User Manual
Roku, Inc.
Page 1/13
11a/b/g/n/ac 2Tx2R USB Combo Module
WM05
OEM/Integrator Manual
* This document contains confidential proprietary information and is property of LTC. The contents of
this document should not be disclosed to unauthorized persons without the written consent of LTC.
Roku, Inc.
Page 2/13
CONTENT
FCC WARING STATEMENT..........................................................................................................3
IC WARING STATEMENT..............................................................................................................5
PRODUCT FEATURES ....................................................................................................................8
WI-FI FEATURE:..................................................................................................................................8
COMMON FEATURE:...........................................................................................................................8
PRODUCT SPECIFICATIONS........................................................................................................9
MAIN CHIPSET.....................................................................................................................................9
FUNCTIONAL SPECIFICATIONS..........................................................................................................9
PIN ASSIGMENT.............................................................................................................................11

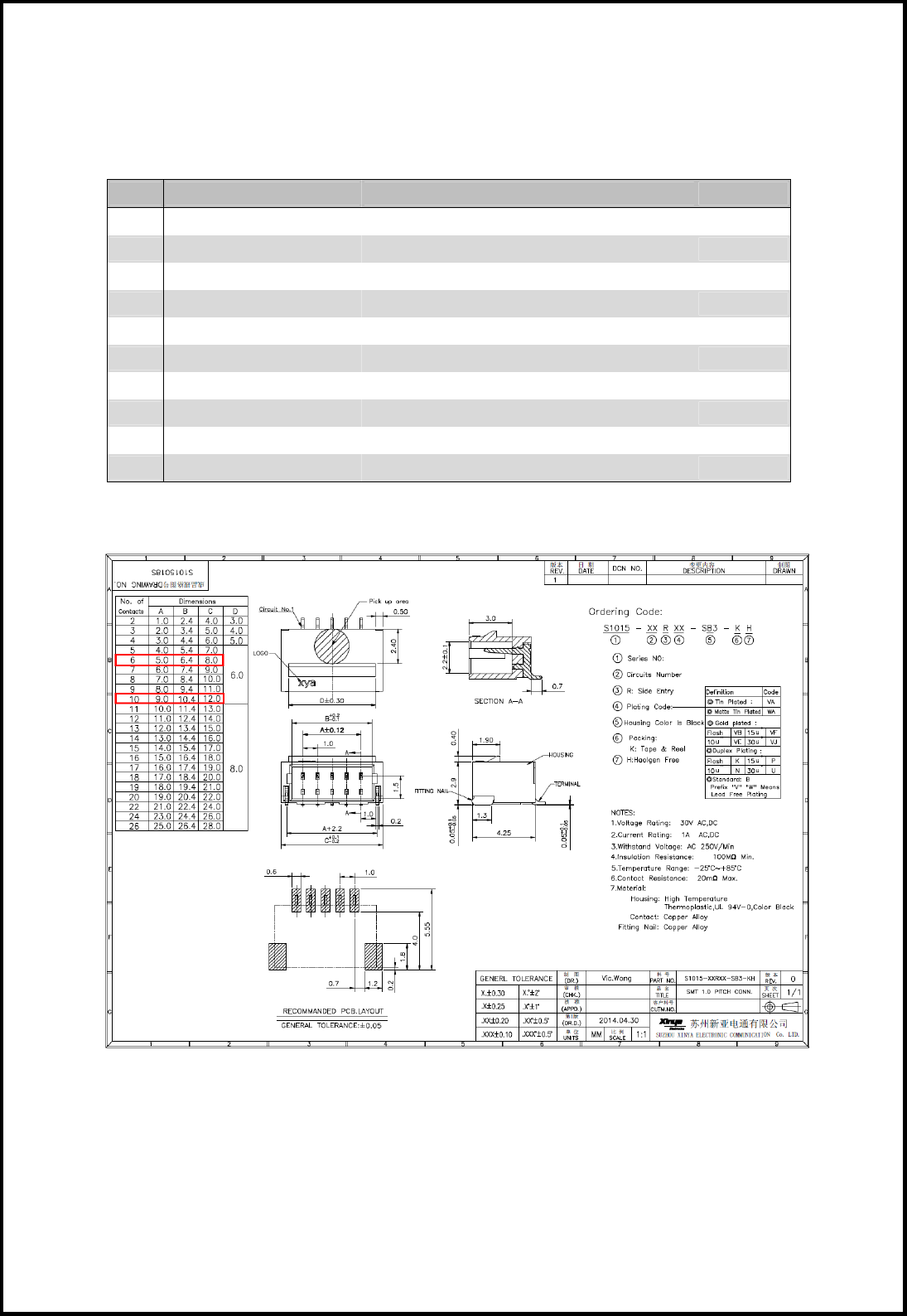

USB CONNECTOR SPEC...............................................................................................................11

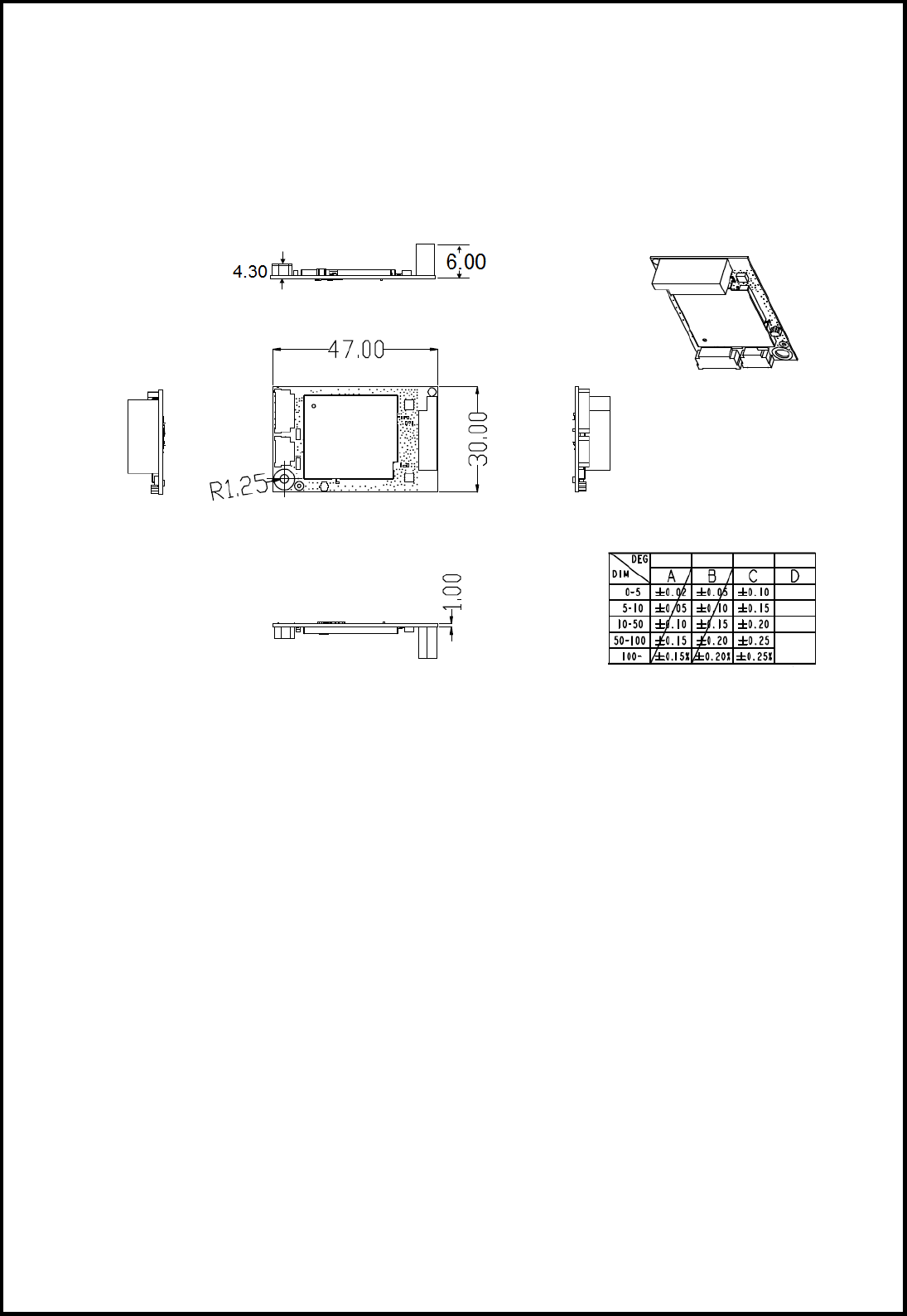

MECHANICAL ................................................................................................................................12
EEPROM INFORMATION ............................................................................................................13
WI-FI..................................................................................................................................................13
ENVIRONMENTAL........................................................................................................................13
OPERATING........................................................................................................................................13
STORAGE............................................................................................................................................13
Roku, Inc.
Page 3/13
FCC WARING STATEMENT
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20 cm between the radiator & your body.
Roku, Inc.
Page 4/13
For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
This device and its antenna(s) must not be co-located with any other transmitters except
in accordance with FCC multi-transmitter product procedures.
This device is restricted for indoor use.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for
the compliance to all the rules that apply to the product into which this certified RF
module is integrated.
Additional testing and certification may be necessary when multiple modules are used.
20 cm minimum distance has to be able to be maintained between the antenna and the
users for the host this module is integrated into. Under such configuration, the FCC
radiation exposure limits set forth for an population/uncontrolled environment can be
satisfied.
Any changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least
20 cm separation with the antenna while this end product is installed and operated. The
end user has to be informed that the FCC radio-frequency exposure guidelines for an
uncontrolled environment can be satisfied. The end user has to also be informed that
any changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate this equipment. If the size of the
end product is smaller than 8x10cm, then additional FCC part 15.19 statement is
required to be available in the users manual: This device complies with Part 15 of FCC
rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains
TX FCC ID: TC2-N1003 ". If the size of the end product is larger than 8x10cm, then
the following FCC part 15.19 statement has to also be available on the label: This
Roku, Inc.
Page 5/13
device complies with Part 15 of FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
IC WARING STATEMENT
Canada, Industry Canada (IC) Notices
This device complies with Industry Canada license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Canada, avis d'Industry Canada (IC)
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Radio Frequency (RF) Exposure Information
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20 cm between the radiator & your body.
Informations concernant l'exposition aux fréquences radio (RF)
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un
minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Roku, Inc.
Page 6/13
For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11
peuvent être exploités. Sélection d'autres canaux n'est pas possible.
This device and its antenna(s) must not be co-located with any other transmitters
except in accordance with IC multi-transmitter product procedures.
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en
association avec une autre antenne ou transmetteur.
The device for operation in the band 5150–5250 MHz is only for indoor use to reduce
the potential for harmful interference to co-channel mobile satellite systems.
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement
pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable
aux systèmes de satellites mobiles utilisant les mêmes canaux.
The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be
such that the equipment still complies with the e.i.r.p. limits specified for point-to-point
and non-point-to-point operation as appropriate.
le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5725-5850
MHz)
doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non
point à point, selon le cas.
This radio transmitter (Model: WM05) has been approved by Industry Canada to
operate with the antenna types listed below with the maximum permissible gain
and required antenna impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device.
Le présent émetteur radio (Model: WM05) a été approuvé par Industrie Canada pour
fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible
maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non
inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont
strictement interdits pour l'exploitation de l'émetteur.
Roku, Inc.
Page 7/13
Antenna list:
Gain (dBi)
5GHz
Ant. Brand Model Name Antenna Type Connector 2.4GHz Band 1 Band 4 Remark
1 LiteON WM950B
DVT2 PIFA Antenna I-PEX 3.7 3.8 4.5 External WiFi
Antenna
2 LiteON WM950B
DVT2 PIFA Antenna N/A 4.6 1.2 3.4 On-board WiFi
Antenna
Note: The EUT has two antennas.
This module is intended for OEM integrator. The OEM integrator is still responsible
for the IC compliance requirement of the end product, which integrates this module.
Any changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least
20 cm separation with the antenna while this end product is installed and operated. The
end user has to be informed that the IC radio-frequency exposure guidelines for an
uncontrolled environment can be satisfied. The end user has to also be informed that
any changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate this equipment. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains
TX IC : 5959A-N1003 ".
Roku, Inc.
Page 8/13
PRODUCT FEATURES
WI-FI FEATURE:
Operate at ISM frequency Band (2.4/5GHz)
IEEE Standards Support, 802.11a ,802.11b, 802.11g 802.11n and 802.11ac
Support for both 20 MHz/40 MHz channel width in 2.4GHz and 20 MHz/40
MHz/80MHz channel width in 5GHz
Enterprise level security supporting: WPS2.0,WAPI, WPA, WPA2
Dual-stream IEEE 802.11n support for 20MHz and 40MHz channels provides
PHY layer rates up to 300Mbps
Dual-stream IEEE 802.11ac support for 80MHz channels provides PHY layer
rates up to 867Mbps
Support for WI-Fi Direct
Support Wake On WLAN
COMMON FEATURE:
BCM43569 is a single chip integrated IEEE 802.11 a/b/g/n/ac
Support OS: Linux based
RoHS compliance
Low Halogen compliance
Roku, Inc.
Page 9/13
PRODUCT SPECIFICATIONS
MAIN CHIPSET
Broadcom BCM43569
FUNCTIONAL SPECIFICATIONS
Wi-Fi Function
Standard IEEE802.11a; IEEE802.11b; IEEE 802.11g; IEEE
802.11n; IEEE802.11ac
Bus Interface USB2.0
Data Rate
802.11a:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11b:
11, 5.5, 2, 1 Mbps
802.11g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n:
MCS 0 to 15 for HT20MHz
MCS 0 to 15 for HT40MHz
802.11ac:
MCS 0 to 8 for HT20MHz
MCS 0 to 9 for HT40MHz
MCS 0 to 9 for HT80MHz
Media Access Control CSMA/CA with ACK
Modulation Technique
802.11a:
64QAM, 16QAM, QPSK, BPSK
802.11b:
CCK, DQPSK, DBPSK
802.11g:
64QAM, 16QAM, QPSK, BPSK
802.11n:
64QAM, 16QAM, QPSK, BPSK
802.11ac:
256QAM, 64QAM, 16QAM, QPSK, BPSK
Network Architecture Ad-hoc mode (Peer-to-Peer)
Infrastructure mode
Operation Channel
2.4GHz
11: (Ch. 1-11) – United States
5GHz
36,40,44,48,149,153,157,161,165 (USA)
Frequency Range
802.11bg
2.400 ~ 2.4835 GHz
802.11a
5.15~5.25 and 5.725-5.85 GHz
Receiver Sensitivity
802.11a:
-86 dBm@6Mbps
-70 dBm@54Mbps
802.11b:
-88 dBm@1Mbps
Roku, Inc.
Page 10/13
-82 dBm@11Mbps
802.11g:
-86 dBm@6Mbps
-70 dBm@54Mbps
802.11n(2.4GHz):
20MHz
-86 dBm@MCS0
-69 dBm@MCS7
40MHz
-83 dBm@MCS0
-66 dBm@MCS7
802.11n(5GHz):
20MHz
-84 dBm@MCS0
-67 dBm@MCS7
40MHz
-81 dBm@MCS0
-64 dBm@MCS7
802.11ac:
20MHz
-64 dBm@MCS8
40MHz
-62 dBm@MCS8
-59 dBm@MCS9
80MHz
-59 dBm@MCS8
-56 dBm@MCS9
Security WPS, WPA, WPA2, WEP 64bit & 128bit, IEEE 802.1X,
IEEE 802.11i
Common Function
Operating Voltage 3.3 V ±9% I/O supply voltage
Power Consumption
Average Peak Mode 11b MCS15/
MCS9 2.4G 5G
TX 750mA 620mA
RX 250mA
Sleep 2mA
850mA 920mA
Antenna Type Single on-board Metal antennas for Wi-Fi
Single U.FL Antenna connector for Wi-Fi
Roku, Inc.
Page 11/13
PIN ASSIGMENT
10 pin connector for WiFi
Pin. Pin Define Description Status
1 +3.3V 3.3V source YES
2 +3.3V 3.3V source YES
3 USB_D- USB Data- YES
4 USB_D+ USB Data+ YES
5 GND Ground YES
6 WL_HOST_WAKE# WLAN wake up Host, Low Active YES
7 WL_REG_ON# Active Low to Reset WLAN YES
8 GND Ground YES
9 +5.0V 5.0V source NC
10 GND Ground YES
USB CONNECTOR SPEC
Roku, Inc.
Page 12/13
MECHANICAL
Roku, Inc.
Page 13/13
EEPROM INFORMATION
WI-FI
ccode 0xTBD
regrev 0xTBD
Vendor ID 0x0A5C
Device ID 0xBD27
ENVIRONMENTAL
OPERATING
Ambient Operating Temperature: 0 to 70 C (32 to 158 F)
Relative Humidity: 5-90% (non-condensing)
STORAGE
Temperature: -40 to 80 C (-40 to 176 F)
Relative Humidity: 5-95% (non-condensing)
