2
Dear Customer:
Congratulations on purchasing a high quality Rollei product. You have
chosen a modern Sunglasses Cam with excellent technical equipment
and related accessories that is particularly easy to use. Please read all the
instructions carefully and thoroughly. Pay particular attention to all safety
instructions.
You have a two year warranty on the device.
If the Sunglasses Cam should ever break down, you will need the enclosed
warranty card and your purchase receipt. Store them carefully with the
operating instructions. When passing the device on to a third party, be sure
to include the instruction manual.
1. Package Contents
Unpack the Sunglasses Cam carefully and check that all the items listed below are
included:
1. Rollei Sunglasses Cam
2. 4 GB microSD memory card, including SD card adapter
3. USB cable
4. 2 additional interchangeable lenses
5. Cleaning cloth
6. Bag
7. Warranty and service documents
Rollei Sunglasses Cam 100

3
2. Table of Contents
1. Introduction and Package Contents 2
2. Table of Contents 3
3. Notes Regarding Risks, Safety and Warnings 4
4. Welcome to Your Sunglasses Cam 7
Front view 7
Controls 7
Changing the lenses 8
5. Descriptions of Functions 9
5.1. Inserting a memory card 9
5.2. Charging the battery 10
5.3. Switching the Sunglasses Cam on and off 11
5.4. Setting the date and time 12
5.5. Changing the settings 12
5.6. Resetting the Sunglasses Cam 14
5.7. Connecting to a computer 15
6. Conformity 16
7. Maintenance 17
8. Disposal 17
9. Technical Data 18
10. Warranty and Service 19
www.rollei-actioncam.com

4
3. Notes Regarding Risks, Safety and Warnings
Handling the Sunglasses Cam and its accessories improperly poses a risk to your-
self and others, or the Sunglasses Cam can be damaged or destroyed. Therefore,
please read and strictly observe the following notes regarding risks, safety
and warnings.
Purpose
• ThisSunglassesCamcontainsavideocamerathatisintendedforrecording
video clips. It is designed for personal use and is not suitable for commercial
use.
Risks to children and persons with limited abilities for using
electronic devices
• TheSunglassesCam,itsaccessoriesandpackagingarenottoysforchildren.
Keep children away from them. Among other things, there are risks of electric
shock, poisoning and suffocation.
• TheSunglassesCamanditsaccessoriesmaynotbeusedbychildrenandper-
sons with limited ability to operate devices. The Sunglasses Cam may be used
only by persons who are physically and mentally able to use them safely.
Risk of electric shock due to moisture and humidity
• TheUSBcableandtheUSBpoweradapter(notincluded)mustnotbeexposed
to dripping or splashing water. In addition, containers filled with liquids, such
as vases or glasses, must not be placed on them or in their immediate vicinity.
There is a risk of fire and electric shock.
• DonotchargetheSunglassesCamnearwater.Thereisariskoffireandelectric
shock. Do not charge the Sunglasses Cam in areas with high levels of humidity,
steam, smoke or dust. There is a risk of fire and electric shock.
Rollei Sunglasses Cam 100

5
Electrical hazard
• IfforeignobjectsoraliquidhasenteredtheSunglassesCam,turnitoff.Let
everything dry thoroughly. Otherwise, there is a risk of fire or electric shock.
• IfthehousingoftheSunglassesCamhasbeendamaged,turnthecamoff.
Otherwise, there is a risk of fire or electric shock.
• TheSunglassesCammustnotbetakenapart,modifiedorrepaired.
There is a risk of fire and electric shock.
Heat damage – fire hazard
• DonotplacetheSunglassesCaminalocationwherethetemperaturemayrise
significantly(e.g.inacar).Thecaseorinternalpartscouldbedamagedasa
result, which can in turn cause a fire.
• DonotwraptheSunglassesCaminanythinganddonotplaceitontextiles.This
could cause heat to build up in the Sunglasses Cam, whereby the housing can
deform and pose the risk of fire.
Risks due to the use of the lithium-ion battery
Thebatteryisintegratedinthedeviceandcannotbereplaced.Thereisanexplosi-
on hazard if the battery is improperly removed.
Injuries and property damage
• DonotusetheSunglassesCamwhilewalkingordriving.Youcouldtriporcause
a traffic accident.
• Donotplaceasourceofnakedflame,suchasalightedcandle,onornearthe
device.
• Damagetotheelectronicsorthecasethathasbeencausedbyexternal
influences such as impacts, dropping, or similar are not covered by the warranty.
Therefore repair or replacement in such cases must be paid for by the customer.
www.rollei-actioncam.com

6
Notes regarding the Sunglasses Cam
• TheSunglassesCamissuitableforuseonlyinmoderateclimates.
• TheRolleiSunglassesCamisaClass1opticaldevice.
The protective lenses provided are not suitable for looking directly at the sun.
Please observe the cleaning instructions in Section 7 on page 17.
Rollei Sunglasses Cam 100

7

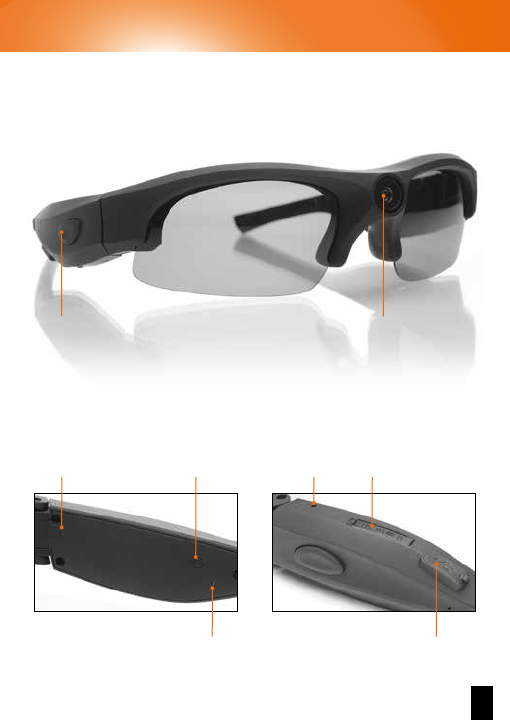

4. Welcome to Your Sunglasses Cam
4.1. Front view
Video cameraOn/Off/Record
Reset button
USB port
Power LED
Memory card slot
Working LED Microphone
4.2. Controls
www.rollei-actioncam.com

8

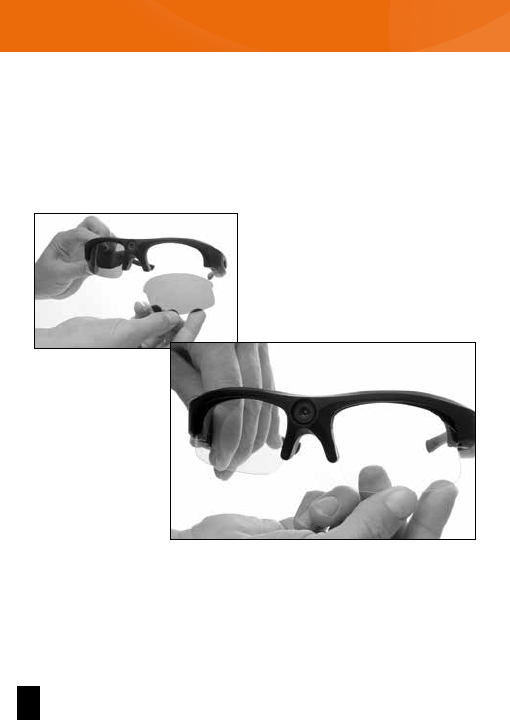

4.3. Changing the lenses
Youcanchoosewhichoftheincludedlensesyouwanttouse.Removeanalready
installed lens with a quick downward pull. Then place the new lens in the guides
on the left and right and push it as shown below until it clicks into place.
Rollei Sunglasses Cam 100

9
5. Descriptions of Functions

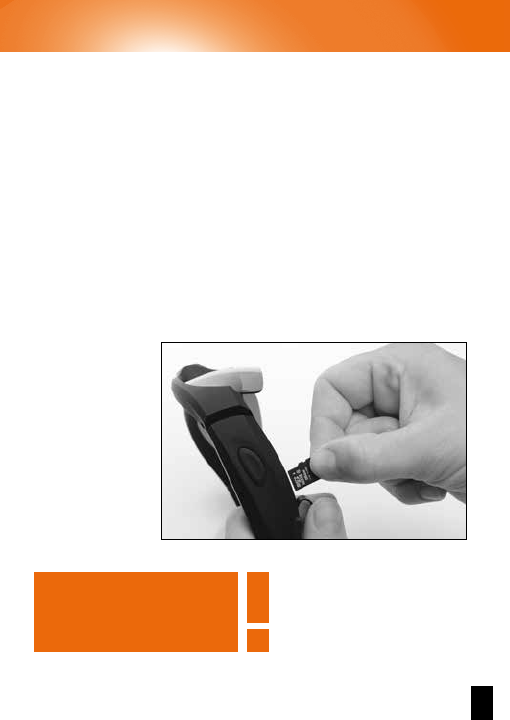

5.1. Inserting a memory card
Before you can record videos with the Rollei Sunglasses Cam, you need to insert
a microSD or microSDHC memory card.
To do this, open the cover of the memory card compartment on the bottom of the
rightearpieceInsertthemicroSD/SDHCmemorycardintothecardslot(seethe
illustration)andpushthememorycardinuntilitclicksintoplace.Thenclosethe
cover of the card compartment.
To remove the memory card, press it once again; it will then pop out slightly from
thecompartment.Whenthememorycardisfull,theblue“Record”LEDlights
up for about 2 seconds when you turn on the cam; then the Sunglasses Cam will
switch off.
Note:
•microSDandmicroSDHC
memory cards up to 32 GB are
supported.
www.rollei-actioncam.com

10

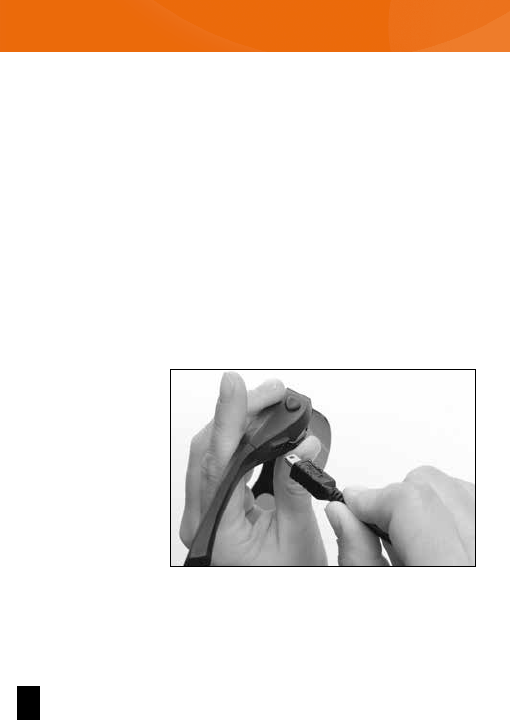

5.2. Charging the battery
To charge the built-in lithium-polymer battery, you must connect the Sunglasses
Cam to the USB port of a computer or a power adapter with a USB output using
the mini-USB connector.
Open the cover of the mini-USB port on the bottom of the right earpiece and insert
the included mini-USB cable. Once you connect the other end of the USB cable to
acomputer,chargingbegins.Duringcharging,aredindicatorLEDontheinsideof
therightearpiecelightsup.Whenthebatteryisfullycharged,theindicatorLED
turns green.
Thechargingtimeforafullydischargedbatteryisapprox.1-2hours(whenusinga
USBconnectionwith500mA).Therstchargingprocesscantakeupto4hours.
AbatterychargewillletyouusetheSunglassesCamforapproximately60minutes.
Rollei Sunglasses Cam 100

11

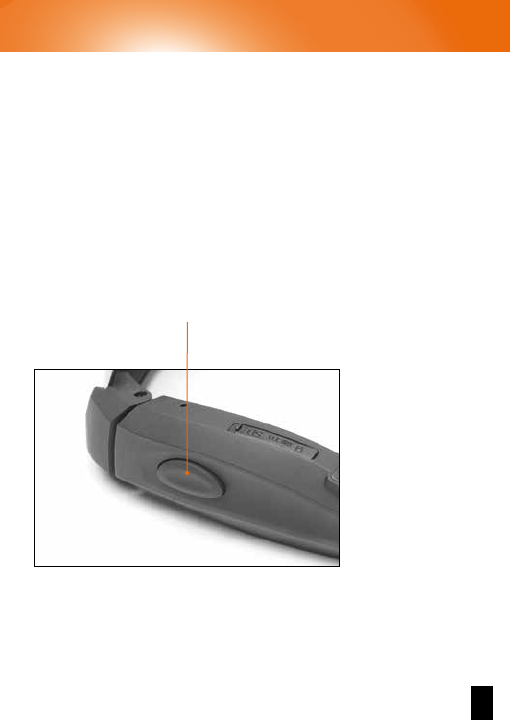

5.3. Switching the Sunglasses Cam on and off
ToturntheSunglassesCamon,presstheOn/Offbuttonbriey.TheindicatorLED
on the inside will then go green and you will hear 4 beeps.
When the Sunglasses Cam is turned on, video recording automatically starts.
Duringrecording,theblueRecordLEDalsoashes.
IfyouturnontheSunglassesCamwithnocardinstalled,theindicatorLEDwillgo
red briefly and the Sunglasses Cam will switch itself off after a long beep.
To stop recording and shut down the Sunglasses Cam, press and hold the On/Off
button for about 3 seconds. The current video recording will be saved, then the
Sunglasses Cam will switch off.
www.rollei-actioncam.com

12
5.4. Setting the date and time
Tosavevideoleswiththecurrentdateandtime,aclockcanbesetinthe
Sunglasses Cam.
Todothis,useatexteditoronyourcomputertocreateatextlenamed“settime.
txt”inthestart-upfolderofthememorycardandenterthefollowingvalues:
YYYYMMDDhhmmss
where:Y=year,M=month,D=day,h=hour,m=minute,s=second
Makesurethatexactlyonespaceisenteredbetweenthevalues.
Example:TosetthecamcordertoMarch1,2013,10:00AM,enterthefollowing
lineoftext:
2013 03 01 10 00 00
Re-insertthememorycardintotheSunglassesCam.ThenexttimetheSunglasses
Camisswitchedon,thedateandtimearetransferredandthe“settime.txt”is
subsequently deleted from the memory card.
5.5. Changing the settings
Youcanchangevariouscamerasettings.Todoso,pleaseconnectthecamerato
your computer using the USB cable. The camera appears as a removable drive on
your desktop. Open the removable drive by double clicking it with the left mouse
button.Nowopenthedocument“Setting.txt”.Atextleshowsyouthedefault
settings of the camera:
UPDATE:N EV:6
AWB:0 CTST:100
SAT:100 SHARPNESS:100
QUALITY:0 AudioVol:1
LIGHTFREQ:1 RTCDisplay:0
VideoSwitch:0 BuzzerAlert:3
Rollei Sunglasses Cam 100

13
Youcanmakethefollowingchanges:
• UPDATE:
To ensure that the changes are transferred the next time you start your
Sunglasses Cam, please change this value to “Y” (Yes). Y = changes are applied,
N = changes are not applied.
• EV(ExposureValue):
Enter a value between 1-21. The default is 6. To make the images brighter, enter
a value between 11 and 21; to make the images darker, choose a value of 1 to 9.
• AWB(AutoWhiteBalance):
Adjust your Sunglasses Cam to the current light situation in order to avoid
incorrect colours when recording.
0 = automatic white balance (default), 1 = sunlight, 2 = cloudy, 3 = fluorescent
light, 4 = light bulb
• CTST(Contrast):
Can be set to values from 1 to 200. Default = 100. Increase this value for a
stronger contrast; choose a lower value for less contrast.
• SAT(Saturation):
Canbesettovaluesfrom1to200.Default=100.Increasethisvaluefor
stronger colour saturation; choose a lower value for less colour saturation.
• SHARPNESS:
Canbesettovaluesfrom1to200.Default=100.Increasethisvaluefora
sharper picture; choose a lower value for less sharpness.
• QUALITY(Videoquality):
AdjustthevideoqualityoftheSunglassesCam.0=highquality(default),
1=mediumquality,2=lowquality
www.rollei-actioncam.com

14
• AudioVol(Audiovolume):
Record your videos with or without sound.
1=audioon(default),0=audiodisabled
• LIGHTFREQ(Lightfrequency):
0=60Hz,1=50Hz(default)
• RTCDisplay(Realtimeclockdisplay):
Here you can choose whether the date and time you have set are displayed as
atimeanddatestamponthevideo(notethatyoucannotdeleteitfromthe
videolater!)
0=disabled(default),1=enabled
• VideoSwitch(Resolution)
Youcanrecordvideosintwodifferentresolutions:
0=1080P(FullHD,default),1=720P
• BuzzerAlert:
Adjust the tone volume of your Sunglasses Cam.
0 = off, 1 = loud, 2 = medium 3 = quiet (default)
Saveyoursettingsandchangesagaininthe“Setting.txt”leandmakesure
thatthisleisstoredontheremovabledisk.AfterturningonyourSunglasses
Cam, the new settings are applied automatically.

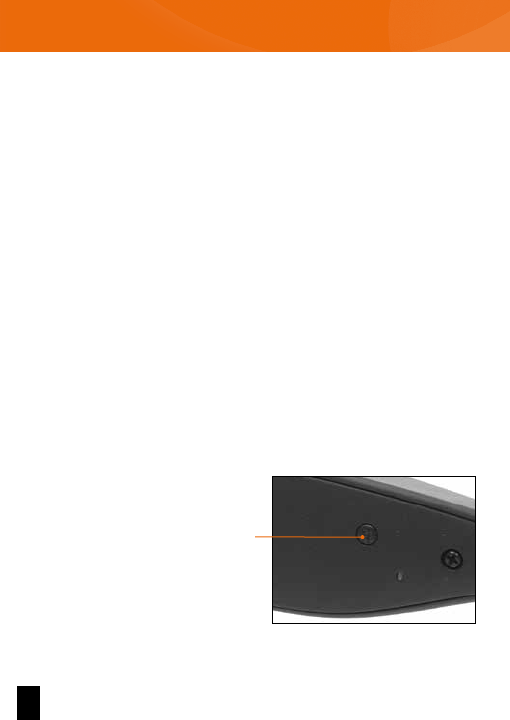

5.6. Resetting the Sunglasses Cam
If the Sunglasses Cam is not functioning
normally, hangs during operation or
cannot be switched off normally, you
should reset the Sunglasses Cam. This
isdonebypressingtheRESETbutton
on the inside of the right earpiece for
about 3 seconds with a pointed stylus.
The Sunglasses Cam should switch off.
It should then be possible to switch it on normally again.
Rollei Sunglasses Cam 100

15

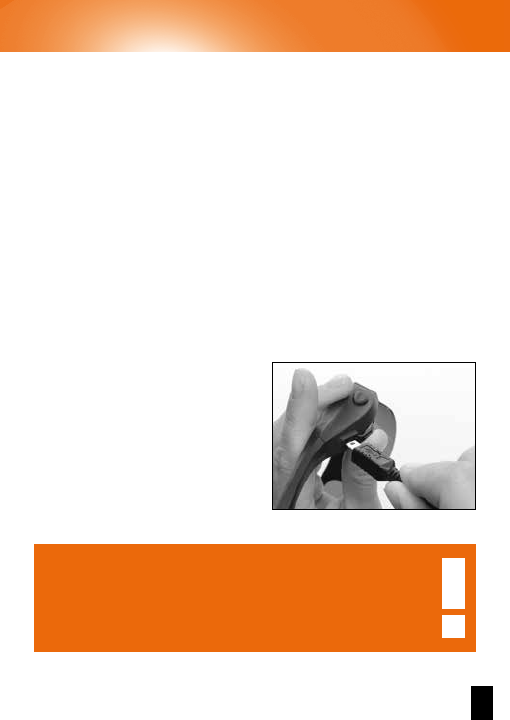

5.7. Connecting to a computer
System requirements
1. Operatingsystems:MicrosoftWindows®ME/2000/XP/VISTA/
Windows®7/8;MacOS10.5;Linux
2. Processor:Intel®Pentium2GHzorequivalent
3. USB 1.1 or USB 2.0
4.CD-ROM/DVDdrive
5. 10 GB or more free space on the hard disk
6. RAM:1GBormore
Open the cover of the mini-USB port on the bottom of the right earpiece and insert
the included mini-USB cable. Once you insert the other end of the USB cable into
the computer, a new removable drive is set up there.
Onthisdrive,youcanndthedatafrom
the memory cards used in the Sunglasses
Caminthe“DCIM”folder.Nowyoucan
copythevideolestotheharddiskof
the computer and, if you wish, delete
them from the memory card. While the
device is connected to the computer, the
indicatorLEDlightsupgreen.
Note:
• TheSunglassesCamissetuponthecomputerasaremovablediskdrive.
The drivers required for this are always present on the operating systems
mentioned above.
• Amongothers,thefreeVLCplayerprogramforWindowsandMaccanbe
usedtoplaythevideoles.
www.rollei-actioncam.com

16
6. Conformity
This device has been tested in accordance with Part 15 of the FCC regulations and
ithasbeenconrmedthatthelimitvaluesforaClassBdigitaldevicehavebeen
satised.Theselimitsaredesignedtoprovidereasonableprotectionfromharmful
interference when installed in a residential community. If this device is not installed
in accordance with the instructions, television, radio and wireless devices may be
susceptible to interference.
Operation of this device is permitted if both of the following two conditions are
met:
(1)Thisdevicedoesnotcauseharmfulinterference
(2)Thisdevicemustaccepttheinuenceofinterference.Thisincludesinterference
that may cause improper functioning or malfunctions.
If this device causes interference to radio and television reception – this is
determined most easily by switching the device on and off – the user should try to
eliminate the interference using the following measures:
• Turningthereceivingantennainadifferentdirectionorrelocatingit.
• Increasingthedistancebetweenthedeviceandthereceiver.
• Consultingthedealeroranexperiencedradio/TVtechnician.
TheCEmarkhasbeenafxedtothisdeviceinaccordancewiththefollowing
Europeandirectives:
RoHSDirective2011/65/EC
EMCDirective2004/108/EC
TheECdeclarationofconformitycanberequestedfrom
the address listed on the warranty card.
Rollei Sunglasses Cam 100

17
7. Maintenance
To clean the Sunglasses Cam frame and the accessories that are included, do not
use harsh cleaners such as alcohol, paint thinner, etc. Clean the components of the
system as needed with a soft, dry cloth.
Always clean the lenses with a normal lens cloth.
Avoid very dusty environments.
When not in use, always store the lenses in their protective bag.
8. Disposal
Dispose of the packaging in an environmentally friendly manner
and in the provided collection containers. Batteries should not be
disposed of in household waste. The consumer is legally obliged
to return used batteries to the municipal collection points or to a
place where batteries are sold. Batteries are therefore provided
withtheadjacentsymbol.
Yourproductislabelledwiththesymbolshowntotheright.
It means that used electrical and electronic products are not to be
disposed of in household waste; instead, they must be placed in a
separate recycling system. Proper disposal ensures that your used
device is collected, treated and used correctly.
This prevents potential negative effects to the environment and
health due to improper disposal. Dispose of the Sunglasses Cam
and its accessories according to the current legal regulations.
Information on this can be found by contacting the relevant
municipal departments.
www.rollei-actioncam.com

18
9. Technical Data
Technical Data
Imagesensor 5 megapixel CMOS sensor
Videoformat MOV (H.264)
1080 p (1920x1080/30fps) | 720p (1280x720/60 fps)
Shootingangle 63 degrees
Memory slot for TF memory card up to 32 GB
Audiorecording stereo
Ports USB 2.0
Recordingtime up to 60 minutes with fully charged battery
Powersupply rechargeable lithium-polymer battery, 550 mAh
Operatingtemperature -5°C - 40°C
Storagetemperature -20°C - 70°C
Dimensions 153 x 43 x 47 mm (closed)
Weight approx. 68 g
Subject to changes without notice!
Rollei Sunglasses Cam 100

19
10. Warranty and Service
If any problems occur while using the device, please do not hesitate to contact
us via our Service address with any questions or problems. The manufacturer’s
warranty is valid for 2 years. Please refer to the warranty card enclosed separately
for details.
Please contact our hotline before sending in your defective device.
Service address:
Rollei Service Deutschland
Denisstraße 28a
D-67663 Kaiserslautern, Germany
Hotline+49(0)631/3428449
Legal notice
It is your responsibility to ensure that the use of the sunglasses video camera does
not infringe upon the privacy rights of third parties. Recordings of persons are to
be clearly communicated and made with their consent, as it is not apparent to the
persons that the glasses are actually a video camera.
Always take into account personal rights and privacy.
Sales:
RCP Technik GmbH & Co. KG
Tarpen 40/Gebäude 7b
D-22419 Hamburg, Germany
welcome@rcp-technik.com
www.rollei-actioncam.com
