INSTRUCTIONS & RECIPES
Best Rotisserie
“Dollar for dollar, the finest
kitchen appliance ever
made.”
- Malcolm Gladwell,
What the Dog Saw
Set It and Forget It!®
Time is precious. Just set
the timer and we’ll do the
rest, leaving you more time
for family.
Cook Like a GourmetTM
Makes perfectly roasted
chickens, turkey, pork or rib
roasts, and burgers that are
delicious and healthy too!
TM
Rotisserie Oven
Table of Contents
Important Safeguards / Cleaning & Care ..................................................................3-5
Rotisserie Model Specs ............................................................................................... 6
Parts Included ............................................................................................................. 6
Getting Started: Setting Up Your Rotisserie ................................................................. 7
Non-stick Spit Rod Assembly ............................................................................... 8
Rotisserie Basket .................................................................................................. 9
How to Tie Chicken & How to Tie Turkey .........................................................10-11

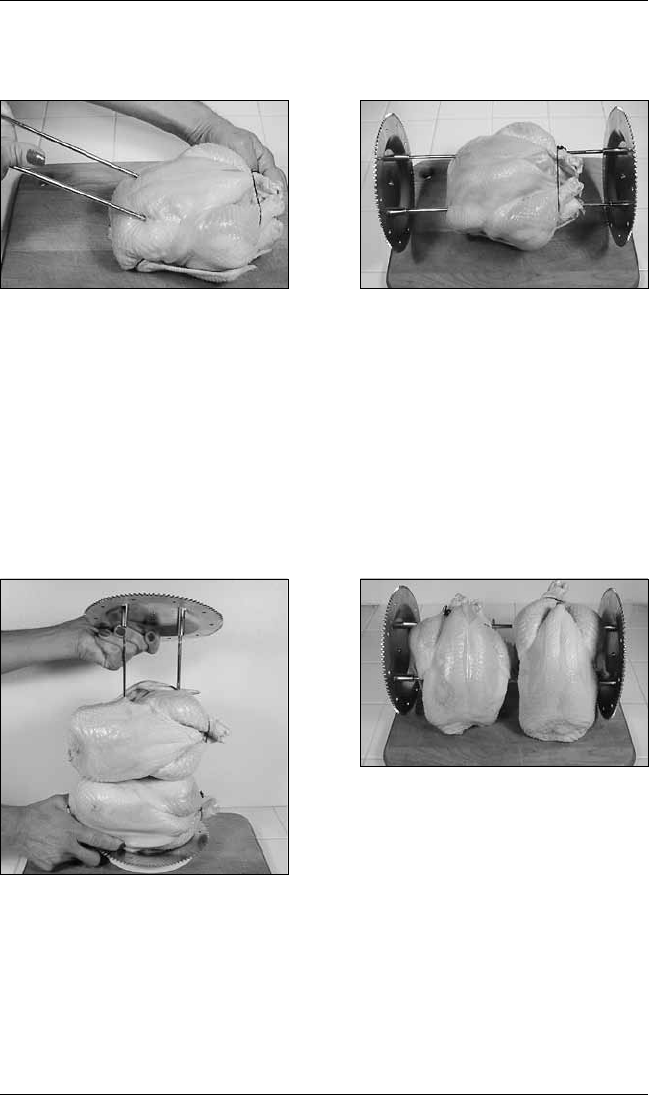

Placing Poultry on the Spit Assembly ................................................................... 12
A or B Cooking Position ....................................................................................... 13
Loading the Spit Assembly .................................................................................. 14

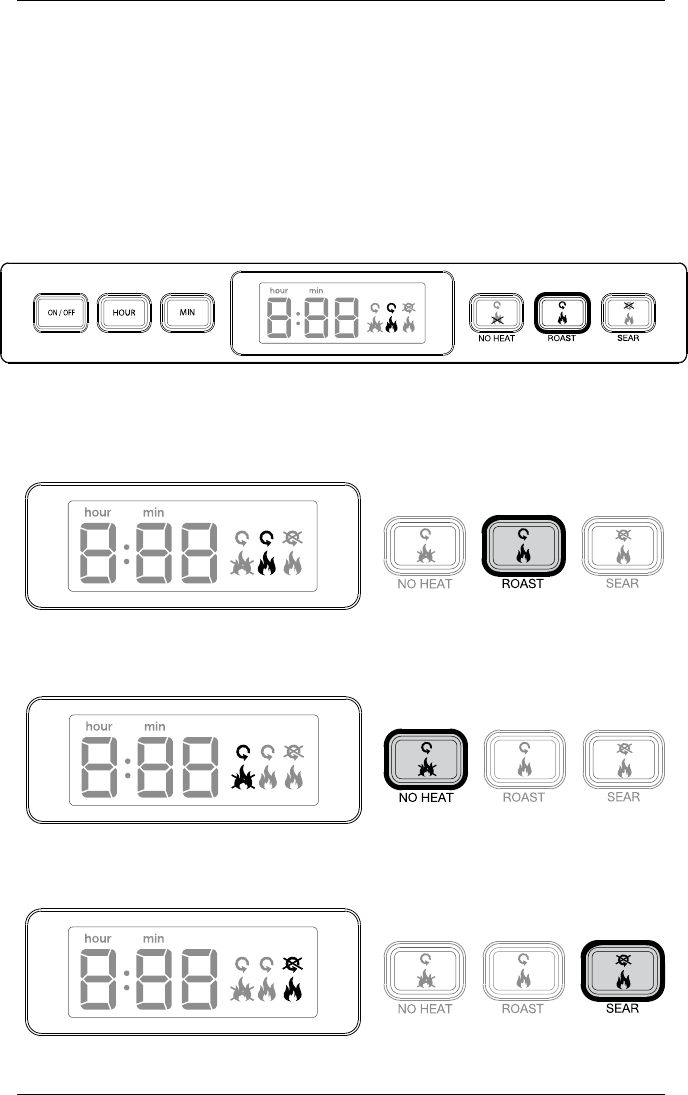

Digital Timer ....................................................................................................... 15
Carving Platform ................................................................................................. 16
Time & Temperature Chart .................................................................................. 17
Available Accessories (sold separately) ...............................................................18-22
Cautions & Helpful Hints ......................................................................................23-24
Meal Suggestions & Recipes ................................................................................25-29
6 Easy Steps to Rotisserie Chicken ......................................................................30-31
Warranty ................................................................................................................... 32
Seals in natural juices and drains off unwanted fat as it cooks. About ¼ cup of animal
fat drips off a 4 lb. chicken.
Evenly browns chicken, roasts, seafood, vegetables, chops, steaks, hamburgers,
sausages, hams, pork loin roasts, and even ribs!
Timer makes it easy to use and automatically shuts off when the time is up.
Dishwasher safe. Drip Tray, Entire Spit Rod Assembly, Glass Door, and Kabob Rods are
all dishwasher safe.
The Rotisserie Basket allows you to enjoy greater variety of Rotisserie foods and
wraps (placing foods in foil, then in Basket).
Lighted Oven makes it easy and fun to watch your food cook.
Energy Efficient. Cooks faster than a conventional oven but still uses about
half the electricity!
TM Rotisserie
IMPORTANT SAFEGUARDS 3
IMPORTANT SAFEGUARDS
The EZ-Store Rotisserie WILL NOT turn on without the back legs extended and the
rotisserie in the up-right position. Heat Shield,and Drip Tray must also be in place.
When using electrical appliances, basic safety precautions should always be
taken, including the following:
1. VERY IMPORTANT: Read all instructions before using the machine.
2. To protect against electrical hazards, do not immerse cord, plug or appliance itself
in water or other liquids.
3. Do not touch hot surfaces. NOTE: (Glass Door, top, back and sides of the Rotisserie,
as well as the Drip Tray, Heat Shield and Heating Element all get very hot during use
and retain heat after use.) Always use adequate oven mitts or gloves when handling
these hot surfaces and when checking hot foods.
4. FOR ADULT USE ONLY: Close supervision is always necessary when the Rotisserie
is used near children.
5. Unplug Rotisserie from outlet when not in use, and allow unit to cool thoroughly
before putting on or taking off parts, such as the Drip Tray before cleaning.
6. Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions or is dropped or damaged in any manner. Return the appliance to
Ronco Holdings, Inc. for examination, repair, electrical or mechanical adjustment.
Call 1-855-85-RONCO (76626) for return instructions.
7. Turn off and unplug the Rotisserie if you smell or see heavy smoke or fire. After it
has cooled down, make adjustments so nothing touches the Heating Element as the
food rotates. Do not open the Glass Door until it has cooled down. This is an electrical
appliance; never put water in it, or on it to cool it down or stop it from smoking.
8. The use of accessory attachments not recommended by Ronco Holdings,Inc. may cause
injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces.
11. Do not place appliance on or near a hot gas or electric burner, in a heated oven
or near easily flammable material.
12. Use only on a stable, heat-resistant surface and place unit at least 8” (inches) from
walls and 8” clear above unit.
13. To disconnect, turn rotisserie OFF, then grip plug and pull from wall outlet. Do not
pull on cord.
14. Always unplug the unit before attempting to move it. Never move the unit when
it contains hot oil, liquids or hot foods.
15. Use extreme caution when working near the hot pieces and the Heating Element
after using Rotisserie as these parts become (and remain) very hot. Also use maxi-
mum care when removing Drip Tray or disposing of hot grease or other hot liquids.
EZ-Store Rotisserie
4 IMPORTANT SAFEGUARDS
16. When using the Rotisserie Baskets, be sure no small bones or other food can fall
between or extend beyond the wires and catch on the Drip Tray or Heating Element
or anything else during rotation. It is important to check while cooking. If the food
moves around inside the Basket, stop the machine. Put Oven Gloves on and care-
fully take out the Basket. Tighten the lid down further so the food can’t move or slip
around in the Basket as it rotates. The Basket gets hot so please use caution.
17. Do not clean with a metal scouring pad. Pieces can break off the pad and touch
electrical parts, creating a risk of electrical shock. In addition, scouring pads may
damage Rotisserie finish or the nonstick parts.
18. Do not use appliance for other than its intended use.
19. Oversized foods or metal utensils must not be inserted in the appliance as they may
create a fire or risk of electrical shock.
20. Do not cover crumb/drip tray or any part of the oven with metal foil. This will cause
overheating of the oven.
21. Front, back, top, bottom and side surfaces become very hot. Do not allow contact
with any objects. A fire may occur if the Rotisserie is covered or touching flammable
material, including curtains, draperies, walls, and the like, when in operation.
22. Do not place or store any objects or material other than foods and manufacturer’s
recommended accessories in the Rotisserie. Do not place or store anything on top
of the Rotisserie when plugged.
23. Unplug unit before changing/replacing the interior light bulb (25 watt small
appliance bulb).
24. Polarized Electrical Plug: To reduce the hazard of potential shock, this item has a
polarized plug (one prong is wider than the other), which will fit only one way in a
polarized outlet. If the plug does not fit the outlet properly, turn the plug the other
way; if it still does not fit, contact a qualified electrician for assistance. Never use
this plug with an extension cord unless it fits properly. DO NOT ATTEMPT TO DEFEAT
THIS SAFETY FEATURE.
25. SHORT CORD INSTRUCTIONS: A short cord is provided to reduce the risks of
becoming tangled in or tripping over a longer cord. Extension cords may be used
if care is exercised in their use and the wattage rating is at least as great as the
wattage stamped on the back of the appliance. If an extension cord is used, it
should be arranged so that it will not drape over the counter or tabletop where
it can be reached by children or tripped over accidentally.
26. HEAR A SQUEAK? No problem. Put a drop or two of vegetable oil on the Gear Wheel
Nub before inserting the Spit Rod Assembly in the machine.
THIS PRODUCT IS FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
CLEANING & CARE 5
IMPORTANT: “Set It and Forget It” ® only after all instructional materials
(written and DVD) have been carefully followed.
Make sure food safely rotates without touching the Heating Element.
Please Don’t Take “Set It and Forget It”® Literally
Always use caution and check on your Rotisserie from time to time.
It is highly unlikely, but if you should see or smell heavy smoke it’s because the food is
rubbing against the hot Heating Element. This indicates that the meat or poultry is too
big or it wasn’t placed properly - or the food is off-center (lopsided) on the spit rods or
in the basket. If this occurs:
Turn off and unplug your machine. Do not open the Glass Door. Let it cool down.
Trim any excess fat or meat, position your food tightly in the basket and be sure the
food is centered in the basket so it always rotates without touching the Heating Element.
Cleaning and Caring for your Rotisserie
The Glass Door:
Turn lid right-side-up and insert the side lid pins into the pivot holes in
the Rotisserie base (see pg 7 for diagram).
After Use: Unplug and allow it to cool before washing any parts. NOTE: The Heating
Element cleans itself and no other maintenance is necessary.
The Light: The light is on when the heat is on. Replace light bulb with a 25 watt appli-
ance bulb when needed.
Never Use Metal Cleaning Pads on the Non-stick Surfaces. They will permanently
scratch the surfaces of the Grate Cover, Drip Tray, Steaming Tray, etc.
Discoloration? Some discoloration over time is to be expected when you work with
hot food - especially food with fat. It’s normal and will not affect the function. On white
machines it gets slightly browner on the front of the machine by the Glass Lid. While
not recommended, you can return your machine and, for a nominal fee, the factory will
refinish the special outside surface.
Cleaning Stainless Steel (Stainless Model Only) - We recommend cleaners or wipes
designed specifically for stainless steel surfaces. These cleaners are available at your
local grocery or hardware store.
Any repairs should be handled only by an authorized service facility. Call Customer
Service at 1-855-85-RONCO (76626) and leave a message if after standard business
hours. Or you can contact us via email at support@ronco.com or visit our help desk
http://support.ronco.com.
BEFORE FIRST USE: Be sure the Rotisserie is not plugged in. Wash and dry the
removable parts in warm soapy water. Never immerse the machine or the cord in
water. Keep at least 8 inches of clearance on all sides and do not place it under a
cabinet when in use. A little smoke is normal when you first use the machine.
EZ-Store Rotisserie
6 ROTISSERIE MODELS & PARTS INCLUDED
ROTISSERIE MODEL SPECS
A. Fold flaps back,
carefully turn box
over and lift up.
B. Tip on one
face of styrofoam
block and carefully
remove Rotisserie.
C. Carefully pull
styrofoam blocks
off the Rotisserie.
NOTE: All included
components are
located in the basket
inside the Rotisserie.
PARTS INCLUDED
UNPACKING ROTISSERIE
NOTE: The model number is located on the back of your E-Z StoreRotisserie.
Food Ties
Instructions & RecipesCarving Platform
(And load the Spit Rod Assembly)
Non-stick Rotisserie Basket
Non-stick Spit Rod Assembly
(2 Gear Wheels and 2 Spit Rods)
Heat Shield
(Refer to pg 8 before using)
Removable Drip Tray
(comes inserted in base)
Glass Lid/Top
Oven Gloves
Rotisserie
5250, 5260, 5270 Series
• Dimensions: 17.25” W x
12.75” H x 15..75” D
• 15 lb Cooking Capacity
GETTING STARTED: SETTING UP YOUR ROTISSERIE 7
GETTING STARTED: Setting Up Your Rotisserie
1. REMOVE PACKING TAPE: After you’ve unpacked your Rotisserie make sure you’ve
removed all of the packing tape used to secure the Rotisserie during shipment.
2. DEPLOY REAR LEGS: The legs can be extended by pushing the small RELEASE
BUTTON located on the right side of the Rotisserie. You will need to tilt the Rotisserie
towards you so the legs can fully extend.
Helpful Hint -For your safety, the
Rotisserie will only power on if the legs
are in the UP-RIGHT position AND the
DRIP TRAY is properly inserted.
3. INSTALL GLASS LID/TOP: The lid comes packed and nested for storage. To assemble,
turn lid right-side-up and insert the LID PINS into the PIVOT HOLES in the Rotisserie
base as shown. You can now close the lid.
4. PROPER DRIP TRAY & HEAT SHIELD INSTALLATION: The DRIP TRAY must be prop-
erly inserted and in place before the Rotisserie will power on. After each use, PRESS
the DRIP TRAY LATCH down to remove tray and empty grease. Never operate without
the HEAT SHIELD in place behind the heating element. To access the HEAT SHIELD for
cleaning, you must first remove the GLASS LID. Then slide the HEAT SHIELD out from
the top of the Rotisserie.
Release Button STORAGE POSITION UP-RIGHT POSITION
Lid Pins
Lid Pins
Pivot Holes
Pivot Holes
Removable Drip Tray
Install Heat Shield
Drip Tray Latch
IMPORTANT: FOR YOUR SAFETY, THE ROTISSERIE WILL ONLY
POWER ON IF THE LEGS ARE IN THE UP-RIGHT POSITION AND THE
DRIP TRAY IS PROPERLY INSERTED.
EZ-Store Rotisserie
GETTING STARTED (cont’d)
5. SPIT ROD ASSEMBLY: One end of the spit rod is held in place by a WIRE CLIP installed
on Gear Wheel A. Insert the notched end of the SPIT ROD into Gear Wheel A while
squeezing the WIRE CLIP together. The SPIT ROD is secure when the WIRE CLIP snaps
into the notch. Repeat with second SPIT ROD. Insert pointed ends of SPIT RODS into
Gear Wheel B. Place SPIT ROD ASSEMBLY inside the Rotisserie base.
CAREFUL!
Removable gear wheels (A & B) fit on the Spit Rods after food (or Basket) is loaded in
place. It is heavy and has sharp gear teeth. When carrying the Spit Rod Assembly
always carry Gear Wheel B upward so it won’t fall off.
Use CAUTION. Tips are sharp. Please be very careful with your hands when loading any
food onto the Spit Rods.
8 QUICK SET-UP GUIDE (cont’d)
Notched End of Spit Rod
Wire Clip
AB
IMPORTANT:
Before First Use, be sure the Rotisserie is not plugged in. Wash and dry the removable
parts in warm soapy water. Never immerse the machine or the cord in water. Keep at
least 8” (inches) of clearance on top and 8 inches all sides and do not place it under a
cabinet when in use. A little smoking is normal the very first time you use your machine.
Read the retain this instruction booklet for future reference regarding instruction
and safeguards.
Never cook foods larger than recommended for your model of E-Z Store Rotisserie.
Always use CAUTION with Hot Food and Metal Parts. The
Food, Basket and the Spit Assembly get HOT! Always wear
protective gloves when removing the Basket. If you feel the Oven
Gloves are not insulated enough to adequately protect you from
the hot surfaces you are handling, set whatever you are holding
down immediately and wait until the food and the metal parts
cool down. You may want to use a thicker oven glove or mitt.

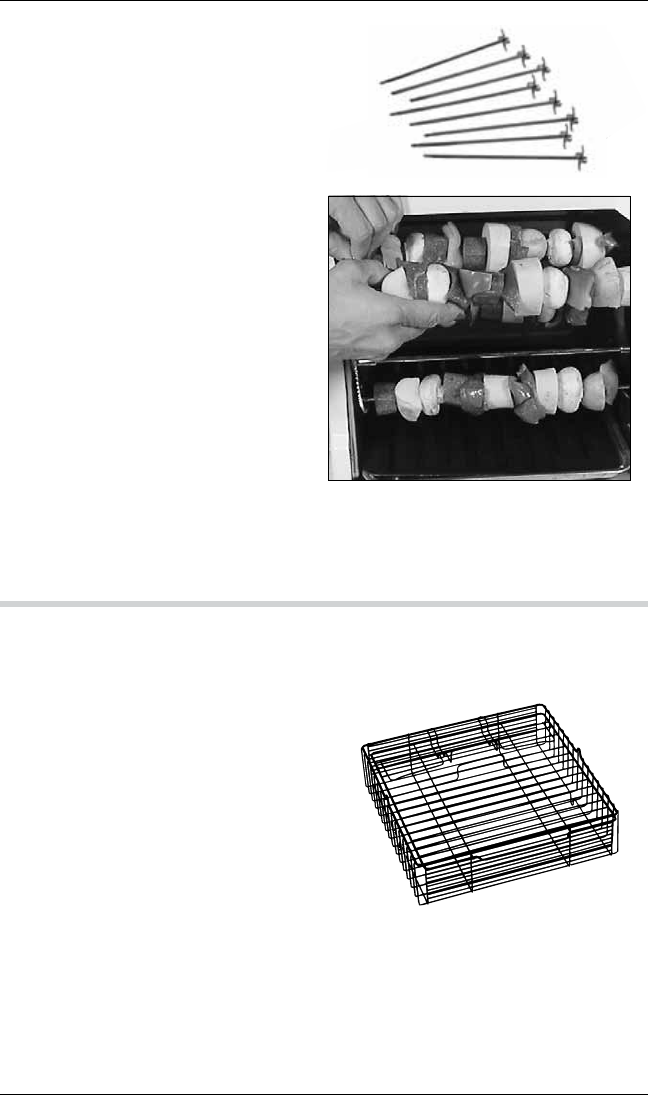

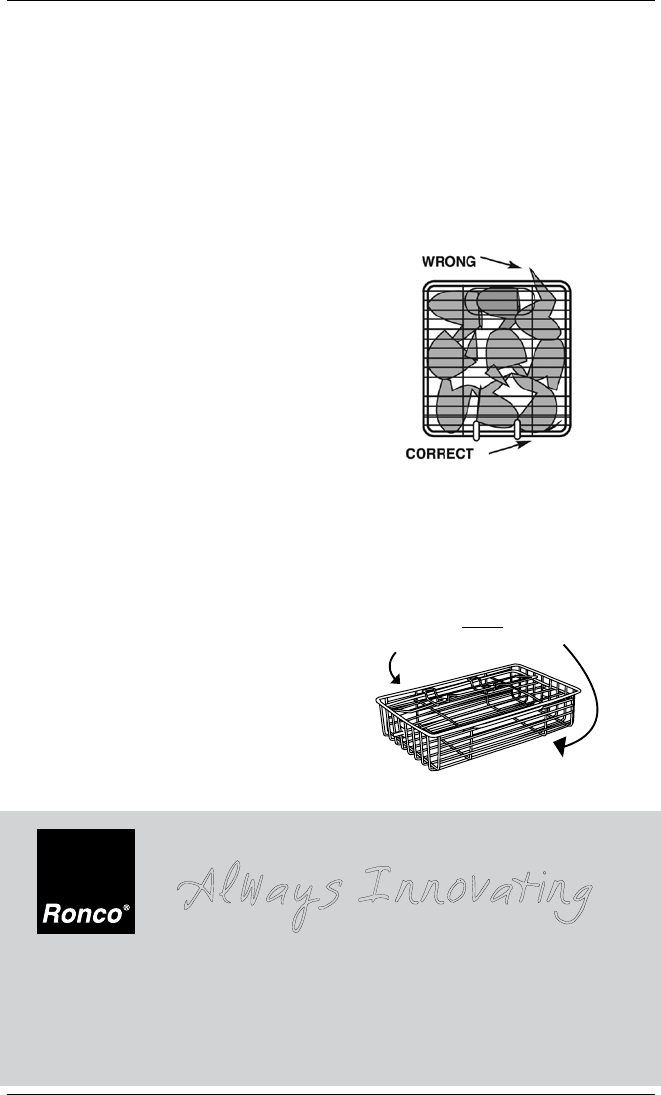

Rotisserie Basket
Perfect for hamburgers, chicken pieces, vegetables, whole fish
and fish fillets, steaks, chops, cutlets and smaller flat roasts.
After putting the food in the Basket, compress the Basket lid very
tightly so no food can move, whatsoever. This can be done by
compressing the lid further. CAUTION: The Basket gets hot.
Be sure nothing extends out between the wires. Make sure
wings are all secure inside the Basket with no parts hanging
out so they can’t slip out and hang up on Drip Tray or Heating
Element.
You can use a small strip of aluminum foil inside the Basket
on the top and bottom edges (the edges that rotate near the
Heating Element) to keep the tips of the wings from burning.
Set the Spit Rods in the Carving Platform. Line up the two small
loops on the Basket with the Spit Rods. Then drop the Basket
down on the Spit Rods, and match it to the corresponding loops
on the other end of the Rotisserie Basket.
Check the Basket occasionally and be sure the food is still tight.
If not, stop the machine and carefully take out the Basket and
tighten the lid.
When the food in the Basket is done, you can remove the Basket
by keeping it in a horizontal position.
REMEMBER THE FOOD, SPIT ROD ASSEMBLY AND THE BASKET
ARE ALL HOT – TAKE PRECAUTIONS.
INSTRUCTIONS: Rotisserie Basket & Speed Basket 9
CAUTION: Keep at least 8” clearance all around from walls, cabinets and other
objects when using the rotisserie to prevent heat damage. Don’t put charcoal
briquettes, hickory chips or anything else in the machine that is not authorized by
Ronco Holdings, Inc. Do not use under cabinets. ROTISSERIE IS HOT!
EZ-Store Rotisserie
10 INSTRUCTIONS: How to Tie Chicken
How to Tie Chicken
Elastic Food Ties are designed to be an easy-to-use method of securing poultry on
the Spit Rods. It is very important when using your E-Z Store Rotisserie that food is
securely tied and fits onto the Spit Rods so that the food will not touch the Heating Ele-
ment and is evenly centered all around.
It is recommended that you cut off the tail from the chicken and remove any excess fat
or loose hanging parts – especially around the main cavity so heat can enter inside the
chicken while it’s cooking.
The illustration shows how to tie a bird with one or two ties.
How to tie a chicken using 1 tie
With one tie you go behind each wing, cross over the back and pull it over the bottom
of the bird and up the front to hold the legs together. Then tuck the wings inside the tie.
If a Food Tie is too long, you can shorten it by tying a knot in it and cutting off the
excess with scissors.
Always use CAUTION with Hot Food and Metal Parts. The Food, Basket and the
Spit Assembly get HOT! Always wear protective gloves when removing the Basket.
If you feel the Oven Gloves are not insulated enough to adequately protect you
from the hot surfaces you are handling, set whatever you are holding down
immediately and wait until the food and the metal parts cool down. You may
want to use a thicker oven glove or mitt.
Finish Breast Side Up
Start Breast Side Down
INSTRUCTIONS: How to Tie Turkey 11
How to tie a chicken using 2 ties
Using two ties, shorten them both and put
one over the wings and one over the legs.
It’s very easy.
You can also use several Food Ties to secure
any bird. If you run out of Food Ties you can
use butcher’s twine until you can order more
Food Ties.
How to Tie Turkey
Tie your turkey right: make it tight! When preparing a Turkey, the wings and legs
must be tied down securely to prevent them from touching the heating element.
REMEMBER: Your must use Heavy Twine or String when fixing your Turkey.
DO NOT use the elastic Food Ties. Keep the cavity open to heat.
Stuffing Rotisserie poultry is not recommended.
Depending on the model of your rotisserie, you will only be able to cook a certain size
turkey. Please see below:
As your Turkey rotates, the wings and legs do have a tendency to bow out. It is VERY
IMPORTANT that you follow these instructions to make sure that no part of your Turkey
touches the Heating Element!
MAKE FOUR OR FIVE TIES WITH HEAVY STRING OR TWINE!
(FOR BEST RESULTS WET THE STRING OR TWINE BEFORE USE)
TIE YOUR TURKEY IN FOUR OR FIVE SPOTS:
Two ties over the Wings, One or Two ties over the
wide part of the Drumsticks, and One tie over
the Legs, as shown above. Be sure that nothing
hangs over or extends beyond the Gear Wheels.
Always center your Turkey on the Spit Rods.
REMEMBER TO TIE EACH STRING AS TIGHTLY
AS POSSIBLE.
If any part of your Turkey (or any game bird or other food) Touches the Heating Element
while cooking, IMMEDIATELY TURN OFF YOUR ROTISSERIE and re-tie the Bird more
securely. If, after re-tying, any part of your Turkey is still touching the Heating Element,
the bird is too big and must be trimmed down, where necessary.
EZ-Store Rotisserie Series
• Dimensions: 17.25” W x
12.75” H x 15..75” D
• 15 lb Cooking Capacity
EZ-Store Rotisserie
12
12 INSTRUCTIONS: Placing Poultry on the Spit Rod Assembly
Placing Poultry on the Spit Rod Assembly
There are two ways to load the Spit Rods.
Piercing Poultry with Rods Hold the tied poultry or meat down securely with one hand
while firmly pushing the Spit Rods into the bird, through the meaty portion of the breast
area. The Spit Rods are sharp so always be careful not to puncture your hand.
When inserting the Spit Rods, push at a slightly downward angle and then level out
the Spit Rods so that they go through the breast and exit the bird on the other side at
approximately the same level. (Note: You should gently squeeze the legs of the bird
together when pushing the Spit Rods through the bird.)
Carving Platform to Load Chicken Try putting the food on by using the Spit Rods in
the Loading Base and put the chicken on breast first using gravity to help. Be sure you
center the food within the area of the two Gear Wheels. Also balance the food so the
weight is evenly distributed.
Keep hands clear of pointed rods as they
exit from the meat.
Carving Platform to Load Chicken
INSTRUCTIONS: A or B Cooking Position? 13
After the food is held securely on the Spit Rods,
put the other Gear Wheel in place.
The Spit Assembly can now be placed in the
rotisserie. See diagram at the bottom of the
page for more information about Cooking
Position.
Small Chickens or Game Hens Side-by-Side
You can also rotate two small chickens or
game hens side-by-side. Place Spit Assembly
in vertical position with platform underneath.
Push the birds on the Spit Rods through their
centers, and pierce wing to wing. Place the first
tied chicken on its side and run both Spit Rods
through it. Duplicate this method for the second
bird. Leave a little space between the two birds so they can brown faster and more
evenly. Keep all parts within the Gear Wheels and centered all around.
Cooking Position
The Spit Rods can go to Position A for
normal size foods. Use Position B for
small foods and Basket to cook them
closer to the Heating Element.
Use Position B for a single chicken
3-1/2 lbs. or less. Tie it tightly. If any
piece touches the Heating Element
while rotating, move it down to
Position A and add a bit more time.
A – for Normal Sized Foods
B – for Small Foods and/or Speed Basket -
Closer to the Heating Element
CAUTION: To prevent a wheel from acci-
dentally falling off, always carry the end with
the Removable Wheel held slightly higher. The
wheels are heavy and have sharp gear teeth.
EZ-Store Rotisserie
14 INSTRUCTIONS: Loading the Spit Rod Assembly
Loading the Spit Rod Assembly
Put the Spit Rods through center of the food so it will be balanced and the food does
not touch the Heating Element as it rotates. This is important for large foods like
turkeys, standing rib roasts, 2 chickens side-by-side or any large piece of meat that
goes directly onto the Spit Rods. Small foods and pieces go in a Basket.
Roast

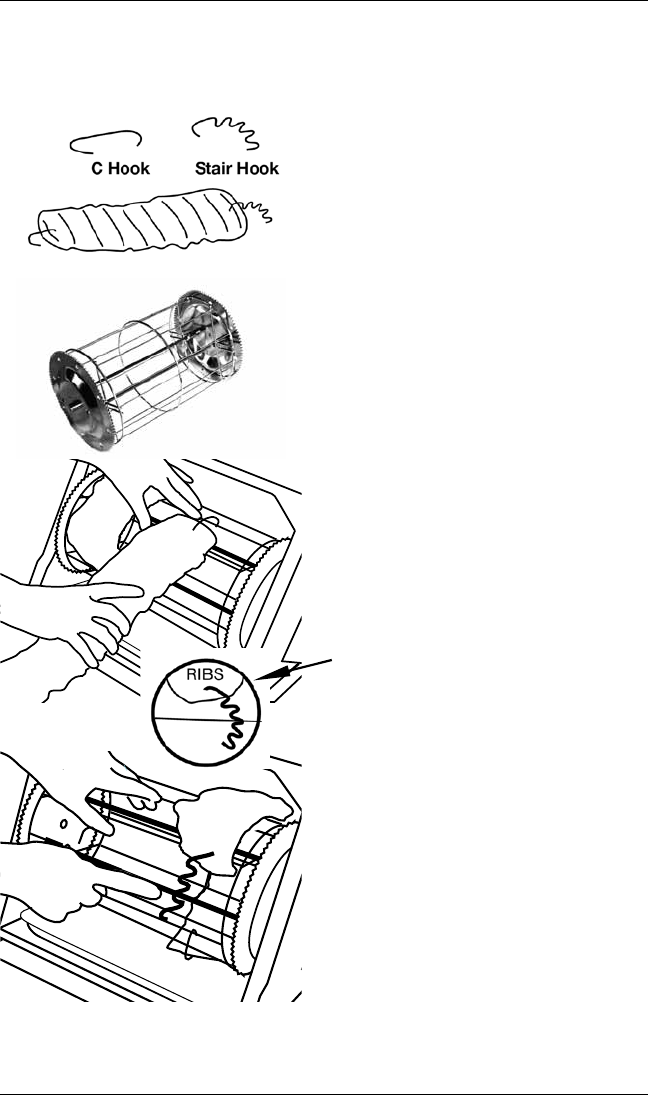

Standing Rib Roasts should always be loaded with the bones on the left side opposite
from the small turning gear on the right side and the heavier meat on the right side.
Also put the Spit Rods through meat between the bones.
When loading a rib roast start through
the fat, meaty end and move the Spit
Rods between (or on top of) the bones.
Keep the meat evenly distributed on the
Spit Rods. It may take a couple of tries
to not run into a bone.
If any food scrapes or hangs up, stop immediately. Trim with scissors and reload the
Spit Rods so that nothing touches the top, bottom, sides or Heating Element.
Rib Bones Always to the Left and Parallel to
the Spit Rods! - Up to 8 lb. Roasts Only
Trim turkeys, standing rib roasts and other
large food to be sure nothing (bones, meat
or skin) hangs over or extends beyond the
Gear Wheels. Cut off excess and tie it down
with string as necessary. Only turkeys up
to 15 lbs. in the full-sized models. Keep
center cavity clear so heat can enter while
it cooks.
Trim off excess fat and skin or loose pieces
– especially around poultry cavities so heat
can enter as it cooks.
IMPORTANT: Food must be centered.
INSTRUCTIONS: Timers 15
Digital Timer
EZ-Store Rotisserie Timer
Push the ON/OFF button to turn on. Press the HOUR button to set the hours of cook
time. Press the MIN button to set additional minutes for your cook time. Automatically
shuts off after the allotted time and a bell sounds. Always push the ON/OFF button (if
the unit is still running) before removing food. The ON/OFF button will stop all functions.
Oven Light Heat Indicator – When the heat coils are getting hot, the oven light will be
on. The timer must be ON for the heat to be on.
Cook Settings
ROAST: Normal rotation with heat. Use this setting to rotisserie food. This function will
be automatically selected first.
NO HEAT: Rotation without heat. Use for up to 20 minutes after cooking to keep the
juices evenly distributed before serving.
SEAR: Pause to SEAR (Heat with NO rotation). Use this function to sear steaks and
brown food in front of the Heating Element. Great for food in the Baskets.
EZ-Store Rotisserie
16 INSTRUCTIONS: Carving Platform
Carving Platform
After your roast, leg of lamb, or ham is done, you can place the Carving Platform
under the Gear Wheel to hold the Spit rod assembly in a vertical position while you
carve the meat. And, if you want the roast browned further, you can put the roast back
in the Rotisserie - even after you’ve carved some off.
IMPORTANT: The times and temperatures given in this booklet are only
a guide for your reference. Times can vary due to differences in meat shape, size,
fat content, presence of bone, and electrical outlets. Use a cooking thermometer
inserted into the center of the thickest portion of the meat to determine internal
temperature and doneness. Remember to use Position B for small foods.
Visit us online at www.Ronco.com for
more information and product availability
or email us: support@ronco.com
Call the Order Desk to order supplies,
7 Days a Week (Leave phone message
after standard business hours)
Call for order information 1-855-85-RONCO
Always
I
nnovating
INSTRUCTIONS: Time and Temperature Chart 17
Estimated Time and Temperature Chart
The times and temperatures given in this booklet are only a guide for your reference and are based on foods
at room temperature (not cold foods). Times can vary due to differences in meat shape, size, and the amount
of fat and bone. Also times can vary depending on the electricity in your home – and it can even vary when
plugged into different electrical outlets. The most accurate method of determining if your food is done is using
a thermometer inserted into the center of the thickest portion of the meat. NOTE: If poultry exceeds 180º
(internal temperature) your poultry will become drier and less juicy. Remember to use Position B for small foods.
FOOD (QTY.) WEIGHT EST. TIME INTERNAL TEMP
POULTRY
Whole Chicken or Duck 5 lbs. 15 min/lb. 165°
2 Chickens or Ducks 4 lbs. each = 8 lbs. 10 min/lb. 165°
Cornish Hens (side by side) 2-4 lbs. total 10 min/lb. 165°
Pause-to-Sear (breast stopped in front of Heating Element) @ 4 min - browner breast if necessary
Whole Turkey Up to 15 lbs. 12-18 min/lb. 165°
Chicken Pieces 3 lbs. (about) 45 minutes 165°
Turkey Burgers 1 ¼ lbs. 30-35 minutes 165°
Chicken Kabobs 8 Kabobs 30-35 minutes 170° Well
PORK
Baby Back Ribs (Parboiled 15 min) 1-3 racks 35 min total 160° Med 170° Well
Rolled Pork Lion up to 8 lbs. 18-25 min/lb. 160° Med 170° Well
Pork Tenderlion 1 ¾ - 2 lbs. 30-35 min/lb. 160° Med 170° Well
Pork Chops 4-6 chops 30-40 min total 160° Med 170° Well
Boneless Pork Chops 6 chops 25-30 min total 160° Med 170° Well
Boneless Ham (cooked) 3 lbs. 13 min/lb. 140°
Italian Sausages
uncooked up to 16 30-35 minutes
cooked up to 16 20-25 minutes
Hot Dogs up to 16 10 minutes
BEEF
Standing Rib Roast up to 8 lbs. 18 min/lb. 145° Med
Roast up to 8 lbs. 16 min/lb. 140° Rare
18 min/lb. 160° Med
20 min/lb. 170° Well
Steaks 1 ¼” thick 20 min total Med
Hamburgers (9) ¼ lb. each 20-30 min total Med
Beef Kabobs 8 Kabobs 20-25 min total Med
LAMB
Leg of Lamb up to 8 lbs. 18-22 min/lb. 160° Med
SEAFOOD
Salmon Steaks (Basket) 4-6 steaks 1 ¼” thick 20-25 min total
Fish Fillets (Basket) ¾” thick 25 min total
thin 18 min total
Shrimp Kabobs 6 Kabobs 20-25 min total
Halibut Fillets (Basket) ¾” thick (breaded with dill) 30 min total
Temperatures based on USDA Food Safety and Inspection Service Guidelines.
Power and energy or rotations may vary based on voltage and speed of the basket.
EZ-Store Rotisserie
18
18 ACCESSORIES
AVAILABLE ACCESSORIES
Liquid Flavor Injector (Optional Accessory)
For poultry meat and seafood, just add your favorite liquid, or one of Ron’s marinades,
for the best flavor you’ve ever had. Mix with water, juice, wine, soy sauce, vinegar, olive
oil, etc. Be creative, use the flavored marinating liquids of your choice.
1) Remove the Locking Tip
hidden inside the Plunger.
2) Load Plunger into Cylinder.
Note: Keep a couple of drops of
olive oil or vegetables oil
on the back stopper to keep
it moving smoothly.
3) Snap Locking Tip to the head
of Cylinder.
Plunger Locking Tip Needle
How to Load Injector
For Liquid: Draw back Plunger to pull
liquids into the Cylinder section.
Important Safeguards
Keep all parts clean. Use warm water to
clean. Mild bleach can be added to help
reduce bacteria too. To clean a clogged
needle, soak and use a cotton swab
or fine brush.
Discard used marinade. It can carry
bacteria. Never use leftover marinade on
cooked meat or poultry after the marinade
has had contact with uncooked meat
or poultry. Should your needle stop or
clog when using, you will need to make a
finer marinade. Use the blender to make
smaller particles.
If you inject against bone, it will seem
stuck. Move the needle to one side and
continue.
If you let the meat or poultry sit to mari-
nate, refrigerate until ready to cook the
food.
CAUTION: FOR FOOD PREP ONLY.
KEEP AWAY FROM CHILDREN.
Look inside Cylinder
section to see that
liquid has filled up
to desired amount.
19ACCESSORIES 19
Solid Flavor Injector (Optional Accessory)
This expanding tip injector can be loaded with pieces of garlic or diced onions, herbs,
spices, diced peppers, fruit pieces or diced ham for flavoring. For pastries try inserting
chocolate chips, sprinkles, nuts and other seasonings.
1) Load the Expanding Tip with
garlic, fresh or dried herbs, nuts
or other solid food items.
2) Insert the filled Expanding Tip
inside the Locking Ring.
3) Place the Insert Rod inside
the injector Cylinder. Plunger
should be pulled back as far as
it can go. The Insert Rod is used
to push the spices through the
Expanding Tip.
4) Inject meat, poultry or pastry
with small pieces of solid food
then withdraw the whole
Injector. Pull the plunger back.
Repeat as necessary.
How to Load Injector
To inject small
whole garlic cloves,
fresh herbs or
seasonings into
meat or poultry, you
must first insert the
filled Expanding Tip
as deep as it can
go into the food,
then depress the
plunger.
Depress plunger while tip is inserted
into the meat (or pastry). Withdraw the
injector then pull the plunger back,
reload the Expanding Tip and repeat
throughout the meat or poultry.
Difficulty in piercing through tough skin,
heavy fat or tough meat? Start a slit
(about 1 ½” deep) into the meat with
the point of a small knife.
CAUTION: FOR FOOD PREP ONLY.
KEEP AWAY FROM CHILDREN.
Important Safeguards
While inserting this Solid Flavor Injector
into meat, poultry, or any other food,
be careful not to push Injector into your
hand. The Expanding Tip is sharp.
Wash Injector thoroughly with soap and
water after each use. Meat and poultry
residue is unhealthy and can cause the
expanding Tip to crack or break.
If the Injector seems too large for your
hand, fill the Expand-
ing Tip only ½ or ¾ full
(then the plunger is
less extended and will
fit smaller hands).
Important: Please
don’t leave the Insert
Rod in the Expanding Tip. It can stretch.
After each use, pull plunger all the way
back and then retract the Insert Rod
from the Expanding Tip by tapping the
point down gently onto a smooth, hard
surface.
Plunger
Cylinder Insert Rod
Expanding Tip Locking Ring
EZ-Store Rotisserie
20 ACCESSORIES
Kabob Rods (Optional Accessory)
Set the completed Spit Rod Assembly in
the Rotisserie, Position A (see page 13).
Load the Kabobs with food then insert
them into the holes on the gear wheels.
Start with sharp end on the left side, then
load and snap the Kabob with the Auto
Turn Mechanism (spring ends) on the
right so they will rotate. Turn the Spit Rod
Assembly until all the Kabobs are loaded
in place. Slide the whole assembly back
to the next notch - the cooking position.
When done, carefully move the Spit Rod
Assembly back to the Rest Area. Use
Oven Gloves to remove the Kabob Rods.
Simply push the spring end inward and
then pull the rods out one at a time.
Large Multipurpose Basket (Optional Accessory)
The Large Multipurpose Basket is designed to
handle extra thick foods like turkey breasts,
super thick T-bone steaks, lobsters and an
assortment of vegetables.
.
ACCESSORIES 21

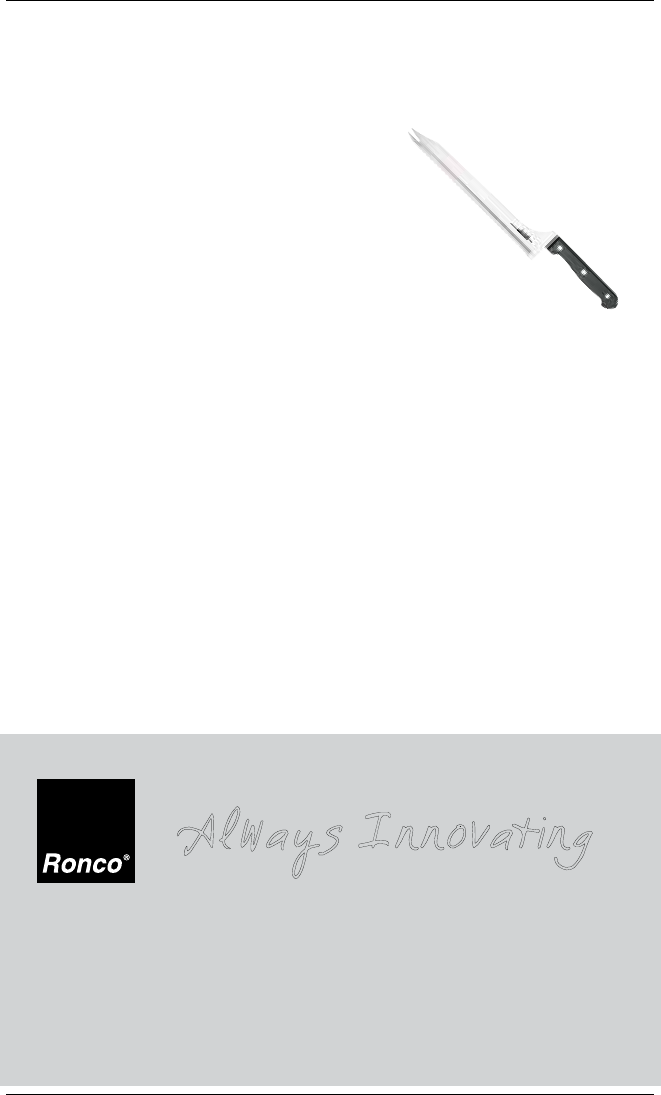

Carving Knife (Optional Accessory)
This is the all-purpose knife that can do just
about anything you ask of it. Slice, chop, dice
and stay sharp with the lifetime edge. The
tip is used for picking up and serving small
pieces of meat. Use it when you want to dice
and slice without having your hand hit the
counter. Use for all vegetables and fruits.
Use a gentle sawing motion. Remember to
always use caution with knives.
Overall length 14-3/8”.
Visit us online at www.Ronco.com for
more information and product availability
or email us: support@ronco.com
Call the Order Desk to order supplies,
7 Days a Week (Leave phone message
after standard business hours)
Call for order information 1-855-85-RONCO
Always
I
nnovating
EZ-Store Rotisserie
22 ACCESSORIES
Round BBQ Rib Basket (Optional Accessory)
1. Place baby back or spare ribs in boiling
water for 15 minutes. Drain ribs and let
them cool. This step makes the ribs more
pliable and tender and reduces fat. When
cooled, cover both sides of the ribs with
BBQ Seasoning.
2. Position hooks over the middle of the last
rib bones. Attach a C Hook at one end of
the slab and attach a Stair Hook at the
other end.
3. Thread the Spit Rod Assembly through
eyelets on both ends of the Rib Basket.
Then attach the removable wheel.
Position the Spit Rod Assembly with
the Rib Basket in the Rest Area.
4. Starting with the C Hook end, attach the
ribs to the basket on any horizontal wire.
Rotate the basket while wrapping the ribs
around the outside of the basket.
After ribs are stretched tight, lock the
slab down by attaching the Stair Hook
on the closest horizontal wire on the Rib
Basket. Make sure it is tight.
5. Close the Rotisserie Lid and set the
timer for 35 minutes on ROAST. While
rotating, check to make sure the ribs are
not touching the heating element or the
glass door. If they touch, trim the ribs.
Always check on your food from time to
time.
6. Brush ribs with one coat of BBQ Sauce
onto the ribs 10 minutes before they
are done.
CAUTIONS 23
Never use any aerosol sprays of any kind inside the unit.
Never cook foods larger than recommended in the booklet for your Rotisserie.
Grease Flicker? Foods with high fat content can produce a small flicker of flame
as fat spatters off the Heating Element. This is normal. However, if you see smoke
or fire, turn off and unplug the machine and let it cool off. DO NOT OPEN THE DOOR
until it has cooled down. NEVER PUT WATER IN THE ROTISSERIE - Water and fat
or oil don’t mix. After it has cooled, check to see if food touched, or hung up on the
Heating Element.
Keep out of reach of children.
DO NOT MOVE rotisserie when it is hot or loaded with food.
Always keep at least 8” (inch) clearance all around the rotisserie from walls,
cabinets and other objects when in use to prevent heat damage.
Do not use under cabinets.
Do not put charcoal briquettes, hickory chips or anything else in the machine
that is not authorized by Ronco Holdings, Inc.
Empty Drip Tray - TRAY AND GREASE WILL BE HOT!
Once the Rotisserie is cool to the touch, empty the Drip tray. The tray should be
emptied after each use. PRESS on the latch to release the Drip Tray.
CAUTIONS
Rotisserie is HOT!
Glass Door, top, back and sides of the Rotisserie, as well as the Dual Heating Tray,
Drip Tray, Heat Shield and Heating Element all get very hot during use and retain
heat after use. Always use adequate oven mitts or gloves when handling these hot
surfaces and when checking hot foods. Wait until the Rotisserie has completely
cooled before emptying Drip Tray.
EZ-Store Rotisserie
24 HELPFUL HINTS
Helpful Hints
Burnt Edges on Food? You can put a
small strip of aluminum foil on the top
and bottom edges inside the Basket to
prevent burnt edges as it cooks.
Seasonings and spices should be
sprinkled on or rubbed into the food
before it goes into the Rotisserie.
Once the food is rotating, watch it
to be sure nothing is touching the
Heating Element as it goes around.
Have your food at room temperature
when it goes in. Not chilled. Wash food
in warm water inside and out. DO NOT
LEAVE OUT AT ROOM TEMPERATURE MORE
THAN 1 HOUR.
It is not necessary to preheat the
Rotisserie.
Never cook foods larger than
recommended in the booklet for
your Rotisserie.
Avoid burning – Baste with BBQ
sauce only during the last 5 minutes.
It’s tasty and delicious.
Wrap fish with seasonings and mari-
nade in aluminum foil (triple-fold the
edges) and put tightly in the Basket for
a delicious and easy meal!
Be sure wings are all secure inside the
Basket with no parts hanging out.
You can use a small strip of aluminum
foil inside the Basket on the top and
bottom edges (the edges that rotate near
the Heating Element) to keep the tips of
the wings from burning.
Place foil inside on top
and bottom edges
Visit us online at www.Ronco.com for
more information and product availability
or email us: support@ronco.com
Call the Order Desk to order supplies,
7 Days a Week (Leave phone message
after standard business hours)
Call for order information 1-855-85-RONCO
Always
I
nnovating
MEAL SUGGESTIONS 25
Meal Suggestions
Here is a list of food that requires little prep to have a fantastic meal with your
E-Z StoreRotisserie.
Poultry:
1 or 2 Seasoned Chickens
Turkey - up to 15 lbs.
Cornish Game Hens or Ducks
Wild Game - Venison, Goat , Fowl
Spicy Chicken Wings (basket)
Lemon Herb Chicken Breasts (basket)
Beef:
Prime Rib Roasts- up to 8 lbs.
Carne Asada Burritos
Fajitas - Beef Strips with Bell Peppers and
Onions
New York Steak with Asparagus (basket)
9 Old Fashion ¼ lb. Hamburgers
Chicago Style Hot Dogs
Ribs (BBQ Rib Basket)
Pork and Lamb:
Leg of Lamb Rolled in Rosemary
and Olive Oil - up to 8 lbs.
Pork Loin or Shoulder Roast - up to 8 lbs.
Country Honey Glazed Ham
Ribs (BBQ Rib Basket)
Pineapple Teriyaki Pork Chops (basket)
Apple Cinnamon Pork Chops (basket
Lamb Chops with Bean Salad (basket)
Sausages (basket)
Fish and Seafood:
Cajun Fish (basket)
Fish with Pineapple
Cilantro Sauce (basket)
Halibut with Eggplant (basket)
Shrimp or Scallops with Tarragon
Mustard Dressing (basket)
Vegetables:
Mixed Vegetables (basket)
Kabobs:
Chicken, Lamb, Beef, Seafood
with Vegetables
NOTE:
Inner Oven dimensions are:
12.05” W x 11.38” H x 9.40” D.
Standard basket dimensions are:
9.25” L x 9.50” W x 1.50” H.
We have provided you the dimensions of
the above to help you also in figuring out
the size of the turkey/chicken/roast to use.
The baskets are designed so that they will
not touch either the Heat Element or the
Glass Top/Lid when in rotation. So, the
outer contour of the potential bird or meat
cut should not exceed the rectangle made
by the boundary of your basket.
For example, the maximum “weight” of
a bird (chicken or turkey) to grill with the
EZ-Store Rotisserie is 15 lbs. However,
you need to be mindful of the “volume”
as well. Please note that the length of the
chicken should not exceed 9.50” (which
represents the distance between the gear
wheels) while the width to be at 9.25” or
less (which represents the depth allowed
to occupy without having the chicken
touching the heat element on the back
wall or the glass door at the front during
rotation.)
NOTE: The model number is located on
the back of your E-Z Store Rotisserie.
EZ-Store Rotisserie
26 RECIPES
Recipes
Roast Chicken with Lemon Herb Rub
One 3½ to 4 pound Whole Chicken
Rind of 2 Lemons, minced
5 Garlic Cloves, minced
1 tablespoon Dried Thyme, finely crumbled
2 teaspoons Dried Rosemary, finely crumbled
2 teaspoons Dried Sage Leaves, finely crumbled
Salt and freshly Ground Pepper
In a small bowl combine lemon rind, garlic, and herbs to form a slightly moist paste.
Wash the chicken and dry thoroughly, inside and out. Loosen the skin across the
breasts and then down around the leg and thigh using a chopstick or your fingers.
Work the seasoning mixture under the skin and into the meat of the breast, leg and
thighs and all over the outside skin as well. Season the cavity of the chicken with salt
and pepper. Using an Elastic Food Tie, truss the chicken. Place the chicken on the Spit
Rods for about 60 minutes or until the internal temperature reaches 165°F on a meat
thermometer inserted in the thigh meat. Remove chicken and cut it into pieces to serve.
(Tip: If you are rotating two small chickens at a time, skewer them side by side on the
Spit Rods and increase the time to 1½ hours.) Serves 3 to 4.
Four Peppercorn Crusted Roast Beef
One 3½ to 4-pound Boneless Beef Rib Roast
2 teaspoons Black Peppercorns
2 teaspoons White Peppercorns
2 teaspoons Green Peppercorns
1 teaspoon Pink Peppercorns
1 teaspoon Salt
Place the peppercorns in a heavy plastic bag and crush with a rolling pin. Stir in the
salt. Coat the outside of the roast with the pepper mixture. Rotisserie the roast on the
Spit Rods 18 to 20 minutes per pound for rare or until the internal temperature reaches
140°F, 25 to 30 minutes per pound for medium or until the internal temperature reaches
160°F, or 35 to 40 minutes per pound for well done or until the internal temperature
reaches 170°F on the meat thermometer inserted in the center. Remove and slice into
1/4 inch thick slices or thinner. Serves 4 to 6.
Jamaican Jerk Pork Tenderloin
2 Pork Tenderloins (About 1 ½ to 2 Pounds Total)
2 tablespoons Chopped Fresh Cilantro
1 tablespoon Finely Minced Fresh Ginger
¼ cup Dark Rum
2 tablespoons Fresh Lime Juice
2 tablespoons Olive Oil
2 tablespoons Light Brown Sugar
1 cup Soy Sauce
½ teaspoon Nutmeg
¼ teaspoon Cayenne
¼ teaspoon Ground Allspice
¼ teaspoon Ground Cinnamon
¼ teaspoon Salt
Combine all ingredients except the pork in a flat baking dish. Reserve 1/3 of the
marinade and keep it separate. Trim all fat and skin from the pork tenderloins and
place them in the marinade. Turn to coat well. Cover and marinate for 15 to 30 minutes
at room temperature. Cook the pork in a Rotisserie Basket for 30 minutes basting it
with the marinade juices often during the last 10 minutes or until the internal temperature
reaches 160°F on a meat thermometer. Slice the pork on the diagonal, place on a
serving platter. Warm the reserved marinade and spoon it over the pork slices and
serve. Serves 4.
Lemon Dill Salmon Steaks
4 Large or 6 Medium Salmon Steaks
¼ cup Fresh Lemon Juice
3 tablespoons Olive Oil
1 tablespoon Minced Fresh Dill or 1 teaspoon Dry Dill Weed
½ teaspoon Salt
½ teaspoon White Pepper
In a small bowl add all ingredients except the salmon. Brush on both sides of the
salmon, wait 5 minutes and repeat. Place the salmon steaks in the Rotisserie Basket.
Cook for 15 to 25 minutes, depending on size of salmon steaks. Serve one salmon
steak per person.
RECIPES 27
EZ-Store Rotisserie
28 RECIPES
Roasted Vegetable Skewers with
Balsamic Basil Marinade
1 Red Bell Pepper, cut into 1 inch pieces
1 Yellow Summer Squash, cut into ¼ inch slices
1 Zucchini cut into ¼ inch slices
16 White Button Mushrooms, stems removed
8 Green Onions, cut into 1½ inch pieces
Marinade:
½ cup Olive Oil
6 tablespoons Balsamic vinegar
2 tablespoons minced fresh Basil
2 cloves Garlic
Prepare the vegetables and place them in a large bowl or food storage bag. Combine the
marinade ingredients and pour the marinade over the vegetables. Cover and marinate
1 to 2 hours at room temperature. Drain off the marinade and skewer the vegetables
on the Kabob rods. Rotate the skewered vegetables for 20 to 25 minutes until the
vegetables are slightly brown, but still crunchy. Remove the Kabobs from the Gear
Wheels and slide the vegetables off onto serving plates. Serves 6.
Merlot Marinated Leg of Lamb
One Leg of Lamb (4 ½ to 5 Pounds) boned and tied
1 cup Merlot or other dry red wine
½ cup Soy Sauce
4 cloves Garlic; minced
2 tablespoons Dried Oregano
1 tablespoon Dried Rosemary
1 tablespoon coarsely Ground Pepper
Combine the soy sauce, Merlot, garlic, oregano, rosemary, and pepper in a deep bowl.
Add the lamb and turn it to coat with marinade. Cover and chill at least 6 hours or up
to a day, turning the meat over several times. Remove the lamb from the marinade,
reserving marinade for basting. Place the lamb on the Spit Rods. Cook for 1 hour, 15 to
30 minutes or until the internal temperature reaches 160°F for medium, basting several
times during the last 10 minutes. Serves 6 to 8.
RECIPES 29
Mustard-Brown Sugar Glazed Pork Chops
Three or Four 1 Inch thick Center Cut Pork chops
½ cup Brown Sugar
¼ cup Dijon Mustard
Pinch each of Dried Thyme and Dried Sage
Pat pork chops dry with a paper towel. Stir together mustard, thyme and sage. Coat
pork chops well with the herb mustard. Press brown sugar into the herb mustard. Place
the pork chops in the Rotisserie Basket for 30 to 35 minutes or until cooked through. If
not brown enough, position the Basket facing the Heating Element and turn the switch
to “Pause-to-Sear” for 2 to 3 minutes on each side. Serves 3 to 4.
Apricot-Orange Glazed Game Hens
Two 1 ½ to 2 Pound Rock Cornish Game Hens
3 tablespoons Fresh Orange Juice
3 tablespoons Soy Sauce
½ cup Apricot Preserves
Salt and Fresh Ground Pepper
Stir together the preserves, orange juice and soy sauce. Separate and reserve half of
the sauce and serve it with the hens. Wash and thoroughly dry the game hens inside
and out. Season the inside cavity with salt and pepper and brush the game hens with
the other half of the sauce. Cook 40 to 50 minutes or until the temperature reaches
180°F on a meat thermometer. Serve with warmed reserve sauce. Serves 2 to 4.
BBQ Beef Kabobs
2 pounds Beef Top Sirloin
1 cup BBQ Sauce
2 Bell Peppers; cut in 1 Inch pieces
2 cups whole Mushrooms
1 Purple Onion, cut in 1 Inch pieces
Cut the beef into 1¼ inch cubes and place in a medium bowl. Stir in BBQ sauce; cover
and let marinate for 1 to 4 hours in the refrigerator. Remove the beef from the sauce
and skewer on the Kabob Rods, alternating beef with desired vegetables. Cook for 20 to
25 minutes or until they reach desired doneness. Baste with BBQ sauce only during the
last 5-10 minutes. Serves 6.
EZ-Store Rotisserie
30 6 EASY STEPS TO ROTISSERIE CHICKEN
Two Original Style Roast Chickens
Two 3½ to 4 pound whole chicken
2 teaspoons each of Salt and Paprika
1 teaspoon each of Onion Powder, Dried Thyme, White Pepper
½ teaspoon each of Cayenne Pepper, Black Pepper, Garlic Powder
Salt and fresh Ground Pepper
2 Onions, quartered
In a small bowl, mix together salt, paprika, onion powder, thyme, white pepper, black
pepper, cayenne pepper, and garlic powder. Remove and discard giblets from chicken.
Rinse chicken cavity, and pat dry with paper towel. Rub each chicken inside and out
with spice mixture. Place 1 onion into the cavity of each chicken. Place chickens in a
resealable bag or double wrap with plastic wrap. Refrigerate overnight, or at least 4 to
6 hours. Remove onions from cavity. Season the cavity of the chicken with salt and
pepper. Using an Elastic Food Tie, truss the chicken. Place the chickens side by side on
the Spit Rods for about 80-90 minutes or until the internal temperature reaches 165°F
on a meat thermometer inserted in the thigh meat. Remove chickens and cut it into
pieces to serve. Serves 6 to 8.
6 Easy Steps to Great Rotisserie Chicken
1. Wash the chicken with warm water
(so the food is not cold when it goes in the
Rotisserie) and remove any parts from the
cavity (giblets, etc). Cut away excess fat
and skin so hot air can get into the cavity.
Tie the wings and legs down. Use one or
two of the Elastic Food Ties (if they are too
big for your chicken, knot them smaller and
cut off the excess). See page 10 for more
details.
2. Place the chicken on the Spit Rods
breast first - be sure it’s centered and the
weight is evenly distributed. Be careful to
keep your hands clear of the sharp rod tips
when loading food vertically or horizontally.
After loading the food on the Spit Rods, put
the other Gear Wheel on.
6 EASY STEPS TO ROTISSERIE CHICKEN 31
3. Place the loaded Spit Rod Assembly in
the proper cooking position (A or B). Posi-
tion A is your standard cooking position.
Position B is for smaller items or the Speed
Basket Close the Glass Lid.
4. Set the 3-Way Function to ROAST. Set
the Timer for 15 minutes per pound for a
chicken. Example: 4 lbs. = 1 hour.
NOTE: Use the total weight- which includes
giblets that’s printed on your chicken
package. If your package does not include
giblets, etc., then add a 1/4 pound to the
actual weight of your chicken to figure the
cooking time.
5. To enjoy the best flavor and taste, serve
your chicken immediately. If you are not
ready to serve it right away, however, press
the NO HEAT button to continue rotating.
This will keep the juices evenly distributed
throughout the chicken.
6. To Serve: When chicken is done,
carefully lift the Glass Lid. Use the Oven
Gloves and gently but quickly lift the
chicken and Spit Rod Assembly out while
supporting the chicken. A bowl under the
chicken helps make it easier to remove.
Take off the removable Gear Wheel, slide
out the Spit Rods and serve.
CAUTION: The parts get really hot!
Problem? If a chicken wing comes free or any part touches the Heating Element
or bottom grate during cooking, simply turn the Timer to OFF. Let it cool a bit.
Please be careful – both the food and the Rotisserie get hot. Make any adjustments
or re-tie your chicken. Then reset the Timer.
Ronco Holdings, Inc.
15505 Long Vista Dr., Ste 250
Austin, TX 78728
www.Ronco.com
Copyright ©2013 by Ronco Holdings, Inc. All Rights Reserved. 01.13
Manufactured under U.S. patents: 7,424,849; 7,325,484; 7,739,948; 6,782,805; 6,782,806; 7,153,120; 6,250,214;
6,142,064; 6,988,445; 7,021,203; 6,170,390; 5,731,012; 6,874,408; 6,422,136; 6,658,991; 6,393,972; 6,240,838;
6,408,742; 6,568,315; 6,568,316; 6,253,665; 6,330,855; 7,225,729; 7,225,730; 6,536,334; 6,742,445; 7,500,428;
7,878,111; 6,837,150.
Foreign patents pending.
EZ-Store MODEL ROTISSERIE
ONE YEAR LIMITED WARRANTY
Ronco Holdings, Inc., warrants to the owner of this product that it is free from defects in
material and workmanship for a period of one year from date of purchase. Please visit
http://www.ronco.com/warranty.html and fill out your Warranty Registration Form.
The manufacturer’s obligation will be limited to repairing or replacing F.O.B. any part of
the product which is defective. Such warranty will not apply to defects resulting from
tamper, cosmetic damage, acts of God, accidental breakage, abuse, negligence, neglect
or misuse. If you must return the product for reasons of malfunction within the one year
warranty period, the following action and steps are required: Remit U.S. Dollars:
1. The machine must be clean and packaged securely to protect from damage or
breakage in shipment.
2. Call and obtain a Return Authorization Number. Then ship prepaid to Ronco Hold-
ings, Inc., by the most convenient method. Ronco Holdings, Inc., will repair or
replace your Rotisserie unit and return it to you prepaid.
Even if not required, the rights in this warranty are granted to you. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to
state. Registering for your warranty is not a condition precedent to warranty coverage.
Ronco Ronco Holdings, Inc., will not be held liable for any special, incidental, or con-
sequential damage, resulting from possession, use or loss of use of this product either
directly or indirectly.
No returns will be accepted without prior authorization.
To receive a Return Authorization Number Call Customer Service at 1-855-85-RONCO.
If all lines are busy, please contact our support site at https://support.ronco.com

Navigation menu
