Root RGW2400-OD Direct Sequence Spread Spectrum Transceiver User Manual

Root Inc Direct Sequence Spread Spectrum Transceiver

User Manual

Z990002-D08-12Instruction ManualRGW2400/ODU.S.A.
2FCC NoticeThis equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses, andcan radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment doescause harmful interference, the user is encouraged to try to correct the interference by one ormore of the following measures:• Reselect or relocate the antenna.• Increase the separation between the equipment and receiver.• Consult the dealer or an experienced radio technician for help.Changes or modifications not expressly approved in writing by ROOT Inc. may void the user’sauthority to operate this equipment. ROOT Inc. can not accept any financial or otherresponsibilities that may be the result of your use of this information, including direct, indirect,special, or consequential damages.
3Handling precautionsStrictly observe the following important handling precautions when using the product: WWARNINGARNING Indicates that user's mishandling of the product may lead to adanger resulting in a serious injury or death. CAUTIONCAUTION Indicates that user's mishandling of the product may lead to adanger resulting in an injury or a physical damage alone.l WARNINGWorking at high place to install the main unit and antenna may result in an injury ordeath due to a fall. Do not work in an unstable position or shaky footing and be sureto ensure the safety before starting work.l WARNINGDo not put up the antennal in a thunderstorm, on a windy day or in a cold season,otherwise you may be struck by lightning or may be subject to other danger.l WARNINGWhen installing the main unit and antenna, firmly fix them in accordance with theinstallation manual. If they are insufficiently fixed, they may drop, causing aninjury or death.l WARNINGThe main unit and AC adaptor get hot extremely, causing a burn or injury.Carefully handle them, when it is necessary to touch them, as they generate heat,place them in a well-ventilated location.l WARNINGDo not use them in abnormal conditions where smoke or offensive smell is comingout, otherwise causing a fire, electric shock or trouble.l CAUTIONWhen installing or removing each unit, be sure to turn off power supplybeforehand. If it is installed or removed with power turned on, a trouble may occur.l CAUTIONNever disassemble the equipment, otherwise causing a trouble.l CAUTIONDo not drop the product and do not give a strong shock to it, otherwise causing atrouble.l CAUTIONNever open the main unit.l CAUTION

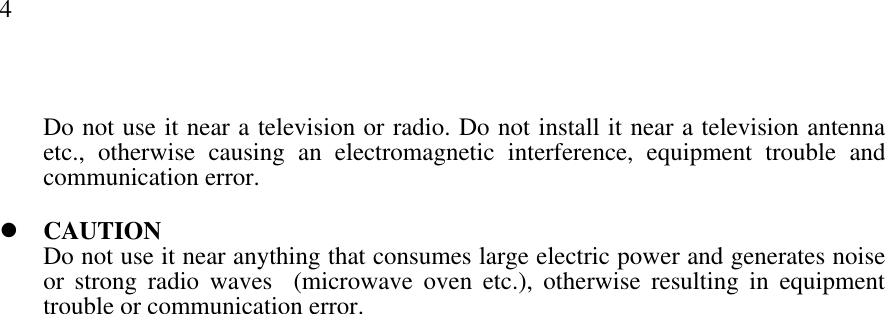

4Do not use it near a television or radio. Do not install it near a television antennaetc., otherwise causing an electromagnetic interference, equipment trouble andcommunication error.l CAUTIONDo not use it near anything that consumes large electric power and generates noiseor strong radio waves (microwave oven etc.), otherwise resulting in equipmenttrouble or communication error.

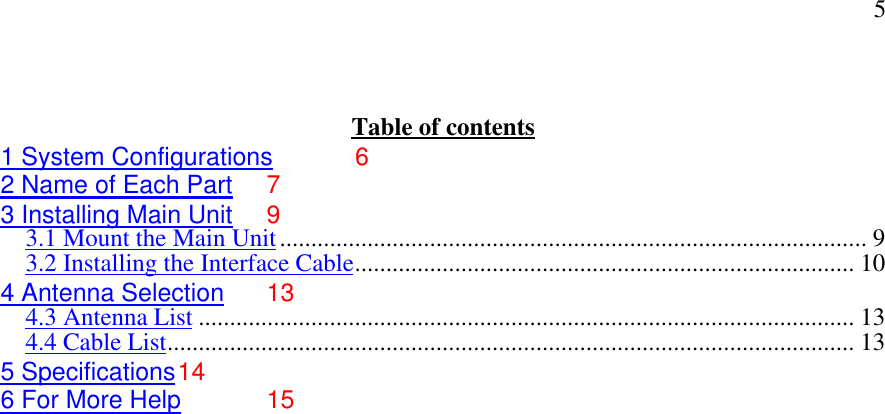

5Table of contents1 System Configurations 62 Name of Each Part 73 Installing Main Unit 93.1 Mount the Main Unit.............................................................................................. 93.2 Installing the Interface Cable................................................................................ 104 Antenna Selection 134.3 Antenna List ......................................................................................................... 134.4 Cable List.............................................................................................................. 135 Specifications146 For More Help 15

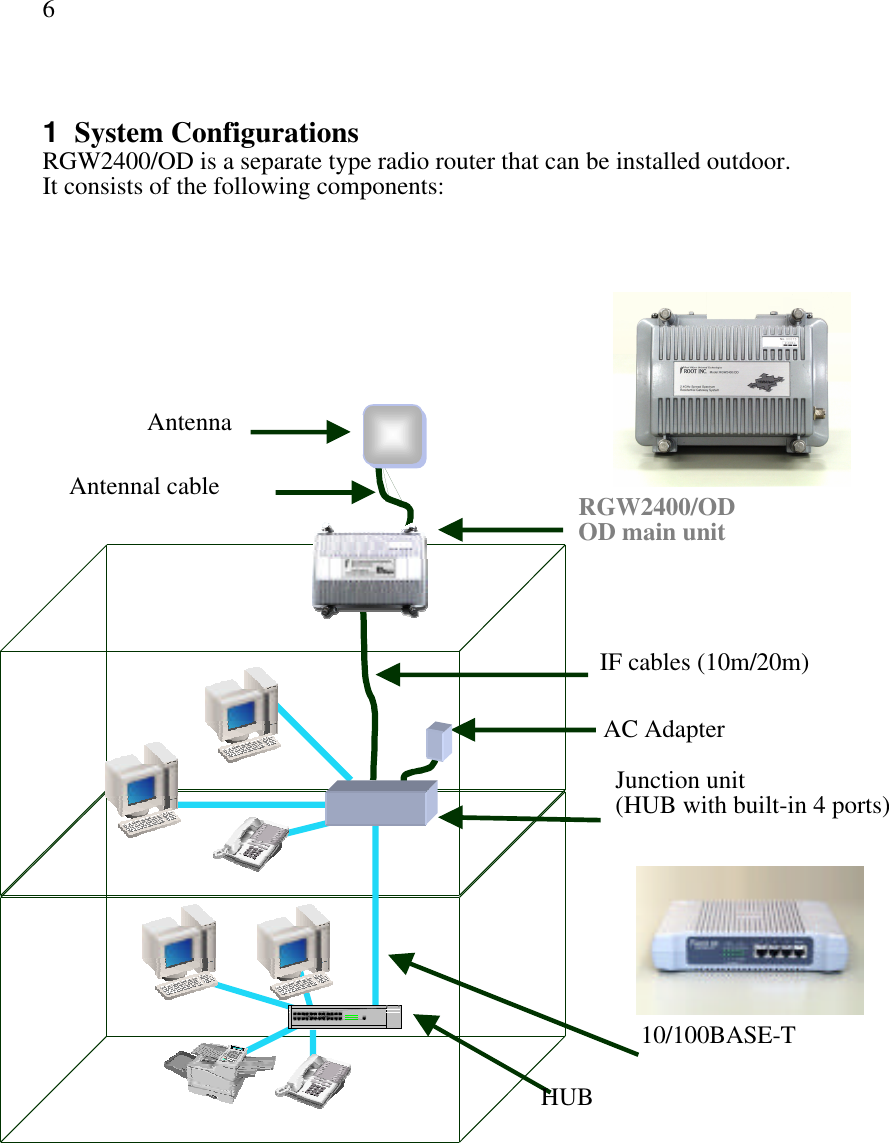

61 System ConfigurationsRGW2400/OD is a separate type radio router that can be installed outdoor.It consists of the following components:RGW2400/ODOD main unitJunction unit(HUB with built-in 4 ports)AC AdapterIF cables (10m/20m)Antennal cable10/100BASE-THUBAntenna

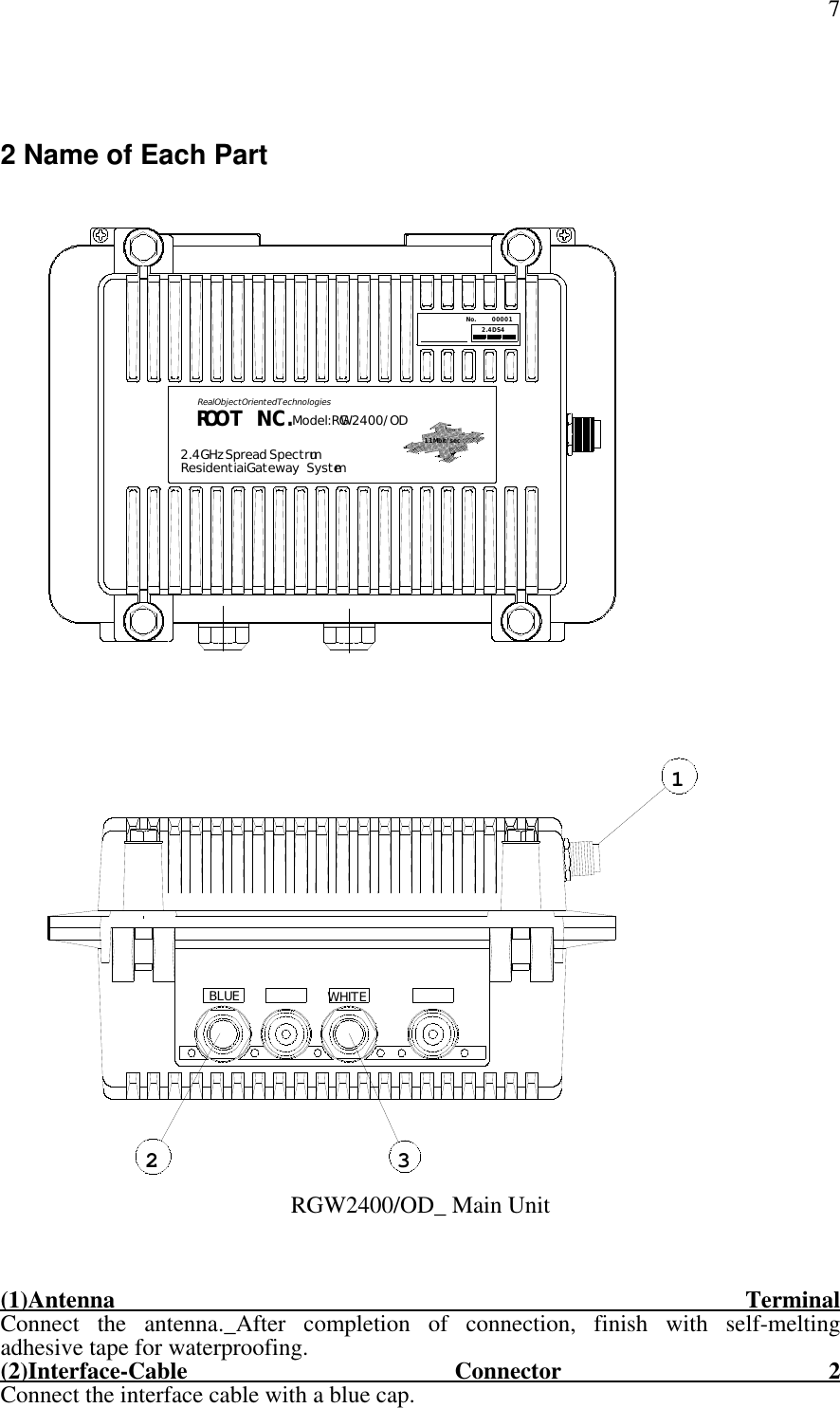

72 Name of Each PartBLUE WHITE11Mbit/secModel:RGW2400/OD2.4GHzSpread SpectrumResidentiaiGateway SystemRealObjectOrientedTechnologiesROOT INC.No. 000012.4DS412 3RGW2400/OD_ Main Unit(1)Antenna TerminalConnect the antenna._After completion of connection, finish with self-meltingadhesive tape for waterproofing.(2)Interface-Cable Connector 2Connect the interface cable with a blue cap.

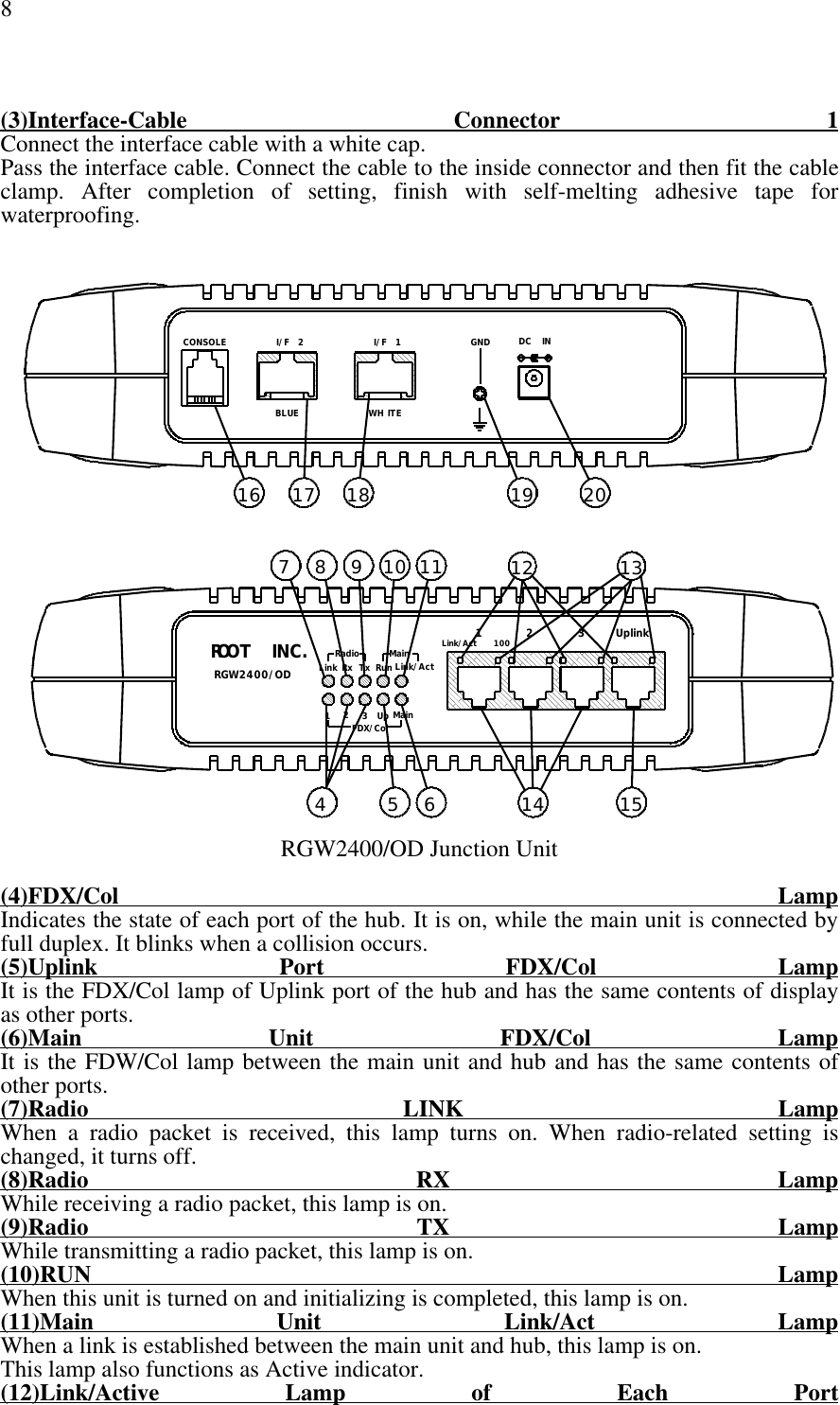

8(3)Interface-Cable Connector 1Connect the interface cable with a white cap.Pass the interface cable. Connect the cable to the inside connector and then fit the cableclamp. After completion of setting, finish with self-melting adhesive tape forwaterproofing.FDX/ColMainRadio RunTxRxLinkRGW2400/ODROOT INC.MainUp321Link/Act1 2 3 UplinkLink/Act 100CONSOLE I/F 2 I/F 1 GNDBLUE WH ITEDC IN14 151716 18 19 204 5 67 8 9 10 11 12 13RGW2400/OD Junction Unit(4)FDX/Col LampIndicates the state of each port of the hub. It is on, while the main unit is connected byfull duplex. It blinks when a collision occurs.(5)Uplink Port FDX/Col LampIt is the FDX/Col lamp of Uplink port of the hub and has the same contents of displayas other ports.(6)Main Unit FDX/Col LampIt is the FDW/Col lamp between the main unit and hub and has the same contents ofother ports.(7)Radio LINK LampWhen a radio packet is received, this lamp turns on. When radio-related setting ischanged, it turns off.(8)Radio RX LampWhile receiving a radio packet, this lamp is on.(9)Radio TX LampWhile transmitting a radio packet, this lamp is on.(10)RUN LampWhen this unit is turned on and initializing is completed, this lamp is on.(11)Main Unit Link/Act LampWhen a link is established between the main unit and hub, this lamp is on.This lamp also functions as Active indicator.(12)Link/Active Lamp of Each Port

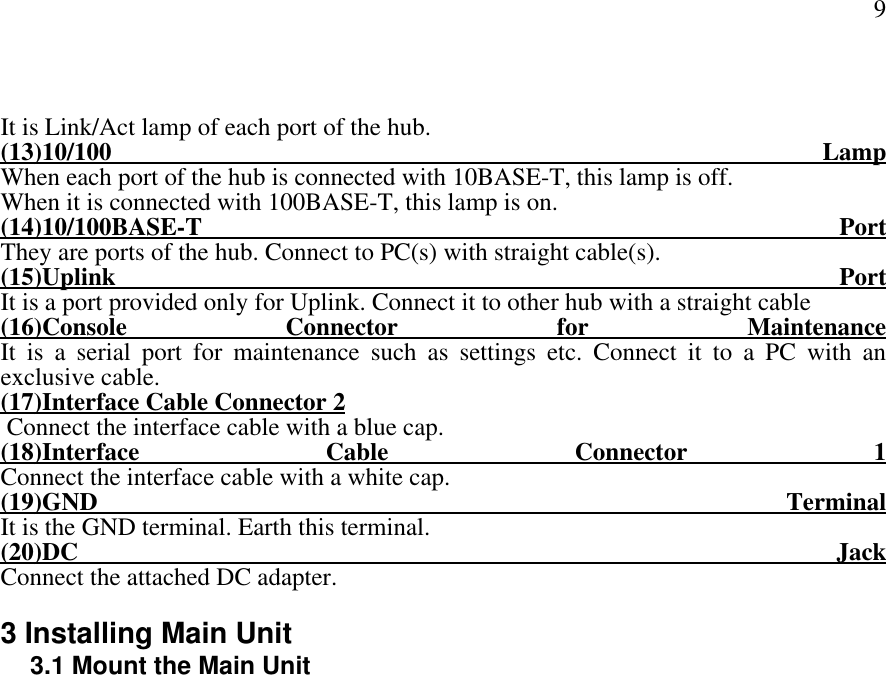

9It is Link/Act lamp of each port of the hub.(13)10/100 LampWhen each port of the hub is connected with 10BASE-T, this lamp is off.When it is connected with 100BASE-T, this lamp is on.(14)10/100BASE-T PortThey are ports of the hub. Connect to PC(s) with straight cable(s).(15)Uplink PortIt is a port provided only for Uplink. Connect it to other hub with a straight cable(16)Console Connector for MaintenanceIt is a serial port for maintenance such as settings etc. Connect it to a PC with anexclusive cable.(17)Interface Cable Connector 2 Connect the interface cable with a blue cap.(18)Interface Cable Connector 1Connect the interface cable with a white cap.(19)GND TerminalIt is the GND terminal. Earth this terminal.(20)DC JackConnect the attached DC adapter.3 Installing Main Unit3.1 Mount the Main Unit

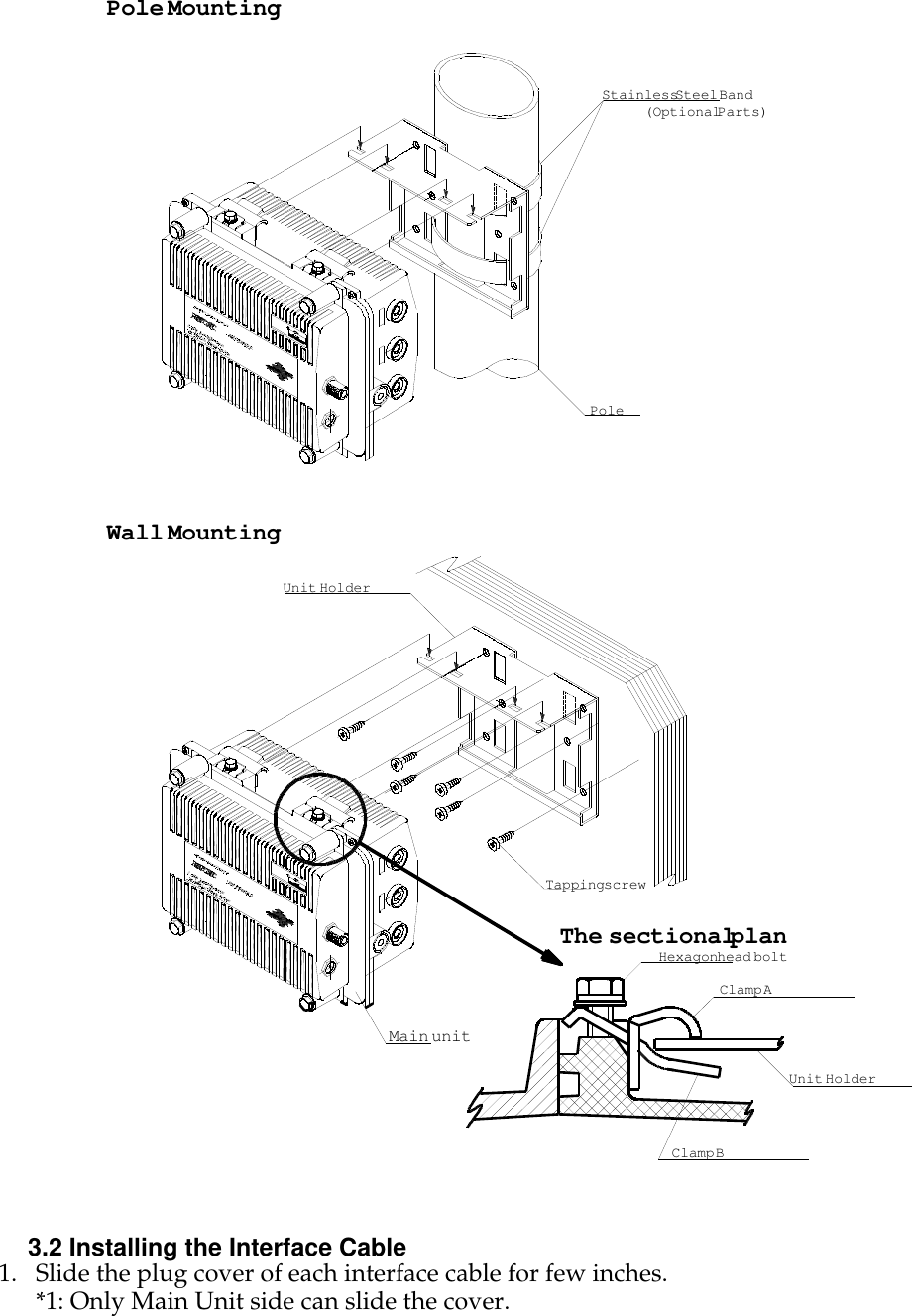

StainlessSteelBand(OptionalParts)Hexagonhead boltMain unitPolePole MountingWall MountingClampAClampBThe sectionalplanUnit Holder11Mbit/secModel:RGW2 400/OD2.4GHzSpreadSpectrumResidentiaiGatewaySystemRealObjectOrientedTechnologiesROOTINC.No.000012.4DS4Unit HolderTappingscrew11Mbit/secModel:RGW2400/OD2.4GHzSpreadSpectrumResidentiaiGatewaySystemRealObjectOrientedTechnologiesROOTINC.No.000012.4DS43.2 Installing the Interface Cable1. Slide the plug cover of each interface cable for few inches.*1: Only Main Unit side can slide the cover.

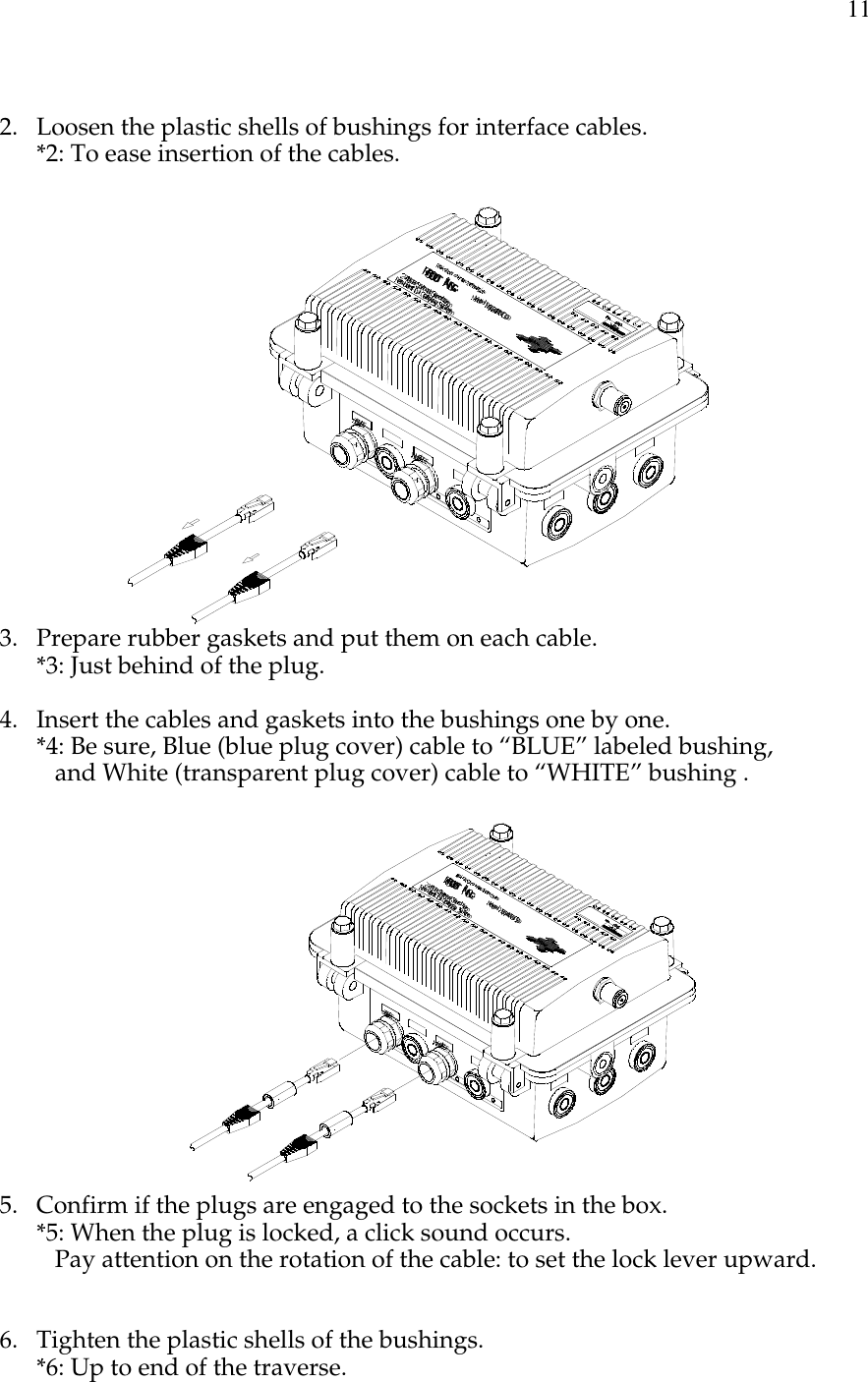

112. Loosen the plastic shells of bushings for interface cables.*2: To ease insertion of the cables.WHITEBLUE11Mbit/secModel:RGW2400/OD2.4GHzSpreadSpectrumResidentiaiGatewaySystemRealObjectOrientedTechnologiesROOTINC.No.000012.4DS43. Prepare rubber gaskets and put them on each cable.*3: Just behind of the plug.4. Insert the cables and gaskets into the bushings one by one.*4: Be sure, Blue (blue plug cover) cable to “BLUE” labeled bushing, and White (transparent plug cover) cable to “WHITE” bushing .WHITEBLUE11Mbit/secModel:RGW2400/OD2.4GHzSpreadSpectrumResidentiaiGatewaySystemRealObjectOrientedTechnologiesROOTINC.No.000012.4DS45. Confirm if the plugs are engaged to the sockets in the box.*5: When the plug is locked, a click sound occurs. Pay attention on the rotation of the cable: to set the lock lever upward.6. Tighten the plastic shells of the bushings.*6: Up to end of the traverse.

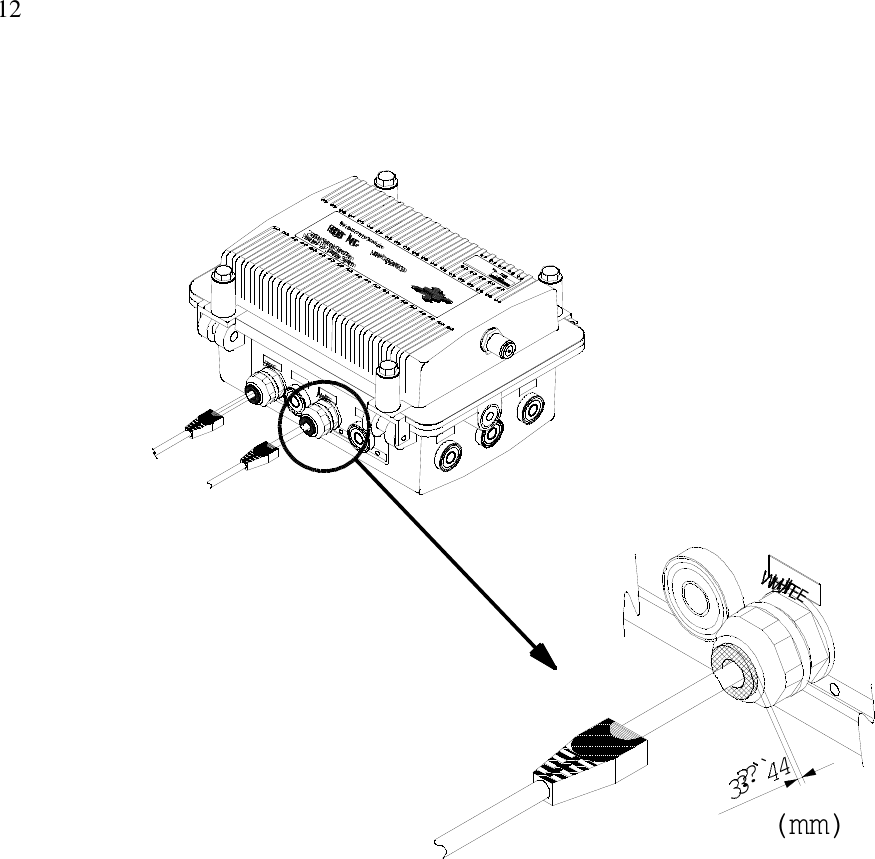

12(mm)3?`4WHITEWHITEBLUE11Mbit/secModel:RGW2400/OD2.4GHzSpreadSpectrumResidentiaiGatewaySystemRealObjectOrientedTechnologiesROOTINC.No.000012.4DS4
134 Antenna SelectionNOTICEThe antennas for the RGW2400/OD must be professionally installed on permanent structures foroutdoor operations. The installer is responsible for ensuring that the limits imposed by the FederalCommunications Commission (FCC) Regulations with regard to Maximum Effective IsotropicRadiated Power (EIRP) and Maximum Permissible Exposure (MPE) are not violated. As such,installer must insure that a separation of at least 2m is maintained at all times between the transmitantenna and all persons.4.3 Antenna ListAntenna type Gain (dBi) Model ID Operating Channels, USOmni 6 MFB24006 5,6,7 (with 45 ft cable min.)Patch 8 MP24008XFPT 5,6,7 (with 45 ft cable min.)Omni 10 MFB24010 5,6,7 (with 45 ft cable min.)Sector 13 MSP24013MB 5,6,7,8,9 (with 45 ft cable min.)Directional 15 HG2415G 5, 6 (with 45 ft. cable min.)4.4 Cable ListNO. Length(ft.) Loss(dB)1 15 1.022 40 2.72NOTICEIt is possible only to connect it with Point to Point when the value by which the cableloss is pulled from the antenna gain is 14dBi or more. Do not use it in Point tomultipoint.

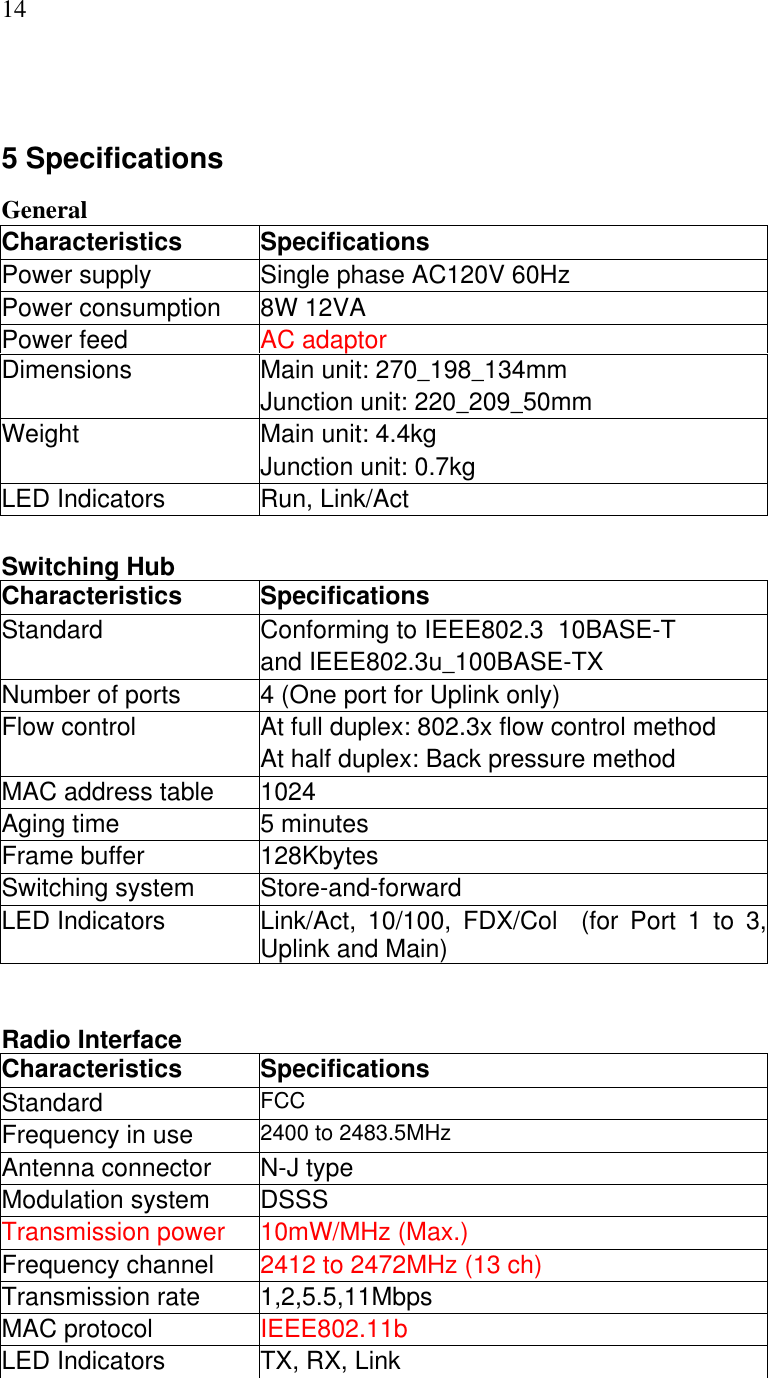

145 SpecificationsGeneralCharacteristics SpecificationsPower supply Single phase AC120V 60HzPower consumption 8W 12VAPower feed AC adaptorMain unit: 270_198_134mmDimensionsJunction unit: 220_209_50mmMain unit: 4.4kgWeightJunction unit: 0.7kgLED Indicators Run, Link/ActSwitching HubCharacteristics SpecificationsConforming to IEEE802.3 10BASE-TStandardand IEEE802.3u_100BASE-TXNumber of ports 4 (One port for Uplink only)At full duplex: 802.3x flow control methodFlow controlAt half duplex: Back pressure methodMAC address table 1024Aging time 5 minutesFrame buffer 128KbytesSwitching system Store-and-forwardLED Indicators Link/Act, 10/100, FDX/Col (for Port 1 to 3,Uplink and Main)Radio InterfaceCharacteristics SpecificationsStandard FCCFrequency in use 2400 to 2483.5MHzAntenna connector N-J typeModulation system DSSSTransmission power 10mW/MHz (Max.)Frequency channel 2412 to 2472MHz (13 ch)Transmission rate 1,2,5.5,11MbpsMAC protocol IEEE802.11bLED Indicators TX, RX, Link

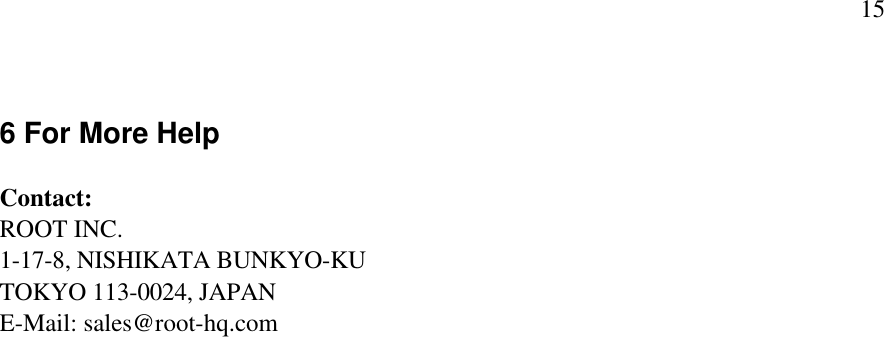

156 For More HelpContact:ROOT INC.1-17-8, NISHIKATA BUNKYO-KUTOKYO 113-0024, JAPANE-Mail: sales@root-hq.com
