RM5800 Datasheet Rosemount Inc. 1
User Manual
RM5800 Wireless HARTTM
2.4 GHz Radio Module

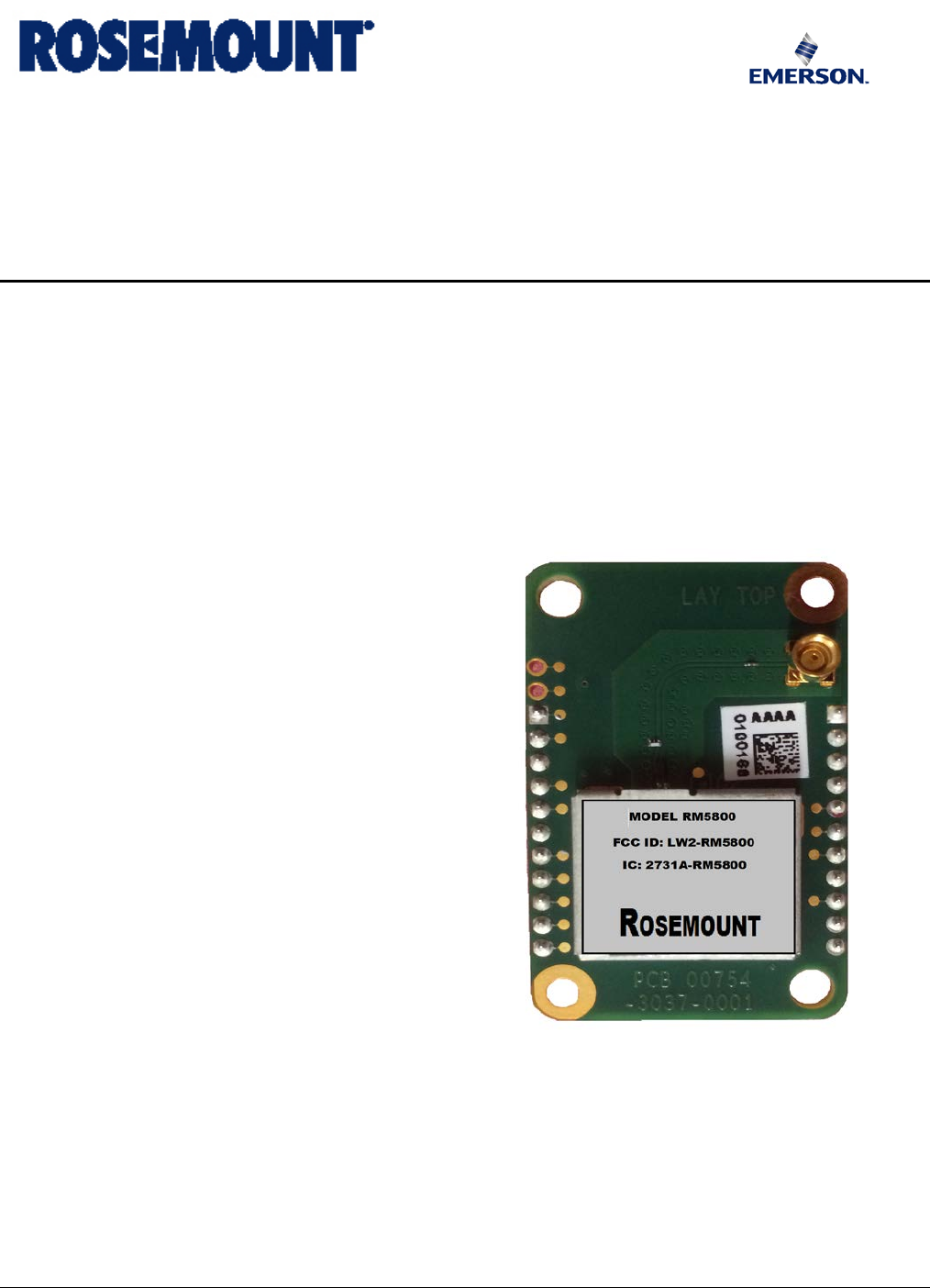

Product Description
Rosemount Inc.’s RM5800 Wireless HARTTM 2.4GHz Radio Module has been specifically designed to interface with industrial and
process control equipment designed and marketed by the Emerson family of companies. The RM5800 is designed to be fully compliant
with the wireless HARTTM specification. The RM5800 utilizes the global license-free 2.4GHz band at output power levels that are
compatible with government regulations throughout the world.
The RM5800’s very low power consumption characteristics make it perfect for battery powered equipment. The multi-functional interface
of the RM5800 is flexible enough for it to be integrated into many types of sensors. From pressure, temperature, and flow monitoring to
machinery health and valve position control, the RM5800 is the best choice for wireless HARTTM compatible communications.
Key Features
Reliable Networking
• Mesh networking for redundancy and high reliability (> 99.9%
typical network reliability)
• Dynamic channel selection for interference rejection
• Every RM5800 acts as both an endpoint and a router, increasing
network reliability.
• Automatic self-organizing mesh-networking capability built-in
Easy Integration
• Well-defined multi-functional interfaces
• High-level Data Link Control (HDLC) serial interface with
bidirectional flow control
• Industrial temperature range –40 °C to +85 °C
802.15.4 Standard Radio
• +8 dBm (6.3 mW) conducted RF output power
• –95 dBm receiver sensitivity
• 300 m outdoor range (typical)
Data Security
• Uses AES FIPS PUB 197 (128 bit) encryption
Confidential
RM5800 Datasheet Rosemount Inc. 2 of 10
Table of Contents
1.0 Absolute Maximum Ratings ................................................................................ 3
2.0 Normal Operating Conditions ............................................................................. 3
3.0 Electrical Specifications ..................................................................................... 4
4.0 Radio .................................................................................................................. 4
4.1 Detailed Radio Specifications ................................................................................ 4
4.2 Antenna Specifications ......................................................................................... 5
5.0 Pinout ................................................................................................................ 5
6.0 Physical Drawing ................................................................................................ 7
7.0 Regulatory and Standards Compliance ............................................................... 8
Confidential
RM5800 Datasheet Rosemount Inc. 3 of 10
1.0 Absolute Maximum Ratings
The absolute maximum ratings shown below should under no circumstances be violated. Permanent damage to the device may be caused by
exceeding one or more of these parameters.
Table 1 Absolute Maximum Ratings
Parameter Min Typ Max Units Comments
Supply voltage (VDD to VSS) –0.3 4.2 V
Voltage on any digital I/O pin –0.3 VDD + 0.3 V
Input RF level 10 dBm Input power at antenna
connector
Storage temperature range –55 +125 °C
VSWR of antenna 3:1
ESD protection
Antenna pad ±250 V HBM
All other pads ±2 kV HBM
±200 V CDM
* All voltages are referenced to VSS
Caution! ESD sensitive device. Precaution should be used when handling the device in order to prevent permanent damage.
2.0 Normal Operating Conditions
Table 2 Normal Operating Conditions
Parameter Min Typ Max Units Comments
Operational supply voltage
range (between VDD and VSS) 2.1 3.0 3.76 V Including noise and load
regulation
Voltage on analog input pins 0 1.8 V
Voltage supply noise 250 mVp-p 50 Hz to 2 MHz
Peak current
85 mA Flash write 35 ms max
18 mA TX, 5 ms maximum
6 mA Searching for network, 60
minutes maximum
12 mA RM5800 boot, see
section Error! Reference
source not found.
.
Operating temperature range –40 +85 °C
Maximum allowed temperature
ramp during operation 8 °C/min –40 °C to +85 °C
Operating relative humidity 10 90 % RH Non-condensing
Unless otherwise noted, Table 3 assume VDD is 3.0 V and temperature is 25 °C.
Table 3 RM5800 Current Consumption
Parameter Min Typ Max Units Comments
Transmit 18 mA
Receive 6 mA
Sleep 2.5 µA
Confidential
RM5800 Datasheet Rosemount Inc. 4 of 10
3.0 Electrical Specifications
Table 4 Device Load
Parameter Min Typ Max Units Comments
Total capacitance 0.5 µF
Unless otherwise noted, VDD is 3.0 V and temperature is –40 °C to +85 °C.
Table 5 Digital I/O Type 1
Digital Signal Min Typ Max Units Comments
VIL (low-level input voltage) –0.3 0.6 V
VIH (high-level input voltage) 0.8 x VDD VDD + 0.3 V
VOL (low-level output voltage) 0.4 V
VOH (high-level output voltage) 2.4 V
Digital current
*
Output source (single pin) 3.7 mA 25 °C
Output sink (single pin) 2.0 mA 25 °C
Input leakage current 50 nA
*
This current level guarantees that the output voltage meets VOH and VOL specifications above.
Table 6 Digital I/O Type 2
Digital Signal Min Typ Max Units Comments
VIL (low-level input voltage) –0.3 0.6 V
VIH (high-level input voltage) 0.8 x VDD VDD + 0.3 V
VOL (low-level output voltage, multi-
function I/O configured as
output)
0 0.6 V IOL < 0.6 mA, 85 °C
VOH low-level output voltage, multi-
function I/O configured as
output)
VDD – 0.6 VDD V IOH > –0.4 mA, 85 °C
Digital current
*
Output source (single pin,
multifunction I/O configured as
output)
0.4 mA 25 °C
Output sink (single pin,
multifunction I/O configured as
output)
0.6 mA 25 °C
Input leakage current 50 nA
*
This current level guarantees that the output voltage meets VOH and VOL specifications above.
4.0 Radio
4.1 Detailed Radio Specifications
Table 7 Radio Specifications
Parameter Min Typ Max Units Comments
Operating frequency 2.4000 2.4835 GHz
Number of channels 15
Channel separation 5 MHz
Occupied channel bandwidth 2.5 MHz At –20 dBc
Confidential
RM5800 Datasheet Rosemount Inc. 5 of 10
Parameter Min Typ Max Units Comments
Frequency Accuracy -50 +50 kHz
Modulation IEEE 802.15.4
Raw data rate 250 kbps
Receiver operating maximum
input level 0 dBm
Receiver sensitivity –95 dBm At 50% PER, VDD = 3 V,
25 °C
–93 dBm At 1% PER, VDD = 3 V,
25 °C, (inferred from 50%
PER measurement)
Output power, conducted +8 dBm VDD = 3 V, 25 °C
Output power , conducted +7 mW/MHz Based on 70% of 2.7MHz
signal power in a 1 MHz
window
Range*
Indoor 100 m 25 °C, 50% RH, 1 meter
above ground, +2 dBi
omni-directional antenna
Outdoor 300 m
* Actual RF range performance is subject to a number of installation-specific variables including, but not
restricted to ambient temperature, relative humidity, presence of active interference sources, line-of-sight
obstacles, near-presence of objects (for example, trees, walls, signage, and so on) that may induce
multipath fading. As a result, actual performance varies for each instance.
4.2 Antenna Specifications
The antenna must meet specifications in Table 8.
Table 8 Antenna Specifications
Parameter Value
Frequency range 2.4–2.4835 GHz
Impedance 50 Ω
Maximum VSWR 3:1
Antenna Connector MMCX
When the RM5800 is placed inside an enclosure, the antenna should be mounted such that the radiating portion of the antenna protrudes from the
enclosure, and connected using a coaxial cable. For optimum performance, allow the antenna to be positioned vertically when installed.
5.0 Pinout
The following is the pinout for the RM5800 module.
Table 9 Pinout Assignments for the RM5800
Pin Number Pin Description I/O (relative to radio)
1-1 Circuit Common/Ground Input
1-2 Power Supply (2.75 V to 3.3 V) Input
1-3 Keying Pin (no function) N/A
1-4 Data Transmit (Sensor Board to Radio) Input
1-5 Data Receive (Radio to Sensor Board) Output
1-6 Diagnostics LED Output
1-7 Radio Ready-to-Send (also DIM wake-up) Output
1-8 Radio Clear-to-Send Output
1-9 Sensor Board Clear-to-Send Input
Confidential
RM5800 Datasheet Rosemount Inc. 6 of 10
1-10 Radio Time Packet Input
1-11 Radio Baud Rate Input Input
2-1 Radio Reset Line Input
2-2 SPI Chip Select Input
2-3 Keying Pin (no function) N/A
2-4 SPI Bus (MISO) Output
2-5 SPI Bus (MOSI) Input
2-6 SPI Bus (Clock) Input
2-7 JTAG (TCK) Input
2-8 JTAG (TDO) Output
2-9 JTAG (TDI) Input
2-10 JTAG (TMS) Input
2-11 Flash Enable Input
Confidential
RM5800 Datasheet Rosemount Inc. 7 of 10
6.0 Physical Drawing

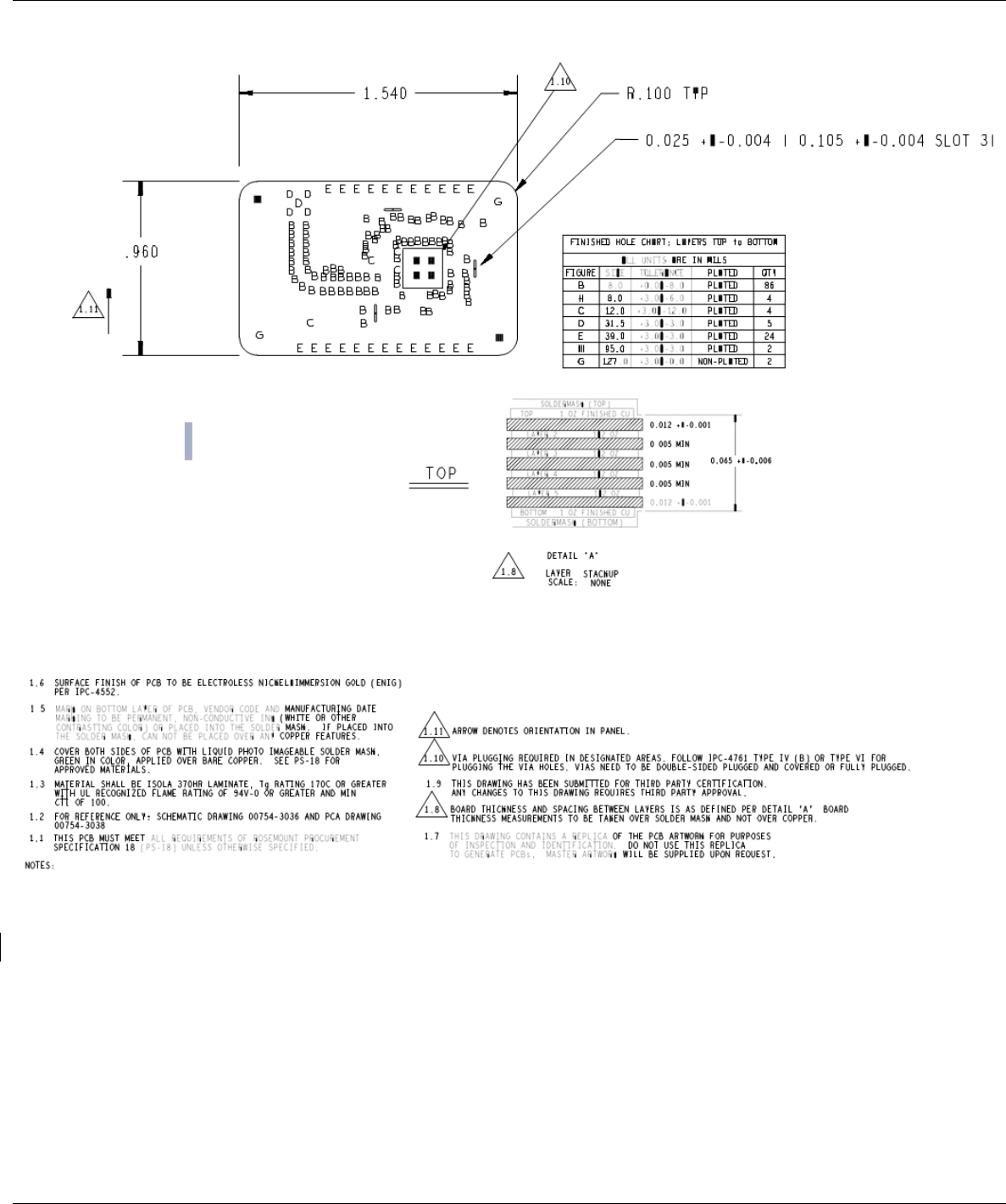

Figure 1 RM5800 Mechanical Drawing
Confidential
RM5800 Datasheet Rosemount Inc. 8 of 10
7.0 Regulatory and Standards Compliance
The RM5800 has achieved modular radio certification on a reference design for the United States, Canada . The reference design has been
certified for Part 15.247 (Intentional Radiator) of the FCC rules an regulations, Industry Canada RSS-210.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
The RM5800 complies with Part 15.247 modular (Intentional Radiator) FCC rules and regulations. Changes or
modifications not expressly approved by Rosemount Inc. could void the user's authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Cet appareil est conforme à la norme RSS Industrie Canada exempt de licence. Son fonctionnement est soumis aux deux
conditions suivantes: (1) cet appareil ne doit pas provoquer d’interférences et (2) cet appareil doit accepter toute interférence, y
compris les interférences pouvant causer un mauvais fonctionnement du dispositif.
7.1 FCC Testing
In order to fulfill FCC certification requirements, products incorporating the RM5800 must comply with the following:
1. An external label must be provided on the outside of the final product enclosure specifying the FCC identifier as
described in 7.3 below.
2. The antenna must be electrically identical to the FCC-approved antenna specifications for the RM5800 as described in
7.2 with the exception that the gain may be lower than specified in Section 7.2
3. The device integrating the RM5800 may not cause harmful interference, and must accept any interference received,
including interference that may cause undesired operation.
4. An unintentional radiator scan must be performed on the device integrating the RM5800, per FCC rules and
regulations, CFR Title 47, Part 15, Subpart B. See FCC rules for specifics on requirements for declaration of conformity.
Confidential
RM5800 Datasheet Rosemount Inc. 9 of 10
7.2 FCC-approved Antennas
The following antennas have been approved for use with the RM5800.
A. 2.0dBi Omni, Rosemount 00753-2035-0051/0052/0055
B. 4.5dBi Omni, Rosemount 00753-2035-0054/0056
C. 8dBi Omni, PCTEL MFB24008DC
D. 12dBi Yagi, L-com HG2412SY-NF
E. 17dBi Sector, L-com HG2417P-120
F. 24dBi Parabolic, L-com HG2424EG
The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device,
except in accordance with FCC multi-transmitter product procedures.
Note: The following FCC rule (15.203) must be ensured in the final design of the product. This can be done by either ensuring the
professional installation of the final product (See Ref 1) or designing it in such a way as to make the antenna integral to the final
product (See Ref 2). Further, the RM5800 is only for sale to OEM’s and is not available to the general public. The RM5800 is an
industrial network communication module and only works on Wireless Hart protocols and as such is part of an industrial process
control system professionally installed and maintained.
Ref 1
(1) Installation must be controlled.
(2) Installed by licensed professionals (e.g., device sold to dealer who hire installers).
(3) Installation requires special training (e.g., special programming, access to keypad, field strength measurements made).
Ref 2
(1) Use of permanent, industrial epoxy, “Loctite” or solder to make the connection permanent prior to shipping.
(2) Allow use of standard connectors if the transmitter has a sensing circuitry that disables the transmitter if an unauthorized
antenna is used. An application should detail how this is accomplished.
(3) Use of a standard connector is also allowed if the connector is within the transmitter enclosure and can only be accessed by
disassembly of the transmitter, where such disassembly is not normally required. The user manual must not show that user has
access to the connector.
(4) BIOS lock—Radio card and host (e.g., laptop computer) exchange code to ensure only the authorized transmission system
works in the host.
CFR Title 47, Chapter 1, Subchapter A, Part 15, Subpart C, Section 15.203 Antenna Requirement
An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party
shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique
coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section. The
manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard
antenna jack or electrical connector is prohibited. This requirement does not apply to carrier current devices or to
devices operated under the provisions of § 15.211, § 15.213, § 15.217, § 15.219, or § 15.221. Further, this
requirement does not apply to intentional radiators that must be professionally installed, such as perimeter protection
Confidential
RM5800 Datasheet Rosemount Inc. 10 of 10
systems and some field disturbance sensors, or to other intentional radiators which, in accordance with § 15.31(d),
must be measured at the installation site. However, the installer shall be responsible for ensuring that the proper
antenna is employed so that the limits in this part are not exceeded.
7.3 Final FCC Labeling Requirements
The outside of the final product enclosure must have a label with the following (or similar) text specifying the FCC identifier. The
FCC ID and certification code must be in Latin letters and Arabic numbers and visible without magnification.
Contains transmitter module FCC ID: LW2-RM5800
Or Contains FCC ID: LW2-RM5800
7.4 IC Testing
The RM5800 is certified for modular Industry Canada (IC) RSS-210 approval. The OEM is responsible for its product to
comply with IC ICES-003 and FCC Part 15, Sub. B - Unintentional Radiators. The requirements of ICES-003 are equivalent
to FCC Part 15 Sub. B and Industry Canada accepts FCC test reports or CISPR 22 test reports for compliance with ICES-003.
7.5 Final IC Labeling Requirements
The Original Equipment Manufacturer (OEM) must ensure that IC labeling requirements are met. The outside of the final
product enclosure must have a label with the following (or similar) text specifying the IC identifier. The IC ID and
certification code must be in Latin letters and Arabic numbers and visible without magnification
Contains IC: 2731A-RM5800
Rosemount Inc.
8200 Market Boulevard
Chanhassen, MN 55317 USA
