DVD/Video Game

Entertainment System

Owner's Manual

.mp3

RES

SURROUND SOUND

input

SATELLITE

DUAL

ZONE

VIDEOGAMES

integrated

wireless

NOTICE OF INTENDED USE

Rosen Entertainment Systems are designed to enable

viewing of video ONLY for rear-seat occupants, and are not

intended for viewing by the driver when the vehicle is in

motion. Such use might distract the driver or interfere with

the driver’s safe operation of the vehicle, and thus result in

serious injury or death. Such use might also violate state or

local laws.

Rosen Entertainment Systems disclaims any liability for

any bodily injury or property damage that might result from

any improper or unintended use.

About the Registered Marks

This product incorporates copyright protection technology that is protected by

method claims of certain U.S. patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners. Use of this copyright

protection technology must be authorized by Macrovision Corporation, and is

intended for home and other limited viewing uses only unless otherwise

authorized by Macrovision Corporation. Reverse engineering or disassembly is

prohibited.

NOTICES

Table of Contents

Registration Screen ................................................................................................................................................................................................................. 3

Notices ..................................................................................................................................................................................................................................... 4

Getting Started ......................................................................................................................................................................................................................... 6

Switching On, Lowering and Adjusting the Screen, Finding the Remote Control Buttons You Need, Listening Over the Vehicle Speakers

Introduction .............................................................................................................................................................................................................................. 8

Discs Played ............................................................................................................................................................................................................................ 9

Changing Display Settings, Using the Dome Lights .............................................................................................................................................................. 10

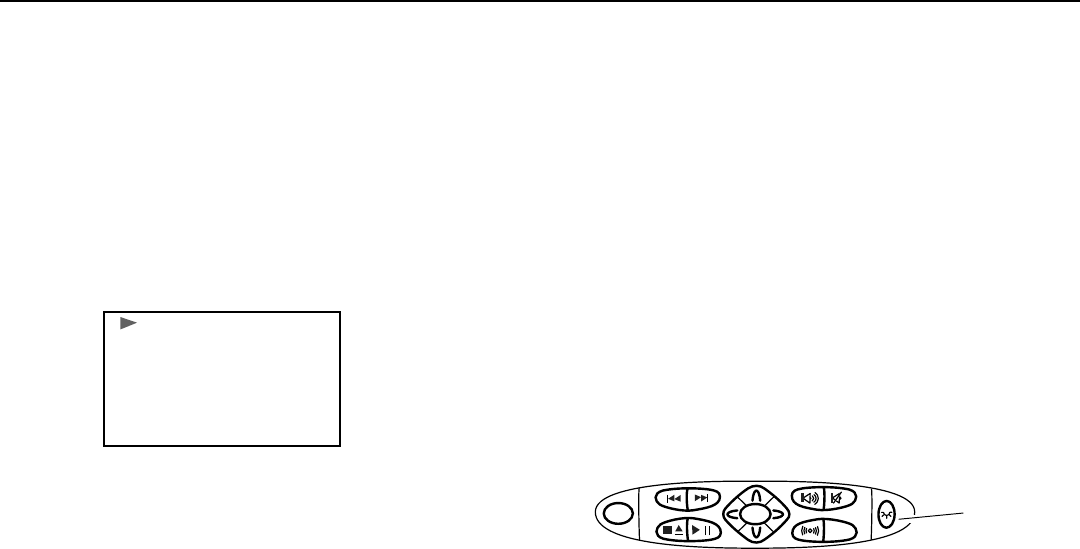

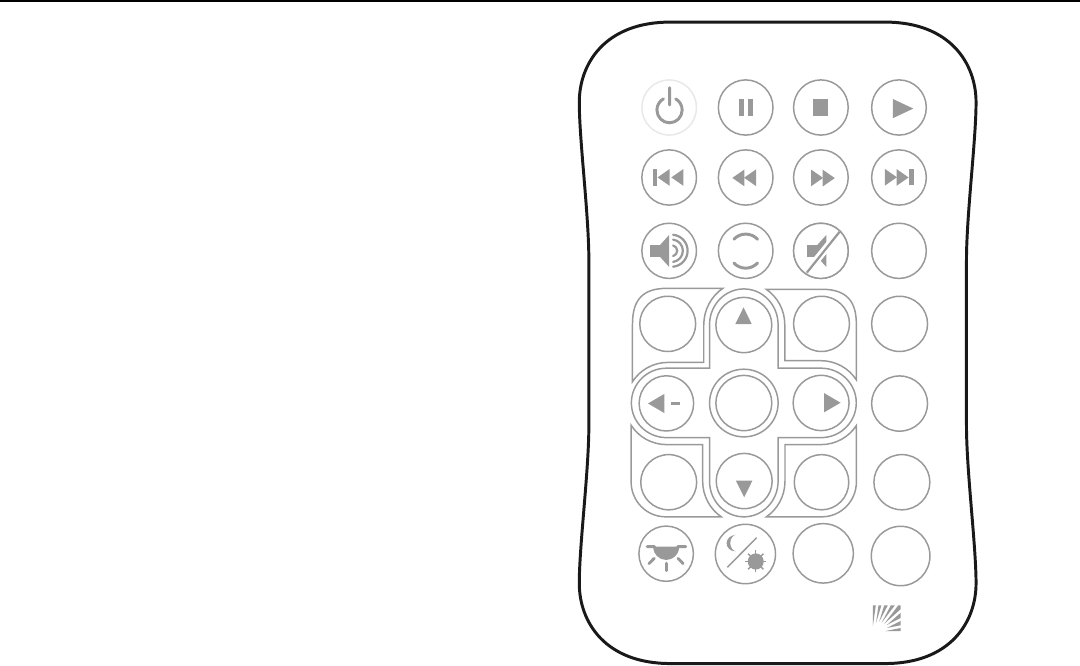

Using the Remote Control ....................................................................................................................................................................................................... 11

Basic Remote Control Buttons .............................................................................................................................................................................................. 12

Using Menu and Navigation Buttons, Using Audio Buttons .................................................................................................................................................. 13

Using DVD Disc Features ..................................................................................................................................................................................................... 14

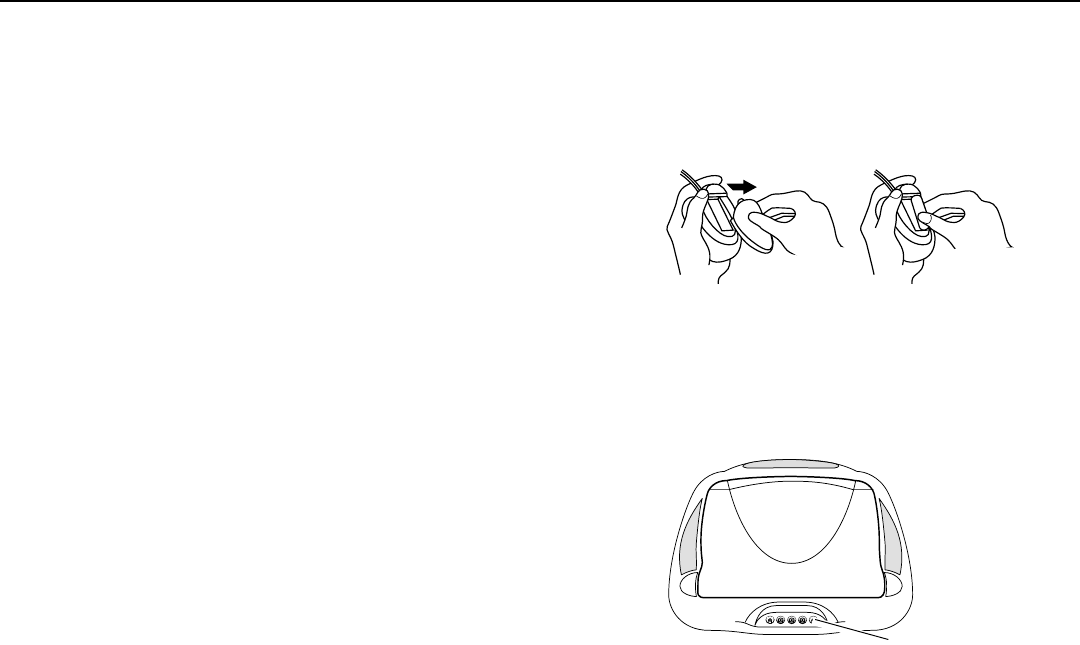

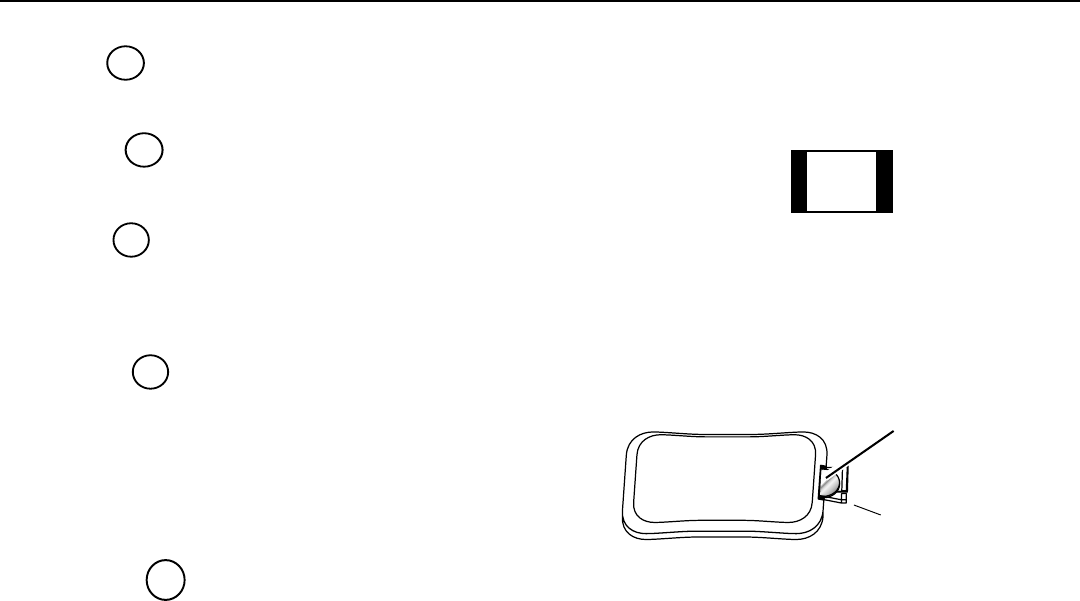

Replacing the Remote Battery ............................................................................................................................................................................................... 14

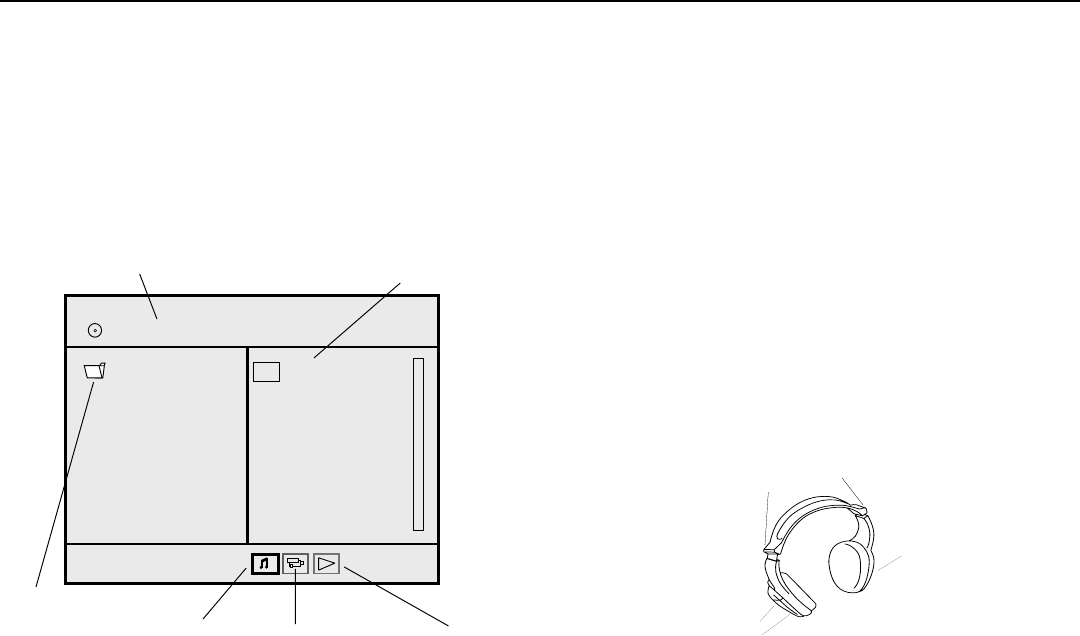

CD Audio and MP3 Playback ................................................................................................................................................................................................. 15

Listening Over the Car Speakers .......................................................................................................................................................................................... 16

Using the Included Wireless Headphones ............................................................................................................................................................................ 16

Watching Broadcast Television (with Tuner-equipped systems) ........................................................................................................................................ 17

Using the Integrated Game System ...................................................................................................................................................................................... 18

Adjusting the Screen Angle .................................................................................................................................................................................................. 18

Using External Sources......................................................................................................................................................................................................... 19

Managing Black Bars ............................................................................................................................................................................................................. 20

Using the G10 Dual-Zone Modes and Output B ................................................................................................................................................................... 22

DVD Player Setup Options .................................................................................................................................................................................................... 23

Frequently Asked Questions ................................................................................................................................................................................................. 26

To Watch a DVD:

1 Press SOURCE until

“INTERNAL DVD” is displayed.

Press EJECT twice to remove

any loaded disc.

2 Insert a DVD onto the slot, label side up.

3 Most DVD discs begin playback

automatically. If a menu appears,

press PLAY or ENTER as instructed on screen.

To Play the Integrated Video Game:

1 Press any controller button to turn

on the infrared wireless controller.

2 Press SOURCE until “INTERNAL GAME“

appears on the screen.

3 Use the arrow keys to select a game.

4 Press the START button on the game controller. (See Page 18

for more information).

To Watch Broadcast Television (with optional TV tuner):

1 Press SOURCE until “TV Tuner “ appears on the screen. If the

screen remains dark, press the POWER button on the remote.

2 To change channels, press UP CH and DOWN CH on the

remote.

Use the system with the vehicle running, or with the ignition

key switch in the “accessory” position.

When the system is first turned on, you will be prompted to

To Lower the Screen and Switch On the System:

GETTING STARTED

Note: While a disc is playing, the Stop/Eject button on the front

panel acts as a Stop button. To eject a disc while it is playing, press

Stop/Eject twice, with about one second between presses. The

Eject button on the remote usually ejects the disc immediately.

ENTER

OPEN

SOURCE

Press the OPEN button on the front panel or on the remote.

The screen will deploy, and the system will turn on.

ENTER

OPEN

SOURCE

Navigation

Keys Speaker

Mute

Rosen

Entertainment

Sound

Source

Select

Play/

Pause

Stop/

Eject

Open

Dome Light

To Use An External Video Source

(optional video game console or camcorder):

1 Connect the RCA audio and video outputs of the device to the

RCA inputs of the system.

2 Press SOURCE until “AUXILIARY INPUT” appears on the screen.

Listening Over the Vehicle Speakers

1 Make sure MUTE is off. Press SPEAKER. “SPEAKER SOUND

ENABLED” will appear on the screen, along with an FM fre-

quency (such as “FM 87.7”).

2 Turn on the car radio. Tune to the FM frequency displayed on

the screen. If radio interference is heard, try another frequency

(see pages 13 and 16 for more information.)

Using the Dome Lights

1 Press the DOME LIGHT button to turn the dome lights on or off.

Note: To prevent battery drain, the dome light automatically shuts

off after 5 minutes of use.

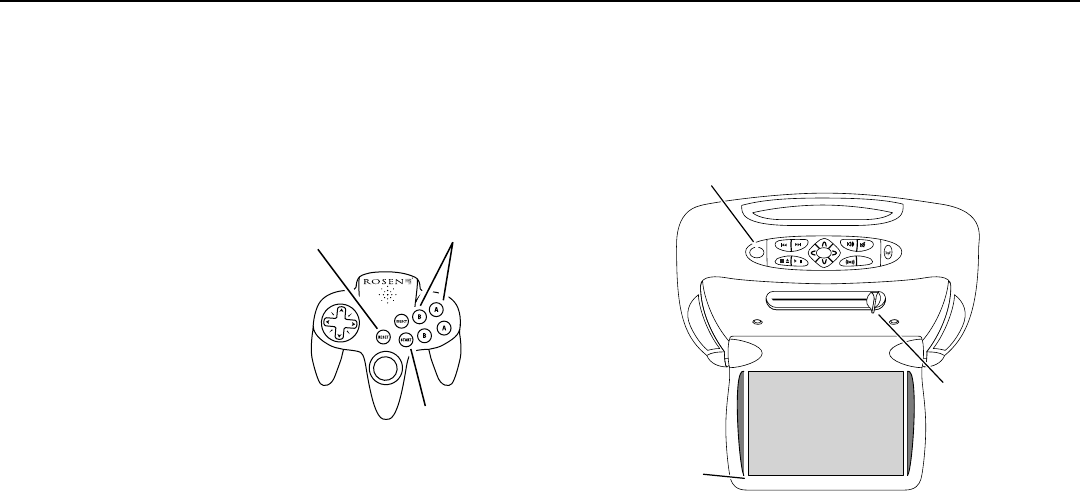

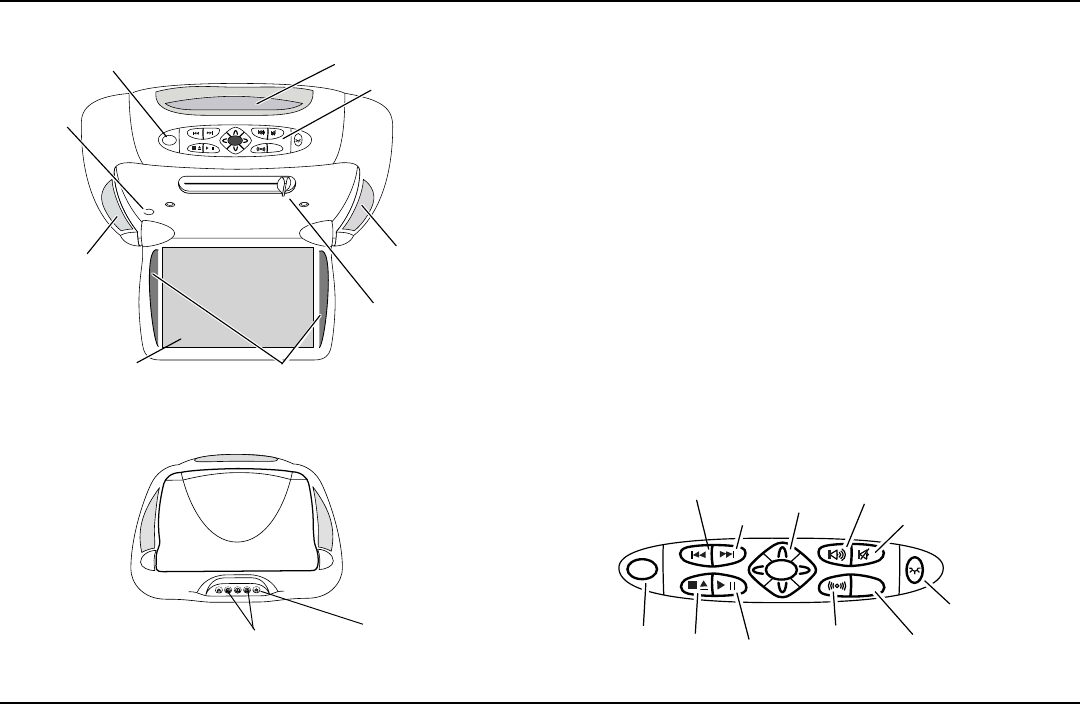

The Front Panel Controls

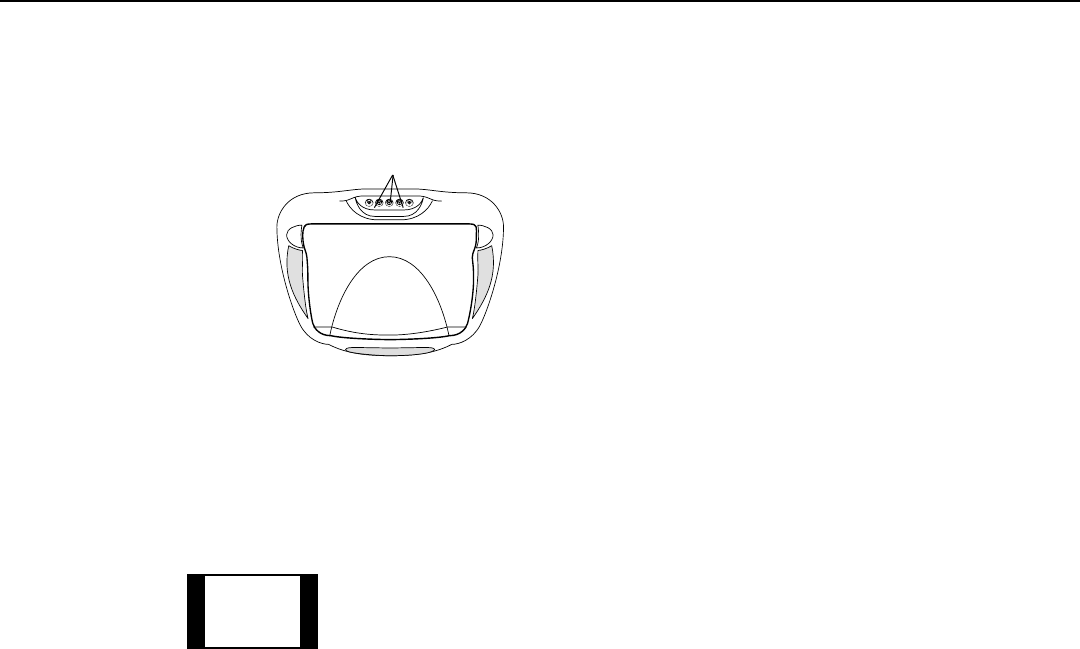

Console-mounted Input Jack Locations

Front View

ENTER

OPEN

SOURCE

OPEN button Disc slot

Dome light Dome light

Screen angle

adjuster

Control Panel

LCD Screen Infrared transmitter

(for headphones)

Reset

Button

Auxiliary Input

RCA Jacks

Wired Headphone

Jack

Rosen G10 Owner’s Manual

INTRODUCTION

Congratulations on owning a Rosen Entertainment System! Here’s a

partial list of some things you can do with your system:

· Play DVD movies, music CDs, or discs with MP3 audio files.

· Play video games.

· Listen using the vehicle speakers or the wireless headphones.

· Use external audio/video units like video game consoles,

camcorders, or optional units like a TV tuner or a DVD changer.

With optional dual-channel wireless headphones, you can also listen

to CD-Audio or MP3 audio while another user plays the built-in video

game.

Add an optional second display, and two users can simultaneously

play video and listen to sound from two different source units. For

instance, one user can watch and listen to a DVD while the other

plays the built-in video game. Or with the optional AC3247 wireless

controller, two players can play certain games at the same time.

Your system includes the following components:

· An overhead, wide-screen, flat-panel display.

· A built-in overhead DVD/CD/MP3 Player.

· A built-in video game system with a game controller (AC3131).

· Two pair of wireless infrared headphones (AC3003).

· A remote control (AC3074).

· A stereo FM modulator (this lets the system audio play over your

vehicle speakers).

· Other parts and cables installed out of sight in your vehicle.

Precautions

In order to operate the system, the

vehicle ignition key switch must be

in the ACC or engine ON position.

•Use this system only if properly installed by a qualified installer.

•If the unit shows any sign of overheating or malfunction, close the

display and consult your dealer immediately. Do not open the unit -

there are no serviceable parts inside.

•Do not press on the display surface - you might damage it.

•Clean the LCD panel with a slightly damp, soft cloth using

household glass cleaner. Do not use solvents such as benzene,

thinner, or commercially available cleaners.

•When using portable radios and telephones near the system,

picture or sound interference may occur.

•If your car was parked in a very cold or very hot place, you may

see a temperature warning on the screen instead of a picture.

The picture will return after the system temperature returns to

normal.

Note:

The system’s operating voltage range is 11-16VDC operat-

ing voltage. The system operating temperature is 32o to 140o

F ( 0o to 60o C). Use of the system beyond the safe operating

ranges listed can cause temporary or permanent damage to

the unit, and such damage may not be covered by the

manufacturer’s warranty.

ACC or engine

ON position

Rosen Entertainment Systems

DISCS PLAYED

Compatible Discs

DVD, Video CD (VCD), and CD-Audio discs discs are compatible with

the A10 system. Compatible discs have these logos on their labels:

Also, the unit can play most CD-Recordable discs containing CD-

Audio, MP3 files, and JPEG images - but not all such discs. Since

these discs are usually made on home computers, there is no

certification process ensuring that all such discs play on all players.

DVD Regions

When a DVD disc is created, it is encoded with a “Region number”.

The disc will only play on DVD players with the same Region number

- for instance, a Region 3 disc won’t play on a Region 1 player.

Region 1: U.S. and U.S. Territories, Canada

Region 2: Japan, Western Europe, Middle East, South Africa

Region 3: South Korea, Hong Kong, Taiwan, Southeast and East Asia

Region 4: New Zealand, Australia, Pacific Islands, Mexico, Central/

South America.

Region 5: Russia and the former Soviet Union, Africa, Indian subconti-

nent, North Korea

Region 6: China

Region 8: Special International Venues (Cruise Ships, Airlines, etc.)

DVD Region Icons

Incompatible Discs

The following disc types are incompatible with the system:

· DVD-ROM discs.

· DVD-R/DVD-RW/DVD-RAM discs.

· Photo CD discs, including Kodak Picture CDs.

· CD-ROM data discs.

· CD-Audio discs made with certain copy protection methods.

· Any DVD with a different Region number than the unit.

· Any disc that does not meet DVD Forum standards.

Why the system doesn’t respond the same way to all discs

When a DVD disc is created, the creator has to define how the disc

will operate when loaded into a DVD player. For instance, some discs

begin playing immediately, while other discs only display a menu and

require a menu selection to be made before playback will start.

The DVD standard also allows the maker of a DVD disc to disable

functions at certain times, such as Fast-Forward and Stop (which is

why you can’t skip past the copyright warning screen). If some DVD

feature temporarily isn’t working for you, usually the disc is prevent-

ing the player from performing that function.

Discs that don’t properly load and play

Some CD and DVD discs, especially homemade discs which do not

have all the data needed to properly initialize all DVD players, may not

load and play properly. They may even create a state where the DVD

player will not eject the disc at all. In these cases, use a paper clip to

press the Reset button (this button’s location is shown on page 7).

ALL

146

Rosen G10 Owner’s Manual

Note: The internal DVD player can be configured for either a

16:9 “Wide” image output or a 4:3 standard image output.

Since the unit has a widescreen display, the DVD player

should be configured for “Wide”. For more, see Page 20.

Note: The internal DVD player also has a set of video

adjustments, which are seperate from the main adjustments.

For more information, please see Page 23.

USING THE BUILT-IN DOME LIGHTS

The system has built-in dome lights. In many vehicles, these built-in

dome lights replace an original factory dome light which was

displaced when the system was installed. The dome lights are

controlled by both the Dome Light button on the front panel and by the

matching Dome Light button on the remote control.

When the lights are off, press either button to turn them on.

When the lights are on, press either button to turn them off.

When the lights have been turned on manually using the Dome Light

button, they will automatically turn off after all the doors are closed.

ENTER

OPEN

SOURCE

Note: Some vehicles have a dome light dimming feature that

causes the light to fade out gradually after the doors are

closed. The unit’s dome light may not fade at the exact speed

that the factory dome lights fade, but it will turn on and off

normally when the doors are opened and closed.

CHANGING AND ADJUSTING THE DISPLAY

Selecting a display mode: The system’s “widescreen” display has

a 16:9 aspect ratio - wider than a standard television. While many

DVD’s provide widescreen video images that fit the screen, standard

broadcast TV and many video games don’t.

•To view widescreen DVD’s, press the DISPLAY MODE button

until “WIDE” is displayed on the screen.

•To watch “fullscreen” DVD’s, the internal game system, or

broadcast television, select “STANDARD”.

Display adjustments: The display has adjustable video settings. To

change these settings, press the ENTER button on the overhead

console and hold it for two seconds. The following menu appears:

COLOR 8

BRIGHT 8

TINT 8

SHARPNESS 4

CONTRAST 8

RESET

To select a setting to be changed: Press the DOWN button to move

the cursor down the menu list. After you reach the final setting,

pressing DOWN will cause you to exit the menu. Selecting RESET will

restore the original factory values for all five settings.

To change the value of a setting: Use the LEFT and RIGHT arrow

buttons. The range is from 0 to 15.

Press DOWN to return to the display adjustments menu.

To exit the menu: Press the DOWN button to save settings and exit.

Note: See Page 12 for more on adjusting the Bright setting.

Dome Light

button

Rosen Entertainment Systems

SOURCE

DISC

ZOOM

DISC

SOURCE

ENTER

DISPLAY

OUTPUT

INFO

ROSEN

MODE

SUB

TITLE

RES

EJECT

DISC

USING THE REMOTE CONTROL

You can use the remote control to operate the system, including

access to features not available on the front panel. The unit has two

infrared sensors to receive signals from the remote - one is built into

the control panel, and the other faces forward in the vehicle, for use

from the front seats. For definitions of each remote control button’s

specific function, see the following pages.

1 Open/ Optional Source Unit Power 15 Info

2 Pause 16 Eject

3 Stop 17 Navigate left

4 Play 18 Enter

5 Previous Chapter/Track 19 Navigate Right

6 Reverse 20 Subtitle

7 Fast forward 21 Source Unit Menu

8 Next Chapter/Track 22 Navigate Down

9 FMM Status and Frequency 23 Disc Menu

10 Rosen Entertainment Sound 24 Disc Zoom

11 Mute 25 Dome Light On/Off

12 Next Disc (w/DVD Changer only) 26 Day/Night Mode

13 Source select 27 Output B Control

14 Navigate Up 28 Display Mode

Note: If you try to perform a DVD action when it is not

permitted (such as accessing the disc menu while the disc is

loading), there will be no response from the unit. This is

normal operation and is not a problem with your system.

1 2 3 4

5 6 7 8

9 10 11 12

13 14 15 16

17 18 19 20

25 26 27 28

22 23 24

Rosen G10 Owner’s Manual

BASIC REMOTE CONTROL BUTTONS

1 Open/ Optional Source Unit Power

Pressing this button when the screen is closed will deploy the

screen. This button also turns on some optional Rosen source units.

(There is also an OPEN button on the front control panel.)

Note: The system turns on when the screen opens.

4 Play

Press to begin or resume playback of a DVD.

Note: When the disc is first inserted, you may have to press

PLAY or ENTER to begin playback.

3 Stop

Press once to temporarily stop playback of a DVD. To resume normal

playback from the same point, press PLAY.

To play the disc from the beginning, press STOP twice, then PLAY.

Note: Once STOP is pressed twice, the player can only begin

playing from the beginning of the disc.

16 Eject

Press to eject a DVD or CD. After a disc is ejected, “OPEN” is

displayed on the screen.

2 Pause/Frame Step

Press once to pause playback. Press repeatedly to advance video

frame by frame. To resume normal playback, press PLAY.

5 Previous Chapter/Track

Press to jump to the previous title or chapter, if available on a DVD, or

to the previous track on an audio CD. Not supported with some VCDs.

8 Next Chapter/Track

Press to jump to the next title or chapter, if available on a DVD, or to

the next track on an audio CD. Not supported with some VCDs.

6 Reverse

Press to search in reverse. To resume normal playback, press PLAY.

7 Forward/Search

Press during playback to fast forward. Press the RIGHT and LEFT

arrow buttons to adjust search direction and speed. Choose from 2x,

4x, 6x, and 8x. Press PLAY to resume regular play.

25 Day/Night

This button decreases display brightness for optimum viewing in low

light conditions. The system also has an automatic dimming feature

which dims display brightness automatically whenever the headlights

are on (this feature is not compatible with all vehicles). Using the Day/

Night button temporarily overrides the auto-dimming feature - it re-

activates the next time you start the vehicle.

Set the Brightness level in daytime conditions with plenty of ambient

light, and with the headlights off. Then the auto-dimming feature will

dim the screen automatically at night, or you can use this button to

switch between Day and Night modes. (See Page 10.)

EJECT

Rosen Entertainment Systems

USING AUDIO BUTTONS

9 Speaker Sound Control

When this button is pressed, Speaker Sound On appears on the

screen, along with the FM frequency to which you should tune your

radio, such as “FM 87.7” . To change the frequency, press the Left or

Right arrow buttons on the remote control. Headphone audio is not

affected by this button.

FM frequencies available: 87.7, 87.9, 88.1, 88.3, 88.5, 88.7, 88.9

106.7, 106.9, 107.1, 107.3, 107.5, 107.7, 107.9.

Note: If the frequency does not appear on screen when this

button is pressed, an external FM Modulator is probably

being used. See Page 16 for more information.

10 Rosen Entertainment Sound Processing

This button lets you change the RES settings for the built-in surround-

sound and equalization. Press the button once, and “Equalization” will

appear - twice, and the word “Surround” will appear. (A third press

exits the adjustment mode.) Pressing the L and R arrow keys will

change the selected setting.

Equalization modes: Standard, Classic, Rock, Jazz, or Pop.

Surround-sound modes:Off, Concert, Church, Passive, Wide, or Live.

11 Mute

Press once to mute all system audio. As long as the Mute function is

active, “Mute” will appear on the screen. Press again to turn Mute off.

Note: The Mute button on the control panel performs the same

function.

USING MENU AND NAVIGATION BUTTONS

13 Source

This button lets you select the internal DVD/CD player, the Internal

Game, or the Auxiliary input. You can also select the optional TV

Tuner, DVD Changer, or other optional auxiliary sources, if installed.

Note: The Source button on the control panel performs the

same function.

14, 22 Up/Down Arrows

Press to move up or down in a menu or to change channel when

watching TV.

17, 19 Left/Right Arrows

Press to move left or right in a menu. Also used to change frequen-

cies on the FMM, after the Speaker Sound button is pressed.

18 Enter

Press to make a menu selection.

21 Source Menu

If the source unit selected has a Setup Menu, you can access it by

pressing Source Menu. With the optional TV Tuner, this button

activates the Auto-Program feature, which stores all available TV

stations in the memory for easier, faster channel-changing.

15 Info

Press to view the status, current title number, track number and the

total playing time of the currently-playing disc.

SOURCE

ENTER

SOURCE

INFO

RES

Rosen G10 Owner’s Manual

•To view widescreen DVD’s, press this button until “WIDE” is

displayed on the screen. This uses the full width of the screen.

•To watch “fullscreen” DVD’s or broadcast television, press until

“STANDARD” is displayed. This mode uses most of the screen,

but black bars will be visible on the sides, like this:

•To zoom the picture, select the “ZOOM” mode.

Note: For best results when zooming in on DVD images, use the

Disc Zoom feature instead of the “ZOOM” Display Mode.

For more information about image shapes, see “Managing Black

Bars”, on Page 20.

REPLACING THE REMOTE BATTERY

Use a single 3V battery, type CR2025. Insert as shown. Observe the

correct orientation of the battery as marked on the battery tray.

Battery life is approximately six months, depending on how often the

remote is used.

USING DVD DISC FEATURES

20 Subtitle

This button lets you cycle through the various subtitle languages

available on the DVD disc being played.

23 Disc Menu

Press to see the main menu for the DVD being played. To resume

normal playback, press PLAY.

12 Next Disc

When the optional R5001 DVD Changer is connected, this button

commands the changer to play the next disc in the magazine.

CHANGING THE SHAPE AND SIZE OF THE IMAGE

24 Disc Zoom

View the same scene on a DVD at different magnifications.

1 Press the DISC ZOOM button during playback to select among the

following options: x2, x3, x4, x1/2, x1/3, x1/4, and Off.

2 Press the arrow buttons to shift the magnified section of the

screen.

3 To resume normal playback, press DISC ZOOM until “Zoom off” is

displayed.

28 Display Mode

This button lets you select from the various screen display modes.

SUB

TITLE

DISC

ZOOM

DISPLAY

MODE

Press tab here

and pull battery tray out

DISC

Battery

Rosen Entertainment Systems

CD AUDIO, MP3, JPEG, AND VIDEO CD PLAYBACK

CD Playback

When you insert an audio CD, “CD” will appear on the screen. The

standard CD commands (PLAY, NEXT, etc.) will control the unit.To

display track information, press INFO. Some CDs recorded in CD-R or

CD-RW mode may not play.

MP3, JPEG, Video CD Playback

When a disc containing MP3, JPEG, or Video CD files is inserted, the

following screen appears. Use the arrow buttons to select a file type.


01. - 01. MP3_003

USING THE INCLUDED WIRELESS HEADPHONES

The system comes with two pair of wireless infrared (IR) head-

phones. These headphones receive a signal from an IR transmitter

built into the unit. These headphones allow rear-seat passengers to

listen without using the vehicle speakers.

To turn the headphones on and off, push the Power ON/OFF button

on the right ear piece. The Power LED on the left ear piece indicates

when headphone power is on. Power turns off automatically after

three minutes of no audio, in order to preserve battery life.

To adjust the headphone volume, rotate the thumb wheel on the

headphones.

Two-channel use: The optional AC3072 headphones have a two-

position slide switch labeled “A/B”. When the switch is in the “A”

position, the headphones play audio from the source selected for the

main screen. If the main screen is displaying internal DVD video,

Channel A will play internal DVD audio. When the switch is in the “B”

position, the headphones play audio from the source selected for

Output B. For more information, see Page 22.

Adjust headphones

here

Volume Knob

Power LED

Power ON/Off

switch

MP3 playback Video CD or

JPEG playback Display folder

contents

Name of selected file List of files in the selected folder

Selected folder

Rosen G10 Owner’s Manual

REPLACING HEADPHONE BATTERIES

The wireless IR headphones require two AAA batteries. To replace

the batteries, slide off the battery compartment door on the right

earpiece and insert batteries, as shown. Make certain that the battery

orientation matches the marks inside the battery compartment.

USING OPTIONAL WIRED HEADPHONES

There is a jack for wired headphones on the forward edge of the

unit, under a removable cover. When using optional wired head-

phones, only use headphones with a volume control, since the

system has no volume adjustment.

Mini-stereo Headphone Jack

LISTENING OVER THE CAR SPEAKERS

The system uses an FM Modulator (FMM) to send audio through the

vehicle radio and speakers. To listen over your speakers:

1 Make sure system MUTE is off. Press SPEAKER. “SPEAKER

SOUND ON FM _ _ . _” appears. (If “SPEAKER SOUND DIS-

ABLED” appears, select an FM frequency as described below.)

2 Turn on the car radio. Tune to the FM frequency displayed on the

screen, such as “FM 87.7”.

3 If no system audio is heard, try changing the FMM frequency and

re-tuning the radio to the new frequency.

To change the FM Modulator frequency:

Press SPEAKER. “Speaker Sound on FM _ _ . _” will be displayed.

Now use the Left and Right buttons to change the frequency. The

FMM frequencies are 87.7, 87.9, 88.1, 88.3, 88.5, 88.7, 88.9,

106.7, 106.9, 107.1, 107.3, 107.5, 107.7, and 107.9. After you

select a frequency, re-tune your radio and check for clear sound.

The system saves the frequency you select, and returns to it each

time the system is turned on. You may want to store the FM Modulator

frequency as a preset of your radio for ease of use.

Note: If there seems to be a strong station on the FM

Modulator frequency, and you are hearing a radio station

mixed in with the system audio, change the FM Modulator

frequency. Avoid frequencies used by local radio stations.

If the words “SPEAKER SOUND DISABLED appear, the Internal FMM is

turned off. It can be turned on by pressing the left or right arrow keys

and selecting an FM frequency. If the words “HEADPHONE SOUND

ONLY” appear, an external FM Modulator is probably being used. In

this case, the SPEAKER button turns the external FMM on and off.

The Rosen external FMM is uses either FM 87.9 or FM 88.3. If you

have any questions about your FMM, please ask your Rosen dealer.

Rosen Entertainment Systems

WATCHING BROADCAST TELEVISION

(ON TV TUNER-EQUIPPED SYSTEMS)

You can watch television on the system if you have installed the

optional CV4000 TV Tuner kit (includes TV Tuner, antenna, and an

AC3024 harness).

Note: Broadcast television reception varies with location,

terrain, distance from the broadcast tower, and other factors.

Signal quality is likely to vary in a moving vehicle.

1 Press SOURCE to select the “TV TUNER” input. “TV TUNER” will

appear on the screen. If the screen remains dark, press the

remote’s POWER button.

2 Press the UP CH and DOWN CH arrow buttons on the remote to

change channels. You can also use the UP and DOWN arrows on

the front control panel. Pressing the LEFT and RIGHT buttons

allows you to access the auxiliary inputs of the TV Tuner.

3 To scan and store all available channels, press SOURCE MENU.

Note: To watch broadcast television or videotapes in their

original format, press the DISPLAY MODE button on the

remote control until “STANDARD” is displayed on the screen.

This will properly size the image, instead of stretching the

image across the wide screen. In “STANDARD” mode, you will

see black bars on the sides of the image, like this:

Rosen G10 Owner’s Manual

USING THE INTEGRATED GAME SYSTEM

There is an integrated video game built into the system. The Rosen

AC3131 Game Controller is included. Although the Controller may

resemble controllers for home game systems, only the Rosen AC3131

is certified to operate with the system.

To play a game:

Press any button on the Controller

to turn in on. The Controller LED will

blink to confirm that it has turned

on.

Press SOURCE on the remote or

the front control panel until

“INTERNAL GAME” appears, along

with the game startup menu.

Use the up and down arrows on

the Controller to select which game

you want to play from the list.

Press START on the Controller.

ADJUSTING THE SCREEN ANGLE

Rosen uses an advanced mechanical design to hold the screen at the

perfect viewing angle for you, your passengers, and your vehicle.

Here’s how to adjust the screen angle:

ENTER

OPEN

SOURCE

Second,

to allow the

adjuster to

move freely,

gently pull the

screen towards

you an inch or so,

and hold it there

with one hand.

Third,

while

holding the

screen, move

the adjuster

slider with

your other

hand - to the

left to move the

screen forward,

and to the right to move

the screen rearward.

Finally, let go of the screen and double-check the viewing angle.

You may need to repeat this process a few times to get the angle

just right for your height and the height of the vehicle seats.

First, press the OPEN button on the front panel,

or on the remote. The screen will deploy.

While playing, use A and/or B as fire, jump, or other action buttons,

depending on the game.

To return to the game main menu, press RESET on the Controller.

Notes:

The Controller works using infrared “line-of-sight” technology.

If the controller is held so that there is not a clear line of sight

to the system, intermittent operation results.

The Controller turns off after a brief period without use.

Reset

Start

A and B

Rosen Entertainment Systems

USING EXTERNAL SOURCES

You may use optional external video games, camcorders, and other

portable video units by connecting the unit to the auxiliary RCA input

jacks on the unit. You must remove the cover to access the jacks,

and press SOURCE to select “AUXILIARY INPUT”.

Red — Right channel audio input

White — Left channel audio input

Yellow — Video input

To use an external game system, a 12VDC to 110VAC power inverter,

available at most electronic retail stores, is often required.

Note: If you want to watch non-widescreen, 4:3 images, press

the DISPLAY MODE button on the remote control until

“STANDARD” is displayed on the screen. This will properly

size the image, instead of stretching the image across the

wide screen. In “STANDARD” mode, you will see black bars

on the sides of the image, like this:

Color-Coded RCA Jacks

OPTIONAL ROSEN ACCESSORIES

Check with your authorized Rosen dealer or visit www.

rosenentertainment.com for information on accessories available for

your system. Some require installation parts and labor.

AC3131 Replacement Player 1 Wireless Game Controller

AC3247 Player 2 Wireless Game Controller

The AC3247 option allows some G10 games to support two players.

CV4000 TV Tuner kit

The CV4000 includes a TV Tuner that receives U.S. television

broadcasts, a wire harness, and a TV antenna. When installed using

theAC3024 harness, the TV Tuner is controlled by the A10 remote.

R5001 DVD Changer

This 10-disc changer plays CDs, DVDs, MP3 files, and Video CDs. It

is fully compatible with your system (adapter kit required).

R5600-series single-disc DVD Player

R5000-series Video Casssette Player

AC3074 Remote Control

This is the original replacement remote control for the unit. In multi-

screen systems, it’s a good idea to have a second remote control.

AC3072 Dual-Channel Infrared Wireless Headphones

These are the original-equipment headphones for the A10.These are

required to use the dual-zone modes, or for compatibility with factory

IR headphone systems.

AC3003 Infrared Single-channel Wireless Headphones

AC3062 Noise-Cancelling Infrared Wireless Headphones

These offer improved audio performance through electronic

cancellation of background and road noise. Single-channel only.

Rosen G10 Owner’s Manual

Motion picture film and cameras, and later

television screens, were originally designed

around a screen size that was almost square - it

was one-third wider than it was high (another

way to say this is that it had a width-to-height

ratio, or aspect ratio, of 4:3. This ratio, 4:3, can

also be expressed as 1.66:1.)

When widescreen movies using technologies

like Cinemascope and Panavision became

popular, new aspect ratios were used

for them - 1.78:1, 2.35:1, and even 2.55:1.

When high-definition television was

developed, a screen shape of 16:9, or 1.85:1,

was selected as the best compromise for

viewing widescreen movie images.

When you watch widescreen movies on a

standard 4:3 television, there are “black bars”

on the top and bottom of the screen. This is

often called a “letterbox” image. The alternative

is called “pan-and-scan”, where the edges of

the image are “cropped” off.

This system uses a widescreen 16:9, or 1.85:1

display - the same aspect ratio as high-

definition televisions. This means that when

viewing widescreen DVD’s, these black bars

are either non-existent, or greatly minimized.

WHY ARE THE BLACK BARS STILL THERE SOMETIMES?

There are three possible reasons for black bars to appear on the top

and bottom of the display:

1) You are watching a widescreen movie with an aspect ratio

greater than 1.85:1. (For more options on dealing with this, see

below). Check the disc jewel box to determine the DVD’s aspect

ratio - if you see 2.3:1, 2.33:1, or 2.35:1, this applies.

2) The internal DVD player has been set for a 4:3 display instead of a

16:9, wide display. See DVD Setup on Page 23 to correct this.

3) The “widescreen” DVD movie you are viewing is not “anamorphic”

or “enhanced for widescreen televisions”. These films, often older

DVD conversions, are not recommended for viewing on

widescreen displays. You can usually determine if your DVD was

produced for optimum compatibility with widescreen televisions by

looking for the word “anamorphic” or the phrase “enhanced for

widescreen televisions” on the box.

WHAT CAN I DO?

First, Rosen recommends that for best results you use DVD’s that

say “anamorphic” or “enhanced for widescreen televisions” on the

box. However, this system can get rid of black bars with just about

any DVD, by following the steps on the next page.

Note: To watch “fullscreen” DVD’s or broadcast television

(using an optional TV tuner), you can use the DISPLAY MODE

button to select “STANDARD”. This will properly size the

image, instead of stretching the image across the wide

screen. In “STANDARD” mode, you will see black bars on the

sides of the image.

4:3

1.66:1

16:9

1.85:1

MANAGING BLACK BARS

Letterbox

Widescreen

Rosen Entertainment Systems

1) Make sure that the internal DVD player is set to “WIDE”

(see DVD Setup, page 23).

2) Use the Display Mode button to select “Wide” or “Zoom”.

•To view widescreen DVD’s, use “Wide”.

•To zoom the picture, use the “Zoom” mode.

Note: This feature will slightly “crop” the edges of the image.

For best results when zooming in on DVD images, use the Disc

Zoom feature below - not the “Zoom” Display Mode.

If this solution still isn’t satisfactory, go to step 3.

3) Use the Disc Zoom feature to completely fill the screen.

Again, the edges will be “cropped”, but the screen will be filled.

Press the DISC ZOOM button during playback to select among the

available options. You can then use the arrow buttons to shift the

magnified image left and right.

Eliminating Black Bars when viewing a DVD:

Some new vehicles have infrared wireless headphone systems built

in which allow rear-seat passengers to listen to the vehicle’s audio

system without playing the audio over the speakers.

Many of these systems operate on the same IR wavelength as the

wireless IR headphones used by video entertainment systems, and in

these cases interference between the two systems can result. The

system is compatible with these factory IR-headphone systems.

The system has a two-channel infrared headphone transmitter - that

is, it uses two IR “channels” - Channel A and Channel B, and can

transmit different audio programs on these two channels at the same

time. Standard wireless headphones, as well as factory IR head-

phone systems, typically operate only on Channel A. Optional Rosen

AC3007 Dual-Channel Headphones are required to receive Channel B

- they switch between Channels A and B at the touch of a button.

They are available from your Rosen authorized dealer.

Your Rosen Authorized dealer can configure the unit to operate on

Channel B only, thus preventing interference with most factory

wireless headphone systems. This lets you use Channel A of your

optional AC3007 headphones for listening to the factory audio

system, and Channel B for listening to the DVD entertainment system.

Note: When the system is configured for factory-IR compat-

ibility, the dual-zone functions described on Page 22 are not

available.

INTEGRATING THE UNIT WITH FACTORY IR WIRE-

LESS HEADPHONE SYSTEMS

Note: Best results are obtained by connecting only

widescreen displays to the system. The DVD player can

provide either widescreen video or standard, non-widescreen

video - it cannot provide widescreen video for one screen and

standard video for other screens. Your Rosen authorized

dealer offers a selection of high-quality widescreen

automotive displays.

Rosen G10 Owner’s Manual

USING THE DUAL-ZONE MODES AND OUTPUT B

With the optional AC3072 headphones, the system supports the

following multi-zone and multi-screen features and capabilities:

Dual-Zone Audio on Headphone Channel B

What this means: One user can play the Internal Game, listening on

Channel A, while the other user listens on Channel B to Audio CDs or

MP3s using the Internal DVD drive.

How to do it:

Load a CD into the DVD drive.

The main-screen user sets their headphones to Channel A.

Press SOURCE and select INTERNAL GAME.

The audio-only user sets their headphones to Channel B.

Press OUTPUT B. “CONTROLLING OUTPUT B” appears.

Press SOURCE and select INTERNAL DVD.

Satellite Radio integration on Headphone Channel B

What this means: One user can play the Internal Game or watch

DVD’s, listening on Channel A, while the other user listens to their

optional Satellite Radio receiver on Channel B.

How to do it:

Have your Rosen Authorized dealer connect your Satellite Radio

receiver (not included) to the Auxiliary Input 2, and have them

program the on-screen display input label to read “SATELLITE”.

The main screen user sets their headphones to Channel A.

Press SOURCE, select INTERNAL GAME or INTERNAL DVD.

The Satellite Radio listener sets their headphones to Channel B.

Press OUTPUT B. “CONTROLLING OUTPUT B” appears.

Press SOURCE and select SATELLITE.

Note: The Satellite Radio feature is not available if an

optional TV Tuner or DVD Changer is installed.

Viewing different video sources on different screens

What this means: When an optional additional screen is connected,

the user can select and control the video source for “Screen B”

independent of the main screen. For instance, the main screen can

be used to play the Internal Game, while Screen B displays a DVD.

How to do it:

The main screen user sets their headphones to Channel A.

Press SOURCE and select the source you want to view on

the main screen (INTERNAL DVD, INTERNAL GAME, etc.)

The Screen B user sets their headphones to Channel B.

Press OUTPUT B. “CONTROLLING OUTPUT B” appears.

Press SOURCE to select the source unit viewed on Screen B.

Notes: Selecting “SAME AS MAIN SCREEN” for Screen B

causes all screens to display the same image at all times.

When this is selected, pressing SOURCE changes the

audio and video for all screens simultaneously.

The Internal Game cannot be routed to Screen B unless it is

already routed to the main screen. “SAME AS MAIN SCREEN”

must then be selected.

To control the source unit assigned to Output B

First press OUTPUT B, then the desired button. For instance, to

pause a DVD, press OUTPUT B and then press PAUSE.

SOURCE

OUTPUT

SOURCE

OUTPUT

Rosen Entertainment Systems

The Digital Output Setting

There is a setting in the menu for a Digital Audio output under DIGITAL

SETUP. This unit does not have a digital audio output. Leave this

setting in the ANALOG mode.

Note: Enabling the Digital Audio mode disables the analog

audio output used by the FM Modulator and the IR head-

phones, and can resemble a system audio failure.

Changing the Aspect Ratio Mode

This is under the SYSTEM SETUP tab,

under TV TYPE. The correct setting is

WIDE. Changing this setting to NORMAL/PS

or NORMAL/LB will result in distorted

video.

Changing the Video Output Mode

To change the video output mode, select

SYSTEM SETUP, and then select TV

SYSTEM. The default is NTSC. If you want

to be able to play PAL discs on your NTSC

monitors, select PAL. If you change this

setting and the picture “rolls”, see your

Rosen dealer.

Note: The setting “AUTO” will automatically output NTSC

video from NTSC discs, and PAL video from PAL discs.

NTSC is the North American standard. Some discs may

not play properly when AUTO is selected.

DVD TYPICAL SETUP AND CONFIGURATION

The following section explains how to customize various features of

the Internal DVD Player, including various language, display, and

parental control features.

Note: Many DVD menu settings do not apply to this system,

since it is specifically engineered for automotive use.

Changing the state of some settings can cause apparent

system failure. Don’t change any settings other than those

described in this section.

A DVD disc must be loaded to access the Internal DVD settings.

1 Press SOURCE SETUP.

2 Use the Left and Right arrow buttons to select a page.

3 Use the Up and Down arrow buttons to select the setting to

change.

4 Use the Left and Right buttons again to change the value of the

setting.

AUDIO SETUP

GENERAL SETUP

SPEAKER SETUP

PREFERENCES

EXIT SETUP

SETUP MENU -- MAIN PAGE

TV SYSTEM

EXIT SETUP

SYSTEM SETUP

VIDEO

RATING

DEFAULT

TV TYPE

PASSWORD

EXIT SETUP

SYSTEM SETUP

VIDEO

RATING

DEFAULT

TV TYPE

PASSWORD

16:9

4:3 PS

4:3 LB

TV SYSTEM

EXIT SETUP

SYSTEM SETUP

VIDEO

RATING

DEFAULT

TV TYPE

PASSWORD

TV SYSTEM

PA L

NTSC

PAL60

AUTO

Rosen G10 Owner’s Manual

Parental Control

The supplied remote control does not support the Parental Control

feature.

Changing Language Settings

Several language settings can be customized on the DVD Player.

These languages can vary depending on the language supported by

the DVD disc. To change these settings, select the LANGUAGE

SETTINGS page.

Note:·Not all language settings are supported by all discs.

To change the on-screen

display language, select

OSD LANGUAGE.

To change the soundtrack lan-

guage, select AUDIO LANG.

To change the subtitle or caption

language, select SUBTITLE LANG. You

can also press the SUBTITLE button on

the remote to select among the available

subtitle languages.

To change the disc menu language,

select MENU LANG.

NOTE: If you select another lan-

guage, the change takes effect

immediately on the on-screen menu,

making any needed correction

difficult if you select a language you

don’t read. Avoid changing menu

languages unless absolutely needed.

OSD LANGUAGE

LANGUAGE SETUP

SUBTITLE LANG

MENU LANG

AUDIO LANG

EXIT SETUP

OSD LANGUAGE

LANGUAGE SETUP

SUBTITLE LANG

MENU LANG

AUDIO LANG

EXIT SETUP

ENGLISH

FRENCH

CHINESE

JAPAN

SPANISH

PORTUGUESE

LATIN

GERMAN

OSD LANGUAGE

LANGUAGE SETUP

SUBTITLE LANG

MENU LANG

AUDIO LANG

EXIT SETUP

ENGLISH

FRENCH

CHINESE

JAPAN

SPANISH

PORTUGUESE

GERMAN

OFF

OSD LANGUAGE

LANGUAGE SETUP

SUBTITLE LANG

MENU LANG

AUDIO LANG

EXIT SETUP

ENGLISH

FRENCH

CHINESE

JAPAN

SPANISH

PORTUGUESE

LATIN

GERMAN

OSD LANGUAGE

LANGUAGE SETUP

SUBTITLE LANG

MENU LANG

AUDIO LANG

EXIT SETUP

FRENCH

ENGLISH

CHINESE

SPANISH

PORTUGUESE

GERMAN

Rosen Entertainment Systems

Rosen G10 Owner’s Manual

THE DOME LIGHT WENT OUT - WHY?

The dome light has a 5-minute timer to prevent accidental battery drain.

I HAVE BLACK BARS ON THE TOP AND BOTTOM OF MY SCREEN

WITH A WIDESCREEN DVD - HOW DO I GET RID OF THEM?

See page 20.

WITH THE AC3072 DUAL-CHANNEL HEADPHONES, CHANNEL A

AND CHANNEL B HAVE THE SAME AUDIO. HOW DO I CHANGE

WHAT I HEAR ON CHANNEL B?

Press OUTPUT B and then press SOURCE to change Output B’s

assigned source. See page 22 for more information on dual-zone use.

WHY DOESN’T THE STOP/EJECT BUTTON EJECT THE DISC RIGHT

AWAY?

While a disc is playing, this button acts as a STOP button. To eject a

disc while it is playing, press the STOP/EJECT button twice, with the

presses about 1 second apart. The Eject button on the remote control

always ejects the disc immediately.

THE DISC WILL NOT EJECT AT ALL - WHAT DO I DO?

Using a paper clip, press the reset button (see page 7 for its location).

If this section does not address your question, please contact your

Rosen authorized dealer. Also, your system has internal diagnostic

capabilities that are accessible to authorized Rosen dealers. To locate

a Rosen Entertainment Systems authorized dealer, please visit

www.rosenentertainment.com.

FAQ’S

I HAVE NO PICTURE AND NO SOUND - WHAT’S WRONG?

The system has low- and high-voltage and temperature protection

circuits. If the voltage or temperature goes beyond the limits, the

system shuts off. The power wire or power harness may have been

disconnected, or the fuse may have failed. Contact your Rosen

authorized dealer to determine if this is the case.

Note: The system voltage range is 11-16VDC operating

voltage. The system operating temperature is 0o to 60o

Celsius. Use of the system beyond the safe operating ranges

listed can cause temporary or permanent damage to the unit -

such damage may not be covered by manufacturer’s warranty.

I HAVE A PICTURE, BUT NO SOUND OR DISTORTED SOUND. WHY?

Check the MUTE button. Check the volume on the radio, and make

sure the radio is tuned to the right frequency - try tuning the FMM and

the radio to a new frequency. Check that the headphones have a

direct “line of sight” to the infrared transmitter below the screen.

Replace headphone batteries, if needed. Check the DVD Setup Menu

- the Audio Output setting must be set to “ANALOG”, the Speaker

Downmix setting to “STEREO”, and the Dynamic Range to “FULL”. If

using a CD you have made yourself, make sure you did not set the

recording level too high. Make sure you to check both CH A and CH B

if you are using AC3072 two-channel headphones.

WHY DO I GET NO RESPONSE WHEN I PRESS THE REMOTE

BUTTONS?

Check the battery in the remote control.

If you press a DVD function button when that function is not allowed

by the disc, there will be no response. An example would be

pressing pause during a DVD disc menu that does not allow pausing.

This varies by DVD disc.

RES PN 9100389 Rev A

www.rosenentertainment.com

(951) 898-9808

No part of this publication may be reproduced, stored in a retrieval sytem or transmitted in any form, electronic, mechanical, recording or other means without prior written permission from Rosen.

Rosen Entertainment Systems G10 Users Manual

g10 63beafe6-6845-4ba0-9645-4bff233129d0 Rosen Entertainment Systems Games G10 User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
