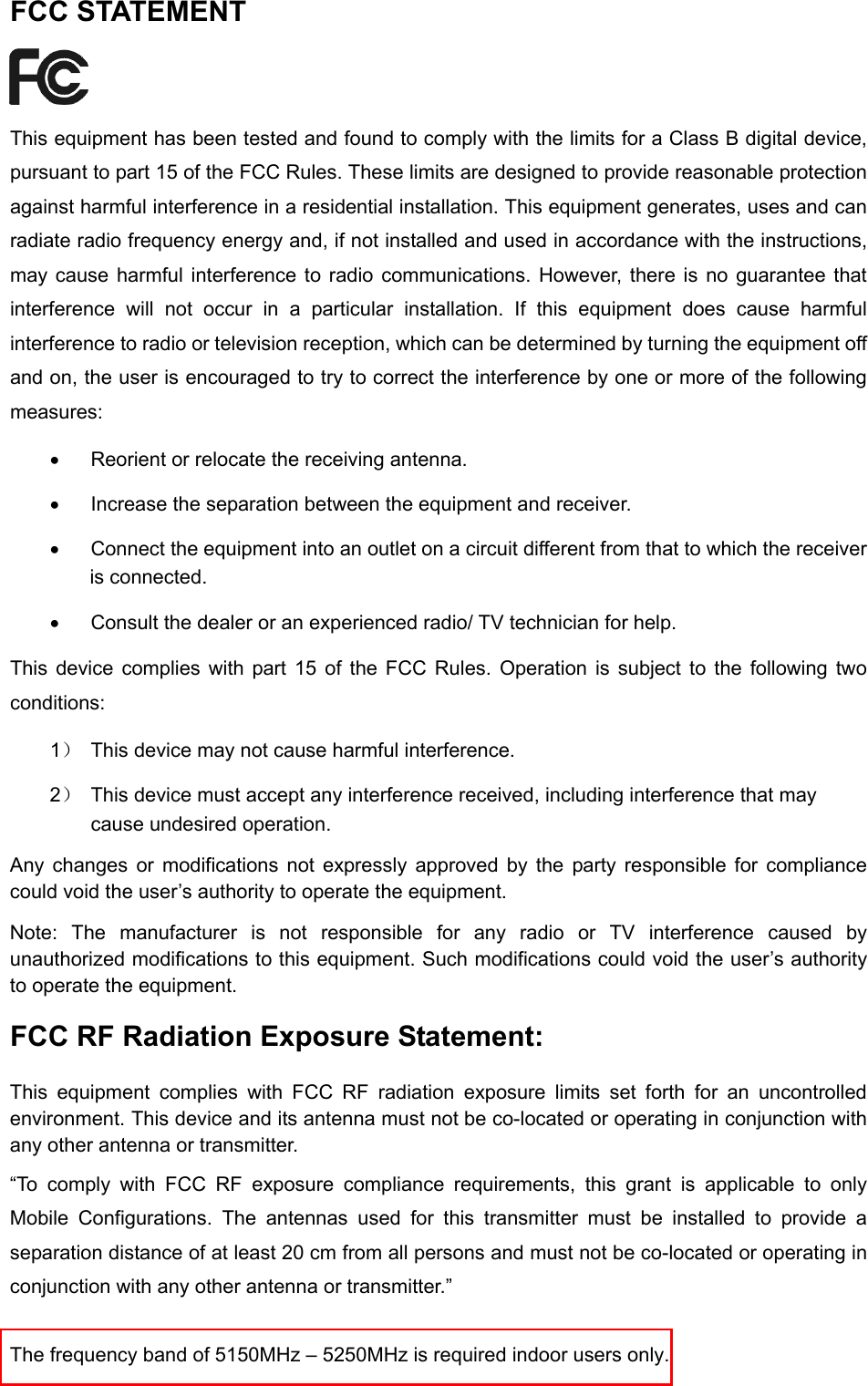

FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1） This device may not cause harmful interference. 2） This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” The frequency band of 5150MHz – 5250MHz is required indoor users only.

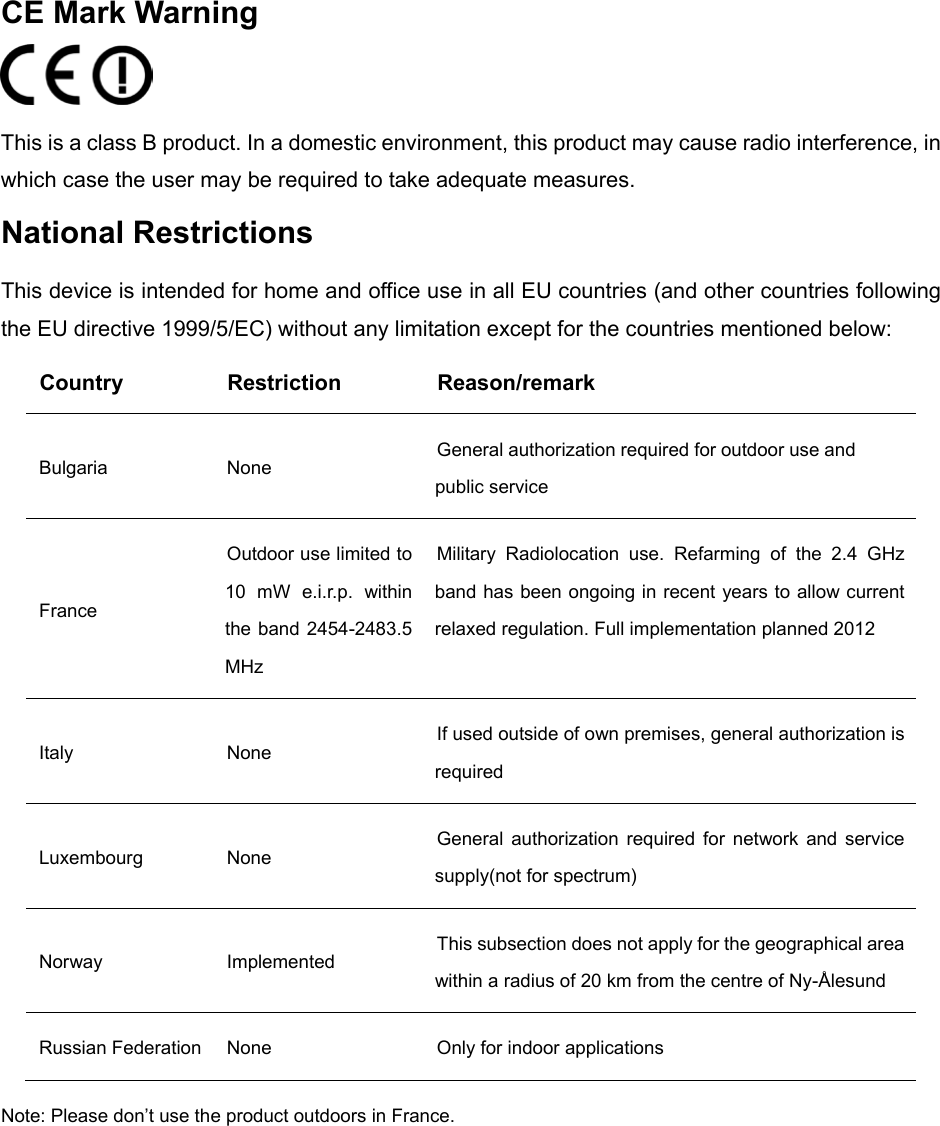

CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France.

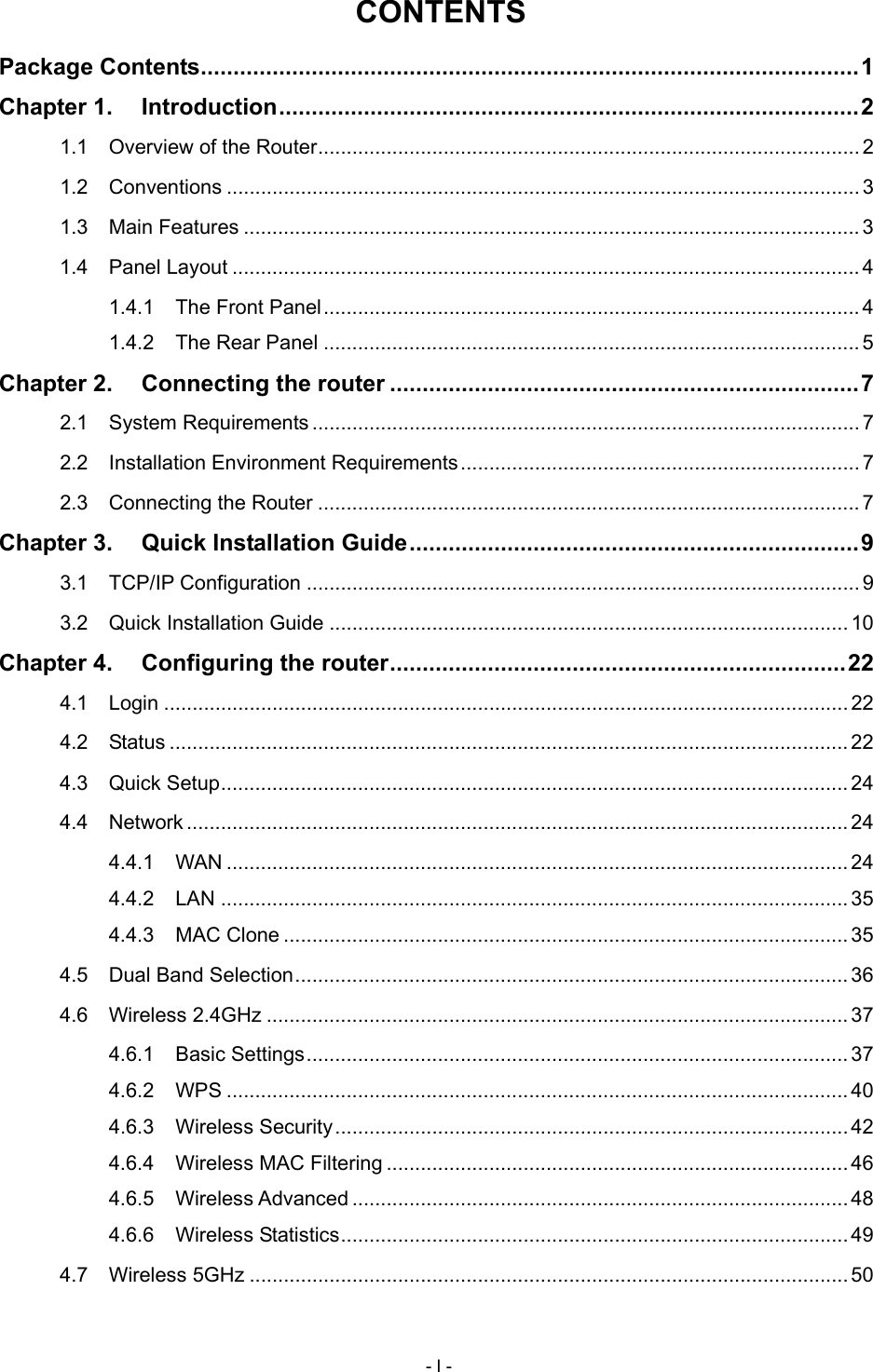

CONTENTS Package Contents ..................................................................................................... 1 Chapter 1. Introduction ......................................................................................... 2 1.1 Overview of the Router ............................................................................................... 2 1.2 Conventions ............................................................................................................... 3 1.3 Main Features ............................................................................................................ 3 1.4 Panel Layout .............................................................................................................. 4 1.4.1 The Front Panel .............................................................................................. 4 1.4.2 The Rear Panel .............................................................................................. 5 Chapter 2. Connecting the router ........................................................................ 7 2.1 System Requirements ................................................................................................ 7 2.2 Installation Environment Requirements ...................................................................... 7 2.3 Connecting the Router ............................................................................................... 7 Chapter 3. Quick Installation Guide ..................................................................... 9 3.1 TCP/IP Configuration ................................................................................................. 9 3.2 Quick Installation Guide ........................................................................................... 10 Chapter 4. Configuring the router ...................................................................... 22 4.1 Login ........................................................................................................................ 22 4.2 Status ....................................................................................................................... 22 4.3 Quick Setup .............................................................................................................. 24 4.4 Network .................................................................................................................... 24 4.4.1 WAN ............................................................................................................. 24 4.4.2 LAN .............................................................................................................. 35 4.4.3 MAC Clone ................................................................................................... 35 4.5 Dual Band Selection ................................................................................................. 36 4.6 Wireless 2.4GHz ...................................................................................................... 37 4.6.1 Basic Settings ............................................................................................... 37 4.6.2 WPS ............................................................................................................. 40 4.6.3 Wireless Security .......................................................................................... 42 4.6.4 Wireless MAC Filtering ................................................................................. 46 4.6.5 Wireless Advanced ....................................................................................... 48 4.6.6 Wireless Statistics ......................................................................................... 49 4.7 Wireless 5GHz ......................................................................................................... 50 - I -

4.7.1 Basic Settings ............................................................................................... 50 4.7.2 WPS ............................................................................................................. 53 4.7.3 Wireless Security .......................................................................................... 55 4.7.4 Wireless MAC Filtering ................................................................................. 59 4.7.5 Wireless Advanced ....................................................................................... 61 4.7.6 Wireless Statistics ......................................................................................... 62 4.8 Guest Network ......................................................................................................... 63 4.9 DHCP ....................................................................................................................... 65 4.9.1 DHCP Settings ............................................................................................. 65 4.9.2 DHCP Clients List ......................................................................................... 67 4.9.3 Address Reservation .................................................................................... 67 4.10 USB Settings ............................................................................................................ 68 4.10.1 USB Mass Storage ....................................................................................... 69 4.10.2 User Accounts .............................................................................................. 69 4.10.3 Storage Sharing ............................................................................................ 71 4.10.4 FTP Server ................................................................................................... 73 4.10.5 Media Server ................................................................................................ 74 4.11 NAT .......................................................................................................................... 76 4.12 Forwarding ............................................................................................................... 77 4.12.1 Virtual Server ................................................................................................ 77 4.12.2 Port Triggering .............................................................................................. 79 4.12.3 DMZ .............................................................................................................. 81 4.12.4 UPnP ............................................................................................................ 82 4.13 Security .................................................................................................................... 83 4.13.1 Basic Security ............................................................................................... 83 4.13.2 Advanced Security ........................................................................................ 85 4.13.3 Local Management ....................................................................................... 86 4.13.4 Remote Management ................................................................................... 87 4.14 Parent Control .......................................................................................................... 88 4.15 Access Control ......................................................................................................... 92 4.15.1 Rule .............................................................................................................. 92 4.15.2 Host .............................................................................................................. 94 4.15.3 Target............................................................................................................ 96 4.15.4 Schedule ....................................................................................................... 99 4.16 Advanced Routing .................................................................................................. 100 4.16.1 Static Route List .......................................................................................... 101 - II -

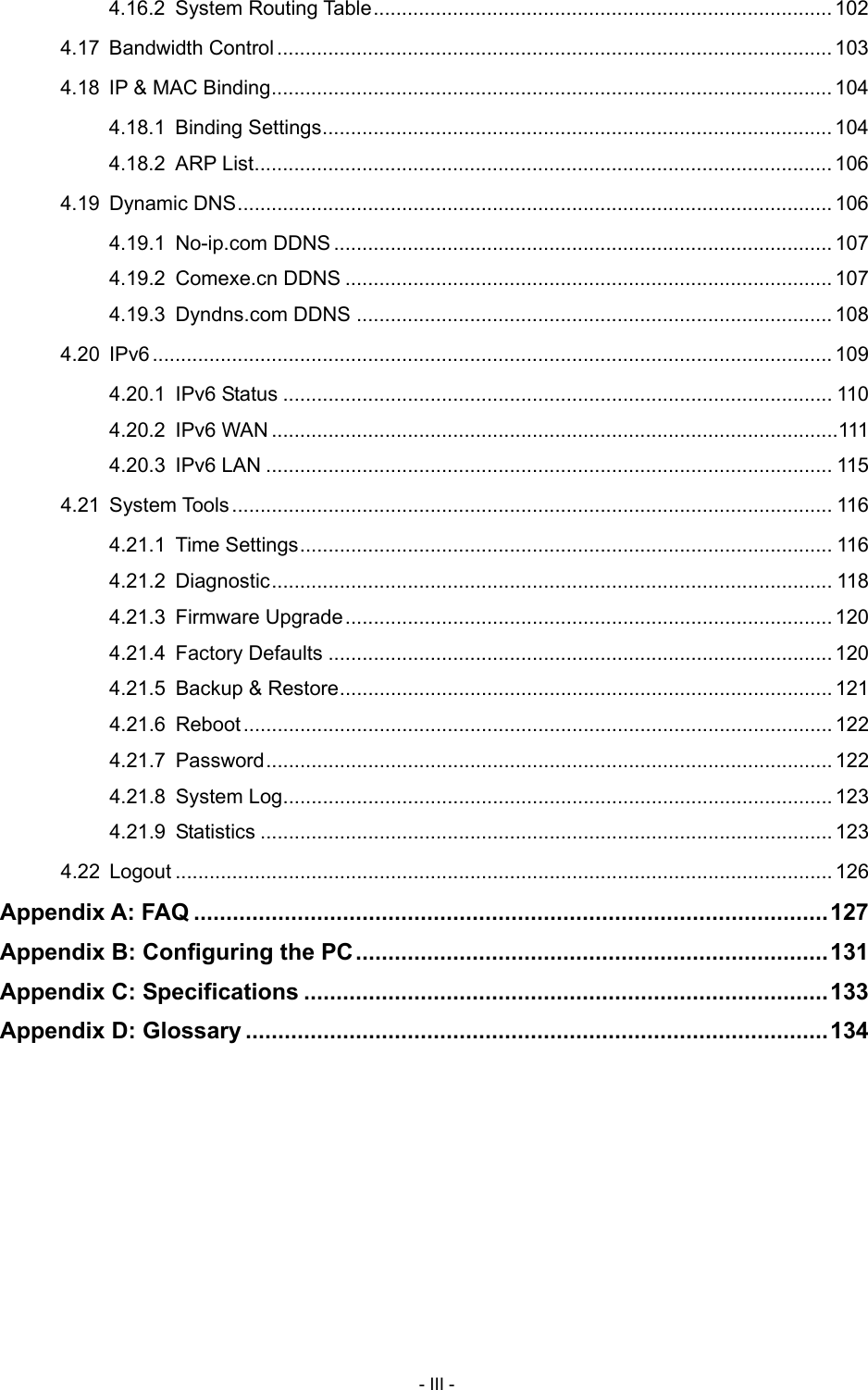

4.16.2 System Routing Table ................................................................................. 102 4.17 Bandwidth Control .................................................................................................. 103 4.18 IP & MAC Binding ................................................................................................... 104 4.18.1 Binding Settings .......................................................................................... 104 4.18.2 ARP List ...................................................................................................... 106 4.19 Dynamic DNS ......................................................................................................... 106 4.19.1 No-ip.com DDNS ........................................................................................ 107 4.19.2 Comexe.cn DDNS ...................................................................................... 107 4.19.3 Dyndns.com DDNS .................................................................................... 108 4.20 IPv6 ........................................................................................................................ 109 4.20.1 IPv6 Status ................................................................................................. 110 4.20.2 IPv6 WAN .................................................................................................... 111 4.20.3 IPv6 LAN .................................................................................................... 115 4.21 System Tools .......................................................................................................... 116 4.21.1 Time Settings .............................................................................................. 116 4.21.2 Diagnostic ................................................................................................... 118 4.21.3 Firmware Upgrade ...................................................................................... 120 4.21.4 Factory Defaults ......................................................................................... 120 4.21.5 Backup & Restore ....................................................................................... 121 4.21.6 Reboot ........................................................................................................ 122 4.21.7 Password .................................................................................................... 122 4.21.8 System Log ................................................................................................. 123 4.21.9 Statistics ..................................................................................................... 123 4.22 Logout .................................................................................................................... 126 Appendix A: FAQ .................................................................................................. 127 Appendix B: Configuring the PC ......................................................................... 131 Appendix C: Specifications ................................................................................. 133 Appendix D: Glossary .......................................................................................... 134 - III -

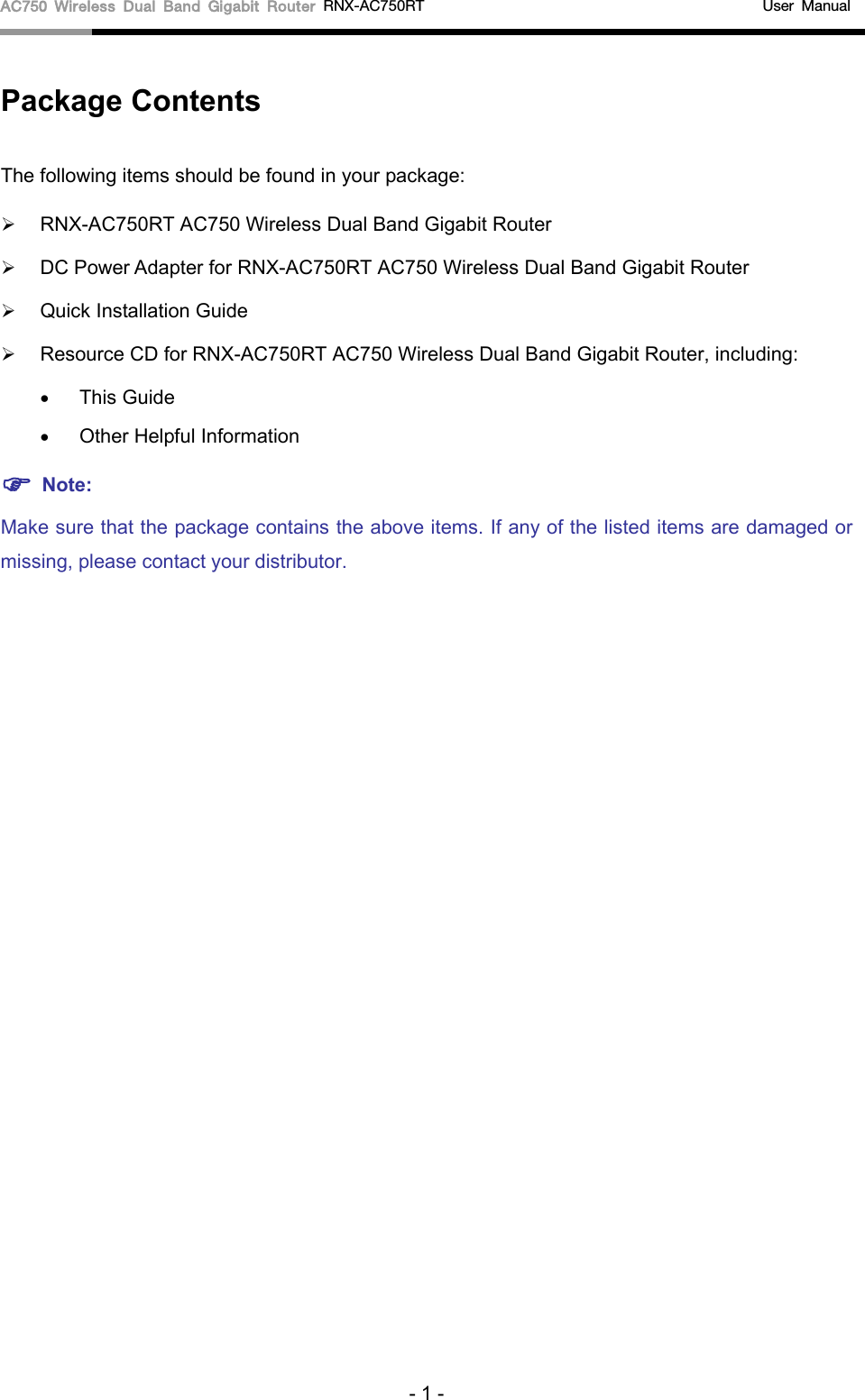

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Package Contents The following items should be found in your package:  RNX-AC750RT AC750 Wireless Dual Band Gigabit Router  DC Power Adapter for RNX-AC750RT AC750 Wireless Dual Band Gigabit Router  Quick Installation Guide  Resource CD for RNX-AC750RT AC750 Wireless Dual Band Gigabit Router, including: • This Guide • Other Helpful Information  Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact your distributor. - 1 -

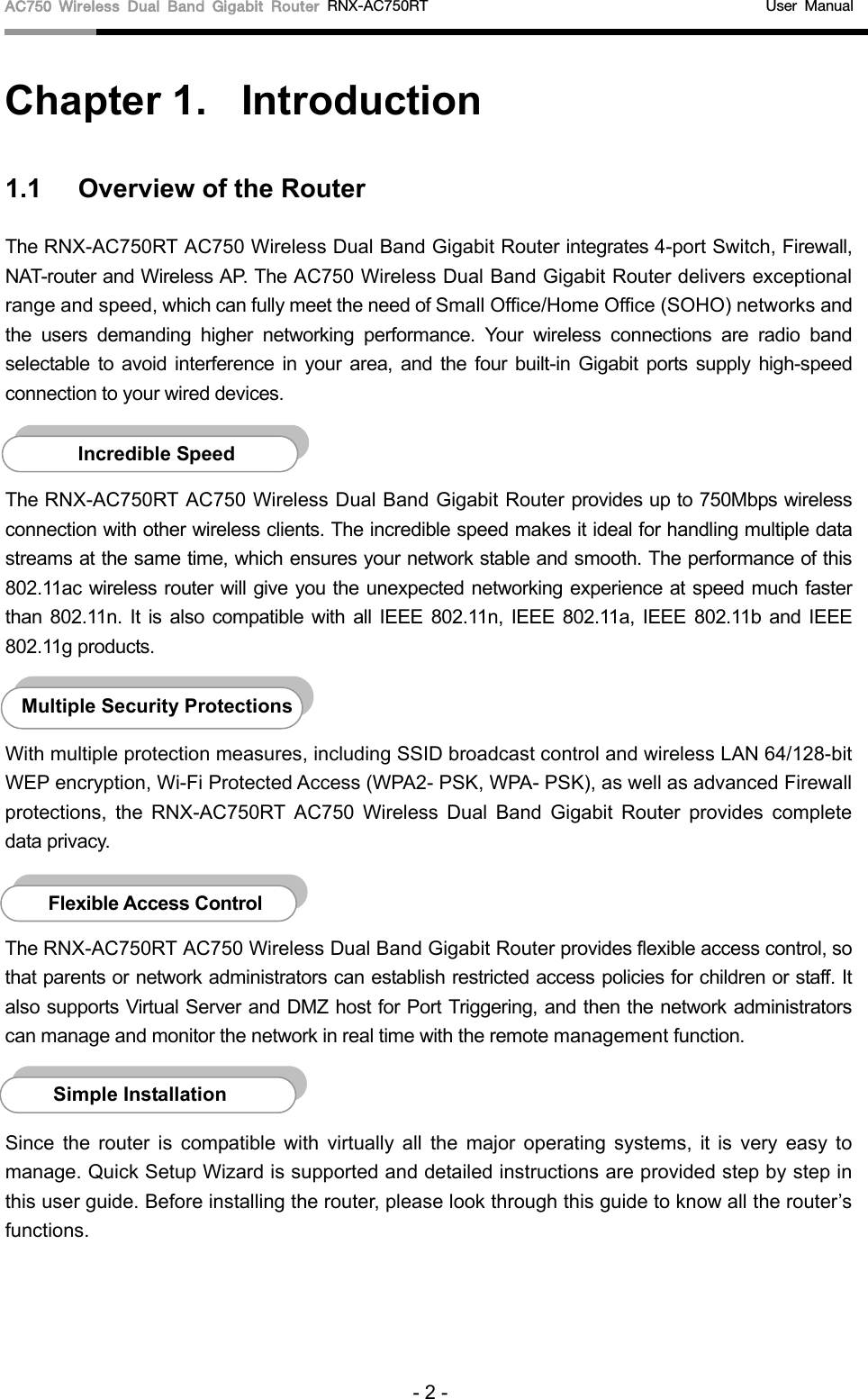

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Chapter 1. Introduction 1.1 Overview of the Router The RNX-AC750RT AC750 Wireless Dual Band Gigabit Router integrates 4-port Switch, Firewall, NAT-router and Wireless AP. The AC750 Wireless Dual Band Gigabit Router delivers exceptional range and speed, which can fully meet the need of Small Office/Home Office (SOHO) networks and the users demanding higher networking performance. Your wireless connections are radio band selectable to avoid interference in your area, and the four built-in Gigabit ports supply high-speed connection to your wired devices. The RNX-AC750RT AC750 Wireless Dual Band Gigabit Router provides up to 750Mbps wireless connection with other wireless clients. The incredible speed makes it ideal for handling multiple data streams at the same time, which ensures your network stable and smooth. The performance of this 802.11ac wireless router will give you the unexpected networking experience at speed much faster than 802.11n. It is also compatible with all IEEE 802.11n, IEEE 802.11a, IEEE 802.11b and IEEE 802.11g products. With multiple protection measures, including SSID broadcast control and wireless LAN 64/128-bit WEP encryption, Wi-Fi Protected Access (WPA2- PSK, WPA- PSK), as well as advanced Firewall protections, the RNX-AC750RT AC750 Wireless Dual Band Gigabit Router provides complete data privacy. The RNX-AC750RT AC750 Wireless Dual Band Gigabit Router provides flexible access control, so that parents or network administrators can establish restricted access policies for children or staff. It also supports Virtual Server and DMZ host for Port Triggering, and then the network administrators can manage and monitor the network in real time with the remote management function. Since the router is compatible with virtually all the major operating systems, it is very easy to manage. Quick Setup Wizard is supported and detailed instructions are provided step by step in this user guide. Before installing the router, please look through this guide to know all the router’s functions. Simple Installation Flexible Access Control Multiple Security Protections Incredible Speed - 2 -

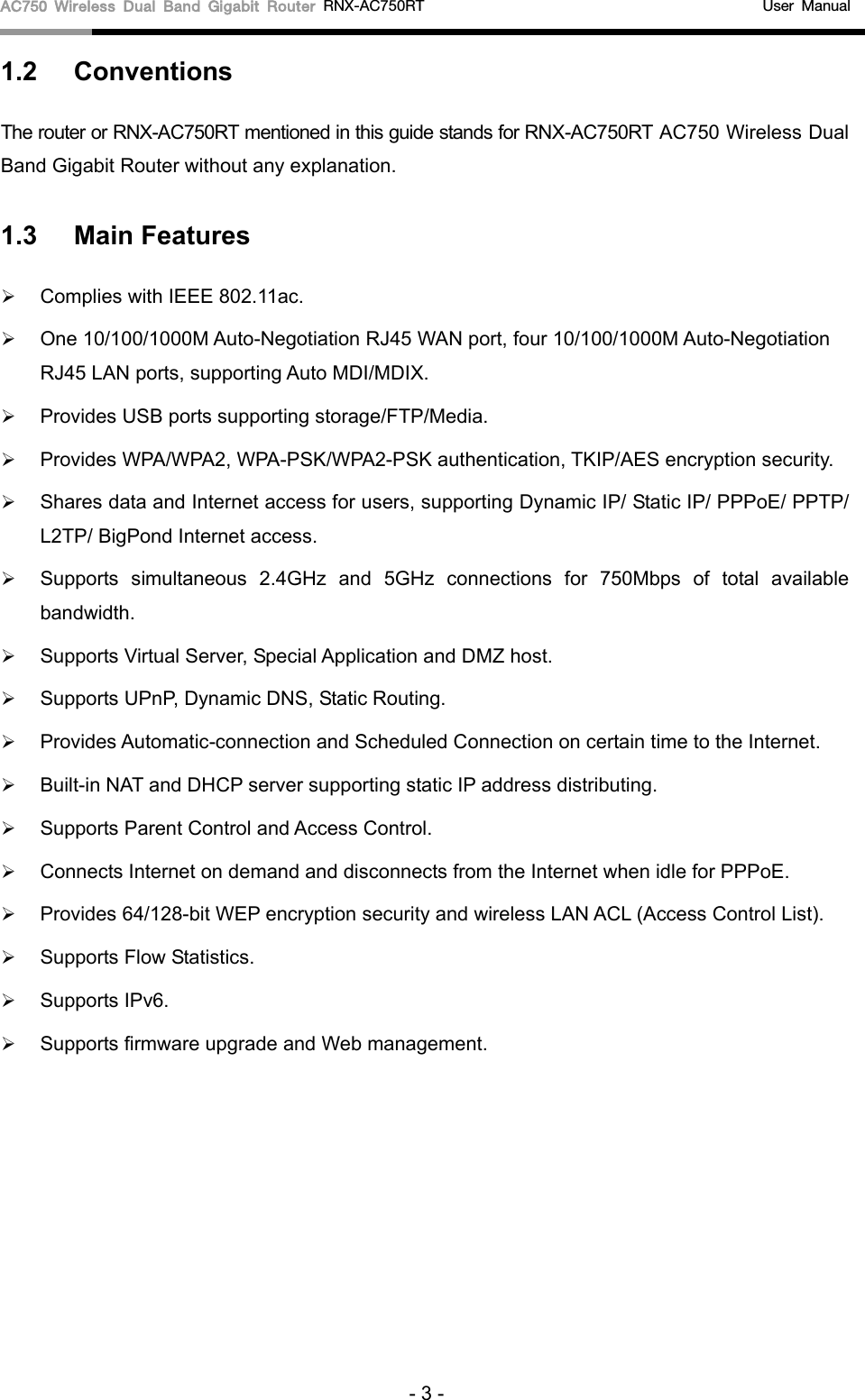

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual 1.2 Conventions The router or RNX-AC750RT mentioned in this guide stands for RNX-AC750RT AC750 Wireless Dual Band Gigabit Router without any explanation. 1.3 Main Features  Complies with IEEE 802.11ac.  One 10/100/1000M Auto-Negotiation RJ45 WAN port, four 10/100/1000M Auto-Negotiation RJ45 LAN ports, supporting Auto MDI/MDIX.  Provides USB ports supporting storage/FTP/Media.  Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security.  Shares data and Internet access for users, supporting Dynamic IP/ Static IP/ PPPoE/ PPTP/ L2TP/ BigPond Internet access.  Supports simultaneous 2.4GHz and 5GHz connections for 750Mbps of total available bandwidth.  Supports Virtual Server, Special Application and DMZ host.  Supports UPnP, Dynamic DNS, Static Routing.  Provides Automatic-connection and Scheduled Connection on certain time to the Internet.  Built-in NAT and DHCP server supporting static IP address distributing.  Supports Parent Control and Access Control.  Connects Internet on demand and disconnects from the Internet when idle for PPPoE.  Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List).  Supports Flow Statistics.  Supports IPv6.  Supports firmware upgrade and Web management. - 3 -

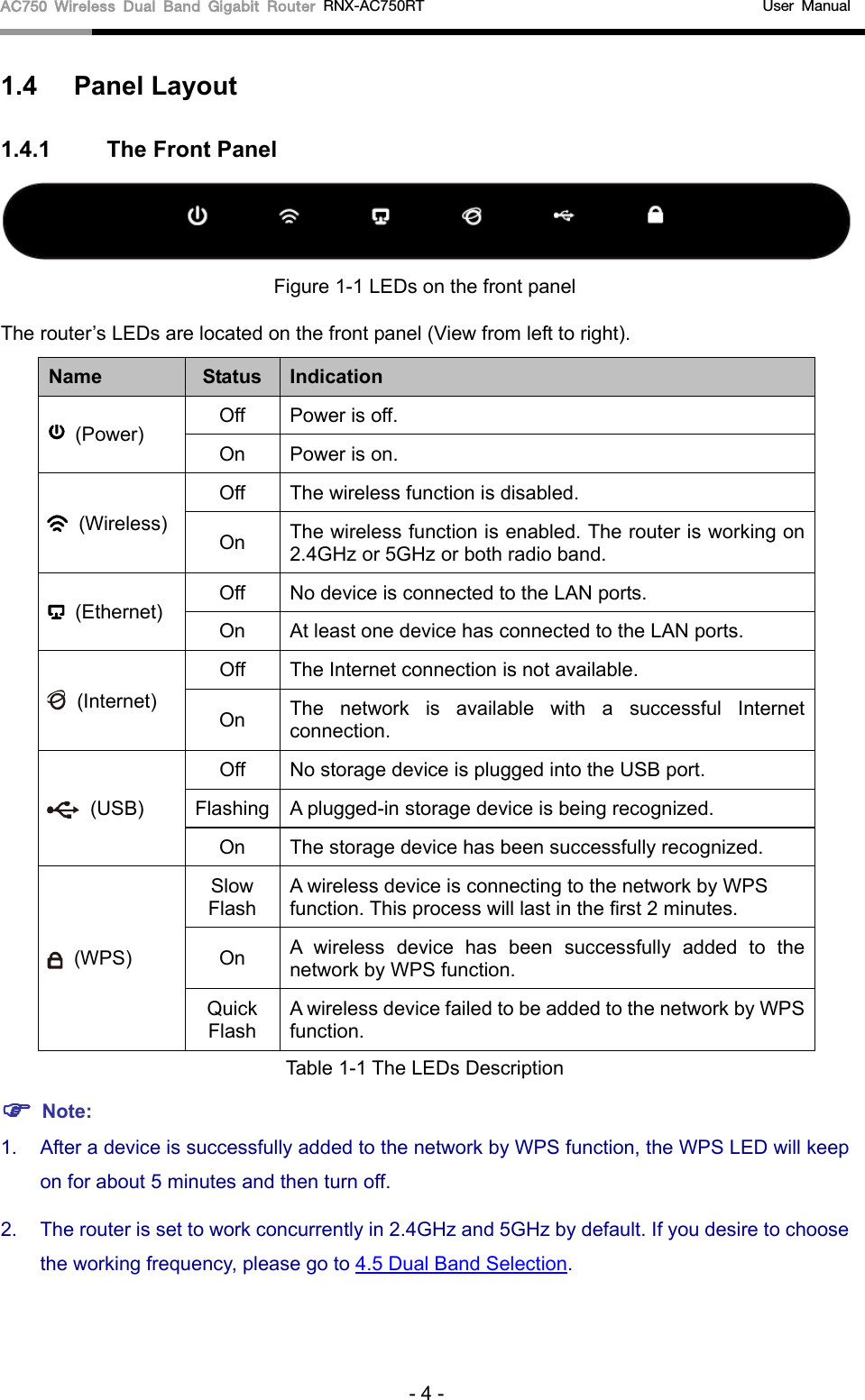

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual 1.4 Panel Layout 1.4.1 The Front Panel Figure 1-1 LEDs on the front panel The router’s LEDs are located on the front panel (View from left to right). Name Status Indication (Power) Off Power is off. On Power is on. (Wireless) Off The wireless function is disabled. On The wireless function is enabled. The router is working on 2.4GHz or 5GHz or both radio band. (Ethernet) Off No device is connected to the LAN ports. On At least one device has connected to the LAN ports. (Internet) Off The Internet connection is not available. On The network is available with a successful Internet connection. (USB) Off No storage device is plugged into the USB port. Flashing A plugged-in storage device is being recognized. On The storage device has been successfully recognized. (WPS) Slow Flash A wireless device is connecting to the network by WPS function. This process will last in the first 2 minutes. On A wireless device has been successfully added to the network by WPS function. Quick Flash A wireless device failed to be added to the network by WPS function. Table 1-1 The LEDs Description  Note:1. After a device is successfully added to the network by WPS function, the WPS LED will keepon for about 5 minutes and then turn off.2. The router is set to work concurrently in 2.4GHz and 5GHz by default. If you desire to choosethe working frequency, please go to 4.5 Dual Band Selection.- 4 -

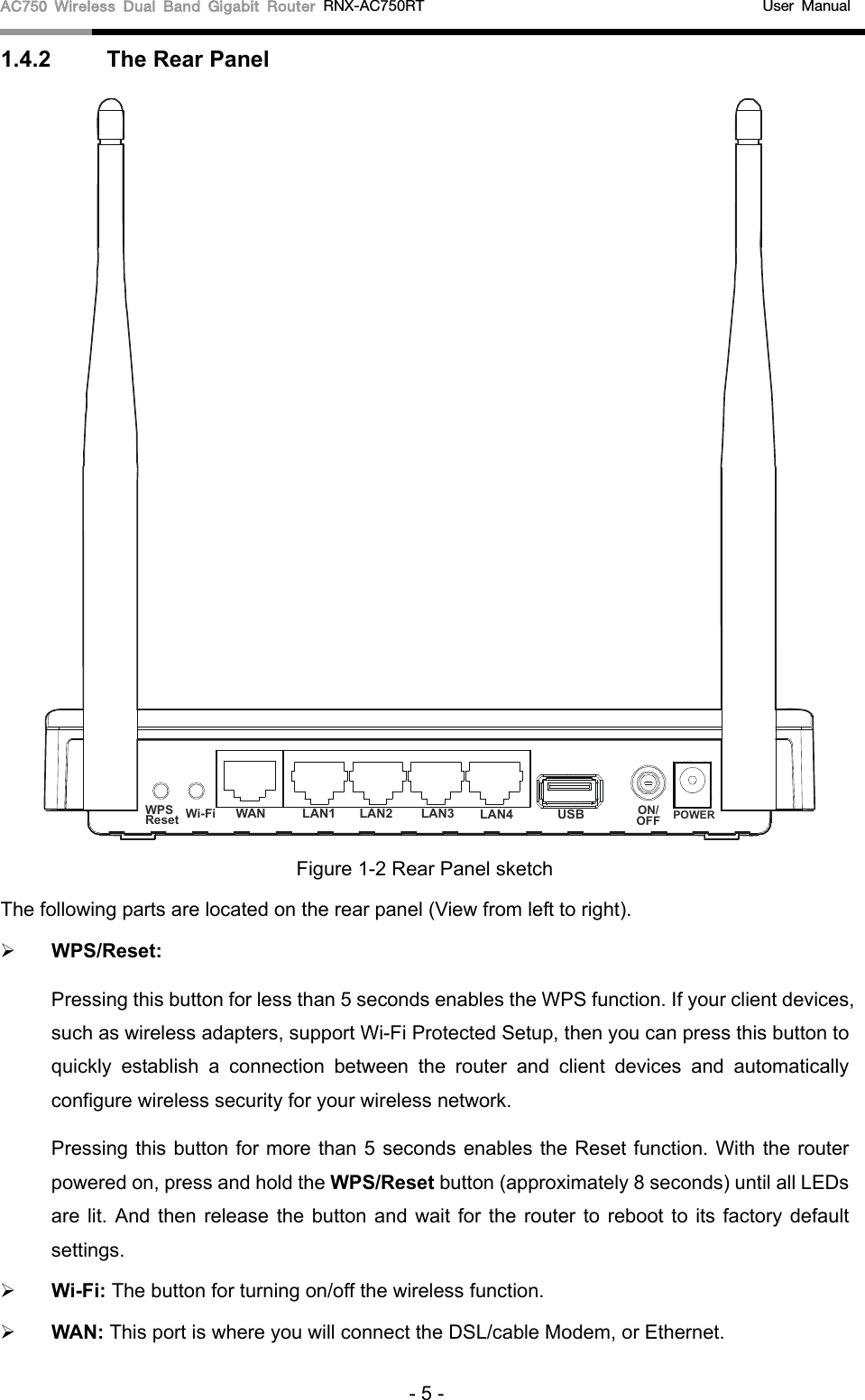

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual 1.4.2 The Rear Panel Figure 1-2 Rear Panel sketch The following parts are located on the rear panel (View from left to right). WPS/Reset:Pressing this button for less than 5 seconds enables the WPS function. If your client devices,such as wireless adapters, support Wi-Fi Protected Setup, then you can press this button toquickly establish a connection between the router and client devices and automaticallyconfigure wireless security for your wireless network.Pressing this button for more than 5 seconds enables the Reset function. With the routerpowered on, press and hold the WPS/Reset button (approximately 8 seconds) until all LEDsare lit. And then release the button and wait for the router to reboot to its factory defaultsettings.Wi-Fi: The button for turning on/off the wireless function.WAN: This port is where you will connect the DSL/cable Modem, or Ethernet.- 5 - WPSResetON/OFF POWERWi-Fi WAN LAN1 LAN2 LAN3 LAN4 USB

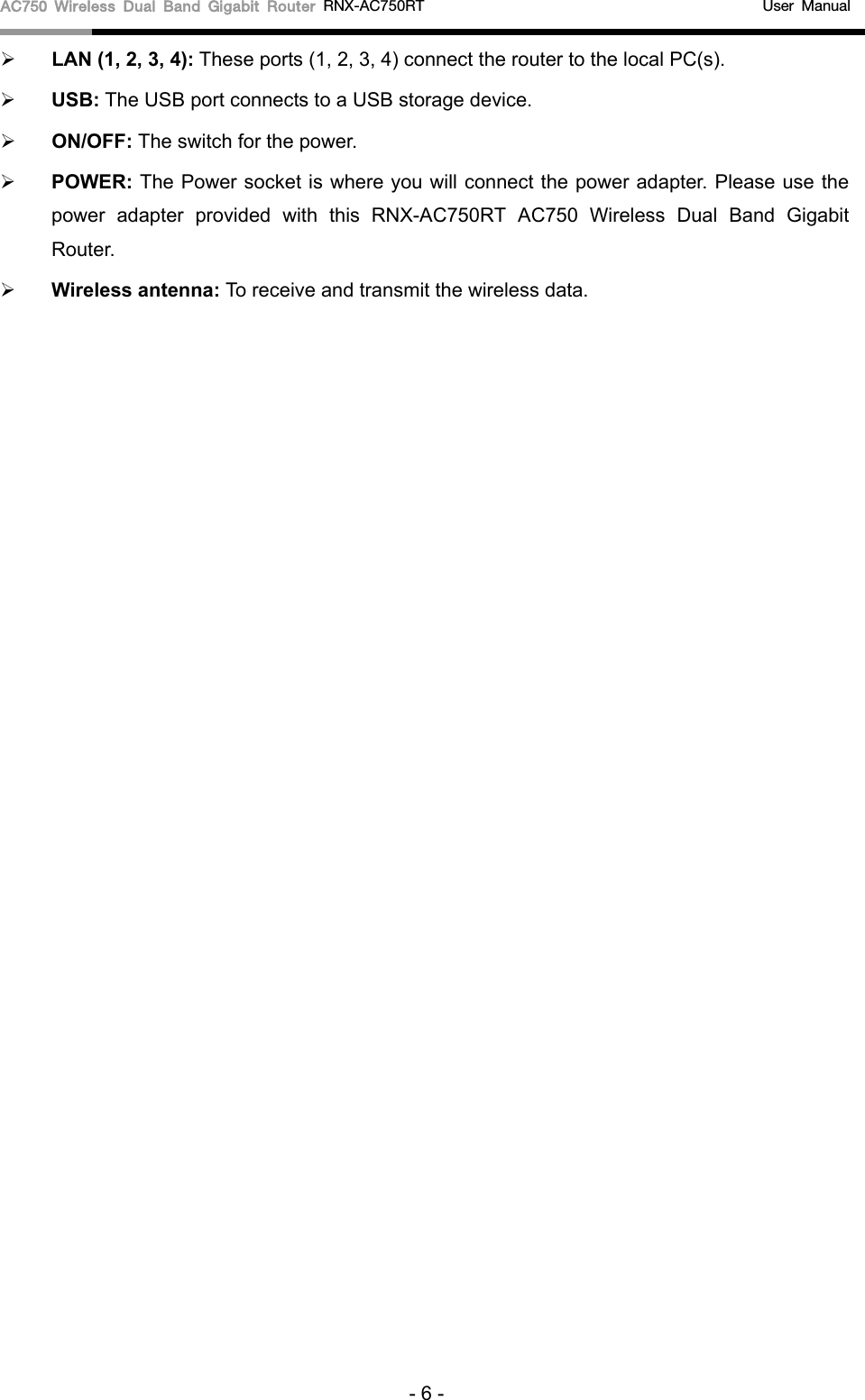

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  LAN (1, 2, 3, 4): These ports (1, 2, 3, 4) connect the router to the local PC(s).  USB: The USB port connects to a USB storage device.  ON/OFF: The switch for the power.  POWER: The Power socket is where you will connect the power adapter. Please use the power adapter provided with this RNX-AC750RT AC750 Wireless Dual Band Gigabit Router.  Wireless antenna: To receive and transmit the wireless data. - 6 -

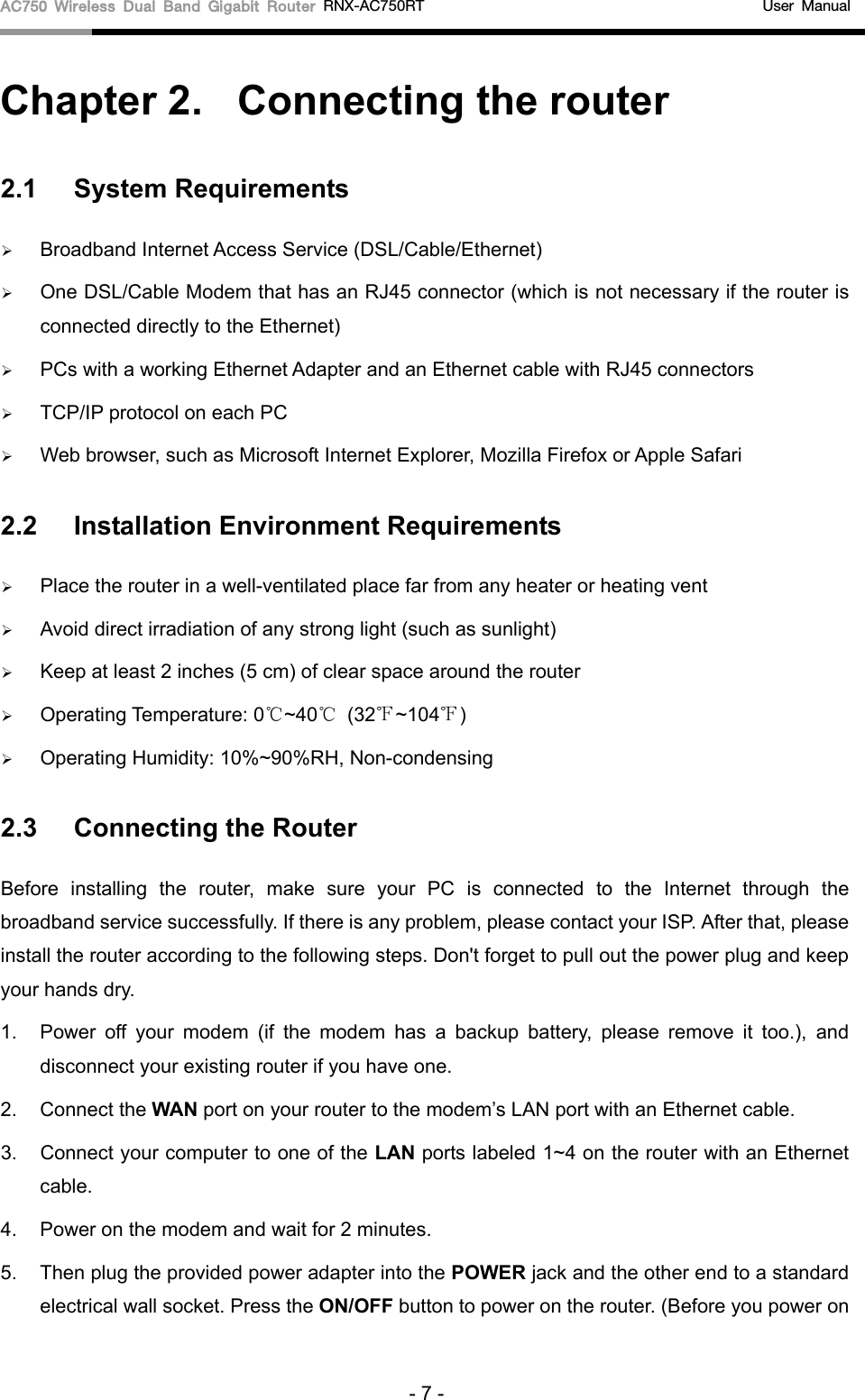

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Chapter 2. Connecting the router 2.1 System Requirements  Broadband Internet Access Service (DSL/Cable/Ethernet)  One DSL/Cable Modem that has an RJ45 connector (which is not necessary if the router is connected directly to the Ethernet)  PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors  TCP/IP protocol on each PC  Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari 2.2 Installation Environment Requirements  Place the router in a well-ventilated place far from any heater or heating vent  Avoid direct irradiation of any strong light (such as sunlight)  Keep at least 2 inches (5 cm) of clear space around the router  Operating Temperature: 0℃~40℃ (32℉~104℉)  Operating Humidity: 10%~90%RH, Non-condensing 2.3 Connecting the Router Before installing the router, make sure your PC is connected to the Internet through the broadband service successfully. If there is any problem, please contact your ISP. After that, please install the router according to the following steps. Don't forget to pull out the power plug and keep your hands dry. 1. Power off your modem (if the modem has a backup battery, please remove it too.), and disconnect your existing router if you have one. 2. Connect the WAN port on your router to the modem’s LAN port with an Ethernet cable. 3. Connect your computer to one of the LAN ports labeled 1~4 on the router with an Ethernet cable. 4. Power on the modem and wait for 2 minutes. 5. Then plug the provided power adapter into the POWER jack and the other end to a standard electrical wall socket. Press the ON/OFF button to power on the router. (Before you power on - 7 -

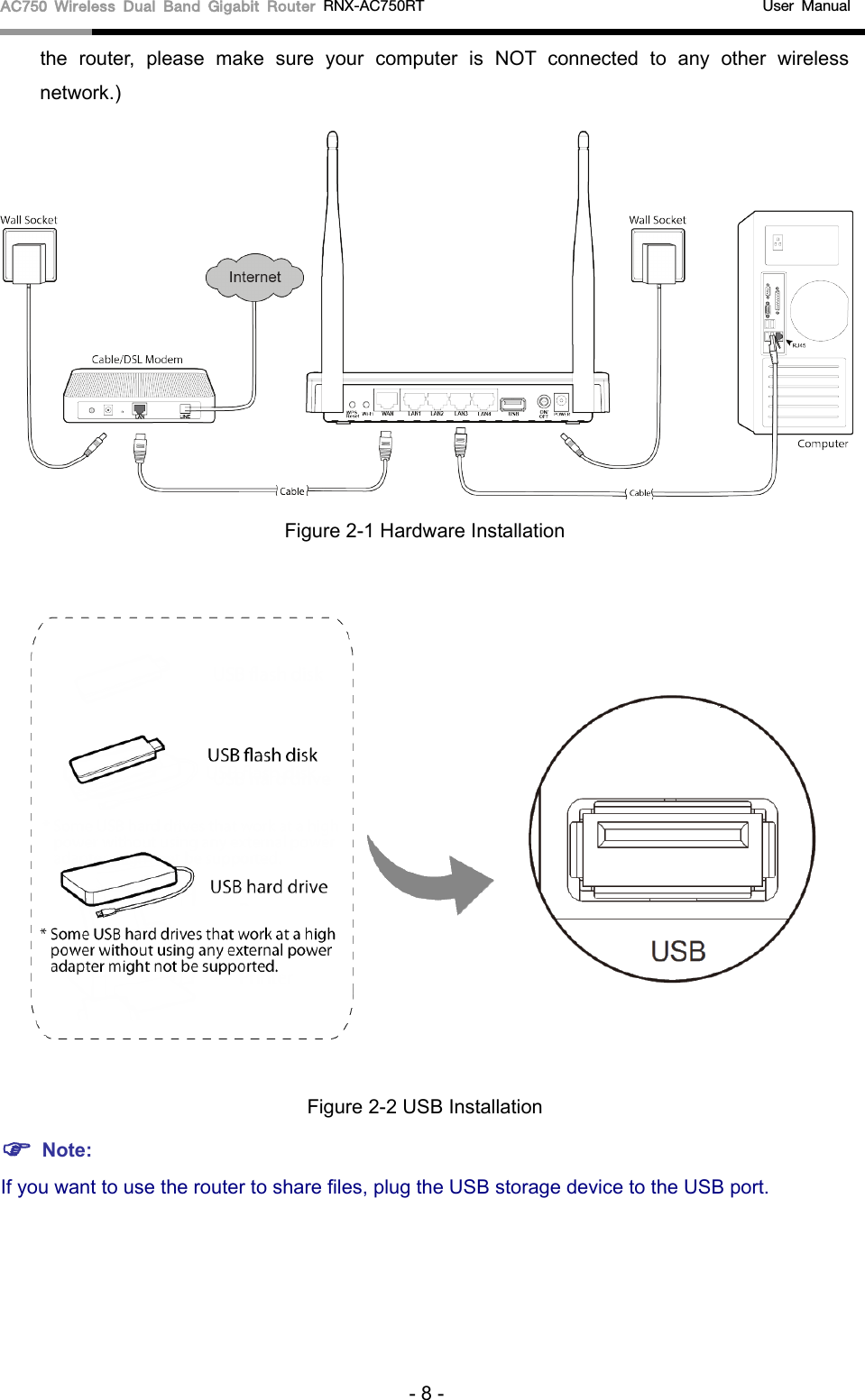

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual the router, please make sure your computer is NOT connected to any other wireless network.) Figure 2-1 Hardware Installation Figure 2-2 USB Installation  Note:If you want to use the router to share files, plug the USB storage device to the USB port. - 8 -

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Chapter 3. Quick Installation Guide This chapter will show you how to configure the basic functions of your AC750 Wireless Dual Band Gigabit Router using Quick Setup Wizard within minutes. 3.1 TCP/IP Configuration The default IP address of the router is 192.168.1.1 and the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this guide, we use all the default values for description. Connect the local PC to the LAN ports of the router and then you can configure the IP address for your PC by the following method: Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC. If you need instructions as to how to do this, please refer to Appendix B: Configuring the PC. Then the built-in DHCP server will assign IP address for the PC. Now, you can run the Ping command in the command prompt to verify the network connection between your PC and the router. The following example is in Windows XP OS. Open a command prompt, and type ping 192.168.1.1, and then press Enter.  If the result displayed is similar to the Figure 3-1, it means the connection between your PC and the router has been established well. Figure 3-1 Success result of Ping command  If the result displayed is similar to Figure 3-2, it means the connection between your PC and the router failed. - 9 -

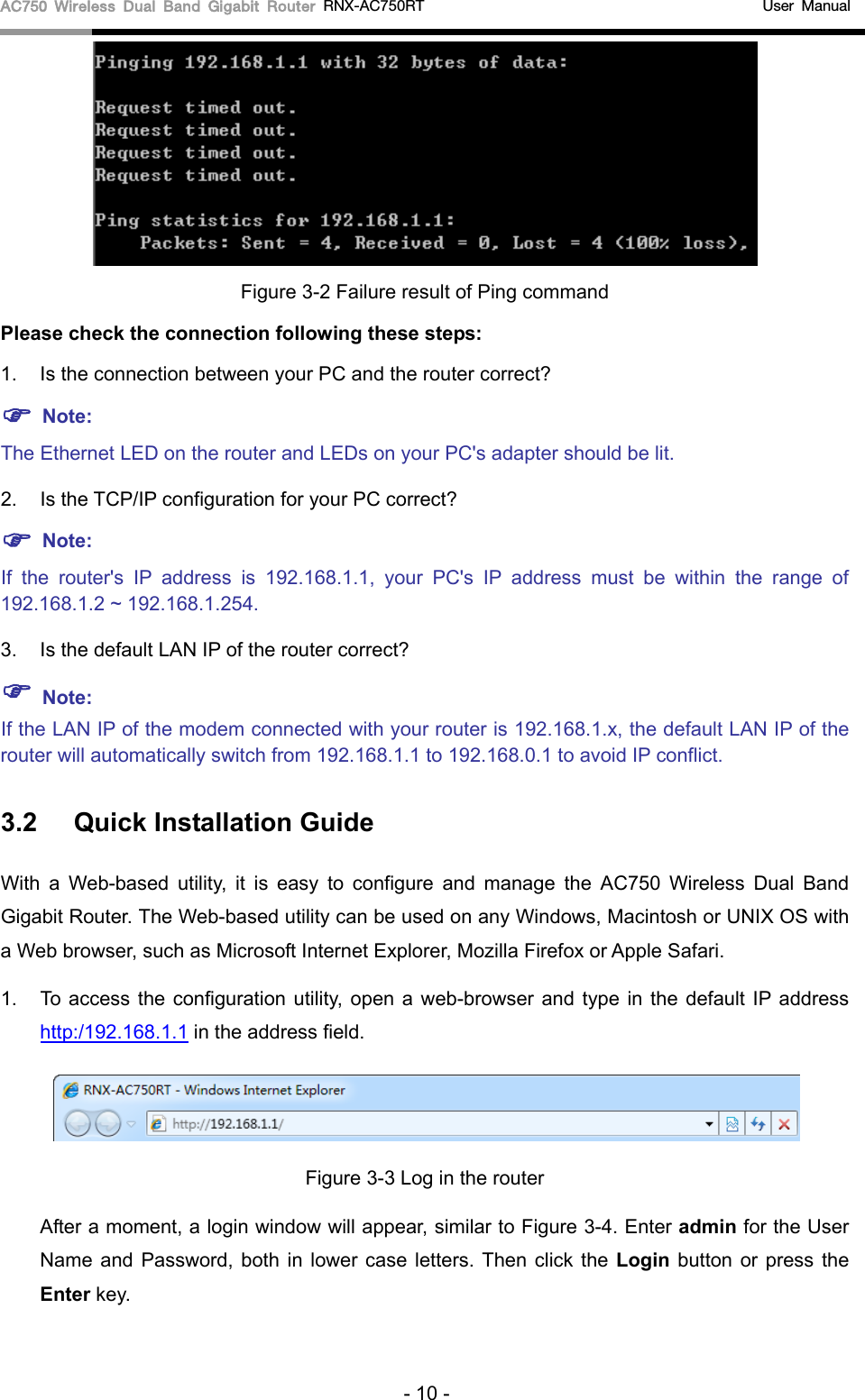

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 3-2 Failure result of Ping command Please check the connection following these steps: 1. Is the connection between your PC and the router correct?  Note: The Ethernet LED on the router and LEDs on your PC's adapter should be lit. 2. Is the TCP/IP configuration for your PC correct?  Note: If the router's IP address is 192.168.1.1, your PC's IP address must be within the range of 192.168.1.2 ~ 192.168.1.254. 3. Is the default LAN IP of the router correct?  Note: If the LAN IP of the modem connected with your router is 192.168.1.x, the default LAN IP of the router will automatically switch from 192.168.1.1 to 192.168.0.1 to avoid IP conflict. 3.2 Quick Installation Guide With a Web-based utility, it is easy to configure and manage the AC750 Wireless Dual Band Gigabit Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari. 1. To access the configuration utility, open a web-browser and type in the default IP address http:/192.168.1.1 in the address field. Figure 3-3 Log in the router After a moment, a login window will appear, similar to Figure 3-4. Enter admin for the User Name and Password, both in lower case letters. Then click the Login button or press the Enter key. - 10 -

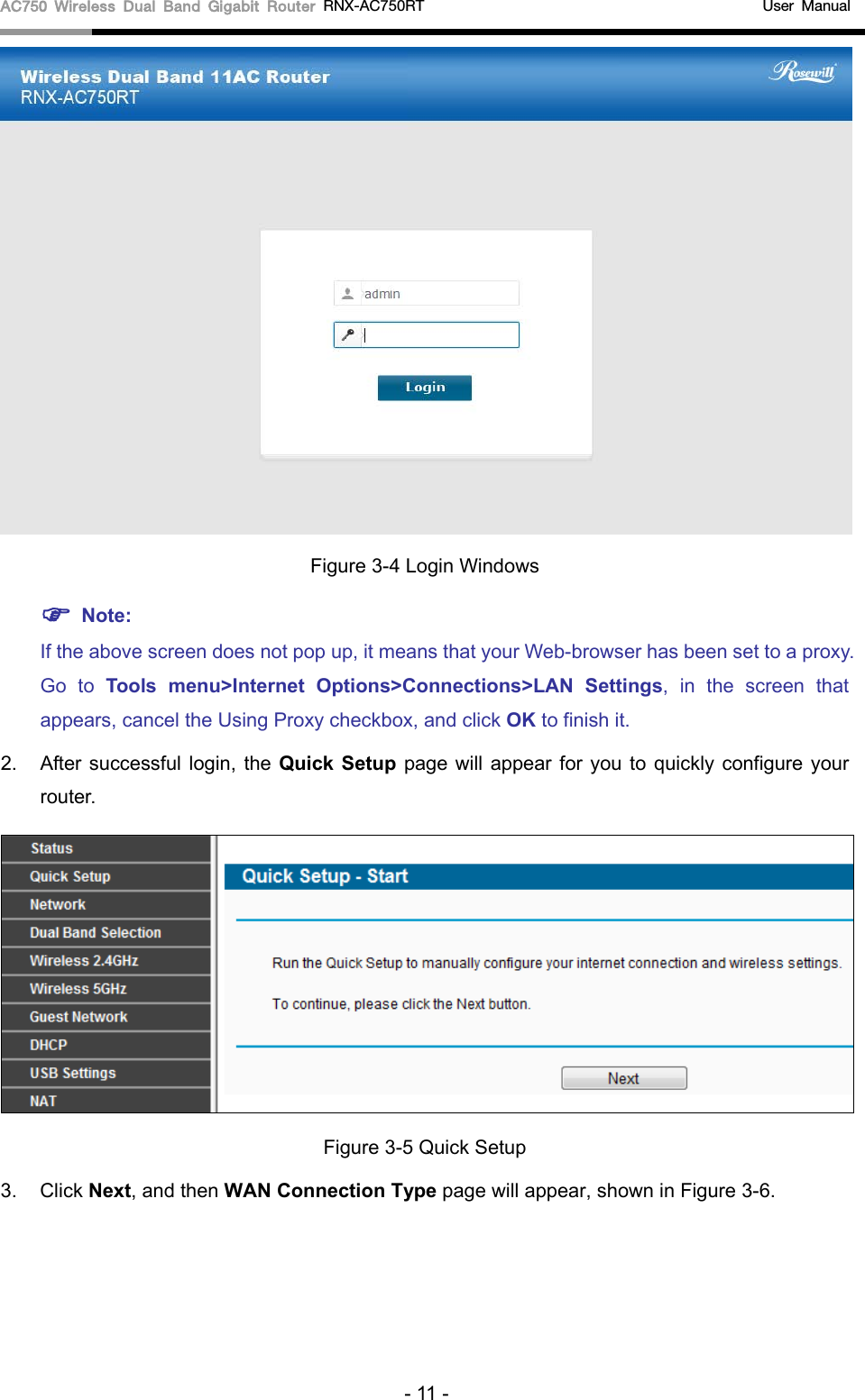

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 3-4 Login Windows  Note: If the above screen does not pop up, it means that your Web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it. 2. After successful login, the Quick Setup page will appear for you to quickly configure your router. Figure 3-5 Quick Setup 3. Click Next, and then WAN Connection Type page will appear, shown in Figure 3-6. - 11 -

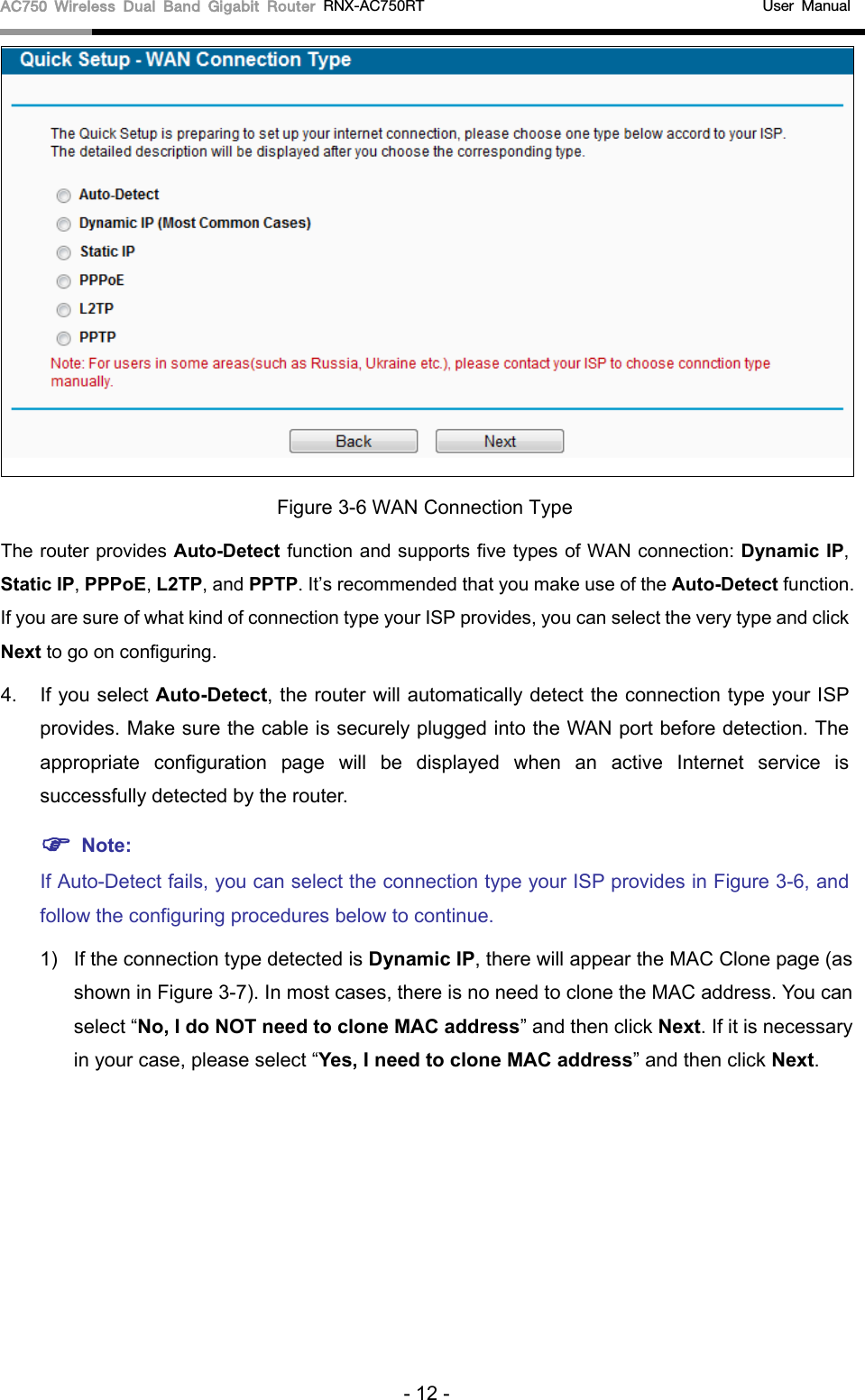

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 3-6 WAN Connection Type The router provides Auto-Detect function and supports five types of WAN connection: Dynamic IP, Static IP, PPPoE, L2TP, and PPTP. It’s recommended that you make use of the Auto-Detect function. If you are sure of what kind of connection type your ISP provides, you can select the very type and click Next to go on configuring. 4. If you select Auto-Detect, the router will automatically detect the connection type your ISP provides. Make sure the cable is securely plugged into the WAN port before detection. The appropriate configuration page will be displayed when an active Internet service is successfully detected by the router.  Note: If Auto-Detect fails, you can select the connection type your ISP provides in Figure 3-6, and follow the configuring procedures below to continue. 1) If the connection type detected is Dynamic IP, there will appear the MAC Clone page (as shown in Figure 3-7). In most cases, there is no need to clone the MAC address. You can select “No, I do NOT need to clone MAC address” and then click Next. If it is necessary in your case, please select “Yes, I need to clone MAC address” and then click Next. - 12 -

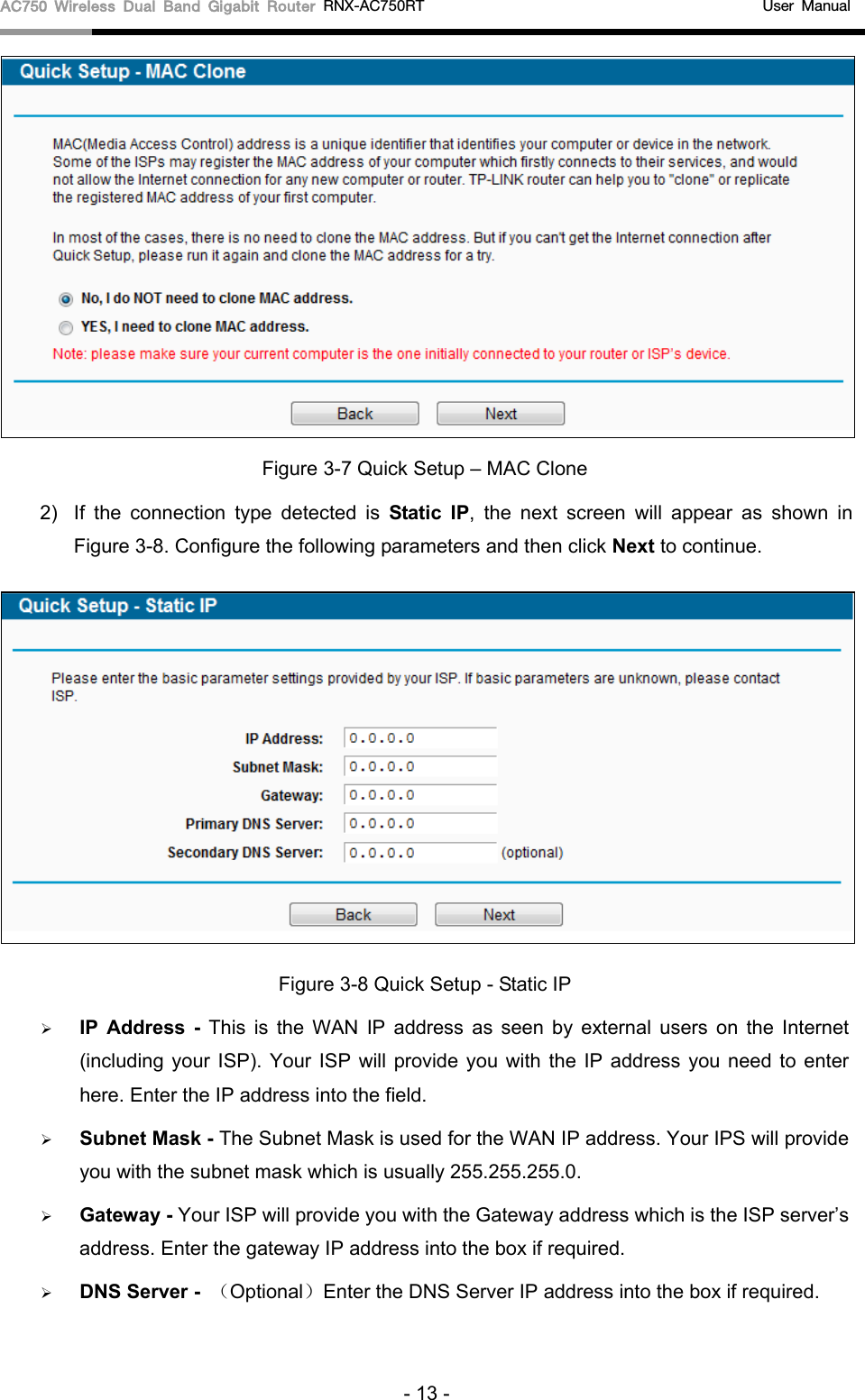

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 3-7 Quick Setup – MAC Clone 2) If the connection type detected is Static IP, the next screen will appear as shown in Figure 3-8. Configure the following parameters and then click Next to continue. Figure 3-8 Quick Setup - Static IP  IP Address - This is the WAN IP address as seen by external users on the Internet (including your ISP). Your ISP will provide you with the IP address you need to enter here. Enter the IP address into the field.  Subnet Mask - The Subnet Mask is used for the WAN IP address. Your IPS will provide you with the subnet mask which is usually 255.255.255.0.  Gateway - Your ISP will provide you with the Gateway address which is the ISP server’s address. Enter the gateway IP address into the box if required.  DNS Server - （Optional）Enter the DNS Server IP address into the box if required. - 13 -

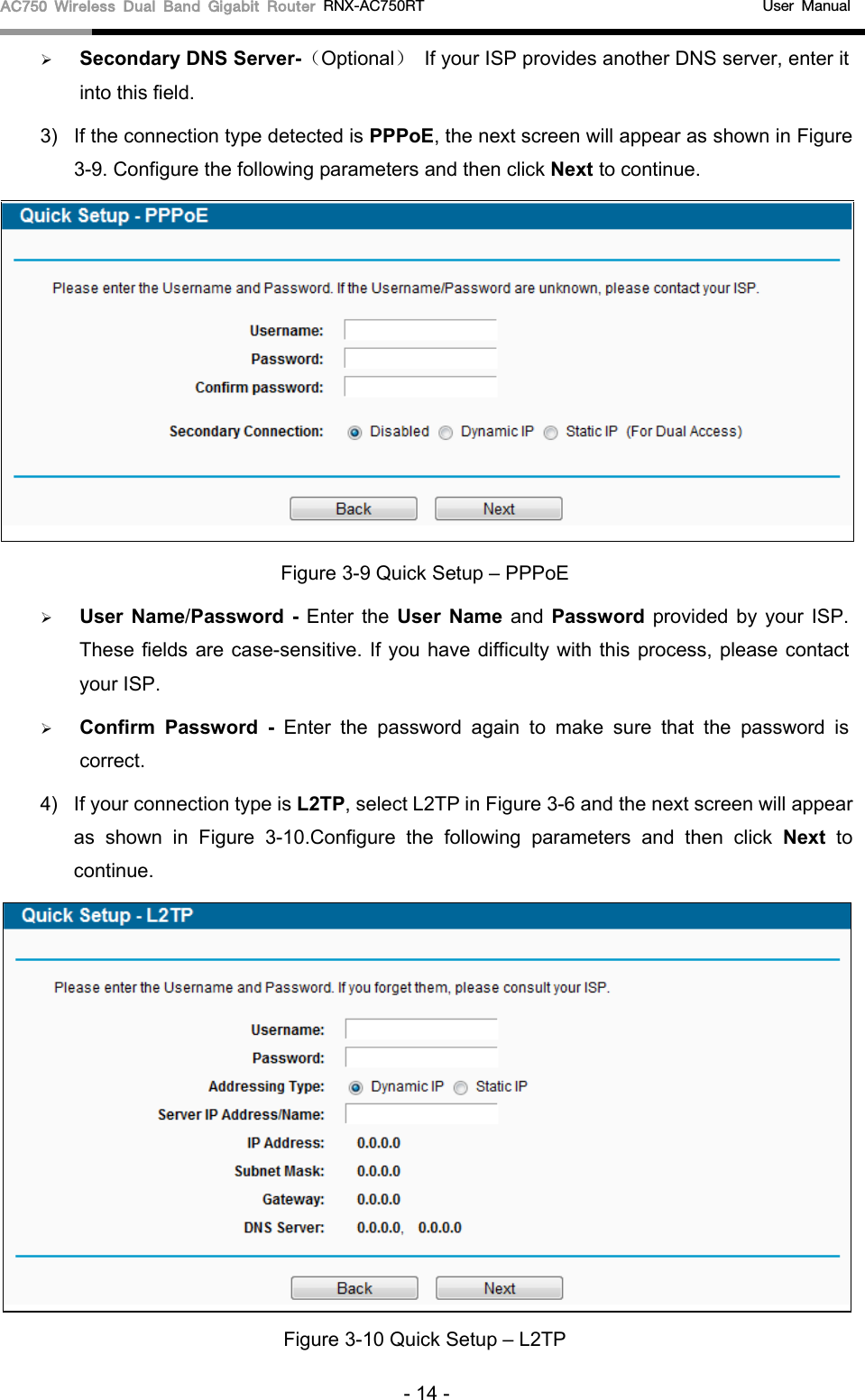

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  Secondary DNS Server-（Optional） If your ISP provides another DNS server, enter it into this field. 3) If the connection type detected is PPPoE, the next screen will appear as shown in Figure 3-9. Configure the following parameters and then click Next to continue. Figure 3-9 Quick Setup – PPPoE  User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. If you have difficulty with this process, please contact your ISP.  Confirm Password - Enter the password again to make sure that the password is correct. 4) If your connection type is L2TP, select L2TP in Figure 3-6 and the next screen will appear as shown in Figure 3-10.Configure the following parameters and then click Next to continue. Figure 3-10 Quick Setup – L2TP - 14 -

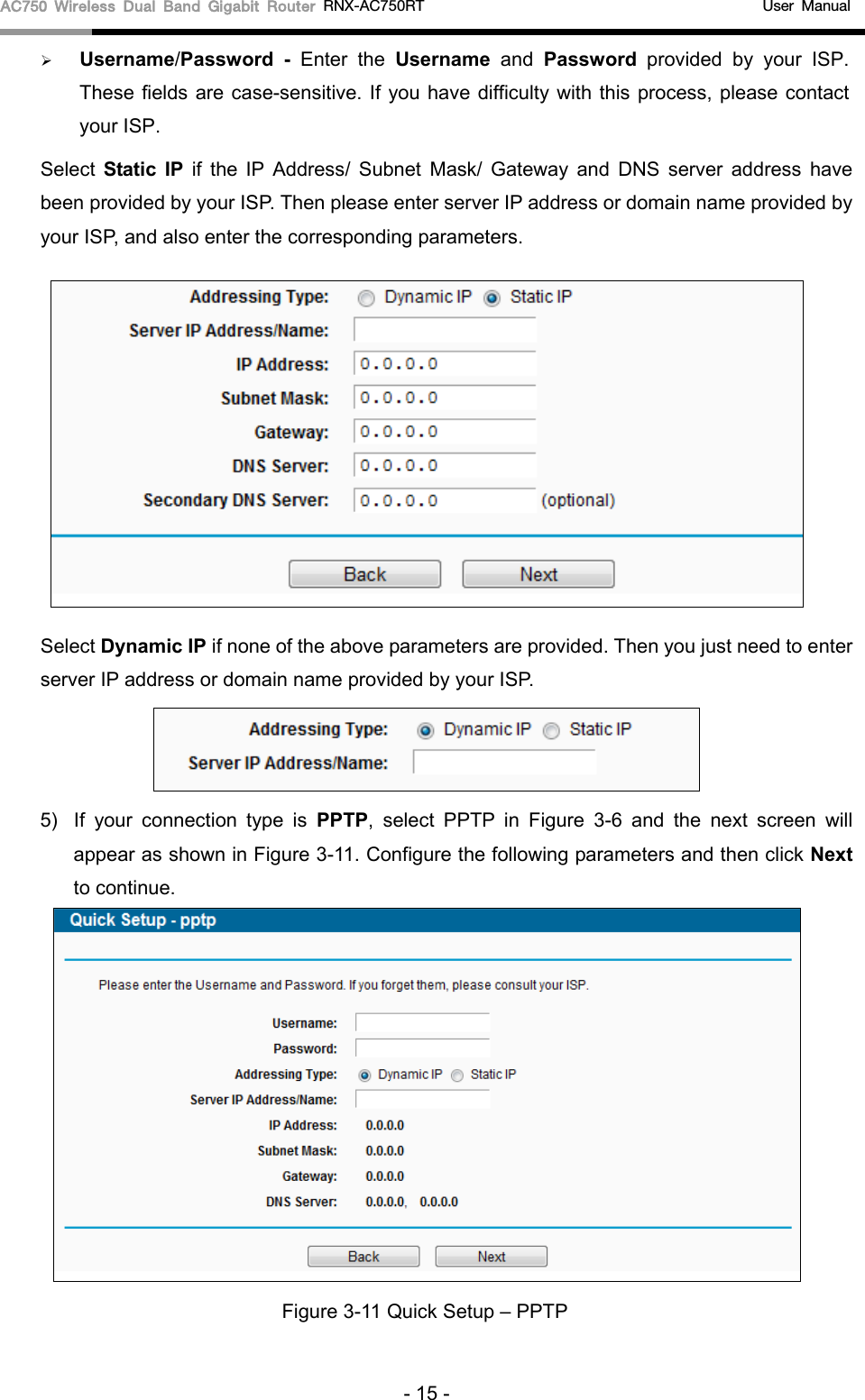

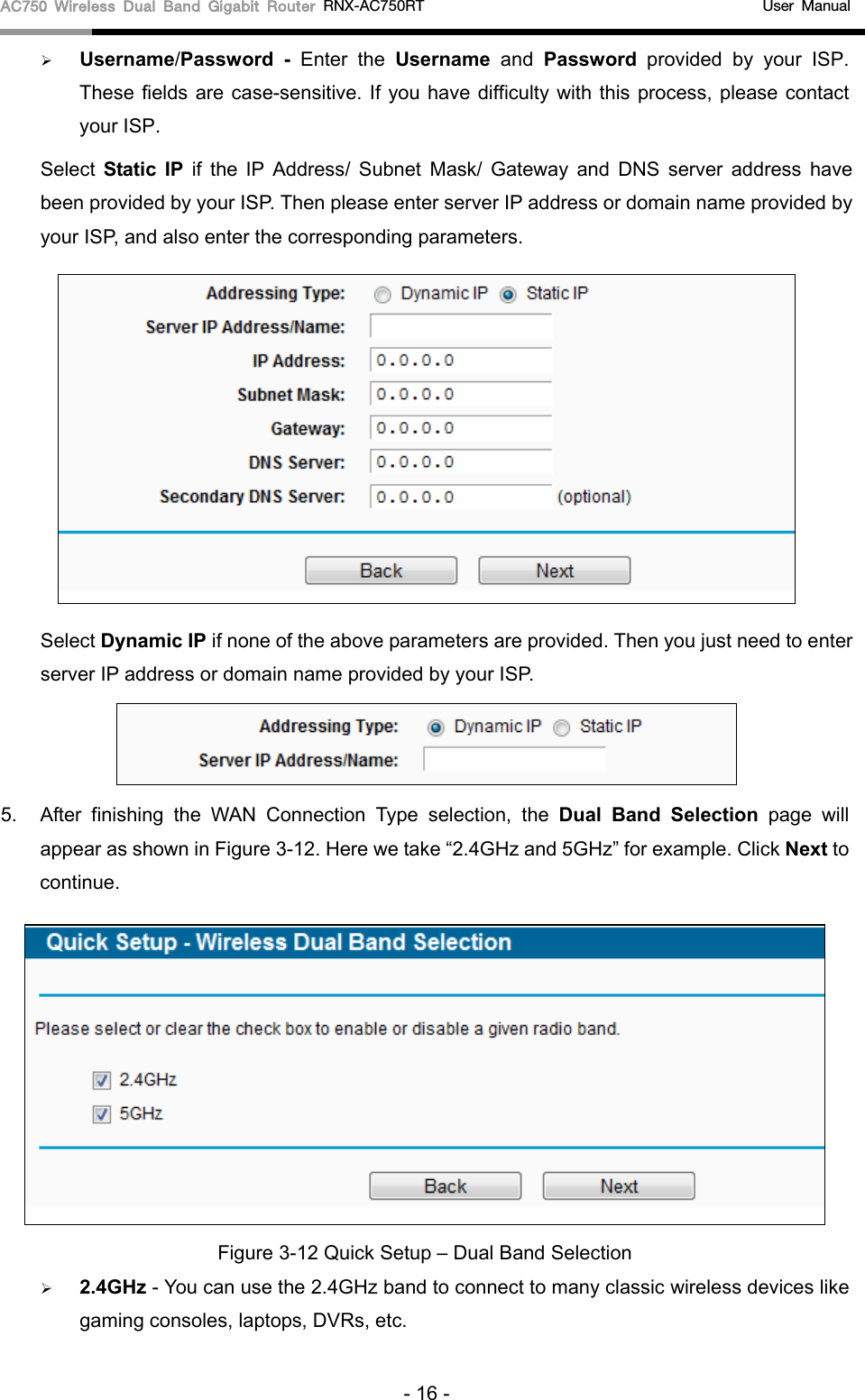

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  Username/Password - Enter the Username and Password provided by your ISP. These fields are case-sensitive. If you have difficulty with this process, please contact your ISP. Select Static IP if the IP Address/ Subnet Mask/ Gateway and DNS server address have been provided by your ISP. Then please enter server IP address or domain name provided by your ISP, and also enter the corresponding parameters. Select Dynamic IP if none of the above parameters are provided. Then you just need to enter server IP address or domain name provided by your ISP. 5) If your connection type is PPTP, select PPTP in Figure 3-6 and the next screen will appear as shown in Figure 3-11. Configure the following parameters and then click Next to continue. Figure 3-11 Quick Setup – PPTP - 15 -

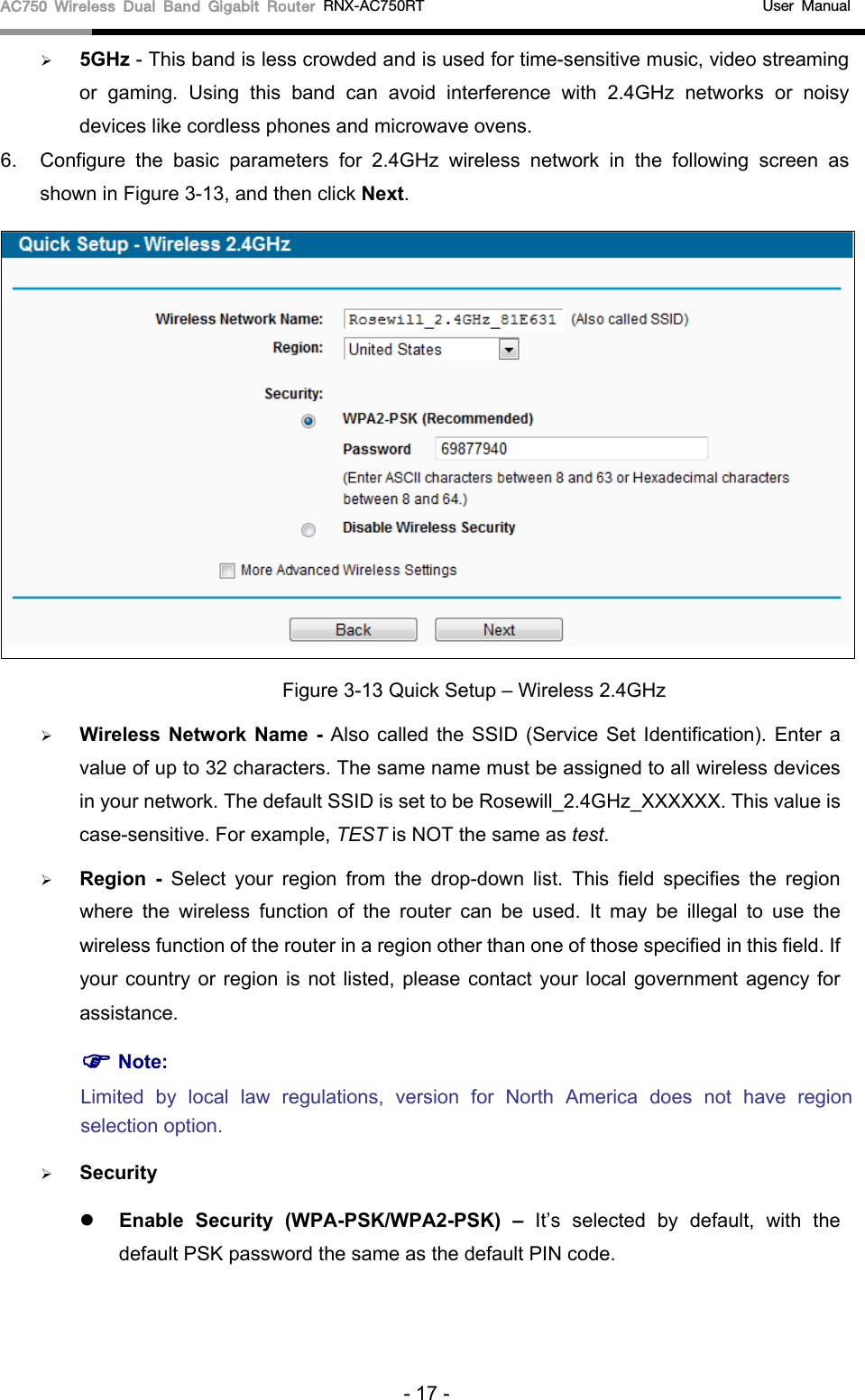

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  5GHz - This band is less crowded and is used for time-sensitive music, video streaming or gaming. Using this band can avoid interference with 2.4GHz networks or noisy devices like cordless phones and microwave ovens. 6. Configure the basic parameters for 2.4GHz wireless network in the following screen as shown in Figure 3-13, and then click Next. Figure 3-13 Quick Setup – Wireless 2.4GHz  Wireless Network Name - Also called the SSID (Service Set Identification). Enter a value of up to 32 characters. The same name must be assigned to all wireless devices in your network. The default SSID is set to be Rosewill_2.4GHz_XXXXXX. This value is case-sensitive. For example, TEST is NOT the same as test.  Region - Select your region from the drop-down list. This field specifies the region where the wireless function of the router can be used. It may be illegal to use the wireless function of the router in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance.  Note: Limited by local law regulations, version for North America does not have region selection option.  Security  Enable Security (WPA-PSK/WPA2-PSK) – It’s selected by default, with the default PSK password the same as the default PIN code. - 17 -

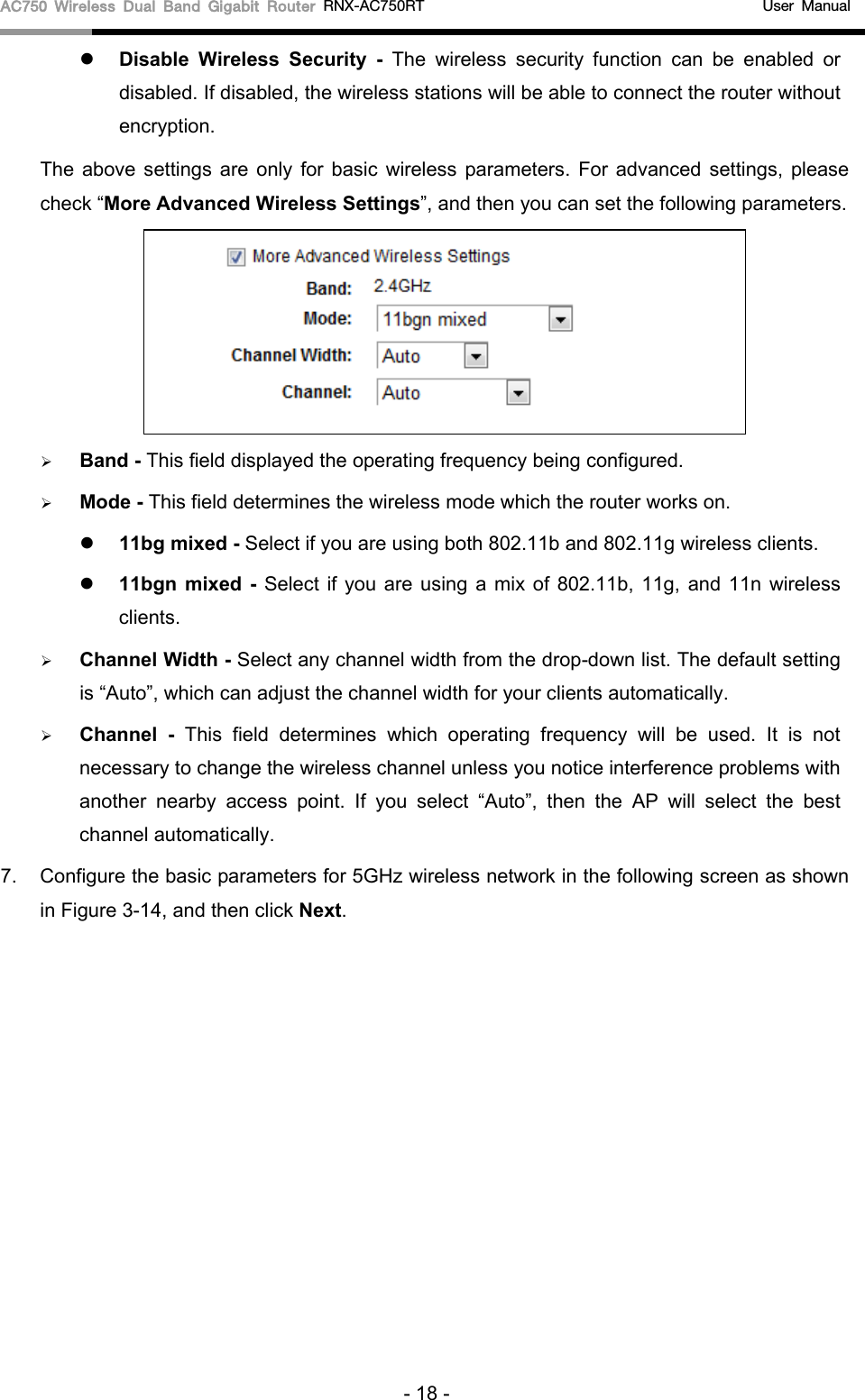

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  Disable Wireless Security - The wireless security function can be enabled or disabled. If disabled, the wireless stations will be able to connect the router without encryption. The above settings are only for basic wireless parameters. For advanced settings, please check “More Advanced Wireless Settings”, and then you can set the following parameters.  Band - This field displayed the operating frequency being configured.  Mode - This field determines the wireless mode which the router works on.  11bg mixed - Select if you are using both 802.11b and 802.11g wireless clients.  11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless clients.  Channel Width - Select any channel width from the drop-down list. The default setting is “Auto”, which can adjust the channel width for your clients automatically.  Channel - This field determines which operating frequency will be used. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point. If you select “Auto”, then the AP will select the best channel automatically. 7. Configure the basic parameters for 5GHz wireless network in the following screen as shown in Figure 3-14, and then click Next. - 18 -

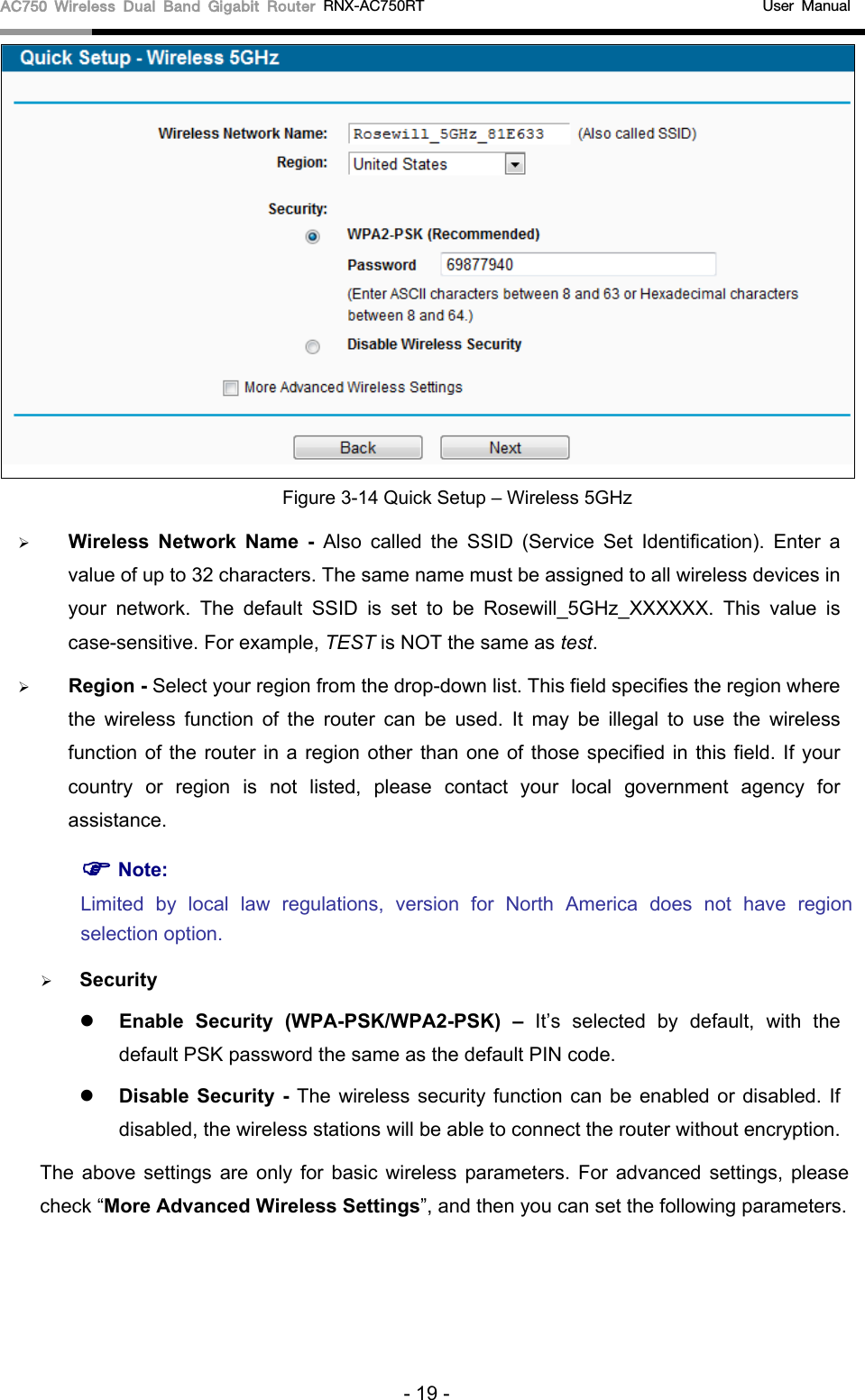

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 3-14 Quick Setup – Wireless 5GHz  Wireless Network Name - Also called the SSID (Service Set Identification). Enter a value of up to 32 characters. The same name must be assigned to all wireless devices in your network. The default SSID is set to be Rosewill_5GHz_XXXXXX. This value is case-sensitive. For example, TEST is NOT the same as test.  Region - Select your region from the drop-down list. This field specifies the region where the wireless function of the router can be used. It may be illegal to use the wireless function of the router in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance.  Note: Limited by local law regulations, version for North America does not have region selection option.  Security  Enable Security (WPA-PSK/WPA2-PSK) – It’s selected by default, with the default PSK password the same as the default PIN code.  Disable Security - The wireless security function can be enabled or disabled. If disabled, the wireless stations will be able to connect the router without encryption. The above settings are only for basic wireless parameters. For advanced settings, please check “More Advanced Wireless Settings”, and then you can set the following parameters. - 19 -

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  Band - This field displayed the operating frequency being configured.  Mode - This field determines the wireless mode which the router works on.  11an mixed - Select if you are using both 802.11a and 802.11n wireless clients.  11a/n/ac mixed – Select if you are using 802.11a, 802.11n and 802.11ac wireless clients.  Channel Width - Select any channel width from the drop-down list. The default setting is “Auto”, which can adjust the channel width for your clients automatically.  Channel - This field determines which operating frequency will be used. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point. If you select “Auto”, then the AP will select the best channel automatically. 8. Confirm the parameters and click the Save button to make the settings take effect. - 20 -

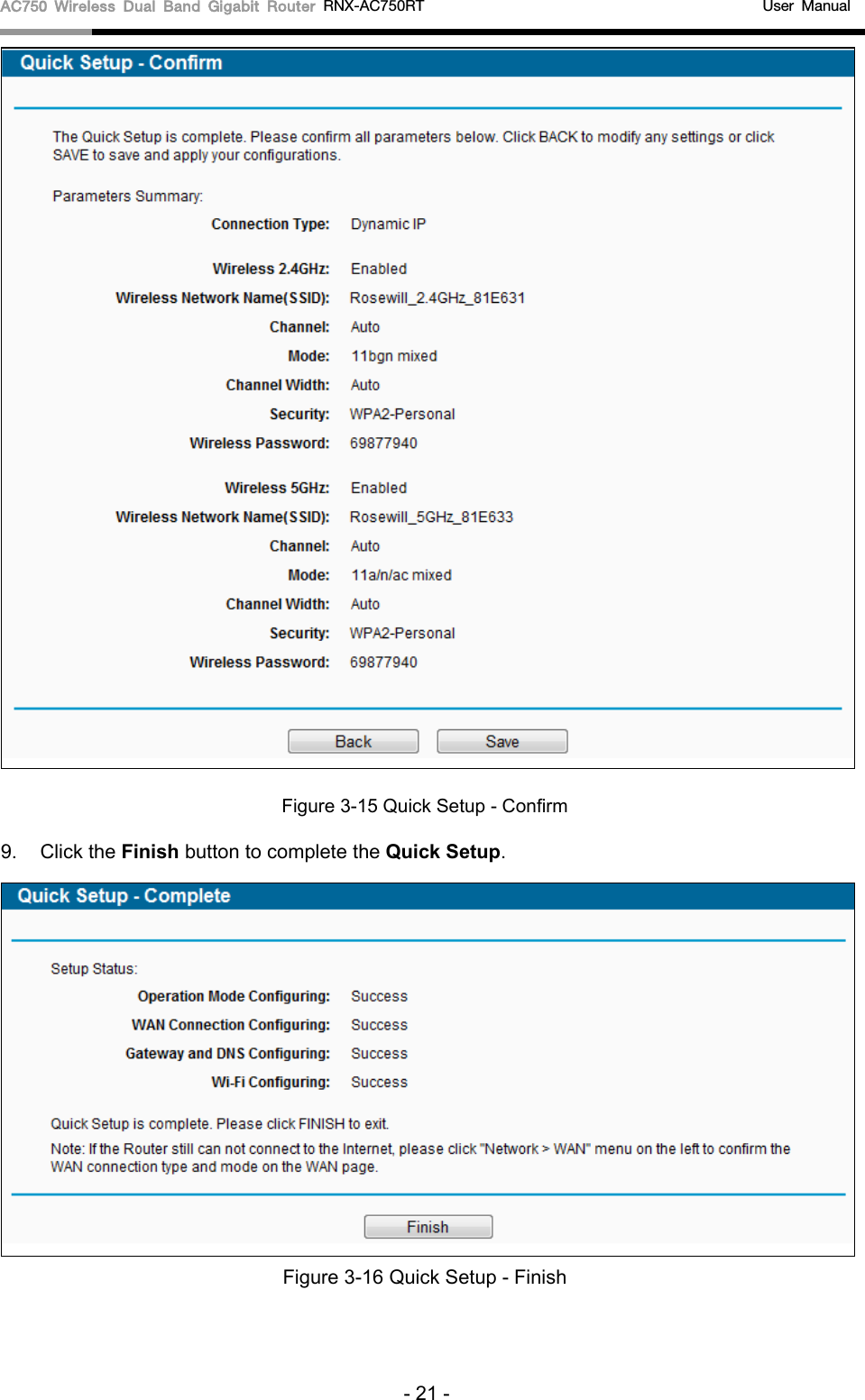

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 3-15 Quick Setup - Confirm 9. Click the Finish button to complete the Quick Setup. Figure 3-16 Quick Setup - Finish - 21 -

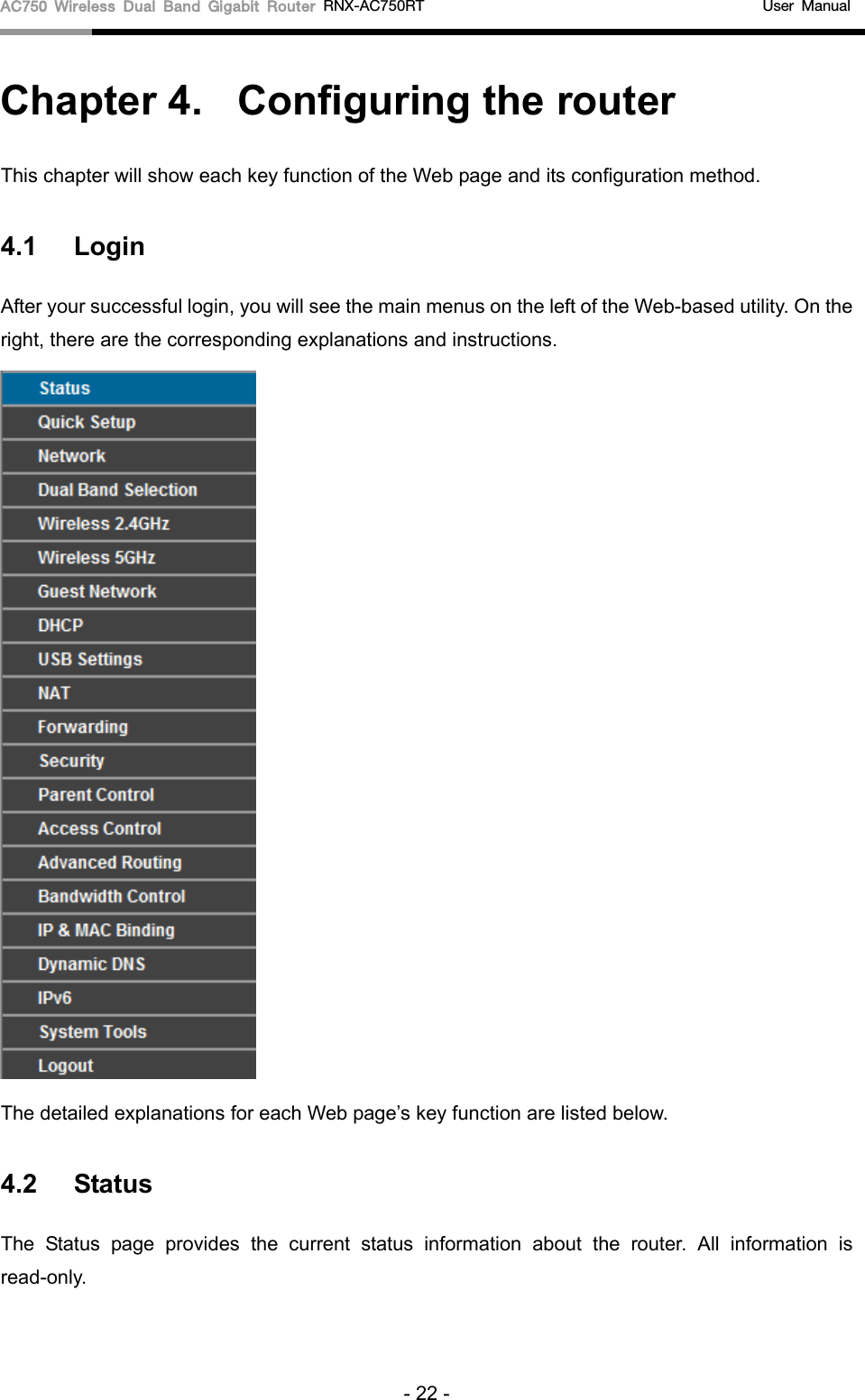

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Chapter 4. Configuring the router This chapter will show each key function of the Web page and its configuration method. 4.1 Login After your successful login, you will see the main menus on the left of the Web-based utility. On the right, there are the corresponding explanations and instructions. The detailed explanations for each Web page’s key function are listed below. 4.2 Status The Status page provides the current status information about the router. All information is read-only. - 22 -

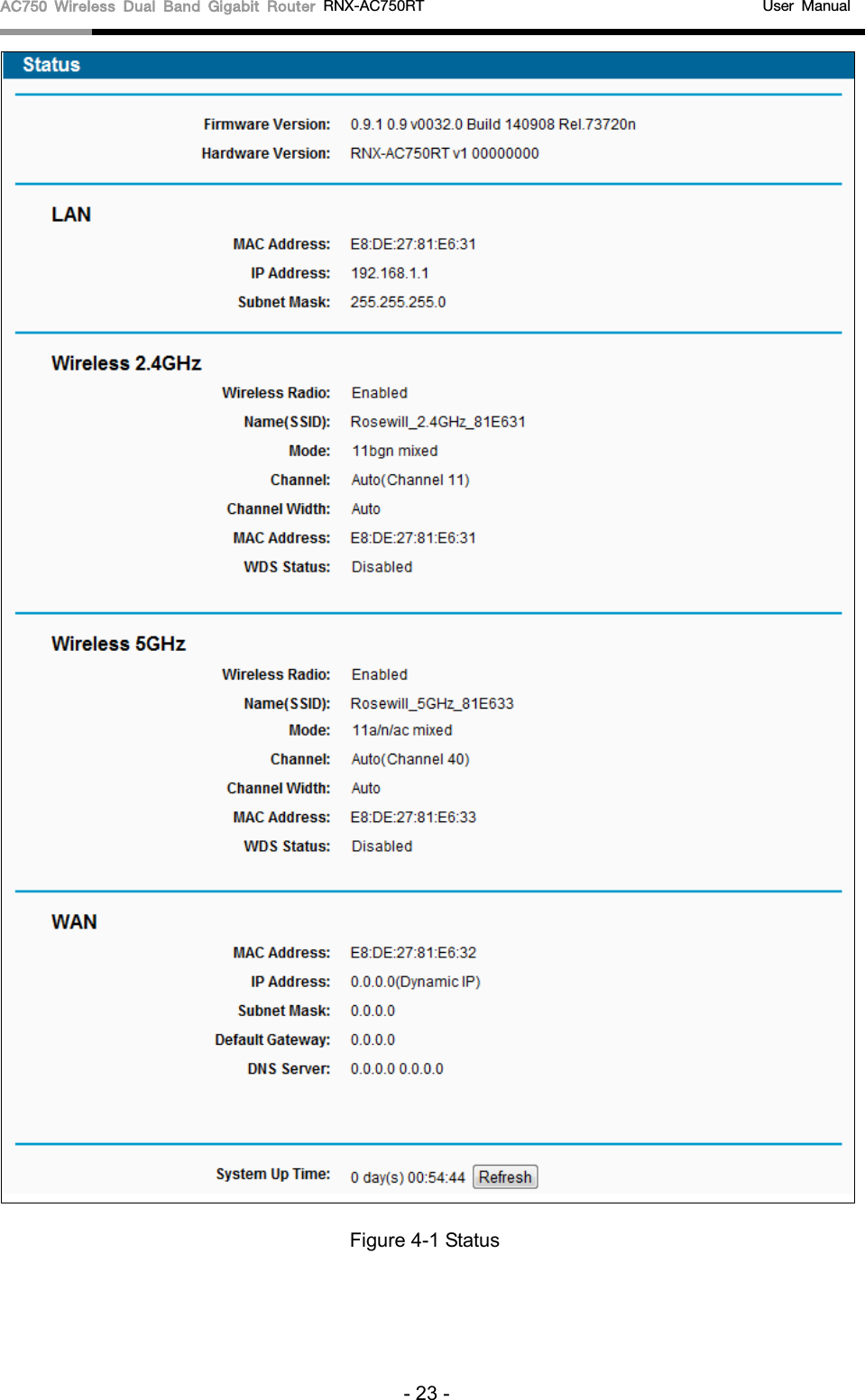

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 4-1 Status - 23 -

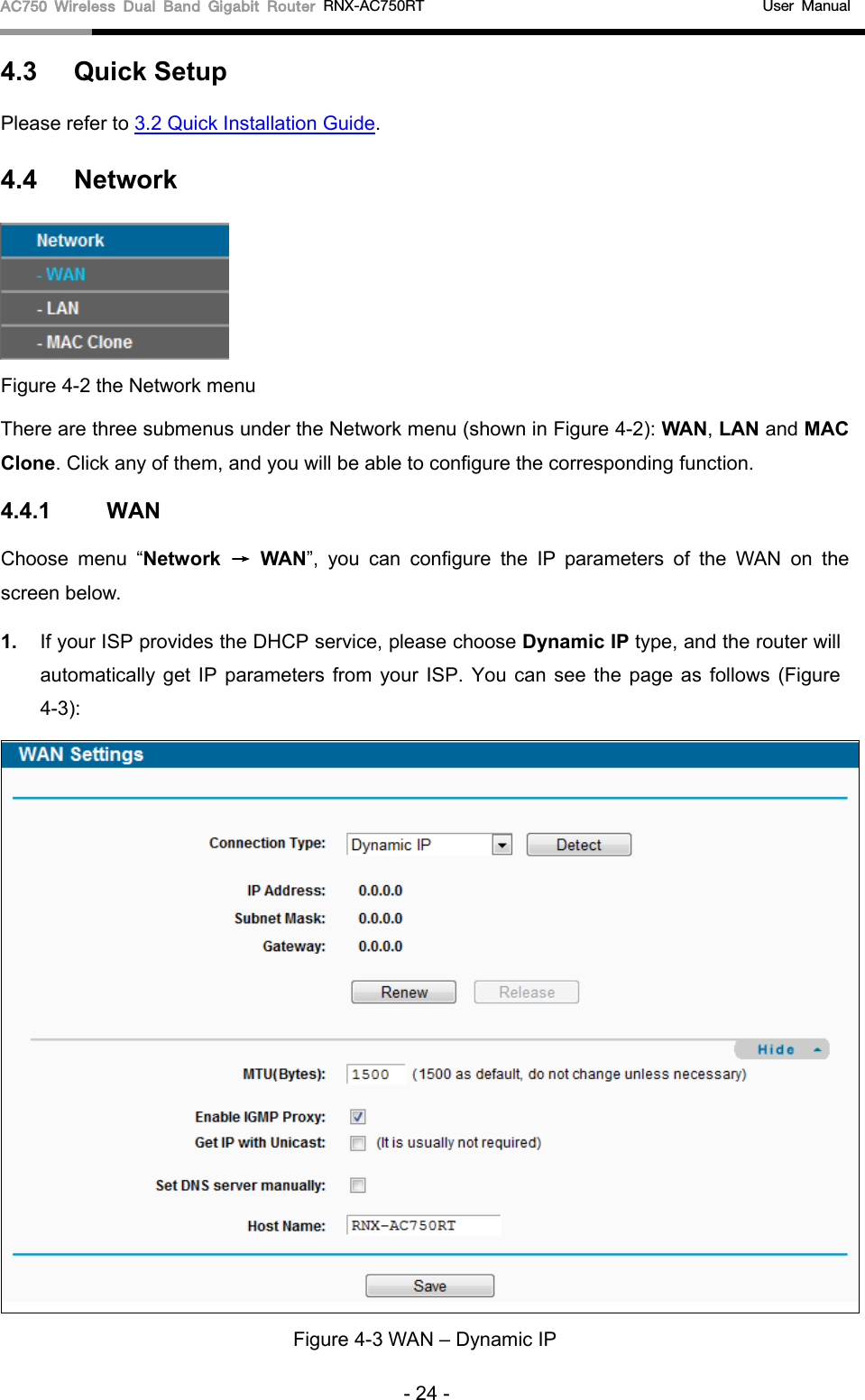

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual 4.3 Quick Setup Please refer to 3.2 Quick Installation Guide. 4.4 Network Figure 4-2 the Network menu There are three submenus under the Network menu (shown in Figure 4-2): WAN, LAN and MAC Clone. Click any of them, and you will be able to configure the corresponding function. 4.4.1 WAN Choose menu “Network → WAN”, you can configure the IP parameters of the WAN on the screen below. 1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the router will automatically get IP parameters from your ISP. You can see the page as follows (Figure 4-3): Figure 4-3 WAN – Dynamic IP - 24 -

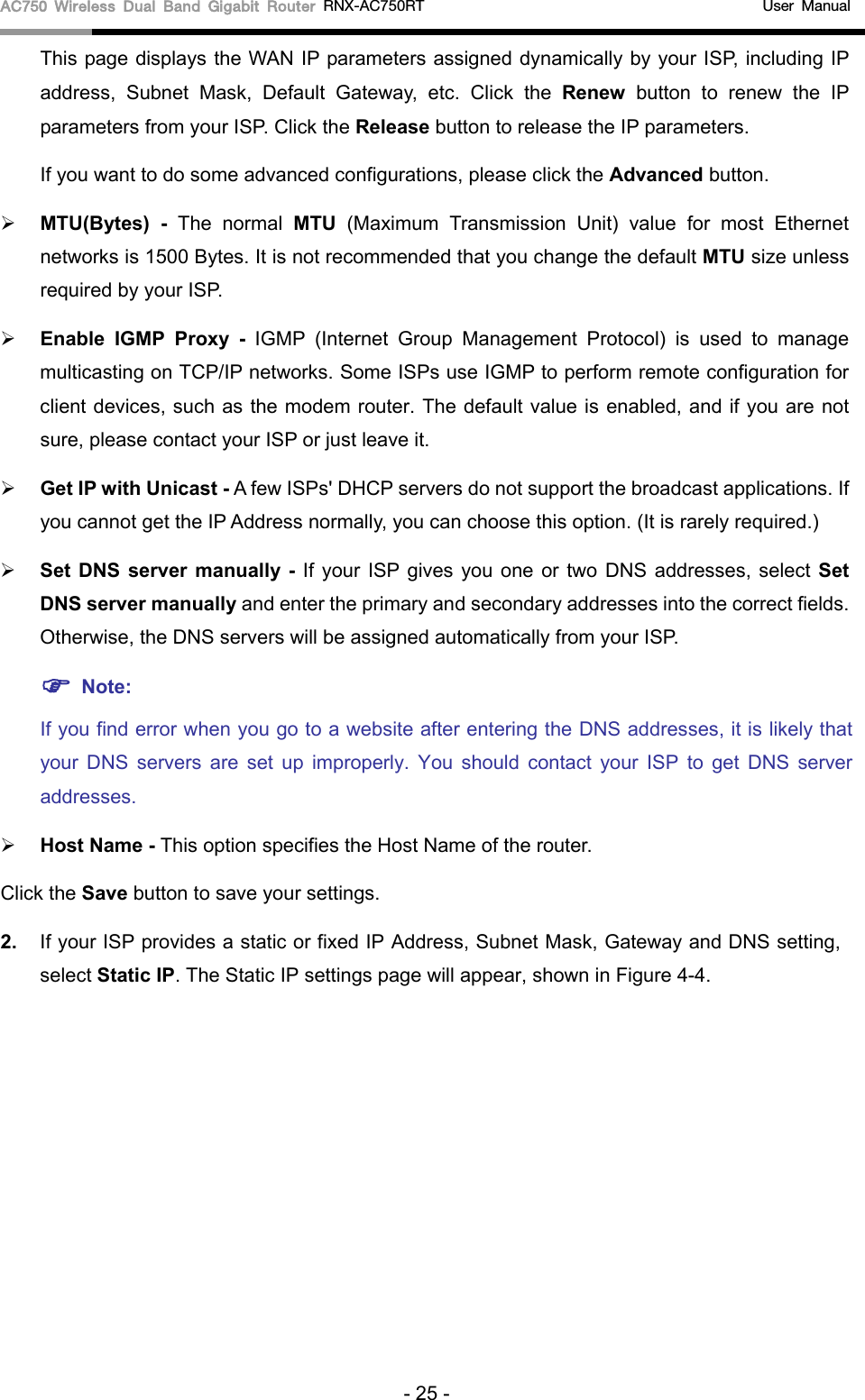

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual This page displays the WAN IP parameters assigned dynamically by your ISP, including IP address, Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP parameters from your ISP. Click the Release button to release the IP parameters. If you want to do some advanced configurations, please click the Advanced button.  MTU(Bytes) - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500 Bytes. It is not recommended that you change the default MTU size unless required by your ISP.  Enable IGMP Proxy - IGMP (Internet Group Management Protocol) is used to manage multicasting on TCP/IP networks. Some ISPs use IGMP to perform remote configuration for client devices, such as the modem router. The default value is enabled, and if you are not sure, please contact your ISP or just leave it.  Get IP with Unicast - A few ISPs' DHCP servers do not support the broadcast applications. If you cannot get the IP Address normally, you can choose this option. (It is rarely required.)  Set DNS server manually - If your ISP gives you one or two DNS addresses, select Set DNS server manually and enter the primary and secondary addresses into the correct fields. Otherwise, the DNS servers will be assigned automatically from your ISP.  Note: If you find error when you go to a website after entering the DNS addresses, it is likely that your DNS servers are set up improperly. You should contact your ISP to get DNS server addresses.  Host Name - This option specifies the Host Name of the router. Click the Save button to save your settings. 2. If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting, select Static IP. The Static IP settings page will appear, shown in Figure 4-4. - 25 -

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 4-4 WAN - Static IP  IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.  Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP, usually is 255.255.255.0.  Gateway - (Optional) Enter the gateway IP address in dotted-decimal notation provided by your ISP.  Primary DNS Server/Secondary DNS Server- (Optional) Enter one or two DNS addresses in dotted-decimal notation provided by your ISP.  MTU (Bytes)- The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500 Bytes. It is not recommended that you change the default MTU size unless required by your ISP.  Enable IGMP Proxy - IGMP (Internet Group Management Protocol) is used to manage multicasting on TCP/IP networks. Some ISPs use IGMP to perform remote configuration for client devices, such as the modem router. The default value is enabled, and if you are not sure, please contact your ISP or just leave it. Click the Save button to save your settings. 3. If your ISP provides a PPPoE connection, select PPPoE option. And you should enter the following parameters (Figure 4-5): - 26 -

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 4-5 WAN - PPPoE  PPP Username/PPP Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive.  Secondary Connection - It’s available only for PPPoE Connection. If your ISP provides an extra Connection type such as Dynamic/Static IP to connect to a local area network, then you can check the radio button of Dynamic/Static IP to activate this secondary connection.  Disabled - The Secondary Connection is disabled by default, so there is PPPoE connection only. This is recommended. - 27 -

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  Dynamic IP - You can check this radio button to use Dynamic IP as the secondary connection to connect to the local area network provided by ISP.  Static IP - You can check this radio button to use Static IP as the secondary connection to connect to the local area network provided by ISP.  Connection Mode-choose the Internet connection mode.  Always on - In this mode, the Internet connection will be active all the time.  Connect on Demand - In this mode, the Internet connection can be terminated automatically after a specified inactivity period (Max Idle Time) and be re-established when you attempt to access the Internet again. If you want your Internet connection keeps active all the time, please enter “0” in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet access disconnects.  Connect Manually - You can click the Connect/Disconnect button to connect/disconnect immediately. This mode also supports the Max Idle Time function as Connect on Demand mode. The Internet connection can be disconnected automatically after a specified inactivity period and re-established when you attempt to access the Internet again. Click the Connect button to connect immediately. Click the Disconnect button to disconnect immediately. Caution: Sometimes the connection cannot be terminated although you specify a time to Max Idle Time because some applications are visiting the Internet continually in the background.  Service Name/Server Name - The service name and server name should not be configured unless you are sure it is necessary for your ISP. In most cases, leaving these fields blank will work.  MTU(Bytes) - The default MTU size is “1480” bytes, which is usually fine. It is not recommended that you change the default MTU Size unless required by your ISP.  Enable IGMP Proxy - IGMP (Internet Group Management Protocol) is used to manage multicasting on TCP/IP networks. Some ISPs use IGMP to perform remote configuration for client devices, such as the modem router. The default value is enabled, and if you are not sure, please contact your ISP or just leave it.  Use IP address specified by ISP: - If your ISP does not automatically assign IP addresses to the router during login, please click “Use IP address specified by ISP” check box and enter the IP address provided by your ISP in dotted-decimal notation.  Echo request interval - The router will detect Access Concentrator online at every interval. The default value is “0”. You can input the value between “0” and “120”. The value “0” means no detect. - 28 -

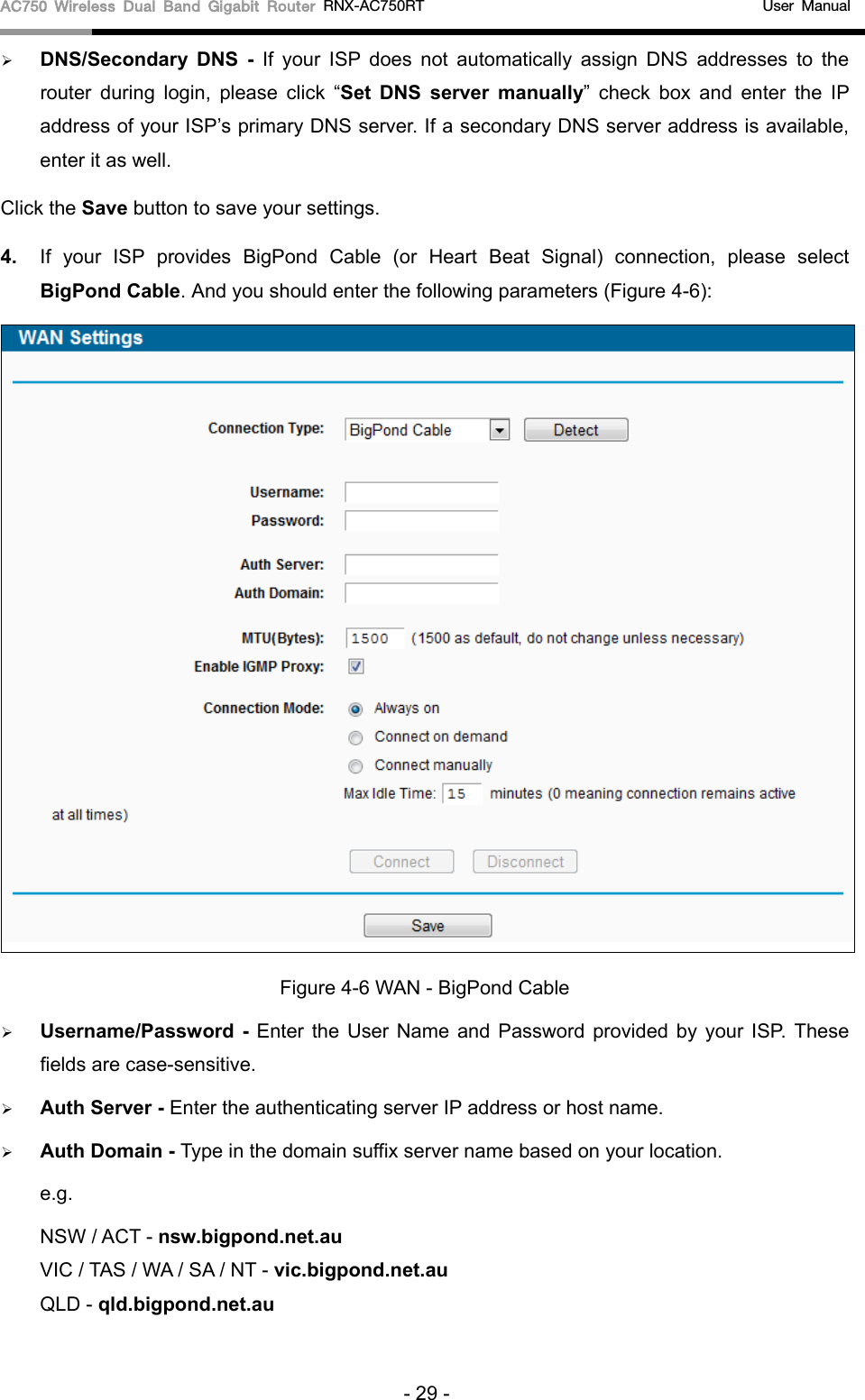

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  DNS/Secondary DNS - If your ISP does not automatically assign DNS addresses to the router during login, please click “Set DNS server manually” check box and enter the IP address of your ISP’s primary DNS server. If a secondary DNS server address is available, enter it as well. Click the Save button to save your settings. 4. If your ISP provides BigPond Cable (or Heart Beat Signal) connection, please select BigPond Cable. And you should enter the following parameters (Figure 4-6): Figure 4-6 WAN - BigPond Cable  Username/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive.  Auth Server - Enter the authenticating server IP address or host name.  Auth Domain - Type in the domain suffix server name based on your location. e.g. NSW / ACT - nsw.bigpond.net.au VIC / TAS / WA / SA / NT - vic.bigpond.net.au QLD - qld.bigpond.net.au - 29 -

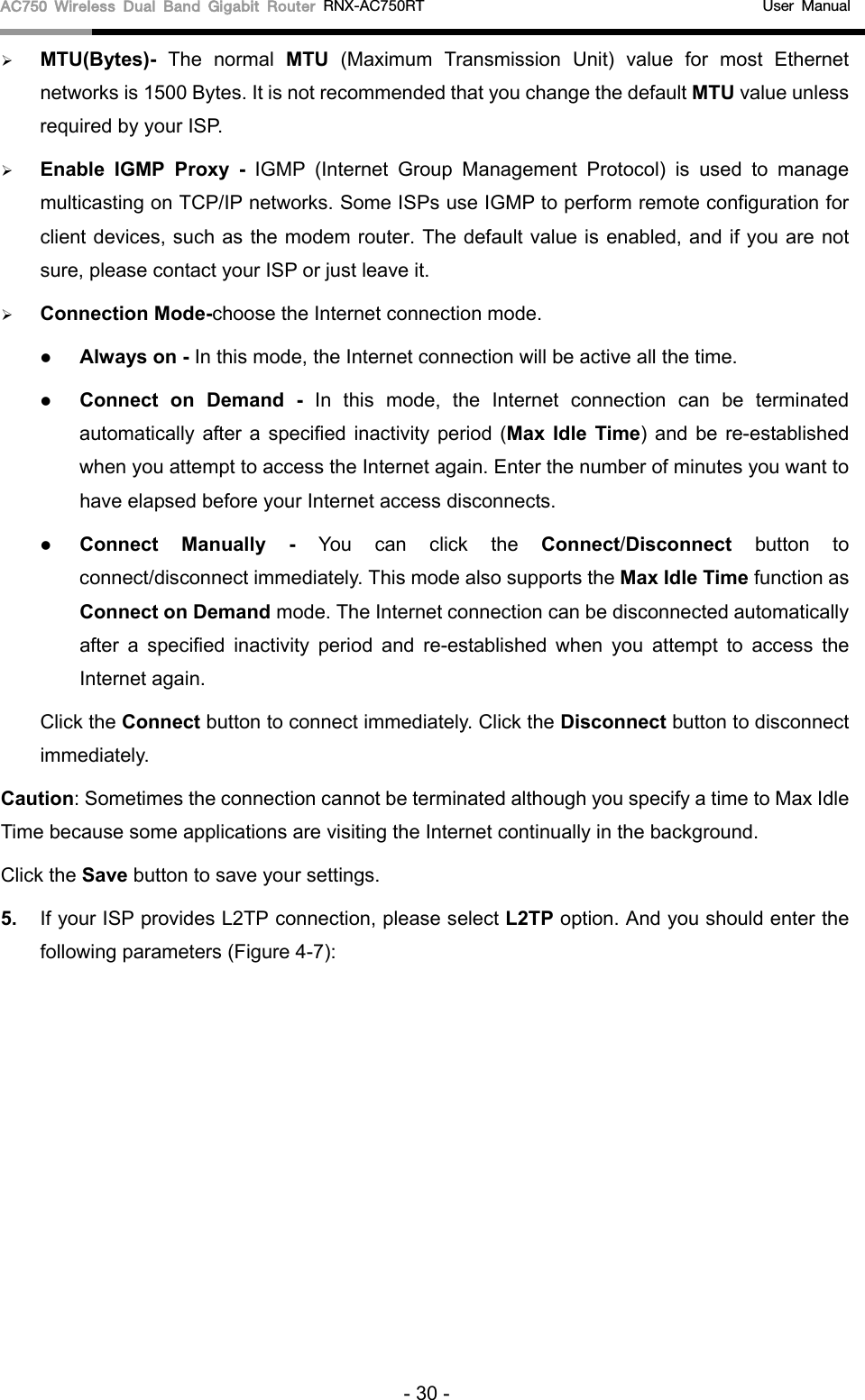

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  MTU(Bytes)- The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500 Bytes. It is not recommended that you change the default MTU value unless required by your ISP.  Enable IGMP Proxy - IGMP (Internet Group Management Protocol) is used to manage multicasting on TCP/IP networks. Some ISPs use IGMP to perform remote configuration for client devices, such as the modem router. The default value is enabled, and if you are not sure, please contact your ISP or just leave it.  Connection Mode-choose the Internet connection mode.  Always on - In this mode, the Internet connection will be active all the time.  Connect on Demand - In this mode, the Internet connection can be terminated automatically after a specified inactivity period (Max Idle Time) and be re-established when you attempt to access the Internet again. Enter the number of minutes you want to have elapsed before your Internet access disconnects.  Connect Manually - You can click the Connect/Disconnect button to connect/disconnect immediately. This mode also supports the Max Idle Time function as Connect on Demand mode. The Internet connection can be disconnected automatically after a specified inactivity period and re-established when you attempt to access the Internet again. Click the Connect button to connect immediately. Click the Disconnect button to disconnect immediately. Caution: Sometimes the connection cannot be terminated although you specify a time to Max Idle Time because some applications are visiting the Internet continually in the background. Click the Save button to save your settings. 5. If your ISP provides L2TP connection, please select L2TP option. And you should enter the following parameters (Figure 4-7): - 30 -

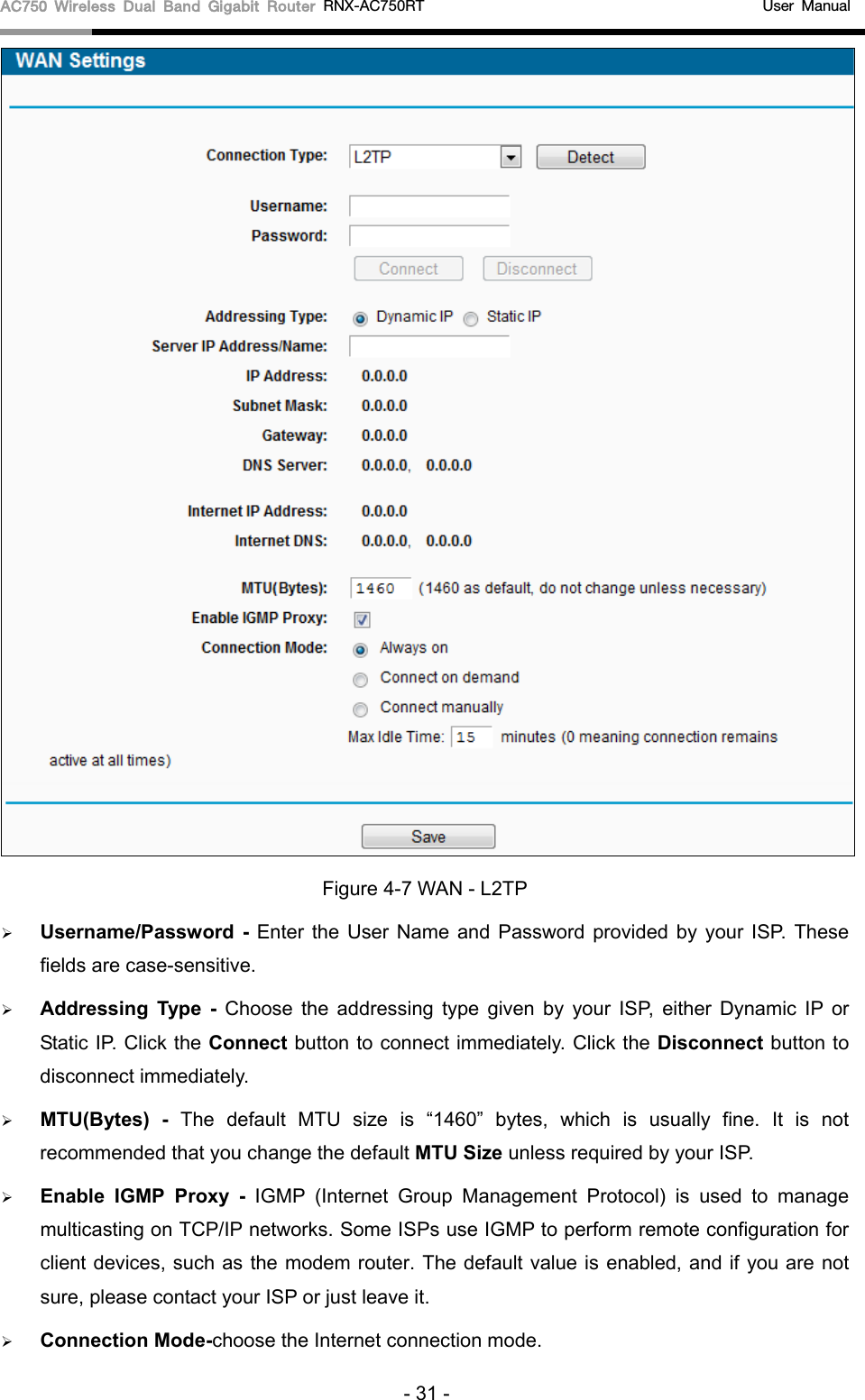

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 4-7 WAN - L2TP  Username/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive.  Addressing Type - Choose the addressing type given by your ISP, either Dynamic IP or Static IP. Click the Connect button to connect immediately. Click the Disconnect button to disconnect immediately.  MTU(Bytes) - The default MTU size is “1460” bytes, which is usually fine. It is not recommended that you change the default MTU Size unless required by your ISP.  Enable IGMP Proxy - IGMP (Internet Group Management Protocol) is used to manage multicasting on TCP/IP networks. Some ISPs use IGMP to perform remote configuration for client devices, such as the modem router. The default value is enabled, and if you are not sure, please contact your ISP or just leave it.  Connection Mode-choose the Internet connection mode. - 31 -

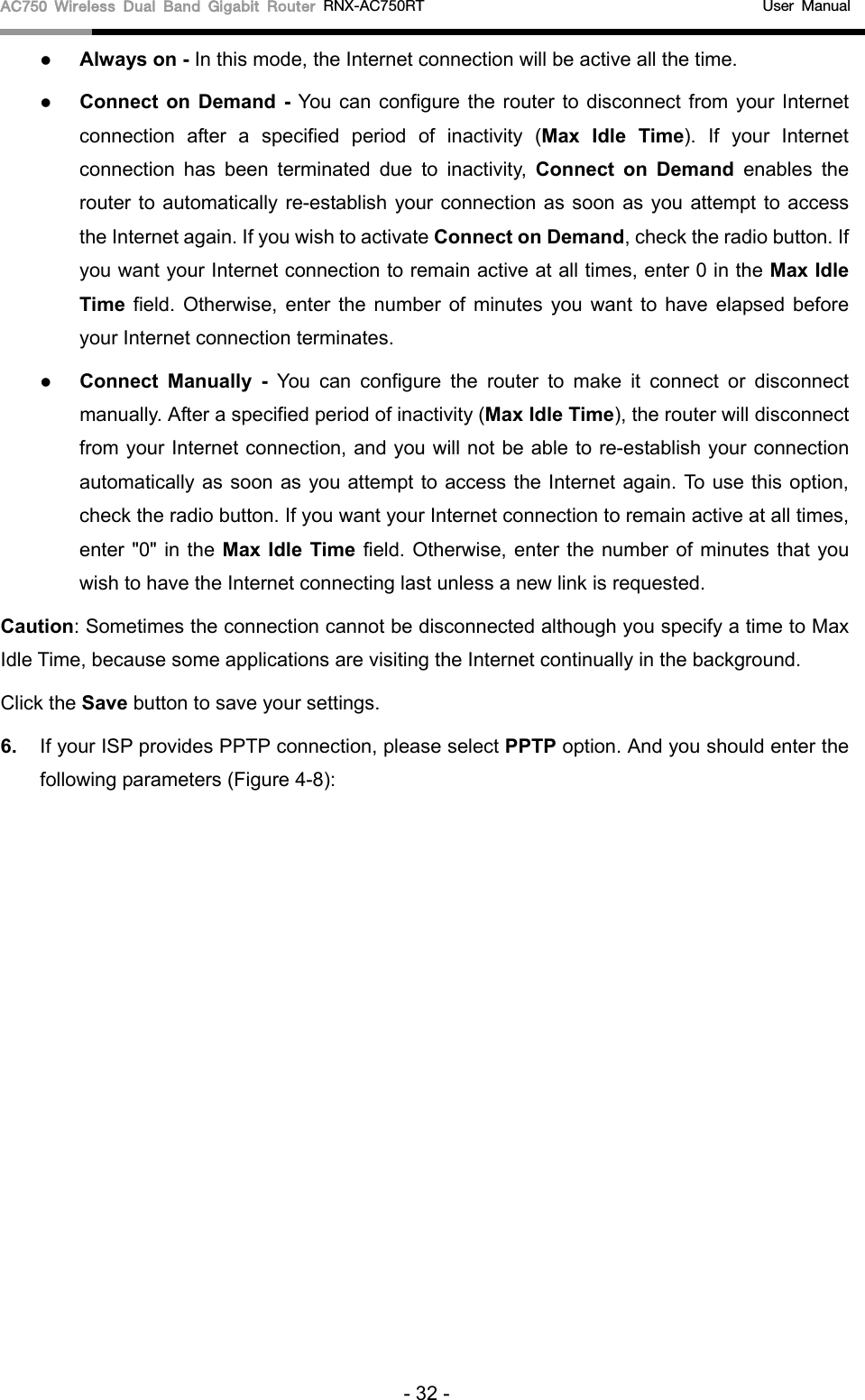

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  Always on - In this mode, the Internet connection will be active all the time.  Connect on Demand - You can configure the router to disconnect from your Internet connection after a specified period of inactivity (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, check the radio button. If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates.  Connect Manually - You can configure the router to make it connect or disconnect manually. After a specified period of inactivity (Max Idle Time), the router will disconnect from your Internet connection, and you will not be able to re-establish your connection automatically as soon as you attempt to access the Internet again. To use this option, check the radio button. If you want your Internet connection to remain active at all times, enter "0" in the Max Idle Time field. Otherwise, enter the number of minutes that you wish to have the Internet connecting last unless a new link is requested. Caution: Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, because some applications are visiting the Internet continually in the background. Click the Save button to save your settings. 6. If your ISP provides PPTP connection, please select PPTP option. And you should enter the following parameters (Figure 4-8): - 32 -

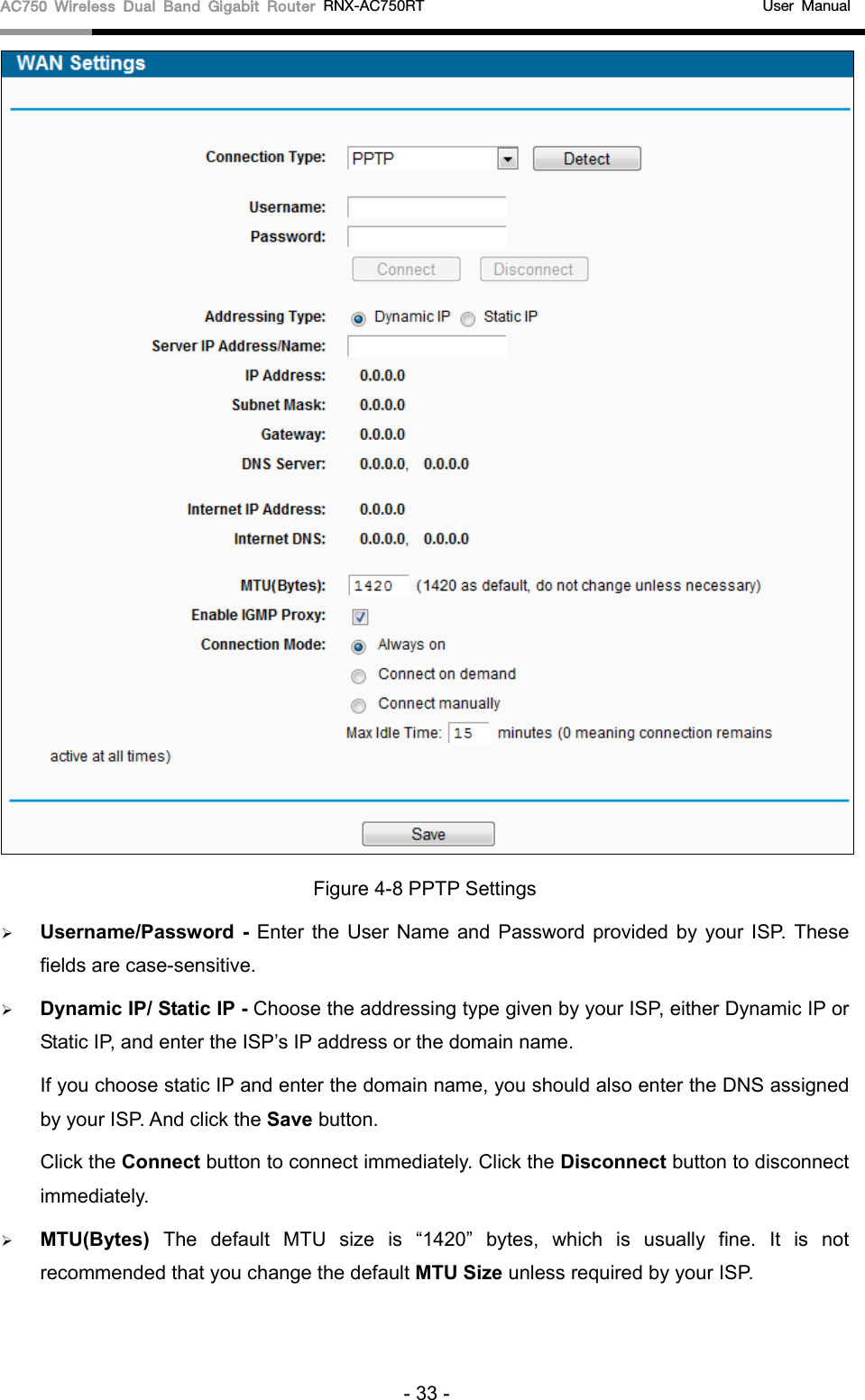

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 4-8 PPTP Settings  Username/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive.  Dynamic IP/ Static IP - Choose the addressing type given by your ISP, either Dynamic IP or Static IP, and enter the ISP’s IP address or the domain name. If you choose static IP and enter the domain name, you should also enter the DNS assigned by your ISP. And click the Save button. Click the Connect button to connect immediately. Click the Disconnect button to disconnect immediately.  MTU(Bytes) The default MTU size is “1420” bytes, which is usually fine. It is not recommended that you change the default MTU Size unless required by your ISP. - 33 -

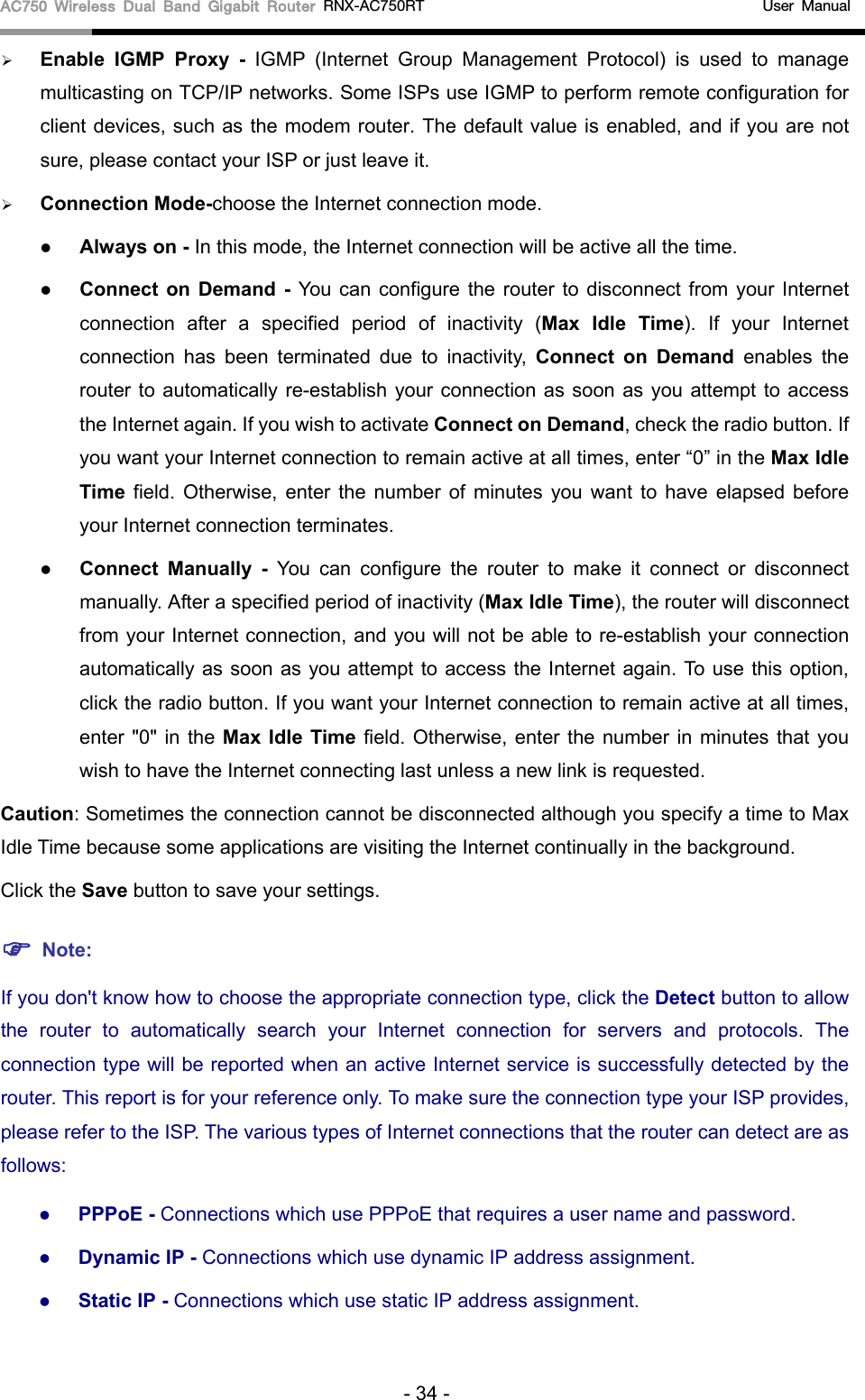

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  Enable IGMP Proxy - IGMP (Internet Group Management Protocol) is used to manage multicasting on TCP/IP networks. Some ISPs use IGMP to perform remote configuration for client devices, such as the modem router. The default value is enabled, and if you are not sure, please contact your ISP or just leave it.  Connection Mode-choose the Internet connection mode.  Always on - In this mode, the Internet connection will be active all the time.  Connect on Demand - You can configure the router to disconnect from your Internet connection after a specified period of inactivity (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, check the radio button. If you want your Internet connection to remain active at all times, enter “0” in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates.  Connect Manually - You can configure the router to make it connect or disconnect manually. After a specified period of inactivity (Max Idle Time), the router will disconnect from your Internet connection, and you will not be able to re-establish your connection automatically as soon as you attempt to access the Internet again. To use this option, click the radio button. If you want your Internet connection to remain active at all times, enter "0" in the Max Idle Time field. Otherwise, enter the number in minutes that you wish to have the Internet connecting last unless a new link is requested. Caution: Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time because some applications are visiting the Internet continually in the background. Click the Save button to save your settings.  Note: If you don't know how to choose the appropriate connection type, click the Detect button to allow the router to automatically search your Internet connection for servers and protocols. The connection type will be reported when an active Internet service is successfully detected by the router. This report is for your reference only. To make sure the connection type your ISP provides, please refer to the ISP. The various types of Internet connections that the router can detect are as follows:  PPPoE - Connections which use PPPoE that requires a user name and password.  Dynamic IP - Connections which use dynamic IP address assignment.  Static IP - Connections which use static IP address assignment. - 34 -

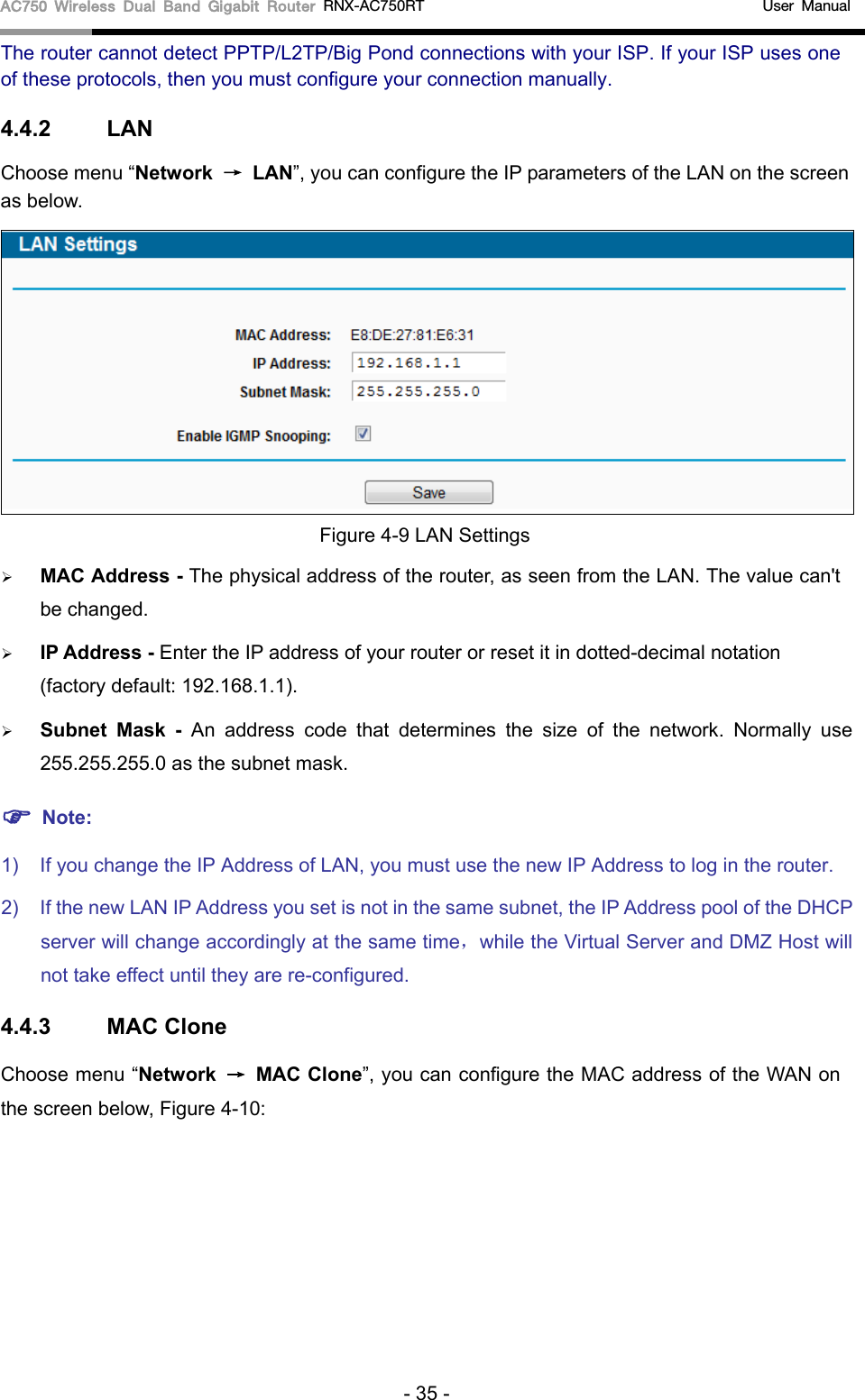

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual The router cannot detect PPTP/L2TP/Big Pond connections with your ISP. If your ISP uses one of these protocols, then you must configure your connection manually. 4.4.2 LAN Choose menu “Network → LAN”, you can configure the IP parameters of the LAN on the screen as below. Figure 4-9 LAN Settings  MAC Address - The physical address of the router, as seen from the LAN. The value can't be changed.  IP Address - Enter the IP address of your router or reset it in dotted-decimal notation (factory default: 192.168.1.1).  Subnet Mask - An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask.  Note: 1) If you change the IP Address of LAN, you must use the new IP Address to log in the router. 2) If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP server will change accordingly at the same time，while the Virtual Server and DMZ Host will not take effect until they are re-configured. 4.4.3 MAC Clone Choose menu “Network → MAC Clone”, you can configure the MAC address of the WAN on the screen below, Figure 4-10: - 35 -

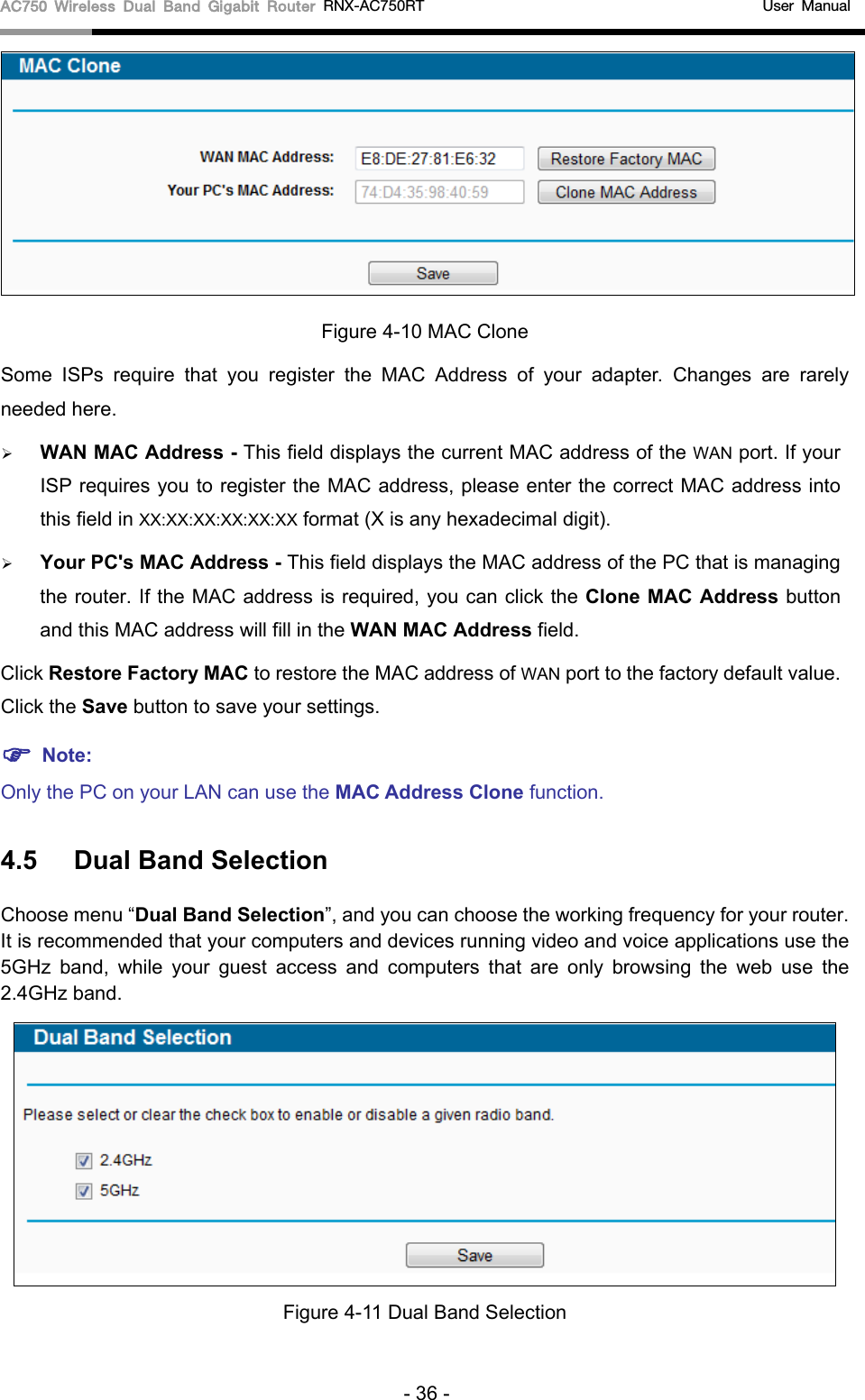

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 4-10 MAC Clone Some ISPs require that you register the MAC Address of your adapter. Changes are rarely needed here.  WAN MAC Address - This field displays the current MAC address of the WAN port. If your ISP requires you to register the MAC address, please enter the correct MAC address into this field in XX:XX:XX:XX:XX:XX format (X is any hexadecimal digit).  Your PC's MAC Address - This field displays the MAC address of the PC that is managing the router. If the MAC address is required, you can click the Clone MAC Address button and this MAC address will fill in the WAN MAC Address field. Click Restore Factory MAC to restore the MAC address of WAN port to the factory default value. Click the Save button to save your settings.  Note: Only the PC on your LAN can use the MAC Address Clone function. 4.5 Dual Band Selection Choose menu “Dual Band Selection”, and you can choose the working frequency for your router. It is recommended that your computers and devices running video and voice applications use the 5GHz band, while your guest access and computers that are only browsing the web use the 2.4GHz band. Figure 4-11 Dual Band Selection - 36 -

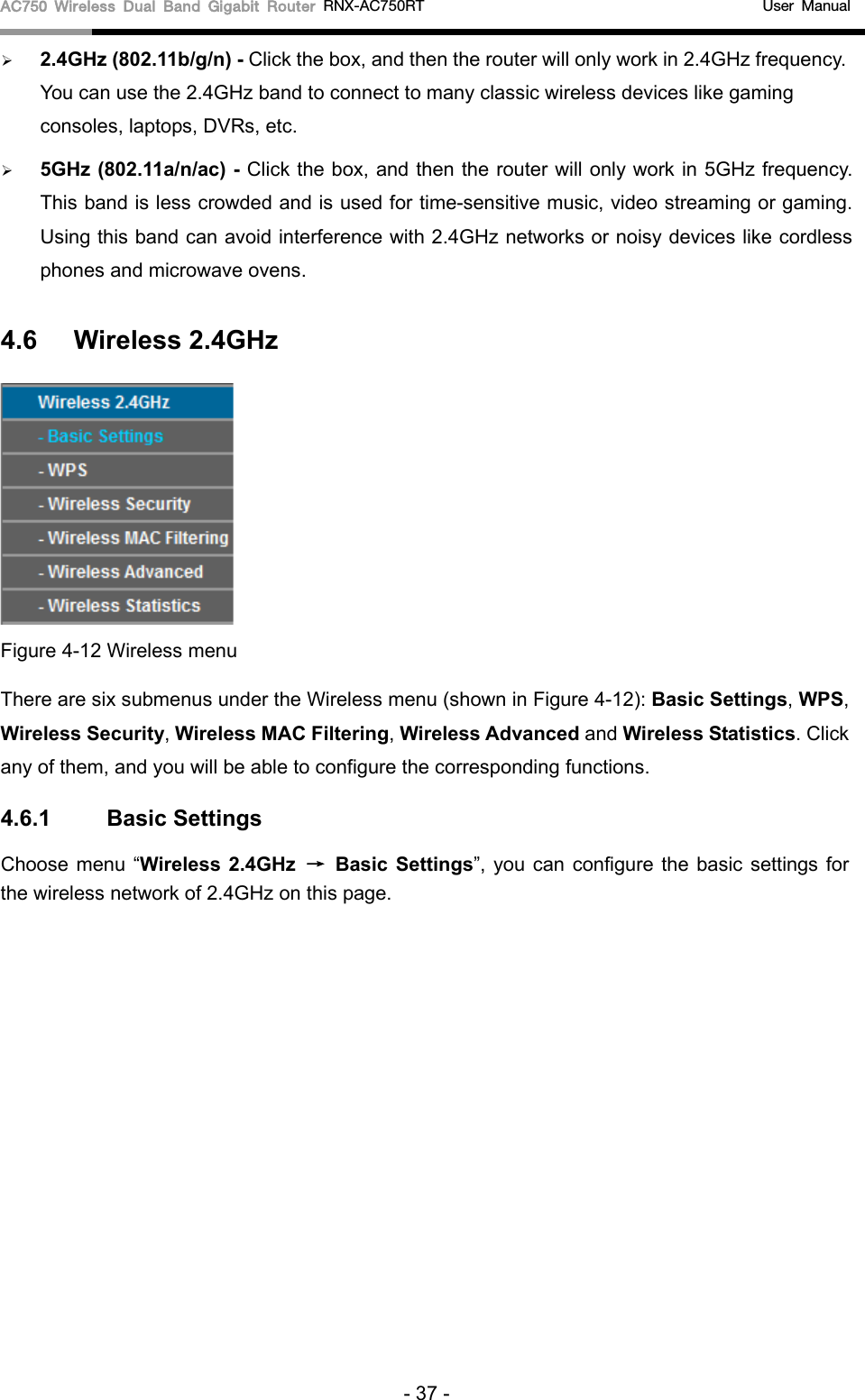

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  2.4GHz (802.11b/g/n) - Click the box, and then the router will only work in 2.4GHz frequency. You can use the 2.4GHz band to connect to many classic wireless devices like gaming consoles, laptops, DVRs, etc.  5GHz (802.11a/n/ac) - Click the box, and then the router will only work in 5GHz frequency. This band is less crowded and is used for time-sensitive music, video streaming or gaming. Using this band can avoid interference with 2.4GHz networks or noisy devices like cordless phones and microwave ovens. 4.6 Wireless 2.4GHz Figure 4-12 Wireless menu There are six submenus under the Wireless menu (shown in Figure 4-12): Basic Settings, WPS, Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click any of them, and you will be able to configure the corresponding functions. 4.6.1 Basic Settings Choose menu “Wireless 2.4GHz → Basic Settings”, you can configure the basic settings for the wireless network of 2.4GHz on this page. - 37 -

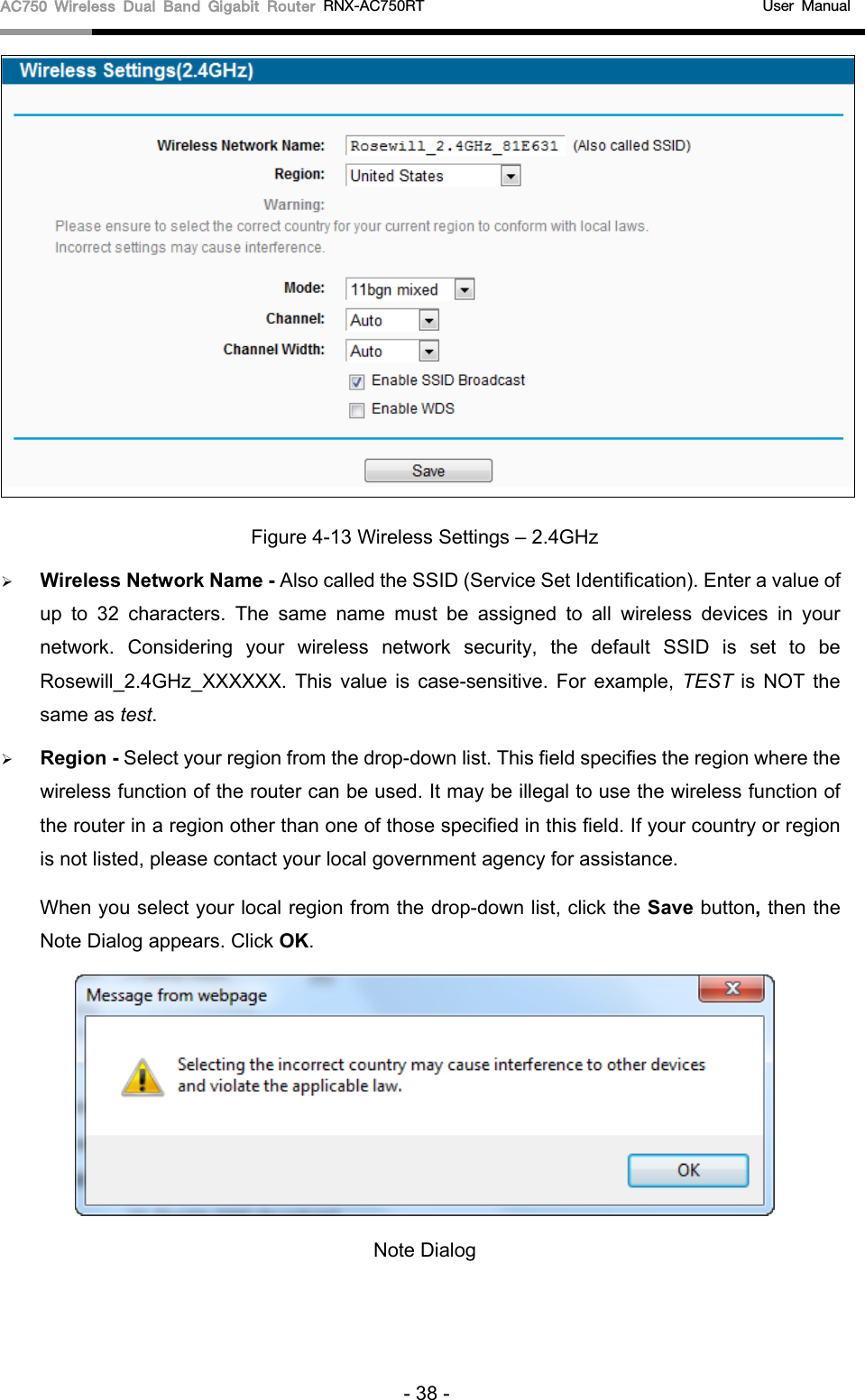

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 4-13 Wireless Settings – 2.4GHz  Wireless Network Name - Also called the SSID (Service Set Identification). Enter a value of up to 32 characters. The same name must be assigned to all wireless devices in your network. Considering your wireless network security, the default SSID is set to be Rosewill_2.4GHz_XXXXXX. This value is case-sensitive. For example, TEST is NOT the same as test.  Region - Select your region from the drop-down list. This field specifies the region where the wireless function of the router can be used. It may be illegal to use the wireless function of the router in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance. When you select your local region from the drop-down list, click the Save button, then the Note Dialog appears. Click OK. Note Dialog - 38 -

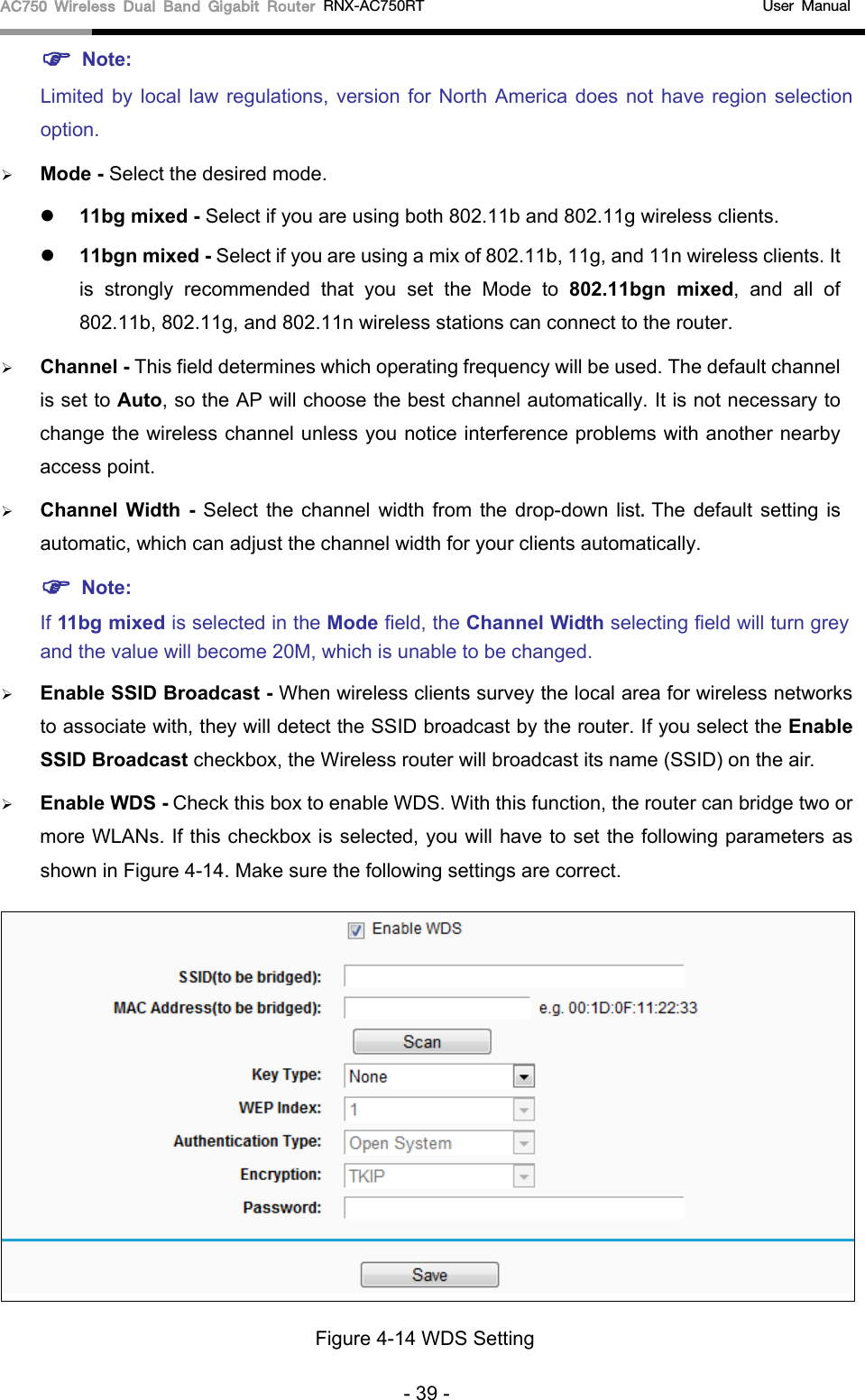

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  Note: Limited by local law regulations, version for North America does not have region selection option.  Mode - Select the desired mode.  11bg mixed - Select if you are using both 802.11b and 802.11g wireless clients.  11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless clients. It is strongly recommended that you set the Mode to 802.11bgn mixed, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the router.  Channel - This field determines which operating frequency will be used. The default channel is set to Auto, so the AP will choose the best channel automatically. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point.  Channel Width - Select the channel width from the drop-down list. The default setting is automatic, which can adjust the channel width for your clients automatically.  Note: If 11bg mixed is selected in the Mode field, the Channel Width selecting field will turn grey and the value will become 20M, which is unable to be changed.  Enable SSID Broadcast - When wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the router. If you select the Enable SSID Broadcast checkbox, the Wireless router will broadcast its name (SSID) on the air.  Enable WDS - Check this box to enable WDS. With this function, the router can bridge two or more WLANs. If this checkbox is selected, you will have to set the following parameters as shown in Figure 4-14. Make sure the following settings are correct. Figure 4-14 WDS Setting - 39 -

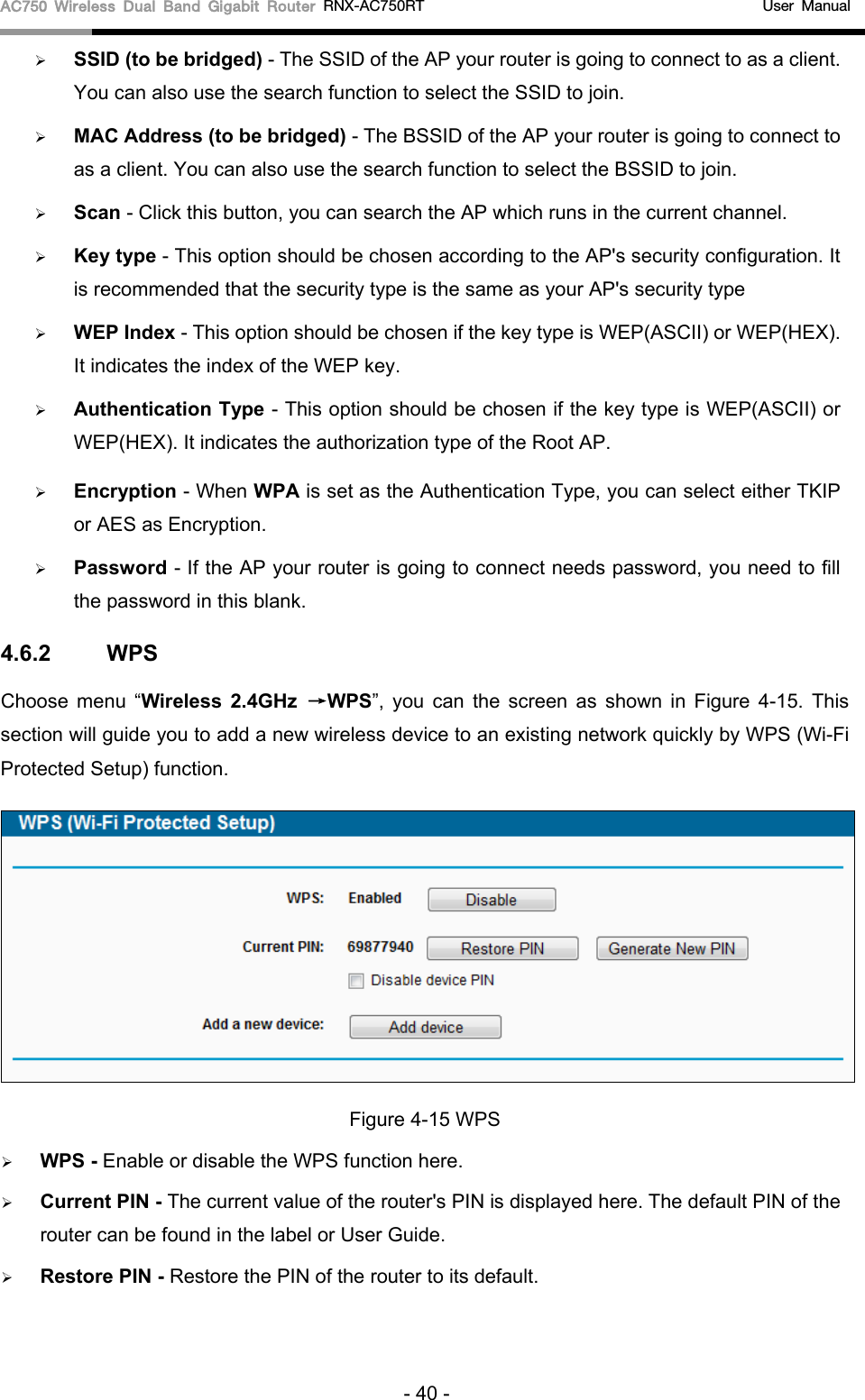

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  SSID (to be bridged) - The SSID of the AP your router is going to connect to as a client. You can also use the search function to select the SSID to join.  MAC Address (to be bridged) - The BSSID of the AP your router is going to connect to as a client. You can also use the search function to select the BSSID to join.  Scan - Click this button, you can search the AP which runs in the current channel.  Key type - This option should be chosen according to the AP's security configuration. It is recommended that the security type is the same as your AP's security type  WEP Index - This option should be chosen if the key type is WEP(ASCII) or WEP(HEX). It indicates the index of the WEP key.  Authentication Type - This option should be chosen if the key type is WEP(ASCII) or WEP(HEX). It indicates the authorization type of the Root AP.  Encryption - When WPA is set as the Authentication Type, you can select either TKIP or AES as Encryption.  Password - If the AP your router is going to connect needs password, you need to fill the password in this blank. 4.6.2 WPS Choose menu “Wireless 2.4GHz →WPS”, you can the screen as shown in Figure 4-15. This section will guide you to add a new wireless device to an existing network quickly by WPS (Wi-Fi Protected Setup) function. Figure 4-15 WPS  WPS - Enable or disable the WPS function here.  Current PIN - The current value of the router's PIN is displayed here. The default PIN of the router can be found in the label or User Guide.  Restore PIN - Restore the PIN of the router to its default. - 40 -

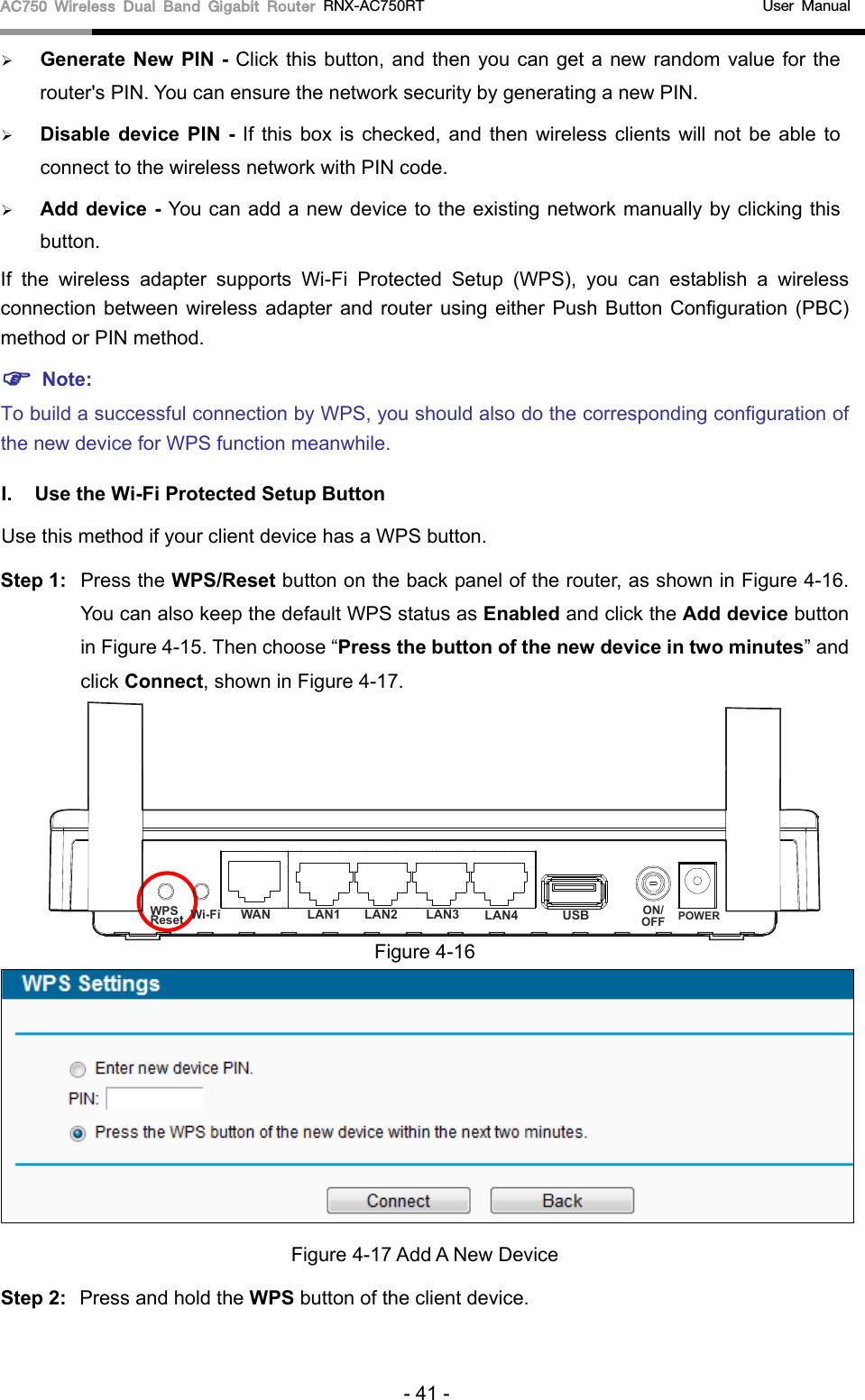

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Generate New PIN - Click this button, and then you can get a new random value for therouter's PIN. You can ensure the network security by generating a new PIN.Disable device PIN - If this box is checked, and then wireless clients will not be able toconnect to the wireless network with PIN code.Add device - You can add a new device to the existing network manually by clicking thisbutton.If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and router using either Push Button Configuration (PBC) method or PIN method.  Note:To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function meanwhile. I. Use the Wi-Fi Protected Setup Button Use this method if your client device has a WPS button. Step 1: Press the WPS/Reset button on the back panel of the router, as shown in Figure 4-16. You can also keep the default WPS status as Enabled and click the Add device button in Figure 4-15. Then choose “Press the button of the new device in two minutes” and click Connect, shown in Figure 4-17. Figure 4-16 Figure 4-17 Add A New Device Step 2: Press and hold the WPS button of the client device. - 41 - WPSResetON/OFF POWERWi-Fi WAN LAN1 LAN2 LAN3 LAN4 USB

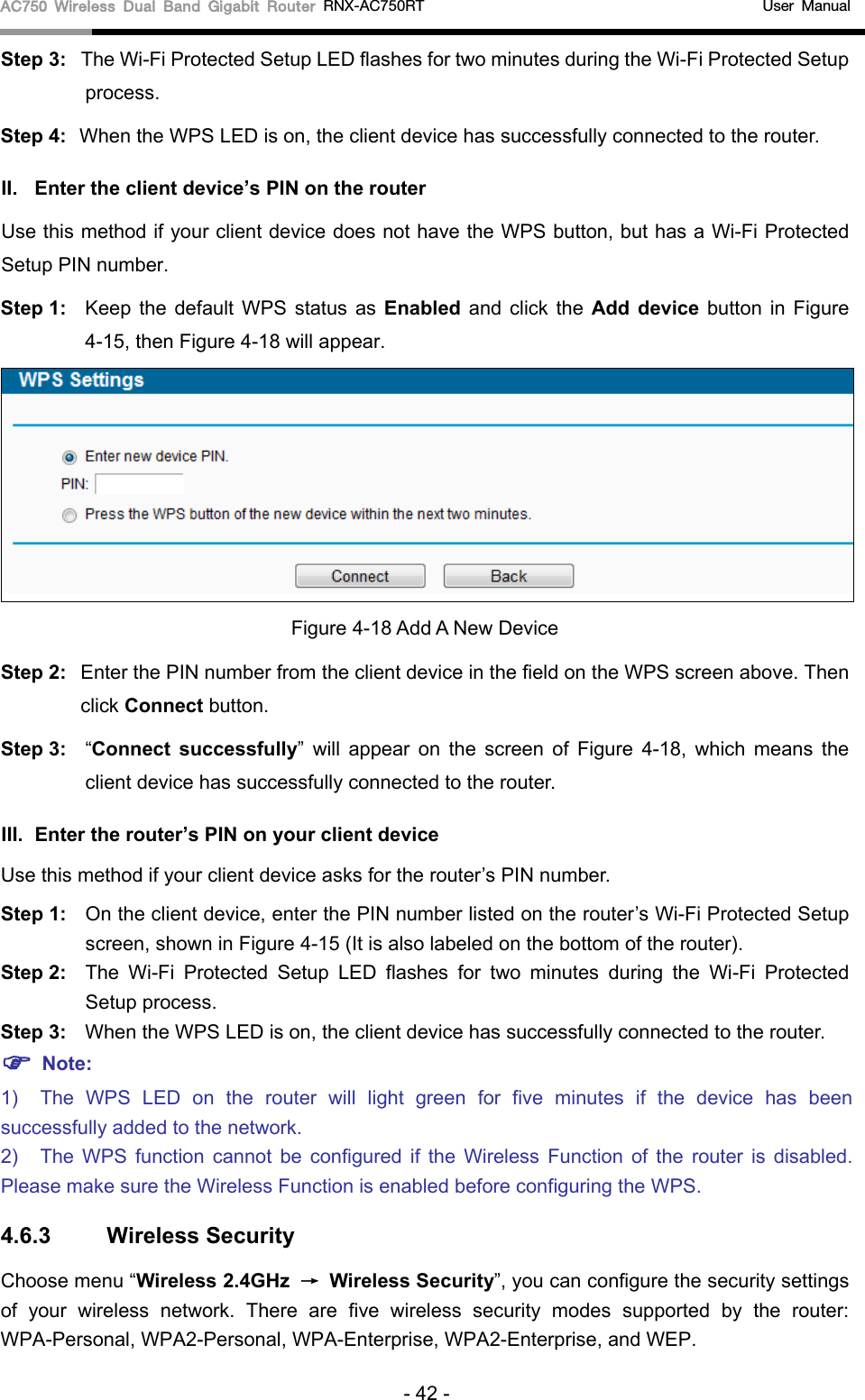

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Step 3: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected Setup process. Step 4: When the WPS LED is on, the client device has successfully connected to the router. II. Enter the client device’s PIN on the router Use this method if your client device does not have the WPS button, but has a Wi-Fi Protected Setup PIN number. Step 1: Keep the default WPS status as Enabled and click the Add device button in Figure 4-15, then Figure 4-18 will appear. Figure 4-18 Add A New Device Step 2: Enter the PIN number from the client device in the field on the WPS screen above. Then click Connect button. Step 3: “Connect successfully” will appear on the screen of Figure 4-18, which means the client device has successfully connected to the router. III. Enter the router’s PIN on your client device Use this method if your client device asks for the router’s PIN number. Step 1: On the client device, enter the PIN number listed on the router’s Wi-Fi Protected Setup screen, shown in Figure 4-15 (It is also labeled on the bottom of the router). Step 2: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected Setup process. Step 3: When the WPS LED is on, the client device has successfully connected to the router.  Note: 1) The WPS LED on the router will light green for five minutes if the device has been successfully added to the network. 2) The WPS function cannot be configured if the Wireless Function of the router is disabled. Please make sure the Wireless Function is enabled before configuring the WPS. 4.6.3 Wireless Security Choose menu “Wireless 2.4GHz → Wireless Security”, you can configure the security settings of your wireless network. There are five wireless security modes supported by the router: WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, and WEP. - 42 -

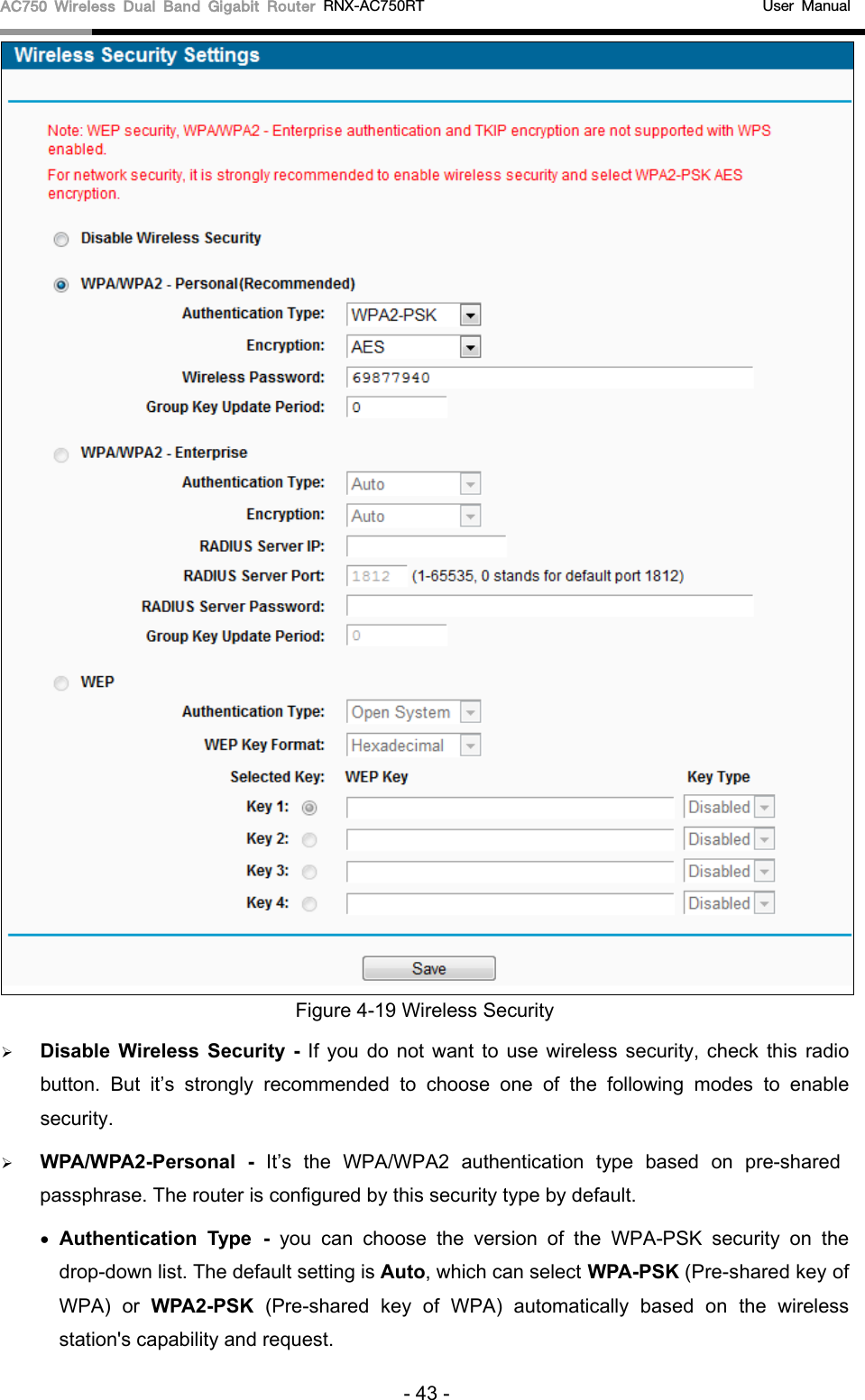

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 4-19 Wireless Security  Disable Wireless Security - If you do not want to use wireless security, check this radio button. But it’s strongly recommended to choose one of the following modes to enable security.  WPA/WPA2-Personal - It’s the WPA/WPA2 authentication type based on pre-shared passphrase. The router is configured by this security type by default. • Authentication Type - you can choose the version of the WPA-PSK security on the drop-down list. The default setting is Auto, which can select WPA-PSK (Pre-shared key of WPA) or WPA2-PSK (Pre-shared key of WPA) automatically based on the wireless station's capability and request. - 43 -

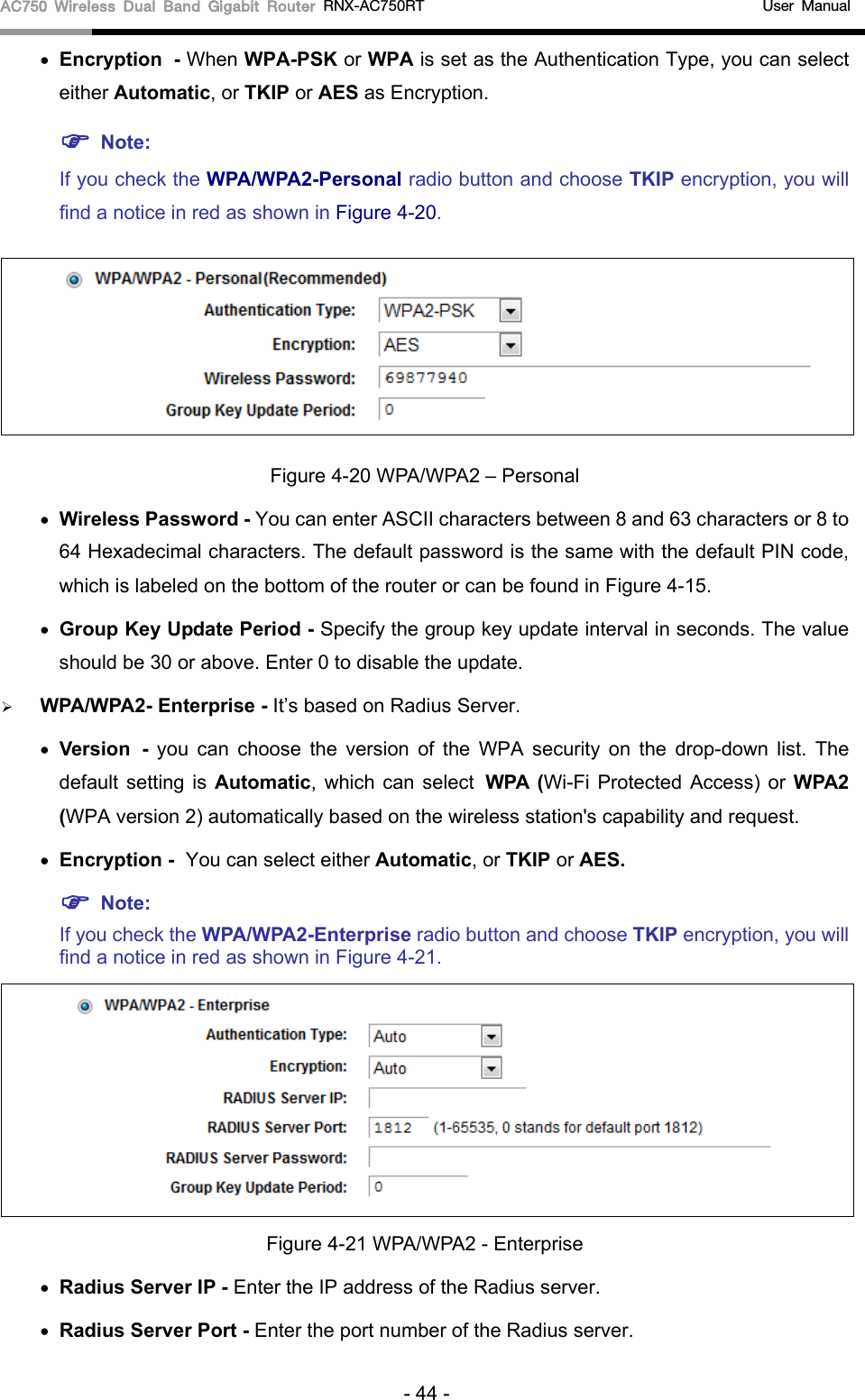

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual • Encryption - When WPA-PSK or WPA is set as the Authentication Type, you can select either Automatic, or TKIP or AES as Encryption.  Note: If you check the WPA/WPA2-Personal radio button and choose TKIP encryption, you will find a notice in red as shown in Figure 4-20. Figure 4-20 WPA/WPA2 – Personal • Wireless Password - You can enter ASCII characters between 8 and 63 characters or 8 to 64 Hexadecimal characters. The default password is the same with the default PIN code, which is labeled on the bottom of the router or can be found in Figure 4-15. • Group Key Update Period - Specify the group key update interval in seconds. The value should be 30 or above. Enter 0 to disable the update.  WPA/WPA2- Enterprise - It’s based on Radius Server. • Version - you can choose the version of the WPA security on the drop-down list. The default setting is Automatic, which can select WPA (Wi-Fi Protected Access) or WPA2 (WPA version 2) automatically based on the wireless station's capability and request. • Encryption - You can select either Automatic, or TKIP or AES.  Note: If you check the WPA/WPA2-Enterprise radio button and choose TKIP encryption, you will find a notice in red as shown in Figure 4-21. Figure 4-21 WPA/WPA2 - Enterprise • Radius Server IP - Enter the IP address of the Radius server. • Radius Server Port - Enter the port number of the Radius server. - 44 -

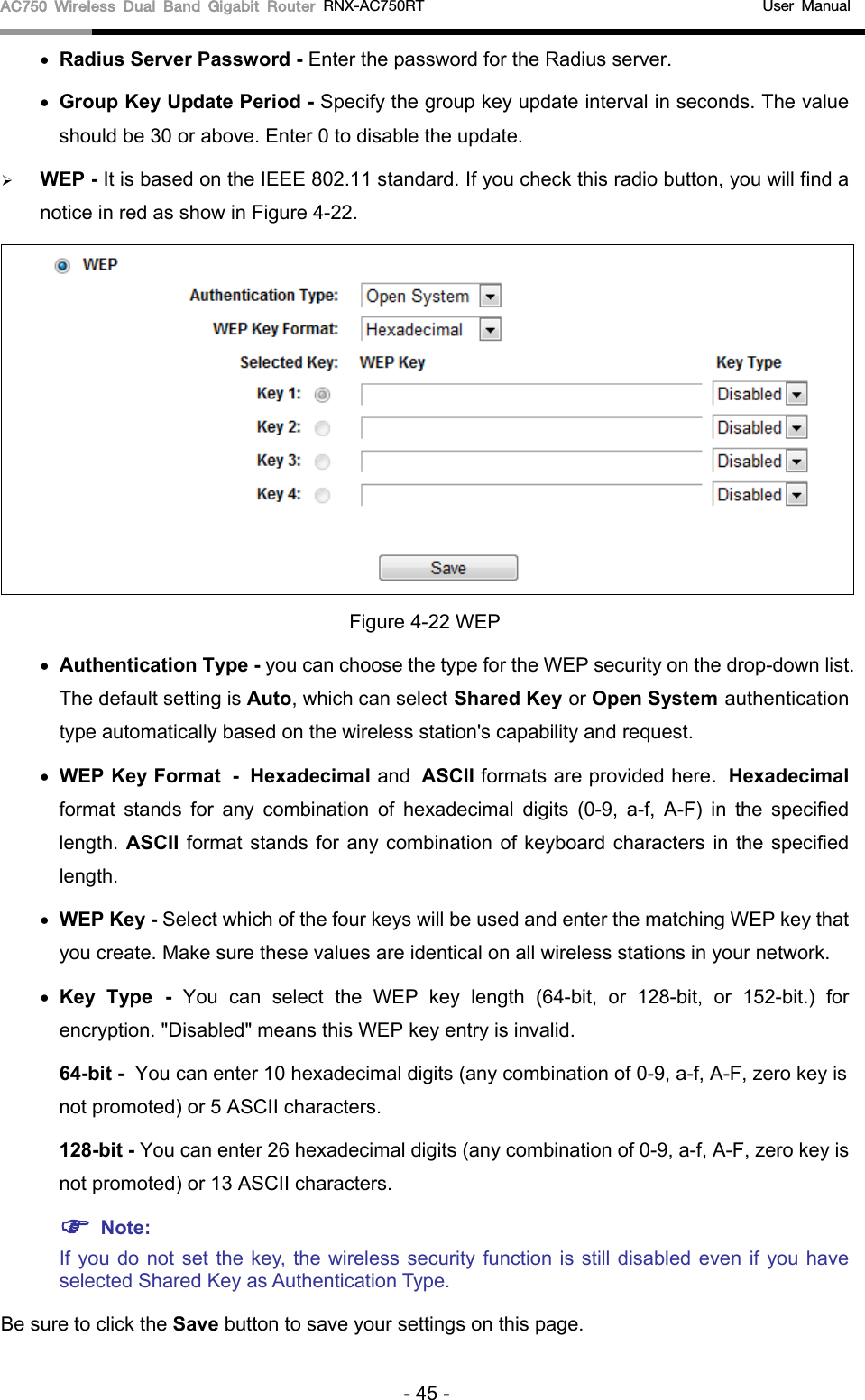

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual • Radius Server Password - Enter the password for the Radius server. • Group Key Update Period - Specify the group key update interval in seconds. The value should be 30 or above. Enter 0 to disable the update.  WEP - It is based on the IEEE 802.11 standard. If you check this radio button, you will find a notice in red as show in Figure 4-22. Figure 4-22 WEP • Authentication Type - you can choose the type for the WEP security on the drop-down list. The default setting is Auto, which can select Shared Key or Open System authentication type automatically based on the wireless station's capability and request. • WEP Key Format - Hexadecimal and ASCII formats are provided here. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. ASCII format stands for any combination of keyboard characters in the specified length. • WEP Key - Select which of the four keys will be used and enter the matching WEP key that you create. Make sure these values are identical on all wireless stations in your network. • Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. "Disabled" means this WEP key entry is invalid. 64-bit - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 5 ASCII characters. 128-bit - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 13 ASCII characters.  Note: If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. Be sure to click the Save button to save your settings on this page. - 45 -

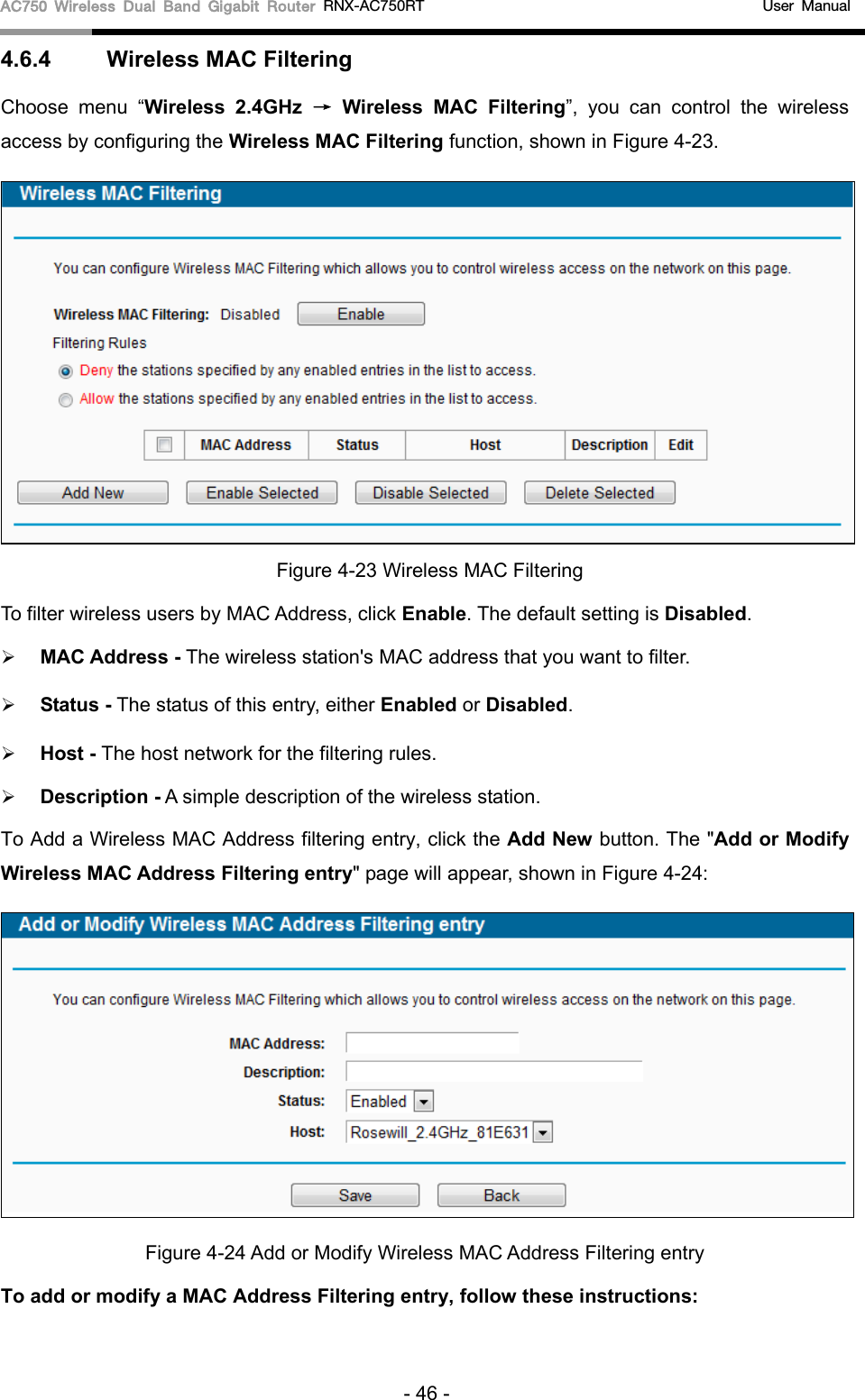

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual 4.6.4 Wireless MAC Filtering Choose menu “Wireless 2.4GHz → Wireless MAC Filtering”, you can control the wireless access by configuring the Wireless MAC Filtering function, shown in Figure 4-23. Figure 4-23 Wireless MAC Filtering To filter wireless users by MAC Address, click Enable. The default setting is Disabled.  MAC Address - The wireless station's MAC address that you want to filter.  Status - The status of this entry, either Enabled or Disabled.  Host - The host network for the filtering rules.  Description - A simple description of the wireless station. To Add a Wireless MAC Address filtering entry, click the Add New button. The "Add or Modify Wireless MAC Address Filtering entry" page will appear, shown in Figure 4-24: Figure 4-24 Add or Modify Wireless MAC Address Filtering entry To add or modify a MAC Address Filtering entry, follow these instructions: - 46 -

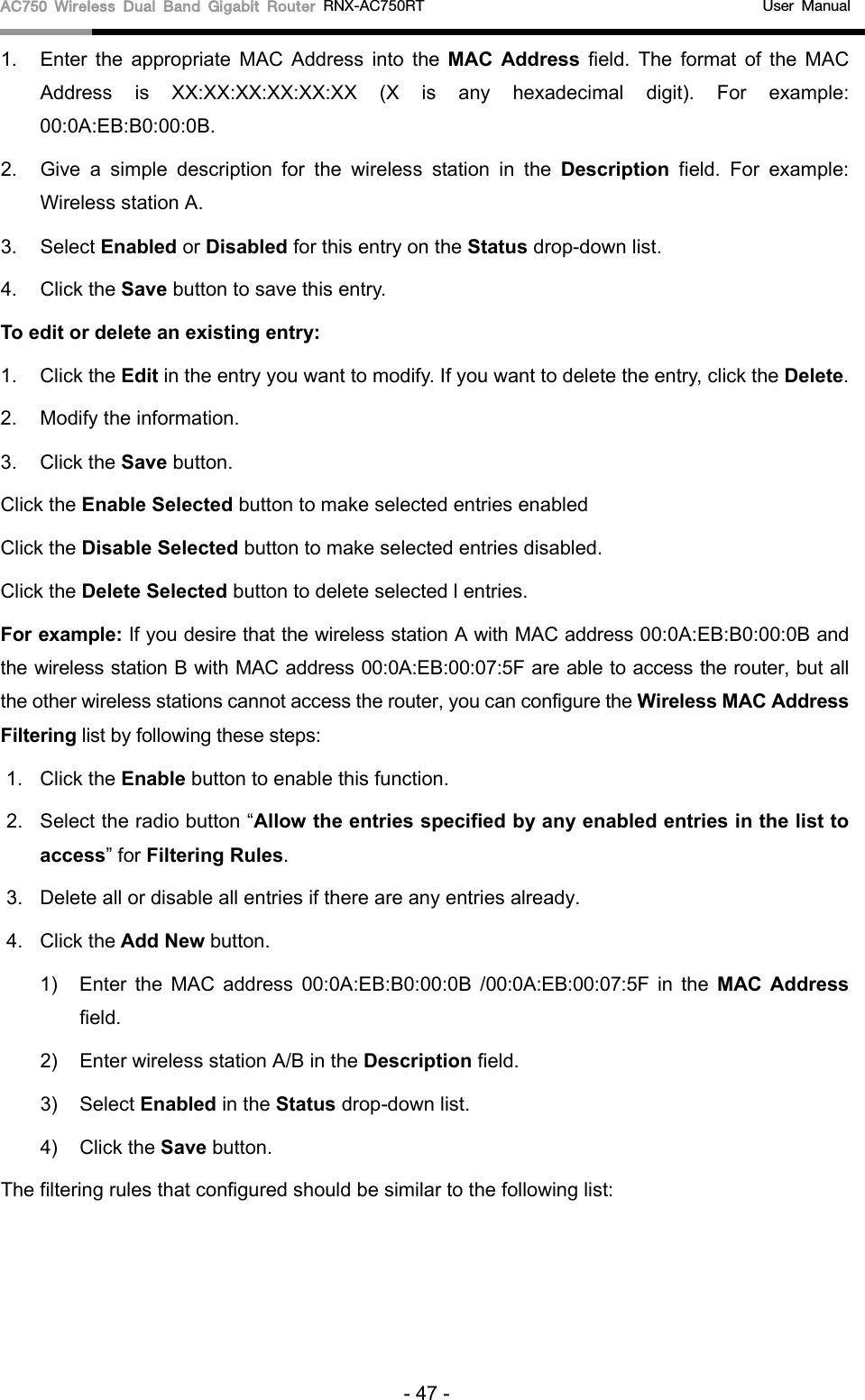

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual 1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX:XX:XX:XX:XX:XX (X is any hexadecimal digit). For example: 00:0A:EB:B0:00:0B. 2. Give a simple description for the wireless station in the Description field. For example: Wireless station A. 3. Select Enabled or Disabled for this entry on the Status drop-down list. 4. Click the Save button to save this entry. To edit or delete an existing entry: 1. Click the Edit in the entry you want to modify. If you want to delete the entry, click the Delete. 2. Modify the information. 3. Click the Save button. Click the Enable Selected button to make selected entries enabled Click the Disable Selected button to make selected entries disabled. Click the Delete Selected button to delete selected l entries. For example: If you desire that the wireless station A with MAC address 00:0A:EB:B0:00:0B and the wireless station B with MAC address 00:0A:EB:00:07:5F are able to access the router, but all the other wireless stations cannot access the router, you can configure the Wireless MAC Address Filtering list by following these steps: 1. Click the Enable button to enable this function. 2. Select the radio button “Allow the entries specified by any enabled entries in the list to access” for Filtering Rules. 3. Delete all or disable all entries if there are any entries already. 4. Click the Add New button. 1) Enter the MAC address 00:0A:EB:B0:00:0B /00:0A:EB:00:07:5F in the MAC Address field. 2) Enter wireless station A/B in the Description field. 3) Select Enabled in the Status drop-down list. 4) Click the Save button. The filtering rules that configured should be similar to the following list: - 47 -

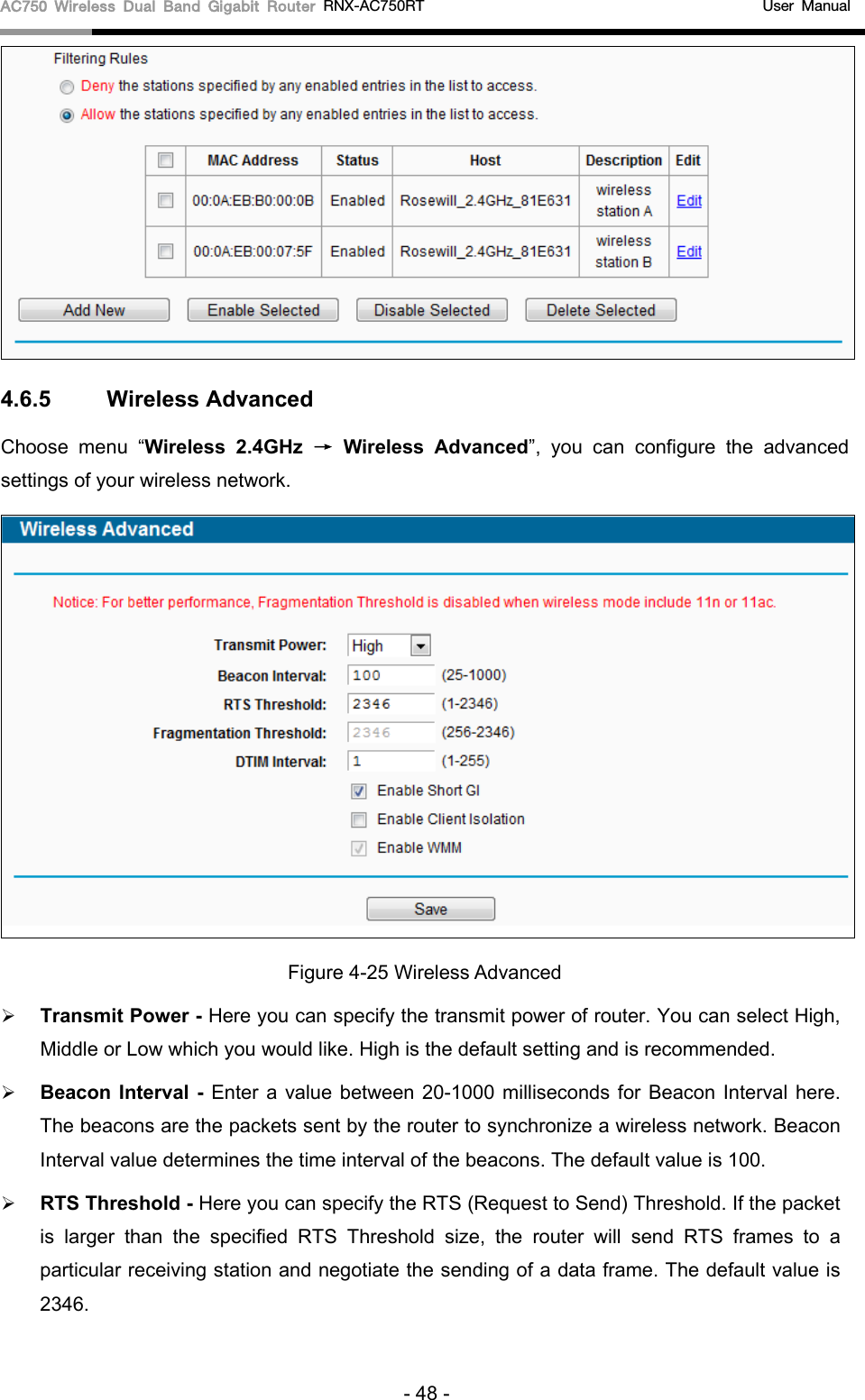

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual 4.6.5 Wireless Advanced Choose menu “Wireless 2.4GHz → Wireless Advanced”, you can configure the advanced settings of your wireless network. Figure 4-25 Wireless Advanced  Transmit Power - Here you can specify the transmit power of router. You can select High, Middle or Low which you would like. High is the default setting and is recommended.  Beacon Interval - Enter a value between 20-1000 milliseconds for Beacon Interval here. The beacons are the packets sent by the router to synchronize a wireless network. Beacon Interval value determines the time interval of the beacons. The default value is 100.  RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the packet is larger than the specified RTS Threshold size, the router will send RTS frames to a particular receiving station and negotiate the sending of a data frame. The default value is 2346. - 48 -

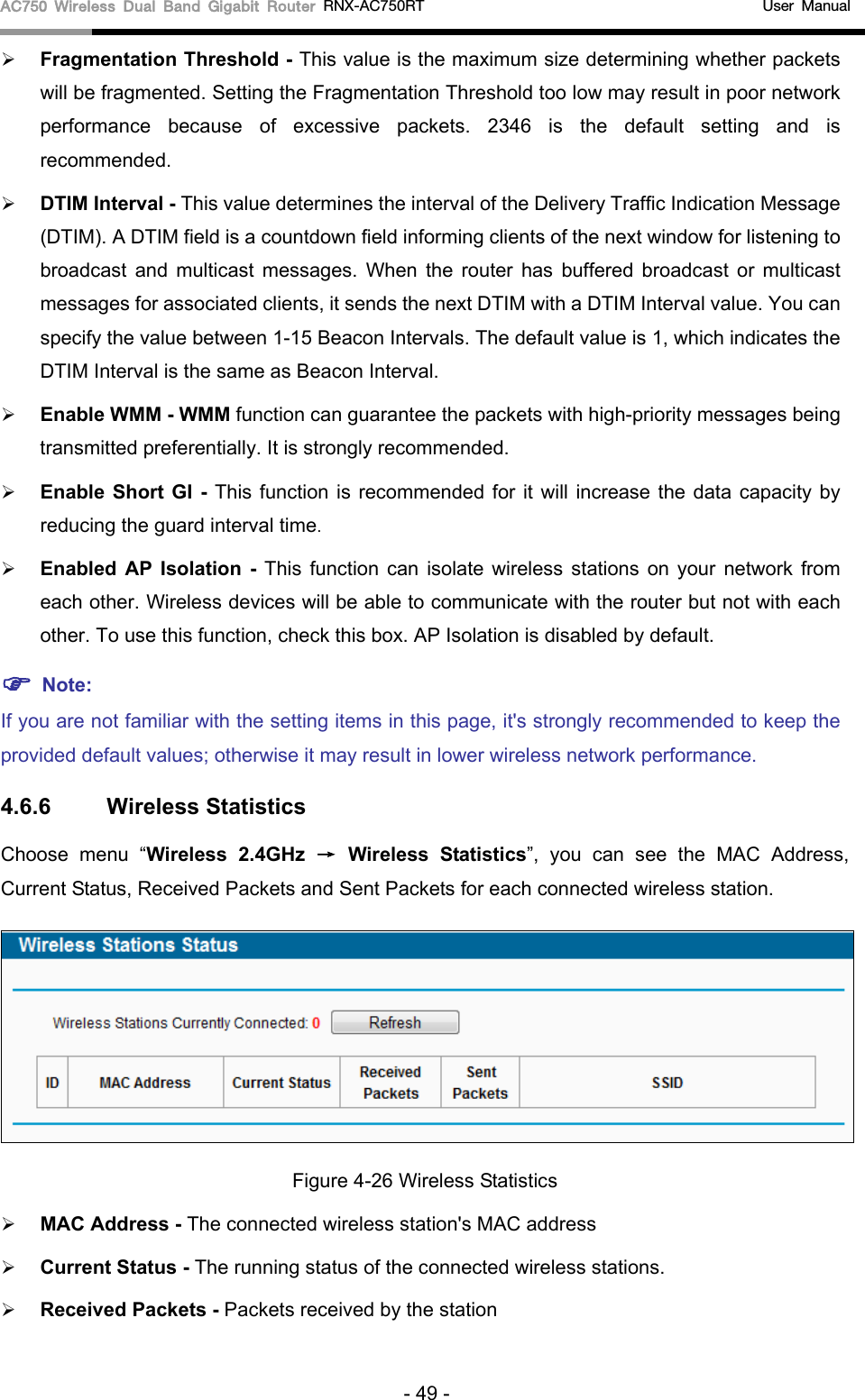

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  Fragmentation Threshold - This value is the maximum size determining whether packets will be fragmented. Setting the Fragmentation Threshold too low may result in poor network performance because of excessive packets. 2346 is the default setting and is recommended.  DTIM Interval - This value determines the interval of the Delivery Traffic Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. You can specify the value between 1-15 Beacon Intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval.  Enable WMM - WMM function can guarantee the packets with high-priority messages being transmitted preferentially. It is strongly recommended.  Enable Short GI - This function is recommended for it will increase the data capacity by reducing the guard interval time.  Enabled AP Isolation - This function can isolate wireless stations on your network from each other. Wireless devices will be able to communicate with the router but not with each other. To use this function, check this box. AP Isolation is disabled by default.  Note: If you are not familiar with the setting items in this page, it's strongly recommended to keep the provided default values; otherwise it may result in lower wireless network performance. 4.6.6 Wireless Statistics Choose menu “Wireless 2.4GHz → Wireless Statistics”, you can see the MAC Address, Current Status, Received Packets and Sent Packets for each connected wireless station. Figure 4-26 Wireless Statistics  MAC Address - The connected wireless station's MAC address  Current Status - The running status of the connected wireless stations.  Received Packets - Packets received by the station - 49 -

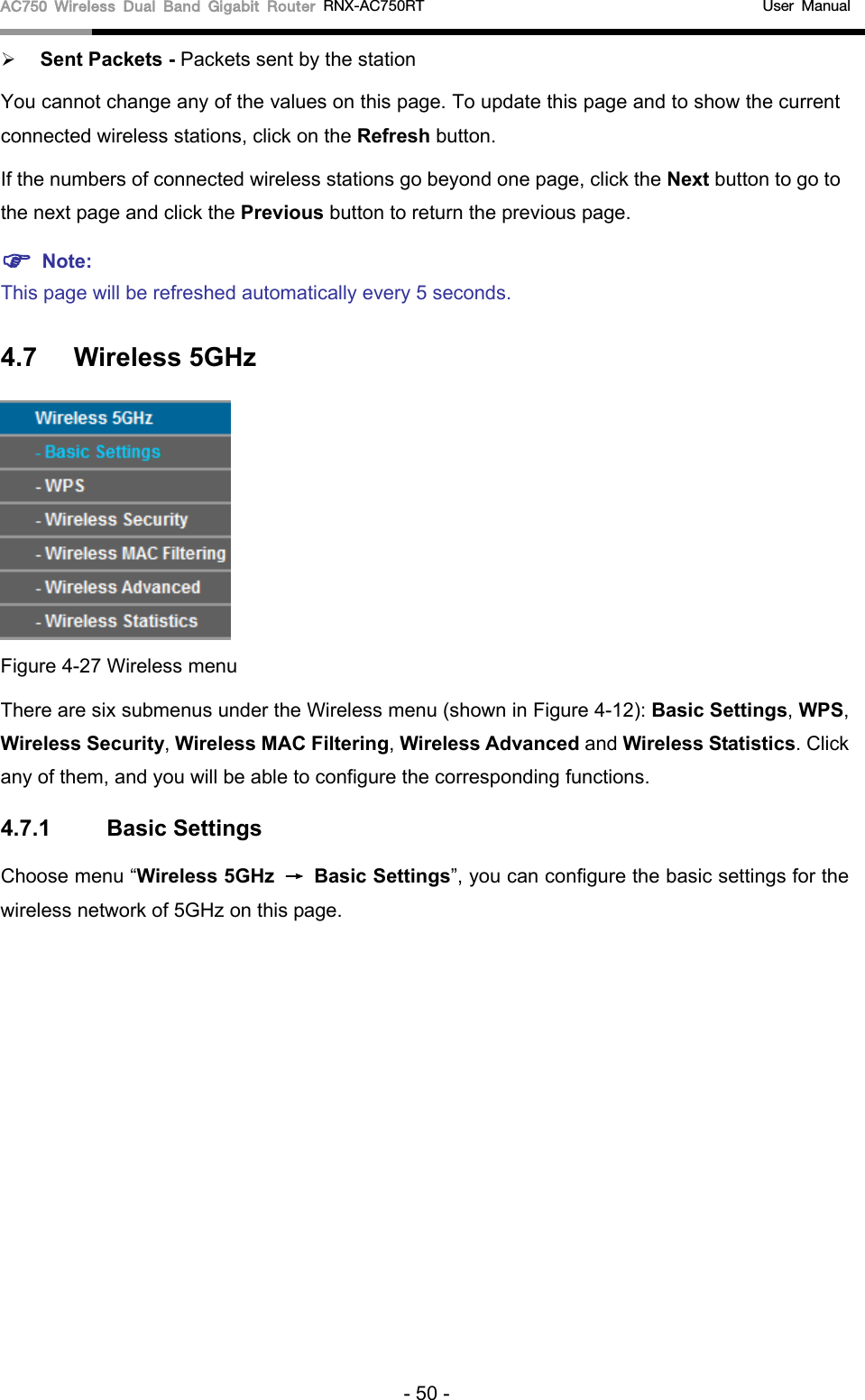

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  Sent Packets - Packets sent by the station You cannot change any of the values on this page. To update this page and to show the current connected wireless stations, click on the Refresh button. If the numbers of connected wireless stations go beyond one page, click the Next button to go to the next page and click the Previous button to return the previous page.  Note: This page will be refreshed automatically every 5 seconds. 4.7 Wireless 5GHz Figure 4-27 Wireless menu There are six submenus under the Wireless menu (shown in Figure 4-12): Basic Settings, WPS, Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click any of them, and you will be able to configure the corresponding functions. 4.7.1 Basic Settings Choose menu “Wireless 5GHz → Basic Settings”, you can configure the basic settings for the wireless network of 5GHz on this page. - 50 -

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 4-28 Wireless Settings – 5GHz  Wireless Network Name - Also called the SSID (Service Set Identification). Enter a value of up to 32 characters. The same name must be assigned to all wireless devices in your network. Considering your wireless network security, the default SSID is set to be Rosewill_5GHz_XXXXXX. This value is case-sensitive. For example, TEST is NOT the same as test.  Region - Select your region from the drop-down list. This field specifies the region where the wireless function of the router can be used. It may be illegal to use the wireless function of the router in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance. When you select your local region from the drop-down list, click the Save button, then the Note Dialog appears. Click OK. Note Dialog - 51 -

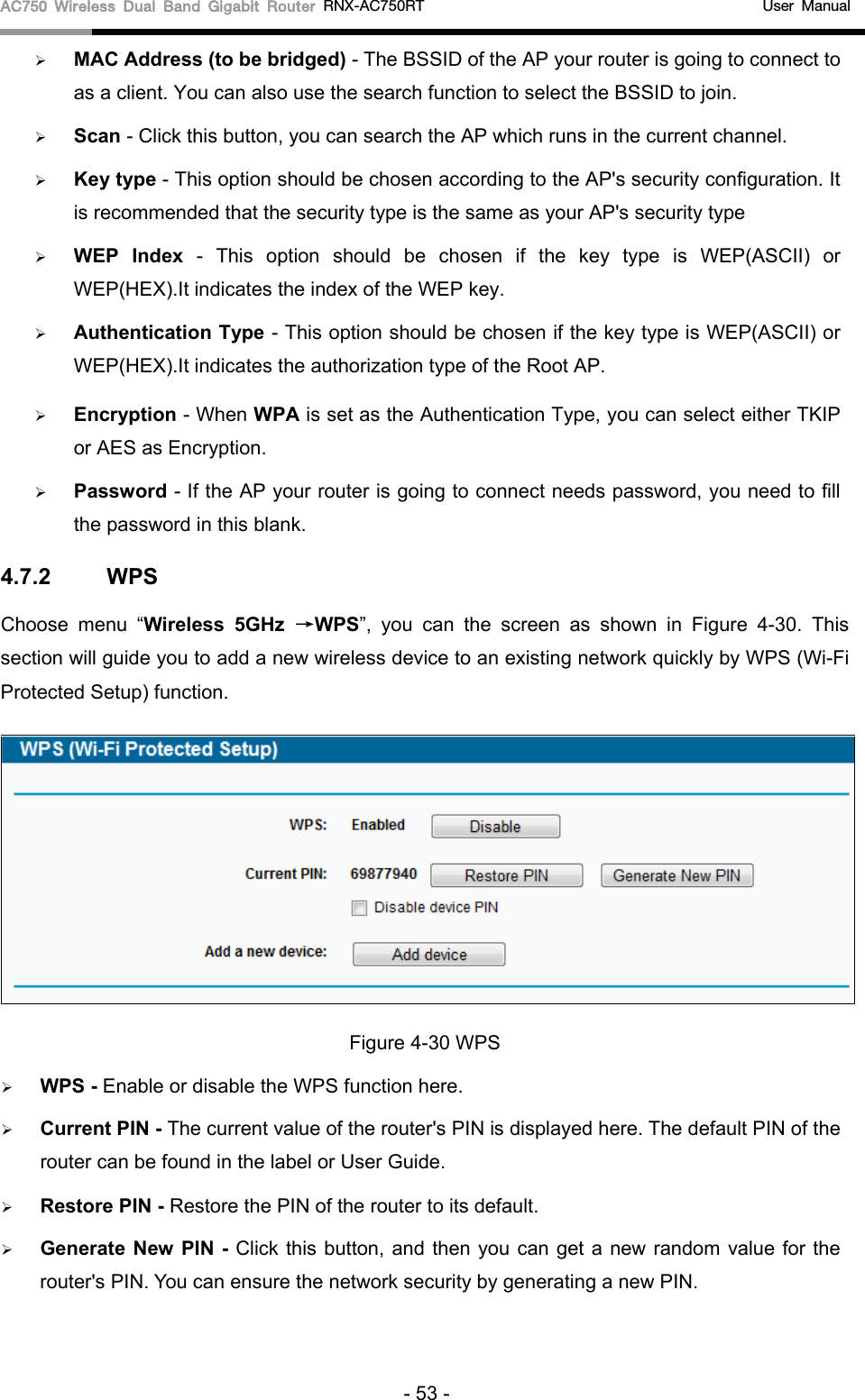

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  MAC Address (to be bridged) - The BSSID of the AP your router is going to connect to as a client. You can also use the search function to select the BSSID to join.  Scan - Click this button, you can search the AP which runs in the current channel.  Key type - This option should be chosen according to the AP's security configuration. It is recommended that the security type is the same as your AP's security type  WEP Index - This option should be chosen if the key type is WEP(ASCII) or WEP(HEX).It indicates the index of the WEP key.  Authentication Type - This option should be chosen if the key type is WEP(ASCII) or WEP(HEX).It indicates the authorization type of the Root AP.  Encryption - When WPA is set as the Authentication Type, you can select either TKIP or AES as Encryption.  Password - If the AP your router is going to connect needs password, you need to fill the password in this blank. 4.7.2 WPS Choose menu “Wireless 5GHz →WPS”, you can the screen as shown in Figure 4-30. This section will guide you to add a new wireless device to an existing network quickly by WPS (Wi-Fi Protected Setup) function. Figure 4-30 WPS  WPS - Enable or disable the WPS function here.  Current PIN - The current value of the router's PIN is displayed here. The default PIN of the router can be found in the label or User Guide.  Restore PIN - Restore the PIN of the router to its default.  Generate New PIN - Click this button, and then you can get a new random value for the router's PIN. You can ensure the network security by generating a new PIN. - 53 -

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Add device - You can add a new device to the existing network manually by clicking thisbutton.If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and router using either Push Button Configuration (PBC) method or PIN method.  Note:To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function meanwhile. I. Use the Wi-Fi Protected Setup Button Use this method if your client device has a Wi-Fi Protected Setup button. Step 1: Press the WPS/Reset button on the back panel of the router, as shown in Figure 4-31. You can also keep the default WPS status as Enabled and click the Add device button in Figure 4-30. Then choose “Press the button of the new device in two minutes” and click Connect, shown in Figure 4-32. Figure 4-31 Figure 4-32 Add A New Device Step 2: Press and hold the WPS button of the client device directly. Step 3: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected Setup process. Step 4: When the WPS LED is on, the client device has successfully connected to the router. II. Enter the client device’s PIN on the router- 54 - WPSResetON/OFF POWERWi-Fi WAN LAN1 LAN2 LAN3 LAN4 USB

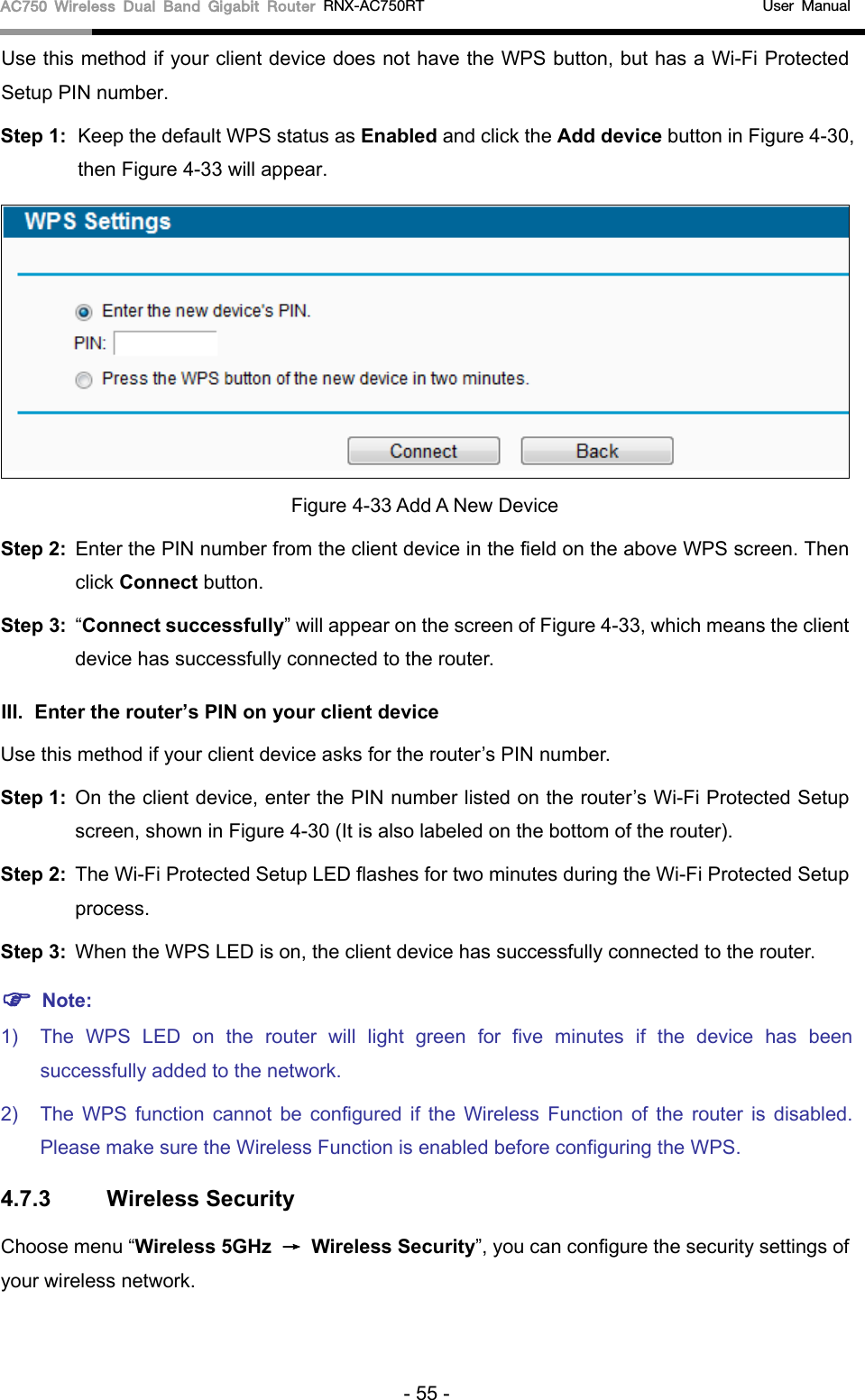

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Use this method if your client device does not have the WPS button, but has a Wi-Fi Protected Setup PIN number. Step 1: Keep the default WPS status as Enabled and click the Add device button in Figure 4-30, then Figure 4-33 will appear. Figure 4-33 Add A New Device Step 2: Enter the PIN number from the client device in the field on the above WPS screen. Then click Connect button. Step 3: “Connect successfully” will appear on the screen of Figure 4-33, which means the client device has successfully connected to the router. III. Enter the router’s PIN on your client device Use this method if your client device asks for the router’s PIN number. Step 1: On the client device, enter the PIN number listed on the router’s Wi-Fi Protected Setup screen, shown in Figure 4-30 (It is also labeled on the bottom of the router). Step 2: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected Setup process. Step 3: When the WPS LED is on, the client device has successfully connected to the router.  Note: 1) The WPS LED on the router will light green for five minutes if the device has been successfully added to the network. 2) The WPS function cannot be configured if the Wireless Function of the router is disabled. Please make sure the Wireless Function is enabled before configuring the WPS. 4.7.3 Wireless Security Choose menu “Wireless 5GHz → Wireless Security”, you can configure the security settings of your wireless network. - 55 -

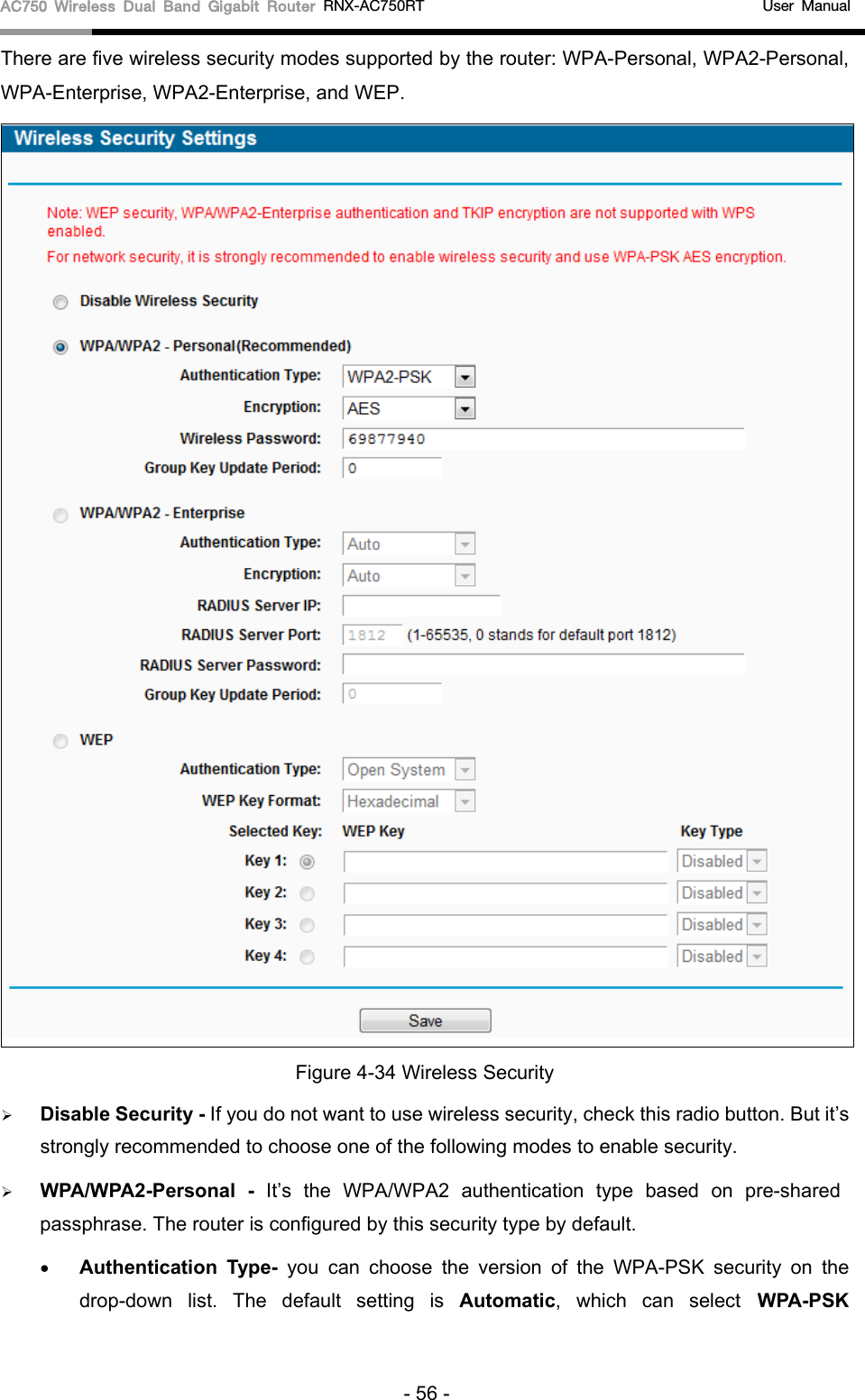

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual There are five wireless security modes supported by the router: WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise, and WEP. Figure 4-34 Wireless Security  Disable Security - If you do not want to use wireless security, check this radio button. But it’s strongly recommended to choose one of the following modes to enable security.  WPA/WPA2-Personal - It’s the WPA/WPA2 authentication type based on pre-shared passphrase. The router is configured by this security type by default. • Authentication Type- you can choose the version of the WPA-PSK security on the drop-down list. The default setting is Automatic, which can select WPA-PSK - 56 -

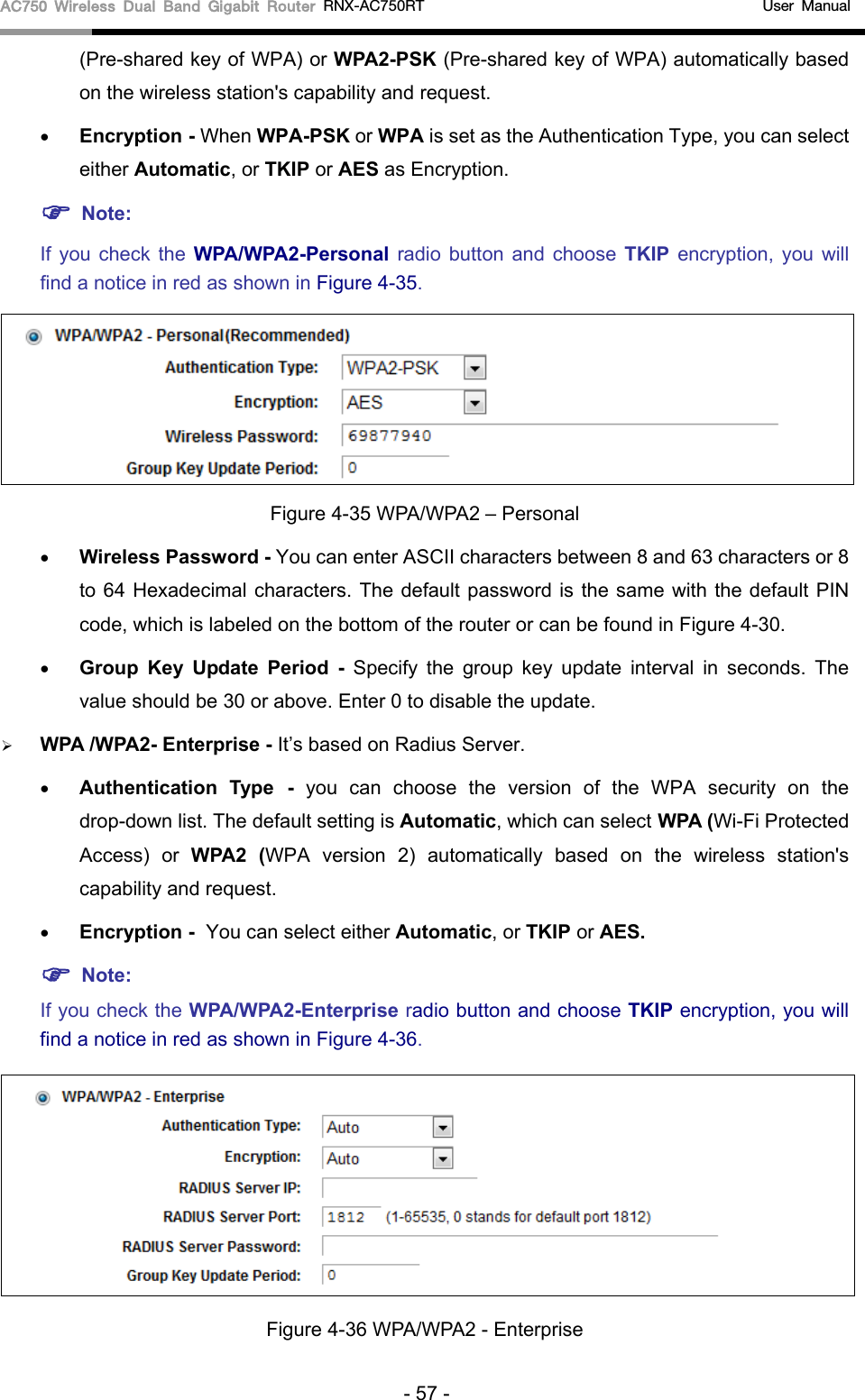

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual (Pre-shared key of WPA) or WPA2-PSK (Pre-shared key of WPA) automatically based on the wireless station's capability and request. • Encryption - When WPA-PSK or WPA is set as the Authentication Type, you can select either Automatic, or TKIP or AES as Encryption.  Note: If you check the WPA/WPA2-Personal radio button and choose TKIP encryption, you will find a notice in red as shown in Figure 4-35. Figure 4-35 WPA/WPA2 – Personal • Wireless Password - You can enter ASCII characters between 8 and 63 characters or 8 to 64 Hexadecimal characters. The default password is the same with the default PIN code, which is labeled on the bottom of the router or can be found in Figure 4-30. • Group Key Update Period - Specify the group key update interval in seconds. The value should be 30 or above. Enter 0 to disable the update.  WPA /WPA2- Enterprise - It’s based on Radius Server. • Authentication Type - you can choose the version of the WPA security on the drop-down list. The default setting is Automatic, which can select WPA (Wi-Fi Protected Access) or WPA2 (WPA version 2) automatically based on the wireless station's capability and request. • Encryption - You can select either Automatic, or TKIP or AES.  Note: If you check the WPA/WPA2-Enterprise radio button and choose TKIP encryption, you will find a notice in red as shown in Figure 4-36. Figure 4-36 WPA/WPA2 - Enterprise - 57 -

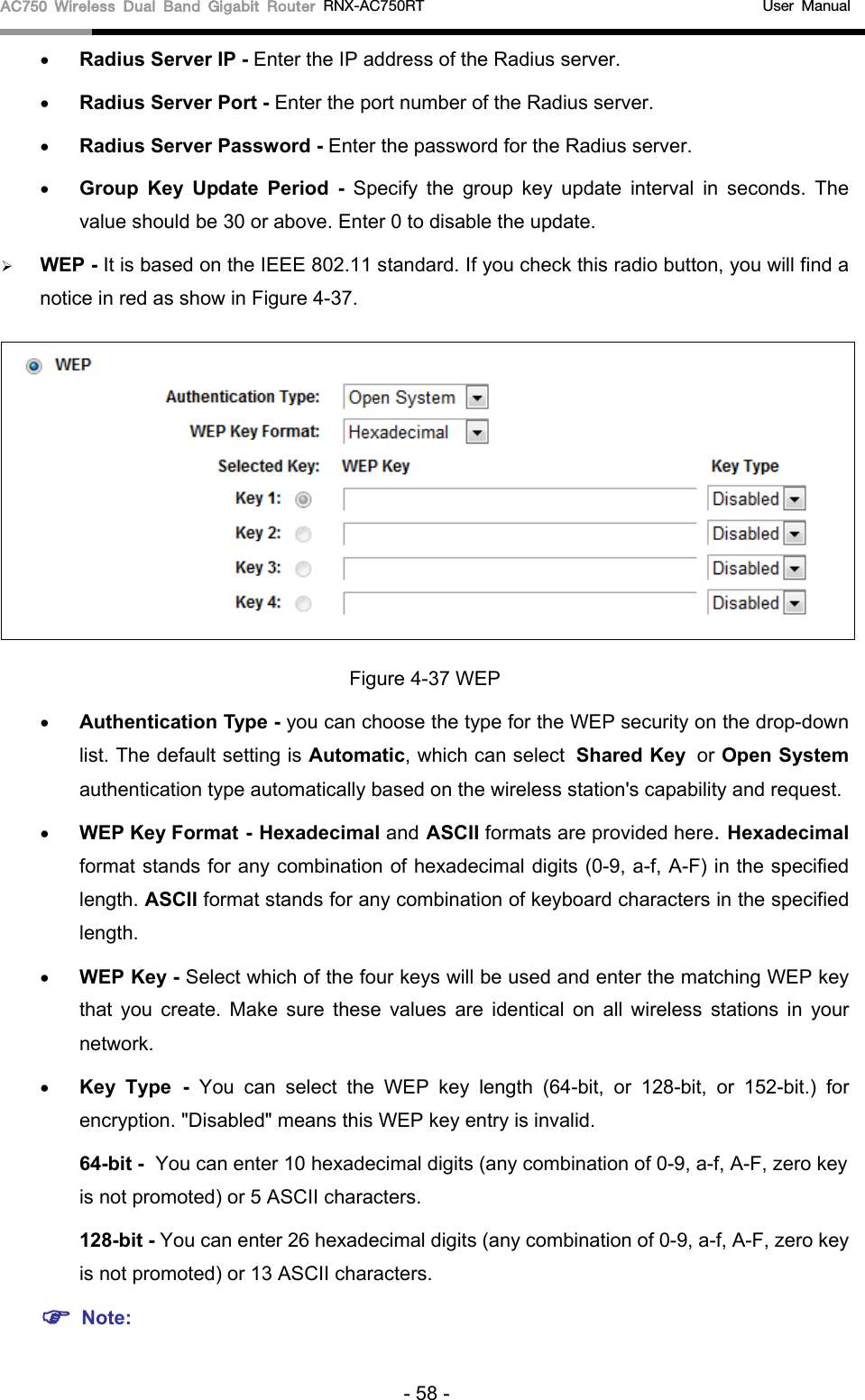

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual • Radius Server IP - Enter the IP address of the Radius server. • Radius Server Port - Enter the port number of the Radius server. • Radius Server Password - Enter the password for the Radius server. • Group Key Update Period - Specify the group key update interval in seconds. The value should be 30 or above. Enter 0 to disable the update.  WEP - It is based on the IEEE 802.11 standard. If you check this radio button, you will find a notice in red as show in Figure 4-37. Figure 4-37 WEP • Authentication Type - you can choose the type for the WEP security on the drop-down list. The default setting is Automatic, which can select Shared Key or Open System authentication type automatically based on the wireless station's capability and request. • WEP Key Format - Hexadecimal and ASCII formats are provided here. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. ASCII format stands for any combination of keyboard characters in the specified length. • WEP Key - Select which of the four keys will be used and enter the matching WEP key that you create. Make sure these values are identical on all wireless stations in your network. • Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. "Disabled" means this WEP key entry is invalid. 64-bit - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 5 ASCII characters. 128-bit - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 13 ASCII characters.  Note: - 58 -

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. Be sure to click the Save button to save your settings on this page. 4.7.4 Wireless MAC Filtering Choose menu “Wireless → MAC Filtering”, you can control the wireless access by configuring the Wireless MAC Filtering function, shown in Figure 4-23. Figure 4-38 Wireless MAC Filtering To filter wireless users by MAC Address, click Enable. The default setting is Disabled.  MAC Address - The wireless station's MAC address that you want to filter.  Status - The status of this entry, either Enabled or Disabled.  Host- The host network for the filetring rules.  Description - A simple description of the wireless station. To Add a Wireless MAC Address filtering entry, click the Add New button. The "Add or Modify Wireless MAC Address Filtering entry" page will appear, shown in Figure 4-24: - 59 -

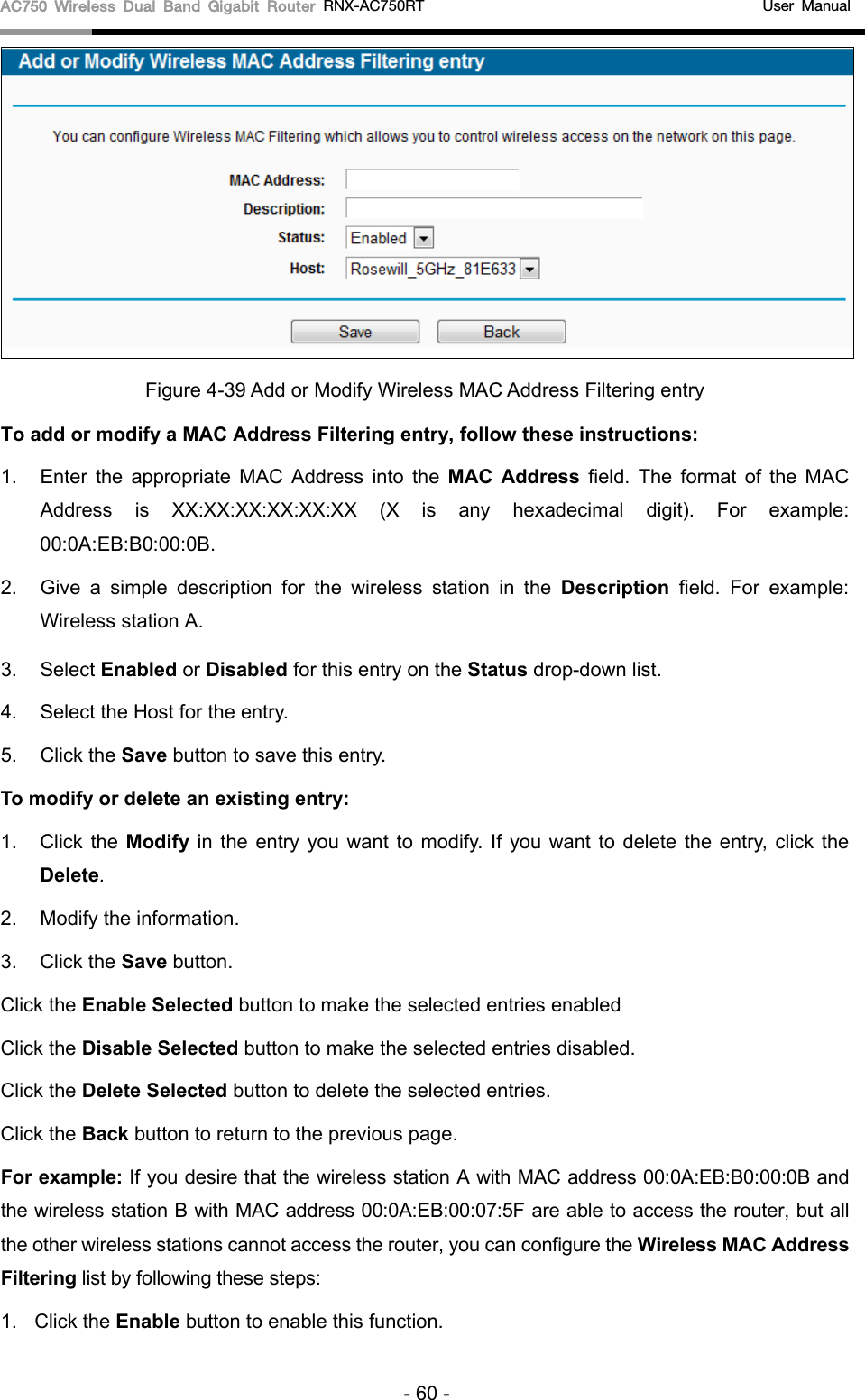

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 4-39 Add or Modify Wireless MAC Address Filtering entry To add or modify a MAC Address Filtering entry, follow these instructions: 1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX:XX:XX:XX:XX:XX (X is any hexadecimal digit). For example: 00:0A:EB:B0:00:0B. 2. Give a simple description for the wireless station in the Description field. For example: Wireless station A. 3. Select Enabled or Disabled for this entry on the Status drop-down list. 4. Select the Host for the entry. 5. Click the Save button to save this entry. To modify or delete an existing entry: 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete. 2. Modify the information. 3. Click the Save button. Click the Enable Selected button to make the selected entries enabled Click the Disable Selected button to make the selected entries disabled. Click the Delete Selected button to delete the selected entries. Click the Back button to return to the previous page. For example: If you desire that the wireless station A with MAC address 00:0A:EB:B0:00:0B and the wireless station B with MAC address 00:0A:EB:00:07:5F are able to access the router, but all the other wireless stations cannot access the router, you can configure the Wireless MAC Address Filtering list by following these steps: 1. Click the Enable button to enable this function. - 60 -

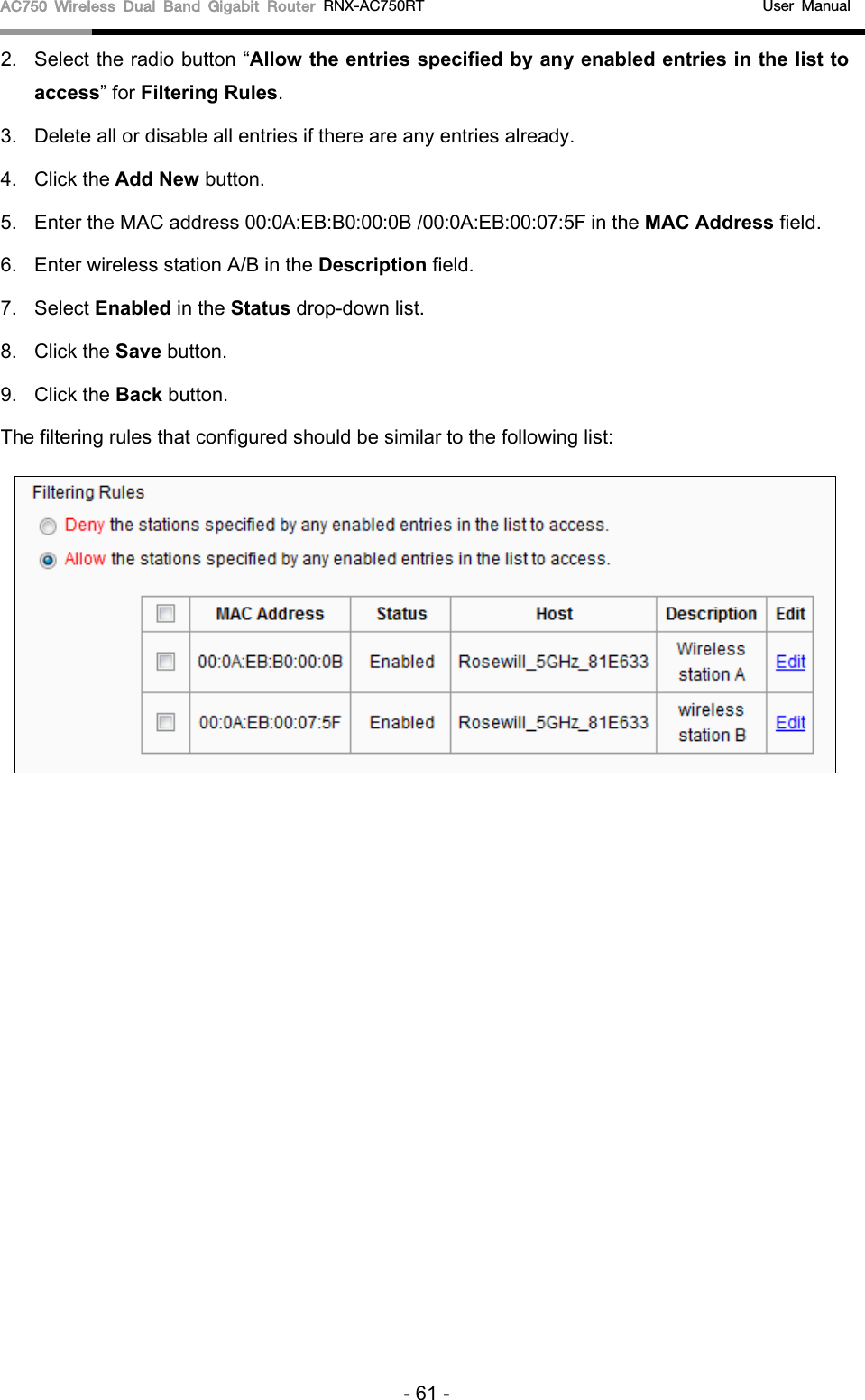

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual 2. Select the radio button “Allow the entries specified by any enabled entries in the list to access” for Filtering Rules. 3. Delete all or disable all entries if there are any entries already. 4. Click the Add New button. 5. Enter the MAC address 00:0A:EB:B0:00:0B /00:0A:EB:00:07:5F in the MAC Address field. 6. Enter wireless station A/B in the Description field. 7. Select Enabled in the Status drop-down list. 8. Click the Save button. 9. Click the Back button. The filtering rules that configured should be similar to the following list: - 61 -

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual 4.7.5 Wireless Advanced Choose menu “Wireless → Wireless Advanced”, you can configure the advanced settings of your wireless network. Figure 4-40 Wireless Advanced  Transmit Power - Here you can specify the transmit power of router. You can select High, Middle or Low which you would like. High is the default setting and is recommended.  Beacon Interval - Enter a value between 20-1000 milliseconds for Beacon Interval here. The beacons are the packets sent by the router to synchronize a wireless network. Beacon Interval value determines the time interval of the beacons. The default value is 100.  RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the packet is larger than the specified RTS Threshold size, the router will send RTS frames to a particular receiving station and negotiate the sending of a data frame. The default value is 2346.  Fragmentation Threshold - This value is the maximum size determining whether packets will be fragmented. Setting the Fragmentation Threshold too low may result in poor network performance because of excessive packets. 2346 is the default setting and is recommended.  DTIM Interval - This value determines the interval of the Delivery Traffic Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. You can specify the value between 1-15 Beacon Intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval. - 62 -

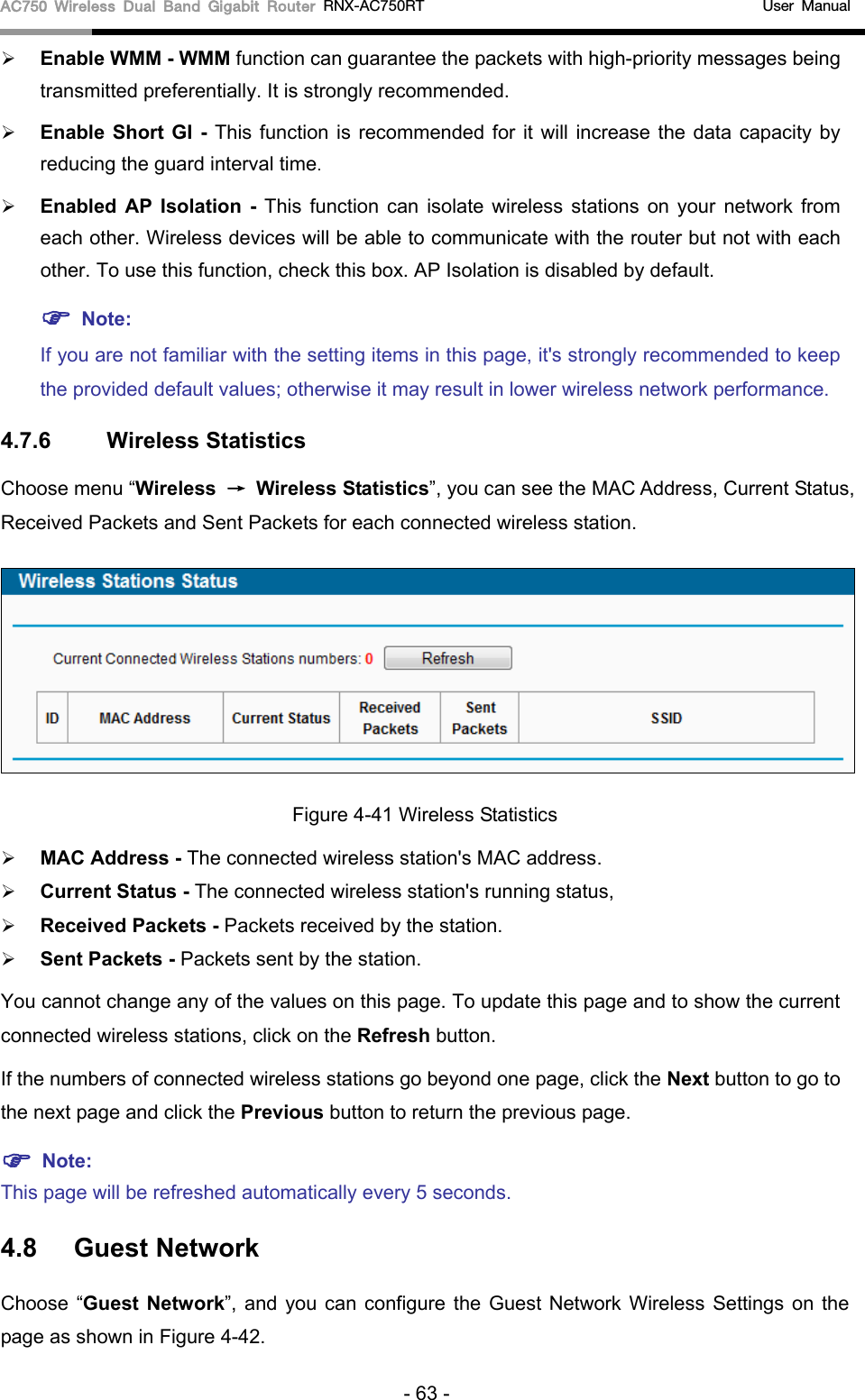

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  Enable WMM - WMM function can guarantee the packets with high-priority messages being transmitted preferentially. It is strongly recommended.  Enable Short GI - This function is recommended for it will increase the data capacity by reducing the guard interval time.  Enabled AP Isolation - This function can isolate wireless stations on your network from each other. Wireless devices will be able to communicate with the router but not with each other. To use this function, check this box. AP Isolation is disabled by default.  Note: If you are not familiar with the setting items in this page, it's strongly recommended to keep the provided default values; otherwise it may result in lower wireless network performance. 4.7.6 Wireless Statistics Choose menu “Wireless → Wireless Statistics”, you can see the MAC Address, Current Status, Received Packets and Sent Packets for each connected wireless station. Figure 4-41 Wireless Statistics  MAC Address - The connected wireless station's MAC address.  Current Status - The connected wireless station's running status,  Received Packets - Packets received by the station.  Sent Packets - Packets sent by the station. You cannot change any of the values on this page. To update this page and to show the current connected wireless stations, click on the Refresh button. If the numbers of connected wireless stations go beyond one page, click the Next button to go to the next page and click the Previous button to return the previous page.  Note: This page will be refreshed automatically every 5 seconds. 4.8 Guest Network Choose “Guest Network”, and you can configure the Guest Network Wireless Settings on the page as shown in Figure 4-42. - 63 -

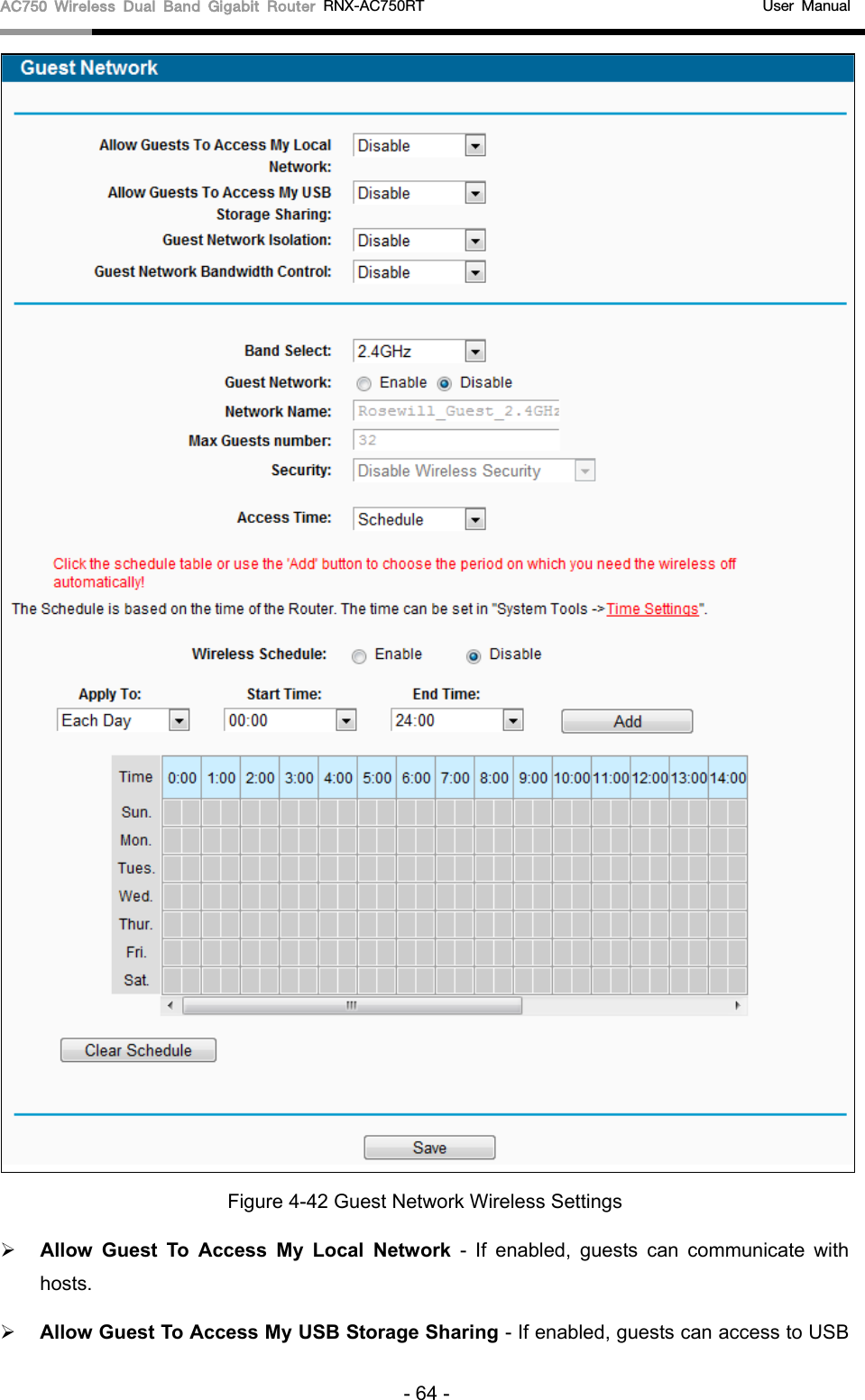

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 4-42 Guest Network Wireless Settings  Allow Guest To Access My Local Network - If enabled, guests can communicate with hosts.  Allow Guest To Access My USB Storage Sharing - If enabled, guests can access to USB - 64 -

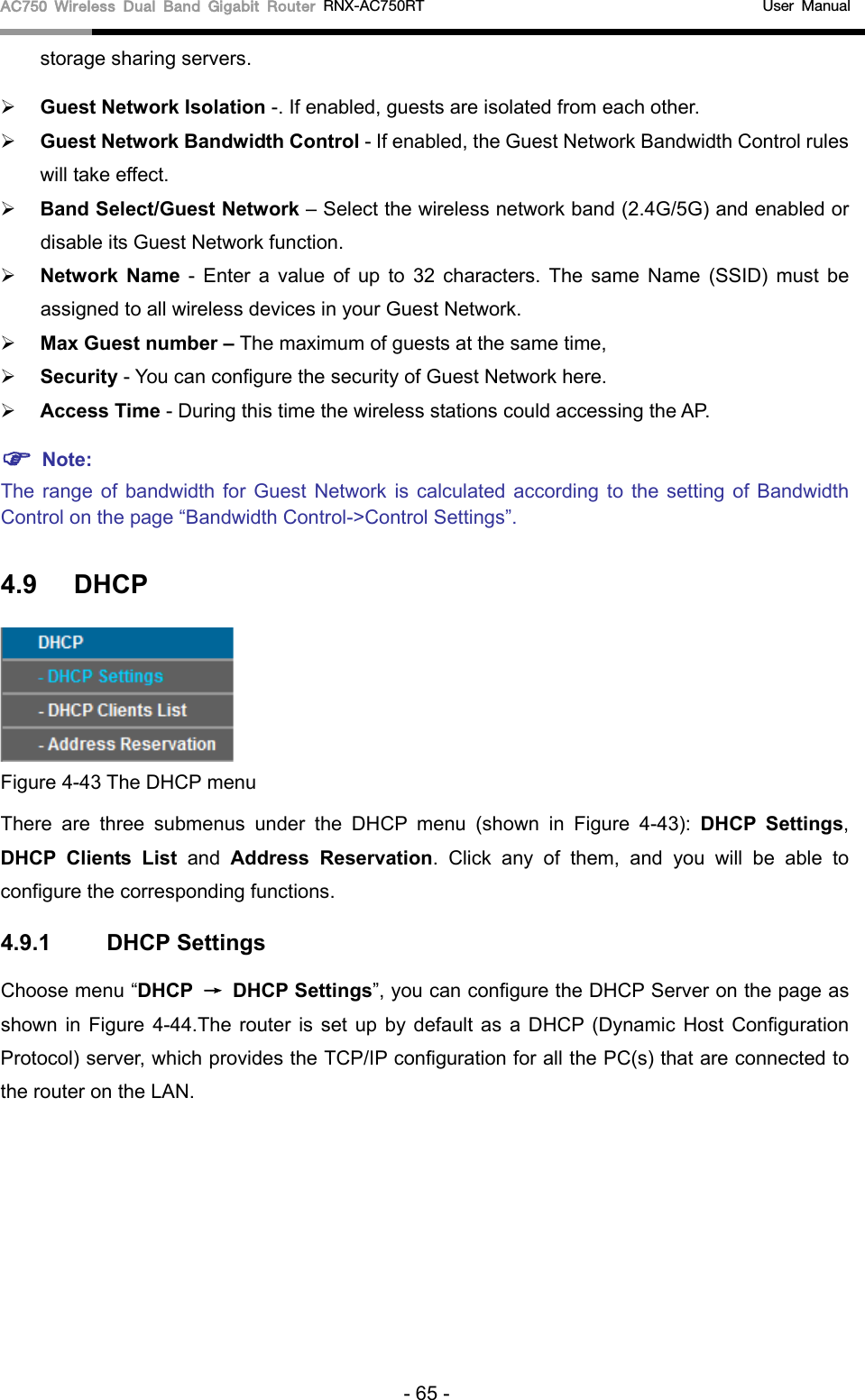

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual storage sharing servers.  Guest Network Isolation -. If enabled, guests are isolated from each other.  Guest Network Bandwidth Control - If enabled, the Guest Network Bandwidth Control rules will take effect.  Band Select/Guest Network – Select the wireless network band (2.4G/5G) and enabled or disable its Guest Network function.  Network Name - Enter a value of up to 32 characters. The same Name (SSID) must be assigned to all wireless devices in your Guest Network.  Max Guest number – The maximum of guests at the same time,  Security - You can configure the security of Guest Network here.  Access Time - During this time the wireless stations could accessing the AP.  Note: The range of bandwidth for Guest Network is calculated according to the setting of Bandwidth Control on the page “Bandwidth Control->Control Settings”. 4.9 DHCP Figure 4-43 The DHCP menu There are three submenus under the DHCP menu (shown in Figure 4-43): DHCP Settings, DHCP Clients List and Address Reservation. Click any of them, and you will be able to configure the corresponding functions. 4.9.1 DHCP Settings Choose menu “DHCP → DHCP Settings”, you can configure the DHCP Server on the page as shown in Figure 4-44.The router is set up by default as a DHCP (Dynamic Host Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are connected to the router on the LAN. - 65 -

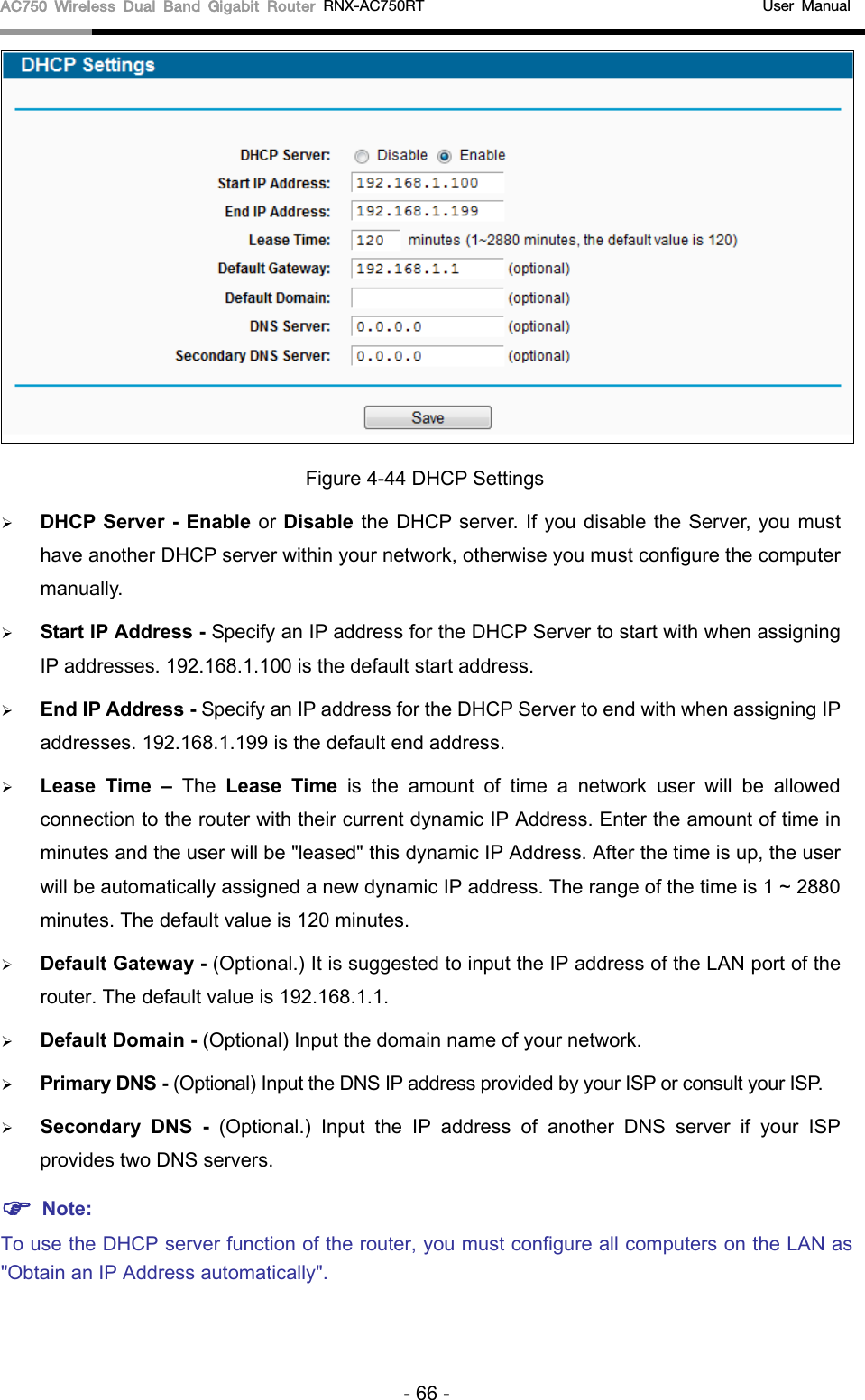

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 4-44 DHCP Settings  DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must have another DHCP server within your network, otherwise you must configure the computer manually.  Start IP Address - Specify an IP address for the DHCP Server to start with when assigning IP addresses. 192.168.1.100 is the default start address.  End IP Address - Specify an IP address for the DHCP Server to end with when assigning IP addresses. 192.168.1.199 is the default end address.  Lease Time – The Lease Time is the amount of time a network user will be allowed connection to the router with their current dynamic IP Address. Enter the amount of time in minutes and the user will be "leased" this dynamic IP Address. After the time is up, the user will be automatically assigned a new dynamic IP address. The range of the time is 1 ~ 2880 minutes. The default value is 120 minutes.  Default Gateway - (Optional.) It is suggested to input the IP address of the LAN port of the router. The default value is 192.168.1.1.  Default Domain - (Optional) Input the domain name of your network.  Primary DNS - (Optional) Input the DNS IP address provided by your ISP or consult your ISP.  Secondary DNS - (Optional.) Input the IP address of another DNS server if your ISP provides two DNS servers.  Note: To use the DHCP server function of the router, you must configure all computers on the LAN as "Obtain an IP Address automatically". - 66 -

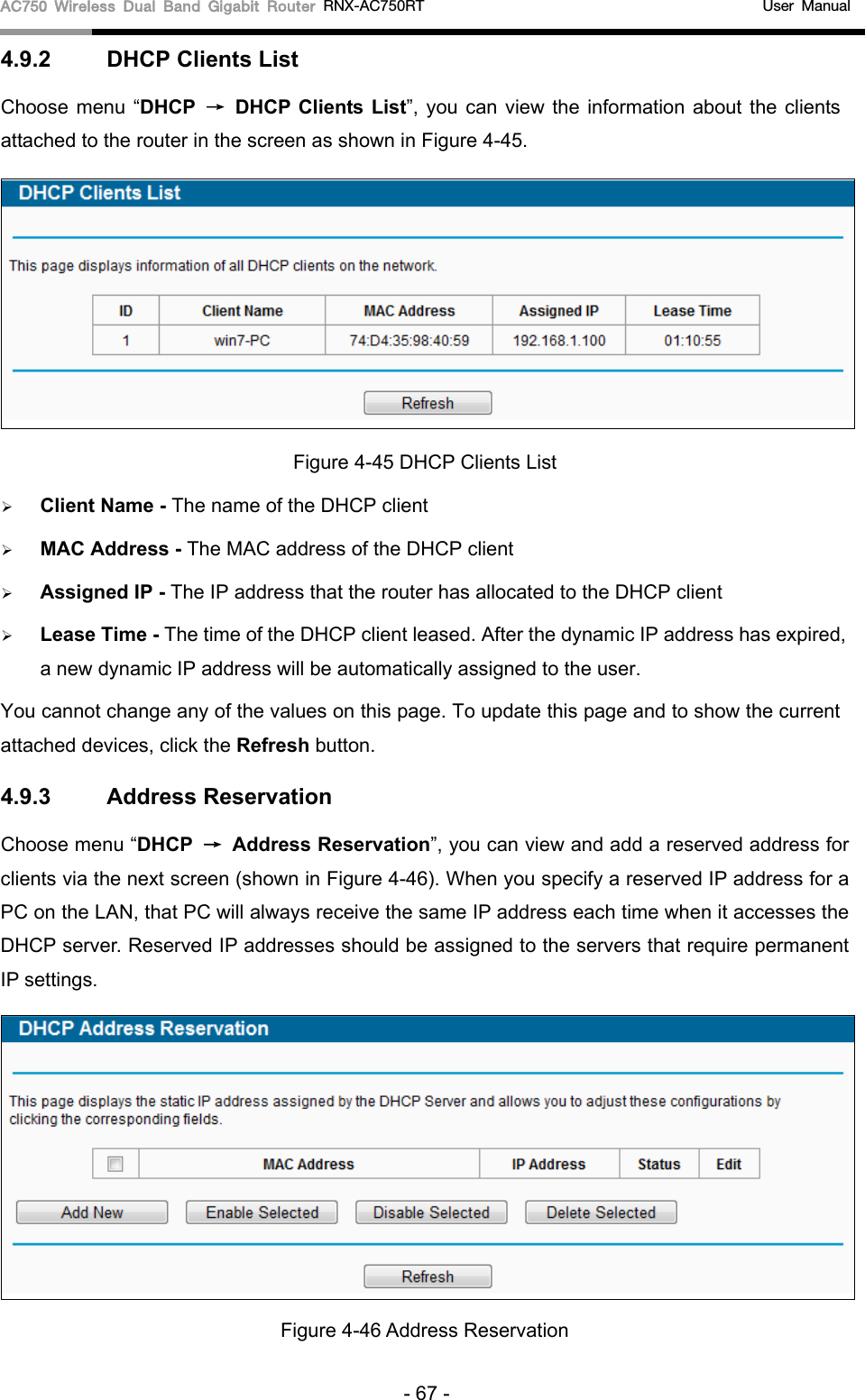

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual 4.9.2 DHCP Clients List Choose menu “DHCP → DHCP Clients List”, you can view the information about the clients attached to the router in the screen as shown in Figure 4-45. Figure 4-45 DHCP Clients List  Client Name - The name of the DHCP client  MAC Address - The MAC address of the DHCP client  Assigned IP - The IP address that the router has allocated to the DHCP client  Lease Time - The time of the DHCP client leased. After the dynamic IP address has expired, a new dynamic IP address will be automatically assigned to the user. You cannot change any of the values on this page. To update this page and to show the current attached devices, click the Refresh button. 4.9.3 Address Reservation Choose menu “DHCP → Address Reservation”, you can view and add a reserved address for clients via the next screen (shown in Figure 4-46). When you specify a reserved IP address for a PC on the LAN, that PC will always receive the same IP address each time when it accesses the DHCP server. Reserved IP addresses should be assigned to the servers that require permanent IP settings. Figure 4-46 Address Reservation - 67 -

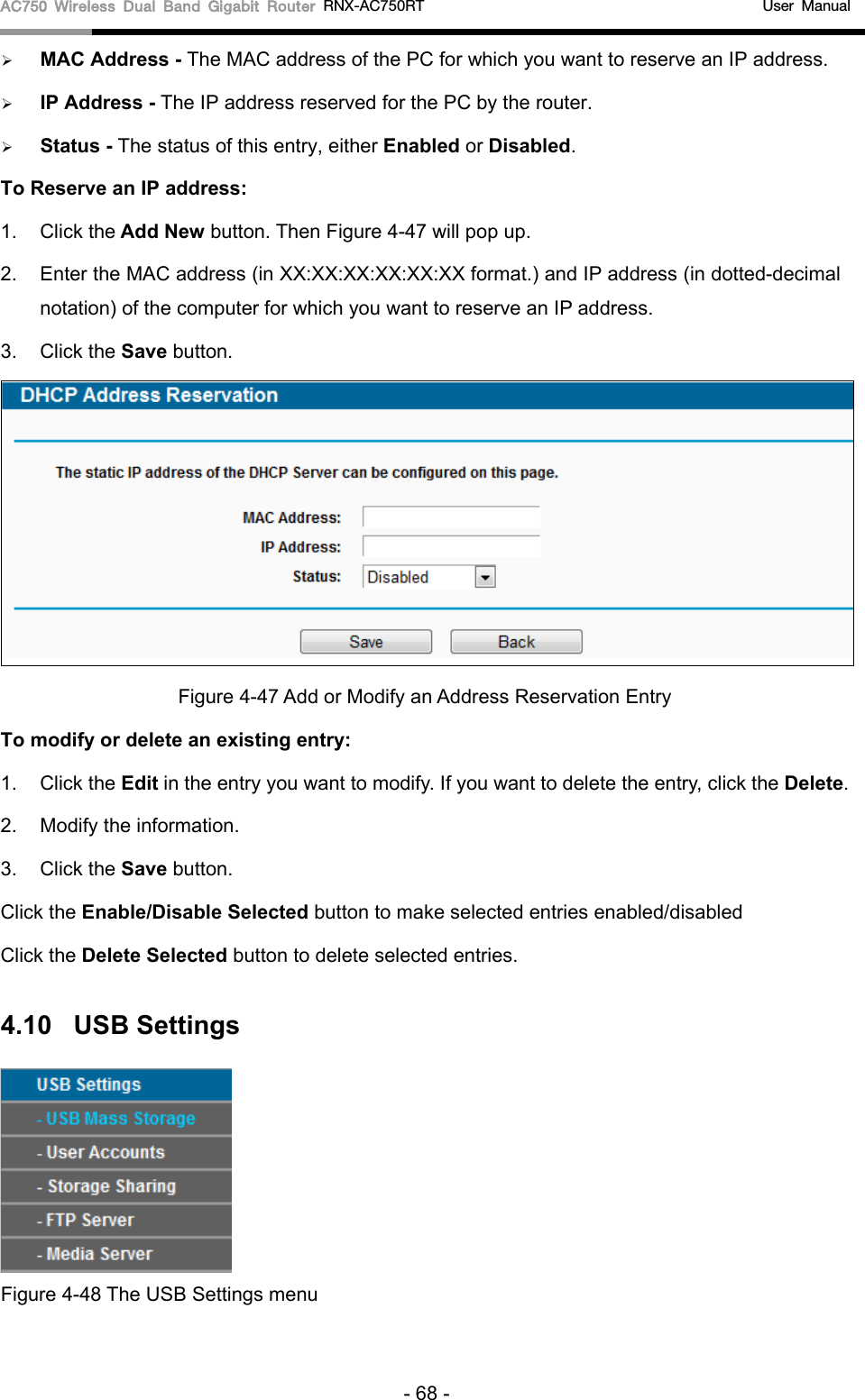

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  MAC Address - The MAC address of the PC for which you want to reserve an IP address.  IP Address - The IP address reserved for the PC by the router.  Status - The status of this entry, either Enabled or Disabled. To Reserve an IP address: 1. Click the Add New button. Then Figure 4-47 will pop up. 2. Enter the MAC address (in XX:XX:XX:XX:XX:XX format.) and IP address (in dotted-decimal notation) of the computer for which you want to reserve an IP address. 3. Click the Save button. Figure 4-47 Add or Modify an Address Reservation Entry To modify or delete an existing entry: 1. Click the Edit in the entry you want to modify. If you want to delete the entry, click the Delete. 2. Modify the information. 3. Click the Save button. Click the Enable/Disable Selected button to make selected entries enabled/disabled Click the Delete Selected button to delete selected entries. 4.10 USB Settings Figure 4-48 The USB Settings menu - 68 -

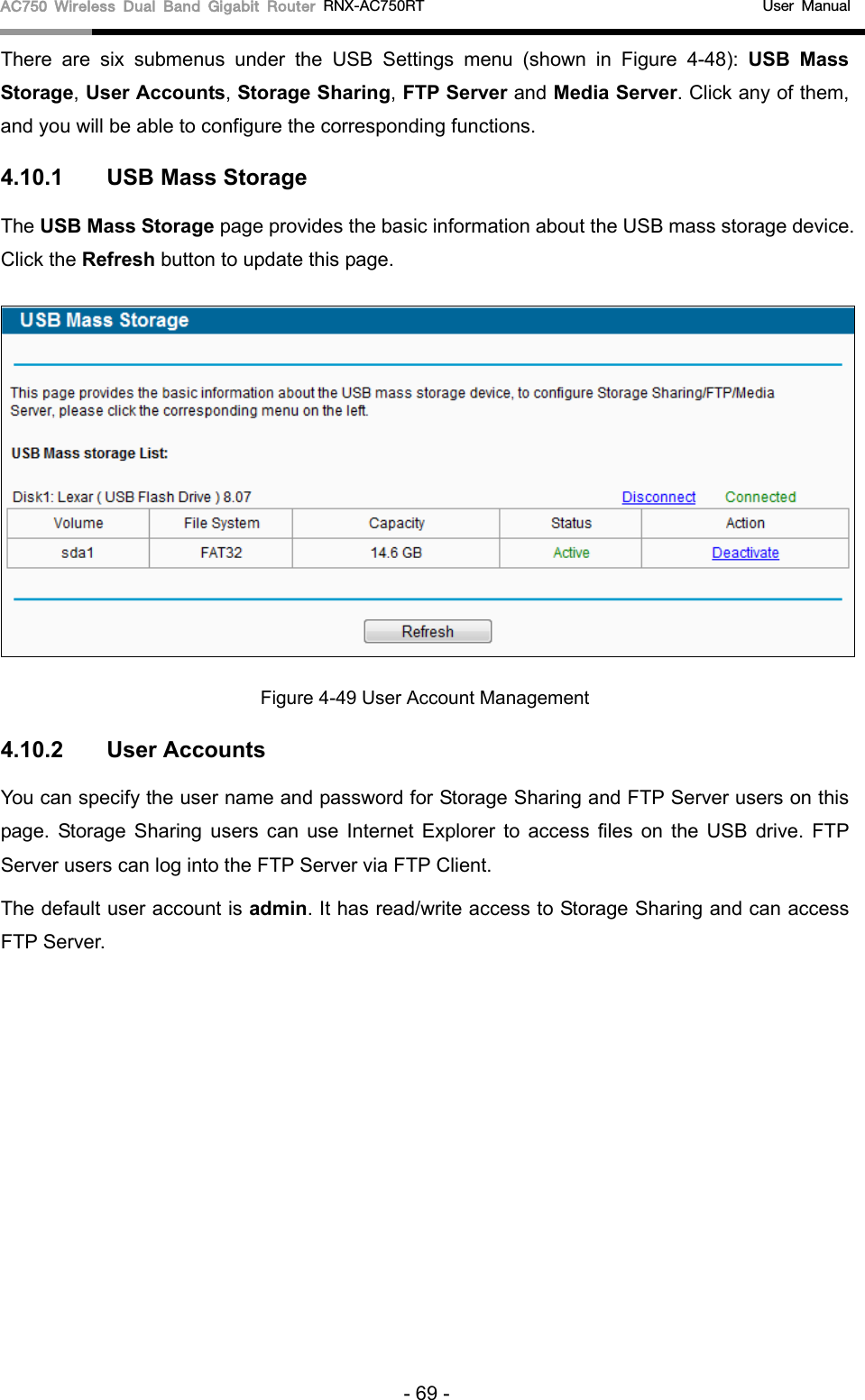

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual There are six submenus under the USB Settings menu (shown in Figure 4-48): USB Mass Storage, User Accounts, Storage Sharing, FTP Server and Media Server. Click any of them, and you will be able to configure the corresponding functions. 4.10.1 USB Mass Storage The USB Mass Storage page provides the basic information about the USB mass storage device. Click the Refresh button to update this page. Figure 4-49 User Account Management 4.10.2 User Accounts You can specify the user name and password for Storage Sharing and FTP Server users on this page. Storage Sharing users can use Internet Explorer to access files on the USB drive. FTP Server users can log into the FTP Server via FTP Client. The default user account is admin. It has read/write access to Storage Sharing and can access FTP Server. - 69 -

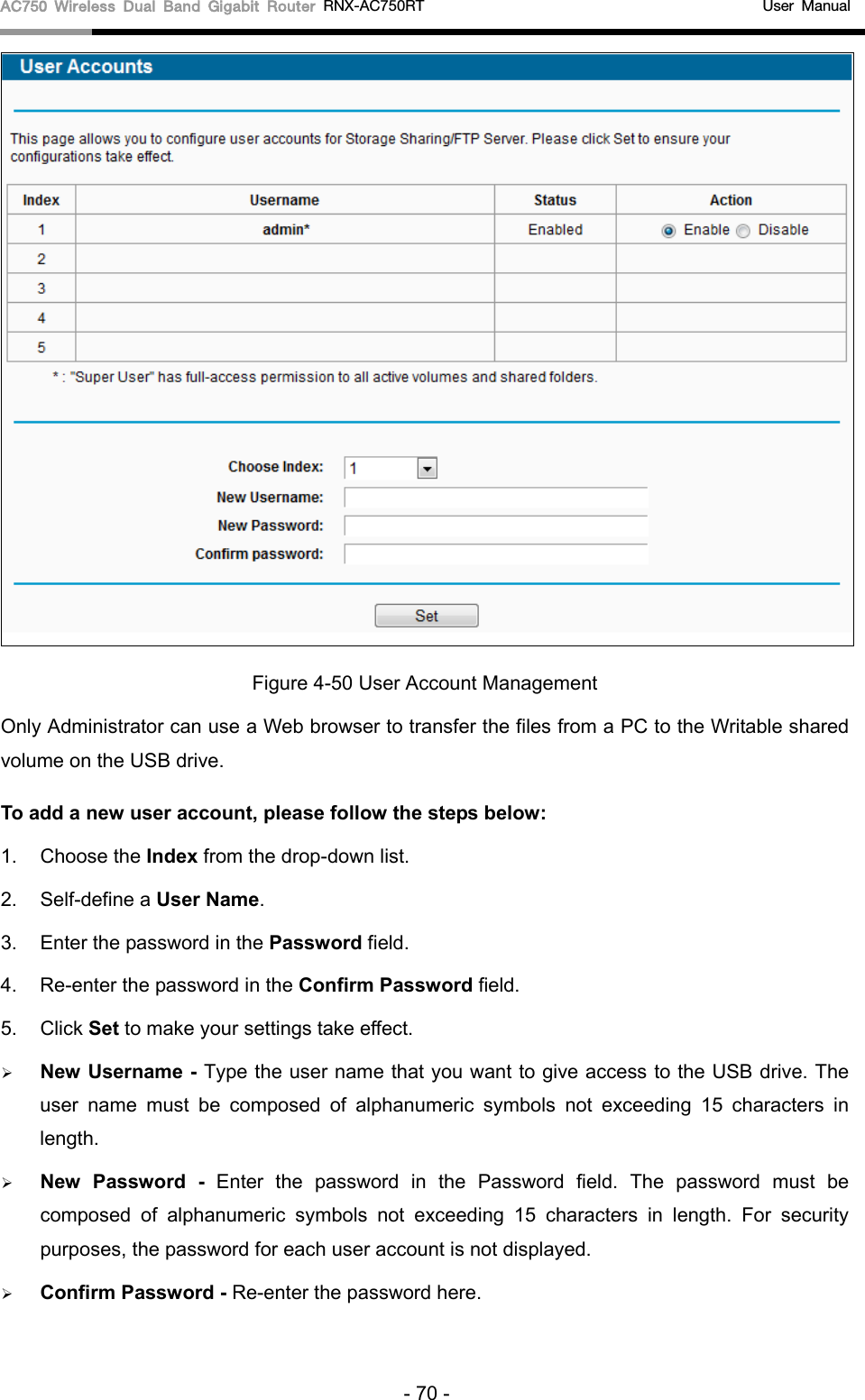

AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual Figure 4-50 User Account Management Only Administrator can use a Web browser to transfer the files from a PC to the Writable shared volume on the USB drive. To add a new user account, please follow the steps below: 1. Choose the Index from the drop-down list. 2. Self-define a User Name. 3. Enter the password in the Password field. 4. Re-enter the password in the Confirm Password field. 5. Click Set to make your settings take effect.  New Username - Type the user name that you want to give access to the USB drive. The user name must be composed of alphanumeric symbols not exceeding 15 characters in length.  New Password - Enter the password in the Password field. The password must be composed of alphanumeric symbols not exceeding 15 characters in length. For security purposes, the password for each user account is not displayed.  Confirm Password - Re-enter the password here. - 70 -

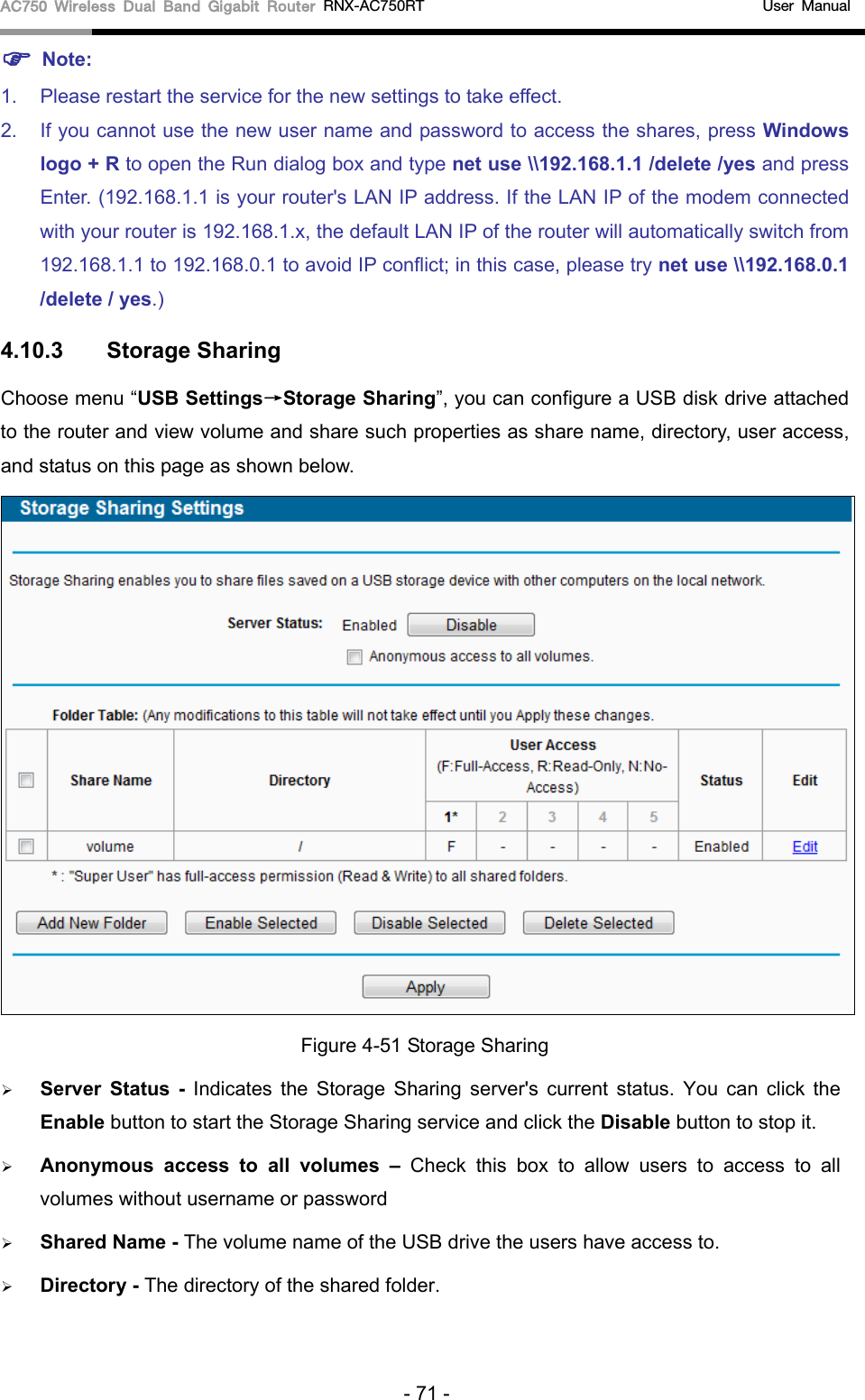

$AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual  Note: 1. Please restart the service for the new settings to take effect. 2. If you cannot use the new user name and password to access the shares, press Windows logo + R to open the Run dialog box and type net use \\192.168.1.1 /delete /yes and press Enter. (192.168.1.1 is your router's LAN IP address. If the LAN IP of the modem connected with your router is 192.168.1.x, the default LAN IP of the router will automatically switch from 192.168.1.1 to 192.168.0.1 to avoid IP conflict; in this case, please try net use \\192.168.0.1 /delete / yes.) 4.10.3 Storage Sharing Choose menu “USB Settings→Storage Sharing”, you can configure a USB disk drive attached to the router and view volume and share such properties as share name, directory, user access, and status on this page as shown below. Figure 4-51 Storage Sharing  Server Status - Indicates the Storage Sharing server's current status. You can click the Enable button to start the Storage Sharing service and click the Disable button to stop it.  Anonymous access to all volumes – Check this box to allow users to access to all volumes without username or password  Shared Name - The volume name of the USB drive the users have access to.  Directory - The directory of the shared folder. - 71 -$
