Rosewill RNX-N150NUB 150Mbps Wireless N Nano USB Adapter User Manual

Rosewill Inc. 150Mbps Wireless N Nano USB Adapter

User Manual

RNX-N150NUB N150 Wireless Nano USB Adapter 1910020746 REV 1.0.0

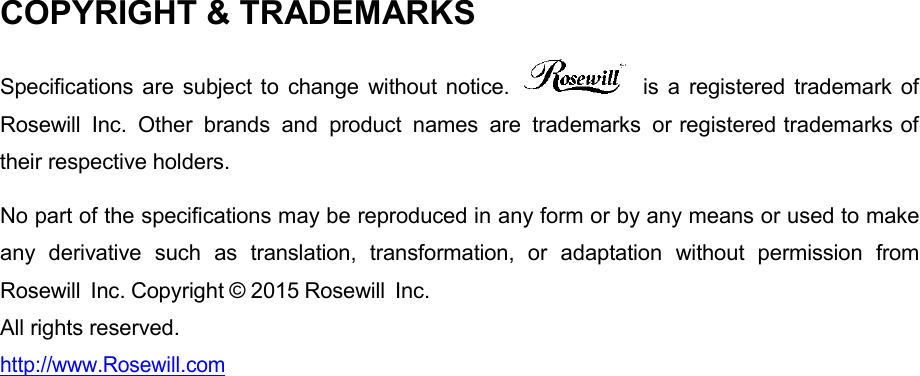

COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of Rosewill Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Rosewill Inc. Copyright © 2015 Rosewill Inc. All rights reserved. http://www.Rosewill.com

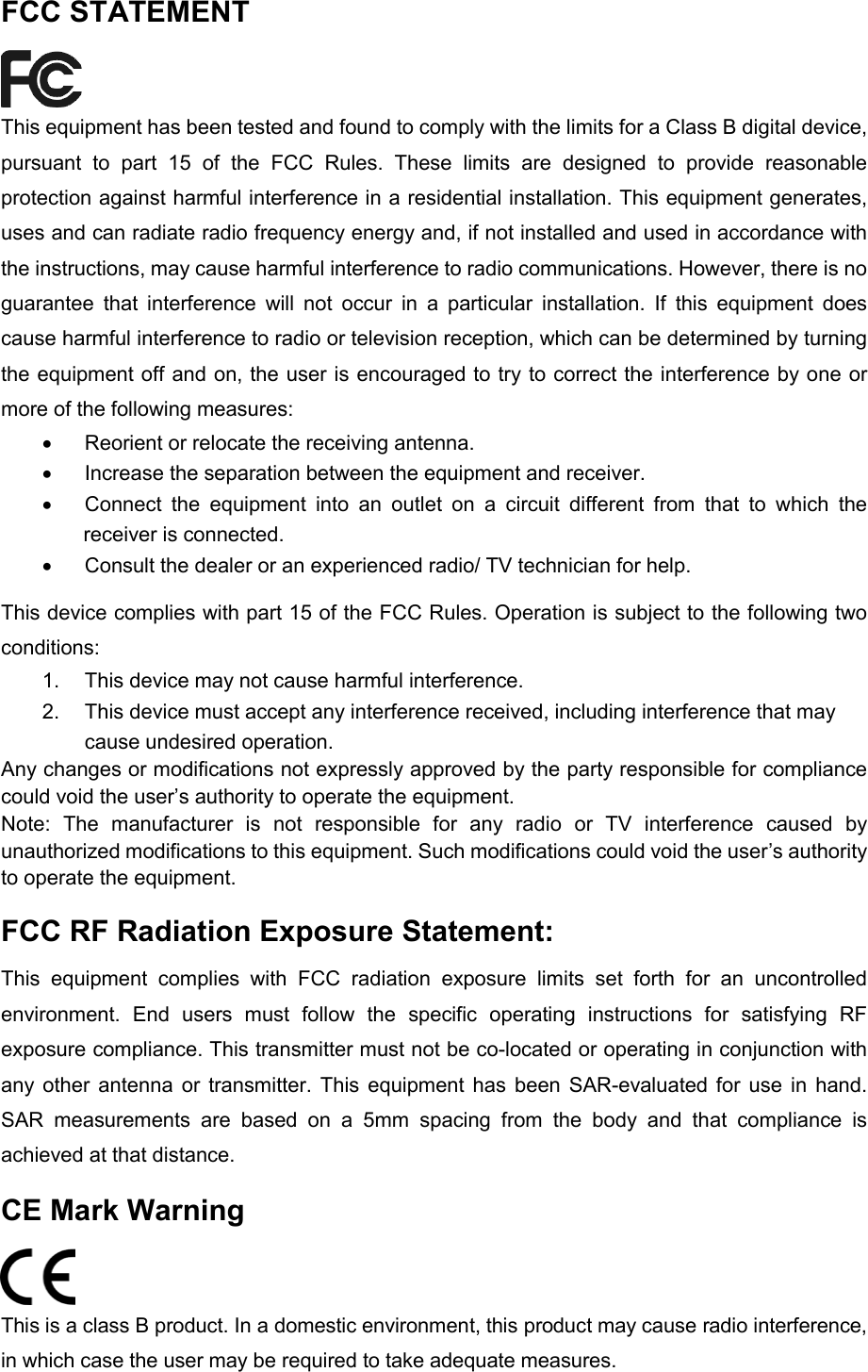

FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been SAR-evaluated for use in hand. SAR measurements are based on a 5mm spacing from the body and that compliance is achieved at that distance. CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

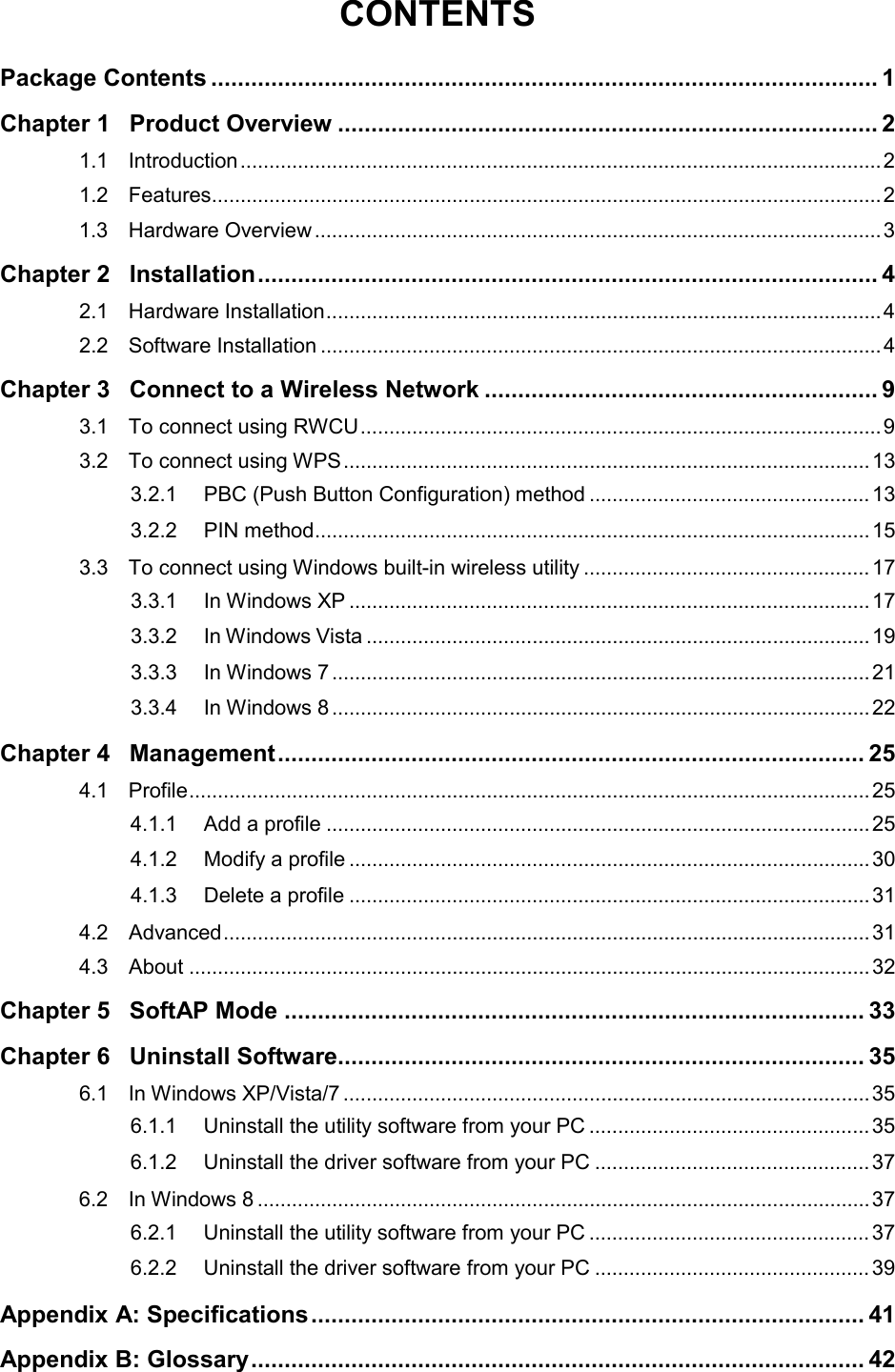

CONTENTS Package Contents .................................................................................................... 1 Chapter 1 Product Overview ................................................................................. 2 1.1 Introduction ................................................................................................................ 2 1.2 Features ..................................................................................................................... 2 1.3 Hardware Overview ................................................................................................... 3 Chapter 2 Installation ............................................................................................. 4 2.1 Hardware Installation ................................................................................................. 4 2.2 Software Installation .................................................................................................. 4 Chapter 3 Connect to a Wireless Network ........................................................... 9 3.1 To connect using RWCU ........................................................................................... 9 3.2 To connect using WPS ............................................................................................ 13 3.2.1 PBC (Push Button Configuration) method ................................................. 13 3.2.2 PIN method ................................................................................................. 15 3.3 To connect using Windows built-in wireless utility .................................................. 17 3.3.1 In Windows XP ........................................................................................... 17 3.3.2 In Windows Vista ........................................................................................ 19 3.3.3 In Windows 7 .............................................................................................. 21 3.3.4 In Windows 8 .............................................................................................. 22 Chapter 4 Management ........................................................................................ 25 4.1 Profile ....................................................................................................................... 25 4.1.1 Add a profile ............................................................................................... 25 4.1.2 Modify a profile ........................................................................................... 30 4.1.3 Delete a profile ........................................................................................... 31 4.2 Advanced ................................................................................................................. 31 4.3 About ....................................................................................................................... 32 Chapter 5 SoftAP Mode ....................................................................................... 33 Chapter 6 Uninstall Software ............................................................................... 35 6.1 In Windows XP/Vista/7 ............................................................................................ 35 6.1.1 Uninstall the utility software from your PC ................................................. 35 6.1.2 Uninstall the driver software from your PC ................................................ 37 6.2 In Windows 8 ........................................................................................................... 37 6.2.1 Uninstall the utility software from your PC ................................................. 37 6.2.2 Uninstall the driver software from your PC ................................................ 39 Appendix A: Specifications ................................................................................... 41 Appendix B: Glossary ............................................................................................ 42
RNX-N150NUB N150 Wireless Nano USB Adapter Package Contents Please verify that all the package contents below are available.  One RNX-N150NUB N150 Wireless Nano USB Adapter  Quick Installation Guide  One resource CD for RNX-N150NUB, including: • Rosewill Wireless Configuration Utility (RWCU) and Drivers • User Guide • Other helpful information Make sure that the above items are contained in the package. If any of the above items are damaged or missing, please contact your distributor.  Note: The ‘adapter’ mentioned in this User Guide stands for RNX-N150NUB N150 Wireless Nano USB Adapter without any explanations. 1
RNX-N150NUB N150 Wireless Nano USB Adapter Chapter 1 Product Overview 1.1 Introduction The adapter is a 802.11n client device designed to deliver a high-speed and unrivaled wireless performance for your desktop. With a faster wireless connection, you can get a better Internet experience, such as downloading, gaming, video streaming. With the 802.11n technology, the RNX-N150NUB’s auto-sensing capability allows high packet transfer rate of up to 150Mbps for maximum throughput. It has good capability on anti-jamming, and it can also interoperate with other wireless (802.11b/g) products. The adapter supports WEP, WPA and WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed. The adapter is easy to install and manage with the Quick Setup Wizard guiding you step-by-step through the installation process and the utility instructing you to quickly set up a wireless connection. With unmatched wireless performance, reception, and security protection, the RNX-N150NUB is the best choice for easily adding or upgrading wireless connectivity to your desktop. 1.2 Features  Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11x, IEEE 802.11e, IEEE 802.11i standards  Supports WEP, WPA/WPA2, WPA/WPA2-PSK data security, TKIP/AES encryption, 802.1x Authentication  Supports high rate of up to 150Mbps for maximum throughput, supports automatically adjust to lower speeds due to distance or other operating limitations  Provides USB 2.0 interface  Supports Ad Hoc and Infrastructure modes  Good capability on anti-jamming  Supports roaming between access points when configured under Infrastructure mode  Easy to configure and provides monitoring information  Supports Windows XP, Windows Vista, Windows 7 and Windows 8 2
RNX-N150NUB N150 Wireless Nano USB Adapter 1.3 Hardware Overview LED status: Status Working Status Off The driver has not been installed; The adapter's radio has been disabled. Flashing Slowly The driver has been installed but no data is being transmitted or received. Flashing Quickly Data is being transmitted or received. 3
RNX-N150NUB N150 Wireless Nano USB Adapter Chapter 2 Installation 2.1 Hardware Installation Plug the Adapter directly to the USB port on your computer.  Note: The prompted Found New Hardware Wizard screen will pop up when the adapter is installed correctly. Click Cancel. 2.2 Software Installation The adapter’s Setup Wizard will guide you through the installation procedures for Windows XP, Windows Vista, Windows 7 and Windows 8. The procedures in different systems are quite similar, therefore here takes the procedures in Windows 8 for example. 1. Insert the Resource CD into your CD-ROM drive and then go to My Computer. Double-click CD-ROM RNX-N150NUB_v1.0, and you will see the window as shown in Figure 2-1. Double-click Setup.exe to start the installation. Figure 2-1 4
RNX-N150NUB N150 Wireless Nano USB Adapter 2. The InstallShield Wizard window will appear. Click Next to continue. Figure 2-2 3. Select Install Rosewill Wireless Configuration Utility and Driver, and then click Next. Figure 2-3 5

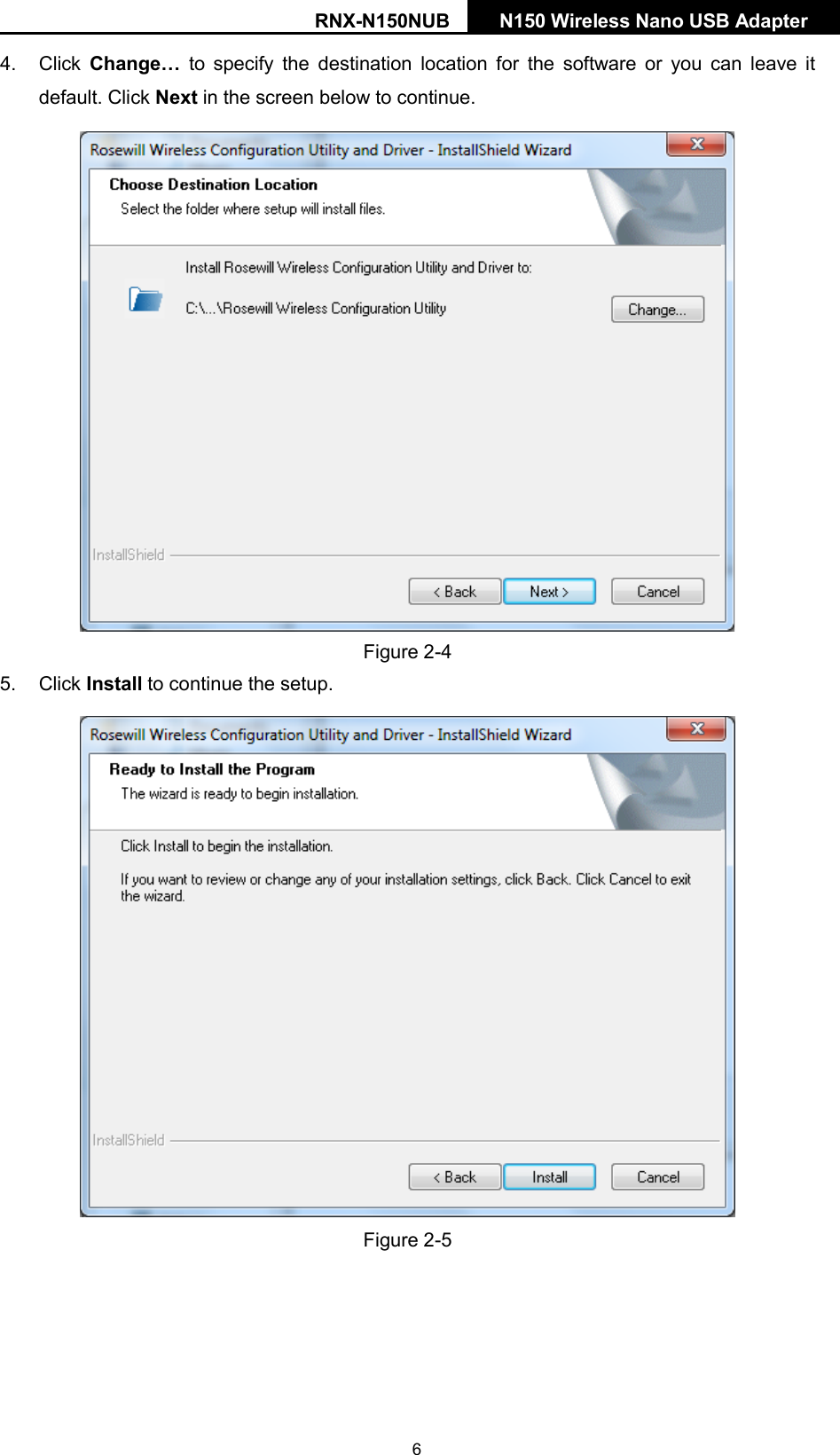

RNX-N150NUB N150 Wireless Nano USB Adapter 4. Click Change… to specify the destination location for the software or you can leave it default. Click Next in the screen below to continue. Figure 2-4 5. Click Install to continue the setup. Figure 2-5 6

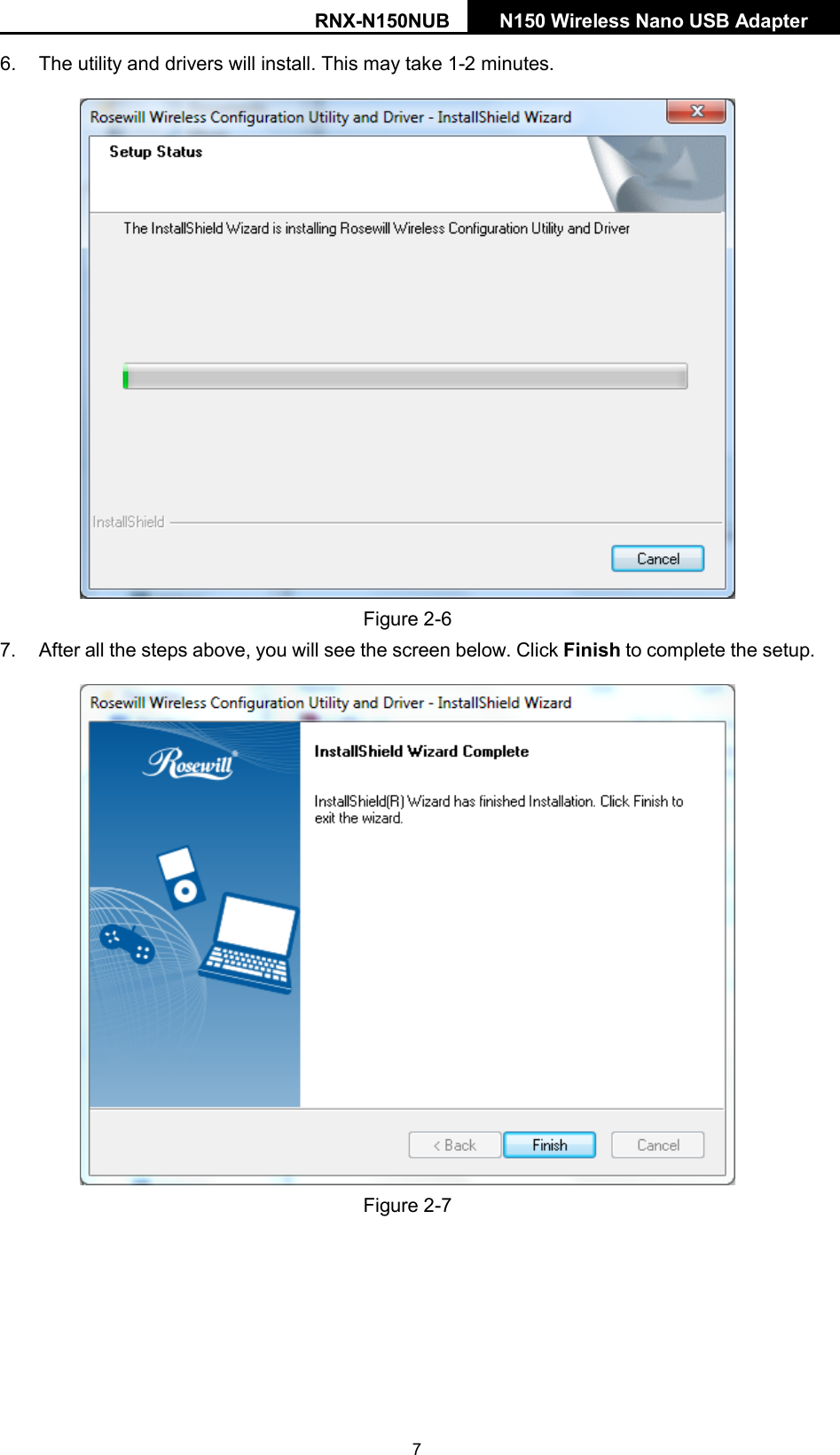

RNX-N150NUB N150 Wireless Nano USB Adapter 6. The utility and drivers will install. This may take 1-2 minutes. Figure 2-6 7. After all the steps above, you will see the screen below. Click Finish to complete the setup. Figure 2-7 7
RNX-N150NUB N150 Wireless Nano USB Adapter 8. After installation, the utility configuration page will automatically pop up as shown in the following figure and the icon will appear in your system tray. To connect to a network, please refer to Chapter 3 Connect to a Wireless Network. Figure 2-8 8
RNX-N150NUB N150 Wireless Nano USB Adapter Chapter 3 Connect to a Wireless Network With both the hardware and software successfully installed into your computer, you can quickly connect to a wireless network using one of the following methods.  Method One: To connect using RWCU RNX-N150NUB uses the Rosewill Wireless Configuration Utility (RWCU) as the management software. The utility provides you an easy interface to connect to a network and to change any settings related to the wireless adapter. For specific operations, please go to To connect using RWCU.  Method Two: To connect using WPS By this method, you can connect to your network quickly on the condition that your router or access point supports WPS as is called by some other brands. For specific operations, please go to To connect using WPS.  Method Three: To connect using Windows built-in wireless utility Windows users may use the built-in wireless utility to connect to a wireless network. For specific operations, please go to To connect using Windows built-in wireless utility. 3.1 To connect using RWCU 1. After installation, the utility configuration page will automatically pop up on the screen. If the utility page does not pop up, you can also launch the utility by double-clicking on the icon on your desktop. 9
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 3-1 2. The Network page will display all wireless networks that are available in your area. To connect to a network, simply highlight the wireless network name and click Connect. SSID (Service Set Identifier) is the name of the wireless network. The adapter will automatically connect to your target network next time if you tick Connect automatically. Figure 3-2 3. You will be prompted different windows when you choose wireless network of different security types. 1) Wireless network of WPA/WPA2-Personal If you selected a wireless network of the security type WPA/WPA2-Personal, you will be 10
RNX-N150NUB N150 Wireless Nano USB Adapter prompted to enter the password in the security key field, as shown in Figure 3-3. Or you can push the WPS button on your Router (if it features the WPS function) to quickly build a connection without entering the security key (password). Figure 3-3  Note: The security key (password) can be found on the configuration page of your Router or Access Point. 2) Wireless network of WPA/WPA2-Enterprise If you selected a wireless network of the security type WPA/WPA2-Enterprise, you will be prompted to choose a type of authentication, either Certificate or Password. With Certificate as your authentication, you need to select one specific certificate from the drop-down list, as shown in Figure 3-4. With Password as your authentication, you should enter the right user name and password in the corresponding field, as shown in Figure 3-5. Figure 3-4 11
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 3-5 3) Wireless network of None If you selected a wireless network of None (that is, no security is set.), you can get directly connected to this network without any further configuration. 4. Please wait a few minutes for the connection process. Figure 3-6 5. You have now successfully connected to your network. Click Close to enjoy the Internet. Figure 3-7 6. To view more information about the network currently connected, click Status in the tools 12
RNX-N150NUB N150 Wireless Nano USB Adapter section and the page will display information such as the network type, link quality and wireless mode. Figure 3-8 3.2 To connect using WPS WPS (Wi-Fi Protected Setup) function allows you to add a new wireless device to an existing network quickly. If the wireless router supports WPS, you can establish a wireless connection between wireless card and router using either Push Button Configuration (PBC) method or PIN method. Three WPS connection methods are listed in the following parts. 3.2.1 PBC (Push Button Configuration) method 1. Press the WPS button on the back panel of the router. 13
RNX-N150NUB N150 Wireless Nano USB Adapter 2. Open RWCU and click WPS tab. Select Push the button on my access point or wireless router and then click Connect. Figure 3-9 3. The adapter will be connecting to the target network. 14
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 3-10 4. When the following window appears, you have successfully connected to the network. Figure 3-11 3.2.2 PIN method There are two ways to configure the WPS by PIN method: 1) Enter the PIN from your AP device. 2) Enter a PIN into your AP device. Following are detailed configuration procedures of each way. 3.2.2.1. Enter the PIN from your AP device 1. Open RWCU and click WPS tab. Select Enter the PIN of my access point or wireless router. In the empty field beside PIN, enter the PIN labeled on the bottom of the router (here takes 13492564 for example). If you have generated a new PIN code for your router, please enter the new one instead. Click Connect to continue. 15
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 3-12 2. The adapter will be connecting to the target network. Figure 3-13 3. When XFigure 3-11 appears, you have successfully connected to the network. 3.2.2.2. Enter a PIN into your AP device 1. Open RWCU and click WPS tab. Select Enter the PIN of this device into my access point or wireless router. In the field beside PIN, you will see the PIN value of the adapter which is randomly generated. Click Connect to continue. 16
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 3-14 2. Enter the PIN code of the adapter (here takes 51995799 in the screen for example) into the configuration utility of the Access Point. For the detailed instructions of the Access Point configuration, please refer to the User Guide of the Access Point. 3. When Figure 3-15 appears, the configuration is completed. Figure 3-15 3.3 To connect using Windows built-in wireless utility 3.3.1 In Windows XP Windows XP users may use the built-in wireless utility. Follow the steps below. 1. Right-click on the utility icon in your system tray (lower-right corner). Select Switch to Windows wireless configuration tool. 17
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 3-16 Or double-click the utility icon to load the utility configuration page. Click Advanced in the tools section and then select Use Windows wireless configuration tool in the figure shown below. Click OK when XFigure 3-18X appears to continue. Figure 3-17 Figure 3-18 2. Right-click on the wireless computer icon in your system tray (lower-right corner). Select View Available Wireless Networks. 18
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 3-19 3. The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) and click the Connect button. 4. If the network is security-enabled, you will be prompted to enter the key as shown below. If not, you will connect to the network directly without entering a key. Figure 3-20 3.3.2 In Windows Vista Windows Vista users may use the built-in wireless utility. Follow the steps below. 1. Open the wireless utility by right-clicking on the wireless computer icon in your system tray as shown in the figure below. Select Connect to a network. Figure 3-21 2. The utility will display any available wireless networks in your area. Highlight the wireless network you would like to connect and then click Connect. 19
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 3-22 3. If the network you would like to connect is security-enabled, enter the same security key or passphrase that is on your router. If the network to be connected is not secure, the connection will be built without entering a key. Figure 3-23 4. You have now successfully connected to the network. 20
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 3-24 3.3.3 In Windows 7 Windows 7 users may use the built-in wireless utility. Follow the steps below. 1. Left-click the wireless icon in your system tray (lower-right corner). The utility will display any available wireless networks in your area. Highlight the wireless network (displayed using the SSID) to be connected and then click Connect. Figure 3-25 2. If the network you would like to connect is security-enabled, enter the same security key or passphrase that is on your router. Or push the WPS button on the router or access point (You will be prompted to push the button on the window if WPS function is supported as shown in the figure below). If the network to be connected is not secure, the connection will be built without entering a key. 21
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 3-26 3. When Connected appears behind the SSID, you have successfully connected to the target network. 3.3.4 In Windows 8 Windows 8 users may use the built-in wireless utility. Follow the steps below. 1. Click the icon at the bottom of your screen, and a network list will appear at the right side of your screen. Select your target network, and then click Connect. Figure 3-27 2. If the network is unencrypted, you will directly connect to it. If the network is encrypted, enter the password (network security key) and then click Next to continue. 22
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 3-28  Note: You can also push the WPS/QSS button on your router as hinted “You can also connect by pushing the button on the router”. Then click Next to continue. 3. When Connected appears behind the SSID (as shown below), you have successfully connected to the target network. Figure 3-29  Note: If the adapter is connected to the network for the first time, you will be asked whether to turn on sharing or connect to devices. Please select “Yes, ...”or “No, ...” according to your Internet environment. 23
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 3-30 24
RNX-N150NUB N150 Wireless Nano USB Adapter Chapter 4 Management This section will show you how to configure your RNX-N150NUB adapter using the Rosewill Wireless Configuration Utility (RWCU). The RNX-N150NUB adapter uses the Rosewill Wireless Configuration Utility as the management software. The utility provides users with an easy interface to change any settings related to the adapter. Double-clicking on the icon on your desktop will start the utility. 4.1 Profile Your wireless networks may vary in different places like home, office or coffee shop. With Profile management, you can easily save and manage various networks to be connected, saving you the trouble of having to repeat the same configurations. Click Profile in the tools section, the following page will appear. Figure 4-1 4.1.1 Add a profile To add a profile, click the Add button on the bottom of the screen. Then the configuration window will appear. 4.1.1.1. Add a profile in Infrastructure mode If you are connecting to a wireless router or access point, select Infrastructure as the Network Type in the screen that appears and follow the instructions below to finish the setting. 25
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 4-2 Figure 4-3 Figure 4-4 The following items can be found on the screen.  Profile Name: Enter a name for your profile (e.g. Home, Office, Coffee Shop). The same name is not allowed. Please also note that no space is allowed between words.  SSID: Select the target network from the drop-down list. 26
RNX-N150NUB N150 Wireless Nano USB Adapter  Network Type: Select the network type. If you are connecting to a wireless Router or access point, select Infrastructure. If you are connecting to another wireless client such as an adapter, select ad-hoc.  Security Type: Select the security type from the list. Four options are available: WPA-PSK/WPA2-PSK, WPA/WPA2, WEP and None. The security type should be the same as on your router or access point, otherwise, you will not be able to build a successful connection. WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key must be the exact same key entered on your wireless router or access point. WPA/WPA2 is designed for enterprise networks and requires a RADIUS authentication server. Choose the Encryption Type, Authentication and Certificate according to your network environment. WEP is based on the IEEE 802.11 standard. It uses a key to authenticate your wireless connection. None stands for no security. It is recommended to enable WPA-PSK/WPA2-PSK on your wireless router or access point before configuring your wireless adapter.  Note: You will see Figure 4-2 if you selected the security type WPA-PSK/WPA2-PSK; if you selected the security type WPA/WPA2 (-Enterprise), Figure 4-3 will be displayed; while if you selected the security type WEP, Figure 4-4 will be displayed.  Encryption Type: From the drop-down menu, select the encryption type that is the same as on your Router or access point.  Security Key: Enter the passphrase exactly as it is on your wireless router or access point. Click the Show characters box to see the passphrase, or uncheck this box to hide it.  Authentication: Select a type of authentication, either certificate or password.  Certificate: If you select certificate as your Authentication, then you need to specify your certificate from the drop-down list here.  Start this connection automatically: Check this box to automatically connect to this network next time.  Save: Click Save to save your settings. Having completed the above settings, the Profile page should look like the following figure. To connect to a desired network, just highlight the network you would like to connect to and click the Connect button on the bottom of the window. Then click OK in Figure 4-6 to activate the profile. 27
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 4-5 Figure 4-6 4.1.1.2. Add a profile in ad hoc mode If you are connecting to another wireless client such as an adapter, select ad hoc as the Network Type in the screen that appears and follow the instructions below to finish the setting. Figure 4-7 The following items can be found on the screen. 28
RNX-N150NUB N150 Wireless Nano USB Adapter  Profile Name: Enter a name for your profile e.g. Home, Office, Coffee Shop. The same name is not allowed. Please also note that no space is allowed between words.  SSID: Select the target network from the drop-down list.  Network Type: Select the network type. If you are connecting to a wireless router or access point, select Infrastructure. If you are connecting to another wireless client such as an adapter, select ad hoc.  Security Type: Select the security type from the list. Two options are available: WEP and None. None stands for no security. It is recommended that you select WEP to secure your wireless network.  Encryption Type: If you select None as the Security Type, the Encryption Type will be None accordingly. If you select WEP as the Security Type, the Encryption Type will be Open.  Key Index: You can select ASCII or Hexadecimal format on the right. ASCII format stands for any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. • For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 5 ASCII characters. • For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 13 ASCII characters.  Security Key: Enter the passphrase. Click the Show characters box to see the passphrase. Unchecking it will hide it.  Start this connection automatically: Check this box to automatically connect to this network next time.  Save: Click Save to save your settings. Having completed the above settings, the Profile page should looks like the following figure. To connect to a desired network, just highlight the network you would like to connect to and click the Connect button on the bottom of the window. Then click OK in Figure 4-9 to activate the profile. 29
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 4-8 Figure 4-9 4.1.2 Modify a profile You may edit an existing profile by clicking the Modify button from the Profile page. For instance, you may like to change the profile name from Home to Home1 or you may want to specify another SSID for profile Home. After all the changes, click Save to make the changes take effect. 30
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 4-10 4.1.3 Delete a profile To delete an existing profile, highlight the profile name and click Remove on the bottom of the screen or press the Delete button on your keyboard. When the following figure appears, click OK to continue. Figure 4-11 4.2 Advanced The following configurations can be made on the Advanced page: 1) To select wireless configuration tool. Here you can decide which tool to use, either Rosewill Wireless Configuration Utility or the Windows wireless configuration tool. (This option is available only in Windows XP). 2) To switch to another wireless network adapter. Here you can switch to another adapter installed in your computer. The adapters successfully installed in your computer will be listed in the drop-down menu if the adapters are supported by this utility. 3) To switch to SoftAP mode. Once enabled, the adapter will be able to work as an AP. 4) To change the power save mode. The default option is OFF. 31
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 4-12 4.3 About The About screen gives you some information about the Driver and Utility versions of the adapter. Right-click on the icon in your system tray and select About from the list. Figure 4-13 Figure 4-14 32
RNX-N150NUB N150 Wireless Nano USB Adapter Chapter 5 SoftAP Mode In Soft AP mode, the adapter will work as an AP. Suppose that only one computer in your house can access the Internet for various reasons like only one LAN port is available on your wired broadband router, however, other wireless-capable devices also want to share the Internet. Then the adapter can be configured as an AP under the Soft AP mode, saving you the trouble of having to get a separate access point or a router. With this feature, a computer can use a single physical wireless adapter to connect as a client to a hardware access point while at the same time acting as a software AP allowing other wireless-capable devices to connect to it. To switch to this mode, right-click on the utility icon in your system tray and select Switch to SoftAP mode. Figure 5-1 Or from the Advanced page of the utility, tick ON under the SoftAP mode as shown in the following figure. Click OK when prompted to confirm the setting. Figure 5-2 The Soft AP icon should then appear beside Advanced icon in the utility. 33
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 5-3  SoftAP mode: Select to enable or disable the function.  Internet Connecting Share(ICS): Specify a connection through which devices connected to your AP can access the Internet.  SSID: Enter the name for your soft AP (for example, Jone) so that others can know which AP is yours when trying to connect to it. The default name (SSID) is “SoftAP”.  Security Type: The security type here is set to be WPA2-PSK which is based on 802.11i and uses Advanced Encryption Standard instead of TKIP. It was designed to improve the security features of WEP. WPA2-PSK uses a passphrase or key to authenticate your wireless connection. You needn’t make any configuration here.  Encryption Type: The encryption type here is set to be AES.  Security Key: Enter the Key in the field to make your AP security enabled. It is recommended that you specify another key instead of the default key 12345678. Only by entering the corresponding key can other computers establish a successful connection with your AP.  IP Address: Here displays the IP address of the SoftAP. 34

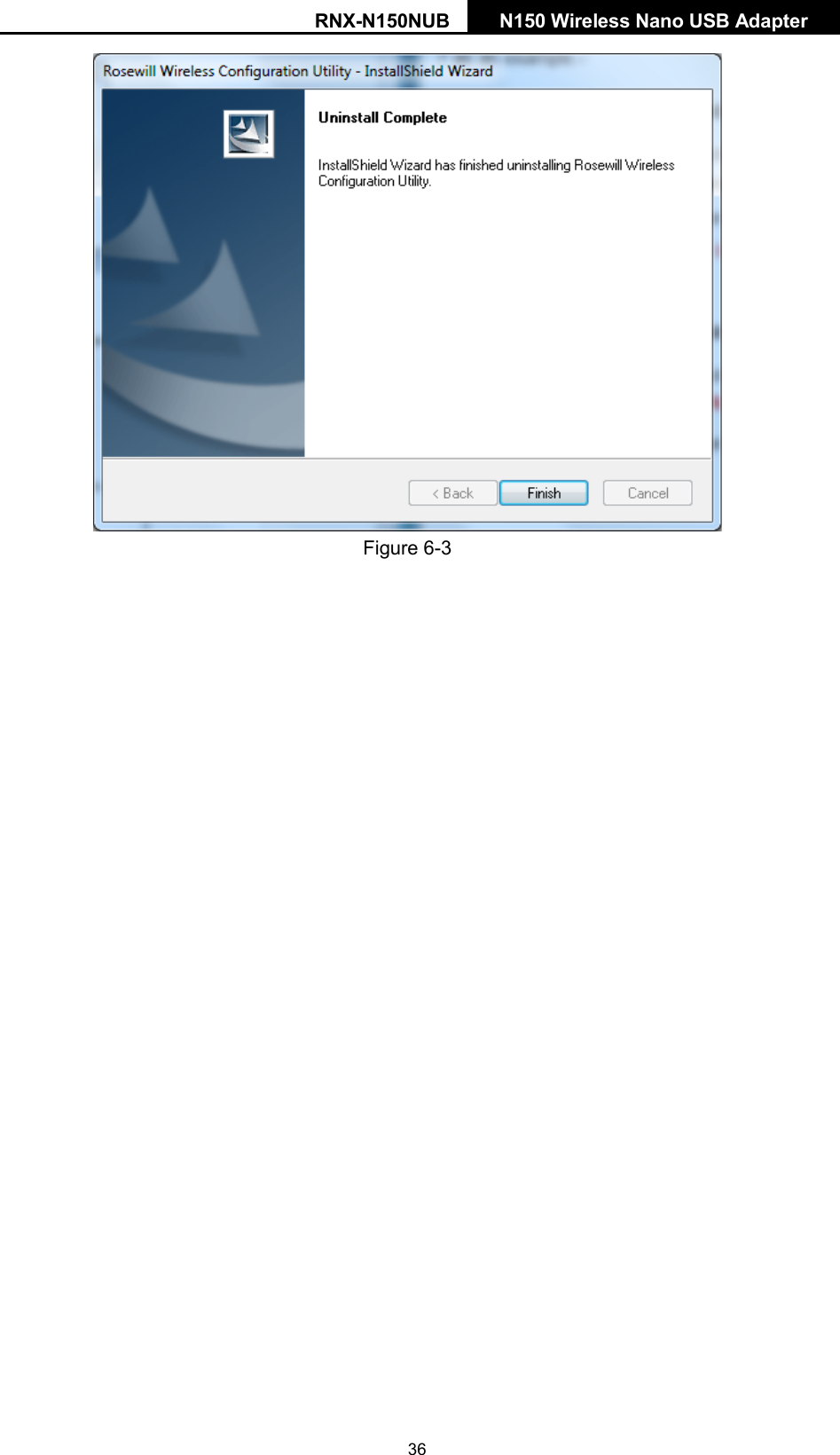

RNX-N150NUB N150 Wireless Nano USB Adapter Chapter 6 Uninstall Software 6.1 In Windows XP/Vista/7 The software uninstall steps are similar in Windows XP and Windows 7, here we take Windows 7 as an example. 6.1.1 Uninstall the utility software from your PC 1. On the Windows taskbar, click the Start button, click All programs  Rosewill, and then click Uninstall - Rosewill Wireless Configuration Utility. Figure 6-1 2. Follow the InstallShield Wizard to uninstall the utility software from your PC. Figure 6-2 3. Click Finish when the figure below appears. 35
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 6-3 36
RNX-N150NUB N150 Wireless Nano USB Adapter 6.1.2 Uninstall the driver software from your PC 1. On the Windows taskbar, click the Start button, click All programs  Rosewill, and then click Uninstall - RNX-N150NUB Driver. Figure 6-4 2. Follow the InstallShield Wizard to uninstall the driver software from your PC. 6.2 In Windows 8 6.2.1 Uninstall the utility software from your PC 1. Enter the Apps interface, and find the Wireless application, then click Uninstall - Rosewill Wireless Configuration Utility. 37
RNX-N150NUB N150 Wireless Nano USB Adapter Figure 6-5 2. Click Yes to start uninstalling the utility software from your PC. Figure 6-6 3. It may take a few minutes to undergo the whole un-installation process. Figure 6-7 38
RNX-N150NUB N150 Wireless Nano USB Adapter 4. Click Finish when the figure below appears. Figure 6-8 6.2.2 Uninstall the driver software from your PC 1. Enter the Apps interface, and find the Wireless application, then click Uninstall – RNX-N150NUB Driver. Figure 6-9 2. Click Yes to start uninstalling the driver software from your PC. Figure 6-10 39
RNX-N150NUB N150 Wireless Nano USB Adapter 3. It may take a few minutes to undergo the whole un-installation process. Figure 6-11 4. Click Finish when the figure below appears. Figure 6-12 40
RNX-N150NUB N150 Wireless Nano USB Adapter Appendix A: Specifications Normal Interface USB 2.0 Interface Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.1x, IEEE 802.11e, IEEE 802.11i Operating System Windows XP, Windows Vista, Windows 7, Windows 8 Throughput 150Mbps (Maximal) Radio Data Rate 11b: 1/2/5.5/11Mbps 11g: 6/9/12/18/24/36/48/54Mbps 11n: Up to 150Mbps Modulation 11b:CCK,QPSK,BPSK 11g:OFDM 11n: QPSK, BPSK, 16-QAM, 64-QAM Media Access Protocol CSMA/CA with ACK Data Security 62/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Frequency* 2.4 ~ 2.4835GHz Spread Spectrum Direct Sequence Spread Spectrum (DSSS) Safety & Emissions FCC, CE Environmental and Physical Working Temperature 0℃ ~ 40℃ (32℉~104℉) Working Humidity 10% ~ 90% RH, Non-condensing Storage Temperature -40℃ ~ 70℃(-40℉~158℉) Storage Humidity 5% ~ 90% RH, Non-condensing * Only 2.412GHz~2.462GHz is allowed to be used in USA, which means only channel 1~11 is available for American users to choose. 41
RNX-N150NUB N150 Wireless Nano USB Adapter Appendix B: Glossary  802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks.  802.11g - specification for wireless networking at 54 Mbps using direct-sequence spread-spectrum (DSSS) technology, using OFDM modulation and operating in the unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices, and WEP encryption for security.  802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input multiple-output). MIMO uses multiple transmitter and HreceiverH antennas to allow for increased data throughput via spatial multiplexing and increased range by exploiting the spatial diversity, perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium (EWC) was formed to help accelerate the IEEE 802.11n development process and promote a technology specification for interoperability of next-generation wireless local area networking (WLAN) products.  Ad hoc Network - An ad hoc network is a group of computers, each with a Wireless Adapter, connected as an independent 802.11 wireless LAN. Ad hoc wireless computers operate on a peer-to-peer basis, communicating directly with each other without the use of an access point. Ad hoc mode is also referred to as an Independent Basic Service Set (IBSS) or as peer-to-peer mode, and is useful at a departmental scale or SOHO operation.  DSSS - (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit pattern for all data transmitted. This bit pattern is called a chip (or chipping code). Even if one or more bits in the chip are damaged during transmission, statistical techniques embedded in the receiver can recover the original data without the need of retransmission. To an unintended receiver, DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband receivers. However, to an intended receiver (i.e. another wireless LAN endpoint), the DSSS signal is recognized as the only valid signal, and interference is inherently rejected (ignored).  FHSS - (Frequency Hopping Spread Spectrum) - FHSS continuously changes (hops) the carrier frequency of a conventional carrier several times per second according to a pseudo-random set of channels. Because a fixed frequency is not used, and only the transmitter and receiver know the hop patterns, interception of FHSS is extremely difficult.  Infrastructure Network - An infrastructure network is a group of computers or other devices, each with a Wireless Adapter, connected as an 802.11 wireless LAN. In infrastructure mode, the wireless devices communicate with each other and to a wired network by first going through an access point. An infrastructure wireless network connected to a wired network is referred to as a Basic Service Set (BSS). A set of two or more BSS in a single network is referred to as an Extended Service Set (ESS). Infrastructure mode is useful at a corporation scale, or when it is necessary to connect the wired and wireless networks. 42
RNX-N150NUB N150 Wireless Nano USB Adapter  Spread Spectrum - Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).  SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in the wireless Access Point and to the wireless network name. See also Wireless Network Name and ESSID.  WEP - (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or 152-bit shared key algorithm, as described in the IEEE 802.11 standard. To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-bit encryption. Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard Code for Information Interchange – alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is converted to HEX for use over the network. Four keys can be defined so that you can change keys easily.  Wi-Fi - A trademark of the Wi-Fi Alliance and the brand name for products using the IEEE 802.11 family of standards.  WLAN - (Wireless Local Area Network) - A group of computers and associated devices communicate with each other wirelessly, which network serving users are limited in a local area.  WPA - (Wi-Fi Protected Access) - A wireless security protocol uses TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server. 43
