Wireless N PCI Adapter RNX-N250PC2 User Manual Wireless N PCI Adapter RNX-N250PC2 User Manual

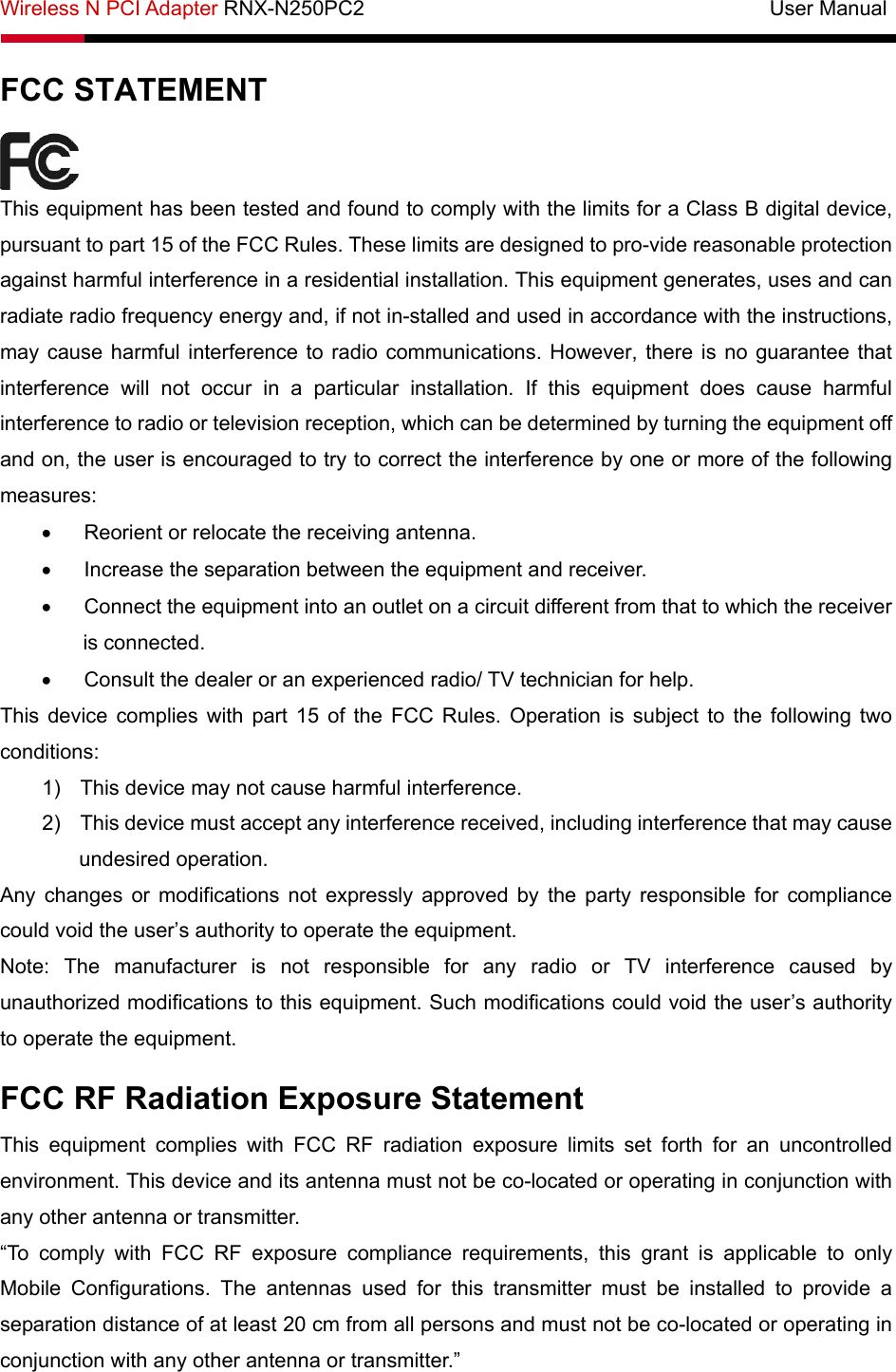

Wireless N PCI Adapter RNX-N250PC2 User Manual FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.”

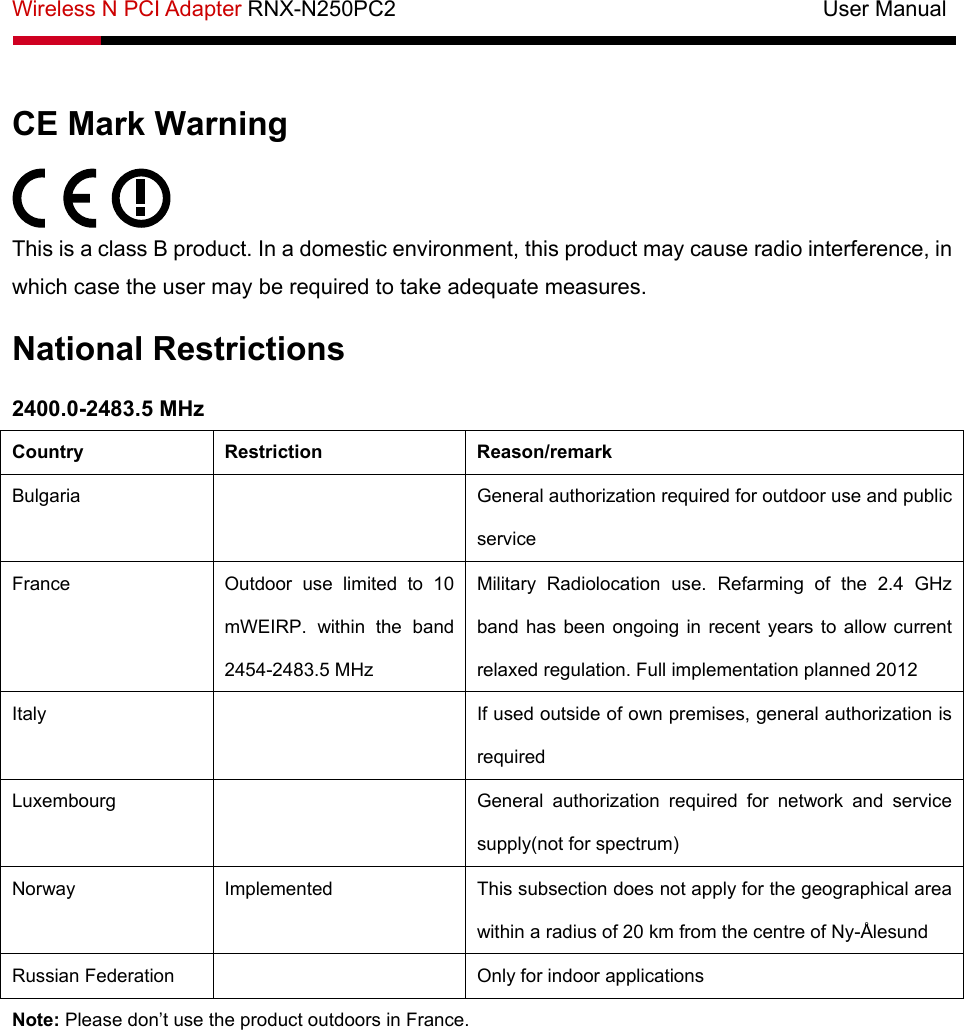

Wireless N PCI Adapter RNX-N250PC2 User Manual CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions 2400.0-2483.5 MHz Country Restriction Reason/remark Bulgaria General authorization required for outdoor use and public service France Outdoor use limited to 10 mWEIRP. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy If used outside of own premises, general authorization is required Luxembourg General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation Only for indoor applications Note: Please don’t use the product outdoors in France.

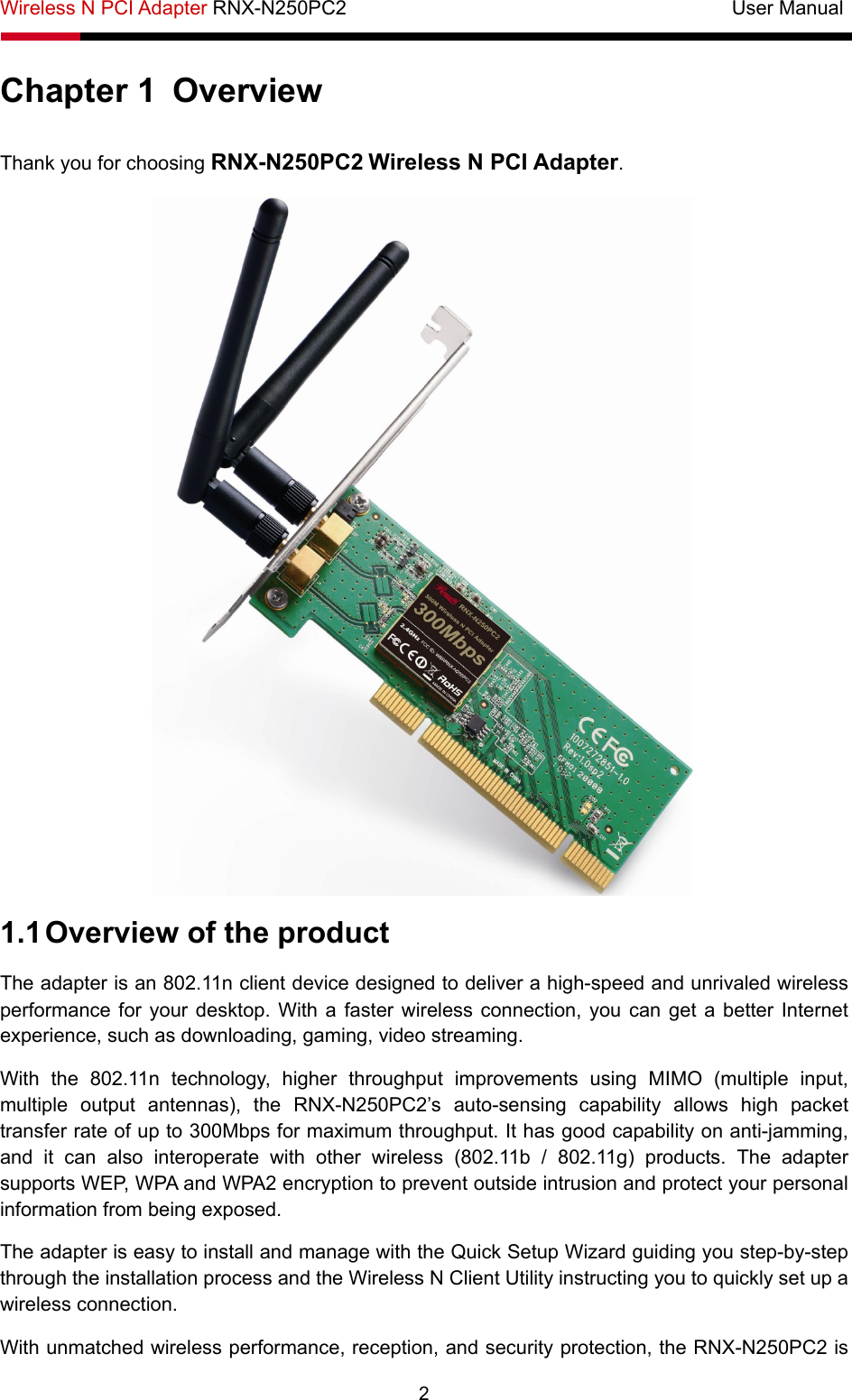

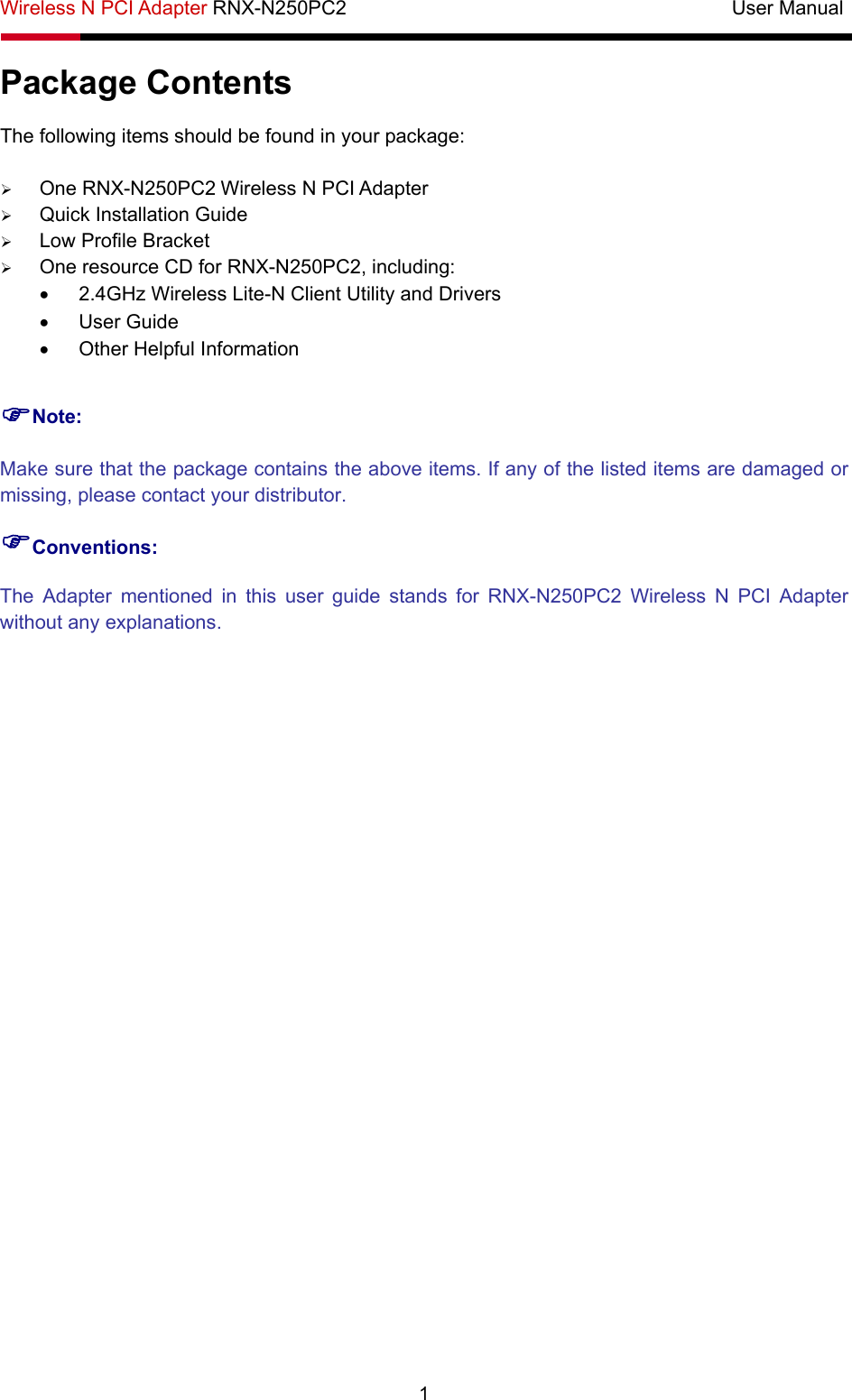

Wireless N PCI Adapter RNX-N250PC2 User Manual 2 Chapter 1 Overview Thank you for choosing RNX-N250PC2 Wireless N PCI Adapter. 1.1 Overview of the product The adapter is an 802.11n client device designed to deliver a high-speed and unrivaled wireless performance for your desktop. With a faster wireless connection, you can get a better Internet experience, such as downloading, gaming, video streaming. With the 802.11n technology, higher throughput improvements using MIMO (multiple input, multiple output antennas), the RNX-N250PC2’s auto-sensing capability allows high packet transfer rate of up to 300Mbps for maximum throughput. It has good capability on anti-jamming, and it can also interoperate with other wireless (802.11b / 802.11g) products. The adapter supports WEP, WPA and WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed. The adapter is easy to install and manage with the Quick Setup Wizard guiding you step-by-step through the installation process and the Wireless N Client Utility instructing you to quickly set up a wireless connection. With unmatched wireless performance, reception, and security protection, the RNX-N250PC2 is

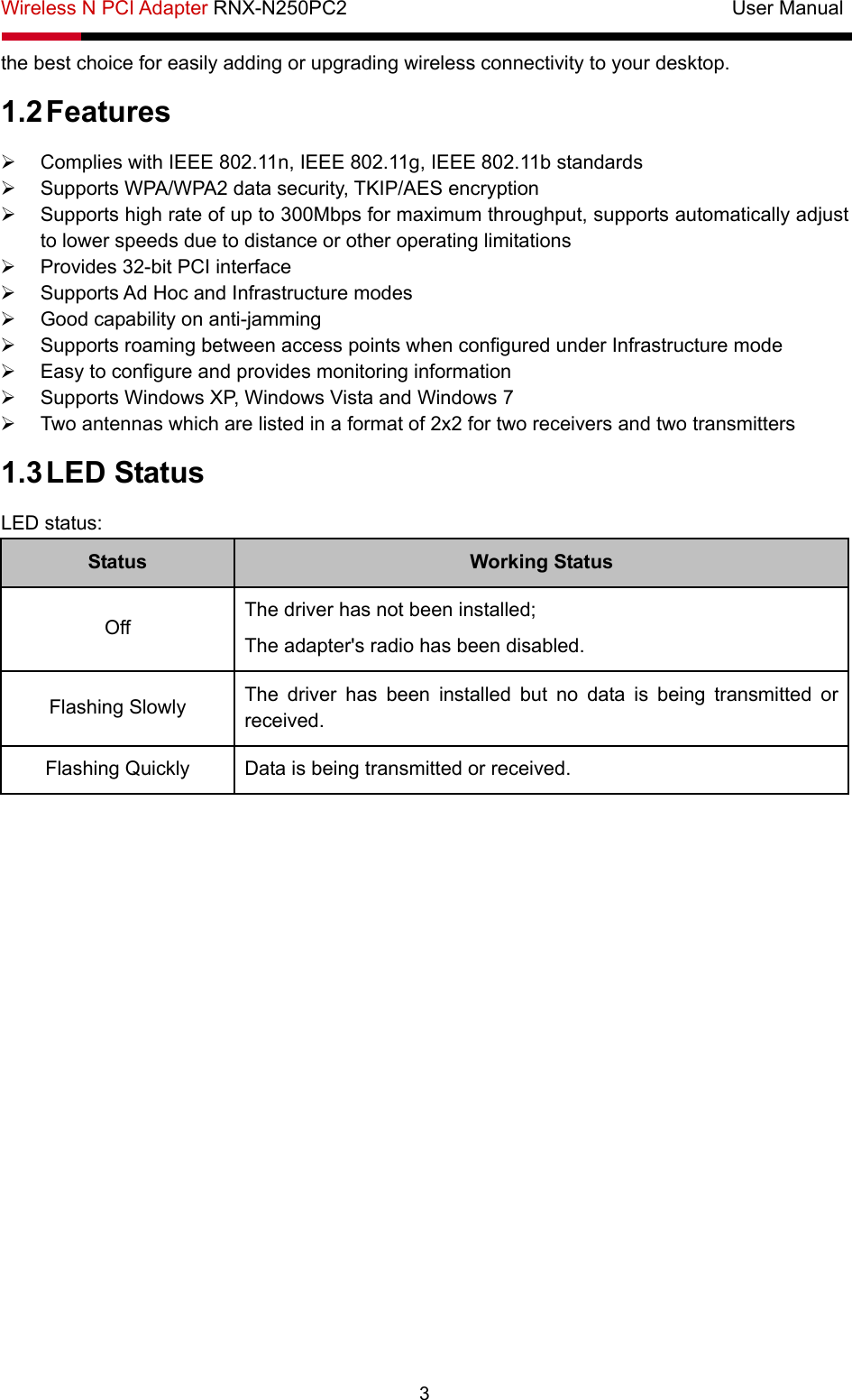

Wireless N PCI Adapter RNX-N250PC2 User Manual 3 the best choice for easily adding or upgrading wireless connectivity to your desktop. 1.2 Features ¾ Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards ¾ Supports WPA/WPA2 data security, TKIP/AES encryption ¾ Supports high rate of up to 300Mbps for maximum throughput, supports automatically adjust to lower speeds due to distance or other operating limitations ¾ Provides 32-bit PCI interface ¾ Supports Ad Hoc and Infrastructure modes ¾ Good capability on anti-jamming ¾ Supports roaming between access points when configured under Infrastructure mode ¾ Easy to configure and provides monitoring information ¾ Supports Windows XP, Windows Vista and Windows 7 ¾ Two antennas which are listed in a format of 2x2 for two receivers and two transmitters 1.3 LED Status LED status: Status Working Status Off The driver has not been installed; The adapter's radio has been disabled. Flashing Slowly The driver has been installed but no data is being transmitted or received. Flashing Quickly Data is being transmitted or received.

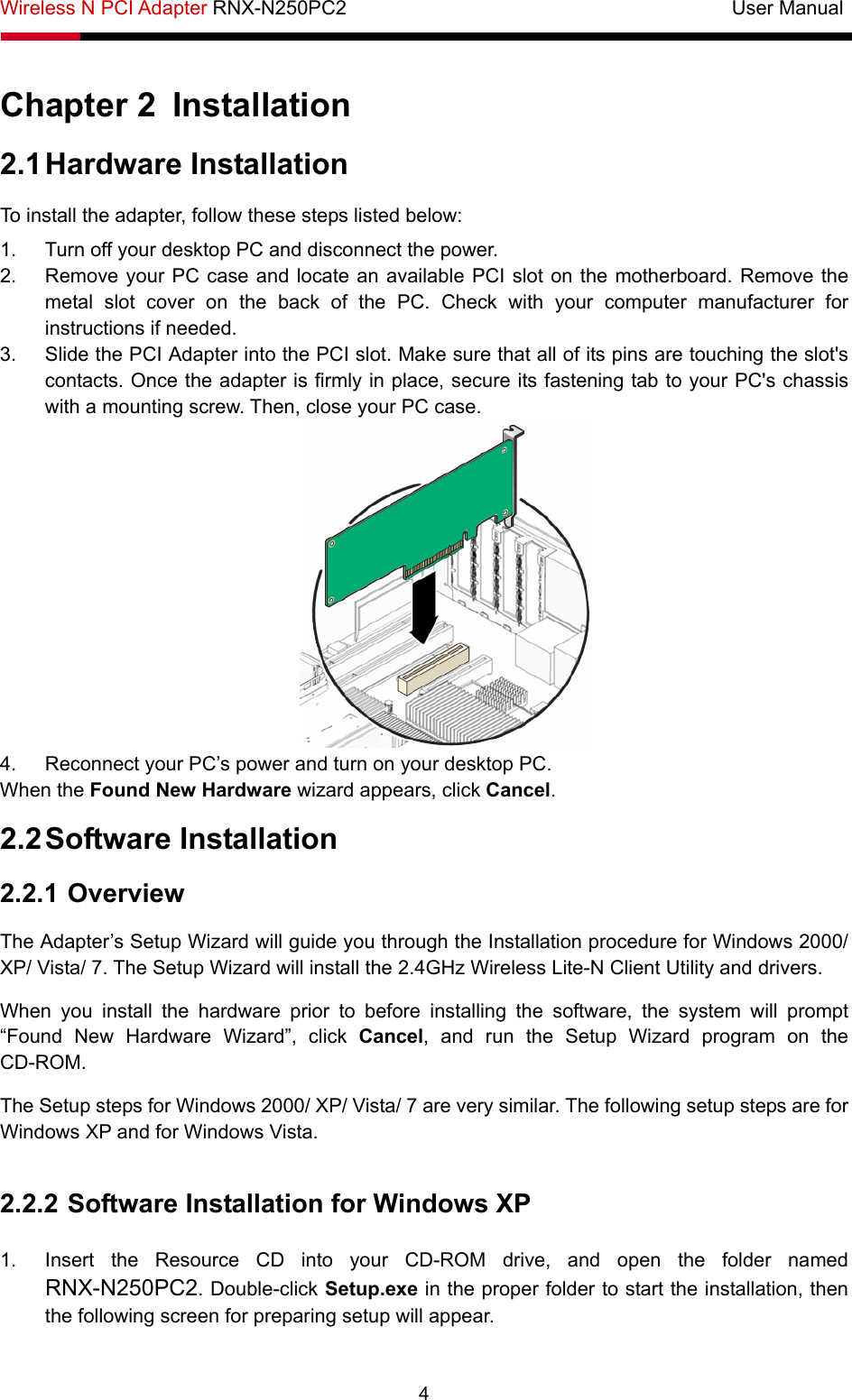

Wireless N PCI Adapter RNX-N250PC2 User Manual 4 Chapter 2 Installation 2.1 Hardware Installation To install the adapter, follow these steps listed below: 1. Turn off your desktop PC and disconnect the power. 2. Remove your PC case and locate an available PCI slot on the motherboard. Remove the metal slot cover on the back of the PC. Check with your computer manufacturer for instructions if needed. 3. Slide the PCI Adapter into the PCI slot. Make sure that all of its pins are touching the slot's contacts. Once the adapter is firmly in place, secure its fastening tab to your PC's chassis with a mounting screw. Then, close your PC case. 4. Reconnect your PC’s power and turn on your desktop PC. When the Found New Hardware wizard appears, click Cancel. 2.2 Software Installation 2.2.1 Overview The Adapter’s Setup Wizard will guide you through the Installation procedure for Windows 2000/ XP/ Vista/ 7. The Setup Wizard will install the 2.4GHz Wireless Lite-N Client Utility and drivers. When you install the hardware prior to before installing the software, the system will prompt “Found New Hardware Wizard”, click Cancel, and run the Setup Wizard program on the CD-ROM. The Setup steps for Windows 2000/ XP/ Vista/ 7 are very similar. The following setup steps are for Windows XP and for Windows Vista. 2.2.2 Software Installation for Windows XP 1. Insert the Resource CD into your CD-ROM drive, and open the folder named RNX-N250PC2. Double-click Setup.exe in the proper folder to start the installation, then the following screen for preparing setup will appear.

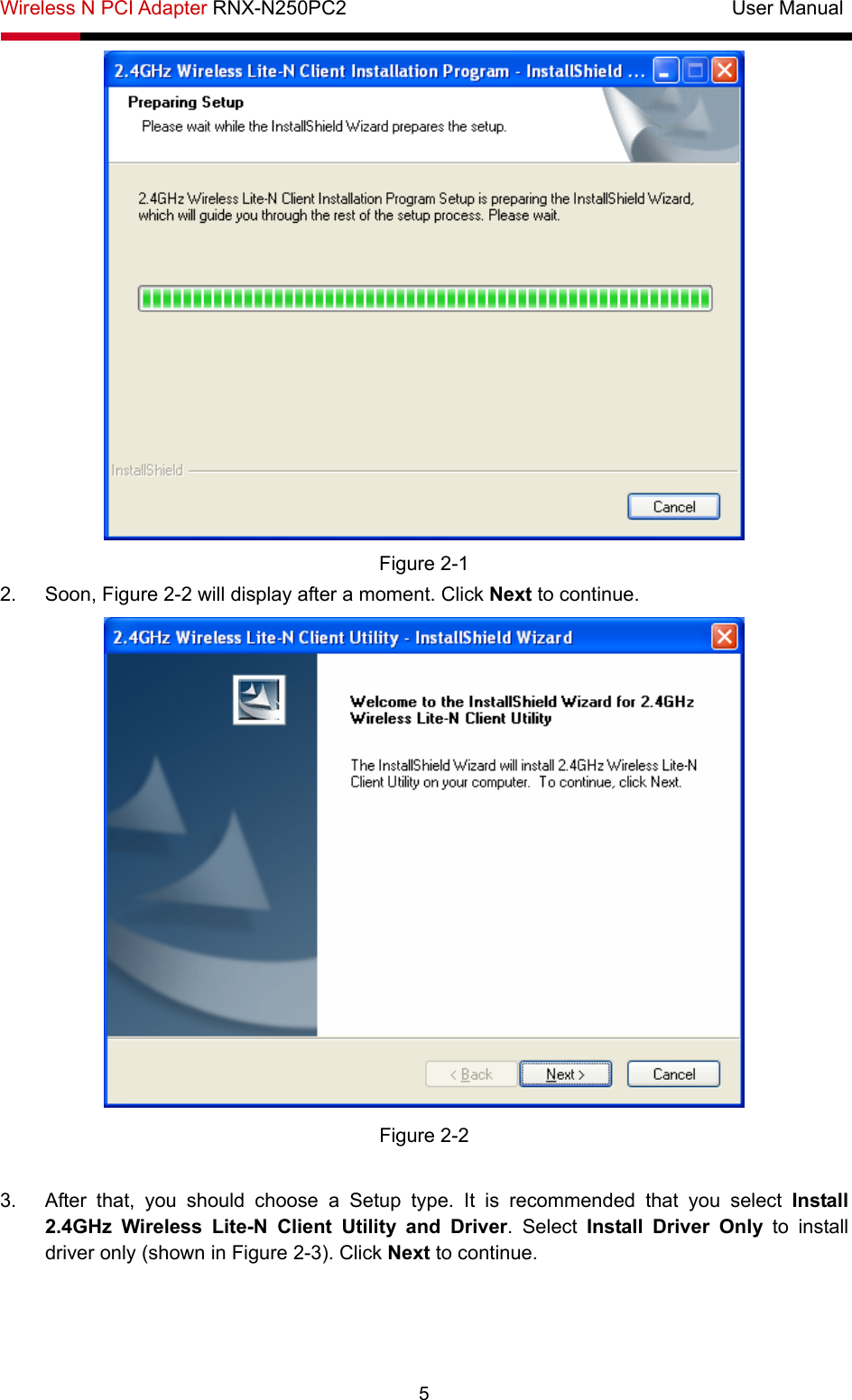

Wireless N PCI Adapter RNX-N250PC2 User Manual 5 Figure 2-1 2. Soon, Figure 2-2 will display after a moment. Click Next to continue. Figure 2-2 3. After that, you should choose a Setup type. It is recommended that you select Install 2.4GHz Wireless Lite-N Client Utility and Driver. Select Install Driver Only to install driver only (shown in Figure 2-3). Click Next to continue.

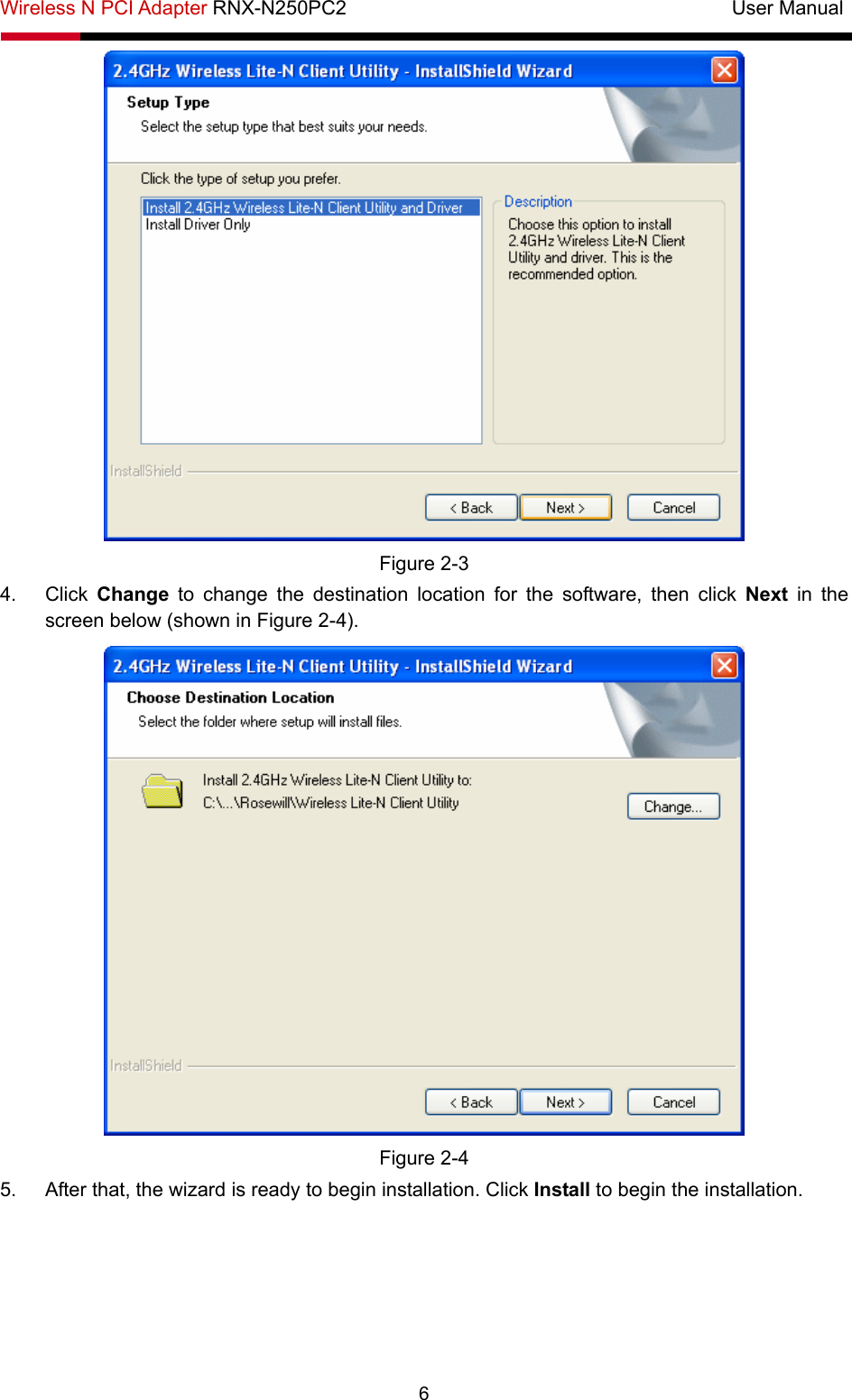

Wireless N PCI Adapter RNX-N250PC2 User Manual 6 Figure 2-3 4. Click Change to change the destination location for the software, then click Next in the screen below (shown in Figure 2-4). Figure 2-4 5. After that, the wizard is ready to begin installation. Click Install to begin the installation.

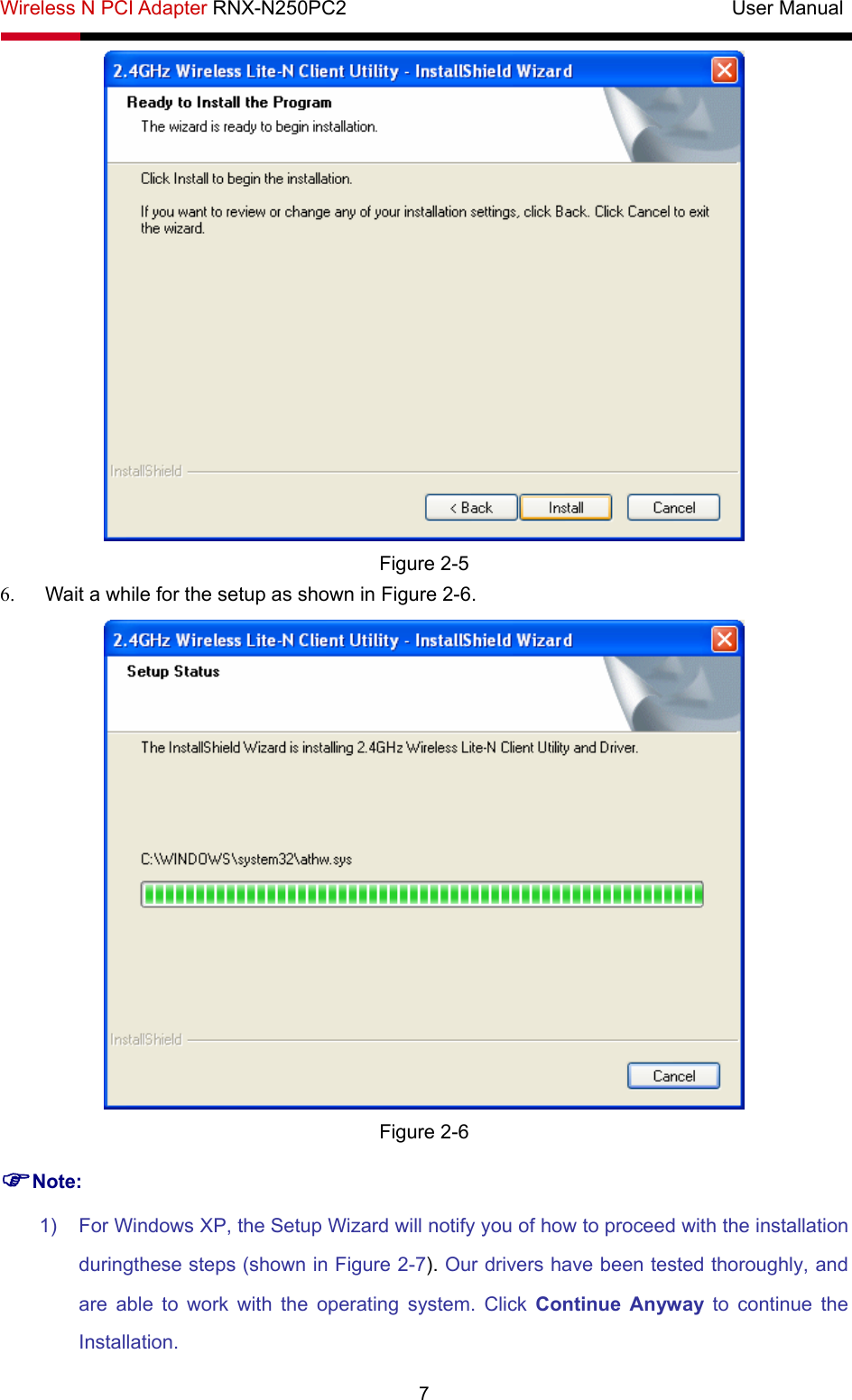

Wireless N PCI Adapter RNX-N250PC2 User Manual 7 Figure 2-5 6. Wait a while for the setup as shown in Figure 2-6. Figure 2-6 )Note: 1) For Windows XP, the Setup Wizard will notify you of how to proceed with the installation duringthese steps (shown in Figure 2-7). Our drivers have been tested thoroughly, and are able to work with the operating system. Click Continue Anyway to continue the Installation.

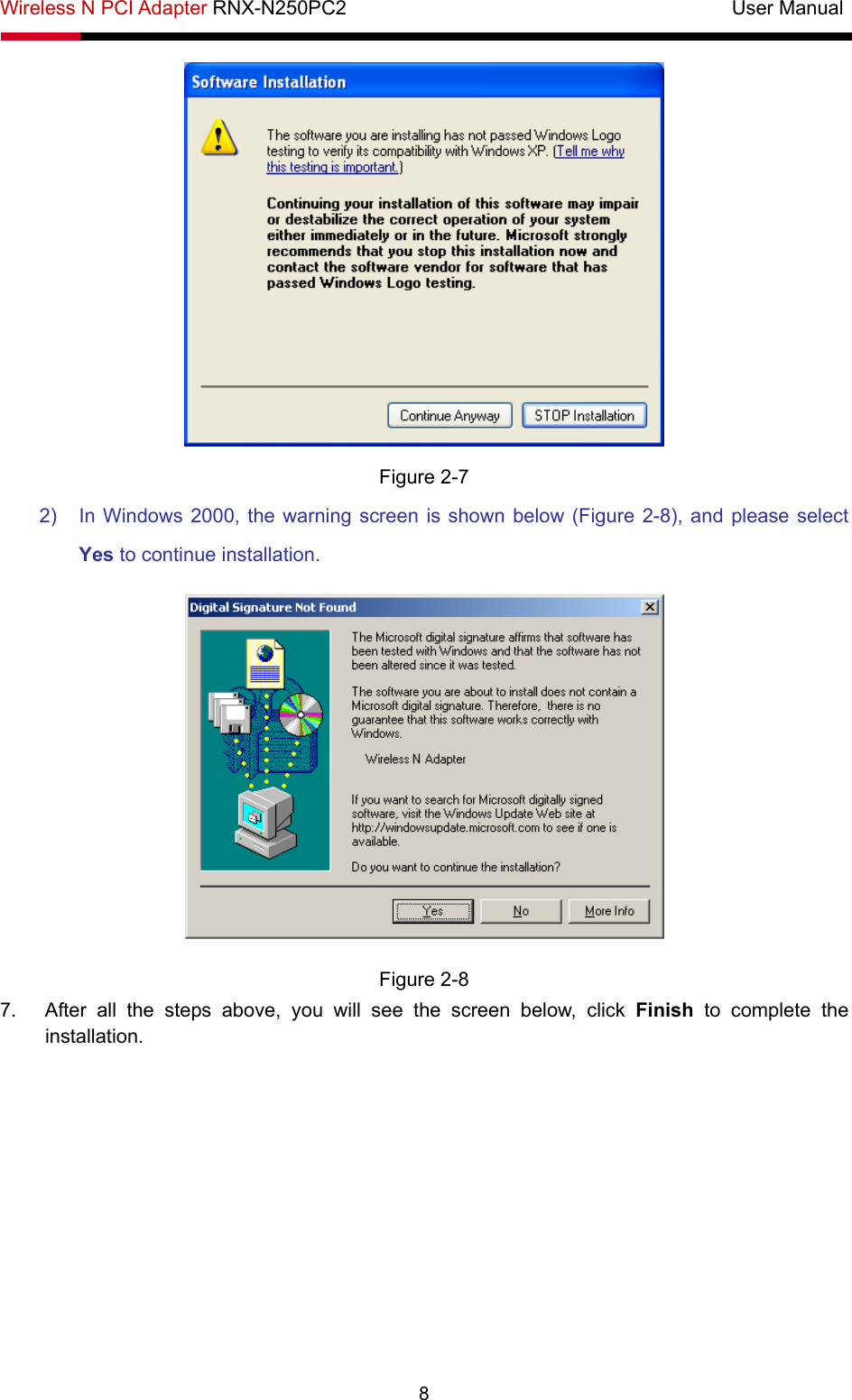

Wireless N PCI Adapter RNX-N250PC2 User Manual 8 Figure 2-7 2) In Windows 2000, the warning screen is shown below (Figure 2-8), and please select Yes to continue installation. Figure 2-8 7. After all the steps above, you will see the screen below, click Finish to complete the installation.

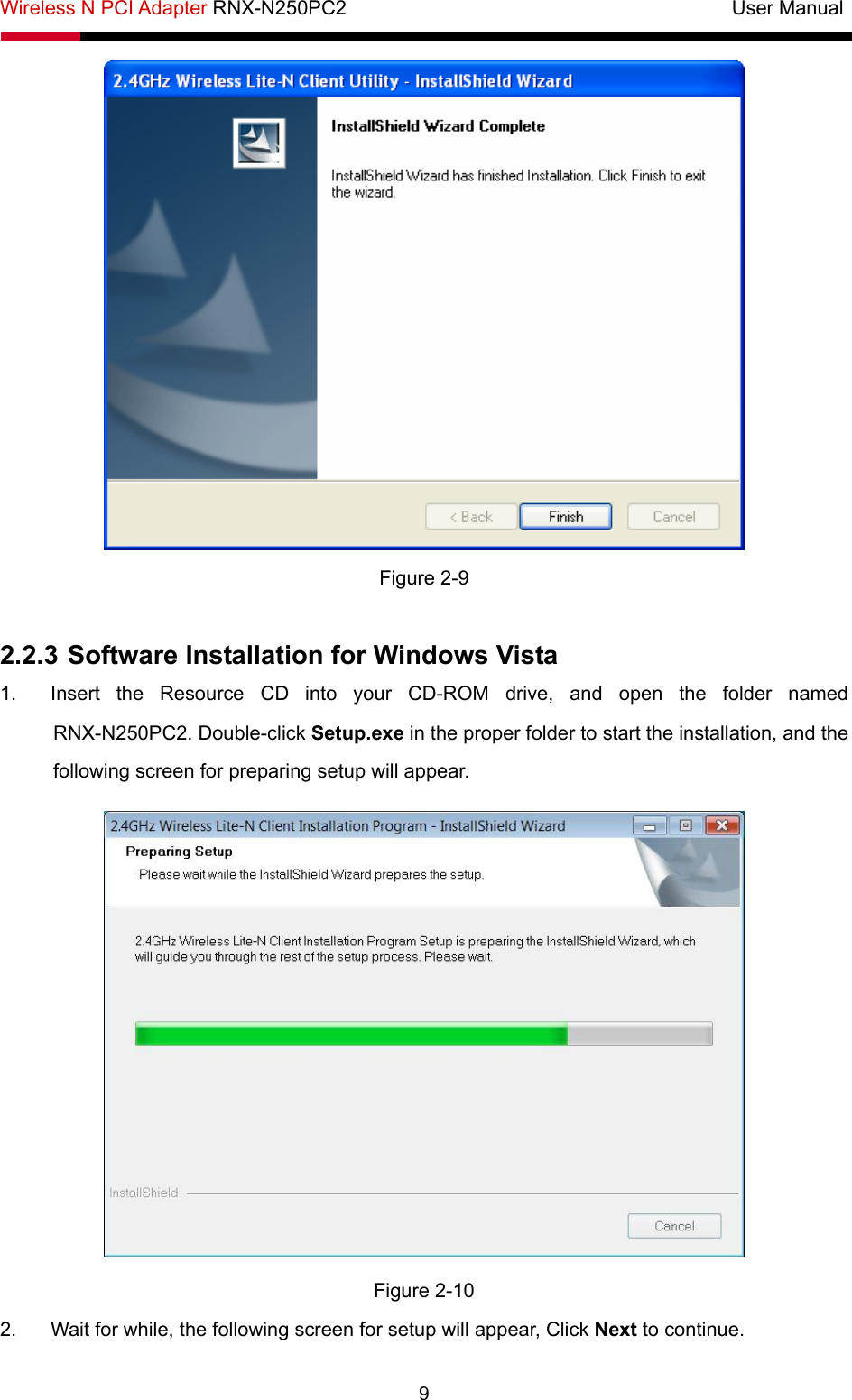

Wireless N PCI Adapter RNX-N250PC2 User Manual 9 Figure 2-9 2.2.3 Software Installation for Windows Vista 1. Insert the Resource CD into your CD-ROM drive, and open the folder named RNX-N250PC2. Double-click Setup.exe in the proper folder to start the installation, and the following screen for preparing setup will appear. Figure 2-10 2. Wait for while, the following screen for setup will appear, Click Next to continue.

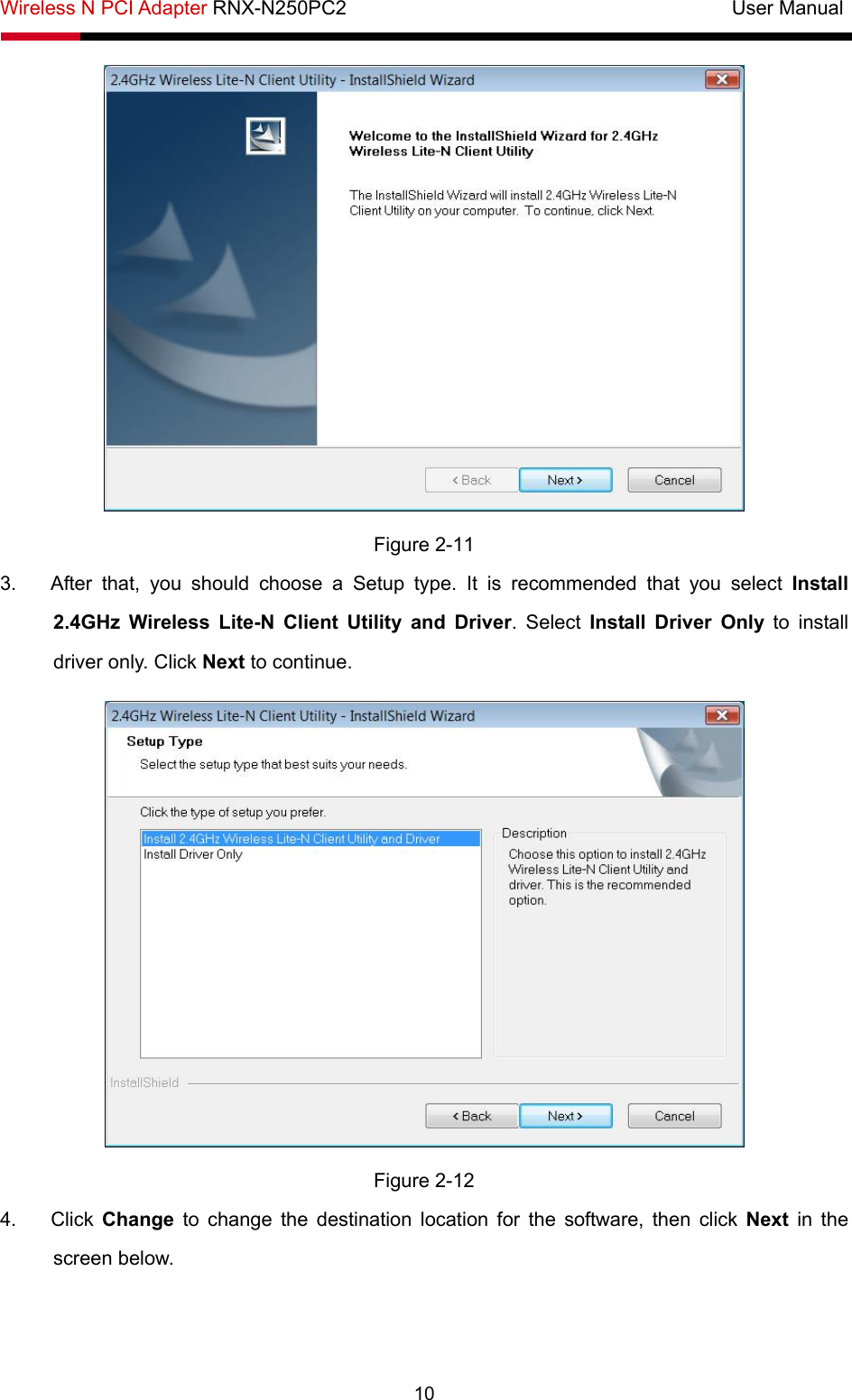

Wireless N PCI Adapter RNX-N250PC2 User Manual 10 Figure 2-11 3. After that, you should choose a Setup type. It is recommended that you select Install 2.4GHz Wireless Lite-N Client Utility and Driver. Select Install Driver Only to install driver only. Click Next to continue. Figure 2-12 4. Click Change to change the destination location for the software, then click Next in the screen below.

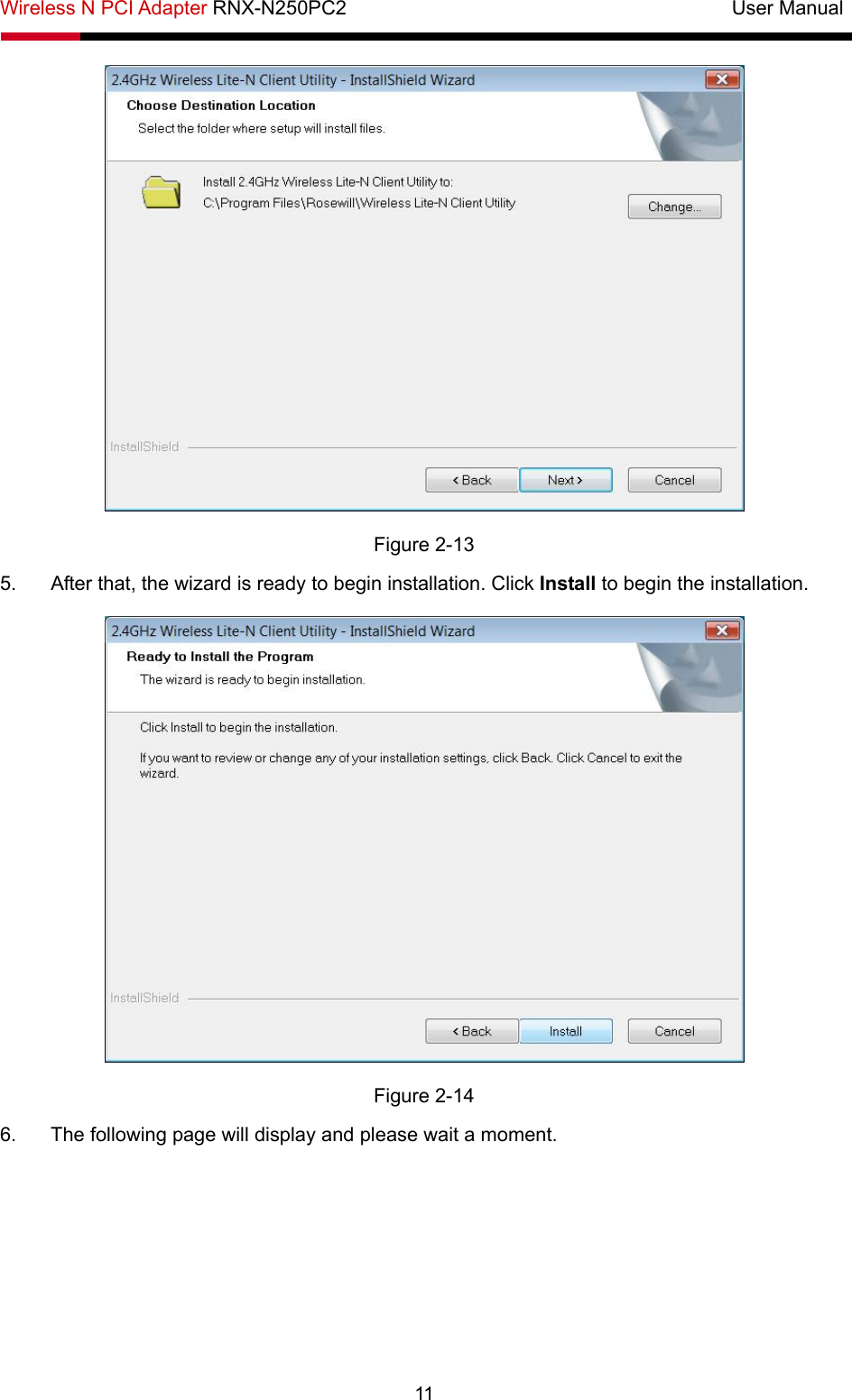

Wireless N PCI Adapter RNX-N250PC2 User Manual 11 Figure 2-13 5. After that, the wizard is ready to begin installation. Click Install to begin the installation. Figure 2-14 6. The following page will display and please wait a moment.

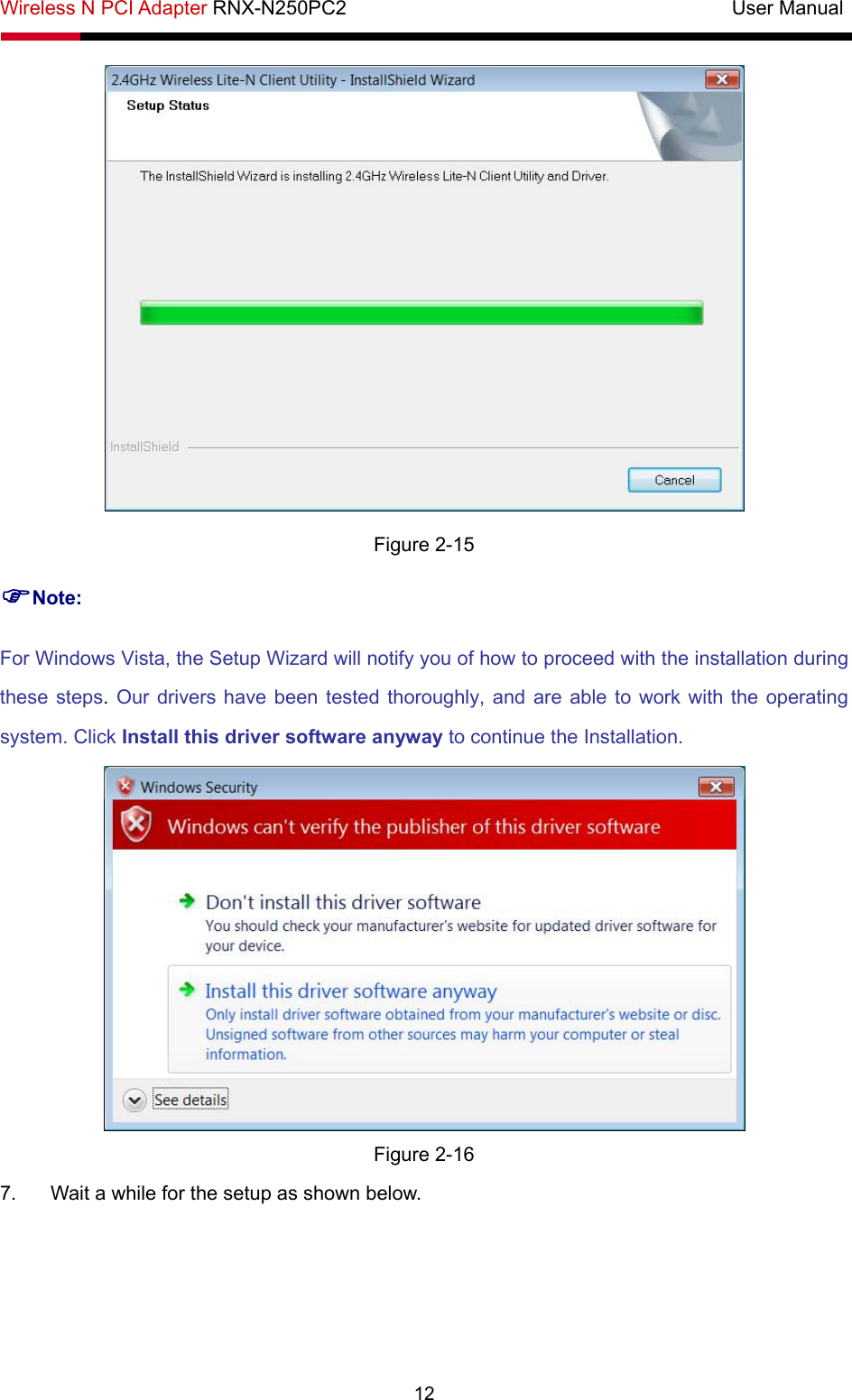

Wireless N PCI Adapter RNX-N250PC2 User Manual 12 Figure 2-15 )Note: For Windows Vista, the Setup Wizard will notify you of how to proceed with the installation during these steps. Our drivers have been tested thoroughly, and are able to work with the operating system. Click Install this driver software anyway to continue the Installation. Figure 2-16 7. Wait a while for the setup as shown below.

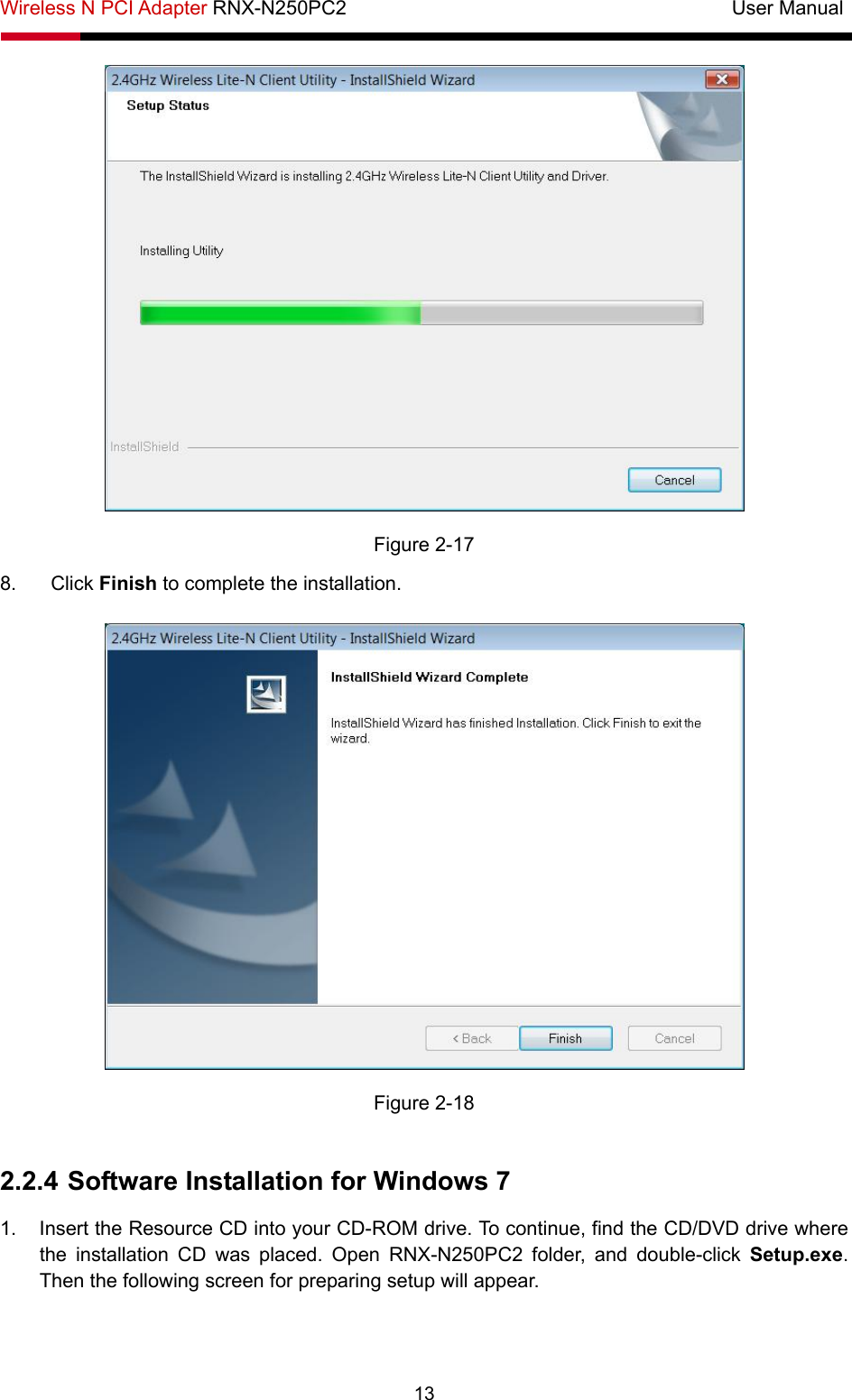

Wireless N PCI Adapter RNX-N250PC2 User Manual 13 Figure 2-17 8. Click Finish to complete the installation. Figure 2-18 2.2.4 Software Installation for Windows 7 1. Insert the Resource CD into your CD-ROM drive. To continue, find the CD/DVD drive where the installation CD was placed. Open RNX-N250PC2 folder, and double-click Setup.exe. Then the following screen for preparing setup will appear.

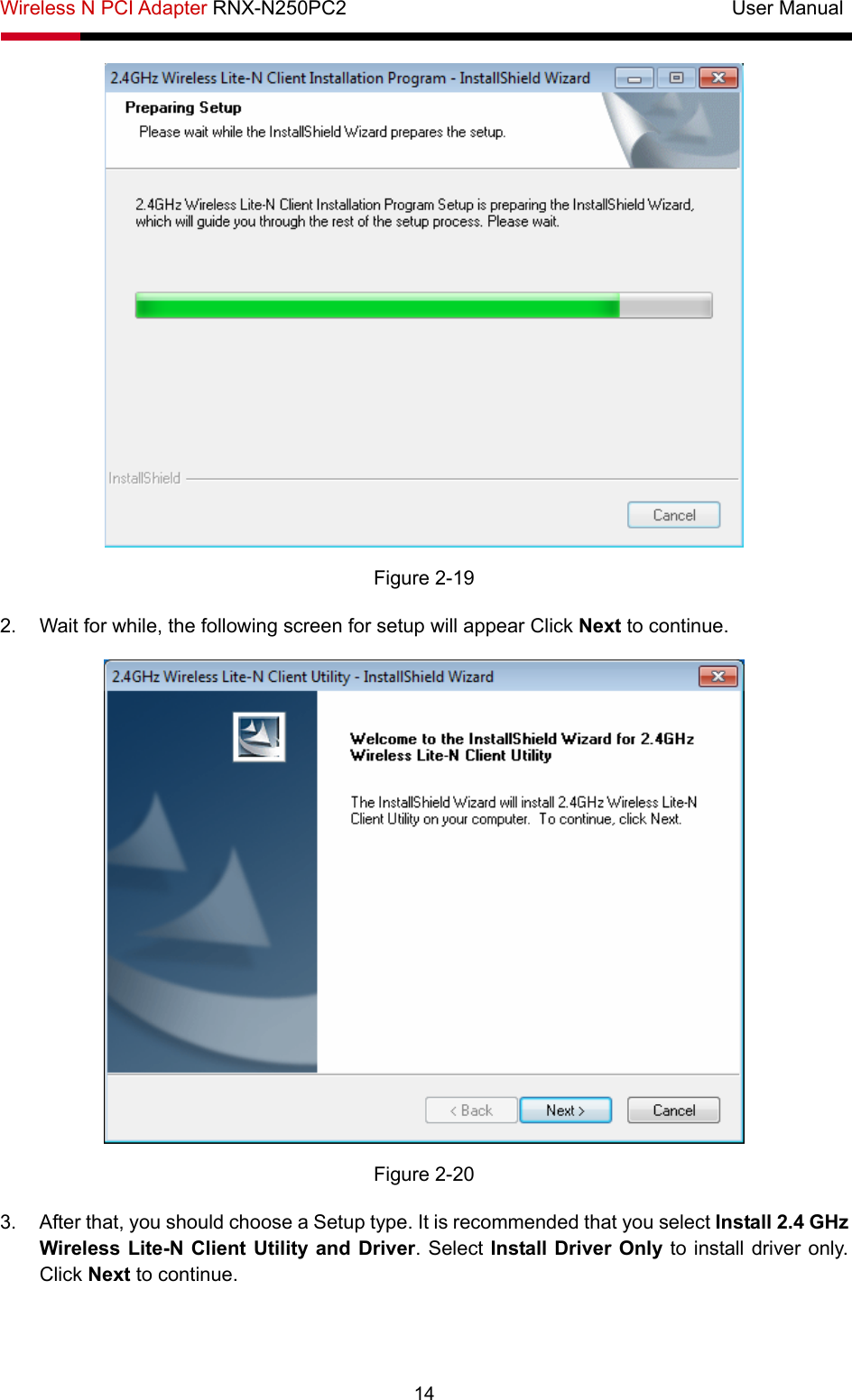

Wireless N PCI Adapter RNX-N250PC2 User Manual 14 Figure 2-19 2. Wait for while, the following screen for setup will appear Click Next to continue. Figure 2-20 3. After that, you should choose a Setup type. It is recommended that you select Install 2.4 GHz Wireless Lite-N Client Utility and Driver. Select Install Driver Only to install driver only. Click Next to continue.

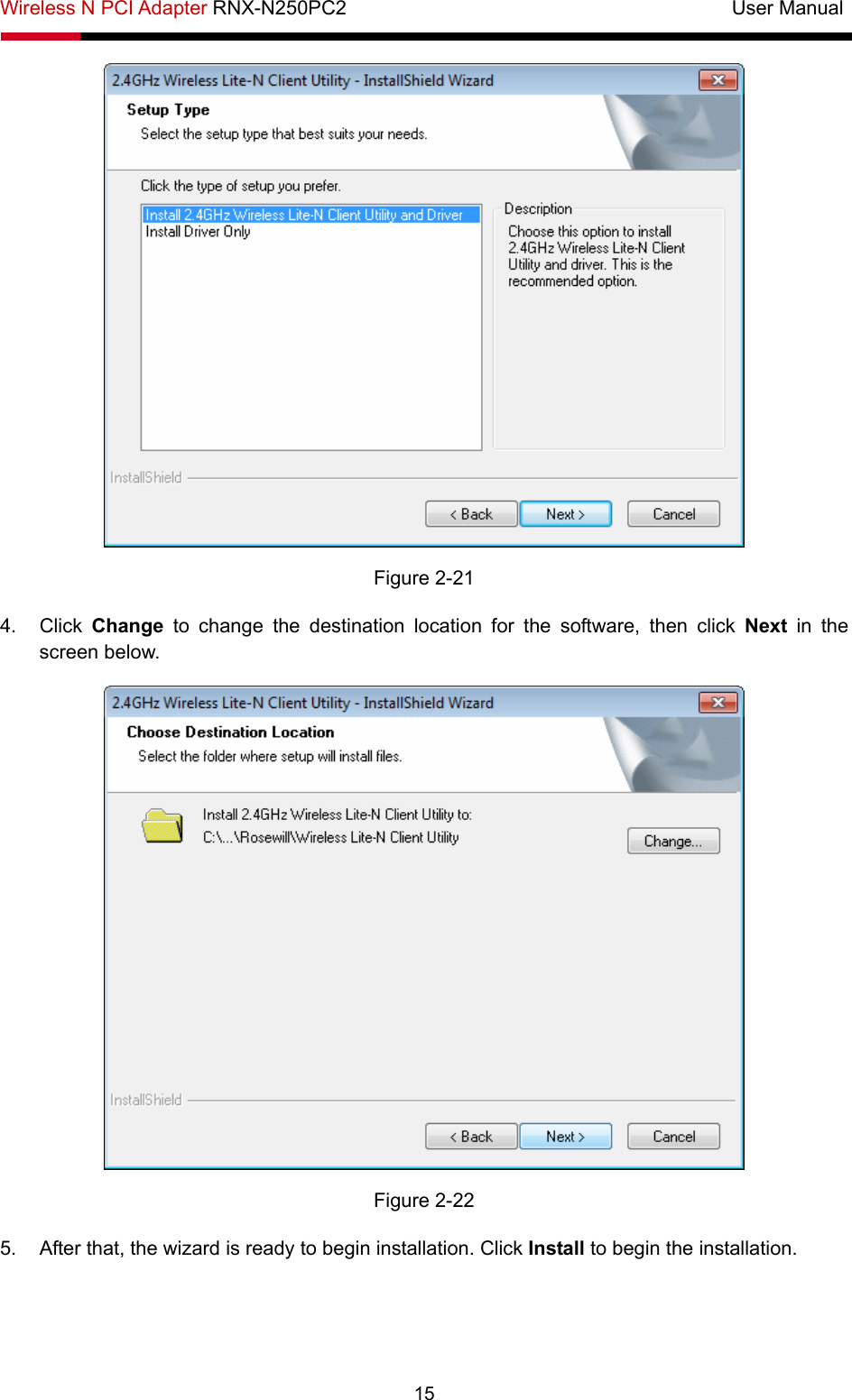

Wireless N PCI Adapter RNX-N250PC2 User Manual 15 Figure 2-21 4. Click Change to change the destination location for the software, then click Next in the screen below. Figure 2-22 5. After that, the wizard is ready to begin installation. Click Install to begin the installation.

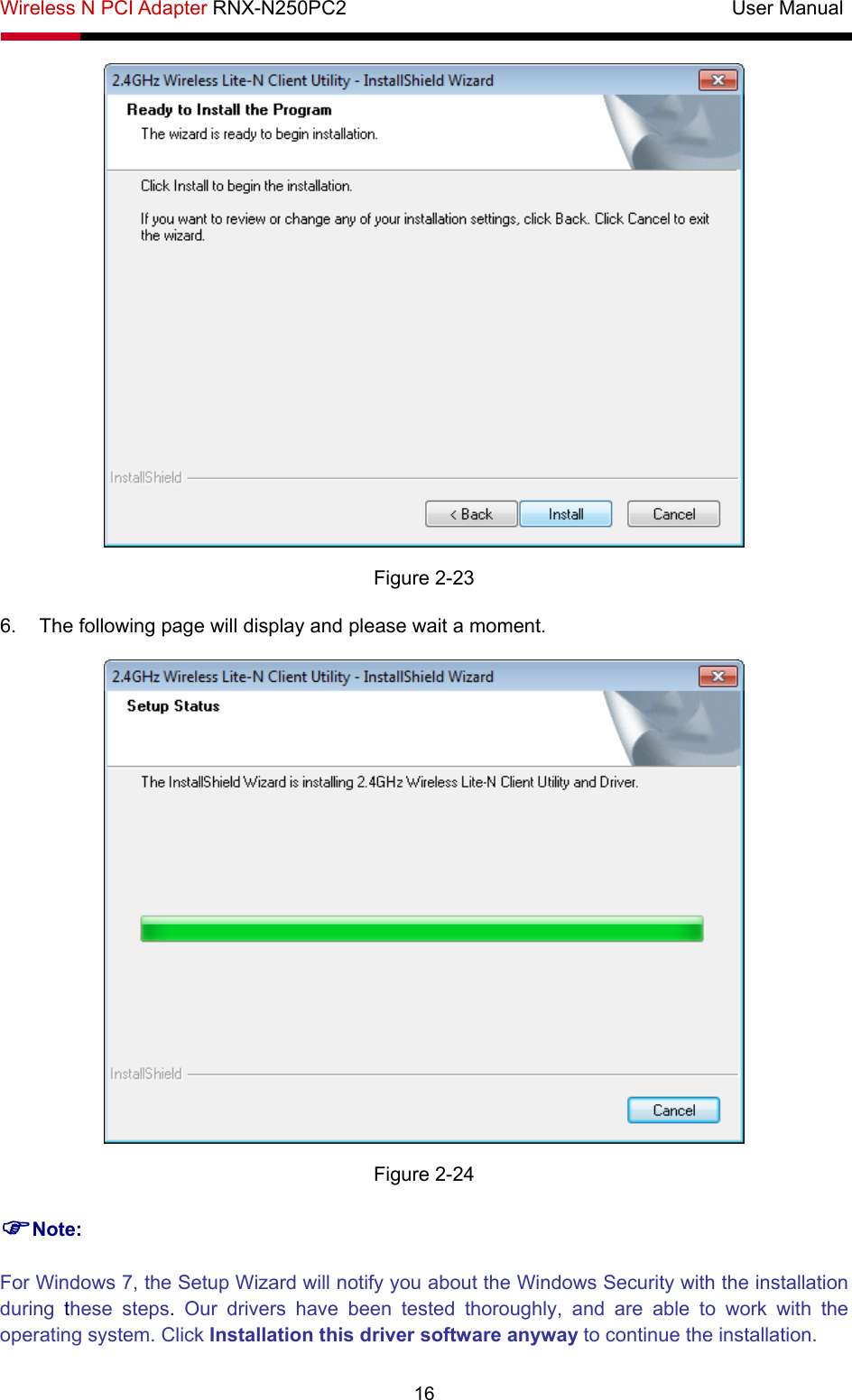

Wireless N PCI Adapter RNX-N250PC2 User Manual 16 Figure 2-23 6. The following page will display and please wait a moment. Figure 2-24 )Note: For Windows 7, the Setup Wizard will notify you about the Windows Security with the installation during these steps. Our drivers have been tested thoroughly, and are able to work with the operating system. Click Installation this driver software anyway to continue the installation.

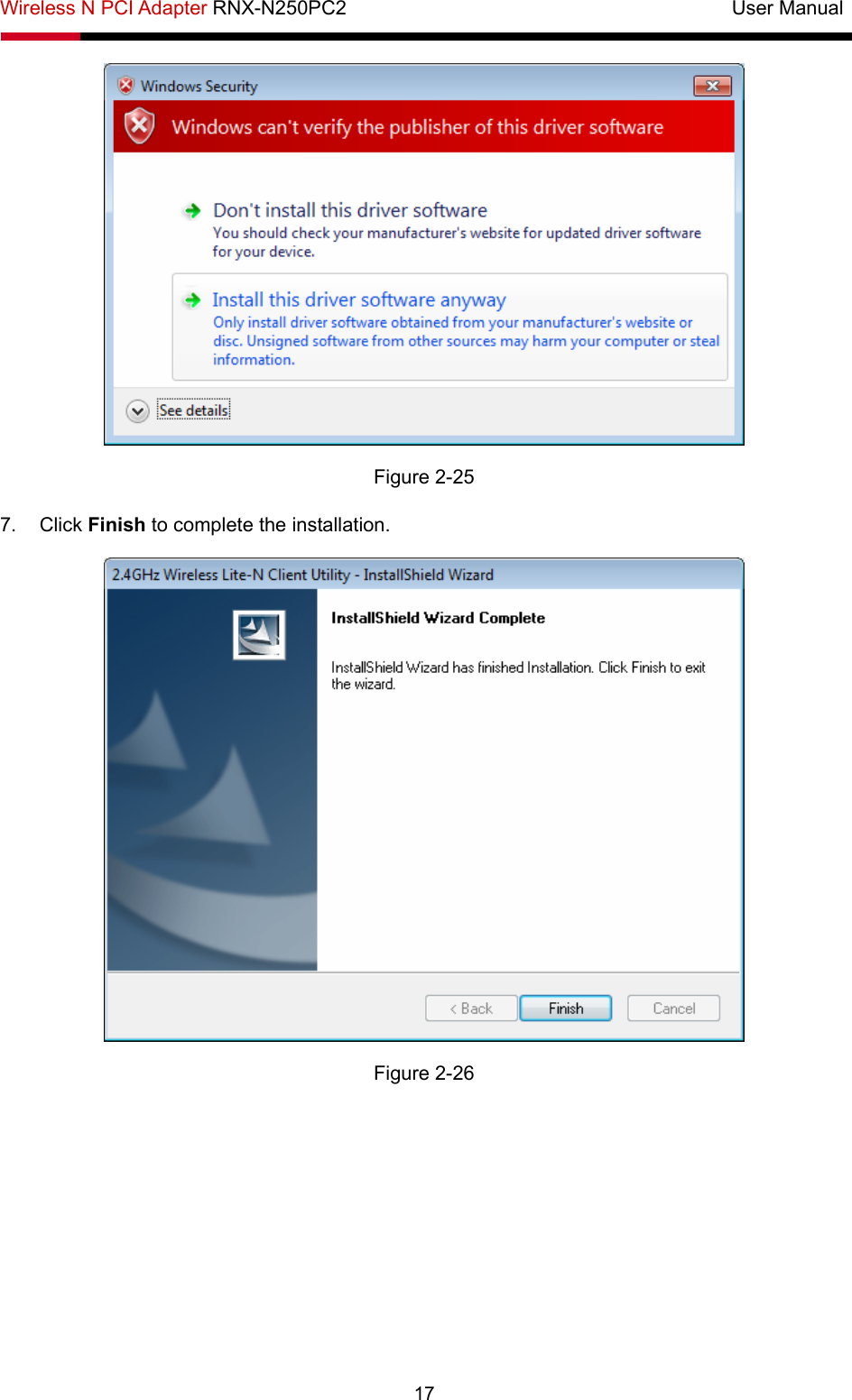

Wireless N PCI Adapter RNX-N250PC2 User Manual 17 Figure 2-25 7. Click Finish to complete the installation. Figure 2-26

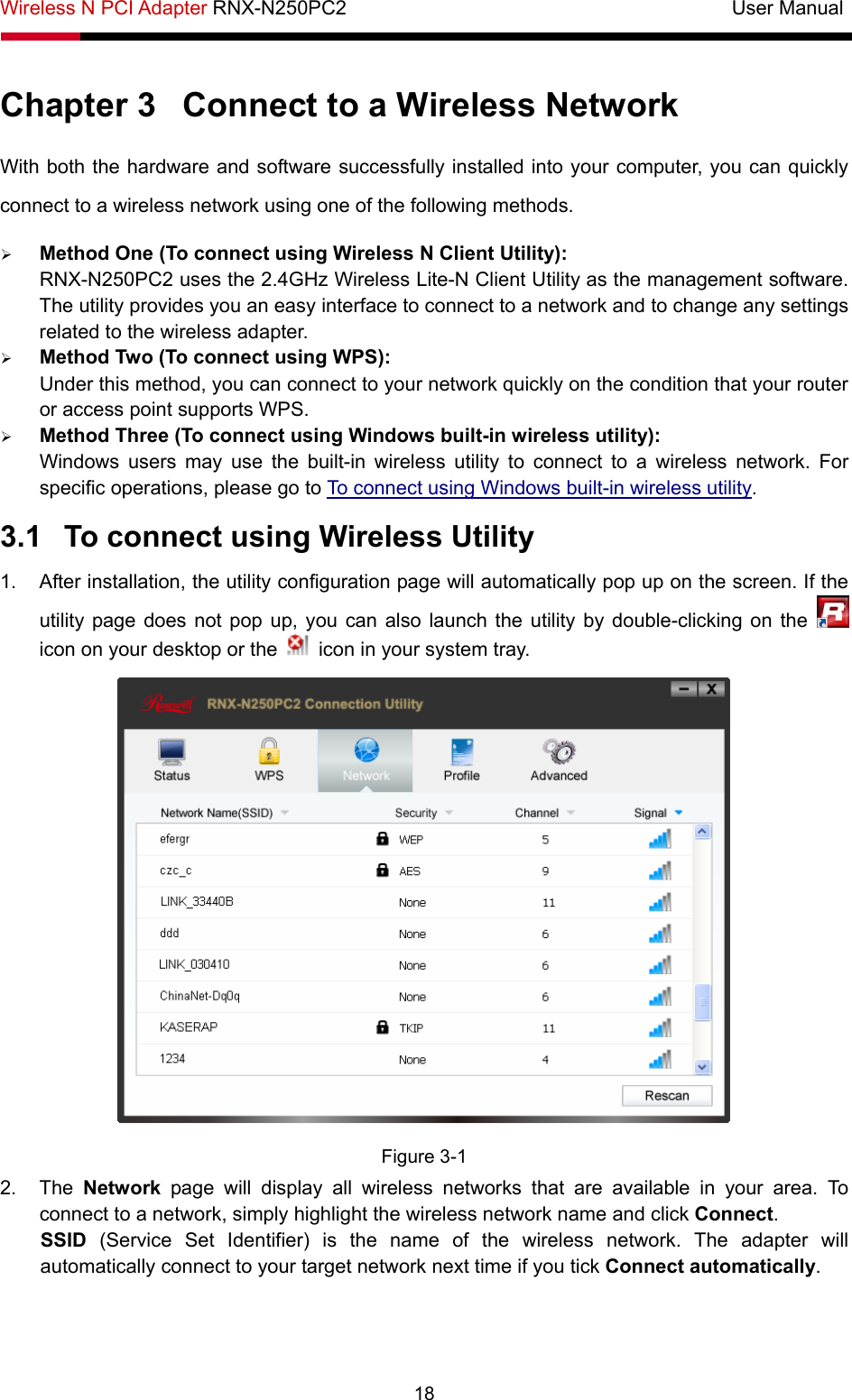

Wireless N PCI Adapter RNX-N250PC2 User Manual 18 Chapter 3 Connect to a Wireless Network With both the hardware and software successfully installed into your computer, you can quickly connect to a wireless network using one of the following methods. ¾ Method One (To connect using Wireless N Client Utility): RNX-N250PC2 uses the 2.4GHz Wireless Lite-N Client Utility as the management software. The utility provides you an easy interface to connect to a network and to change any settings related to the wireless adapter. ¾ Method Two (To connect using WPS): Under this method, you can connect to your network quickly on the condition that your router or access point supports WPS. ¾ Method Three (To connect using Windows built-in wireless utility): Windows users may use the built-in wireless utility to connect to a wireless network. For specific operations, please go to To connect using Windows built-in wireless utility. 3.1 To connect using Wireless Utility 1. After installation, the utility configuration page will automatically pop up on the screen. If the utility page does not pop up, you can also launch the utility by double-clicking on the icon on your desktop or the icon in your system tray. Figure 3-1 2. The Network page will display all wireless networks that are available in your area. To connect to a network, simply highlight the wireless network name and click Connect. SSID (Service Set Identifier) is the name of the wireless network. The adapter will automatically connect to your target network next time if you tick Connect automatically.

Wireless N PCI Adapter RNX-N250PC2 User Manual 19 Figure 3-2 3. If word None appears behind the SSID, this means the network to be connected is not security-enabled and you can connect to the network without entering a key. To prevent outside intrusion and safeguard your network, it is strongly recommended to set a password to your router or access point. Figure 3-3 If there is a “lock” icon behind the SSID, this means the wireless network is secure and the corresponding security type will display. You must know the encryption key/security settings to connect. Input the password which can be found on the configuration page of your router or access point, then click OK to continue. Or push the QSS/WPS button on your router if your router features the QSS/WPS function to quickly build a connection without having to enter a key.

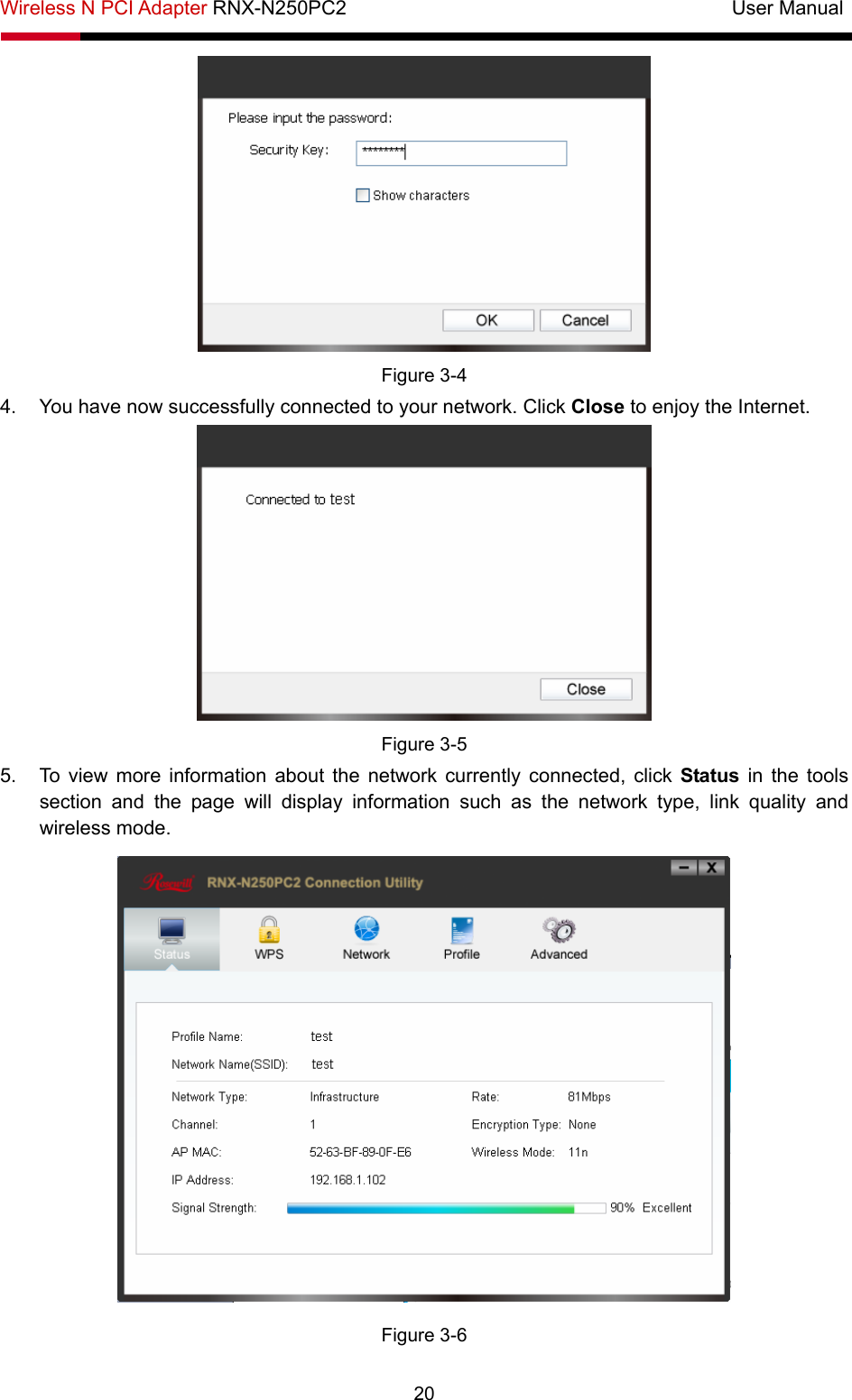

Wireless N PCI Adapter RNX-N250PC2 User Manual 20 Figure 3-4 4. You have now successfully connected to your network. Click Close to enjoy the Internet. Figure 3-5 5. To view more information about the network currently connected, click Status in the tools section and the page will display information such as the network type, link quality and wireless mode. Figure 3-6

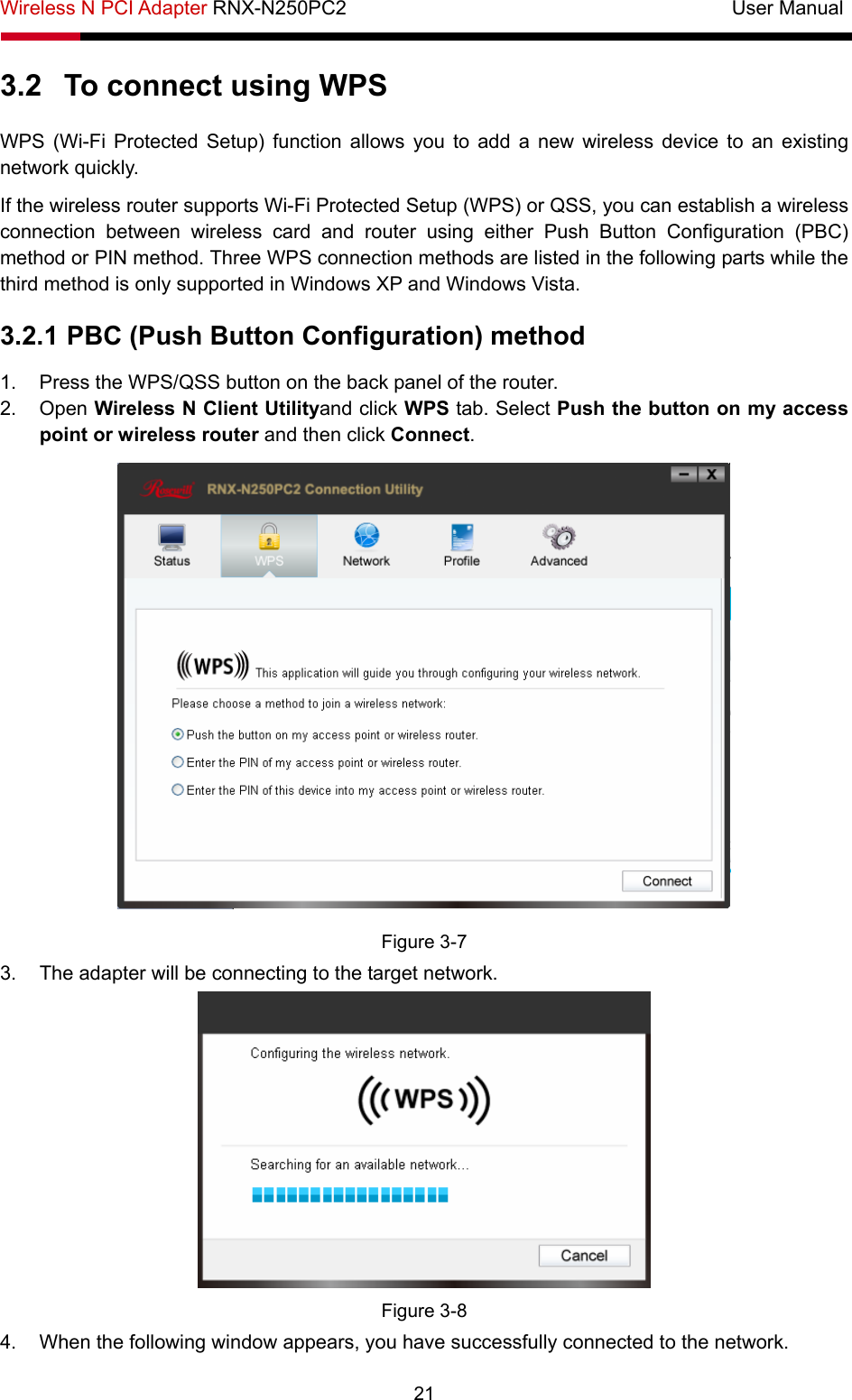

Wireless N PCI Adapter RNX-N250PC2 User Manual 21 3.2 To connect using WPS WPS (Wi-Fi Protected Setup) function allows you to add a new wireless device to an existing network quickly. If the wireless router supports Wi-Fi Protected Setup (WPS) or QSS, you can establish a wireless connection between wireless card and router using either Push Button Configuration (PBC) method or PIN method. Three WPS connection methods are listed in the following parts while the third method is only supported in Windows XP and Windows Vista. 3.2.1 PBC (Push Button Configuration) method 1. Press the WPS/QSS button on the back panel of the router. 2. Open Wireless N Client Utilityand click WPS tab. Select Push the button on my access point or wireless router and then click Connect. Figure 3-7 3. The adapter will be connecting to the target network. Figure 3-8 4. When the following window appears, you have successfully connected to the network.

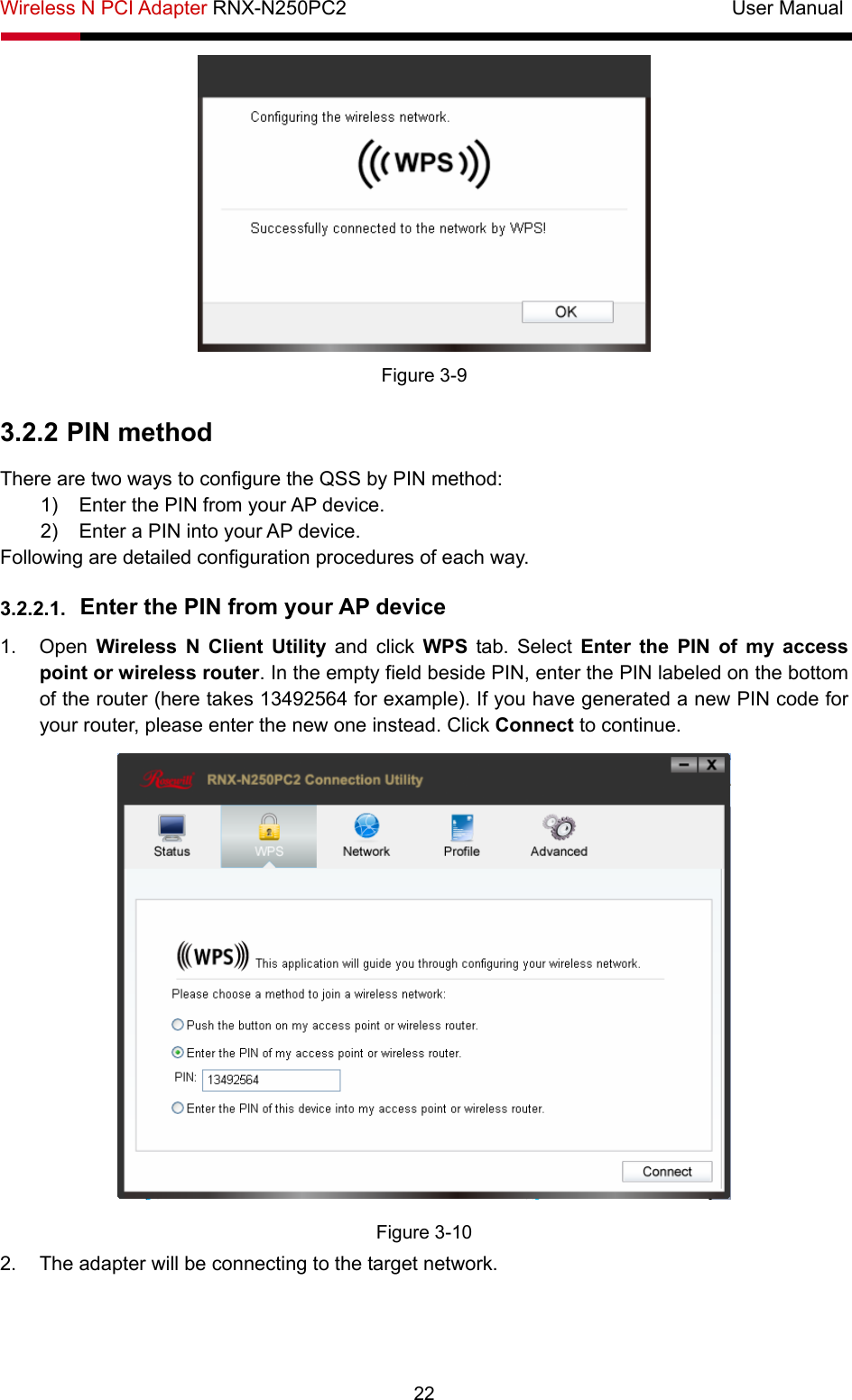

Wireless N PCI Adapter RNX-N250PC2 User Manual 22 Figure 3-9 3.2.2 PIN method There are two ways to configure the QSS by PIN method: 1) Enter the PIN from your AP device. 2) Enter a PIN into your AP device. Following are detailed configuration procedures of each way. 3.2.2.1. Enter the PIN from your AP device 1. Open Wireless N Client Utility and click WPS tab. Select Enter the PIN of my access point or wireless router. In the empty field beside PIN, enter the PIN labeled on the bottom of the router (here takes 13492564 for example). If you have generated a new PIN code for your router, please enter the new one instead. Click Connect to continue. Figure 3-10 2. The adapter will be connecting to the target network.

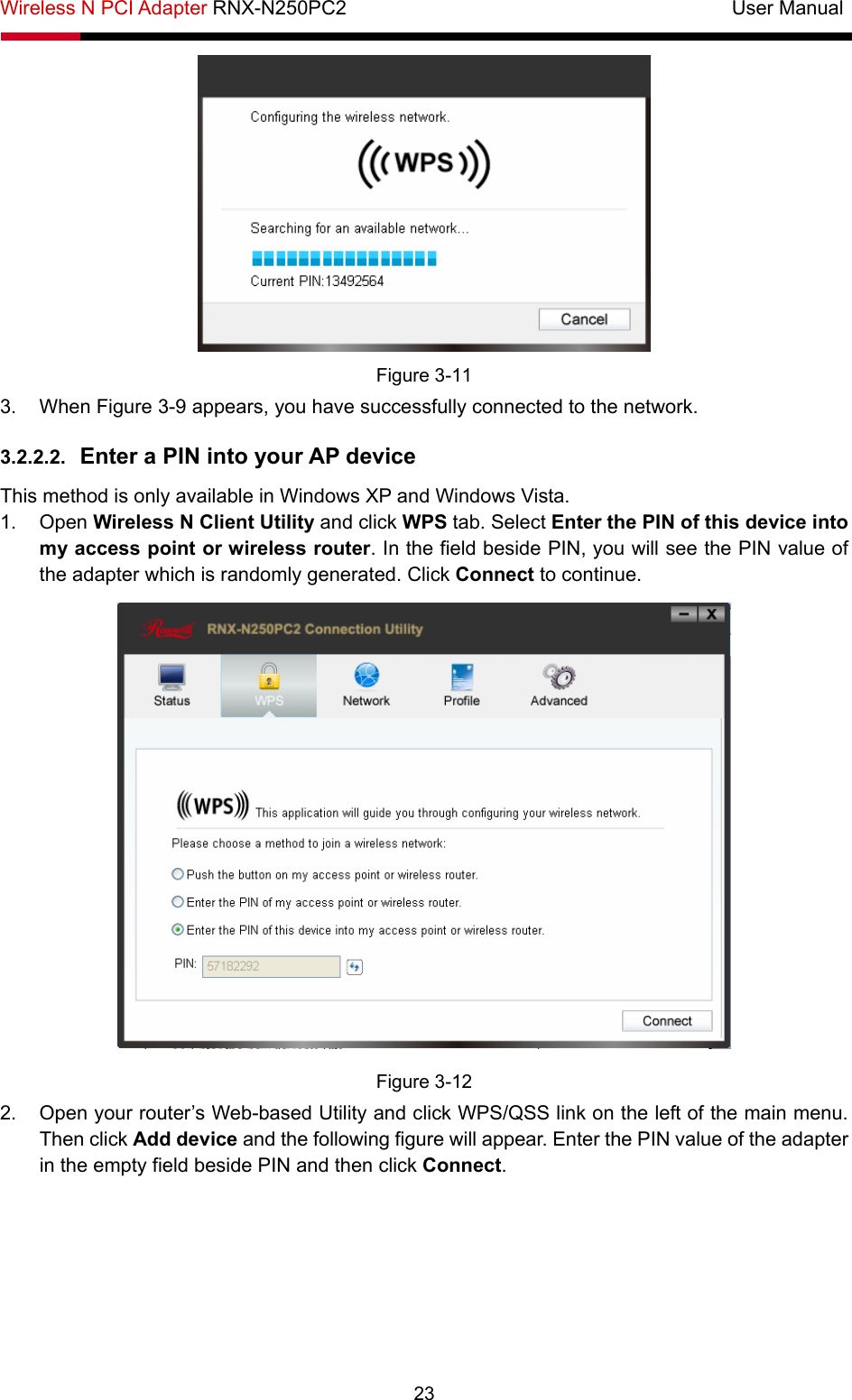

Wireless N PCI Adapter RNX-N250PC2 User Manual 23 Figure 3-11 3. When Figure 3-9 appears, you have successfully connected to the network. 3.2.2.2. Enter a PIN into your AP device This method is only available in Windows XP and Windows Vista. 1. Open Wireless N Client Utility and click WPS tab. Select Enter the PIN of this device into my access point or wireless router. In the field beside PIN, you will see the PIN value of the adapter which is randomly generated. Click Connect to continue. Figure 3-12 2. Open your router’s Web-based Utility and click WPS/QSS link on the left of the main menu. Then click Add device and the following figure will appear. Enter the PIN value of the adapter in the empty field beside PIN and then click Connect.

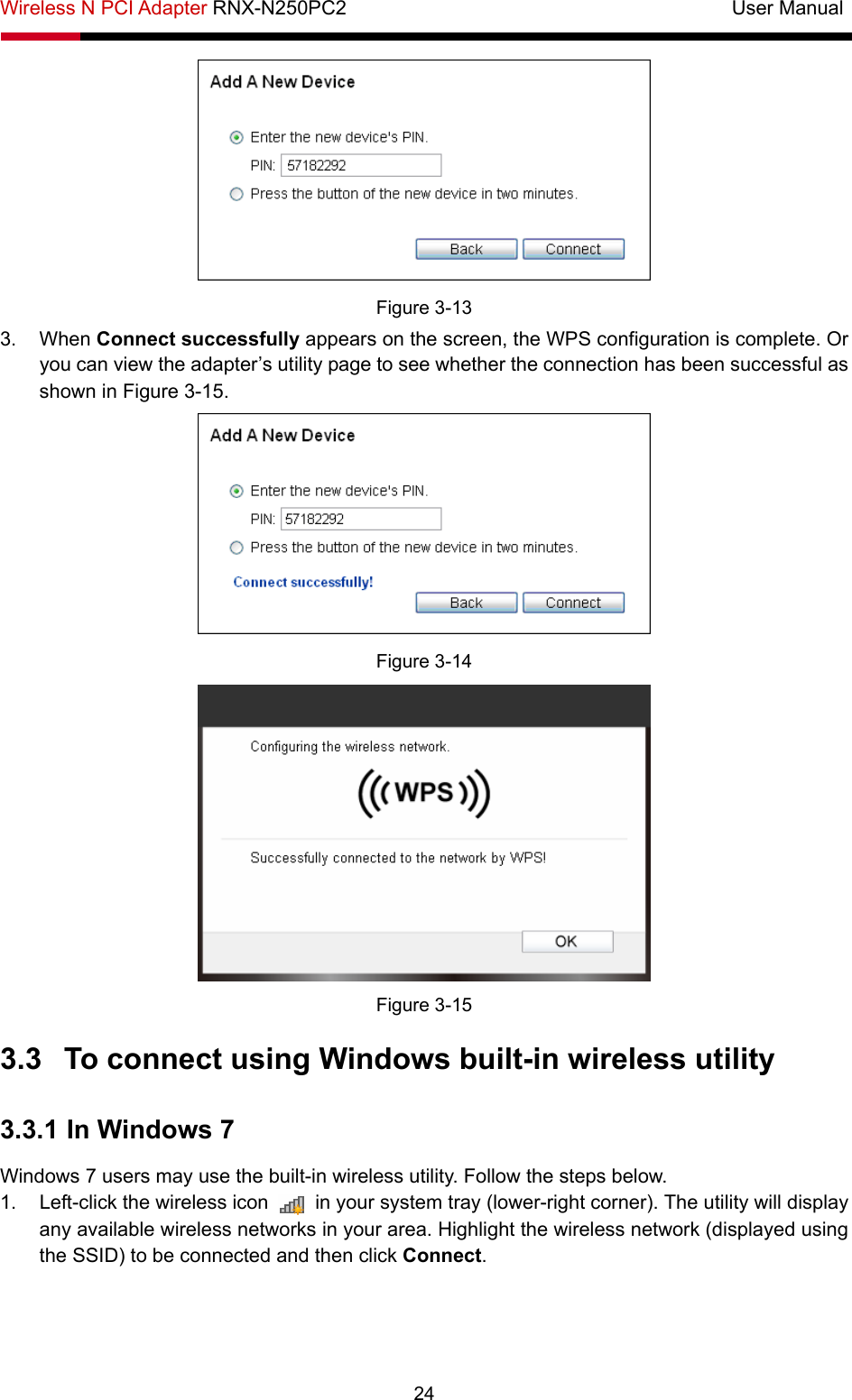

Wireless N PCI Adapter RNX-N250PC2 User Manual 24 Figure 3-13 3. When Connect successfully appears on the screen, the WPS configuration is complete. Or you can view the adapter’s utility page to see whether the connection has been successful as shown in Figure 3-15. Figure 3-14 Figure 3-15 3.3 To connect using Windows built-in wireless utility 3.3.1 In Windows 7 Windows 7 users may use the built-in wireless utility. Follow the steps below. 1. Left-click the wireless icon in your system tray (lower-right corner). The utility will display any available wireless networks in your area. Highlight the wireless network (displayed using the SSID) to be connected and then click Connect.

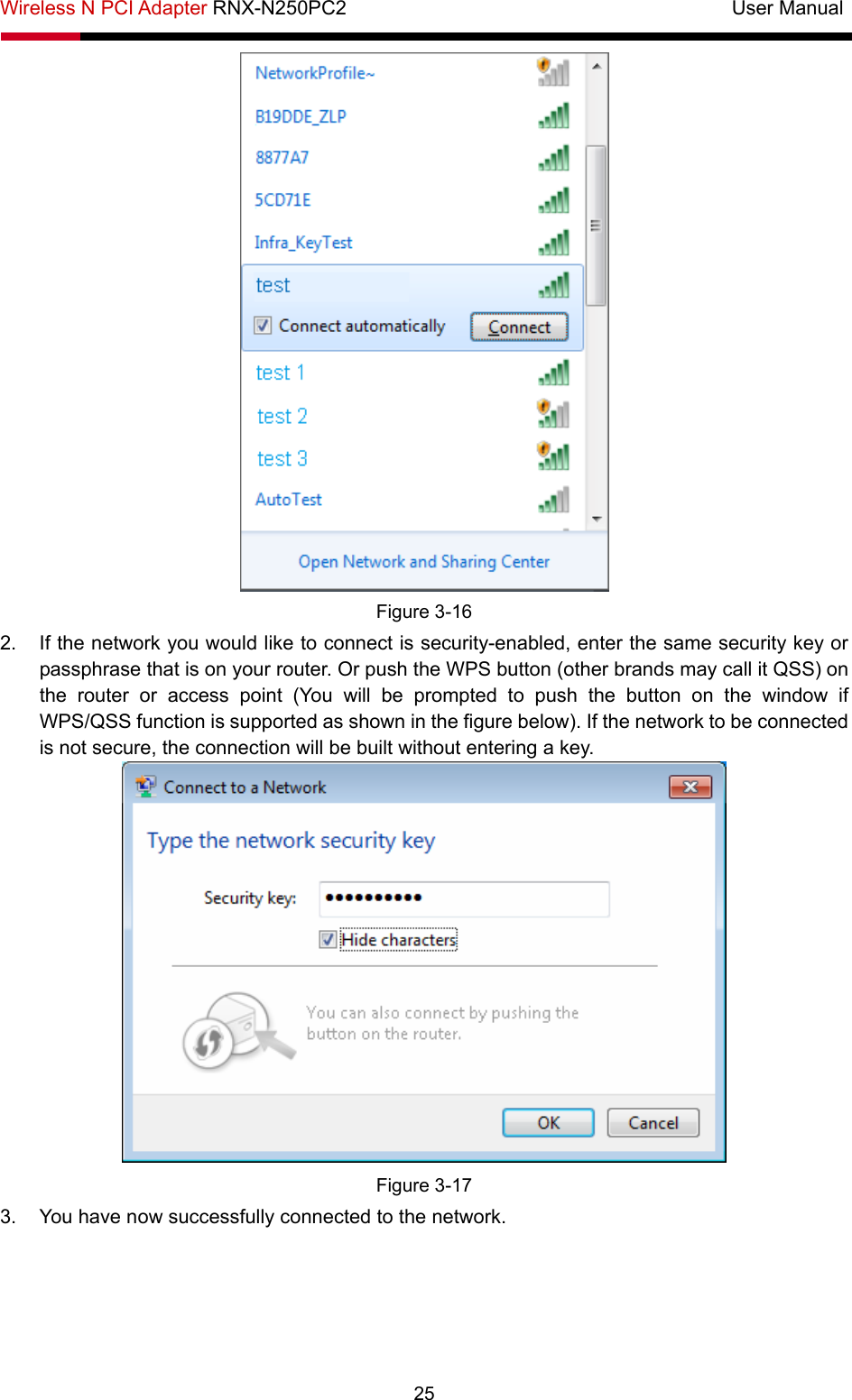

Wireless N PCI Adapter RNX-N250PC2 User Manual 25 Figure 3-16 2. If the network you would like to connect is security-enabled, enter the same security key or passphrase that is on your router. Or push the WPS button (other brands may call it QSS) on the router or access point (You will be prompted to push the button on the window if WPS/QSS function is supported as shown in the figure below). If the network to be connected is not secure, the connection will be built without entering a key. Figure 3-17 3. You have now successfully connected to the network.

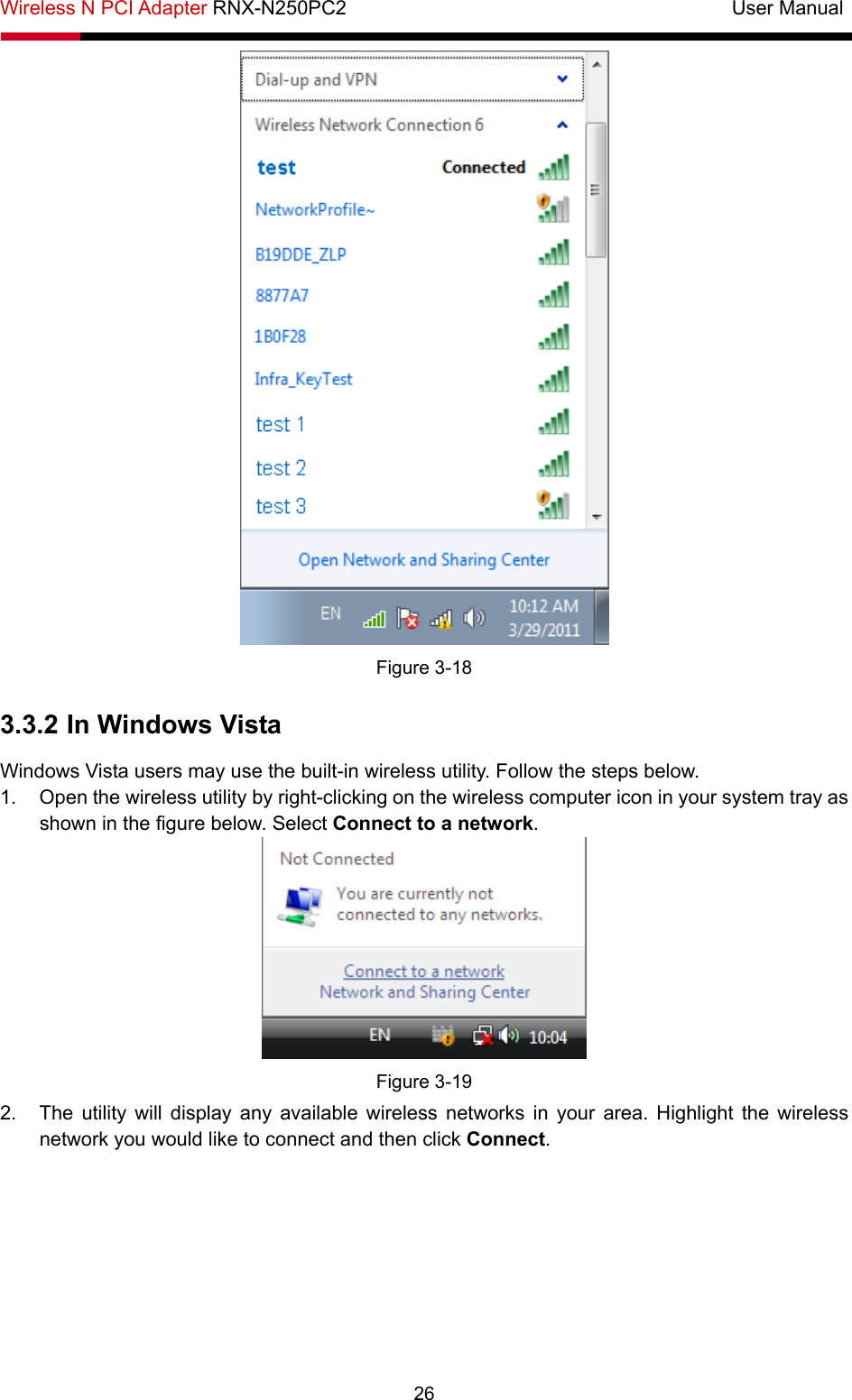

Wireless N PCI Adapter RNX-N250PC2 User Manual 26 Figure 3-18 3.3.2 In Windows Vista Windows Vista users may use the built-in wireless utility. Follow the steps below. 1. Open the wireless utility by right-clicking on the wireless computer icon in your system tray as shown in the figure below. Select Connect to a network. Figure 3-19 2. The utility will display any available wireless networks in your area. Highlight the wireless network you would like to connect and then click Connect.

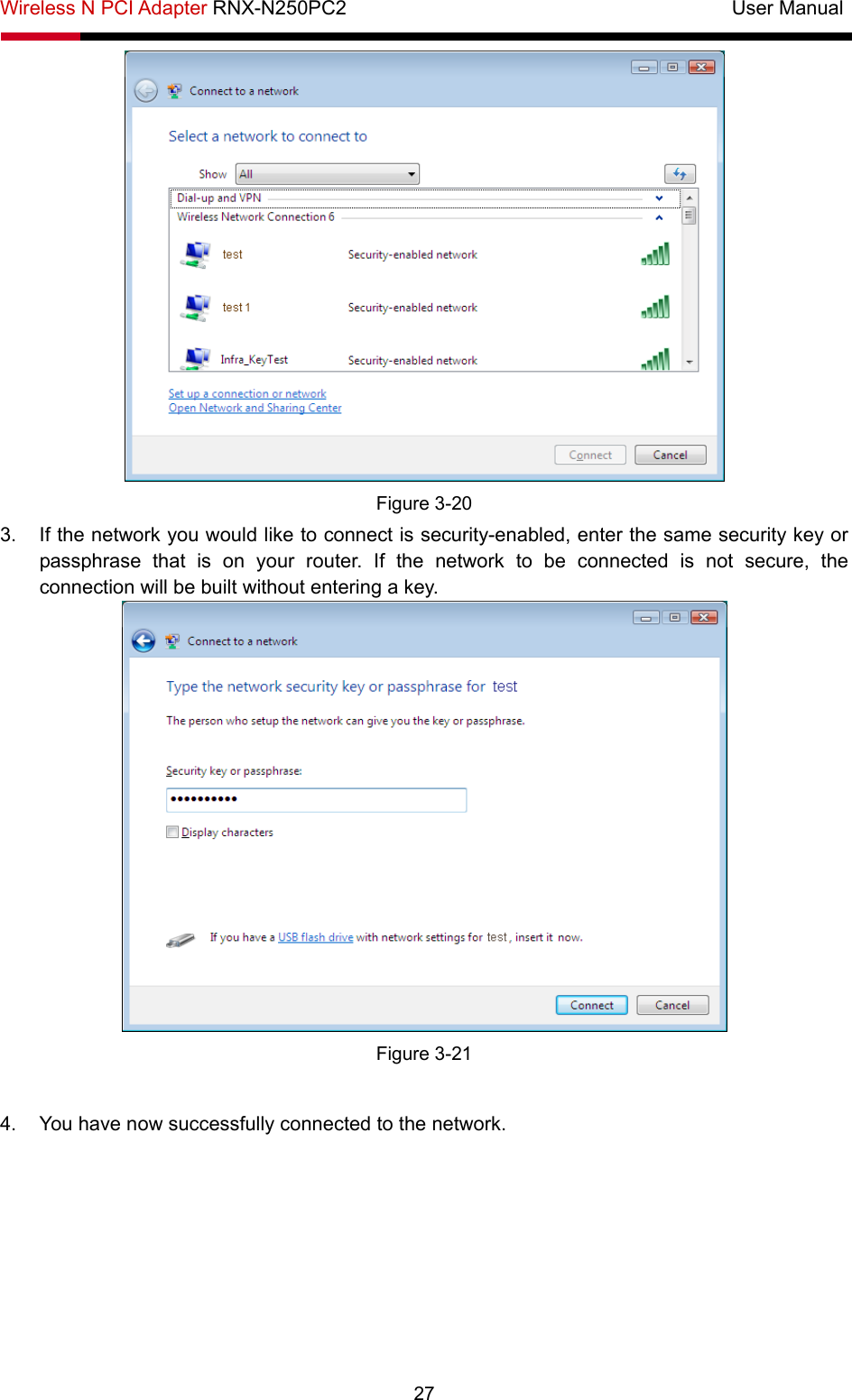

Wireless N PCI Adapter RNX-N250PC2 User Manual 27 Figure 3-20 3. If the network you would like to connect is security-enabled, enter the same security key or passphrase that is on your router. If the network to be connected is not secure, the connection will be built without entering a key. Figure 3-21 4. You have now successfully connected to the network.

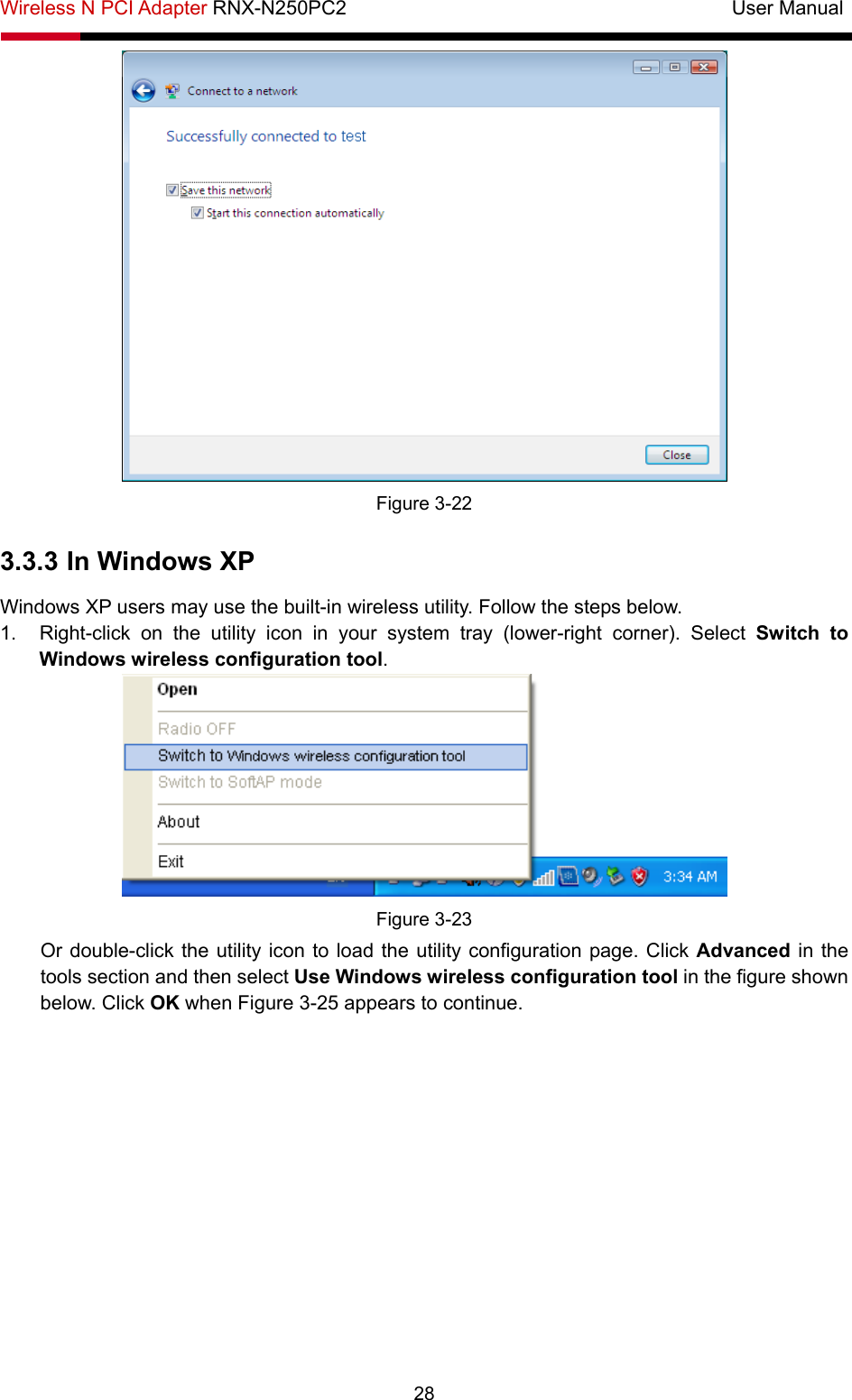

Wireless N PCI Adapter RNX-N250PC2 User Manual 28 Figure 3-22 3.3.3 In Windows XP Windows XP users may use the built-in wireless utility. Follow the steps below. 1. Right-click on the utility icon in your system tray (lower-right corner). Select Switch to Windows wireless configuration tool. Figure 3-23 Or double-click the utility icon to load the utility configuration page. Click Advanced in the tools section and then select Use Windows wireless configuration tool in the figure shown below. Click OK when Figure 3-25 appears to continue.

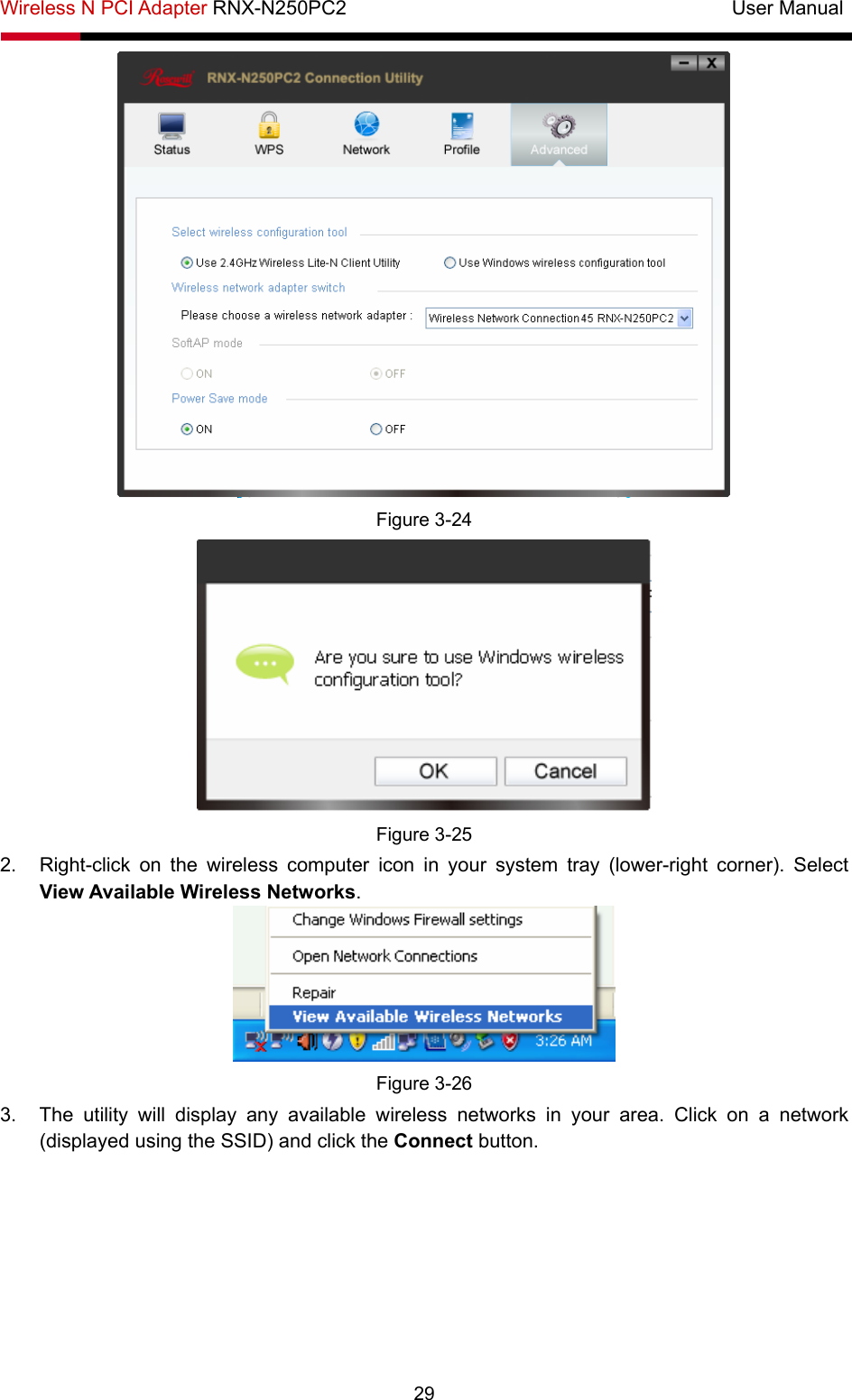

Wireless N PCI Adapter RNX-N250PC2 User Manual 29 Figure 3-24 Figure 3-25 2. Right-click on the wireless computer icon in your system tray (lower-right corner). Select View Available Wireless Networks. Figure 3-26 3. The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) and click the Connect button.

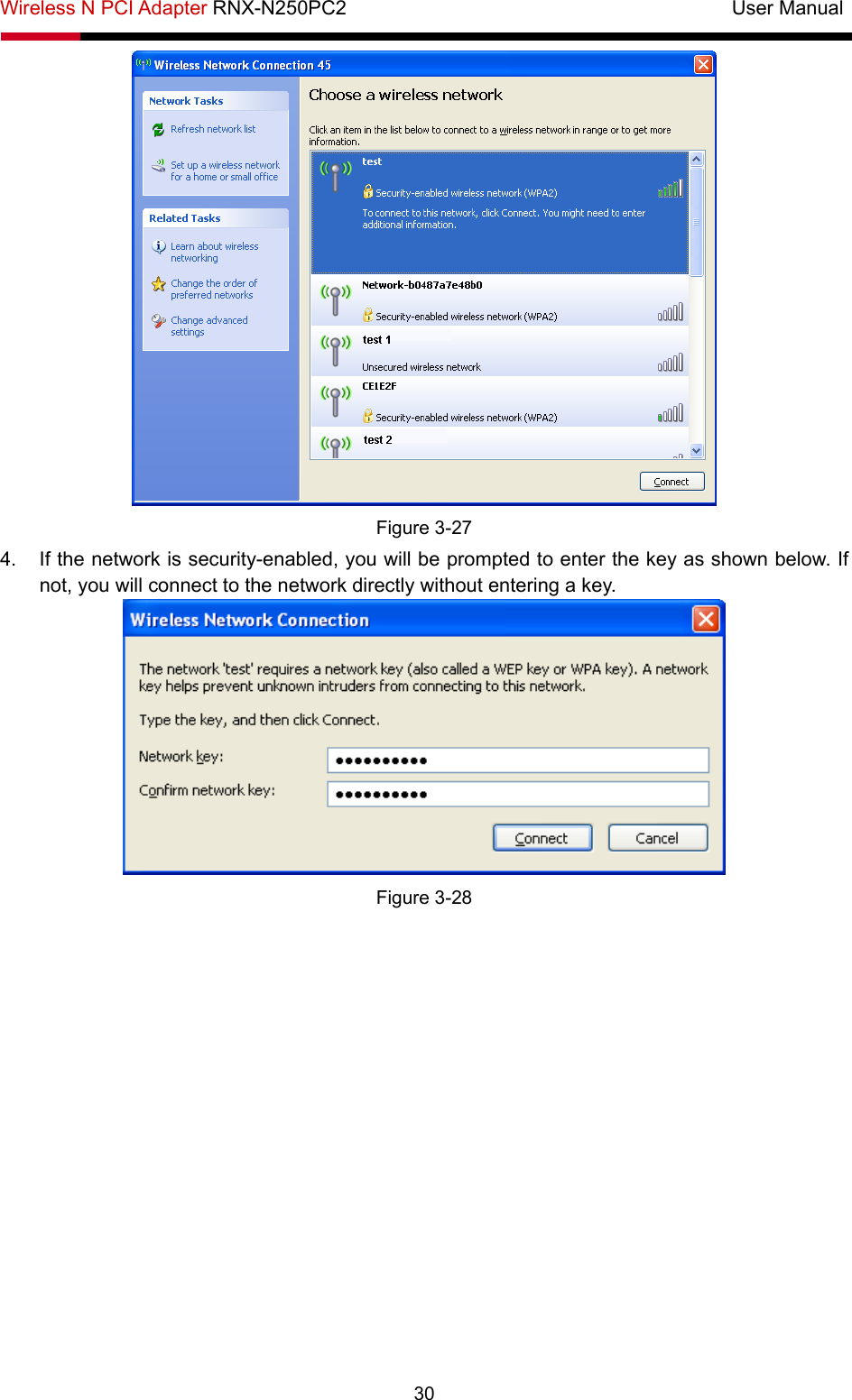

Wireless N PCI Adapter RNX-N250PC2 User Manual 30 Figure 3-27 4. If the network is security-enabled, you will be prompted to enter the key as shown below. If not, you will connect to the network directly without entering a key. Figure 3-28

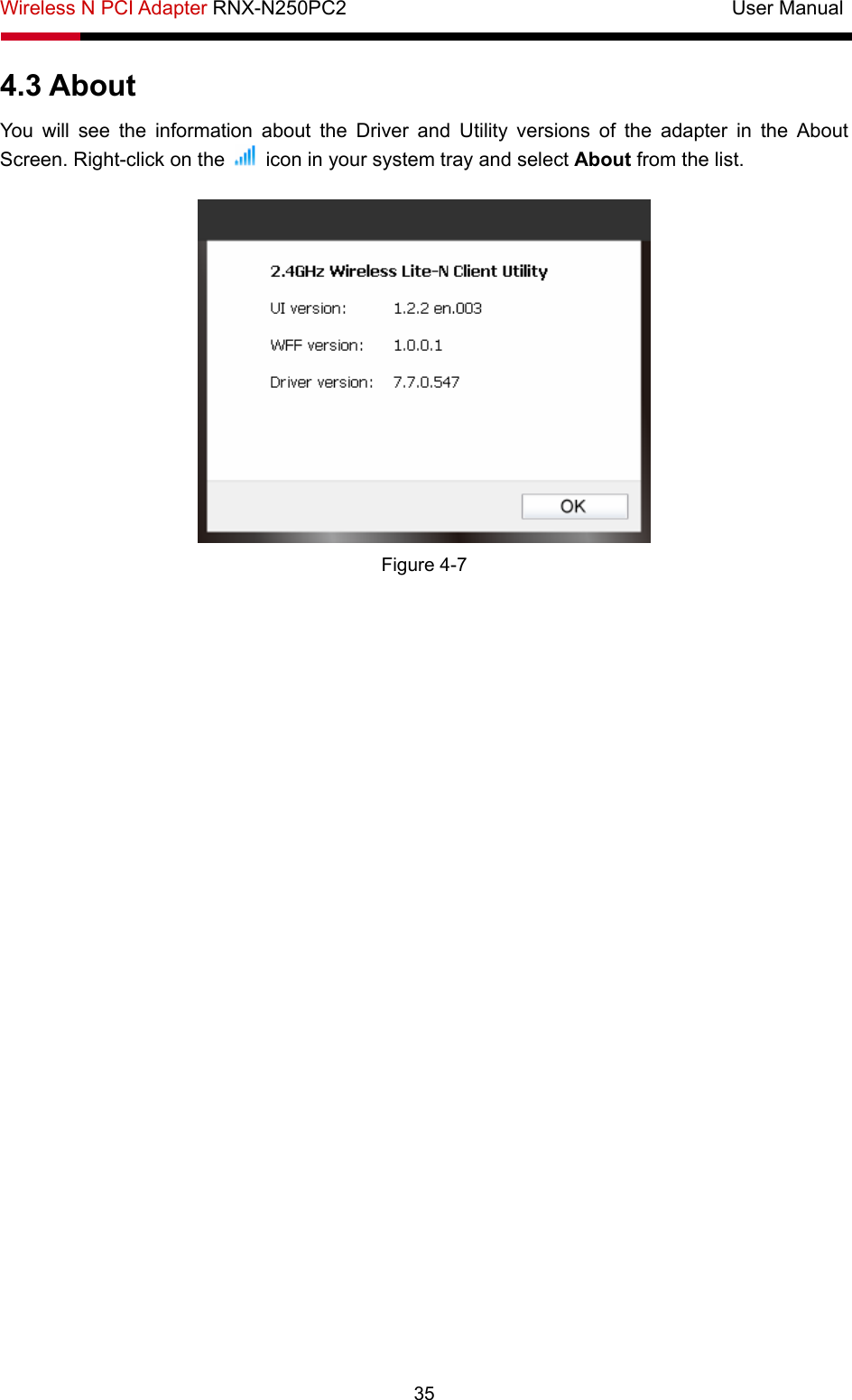

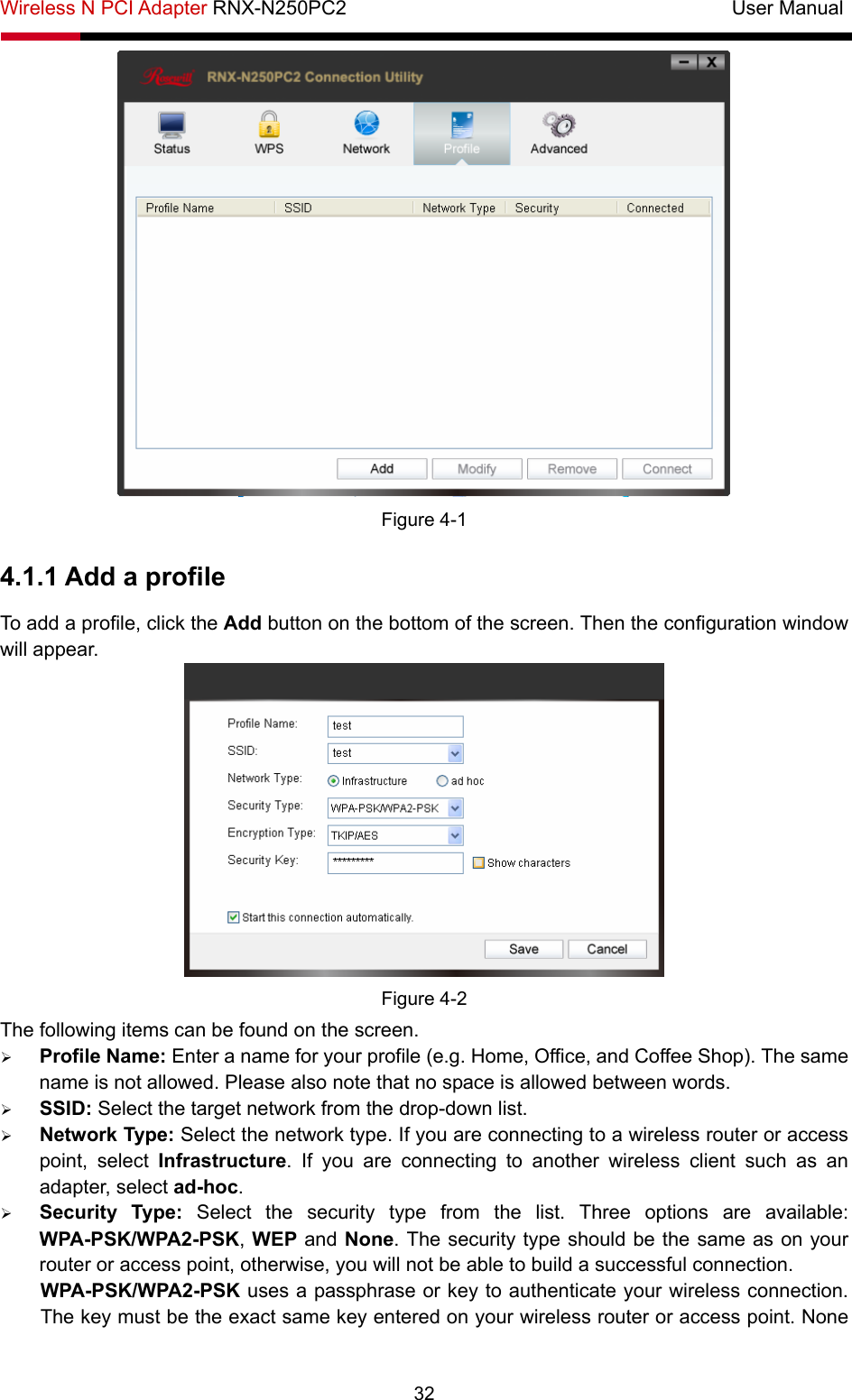

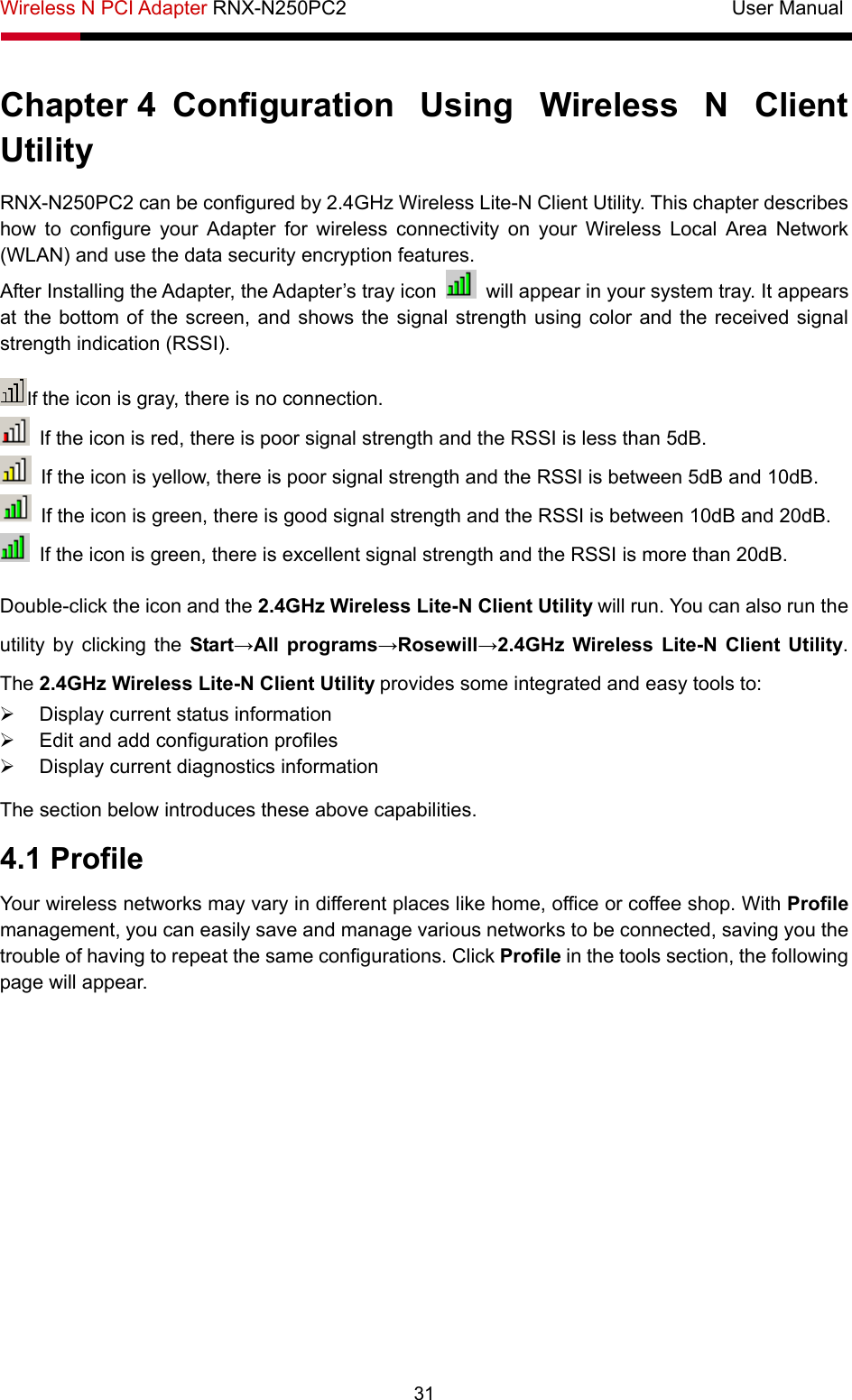

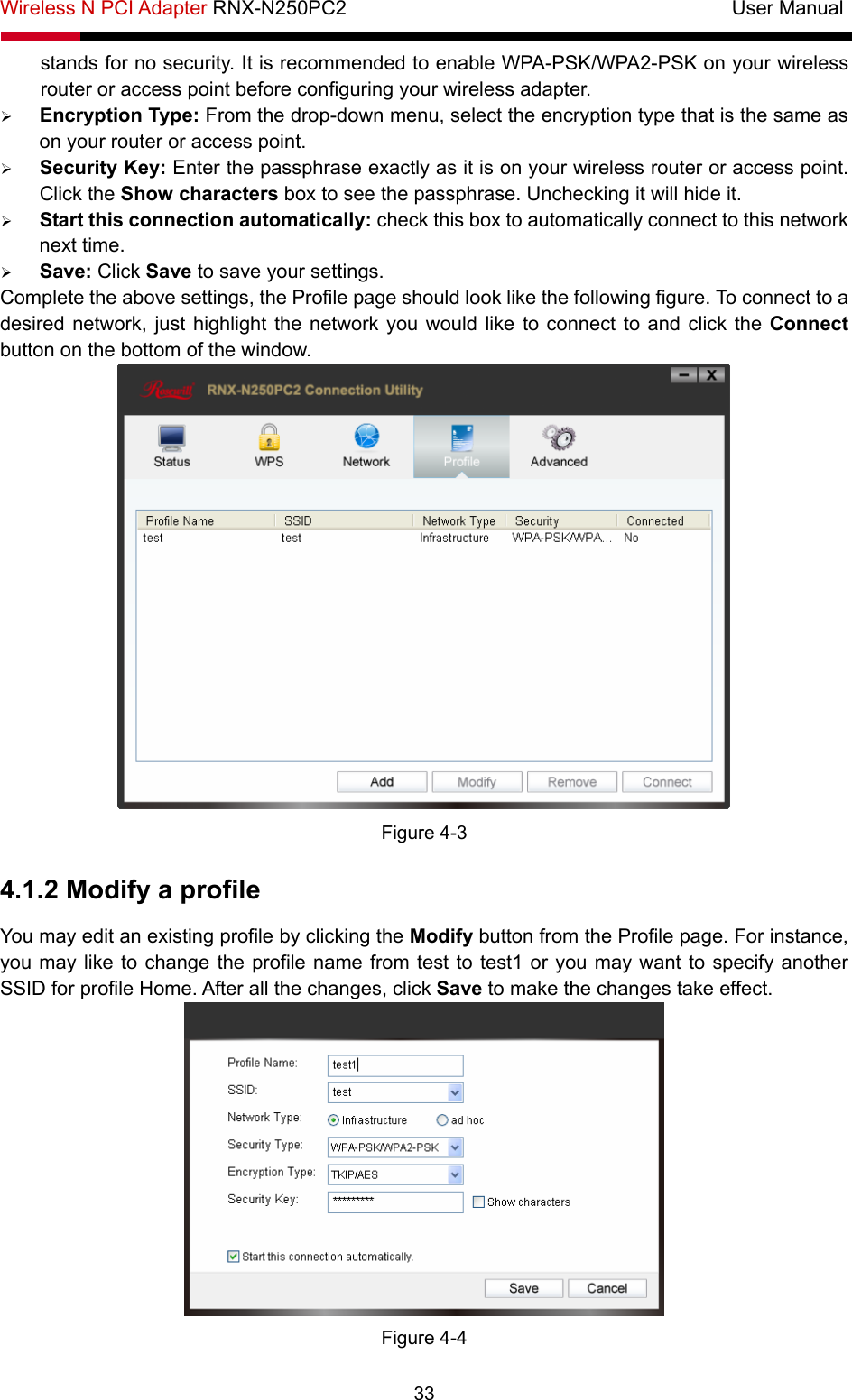

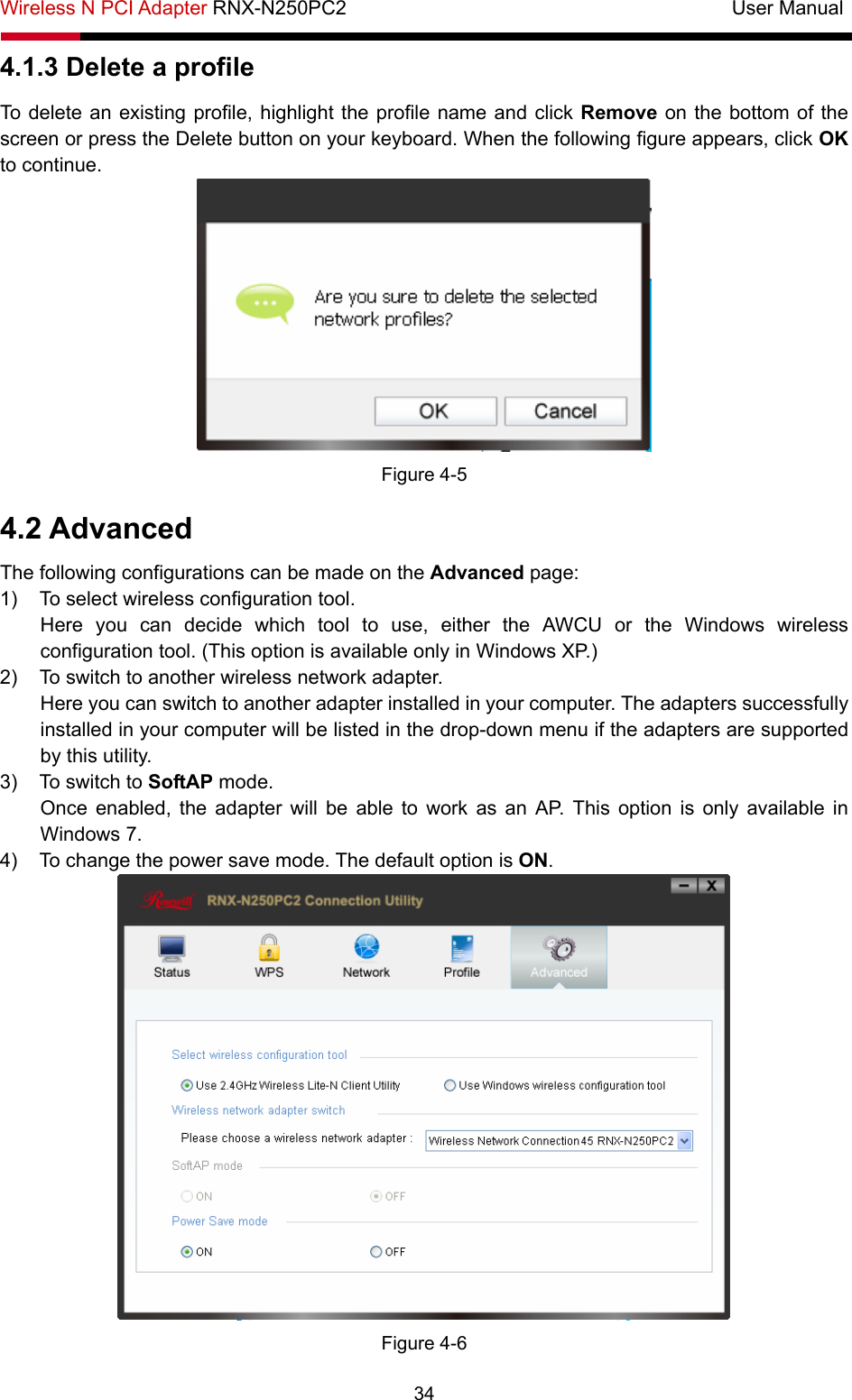

Wireless N PCI Adapter RNX-N250PC2 User Manual 35 4.3 About You will see the information about the Driver and Utility versions of the adapter in the About Screen. Right-click on the icon in your system tray and select About from the list. Figure 4-7

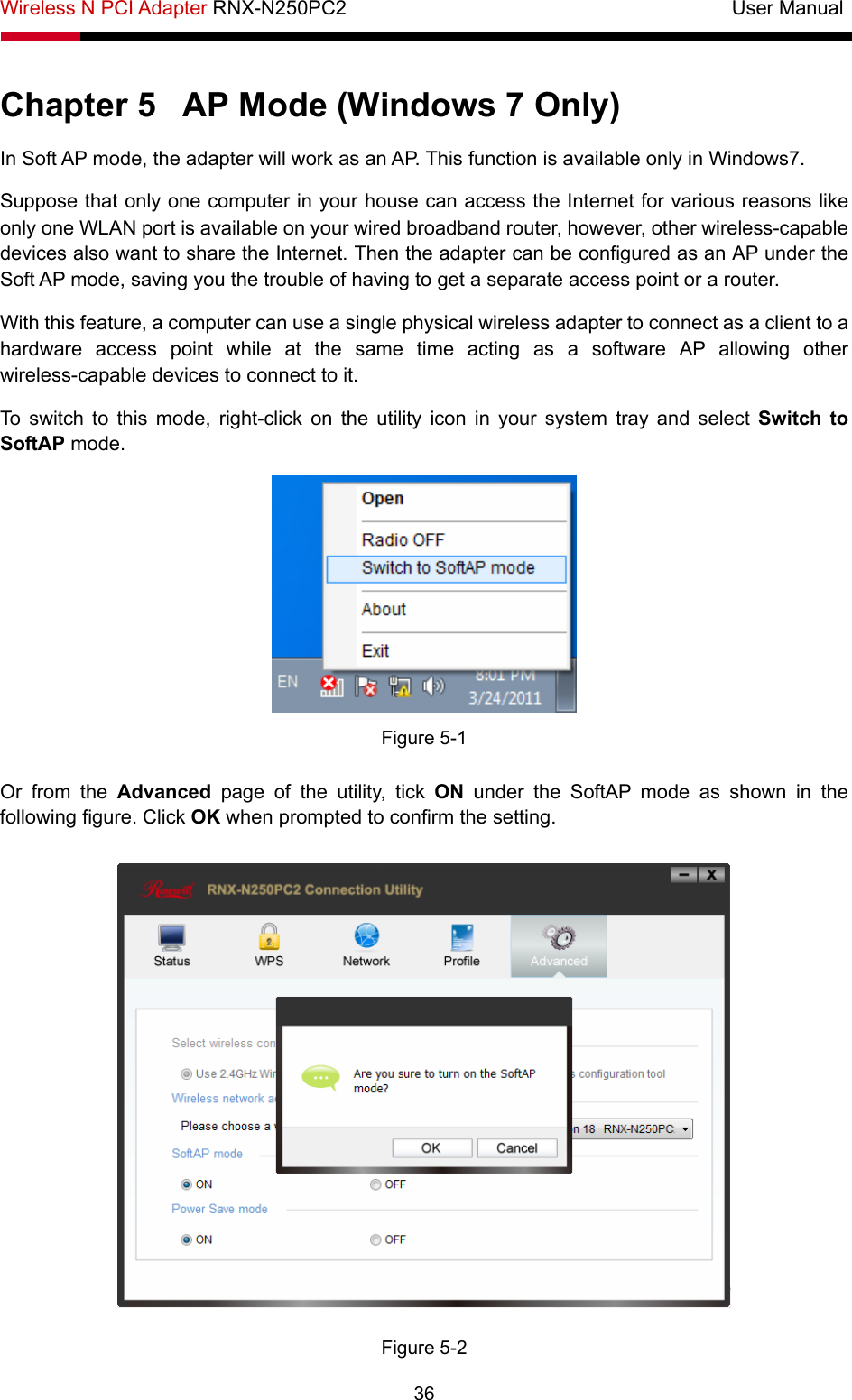

Wireless N PCI Adapter RNX-N250PC2 User Manual 36 Chapter 5 AP Mode (Windows 7 Only) In Soft AP mode, the adapter will work as an AP. This function is available only in Windows7. Suppose that only one computer in your house can access the Internet for various reasons like only one WLAN port is available on your wired broadband router, however, other wireless-capable devices also want to share the Internet. Then the adapter can be configured as an AP under the Soft AP mode, saving you the trouble of having to get a separate access point or a router. With this feature, a computer can use a single physical wireless adapter to connect as a client to a hardware access point while at the same time acting as a software AP allowing other wireless-capable devices to connect to it. To switch to this mode, right-click on the utility icon in your system tray and select Switch to SoftAP mode. Figure 5-1 Or from the Advanced page of the utility, tick ON under the SoftAP mode as shown in the following figure. Click OK when prompted to confirm the setting. Figure 5-2

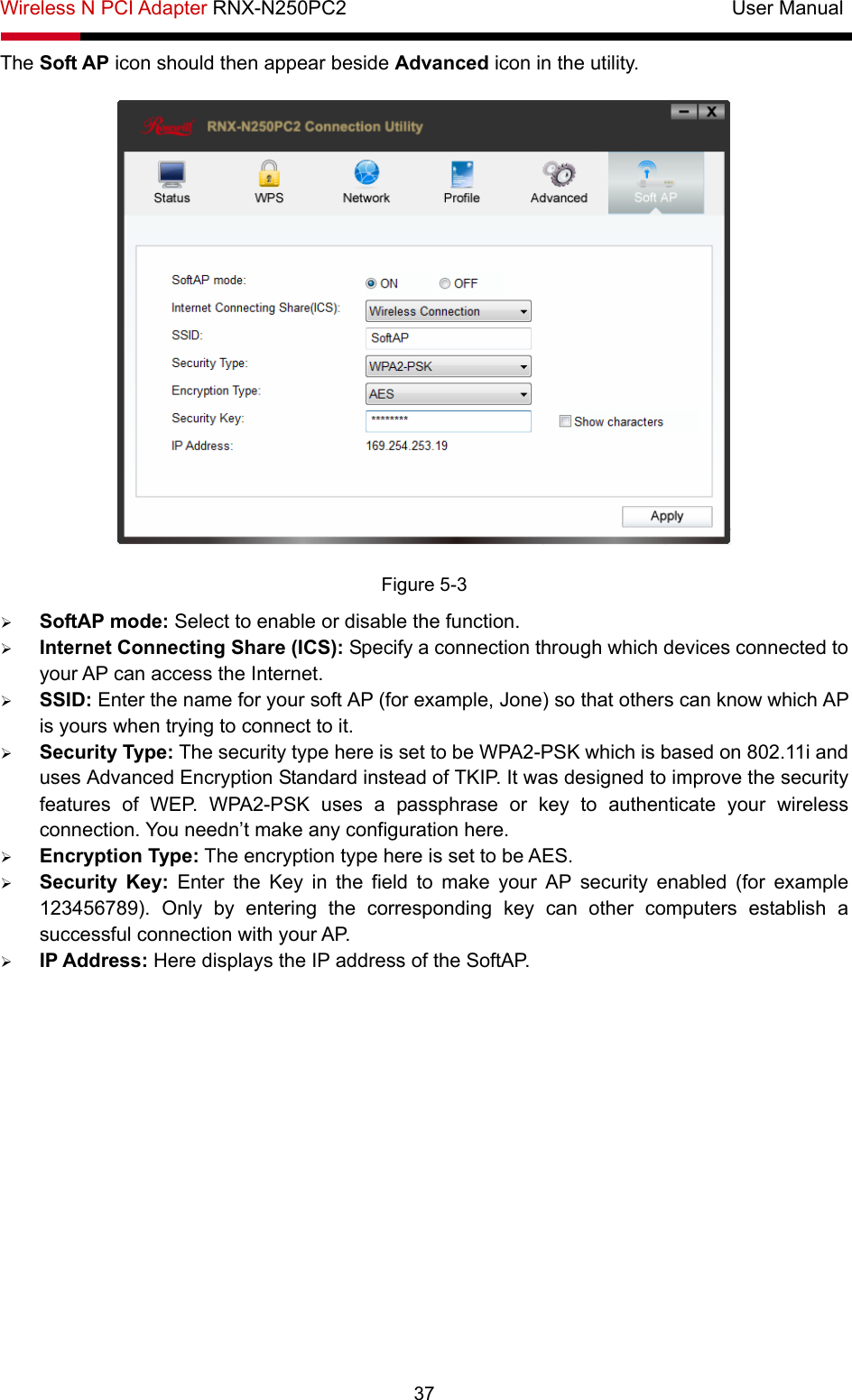

Wireless N PCI Adapter RNX-N250PC2 User Manual 37 The Soft AP icon should then appear beside Advanced icon in the utility. Figure 5-3 ¾ SoftAP mode: Select to enable or disable the function. ¾ Internet Connecting Share (ICS): Specify a connection through which devices connected to your AP can access the Internet. ¾ SSID: Enter the name for your soft AP (for example, Jone) so that others can know which AP is yours when trying to connect to it. ¾ Security Type: The security type here is set to be WPA2-PSK which is based on 802.11i and uses Advanced Encryption Standard instead of TKIP. It was designed to improve the security features of WEP. WPA2-PSK uses a passphrase or key to authenticate your wireless connection. You needn’t make any configuration here. ¾ Encryption Type: The encryption type here is set to be AES. ¾ Security Key: Enter the Key in the field to make your AP security enabled (for example 123456789). Only by entering the corresponding key can other computers establish a successful connection with your AP. ¾ IP Address: Here displays the IP address of the SoftAP.

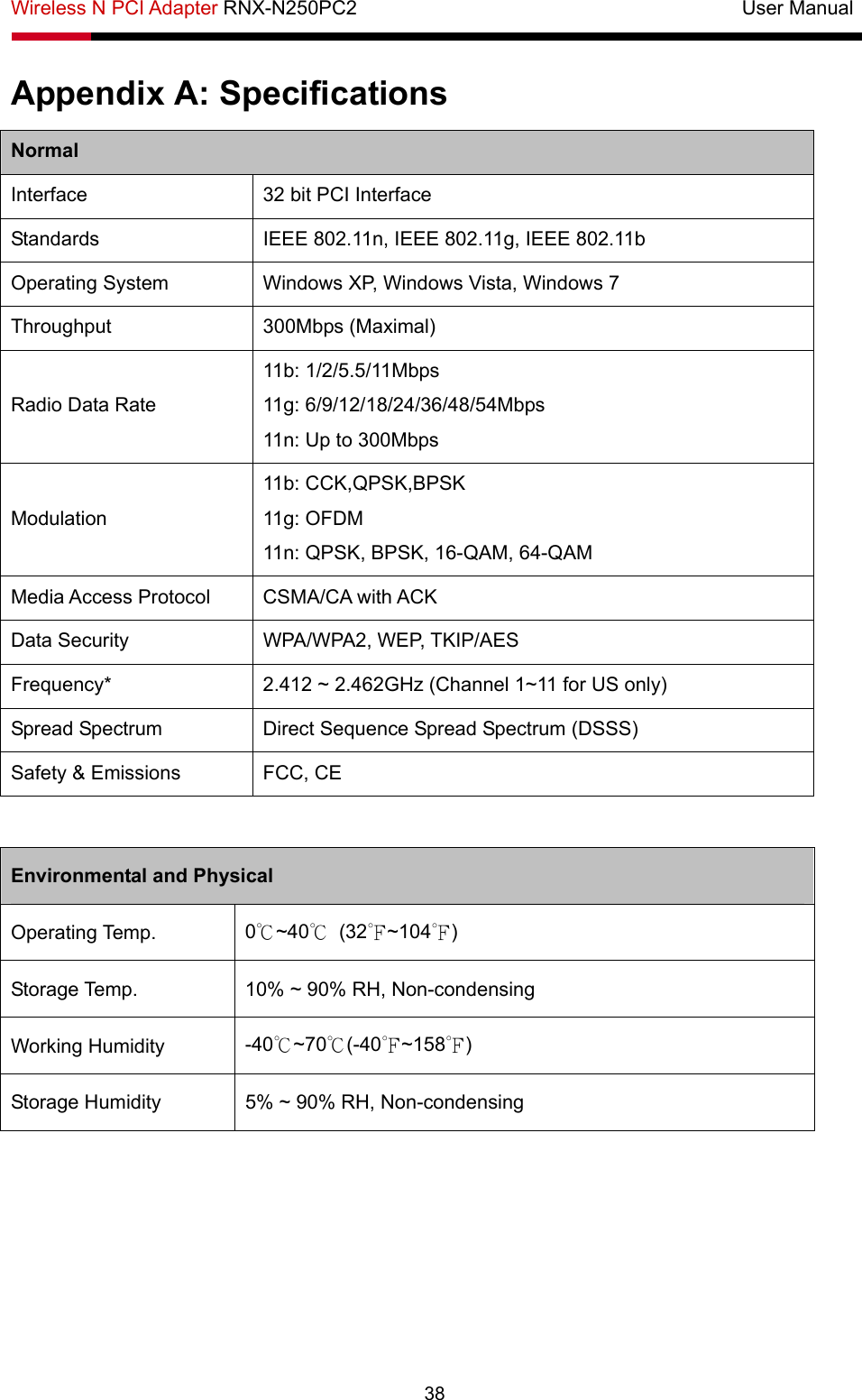

Wireless N PCI Adapter RNX-N250PC2 User Manual 38 Appendix A: Specifications Normal Interface 32 bit PCI Interface Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Operating System Windows XP, Windows Vista, Windows 7 Throughput 300Mbps (Maximal) Radio Data Rate 11b: 1/2/5.5/11Mbps 11g: 6/9/12/18/24/36/48/54Mbps 11n: Up to 300Mbps Modulation 11b: CCK,QPSK,BPSK 11g: OFDM 11n: QPSK, BPSK, 16-QAM, 64-QAM Media Access Protocol CSMA/CA with ACK Data Security WPA/WPA2, WEP, TKIP/AES Frequency* 2.412 ~ 2.462GHz (Channel 1~11 for US only) Spread Spectrum Direct Sequence Spread Spectrum (DSSS) Safety & Emissions FCC, CE Environmental and Physical Operating Temp. 0℃~40℃ (32℉~104℉) Storage Temp. 10% ~ 90% RH, Non-condensing Working Humidity -40℃~70℃(-40℉~158℉) Storage Humidity 5% ~ 90% RH, Non-condensing

Wireless N PCI Adapter RNX-N250PC2 User Manual 39 Appendix B: Glossary ¾ 802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks. ¾ 802.11g- specification for wireless networking at 54 Mbps using direct-sequence spread-spectrum (DSSS) technology, using OFDM modulation and operating in the unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices, and WEP encryption for security. ¾ Ad-hoc Network - An ad-hoc network is a group of computers, each with a Wireless Adapter, connected as an independent 802.11 wireless LAN. Ad-hoc wireless computers operate on a peer-to-peer basis, communicating directly with each other without the use of an access point. Ad-hoc mode is also referred to as an Independent Basic Service Set (IBSS) or as peer-to-peer mode, and is useful at a departmental scale or SOHO operation. ¾ DSSS - (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit pattern for all data transmitted. This bit pattern is called a chip (or chipping code). Even if one or more bits in the chip are damaged during transmission, statistical techniques embedded in the receiver can recover the original data without the need of retransmission. To an unintended receiver, DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband receivers. However, to an intended receiver (i.e. another wireless LAN endpoint), the DSSS signal is recognized as the only valid signal, and interference is inherently rejected (ignored). ¾ FHSS - (Frequency Hopping Spread Spectrum) - FHSS continuously changes (hops) the carrier frequency of a conventional carrier several times per second according to a pseudo-random set of channels. Because a fixed frequency is not used, and only the transmitter and receiver know the hop patterns, interception of FHSS is extremely difficult. ¾ Infrastructure Network - An infrastructure network is a group of computers or other devices, each with a Wireless Adapter, connected as an 802.11 wireless LAN. In infrastructure mode, the wireless devices communicate with each other and to a wired network by first going through an access point. An infrastructure wireless network connected to a wired network is referred to as a Basic Service Set (BSS). A set of two or more BSS in a single network is referred to as an Extended Service Set (ESS). Infrastructure mode is useful at a corporation scale, or when it is necessary to connect the wired and wireless networks. ¾ Spread Spectrum - Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS). ¾ SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is

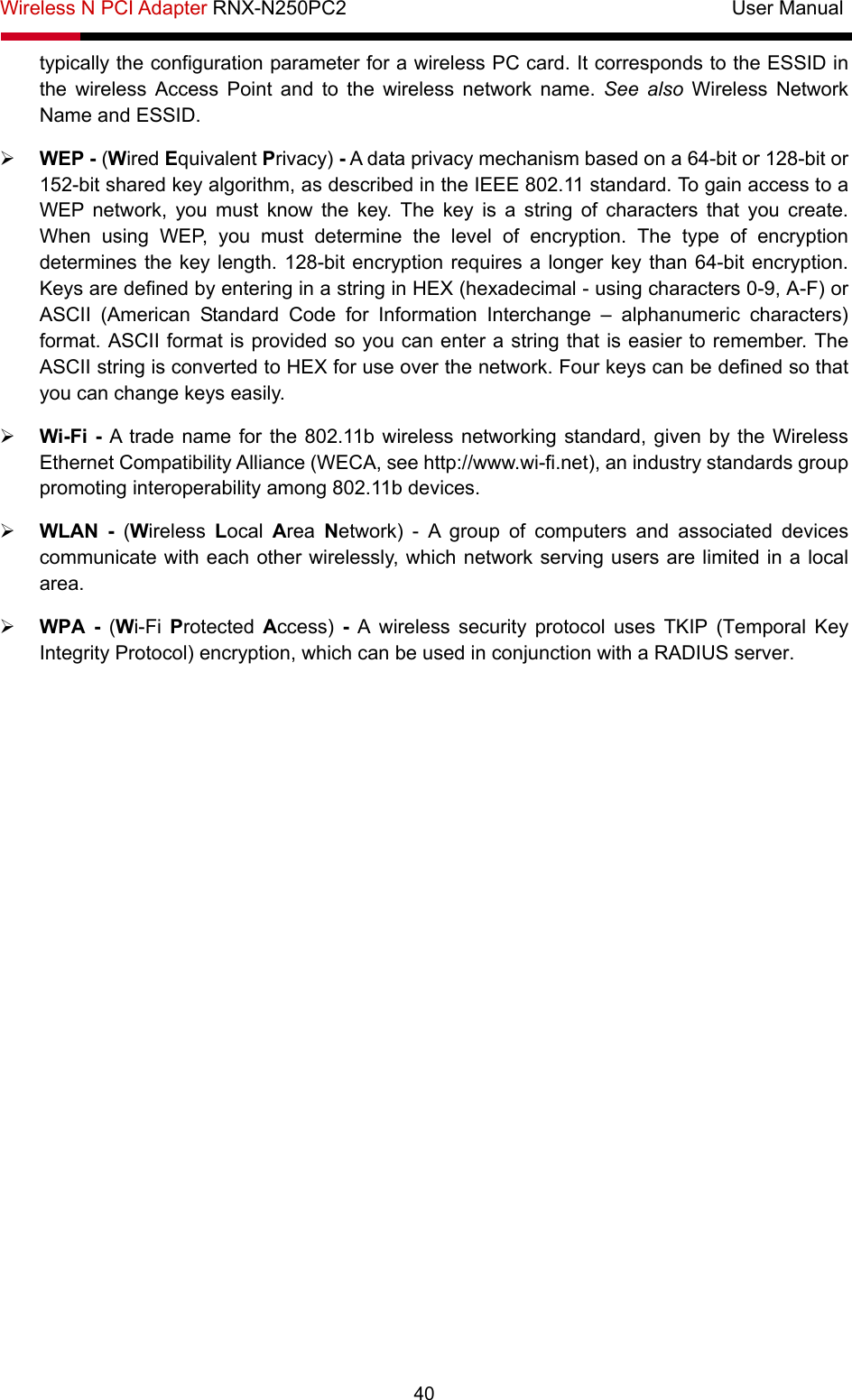

Wireless N PCI Adapter RNX-N250PC2 User Manual 40 typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in the wireless Access Point and to the wireless network name. See also Wireless Network Name and ESSID. ¾ WEP - (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or 152-bit shared key algorithm, as described in the IEEE 802.11 standard. To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-bit encryption. Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard Code for Information Interchange – alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is converted to HEX for use over the network. Four keys can be defined so that you can change keys easily. ¾ Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group promoting interoperability among 802.11b devices. ¾ WLAN - (Wireless Local Area Network) - A group of computers and associated devices communicate with each other wirelessly, which network serving users are limited in a local area. ¾ WPA - (Wi-Fi Protected Access) - A wireless security protocol uses TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

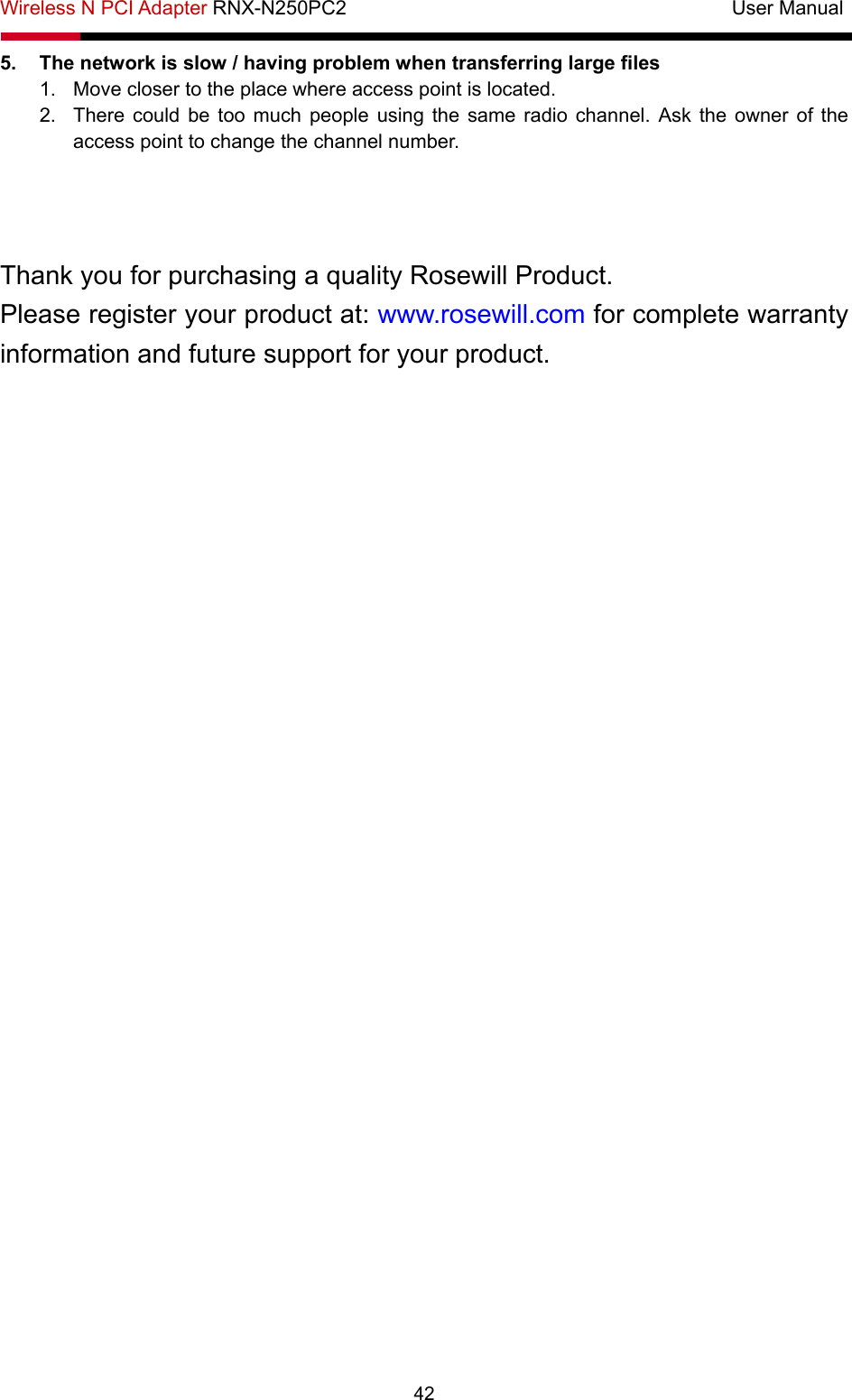

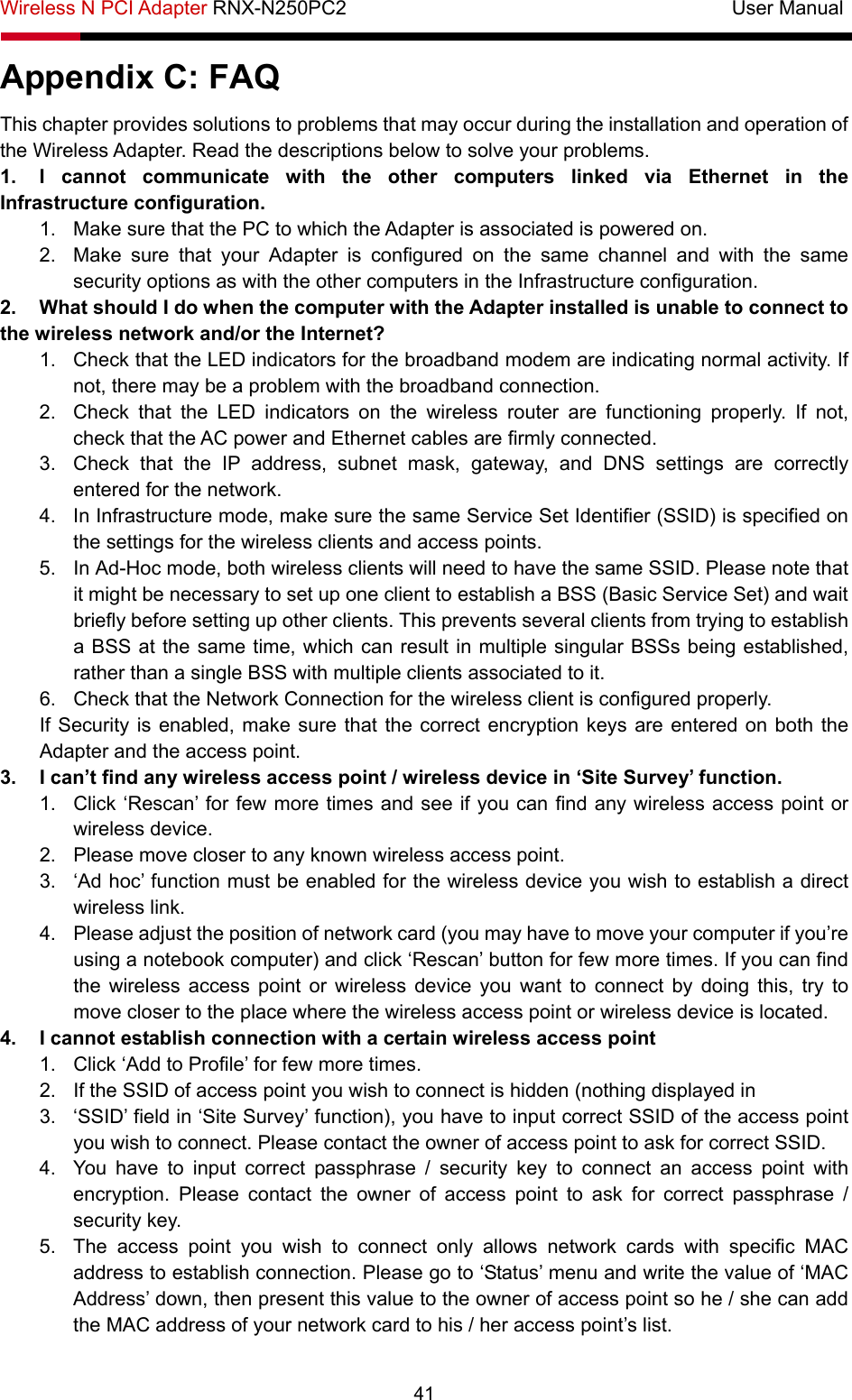

Wireless N PCI Adapter RNX-N250PC2 User Manual 42 5. The network is slow / having problem when transferring large files 1. Move closer to the place where access point is located. 2. There could be too much people using the same radio channel. Ask the owner of the access point to change the channel number. Thank you for purchasing a quality Rosewill Product. Please register your product at: www.rosewill.com for complete warranty information and future support for your product.
