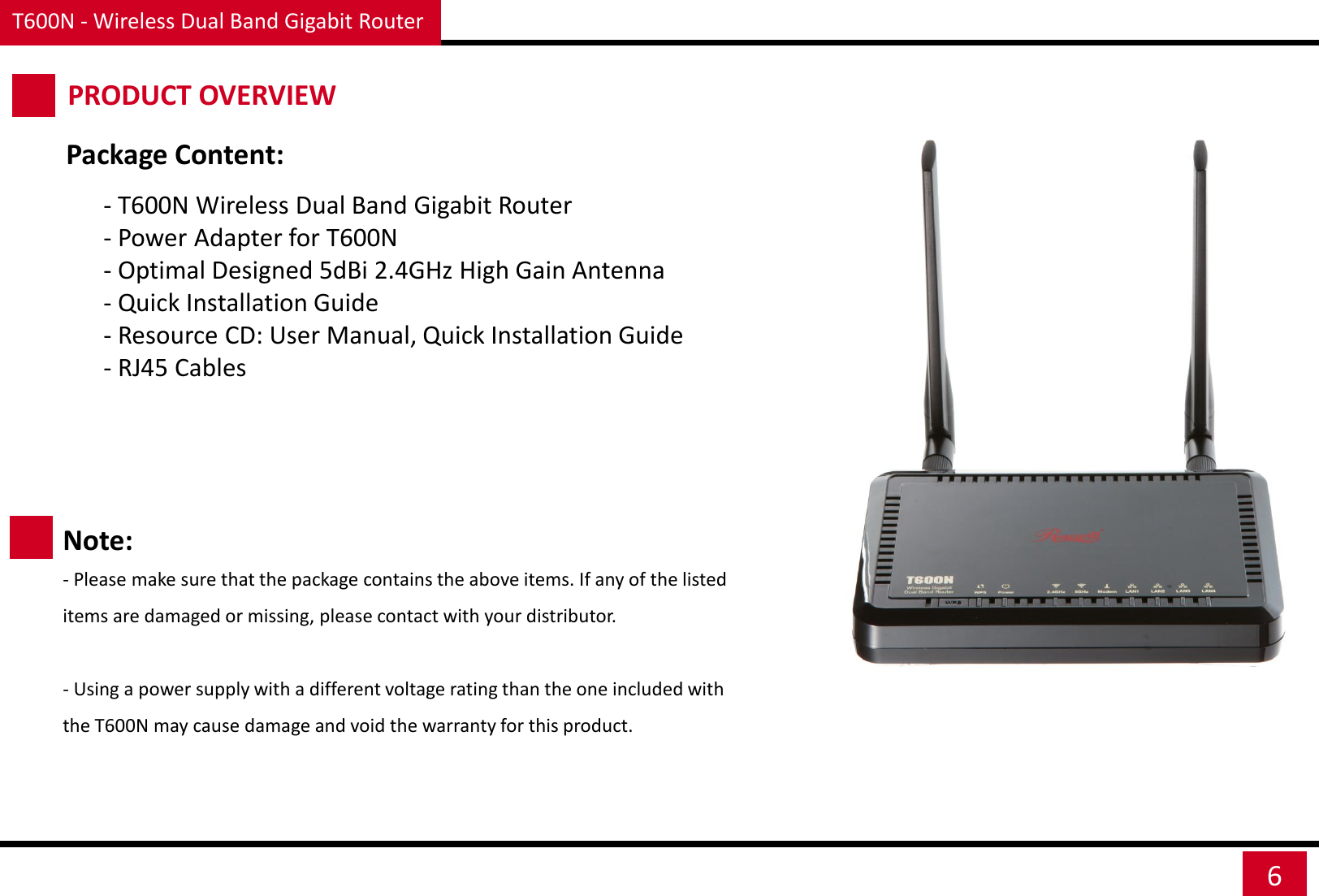

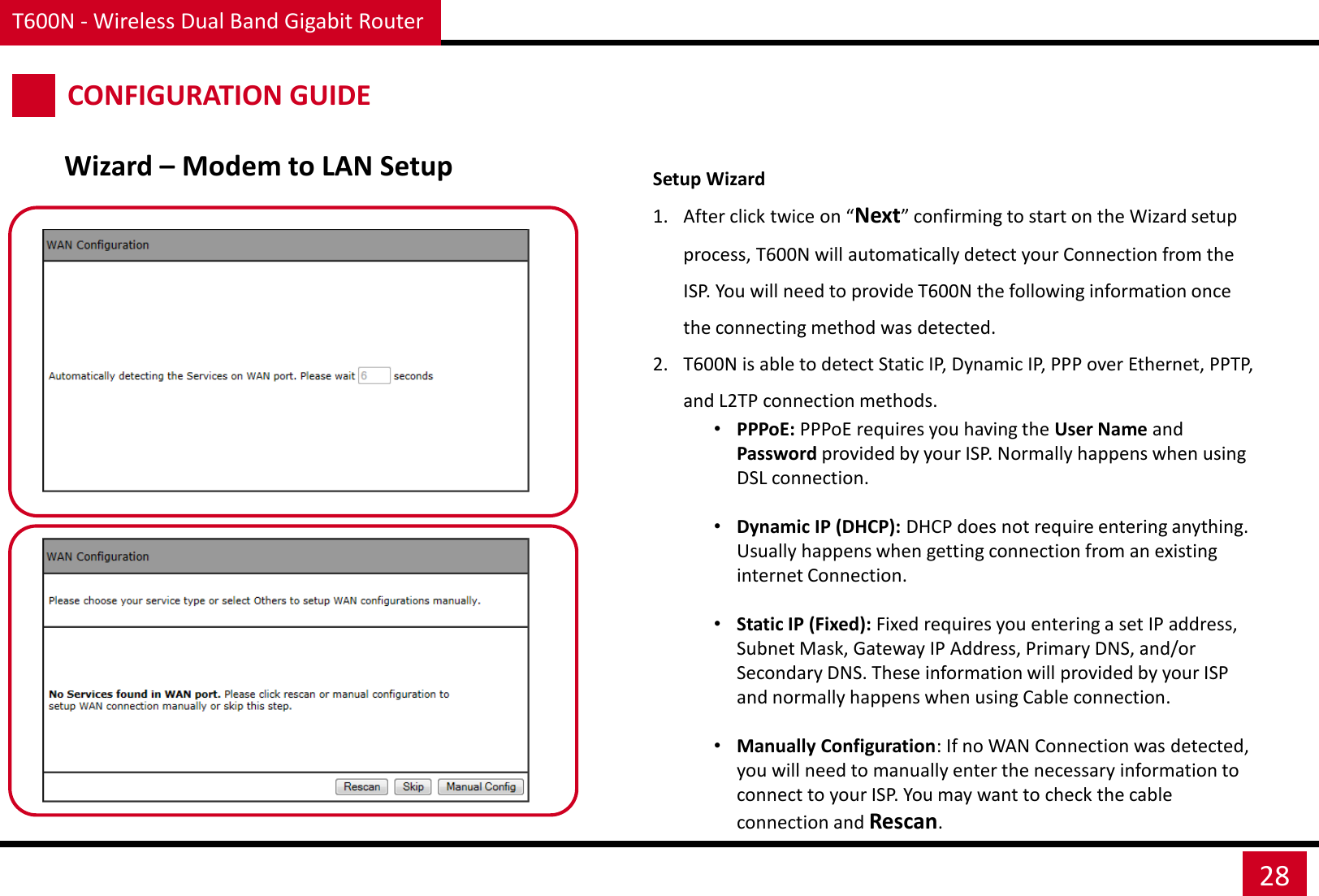

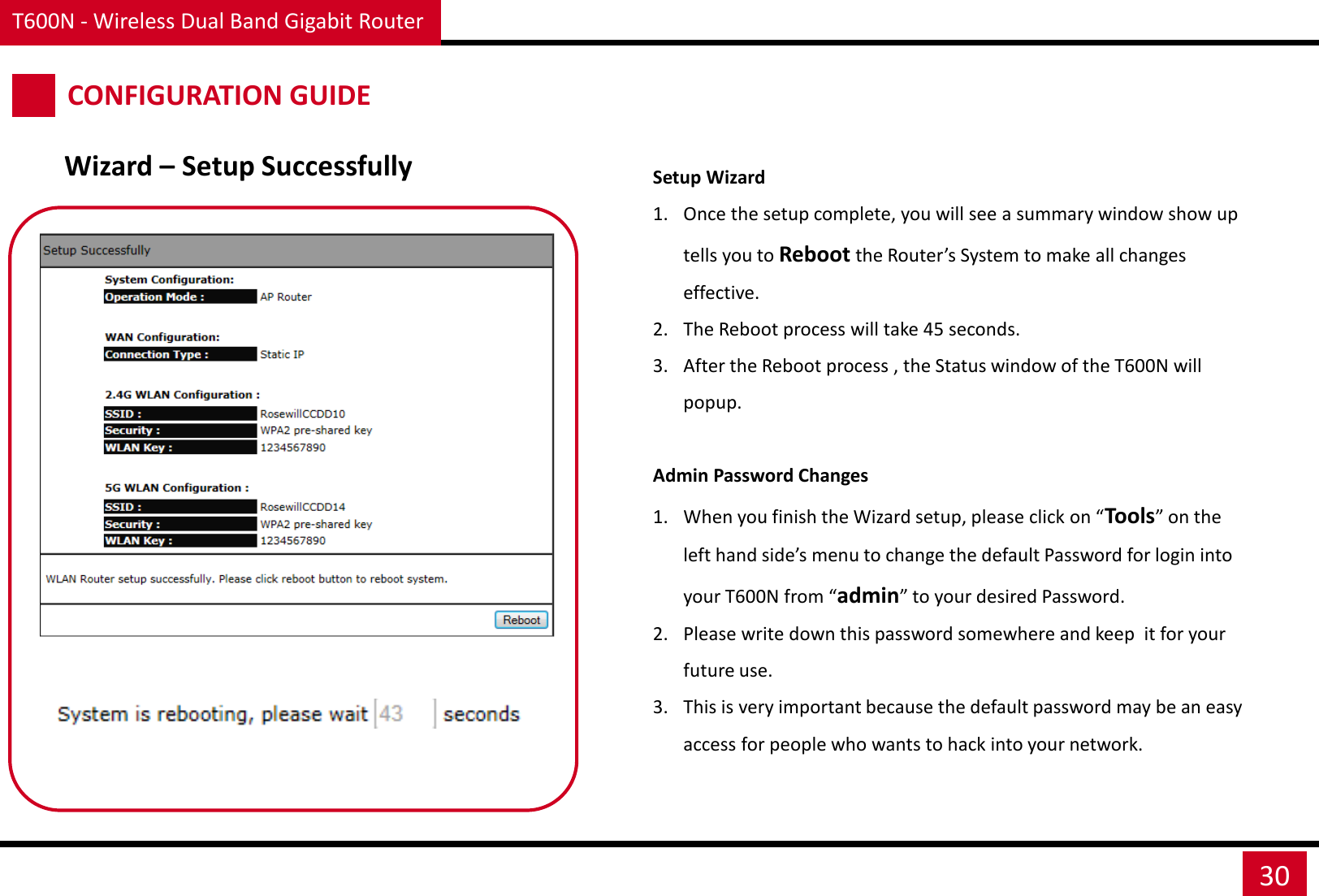

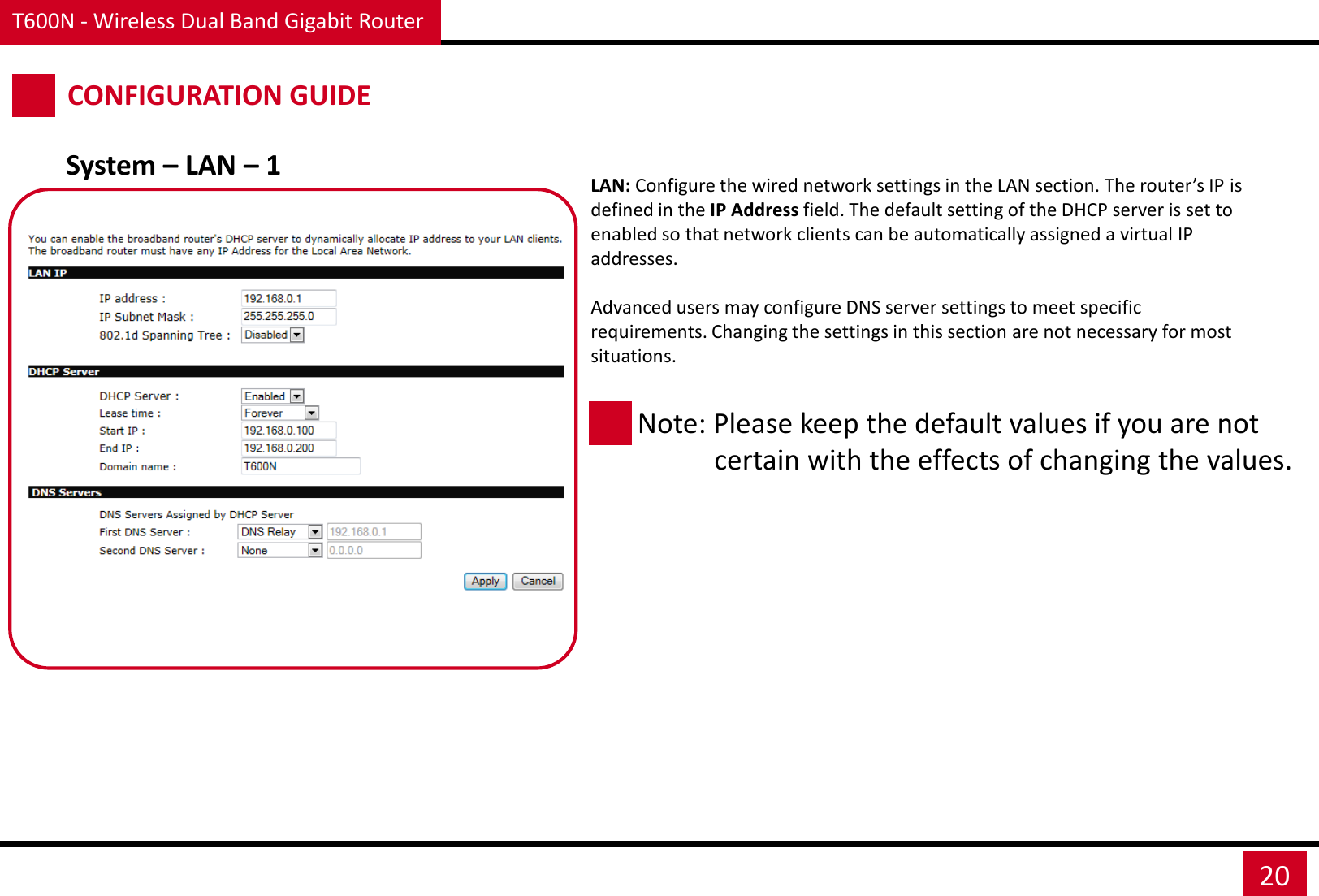

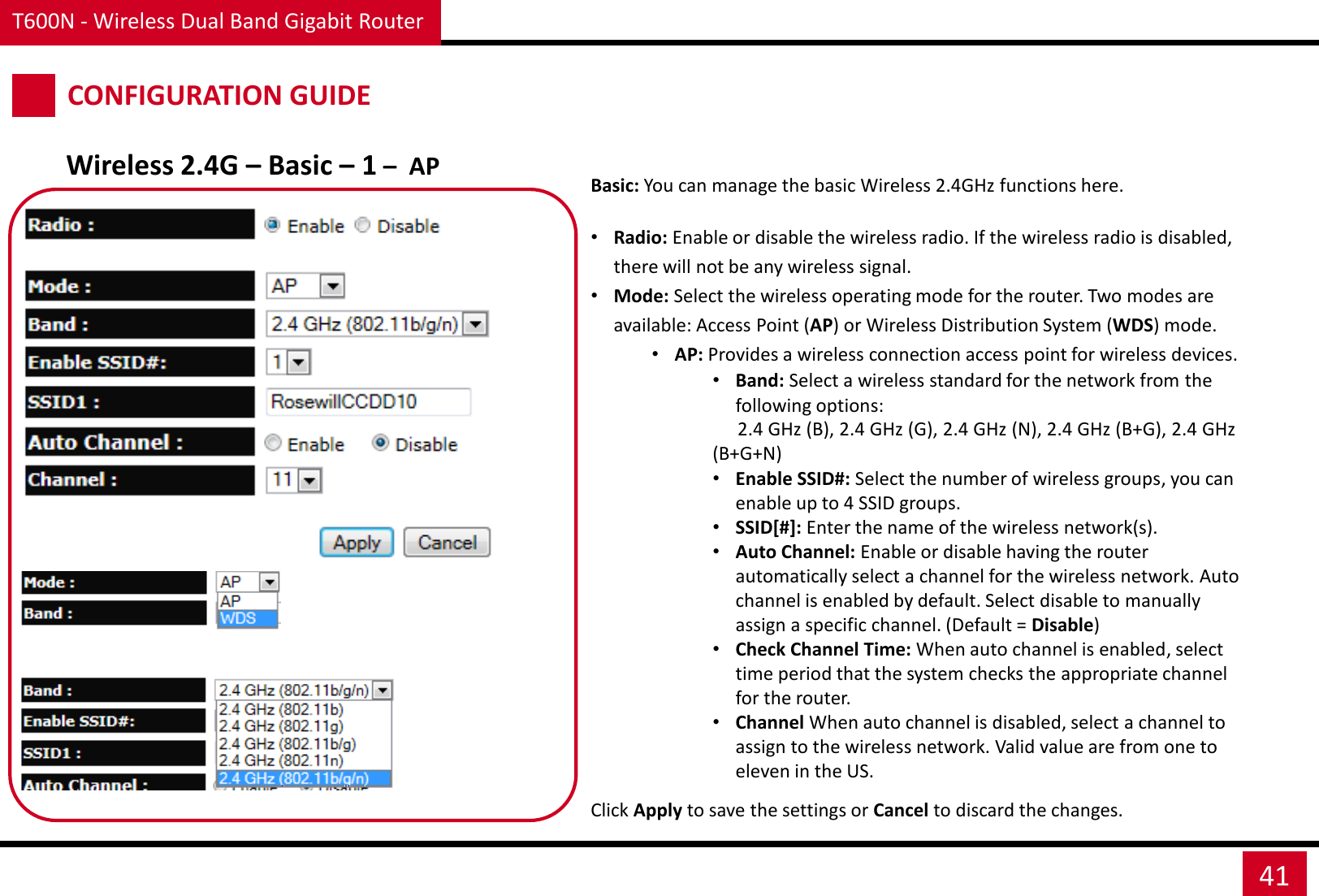

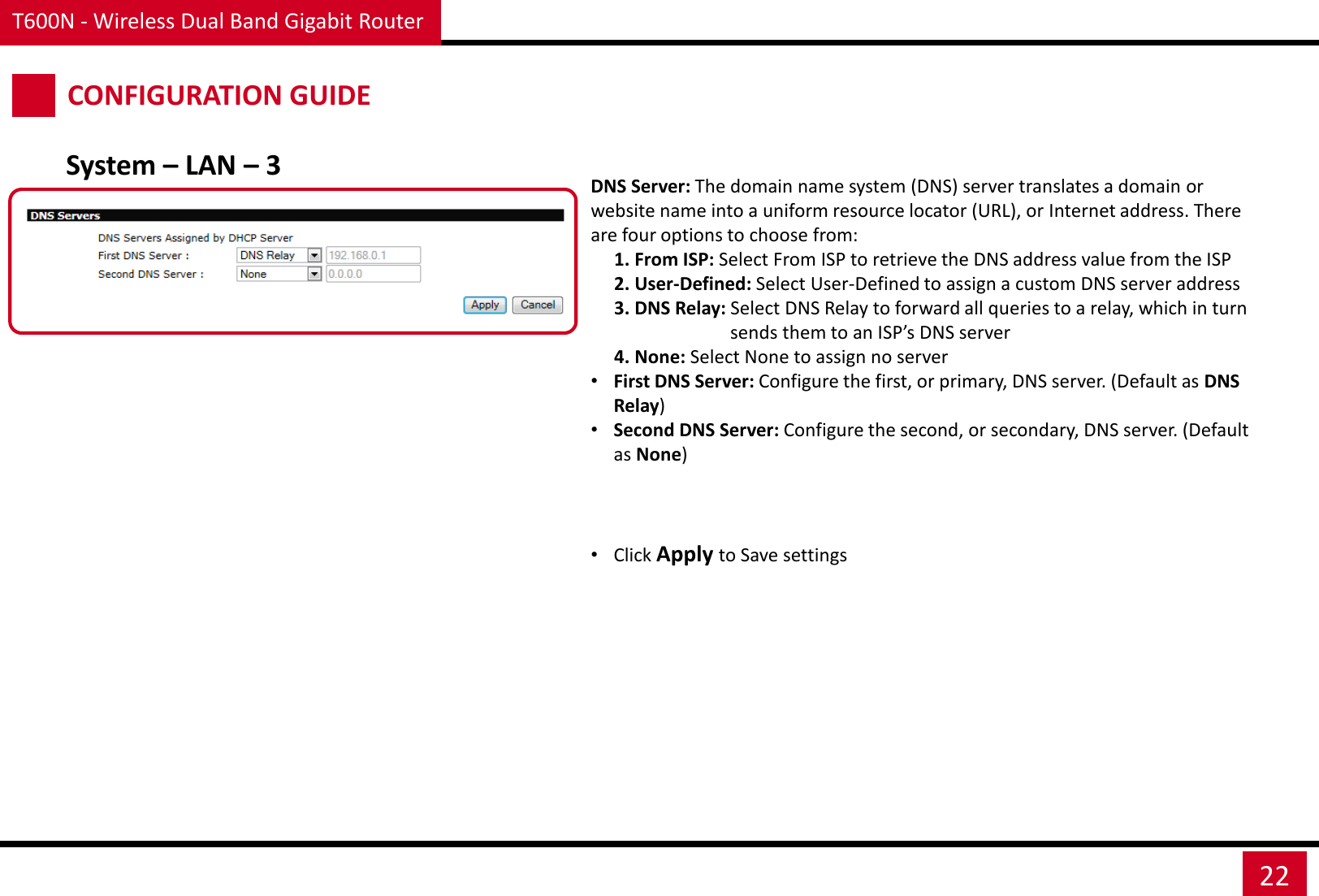

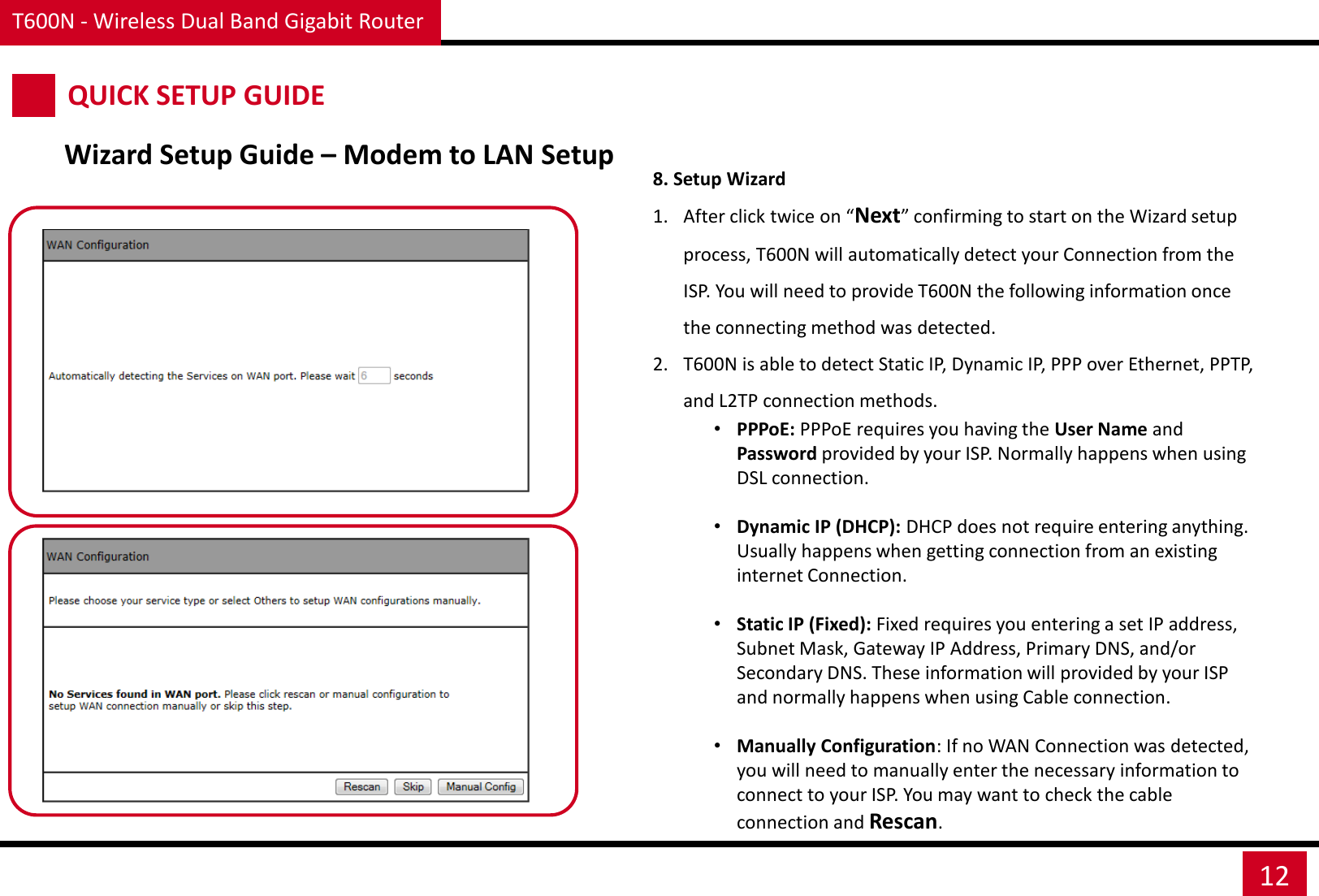

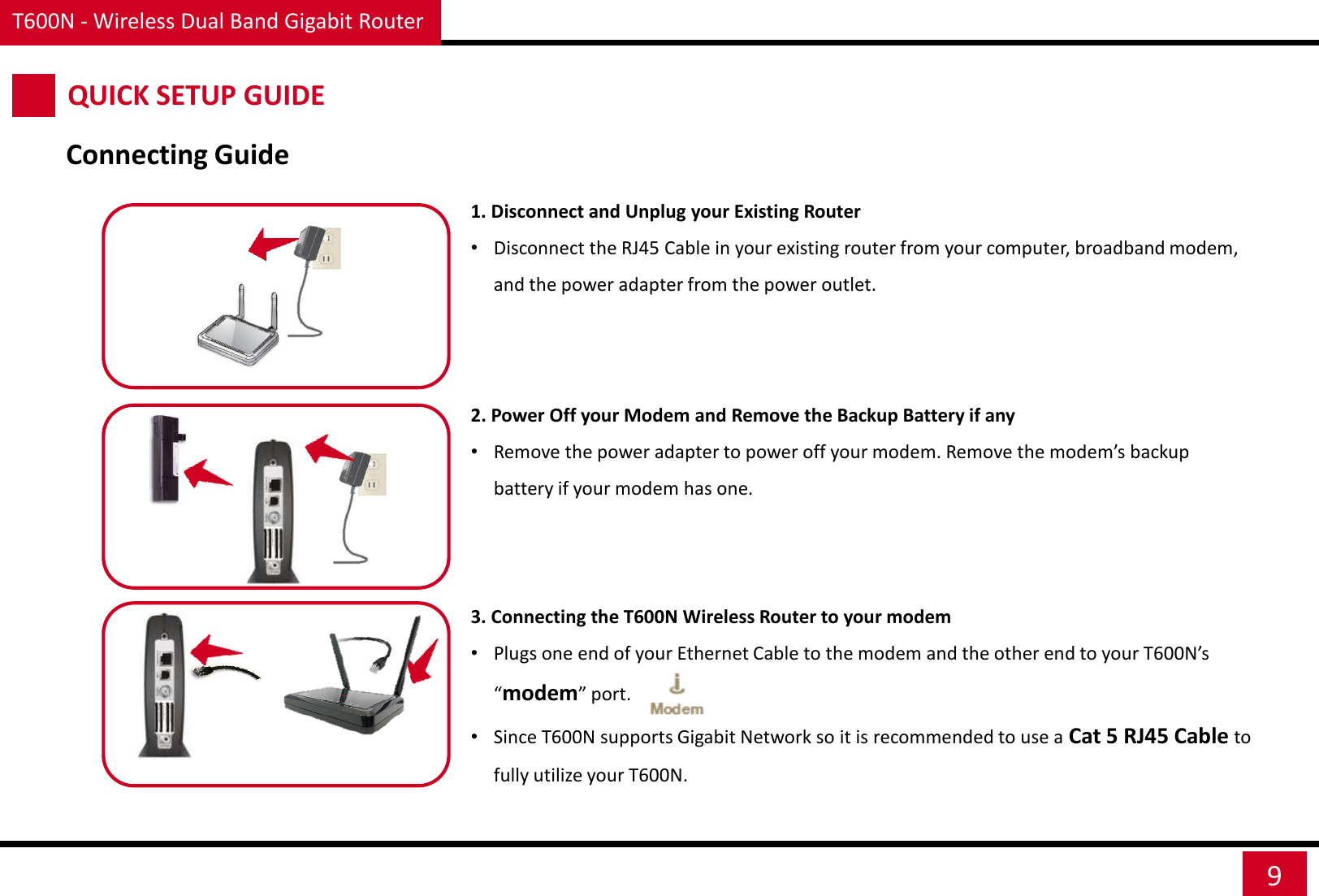

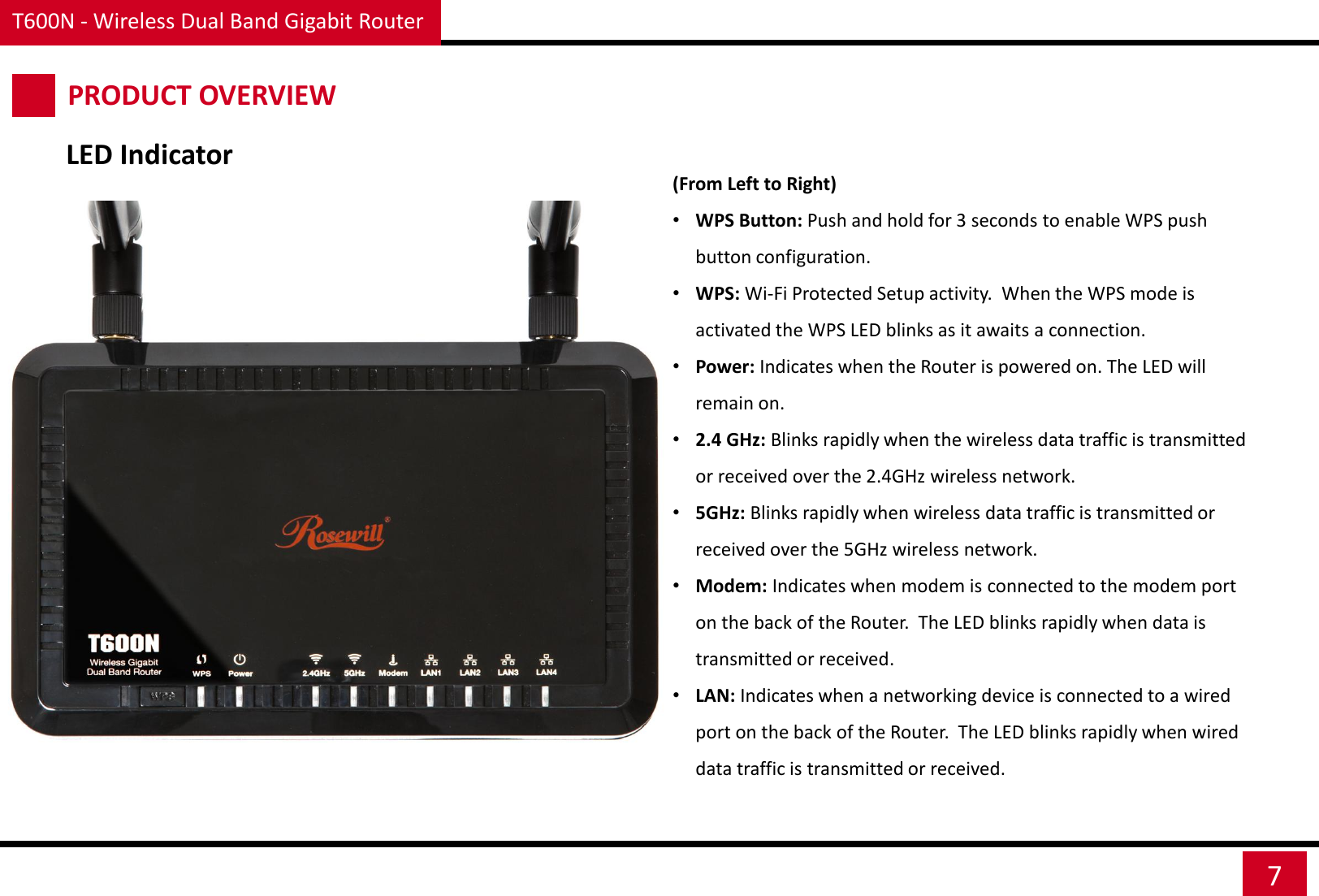

![T600N - Wireless Dual Band Gigabit Router 41 CONFIGURATION GUIDE Wireless 2.4G – Basic – 1 – AP Basic: You can manage the basic Wireless 2.4GHz functions here. •Radio: Enable or disable the wireless radio. If the wireless radio is disabled, there will not be any wireless signal. •Mode: Select the wireless operating mode for the router. Two modes are available: Access Point (AP) or Wireless Distribution System (WDS) mode. •AP: Provides a wireless connection access point for wireless devices. •Band: Select a wireless standard for the network from the following options: 2.4 GHz (B), 2.4 GHz (G), 2.4 GHz (N), 2.4 GHz (B+G), 2.4 GHz (B+G+N) •Enable SSID#: Select the number of wireless groups, you can enable up to 4 SSID groups. •SSID[#]: Enter the name of the wireless network(s). •Auto Channel: Enable or disable having the router automatically select a channel for the wireless network. Auto channel is enabled by default. Select disable to manually assign a specific channel. (Default = Disable) •Check Channel Time: When auto channel is enabled, select time period that the system checks the appropriate channel for the router. •Channel When auto channel is disabled, select a channel to assign to the wireless network. Valid value are from one to eleven in the US. Click Apply to save the settings or Cancel to discard the changes.](https://usermanual.wiki/Rosewill/T600N/User-Guide-1872562-Page-41.png)

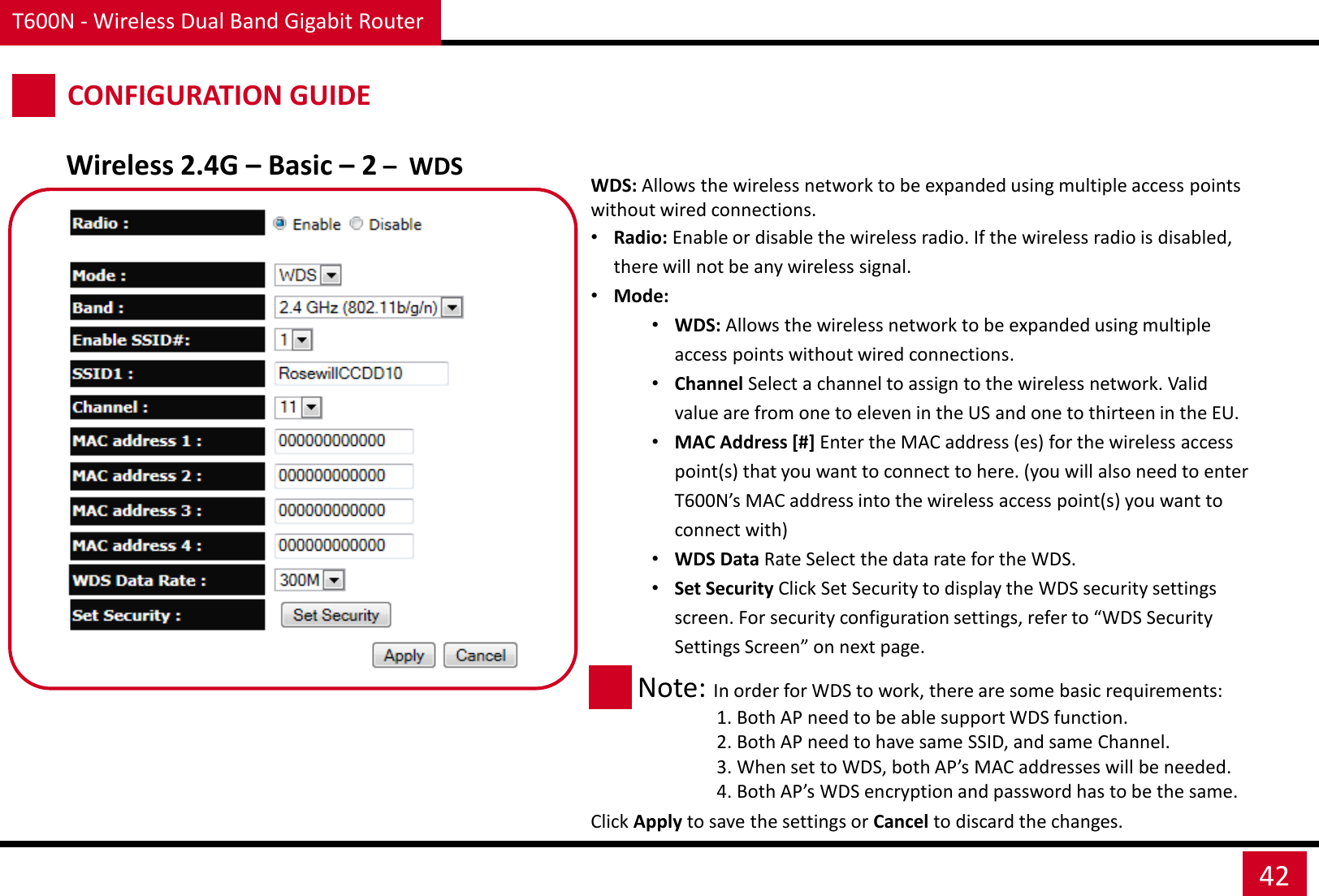

![T600N - Wireless Dual Band Gigabit Router 42 CONFIGURATION GUIDE Wireless 2.4G – Basic – 2 – WDS WDS: Allows the wireless network to be expanded using multiple access points without wired connections. •Radio: Enable or disable the wireless radio. If the wireless radio is disabled, there will not be any wireless signal. •Mode: •WDS: Allows the wireless network to be expanded using multiple access points without wired connections. •Channel Select a channel to assign to the wireless network. Valid value are from one to eleven in the US and one to thirteen in the EU. •MAC Address [#] Enter the MAC address (es) for the wireless access point(s) that you want to connect to here. (you will also need to enter T600N’s MAC address into the wireless access point(s) you want to connect with) •WDS Data Rate Select the data rate for the WDS. •Set Security Click Set Security to display the WDS security settings screen. For security configuration settings, refer to “WDS Security Settings Screen” on next page. Note: In order for WDS to work, there are some basic requirements: 1. Both AP need to be able support WDS function. 2. Both AP need to have same SSID, and same Channel. 3. When set to WDS, both AP’s MAC addresses will be needed. 4. Both AP’s WDS encryption and password has to be the same. Click Apply to save the settings or Cancel to discard the changes.](https://usermanual.wiki/Rosewill/T600N/User-Guide-1872562-Page-42.png)
![T600N - Wireless Dual Band Gigabit Router 43 CONFIGURATION GUIDE Wireless 2.4G – Basic – 3 – WDS Security WDS: Allows the wireless network to be expanded using multiple access points without wired connections. •Set Security: You should see a popup window when click on Set Security. Please enter the same Encryption method and password of the device that you want to connect to. •WDS: Allows the wireless network to be expanded using multiple access points without wired connections. •Channel Select a channel to assign to the wireless network. Valid value are from one to eleven in the US and one to thirteen in the EU. •MAC Address [#] Enter the MAC address(es) for the wireless access point(s) that are part of the WDS. •WDS Data Rate Select the data rate for the WDS. •Set Security Click Set Security to display the WDS security settings screen. For security configuration settings, refer to “WDS Security Settings Screen” on next page. Click Apply to save the settings or Cancel to discard the changes.](https://usermanual.wiki/Rosewill/T600N/User-Guide-1872562-Page-43.png)

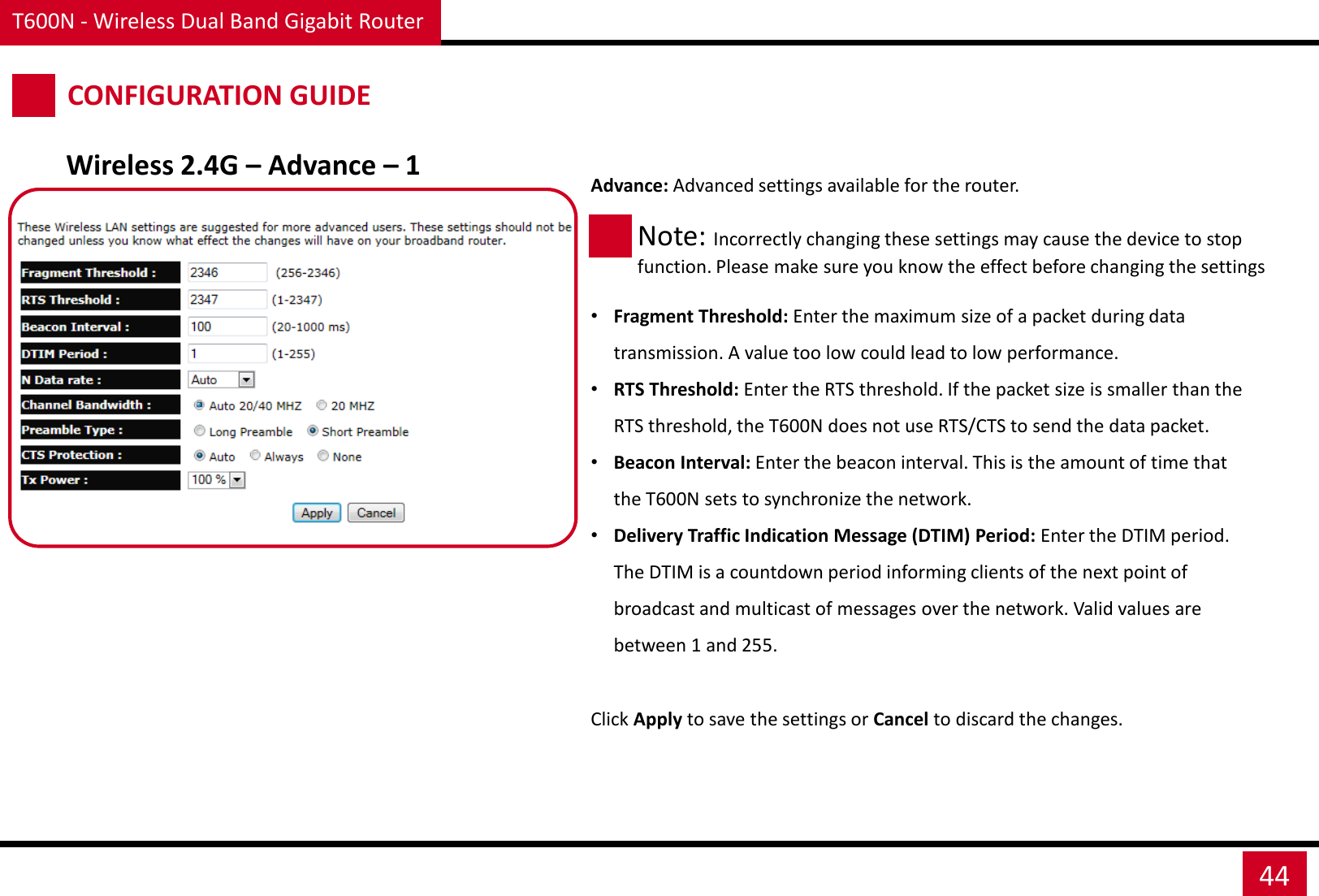

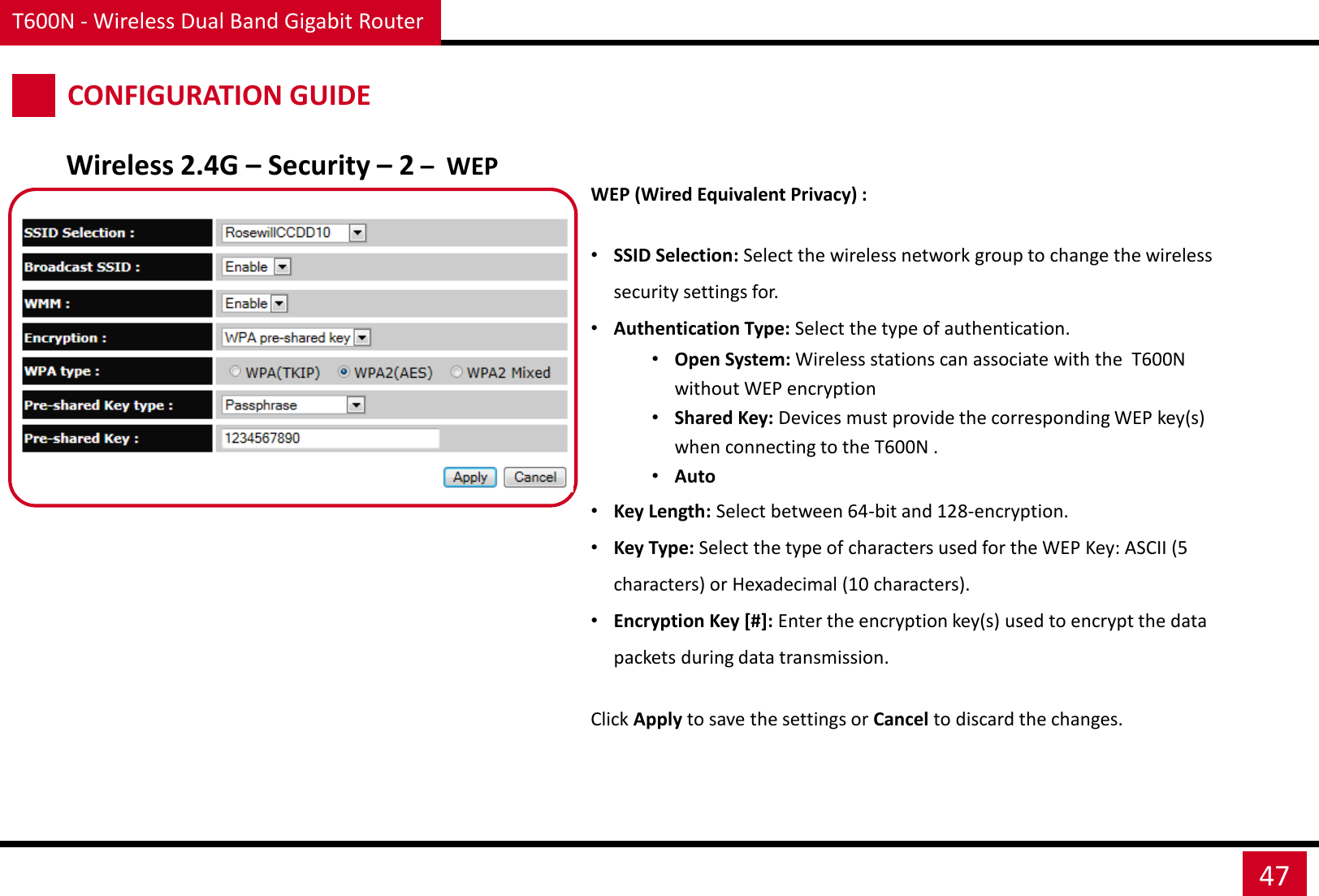

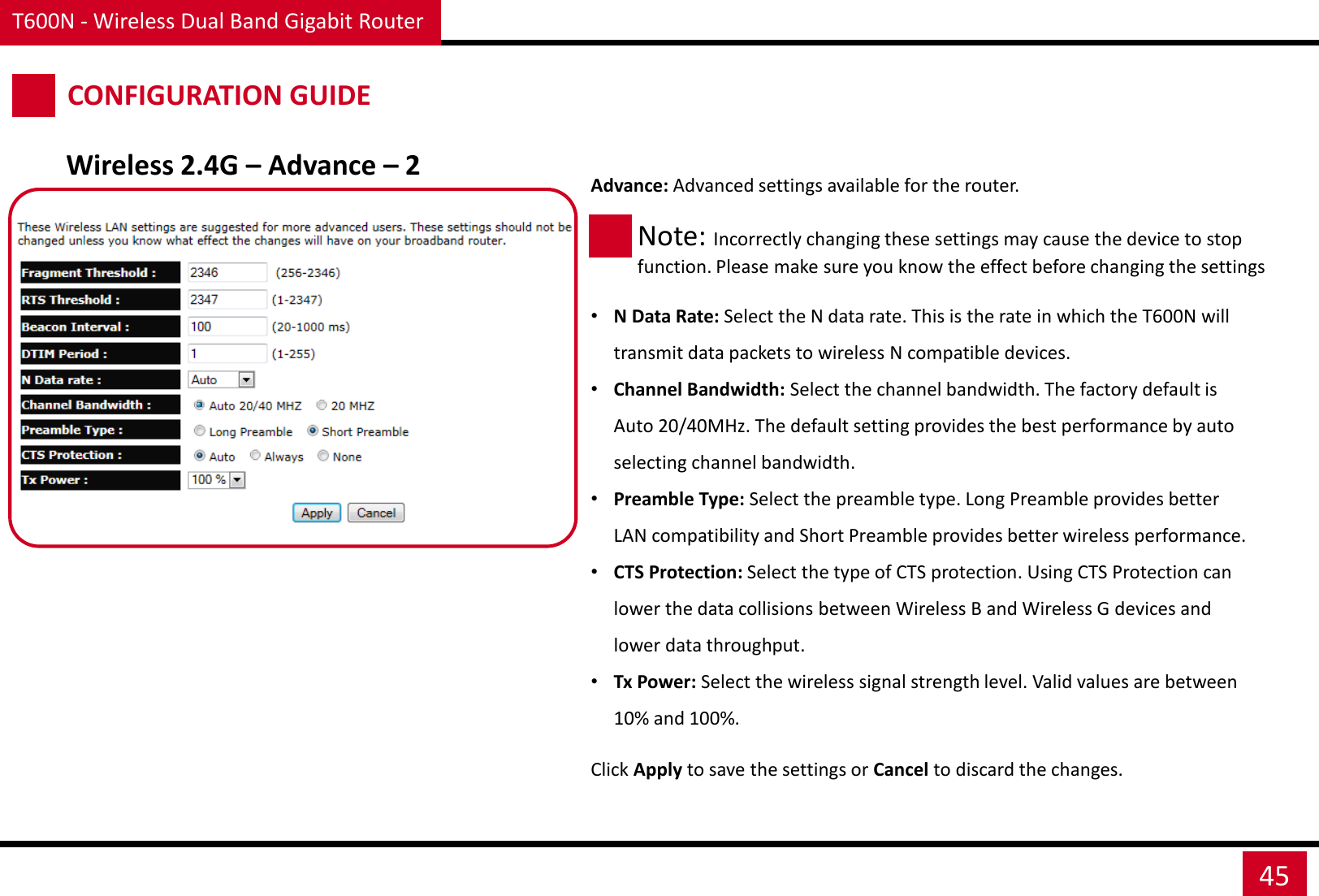

![T600N - Wireless Dual Band Gigabit Router 47 CONFIGURATION GUIDE Wireless 2.4G – Security – 2 – WEP WEP (Wired Equivalent Privacy) : •SSID Selection: Select the wireless network group to change the wireless security settings for. •Authentication Type: Select the type of authentication. •Open System: Wireless stations can associate with the T600N without WEP encryption •Shared Key: Devices must provide the corresponding WEP key(s) when connecting to the T600N . •Auto •Key Length: Select between 64-bit and 128-encryption. •Key Type: Select the type of characters used for the WEP Key: ASCII (5 characters) or Hexadecimal (10 characters). •Encryption Key [#]: Enter the encryption key(s) used to encrypt the data packets during data transmission. Click Apply to save the settings or Cancel to discard the changes.](https://usermanual.wiki/Rosewill/T600N/User-Guide-1872562-Page-47.png)

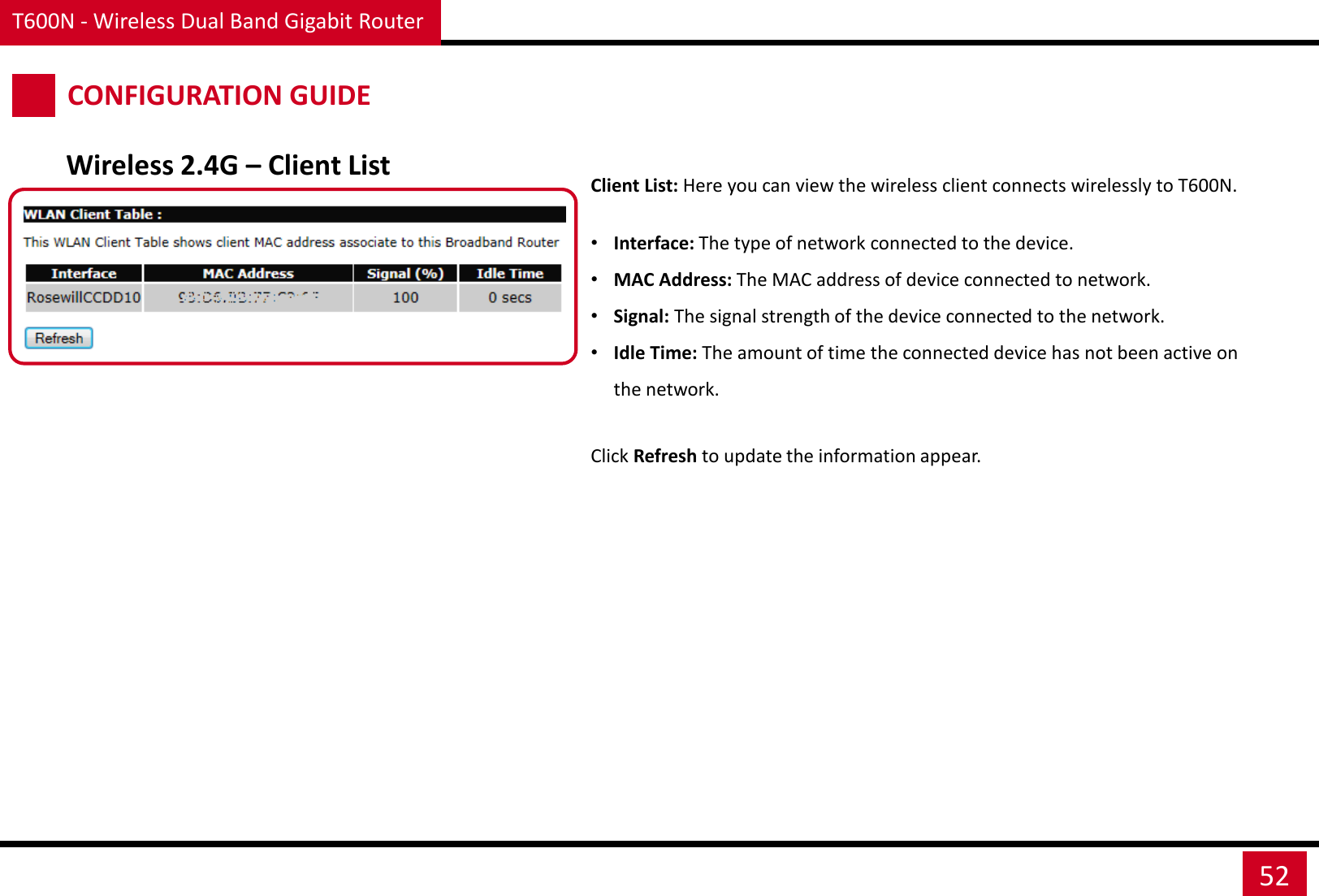

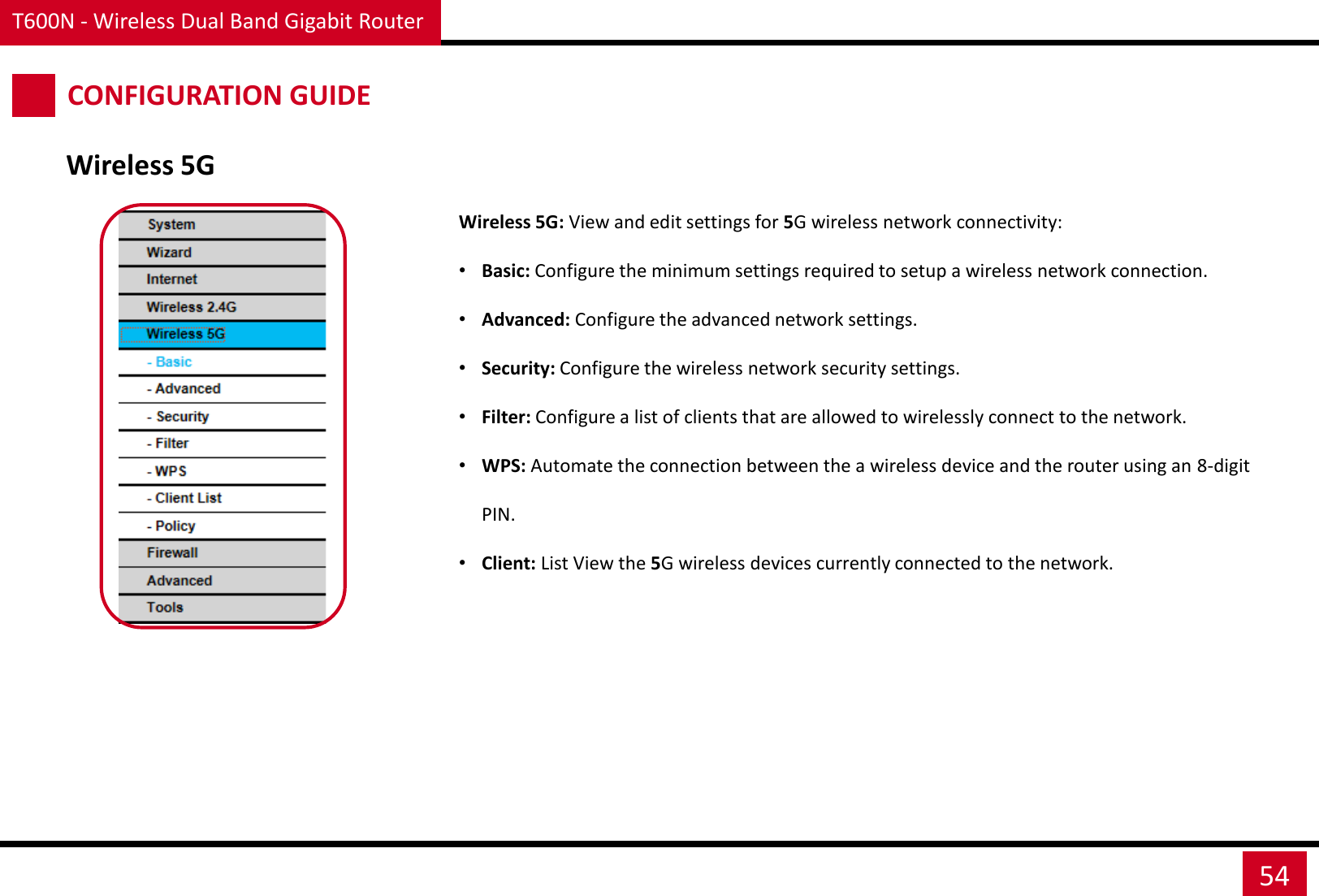

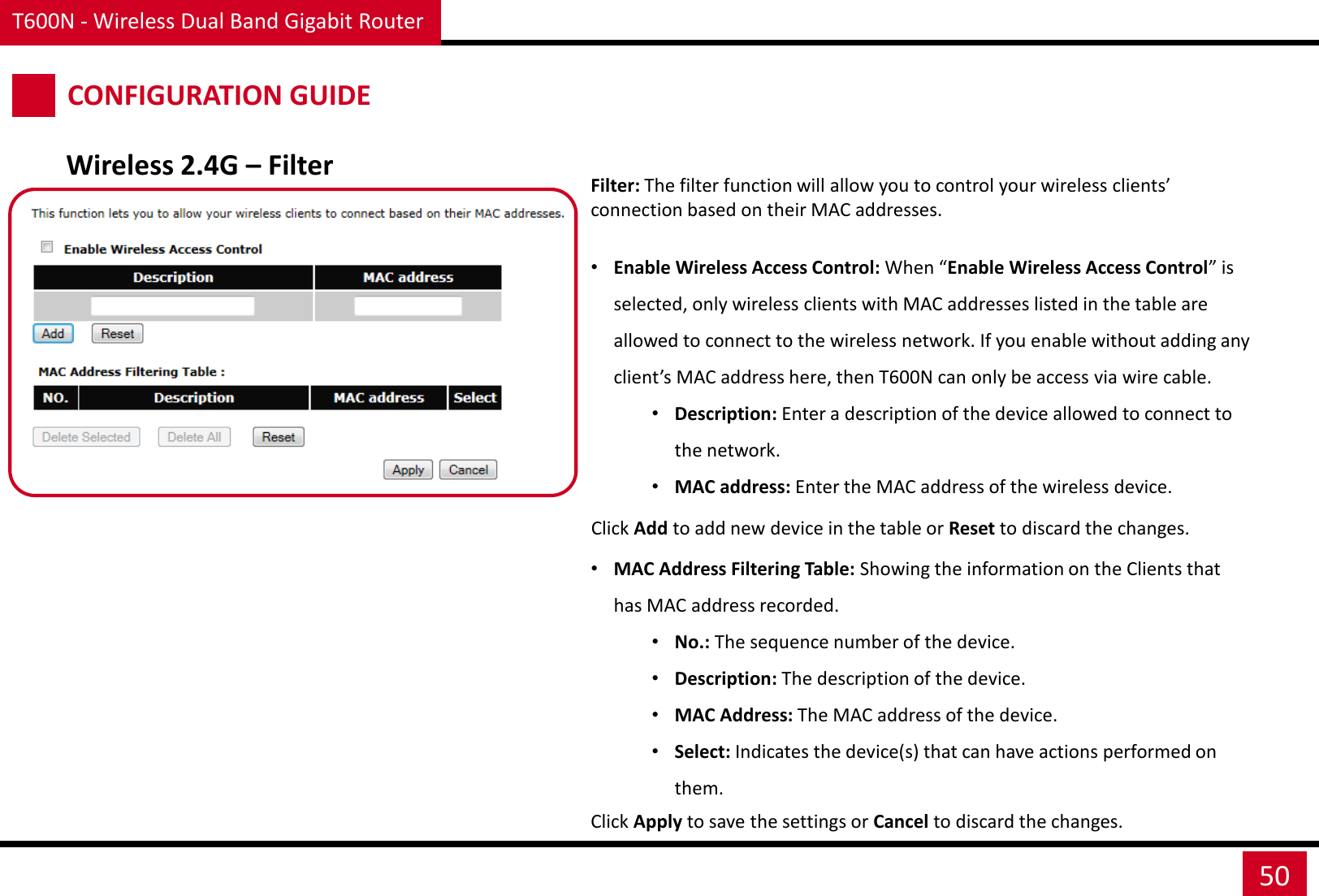

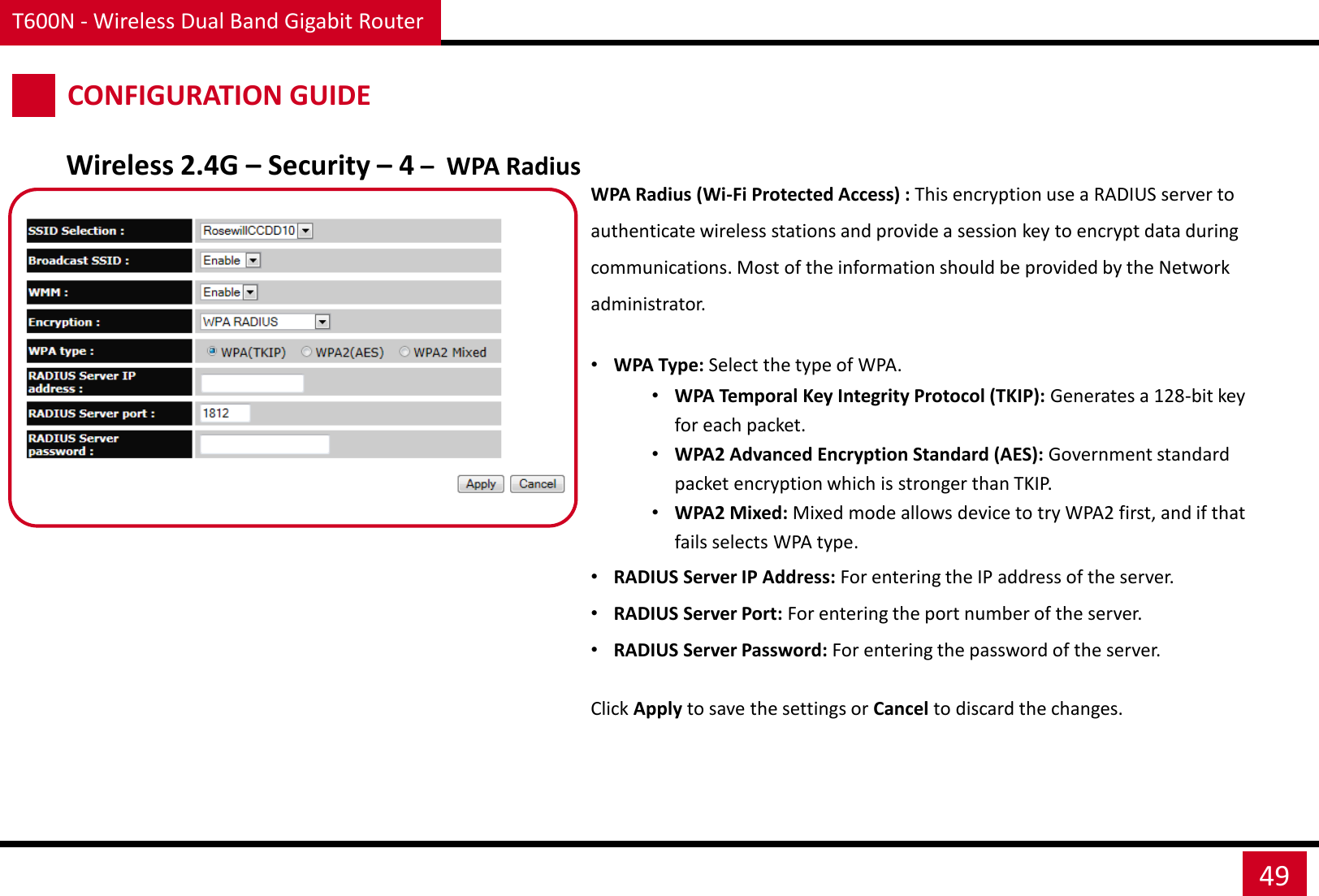

![T600N - Wireless Dual Band Gigabit Router 55 CONFIGURATION GUIDE Wireless 5G – Basic – 1 – AP Basic: You can manage the basic Wireless 5GHz functions here. •Radio: Enable or disable the wireless radio. If the wireless radio is disabled, there will not be any wireless signal. •Mode: Select the wireless operating mode for the router. Two modes are available: Access Point (AP) or Wireless Distribution System (WDS) mode. •AP: Provides a wireless connection access point for wireless devices. •Band: Select a wireless standard for the network from the following options: 5 GHz (802.11a), 5 GHz (802.11n), 5 GHz (802.11a/n) •Enable SSID#: Select the number of wireless groups, you can enable up to 4 SSID groups. •SSID[#]: Enter the name of the wireless network(s). •Auto Channel: Enable or disable having the router automatically select a channel for the wireless network. Auto channel is enabled by default. Select disable to manually assign a specific channel. (Default = Disable) •Check Channel Time: When auto channel is enabled, select time period that the system checks the appropriate channel for the router. •Channel When auto channel is disabled, select a channel to assign to the wireless network. Click Apply to save the settings or Cancel to discard the changes.](https://usermanual.wiki/Rosewill/T600N/User-Guide-1872562-Page-55.png)

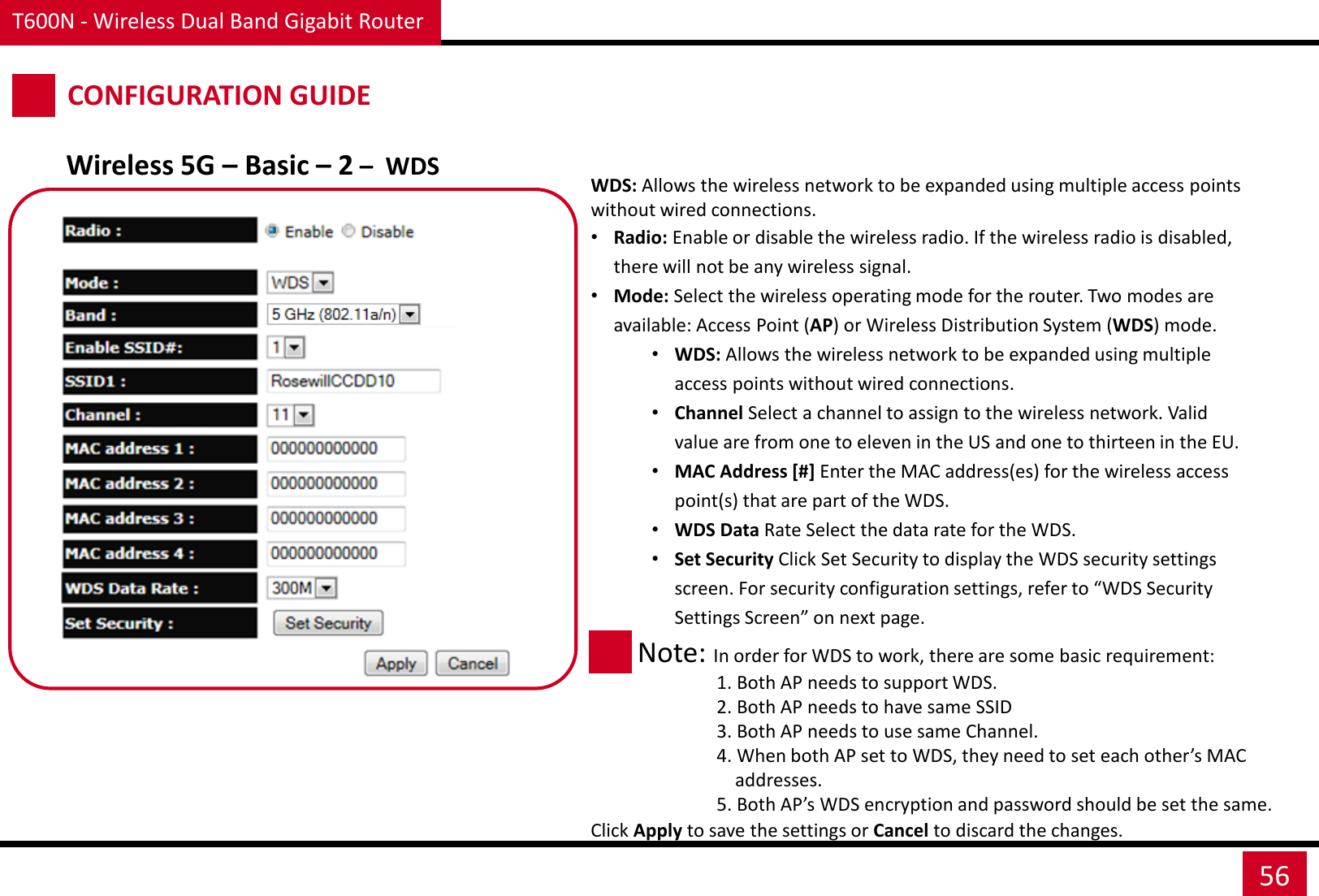

![T600N - Wireless Dual Band Gigabit Router 56 CONFIGURATION GUIDE Wireless 5G – Basic – 2 – WDS WDS: Allows the wireless network to be expanded using multiple access points without wired connections. •Radio: Enable or disable the wireless radio. If the wireless radio is disabled, there will not be any wireless signal. •Mode: Select the wireless operating mode for the router. Two modes are available: Access Point (AP) or Wireless Distribution System (WDS) mode. •WDS: Allows the wireless network to be expanded using multiple access points without wired connections. •Channel Select a channel to assign to the wireless network. Valid value are from one to eleven in the US and one to thirteen in the EU. •MAC Address [#] Enter the MAC address(es) for the wireless access point(s) that are part of the WDS. •WDS Data Rate Select the data rate for the WDS. •Set Security Click Set Security to display the WDS security settings screen. For security configuration settings, refer to “WDS Security Settings Screen” on next page. Note: In order for WDS to work, there are some basic requirement: 1. Both AP needs to support WDS. 2. Both AP needs to have same SSID 3. Both AP needs to use same Channel. 4. When both AP set to WDS, they need to set each other’s MAC addresses. 5. Both AP’s WDS encryption and password should be set the same. Click Apply to save the settings or Cancel to discard the changes.](https://usermanual.wiki/Rosewill/T600N/User-Guide-1872562-Page-56.png)

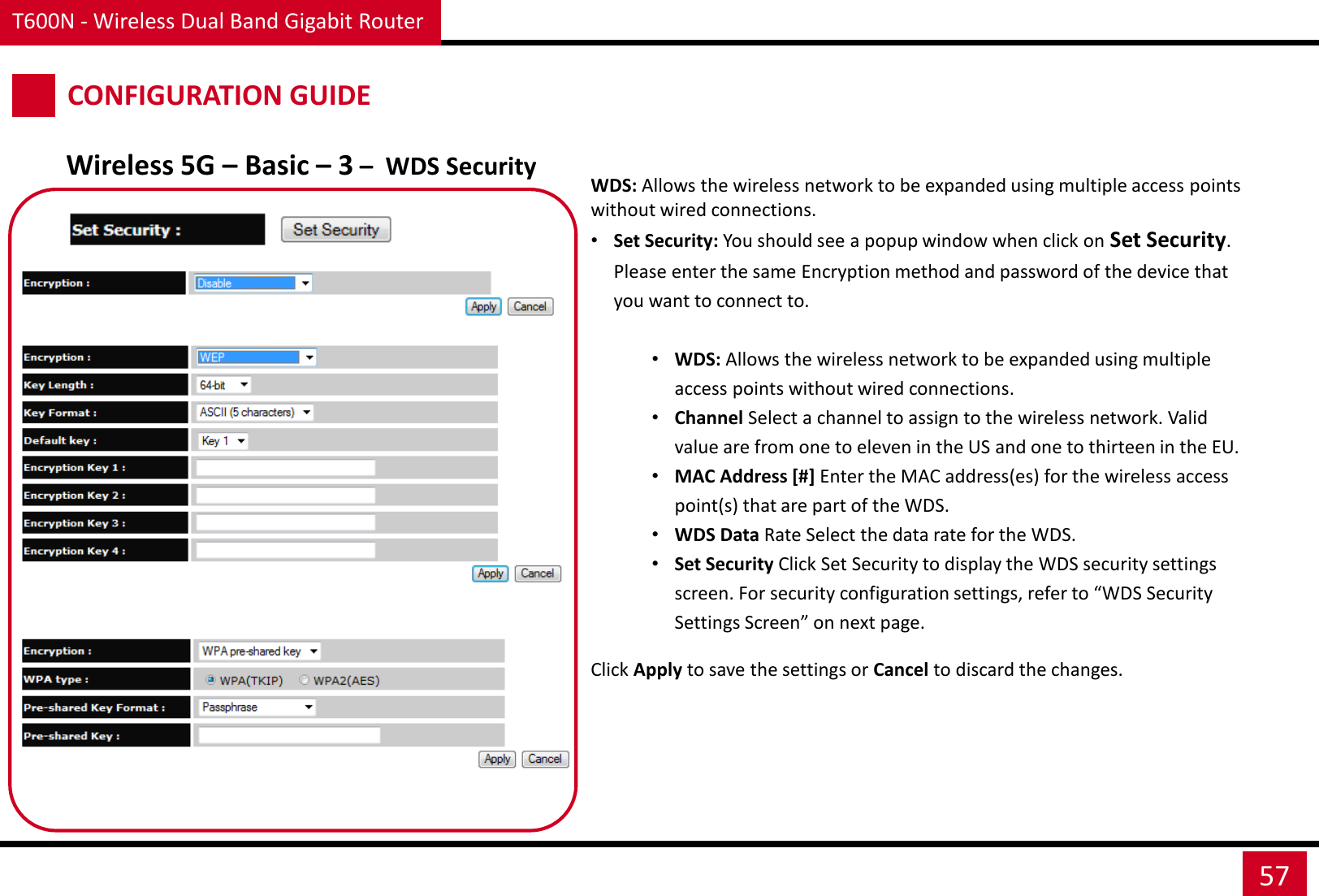

![T600N - Wireless Dual Band Gigabit Router 57 CONFIGURATION GUIDE Wireless 5G – Basic – 3 – WDS Security WDS: Allows the wireless network to be expanded using multiple access points without wired connections. •Set Security: You should see a popup window when click on Set Security. Please enter the same Encryption method and password of the device that you want to connect to. •WDS: Allows the wireless network to be expanded using multiple access points without wired connections. •Channel Select a channel to assign to the wireless network. Valid value are from one to eleven in the US and one to thirteen in the EU. •MAC Address [#] Enter the MAC address(es) for the wireless access point(s) that are part of the WDS. •WDS Data Rate Select the data rate for the WDS. •Set Security Click Set Security to display the WDS security settings screen. For security configuration settings, refer to “WDS Security Settings Screen” on next page. Click Apply to save the settings or Cancel to discard the changes.](https://usermanual.wiki/Rosewill/T600N/User-Guide-1872562-Page-57.png)

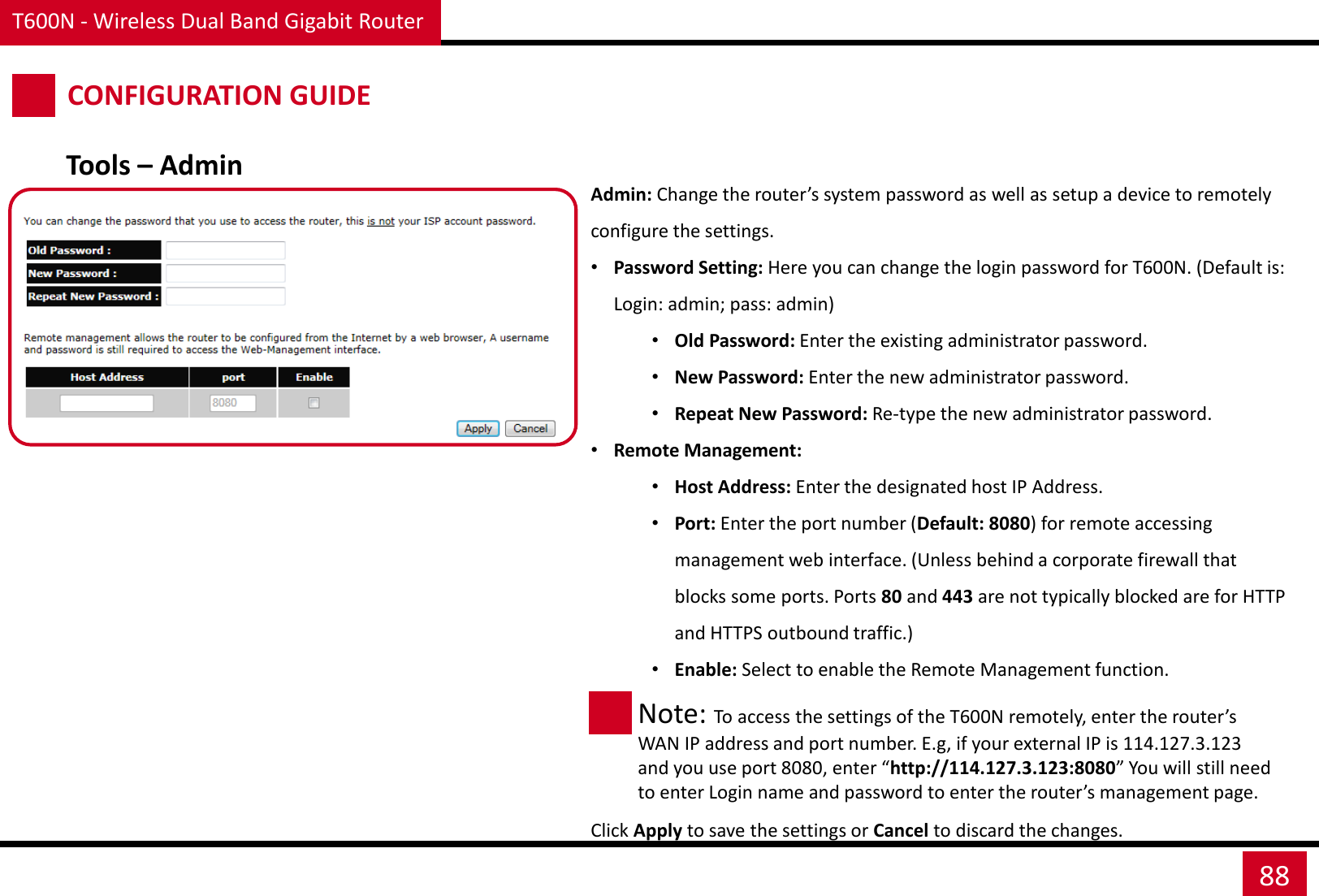

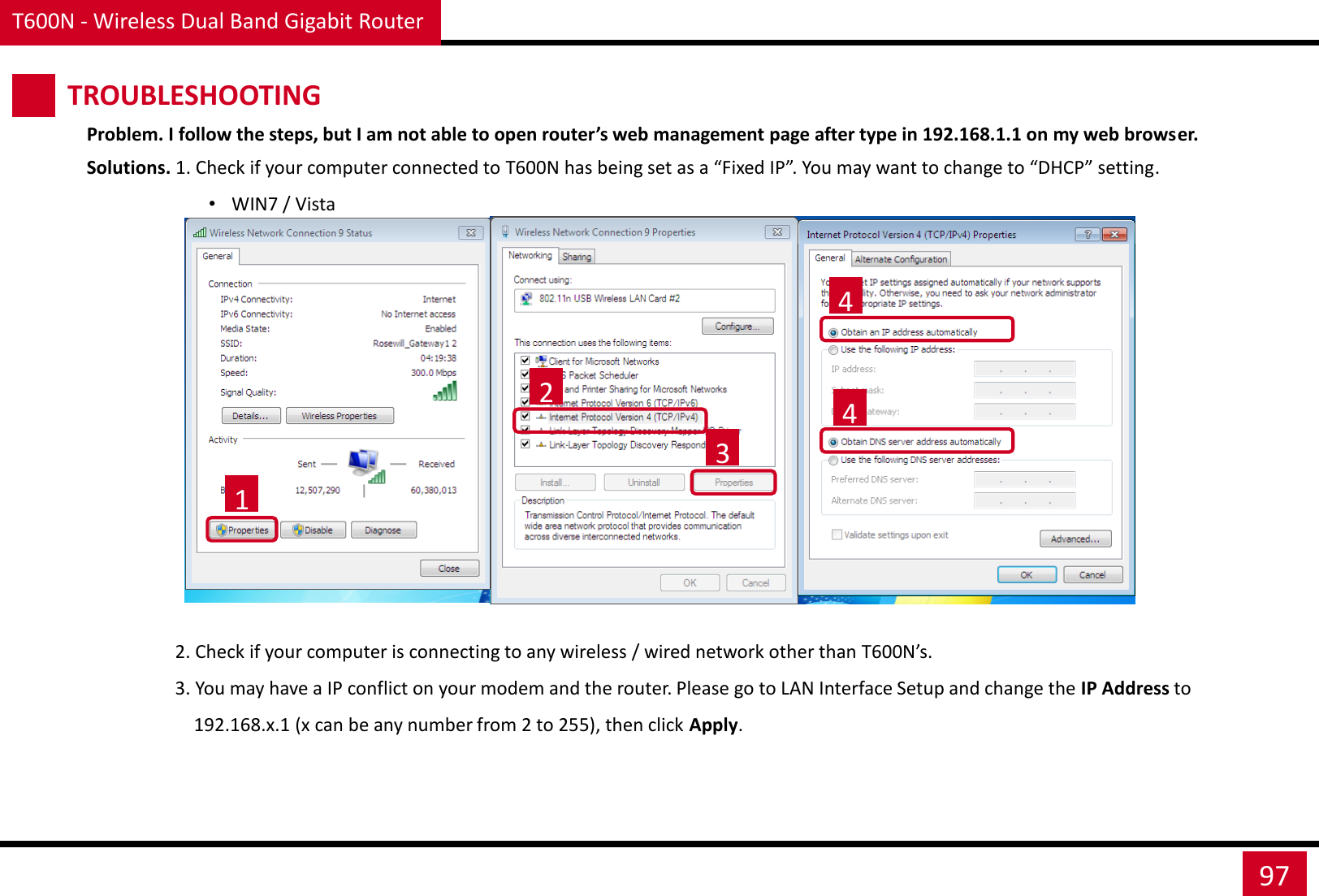

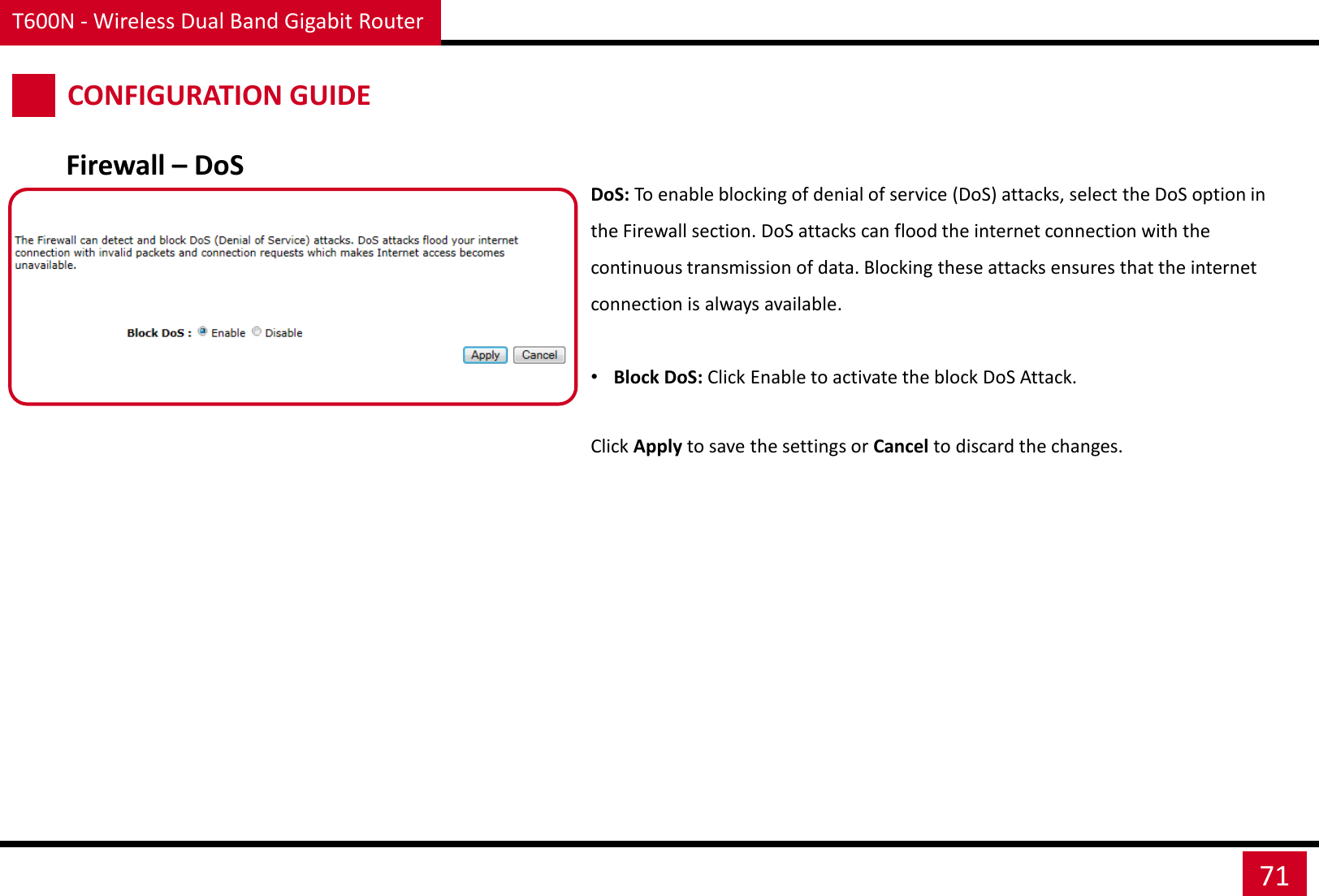

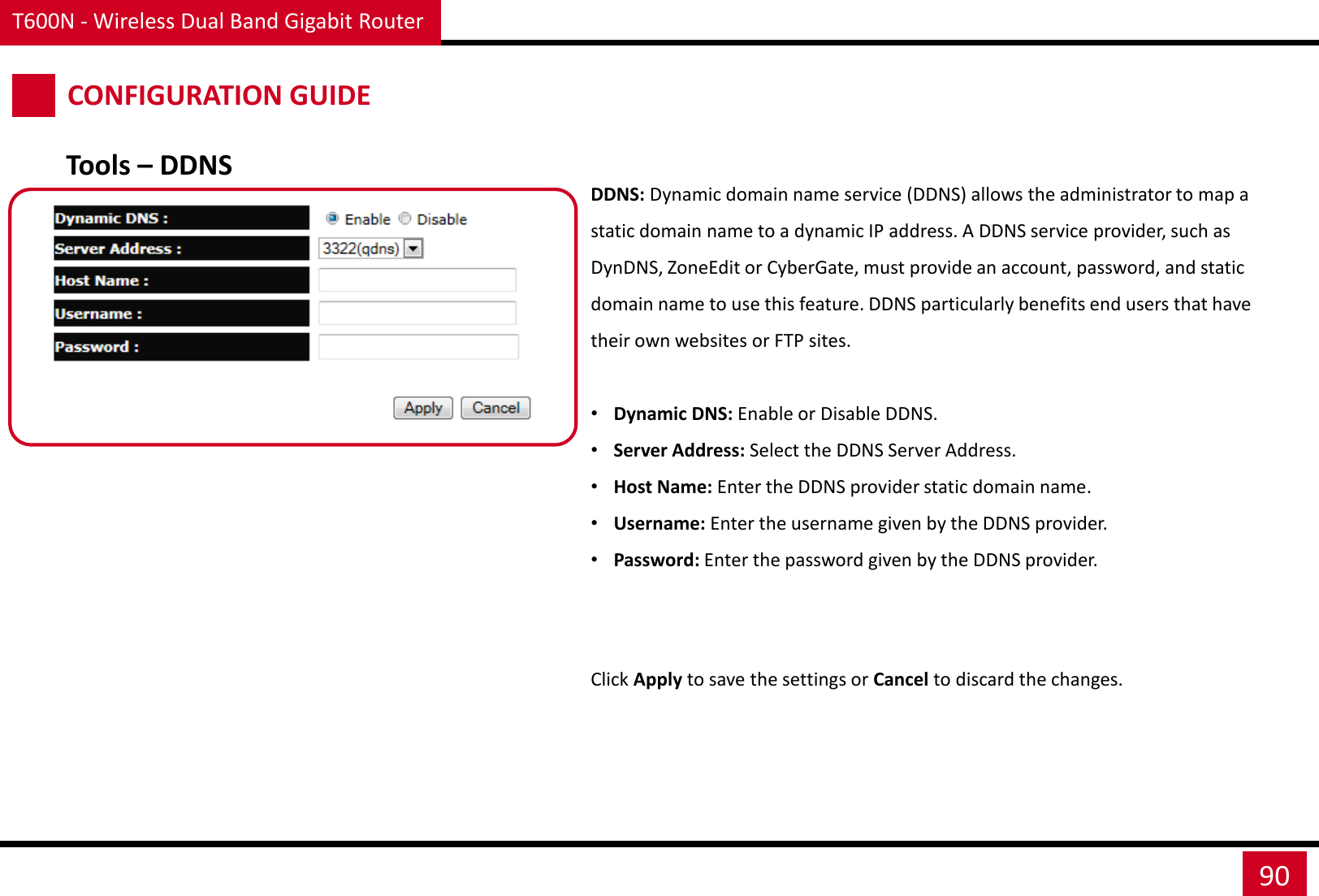

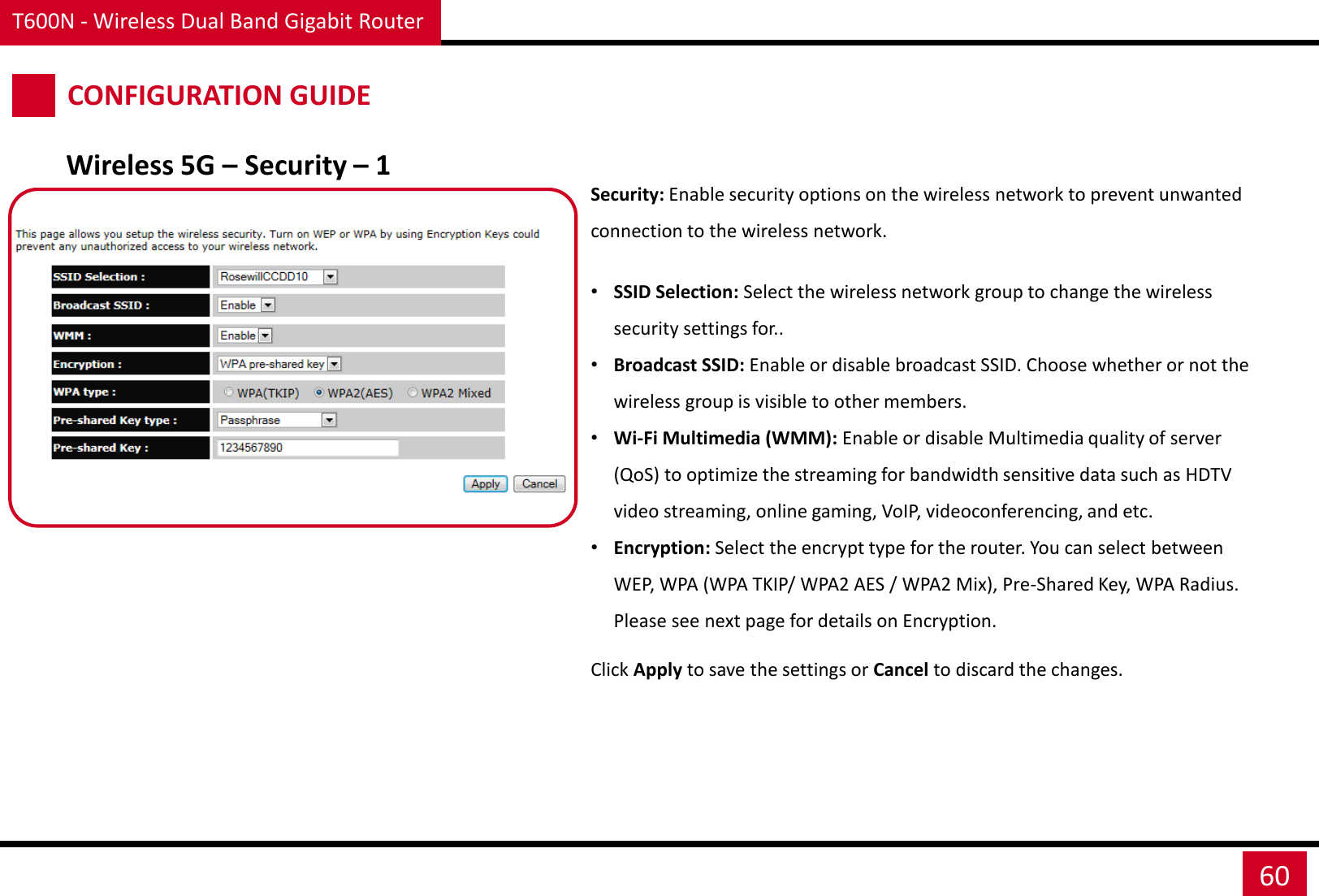

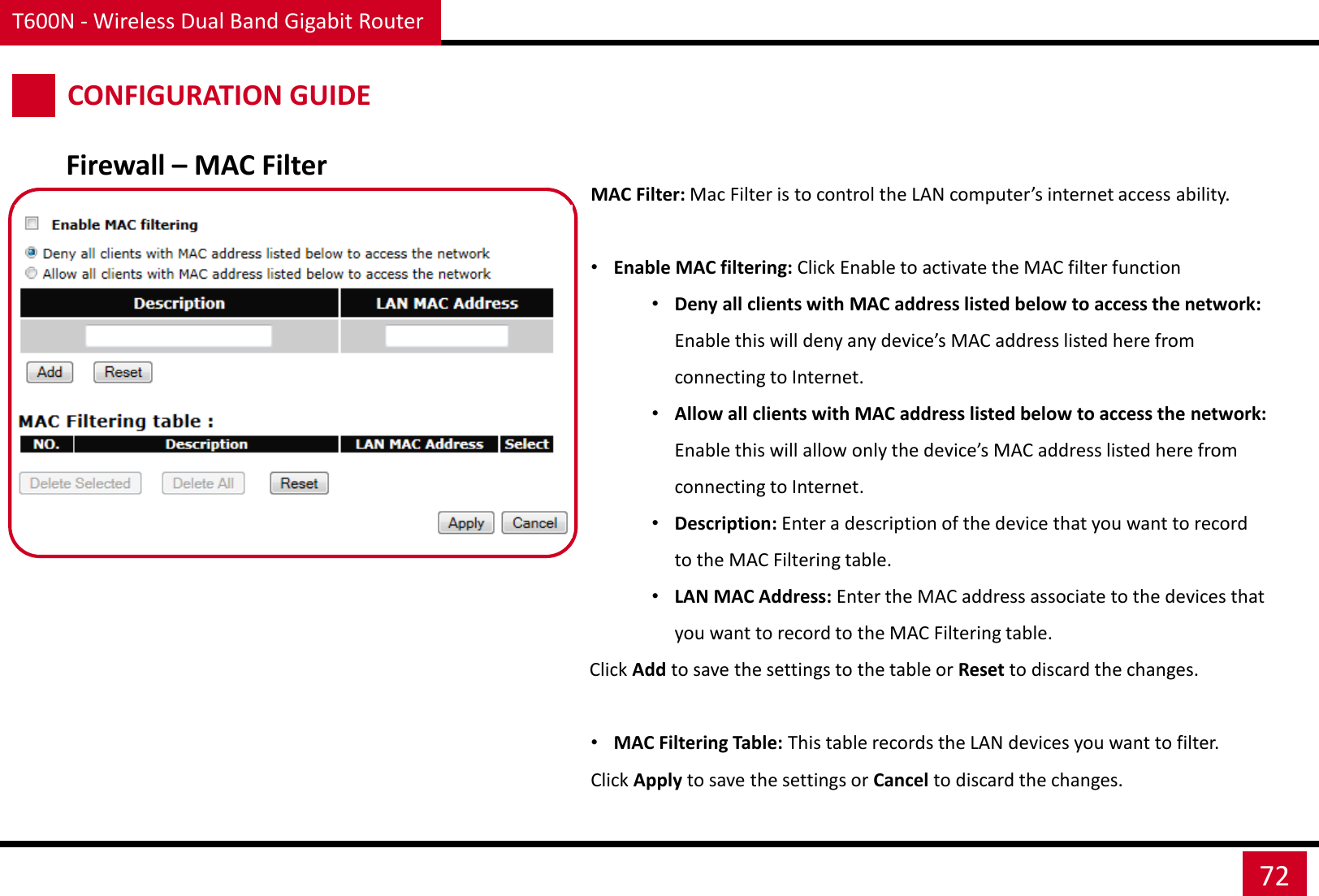

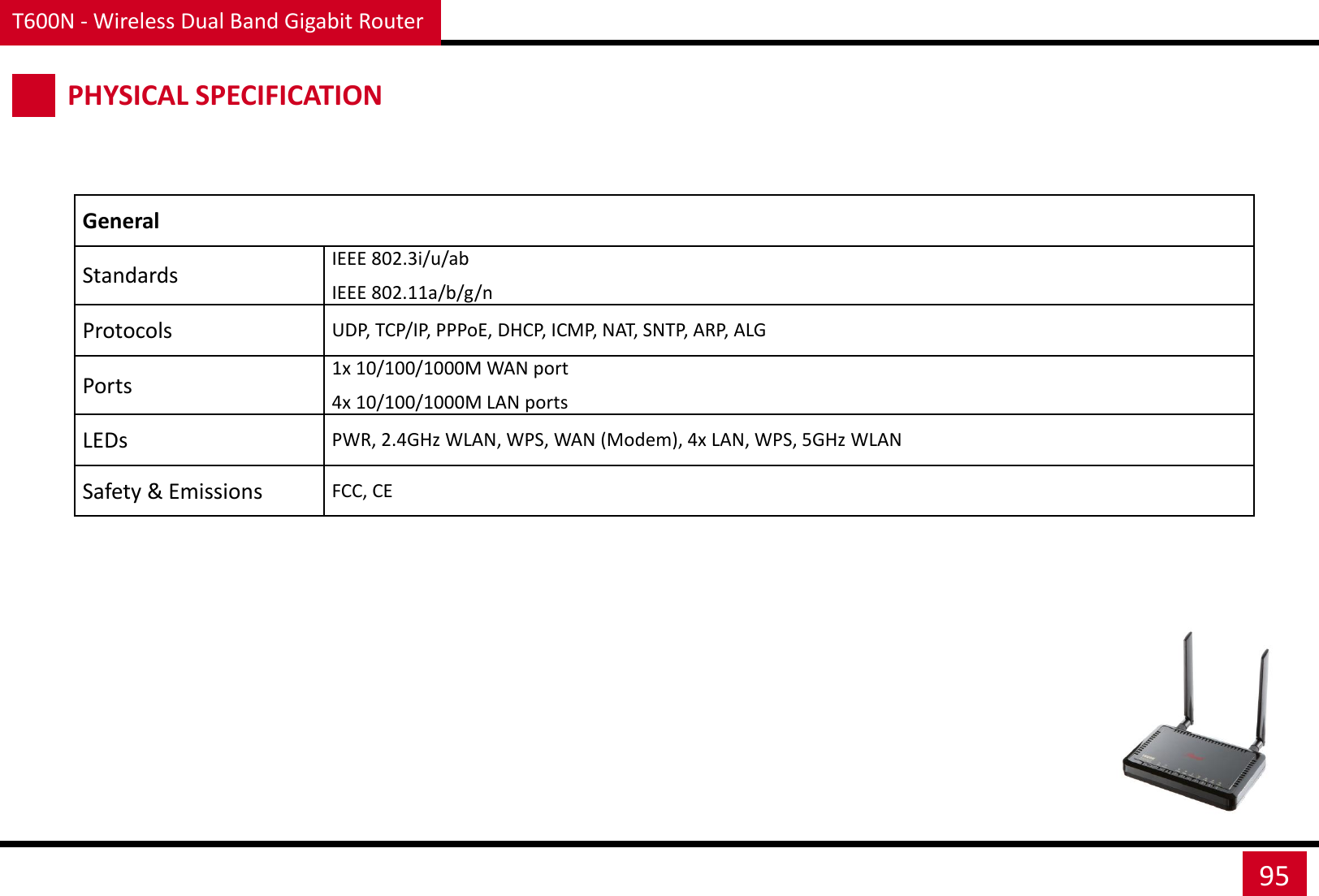

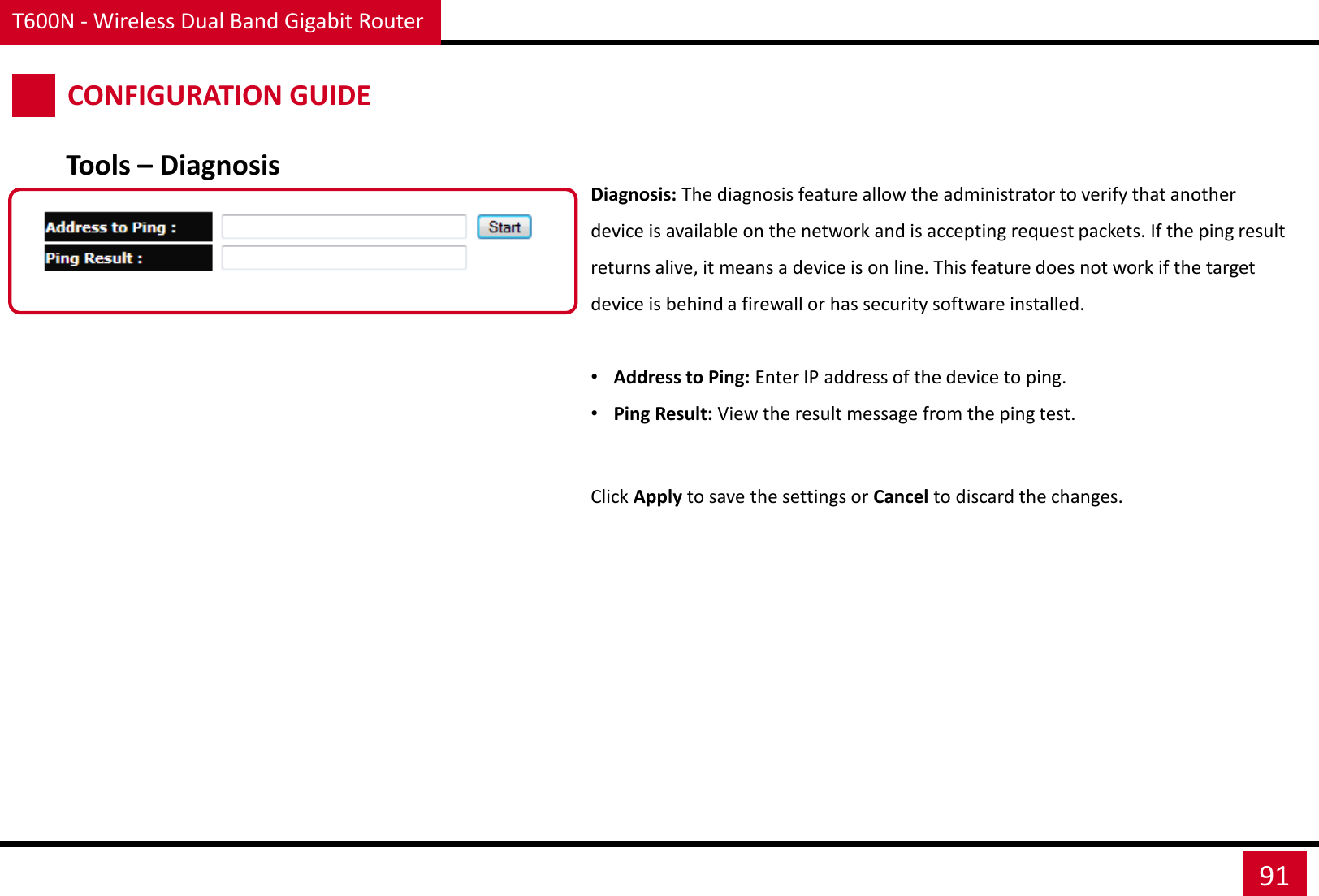

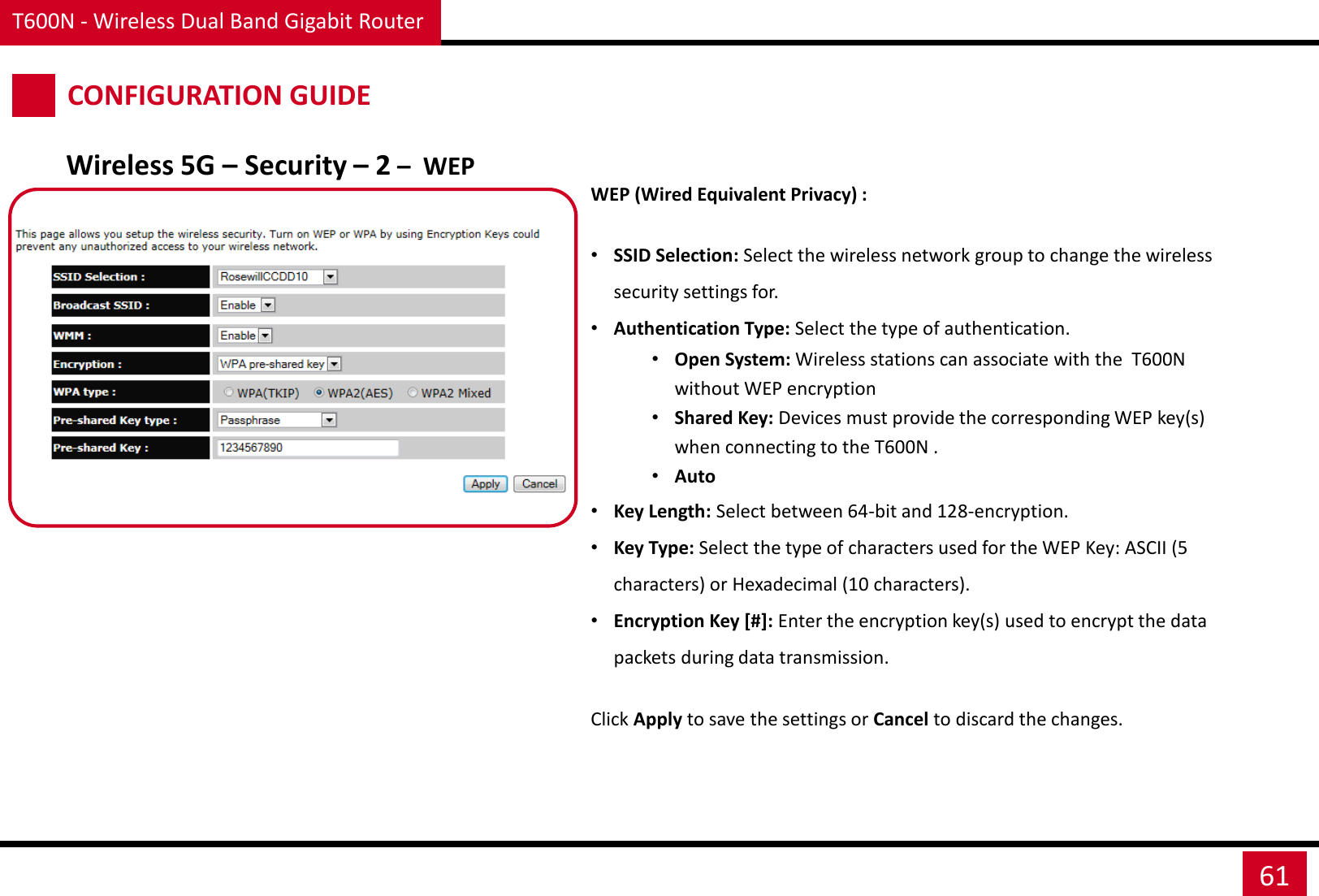

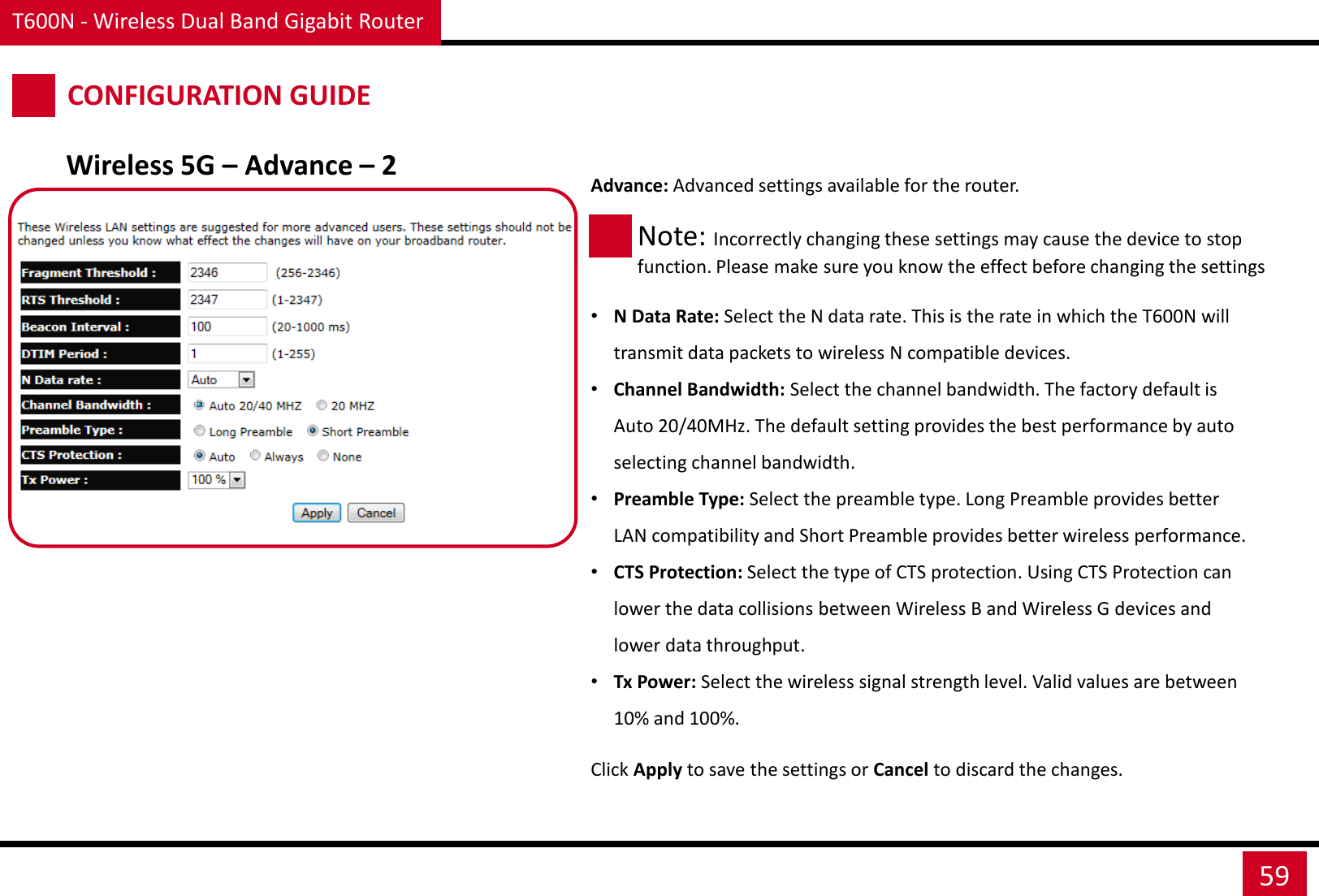

![T600N - Wireless Dual Band Gigabit Router 61 CONFIGURATION GUIDE Wireless 5G – Security – 2 – WEP WEP (Wired Equivalent Privacy) : •SSID Selection: Select the wireless network group to change the wireless security settings for. •Authentication Type: Select the type of authentication. •Open System: Wireless stations can associate with the T600N without WEP encryption •Shared Key: Devices must provide the corresponding WEP key(s) when connecting to the T600N . •Auto •Key Length: Select between 64-bit and 128-encryption. •Key Type: Select the type of characters used for the WEP Key: ASCII (5 characters) or Hexadecimal (10 characters). •Encryption Key [#]: Enter the encryption key(s) used to encrypt the data packets during data transmission. Click Apply to save the settings or Cancel to discard the changes.](https://usermanual.wiki/Rosewill/T600N/User-Guide-1872562-Page-61.png)
