Rosslare B8650 Anti-Vandal Fingerprint and 13.56MHz MIFARE RFID Reader User Manual A4 1 page

Rosslare Enterprises Ltd Anti-Vandal Fingerprint and 13.56MHz MIFARE RFID Reader A4 1 page

user manual

AY-B8650
Anti-Vandal Fingerprint and 13.56 MIFARE RFID Reader
User Manual
1
1. Introduction
The AY-B8650 series are biometric fingerprint and RFID card reader
with a compact design, which is suitable for installing on a door
frame. The USB power supply and debug make operations simple.
The reader IP65 certified for outdoor use.
Using AxTraxNG, you can register and delete users (see the
AxTraxNG™ Software Installation and User Manual). Alternatively, you
can use master cards to register and delete users while in an offline
state.
The standard Wiegand output seamlessly connects to the third-party
access controllers.
The reader comes in two models:
AY-B8650 13.56 MHz MIFARE card reader

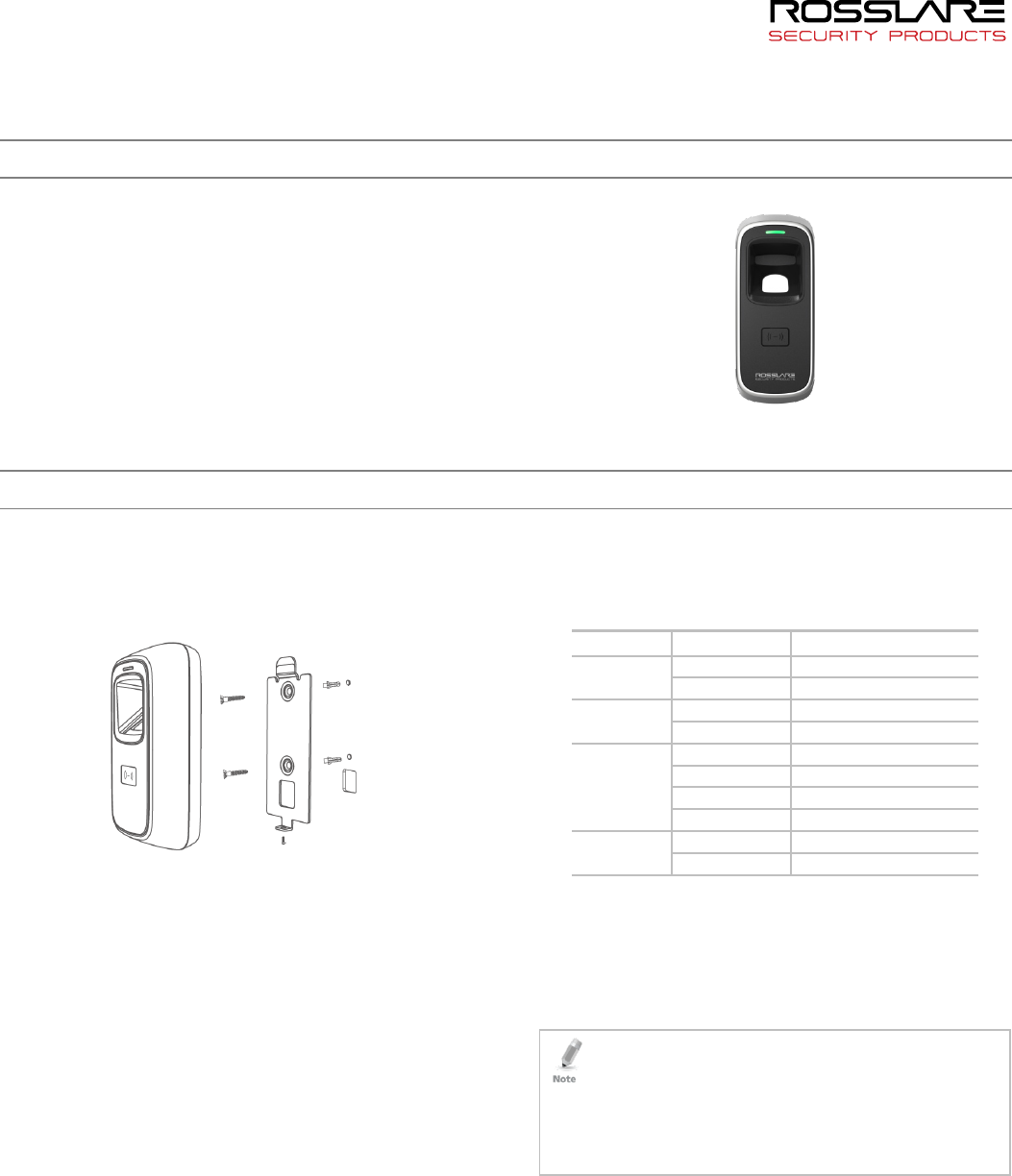

Figure 1: AY-B8650
2. Installation
2.1 Mounting
1. Using the back panel as a guide, drill two holes for mounting
the back plate onto the surface (Figure 2).
Figure 2: Wall Mounting
2. Insert a suitable wall plug into each screw hole.
3. Drill a 10-mm (7/16”) hole for the cable.
4. Screw the back plate onto the wall.
5. Connect the reader to the controller (see Section 2.2). A linear
type power supply is recommended.
6. Attach the reader to the back plate and secure the reader to the
back plate with the provided security screw and tools.
2.2 Wiring
To connect the unit as a reader to an access control unit:
1. Select the appropriate connections according to Table 1.
Table 1: Wiring the Unit as a Reader to a Control Panel
Function Cable Color Description
Power Red 12 VDC
Black GND
Tamper Alarm Brown Tamper
Orange Tamper
Wiegand
Output
Green Wiegand DATA0 Output
White Wiegand DATA1 Output
Blue Wiegand switch
Black GND
Pulse Signal Light brown RS-485B/GND
Light Blue RS-485A/pulse signal (3.3 V)
2. Prepare the controller cable by cutting its jacket back about
3 cm (1¼") and strip the insulation from the wires about 1.3 cm
(½").
3. Splice the reader’s pigtail wires to the corresponding controller
wires and cover each joint with insulating tape.
4. Trim and insulate the ends of all unused conductors individually.
Do not short any unused wires together.
The individual wires from the reader are color coded according the
Wiegand standard.
When using a separate power supply for the reader, this supply
and that of the controller must have a common ground.
The reader’s cable shield wire should be preferably attached to an
earth ground, or a signal ground connection at the panel, or the
power supply end of the cable. This configuration is best for
shielding the reader cable from external interference.
MHz
2
3. Operation
3.1 Registering a Management Card
Register a management card (Enroll and Delete) as shown in
Figure 3.
Figure 3: Registering Management Card
3.2 Resetting a Management Card (Enroll and
Delete)
To reset a management card, press and hold the function button
located inside the back cover of the reader until you hear beeps
(Figure 4).
Figure 4: Function Button
3.3 Registering a User
There are three ways to register a user: fingerprint, card,
card+fingerprint.
See Section 4 about how to properly place your finger on the
reader.
3.3.1 Registering a Fingerprint
Register a fingerprint as shown in Figure 5.
Figure 5: Registering a Fingerprint
If the finger has been already registered, the red LED flashes
and there are 2 long beeps.
3.3.2 Registering Two Fingerprints
Register two fingerprints as shown in Figure 6.
Figure 6: Registering Two Fingerprints
3.3.3 Registering a Fingerprint and Card
Register a fingerprint and card as shown in Figure 7.
Figure 7: Registering a Fingerprint and Card
If the card and/or fingerprint have been already registered,
the red LED flashes and there are 2 long beeps.
3.3.4 Registering Two Fingerprints and a Card
Register two fingerprints and a card as shown in Figure 8.
Figure 8: Registering Two Fingerprints and a Card
3.4 Deleting Users
3.4.1 Deleting a Fingerprint
Delete a fingerprint from the reader as shown in Figure 9.
Figure 9: Deleting a Fingerprint
If the fingerprint does not exist in the system, the red LED
flashes and there is a long beep.
3.4.2 Deleting a Card
Delete a fingerprint from the reader as shown in Figure 10.
Figure 10: Deleting a Card
If the card does not exist in the system, the red LED flashes
and there is a long beep.
3.4.3 Deleting all Users
Delete all users from the reader as shown in Figure 11.
Figure 11: Deleting all Users
3

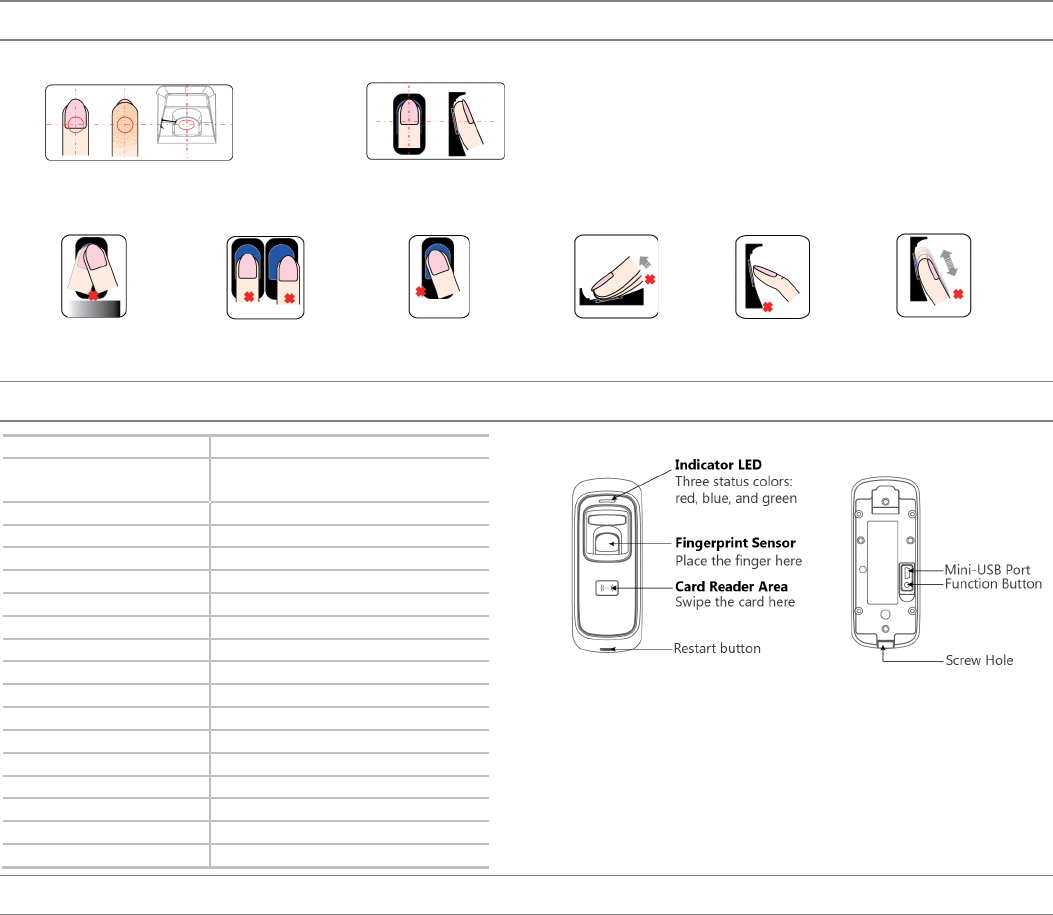

4. Instructions for Placing Finger
Correct Method: Straighten your finger and then place it on the sensor, ensuring the finger is down flat and covers the entire sensor window.
Always place finger in the center of the
sensor.
Make sure you cover the entire sensor surface
with as much of your finger as possible.
Incorrect Method:
DO NOT move your finger
before the backlights of
the sensor turns off.
DO NOT place finger
away from the center
of the sensor window
DO NOT place finger at
an angle.
DO NOT take off finger
during the fingerprint
verification process.
DO NOT use just
your fingertip.
DO NOT slide your finger
during the fingerprint
verification process.
5. Technical Specifications
Fingerprint Sensor 500 DPI Optical Sensor
RFID Card Reader AY-B8650 13.56 MHz
User Capacity 7000
Fingerprint Capacity 7000
Card Capacity 7000
Log Capacity 100,000
Verification Speed < 1 Second (1:N)
Card Read Range 20 to 80 mm (0.8 to 3.1 in.)
Identification Mode Fingerprint/Card
Network Port TCP/IP
Wiegand Protocol Wiegand 26-Bit
Voice and Interface Multi-color LEDs and buzzer
Operating Voltage 12 VDC
Work Current 150 mA
Operating Temperature Range -20°C to 60°C
Humidity Range 10% to 95% (non-condensing)
Size (W x H x D) 50 x 124 x 34.5 mm (1.97 x 4.9 x 1.4 in.)
Certificate FCC, CE, RoHS
Figure 12: Reader Layout
6. Usage Notice
Do not scratch the surface of the optical fingerprint sensor with
any sharp object such as a small knife or a pen.
Humidity, dust, and direct light can affect the terminal’s
performance.
Do not clean the surface of the optical fingerprint sensor with
organic material such as alcohol or gasoline.
To clean the surface, apply a piece of one-sided adhesive tape to
the sensor and then remove.
4 0706-0960676+00
Declaration of Conformity
FCC ID = GCD-B8650
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Radio Equipment Directive (RED)
Rosslare hereby declares that the AY-B8650 is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU.
RoHS Directive
Under our sole responsibility that the following labeled AY-B8650 is tested to conform to the Restriction of Hazardous Substances (RoHS) directive
2011/65/EU in electrical and electronic equipment.
Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com.
Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them.
CERT
ISO 9001
ISO 14001
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
ЬReorient or relocate the receiving antenna.
ЬIncrease the separation between the equipment and receiver.
ЬConnect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
ЬConsult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved
by manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement.
