SA-33
Installation Instructions Wireless 5-Button Remote Control
1
0706-0960345+00

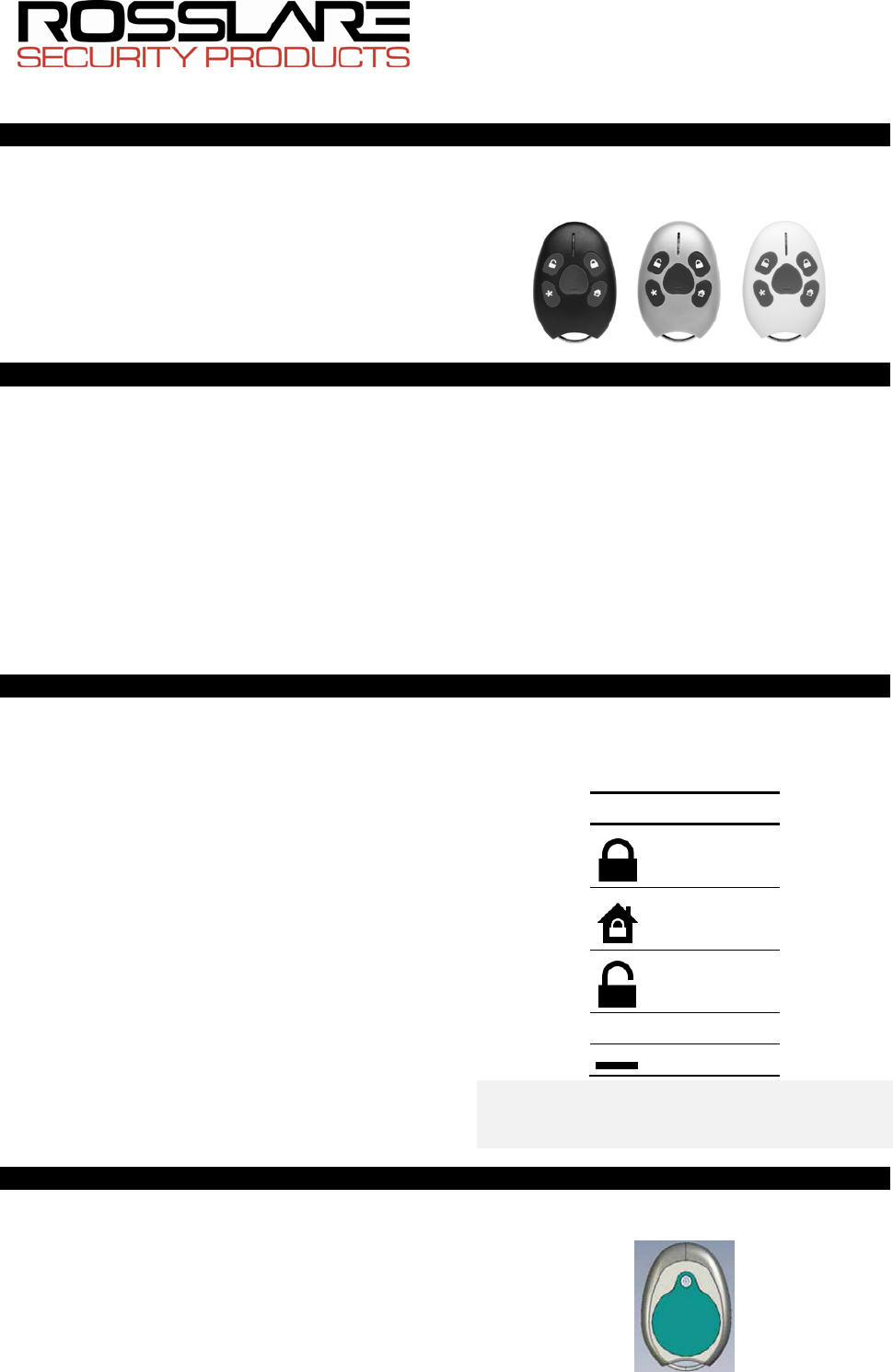

1. General Description
The SA-33 is a handheld 5-button remote control that
works with existing wireless panels and expansions.
1.1. Standard Features
• Four function buttons: arm away, arm home, disarm,
and status
• Large, recessed shield-shaped Panic button in the
middle of the device
• Small, thin, and oval design
• Handy design – easy to reach all the buttons with one
finger
• Sealed and waterproof
• Coin battery with life expectancy of three years
• Simple battery replacement
2. Technical Specifications
2.1. Electrical Characteristics
Battery: CR2450
Lifetime: At least three years
Compliance: CE, FCC
Standby Current: <1uA
Transmission Current: 15mA
Transmission Sign: 2 SMD LED
2.2. Environmental Characteristics
Operating Temperature: -10°C to +60°C (+14°F to +140°F)
Operating Humidity: Up to 95% non-condensing
2.3. RF Characteristics:
RF Frequency: H - 868.35MHz
G - 433.92MHz
RF Power Output: 6dBm
Range: Up to 80 m in open space
2.4. Physical Characteristics
Dimensions: 57.9 x 41 x 13.8 mm (2.28 x 1.6 x 0.54 inch)
Shape: Oval
Weight: 22 g (0.77 oz) including battery
Colors: Black with black keys
Silver with dark gray keys
White with light gray keys
3. Operating Instructions
The SA-33 remote control is activated by pressing the
buttons on the unit, and transmitting this information to
the receiver panel.
As the SA-33 is a portable, wireless device, system
reception is dependent upon the conditions of use, as
follows.
Caution: AVOID using near or behind large metal
surfaces and multiple concrete/steel walls. This may
interfere or block the wireless signals. Make sure to test
the range from the desired location by using the RF Test
Procedure to ensure reception.
Caution: AVOID placing the SA-33 near strong magnetic
or electrical fields other than the magnet with which it is
intended to be used. Otherwise, performance can be
affected, and false alarms can occur.
Important Note: When the detector range is decreased
as a result of depleted battery power, replace the
battery with the same type of battery immediately.
3.1. Registration
Before using the SA33 transmission information, it should
be directed to the relevant panel. Please refer to the
Panel manual for more information on the registration
process. The device group consist of remotes, and the
information is transferred by pressing one of the keys.
3.2. Using the Remote Control
The SA-33 has five buttons.
Use the buttons to operate the remote control, as
described in the table below.
Button
Description
Arm Away
Arm Home
Disarm
Status
Panic Button
CAUTION: Changes or modifications to this equipment not
expressly approved by the party responsible for compliance
(Rosslare Ltd.) could void the user’s authority to operate the
equipment.
4. Replacing the Battery
To replace the batteries when needed, follow the
procedure below:
1. Use a Phillips head screw driver to loosen the screw
on the battery cover (see Figure 1), located on the
bottom side of the remote control.
2. Replace the battery with the same type of battery,
with the positive (+) side facing up.
3. Close the battery cover, and tighten the screw using
the screw driver.
4. Dispose of the old battery properly; do not incinerate,
heat, disassemble, or recharge.
Figure 1: SA-33 Battery Cover
2
0706-0960345+00
5. Limited Warranty
ROSSLARE ENTERPRISES LIMITED S (Rosslare) TWO YEAR LIMITED
WARRANTY is applicable worldwide. This warranty supersedes any other
warranty. Rosslare's TWO YEAR LIMITED WARRANTY is subject to the
following conditions:
Warranty
Warranty of Rosslare's products extends to the original purchaser (Customer) of
the Rosslare product and is not transferable.
Products Covered By This Warranty and Duration
ROSSLARE ENTERPRISES LTD. AND / OR SUBSIDIARIES (ROSSLARE)
warrants that the SA-33 Wireless 5-Button Remote Control is free from defects
in materials and assembly in the course of normal use and service. The
warranty period commences with the date of shipment to the original purchaser
and extends for a period of 2 years (24 months).
Warranty Remedy Coverage
In the event of a breach of warranty, ROSSLARE will credit Customer with the
price of the Product paid by Customer, provided that the warranty claim is
delivered to ROSSLARE by the Customer during the warranty period in
accordance with the terms of this warranty. Unless otherwise requested by
ROSSLARE ENTERPRISES LTD. AND / OR SUBSIDIARIES representative,
return of the failed product(s) is not immediately required.
If ROSSLARE has not contacted the Customer within a sixty (60) day holding
period following the delivery of the warranty claim, Customer will not be required
to return the failed product(s). All returned Product(s), as may be requested at
ROSSLARE ENTERPRISES LTD. AND / OR SUBSIDIARY’S sole discretion,
shall become the property of ROSSLARE ENTERPRISES LTD. AND / OR
SUBSIDIARIES.
To exercise the warranty, the user must contact Rosslare Enterprises Ltd. to
obtain an RMA number after which, the product must be returned to the
Manufacturer freight prepaid and insured.
In the event ROSSLARE chooses to perform a product evaluation within the
sixty (60) day holding period and no defect is found, a minimum US$ 50.00 or
equivalent charge will be applied to each Product for labor required in the
evaluation.
Rosslare will repair or replace, at its discretion, any product that under normal
conditions of use and service proves to be defective in material or
workmanship. No charge will be applied for labor or parts with respect to
defects covered by this warranty, provided that the work is done by Rosslare or
a Rosslare authorized service center.
Exclusions and Limitations
ROSSLARE shall not be responsible or liable for any damage or loss resulting
from the operation or performance of any Product or any systems in which a
Product is incorporated. This warranty shall not extend to any ancillary
equipment not furnished by ROSSLARE, which is attached to or used in
conjunction with a Product, nor to any Product that is used with any ancillary
equipment, which is not furnished by ROSSLARE.
This warranty does not cover expenses incurred in the transportation, freight
cost to the repair center, removal or reinstallation of the product, whether or not
proven defective.
Specifically excluded from this warranty are any failures resulting from
Customer's improper testing, operation, installation, or damage resulting from
use of the Product in other than its normal and customary manner, or any
maintenance, modification, alteration, or adjustment or any type of abuse,
neglect, accident, misuse, improper operation, normal wear, defects or damage
due to lightning or other electrical discharge. This warranty does not cover
repair or replacement where normal use has exhausted the life of a part or
instrument, or any modification, abuse of, or tampering with the Product, if
Product disassembled or repaired in such a manner as to adversely affect
performance or prevent adequate inspection and testing to verify any warranty
claim.
ROSSLARE does not warrant the installation, maintenance, or service of the
Product. Service life of the product is dependent upon the care it receives and
the conditions under which it has to operate.
In no event shall Rosslare be liable for incidental or consequential damages.
Limited Warranty Terms
THIS WARRANTY SETS FORTH THE FULL EXTENT OF ROSSLARE ENTERPRISES LTD. AND ITS
SUBSIDIARIES’ WARRANTY.
89BTHE TERMS OF THIS WARRANTY MAY NOT BE VARIED BY ANY PERSON, WHETHER OR NOT
PURPORTING TO REPRESENT OR ACT ON BEHALF OF ROSSLARE.
90BTHIS LIMITED WARRANTY IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES. ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITATION, IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE
SPECIFICALLY EXCLUDED.
91BIN NO EVENT SHALL ROSSLARE BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE
PRICE OF THE PRODUCT, OR FOR ANY OTHER INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF USE, LOSS OF TIME, COMMERCIAL
LOSS, INCONVENIENCE, AND LOSS OF PROFITS, ARISING OUT OF THE INSTALLATION, USE,
OR INABILITY TO USE SUCH PRODUCT, TO THE FULLEST EXTENT THAT ANY SUCH LOSS OR
DAMAGE MAY BE DISCLAIMED BY LAW.
92BTHIS WARRANTY SHALL BECOME NULL AND VOID IN THE EVENT OF A VIOLATION OF THE
PROVISIONS OF THIS LIMITED WARRANTY.
6. 37BDeclaration of Conformity
109BThis equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• 93BReorient or relocate the receiving antenna.
• 94BIncrease the separation between the equipment and receiver.
• 95BConnect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• 96BConsult the dealer or an experienced radio/TV technician for help.
