1313-16C630IM-CA 20120925RA Page 1 of 18 1-800-59-ROUSH

2013 Mustang Hood Scoop

P/N: 421395 (R1313-16C630)

Application: 2013 Ford Mustang

2013 Mustang 5.0L with Automatic/Manual Transmission

2013 Mustang 3.7L with Automatic/Manual Transmission

Installation Instructions

Before installing your ROUSH Performance Product(s), read through the entire installation

procedure and check to make sure all items are present. Contact ROUSH Customer Service at

1-800-59-ROUSH, weekdays from 9:00 AM to 5:00 PM EST, with any questions regarding fit,

missing parts or instructions that are unclear to you.

1313-16C630IM-CA 20120925RA Page 2 of 18 1-800-59-ROUSH

EQUIPMENT AND SUPPLIES REQUIRED

 Electric or Pneumatic Drill

 Drill Bit Set

 10MM Metric Socket (Deep

Recommended)

 Isopropyl Alcohol and Terry Cloth

 Safety Glasses

 Ratchet

 Torque Wrench

 Trim Tool (Hood Liner Removal)

 Commercially Available Clear

Coat

 Blanket

 7/8” Hole Saw

Description

Part Number

Qty

Hood Scoop

1313-16C630

1

Tape Kit

1313-16C630TAPE

1

Nuts, M6 x 1.00

W704521

8

7/8" ID Flush Plug, Black

9750K25

4

Adhesion Promoter

021200-27571

1

Hood Scoop Inlet Graphic

1313-16C630GFX

1

Template

1313-16C630TMPL

1

Installation Instructions

1313-16C630IM

1

1313-16C630IM-CA 20120925RA Page 3 of 18 1-800-59-ROUSH

LIMIT OF LIABILITY STATEMENT

The information contained in this publication was accurate and in effect at the time the

publication was approved for printing and is subject to change without notice or liability.

ROUSH Performance Products (RPP) reserves the right to revise the information presented

herein or to discontinue the production of parts described at any time.

SAFETY REQUIREMENTS

STOP! READ IMPORTANT SAFETY CAUTIONS AND WARNINGS BEFORE PROCEEDING.

IMPORTANT SAFETY NOTICE

Appropriate disassembly, assembly methods and procedures are essential to ensure the

personal safety of the individual performing the kit installation. Improper installation due to the

failure to correctly follow these instructions could cause personal injury or death. Read each

step of the installation manual carefully before starting the actual installation.

1. Always wear safety glasses for eye protection.

2. Place ignition switch in the OFF position.

3. Always apply the parking brake when working on a vehicle.

4. Chock the front and rear tires to prevent unexpected vehicle movement.

5. If working without a lift, always consult vehicle manual for correct lifting

specifications.

6. Operate the engine only in well-ventilated areas to avoid exposure to carbon

monoxide.

7. Do not smoke or use flammable items near or around the fuel system.

8. Use chemicals and cleaners in well-ventilated areas.

9. Batteries produce explosive gases, which can cause personal injury. Therefore, do

not allow flames, sparks or flammable substances to come near the battery.

10. Keeps hands and any other objects away from the radiator fan blades.

11. Keep yourself and your clothing away from moving parts when the engine is running.

12. Do not wear loose clothing or jewelry that can get caught in rotating parts or scratch

surface finishes.

13. Allow the engine, cooling system, brakes and exhaust to cool before working on a

vehicle.

WORK SAFELY!

Perform this installation on a good clean level surface for maximum safety and with the

engine turned off.

1313-16C630IM-CA 20120925RA Page 4 of 18 1-800-59-ROUSH

SECTION A – DISASSEMBLY

The following section will guide you through the disassembly and removal

of the stock components.

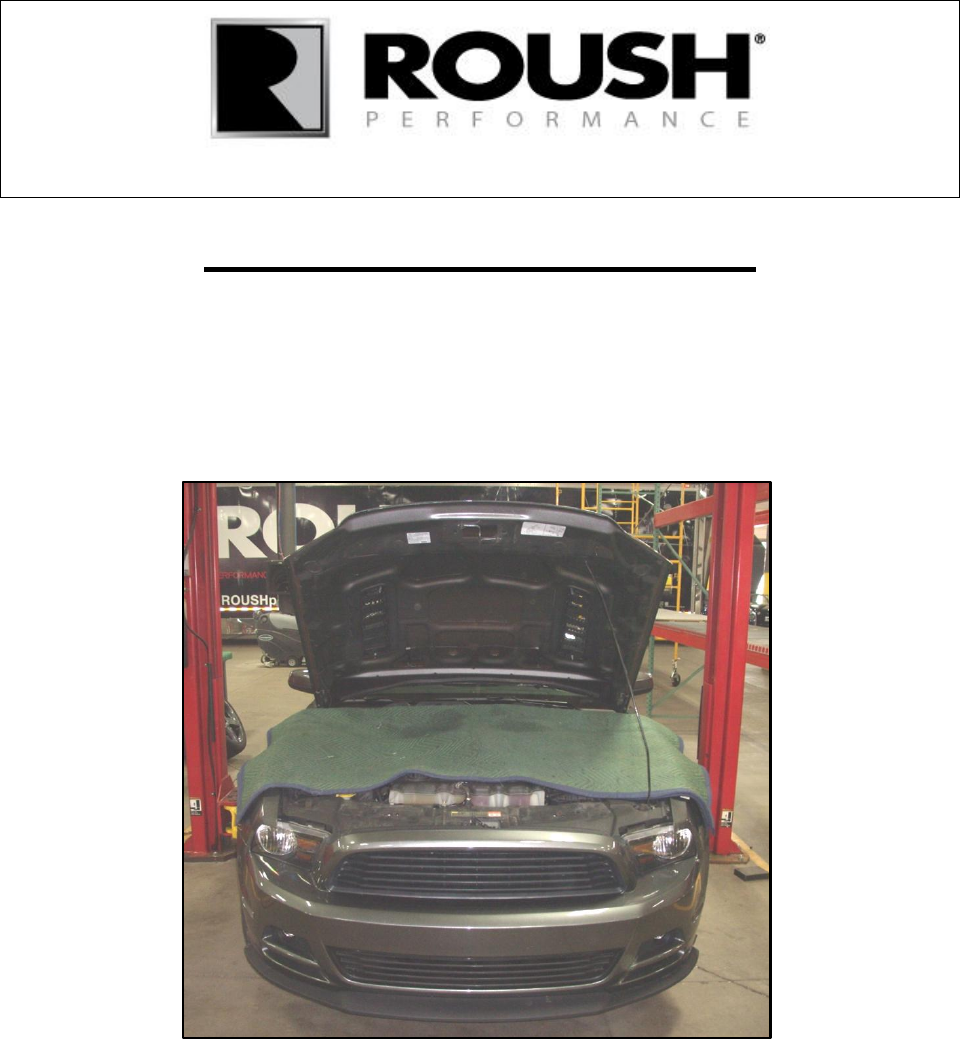

1. With the hood open, place a blanket across the engine bay before

removing hood liner retainers.

(Blanket will catch pins if dropped and metal debris while drilling.)

1313-16C630IM-CA 20120925RA Page 5 of 18 1-800-59-ROUSH

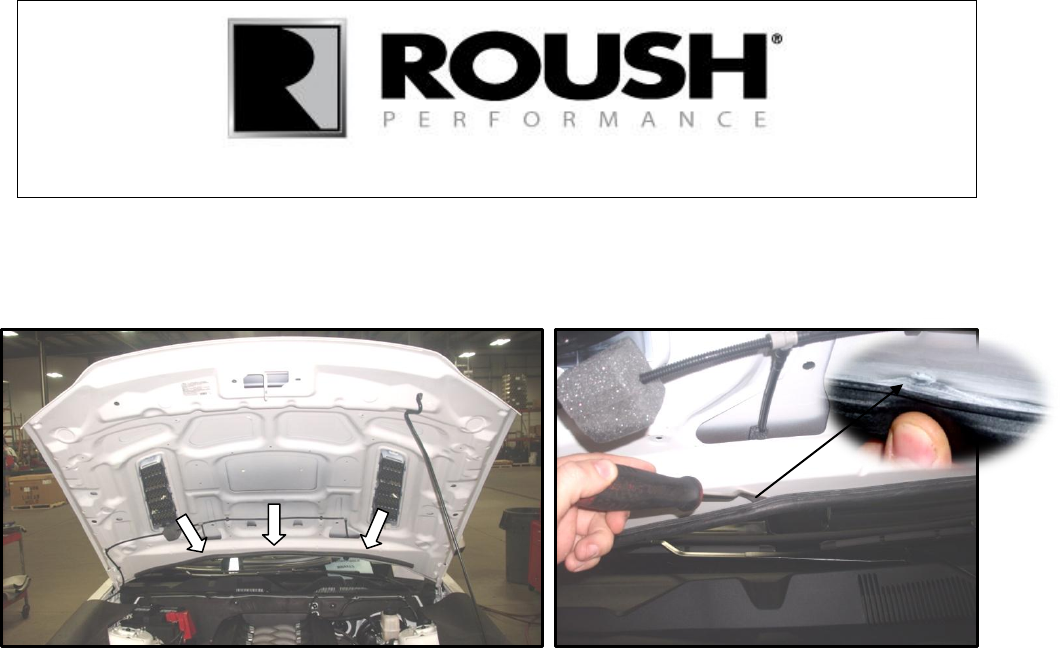

2. Using a suitable trim tool, remove the thirteen (13) hood insulator retainers, save

for reinstallation. Remove the hood insulator once retainers are removed.

1313-16C630IM-CA 20120925RA Page 6 of 18 1-800-59-ROUSH

3. Using a suitable trim tool, remove the hood to cowl seal. Use caution when

removing to not damage the rubber seal.

1313-16C630IM-CA 20120925RA Page 7 of 18 1-800-59-ROUSH

SECTION B – MODIFICATION

1. Prepare your template; make the necessary cuts along the dashed lines to align

the template to the hood.

2. Set the hood down, unlatched. After cutting the template along its dashed lines,

align the rear of the template to the rear of the hood. Align the sides of the

template with the cowl hood features in the hood. If the vehicle is equipped with

extractors, align the template cut outs with the extractors.

3. Tape the template down on the four (4) corners to prevent lifting while center

punching the holes. Using a center punch and hammer, mark the holes to be

drilled.

Rear of hood,

toward windshield

1313-16C630IM-CA 20120925RA Page 8 of 18 1-800-59-ROUSH

4. Remove template. Using 1/8” pilot drill bit, drill nine (9) holes into previously

center punched marks on the hood. Continue drilling a straight, centered pilot

hole through the second layer of sheet metal in the four (4) locations illustrated

below.

5. With a commercially available drill bit set (or a step drill bit), begin drilling the pilot

holes open, working up to a size 7/16 IN drill bit. Do not drill the second layer

sheet metal pilot holes open at this time.

1/8 IN

7/16 IN

1313-16C630IM-CA 20120925RA Page 9 of 18 1-800-59-ROUSH

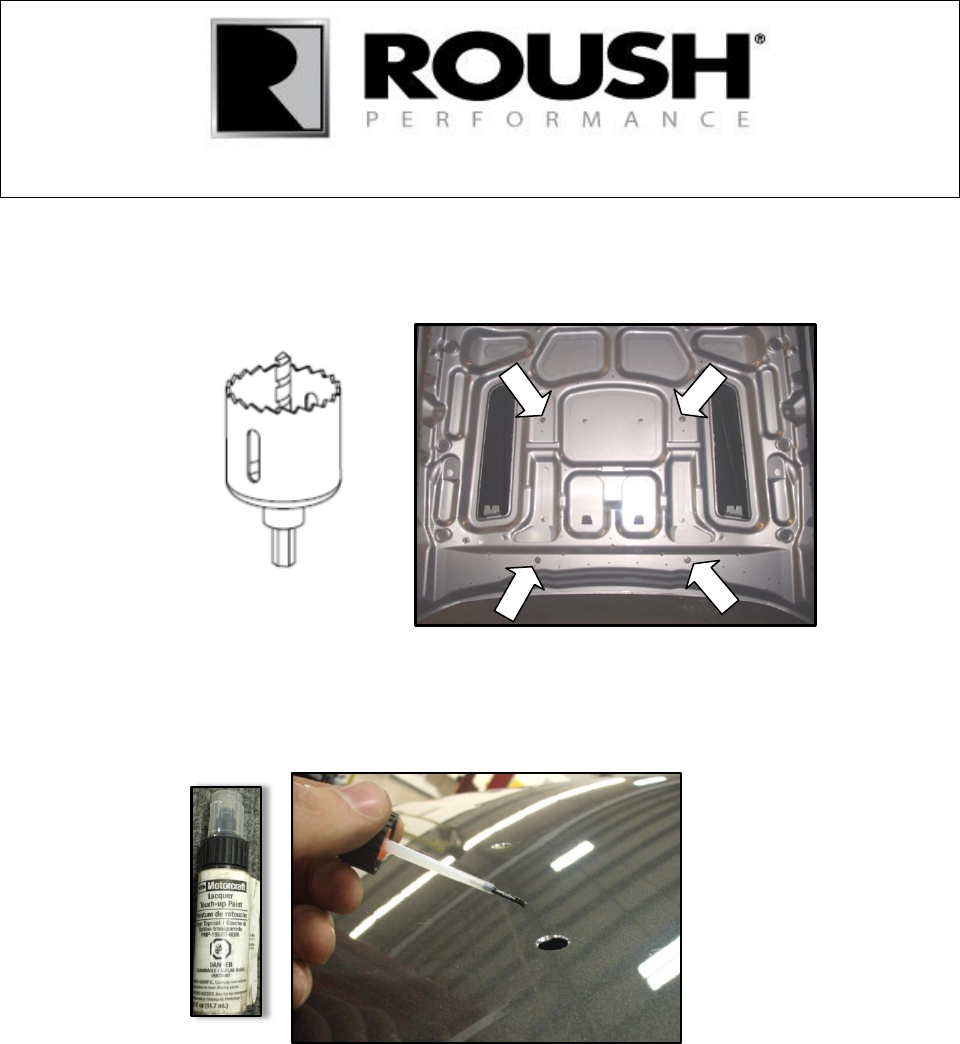

6. Open the hood. Using a suitable hole saw or drill bit, open the four (4) 1/8” pilot

holes on the underside of the hood drilled in step 4 to 7/8”.

7. With commercially available clear coat, paint the exposed metal to prevent

corrosion. (Motorcraft Part Number: PM-19500-6000)

7/8”

1313-16C630IM-CA 20120925RA Page 10 of 18 1-800-59-ROUSH

SECTION C – Hood Scoop Preparation

1. Remove hood scoop from packaging. If equipped, remove protective tape from

edges. With household isopropyl alcohol and a terry cloth, clean the surface to

apply the graphics and tape.

2. Apply supplied 3M Adhesion Promoter 4298 (P/N: 021200-27571) to the cleaned

surfaces highlighted in white in the picture below. Let the Adhesion Promoter dry

for at least 60 seconds before applying tape.

1313-16C630IM-CA 20120925RA Page 11 of 18 1-800-59-ROUSH

3. While adhesion promoter is drying, install the inlet graphic. Remove the backing

from the inlet graphic and install starting 1/4 IN from the edge of the corner where

the faux inlet starts. While applying the graphic run your fingers or a credit card

along the surface to prevent any air pockets.

1/4

1313-16C630IM-CA 20120925RA Page 12 of 18 1-800-59-ROUSH

4. Remove the stud protectors. Remove the backing from eight (8) of the circular

isolators and install around the eight (8) stud posts. Remove the backing from

the ninth (9th) isolator and stretch it, so it fits around the locating dowel.

5. Install the front tape piece first by removing the white film and applying it with the

triangular features close to the raised edge of the piece as shown in the picture

below.

1313-16C630IM-CA 20120925RA Page 13 of 18 1-800-59-ROUSH

6. Next, install the rear tape piece, followed by the left and right tape pieces (left

and right pieces are of equal length. The front portions are angled to follow the

shape of the front tape piece). Equally space the side tape pieces between the

front and rear tape pieces.

7. Pull approximately one inch of red tape from left, right and rear pieces of tape to

allow for removal of tape once installed. Bend the tabs over for access to

remove once hood scoop is in place.

1313-16C630IM-CA 20120925RA Page 14 of 18 1-800-59-ROUSH

SECTION C – Installation

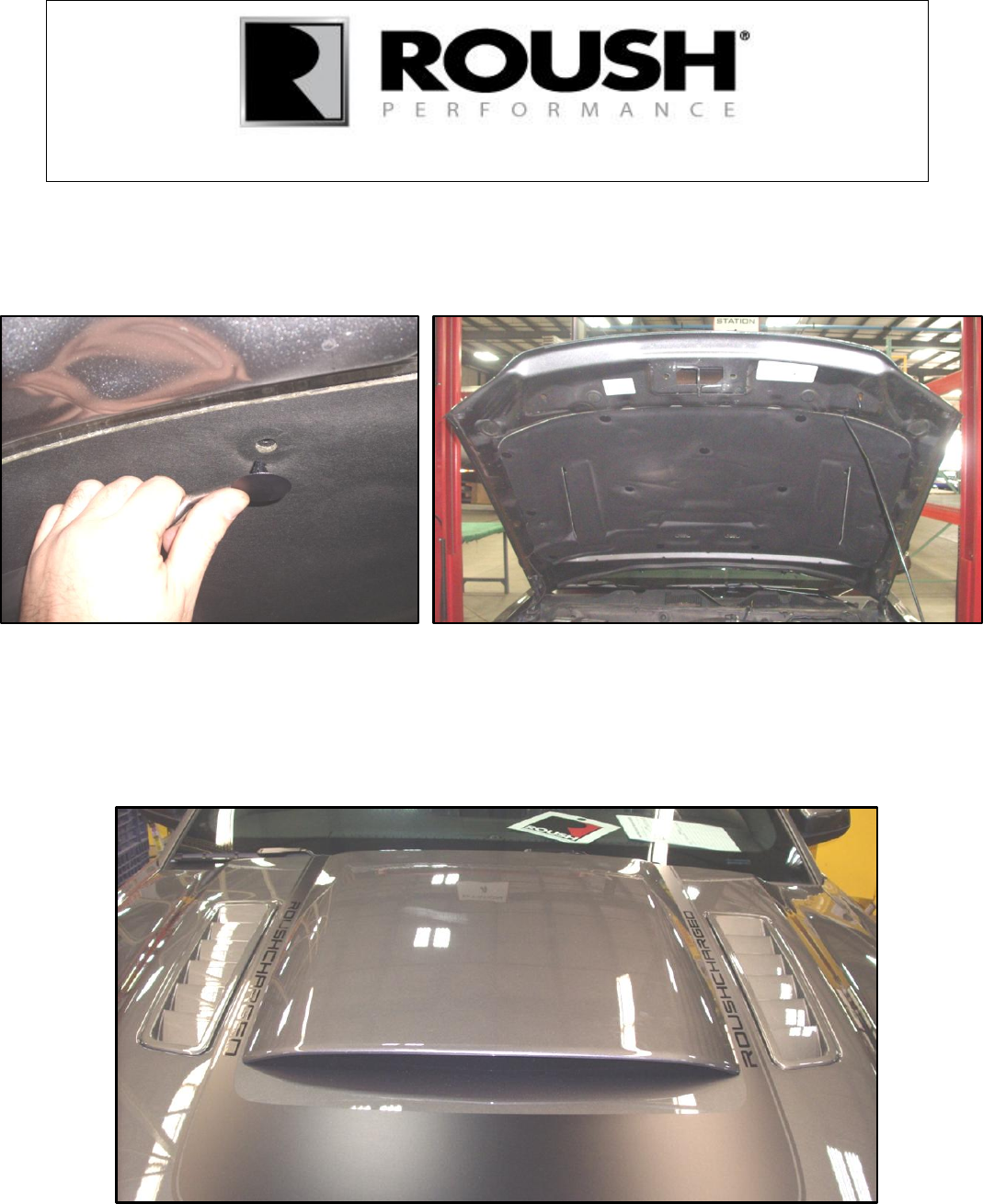

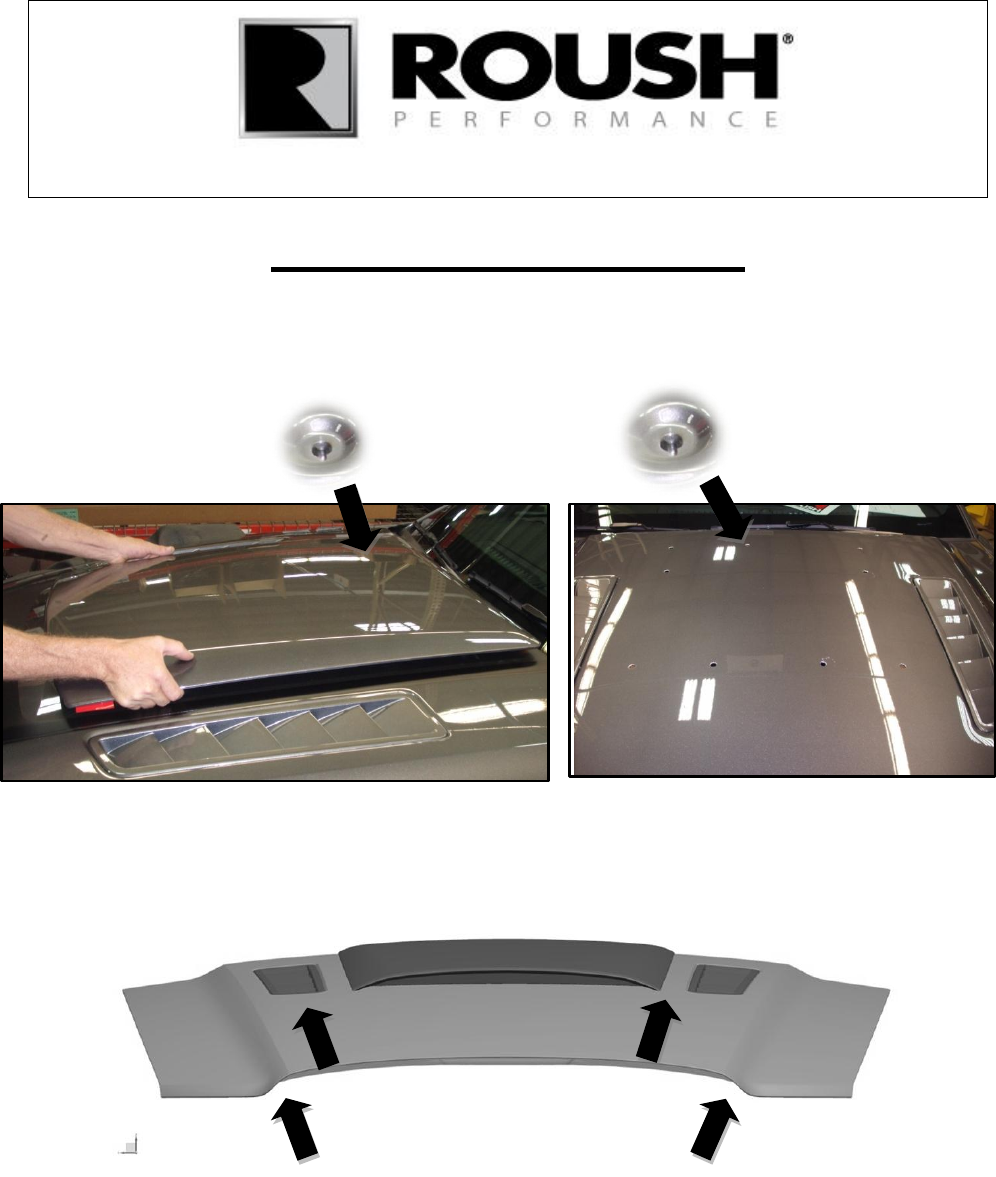

1. Holding hood scoop from the front, place the hood scoop over the hood. Place

the rear locating dowel into the hole shown in the picture below.

2. Center the hood scoop between the cowl lines of the hood. If the vehicle is

equipped with heat extractors, center the hood scoop between the heat

extractors.

1313-16C630IM-CA 20120925RA Page 15 of 18 1-800-59-ROUSH

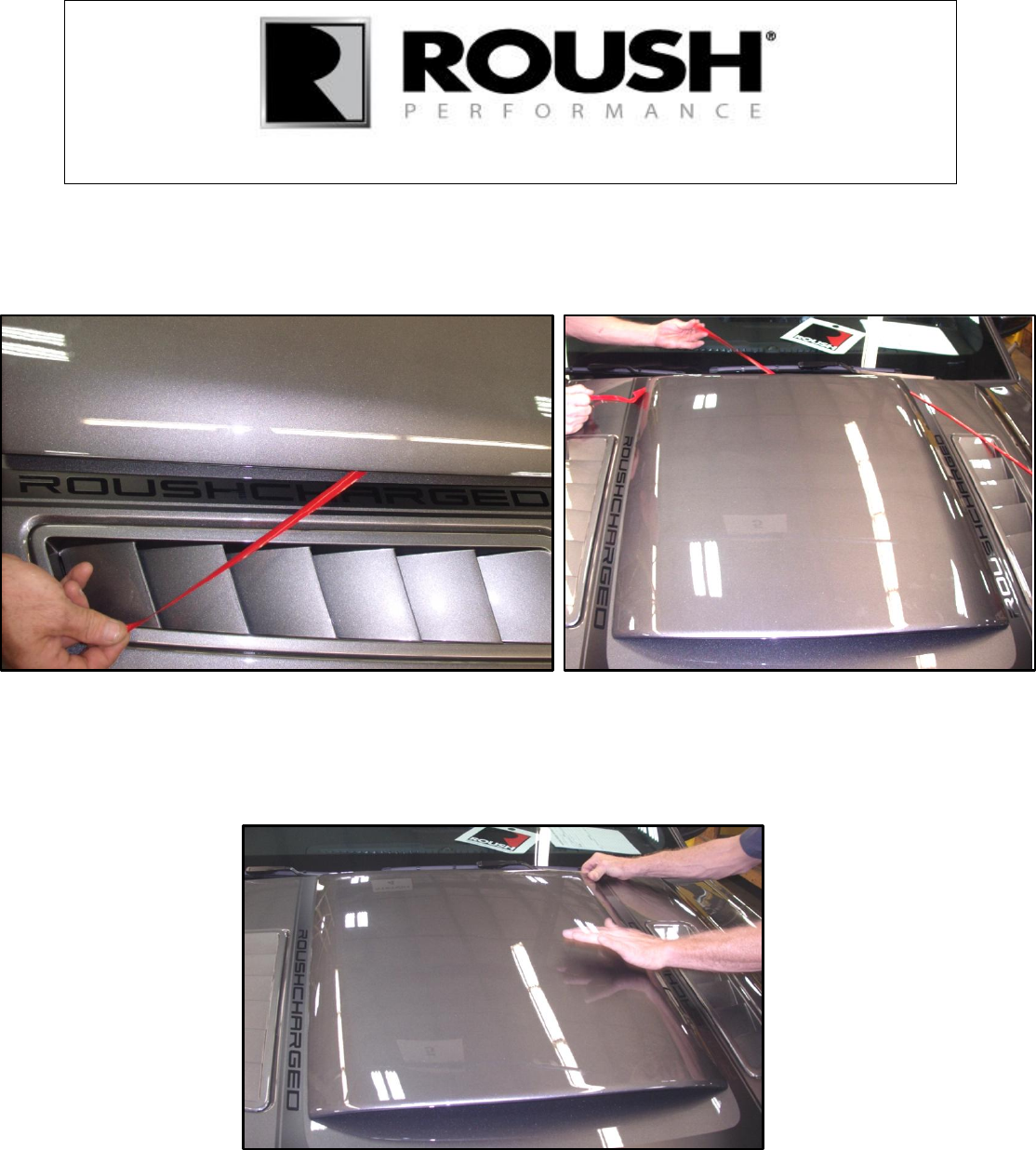

3. Set the hood scoop in its centered position, remove the red tape film; left and

right side first, proceed with front, then back.

4. To properly set the tape, press firmly around the perimeter of the hood scoop.

1313-16C630IM-CA 20120925RA Page 16 of 18 1-800-59-ROUSH

5. Open the hood, hand install the eight (8) nuts (PN: W704521). Torque the eight

(8) nuts to 4 NM (35 IN-LBS.)

6. Install the four (4) flush plugs (PN: 9750K25) into the 7/8” holes drilled on the

underside of the hood.

1313-16C630IM-CA 20120925RA Page 17 of 18 1-800-59-ROUSH

7. Re-install the hood insulator. Install the nine (9) push-pins. Reinstall the hood to

cowl weather strip removed in Section A, Step 3.

8. Remove the blanket and dispose of any metal shavings. Close the hood.

Installation is now complete.

1313-16C630IM-CA 20120925RA Page 18 of 18 1-800-59-ROUSH

WARRANTY

All retail parts carry a 90-day warranty from the date of purchase. This warranty covers defects

in materials or workmanship, and does not include (i) normal wear and tear, environmental

conditions, improper installation; (ii) road hazards, misuse, abuse, neglect, accidents, collision,

fire, theft, freezing, vandalism, riot, explosion, or objects striking the vehicle; (iii) misusing the

vehicle, such as driving over curbs, overloading, racing, or using the vehicle as a stationary

power source; (iv) altering, disassembling or modifying the parts; (v) defects caused or induced

by failures, breakdowns, or damage by other parts, components or the vehicle; (vi) subjecting

the parts to excessive moisture or water or any motor vehicle fluids (e.g.: oil, anti-freeze, battery

acid, brake fluid, etc.); (vii) acts of God, natural disasters and other similar causes beyond the

reasonable control of ROUSH; or (viii) application of chemicals that affect the parts. This

Limited Warranty does not cover surface deterioration of paint, trim, and appearance items that

result from use and/or exposure to the elements, such as stone chips, scratches, bird

droppings, lightning, hail, windstorm, dings, dents, earthquake, road salt, tree sap, water or

flood.

ROUSH SHALL NOT BE LIABLE TO REIMBURSE CUSTOMER/DEALER FOR INCIDENTAL

OR CONSEQUENTIAL DAMAGES RESULTING FROM THE INSTALLATION OR USE OF

ANY PRODUCT SOLD THROUGH THIS CATALOG OR ARISING OUT OF ANY BREACH OF

WARRANTY. EXCEPT AS MAY BE STATED IN THIS CATALOG, ROUSH DISCLAIMS ALL

EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL

ROUSH’S LIABILITY EXCEED THE PRICE PAID BY CUSTOMER/DEALER FOR PRODUCTS

SOLD REGARDLESS IF ROUSH HAS BEEN ADVISED IN ADVANCE OF ANY POTENTIAL

PROBLEM OR IF A CLAIM IS BASED ON CONTRACT, TORT, STRICT LIABILITY, PRODUCT

LIABILITY OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF IMPLIED WARRANTIES OR THEIR DURATION, OR LIABILITY FOR

INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSIONS OR

LIMITATIONS MAY NOT APPLY.
