RoyalTek TG BLUEGPS User Manual operational manual

RoyalTek Company Ltd. BLUEGPS operational manual

Contents

OPERATIONAL DESCRIPTION

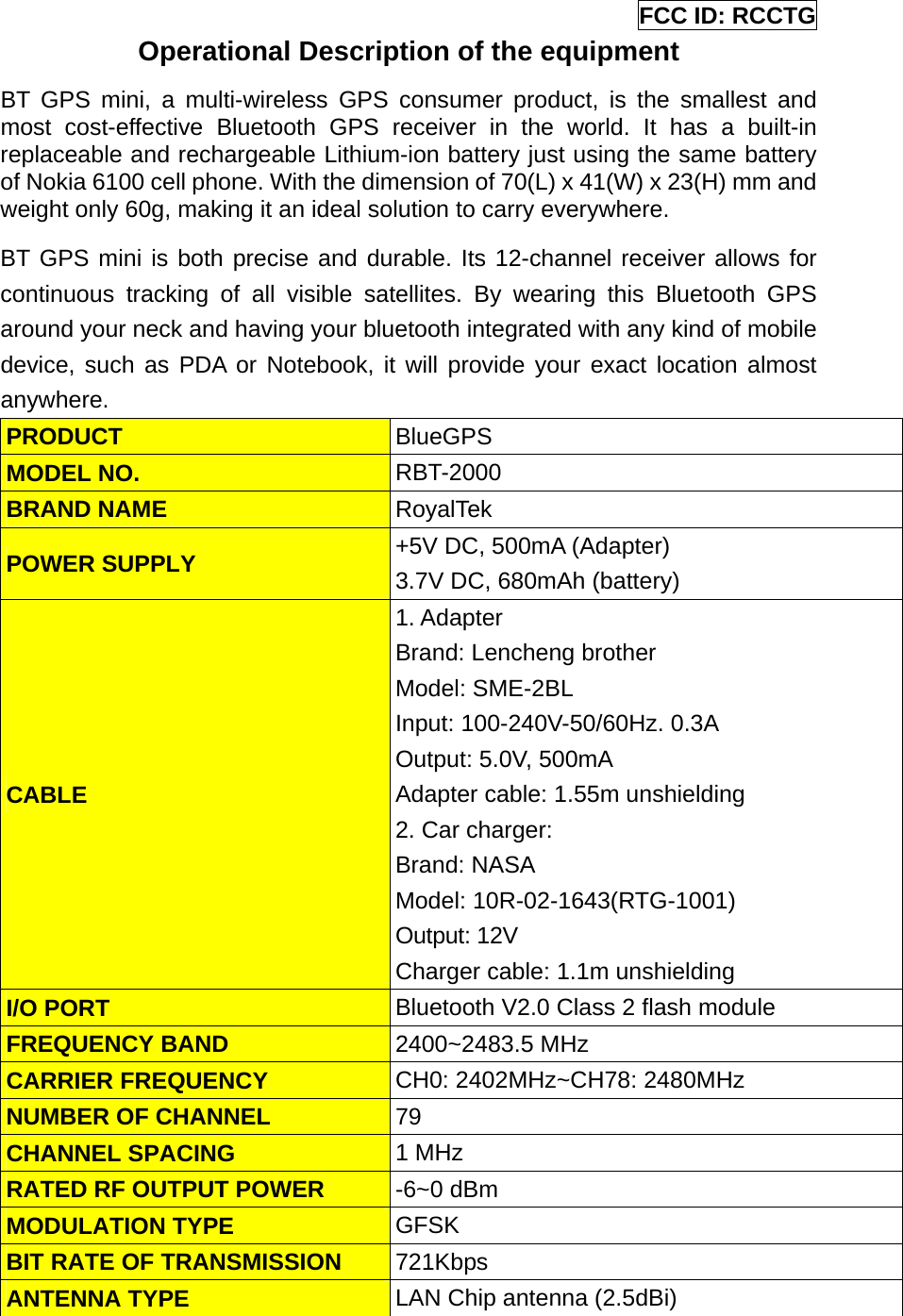

FCC ID: RCCTG Operational Description of the equipment BT GPS mini, a multi-wireless GPS consumer product, is the smallest and most cost-effective Bluetooth GPS receiver in the world. It has a built-in replaceable and rechargeable Lithium-ion battery just using the same battery of Nokia 6100 cell phone. With the dimension of 70(L) x 41(W) x 23(H) mm and weight only 60g, making it an ideal solution to carry everywhere. BT GPS mini is both precise and durable. Its 12-channel receiver allows for continuous tracking of all visible satellites. By wearing this Bluetooth GPS around your neck and having your bluetooth integrated with any kind of mobile device, such as PDA or Notebook, it will provide your exact location almost anywhere. PRODUCT BlueGPS MODEL NO. RBT-2000 BRAND NAME RoyalTek POWER SUPPLY +5V DC, 500mA (Adapter) 3.7V DC, 680mAh (battery) CABLE 1. Adapter Brand: Lencheng brother Model: SME-2BL Input: 100-240V-50/60Hz. 0.3A Output: 5.0V, 500mA Adapter cable: 1.55m unshielding 2. Car charger: Brand: NASA Model: 10R-02-1643(RTG-1001) Output: 12V Charger cable: 1.1m unshielding I/O PORT Bluetooth V2.0 Class 2 flash module FREQUENCY BAND 2400~2483.5 MHz CARRIER FREQUENCY CH0: 2402MHz~CH78: 2480MHz NUMBER OF CHANNEL 79 CHANNEL SPACING 1 MHz RATED RF OUTPUT POWER -6~0 dBm MODULATION TYPE GFSK BIT RATE OF TRANSMISSION 721Kbps ANTENNA TYPE LAN Chip antenna (2.5dBi)
