The Ruckus ZoneFlex 2942 is the first centrally managed,
multimedia 802.11g Wi-Fi access point that delivers
industrial-strength features and functionality not available
in any low-end consumer AP or high-end WLAN system.
Together with the Ruckus ZoneDirector central WLAN
controller, Ruckus ZoneFlex APs plug-and-play with
minimum operational overhead. Ideal for hotels, schools,
airports and small-to-medium businesses (SMBs) with little
or no IT staff and a limited budget, the Ruckus ZoneFlex
2942 is also perfect for hot spot operators that want to
deliver business class hot spot services – such as voice over
Wi-Fi, IP-based video or secure enterprise access.
The ZoneFlex 2942 implements Ruckus patented
BeamFlex™ smart antenna technology that enables
consistent, high performance, extended coverage and
multimedia support as it automatically tunes itself to adapt
to constant changes in the environment. This means fewer
APs, more satisfied users, and a cost effective system that
can be installed anywhere by non-wireless experts.
A Web-based wizard allows any computer user to
configure ZoneFlex 2942s through the ZoneDirector
– creating a secure and sophisticated WLAN in a matter
of minutes. Ruckus ZoneFlex 2942s simply plug into
any Ethernet network and automatically discover the
ZoneDirector. No RF tuning. No client configuration. A true
plug-and-play multimedia WLAN that is ready to use.
Smart Wi-Fi 802.11g Multimedia Access Point
No RF experts required
Smart antenna array eliminates AP placement issues and
minimizes adjacent AP interference while ZoneDirector
controls dynamic channel assignment and power management
Breakthrough user performance and density
Advanced antenna array and precision QoS software delivers
20 concurrent voice call, 50 simultaneous data users or 20 Mbps
of sustained video quality throughput per access point
Extended coverage means fewer APs
Directional, high-gain antennas dynamically combined to give
hotspot operators and SMBs two to four times the coverage
over typical consumer and enterprise APs
Optimized for voice over Wi-Fi
Specialized antenna design, dynamic signal path selection and
precision QoS software optimize delay-sensitive, high-density
Vo-Fi applications. Power Save (UAPSD) maximizes handset
battery life
Proven video streaming support
Ruckus smart antenna system and video QoS already proven for
real time IP video streaming applications deployed by over 100
IPTV operators worldwide
“IT lite” configuration and management
Web-based wizard enables configuration of multiple APs
across the entire WLAN in minutes. Once configured the
WLAN manages itself
Enables business class hot spot services
New revenue opportunities for operators such as Voice-
over-WLAN services, extended enterprise access, IP video
applications and tiered service classes
BENEFITS
ZoneFlex™ 2942
The First Centrally Managed,
Multimedia W-Fi Solution for
the Small Business and Hot Zone
Introducing the Ruckus ZoneFlex 2942
The Ruckus ZoneFlex 2942 fills the gap between low end, feature-sparse
consumer AP and expensive, complex enterprise-class WLANs. It is the first
truly-affordable, centrally-managed 802.11g multimedia access point specifi-
cally designed for hot zone operators and SMBs. Working in concert with the
ZoneDirector system, the Ruckus ZoneFlex 2942 delivers a complete, plug-
and-play, secure and robust WLAN solution without the cost or complexity of
high-end systems.
High performance and cost effective
The Ruckus ZoneFlex 2942 is built on patented BeamFlex Smart antenna
technology that automatically adapts to the RF environment by steering Wi-Fi
signals on the best path and rejecting interference in real time. Each Ruckus
ZoneFlex 2942 comes equipped with a state-of-the-art, high-gain smart an-
tenna array designed to deliver unsurpassed density and range. Supporting
up to 50 simultaneous data users or 20 concurrent voice calls while its superior
coverage reduces the number of APs required by a factor of two or more, the
Ruckus ZoneFlex 2942 gives hot zone operators and SMBs the most cost-ef-
fective multimedia Wi-Fi solution.
IT “lite” deployment
The self-optimizing BeamFlex technology allows the Ruckus ZoneFlex 2942
to be installed without site survey and RF planning. Simply plug any Ruckus
ZoneFlex 2942 into an Ethernet and it automatically discovers the Ruckus
ZoneDirector and self-configures.
The Ruckus ZoneFlex 2942 and ZoneDirector system seamlessly integrate
with existing security systems such as firewalls, intrusion detection system and
authentication servers including RADIUS and ActiveDirectory. An internal au-
thentication database allows SMBs to implement user authentication without
the expenses and complexity associated with external authentication servers.
Minute configuration
Ruckus ZoneFlex 2942 APs are automatically configured by the Ruckus Zone-
Director. A network of APs can be centrally configured in a matter of minutes
through the ZoneDirector’s web-based wizard.
Automatic user security
Used with the Ruckus ZoneDirector, the Ruckus ZoneFlex 2942 provides first-
of-its-kind automatic, robust user security enforcement . Provisioning secure
wireless access often involves configuring all the client devices with wireless
setting such as an SSID and encryption key. Typically organizations use a single
pre-shared key for all employees. This is a security problem and is an ongoing
operational headache.

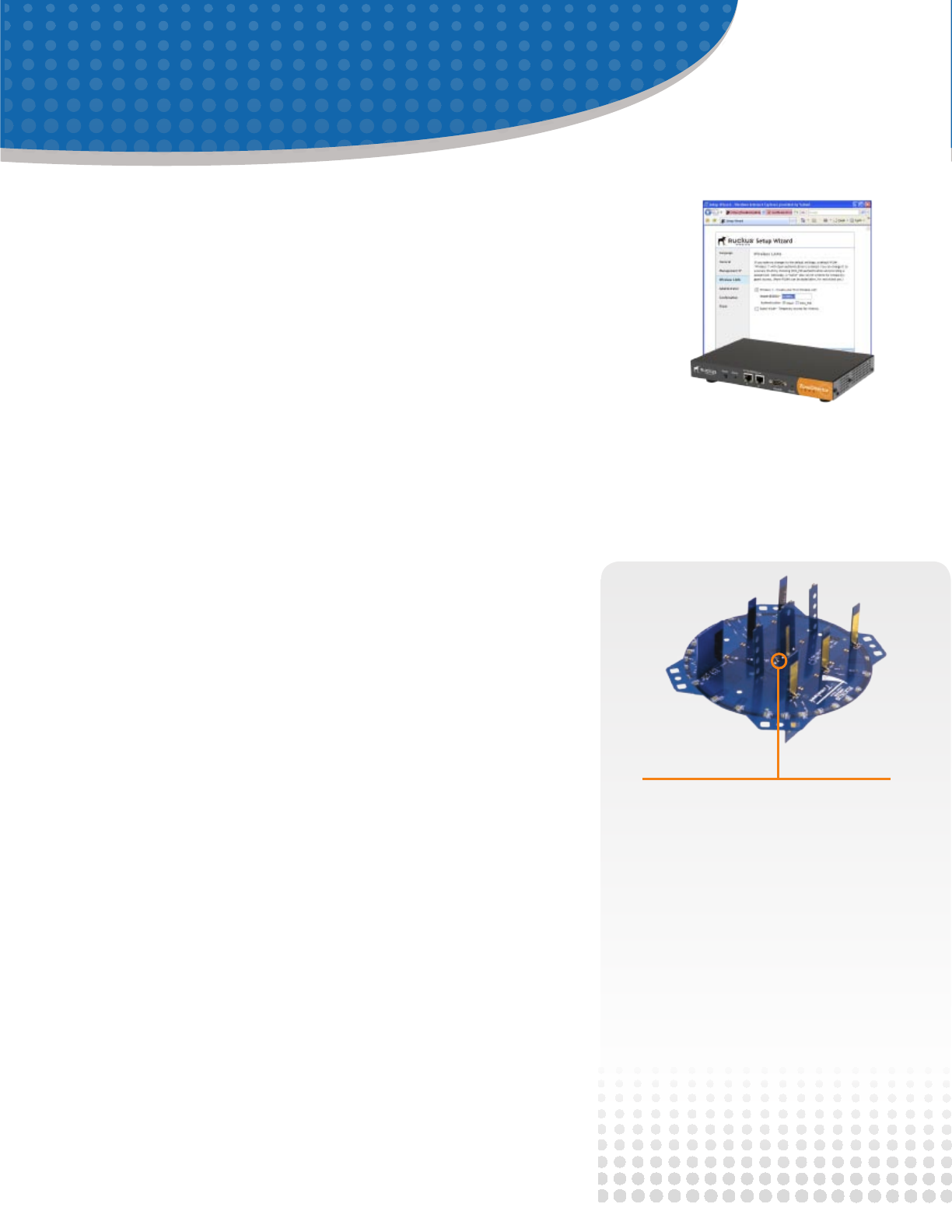

A state-of-the-art smart antenna array
integrates six high-gain vertically polarized
and six hortizontally polarized antenna
elements. This enables up to 4096 potential
antenna combinations and up to 7 dBi gain
thereby delivering unprecedented range
extension and Wi-Fi signal reliability. Expert
control software selects the best antenna
elements to use at any given moment for any
given packet and any given client based on
changing environmental conditions
Ruckus ZoneFlex 2942
Smart Wi-Fi 802.11g Multimedia Access Point
Centralized configuration and
RF management of Zoneflex APs
can be provided through
the ZoneDirector 1000
Integrated smart antenna array with 4K unique
patterns designed for triple-play services
Automatic interference avoidance optimized for
high density environment
Two to four-times extended range/coverage
20 Mbps sustainable video throughput
4 queues per station
4 BSSIDs with unique QoS and security policies
WEP, WPA-PSK, 802.1X
Zero-IT and Dynamic PSK
(with ZoneDirector)
Admission control/load balancing
(with ZoneDirector)
Captive portal and guest accounts
(with ZoneDirector)
RADIUS and Active Directory support
(with ZoneDirector)
Advanced RF management
(with ZoneDirector)
Two 10/100 Mbps Ethernet ports allowing for
daisy chaining of APs and connection of local
devices
Power over Ethernet for easy deployment
Ceiling or wall mountable with Kensington lock
option
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
FEATURES
Ruckus patent-pending Dynamic PSK on the Ruckus ZoneDirector and
ZoneFlex 2942 automates this process to assure integrity of the user
authentication system. First time users simply plug their computers into
the LAN and specify a URL that directs them to a captive portal for a one-
time authentication. Upon authentication, the ZoneDirector automatically
configures the user’s system with the designated SSID and a unique,
dynamically generated encryption key. The key can be removed automatically
upon expiration or manually when the user or the user’s device is no longer
trusted.
Differentiated services with multiple SSIDs
Multiple SSIDs can be configured within each Ruckus ZoneFlex 2942 with
unique broadcast, QoS, security and management parameters assigned to
each SSID This enables a hot zone operator to easily offer tiered services
to different user or traffic types. SMBs can utilize this facility to implement
unique guest, contractor and employee access policies.
Dynamic RF management
A Ruckus ZoneFlex WLAN is inherently RF-coordinated as BeamFlex auto-
matically steers Wi-Fi signals toward each receiver and away from noise in
real time. And unlike omni antennas, BeamFlex does not constantly radiates
in all directions, thereby minimizing the chances of adjacent AP interference.
As a last resort, the Ruckus ZoneDirector can dynamically exert control over
the RF channel assignment and transmit power level on the ZoneFlex APs to
further optimize the RF environment without manual intervention.

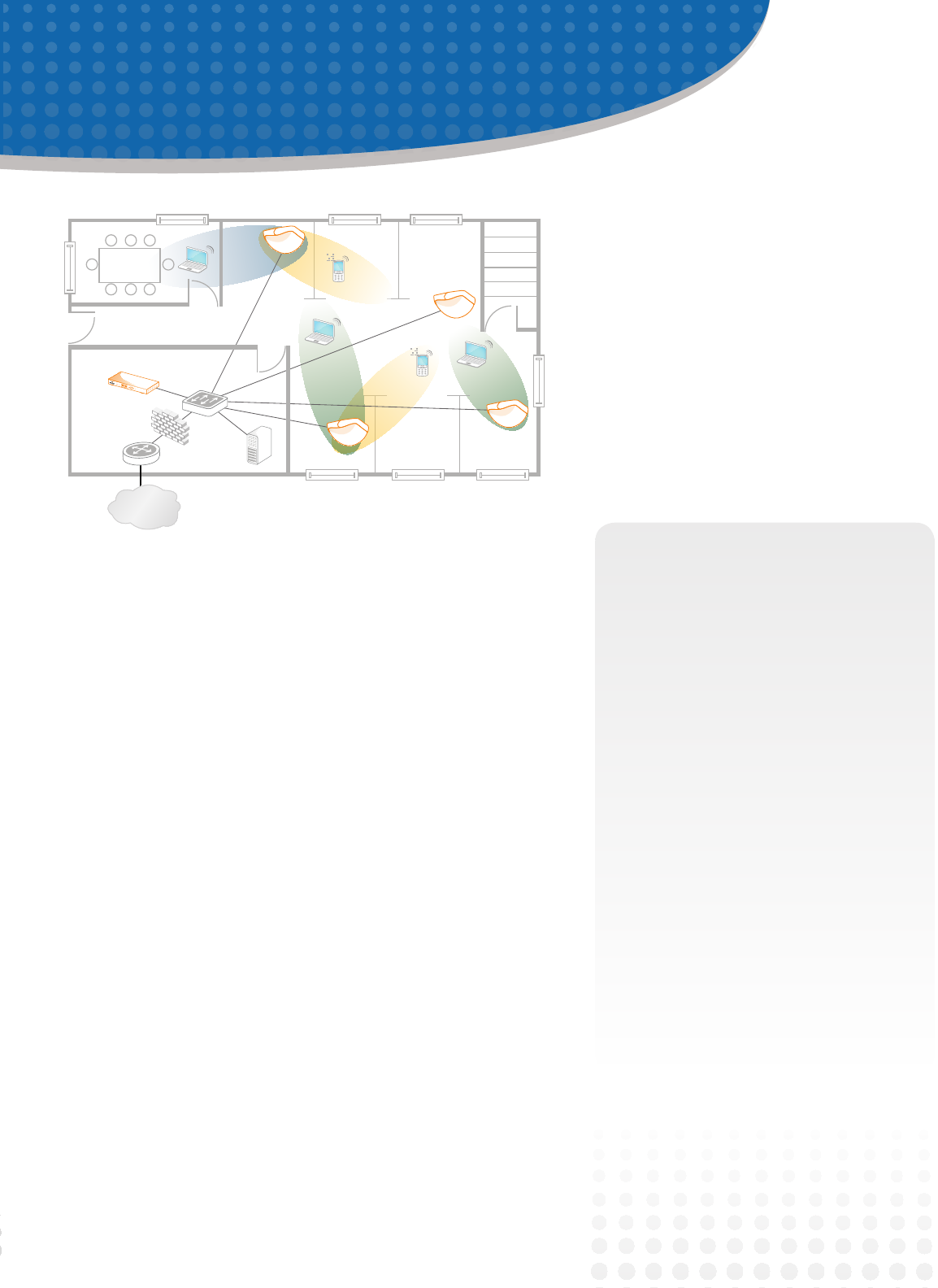

Ruckus ZoneFlex 2942
Smart Wi-Fi 802.11G Multimedia Access Point
ZoneDirector
Firewall
Router
Internet
RADIUS/AD
Voice
SSID
Voice
SSID
Employee
SSID Employee
SSID
Guest
SSID
Management (when individually managed)
Wi-Fi
Specifications
Power External power adapter
Input: 110-240V AC
Output: 12V DC, 1A
Power over Ethernet
•
•
•
•
Physical Size 19.43cm (L), 14.43cm (W),
10.16cm (H)
•
Weight 550 grams•
Antenna Internal software-configurable
antenna array with directional
and omni high-gain elements that
provide up to 4K unique antenna
patterns
External RP-SMA connector option
•
•
Ethernet Ports 2 ports, auto MDX, auto-sensing
10/100 Mbps, RJ-45
Power over Ethernet (802.3af)
•
•
LED display Power/status, Ethernet status,
wireless status, wireless network
quality indicator, Director status
•
Lock Option Integrated Kennsington lock•
Environmental conditions Operating Temperature: 32°F (0°C)
- 122°F (50°C)
Operating humidity: 15% - 95%
non-condensing
•
•
Performance and Supported Configurations
Concurrent stations Up to 50•
Target UDP throughput 15-20 Mbps (54 Mbps bursts)
sustainable throughout a 5000
square foot (460m2) public area
•
Simultaneous Vo-Fi clients up to 20•
Traffic Management and Quality of Service
Classes of service Voice, video, best effort and
background
•
Software queues 4 per station•
Automatic traffic classification Automatic type of service tagging
for multicast video packets
•
Rate Limiting Supported•
VLAN support 802.1Q•
Heuristic classification Supported•
Configuration Web user interface, CLI (Telnet),
SSH HTTP/S, SNMP statistics
interface
•
Statistics LAN, wireless and associated
stations (accessible via Web UI)
•
Software update FTP or TFTP, remote auto available•
Standards 802.11b/g•
Supported data rates 54,48,36,24,18,12,11,5.5,2,1 Mbps•
Channels US/Canada: 1-11
Europe (ETSI X30): 1-13
Japan X41: 1-13
•
•
•
Auto channel selection Supported•
RF power output 23 dBm for wireless-B
23 dBm for wireless-G
Country-specific power settings are
configurable
•
•
•
Transmit power control Supported•
BSSID Up to four•
Power Save Supported•
Certifications FCC (U.S.), CE (EU), OFTA (Hong
Kong) Canada, Australia/New
Zealand
Plenum rating (UL 2043) - in process
•
•
Wireless Security WEP, WPA-PSK, WPA-TKIP, WPA2-
AES
Authentication via 802.1X with the
ZoneDirector, local authentication
database, support for RADIUS and
ActiveDirectory
•
•
Deployment
Options Managed by ZoneDirector
Individually managed
•
•
PLEASE NOTE:
When ordering you must specify the destination region by
indicating -US -EU or -UK following the model number.
Copyright © 2007, Ruckus Wireless, Inc. All rights reserved. Ruckus Wireless and Ruckus Wireless design are
registered in the U.S. Patent and Trademark Office. All other trademarks are the property of their respective
owners. 031606
Ruckus Wireless, Inc.
880 W. Maude Avenue. Suite 101
Sunnyvale, CA 94085 USA
TEL +1 650-265-4200 FAX +1 408-738-2065
www.ruckuswireless.com
Physical Characteristics
Product Ordering information
Model Description
ZF2942 (US, EU, UK, AU, UN) 2-port centrally managed
multimedia AP
