Ruckus MM2211 Metro
Broadband Gateway Quick
Setup Guide
Packing list
•Ruckus MM2211 Metro Broadband Gateway (MM2211
Gateway)
•AC power adapter
•Category 5 (CAT5) Ethernet cable
•Ruckus MM2211 Metro Broadband Gateway Quick Setup
Guide (this document)
Understand the Default Network
Settings
Default Settings
IP Address
• The default IP address of the Ruckus MM2211 is
192.168.1.1.
• The Subnet Mask address is 255.255.255.0
• To gain administrative control of the MM2211, you must
set your computer’s network IP address to obtain an IP
address automatically.
Proceed to the next section for instructions on configuring
your IP address.
Manually Configure an IP Address
on Your Computer
1. For Windows 2000: Select Start->Settings->Network
and choose Dialup Connections
2. For Windows XP: Select Start->Settings->Control
Panel-> Network Connections
3. Double-click the icon for the Local Area Connection
designated for your home network. This is not the
same icon as your home wireless network.

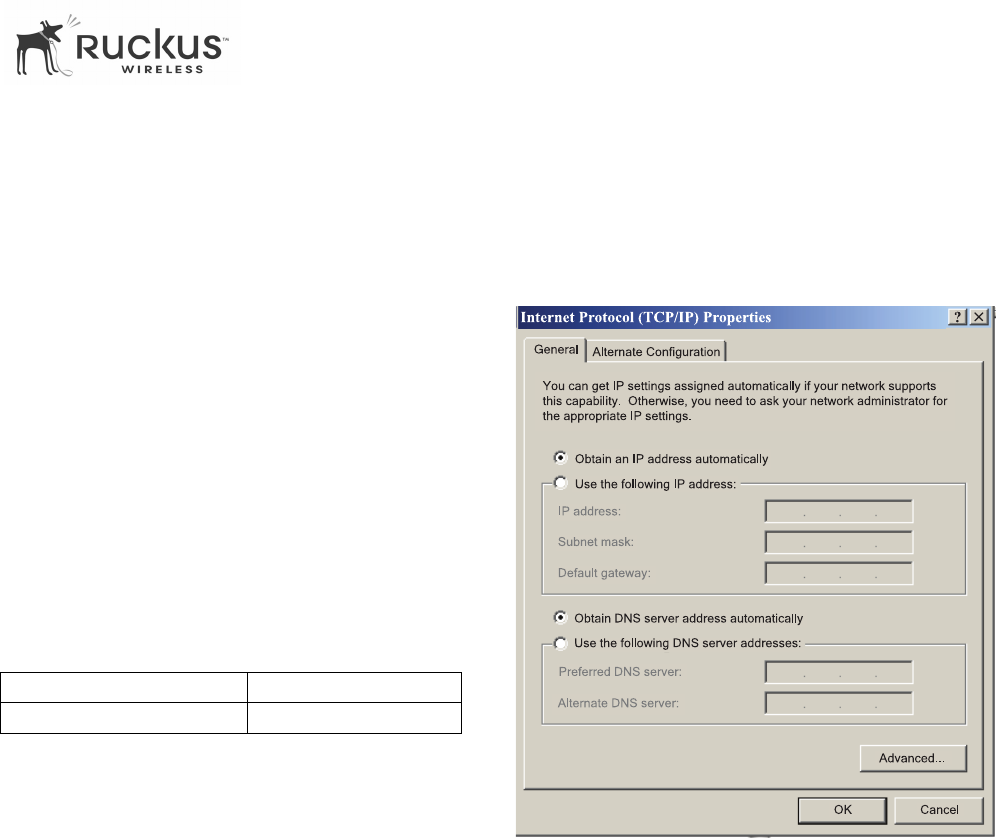

4. In the Local Area Connection Properties window, select
Internet Protocol (TCP/IP) and click Properties.
5. Select Obtain an IP address automatically, and click
OK to exit the TCP/IP Properties window.
6. Click OK to exit the Local Area Connection Properties
window.
Connect and Configure Your
Ruckus MM2211 Gateway
The following steps will guide you to set up and gain admin-
istrative access to your Ruckus MM2211 Metro Broadband
Gateway.
1. Remove the Ruckus MM2211 Metro Broadband Gate-
way gateway from the packaging and place it next to
your computer.
2. Connect the AC power supply to the Ruckus MM2211
gateway and plug the other end into a power outlet or
to a surge protector that is plugged into a power out-
let.
3. Connect the CAT5 Ethernet cable to the Ethernet port
on your computer, and to the Ethernet port on the
Ruckus MM2211 Metro Broadband Gateway.
4. On your PC, open a browser window. Enter the
address http://192.168.1.1.
5. When the login screen appears, enter the username
admin and leave the password field blank. Then click
the Login button.
6. In the Configuration->Wireless menu, you may change
the default wireless network Name (SSID) name for this
device to match the SSID of the AP you intend to con-
nect to.
7. Refer to the information provided under the Help but-
ton before attempting to change any other default set-
tings in this screen.
8. The initial configuration is now complete. Click
Reboot/Reset to make the change take effect.
Troubleshooting
If you cannot connect to your Ruckus MM2211 Metro Broad-
band Gateway, perform the following steps:
If the startup sequence didn’t work, verify that the Network
name (SSID) and security settings on the Ruckus MM2211
Metro Broadband Gateway match your wireless network.
1. Connect your computer to the Ruckus MM2211 Metro
Broadband Gateway by an Ethernet cable. Set your
computer’s network to get an IP address automatically.
2. Open a Web browser window.
3. Point your browser to http://192.168.1.1. At the login
screen, enter the username admin and leave password
field blank. Click Login.
4. Click the System link under the Configuration menu on
the left panel of the Ruckus Web user interface. Verify
that the Ruckus MM2211 Metro Broadband Gateway’s
wireless settings match those of your remote AP.
Check the LED status lights to verify correct operation.
1. Make sure you are using the power adapter supplied
by Ruckus Wireless.
Network Name (SSID): V54-WXYZ
Security: Disabled
2. Make sure the Power LED is lit. If it is not lit, make sure
that the power cord is properly connected to the
Ruckus MM2211 Metro Broadband Gateway, and that
the power supply adapter is properly connected to a
functioning power outlet. If the error persists, you have
a hardware problem and should contact technical sup-
port.
3. Make sure your Network LED is lit. Make sure that the
Ethernet cable connections are secure at the Ruckus
MM2211 Metro Broadband Gateway and your com-
puter. The LAN LED on the Ruckus MM2211 Metro
Broadband Gateway indicates link when the gateway is
fully seated in the port.
4. Make sure the Wireless LED is either steady or flashing
Green. If not lit, the Wireless settings may be incorrect
between the Ruckus MM2211 Metro Broadband Gate-
way and your computer.
If necessary, reset the Ruckus MM2211 Metro Broadband
Gateway gateway to its factory defaults
If you forgot which security settings you assigned to the
Ruckus MM2211 Metro Broadband Gateway, you can reset it
to factory defaults by inserting the end of a paper clip into
the reset button hole located on the back of the unit.
Press and hold the reset button for at least eight seconds,
until all Dome LEDs start to flash simultaneously. Then you
can connect to the Ruckus MM2211 Metro Broadband Gate-
way using the default network settings.

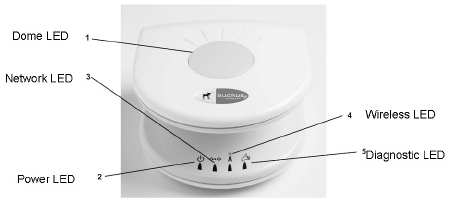

LED Information
