Who Should Use This Guide
Preface
This Ruckus Wireless MediaFlex 7811 Access Point User Guide will help you understand the Ruckus
Wireless MediaFlex 7811 Access Point — how to install it, and configure it using the Ruckus
Wireless Web Interface.
Who Should Use This Guide
This User Guide assumes that the reader has basic to intermediate computer and Internet skills. All the basic
computer networking, Internet, and other information required to configure this device is provided herein.
What You’ll Find in This Guide
The following topics are covered:
Chapter 1: “Introduction”
Chapter 2: “Installation and Setup”
Chapter 3: “Configuration”
Chapter 4: “Maintenance
Chapter 5: “7111 Adapter Setup, Provisioning, and Management
Appendix A: “Technical Specifications”
Appendix B: “Configuration Worksheets
Typographic Conventions
This User Guide uses the following typographic conventions:
Table 1—Typographic conventions
Typeface or
Symbol Meaning Example
italics Emphasis, book titles, CD names,
special terms.
Also used to denote optional input if
surrounded by <brackets>
Read your User Guide thoroughly.
Enter an address in the range
192.168.2.<2-253>
bold System menu names, user input Open the Control Panel.
fixed Screen text, URLs, IP addresses Browse to the following IP address:
http://192.168.2.1
vi Ruckus Wireless MediaFlex 7811 Access Point
System Requirements
System Requirements
The 7811 is compatible with most contemporary personal computers and operating systems that are
configured for Internet and wireless networking.
The 7811 is accessed and configured via a Web browser interface. Any of the following Web browsers are
supported:
Internet Explorer version 6.0
Netscape version 8.1
Firefox version 1.5.0.6
Safari 1.0
Support and Warranty Information
See the Warranty card for detailed information about contacting Technical Support, and the Warranty terms
for your 7811.
Ruckus Wireless MediaFlex 7811 Access Point 1
Chapter 1: Introduction
Congratulations on your purchase of the Ruckus Wireless MediaFlex 7811 Access Point (7811). The 7811
is a device that enables wireless multimedia networking for video, voice and data, without replacing existing
routers, network adapters and media receivers.
A typical installation consists of a 7811 connected to a DSL router or cable modem. The 7811 sends wireless
signals to an adapter that is connected to a set top box. Video, data and voice traffic are distributed amongst
TV, video appliances, and other wireless-enabled home entertainment appliances.

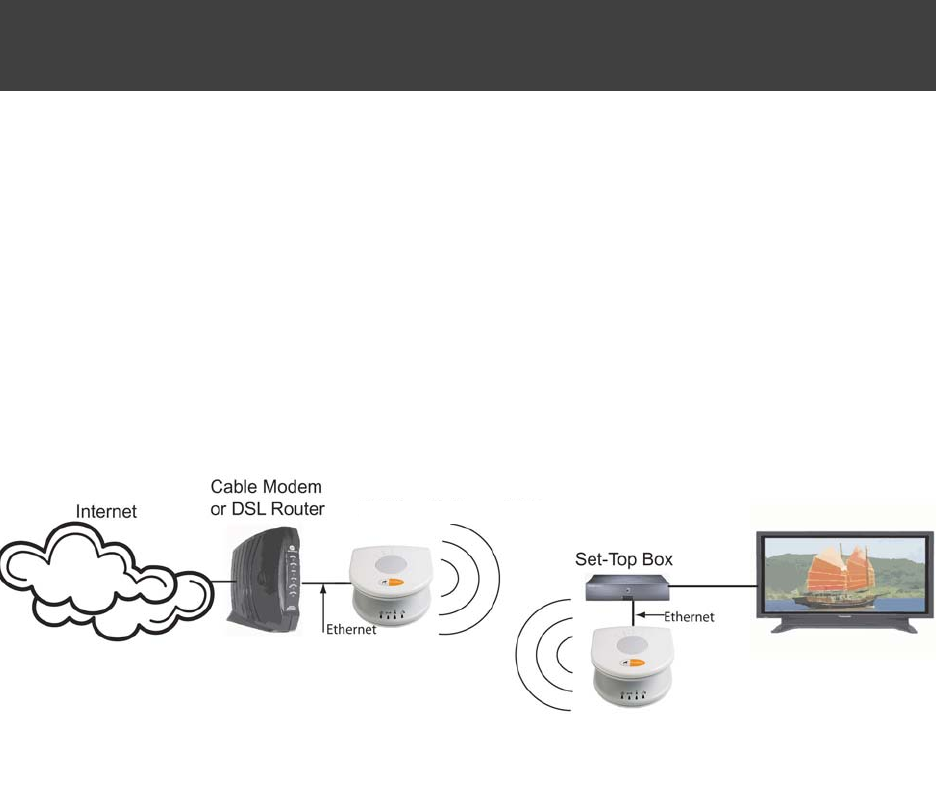

Figure 1—Ruckus Wireless MediaFlex 7811 Access Point in a typical home network
The 7811 supports one BSSID and features HTTPS and secure shell (SSH) management, with device
specific certificates.
Ruckus Wireless
MediaFlex 7811
Access Point
Ruckus Wireless
MediaFlex 7111 Adapter
2 Ruckus Wireless MediaFlex 7811 Access Point
MediaFlex™
MediaFlex™
MediaFlex™ is Ruckus Wireless, Inc.’s family of purpose-built, multimedia WiFi devices that enable
reliable wireless distribution of entertainment-quality, real-time media applications throughout the home.
Media applications require consistent and uninterrupted bandwidth; however most wireless LANs
(WLANs) cannot provide consistent service because of the variable nature of the wireless medium.
Ruckus Wireless, Inc.’s new, patent-pending Multicast TV-over-WLAN (TVoWLAN) technology
differentiates multicast video frames from general multicast and broadcast traffic to provide robust wireless
transport for IPTV streams—from the broadband gateway to the set top boxes.
To mitigate the performance impact of concurrent applications and interfering devices in a shared medium
network, MediaFlex integrates the Ruckus Wireless new, patent-pending Media Quality of Service (QoS)
technology to automatically classify video traffic and prioritize transmissions among applications.
BeamFlex™
BeamFlex™ is Ruckus Wireless, Inc.s patent-pending antenna technology that allows wireless signals to
navigate around interference, extend wireless signal range, and increase speeds and capacity for 802.11n
wireless networks. The BeamFlex™ antenna system consists of an array of six high-gain directional antenna
elements, that allow the 7811 to find quality signal paths in a changing environment, and sustain the baseline
performance required for supporting data, audio and video applications.
Key Features
BeamFlex™ Smart MIMO Antenna Maximizes Wireless Range and
Performance
Multiple-Input, Multiple-Output (MIMO) technology supports real time learning of Radio Frequency,
station, network and application conditions.
On-the-fly adaptation to each receiving device in response to environmental changes such as interference
to maximize signal quality, data rate and minimize packet errors and retransmissions.
Internal driver software controls an antenna array with 6 high-gain, directional antenna elements that
combine to form 63 unique antenna combinations.
Expert system 802.11 driver controls data rate and retransmission policies on a per-packet basis.
Media QoS Ensures Highest Video Quality
Automatic traffic classification and Type-of-Service (TOS) tagging eliminates complex QoS
configurations.
Priority queuing for voice, video, best-effort and background traffic, per WiFi Alliance WiFi Multimedia
(WMM) specifications.
Strict priority with short (2 frames) hardware queue depth to ensure rapid feedback from the remote AP.
Ruckus Wireless MediaFlex 7811 Access Point 3
Key Features
Multiple Concurrent Video Streams with Simultaneous Data Traffic
Delivers 30-40Mbps of bandwidth at 99.9% availability throughout a typical 2500ft2 (300m2) home.
Supports total number of streams with aggregate of 30Mbps to 40Mbps video throughput
Supports one MPEG-4/WMV stream, one DVD-quality MPEG-2 streams, or one 10Mbps+ high
definition video stream at 50ft (18m), with simultaneous data traffic.
Simple Configuration and Installation
Simple Web-based user interface for easy configuration and customization of features such as SSID, WPA
key, statistics monitoring and software upgrade.
Standards-based Solution Protects User Investment, Minimizes
Replacement Cost
Compliant with 802.11n: Supports 802.11n wireless networking and can interoperate in 802.11n-only or
mixed networks
Compliant with WPA-AES, WPA2-AES, and Wi-Fi Alliance WMM specifications
Supports Wi-Fi Protected Access-Pre-Shared Key (WPA-PSK) data encryption. WPA provides strong
data encryption based on a pre-shared key
Attaches to installed routers or home gateways via Ethernet to optimize the WLAN without replacing
existing router, firewall or media devices
Compatible with the emerging 802.11n WLAN standard
Virtual AP support of one BSSID
HTTPS management
SSH management
Device-specific certificates
4 Ruckus Wireless MediaFlex 7811 Access Point
Key Features
(This page intentionally left blank.)
Ruckus Wireless MediaFlex 7811 Access Point 5
Chapter 2: Installation and Setup
This chapter describes how to install your Ruckus Wireless MediaFlex 7811 Access Point, and how to set
up your PC to connect to the Ruckus Wireless Web Interface.
Topics covered in this chapter include:
• Packing List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
• Ruckus Wireless MediaFlex 7811 Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
• LED Status Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
• Placement Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
• Connecting and Configuring the 7811. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
• Troubleshooting Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Ruckus Wireless MediaFlex 7811 Access Point
Packing List
Packing List
1. Ruckus Wireless MediaFlex 7811 Access Point
2. AC power adapter (Output DC 5-18V 1-2A)
3. Category 5 (CAT5) Ethernet Cable
4. Ruckus Wireless MediaFlex 7811 Quick Setup Guide
5. Limited Warranty Statement and Software License Agreement
6. Federal Communications Commission Notices
Ruckus Wireless MediaFlex 7811 Access Point
Front View

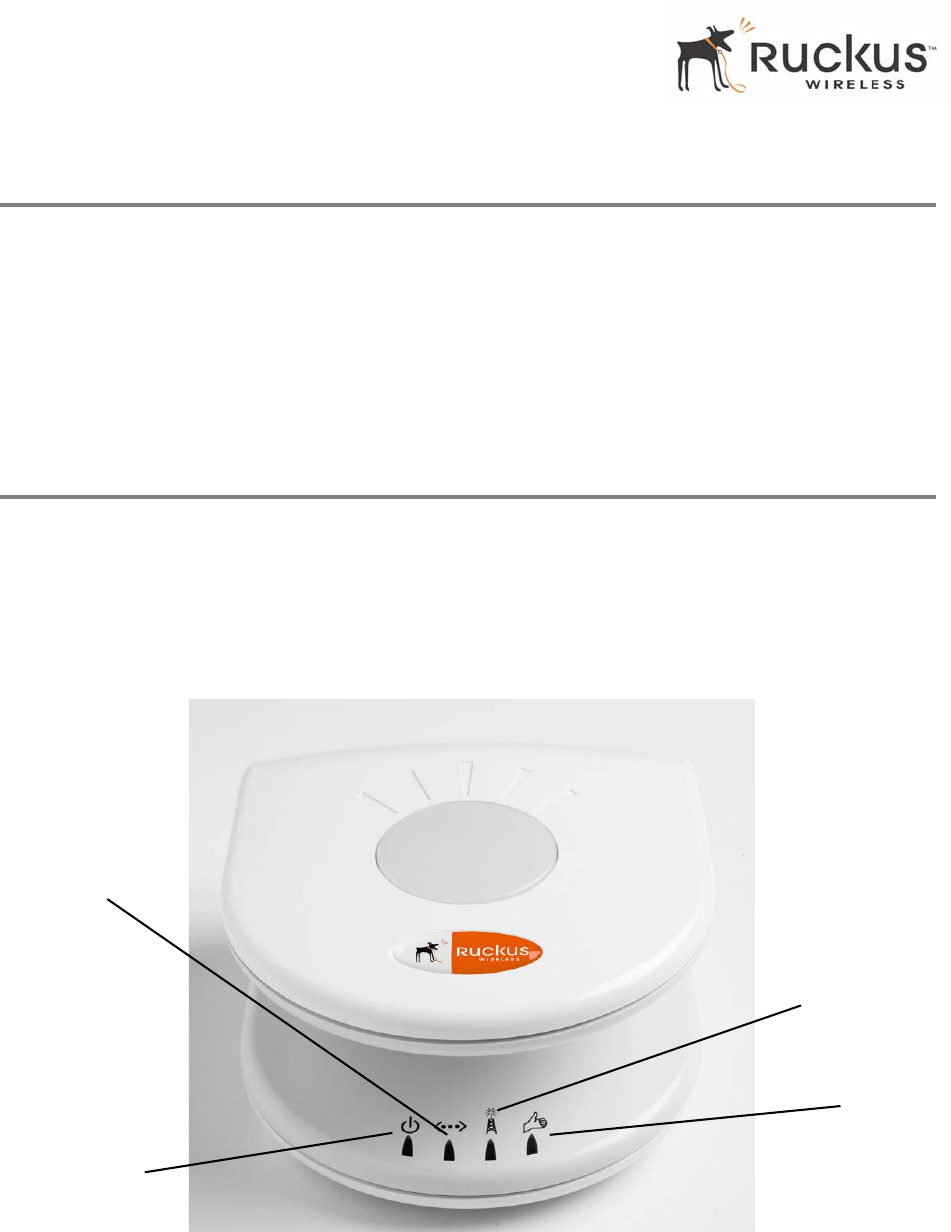

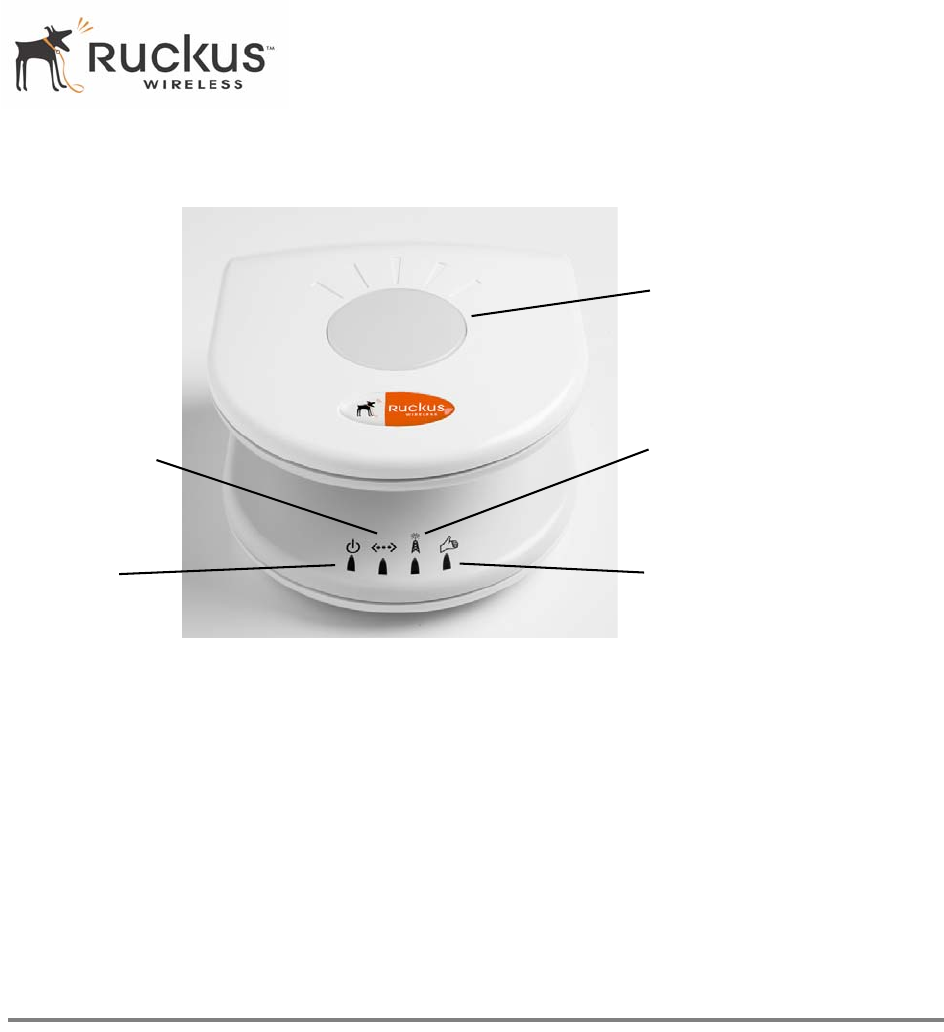

Figure 2— “Front view of the 7811” shows the front view of the 7811, with the LED indicators numbered.
The numbers correspond to the labels describing LED behavior in Table 1— “LED Indicators and
Meanings” on page 7.
Figure 2—Front view of the 7811
2
1
3
4
Ruckus Wireless MediaFlex 7811 Access Point 7
LED Status Lights
LED Status Lights
Table 1— “LED Indicators and Meanings describes the LED lights on the front of the 7811.
Table 1—LED Indicators and Meanings
Label LED Activity Description
1Power Green Power is supplied to the 7811.
Off Power is not supplied to the 7811.
2WAN
Connectivity
Green The WAN port has detected link.
Flashing Green Data is being transmitted or received on the WAN port.
Off No link connectivity.
3Wireless
Device
Association
Amber The WLAN interface is up, but no station is connected.
Green A station is connected to the WLAN (either the home
WLAN or the service provider WLAN).
Off WLAN is not up
4Signal Quality
Green Good signal quality at the service provider WLAN
interface.
Flashing Green Marginally acceptable signal quality at the service
provider WLAN interface.
Off No station associated with service provider WLAN.
8 Ruckus Wireless MediaFlex 7811 Access Point
LED Status Lights
Rear View
Figure 3—Rear view of the 7811
Table 2 describes the physical features of the AP’s rear panel.
Table 2—Rear Panel Features
Label Description
5 AC Power (Input 100-120V or 220-240V depending on the
country, 50/60HZ, 0.3A)
6 WAN port, a 10/100Mbps auto-sensing, autonegotiating
Ethernet port that needs to be connected to the broadband
gateway.
7 Over the Air Auto Provisioning Button (not active for current
release).
8Reset button. Used only if you need to reset the 7811 to its
factory default settings. Insert the end of a paper clip or pin
into the hole and hold it in for at least 8 seconds.
567
8
Ruckus Wireless MediaFlex 7811 Access Point 9
Placement Guidelines
Placement Guidelines
The Ruckus Wireless MediaFlex 7811 will automatically adjust, within limits, to room conditions. You can
achieve better signal reception by following the below placement guidelines:
Establishing a Good General Location
Your 7811 should be placed:
Near the center of the room, if possible.
On a shelf or other elevated location where other wireless networking devices are within line-of-sight
access.
Away from other sources of electromagnetic interference (for example, microwave ovens, and cordless
phones).
Away from large metal surfaces, pictures or mirrors, metal bookcases, displays, racks, etc.
Away from large furniture or other physical obstructions, particularly metallic materials.
Using the Signal Quality LED to Fine Tune the Placement
Wireless environments are sensitive to the physical arrangement of both electronic devices and furniture in
a room. You can observe the Signal Quality Indicator LED to determine the best location. The Signal Quality
indicator LED is described in Table 1— “LED Indicators and Meanings” on page 7.
Refer to the troubleshooting section on page 14 if video quality deteriorates after an installation.
If “Minimum Acceptable” or “Marginally Acceptable,” air quality is indicated, you can adjust the location
of the 7811 and other devices until a steady green LED indicates “good” signal quality.
Connecting and Configuring the 7811
If it has not been already configured, you must configure your 7811 to work within your home network. Read
the following section to understand how to configure it manually.
NOTEDepending on the pre-configurations of the 7811, the device behavior may be slightly different than what is
described in this manual.
Configuring an IP Address on Your Computer
1. Do one of the following:
For Windows 2000: Select Start > Settings > Network and Dialup Connections
For Windows XP: Select Start > Control Panel > Network Connections
2. Right-click the icon for the Local Area Connection designated for your home network and select Properties.
NOTEThis is not the same icon as your home wireless network.
3. In the Local Area Connection Properties window, select Internet Protocol (TCP/IP) and click Properties.
The Internet Protocol (TCP/IP) Properties window (Figure ) appears.
10 Ruckus Wireless MediaFlex 7811 Access Point
Connecting and Configuring the 7811

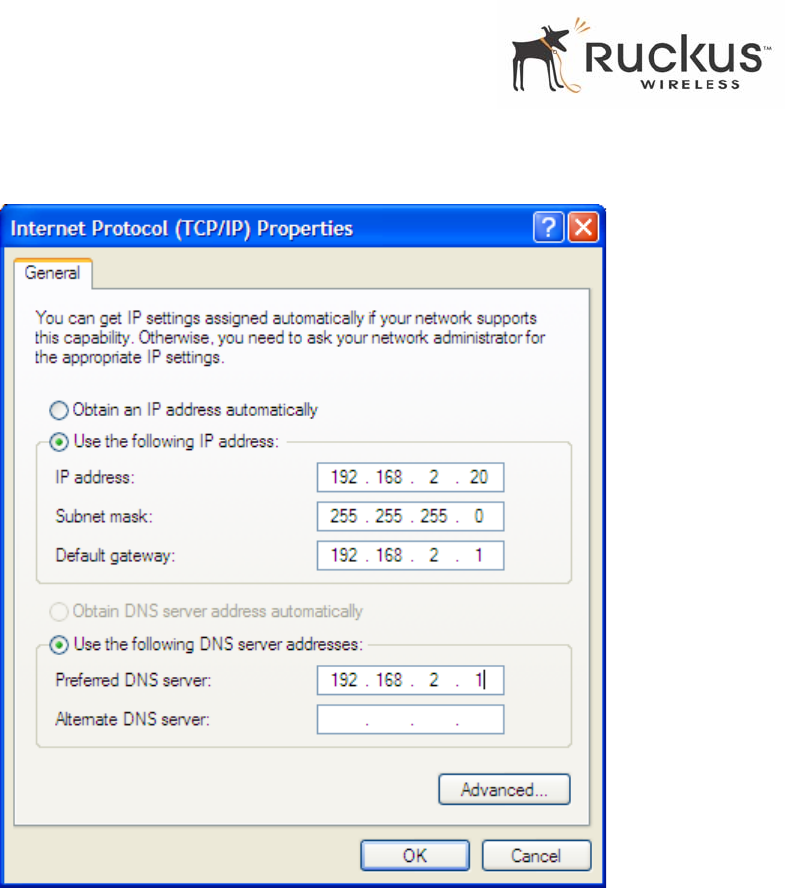

Figure 4—TCP/IP Properties
4. Write down the current settings so you can restore your computer to its current configuration, if needed.
5. Select Use the following IP address, and enter 192.168.2.20 in the IP address text box.
6. For Subnet mask, enter 255.255.255.0.
7. For Default gateway, enter 192.168.2.1.
8. Select Use the following DNS server addresses and enter 192.168.2.1 for the Preferred DNS server.
9. Click OK to save these settings and exit the Local Area Connection Properties window.
Connecting the 7811
1. Connect the provided AC Power adapter to the 7811 and plug the other end into a power outlet or to a surge
protector that is plugged into a power outlet. The Power LED will turn green when you connect the power.
2. Connect the CAT5 Ethernet cable to the WAN port on the 7811 and the Ethernet port on your PC. The WAN
Connectivity LED should turn steady green.
Ruckus Wireless MediaFlex 7811 Access Point 11
Connecting and Configuring the 7811
3. Open a browser window on your PC. Type the default router WAN port IP address shown in Table 3 as
https://<ip-address>.
NOTEDepending on your Service Provider's configuration, the default values might be different than what is stated
in this table.

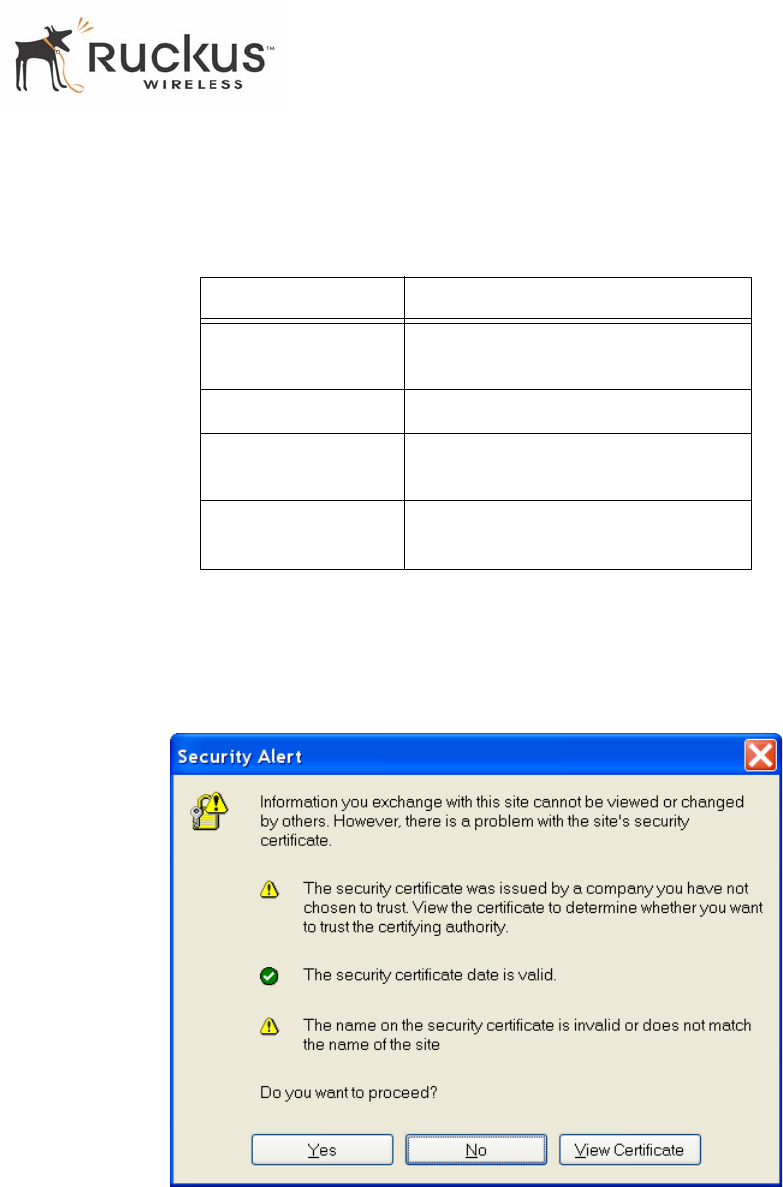

4. The Security Alert window appears (Figure 5).
Figure 5—Security Alert window
5. Click Yes.
Table 3—Default Settings
Parameter Service Provider
Network Name V54-xxxxxx (where xxxxxx are the last
six digits of the MAC address.
Security WPA-PSK
IP Addressing 192.168.2.1 (WAN port)
192.168.2.254 (adapter)
Username/Password Username: super
Password: sp-admin
12 Ruckus Wireless MediaFlex 7811 Access Point
Connecting and Configuring the 7811

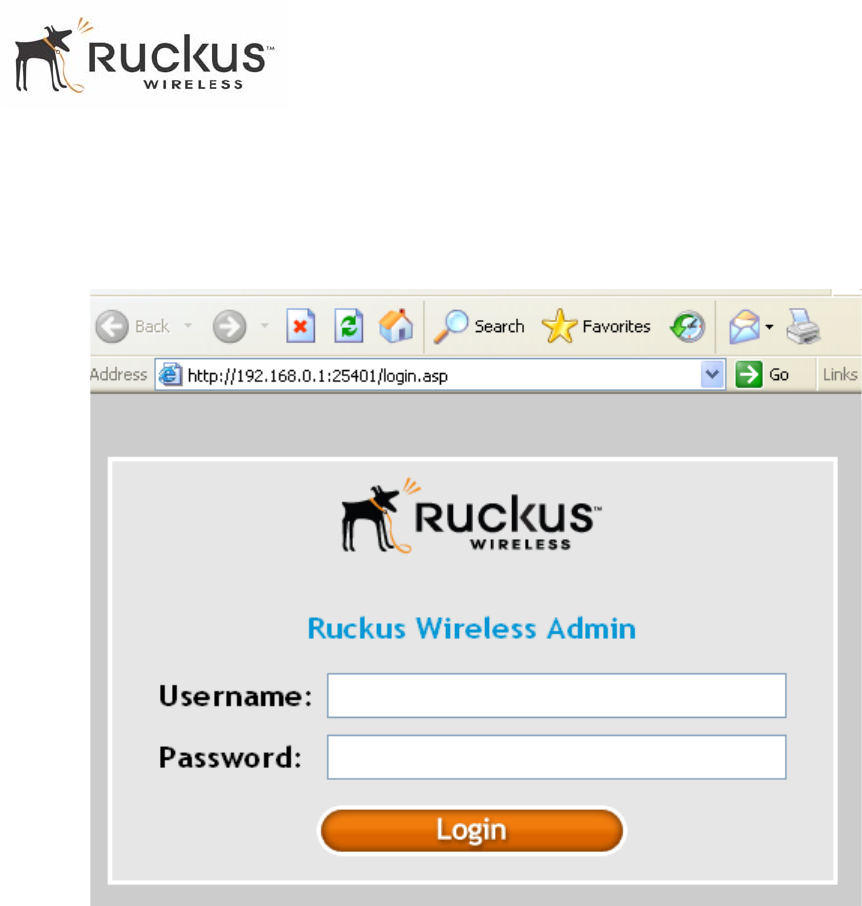

Figure 6—Login Window
6. The login screen appears, type the appropriate Username and Password shown in Table 3.
7. Click Login. The Status > Device window appears (Figure 7).

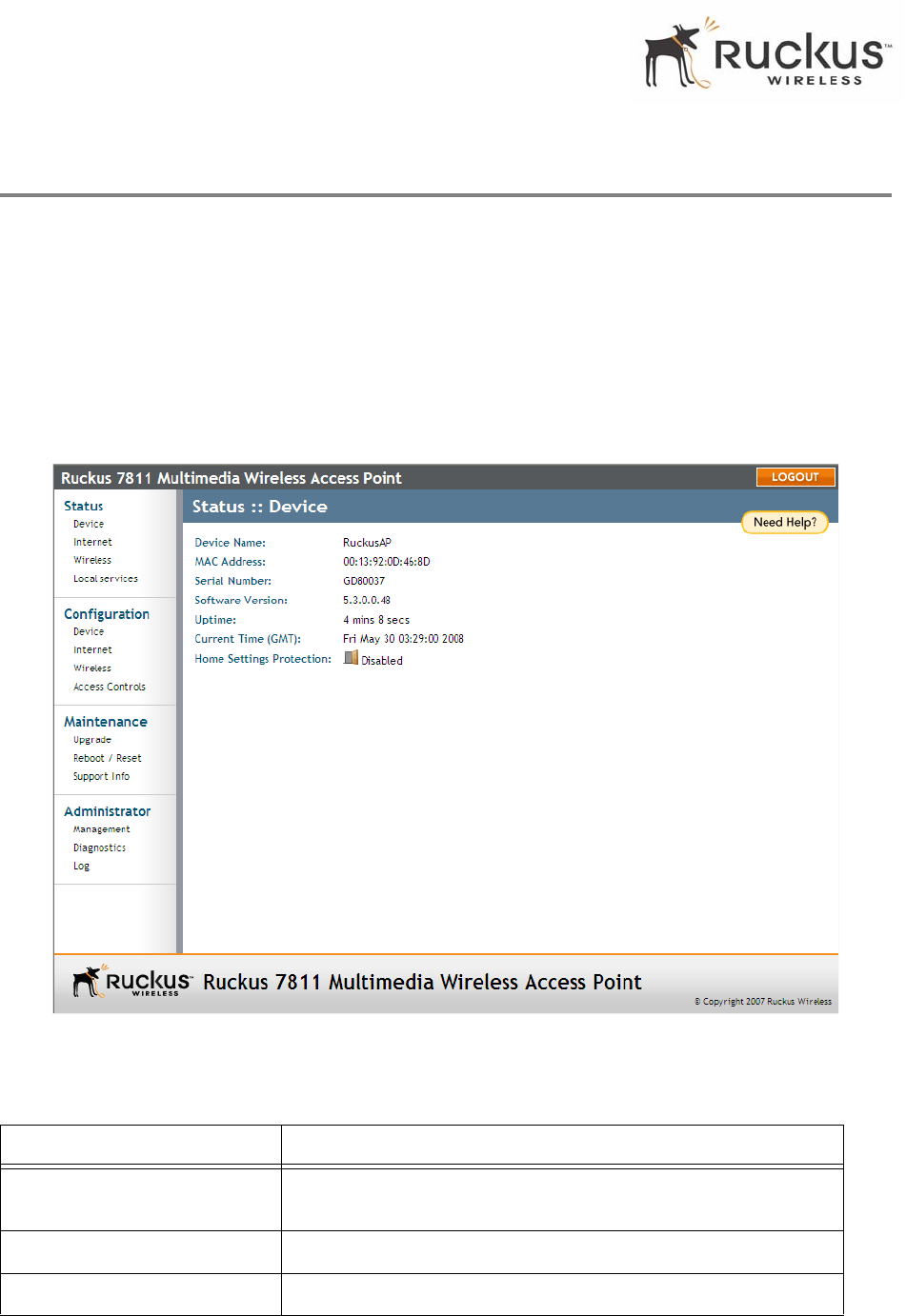

Figure 7—Status > Device Window
Ruckus Wireless MediaFlex 7811 Access Point 13
Connecting and Configuring the 7811
Configuring Wireless Settings
Follow the basic steps below to configure wireless settings. For more detailed information, see Configuring
the Wireless Settings on page 22.
1. Choose Configuration > Wireless. The window in Figure 8 appears.

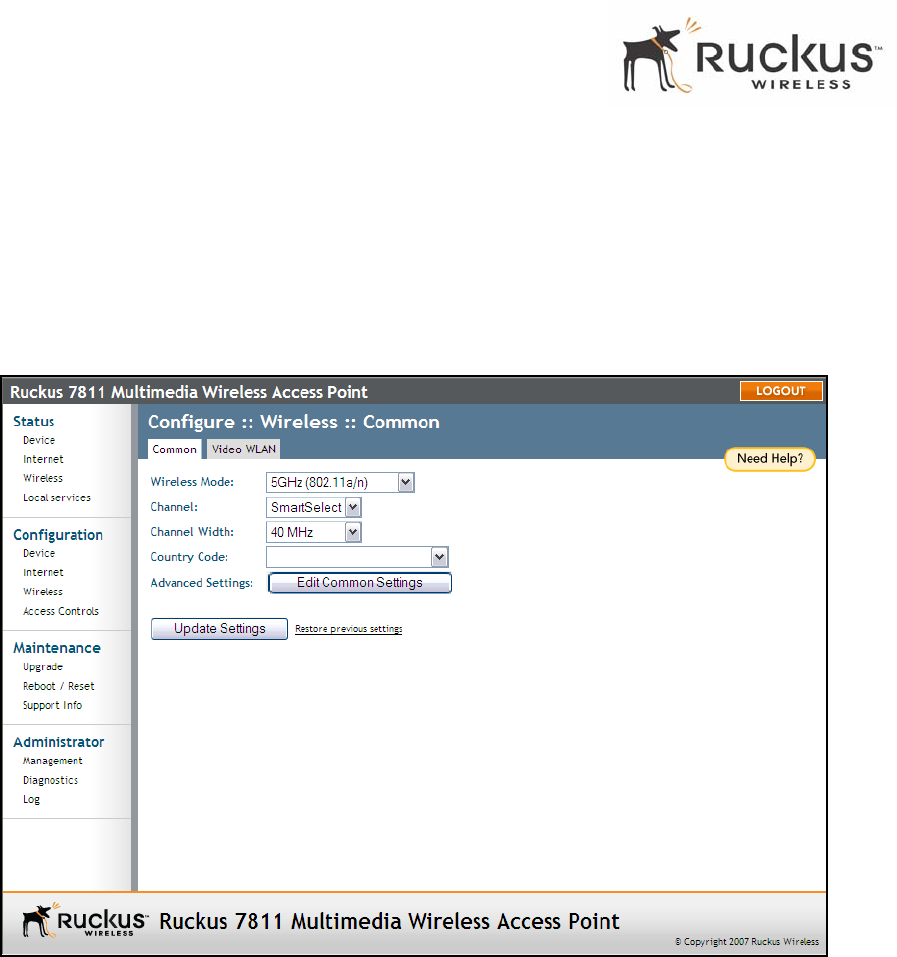

Figure 8—Configure > Wireless Settings (Common)
NOTEThe value for Wireless Mode is fixed to 5GHz (802.11a/n) and is not configurable.
2. For Channel, choose SmartSelect.
3. When you are finished, click Update Settings.
4. Click Update Settings.
14 Ruckus Wireless MediaFlex 7811 Access Point
Troubleshooting Setup
Troubleshooting Setup
If you cannot connect to the 7811, follow this startup sequence:
1. Unplug the 7811’s power adapter.
2. Plug in the 7811’s power adapter.
3. Connect the 7811 (through the WAN port) to your DSL modem or gateway.
4. Connect your computer to your DSL modem or gateway, and then set the IP address of your computer by
following Configuring an IP Address on Your Computer on page 9.
5. On your PC, open a browser window. Enter the default IP address of the 7811 that appears on the label at the
bottom of the 7811. When the login screen appears, enter the username and password shown on the label at
the bottom of the 7811.
6. Choose Configuration :: Device. Verify that your computers wireless network settings match that of the
7811.
7. Check the LED status lights to verify correct operation.
Make sure you are using the correct power adapter supplied by Ruckus Wireless.
Make sure the Power LED is lit. If it is not lit, make sure that the power cord is properly connected to
the 7811, and that the AC power adapter is properly connected to a functioning power outlet. If the
problem persists, you have a hardware problem and should contact technical support.
Make sure your WAN Connectivity LED is lit. Make sure that the Ethernet cable connections are
secure at the 7811 and your computer. The WAN Connectivity LED on the 7811 indicates link when
the adapter is fully seated in the port.
Make sure the Wireless Device Association LED is either steady or flashing Green. If not lit, the
Wireless settings may be incorrect between the 7811 and your computer. If necessary, reset the 7811
to its factory defaults
Resetting the Device To Factory Defaults
If you forgot what IP address or security settings you assigned to the 7811, you can reset it to factory defaults
by inserting the end of a paper clip into the reset button hole located on the back of the unit. Press and hold
the reset button for at least eight (8) seconds. Then you can connect to the 7811 using the default network
settings.
Ruckus Wireless MediaFlex 7811 Access Point 15
Chapter 3: Configuration
This chapter describes the tasks you need to do to customize the 7811 to run on your wireless network.
Topics covered in this chapter include:
• Wireless Settings Worksheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
• 7811 Settings Worksheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
• Ruckus Wireless Web Interface Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
• Configuring the 7811 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
• Viewing Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
• Access Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
16 Ruckus Wireless MediaFlex 7811 Access Point
Wireless Settings Worksheet
Wireless Settings Worksheet
Before you modify any wireless settings on the 7811, print Table 4— “Wireless Network Settings
Worksheet” and record the following information about your wireless network. Your ISP or network
administrator may provide you with this information. The wireless information recorded in this worksheet
should be used to configure the 7811’s wireless settings.
Table 4 shows is the Wireless Network Settings Worksheet that you can use to record your settings.
NOTE Appendix B: Configuration Worksheets also contains a printable version of this table.
Table 4—Wireless Network Settings Worksheet
Item Description and Your Network Setting
7811 SSID The SSID for the service provider. This is typically used for streaming IPTV video
content.
SSID___________________________________________________________
Encryption Method If using WPA-PSK, write down the passphrase. The WPA-PSK passphrase is
case-sensitive.
WPA Version:______________________________________
WPA Algorithm____________________________________
WPA Passphrase: ________________________________
Ruckus Wireless MediaFlex 7811 Access Point 17
7811 Settings Worksheet
7811 Settings Worksheet
Table 5 enables you to record your personalized settings for configuring the 7811. Enter the security settings
you recorded in Table 4, “Wireless Network Settings Worksheet,” on page 16.
Store this information in a safe place.
NOTE Appendix B: Configuration Worksheets also contains a printable version of this table.
Table 5—7811 Default and User Settings Worksheet
Item Default Setting Your Setting
Service Provider User Name super
_______________________________
Service Provider Password sp-admin
_______________________________
Internet Access Type DHCP Client Enabled
(can be set to static
or PPPoE) _______________________________
Local Network Configuration DHCP Server Enabled
_______________________________
Default IP Address (WAN port if
no DHCP response from the
DHCP server)
192.168.2.1
_______________________________
Subnet Mask 255.255.255.0
_______________________________
Service Provider SSID V54-xxxxxx where
xxxxxx are the last six
digits of the MAC
address.
_______________________________
Wireless Mode 5GHz (802.11a/n) -
Fixed Not configurable
18 Ruckus Wireless MediaFlex 7811 Access Point
Ruckus Wireless Web Interface Menus
Ruckus Wireless Web Interface Menus
The Ruckus Wireless Web Interface menus are located on the left-hand navigation pane. To select a
particular menu, simply click on the menu link.
Common Buttons
The Ruckus Wireless Web Interface screens contain the following menu buttons (Table 6):
Configuring the 7811
This section describes the tasks and screens used to customize the 7811 configuration to run on your wireless
network.
Review the following topics before you change any system configuration settings:
"Connecting and Configuring the 7811" on page 9.
Device Configuration
Table 5, “7811 Default and User Settings Worksheet,” on page 17 shows the default settings used to login
to the device.
A minimum set of configurations is required to put the 7811 into operational mode. The system provides the
default settings for these configuration items. You should change the default settings where necessary to
match your own wireless network’s configuration, and to protect your privacy.
To set the name of your device or to modify the login name and passwords, do the following:
1. Go to Configuration > Device. The window of Figure 9 appears.
Table 6—Wireless Web Interface Menu Buttons
Button Action
Logout Logs out from the current session.
Restore Previous Settings Restores the original configuration.
Update Settings Saves the new configuration.
Back Reverts to the previous menu. Only found in the Configuration menus.
Ruckus Wireless MediaFlex 7811 Access Point 19
Configuring the 7811

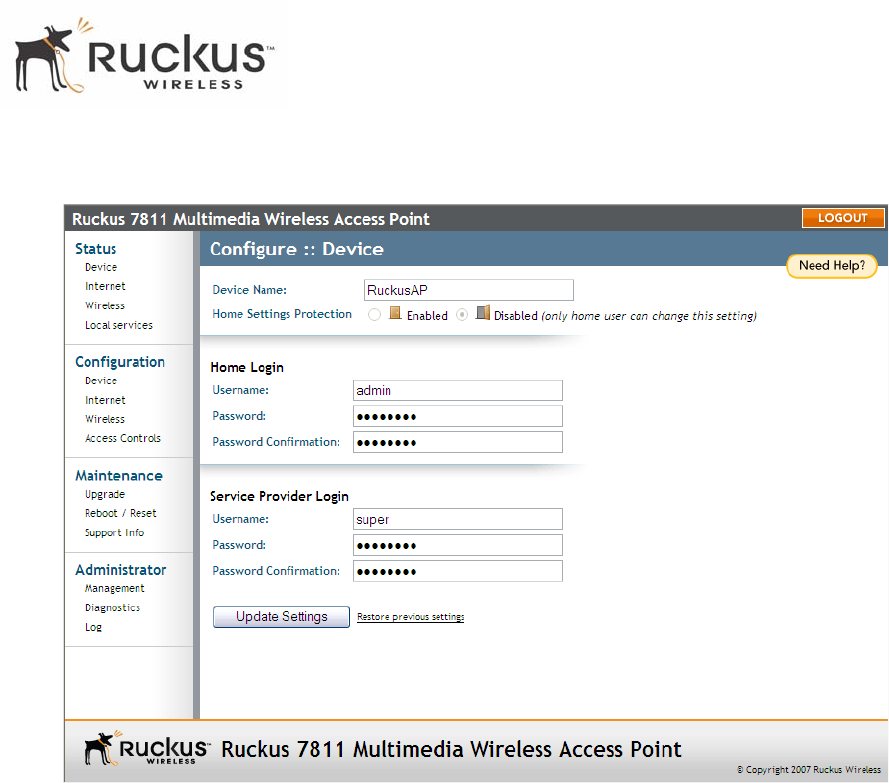

Figure 9—Device Configuration
2. Change any of the following:
Device Name: Assigned name of the 7811
Home Settings Protection: This feature prevents the home users settings from being overwritten by
the Service Provider. When this is Enabled, the Service Provider can only change Service Provider
specific settings, such as the Service Provider Username and Password.
Home Login Username and Password (plus Password Confirmation)
(Service Providers only) Service Provider Login Username and Password (plus Password
Confirmation)
3. Click Update Settings to save your settings.
20 Ruckus Wireless MediaFlex 7811 Access Point
Configuring the 7811
Customizing the System Configuration
It is recommended that you customize the username and password so that you can control who can gain
administrative access to the 7811. You may also wish to change the default IP address if it conflicts with
another device in your wireless network. Refer to Table 5 for details on each field.
!
CAUTION:—You must click the Update Settings button to save your settings. The Ruckus WebUI will timeout
after 5 minutes of inactivity. If you let the system time out before clicking the Update Settings button, any
setting changes you made will be lost.
!
CAUTION:—If, after having changed any default settings, you have forgotten what the new settings are, you
may not be able to login to the 7811. To regain access to the 7811, you must reset the device to its factory
default settings. Do this by inserting the end of a paper clip into the Reset Button while the unit is on and keep
holding the button down until the green LEDs at the top of the unit briefly go out— indicating the system is
rebooting. This should take about eight seconds.
Internet Configuration
To define how the 7811 is configured to the Internet, do the following:

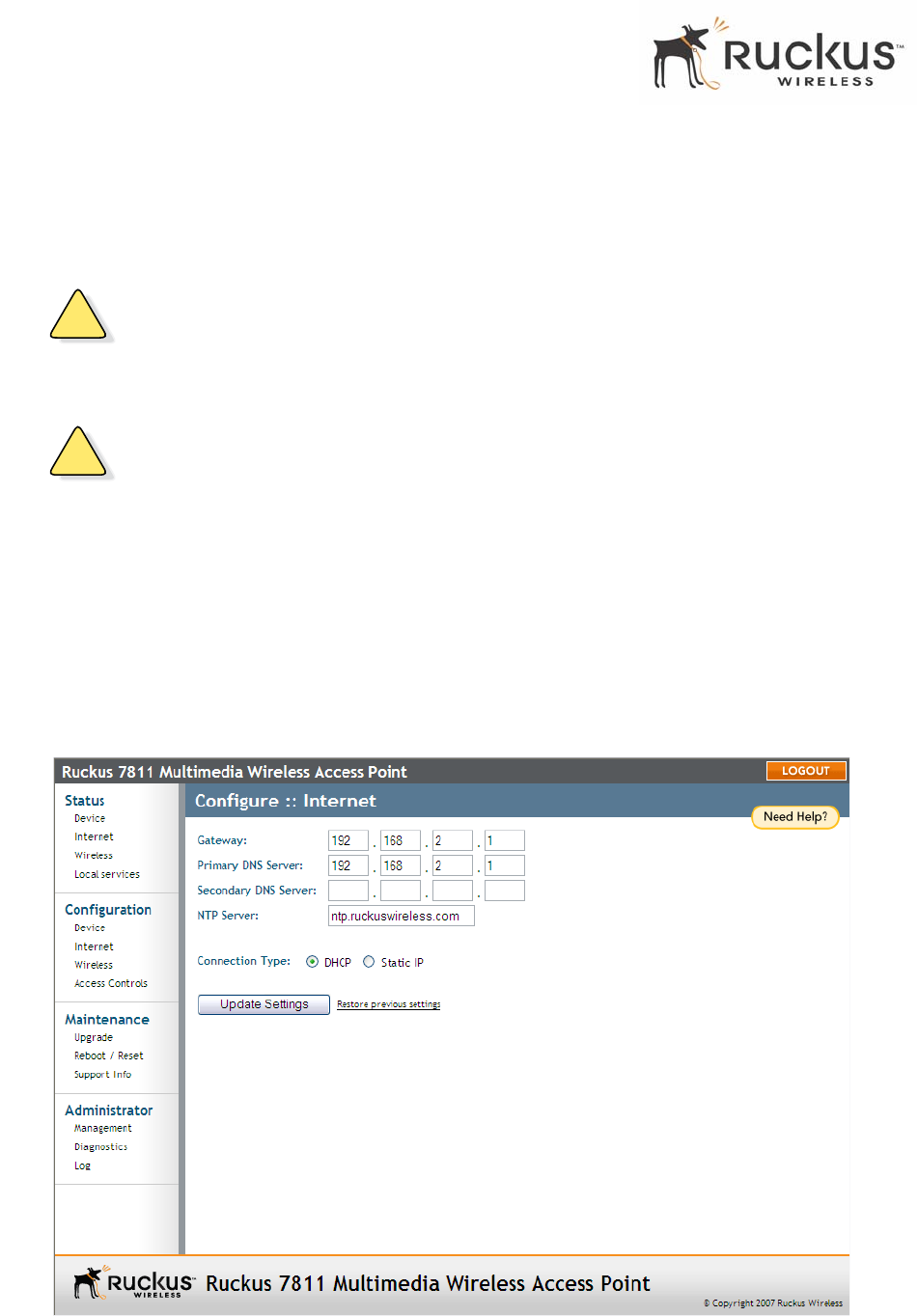

1. Go to Configuration > Internet. The window of Figure 10 appears.
Figure 10—Internet Configuration
Ruckus Wireless MediaFlex 7811 Access Point 21
Configuring the 7811
Table 7 shows the Internet Configuration Parameters.
Table 7—Internet Configuration Parameters
Field Description
Gateway This is the gateway IP address of the internet interface.
Primary DNS
Server This is the primary Domain Name System (DNS) server IP address.
Secondary DNS
Server This is the secondary Domain Name System (DNS) server IP address.
NTP Server The hostname or IP address of the Network Time Protocol server which keeps time for
your 7811 and its associated 7111 adapters.
Connection Type This indicates the connection type of the Internet interface to be configured. The
options of connection type are Static IP, DHCP or PPPoE. Typically for cable modem
access, DHCP is used. For DSL access, PPPoE is used. You must get the PPPoE
username and password from your ISP.
22 Ruckus Wireless MediaFlex 7811 Access Point
Configuring the 7811
Configuring the Wireless Settings
Before changing any settings in the Wireless configuration menu, make sure you have recorded and verified
the information in "7811 Default and User Settings Worksheet" on page 17.
To configure the Wireless settings, do the following:
1. Go to Configuration > Wireless.
Figure 11—Configure :: Wireless tab
Ruckus Wireless MediaFlex 7811 Access Point 23
Configuring the 7811

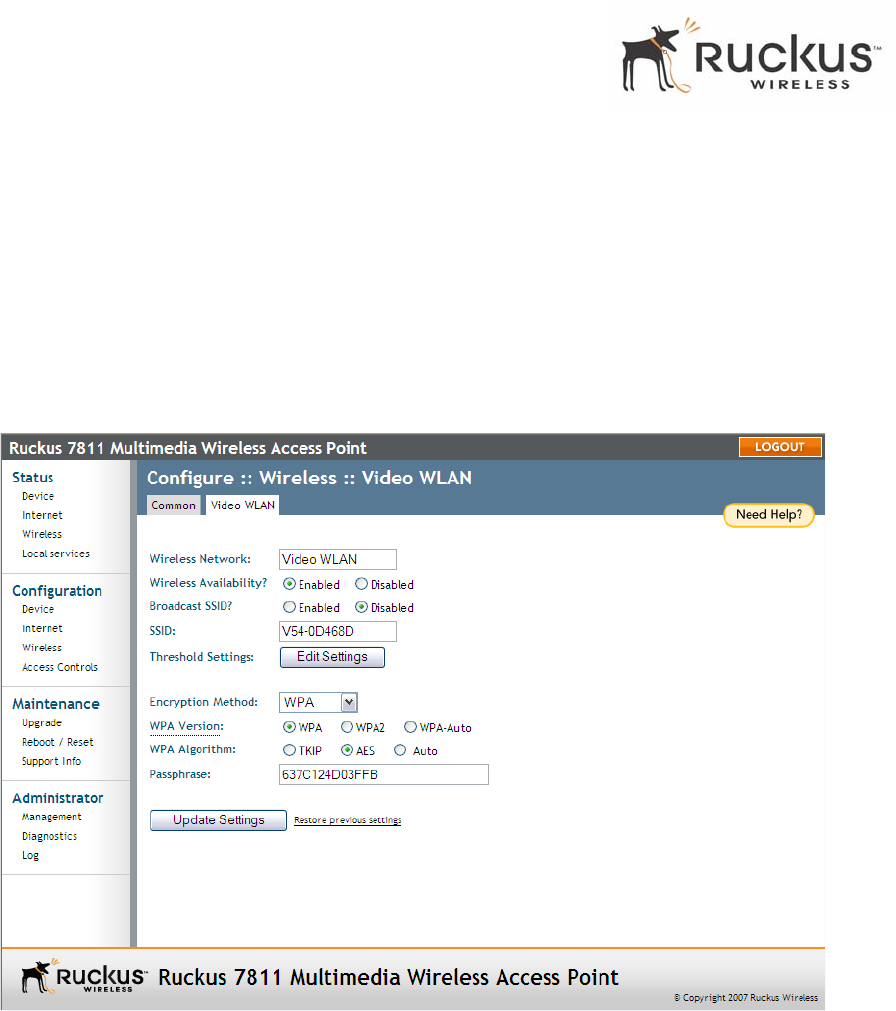

Figure 12—Configure :: Wireless :: Video WLAN tab
2. Under the Common tab, choose the Channel and Country Code as described in Table 8.
3. Click the Edit Common Settings button by Advanced Settings. The window of Figure 13 appears. The
settings are described in Table 9.
Table 8—Wireless Interface Configuration
Field Description
Wireless mode This value is fixed to 5GHz (802.11a/n) and is not configurable.
Channel This is the channel used by the network. You can choose Smart
Select, or force a specific channel. If you choose Smart Select, the
7811 selects the best channel (least interference) to transmit the
signal.
Country Code Sets your country or region code. Selecting the incorrect country or
region may result in violation of applicable law.
For 7811s shipped in the United States, the country code cannot
be modified. The country code is pre-defined for United States
only.
24 Ruckus Wireless MediaFlex 7811 Access Point
Configuring the 7811

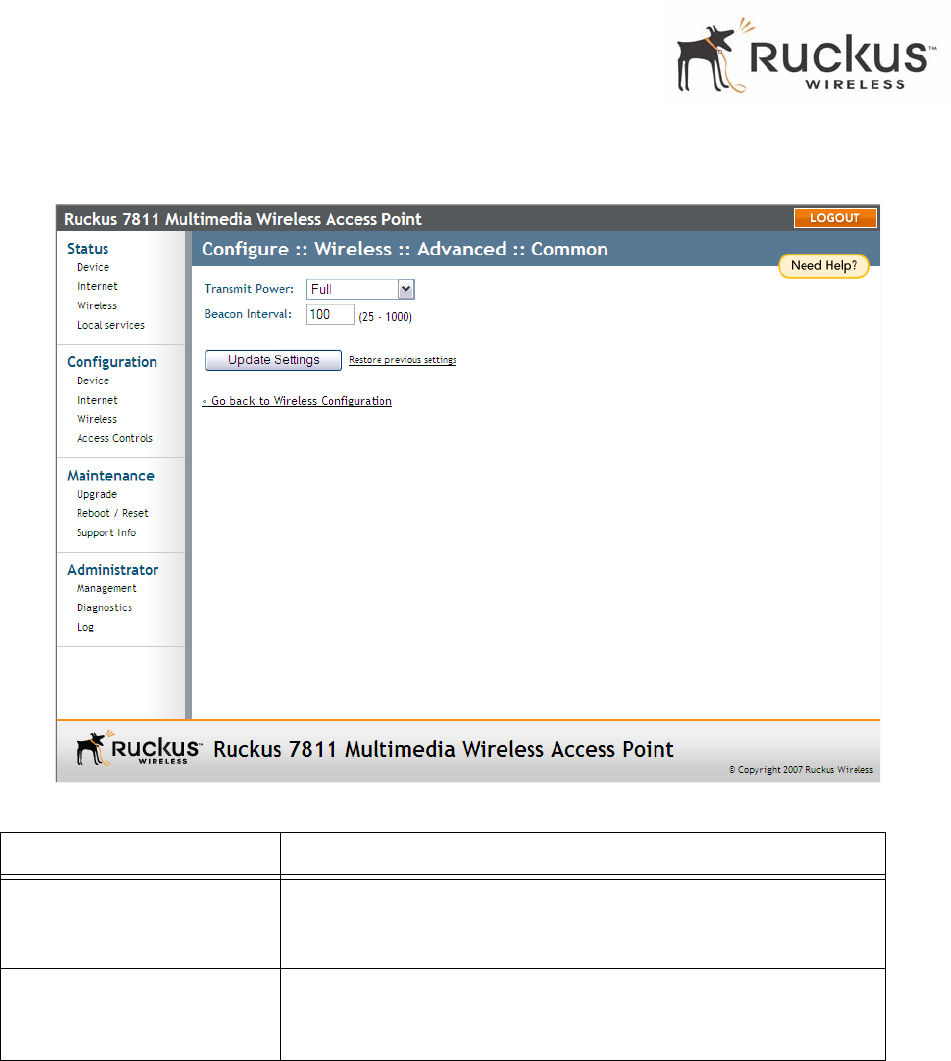

Figure 13—Advanced Wireless Configuration Settings
NOTEThis window is used to set up the advanced wireless functions. These settings should only be changed by an
experienced administrator. Incorrect settings can impact wireless performance. It is recommended that you keep the
default settings for best performance.
4. Click Update Settings to save your settings.
5. Once back under the Configure :: Wireless :: Common settings, click the Video WLAN tab.
Table 9—Advanced Wireless Settings
Field Description
Transmit Power Specifies the maximum transmit power level relative to the calibrated
power. Select the level of transmit power from the drop-down menu.
The default is Full
Beacon Interval The Beacon Interval value indicates the frequency interval of the
beacon in milliseconds. A beacon is a broadcast packet by Access
Point (AP) to synchronize wireless network. The default value is 100.
Ruckus Wireless MediaFlex 7811 Access Point 25
Configuring the 7811

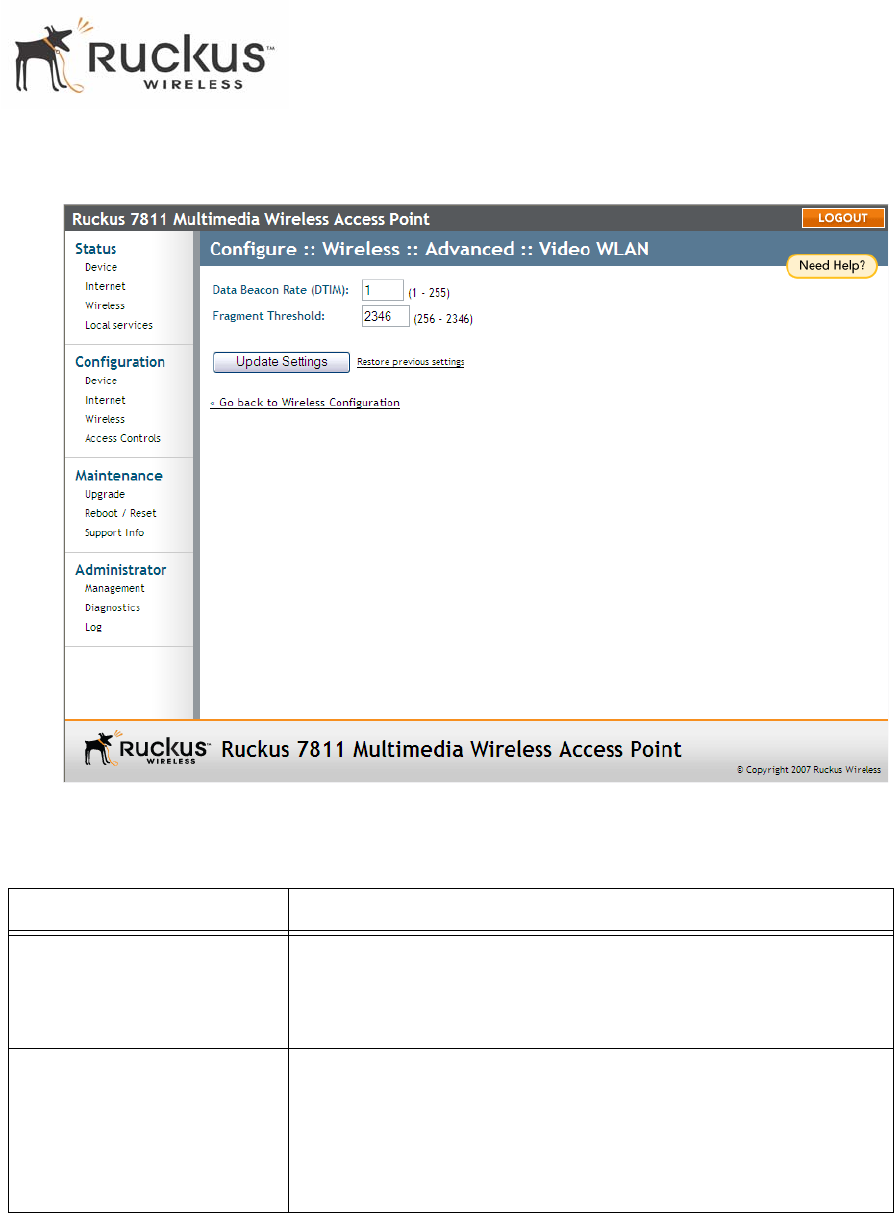

Figure 14—Threshold Settings window
Table 10 describes the Threshold Settings parameters.
6. Click Update Settings to save your settings.
Table 10—Threshold Settings Parameters
Field Description
Data Beacon Rate (DTIM) The value indicates the interval of the Delivery Traffic Indication
Message (DTIM). This is a countdown field that Access Point (AP)
informs its clients of the next window for listening to broadcast or
multicast messages. The default value is 1.
Fragment Threshold This value indicates the maximum length of a packet before data is
fragmented into multiple packets. In a good wireless environment, the
larger the fragment, the more efficient the network operates. In a noisy
environment, the threshold should be adjusted to a smaller size to
minimize retransmission and increase the reliability of the
transmission. The default value is 2346.
26 Ruckus Wireless MediaFlex 7811 Access Point
Configuring the 7811
Configuring WPA
WPA PSK configuration menu allows automatic key generation based on a single passphrase. WPA-PSK
provides very strong security, but may not be supported on older wireless systems (in some cases, the older
wireless systems can be upgraded with the newer adapters to support WPA-PSK).
If you configure the 7811 with WPA-PSK, the other devices in the network will not connect unless they, too
are set to WPA-PSK, and are configured with the same passphrase.
Figure 15 shows the WPA-PSK window.

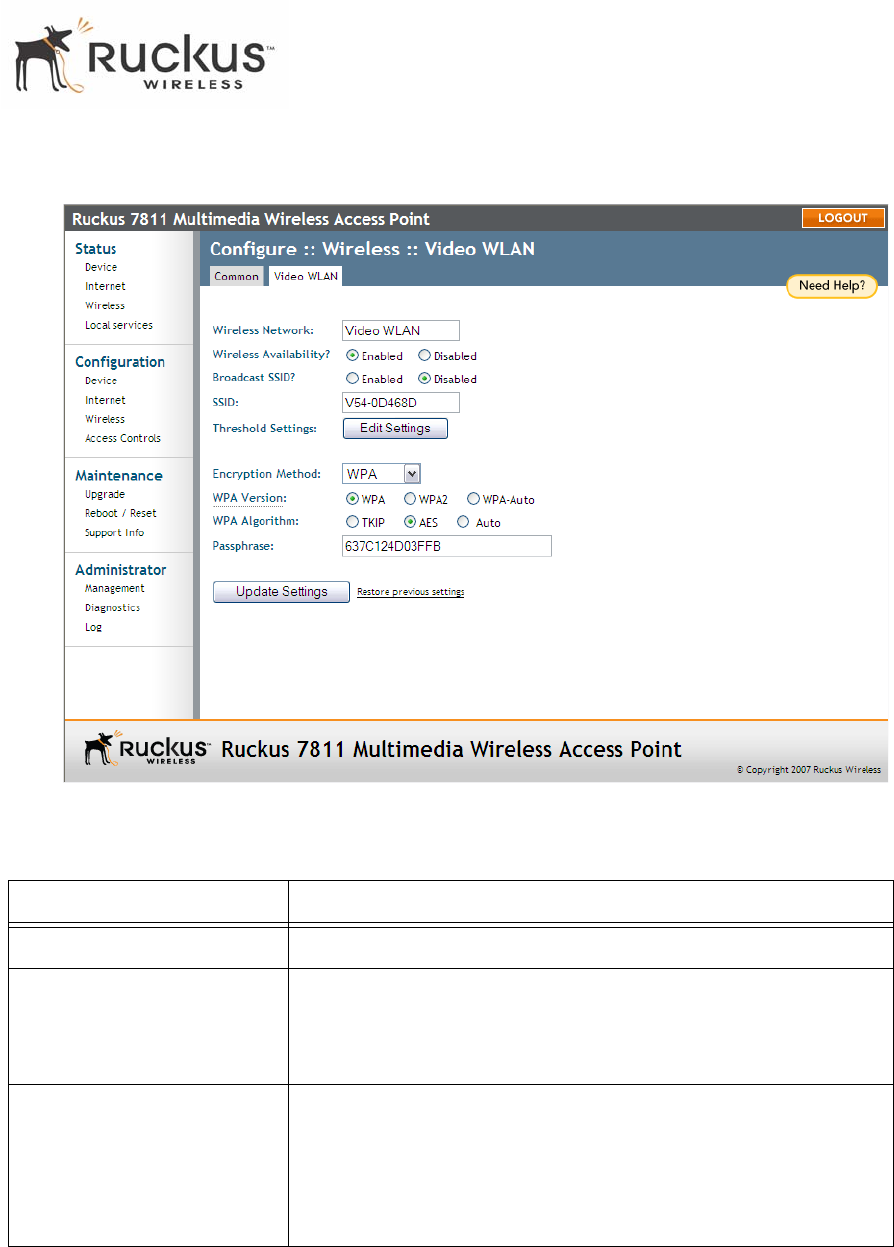

Figure 15—WPA-PSK Wireless Settings
1. Go to Configuration > Wireless.
2. Click the Video WLAN tab.
3. Select WPA-PSK in the Encryption Method drop-down menu.
Ruckus Wireless MediaFlex 7811 Access Point 27
Configuring the 7811
Table 11 explains the WPA Configuration parameters
4. In the Configuration > Wireless menu, enter a passphrase.
5. Click Update Settings to save your settings.
Table 11WPA Algorithm
Field Description
WPA Version Choices are WPA, WPA2 or WPA Auto. When WPA-Auto is selected, the
wireless client decides the version of WPA will be used.
WPA is the recommended default for best compatibility. Wi-Fi WPA-capable
PDAs and other gadgets are usually limited to WPA + TKIP. WPA2 is an
advanced option. WPA2 support on Windows requires a Microsoft patch and
is only available on Windows XP with Service pack 2 or later.
WPA-Auto is an advanced option. Only the best WPA
802.11i-conforming/Wi-Fi WPA-certified client devices can operate in this
mode.
WPA Algorithm AES, the only option for this field, is the strongest encryption method and
requires additional hardware support on wireless devices. You should
consult the documentation of your wireless client devices.
Passphrase Enter any combination of printable characters. The Passphrase must be
between 8 and 32 characters long.
28 Ruckus Wireless MediaFlex 7811 Access Point
Viewing Status Information
Viewing Status Information
There are five status information windows. These are "Device Status" on page 28, "Internet Status" on page
30, "Wireless Status" on page 32, and "Local Services Status" on page 34.
Device Status
The Status page shows current status and configuration information about the Ruckus Wireless Router or
Adapter. Figure 16 shows the Device Status window. You can bring up the window by choosing
Status > Device.
Figure 16—Device Status Window
Table 12 explains the Device Status Parameters.
Table 12—Device Status Parameters
Field Description
Device Name This is the name of the Ruckus Wireless Router or Adapter. The
name can be configured using Configuration > Device window.
MAC Address This is the Media Access Control (MAC) address of the 7811.
Serial Number This is the serial number of the 7811.
Ruckus Wireless MediaFlex 7811 Access Point 29
Viewing Status Information
Software Version This is the current software version for the 7811.
Uptime This is the time that the 7811 has been powered on since the last
reboot.
Current Time (GMT) The current time on the 7811
Home Settings Protection When enabled, a service provider will not be able to view the home
user device user name, password, SSID, security mode and security
keys. Only the home user can change this setting. It must be
changed using the Configuration > Device Window.
Table 12—Device Status Parameters (Continued)
Field Description
30 Ruckus Wireless MediaFlex 7811 Access Point
Viewing Status Information
Internet Status
Figure 17 shows the Internet Status window. You can bring up the window by choosing Status > Internet.

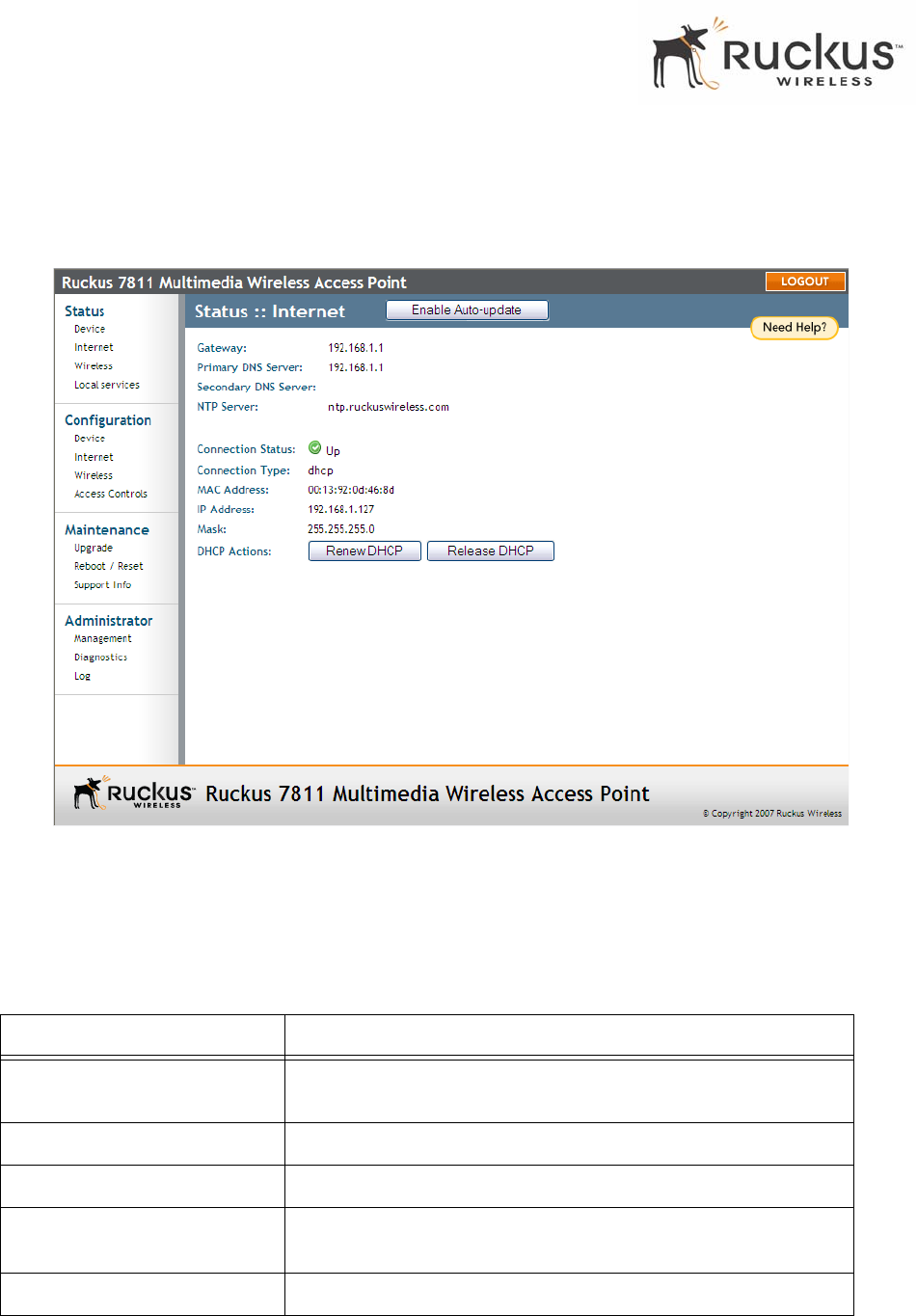

Figure 17—Internet Status Window
The Internet Status window shows the values and status of the various parameters that were configured in
the Configuration section. You can also renew and release DHCP request to the DHCP servers located on
the network. If you enable auto update, the information will be continuously updated on the display.
Table 13 explains the Status—Internet Parameters.
Table 13—Status—Internet Parameters
Field Description
Gateway The IP address of the router or WAN port. The default is as shown
192.168.2.1.
Primary DNS Server This is the primary Domain Name System (DNS) server IP address.
Secondary DNS Server This is the secondary DNS server IP address.
NTP Server IP address or hostname of the NTP server which synchronizes time
on the 7811 and managed 7111 adapters.
Connection Status This indicates the status of the Internet interface, Up or Down.
Ruckus Wireless MediaFlex 7811 Access Point 31
Viewing Status Information
NOTEWhen Internet connection type is either DHCP or PPPoE, if the 7811 does not receive the dynamic IP
address from DHCP server or PPPoE server, the default IP address for WAN port will be 192.168.2.1.
Connection Type This indicates the connection type of the internet interface that was
configured. The options of connection type are Static IP, DHCP or
PPPoE.
MAC Address This is the Media Access Control (MAC) address of the WAN port.
IP Address / Mask This is the IP address and network mask of the Internet WAN
interface. If PPPoE is selected, this is the IP address assigned from
the PPPoE server on the network. If DHCP is selected, this is the
dynamically assigned IP address to the 7811.
Table 13—Status—Internet Parameters (Continued)
Field Description
32 Ruckus Wireless MediaFlex 7811 Access Point
Viewing Status Information
Wireless Status
Figure 18 shows the Wireless Status Window. You can bring up the window by choosing Status > Wireless.
Note that the common settings are displayed.

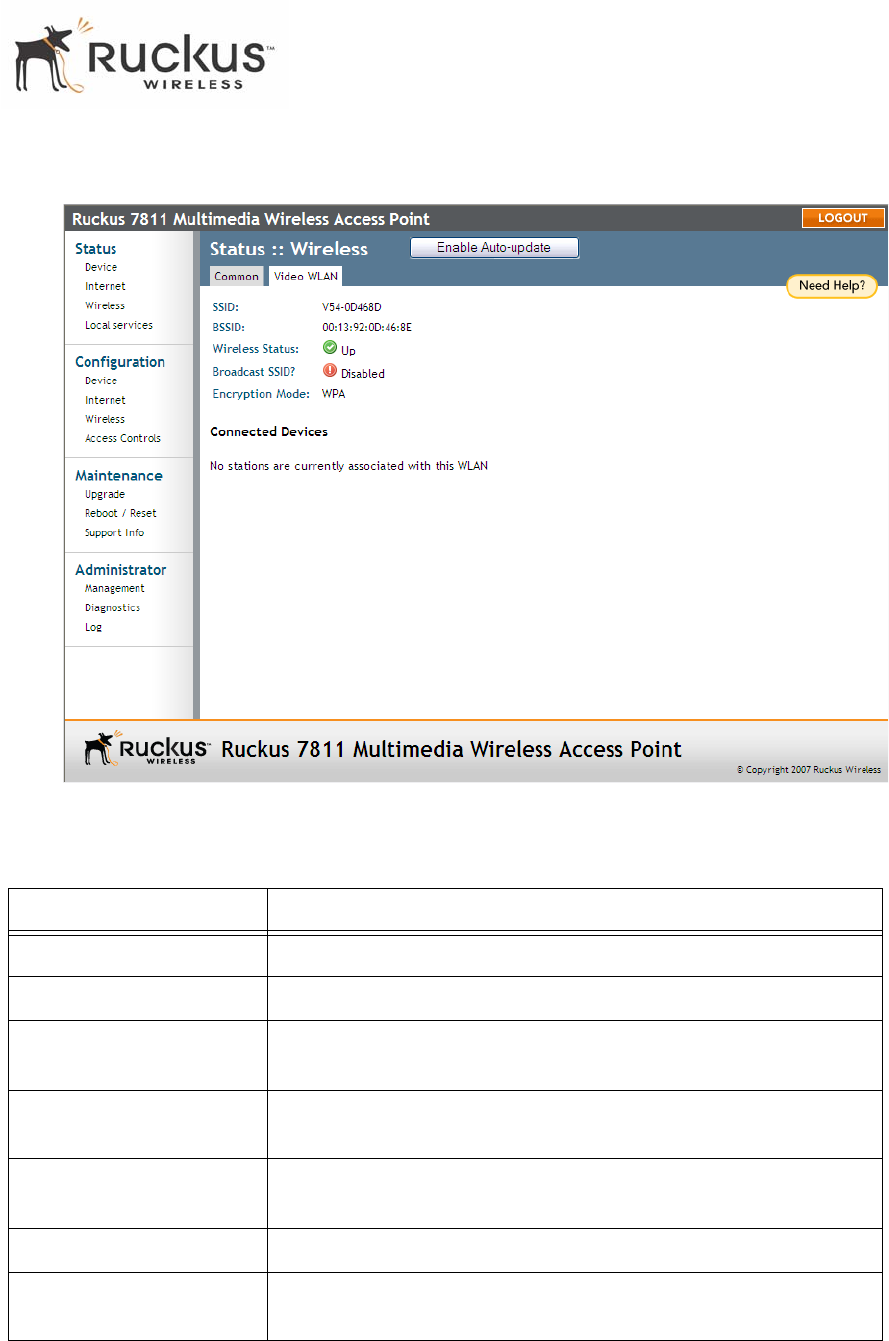

Figure 18—Status :: Wireless :: Common
To view the wireless status of the Video WLAN, click the Video WLAN tab (Figure 19).
Ruckus Wireless MediaFlex 7811 Access Point 33
Viewing Status Information

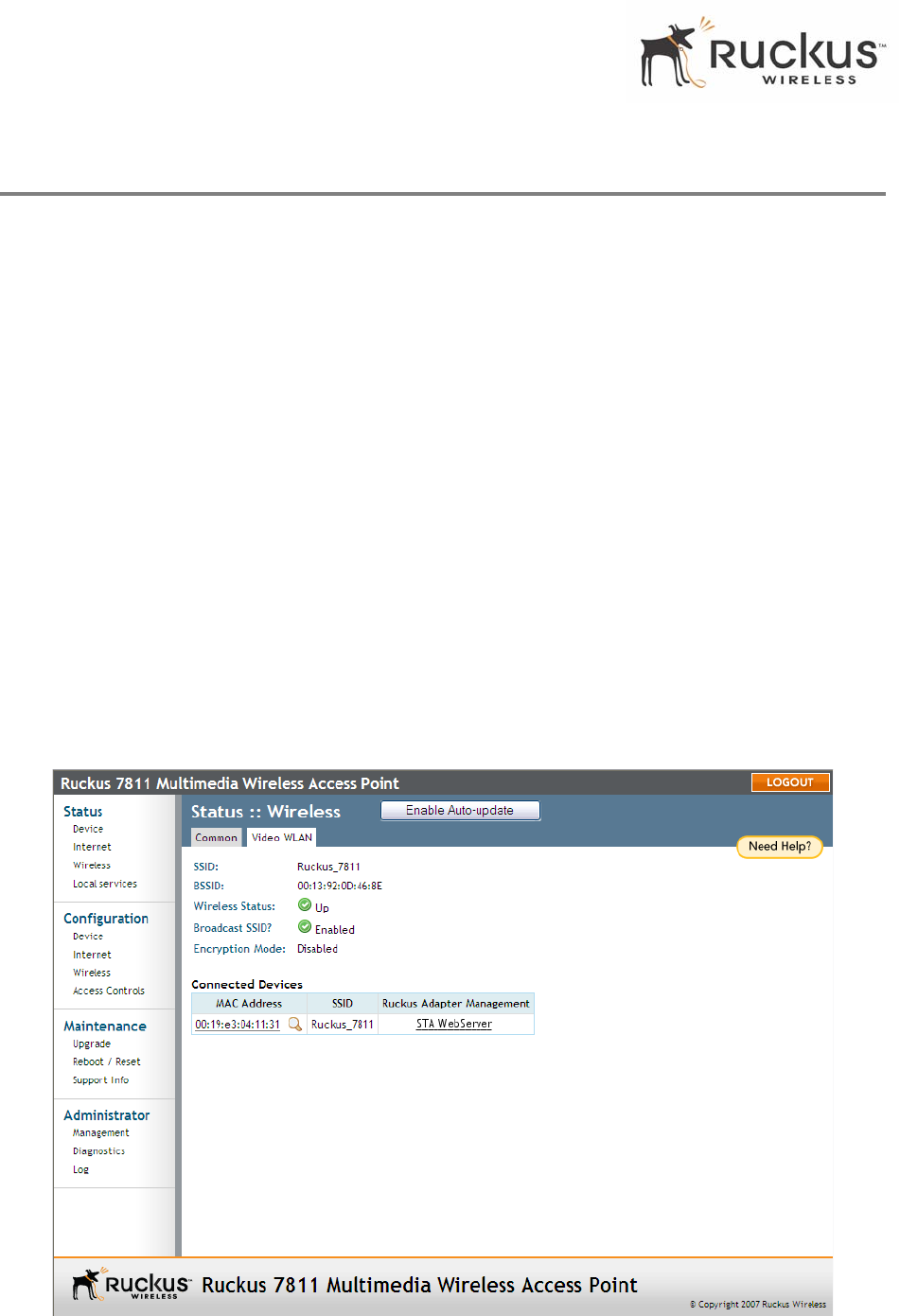

Figure 19—Status :: Wireless :: Video WLAN
Table 14 shows the Wireless Information Window parameters.
Table 14—Wireless Status Window Parameters
Field Description
Wireless Mode Not configurable – this value is fixed to 5GHz (802.11a/n)
Channel The wireless channel number.
Country code The country in which the 7811 is operating. The country code will
automatically select the Channels available for that country.
SSID The SSID (Service Set Identifier) is the name of the wireless network
(either the home wireless or the service provider wireless domain).
BSSID The BSSID is the MAC address of the Wireless LAN interface of the
wireless domain.
Wireless Status Shows the status as either Up or Down.
Broadcast SSID Shows the visibility status of your SSID as enabled (visible to anyone
looking for wireless networks) or disabled (not visible).
34 Ruckus Wireless MediaFlex 7811 Access Point
Viewing Status Information
Local Services Status

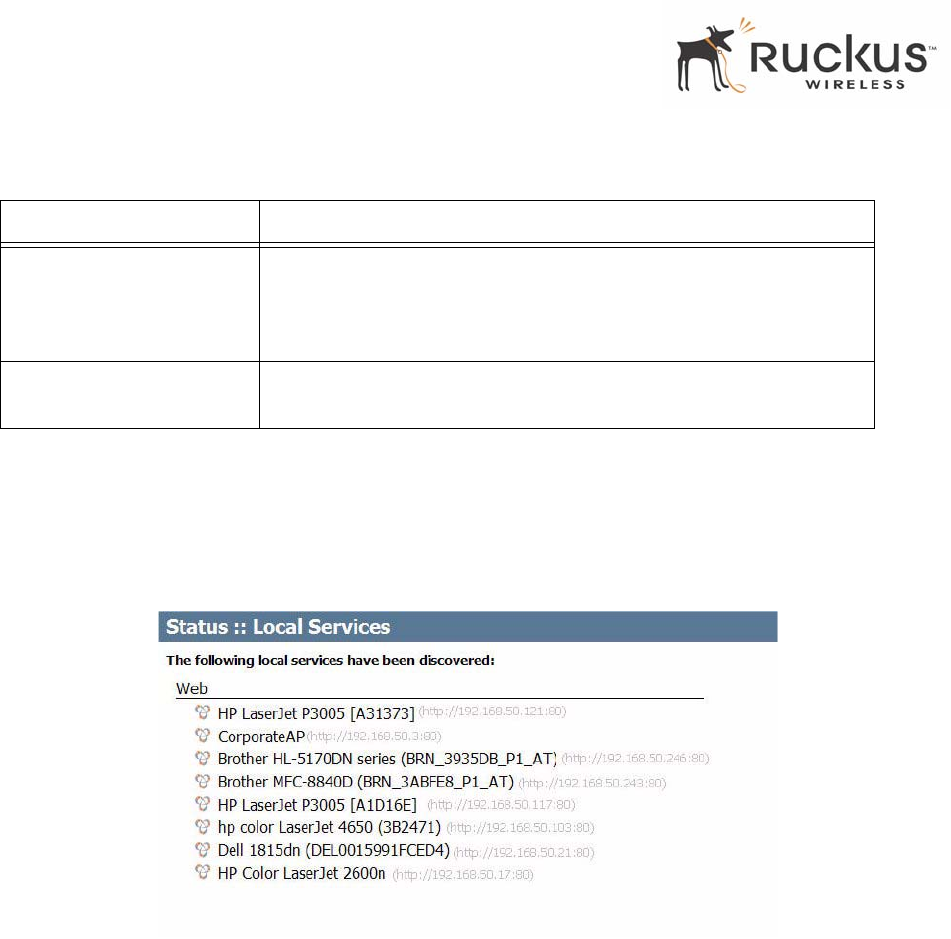

Figure 20 shows the Status :: Local Services window. Local Services shows automatically discovered
services utilizing the 7811’s wireless network. Each service is listed by name, and includes the IP address
assigned to the service and the port over which the service operates.
Figure 20—Local Services status window
Encryption Mode Describes the encryption type currently in use. The encryption types are
WPA-PSK or disabled. For more information about each type of
encryption, see Table 8— “Wireless Interface Configuration” on page
23.
Connected Devices Shows the IP Address, MAC Address and SSID for all connected
devices.
Table 14—Wireless Status Window Parameters (Continued)
Field Description
Ruckus Wireless MediaFlex 7811 Access Point 35
Access Controls
Access Controls
Access Controls give you control over which stations are allowed to join (associate with) your WLAN
networks. There are "tab" entries for each available WLAN.

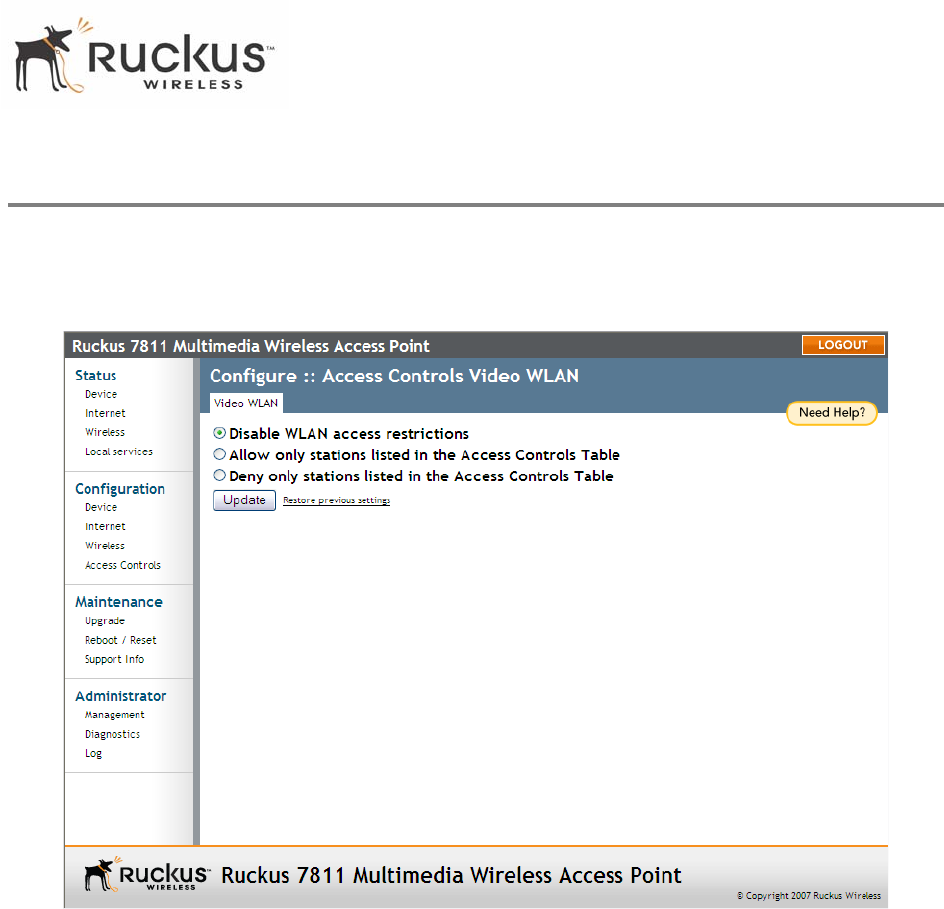

Figure 21—Configuring Access Controls main page
Access Controls Options
Disabling WLAN access restrictions
If you select "Disable WLAN access restrictions", then MAC-address-based restrictions on which stations
can join the WLAN are disabled; thus, any station can join. If the WLAN uses encryption, then the station
must still supply the correct encryption pass-phrase.
The Access Controls table is hidden if the current mode is "Disable WLAN access restrictions".
Allowing only stations explicitly listed in the Access Controls Table
If you select "Allow only stations listed in the Access Controls Table", then stations entered into the
access-controls table are allowed but all others are disallowed. To add MAC addresses, see "Changing
Access Controls" on page 36.
36 Ruckus Wireless MediaFlex 7811 Access Point
Access Controls
Denying only stations explicitly listed in the Access Controls Table
If you select "Deny only stations listed in the Access Controls Table", then stations entered into the
access-controls table are disallowed but all others are allowed. To add MAC addresses, see "Changing
Access Controls" on page 36.
Changing Access Controls
1. Go to Configuration > Access Controls.
2. Select the radio button for the desired access control. (For a description of the options, see "Access Controls
Options" on page 35.) The Access Controls Table appears [with no entries]

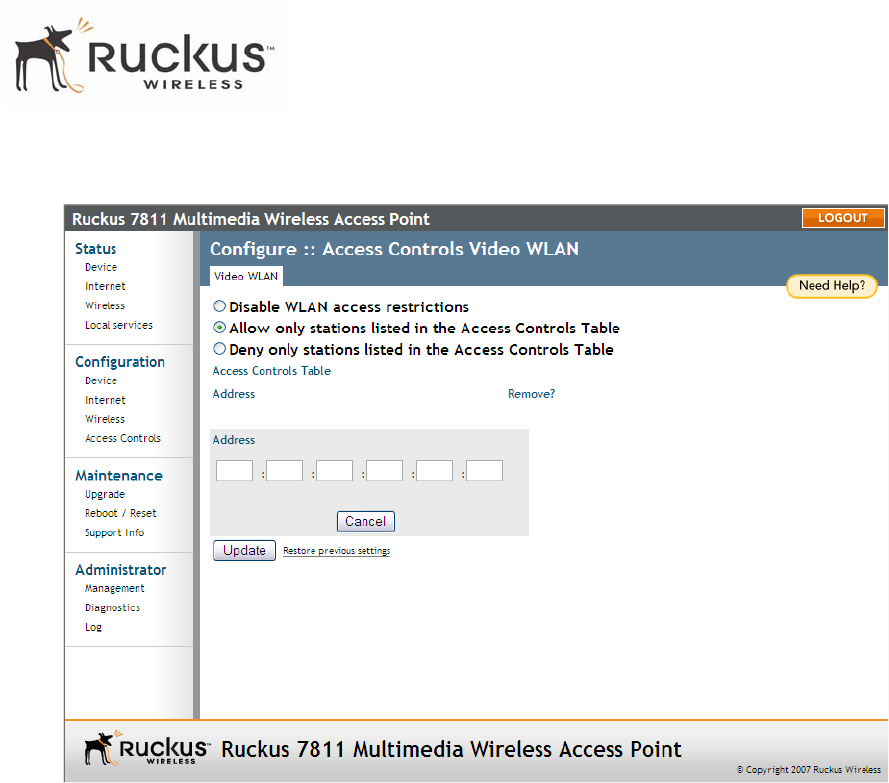

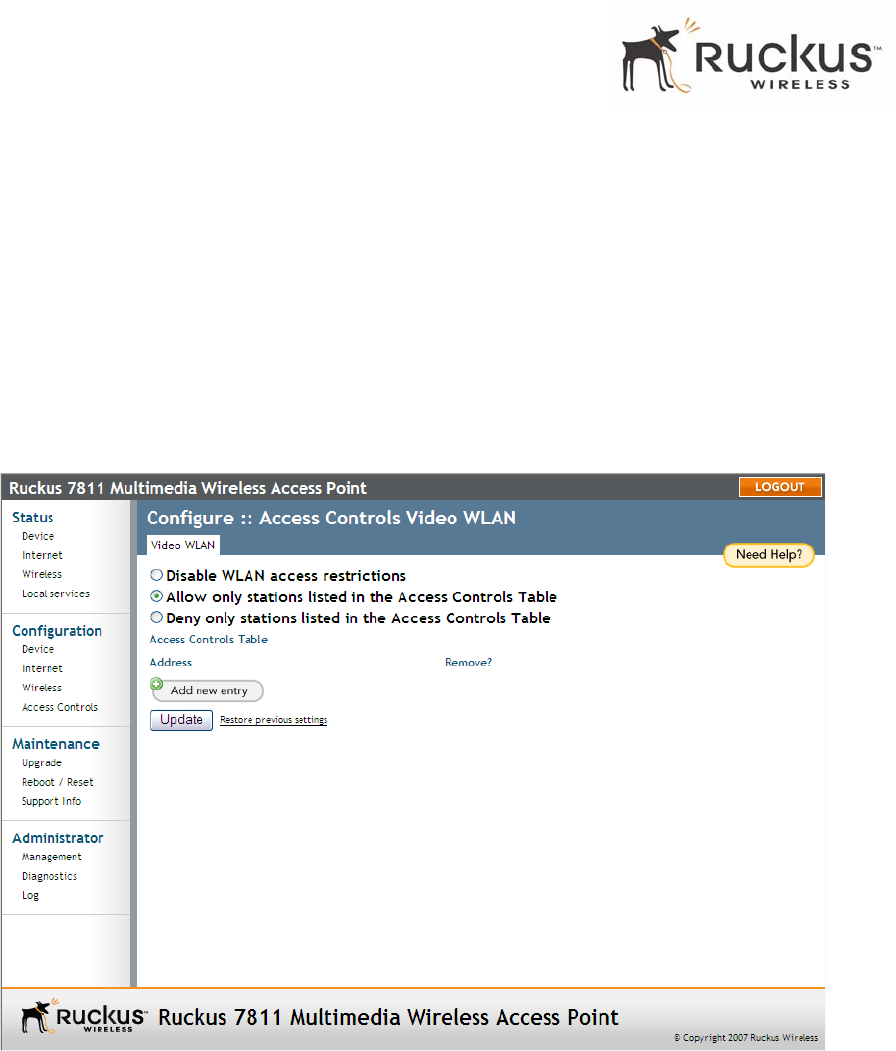

Figure 22—Access Controls allow settings
.
3. Click the Add new entry button to add a MAC address to the table.
Ruckus Wireless MediaFlex 7811 Access Point 37
Access Controls
Figure 23—Access controls: adding an entry
4. Type the MAC address in the spaces provided.
5. Click the Update button to save your changes. Assuming all parameters you entered are acceptable, that value
will be added to the table.
6. If you have additional MAC addresses you want included, click Add new entry and repeat these steps until
you've entered all the stations you want. There is a limit of 128 rows.
Access Control Table Columns
The Access Control Table contains the following columns:
Address: six text boxes appear in which you enter the desired MAC address, in hexadecimal digit form,
two characters in each box. You can specify a full 12-hex-digit MAC address or enter "wildcard"
characters for "don't care" digits. Allowable hex-digit characters are 0-9, a-f, and A-F. Most address-tags
and software where you find MAC addresses listed include colons or dashes to separate the address-pairs;
that is provided for you on the Web page, so do not enter the colons or dashes. The wildcard characters
are "x", "X" and blank (space character). Wildcards are useful when you want to specify all MAC
addresses from a given manufacturer. Thus for example, by specifying only the Organizationally Unique
Identifier (the first six hexadecimal digits of any MAC address from that manufacturer is its OUI) saves
you having to enter all 24 million of them (the table size is limited in the AP/Router to 128 entries). Some
manufacturers produce devices using more than one OUI, in which case you may need to enter each
applicable one.
Remove: Check the 'Remove' box for any row(s) you no longer want used.
38 Ruckus Wireless MediaFlex 7811 Access Point
Access Controls
Removing MAC Addresses from a List
Simply check the box under the Remove column for the MAC address entry or entries you want to remove
from the table and click Update.
Showing/Hiding Locally Known MAC Addresses
The AP/Router "knows" the MAC addresses of devices in the local network and this information can be
shown by clicking the "Show locally-known MAC addresses" link. It will disappear when you click "Hide
locally-known MAC addresses". By default, the "Remove" box is checked in each of these. Un-check it for
those devices you want included in the table. When you click Update, only entries in the table whose
“Remove” check box is un-checked will be included in the Access Controls table.
Ruckus Wireless MediaFlex 7811 Access Point 39
Access Controls
(This page intentionally left blank.)
40 Ruckus Wireless MediaFlex 7811 Access Point
Access Controls
Ruckus Wireless MediaFlex 7811 Access Point 41
Chapter 4: Maintenance
This chapter shows you how to perform maintenance functions—to upgrade the firmware of the 7811 and
to take a system support snapshot.
Topics covered in this chapter include:
• Upgrading the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
• Rebooting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
• Taking a System Support Snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
• Administrator Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
42 Ruckus Wireless MediaFlex 7811 Access Point
Upgrading the Firmware
Upgrading the Firmware
This menu provides a utility for upgrading the 7811’s firmware. A firmware upgrade may be necessary or
desirable to add new features, important fixes or enhancements to the 7811.
The Image Control File contains information on both the image and the firmware server. Image information
includes the file size and file name. For the firmware server, the image control file contains the IP address
of the firmware server, which may be different then the IP address where the image file is stored.
Performing a Firmware Upgrade Using TFTP
To download a firmware image from a TFTP server and use it to update the firmware on the 7811:
1. Go to Maintenance > Upgrade. The window of Figure 24 appears.
2. If you want to use TFTP to download the firmware image, select TFTP as the Upgrade Method.
Ruckus Wireless MediaFlex 7811 Access Point 43
Upgrading the Firmware
3. Under TFTP Options, enter the IP Address or hostname of the TFTP Server, the listening port (69 by default),
and the name of the image control file.
Figure 24—Maintenance > Upgrade—TFTP
4. Do one of the following:
If you want to enable Auto Upgrade, select Enabled, and specify the interval to check for upgrades.
Click Save parameters only to save your settings. The upgrade occurs automatically according to the
scheduled time.
If you want to perform a manual upgrade, click Perform Upgrade. The window of Figure 25 appears.
NOTEWhen entering the server name for firmware upgrade, make sure the Fully Qualified Domain Name (FQDN)
is entered (for example, fwupdate.ruckuswireless.com).
44 Ruckus Wireless MediaFlex 7811 Access Point
Upgrading the Firmware

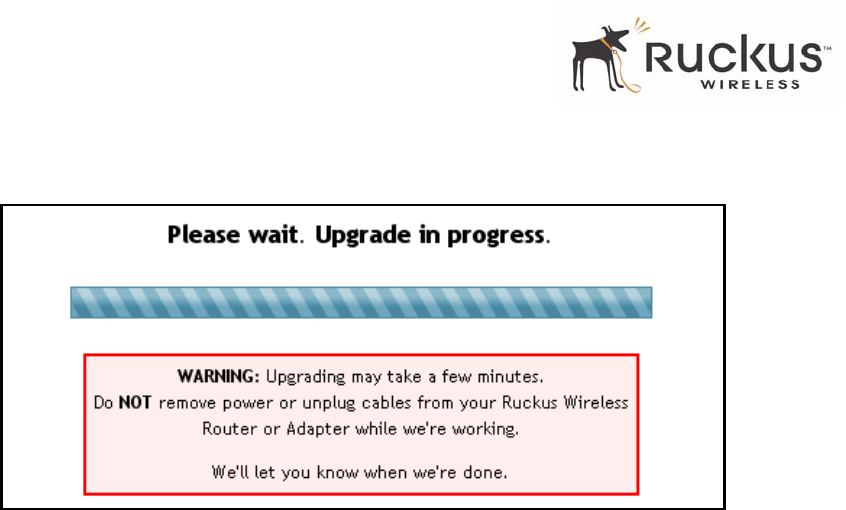

Figure 25—Download Started
Ruckus Wireless MediaFlex 7811 Access Point 45
Upgrading the Firmware
Performing a Firmware Upgrade Using FTP
1. Go to Maintenance > Upgrade. The window of Figure 26 appears.
2. If you want to perform the download using FTP, select FTP as the Upgrade Method.

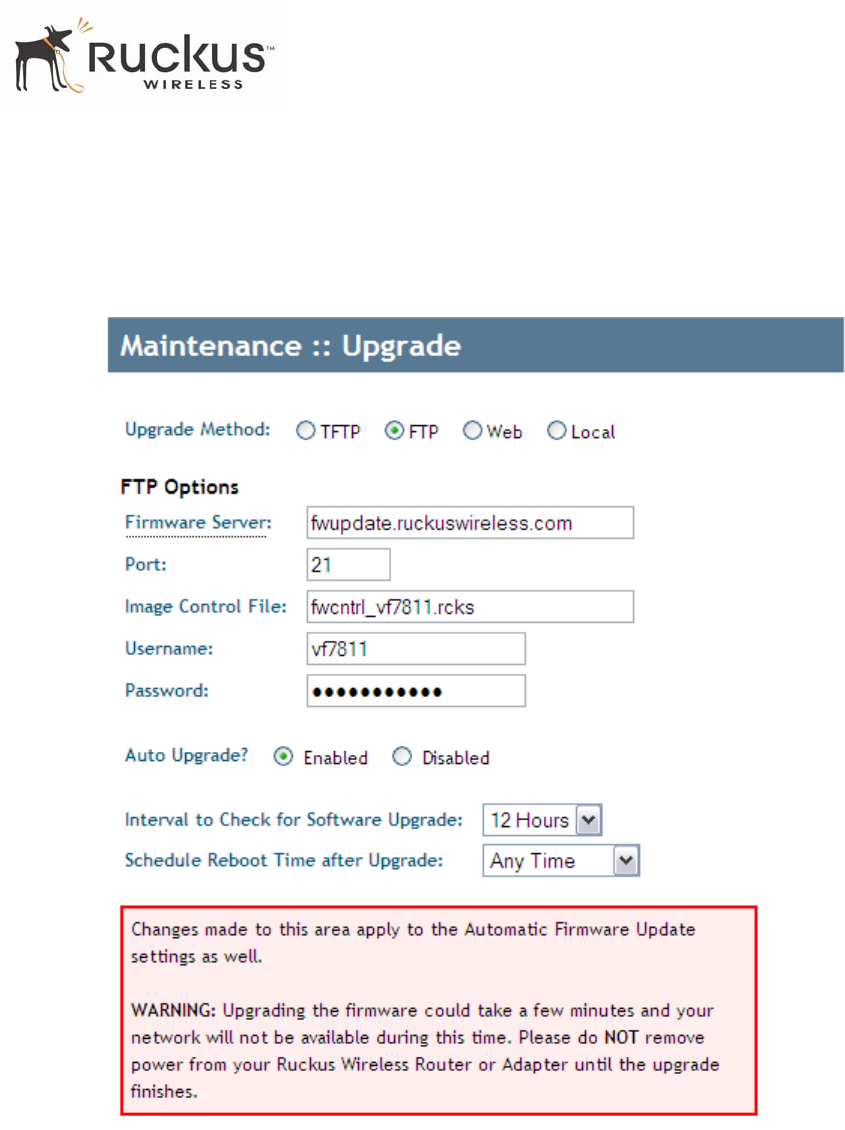

Figure 26—Maintenance > Upgrade—FTP
3. Under FTP Options, enter the IP Address or the host name of the FTP server, the listening port (21 by default),
the image control file name, and the username and password for logging into the FTP server.
46 Ruckus Wireless MediaFlex 7811 Access Point
Upgrading the Firmware
4. Do one of the following:
If you want to enable Auto Upgrade, select Enabled, and specify the interval to check for upgrades.
Click Save parameters only to save your settings. The upgrade occurs automatically according to the
scheduled time.
If you want to perform a manual upgrade, click Perform Upgrade. The window of Figure 25 appears.
NOTEWhen entering the server name for firmware upgrade, make sure the Fully Qualified Domain Name (FQDN)
is entered (for example, fwupdate.ruckuswireless.com).
Ruckus Wireless MediaFlex 7811 Access Point 47
Upgrading the Firmware
Performing a Firmware Upgrade Using HTTP
1. Go to Maintenance > Upgrade. The window of Figure 27 appears.
2. If you want to perform the download using HTTP, select Web as the Upgrade Method.

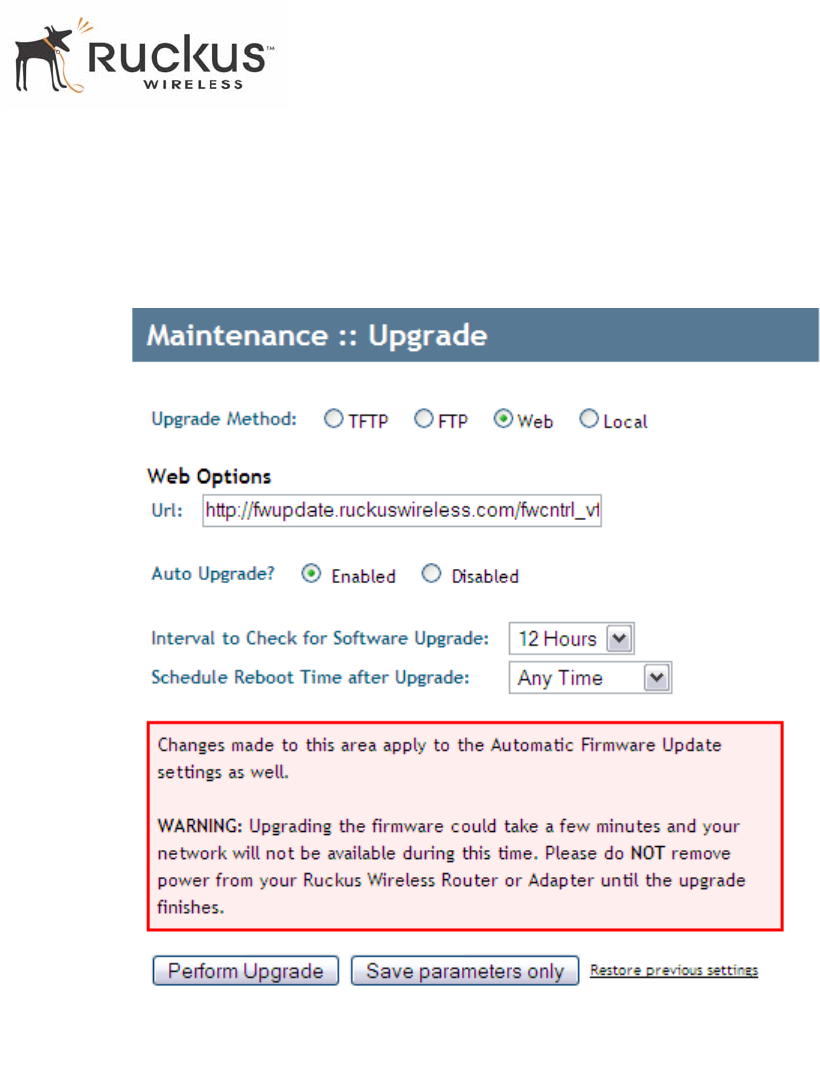

Figure 27—Maintenance > Upgrade—Web/HTTP
3. Under Web Options, enter the full URL of the image control file name on the Web server.
4. Do one of the following:
If you want to enable Auto Upgrade, select Enabled, and specify the interval to check for upgrades.
Click Save parameters only to save your settings. The upgrade occurs automatically according to the
scheduled time.
If you want to perform a manual upgrade, click Perform Upgrade. The window of Figure 25 appears.
NOTEWhen entering the server name for firmware upgrade, make sure the Fully Qualified Domain Name (FQDN)
is entered (for example, fwupdate.ruckuswireless.com).
48 Ruckus Wireless MediaFlex 7811 Access Point
Upgrading the Firmware
Performing a Local Firmware Upgrade
Before you perform a local firmware upgrade, take note of the current software version on the Status ::
Device page. You need to know the current software version to verify that the upgrade process was
successfully completed.
To perform a local firmware upgrade
1. Visit the Ruckus Wireless Web site, and then download the latest firmware for 7811. You can find the 7811
firmware files at http://support.ruckuswireless.com/software/for_product/mf7811. Take note of the version
number of the firmware that you are downloading.
2. Save the 7811 firmware file to the computer that you use to access the 7811 Web interface.
3. Log on to the 7811 Web interface.
4. On the menu, click Maintenance > Upgrade.
5. In Upgrade Method, click Local.

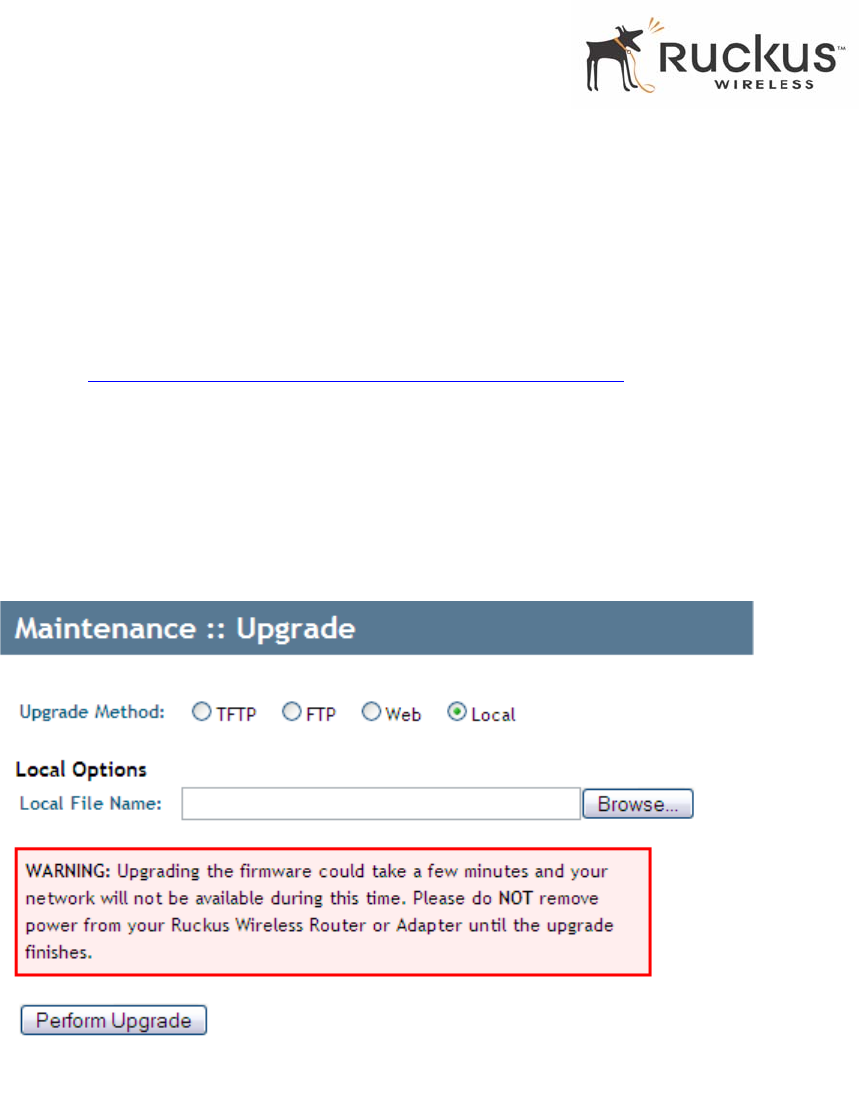

Figure 28—Maintenance > Upgrade—Local
6. In Local File Name, click Browse, and then browse to the location where you saved the firmware file.
7. Select the file, and then click Open.
8. Click Perform Upgrade. The message “Loading...” appears, as shown in Table 29.
Ruckus Wireless MediaFlex 7811 Access Point 49
Upgrading the Firmware

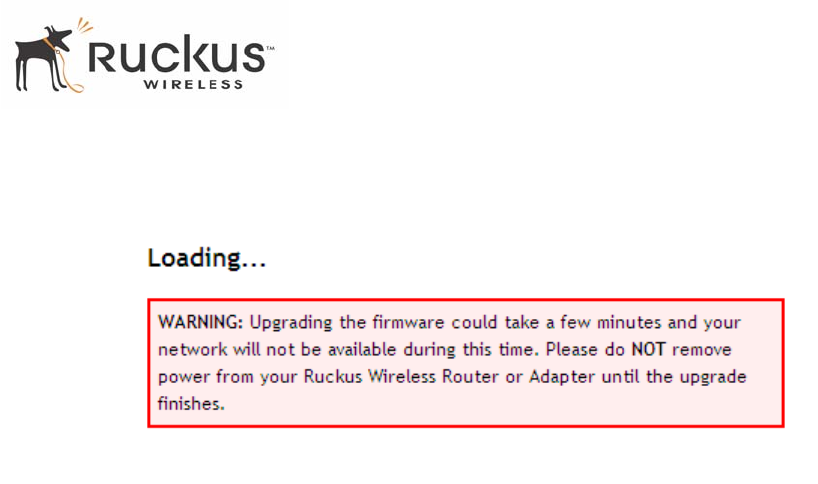

Figure 29—The following message appears as the 7811 upgrades its firmware
When the upgrade is complete, the login page reappears.
9. Log back into the 7811 Web interface, and then check if the software version number on the Status :: Device
page has been updated. If it reflects the version number of the firmware that you downloaded earlier, this
indicates that the upgrade was completed successfully.
50 Ruckus Wireless MediaFlex 7811 Access Point
Rebooting the System
Rebooting the System
Two types of reboot are provided:
•The Reboot Now button re-starts the system. All the configurations that have been saved are preserved
through the reboot. Any configuration changes made before the Reboot will be lost if they are not saved
by clicking Update Settings.
•The Reset to Factory Settings button restarts the system with the factory default configurations. All
previous configurations will be lost.
NOTEMake sure to save your settings before you reboot.
To reboot for either type, do the following:
1. Go to Maintenance > Reboot/Reset. The window of Figure 30 appears.

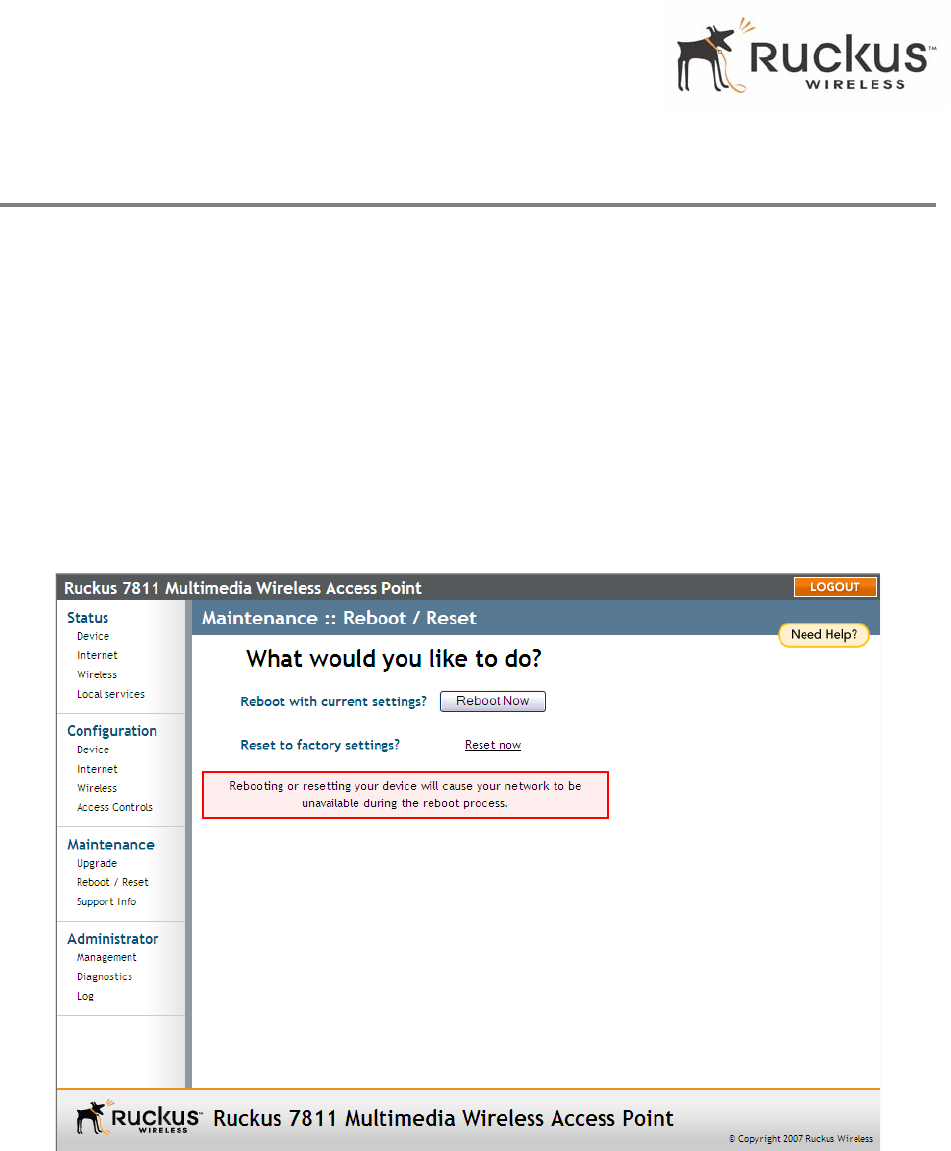

Figure 30—Reboot Menu
2. Do one of the following:
Click Reboot Now to reboot the device while maintaining its current settings. During a reboot, the
Dome LED on the top of the 7811 will momentarily go out, then light up again.
Click the Reset Now link to reset the device to factory settings; thus, erasing any of your custom
settings.
Ruckus Wireless MediaFlex 7811 Access Point 51
Rebooting the System
The reboot in progress window appears (Figure 31).

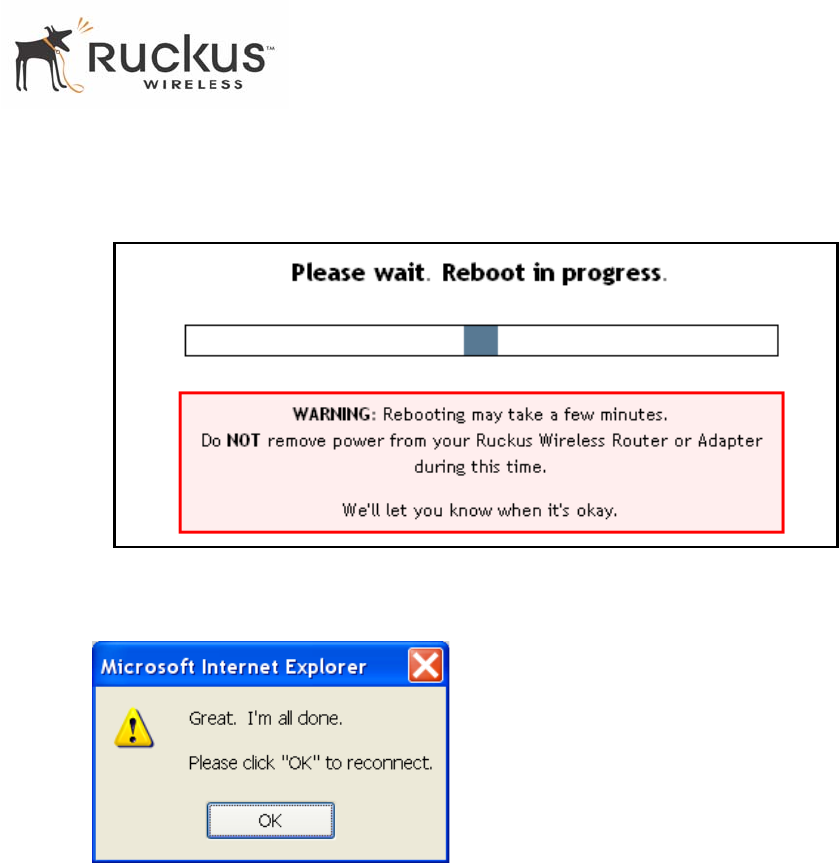

Figure 31—Reboot in Progress Window
The system notifies you when it is done (Figure 32).
Figure 32—Reboot Done
52 Ruckus Wireless MediaFlex 7811 Access Point
Taking a System Support Snapshot
Taking a System Support Snapshot
NOTEThis menu is only available when you are logged in as a service provider.
Support Info enables you to take a system snapshot for further analysis and troubleshooting. The system
snapshot can be saved to a TFTP or FTP server, or your local computer, and then sent to a technical support
engineer for analysis.
1. Go to Maintenance > Support Info. The window of Figure 33 appears.
Figure 33—Maintenance :: Support Info Window
2. At Upload Method, select one of the following:
TFTP: Specify the TFTP servers IP address, and enter a filename for the snapshot.
FTP: Specify the FTP servers IP address, username and password, and then enter a filename for the
snapshot.
Save to Local Computer: Right-click on the link that appears and save. Navigate to the folder where
you want the file saved and click Save.
Ruckus Wireless MediaFlex 7811 Access Point 53
Administrator Information
Administrator Information
NOTEThis menu is available only when you are logged in as a service provider.
Management Information
Figure 34 shows the Administrator Management Window.
1. Go to Administrator > Management.

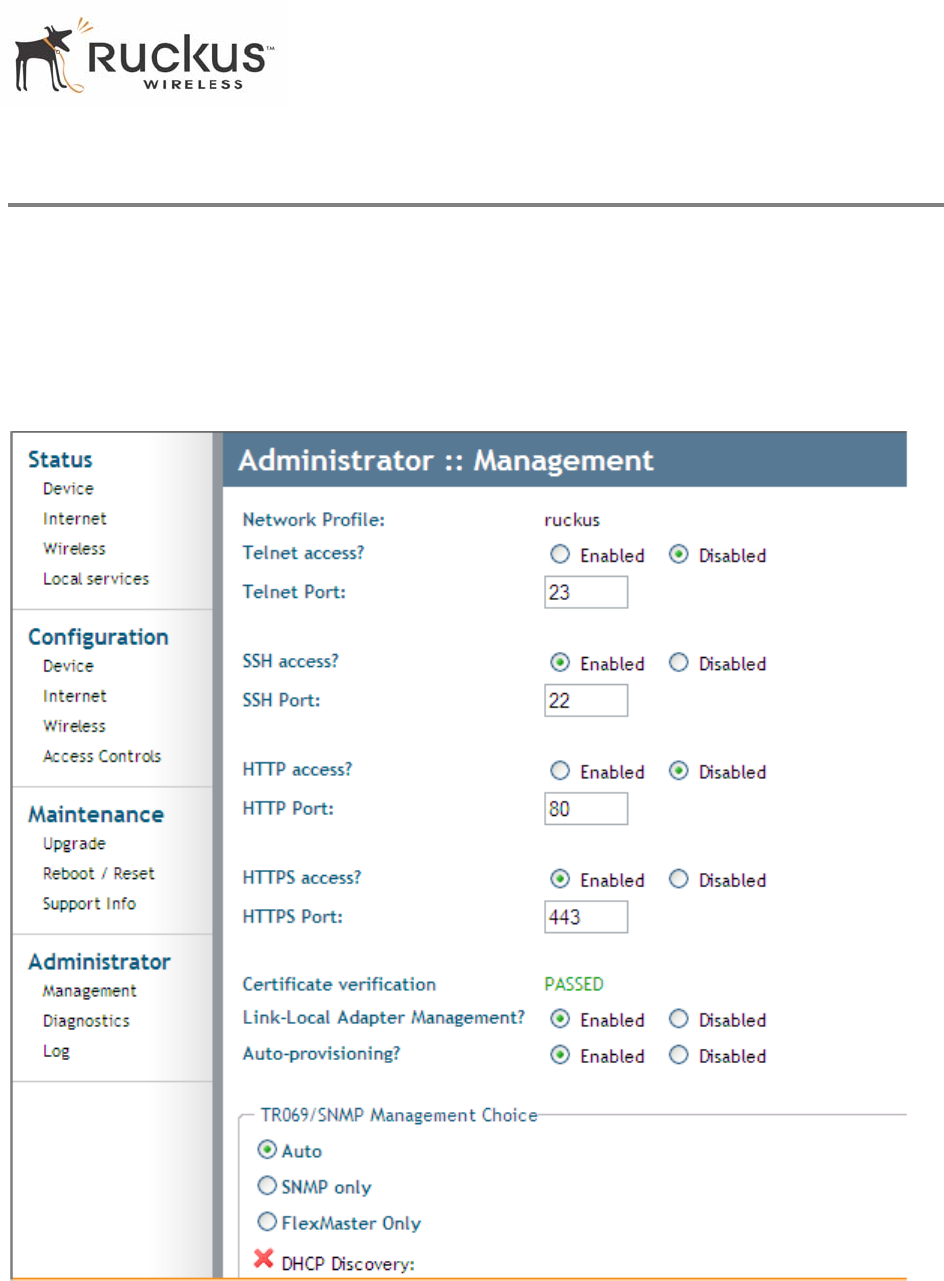

Figure 34—Administrator Management Window
54 Ruckus Wireless MediaFlex 7811 Access Point
Administrator Information
2. Review the access options and make changes as needed. Table 15 lists the access options that are available.
Table 15—Administrator Management Window Parameters
Field Description
Network Profile Predefined network configuration in the system. The 7811 can be
preconfigured into a different network profile.
Telnet Access Allows you to enable or disable Telnet access to the Ruckus Wireless
device. By default, this option is disabled (inactive).
Telnet Port Lists the default Telnet port of 23—only if Telnet is active. You can
manually change this port number if required.
SSH Access? Allows you to enable or disable SSH access to the Ruckus Wireless
device. By default, this option is enabled (active).
SSH Port Specifies the port number for Telnet access. The default port number is
23.
HTTP Access? Allows you to enable or disable HTTP (Web) access to the Ruckus
Wireless device.
HTTPS Access? Allows you to enable or disable HTTPS (Secure Web) access to the
Ruckus Wireless device.
HTTPS Port Specifies the port number for HTTPS access. The default port number
is 80.
Certification Verification Specifies whether the security certificate linked to the HTTPS settings
has been passed or not.
Link-Local Adapter
Management When enabled, allows the 7811 to manage Ruckus 7111 adapters. For
more information, see Adapter Management on page 64.
Auto Provisioning When enabled, the 7811 can be set up to automatically synchronize the
relevant parameters to the adapter. For more details on auto
provisioning, refer to What is Auto Provisioning? on page 62.
Ruckus Wireless MediaFlex 7811 Access Point 55
Administrator Information
3. Under TR-069/SNMP Management Choices, configure the options as needed. Table 16 lists the
management options that are available.
4. Under TR-069 Status, view information on the status of the connection between your device and FlexMaster.
5. Click Update Settings to save your settings. The message “Your parameters were saved” appears at the top
of the workspace.
Table 16—TR-069/SNMP Management Options
Field Description
Auto Enables the device to connect to either SNMP, Ruckus ZoneDirector or
FlexMaster.
SNMP only Only allow SNMP management
FlexMaster only Only allow FlexMaster management
DHCP Discovery URL of the DHCP server
FlexMaster Server URL URL of the FlexMaster server
Contact FlexMaster every Interval at which the device will attempt to contact the FlexMaster server
56 Ruckus Wireless MediaFlex 7811 Access Point
Administrator Information
Administrator Diagnostics
The administrator diagnostics allow you to run the command line programs ping and traceroute directly
without having to open a command line window.
1. Go to Administrator > Diagnostics (Figure 35).

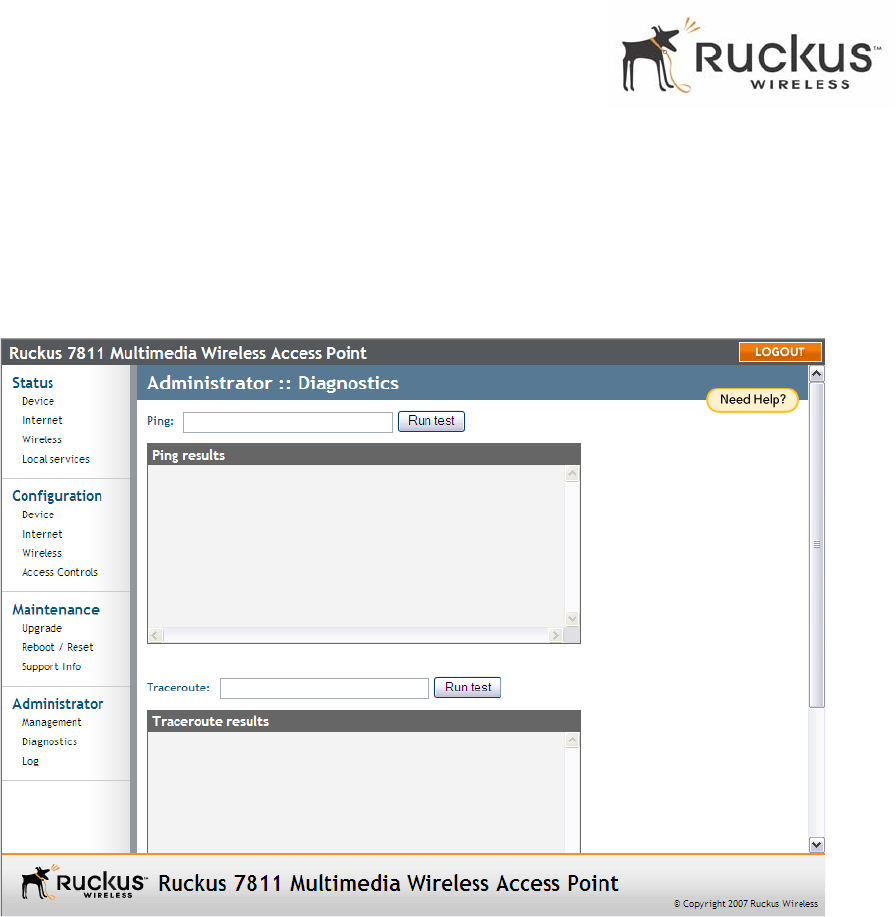

Figure 35—Administrator Diagnostics Window
2. To use the ping command, enter the IP address you wish to ping and click Run test. The results appear in the
Ping results window.
3. To use the traceroute command, enter the IP address you wish to trace and click Run test. The results appear
in the Traceroute results window.
NOTEIt may take some time before the results are displayed.
Ruckus Wireless MediaFlex 7811 Access Point 57
Administrator Information
Administrator Log
The current log screen shows the log messages kept by the Ruckus Wireless Router since it was last rebooted.
The log has limited size: the oldest messages are replaced as new messages arrive.
It also sends the messages to a server (the Syslog server) that you designate. To configure the administrator
log:
1. Go to Administrator > Log. The window of Figure 36 opens.
2. Enable Log Status if you want to continue to send messages to your Syslog Server. Otherwise, disable Log
Status.
3. Enter the IP address of your Syslog Server.
4. Enter the Syslog Server Port Number. The default port number is 514.
5. Click Update Settings to save your settings.
Figure 36—Administrator Log Window
58 Ruckus Wireless MediaFlex 7811 Access Point
Administrator Information
(This page intentionally left blank.)
Ruckus Wireless MediaFlex 7811 Access Point 59
Chapter 5: 7111 Adapter Setup, Provisioning,
and Management
This chapter shows you how to set up and provision the Ruckus Wireless MediaFlex 7111 Adapter with the
Ruckus Wireless MediaFlex 7811 Access Point.
Topics covered in this chapter include
• Packing List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
• Placing the 7111 into Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
• Troubleshooting Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
• Verifying Proper Provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
• What is Auto Provisioning?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
• Connecting and Configuring Your Ruckus 7111 Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
• Performing Auto Provisioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
• Adapter Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
• Disabling Adapter Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
• Enabling Adapter Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
60 Ruckus Wireless MediaFlex 7811 Access Point
Packing List
Packing List
Each 7111 is supplied with the following:
Ruckus Wireless MediaFlex 7111 Adapter
AC power adapter
Category 5 (CAT5) Ethernet cable
Placing the 7111 into Operation
The 7111 connects to the set-top box or other media receiver while communicating wirelessly with the 7811.
The 7811 already has a basic default configuration that can be used for auto-provisioning the adapter.
Note that normally the 7111 is pre-configured for plug and play operation in the IPTV deployment. You need
only follow these steps to place the 7111 into operation.
1. Remove the 7111 adapter from the packaging and place it next to your set-top box.
2. Connect the AC power supply to the 7111 adapter and plug the other end into either a power outlet or a surge
protector that is plugged into a power outlet.
3. Connect the CAT5 Ethernet cable between the Ethernet port on the 7111 and the set-top box.
4. Power on the set-top box.
Troubleshooting Setup
If you cannot see the video on your TV, follow these troubleshooting tips:
1. Disconnect the 7111 power adapter.
2. Re-connect the 7111 power adapter.
3. Connect the 7111 to the set-top box (or remote computer).
4. From the TV connected to the set-top box, check to see if you can watch IPTV channels.
5. If not, turn off the set-top box.
6. Turn on the set-top box.
7. Re-check the TV channel (or the remote computer).
8. If you still cannot connect, turn off all network devices.
9. Power on the router and the access point.
10. Turn on the 7111.
11. Turn on the set-top box.
12. Check the LED status lights to verify correct operation (Figure 37).
Ruckus Wireless MediaFlex 7811 Access Point 61
Verifying Proper Provisioning
Figure 37—LEDs
13. Make sure you are using the power adapter supplied by Ruckus Wireless.
14. Make sure the Power LED is lit. If it is not lit, make sure that the power cord is properly connected to the 7111,
and that the power supply adapter is properly connected to a functioning power outlet. If the error persists,
you have a hardware problem and should contact technical support.
15. Make sure your Network LED is lit. Make sure that the Ethernet cable connections are secure at the 7111
adapter and your computer. The Network LED on the 7111 adapter indicates link when the adapter is fully
seated in the port.
16. Make sure the Wireless LED is either steady or flashing Green. If is not lit, the Wireless settings may be
incorrect between the 7111 adapter and the AP.
17. If you still cannot see the video, proceed to the next section, ”Verifying Proper Provisioning.”
Verifying Proper Provisioning
To verify proper provisioning of the 7111, you can log in to the Web interface of the 7111 using the following
steps.
Manually Configuring an IP Address on Your Computer
Follow the steps detailed in Configuring an IP Address on Your Computer on page 9.
Connecting and Configuring Your Ruckus 7111 Adapter
The following steps guide you to set up and gain administrative access to your Ruckus 7111.
1. Move the 7111 next to your computer.
2. Connect the AC power adapter to the Ruckus 7111 and plug the other end into either a power outlet or to a
surge protector that is plugged into a power outlet.
Dome
Signal Quality
Wireless Device
Association
Power
WAN
Connectivity
62 Ruckus Wireless MediaFlex 7811 Access Point
What is Auto Provisioning?
3. Connect the CAT5 Ethernet cable to the Ethernet port on your computer, and to the Ethernet port on the 7111.
4. On your PC, open a browser window.
5. Upon login, check the Status :: Wireless page to verify that the wireless status is up. If the status is down,
then you have a connection problem between the 7811 and the 7111. You may need to reset the unit to factory
defaults and perform auto provisioning with the 7811.
6. If necessary, reset the 7111 to its factory defaults. Press and hold the Reset button on the device for at least
eight (8) seconds.
7. Repeat the auto provisioning steps by referring to Performing Auto Provisioning on page 62.
What is Auto Provisioning?
Using auto provisioning, you can synchronize wireless settings between the 7111 and the 7811.
In order for the adapter to communicate with the AP, the 7111 must have the same wireless settings (such
as SSID, security mode, and passphrase) as the 7811. With auto provisioning, the adapter can obtain these
settings without the need to use a PC for configurtation.
The auto provisioning method is very simple. You simply connect the 7111 to the 7811, and all of the
wireless settings of the 7811 are securely sent to the 7111.
Performing Auto Provisioning
To perform auto provisioning, perform the following steps:
1. The adapter must be in factory default mode. If the adapter is not in factory default mode, use a pin to depress
the Reset button (for at least 8 seconds) on the back of the adapter to set it to factory defaults.
2. When the adapter is in default mode, the right two LEDs (Wireless Device Association and the Signal
Quality) should be blinking in unison. This indicates that the adapter is in factory default mode and is waiting
to be auto provisioned.
3. The 7811 should be powered on.
4. Use an Ethernet cable to connect the 7811 (any port) to the 7111’s Ethernet port.
5. Observe the Wireless Device Association and the Signal Quality LEDs of the 7111. These LEDs should
continue to blink in unison.
6. The auto provisioning process will take between 5 to 15 seconds. At the end of this process, these two LEDs
should turn off.
7. Unplug the Ethernet cable from the 7111. The 7111 will reboot automatically. Be sure that the 7111 is
rebooting by checking the three right most LEDs.
8. If the 7811 and the 7111 are correctly auto provisioned and associated, the right two LEDs of the 7111 should
show constant green.
Ruckus Wireless MediaFlex 7811 Access Point 63
What is Auto Provisioning?
7811 Parameters Included in Auto Provisioning
The following 7811 parameters are synchronized over to the Adapter at the completion of the auto
provisioning stage (Table 17):
7811 Parameters Not Included in Auto Provisioning
The following less common parameters are not included. If you need to sync these parameters, you must
configure them using the Web user interface or the CLI (if provided) (Table 18).
Resetting to Factory Defaults
When the adapter is factory reset (by pressing the Reset button on the back of the unit for at least 8 seconds),
the auto provisioned parameters will be lost. The adapter will go back to the original parameters as
provisioned from the factory. If you want to retain the parameters from the AP, you must repeat the auto
provisioning process described above.
Table 17— 7811 Parameters Included in Auto Provisioning
Parameter Description
Country Code Configured country code for regulatory compliance
SSID Configured Service Set Identifier
Encryption mode Configured encryption mode status
Cipher Configured security encryption cipher
Passphrase Configured Pre-Shared Passphrase
Table 18— 7811 Parameters Not Included in Auto Provisioning
Parameter Description
User Name and Password You may want the AP and Adapter to have different usernames and passwords
Country Code Fixed Mode Set during manufacturing
64 Ruckus Wireless MediaFlex 7811 Access Point
Adapter Management
Adapter Management
After setting up and provisioning your 7111 adapter, the 7111 can be configured to be managed via the Web
user interface of the 7811. This adapter management enables a service provider to access and configure the
7111 without being physically local to the device. Adapter management also enables the 7111 to connect to
the firmware server via NAT through the 7811. As the 7111 does not have a publicly addressable IP address,
using NAT through the 7811 allows the adapter to receive updates without special access between networks.
NOTEWhen adapter management is enabled on the 7111 adapter, it is not possible to change the IP address of the
7111. To change the IP address of the 7111 adapter, adapter management must first be disabled.
To utilize adapter management, do the following:
NOTEThe following steps assume you have reconfigured your client PC to connect to the 7811.
1. Login to the wireless Web interface of the 7811.
2. Go to Status :: Wireless.
3. Click the Video WLAN tab. In the Connected Devices table, note the Ruckus Adapter Management column.
This column has one of two values:
STA WebServer: This indicates that the adapter is under adapter management.
n/a: The 7111 is connected but not currently under adapter management. You must open a separate
browser window and enter the address of the 7111 to configure the adapter. To login to the 7111 and
enable adapter management, see Enabling Adapter Management on page 66.
Figure 38—Viewing the adapter management status of a 7111 via the 7811
Ruckus Wireless MediaFlex 7811 Access Point 65
Adapter Management
4. Click the STA WebServer link. A separate browser window opens to the 7111’s Web user interface login
page. Note in Figure 39 the IP address of the login is identical to that of the 7811, with the exception of the
port number ‘25401’ appended to the 7811’s IP address.
Figure 39—Logging into the 7111 via adapter management
5. Login to the 7111 using the appropriate user name and password. You can now configure your 7111 adapter.
Disabling Adapter Management
To disable adapter management, do the following:
NOTEThis procedure assumes adapter management is currently enabled.
1. Login to the 7811 Web user interface.
2. Go to Status :: Wireless.
3. Click the Video WLAN tab. In the Connected Devices table, note the Ruckus Adapter Management column.
4. Click the STA WebServer link. A separate browser window opens to the 7111’s Web user interface login
page.
5. Login to the 7111 using the appropriate user name and password.
6. In the 7111 Web user interface, go to Administrator :: Management. Note that the Link-Local Adapter
Management? field shows “Enabled”.
7. Click the Disabled radio button at Link-Local Adapter Management.
66 Ruckus Wireless MediaFlex 7811 Access Point
Adapter Management
8. Click Update Settings to save your settings.

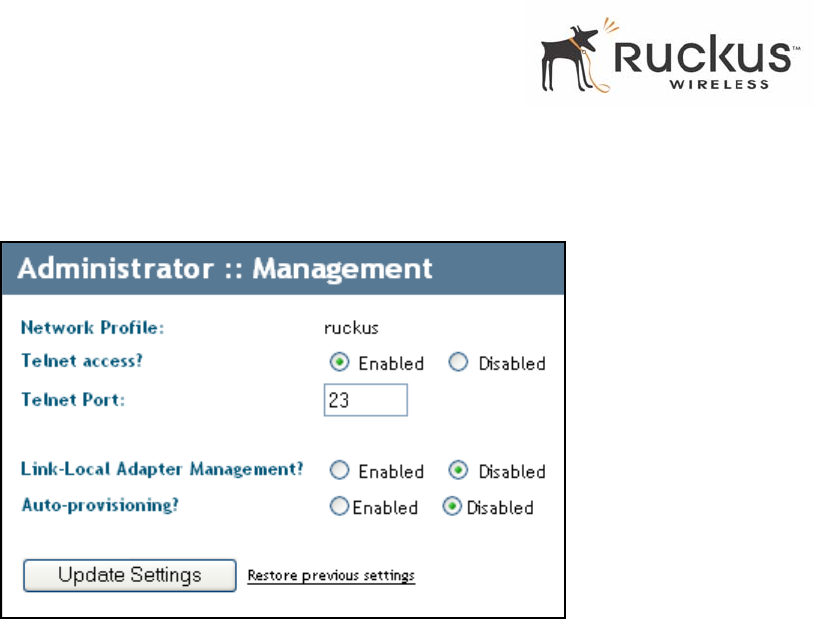

Figure 40—Disabling adapter management
Enabling Adapter Management
To enable adapter management, do the following:
NOTEWith Release 4.2 and later, adapter management is enabled by default upon 7111 provisioning with the 7811.
This procedure assumes that adapter management is currently disabled.
1. Connect a PC to the 7111’s Ethernet port.
2. If necessary, change the IP address of your PC to an address in the same subnet (192.168.2.x) as the 7111.
3. Login to the 7111 using the IP address, user name, and password located on the label on the bottom of the
adapter.
4. Go to Administrator :: Management.
5. Select the ‘Enabled” radio button for Link-Local Adapter Management.
6. Click Update Settings to save your settings.
Upgrading 7111 Firmware using Adapter Management
NOTEThis procedure assumes adapter management is currently enabled.
1. Login to the 7811 Web user interface.
2. Go to Status :: Wireless.
3. Click the Video WLAN tab. In the Connected Devices table, note the Ruckus Adapter Management column.
4. Click the STA WebServer link. A separate browser window opens to the 7111’s Web user interface login
page.
5. Login to the 7111 using the appropriate user name and password.
6. In the 7111 Web user interface, go to Maintenance :: Upgrade.
7. Follow the instructions in the 7111 user guide to perform the firmware upgrade.
Ruckus Wireless MediaFlex 7811 Access Point 67
Adapter Management
(This page intentionally left blank.)
68 Ruckus Wireless MediaFlex 7811 Access Point
Adapter Management
Ruckus Wireless MediaFlex 7811 Access Point 69
Appendix A: Technical Specifications
Physical Characteristics
Power requirements VF7811:
12V, 1A
External power adapter:
Ruckus Wireless Model DSA-12R-12AUS
Ruckus Wireless Model DSA-12R-12AUK
Ruckus Wireless Model DSA-12R-12AEU
Ruckus Wireless Model DSA-12R-12AAU (N136 with
Electrical Approval V06649 for safety)
Physical size 5.72 x 4.92 x 2.9 in (145 x 125 x 74 mm.)
Weight 0.53 lbs (0.24 kg)
Antenna Internal software-configurable antenna array with six
directional, high-gain elements and 63 unique antenna patterns
Ethernet ports One (1) auto MDX, auto sensing 10/100Mbps, RJ45 port
LED display Antenna
Power
WAN Connectivity
Wireless Device Association
Signal Quality
Environmental conditions Operating Temperature: 32oF – 104oF (0oC – 40oC)
Operating Humidity: 15% - 95% non condensing
Electromagnetic Emissions Meets requirements of FCC Part 15 Class B
Performance and Supported Configurations
Target UDP throughput 30Mbps-40Mbps sustainable throughout a typical 2500 ft2
(300 m2) home
Number of simultaneous video streams The aggregated throughput of multiple video streams can
reach up to 30Mbps-40Mbps
70 Ruckus Wireless MediaFlex 7811 Access Point
Traffic Management and QoS
Traffic Management and QoS
Classes of service Voice, Video, Best Effort and Background
Number of hardware queues 4
Number of software queues 4
Management
Configuration and monitoring interface Ruckus Wireless Web User Interface (WebUI), Telnet
Login Service Provider Username: super
Statistics Wireless and associated stations
Accessible via Ruckus Wireless Web Interface
Firmware Update Via FTP, TFTP, or Web download
Accessible via Ruckus Wireless Web Interface
Manual or Automatic
Other Utilities System Support Snapshot
Standards/Specifications 802.11 n
802.11u
802.11e,
Wi-Fi Alliance WMM
Channels US/Canada: 1-11
Europe (ETSI X30): 1-13
Japan X41: 1-14
Wireless Security WPA-PSK, WPA-AES, WPA2-AES
Diagnostic Tools Ping and Traceroute
Certifications
Countries FCC (US), IC (Canada), CE (EU)
Ruckus Wireless MediaFlex 7811 Access Point 71
Appendix B: Configuration Worksheets
The following worksheets were presented in Chapter 3:, “Configuration, and are offered here in printable,
one-page each format.
Table 19—Wireless Network Settings Worksheet—Service Provider User
Item Description and Your Network Setting
VF7811 SSID The SSID for the service provider. This is typically used for streaming IPTV video
content.
SSID___________________________________________________________
Encryption Method If using WPA-PSK, write down the passphrase. The WPA-PSK passphrase is
case-sensitive.
WPA Version:______________________________________
WPA Algorithm____________________________________
WPA Passphrase: ________________________________
72 Ruckus Wireless MediaFlex 7811 Access Point
Table 20—VF7811 Default and User Settings Worksheet
Item Default Setting Your Setting
Service Provider User Name super
_______________________________
Service Provider Password sp-admin
_______________________________
Internet Access Type DHCP Client Enabled
(can be set to static
or PPPoE) _______________________________
Local Network Configuration DHCP Server Enabled
_______________________________
Default IP Address (WAN port if
no DHCP response from the
DHCP server)
192.168.2.1
_______________________________
Subnet Mask 255.255.255.0
_______________________________
Service Provider SSID V54-xxxxxx where
xxxxxx are the last six
digits of the MAC
address.
_______________________________
Wireless Mode 5GHz (802.11a/n) -
Fixed Not configurable
Federal Communications Commission Notices
This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator and your body.
Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment or devices
Connect the equipment to an outlet other than the receiver's
Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications to this equipment that have not been approved by Ruckus Wireless may void the user's authority to operate this equipment.
Industry Canada Statement
This device complies with Industry Canada ICES-003 and RSS210 rules. Operation is subject to the following two conditions:
1. This device may not cause interference and
2. This device must accept any interference, including interference that may cause undesired operation of the device.
Règlement d’Industry Canada
Cet appareil est conforme aux normes NMB003 et RSS210 d'Industrie Canada. Le fonctionnement est soumis aux conditions suivantes :
1. Ce périphérique ne doit pas causer d'interférences;
2. Ce périphérique doit accepter toutes les interférences reçues, y compris celles qui risquent d'entraîner un fonctionnement indésirable.
European Union Notices
Compliance Information for 5-GHz Wireless Products
The following standards were applied during the assessment of the product against the requirements of the Directive 1999/5/EC:
Radio: EN 300 893
EMC: EN 301 489-1, EN 301 489-17
Safety: EN 60950
The frequency band 5150 – 5350 MHz is restricted to indoor use.
Česky
[Czech]
Ruckus Wireless tímto prohlašuje, že tento Radio LAN je ve shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede Ruckus Wireless erklærer herved, at følgende udstyr Radio LAN overholder de væsentlige krav og øvrige
relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt Ruckus Wireless, dass sich das Gerät Radio LAN in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab Ruckus Wireless seadme Radio LAN vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud
direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, Ruckus Wireless declares that this Radio LAN is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente Ruckus Wireless declara que el Radio LAN cumple con los requisitos esenciales y cualesquiera
otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ruckus Wireless ΔΗΛΩΝΕΙ ΟΤΙ Radio LAN ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente Ruckus Wireless déclare que l'appareil Radio LAN est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente Ruckus Wireless dichiara che questo Radio LAN è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo Ruckus Wireless deklarē, ka Radio LAN atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to
saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo Ruckus Wireless deklaruoja, kad šis Radio LAN atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Nederlands
[Dutch]
Hierbij verklaart Ruckus Wireless dat het toestel Radio LAN in overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, Ruckus Wireless, jiddikjara li dan Radio LAN jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn
relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, Ruckus Wireless nyilatkozom, hogy a Radio LAN megfelel a vonatkozó alapvetõ követelményeknek és az
1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym Ruckus Wireless oświadcza, że Radio LAN jest zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
Ruckus Wireless declara que este Radio LAN está conforme com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
Slovensko
[Slovenian]
Ruckus Wireless izjavlja, da je ta Radio LAN v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
Slovensky
[Slovak]
Ruckus Wireless týmto vyhlasuje, že Radio LAN spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice
1999/5/ES.
Suomi
[Finnish]
Ruckus Wireless vakuuttaa täten että Radio LAN tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar Ruckus Wireless att denna Radio LAN står I överensstämmelse med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Íslenska
[Icelandic]
Hér með lýsir Ruckus Wireless yfir því að Radio LAN er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í
tilskipun 1999/5/EC.
Norsk
[Norwegian]
Ruckus Wireless erklærer herved at utstyret Radio LAN er i samsvar med de grunnleggende krav og øvrige relevante
krav i direktiv 1999/5/EF.
800-70150-001 rev. A

Navigation menu
