The Ruckus ZoneFlex 7372 delivers high-performance and reli-
able 802.11n wireless networking at the industry’s most afford-
able price point.
Unlike any other 802.11n wireless solution in its class, the
ZoneFlex 7372 combines patented adaptive antenna technol-
ogy and automatic interference mitigation to deliver consistent,
predictable performance at extended ranges with up to an
additional 4dB of BeamFlex gain on top of the physical antenna
gain and up to 10dB of interference mitigation.
Additional performance enhancements to signal gain can be
attributed to the chip-based transmit beamforming capability
adding 3 dB when associated to a compatible client. The 7372
is also ideal for client performance with mobile devices that
constantly change orientation with dual-polarized antennas
that adapt to hand-held device movement.
Each ZoneFlex 7372 integrates Ruckus-patented BeamFlex, a
software-controlled, high gain antenna array that continually
forms and directs each 802.11n packet over the best perform-
ing signal path. The ZoneFlex 7372 automatically selects chan-
nels for highest throughput potential using Ruckus ChannelFly
dynamic channel management, adapting to environmental
changes. Once deployed, enterprises never have to worry
about constant site surveys as the environment changes.
A sleek and low-prole design, the ZoneFlex 7372 was purpose-
built for cost-minded enterprises requiring reliable high speed
client connectivity. It is ideal for a variety of enterprise and
hotspot environments including hotels, schools, retail outlets,
branch ofces and public venues.
Offered in single and dual band models, the ZoneFlex 7372
can be deployed as a standalone access point or as part of
the centrally-controlled Smart Wireless LAN with the Ruckus
ZoneDirector. The ZoneFlex 7372 can also be easily deployed
using Smart Mesh Networking to extend Wi-Fi services in loca-
tions where Ethernet cabling is not available or cost prohibitive.
Dual-Band 802.11n Smart Wi-Fi Access Points
BENEFITS
Best-in-class mid-range performance at lowest cost
Unprecedented price/performance with extended range at the
industrys most affordable price point for both single and dual-band
Extended range requires fewer APs
Adaptive antenna technology delivers a 2x to 4x increase in Wi-Fi signal
coverage minimizing the number of APs required to service any area
Wire-like wireless reliability
Patented smart antenna array, adaptive antenna technology and
Quality of Service technologies combine to mitigate interference and
minimize packet loss
Sleek, low prole enclosure for ease-of-deployment
Aesthetically-pleasing design ts almost anywhere
Channel selection optimizes throughput
ChannelFly dynamic management, based on throughput measure-
ments, not just interference, chooses the best channel to give users the
highest throughput.
Super simple conguration and management
The industry’s simplest conguration and management through
a Web-based wizard and automated deployment capabilities
Flexible deployment options
Standalone or controller-based deployment
Smart wireless meshing
When used with a ZoneDirector Smart WLAN controller, the ZoneFlex
7372 easily extends Wi-Fi services to areas where Ethernet cabling isn’t
available, possible or cost effective
Adaptive Polarization Diversity (PD-MRC)
Dual-polarized antennas that are dynamically selected provide better
reception for hard to hear clients and more consistent performance as
clients constantly change orientation
Hassle free migration to higher speed Wi-Fi
Support for standard 802.3af power over Ethernet allows enterprises
to use existing PoE switches without costly upgrades
Multiple Ethernet ports
One Ethernet ports enable connectivity of wired devices such as
printers, registers, VoIP phones, servers, etc.
ZoneFlex7372
High Performance, 802.11n Mid-Range Smart Wi-Fi
Access Points with Adaptive Antenna Technology
ZoneFlex7372 Single/Dual-Band 802.11n Smart Wi-Fi Access Points
High-gain directional
antenna elements not
only delivers signal gain
but also interference
mitigation for range
extension, reliability
and high data rates
Many potential antenna
combinations can be chosen
for high availability of Wi-Fi
One 10/100 Mbps and one 802.3af
PoE 10/100/1000 Mbps Ethernet
port support
FEATURES
t Dual-band concurrent (5GHz/2.4GHz)
t Adaptive antenna technology and advanced RF
management
t Up to an additional 4dB BeamFlex gain / 10dB interfer-
ence mitigation / 6 dBi physical antenna gain
t Automatic interference mitigation, optimized for
high-density environments
t Integrated smart antenna technology
t Standard 802.3af Power over Ethernet (PoE)
t Router mode with NAT and DHCP services
t 2 to 4 times extended range and coverage
t IP multicast video streaming support
t Up to 27 BSSIDs per radio with unique QoS and security
policies
t Advanced QoS packet classication and automatic
priority for latency-sensitive trafc
t Dynamic, pre-user rate-limiting for hotspot WLANs
t WEP, WPA-PSK (AES), 802.1X support for RADIUS and
Active Directory**
t Ethernet 802.1x port-based authentication (authenticator
and supplicant)
t Smart Mesh Networking**
t Zero-IT and Dynamic PSK**
t Admission control/load balancing**
t Bandsteering and airtime fairness
t Captive portal and guest accounts **
t Wall, desktop or ceiling mountable
t Limited lifetime warranty
** when used with Ruckus ZoneDirector controller.
Patented BeamFlex Technology Extends Signal
Range, Improves Stability of Client Connections
All ZoneFlex 7372 Smart Wi-Fi access points integrate a
software-controlled smart antenna array that delivers up to an
additional 4dB of BeamFlex gain and 10dB of interference miti-
gation. This allows a 2 to 4x improvement in signal range and a
reduction in packet loss from the ability to automatically mitigate
interference and avoid obstacles.
Advanced WLAN Applications
with Smart/OS
When used with the Ruckus ZoneDirector
Smart WLAN controller, each ZoneFlex 7372
supports a wide range of value-added appli-
cations such as guest networking, Smart
Wireless Meshing, Dynamic PSK, hotspot
authentication, wireless intrusion detection
and many more. With Smart/OS, WLANs can be created and
mapped to the same or different APs or VLANs. In a centrally
managed conguration, the ZoneFlex 7372 works with a wide
range of authentication servers including Microsoft’s Active
Directory, LDAP, and RADIUS.
Flexible Deployment Options
ZoneFlex 7372 APs can be deployed as a standalone AP or
as part of a centrally managed wireless LAN using ZoneDirector
Smart WLAN controllers. ZoneFlex 7372 can be deployed across
any L2/L3 network and can bridge trafc onto the local net-
work, tunnel to a central location using L2TP or PPPoE, or route
between the WAN and NAT’ed private subnets. It can be wired
to the network or connect wirelessly by meshing to another
AP when Ethernet cabling is unavailable. When used with the
ZoneDirector, each ZoneFlex 7372 is automatically congured
through the network making deployment quick and easy.
Complete Local and
Remote Management
Each ZoneFlex 7372 can be
managed as a standalone
AP through a Web-based GUI,
using SNMP or through the Ruckus
FlexMaster Wi-Fi remote manage-
ment system. Local management
can also be performed using the
ZoneDirector Smart WLAN controller.
FlexMaster is a LINUX-based software
platform that uses industry-standard protocols to perform bulk
conguration, fault detection, monitoring and a wide range of
troubleshooting capabilities over a wire area connection. The
ZoneDirector enables local management and control of APs,
adding value-added services such as transmit power control,
guest networking and meshing.
ZoneFlex7372 Single/Dual-Band 802.11n Smart Wi-Fi Access Points
ZoneFlex
7372
ZoneDirector
ZF 7372
ZF 7372
Firewall
Router
RADIUS/AD/LDAP
Branch Ofce
Enterprise
Voice
SSID
Corp
SSID
Guest
SSID
Corp
SSID
Corp
SSID
2.4GHz
Voice
SSID
2.4GHz
5GHz
5GHz
2.4GHz
2.4GHz
2.4GHz
2.4GHz
802.11n 802.11g
802.11g
802.11n
802.11a
802.11g
802.11n 802.11n
802.11g
ZF 7372 Internet

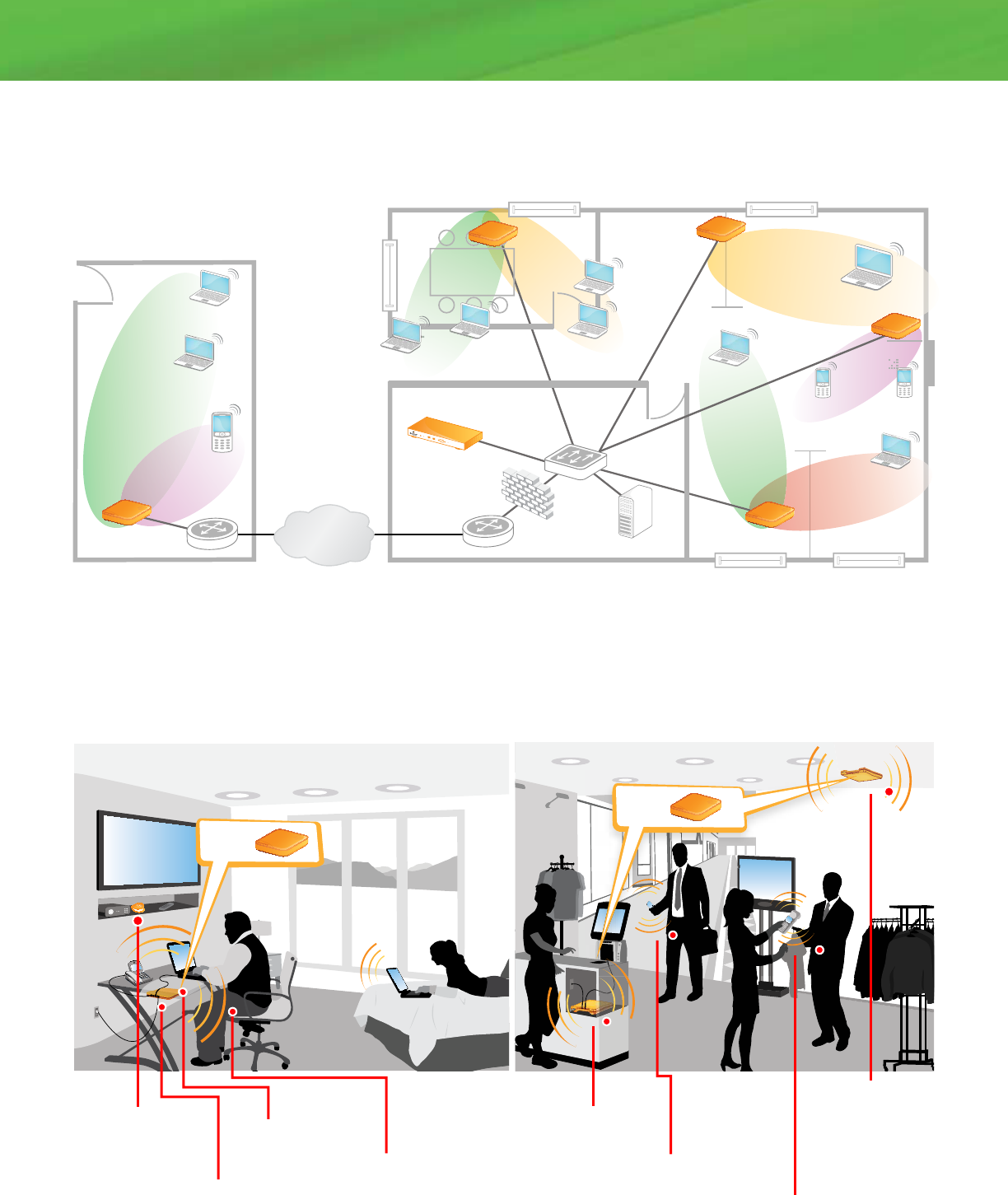

AFFORDABLE PERFORMANCE FOR ENTERPRISES
The ZoneFlex 7372 integrates seamlessly with your existing network infrastructure, delivering best-in-class 802.11n performance and reliability at the
industry’s most affordable price - making it the ideal wireless solution for mid-range enterprise and branch ofce applications.
IN-ROOM DEPLOYMENT FOR HOTELS
The ZoneFlex 7372 is ideal for deployment in hotel guest rooms to provide
wireless connection to high quality video and data access, as well as wired
connections to IP phone and guest devices.
Dual-band
(2.4/5GHz)
support allows for
concurrent Internet
and IP-based video
services
Sleek, elegant
design easily
concealed
Wired ports for connecting
IP devices such as laptops
and VoIP phones
Multiple SSIDs for
high-speed Internet
access and other
services
ZoneFlex
7372
Wired ports to
connect devices such
as cash registers,
printers, etc.
5GHz band and
smart antenna
system ideal
for wireless
meshing
between APs
Multiple SSIDs for
differentiated user
services (e.g., guest
Wi-Fi, point of sale,
voice)
Reliable Wi-Fi connectivity
for point of sale devices
DEPLOYMENT FOR RETAIL / BRANCH OFFICES
The ZoneFlex 7372 is ideal for deployment in retail stores to provide
inconspicuous wireless connection to high quality video, wireless IP phones
and data access for handheld PoS bar code scanners.
Specications
Copyright © 2012, Ruckus Wireless, Inc. All rights reserved. Ruckus Wireless and Ruckus Wireless design are registered in the U.S. Patent and
Trademark Office. Ruckus Wireless, the Ruckus Wireless logo, BeamFlex, ZoneFlex, MediaFlex, FlexMaster, ZoneDirector, SpeedFlex, SmartCast,
and Dynamic PSK are trademarks of Ruckus Wireless, Inc. in the United States and other countries. All other trademarks mentioned in this document
or website are the property of their respective owners. 801-70685-001 rev 11
w w w . r u c k u s w i r e l e s s . c o m
Ruckus Wireless, Inc.
350 West Java Drive, Sunnyvale, CA 94089 USA (650) 265-4200 Ph \ (408) 738-2065 Fx
PERFORMANCE AND CAPACITY
UDP THROUGHPUT t 225 Mbps (HT40) / 120Mbps (HT20)
CONCURRENT STATIONS t Up to 500 per AP
SIMULTANEOUS VoIP CLIENTS t Up to 30
WI-FI
STANDARDS t IEEE 802.11a/b/g/n
t 2.4GHz and 5GHz
SUPPORTED
DATA RATES
t 802.11n: 6.5Mbps – 130Mbps (20MHz) 6.5Mbps
300Mbps (40MHz)
t802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
t 802.11b: 11, 5.5, 2 and 1 Mbps
t802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
RADIO CHAINS t 2 x 2
SPATIAL STREAMS t 2
RF POWER OUTPUT
PER CHAIN
t 23 dBm for 2.4GHz†
t 21 dBm for 5GHz
CHANNELIZATION t 20MHz and/or 40MHz
FREQUENCY BAND t IEEE 802.11 b/g/n: 2.4 – 2.484 GHz I
t IEEE 802.11a/n: 5.15 5.25 GHz; 5.25 – 5.35 GHz;
5.47 – 5.725 GHz; 5.725 5.85 GHz
OPERATING
CHANNELS
t US/Canada: 1-11, Europe ( ETSI X30): 1-13, Japan
X41: 1-13
t 5 GHz channels: Country dependent
BSSID t Up to 27 per radio
POWER SAVE t Supported
WIRELESS
SECURITY
t WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
t Authentication via 802.1X with the ZoneDirec-
tor, local authentication database, support for
RADIUS, LDAP, and ActiveDirectory
CERTIFICATIONS t U.S., Europe, Australia, Brazil, Canada, Chile,
China, Colombia, Costa Rica, Hong Kong, India,
Indonesia, Israel, Japan, Korea, Malaysia, Mexico,
New Zealand, Peru, Philippines, Saudi Arabia,
Singapore, South Africa, Taiwan, Thailand, UAE,
Vietnam
t WEEE/RoHS compliance
t EN-60601-1-2
t Wi-Fi Alliance
† Maximum power varies by country
PLEASE NOTE: When ordering ZoneFlex Indoor APs, you must specify the
destination region by indicating -US, -IL, or -WW instead of XX. When ordering
PoE injectors or power supplies, you must specify the destination region by
indicating -US, -EU, -AU, -BR, -CN, -IN, -JP, -KR, -SA, -UK, or -UN instead of -XX.
PHYSICAL CHARACTERISTICS
POWER t DC Input: 12 VDC 1.0A
t Power over Ethernet 802.3 af
PHYSICAL SIZE t 15.8 cm x 15.8 cm x 4 cm (6.2 in x 6.2 in
x 1.57 in)
WEIGHT t 350 g (0.77 lb.)
ETHERNET PORTS t 1 auto MDX, auto-sensing 10/100/1000
Mbps, RJ-45, POE port
t 1 auto MDX, auto-sensing 10/100
Mbps, RJ-45 ports
LOCK OPTIONS t Hidden latching mechanism
t Kensington Lock Hole
t T-bar Torx
t Bracket (902-0108-0000) Torx screw &
padlock
ENVIRONMENTAL
CONDITIONS
t Operating Temperature: 0°C - 50°C
t Operating Humidity: 10% - 95%
non-condensing
POWER DRAW t DC Input
t Idle: 1.5W
t Typical: 3.2W
t Peak: 7W
t Power over Ethernet Input
t Idle: 1.5W
t Typical: 3.2W
t Peak: 7W
Product Ordering Information
MODEL DESCRIPTION
ZoneFlex 7372 Smart Wi-Fi 802.11n Access Point
901-7372-XX00 Concurrent dual band 802.11n AP, no power adapter
Optional Accessories
902-0108-0000 Spare, Accessory Mounting Bracket
902-0173-XXYY Power Adapter, AC/DC wall plug,100-240Vac 50/60Hz
902-0162-XXYY PoE injector (sold in quantities of 10 or 100)
MANAGEMENT
DEPLOYMENT OPTIONS t Standalone (individually managed)
t Managed by ZoneDirector
t Managed by FlexMaster
t Managed by SmartCellGateway 200
CONFIGURATION t Web User Interface (HTTP/S)
t CLI (Telnet/SSH), SNMP v1, 2, 3
t TR-069 vis FlexMaster
AUTO AP SOFTWARE
UPDATES
t FTP or TFTP, remote auto available

Navigation menu
