Ruckus SmartZone 100 And Virtual Essentials SNMP MIB Reference For 3.6 Smart Zone (SZ100/v SZ E) SZ100VSZE 36 SNMPReference Guide Rev A 20171110

2017-11-17

User Manual: Ruckus SmartZone 3.6 SNMP MIB Reference (SZ100/vSZ-E)

Open the PDF directly: View PDF PDF.
Page Count: 235 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Supporting SmartZone 3.6
MIB REFERENCE GUIDE
Ruckus SmartZone 100 and
Virtual SmartZone Essentials
SNMP MIB Reference
Part Number: 800-71536-001 Rev A
Publication Date: November 2017
Copyright Notice and Proprietary Information
Copyright 2017 Brocade Communications Systems, Inc. All rights reserved.
No part of this documentation may be used, reproduced, transmitted, or translated, in any form or by any means, electronic, mechanical,
manual, optical, or otherwise, without prior written permission of or as expressly provided by under license from Brocade.
Destination Control Statement
Technical data contained in this publication may be subject to the export control laws of the United States of America. Disclosure to
nationals of other countries contrary to United States law is prohibited. It is the reader’s responsibility to determine the applicable regulations
and to comply with them.
Disclaimer
THIS DOCUMENTATION AND ALL INFORMATION CONTAINED HEREIN (“MATERIAL”) IS PROVIDED FOR GENERAL INFORMATION
PURPOSES ONLY. BROCADE and RUCKUS WIRELESS, INC. AND THEIR LICENSORS MAKE NO WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, WITH REGARD TO THE MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE MATERIAL IS ERROR-FREE,
ACCURATE OR RELIABLE. BROCADE and RUCKUS RESERVE THE RIGHT TO MAKE CHANGES OR UPDATES TO THE MATERIAL AT
ANY TIME.
Limitation of Liability
IN NO EVENT SHALL BROCADE or RUCKUS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, DATA OR USE, INCURRED BY YOU OR ANY THIRD PARTY, WHETHER
IN AN ACTION IN CONTRACT OR TORT, ARISING FROM YOUR ACCESS TO, OR USE OF, THE MATERIAL.
Trademarks
Ruckus Wireless, Ruckus, the bark logo, BeamFlex, ChannelFly, Dynamic PSK, FlexMaster, Simply Better Wireless, SmartCell, SmartMesh,
SmartZone, Unleashed, ZoneDirector and ZoneFlex are trademarks of Ruckus Wireless, Inc. in the United States and in other countries.
Brocade, the B-wing symbol, MyBrocade, and ICX are trademarks of Brocade Communications Systems, Inc. in the United States and in
other countries. Other trademarks may belong to third parties.
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
2 Part Number: 800-71536-001 Rev A
Contents
Preface........................................................................................................................................................................................................17
Document Conventions........................................................................................................................................................................17
Notes, Cautions, and Warnings.....................................................................................................................................................17
Command Syntax Conventions............................................................................................................................................................17
Document Feedback............................................................................................................................................................................18
Ruckus Product Documentation Resources......................................................................................................................................... 18
Online Training Resources.................................................................................................................................................................... 18
Contacting Ruckus Customer Services and Support............................................................................................................................19
What Support Do I Need?.............................................................................................................................................................19
Open a Case.................................................................................................................................................................................19
Self-Service Resources................................................................................................................................................................. 19
About This Guide........................................................................................................................................................................................ 21
Introduction..........................................................................................................................................................................................21
Terminology..........................................................................................................................................................................................21
References...........................................................................................................................................................................................22
Revision History...........................................................................................................................................................................................23
SmartZone Version 3.6.........................................................................................................................................................................23
Product MIBs................................................................................................................................................................................23
SmartZone Version 3.5.1......................................................................................................................................................................24
SmartZone Version 3.5.........................................................................................................................................................................24
SmartZone Version 3.4.1......................................................................................................................................................................25
SmartZone Version 3.4.........................................................................................................................................................................25
SmartZone Version 3.2.1......................................................................................................................................................................26
SmartZone Version 3.2.........................................................................................................................................................................27
SmartZone Version 3.1.1......................................................................................................................................................................29
RuckOS Version 3.1............................................................................................................................................................................. 30
SNMP Configuration and Standard MIB...................................................................................................................................................... 33
Overview.............................................................................................................................................................................................. 33

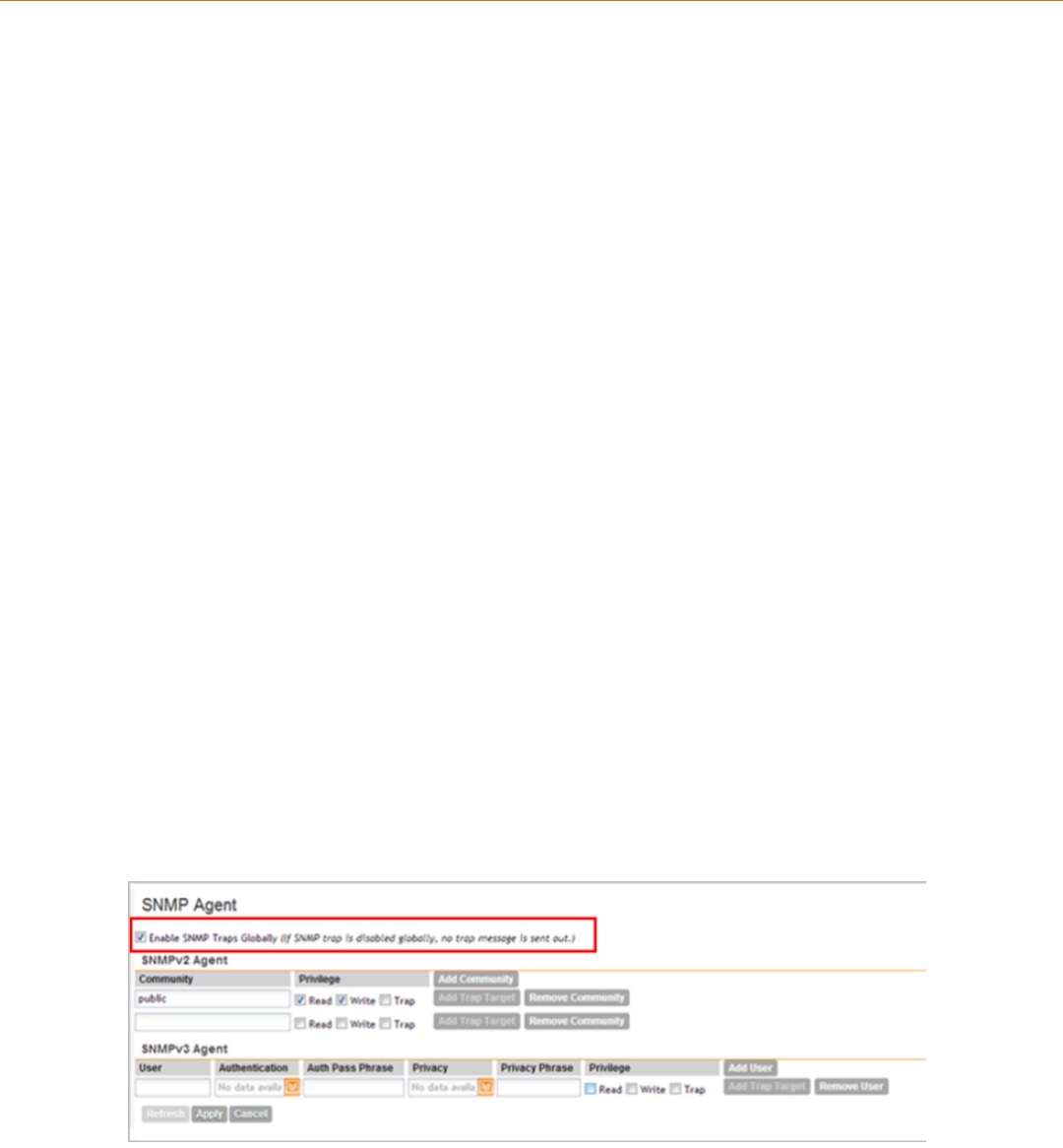

Enabling and Disabling SNMP Traps.................................................................................................................................................... 33

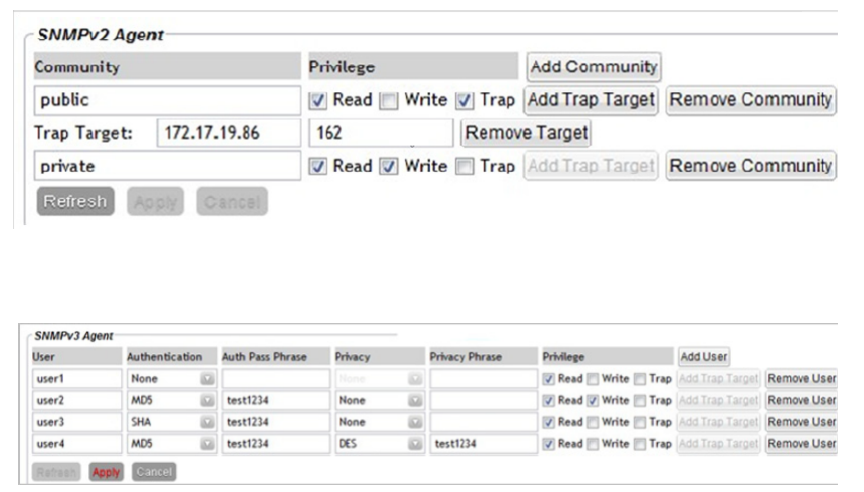

Updating SNMP V2 and V3 Configuration Flow....................................................................................................................................34
Standard MIB.......................................................................................................................................................................................34
Host Resource MIB.......................................................................................................................................................................35
UCD MIB...................................................................................................................................................................................... 35
SNMPv2 MIB (RFC3418).............................................................................................................................................................. 35
RFC1213 MIB (RFC1213)............................................................................................................................................................. 35
Decoding Traps....................................................................................................................................................................................36

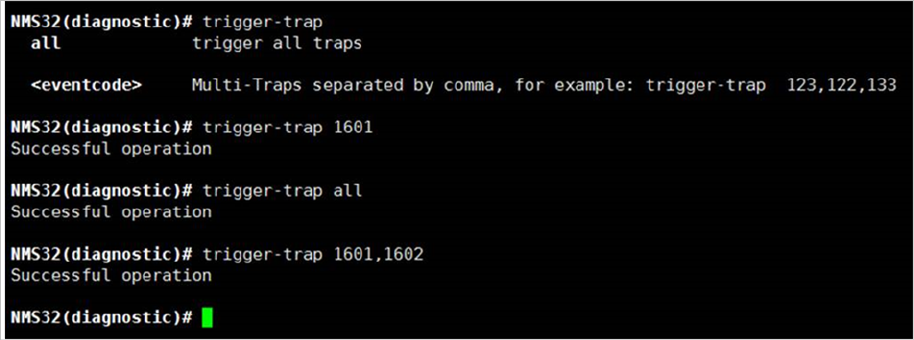

Generate Traps Using CLI.................................................................................................................................................................... 36
SNMP Agent for APs............................................................................................................................................................................37
Limitations.................................................................................................................................................................................... 37

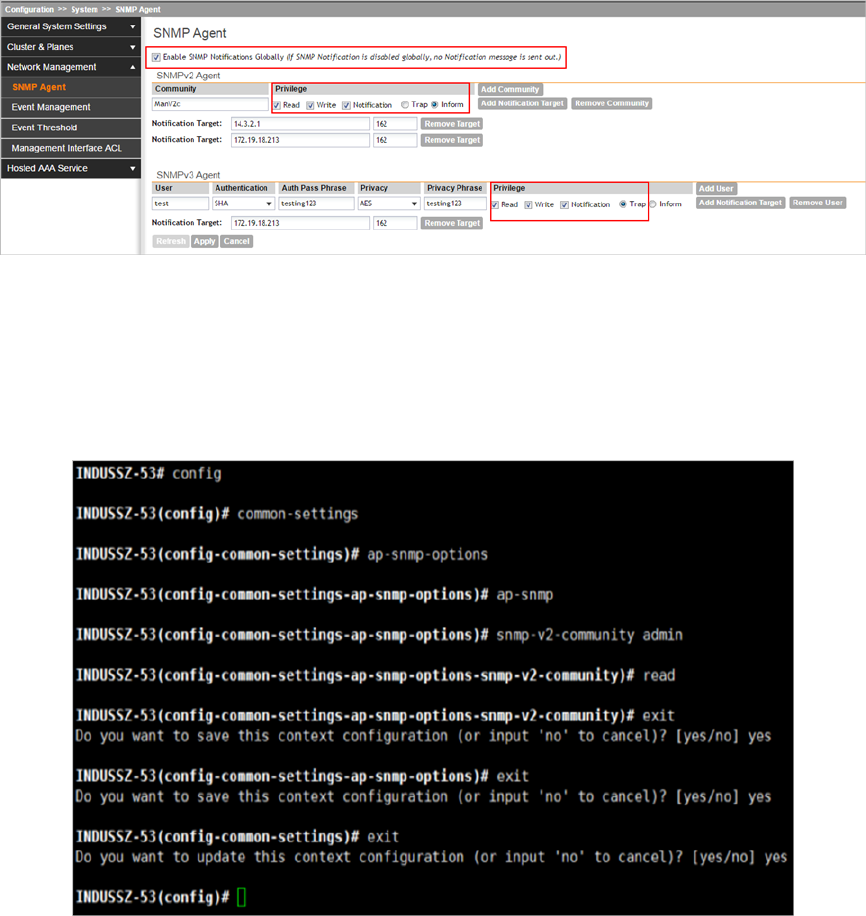

Enable SNMP Agent..................................................................................................................................................................... 37

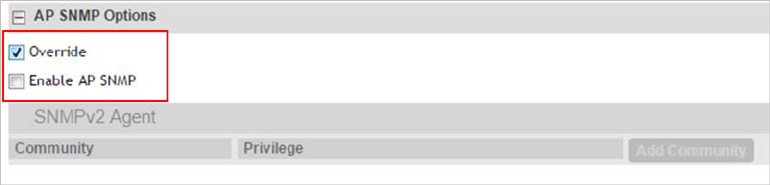

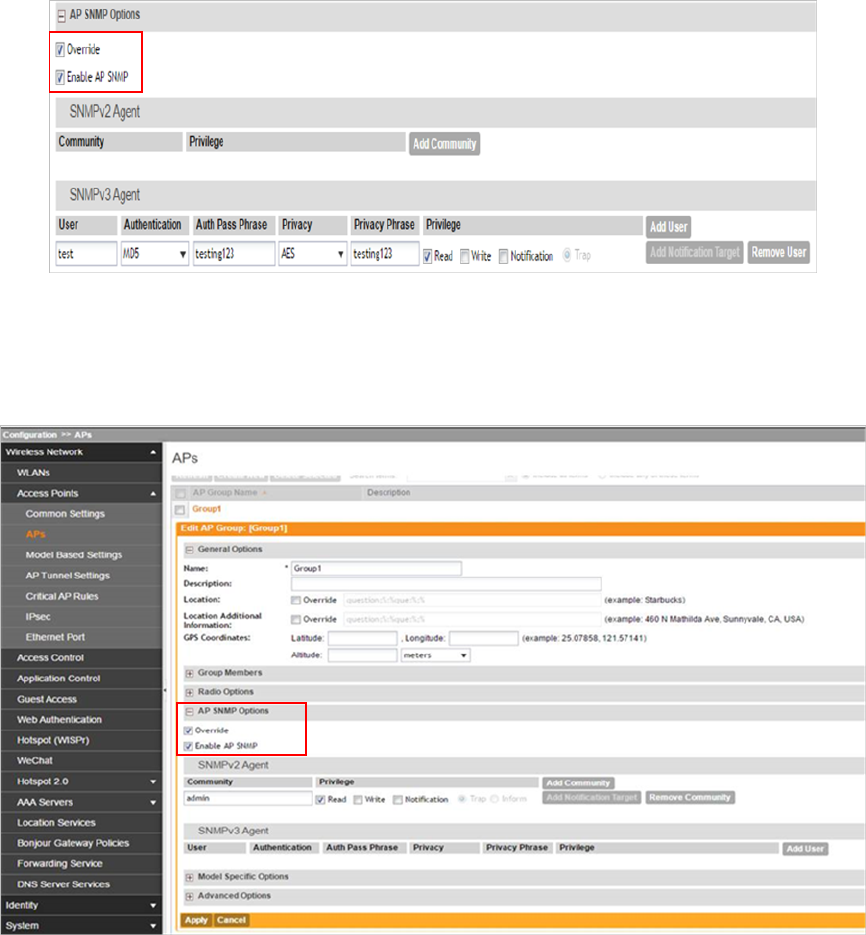

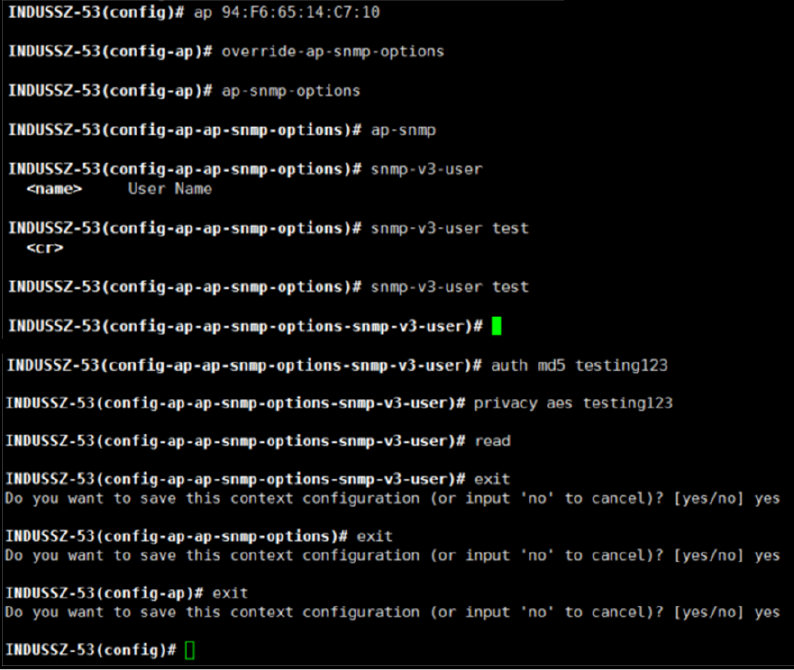

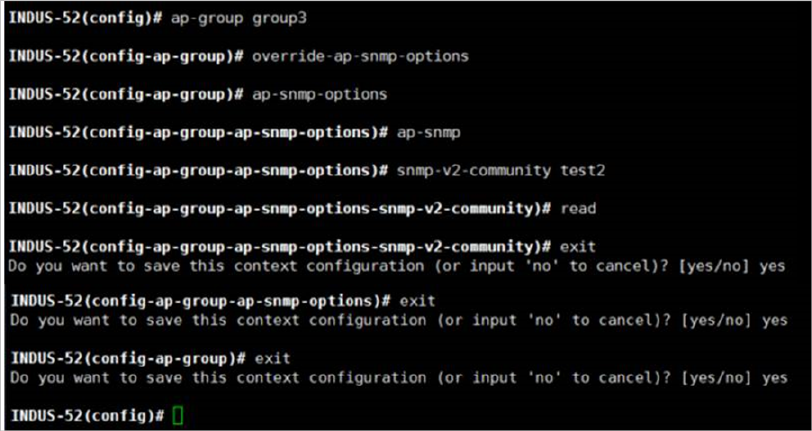

Enable Override Settings...............................................................................................................................................................38
View SNMP Configuration.............................................................................................................................................................41
Disable SNMP Agents...................................................................................................................................................................42
Using SNMP Walk Scripts.................................................................................................................................................................... 43
Setup EnvironmentInstalling SNMP Client Tool Ruckus MIB files in the MIB directoryTips for Writing Your Own Scripts................. 43
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 3
Ruckus Event MIB.......................................................................................................................................................................................45
Introduction..........................................................................................................................................................................................45
Ruckus Event Trap............................................................................................................................................................................... 45
ruckusSZSystemMiscEventTrap.................................................................................................................................................... 49
ruckusSZUpgradeSuccessTrap.....................................................................................................................................................49
ruckusSZUpgradeFailedTrap......................................................................................................................................................... 50
ruckusSZNodeRestartedTrap........................................................................................................................................................ 50
ruckusSZNodeShutdownTrap....................................................................................................................................................... 51
ruckusSZCPUUsageThresholdExceededTrap................................................................................................................................51
ruckusSZMemoryUsageThresholdExceededTrap.......................................................................................................................... 52
ruckusSZDiskUsageThresholdExceededTrap................................................................................................................................ 52
ruckusSZLicenseUsageThresholdExceededTrap........................................................................................................................... 53
ruckusSZAPMiscEventTrap........................................................................................................................................................... 53
ruckusSZAPConnectedTrap..........................................................................................................................................................54
ruckusSZAPDeletedTrap............................................................................................................................................................... 54
ruckusSZAPDisconnectedTrap......................................................................................................................................................55
ruckusSZAPLostHeartbeatTrap..................................................................................................................................................... 55
ruckusSZAPRebootTrap................................................................................................................................................................56
ruckusSZCriticalAPConnectedTrap............................................................................................................................................... 57
ruckusSZCriticalAPDisconnectedTrap........................................................................................................................................... 57
ruckusSZAPRejectedTrap............................................................................................................................................................. 58
ruckusSZAPConfUpdateFailedTrap............................................................................................................................................... 58
ruckusSZAPConfUpdatedTrap...................................................................................................................................................... 59
ruckusSZAPSwapOutModelDiffTrap..............................................................................................................................................60
ruckusSZAPPreProvisionModelDiffTrap......................................................................................................................................... 60
ruckusSZAPFirmwareUpdateFailedTrap........................................................................................................................................ 61
ruckusSZAPFirmwareUpdatedTrap............................................................................................................................................... 61
ruckusSZAPWlanOversubscribedTrap...........................................................................................................................................62
ruckusSZAPFactoryResetTrap...................................................................................................................................................... 62
ruckusSZCableModemDownTrap..................................................................................................................................................63
ruckusSZCableModemRebootTrap............................................................................................................................................... 63
ruckusSZAPManagedTrap............................................................................................................................................................ 64
ruckusSZCPUUsageThresholdBackToNormalTrap........................................................................................................................ 65
ruckusSZMemoryUsageThresholdBackToNormalTrap...................................................................................................................65
ruckusSZDiskUsageThresholdBackToNormalTrap.........................................................................................................................65
ruckusSZCableModemUpTrap...................................................................................................................................................... 66
ruckusSZAPDiscoverySuccessTrap...............................................................................................................................................66
ruckusSZCMResetByUserTrap......................................................................................................................................................67
ruckusSZCMResetFactoryByUserTrap.......................................................................................................................................... 67
ruckusSZSSIDSpoofingRogueAPDetectedTrap............................................................................................................................. 68
ruckusSZMacSpoofingRogueAPDetectedTrap.............................................................................................................................. 69
ruckusSZSameNetworkRogueAPDetectedTrap.............................................................................................................................69
ruckusSZADHocNetworkRogueAPDetectedTrap.......................................................................................................................... 70
ruckusSZMaliciousRogueAPTimeoutTrap......................................................................................................................................70
ruckusSZAPLBSConnectSuccessTrap.......................................................................................................................................... 71
ruckusSZAPLBSNoResponsesTrap...............................................................................................................................................71
ruckusSZAPLBSAuthFailedTrap.................................................................................................................................................... 72
ruckusSZAPLBSConnectFailedTrap.............................................................................................................................................. 73
ruckusSZAPTunnelBuildFailedTrap................................................................................................................................................ 73
ruckusSZAPTunnelBuildSuccessTrap............................................................................................................................................ 74
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
4 Part Number: 800-71536-001 Rev A
ruckusSZAPTunnelDisconnectedTrap............................................................................................................................................75
ruckusSZAPSoftGRETunnelFailoverPtoSTrap................................................................................................................................ 75
ruckusSZAPSoftGRETunnelFailoverStoPTrap................................................................................................................................ 76
ruckusSZAPSoftGREGatewayNotReachableTrap..........................................................................................................................77
ruckusSZAPSoftGREGatewayReachableTrap............................................................................................................................... 77
ruckusSZDPConfUpdateFailedTrap............................................................................................................................................... 78
ruckusSZDPLostHeartbeatTrap.....................................................................................................................................................78
ruckusSZDPDisconnectedTrap..................................................................................................................................................... 79
ruckusSZDPPhyInterfaceDownTrap...............................................................................................................................................79
ruckusSZDPStatusUpdateFailedTrap............................................................................................................................................ 79
ruckusSZDPStatisticUpdateFaliedTrap.......................................................................................................................................... 80
ruckusSZDPConnectedTrap..........................................................................................................................................................80
ruckusSZDPPhyInterfaceUpTrap................................................................................................................................................... 81
ruckusSZDPConfUpdatedTrap...................................................................................................................................................... 81
ruckusSZDPTunnelTearDownTrap................................................................................................................................................. 81
ruckusSZDPAcceptTunnelRequestTrap......................................................................................................................................... 82
ruckusSZDPRejectTunnelRequestTrap.......................................................................................................................................... 82
ruckusSZDPTunnelSetUpTrap....................................................................................................................................................... 83
ruckusSZDPDiscoverySuccessTrap.............................................................................................................................................. 83
ruckusSZDPDiscoveryFailTrap.......................................................................................................................................................83
ruckusSZDPDeletedTrap............................................................................................................................................................... 84
ruckusSZDPUpgradeStartTrap...................................................................................................................................................... 84
ruckusSZDPUpgradingTrap...........................................................................................................................................................84
ruckusSZDPUpgradeSuccessTrap................................................................................................................................................ 85
ruckusSZDPUpgradeFailedTrap.................................................................................................................................................... 85
ruckusSZClientMiscEventTrap.......................................................................................................................................................86
ruckusSZNodeJoinFailedTrap........................................................................................................................................................86
ruckusSZNodeRemoveFailedTrap................................................................................................................................................. 86
ruckusSZNodeOutOfServiceTrap.................................................................................................................................................. 87
ruckusSZClusterInMaintenanceStateTrap......................................................................................................................................87
ruckusSZClusterBackupFailedTrap................................................................................................................................................88
ruckusSZClusterRestoreFailedTrap................................................................................................................................................88
ruckusSZClusterAppStoppedTrap.................................................................................................................................................89
ruckusSZNodeBondInterfaceDownTrap........................................................................................................................................ 89
ruckusSZNodePhyInterfaceDownTrap...........................................................................................................................................90
ruckusSZClusterLeaderChangedTrap............................................................................................................................................90
ruckusSZClusterUpgradeSuccessTrap..........................................................................................................................................90
ruckusSZNodeBondInterfaceUpTrap.............................................................................................................................................91
ruckusSZNodePhyInterfaceUpTrap............................................................................................................................................... 91
ruckusSZClusterBackToInServiceTrap........................................................................................................................................... 92
ruckusSZBackupClusterSuccessTrap........................................................................................................................................... 92
ruckusSZNodeJoinSuccessTrap................................................................................................................................................... 92
ruckusSZClusterAppStartTrap.......................................................................................................................................................93
ruckusSZNodeRemoveSuccessTrap............................................................................................................................................. 93
ruckusSZClusterRestoreSuccessTrap........................................................................................................................................... 94
ruckusSZNodeBackToInServiceTrap............................................................................................................................................. 94
ruckusSZSshTunnelSwitchedTrap................................................................................................................................................. 94
ruckusSZClusterCfgBackupStartTrap............................................................................................................................................95
ruckusSZClusterCfgBackupSuccessTrap...................................................................................................................................... 95
ruckusSZClusterCfgBackupFailedTrap.......................................................................................................................................... 96
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 5
ruckusSZClusterCfgRestoreSuccessTrap......................................................................................................................................96
ruckusSZClusterCfgRestoreFailedTrap.......................................................................................................................................... 96
ruckusSZClusterUploadSuccessTrap............................................................................................................................................ 97
ruckusSZClusterUploadFailedTrap................................................................................................................................................ 97
ruckusSZClusterOutOfServiceTrap................................................................................................................................................ 97
ruckusSZClusterUploadVDPFirmwareStartTrap............................................................................................................................. 98
ruckusSZClusterUploadVDPFirmwareSuccessTrap....................................................................................................................... 98
ruckusSZClusterUploadVDPFirmwareFailedTrap........................................................................................................................... 99
ruckusSZIpmiTempBBTrap............................................................................................................................................................99
ruckusSZIpmiTempPTrap.............................................................................................................................................................. 99
ruckusSZIpmiFanTrap................................................................................................................................................................. 100
ruckusSZIpmiFanStatusTrap....................................................................................................................................................... 100
ruckusSZIpmiRETempBBTrap..................................................................................................................................................... 101
ruckusSZIpmiRETempPTrap........................................................................................................................................................101
ruckusSZIpmiREFanTrap.............................................................................................................................................................102
ruckusSZIpmiREFanStatusTrap...................................................................................................................................................102
ruckusSZFtpTransferErrorTrap.....................................................................................................................................................103
ruckusSZSystemLBSConnectSuccessTrap.................................................................................................................................103
ruckusSZSystemLBSNoResponseTrap....................................................................................................................................... 103
ruckusSZSystemLBSAuthFailedTrap........................................................................................................................................... 104
ruckusSZSystemLBSConnectFailedTrap..................................................................................................................................... 104
ruckusSZProcessRestartTrap......................................................................................................................................................105
ruckusSZServiceUnavailableTrap.................................................................................................................................................105
ruckusSZKeepAliveFailureTrap.................................................................................................................................................... 106
ruckusSZResourceUnavailableTrap............................................................................................................................................. 106
ruckusSZSmfRegFailedTrap........................................................................................................................................................ 106
ruckusSZHipFailoverTrap............................................................................................................................................................ 107
ruckusSZConfUpdFailedTrap...................................................................................................................................................... 107
ruckusSZConfRcvFailedTrap....................................................................................................................................................... 108
ruckusSZLostCnxnToDbladeTrap................................................................................................................................................ 108
ruckusSZAuthSrvrNotReachableTrap.......................................................................................................................................... 109
ruckusSZAccSrvrNotReachableTrap........................................................................................................................................... 109
ruckusSZAuthFailedNonPermanentIDTrap...................................................................................................................................110
ruckusSZAPAcctRespWhileInvalidConfigTrap.............................................................................................................................. 110
ruckusSZAPAcctMsgDropNoAcctStartMsgTrap.......................................................................................................................... 110
ruckusSZUnauthorizedCoaDmMessageDroppedTrap................................................................................................................. 111
ruckusSZConnectedToDbladeTrap..............................................................................................................................................111
ruckusSZSessUpdatedAtDbladeTrap.......................................................................................................................................... 112
ruckusSZSessUpdateErrAtDbladeTrap........................................................................................................................................112
ruckusSZSessDeletedAtDbladeTrap............................................................................................................................................113
ruckusSZSessDeleteErrAtDbladeTrap......................................................................................................................................... 113
ruckusSZLicenseSyncSuccessTrap.............................................................................................................................................114
ruckusSZLicenseSyncFailedTrap.................................................................................................................................................114
ruckusSZLicenseImportSuccessTrap.......................................................................................................................................... 115
ruckusSZLicenseImportFailedTrap...............................................................................................................................................115
ruckusSZSyslogServerReachableTrap.........................................................................................................................................115
ruckusSZSyslogServerUnreachableTrap......................................................................................................................................116
ruckusSZSyslogServerSwitchedTrap...........................................................................................................................................116
ruckusSZAPRadiusServerReachableTrap.................................................................................................................................... 117
ruckusSZAPRadiusServerUnreachableTrap.................................................................................................................................117
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
6 Part Number: 800-71536-001 Rev A
ruckusSZAPLDAPServerReachableTrap......................................................................................................................................118
ruckusSZAPLDAPServerUnreachableTrap...................................................................................................................................119
ruckusSZAPADServerReachableTrap.......................................................................................................................................... 119
ruckusSZAPADServerUnreachableTrap....................................................................................................................................... 120
ruckusSZAPUsbSoftwarePackageDownloadedTrap....................................................................................................................120
ruckusSZAPUsbSoftwarePackageDownloadFailedTrap...............................................................................................................121
ruckusSZEspAuthServerReachableTrap...................................................................................................................................... 122
ruckusSZEspAuthServerUnreachableTrap................................................................................................................................... 122
ruckusSZEspAuthServerResolvableTrap......................................................................................................................................123
ruckusSZEspAuthServerUnResolvableTrap................................................................................................................................. 123
ruckusSZEspDNATServerReachableTrap.................................................................................................................................... 124
ruckusSZEspDNATServerUnreachableTrap.................................................................................................................................125
ruckusSZEspDNATServerResolvableTrap....................................................................................................................................125
ruckusSZEspDNATServerUnresolvableTrap.................................................................................................................................126
ruckusRateLimitTORSurpassedTrap............................................................................................................................................126
ruckusSZIPSecTunnelAssociatedTrap......................................................................................................................................... 127
ruckusSZIPSecTunnelDisassociatedTrap.....................................................................................................................................127
ruckusSZIPSecTunnelAssociateFailedTrap.................................................................................................................................. 128
Ruckus Event Object..........................................................................................................................................................................129
ruckusSZEventDescription.......................................................................................................................................................... 130
ruckusSZClusterName................................................................................................................................................................ 130
ruckusSZEventCode................................................................................................................................................................... 131
ruckusSZProcessName.............................................................................................................................................................. 131
ruckusSZEventCtrlIP ................................................................................................................................................................. 131
ruckusSZEventSeverity .............................................................................................................................................................. 131
ruckusSZEventType.................................................................................................................................................................... 131
ruckusSZEventNodeMgmtIp....................................................................................................................................................... 132
ruckusSZEventNodeName .........................................................................................................................................................132
ruckusSZCPUPerc......................................................................................................................................................................132
ruckusSZMemoryPerc................................................................................................................................................................ 132
ruckusSZDiskPerc...................................................................................................................................................................... 132
ruckusSZEventMacAddr............................................................................................................................................................. 132
ruckusSZEventFirmwareVersion.................................................................................................................................................. 133
ruckusSZEventUpgradedFirmwareVersion...................................................................................................................................133
ruckusSZEventAPMacAddr.........................................................................................................................................................133
ruckusSZEventReason................................................................................................................................................................133
ruckusSZEventAPName..............................................................................................................................................................133
ruckusSZEventAPIP.................................................................................................................................................................... 133
ruckusSZEventAPLocation..........................................................................................................................................................134
ruckusSZEventAPGPSCoordinates............................................................................................................................................. 134
ruckusSZEventAPDescription......................................................................................................................................................134
ruckusSZAPModel...................................................................................................................................................................... 134
ruckusSZConfigAPModel............................................................................................................................................................ 134
ruckusSZAPConfigID.................................................................................................................................................................. 134
ruckusSZEventAPIPv6................................................................................................................................................................ 135
ruckusSZLBSURL.......................................................................................................................................................................135
ruckusSZLBSPort....................................................................................................................................................................... 135
ruckusSZEventSSID....................................................................................................................................................................135
ruckusSZEventRogueMac...........................................................................................................................................................135
ruckusPrimaryGRE......................................................................................................................................................................135
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 7
ruckusSecondaryGRE.................................................................................................................................................................136
ruckusSoftGREGatewayList........................................................................................................................................................ 136
ruckusSZSoftGREGWAddress.................................................................................................................................................... 136
ruckusSZEventClientMacAddr.....................................................................................................................................................136
ruckusSZDPKey..........................................................................................................................................................................136
ruckusSZDPConfigID.................................................................................................................................................................. 136
ruckusSZDPIP............................................................................................................................................................................ 137
ruckusSZNetworkPortID............................................................................................................................................................. 137
ruckusSZNetworkInterface..........................................................................................................................................................137
ruckusSZSwitchStatus................................................................................................................................................................137
ruckusSZTemperatureStatus....................................................................................................................................................... 137
ruckusSZProcessorId..................................................................................................................................................................137
ruckusSZFanid............................................................................................................................................................................138
ruckusSZFanStatus.....................................................................................................................................................................138
ruckusSZLicenseType................................................................................................................................................................. 138
ruckusSZLicenseUsagePerc....................................................................................................................................................... 138
ruckusSZLicenseServerName..................................................................................................................................................... 138
ruckusSZIPSecGWAddress........................................................................................................................................................ 138
ruckusSZSyslogServerAddress................................................................................................................................................... 139
ruckusSZSrcSyslogServerAddress.............................................................................................................................................. 139
ruckusSZDestSyslogServerAddress............................................................................................................................................ 139
ruckusSZFtpIp............................................................................................................................................................................ 139
ruckusSZFtpPort.........................................................................................................................................................................139
ruckusSZUEImsi......................................................................................................................................................................... 139
ruckusSZUEMsisdn.....................................................................................................................................................................140
ruckusSZAuthSrvrIp.................................................................................................................................................................... 140
ruckusSZRadProxyIp.................................................................................................................................................................. 140
ruckusSZAccSrvrIp..................................................................................................................................................................... 140
ruckusSZRadSrvrIp.....................................................................................................................................................................140
ruckusSZUserName...................................................................................................................................................................140
ruckusSZFileName......................................................................................................................................................................141
ruckusSZLDAPSrvrIp.................................................................................................................................................................. 141
ruckusSZADSrvrIp...................................................................................................................................................................... 141
ruckusSZSoftwareName............................................................................................................................................................. 141
ruckusSZDomainName............................................................................................................................................................... 141
ruckusSZDNATIp........................................................................................................................................................................ 141
Ruckus System MIB..................................................................................................................................................................................143
Introduction........................................................................................................................................................................................143
ruckusSZSystemStatsNumAP.....................................................................................................................................................143
ruckusSZSystemStatsNumSta.................................................................................................................................................... 143
ruckusSZSystemStatsWLANTotalRxPkts.................................................................................................................................... 144
ruckusSZSystemStatsWLANTotalRxBytes...................................................................................................................................144
ruckusSZSystemStatsWLANTotalRxMulticast............................................................................................................................. 144
ruckusSZSystemStatsWLANTotalTxPkts.....................................................................................................................................144
ruckusSZSystemStatsWLANTotalTxBytes................................................................................................................................... 144
ruckusSZSystemStatsWLANTotalTxMulticast..............................................................................................................................145
ruckusSZSystemStatsWLANTotalTxFail.......................................................................................................................................145
ruckusSZSystemStatsWLANTotalTxRetry....................................................................................................................................145
ruckusSZSystemStatsSerialNumber............................................................................................................................................145
Ruckus System Command (SysCommands)...................................................................................................................................... 145
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
8 Part Number: 800-71536-001 Rev A
ruckusCTRLSysCmdReboot....................................................................................................................................................... 146
Ruckus Controller System Node Table............................................................................................................................................... 146
ruckusCtrlSystemNodeEntry....................................................................................................................................................... 147
ruckusCtrlSystemNodeName......................................................................................................................................................147
ruckusCtrlSystemNodeMgmtIp................................................................................................................................................... 147
ruckusCtrlSystemNodeMgmtIpv6................................................................................................................................................147
ruckusCtrlSystemNodeMgmtMac............................................................................................................................................... 147
ruckusCtrlSystemNodeModel......................................................................................................................................................148
ruckusCtrlSystemNodeVersion.................................................................................................................................................... 148
ruckusCtrlSystemNodeSerialNumber.......................................................................................................................................... 148
ruckusCtrlSystemNodeUptime.................................................................................................................................................... 148
ruckusCtrlSystemNodeNumApLicense....................................................................................................................................... 148
ruckusCtrlSystemNodeNumApConnected.................................................................................................................................. 149
ruckusCtrlSystemNodeStatus..................................................................................................................................................... 149
ruckusCtrlSystemClusterStatus...................................................................................................................................................149
ruckusCtrlSystemNodeClusterHAState....................................................................................................................................... 149
ruckusCtrlSystemNodeClusterHARoles.......................................................................................................................................150
Ruckus Controller Zone Table.............................................................................................................................................................150
RuckusCtrlZoneEntry.................................................................................................................................................................. 150
ruckusCtrlZoneId........................................................................................................................................................................ 150
ruckusCtrlZoneName.................................................................................................................................................................. 151
ruckusCtrlZoneCountryCode.......................................................................................................................................................151
ruckusCtrlZoneNumApConnected.............................................................................................................................................. 151
ruckusCtrlZoneNumApDisconnected.......................................................................................................................................... 151
Ruckus WLAN MIB................................................................................................................................................................................... 153
Introduction........................................................................................................................................................................................153
Ruckus SZ WLAN.............................................................................................................................................................................. 153
ruckusSZWLANIndex..................................................................................................................................................................153
ruckusSZWLANSSID.................................................................................................................................................................. 153
ruckusSZWLANNumSta..............................................................................................................................................................154
ruckusSZWLANRxBytes............................................................................................................................................................. 154
ruckusSZWLANTxBytes..............................................................................................................................................................154
ruckusSZWLANAuthType............................................................................................................................................................154
Ruckus SZ AP....................................................................................................................................................................................154
ruckusSZAPMac......................................................................................................................................................................... 155
ruckusSZAPGroup...................................................................................................................................................................... 155
ruckusSZAPName...................................................................................................................................................................... 155
ruckusSZAPUptime.....................................................................................................................................................................155
ruckusSZAPFWversion............................................................................................................................................................... 156
ruckusSZAPModel...................................................................................................................................................................... 156
ruckusSZAPSerial....................................................................................................................................................................... 156
ruckusSZAPIp.............................................................................................................................................................................156
ruckusSZAPIPType..................................................................................................................................................................... 156
ruckusSZAPExtIp........................................................................................................................................................................157
ruckusSZAPExtPort.................................................................................................................................................................... 157
ruckusSZAPNumSta................................................................................................................................................................... 157
ruckusSZAPConnStatus............................................................................................................................................................. 157
ruckusSZAPRegStatus............................................................................................................................................................... 157
ruckusSZAPConfigStatus............................................................................................................................................................158
ruckusSZAPLocation.................................................................................................................................................................. 158
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 9
ruckusSZAPGPSInfo...................................................................................................................................................................158
ruckusSZAPMeshRole................................................................................................................................................................ 158
ruckusSZAPDescription.............................................................................................................................................................. 158
ruckusSZAPRXBytes.................................................................................................................................................................. 159
ruckusSZAPTXBytes...................................................................................................................................................................159
ruckusSZAPIpsecSessionTime....................................................................................................................................................159
ruckusSZAPIpsecTXPkts............................................................................................................................................................ 159
ruckusSZAPIpsecRXPkts............................................................................................................................................................ 159
ruckusSZAPIpsecTXBytes...........................................................................................................................................................160
ruckusSZAPIpsecRXBytes.......................................................................................................................................................... 160
ruckusSZAPIpsecTXPktsDropped...............................................................................................................................................160
ruckusSZAPIpsecRXPktsDropped.............................................................................................................................................. 160
ruckusSZAPIpsecTXIdleTime...................................................................................................................................................... 160
ruckusSZAPIpsecRXIdleTime...................................................................................................................................................... 161
Ruckus SZ Configuration WLAN Statistics..........................................................................................................................................161
ruckusSZConfigWLANID.............................................................................................................................................................161
ruckusSZConfigWLANSSID........................................................................................................................................................ 162
ruckusSZConfigWLANDescription...............................................................................................................................................162
ruckusSZConfigWLANName.......................................................................................................................................................162
ruckusSZConfigWLANWLANServiceType....................................................................................................................................162
ruckusSZConfigWLANAuthentication.......................................................................................................................................... 162
ruckusSZConfigWLANEncryption................................................................................................................................................163
ruckusSZConfigWLANWEPKeyIndex.......................................................................................................................................... 163
ruckusSZConfigWLANWEPKey...................................................................................................................................................163
ruckusSZConfigWLANWPACipherType....................................................................................................................................... 163
ruckusSZConfigWLANWPAKey...................................................................................................................................................163
ruckusSZConfigWLANWirelessClientIsolation..............................................................................................................................164
ruckusSZConfigWLANZeroITActivation........................................................................................................................................164
ruckusSZConfigWLANServicePriority.......................................................................................................................................... 164
ruckusSZConfigWLANAccountingUpdateInterval........................................................................................................................ 164
ruckusSZConfigWLANVlanID...................................................................................................................................................... 164
ruckusSZConfigWLANHideSSID................................................................................................................................................. 165
ruckusSZConfigWLANMaxClientsPerAP..................................................................................................................................... 165
Ruckus SCG Client Information.......................................................................................................................................................... 165
ruckusCtrlClientMac....................................................................................................................................................................165
ruckusCtrlClientStatus.................................................................................................................................................................166
Ruckus AP MIB......................................................................................................................................................................................... 167
Ruckus Controller AP Group Table..................................................................................................................................................... 167
ruckusCtrlApGroupEntry............................................................................................................................................................. 167
ruckusCtrlApGroupZoneId.......................................................................................................................................................... 168
ruckusCtrlApGroupId.................................................................................................................................................................. 168
ruckusCtrlApGroupName............................................................................................................................................................168
ruckusCtrlApGroupNumApConnected........................................................................................................................................ 168
ruckusCtrlApGroupNumApDisconnected.................................................................................................................................... 168
Ruckus Controller Summary AP Table................................................................................................................................................ 169
ruckusCtrlSummaryApEntry........................................................................................................................................................ 170
ruckusCtrlSummaryApIndexType................................................................................................................................................ 170
ruckusCtrlSummaryApIndexUUID............................................................................................................................................... 171
ruckusCtrlSummaryApDomainId................................................................................................................................................. 171
ruckusCtrlSummaryApZoneId..................................................................................................................................................... 171
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
10 Part Number: 800-71536-001 Rev A
ruckusCtrlSummaryApApGroupId............................................................................................................................................... 171
ruckusCtrlSummaryApMac......................................................................................................................................................... 172
ruckusCtrlSummaryApDomainName...........................................................................................................................................172
ruckusCtrlSummaryApZoneName...............................................................................................................................................172
ruckusCtrlSummaryApName.......................................................................................................................................................173
ruckusCtrlSummaryApLocation...................................................................................................................................................173
Ruckus Controller AP Client Table...................................................................................................................................................... 173
ruckusCtrlApClientEntry.............................................................................................................................................................. 174
ruckusCtrlApClientApMac........................................................................................................................................................... 174
ruckusCtrlApClientMac............................................................................................................................................................... 174
Ruckus Controller AP Table................................................................................................................................................................174
ruckusCtrlApEntry.......................................................................................................................................................................176
ruckusCtrlApMac........................................................................................................................................................................ 177
ruckusCtrlApDomainId................................................................................................................................................................ 177
ruckusCtrlApDomainName..........................................................................................................................................................177
ruckusCtrlApZoneId.................................................................................................................................................................... 177
ruckusCtrlApZoneName..............................................................................................................................................................177
ruckusCtrlApApGroupId..............................................................................................................................................................178
ruckusCtrlApApGroupName....................................................................................................................................................... 178
ruckusCtrlApIp............................................................................................................................................................................ 178
ruckusCtrlApIpv6........................................................................................................................................................................ 178
ruckusCtrlApNetmask................................................................................................................................................................. 178
ruckusCtrlApGateway................................................................................................................................................................. 179
ruckusCtrlApIpDnsSvr1...............................................................................................................................................................179
ruckusCtrlApIpDnsSvr2...............................................................................................................................................................179
ruckusCtrlApIpv6DnsSvr1........................................................................................................................................................... 179
ruckusCtrlApIpv6DnsSvr2........................................................................................................................................................... 179
ruckusCtrlApName......................................................................................................................................................................180
ruckusCtrlApDescription............................................................................................................................................................. 180
ruckusCtrlApStatus.....................................................................................................................................................................180
ruckusCtrlApModel..................................................................................................................................................................... 180
ruckusCtrlApSerialNumber..........................................................................................................................................................180
ruckusCtrlApSwVersion...............................................................................................................................................................181
ruckusCtrlApLocation................................................................................................................................................................. 181
ruckusCtrlApGpsInfo...................................................................................................................................................................181
ruckusCtrlApTemperature........................................................................................................................................................... 181
ruckusCtrlApUptime....................................................................................................................................................................181
ruckusCtrlApLastConfSyncTime................................................................................................................................................. 182
ruckusCtrlApCpuUtilization..........................................................................................................................................................182
ruckusCtrlApTotalMemory........................................................................................................................................................... 182
ruckusCtrlApFreeMemory........................................................................................................................................................... 182
ruckusCtrlApFreeStorage............................................................................................................................................................182
ruckusCtrlApEtherPortStatus...................................................................................................................................................... 183
ruckusCtrlApCableModemMac................................................................................................................................................... 183
ruckusCtrlApCableModemSerialNumber.....................................................................................................................................183
ruckusCtrlApNumRadios.............................................................................................................................................................183
ruckusCtrlApNumWlans..............................................................................................................................................................183
ruckusCtrlApNumAssocClients................................................................................................................................................... 184
ruckusCtrlApStatsRxBytes.......................................................................................................................................................... 184
ruckusCtrlApStatsTxBytes.......................................................................................................................................................... 184
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 11
ruckusCtrlApStatsRxDataBytes...................................................................................................................................................184
ruckusCtrlApStatsTxDataBytes................................................................................................................................................... 184
ruckusCtrlApStatsRxPkts............................................................................................................................................................185
ruckusCtrlApStatsTxPkts............................................................................................................................................................ 185
ruckusCtrlApStatsRxDataPkts.....................................................................................................................................................185
ruckusCtrlApStatsTxDataPkts..................................................................................................................................................... 185
ruckusCtrlApStatsRxErrorPkts.................................................................................................................................................... 185
ruckusCtrlApStatsTxErrorPkts.....................................................................................................................................................186
ruckusCtrlApStatsRxDropPkts.................................................................................................................................................... 186
ruckusCtrlApStatsTxDropPkts.....................................................................................................................................................186
ruckusCtrlApMeshRole............................................................................................................................................................... 186
ruckusCtrlApNumMeshHops.......................................................................................................................................................186
ruckusCtrlApConnectScgCpIp.................................................................................................................................................... 187
ruckusCtrlApConnectScgCpIpv6................................................................................................................................................ 187
ruckusCtrlApConnectScgDpIp.................................................................................................................................................... 187
ruckusCtrlApConnectScgDpIpv6................................................................................................................................................ 187
ruckusCtrlApLanStatsRxBytes.................................................................................................................................................... 187
ruckusCtrlApLanStatsTxBytes.....................................................................................................................................................188
ruckusCtrlApLanStatsRxPkts...................................................................................................................................................... 188
ruckusCtrlApLanStatsTxPkts.......................................................................................................................................................188
ruckusCtrlApLanStatsRxErrorPkts...............................................................................................................................................188
ruckusCtrlApLanStatsTxErrorPkts............................................................................................................................................... 188
ruckusCtrlApLanStatsRxDroppedPkts.........................................................................................................................................189
ruckusCtrlApLanStatsTxDroppedPkts.........................................................................................................................................189
ruckusCtrlAPIpsecRxBytes......................................................................................................................................................... 189
ruckusCtrlAPIpsecTxBytes..........................................................................................................................................................189
ruckusCtrlAPIpsecRxPkts........................................................................................................................................................... 189
ruckusCtrlAPIpsecTxPkts............................................................................................................................................................190
ruckusCtrlAPIpsecRxDropPkts....................................................................................................................................................190
ruckusCtrlAPIpsecTxDropPkts.................................................................................................................................................... 190
ruckusCtrlAPIpsecSessionTime.................................................................................................................................................. 190
ruckusCtrlAPIpsecRxIdleTime..................................................................................................................................................... 190
ruckusCtrlAPIpsecTxIdleTime......................................................................................................................................................191
Ruckus Controller Radio Table........................................................................................................................................................... 191
ruckusCtrlApRadioEntry..............................................................................................................................................................193
ruckusCtrlApRadioApMac...........................................................................................................................................................193
ruckusCtrlApRadioIndex............................................................................................................................................................. 193
ruckusCtrlApRadioNumWlans.....................................................................................................................................................193
ruckusCtrlApRadioType...............................................................................................................................................................194
ruckusCtrlApRadioChannelWidth................................................................................................................................................ 194
ruckusCtrlApRadioChannel......................................................................................................................................................... 194
ruckusCtrlApRadioTxPower........................................................................................................................................................ 194
ruckusCtrlApRadioBeaconPeriod................................................................................................................................................195
ruckusCtrlApRadioPowerMgmtEnable........................................................................................................................................ 195
ruckusCtrlApRadioMeshEnable...................................................................................................................................................195
ruckusCtrlApRadioStatsRxAirtime............................................................................................................................................... 195
ruckusCtrlApRadioStatsTxAirtime............................................................................................................................................... 196
ruckusCtrlApRadioStatsBusyAirtime........................................................................................................................................... 196
ruckusCtrlApRadioStatsTotalAirtime............................................................................................................................................ 196
ruckusCtrlApRadioAntennaGain..................................................................................................................................................196
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
12 Part Number: 800-71536-001 Rev A
ruckusCtrlApRadioStatsSnr.........................................................................................................................................................196
ruckusCtrlApRadioStatsNoiseFloor............................................................................................................................................. 197
ruckusCtrlApRadioStatsNumAssocClients.................................................................................................................................. 197
ruckusCtrlApRadioStatsNumAuthClients.....................................................................................................................................197
ruckusCtrlApRadioStatsNumMaxClients..................................................................................................................................... 197
ruckusCtrlApRadioStatsPhyError.................................................................................................................................................197
ruckusCtrlApRadioStatsRxWepFail............................................................................................................................................. 198
ruckusCtrlApRadioStatsRxDecryptCrcError.................................................................................................................................198
ruckusCtrlApRadioStatsRxMicError.............................................................................................................................................198
ruckusCtrlApRadioStatsRxBytes................................................................................................................................................. 198
ruckusCtrlApRadioStatsTxBytes................................................................................................................................................. 198
ruckusCtrlApRadioStatsRxPkts...................................................................................................................................................199
ruckusCtrlApRadioStatsTxPkts................................................................................................................................................... 199
ruckusCtrlApRadioStatsRxMcastPkts......................................................................................................................................... 199
ruckusCtrlApRadioStatsTxMcastPkts..........................................................................................................................................199
ruckusCtrlApRadioStatsRxErrorPkts........................................................................................................................................... 199
ruckusCtrlApRadioStatsTxErrorPkts............................................................................................................................................200
ruckusCtrlApRadioStatsRxPktErrorRate......................................................................................................................................200
ruckusCtrlApRadioStatsTxPktErrorRate...................................................................................................................................... 200
ruckusCtrlApRadioStatsTxPktRetryRate......................................................................................................................................200
ruckusCtrlApRadioStatsTxRetryPkts........................................................................................................................................... 200
ruckusCtrlApRadioStatsRxDropPkts........................................................................................................................................... 201
ruckusCtrlApRadioStatsTxDropPkts............................................................................................................................................201
ruckusCtrlApRadioStatsNumAuthReqs....................................................................................................................................... 201
ruckusCtrlApRadioStatsNumAuthResps..................................................................................................................................... 201
ruckusCtrlApRadioStatsNumAuthSuccess..................................................................................................................................201
ruckusCtrlApRadioStatsNumAuthFail.......................................................................................................................................... 202
ruckusCtrlApRadioStatsAuthFailRate.......................................................................................................................................... 202
ruckusCtrlApRadioStatsNumAssocReq...................................................................................................................................... 202
ruckusCtrlApRadioStatsNumAssocResp.....................................................................................................................................202
ruckusCtrlApRadioStatsNumReassocReq...................................................................................................................................202
ruckusCtrlApRadioStatsNumReassocResp.................................................................................................................................203
ruckusCtrlApRadioStatsNumAssocSuccess................................................................................................................................203
ruckusCtrlApRadioStatsNumAssocFail........................................................................................................................................203
ruckusCtrlApRadioStatsAssocSuccessRate................................................................................................................................203
ruckusCtrlApRadioStatsAssocFailRate........................................................................................................................................203
Ruckus Controller AP WLAN Table.....................................................................................................................................................204
ruckusCtrlApWlanEntry............................................................................................................................................................... 205
ruckusCtrlApWlanApMac............................................................................................................................................................ 205
ruckusCtrlApWlanRadioIndex......................................................................................................................................................205
ruckusCtrlApWlanBssid...............................................................................................................................................................205
ruckusCtrlApWlanAuthMethod.................................................................................................................................................... 206
ruckusCtrlApWlanEncryptMethod............................................................................................................................................... 206
ruckusCtrlApWlanId.................................................................................................................................................................... 206
ruckusCtrlApWlanName..............................................................................................................................................................206
ruckusCtrlApWlanRadioChannel................................................................................................................................................. 206
ruckusCtrlApWlanSsid................................................................................................................................................................ 207
ruckusCtrlApWlanVlanId..............................................................................................................................................................207
ruckusCtrlApWlanRtsThreshold...................................................................................................................................................207
ruckusCtrlApWlanDownRateLimit................................................................................................................................................207
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 13
ruckusCtrlApWlanUpRateLimit.................................................................................................................................................... 208
ruckusCtrlApWlanIsBcastDisable................................................................................................................................................ 208
ruckusCtrlApWlanIsGuest........................................................................................................................................................... 208
ruckusCtrlApWlanIsTunnel...........................................................................................................................................................208
ruckusCtrlApWlanStatsNumAssocClients....................................................................................................................................208
ruckusCtrlApWlanStatsRxPkts.................................................................................................................................................... 209
ruckusCtrlApWlanStatsTxPkts.....................................................................................................................................................209
ruckusCtrlApWlanStatsRxBytes.................................................................................................................................................. 209
ruckusCtrlApWlanStatsTxBytes...................................................................................................................................................209
ruckusCtrlApWlanStatsRxDataBytes........................................................................................................................................... 209
ruckusCtrlApWlanStatsTxDataBytes........................................................................................................................................... 210
ruckusCtrlApWlanStatsRxDataPkts.............................................................................................................................................210
ruckusCtrlApWlanStatsTxDataPkts............................................................................................................................................. 210
ruckusCtrlApWlanStatsRxBcastDataPkts.................................................................................................................................... 210
ruckusCtrlApWlanStatsTxBcastDataPkts.................................................................................................................................... 210
ruckusCtrlApWlanStatsRxMcastDataPkts................................................................................................................................... 211
ruckusCtrlApWlanStatsTxMcastDataPkts....................................................................................................................................211
ruckusCtrlApWlanStatsNumAssocReq........................................................................................................................................211
ruckusCtrlApWlanStatsNumAssocResp...................................................................................................................................... 211
ruckusCtrlApWlanStatsNumReassocReq....................................................................................................................................211
ruckusCtrlApWlanStatsNumReassocResp.................................................................................................................................. 212
ruckusCtrlApWlanStatsNumAuthReq.......................................................................................................................................... 212
ruckusCtrlApWlanStatsNumAuthResp........................................................................................................................................ 212
ruckusCtrlApWlanStatsNumAuthSuccess................................................................................................................................... 212
ruckusCtrlApWlanStatsNumAuthFail........................................................................................................................................... 212
ruckusCtrlApWlanStatsAuthFailRate............................................................................................................................................213
ruckusCtrlApWlanStatsNumAssocFail.........................................................................................................................................213
Ruckus Controller Client Table............................................................................................................................................................213
ruckusCtrlClientEntry.................................................................................................................................................................. 214
ruckusCtrlClientMac....................................................................................................................................................................214
ruckusCtrlClientIp........................................................................................................................................................................215
ruckusCtrlClientIpv6....................................................................................................................................................................215
ruckusCtrlClientApMac............................................................................................................................................................... 215
ruckusCtrlClientWlanBssid.......................................................................................................................................................... 215
ruckusCtrlClientSsid....................................................................................................................................................................215
ruckusCtrlClientRadioIndex......................................................................................................................................................... 216
ruckusCtrlClientRadioType.......................................................................................................................................................... 216
ruckusCtrlClientRadioChannel.....................................................................................................................................................216
ruckusCtrlClientUsername...........................................................................................................................................................216
ruckusCtrlClientVlanId................................................................................................................................................................. 217
ruckusCtrlClientOsType...............................................................................................................................................................217
ruckusCtrlClientStatus.................................................................................................................................................................217
ruckusCtrlClientAuthMode.......................................................................................................................................................... 217
ruckusCtrlClientStatsRssi............................................................................................................................................................217
ruckusCtrlClientStatsSnr............................................................................................................................................................. 218
ruckusCtrlClientStatsNoiseFloor..................................................................................................................................................218
ruckusCtrlClientStatsThroughput.................................................................................................................................................218
ruckusCtrlClientStatsRxDataBytes.............................................................................................................................................. 218
ruckusCtrlClientStatsTxDataBytes...............................................................................................................................................218
ruckusCtrlClientStatsRxDataPkts................................................................................................................................................ 219
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
14 Part Number: 800-71536-001 Rev A
ruckusCtrlClientStatsTxDataPkts.................................................................................................................................................219
ruckusCtrlClientStatsTxAvgByteRate...........................................................................................................................................219
ruckusCtrlClientStatsTxRetry.......................................................................................................................................................219
ruckusCtrlClientStatsRxError.......................................................................................................................................................219
ruckusCtrlClientStatsTxError....................................................................................................................................................... 220
ruckusCtrlClientStatsTxRetryBytes..............................................................................................................................................220
ruckusCtrlClientStatsTxDropPkts................................................................................................................................................ 220
AP Wired Client Table.........................................................................................................................................................................220
ruckusCTRLApWiredClientEntry..................................................................................................................................................221
ruckusCtrlApWiredClientApMac.................................................................................................................................................. 221
ruckusCtrlApWiredClientMac...................................................................................................................................................... 221
Ruckus Wired Client Table..................................................................................................................................................................221
ruckusCTRLWiredClientEntry...................................................................................................................................................... 222
ruckusCtrlWiredClientMac...........................................................................................................................................................222
ruckusCtrlWiredClientUserName................................................................................................................................................. 223
ruckusCtrlWiredClientLanPort..................................................................................................................................................... 223
ruckusCtrlWiredClientVlanId........................................................................................................................................................ 223
ruckusCtrlWiredClientIp...............................................................................................................................................................223
ruckusCtrlWiredClientIpv6...........................................................................................................................................................223
ruckusCtrlWiredClientApMac...................................................................................................................................................... 224
ruckusCtrlWiredClientAuthStatus................................................................................................................................................ 224
ruckusCtrlWiredClientRxFrames..................................................................................................................................................224
ruckusCtrlWiredClientTxFrames.................................................................................................................................................. 224
ruckusCtrlWiredClientRxBytes.....................................................................................................................................................224
ruckusCtrlWiredClientTxBytes..................................................................................................................................................... 225
ruckusCtrlWiredClientRxUcastPkts............................................................................................................................................. 225
ruckusCtrlWiredClientTxUcastPkts..............................................................................................................................................225
ruckusCtrlWiredClientRxMcastPkts.............................................................................................................................................225
ruckusCtrlWiredClientTxMcastPkts............................................................................................................................................. 225
ruckusCtrlWiredClientRxMcastLegacyPkts..................................................................................................................................226
ruckusCtrlWiredClientRxBcastPkts............................................................................................................................................. 226
ruckusCtrlWiredClientTxBcastPkts..............................................................................................................................................226
ruckusCtrlWiredClientRxDroppedPkts.........................................................................................................................................226
ruckusCtrlWiredClientTxDroppedPkts......................................................................................................................................... 226
ruckusCtrlWiredClientRxEapolPkts..............................................................................................................................................227
ruckusCtrlWiredClientTxEapolPkts.............................................................................................................................................. 227
SmartZone Event Traps............................................................................................................................................................................. 229
ruckusSZSystemMiscEventTrap......................................................................................................................................................... 229
ruckusSZAPMiscEventTrap................................................................................................................................................................ 230
ruckusSZClientMiscEventTrap............................................................................................................................................................ 230
Frequently Asked Questions......................................................................................................................................................................231
Timeout .............................................................................................................................................................................................231
SNMP Reports ..................................................................................................................................................................................232
Difference in SNMP Data....................................................................................................................................................................232
Modifying SNMP HostName...............................................................................................................................................................233
Determining the Timeout Value ..........................................................................................................................................................233
Determining the Query Interval........................................................................................................................................................... 233
Determining the Query Interval for AP Related Tables......................................................................................................................... 233
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 15
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
16 Part Number: 800-71536-001 Rev A
Preface
• Document Conventions...........................................................................................................................................17
• Command Syntax Conventions............................................................................................................................... 17
• Document Feedback...............................................................................................................................................18
• Ruckus Product Documentation Resources............................................................................................................ 18
• Online Training Resources....................................................................................................................................... 18
• Contacting Ruckus Customer Services and Support............................................................................................... 19
Document Conventions
The following tables list the text and notice conventions that are used throughout this guide.
TABLE 1 Text conventions
Convention Description Example
monospace Identifies command syntax
examples. device(config)# interface ethernet 1/1/6
bold User interface (UI) components such
as screen or page names, keyboard
keys, software buttons, and field
names
On the Start menu, click All Programs.
italics
Publication titles Refer to the
Ruckus Small Cell Release Notes
for more information
Notes, Cautions, and Warnings
Notes, cautions, and warning statements may be used in this document. They are listed in the order of increasing severity of potential
hazards.
NOTE
A NOTE provides a tip, guidance, or advice, emphasizes important information, or provides a reference to related information.
CAUTION
A CAUTION statement alerts you to situations that can be potentially hazardous to you or cause damage to hardware, firmware,
software, or data.
DANGER
A DANGER statement indicates conditions or situations that can be potentially lethal or extremely hazardous to you. Safety labels
are also attached directly to products to warn of these conditions or situations.
Command Syntax Conventions
Bold and italic text identify command syntax components. Delimiters and operators define groupings of parameters and their logical
relationships.
Convention Description
bold text Identifies command names, keywords, and command options.
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 17
Convention Description
italic
text Identifies a variable.
[ ] Syntax components displayed within square brackets are optional.
Default responses to system prompts are enclosed in square brackets.
{ x | y | z }A choice of required parameters is enclosed in curly brackets separated by vertical bars. You must select
one of the options.
x | yA vertical bar separates mutually exclusive elements.
< > Nonprinting characters, for example, passwords, are enclosed in angle brackets.
... Repeat the previous element, for example,
member
[
member
...].
\ Indicates a “soft” line break in command examples. If a backslash separates two lines of a command input,
enter the entire command at the prompt without the backslash.
Document Feedback
Ruckus is interested in improving its documentation and welcomes your comments and suggestions.
You can email your comments to Ruckus at: docs@ruckuswireless.com
When contacting us, please include the following information:
• Document title and release number
• Document part number (on the cover page)
• Page number (if appropriate)
• For example:
– Ruckus Small Cell Alarms Guide SC Release 1.3
– Part number: 800-71306-001
– Page 88
Ruckus Product Documentation Resources
Visit the Ruckus website to locate related documentation for your product and additional Ruckus resources.
Release Notes and other user documentation are available at https://support.ruckuswireless.com/documents. You can locate
documentation by product or perform a text search. Access to Release Notes requires an active support contract and Ruckus Support
Portal user account. Other technical documentation content is available without logging into the Ruckus Support Portal.
White papers, data sheets, and other product documentation are available at https://www.ruckuswireless.com.
Online Training Resources
To access a variety of online Ruckus training modules, including free introductory courses to wireless networking essentials, site surveys,
and Ruckus products, visit the Ruckus Training Portal at https://training.ruckuswireless.com.
Preface
Document Feedback
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
18 Part Number: 800-71536-001 Rev A
Contacting Ruckus Customer Services and Support
The Customer Services and Support (CSS) organization is available to provide assistance to customers with active warranties on their
Ruckus Networks products, and customers and partners with active support contracts.
For product support information and details on contacting the Support Team, go directly to the Support Portal using https://
support.ruckuswireless.com, or go to https://www.ruckuswireless.com and select Support.
What Support Do I Need?
Technical issues are usually described in terms of priority (or severity). To determine if you need to call and open a case or access the self-
service resources use the following criteria:
• Priority 1 (P1)—Critical. Network or service is down and business is impacted. No known workaround. Go to the Open a Case
section.
• Priority 2 (P2)—High. Network or service is impacted, but not down. Business impact may be high. Workaround may be available.
Go to the Open a Case section.
• Priority 3 (P3)—Medium. Network or service is moderately impacted, but most business remains functional. Go to the Self-Service
Resources section.
• Priority 4 (P4)—Low. Request for information, product documentation, or product enhancements. Go to the Self-Service
Resources section.
Open a Case
When your entire network is down (P1), or severely impacted (P2), call the appropriate telephone number listed below to get help:
• Continental United States: 1-855-782-5871
• Canada: 1-855-782-5871
• Europe, Middle East, Africa, and Asia Pacific, toll-free numbers are available at https://support.ruckuswireless.com/contact-us and
Live Chat is also available.
Self-Service Resources
The Support Portal at https://support.ruckuswireless.com/contact-us offers a number of tools to help you to research and resolve problems
with your Ruckus products, including:
•Technical Documentation—https://support.ruckuswireless.com/documents
•Community Forums—https://forums.ruckuswireless.com/ruckuswireless/categories
•Knowledge Base Articles—https://support.ruckuswireless.com/answers
•Software Downloads and Release Notes—https://support.ruckuswireless.com/software
•Security Bulletins—https://support.ruckuswireless.com/security
Using these resources will help you to resolve some issues, and will provide TAC with additional data from your troubleshooting analysis if
you still require assistance through a support case or RMA. If you still require help, open and manage your case at https://
support.ruckuswireless.com/case_management
Preface
Contacting Ruckus Customer Services and Support
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 19
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
20 Part Number: 800-71536-001 Rev A
About This Guide
• Introduction............................................................................................................................................................. 21
• Terminology.............................................................................................................................................................21
• References.............................................................................................................................................................. 22
Introduction
This
SmartZone™ SNMP MIB Reference Guide
describes the SNMP Management Information Bases (MIBs) that the SmartZone™ 100
(SZ-100)/Virtualized SmartZone Essentials (vSZ-E) (collectively referred to as “the controller” throughout this guide) supports.
This guide is written for service operators and system administrators who are responsible for managing, configuring, and troubleshooting
Ruckus Wireless devices. Consequently, it assumes a basic working knowledge of local area networks, wireless networking, and wireless
devices.
NOTE
If release notes are shipped with your product and the information there differs from the information in this guide, follow the
instructions in the release notes.
Most user guides and release notes are available in Adobe Acrobat Reader Portable Document Format (PDF) or HTML on the Ruckus
Wireless Support Web site at https://support.ruckuswireless.com/contact-us.
Terminology
The following table lists the terms used in this guide.
TABLE 2 Terms used in this guide
Term Description
AAA Authentication, Authorization, and Accounting
AP Access Point
APN Access Point Name
CDR Call Detail Record
CGF Charging Data Function
CIP Channel Interface Processor
DHCP Dynamic Host Configuration Protocol
EAP-AKA Extensible Authentication Protocol for Authentication and Key Agreement
EAP-SIM Extensible Authentication Protocol for GSM Subscriber Identity Module
GGSN Gateway GPRS Support Node
GSN GPRS Support Node
GTP-C GPRS Tunneling Protocol – Control Plane
HLR Home Location Register
IPSP IP Signaling Point
LBS Location Based Service
MIB Management Information Bases
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 21
TABLE 2 Terms used in this guide (continued)
Term Description
NAK Negative Acknowledgment
NBI Northbound Interface
OID Object Identifier
PDG Packet Data Gateway
SG Signaling Gateway
SmartZone-CBlade SmartZone Controller Blade
SmartZone-DBlade SmartZone Data Blade
SNMP Simple Network Management Protocol
SZ SmartZone 100
TCP Transmission Control Protocol
TTG Tunnel Termination Gateway
UE User Equipment
UE-IP User Equipment - IP Address
UE-MAC User Equipment - MAC Address
References
The following table lists the specifications and standards that are referred to in this guide.
TABLE 3 References used in this guide
No. Reference Number Description
1 RFC3418 Defines managed objects that describe the behavior of a
Simple Network Management Protocol (SNMP) entity
2 RFC1213 Defines the second version of the Management Information
Base (MIB-II) for use with network management protocols on
TCP/IP- based Internets.
About This Guide
References
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
22 Part Number: 800-71536-001 Rev A
Revision History
• SmartZone Version 3.6............................................................................................................................................ 23
• SmartZone Version 3.5.1......................................................................................................................................... 24
• SmartZone Version 3.5............................................................................................................................................ 24
• SmartZone Version 3.4.1......................................................................................................................................... 25
• SmartZone Version 3.4............................................................................................................................................ 25
• SmartZone Version 3.2.1......................................................................................................................................... 26
• SmartZone Version 3.2............................................................................................................................................ 27
• SmartZone Version 3.1.1......................................................................................................................................... 29
• RuckOS Version 3.1................................................................................................................................................ 30
SmartZone Version 3.6
1. Added the below MIB definitions. The purpose of these new tables is to let users get more information about the controller and
real-time information of System Node, AP Wired Clients and Wired Clients.
•ruckusCtrlSystemNodeClusterHARoles on page 150
•ruckusCtrlSystemNodeClusterHAState on page 149
•AP Wired Client Table on page 220
•Ruckus Wired Client Table on page 221
2. Added a new section on Frequently Asked Questions on page 231.
Product MIBs
Following are the changes to Product MIBs in this release.
• Sample shell scripts are provided for querying all entries in RuckusCtrlAp related tables such as AP, AP Radio and AP WLAN.
These tables are not designed to query ALL APs in the tables, so it does not provide the snmpwalk functionality. These sample
shell scripts demonstrate on querying all APs information only for ruckusCtrlApTable, ruckusCtrlApRadioTable, and
ruckusCtrlApWlanTable.
NOTE
It takes an extremely long time for the controller to get all the information, which is managed by thousand or more APs.
• Support for new OID for Geo Redundancy. Users can now check the cluster HA roles and state using SNMP.
• Support for new table AP wired Client Table and Wired Client Table. Users can now query for statistical data of wired clients from
APs.
NOTE
These tables are designed for debugging specific wired clients for a period of time. It is recommended that you do not
use this for periodic and long time monitoring.
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 23
SmartZone Version 3.5.1
Following are the changes to Product MIBs.
Object Identifier in 3.5 Change / New
ruckusR700 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 69}
ruckusR700 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 68}
ruckusR710 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 70}
ruckusR710 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 69}
ruckusR500E OBJECT IDENTIFIER ::=
{ruckusWirelessHotzoneProducts 70}
ruckusH500 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 79}
ruckusH500 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 78}
ruckusC500 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 80}
ruckusC500 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 79}
ruckusT504 OBJECT IDENTIFIER ::=
{ruckusWirelessHotzoneProducts 78}
ruckusT504 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 80}
ruckusR310 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 88}
ruckusT710 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 90}
ruckusH320 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 93}
ruckusC110 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 95}
ruckusT610S OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts99}
ruckusT610 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 101}
ruckusR720 OBJECT IDENTIFIER::=
{ruckusWirelessHotzoneProducts 102}
SmartZone Version 3.5
Added the following MIB definitions. The purpose of these new tables is to let users get more information about the controller and real-time
information of the AP and Clients.
NOTE
To identify the changes from release 3.1.1 to 3.5 you would need to see section changes from SmartZone Version 3.1.1,
SmartZone Version 3.2, SmartZone Version 3.2.1, SmartZone Version 3.4 and this section.
1. Ruckus System Command (SysCommands) on page 145
2. Ruckus Controller System Node Table on page 146
3. Ruckus Controller Zone Table on page 150
4. Ruckus Controller AP Group Table on page 167
5. Ruckus Controller Summary AP Table on page 169
6. Ruckus Controller AP Client Table on page 173
Revision History
SmartZone Version 3.5.1
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
24 Part Number: 800-71536-001 Rev A
7. Ruckus Controller AP Table on page 174
8. Ruckus Controller Radio Table on page 191
9. Ruckus Controller AP WLAN Table on page 204
10. Ruckus Controller Client Table on page 213
SmartZone Version 3.4.1
No changes to this version.
SmartZone Version 3.4
The following are the changes for version 3.4.
NOTE
To identify the changes from release 3.1.1 to 3.4 you would need to see section changes from SmartZone Version 3.1.1 on page
29, SmartZone Version 3.2 on page 27, SmartZone Version 3.2.1 on page 26 and this section.
1. Added Ruckus SCG Client Information on page 165 MIBs (RUCKUS-CTRL-MIB)
2. Added the following events to ruckusSZSystemMiscEventTrap on page 229
Event Event Type
848 clusterUploadAPFirmwareStart
849 clusterUploadAPFirmwareSuccess
850 clusterUploadAPFirmwareFailed
851 clusterAddAPFirmwareStart
852 clusterAddAPFirmwareSuccess
853 clusterAddAPFirmwareFailed
854 clusterNameChanged
3. Added the following events to ruckusSZAPMiscEventTrap on page 230
Event Event Type
1021 zoneCfgPrepareFailed
1022 apCfgGenFailed
1023 cfgGenSkippedDueToEolAp
Revision History
SmartZone Version 3.4
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 25
4. The following are the changes to Product MIBs.
Revision B
Object Identifier in 3.4 Change
ruckusR510 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 91 }
New
ruckusH510 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 92 }
New
Revision A
Object Identifier in 3.1.1 Object Identifier in 3.4 Change
ruckusR700 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 68 }
ruckusR700 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 69 }
Changed from
68 to 69
ruckusR710 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 69 }
ruckusR710 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 70 }
Changed from
69 to 70
ruckusR310 OBJECT IDENTIFIER:=
{ ruckusWirelessHotzoneProducts 68}
New
ruckusT504 OBJECT IDENTIFIER:=
{ruckusWirelessHotzoneProducts 78}
New
5. Added the following Root MIBs
Object Identifier Change
ruckusCTRL OBJECT IDENTIFIER:= {ruckusObjects
8}
New
ruckusCTRLWLANModule OBJECT IDENTIFIER:=
{ruckusCTRL 1}
New
SmartZone Version 3.2.1
The following are the changes for version 3.2.1
Added the following events to ruckusSZClientMiscEventTrap on page 230
Event Event Type
226 wdsDeviceJoin
227 wdsDeviceLeave
Revision History
SmartZone Version 3.2.1
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
26 Part Number: 800-71536-001 Rev A
SmartZone Version 3.2
The following are the changes tor version 3.2.
1. Added the following SNMP traps.
Object Name Object Identifier
ruckusSZAPDiscoverySuccessTrap .1.3.6.1.4.1.25053.2.11.1.46
ruckusSZCMResetByUserTrap .1.3.6.1.4.1.25053.2.11.1.47
ruckusSZCMResetFactoryByUserTrap .1.3.6.1.4.1.25053.2.11.1.48
ruckusSZDPDeletedTrap .1.3.6.1.4.1.25053.2.11.1.94
ruckusSZDPUpgradeStartTrap .1.3.6.1.4.1.25053.2.11.1.95
ruckusSZDPUpgradingTrap .1.3.6.1.4.1.25053.2.11.1.96
ruckusSZDPUpgradeSuccessTrap .1.3.6.1.4.1.25053.2.11.1.97
ruckusSZDPUpgradeFailedTrap .1.3.6.1.4.1.25053.2.11.1.98
ruckusSZClusterUploadVDPFirmwareStartTrap .1.3.6.1.4.1.25053.2.11.1.232
ruckusSZClusterUploadVDPFirmwareSuccessTrap .1.3.6.1.4.1.25053.2.10.1.233
ruckusSZClusterUploadVDPFirmwareFailedTrap .1.3.6.1.4.1.25053.2.10.1.234
ruckusSZSyslogServerReachableTrap .1.3.6.1.4.1.25053.2.11.1.370
ruckusSZSyslogServerUnreachableTrap .1.3.6.1.4.1.25053.2.11.1.371
ruckusSZSyslogServerSwitchedTrap .1.3.6.1.4.1.25053.2.11.1.372
ruckusSZAPRadiusServerReachableTrap .1.3.6.1.4.1.25053.2.11.1.400
ruckusSZAPRadiusServerUnreachableTrap .1.3.6.1.4.1.25053.2.11.1.401
ruckusSZAPLDAPServerReachableTrap .1.3.6.1.4.1.25053.2.11.1.402
ruckusSZAPLDAPServerUnreachableTrap .1.3.6.1.4.1.25053.2.11.1.403
ruckusSZAPADServerReachableTrap .1.3.6.1.4.1.25053.2.11.1.404
ruckusSZAPADServerUnreachableTrap .1.3.6.1.4.1.25053.2.11.1.405
ruckusSZAPUsbSoftwarePackageDownloadedTrap .1.3.6.1.4.1.25053.2.11.1.406
ruckusSZAPUsbSoftwarePackageDownloadFailedTrap .1.3.6.1.4.1.25053.2.11.1.407
ruckusSZEspAuthServerReachableTrap .1.3.6.1.4.1.25053.2.11.1.408
ruckusSZEspAuthServerUnreachableTrap .1.3.6.1.4.1.25053.2.11.1.409
ruckusSZEspAuthServerResolvableTrap .1.3.6.1.4.1.25053.2.11.1.410
ruckusSZEspAuthServerUnResolvableTrap .1.3.6.1.4.1.25053.2.11.1.411
ruckusSZEspDNATServerReachableTrap .1.3.6.1.4.1.25053.2.11.1.412
ruckusSZEspDNATServerUnreachableTrap .1.3.6.1.4.1.25053.2.11.1.413
ruckusSZEspDNATServerResolvableTrap .1.3.6.1.4.1.25053.2.11.1.414
ruckusSZEspDNATServerUnresolvableTrap .1.3.6.1.4.1.25053.2.11.1.415
Revision History
SmartZone Version 3.2
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 27
2. Added the following SNMP objects.
Event Object Event Object Code
ruckusSZSyslogServerAddress .1.3.6.1.4.1.25053.2.11.2.154
ruckusSZSrcSyslogServerAddress .1.3.6.1.4.1.25053.2.11.2.155
ruckusSZDestSyslogServerAddress .1.3.6.1.4.1.25053.2.11.2.156
ruckusSZLDAPSrvrIp .1.3.6.1.4.1.25053.2.11.2.327
ruckusSZADSrvrIp .1.3.6.1.4.1.25053.2.11.2.328
ruckusSZSoftwareName .1.3.6.1.4.1.25053.2.11.2.329
ruckusSZDomainName .1.3.6.1.4.1.25053.2.11.2.330
ruckusSZDNATIp .1.3.6.1.4.1.25053.2.11.2.331
3. Modified the following binding name and description.
Event Object Code Event Binding Name Event Object Description
1.3.6.1.4.1.25053.2.11.1.70
1.3.6.1.4.1.25053.2.11.1.71
1.3.6.1.4.1.25053.2.11.1.72
1.3.6.1.4.1.25053.2.11.1.73
1.3.6.1.4.1.25053.2.11.1.74
1.3.6.1.4.1.25053.2.11.1.75
1.3.6.1.4.1.25053.2.11.1.76
1.3.6.1.4.1.25053.2.11.1.77
1.3.6.1.4.1.25053.2.11.1.78
1.3.6.1.4.1.25053.2.11.1.79
1.3.6.1.4.1.25053.2.11.1.81
1.3.6.1.4.1.25053.2.11.1.82
1.3.6.1.4.1.25053.2.11.1.85
1.3.6.1.4.1.25053.2.11.1.86
1.3.6.1.4.1.25053.2.11.1.87
Changed from ruckusSZDPMac
to ruckusSZDPKey
Changed from Data plane MAC
address to Data plane identifier.
1.3.6.1.4.1.25053.2.11.1.219
1.3.6.1.4.1.25053.2.11.1.220
1.3.6.1.4.1.25053.2.11.1.221
1.3.6.1.4.1.25053.2.11.1.222
1.3.6.1.4.1.25053.2.11.1.223
N/A Changed from node MAC name
to node MAC address.
4. Added the section Ruckus SZ Configuration WLAN Statistics on page 161.
Revision History
SmartZone Version 3.2
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
28 Part Number: 800-71536-001 Rev A
5. Modified the following product MIBs
Object Identifier in 3.1.1 Object Identifier in 3.2 Change
ruckusR700 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 68 }
ruckusR700 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 69 }
Changed from
68 to 69
ruckusR710 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 69 }
ruckusR710 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 70 }
Changed from
69 to 70
ruckusH500 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 78 }
ruckusH500 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 79 }
Changed from
78 to 79
ruckusC500 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 79 }
ruckusC500 OBJECT IDENTIFIER ::=
{ ruckusWirelessHotzoneProducts 80 }
Changed from
79 to 80
SmartZone Version 3.1.1
The following are the changes for version 3.1.1.
1. Added the following SNMP traps.
Object Name Object Identifier
ruckusSCGIPSecTunnelAssociatedTrap .1.3.6.1.4.1.25053.2.10.1.600
ruckusSCGIPSecTunnelDisassociatedTrap .1.3.6.1.4.1.25053.2.10.1.601
ruckusSCGIPSecTunnelAssociateFailedTrap .1.3.6.1.4.1.25053.2.10.1.602
2. Added the following SNMP objects. Z
Event Object Event Object Code
ruckusSCGIPSecGWAddress .1.3.6.1.4.1.25053.2.10.2.153
3. Added the following Ruckus SZ AP event objects.
Event Object Event Object Code
ruckusSCGAPIpsecSessionTime .1.3.6.1.4.1.25053.1.3.2.1.1.2.2.1.50
ruckusSCGAPIpsecTXPkts 1.3.6.1.4.1.25053.1.3.2.1.1.2.2.1.55
ruckusSCGAPIpsecRXPkts 1.3.6.1.4.1.25053.1.3.2.1.1.2.2.1.56
ruckusSCGAPIpsecTXBytes 1.3.6.1.4.1.25053.1.3.2.1.1.2.2.1.57
ruckusSCGAPIpsecRXBytes 1.3.6.1.4.1.25053.1.3.2.1.1.2.2.1.58
ruckusSCGAPIpsecTXPktsDropped 1.3.6.1.4.1.25053.1.3.2.1.1.2.2.1.59
ruckusSCGAPIpsecRXPktsDropped 1.3.6.1.4.1.25053.1.3.2.1.1.2.2.1.60
ruckusSCGAPIpsecTXIdleTime 1.3.6.1.4.1.25053.1.3.2.1.1.2.2.1.65
ruckusSCGAPIpsecRXIdleTime 1.3.6.1.4.1.25053.1.3.2.1.1.2.2.1.66
4. The following events are deprecated.
Event Code Event Name
1604 authSuccess
1605 authFailed
Revision History
SmartZone Version 3.1.1
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 29
RuckOS Version 3.1
The following are the changes for version 3.1.
1. Added the binding ruckusSZEventAPIPv6
2. Added the following SNMP traps.
Object Name Object Identifier
ruckusSZCPUUsageThresholdBackToNormalTrap .1.3.6.1.4.1.25053.2.11.1.42
ruckusSZMemoryUsageThresholdBackToNormalTrap .1.3.6.1.4.1.25053.2.11.1.43
ruckusSZDiskUsageThresholdBackToNormalTrap .1.3.6.1.4.1.25053.2.11.1.44
ruckusSZCableModemUpTrap .1.3.6.1.4.1.25053.2.11.1.45
ruckusSZDPAcceptTunnelRequestTrap .1.3.6.1.4.1.25053.2.11.1.81
ruckusSZDPRejectTunnelRequestTrap .1.3.6.1.4.1.25053.2.11.1.82
ruckusSZDPTunnelSetUpTrap .1.3.6.1.4.1.25053.2.11.1.85
ruckusSZDPDiscoverySuccessTrap .1.3.6.1.4.1.25053.2.11.1.86
ruckusSZDPDiscoveryFailTrap .1.3.6.1.4.1.25053.2.11.1.87
ruckusSZClusterCfgBackupStartTrap .1.3.6.1.4.1.25053.2.11.1.224
ruckusSZClusterCfgBackupSuccessTrap .1.3.6.1.4.1.25053.2.11.1.225
ruckusSCGClusterCfgBackupFailedTrap .1.3.6.1.4.1.25053.2.11.1.226
ruckusSZClusterCfgBackupFailedTrap .1.3.6.1.4.1.25053.2.11.1.227
ruckusSZClusterCfgRestoreFailedTrap .1.3.6.1.4.1.25053.2.11.1.228
ruckusSZClusterUploadSuccessTrap .1.3.6.1.4.1.25053.2.11.1.229
ruckusSZClusterUploadFailedTrap .1.3.6.1.4.1.25053.2.11.1.230
ruckusSZClusterOutOfServiceTrap .1.3.6.1.4.1.25053.2.11.1.231
ruckusSZIpmiTempBBTrap .1.3.6.1.4.1.25053.2.11.1.251
ruckusSZIpmiRETempBBTrap .1.3.6.1.4.1.25053.2.11.1.265
ruckusSZIpmiRETempPTrap .1.3.6.1.4.1.25053.2.11.1.270
ruckusSZIpmiREFanTrap .1.3.6.1.4.1.25053.2.11.1.272
ruckusSZIpmiREFanStatusTrap .1.3.6.1.4.1.25053.2.11.1.275
ruckusSZConnectedToDbladeTrap .1.3.6.1.4.1.25053.2.11.1.350
ruckusSCGDestAvailableTrap .1.3.6.1.4.1.25053.2.11.1.351
ruckusSZSessUpdatedAtDbladeTrap .1.3.6.1.4.1.25053.2.11.1.354
ruckusSZSessUpdateErrAtDbladeTrap .1.3.6.1.4.1.25053.2.11.1.355
ruckusSZSessDeletedAtDbladeTrap .1.3.6.1.4.1.25053.2.11.1.356
ruckusSZSessDeleteErrAtDbladeTrap .1.3.6.1.4.1.25053.2.11.1.357
ruckusSZLicenseSyncSuccessTrap .1.3.6.1.4.1.25053.2.11.1.358
ruckusSZLicenseSyncFailedTrap .1.3.6.1.4.1.25053.2.11.1.359
rruckusSZLicenseImportSuccessTrap .1.3.6.1.4.1.25053.2.11.1.360
ruckusSZLicenseImportFailedTrap .1.3.6.1.4.1.25053.2.11.1.361
Revision History
RuckOS Version 3.1
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
30 Part Number: 800-71536-001 Rev A
3. Added the following SNMP objects.
Event Object Event Object Code
ruckusSZEventAPIPv6 .1.3.6.1.4.1.25053.2.11.2.35
ruckusSZLicenseServerName .1.3.6.1.4.1.25053.2.11.2.152
Revision History
RuckOS Version 3.1
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 31
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
32 Part Number: 800-71536-001 Rev A
SNMP Configuration and Standard MIB
• Overview................................................................................................................................................................. 33
• Enabling and Disabling SNMP Traps........................................................................................................................33
• Updating SNMP V2 and V3 Configuration Flow....................................................................................................... 34
• Standard MIB..........................................................................................................................................................34
• Decoding Traps....................................................................................................................................................... 36
• Generate Traps Using CLI........................................................................................................................................36
• SNMP Agent for APs...............................................................................................................................................37
• Using SNMP Walk Scripts....................................................................................................................................... 43
Overview
This document describes the SNMP management information bases (MIBs) that the controller supports. It also describes the overall design
of the controller SNMP agent. The Smart Zone SNMP agent allows its northbound portal application to monitor the system via SNMP GET
operation. It also notifies the critical events by sending traps. The Smart Zone supports V2c community and V3 user versions of SNMP. It
also supports configuring the system via SNMP SET from this release. See Updating SNMP V2 and V3 Configuration Flow on page 34.
NOTE
For information on how to enable SNMP traps and configure the SNMP V2 and V3 settings on the controller web interface, refer
to the
Administrator Guide for SmartZone 3.1.1.
NOTE
Refer to About This Guide on page 21 for conventions used in this guide.
NOTE
For details on alarms and events refer to
Alarms and Events Guide for SmartZone 3.1.1
.
Enabling and Disabling SNMP Traps
In the controller web interface navigate to Configuration > SZ/vSZ-E System> SNMP Agent > to either enable or disable the SNMP trap as
shown in the following figure.
FIGURE 1 SNMP Traps
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 33
If the SNMP trap is disabled, it will not send any traps to the receiver. It also does not allow any community or a user to enable or configure
the trap target address.
Updating SNMP V2 and V3 Configuration Flow
Using the controller web interface, you add or update V2 and V3 communities / users and set the operation (set/get/trap) configurations, as
shown in Figure 2 and Figure 3. On the controller web interface, navigate to Administration > Application Status & Logs > SNMP to view
the log files.
NOTE
For information on how to enable the SNMP V2 and V3 settings on the controller web interface, refer to the
SmartZone
Administrator Guide
.
The controller supports a maximum of four users/communities.
FIGURE 2 Enabling SNMP V2
FIGURE 3 Enabling SNMP V3
Standard MIB
Standard MIBs that the controller supports include:
•Host Resource MIB on page 35
•UCD MIB on page 35
•SNMPv2 MIB (RFC3418) on page 35
•RFC1213 MIB (RFC1213) on page 35
SNMP Configuration and Standard MIB
Updating SNMP V2 and V3 Configuration Flow
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
34 Part Number: 800-71536-001 Rev A
Host Resource MIB
Host resource MIB is a standard MIB for managing controller systems. The term “host” refers to any computer that communicates with
other similar computers attached to the Internet and that is directly used by one or more users.
NOTE
To get disk information use the Host Resource MIB OID.1.3.6.1.2.1.25.2.3.
UCD MIB
The UCD SNMP MIB contains system performance data, which was designed for ease of numerical management routines. This MIB is no
longer maintained by the University of California. It is now on life support-mode and maintained by the NET-SNMP project.
• To get CPU information use the UCD MIB OIDs.
– .1.3.6.1.4.1.2021.10.1.3.1 (1 minute load)
– .1.3.6.1.4.1.2021.10.1.3.2 (5 minute load)
– .1.3.6.1.4.1.2021.10.1.3.3 (15 minute load)
• To get memory information use the OID.1.3.6.1.4.1.2021.4
SNMPv2 MIB (RFC3418)
SNMPv2-MIB (RFC3418) define managed objects that describe the behavior of a Simple Network Management Protocol (SNMP) entity.
NOTE
RFC3418 obsoletes RFC1907 – the management information base for v2 of the Simple Network Management Protocol
(SNMPv2).
RFC1213 MIB (RFC1213)
RFC1213-MIB (RFC1213) define the second version of the management information base (MIB-II) for use with network management
protocols on TCP/IP- based Internets. This RFC specifies an IAB standards track protocol for the Internet community, and requests
discussion and suggestions for improvements.
NOTE
To get network information use the OID.1.3.6.1.2.1.2.2.
NOTE
For more information about RFC1213-MIB (RFC1213), refer to the current edition of the “IAB Official Protocol Standards” for the
standardization state and status of this protocol. Distribution of this memo is unlimited.
Ruckus Wireless private MIBs are categorized into the following types:
•Ruckus Event MIB on page 45
•Ruckus System MIB on page 143
•Ruckus WLAN MIB on page 153
•SmartZone Event Traps on page 229
SNMP Configuration and Standard MIB
Standard MIB
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 35
Decoding Traps
To extract the variable bindings from the trap, it is recommended to use the OID (of the variables) instead of their positions. The reason is
that the OID never changes while the position may change when additional variables are added to the trap. For example, the
ruckusSZSystemMiscEventTrap trap may originally contain the following four variable bindings:
ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventDescription
Assuming in a future release, a new variable binding - ruckusSZEventAPGPSCoordinates, is added to this trap, then
ruckusSZSystemMiscEventTrap trap will have the following variable bindings:
ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventDescription
ruckusSZEventAPIPv6
If the variable bindings are extracted based on the position, the original logic fails when the binding - RuckusSZEventAPGPSCoordinates is
added.
Though a newly-added variable binding is normally added at the end of the existing binding, sometimes it may placed in the middle to make
it consistent with other traps.
NOTE
For details on variable OIDs refer to Ruckus Event Object on page 129.
Generate Traps Using CLI
Using the CLI console execute the following commands to trigger SNMP traps. These set of commands is for testing purposes, where fake
or test traps are generated manually to test communication and message parsing with upper systems.
SNMP Configuration and Standard MIB
Decoding Traps
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
36 Part Number: 800-71536-001 Rev A
FIGURE 4 SNMP Traps Using CLI
SNMP Agent for APs
APs by default have SNMP Agent disabled. This can be changed either using the controller’s interface or CLI console.
Limitations
• Only one target notification is allowed in both SNMP v2 and v3 agents
• You can have a maximum count of three (3) each for community and user groups
• Community or users should not have the same privileges. For example:
– Read or write or notification privileges should not be enabled in two communities
– Read or write or notification should not be enabled in two users
Enable SNMP Agent
Option 1 - User Interface
In the controller interface navigate to Configuration > Wireless Network > Access Points > Common Settings. Select AP SNMP Options for
all the APs in the controller as seen in Figure 5.
Privilege option - target refers to adding SNMP target notification and inform refers to sending SNMP information notifications to the
selected community.
NOTE
For AP SNMP Inform privilege option for SNMP v3 Agent is not supported.
SNMP Configuration and Standard MIB
SNMP Agent for APs
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 37
FIGURE 5 Enabling SNMP options using interface
Option 2 - CLI Console
Using the CLI console login with your administrator user credentials. Execute the common settings AP SNMP options to enable the SNMP
agents as seen in Figure 6. This setting will be applied to all APs connected to the controller.
FIGURE 6 Enabling SNMP options using CLI
Enable Override Settings
If you want to set up a different policy for a specific AP, you need to enable the override option for a particular AP or for a AP Group.
Option 1 - User Interface
Using the controller interface navigate to Configuration > Wireless Network > Access Points > APs. Click on the AP MAC > AP SNMP
Options and enable the Override option for a particular AP as seen in the following figure.
SNMP Configuration and Standard MIB
SNMP Agent for APs
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
38 Part Number: 800-71536-001 Rev A
FIGURE 7 Setting the Override option for a particular AP
Using the controller interface navigate to Configuration > APs > AP Group. Click AP SNMP Options and enable the Override option for a
AP Group as seen in the following figure.
FIGURE 8 Setting the Override option for a AP Group
Option 2 - CLI Console
Login to CLI console with your administrator user credentials. Execute the common settings commands as seen in Figure 9. This setting will
be applied to a particular AP.
SNMP Configuration and Standard MIB
SNMP Agent for APs
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 39
FIGURE 9 Setting the Override option using CLI for a AP
Login to CLI console with your administrator user credentials. Execute the common settings commands as seen in Figure 10. This setting
will be applied to a AP Group.
SNMP Configuration and Standard MIB
SNMP Agent for APs
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
40 Part Number: 800-71536-001 Rev A
FIGURE 10 Setting the Override option using CLI for a AP Group
Apart from that, you can not only enable or disable SNMP, but also configure SNMPv2/v3 communities.
View SNMP Configuration
To view the SNMP configurations applied to Access Points, login to AP CLI console. Execute the command GET SNMP as shown in the
following figure.
SNMP Configuration and Standard MIB
SNMP Agent for APs
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 41
FIGURE 11 AP GET SNMP
Disable SNMP Agents
To disable AP SNMP for all APs navigate to the controller user interface Configuration > Wireless Network > Access Points > Common
Settings. Uncheck to disable the Enable AP SNMP option.
FIGURE 12 Disable AP SNMP for all APs
To disable AP SNMP for a particular AP navigate to the controller user interface Configuration > Wireless Network > Access Points > APs.
Select the Override option and uncheck the Enable AP SNMP option.
SNMP Configuration and Standard MIB
SNMP Agent for APs
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
42 Part Number: 800-71536-001 Rev A
FIGURE 13 Disable AP SNMP for a particular AP
Using SNMP Walk Scripts
The following procedure helps you in creating sample shell scripts to query all entries in RuckusCtrlAp related tables (AP, AP Radio, AP
WLAN).
The following are the steps for using SNMP walk scripts.
1. Get the MAC list using ruckusCTRLSummaryApTable
2. Translate all output MAC addresses in the OID format
3. Utilize SNMP cache. It gets all the attributes (based on the rows first and not column) of an AP through snmpget or snmpwalk.
Do retry for unsuccessful APs if required.
The below scripts are example codes for walking through all the APs in the controller.
Setup Environment
The following is the requirement to setup the required environment.
•Shell: Dash or bash
•Operating System: Linux
Procedure
1. Install NET SNMP client tools (snmpget and snmpwalk) by referring to: http://www.net-snmp.org/download.html
2. Save the downloaded MIB files in the MIB directory.
3. Ensure that the following MIB files are installed in the system
a. IANAifType-MIB
b. IF-MIB
c. IPV6-TC
d. SNMPv2-CONF
e. SNMPv2-SMI
f. SNMPv2-TC
Installing SNMP Client Tool
Execute the following script to install SNMP client using:
SNMP Configuration and Standard MIB
Using SNMP Walk Scripts
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 43
Ubuntu
apt-get install snmp
RedHat
yum install net-snmp net-snmp-libs net-snmp-utils
Ruckus MIB files in the MIB directory
Execute the following script to save the Ruckus MIB files in the MIB directory using:
Ubuntu and RedHat
cd RUCKUS_MIB_Directory
sudo cp RUCKUS-*.txt /usr/share/snmp/mibs/
Usage
Execute the following script to use the Ruckus MIB files.
sh <sample_script>.sh <SZ IP address> <snmpcmd options>
SNMP CMD Options
Refer to the OPTIONS section in http://net-snmp.sourceforge.net/docs/man/snmpcmd.html. For example, using SNMPv2 with read
community
public
for controller with the IP address 172.17.1.2.
sh walk_ruckusCTRLApTable_sample.sh 172.17.1.2 -mall -v2c -c public
where -mall is an option required for these scripts or you may not be able to get the results.
Tips for Writing Your Own Scripts
1. Use -Oe with snmpget/snmpwalk to output index(MAC address) in OID format.
2. snmpget can send 128 OIDs at a time.
3. Always get all OIDs of the same AP first, instead of OIDs for all APs.
4. AP related tables cache data for 15 seconds. This means that you may get the same result if you do not wait for cache timeout.
5. You can use NET-SNMP-AGENT-MIB::nsCacheStatus to check cache status of a table. If your system supports snmpset, you can
also force it to clean cache via snmpset
6. Be careful with the output format. Refer to OUTPUT OPTIONS link http://net-snmp.sourceforge.net/docs/man/snmpcmd.html
SNMP Configuration and Standard MIB
Using SNMP Walk Scripts
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
44 Part Number: 800-71536-001 Rev A
Ruckus Event MIB
• Introduction............................................................................................................................................................. 45
• Ruckus Event Trap.................................................................................................................................................. 45
• Ruckus Event Object.............................................................................................................................................129
Introduction
The objects contained in the RUCKUS-SZ-EVENT-MIB group provide information about the controller supported traps.
NOTE
For details on alarms and events refer to
SmartZone Alarms and Events Guide
.
Ruckus Event Trap
The following table lists the MIB, OID, and description of each object in the RUCKUS-SZ group.
Trap Name Object Identifier
ruckusSZSystemMiscEventTrap on page 49 .1.3.6.1.4.1.25053.2.11.1.1
ruckusSZUpgradeSuccessTrap on page 49 .1.3.6.1.4.1.25053.2.11.1.2
ruckusSZUpgradeFailedTrap on page 50 .1.3.6.1.4.1.25053.2.11.1.3
ruckusSZNodeRestartedTrap on page 50 .1.3.6.1.4.1.25053.2.11.1.4
ruckusSZNodeShutdownTrap on page 51 .1.3.6.1.4.1.25053.2.11.1.5
ruckusSZCPUUsageThresholdExceededTrap on page 51 .1.3.6.1.4.1.25053.2.11.1.6
ruckusSZMemoryUsageThresholdExceededTrap on page 52 .1.3.6.1.4.1.25053.2.11.1.7
ruckusSZDiskUsageThresholdExceededTrap on page 52 .1.3.6.1.4.1.25053.2.11.1.8
ruckusSZLicenseUsageThresholdExceededTrap on page 53 .1.3.6.1.4.1.25053.2.11.1.19
ruckusSZAPMiscEventTrap on page 53 .1.3.6.1.4.1.25053.2.11.1.20
ruckusSZAPConnectedTrap on page 54 .1.3.6.1.4.1.25053.2.11.1.21
ruckusSZAPDeletedTrap on page 54 .1.3.6.1.4.1.25053.2.11.1.22
ruckusSZAPDisconnectedTrap on page 55 .1.3.6.1.4.1.25053.2.11.1.23
ruckusSZAPLostHeartbeatTrap on page 55 .1.3.6.1.4.1.25053.2.11.1.24
ruckusSZAPRebootTrap on page 56 .1.3.6.1.4.1.25053.2.11.1.25
ruckusSZCriticalAPConnectedTrap on page 57 .1.3.6.1.4.1.25053.2.11.1.26
ruckusSZCriticalAPDisconnectedTrap on page 57 .1.3.6.1.4.1.25053.2.11.1.27
ruckusSZAPRejectedTrap on page 58 .1.3.6.1.4.1.25053.2.11.1.28
ruckusSZAPConfUpdateFailedTrap on page 58 .1.3.6.1.4.1.25053.2.11.1.29
ruckusSZAPConfUpdatedTrap on page 59 .1.3.6.1.4.1.25053.2.11.1.30
ruckusSZAPSwapOutModelDiffTrap on page 60 .1.3.6.1.4.1.25053.2.11.1.31
ruckusSZAPPreProvisionModelDiffTrap on page 60 .1.3.6.1.4.1.25053.2.11.1.32
ruckusSZAPFirmwareUpdateFailedTrap on page 61 .1.3.6.1.4.1.25053.2.11.1.34
ruckusSZAPFirmwareUpdatedTrap on page 61 .1.3.6.1.4.1.25053.2.11.1.35
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 45
Trap Name Object Identifier
ruckusSZAPWlanOversubscribedTrap on page 62 .1.3.6.1.4.1.25053.2.11.1.36
ruckusSZAPFactoryResetTrap on page 62 .1.3.6.1.4.1.25053.2.11.1.37
ruckusSZCableModemDownTrap on page 63 .1.3.6.1.4.1.25053.2.11.1.38
ruckusSZCableModemRebootTrap on page 63 .1.3.6.1.4.1.25053.2.11.1.39
ruckusSZAPManagedTrap on page 64 .1.3.6.1.4.1.25053.2.11.1.41
ruckusSZCPUUsageThresholdBackToNormalTrap on page 65 .1.3.6.1.4.1.25053.2.11.1.42
ruckusSZMemoryUsageThresholdBackToNormalTrap on page 65 .1.3.6.1.4.1.25053.2.11.1.43
ruckusSZDiskUsageThresholdBackToNormalTrap on page 65 .1.3.6.1.4.1.25053.2.11.1.44
ruckusSZCableModemUpTrap on page 66 .1.3.6.1.4.1.25053.2.11.1.45
ruckusSZAPDiscoverySuccessTrap on page 66 .1.3.6.1.4.1.25053.2.11.1.46
ruckusSZCMResetByUserTrap on page 67 .1.3.6.1.4.1.25053.2.11.1.47
ruckusSZCMResetFactoryByUserTrap on page 67 .1.3.6.1.4.1.25053.2.11.1.48
ruckusSZSSIDSpoofingRogueAPDetectedTrap on page 68 .1.3.6.1.4.1.25053.2.11.1.50
ruckusSZMacSpoofingRogueAPDetectedTrap on page 69 .1.3.6.1.4.1.25053.2.11.1.51
ruckusSZSameNetworkRogueAPDetectedTrap on page 69 .1.3.6.1.4.1.25053.2.11.1.52
ruckusSZADHocNetworkRogueAPDetectedTrap on page 70 .1.3.6.1.4.1.25053.2.11.1.53
ruckusSZMaliciousRogueAPTimeoutTrap on page 70 .1.3.6.1.4.1.25053.2.11.1.54
ruckusSZAPLBSConnectSuccessTrap on page 71 .1.3.6.1.4.1.25053.2.11.1.55
ruckusSZAPLBSNoResponsesTrap on page 71 .1.3.6.1.4.1.25053.2.11.1.56
ruckusSZAPLBSAuthFailedTrap on page 72 .1.3.6.1.4.1.25053.2.11.1.57
ruckusSZAPLBSConnectFailedTrap on page 73 .1.3.6.1.4.1.25053.2.11.1.58
ruckusSZAPTunnelBuildFailedTrap on page 73 .1.3.6.1.4.1.25053.2.11.1.60
ruckusSZAPTunnelBuildSuccessTrap on page 74 .1.3.6.1.4.1.25053.2.11.1.61
ruckusSZAPTunnelDisconnectedTrap on page 75 .1.3.6.1.4.1.25053.2.11.1.62
ruckusSZAPSoftGRETunnelFailoverPtoSTrap on page 75 .1.3.6.1.4.1.25053.2.11.1.65
ruckusSZAPSoftGRETunnelFailoverStoPTrap on page 76 .1.3.6.1.4.1.25053.2.11.1.66
ruckusSZAPSoftGREGatewayNotReachableTrap on page 77 .1.3.6.1.4.1.25053.2.11.1.67
ruckusSZAPSoftGREGatewayReachableTrap on page 77 .1.3.6.1.4.1.25053.2.11.1.68
ruckusSZDPConfUpdateFailedTrap on page 78 .1.3.6.1.4.1.25053.2.11.1.70
ruckusSZDPLostHeartbeatTrap on page 78 .1.3.6.1.4.1.25053.2.11.1.71
ruckusSZDPDisconnectedTrap on page 79 .1.3.6.1.4.1.25053.2.11.1.72
ruckusSZDPPhyInterfaceDownTrap on page 79 .1.3.6.1.4.1.25053.2.11.1.73
ruckusSZDPStatusUpdateFailedTrap on page 79 .1.3.6.1.4.1.25053.2.11.1.74
ruckusSZDPStatisticUpdateFaliedTrap on page 80 .1.3.6.1.4.1.25053.2.11.1.75
ruckusSZDPConnectedTrap on page 80 .1.3.6.1.4.1.25053.2.11.1.76
ruckusSZDPPhyInterfaceUpTrap on page 81 .1.3.6.1.4.1.25053.2.11.1.77
ruckusSZDPConfUpdatedTrap on page 81 .1.3.6.1.4.1.25053.2.11.1.78
ruckusSZDPTunnelTearDownTrap on page 81 .1.3.6.1.4.1.25053.2.11.1.79
ruckusSZDPAcceptTunnelRequestTrap on page 82 .1.3.6.1.4.1.25053.2.11.1.81
ruckusSZDPRejectTunnelRequestTrap on page 82 .1.3.6.1.4.1.25053.2.11.1.82
ruckusSZDPTunnelSetUpTrap on page 83 .1.3.6.1.4.1.25053.2.11.1.85
ruckusSZDPDiscoverySuccessTrap on page 83 .1.3.6.1.4.1.25053.2.11.1.86
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
46 Part Number: 800-71536-001 Rev A
Trap Name Object Identifier
ruckusSZDPDiscoveryFailTrap on page 83 .1.3.6.1.4.1.25053.2.11.1.87
ruckusSZDPDeletedTrap on page 84 .1.3.6.1.4.1.25053.2.11.1.94
ruckusSZDPUpgradeStartTrap on page 84 .1.3.6.1.4.1.25053.2.11.1.95
ruckusSZDPUpgradingTrap on page 84 .1.3.6.1.4.1.25053.2.11.1.96
ruckusSZDPUpgradeSuccessTrap on page 85 .1.3.6.1.4.1.25053.2.11.1.97
ruckusSZDPUpgradeFailedTrap on page 85 .1.3.6.1.4.1.25053.2.11.1.98
ruckusSZClientMiscEventTrap on page 86 .1.3.6.1.4.1.25053.2.11.1.100
ruckusSZNodeJoinFailedTrap on page 86 .1.3.6.1.4.1.25053.2.11.1.200
ruckusSZNodeRemoveFailedTrap on page 86 .1.3.6.1.4.1.25053.2.11.1.201
ruckusSZNodeOutOfServiceTrap on page 87 .1.3.6.1.4.1.25053.2.11.1.202
ruckusSZClusterInMaintenanceStateTrap on page 87 .1.3.6.1.4.1.25053.2.11.1.203
ruckusSZClusterBackupFailedTrap on page 88 .1.3.6.1.4.1.25053.2.11.1.204
ruckusSZClusterRestoreFailedTrap on page 88 .1.3.6.1.4.1.25053.2.11.1.205
ruckusSZNodeBondInterfaceDownTrap on page 89 .1.3.6.1.4.1.25053.2.11.1.207
ruckusSZNodePhyInterfaceDownTrap on page 90 .1.3.6.1.4.1.25053.2.11.1.208
ruckusSZClusterLeaderChangedTrap on page 90 .1.3.6.1.4.1.25053.2.11.1.209
ruckusSZClusterUpgradeSuccessTrap on page 90 .1.3.6.1.4.1.25053.2.11.1.210
ruckusSZNodeBondInterfaceUpTrap on page 91 .1.3.6.1.4.1.25053.2.11.1.211
ruckusSZNodePhyInterfaceUpTrap on page 91 .1.3.6.1.4.1.25053.2.11.1.212
ruckusSZClusterBackToInServiceTrap on page 92 .1.3.6.1.4.1.25053.2.11.1.216
ruckusSZBackupClusterSuccessTrap on page 92 .1.3.6.1.4.1.25053.2.11.1.217
ruckusSZNodeJoinSuccessTrap on page 92 .1.3.6.1.4.1.25053.2.11.1.218
ruckusSZClusterAppStartTrap on page 93 .1.3.6.1.4.1.25053.2.11.1.219
ruckusSZNodeRemoveSuccessTrap on page 93 .1.3.6.1.4.1.25053.2.11.1.220
ruckusSZClusterRestoreSuccessTrap on page 94 .1.3.6.1.4.1.25053.2.11.1.221
ruckusSZNodeBackToInServiceTrap on page 94 .1.3.6.1.4.1.25053.2.11.1.222
ruckusSZSshTunnelSwitchedTrap on page 94 .1.3.6.1.4.1.25053.2.11.1.223
ruckusSZClusterCfgBackupStartTrap on page 95 .1.3.6.1.4.1.25053.2.11.1.224
ruckusSZClusterCfgBackupSuccessTrap on page 95 .1.3.6.1.4.1.25053.2.11.1.225
ruckusSZClusterCfgBackupFailedTrap on page 96 .1.3.6.1.4.1.25053.2.11.1.226
ruckusSZClusterCfgRestoreSuccessTrap on page 96 .1.3.6.1.4.1.25053.2.11.1.227
ruckusSZClusterCfgRestoreFailedTrap on page 96 .1.3.6.1.4.1.25053.2.11.1.228
ruckusSZClusterUploadSuccessTrap on page 97 .1.3.6.1.4.1.25053.2.11.1.229
ruckusSZClusterUploadFailedTrap on page 97 .1.3.6.1.4.1.25053.2.11.1.230
ruckusSZClusterOutOfServiceTrap on page 97 .1.3.6.1.4.1.25053.2.11.1.231
ruckusSZClusterUploadVDPFirmwareStartTrap on page 98 .1.3.6.1.4.1.25053.2.11.1.232
ruckusSZClusterUploadVDPFirmwareSuccessTrap on page 98 .1.3.6.1.4.1.25053.2.11.1.233
ruckusSZClusterUploadVDPFirmwareFailedTrap on page 99 .1.3.6.1.4.1.25053.2.11.1.234
ruckusSZIpmiTempBBTrap on page 99 .1.3.6.1.4.1.25053.2.11.1.251
ruckusSZIpmiTempPTrap on page 99 .1.3.6.1.4.1.25053.2.11.1.256
ruckusSZIpmiFanTrap on page 100 .1.3.6.1.4.1.25053.2.11.1.258
ruckusSZIpmiFanStatusTrap on page 100 .1.3.6.1.4.1.25053.2.11.1.261
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 47
Trap Name Object Identifier
ruckusSZIpmiRETempBBTrap on page 101 .1.3.6.1.4.1.25053.2.11.1.265
ruckusSZIpmiRETempPTrap on page 101 .1.3.6.1.4.1.25053.2.11.1.270
ruckusSZIpmiREFanTrap on page 102 .1.3.6.1.4.1.25053.2.11.1.272
ruckusSZIpmiREFanStatusTrap on page 102 .1.3.6.1.4.1.25053.2.11.1.275
ruckusSZFtpTransferErrorTrap on page 103 .1.3.6.1.4.1.25053.2.11.1.280
ruckusSZSystemLBSConnectSuccessTrap on page 103 .1.3.6.1.4.1.25053.2.11.1.290
ruckusSZSystemLBSNoResponseTrap on page 103 .1.3.6.1.4.1.25053.2.11.1.291
ruckusSZSystemLBSAuthFailedTrap on page 104 .1.3.6.1.4.1.25053.2.11.1.292
ruckusSZSystemLBSConnectFailedTrap on page 104 .1.3.6.1.4.1.25053.2.11.1.293
ruckusSZProcessRestartTrap on page 105 .1.3.6.1.4.1.25053.2.11.1.300
ruckusSZServiceUnavailableTrap on page 105 .1.3.6.1.4.1.25053.2.11.1.301
ruckusSZKeepAliveFailureTrap on page 106 .1.3.6.1.4.1.25053.2.11.1.302
ruckusSZResourceUnavailableTrap on page 106 .1.3.6.1.4.1.25053.2.11.1.304
ruckusSZSmfRegFailedTrap on page 106 .1.3.6.1.4.1.25053.2.11.1.305
ruckusSZHipFailoverTrap on page 107 .1.3.6.1.4.1.25053.2.11.1.306
ruckusSZConfUpdFailedTrap on page 107 .1.3.6.1.4.1.25053.2.11.1.307
ruckusSZConfRcvFailedTrap on page 108 .1.3.6.1.4.1.25053.2.11.1.308
ruckusSZLostCnxnToDbladeTrap on page 108 .1.3.6.1.4.1.25053.2.11.1.309
ruckusSZAuthSrvrNotReachableTrap on page 109 .1.3.6.1.4.1.25053.2.11.1.314
ruckusSZAccSrvrNotReachableTrap on page 109 .1.3.6.1.4.1.25053.2.11.1.315
ruckusSZAuthFailedNonPermanentIDTrap on page 110 .1.3.6.1.4.1.25053.2.11.1.317
ruckusSZAPAcctRespWhileInvalidConfigTrap on page 110 .1.3.6.1.4.1.25053.2.11.1.347
ruckusSZAPAcctMsgDropNoAcctStartMsgTrap on page 110 .1.3.6.1.4.1.25053.2.11.1.348
ruckusSZUnauthorizedCoaDmMessageDroppedTrap on page 111 .1.3.6.1.4.1.25053.2.11.1.349
ruckusSZConnectedToDbladeTrap on page 111 .1.3.6.1.4.1.25053.2.11.1.350
ruckusSZSessUpdatedAtDbladeTrap on page 112 .1.3.6.1.4.1.25053.2.11.1.354
ruckusSZSessUpdateErrAtDbladeTrap on page 112 .1.3.6.1.4.1.25053.2.11.1.355
ruckusSZSessDeletedAtDbladeTrap on page 113 .1.3.6.1.4.1.25053.2.11.1.356
ruckusSZSessDeleteErrAtDbladeTrap on page 113 .1.3.6.1.4.1.25053.2.11.1.357
ruckusSZLicenseSyncSuccessTrap on page 114 .1.3.6.1.4.1.25053.2.11.1.358
ruckusSZLicenseSyncFailedTrap on page 114 .1.3.6.1.4.1.25053.2.11.1.359
ruckusSZLicenseImportSuccessTrap on page 115 .1.3.6.1.4.1.25053.2.11.1.360
ruckusSZLicenseImportFailedTrap on page 115 .1.3.6.1.4.1.25053.2.11.1.361
ruckusSZSyslogServerReachableTrap on page 115 .1.3.6.1.4.1.25053.2.11.1.370
ruckusSZSyslogServerUnreachableTrap on page 116 .1.3.6.1.4.1.25053.2.11.1.371
ruckusSZSyslogServerSwitchedTrap on page 116 .1.3.6.1.4.1.25053.2.11.1.372
ruckusSZAPRadiusServerReachableTrap on page 117 .1.3.6.1.4.1.25053.2.11.1.400
ruckusSZAPRadiusServerUnreachableTrap on page 117 .1.3.6.1.4.1.25053.2.11.1.401
ruckusSZAPLDAPServerReachableTrap on page 118 .1.3.6.1.4.1.25053.2.11.1.402
ruckusSZAPLDAPServerUnreachableTrap on page 119 .1.3.6.1.4.1.25053.2.11.1.403
ruckusSZAPADServerReachableTrap on page 119 .1.3.6.1.4.1.25053.2.11.1.404
ruckusSZAPADServerUnreachableTrap on page 120 .1.3.6.1.4.1.25053.2.11.1.405
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
48 Part Number: 800-71536-001 Rev A
Trap Name Object Identifier
ruckusSZAPUsbSoftwarePackageDownloadedTrap on page 120 .1.3.6.1.4.1.25053.2.11.1.406
ruckusSZAPUsbSoftwarePackageDownloadFailedTrap on page 121 .1.3.6.1.4.1.25053.2.11.1.407
ruckusSZEspAuthServerReachableTrap on page 122 .1.3.6.1.4.1.25053.2.11.1.408
ruckusSZEspAuthServerUnreachableTrap on page 122 .1.3.6.1.4.1.25053.2.11.1.409
ruckusSZEspAuthServerResolvableTrap on page 123 .1.3.6.1.4.1.25053.2.11.1.410
ruckusSZEspAuthServerUnResolvableTrap on page 123 .1.3.6.1.4.1.25053.2.11.1.411
ruckusSZEspDNATServerReachableTrap on page 124 .1.3.6.1.4.1.25053.2.11.1.412
ruckusSZEspDNATServerUnreachableTrap on page 125 .1.3.6.1.4.1.25053.2.11.1.413
ruckusSZEspDNATServerResolvableTrap on page 125 .1.3.6.1.4.1.25053.2.11.1.414
ruckusSZEspDNATServerUnresolvableTrap on page 126 .1.3.6.1.4.1.25053.2.11.1.415
ruckusRateLimitTORSurpassedTrap on page 126 .1.3.6.1.4.1.25053.2.11.1.500
ruckusSZIPSecTunnelAssociatedTrap on page 127 .1.3.6.1.4.1.25053.2.11.1.600
ruckusSZIPSecTunnelDisassociatedTrap on page 127 .1.3.6.1.4.1.25053.2.11.1.601
ruckusSZIPSecTunnelAssociateFailedTrap on page 128 .1.3.6.1.4.1.25053.2.11.1.602
NOTE
Auto clearance of SNMP trap occurs when a trap is cleared by another trap. The Cleared by SNMP Trap row indicates the auto
clearance information. All other traps are cleared manually. The Cleared by Matching row contains the information that a user can
use to clear the corresponding trap.
ruckusSZSystemMiscEventTrap
TABLE 4 ruckusSZSystemMiscEventTrap
Object Name ruckusSZSystemMiscEventTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.1
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventDescription
Description Generic trap triggered by administrator specified miscellaneous event. The event
severity, event code, event type, event description are displayed.
Generated by Event Code Refer to SmartZone Event Traps on page 229 - ruckusSZSystemMiscEventTrap
on page 229
ruckusSZUpgradeSuccessTrap
TABLE 5 ruckusSZUpgradeSuccessTrap
Object Name ruckusSZUpgradeSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.2
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 49
TABLE 5 ruckusSZUpgradeSuccessTrap (continued)
Object Name ruckusSZUpgradeSuccessTrap
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
ruckusSZEventFirmwareVersion ruckusSZEventUpgradedFirmwareVersion
Description Triggered by the SmartZone success event. The event severity, event code, event
type, node name, MAC address, management IP address, firmware version and
upgraded firmware version are displayed.
Generated by Event Code 813:upgradeClusterNodeSuccess
ruckusSZUpgradeFailedTrap
TABLE 6 ruckusSZUpgradeFailedTrap
Object Name ruckusSZUpgradeFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.3
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventFirmwareVersion ruckusSZEventUpgradedFirmwareVersion
Description Triggered by the SmartZone upgrade failure event. The event severity, event code,
event type, firmware version and upgraded firmware version are displayed.
Generated by Event Code 815:upgradeClusterFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZUpgradeSuccessTrap on page 49 (.
1.3.6.1.4.1.25053.2.11.1.210).
ruckusSZNodeRestartedTrap
TABLE 7 ruckusSZNodeRestartedTrap
Object Name ruckusSZNodeRestartedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.4
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
ruckusSZEventReason
Description Triggered by the SmartZone restart event. The event severity, event code, event
type, node name, MAC address, management IP address and restart reason are
displayed.
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
50 Part Number: 800-71536-001 Rev A
TABLE 7 ruckusSZNodeRestartedTrap (continued)
Object Name ruckusSZNodeRestartedTrap
Generated by Event Code 826:nodeRebooted
ruckusSZNodeShutdownTrap
TABLE 8 ruckusSZNodeShutdownTrap
Object Name ruckusSZNodeShutdownTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.5
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by the SmartZone shutdown event. The event severity, event code,
event type, node name, MAC address and management IP address are
displayed.
Generated by Event Code 828:nodeShutdown
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZNodeRestartedTrap on page 50 (.
1.3.6.1.4.1.25053.2.11.1.4).
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZCPUUsageThresholdExceededTrap
TABLE 9 ruckusSZCPUUsageThresholdExceededTrap
Object Name ruckusSZCPUUsageThresholdExceededTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.6
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZCPUPerc
Description Triggered by the SmartZone CPU threshold exceeded event. The usage
percentage threshold can be configured as 60% to 90%. This trap is sent if the
usage percentage exceeds the configured threshold. The event severity, event
code, event type, node name, MAC address and CPU usage percentage are
displayed.
Generated by Event Code 950:cpuThresholdExceeded
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZCPUUsageThresholdBackToNormalTrap
on page 65 (.1.3.6.1.4.1.25053.2.11.1.42)
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 51
TABLE 9 ruckusSZCPUUsageThresholdExceededTrap (continued)
Object Name ruckusSZCPUUsageThresholdExceededTrap
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZMemoryUsageThresholdExceededTrap
TABLE 10 ruckusSZMemoryUsageThresholdExceededTrap
Object Name ruckusSZMemoryUsageThresholdExceededTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.7
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZMemoryPerc
Description Triggered by the SmartZone memory threshold exceeded event. The usage
percentage threshold can be configured as 60% to 90%. This trap is sent if the
usage percentage exceeds the configured threshold. The event severity, event
code, event type, node name, MAC address and memory usage percentage are
displayed.
Generated by Event Code 951:memoryThresholdExceeded
Cleared by SNMP Trap This SNMP trap is cleared by
ruckusSZMemoryUsageThresholdBackToNormalTrap on page 65 (.
1.3.6.1.4.1.25053.2.11.1.43)
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZDiskUsageThresholdExceededTrap
TABLE 11 ruckusSZDiskUsageThresholdExceededTrap
Object Name ruckusSZDiskUsageThresholdExceededTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.8
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZDiskPerc
Description Triggered when there is a SmartZone disk usage threshold exceeded event. The
usage percentage threshold can be configured as 60% to 90%. This trap is sent if
the usage percentage exceeds the configured threshold. The event severity, event
code, event type, node name, MAC address and disk usage percentage are
displayed.
Generated by Event Code 952:diskUsageThresholdExceeded
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
52 Part Number: 800-71536-001 Rev A
TABLE 11 ruckusSZDiskUsageThresholdExceededTrap (continued)
Object Name ruckusSZDiskUsageThresholdExceededTrap
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZDiskUsageThresholdBackToNormalTrap
on page 65 (.1.3.6.1.4.1.25053.2.11.1.44)
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZLicenseUsageThresholdExceededTrap
TABLE 12 ruckusSZLicenseUsageThresholdExceededTrap
Object Name ruckusSZLicenseUsageThresholdExceededTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.19
Trap Severity Warning
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZLicenseType
ruckusSZLicenseUsagePerc
Description Triggered by the SmartZone license usage threshold exceeded event. The event
severity, event code, event type, license type and license usage percentage are
displayed.
Generated by Event Code 960:licenseThresholdExceeded
ruckusSZAPMiscEventTrap
TABLE 13 ruckusSZAPMiscEventTrap
Object Name ruckusSZAPMiscEventTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.20
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventDescription
ruckusSZEventAPIPv6
Description Generic trap triggered by AP related miscellaneous event. The event severity,
event code, event type, AP name, AP MAC IP address, AP IP address, AP
location, AP description, AP GPS coordinates, event description, and AP IPv6 are
displayed.
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 53
TABLE 13 ruckusSZAPMiscEventTrap (continued)
Object Name ruckusSZAPMiscEventTrap
Generated by Event Code Refer to SmartZone Event Traps on page 229 - ruckusSZAPMiscEventTrap on
page 230
ruckusSZAPConnectedTrap
TABLE 14 ruckusSZAPConnectedTrap
Object Name ruckusSZAPConnectedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.21
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventReason
ruckusSZEventAPIPv6
Description Triggered by the AP connected event. The event severity, event code, event type,
AP name, AP MAC IP address, AP IP address, AP location, AP description, AP
GPS coordinates, event description, reason and AP IPv6 are displayed.
Generated by Event Code 312:apConnected
ruckusSZAPDeletedTrap
TABLE 15 ruckusSZAPDeletedTrap
Object Name ruckusSZAPDeletedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.22
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
54 Part Number: 800-71536-001 Rev A
TABLE 15 ruckusSZAPDeletedTrap (continued)
Object Name ruckusSZAPDeletedTrap
ruckusSZEventAPIPv6
Description Triggered by the AP deleted event. The event severity, event code, event type, AP
name, AP MAC IP address, AP IP address, AP location, AP description, AP GPS
coordinates, and AP IPv6 are displayed.
Generated by Event Code 313:apDeleted
ruckusSZAPDisconnectedTrap
TABLE 16 ruckusSZAPDisconnectedTrap
Object Name ruckusSZAPDisconnectedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.23
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Description Triggered by AP connection lost event. The event severity, event code, event type,
AP name, AP MAC IP address, AP IP address, AP description, AP GPS
coordinates, and AP IPv6 are displayed.
Generated by Event Code 303:apConnectionLost
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPConnectedTrap on page 54 (.
1.3.6.1.4.1.25053.2.11.1.21) and ruckusSZCriticalAPConnectedTrap on page
57 (.1.3.6.1.4.1.25053.2.11.1.26)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZAPLostHeartbeatTrap
TABLE 17 ruckusSZAPLostHeartbeatTrap
Object Name ruckusSZAPLostHeartbeatTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.24
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 55
TABLE 17 ruckusSZAPLostHeartbeatTrap (continued)
Object Name ruckusSZAPLostHeartbeatTrap
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Description Triggered by the SmartZone lost AP heart beat event. The event severity, event
code, event type, AP name, AP MAC IP address, AP IP address, AP location, AP
description, AP GPS coordinates, and AP IPv6 are displayed.
Generated by Event Code 314:apHeartbeatLost
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPConnectedTrap on page 54 (.
1.3.6.1.4.1.25053.2.11.1.21) and ruckusSZCriticalAPConnectedTrap on page
57 (.1.3.6.1.4.1.25053.2.11.1.26)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZAPRebootTrap
TABLE 18 ruckusSZAPRebootTrap
Object Name ruckusSZAPRebootTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.25
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventReason
ruckusSZEventAPIPv6
Description Triggered by the AP reboot event. The event severity, event code, event type, AP
name, AP MAC IP address, AP IP address, AP location, AP description, AP GPS
coordinates, event reason and AP IPv6 are displayed.
Generated by Event Code 301:apRebootByUser ; 302:apRebootBySystem
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
56 Part Number: 800-71536-001 Rev A
ruckusSZCriticalAPConnectedTrap
TABLE 19 ruckusSZCriticalAPConnectedTrap
Object Name ruckusSZCriticalAPConnectedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.26
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventReason
ruckusSZEventAPIPv6
Description Triggered by the AP reboot event. The event severity, event code, event type, AP
name, AP MAC IP address, AP IP address, AP location, AP description, AP GPS
coordinates, event reason and AP IPv6 are displayed.
Generated by Event Code 312:apConnected
ruckusSZCriticalAPDisconnectedTrap
TABLE 20 ruckusSZCriticalAPDisconnectedTrap
Object Name ruckusSZCriticalAPDisconnectedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.27
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Description Triggered by the AP reboot event. The event severity, event code, event type, AP
name, AP MAC IP address, AP IP address, AP location, AP description, AP GPS
coordinates, and AP IPv6 are displayed.
Generated by Event Code 303:apConnectionLost
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 57
TABLE 20 ruckusSZCriticalAPDisconnectedTrap (continued)
Object Name ruckusSZCriticalAPDisconnectedTrap
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZCriticalAPConnectedTrap on page 57 (.
1.3.6.1.4.1.25053.2.11.1.26)
Cleared by Matching ruckusSZEventAPMacAddr(.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZAPRejectedTrap
TABLE 21 ruckusSZAPRejectedTrap
Object Name ruckusSZAPRejectedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.28
Trap Severity Minor
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventCtrlIP
ruckusSZEventReason
ruckusSZEventAPIPv6
Description Triggered by the AP rejected event. The event severity, event code, event type, AP
name, AP MAC IP address, AP IP address, AP location, AP description, AP GPS
coordinates, event reason, and AP IPv6 are displayed.
Generated by Event Code 105:apStatusRejected
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPManagedTrap on page 64 (.
1.3.6.1.4.1.25053.2.11.1.41)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZAPConfUpdateFailedTrap
TABLE 22 ruckusSZAPConfUpdateFailedTrap
Object Name ruckusSZAPConfUpdateFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.29
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
58 Part Number: 800-71536-001 Rev A
TABLE 22 ruckusSZAPConfUpdateFailedTrap (continued)
Object Name ruckusSZAPConfUpdateFailedTrap
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZAPConfigID
ruckusSZEventAPIPv6
Description Triggered by the AP configuration update failed event. The event severity, event
code, event type, AP name, AP MAC IP address, AP IP address, AP location, AP
description, AP GPS coordinates, configuration ID and AP IPv6 are displayed.
Generated by Event Code 111:apConfUpdateFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPConfUpdatedTrap on page 59 (.
1.3.6.1.4.1.25053.2.11.1.30)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZAPConfUpdatedTrap
TABLE 23 ruckusSZAPConfUpdatedTrap
Object Name ruckusSZAPConfUpdatedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.30
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZAPConfigID
ruckusSZEventAPIPv6
Description Triggered by AP configuration updated event. The event severity, event code,
event type, AP name, AP MAC IP address, AP IP address, AP location, AP
description, AP GPS coordinates, AP configuration ID and AP IPv6 are displayed.
Generated by Event Code 110:apConfUpdated
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 59
ruckusSZAPSwapOutModelDiffTrap
TABLE 24 ruckusSZAPSwapOutModelDiffTrap
Object Name ruckusSZAPSwapOutModelDiffTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.31
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZAPModel
ruckusSZConfigAPModel
ruckusSZEventAPIPv6
Description Triggered when the AP model is different from the imported swap AP model. The
event severity, event code, event type, AP name, AP MAC IP address, AP IP
address, AP location, AP description, AP GPS coordinates, AP model,
configuration AP model and AP IPv6 are displayed.
Generated by Event Code 113:apModelDiffWithSwapOutAP
ruckusSZAPPreProvisionModelDiffTrap
TABLE 25 ruckusSZAPPreProvisionModelDiffTrap
Object Name ruckusSZAPPreProvisionModelDiffTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.32
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZAPModel
ruckusSZConfigAPModel
ruckusSZEventAPIPv6
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
60 Part Number: 800-71536-001 Rev A
TABLE 25 ruckusSZAPPreProvisionModelDiffTrap (continued)
Object Name ruckusSZAPPreProvisionModelDiffTrap
Description Triggered when the AP model is different from imported pre-provision AP model.
The event severity, event code, event type, AP name, AP MAC IP address, AP IP
address, AP location, AP description, AP GPS coordinates, AP model,
configuration AP model and AP IPv6 are displayed.
Generated by Event Code 112:apModelDiffWithPreProvConfig
ruckusSZAPFirmwareUpdateFailedTrap
TABLE 26 ruckusSZAPFirmwareUpdateFailedTrap
Object Name ruckusSZAPFirmwareUpdateFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.34
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Description Triggered by AP firmware update failed event. The event severity, event code,
event type, AP name, AP MAC IP address, AP IP address, AP location, AP
description, AP GPS coordinates and AP IPv6 are displayed.
Generated by Event Code 107:apFirmwareUpdateFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPFirmwareUpdatedTrap on page 61 (.
1.3.6.1.4.1.25053.2.11.1.35)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZAPFirmwareUpdatedTrap
TABLE 27 ruckusSZAPFirmwareUpdatedTrap
Object Name ruckusSZAPFirmwareUpdatedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.35
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 61
TABLE 27 ruckusSZAPFirmwareUpdatedTrap (continued)
Object Name ruckusSZAPFirmwareUpdatedTrap
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Description Triggered by AP firmware update success event. The event severity, event code,
event type, AP name, AP MAC IP address, AP IP address, AP location, AP
description, AP GPS coordinates and AP IPv6 are displayed.
Generated by Event Code 106:apFirmwareUpdated
ruckusSZAPWlanOversubscribedTrap
TABLE 28 ruckusSZAPWlanOversubscribedTrap
Object Name ruckusSZAPWlanOversubscribedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.36
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
Description Triggered by AP WLAN oversubscribe event. The event severity, event type, AP
name, AP MAC IP address, AP IP address, AP location, AP description, AP GPS
coordinates, zone name and event code are displayed.
Generated by Event Code 114:apWlanMismatched
ruckusSZAPFactoryResetTrap
TABLE 29 ruckusSZAPFactoryResetTrap
Object Name ruckusSZAPFactoryResetTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.37
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
62 Part Number: 800-71536-001 Rev A
TABLE 29 ruckusSZAPFactoryResetTrap (continued)
Object Name ruckusSZAPFactoryResetTrap
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Description Triggered by the AP factory reset event. The event severity, event code, event
type, AP name, AP MAC IP address, AP IP address, AP location, AP description,
AP GPS coordinates and AP IPv6 are displayed.
Generated by Event Code 305:apFactoryReset
ruckusSZCableModemDownTrap
TABLE 30 ruckusSZCableModemDownTrap
Object Name ruckusSZCableModemDownTrap
Object Identifier .1.3.6.1.4.1.25053.2.10.1.38
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Description Triggered by the AP cable modem down event. The event severity, event code,
event type, AP name, AP MAC IP address, AP IP address, AP location, AP
description, AP GPS coordinates and AP IPv6 are displayed.
Generated by Event Code 316:cableModemDown
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZCableModemUpTrap on page 66 (.
1.3.6.1.4.1.25053.2.11.1.45)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZCableModemRebootTrap
TABLE 31 ruckusSZCableModemRebootTrap
Object Name ruckusSZCableModemRebootTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.39
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 63
TABLE 31 ruckusSZCableModemRebootTrap (continued)
Object Name ruckusSZCableModemRebootTrap
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Description Triggered when there is an AP cable modem reboot event. The event severity,
event code, event type, AP name, AP MAC IP address, AP IP address, AP
location, AP description, AP GPS coordinates and AP IPv6 are displayed.
Generated by Event Code 318:cmRebootByUser
ruckusSZAPManagedTrap
TABLE 32 ruckusSZAPManagedTrap
Object Name ruckusSZAPManagedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.41
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventCtrlIP
Description Triggered when there is an AP managed event. The event severity, event type, AP
name, AP MAC address, AP IP address, AP location, AP description, AP GPS
coordinates, zone name, target zone name, control IP address and event code
are displayed.
Generated by Event Code 103:apStatusManaged
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
64 Part Number: 800-71536-001 Rev A
ruckusSZCPUUsageThresholdBackToNormalTrap
TABLE 33 ruckusSZCPUUsageThresholdBackToNormalTrap
Object Name ruckusSZCPUUsageThresholdBackToNormalTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.42
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZCPUPerc
Description Triggered when the controller CPU temperature status is back to normal. The
event severity, event code, event type, node name, MAC address, and CPU
usage percentage are displayed.
Generated by Event Code 953:cpuThresholdBackToNormal
ruckusSZMemoryUsageThresholdBackToNormalTrap
TABLE 34 ruckusSZMemoryUsageThresholdBackToNormalTrap
Object Name ruckusSZMemoryUsageThresholdBackToNormalTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.43
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZMemoryPerc
Description Triggered when the controller memory temperature status is back to normal. The
event severity, event code, event type, node name, MAC address, and memory
usage percentage are displayed.
Generated by Event Code 954:memoryThresholdBackToNormal
ruckusSZDiskUsageThresholdBackToNormalTrap
TABLE 35 ruckusSZDiskUsageThresholdBackToNormalTrap
Object Name ruckusSZDiskUsageThresholdBackToNormalTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.44
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 65
TABLE 35 ruckusSZDiskUsageThresholdBackToNormalTrap (continued)
Object Name ruckusSZDiskUsageThresholdBackToNormalTrap
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZDiskPerc
Description Triggered when the controller disk temperature status is back to normal. The
event severity, event code, event type, node name, MAC address, and memory
usage percentage are displayed.
Generated by Event Code 955:diskUsageThresholdBackToNormal
ruckusSZCableModemUpTrap
TABLE 36 ruckusSZCableModemUpTrap
Object Name ruckusSZCableModemUpTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.45
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Description Triggered when the controller disk temperature status is back to normal. The
event severity, event code, event type, AP name, AP MAC address, AP IP
address, AP location, AP description, AP GPS coordinates, and AP IP v6 are
displayed.
Generated by Event Code 325:cableModemUp
ruckusSZAPDiscoverySuccessTrap
TABLE 37 ruckusSZAPDiscoverySuccessTrap
Object Name ruckusSZAPDiscoverySuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.46
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
66 Part Number: 800-71536-001 Rev A
TABLE 37 ruckusSZAPDiscoverySuccessTrap (continued)
Object Name ruckusSZAPDiscoverySuccessTrap
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventCtrlIP
ruckusSZEventAPIPv6
Description Triggered by the event where the AP is discovered successfully. The event
severity, event code, event type, AP name, AP MAC address, AP IP address, AP
location, AP description, AP GPS coordinates, event control IP address, and AP
IPv6 address are displayed.
Generated by Event Code 101:apDiscoverySuccess
ruckusSZCMResetByUserTrap
TABLE 38 ruckusSZCMResetByUserTrap
Object Name ruckusSZCMResetByUserTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.47
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventReason
ruckusSZEventAPIPv6
Description Triggered by the event where the AP cable modem starts a soft reboot triggered
by the user. The event severity, event code, event type, AP name, AP MAC
address, AP IP address, AP location, AP description, AP GPS coordinates, event
reason and AP IPv6 address are displayed.
Generated by Event Code 326:cmResetByUser
ruckusSZCMResetFactoryByUserTrap
TABLE 39 ruckusSZCMResetFactoryByUserTrap
Object Name ruckusSZCMResetFactoryByUserTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.48
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 67
TABLE 39 ruckusSZCMResetFactoryByUserTrap (continued)
Object Name ruckusSZCMResetFactoryByUserTrap
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventReason
ruckusSZEventAPIPv6
Description Triggered by the event where the AP cable modem is set to factory default by the
user. The event severity, event code, event type, AP name, AP MAC address, AP
IP address, AP location, AP description, AP GPS coordinates, event reason and
AP IPv6 address are displayed.
Generated by Event Code 327:cmResetFactoryByUser
ruckusSZSSIDSpoofingRogueAPDetectedTrap
TABLE 40 ruckusSZSSIDSpoofingRogueAPDetectedTrap
Object Name ruckusSZSSIDSpoofingRogueAPDetectedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.50
Trap Severity Warning
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventRogueMac
ruckusSZEventSSID
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Description Triggered when the AP detects a rouge AP. The event severity, event code, event
type, AP rouge MAC IP address, SSID value, AP name, AP MAC address, AP IP
address, AP location, AP description, AP GPS coordinates, and AP IP v6 are
displayed.
Generated by Event Code 181:ssid-spoofingRogueAPDetected
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
68 Part Number: 800-71536-001 Rev A
ruckusSZMacSpoofingRogueAPDetectedTrap
TABLE 41 ruckusSZMacSpoofingRogueAPDetectedTrap
Object Name ruckusSZMacSpoofingRogueAPDetectedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.51
Trap Severity Warning
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventRogueMac
ruckusSZEventSSID
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Description Triggered when the AP detects a rogue AP event. The event severity, event code,
event type, AP rouge MAC IP address, SSID value, AP name, AP MAC address,
AP IP address, AP location, AP description, AP GPS coordinates, and AP IP v6
are displayed.
Generated by Event Code 182:mac-spoofingRogueAPDetected
ruckusSZSameNetworkRogueAPDetectedTrap
TABLE 42 ruckusSZSameNetworkRogueAPDetectedTrap
Object Name ruckusSZSameNetworkRogueAPDetectedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.52
Trap Severity Warning
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventRogueMac
ruckusSZEventSSID
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 69
TABLE 42 ruckusSZSameNetworkRogueAPDetectedTrap (continued)
Object Name ruckusSZSameNetworkRogueAPDetectedTrap
Description Triggered when the AP detects a rogue AP having the same BSSID. The event
severity, event code, event type, AP rouge MAC IP address, SSID value, AP
name, AP MAC address, AP IP address, AP location, AP description, AP GPS
coordinates, and AP IP v6 are displayed.
Generated by Event Code 183:same-networkRogueAPDetected
ruckusSZADHocNetworkRogueAPDetectedTrap
TABLE 43 ruckusSZADHocNetworkRogueAPDetectedTrap
Object Name ruckusSZADHocNetworkRogueAPDetectedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.53
Trap Severity Warning
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventRogueMac
ruckusSZEventSSID
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Description Triggered when the AP detects a rogue AP having the same ad-hoc network. The
event severity, event code, event type, AP rouge MAC IP address, SSID value, AP
name, AP MAC address, AP IP address, AP location, AP description, AP GPS
coordinates, and AP IP v6 are displayed.
Generated by Event Code 184:ad-hoc-networkRogueAPDetected
ruckusSZMaliciousRogueAPTimeoutTrap
TABLE 44 ruckusSZMaliciousRogueAPTimeoutTrap
Object Name ruckusSZMaliciousRogueAPTimeoutTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.54
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventRogueMac
ruckusSZEventAPName
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
70 Part Number: 800-71536-001 Rev A
TABLE 44 ruckusSZMaliciousRogueAPTimeoutTrap (continued)
Object Name ruckusSZMaliciousRogueAPTimeoutTrap
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZEventAPIPv6
Description Triggered when the rogue AP disappears. The event severity, event code, event
type, AP rouge MAC IP address, SSID value, AP name, AP MAC address, AP IP
address, AP location, AP description, AP GPS coordinates, and AP IP v6 are
displayed.
Generated by Event Code 185:maliciousRogueAPTimeout
ruckusSZAPLBSConnectSuccessTrap
TABLE 45 ruckusSZAPLBSConnectSuccessTrap
Object Name ruckusSZAPLBSConnectSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.55
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZLBSURL
ruckusSZLBSPort
ruckusSZEventAPIPv6
Description Triggered when the AP successfully connect to the LS event. The event severity,
event code, event type, AP name, AP MAC address, AP IP address, AP location,
AP description, AP GPS coordinates, LBS URL, LBS port and AP IP v6 are
displayed.
Generated by Event Code 703:apLBSConnectSuccess
ruckusSZAPLBSNoResponsesTrap
TABLE 46 ruckusSZAPLBSNoResponsesTrap
Object Name ruckusSZAPLBSNoResponsesTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.56
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 71
TABLE 46 ruckusSZAPLBSNoResponsesTrap (continued)
Object Name ruckusSZAPLBSNoResponsesTrap
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZLBSURL
ruckusSZLBSPort
ruckusSZEventAPIPv6
Description Triggered when an event is raised since the LS fails to respond to the connecting
AP. The event severity, event code, event type, AP name, AP MAC address, AP IP
address, AP location, AP description, AP GPS coordinates, LBS URL, LBS port
and AP IP v6 are displayed.
Generated by Event Code 701:apLBSNoResponses
ruckusSZAPLBSAuthFailedTrap
TABLE 47 ruckusSZAPLBSAuthFailedTrap
Object Name ruckusSZAPLBSAuthFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.57
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZLBSURL
ruckusSZLBSPort
ruckusSZEventAPIPv6
Description Triggered by the authentication failure event when the AP tries connecting to the
LS. The event severity, event code, event type, AP name, AP MAC address, AP IP
address, AP location, AP description, AP GPS coordinates, LBS URL, LBS port
and AP IP v6 are displayed.
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
72 Part Number: 800-71536-001 Rev A
TABLE 47 ruckusSZAPLBSAuthFailedTrap (continued)
Object Name ruckusSZAPLBSAuthFailedTrap
Generated by Event Code 702:apLBSAuthFailed
ruckusSZAPLBSConnectFailedTrap
TABLE 48 ruckusSZAPLBSConnectFailedTrap
Object Name ruckusSZAPLBSConnectFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.58
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZLBSURL
ruckusSZLBSPort
ruckusSZEventAPIPv6
Description An event is raised when the AP fails in connecting to LS. The event severity, event
code, event type, AP name, AP MAC address, AP IP address, AP location, AP
description, AP GPS coordinates, LBS URL, LBS port and AP IP v6 are
displayed.
Generated by Event Code 704:apLBSConnectFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPLBSConnectSuccessTrap on page 71
(.1.3.6.1.4.1.25053.2.11.1.55)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZAPTunnelBuildFailedTrap
TABLE 49 ruckusSZAPTunnelBuildFailedTrap
Object Name ruckusSZAPTunnelBuildFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.60
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 73
TABLE 49 ruckusSZAPTunnelBuildFailedTrap (continued)
Object Name ruckusSZAPTunnelBuildFailedTrap
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZDPIP
ruckusSZEventReason
ruckusSZEventAPIPv6
Description Triggered by the AP build tunnel failed event. The event severity, event code,
event type, AP name, AP MAC address, AP IP address, AP location, AP
description, AP GPS coordinates, data plane IP address, event reason and AP IP
v6 are displayed.
Generated by Event Code 609:apBuildTunnelFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPTunnelBuildSuccessTrap on page 74 (.
1.3.6.1.4.1.25053.2.11.1.61)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0).
ruckusSZAPTunnelBuildSuccessTrap
TABLE 50 ruckusSZAPTunnelBuildSuccessTrap
Object Name ruckusSZAPTunnelBuildSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.61
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZDPIP
ruckusSZEventAPIPv6
Description Triggered by the AP build tunnel success event. The event severity, event code,
event type, AP name, AP MAC address, AP IP address, AP location, AP
description, AP GPS coordinates, data plane IP address, and AP IP v6 are
displayed.
Generated by Event Code 608:apBuildTunnelSuccess
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
74 Part Number: 800-71536-001 Rev A
ruckusSZAPTunnelDisconnectedTrap
TABLE 51 ruckusSZAPTunnelDisconnectedTrap
Object Name ruckusSZAPTunnelDisconnectedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.62
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZDPIP
ruckusSZEventReason
ruckusSZEventAPIPv6
Description Triggered by the AP tunnel disconnected event. The event severity, event code,
event type, AP name, AP MAC address, AP IP address, AP location, AP
description, AP GPS coordinates, data plane IP address, event reason and AP IP
v6 are displayed.
Generated by Event Code 610:apTunnelDisconnected
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPTunnelBuildSuccessTrap on page 74 (.
1.3.6.1.4.1.25053.2.11.1.61)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZAPSoftGRETunnelFailoverPtoSTrap
TABLE 52 ruckusSZAPSoftGRETunnelFailoverPtoSTrap
Object Name ruckusSZAPSoftGRETunnelFailoverPtoSTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.65
Trap Severity Warning
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 75
TABLE 52 ruckusSZAPSoftGRETunnelFailoverPtoSTrap (continued)
Object Name ruckusSZAPSoftGRETunnelFailoverPtoSTrap
ruckusPrimaryGRE
ruckusSecondaryGRE
ruckusSZEventAPIPv6
Description Triggered by the AP SoftGRE tunnel failing over from the primary server to the
secondary server event. The event severity, event code, event type, AP name, AP
MAC address, AP IP address, AP location, AP description, AP GPS coordinates,
primary GRE IP address, secondary GRE IP address and AP IP v6 are displayed.
Generated by Event Code 611:apSoftGRETunnelFailoverPtoS
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPSoftGREGatewayReachableTrap on
page 77 (.1.3.6.1.4.1.25053.2.11.1.68)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZAPSoftGRETunnelFailoverStoPTrap
TABLE 53 ruckusSZAPSoftGRETunnelFailoverStoPTrap
Object Name ruckusSZAPSoftGRETunnelFailoverStoPTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.66
Trap Severity Warning
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusPrimaryGRE
ruckusSecondaryGRE
ruckusSZEventAPIPv6
Description Triggered by the AP SoftGRE tunnel failing over from the secondary server to the
primary secondary event. The event severity, event code, event type, AP name,
AP MAC address, AP IP address, AP location, AP description, AP GPS
coordinates, primary GRE IP address, secondary GRE IP address and AP IP v6
are displayed.
Generated by Event Code 612:apSoftGRETunnelFailoverStoP
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPSoftGREGatewayReachableTrap on
page 77 (.1.3.6.1.4.1.25053.2.11.1.68)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
76 Part Number: 800-71536-001 Rev A
ruckusSZAPSoftGREGatewayNotReachableTrap
TABLE 54 ruckusSZAPSoftGREGatewayNotReachableTrap
Object Name ruckusSZAPSoftGREGatewayNotReachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.67
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSoftGREGatewayList
ruckusSZEventAPIPv6
Description Triggered when the AP cannot ping/reach the SoftGRE gateway. The event
severity, event code, event type, AP name, AP MAC address, AP IP address, AP
location, AP description, AP GPS coordinates, GRE gateway list and AP IP v6 are
displayed.
Generated by Event Code 614:apSoftGREGatewayNotReachable
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPSoftGREGatewayReachableTrap on
page 77 (.1.3.6.1.4.1.25053.2.11.1.68)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZAPSoftGREGatewayReachableTrap
TABLE 55 ruckusSZAPSoftGREGatewayReachableTrap
Object Name ruckusSZAPSoftGREGatewayReachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.68
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZSoftGREGWAddress
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 77
TABLE 55 ruckusSZAPSoftGREGatewayReachableTrap (continued)
Object Name ruckusSZAPSoftGREGatewayReachableTrap
Description Triggered when there is a AP SoftGRE gateway reachable event. The event
severity, event type, AP name, AP MAC IP address, AP IP address, AP location,
AP description, AP GPS coordinates, zone name, soft GRE gateway list and
event code are displayed.
Generated by Event Code 613:apSoftGREGatewayReachable
ruckusSZDPConfUpdateFailedTrap
TABLE 56 ruckusSZDPConfUpdateFailedTrap
Object Name ruckusSZDPConfUpdateFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.70
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
ruckusSZDPConfigID
Description Triggered by the data plane configuration update failed event. The data plane can
get the updated configuration settings from the control plane, but cannot apply
the updated configuration changes. The event severity, event code, event type,
data plane identifier and configuration UUID are displayed.
Generated by Event Code 505:dpConfUpdateFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZDPConfUpdatedTrap on page 81 (.
1.3.6.1.4.1.25053.2.11.1.78)
Cleared by Matching ruckusSZDPKey (.1.3.6.1.4.1.25053.2.11.2.80.0)
ruckusSZDPLostHeartbeatTrap
TABLE 57 ruckusSZDPLostHeartbeatTrap
Object Name ruckusSZDPLostHeartbeatTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.71
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
Description Triggered by the data plane lost heart beat event. The event severity, event code,
event type and data plane identifier are displayed.
Generated by Event Code 507:dpLostConnection
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZDPConnectedTrap on page 80 (.
1.3.6.1.4.1.25053.2.11.1.76)
Cleared by Matching ruckusSZDPKey (.1.3.6.1.4.1.25053.2.11.2.80.0)
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
78 Part Number: 800-71536-001 Rev A
ruckusSZDPDisconnectedTrap
TABLE 58 ruckusSZDPDisconnectedTrap
Object Name ruckusSZDPDisconnectedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.72
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
ruckusSZEventCtrlIP
Description Triggered by the data plane disconnected event. The event severity, event code,
event type, data plane identifier, and control IP address are displayed.
Generated by Event Code 513:dpDisconnected
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZDPConnectedTrap on page 80 (.
1.3.6.1.4.1.25053.2.11.1.76)
Cleared by Matching ruckusSZDPKey (.1.3.6.1.4.1.25053.2.11.2.80.0)
ruckusSZDPPhyInterfaceDownTrap
TABLE 59 ruckusSZDPPhyInterfaceDownTrap
Object Name ruckusSZDPPhyInterfaceDownTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.73
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
ruckusSZNetworkPortID
Description Triggered by the data plane physical interface detected as down event. The event
severity, event code, event type, data plane identifier, and network port identifier
are displayed
Generated by Event Code 514:dpPhyInterfaceDown
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZDPPhyInterfaceUpTrap on page 81 (.
1.3.6.1.4.1.25053.2.11.1.77)
Cleared by Matching ruckusSZDPKey (.1.3.6.1.4.1.25053.2.11.2.80.0)
ruckusSZNetworkPortID (.1.3.6.1.4.1.25053.2.11.2.100.0)
ruckusSZDPStatusUpdateFailedTrap
TABLE 60 ruckusSZDPStatusUpdateFailedTrap
Object Name ruckusSZDPStatusUpdateFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.74
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 79
TABLE 60 ruckusSZDPStatusUpdateFailedTrap (continued)
Object Name ruckusSZDPStatusUpdateFailedTrap
Trap Severity Minor
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
Description Triggered by the data plane update status failed event. The event severity, event
code, event type and data plane identifier are displayed.
Generated by Event Code 510:dpUpdateStatusFailed
ruckusSZDPStatisticUpdateFaliedTrap
TABLE 61 ruckusSZDPStatisticUpdateFaliedTrap
Object Name ruckusSZDPStatisticUpdateFaliedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.75
Trap Severity Minor
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
Description Triggered by the data plane update statistics failed event. The event severity,
event code, event type and data plane identifier are displayed.
Generated by Event Code 511:dpUpdateStatisticFailed
ruckusSZDPConnectedTrap
TABLE 62 ruckusSZDPConnectedTrap
Object Name ruckusSZDPConnectedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.76
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
ruckusSZEventCtrlIP
Description Triggered by the data plane connected event. The event severity, event code,
event type, data plane identifier and control IP address are displayed.
Generated by Event Code 512:dpConnected
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
80 Part Number: 800-71536-001 Rev A
ruckusSZDPPhyInterfaceUpTrap
TABLE 63 ruckusSZDPPhyInterfaceUpTrap
Object Name ruckusSZDPPhyInterfaceUpTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.77
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
ruckusSZNetworkPortID
Description Triggered by the data plane physical interface up event. The event severity, event
code, event type, data plane identifier and network port identifier are displayed.
Generated by Event Code 515:dpPhyInterfaceUp
ruckusSZDPConfUpdatedTrap
TABLE 64 ruckusSZDPConfUpdatedTrap
Object Name ruckusSZDPConfUpdatedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.78
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
ruckusSZDPConfigID
Description Triggered by the data plane configuration updated event. The event severity, event
code, event type, data plane identifier and configuration identifier are displayed.
Generated by Event Code 504:dpConfUpdated
ruckusSZDPTunnelTearDownTrap
TABLE 65 ruckusSZDPTunnelTearDownTrap
Object Name ruckusSZDPTunnelTearDownTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.79
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
ruckusSZEventAPMacAddr
ruckusSZEventReason
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 81
TABLE 65 ruckusSZDPTunnelTearDownTrap (continued)
Object Name ruckusSZDPTunnelTearDownTrap
Description Triggered by the data plane tear down tunnel event. The event severity, event
code, event type, data plane identifier, AP MAC address and event reason are
displayed.
Generated by Event Code 603:dpTearDownTunnel
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZDPTunnelSetUpTrap on page 83 (.
1.3.6.1.4.1.25053.2.11.1.85)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZDPKey (.1.3.6.1.4.1.25053.2.11.2.80.0)
ruckusSZDPAcceptTunnelRequestTrap
TABLE 66 ruckusSZDPAcceptTunnelRequestTrap
Object Name ruckusSZDPAcceptTunnelRequestTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.81
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
ruckusSZEventAPMacAdd
Description Triggered when the data plane accepts a tunnel request from the AP. The event
severity, event code, event type, data plane identifier and AP MAC address are
displayed.
Generated by Event Code 601:dpAcceptTunnelRequest
ruckusSZDPRejectTunnelRequestTrap
TABLE 67 ruckusSZDPRejectTunnelRequestTrap
Object Name ruckusSZDPRejectTunnelRequestTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.82
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
ruckusSZEventAPMacAddr
ruckusSZEventReason
Description Triggered when the data plane rejects a tunnel request from the AP. The event
severity, event code, event type, data plane identifier, AP MAC address and event
reason are displayed.
Generated by Event Code 602:dpRejectTunnelRequest
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
82 Part Number: 800-71536-001 Rev A
NOTE
Trap .1.3.6.1.4.1.25053.2.11.1.85 is not applicable for vSZ-E.
ruckusSZDPTunnelSetUpTrap
TABLE 68 ruckusSZDPTunnelSetUpTrap
Object Name ruckusSZDPTunnelSetUpTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.85
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
ruckusSZEventAPMacAdd
Description Triggered when the data plane sets the tunnel. The event severity, event code,
event type, data plane identifier and AP MAC address are displayed.
Generated by Event Code 627:dpSetUpTunnel
ruckusSZDPDiscoverySuccessTrap
TABLE 69 ruckusSZDPDiscoverySuccessTrap
Object Name ruckusSZDPDiscoverySuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.86
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
ruckusSZEventCtrlIP
Description Triggered by the event where the data plane is successfully identified The event
severity, event code, event type, data plane identifier and control plane IP address
are displayed.
Generated by Event Code 501:dpDiscoverySuccess
ruckusSZDPDiscoveryFailTrap
TABLE 70 ruckusSZDPDiscoveryFailTrap
Object Name ruckusSZDPDiscoveryFailTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.87
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 83
TABLE 70 ruckusSZDPDiscoveryFailTrap (continued)
Object Name ruckusSZDPDiscoveryFailTrap
ruckusSZEventType
ruckusSZDPKey
ruckusSZEventCtrlIP
Description Triggered by the event where the data plane is unidentified The event severity,
event code, event type, data plane identifier and control plane IP address are
displayed.
Generated by Event Code 502:dpDiscoveryFail
ruckusSZDPDeletedTrap
TABLE 71 ruckusSZDPDeletedTrap
Object Name ruckusSZDPDeletedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.94
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
Description Triggered by the event where data plane is deleted. The event severity, event
code, type and data plane identifier are displayed.
Generated by Event Code 537:dpDeleted
ruckusSZDPUpgradeStartTrap
TABLE 72 ruckusSZDPUpgradeStartTrap
Object Name ruckusSZDPUpgradeStartTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.95
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
Description Triggered by the event of data plane starting the upgrade process. The event
severity, event code, event type and data plane identifier are displayed.
Generated by Event Code 550:dpUpgradeStart
ruckusSZDPUpgradingTrap
TABLE 73 ruckusSZDPUpgradingTrap
Object Name ruckusSZDPUpgradingTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.96
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
84 Part Number: 800-71536-001 Rev A
TABLE 73 ruckusSZDPUpgradingTrap (continued)
Object Name ruckusSZDPUpgradingTrap
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
Description Triggered by the event when data plane starts the upgrade program and
configuration. The event severity, event code, event type, and data plane identifier
are displayed.
Generated by Event Code 551:dpUpgrading
ruckusSZDPUpgradeSuccessTrap
TABLE 74 ruckusSZDPUpgradeSuccessTrap
Object Name ruckusSZDPUpgradeSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.97
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
Description Triggered by the event when data plane upgrade is successful. The event severity,
event code, event type, and data plane identifier are displayed.
Generated by Event Code 552:dpUpgradeSuccess
ruckusSZDPUpgradeFailedTrap
TABLE 75 ruckusSZDPUpgradeFailedTrap
Object Name ruckusSZDPUpgradeFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.98
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZDPKey
Description Triggered by the event when data plane upgrade fails. The event severity, event
code, event type, and data plane identifier are displayed.
Generated by Event Code 553:dpUpgradeFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZDPUpgradeSuccessTrap on page 85 (.
1.3.6.1.4.1.25053.2.11.1.97)
Cleared by Matching ruckusSZDPKey (.1.3.6.1.4.1.25053.2.11.2.80.0)
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 85
ruckusSZClientMiscEventTrap
TABLE 76 ruckusSZClientMiscEventTrap
Object Name ruckusSZClientMiscEventTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.100
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventClientMacAddr
ruckusSZEventDescription
Description Generic trap triggered by specified client related miscellaneous event. The event
severity, event code, event type, client MAC address and event description are
displayed.
Generated by Event Code Refer to appendix SmartZone Event Traps on page 229 -
ruckusSZClientMiscEventTrap on page 230
ruckusSZNodeJoinFailedTrap
TABLE 77 ruckusSZNodeJoinFailedTrap
Object Name ruckusSZNodeJoinFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.200
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZClusterName
Description Triggered by new node failing to join event. The event severity, event code, event
type, node name, node MAC address and cluster name are displayed.
Generated by Event Code 803:newNodeJoinFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZNodeJoinSuccessTrap on page 92 (.
1.3.6.1.4.1.25053.2.11.1.218)
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZNodeRemoveFailedTrap
TABLE 78 ruckusSZNodeRemoveFailedTrap
Object Name ruckusSZNodeRemoveFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.201
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
86 Part Number: 800-71536-001 Rev A
TABLE 78 ruckusSZNodeRemoveFailedTrap (continued)
Object Name ruckusSZNodeRemoveFailedTrap
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZClusterName
Description Triggered by remove node failed event. The event severity, event type, node
name, node MAC address, cluster name and event code are displayed.
Generated by Event Code 805:removeNodeFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZNodeRemoveSuccessTrap on page 93 (.
1.3.6.1.4.1.25053.2.11.1.220)
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZNodeOutOfServiceTrap
TABLE 79 ruckusSZNodeOutOfServiceTrap
Object Name ruckusSZNodeOutOfServiceTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.202
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZClusterName
Description Triggered by node out of service event. The event severity, event code, event
type, node name, node MAC address and cluster name are displayed.
Generated by Event Code 806:nodeOutOfService
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZNodeBackToInServiceTrap on page 94 (.
1.3.6.1.4.1.25053.2.11.1.222)
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZClusterInMaintenanceStateTrap
TABLE 80 ruckusSZClusterInMaintenanceStateTrap
Object Name ruckusSZClusterInMaintenanceStateTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.203
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 87
TABLE 80 ruckusSZClusterInMaintenanceStateTrap (continued)
Object Name ruckusSZClusterInMaintenanceStateTrap
Description Triggered when a cluster is put into maintenance state event. The event severity,
event code, event type and cluster name are displayed.
Generated by Event Code 807:clusterInMaintenanceState
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZClusterBackToInServiceTrap on page 92
(.1.3.6.1.4.1.25053.2.11.1.216).
ruckusSZClusterBackupFailedTrap
TABLE 81 ruckusSZClusterBackupFailedTrap
Object Name ruckusSZClusterBackupFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.204
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Description Triggered when a cluster failed to create a backup event. The event severity, event
code, event type and cluster name are displayed.
Generated by Event Code 810:backupClusterFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZBackupClusterSuccessTrap on page 92
(.1.3.6.1.4.1.25053.2.11.1.217)
ruckusSZClusterRestoreFailedTrap
TABLE 82 ruckusSZClusterRestoreFailedTrap
Object Name ruckusSZClusterRestoreFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.205
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Description Triggered by restore cluster failed event. The event severity, event code, event
type and cluster name are displayed.
Generated by Event Code 812:restoreClusterFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZClusterRestoreSuccessTrap on page 94
(.1.3.6.1.4.1.25053.2.11.1.221)
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
88 Part Number: 800-71536-001 Rev A
ruckusSZClusterAppStoppedTrap
TABLE 83 ruckusSZClusterAppStoppedTrap
Object Name ruckusSZClusterAppStoppedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.206
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZProcessName
ruckusSZEventNodeName
ruckusSZEventMacAddr
Description Triggered when an application has stopped running/functioning. The event
severity, event code, event type, application name, SZ node name and node MAC
address are displayed.
Generated by Event Code 816:clusterAppStop
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZClusterAppStartTrap on page 93 (.
1.3.6.1.4.1.25053.2.11.1.219)
Cleared by Matching ruckusSZProcessName(.1.3.6.1.4.1.25053.2.11.2.11.0)
ruckusSZEventMacAddr(.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZNodeBondInterfaceDownTrap
TABLE 84 ruckusSZNodeBondInterfaceDownTrap
Object Name ruckusSZNodeBondInterfaceDownTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.207
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZNetworkInterface
ruckusSZEventNodeName
ruckusSZEventMacAddr
Description Triggered by node bond interface down event. The event severity, event type,
network interface, controller node name, node MAC address and event code are
displayed.
Generated by Event Code 821:nodeBondInterfaceDown
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZNodeBondInterfaceUpTrap on page 91 (.
1.3.6.1.4.1.25053.2.11.1.211)
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZNetworkInterface (.1.3.6.1.4.1.25053.2.11.2.101.0)
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 89
ruckusSZNodePhyInterfaceDownTrap
TABLE 85 ruckusSZNodePhyInterfaceDownTrap
Object Name ruckusSZNodePhyInterfaceDownTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.208
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZNetworkInterface
ruckusSZEventNodeName
ruckusSZEventMacAddr
Description Triggered by node physical interface down event. The event severity, event type,
network interface, controller node name, node MAC address and event code are
displayed.
Generated by Event Code 824:nodePhyInterfaceDown
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZNodePhyInterfaceUpTrap on page 91 (.
1.3.6.1.4.1.25053.2.11.1.212)
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZNetworkInterface (.1.3.6.1.4.1.25053.2.11.2.101.0)
ruckusSZClusterLeaderChangedTrap
TABLE 86 ruckusSZClusterLeaderChangedTrap
Object Name ruckusSZClusterLeaderChangedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.209
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZClusterName
Description Triggered by cluster leader changed event. The event severity, event code, event
type, SZ node name, node MAC address and cluster name are displayed.
Generated by Event Code 820:clusterLeaderChanged
ruckusSZClusterUpgradeSuccessTrap
TABLE 87 ruckusSZClusterUpgradeSuccessTrap
Object Name ruckusSZClusterUpgradeSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.210
Trap Severity Informational
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
90 Part Number: 800-71536-001 Rev A
TABLE 87 ruckusSZClusterUpgradeSuccessTrap (continued)
Object Name ruckusSZClusterUpgradeSuccessTrap
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
ruckusSZEventFirmwareVersion ruckusSZEventUpgradedFirmwareVersion
Description Triggered when the entire cluster has been successfully upgraded. The event
severity, event code, event type, cluster name, firmware version and upgraded
firmware version are displayed.
Generated by Event Code 814:upgradeEntireClusterSuccess
ruckusSZNodeBondInterfaceUpTrap
TABLE 88 ruckusSZNodeBondInterfaceUpTrap
Object Name ruckusSZNodeBondInterfaceUpTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.211
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZNetworkInterface
ruckusSZEventNodeName
ruckusSZEventMacAddr
Description Triggered by node bond interface up event. The event severity, event code, event
type, network interface, SZ node name and SZ MAC address are displayed.
Generated by Event Code 822:nodeBondInterfaceUp
ruckusSZNodePhyInterfaceUpTrap
TABLE 89 ruckusSZNodePhyInterfaceUpTrap
Object Name ruckusSZNodePhyInterfaceUpTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.212
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZNetworkInterface
ruckusSZEventNodeName
ruckusSZEventMacAddr
Description Triggered by node physical interface up event. The event severity, event code,
event type, network interface, SZ node name and SZ MAC address are displayed.
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 91
TABLE 89 ruckusSZNodePhyInterfaceUpTrap (continued)
Object Name ruckusSZNodePhyInterfaceUpTrap
Generated by Event Code 825:nodePhyInterfaceUp
ruckusSZClusterBackToInServiceTrap
TABLE 90 ruckusSZClusterBackToInServiceTrap
Object Name ruckusSZClusterBackToInServiceTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.216
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Description Triggered when a cluster is back in service. The event severity, event code, event
type and cluster name are displayed.
Generated by Event Code 808:clusterBackToInService
ruckusSZBackupClusterSuccessTrap
TABLE 91 ruckusSZBackupClusterSuccessTrap
Object Name ruckusSZBackupClusterSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.217
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Description Triggered by backup cluster success event. The event severity, event code, event
type and cluster name are displayed.
Generated by Event Code 809:backupClusterSuccess
ruckusSZNodeJoinSuccessTrap
TABLE 92 ruckusSZNodeJoinSuccessTrap
Object Name ruckusSZNodeJoinSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.218
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
92 Part Number: 800-71536-001 Rev A
TABLE 92 ruckusSZNodeJoinSuccessTrap (continued)
Object Name ruckusSZNodeJoinSuccessTrap
ruckusSZEventMacAddr
ruckusSZClusterName
Description Triggered by new node join success event. The event severity, event code, event
type, SZ node name, node MAC address and cluster name are displayed.
Generated by Event Code 802:newNodeJoinSuccess
ruckusSZClusterAppStartTrap
TABLE 93 ruckusSZClusterAppStartTrap
Object Name ruckusSZClusterAppStartTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.219
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZProcessName
ruckusSZEventNodeName
ruckusSZEventMacAddr
Description Triggered when a cluster application starts. The event severity, event code, event
type, application name, SZ node name and node MAC address are displayed.
Generated by Event Code 817:clusterAppStart
ruckusSZNodeRemoveSuccessTrap
TABLE 94 ruckusSZNodeRemoveSuccessTrap
Object Name ruckusSZNodeRemoveSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.220
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZClusterName
Description Triggered by successful removal of a node. The event severity, event code, event
type, SZ node name, node MAC address and cluster name are displayed.
Generated by Event Code 804:removeNodeSuccess
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 93
ruckusSZClusterRestoreSuccessTrap
TABLE 95 ruckusSZClusterRestoreSuccessTrap
Object Name ruckusSZClusterRestoreSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.221
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZClusterName
Description Triggered when a cluster has been successfully restored. The event severity, event
code, event type, SZ node name, node MAC address and cluster name are
displayed.
Generated by Event Code 811:restoreClusterSuccess
ruckusSZNodeBackToInServiceTrap
TABLE 96 ruckusSZNodeBackToInServiceTrap
Object Name ruckusSZNodeBackToInServiceTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.222
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZClusterName
Description Triggered by node back to in service event. The event severity, event code, event
type, SZ node name, node MAC address and cluster name are displayed.
Generated by Event Code 835:nodeBackToInService
ruckusSZSshTunnelSwitchedTrap
TABLE 97 ruckusSZSshTunnelSwitchedTrap
Object Name ruckusSZSshTunnelSwitchedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.223
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
94 Part Number: 800-71536-001 Rev A
TABLE 97 ruckusSZSshTunnelSwitchedTrap (continued)
Object Name ruckusSZSshTunnelSwitchedTrap
ruckusSZEventNodeName
ruckusSZEventMacAddr
ruckusSZClusterName
ruckusSZSwitchStatus
Description Triggered by SSH tunnel switched event. The event severity, event code, event
type, SZ node name, node MAC address, cluster name and switch status are
displayed.
Generated by Event Code 833:sshTunnelSwitched
ruckusSZClusterCfgBackupStartTrap
TABLE 98 ruckusSZClusterCfgBackupStartTrap
Object Name ruckusSZClusterCfgBackupStartTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.224
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Description Triggered by start of configuration backup event. The event severity, event code,
event type and controller cluster name are displayed.
Generated by Event Code 860:clusterCfgBackupStart
ruckusSZClusterCfgBackupSuccessTrap
TABLE 99 ruckusSZClusterCfgBackupSuccessTrap
Object Name ruckusSZClusterCfgBackupSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.225
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Description Triggered by successful configuration backup event. The event severity, event
code, event type and controller cluster name are displayed.
Generated by Event Code 861:clusterCfgBackupSuccess
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 95
ruckusSZClusterCfgBackupFailedTrap
TABLE 100 ruckusSZClusterCfgBackupFailedTrap
Object Name ruckusSZClusterCfgBackupFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.226
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Description Triggered by failed configuration backup event. The event severity, event code,
event type and controller cluster name are displayed.
Generated by Event Code 862:clusterCfgBackupFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZClusterCfgBackupSuccessTrap on page
95
ruckusSZClusterCfgRestoreSuccessTrap
TABLE 101 ruckusSZClusterCfgRestoreSuccessTrap
Object Name ruckusSZClusterCfgRestoreSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.227
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Description Triggered by successful configuration restoration event. The event severity, event
code, event type and controller cluster name are displayed.
Generated by Event Code 863:clusterCfgRestoreSuccess
ruckusSZClusterCfgRestoreFailedTrap
TABLE 102 ruckusSZClusterCfgRestoreFailedTrap
Object Name ruckusSZClusterCfgRestoreFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.228
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Description Triggered by failed configuration restoration event. The event severity, event code,
event type and controller cluster name are displayed.
Generated by Event Code 864:clusterCfgRestoreFailed
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
96 Part Number: 800-71536-001 Rev A
TABLE 102 ruckusSZClusterCfgRestoreFailedTrap (continued)
Object Name ruckusSZClusterCfgRestoreFailedTrap
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZClusterCfgRestoreSuccessTrap on page
96 (
.1.3.6.1.4.1.25053.2.11.1.227)
ruckusSZClusterUploadSuccessTrap
TABLE 103 ruckusSZClusterUploadSuccessTrap
Object Name ruckusSZClusterUploadSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.229
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Description Triggered by successful cluster upload event. The event severity, event code,
event type and controller cluster name are displayed.
Generated by Event Code 831:uploadClusterSuccess
ruckusSZClusterUploadFailedTrap
TABLE 104 ruckusSZClusterUploadFailedTrap
Object Name ruckusSZClusterUploadFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.230
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
ruckusSZEventReason
Description Triggered by failed cluster upload event. The event severity, event code, event
type, controller cluster name and reason are displayed.
Generated by Event Code 832:uploadClusterFailed
ruckusSZClusterOutOfServiceTrap
TABLE 105 ruckusSZClusterOutOfServiceTrap
Object Name ruckusSZClusterOutOfServiceTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.231
Trap Severity Critical
Bindings ruckusSZEventSeverity
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 97
TABLE 105 ruckusSZClusterOutOfServiceTrap (continued)
Object Name ruckusSZClusterOutOfServiceTrap
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Description Triggered by the event where the cluster is out of service. The event severity,
event code, event type and controller cluster name are displayed.
Generated by Event Code 843:clusterOutOfService
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZClusterBackToInServiceTrap on page 92 (.
1.3.6.1.4.1.25053.2.11.1.216)
ruckusSZClusterUploadVDPFirmwareStartTrap
TABLE 106 ruckusSZClusterUploadVDPFirmwareStartTrap
Object Name ruckusSZClusterUploadVDPFirmwareStartTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.232
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Description Triggered by the event when the when the cluster starts and uploads virtual data
plane. The event severity, event code, event type and cluster name are displayed.
Generated by Event Code 845:clusterUploadVDPFirmwareStart
ruckusSZClusterUploadVDPFirmwareSuccessTrap
TABLE 107 ruckusSZClusterUploadVDPFirmwareSuccessTrap
Object Name ruckusSZClusterUploadVDPFirmwareSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.233
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
Description Triggered by the event when cluster uploads the virtual data plane firmware is
successful. The event severity, event code, event type and cluster name are
displayed.
Generated by Event Code 846:uploadClusterVDPFirmwareSuccess
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
98 Part Number: 800-71536-001 Rev A
ruckusSZClusterUploadVDPFirmwareFailedTrap
TABLE 108 ruckusSZClusterUploadVDPFirmwareFailedTrap
Object Name ruckusSZClusterUploadVDPFirmwareFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.234
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZClusterName
ruckusSZEventReason
Description Triggered by the event when cluster uploads the virtual data plane firmware fails.
The event severity, event code, event type, cluster name, and reason are
displayed.
Generated by Event Code 847:uploadClusterVDPFirmwareFailed
ruckusSZIpmiTempBBTrap
NOTE
Traps .1.3.6.1.4.1.25053.2.11.1.251 to .1.3.6.1.4.1.25053.2.11.1.275 is not applicable for vSZ-E.
TABLE 109 ruckusSZIpmiTempBBTrap
Object Name ruckusSZIpmiTempBBTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.251
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZTemperatureStatus
ruckusSZEventMacAddr
Description Triggered by baseboard temperature event. The event severity, event code, event
type, temperature status and node MAC address are displayed.
Generated by Event Code 902:ipmiThempBB
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZIpmiRETempBBTrap on page 101 (.
1.3.6.1.4.1.25053.2.11.1.265)
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZIpmiTempPTrap
TABLE 110 ruckusSZIpmiTempPTrap
Object Name ruckusSZIpmiTempPTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.256
Trap Severity Major
Bindings ruckusSZEventSeverity
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 99
TABLE 110 ruckusSZIpmiTempPTrap (continued)
Object Name ruckusSZIpmiTempPTrap
ruckusSZEventCode
ruckusSZEventType
ruckusSZProcessorId
ruckusSZTemperatureStatus
ruckusSZEventMacAddr
Description Triggered by processor temperature event. The event severity, event code, event
type, processor id, temperature status and controller node MAC address are
displayed.
Generated by Event Code 907:ipmiThempP
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZIpmiRETempPTrap on page 101 (.
1.3.6.1.4.1.25053.2.11.1.270)
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZProcessorId (.1.3.6.1.4.1.25053.2.11.2.121.0)
ruckusSZIpmiFanTrap
TABLE 111 ruckusSZIpmiFanTrap
Object Name ruckusSZIpmiFanTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.258
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZFanId
ruckusSZFanStatus
ruckusSZEventMacAddr
Description Triggered when the system fan fails. The event severity, event code, event type,
fan id, fan status and controller node MAC address are displayed.
Generated by Event Code 909:ipmiFan
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZIpmiFanTrap (.
1.3.6.1.4.1.25053.2.11.1.272)
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZFanId (.1.3.6.1.4.1.25053.2.11.2.122.0)
ruckusSZIpmiFanStatusTrap
TABLE 112 ruckusSZIpmiFanStatusTrap
Object Name ruckusSZIpmiFanStatusTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.261
Trap Severity Major
Bindings ruckusSZEventSeverity
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
100 Part Number: 800-71536-001 Rev A
TABLE 112 ruckusSZIpmiFanStatusTrap (continued)
Object Name ruckusSZIpmiFanStatusTrap
ruckusSZEventCode
ruckusSZEventType
ruckusSZFanId
ruckusSZFanStatus
ruckusSZEventMacAddr
Description Triggered by fan module event. The event severity, event code, event type, fan id,
fan status and controller node MAC address are displayed.
Generated by Event Code 912:ipmiFanStatus
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZIpmiREFanStatusTrap on page 102 (.
1.3.6.1.4.1.25053.2.11.1.275)
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZFanId (.1.3.6.1.4.1.25053.2.11.2.122.0)
ruckusSZIpmiRETempBBTrap
TABLE 113 ruckusSZIpmiRETempBBTrap
Object Name ruckusSZIpmiRETempBBTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.265
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZTemperatureStatus
ruckusSZEventMacAddr
Description Triggered by the event where the base board temperature status recovers to
normal condition. The event severity, event code, event type, temperature status
and controller node MAC address are displayed.
Generated by Event Code 927:ipmiREThempBB
ruckusSZIpmiRETempPTrap
TABLE 114 ruckusSZIpmiRETempPTrap
Object Name ruckusSZIpmiRETempPTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.270
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZProcessorId
ruckusSZTemperatureStatus
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 101
TABLE 114 ruckusSZIpmiRETempPTrap (continued)
Object Name ruckusSZIpmiRETempPTrap
ruckusSZEventMacAddr
Description Triggered by the event where the processor temperature status recovers to
normal condition. The event severity, event code, event type, processor ID,
temperature status and controller node MAC address are displayed.
Generated by Event Code 932:ipmiREThempP
ruckusSZIpmiREFanTrap
TABLE 115 ruckusSZIpmiREFanTrap
Object Name ruckusSZIpmiREFanTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.272
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZFanId
ruckusSZFanStatus
ruckusSZEventMacAddr
Description Triggered by the event where the system fan module status recovers to normal
condition. The event severity, event code, event type, fan ID, fan temperature
status and controller node MAC address are displayed.
Generated by Event Code 934:ipmiREFan
ruckusSZIpmiREFanStatusTrap
TABLE 116 ruckusSZIpmiREFanStatusTrap
Object Name ruckusSZIpmiREFanStatusTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.275
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZFanId
ruckusSZFanStatus
ruckusSZEventMacAddr
Description Triggered by the event where fan module status recovers to normal condition. The
event severity, event code, event type, fan ID, fan temperature status and
controller node MAC address are displayed.
Generated by Event Code 937:ipmiREFanStatus
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
102 Part Number: 800-71536-001 Rev A
ruckusSZFtpTransferErrorTrap
TABLE 117 ruckusSZFtpTransferErrorTrap
Object Name ruckusSZFtpTransferErrorTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.280
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZFtpIp
ruckusSZFtpPort
ruckusSZFileName
ruckusSZEventMacAddr
Description Triggered by FTP transfer error event. The event severity, event code, event type,
FTP server IP address, FTP server port, file name and node MAC address are
displayed.
Generated by Event Code 971:ftpTransferError
ruckusSZSystemLBSConnectSuccessTrap
TABLE 118 ruckusSZSystemLBSConnectSuccessTrap
Object Name ruckusSZSystemLBSConnectSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.290
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
ruckusSZLBSURL
ruckusSZLBSPort
Description Triggered by the event when the controller successfully connects to the LS. The
event severity, event code, event type, controller MAC address, controller node
MAC address, LBS (Location Based Service) server URL and LBS port are
displayed.
Generated by Event Code 723:scgLBSConnectSuccess
ruckusSZSystemLBSNoResponseTrap
TABLE 119 ruckusSZSystemLBSNoResponseTrap
Object Name ruckusSZSystemLBSNoResponseTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.291
Trap Severity Major
Bindings ruckusSZEventSeverity
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 103
TABLE 119 ruckusSZSystemLBSNoResponseTrap (continued)
Object Name ruckusSZSystemLBSNoResponseTrap
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
ruckusSZLBSURL
ruckusSZLBSPort
Description Triggered by the controller failure response event when connecting to the LS. The
event severity, event code, event type, controller MAC address, controller node
MAC address, LBS server URL and LBS port are displayed.
Generated by Event Code 721:scgLBSNoResponse
ruckusSZSystemLBSAuthFailedTrap
TABLE 120 ruckusSZSystemLBSAuthFailedTrap
Object Name ruckusSZSystemLBSAuthFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.292
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
ruckusSZLBSURL
ruckusSZLBSPort
Description Triggered by the controller authentication failure event when connecting to the LS.
The event severity, event code, event type, controller MAC address, controller
node MAC address, LBS server URL and LBS port are displayed.
Generated by Event Code 722:scgLBSAuthFailed
ruckusSZSystemLBSConnectFailedTrap
TABLE 121 ruckusSZSystemLBSConnectFailedTrap
Object Name ruckusSZSystemLBSConnectFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.293
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
104 Part Number: 800-71536-001 Rev A
TABLE 121 ruckusSZSystemLBSConnectFailedTrap (continued)
Object Name ruckusSZSystemLBSConnectFailedTrap
ruckusSZLBSURL
ruckusSZLBSPort
Description Triggered by the controller failed to connect to LS event. The event severity, event
code, event type, node MAC address, management IP address, LBS server URL
and LBS port are displayed.
Generated by Event Code 724:scgLBSConnectFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZSystemLBSConnectSuccessTrap on page
103 (.1.3.6.1.4.1.25053.2.11.1.290)
Cleared by Matching ruckusSZEventMacAddr (.1.3.6.1.4.1.25053.2.11.2.20.0)
ruckusSZProcessRestartTrap
TABLE 122 ruckusSZProcessRestartTrap
Object Name ruckusSZProcessRestartTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.300
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZProcessName
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by process restart event. The event severity, event code, event type,
process name, node MAC address and management IP address are displayed.
Generated by Event Code 1001:processRestart
ruckusSZServiceUnavailableTrap
TABLE 123 ruckusSZServiceUnavailableTrap
Object Name ruckusSZServiceUnavailableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.301
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZProcessName
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by service unavailable event. The event severity, event code, event type,
process name, node MAC address and management IP address are displayed.
Generated by Event Code 1002:serviceUnavailable
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 105
ruckusSZKeepAliveFailureTrap
TABLE 124 ruckusSZKeepAliveFailureTrap
Object Name ruckusSZKeepAliveFailureTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.302
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZSrcProcess
ruckusSZProcessName
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by service keep alive failure event. The event severity, event code, event
type, source process name, process name, node MAC address and management
IP address are displayed.
Generated by Event Code 1003:keepAliveFailure
ruckusSZResourceUnavailableTrap
TABLE 125 ruckusSZResourceUnavailableTrap
Object Name ruckusSZResourceUnavailableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.304
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZSrcProcess
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
ruckusSZEventReason
Description Triggered by resource unavailable event. The event severity, event code, event
type, source process name, node MAC address, management IP address and
reason are displayed.
Generated by Event Code 1006:resourceUnavailable
ruckusSZSmfRegFailedTrap
TABLE 126 ruckusSZSmfRegFailedTrap
Object Name ruckusSZSmfRegFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.305
Trap Severity Critical
Bindings ruckusSZEventSeverity
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
106 Part Number: 800-71536-001 Rev A
TABLE 126 ruckusSZSmfRegFailedTrap (continued)
Object Name ruckusSZSmfRegFailedTrap
ruckusSZEventCode
ruckusSZEventType
ruckusSZSrcProcess
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by SMF (System Management Framework) registration failed event. The
event severity, event code, event type, source process name, node MAC address
and management IP address are displayed.
Generated by Event Code 1010:smfRegFailed
ruckusSZHipFailoverTrap
NOTE
This trap is not applicable for vSZ-E.
TABLE 127 ruckusSZHipFailoverTrap
Object Name ruckusSZHipFailoverTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.306
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZSrcProcess
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by a HIP failover event. The event severity, event code, event type,
source process name, event MAC address, node management IP address are
displayed.
Generated by Event Code 1016:hipFailover
ruckusSZConfUpdFailedTrap
TABLE 128 ruckusSZConfUpdFailedTrap
Object Name ruckusSZConfUpdFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.307
Trap Severity Debug
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZProcessName
ruckusSZEventMacAddr
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 107
TABLE 128 ruckusSZConfUpdFailedTrap (continued)
Object Name ruckusSZConfUpdFailedTrap
ruckusSZEventNodeMgmtIp
ruckusSZEventReason
Description Triggered by configuration update failed event. The event severity, event code,
event type, process name, node MAC address, management IP address and
failure reason are displayed.
Generated by Event Code 1008:cfgUpdFailed
ruckusSZConfRcvFailedTrap
TABLE 129 ruckusSZConfRcvFailedTrap
Object Name ruckusSZConfRcvFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.308
Trap Severity Debug
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
ruckusSZEventReason
Description Triggered when the SmartZone receives a message from the AP that it has failed
to update it's configuration. The event severity, event code, event type, node
MAC address, management IP address and failure reason are displayed.
Generated by Event Code 1009:cfgRcvFailed
ruckusSZLostCnxnToDbladeTrap
TABLE 130 ruckusSZLostCnxnToDbladeTrap
Object Name ruckusSZLostCnxnToDbladeTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.309
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventCtrlIP
ruckusSZDPIp
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by lost connection to data plane. The event severity, event code, event
type, SZ control IP address, DP IP address, node MAC address and
management IP address are displayed.
Generated by Event Code 1202:lostCnxnToDblade
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
108 Part Number: 800-71536-001 Rev A
TABLE 130 ruckusSZLostCnxnToDbladeTrap (continued)
Object Name ruckusSZLostCnxnToDbladeTrap
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZConnectedToDbladeTrap on page 111 (.
1.3.6.1.4.1.25053.2.11.1.350)
Cleared by Matching :ruckusSZEventCtrlIP (.1.3.6.1.4.1.25053.2.11.2.12.0)
ruckusSZDPIP (.1.3.6.1.4.1.25053.2.11.2.82.0)
ruckusSZAuthSrvrNotReachableTrap
TABLE 131 ruckusSZAuthSrvrNotReachableTrap
Object Name ruckusSZAuthSrvrNotReachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.314
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZAuthSrvrIp
ruckusSZRadProxyIp
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by authentication server not reachable event. The event severity, event
code, event type, authentication server IP address, radius proxy IP address, node
MAC address and management IP address are displayed.
Generated by Event Code 1601:authSrvrNotReachable
ruckusSZAccSrvrNotReachableTrap
TABLE 132 ruckusSZAccSrvrNotReachableTrap
Object Name ruckusSZAccSrvrNotReachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.315
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZAccSrvrIp
ruckusSZRadProxyIp
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by accounting server not reachable event. The event severity, event
code, event type, accounting server IP address, radius proxy IP address, node
MAC address and management IP address are displayed.
Generated by Event Code 1602:accSrvrNotReachable
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 109
ruckusSZAuthFailedNonPermanentIDTrap
TABLE 133 ruckusSZAuthFailedNonPermanentIDTrap
Object Name ruckusSZAuthFailedNonPermanentIDTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.317
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZUEImsi
ruckusSZUEMsisdn
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
ruckusSZEventReason
Description Triggered by non-permanent ID authentication failed event. The event severity,
event code, event type, UE imsi, UE msisdn, node MAC address, management IP
address and failure reason are displayed.
Generated by Event Code 1617:non-permanentIDauthenticationfailed
ruckusSZAPAcctRespWhileInvalidConfigTrap
TABLE 134 ruckusSZAPAcctRespWhileInvalidConfigTrap
Object Name ruckusSZAPAcctRespWhileInvalidConfigTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.347
Trap Severity Debug
Bindings ruckusSCGEventSeverity
ruckusSCGEventType
ruckusSCGSrcProcess
ruckusSCGUserName
ruckusSCGEventMacAddr
ruckusSCGEventNodeMgmtIp
ruckusSCGEventCode
Description Triggered by the event where the controller sends a response to AP accounting
message but the configuration is incorrect in the controller for forwarding received
message or for generating CDRs.
The event severity, event type, source process name, user name, controller node
MAC IP address, management IP address and event are displayed.
Generated by Event Code 1909:apAcctRespWhileInvalidConfig
ruckusSZAPAcctMsgDropNoAcctStartMsgTrap
TABLE 135 ruckusSZAPAcctMsgDropNoAcctStartMsgTrap
Object Name ruckusSZAPAcctMsgDropNoAcctStartMsgTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.348
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
110 Part Number: 800-71536-001 Rev A
TABLE 135 ruckusSZAPAcctMsgDropNoAcctStartMsgTrap (continued)
Object Name ruckusSZAPAcctMsgDropNoAcctStartMsgTrap
Trap Severity Critical
Bindings ruckusSCGEventSeverity
ruckusSCGEventType
ruckusSCGSrcProcess
ruckusSCGUserName
ruckusSCGEventMacAddr
ruckusSCGEventNodeMgmtIp
ruckusSCGEventCode
Description Triggered by the event where the accounting message from AP is dropped from
the Acct Interim/Stop message since the account start is not received from the
AP.
The event severity, event type, source process name, user name, controller node
MAC IP address, management IP address and event are displayed.
Generated by Event Code 1910:apAcctMsgDropNoAcctStartMsg
ruckusSZUnauthorizedCoaDmMessageDroppedTrap
TABLE 136 ruckusSZUnauthorizedCoaDmMessageDroppedTrap
Object Name ruckusSZUnauthorizedCoaDmMessageDroppedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.349
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZSrcProcess
ruckusSZRadSrvrIp
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by the event where the controller receives COA/DM from an
unauthorized AAA server. The event severity, event code, event type, source
process name, AAA server IP address, node MAC address and management IP
address are displayed.
Generated by Event Code 1911:unauthorizedCoaDmMessageDropped
ruckusSZConnectedToDbladeTrap
TABLE 137 ruckusSZConnectedToDbladeTrap
Object Name ruckusSZConnectedToDbladeTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.350
Trap Severity Informational
Bindings ruckusSZEventSeverity
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 111
TABLE 137 ruckusSZConnectedToDbladeTrap (continued)
Object Name ruckusSZConnectedToDbladeTrap
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventCtrlIP
ruckusSZDPIP
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by successful connection to data plane event. The event severity, event
code, event type, control plane IP address, data plane IP address, node MAC
address, and management IP address are displayed.
Generated by Event Code 1201:connectedToDblade
ruckusSZSessUpdatedAtDbladeTrap
NOTE
This trap is not applicable for vSZ-E.
TABLE 138 ruckusSZSessUpdatedAtDbladeTrap
Object Name ruckusSZSessUpdatedAtDbladeTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.354
Trap Severity Debug
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventCtrlIP
ruckusSZDPIP
ruckusSZUEImsi
ruckusSZUEMsisdn
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by successful update of session request (C-D-SESS-UPD-REQ) event.
The event severity, event code, event type, control IP address, data plane IP
address, IMSI code, MSIDN code and management IP address are displayed.
Generated by Event Code 1205:sessUpdatedAtDblade
ruckusSZSessUpdateErrAtDbladeTrap
TABLE 139 ruckusSZSessUpdateErrAtDbladeTrap
Object Name ruckusSZSessUpdateErrAtDbladeTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.355
Trap Severity Debug
Bindings ruckusSZEventSeverity
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
112 Part Number: 800-71536-001 Rev A
TABLE 139 ruckusSZSessUpdateErrAtDbladeTrap (continued)
Object Name ruckusSZSessUpdateErrAtDbladeTrap
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventCtrlIP
ruckusSZDPIP
ruckusSZUEImsi
ruckusSZUEMsisdn
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by failed deletion of session request (C-D-SESS-DEL-REQ) event. The
event severity, event code, event type, control IP address, data plane IP address,
IMSI code, MSIDN code and management IP address are displayed.
Generated by Event Code 1206:sessUpdateErrAtDblade
ruckusSZSessDeletedAtDbladeTrap
TABLE 140 ruckusSZSessDeletedAtDbladeTrap
Object Name ruckusSZSessDeletedAtDbladeTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.356
Trap Severity Debug
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventCtrlIP
ruckusSZDPIP
ruckusSZUEImsi
ruckusSZUEMsisdn
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by successful deletion of session request (C-D-SESS-DEL-REQ) event.
The event severity, event code, event type, control IP address, data plane IP
address, IMSI code, MSIDN code and management IP address are displayed.
Generated by Event Code 1207:sessDeletedAtDblade
ruckusSZSessDeleteErrAtDbladeTrap
TABLE 141 ruckusSZSessDeleteErrAtDbladeTrap
Object Name ruckusSZSessDeleteErrAtDbladeTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.357
Trap Severity Debug
Bindings ruckusSZEventSeverity
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 113
TABLE 141 ruckusSZSessDeleteErrAtDbladeTrap (continued)
Object Name ruckusSZSessDeleteErrAtDbladeTrap
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventCtrlIP
ruckusSZDPIP
ruckusSZUEImsi
ruckusSZUEMsisdn
ruckusSZEventMacAddr
ruckusSZEventNodeMgmtIp
Description Triggered by deletion of session request (C-D-SESS-DEL-REQ) failed event. The
event severity, event code, event type, control IP address, data plane IP address,
IMSI code, MSIDN code and management IP address are displayed.
Generated by Event Code 1208:sessDeleteErrAtDblade
ruckusSZLicenseSyncSuccessTrap
TABLE 142 ruckusSZLicenseSyncSuccessTrap
Object Name ruckusSZLicenseSyncSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.358
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZLicenseServerName
Description Triggered by successful synchronization of license data with the license server
event. The event severity, event code, event type, node name and license server
name are displayed.
Generated by Event Code 1250:licenseSyncSuccess
ruckusSZLicenseSyncFailedTrap
TABLE 143 ruckusSZLicenseSyncFailedTrap
Object Name ruckusSZLicenseSyncFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.359
Trap Severity Warning
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
ruckusSZLicenseServerName
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
114 Part Number: 800-71536-001 Rev A
TABLE 143 ruckusSZLicenseSyncFailedTrap (continued)
Object Name ruckusSZLicenseSyncFailedTrap
Description Triggered by synchronization of license data with the license server failed event.
The event severity, event code, event type, node name and license server name
are displayed.
Generated by Event Code 1251:licenseSyncFail
ruckusSZLicenseImportSuccessTrap
TABLE 144 ruckusSZLicenseImportSuccessTrap
Object Name ruckusSZLicenseImportSuccessTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.360
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
Description Triggered by successful import of license data event. The event severity, event
code, event type and node name are displayed.
Generated by Event Code 1252:licenseImportSuccess
ruckusSZLicenseImportFailedTrap
TABLE 145 ruckusSZLicenseImportFailedTrap
Object Name ruckusSZLicenseImportFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.361
Trap Severity Warning
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventNodeName
Description Triggered by import of license data failed event. The event severity, event code,
event type and node name are displayed.
Generated by Event Code 1253:licenseImportFail
ruckusSZSyslogServerReachableTrap
TABLE 146 ruckusSZSyslogServerReachableTrap
Object Name ruckusSZSyslogServerReachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.370
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 115
TABLE 146 ruckusSZSyslogServerReachableTrap (continued)
Object Name ruckusSZSyslogServerReachableTrap
ruckusSZEventType
ruckusSZSyslogServerAddress
ruckusSZEventMacAddr
Description Triggered by the event when the syslog server is reachable. The event severity,
event code, event type, syslog server address and event MAC address are
displayed.
Generated by Event Code 750:syslogServerReachable
ruckusSZSyslogServerUnreachableTrap
TABLE 147 ruckusSZSyslogServerUnreachableTrap
Object Name ruckusSZSyslogServerUnreachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.371
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZSyslogServerAddress
ruckusSZEventMacAddr
Description Triggered by the event when the syslog server is unreachable. The event severity,
event code, event type, syslog server address and event MAC address are
displayed.
Generated by Event Code 751:syslogServerUnreachable
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZSyslogServerReachableTrap on page 115
(.1.3.6.1.4.1.25053.2.11.1.370)
Cleared by Matching ruckusSZSyslogServerAddress (.1.3.6.1.4.1.25053.2.11.2.154.0)
ruckusSZSyslogServerSwitchedTrap
TABLE 148 ruckusSZSyslogServerSwitchedTrap
Object Name ruckusSZSyslogServerSwitchedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.372
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZSrcSyslogServerAddress
ruckusSZDestSyslogServerAddress
ruckusSZEventMacAddr
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
116 Part Number: 800-71536-001 Rev A
TABLE 148 ruckusSZSyslogServerSwitchedTrap (continued)
Object Name ruckusSZSyslogServerSwitchedTrap
Description Triggered by the event when the syslog server is switched. The event severity,
event code, event type, syslog server source and destination address and event
MAC address are displayed.
Generated by Event Code 752:syslogServerSwitched
ruckusSZAPRadiusServerReachableTrap
TABLE 149 ruckusSZAPRadiusServerReachableTrap
Object Name ruckusSZAPRadiusServerReachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.400
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZRadSrvrIp
ruckusSZEventAPIPv6
Description Triggered by the event when AP is able to reach the radius server successfully.
The event severity, event code, event type, AP name, AP MAC address, AP IP
address, AP location, AP description, AP GPS coordinates, zone name, server IP
address and AP IPv6 address are displayed.
Generated by Event Code 2101:radiusServerReachable
ruckusSZAPRadiusServerUnreachableTrap
TABLE 150 ruckusSZAPRadiusServerUnreachableTrap
Object Name ruckusSZAPRadiusServerUnreachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.401
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 117
TABLE 150 ruckusSZAPRadiusServerUnreachableTrap (continued)
Object Name ruckusSZAPRadiusServerUnreachableTrap
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZRadSrvrIp
ruckusSZEventAPIPv6
Description Triggered by the event when AP fails to reach the radius server. The event
severity, event code, event type, AP name, AP MAC address, AP IP address, AP
location, AP description, AP GPS coordinates, server IP address and AP IPv6
address are displayed
Generated by Event Code 2102:radiusServerUnreachable
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPRadiusServerReachableTrap on page
117 (.1.3.6.1.4.1.25053.2.11.1.400)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZRadSrvrIp (.1.3.6.1.4.1.25053.2.11.2.312.0)
ruckusSZAPLDAPServerReachableTrap
TABLE 151 ruckusSZAPLDAPServerReachableTrap
Object Name ruckusSZAPLDAPServerReachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.402
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZLDAPSrvrIp
ruckusSZEventAPIPv6
Description Triggered by the event when AP is able to reach the lightweight directory access
protocol (LDAP) server successfully. The event severity, event code, event type,
AP name, AP MAC address, AP IP address, AP location, AP description, AP GPS
coordinates, server IP address and AP IPv6 address are displayed
Generated by Event Code 2121:ldapServerReachable
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
118 Part Number: 800-71536-001 Rev A
ruckusSZAPLDAPServerUnreachableTrap
TABLE 152 ruckusSZAPLDAPServerUnreachableTrap
Object Name ruckusSZAPLDAPServerUnreachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.403
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZLDAPSrvrIp
ruckusSZEventAPIPv6
Description Triggered by the event when AP fails to reach the lightweight directory access
protocol (LDAP) server. The event severity, event code, event type, AP name, AP
MAC address, AP IP address, AP location, AP description, AP GPS coordinates,
server IP address and AP IPv6 address are display.
Generated by Event Code 2122:ldapServerUnreachable
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPLDAPServerReachableTrap on page
118 (.1.3.6.1.4.1.25053.2.11.1.402)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZLDAPSrvrIp (.1.3.6.1.4.1.25053.2.11.2.327.0)
ruckusSZAPADServerReachableTrap
TABLE 153 ruckusSZAPADServerReachableTrap
Object Name ruckusSZAPADServerReachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.404
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 119
TABLE 153 ruckusSZAPADServerReachableTrap (continued)
Object Name ruckusSZAPADServerReachableTrap
ruckusSZADSrvrIp
ruckusSZEventAPIPv6
Description Triggered by the event when AP is able to reach the active directory successfully.
The event severity, event code, event type, AP name, AP MAC address, AP IP
address, AP location, AP description, AP GPS coordinates, server IP address and
AP IPv6 address are displayed.
Generated by Event Code 2141:adServerReachable
ruckusSZAPADServerUnreachableTrap
TABLE 154 ruckusSZAPADServerUnreachableTrap
Object Name ruckusSCGAPADServerUnreachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.405
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZADSrvrIp
ruckusSZEventAPIPv6
Description Triggered by the event when AP fails to reach AD server. The event severity, event
code, event type, AP name, AP MAC address, AP IP address, AP location, AP
description, AP GPS coordinates, AD server IP address and AP IPv6 address are
displayed.
Generated by Event Code 2142:adServerUnreachable
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZAPADServerReachableTrap on page 119 (.
1.3.6.1.4.1.25053.2.11.1.404)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZADSrvrIp (.1.3.6.1.4.1.25053.2.11.2.328.0)
ruckusSZAPUsbSoftwarePackageDownloadedTrap
TABLE 155 ruckusSZAPUsbSoftwarePackageDownloadedTrap
Object Name ruckusSZAPUsbSoftwarePackageDownloadedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.406
Trap Severity Informational
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
120 Part Number: 800-71536-001 Rev A
TABLE 155 ruckusSZAPUsbSoftwarePackageDownloadedTrap (continued)
Object Name ruckusSZAPUsbSoftwarePackageDownloadedTrap
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZSoftwareName
ruckusSZEventAPIPv6
Description Triggered by the event when AP successfully downloads its USB (Universal Serial
Bus) software. The event severity, event code, event type, AP name, AP MAC
address, AP IP address, AP location, AP description, AP GPS coordinates,
software name and AP IPv6 address are displayed.
Generated by Event Code 370:apUsbSoftwarePackageDownloaded
ruckusSZAPUsbSoftwarePackageDownloadFailedTrap
TABLE 156 ruckusSZAPUsbSoftwarePackageDownloadFailedTrap
Object Name ruckusSZAPUsbSoftwarePackageDownloadFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.407
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZSoftwareName
ruckusSZEventAPIPv6
Description Triggered by the event when AP fails to downloads its USB (Universal Serial Bus)
software. The event severity, event code, event type, AP name, AP MAC address,
AP IP address, AP location, AP description, AP GPS coordinates, software name
and AP IPv6 address are displayed.
Generated by Event Code 371:apUsbSoftwarePackageDownloadFailed
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 121
ruckusSZEspAuthServerReachableTrap
TABLE 157 ruckusSZEspAuthServerReachableTrap
Object Name ruckusSZEspAuthServerReachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.408
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZAuthSrvrIp
ruckusSZEventAPIPv6
Description Triggered by the event when AP successfully reaches WeChat ESP authentication
server. The event severity, event code, event type, AP name, AP MAC address,
AP IP address, AP location, AP description, AP GPS coordinates, authentication
server IP address and AP IPv6 address are displayed.
Generated by Event Code 2151:espAuthServerReachable
ruckusSZEspAuthServerUnreachableTrap
TABLE 158 ruckusSZEspAuthServerUnreachableTrap
Object Name ruckusSZEspAuthServerUnreachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.409
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZAuthSrvrIp
ruckusSZEventAPIPv6
Description Triggered by the event when AP fails to reach WeChat ESP authentication server.
The event severity, event code, event type, AP name, AP MAC address, AP IP
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
122 Part Number: 800-71536-001 Rev A
TABLE 158 ruckusSZEspAuthServerUnreachableTrap (continued)
Object Name ruckusSZEspAuthServerUnreachableTrap
address, AP location, AP description, AP GPS coordinates, authentication server
IP address and AP IPv6 address are displayed.
Generated by Event Code 2152:espAuthServerUnreachable
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZEspAuthServerReachableTrap on page
122 (.1.3.6.1.4.1.25053.2.11.1.408)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZEspAuthServerResolvableTrap
TABLE 159 ruckusSZEspAuthServerResolvableTrap
Object Name ruckusSZEspAuthServerResolvableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.410
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZDomainName
ruckusSZEventAPIPv6
Description Triggered by the event when AP successfully resolves WeChat ESP authentication
server domain name. The event severity, event code, event type, AP name, AP
MAC address, AP IP address, AP location, AP description, AP GPS coordinates,
domain name and AP IPv6 address are displayed.
Generated by Event Code 2153:espAuthServerResolvable
ruckusSZEspAuthServerUnResolvableTrap
TABLE 160 ruckusSZEspAuthServerUnResolvableTrap
Object Name ruckusSZEspAuthServerUnResolvableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.411
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 123
TABLE 160 ruckusSZEspAuthServerUnResolvableTrap (continued)
Object Name ruckusSZEspAuthServerUnResolvableTrap
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZDomainName
ruckusSZEventAPIPv6
Description Triggered by the event when AP fails to resolve WeChat ESP authentication server
domain name. The event severity, event code, event type, AP name, AP MAC
address, AP IP address, AP location, AP description, AP GPS coordinates,
domain name and AP IPv6 address are displayed.
Generated by Event Code 2154:espAuthServerUnResolvable
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZEspAuthServerResolvableTrap on page
123 (.1.3.6.1.4.1.25053.2.11.1.410)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZEspDNATServerReachableTrap
TABLE 161 ruckusSZEspDNATServerReachableTrap
Object Name ruckusSZEspDNATServerReachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.412
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZDNATIp
ruckusSZEventAPIPv6
Description Triggered by the event when AP successfully reaches WeChat ESP DNAT server.
The event severity, event code, event type, AP name, AP MAC address, AP IP
address, AP location, AP description, AP GPS coordinates, DNAT server IP
address and AP IPv6 address are displayed.
Generated by Event Code 2161:espDNATServerReachable
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
124 Part Number: 800-71536-001 Rev A
ruckusSZEspDNATServerUnreachableTrap
TABLE 162 ruckusSZEspDNATServerUnreachableTrap
Object Name ruckusSZEspDNATServerUnreachableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.413
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZDNATIp
ruckusSZEventAPIPv6
Description Triggered by the event when AP fails to reach WeChat ESP DNAT server. The
event severity, event code, event type, AP name, AP MAC address, AP IP
address, AP location, AP description, AP GPS coordinates, DNAT server IP
address and AP IPv6 address are displayed.
Generated by Event Code 2162:espDNATServerUnreachable
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZEspDNATServerReachableTrap on page
124 (.1.3.6.1.4.1.25053.2.11.1.412)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusSZEspDNATServerResolvableTrap
TABLE 163 ruckusSZEspDNATServerResolvableTrap
Object Name ruckusSZEspDNATServerResolvableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.414
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZDomainName
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 125
TABLE 163 ruckusSZEspDNATServerResolvableTrap (continued)
Object Name ruckusSZEspDNATServerResolvableTrap
ruckusSZEventAPIPv6
Description Triggered by the event when AP successfully resolves WeChat ESP DNAT server
domain name The event severity, event code, event type, AP name, AP MAC
address, AP IP address, AP location, AP description, AP GPS coordinates,
domain name and AP IPv6 address are displayed.
Generated by Event Code 2163:espDNATServerResolvable
ruckusSZEspDNATServerUnresolvableTrap
TABLE 164 ruckusSZEspDNATServerUnresolvableTrap
Object Name ruckusSZEspDNATServerUnresolvableTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.415
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZDomainName
ruckusSZEventAPIPv6
Description Triggered by the event AP fails to resolve WeChat ESP DNAT server domain
name. The event severity, event code, event type, AP name, AP MAC address,
AP IP address, AP location, AP description, AP GPS coordinates, domain name
and AP IPv6 address are displayed.
Generated by Event Code 2164:espDNATServerUnresolvable
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZEspDNATServerResolvableTrap on page
125 (.1.3.6.1.4.1.25053.2.11.1.414)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
ruckusRateLimitTORSurpassedTrap
TABLE 165 ruckusRateLimitTORSurpassedTrap
Object Name ruckusRateLimitTORSurpassedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.500
Trap Severity Critical
Bindings ruckusSZEventSeverity
ruckusSZEventCode
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
126 Part Number: 800-71536-001 Rev A
TABLE 165 ruckusRateLimitTORSurpassedTrap (continued)
Object Name ruckusRateLimitTORSurpassedTrap
ruckusSZEventType
ruckusSZRadSrvrIp
Description Triggered by the event where the SmartZone receives the rate limit for Total
Outstanding Requests (TOR) is surpassed. The event severity, event code, event
type and AAA server IP address are displayed.
Generated by Event Code 1302:rateLimitTORSurpassed
ruckusSZIPSecTunnelAssociatedTrap
TABLE 166 ruckusSZIPSecTunnelAssociatedTrap
Object Name ruckusSZIPSecTunnelAssociatedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.600
Trap Severity Informational
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZIPSecGWAddress
ruckusSZEventAPIPv6
Description Triggered by the event where the AP is able to reach the secure gateway
successfully. The event severity, event code, event type, AP name, MAC address,
IP address, location, description, GPS coordinates, IPsec gateway address and
IPv6 version are displayed.
Generated by Event Code 660:ipsecTunnelAssociated
ruckusSZIPSecTunnelDisassociatedTrap
TABLE 167 ruckusSZIPSecTunnelDisassociatedTrap
Object Name ruckusSZIPSecTunnelDisassociatedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.601
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 127
TABLE 167 ruckusSZIPSecTunnelDisassociatedTrap (continued)
Object Name ruckusSZIPSecTunnelDisassociatedTrap
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZIPSecGWAddress
ruckusSZEventAPIPv6
Description Triggered by the event where the AP is disconnected from the secure gateway.
The event severity, event code, event type, AP name, MAC address, IP address,
location, description, GPS coordinates, IPsec gateway address and IPv6 version
are displayed.
Generated by Event Code 661:ipsecTunnelDisassociated
ruckusSZIPSecTunnelAssociateFailedTrap
TABLE 168 ruckusSZIPSecTunnelAssociateFailedTrap
Object Name ruckusSZIPSecTunnelAssociateFailedTrap
Object Identifier .1.3.6.1.4.1.25053.2.11.1.602
Trap Severity Major
Bindings ruckusSZEventSeverity
ruckusSZEventCode
ruckusSZEventType
ruckusSZEventAPName
ruckusSZEventAPMacAddr
ruckusSZEventAPIP
ruckusSZEventAPLocation
ruckusSZEventAPDescription
ruckusSZEventAPGPSCoordinates
ruckusSZIPSecGWAddress
ruckusSZEventAPIPv6
Description Triggered by the event where the AP is unable to reach the secure gateway. The
event severity, event type, AP name, MAC address, IP address, location,
description, GPS coordinates, IPsec gateway address, and IPv6 version are
displayed.
Generated by Event Code 662:ipsecTunnelAssociateFailed
Cleared by SNMP Trap This SNMP trap is cleared by ruckusSZIPSecTunnelAssociatedTrap on page 127
(.1.3.6.1.4.1.25053.2.11.1.600)
Cleared by Matching ruckusSZEventAPMacAddr (.1.3.6.1.4.1.25053.2.11.2.23.0)
Ruckus Event MIB
Ruckus Event Trap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
128 Part Number: 800-71536-001 Rev A
Ruckus Event Object
The objects contained in the RUCKUS-SZ-EVENT-Object group define the events for sending tap event notifications by the controller. All
traps are triggered by events. The following are the trap object definitions.
Event Object Object Identifier
ruckusSZEventDescription on page 130 .1.3.6.1.4.1.25053.2.11.2.1
ruckusSZClusterName on page 130 .1.3.6.1.4.1.25053.2.11.2.2
ruckusSZEventCode on page 131 .1.3.6.1.4.1.25053.2.11.2.10
ruckusSZProcessName on page 131 .1.3.6.1.4.1.25053.2.11.2.11
ruckusSZEventCtrlIP on page 131 .1.3.6.1.4.1.25053.2.11.2.12
ruckusSZEventSeverity on page 131 .1.3.6.1.4.1.25053.2.11.2.13
ruckusSZEventType on page 131 .1.3.6.1.4.1.25053.2.11.2.14
ruckusSZEventNodeMgmtIp on page 132 .1.3.6.1.4.1.25053.2.11.2.15
ruckusSZEventNodeName on page 132 .1.3.6.1.4.1.25053.2.11.2.16
ruckusSZCPUPerc on page 132 .1.3.6.1.4.1.25053.2.11.2.17
ruckusSZMemoryPerc on page 132 .1.3.6.1.4.1.25053.2.11.2.18
ruckusSZDiskPerc on page 132 .1.3.6.1.4.1.25053.2.11.2.19
ruckusSZEventMacAddr on page 132 .1.3.6.1.4.1.25053.2.11.2.20
ruckusSZEventFirmwareVersion on page 133 .1.3.6.1.4.1.25053.2.11.2.21
ruckusSZEventUpgradedFirmwareVersion on page 133 .1.3.6.1.4.1.25053.2.11.2.22
ruckusSZEventAPMacAddr on page 133 .1.3.6.1.4.1.25053.2.11.2.23
ruckusSZEventReason on page 133 .1.3.6.1.4.1.25053.2.11.2.24
ruckusSZEventAPName on page 133 .1.3.6.1.4.1.25053.2.11.2.25
ruckusSZEventAPIP on page 133 .1.3.6.1.4.1.25053.2.11.2.26
ruckusSZEventAPLocation on page 134 .1.3.6.1.4.1.25053.2.11.2.27
ruckusSZEventAPGPSCoordinates on page 134 .1.3.6.1.4.1.25053.2.11.2.28
ruckusSZEventAPDescription on page 134 .1.3.6.1.4.1.25053.2.11.2.29
ruckusSZAPModel on page 134 .1.3.6.1.4.1.25053.2.11.2.31
ruckusSZConfigAPModel on page 134 .1.3.6.1.4.1.25053.2.11.2.32
ruckusSZAPConfigID on page 134 .1.3.6.1.4.1.25053.2.11.2.33
ruckusSZEventAPIPv6 on page 135 .1.3.6.1.4.1.25053.2.11.2.35
ruckusSZLBSURL on page 135 .1.3.6.1.4.1.25053.2.11.2.38
ruckusSZLBSPort on page 135 .1.3.6.1.4.1.25053.2.11.2.39
ruckusSZEventSSID on page 135 .1.3.6.1.4.1.25053.2.11.2.40
ruckusSZEventRogueMac on page 135 .1.3.6.1.4.1.25053.2.11.2.45
ruckusPrimaryGRE on page 135 .1.3.6.1.4.1.25053.2.11.2.46
ruckusSecondaryGRE on page 136 .1.3.6.1.4.1.25053.2.11.2.47
ruckusSoftGREGatewayList on page 136 .1.3.6.1.4.1.25053.2.11.2.48
ruckusSZSoftGREGWAddress on page 136 .1.3.6.1.4.1.25053.2.11.2.49
ruckusSZEventClientMacAddr on page 136 .1.3.6.1.4.1.25053.2.11.2.50
ruckusSZDPKey on page 136 .1.3.6.1.4.1.25053.2.11.2.80
ruckusSZDPConfigID on page 136 .1.3.6.1.4.1.25053.2.11.2.81
ruckusSZDPIP on page 137 .1.3.6.1.4.1.25053.2.11.2.82
Ruckus Event MIB
Ruckus Event Object
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 129
Event Object Object Identifier
ruckusSZNetworkPortID on page 137 .1.3.6.1.4.1.25053.2.11.2.100
ruckusSZNetworkInterface on page 137 .1.3.6.1.4.1.25053.2.11.2.101
ruckusSZSwitchStatus on page 137 .1.3.6.1.4.1.25053.2.11.2.102
ruckusSZTemperatureStatus on page 137 .1.3.6.1.4.1.25053.2.11.2.120
ruckusSZProcessorId on page 137 .1.3.6.1.4.1.25053.2.11.2.121
ruckusSZFanid on page 138 .1.3.6.1.4.1.25053.2.11.2.122
ruckusSZFanStatus on page 138 .1.3.6.1.4.1.25053.2.11.2.123
ruckusSZLicenseType on page 138 .1.3.6.1.4.1.25053.2.11.2.150
ruckusSZLicenseUsagePerc on page 138 .1.3.6.1.4.1.25053.2.11.2.151
ruckusSZLicenseServerName on page 138 .1.3.6.1.4.1.25053.2.11.2.152
ruckusSZIPSecGWAddress on page 138 .1.3.6.1.4.1.25053.2.11.2.153
ruckusSZSyslogServerAddress on page 139 .1.3.6.1.4.1.25053.2.11.2.154
ruckusSZSrcSyslogServerAddress on page 139 .1.3.6.1.4.1.25053.2.11.2.155
ruckusSZDestSyslogServerAddress on page 139 .1.3.6.1.4.1.25053.2.11.2.156
ruckusSZFtpIp on page 139 .1.3.6.1.4.1.25053.2.11.2.200
ruckusSZFtpPort on page 139 .1.3.6.1.4.1.25053.2.11.2.201
ruckusSZUEImsi on page 139 .1.3.6.1.4.1.25053.2.11.2.305
ruckusSZUEMsisdn on page 140 .1.3.6.1.4.1.25053.2.11.2.306
ruckusSZAuthSrvrIp on page 140 .1.3.6.1.4.1.25053.2.11.2.307
ruckusSZRadProxyIp on page 140 .1.3.6.1.4.1.25053.2.11.2.308
ruckusSZAccSrvrIp on page 140 .1.3.6.1.4.1.25053.2.11.2.309
ruckusSZRadSrvrIp on page 140 .1.3.6.1.4.1.25053.2.11.2.312
ruckusSZUserName on page 140 .1.3.6.1.4.1.25053.2.11.2.324
ruckusSZFileName on page 141 .1.3.6.1.4.1.25053.2.11.2.326
ruckusSZLDAPSrvrIp on page 141 .1.3.6.1.4.1.25053.2.11.2.327
ruckusSZADSrvrIp on page 141 .1.3.6.1.4.1.25053.2.11.2.328
ruckusSZSoftwareName on page 141 .1.3.6.1.4.1.25053.2.11.2.329
ruckusSZDomainName on page 141 .1.3.6.1.4.1.25053.2.11.2.330
rruckusSZDNATIp on page 141 .1.3.6.1.4.1.25053.2.11.2.331
ruckusSZEventDescription
TABLE 169 ruckusSZEventDescription
Object Name ruckusSZEventDescription
Object Identifier .1.3.6.1.4.1.25053.2.11.2.1
Description Event description.
ruckusSZClusterName
TABLE 170 ruckusSZClusterName
Object Name ruckusSZClusterName
Object Identifier .1.3.6.1.4.1.25053.2.11.2.2
Ruckus Event MIB
Ruckus Event Object
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
130 Part Number: 800-71536-001 Rev A
TABLE 170 ruckusSZClusterName (continued)
Object Name ruckusSZClusterName
Description The SmartZone cluster name
ruckusSZEventCode
TABLE 171 ruckusSZEventCode
Object Name ruckusSZEventCode
Object Identifier .1.3.6.1.4.1.25053.2.11.2.10
Description The event code
ruckusSZProcessName
TABLE 172 ruckusSZProcessName
Object Name ruckusSZProcessName
Object Identifier .1.3.6.1.4.1.25053.2.11.2.11
Description The process name.
ruckusSZEventCtrlIP
TABLE 173 ruckusSZEventCtrlIP
Object Name ruckusSZEventCtrlIP
Object Identifier .1.3.6.1.4.1.25053.2.11.2.12
Description The SmartZone node control IP address.
ruckusSZEventSeverity
TABLE 174 ruckusSZEventSeverity
Object Name ruckusSZEventSeverity
Object Identifier .1.3.6.1.4.1.25053.2.11.2.13
Description The event severity.
ruckusSZEventType
TABLE 175 ruckusSZEventType
Object Name ruckusSZEventType
Object Identifier .1.3.6.1.4.1.25053.2.11.2.14
Description The event type.
Ruckus Event MIB
Ruckus Event Object
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 131
ruckusSZEventNodeMgmtIp
TABLE 176 ruckusSZEventNodeMgmtIp
Object Name ruckusSZEventNodeMgmtIp
Object Identifier .1.3.6.1.4.1.25053.2.11.2.15
Description The SmartZone management IP address.
ruckusSZEventNodeName
TABLE 177 ruckusSZEventNodeName
Object Name ruckusSZEventNodeName
Object Identifier .1.3.6.1.4.1.25053.2.11.2.16
Description The SmartZone node name.
ruckusSZCPUPerc
TABLE 178 ruckusSZCPUPerc
Object Name ruckusSZCPUPerc
Object Identifier .1.3.6.1.4.1.25053.2.11.2.17
Description The SmartZone CPU usage in percentage.
ruckusSZMemoryPerc
TABLE 179 ruckusSZMemoryPerc
Object Name ruckusSZMemoryPerc
Object Identifier .1.3.6.1.4.1.25053.2.11.2.18
Description The SmartZone memory usage in percentage.
ruckusSZDiskPerc
TABLE 180 ruckusSZDiskPerc
Object Name ruckusSZDiskPerc
Object Identifier .1.3.6.1.4.1.25053.2.10.2.19
Description The SmartZone disk usage in percentage.
ruckusSZEventMacAddr
TABLE 181 ruckusSZEventMacAddr
Object Name ruckusSZEventMacAddr
Object Identifier .1.3.6.1.4.1.25053.2.10.2.20
Description The SmartZone MAC address
Ruckus Event MIB
Ruckus Event Object
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
132 Part Number: 800-71536-001 Rev A
ruckusSZEventFirmwareVersion
TABLE 182 ruckusSZEventFirmwareVersion
Object Name ruckusSZEventFirmwareVersion
Object Identifier .1.3.6.1.4.1.25053.2.11.2.21
Description The SmartZone firmware version.
ruckusSZEventUpgradedFirmwareVersion
TABLE 183 ruckusSZEventUpgradedFirmwareVersion
Object Name ruckusSZEventUpgradedFirmwareVersion
Object Identifier .1.3.6.1.4.1.25053.2.11.2.22
Description Controller upgrade firmware version.
ruckusSZEventAPMacAddr
TABLE 184 ruckusSZEventAPMacAddr
Object Name ruckusSZEventAPMacAddr
Object Identifier .1.3.6.1.4.1.25053.2.11.2.23
Description The AP MAC address
ruckusSZEventReason
TABLE 185 ruckusSZEventReason
Object Name ruckusSZEventReason
Object Identifier .1.3.6.1.4.1.25053.2.11.2.24
Description The event reason.
ruckusSZEventAPName
TABLE 186 ruckusSZEventAPName
Object Name ruckusSZEventAPName
Object Identifier .1.3.6.1.4.1.25053.2.11.2.25
Description The AP name.
ruckusSZEventAPIP
TABLE 187 ruckusSZEventAPIP
Object Name ruckusSZEventAPIP
Object Identifier .1.3.6.1.4.1.25053.2.11.2.26
Description The AP IP address.
Ruckus Event MIB
Ruckus Event Object
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 133
ruckusSZEventAPLocation
TABLE 188 ruckusSZEventAPLocation
Object Name ruckusSZEventAPLocation
Object Identifier .1.3.6.1.4.1.25053.2.11.2.27
Description The AP location.
ruckusSZEventAPGPSCoordinates
TABLE 189 ruckusSZEventAPGPSCoordinates
Object Name ruckusSZEventAPGPSCoordinates
Object Identifier .1.3.6.1.4.1.25053.2.11.2.28
Description The AP GPS coordinates.
ruckusSZEventAPDescription
TABLE 190 ruckusSZEventAPDescription
Object Name ruckusSZEventAPDescription
Object Identifier .1.3.6.1.4.1.25053.2.11.2.29
Description The AP description
ruckusSZAPModel
TABLE 191 ruckusSZAPModel
Object Name ruckusSZAPModel
Object Identifier .1.3.6.1.4.1.25053.2.11.2.31
Description The AP model.
ruckusSZConfigAPModel
TABLE 192 ruckusSZConfigAPModel
Object Name ruckusSZConfigAPModel
Object Identifier .1.3.6.1.4.1.25053.2.11.2.32
Description The configured AP model.
ruckusSZAPConfigID
TABLE 193 ruckusSZAPConfigID
Object Name ruckusSZAPConfigID
Object Identifier .1.3.6.1.4.1.25053.2.11.2.33
Description The AP configuration UUID.
Ruckus Event MIB
Ruckus Event Object
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
134 Part Number: 800-71536-001 Rev A
ruckusSZEventAPIPv6
TABLE 194 ruckusSZEventAPIPv6
Object Name ruckusSZEventAPIPv6
Object Identifier .1.3.6.1.4.1.25053.2.11.2.35
Description The AP IPv6 address.
ruckusSZLBSURL
TABLE 195 ruckusSZLBSURL
Object Name ruckusSZLBSURL
Object Identifier .1.3.6.1.4.1.25053.2.11.2.38
Description URL of the LBS server.
ruckusSZLBSPort
TABLE 196 ruckusSZLBSPort
Object Name ruckusSZLBSPort
Object Identifier .1.3.6.1.4.1.25053.2.11.2.39
Description Port of the LBS server.
ruckusSZEventSSID
TABLE 197 ruckusSZEventSSID
Object Name ruckusSZEventSSID
Object Identifier .1.3.6.1.4.1.25053.2.11.2.40
Description The WLAN SSID.
ruckusSZEventRogueMac
TABLE 198 ruckusSZEventRogueMac
Object Name ruckusSZEventRogueMac
Object Identifier .1.3.6.1.4.1.25053.2.11.2.45
Description The rouge MAC address.
ruckusPrimaryGRE
TABLE 199 ruckusPrimaryGRE
Object Name ruckusPrimaryGRE
Object Identifier .1.3.6.1.4.1.25053.2.11.2.46
Description The primary GRE gateway.
Ruckus Event MIB
Ruckus Event Object
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 135
ruckusSecondaryGRE
TABLE 200 ruckusSecondaryGRE
Object Name ruckusSecondaryGRE
Object Identifier .1.3.6.1.4.1.25053.2.11.2.47
Description The secondary GRE gateway.
ruckusSoftGREGatewayList
TABLE 201 ruckusSoftGREGatewayList
Object Name ruckusSoftGREGatewayList
Object Identifier .1.3.6.1.4.1.25053.2.11.2.48
Description The SoftGRE gateway list. It could either be the IP address or FQDN and must
have only two IPs or DN, which is separated by a semicolon (;)
ruckusSZSoftGREGWAddress
TABLE 202 ruckusSZSoftGREGWAddress
Object Name ruckusSZSoftGREGWAddress
Object Identifier .1.3.6.1.4.1.25053.2.10.2.49
Description The SoftGRE gateway IP address.
ruckusSZEventClientMacAddr
TABLE 203 ruckusSZEventClientMacAddr
Object Name ruckusSZEventClientMacAddr
Object Identifier .1.3.6.1.4.1.25053.2.11.2.50
Description The client MAC address.
ruckusSZDPKey
TABLE 204 ruckusSZDPKey
Object Name ruckusSZDPKey
Object Identifier .1.3.6.1.4.1.25053.2.11.2.80
Description The data plane identifier.
ruckusSZDPConfigID
TABLE 205 ruckusSZDPConfigID
Object Name ruckusSZDPConfigID
Object Identifier .1.3.6.1.4.1.25053.2.11.2.81
Description The data plane configuration ID.
Ruckus Event MIB
Ruckus Event Object
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
136 Part Number: 800-71536-001 Rev A
ruckusSZDPIP
TABLE 206 ruckusSZDPIP
Object Name ruckusSZDPIP
Object Identifier .1.3.6.1.4.1.25053.2.11.2.82
Description The data plane IP address.
ruckusSZNetworkPortID
TABLE 207 ruckusSZNetworkPortID
Object Name ruckusSZNetworkPortID
Object Identifier .1.3.6.1.4.1.25053.2.11.2.100
Description The network port ID.
ruckusSZNetworkInterface
TABLE 208 ruckusSZNetworkInterface
Object Name ruckusSZNetworkInterface
Object Identifier .1.3.6.1.4.1.25053.2.11.2.101
Description The network interface.
ruckusSZSwitchStatus
TABLE 209 ruckusSZSwitchStatus
Object Name ruckusSZSwitchStatus
Object Identifier .1.3.6.1.4.1.25053.2.11.2.102
Description The switch status.
ruckusSZTemperatureStatus
TABLE 210 ruckusSZTemperatureStatus
Object Name ruckusSZTemperatureStatus
Object Identifier .1.3.6.1.4.1.25053.2.11.2.120
Description The temperature status.
ruckusSZProcessorId
TABLE 211 ruckusSZProcessorId
Object Name ruckusSZProcessorId
Object Identifier .1.3.6.1.4.1.25053.2.11.2.121
Description The processor ID.
Ruckus Event MIB
Ruckus Event Object
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 137
ruckusSZFanid
TABLE 212 ruckusSZFanid
Object Name ruckusSZFanid
Object Identifier .1.3.6.1.4.1.25053.2.11.2.122
Description The fan module ID.
ruckusSZFanStatus
TABLE 213 ruckusSZFanStatus
Object Name ruckusSZFanStatus
Object Identifier .1.3.6.1.4.1.25053.2.11.2.123
Description The fan module status.
ruckusSZLicenseType
TABLE 214 ruckusSZLicenseType
Object Name ruckusSZLicenseType
Object Identifier .1.3.6.1.4.1.25053.2.11.2.150
Description The license type
ruckusSZLicenseUsagePerc
TABLE 215 ruckusSZLicenseUsagePerc
Object Name ruckusSZLicenseUsagePerc
Object Identifier .1.3.6.1.4.1.25053.2.11.2.151
Description The license usage in percentage.
ruckusSZLicenseServerName
TABLE 216 ruckusSZLicenseServerName
Object Name ruckusSZLicenseServerName
Object Identifier .1.3.6.1.4.1.25053.2.11.2.152
Description The license server name.
ruckusSZIPSecGWAddress
TABLE 217 ruckusSZIPSecGWAddress
Object Name ruckusSZIPSecGWAddress
Object Identifier .1.3.6.1.4.1.25053.2.11.2.153
Description The secure gateway address.
Ruckus Event MIB
Ruckus Event Object
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
138 Part Number: 800-71536-001 Rev A
ruckusSZSyslogServerAddress
TABLE 218 ruckusSZSyslogServerAddress
Object Name ruckusSZSyslogServerAddress
Object Identifier .1.3.6.1.4.1.25053.2.11.2.154
Description The syslog server address.
ruckusSZSrcSyslogServerAddress
TABLE 219 ruckusSZSrcSyslogServerAddress
Object Name ruckusSZSrcSyslogServerAddress
Object Identifier .1.3.6.1.4.1.25053.2.11.2.155
Description The source address of the syslog server.
ruckusSZDestSyslogServerAddress
TABLE 220 ruckusSZDestSyslogServerAddress
Object Name ruckusSZDestSyslogServerAddress
Object Identifier .1.3.6.1.4.1.25053.2.11.2.156
Description The destination address of the syslog server.
ruckusSZFtpIp
TABLE 221 ruckusSZFtpIp
Object Name ruckusSZFtpIp
Object Identifier .1.3.6.1.4.1.25053.2.10.2.200
Description The FTP server IP address.
ruckusSZFtpPort
TABLE 222 ruckusSZFtpPort
Object Name ruckusSZFtpPort
Object Identifier .1.3.6.1.4.1.25053.2.11.2.201
Description The FTP server port.
ruckusSZUEImsi
TABLE 223 ruckusSZUEImsi
Object Name ruckusSZUEImsi
Object Identifier .1.3.6.1.4.1.25053.2.11.2.305
Description The UE IMSI.
Ruckus Event MIB
Ruckus Event Object
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 139
ruckusSZUEMsisdn
TABLE 224 ruckusSZUEMsisdn
Object Name ruckusSZUEMsisdn
Object Identifier .1.3.6.1.4.1.25053.2.11.2.306
Description The UE MSISDN.
ruckusSZAuthSrvrIp
TABLE 225 ruckusSZAuthSrvrIp
Object Name ruckusSZAuthSrvrIp
Object Identifier .1.3.6.1.4.1.25053.2.11.2.307
Description The authentication server IP address.
ruckusSZRadProxyIp
TABLE 226 ruckusSZRadProxyIp
Object Name ruckusSZRadProxyIp
Object Identifier .1.3.6.1.4.1.25053.2.11.2.308
Description The RADIUS proxy IP address.
ruckusSZAccSrvrIp
TABLE 227 ruckusSZAccSrvrIp
Object Name ruckusSZAccSrvrIp
Object Identifier .1.3.6.1.4.1.25053.2.11.2.309
Description The accounting server IP address.
ruckusSZRadSrvrIp
TABLE 228 ruckusSZRadSrvrIp
Object Name ruckusSZRadSrvrIp
Object Identifier .1.3.6.1.4.1.25053.2.11.2.312
Description The RADIUS server IP address.
ruckusSZUserName
TABLE 229 ruckusSZUserName
Object Name ruckusSZUserName
Object Identifier .1.3.6.1.4.1.25053.2.11.2.324
Description The user name.
Ruckus Event MIB
Ruckus Event Object
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
140 Part Number: 800-71536-001 Rev A
ruckusSZFileName
TABLE 230 ruckusSZFileName
Object Name ruckusSZFileName
Object Identifier .1.3.6.1.4.1.25053.2.11.2.326
Description The file name.
ruckusSZLDAPSrvrIp
TABLE 231 ruckusSZLDAPSrvrIp
Object Name ruckusSZLDAPSrvrIp
Object Identifier .1.3.6.1.4.1.25053.2.11.2.327
Description IP address of LDAP server.
ruckusSZADSrvrIp
TABLE 232 ruckusSZADSrvrIp
Object Name ruckusSZADSrvrIp
Object Identifier .1.3.6.1.4.1.25053.2.11.2.328
Description IP address of AD server.
ruckusSZSoftwareName
TABLE 233 ruckusSZSoftwareName
Object Name ruckusSZSoftwareName
Object Identifier .1.3.6.1.4.1.25053.2.11.2.329
Description Name of the software.
ruckusSZDomainName
TABLE 234 ruckusSZDomainName
Object Name ruckusSZDomainName
Object Identifier .1.3.6.1.4.1.25053.2.11.2.330
Description Name of the domain.
ruckusSZDNATIp
TABLE 235 ruckusSZDNATIp
Object Name ruckusSZDNATIp
Object Identifier .1.3.6.1.4.1.25053.2.11.2.331
Description IP address of DNAT server.
Ruckus Event MIB
Ruckus Event Object
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 141
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
142 Part Number: 800-71536-001 Rev A
Ruckus System MIB
• Introduction........................................................................................................................................................... 143
• Ruckus System Command (SysCommands)......................................................................................................... 145
• Ruckus Controller System Node Table...................................................................................................................146
• Ruckus Controller Zone Table................................................................................................................................ 150
Introduction
The objects contained in the RUCKUS-SZ-SYSTEM-MIB provide information about the controller system, including its WLAN traffic,
managed APs, wireless clients associated with the managed APs, and CPU and memory utilization. The following are the MIB definition
system level statistics nodes for RUCKUS-SZ-SYSTEM-MIB.
NOTE
For details on alarms and events refer to
SmartZone 100 Alarms and Events Guide
.
•ruckusSZSystemStatsNumAP on page 143
•ruckusSZSystemStatsNumSta on page 143
•ruckusSZSystemStatsWLANTotalRxPkts on page 144
•ruckusSZSystemStatsWLANTotalRxBytes on page 144
•ruckusSZSystemStatsWLANTotalRxMulticast on page 144
•ruckusSZSystemStatsWLANTotalTxPkts on page 144
•ruckusSZSystemStatsWLANTotalTxBytes on page 144
•ruckusSZSystemStatsWLANTotalTxMulticast on page 145
•ruckusSZSystemStatsWLANTotalTxFail on page 145
•ruckusSZSystemStatsWLANTotalTxRetry on page 145
•ruckusSZSystemStatsSerialNumber on page 145
ruckusSZSystemStatsNumAP
TABLE 236 ruckusSZSystemStatsNumAP
Object Name ruckusSZSystemStatsNumAP
Parent Node ruckusSZSystemStats
Object Identifier .1.3.6.1.4.1.25053.1.4.1.1.1.15.1
Description The number of APs.
ruckusSZSystemStatsNumSta
TABLE 237 ruckusSZSystemStatsNumSta
Object Name ruckusSZSystemStatsNumSta
Parent Node ruckusSZSystemStats
Object Identifier .1.3.6.1.4.1.25053.1.4.1.1.1.15.2
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 143
TABLE 237 ruckusSZSystemStatsNumSta (continued)
Object Name ruckusSZSystemStatsNumSta
Description The number of associated clients.
ruckusSZSystemStatsWLANTotalRxPkts
TABLE 238 ruckusSZSystemStatsWLANTotalRxPkts
Object Name ruckusSZSystemStatsWLANTotalRxPkts
Parent Node ruckusSZSystemStats
Object Identifier .1.3.6.1.4.1.25053.1.4.1.1.1.15.5
Description The total number of received packets in WLAN.
ruckusSZSystemStatsWLANTotalRxBytes
TABLE 239 ruckusSZSystemStatsWLANTotalRxBytes
Object Name ruckusSZSystemStatsWLANTotalRxBytes
Parent Node ruckusSZSystemStats
Object Identifier .1.3.6.1.4.1.25053.1.4.1.1.1.15.6
Description The total number of received bytes in WLAN.
ruckusSZSystemStatsWLANTotalRxMulticast
TABLE 240 ruckusSZSystemStatsWLANTotalRxMulticast
Object Name ruckusSZSystemStatsWLANTotalRxMulticast
Parent Node ruckusSZSystemStats
Object Identifier .1.3.6.1.4.1.25053.1.4.1.1.1.15.7
Description The total number of received multicast packets in WLAN.
ruckusSZSystemStatsWLANTotalTxPkts
TABLE 241 ruckusSZSystemStatsWLANTotalTxPkts
Object Name ruckusSZSystemStatsWLANTotalTxPkts
Parent Node ruckusSZSystemStats
Object Identifier .1.3.6.1.4.1.25053.1.3.1.1.1.15.8
Description The total number of transmitted packets in WLAN.
ruckusSZSystemStatsWLANTotalTxBytes
TABLE 242 ruckusSZSystemStatsWLANTotalTxBytes
Object Name ruckusSZSystemStatsWLANTotalTxBytes
Parent Node ruckusSZSystemStats
Object Identifier .1.3.6.1.4.1.25053.1.4.1.1.1.15.9
Ruckus System MIB
Introduction
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
144 Part Number: 800-71536-001 Rev A
TABLE 242 ruckusSZSystemStatsWLANTotalTxBytes (continued)
Object Name ruckusSZSystemStatsWLANTotalTxBytes
Description The total number of transmitted bytes in WLAN.
ruckusSZSystemStatsWLANTotalTxMulticast
TABLE 243 ruckusSZSystemStatsWLANTotalTxMulticast
Object Name ruckusSZSystemStatsWLANTotalTxMulticast
Parent Node ruckusSZSystemStats
Object Identifier .1.3.6.1.4.1.25053.1.4.1.1.1.15.10
Description The total number of transmitted multicast packets in WLAN.
ruckusSZSystemStatsWLANTotalTxFail
TABLE 244 ruckusSZSystemStatsWLANTotalTxFail
Object Name ruckusSZSystemStatsWLANTotalTxFail
Parent Node ruckusSZSystemStats
Object Identifier .1.3.6.1.4.1.25053.1.4.1.1.1.15.11
Description The total number of failed transmitted packets in WLAN
ruckusSZSystemStatsWLANTotalTxRetry
TABLE 245 ruckusSZSystemStatsWLANTotalTxRetry
Object Name ruckusSZSystemStatsWLANTotalTxRetry
Parent Node ruckusSZSystemStats
Object Identifier .1.3.6.1.4.1.25053.1.4.1.1.1.15.12
Description The total number of retry transmitted packets in WLAN
ruckusSZSystemStatsSerialNumber
TABLE 246 ruckusSZSystemStatsSerialNumber
Object Name ruckusSZSystemStatsSerialNumber
Parent Node ruckusSZSystemStats
Object Identifier .1.3.6.1.4.1.25053.1.4.1.1.1.15.13
Description The SmartZone serial number.
Ruckus System Command (SysCommands)
System command (SysCommands) MIBs define the performing system commands for SZ node. Users can use the snmpset OID.0
<value type> <value> to perform system commands. For example,
snmpset -v2c -c private -mall 172.17.50.100 RUCKUS-CTRL- MIB::ruckusCTRLSysCmdReboot.0 i run-reboot
Ruckus System MIB
Ruckus System Command (SysCommands)
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 145
NOTE
.0 is appended after the OID.
ruckusCTRLSysCmdReboot
TABLE 247 ruckusCTRLSysCmdReboot
Object Name ruckusCTRLSysCmdReboot
Parent Node ruckusSZSystemStats
Object Identifier .1.3.6.1.4.1.25053.1.4.1.1.1.15.13
Description This object defines the system command for SZ node. Command to reboot SZ is:
• 0:normal (default value), means that the system has completed the reboot command or the system has
been rebooted.
• 1:run-reboot - once the value is set as run-reboot, the user cannot stop it until the system is setup
again. Users can only set OID as this value.
NOTE
This command may fail to reboot the system due to the cluster operation.
If it set as reboot successfully, SNMP daemon will be stopped immediately. Therefore, it should wait until the system
is up again.
For example: snmpset -v2c -c private -mall 172.17.50.100 RUCKUS-CTRL-
MIB::ruckusCTRLSysCmdReboot.0 i run-reboot
Ruckus Controller System Node Table
The Following MIBs contained in the controller System Node table (ruckusCtrlSystemNodeTable) define the system information of each
node in a cluster.
The index of the table is ruckusCtrlSystemNodeSerialNumber.
•ruckusCtrlSystemNodeEntry on page 147
•ruckusCtrlSystemNodeName on page 147
•ruckusCtrlSystemNodeMgmtIp on page 147
•ruckusCtrlSystemNodeMgmtIpv6 on page 147
•ruckusCtrlSystemNodeMgmtMac on page 147
•ruckusCtrlSystemNodeModel on page 148
•ruckusCtrlSystemNodeVersion on page 148
•ruckusCtrlSystemNodeSerialNumber on page 148
•ruckusCtrlSystemNodeUptime on page 148
•ruckusCtrlSystemNodeNumApLicense on page 148
•ruckusCtrlSystemNodeNumApConnected on page 149
•ruckusCtrlSystemNodeStatus on page 149
•ruckusCtrlSystemClusterStatus on page 149
•ruckusCtrlSystemNodeClusterHAState on page 149
•ruckusCtrlSystemNodeClusterHARoles on page 150
Ruckus System MIB
Ruckus Controller System Node Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
146 Part Number: 800-71536-001 Rev A
ruckusCtrlSystemNodeEntry
TABLE 248 ruckusCtrlSystemNodeEntry
Object Name ruckusCtrlSystemNodeEntry
Parent Node ruckusCtrlSystemNodeEntry
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1
Description The index to this table is ruckusCtrlSystemNodeSerialNumber.
ruckusCtrlSystemNodeName
TABLE 249 ruckusCtrlSystemNodeName
Object Name ruckusCtrlSystemNodeName
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.2
Description Displays the node name.
ruckusCtrlSystemNodeMgmtIp
TABLE 250 ruckusCtrlSystemNodeMgmtIp
Object Name ruckusCtrlSystemNodeMgmtIp
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.11
Description The node Management IP address.
ruckusCtrlSystemNodeMgmtIpv6
TABLE 251 ruckusCtrlSystemNodeMgmtIpv6
Object Name ruckusCtrlSystemNodeMgmtIpv6
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.12
Description The node Management IP v6 address.
ruckusCtrlSystemNodeMgmtMac
TABLE 252 ruckusCtrlSystemNodeMgmtMac
Object Name ruckusCtrlSystemNodeMgmtMac
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.13
Description The node Management MAC address.
Ruckus System MIB
Ruckus Controller System Node Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 147
ruckusCtrlSystemNodeModel
TABLE 253 ruckusCtrlSystemNodeModel
Object Name ruckusCtrlSystemNodeModel
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.3
Description Displays the node model.
ruckusCtrlSystemNodeVersion
TABLE 254 ruckusCtrlSystemNodeVersion
Object Name ruckusCtrlSystemNodeVersion
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.9
Description Displays the controller software version.
ruckusCtrlSystemNodeSerialNumber
TABLE 255 ruckusCtrlSystemNodeSerialNumber
Object Name ruckusCtrlSystemNodeSerialNumber
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.1
Description Displays the serial number of the node
ruckusCtrlSystemNodeUptime
TABLE 256 ruckusCtrlSystemNodeUptime
Object Name ruckusCtrlSystemNodeUptime
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.16
Description UP time of the node.
ruckusCtrlSystemNodeNumApLicense
TABLE 257 ruckusCtrlSystemNodeNumApLicense
Object Name ruckusCtrlSystemNodeNumApLicense
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.10
Description Number of AP licenses for this node.
Ruckus System MIB
Ruckus Controller System Node Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
148 Part Number: 800-71536-001 Rev A
ruckusCtrlSystemNodeNumApConnected
TABLE 258 ruckusCtrlSystemNodeNumApConnected
Object Name ruckusCtrlSystemNodeNumApConnected
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.19
Description Number of APs currently connected to this node.
ruckusCtrlSystemNodeStatus
TABLE 259 ruckusCtrlSystemNodeStatus
Object Name ruckusCtrlSystemNodeStatus
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.17
Description System status of the node, where the status is:
• out-of-service(0)
• in-service(8)
ruckusCtrlSystemClusterStatus
TABLE 260 ruckusCtrlSystemClusterStatus
Object Name ruckusCtrlSystemClusterStatus
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.18
Description Displays the cluster status, where the status is:
• in-service(0)
• out-of-service(1)
• maintenance(2)
• network-partitio-suspected(4)
ruckusCtrlSystemNodeClusterHAState
TABLE 261 ruckusCtrlSystemNodeClusterHAState
Object Name ruckusCtrlSystemNodeClusterHAState
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.26
Description Displays the cluster HA status, where the status is:
• enable (1)
• disable (2)
Ruckus System MIB
Ruckus Controller System Node Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 149
ruckusCtrlSystemNodeClusterHARoles
TABLE 262 ruckusCtrlSystemNodeClusterHARoles
Object Name ruckusCtrlSystemNodeClusterHARoles
Parent Node ruckusCtrlSystemNodeTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.1.1.27
Description Displays the cluster HA role, where the status is:
• active (1)
• standby (2)
• none (3)
Ruckus Controller Zone Table
The following MIBs define the information for the controller Zone table (ruckusCtrlZoneTable) for users to easily retrieve the information for all
zones. The index of the table is the
DomainId
and
ZoneId
.
To query:
• all zones in domain1, use the below command:
snmpwalk RUCKUS-CTRL-MIB::ruckusCTRLZoneTable
•RuckusCtrlZoneEntry on page 150
•ruckusCtrlZoneId on page 150
•ruckusCtrlZoneName on page 151
•ruckusCtrlZoneCountryCode on page 151
•ruckusCtrlZoneNumApConnected on page 151
•ruckusCtrlZoneNumApDisconnected on page 151
RuckusCtrlZoneEntry
TABLE 263 RuckusCtrlZoneEntry
Object Name RuckusCtrlZoneEntry
Parent Node ruckusCtrlZoneTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.3.1
Description The index to this table is DomainId and ZoneId.
ruckusCtrlZoneId
TABLE 264 ruckusCtrlZoneId
Object Name ruckusCtrlZoneId
Parent Node ruckusCtrlZoneTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.3.1.2
Description The index is ZoneId.
Ruckus System MIB
Ruckus Controller Zone Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
150 Part Number: 800-71536-001 Rev A
ruckusCtrlZoneName
TABLE 265 ruckusCtrlZoneName
Object Name ruckusCtrlZoneName
Parent Node ruckusCtrlZoneTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.3.1.3
Description Displays the zone name.
ruckusCtrlZoneCountryCode
TABLE 266 ruckusCtrlZoneCountryCode
Object Name ruckusCtrlZoneCountryCode
Parent Node ruckusCtrlZoneTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.3.1.4
Description Displays the country code of the zone.
ruckusCtrlZoneNumApConnected
TABLE 267 ruckusCtrlZoneNumApConnected
Object Name ruckusCtrlZoneNumApConnected
Parent Node ruckusCtrlZoneTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.3.1.9
Description The number of APs in the zone that are currently connected to the controller.
ruckusCtrlZoneNumApDisconnected
TABLE 268 ruckusCtrlZoneNumApDisconnected
Object Name ruckusCtrlZoneNumApDisconnected
Parent Node ruckusCtrlZoneTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.3.1.10
Description Number of APs in the zone that are currently disconnected from the controller.
Ruckus System MIB
Ruckus Controller Zone Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 151
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
152 Part Number: 800-71536-001 Rev A
Ruckus WLAN MIB
• Introduction........................................................................................................................................................... 153
• Ruckus SZ WLAN................................................................................................................................................. 153
• Ruckus SZ AP.......................................................................................................................................................154
• Ruckus SZ Configuration WLAN Statistics.............................................................................................................161
• Ruckus SCG Client Information............................................................................................................................. 165
Introduction
The objects contained in the RUCKUS-SZ-WLAN-MIB provides information about WLANs and their statistics, including SSIDs, WLAN
traffic, client count and AP information.
Ruckus SZ WLAN
The following are the MIBs for RUCKUS-SZWLAN group.
•ruckusSZWLANIndex on page 153
•ruckusSZWLANSSID on page 153
•ruckusSZWLANNumSta on page 154
•ruckusSZWLANRxBytes on page 154
•ruckusSZWLANTxBytes on page 154
•ruckusSZWLANAuthType on page 154
ruckusSZWLANIndex
TABLE 269 ruckusSZWLANIndex
Object Name ruckusSZWLANIndex
Parent Node ruckusSZWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.1.2.1.99
Description Identifies the specific WLAN identifier in the controller system.
ruckusSZWLANSSID
TABLE 270 ruckusSZWLANSSID
Object Name ruckusSZWLANSSID
Parent Node ruckusSZWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.1.2.1.1
Description The SSID of WLAN.
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 153
ruckusSZWLANNumSta
TABLE 271 ruckusSZWLANNumSta
Object Name ruckusSZWLANNumSta
Parent Node ruckusSZWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.1.2.1.12
Description The number of client devices.
ruckusSZWLANRxBytes
TABLE 272 ruckusSZWLANRxBytes
Object Name ruckusSZWLANRxBytes
Parent Node ruckusSZWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.1.2.1.14
Description The number of received bytes.
ruckusSZWLANTxBytes
TABLE 273 ruckusSZWLANTxBytes
Object Name ruckusSZWLANTxBytes
Parent Node ruckusSZWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.1.2.1.16
Description The number of transmitted bytes.
ruckusSZWLANAuthType
TABLE 274 ruckusSZWLANAuthType
Object Name ruckusSZWLANAuthType
Parent Node ruckusSZWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.1.2.1.17
Description The authentication type.
Ruckus SZ AP
The following are the MIBs for RUCKUS-SZAP group.
MIB MIB
ruckusSZAPMac on page 155 ruckusSZAPGroup on page 155
ruckusSZAPUptime on page 155 ruckusSZAPFWversion on page 156
ruckusSZAPModel on page 156 ruckusSZAPSerial on page 156
ruckusSZAPIp on page 156 ruckusSZAPIPType on page 156
ruckusSZAPExtIp on page 157 ruckusSZAPExtPort on page 157
Ruckus WLAN MIB
Ruckus SZ AP
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
154 Part Number: 800-71536-001 Rev A
MIB MIB
ruckusSZAPNumSta on page 157 ruckusSZAPConnStatus on page 157
ruckusSZAPRegStatus on page 157 ruckusSZAPConfigStatus on page 158
ruckusSZAPLocation on page 158 ruckusSZAPGPSInfo on page 158
ruckusSZAPMeshRole on page 158 ruckusSZAPRXBytes on page 159
ruckusSZAPTXBytes on page 159 ruckusSZAPIpsecSessionTime on page 159
ruckusSZAPIpsecTXPkts on page 159 ruckusSZAPIpsecRXPkts on page 159
ruckusSZAPIpsecTXBytes on page 160 ruckusSZAPIpsecRXBytes on page 160
ruckusSZAPIpsecTXPktsDropped on page 160 ruckusSZAPIpsecRXPktsDropped on page 160
ruckusSZAPIpsecTXIdleTime on page 160 ruckusSZAPIpsecRXIdleTime on page 161
ruckusSZAPMac
TABLE 275 ruckusSZAPMac
Object Name ruckusSZAPMac
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.1
Description The MAC address of the AP.
ruckusSZAPGroup
TABLE 276 ruckusSZAPGroup
Object Name ruckusSZAPGroup
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.2
Description The AP group.
ruckusSZAPName
TABLE 277 ruckusSZAPName
Object Name ruckusSZAPName
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.5
Description The AP name.
ruckusSZAPUptime
TABLE 278 ruckusSZAPUptime
Object Name ruckusSZAPUptime
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.6
Description The AP uptime.
Ruckus WLAN MIB
Ruckus SZ AP
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 155
ruckusSZAPFWversion
TABLE 279 ruckusSZAPFWversion
Object Name ruckusSZAPFWversion
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.7
Description The software version.
ruckusSZAPModel
TABLE 280 ruckusSZAPModel
Object Name ruckusSZAPModel
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.8
Description The AP model.
ruckusSZAPSerial
TABLE 281 ruckusSZAPSerial
Object Name ruckusSZAPSerial
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.9
Description The AP serial number.
ruckusSZAPIp
TABLE 282 ruckusSZAPIp
Object Name ruckusSZAPIp
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.10
Description The AP IP address.
ruckusSZAPIPType
TABLE 283 ruckusSZAPIPType
Object Name ruckusSZAPIPType
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.11
Description The AP IP address type.
Ruckus WLAN MIB
Ruckus SZ AP
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
156 Part Number: 800-71536-001 Rev A
ruckusSZAPExtIp
TABLE 284 ruckusSZAPExtIp
Object Name ruckusSZAPExtIp
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.12
Description The external IP address.
ruckusSZAPExtPort
TABLE 285 ruckusSZAPExtPort
Object Name ruckusSZAPExtPort
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.13
Description The external port number.
ruckusSZAPNumSta
TABLE 286 ruckusSZAPNumSta
Object Name ruckusSZAPNumSta
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.15
Description The number of stations.
ruckusSZAPConnStatus
TABLE 287 ruckusSZAPConnStatus
Object Name ruckusSZAPConnStatus
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.16
Description The connection status.
ruckusSZAPRegStatus
TABLE 288 ruckusSZAPRegStatus
Object Name ruckusSZAPRegStatus
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.17
Description The registration status, which could either be pending, approved, rejected or
swapped.
Ruckus WLAN MIB
Ruckus SZ AP
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 157
ruckusSZAPConfigStatus
TABLE 289 ruckusSZAPConfigStatus
Object Name ruckusSZAPConfigStatus
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.18
Description The AP configuration status.
ruckusSZAPLocation
TABLE 290 ruckusSZAPLocation
Object Name ruckusSZAPLocation
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.19
Description The AP location.
ruckusSZAPGPSInfo
TABLE 291 ruckusSZAPGPSInfo
Object Name ruckusSZAPGPSInfo
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.20
Description The GPS information.
ruckusSZAPMeshRole
TABLE 292 ruckusSZAPMeshRole
Object Name ruckusSZAPMeshRole
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.21
Description The AP mesh role.
ruckusSZAPDescription
TABLE 293 ruckusSZAPDescription
Object Name ruckusSZAPDescription
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.22
Description The AP description.
Ruckus WLAN MIB
Ruckus SZ AP
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
158 Part Number: 800-71536-001 Rev A
ruckusSZAPRXBytes
TABLE 294 ruckusSZAPRXBytes
Object Name ruckusSZAPRXBytes
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.30
Description The number of received bytes.
ruckusSZAPTXBytes
TABLE 295 ruckusSZAPTXBytes
Object Name ruckusSZAPTXBytes
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.31
Description The number of transmitted bytes.
ruckusSZAPIpsecSessionTime
TABLE 296 ruckusSZAPIpsecSessionTime
Object Name ruckusSZAPIpsecSessionTime
Parent Node ruckusSZAPTable
Object Identifier 1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.50
Description The IPsec session time in seconds.
ruckusSZAPIpsecTXPkts
TABLE 297 ruckusSZAPIpsecTXPkts
Object Name ruckusSZAPIpsecTXPkts
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.55
Description The number of packets transmitted in IPsec session.
ruckusSZAPIpsecRXPkts
TABLE 298 ruckusSZAPIpsecRXPkts
Object Name ruckusSZAPIpsecRXPkts
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.56
Description The number of packets received in IPsec session.
Ruckus WLAN MIB
Ruckus SZ AP
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 159
ruckusSZAPIpsecTXBytes
TABLE 299 ruckusSZAPIpsecTXBytes
Object Name ruckusSZAPIpsecTXBytes
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.57
Description The number of bytes transmitted n IPsec session.
ruckusSZAPIpsecRXBytes
TABLE 300 ruckusSZAPIpsecRXBytes
Object Name ruckusSZAPIpsecRXBytes
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.58
Description The number of bytes received in IPsec session.
ruckusSZAPIpsecTXPktsDropped
TABLE 301 ruckusSZAPIpsecTXPktsDropped
Object Name ruckusSZAPIpsecTXPktsDropped
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.59
Description The number of transmitted packets that were dropped in IPsec session.
ruckusSZAPIpsecRXPktsDropped
TABLE 302 ruckusSZAPIpsecRXPktsDropped
Object Name ruckusSZAPTXBytes
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.60
Description The number of received packets that were dropped in IPsec session.
ruckusSZAPIpsecTXIdleTime
TABLE 303 ruckusSZAPIpsecTXIdleTime
Object Name ruckusSZAPIpsecTXIdleTime
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.65
Description The number of seconds since the last transmitted packet in IPsec session.
Ruckus WLAN MIB
Ruckus SZ AP
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
160 Part Number: 800-71536-001 Rev A
ruckusSZAPIpsecRXIdleTime
TABLE 304 ruckusSZAPIpsecRXIdleTime
Object Name ruckusSZAPIpsecRXIdleTime
Parent Node ruckusSZAPTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.1.1.2.2.1.66
Description The number of seconds since the last received packet in IPsec session.
Ruckus SZ Configuration WLAN Statistics
The following are the MIBs for WLAN configuration nodes.
NOTE
SNMP set for ruckusSZConfigWLANTable supports only a few OIDs. Read-only indicates that the particular SNMP set will not
be supported.
•ruckusSZConfigWLANID on page 161
•ruckusSZConfigWLANSSID on page 162
•ruckusSZConfigWLANDescription on page 162
•ruckusSZConfigWLANName on page 162
•ruckusSZConfigWLANWLANServiceType on page 162
•ruckusSZConfigWLANAuthentication on page 162
•ruckusSZConfigWLANEncryption on page 163
•ruckusSZConfigWLANWEPKeyIndex on page 163
•ruckusSZConfigWLANWEPKey on page 163
•ruckusSZConfigWLANWPACipherType on page 163
•ruckusSZConfigWLANWPAKey on page 163
•ruckusSZConfigWLANWirelessClientIsolation on page 164
•ruckusSZConfigWLANZeroITActivation on page 164
•ruckusSZConfigWLANServicePriority on page 164
•ruckusSZConfigWLANAccountingUpdateInterval on page 164
•ruckusSZConfigWLANVlanID on page 164
•ruckusSZConfigWLANHideSSID on page 165
•ruckusSZConfigWLANMaxClientsPerAP on page 165
ruckusSZConfigWLANID
TABLE 305 ruckusSZConfigWLANID
Object Name ruckusSZConfigWLANID (read-only)
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.1
Description The wireless LAN (WLAN) identifier.
Ruckus WLAN MIB
Ruckus SZ Configuration WLAN Statistics
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 161
ruckusSZConfigWLANSSID
TABLE 306 ruckusSZConfigWLANSSID
Object Name ruckusSZConfigWLANSSID (read-only)
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.2
Description SSID for the wireless LAN (WLAN).
ruckusSZConfigWLANDescription
TABLE 307 ruckusSZConfigWLANDescription
Object Name ruckusSZConfigWLANDescription
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.3
Description Description of the wireless LAN (WLAN).
ruckusSZConfigWLANName
TABLE 308 ruckusSZConfigWLANName
Object Name ruckusSZConfigWLANName (read-only)
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.4
Description Name of the wireless LAN (WLAN).
ruckusSZConfigWLANWLANServiceType
TABLE 309 ruckusSZConfigWLANWLANServiceType
Object Name ruckusSZConfigWLANWLANServiceType (read-only)
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.8
Description Type of service for the wireless LAN (WLAN).
ruckusSZConfigWLANAuthentication
TABLE 310 ruckusSZConfigWLANAuthentication
Object Name ruckusSZConfigWLANAuthentication (read-only)
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.10
Description Authentication method specified for the wireless LAN (WLAN).
Ruckus WLAN MIB
Ruckus SZ Configuration WLAN Statistics
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
162 Part Number: 800-71536-001 Rev A
ruckusSZConfigWLANEncryption
TABLE 311 ruckusSZConfigWLANEncryption
Object Name ruckusSZConfigWLANEncryption (read-only)
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.12
Description Encryption method specified for the wireless LAN (WLAN).
ruckusSZConfigWLANWEPKeyIndex
TABLE 312 ruckusSZConfigWLANWEPKeyIndex
Object Name ruckusSZConfigWLANWEPKeyIndex
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.15
Description Specify the WEP key index for WEP encryption.
ruckusSZConfigWLANWEPKey
TABLE 313 ruckusSZConfigWLANWEPKey
Object Name ruckusSZConfigWLANWEPKey
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.16
Description Specify the passphrase for WEP encryption method.
ruckusSZConfigWLANWPACipherType
TABLE 314 ruckusSZConfigWLANWPACipherType
Object Name ruckusSZConfigWLANWPACipherType
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.20
Description Specify the cipher method for WPA encryption.
ruckusSZConfigWLANWPAKey
TABLE 315 ruckusSZConfigWLANWPAKey
Object Name ruckusSZConfigWLANWPAKey
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.21
Description Specify the passphrase for WPA encryption.
Ruckus WLAN MIB
Ruckus SZ Configuration WLAN Statistics
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 163
ruckusSZConfigWLANWirelessClientIsolation
TABLE 316 ruckusSZConfigWLANWirelessClientIsolation
Object Name ruckusSZConfigWLANWirelessClientIsolation
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.28
Description Specify the wireless client Isolation, where clients will be unable to communicate
with each other or access any of the restricted subnet.
ruckusSZConfigWLANZeroITActivation
TABLE 317 ruckusSZConfigWLANZeroITActivation
Object Name ruckusSZConfigWLANZeroITActivation
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.30
Description Enable the Zero IT activation service for wireless LAN
ruckusSZConfigWLANServicePriority
TABLE 318 ruckusSZConfigWLANServicePriority
Object Name ruckusSZConfigWLANServicePriority
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.32
Description Specify the quality of service (QOS) priority for wireless LAN.
ruckusSZConfigWLANAccountingUpdateInterval
TABLE 319 ruckusSZConfigWLANAccountingUpdateInterval
Object Name ruckusSZConfigWLANAccountingUpdateInterval
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.36
Description Specify the interval in minutes for updating the accounting server.
ruckusSZConfigWLANVlanID
TABLE 320 ruckusSZConfigWLANVlanID
Object Name ruckusSZConfigWLANVlanID
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.45
Description Specify the VLAN identifier of WLAN. If the VLAN ID is 1packets from WLAN will
be untagged.
Ruckus WLAN MIB
Ruckus SZ Configuration WLAN Statistics
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
164 Part Number: 800-71536-001 Rev A
ruckusSZConfigWLANHideSSID
TABLE 321 ruckusSZConfigWLANHideSSID
Object Name ruckusSZConfigWLANHideSSID
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.50
Description SSID will not be broadcasted by activating the hide tag.
ruckusSZConfigWLANMaxClientsPerAP
TABLE 322 ruckusSZConfigWLANMaxClientsPerAP
Object Name ruckusSZConfigWLANMaxClientsPerAP
Parent Node ruckusSZConfigWLANTable
Object Identifier .1.3.6.1.4.1.25053.1.4.2.2.1.1.1.1.55
Description Specify the number of client devices that the AP can service for wireless LAN.
Ruckus SCG Client Information
The following are the MIBs for client information nodes (RUCKUS-CTRL-MIB). These MIBs indicate information on the user equipment’s
MAC address and status. Operators would need to append the user equipment’s MAC address to the string length of 6 (decimal format) as
index after each OID to get the required information.
For MAC address of C8:AA:7C:8E:67:C4, it must be translated to equivalent decimal value of 202.170.124.142.103.196 for the query.
For example, use the following command to get the status of the client (with MAC C8:AA:7C:8E:67:C4):
snmpget -v2c -c public <ip_addr> RUCKUS-CTRL-MIB::ruckusCtrlClientStatus.
6.202.170.124.142.103.196
NOTE
Length of the string index should always be 6. Read only indicates that the particular SNMP set will not be supported.
In the controller user interface using the Global SNMP configuration (Configuration > System > SNMP Agent) you can query client status
using RUCKUS-CTRL-MIB.
•ruckusCtrlClientMac on page 165
•ruckusCtrlClientStatus on page 166
ruckusCtrlClientMac
TABLE 323 ruckusCtrlClientMac
Object Name ruckusCtrlClientMac (read only)
Parent Node ruckusCtrlClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.1
Description MAC IP address of the user equipment
Ruckus WLAN MIB
Ruckus SCG Client Information
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 165
ruckusCtrlClientStatus
TABLE 324 ruckusCtrlClientStatus
Object Name ruckusCtrlClientStatus (read only)
Parent Node ruckusCtrlClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.20
Description The client status is either:
1 Unauthorized
2 Authorized
Ruckus WLAN MIB
Ruckus SCG Client Information
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
166 Part Number: 800-71536-001 Rev A
Ruckus AP MIB
• Ruckus Controller AP Group Table........................................................................................................................ 167
• Ruckus Controller Summary AP Table................................................................................................................... 169
• Ruckus Controller AP Client Table......................................................................................................................... 173
• Ruckus Controller AP Table................................................................................................................................... 174
• Ruckus Controller Radio Table...............................................................................................................................191
• Ruckus Controller AP WLAN Table........................................................................................................................ 204
• Ruckus Controller Client Table............................................................................................................................... 213
• AP Wired Client Table............................................................................................................................................ 220
• Ruckus Wired Client Table.....................................................................................................................................221
Ruckus Controller AP Group Table
The following MIBs define the information for the controller AP Group table (ruckusCtrlApGroupTable) for users to easily retrieve the
information for all AP groups. The index of the table is
ZoneId
and
ApGroupId
.
To query:
• all AP groups in zone1, use the command:
snmpwalk ruckusCtrlApGroupTable.zone1
• a specific apgroup1 in zone1, use the command:
snmpwalk ruckusCtrlApGroupTable.zone1.apgroup1
• a specific apgroup1 in an unknown domain, use the below command:
snmpwalk ruckusCtrlApGroupTable.all.apgroup1
•ruckusCtrlApGroupEntry on page 167
•ruckusCtrlApGroupZoneId on page 168
•ruckusCtrlApApGroupId on page 178
•ruckusCtrlApApGroupName on page 178
•ruckusCtrlApGroupNumApConnected on page 168
•ruckusCtrlApGroupNumApDisconnected on page 168
ruckusCtrlApGroupEntry
TABLE 325 ruckusCtrlApGroupEntry
Object Name ruckusCtrlApGroupEntry
Parent Node ruckusCtrlApGroupTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1
Description The index to table is ApGroupId and ZoneId.
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 167
ruckusCtrlApGroupZoneId
TABLE 326 ruckusCtrlApGroupZoneId
Object Name ruckusCtrlApGroupZoneId
Parent Node ruckusCTRLApGroupTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.5.1.1
Description The index is ZoneId.
ruckusCtrlApGroupId
TABLE 327 ruckusCtrlApGroupId
Object Name ruckusCtrlApGroupId
Parent Node ruckusCTRLApGroupTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.5.1.2
Description The index is ApGroup Id.
ruckusCtrlApGroupName
TABLE 328 ruckusCtrlApGroupName
Object Name ruckusCtrlApGroupName
Parent Node ruckusCTRLApGroupTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.5.1.3
Description Displays the name of the AP Group.
ruckusCtrlApGroupNumApConnected
TABLE 329 ruckusCtrlApGroupNumApConnected
Object Name ruckusCtrlApGroupNumApConnected
Parent Node ruckusCTRLApGroupTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.5.1.9
Description Number of APs in the AP Group that are currently connected to the controller.
ruckusCtrlApGroupNumApDisconnected
TABLE 330 ruckusCtrlApGroupNumApDisconnected
Object Name ruckusCtrlApGroupNumApDisconnected
Parent Node ruckusCTRLApGroupTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.5.1.10
Description Number of APs in the AP Group that are currently disconnected from the controller.
Ruckus AP MIB
Ruckus Controller AP Group Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
168 Part Number: 800-71536-001 Rev A
Ruckus Controller Summary AP Table
The following MIBs define the information for the controller SummaryAP table (ruckusCtrlSummaryApTable) for users to easily access basic
information of all the APs. The index of the table is
DomainId
,
ZoneId
and
ApGroupId
and
ApMac
. Using the
ApMac
in this table, users can
go to AP table to get more details.
To query:
• all APs in domain 1, use the command:
snmpwalk ruckusCtrlSummaryApTable.domain1
• all APs in a specific zone1 under domain1, use the command:
snmpwalk ruckusCtrlSummaryApTable.domain1.zone1
• all APs in a specific zone1 in an unknown domain, use the command:
snmpwalk ruckusCtrlSummaryApTable.all.zone1
• all information, use the command:
snmpwalk {option} ruckusCTRLSummaryApTable
• all ApMAC in domain1, use the command:
snmpwalk {option}ruckusCtrlSummryApMac.domain.{domain1 UUID}
• For a domain with UUID 87b593c6-50e7-4d57-87f0-2820bb3878ef, use the following command:
snmpwalk -mall -v2c -c public 172.17.50.103 RUCKUS-CTRL-
MIB::ruckusCtrlSummaryApMac.domain.\'87b593c6-50e7- 4d57-87f0-2820bb3878ef\'
• The MIB browser should translate UUID 87b593c6-50e7-4d57-87f0- 2820bb3878ef into decimal form:
.1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1.6.1.135.181.147.19
8.80.231.77.87.135.240.40.32.187.56.120.239 where 1
represents the input UUID as domain UUID
135.181.147.198.80.231.77.87.135.240.40.32.187.56.120
.239: UUID 87b593c6-50e7-4d57-87f0-2820bb3878ef in
decimal form(16 numbers)
• all ApMAC in zone1, use the command:
snmpwalk {option} ruckusCtrlSummaryApMac.zone.{zone1 UUID}
• For a zone with UUID 8f0c4245-4bc7-4f5a-8f76-a8137443833e, use the following command:
snmpwalk -mall -v2c -c public 172.17.50.103 RUCKUS-CTRL-
MIB::ruckusCtrlSummaryApMac.zone.\'8f0c4245-4bc7- 4f5a-8f76-a8137443833e\'
• The MIB browser should translate UUID 8f0c4245-4bc7-4f5a-8f76- a8137443833e into decimal form:
.1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1.6.2.143.12.66.69.7
5.199.79.90.143.118.168.19.116.67.131.62 where 2
represents the input UUID as zone UUID.
143.12.66.69.75.199.79.90.143.118.168.19.116.67.131.6
2: UUID 8f0c4245-4bc7-4f5a-8f76-a8137443833e in decimal
form(16 numbers)
Ruckus AP MIB
Ruckus Controller Summary AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 169
• all ApMAC in apgroup1, use the command:
snmpwalk {option}ruckusCtrlSummaryApMac.apgroup.{apgroup UUID}
• For ApGroup with UUID 84136003-bd53-4ca7-a19a-63254fcdfe2d, use the following command:
snmpwalk -mall -v2c -c public 172.17.50.103 RUCKUS-CTRL-
MIB::ruckusCtrlSummaryApMac.apgroup.\'84136003-bd53- 4ca7-a19a-63254fcdfe2d\'
• The MIB browser should translate UUID 84136003-bd53-4ca7-a19a- 63254fcdfe2d into decimal form:
.1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1.6.3.132.19.96.3.18
9.83.76.167.161.154.99.37.79.205.254.45 where 3
represents the input UUID as ApGroup UUID.
132.19.96.3.189.83.76.167.161.154.99.37.79.205.254.45
: UUID 84136003-bd53-4ca7-a19a-63254fcdfe2d in decimal
form(16 numbers)
•ruckusCtrlSummaryApEntry on page 170
•ruckusCtrlSummaryApIndexType on page 170
•ruckusCtrlSummaryApIndexUUID on page 171
•ruckusCtrlSummaryApDomainId on page 171
•ruckusCtrlSummaryApZoneId on page 171
•ruckusCtrlSummaryApApGroupId on page 171
•ruckusCtrlSummaryApMac on page 172
•ruckusCtrlSummaryApDomainName on page 172
•ruckusCtrlSummaryApZoneName on page 172
•ruckusCtrlSummaryApName on page 173
•ruckusCtrlSummaryApLocation on page 173
ruckusCtrlSummaryApEntry
TABLE 331 ruckusCtrlSummaryApEntry
Object Name ruckusCtrlSummaryApEntry
Parent Node ruckusCtrlSummaryApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1
Description The index to this table is:
• ruckusCtrlSummaryApIndexType
• ruckusCtrlSummaryApIndexUUID
• ruckusCtrlSummaryApMacApGroupId
ruckusCtrlSummaryApIndexType
TABLE 332 ruckusCtrlSummaryApIndexType
Object Name ruckusCtrlSummaryApIndexType
Parent Node ruckusCtrlSummaryApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1.1
Ruckus AP MIB
Ruckus Controller Summary AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
170 Part Number: 800-71536-001 Rev A
TABLE 332 ruckusCtrlSummaryApIndexType (continued)
Object Name ruckusCtrlSummaryApIndexType
Description The UUID index type - domain(1), zone(2), apgroup(3) For example:
snmpwalk ruckusCtrlSummaryApTable.domain.{uuid} for known DomainId
snmpwalk ruckusCtrlSummaryApTable.zone.{uuid} for known ZoneId
snmpwalk ruckusCtrlSummaryApTable.ApGroup.{uuid} for known ApGroupId
ruckusCtrlSummaryApIndexUUID
TABLE 333 ruckusCtrlSummaryApIndexUUID
Object Name ruckusCtrlSummaryApIndexUUID
Parent Node ruckusCtrlSummaryApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1.2
Description UUID for query entry, which can be the UUID of domain, zone, or AP Group.
ruckusCtrlSummaryApDomainId
TABLE 334 ruckusCtrlSummaryApDomainId
Object Name ruckusCtrlSummaryApDomainId
Parent Node ruckusCtrlSummaryApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1.3
Description The domain identifier.
ruckusCtrlSummaryApZoneId
TABLE 335 ruckusCtrlSummaryApZoneId
Object Name ruckusCtrlSummaryApZoneId
Parent Node ruckusCtrlSummaryApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1.4
Description The zone identifier.
ruckusCtrlSummaryApApGroupId
TABLE 336 ruckusCtrlSummaryApApGroupId
Object Name ruckusCtrlSummaryApApGroupId
Parent Node ruckusCtrlSummaryApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1.5
Description The AP Group identifier.
Ruckus AP MIB
Ruckus Controller Summary AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 171
ruckusCtrlSummaryApMac
TABLE 337 ruckusCtrlSummaryApMac
Object Name ruckusCtrlSummaryApMac
Parent Node ruckusCtrlSummaryApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1.6
Description The AP MAC address.
ruckusCtrlSummaryApDomainName
TABLE 338 ruckusCtrlSummaryApDomainName
Object Name ruckusCtrlSummaryApDomainName
Parent Node ruckusCtrlSummaryApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1.11
Description Displays the domain name.
ruckusCtrlSummaryApZoneName
TABLE 339 ruckusCtrlSummaryApZoneName
Object Name ruckusCtrlSummaryApZoneName
Parent Node ruckusCtrlSummaryApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1.12
Description The AP zone name.
Ruckus AP MIB
Ruckus Controller Summary AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
172 Part Number: 800-71536-001 Rev A
ruckusCtrlSummaryApName
TABLE 340 ruckusCtrlSummaryApName
Object Name ruckusCtrlSummaryApName
Parent Node ruckusCtrlSummaryApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1.17
Description The name of the AP.
ruckusCtrlSummaryApLocation
TABLE 341 ruckusCtrlSummaryApLocation
Object Name ruckusCtrlSummaryApLocation
Parent Node ruckusCtrlSummaryApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.8.1.18
Description The AP location.
Ruckus Controller AP Client Table
The following MIBs define the information for the controller Client table (ruckusCtrlApClientTable) for users to easily access basic information
of all the clients in a specific AP. Using the
ClientMac
in this table, users can go to Client table to get more details about this client. The
index of the table is the
ApMac
.
•ruckusCtrlApClientEntry on page 174
•ruckusCtrlApClientApMac on page 174
•ruckusCtrlApClientMac on page 174
To query:
• all clients in a specific ap1, the following command can be used:
snmpwalk ruckusCtrlApClientTable.ap1
• all information, use the command format:
snmpwalk {option} ruckusCTRLSummaryApTable
• all AP MAC in domain1, use the command format:
snmpwalk {option}ruckusCtrlSummryApMac.domain.{domain1 UUID}
• A MAC address of C8:AA:7C:8E:67:C4 must be translated to the equivalent decimal value of 202.170.124.142.103.196 for the
query.
snmpget -v2c -c public <ip_addr> RUCKUS-CTRL-MIB::ruck- usCtrlApClientMac.6.202.170.124.142.103.196,
where the
length of the string index is always 6.
202.170.124.142.103.196: MAC Address C8:AA:7C:8E:67:C4
in decimal form
Ruckus AP MIB
Ruckus Controller AP Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 173
• The MIB browser should translate the MAC address into decimal form as:
.1.3.6.1.4.1.25053.1.8.1.1.1.1.9.1.6.6.202.170.124.14
2.103.196
200.170.124.142.103.196: MAC Address C8:AA:7C:8E:67:C4
in decimal form
ruckusCtrlApClientEntry
TABLE 342 ruckusCtrlApClientEntry
Object Name ruckusCtrlApClientEntry
Parent Node ruckusCtrlApClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.9.1
Description The index to this table is ApMac.
ruckusCtrlApClientApMac
TABLE 343 ruckusCtrlApClientApMac
Object Name ruckusCtrlApClientApMac
Parent Node ruckusCtrlApClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.9.1.1
Description The AP MAC address.
ruckusCtrlApClientMac
TABLE 344 ruckusCtrlApClientMac
Object Name ruckusCtrlApClientMac
Parent Node ruckusCtrlApClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.1.9.1.6
Description The client MAC address.
Ruckus Controller AP Table
The following MIBs define the information for the controller AP table (ruckusCtrlApTable) for users to easily access to all information of the
AP. Using the ApMac in this table, users get more details about this AP. The index of the table is the
ApMac
.
To get the information of an AP with MAC C8:AA:7C:8E:67:C4, use the command format:
snmpget -v2c -c public <ip_addr> RUCKUS-CTRL-MIB::ruck- usCtrlApMac.6.200.170.124.142.103.196 where the
length
of string index, is always 6.
200.170.124.142.103.196: MAC Address C8:AA:7C:8E:67:C4
in decimal form
•ruckusCtrlApEntry on page 176
•ruckusCtrlApMac on page 177
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
174 Part Number: 800-71536-001 Rev A
•ruckusCtrlApDomainId on page 177
•ruckusCtrlApDomainName on page 177
•ruckusCtrlApZoneId on page 177
•ruckusCtrlApZoneName on page 177
•ruckusCtrlApApGroupId on page 178
•ruckusCtrlApApGroupName on page 178
•ruckusCtrlApIp on page 178
•ruckusCtrlApIpv6 on page 178
•ruckusCtrlApNetmask on page 178
•ruckusCtrlApGateway on page 179
•ruckusCtrlApIpDnsSvr1 on page 179
•ruckusCtrlApIpDnsSvr2 on page 179
•ruckusCtrlApIpv6DnsSvr1 on page 179
•ruckusCtrlApIpv6DnsSvr2 on page 179
•ruckusCtrlApName on page 180
•ruckusCtrlApDescription on page 180
•ruckusCtrlApStatus on page 180
•ruckusCtrlApModel on page 180
•ruckusCtrlApSerialNumber on page 180
•ruckusCtrlApSwVersion on page 181
•ruckusCtrlApLocation on page 181
•ruckusCtrlApGpsInfo on page 181
•ruckusCtrlApTemperature on page 181
•ruckusCtrlApUptime on page 181
•ruckusCtrlApLastConfSyncTime on page 182
•ruckusCtrlApCpuUtilization on page 182
•ruckusCtrlApTotalMemory on page 182
•ruckusCtrlApFreeMemory on page 182
•ruckusCtrlApFreeStorage on page 182
•ruckusCtrlApEtherPortStatus on page 183
•ruckusCtrlApCableModemMac on page 183
•ruckusCtrlApCableModemSerialNumber on page 183
•ruckusCtrlApNumRadios on page 183
•ruckusCtrlApNumWlans on page 183
•ruckusCtrlApNumAssocClients on page 184
•ruckusCtrlApStatsRxBytes on page 184
•ruckusCtrlApStatsTxBytes on page 184
•ruckusCtrlApStatsRxDataBytes on page 184
•ruckusCtrlApStatsTxDataBytes on page 184
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 175
•ruckusCtrlApStatsRxPkts on page 185
•ruckusCtrlApStatsTxPkts on page 185
•ruckusCtrlApStatsRxDataPkts on page 185
•ruckusCtrlApStatsTxDataPkts on page 185
•ruckusCtrlApStatsRxErrorPkts on page 185
•ruckusCtrlApStatsTxErrorPkts on page 186
•ruckusCtrlApStatsRxDropPkts on page 186
•ruckusCtrlApStatsTxDropPkts on page 186
•ruckusCtrlApMeshRole on page 186
•ruckusCtrlApNumMeshHops on page 186
•ruckusCtrlApConnectScgCpIp on page 187
•ruckusCtrlApConnectScgCpIpv6 on page 187
•ruckusCtrlApConnectScgDpIp on page 187
•ruckusCtrlApConnectScgDpIpv6 on page 187
•ruckusCtrlApLanStatsRxBytes on page 187
•ruckusCtrlApLanStatsTxBytes on page 188
•ruckusCtrlApLanStatsRxPkts on page 188
•ruckusCtrlApLanStatsTxPkts on page 188
•ruckusCtrlApLanStatsRxErrorPkts on page 188
•ruckusCtrlApLanStatsTxErrorPkts on page 188
•ruckusCtrlApLanStatsRxDroppedPkts on page 189
•ruckusCtrlApLanStatsTxDroppedPkts on page 189
•ruckusCtrlAPIpsecRxBytes on page 189
•ruckusCtrlAPIpsecTxBytes on page 189
•ruckusCtrlAPIpsecRxPkts on page 189
•ruckusCtrlAPIpsecTxPkts on page 190
•ruckusCtrlAPIpsecRxDropPkts on page 190
•ruckusCtrlAPIpsecTxDropPkts on page 190
•ruckusCtrlAPIpsecSessionTime on page 190
•ruckusCtrlAPIpsecRxIdleTime on page 190
•ruckusCtrlAPIpsecTxIdleTime on page 191
ruckusCtrlApEntry
TABLE 345 ruckusCtrlApEntry
Object Name ruckusCtrlApEntry
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1
Description The index to this table is ApMac
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
176 Part Number: 800-71536-001 Rev A
ruckusCtrlApMac
TABLE 346 ruckusCtrlApMac
Object Name ruckusCtrlApMac
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.1
Description The AP MAC address.
ruckusCtrlApDomainId
TABLE 347 ruckusCtrlApDomainId
Object Name ruckusCtrlApDomainId
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.2
Description The root domain identifier (the domain under admin domain)
ruckusCtrlApDomainName
TABLE 348 ruckusCtrlApDomainName
Object Name ruckusCtrlApDomainName
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.3
Description Displays the domain name.
ruckusCtrlApZoneId
TABLE 349 ruckusCtrlApZoneId
Object Name ruckusCtrlApZoneId
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.4
Description The zone UUID.
ruckusCtrlApZoneName
TABLE 350 ruckusCtrlApZoneName
Object Name ruckusCtrlApZoneName
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.5
Description Displays the zone name.
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 177
ruckusCtrlApApGroupId
TABLE 351 ruckusCtrlApApGroupId
Object Name ruckusCtrlApApGroupId
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.6
Description The AP Group UUID.
ruckusCtrlApApGroupName
TABLE 352 ruckusCtrlApApGroupName
Object Name ruckusCtrlApApGroupName
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.7
Description The AP Group name.
ruckusCtrlApIp
TABLE 353 ruckusCtrlApIp
Object Name ruckusCtrlApIp
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.12
Description The IP address.
ruckusCtrlApIpv6
TABLE 354 ruckusCtrlApIpv6
Object Name ruckusCtrlApIpv6
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.13
Description The IPv6 address.
ruckusCtrlApNetmask
TABLE 355 ruckusCtrlApNetmask
Object Name ruckusCtrlApNetmask
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.14
Description The netmask address.
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
178 Part Number: 800-71536-001 Rev A
ruckusCtrlApGateway
TABLE 356 ruckusCtrlApGateway
Object Name ruckusCtrlApGateway
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.15
Description The gateway server address.
ruckusCtrlApIpDnsSvr1
TABLE 357 ruckusCtrlApIpDnsSvr1
Object Name ruckusCtrlApIpDnsSvr1
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.16
Description The primary DNS server address.
ruckusCtrlApIpDnsSvr2
TABLE 358 ruckusCtrlApIpDnsSvr2
Object Name ruckusCtrlApIpDnsSvr2
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.17
Description The secondary DNS server address.
ruckusCtrlApIpv6DnsSvr1
TABLE 359 ruckusCtrlApIpv6DnsSvr1
Object Name ruckusCtrlApIpv6DnsSvr1
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.22
Description The primary DNS server IPv6 address.
ruckusCtrlApIpv6DnsSvr2
TABLE 360 ruckusCtrlApIpv6DnsSvr2
Object Name ruckusCtrlApIpv6DnsSvr2
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.23
Description The secondary DNS server IPv6 address.
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 179
ruckusCtrlApName
TABLE 361 ruckusCtrlApName
Object Name ruckusCtrlApName
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.28
Description Displays the AP name.
ruckusCtrlApDescription
TABLE 362 ruckusCtrlApDescription
Object Name ruckusCtrlApDescription
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.29
Description The AP description.
ruckusCtrlApStatus
TABLE 363 ruckusCtrlApStatus
Object Name ruckusCtrlApStatus
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.30
Description The AP status type, which is: 0: not available (busy or not running) 1: connected
ruckusCtrlApModel
TABLE 364 ruckusCtrlApModel
Object Name ruckusCtrlApModel
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.31
Description The AP model type.
ruckusCtrlApSerialNumber
TABLE 365 ruckusCtrlApSerialNumber
Object Name ruckusCtrlApSerialNumber
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.32
Description The AP serial number.
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
180 Part Number: 800-71536-001 Rev A
ruckusCtrlApSwVersion
TABLE 366 ruckusCtrlApSwVersion
Object Name ruckusCtrlApSwVersion
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.33
Description The AP software version.
ruckusCtrlApLocation
TABLE 367 ruckusCtrlApLocation
Object Name ruckusCtrlApLocation
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.34
Description The AP location information.
ruckusCtrlApGpsInfo
TABLE 368 ruckusCtrlApGpsInfo
Object Name ruckusCtrlApGpsInfo
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.35
Description The AP GPS information.
ruckusCtrlApTemperature
TABLE 369 ruckusCtrlApTemperature
Object Name ruckusCtrlApTemperature
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.36
Description The AP temperature information.
ruckusCtrlApUptime
TABLE 370 ruckusCtrlApUptime
Object Name ruckusCtrlApUptime
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.41
Description Number of minutes elapsed since the AP was last rebooted.
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 181
ruckusCtrlApLastConfSyncTime
TABLE 371 ruckusCtrlApLastConfSyncTime
Object Name ruckusCtrlApLastConfSyncTime
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.45
Description The last configuration synchronization displayed as time.
ruckusCtrlApCpuUtilization
TABLE 372 ruckusCtrlApCpuUtilization
Object Name ruckusCtrlApCpuUtilization
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.50
Description The percentage of CPU utilization.
ruckusCtrlApTotalMemory
TABLE 373 ruckusCtrlApTotalMemory
Object Name ruckusCtrlApTotalMemory
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.51
Description The total memory in KB.
ruckusCtrlApFreeMemory
TABLE 374 ruckusCtrlApFreeMemory
Object Name ruckusCtrlApFreeMemory
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.52
Description Free memory in KB.
ruckusCtrlApFreeStorage
TABLE 375 ruckusCtrlApFreeStorage
Object Name ruckusCtrlApFreeStorage
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.53
Description Flash free memory in KB.
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
182 Part Number: 800-71536-001 Rev A
ruckusCtrlApEtherPortStatus
TABLE 376 ruckusCtrlApEtherPortStatus
Object Name ruckusCtrlApEtherPortStatus
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.54
Description AP Ethernet port physical link status as:
0: Down
1: Up
ruckusCtrlApCableModemMac
TABLE 377 ruckusCtrlApCableModemMac
Object Name ruckusCtrlApCableModemMac
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.56
Description The AP MAC address of the cable modem.
ruckusCtrlApCableModemSerialNumber
TABLE 378 ruckusCtrlApCableModemSerialNumber
Object Name ruckusCtrlApCableModemSerialNumber
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.57
Description Serial number of the AP MAC cable modem.
ruckusCtrlApNumRadios
TABLE 379 ruckusCtrlApNumRadios
Object Name ruckusCtrlApNumRadios
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.62
Description Total number of radios.
ruckusCtrlApNumWlans
TABLE 380 ruckusCtrlApNumWlans
Object Name ruckusCtrlApNumWlans
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.63
Description Total number of WLANs.
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 183
ruckusCtrlApNumAssocClients
TABLE 381 ruckusCtrlApNumAssocClients
Object Name ruckusCtrlApNumAssocClients
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.65
Description Number of clients associated with the AP.
ruckusCtrlApStatsRxBytes
TABLE 382 ruckusCtrlApStatsRxBytes
Object Name ruckusCtrlApStatsRxBytes
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.71
Description The total number of received bytes.
ruckusCtrlApStatsTxBytes
TABLE 383 ruckusCtrlApStatsTxBytes
Object Name ruckusCtrlApStatsTxBytes
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.72
Description The total number of transmitted bytes.
ruckusCtrlApStatsRxDataBytes
TABLE 384 ruckusCtrlApStatsRxDataBytes
Object Name ruckusCtrlApStatsRxDataBytes
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.73
Description The total number of data packet bytes received.
ruckusCtrlApStatsTxDataBytes
TABLE 385 ruckusCtrlApStatsTxDataBytes
Object Name ruckusCtrlApStatsTxDataBytes
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.74
Description The total number of data packet bytes transmitted.
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
184 Part Number: 800-71536-001 Rev A
ruckusCtrlApStatsRxPkts
TABLE 386 ruckusCtrlApStatsRxPkts
Object Name ruckusCtrlApStatsRxPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.77
Description The total number of packet counts received.
ruckusCtrlApStatsTxPkts
TABLE 387 ruckusCtrlApStatsTxPkts
Object Name ruckusCtrlApStatsTxPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.78
Description Total number of packets counts transmitted.
ruckusCtrlApStatsRxDataPkts
TABLE 388 ruckusCtrlApStatsRxDataPkts
Object Name ruckusCtrlApStatsRxDataPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.79
Description The total number of data packets counts received.
ruckusCtrlApStatsTxDataPkts
TABLE 389 ruckusCtrlApStatsTxDataPkts
Object Name ruckusCtrlApStatsTxDataPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.80
Description The total number of data packets counts transmitted.
ruckusCtrlApStatsRxErrorPkts
TABLE 390 ruckusCtrlApStatsRxErrorPkts
Object Name ruckusCtrlApStatsRxErrorPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.81
Description Error count of AP wireless received.
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 185
ruckusCtrlApStatsTxErrorPkts
TABLE 391 ruckusCtrlApStatsTxErrorPkts
Object Name ruckusCtrlApStatsTxErrorPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.82
Description Error count of AP wireless transmitted.
ruckusCtrlApStatsRxDropPkts
TABLE 392 ruckusCtrlApStatsRxDropPkts
Object Name ruckusCtrlApStatsRxDropPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.83
Description Dropped count of AP wireless received.
ruckusCtrlApStatsTxDropPkts
TABLE 393 ruckusCtrlApStatsTxDropPkts
Object Name ruckusCtrlApStatsTxDropPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.84
Description Dropped count of AP wireless transmitted.
ruckusCtrlApMeshRole
TABLE 394 ruckusCtrlApMeshRole
Object Name ruckusCtrlApMeshRole
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.89
Description AP Mesh role:
• 0: disable
• 1: rap
• 2: map
• 3: emap
• 4: mesh-is-down
• 5: mesh-role-is-undefined
ruckusCtrlApNumMeshHops
TABLE 395 ruckusCtrlApNumMeshHops
Object Name ruckusCtrlApNumMeshHops
Parent Node ruckusCtrlApTable
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
186 Part Number: 800-71536-001 Rev A
TABLE 395 ruckusCtrlApNumMeshHops (continued)
Object Name ruckusCtrlApNumMeshHops
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.90
Description The total number of mesh hops.
ruckusCtrlApConnectScgCpIp
TABLE 396 ruckusCtrlApConnectScgCpIp
Object Name ruckusCtrlApConnectScgCpIp
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.95
Description The controller's control plane IP address that the AP connects.
ruckusCtrlApConnectScgCpIpv6
TABLE 397 ruckusCtrlApConnectScgCpIpv6
Object Name ruckusCtrlApConnectScgCpIpv6
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.96
Description The controller's control plane IPv6 address that the AP connects.
ruckusCtrlApConnectScgDpIp
TABLE 398 ruckusCtrlApConnectScgDpIp
Object Name ruckusCtrlApConnectScgDpIp
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.97
Description The controller's data plane IP address that the AP connects.
ruckusCtrlApConnectScgDpIpv6
TABLE 399 ruckusCtrlApConnectScgDpIpv6
Object Name ruckusCtrlApConnectScgDpIpv6
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.98
Description The controller's data plane IPv6 address that the AP connects.
ruckusCtrlApLanStatsRxBytes
TABLE 400 ruckusCtrlApLanStatsRxBytes
Object Name ruckusCtrlApLanStatsRxBytes
Parent Node ruckusCtrlApTable
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 187
TABLE 400 ruckusCtrlApLanStatsRxBytes (continued)
Object Name ruckusCtrlApLanStatsRxBytes
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.103
Description The total number of bytes received on the LAN port.
ruckusCtrlApLanStatsTxBytes
TABLE 401 ruckusCtrlApLanStatsTxBytes
Object Name ruckusCtrlApLanStatsTxBytes
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.104
Description The total number of bytes transmitted on the LAN port.
ruckusCtrlApLanStatsRxPkts
TABLE 402 ruckusCtrlApLanStatsRxPkts
Object Name ruckusCtrlApLanStatsRxPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.105
Description The total number of packets received on the LAN port.
ruckusCtrlApLanStatsTxPkts
TABLE 403 ruckusCtrlApLanStatsTxPkts
Object Name ruckusCtrlApLanStatsTxPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.106
Description The total number of packets transmitted on the LAN port.
ruckusCtrlApLanStatsRxErrorPkts
TABLE 404 ruckusCtrlApLanStatsRxErrorPkts
Object Name ruckusCtrlApLanStatsRxErrorPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.107
Description The total number of error packets received on the LAN port.
ruckusCtrlApLanStatsTxErrorPkts
TABLE 405 ruckusCtrlApLanStatsTxErrorPkts
Object Name ruckusCtrlApLanStatsTxErrorPkts
Parent Node ruckusCtrlApTable
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
188 Part Number: 800-71536-001 Rev A
TABLE 405 ruckusCtrlApLanStatsTxErrorPkts (continued)
Object Name ruckusCtrlApLanStatsTxErrorPkts
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.108
Description The total number of error packets transmitted on the LAN port.
ruckusCtrlApLanStatsRxDroppedPkts
TABLE 406 ruckusCtrlApLanStatsRxDroppedPkts
Object Name ruckusCtrlApLanStatsRxDroppedPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.115
Description The total number of received packets dropped on LAN port.
ruckusCtrlApLanStatsTxDroppedPkts
TABLE 407 ruckusCtrlApLanStatsTxDroppedPkts
Object Name ruckusCtrlApLanStatsTxDroppedPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.116
Description The total number of transmitted packets dropped on LAN port.
ruckusCtrlAPIpsecRxBytes
TABLE 408 ruckusCtrlAPIpsecRxBytes
Object Name ruckusCtrlAPIpsecRxBytes
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.123
Description The total number of IPsec bytes received.
ruckusCtrlAPIpsecTxBytes
TABLE 409 ruckusCtrlAPIpsecTxBytes
Object Name ruckusCtrlAPIpsecTxBytes
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.124
Description The total number of IPsec bytes transmitted.
ruckusCtrlAPIpsecRxPkts
TABLE 410 ruckusCtrlAPIpsecRxPkts
Object Name ruckusCtrlAPIpsecRxPkts
Parent Node ruckusCtrlApTable
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 189
TABLE 410 ruckusCtrlAPIpsecRxPkts (continued)
Object Name ruckusCtrlAPIpsecRxPkts
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.125
Description The total number of IPsec packet received.
ruckusCtrlAPIpsecTxPkts
TABLE 411 ruckusCtrlAPIpsecTxPkts
Object Name ruckusCtrlAPIpsecTxPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.126
Description The total number of IPsec packet transmitted.
ruckusCtrlAPIpsecRxDropPkts
TABLE 412 ruckusCtrlAPIpsecRxDropPkts
Object Name ruckusCtrlAPIpsecRxDropPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.127
Description The total number of IPsec received packets that dropped.
ruckusCtrlAPIpsecTxDropPkts
TABLE 413 ruckusCtrlAPIpsecTxDropPkts
Object Name ruckusCtrlAPIpsecTxDropPkts
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.128
Description The total number of IPsec transmitted packets that dropped
ruckusCtrlAPIpsecSessionTime
TABLE 414 ruckusCtrlAPIpsecSessionTime
Object Name ruckusCtrlAPIpsecSessionTime
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.129
Description Session time of IPsec in seconds.
ruckusCtrlAPIpsecRxIdleTime
TABLE 415 ruckusCtrlAPIpsecRxIdleTime
Object Name ruckusCtrlAPIpsecRxIdleTime
Parent Node ruckusCtrlApTable
Ruckus AP MIB
Ruckus Controller AP Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
190 Part Number: 800-71536-001 Rev A
TABLE 415 ruckusCtrlAPIpsecRxIdleTime (continued)
Object Name ruckusCtrlAPIpsecRxIdleTime
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.130
Description Time of the last received packet in seconds.
ruckusCtrlAPIpsecTxIdleTime
TABLE 416 ruckusCtrlAPIpsecTxIdleTime
Object Name ruckusCtrlAPIpsecTxIdleTime
Parent Node ruckusCtrlApTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.1.1.131
Description Time of the last transmitted packet in seconds.
Ruckus Controller Radio Table
The following MIBs define the information for the controller AP Radio table (ruckusCtrlApRadioTable) for users to easily access all
information of the AP radio in the AP. Using the ApMac in this table, users get more details about this AP. The index of the table is the
ApMac
and
RadioIndex
.
A MAC address of C8:AA:7C:8E:67:C4 must be translated to the equivalent decimal value of 200.170.124.142.103.196 for the query.
For example:
• To get the radio index 1 of an AP with MAC C8:AA:7C:8E:67:C4, use the command format:
snmpget -v2c -c public <ip_addr> RUCKUS-CTRL-
MIB::ruckusCtrlApRadioApMac.6.200.170.124.142.103.196.1
where:
1: Radio index
6: Length of string index, which is always 6
200.170.124.142.103.196: MAC Address C8:AA:7C:8E:67:C4
in decimal form
• To get all Radio information of the AP with MAC C8:AA:7C:8E:67:C4, use the command format:
snmpwalk -v2c -c public <ip_addr> RUCKUS-CTRL-
MIB::ruckusCtrlApRadioApMac.6.200.170.124.142.103.196 where 6 is the length of string index.
200.170.124.142.103.196: MAC Address C8:AA:7C:8E:67:C4 in decimal form
• The MIB browser should also translate the MAC address into decimal form as:
.1.3.6.1.4.1.25053.1.8.1.1.1.1.9.1.6
.6.200.170.124.142.103.196.1
•ruckusCtrlApRadioEntry on page 193
•ruckusCtrlApRadioApMac on page 193
•ruckusCtrlApRadioIndex on page 193
•ruckusCtrlApRadioNumWlans on page 193
•ruckusCtrlApRadioType on page 194
Ruckus AP MIB
Ruckus Controller Radio Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 191
•ruckusCtrlApRadioChannelWidth on page 194
•ruckusCtrlApRadioChannel on page 194
•ruckusCtrlApRadioTxPower on page 194
•ruckusCtrlApRadioBeaconPeriod on page 195
•ruckusCtrlApRadioPowerMgmtEnable on page 195
•ruckusCtrlApRadioMeshEnable on page 195
•ruckusCtrlApRadioStatsRxAirtime on page 195
•ruckusCtrlApRadioStatsTxAirtime on page 196
•ruckusCtrlApRadioStatsBusyAirtime on page 196
•ruckusCtrlApRadioStatsTotalAirtime on page 196
•ruckusCtrlApRadioAntennaGain on page 196
•ruckusCtrlApRadioStatsSnr on page 196
•ruckusCtrlApRadioStatsNoiseFloor on page 197
•ruckusCtrlApRadioStatsNumAssocClients on page 197
•ruckusCtrlApRadioStatsNumAuthClients on page 197
•ruckusCtrlApRadioStatsNumMaxClients on page 197
•ruckusCtrlApRadioStatsPhyError on page 197
•ruckusCtrlApRadioStatsRxWepFail on page 198
•ruckusCtrlApRadioStatsRxDecryptCrcError on page 198
•ruckusCtrlApRadioStatsRxMicError on page 198
•ruckusCtrlApRadioStatsRxBytes on page 198
•ruckusCtrlApRadioStatsTxBytes on page 198
•ruckusCtrlApRadioStatsRxPkts on page 199
•ruckusCtrlApRadioStatsTxPkts on page 199
•ruckusCtrlApRadioStatsRxMcastPkts on page 199
•ruckusCtrlApRadioStatsTxMcastPkts on page 199
•ruckusCtrlApRadioStatsRxErrorPkts on page 199
•ruckusCtrlApRadioStatsTxErrorPkts on page 200
•ruckusCtrlApRadioStatsRxPktErrorRate on page 200
•ruckusCtrlApRadioStatsTxPktErrorRate on page 200
•ruckusCtrlApRadioStatsTxPktRetryRate on page 200
•ruckusCtrlApRadioStatsTxRetryPkts on page 200
•ruckusCtrlApRadioStatsRxDropPkts on page 201
•ruckusCtrlApRadioStatsTxDropPkts on page 201
•ruckusCtrlApRadioStatsNumAuthReqs on page 201
•ruckusCtrlApRadioStatsNumAuthResps on page 201
•ruckusCtrlApRadioStatsNumAuthSuccess on page 201
•ruckusCtrlApRadioStatsNumAuthFail on page 202
•ruckusCtrlApRadioStatsAuthFailRate on page 202
Ruckus AP MIB
Ruckus Controller Radio Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
192 Part Number: 800-71536-001 Rev A
•ruckusCtrlApRadioStatsNumAssocReq on page 202
•ruckusCtrlApRadioStatsNumAssocResp on page 202
•ruckusCtrlApRadioStatsNumReassocReq on page 202
•ruckusCtrlApRadioStatsNumReassocResp on page 203
•ruckusCtrlApRadioStatsNumAssocSuccess on page 203
•ruckusCtrlApRadioStatsNumAssocFail on page 203
•ruckusCtrlApRadioStatsAssocSuccessRate on page 203
•ruckusCtrlApRadioStatsAssocFailRate on page 203
ruckusCtrlApRadioEntry
TABLE 417 ruckusCtrlApRadioEntry
Object Name ruckusCtrlApRadioEntry
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1
Description The index to this table is ApMac and RadioIndex
ruckusCtrlApRadioApMac
TABLE 418 ruckusCtrlApRadioApMac
Object Name ruckusCtrlApRadioApMac
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.1
Description The AP MAC address.
ruckusCtrlApRadioIndex
TABLE 419 ruckusCtrlApRadioIndex
Object Name ruckusCtrlApRadioApMac
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.2
Description The index of the radio in the AP, which is:
• 0: 2.4G
• 1: 5G
ruckusCtrlApRadioNumWlans
TABLE 420 ruckusCtrlApRadioNumWlans
Object Name ruckusCtrlApRadioNumWlans
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.7
Description The number of WLANs in the radio.
Ruckus AP MIB
Ruckus Controller Radio Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 193
ruckusCtrlApRadioType
TABLE 421 ruckusCtrlApRadioType
Object Name ruckusCtrlApRadioType
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.8
Description The radio modes:
1: ieee802dot11b
2: ieee802dot11g
3: ieee802dot11Mixed
4: ieee802dot11a
5: ieee802dot11ng
6: ieee802dot11na
7: ieee802dot11ac
ruckusCtrlApRadioChannelWidth
TABLE 422 ruckusCtrlApRadioChannelWidth
Object Name ruckusCtrlApRadioChannelWidth
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.9
Description Radio channel width of 10/20/2040/40/80
ruckusCtrlApRadioChannel
TABLE 423 ruckusCtrlApRadioChannel
Object Name ruckusCtrlApRadioChannel
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.10
Description The channel number of this AP radio.
ruckusCtrlApRadioTxPower
TABLE 424 ruckusCtrlApRadioTxPower
Object Name ruckusCtrlApRadioTxPower
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.11
Description Specifies the transmit power of this AP radio.
Ruckus AP MIB
Ruckus Controller Radio Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
194 Part Number: 800-71536-001 Rev A
ruckusCtrlApRadioBeaconPeriod
TABLE 425 ruckusCtrlApRadioBeaconPeriod
Object Name ruckusCtrlApRadioBeaconPeriod
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.16
Description The number of milli seconds that a station uses for scheduling beacon transmissions. This value is transmitted in
beacon and probe response frames.
• Range: (100 to 1000)
• Units: Milli seconds
ruckusCtrlApRadioPowerMgmtEnable
TABLE 426 ruckusCtrlApRadioPowerMgmtEnable
Object Name ruckusCtrlApRadioPowerMgmtEnable
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.23
Description Enabling the power management as:
0: No
1: Yes
ruckusCtrlApRadioMeshEnable
TABLE 427 ruckusCtrlApRadioMeshEnable
Object Name ruckusCtrlApRadioMeshEnable
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.24
Description Enabling the radio mesh as:
0: No
1: Yes
ruckusCtrlApRadioStatsRxAirtime
TABLE 428 ruckusCtrlApRadioStatsRxAirtime
Object Name ruckusCtrlApRadioStatsRxAirtime
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.29
Description AP radio's total airtime received in one second as per the channel utilization.
Ruckus AP MIB
Ruckus Controller Radio Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 195
ruckusCtrlApRadioStatsTxAirtime
TABLE 429 ruckusCtrlApRadioStatsTxAirtime
Object Name ruckusCtrlApRadioStatsTxAirtime
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.30
Description AP radio's total airtime transmitted in one second as per the channel utilization.
ruckusCtrlApRadioStatsBusyAirtime
TABLE 430 ruckusCtrlApRadioStatsBusyAirtime
Object Name ruckusCtrlApRadioStatsBusyAirtime
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.31
Description AP radio's busy airtime in one second as per the channel utilization.
ruckusCtrlApRadioStatsTotalAirtime
TABLE 431 ruckusCtrlApRadioStatsTotalAirtime
Object Name ruckusCtrlApRadioStatsTotalAirtime
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.32
Description AP radio's total airtime.
ruckusCtrlApRadioAntennaGain
TABLE 432 ruckusCtrlApRadioAntennaGain
Object Name ruckusCtrlApRadioAntennaGain
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.38
Description AP radio's antenna gain.
ruckusCtrlApRadioStatsSnr
TABLE 433 ruckusCtrlApRadioStatsSnr
Object Name ruckusCtrlApRadioStatsSnr
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.39
Description AP radio's SNR ratio.
Ruckus AP MIB
Ruckus Controller Radio Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
196 Part Number: 800-71536-001 Rev A
ruckusCtrlApRadioStatsNoiseFloor
TABLE 434 ruckusCtrlApRadioStatsNoiseFloor
Object Name ruckusCtrlApRadioStatsNoiseFloor
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.40
Description AP radio's noise floor.
ruckusCtrlApRadioStatsNumAssocClients
TABLE 435 ruckusCtrlApRadioStatsNumAssocClients
Object Name ruckusCtrlApRadioStatsNumAssocClients
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.41
Description Number of clients associated to this AP radio.
ruckusCtrlApRadioStatsNumAuthClients
TABLE 436
Object Name ruckusCtrlApRadioStatsNumAuthClients
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.42
Description Number of clients authenticated to this AP radio.
ruckusCtrlApRadioStatsNumMaxClients
TABLE 437 ruckusCtrlApRadioStatsNumMaxClients
Object Name ruckusCtrlApRadioStatsNumMaxClients
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.43
Description Maximum number of stations allowed to this AP radio.
ruckusCtrlApRadioStatsPhyError
TABLE 438 ruckusCtrlApRadioStatsPhyError
Object Name ruckusCtrlApRadioStatsPhyError
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.49
Description Number of PHY errors that occurred in one second for this AP radio.
Ruckus AP MIB
Ruckus Controller Radio Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 197
ruckusCtrlApRadioStatsRxWepFail
TABLE 439 ruckusCtrlApRadioStatsRxWepFail
Object Name ruckusCtrlApRadioStatsRxWepFail
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.50
Description The number of received WEP for this AP radio that failed.
ruckusCtrlApRadioStatsRxDecryptCrcError
TABLE 440 ruckusCtrlApRadioStatsRxDecryptCrcError
Object Name ruckusCtrlApRadioStatsRxDecryptCrcError
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.51
Description The number of received frames with decrypted CRC errors for this AP radio.
ruckusCtrlApRadioStatsRxMicError
TABLE 441 ruckusCtrlApRadioStatsRxMicError
Object Name ruckusCtrlApRadioStatsRxMicError
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.52
Description Number of received frames with MIC errors pertaining to this AP radio.
ruckusCtrlApRadioStatsRxBytes
TABLE 442 ruckusCtrlApRadioStatsRxBytes
Object Name ruckusCtrlApRadioStatsRxBytes
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.57
Description Total number of received radio bytes of this AP radio, including duplicate packets.
ruckusCtrlApRadioStatsTxBytes
TABLE 443 ruckusCtrlApRadioStatsTxBytes
Object Name ruckusCtrlApRadioStatsTxBytes
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.58
Description Total number of transmitted radio bytes of this AP radio, including SW retries.
Ruckus AP MIB
Ruckus Controller Radio Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
198 Part Number: 800-71536-001 Rev A
ruckusCtrlApRadioStatsRxPkts
TABLE 444 ruckusCtrlApRadioStatsRxPkts
Object Name ruckusCtrlApRadioStatsRxPkts
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.59
Description Total number of received radio packets of this AP radio. It contains retry/ duplicate values and 802.11 headers.
ruckusCtrlApRadioStatsTxPkts
TABLE 445 ruckusCtrlApRadioStatsTxPkts
Object Name ruckusCtrlApRadioStatsTxPkts
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.60
Description Total number of transmitted radio packets of this AP radio. It contains retry/duplicate values and 802.11 headers.
ruckusCtrlApRadioStatsRxMcastPkts
TABLE 446 ruckusCtrlApRadioStatsRxMcastPkts
Object Name ruckusCtrlApRadioStatsRxMcastPkts
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.65
Description Total number of received multi cast frames.
ruckusCtrlApRadioStatsTxMcastPkts
TABLE 447 ruckusCtrlApRadioStatsTxMcastPkts
Object Name ruckusCtrlApRadioStatsTxMcastPkts
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.66
Description Total number of transmitted multi cast frames.
ruckusCtrlApRadioStatsRxErrorPkts
TABLE 448 ruckusCtrlApRadioStatsRxErrorPkts
Object Name ruckusCtrlApRadioStatsRxErrorPkts
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.67
Description Total number of error packets received.
Ruckus AP MIB
Ruckus Controller Radio Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 199
ruckusCtrlApRadioStatsTxErrorPkts
TABLE 449 ruckusCtrlApRadioStatsTxErrorPkts
Object Name ruckusCtrlApRadioStatsTxErrorPkts
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.68
Description Total number of error packets transmitted.
ruckusCtrlApRadioStatsRxPktErrorRate
TABLE 450 ruckusCtrlApRadioStatsRxPktErrorRate
Object Name ruckusCtrlApRadioStatsRxPktErrorRate
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.69
Description Error rate on the total number of packets received.
ruckusCtrlApRadioStatsTxPktErrorRate
TABLE 451 ruckusCtrlApRadioStatsTxPktErrorRate
Object Name ruckusCtrlApRadioStatsTxPktErrorRate
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.70
Description Error rate on the total number of packets transmitted.
ruckusCtrlApRadioStatsTxPktRetryRate
TABLE 452 ruckusCtrlApRadioStatsTxPktRetryRate
Object Name ruckusCtrlApRadioStatsTxPktRetryRate
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.71
Description Percentage rate of retries on transmitted packets.
ruckusCtrlApRadioStatsTxRetryPkts
TABLE 453 ruckusCtrlApRadioStatsTxRetryPkts
Object Name ruckusCtrlApRadioStatsTxRetryPkts
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.73
Description Total number of retries on transmitted packets.
Ruckus AP MIB
Ruckus Controller Radio Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
200 Part Number: 800-71536-001 Rev A
ruckusCtrlApRadioStatsRxDropPkts
TABLE 454 ruckusCtrlApRadioStatsRxDropPkts
Object Name ruckusCtrlApRadioStatsRxDropPkts
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.76
Description Total number of dropped packets received.
ruckusCtrlApRadioStatsTxDropPkts
TABLE 455 ruckusCtrlApRadioStatsTxDropPkts
Object Name ruckusCtrlApRadioStatsTxDropPkts
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.77
Description Total number of dropped packets transmitted.
ruckusCtrlApRadioStatsNumAuthReqs
TABLE 456 ruckusCtrlApRadioStatsNumAuthReqs
Object Name ruckusCtrlApRadioStatsNumAuthReqs
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.82
Description Total number of authenticated requests received.
ruckusCtrlApRadioStatsNumAuthResps
TABLE 457 ruckusCtrlApRadioStatsNumAuthResps
Object Name ruckusCtrlApRadioStatsNumAuthResps
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.83
Description Total number of authenticated responses sent.
ruckusCtrlApRadioStatsNumAuthSuccess
TABLE 458 ruckusCtrlApRadioStatsNumAuthSuccess
Object Name ruckusCtrlApRadioStatsNumAuthSuccess
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.84
Description Total number of successful authentications.
Ruckus AP MIB
Ruckus Controller Radio Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 201
ruckusCtrlApRadioStatsNumAuthFail
TABLE 459 ruckusCtrlApRadioStatsNumAuthFail
Object Name ruckusCtrlApRadioStatsNumAuthFail
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.85
Description Total number of failed authentications.
ruckusCtrlApRadioStatsAuthFailRate
TABLE 460 ruckusCtrlApRadioStatsAuthFailRate
Object Name ruckusCtrlApRadioStatsAuthFailRate
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.86
Description Total number of failed connections - authentication and associated failure.
ruckusCtrlApRadioStatsNumAssocReq
TABLE 461 ruckusCtrlApRadioStatsNumAssocReq
Object Name ruckusCtrlApRadioStatsNumAssocReq
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.87
Description Total number of associated requests sent.
ruckusCtrlApRadioStatsNumAssocResp
TABLE 462 ruckusCtrlApRadioStatsNumAssocResp
Object Name ruckusCtrlApRadioStatsNumAssocResp
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.88
Description Total number of associated responses received.
ruckusCtrlApRadioStatsNumReassocReq
TABLE 463 ruckusCtrlApRadioStatsNumReassocReq
Object Name ruckusCtrlApRadioStatsNumReassocReq
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.89
Description Total number of re-associated requests sent.
Ruckus AP MIB
Ruckus Controller Radio Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
202 Part Number: 800-71536-001 Rev A
ruckusCtrlApRadioStatsNumReassocResp
TABLE 464 ruckusCtrlApRadioStatsNumReassocResp
Object Name ruckusCtrlApRadioStatsNumReassocResp
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.90
Description Total number of re-associated responses received.
ruckusCtrlApRadioStatsNumAssocSuccess
TABLE 465 ruckusCtrlApRadioStatsNumAssocSuccess
Object Name ruckusCtrlApRadioStatsNumAssocSuccess
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.91
Description Total number of successful associations.
ruckusCtrlApRadioStatsNumAssocFail
TABLE 466 ruckusCtrlApRadioStatsNumAssocFail
Object Name ruckusCtrlApRadioStatsNumAssocFail
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.92
Description Total number of failed associations.
ruckusCtrlApRadioStatsAssocSuccessRate
TABLE 467 ruckusCtrlApRadioStatsAssocSuccessRate
Object Name ruckusCtrlApRadioStatsAssocSuccessRate
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.94
Description AP radio's station association success rate.
ruckusCtrlApRadioStatsAssocFailRate
TABLE 468 ruckusCtrlApRadioStatsAssocFailRate
Object Name ruckusCtrlApRadioStatsAssocFailRate
Parent Node ruckusCtrlApRadioTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.3.1.95
Description AP radio's station association failure rate.
Ruckus AP MIB
Ruckus Controller Radio Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 203
Ruckus Controller AP WLAN Table
The following MIBs define the information for the controller AP WLAN table (ruckusCtrlApWlanTable) for users to easily access all information
of the WLAN to a specific radio of an AP. Using the ApMac in this table, users get more details about this AP. The index of the table is the
ApMac
,
RadioIndex
and
ApWlanBssid
.
•ruckusCtrlApWlanEntry on page 205
•ruckusCtrlApWlanApMac on page 205
•ruckusCtrlApWlanRadioIndex on page 205
•ruckusCtrlApWlanBssid on page 205
•ruckusCtrlApWlanAuthMethod on page 206
•ruckusCtrlApWlanEncryptMethod on page 206
•ruckusCtrlApWlanId on page 206
•ruckusCtrlApWlanName on page 206
•ruckusCtrlApWlanRadioChannel on page 206
•ruckusCtrlApWlanSsid on page 207
•ruckusCtrlApWlanVlanId on page 207
•ruckusCtrlApWlanRtsThreshold on page 207
•ruckusCtrlApWlanDownRateLimit on page 207
•ruckusCtrlApWlanUpRateLimit on page 208
•ruckusCtrlApWlanIsBcastDisable on page 208
•ruckusCtrlApWlanIsGuest on page 208
•ruckusCtrlApWlanIsTunnel on page 208
•ruckusCtrlApWlanStatsNumAssocClients on page 208
•ruckusCtrlApWlanStatsRxPkts on page 209
•ruckusCtrlApWlanStatsTxPkts on page 209
•ruckusCtrlApWlanStatsRxBytes on page 209
•ruckusCtrlApWlanStatsTxBytes on page 209
•ruckusCtrlApWlanStatsRxDataBytes on page 209
•ruckusCtrlApWlanStatsTxDataBytes on page 210
•ruckusCtrlApWlanStatsRxDataPkts on page 210
•ruckusCtrlApWlanStatsTxDataPkts on page 210
•ruckusCtrlApWlanStatsRxBcastDataPkts on page 210
•ruckusCtrlApWlanStatsTxBcastDataPkts on page 210
•ruckusCtrlApWlanStatsRxMcastDataPkts on page 211
•ruckusCtrlApWlanStatsTxMcastDataPkts on page 211
•ruckusCtrlApWlanStatsNumAssocReq on page 211
•ruckusCtrlApWlanStatsNumAssocResp on page 211
•ruckusCtrlApWlanStatsNumReassocReq on page 211
•ruckusCtrlApWlanStatsNumReassocResp on page 212
•ruckusCtrlApWlanStatsNumAuthReq on page 212
Ruckus AP MIB
Ruckus Controller AP WLAN Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
204 Part Number: 800-71536-001 Rev A
•ruckusCtrlApWlanStatsNumAuthResp on page 212
•ruckusCtrlApWlanStatsNumAuthSuccess on page 212
•ruckusCtrlApWlanStatsNumAuthFail on page 212
•ruckusCtrlApWlanStatsAuthFailRate on page 213
•ruckusCtrlApWlanStatsNumAssocFail on page 213
ruckusCtrlApWlanEntry
TABLE 469 ruckusCtrlApWlanEntry
Object Name ruckusCtrlApWlanEntry
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1
Description The index to this table is ApMac, RadioIndex and ApWlanBssid
ruckusCtrlApWlanApMac
TABLE 470 ruckusCtrlApWlanApMac
Object Name ruckusCtrlApWlanApMac
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.1
Description The AP MAC address.
ruckusCtrlApWlanRadioIndex
TABLE 471 ruckusCtrlApWlanRadioIndex
Object Name ruckusCtrlApWlanRadioIndex
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.2
Description The index of the radio:
• 0: 2.4G
• 1: 5G
ruckusCtrlApWlanBssid
TABLE 472 ruckusCtrlApWlanBssid
Object Name ruckusCtrlApWlanBssid
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.3
Description BSSID of the WLAN - AP MAC address for this WLAN.
Ruckus AP MIB
Ruckus Controller AP WLAN Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 205
ruckusCtrlApWlanAuthMethod
TABLE 473 ruckusCtrlApWlanAuthMethod
Object Name ruckusCtrlApWlanAuthMethod
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.8
Description Authentication method of the WLAN is:
• 1: open
• 3: auto
• 4: wpa-eap-802-1x
ruckusCtrlApWlanEncryptMethod
TABLE 474 ruckusCtrlApWlanEncryptMethod
Object Name ruckusCtrlApWlanEncryptMethod
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.9
Description Encryption method of the WLAN is:
• 1: open
• 2: wep
• 3: wpa
ruckusCtrlApWlanId
TABLE 475 ruckusCtrlApWlanId
Object Name ruckusCtrlApWlanId
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.10
Description Unique identifier (within zone) of this WLAN where the range is (0 to 65536)
ruckusCtrlApWlanName
TABLE 476 ruckusCtrlApWlanName
Object Name ruckusCtrlApWlanName
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.11
Description Displays the name of the WLAN.
ruckusCtrlApWlanRadioChannel
TABLE 477 ruckusCtrlApWlanRadioChannel
Object Name ruckusCtrlApWlanRadioChannel
Parent Node ruckusCtrlApWlanTable
Ruckus AP MIB
Ruckus Controller AP WLAN Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
206 Part Number: 800-71536-001 Rev A
TABLE 477 ruckusCtrlApWlanRadioChannel (continued)
Object Name ruckusCtrlApWlanRadioChannel
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.12
Description Radio of the channel of this WLAN.
ruckusCtrlApWlanSsid
TABLE 478 ruckusCtrlApWlanSsid
Object Name ruckusCtrlApWlanSsid
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.13
Description SSID of this WLAN.
ruckusCtrlApWlanVlanId
TABLE 479 ruckusCtrlApWlanVlanId
Object Name ruckusCtrlApWlanVlanId
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.14
Description The VLAN identifier of this WLAN in the range (1 to 4094). If the VLAN ID is 1, packets from this WLAN will be
untagged.
ruckusCtrlApWlanRtsThreshold
TABLE 480 ruckusCtrlApWlanRtsThreshold
Object Name ruckusCtrlApWlanRtsThreshold
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.15
Description This attribute indicates the threshold number of octets in an MPDU. The range is (256 to 2346). The default value is
2347.
ruckusCtrlApWlanDownRateLimit
TABLE 481 ruckusCtrlApWlanDownRateLimit
Object Name ruckusCtrlApWlanDownRateLimit
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.19
Description Down link rate limit of the WLAN in Kbps.
Ruckus AP MIB
Ruckus Controller AP WLAN Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 207
ruckusCtrlApWlanUpRateLimit
TABLE 482 ruckusCtrlApWlanUpRateLimit
Object Name ruckusCtrlApWlanUpRateLimit
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.20
Description UP link rate limit of the WLAN in Kbps.
ruckusCtrlApWlanIsBcastDisable
TABLE 483 ruckusCtrlApWlanIsBcastDisable
Object Name ruckusCtrlApWlanIsBcastDisable
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.25
Description To confirm if the SSID broadcast for this WLAN is disabled. Values are:
• 0: No
• 1: Yes
ruckusCtrlApWlanIsGuest
TABLE 484 ruckusCtrlApWlanIsGuest
Object Name ruckusCtrlApWlanIsGuest
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.26
Description To confirm if the WLAN connected is a guest. Values are:
• 0: No
• 1: Yes
ruckusCtrlApWlanIsTunnel
TABLE 485 ruckusCtrlApWlanIsTunnel
Object Name ruckusCtrlApWlanIsTunnel
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.27
Description To confirm if the tunnel is a WLAN. Values are:
• 0: No
• 1: Yes
ruckusCtrlApWlanStatsNumAssocClients
TABLE 486 ruckusCtrlApWlanStatsNumAssocClients
Object Name ruckusCtrlApWlanStatsNumAssocClients
Parent Node ruckusCtrlApWlanTable
Ruckus AP MIB
Ruckus Controller AP WLAN Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
208 Part Number: 800-71536-001 Rev A
TABLE 486 ruckusCtrlApWlanStatsNumAssocClients (continued)
Object Name ruckusCtrlApWlanStatsNumAssocClients
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.32
Description Number of associated clients for this WLAN with an entry timestamp.
ruckusCtrlApWlanStatsRxPkts
TABLE 487 ruckusCtrlApWlanStatsRxPkts
Object Name ruckusCtrlApWlanStatsRxPkts
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.37
Description Total number of received packets for this WLAN.
ruckusCtrlApWlanStatsTxPkts
TABLE 488 ruckusCtrlApWlanStatsTxPkts
Object Name ruckusCtrlApWlanStatsTxPkts
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.38
Description Total number of transmitted packets for this WLAN.
ruckusCtrlApWlanStatsRxBytes
TABLE 489 ruckusCtrlApWlanStatsRxBytes
Object Name ruckusCtrlApWlanStatsRxBytes
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.39
Description Total number of received bytes of this WLAN. This counter does not include the Ether / VLAN header.
ruckusCtrlApWlanStatsTxBytes
TABLE 490 ruckusCtrlApWlanStatsTxBytes
Object Name ruckusCtrlApWlanStatsTxBytes
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.40
Description Total number of received bytes of this WLAN. This counter does not include the Ether / VLAN header.
ruckusCtrlApWlanStatsRxDataBytes
TABLE 491 ruckusCtrlApWlanStatsRxDataBytes
Object Name ruckusCtrlApWlanStatsRxDataBytes
Parent Node ruckusCtrlApWlanTable
Ruckus AP MIB
Ruckus Controller AP WLAN Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 209
TABLE 491 ruckusCtrlApWlanStatsRxDataBytes (continued)
Object Name ruckusCtrlApWlanStatsRxDataBytes
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.47
Description Total number of data bytes received of this WLAN.
ruckusCtrlApWlanStatsTxDataBytes
TABLE 492 ruckusCtrlApWlanStatsTxDataBytes
Object Name ruckusCtrlApWlanStatsTxDataBytes
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.48
Description Total number of data bytes transmitted from this WLAN.
ruckusCtrlApWlanStatsRxDataPkts
TABLE 493 ruckusCtrlApWlanStatsRxDataPkts
Object Name ruckusCtrlApWlanStatsRxDataPkts
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.49
Description Total number of data packets received.
ruckusCtrlApWlanStatsTxDataPkts
TABLE 494 ruckusCtrlApWlanStatsTxDataPkts
Object Name ruckusCtrlApWlanStatsTxDataPkts
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.50
Description Total number of data packets transmitted.
ruckusCtrlApWlanStatsRxBcastDataPkts
TABLE 495 ruckusCtrlApWlanStatsRxBcastDataPkts
Object Name ruckusCtrlApWlanStatsRxBcastDataPkts
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.55
Description Total number of broadcast data packets received.
ruckusCtrlApWlanStatsTxBcastDataPkts
TABLE 496 ruckusCtrlApWlanStatsTxBcastDataPkts
Object Name ruckusCtrlApWlanStatsTxBcastDataPkts
Parent Node ruckusCtrlApWlanTable
Ruckus AP MIB
Ruckus Controller AP WLAN Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
210 Part Number: 800-71536-001 Rev A
TABLE 496 ruckusCtrlApWlanStatsTxBcastDataPkts (continued)
Object Name ruckusCtrlApWlanStatsTxBcastDataPkts
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.56
Description Total number of broadcast data packets transmitted.
ruckusCtrlApWlanStatsRxMcastDataPkts
TABLE 497 ruckusCtrlApWlanStatsRxMcastDataPkts
Object Name ruckusCtrlApWlanStatsRxMcastDataPkts
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.57
Description Total number of multicast data packets received.
ruckusCtrlApWlanStatsTxMcastDataPkts
TABLE 498 ruckusCtrlApWlanStatsTxMcastDataPkts
Object Name ruckusCtrlApWlanStatsTxMcastDataPkts
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.58
Description Total number of multicast data packets transmitted.
ruckusCtrlApWlanStatsNumAssocReq
TABLE 499 ruckusCtrlApWlanStatsNumAssocReq
Object Name ruckusCtrlApWlanStatsNumAssocReq
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.78
Description Total number of associated requests.
ruckusCtrlApWlanStatsNumAssocResp
TABLE 500 ruckusCtrlApWlanStatsNumAssocResp
Object Name ruckusCtrlApWlanStatsNumAssocResp
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.79
Description Total number of associated responses sent.
ruckusCtrlApWlanStatsNumReassocReq
TABLE 501 ruckusCtrlApWlanStatsNumReassocReq
Object Name ruckusCtrlApWlanStatsNumReassocReq
Parent Node ruckusCtrlApWlanTable
Ruckus AP MIB
Ruckus Controller AP WLAN Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 211
TABLE 501 ruckusCtrlApWlanStatsNumReassocReq (continued)
Object Name ruckusCtrlApWlanStatsNumReassocReq
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.80
Description Total number of re-associated requests received
ruckusCtrlApWlanStatsNumReassocResp
TABLE 502 ruckusCtrlApWlanStatsNumReassocResp
Object Name ruckusCtrlApWlanStatsNumReassocResp
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.81
Description Total number of re-associated responses sent.
ruckusCtrlApWlanStatsNumAuthReq
TABLE 503 ruckusCtrlApWlanStatsNumAuthReq
Object Name ruckusCtrlApWlanStatsNumAuthReq
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.89
Description Total number of authentication requests received.
ruckusCtrlApWlanStatsNumAuthResp
TABLE 504 ruckusCtrlApWlanStatsNumAuthResp
Object Name ruckusCtrlApWlanStatsNumAuthResp
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.90
Description Total number of authentication responses sent.
ruckusCtrlApWlanStatsNumAuthSuccess
TABLE 505 ruckusCtrlApWlanStatsNumAuthSuccess
Object Name ruckusCtrlApWlanStatsNumAuthSuccess
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.91
Description Total number of successful authentications.
ruckusCtrlApWlanStatsNumAuthFail
TABLE 506 ruckusCtrlApWlanStatsNumAuthFail
Object Name ruckusCtrlApWlanStatsNumAuthFail
Parent Node ruckusCtrlApWlanTable
Ruckus AP MIB
Ruckus Controller AP WLAN Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
212 Part Number: 800-71536-001 Rev A
TABLE 506 ruckusCtrlApWlanStatsNumAuthFail (continued)
Object Name ruckusCtrlApWlanStatsNumAuthFail
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.92
Description Total number of failed authentications.
ruckusCtrlApWlanStatsAuthFailRate
TABLE 507 ruckusCtrlApWlanStatsAuthFailRate
Object Name ruckusCtrlApWlanStatsAuthFailRate
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.93
Description Failed rate in percentage.
ruckusCtrlApWlanStatsNumAssocFail
TABLE 508 ruckusCtrlApWlanStatsNumAssocFail
Object Name ruckusCtrlApWlanStatsNumAssocFail
Parent Node ruckusCtrlApWlanTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.5.1.98
Description Total number of associated failures.
Ruckus Controller Client Table
The following MIBs define the information for the controller Client table (ruckusCtrlClientTable) for users to easily access information of a
specific client.
In addition, if a client has successfully roamed from AP1 to AP2, only the information in AP2 will be returned. Using the ClientMac in this
table, users get more details about this AP.
The index of the table is the
ClientMac.
A MAC address of C8:AA:7C:8E:67:C4, must be translated to the equivalent decimal value of 200.170.124.142.103.196 for the query.
For example:
To get MAC C8:AA:7C:8E:67:C4, use the command format:
snmpget -v2c -c public <ip_addr> RUCKUS-CTRL-MIB::ruck- usCtrlClientMac.6.200.170.124.142.103.196 where 6 is
the length of the string index.
•ruckusCtrlClientEntry on page 214
•ruckusCtrlClientMac on page 214
•ruckusCtrlClientIp on page 215
•ruckusCtrlClientIpv6 on page 215
•ruckusCtrlClientApMac on page 215
•ruckusCtrlClientWlanBssid on page 215
•ruckusCtrlClientSsid on page 215
Ruckus AP MIB
Ruckus Controller Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 213
•ruckusCtrlClientRadioIndex on page 216
•ruckusCtrlClientRadioType on page 216
•ruckusCtrlClientRadioChannel on page 216
•ruckusCtrlClientUsername on page 216
•ruckusCtrlClientVlanId on page 217
•ruckusCtrlClientOsType on page 217
•ruckusCtrlClientStatus on page 217
•ruckusCtrlClientAuthMode on page 217
•ruckusCtrlClientStatsRssi on page 217
•ruckusCtrlClientStatsSnr on page 218
•ruckusCtrlClientStatsNoiseFloor on page 218
•ruckusCtrlClientStatsThroughput on page 218
•ruckusCtrlClientStatsRxDataBytes on page 218
•ruckusCtrlClientStatsTxDataBytes on page 218
•ruckusCtrlClientStatsRxDataPkts on page 219
•ruckusCtrlClientStatsTxDataPkts on page 219
•ruckusCtrlClientStatsTxAvgByteRate on page 219
•ruckusCtrlClientStatsTxRetry on page 219
•ruckusCtrlClientStatsRxError on page 219
•ruckusCtrlClientStatsTxError on page 220
•ruckusCtrlClientStatsTxRetryBytes on page 220
•ruckusCtrlClientStatsTxDropPkts on page 220
ruckusCtrlClientEntry
TABLE 509 ruckusCtrlClientEntry
Object Name ruckusCtrlClientEntry
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1
Description The index to this table is ClientMac.
ruckusCtrlClientMac
TABLE 510 ruckusCtrlClientMac
Object Name ruckusCtrlClientMac
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.1
Description The MAC address of the user equipment.
Ruckus AP MIB
Ruckus Controller Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
214 Part Number: 800-71536-001 Rev A
ruckusCtrlClientIp
TABLE 511 ruckusCtrlClientIp
Object Name ruckusCtrlClientIp
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.6
Description The IP address of the user equipment.
ruckusCtrlClientIpv6
TABLE 512 ruckusCtrlClientIpv6
Object Name ruckusCtrlClientIpv6
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.7
Description The IPv6 address of the user equipment.
ruckusCtrlClientApMac
TABLE 513 ruckusCtrlClientApMac
Object Name ruckusCtrlClientApMac
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.8
Description The AP Mac address.
ruckusCtrlClientWlanBssid
TABLE 514 ruckusCtrlClientWlanBssid
Object Name ruckusCtrlClientWlanBssid
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.9
Description The BSSID of the WLAN.
ruckusCtrlClientSsid
TABLE 515 ruckusCtrlClientSsid
Object Name ruckusCtrlClientSsid
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.10
Description The SSID that the user equipment connects to.
Ruckus AP MIB
Ruckus Controller Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 215
ruckusCtrlClientRadioIndex
TABLE 516 ruckusCtrlClientRadioIndex
Object Name ruckusCtrlClientRadioIndex
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.12
Description The radio index of:
• 0: 2.4G
• 1: 5G.
ruckusCtrlClientRadioType
TABLE 517 ruckusCtrlClientRadioType
Object Name ruckusCtrlClientRadioType
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.13
Description The radio index:
1: ieee802dot11b
2: ieee802dot11g
3: ieee802dot11Mixed
4: ieee802dot11a
5: ieee802dot11ng
6: ieee802dot11na
7: ieee802dot11ac
ruckusCtrlClientRadioChannel
TABLE 518 ruckusCtrlClientRadioChannel
Object Name ruckusCtrlClientRadioChannel
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.14
Description The radio channel.
ruckusCtrlClientUsername
TABLE 519 ruckusCtrlClientUsername
Object Name ruckusCtrlClientUsername
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.15
Description The user name.
Ruckus AP MIB
Ruckus Controller Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
216 Part Number: 800-71536-001 Rev A
ruckusCtrlClientVlanId
TABLE 520 ruckusCtrlClientVlanId
Object Name ruckusCtrlClientVlanId
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.18
Description The VLAN identifier.
ruckusCtrlClientOsType
TABLE 521 ruckusCtrlClientOsType
Object Name ruckusCtrlClientOsType
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.19
Description The OS type of the user equipment.
ruckusCtrlClientStatus
TABLE 522 ruckusCtrlClientStatus
Object Name ruckusCtrlClientStatus
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.20
Description The authorized status of the client as:
1: unauthorized
2: authorized
ruckusCtrlClientAuthMode
TABLE 523 ruckusCtrlClientAuthMode
Object Name ruckusCtrlClientAuthMode
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.29
Description The authentication mode.
ruckusCtrlClientStatsRssi
TABLE 524 ruckusCtrlClientStatsRssi
Object Name ruckusCtrlClientStatsRssi
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.41
Description An estimate of the received signal power (strength), reported in dBm, at the AP for each received packet from a
particular client.
Ruckus AP MIB
Ruckus Controller Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 217
ruckusCtrlClientStatsSnr
TABLE 525 ruckusCtrlClientStatsSnr
Object Name ruckusCtrlClientStatsSnr
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.42
Description An estimate of the received signal to noise ratio, reported in dB, at the AP for each received packet from a particular
client. The SNR is rounded to the nearest dB.
ruckusCtrlClientStatsNoiseFloor
TABLE 526 ruckusCtrlClientStatsNoiseFloor
Object Name ruckusCtrlClientStatsNoiseFloor
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.43
Description An estimate of the radio's thermal noise floor, reported in dBm, at the AP. The noise floor estimate is rounded to the
nearest dB.
ruckusCtrlClientStatsThroughput
TABLE 527 ruckusCtrlClientStatsThroughput
Object Name ruckusCtrlClientStatsThroughput
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.44
Description An estimate of the saturated throughput of the AP towards a particular client.
ruckusCtrlClientStatsRxDataBytes
TABLE 528 ruckusCtrlClientStatsRxDataBytes
Object Name ruckusCtrlClientStatsRxDataBytes
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.49
Description Total number of data bytes that are successfully received.
ruckusCtrlClientStatsTxDataBytes
TABLE 529 ruckusCtrlClientStatsTxDataBytes
Object Name ruckusCtrlClientStatsTxDataBytes
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.50
Description Total number of bytes that are successfully transmitted.
Ruckus AP MIB
Ruckus Controller Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
218 Part Number: 800-71536-001 Rev A
ruckusCtrlClientStatsRxDataPkts
TABLE 530 ruckusCtrlClientStatsRxDataPkts
Object Name ruckusCtrlClientStatsRxDataPkts
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.51
Description Total number of data packets that are successfully received.
ruckusCtrlClientStatsTxDataPkts
TABLE 531 ruckusCtrlClientStatsTxDataPkts
Object Name ruckusCtrlClientStatsTxDataPkts
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.52
Description Total number of data packets that are successfully transmitted.
ruckusCtrlClientStatsTxAvgByteRate
TABLE 532 ruckusCtrlClientStatsTxAvgByteRate
Object Name ruckusCtrlClientStatsTxAvgByteRate
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.56
Description Average rate as percentage of transmitted bytes.
ruckusCtrlClientStatsTxRetry
TABLE 533 ruckusCtrlClientStatsTxRetry
Object Name ruckusCtrlClientStatsTxRetry
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.57
Description Total number retries while transmitting packets.
ruckusCtrlClientStatsRxError
TABLE 534 ruckusCtrlClientStatsRxError
Object Name ruckusCtrlClientStatsRxError
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.58
Description Total number of errors when receiving packets.
Ruckus AP MIB
Ruckus Controller Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 219
ruckusCtrlClientStatsTxError
TABLE 535 ruckusCtrlClientStatsTxError
Object Name ruckusCtrlClientStatsTxError
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.59
Description Total number of errors when transmitting packets.
ruckusCtrlClientStatsTxRetryBytes
TABLE 536 ruckusCtrlClientStatsTxRetryBytes
Object Name ruckusCtrlClientStatsTxRetryBytes
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.61
Description Total number of retries when transmitting bytes.
ruckusCtrlClientStatsTxDropPkts
TABLE 537 ruckusCtrlClientStatsTxDropPkts
Object Name ruckusCtrlClientStatsTxDropPkts
Parent Node ruckusCtrlClientTable
Object Identifier 1.3.6.1.4.1.25053.1.8.1.1.1.2.8.1.63
Description Total number of transmitted packets that dropped.
AP Wired Client Table
The following MIBs define the information for the controller AP Wired Client (ruckusCtrlApWiredClientTable) table for users to easily access
information on all wired clients in a specific AP.
The index of the table is the
ApMac
and
WiredClientMac.
To query all clients in a specific AP (ap1), use the command format:
snmpwalk ruckusCtrlApWiredClientMac.ap1
For MAC address of C8:AA:7C:8E:67:C4, it must be translated to equivalent decimal value of 202.170.124.142.103.196 for the query.
For example use the command format:
snmpget -v2c -c public <ip_addr>
RUCKUS-CTRL-MIB::ruckusCtrlApWiredClientMac.6.202.170.124.142.103.196
where 6 is the length of the string index
For MIB browser, it should translate the MAC address to the decimal form.
.1.3.6.1.4.1.25053.1.8.1.1.1.1.9.1.6.6.202.170.124.142.103.196
•ruckusCTRLApWiredClientEntry on page 221
•ruckusCtrlApWiredClientApMac on page 221
Ruckus AP MIB
AP Wired Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
220 Part Number: 800-71536-001 Rev A
•ruckusCtrlApWiredClientMac on page 221
ruckusCTRLApWiredClientEntry
TABLE 538 ruckusCTRLApWiredClientEntry
Object Name ruckusCTRLApWiredClientEntry
Parent Node ruckusCtrlApWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.1.11.1
Description The index to this table is:
• ruckusCtrlApWiredClientApMac
• ruckusCtrlApWiredClientMac
ruckusCtrlApWiredClientApMac
TABLE 539 ruckusCtrlApWiredClientApMac
Object Name ruckusCtrlApWiredClientApMac
Parent Node ruckusCtrlApWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.1.11.1
Description The AP MAC address.
ruckusCtrlApWiredClientMac
TABLE 540 ruckusCtrlApWiredClientMac
Object Name ruckusCtrlApWiredClientMac
Parent Node ruckusCtrlApWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.1.11.1.6
Description Wired client MAC address.
Ruckus Wired Client Table
The following MIBs define the information for the controller Wired Client (ruckusCtrlWiredClientTable) table for users to easily access
information of a specific wired client.
The index of the table is
WiredClientMac.
This table supports only
snmppget
when the user knows the wired UE's MAC, where the first
index should be provided.
To query MAC address of C8:AA:7C:8E:67:C4, it must be translated to an equivalent decimal value of 200.170.124.142.103.196.
For example, to get information of the wired UE with MAC address of C8:AA:7C:8E:67:C4 use the command format:
snmpget -v2c -c public <ip_addr> RUCKUS-CTRL-MIB::ruckusCtrlWiredClientMac.6.200.170.124.142.103.196
where 6 is the length of the string index
MAC Address C8:AA:7C:8E:67:C4 in decimal form is 200.170.124.142.103.196:
•ruckusCTRLWiredClientEntry on page 222
Ruckus AP MIB
Ruckus Wired Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 221
•ruckusCtrlWiredClientMac on page 222
•ruckusCtrlWiredClientUserName on page 223
•ruckusCtrlWiredClientLanPort on page 223
•ruckusCtrlWiredClientVlanId on page 223
•ruckusCtrlWiredClientIp on page 223
•ruckusCtrlWiredClientIpv6 on page 223
•ruckusCtrlWiredClientApMac on page 224
•ruckusCtrlWiredClientAuthStatus on page 224
•ruckusCtrlWiredClientRxFrames on page 224
•ruckusCtrlWiredClientTxFrames on page 224
•ruckusCtrlWiredClientRxBytes on page 224
•ruckusCtrlWiredClientTxBytes on page 225
•ruckusCtrlWiredClientRxUcastPkts on page 225
•ruckusCtrlWiredClientTxUcastPkts on page 225
•ruckusCtrlWiredClientRxMcastPkts on page 225
•ruckusCtrlWiredClientRxMcastLegacyPkts on page 226
•ruckusCtrlWiredClientRxMcastLegacyPkts on page 226
•ruckusCtrlWiredClientRxBcastPkts on page 226
•ruckusCtrlWiredClientTxBcastPkts on page 226
•ruckusCtrlWiredClientRxDroppedPkts on page 226
•ruckusCtrlWiredClientTxBcastPkts on page 226
•ruckusCtrlWiredClientRxEapolPkts on page 227
•ruckusCtrlWiredClientTxEapolPkts on page 227
ruckusCTRLWiredClientEntry
TABLE 541 ruckusCTRLWiredClientEntry
Object Name ruckusCTRLWiredClientEntry
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1
Description The index to this table is WiredClientMac.
ruckusCtrlWiredClientMac
TABLE 542 ruckusCtrlWiredClientMac
Object Name ruckusCtrlWiredClientMac
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.1
Description The wired UE MAC Address
Ruckus AP MIB
Ruckus Wired Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
222 Part Number: 800-71536-001 Rev A
ruckusCtrlWiredClientUserName
TABLE 543 ruckusCtrlWiredClientUserName
Object Name ruckusCtrlWiredClientUserName
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.3
Description The wired UE user name.
ruckusCtrlWiredClientLanPort
TABLE 544 ruckusCtrlWiredClientLanPort
Object Name ruckusCtrlWiredClientLanPort
Parent Node ruckusCtrlApClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.4
Description The wired UE LAN port
ruckusCtrlWiredClientVlanId
TABLE 545 ruckusCtrlWiredClientVlanId
Object Name ruckusCtrlWiredClientVlanId
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.5
Description VLAN identifier.
ruckusCtrlWiredClientIp
TABLE 546 ruckusCtrlWiredClientIp
Object Name ruckusCtrlWiredClientIp
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.7
Description The wired UE IP address.
ruckusCtrlWiredClientIpv6
TABLE 547 ruckusCtrlWiredClientIpv6
Object Name ruckusCtrlWiredClientIpv6
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.7
Description The wired UE IPV6 address.
Ruckus AP MIB
Ruckus Wired Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 223
ruckusCtrlWiredClientApMac
TABLE 548 ruckusCtrlWiredClientApMac
Object Name ruckusCtrlWiredClientApMac
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.8
Description The AP MAC address of the wired client.
ruckusCtrlWiredClientAuthStatus
TABLE 549 ruckusCtrlWiredClientAuthStatus
Object Name ruckusCtrlWiredClientAuthStatus
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.10
Description The authorized status of the wired client:
• unauthorized (1)
• authorized (2)
ruckusCtrlWiredClientRxFrames
TABLE 550 ruckusCtrlWiredClientRxFrames
Object Name ruckusCtrlWiredClientRxFrames
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.15
Description The total received frames of the wired client.
ruckusCtrlWiredClientTxFrames
TABLE 551 ruckusCtrlWiredClientTxFrames
Object Name ruckusCtrlWiredClientTxFrames
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.16
Description The total transmitted frames of the wired client.
ruckusCtrlWiredClientRxBytes
TABLE 552 ruckusCtrlWiredClientRxBytes
Object Name ruckusCtrlWiredClientUserName
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.17
Description The total received bytes of the wired client.
Ruckus AP MIB
Ruckus Wired Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
224 Part Number: 800-71536-001 Rev A
ruckusCtrlWiredClientTxBytes
TABLE 553 ruckusCtrlWiredClientTxBytes
Object Name ruckusCtrlWiredClientTxBytes
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.18
Description The total transmitted bytes of the wired client.
ruckusCtrlWiredClientRxUcastPkts
TABLE 554 ruckusCtrlWiredClientRxUcastPkts
Object Name ruckusCtrlWiredClientRxUcastPkts
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.23
Description The number of received unicast packets of the wired client
ruckusCtrlWiredClientTxUcastPkts
TABLE 555 ruckusCtrlWiredClientTxUcastPkts
Object Name ruckusCtrlWiredClientTxUcastPkts
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.24
Description The number of transmitted unicast packets of the wired client.
ruckusCtrlWiredClientRxMcastPkts
TABLE 556 ruckusCtrlWiredClientRxMcastPkts
Object Name ruckusCtrlWiredClientRxMcastPkts
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.25
Description The number of multicast packets received of the wired client.
ruckusCtrlWiredClientTxMcastPkts
TABLE 557 ruckusCtrlWiredClientTxMcastPkts
Object Name ruckusCtrlWiredClientTxMcastPkts
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.26
Description The number of multicast packets transmitted of the wired client.
Ruckus AP MIB
Ruckus Wired Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 225
ruckusCtrlWiredClientRxMcastLegacyPkts
TABLE 558 ruckusCtrlWiredClientRxMcastLegacyPkts
Object Name ruckusCtrlWiredClientRxMcastLegacyPkts
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.27
Description The total number of multicast legacy packets of the wired client.
ruckusCtrlWiredClientRxBcastPkts
TABLE 559 ruckusCtrlWiredClientRxBcastPkts
Object Name ruckusCtrlWiredClientRxBcastPkts
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.28
Description The number of broadcast packets received of the wired client.
ruckusCtrlWiredClientTxBcastPkts
TABLE 560 ruckusCtrlWiredClientTxBcastPkts
Object Name ruckusCtrlWiredClientTxBcastPkts
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.29
Description The number of broadcast packets transmitted of the wired client.
ruckusCtrlWiredClientRxDroppedPkts
TABLE 561 ruckusCtrlWiredClientRxDroppedPkts
Object Name ruckusCtrlWiredClientRxDroppedPkts
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.34
Description The number of dropped frames received.
ruckusCtrlWiredClientTxDroppedPkts
TABLE 562 ruckusCtrlWiredClientTxDroppedPkts
Object Name ruckusCtrlWiredClientTxDroppedPkts
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.35
Description The number of transmitted dropped frames.
Ruckus AP MIB
Ruckus Wired Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
226 Part Number: 800-71536-001 Rev A
ruckusCtrlWiredClientRxEapolPkts
TABLE 563 ruckusCtrlWiredClientRxEapolPkts
Object Name ruckusCtrlWiredClientRxEapolPkts
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.36
Description The number of EAPOL (Extensible Authentication Protocol (EAP) over LAN (EAPoL)) packets received.
ruckusCtrlWiredClientTxEapolPkts
TABLE 564 ruckusCtrlWiredClientTxEapolPkts
Object Name ruckusCtrlWiredClientTxEapolPkts
Parent Node ruckusCtrlWiredClientTable
Object Identifier .1.3.6.1.4.1.25053.1.8.1.1.1.2.15.1.37
Description The number of EAPOL packets transmitted.
Ruckus AP MIB
Ruckus Wired Client Table
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 227
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
228 Part Number: 800-71536-001 Rev A
SmartZone Event Traps
• ruckusSZSystemMiscEventTrap............................................................................................................................ 229
• ruckusSZAPMiscEventTrap................................................................................................................................... 230
• ruckusSZClientMiscEventTrap............................................................................................................................... 230
ruckusSZSystemMiscEventTrap
• Object Name - ruckusSZSystemMiscEventTrap on page 49
• Object Identifier -.1.3.6.1.4.1.25053.2.11.1.1
Event Event Event
0:Unknown 508:dpIPChanged 509:dpChangeControlBlade
516:dpPktPoolLow 517:dpPktPoolCriticalLow 518:dpPktPoolRecover
519:dpCoreDead 520:dpProcessRestart 618:dpDhcpRelayNoResp
619:dpDhcpRelayFailOver 623:dpDhcpRelayRespRecovery 725:scgLBSStartLocationService
727:scgLBSSentControllerInfo 728:scgLBSRcvdMgmtRequest 729:scgLBSSendAPInfobyVenueReport
730:scgLBSSendVenuesReport 731:scgLBSSendClientInfo 732:scgLBSFwdPassiveCalReq
733:scgLBSFwdPassiveFFReq 734:scgLBSRcvdUnrecognizedRequest 770:planeLoadingRebalancingSucceeded
771:planeLoadingRebalancingFailed 801:clusterCreatedSuccess 819:clusterUpgradeStart
823:nodeIPChanged 827:ntpTimeSynched 830:clusterUploadStart
834:removeNodeStarted 837:resyncNTPTime 838:diskUsageExceed
844:clusterInitiatedMovingAp 848:clusterUploadAPFirmwareStart 849:clusterUploadAPFirmwareSuccess
850:clusterUploadAPFirmwareFailed 851:clusterAddAPFirmwareStart 852:clusterAddAPFirmwareSuccess
853:clusterAddAPFirmwareFailed 854:clusterNameChanged 970:ftpTransfer
980:fileUpload 981:mailSendSuccess 982:mailSendFailed
983:smsSendSuccess 984:smsSendFailed 1007:cfgUpdSuccess
1012:incorrectFlatFileCfg 1209:c2dCfgFailed 1237:delAllSess
1254:licenseImported 1255:licenseGoingToExpire 1256:apConnectionTerminatedDueToInsufficie
ntLicense
1300:rateLimitThresholdSurpassed 1301:rateLimitThresholdRestored 1641:dmRcvdAAA
1642:dmNackSntAAA 1643:dmSntNAS 1644:dmNackRcvdNAS
1645:coaRcvdAAA 1646:coaNackSntAAA 1647:coaSentNas
1648:coaNakRcvdNas 1649:coaAuthorizeOnlyAccessReject 1650:coaRWSGMWSGNotifFailure
1651:authFailedOverToSecondary 1652:authFallbackToPrimary 1751:racADLDAPSuccess
1752:racADLDAPFail 1753:racADLDAPBindFail 1754:racLDAPFailToFindPassword
1755:racADNPSFail 1756:racADNPSFailToAuthenticate 2001:zdAPMigrating
2002:zdAPMigrated 2003:zdAPRejected 2501:nodeIPv6Added
2502:nodeIPv6Deleted 2004:zdAPMigrationFailed 3001:cassandraError
7001:tooManyUsers 7002:tooManyDevices
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 229
ruckusSZAPMiscEventTrap
• Object Name - ruckusSZAPMiscEventTrap on page 53
• Object Identifier -.1.3.6.1.4.1.25053.2.11.1.20
Event Event Event
108:apFirmwareApplying 109:apConfApplying 116:apIllgalToChangeCountryCode
180:genericRogueAPDetected 304:apIPChanged 306:apChannelChanged
307:apCountryCodeChanged 308:apDfsRadarEvent 311:apChangeControlBlade
315:apTaggedAsCritical 317:apBrownout 319:smartMonitorTurnOffWLAN
320:apCLBlimitReached 321:apCLBlimitRecovered 322:apWLANStateChanged
323:apCapacityReached 324:apCapacityRecovered 405:emapDlinkConnectWithMap
406:emapDlinkDisconnectWithMap 407:emapUlinkConnectWithMap 408:emapUlinkDisconnectWithMap
411:mapDisconnected 412:mapDlinkConnected 413:mapDlinkConnectWitheMap
414:mapDlinkDisconnectWitheMap 416:rmapDlinkConnectWithMap 417:mapUlinkConnectToeMap
418:mapUlinkDisconnectToeMap 419:mapUlinkConnectToRap 420:mapUlinkConnectToMap
421:meshStateUpdateToMap 422:meshStateUpdateToMapNoChannel 423:meshStateUpdateToRap
424:meshStateUpdateToRapNoChannel 425:mapDlinkConnectWithMap 426:mapDlinkDisconnectWithMap
427:rapDlinkDisconnectWithMap 705:apLBSStartLocationService 706:apLBSStopLocationService
707:apLBSRcvdPassiveCalReq 708:apLBSRcvdPassiveFFReq 709:apLBSRcvdUnrecognizedRequest
1021:zoneCfgPrepareFailed 1022: apCfgGenFailed 1023:cfgGenSkippedDueToEolAp
ruckusSZClientMiscEventTrap
• Object Name - ruckusSZClientMiscEventTrap on page 86
• Object Identifier -.1.3.6.1.4.1.25053.2.11.1.100
Event Event Event
201:clientAuthFailure 202:clientJoin 203:clientJoinFailure
204:clientDisconnect 205:clientInactivityTimeout 206:clientAuthorization
207:clientAuthorizationFailure 208:clientSessionExpiration 209:clientRoaming
210:clientSessionLogout 218:smartRoamDisconnect 219:clientBlockByDeviceType
220:clientGracePeriod 221:onboardingRegistrationSuccess 222:onboardingRegistrationFailure
223:remediationSuccess 224:remediationFailure 225:forceDHCPDisconnect
226:wdsDeviceJoin 227:wdsDeviceLeave
SmartZone Event Traps
ruckusSZAPMiscEventTrap
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
230 Part Number: 800-71536-001 Rev A
Frequently Asked Questions
• Timeout ................................................................................................................................................................231
• SNMP Reports ..................................................................................................................................................... 232
• Difference in SNMP Data....................................................................................................................................... 232
• Modifying SNMP HostName..................................................................................................................................233
• Determining the Timeout Value ............................................................................................................................. 233
• Determining the Query Interval...............................................................................................................................233
• Determining the Query Interval for AP Related Tables............................................................................................ 233
Timeout
Why does a
Timeout No Response
occur during a full SNMP MIB walk?
1. Scenario 1 : When querying full MIBs
Following are the solutions to resolve the timeout issue.
a. Increase the timeout value of the SNMP client tools. Always try to increase the timeout value of the SNMP MIB browser or
SNMP CLI commands based on the number of APs and UEs on the controller (SmartZone).
b. Do a snmpwalk for a specified table. Otherwise, it is likely that SNMP will focus on the standard table
tcpConnTable
, which
collects all the TCP connections of the controller. The table size could be large based on the large number of APs or UEs
associated to a controller .
2. Scenario 2 : When querying AP related table for controllers with large number of APs and UEs
Following are the solutions to resolve the timeout issue.
a. Increase the interval of the query scripts or tools to make sure there is only one SNMP client tool to query the controller at a
time. Adjust the query interval of the query scripts or tools by the loading of the controller. Otherwise, SNMP daemon takes
longer to complete all queries. It is recommended that you do not run multiple queries at the same time.
b. Do not use MIB browser to monitor the APs. Most MIB browsers can only provide snmpwalk which is not an efficient for
querying large volume of data and are unable to store large volumes of data.
c. Increase the timeout value of the SNMP client tools. Always try to increase the timeout value of the SNMP MIB browser or
SNMP CLI commands based on the number of APs and UEs on the controller.
d. Get the table index by using snmpwalk and use snmpget to get multiple entries of same index at a time.
a. Step 1 - Use a script to query the index of the table using snmpwalk as seen in the below example.
Example:
snmpwalk <options> <IP> <table index 1 OID>snmpwalk <options> <IP> <table index 2 OID>
b. Step 2 - Use a script to query multiple table entries for same index at a time using snmpget as seen in the below
example.
Example:
snmpget <options> <IP> <table entry 1 OID>.index1 <table entry 2 OID>.index1 ...
<table entry N OID>.index1
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 231
SNMP Reports
Why is the response time slow when querying for SNMP reports ?
If the controller is busy collecting data for other tables and if the time taken is longer than the timeout setting for SNMP reports, then the
SNMP client tool displays the
Timeout No Response
error.
Following are the solutions for the response time being slow.
1. Increase the interval of the query scripts or tools to make sure there is only one SNMP client tool to query the controller at a time.
Adjust the query interval of the query scripts or tools by the loading of the controller. Otherwise, SNMP daemon takes longer to
complete all queries. It is recommended that you do not run multiple queries at the same time.
2. Do not use MIB browser to monitor the APs. Most MIB browsers can only provide snmpwalk which is not an efficient for querying
large volume of data and are unable to store large volumes of data.
3. Increase the timeout value of the SNMP client tools. Always try to increase the timeout value of the SNMP MIB browser or SNMP
CLI commands based on the number of APs and UEs on the controller.
4. Get the table index by using snmpwalk and use snmpget to get multiple entries of same index at a time.
a. Step 1 - Use a script to query the index of the table using snmpwalk as seen in the below example.
Example:
snmpwalk <options> <IP> <table index 1 OID>snmpwalk <options> <IP> <table index 2 OID>
b. Step 2 - Use a script to query multiple table entries for same index at a time using snmpget as seen in the below example.
Example:
snmpget <options> <IP> <table entry 1 OID>.index1 <table entry 2 OID>.index1 ...
<table entry N OID>.index1
Difference in SNMP Data
Why is there a difference between the SNMP reports and the web interface display?
•Scenario 1: Memory, disk space, and CPU usages are different from the web interface display.
The following are the reasons for this difference to occur.
Standard MIBs provide Linux level resource status. It is different from
usable resource
of the system.
The web interface shows the logically resource of the system, which is different from the physical status. Currently, it does not
show in the Ruckus private MIBs.
•Scenario 2: Statistical data is different from the web interface display.
The following are the reasons for this difference to occur.
Most of the SNMP tables use cache mechanism.
SNMP daemon retains the data between 30 to 300 seconds.
There is a delayed response time from APs or UEs in reporting their statistical data.
Frequently Asked Questions
SNMP Reports
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
232 Part Number: 800-71536-001 Rev A
Modifying SNMP HostName
Why cannot the SNMP hostname be modified through SNMPSET ?
Ruckus does not support setting the hostname through SNMP MIB. This is a read-only for all controller platforms. Use the CLI mode to
modify the hostname.
Determining the Timeout Value
How to determine the minimum timeout value for a full MIB tree?
The minimum timeout value should be long to complete the
TCP-MIB::tcpConnectionTable
which is the bottle neck. An elapsed time results
in a timeout response.
To determine this value, use the SNMP daemon, which caches the data in this table. Query this table within the cached timeout to get the
value.
For example, in an environment with 2000 APs and 1000 WLANs, the values are:
MIB Table Minimum Timeout
RUCKUS-SCG-CONFIG-WLAN-MIB::ruckusSCGConfigWLANTable 25+ seconds
TCP-MIB::tcpConnectionTable 85+ seconds
NOTE
The exact value should be tested in your own environments.
Determining the Query Interval
How to determine the query interval for a full MIB tree?
The exact value depends on too many factors such as network topology, congestion, and traffic. The precise to determine the query interval
is by recording the longest time and adding some buffer time to complete a full MIB walk.
Determining the Query Interval for AP Related Tables
How to determine the query interval for AP related tables ?
Use snmpwalk to get an OID of the AP related table to determine the time to complete the snmpwalk for a single OID.
1. Scenario 1 : Using simple snmpwalk
If you are unable to write your own script as suggested in Timeout on page 231 the approximate time for an OID may be between
the range of 20 to 40 minutes per seconds. This is based on lab environments tested in Ruckus.
An approximate estimate of 100 minutes per AP is totally sufficient for the below example. The suggested polling interval shown
below needs an OID for the AP tables.
3,000 AP: at least 300 sec(5 min) per OID
6,000 AP: at least 600 sec(10 min) per OID
10,000 AP: at least 1,000 sec(16-17 mins) per OID
For full table query, multiply the value by the number of fields in the table.
Frequently Asked Questions
Determining the Query Interval for AP Related Tables
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
Part Number: 800-71536-001 Rev A 233
For example, in
RUCKUS-SCG-WLAN-MIB::ruckusSCGAPTable
, there are 33 fields in the table, which needs to be multiplied by
the value.
3,000 AP: at least 9,900 sec(165 min)for full table
6,000 AP: at least 19,800 sec(330 min)for full table
10,000 AP: at least 33,000 sec(550 min)for full table
For example, in an environment with 2000 APs and 1000 WLANs, the values are:
MIB Table SNMPWalk Elapsed Time Comment
RUCKUS-SCG-WLAN-MIB::ruckusWLANTable 41 seconds
RUCKUS-SCG-WLAN-MIB::ruckusSCGWLANTable 42 seconds
RUCKUS-SCG-WLAN-MIB::ruckusWLANAPTable 152 seconds
RUCKUS-SCG-WLAN-MIB::ruckusSCGAPTable 4015 seconds
RUCKUS-SCG-CONFIG-WLAN-MIB::ruckusSCGConfigWLANTable 50 seconds Timeout should be set as 25+
seconds.
NOTE
The exact value should be tested in your own environments.
1. Scenario 2 : Using customized query scripts as described in Timeout on page 231scenario 2 (d).
Since it utilizes the cached mechanism, it needs less time to complete it. For example, in
RUCKUS-SCG-WLAN-
MIB::ruckusSCGAPTable
, it takes about 154 minutes for 1 AP to get all fields in the test environment. If 500 minutes are used for
an AP the following is the result.
3,000 AP: at least 1,500 seconds(25 min)for full table.
6,000 AP: at least 3,000 seconds(50 min)for full table.
10,000 AP: at least 5,000 seconds(83-84 min)for full table.
Frequently Asked Questions
Determining the Query Interval for AP Related Tables
Ruckus SmartZone 100 and Virtual SmartZone Essentials SNMP MIB Reference
234 Part Number: 800-71536-001 Rev A
