About This Guide
This SmartCell Gateway™ (SCG) 200 and Virtual SmartZone High-Scale (vSZ-H)
Hotspot Portal Integration Reference Guide describes the SCG-200/vSZ-H (collec-
tively referred to as “the controller” throughout this guide) RESTful-like/JSON
interfaces for external web portal servers.
This guide is written for service operators and system administrators who are
responsible for managing, configuring, and troubleshooting Ruckus Wireless
devices. Consequently, it assumes a basic working knowledge of local area
networks, wireless networking, and wireless devices.
NOTE If release notes are shipped with your product and the information there
differs from the information in this guide, follow the instructions in the release notes.
Most user guides and release notes are available in Adobe Acrobat Reader Portable
Document Format (PDF) or HTML on the Ruckus Wireless Support web site at
https://support.ruckuswireless.com/contact-us.
Document Conventions
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 6
Document Conventions
Tab l e 1 and Table 2 list the text and notice conventions that are used throughout
this guide.
Terminology
Tab l e 3 lists the terms used in this guide.
Table 1. Text conventions
Convention Description Example
monospace Represents information as it
appears on screen
[Device name]>
monospace bold Represents information that
you enter
[Device name]> set
ipaddr 10.0.0.12
default font bold Keyboard keys, software
buttons, and field names
On the Start menu, click All
Programs.
italics Screen or page names Click Advanced Settings.
The Advanced Settings page
appears.
Table 2. Notice conventions
Notice Type Description
NOTE Information that describes important features or instructions
CAUTION! Information that alerts you to potential loss of data or potential
damage to an application, system, or device
WARNING! Information that alerts you to potential personal injury
Table 3. Terms used in this guide
Terms Description
AP Access Point
CP Captive Portal
NBI Northbound Interface
RADIUS Remote Access Dial In User Service
SCG Smart Cell Gateway
SSL Secure Socket Layer
Related Documentation
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 7
Related Documentation
For a complete list of documents that accompany this release, refer to the Release
Notes.
Online Training Resources
To access a variety of online Ruckus Wireless training modules, including free
introductory courses to wireless networking essentials, site surveys, and Ruckus
Wireless products, visit the Ruckus Wireless Training Portal at:
https://training.ruckuswireless.com.
Documentation Feedback
Ruckus Wireless is interested in improving its documentation and welcomes your
comments and suggestions. You can email your comments to Ruckus Wireless at:
docs@ruckuswireless.com
When contacting us, please include the following information:
• Document title
• Document part number (on the cover page)
• Page number (if appropriate)
For example:
• SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for Smart-
Zone 3.4.1
• Part number: 800-71364-001
• Page 88
TCP Transmission Control Protocol
UDI User Define Interface
UE User Equipment
UE-IP User Equipment - IP Address
UE-MAC User Equipment - MAC Address
Table 3. Terms used in this guide
Terms Description
Web Interface Configuration
Overview
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 9
Overview
The controller provides Wi-Fi hotspot services in conjunction with external web
portal servers. In most cases, an external web portal server provides the landing
web pages with Wi-Fi hotspot usage instructions, terms and conditions, etc., while
the end user submits his login ID and password directly to the AP for authentication.
There are, however, some cases when an external web portal server requires total
control of a user session by requesting authentication on the user’s behalf as well
as terminating user sessions. JSON interface defined in this reference guide provides
a standard way for an external web portal server to communicate with the controller
for this kind of usage.

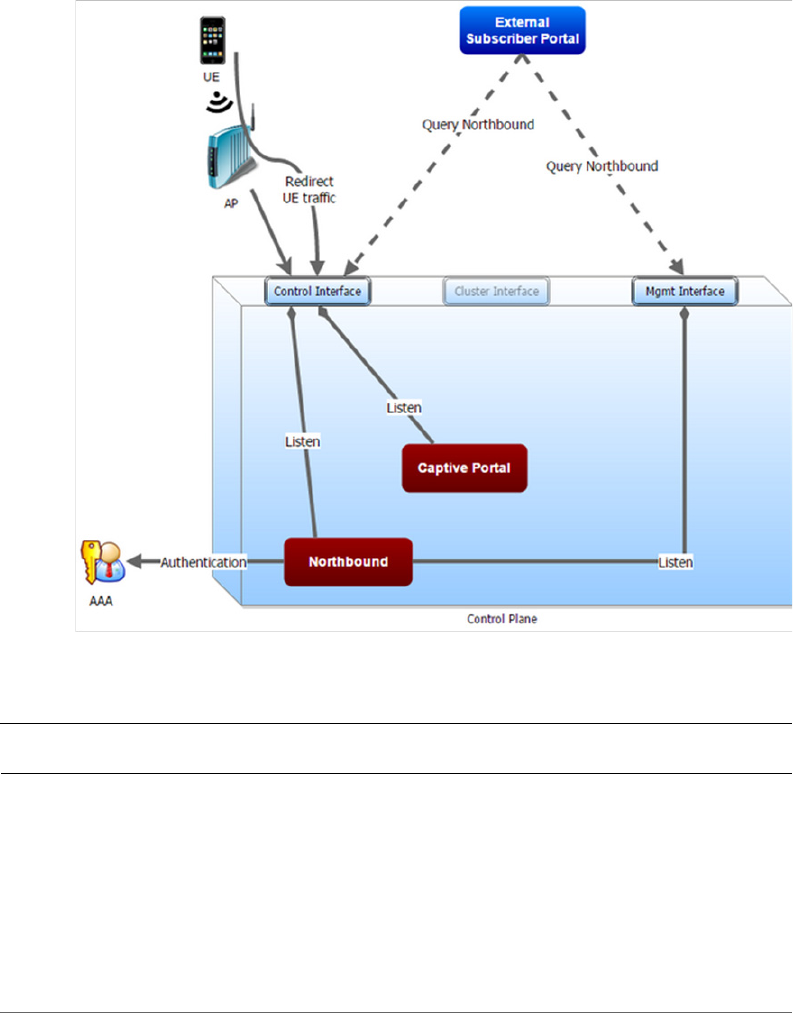

The following are the hotspot components and its role in the hotspot portal as seen
in Figure 1.
• Northbound: Listens on the control and management interface. It is responsible
for handling requests from external subscriber portal and authenticates with the
AAA server.
• Captive portal: Listens on the control interface or UDI. It is responsible for
providing a wall garden for web-proxy UE. It blocks UEs, which uses user agents
that are listed in the configured black-list and mainly handles high scalable
redirecting UEs to the external subscriber portal.
• External subscriber portal: Is a Web service. The user sends his/her login
credentials (user name and password) through this portal. The authentication is
performed through the northbound by user input credential. The external
subscriber portal can reach the northbound depending on the type of interface
it can reach such as control interface, management interface or both.
• AAA server: Is responsible for authenticating the UE through the UE’s login
credentials (user name and password).
Web Interface Configuration
Overview
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 10

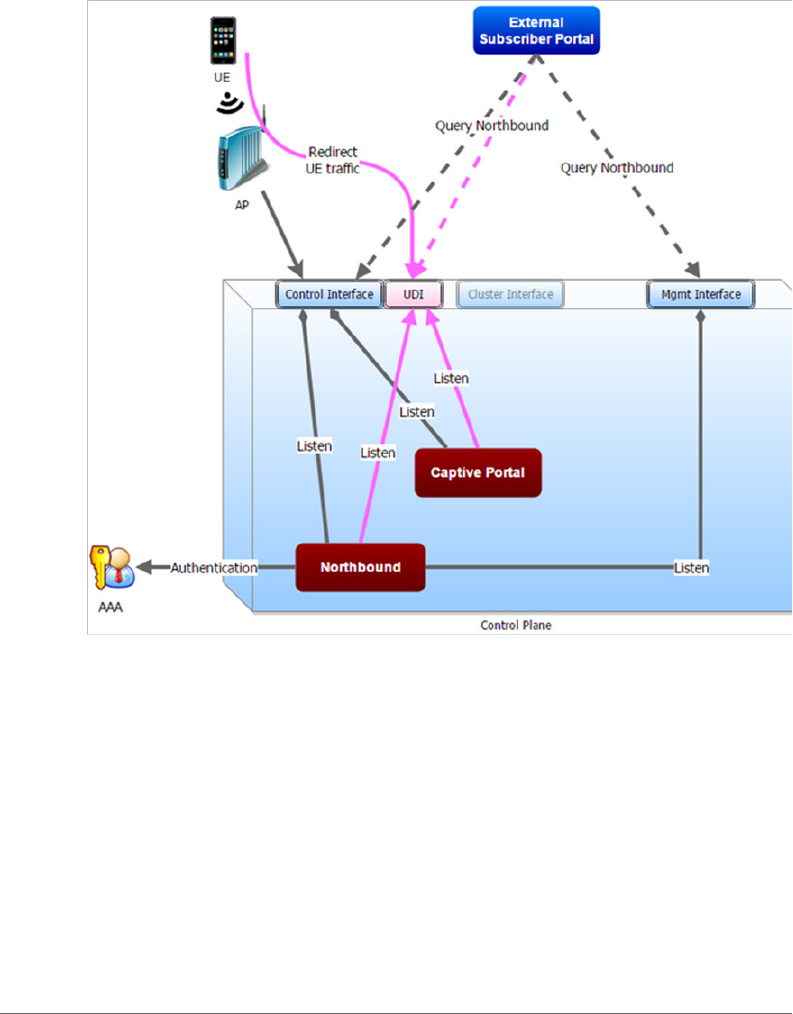

Figure 1. Hotspot portal components
This reference guide describes the controller RESTful-like/JSON interfaces for
external web portal servers.
NOTE: Refer to About This Guide chapter for conventions used in this guide.
Web Interface Configuration
Request Format
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 11
Request Format
As defined in JSON Commands, each request issued from an external web portal
server is in JSON format. NBI is only accessible via the management, control and
user defined interfaces. The following are the request formats.
HTTP Request
http://{scg_management_ip}:9080/portalintf
HTTPS Request
https://{scg_management_ip}:9443/portalintf
NOTE: The above URI is a fixed value and cannot be modified.
NOTE: You can download the log for northbound portal interface from the controller
web interface by navigating to Administration > Diagnostics > Application Logs
& Status, as all other applications.
Tab l e 4 lists the ports that must be opened on the network firewall to ensure that
the controller and NBI can communicate with each other successfully.
Controller Web Interface Configuration
Each JSON request must be accompanied by a request password that is precon-
figured on the controller, as well as on the external web portal server. This helps
ensure that only authorized web portal servers can access the northbound portal
interface.
The northbound portal interface request password can be configured in the
controller web interface by navigating to Configuration > SCG System > General
System Settings > Northbound Portal Interface. See Figure 2.
Table 4. Portal details
Port
Number
Layer 4
Protocol
Source Destination Configurable from
Web Interface?
Purpose
9080 HTTP Any Controller No Northbound Portal Interface
for Hotspot
9443 HTTPS Any Controller No Northbound Portal Interface
for Hotspot
Web Interface Configuration
Controller Web Interface Configuration
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 12
The password in Figure 2 is a token to ensure that a portal has the permission to
get the services from the northbound portal interface. It must be included in all JSON
request as RequestPassword sent to NBI.
A web portal server must use the POST command to issue JSON requests. The
controller will not accept a request with the GET request command.
Figure 2. Setting the password
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 13
2
JSON Commands
In this chapter:
•User Online Control
•Request Authentication - Asynchronous Login
•Request Authentication - Synchronous Login
•Querying a User Status
•Terminating a User Session
•Disconnect Command
JSON Commands
User Online Control
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 14
User Online Control
The northbound portal interface supports the following JSON commands:
• Login
• Login Async
• Status
• Logout
• Disconnect
These commands are used for user authentication, user status query, and termi-
nating user sessions. For each command (JSON POST), both the UE-IP and UE-
MAC may be included. Where both are present, the UE-MAC will be preferred.
The NBI decrypts the strings and returns the decrypted version within the response
message. This is because the Captive Portal (CP) encrypts the IP and MAC address
parameters in each redirection (See Ta ble 1 0 for the full list of these parameters) to
the subscriber portal. The controller decrypts the UE-IP and UE-MAC address
before returning the response, by using the Encrypt and Decrypt API described in
GetConfig section.
NOTE: Northbound Interface (NBI) expects to receive encrypted UE-IP and UE-
MAC address (For example, ENC12bc24c4777703327f2e0aabbf6b9f9e) when the
request category is UserOnlineControl. In the GetConfig request category you do
not need to encrypt UE-IP and UE-MAC address (For example: 172.21.134.87)
Request Authentication - Asynchronous
Login
In the hotspot (WISPr) WLAN use case, an unauthorized user is redirected to an
external web portal server by the controller. Using the asynchronous login command
(RequestType=LoginAsync), the external web portal server sends a request to the
controller to authenticate the user using the RADIUS server. The external Web portal
server receives the response - 202 Authentication pending, while the controller
performs the authentication in the background. It is the responsibility of the Web
portal to poll the controller and fetch the authentication result. This action is
performed using the status command (RequestType=Status).
JSON Commands
Request Authentication - Asynchronous Login
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 15
NOTE: To use asynchronous APIs refer to Using Asynchronous API
The following is an example of the asynchronous login request:
{
Vendor: “ruckus”
RequestPassword: “myPassword”,
APIVersion: “1.0”,
RequestCategory: “UserOnlineControl”,
RequestType: “LoginAsync”,
UE-IP: “ENC12bc24c4777703327f2e0aabbf6b9f9e”,
UE-MAC: “ENCCDD319C6A476FA7127DF1FB80A63CD30ADC5E47C3D-
BE2157”,
UE-Proxy: “0”,
UE-Username: “test”,
UE-Password: “test”
}
Tab l e 5 lists the controller responses to these authentication requests.
NOTE: The user account test (UE username) mentioned in the above example, is
created as an external user in the RADIUS server. The hotspot portal does not
provide an interface for manipulating user account information.
Table 5. Controller responses to authentication (asynchronous login) requests
Response Type Possible Responses
Normal response • 101, Client authorized: Response if the user is
already authorized.
• 202, Authentication pending: Authentication is in
progress, portal server needs to check the result
later.
Service error • 300, Not found: Response if the lookup fails with
given UE-MAC or UE-IP address.
• 400, Internal server error: Response when the
controller internal error occurs.
JSON Commands
Request Authentication - Synchronous Login
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 16
Using Asynchronous API
When using the asynchronous API (RequestType = LoginAsync), NBI will always
return a response as pending authentication. The client must send a status request
(each X seconds/milliseconds) to check for the authentication result.
This is useful when using a smart device. The App in a smart device can query the
login status periodically. It stores the user credentials in the background thereby
reducing the user driven actions.
Request Authentication - Synchronous Login
The controller also provides a synchronous login blocking command (Request-
Type=Login). In synchronous login command, the external Web portal must wait for
the authentication process to complete, which is usually processed by the RADIUS
server. This could result in a delayed response if the controller is unable to get a
response from the RADIUS server. The following is an example of this command.
{
Vendor: “ruckus”
RequestPassword: “myPassword”,
APIVersion: “1.0”,
RequestCategory: “UserOnlineControl”,
RequestType: “Login”,
UE-IP: “ENC12bc24c4777703327f2e0aabbf6b9f9e”,
UE-MAC: “ENCCDD319C6A476FA7127DF1FB80A63CD30ADC5E47C3D-
BE2157”,
General error • 302, Bad request: Response if the JSON request
is not well-formed.
• 303, Version not supported: Response if there is a
version mismatch.
• 304, Command not supported: Response if the
request type is not supported.
• 305, Category not supported: Response if the
request category not supported.
• 306, Wrong request password: Response if the
request password is mismatched.
Table 5. Controller responses to authentication (asynchronous login) requests
JSON Commands
Request Authentication - Synchronous Login
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 17
UE-Proxy: “0”,
UE-Username: “test”,
UE-Password: “test”
}
Tab l e 6 lists the controller responses to the synchronous login command.
Table 6. Controller responses to a synchronous login command
Response Type Possible Responses
Normal response • 101, Client authorized: Response if the user is
already authorized.
• 201, Login succeeded: Response if the login is
accepted.
Service error • 300, Not found: Response if the lookup fails with
given UE-MAC or UE-IP address.
• 301, Login failed: It will be replaced if the RADIUS
reply message is returned.
• 400, Internal server error: Response when an
controller internal error occurs.
• 401, Radius server error: Response when a
RADIUS connection error occurs or the
connection request times out.
General error • 302, Bad request: Response if the JSON request
is not well-formed.
• 303, Version not supported: Response if there is
a version mismatch.
• 304, Command not supported: Response if the
request type is not supported.
• 305, Category not supported: Response if the
request category not supported.
• 306, Wrong request password: Response if the
request password is mismatched.
JSON Commands
Querying a User Status
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 18
Querying a User Status
After the authentication request is issued, the external web portal server can query
the user's authentication status. The following is an example of the user status query
command:
{
Vendor: “ruckus”
RequestPassword: “myPassword”,
APIVersion: “1.0”,
RequestCategory: “UserOnlineControl”,
RequestType: “Status”,
UE-IP: “ENC12bc24c4777703327f2e0aabbf6b9f9e”,
UE-MAC: “ENCCDD319C6A476FA7127DF1FB80A63CD30ADC5E47C3D-
BE2157”
}
Tab l e 7 lists the controller responses to these user status query commands.
Table 7. Controller responses to user status query
Response Type Possible Responses
If there is a pending
authentication process
for this client
• 201, Login succeeded.
• 202, Authentication pending: Authentication is in
progress, portal server needs to check the result later.
If there is no pending
authentication process
for this client
• 100, Client unauthorized.
or
• 101, Client authorized.
Service error • 300, Not found: Response if the lookup fails with given
UE- MAC or UE-IP address.
• 301, Login failed: It will be replaced if the RADIUS reply
message is returned
• 400, Internal server error: Response when an controller
internal error occurs.
• 401, Radius server error: Response when a RADIUS
connection error occurs or the connection request times
out.
JSON Commands
Terminating a User Session
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 19
NOTE: If an authentication process has a result (not pending), the controller
responds to it only once. For example, if the controller replies 301, Login failed to
the web portal server, and the web portal server sends the same query, the response
will be 100, unauthorized. If the controller replies 201, Login succeeded, and the
web portal server queries again, the response will be 101, Authorized.
Terminating a User Session
After a user session is authorized, the external web portal server can terminate the
user session by sending a JSON request to the controller. In this case, the Web
portal changes the status of the client from authenticated, to unauthenticated,
forcing the user to login again. When un-authenticating a user, existing TCP sessions
are not terminated and the UE is not disassociated from the AP. It only changes the
status of the UE from authorized to unauthorized. The following is an example of
terminating a user session command:
{
Vendor: “ruckus”
RequestPassword: “myPassword”,
APIVersion: “1.0”,
RequestCategory: “UserOnlineControl”,
RequestType: “Logout”,
UE-IP: “ENC12bc24c4777703327f2e0aabbf6b9f9e”,
General error • 302, Bad request: Response if the JSON request is not
well-formed.
• 303, Version not supported: Response if there is a version
mismatch.
• 304, Command not supported: Response if the request
type is not supported.
• 305, Category not supported: Response if the request
category not supported.
• 306, Wrong request password: Response if the request
password is mismatched.
Table 7. Controller responses to user status query
Response Type Possible Responses
JSON Commands
Disconnect Command
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 20
UE-MAC: “ENCCDD319C6A476FA7127DF1FB80A63CD30ADC5E47C3D-
BE2157”
}
Disconnect Command
The controller also provides a command for terminating user TCP (Transmission
Control Protocol) connections from the AP (Access Point)). In other words, the
disconnect command (RequestType=Disconnect) changes the status of the UE
from authorized to unauthorized and also disassociates the UE from the AP.
{
Vendor: “ruckus”
RequestPassword: “myPassword”,
APIVersion: “1.0”,
RequestCategory: “UserOnlineControl”,
RequestType: “Disconnect”,
UE-IP: “ENC12bc24c4777703327f2e0aabbf6b9f9e”,
UE-MAC: “ENCCDD319C6A476FA7127DF1FB80A63CD30ADC5E47C3D-
BE2157”
}
Tab l e 8 lists the controller response.
Table 8. Controller responses to a disconnect command
Response Type Possible Responses
Normal response • 200, OK
• 100, Client unauthorized: Response if the user is already
unauthorized
Service error • 300, Not found: Response if the lookup fails with given
UE- MAC or the UE-IP address.
• 400, Internal server error: Response when an controller
internal error occurs.
JSON Commands
Disconnect Command
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 21
General error • 302, Bad request: Response if the JSON request is not
well-formed.
• 303, Version not supported: Response if there is a version
mismatch.
• 304, Command not supported: Response if the request
type is not supported.
• 305, Category not supported: Response if the request
category not supported.
• 306, Wrong request password: Response if the request
password is mismatched.
Table 8. Controller responses to a disconnect command
Response Type Possible Responses
JSON Responses
GetConfig
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 23
GetConfig
The northbound interface supports the following JSON commands in request
category - GetConfig:
1Control Blade IP List
2Cluster Blade IP List
3Management Blade IP List
4User Interface IP List
5Encrypt
6Decrypt
NOTE: It is recommended for new users to implement and use the new APIs -
Encrypt and Decrypt. Existing users can continue using the legacy APIs - EncryptIP
and DecryptIP provided; you have not made any changes to it during implementation
on your portal server.
The first four commands are used for obtaining the different blade IP lists. The
northbound portal interface simply responds with the control, cluster, management
blade or user defined IP list of the controller. The following is an example of the
GetConfig command:
{
Vendor: “ruckus”,
RequestPassword: “myPassword”,
APIVersion: “1.0”,
RequestCategory: “GetConfig”,
RequestType: “ControlBladeIPList”,
The following is an example of the success response:
{
Vendor:“ruckus”,
ReplyMessage:”OK",
ResponseCode:200,
APIVersion:"1.0"
ControlBladeIPList:[“172.17.18.149”, “172.17.18.159”,
“172.17.18.169”]
}
JSON Responses
GetConfig
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 24
Control Blade IP address list can be replaced by Cluster Blade IP List, Management
Blade IP List or User Interface IP List, depending on context of the GetConfig
command.
The following is an example of an Encrypt IP address command, which returns an
encrypted IP address for direct access to the subscriber portal. By default, the
encryption is enabled. To disable the encryption, use the CLI command:
ruckus(config)# [no] encrypt-mac-ip
NOTE: Refer to the CLI examples given below for enabling and disabling the IP and
MAC address encryption.
{
Vendor: “ruckus”,
RequestPassword: “myPassword”,
APIVersion: “1.0”,
RequestCategory: “GetConfig”,
RequestType: “Encrypt”,
Data: “172.21.134.87”
}
The following is an example of the success response:
{
Vendor: “ruckus”,
ReplyMessage:”OK",
ResponseCode:200,
APIVersion:”1.0”
Data: “ENC1234bfdbe5y5hbfdgh45y54ryt5y5th5”
}
Another example is the decrypt command, which returns a decrypted value of
IP address.
{
Vendor: "ruckus",
RequestPassword: "myPassword", APIVersion: "1.0",
RequestCategory: "GetConfig", RequestType: "Decrypt",
Data: "ENC1234bfdbe5y5hbfdgh45y54ryt5y5th5"
}
The success response:
JSON Responses
JSON Responses
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 25
{
Vendor:"ruckus", ReplyMessage:"OK", ResponseCode:200,
APIVersion:"1.0"
Data: "172.21.134.87"
}
The following are examples of using the CLI command for enabling and disabling
the IP address and MAC address encryptions.
Enabling the IP address and MAC address encryption:
# show running-config encrypt-mac-ip
Disabling the IP address and MAC address encryption:
# config
(config)# no encrypt-mac-ip
Do you want to continue to disable (or input 'no' to
cancel)? [yes/no] yes
Successful operation
Confirming that the IP address and MAC address encryption is disabled:
(config)# do show running-config encrypt-mac-ip
Encryption MAC and IP: Disabled
JSON Responses
Tab l e 9 lists the definitions of JSON responses from the northbound portal interface.
The following are the expansions for the abbreviations mentioned in the Used In
column.
• UA: User Authenticate (includes LoginSync and LoginAsync)
• SQ: Status Query
• TU: Terminating User (Logout and Disconnect)
• GC: Get Config (Control Blade IP, Cluster Blade IP, Management Blade IP, User
Interface IP, Encrypt and Decrypt)
NOTE: Refer to JSON Commands for commands related to the responses
mentioned above.
JSON Responses
JSON Response Examples
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 26
JSON Response Examples
This section provides the following examples of JSON responses defined in Ta b l e 9.
•Example: Client unauthorized
•Example: Client authorized
•Example: Success information
•Example: Login succeeded
•Example: Authentication pending
•Example: Not found
•Example: Login failed
•Example: Bad request
•Example: Version not supported
Table 9. JSON response definitions
Category Code Definition Used In
UA SQ TU EI GC
Informational 100 Client unauthorized • •
101 Client authorized • •
Success 200 OK • •
201 Login succeeded •
202 Authentication pending • •
Client Error 300 Not found • • • •
301 Login failed • •
302 Bad request • • • • •
303 Version not supported • • • • •
304 Command not supported
305 Category not supported
306 Wrong request password • • • • •
Server Error 400 Internal server error • • • • •
401 Radius server error • •
JSON Responses
JSON Response Examples
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 27
•Example: Command not supported
•Example: Category not supported
•Example: Wrong request password
•Example: Internal server error
•Example: RADIUS server error
•Example: Encrypt for MAC address
•Example: Decrypt for MAC address
JSON Responses
JSON Response Examples
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 28
Example: Client unauthorized
{
Vendor:"Ruckus",
APIVersion:"1.0",
ResponseCode:100,
ReplyMessage:"Client unauthorized",
UE-IP:"ENC323e79bf1bbd5ac4",
UE-MAC:"ENCf6b7f49da92a45f8978c35966b95ee-
afc6451102af391592",
AP-MAC:"00:11:22:AA:BB:CC",
SSID:" hotspot-01",
SmartClientInfo:"",
GuestUser:"0",
SmartClientMode:"none"
}
Example: Client authorized
{
Vendor: "Ruckus",
APIVersion: "1.0",
ResponseCode: "101",
ReplyMessage: "Client authorized",
UE-IP: "ENC12bc24c4777703327f2e0aabbf6b9f9e",
UE-MAC: "ENCCDD319C6A476FA7127DF1FB80A63CD30ADC5E47C3D-
BE2157",
UE-Username: "user001",
AP-MAC: "04:4f:aa:32:25:f0",
SSID: "hotspot-01"
SmartClientMode: "none",
SmartClientInfo: "",
GuestUser: "0",
}
Example: Success information
{
Vendor: "Ruckus",
JSON Responses
JSON Response Examples
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 29
Version: "1.0",
ResponseCode: "200",
ReplyMessage: "OK"
UE-IP: "ENC12bc24c4777703327f2e0aabbf6b9f9e",
UE-MAC: "ENCCDD319C6A476FA7127DF1FB80A63CD30ADC5E47C3D-
BE2157",
SmartClientMode: "none",
SmartClientInfo: "",
GuestUser: "0",
}
JSON Responses
JSON Response Examples
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 30
Example: Login succeeded
{
Vendor: "Ruckus",
APIVersion: "1.0",
ResponseCode: "201",
ReplyMessage: "Login succeeded",
UE-IP: "ENC12bc24c4777703327f2e0aabbf6b9f9e",
UE-MAC: "ENCCDD319C6A476FA7127DF1FB80A63CD30ADC5E47C3D-
BE2157",
UE-Username: "user001",
AP-MAC: "04:4f:aa:32:25:f0",
SSID: "hotspot-01",
SmartClientMode: "none",
SmartClientInfo: "",
GuestUser: "0",
UE-Proxy: "0"
}
Example: Authentication pending
{
Vendor: "ruckus",
APIVersion: "1.0",
ResponseCode: "202",
ReplyMessage: "Authentication pending",
UE-IP: "ENC12bc24c4777703327f2e0aabbf6b9f9e",
UE-MAC: "ENCCDD319C6A476FA7127DF1FB80A63CD30ADC5E47C3D-
BE2157",
UE-Username: "user001",
AP-MAC: "04:4f:aa:32:25:f0",
SSID: "hotspot-01",
SmartClientMode: "none",
SmartClientInfo: "",
GuestUser: "0",
}
JSON Responses
JSON Response Examples
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 31
Example: Not found
{
Vendor: "Ruckus",
APIVersion: "1.0",
ResponseCode: "300",
ReplyMessage: "Not found",
}
Example: Login failed
{
Vendor: "Ruckus",
APIVersion: "1.0",
ResponseCode: "301",
ReplyMessage: "Login failed",
UE-IP: "ENC12bc24c4777703327f2e0aabbf6b9f9e",
UE-MAC: "ENCCDD319C6A476FA7127DF1FB80A63CD30ADC5E47C3D-
BE2157",
AP-MAC: "04:4f:aa:32:25:f0",
SSID: "hotspot-01",
SmartClientMode: "none",
SmartClientInfo: "",
GuestUser: "0",
}
Example: Bad request
{
Vendor: "ruckus",
APIVersion: "1.0",
ResponseCode: "302",
ReplyMessage: "Bad request",
}
JSON Responses
JSON Response Examples
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 32
Example: Version not supported
{
Vendor: "ruckus",
APIVersion: "1.0",
ResponseCode: "303",
ReplyMessage: "Version not supported"
}
Example: Command not supported
{
Vendor: "ruckus",
APIVersion: "1.0",
ResponseCode: "304",
ReplyMessage: "Command not supported",
}
Example: Category not supported
{
Vendor: "ruckus",
APIVersion: "1.0",
ResponseCode: "305",
ReplyMessage: "Category not supported",
}
Example: Wrong request password
{
Vendor: "ruckus",
APIVersion: "1.0",
ResponseCode: "306",
ReplyMessage: "Wrong request password",
}
JSON Responses
JSON Response Examples
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 33
Example: Internal server error
{
Vendor: "ruckus",
APIVersion: "1.0",
ResponseCode: "400",
ReplyMessage: "Internal server error",
}
Example: RADIUS server error
{
Vendor: "ruckus",
APIVersion: "1.0",
ResponseCode: "401",
ReplyMessage: "Radius server error",
}
Example: Encrypt for MAC address
{
Vendor: “ruckus”,
RequestPassword: “myPassword”,
APIVersion: “1.0”,
RequestCategory: “GetConfig”,
RequestType: “Encrypt”,
Data: “04:4f:aa:32:25:f0”
}
The success response:
{
Vendor: “ruckus”,
ReplyMessage:”OK",
ResponseCode:200,
APIVersion:”1.0”,
Data: "ENC4782689566f8-
eac8aa30e276aa907f332d0bf93f9f60a7d8"
}
JSON Responses
JSON Response Examples
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 34
Example: Decrypt for MAC address
{
Vendor: "ruckus",
RequestPassword: “myPassword”,
APIVersion: "1.0",
RequestCategory: "GetConfig",
RequestType: "Decrypt",
Data: "ENC4782689566f8-
eac8aa30e276aa907f332d0bf93f9f60a7d8"
}
The success response:
{
Vendor:"ruckus", ReplyMessage:"OK",
ResponseCode:200,
APIVersion:"1.0"
Data: "04:4f:aa:32:25:f0"
}
Customer Login
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 36
The WISPr hotspot portal logon API supports existing customer’s external logon
page (working with Zone Director (ZD)). Customers who already have a ZD deploy-
ment and have implemented their own external logon page for hotspot WLAN, can
use ZD's API (provided by Ruckus) for UE authentication.
The controller provides the same API as that of ZD for customers to use their existing
logon page.
NOTE: This new API is provided since controller's official portal integration using
JSON requests does not support ZD login API. Ruckus Wireless recommends that
the customer works with the JSON API as documented in this guide - Hotspot Portal
Integration Interface.
Customer Login
Customers who already have ZD deployment with their own external portal must
change their login/logout URLs to match the new supported API.
The external portal sends the login/logout request to the controller. The requests
should include the parameters provided by the controller's captive portal redirection
NOTE: See Captive Portal Attributes for details.
.
• Login: The login request path in the external portal to the controller should be
changed:
From:
https://{sip-server-ip-address}:9998/login
To:
https://{sip-server-ip-address}:9998/Subscriber-
Portal/hotspotlogin
NOTE: The login request also supports HTTP with port number 9997.
Customer Logout
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 37
NOTE: This login request should include the customer’s login credentials such as
the user name and password parameters. It is expected that the customer's portal
also sends the following parameters from Captive Portal's redirection -
•url - the original URL which the user tried to browse
•proxy - if the UE browser is set to Web proxy
•uip - UE IP address
•client_mac - UE MAC IP address
Customer Logout
The logout request path in the external portal to the controller should be changed:
From:
https://{sip-server-ip-address}:9998/logout
To:
https://{sip-server-ip-address}:9998/Subscriber-
Portal/
hotspotlogout?uip=10.20.30.40
Redirection Attributes
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 39
The UE-IP and UE-MAC address parameters are decrypted at the beginning of each
user online control request. This is because the Captive Portal (CP) encrypts the IP
and MAC address parameters in each redirection to the subscriber portal. The
controller decrypts the UE-IP and UE-MAC address before returning the response,
by using the Encrypt and Decrypt API described in the GetConfig section.
NOTE: Apple CNA only works for HTTP redirect. If does not work if the external
portal is in HTTPS.
Redirection Attributes
Tab l e 1 0 lists these parameters provided by controller's captive portal redirection.
NOTE: See WISPr Support for ZoneDirector Login for login and logout details.
.
Table 10. Redirection attributes
Attributes Description
client_mac Encrypted UE Mac address.
NOTE: The format of the MAC Address
is defined in the Hotspot (WISPr) Portal
configuration.
dn The domain name.
loc AP location.
mac AP Mac address.
proxy The UE browser if it is set to the Web proxy.
reason Reason for redirecting the WLAN. The value could either
be:
• Un-Auth-Captive – Regular unauthenticated UE
redirected to Login Portal
or
• Un-Auth-SSL-Captive – In case of HTTPS, Captive
Portal is performing a “double redirect”. Adding this
value to identify this flow.
Redirection Attributes
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 40
nbilp The IP of SCG/SZ’s Northbound Interface.
sip The value could either be the:
• FQDN of the uploaded SCG/SZ Web UI certificate if
the uploaded certificate’s common name is FQDN.
• Concatenation of the SCG/SZ cluster name with the
common name value after the wild card, if the
uploaded certificate’s common name is not FQDN
(meaning if it includes wild card). For example, if the
common name is “*.ruckuswireless.com” and the
cluster name is “Cluster_Node1”, then the sip will be
“cluster_node1.ruckuswireless.com.”
• “scg.ruckuswireless.com”, which is the FQDN of the
self-signed certificate which SCG/SZ is packaged
with, if the certificate was not uploaded at all.
ssid The broadcasted SSID name.
startUrl The URL as per the hotspot configuration, which is
to be redirected after successful login.
uip Encrypted UE IP address.
url Original URL which the customer tries browsing.
vlan VLAN which the customer is set to
wlan WLAN ID of the UE's associated the WLAN.
wlanName SSIDs configured WLAN Name
zoneId In case of a third party AP, this attribute will be included
instead of WLAN and will include the zone ID where the
SSID is configured in the controller.
zoneName AP zone name of the UE's associated with the WLAN.
The Zone name is configured using the WLANs. The
zone name is used for Kumo. The value is encrypted
based on a special key.
Table 10. Redirection attributes
Attributes Description
The Smart Client
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 42
The Smart Client
The Smart Client is a software solution which resides on the user’s access device
that facilitates the user’s connection to Public Access Networks, whether via a
browser, signaling protocol or other proprietary method of access.
The XML is embedded in the HTML source code as a comment block as the
following:
<html>
< head>
< meta http-equiv="content-type" content="text/html; charset=UTF-8">
< /head>
< body></body>
<!--<?xml version="1.0" encoding="utf-8"?>
{{{ The Embedded XML }}}
-->
</html>
The Smart Client
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 43

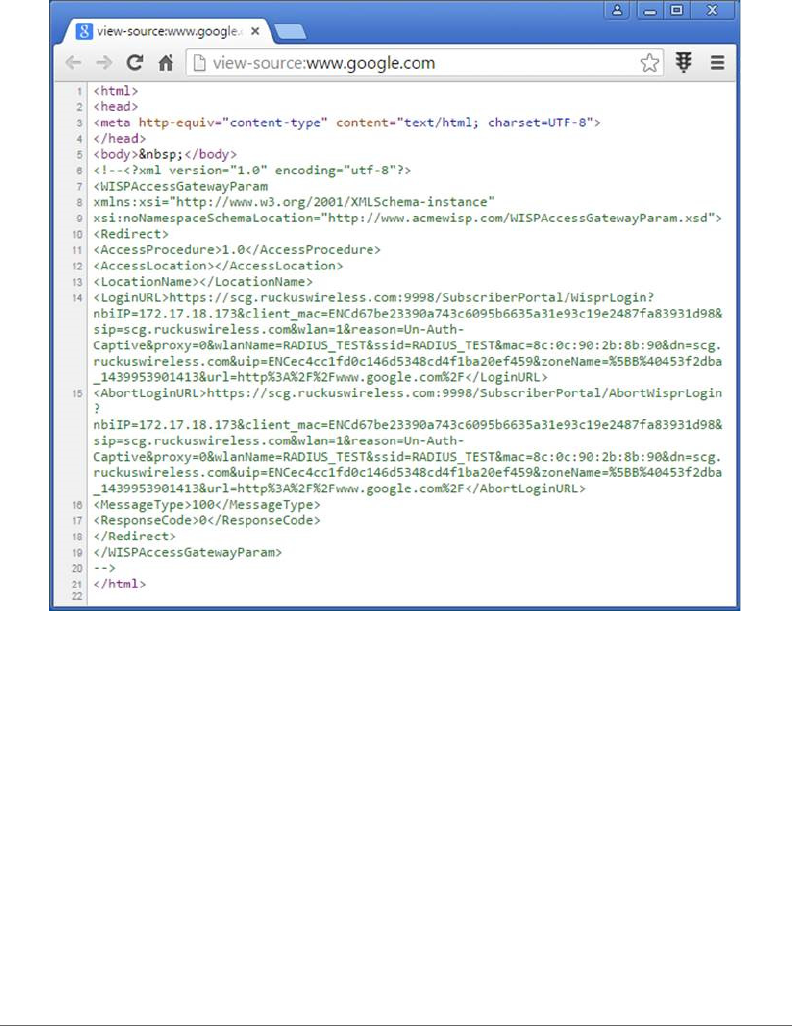

Figure 3. Smart Client Example
Extract the embedded XML as the following.
<?xml version="1.0" encoding="utf-8"?>
<WISPAccessGatewayParam xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance"xsi:noNamespaceSchemaLocation="http://
www.acmewisp.com/WISPAccessGatewayParam.xsd">
<Redirect>
<AccessProcedure>1.0</AccessProcedure>
<AccessLocation></AccessLocation>
<LocationName></LocationName>
<LoginURL>https://scg.ruckuswireless.com:9998/SubscriberPortal/
WisprLogin?nbiIP=172.17.18.173&client_mac=ENCd67be23390a743c6095b
6635a31e93c19e2487fa83931d98&sip=scg.ruckuswire-
less.com&wlan=1&reason=Un-Auth-Captive&proxy=0&wlanName=RADI-
US_TEST&ssid=RADIUS_TEST&mac=8c:0c:90:2b:8b:90&dn=scg.ruckuswirel
The Smart Client
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 44
ess.com&uip=ENCec4cc1fd0c146d5348cd4f1-
ba20ef459&zoneName=%5BB%40453f2d-
ba_1439953901413&url=http%3A%2F%2Fwww.google.com%2F</
LoginURL>
<AbortLoginURL>https://scg.ruckuswireless.com:9998/SubscriberPortal/
AbortWisprLogin?nbiIP=172.17.18.173&client_mac=ENCd67be23390a743c6
095b6635a31e93c19e2487fa83931d98&sip=scg.ruckuswire-
less.com&wlan=1&reason=Un-Auth-Captive&proxy=0&wlanName=RADI-
US_TEST&ssid=RADIUS_TEST&mac=8c:0c:90:2b:8b:90&dn=scg.ruckuswirel
ess.com&uip=ENCec4cc1fd0c146d5348cd4f1-
ba20ef459&zoneName=%5BB%40453f2d-
ba_1439953901413&url=http%3A%2F%2Fwww.google.com%2F</
AbortLoginURL>
<MessageType>100</MessageType>
<ResponseCode>0</ResponseCode>
</Redirect>
Example: Information on the redirection page
<?xml version="1.0" encoding="utf-8"?>
<WISPAccessGatewayParam xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://
www.acmewisp.com/WISPAccessGatewayParam.xsd">
<Redirect>
<AccessProcedure>1.0</AccessProcedure>
<AccessLocation></AccessLocation>
<LocationName></LocationName>
<LoginURL>https://sip:9998/SubscriberPortal/WisprLogin?nbiIP=<nbiIP>{& ...
other Redirection attributes in Table 11}</LoginURL>
<AbortLoginURL>https://sip:9998/SubscriberPortal/AbortWispr-
Login?nbiIP=<nbiIP></AbortLoginURL>
<MessageType>100</MessageType>
<ResponseCode>0</ResponseCode>
</Redirect>
</WISPAccessGatewayParam>
NOTE: To do authentication. An HTTP POST request must be sent to the
<LoginURL> with the `UserName` and `Password` fields.
NOTE: The content type of request must be "application/x-www-form-
urlencoded".
The Smart Client
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 45
Example: Authentication Request (HTTP)
POST /SubscriberPortal/WisprLogin?nbiIP=<nbiIP>
HTTP/1.1
Host: sip:9998
Content-Type: application/x-www-form-urlencoded
UserName=<UserName>&Password=<Password>
Example: Authentication Reply
<?xml version="1.0" encoding="UTF-8"?>
<WISPAccessGatewayParam xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://
www.acmewisp.com/WISPAccessGatewayParam.xsd">
<AuthenticationReply>
<MessageType>120</MessageType>
<ResponseCode>201</ResponseCode>
<ReplyMessage>Authentication pending</ReplyMessage>
<LoginResultsURL>https://sip:9998/SubscriberPortal/
WisprStatus?nbiIP=<nbiIP></LoginResultsURL>
</AuthenticationReply>
</WISPAccessGatewayParam>
Example: Authentication Result (Login succeeded)
<?xml version="1.0"encoding="UTF-8"?>
<WISPAccessGatewayParam xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://
www.acmewisp.com/WISPAccessGatewayParam.xsd">
<AuthenticationPollReply>
<MessageType>140</MessageType>
<ResponseCode>50</ResponseCode>
<ReplyMessage>Login succeeded</ReplyMessage>
<LogoffURL>https://sip:9998/SubscriberPortal/WisprLogout?nbiIP=<nbiIP>
&UserName=<UserName>&Password=<Password></LogoffURL>
</AuthenticationPollReply>
</WISPAccessGatewayParam>
Example: Authentication Result (Login failed)
<?xml version="1.0" encoding="UTF-8"?>
<WISPAccessGatewayParam xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://
www.acmewisp.com/WISPAccessGatewayParam.xsd">
The Smart Client
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 46
<AuthenticationPollReply>
<MessageType>140</MessageType>
<ResponseCode>100</ResponseCode>
<ReplyMessage>Login failed</ReplyMessage>
</AuthenticationPollReply>
</WISPAccessGatewayParam>
Example: Logoff Reply
<?xml version="1.0" encoding="UTF-8"?>
<WISPAccessGatewayParam xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://
www.acmewisp.com/WISPAccessGatewayParam.xsd">
<LogoffReply>
<MessageType>130</MessageType>
<ResponseCode>150</ResponseCode>
</LogoffReply>
</WISPAccessGatewayParam>
NBI and UDI
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 48
NBI and UDI
AP uses the control interface to communicate with the controller regarding its
configuration. To have a logical separation of UE traffic from the AP control traffic
the administrator can create an UDI (User Defined Interface).
In case the UDI (using control interface, physical interface and hotspot service as
shown in Figure 4) is configured, the AP uses it to DNAT unauthorized UE requests
to the controller's captive portal (otherwise the AP uses the control interface).
Figure 4. Using UDI
.
The controller's captive portal redirects the UE to the configured portal login page
URL. When the UE triggers this portal URL request, the AP will let it go through (it
will not DNAT to the controller's captive portal), as it is configured as ACL in the AP,
direct to the external portal server.
The external portal communicates with the controller's NBI for status/login/logout
requests. The interfaces external portal can communicate are the interfaces NBI
listens to. NBI is bound by default to the controller's control and management
interfaces.
In addition, the administrator can configure UDI interface, which NBI will bind as
well. This UDI for NBI can be the same UDI which AP DNAT to the controller's captive
portal, or others using control or management physical interfaces and whatever
service (hotspot/not specified) as in Figure 5. To define UDI on the controller’s web
interface, navigate to Configuration > SCG System > General System Settings
> Cluster Plane > existing Control Plane > User Defined Interface.
Figure 5. UDI Physical Interface
Figure 6 describes the request flows per interface.
NBI and UDI
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71364-001 Rev A 49
Figure 6. .Request flows per interface
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71145-001 Rev A 50
Index
A
aPI 36
asynchronous login 14
authentication 9
authentication pending 30
authentication request 18
authorized 19
B
bad request 31
blocking command 16
C
category not supported 32
client authorized 28
client error 26
client unauthorized 28
client_mac 39
cluster blade IP list 23
cluster management blade 23
command not supported 32
control 23
control blade IP list 23
D
decrypt 23, 24
decrypt for MAC address 34
disconnect command 20
dn 39
E
encrypt 23
encrypt for MAC address 33
external portal 36
G
general error 17, 19, 21
get config 23, 25
H
hotspot 36
hotspot services 9
I
informational 26
internal server error 33
J
jSON response examples 26
jSON responses 25
L
loc 39
login 36
login failed 19, 31
login succeeded 19, 30
logout 37
M
mac 39
management blade IP list 23
N
nbilp 40
normal response 17, 20
northbound portal interface 11
not found 31
O
overview 9
P
password 11
pending authentication 18
portal logon 36
pOST 12
proxy 39
Index
SmartCell Gateway 200 and vSZ-H Hotspot WISPr Reference Guide for SmartZone 3.4.1, 800-71145-001 Rev A 51
Q
querying a user status 17
R
rADIUS server error 33
reason 39
request authentication 14
request format 11
S
server error 26
service error 17, 18, 20
sip 40
Smart Client 42
ssid 40
startUrl 40
status query 25
subscriber portal 24
success 26
success information 28
synchronous login 16
T
terminating 9
terminating a user session 19
terminating user 25
terminating user sessions 14
transmission control protocol 20
U
uip 40
unauthorized 19
url 40
user account 15
user authenticate 25
user authentication 14
user defined IP list 23
user interface IP list 23
user online control 39
user session 9
user status query 14, 18
UserOnlineControl 14
V
version not supported 32
vlan 40
W
web interface configuration 11
wifi hotspot 9
wlan 40
wrong request password 32
Z
zoneDirector 36
zoneId 40
zoneName 40
Copyright © 2006-2016. Ruckus Wireless, Inc.
350 West Java Dr. Sunnyvale, CA 94089. USA
www.ruckuswireless.com
