UnleashedTM R600 Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how
to set up your Ruckus Wireless Unleashed R600 Dual Band
802.11ac WiFi Access Point. After completing the steps described
in this Guide, the Unleashed Master Access Point (Master AP) will
be created. Additional Unleashed access points can be added to
the network for additional coverage and capacity.
Before You Begin
Before deploying Ruckus Wireless products, please check for the
latest software and release documentation.
User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents.
Product Limited Warranty documents are available at
http://support.ruckuswireless.com/warranty.
Online Training Resources are available at
https://training.ruckuswireless.com
Package Contents
Unleashed R600 Access Point
One wall-mount anchor kit, including two 1" No. 8 steel
panhead Phillips sheet metal screws, one 5mm M2.5 x 1.06
Torx security screw, and wall-mount anchors
One external T-bar bracket (two unassembled parts)
One unit removal pin
Regulatory flyer
Product warranty statement
Declaration of Conformity, if required
•This
Quick Setup Guide
Step 1: Collect Tools and Setup Requirements
Make sure that you have the following setup requirements:
A PC/Mac/mobile client with a WiFi network adapter and a web
browser
One Cat 5e Ethernet cable
Network switch or router, with Internet connectivity
An AC power adapter (sold separately), or
An 802.3af or 802.3at -compliant Power over Ethernet (PoE)
switch or PoE injector
No. 2 Phillips screwdriver and T8 Torx driver for wall mounting
anchor kit
When mounting the Unleashed R600 to a truss or pole, two
customer-supplied cable ties
Step 2: Connect the AP to Power and Your Network

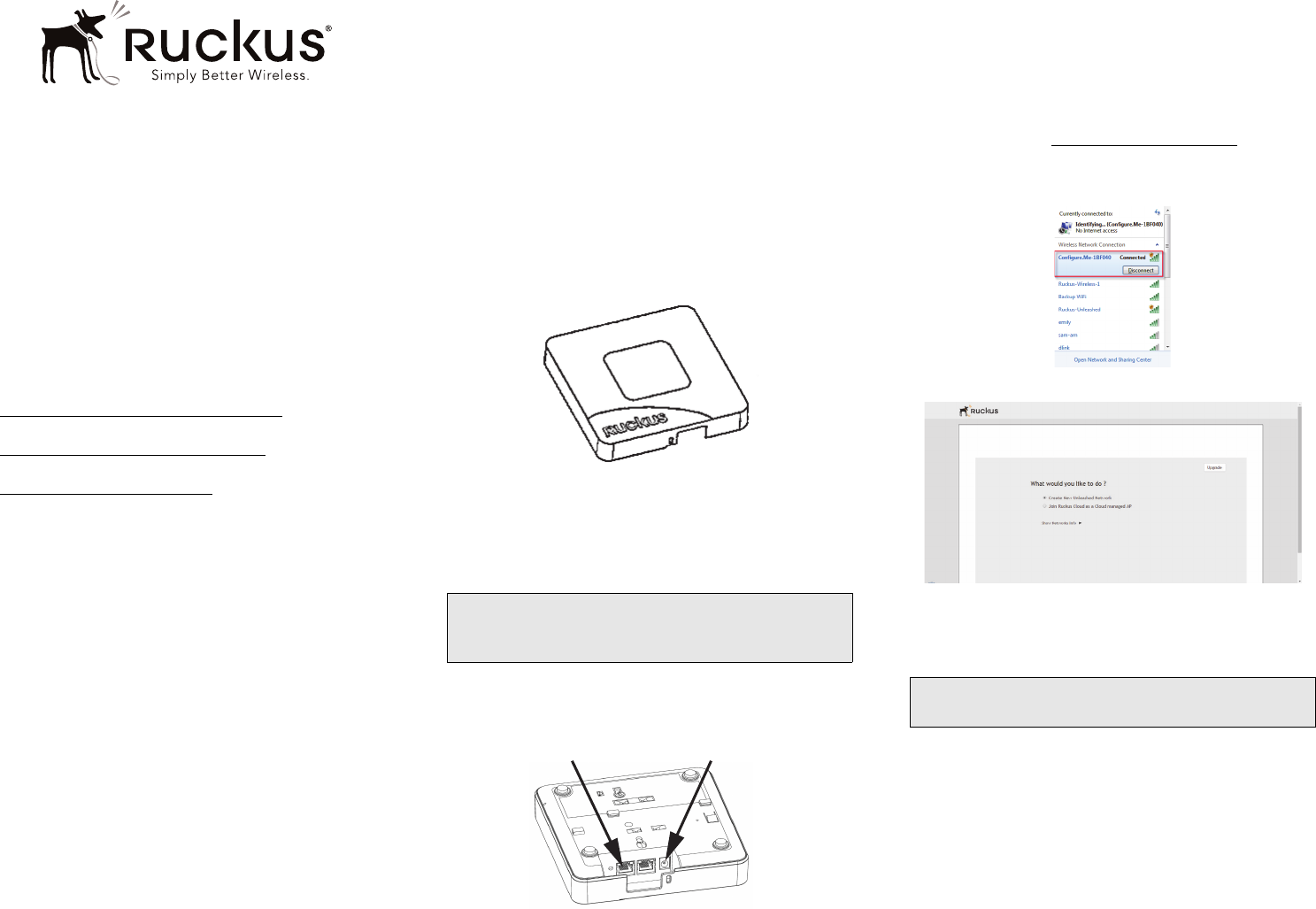

Figure 1. : Top view
1After removing your Unleashed AP from its package, connect it
to your network switch or router using an Ethernet cable.
2Using an AC adapter (sold separately), connect the AP 12VDC
port to a protected power source.
Alternatively, connect the PoE port to a PoE injector or PoE
switch for both power and network connections.
3Verify that the Power LED on the external enclosure is a steady
green.
Figure 2. : Bottom view
Step 3: Log In and Run the Setup Wizard
1As soon as the Unleashed AP is powered on and connected to
the local network, it boots up and begins broadcasting a
temporary unencrypted WLAN named “Configure.Me-[xxxxxx]”
from the 2.4 GHz radio only.
2Using your client’s WiFi configuration settings, select and
associate to the “Configure.Me-[xxxxxx]” WLAN.
3Launch a web browser and enter the following into the
browser’s URL bar: unleashed.ruckuswireless.com, and press
Enter.
Figure 3. Connect to the “ConfigureMe” WLAN
\
Figure 4. : Select Create New Unleashed Network
4Select Create New Unleashed Network, and click
Start to begin.
5The “Configuring Unleashed Master” progress screen displays
the progress. Wait until the initialization process completes.
.
6Once initialization is complete, ensure that you are still
connected to the “Configure.Me” WLAN, and click Next.
7You will be redirected to the Setup Wizard. Complete the steps
in the Setup Wizard and click Finish.
Note: If you will be using PoE, then you will need a Cat
5e (or better) Ethernet cable to connect the AP to the
PoE injector or switch.
PoE Port 12VDC Port
Note: Do NOT disconnect the power or network cable
from the device during the setup process.
Copyright © 2016 Ruckus Wireless, Inc.
Published September 2016, Part Number 800-70633-002 Rev D
Page 2 of 4

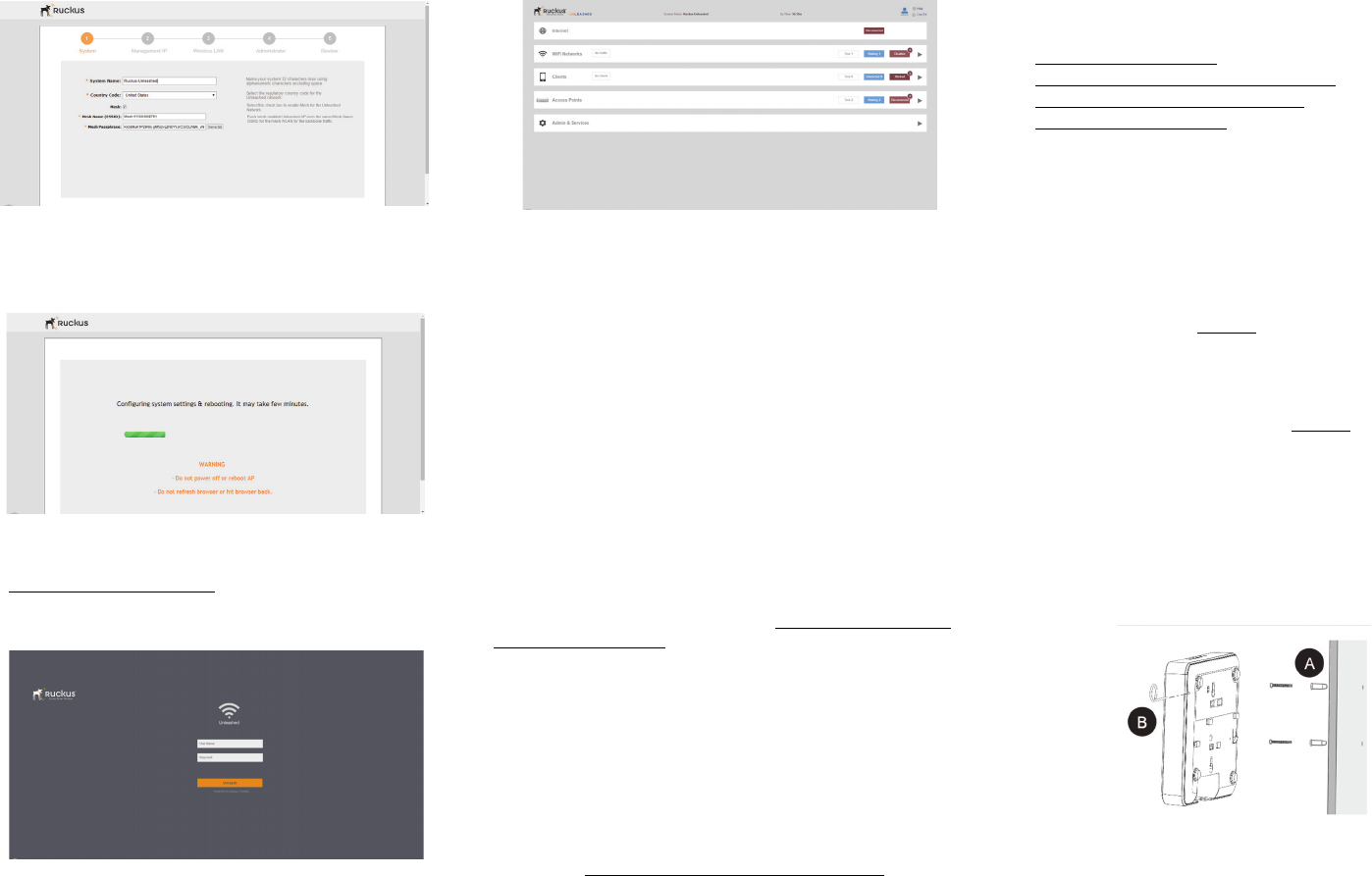

Figure 5. Complete the Setup Wizard to set up your Unleashed network
8Once the Setup Wizard is finished, a “Configuring system
settings and rebooting” progress screen appears. Wait until the
process is complete.
Figure 6. Configuring system settings and rebooting
9Connect to the WLAN that you configured in the Setup Wizard,
and click OK to reconnect. You will be redirected to the
unleashed.ruckuswireless.com login screen.
10 Enter your Admin Name and Password to login.
Figure 7. The Login page
11 Upon successful login you will be presented with the
Unleashed Dashboard, which displays an overview of your
Ruckus Unleashed network.
Figure 8. : The Unleashed Dashboard
Step 4: Customize Your Wireless LANs
Once the Unleashed Master AP has been initialized, you can fine-
tune the settings of your first WLAN (that you created during the
setup wizard), and create any additional WLANs needed prior to
attaching additional Unleashed member APs. Then, when you
deploy additional member APs in whatever order you prefer, they
will automatically retrieve all WLAN configuration settings (and any
other settings you have configured) from the Unleashed Master AP.
1From the Dashboard, click anywhere in the WiFi Networks
section to expand the display of your deployed WLANs.
2On the left side of the screen, select the WLAN box for the
WLAN you would like to configure, and click the Edit button to
edit the configuration; or click Create to create a new WLAN.
3If you made any changes to the original WLAN, you will be
disconnected and will need to reconnect once the changes
have been deployed on the AP radios.
Congratulations! Your Unleashed network is now configured and
ready for use. You may now proceed to Step 5: Deploy Additional
Unleashed Access Points.
Step 5: Deploy Additional Unleashed Access Points
Deploying additional Unleashed member APs is simply a matter of
connecting them to the same Layer 2 network (subnet) and
providing power. They will discover the Unleashed Master and join
automatically. No additional steps are necessary.
For More Information
For more information on managing your Unleashed network, refer
to the Ruckus Wireless Unleashed Access Point Online Help,
available from https://docs.ruckuswireless.com/unleashed/.
(OPTIONAL) MOUNTING INSTRUCTIONS
The Unleashed R600 can be mounted to a T-bar, wall or ceiling a
using the enclosed mounting kits. Refer to the following sections:
Mounting on a Flat Surface
Mounting on a Recessed Drop-Ceiling T-Bar
Mounting on a Flush Drop-Ceiling T-Bar
Mounting on a Truss or Pole
Mounting on a Flat Surface

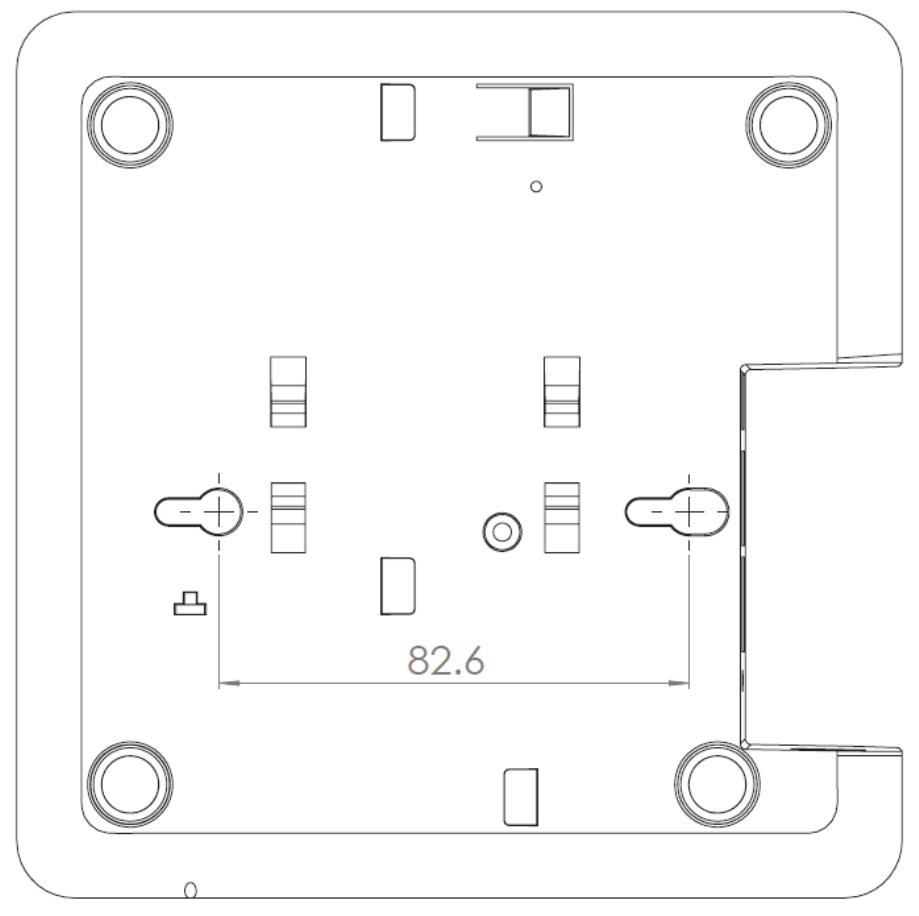

1Use the Mounting Template on the last page of this Quick
Setup Guide as a template to mark the locations for drill holes
on the mounting surface. There are two sets of keyholes
available on the AP. One allows the AP to be mounted to a wall
or ceiling. The other allows the Unleashed R600 to be mounted
to an accessory bracket (not included).
2Use a 5mm drill bit to drill holes approximately 25mm into the
mounting surface (A in Figure 9.).
3Insert the anchors and mounting screws into the mounting
surface, leaving approximately 1/4” (6 mm) of the screw heads
protruding for the AP enclosure.
4Insert the unit removal pin into the hole on the side of the AP to
release the locking mechanism (B in Figure 9.).
5Place the AP onto the mounting screws so that the screw
heads enter the mounting holes on the AP enclosure, and push
the AP down to lock in place.
6Remove the unit removal pin to release the locking mechanism
and secure the AP.
7To remove the AP, insert the unit removal pin into the hole on
the side of the AP to unlock, then push the AP up to release the
AP enclosure from the mounting screws.
Figure 9. . Flat surface mounting
Copyright © 2016 Ruckus Wireless, Inc.
Published September 2016, Part Number 800-70633-002 Rev D
Page 3 of 4
Mounting on a Recessed Drop-Ceiling T-Bar
The enclosed T-bar bracket supports mounting to recessed drop
ceiling T-bars.
Mounting an AP using the External Bracket
Removing an External Bracket from a T-Bar
Removing an External Bracket from an AP
Mounting an AP using the External Bracket

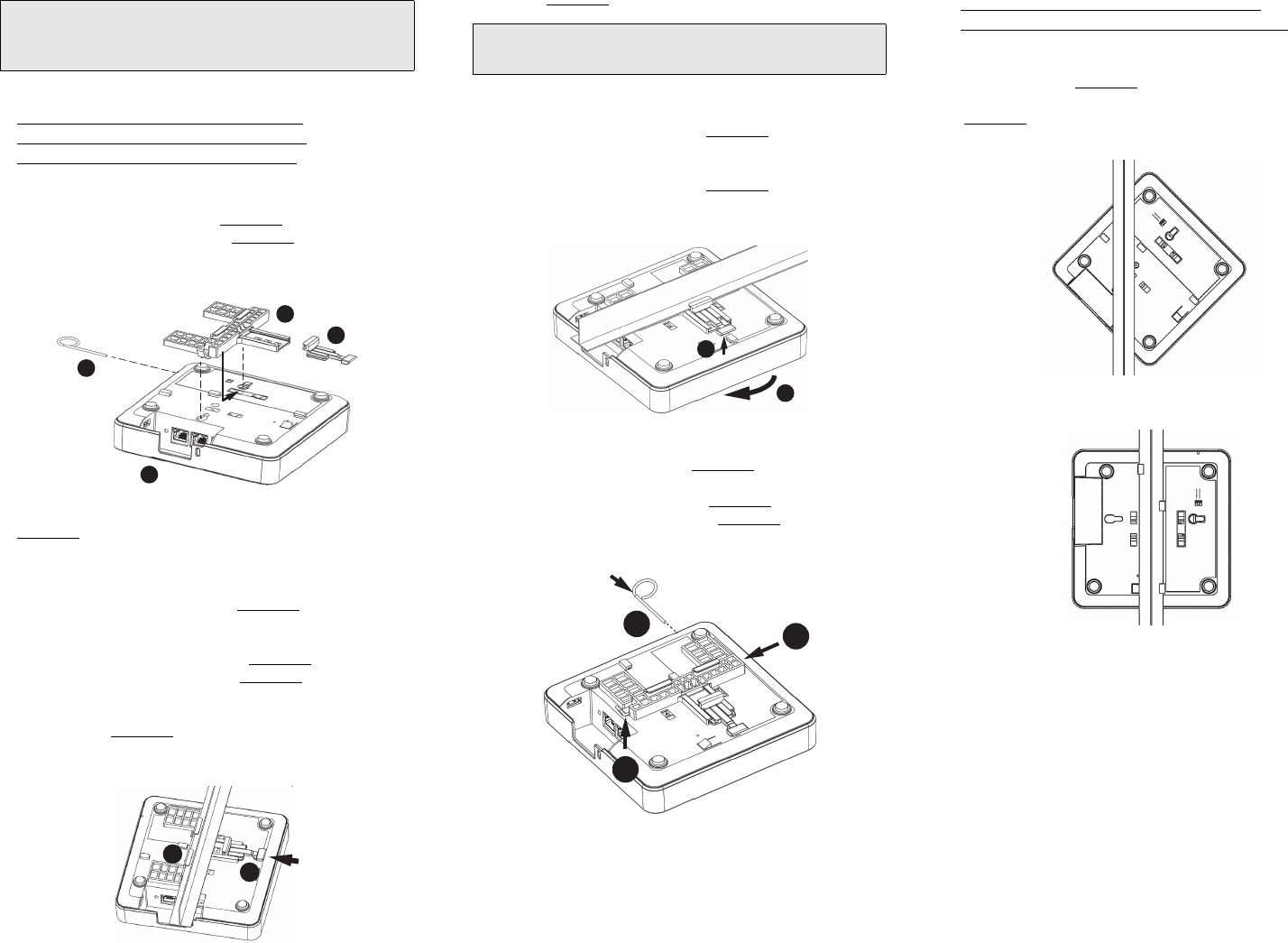

1Insert the unit removal pin (A in Figure 10.) into the hole on the
side of the Unleashed R600 (B in Figure 10.) to release the
locking mechanism.
Figure 10. . Attaching the external bracket to the AP
2Position the studs on the bottom of the T-bar bracket (C in
Figure 10.) in the mounting holes on the Unleashed R600
enclosure, and then slide the T-bar bracket until the studs are in
the narrow parts of the Unleashed R600 mounting keyholes
(arrow).
3Remove the unit removal pin (A in Figure 10.) to engage the
locking mechanism and secure the T-bar bracket to the
Unleashed R600.
4Make sure that the locking tab (D in Figure 10.) is in the first
position on the T-bar bracket (C in Figure 10.).
5Gently push the ceiling tiles up and out of the way.
6Position the T-bar bracket so its two clasps grip one edge of
the T-bar (A in Figure 11.). Make sure that both clasps are
gripping the T-bar.
Figure 11. . Attaching the external bracket to the T-bar
7Hold the Unleashed R600 in place and gently push the locking
tab (B in Figure 11.) until its clasp grips the other edge of the T-
bar.
Removing an External Bracket from a T-Bar
1Move the ceiling tiles out of the way.
2Gently lift up the locking tab (A in Figure 12.) by sliding your
fingers under the tab.
3While lifting up on the locking tab, rotate the Unleashed R600-
and-T-bar bracket assembly (B in Figure 12.). The Unleashed
R600-and-T-bar bracket assembly comes away from the T-bar.
Figure 12. . Removing the external bracket from the T-bar
Removing an External Bracket from an AP
1Insert the unit removal pin (A in Figure 13.) into the hole on the
side of the Unleashed R600.
2Gently lift up the retainer tab (B in Figure 13.).
3Gently push the T-bar bracket (C in Figure 13.) until it detaches
from the Unleashed R600.
Figure 13. . Removing the external bracket from an AP
Mounting on a Flush Drop-Ceiling T-Bar
Mounting an AP using the Integrated Bracket
Removing an AP Integrated Bracket from a T-Bar
Mounting an AP using the Integrated Bracket
1Orient the AP so that the T-bar is positioned between the T-bar
clips as shown in Figure 14., then rotate the AP until the third T-
bar clip catches the T-bar and the latch locks the T-bar in place
(Figure 15.).
Figure 14. . Attaching the integrated bracket to the T-bar
Figure 15. . Locking the integrated bracket to the T-bar
2Insert the Torx security screw into the hole near the latch to lock
the AP in place.
Removing an AP Integrated Bracket from a T-Bar
1To remove the AP from a T-bar, first remove the security screw,
then depress the latch while rotating the AP so that the T-bar
clips disengage the T-bar.
Mounting on a Truss or Pole
1Feed the customer-supplied cable ties through the two slots on
the back of the Unleashed R600.
2Fasten the Unleashed R600 to the truss or pole using the cable
ties.
Note: This mounting bracket can also be used on a
flush drop-ceiling T-bar, so the four rubber feet on the
bottom of the AP minimize ceiling tile displacement.
A
B
C
D
A
B
CAUTION: Make sure that all three clasps are gripping
the T-bar!
A
B
C
B
A
Copyright © 2016 Ruckus Wireless, Inc. Page 4 of 4
Published September 2016, Part Number 800-70633-002 Rev D
Mounting Template

Navigation menu
