Ruckus Wireless™ virtual SmartZone Data

Plane (vSZ-D)

vSZ-D Configuration Guide for SmartZone

3.5

Part Number: 800-71245-001 Rev A

Published: 07 April 2017

www.ruckuswireless.com

| Introduction | 2

Contents

About this Guide

Document Conventions.................................................................................................6

Related Documentation.................................................................................................7

Online Training Resources.............................................................................................7

Documentation Feedback.............................................................................................7

1 Virtual SmartZone Data Plane Overview

2 Features and Benefits

Tunneled WLANs and Flexible Traffic Redirection........................................................10

Architecture and Deployment Flexibility........................................................................11

IPv6 Address Support.................................................................................................12

vSZ-D Zone Affinity......................................................................................................12

DHCP Server and NAT Service on the vSZ-D..............................................................13

L3 Roaming.................................................................................................................14

Lawful Intercept...........................................................................................................15

3 Network Architecture

4 Communication Workflow

5 NAT Deployment Topologies

6 System Requirements

Hardware Requirements..............................................................................................26

Supported Modes of Operation.........................................................................27

Recommended NICs and Operation Modes......................................................33

7 Hypervisor Configuration

Supported Hypervisors................................................................................................34

General Configuration..................................................................................................34

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

VMware Specific Configuration....................................................................................35

KVM Specific Configuration.........................................................................................40

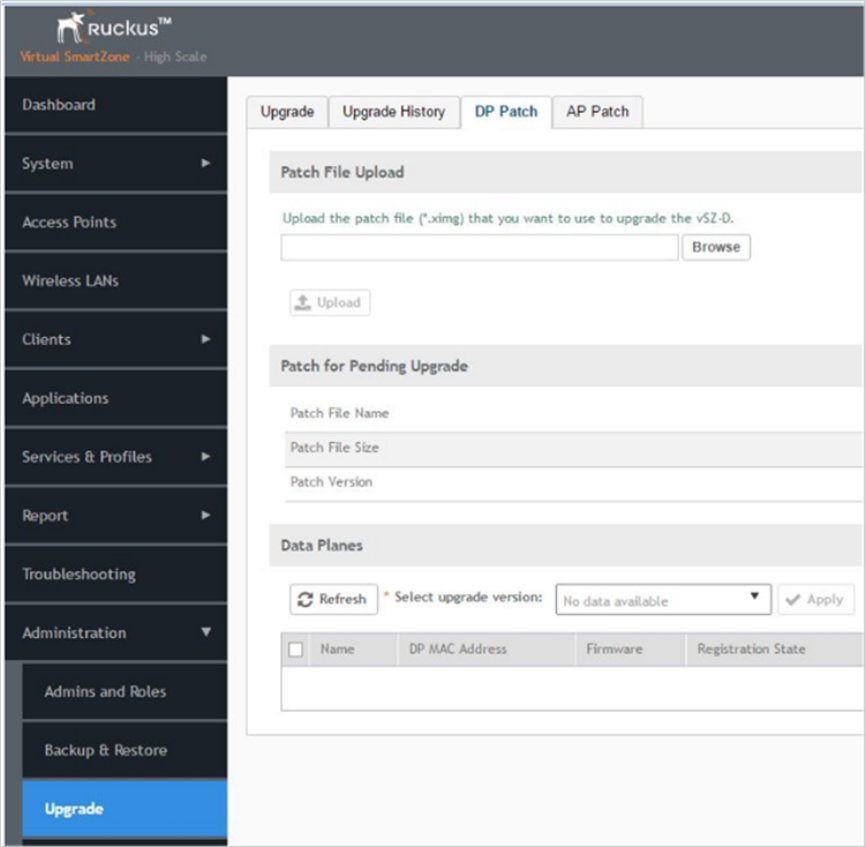

8 Upgrade Procedure

9 vSZ-D Performance Recommendations

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

No part of this documentation may be used, reproduced, transmitted, or translated, in any form

or by any means, electronic, mechanical, manual, optical, or otherwise, without prior written

permission of Ruckus Wireless, Inc. (“Ruckus”), or as expressly provided by under license from

Ruckus.

Destination Control Statement

Technical data contained in this publication may be subject to the export control laws of the

United States of America. Disclosure to nationals of other countries contrary to United States

law is prohibited. It is the reader’s responsibility to determine the applicable regulations and to

comply with them.

Disclaimer

THIS DOCUMENTATION AND ALL INFORMATION CONTAINED HEREIN (“MATERIAL”) IS

PROVIDED FOR GENERAL INFORMATION PURPOSES ONLY. RUCKUS AND ITS LICENSORS

MAKE NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THE

MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE,

OR THAT THE MATERIAL IS ERROR-FREE, ACCURATE OR RELIABLE. RUCKUS RESERVES

THE RIGHT TO MAKE CHANGES OR UPDATES TO THE MATERIAL AT ANY TIME.

Limitation of Liability

IN NO EVENT SHALL RUCKUS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL

OR CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, DATA

OR USE, INCURRED BY YOU OR ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT

OR TORT, ARISING FROM YOUR ACCESS TO, OR USE OF, THE MATERIAL.

Trademarks

Ruckus Wireless, Ruckus, the bark logo, BeamFlex, ChannelFly, Dynamic PSK, FlexMaster,

Simply Better Wireless, SmartCell, SmartMesh, SmartZone, Unleashed, ZoneDirector and

ZoneFlex are trademarks of Ruckus Wireless, Inc. in the United States and other countries. All

other product or company names may be trademarks of their respective owners.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

About this Guide

This Configuration Guide describes the features and configuration required for setting up the

Ruckus Wireless Virtual SmartZone Data Plane (vSZ-D) on the network.

This guide is written for service operators and system administrators who are responsible for

managing, configuring, and troubleshooting Ruckus Wireless devices. Consequently, it assumes

a basic working knowledge of local area networks, wireless networking, and wireless devices.

NOTE: If release notes are shipped with your product and the information there differs from the

information in this guide, follow the instructions in the release notes.

Most user guides and release notes are available in Adobe Acrobat Reader Portable Document

Format (PDF) or HTML on the Ruckus Wireless Support Web site at

https://support.ruckuswireless.com/contact-us.

Document Conventions

Table 1: Text conventions on page 6 and Table 2: Notice conventions on page 6 list the text

and notice conventions that are used throughout this guide.

Table 1: Text conventions

ExampleDescriptionConvention

[Device Name] >Represents information as it

appears on screen

message phrase

[Device Name] > set

ipaddr 10.0.0.12

Represents information that you

enter

user input

Click Start > All ProgramsKeyboard keys, software

buttons, and field names

user interface controls

Click Advanced Settings. The

Advanced Settings page

appears.

screen or page names

Table 2: Notice conventions

DescriptionNotice type

Information that describes important features

or instructions

NOTE:

Information that alerts you to potential loss of

data or potential damage to an application,

system, or device

CAUTION:

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

About this Guide

Document Conventions

DescriptionNotice type

Information that alerts you to potential personal

injury

WARNING:

Related Documentation

Virtual SmartZone Data Plane Overview

The Ruckus Wireless Virtual SmartZone controller platform is the industry’s most scalable Wi-Fi

controller platform that enables service providers and enterprises to leverage virtualization technologies

to deploy superior Wi-Fi management systems.

With the introduction of the Virtual Data Plane (vSZ-D) in SZ 3.2 release, the Virtual SmartZone platform

launched sophisticated data plane capabilities in a virtualized form factor. This is truly differentiated

and distinguished offering that provides compelling business benefits for varied deployment scenarios.

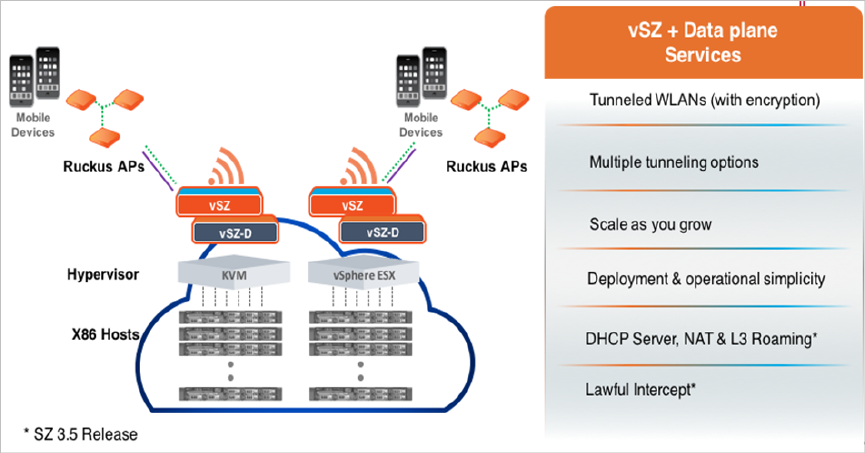

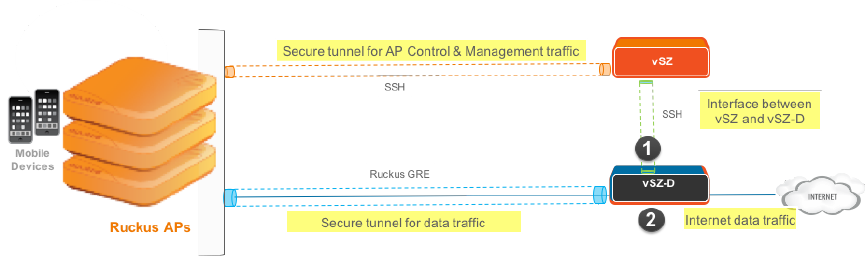

Figure 1: vSZ-D services

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Virtual SmartZone Data Plane Overview

Features and Benefits

In this chapter:

•Tunneled WLANs and Flexible Traffic Redirection

•Architecture and Deployment Flexibility

•IPv6 Address Support

•vSZ-D Zone Affinity

•DHCP Server and NAT Service on the vSZ-D

•L3 Roaming

•Lawful Intercept

vSZ-D is a virtualized service to segregate and securely tunnel user data traffic.

Some of the key use cases for the vSZ-D are:

Figure 2: Use cases

Table 3: Feature and Benefits

BenefitFeature

Manages the creation of aggregated user data

streams through secure tunnel

Secure data plane tunneling

Supports the most widely deployed VMware and

KVM hypervisors

Multiple Hypervisor Support

Supports 1Gbps, 10Gbps or even higher

throughput capacities to support all types of

Dynamic data plane scaling

enterprise and carrier deployments that can be

dynamically tuned without needing software

updates

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

BenefitFeature

Seamless integration with vSZ controller •Simple integration and management with vSZ

controller clustering architecture enables

support for multiple vSZ-D instances

•10 vSZ-D instances per vSZ instance

•40 vSZ-D instances per vSZ cluster of 4

instances

•The controller runs in Active/Active (3+1) mode

for extremely high availability.

•Each vSZ-D runs as an independent virtual

machine instance that is managed by the

controller.

•With vSZ-D Zone Affinity enabled, it is possible

to support a distributed vSZ-D instance on a

per vSZ Zone basis.

Encrypted tunnel aggregation from all types of

WLANs (Captive portal, 802.1x, HS2.0), VLANs,

Superior data plane functions

DHCP Relay, DHCP Server, NAT, L3 Roaming,

Lawful Intercept, IPv6 Support and NAT traversal

between AP and vSZ-D.

Provides the ability to service distributed and

centralized network configurations

Scalable Deployment Architectures

Simple integration and management with vSZ-E

and vSZ-H installations

Deployment and operational simplicity

Service policy management and data stream (will

be supported in a later release)

Site level QoS and policy control

Tunneled WLANs and Flexible Traffic Redirection

Many WiFi deployments have requirements to support tunneled WLANs for guest isolation and

encryption, POS data security, VoIP traffic management, and seamless roaming across L2

subnets. One of the most deployed and easily managed way to meet these requirements is to

enable a flat network topology by tunneling traffic to a controller.

With the vSZ-D, it is now possible to support tunneled WLANs on Ruckus Wireless APs that are

managed by a vSZ controller. In addition, both the Ruckus Wireless AP and the vSZ-D support

encryption capabilities on tunnels for data protection. This is especially important when tunneling

guest traffic and in use cases where the service provider or enterprise operator does not have

control on the backhaul links.

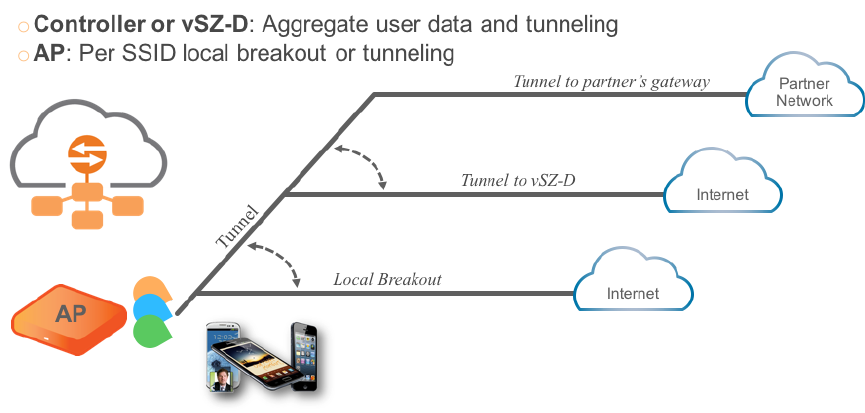

Figure 3: Traffic redirection flexibility with the Virtual SmartZone platform

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Features and Benefits

Tunneled WLANs and Flexible Traffic Redirection

Architecture and Deployment Flexibility

Existing architectures for supporting tunneled WLANs involve tunneling data back into controllers.

This results in architectures where a complete controller needs to be deployed on each site or

all the tunneled WLAN traffic being backhauled into a centralized data center. This also results

in dependencies on choices for controller platforms with different capacity profiles, which increase

the capital and operating expenses of the entire solution without actually solving the real problem.

With the vSZ-D, it is now possible to deploy the same software either on-premise (on cheaper

COTS hardware) when needed, as well as deploy it at the data center (on higher end COTS

hardware) and the entire Wi-Fi management controller by the vSZ controller.

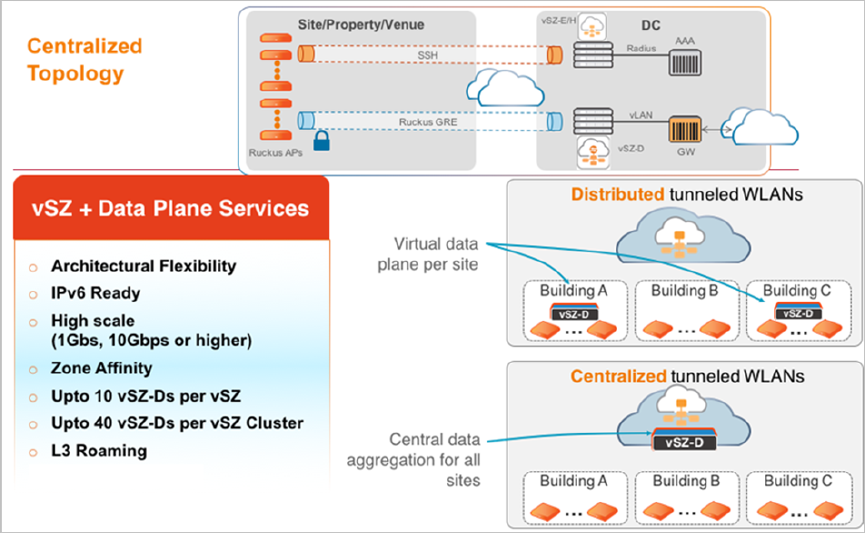

Figure 4: Unmatched architecture flexibility

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Features and Benefits

Architecture and Deployment Flexibility

IPv6 Address Support

The vSZ-D supports IPv6 addresses for the data and control/management plane interfaces. The

vSZ-D also supports client IPv6 addressess for DHCP Relay only.

NOTE: vSZ-D does not support IPv6 addresses for northbound soft-GRE tunnels.

vSZ-D Zone Affinity

vSZ-D Zone Affinity is a new feature introduced in this release. It is now possible to dedicate

vSZ-D instance on a per distributed site basis.

This is especially useful for managed service providers and ISPs who manage remote distributed

sites through a central or regional data center. In this architecture, the vSZ is in the provider’s

data center managing APs across all remote distributed sites.

On sites where there is a need for tunneling, they can introduce the vSZ-D and bind those vSZ-Ds

to that particular site so that all APs on that site shall tunnel traffic locally to the vSZ-D on that

site.

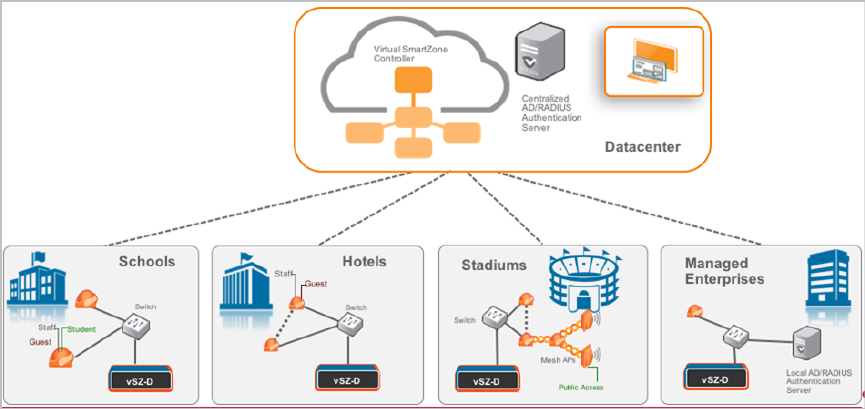

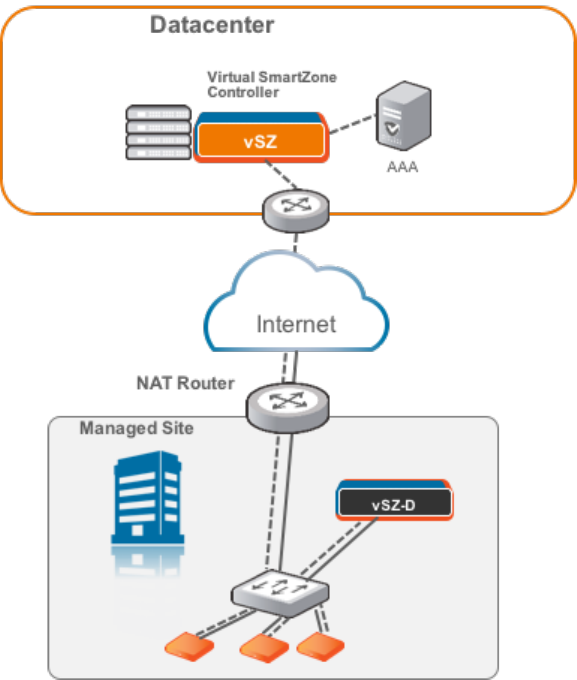

Figure 5: vSZ-D Zone Affinity

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Features and Benefits

IPv6 Address Support

DHCP Server and NAT Service on the vSZ-D

3.5 Release introduces a highly scalable and optimized DHCP Server on the vSZ-D that is

designed from the ground up for WiFi networks. It also introduces NAT capability.

NOTE: DHCP Server/NAT function if enabled is supported only for wireless client IPv4 address

assignment.

NOTE: DHCP Server and NAT service configuration is supported only with CLI in 3.5 release.

DHCP Server

The DHCP Server is designed in-line in the data plane and provides extreme scale in terms of

IP address assignment to clients. This feature is especially useful in high density and dynamic

deployments like stadiums, train stations where large number of clients continuously move in &

out of WiFi coverage. The DHCP server in the network needs to scale to meet these challenging

requirements. The DHCP server on the vSZ-D provides high scale IP assignment and management

with minimal impact on forwarding latency. DHCP Server supports 440K IP addresses and 64

pools with profile support.

NAT Service

With NAT service enabled, all the WiFi client traffic is NATed by the vSZ-D before being forwarded

to the core network. Each vSZ-D supports up to 990K ports and 16 public IP addresses for

NAT. This feature essentially reduces the network overhead significantly since this reduces the

MAC-table considerations on the UP-stream switches significantly. Again, very useful in high

density deployments.

NOTE: Only single subnet is supported in 3.5 release.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Features and Benefits

DHCP Server and NAT Service on the vSZ-D

L3 Roaming

Ruckus vSZ and vSZ-D architecture now supports L3 Roaming without the need for additional

mobility controllers.

The key use cases for L3 Roaming are well-understood,. Typically, a large WLAN network where

APs are separated on different VLAN segments and there is a need for IP address preservation

and potentially session persistence. Most common deployments are large campus networks

designed with multiple switches and VLANs and there is a need to support L3 Roaming.

With the 3.5 release and on the vSZ-D, Ruckus Wi-Fi can now support L3 Roaming with IP

Address preservation. Below is the high level use case that describes the feature functions. A

large network that is broken up into various campuses and there is a need to support L3 Roaming.

Below figure depicts 2 campuses, which are L2 separated but need L3 Roaming.

The APs in campus A setup a tunneled WLAN to the vSZ-D (Using Zone Affinity) and APs in

building B setup a tunneled WLAN to the vSZ-D in their building.

Each vSZ-D in the building can be configured to run a DHCP Server and NAT the traffic or be

setup as a DHCP Relay. When a client roams from an AP in building A to an AP in building B,

the vSZ-D in building B detects the roaming event and forwards the traffic (or assigns the same

IP back to the client) to the vSZ-D in building A (home vSZ-D or anchor vSZ-D) to ensure that

service to the client is not interrupted.

One additional unique benefit of this architecture over other L3 Roaming solutions is that with

this architecture, the roamer client can still have access to his home network resources (this is

similar to mobile roaming on 3G/4G networks).

Figure 6: Usage of L3 roaming

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Features and Benefits

L3 Roaming

Lawful Intercept

An important carrier class feature that is being introduced on the vSZ-D with the 3.5 release is

to support Lawful Intercept requirements.

These are slowly becoming mandatory and stringent on SP-WiFi deployments where Service

Providers need to meet the CALEA standard requirements.

Ruckus vSZ-D now supports the ability to identify a device that has a LI warrant issued against

it and mirror the client data traffic to a LIG (Lawful Intercept Gateway) that is hosted in the SP’s

data center over L2oGRE.

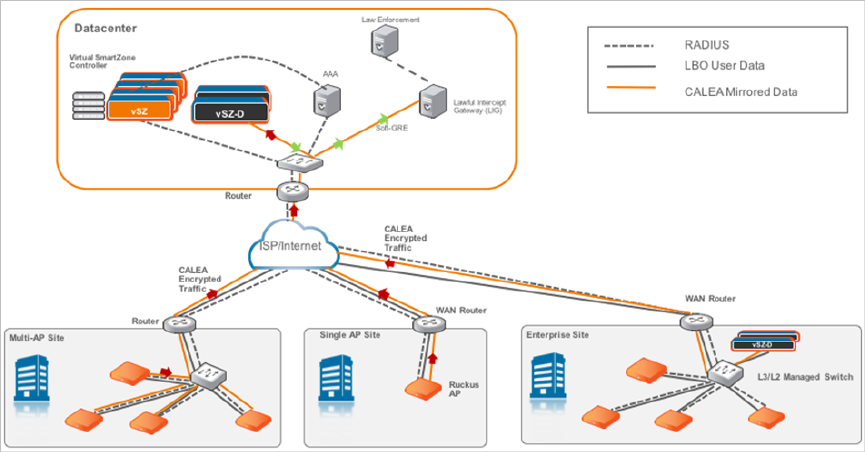

The figure below illustrates the high level architecture that is supported for Lawful Intercept

capabilities. It aslo depicts an architecture where smaller sites (with lesser number of APs) that

do not need data tunneling to vSZ-D (depicted as Multi-AP and Single AP sites) but need Lawful

Intercept. On the other side is a large enterprise site with large number of APs and need tunneling

(depicted as Enterprise site with vSZ-D on premise) with Lawful intercept.

NOTE: As mentioned in this document, the flexibility of the Ruckus vSZ/vSZ-D architecture is

that WiFi service providers can deploy the vSZ-D only on premises where there is a need (typically

larger venues) for tunneling.

The Ruckus architecture simply involves spinning up a vSZ-D instance at the central data center

and designate that vSZ-D instance as a CALEA mirroring agent. All of this configuration is centrally

managed through the vSZ. Once the network is setup appropriately, when a client device with

a matching MAC address that has a warrant is detected on any of the access sites, the APs (or

the vSZ-D) will mirror the packets to the vSZ-D (CALEA Mirroring agent) in the DC which will

then forward the traffic to the LIG (Lawful Intercept Gateway) either in the DC or SP DC.

Figure 7: Usage of Lawful Intercept

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Features and Benefits

Lawful Intercept

Network Architecture

vSZ-D requires at least two physical interfaces: one for control/management and another for data

plane.

The control/management interface is used for communication with the vSZ controller, as well as the

command line interface. The data plane interface is used to tunnel user data traffic from the APs.

Figure 8: vSZ-D logical interfaces

The access layer (southbound) is used to tunnel traffic to and from managed APs. The following

connections exist on the access layer.

1. AP to and from vSZ-D: Data plane, secured by Ruckus GRE tunnel.

2. vSZ to and from vSZ-D: Control plane, for vSZ to manage vSZ-D

3. AP to and from vSZ: Control plane, for vSZ to manage the AP

The core layer (northbound) is used by vSZ-D to forward traffic to and from the core network.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Network Architecture

Communication Workflow

The figure below captures a high level end-to-end communication flow between Ruckus Wireless

APs, vSZ and vSZ-D.

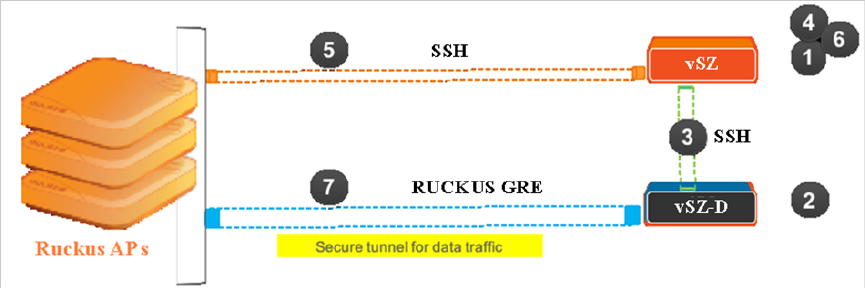

Figure 9: Communication workflow between Ruckus Wireless APs, vSZ, and vSZ-D

The following are the steps seen in the above figure.

1. Update the vSZ controller to the latest 3.x release or perform a fresh install of the vSZ controller

with the latest release

NOTE: If you are upgrading the vSZ controller and the vSZ-D, Ruckus Wireless recommends the

update of vSZ controller before the update of vSZ-D

2. Install vSZ-D and point it to the vSZ-E or vSZ-H controller by using the following options:

•Set vSZ-E or vSZ-H control interface IP address or FQDN or configure the controller IP address

via DHCP option 43.

•For vSZ-E or vSZ-H configured with three (3) IP interfaces, the IP address to use is the vSZ

control interface IP address.

3. The vSZ-D management interface connects with the vSZ-E or vSZ-H controller control interface

4. The vSZ-E or vSZ-H controller administrator approves the vSZ-D connection request

5. The vSZ informs the AP of the vSZ-D data interface

6. The vSZ-D is displayed as active and managed on vSZ-E or vSZ-H

7. AP establishes a Ruckus GRE tunnel with the vSZ-D data interface when a tunnelling WLAN is

configured

Figure 9: Communication workflow between Ruckus Wireless APs, vSZ, and vSZ-D on page 17

depicts logical network architecture. In real-world deployments, there may be network routers,

gateways, firewalls and other devices; these typical network devices are not shown in the figure to

focus on the vSZ-D interfaces and communication protocol aspects between the various entities.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

It is also important to note that support for distributed or centralized deployment topologies introduce

NAT routers/gateway devices. The communication interfaces between Ruckus Wireless APs, vSZ

and vSZ-D are designed to support NAT traversal so as to support such deployment topologies.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Communication Workflow

NAT Deployment Topologies

vSZ-D supports several deployment topologies.

AP Behind NAT and vSZ-D Behind NAT

When an AP is behind NAT, it is assumed that AP is sitting in the private world and wants to talk to

vSZ-D in the public world through NAT. The AP obtains its private IP address and communicate with

the vSZ-D through NAT. During communication with vSZ-D, the NAT router will intercept the packet

and change the source IP address (which is the AP IP address) to a public IP address and add a new

source port number before forwarding the packet to vSZ-D. vSZ-D, in this case, is insensitive to the

NAT router’s operation. When the packet comes back from vSZ-D to the AP, the NAT router will

intercept the packet and translate the destination IP address and port number back to the appropriate

(original) AP IP address and port number.

When vSZ-D is behind NAT, it is assumed that vSZ-D is sitting in the private world and wants to talk

to the AP in the public world through NAT. In this case, it is needed to setup the NAT IP (public IP)

and a port number pair in vSZ-D “setup” process. vSZ picks up this public address and the associated

port number and informs the AP that this is the vSZ-D address/port (public-IP, port) pair to connect

to.

It is also needed to configure the NAT device and enter the port mapping, basically, (public-IP, port)

<-> (private-IP, 23233) into NAT’s rule table. Thus, when NAT receives the packet bound for vSZ-D

(sent to public-IP/port) from the AP, it will translate it to (private-IP, 23233) based on the rule table

before sending it to vSZ-D, and conversely, for packet from vSZ-D, NAT router will look at the

srcIP/srcPort (IP, 23233), and convert it to public IP address or port based on the rule table before

sending it to AP.

NOTE: Both TCP and UDP protocols on port 23233 need to be forwarded as both are used (TCP is

used for tunnel establishment and UDP for client data)

vSZ and vSZ-D at Data Center Behind NAT

In this deployment topology, vSZ-D and vSZ are co-located at the data center behind NAT, while

Ruckus Wireless APs are on the access network behind NAT.

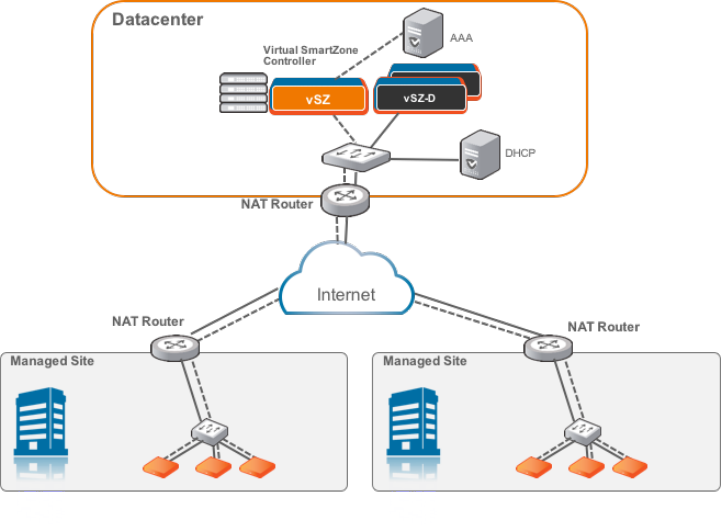

Figure 10: vSZ and vSZ-D at data center behind NAT

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

vSZ-D at Access Side with NAT

In this deployment topology, vSZ is at the data center and vSZ-D is co-located with the Ruckus

Wireless APs on the access network. In this scenario, there are NAT routers between vSZ and

vSZ-D/Ruckus APs.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

NAT Deployment Topologies

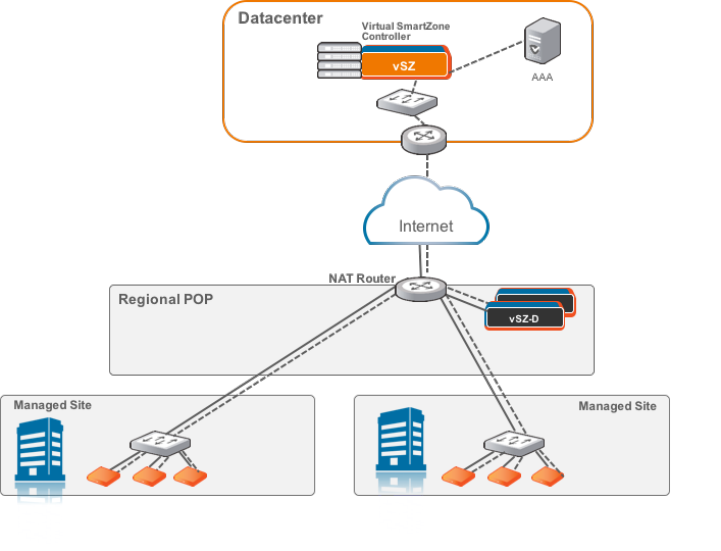

Figure 11: vSZ-D at access side with a NAT router

vSZ-D Behind NAT

In this deployment topology, vSZ is at the data center and vSZ-D is in a distributed site but not

co-located with the Ruckus Wireless APs within the access network. There are NAT routers between

vSZ and vSZ-D, and between vSZ-D and Ruckus Wireless APs. The vSZ-D port to communicate with

vSZ control plane is port 22.

Figure 12: vSZ-D behind a NAT router

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

NAT Deployment Topologies

DHCP Relay with NAT

Similar to the vSZ-D Behind NAT, in this deployment topology, vSZ is at the data center and vSZ-D

is in a distributed site but not co-located with the Ruckus Wireless APs within the access network.

There are NAT routers between vSZ and vSZ-D, and between vSZ-D and Ruckus Wireless APs.

However, in this topology, the DHCP server assigning client IP addresses is on its own separate

subnet. vSZ-D provides the DHCP relay function to support such a network configuration.

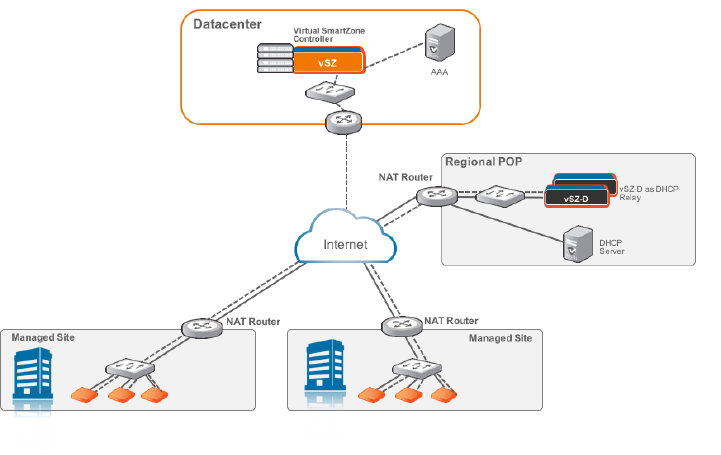

Figure 13: DHCP relay with a NAT router

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

NAT Deployment Topologies

DHCP Option 82 and Bridge Profile

If you are enabling the DHCP Option 82 in WLAN configuration in the controller vSZ, it means that

the AP is going to put DHCP Option 82 in the DHCP server and will send it to vSZ-D. This is in the

format IF-Name:VLAN-ID:ESSID:AP-Model:AP-Name:AP-MAC. If you want to give the users

the option to choose what needs to be included in DHCP Option 82, you would need to create a

Bridge Service Profile in the vSZ controller web interface. Follow the steps to create a Bridge Service

Profile.

•Go to vSZ controller web interface > Services & Profiles > Core Network Tunnel

•Click on Create to add a Bridge Forwarding Profile

•Verify if the DHCP Relay is enabled.

•Add the DHCP server IP address

•Enable DHCP Option 82 and choose the sub options based on your requirement or of the user.

This will be taken care by vSZ-D during DHCP packet relay to the DHCP server.

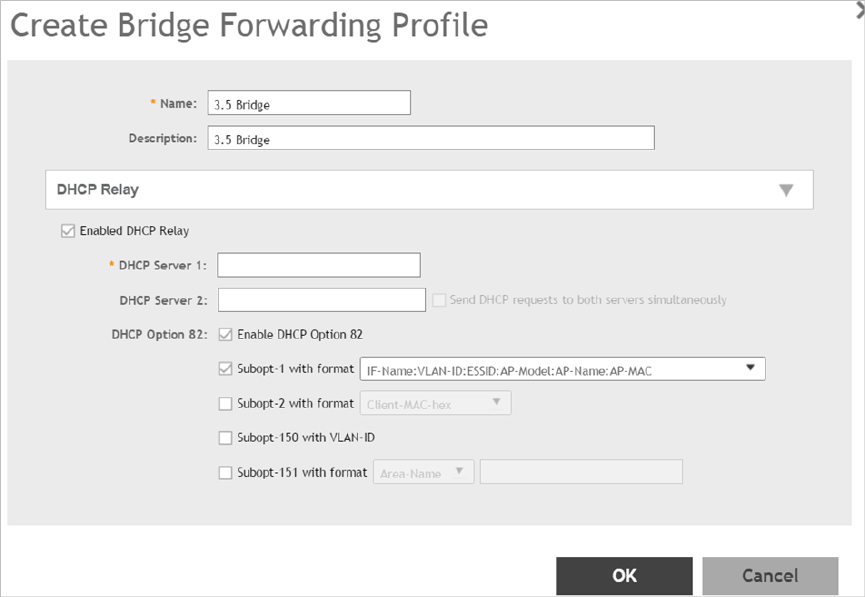

Figure 14: Creating Bridge Profile

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

NAT Deployment Topologies

•Go to vSZ controller web interface > Wireless LANs

•Click on Create to add the following new WLAN configuration:

•Access Network as Tunnel WLAN traffic through Ruckus GRE

•Core Network as Bridge

•Authentication Options > Methodas Open

•Encryption Options > Methodas None

•Forwarding Policy as Factory Default . Choose the forwarding policy as the bridge profile.

•Click OK to complete and save the configuration.

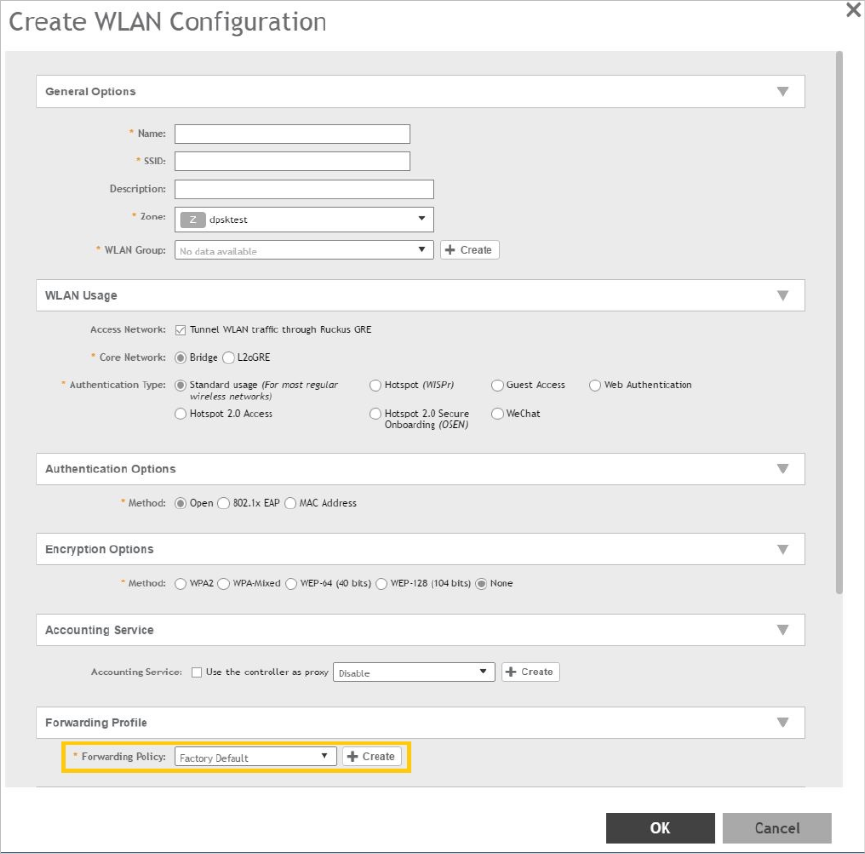

Figure 15: Creating a WLAN Configuration

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

NAT Deployment Topologies

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

NAT Deployment Topologies

System Requirements

In this chapter:

•Hardware Requirements

Hardware Requirements

vSZ-D supports auto scaling, which means the number of CPU cores can be expanded without

needing a software update. Ruckus Wireless has tested from three to six CPU core allocations

for the vSZ-D in release 3.2 and above.

NOTE: The minimum memory and CPU requirements for vSZ have changed in this release. You

may need to upgrade your infrastructure before upgrading. Please read carefully. This is the

minimum requirement recommended. Refer to the Release Notes or the vSZ Getting Started

Guide.

The following table lists the minimum hardware requirements recommended for running an

instance of vSZ-D.

Table 4: vSZ-D hardware requirements

RequirementHardware Component

VMWare Esxi 5.5 and later OR KVM (CentOS

7.0 64bit)

Hypervisor support required by Management

Interface

Intel Xeon E55xx and above. Recent Intel

E5-2xxx chips are recommended

Processor

CPU cores •Minimum 3 to 6 cores per instance

dedicated for data plane processing.

•DirectIO mode for best data plane

performance.

NOTE: Actual throughput numbers will vary

depending on infrastructure and traffic type.

•vSwitch mode for flexibility and service

chaining

Minimum 6 Gb memory per instanceMemory

10GB per instanceDisk space

2Ethernet interfaces

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

System Requirements

Hardware Requirements

RequirementHardware Component

NICs that support Intel DPDK requiredby Data

Interface

•Intel NICs iab, ixabe

•82576, I350

•82599EB, 82599, X520

Important Notes About Hardware Requirements

•If you change the number of CPU cores, you must reboot vSZ-D for the changes to take

effect.

•The first core is always shared between Linux and NPE. Other cores are dedicated to NPE.

•vSZ-D requires two interfaces and these interfaces must be deployed on different subnets.

•The management interface of the vSZ-D can be any model as long as the NIC is supported

by the hypervisor.

•The data interface needs to be Intel DPDK based.

Supported Modes of Operation

vSZ-D supports two modes of operation: direct IO mode and vSwitch mode.

For best performance, Ruckus Wireless recommends using the direct IO mode. SR-IOV mode

is unsupported. Refer to the table below for mode of operation

NOTE: NICs assigned to direct IO cannot be shared. Moreover, VMware features such as

vMotion, DRS, and HA are unsupported.

The hardware configuration for a single vSZ-D instance specified in the guide will scale to handle

10K tunnels (10K APs) and up to 10Gbps of throughput (unencrypted) with appropriate underlying

Intel NIC cards (10G interfaces) in directIO mode of operation. This aligns with the number of

Ruckus AP that a vSZ controller supports. Refer to the dimensioning table below.

Table 5: Hardware Dimensioning

NotesMaximum

Throughput

(Unencrypted)

Number of

Tunnels on

vSZ-D

Number of

Ruckus APs

Number of

vSZ-D

Instances

Number of

vSZ

Instances

It is

recommended

10 Gbps100001000011

to have 10G

NICS on the

vSZ-D

considering

the high

number of

Ruckus APs.

Tunnels are

load-balanced

10 Gbps5000 (10K

maximum in

1000021

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

System Requirements

Hardware Requirements

NotesMaximum

Throughput

(Unencrypted)

Number of

Tunnels on

vSZ-D

Number of

Ruckus APs

Number of

vSZ-D

Instances

Number of

vSZ

Instances

towards the

vSZ-D by the

case of

failover)

vSZ. This is

useful when

data plane

redundancy is

required. It is

recommended

to have 10G

NICS on the

vSZ-D

considering

the high

number of

Ruckus APs.

Tunnels are

load-balanced

10 Gbps5000 (10K

maximum)

1000022

towards the

vSZ-D by the

vSZ. Each

vSZ-D

instance can

handle 10K

maximim

tunnels.

Tunnels are

load-balanced

10 Gbps2500 (10K

maximum)

1000042

towards the

vSZ-D by the

vSZ. Each

vSZ-D

instance can

handle 10K

maximim

tunnels.

Tunnels are

load-balanced

10 Gbps3300 (10K

maximum)

2000063

towards the

vSZ-D by the

vSZ. Each

vSZ-D

instance can

handle 10K

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

System Requirements

Hardware Requirements

NotesMaximum

Throughput

(Unencrypted)

Number of

Tunnels on

vSZ-D

Number of

Ruckus APs

Number of

vSZ-D

Instances

Number of

vSZ

Instances

maximim

tunnels.

Tunnels are

load-balanced

10 Gbps3750 (10K

maximum)

3000084

towards the

vSZ-D by the

vSZ. Each

vSZ-D

instance can

handle 10K

maximim

tunnels.

Table 6: Mode of Operation

Packet

Size

(Bytes)

Tunnel

Bandwidth

(Intel NIC-10

(Unencrypted)

Number of

Tunnels

Hard Disk

(GB)

Memory

(GB)

Number of

CPUs

Hypervisor

140017.6 Gbps10001063Vmware

(DirectIO)

Random6.3 Gbps100001066*Vmware

(DirectIO)

Random4.5 Gbps100001063Vmware

(DirectIO)

NOTE: Refer to the vSZ-D Performance Recommendations on page 49 chapter for encryption

and vSwitch impacts.

NOTE: * vDP needs to increase the CPUs to 6 for sustaining the 10GB line rate in random-byte

traffic when the encryption is enabled. Encrypted requires 6 cores and unencrypted requires 3

cores

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

System Requirements

Hardware Requirements

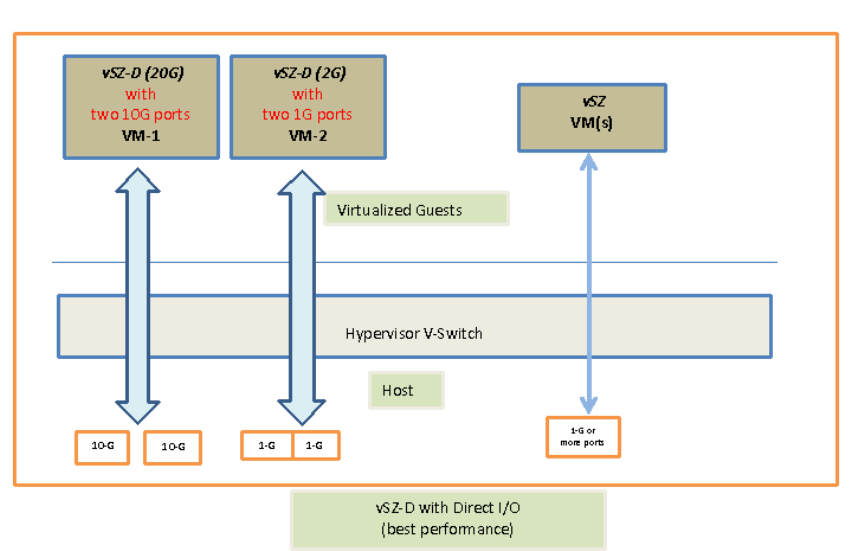

The figure below depicts a sample configuration in DirectIO mode. This is the recommended

deployment model for the vSZ-D for best performance benefits. In this setup, cores as well as

the NICs are dedicated to the vSZ-D VM only for best performance.

NOTE: In this setup, the vSZ-D data plane interfaces directly with the DPDK NIC, completely

bypassing the vSwitch

vSZ-D with DirectI/O

NOTE: The figure below depicts multiple virtual data plane instances for reference purposes

only.

It also depicts a vSZ controller instance running as a separate VM. These VMs can be running

on the same underlying host or potentially different hosts.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

System Requirements

Hardware Requirements

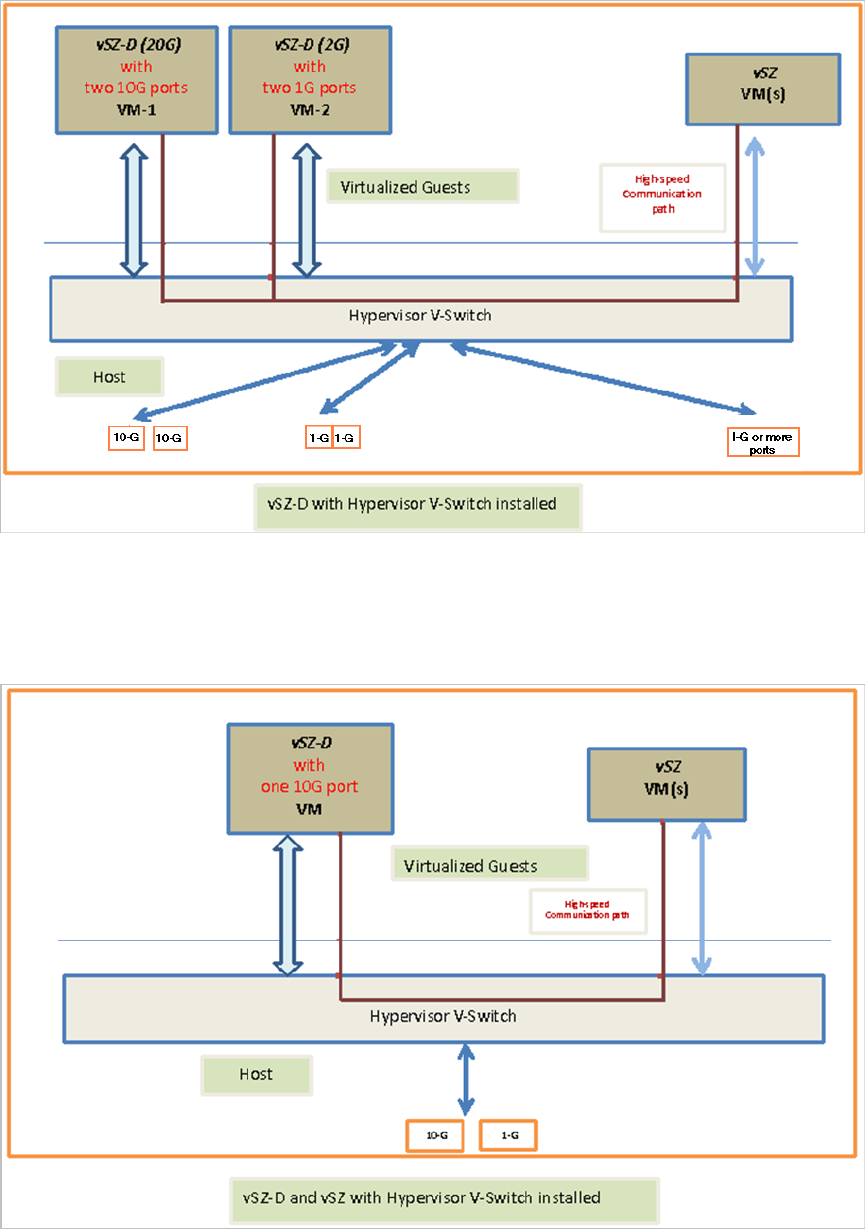

vSZ-D with Hypervisor vSwitch Installed

The figure below depicts a sample setup via the vSwitch.

NOTE: The figure below depicts multiple virtual data plane instances for reference. It also depicts

a vSZ controller instance running as a separate VM.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

System Requirements

Hardware Requirements

vSZ-D and vSZ with Hypervisor vSwitch Installed

The figure below depicts an architecture where vSZ and vSZ-D are running on the same underlying

host.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

System Requirements

Hardware Requirements

Recommended NICs and Operation Modes

The following table lists the modes of operation and network interface cards (NICs) that have

been tested by Ruckus Wireless. Other NICs that support Intel DPDK architectures may or may

not work.

Table 7: Recommended NICs and operation modes

NIC ModelSupported NIC DriverModeInterface

82574E1000vSwitchControl /

management

I350

igb1GBDirect IOData

82576

Intel 82571EB

Broadcom

BCM5720

82599EBixgbe10GB

82598

X540 (T1 and T2,

for RJ-45

twist-pair)

X520

--VMXNET3VMwarevSwitch

--VirtioKVM

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

System Requirements

Hardware Requirements

Hypervisor Configuration

In this chapter:

•Supported Hypervisors

•General Configuration

•VMware Specific Configuration

•KVM Specific Configuration

This section covers hypervisor-specific configurations that Ruckus Wireless recommends and other

settings that you may need to fine tune.

Supported Hypervisors

Unlike the vSZ controller, vSZ-D can only be installed on specific versions of VMware and KVM.

The tables below list the hypervisors and versions on which vSZ and vSZ-D can and cannot be

installed.

Table 8: vSZ and vSZ-D supported hypervisors

vSZ-DvSZ

Supported from 2.5VMware 5.1

Supported from 3.2Supported from 3.0VMware 5.5 and later

Supported from 2.5KVM CentOS 6.5 64-bit

Supported from 3.2Supported from 3.0KVM CentOS 7.0 64-bit

Supported from 3.2Hyper-V

Supported from 3.2Azure

Supported from 3.2GCE

General Configuration

Ruckus Wireless offers the following general configuration recommendations.

Table 9: General vSZ-D configuration recommendations

Minimum RecommendationComponent

Minimum 6144MBRecommended reserved memory

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Hypervisor Configuration

Supported Hypervisors

Minimum RecommendationComponent

Minimum three CPU cores. For improved

performance in a large-scale deployment,

allocate six CPU cores.

Recommended number of CPU cores

To enable passthrough on NIC devices,

configure DirectIO mode in ESXi in Advanced

Settings.

Configuration via DirectIO or through vSwitch

VMware Specific Configuration

If you are installing vSZ-D on VMware, read these VMware specific configuration recommendations

from Ruckus Wireless.

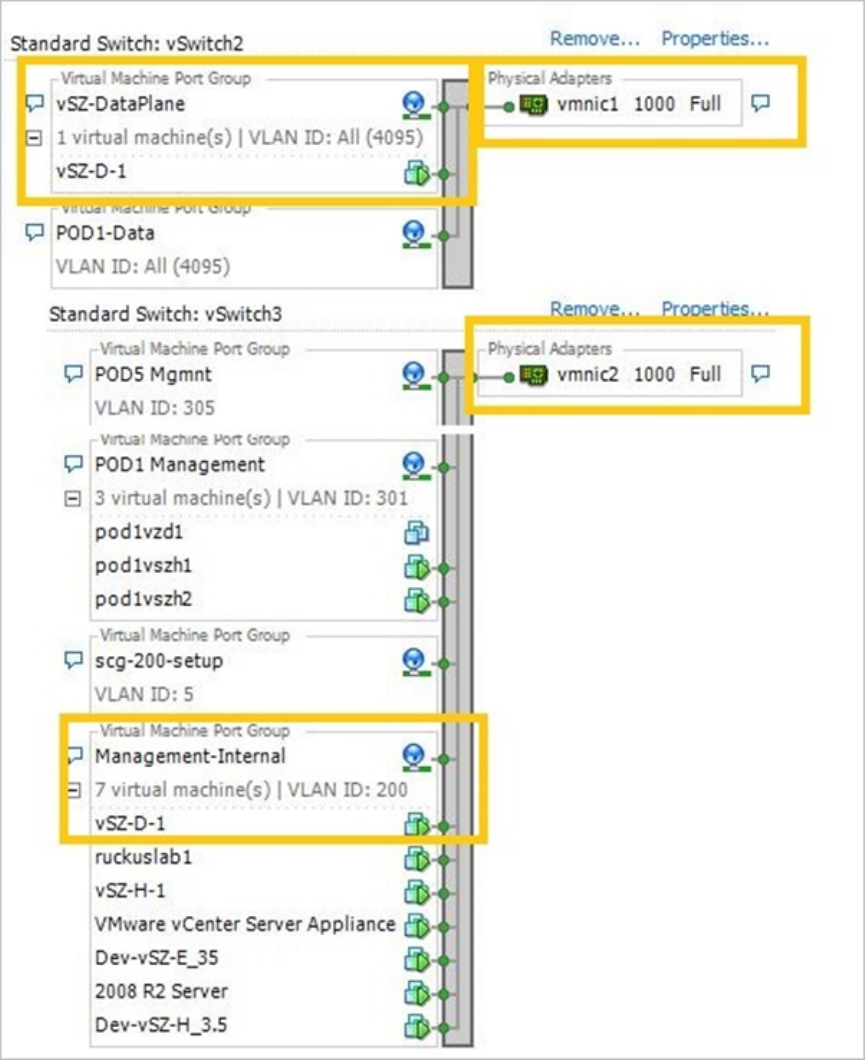

•Deploy vSZ-D on a machine that has at least two physical NICs. Alternatively, deploy to two

vSwitch instances with dedicated physical NICs.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Hypervisor Configuration

VMware Specific Configuration

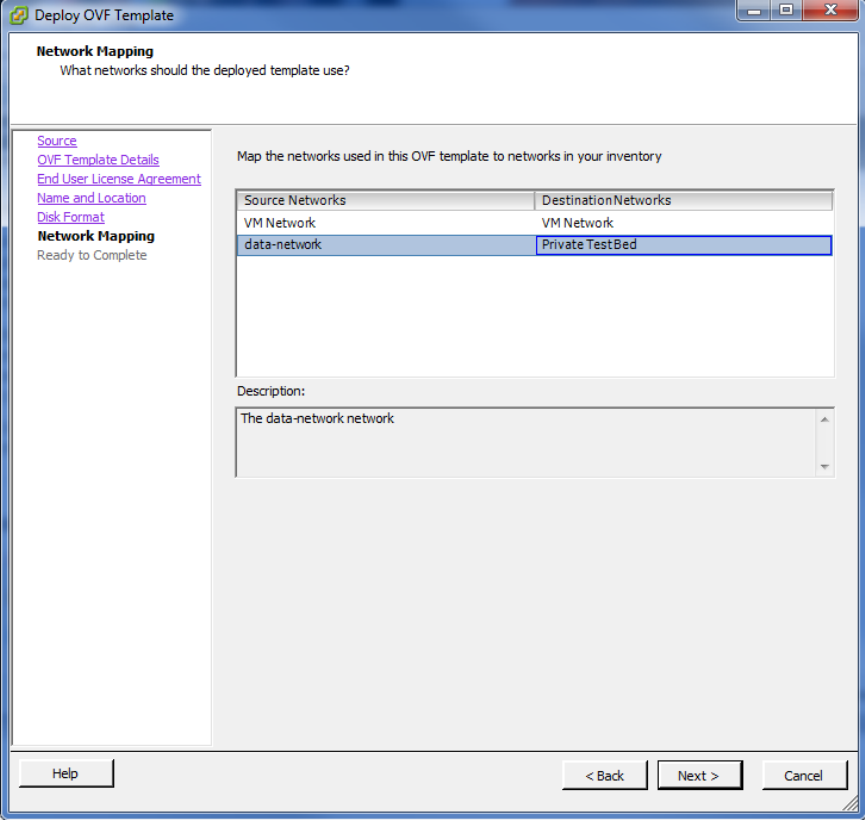

•When deploying an instance of vSZ-D using an OVA file, you must assign the management

and data interfaces to two different network groups (vSwitch) on different subnets.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Hypervisor Configuration

VMware Specific Configuration

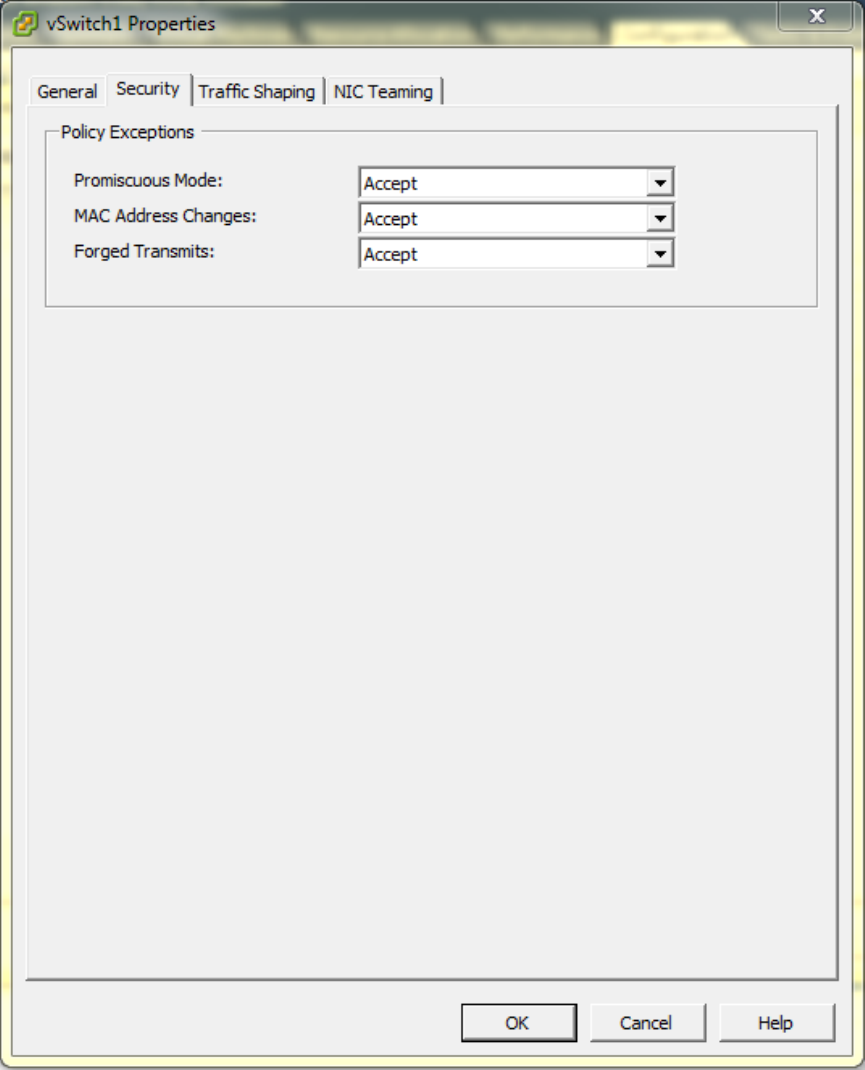

•Enable Promiscuous mode in vSwitch Config.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Hypervisor Configuration

VMware Specific Configuration

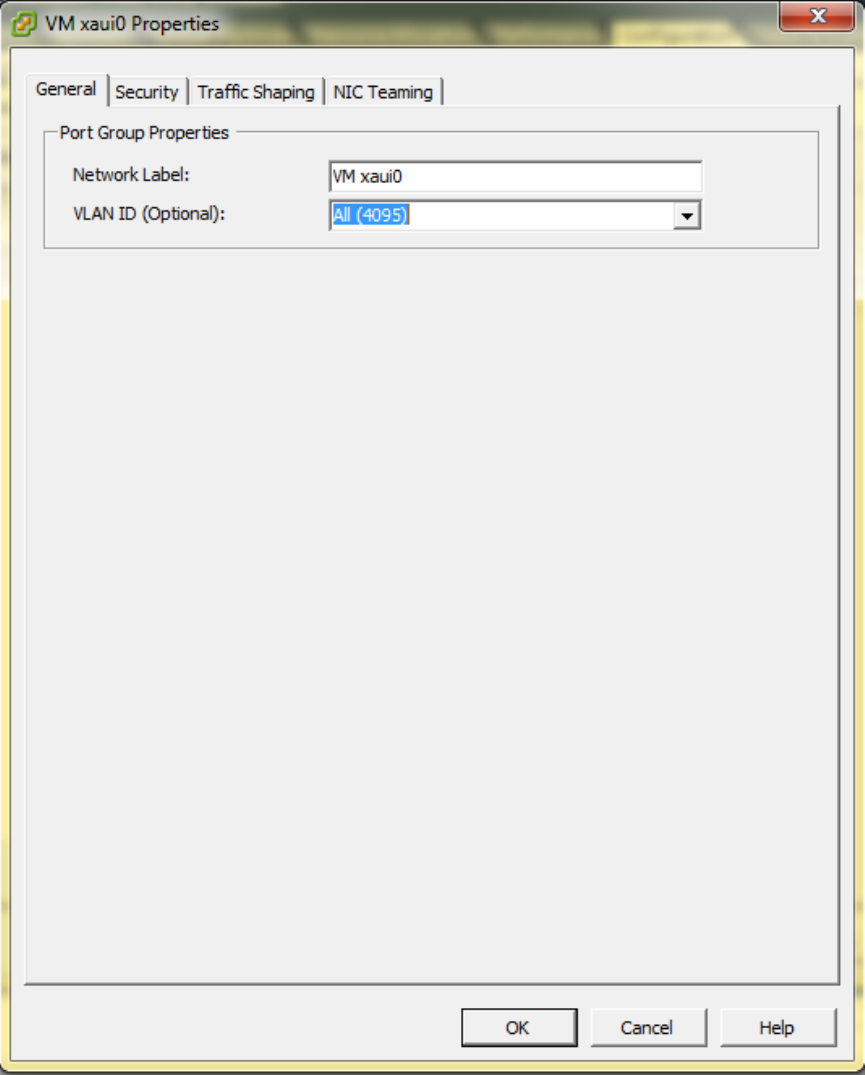

•In vSwitch Config, enable VLAN ID for All.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Hypervisor Configuration

VMware Specific Configuration

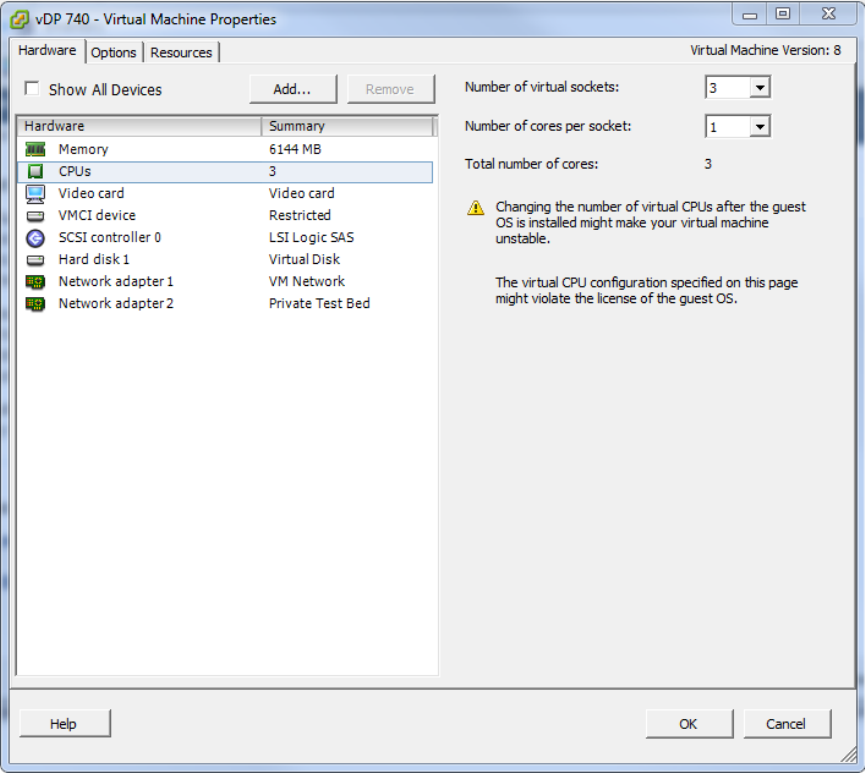

•After the vSZ-D instance is ready, modify the number of CPU cores (if needed) before powering

on vSZ-D.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Hypervisor Configuration

VMware Specific Configuration

•For advanced CPU and memory resource configuration recommendations, refer to the vSphere

Resource Management Guide, which is available on the VMware website.

KVM Specific Configuration

If you are installing a KVM on VMware, read these KVM specific configuration recommendations

from Ruckus Wireless

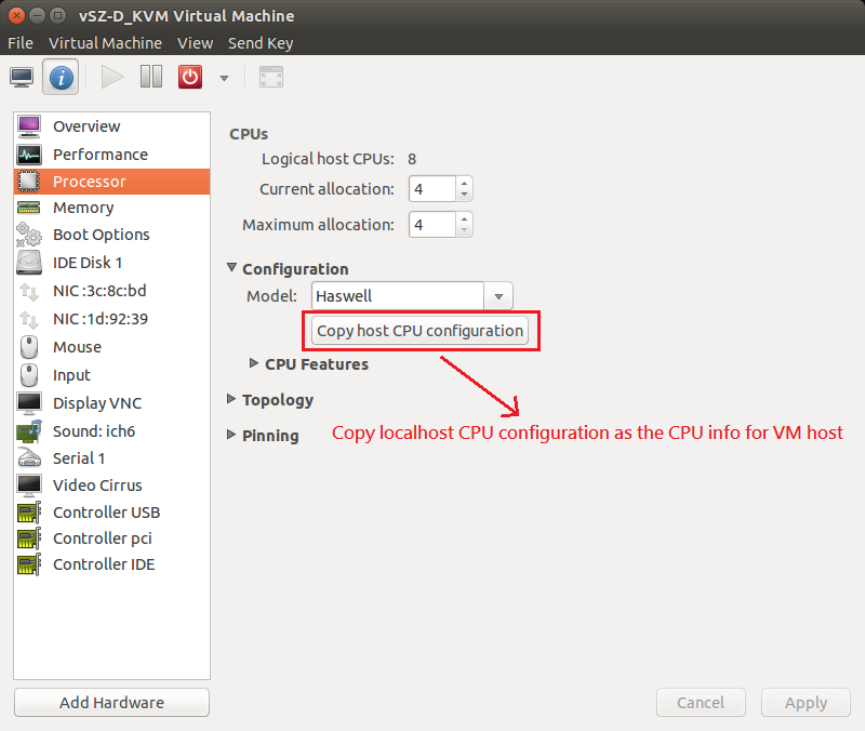

CPU Type

When selecting the CPU model, make sure you select one that is higher than Intel Core 2 Duo.

On Linux, you can this information in /proc/cpuinfo.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Hypervisor Configuration

KVM Specific Configuration

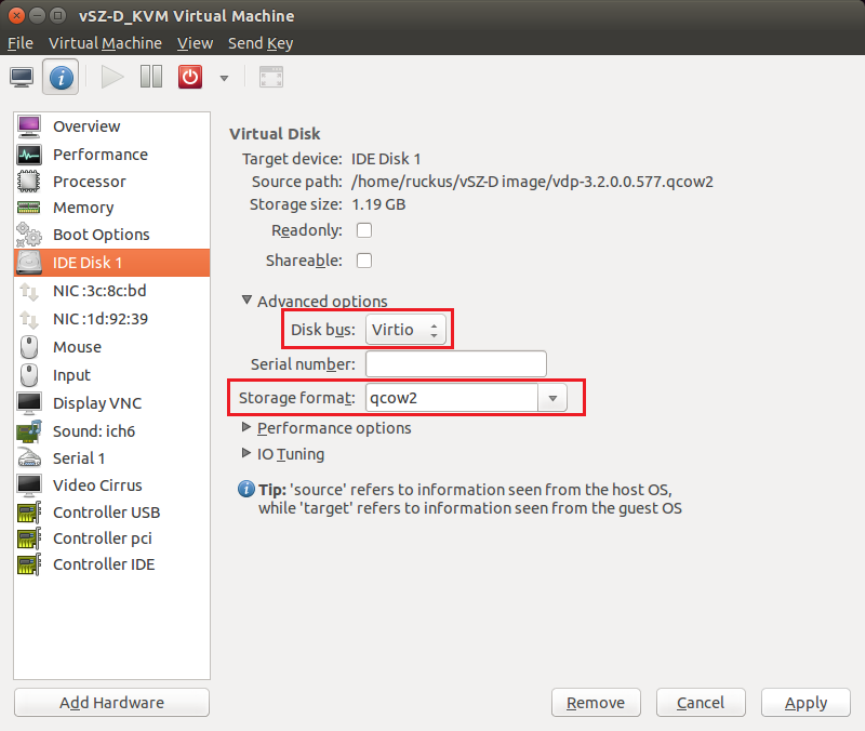

Disk Configuration

Ruckus Wireless recommends using Virtio as the disk bus and qcow2 as the storage format.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Hypervisor Configuration

KVM Specific Configuration

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Hypervisor Configuration

KVM Specific Configuration

NIC Configuration in Direct IO Mode

NOTE: Only the data interface needs to be configured to direct PCI passthrough. The

management interface should always be configured to e1000 as the NIC driver.

Before adding a PCI device to the KVM, you need to complete the following steps:

1. Enable VT-d (for Intel processors) in the motherboard BIOS. Intel's VT-d ("Intel Virtualization

Technology for Directed I/O") is available on most i7 family processors.

2. Add kernel boot parameters via GRUB to enable IOMMU (see figure below). To enable IOMMU

in the kernel of Intel processors, pass intel_iommu=on boot parameter on Linux. For more

information, read this tutorial.

3. After configuring the boot parameter, reset the computer.

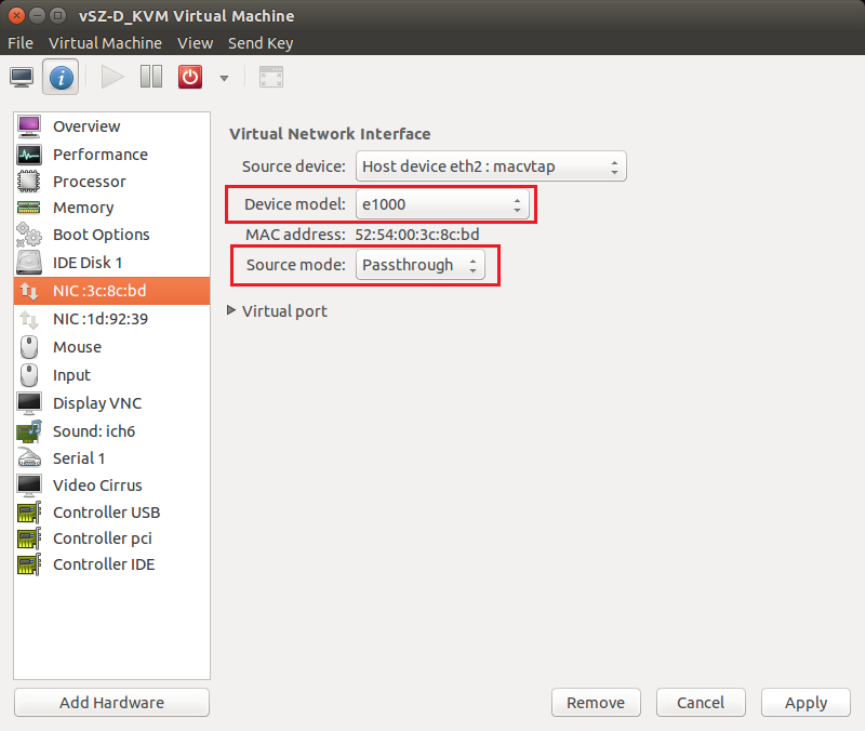

NIC Configuration in vSwitch Mode

NOTE: Configure only two ports for vSZ-D.

For the management interface, use the following settings:

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Hypervisor Configuration

KVM Specific Configuration

•Device model: e1000

•Source mode: Either Bridge or Passthrough if you are using macvtap for the device type.

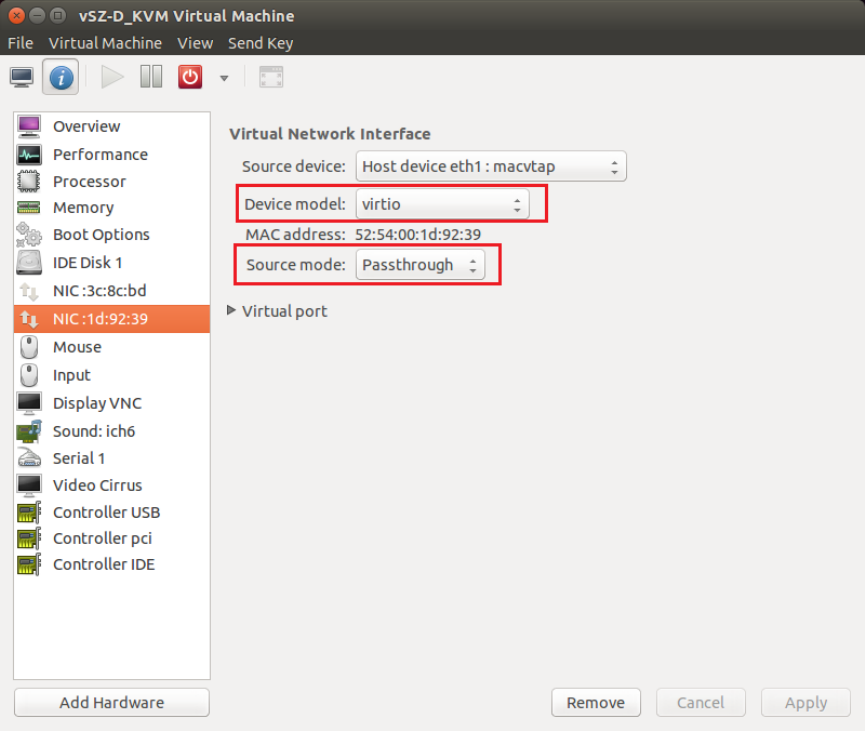

For the data interface, use the following settings:

•Device model: e1000

•Source mode: Passthrough if you are using macvtap for the device type. Only the

passthrough mode can allow UE traffic to pass through the VM NIC.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Hypervisor Configuration

KVM Specific Configuration

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Hypervisor Configuration

KVM Specific Configuration

Upgrade Procedure

Procedure for upgrading to a new vSZ-D version.

Controller and vSZ-D Firmware Compatibility Matrix

The below table indicates the compatibiliy matrix. In general, Ruckus Wireless supports N-2 vSZ-D

releases with vSZ.

Table 10: Controller and vSZ-D Firmware Compatibility Matrix

vSZ-D ReleasevSZ Release

3.23.43.5

YesYesYes3.5

YesYesNo3.4

YesNoNo3.2

Follow these steps to upgrade the vSZ-D version.

NOTE: Before starting this procedure, you should have already obtained a valid software upgrade file

from Ruckus Wireless® Support or an authorized reseller.

NOTE: If you are upgrading both vSZ and vSZ-D, Ruckus Wireless® recommends upgrading vSZ first

before vSZ-D.

1. Copy the software upgrade file that you received from Ruckus Wireless® to the computer where

you are accessing the controller web interface or to any location on the network that is accessible

from the web interface.

2. Go to Controller web interface > Administration > Upgrade

Figure 16: Upgrade Section

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Upgrade Procedure

3. In the Patch File Upload section, click the Browse button, and then browse to the location of the

software upgrade file.

The file name of the software upgrade file is vSZ-D-installer_{version}.ximg.

4. Click Upload to upload the software upgrade file.

5. The Patch Information displays the new vSZ-D file details.

6. Select the vSZ-D instance that you want to upgrade from the Data Plane table and click Apply.

The controller fetches the new vSZ-D version on a reboot.

7. To verify if the upgrade is successful after a reboot:

•Go to Controller web interface > Administration > Upgrade to view a confirmation message

that the data plane firmware upgrade is complete.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Upgrade Procedure

•Go to Controller web interface > Configuration > System > Cluster Planes to view a

confirmation message that the data plane is managed with an upgrade firmware version.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Upgrade Procedure

vSZ-D Performance Recommendations

vSZ-D has been designed to induce minimal latency in user data aggregation and forwarding. The

unique design of the vSZ-D software enables consistent packet performance with minimal throughput

degradation as the number of tunnels or the number of clients’ increase.

The fast path processing of the vSZ-D is engineered to scale to the underlying NIC capacity profiles

whether be it 1G or 10G speeds. vSZ-D is designed to scale and handle data tunnels and data

forwarding capabilities at high scale.

The following are some important observations and recommendations related to the vSZ-D

performance:

•To obtain the best throughput, Ruckus Wireless recommends operating vSZ-D in directIO mode.

This recommended mode of operation applies whether the hypervisor used is VMware or KVM.

•vSZ-D supports vSwitch mode of operation for added flexibility in deployments where vSZ-D may

be co-located with other VMs for service chaining on the same underlying hardware. Note that the

current observations are that in the vSwitch mode of operation, there is an induced performance

impact in comparison with the directIO mode of operation. This may be due to the latency or

performance bottleneck in virtIO and vSwitch sharing. This is still being researched at the Ruckus

Wireless R&D Labs.

•There is an expected performance impact when enabling encryption (AES 128 bit) on the Ruckus

GRE Tunnels. This is due to the overhead induced by the crypto processing on Ruckus Wireless

AP and vSZ-D due to the associated overheads of encryption and decryption on a per packet

basis. The vSZ-D software is designed to introduce minimal latency and overheads associated in

packet processing. vSZ-D takes advantage of the underlying Intel chip’s crypto module for packet

encryption and decryption and the associated impact is primarily bounded at the hardware level.

For specific recommendations and calibrations that may be needed for your deployment, contact

Ruckus Wireless.

Ruckus Wireless™ virtual SmartZone Data Plane (vSZ-D) vSZ-D Configuration Guide for SmartZone 3.5

Index

architecture 11

benefits 9

Bridge Profile 19

CALEA standard requirement 15

communication workflow 17

control 16

controller 16

controllers 11

CPU cores 26

data center managing 12

data plane 8, 16, 46

deployment flexibility 11

deployment topologies 19

DHCP Option 82 19

DHCP relay 19

DHCP Server 13

Ethernet interfaces 26

features 9

Flexible traffic redirection 10

Forwarding Policy 19

general configuration 34

hard disk 26

hardware dimensioning 27

hardware requirements 26

hypervisor configuration 34

Hypervisor support 26

hypervisors 34

IPv6 address 12

KVM 40

lawful intercept 15

legal 5

managed services 12

management 16

memory 26

modes of operation 33

NAT 19

NAT Service 13

NICs 33

NICs supported 26

operation modes 27

overview 8

patch information 46

performance 49

Processor 26

Ruckus GRE 17

service provider 15

SSH 17

system requirements 26

trademarks 5

tunnel 16

Tunneled WLAN 10

upgrade file 46

verify 46

virtual 8

VMware 35

vSZ-D zone affinity 12

WLAN 11

Ruckus Virtual SmartZone Data Plane (vSZ D™) Configuration Guide For 3.5 Smart Zone (GA) (v SZ D) Vszd 35 Guide20170407

Navigation menu

Versions of this User Manual:

Views

Navigation
