53-1004158-01
18 December 2015
Brocade FastIron Flexible
Authentication
Deployment Guide
Supporting FastIron 08.0.40
© 2015, Brocade Communications Systems, Inc. All Rights Reserved.
ADX, Brocade, Brocade Assurance, the B-wing symbol, DCX, Fabric OS, HyperEdge, ICX, MLX, MyBrocade, OpenScript, The Effortless
Network, VCS, VDX, Vplane, and Vyatta are registered trademarks, and Fabric Vision and vADX are trademarks of Brocade
Communications Systems, Inc., in the United States and/or in other countries. Other brands, products, or service names mentioned may be
trademarks of others.
Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning any
equipment, equipment feature, or service offered or to be offered by Brocade. Brocade reserves the right to make changes to this document
at any time, without notice, and assumes no responsibility for its use. This informational document describes features that may not be
currently available. Contact a Brocade sales office for information on feature and product availability. Export of technical data contained in
this document may require an export license from the United States government.
The authors and Brocade Communications Systems, Inc. assume no liability or responsibility to any person or entity with respect to the
accuracy of this document or any loss, cost, liability, or damages arising from the information contained herein or the computer programs that
accompany it.
The product described by this document may contain open source software covered by the GNU General Public License or other open
source license agreements. To find out which open source software is included in Brocade products, view the licensing terms applicable to
the open source software, and obtain a copy of the programming source code, please visit http://www.brocade.com/support/oscd.
Contents
Preface.....................................................................................................................................4
Introduction....................................................................................................... 4
Purpose of This Document................................................................................4
Audience........................................................................................................... 5
Related Documents...........................................................................................5
Document History..............................................................................................5
Overview................................................................................................................................... 6
802.1X Authentication....................................................................................... 6
MAC Authentication.......................................................................................... 8
Flexible Authentication...................................................................................... 8
How Flexible Authentication Works...................................................................8
Platform Support for Flexible Authentication...................................................10
Dynamic VLAN and ACL Assignment with MAC Authentication..................................................12
Dynamic VLAN and ACL Assignment with 802.1X Authentication..............................................14
Dynamic VLAN and ACL Assignment with Default Authentication Order.....................................16
Dynamic VLAN and ACL Assignment with Authentication Order—MAC Authentication
Followed by 802.1X...........................................................................................................19
Authentication of a Phone and a PC on the Same Port Using Flexible Authentication................ 23
Brocade FastIron Flexible Authentication Deployment Guide 3
53-1004158-01
Preface
● Introduction..................................................................................................................... 4
● Purpose of This Document..............................................................................................4
● Audience......................................................................................................................... 5
● Related Documents.........................................................................................................5
● Document History............................................................................................................5
Introduction
Brocade ICX switches running FastIron software support Network Access Control features, including
IEEE 802.1X, MAC authentication, and Web authentication. These authentication methods can be
used to address various use cases in granting network access to users and devices.
FastIron release 8.0.20 introduced the Flexible Authentication feature, or Flex Auth, which provides
the flexibility to use authentication methods such as 802.1X and MAC authentication. Both
mechanisms can be used in a configurable sequence for additional flexibility, depending on the use
case of authenticating a user or a device or a combination of both. This flexibility also helps to reduce
authentication traffic, and it provides a common configuration set that can be used across all ports on
a switch regardless of the clients connecting to it.
Flexible Authentication allows the network administrator to set the sequence of authentication methods
to be attempted on a switch port. This feature supports two methods: 802.1X authentication and MAC
authentication. By default, the sequence is set to 802.1X followed by MAC authentication. 802.1X is
attempted first. If the client is not 802.1X capable, MAC authentication is attempted. When the
sequence is set to MAC authentication followed by 802.1X, both methods are attempted for the clients.
This option should help customers retain feature parity when they upgrade their switches from
versions prior to 8.0.20.
Brocade’s Flexible Authentication implementation allows each client connected to the same switch
port to have a different network policy (such as a dynamic VLAN or ingress IPv4 ACL). This
implementation is achieved by using MAC-based VLANs that allow the creation of VLANs based on
MAC addresses instead of the traditional method of port membership.
Purpose of This Document
The purpose of this deployment guide is to provide an understanding of Flex Auth and the steps
required to successfully configure and deploy a strong set of authentication schemes suitable for your
network. This guide describes the following use cases:
1. Dynamic VLAN and ACL Assignment with MAC Authentication
2. Dynamic VLAN and ACL Assignment with 802.1X Authentication
3. Dynamic VLAN and ACL Assignment with Default Authentication Order
4. Dynamic VLAN and ACL Assignment with Authentication Order—MAC Authentication Followed by
802.1X
5. Authentication of a Phone and a PC on the Same Port Using Flexible Authentication
Preface
4 Brocade FastIron Flexible Authentication Deployment Guide
53-1004158-01
Audience
This document can be used by many, including technical marketing engineers, system engineers,
technical assistance center engineers, and customers to deploy a Flexible Authentication scheme for a
network.
Related Documents
In addition to this deployment guide, see the following guides, which focus on a particular NAC
application server, such as Cisco ISE and Aruba ClearPass.
•Brocade FastIron Flexible Authentication Deployment Guide with Aruba ClearPass
•Brocade FastIron Flexible Authentication Deployment Guide with Cisco ISE
•FastIron Ethernet Switch Security Configuration Guide (08.0.20)
•Brocade FastIron Security Configuration Guide (08.0.40)
•IEEE 802.1X-2004
http://www.ieee802.org/1/pages/802.1x-2004.html
•PPP Extensible Authentication Protocol (EAP)
http://tools.ietf.org/html/rfc2284
•Remote Authentication Dial In User Service (RADIUS)
http://tools.ietf.org/html/rfc2865
•RADIUS Extensions
http://tools.ietf.org/html/rfc2869
Document History
Date Part Number Description
December 2015 53-1004158-01 Initial release.
Audience
Brocade FastIron Flexible Authentication Deployment Guide 5
53-1004158-01
Overview
● 802.1X Authentication.....................................................................................................6
● MAC Authentication........................................................................................................ 8
● Flexible Authentication....................................................................................................8
● How Flexible Authentication Works.................................................................................8
● Platform Support for Flexible Authentication.................................................................10
802.1X Authentication
The 802.1X-based authentication is a standards-based implementation, and it defines three types of
device roles in a network:
• Client/Supplicant
• Authenticator
• Authentication Server
Client/Supplicant—The devices (for example, desktop, laptop, IP phone) that seek to gain access to
the network. Clients must be running software that supports the 802.1X standard. Clients can be
directly connected to a port on the authenticator, or they can be connected via a hub.
Authenticator—The device that controls access to the network. In an 802.1X configuration, the
Brocade device serves as the authenticator. The authenticator passes messages between the client
and the authentication server. Based on the identity information supplied by the client and the
authentication information supplied by the authentication server, the authenticator either grants or
restricts network access to the client.
Authentication Server—The device that validates the client and specifies whether the client may
access services on the device. Brocade supports authentication servers that run RADIUS.
Message Exchange During Authentication
For communication between devices, 802.1X port security uses the Extensible Authentication Protocol
(EAP), defined in RFC 2284. The 802.1X standard specifies a method for encapsulating EAP
messages so that they can be carried over a LAN. This encapsulated form of EAP is known as EAP
over LAN (EAPOL). During authentication, EAPOL messages are exchanged between the supplicant
and the authenticator, and RADIUS messages are exchanged between the authenticator and the
authentication server.

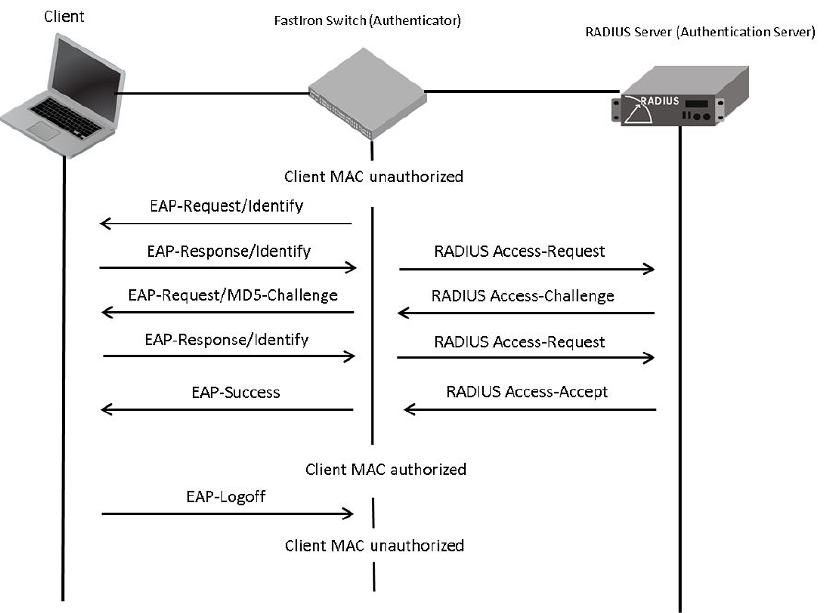

The following figure illustrates a sample exchange of messages between an 802.1X-enabled client, a
FastIron switch acting as authenticator, and a RADIUS server acting as an authentication server.
Overview
6 Brocade FastIron Flexible Authentication Deployment Guide
53-1004158-01
FIGURE 1 Message Exchange Between the Client, Authenticator, and Authentication Server
In this example, the authenticator (the FastIron switch) initiates communication with an 802.1X-enabled
client. When the client responds, it is prompted for a username (255 characters maximum) and a
password. The authenticator passes this information to the authentication server, which determines
whether the client can access services provided by the authenticator. If authentication succeeds, the
MAC address of the client is authorized. In addition, the RADIUS server may include a network access
policy, such as a dynamic VLAN or an ingress IPv4 ACL, in the Access-Accept message for this client.
When the client logs off, the MAC address of the client becomes unauthorized again.
A client may fail to be authenticated in various scenarios. The scenarios and options available to place
the client in various VLANs due to authentication failure are described below.
Guest VLAN—The client is moved to a guest VLAN when it does not respond to the 802.1X requests
for authentication. It is possible that the client does not have the 802.1X authenticator loaded and hence
needs some way to access the network to download the authenticator. The administrator can configure
the guest VLAN with such access and other access methods, as required.
Critical VLAN—There may be scenarios in which the RADIUS server is not available and
authentication fails. This can happen the first time the client is authenticating or when it re-
authenticates. In this situation, the administrator can decide to grant some or the same access as
original instead of blocking the access. This VLAN should be configured with the desired access levels.
Restricted VLAN—When authentication fails, the client can be moved into a restricted VLAN instead of
failing completely. The administrator may decide to grant some access in this scenario, instead of
blocking the access. This VLAN should be configured with the desired access levels.
For more information about the 802.1X feature, refer to the Brocade FastIron Security Configuration
Guide.
Overview
Brocade FastIron Flexible Authentication Deployment Guide 7
53-1004158-01
MAC Authentication
The MAC authentication feature is a mechanism by which incoming traffic originating from a specific
MAC address is forwarded by the Brocade switch only if a RADIUS server successfully authenticates
the source MAC address. The MAC address itself is used as the username and password for RADIUS
authentication; the user does not provide a specific username and password to gain access to the
network. If RADIUS authentication for that MAC address succeeds, traffic from that MAC address is
forwarded.
If the RADIUS server cannot validate the user's MAC address, it is considered an authentication
failure, and a specified authentication-failure action can be taken. The format of the MAC address sent
to the RADIUS server is configurable via the CLI. The MAC authentication feature supports the use of
a critical VLAN and a restricted VLAN, as described in the “802.1X Authentication” section.
For more information about the MAC authentication feature, refer to the Brocade FastIron Security
Configuration Guide.
Flexible Authentication
Flexible authentication allows the network administrator to set the sequence of the authentication
methods to be attempted on a switch port. This feature supports two methods: 802.1X authentication
and MAC authentication. By default the sequence is set to 802.1X.
How Flexible Authentication Works
The following flow chart explains how flexible authentication is implemented in FastIron. By default, the
sequence is set to 802.1X followed by MAC authentication. 802.1X is attempted first. If the client is not
802.1X capable, MAC authentication is attempted.
MAC Authentication
8 Brocade FastIron Flexible Authentication Deployment Guide
53-1004158-01
FIGURE 2 Default Sequence—802.1X Followed by MAC Authentication

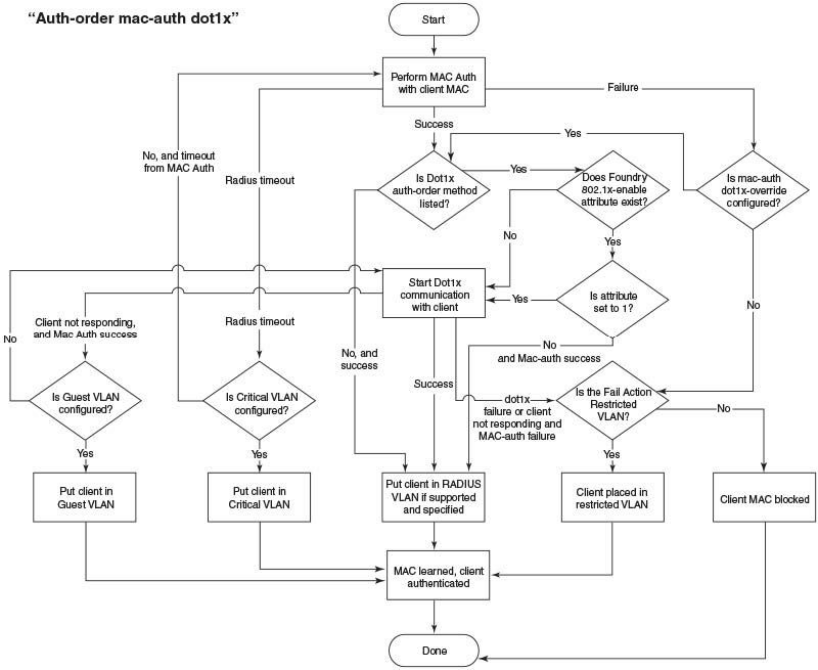

When the sequence is set to MAC authentication followed 802.1X:
• MAC authentication is attempted first. If it succeeds, the 802.1X method is also attempted.
• If MAC authentication succeeds, the 802.1X process can be skipped by using a vendor-specific
RADIUS attribute called “Foundry-802_1x-enable” for the MAC authentication process. If this
attribute is present in the RADIUS Access-Accept message during MAC authentication and the value
of this attribute is set to 1, 802.1X is not attempted for the client.
• If MAC authentication fails, 802.1X is not attempted and the configured failure action is taken.
However, the administrator can configure the dot1x-override command through the CLI to allow the
clients that failed MAC authentication to authenticate via the 802.1X method.
Overview
Brocade FastIron Flexible Authentication Deployment Guide 9
53-1004158-01
FIGURE 3 MAC Authentication Followed by 802.1X
Platform Support for Flexible Authentication
Flexible Authentication was designed to work on all campus switching products. Flexible
Authentication support was introduced in release 08.0.20. The following platforms are supported:
• FCX
• ICX 6430
• ICX 6450
• ICX 6610
• ICX 7250
• ICX 7450
• ICX 7750
FastIron 08.0.40 supports only the following platforms:
• ICX 7250
• ICX 7450
• ICX 7750
Platform Support for Flexible Authentication
10 Brocade FastIron Flexible Authentication Deployment Guide
53-1004158-01
NOTE
From FastIron 08.0.30d and later, by default, FCX, ICX 6430, ICX 6450, ICX 6610, and ICX 7000
platforms support two clients per port. Support for a higher number of clients per port can be configured
using the CLI.
Overview
Brocade FastIron Flexible Authentication Deployment Guide 11
53-1004158-01
Dynamic VLAN and ACL Assignment with MAC Authentication
The following example uses MAC authentication for authenticating a client and then dynamically
assigns a VLAN and ACL after a successful authentication.
Client A
• The MAC address is 0010.9400.8402.
• After authentication:
‐The client should be placed in VLAN 3.
‐Incoming traffic from client A should be filtered by ACL 102.
FreeRADIUS Configuration
001094008402 Cleartext-Password := "001094008402"
Filter-ID = ip.102.in,
Tunnel-Type = 13,
Tunnel-Medium-Type = 6,
Tunnel-Private-Group-ID = U:3
Switch Configuration
!
vlan 2 name global-auth-default-vlan by port
!
vlan 3 by port
untagged ethe 2/1/2
!
authentication
auth-default-vlan 2
mac-authentication enable
mac-authentication enable ethe 2/1/1
!
aaa authentication dot1x default radius
radius-server host 10.20.64.11 auth-port 1812 acct-port 1813 default key secret
!
access-list 102 deny ip any 10.11.0.0 0.255.255.255
access-list 102 permit ip any any
!
Switch Output
SYSLOG: <13> Sep 28 19:06:38 ICX-Switch MAC Authentication succeeded for [0000.1094.8402 ] on port
2/1/1
ICX-Switch# show mac-authentication sessions all
----------------------------------------------------------------------------
Port MAC IP Vlan Auth ACL Age
Addr Addr State
----------------------------------------------------------------------------
2/1/1 0000.1094.8402 192.168.1.2 3 Yes in-102 Ena
ICX-Switch# show vlan 3
Total PORT-VLAN entries: 16
Maximum PORT-VLAN entries: 4095
Legend: [Stk=Stack-Id, S=Slot]
PORT-VLAN 3, Name [None], Priority level0, Spanning tree On
Dynamic VLAN and ACL Assignment with MAC Authentication
12 Brocade FastIron Flexible Authentication Deployment Guide
53-1004158-01
Untagged Ports: (U2/M1) 2
Tagged Ports: None
Uplink Ports: None
DualMode Ports: None
Mac-Vlan Ports: (U2/M1) 1
Monitoring: Disabled
ICX-Switch# show mac-auth ip-acl e 2/1/1
MAC-Auth IP ACL Information :
Port 2/1/1 : 0000.1094.8402
In-bound IP ACL : 102
ICX-Switch#
Dynamic VLAN and ACL Assignment with MAC Authentication
Brocade FastIron Flexible Authentication Deployment Guide 13
53-1004158-01
Dynamic VLAN and ACL Assignment with 802.1X
Authentication
The following example uses 802.1X authentication for authenticating a client and then dynamically
assigns a VLAN and ACL after a successful authentication.
Client A
• Username: user8402
• Password: password
• After authentication:
‐The client should be placed in VLAN 3.
‐Incoming traffic from client A should be filtered by ACL 102.
FreeRADIUS Configuration
user8402 Cleartext-Password := "password"
Tunnel-Type = 13,
Tunnel-Medium-Type = 6,
Tunnel-Private-Group-ID = U:3,
Filter-ID = ip.102.in
Switch Configuration
!
vlan 2 name global-auth-default-vlan by port
!
vlan 3 by port
untagged ethe 2/1/2
!
authentication
auth-default-vlan 2
dot1x enable
dot1x enable ethe 2/1/1
!
interface ethernet 2/1/1
dot1x port-control auto
!
aaa authentication dot1x default radius
radius-server host 10.20.64.11 auth-port 1812 acct-port 1813 default key secret
!
access-list 102 deny ip any 10.11.0.0 0.255.255.255
access-list 102 permit ip any any
!
Switch Output
SYSLOG: <14> Sep 28 19:12:50 ICX-Switch DOT1X: Port 2/1/1 - mac 0000.1094.8402,
AuthControlledPortStatus change: authorized
ICX-Switch# show dot1x sessions all
------------------------------------------------------------------------------------------------------
Port MAC IP User Vlan Auth ACL Age PAE
Addr Addr Name State State
------------------------------------------------------------------------------------------------------
Dynamic VLAN and ACL Assignment with 802.1X Authentication
14 Brocade FastIron Flexible Authentication Deployment Guide
53-1004158-01
2/1/1 0000.1094.8402 192.168.1.2 user8402 3 permit in-102 Ena AUTHENTICATED
ICX-Switch# show vlan 3
Total PORT-VLAN entries: 16
Maximum PORT-VLAN entries: 4095
Legend: [Stk=Stack-Id, S=Slot]
PORT-VLAN 3, Name [None], Priority level0, Spanning tree On
Untagged Ports: (U2/M1) 2
Tagged Ports: None
Uplink Ports: None
DualMode Ports: None
Mac-Vlan Ports: (U2/M1) 1
Monitoring: Disabled
ICX-Switch# show dot1x ip-acl e 2/1/1
802.1X IP ACL Information :
Port 2/1/1 : 0000.1094.8402
In-bound IP ACL : 102
ICX-Switch#
Dynamic VLAN and ACL Assignment with 802.1X Authentication
Brocade FastIron Flexible Authentication Deployment Guide 15
53-1004158-01
Dynamic VLAN and ACL Assignment with Default
Authentication Order
This use case demonstrates how Flexible Authentication works with the client undergoing 802.1X
authentication and MAC authentication. The default sequence of authentication is 802.1x first followed
by MAC authentication.
Client A
• Client MAC address: 0010.9400.8402
• 802.1x username: user8402
• Password: password
• After authentication:
‐The client should be placed in VLAN 3.
‐Incoming traffic from client A should be filtered by ACL 102.
FreeRADIUS Configuration
user8402 Cleartext-Password := "password"
Tunnel-Type = 13,
Tunnel-Medium-Type = 6,
Tunnel-Private-Group-ID = U:3,
Filter-ID = ip.102.in
001094008402 Cleartext-Password := "001094008402"
Filter-ID = ip.102.in,
Tunnel-Type = 13,
Tunnel-Medium-Type = 6,
Tunnel-Private-Group-ID = U:3
Switch Configuration
!
vlan 2 name global-auth-default-vlan by port
!
vlan 3 by port
untagged ethe 2/1/2
!
authentication
auth-default-vlan 2
dot1x enable
dot1x enable ethe 2/1/1
mac-authentication enable
mac-authentication enable ethe 2/1/1
!
interface ethernet 2/1/1
dot1x port-control auto
!
aaa authentication dot1x default radius
radius-server host 10.20.64.11 auth-port 1812 acct-port 1813 default key secret
!
access-list 102 deny ip any 10.11.0.0 0.255.255.255
access-list 102 permit ip any any
!
Dynamic VLAN and ACL Assignment with Default Authentication Order
16 Brocade FastIron Flexible Authentication Deployment Guide
53-1004158-01
Switch Output (Successful Case)
SYSLOG: <14> Sep 28 19:36:32 ICX-Switch DOT1X: Port 2/1/1 - mac 0000.1094.8402,
AuthControlledPortStatus change: authorized
ICX-Switch# show dot1x sessions all
------------------------------------------------------------------------------------------------------
Port MAC IP User Vlan Auth ACL Age PAE
Addr Addr Name State State
------------------------------------------------------------------------------------------------------
2/1/1 0000.1094.8402 192.168.1.2 user8402 3 permit in-102 Ena AUTHENTICATED
ICX-Switch# show mac-auth se all
----------------------------------------------------------------------------
Port MAC IP Vlan Auth ACL Age
Addr Addr State
----------------------------------------------------------------------------
ICX-Switch#
ICX-Switch# show vlan 3
Total PORT-VLAN entries: 16
Maximum PORT-VLAN entries: 4095
Legend: [Stk=Stack-Id, S=Slot]
PORT-VLAN 3, Name [None], Priority level0, Spanning tree On
Untagged Ports: (U2/M1) 2
Tagged Ports: None
Uplink Ports: None
DualMode Ports: None
Mac-Vlan Ports: (U2/M1) 1
Monitoring: Disabled
ICX-Switch# show dot1x ip-acl e 2/1/1
802.1X IP ACL Information :
Port 2/1/1 : 0000.1094.8402
In-bound IP ACL : 102
ICX-Switch#
Switch Output (Client Is Not dot1x Capable)
SYSLOG: <14> Nov 3 21:09:41 ICX-Switch DOT1X: Port 2/1/1 - mac 0010.9400.8402 AuthControlledPortStatus
change: unauthorized
SYSLOG: <13> Nov 3 21:10:00 ICX-Switch MAC Authentication succeeded for [0010.9400.8402 ] on port
2/1/1
ICX-Switch# show dot1x se all
------------------------------------------------------------------------------------------------------
Port MAC IP User Vlan Auth ACL Age PAE
Addr Addr Name State State
------------------------------------------------------------------------------------------------------
2/1/1 0010.9400.8402 N/A N/A 3 init none Ena HELD
ICX-Switch#
ICX-Switch# show mac-auth se all
----------------------------------------------------------------------------
Port MAC IP Vlan Auth ACL Age
Addr Addr State
----------------------------------------------------------------------------
2/1/1 0010.9400.8402 192.168.1.2 3 Yes in-102 Ena
ICX-Switch# show vlan 3
Total PORT-VLAN entries: 20
Maximum PORT-VLAN entries: 4095
Legend: [Stk=Stack-Id, S=Slot]
PORT-VLAN 3, Name isolation, Priority level0, Spanning tree Off
Untagged Ports: (U2/M1) 2
Tagged Ports: None
Uplink Ports: None
DualMode Ports: None
Dynamic VLAN and ACL Assignment with Default Authentication Order
Brocade FastIron Flexible Authentication Deployment Guide 17
53-1004158-01
Mac-Vlan Ports: (U2/M1) 1
Monitoring: Disabled
ICX-Switch# show dot1x ip-acl e 2/1/1
802.1X IP ACL Information :
Port 2/1/1 : 0010.9400.8402
ICX-Switch#
ICX-Switch# show mac-auth ip-acl e 2/1/1
MAC-Auth IP ACL Information :
Port 2/1/1 : 0010.9400.8402
In-bound IP ACL : 102
ICX-Switch#
Dynamic VLAN and ACL Assignment with Default Authentication Order
18 Brocade FastIron Flexible Authentication Deployment Guide
53-1004158-01
Dynamic VLAN and ACL Assignment with Authentication Order
—MAC Authentication Followed by 802.1X
This use case demonstrates how Flexible Authentication works with the client undergoing MAC
authentication and 802.1X authentication. The sequence of authentication is MAC authentication
followed by 802.1X. This is a nondefault sequence and must be manually configured using the auth-
order mac-auth dot1x command. This sequence is typically used when upgrading from an earlier
version of software (FastIron 8.0.10 or earlier). When this sequence is used, both MAC authentication
and 802.1x authentication for that client must pass. If a RADIUS authentication process is successful,
the RADIUS server sends an Access-Accept message to the switch, authenticating the client. The
Access-Accept message can include vendor-specific attributes (VSAs) that specify additional
information about the device. Brocade VSAs can be used to make this sequence more flexible. The
Brocade Vendor-ID is 1991 with Vendor-Type 1.
1. If the client is only 802.1X capable, you can use the mac-authentication dot1x-override command
under the port to try 802.1X after a MAC authentication failure.
2. If the client is not 802.1X capable, you can skip 802.1X authentication after a successful MAC
authentication by using a VSA on the RADIUS server: attribute name, Foundry-802_1x-enable;
attribute ID, 6. If the value is set to 0, the switch does not attempt 802.1X authentication. If the value
is set to 1 or if the attribute is not present, the switch attempts 802.1X authentication.
3. If the client is not 802.1X capable, you can use the client MAC address for 802.1X authentication by
specifying both the username and password as the MAC address and also by using a VSA on the
RADIUS server: attribute name, Foundry-802_1x-valid; attribute ID, 7. If the value is set to 0, a user
is prevented from using the MAC address as the username and password for 802.1X authentication.
If the value is set to 1, the RADIUS record is valid for both MAC authentication and 802.1X
authentication. A user can use the MAC address as username and password for 802.1X
authentication.
If the client fails MAC authentication in this particular Flex Auth sequence, the client is blocked and no
traffic from the client is forwarded by the switch.
Client A
• The client MAC address: 0010.9400.8402
• 802.1x username: user8402
• Password: password
• After authentication:
‐The client should be placed in VLAN 3.
‐Incoming traffic from client A should be filtered by ACL 102.
FreeRADIUS Configuration
user8402 Cleartext-Password := "password"
Tunnel-Type = 13,
Tunnel-Medium-Type = 6,
Tunnel-Private-Group-ID = U:3,
Filter-ID = ip.102.in
001094008402 Cleartext-Password := "001094008402"
Filter-ID = ip.102.in,
Tunnel-Type = 13,
Tunnel-Medium-Type = 6,
Tunnel-Private-Group-ID = U:3
Brocade FastIron Flexible Authentication Deployment Guide 19
53-1004158-01
Switch Configuration
!
vlan 2 name global-auth-default-vlan by port
!
vlan 3 by port
untagged ethe 2/1/2
!
authentication
auth-order mac-auth dot1x
auth-default-vlan 2
dot1x enable
dot1x enable ethe 2/1/1
mac-authentication enable
mac-authentication enable ethe 2/1/1
!
interface ethernet 2/1/1
dot1x port-control auto
!
aaa authentication dot1x default radius
radius-server host 10.20.64.11 auth-port 1812 acct-port 1813 default key secret
!
access-list 102 deny ip any 10.11.0.0 0.255.255.255
access-list 102 permit ip any any
!
Switch Output (Successful Case)
SYSLOG: <13> Sep 28 20:39:29 ICX-Switch MAC Authentication succeeded for [0000.1094.8402 ] on port
2/1/1
SYSLOG: <14> Sep 28 20:39:29 ICX-Switch DOT1X: Port 2/1/1 - mac 0000.1094.8402,
AuthControlledPortStatus change: authorized
ICX-Switch# show mac-auth ip-acl e 2/1/1
MAC-Auth IP ACL Information :
ICX-Switch# show mac-auth se all
----------------------------------------------------------------------------
Port MAC IP Vlan Auth ACL Age
Addr Addr State
----------------------------------------------------------------------------
2/1/1 0000.1094.8402 192.168.1.2 3 Yes none Ena
ICX-Switch# show dot1x session all
------------------------------------------------------------------------------------------------------
Port MAC IP User Vlan Auth ACL Age PAE
Addr Addr Name State State
------------------------------------------------------------------------------------------------------
2/1/1 0000.1094.8402 192.168.1.2 user8402 3 permit in-102 Ena AUTHENTICATED
ICX-Switch# show vlan 3
Total PORT-VLAN entries: 16
Maximum PORT-VLAN entries: 4095
Legend: [Stk=Stack-Id, S=Slot]
PORT-VLAN 3, Name [None], Priority level0, Spanning tree On
Untagged Ports: (U2/M1) 2
Tagged Ports: None
Uplink Ports: None
DualMode Ports: None
Mac-Vlan Ports: (U2/M1) 1
Monitoring: Disabled
ICX-Switch#
ICX-Switch# show mac-auth ip-acl e 2/1/1
MAC-Auth IP ACL Information :
ICX-Switch# show dot1x ip-acl e 2/1/1
802.1X IP ACL Information :
Port 2/1/1 : 0000.1094.8402
In-bound IP ACL : 102
ICX-Switch#
Dynamic VLAN and ACL Assignment with Authentication Order—MAC Authentication Followed by 802.1X
20 Brocade FastIron Flexible Authentication Deployment Guide
53-1004158-01
Switch Output (MAC Authentication Failure Case)
SYSLOG: <13> Sep 30 00:15:12 ICX-Switch DOT1X: Port 2/1/1 Mac 0000.1094.8402 - MAC authentication
failed for MAC 0000.1094.8402 as RADIUS server rejected
SYSLOG: <9> Sep 30 00:15:12 ICX-Switch MAC Authentication failed for [0000.1094.8402 ] on port 2/1/1
(Invalid User)
ICX-Switch# show mac-auth se all
----------------------------------------------------------------------------
Port MAC IP Vlan Auth ACL Age
Addr Addr State
----------------------------------------------------------------------------
2/1/1 0000.1094.8402 N/A 4092 No none H45
ICX-Switch# show dot1x se all
------------------------------------------------------------------------------------------------------
Port MAC IP User Vlan Auth ACL Age PAE
Addr Addr Name State State
------------------------------------------------------------------------------------------------------
ICX-Switch#
ICX-Switch# show vlan 3
Total PORT-VLAN entries: 15
Maximum PORT-VLAN entries: 4095
Legend: [Stk=Stack-Id, S=Slot]
PORT-VLAN 3, Name [None], Priority level0, Spanning tree On
Untagged Ports: (U2/M1) 2
Tagged Ports: None
Uplink Ports: None
DualMode Ports: None
Mac-Vlan Ports: None
Monitoring: Disabled
ICX-Switch#
Switch Output (MAC Authentication Failure Case with dot1x Override)
authentication
auth-order mac-auth dot1x
auth-default-vlan 2
dot1x enable
dot1x enable ethe 2/1/1
mac-authentication enable
mac-authentication enable ethe 2/1/1
mac-authentication dot1x-override
SYSLOG: <9> Sep 30 00:20:24 ICX-Switch MAC Authentication failed for [0000.1094.8402 ] on port 2/1/1
(Invalid User)
SYSLOG: <14> Sep 30 00:20:24 ICX-Switch DOT1X: Port 2/1/1 - mac 0000.1094.8402,
AuthControlledPortStatus change: authorized
ICX-Switch# show mac-auth se all
----------------------------------------------------------------------------
Port MAC IP Vlan Auth ACL Age
Addr Addr State
----------------------------------------------------------------------------
2/1/1 0000.1094.8402 N/A 3 No none H40
ICX-Switch# show dot1x se all
------------------------------------------------------------------------------------------------------
Port MAC IP User Vlan Auth ACL Age PAE
Addr Addr Name State State
------------------------------------------------------------------------------------------------------
2/1/1 0000.1094.8402 192.168.1.2 user8402 3 permit in-102 Ena AUTHENTICATED
ICX-Switch#
ICX-Switch# show vlan 3
Total PORT-VLAN entries: 15
Maximum PORT-VLAN entries: 4095
Legend: [Stk=Stack-Id, S=Slot]
PORT-VLAN 3, Name [None], Priority level0, Spanning tree On
Untagged Ports: (U2/M1) 2
Tagged Ports: None
Uplink Ports: None
Dynamic VLAN and ACL Assignment with Authentication Order—MAC Authentication Followed by 802.1X
Brocade FastIron Flexible Authentication Deployment Guide 21
53-1004158-01
DualMode Ports: None
Mac-Vlan Ports: (U2/M1) 1
Monitoring: Disabled
ICX-Switch#
ICX-Switch# show dot1x ip-acl e 2/1/1
802.1X IP ACL Information :
Port 2/1/1 : 0000.1094.8402
In-bound IP ACL : 102
ICX-Switch#
Dynamic VLAN and ACL Assignment with Authentication Order—MAC Authentication Followed by 802.1X
22 Brocade FastIron Flexible Authentication Deployment Guide
53-1004158-01
Authentication of a Phone and a PC on the Same Port Using
Flexible Authentication
This use case demonstrates the use for Flexible Authentication in a setup where a PC is daisy-chained
to an IP phone connected to a switch port. When Flexible Authentication is enabled on a port with an IP
phone and a PC, both clients go through 802.1X and MAC authentication. It is typical to use MAC
authentication for the IP phone and 802.1X for the PC connecting to the phone. The following example
shows the configuration and validation of this use case.
Note that if the IP phone is not capable of participating in the 802.1X process, it will time out and then
MAC authentication is tried. If the IP phone is capable of 802.1X, 802.1X authentication is used first by
default. If it succeeds, MAC authentication is not performed.
In FastIron 8.0.40, the LLDP configuration for the IP phone can also be automated using the RADIUS
attributes. In the following example, we have defined the voice VLAN, DSCP, and Priority values in the
RADIUS server.
• Tunnel-Private-Group-ID = T:48,
• Foundry-Voice-Phone-Config = "dscp:46;priority:4"
If LLDP is not configured via the RADIUS server, the following LLDP configuration must be added to
enable LLDP MED on the port connecting to the IP phone.
lldp med network-policy application voice tagged vlan 48 priority 4 dscp 46 ports
ethernet 2/1/1
Client A
• The client MAC address: 0cd9.9690.1ed3
• 802.1x username: user8402
• Password: password
• After authentication:
‐The client should be placed in VLAN 3 and the IP phone in tagged VLAN 48.
‐Incoming traffic from client A should be filtered by ACL 102.
FreeRADIUS Configuration
user8402 Cleartext-Password := "password"
Tunnel-Type = 13,
Tunnel-Medium-Type = 6,
Tunnel-Private-Group-ID = U:3,
Filter-ID = ip.102.in
0cd996901ed3 Cleartext-Password := "0cd996901ed3"
Tunnel-Type = 13,
Tunnel-Medium-Type = 6,
Tunnel-Private-Group-ID = T:48,
Foundry-Voice-Phone-Config = "dscp:46;priority:4"
Switch Configuration
!
vlan 2 name global-auth-default-vlan by port
!
vlan 3 by port
Brocade FastIron Flexible Authentication Deployment Guide 23
53-1004158-01
untagged ethe 2/1/2
!
authentication
auth-default-vlan 2
dot1x enable
dot1x enable ethe 2/1/1
mac-authentication enable
mac-authentication enable ethe 2/1/1
!
interface ethernet 2/1/1
dot1x port-control auto
inline power
!
aaa authentication dot1x default radius
radius-server host 10.20.64.11 auth-port 1812 acct-port 1813 default key secret
!
access-list 102 deny ip any 10.11.0.0 0.255.255.255
access-list 102 permit ip any any
!
lldp run
!
Switch Output
SYSLOG: <14> Nov 5 20:03:57 ICX-Switch DOT1X: Port 2/1/1 - mac 0010.9400.8402,
AuthControlledPortStatus change: authorized
SYSLOG: <13> Nov 5 20:04:11 ICX-Switch MAC Authentication succeeded for [0cd9.9690.1ed3 ] on port
2/1/1
SYSLOG: <13> Nov 5 20:04:14 ICX-Switch MAC Authentication succeeded for [0cd9.9690.1ed3 ] on port
2/1/1
ICX-Switch# show dot1x se all
------------------------------------------------------------------------------------------------------
Port MAC IP User Vlan Auth ACL Age PAE
Addr Addr Name State State
------------------------------------------------------------------------------------------------------
2/1/1 0010.9400.8402 192.168.1.2 user8402 3 permit in-102 Ena AUTHENTICATED
2/1/1 0cd9.9690.1ed3 N/A N/A 3 init none Ena HELD
ICX-Switch#
ICX-Switch# show mac-auth se all
----------------------------------------------------------------------------
Port MAC IP Vlan Auth ACL Age
Addr Addr State
----------------------------------------------------------------------------
2/1/1 0cd9.9690.1ed3 N/A 48 Yes none Ena
2/1/1 0cd9.9690.1ed3 N/A 3 Yes none Ena
ICX-Switch#
ICX-Switch# show vlan 3
Total PORT-VLAN entries: 22
Maximum PORT-VLAN entries: 4095
Legend: [Stk=Stack-Id, S=Slot]
PORT-VLAN 3, Name isolation, Priority level0, Spanning tree Off
Untagged Ports: None
Tagged Ports: (U2/M1) 2
Uplink Ports: None
DualMode Ports: None
Mac-Vlan Ports: (U2/M1) 1
Monitoring: Disabled
ICX-Switch#
ICX-Switch# show vlan 48
Total PORT-VLAN entries: 22
Maximum PORT-VLAN entries: 4095
Legend: [Stk=Stack-Id, S=Slot]
PORT-VLAN 48, Name [None], Priority level0, Spanning tree On
Untagged Ports: None
Authentication of a Phone and a PC on the Same Port Using Flexible Authentication
24 Brocade FastIron Flexible Authentication Deployment Guide
53-1004158-01
Tagged Ports: (U2/M1) 1 2
Uplink Ports: None
DualMode Ports: None
Mac-Vlan Ports: None
Monitoring: Disabled
ICX-Switch#
ICX-Switch# show lldp local-info port e 2/1/1
Local port: 2/1/1
+ Chassis ID (MAC address): cc4e.24b4.2222
+ Port ID (MAC address): cc4e.24b4.7bc0
+ Time to live: 120 seconds
+ System name : "ICX-Switch"
+ Port description : "GigabitEthernet2/1/1"
+ System description : "Brocade Communications Systems, Inc. Stacking Syste\
m ICX7250-24-HPOE, IronWare Version 08.0.40q072T213\
Compiled on Nov 3 2015 at 21:33:12 labeled as SPR\
08040q072"
+ System capabilities : bridge, router
Enabled capabilities: bridge, router
+ 802.3 MAC/PHY : auto-negotiation enabled
Advertised capabilities: 10BaseT-HD, 10BaseT-FD, 100BaseTX-HD,
100BaseTX-FD, fdxSPause, fdxBPause, 1000BaseT-HD,
1000BaseT-FD
Operational MAU type : 1000BaseT-FD
+ Link aggregation: not capable
+ Maximum frame size: 10200 octets
+ MED capabilities: capabilities, networkPolicy, location, extendedPSE
MED device type : Network Connectivity
+ MED Network Policy
Application Type : Voice
Policy Flags : Known Policy, Tagged
VLAN ID : 48
L2 Priority : 4
DSCP Value : 46
+ Port VLAN ID: none
+ Management address (IPv4): 10.20.64.39
ICX-Switch# show dot1x ip-acl e 2/1/1
802.1X IP ACL Information :
Port 2/1/1 : 0010.9400.8402
In-bound IP ACL : 102
Port 2/1/1 : 0cd9.9690.1ed3
ICX-Switch#
Authentication of a Phone and a PC on the Same Port Using Flexible Authentication
Brocade FastIron Flexible Authentication Deployment Guide 25
53-1004158-01

Navigation menu
