Ruckus Brocade FastIron Web Management Interface User Guide, 08.0.50 Fast Iron Guide 08050 Webguide

FastIron 08.0.50 Web Management Guide fastiron-08050-webguide

2017-12-14

User Manual: Ruckus FastIron 08.0.50 Web Management Guide

Open the PDF directly: View PDF PDF.
Page Count: 227 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Supporting FastIron Software Release 08.0.50
FOR BROCADE CONTROLLED RELEASE ONLY
USER GUIDE
Brocade FastIron Web Management Interface
User Guide, 08.0.50
53-1004462-01
18 November 2016
© 2016, Brocade Communications Systems, Inc. All Rights Reserved.
Brocade, the B-wing symbol, and MyBrocade are registered trademarks of Brocade Communications Systems, Inc., in the United States and in other
countries. Other brands, product names, or service names mentioned of Brocade Communications Systems, Inc. are listed at www.brocade.com/en/legal/
brocade-Legal-intellectual-property/brocade-legal-trademarks.html. Other marks may belong to third parties.
Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning any equipment,
equipment feature, or service oered or to be oered by Brocade. Brocade reserves the right to make changes to this document at any time, without
notice, and assumes no responsibility for its use. This informational document describes features that may not be currently available. Contact a Brocade
sales oce for information on feature and product availability. Export of technical data contained in this document may require an export license from the
United States government.
The authors and Brocade Communications Systems, Inc. assume no liability or responsibility to any person or entity with respect to the accuracy of this
document or any loss, cost, liability, or damages arising from the information contained herein or the computer programs that accompany it.
The product described by this document may contain open source software covered by the GNU General Public License or other open source license
agreements. To nd out which open source software is included in Brocade products, view the licensing terms applicable to the open source software, and
obtain a copy of the programming source code, please visit http://www.brocade.com/support/oscd.
Brocade FastIron Web Management Interface User Guide, 08.0.50
2 53-1004462-01
Contents
Preface...................................................................................................................................................................................................................................7
Document conventions............................................................................................................................................................................................................................7
Notes, cautions, and warnings.....................................................................................................................................................................................................7
Text formatting conventions.........................................................................................................................................................................................................7
Command syntax conventions....................................................................................................................................................................................................8
Brocade resources.....................................................................................................................................................................................................................................8
Document feedback..................................................................................................................................................................................................................................8
Contacting Brocade Technical Support............................................................................................................................................................................................ 9
Brocade customers..........................................................................................................................................................................................................................9
Brocade OEM customers............................................................................................................................................................................................................. 9
About This Document..................................................................................................................................................................................................... 11
Supported hardware...............................................................................................................................................................................................................................11
What’s new in this document ............................................................................................................................................................................................................ 11
Getting Started with the GUI..........................................................................................................................................................................................13
Access requirements............................................................................................................................................................................................................................. 13
Prerequisite conguration....................................................................................................................................................................................................................13

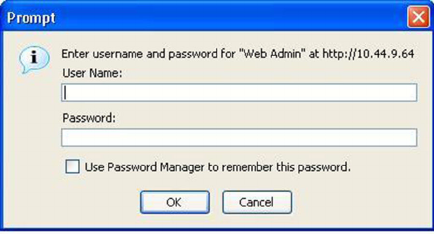

Logging in to the Web Management Interface........................................................................................................................................................................... 14
Logging out of the Web Management Interface........................................................................................................................................................................ 17
Using the Web Management Interface.......................................................................................................................................................................................... 17
Web Management Interface areas..........................................................................................................................................................................................19
Monitoring Basic Device Information...........................................................................................................................................................................21
Displaying the ARP cache...................................................................................................................................................................................................................21
Displaying the device information....................................................................................................................................................................................................23
Displaying ash information............................................................................................................................................................................................................... 25
Displaying memory information....................................................................................................................................................................................................... 26
Displaying the front panel....................................................................................................................................................................................................................27
Status LED display........................................................................................................................................................................................................................27
Displaying the front panel for the Brocade ICX 7750 device.....................................................................................................................................27
Displaying the front panel for the Brocade ICX 7450 device.....................................................................................................................................28
Displaying the front panel for the Brocade ICX 7250 device.....................................................................................................................................28
Displaying MAC addresses.................................................................................................................................................................................................................29

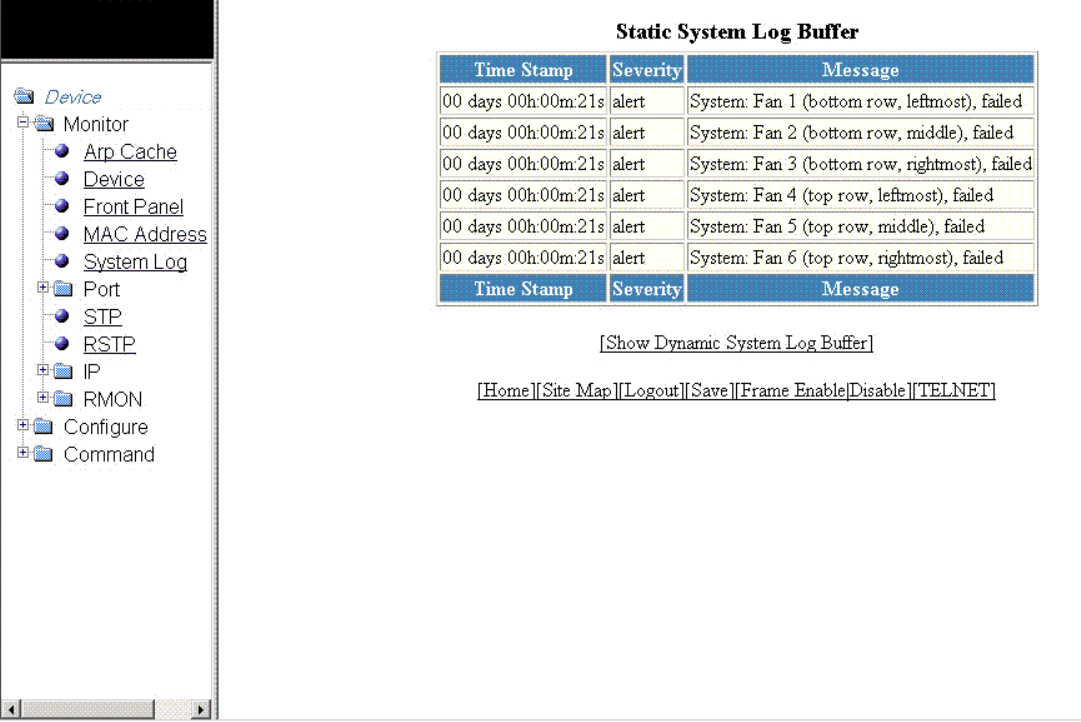

Displaying the system log................................................................................................................................................................................................................... 30
Monitoring Stacks............................................................................................................................................................................................................ 33
Displaying the stack details.................................................................................................................................................................................................................33
Displaying a stack module.................................................................................................................................................................................................................. 35
Displaying stack neighbors.................................................................................................................................................................................................................36
Displaying stack ports information.................................................................................................................................................................................................. 37
Displaying stack port statistics.......................................................................................................................................................................................................... 39
Displaying stack port interfaces........................................................................................................................................................................................................ 39
Monitoring Ports...............................................................................................................................................................................................................43
Displaying Ethernet port statistics....................................................................................................................................................................................................43
Displaying Ethernet port attributes.................................................................................................................................................................................................. 45
Displaying Ethernet port utilization..................................................................................................................................................................................................47
Displaying the management port information............................................................................................................................................................................49
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 3
Displaying the management port real-time information...............................................................................................................................................51
Displaying port inline power for Brocade ICX devices............................................................................................................................................................ 52
Displaying inline power details ................................................................................................................................................................................................53
Displaying inline power statistics.............................................................................................................................................................................................55
Monitoring STP.................................................................................................................................................................................................................59
Displaying STP information................................................................................................................................................................................................................59
Monitoring RSTP..............................................................................................................................................................................................................63
Displaying RSTP information.............................................................................................................................................................................................................63
Monitoring IP.....................................................................................................................................................................................................................65
Displaying IP cache................................................................................................................................................................................................................................65
Displaying IP trac information for devices running Layer 2 code...................................................................................................................................67
Displaying IP trac information for devices running Layer 3 code...................................................................................................................................71
Monitoring RMON............................................................................................................................................................................................................77
Displaying RMON history....................................................................................................................................................................................................................77
Displaying RMON Ethernet statistics............................................................................................................................................................................................. 79
Changing polling interval......................................................................................................................................................................................................................84
Displaying RMON Ethernet error statistics.................................................................................................................................................................................. 84
Conguring Stack Components....................................................................................................................................................................................87
Conguring the general settings for a traditional stack........................................................................................................................................................... 87
Viewing stack priority details.............................................................................................................................................................................................................. 88
Modifying stack ports............................................................................................................................................................................................................................89
Conguring a stack module................................................................................................................................................................................................................91
Conguring System Components................................................................................................................................................................................ 95
Conguring the system clock.............................................................................................................................................................................................................95
Conguring the system DNS.............................................................................................................................................................................................................97
Conguring the general system settings.......................................................................................................................................................................................98
Conguring the system identication.......................................................................................................................................................................................... 100
Conguring the system IP address.............................................................................................................................................................................................. 102
Conguring a standard ACL............................................................................................................................................................................................................103
Conguring an extended ACL........................................................................................................................................................................................................ 104
Conguring an IP access group.....................................................................................................................................................................................................108
Conguring the system MAC lter............................................................................................................................................................................................... 109
Conguring a lter group.........................................................................................................................................................................................................111
Conguring the maximum system parameter value.............................................................................................................................................................112
Conguring a system module.........................................................................................................................................................................................................113
Conguring a RADIUS server.........................................................................................................................................................................................................115
Conguring a TACACS/TACACS+ server.................................................................................................................................................................................117
Conguring management authentication...................................................................................................................................................................................118
Conguring management authorization.....................................................................................................................................................................................120
Conguring management accounting ........................................................................................................................................................................................121
Conguring an SNMP community string.................................................................................................................................................................................. 123
Conguring the general management parameters................................................................................................................................................................124
Conguring a management system log..................................................................................................................................................................................... 126
Adding a log server....................................................................................................................................................................................................................127
Conguring a trap................................................................................................................................................................................................................................ 128
Conguring a trap receiver............................................................................................................................................................................................................... 129
Conguring a management user account................................................................................................................................................................................. 130
Brocade FastIron Web Management Interface User Guide, 08.0.50
4 53-1004462-01

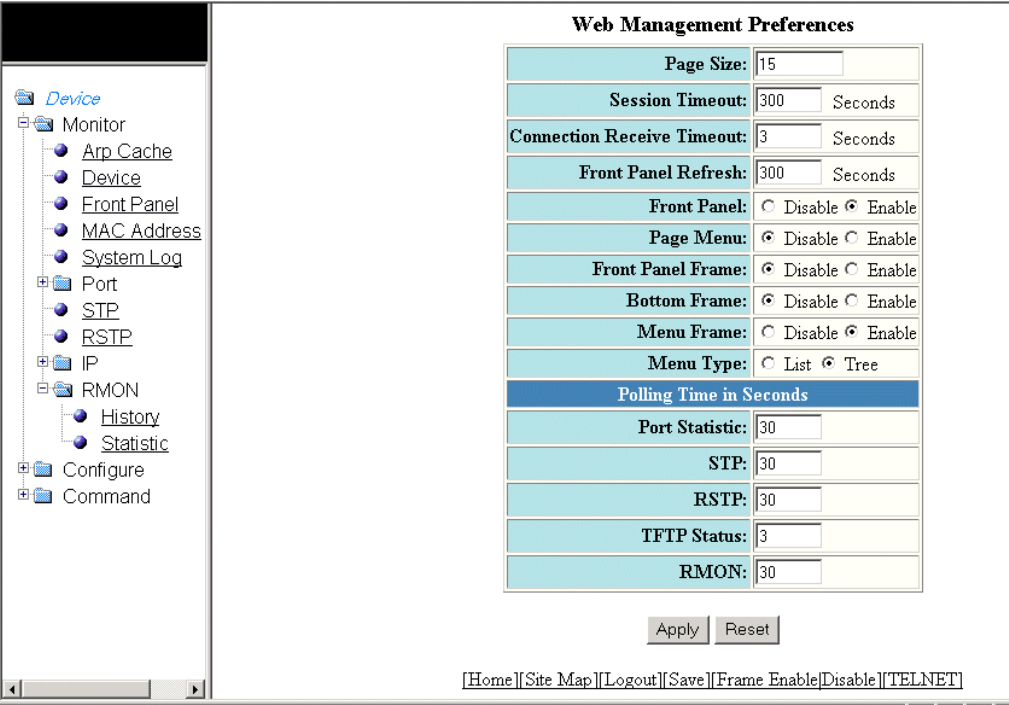

Conguring the web management preferences......................................................................................................................................................................131
Conguring Port Parameters...................................................................................................................................................................................... 135
Conguring an Ethernet port...........................................................................................................................................................................................................135
Conguring port inline power..........................................................................................................................................................................................................137
Conguring a management port................................................................................................................................................................................................... 138
Conguring the port uplink relative utilization.......................................................................................................................................................................... 139

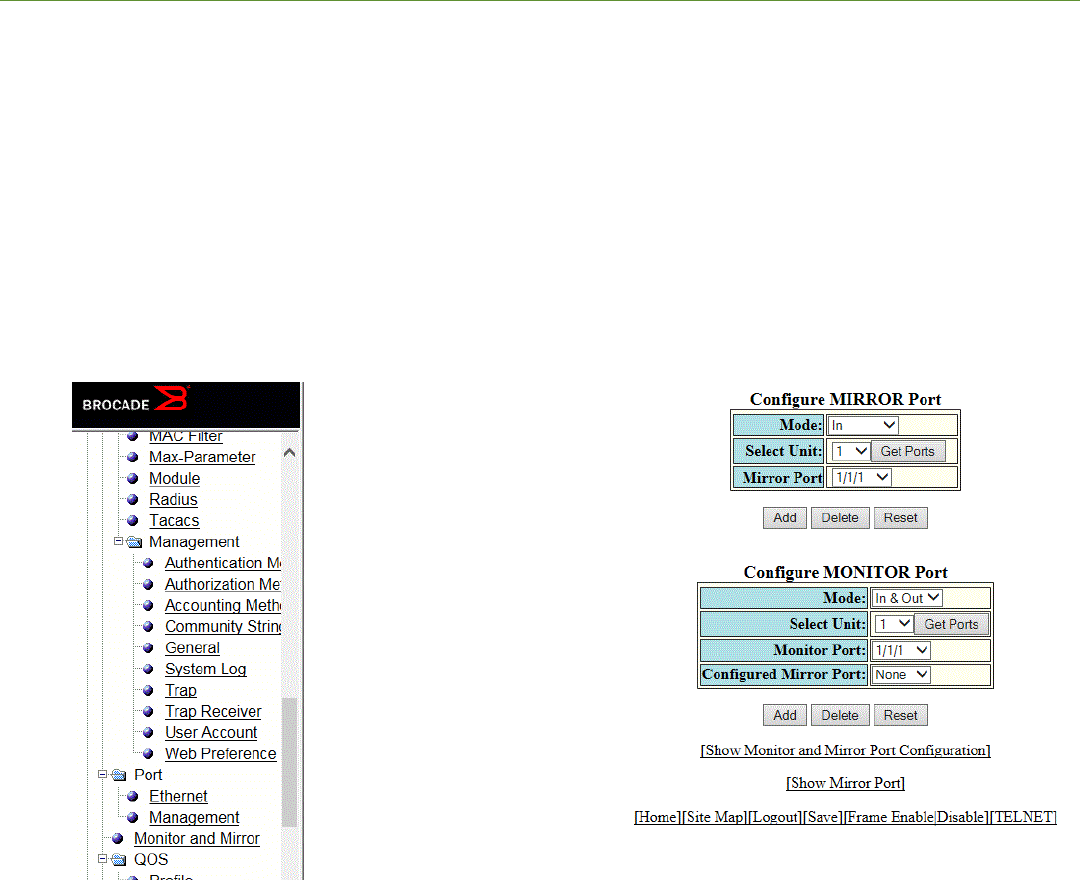

Conguring Monitor and Mirror Port.........................................................................................................................................................................143
Conguring a mirror port.................................................................................................................................................................................................................. 143
Conguring a monitor port...............................................................................................................................................................................................................145
Conguring QoS............................................................................................................................................................................................................ 147
Conguring the QoS prole.............................................................................................................................................................................................................147
Conguring the QoS prole bind...................................................................................................................................................................................................148
Conguring VLAN......................................................................................................................................................................................................... 149
Conguring a port VLAN..................................................................................................................................................................................................................149
Modifying a port VLAN.....................................................................................................................................................................................................................153
Conguring STP............................................................................................................................................................................................................ 157
Conguring STP parameters.......................................................................................................................................................................................................... 157
Changing STP bridge parameters.......................................................................................................................................................................................157
Changing STP port parameters........................................................................................................................................................................................... 160
Conguring RSTP..........................................................................................................................................................................................................165
Conguring RSTP parameters.......................................................................................................................................................................................................165
Changing RSTP bridge parameters....................................................................................................................................................................................165
Changing RSTP port parameters........................................................................................................................................................................................ 167
Conguring LAGs.......................................................................................................................................................................................................... 171

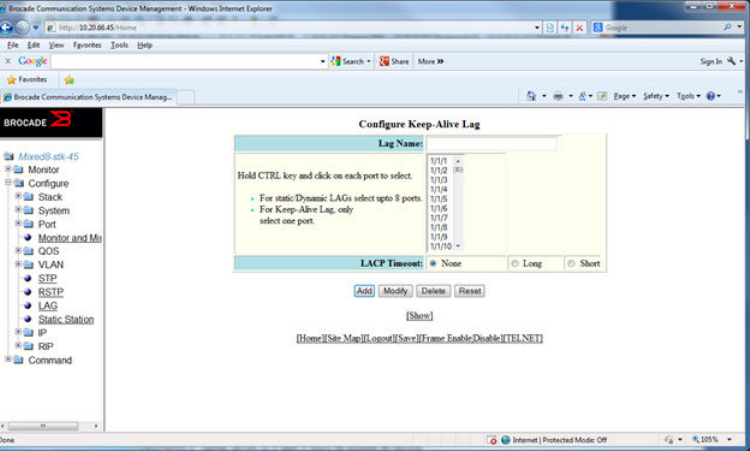

Conguring a static dynamic or keep-alive LAG....................................................................................................................................................................171
Displaying a congured LAG.......................................................................................................................................................................................................... 174
Conguring a Static Station.........................................................................................................................................................................................175
Adding a static station........................................................................................................................................................................................................................175
Modifying a static station..................................................................................................................................................................................................................176
Conguring IP.................................................................................................................................................................................................................179
Conguring the router IP address................................................................................................................................................................................................. 179
Conguring a standard ACL............................................................................................................................................................................................................180
Conguring an extended ACL........................................................................................................................................................................................................ 182
Conguring an IP access group.....................................................................................................................................................................................................186
Conguring an IP Autonomous System-path access list...................................................................................................................................................188
Conguring an IP community list..................................................................................................................................................................................................189
Conguring an IP prex list..............................................................................................................................................................................................................190
Conguring a DNS entry...................................................................................................................................................................................................................192
Conguring the general IP settings.............................................................................................................................................................................................. 193
Conguring IP interfaces...................................................................................................................................................................................................................194
Conguring a static ARP...................................................................................................................................................................................................................196
Conguring a static RARP................................................................................................................................................................................................................197
Conguring a static route..................................................................................................................................................................................................................198
Conguring a UDP helper................................................................................................................................................................................................................200
Enabling forwarding for a UDP application......................................................................................................................................................................201
Specifying the UDP application............................................................................................................................................................................................202
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 5
Conguring RIP..............................................................................................................................................................................................................203

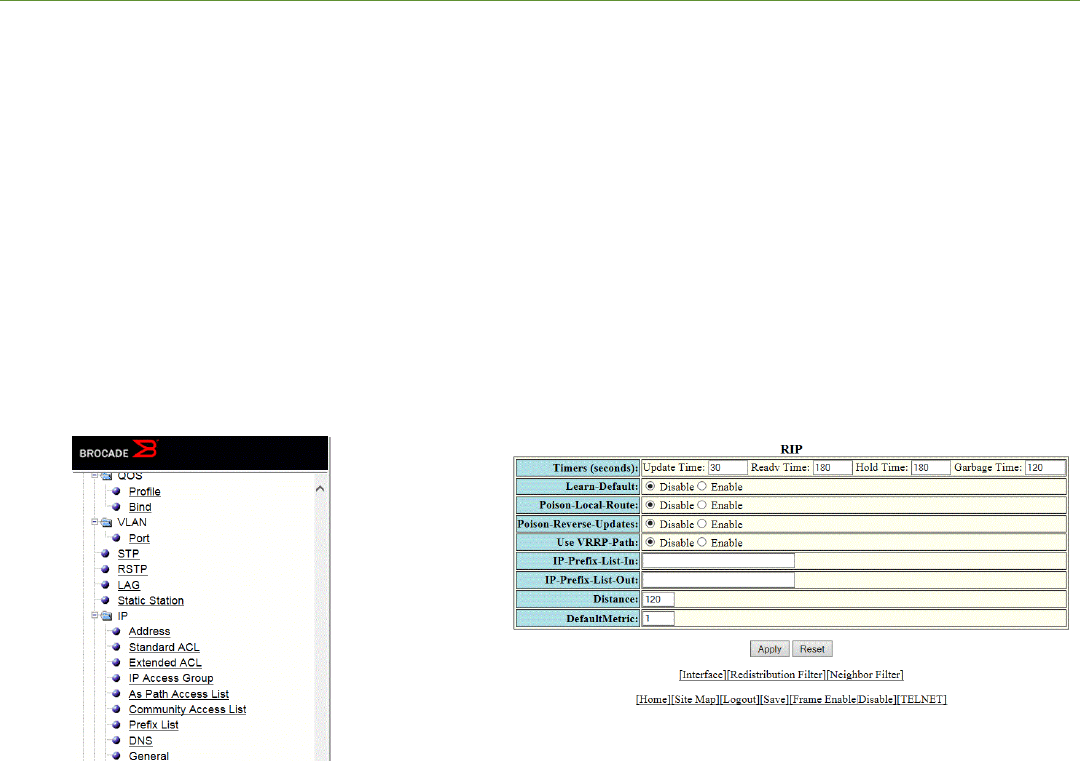

Conguring the general RIP settings...........................................................................................................................................................................................203
Conguring a RIP interface..............................................................................................................................................................................................................204

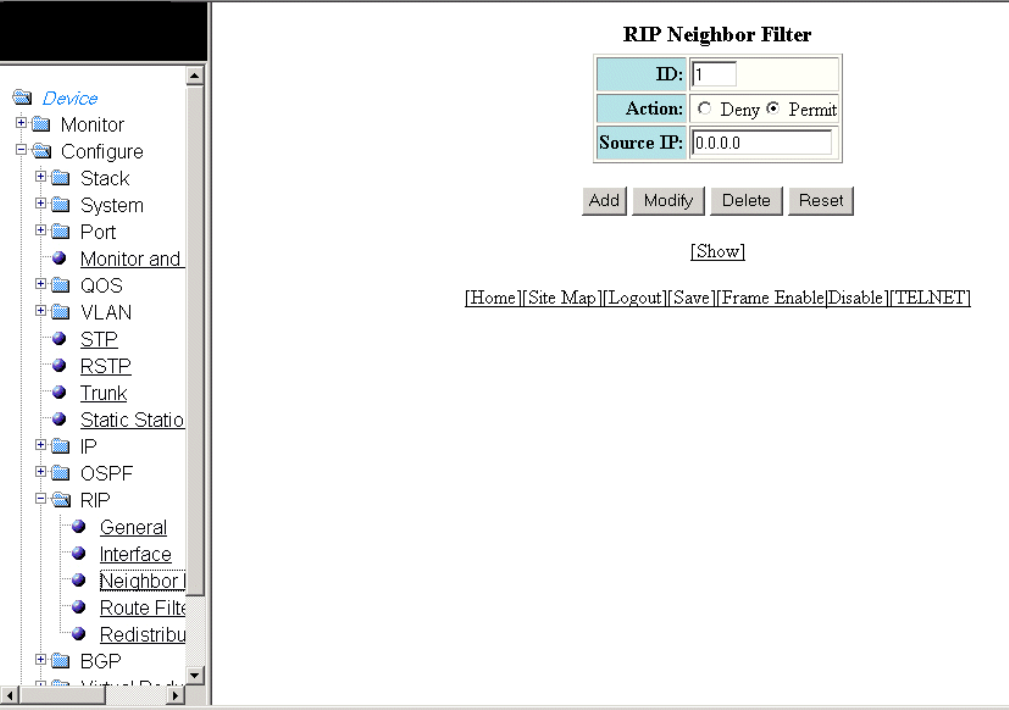

Conguring a RIP neighbor lter................................................................................................................................................................................................... 208

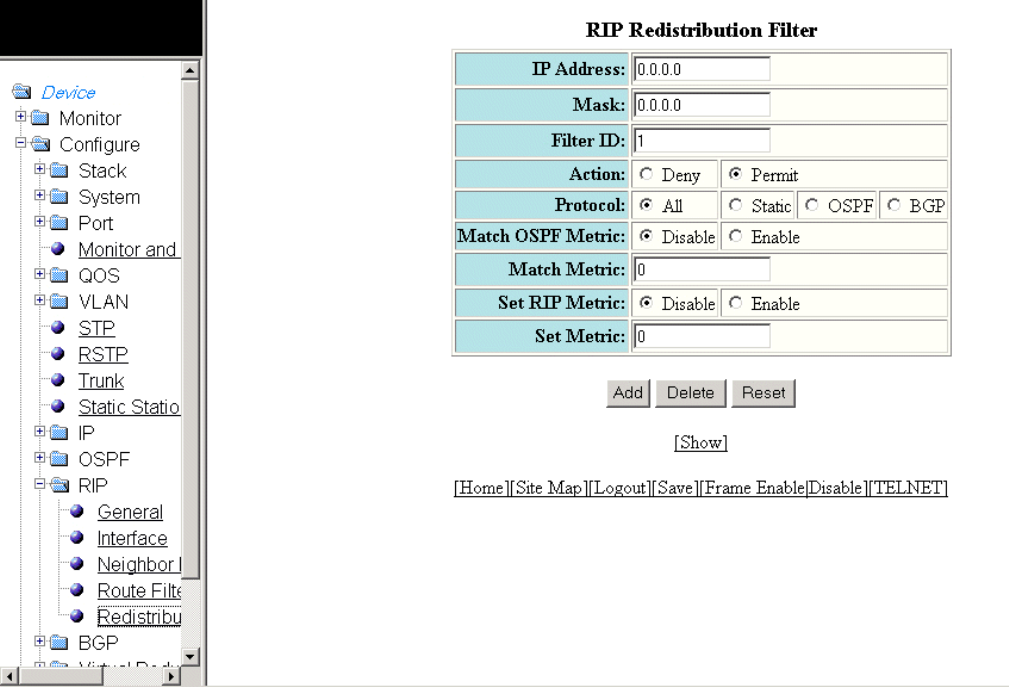

Conguring a RIP redistribution lter...........................................................................................................................................................................................210
Basic Device Commands............................................................................................................................................................................................. 213
Clearing information for a Layer 2 switch..................................................................................................................................................................................213
Clearing information for a Layer 3 switch..................................................................................................................................................................................214
Disabling or enabling the menu view...........................................................................................................................................................................................215
Logging out............................................................................................................................................................................................................................................ 216
Reloading units in a stack.................................................................................................................................................................................................................217
Saving the conguration to ash................................................................................................................................................................................................... 218
Switching over to the active role.................................................................................................................................................................................................... 219

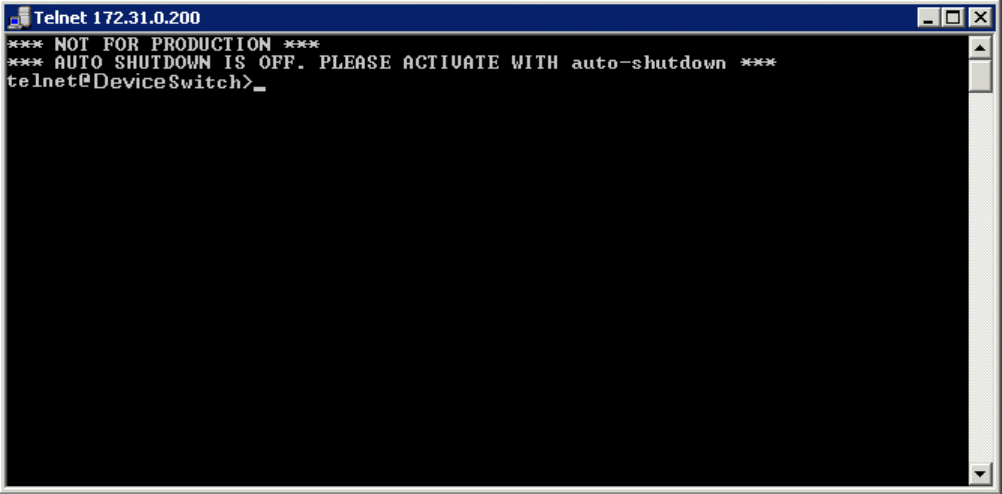

Accessing the Telnet command prompt.................................................................................................................................................................................... 219
Performing a trace...............................................................................................................................................................................................................................221
Using TFTP.....................................................................................................................................................................................................................223

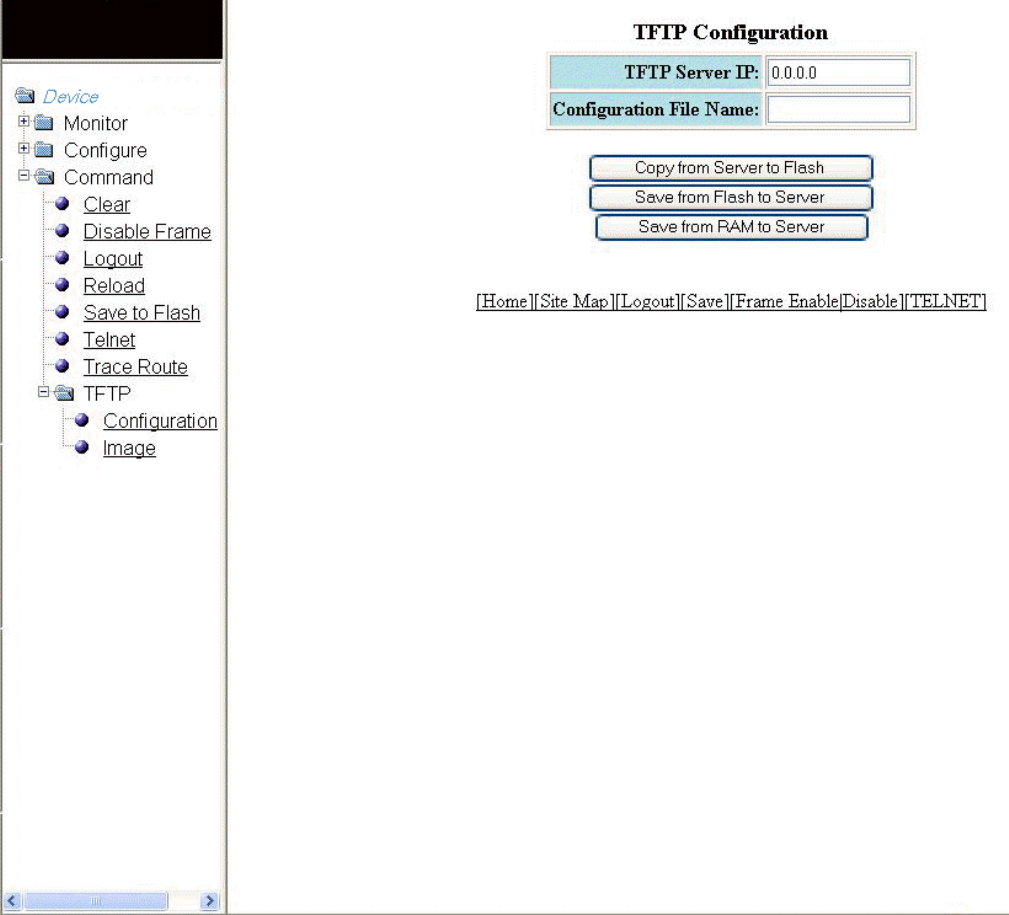

Conguring TFTP................................................................................................................................................................................................................................223
Conguring a TFTP image.............................................................................................................................................................................................................. 225
Brocade FastIron Web Management Interface User Guide, 08.0.50
6 53-1004462-01
Preface
• Document conventions...................................................................................................................................................................................... 7
• Brocade resources............................................................................................................................................................................................... 8
• Document feedback............................................................................................................................................................................................8
• Contacting Brocade Technical Support.......................................................................................................................................................9
Document conventions
The document conventions describe text formatting conventions, command syntax conventions, and important notice formats used in
Brocade technical documentation.
Notes, cautions, and warnings
Notes, cautions, and warning statements may be used in this document. They are listed in the order of increasing severity of potential
hazards.
NOTE
A Note provides a tip, guidance, or advice, emphasizes important information, or provides a reference to related information.
ATTENTION
An Attention statement indicates a stronger note, for example, to alert you when trac might be interrupted or the device might
reboot.
CAUTION
A Caution statement alerts you to situations that can be potentially hazardous to you or cause damage to hardware,
rmware, software, or data.
DANGER
A Danger statement indicates conditions or situations that can be potentially lethal or extremely hazardous to you. Safety
labels are also attached directly to products to warn of these conditions or situations.
Text formatting conventions
Text formatting conventions such as boldface, italic, or Courier font may be used to highlight specic words or phrases.
Format Description
bold text Identies command names.
Identies keywords and operands.
Identies the names of GUI elements.
Identies text to enter in the GUI.
italic text Identies emphasis.
Identies variables.
Identies document titles.
Courier font Identies CLI output.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 7
Format Description
Identies command syntax examples.
Command syntax conventions
Bold and italic text identify command syntax components. Delimiters and operators dene groupings of parameters and their logical
relationships.
Convention Description
bold text Identies command names, keywords, and command options.
italic text Identies a variable.
value In Fibre Channel products, a xed value provided as input to a command option is printed in plain text, for
example, --show WWN.
[ ] Syntax components displayed within square brackets are optional.
Default responses to system prompts are enclosed in square brackets.
{ x | y | z } A choice of required parameters is enclosed in curly brackets separated by vertical bars. You must select
one of the options.
In Fibre Channel products, square brackets may be used instead for this purpose.
x | yA vertical bar separates mutually exclusive elements.
< > Nonprinting characters, for example, passwords, are enclosed in angle brackets.
... Repeat the previous element, for example, member[member...].
\ Indicates a “soft” line break in command examples. If a backslash separates two lines of a command
input, enter the entire command at the prompt without the backslash.
Brocade resources
Visit the Brocade website to locate related documentation for your product and additional Brocade resources.
White papers, data sheets, and the most recent versions of Brocade software and hardware manuals are available at www.brocade.com.
Product documentation for all supported releases is available to registered users at MyBrocade.
Click the Support tab and select Document Library to access documentation on MyBrocade or www.brocade.com You can locate
documentation by product or by operating system.
Release notes are bundled with software downloads on MyBrocade. Links to software downloads are available on the MyBrocade landing
page and in the Document Library.
Document feedback
Quality is our rst concern at Brocade, and we have made every eort to ensure the accuracy and completeness of this document.
However, if you nd an error or an omission, or you think that a topic needs further development, we want to hear from you. You can
provide feedback in two ways:
• Through the online feedback form in the HTML documents posted on www.brocade.com
• By sending your feedback to documentation@brocade.com
Provide the publication title, part number, and as much detail as possible, including the topic heading and page number if applicable, as
well as your suggestions for improvement.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade resources
Brocade FastIron Web Management Interface User Guide, 08.0.50
8 53-1004462-01
Contacting Brocade Technical Support
As a Brocade customer, you can contact Brocade Technical Support 24x7 online, by telephone, or by e-mail. Brocade OEM customers
should contact their OEM/solution provider.
Brocade customers
For product support information and the latest information on contacting the Technical Assistance Center, go to www.brocade.com and
select Support.
If you have purchased Brocade product support directly from Brocade, use one of the following methods to contact the Brocade
Technical Assistance Center 24x7.
Online Telephone E-mail
Preferred method of contact for non-urgent
issues:
• Case management through the
MyBrocade portal.
• Quick Access links to Knowledge
Base, Community, Document Library,
Software Downloads and Licensing
tools
Required for Sev 1-Critical and Sev 2-High
issues:
• Continental US: 1-800-752-8061
• Europe, Middle East, Africa, and Asia
Pacic: +800-AT FIBREE (+800 28
34 27 33)
•Toll-free numbers are available in
many countries.
• For areas unable to access a toll-free
number: +1-408-333-6061
support@brocade.com
Please include:
• Problem summary
• Serial number
• Installation details
• Environment description
Brocade OEM customers
If you have purchased Brocade product support from a Brocade OEM/solution provider, contact your OEM/solution provider for all of
your product support needs.
• OEM/solution providers are trained and certied by Brocade to support Brocade® products.
• Brocade provides backline support for issues that cannot be resolved by the OEM/solution provider.
• Brocade Supplemental Support augments your existing OEM support contract, providing direct access to Brocade expertise.
For more information, contact Brocade or your OEM.
• For questions regarding service levels and response times, contact your OEM/solution provider.
FOR BROCADE CONTROLLED RELEASE ONLY
Contacting Brocade Technical Support
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 9
Brocade FastIron Web Management Interface User Guide, 08.0.50
10 53-1004462-01
About This Document
• Supported hardware......................................................................................................................................................................................... 11
• What’s new in this document .......................................................................................................................................................................11
Supported hardware
This guide supports the web management interface for the following hardware platforms:
• ICX 7750 Series
• ICX 7450 Series
• ICX 7250 Series
For information about the specic models and modules supported in a product family, refer to the hardware installation guide for that
product family.
What’s new in this document
IPsec support for web management is added in the FastIron 08.0.50 release.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 11
Brocade FastIron Web Management Interface User Guide, 08.0.50
12 53-1004462-01
Getting Started with the GUI
• Access requirements........................................................................................................................................................................................13
• Prerequisite conguration...............................................................................................................................................................................13
• Logging in to the Web Management Interface......................................................................................................................................14
• Logging out of the Web Management Interface...................................................................................................................................17
• Using the Web Management Interface.....................................................................................................................................................17
Access requirements
The Web Management Interface is a browser-based interface that allows administrators to manage and monitor a single Brocade device
or a group of Brocade devices connected together. For many of the features on a Brocade device, the Web Management Interface can
be used as an alternate to the CLI for creating new congurations, modifying existing ones, and monitoring the trac on a device.
The Web Management Interface can be accessed from a management station using a web browser through an HTTP connection. The
management options can be accessed from a menu tree or a list. The menu tree view is available when you use the Web Management
Interface with the following web browsers:
• Netscape 4.0 or higher
• Internet Explorer 4.0 or higher
• Safari 3.1
• Google Chrome
• Mozilla Firefox
• Opera
For all the other older browsers, the Web Management Interface displays only the list view.
NOTE
Web management pages may not get properly displayed with Google Chrome when Network Mapper (Nmap 6.4) is active.
Prerequisite conguration
The following steps must be completed to enable access to the Web Management Interface.
1. Connect a PC via a serial connection to the Brocade switch using the console port. Use a terminal program such as PuTTY to
access the Command Line Interface (CLI).
If the switch is already connected to a network, the switch will automatically receive its IP conguration via DHCP. To check the
IP conguration of the switch, use the show ip command.
If the switch is not connected to a network or you wish to assign an IP address manually, then use the commands described in
step 2, otherwise go to step 3.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 13
2. Assign an IP address to the Brocade switch using the Command Line Interface (CLI).
device> enable
device# configure terminal
device(config)# ip address 10.37.71.212/24
device(config)# ip default-gateway 10.37.71.129
For more information on assigning IP addresses for a device, refer to the Brocade FastIron Layer 3 Routing Conguration
Guide.
3. Generate a Secure Sockets Layer (SSL) certicate and then congure a username and password to log in.
device(config)# crypto-ssl certificate generate
device(config)# username brocade password brocade
device(config)# aaa authentication login default local
device(config)# aaa authentication web-server default local
It may take several minutes to generate the certicate key.
4. Save the conguration.
device(config)# write memory
Logging in to the Web Management Interface
To log in to the Web Management Interface, perform the following steps.
1. Open a web browser and enter the IP address of the management port in the Location or Address eld.
The web browser contacts the Brocade device and displays the login page, as shown in the gure below.

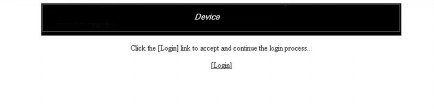

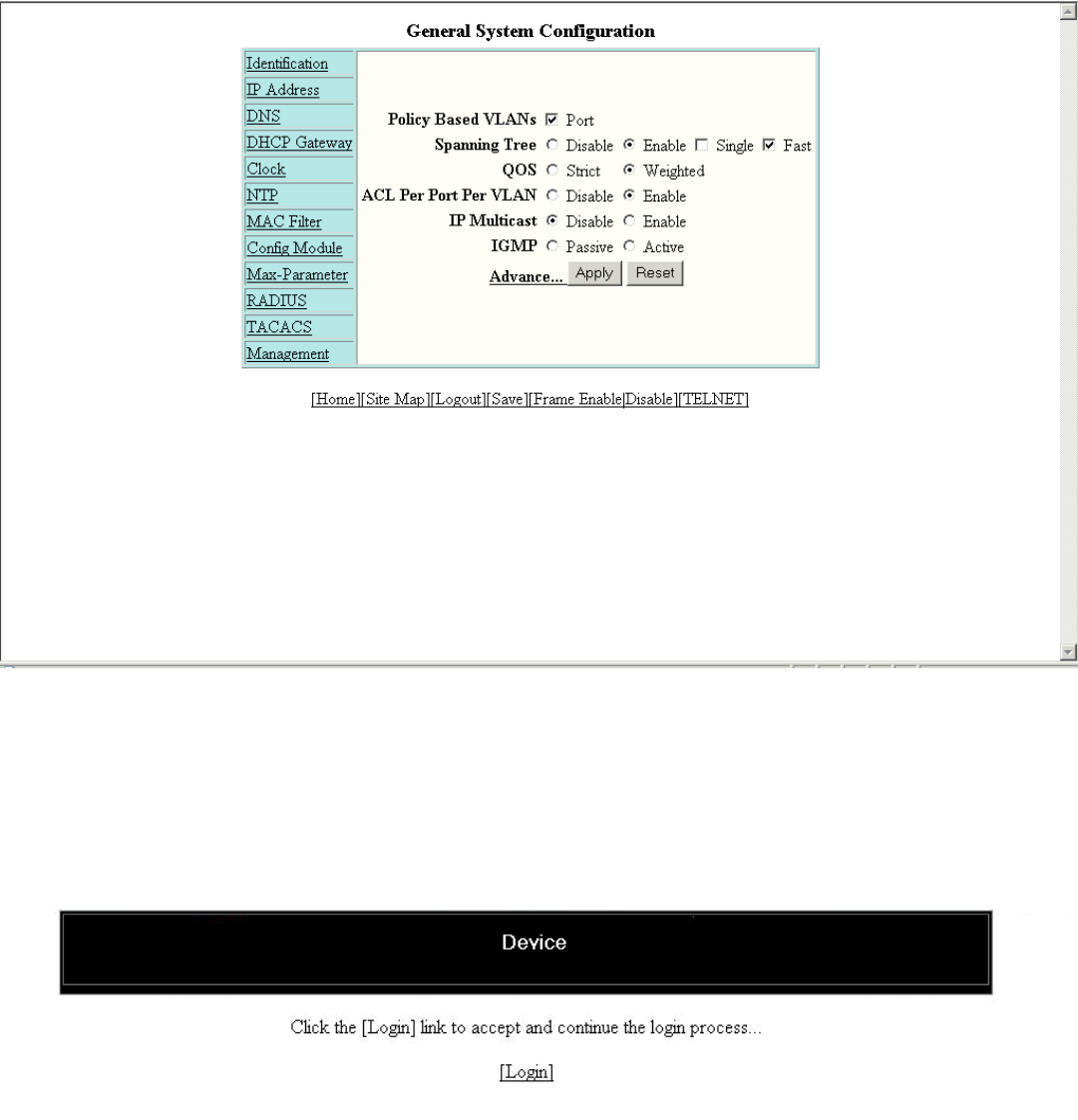

FIGURE 1 Web Management Interface login page
NOTE
If you are unable to connect with the device through a web browser due to a proxy problem, it may be necessary to set
your web browser for direct Internet access instead of using a proxy. For information on how to change a proxy setting,
refer to the online help provided with your web browser.
FOR BROCADE CONTROLLED RELEASE ONLY
Logging in to the Web Management Interface
Brocade FastIron Web Management Interface User Guide, 08.0.50
14 53-1004462-01
2. Click Login. The dialog box as shown in the gure below is displayed.
FIGURE 2 User name and password dialog box
FOR BROCADE CONTROLLED RELEASE ONLY
Logging in to the Web Management Interface
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 15
3. Enter the user name and password that you created using the CLI as described in Prerequisite conguration on page 13.

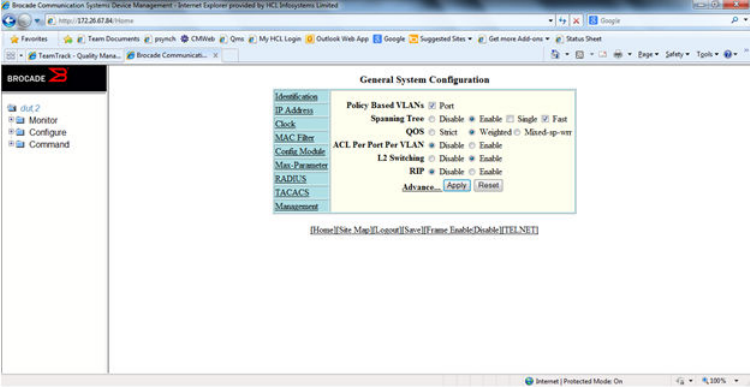

The gure below displays the home page of the Web Management Interface for a Layer 2 switch.
FIGURE 3 Home page for Layer 2 switch features

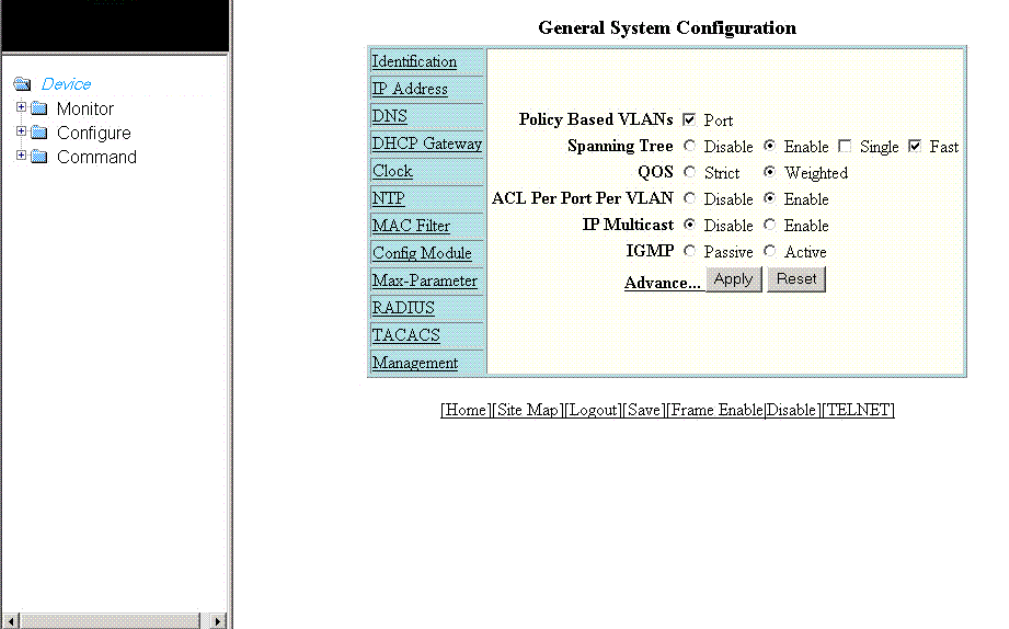

The gure below displays the home page of the Web Management Interface for a Layer 3 switch.
FOR BROCADE CONTROLLED RELEASE ONLY
Logging in to the Web Management Interface
Brocade FastIron Web Management Interface User Guide, 08.0.50
16 53-1004462-01

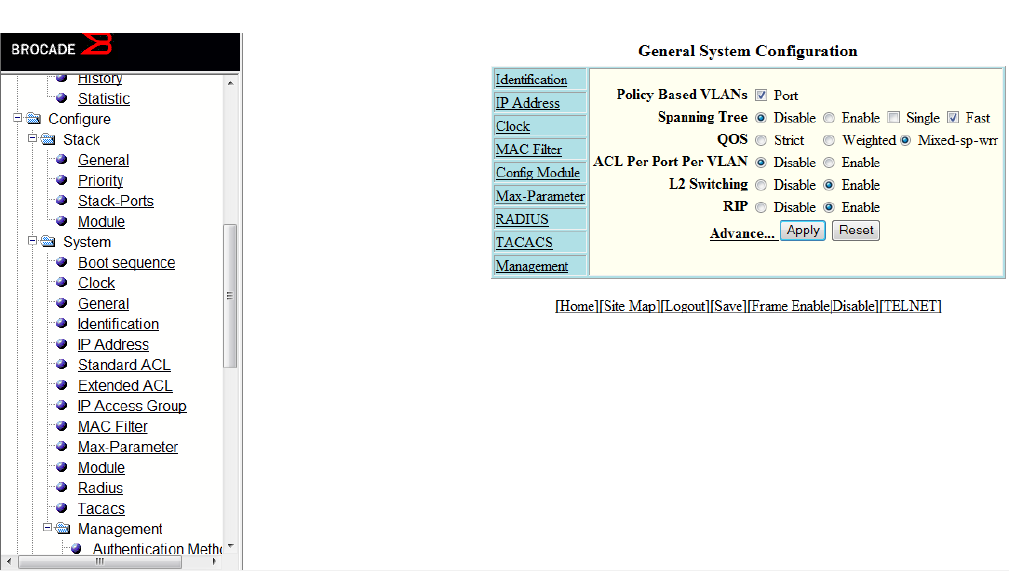

FIGURE 4 Home page for Layer 3 switch features
NOTE
If you are using Internet Explorer 6.0 to view the Web Management Interface, make sure the version you are running
includes the latest service packs. Otherwise, the navigation tree (the left-most pane in the two gures above) will not
display properly. For information on how to load the latest service packs, refer to the online help provided with your
web browser.
Logging out of the Web Management Interface
You can log out of the Web Management Interface in two ways:
• Click Logout on the window.
• Click Command in the left pane and select Logout.
Using the Web Management Interface
The following procedure explains in detail about using the Web Management Interface.
1. Click the plus sign (+) next to Congure in the tree view to expand the list of conguration options.
2. Click the plus sign (+) next to System in the tree view to expand the list of system conguration links.
3. Click the plus sign (+) next to Management in the tree view to expand the list of system management links.
4. Click Authentication Methods to display the Authentication Method panel.
FOR BROCADE CONTROLLED RELEASE ONLY
Using the Web Management Interface
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 17
5. Enable or disable elements on the Web Management Interface by clicking the appropriate options on the panel. The gure
below identies the elements you can change.

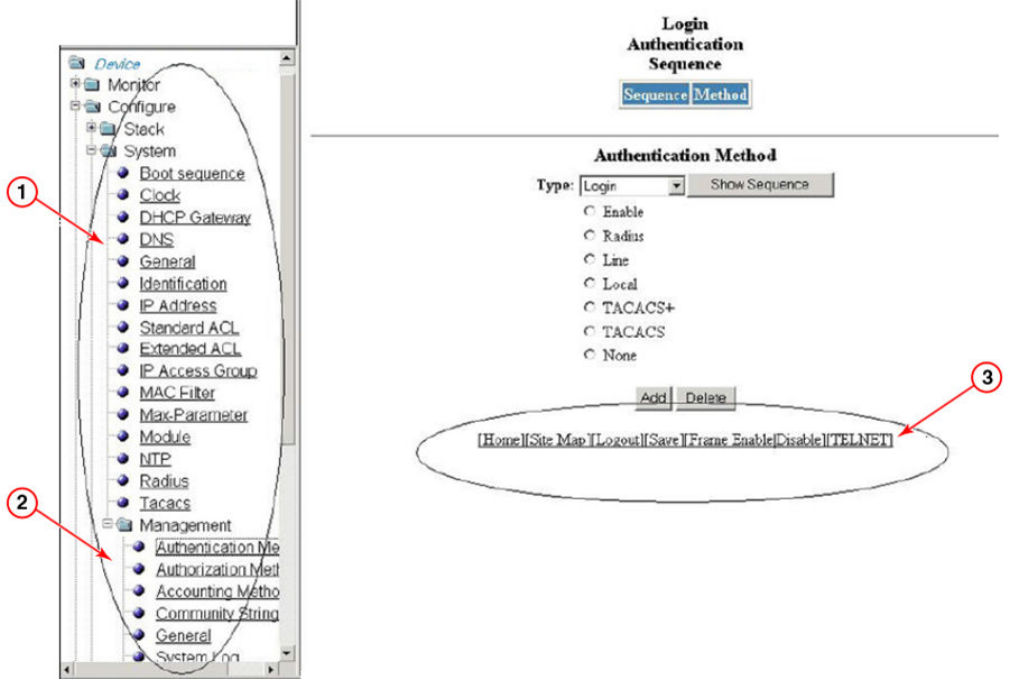

FIGURE 5 Web Management Interface elements
1. Menu Type (Tree view)
2. Menu Frame
3. Shortcut links
NOTE
The tree view is available when you use the Web Management Interface with Netscape 4.0 or higher or Internet
Explorer 4.0 or higher. If you use the Web Management Interface with an older browser, the Web Management
Interface displays the list view only, and the Web Management Preferences panel does not include an option to display
the tree view.
6. When you have nished, click Add on the panel to add the authentication types. Click Delete to remove authentication types.
7. To save the conguration, click the plus sign (+) next to the Command folder, and then click Save to Flash.
NOTE
The only changes that become permanent are the settings to the Menu Type and the Panel Frame. Any other
elements you enable or disable will go back to their default settings the next time you start the Web Management
Interface.
FOR BROCADE CONTROLLED RELEASE ONLY
Using the Web Management Interface
Brocade FastIron Web Management Interface User Guide, 08.0.50
18 53-1004462-01
Web Management Interface areas
The following sections describe the Web Management Interface areas and how to use them.
Menu tree or list
The left panel shows the menu tree or list of options. The interface can be set up to display a menu tree or a list of options. You can
enable or disable the menu tree view in two ways:
• Click Frame Enable|Disable on the bottom of the window.
• Click Command and select Disable Frame
• .
Conguration panel
The conguration panel consists of the tables with the eld elements that display information or the input elds for which the values have
to be entered. The input elds can be of four types:
• Fields into which data must be entered using the keyboard.
• Lists from which one of several options can be chosen.
• Options allow you to select only one of the settings or features of a set of options.
• Check boxes allow you to turn on or o a parameter and you can also make multiple selections.
After entering the values, you must click the appropriate button to congure the values.
Shortcuts to functions and other panels
All the pages in the Web Management Interface provide shortcut links to the functions that are specic to that page and to other panels.
All of the Web Management Interface panels have the following links:
• [Home] --Returns you to the home page of the Web Management Interface.
• [Site Map] -- Lists all options available from the Web Management Interface with links to the panels for those options. Use the
Site Map link to move through the interface if the menu is not displayed.
• [Logout] -- Logs you out of the Web Management Interface.
• [Save] -- Saves the changes you entered on the panels.
• [TELNET] -- Opens a Telnet session to the device.
• [Frame Enable|Disable] --Enables or disables the bookmark options available in the left panel. If frames are disabled, you will
not be able to choose any of the options on the web preference panel that use frames.
FOR BROCADE CONTROLLED RELEASE ONLY
Using the Web Management Interface
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 19
Brocade FastIron Web Management Interface User Guide, 08.0.50
20 53-1004462-01
Monitoring Basic Device Information
• Displaying the ARP cache..............................................................................................................................................................................21
• Displaying the device information...............................................................................................................................................................23
• Displaying ash information..........................................................................................................................................................................25
• Displaying memory information..................................................................................................................................................................26
• Displaying the front panel...............................................................................................................................................................................27
• Displaying MAC addresses........................................................................................................................................................................... 29
• Displaying the system log..............................................................................................................................................................................30
Displaying the ARP cache
The Address Resolution Protocol (ARP) cache table contains entries that map IP addresses to Media Access Control (MAC) addresses.
There are two types of ARP entries: static (user-congured) and dynamic (learned).
To display the ARP cache information, click Monitor on the left pane and select ARP Cache.
The ARP Cache window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 21
FIGURE 6 Monitoring the ARP cache
TABLE 1 Description of the elds in the ARP Cache window
Field Description
Node Displays the IP address of the device.
MAC Address Displays the MAC address of the device.
Type Displays the type of ARP entry, which can be one of the following:
•Dynamic --The Layer 3 switch learned the entry from an
incoming packet.
•Static --The Layer 3 switch loaded the entry from the static
ARP table when the device for the entry was connected to the
Layer 3 switch.
Age Displays the number of minutes the entry has remained unused. If this
value reaches the ARP aging period, the entry is removed from the cache.
NOTE
Static entries do not age out.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying the ARP cache
Brocade FastIron Web Management Interface User Guide, 08.0.50
22 53-1004462-01
TABLE 1 Description of the elds in the ARP Cache window (continued)
Field Description
Port Displays the port attached to the device for which the entry was made. For
dynamic entries, this is the port on which the entry was learned.
The port number for Brocade ICX devices is stack-unit/slotnum/portnum
VLAN ID Displays the VLAN Identier of the port, which learned the entry.
Displaying the device information
To display the device information, perform the following steps.
1. Click Monitor on the left pane and select Device.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying the device information
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 23
2. Select a stack Identier from the Stack Unit ID list and click Display to view the information for any device in an IronStack.

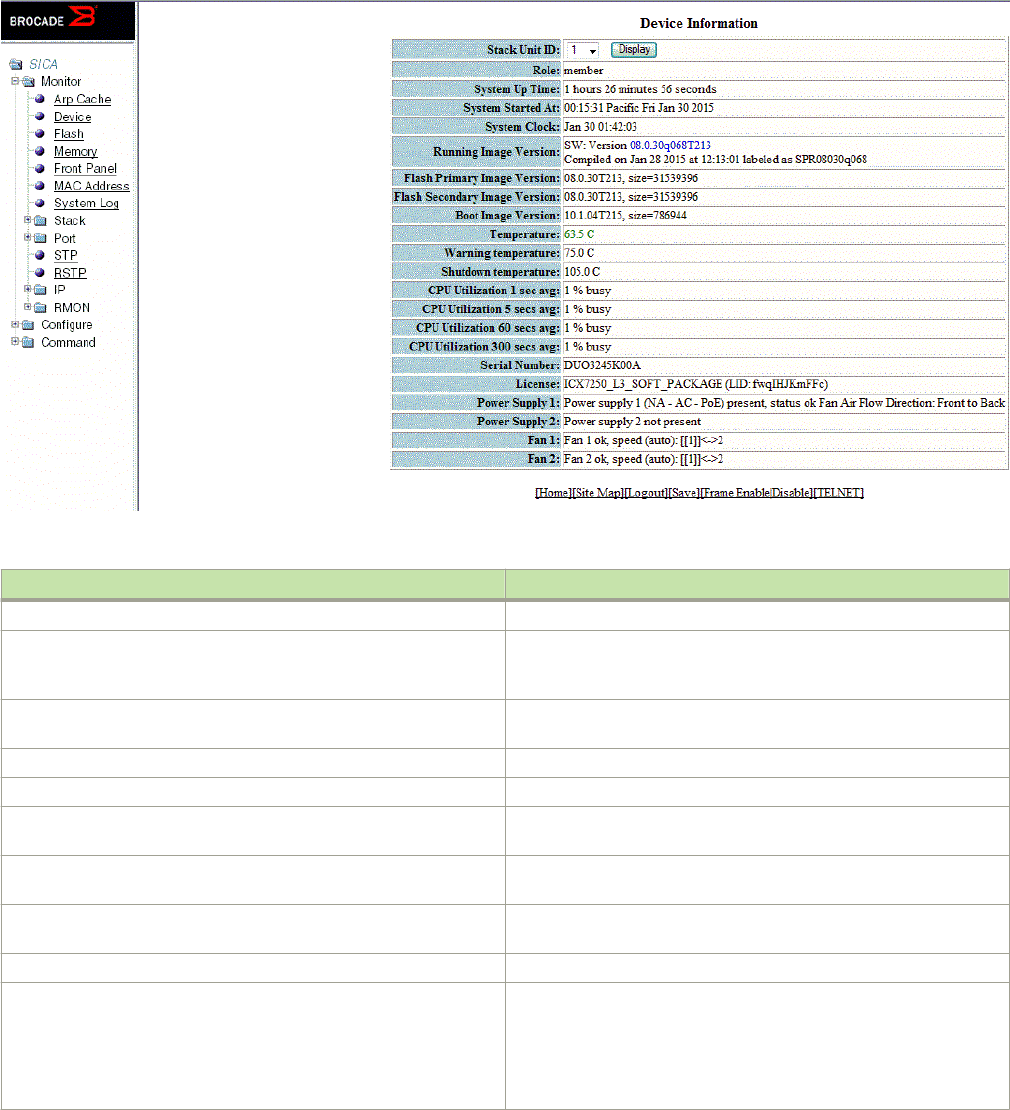

The Device Information window is displayed as shown in the gure below.
FIGURE 7 Monitoring the device information
TABLE 2 Description of the elds in the Device Information window
Field Description
Stack Unit ID Displays the number of the unit within a stack.
Role Displays the role of the device, which can be Active, Standby,
Member, or alone. If the role is alone, the device is operating as a
standalone device.
System Up Time Displays the quantity of time the system has been running since the
last restart.
System Started At Displays the time when the system started.
System Clock Displays the time congured in the system.
Running Image Version Displays the software version currently running and some details on
the version.
Flash Primary Image Version Displays the release number and size of the software loaded on the
primary ash.
Flash Secondary Image Version Displays the release number and size of the software loaded on the
secondary ash.
Boot Image Version Displays the release number and size of the boot image.
Temperature This eld displays the actual temperature. The color of the degrees
provides a visual indicator for the device:
• Green—The temperature is within the normal operating range.
• Orange—The temperature has reached the warning level.
• Red—The temperature has reached the shutdown level.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying the device information
Brocade FastIron Web Management Interface User Guide, 08.0.50
24 53-1004462-01
TABLE 2 Description of the elds in the Device Information window (continued)
Field Description
Warning temperature Displays the warning level temperature.
Shutdown temperature Displays the shutdown level temperature.
CPU Utilization Displays the percentage of CPU being used by the device at 1-
second, 5-second, 1-minute, and 5-minute intervals.
Serial Number Displays the serial number of the device.
License Displays the software license and License ID (LID) of the device.
Power Supply 1 Displays the status of the primary power supply.
Power Supply 2 Displays the status of the secondary power supply, if present.
Fan 1 Displays the status of the primary cooling fan.
Fan 2 Displays the status of the secondary cooling fan, if present.
NOTE
There is an entry for each fan in the device.
NOTE
License details and serial number are not displayed for PE devices on an SPX stack.
Displaying ash information
To display the ash information, click Monitor on the left pane and select Flash.

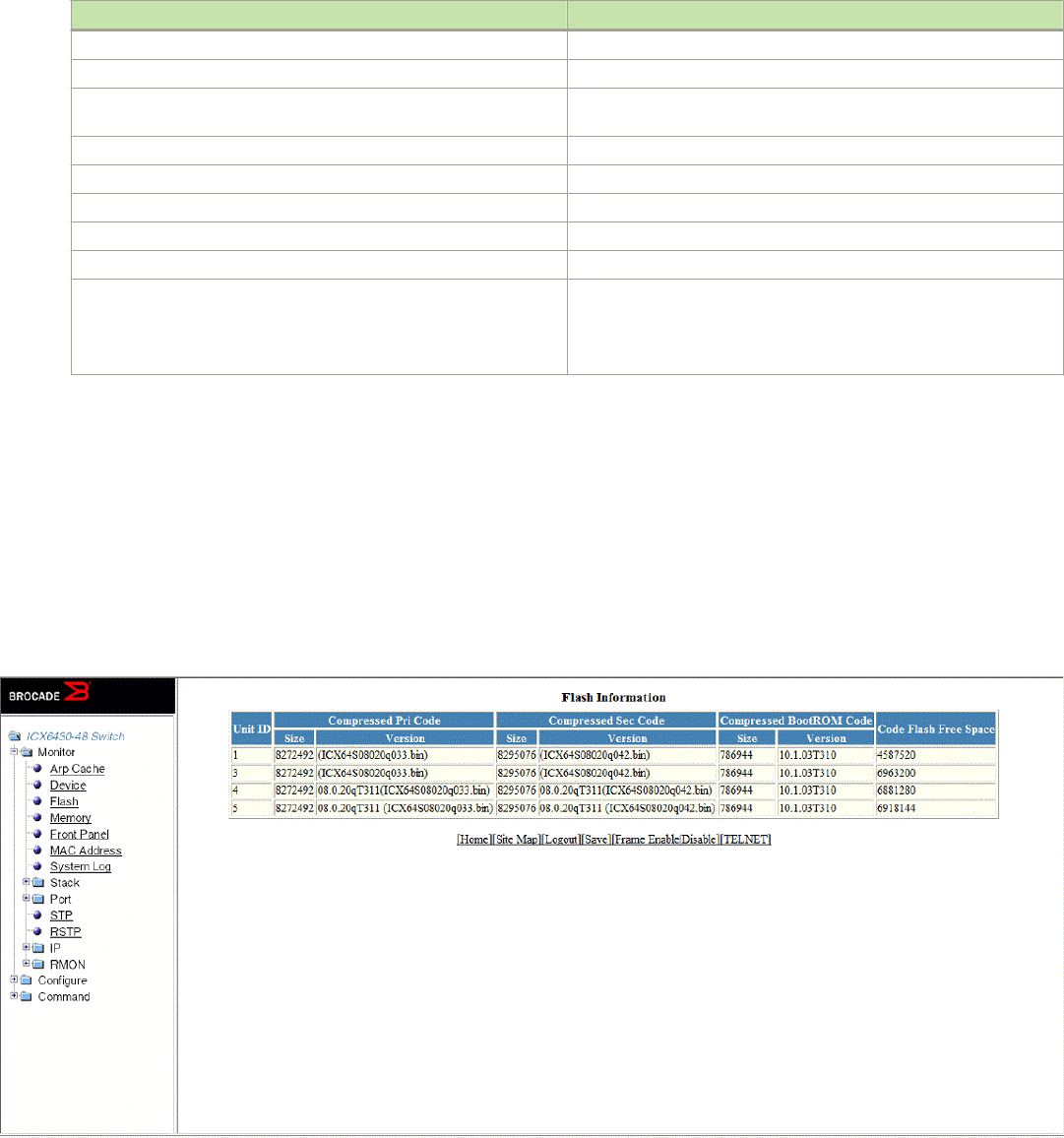

The Flash Information window is displayed as shown in the gure below.
FIGURE 8 Monitoring the ash information
The table below describes the elds in the Flash Information window.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying ash information
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 25
TABLE 3 Description of the elds in the Flash Information window
Field Description
Unit ID Displays the number of the unit within a stack.
Compressed Pri Code Displays the compressed size and version for the primary code.
Compressed Sec Code Displays the compressed size and version for the secondary code.
Compressed BootROM Code Displays the compressed size and version for the BootROM code.
Code Flash Free Space Displays the amount of free space available on the ash memory.
Displaying memory information
To display the memory information of the device, click Monitor on the left pane and select Memory.
The Memory Information window is displayed as shown in the gure below.

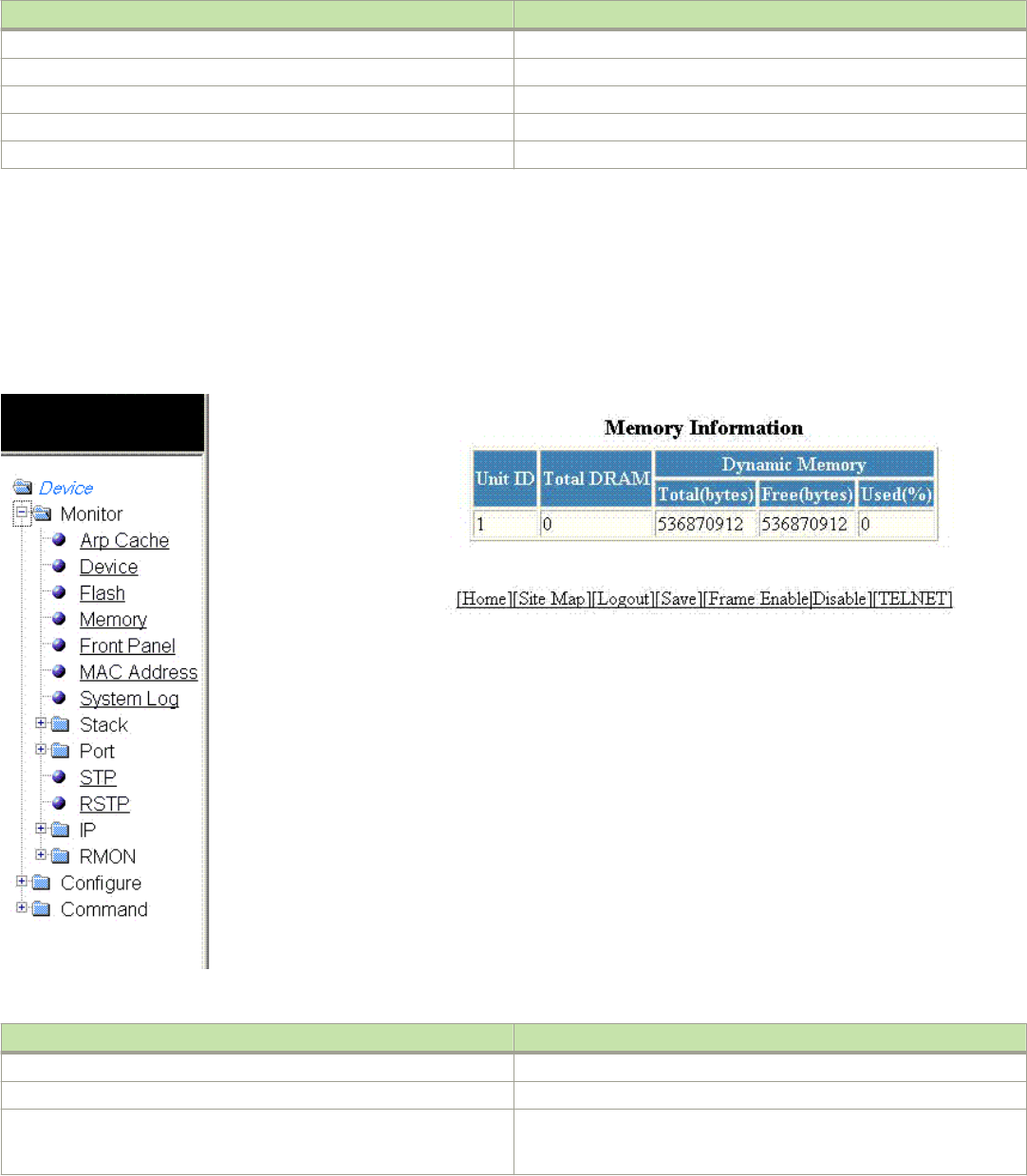

FIGURE 9 Monitoring the memory information
TABLE 4 Description of the elds in the Memory Information window
Field Description
Unit ID Displays the number of the unit within a stack.
Total DRAM Displays the size (in bytes) of dynamic random access memory (DRAM).
Dynamic Memory Displays the total number of bytes in dynamic memory, including the
number of bytes that are available (free or unused), and the percentage of
memory used.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying memory information
Brocade FastIron Web Management Interface User Guide, 08.0.50
26 53-1004462-01
Displaying the front panel
The front panel of the device allows you to view the modules in each device and the ports within each module.
The front panel shows the status of devices using colors. Green ports are connected, and gray ports are not connected. Ports of the
same color on two units are connected with cables. A gray uplink port is not connected to a device. Ports with amber LEDs linked up
have downgraded speeds from their default speeds.
NOTE
In 802.1BR system, the front panel display is supported only for CB units. PE units are not displayed in the front panel.
Status LED display

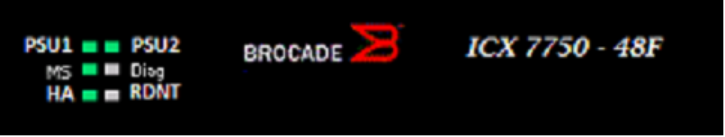

The status LEDs that appear on the front panel provide information about system activity. The gure below shows the LEDs that appear
on the front panel of ICX 7750 device.
FIGURE 10 Front panel LEDs
For more information about the LED labels and status indicators in Brocade devices, refer respective Hardware Installation Guides.
Displaying the front panel for the Brocade ICX 7750 device
To display the front panel, click Monitor on the left panel and select Front Panel.
The gure below shows the front panel of the Brocade ICX 7750 device.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying the front panel
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 27

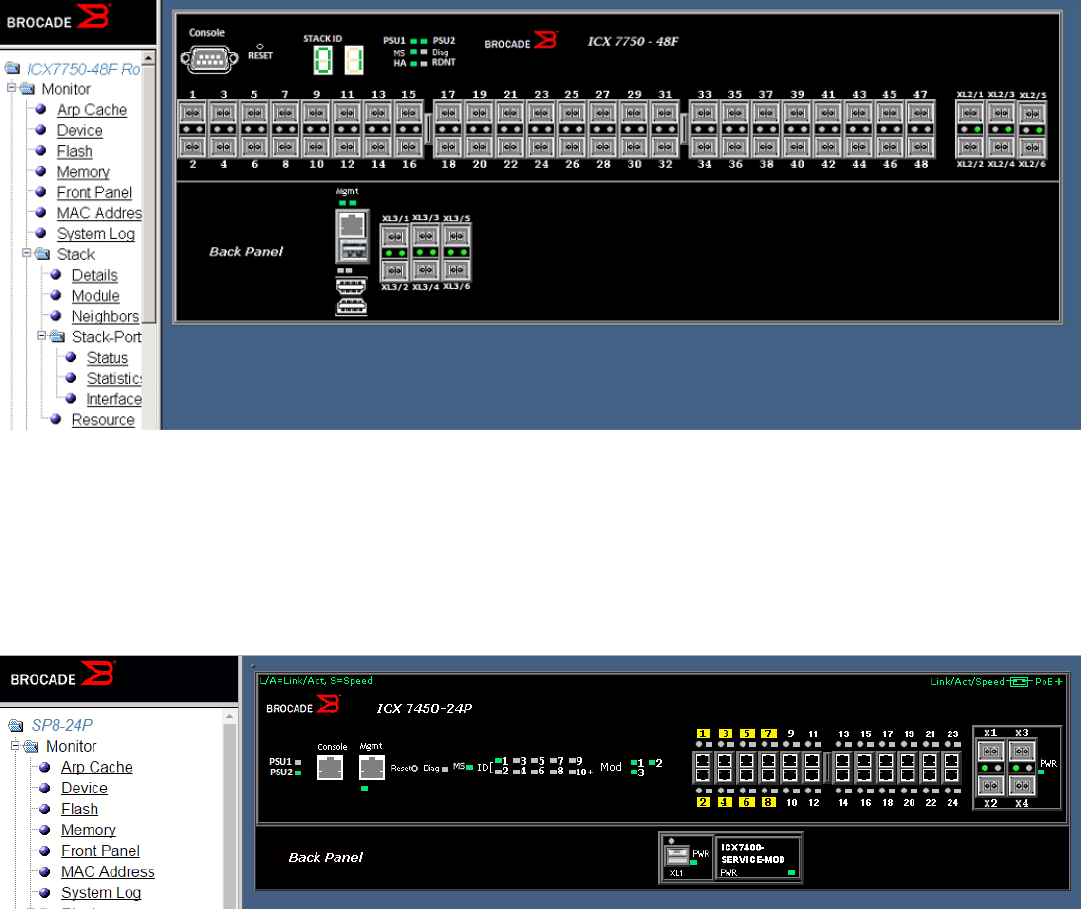

FIGURE 11 Brocade ICX 7750 device front panel
Displaying the front panel for the Brocade ICX 7450 device
To display the front panel, click Monitor on the left panel and select Front Panel.
The gure below shows the front panel of the Brocade ICX 7450 device.
FIGURE 12 Brocade ICX 7450 device front panel

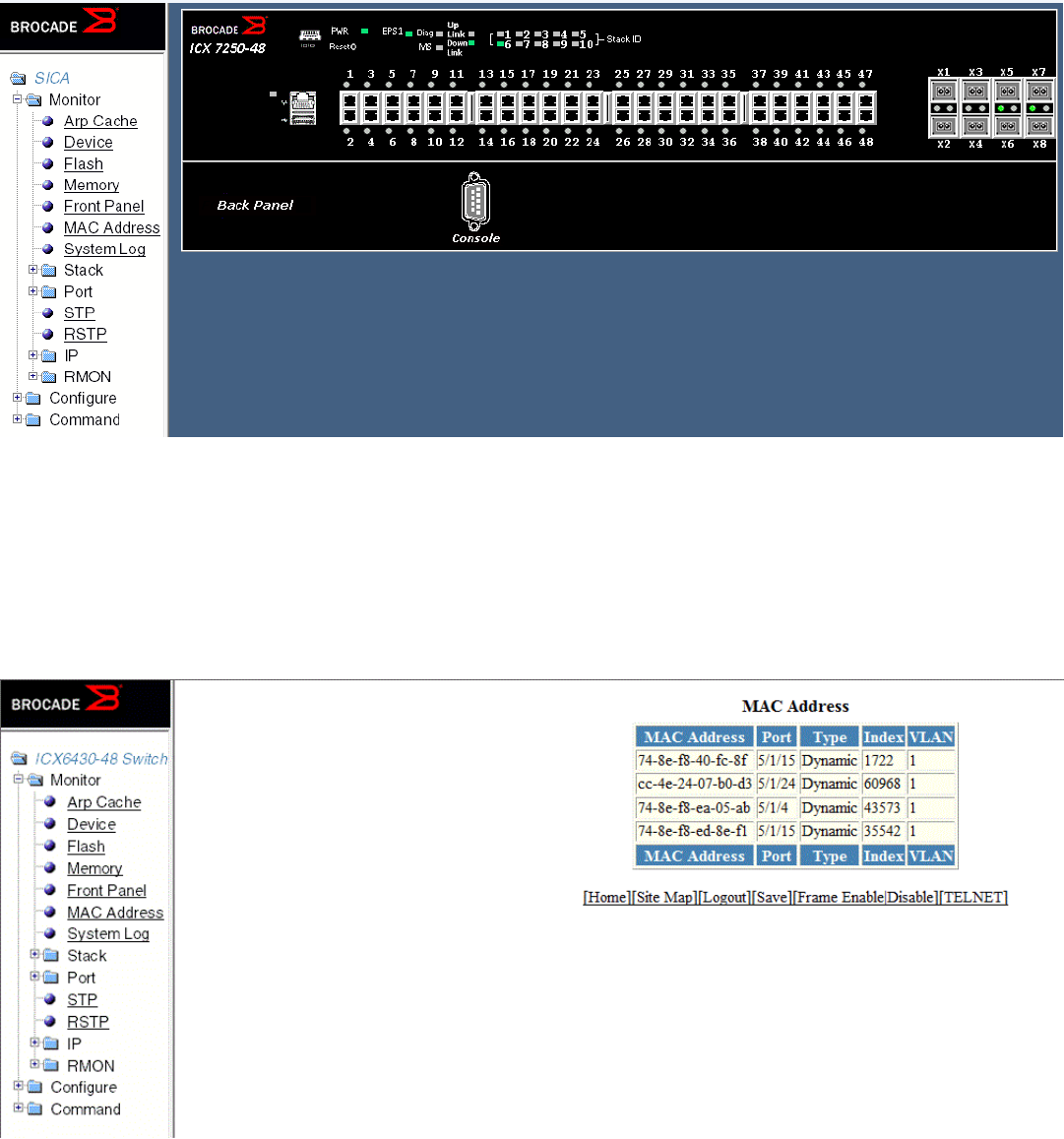

Displaying the front panel for the Brocade ICX 7250 device
To display the front panel, click Monitor on the left panel and select Front Panel.
The gure below shows the front panel of the Brocade ICX 7250-48 device.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying the front panel
Brocade FastIron Web Management Interface User Guide, 08.0.50
28 53-1004462-01
FIGURE 13 Brocade ICX 7250 device front panel
Displaying MAC addresses
To display the list of MAC addresses that have been learned by the device, click Monitor on the left pane and select MAC Address.
The MAC Address window is displayed as shown in the gure below.
FIGURE 14 Monitoring the MAC address
The table below describes the elds in the MAC Address window.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying MAC addresses
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 29
TABLE 5 Description of the elds in the MAC Address window
Field Description
MAC Address Displays the MAC address of the device.
Port Displays the port attached to the device for which the entry was made. For
dynamic entries, this is the port on which the entry was learned.
Type Displays the type of the entry, which can be one of the following:
•Dynamic—The MAC address changes if the Active Controller
changes.
•Static—The MAC address will not change if the Active Controller
changes.
Index Displays the index of the entry in the MAC address table.
VLAN Displays the port-based VLAN that contains this (instance of) spanning
tree. VLAN 1 is the default VLAN. If you have not congured port-based
VLANs on this device, all STP information is for VLAN 1.
Displaying the system log
The software provides two types of system log buers:
• Static—Logs power supply failures, fan failures, and temperature warning or shutdown messages.
• Dynamic—Logs all other message types.
To display the current information of the system log buer, click Monitor on the left pane and select System Log.

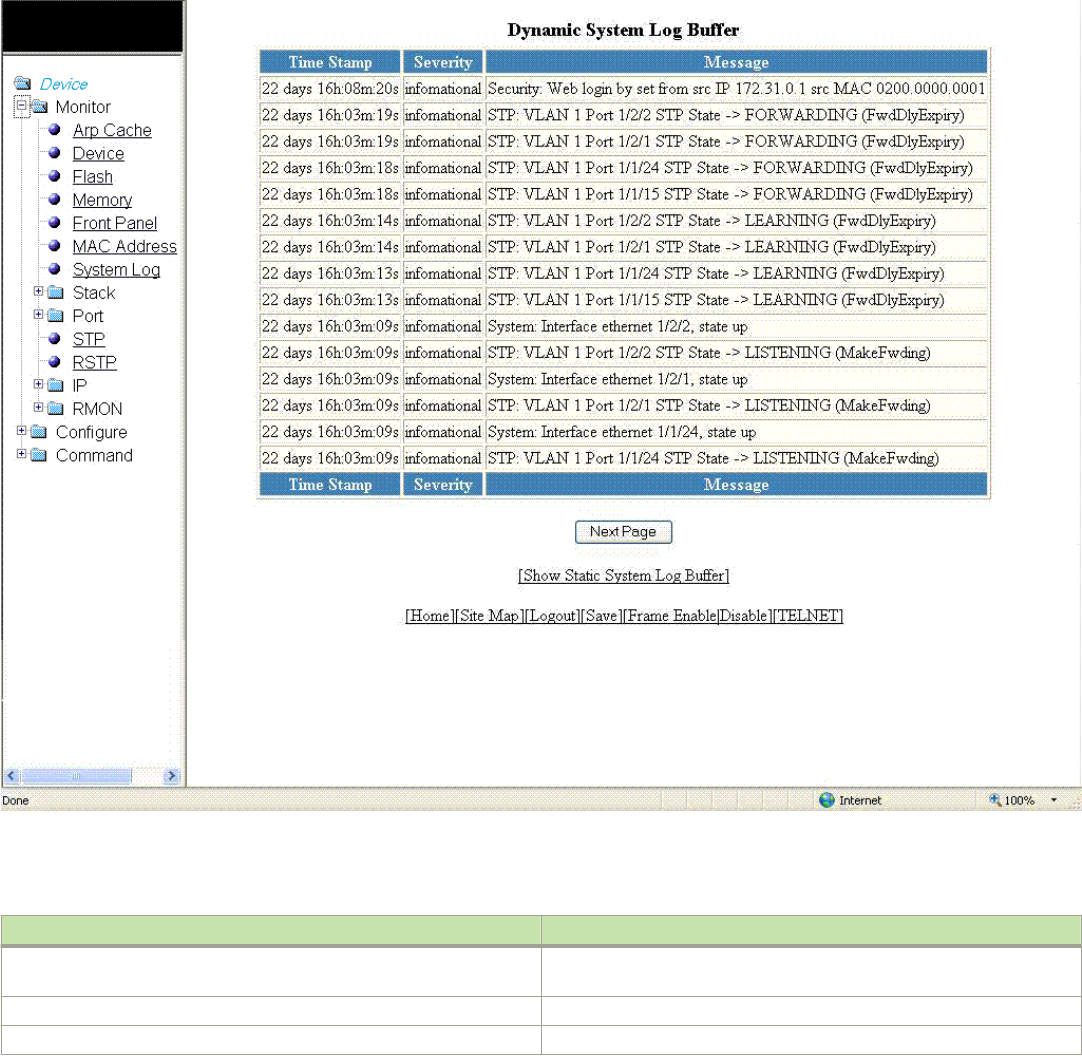

The Dynamic System Log Buer window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying the system log
Brocade FastIron Web Management Interface User Guide, 08.0.50
30 53-1004462-01
The table below describes the elds in the Dynamic System Log Buer window.
TABLE 6 Description of the elds in the Dynamic System Log Buer window
Field Description
Time Stamp Displays the system uptime in DD:HH:MM:SS or the actual time if the
date and time was set.
Severity Displays the severity of the event.
Message Displays the description of the event.
To view the next set of the Dynamic System Log Buer entries, click Next Page. To display the static system log buer information, click
Show Static System Log Buer.
The Static System Log Buer window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying the system log
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 31
For information on the Static System Log Buer elds, refer to the table above.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying the system log
Brocade FastIron Web Management Interface User Guide, 08.0.50
32 53-1004462-01
Monitoring Stacks
• Displaying the stack details........................................................................................................................................................................... 33
• Displaying a stack module.............................................................................................................................................................................35
• Displaying stack neighbors............................................................................................................................................................................36
• Displaying stack ports information.............................................................................................................................................................37
• Displaying stack port statistics.....................................................................................................................................................................39
• Displaying stack port interfaces...................................................................................................................................................................39
Displaying the stack details
To display current stack details, stack port status, and stack neighbors information, perform the following steps.
1. Click Monitor on the left pane and select Stack.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 33
2. Click Details.

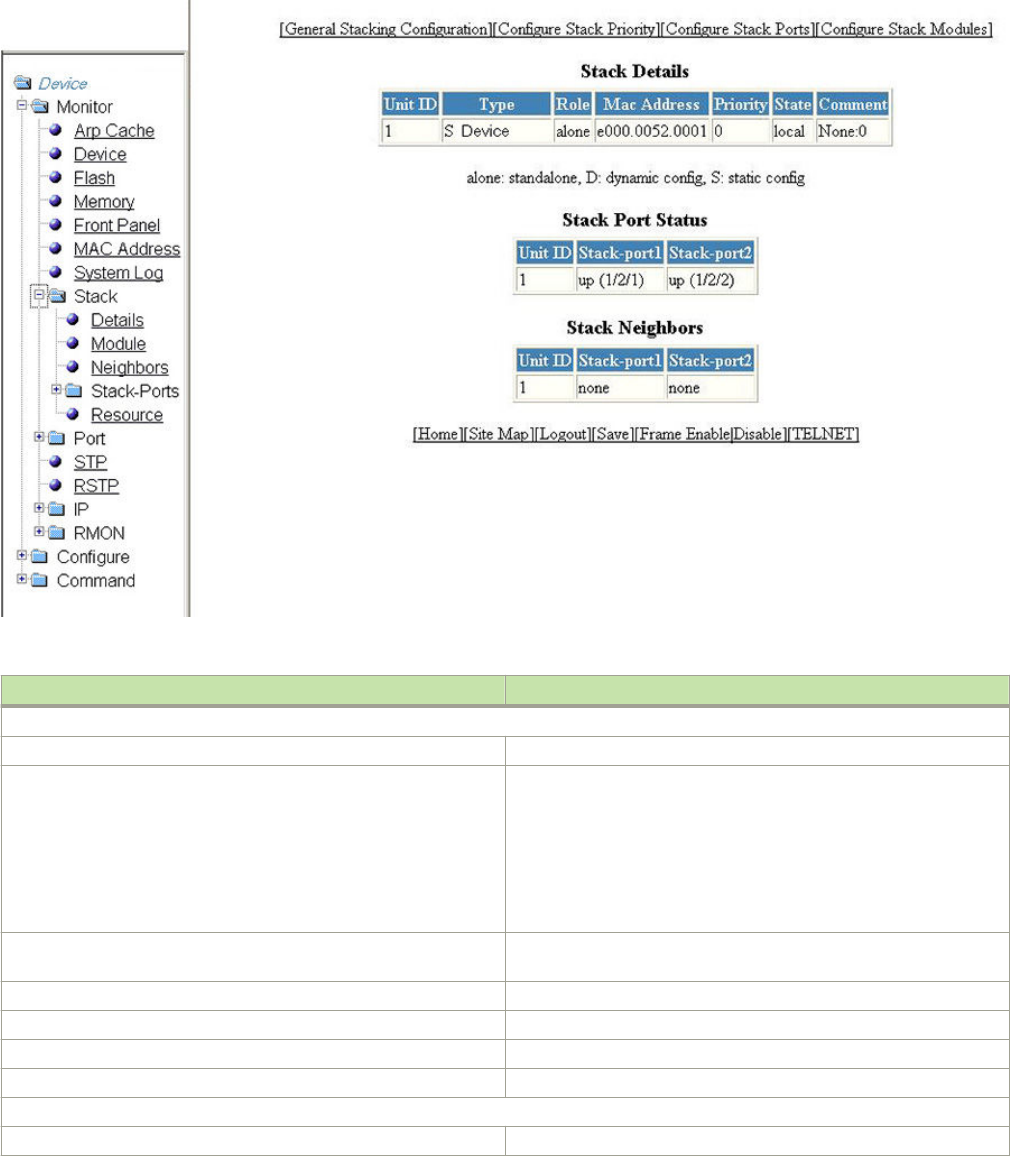

The Stack Details window is displayed in the gure below.
TABLE 7 Description of the elds in the Stack Details window
Field Description
Stack Details parameters
Unit ID Displays the number of the unit within a stack.
Type Displays the type of conguration and the device model. The types of
conguration are as follows:
•alone --Indicates that the device is operating as a standalone
device.
•S --Indicates that the conguration for this unit is static.
•D --Indicates that the conguration for this unit is dynamic and
may be overwritten by a new stack unit.
Role Displays the role of this unit within the stack: Active, Standby,
Member, or alone.
Mac Address Displays the MAC address of the device.
Priority Displays the priority assigned to this unit.
State Displays the operational state of this unit: local or remote.
Comment Displays additional information about this unit.
Stack Port Status parameters
Unit ID Displays the number of the unit within a stack.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying the stack details
Brocade FastIron Web Management Interface User Guide, 08.0.50
34 53-1004462-01
TABLE 7 Description of the elds in the Stack Details window (continued)
Field Description
Stack-port1 Displays the port state and the port number for stack-port1. The port
states are as follows:
•up --Each end is connected.
•down --Port is congured as a stacking port, but not connected.
•none --Port is not congured as a stacking port.
Stack-port2 Displays the port state and the port number for stack-port2. The port
states are as follows:
•up --Each end is connected.
•down --Port is congured as a stacking port, but not connected.
•none --Port is not congured as a stacking port.
Stack Neighbors parameters
Unit ID Displays the number of the unit within a stack.
Stack-port1 Displays the neighbor stack unit for stack-port1 for this unit ID.
Stack-port2 Displays the neighbor stack unit for stack-port2 for this unit ID.
The Stack Details window provides links to congure the stack components:
• To change the stack settings, click General Stacking Conguration. For more information, refer to Conguring the general
settings for a traditional stack on page 87.
• To view the priority of units within a stack, click Congure Stack Priority. For more information, refer to Viewing stack
priority details on page 88.
• To congure a stack port, click Congure Stack Ports. For more information, refer to the “Modifying stack ports” section.
• To congure a stack module, click Congure Stack Modules. For more information, refer to the “Conguring a stack
module” section.
Displaying a stack module
To display current information about the stack unit modules, perform the following steps.
1. Click Monitor on the left pane and select Stack.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying a stack module
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 35
2. Click Module.

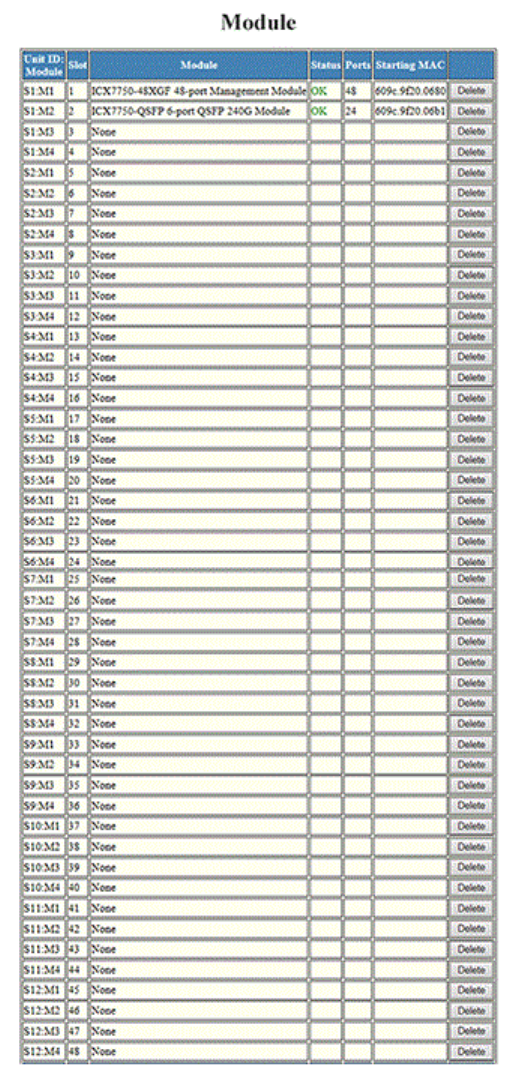

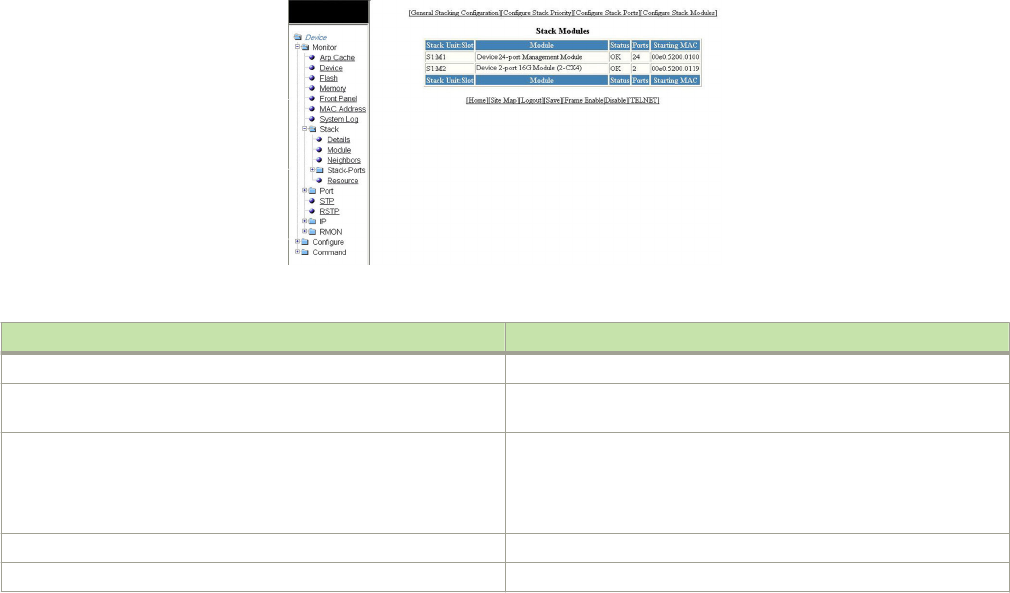

The Stack Modules window is displayed as shown in the gure below.
TABLE 8 Description of the elds in the Stack Modules window
Field Description
Stack Unit: Slot Displays the number of the unit within the stack and the slot number.
Module Displays the device information, such as module number and
module type.
Status Displays the status, which can be one of the following:
•OK -- The module came up and is operating normally.
•CFG --The module is congured, but does not physically exist
within the units of the stack.
Ports Displays the number of ports on the module.
Starting MAC Displays the starting MAC address for this module.
The Stack Modules window provides links to congure the stack components:
• To change the stack settings, click General Stacking Conguration. For more information, refer to Conguring the general
settings for a traditional stack on page 87.
• To congure the priority of units within a stack, click Congure Stack Priority. For more information, refer to the “Modifying
a stack priority” section.
• To congure a stack port, click Congure Stack Ports. For more information, refer to the “Modifying stack ports” section.
• To congure a stack module, click Congure Stack Modules. For more information, refer to the “Conguring Stack
Components” section.
Displaying stack neighbors
To display information of the stack member neighbors, perform the following steps.
1. Click Monitor on the left pane and select Stack.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying stack neighbors
Brocade FastIron Web Management Interface User Guide, 08.0.50
36 53-1004462-01
2. Click Neighbors.

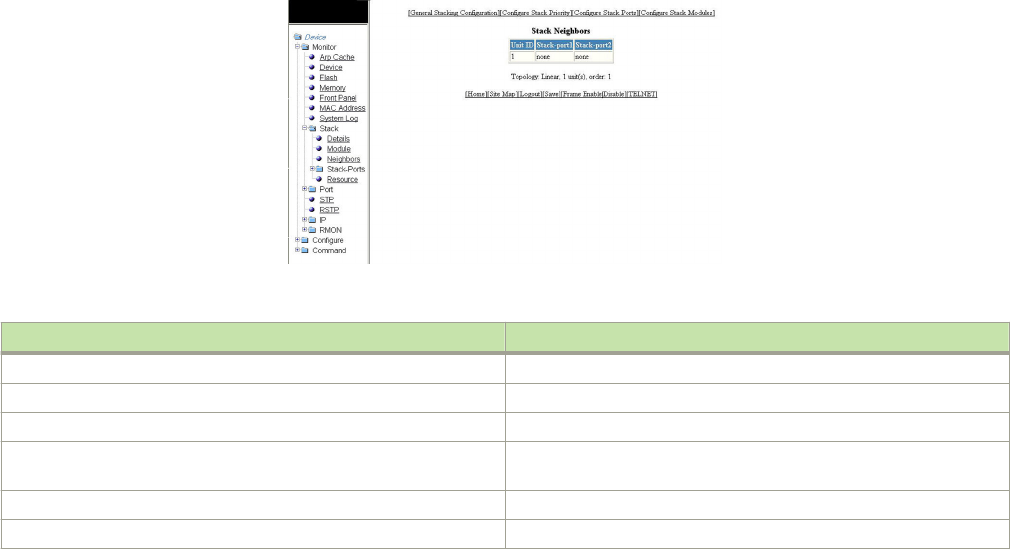

The Stack Neighbors window is displayed as shown in the gure below.
TABLE 9 Description of the elds in the Stack Neighbors window
Field Description
Unit ID Displays the number of the unit within the stack.
Stack-port1 Displays the neighbor stack unit for stack-port1 for this unit ID.
Stack-port2 Displays the neighbor stack unit for stack-port2 for this unit ID.
Topology Displays either Linear or Ring stack topology of the connected
devices.
unit(s) Displays the number of units within the stack.
order Displays the order of the unit IDs within the stack.
The Stack Neighbors window provides links to congure the stack components:
• To change the stack settings, click General Stacking Conguration . For more information, refer to Conguring the general
settings for a traditional stack on page 87.
• To congure the priority of units within a stack, click Congure Stack Priority . For more information, refer to the “Modifying
a stack priority” section.
• To congure a stack port, click Congure Stack Ports . For more information, refer to the “Modifying stack ports” section.
• To congure a stack module, click Congure Stack Modules . For more information, refer to “Conguring a stack module”
section.
Displaying stack ports information
To display the information of the stack ports, perform the following steps.
1. Click Monitor on the left pane and select Stack .
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying stack ports information
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 37
2. Click Stack-Ports and then select Status .

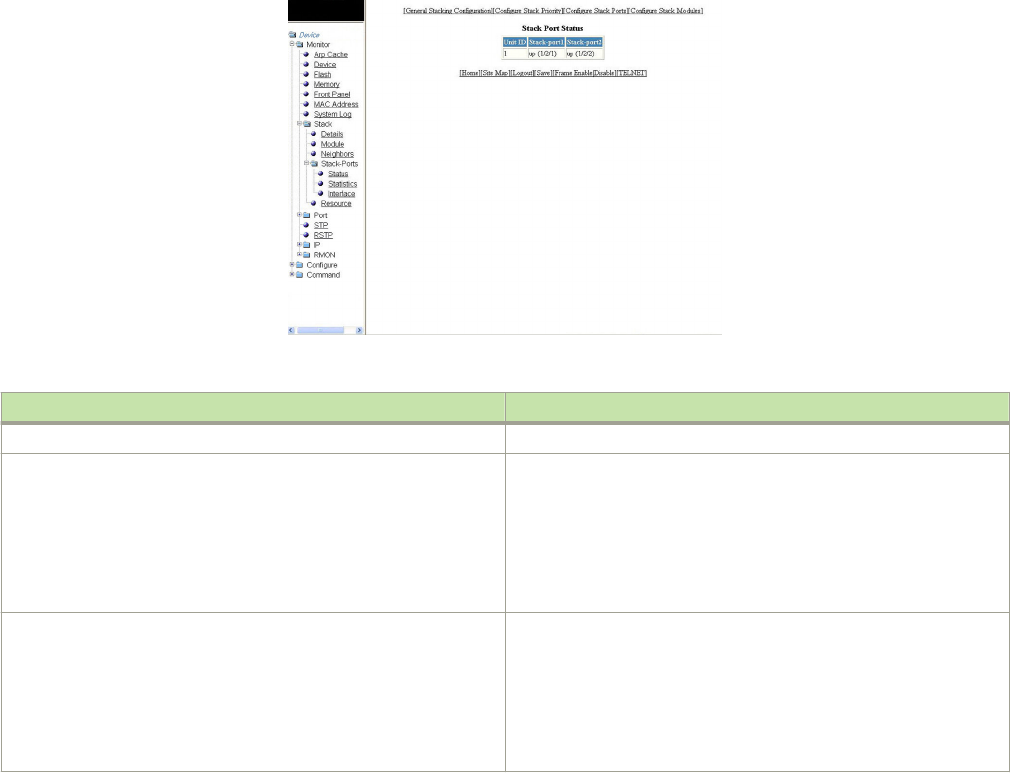

The Stack Port Status window is displayed as shown in the gure below.
FIGURE 15 Monitoring stack port status
TABLE 10 Description of the elds in the Stack Port Status window
Field Description
Unit ID Displays the number of the unit within the stack.
Stack-port1 Displays the port state and the port number for stack-port1 for this
unit ID.
The port states are as follows:
•up --Each end is connected.
•down --Port is congured as a stacking port, but not connected.
•none --Port is not congured as a stacking port.
Stack-port2 Displays the port state and the port number for stack-port2 for this
unit ID.
The port states are:
•up --Each end is connected.
•down --Port is congured as a stacking port, but not connected.
•none --Port is not congured as a stacking port.
The Stack Port Status window provides links to congure the stack components:
• To change the stack settings, click General Stacking Conguration . For more information, refer to Conguring the general
settings for a traditional stack on page 87.
• To view the priority of units within a stack, click Congure Stack Priority . For more information, refer to Viewing stack
priority details on page 88.
• To congure a stack port, click Congure Stack Ports . For more information, refer to Modifying stack ports on page 89.
• To congure a stack module, click Congure Stack Modules . For more information, refer to Conguring a stack module
on page 91.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying stack ports information
Brocade FastIron Web Management Interface User Guide, 08.0.50
38 53-1004462-01
Displaying stack port statistics
To display stack port information for all ports in an IronStack topology, perform the following steps.
1. Click Monitor on the left pane and select Stack .
2. Click Stack-Ports and then select Statistics .
The Stack Port Statistics window is displayed as shown in the gure below.

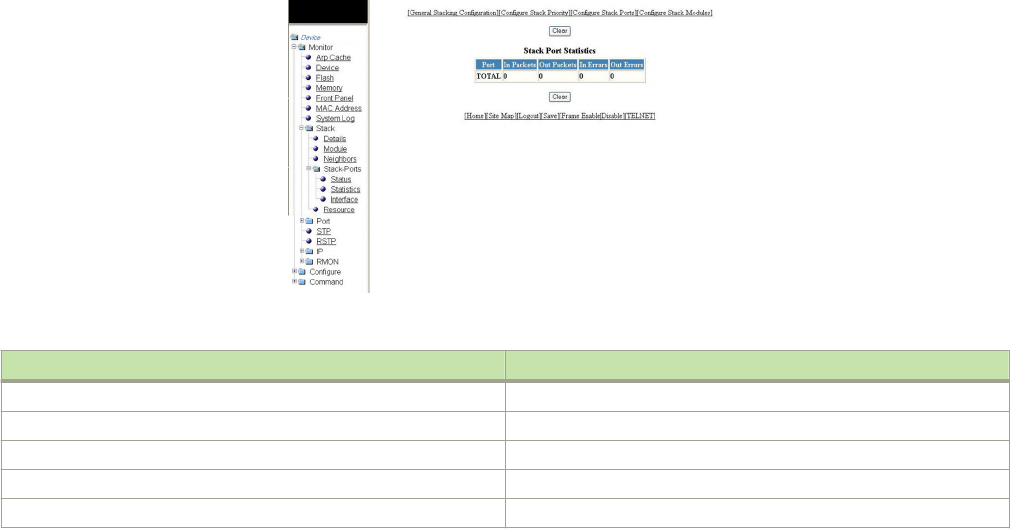

FIGURE 16 Monitoring stack port statistics
TABLE 11 Description of the elds in the Stack Port Statistics window
Field Description
Port Displays the stack identication number for this port.
In Packets Displays the number of incoming packets on this port.
Out Packets Displays the number of outgoing packets on this port.
In Errors Displays the number of errors on the incoming packets on this port.
Out Errors Displays the number of errors on the outgoing packets on this port.
To clear the information and begin a new monitoring cycle, click Clear . The Stack Port Statistics window provides links to
congure the stack components:
• To change the stack settings, click General Stacking Conguration . For more information, refer to Conguring the general
settings for a traditional stack on page 87.
• To view the priority of units within a stack, click Congure Stack Priority . For more information, refer to Viewing stack
priority details on page 88.
• To congure a stack port, click Congure Stack Ports . For more information, refer to Modifying stack ports on page 89.
• To congure a stack module, click Congure Stack Modules . For more information, refer to Conguring a stack module
on page 91.
Displaying stack port interfaces
To display information about stack port interfaces, perform the following steps.
1. Click Monitor on the left pane and select Stack .
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying stack port interfaces
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 39
2. Click Stack-Ports and then select Interface .
The Stack Port Interface window is displayed as shown in the gure below.
FIGURE 17 Monitoring stack port interfaces
TABLE 12 Description of the elds in the Stack Port Interface window
Field Description
Port Displays the stack identication number for this port.
Link Displays whether the link is up or down.
State Displays the state of the stack unit.
Duplex Displays whether the port is congured as half or full duplex.
Speed Displays the port speed as 10 Mbps, 100 Mbps, or 1000 Mbps.
Trunk Displays the trunk group number, if the port is a member of a trunk
group.
Tag Displays whether the port is tagged or untagged.
Priority Displays the port priority.
MAC Displays the MAC address of the port.
Name Displays the name assigned to the port.
The Stack Port Interface window provides links to congure the stack components:
• To change the stack settings, click General Stacking Conguration . For more information, refer to Conguring the general
settings for a traditional stack on page 87.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying stack port interfaces
Brocade FastIron Web Management Interface User Guide, 08.0.50
40 53-1004462-01
• To view the priority of units within a stack, click Congure Stack Priority . For more information, refer to Viewing stack
priority details on page 88.
• To congure a stack port, click Congure Stack Ports . For more information, refer to Modifying stack ports on page 89 .
• To congure a stack module, click Congure Stack Modules . For more information, refer to Conguring a stack module
on page 91.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying stack port interfaces
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 41
Brocade FastIron Web Management Interface User Guide, 08.0.50
42 53-1004462-01
Monitoring Ports
• Displaying Ethernet port statistics.............................................................................................................................................................. 43
• Displaying Ethernet port attributes.............................................................................................................................................................45
• Displaying Ethernet port utilization.............................................................................................................................................................47
• Displaying the management port information.......................................................................................................................................49
• Displaying port inline power for Brocade ICX devices.......................................................................................................................52
Displaying Ethernet port statistics
The ETHERNET Port Statistic window lists the total number of packets, number of collisions, and number of errors that have occurred
on a port. To display the Ethernet port statistics, perform the following steps.
1. Click Monitor on the left pane and select Port.
2. Click Statistic and then select Ethernet.

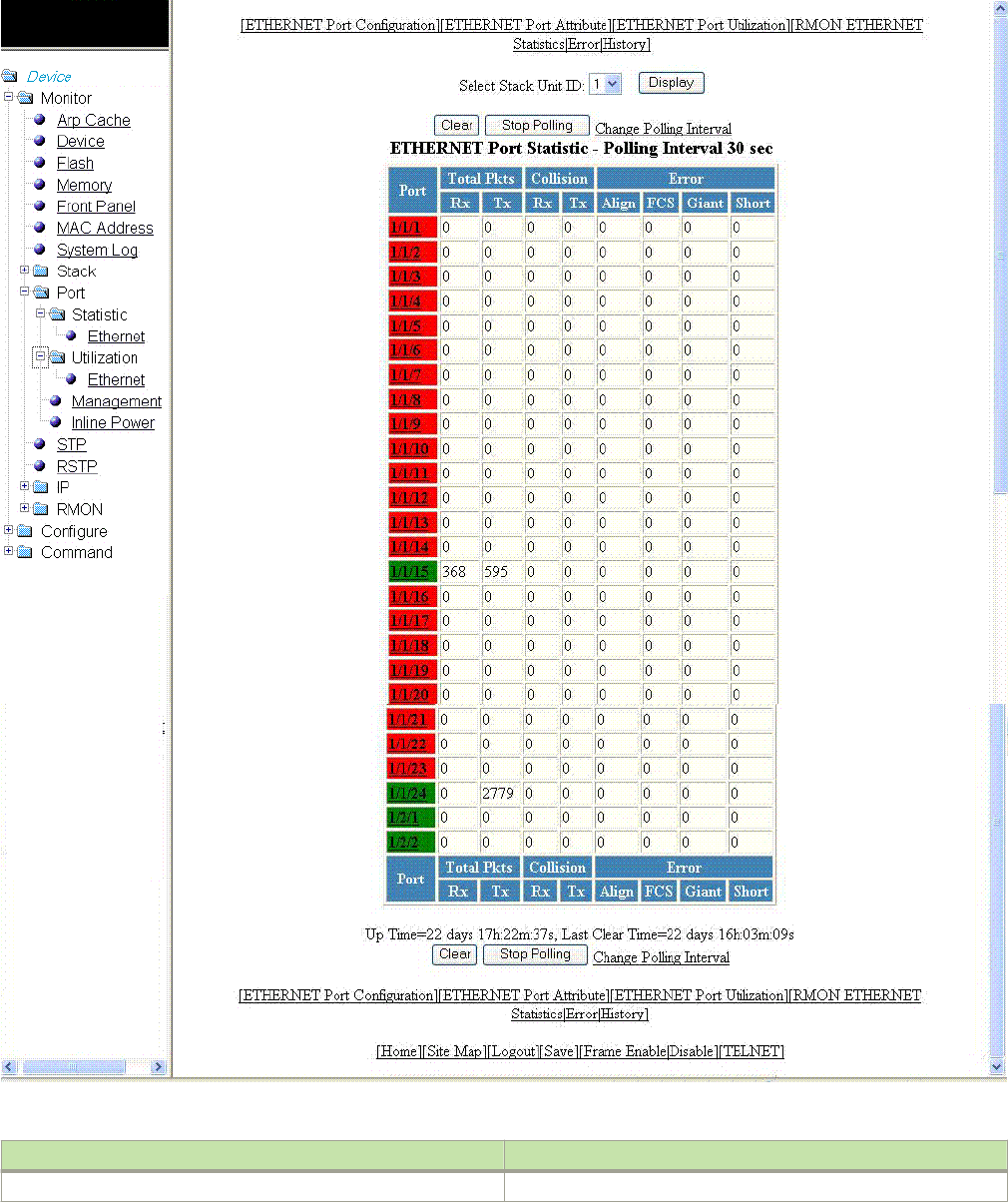

The ETHERNET Port Statistic window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 43
3. Select a unit ID in the Select Stack Unit ID list and click Display to view information about a specic stack unit.
TABLE 13 Description of the elds in the ETHERNET Port Statistic window
Field Description
Port Displays the port number for which the statistics were collected.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying Ethernet port statistics
Brocade FastIron Web Management Interface User Guide, 08.0.50
44 53-1004462-01
TABLE 13 Description of the elds in the ETHERNET Port Statistic window (continued)
Field Description
Total Packets Displays the total number of packets received (Rx) and transmitted
(Tx) on the port.
Collision Shows the number of received (Rx) and transmitted (Tx) collisions on
the port.
Error Displays the number of errors on the port for the following types:
•Alignment --Packets with frame alignment errors.
•FCS --Packets with frame check sequence errors.
•Giant --Packets that were longer than the congured MTU.
•Short -- Packets that were shorter than the minimum valid
length.
To remove the current data and restart the monitoring process, click Clear. To stop the polling process, click Stop Polling. You
can also change the current polling interval by clicking Change Polling Interval.
The ETHERNET Port Statistic window provides links to congure the port parameters:
• To congure an Ethernet port, click ETHERNET Port Conguration. For more information on how to congure an Ethernet
port, refer to the “Conguring an Ethernet port” section.
• To monitor the Ethernet port attributes, click ETHERNET Port Attribute. For more information, refer to the “Displaying
Ethernet port attributes” section.
• To monitor the Ethernet port utilization, click ETHERNET Port Utilization. For more information, refer to the “Displaying
Ethernet port utilization” section.
• To monitor Remote Monitoring (RMON) Ethernet statistics, click RMON ETHERNET Statistics Error. For more
information, refer to the “Displaying RMON Ethernet statistics” section.

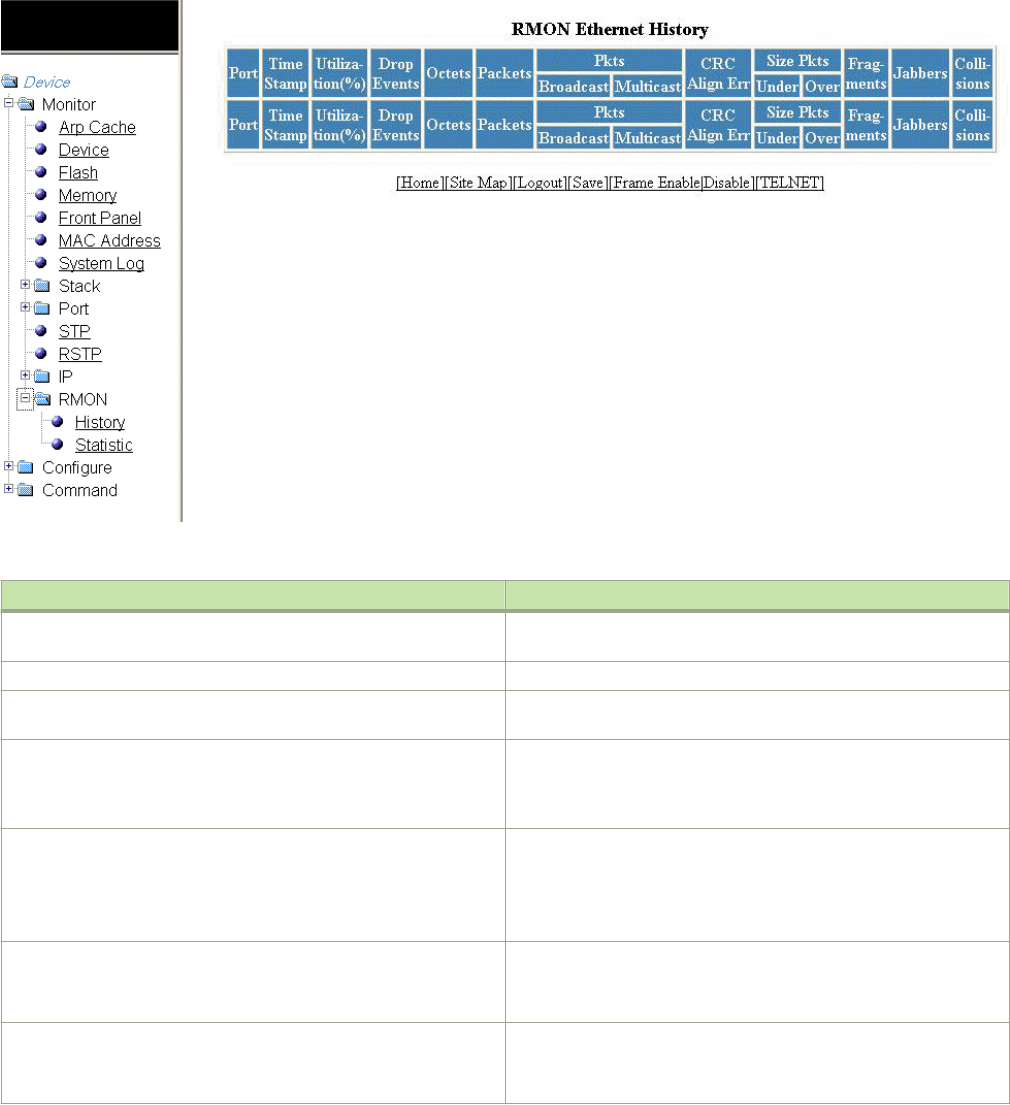

• To monitor RMON history, click RMON ETHERNET Statistics History. For more information, refer to the “Displaying
RMON history” section.
Displaying Ethernet port attributes
The Port Attributes window lists the number, state, media, connector, and MAC address of the port. To display the Ethernet port attribute
information, perform the following steps.
1. Click Monitor on the left pane and select Port .
2. Click Statistic and then select Ethernet .
3. Click ETHERNET Port Attribute on the ETHERNET Port Statistic window.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying Ethernet port attributes
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 45
4. Select a unit ID in the Select Stack Unit ID list and click Display to view information about a specic stack unit.
The Port Attributes window is displayed as shown in the gure below.
FIGURE 18 Monitoring Ethernet port attributes
TABLE 14 Description of the elds in the Port Attributes window
Field Description
Port Displays the port number.
State Displays the status of the port.
Media Displays the type of the Ethernet cable used.
Connector Displays the physical type of connector.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying Ethernet port attributes
Brocade FastIron Web Management Interface User Guide, 08.0.50
46 53-1004462-01
TABLE 14 Description of the elds in the Port Attributes window (continued)
Field Description
MAC Address Displays the Media Access Control (MAC) address of the port.
The Port Attributes window provides links to congure the port parameters:
• To congure an Ethernet port, click ETHERNET Port Conguration . For more information on how to congure an
Ethernet port, refer to Conguring an Ethernet port on page 135.
• To monitor the Ethernet port statistics, click ETHERNET Port Statistic . For more information, refer to Displaying Ethernet
port statistics on page 43.
• To monitor the Ethernet port utilization, click ETHERNET Port Utilization . For more information, refer to Displaying
Ethernet port utilization on page 47.
Displaying Ethernet port utilization
The ETHERNET Port Utilization window lists the trac that is received and transmitted on a port. To display the Ethernet port utilization
information, perform the following steps.
1. Click Monitor on the left pane and select Port.
2. Click Utilization and then select Ethernet.
The ETHERNET Port Utilization window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying Ethernet port utilization
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 47
3. Select a unit ID in the Select Stack Unit ID list and click Display to view information about a specic stack unit.

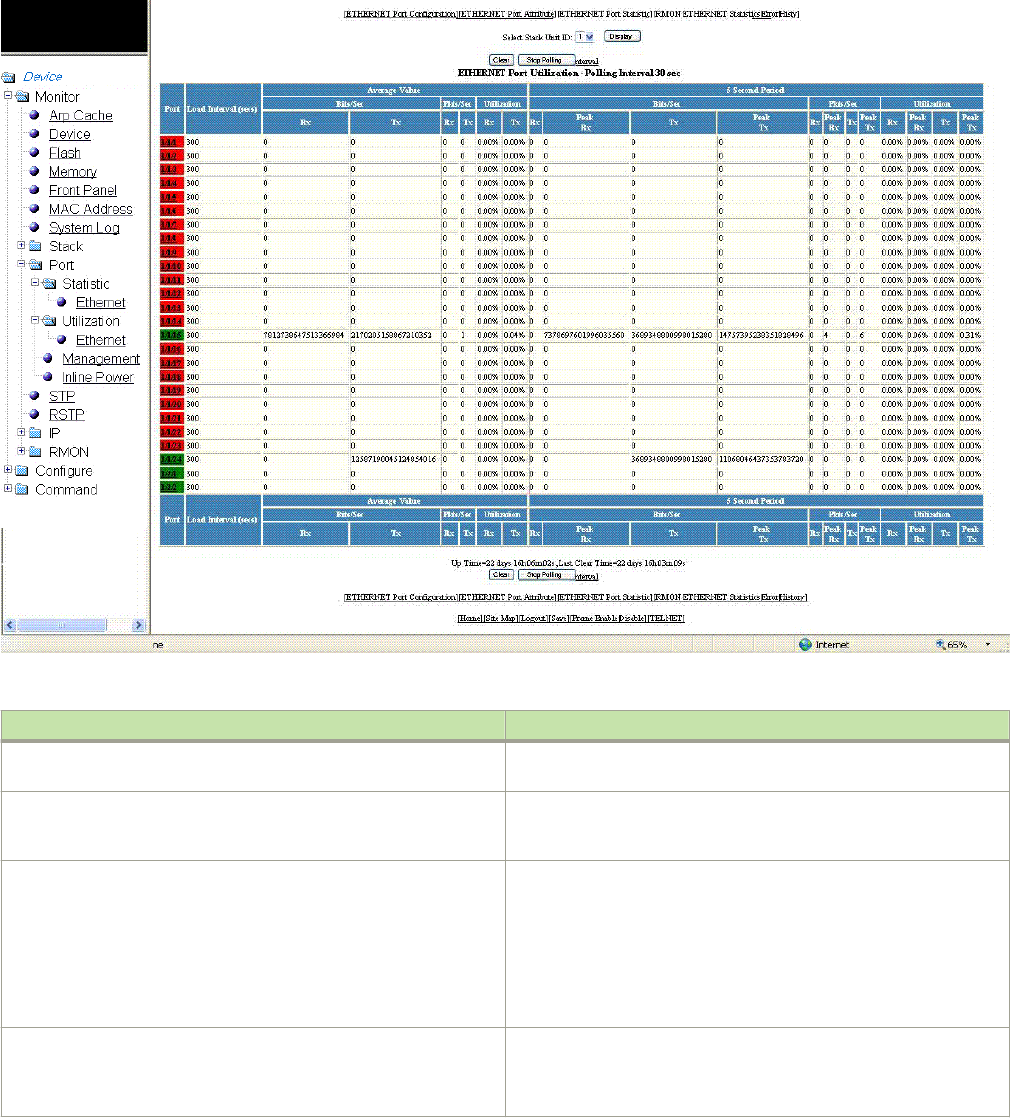

FIGURE 19 Ethernet port utilization
TABLE 15 Description of the elds in the ETHERNET Port Utilization window
Field Description
Port Displays the port number. Each entry has a link to detailed
information about the port.
Load Interval (secs) Displays the number of seconds for which average port utilization
should be calculated. This object can have a value from 30 through
300, in 30-second increments. The default value is 300 seconds.
Average Value Displays the following information:
•Bits/Sec --The average number of bits per second received and
transmitted on the port.
•Pkts/Sec --The average number of packets per second
received and transmitted on the port.
•Utilization -- The average percent utilization received and
transmitted on the port.
5 Second Period This set of columns show the number of bits per second (Bits/Sec),
number of packets per second (Pkts/Sec), and utilization
percentages (Utilization) received and transmitted on a port at each
5-second interval. Peak activities for each category are also provided.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying Ethernet port utilization
Brocade FastIron Web Management Interface User Guide, 08.0.50
48 53-1004462-01
To remove the current data and restart the monitoring process, click Clear . To stop the statistics polling process, click Stop
Polling. You can also change the current polling interval by clicking Change Polling Interval .
The ETHERNET Port Utilization window provides links to congure the port parameters:
• To congure an Ethernet port, click ETHERNET Port Conguration. For more information on how to congure an Ethernet
port, refer to Conguring an Ethernet port on page 135.
• To monitor the Ethernet port attributes, click ETHERNET Port Attribute. For more information, refer to the “Displaying
Ethernet port attributes” section.
• To monitor the Ethernet port statistics, click ETHERNET Port Statistic. For more information, refer to the “Displaying
Ethernet port statistics” section.
• To monitor Remote Monitoring (RMON) statistics, click RMON ETHERNET Statistics Error. For more information, refer to
the “Displaying RMON Ethernet statistics” section.
• To monitor RMON history, click RMON ETHERNET Statistics History . For more information, refer to the “Displaying
RMON history” section.
Displaying the management port information
To display the current management port conguration information, perform the following steps.
1. Click Monitor on the left pane and select Port.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying the management port information
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 49
2. Click Management.

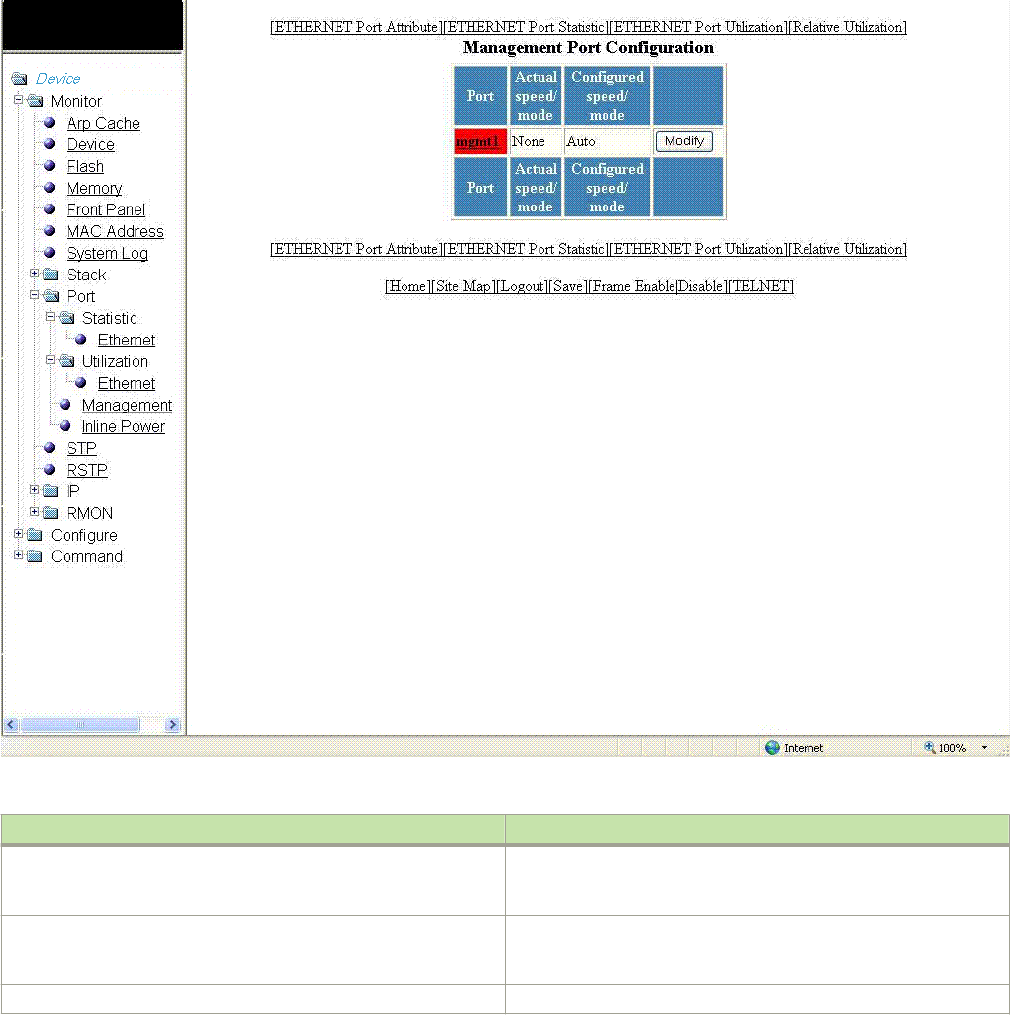

The Management Port Conguration window is displayed as shown in the gure below.
FIGURE 20 Management port conguration
TABLE 16 Description of the elds in the Management Port Conguration window
Field Description
Port Displays the name of the management port. Each entry has a link to
detailed real-time information about the port. Refer to the “Displaying
the management port real-time information” section.
Actual speed/mode Shows whether the actual speed matches the congured speed. If
the congured speed is set to Auto, then the speed is set by the
software.
Congured speed/mode The speed duplex set for the port.
To congure a management port or change the conguration of a current management port, click Modify. For more
information, refer to the “Conguring a management port” section.
The Management Port Conguration window provides links to congure the port parameters:
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying the management port information
Brocade FastIron Web Management Interface User Guide, 08.0.50
50 53-1004462-01
• To monitor the Ethernet port attributes, click ETHERNET Port Attribute. For more information, refer to the “Displaying
Ethernet port attributes” section.
• To monitor the Ethernet port statistics, click ETHERNET Port Statistic. For more information, refer to the “Displaying
Ethernet port statistics” section.
• To monitor the Ethernet port utilization, click ETHERNET Port Utilization. For more information, refer to the “Displaying
Ethernet port utilization” section.

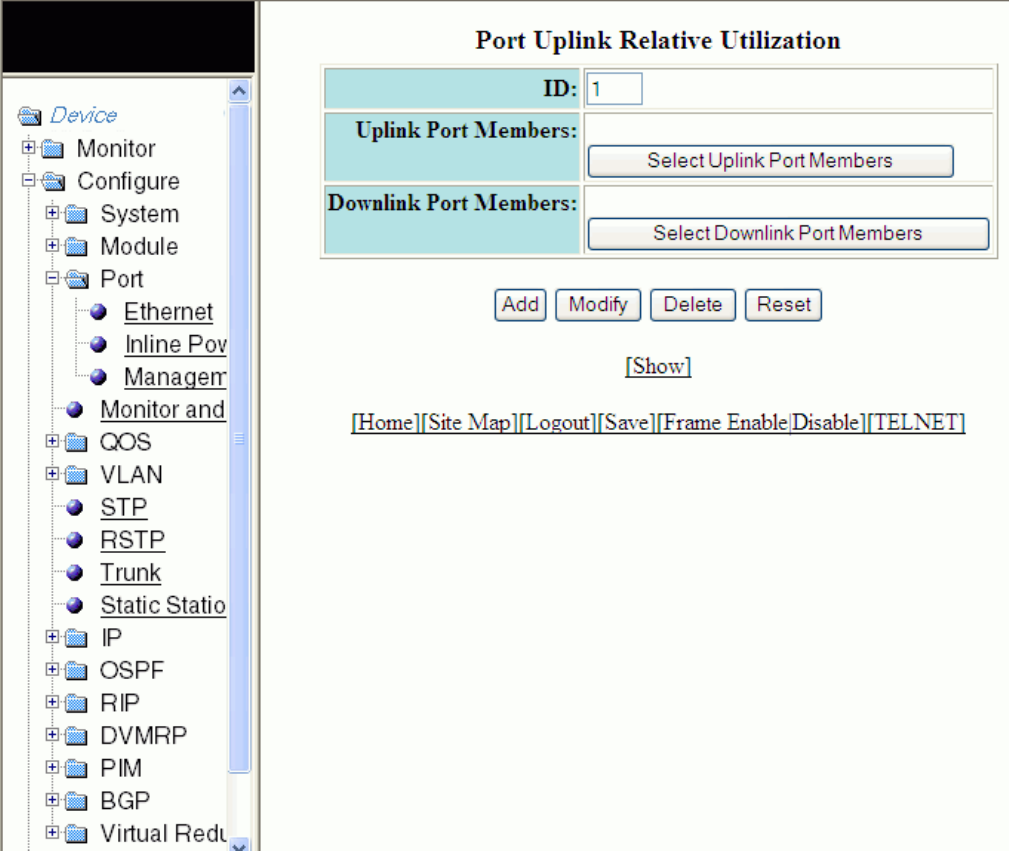

• To congure the port uplink utilization list, click Relative Utilization. For more information, refer to the “Conguring the port
uplink relative utilization” section.
Displaying the management port real-time information
To display the real-time information of a port, click on the management port (for example, mgmt1).

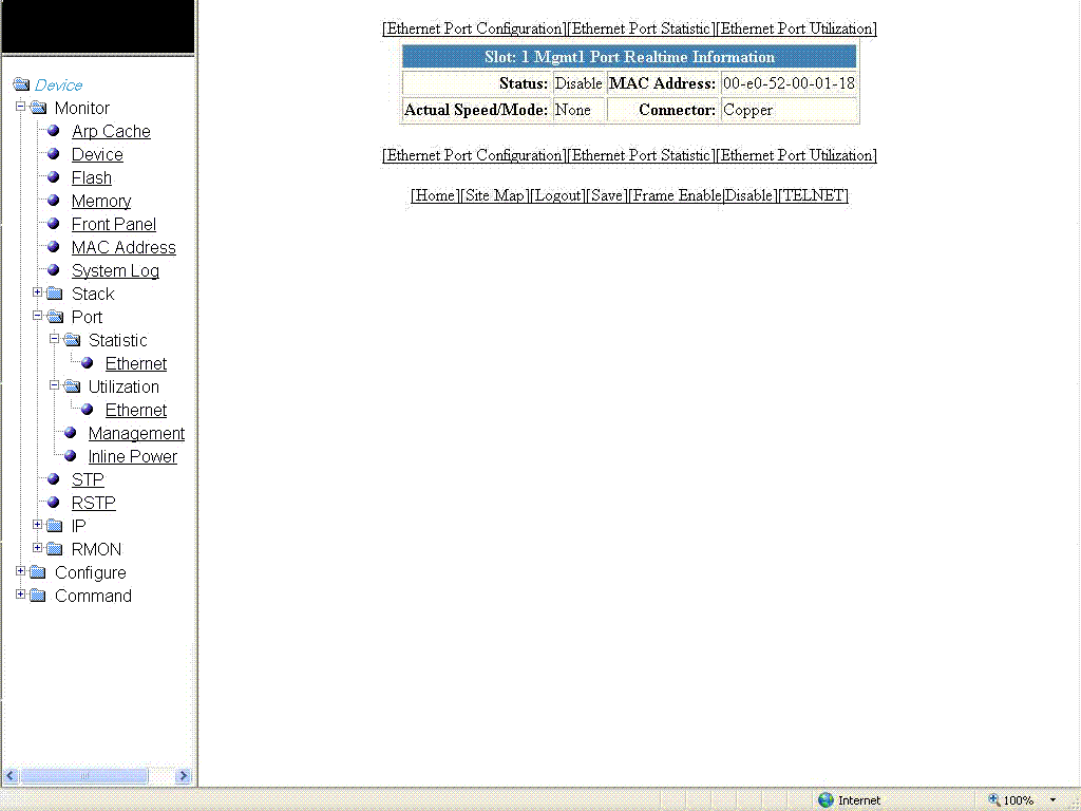

The Port Realtime Information window is displayed as shown in the gure below.
FIGURE 21 Monitoring management port real-time information
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying the management port information
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 51
TABLE 17 Description of the elds in the Port Realtime Information window
Field Description
Status Displays the status of the port.
MAC Address Displays the MAC address of the port.
Actual Speed/Mode Shows whether the actual speed matches the congured speed. If the
congured speed is set to Auto, then the speed is set by the software.
Connector Displays the physical type of connector.
The Port Realtime Information window provides links to congure the port parameters:
• To congure an Ethernet port, click ETHERNET Port Conguration. For more information on how to congure an Ethernet
port, refer to the “Conguring an Ethernet port” section.
• To monitor the Ethernet port statistics, click ETHERNET Port Statistic. For more information, refer to the “Displaying Ethernet
port statistics” section.
• To monitor the Ethernet port utilization, click ETHERNET Port Utilization. For more information, refer to the “Displaying
Ethernet port utilization” section .
Displaying port inline power for Brocade ICX devices
The port inline power statistics allow you to monitor Power over Ethernet (PoE), the ability to transfer electrical power and data to remote
devices over standard twisted-pair cable in an Ethernet network. To display the inline power statistics for a PoE stack device, perform the
following steps.
1. Click Monitor on the left pane and select Port.
2. Click Inline Power.
The port inline power window is displayed.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying port inline power for Brocade ICX devices
Brocade FastIron Web Management Interface User Guide, 08.0.50
52 53-1004462-01
3. Select a unit ID in the Select Stack POE Unit ID list and click either Inline Power Statistics or Inline Power Details.

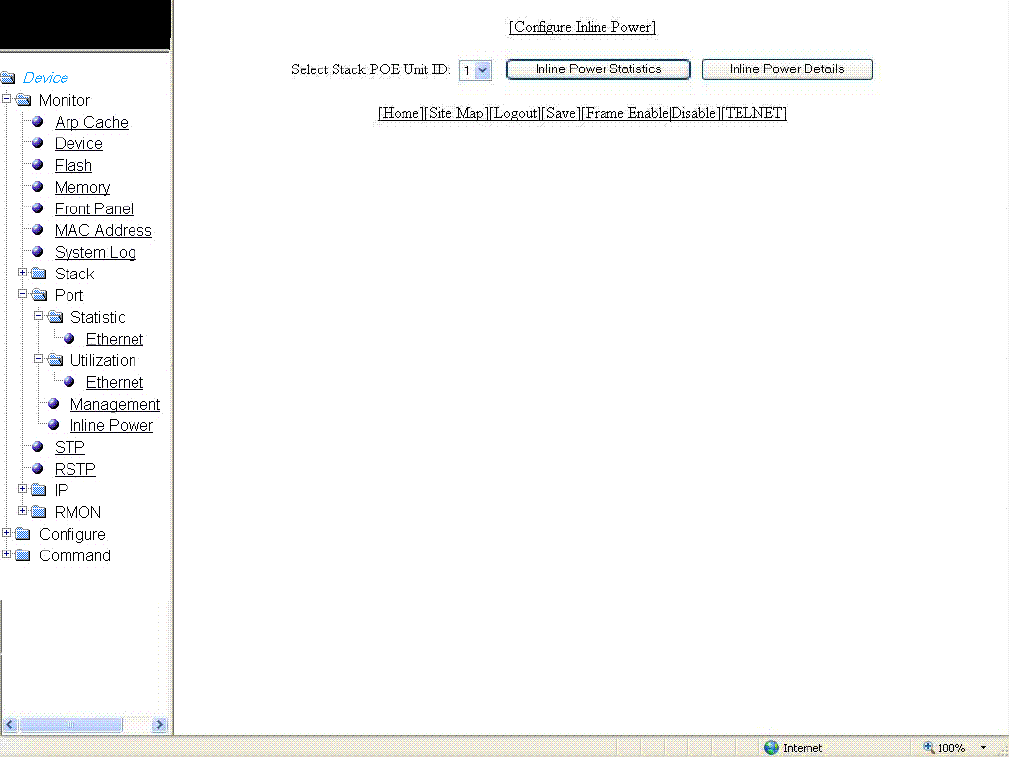

FIGURE 22 Monitoring inline power
NOTE
Only PoE-capable units are displayed in the Select Stack POE Unit ID list. If there are no PoE units, you will receive No
units with POE modules as an error message.
Displaying inline power details
To display the inline power details, select the unit ID in the Select Stack POE Unit ID list and click Inline Power Details .
The Inline Power Details window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying port inline power for Brocade ICX devices
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 53
FIGURE 23 Monitoring inline power details
TABLE 18 Description of the elds in the Inline Power Details window
Field Description
Cumulative Port State parameters
Stack Unit: Slot Displays the stack ID and slot ID (1 or 2).
The PoE-capable slots are available on PoE stack units.
# Ports Admin-On Displays the number of ports on the interface module on which the inline
power was congured.
# Ports Admin-O Displays the number of ports on the interface module on which the inline
power was not congured.
# Port Oper-On Displays the number of ports on the interface module that are receiving
inline power from the PoE power supply.
# Port Oper-O Displays the number of ports on the interface module that are not
receiving inline power from the PoE power supply.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying port inline power for Brocade ICX devices
Brocade FastIron Web Management Interface User Guide, 08.0.50
54 53-1004462-01
TABLE 18 Description of the elds in the Inline Power Details window (continued)
Field Description
# Ports O-Denied Displays the number of ports on the interface module that were denied
power because of insucient power.
# Ports O No-PD Displays the number of ports on the interface module to which no
powered devices (PDs) are connected.
# Ports O-Fault Displays the number of ports on the interface module that are not
receiving power because of a subscription overload.
Cumulative Port Data parameters
Stack Unit: Slot Displays the stack ID and slot ID (1 or 2).
The PoE-capable slots are available on PoE stack units.
# Ports Displays the total number of available ports in each level of priority.
Power Consumption in Watts Displays the total number of watts consumed by both PoE power-
consuming devices and the PoE module (daughter card) attached to the
interface module.
Power Allocation in Watts Displays the number of watts allocated to the interface module PoE ports.
This value is the sum of port default or congured maximum power levels,
or power classes automatically detected by the PoE device.

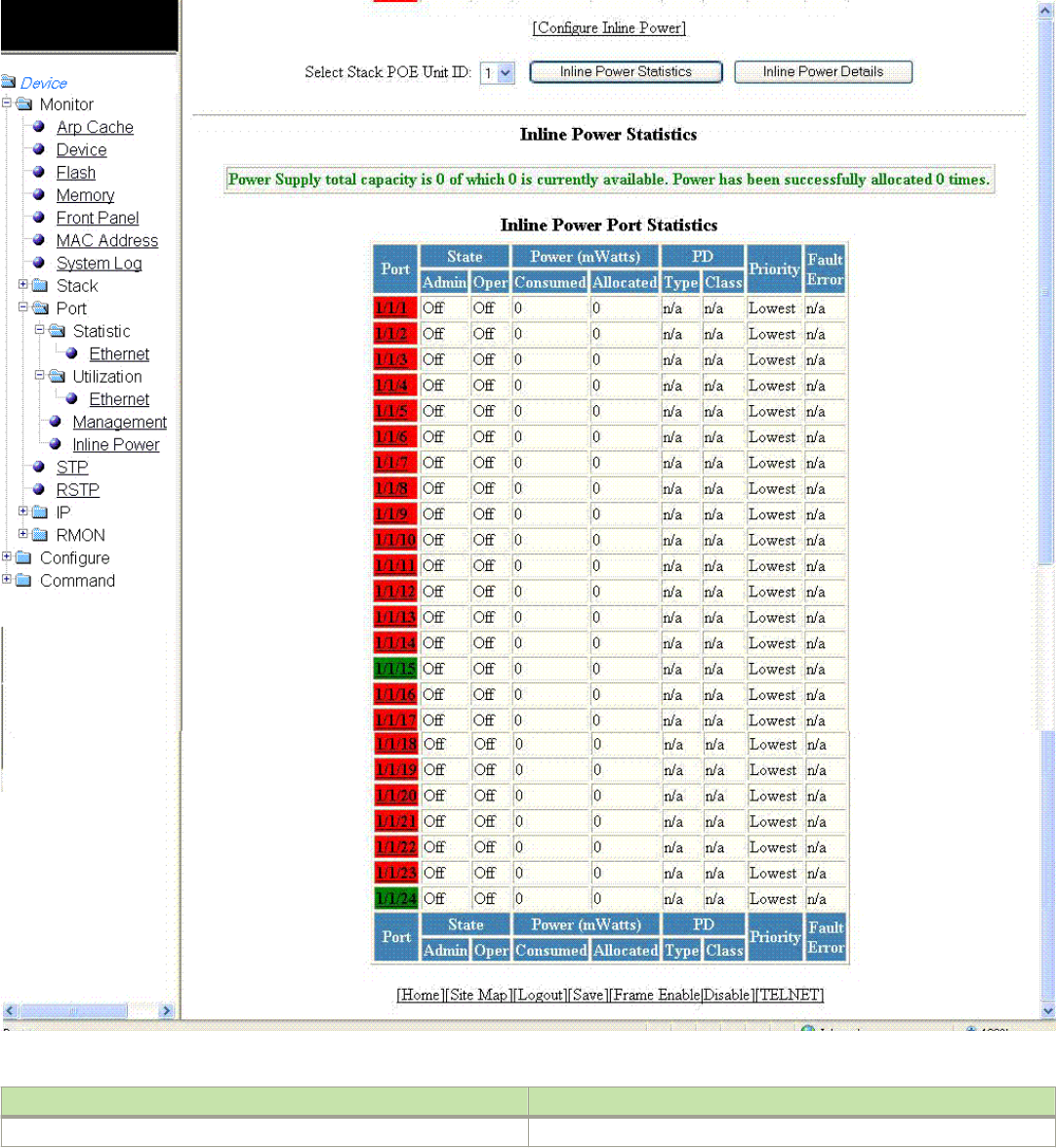

Displaying inline power statistics
To display the inline power statistics, select the unit ID in the Select Stack POE Unit ID list and click Inline Power Statistics .
The Inline Power Statistics window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying port inline power for Brocade ICX devices
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 55
FIGURE 24 Monitoring inline power statistics
TABLE 19 Description of the elds in the Inline Power Statistics window
Field Description
Port Displays the stack port identication of the port as stack#/slot#/port#.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying port inline power for Brocade ICX devices
Brocade FastIron Web Management Interface User Guide, 08.0.50
56 53-1004462-01
TABLE 19 Description of the elds in the Inline Power Statistics window (continued)
Field Description
State: Admin Species whether PoE has been enabled on the port, using one of the
following values:
•ON --The inline power command was issued on the port.
•OFF --The inline power command has not been issued on the
port.
State: Oper Displays the status of inline power on the port, using one of the following
values:
•ON --The PoE power supply is delivering inline power to the
powered device.
•OFF --The PoE power supply is not delivering inline power to
the powered device.
•DENIED --The port is in standby mode waiting for power
because currently there is not enough available power for the
port.
Power (mWatts) Consumed Displays the amount of current (milliwatts) the powered device is
consuming.
Power (mWatts) Allocated Displays the amount of current (milliwatts) allocated to the port. This value
is either the default or congured maximum power level, or the power
class that was automatically detected.
PD Type Displays the type of powered device connected to the port. This value can
be one of the following:
•802.3at --The PD connected to this port is 802.3at-compliant.
•802.3af --The PD connected to this port is 802.3af-compliant.
•LEGACY --The powered device connected to this port is a
legacy product (not 802.3af-compliant).
•n/a-- One of the following is true:
– The device connected to this port is a non-powered device.
– No device is connected to this port.
– The port is in standby or denied mode (waiting for power).
PD Class Displays the maximum amount of power received by a powered device.
This value can be one of the following:
•Class1 --Receives 4 watts maximum.
•Class2 --Receives 7 watts maximum.
•Class3 --Receives 15.4 watts maximum.
•Class 4 --Receives 30 watts maximum.
•n/a --The device attached to the port cannot advertise its class.
Priority Displays the inline power priority of the port, which determines the order in
which the port receives power while in standby mode (waiting for power).
Ports with a higher priority receive power before ports with a low priority.
The value of priority can be one of the following:
•1 --Critical priority
•2 --High priority
•3 --Low priority
Fault Error Displays the fault or error that occurred on the port, if applicable.
Otherwise, n/a is displayed. The value can be one of the following:
•critical temperature --The PoE chip temperature limit rose
above the safe operating level, thereby powering down the port.
•detection failed --The port failed capacitor detection (legacy PD
detection) because of a discharged capacitor. This can occur
when connecting a non-PD on the port.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying port inline power for Brocade ICX devices
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 57
TABLE 19 Description of the elds in the Inline Power Statistics window (continued)
Field Description
•detection failed --The port failed capacitor detection (legacy PD
detection) because of an out-of-range capacitor value. This can
occur when connecting a non-PD on the port.
•internal h/w fault --A hardware problem has hindered port
operation.
•lack of power --The port has shut down due to lack of power.
•main supply voltage high --The voltage was higher than the
maximum voltage limit, thereby tripping the port.
•main supply voltage low --The voltage was lower than the
minimum voltage limit, thereby tripping the port.
•overload state --The PD consumed more power than the
maximum limit congured on the port, based on the default
conguration, user conguration, or CDP conguration.
•over temperature --The port temperature rose above the
temperature limit, thereby powering down the port.
•PD DC fault --A succession of underload and overload states,
or a PDDC/DC fault, caused the port to shutdown.
•short circuit --A short circuit was detected on the port delivering
power.
•underload state --The PD consumes less power than the
minimum limit specied in the 802.3af standard.
•voltage applied from ext src --The port failed capacitor
detection (legacy PD detection) because the voltage applied to
the port was from an external source.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying port inline power for Brocade ICX devices
Brocade FastIron Web Management Interface User Guide, 08.0.50
58 53-1004462-01
Monitoring STP
• Displaying STP information.......................................................................................................................................................................... 59
Displaying STP information
Brocade Layer 2 switches and Layer 3 switches support standard Spanning Tree Protocol (STP) as described in the IEEE 802.1D
specication. By default, STP is enabled on Layer 2 switches and disabled on Layer 3 switches. To display the STP information, perform
the following steps.
1. Click Monitor on the left pane and select STP .
By default, STP is disabled on Layer 3 switches and therefore the message STP is disabled. Go to system to
enable STP is displayed.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 59
2. Select a unit ID in the Select Stack Unit ID list and click Display to view information about a specic stack unit.
The STP window is displayed as shown in the gure below.

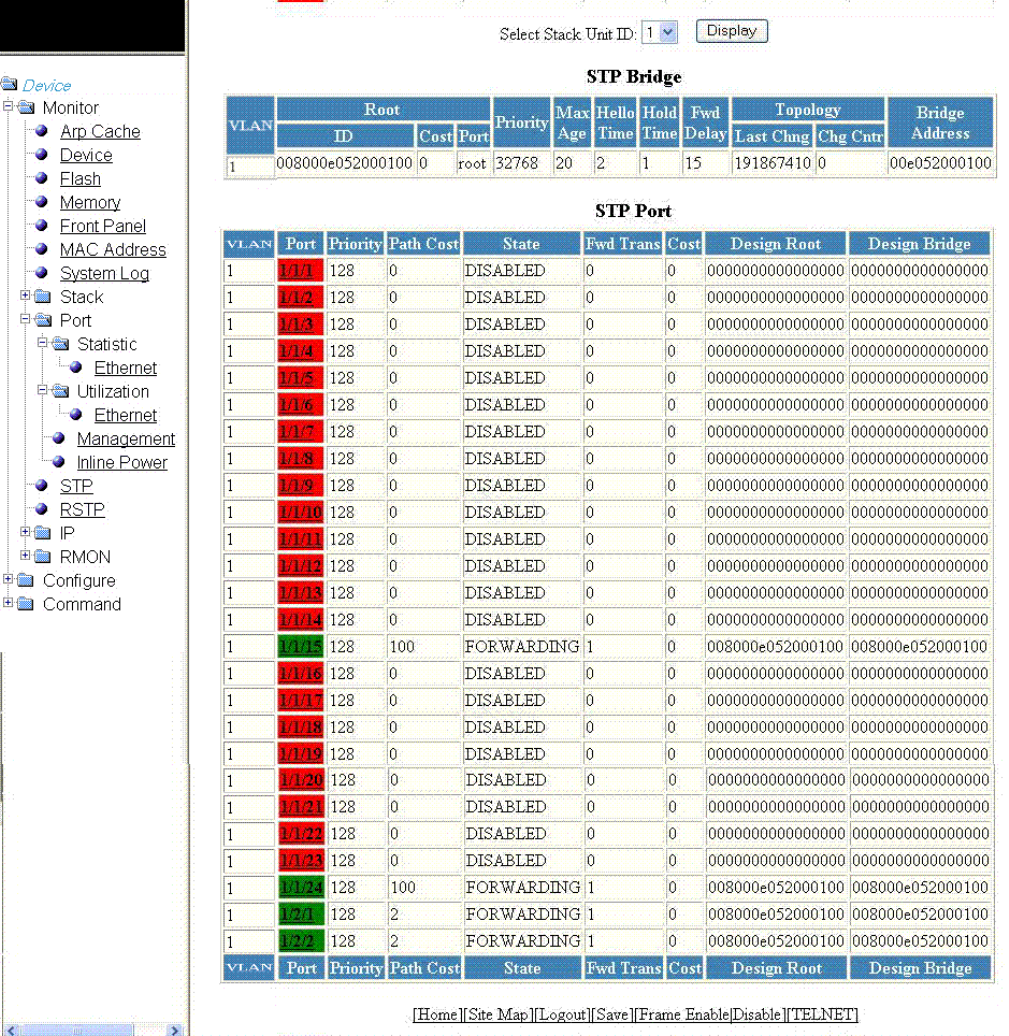

FIGURE 25 Monitoring the STP bridge and port
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying STP information
Brocade FastIron Web Management Interface User Guide, 08.0.50
60 53-1004462-01
TABLE 20 Description of the elds in the STP window
Field Description
STP Bridge parameters (global parameters)
VLAN Displays the port-based virtual local area network (VLAN) that
contains this spanning tree (instance of STP). VLAN 1 is the default
VLAN. If you have not congured port-based VLANs on this device,
all STP information is for VLAN 1.
Root ID Displays the ID assigned by STP to the root bridge for this spanning
tree.
Root Cost Displays the cumulative cost from this bridge to the root bridge. If
this device is the root bridge, then the root cost is 0.
Root Port Displays the port on this device that connects to the root bridge. If
this device is the root bridge, then the value is root instead of a port
number.
Priority Displays the STP priority of this device or VLAN. The value is shown
in hexadecimal format.
Max Age Displays the number of seconds this device or VLAN waits for a
Hello message from the root bridge before deciding that the root has
become unavailable and performing a reconvergence.
Hello Time Displays the interval between each conguration Bridge Packet Data
Unit (BPDU) sent by the root bridge.
Hold Time Displays the minimum number of seconds that must elapse between
transmissions of consecutive conguration BPDUs on a port.
Fwd Delay Displays the number of seconds this device or VLAN waits following
a topology change and consequent reconvergence.
Topology Last Chng Displays the number of seconds since the last time a topology
change occurred.
Topology Chg Cntr Displays the number of times the topology has changed since the
device was reloaded.
Bridge Address Displays the STP address of this device or VLAN.
STP Port parameters
VLAN Displays the VLAN that the port is in. This eld displays only when
port VLAN is enabled.
Port Displays the port number - stack-unit/slotnum/portnum.
Priority Displays the STP priority of the port in hexadecimal format.
Path Cost Displays the STP path cost of the port.
State Displays the STP state of the port. The state can be one of the
following:
•BLOCKING --STP has blocked Layer 2 trac on this port to
prevent a loop. The device or VLAN can reach the root bridge
using another port, whose state is FORWARDING. When a port
is in the BLOCKING state, the port does not transmit or receive
user frames, but the port does continue to receive STP BPDUs.
•DISABLED --The port is not participating in STP. This can
occur when the port is disconnected or STP is disabled on the
port.
•FORWARDING --STP is allowing the port to send and receive
frames.
•LISTENING --STP is responding to a topology change and this
port is listening for a BPDU from neighboring bridges in order
to determine the new topology. No frames are transmitted or
received during this state.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying STP information
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 61
TABLE 20 Description of the elds in the STP window (continued)
Field Description
•LEARNING --The port has passed through the LISTENING
state and will change to the BLOCKING or FORWARDING
state depending on the results of STP’s reconvergence. The
port does not transmit or receive frames during this state.
However, the device can learn the MAC addresses of frames
that the port receives during this state and make corresponding
entries in the MAC table.
Fwd Trans Displays the number of times STP has changed the state of this port
between BLOCKING and FORWARDING.
Cost Displays the cost to the root bridge as advertised by the designated
bridge that is connected to this port. If the designated bridge is the
root bridge itself, then the cost is 0.
Design Root Displays the root bridge as recognized on this port. The value is the
same as the root bridge ID listed in the Root ID eld.
Design Bridge Displays the designated bridge to which this port is connected. The
designated bridge is the device that connects the network segment
on the port to the root bridge.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying STP information
Brocade FastIron Web Management Interface User Guide, 08.0.50
62 53-1004462-01
Monitoring RSTP
• Displaying RSTP information....................................................................................................................................................................... 63
Displaying RSTP information
To view current Rapid Spanning Tree Protocol (RSTP) information for a device, you must congure RSTP. For more information on how
to congure RSTP, refer to Monitoring RSTP on page 63. By default, RSTP is enabled on Layer 2 switches and disabled on Layer 3
switches.
To display RSTP bridge and port information, click Monitor on the left pane and select RSTP .
The RSTP window is displayed as shown in the gure below. Select a Unit ID from the Select Unit ID list and click Display to view the
RSTP parameters of a specic port.

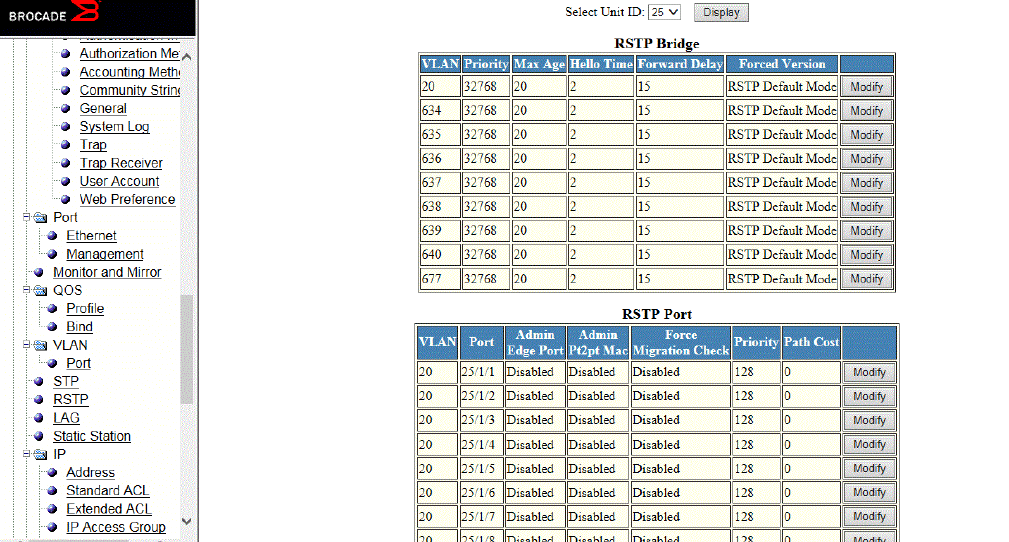

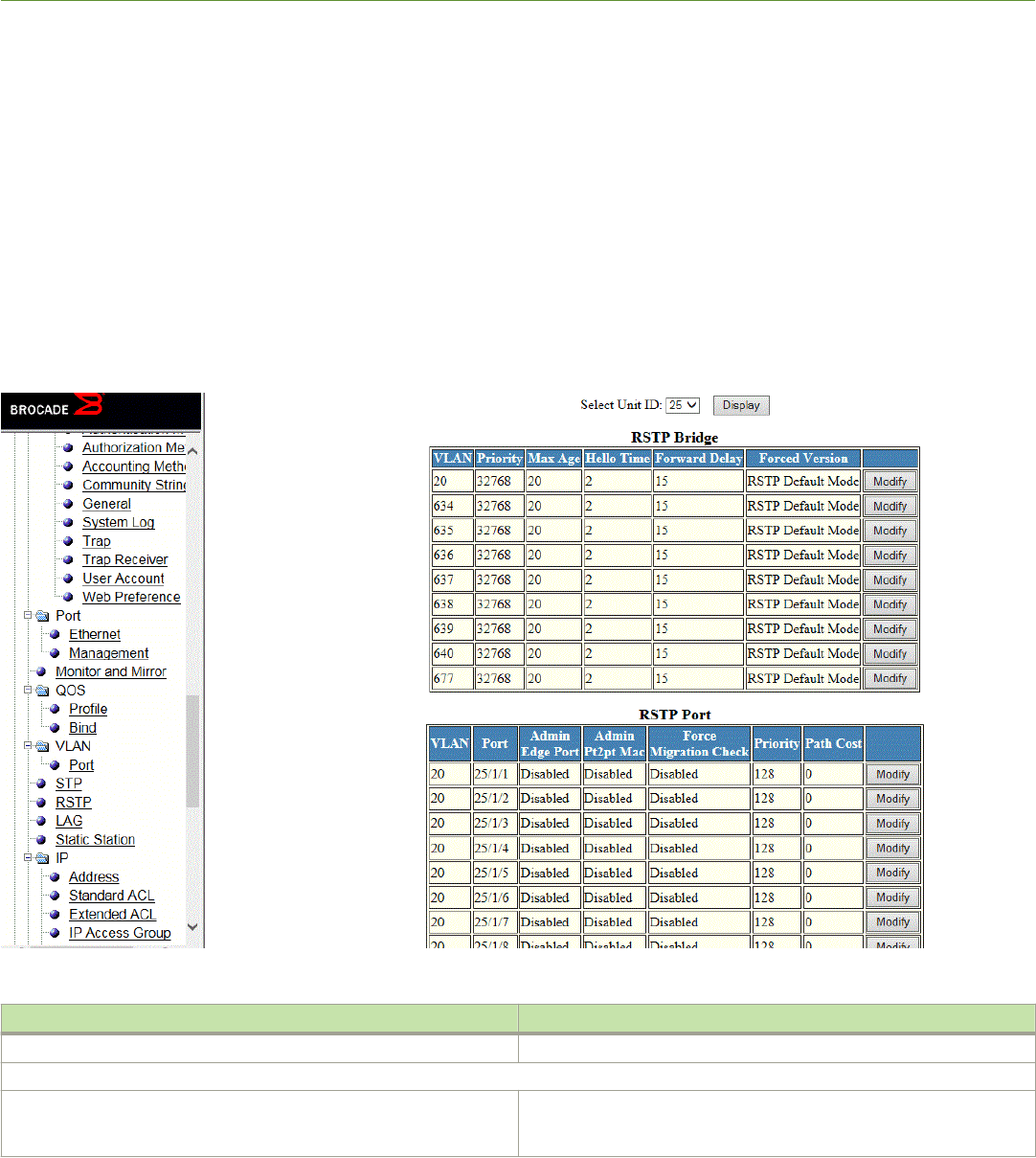

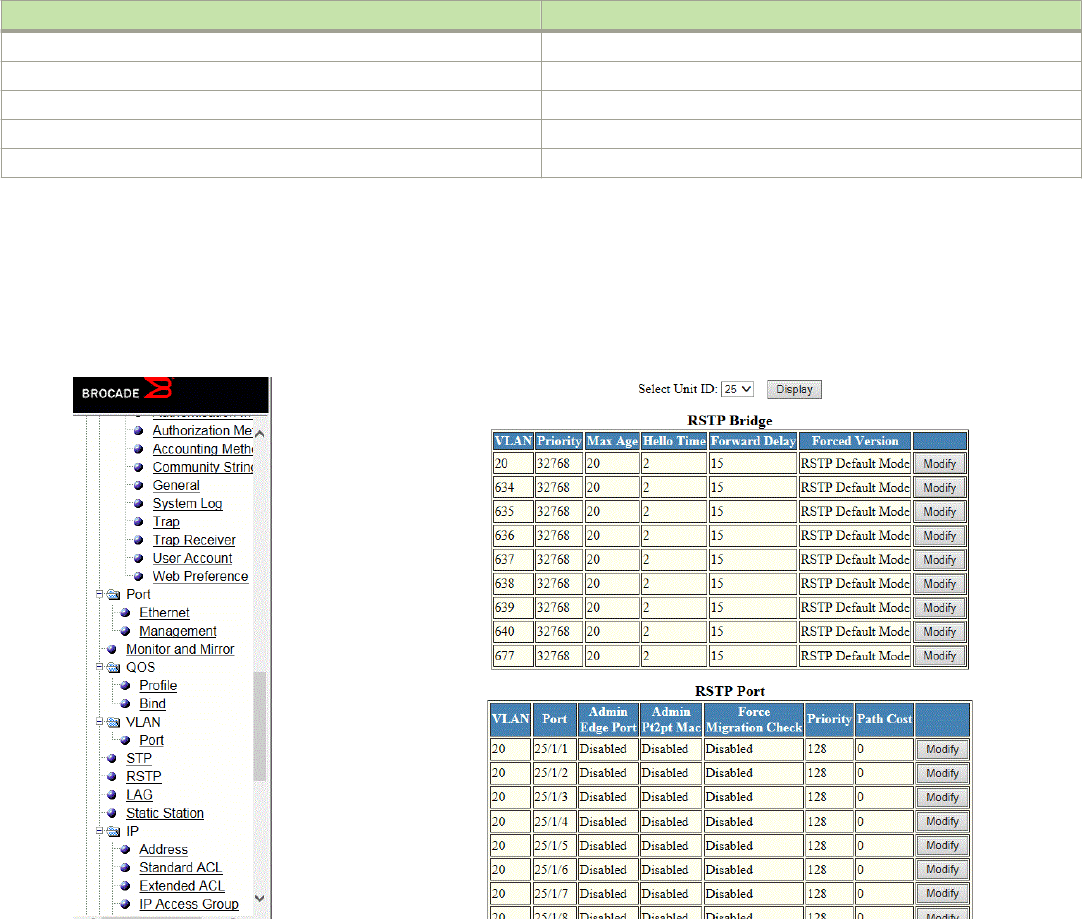

FIGURE 26 Monitoring the RSTP bridge and port
TABLE 21 Description of the elds in the RSTP window
Field Description
Select Unit ID
RSTP Bridge parameters
VLAN Displays the port-based VLAN that owns the STP instance. VLAN 1 is the
default VLAN. If you have not congured port-based VLANs on this
device, all RSTP information is for VLAN 1.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 63
TABLE 21 Description of the elds in the RSTP window (continued)
Field Description
Priority Displays the congured priority.
Max.Age Displays the number of seconds this device or VLAN waits for a Hello
message from the root bridge before deciding the root has become
unavailable and performing a reconvergence.
Hello Time Displays the duration (secs) between two Hello packets.
Forward Delay Displays the number of seconds a non-edge designated port waits until it
can apply any of the following transitions, if the received RST BPDU does
not have an agreed ag:
• Discarding state to learning state
• Learning state to forwarding state
When a non-edge port receives the RST BPDU, it goes into forwarding
state within 4 seconds or after two hello timers expire on the port.
Forward delay is also the number of seconds that a root port waits for an
RST BPDU with a proposal ag before it applies the state transitions listed
above.
If the port is operating in 802.1D-compatible mode, then forward delay
functionality is the same as in 802.1D (STP).
Forced Version Displays the congured force version value, which can be one of the
following:
•0 --The bridge has been forced to operate in an STP
compatibility mode.
•2 --The bridge has been forced to operate in an RSTP mode.
This is the default.
RSTP Port parameters
VLAN Displays the port-based VLAN that owns the STP instance. VLAN 1 is the
default VLAN. If you have not congured port-based VLANs on this
device, all RSTP information is for VLAN 1.
Port Displays the port number - stack-unit/slotnum/portnum.
Admin Edge Port Displays whether the port is congured as an operational edge port:
•T --The port is congured as an edge port.
•F --The port is not congured as an edge port. This is the
default.
Admin Pt2pt Mac Displays whether the point-to-point-MAC parameter is congured to be a
point-to-point link:
•T -- The link is congured as a point-to-point link.
•F --The link is not congured as a point-to-point link. This is the
default.
Force Migration Check Displays whether the port is enabled or disabled to forcefully send one
RST BPDU. If only STP BPDUs are received in response to the send RST
BPDU, then the port will return to sending STP BPDUs.
Priority Displays the congured priority of the port. The default is 128 or 0x80.
Path Cost Displays the congured path cost on a link connected to this port.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying RSTP information
Brocade FastIron Web Management Interface User Guide, 08.0.50
64 53-1004462-01
Monitoring IP
• Displaying IP cache...........................................................................................................................................................................................65
• Displaying IP trac information for devices running Layer 2 code..............................................................................................67
• Displaying IP trac information for devices running Layer 3 code..............................................................................................71
Displaying IP cache
NOTE
The IP cache is specic to Brocade ICX devices running Layer 3
code.
To display the IP forwarding cache information, perform the following steps.
1. Click Monitor on the left pane and select IP .
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 65
2. Click Cache .

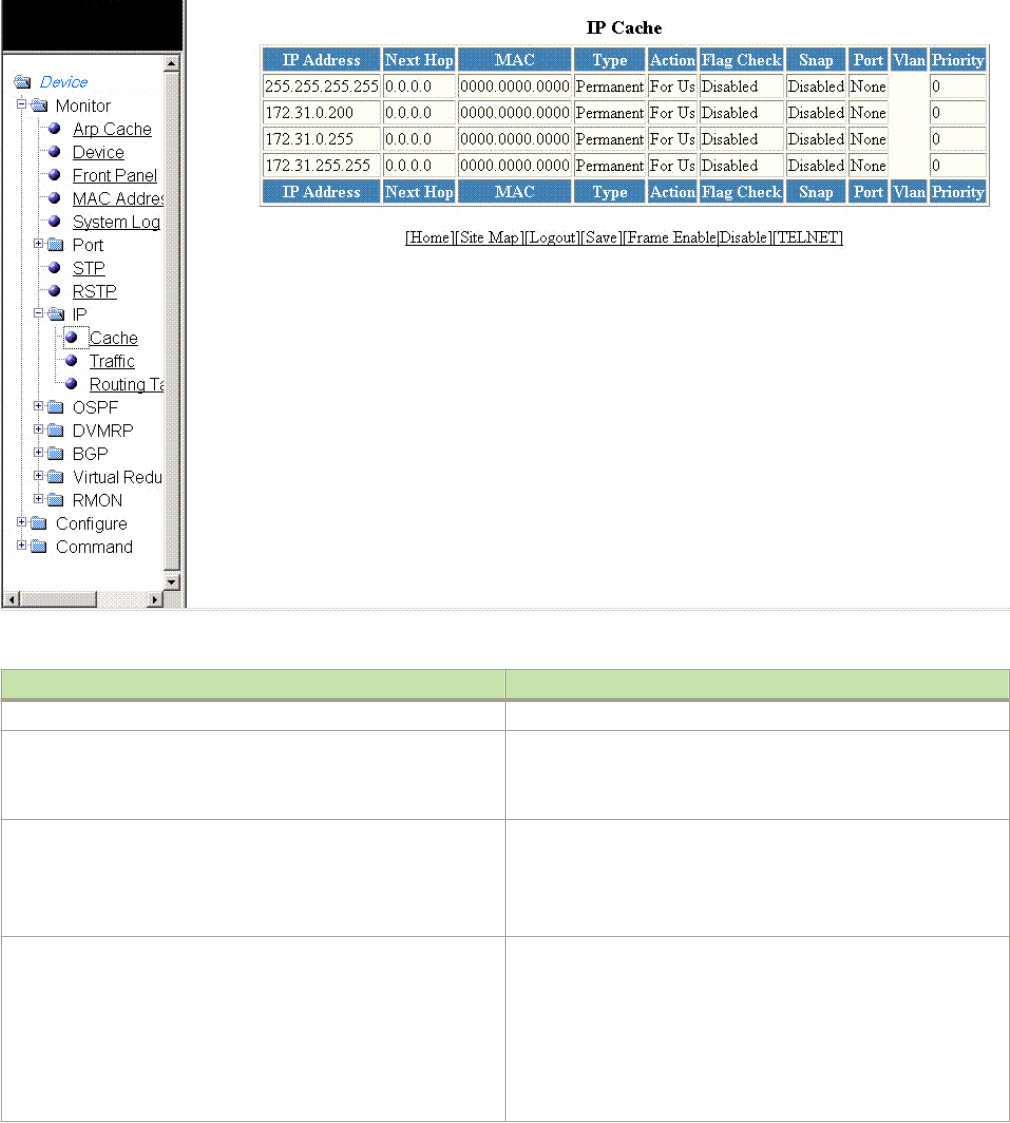

The IP Cache window is displayed as shown in the gure below.
FIGURE 27 Monitoring the IP cache
TABLE 22 Description of the elds in the IP Cache window
Field Description
IP Address Displays the IP address of the destination.
Next Hop Displays the IP address of the next hop router to the destination. This
eld contains either an IP address or the value DIRECT. DIRECT
means the destination is either directly attached or the destination is
an address on this Brocade device.
MAC Displays the MAC address of the destination.
NOTE
If the entry is type Us (indicating that the destination is this
Brocade device), the address consists of zeroes.
Type Displays the type of host entry, which can be one of the following:
•Dynamic
•Permanent
•Forward
•Us
•Complex Filter
•Wait ARP
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying IP cache
Brocade FastIron Web Management Interface User Guide, 08.0.50
66 53-1004462-01
TABLE 22 Description of the elds in the IP Cache window (continued)
Field Description
•ICMP Deny
•Drop
•Fragment
•Snap Encap
Action Displays the action the router takes for the packet.
Flag Check Displays whether the ag check has been enabled or disabled.
Snap Displays whether the snap encapsulation has been enabled or
disabled.
Port Displays the port through which this device reaches the destination.
For destinations that are located on this device, the port number is
shown as "n/a".
Vlan Displays the VLAN the port is in.
Priority Displays the Quality of Service (QoS) priority of the port or the VLAN.
Displaying IP trac information for devices running
Layer 2 code
To display the IP trac statistics for Brocade ICX devices running Layer 2 code, perform the following steps.
1. Click Monitor on the left pane and select IP.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying IP trac information for devices running Layer 2 code
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 67
2. Click Trac.
The IP Trac window is displayed as shown in the gure below.

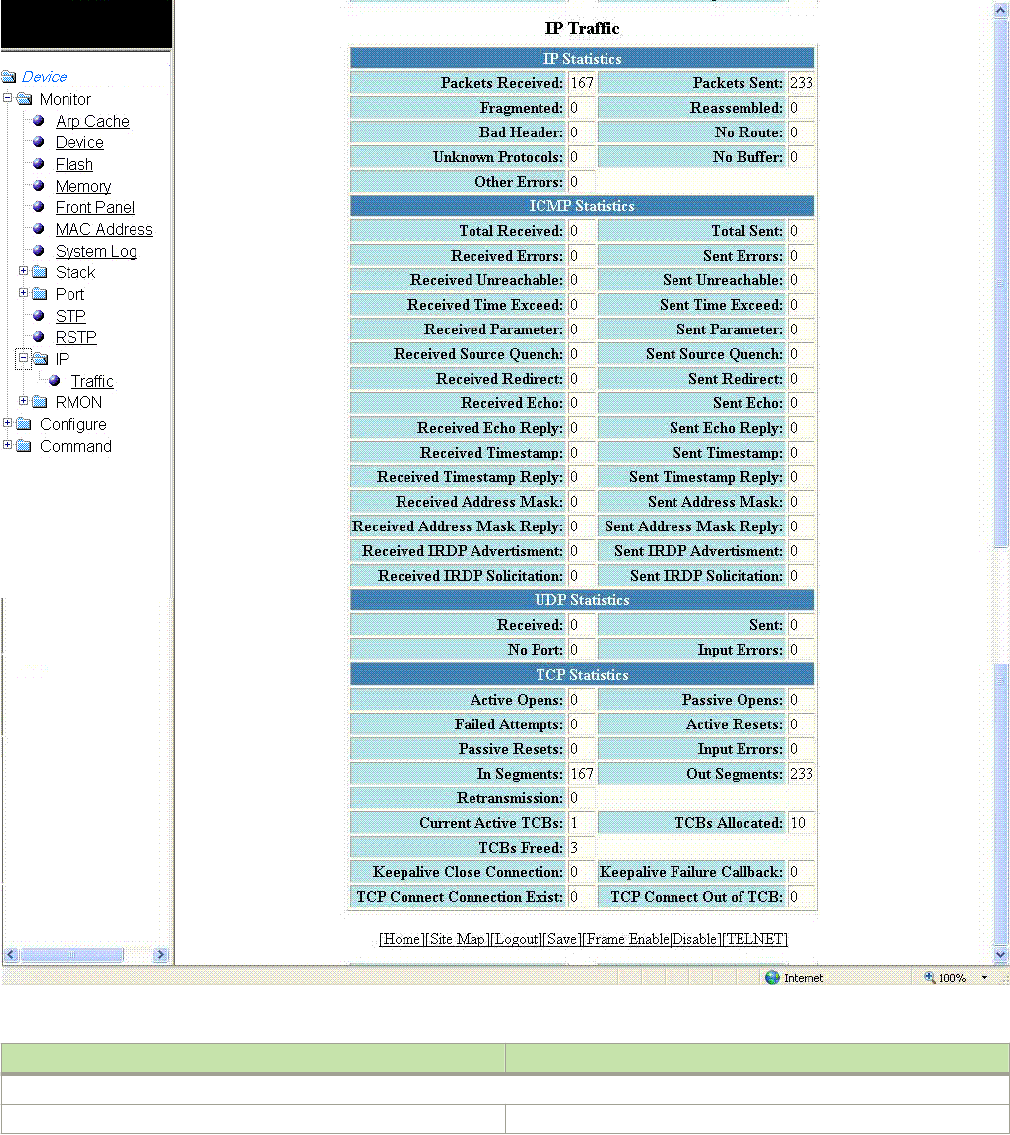

FIGURE 28 Monitoring the IP trac for devices running Layer 2 code
TABLE 23 Description of the elds in the IP Trac window
Field Description
IP Statistics parameters
Packets Received Displays the number of IP packets received by the device.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying IP trac information for devices running Layer 2 code
Brocade FastIron Web Management Interface User Guide, 08.0.50
68 53-1004462-01
TABLE 23 Description of the elds in the IP Trac window (continued)
Field Description
Packets Sent Displays the number of IP packets originated and sent by the device.
Fragmented Displays the number of IP packets fragmented by this device before
sending or forwarding them.
Reassembled Displays the number of fragmented IP packets received and re-
assembled by the device.
Bad Header Displays the number of IP packets dropped because they had a bad
header.
No Route Displays the number of packets dropped by the device because they
had no route information.
Unknown Protocols Displays the number of packets dropped by the device because the
value in the protocol eld of the packet header is unrecognized by
this device.
No Buer Displays the number of packets dropped because the device ran out
of buer space.
Other Errors Displays the number of packets dropped due to errors other than the
ones already indicated in the IP Statistics parameters.
ICMP Statistics parameters
Total Received Displays the number of Internet Control Message Protocol (ICMP)
packets received by the device.
Total Sent Displays the number of ICMP packets sent by the device.
Received Errors Displays the number of errors received by the device. This
information is used by Brocade customer support.
Sent Errors Displays the number of errors sent by the device. This information is
used by Brocade customer support.
Received Unreachable Displays the number of Destination Unreachable messages received
by the device.
Sent Unreachable Displays the number of Destination Unreachable messages sent by
the device.
Received Time Exceed Displays the number of Time Exceeded messages received by the
device.
Sent Time Exceed Displays the number of Time Exceeded messages sent by the
device.
Received Parameter Displays the number of Parameter Problem messages received by
the device.
Sent Parameter Displays the number of Parameter Problem messages sent by the
device.
Received Source Quench Displays the number of Source Quench messages received by the
device.
Sent Source Quench Displays the number of Source Quench messages sent by the
device.
Received Redirect Displays the number of Redirect messages received by the device.
Sent Redirect Displays the number of Redirect messages sent by the device.
Received Echo Displays the number of Echo messages received by the device.
Sent Echo Displays the number of Echo messages sent by the device.
Received Echo Reply Displays the number of Echo Reply messages received by the
device.
Sent Echo Reply Displays the number of Echo Reply messages sent by the device.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying IP trac information for devices running Layer 2 code
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 69
TABLE 23 Description of the elds in the IP Trac window (continued)
Field Description
Received Timestamp Displays the number of Timestamp messages received by the
device.
Sent Timestamp Displays the number of Timestamp messages sent by the device.
Received Timestamp Reply Displays the number of Timestamp Reply messages received by the
device.
Sent Timestamp Reply Displays the number of Timestamp Reply messages sent by the
device.
Received Address Mask Displays the number of Address Mask Request messages received
by the device.
Sent Address Mask Displays the number of Address Mask Request messages sent by
the device.
Received Address Mask Reply Displays the number of Address Mask Reply messages received by
the device.
Sent Address Mask Reply Displays the number of Address Mask Reply messages sent by the
device.
Received IRDP Advertisement Displays the number of ICMP Router Discovery Protocol (IRDP)
Advertisement messages received by the device.
Sent IRDP Advertisement Displays the number of IRDP Advertisement messages sent by the
device.
Received IRDP Solicitation Displays the number of IRDP Solicitation messages received by the
device.
Sent IRDP Solicitation Displays the number of IRDP Solicitation messages sent by the
device.
UDP Statistics parameters
Received Displays the number of User Datagram Protocol (UDP) packets
received by the device.
Sent Displays the number of UDP packets sent by the device.
No Port Displays the number of UDP packets dropped because the packet
did not contain a valid UDP port number.
Input Errors Displays the number of errors on the incoming packets. This
information is used by Brocade customer support.
TCP Statistics parameters
Active Opens Displays the number of Transmission Control Protocol (TCP)
connections opened by this device by sending a TCP SYN to another
device.
Passive Opens Displays the number of TCP connections opened by this device in
response to connection requests (TCP SYNs) received from other
devices.
Failed Attempts Displays the number of failed attempts. This information is used by
Brocade customer support.
Active Resets Displays the number of TCP connections this device reset by
sending a TCP RESET message to the device at the other end of the
connection.
Passive Resets Displays the number of TCP connections this device reset because
the device at the other end of the connection sent a TCP RESET
message.
Input Errors Displays the number of incoming errors. This information is used by
Brocade customer support.
In Segments Displays the number of TCP segments received by the device.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying IP trac information for devices running Layer 2 code
Brocade FastIron Web Management Interface User Guide, 08.0.50
70 53-1004462-01
TABLE 23 Description of the elds in the IP Trac window (continued)
Field Description
Out Segments Displays the number of TCP segments sent by the device.
Retransmission Displays the number of segments that this device retransmitted
because the retransmission timer for the segment had expired before
the device at the other end of the connection had acknowledged
receipt of the segment.
Current Active TCBs Displays the number of TCP Control Blocks (TCBs) that are currently
active.
TCBs Allocated Displays the number of TCBs that have been allocated.
TCBs Freed Displays the number of TCBs that have been freed.
Displaying IP trac information for devices running
Layer 3 code
To display the IP trac statistics for Brocade ICX devices running Layer 3 code, perform the following steps.
1. Click Monitor on the left pane and select IP .
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying IP trac information for devices running Layer 3 code
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 71
2. Click Trac
The IP Trac window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying IP trac information for devices running Layer 3 code
Brocade FastIron Web Management Interface User Guide, 08.0.50
72 53-1004462-01

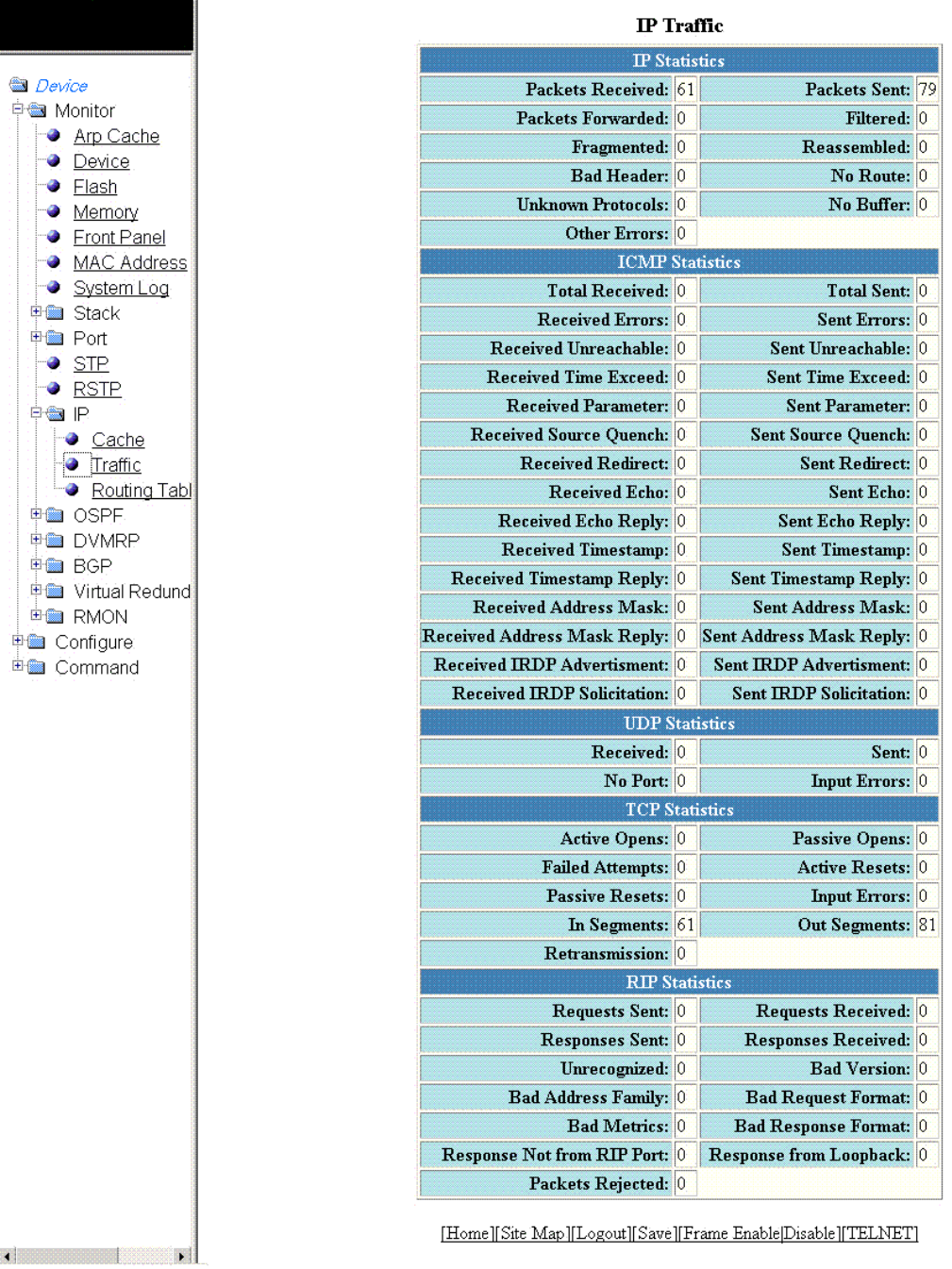

FIGURE 29 Monitoring the IP trac information for devices running Layer 3 code
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying IP trac information for devices running Layer 3 code
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 73
TABLE 24 Description of the elds in the IP Trac window
Field Description
IP Statistics parameters
Packets Received Displays the number of IP packets received by the device.
Packets Sent Displays the number of IP packets originated and sent by the device.
Packets Forwarded Displays the total number of IP packets received by the device and
forwarded to other devices.
Filtered Displays the total number of IP packets ltered by the device.
Fragmented Displays the number of IP packets fragmented by this device before
sending or forwarding them.
Reassembled Displays the number of fragmented IP packets received and re-
assembled by the device.
Bad Header Displays the number of IP packets dropped because they had a bad
header.
No Route Displays the number of packets dropped by the device because they
had no route information.
Unknown Protocols Displays the number of packets dropped by the device because the
value in the protocol eld of the packet header is unrecognized by
this device.
No Buer Displays the number of packets dropped because the device ran out
of buer space.
Other Errors Displays the number of packets dropped due to errors other than the
ones already indicated in the IP Statistics parameters.
ICMP Statistics Refer to Displaying IP trac information for devices running Layer 2
code on page 67.
UDP Statistics Refer to Displaying IP trac information for devices running Layer 2
code on page 67.
TCP Statistics parameters
Active Opens Displays the number of TCP connections opened by this device by
sending a TCP SYN to another device.
Passive Opens Displays the number of TCP connections opened by this device in
response to connection requests (TCP SYNs) received from other
devices.
Failed Attempts Displays the number of failed attempts. This information is used by
Brocade customer support.
Active Resets Displays the number of TCP connections this device reset by
sending a TCP RESET message to the device at the other end of the
connection.
Passive Resets Displays the number of TCP connections this device reset because
the device at the other end of the connection sent a TCP RESET
message.
Input Errors Displays the number of incoming errors. This information is used by
Brocade customer support.
In Segments Displays the number of TCP segments received by the device.
Out Segments Displays the number of TCP segments sent by the device.
Retransmission Displays the number of segments that this device retransmitted
because the retransmission timer for the segment had expired before
the device at the other end of the connection had acknowledged
receipt of the segment.
RIP Statistics parameters
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying IP trac information for devices running Layer 3 code
Brocade FastIron Web Management Interface User Guide, 08.0.50
74 53-1004462-01
TABLE 24 Description of the elds in the IP Trac window (continued)
Field Description
Requests Sent Displays the number of requests this device has sent to another
Routing Information Protocol (RIP) Layer 3 switch for all or part of its
RIP routing table.
Requests Received Displays the number of requests this device has received from
another RIP Layer 3 switch for all or part of this device’s RIP routing
table.
Responses Sent Displays the number of responses this device has sent to another
RIP Layer 3 switch’s request for all or part of this device’s RIP routing
table.
Responses Received Displays the number of responses this device has received to
requests for all or part of another RIP Layer 3 switch’s routing table.
Unrecognized Displays the number of RIP packets that were not recognized by the
device.
Bad Version Displays the number of RIP packets dropped by the device because
the RIP version was either invalid or is not supported by this device.
Bad Address Family Displays the number of RIP packets dropped because the value in
the Address Family Identier eld of the packet’s header was invalid.
Bad Request Format Displays the number of RIP request packets this Layer 3 switch
dropped because the format was bad.
Bad Metrics Displays the number of responses to RIP request packets this Layer
3 switch dropped because of the bad metric value. This information
is used by Brocade customer support.
Bad Response Format Displays the number of responses to RIP request packets this Layer
3 switch dropped because the format was bad.
Response Not from RIP Port Displays the number of RIP responses received from non-RIP ports.
This information is used by Brocade customer support.
Response from Loopback Displays the number of RIP responses received from loopback
interfaces.
Packets Rejected Displays the number of RIP packets rejected by the device.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying IP trac information for devices running Layer 3 code
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 75
Brocade FastIron Web Management Interface User Guide, 08.0.50
76 53-1004462-01
Monitoring RMON
• Displaying RMON history..............................................................................................................................................................................77
• Displaying RMON Ethernet statistics........................................................................................................................................................79
• Changing polling interval................................................................................................................................................................................ 84

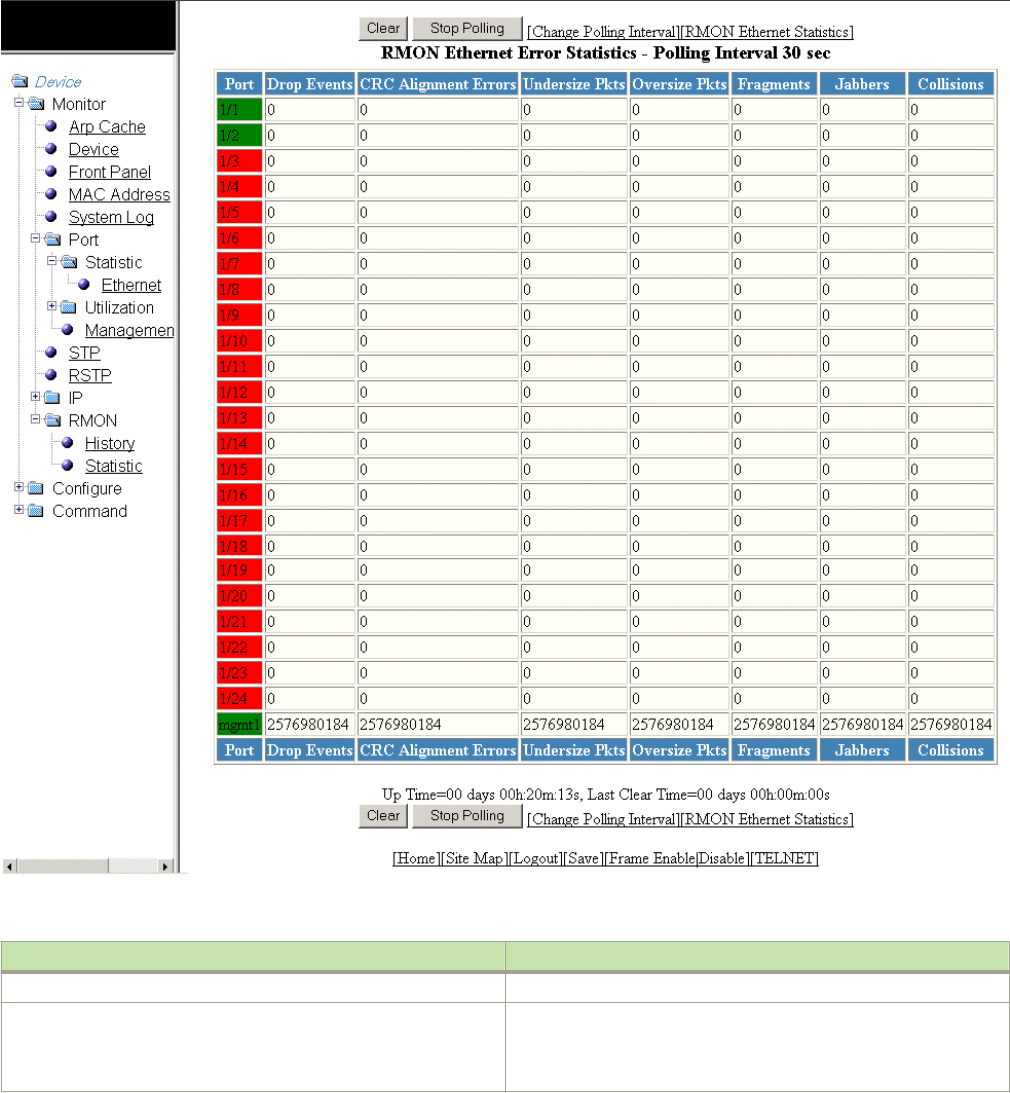

• Displaying RMON Ethernet error statistics.............................................................................................................................................84
Displaying RMON history
By default, all active ports generate two history control data entries per active port. An active port is dened as one with a link up. If the
link goes down, the two history entries are automatically cleared.
The following history entries are generated for each device:
• A sampling of statistics every 30 seconds
• A sampling of statistics every 30 minutes
To display Remote Monitoring (RMON) history, perform the following steps.
1. Click Monitor on the left pane and select RMON .
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 77
2. Click History .
The RMON Ethernet History window is displayed as shown in the gure below.
FIGURE 30 Monitoring the RMON Ethernet history
TABLE 25 Description of the elds in the RMON Ethernet History window
Field Description
Port Displays the port for which the history data is being presented -
stack-unit/slotnum/portnum.
Time Stamp Displays the day and time when the data was collected.
Utilization(%) Displays the percentage of the port that was being utilized when the
data was taken.
Drop Events Displays the total number of events in which packets were dropped
by the RMON probe due to lack of resources. This number is not
necessarily the number of packets dropped, but is the number of
times an overrun condition has been detected.
Octets Displays the total number of octets of data received on the network.
This number includes octets in bad packets.
This number does not include framing bits but does include Frame
Check Sequence (FCS) octets.
Packets Displays the total number of packets received.
This number includes bad packets, broadcast packets, and multicast
packets.
Packets: Broadcast Displays the total number of good packets received that were
directed to the broadcast address.
This number does not include multicast packets.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying RMON history
Brocade FastIron Web Management Interface User Guide, 08.0.50
78 53-1004462-01
TABLE 25 Description of the elds in the RMON Ethernet History window (continued)
Field Description
Packets: Multicast Displays the total number of good packets received that were
directed to a multicast address.
This number does not include packets directed to the broadcast
address.
CRC Alignment Errors Displays the total number of packets received that were from 64
through 1518 octets long, but had either a bad FCS with an integral
number of octets (FCS Error) or a bad FCS with a non-integral
number of octets (Alignment Error).
The packet length does not include framing bits but does include
FCS octets.
Size Packets: Under Displays the total number of packets received that were less than 64
octets long and were otherwise well formed.
This number does not include framing bits but does include FCS
octets.
Size Packets: Over Displays the total number of packets received that were longer than
1518 octets and were otherwise well formed.
This number does not include framing bits but does include FCS
octets.
Fragments Displays the total number of packets received that were less than 64
octets long and had either a bad FCS with an integral number of
octets (FCS Error) or a bad FCS with a non-integral number of octets
(Alignment Error).
It is normal for this counter to be incremented, because it counts both
runts (which are normal occurrences due to collisions) and noise hits.
This number does not include framing bits but does include FCS
octets.
Jabbers Displays the total number of packets received that were longer than
1518 octets and had either a bad FCS with an integral number of
octets (FCS Error) or a bad FCS with a non-integral number of octets
(Alignment Error).
NOTE
This denition of jabber is dierent from the denition in
IEEE-802.3 section 8.2.1.5 (10BASE5) and section
10.3.1.4 (10BASE2). These documents dene jabber as
the condition where any packet exceeds 20 ms. The
allowed range to detect jabber is between 20 ms and
150 ms.
This number does not include framing bits but does include FCS
octets.
Collisions Displays the best estimate of the total number of collisions on this
Ethernet segment.
Displaying RMON Ethernet statistics
RMON statistics provide count information on multicast and broadcast packets. This information includes total packets sent, undersized
and oversized packets, CRC alignment errors, jabbers, collisions, fragments, and dropped events for each port on the system. RMON
statistics collection is activated automatically during system startup, and requires no conguration.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying RMON Ethernet statistics
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 79
To display RMON statistics, perform the following steps.
1. Click Monitor on the left pane and select RMON.
2. Click Statistic.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying RMON Ethernet statistics
Brocade FastIron Web Management Interface User Guide, 08.0.50
80 53-1004462-01
3. Select a unit ID in the Select Stack Unit ID list and click Display to view information about a specic stack unit.
The RMON Ethernet Statistics window is displayed as shown in the gure below.

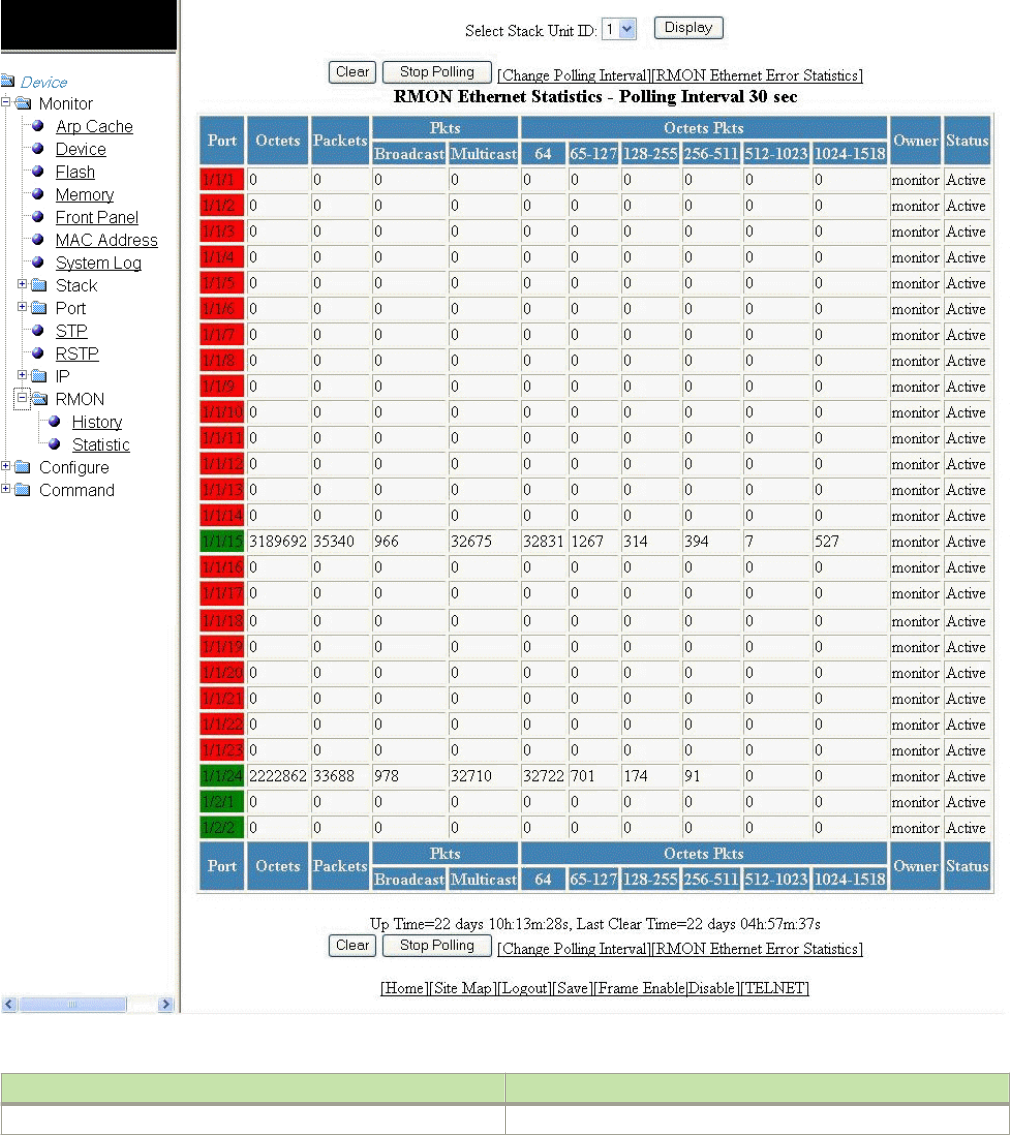

FIGURE 31 Monitoring RMON Ethernet statistics
TABLE 26 Description of the elds in the RMON Ethernet Statistics window
Field Description
Port Displays the port number - stack-unit/slotnum/portnum.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying RMON Ethernet statistics
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 81
TABLE 26 Description of the elds in the RMON Ethernet Statistics window (continued)
Field Description
Octets Displays the total number of octets of data received on the network.
This number includes octets in bad packets.
This number does not include framing bits but does include Frame
Check Sequence (FCS) octets.
Packets Displays the total number of packets received.
This number includes bad packets, broadcast packets, and multicast
packets.
Packets: Broadcast Displays the total number of good packets received that were
directed to the broadcast address.
This number does not include multicast packets.
Packets: Multicast Displays the total number of good packets received that were
directed to a multicast address.
This number does not include packets directed to the broadcast
address.
Octet Packets: 64 Displays the total number of packets received that were 64 octets
long.
This number includes bad packets.
This number does not include framing bits but does include FCS
octets.
Octet Packets: 65 - 127 Displays the total number of packets received that were from 65
through 127 octets long.
This number includes bad packets.
This number does not include framing bits but does include FCS
octets.
Octet Packets: 128 - 255 Displays the total number of packets received that were from 128
through 255 octets long.
This number includes bad packets.
This number does not include framing bits but does include FCS
octets.
Octet Packets: 256 - 511 Displays the total number of packets received that were from 256
through 511 octets long.
This number includes bad packets.
This number does not include framing bits but does include FCS
octets.
Octet Packets: 512 - 1023 Displays the total number of packets received that were from 512
through 1023 octets long.
This number includes bad packets.
This number does not include framing bits but does include FCS
octets.
Octet Packets: 1024 - 1518 Displays the total number of packets received that were from 1024
through 1518 octets long.
This number includes bad packets.
This number does not include framing bits but does include FCS
octets.
Owner Displays the owner of the packets.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying RMON Ethernet statistics
Brocade FastIron Web Management Interface User Guide, 08.0.50
82 53-1004462-01
TABLE 26 Description of the elds in the RMON Ethernet Statistics window (continued)
Field Description
Status Displays the status of the port.
Up Time Displays the length of time the device has been available.
Last Clear Time Displays the length of time data has been accumulating in the current
table.
To remove the current data in the table and restart monitoring, click Clear. To stop reporting the statistics, click Stop Polling.
The RMON Ethernet Statistics window contains the following links:
• To change the polling interval, click Change Polling interval. For more information, refer to the “Changing polling interval”
section.
• To display the RMON Ethernet error statistics, click RMON Ethernet Error Statistics. For more information, refer to the
“Displaying RMON Ethernet error statistics” section.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying RMON Ethernet statistics
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 83
Changing polling interval
To change the number of seconds between reporting the RMON Ethernet statistics, perform the following steps.
1. Click Change Polling interval on the RMON Ethernet Statistics window.
The Web Management Preferences window is displayed as shown in the gure below.
FIGURE 32 Modifying web management preferences
2. Specify the RMON polling interval in the RMON eld.
3. Click Apply .
The message The change has been made is displayed at the top of the window. To undo the changes, click Reset . For
more information on web management preferences, refer to Conguring the web management preferences on page 131.
Displaying RMON Ethernet error statistics
To display RMON error information, perform the following steps.
1. Click RMON Ethernet Error Statistics on the RMON Ethernet Statistics window.
FOR BROCADE CONTROLLED RELEASE ONLY
Changing polling interval
Brocade FastIron Web Management Interface User Guide, 08.0.50
84 53-1004462-01
2. Select a unit ID in the Select Stack Unit ID list and click Display to view information about a specic stack unit.
The RMON Ethernet Error Statistics window is displayed as shown in the gure below.
FIGURE 33 Monitoring the RMON Ethernet error statistics
TABLE 27 Description of the elds in the RMON Ethernet Error Statistics window
Field Description
Port Displays the port number - stack-unit/slotnum/portnum.
Drop Events Displays the total number of events in which packets were dropped
by the RMON probe due to lack of resources. This number is not
necessarily the number of packets dropped, but is the number of
times an overrun condition has been detected.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying RMON Ethernet error statistics
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 85
TABLE 27 Description of the elds in the RMON Ethernet Error Statistics window (continued)
Field Description
CRC Alignment Errors Displays the total number of packets received that were from 64
through 1518 octets long, but had either a bad FCS with an integral
number of octets (FCS Error) or a bad FCS with a non-integral
number of octets (Alignment Error).
The packet length does not include framing bits but does include
FCS octets.
Undersize Pkts Displays the total number of packets received that were less than 64
octets long and were otherwise well formed.
This number does not include framing bits but does include FCS
octets.
Oversize Pkts Displays the total number of packets received that were longer than
1518 octets and were otherwise well formed.
This number does not include framing bits but does include FCS
octets.
Fragments Displays the total number of packets received that were less than 64
octets long and had either a bad FCS with an integral number of
octets (FCS Error) or a bad FCS with a non-integral number of octets
(Alignment Error).
It is normal for this counter to increment, because it counts both runts
(which are normal occurrences due to collisions) and noise hits.
This number does not include framing bits but does include FCS
octets.
Jabbers Displays the total number of packets received that were longer than
1518 octets and had either a bad FCS with an integral number of
octets (FCS Error) or a bad FCS with a non-integral number of octets
(Alignment Error).
NOTE
This denition of jabber is dierent from the denition in
IEEE-802.3 section 8.2.1.5 (10BASE5) and section
10.3.1.4 (10BASE2). These documents dene jabber as
the condition where any packet exceeds 20 ms. The
allowed range to detect jabber is between 20 ms and
150 ms.
This number does not include framing bits but does include FCS
octets.
Collisions Displays the best estimate of the total number of collisions on this
Ethernet segment.
Up Time Displays the length of time the device has been available.
Last Clear Time Displays the length of time data has been accumulating in the current
table.
To remove the current data in the table and restart monitoring, click Clear . To stop reporting the statistics, click Stop Polling .
The RMON Ethernet Error Statistics window contains the following links:
• To change the polling interval, click Change Polling interval . For more information, refer to Changing polling interval on
page 84.
• To display the RMON statistics, click RMON Ethernet Statistics . For more information, refer to Displaying RMON
Ethernet statistics on page 79.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying RMON Ethernet error statistics
Brocade FastIron Web Management Interface User Guide, 08.0.50
86 53-1004462-01
Conguring Stack Components
•Conguring the general settings for a traditional stack......................................................................................................................87
• Viewing stack priority details.........................................................................................................................................................................88
• Modifying stack ports...................................................................................................................................................................................... 89

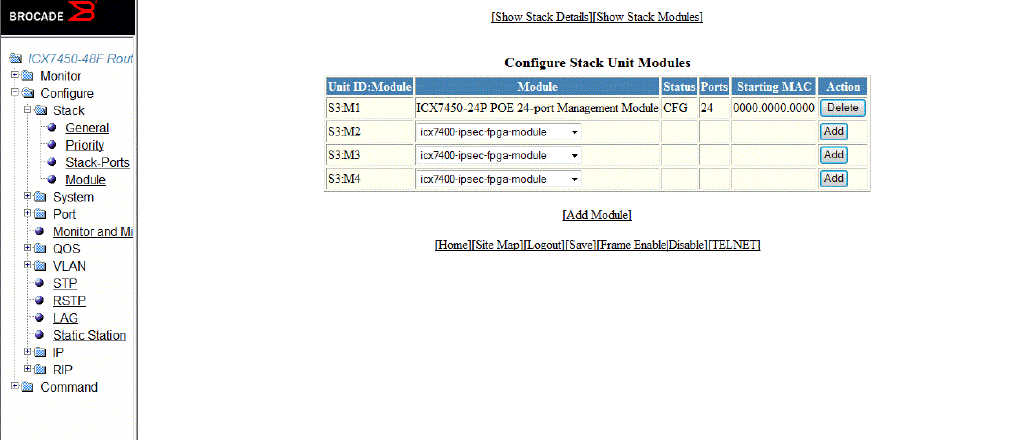

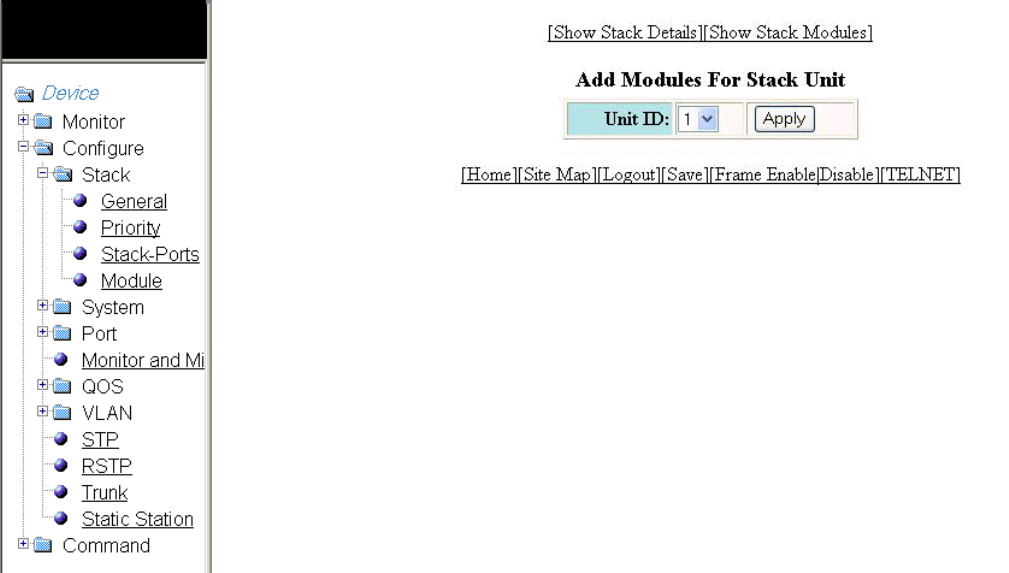

•Conguring a stack module.......................................................................................................................................................................... 91

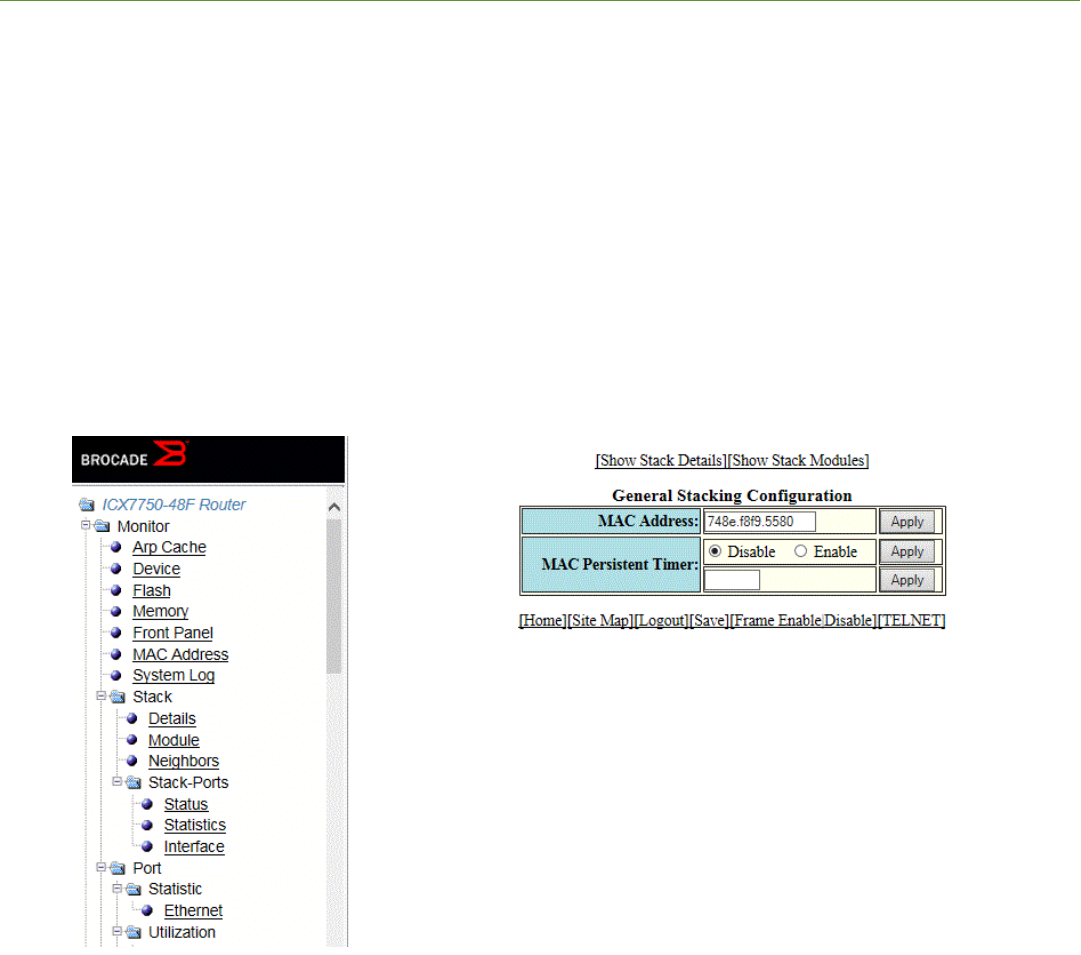

Conguring the general settings for a traditional stack
To change the stack settings to improve performance and reliability of the device, perform the following steps.
1. Click Congure on the left pane and select Stack.
2. Click General.
The General Stacking Conguration window is displayed as shown in the gure below.
FIGURE 34 General stacking conguration
3. Enter the Media Access Control (MAC) address of the device in the MAC Address eld and then click Apply.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 87
4. Click Disable or Enable for MAC Persistent Timer and then click Apply.
If you click Enable, type the time delay before the stack MAC address changes in the MAC Persistent Timer eld and then click
Apply.
The General Stacking Conguration window provides links to monitor stack parameters:
• To display the current stack information, click Show Stack Details . For more information, refer to the “Displaying the stack
details” section.
• To display the current information about the stack modules, click Show Stack Modules . For more information, refer to the
“Displaying a stack module” section.
Viewing stack priority details
The stack unit with the highest priority is the Active Controller (128 by default). The stack unit with the second highest priority is the
Standby Controller, which takes over if the current Active Controller fails.
It is possible to assign the same priority for Active and Standby Controllers, or dierent priorities (Active highest and Standby second-
highest). When the Active and Standby Controllers have the same priority, if the Active Controller fails, the Standby Controller takes over.
If the original Active Controller becomes operational again, it will not be able to resume its original role.
When the priorities of the Active and Standby Controllers are dierent, if the Active Controller fails, the Standby Controller takes over. If
the original Active Controller becomes operational again, the old Active Controller regains its role and resets the other units.
You can assign the same priority to the Active and Standby Controllers after the stack is formed. This prevents the intended Standby
Controller from becoming the Active Controller during stack construction.
To view the priority of the units within a stack, perform the following steps.
1. Click Congure on the left pane and select Stack .
FOR BROCADE CONTROLLED RELEASE ONLY
Viewing stack priority details
Brocade FastIron Web Management Interface User Guide, 08.0.50
88 53-1004462-01
2. Click Priority .

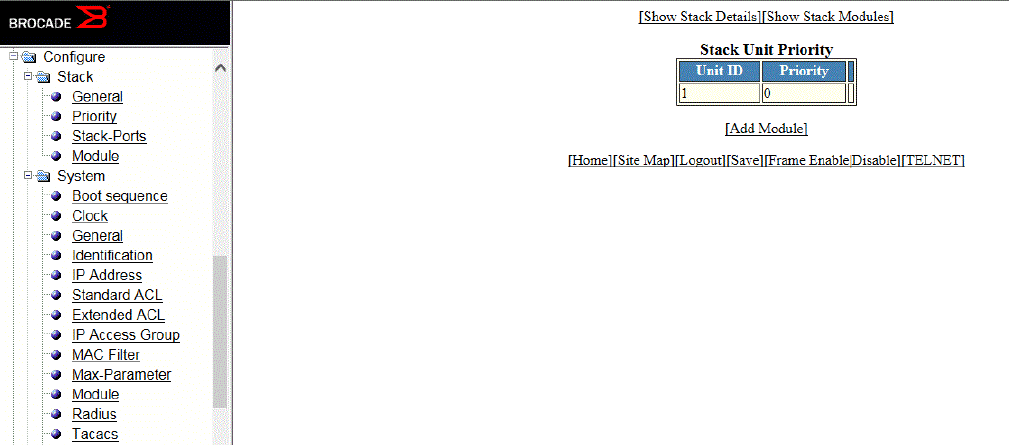

The Stack Unit Priority window is displayed as shown in the gure below.
FIGURE 35 Stack unit priority
To add a new stack module, click Add Module . For more information on how to congure a stack module, refer to Conguring
a stack module on page 91.
Modifying stack ports
NOTE
You cannot change the stack ports for the Brocade ICX devices.
To modify the stack ports, perform the following steps.
1. Click Congure on the left pane and select Stack.
FOR BROCADE CONTROLLED RELEASE ONLY
Modifying stack ports
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 89
2. Click Stack-Ports.
The Stack Ports window is displayed.
FIGURE 36 Modifying stack ports
FOR BROCADE CONTROLLED RELEASE ONLY
Modifying stack ports
Brocade FastIron Web Management Interface User Guide, 08.0.50
90 53-1004462-01
3. Click Modify .
The Congure Stack Ports window is displayed as shown in the gure below.
FIGURE 37 Modifying stack ports
4. Select a port in the Stack-port1 list.
5. Select a port in the Stack-port2 list.
6. Click Apply.
The stack ports are modied and the Stack Ports window is displayed.
To reset the data entered in the conguration pane, click Reset . To display the congured stack port, click Show Stack-Ports.
To congure a stack module, click Add Module . For more information on how to congure a stack module, refer to the
“Conguring a stack module” section.
Conguring a stack module
To congure a stack module, perform the following steps.
1. Click Congure on the left pane and select Stack .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a stack module
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 91
2. Click Module .
The Add Modules For Stack Unit window is displayed as shown in the gure below.
FIGURE 38 Adding modules for a stack unit
3. Select a stack unit identier in the Unit ID list.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a stack module
Brocade FastIron Web Management Interface User Guide, 08.0.50
92 53-1004462-01
4. Click Apply .
The Congure Stack Unit Modules window is displayed as shown in the gure below.
FIGURE 39 Adding and deleting a stack unit module
5. Select a stack module in the list on the Module column and then click Add .
To display current stack details, stack port status, and stack neighbors information, click Show Stack Details . For more
information, refer to Displaying the stack details on page 33. Click Delete to delete a stack unit module. You cannot delete the
active modules.
To display the stack unit modules, click Show Stack Modules . For more information, refer to Displaying a stack module on
page 35.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a stack module
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 93
Brocade FastIron Web Management Interface User Guide, 08.0.50
94 53-1004462-01
Conguring System Components
•Conguring the system clock.......................................................................................................................................................................95
•Conguring the system DNS........................................................................................................................................................................97
•Conguring the general system settings................................................................................................................................................. 98
•Conguring the system identication.....................................................................................................................................................100
•Conguring the system IP address.........................................................................................................................................................102

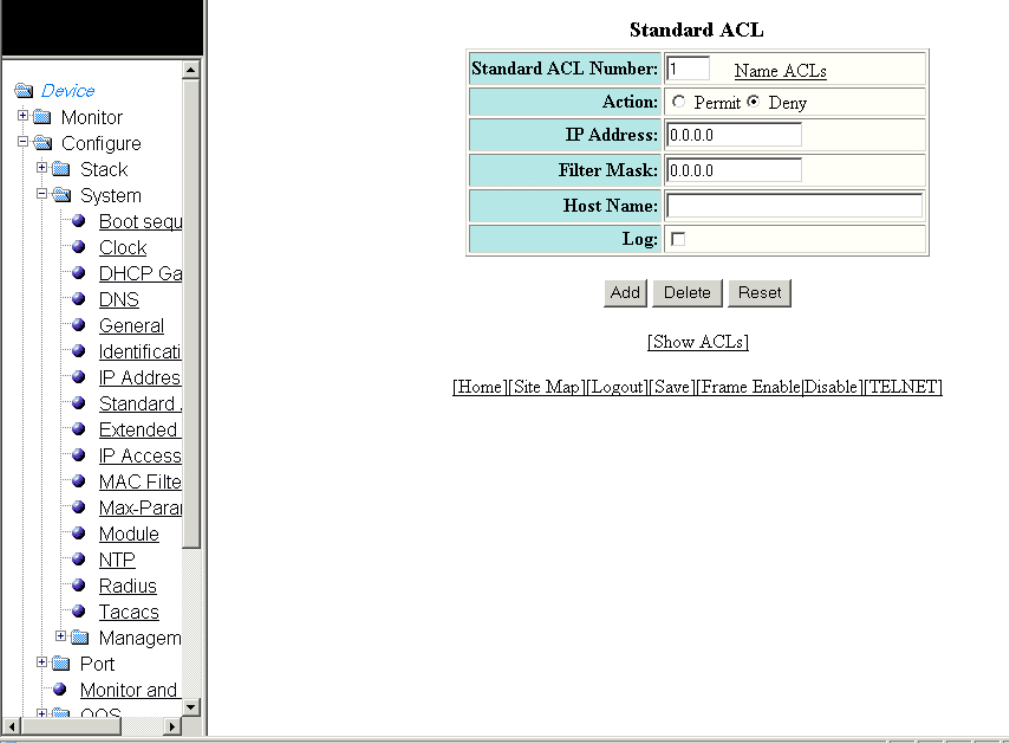

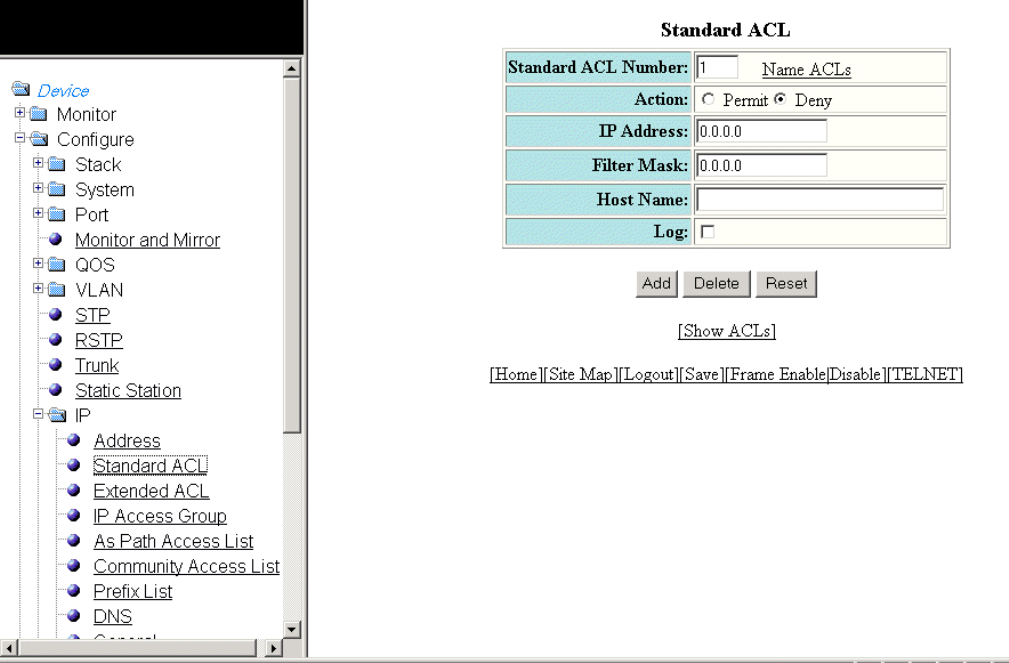

•Conguring a standard ACL.......................................................................................................................................................................103
•Conguring an extended ACL...................................................................................................................................................................104
•Conguring an IP access group............................................................................................................................................................... 108

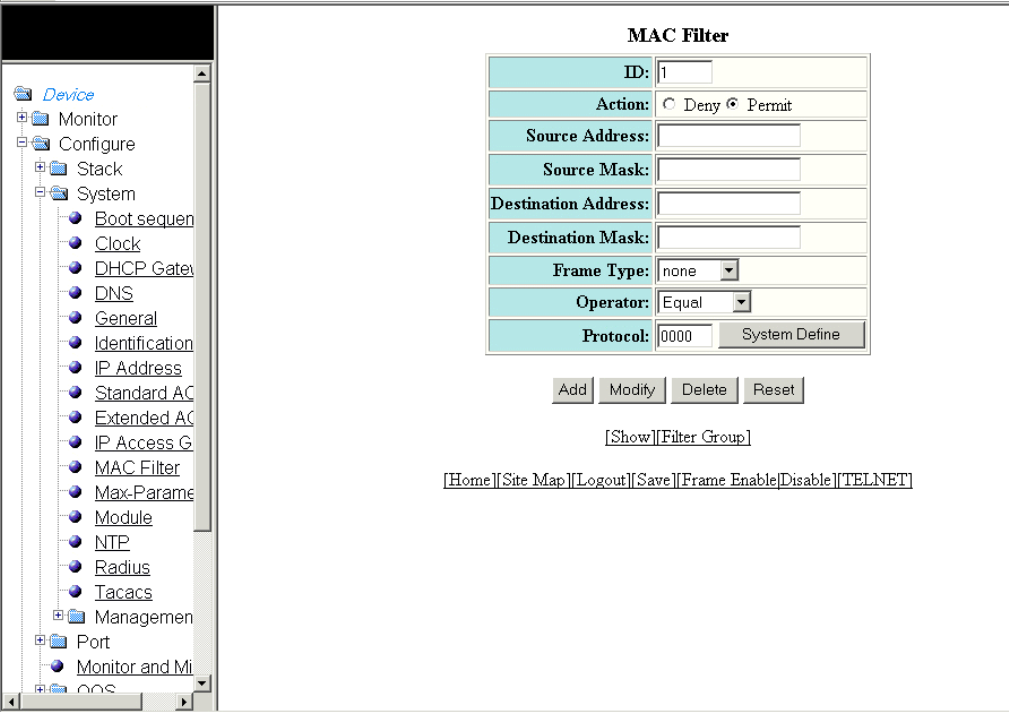

•Conguring the system MAC lter..........................................................................................................................................................109
•Conguring the maximum system parameter value........................................................................................................................112
•Conguring a system module...................................................................................................................................................................113
•Conguring a RADIUS server................................................................................................................................................................... 115
•Conguring a TACACS/TACACS+ server............................................................................................................................................117
•Conguring management authentication............................................................................................................................................. 118
•Conguring management authorization............................................................................................................................................... 120
•Conguring management accounting ..................................................................................................................................................121
•Conguring an SNMP community string.............................................................................................................................................123
•Conguring the general management parameters...........................................................................................................................124

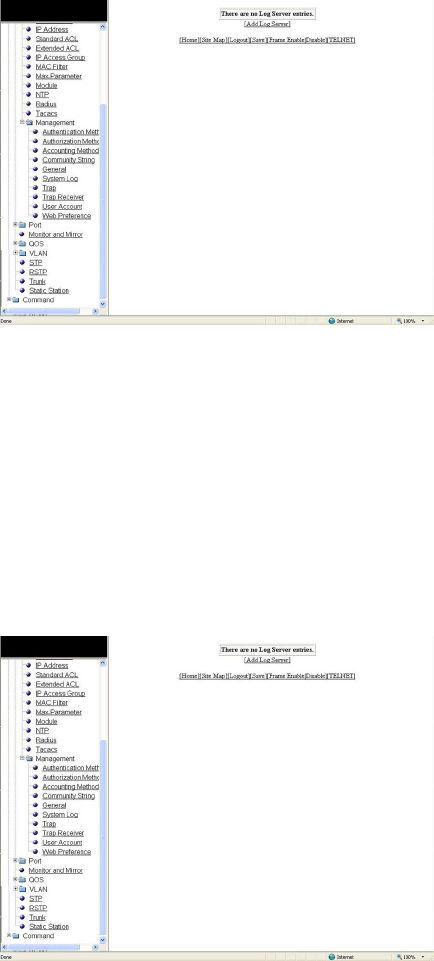

•Conguring a management system log................................................................................................................................................126
•Conguring a trap...........................................................................................................................................................................................128

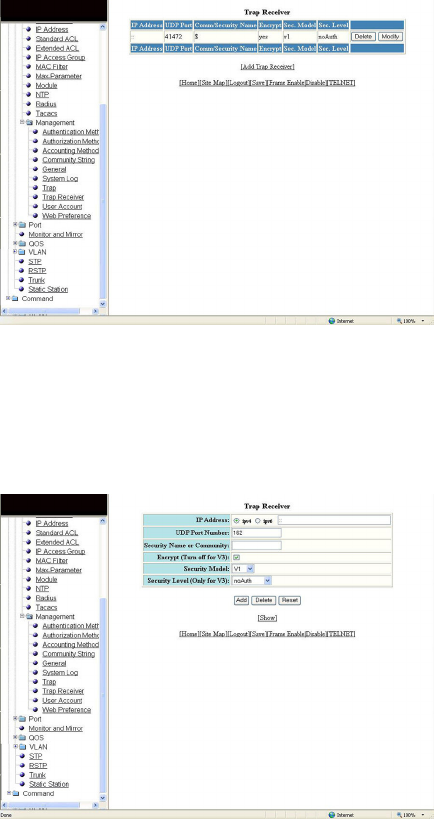

•Conguring a trap receiver..........................................................................................................................................................................129
•Conguring a management user account............................................................................................................................................130
•Conguring the web management preferences.................................................................................................................................131
Conguring the system clock
To congure the system clock, perform the following steps.
1. Click Congure on the left pane and select System .
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 95
2. Click Clock .

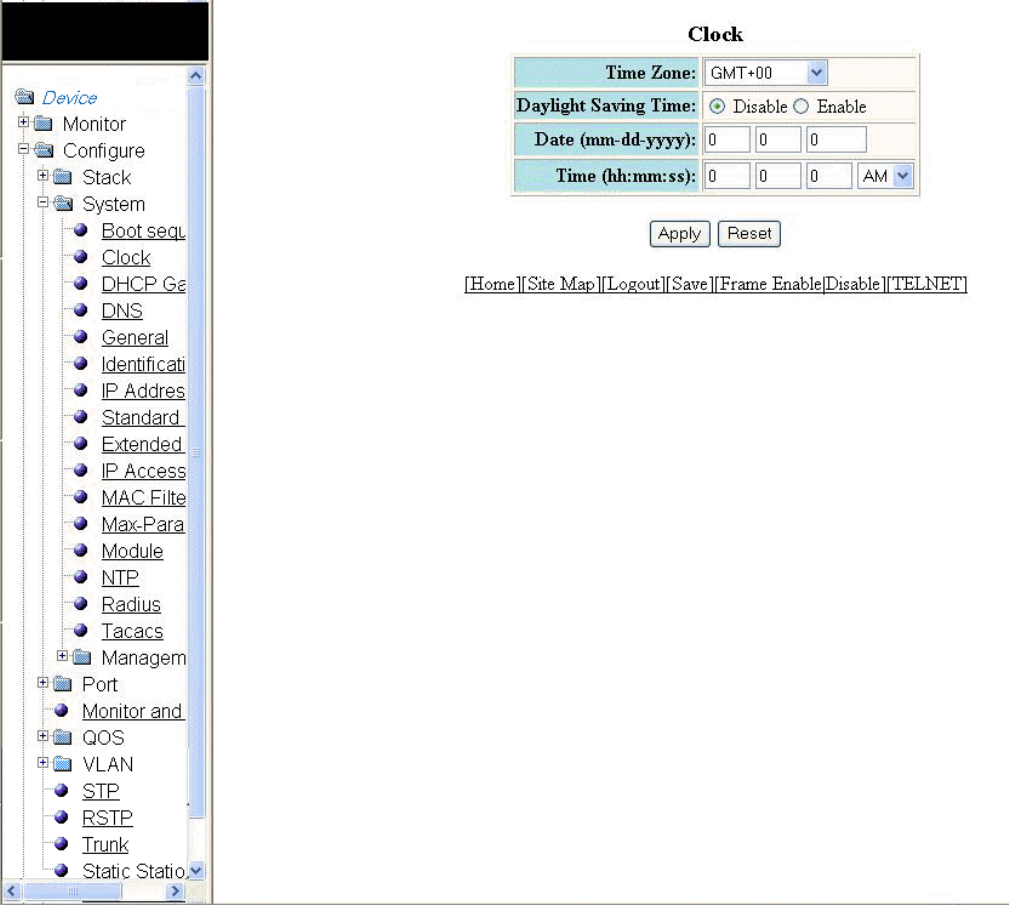

The Clock window is displayed as shown in the gure below.
FIGURE 40 Conguring the system clock
3. Select the GMT time zone that you want to congure for the device in the Time Zone list.
4. Click Disable or Enable for Daylight Saving Time . Daylight Saving Time applies to the US time zone only.
5. Type the date in mm-dd-yyyy format in the Date (mm-dd-yyyy) eld.
6. Type the time in hh:mm:ss format in the Time (hh:mm:ss) eld and select AM or PM in the list.
7. Click Apply .
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the system clock
Brocade FastIron Web Management Interface User Guide, 08.0.50
96 53-1004462-01
Conguring the system DNS
To congure the system Domain Name System (DNS), perform the following steps.
1. Click Congure on the left pane and select System .
2. Click DNS .

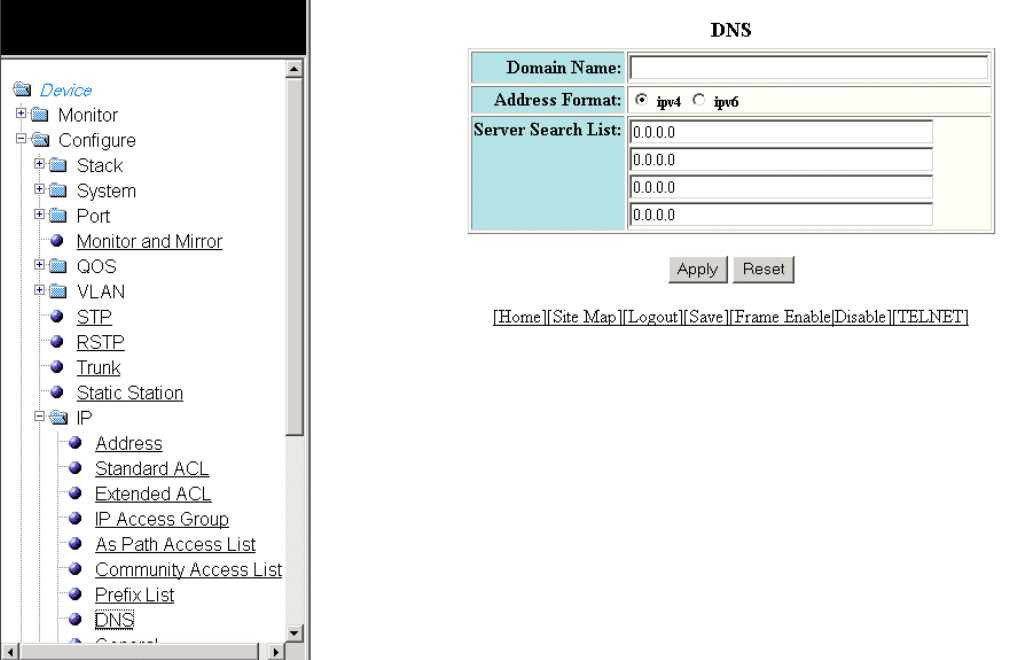

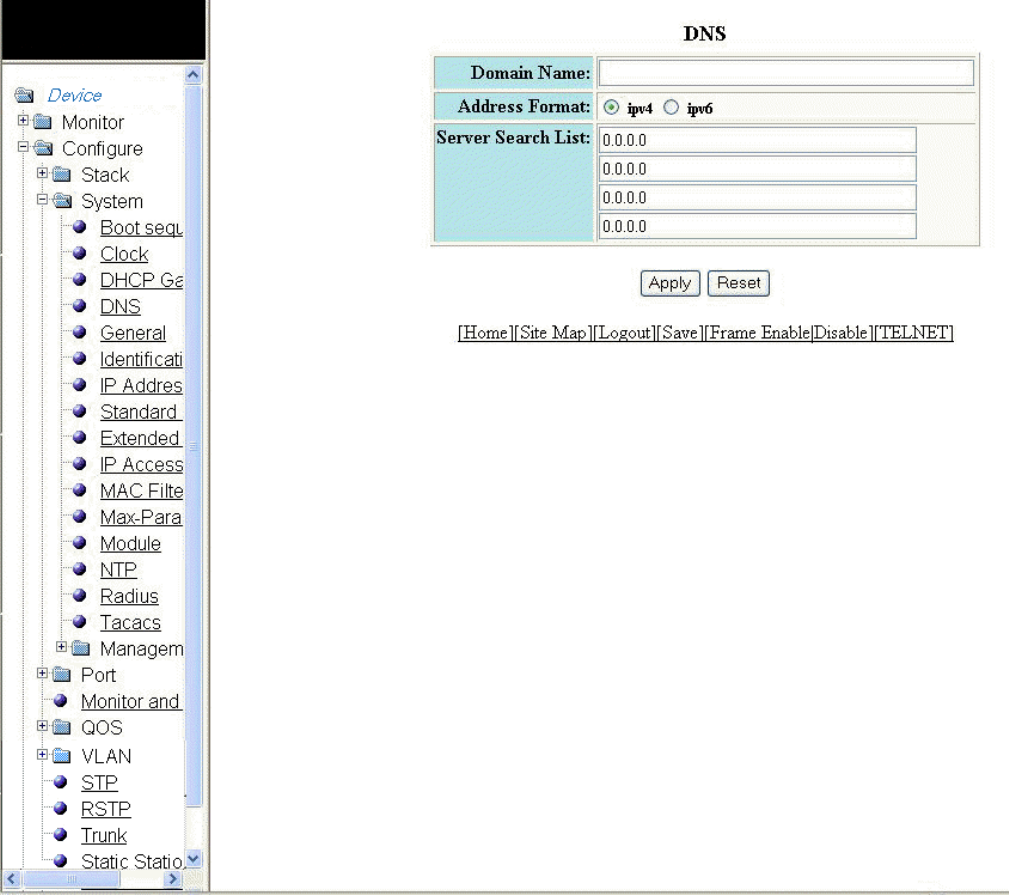

The DNS window is displayed as shown in the gure below.
FIGURE 41 Conguring the system DNS
3. Type the name of the domain that can be used to resolve host names in the Domain Name eld.
4. Select ipv4 or ipv6 for the Address Format .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the system DNS
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 97
5. Type the server IP addresses in the Server Search List elds.
You can congure a Brocade device to recognize up to four DNS servers. The rst entry serves as the primary default address.
If a query to the primary address fails to be resolved after three attempts, the next DNS address is queried (also up to three
times). This process continues for each dened DNS address until the query is resolved. The order in which the default DNS
addresses are polled is the same as the order in which you enter them.
6. Click Apply .
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset .
Conguring the general system settings
To congure the general system settings, perform the following steps.
1. Click Congure on the left pane and select System.
2. Click General.
The General System Conguration window is displayed.
FIGURE 42 Conguring the general system
3. Select the Port check box for Policy based VLANs to enable conguration of port-based VLANs.
4. Click Disable or Enable for Spanning Tree . If you click Enable, select the Single or Fast check box.
5. Click Strict or Weighted for QOS.
6. Click Disable or Enable for ACL Per Port Per VLAN.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the general system settings
Brocade FastIron Web Management Interface User Guide, 08.0.50
98 53-1004462-01
7. Click Advance to congure additional system parameters.

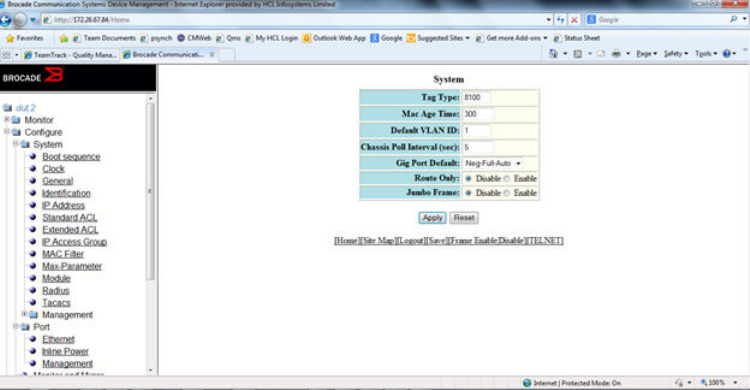

The System window is displayed.
FIGURE 43 Advance system information
8. Type the VLAN tag type in hexadecimal format from 0 through  in the Tag Type eld. The default is 0081.
9. Type the number of seconds a port address remains active in the address table in the Mac Age Time eld.
10. Type the default VLAN ID number in the Default VLAN ID eld.
11. Type the interval, in seconds, in which the chassis is polled in the Chassis Poll Interval (sec) eld.
12. Select a negotiation mode in the Gig Port Default list.
13. Click Disable or Enable for Route Only. If you click Enable , Layer 2 switching is disabled globally.
14. Click Disable or Enable for Jumbo Frame.
Jumbo frames are Ethernet frames with more than 1,500 bytes MTU.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the general system settings
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 99
15. Click Apply.
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset.
The General System Conguration window provides the following links to congure the system parameters:
•Identication
•IP Address
•DNS
•DHCP Gateway
•Clock
•MAC Filter
•Module
•Max-Parameter
•RADIUS
•TACACS
•Management
Conguring the system identication
To congure the system identication information, perform the following steps.
1. Click Congure on the left pane and select System .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the system identication
Brocade FastIron Web Management Interface User Guide, 08.0.50
100 53-1004462-01
2. Click Identication .
The Identication window is displayed as shown in the gure below.
FIGURE 44 Conguring the system identication
3. Type the name of the device in the Name eld.
4. Type the contact information of the device in the Contact eld.
5. Type the location of the device in the Location eld.
6. Click Apply .
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the system identication
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 101
Conguring the system IP address
To congure the IP address of the system, perform the following steps.
1. Click Congure on the left pane and select System .
2. Click IP Address . The Router IP address window is displayed.
3. Click Add IP Address.

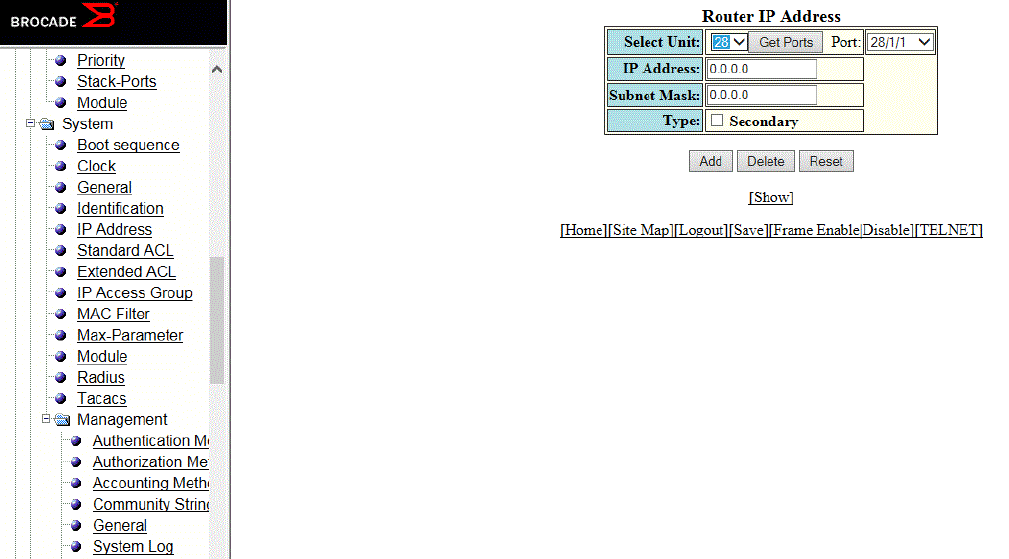

The Router IP address window is displayed as shown in the gure below.
FIGURE 45 Conguring the system IP address
4. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
5. Select a port from the Port list.
6. Type the IP address of the device in the IP Address eld.
7. Type the network mask for the IP address in the Subnet Mask eld.
8. Select the Secondary check box for Type if you have already congured an IP address within the same subnet on the interface.
9. Click Apply .
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the system IP address
Brocade FastIron Web Management Interface User Guide, 08.0.50
102 53-1004462-01
Conguring a standard ACL
To congure a standard Access Control List (ACL), perform the following steps.
1. Click Congure on the left pane and select System .
2. Click Standard ACL .
The Standard ACL window is displayed as shown in the gure below.
NOTE
Web GUI does not have ACL Sequence number support.
FIGURE 46 Conguring a standard ACL
3. Type the standard ACL number from 1 through 99 in the Standard ACL Number eld. If you want to type an ACL name, click
Name ACLs . The eld label changes to Standard ACL Name .
4. Click Permit or Deny for Action so that the ACL forwards or drops the packets that match the policy in the ACL.
5. Type the IP address of the route's destination in the IP Address eld.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a standard ACL
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 103
6. Type the masking bits in the Filter Mask eld. This allows you to specify a range of IP addresses to include or exclude based on
mask matching.
7. Type the host name in the Host Name eld. The host name enables you to perform Telnet, ping, and trace route commands.
8. Select the Log check box to log the entries.
9. Click Add .
The message The change has been made is displayed. To display the congured standard ACL, click Show ACLs . To
delete the congured ACL, click Delete . To reset the data entered in the conguration pane, click Reset .
Conguring an extended ACL
To congure an extended Access Control List (ACL), perform the following steps.
1. Click Congure on the left pane and select System.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an extended ACL
Brocade FastIron Web Management Interface User Guide, 08.0.50
104 53-1004462-01
2. Click Extended ACL.
The Extended ACL window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an extended ACL
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 105

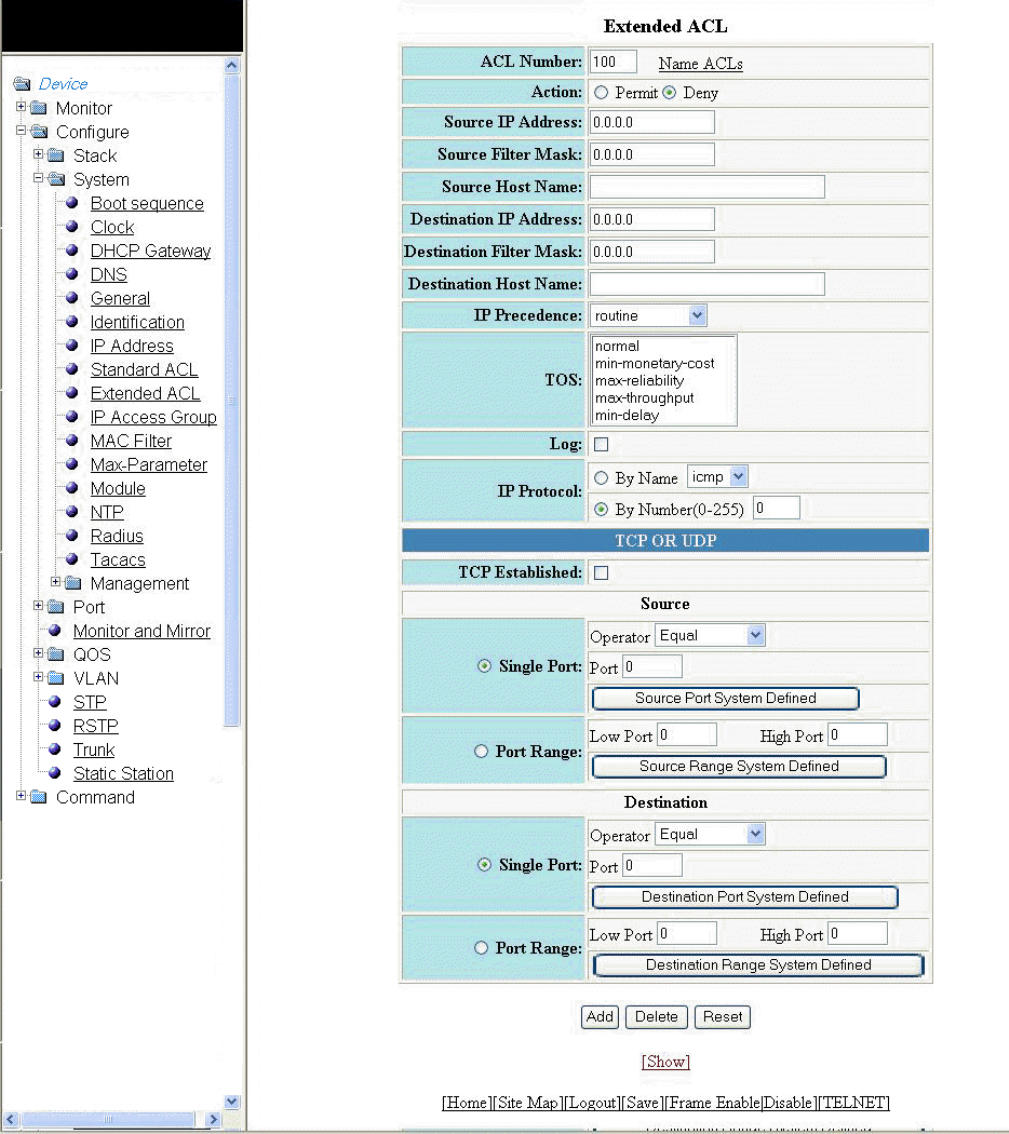

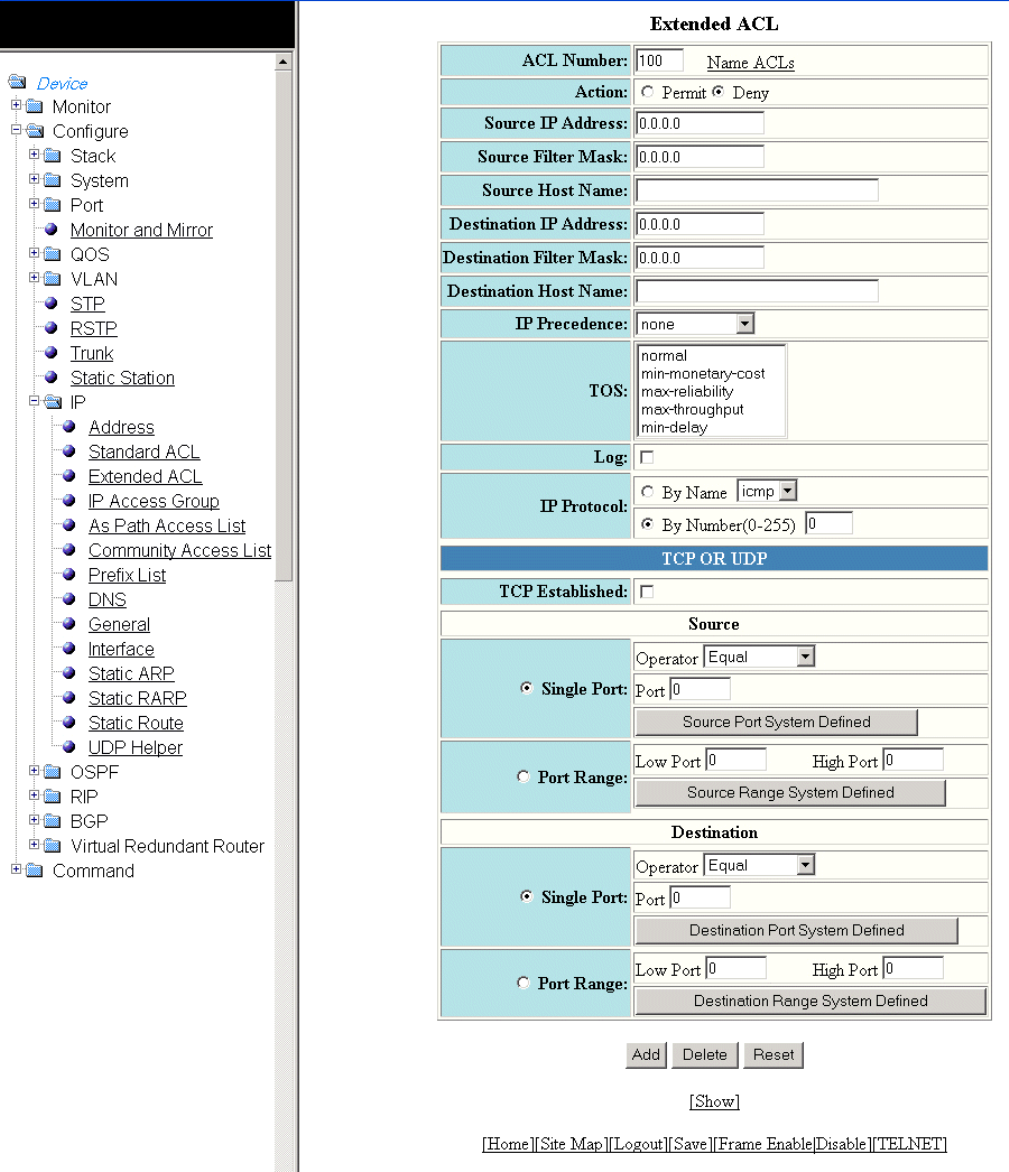

FIGURE 47 Conguring an extended ACL
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an extended ACL
Brocade FastIron Web Management Interface User Guide, 08.0.50
106 53-1004462-01
3. Type the extended ACL number (from 100 through 199) in the ACL Number eld. If you want to specify an extended ACL
name, click Name ACLs. The eld label changes to ACL Name.
4. Click Permit or Deny for Action so that the packets that match the policy are forwarded or dropped.
5. Type the source IP address in the Source IP Address eld.
6. Type the source mask in the Source Filter Mask eld.
7. Type the source host name in the Source Host Name eld.
8. Type the destination IP address in the Destination IP Address eld.
9. Type the destination mask in the Destination Filter Mask eld.
10. Type the destination host name in the Destination Host Name eld.
11. Select one of the following options in the IP Precedence list:
•routine --The ACL matches packets that have the routine precedence.
•priority --The ACL matches packets that have the priority precedence.
•immediate --The ACL matches packets that have the immediate precedence.
•ash --The ACL matches packets that have the ash precedence.
•ash-override --The ACL matches packets that have the ash override precedence.
•critical --The ACL matches packets that have the critical precedence.
•internet --The ACL matches packets that have the internetwork control precedence.
•network --The ACL matches packets that have the network control precedence.
12. Select one of the following options in the TOS list:
•normal --The ACL matches packets that have the normal Type of Service (ToS).
•min-monetary-cost --The ACL matches packets that have the minimum monetary cost ToS.
•max-reliability --The ACL matches packets that have the maximum reliability ToS.
•max-throughput --The ACL matches packets that have the maximum throughput ToS.
•min-delay --The ACL matches packets that have the minimum delay ToS.
13. Select the Log check box to enable generation of SNMP traps and syslog messages for packets denied by the ACL.
14. Click By Name for IP Protocol to select the IP protocol by name or click By Number to specify the number (from 0 through
255).
15. Select the TCP Established check box so that the policy applies to TCP packets that have the ACK (Acknowledgment) or RST
(Reset) bits set on (set to "1") in the Control Bits eld of the TCP packet header. The policy applies only to the established TCP
sessions, not to the new sessions.
NOTE
This eld applies only to the destination TCP ports, not the source TCP
ports.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an extended ACL
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 107
16. Enter the following information for Source:
a) To congure a single port, click Single Port.
Select one of the following options for Operator:
•Equal --The policy applies to the TCP or UDP port number or name you enter.
•NotEqual --The policy applies to all the TCP or UDP port numbers except the port number or port name you enter.
•LessThan --The policy applies to the TCP or UDP port numbers that are less than the port number or the numeric
equivalent of the port name you enter.
•GreaterThan --The policy applies to the TCP or UDP port numbers greater than the port number or the numeric
equivalent of the port name you enter.
Click Source Port System Dened.
b) To congure a range of ports, click Port Range.
Type the lower port number in the Low Port eld and the highest port number in the High Port eld.
Click Source Range System Dened.
17. To congure the destination port settings under Destination, follow the procedure explained in step 16 .
18. Click Add.
The message The change has been made is displayed. To display the congured extended numbered ACL, click Show.
To delete the congured extended numbered ACL, click Delete . To reset the data entered in the conguration pane, click Reset.
NOTE
Web GUI does not have ACL Sequence number support.
Conguring an IP access group
To congure an IP access group, perform the following steps.
1. Click Congure on the left pane and select System.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an IP access group
Brocade FastIron Web Management Interface User Guide, 08.0.50
108 53-1004462-01
2. Click IP Access Group.
The IP Access Group window is displayed as shown in the gure below.

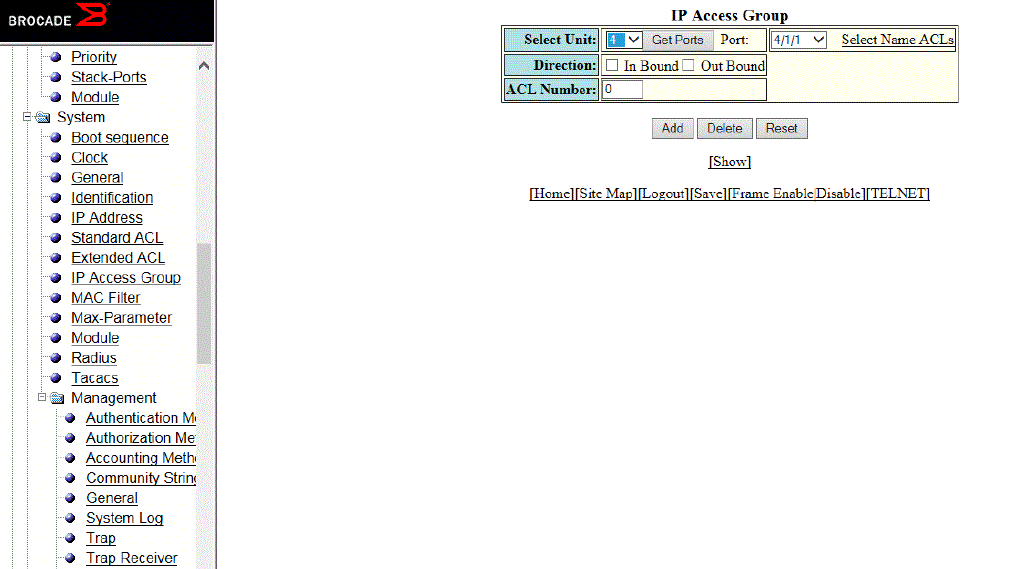

FIGURE 48 Conguring IP access groups
3. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
4. Select a port in the Port list.
• stack-unit/slotnum/portnum
5. Select the In Bound check box for Direction to enable incoming trac on the interface to which you apply the ACL.
6. Type the ACL number in the ACL Number list. If you want to type an ACL name, click Select Name ACLs. The eld label
changes to ACL Name . Now, you can type the ACL name up to 256 alphanumeric characters.
7. Click Add.
The message The change has been made is displayed. To display the congured IP access group, click Show.
To delete the congured IP access group, click Delete. To reset the data entered in the conguration pane, click Reset.
Conguring the system MAC lter
To congure the system MAC lter, perform the following steps.
1. Click Congure on the left pane and select System.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the system MAC lter
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 109
2. Click MAC Filter.
The MAC Filter window is displayed as shown in the gure below.
FIGURE 49 Conguring a MAC lter
3. Type the lter number in the ID eld.
4. Click Deny or Permit for Action.
5. Type the source MAC address in xx.xx.xx.xx.xx.xx format in the Source Address eld.
6. Type the source mask in the Source Mask eld.
7. Type the destination MAC address in xx.xx.xx.xx.xx.xx format in the Destination Address eld.
8. Type the destination mask in the Destination Mask eld.
9. Select the type of frame in the Frame Type list.
10. Select the comparison operator in the Operator list.
11. Type the protocol identier in the Protocol eld. To select the system-dened protocol, click System Dene.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the system MAC lter
Brocade FastIron Web Management Interface User Guide, 08.0.50
110 53-1004462-01
12. Click Add.
The message The change has been made is displayed. To display the congured MAC lter, click Show.
To change the congured MAC lter, click Modify. You can also delete the MAC lter by clicking Delete . To reset the data
entered in the conguration pane, click Reset.
To congure a lter group, click Filter Group. For more information on how to congure a lter group, refer to the “Conguring a
lter group” section.
Conguring a lter group
To congure a system lter group, perform the following steps.
1. Click Filter Group on the right pane of the MAC Filter window.
The Filter Group window is displayed as shown in the gure below.
FIGURE 50 Conguring a lter group
2. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
3. Select a port number in the Port list.
• stack-unit/slotnum/portnum
4. Type the lter identier in the Filter ID List eld.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the system MAC lter
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 111
5. Click Add.
The message The change has been made is displayed. To display the congured lter group, click Show.
To delete the congured lter group, click Delete. To reset the data entered in the conguration pane, click Reset.
Conguring the maximum system parameter value
To congure the maximum system parameter value, perform the following steps.
1. Click Congure on the left pane and select System .
2. Click Max-Parameter .

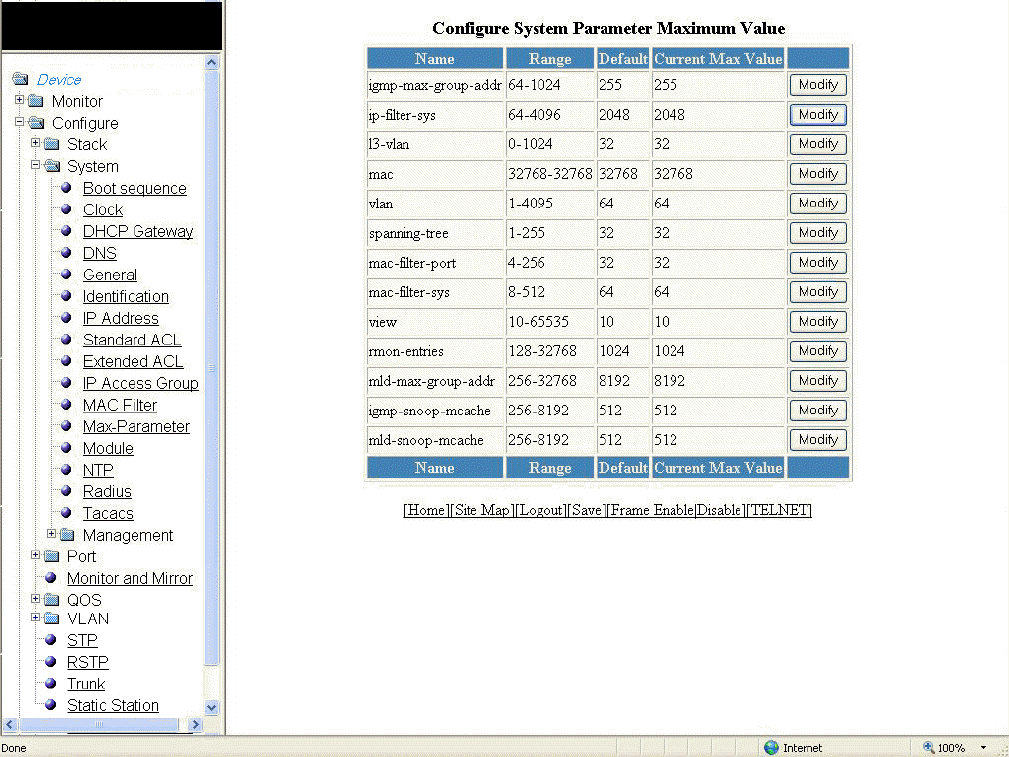

The Congure System Parameter Maximum Value window is displayed as shown in the gure below.
FIGURE 51 Conguring the maximum system parameter
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the maximum system parameter value
Brocade FastIron Web Management Interface User Guide, 08.0.50
112 53-1004462-01
3. To change the values for each system parameter, click Modify .
The System Parameter window is displayed as shown in the gure below.
FIGURE 52 Modifying the maximum parameter value
4. Type the maximum value in the Current Maximum Value eld.
5. Click Apply .
The message The change has been made is displayed. To display the congured maximum system value, click Show . To
reset the data entered in the conguration pane, click Reset .
Conguring a system module
To congure a system module, perform the following steps.
1. Click Congure on the left pane and select System.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a system module
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 113
2. Click Module.
The Module window is displayed as shown in the gure below.
FIGURE 53 Conguring system modules
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a system module
Brocade FastIron Web Management Interface User Guide, 08.0.50
114 53-1004462-01
3. Click Add Module.
The Module window is displayed as shown in the gure below.
FIGURE 54 Adding system modules
4. Select a slot number in the Slot list.
5. Select a chassis module type in the Module Type list.
6. Click Add.
The message The change has been made is displayed. To display the congured module, click Show.
To delete the congured module, click Delete. To reset the data entered in the conguration pane, click Reset.
Conguring a RADIUS server
To congure a Remote Authentication Dial In User Service (RADIUS) server, perform the following steps.
1. Click Congure on the left pane and select System .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a RADIUS server
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 115
2. Click Radius .
The RADIUS window is displayed as shown in the gure below.
FIGURE 55 Conguring a RADIUS server
3. Type the retransmission interval, which species how many times the Brocade device resends an authentication request when
the RADIUS server does not respond, in the Retransmit eld. The range is from 1 through 5 times. The default is 3 times.
4. Type the timeout interval, which species how many seconds the Brocade device waits for a response from a RADIUS server
before either retrying the authentication request or determining that the RADIUS servers are unavailable and moving on to the
next authentication method in the authentication method list, in the Timeout eld. The range is from 1 through 15 seconds. The
default is 3 seconds.
5. Type the dead interval, which species how long the Brocade device waits for the primary authentication server to reply before
deciding the server is dead and trying to authenticate using the next server, in the Dead Time eld. The range is from 1 through
5 seconds. The default is 3 seconds.
6. Type the RADIUS key in the Key eld. This is used to encrypt RADIUS packets before they are sent over the network. The value
for the key parameter on the Brocade device should match the one congured on the RADIUS server. The key can be from 1
through 32 characters in length and cannot include any space characters.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a RADIUS server
Brocade FastIron Web Management Interface User Guide, 08.0.50
116 53-1004462-01
7. Click Apply .
The message The change has been made is displayed. To display the congured RADIUS server, click RADIUS Server .
To reset the data entered in the conguration pane, click Reset .
NOTE
Web management interface does not support RADIUS conguration using ssl-auth-port.
Conguring a TACACS/TACACS+ server
To congure a TACACS/TACACS+ server, perform the following steps.
1. Click Congure on the left pane and select System .
2. Click Tacacs .

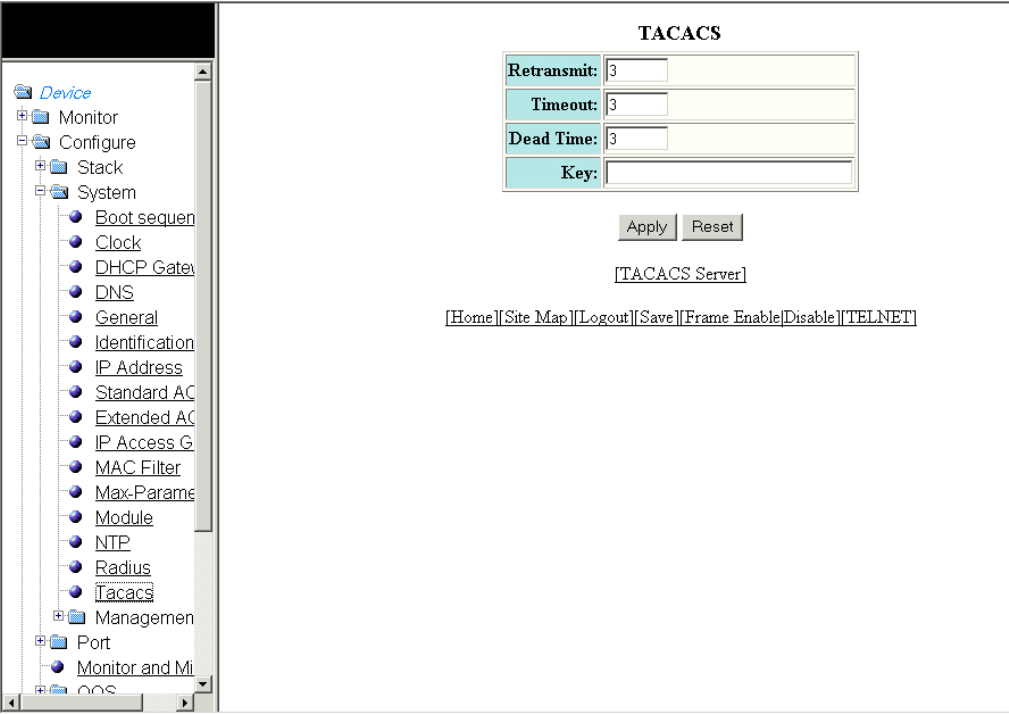

The TACACS window is displayed as shown in the gure below.
FIGURE 56 Conguring a TACACS/TACACS+ server
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a TACACS/TACACS+ server
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 117
3. Type the retransmission interval, which species how many times the Brocade device resends an authentication request when
the TACACS/TACACS+ server does not respond, in the Retransmit eld. The range is from 1 through 5 times. The default is 3
times.
4. Type the timeout interval, which species how many seconds the Brocade device waits for a response from a TACACS/
TACACS+ server before either retrying the authentication request or determining that the TACACS/TACACS+ servers are
unavailable and moving on to the next authentication method in the authentication method list, in the Timeout eld. The range is
from 1 through 15 seconds. The default is 3 seconds.
5. Type the dead interval, which species how long the Brocade device waits for the primary authentication server to reply before
deciding the server is dead and trying to authenticate using the next server, in the Dead Time eld. The range is from 1 through
5 seconds. The default is 3 seconds.
6. Type the TACACS/TACACS+ key in the Key eld. This is used to encrypt TACACS/TACACS+ packets before they are sent over
the network. The value for the key parameter on the Brocade device should match the one congured on the TACACS/
TACACS+ server. The key can be from 1 through 32 characters in length and cannot include any space characters.
7. Click Apply .
The message The change has been made is displayed. To display the congured TACACS/TACACS+ server, click
TACACS Server . To reset the data entered in the conguration pane, click Reset .
Conguring management authentication
To congure management authentication, perform the following steps.
1. Click Congure on the left pane and select System.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring management authentication
Brocade FastIron Web Management Interface User Guide, 08.0.50
118 53-1004462-01
2. Click Management and select Authentication Methods.
The Authentication Method window is displayed as shown in the gure below.
FIGURE 57 Conguring management authentication
3. Select one of the following types of authentication in the Type list:
•Login
•Enable
•Web Server
•SNMP Server
4. Click one of the following servers:
•Enable
•Radius
•Line
•Local
•TACACS+
•TACACS
•None
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring management authentication
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 119
5. Click Add.
The message The change has been made is displayed and the congured authentication method is listed in the Login
Authentication Sequence pane. Click Show Sequence to display the list of authentication methods added. To remove the
congured management authentication, click Delete.
Conguring management authorization
To congure management authorization, perform the following steps.
1. Click Congure on the left pane and select System.
2. Click Management and select Authorization Methods.
The Authorization Method window is displayed as shown in the gure below.
FIGURE 58 Conguring management authorization
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring management authorization
Brocade FastIron Web Management Interface User Guide, 08.0.50
120 53-1004462-01
3. Select either of the following modes of authorization in the Type list:
•Commands
•Exec
4. Click 0 or 4 or 5 for Command Level.
5. Click one of the following servers:
•Radius
•TACACS+
•None
6. Click Add.
The message The change has been made is displayed and the congured authorization method is listed in the Commands
Sequence pane. Click Show Sequence to display the list of authentication methods added. To delete the congured
management authorization, click Delete.
Conguring management accounting
To congure management accounting, perform the following steps.
1. Click Congure on the left pane and select System.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring management accounting
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 121
2. Click Management and select Accounting Methods.

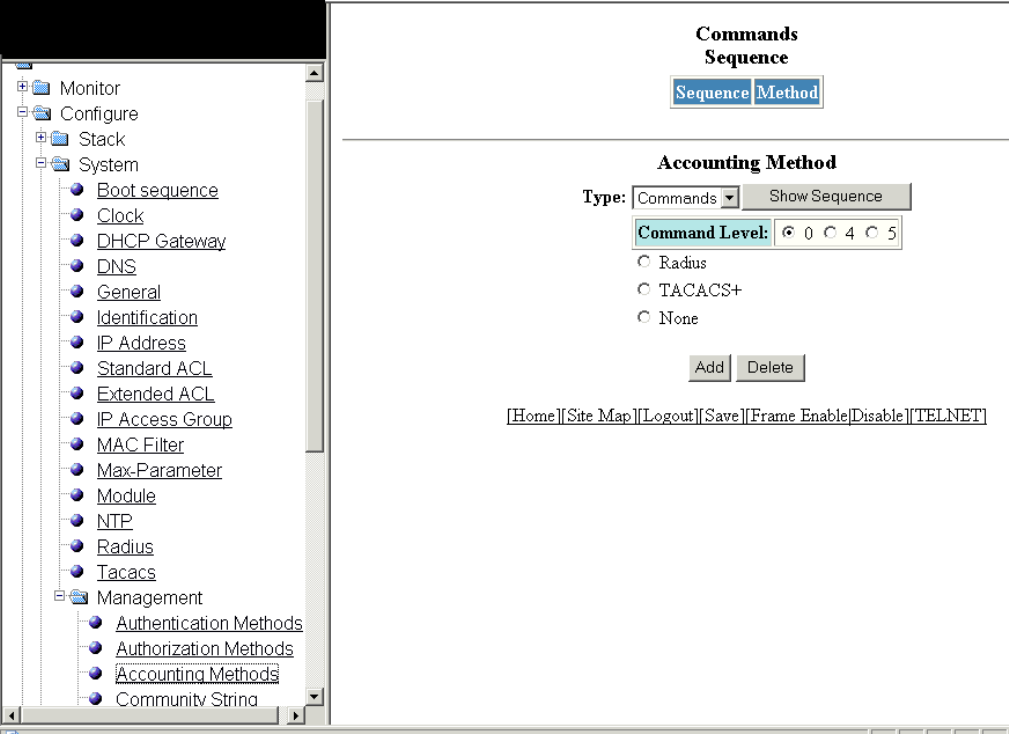

The Accounting Method window is displayed as shown in the gure below.
FIGURE 59 Conguring management accounting methods
3. Select one of the following modes of authorization:
•Commands
•Exec
•System
4. Click 0 or 4 or 5 for Command Level .
5. Click one of the following servers:
•Radius
•TACACS+
•None
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring management accounting
Brocade FastIron Web Management Interface User Guide, 08.0.50
122 53-1004462-01
6. Click Add.
The message The change has been made is displayed and the congured accounting method is listed in the Commands
Sequence pane. To delete the congured accounting method, click Delete.
Conguring an SNMP community string
To congure an SNMP community string, perform the following steps.
NOTE
SNMP community string is not supported if FIPS mode is enabled.
1. Click Congure on the left pane and select System .
2. Click Management and select Community String.
The SNMP Community String window is displayed as shown in the gure below.

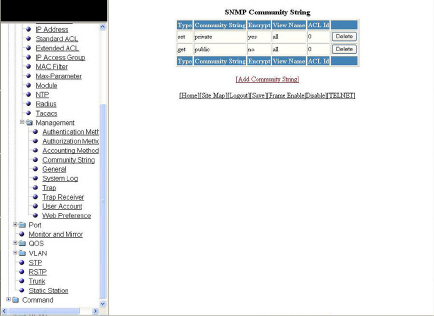

FIGURE 60 Conguring an SNMP community string
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an SNMP community string
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 123
3. Click Add Community String .
The SNMP Community String window is displayed as shown in the gure below.
FIGURE 61 Adding community strings
4. Click Get or Set for Type .
5. Type the user name to open a web management session in the Community String eld.
6. Select the Encrypt check box to enable encryption for a particular string.
7. Type the name of the community string in the View Name eld.
8. Type the ACL number in the ACL Id eld.
9. Click Add .
The message The change has been made is displayed. To display the congured community string, click Show .
To delete the community string, click Delete . To reset the data entered in the conguration pane, click Reset .
Conguring the general management parameters
To congure the general management parameters, perform the following steps.
1. Click Congure on the left pane and select System .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the general management parameters
Brocade FastIron Web Management Interface User Guide, 08.0.50
124 53-1004462-01
2. Click Management and select General .
The Management window is displayed as shown in the gure below.
FIGURE 62 Conguring general management parameters
3. Click Disable or Enable for Web Management .
4. Click Disable or Enable for SNMP .
5. Click Disable or Enable for TELNET .
6. Click Disable or Enable for Telnet Authentication .
7. Type the timeout interval in seconds to wait for a response in the Telnet Time Out eld.
8. Type an alphanumeric password in the Telnet Password eld.
9. Click Apply .
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset .
The Management window provides links to congure other management parameters:
• To congure the web management preferences, click Web Preference . For more information, refer to Conguring the web
management preferences on page 131.
• To congure a management user account, click User Account . For more information, refer to Conguring a management
user account on page 130.
• To congure management authentication, click Authentication Methods . For more information, refer to Conguring
management authentication on page 118.
• To congure management authorization, click Authorization Methods . For more information, refer to Conguring
management authorization on page 120.
• To congure management accounting, click Accounting Methods . For more information, refer to Conguring
management accounting on page 121.
• To congure a system module, click System . For more information, refer to Conguring a system module on page 113.
• To congure an SNMP community string, click Community String . For more information, refer to Conguring a system
module on page 113.
• To congure a trap, click Trap . For more information, refer to Conguring a trap on page 128.
• To congure a trap receiver, click Trap Receiver . For more information, refer to Conguring a trap receiver on page 129.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the general management parameters
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 125
Conguring a management system log
To congure a management system log, perform the following steps.
1. Click Congure on the left pane and select System.
2. Click Management and select System Log.
The System Log window is displayed as shown in the gure below.
FIGURE 63 Conguring a system log
3. Click Disable or Enable for Logging. By default, the syslog buer is enabled.
4. Click Disable or Enable for Logging persistence. By default, logging persistence is disabled.
5. Type the number of messages in the Buer Size eld.
6. Select a facility in the Facility list.
7. Select one of the following severity levels for Accept Severity:
•alert
•critical
•debugging
•emergency
•error
•informational
•notication
•warning
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a management system log
Brocade FastIron Web Management Interface User Guide, 08.0.50
126 53-1004462-01
8. Click Apply .
The message The change has been made is displayed. To display log server entries, click Show Log Server. To reset the
data entered in the conguration pane, click Reset.
If there are no log servers, the message There are no Log Server entries is displayed as shown in the gure below.
FIGURE 64 Viewing log server entries
To add extra log servers to your system log conguration, perform the following steps.
Adding a log server
To add a log sever, perform the following steps.
1. Click Add Log Server.
The System Log Server window is displayed as shown in the gure below.
FIGURE 65 Adding a Log Server
2. Click ipv4 or ipv6 and then type the IPv4 or IPv6 address in the Server IP Address eld.
3. Type the application port that can be used for the syslog facility in the Server Udp Port eld. The default value is 514.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a management system log
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 127
4. Click Add .
The message The change has been made is displayed. To display the log server entries, click Show Log Server . To
display the system log window, click Show System Log .
To delete the changes made, click Delete. To reset the data entered in the conguration pane Reset.
Conguring a trap
To congure a trap, perform the following steps.
NOTE
Trap cannot be congured if FIPS mode is
enabled.
1. Click Congure on the left pane and select System .
2. Click Management and select Trap .
The Trap window is displayed as shown in the gure below.
FIGURE 66 Conguring a trap
3. Click Disable or Enable for each trap.
4. Click Apply .
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a trap
Brocade FastIron Web Management Interface User Guide, 08.0.50
128 53-1004462-01
Conguring a trap receiver
To congure a trap receiver, perform the following steps.
NOTE
Trap receiver cannot be congured if FIPS mode is
enabled.
1. Click Congure on the left pane and select System.
2. Click Management and select Trap Receiver.
The Trap Receiver window is displayed as shown in the gure below.
FIGURE 67 Conguring a trap receiver
3. Click Add Trap Receiver to congure a new trap receiver.
The Trap Receiver window is displayed as shown here.
FIGURE 68 Adding a new trap receiver
4. Click ipv4 or ipv6 and then type the IP address of the destination of the route in the IP Address eld.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a trap receiver
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 129
5. Type the UDP port number of the host that will receive the trap in the UDP Port Number eld.
6. Type an arbitrary value made of two ve-digit integers joined by a colon in the Security Name or Community eld. Each string
in the community name can be a number from 0 through 65535.
7. Select the Encrypt (Turn o for V3) check box to enable or disable encryption for a particular string. It is turned o for V3.
8. Select one of the following options in the Security Model list:
•V1
•V2C
•V3
9. For V3 only, select one of the following options in the Security Level (Only for V3) list:
•noAuth --Allow all packets.
•authNoPriv --Allow only authenticated packets.
•authPriv --A password is required.
10. Click Add.
The message The change has been made is displayed. To view the trap receiver entries, click Show.
To delete the trap receiver, click Delete. To reset the data entered in the conguration pane, click Reset.
Conguring a management user account
To congure a management user account, perform the following steps.
1. Click Congure on the left pane and select System.
2. Click Management and select User Account.
The User Account window is displayed as shown in the gure below.
FIGURE 69 Conguring a management user account
3. Type the user identier in the Username eld.
4. Type the login password in the Password eld.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a management user account
Brocade FastIron Web Management Interface User Guide, 08.0.50
130 53-1004462-01
5. Select one of the following options in the Privilege list:
•0 (Read-Write)
•4 (Port-Cong)
•5 (Read-Only)
6. Click Add.
The message The change has been made is displayed. To view the congured user account, click Show.
To delete the congured user account, click Delete. To reset the data entered in the conguration pane, click Reset.
Conguring the web management preferences
To congure the web management preferences, perform the following steps.
1. Click Congure on the left pane and select System.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the web management preferences
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 131
2. Click Management and select Web Preference.
The Web Management Preferences window is displayed as shown in the gure below.
FIGURE 70 Conguring the web management preferences
3. Type the page size in the Page Size eld.
4. Type the console session timeout value in seconds in the Session Timeout eld.
5. Type the wait time interval after getting disconnected from the application in the Connection Receive Timeout eld.
6. Type the number of seconds after which the front panel gets refreshed in the Front Panel Refresh eld.
7. Click Disable or Enable for Front Panel. By default, it is enabled and the ports are labelled on the front panel of the devices.
8. Click Disable or Enable for Page Menu.
9. Click Disable or Enable for Front Panel Frame.
10. Click Disable or Enable for Bottom Frame.
11. Click Disable or Enable for Menu Frame.
12. Click List or Tree for Menu Type.
13. Type the port statistics polling time in the Port Statistic eld.
14. Type the STP statistics polling time in the STP eld.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the web management preferences
Brocade FastIron Web Management Interface User Guide, 08.0.50
132 53-1004462-01
15. Type the TFTP polling time in seconds in the TFTP Status eld.
16. Type the polling time for Remote Monitoring in the RMON eld.
17. Click Apply.
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the web management preferences
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 133
Brocade FastIron Web Management Interface User Guide, 08.0.50
134 53-1004462-01
Conguring Port Parameters
•Conguring an Ethernet port..................................................................................................................................................................... 135
•Conguring port inline power.................................................................................................................................................................... 137
•Conguring a management port..............................................................................................................................................................138
•Conguring the port uplink relative utilization.....................................................................................................................................139
Conguring an Ethernet port
To congure an Ethernet port, perform the following steps.
1. Click Congure on the left pane and select Port.
2. Click Ethernet.
The ETHERNET Port Conguration window is displayed as shown in the gure below.

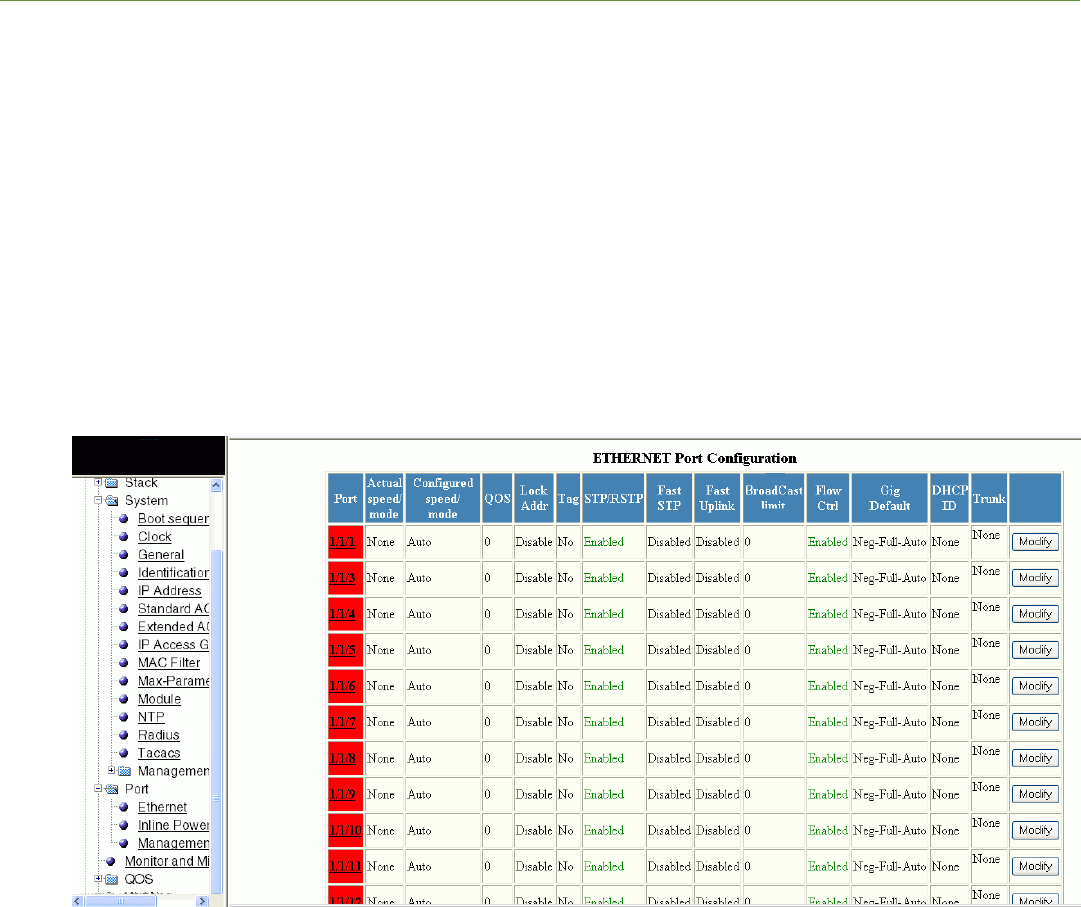

FIGURE 71 Conguring an Ethernet port
3. Select a unit ID in the Select Stack Unit ID list and click Display to display the information about a specic stack unit.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 135
4. Click Modify to modify the respective Ethernet port.
The Congure ETHERNET Port window is displayed as shown in the gure below.
FIGURE 72 Modifying the port settings
5. Type the name of the Ethernet port in the Name eld.
6. Select the type of the port speed for Speed Duplex, which can be one of the following:
•10-full --10 Mbps, full duplex
•10-half --10 Mbps, half duplex
•100-full --100 Mbps, full duplex
•100-half --100 Mbps, half duplex
•1G-full-master --1 Gbps, full duplex master
•1G-full-slave --1 Gbps, full duplex slave
•auto --Auto-negotiation
7. Click Disable or Enable for Status to disable or enable an Ethernet port.
8. Click Disable or Enable or Enable with neg-on for Flow Control . By default, ow control is enabled.
9. Click Disable or Enable for Lock Address . If you click Enable , type the number of devices that can have access to a specic
port in the Addr-count eld.
10. Click Disable or Enable for Route Only. If you click Enable , Layer 2 switching is disabled globally.
11. Select the QoS priority for the port in the QOS list.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an Ethernet port
Brocade FastIron Web Management Interface User Guide, 08.0.50
136 53-1004462-01
12. Click Apply.
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset.
To display the ETHERNET Port Conguration window, click Show ETHERNET Port Conguration .
Conguring port inline power
To congure port inline power, perform the following steps.
1. Click Congure on the left pane and select Port .
2. Click Inline Power .
The Congure Inline Power window is displayed as shown in the gure below.
FIGURE 73 Conguring port inline power
3. Click Disable or Enable for Inline Power .
4. Click Class for Allocate Power By and then select a power class in the Class list, or click Power Limit and then type the
maximum power level for a power-consuming device in the Power Limit eld.
5. Select an inline power priority for a Power over Ethernet (PoE) port in the Priority list.
6. To select the PoE ports, select the Select a range check box and select the range of ports in the From and To lists, or select the
Select one port check box and select the port in the list.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring port inline power
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 137
7. Click Apply .
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset .
To display the inline power statistics and details, click Show Inline Power . For more information, refer to Displaying port inline
power for Brocade ICX devices on page 52.
Conguring a management port
To congure a management port, perform the following steps.
1. Click Congure on the left pane and select Port .
2. Click Management .
The Management Port Conguration window is displayed as shown in the gure below.
FIGURE 74 Management port conguration
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a management port
Brocade FastIron Web Management Interface User Guide, 08.0.50
138 53-1004462-01
3. Click Modify .
The Congure Management Port window is displayed as shown in the gure below.

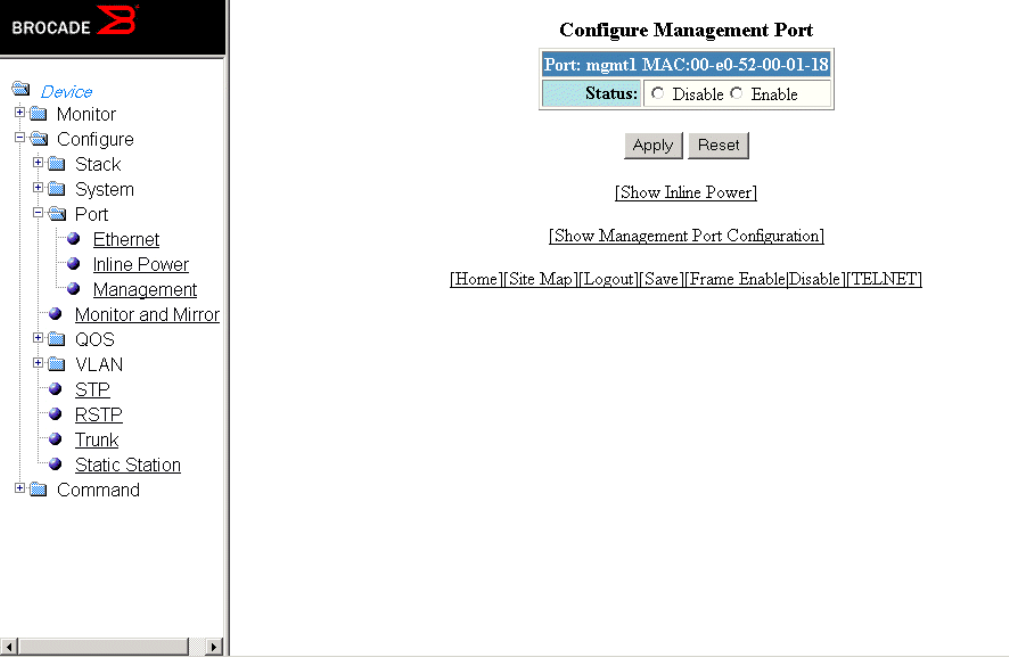

FIGURE 75 Conguring a management port
4. Click Disable or Enable for Status .
5. Click Apply .
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset .
To display the congured management port information, click Show Management Port Conguration .
To display the inline power statistics and details, click Show Inline Power . For more information, refer to Displaying port inline
power for Brocade ICX devices on page 52.
Conguring the port uplink relative utilization
To congure the port uplink utilization list, perform the following steps.
1. Click Congure on the left pane and select Port.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the port uplink relative utilization
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 139
2. Click Relative Utilization on the ETHERNET Port Conguration, Congure Inline Power, or Management Port Conguration
window.
The Port Uplink Relative Utilization window is displayed as shown in the gure below.
FIGURE 76 Conguring the port uplink relative utilization
3. Type the uplink utilization list number (from 1 through 4) in the ID eld.
4. Click Select Uplink Port Members to select the uplink ports.
5. Click Select Downlink Port Members to select the downlink ports.
• stack-unit/slotnum/portnum
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the port uplink relative utilization
Brocade FastIron Web Management Interface User Guide, 08.0.50
140 53-1004462-01
6. Click Add.
The message The change has been made is displayed. To display the congured port uplink utilization list, click Show.
To modify the congured port uplink utilization list, click Modify. You can also delete the congured port uplink utilization list by
clicking Delete. To reset the data entered in the conguration pane, click Reset.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the port uplink relative utilization
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 141
Brocade FastIron Web Management Interface User Guide, 08.0.50
142 53-1004462-01
Conguring Monitor and Mirror Port
•Conguring a mirror port.............................................................................................................................................................................143
•Conguring a monitor port......................................................................................................................................................................... 145
Conguring a mirror port
To congure port monitoring, rst congure the mirror port. The mirror port is the port to which the monitored trac is copied. To
congure a mirror port, perform the following steps.
1. Click Congure on the left pane and select Monitor and Mirror.
The Congure MIRROR Port window is displayed as shown in the gure below.

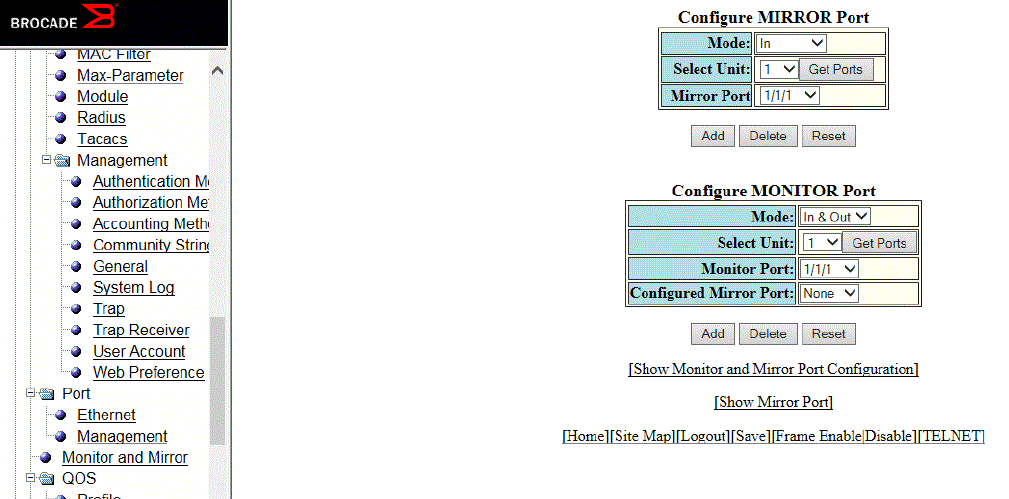

FIGURE 77 Conguring a mirror port
2. Select the mode in which the port operates in the Mode list, which can be one of the following:
•In
•Out
•In & Out
3. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
4. Select a port to which the monitored trac must be copied in the Mirror Port list.
• stack-unit/slotnum/portnum
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 143
5. Click Add .
The message The change has been made is displayed. To display the congured mirror port, click Show Mirror Port. The
gure below shows the Mirrored Ports window with the congured mirror port information.
To delete the congured mirror port, click Delete. To reset the data entered in the conguration pane, click Reset .

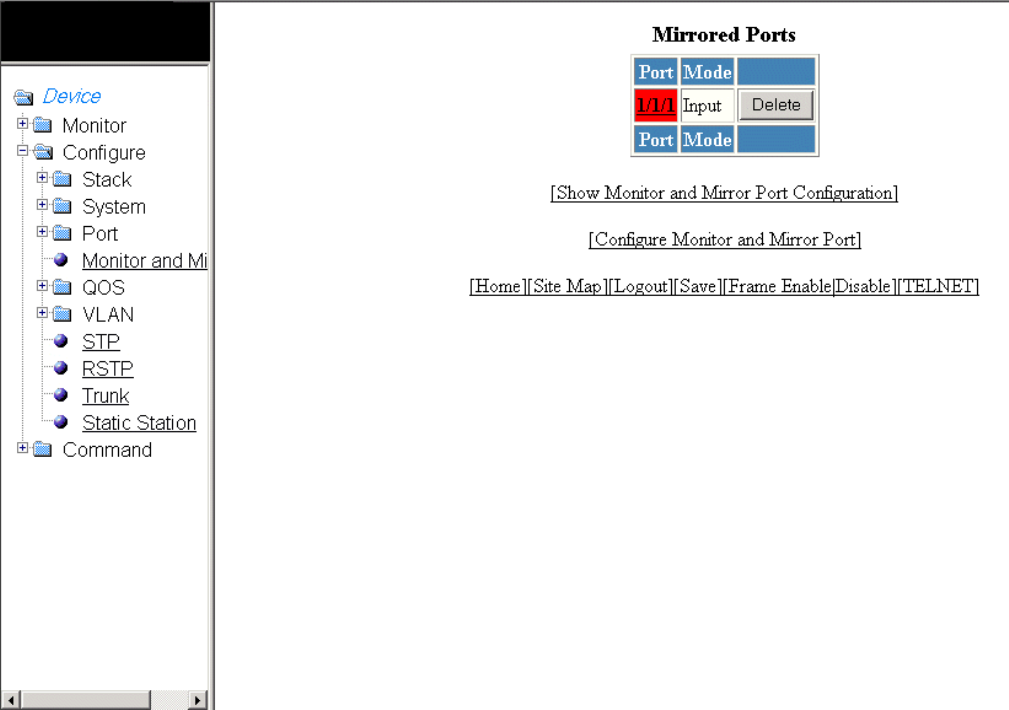

FIGURE 78 Monitoring mirror ports
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a mirror port
Brocade FastIron Web Management Interface User Guide, 08.0.50
144 53-1004462-01
Conguring a monitor port
To congure port monitoring on an individual port on a Brocade device, perform the following steps.
1. Click Congure on the left pane and select Monitor and Mirror.
The Congure MONITOR Port window is displayed as shown in the gure below.
FIGURE 79 Conguring the monitor port
2. Select one of the following modes in which the port operates in the Mode list:
•In
•Out
•In & Out
3. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
4. Select a port for which you want to monitor the trac in the Monitor Port list.
• – stack-unit/slotnum/portnum
5. Select a mirror port that you have congured in the Congured Mirror Port list.
6. Click Add.
The message The change has been made is displayed. To display the congured monitor port, click Show Monitor and
Mirror Port Conguration. To display the mirror port, click Show Mirror Port.
To delete the congured monitor port, click Delete. To reset the data entered in the conguration pane, click Reset.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a monitor port
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 145
Brocade FastIron Web Management Interface User Guide, 08.0.50
146 53-1004462-01
Conguring QoS
•Conguring the QoS prole....................................................................................................................................................................... 147
•Conguring the QoS prole bind............................................................................................................................................................. 148
Conguring the QoS prole
To congure the Quality of Service (QoS) prole, perform the following steps.
1. Click Congure on the left pane and select QOS .
2. Click Prole .
The QOS Prole window is displayed as shown in the gure below.

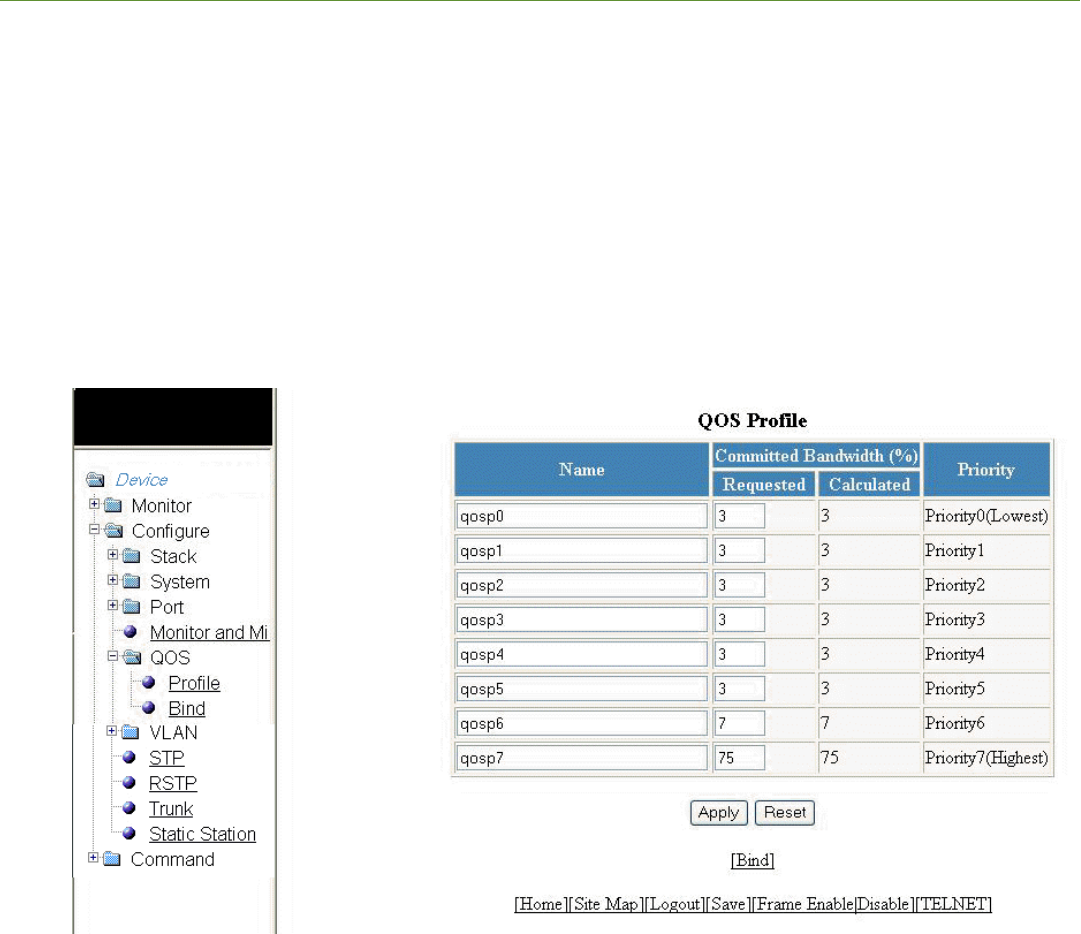

FIGURE 80 Conguring a QoS prole
3. The default queue names are qosp0 , qosp1 , qosp2 , qosp3 , qosp4 , qosp5 , qosp6 , and qosp7 . You can change one or
more of the names, if desired. Type the QoS name in the Name eld.
4. The Committed Bandwidth (%) is the percentage of the device outbound bandwidth that is allocated to the queue. Brocade
QoS queues require a minimum bandwidth of 3 percent for each priority. Type the percentage of bandwidth you want for the
queue in the Requested eld.
NOTE
The total of the percentages you enter must be equal to 100. The Brocade device does not adjust the bandwidth
percentages you enter.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 147
5. Click Apply .
The message The change has been made is displayed and the committed bandwidth is changed to the congured value in
the Calculated eld. The Priority eld shows the default priority of the individual QoS from lowest to highest (0 through 7).
To clear the entered data in the elds, click Reset . To congure the QoS prole bind, click Bind . For more information on how
to congure a QoS prole bind, refer to Conguring the QoS prole bind on page 148.
Conguring the QoS prole bind
To bind an 802.1p priority to a hardware forwarding queue, perform the following steps.
1. Click Congure on the left pane and select QOS .
2. Click Bind .
The 802.1p to QOS Prole Binding window is displayed as shown in the gure below.

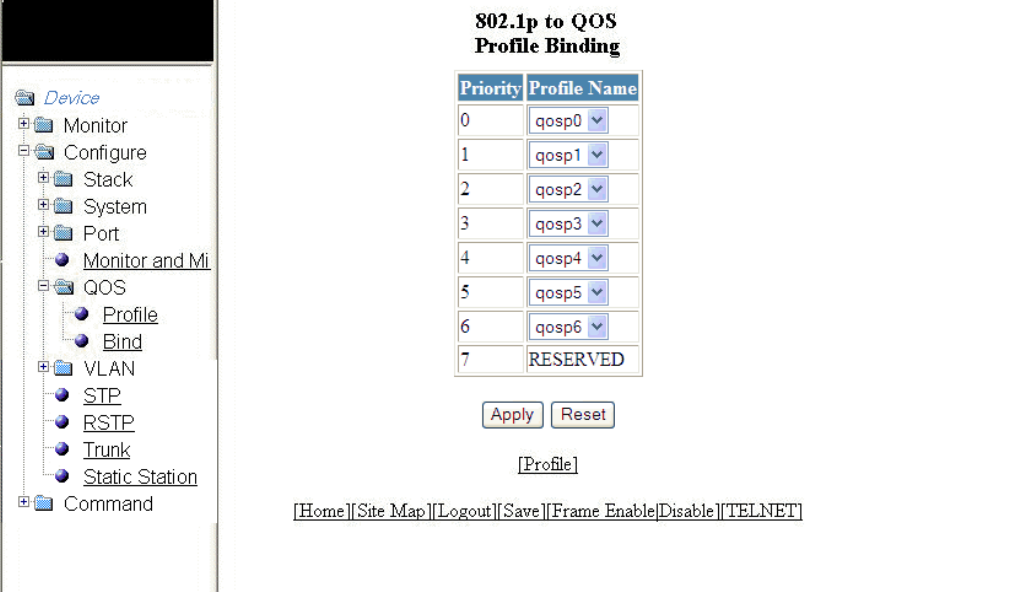

FIGURE 81 802.1p to QoS prole binding
3. Select a hardware forwarding queue to which you are reassigning the priority in the Prole Name lists.
4. Click Apply .
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset .
To congure the Quality of Service (QoS) prole, click Prole . For more information, refer to Conguring the QoS prole on
page 147.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the QoS prole bind
Brocade FastIron Web Management Interface User Guide, 08.0.50
148 53-1004462-01
Conguring VLAN
•Conguring a port VLAN............................................................................................................................................................................ 149
• Modifying a port VLAN................................................................................................................................................................................153
Conguring a port VLAN
To congure a port-based Virtual LAN (VLAN), perform the following steps.
1. Click Congure on the left pane and select VLAN .
2. Click Port .
The Port VLAN window is displayed as shown in the gure below. You can limit the number of VLANs displayed per page
using the VLANs per page list.

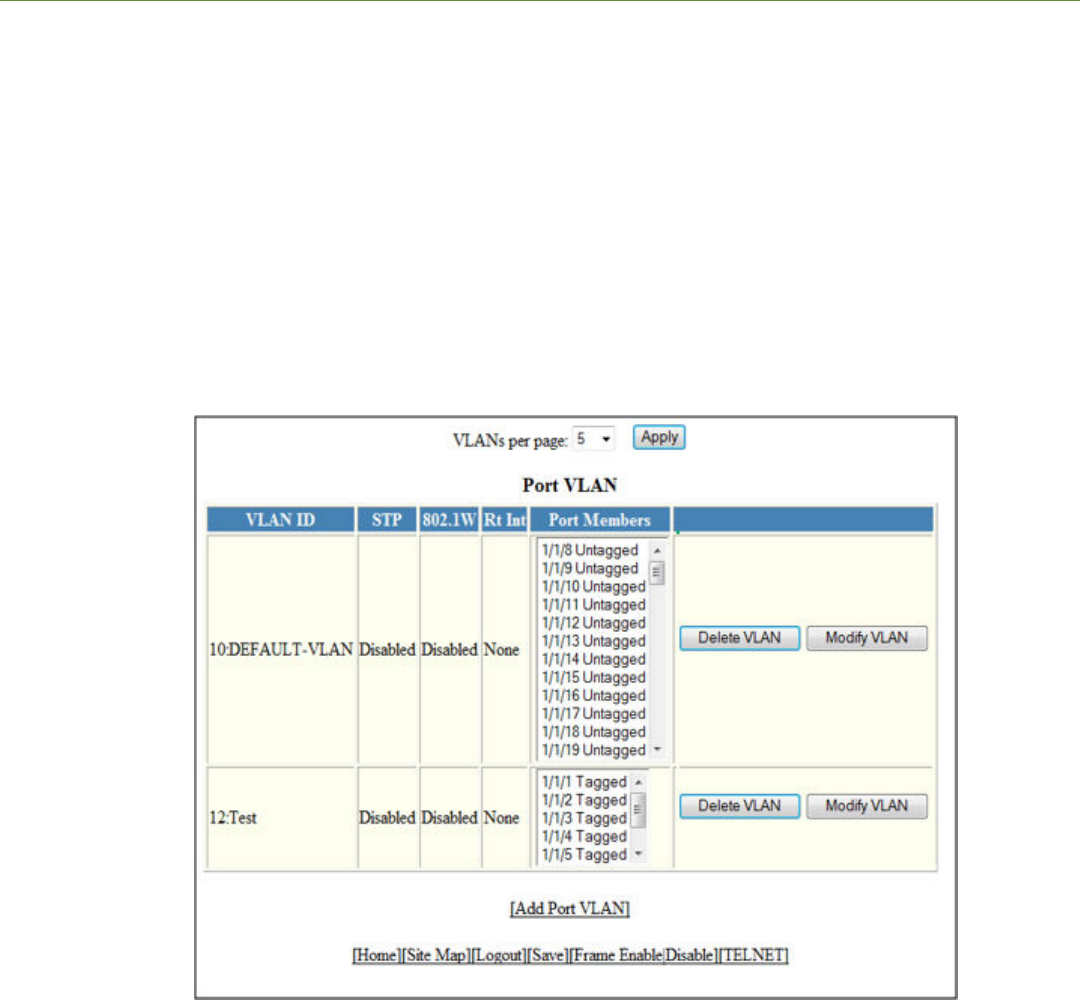

FIGURE 82 Conguring port VLANs
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 149
3. Click Add Port VLAN .
The Add Port VLAN window is displayed as shown in the gure below.
NOTE
Port-based VLAN cannot be congured, if the VLAN does not have any ports assigned to
it.
NOTE
Web management interface displays only the active VLANs with port members.
FIGURE 83 Adding port VLANs
4. Type the VLAN identier of the port in the Vlan Id eld.
5. Type the port VLAN name in the Name eld.
6. Click Disable or Enable for Spanning Tree .
7. Click Disable or Enable for 802.1W .
8. Select a virtual routing interface in the Router Interface list.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a port VLAN
Brocade FastIron Web Management Interface User Guide, 08.0.50
150 53-1004462-01
9. Click Add .
The Add Ports to VLAN window is displayed as shown in the gure below.

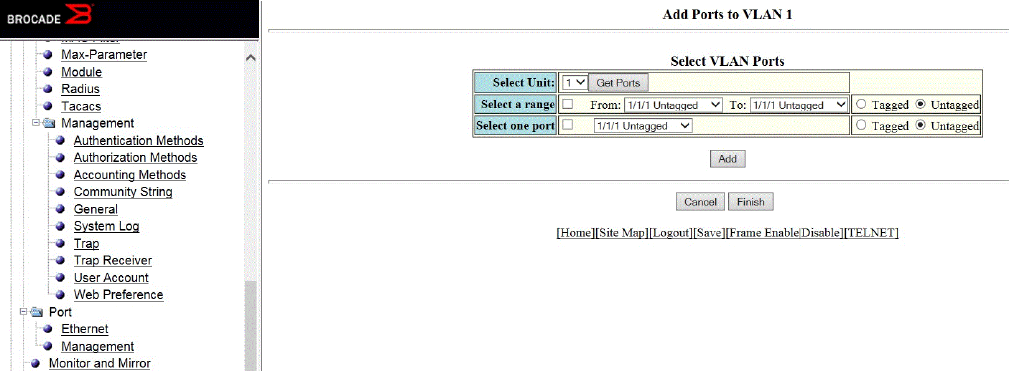

FIGURE 84 Adding ports to VLANs
10. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
11. To select the VLAN ports, select the Select a range check box, select the range of VLAN ports in the From and To lists, and
click Tagged or Untagged , or select the Select one port check box, select a port-based VLAN in the list, and click Tagged or
Untagged .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a port VLAN
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 151
12. Click Add .
The Selected VLAN Ports window is displayed as shown in the gure below.

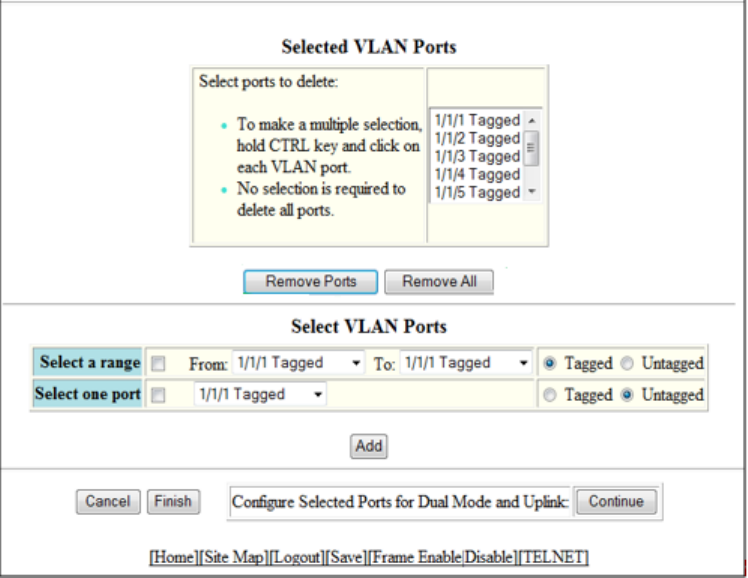

FIGURE 85 Selected VLAN ports
13. The selected VLAN ports are displayed in the Selected VLAN Ports list. Click Remove Ports or Remove All to delete the VLAN
ports.
NOTE
The VLAN conguration is retained even if the last port member is
deleted.
14. You can add more VLAN ports from the Select VLAN Ports pane. To do so, complete step 10 and step 11.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a port VLAN
Brocade FastIron Web Management Interface User Guide, 08.0.50
152 53-1004462-01
15. Click Finish to return to the Port VLAN window with the congured port-based VLAN displayed, or click Continue to congure
selected ports for dual mode and uplink. The Congure Selected Ports for VLAN window is displayed as shown in the gure
below.

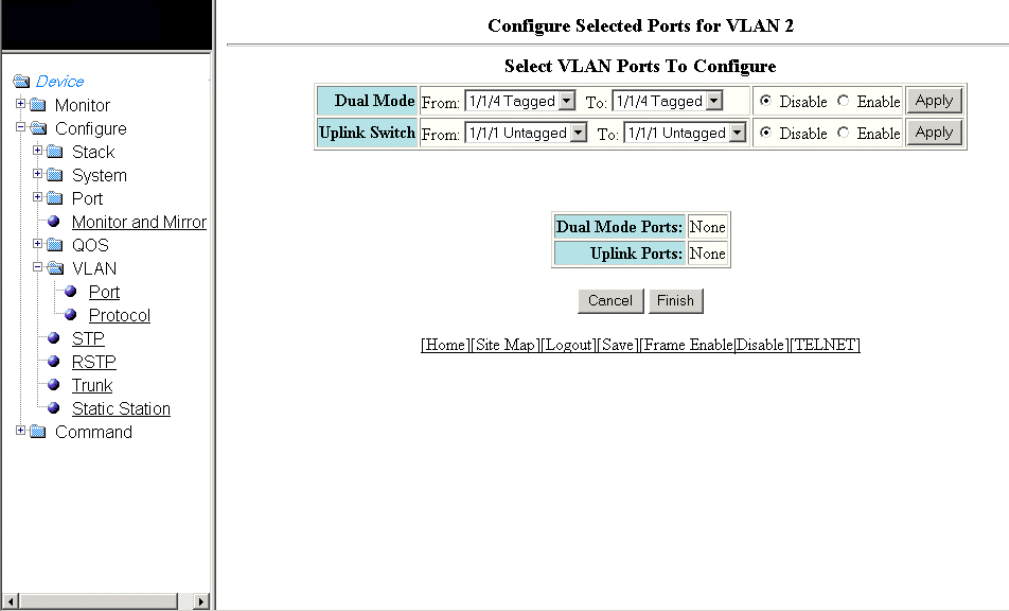

FIGURE 86 Conguring dual mode and uplink for ports
16. To congure dual mode and uplink for the ports, perform the following steps.
a) Select the ports for which you want to congure the dual mode in the From and To lists for Dual Mode . Click Disable or
Enable and then click Apply . The congured ports are displayed in the Dual Mode Ports list.
b) Select the ports for which you want to congure uplink in the From and To lists for Uplink Switch . Click Disable or Enable
and then click Apply . The congured ports are displayed in the Uplink Ports list.
c) Click Finish .
The congured port VLAN is displayed in the Port VLAN window. To cancel the VLAN port conguration and return to the
Port VLAN window, click Cancel .
Modifying a port VLAN
To modify a port VLAN, perform the following steps.
1. Click Congure on the left pane and select VLAN .
FOR BROCADE CONTROLLED RELEASE ONLY
Modifying a port VLAN
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 153
2. Click Port .
The Port VLAN window is displayed as shown in the gure below.
FIGURE 87 Conguring port VLANs
FOR BROCADE CONTROLLED RELEASE ONLY
Modifying a port VLAN
Brocade FastIron Web Management Interface User Guide, 08.0.50
154 53-1004462-01
3. Click Modify .
The Modify Port VLAN window is displayed as shown in the gure below .
FIGURE 88 Modifying port VLANs
4. Type the VLAN identier of the port in the Vlan Id eld.
5. Type the port VLAN name in the Name eld.
6. Click Disable or Enable for Spanning Tree .
7. Click Disable or Enable for 802.1W .
8. Select the VLAN ports in the Port Members list.
9. To delete the congured port VLAN, click Delete VLAN . To undo your changes and go back to the Port VLAN window, click
Cancel .
FOR BROCADE CONTROLLED RELEASE ONLY
Modifying a port VLAN
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 155
10. Click Modify Ports to modify VLAN ports.
The Modify Ports of VLAN window is displayed as shown in the gure below .

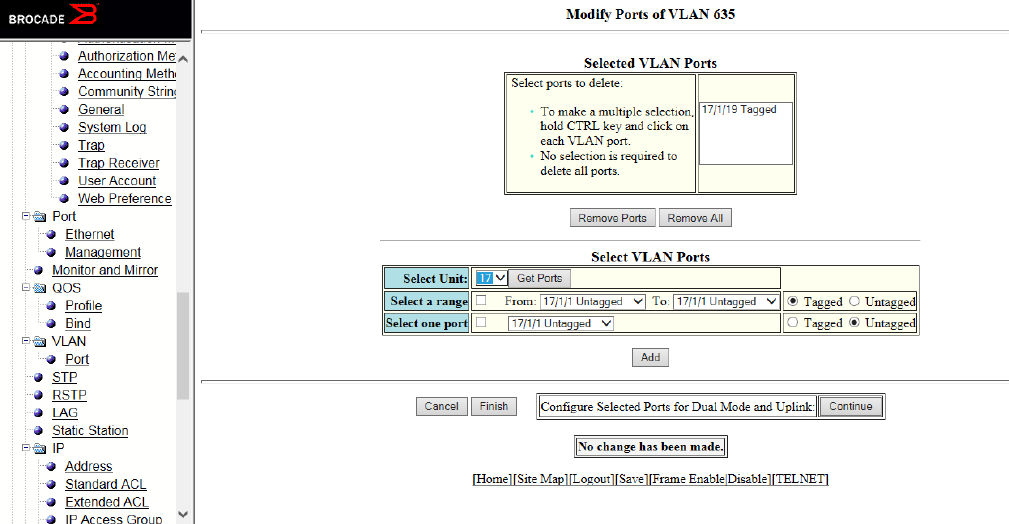

FIGURE 89 Modify Ports of the selected VLAN
11. The selected VLAN ports are displayed in the Selected VLAN Ports list. Click Remove Ports or Remove All to delete the VLAN
ports.
NOTE
The VLAN conguration is retained even if the last port member is
deleted.
12. You can add more VLAN ports from the Select VLAN Ports pane.
13. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
14. To select the VLAN ports, select the Select a range check box, select the range of VLAN ports in the From and To lists, and
click Tagged or Untagged , or select the Select one port check box, select a port-based VLAN in the list, and click Tagged or
Untagged .
15. Click Add to add more VLAN ports.
16. Click Finish to return to the Modify Port VLAN window with the congured port-based VLAN displayed, or click Continue to
congure selected ports for dual mode and uplink.
17. Click Finish to complete the port modifying operation.
FOR BROCADE CONTROLLED RELEASE ONLY
Modifying a port VLAN
Brocade FastIron Web Management Interface User Guide, 08.0.50
156 53-1004462-01
Conguring STP
•Conguring STP parameters.....................................................................................................................................................................157
Conguring STP parameters
Brocade Layer 2 switches and Layer 3 switches support standard Spanning Tree Protocol (STP) as described in the IEEE 802.1D
specication.
Each port-based VLAN on a Brocade device runs a separate spanning tree. A Brocade device has one port-based VLAN (VLAN 1) that
contains all the device ports. However, if you congure additional port-based VLANs on a Brocade device, then each of those VLANs on
which STP is enabled and the VLAN 1 run separate spanning trees.
If you congure a port-based VLAN on the device, the VLAN has the same STP state as the default STP state on the device. Thus, by
default on Layer 2 switches, new VLANs have STP enabled and on Layer 3 switches, new VLANs have STP disabled. You can enable or
disable STP in each VLAN separately and also on individual ports.
Using the Web Management Interface, you can change the default STP bridge and port parameters.
Changing STP bridge parameters
The table below lists the default STP bridge parameters.
TABLE 28 Default STP bridge parameters
Parameter Default value
Forward Delay 15 seconds
Maximum Age 20 seconds
Hello Time 2 seconds
Priority 32768
NOTE
To change STP bridge timers, you must stay within the following ranges:2 * (Forward Delay-1) >= Maximum Age >= 2 * (Hello
Time +1)
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 157
To change the default STP bridge values, perform the following steps.
1. Click Congure on the left pane and select STP .
The STP Bridge window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring STP parameters
Brocade FastIron Web Management Interface User Guide, 08.0.50
158 53-1004462-01
FIGURE 90 Conguring the STP bridge
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring STP parameters
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 159
2. Select a unit ID in the Select Stack Unit ID list and click Display to display the information about a specic stack unit.
3. To change the default values of the STP bridge, click Modify .
The STP window is displayed as shown in the gure below.

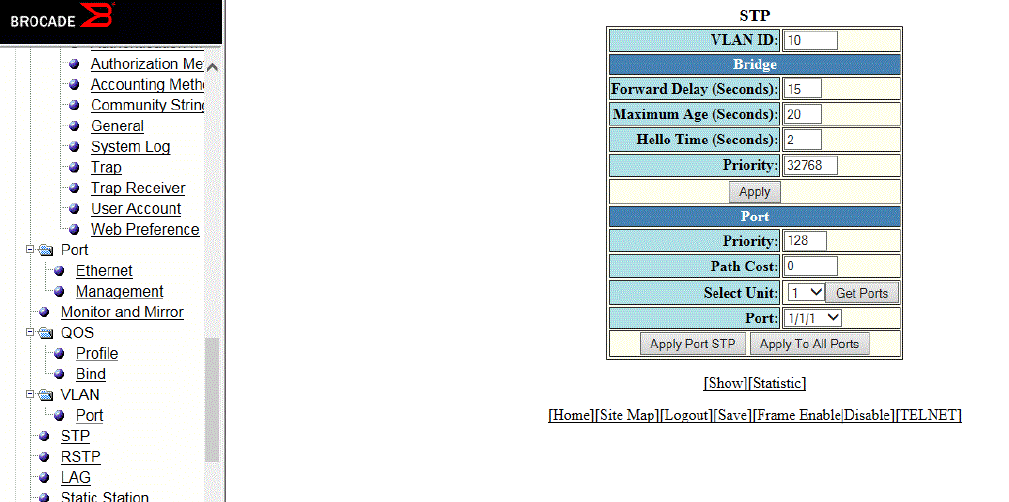

FIGURE 91 Conguring STP bridge parameters
4. Type the VLAN identier of the port in the VLAN ID eld.
5. Type the forward delay time, which is the period of time spent by a port in the listening and learning state before moving on to
the learning or forwarding state, in the Forward Delay (Seconds) eld. The range is from 4 through 30 seconds.
6. Type the maximum amount of time the device waits before a topology change in the Maximum Age (Seconds) eld. The range
is from 6 through 40 seconds.
7. Type the hello time, which is the interval of time between each conguration BPDU sent by the root bridge, in the Hello Time
(Seconds) eld. The range is from 1 through 10 seconds.
8. Type the priority used to identify the root bridge in a spanning tree in the Priority eld. The range is from 0 through 65535.
9. Click Apply .
The message The change has been made is displayed and the congured values are displayed in the STP Bridge window.
To display the STP Bridge window, click Show . To display STP information, click Statistic . For more information on the eld
descriptions, refer to Displaying STP information on page 59.
Changing STP port parameters
The table below lists the default STP port parameters.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring STP parameters
Brocade FastIron Web Management Interface User Guide, 08.0.50
160 53-1004462-01
TABLE 29 Default STP port parameters
Parameter Default value
Priority 128
Path Cost The default path cost depends on the port type.
• 10 Mbps - 100
• 100 Mbps - 19
• 1 Gbps - 4
• 10 Gbps - 2
To change the default STP port values, perform the following steps.
1. Click Congure on the left pane and select STP.
The STP Port window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring STP parameters
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 161
2. Select a unit ID in the Select Stack Unit ID list and click Display to display the information about a specic stack unit.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring STP parameters
Brocade FastIron Web Management Interface User Guide, 08.0.50
162 53-1004462-01

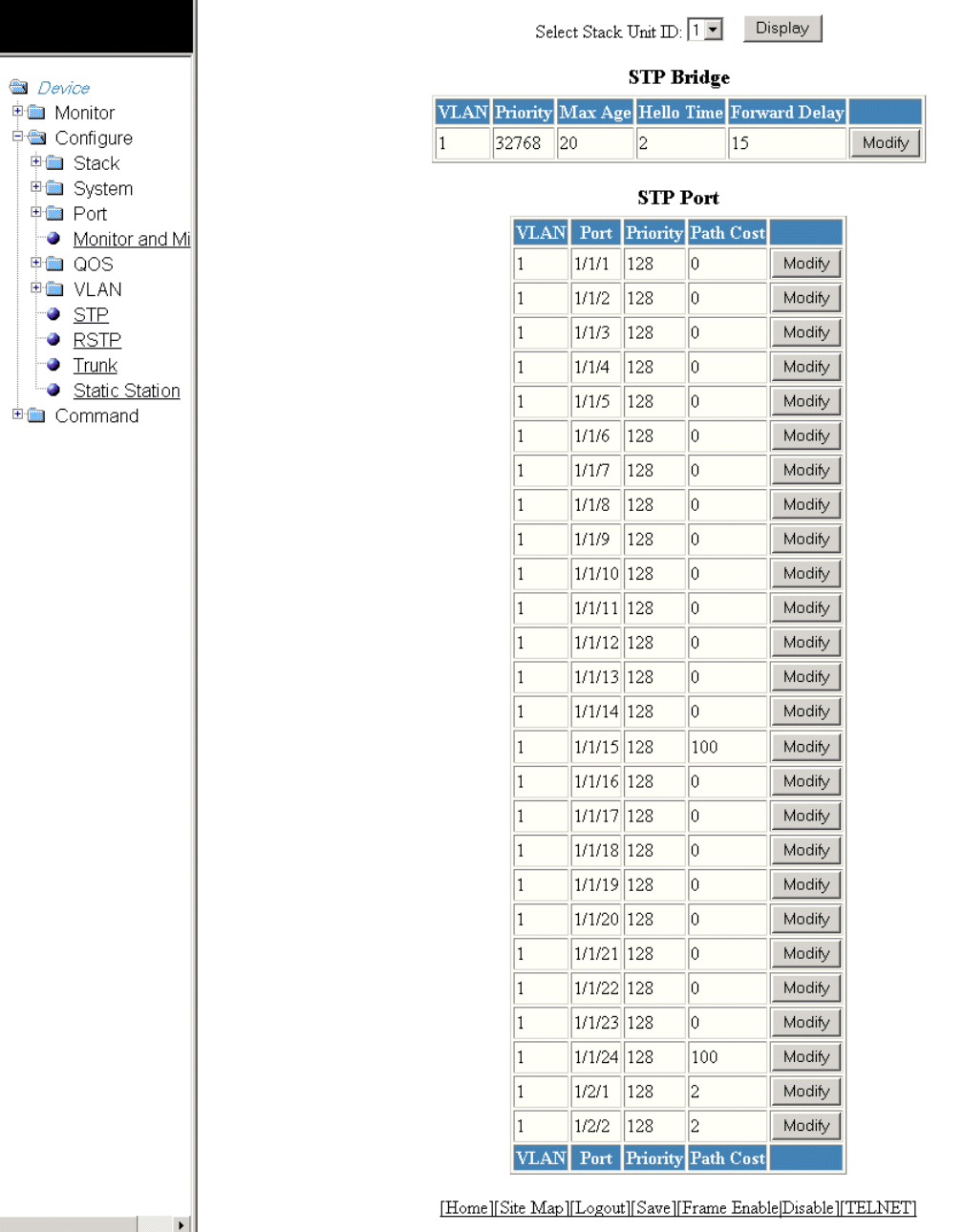

FIGURE 92 Conguring the STP port
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring STP parameters
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 163
3. Click Modify to change the default values of individual STP ports.
The STP window is displayed.
FIGURE 93 Conguring STP port parameters
4. Type the VLAN identier of the port in the VLAN ID eld.
5. Type the preference that STP should give to this port relative to other ports for forwarding trac out of the spanning tree in the
Priority eld. The range is from 0 through 240.
6. Type the cost of using the port to reach the root bridge in the Path Cost eld. The range is from 0 through 65535.
7. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
8. Select a port number in the Port list.
• stack-unit/slotnum/portnum
9. Click Apply Port STP to congure the entered values only to the specied port. Click Apply To All Ports to congure the
entered values to all the ports.
The message The change has been made is displayed and the congured values are displayed in the STP Port window. To
display the STP Port window, click Show.
To display STP information, click Statistic. For more information on the eld descriptions, refer to the “Displaying STP
information” section.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring STP parameters
Brocade FastIron Web Management Interface User Guide, 08.0.50
164 53-1004462-01
Conguring RSTP
•Conguring RSTP parameters..................................................................................................................................................................165
Conguring RSTP parameters
You can change the RSTP default bridge and port parameters using the Web Management Interface.
Changing RSTP bridge parameters
The table below lists the default RSTP bridge parameters.
TABLE 30 Default RSTP bridge parameters
Parameter Default value
Forward Delay 15 seconds
Maximum Age 20 seconds
Hello Time 2 seconds
Priority 32768
Force Version RSTP Default Mode
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 165
To change the default RSTP bridge values, perform the following steps.
1. Click Congure on the left pane and select RSTP.
The RSTP Bridge window is displayed as shown in the gure below.
FIGURE 94 Conguring RSTP parameters
2. Select a Unit ID from the Select Unit ID list and click Display to view the ports congured with RSTP.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring RSTP parameters
Brocade FastIron Web Management Interface User Guide, 08.0.50
166 53-1004462-01
3. Click Modify.
The RSTP window is displayed as shown in the gure below.

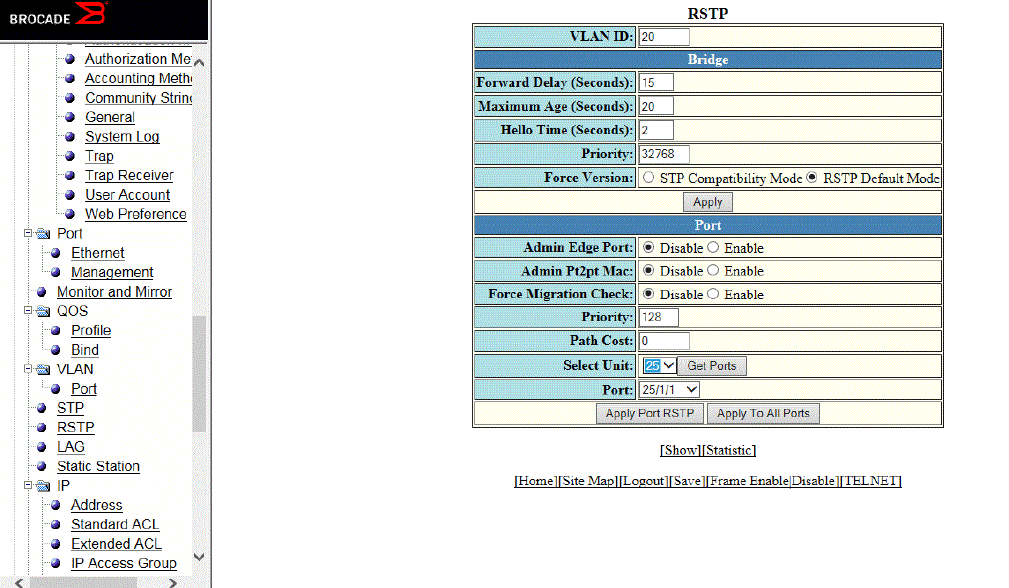

FIGURE 95 Changing RSTP bridge values
4. Type the VLAN identier of the port in the VLAN ID eld.
5. Type the forward delay, which species how long a port waits before it forwards an RST BPDU after a topology change, in the
Forward Delay (Seconds) eld. The range is from 4 through 30 seconds.
6. Type the maximum age, which species the amount of time the device waits to receive a Hello packet before it starts a topology
change, in the Maximum Age (Seconds) eld. The range is from 6 through 40 seconds.
7. Type the hello time, which species the interval between two Hello packets, in the Hello Time (Seconds) eld. The range is from
1 through 10 seconds.
8. Type the priority of the bridge in the Priority eld. The range is from 0 through 65535.
9. Click STP Compatibility Mode or RSTP Default Mode for Force Version . By default, RSTP Default Mode is enabled.
10. Click Apply.
The message The change has been made is displayed and the congured values are shown in the RSTP Bridge window.
Changing RSTP port parameters
The table below lists the default RSTP port parameters.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring RSTP parameters
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 167
TABLE 31 Default RSTP port parameters
Parameter Default value
Admin Edge Port Disable
Admin Pt2pt Mac Disable
Force Migration Check Disable
Priority 128
Path Cost 0
To change the default RSTP port values, perform the following steps.
1. Click Congure on the left pane and select RSTP
The RSTP Port window is displayed as shown in the gure below.
FIGURE 96 Conguring RSTP ports
2. Select a Unit ID from the Select Unit ID list and click Display to view the ports congured with RSTP.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring RSTP parameters
Brocade FastIron Web Management Interface User Guide, 08.0.50
168 53-1004462-01
3. Click Modify to change the default values for an individual RSTP ports.
The RSTP window is displayed as shown in the gure below.
FIGURE 97 Changing RSTP port values
4. Click Disable or Enable for Admin Edge Port. If you click Enable , the port becomes an edge port in the domain.
5. Click Disable or Enable for Admin Pt2pt Mac. If you click Enable, a port will be connected to another port through a point-to-
point link.
6. Click Disable or Enable for Force Migration Check. If you click Enable, the specied port will be forced to send one RST
BPDU. If only STP BPDUs are received in response to the sent RST BPDU, then the port returns to sending STP BPDUs.
7. Type the priority, which is the preference that RSTP gives to this port relative to other ports for forwarding trac out of the
topology, in the Priority eld. The range is from 0 through 240.
8. Type the cost of the port path to the root bridge in the Path Cost eld. The range is from 1 through 20,000,000.
9. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
10. Select a port from the Port list.
• stack-unit/slotnum/portnum
11. Click Apply Port RSTP to congure the values only to the specied port, or click Apply To All Ports to congure the values to
all the ports.
The message The change is made is displayed and the congured RSTP port values are reected in the RSTP Port
window.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring RSTP parameters
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 169
Brocade FastIron Web Management Interface User Guide, 08.0.50
170 53-1004462-01
Conguring LAGs
•Conguring a static dynamic or keep-alive LAG...............................................................................................................................171
• Displaying a congured LAG.....................................................................................................................................................................174
Conguring a static dynamic or keep-alive LAG
You can congure a static, dynamic, or keep-alive link aggregation group (LAG).
NOTE
sFlow and rate-limiting commands are not supported in the Web Management interface.
To congure a LAG, perform the following steps.
1. Click Congure on the left pane and select LAG.

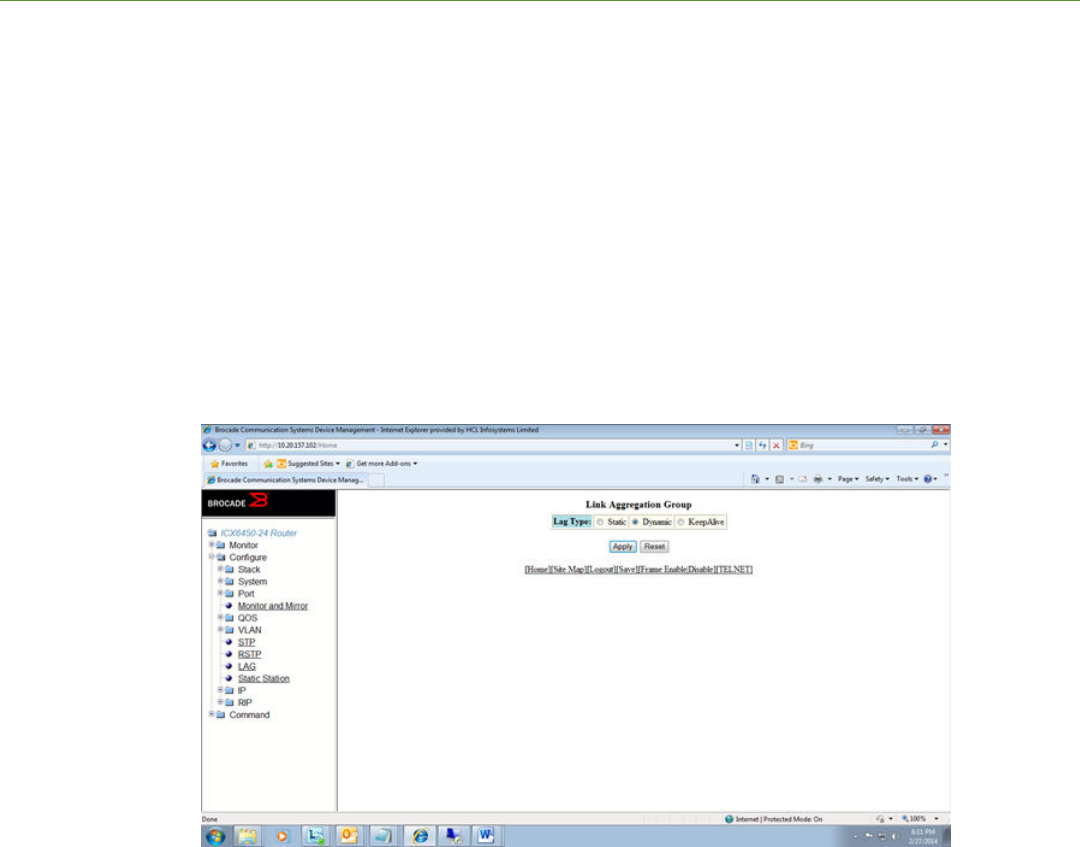

The Link Aggregation Group window is displayed.
You can select among the LAG types: static, dynamic, or keep-alive.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 171
2. Click Apply.

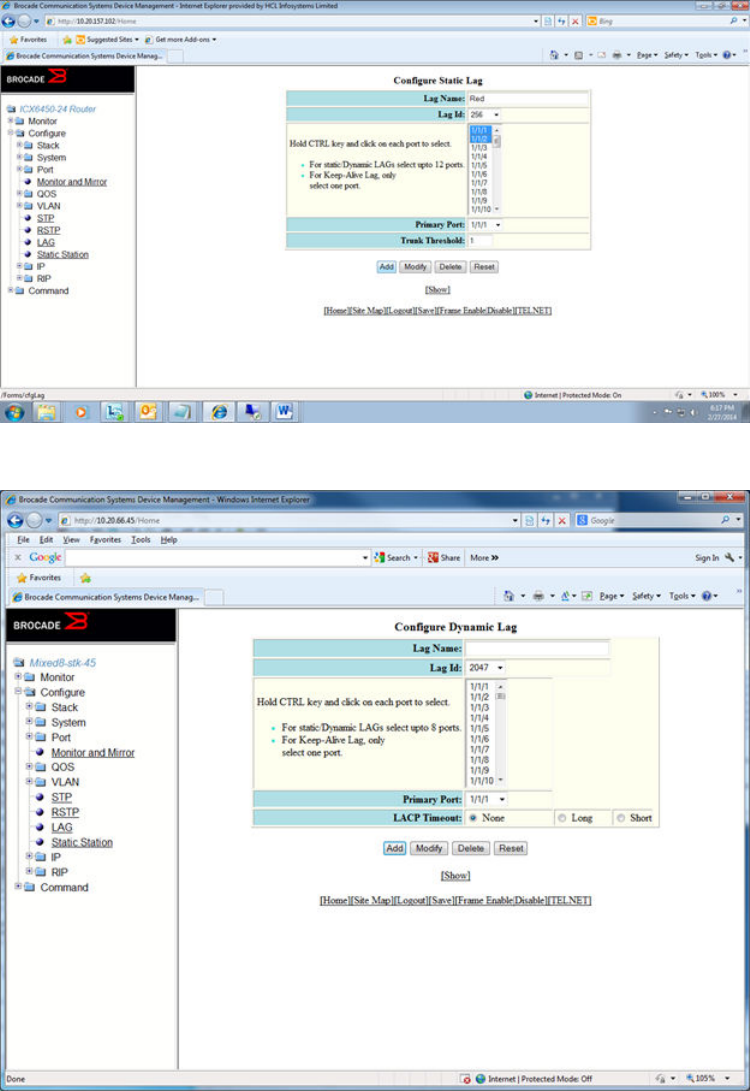

• If you select a static LAG, this window is displayed:
• If you select a dynamic LAG, this window is displayed:
• If you select a keep-alive LAG, this window is displayed:
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a static dynamic or keep-alive LAG
Brocade FastIron Web Management Interface User Guide, 08.0.50
172 53-1004462-01
3. Enter the LAG name in the Lag Name eld.
You can enter up to 64 alphanumeric characters.
4. Enter the LAG ID in the Lag Id eld.
Hold down the CTRL key and, for static and dynamic LAGs only, select ports from the list. The number of ports you can select
for static and dynamic LAGs depends on the platform. You can select only one port for keep-alive LAGs.
NOTE
If you do not select a LAG ID, an ID is automatically generated.
5. NOTE
This step applies only to static and dynamic LAGs.
Select the primary port.
The Primary Port list displays a list of the ports you selected for the LAG; you can select a primary port from it.
6. NOTE
This step applies only to static LAGs.
Congure the trunk threshold.
7. NOTE
This step applies only to dynamic and keep-alive LAGs.
Congure the LACP timeout.
8. Click Add.
The LAG is added.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a static dynamic or keep-alive LAG
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 173
Displaying a congured LAG
You can display information for a congured link aggregation group (LAG). You can also deploy, undeploy, modify, or delete congured
LAGs.
To display LAG information, perform the following step.
Click Show in the Congure LAG window.
This window has information elds for all LAG types; the elds are populated according to the LAG type, as follows:
• For static LAGs, the LACP Timeout and LACP Key elds display “–” because these parameters do not apply to static
LAGs.
• For dynamic LAGs, the Trunk Threshold eld displays “–” because this parameter does not apply to dynamic LAGs.
You can perform the following actions in this window:
• You can select the Modify button to display the Link Aggregation Group conguration window.
• You can select the Add LAG link to congure a new LAG.
FOR BROCADE CONTROLLED RELEASE ONLY
Displaying a congured LAG
Brocade FastIron Web Management Interface User Guide, 08.0.50
174 53-1004462-01
Conguring a Static Station
• Adding a static station...................................................................................................................................................................................175
• Modifying a static station.............................................................................................................................................................................176
Adding a static station
To congure a static MAC entry and assign the trac priority (QoS) and VLAN membership (VLAN ID) to the entry, perform the following
steps.
1. Click Congure on the left pane and select Static Station.
The Static Station Table window is displayed as shown in the gure below.

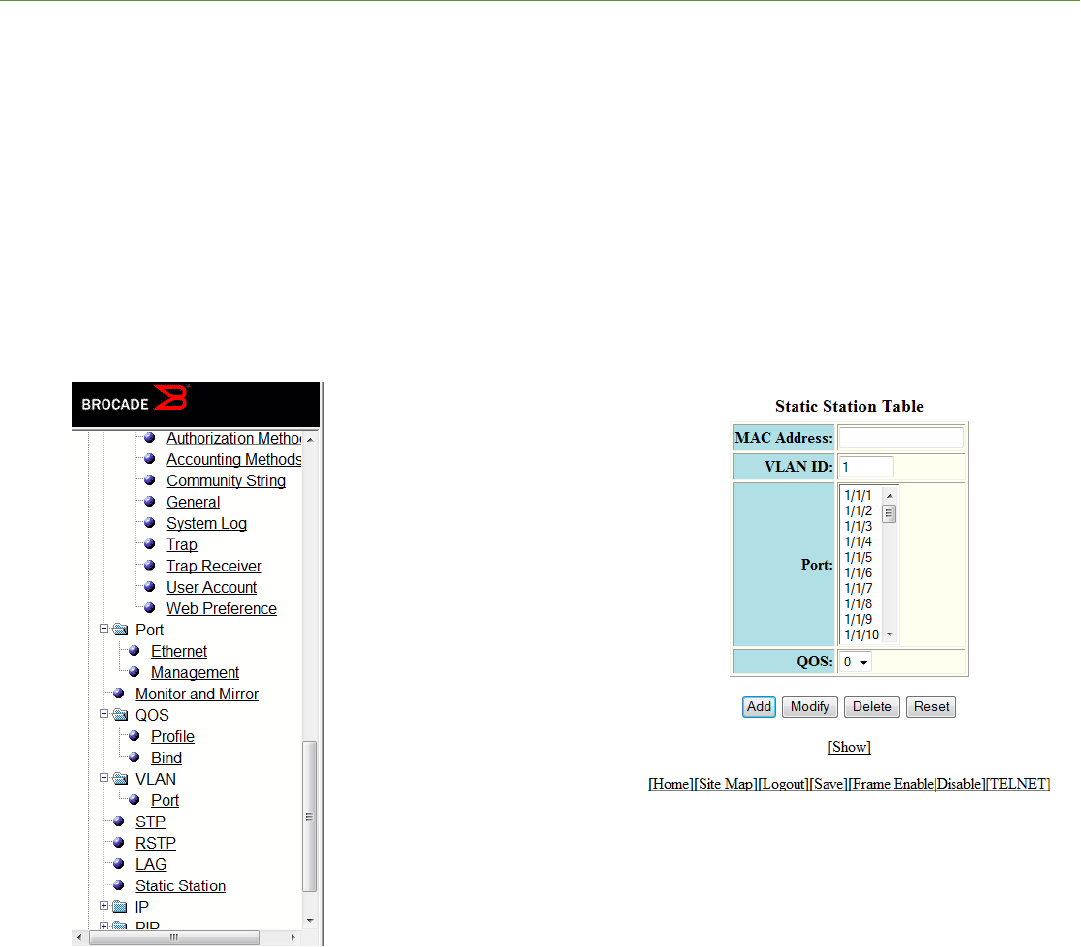

FIGURE 98 Conguring the static station
2. Type the MAC address of the device in xx-xx-xx-xx-xx-xx format in the MAC Address eld.
3. Type the port-based VLAN identier in the VLAN ID eld. VLAN 1 is the default VLAN.
4. Select a port number or multiple port numbers in the Port list.
5. Select a QoS priority in the QOS list. A static MAC entry can be assigned a priority from 0 through 7.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 175
6. Click Add.
The message The change has been made is displayed. To display the congured static station, click Show.
To reset the data entered in the conguration pane, click Reset. You can also delete the congured static station entry by clicking
Delete.
Modifying a static station
After you congure a static station, you can modify the port number, QoS priority, VLAN ID, and device type of the entry by performing
the following steps.
1. Click Congure on the left pane and select Static Station.
The Static Station Table window is displayed as shown in the gure below.

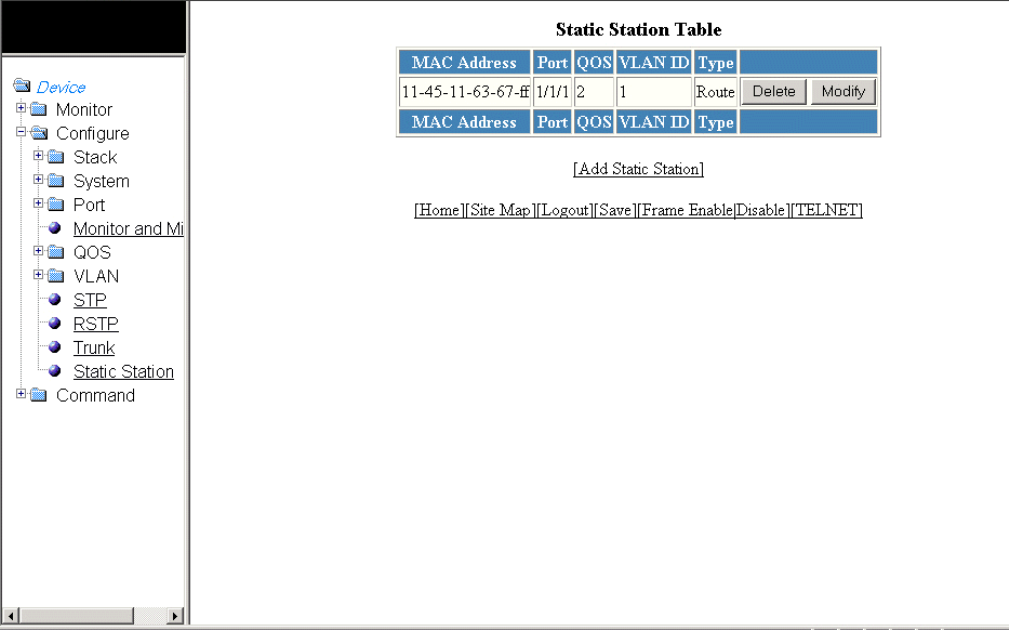

FIGURE 99 Modifying the static station
FOR BROCADE CONTROLLED RELEASE ONLY
Modifying a static station
Brocade FastIron Web Management Interface User Guide, 08.0.50
176 53-1004462-01
2. Click Modify .
The Static Station Table window is displayed as shown in the gure below.
FIGURE 100 Modifying the static station
3. Type the port-based VLAN identier in the VLAN ID eld. VLAN 1 is the default VLAN.
4. Select a port number or multiple port numbers in the Port list.
5. Select a QoS priority in the QOS list. A static MAC entry can be assigned a priority from 0 through 7.
6. Click Modify.
The message The change has been made is displayed and the congured values are reected in the Static Station
window. To display the modied static station, click Show.
To reset the data entered in the conguration pane, click Reset . You can also delete the static station entry by clicking Delete.
FOR BROCADE CONTROLLED RELEASE ONLY
Modifying a static station
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 177
Brocade FastIron Web Management Interface User Guide, 08.0.50
178 53-1004462-01
Conguring IP
•Conguring the router IP address............................................................................................................................................................179
•Conguring a standard ACL.......................................................................................................................................................................180
•Conguring an extended ACL...................................................................................................................................................................182
•Conguring an IP access group............................................................................................................................................................... 186
•Conguring an IP Autonomous System-path access list..............................................................................................................188
•Conguring an IP community list.............................................................................................................................................................189
•Conguring an IP prex list.........................................................................................................................................................................190
•Conguring a DNS entry............................................................................................................................................................................. 192
•Conguring the general IP settings.........................................................................................................................................................193
•Conguring IP interfaces............................................................................................................................................................................. 194
•Conguring a static ARP............................................................................................................................................................................. 196
•Conguring a static RARP.......................................................................................................................................................................... 197
•Conguring a static route.............................................................................................................................................................................198
•Conguring a UDP helper...........................................................................................................................................................................200
The IP feature is specic to Brocade ICX devices running Layer 3 code.
NOTE
The terms "Layer 3 switch" and "router" are used interchangeably in this chapter.
Conguring the router IP address
To congure an IP address to an interface, perform the following steps.
1. Click Congure on the left pane and select IP.
2. Click Address. The Router IP Address window is displayed.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 179
3. Click Add IP Address.
The Router IP Address window is displayed as shown in the gure below.
FIGURE 101 Conguring router IP addresses
4. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
5. Select a port in the Port list.
• stack-unit/slotnum/portnum
6. Type the IP address of the device in the IP Address eld.
7. Type the IP subnet mask in the Subnet Mask eld.
8. Select the Secondary check box for Type if you have already congured an IP address within the same subnet on the interface.
9. Click Add.
The message The change has been made is displayed and the specied IP address is assigned to the interface. To display
the congured router IP address, click Show.
To delete the congured IP address, click Delete. To reset the data entered in the conguration pane, click Reset.
Conguring a standard ACL
To congure a standard ACL, perform the following steps.
1. Click Congure on the left pane and select IP .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a standard ACL
Brocade FastIron Web Management Interface User Guide, 08.0.50
180 53-1004462-01
2. Click Standard ACL .
The Standard ACL window is displayed as shown in the gure below.
NOTE
Web GUI does not have ACL Sequence number support.
FIGURE 102 Conguring standard ACLs
3. Type the ACL number from 1 through 99 in the Standard ACL Number eld. If you want to type an ACL name, click Name
ACLs . The eld label changes to Standard ACL Name . Now you can type an ACL name up to 256 alphanumeric characters in
length.
4. Click Permit or Deny for Action so that the packets that match a policy in the ACL can be permitted (forwarded) or denied
(dropped).
5. Type the host IP address in the IP Address eld.
6. Type the IP subnet mask in the Filter Mask eld.
7. Type the host name in the Host Name eld.
8. Select the Log check box so that the device generates syslog entries and SNMP traps for the packets that are denied by the
access policy.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a standard ACL
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 181
9. Click Add .
The message The change has been made is displayed and the ACL is added. To display the congured ACL, click Show
ACLs .
To delete the congured ACL, click Delete . To reset the data entered in the conguration pane, click Reset .
Conguring an extended ACL
To congure an extended numbered ACL, perform the following steps.
1. Click Congure on the left pane and select IP .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an extended ACL
Brocade FastIron Web Management Interface User Guide, 08.0.50
182 53-1004462-01
2. Click Extended ACL .
The Extended ACL window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an extended ACL
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 183
FIGURE 103 Conguring an extended ACL
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an extended ACL
Brocade FastIron Web Management Interface User Guide, 08.0.50
184 53-1004462-01
3. Type the extended ACL number from 100 through 199 in the ACL Number eld. If you want to specify the extended ACL
name, click Name ACLs . The eld label is changed to ACL Name .
4. Click Permit or Deny for Action so that the packets that match the policy can be forwarded or dropped.
5. Type the source IP address in the Source IP Address eld.
6. Type the source mask in the Source Filter Mask eld.
7. Type the source host name in the Source Host Name eld.
8. Type the destination IP address in the Destination IP Address eld.
9. Type the destination mask in the Destination Filter Mask eld.
10. Type the destination host name in the Destination Host Name eld.
11. Select one of the following options in the IP Precedence list:
• – routine --The ACL matches packets that have the routine precedence.
–priority --The ACL matches packets that have the priority precedence.
–immediate --The ACL matches packets that have the immediate precedence.
–ash --The ACL matches packets that have the ash precedence.
–ash-override --The ACL matches packets that have the ash override precedence.
–critical --The ACL matches packets that have the critical precedence.
–internet --The ACL matches packets that have the internetwork control precedence.
–network --The ACL matches packets that have the network control precedence.
12. Select one of the following options in the TOS list:
• – normal --The ACL matches packets that have the normal ToS.
–min-monetary-cost --The ACL matches packets that have the minimum monetary cost ToS.
–max-reliability --The ACL matches packets that have the maximum reliability ToS.
–max-throughput --The ACL matches packets that have the maximum throughput ToS.
–min-delay --The ACL matches packets that have the minimum delay ToS.
13. Select the Log check box to enable generation of SNMP traps and syslog messages for packets denied by the ACL.
14. Click By Name for IP Protocol to select the IP protocol by name or click By Number to specify the number (from 0 through
255).
15. Select the TCP Established check box so that the policy applies to the TCP packets that have the ACK (Acknowledgment) or
RST (Reset) bits set on (set to "1") in the Control Bits eld of the TCP packet header. The policy applies only to the established
TCP sessions, not to the new sessions.
NOTE
This eld applies only to the destination TCP ports, not the source TCP
ports.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an extended ACL
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 185
16. Enter the following information for Source :
a) To congure a single port, click Single Port .
Select one of the following for Operator :
• – Equal --The policy applies to the TCP or UDP port name or number you enter.
–NotEqual --The policy applies to all the TCP or UDP port numbers except the port number or port name you
enter.
–LessThan --The policy applies to the TCP or UDP port numbers that are less than the port number or the
numeric equivalent to the port name you enter.
–GreaterThan --The policy applies to the TCP or UDP port numbers greater than the port number or the numeric
equivalent to the port name you enter.
Click Source Port System Dened
b) To congure a range of ports, click Port Range .
Type the lower port number in the Low Port eld and the highest port number in the High Port eld.
Click Source Range System Dened .
17. To congure the destination port settings under Destination , follow the procedure explained in step 16 .
18. Click Add .
The message The change has been made is displayed. To display the congured extended numbered ACL, click Show .
To delete the congured extended numbered ACL, click Delete . To reset the data entered in the conguration pane, click
Reset .
NOTE
Web GUI does not have ACL Sequence number support.
Conguring an IP access group
To congure an IP access group, perform the following steps.
1. Click Congure on the left pane and select IP .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an IP access group
Brocade FastIron Web Management Interface User Guide, 08.0.50
186 53-1004462-01
2. Click IP Access Group .
The IP Access Group window is displayed as shown in the gure below.
FIGURE 104 Conguring IP access groups
3. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
4. Select a port in the Port list.
• – stack-unit/slotnum/portnum
5. Select the In Bound check box for Direction to enable incoming trac on the interface to which you apply the ACL.
6. Type the ACL number in the ACL Number eld. If you want to type an ACL name, click Select Name ACLs . The eld label
changes to ACL Name . Now you can type the ACL name up to 256 alphanumeric characters in length.
7. Click Add .
The message The change has been made is displayed. To display the congured IP access group, click Show .
To delete the congured IP access group, click Delete . To reset the data entered in the conguration pane, click Reset .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an IP access group
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 187
Conguring an IP Autonomous System-path access
list
To congure an Autonomous System-path access list, perform the following steps.
1. Click Congure on the left pane and select IP .
2. Click Autonomou System Path Access List .
The IP Autonomous System Path Access List window is displayed as shown in the gure below.

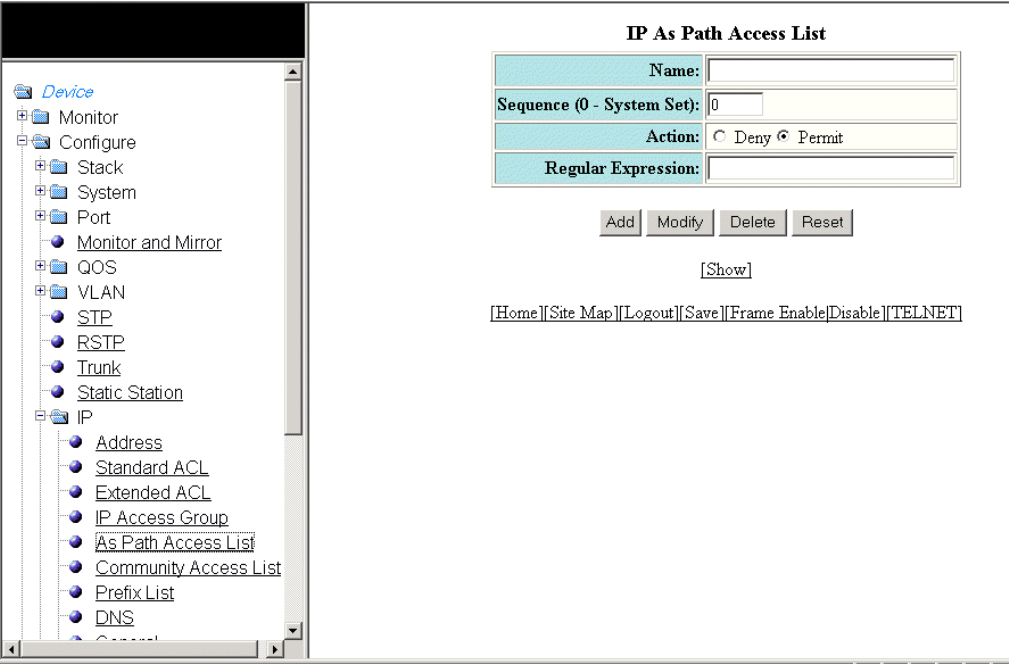

FIGURE 105 Conguring the IP Autonomous System-path access list
3. Type the ACL name in the Name eld.
4. Type the Autonomous System-path list sequence number in the Sequence (0 - System Set) eld. You can congure up to 199
entries in an Autonomous System-path list.
If you do not specify a sequence number, the software numbers the entries in increments of ve, beginning with number 5. The
software interprets the entries in an Autonomous System-path list in numerical order, beginning with the lowest sequence
number.
5. Click Deny or Permit for Action .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an IP Autonomous System-path access list
Brocade FastIron Web Management Interface User Guide, 08.0.50
188 53-1004462-01
6. Type the Autonomous System-path information you want to permit or deny to routes that match any of the match statements
within the ACL in the Regular Expression eld.
7. Click Add .
The message The change has been made is displayed. To display the congured Autonomous System-path list, click
Show .
To modify the Autonomous System-path list, click Modify . You can also delete the Autonomous System-path list by clicking
Delete . To reset the data entered in the conguration pane, click Reset .
Conguring an IP community list
To congure an IP community list, perform the following steps.
1. Click Congure on the left pane and select IP .
2. Click Community Access List .
The IP Community List window is displayed as shown in the gure below.
FIGURE 106 Conguring the IP community list
3. Type the ACL name in the Name eld.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an IP community list
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 189
4. Type the community list sequence number in the Sequence (0 - System Set) eld. You can congure up to 199 entries in a
community list.
If you do not specify a sequence number, the software numbers the entries in increments of ve, beginning with number 5. The
software interprets the entries in a community list in numerical order, beginning with the lowest sequence number.
5. Click Deny or Permit for Action .
6. Select one of the following options for Set Community :
• – Internet --The Internet community.
–No Advertise --Routes with this community cannot be advertised to any other BGP Layer 3 switches.
–No Export --The community of sub-Autonomous Systems within a confederation. Routes with this community can be
exported to other sub-Autonomous Systems within the same confederation but cannot be exported outside the
confederation to other Autonomous Systems or otherwise sent to EBGP neighbors.
–Local Autonomous System --The local sub-Autonomous System within the confederation. Routes with this
community can be advertised only within the local sub-Autonomous System.
7. Type the community number in num :num format in the Community List eld.
8. Click Add .
The message The change has been made is displayed. To display the congured community list, click Show .
To modify the community list, click Modify . You can also delete the community list by clicking Delete . To reset the data
entered in the conguration pane, click Reset .
Conguring an IP prex list
To congure an IP prex list, perform the following steps.
1. Click Congure on the left pane and select IP .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an IP prex list
Brocade FastIron Web Management Interface User Guide, 08.0.50
190 53-1004462-01
2. Click Prex List .
The IP Prex List window is displayed as shown in the gure below.

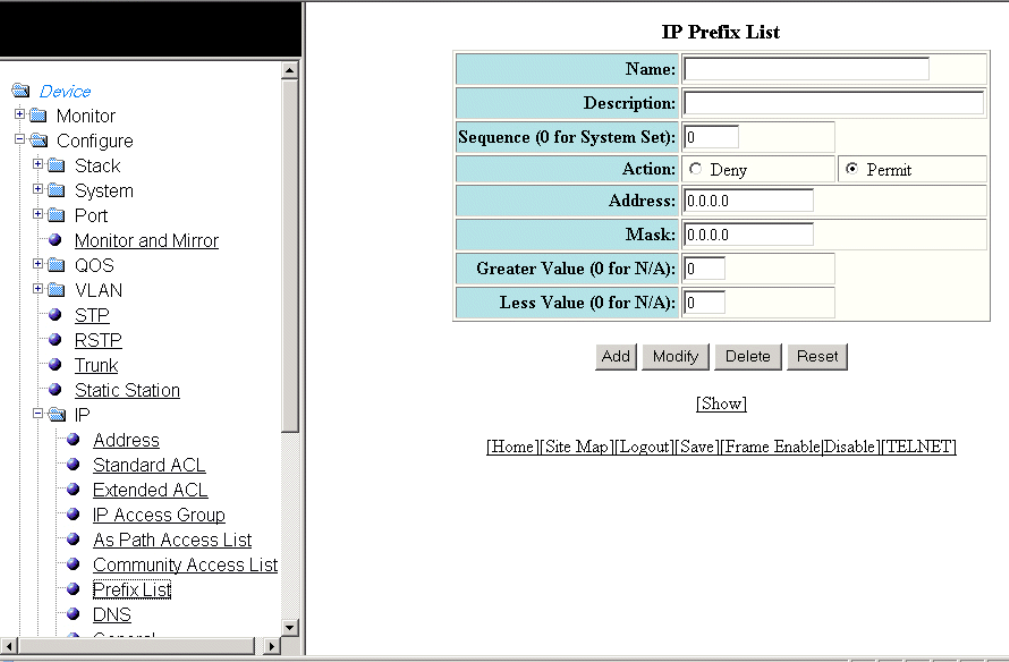

FIGURE 107 Conguring IP prex lists
3. Type the prex list name in the Name eld.
4. Type a text string describing the prex list in the Description eld.
5. Type the IP prex list sequence number in the Sequence (0 for System Set) eld. You can congure up to 100 prex list
entries.
If you do not specify a sequence number, the software numbers the entries in increments of ve, beginning with prex list entry
5. The software interprets the prex list entries in numerical order, beginning with the lowest sequence number.
6. Click Deny or Permit for Action .
7. Type the network IP address in the Address eld.
8. Type the network mask address in the Mask eld.
9. Type the maximum value of the mask length in the Greater Value (0 for N/A) eld.
10. Type the least value of the mask length in the Less Value (0 for N/A) eld.
NOTE
The Greater Value (0 for N/A) or Less Value (0 for N/A) values you specify must meet the following condition:Length
< Greater Value <= Less Value <= 32
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring an IP prex list
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 191
11. Click Add .
The message The change has been made is displayed. To display the congured IP prex list, click Show .
To modify the IP prex list, click Modify . You can also delete the IP prex list by clicking Delete . To reset the data entered in the
conguration pane, click Reset .
Conguring a DNS entry
You can congure the Brocade device to recognize up to four Domain Name System (DNS) servers. The rst entry serves as the primary
default address. If a query to the primary address fails to be resolved after three attempts, the next DNS address is queried (also up to
three times). This process continues for each dened DNS address until the query is resolved. The order in which the default DNS
addresses are polled is the same as the order in which you enter them.
To congure DNS, perform the following steps.
1. Click Congure on the left pane and select IP .
2. Click DNS .
The DNS window is displayed as shown in the gure below.
FIGURE 108 Conguring a DNS entry
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a DNS entry
Brocade FastIron Web Management Interface User Guide, 08.0.50
192 53-1004462-01
3. Type the domain name in the Domain Name eld.
4. Click ipv4 or ipv6 for Address Format .
5. Type the IPv4 or IPv6 address of the DNS in the Server Search List elds.
6. Click Apply .
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset .
Conguring the general IP settings
To congure the general IP settings, perform the following steps.
1. Click Congure on the left pane and select IP .
2. Click General .
The IP window is displayed as shown in the gure below.
FIGURE 109 Conguring the general IP settings
3. Type the maximum number of hops away a BootP server can be located from a Layer 3 switch and still be used by the router
clients for network booting in the BOOTP Relay Maximum Hop eld. The range is from 1 through 15. The default value is 4
hops.
4. Type the amount of time the device should keep a MAC address learned through ARP in the device ARP cache in the ARP Age
(Minutes) eld. The range is from 0 through 240 minutes. The default is 10 minutes.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring the general IP settings
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 193
5. Type the maximum number of Layer 3 switches (hops) through which a packet can pass before being discarded in the TTL
eld. The range is from 1 through 255 hops. The default is 64 hops.
6. Type the Layer 3 switch identier in the Router ID eld.
7. Click Disable or Enable for IRDP . By default, this protocol is disabled.
ICMP Router Discovery Protocol (IRDP) is an IP protocol a Layer 3 switch can use to advertise the IP addresses of its interfaces
to the directly attached hosts.
8. Click Disable or Enable for Load Sharing . If you click Enable , type the number of load sharing paths in the # of Paths eld.
9. Click Disable or Enable for Proxy ARP .
Proxy ARP is an IP mechanism a Layer 3 switch can use to answer an ARP request on behalf of a host, by replying with the
Layer 3 switch’s own MAC address instead of the host.
10. Click Disable or Enable for RARP .
Reverse ARP (RARP) is an IP mechanism a host can use to request an IP address from a directly attached Layer 3 switch when
the host boots.
11. Click Disable or Enable for Broadcast Forward .
12. Click Disable or Enable for Directed Broadcast Forward .
A directed broadcast is a packet containing all ones (or in some cases, all zeros) in the host portion of the destination IP address.
When a Layer 3 switch forwards such a broadcast, it sends a copy of the packet to each of its enabled IP interfaces.
13. Click Disable or Enable for Source Route .
14. Click Disable or Enable for Access Control List .
15. Click Apply .
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset .
Conguring IP interfaces
To congure an IP interface, perform the following steps.
1. Click Congure on the left pane and select IP .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring IP interfaces
Brocade FastIron Web Management Interface User Guide, 08.0.50
194 53-1004462-01
2. Click Interface .
The IP Interface window is displayed as shown in the gure below.

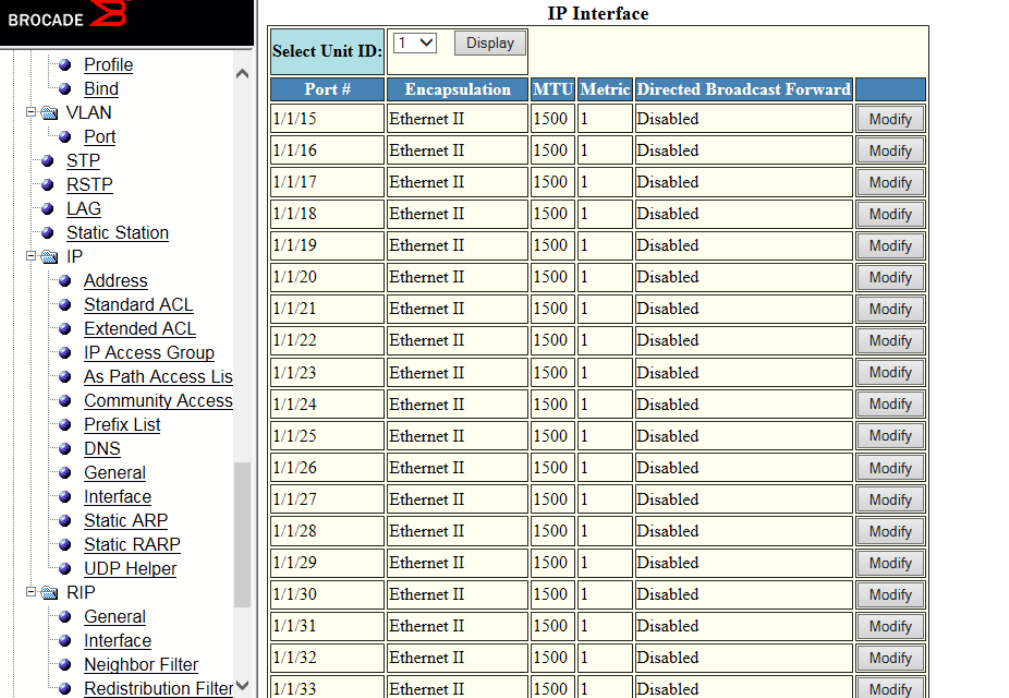

FIGURE 110 IP Interface window
3. Select a Unit ID from the Select Unit ID list and click Display to view the IP properties table.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring IP interfaces
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 195
4. Click Modify.
The IP Interface window is displayed in which stack unit and ports can be specied.

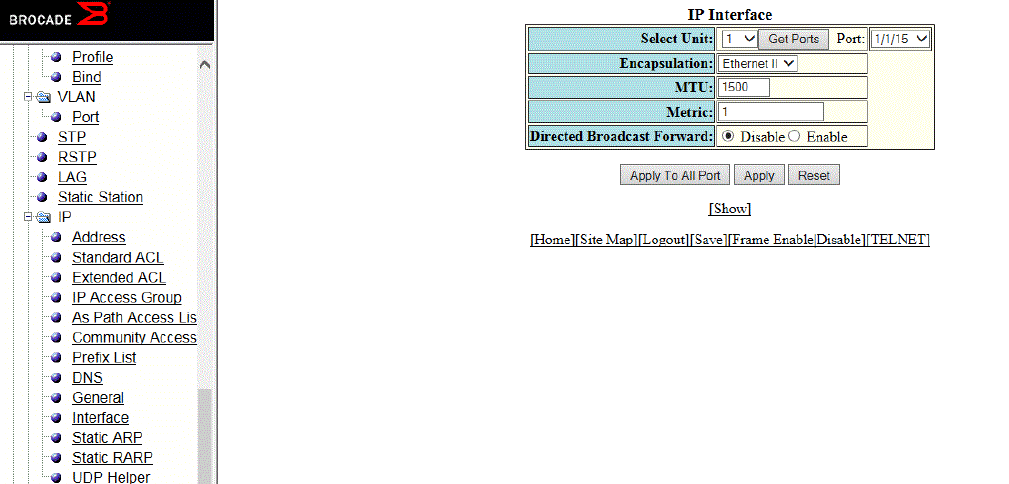

FIGURE 111 Conguring an IP interface
5. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
6. Select the format of the Layer 2 packets in the Encapsulation list.
7. Type the maximum size of the IP packet when encapsulated in a Layer 2 packet, in the MTU eld.
8. Type the cost in the Metric eld.
9. Click Disable or Enable for Directed Broadcast Forward .
10. Click Apply to congure the IP interface to the specied port or click Apply To All Ports to congure the IP interface on all the
ports.
The message The change has been made is displayed. To display the congured IP interface, click Show . To reset the data
entered in the conguration pane, click Reset .
Conguring a static ARP
To congure a static Address Resolution Protocol (ARP) entry, perform the following steps.
1. Click Congure on the left pane and select IP.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a static ARP
Brocade FastIron Web Management Interface User Guide, 08.0.50
196 53-1004462-01
2. Click Static ARP.
The Static ARP window is displayed as shown in the gure below.

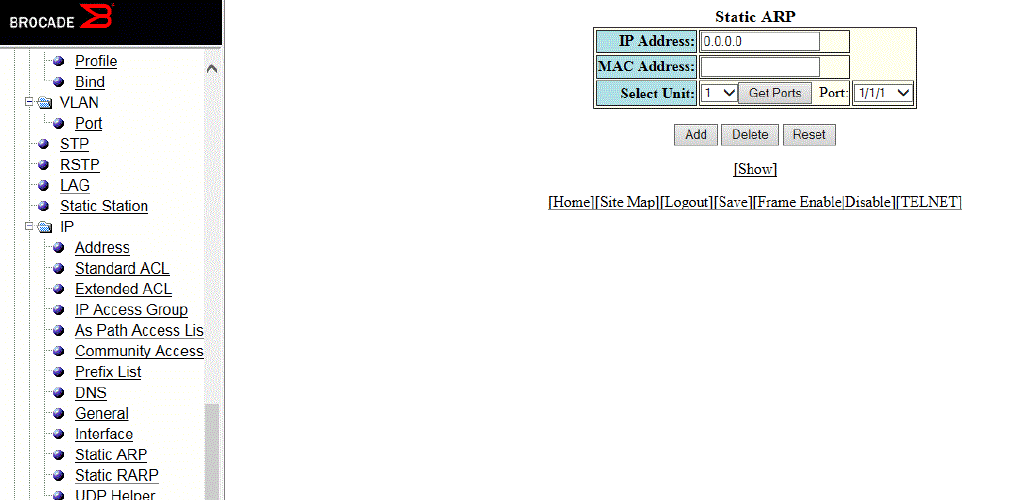

FIGURE 112 Conguring static ARP
3. Type the IP address of the directly connected device in the IP Address eld.
4. Type the MAC address of the device in xx-xx-xx-xx-xx-xx format in the MAC Address eld.
5. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
6. Select a port from the Port list.
7. Click Add .
The message The change has been made is displayed. To display the congured static ARP entry, click Show .
To reset the data entered in the conguration pane, click Reset .
NOTE
The delete operation is not supported in 08.0.20 and later releases.
Conguring a static RARP
The Reverse Address Resolution Protocol (RARP) provides a simple mechanism for directly attached IP hosts to boot over the network.
RARP allows an IP host that does not have a means of storing its IP address across power cycles or software reloads to query a directly
attached Layer 3 switch for an IP address.
To congure a static IP RARP entry for static routes on a Brocade Layer 3 switch, perform the following steps.
1. Click Congure on the left pane and select IP .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a static RARP
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 197
2. Click Static RARP .
The Static RARP window is displayed as shown in the gure below.

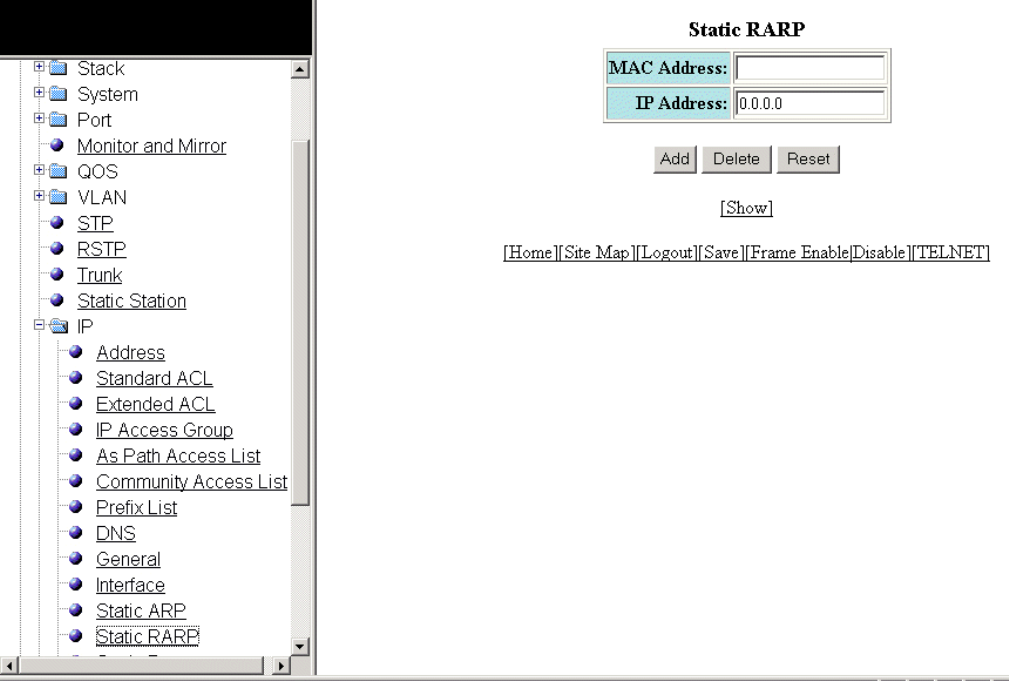

FIGURE 113 Conguring static RARP
3. Type the MAC address of the boot client in xx-xx-xx-xx-xx-xx format in the MAC Address eld.
4. Type the IP address you want the Layer 3 switch to give to the client in the IP Address eld.
5. Click Add .
The message The change has been made is displayed. To display the congured static IP RARP entry, click Show .
To delete the congured static IP RARP entry, click Delete . To reset the data entered in the conguration pane, click Reset .
Conguring a static route
To congure an IP static route, perform the following steps.
1. Click Congure on the left pane and select IP .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a static route
Brocade FastIron Web Management Interface User Guide, 08.0.50
198 53-1004462-01
2. Click Static Route .
The Static Route window is displayed as shown in the gure below.

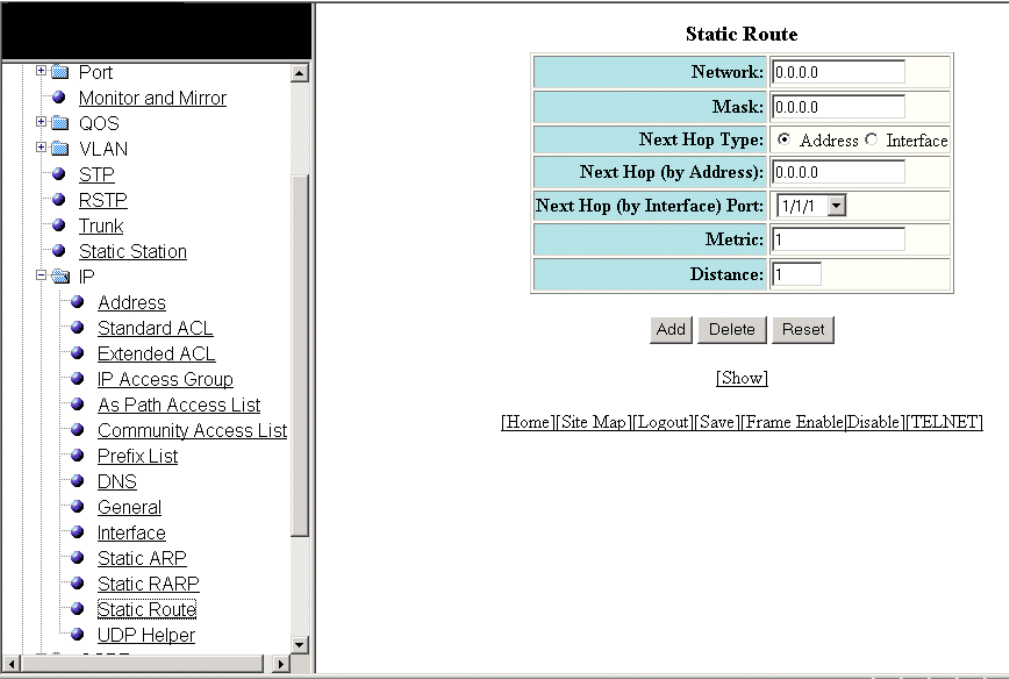

FIGURE 114 Conguring static routes
3. Type the route destination IP address in the Network eld.
4. Type the network mask in the Mask eld.
5. Click Address for Next Hop Type and type the IP address of the next hop router (gateway) for the route in the Next Hop (by
Address) eld.
Or
Click Interface for Next Hop Type and select an Ethernet port in the Next Hop (by Interface) Port list.
6. Type the metric value from 1 through 16 in the Metric eld. The default is 1.
7. Type the administrative distance of the route in the Distance eld. The default is 1.
8. Click Add .
The message The change has been made is displayed. To display the congured static route, click Show .
To delete the congured static route, click Delete . To reset the data entered in the conguration pane, click Reset .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a static route
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 199
Conguring a UDP helper
To congure a helper address on the interface connected to the clients, perform the following steps.
1. Click Congure on the left pane and select IP .
2. Click UDP Helper .
The UDP Helper window is displayed as shown in the gure below.
FIGURE 115 Conguring UDP helper
3. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
4. Select an Ethernet port in the Port list.
5. Type the server IP address or the subnet directed broadcast address of the IP subnet the server belongs to in the IP Address
eld.
6. Click Add .
The message The change has been made is displayed. To display the congured UDP helper, click Show .
To modify the congured UDP helper, click Modify . You can also delete the UDP helper by clicking Delete . To reset the data
entered in the conguration pane, click Reset .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a UDP helper
Brocade FastIron Web Management Interface User Guide, 08.0.50
200 53-1004462-01
Enabling forwarding for a UDP application
To specify a UDP application by using an application name, perform the following steps.
1. Click System Broadcast Forward on the UDP Helper window.
The system broadcast forward window is displayed as shown in this gure.
FIGURE 116 Enabling forwarding for a UDP application
2. Select one of the following forward ports in the list:
• – BOOTPC
–BOOTPS
–DISCARD
–DNSIX
–DOMAIN
–ECHO
–MOBILE-IP
–NETBIOS-DGM
–RIP
–SNMP
–SNMP-TRAP
–TACACS
–TALK
–TFTP
–TIME
3. Click Add .
The added port is displayed in the Selected Forward Ports pane, which displays the application ports that are enabled by
default. To delete the forwarding port, click Delete . To reset the data entered in the conguration pane, click Reset .
To specify the UDP application by using an application UDP port number, perform the following steps.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a UDP helper
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 201
Specifying the UDP application
To specify the UDP application by using an application UDP port number, perform the following steps.
1. Click User Broadcast Forward on the UDP Helper window.
The user broadcast forward window is displayed as shown in the gure below.
FIGURE 117 Enabling user broadcast forward
2. Type the UDP port number in the eld.
3. Click Add.
The added port is displayed in the Selected Forward Ports pane, which displays the application ports that are enabled by
default. To delete the forwarding port, click Delete . To reset the data entered in the conguration pane, click Reset .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a UDP helper
Brocade FastIron Web Management Interface User Guide, 08.0.50
202 53-1004462-01
Conguring RIP
•Conguring the general RIP settings......................................................................................................................................................203
•Conguring a RIP interface.........................................................................................................................................................................204
•Conguring a RIP neighbor lter..............................................................................................................................................................208
•Conguring a RIP redistribution lter..................................................................................................................................................... 210
Conguring the general RIP settings
To congure the general RIP settings, perform the following steps.
1. Click Congure on the left pane and select RIP .
2. Click General .
The RIP window is displayed as shown in the gure below.
FIGURE 118 Conguring the general RIP settings
3. Congure the timer settings in the Timers (seconds).
•Update Time: Sets the amount of time between RIP routing updates. The default is 30 seconds. Possible values are 3
through 21845 seconds.
•Hold Time: Sets the amount of time during which information about other paths is ignored. The default is 180 seconds.
Possible values are 0 through 65535 seconds.
•Garbage Time: Sets the amount of time after which a route is removed from the RIP routing table. The default is 120
seconds. Possible values are 0 through 65535.
4. Click Disable or Enable for the Learn-Default parameter that determines learning of default RIP routes.
5. Click Disable or Enable for the Poison-Local-Route parameter that determines avoiding routing loops by advertising local RIP
routes with a cost of 16 ("innite" or "unreachable") when these routes go down.
6. Click Disable or Enable for the Poison-Reverse-Updates parameter that determines poison reverse loop prevention, by
assigning by assigning an "unreachable" cost to a route before advertising it on the interface where the route was learned.
7. Click Disable or Enable for the Use VRRP-Path parameter that suppresses RIP route advertisement on a VRRP or VRRPE
backup interface.
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 203
8. Specify the prex list to be applied to the routes, the device learns from its neighbors in the IP-Prex-List-In eld.
9. Specify the prex list to be applied to the routes, the device advertises to its neighbors in the IP-Prex-List-out eld.
10. Specify the administrative distance that the RIP router adds to routes in the Distance eld. By default, the RIP router assigns the
default RIP administrative distance (120) to RIP routes.
11. Change the RIP metric the router assigns by default to redistributed routes in the DefaultMetric eld. By default, a metric of 1 is
assigned to each route that is redistributed into RIP.
12. Click Apply .
The message The change has been made is displayed. To reset the data entered in the conguration pane, click Reset .
The RIP window provides links to congure other RIP parameters:
• To congure a RIP interface, click Interface . For more information, refer to Conguring a RIP interface on page 204.
• To congure a RIP neighbor lter, click Neighbor Filter . For more information, refer to Conguring a RIP neighbor lter on
page 208.
Conguring a RIP interface
To congure a RIP interface, perform the following steps.
1. Click Congure on the left pane and select RIP .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a RIP interface
Brocade FastIron Web Management Interface User Guide, 08.0.50
204 53-1004462-01
2. Click Interface .
The RIP Interface window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a RIP interface
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 205
FIGURE 119 RIP interface
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a RIP interface
Brocade FastIron Web Management Interface User Guide, 08.0.50
206 53-1004462-01
3. Click Congure RIP Interface or Modify to change the RIP interface parameters for the respective port.
The RIP Interface window is displayed as shown in the gure below.

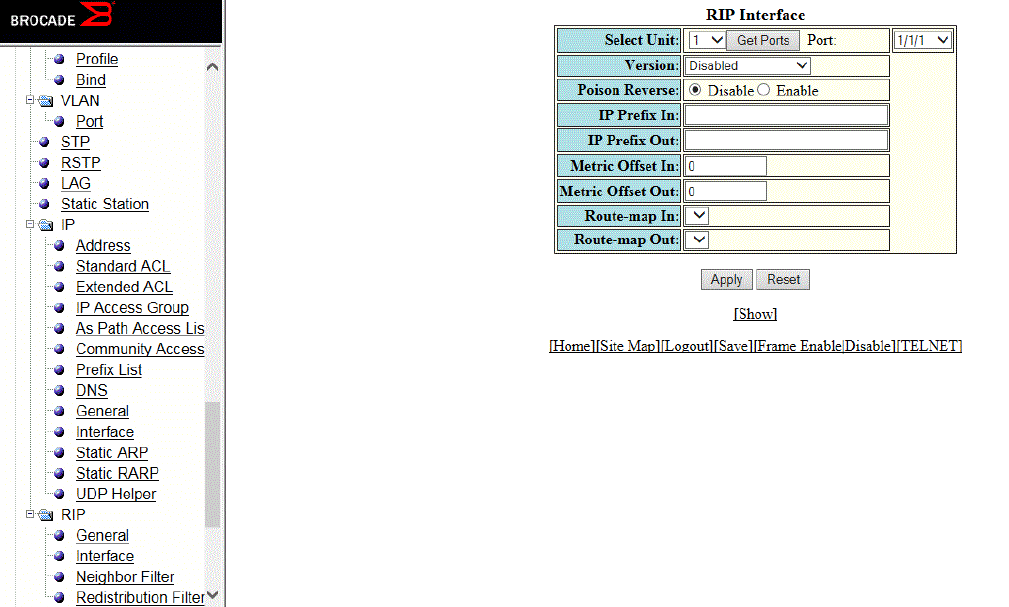

FIGURE 120 Conguring a RIP interface
4. Select a Unit ID from the Select Unit list and click Get Ports to retrieve the list of ports corresponding to the selected Unit ID.
A message is displayed to indicate that the operation does not change the running conguration.
5. Select a port from the Port list.
6. Select one of the following options for Version :
• – Disabled
–V1 Only
–V2 Only
–V1-Compatible-V2
7. Click Disable or Enable for Poison Reverse .
Poison reverse is the method a Layer 3 switch uses to prevent routing loops caused by advertising a route on the same
interface as the one on which the Layer 3 switch learned the route.
8. Enter the prex list to be applied to the learned RIP routes in the IP Prex In eld.
9. Enter the prex list to be applied to the advertised RIP routes in the IP Prex Out eld.
10. Enter the cost metric to be applied to the learned RIP routes in the Metric Oset In eld.
11. Enter the cost metric to be applied to the advertised RIP routes in the Metric Oset Out eld.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a RIP interface
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 207
12. Specify the route map to be applied on the interface to lter the learned RIP routes in the Route-map In eld.
13. Specify the route map to be applied on the interface to lter the advertised RIP routes in the Route-map Out eld.
14. Click Apply to congure the RIP interface to the specied port or click Apply All Port to congure the RIP interface on all the
ports.
The message The change has been made is displayed. To display the congured RIP interface, click Show . To reset the
data entered in the conguration pane, click Reset .
Conguring a RIP neighbor lter
By default, a Brocade Layer 3 switch learns RIP routes from all its RIP neighbors. Neighbor lters allow you to specify the neighbor
Layer 3 switches from which the Brocade device can receive RIP routes. Neighbor lters apply globally to all ports.
To congure a RIP neighbor lter, perform the following steps.
1. Click Congure on the left pane and select RIP .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a RIP neighbor lter
Brocade FastIron Web Management Interface User Guide, 08.0.50
208 53-1004462-01
2. Click Neighbor Filter .
The RIP Neighbor Filter window is displayed as shown in the gure below.
FIGURE 121 Conguring a RIP neighbor lter
3. Type a lter number in the ID eld.
4. Click Deny or Permit for Action .
5. Type a source IP address in the Source IP eld.
6. Click Add .
The message The change has been made is displayed. To display the congured RIP neighbor lter, click Show .
To modify the congured RIP neighbor lter, click Modify . To reset the data entered in the conguration pane, click Reset . You
can also delete the congured RIP neighbor lter by clicking Delete .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a RIP neighbor lter
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 209
Conguring a RIP redistribution lter
To congure a RIP redistribution lter, perform the following steps.
1. Click Congure on the left pane and select RIP .
2. Click Redistribution Filter .
The RIP Redistribution Filter window is displayed as shown in the gure below.
FIGURE 122 Conguring the RIP redistribution lter
3. Type a network IP address in the IP Address eld.
4. Type an IP subnet mask in the Mask eld.
5. Type a redistribution lter identier in the Filter ID eld.
6. Click Deny or Permit for Action .
7. Select one of the following options for Protocol :
• – All --Applies redistribution to all route types.
–Static --Applies redistribution to IP static routes only.
–OSPF --Applies redistribution to OSPF routes only.
–BGP --Applies redistribution to BGP routes only.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a RIP redistribution lter
Brocade FastIron Web Management Interface User Guide, 08.0.50
210 53-1004462-01
8. Click Disable or Enable for Set OSPF Metric .
9. Type the match metric value from 1 through 15 in the Match Metric eld. The match metric parameter applies the
redistribution lter only to those routes with the specied metric value.
10. Click Disable or Enable for Set RIP Metric .
11. Type the RIP metric value in the Set Metric eld.
12. Click Add .
The message The change has been made is displayed. To display the congured RIP redistribution lter, click Show .
To delete the congured RIP redistribution lter, click Delete . To reset the data entered in the conguration pane, click Reset .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a RIP redistribution lter
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 211
Brocade FastIron Web Management Interface User Guide, 08.0.50
212 53-1004462-01
Basic Device Commands
• Clearing information for a Layer 2 switch.............................................................................................................................................213
• Clearing information for a Layer 3 switch.............................................................................................................................................214
• Disabling or enabling the menu view..................................................................................................................................................... 215
• Logging out.......................................................................................................................................................................................................216
• Reloading units in a stack............................................................................................................................................................................217
• Saving the conguration to ash..............................................................................................................................................................218
• Switching over to the active role...............................................................................................................................................................219
• Accessing the Telnet command prompt...............................................................................................................................................219
• Performing a trace..........................................................................................................................................................................................221
Clearing information for a Layer 2 switch
To clear specic data related to a Layer 2 switch, perform the following steps.
1. Click Command on the left pane and select Clear.
The Clear window is displayed as shown in the gure below.

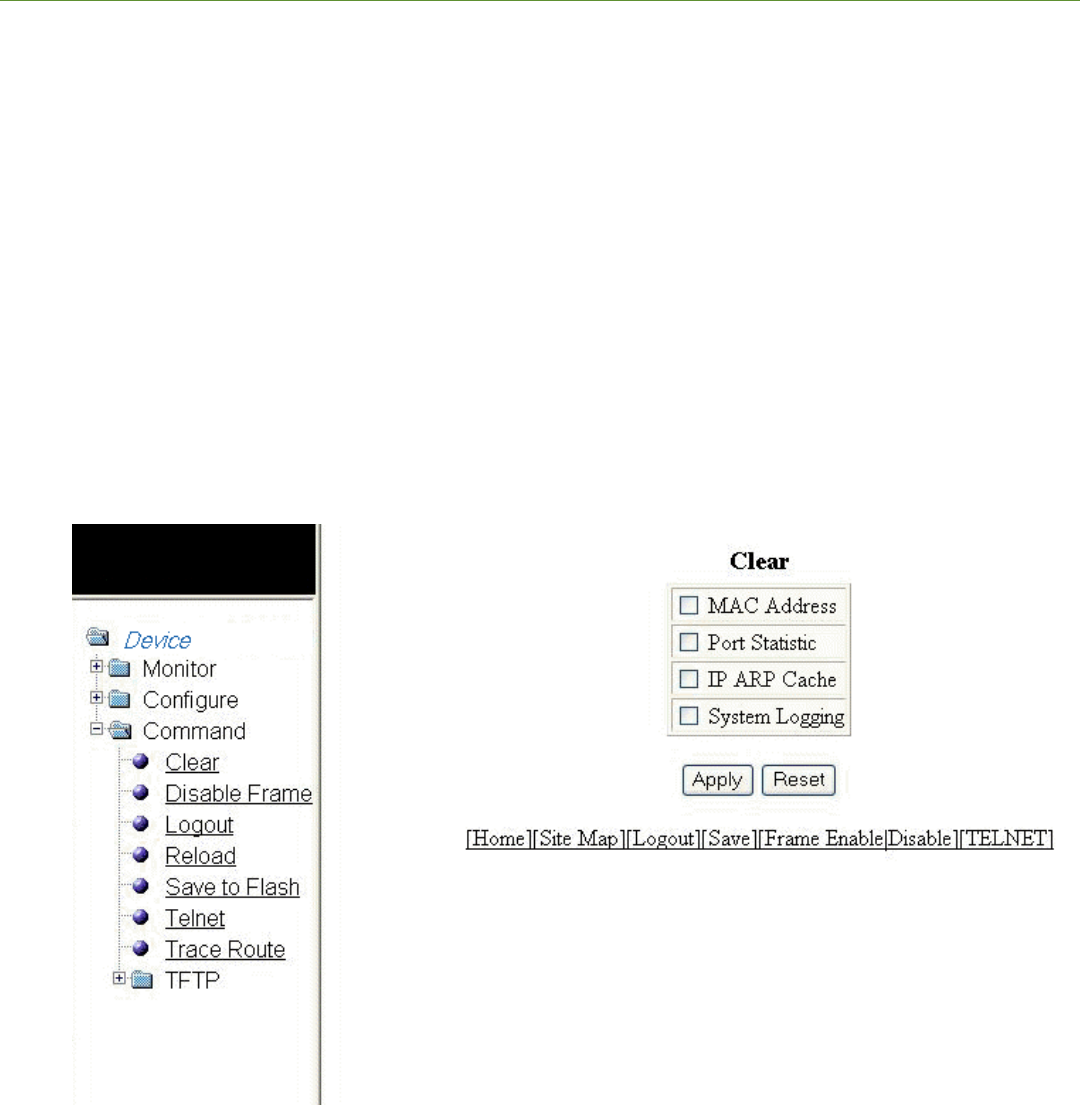

FIGURE 123 Clear window
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 213
2. Select the following check boxes to clear information:
• – MAC Address
–Port Statistic
–IP ARP Cache
–System Logging
3. Click Apply .
All the current entries will be deleted.
Clearing information for a Layer 3 switch
To clear specic data related to a Layer 3 switch, perform the following steps.
1. Click Command on the left pane and select Clear.
The Clear window is displayed as shown in the gure below .

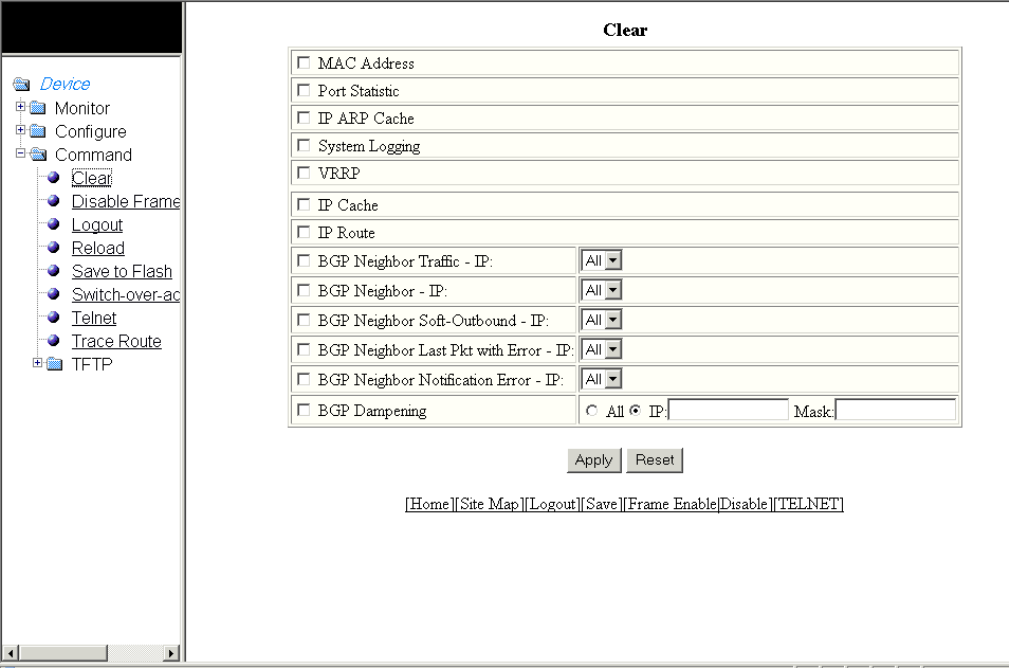

FIGURE 124 Clear window
FOR BROCADE CONTROLLED RELEASE ONLY
Clearing information for a Layer 3 switch
Brocade FastIron Web Management Interface User Guide, 08.0.50
214 53-1004462-01
2. Select the following check boxes to clear information:
•MAC Address
•Port Statistic
•IP ARP Cache
•System Logging
•VRRP
•IP Cache
•IP Route
•BGP Neighbor Trac - IP --Select All in the list to clear the BGP message counter for all neighbors.
•BGP Neighbor - IP --Select All in the list to close all neighbor sessions and clear all the routes exchanged by the Layer 3
switch and the neighbors.
•BGP Neighbor Soft-Outbound - IP --Select All in the list to update all outbound routes by applying the new or changed
lters.
•BGP Neighbor Last Pkt with Error - IP --Select All in the list to clear the last packet from the neighbors that contained an
error.
•BGP Neighbor Notication Error - IP --Select All in the list to clear the buer for all neighbors containing the last
NOTIFICATION message sent or received.
•BGP Dampening --Perform one of the following tasks:
– Click All to clear all the route dampening statistics.
– Click IP and type the network IP address in the IP eld and the network mask in the Mask eld.
3. Click Apply.
All the current entries will be deleted.
Disabling or enabling the menu view
To enable or disable the menu view, click Command on the left pane and select Disable Frame. The menu tree from the left panel is
hidden as shown in the gure below. Click Frame Enable to view the menu tree.
FOR BROCADE CONTROLLED RELEASE ONLY
Disabling or enabling the menu view
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 215
FIGURE 125 Disabling the menu tree
Logging out
To exit the Web Management Interface, click Command on the left pane and select Logout . The login window is displayed as shown in
the gure below. To re-log in, click Login on the window.
FIGURE 126 Logging out
FOR BROCADE CONTROLLED RELEASE ONLY
Logging out
Brocade FastIron Web Management Interface User Guide, 08.0.50
216 53-1004462-01
Reloading units in a stack
To reload any or all of the units within a device, perform the following steps.
1. Click Command on the left pane and select Reload .
The Reset Stack Units window is displayed as shown in the gure below.
FIGURE 127 Reloading the units
2. Click Yes to start the process.
NOTE
If the Active Controller is reset or removed from the stack, the entire stack reloads and Active Controller and Standby
Controller elections are started. If the unit functioning as the previous Active Controller is no longer part of the stack,
the Standby Controller unit becomes the new Active Controller. After a reset, if no stack member qualies as the Active
Controller, the existing Standby Controller waits 30 seconds and then assumes the role of the Active Controller.If both
the Active Controller and the Standby Controllers are removed, the rest of the stack continues to function. The stack
members will not be able to learn any new addresses.
FOR BROCADE CONTROLLED RELEASE ONLY
Reloading units in a stack
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 217
Saving the conguration to ash
To save the conguration changes to ash, perform the following tasks.
1. Click Command on the left pane and select Save To Flash .
The save conguration window is displayed as shown in the gure below.
FIGURE 128 Saving the conguration to ash
2. Click Yes to conrm saving the conguration.
NOTE
To apply the changes to memory allocation, reload the software after you save the changes to the startup-
conguration le.
FOR BROCADE CONTROLLED RELEASE ONLY
Saving the conguration to ash
Brocade FastIron Web Management Interface User Guide, 08.0.50
218 53-1004462-01
Switching over to the active role
To switch a standby module to become an Active Controller, perform the following steps.
1. Click Command on the left pane and select Switch-over-active-controller .
The switch over window is displayed as shown in the gure below.
FIGURE 129 Switching over to an Active Controller
2. Click Yes to switch the standby module to become an Active Controller or click No to cancel the operation.
Accessing the Telnet command prompt
To open a Telnet CLI window, click Command on the left pane and select Telnet .
The Telnet window is displayed as shown in the gure below.
FOR BROCADE CONTROLLED RELEASE ONLY
Accessing the Telnet command prompt
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 219
FIGURE 130 Accessing Telnet
FOR BROCADE CONTROLLED RELEASE ONLY
Accessing the Telnet command prompt
Brocade FastIron Web Management Interface User Guide, 08.0.50
220 53-1004462-01
Performing a trace
Trace Route allows you to trace a path from the Brocade device to an IPv4 host. Trace route requests show all responses to a minimum
Time To Live (TTL) of 1 second and a maximum TTL of 30 seconds. In addition, if there are multiple equal-cost routes to the
destination, the Brocade device displays up to three responses. To run a trace, perform the following steps.
1. Click Command on the left pane and select Trace Route .
The Trace Route window is displayed as shown in the gure below.
FIGURE 131 Performing a trace
2. Type the IP address of the host at the other end of the route in the Target Address eld.
3. Type the minimum value of TTL in the Minimum TTL eld. The default is 1.
4. Type the maximum value of TTL in the Maximum TTL eld. The default is 30.
5. Type the number of seconds the router waits for a reply from the pinged device in the Timeout (Sec) eld.
6. Select the Numeric check box so that, for parameters that require a numeric value, the trace route does not check that the value
you enter is within the allowed range. Instead, if you do exceed the range for a numeric value, the software rounds the value to
the nearest valid value.
7. Click Start to begin the trace process or click Abort to exit without performing the trace.
FOR BROCADE CONTROLLED RELEASE ONLY
Performing a trace
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 221
Brocade FastIron Web Management Interface User Guide, 08.0.50
222 53-1004462-01
Using TFTP
•Conguring TFTP.......................................................................................................................................................................................... 223
•Conguring a TFTP image.........................................................................................................................................................................225
Conguring TFTP
When the device reboots, or the auto-conguration feature has been disabled and then re-enabled, the device uses information from the
Dynamic Host Conguration Protocol (DHCP) server to contact the Trivial File Transfer Protocol (TFTP) server to update the running
conguration le. If the DHCP server provides a TFTP server name or IP address, the device uses this information to request les from
the TFTP server. If the DHCP server does not provide a TFTP server name or IP address, the device requests the conguration les
from the DHCP server.
The device requests the conguration les from the TFTP server in the following order:
• Boot le name provided by the DHCP server (if congured)
• Host name MAC address conguration le
• Brocade conguration le
If the device is successful in contacting the TFTP server and the server has the conguration les, the les are merged. If there is a
conict, the server le takes precedence. If the device is unable to contact the TFTP server or if the les are not found on the server, the
TFTP part of the conguration download process ends.
To access the TFTP conguration, perform the following steps.
1. Click Command on the left pane and select TFTP .
FOR BROCADE CONTROLLED RELEASE ONLY
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 223
2. Click Conguration .
The TFTP Conguration window is displayed as shown in the gure below.
FIGURE 132 Conguring TFTP
3. Type the IP address of the most recently contacted TFTP server (if the switch has contacted a TFTP server since the last time
the software was reloaded or the switch was rebooted) in the TFTP Server IP eld.
4. Type the name under which the startup-cong le of the Layer 2 switch or Layer 3 switch was uploaded or downloaded during
the most recent TFTP access in the Conguration File Name eld.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring TFTP
Brocade FastIron Web Management Interface User Guide, 08.0.50
224 53-1004462-01
5. You can perform one of the following tasks with the conguration le:
• – Click Copy from Server to Flash to copy the le from a TFTP server to the device ash memory.
– Click Save from Flash to Server to save the le from the device ash memory to a TFTP server.
– Click Save from RAM to Server to save the le from the device RAM memory to a TFTP server.
Conguring a TFTP image
To access a TFTP image, perform the following steps.
1. Click Command on the left pane and select TFTP .
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a TFTP image
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 225
2. Click Image .
The TFTP Image window is displayed as shown in the gure below.
FIGURE 133 Conguring a TFTP image
3. Type the IP address of the most recently contacted TFTP server (if the switch has contacted a TFTP server since the last time
the software was reloaded or the switch was rebooted) in the TFTP Server IP eld.
4. Type the name of the Layer 2 switch or Layer 3 switch ash image (system software le) that was uploaded or downloaded
during the most recent TFTP access in the Image File Name eld.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a TFTP image
Brocade FastIron Web Management Interface User Guide, 08.0.50
226 53-1004462-01
5. Click one of the following for Flash :
• – Primary --The default local storage device for image les and conguration les.
–Secondary --The second ash storage device you can use to store redundant images for additional booting reliability
or to preserve one software image while testing another one.
6. You can perform one of the following tasks with the TFTP image:
• – Click Copy from Server to copy a boot image from a TFTP server to the primary or secondary storage location in the
device ash memory.
– Click Save to Server to save the boot image from the primary or secondary storage location of the device ash
memory to a TFTP server.
FOR BROCADE CONTROLLED RELEASE ONLY
Conguring a TFTP image
Brocade FastIron Web Management Interface User Guide, 08.0.50
53-1004462-01 227
