Ruckus FastIron IP Multicast Configuration Guide, 08.0.70 Fast Iron Guide 08070 Ipmulticastguide

2017-12-21

User Manual: Ruckus FastIron 08.0.70 IP Multicast Configuration Guide

Open the PDF directly: View PDF PDF.
Page Count: 199 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Supporting FastIron Software Release 08.0.70
CONFIGURATION GUIDE
Ruckus FastIron IP Multicast
Configuration Guide, 08.0.70
Part Number: 53-1005289-01
Publication Date: 21 December 2017
Copyright Notice and Proprietary Information
© 2018 ARRIS Enterprises, LLC. All rights reserved.
No part of this documentation may be used, reproduced, transmitted, or translated, in any form or by any means, electronic, mechanical,
manual, optical, or otherwise, without prior written permission of or as expressly provided by under license from ARRIS.
Destination Control Statement
Technical data contained in this publication may be subject to the export control laws of the United States of America. Disclosure to
nationals of other countries contrary to United States law is prohibited. It is the reader’s responsibility to determine the applicable regulations
and to comply with them.
Disclaimer
THIS DOCUMENTATION AND ALL INFORMATION CONTAINED HEREIN (“MATERIAL”) IS PROVIDED FOR GENERAL INFORMATION
PURPOSES ONLY. ARRIS and RUCKUS WIRELESS, INC. AND THEIR LICENSORS MAKE NO WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, WITH REGARD TO THE MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY,
NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE MATERIAL IS ERROR-FREE, ACCURATE OR
RELIABLE. ARRIS and RUCKUS RESERVE THE RIGHT TO MAKE CHANGES OR UPDATES TO THE MATERIAL AT ANY TIME.
Limitation of Liability
IN NO EVENT SHALL ARRIS or RUCKUS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, DATA OR USE, INCURRED BY YOU OR ANY THIRD PARTY, WHETHER
IN AN ACTION IN CONTRACT OR TORT, ARISING FROM YOUR ACCESS TO, OR USE OF, THE MATERIAL.
Trademarks
Ruckus Wireless, Ruckus, the bark logo, BeamFlex, ChannelFly, Dynamic PSK, FlexMaster, ICX, Simply Better Wireless, SmartCell,
SmartMesh, SmartZone, Unleashed, ZoneDirector and ZoneFlex are trademarks of Ruckus Wireless, Inc. in the United States and in other
countries. Other trademarks may belong to third parties.
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
2 Part Number: 53-1005289-01
Contents
Preface..........................................................................................................................................................................................................9
Document Conventions..........................................................................................................................................................................9
Notes, Cautions, and Warnings.......................................................................................................................................................9
Command Syntax Conventions..............................................................................................................................................................9
Document Feedback............................................................................................................................................................................10
Ruckus Product Documentation Resources......................................................................................................................................... 10
Online Training Resources.................................................................................................................................................................... 10
Contacting Ruckus Customer Services and Support............................................................................................................................11
What Support Do I Need?.............................................................................................................................................................11
Open a Case.................................................................................................................................................................................11
Self-Service Resources................................................................................................................................................................. 11
About This Document..................................................................................................................................................................................13
Supported hardware............................................................................................................................................................................ 13
What’s new in this document................................................................................................................................................................13
How command information is presented in this guide...........................................................................................................................13
IPv4 Multicast VLAN Traffic Reduction......................................................................................................................................................... 15
PIM convergence on MAC movement.................................................................................................................................................. 15
IGMP snooping overview......................................................................................................................................................................15
Queriers and non-queriers............................................................................................................................................................ 16
VLAN-specific configuration.......................................................................................................................................................... 17
Tracking and fast leave..................................................................................................................................................................17
Support for IGMP snooping and Layer 3 multicast routing together on the same device............................................................... 17
Hardware resources for IGMP and PIM-SM snooping................................................................................................................... 17
Configuration notes and feature limitations for IGMP snooping and Layer 3 multicast routing........................................................17
IGMP snooping configuration............................................................................................................................................................... 18
IGMP snooping mcache entries and group addresses.................................................................................................................. 19
IGMP snooping software resource limits........................................................................................................................................19
Changing the maximum number of supported IGMP snooping mcache entries.............................................................................19
Setting the maximum number of IGMP group addresses.............................................................................................................. 19
Enabling IGMP snooping globally on the device............................................................................................................................ 20
Configuring the IGMP mode..........................................................................................................................................................20
Configuring the IGMP version........................................................................................................................................................21
Configuring static groups to specific ports.................................................................................................................................... 22
Disabling IGMP snooping on a VLAN............................................................................................................................................ 22
Modifying the age interval for group membership entries...............................................................................................................22
Modifying the query interval (active IGMP snooping mode only).....................................................................................................22
Modifying the maximum response time......................................................................................................................................... 22
Configuring report control............................................................................................................................................................. 23
Modifying the wait time before stopping traffic when receiving a leave message............................................................................23
Modifying the multicast cache age time.........................................................................................................................................23
Enabling or disabling error and warning messages........................................................................................................................24
Configuring static router ports.......................................................................................................................................................24
Configuring the Layer 2 mode IPv4 querier address...................................................................................................................... 24
Turning off static group proxy........................................................................................................................................................25
Enabling IGMP V3 membership tracking and fast leave for the VLAN............................................................................................ 25
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 3
Enabling fast leave for IGMP V2.................................................................................................................................................... 26
Enabling fast convergence ........................................................................................................................................................... 26
Displaying the IGMP snooping configuration................................................................................................................................. 26
Displaying IGMP snooping errors.................................................................................................................................................. 27
Displaying IGMP group information............................................................................................................................................... 28
Displaying IGMP snooping mcache information.............................................................................................................................29
Displaying software resource usage for VLANs..............................................................................................................................30
Displaying the status of IGMP snooping traffic...............................................................................................................................30
Displaying querier information....................................................................................................................................................... 31
Clearing the IGMP mcache........................................................................................................................................................... 34
Clearing the mcache on a specific VLAN.......................................................................................................................................34
Clearing traffic on a specific VLAN.................................................................................................................................................34
Clearing IGMP counters on VLANs................................................................................................................................................34
Disabling the flooding of unregistered IPv4 multicast frames in an IGMP-snooping-enabled VLAN....................................................... 35
PIM SM traffic snooping overview.........................................................................................................................................................35

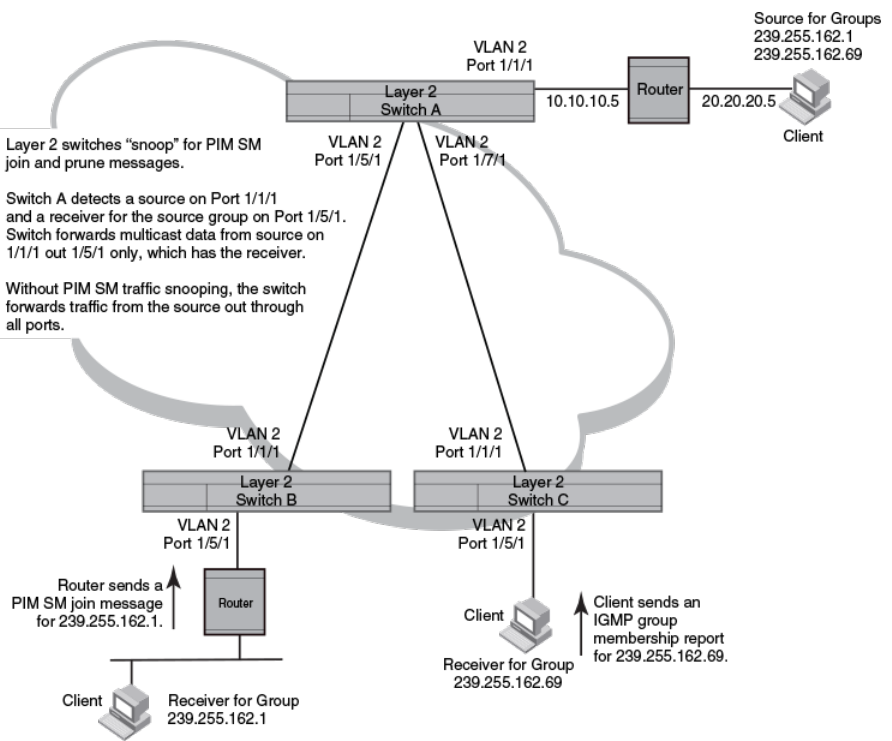

Application examples of PIM SM traffic snooping.......................................................................................................................... 35
Configuration notes and limitations for PIM SM snooping..............................................................................................................37
PIM SM snooping configuration........................................................................................................................................................... 38
Enabling or disabling PIM SM snooping........................................................................................................................................ 38
Enabling PIM SM snooping on a VLAN......................................................................................................................................... 39
Disabling PIM SM snooping on a VLAN.........................................................................................................................................39
PIM SM snooping show commands.....................................................................................................................................................39
Displaying PIM SM snooping information...................................................................................................................................... 39
Displaying PIM SM snooping information on a Layer 2 switch....................................................................................................... 39
Displaying PIM SM snooping information for a specific group or source group pair....................................................................... 40
IPv6 Multicast VLAN Traffic Reduction......................................................................................................................................................... 43
MLD snooping overview.......................................................................................................................................................................43
Support for MLD snooping and Layer 3 IPv6 multicast routing together on the same device.........................................................44
Forwarding mechanism in hardware..............................................................................................................................................44
Hardware resources for MLD and PIMv6 SM snooping................................................................................................................. 44
MLD snooping configuration notes and feature limitations.............................................................................................................44
MLD snooping-enabled queriers and non-queriers........................................................................................................................46
MLD and VLAN configuration........................................................................................................................................................46
MLDv1 with MLDv2...................................................................................................................................................................... 46
MLD snooping configuration................................................................................................................................................................ 46
Configuring the hardware and software resource limits..................................................................................................................47
Configuring the global MLD mode.................................................................................................................................................48
Modifying the age interval..............................................................................................................................................................48
Modifying the query interval (active MLD snooping mode only)...................................................................................................... 48
Configuring the global MLD version...............................................................................................................................................49
Configuring report control............................................................................................................................................................. 49
Modifying the wait time before stopping traffic when receiving a leave message............................................................................49
Modifying the multicast cache aging time......................................................................................................................................49
Disabling error and warning messages..........................................................................................................................................50
Configuring the MLD mode for a VLAN......................................................................................................................................... 50
Disabling MLD snooping for the VLAN.......................................................................................................................................... 50
Configuring the MLD version for the VLAN.................................................................................................................................... 51
Configuring the MLD version for individual ports............................................................................................................................51
Configuring static groups.............................................................................................................................................................. 51
Configuring the Layer 2 Mode IPv6 Querier Address..................................................................................................................... 51
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
4 Part Number: 53-1005289-01
Configuring static router ports.......................................................................................................................................................52
Disabling static group proxy.......................................................................................................................................................... 52
Enabling MLDv2 membership tracking and fast leave for the VLAN...............................................................................................52
Configuring fast leave for MLDv1...................................................................................................................................................53
Enabling fast convergence ........................................................................................................................................................... 53
Displaying MLD snooping information...................................................................................................................................................54
Displaying MLD snooping error information................................................................................................................................... 54
Displaying MLD group information.................................................................................................................................................54
Displaying MLD snooping mcache information..............................................................................................................................56
Displaying status of MLD snooping traffic......................................................................................................................................57
Displaying MLD snooping information by VLAN.............................................................................................................................58
Clearing MLD counters on all VLANs....................................................................................................................................................58
Clearing the mcache on all VLANs....................................................................................................................................................... 59
Clearing the mcache on a specific VLAN..............................................................................................................................................59
Clearing traffic counters on a specific VLAN......................................................................................................................................... 59
Disabling the flooding of unregistered IPv6 multicast frames in an MLD-snooping-enabled VLAN.........................................................59
PIM6 SM traffic snooping overview.......................................................................................................................................................60
Application examples of PIM6 SM traffic snooping........................................................................................................................ 60
Configuration notes and limitations for PIM6 SM snooping............................................................................................................61
PIM6 SM snooping configuration......................................................................................................................................................... 62
Enabling or disabling PIM6 SM snooping...................................................................................................................................... 62
Enabling PIM6 SM snooping on a VLAN....................................................................................................................................... 63
Disabling PIM6 SM snooping on a VLAN.......................................................................................................................................63
Displaying PIM6 SM snooping information............................................................................................................................................63
Displaying PIM6 SM snooping for a VLAN............................................................................................................................................ 63
IPv4 Multicast Protocols.............................................................................................................................................................................. 65
Overview of IP multicasting.................................................................................................................................................................. 65
Multicast terms............................................................................................................................................................................. 65
Support for Multicast Multi-VRF............................................................................................................................................................66
changes to system-max command .............................................................................................................................................. 66
Show and clear command support............................................................................................................................................... 66
Changing global IP multicast parameters..............................................................................................................................................66
Concurrent support for multicast routing and snooping.................................................................................................................67
Defining the maximum number of PIM cache entries.....................................................................................................................67
Defining the maximum number of IGMP group addresses.............................................................................................................67
Changing IGMP V1 and V2 parameters.........................................................................................................................................68
Adding an interface to a multicast group.............................................................................................................................................. 69
Multicast non-stop routing....................................................................................................................................................................70
Configuration considerations.........................................................................................................................................................70
Configuring multicast non-stop routing..........................................................................................................................................70
Displaying the multicast NSR status..............................................................................................................................................71
Passive multicast route insertion ..........................................................................................................................................................72
Configuring PMRI..........................................................................................................................................................................72
Displaying hardware-drop............................................................................................................................................................. 73
IP multicast boundaries........................................................................................................................................................................ 73
Configuration considerations.........................................................................................................................................................73
Configuring multicast boundaries.................................................................................................................................................. 73
Displaying multicast boundaries.................................................................................................................................................... 74
PIM Dense .......................................................................................................................................................................................... 75
Initiating PIM multicasts on a network........................................................................................................................................... 75
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 5
Pruning a multicast tree................................................................................................................................................................ 75
Grafts to a multicast tree...............................................................................................................................................................77
PIM DM versions...........................................................................................................................................................................78
Configuring PIM DM .....................................................................................................................................................................78
Failover time in a multi-path topology............................................................................................................................................ 81
Configuring a DR priority............................................................................................................................................................... 81
Displaying basic PIM Dense configuration information...................................................................................................................81
Displaying all multicast cache entries in a pruned state................................................................................................................. 82
Displaying all multicast cache entries.............................................................................................................................................83
PIM convergence on MAC movement.................................................................................................................................................. 86
PIM Sparse ......................................................................................................................................................................................... 86
PIM Sparse device types...............................................................................................................................................................87
RP paths and SPT paths...............................................................................................................................................................88
Configuring PIM Sparse................................................................................................................................................................ 88
ACL-based RP assignment...........................................................................................................................................................92
IP multicast PIM neighbor filter............................................................................................................................................................. 93
Limitations.................................................................................................................................................................................... 94
Configuring IPv4 PIM neighbor filtering..........................................................................................................................................94
PIM Passive......................................................................................................................................................................................... 94
Multicast Outgoing Interface (OIF) list optimization................................................................................................................................95
Displaying system values......................................................................................................................................................................95
Displaying PIM resources..................................................................................................................................................................... 95
Displaying PIM Sparse configuration information and statistics.............................................................................................................97
Displaying basic PIM Sparse configuration information..................................................................................................................98
Displaying a list of multicast groups...............................................................................................................................................99
Displaying BSR information......................................................................................................................................................... 100
Displaying candidate RP information........................................................................................................................................... 101
Displaying RP-to-group mappings.............................................................................................................................................. 102
Displaying RP Information for a PIM Sparse group...................................................................................................................... 103
Displaying the RP set list.............................................................................................................................................................103
Displaying multicast neighbor information....................................................................................................................................104
Displaying the PIM multicast cache............................................................................................................................................. 105
Displaying the PIM multicast cache for DIT..................................................................................................................................107
Clearing the PIM forwarding cache.....................................................................................................................................................108
Displaying PIM traffic statistics............................................................................................................................................................108
Clearing the PIM message counters................................................................................................................................................... 110
Displaying PIM RPF............................................................................................................................................................................110
Configuring Multicast Source Discovery Protocol................................................................................................................................111
Peer Reverse Path Forwarding flooding.......................................................................................................................................112
Source Active caching................................................................................................................................................................ 112
Configuring MSDP...................................................................................................................................................................... 112
Disabling an MSDP peer............................................................................................................................................................. 114
Designating the interface IP address as the RP IP address..........................................................................................................114
Filtering MSDP source-group pairs..............................................................................................................................................114
Filtering incoming and outgoing Source-Active messages...........................................................................................................115
Filtering advertised Source-Active messages...............................................................................................................................116
Displaying MSDP information...................................................................................................................................................... 117
Displaying MSDP RPF-Peer........................................................................................................................................................ 121
Displaying MSDP Peer................................................................................................................................................................ 122
Displaying MSDP VRF RPF-Peer.................................................................................................................................................122
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
6 Part Number: 53-1005289-01
Clearing MSDP information......................................................................................................................................................... 122
Configuring MSDP mesh groups ....................................................................................................................................................... 123
Configuring MSDP mesh group...................................................................................................................................................124
MSDP Anycast RP............................................................................................................................................................................. 125
Configuring MSDP Anycast RP................................................................................................................................................... 125
Example......................................................................................................................................................................................126
PIM Anycast RP................................................................................................................................................................................. 129
Configuring PIM Anycast RP....................................................................................................................................................... 129
Static multicast routes........................................................................................................................................................................131
IGMP Proxy........................................................................................................................................................................................131
IGMP proxy configuration notes.................................................................................................................................................. 132
IGMP proxy limitations................................................................................................................................................................ 132
Configuring IGMP Proxy..............................................................................................................................................................132
Filtering groups in proxy report messages................................................................................................................................... 133
Displaying IGMP Proxy information..............................................................................................................................................133
IGMP V3............................................................................................................................................................................................ 134
Default IGMP version.................................................................................................................................................................. 135
Compatibility with IGMP V1 and V2.............................................................................................................................................136
Globally enabling the IGMP version ............................................................................................................................................ 136
Enabling the IGMP version per interface setting ..........................................................................................................................136
Enabling the IGMP version on a physical port within a virtual routing interface ............................................................................137
Enabling membership tracking and fast leave..............................................................................................................................137
Creating a static IGMP group...................................................................................................................................................... 138
Setting the query interval.............................................................................................................................................................138
Setting the group membership time............................................................................................................................................ 138
Setting the maximum response time........................................................................................................................................... 139
Displaying IGMPv3 information....................................................................................................................................................139
Clearing the IGMP group membership table ...............................................................................................................................140
Displaying static IGMP groups.................................................................................................................................................... 141
Clearing IGMP traffic statistics ....................................................................................................................................................143
Source-Specific Multicast............................................................................................................................................................144
Configuring PIM SSM group range..............................................................................................................................................145
Configuring multiple SSM group ranges...................................................................................................................................... 145
IGMPv2 SSM mapping............................................................................................................................................................... 146
IPv6 Multicast Protocols............................................................................................................................................................................ 149
IPv6 PIM Sparse ............................................................................................................................................................................... 149
PIM Sparse router types............................................................................................................................................................. 150
RP paths and SPT paths.............................................................................................................................................................150
RFC 3513 and RFC 4007 compliance for IPv6 multicast scope-based forwarding...................................................................... 150
Configuring PIM Sparse.............................................................................................................................................................. 151
IPv6 PIM-Sparse mode............................................................................................................................................................... 151
Configuring IPv6 PIM-SM on a virtual routing interface................................................................................................................ 151
Enabling IPv6 PIM-SM for a specified VRF.................................................................................................................................. 152
Configuring BSRs ...................................................................................................................................................................... 152
Enabling Source-Specific Multicast............................................................................................................................................. 158
Configuring a DR priority............................................................................................................................................................. 159
Passive Multicast Route Insertion................................................................................................................................................159
Displaying system values............................................................................................................................................................ 160
Displaying PIM Sparse configuration information and statistics....................................................................................................160
Clearing the IPv6 PIM forwarding cache......................................................................................................................................173
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 7
Clearing the IPv6 PIM message counters.................................................................................................................................... 173
Updating PIM Sparse forwarding entries witha new RP configuration..........................................................................................174
Clearing the IPv6 PIM traffic ....................................................................................................................................................... 174
Defining the maximum number of IPv6 PIM cache entries........................................................................................................... 174
Configuring a static multicast route within a VRF......................................................................................................................... 175
Configuring the route precedence by specifying the route types..................................................................................................175
Configuring IPv6 PIM neighbor filtering........................................................................................................................................176
IPv6 PIM convergence on MAC movement........................................................................................................................................ 177
PIM Anycast RP................................................................................................................................................................................. 177
Configuring PIM Anycast RP....................................................................................................................................................... 178
Multicast Listener Discovery and source-specific multicast protocols................................................................................................. 179
Enabling MLDv2..........................................................................................................................................................................180
Configuring MLD parameters for default and non-default VRFs................................................................................................... 180
Configuring MLD parameters at the interface level.......................................................................................................................183
Displaying MLD group information...............................................................................................................................................184
Displaying MLD definitions for an interface.................................................................................................................................. 185
Displaying MLD settings..............................................................................................................................................................186
Displaying static MLD groups......................................................................................................................................................187
Displaying MLD traffic................................................................................................................................................................. 187
Clearing IPv6 MLD traffic.............................................................................................................................................................188
Clearing the IPv6 MLD group membership table cache...............................................................................................................188
IPv6 Multicast Boundaries.................................................................................................................................................................. 188
Configuration considerations.......................................................................................................................................................189
Configuring multicast boundaries................................................................................................................................................ 189
Displaying multicast boundaries.................................................................................................................................................. 190
IP Multicast Switch Port Extender Stacking............................................................................................................................................... 191
Switch Port Extender and IP Multicast................................................................................................................................................191
Multicast E-CID and IEE 802.1BR............................................................................................................................................... 191
Multicast E-CID Manager............................................................................................................................................................ 191
Considerations for multicast forwarding on PE units....................................................................................................................191
Layer 2 multicast in an SPX configuration....................................................................................................................................192
Layer 3 multicast in an SPX configuration....................................................................................................................................194
Displaying multicast SPX information...........................................................................................................................................196
IP multicast hardware entry optimization.............................................................................................................................................197
How disabling IP multicast hardware entry optimization works.................................................................................................... 197
Disabling multicast hardware entry optimization.......................................................................................................................... 197
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
8 Part Number: 53-1005289-01
Preface
• Document Conventions.............................................................................................................................................9
• Command Syntax Conventions................................................................................................................................. 9
• Document Feedback...............................................................................................................................................10
• Ruckus Product Documentation Resources............................................................................................................ 10
• Online Training Resources....................................................................................................................................... 10
• Contacting Ruckus Customer Services and Support............................................................................................... 11
Document Conventions
The following tables list the text and notice conventions that are used throughout this guide.
TABLE 1 Text conventions
Convention Description Example
monospace Identifies command syntax
examples. device(config)# interface ethernet 1/1/6
bold User interface (UI) components such
as screen or page names, keyboard
keys, software buttons, and field
names
On the Start menu, click All Programs.
italics
Publication titles Refer to the
Ruckus Small Cell Release Notes
for more information
Notes, Cautions, and Warnings
Notes, cautions, and warning statements may be used in this document. They are listed in the order of increasing severity of potential
hazards.
NOTE
A NOTE provides a tip, guidance, or advice, emphasizes important information, or provides a reference to related information.
CAUTION
A CAUTION statement alerts you to situations that can be potentially hazardous to you or cause damage to hardware, firmware,
software, or data.
DANGER
A DANGER statement indicates conditions or situations that can be potentially lethal or extremely hazardous to you. Safety labels
are also attached directly to products to warn of these conditions or situations.
Command Syntax Conventions
Bold and italic text identify command syntax components. Delimiters and operators define groupings of parameters and their logical
relationships.
Convention Description
bold text Identifies command names, keywords, and command options.
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 9
Convention Description
italic
text Identifies a variable.
[ ] Syntax components displayed within square brackets are optional.
Default responses to system prompts are enclosed in square brackets.
{ x | y | z }A choice of required parameters is enclosed in curly brackets separated by vertical bars. You must select
one of the options.
x | yA vertical bar separates mutually exclusive elements.
< > Nonprinting characters, for example, passwords, are enclosed in angle brackets.
... Repeat the previous element, for example,
member
[
member
...].
\ Indicates a “soft” line break in command examples. If a backslash separates two lines of a command input,
enter the entire command at the prompt without the backslash.
Document Feedback
Ruckus is interested in improving its documentation and welcomes your comments and suggestions.
You can email your comments to Ruckus at: docs@ruckuswireless.com
When contacting us, please include the following information:
• Document title and release number
• Document part number (on the cover page)
• Page number (if appropriate)
• For example:
– Ruckus Small Cell Alarms Guide SC Release 1.3
– Part number: 800-71306-001
– Page 88
Ruckus Product Documentation Resources
Visit the Ruckus website to locate related documentation for your product and additional Ruckus resources.
Release Notes and other user documentation are available at https://support.ruckuswireless.com/documents. You can locate
documentation by product or perform a text search. Access to Release Notes requires an active support contract and Ruckus Support
Portal user account. Other technical documentation content is available without logging into the Ruckus Support Portal.
White papers, data sheets, and other product documentation are available at https://www.ruckuswireless.com.
Online Training Resources
To access a variety of online Ruckus training modules, including free introductory courses to wireless networking essentials, site surveys,
and Ruckus products, visit the Ruckus Training Portal at https://training.ruckuswireless.com.
Preface
Document Feedback
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
10 Part Number: 53-1005289-01
Contacting Ruckus Customer Services and Support
The Customer Services and Support (CSS) organization is available to provide assistance to customers with active warranties on their
Ruckus Networks products, and customers and partners with active support contracts.
For product support information and details on contacting the Support Team, go directly to the Support Portal using https://
support.ruckuswireless.com, or go to https://www.ruckuswireless.com and select Support.
What Support Do I Need?
Technical issues are usually described in terms of priority (or severity). To determine if you need to call and open a case or access the self-
service resources use the following criteria:
• Priority 1 (P1)—Critical. Network or service is down and business is impacted. No known workaround. Go to the Open a Case
section.
• Priority 2 (P2)—High. Network or service is impacted, but not down. Business impact may be high. Workaround may be available.
Go to the Open a Case section.
• Priority 3 (P3)—Medium. Network or service is moderately impacted, but most business remains functional. Go to the Self-Service
Resources section.
• Priority 4 (P4)—Low. Request for information, product documentation, or product enhancements. Go to the Self-Service
Resources section.
Open a Case
When your entire network is down (P1), or severely impacted (P2), call the appropriate telephone number listed below to get help:
• Continental United States: 1-855-782-5871
• Canada: 1-855-782-5871
• Europe, Middle East, Africa, and Asia Pacific, toll-free numbers are available at https://support.ruckuswireless.com/contact-us and
Live Chat is also available.
Self-Service Resources
The Support Portal at https://support.ruckuswireless.com/contact-us offers a number of tools to help you to research and resolve problems
with your Ruckus products, including:
•Technical Documentation—https://support.ruckuswireless.com/documents
•Community Forums—https://forums.ruckuswireless.com/ruckuswireless/categories
•Knowledge Base Articles—https://support.ruckuswireless.com/answers
•Software Downloads and Release Notes—https://support.ruckuswireless.com/software
•Security Bulletins—https://support.ruckuswireless.com/security
Using these resources will help you to resolve some issues, and will provide TAC with additional data from your troubleshooting analysis if
you still require assistance through a support case or RMA. If you still require help, open and manage your case at https://
support.ruckuswireless.com/case_management
Preface
Contacting Ruckus Customer Services and Support
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 11
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
12 Part Number: 53-1005289-01
About This Document
• Supported hardware................................................................................................................................................13
• What’s new in this document...................................................................................................................................13
• How command information is presented in this guide..............................................................................................13
Supported hardware
This guide supports the following Ruckus products:
• Ruckus ICX 7750 Series
• Ruckus ICX 7650 Series
• Ruckus ICX 7450 Series
• Ruckus ICX 7250 Series
• Ruckus ICX 7150 Series
For information about what models and modules these devices support, see the hardware installation guide for the specific product family.
What’s new in this document
FastIron 08.0.70 supports the Ruckus ICX 7650. There are no new IP multicast features added in this release.
NOTE
Refer to the
Ruckus FastIron Features and Standards Support Matrix
for a complete list of IP multicast features supported on the
Ruckus ICX 7650.
How command information is presented in this guide
For all new content supported in FastIron release 08.0.20 and later, command information is documented in a standalone command
reference guide.
In the
Ruckus FastIron Command Reference
, the command pages are in alphabetical order and follow a standard format to present syntax,
parameters, mode, usage guidelines, examples, and command history.
NOTE
Many commands introduced before FastIron release 08.0.20 are also included in the guide.
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 13
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
14 Part Number: 53-1005289-01
IPv4 Multicast VLAN Traffic Reduction
• PIM convergence on MAC movement..................................................................................................................... 15
• IGMP snooping overview.........................................................................................................................................15
• IGMP snooping configuration.................................................................................................................................. 18
• Disabling the flooding of unregistered IPv4 multicast frames in an IGMP-snooping-enabled VLAN...........................35
• PIM SM traffic snooping overview............................................................................................................................35
• PIM SM snooping configuration...............................................................................................................................38
• PIM SM snooping show commands........................................................................................................................39
PIM convergence on MAC movement
PIM convergence occurs when the PIM module is notified of a topology change.
The notification is triggered upon a change in port status, Reverse Path Forwarding (RPF) failure in the hardware, or by the unicast routing
module if there is a change in the Layer 3 topology. If the topology change occurs without setting off any of the two events or if the Layer 3
topology change is not notified by the unicast routing module, PIM convergence does not take place.
If there is a change in the source traffic at the Layer 2 interface level, the RPF check fails because only loose RPF check is supported (loose
RPF check detects the change in the source traffic only at the Layer 3 interface level). A notification for a change in the source traffic at the
Layer 2 interface level can be triggered by establishing a signaling process for MAC address movement. The MAC address movement
notification triggers RPF check on MAC movement for directly connected sources. The MAC address movement notification can be
triggered by configuring the ip multicast-routing rpf-check mac-movement command. The MAC address movement notification triggers
a notification to the PIM module which results in convergence. PIM convergence is supported in both PIM Sparse and PIM Dense modes.
PIM convergence on MAC movement is supported on the Brocade ICX 7xxx switches.
NOTE
PIM convergence on MAC movement is applicable only in a topology where the multicast source port and PIM routers are in the
same Layer 2 domain.
IGMP snooping overview
When a device processes a multicast packet, by default, it broadcasts the packets to all ports except the incoming port of a VLAN. Packets
are flooded by hardware without going to the CPU. This behavior causes some clients to receive unwanted traffic.
IGMP snooping provides multicast containment by forwarding traffic to only the ports that have IGMP receivers for a specific multicast
group (destination address). A device maintains the IGMP group membership information by processing the IGMP reports and leave
messages, so traffic can be forwarded to ports receiving IGMP reports.
An IPv4 multicast address is a destination address in the range of 224.0.0.0 to 239.255.255.255. Addresses of 224.0.0.X are reserved.
Because packets destined for these addresses may require VLAN flooding, devices do not snoop in the reserved range. Data packets
destined to addresses in the reserved range are flooded to the entire VLAN by hardware, and mirrored to the CPU. Multicast data packets
destined for the non-reserved range of addresses are snooped. A client must send IGMP reports in order to receive traffic.
An IGMP device's responsibility is to broadcast general queries periodically, and to send group queries when receiving a leave message, to
confirm that none of the clients on the port still want specific traffic before removing the traffic from the port. IGMP V2 lets clients specify
what group (destination address) will receive the traffic but not to specify the source of the traffic. IGMP V3 is for source-specific multicast
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 15
traffic, adding the capability for clients to INCLUDE or EXCLUDE specific traffic sources. An IGMP V3 device port state could be INCLUDE
or EXCLUDE, and there are different types of group records for client reports.
The interfaces respond to general or group queries by sending a membership report that contains one or more of the following records
associated with a specific group:
• Current-state record that indicates from which sources the interface wants to receive and not receive traffic. This record contains
the source address of interfaces and whether or not traffic will be included (IS_IN) or not excluded (IS_EX) from this source.
• Filter-mode-change record. If the interface state changes from IS_IN to IS_EX, a TO_EX record is included in the membership
report. Likewise, if the interface state changes from IS_EX to IS_IN, a TO_IN record appears in the membership report.
• An IGMP V2 leave report is equivalent to a TO_IN (empty) record in IGMP V3. This record means that no traffic from this group will
be received regardless of the source.
• An IGMP V2 group report is equivalent to an IS_EX (empty) record in IGMP V3. This record means that all traffic from this group will
be received regardless of source.
• Source-list-change record. If the interface wants to add or remove traffic sources from its membership report, the report can
contain an ALLOW record, which includes a list of new sources from which the interface wishes to receive traffic. It can also
contain a BLOCK record, which lists the current traffic sources from which the interface wants to stop receiving traffic.
IGMP protocols provide a method for clients and a device to exchange messages, and let the device build a database indicating which port
wants what traffic. The protocols do not specify forwarding methods. They require IGMP snooping or multicast protocols such as PIM to
handle packet forwarding. PIM can route multicast packets within and outside a VLAN, while IGMP snooping can switch packets only within
a VLAN.
If a VLAN is not IGMP snooping-enabled, it floods multicast data and control packets to the entire VLAN in hardware. When snooping is
enabled, IGMP packets are trapped to the CPU. Data packets are mirrored to the CPU in addition to being VLAN flooded. The CPU then
installs hardware resources, so that subsequent data packets can be switched to desired ports in hardware without going to the CPU. If
there is no client report or port to queriers for a data stream, the hardware resource drops it.
Queriers and non-queriers
An IGMP snooping-enabled Ruckus device can be configured as a querier (active) or non-querier (passive). An IGMP querier sends queries;
a non-querier listens for IGMP queries and forwards them to the entire VLAN. VLANs can be independently configured to be queriers or
non-queriers. If a VLAN has a connection to a PIM-enabled port on another router, the VLAN must be configured as a non-querier. When
multiple IGMP snooping devices are connected together, and there is no connection to a PIM-enabled port, one of the devices must be
configured as a querier. If multiple devices are configured as queriers, after these devices exchange queries, then all except the winner stop
sending queries. The device with the lowest address becomes the querier. Although the system will work when multiple devices are
configured as queriers, Ruckus recommends that only one device (preferably the one with the traffic source) is configured as a querier.
The non-queriers always forward multicast data traffic and IGMP messages to router ports which receive IGMP queries or PIM hellos.
Ruckus recommends that you configure the device with the data traffic source (server) as a querier. If a server is attached to a non-querier,
the non-querier always forwards traffic to the querier regardless of whether there are any clients on the querier.
NOTE
In a topology of one or more connecting devices, at least one device must be running PIM configured as active. Otherwise, none
of the devices can send out queries, and traffic cannot be forwarded to clients.
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping overview
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
16 Part Number: 53-1005289-01
VLAN-specific configuration
IGMP snooping can be enabled on some VLANs or on all VLANs. Each VLAN can be independently configured to be a querier or non-
querier and can be configured for IGMP V2 or IGMP V3. In general, the ip multicast commands apply globally to all VLANs except those
configured with VLAN-specific multicast commands. The VLAN-specific multicast commands supersede the global ip multicast
commands.
IGMP snooping can be configured for IGMP V2 or IGMP V3 on individual ports of a VLAN. An interface or router sends the queries and
reports that include its IGMP version specified on it. The version configuration only applies to sending queries. The snooping device
recognizes and processes IGMP V2 and IGMP V3 packets regardless of the version configuration.
To avoid version deadlock, an interface retains its version configuration even when it receives a report with a lower version.
Tracking and fast leave
Ruckus devices support fast leave for IGMP V2, and tracking and fast leave for IGMP V3. Fast leave stops the traffic immediately when the
port receives a leave message. Tracking traces all IGMP V3 clients. Refer to Enabling IGMP V3 membership tracking and fast leave for the
VLAN on page 25 and Enabling fast leave for IGMP V2 on page 26.
Support for IGMP snooping and Layer 3 multicast routing together on
the same device
The Brocade device supports global Layer 2 IP multicast traffic reduction (IGMP snoopoing) and Layer 3 multicast routing (PIM-Sparse or
PIM-Dense) together on the same device in the full Layer 3 software image, as long as the Layer 2 feature configuration is at the VLAN level.
Hardware resources for IGMP and PIM-SM snooping
Brocade devices allocate/program fdb/mac entries to achieve multicast snooping in hardware. If a data packet does not match any of these
resources, it might be sent to the CPU, which increases the CPU burden. This can happen if the device runs out of hardware resources, or
is unable to install resources for a specific matching address due to a hashing collision.
The hardware hashes addresses into available fdb/mac entries, with some addresses hashed into the same entry. If the collision number in
an entry is more than the hardware chain length, the resource cannot be installed.
Configuration notes and feature limitations for IGMP snooping and Layer
3 multicast routing
The following notes apply to all devices:
• Layer 2 IGMP multicast is automatically enabled with Layer 3 multicast routing. If Layer 3 multicast routing is enabled on your
system, do not attempt to enable Layer 2 IGMP snooping.
• The default IGMP version is V2.
• A user can configure the maximum numbers of group address entries.
• An IGMP device can be configured to rate-limit the forwarding IGMP V2 membership reports to queriers.
• The device supports static groups. The device acts as a proxy to send IGMP reports for the static groups when receiving queries.
• A user can configure static router ports to force all multicast traffic to these specific ports.
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping overview
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 17
• If a VLAN has a connection to a PIM-enabled port on another router, the VLAN must be configured as a non-querier (passive).
When multiple snooping devices connect together and there is no connection to PIM ports, one device must be configured as a
querier (active). If multiple devices are configured as active (queriers), only one will keep sending queries after exchanging queries.
• The querier must configure an IP address to send out queries.
• IGMP snooping requires hardware resource. Hardware resource is installed only when there is data traffic. If resource is
inadequate, the data stream without a resource is mirrored to the CPU in addition to being VLAN flooded, which can cause high
CPU usage. Brocade recommends that you avoid global enabling of snooping unless necessary.
• IGMP snooping requires clients to send membership reports in order to receive data traffic. If a client application does not send
reports, you must configure static groups on the snooping VLAN to force traffic to client ports. Note that servers (traffic sources)
are not required to send IGMP memberships.
• Support for VSRP together with IGMP snooping on the same interface.
• When VSRP or VSRP-aware is configured on a VLAN, only IGMP version 2 is recommended; IGMP version 3 is not
recommended.
• Each VLAN can independently enable or disable IGMP, or configure IGMP v2 or IGMP v3.
• IGMP/PIM-SM snooping over Multi-Chassis Trunking is supported on ICX devices.
IGMP snooping configuration
Configuring IGMP snooping on a Ruckus device consists of the following global, VLAN-specific, and port-specific tasks:
Perform the following global IGMP snooping tasks:
•Configuring the IGMP V3 snooping software resource limits
• Enabling IGMP snooping globally on the device
•Configuring the global IGMP mode
•Configuring the global IGMP version
• Modifying the age interval for group membership entries
• Modifying the query interval (active IGMP snooping mode only)
• Modifying the maximum response time
•Configuring report control (rate limiting)
• Modifying the wait time before stopping traffic when receiving a leave message
• Modifying the multicast cache age time
• Enabling or disabling error and warning messages
Perform the following VLAN-specific IGMP snooping tasks:
•Configuring the IGMP mode for a VLAN (active or passive)
• Disabling IGMP snooping on a VLAN
•Configuring the IGMP version for a VLAN
•Configuring static router ports
• Turning off static group proxy
• Enabling IGMP V3 membership tracking and fast leave for the VLAN
• Enabling fast leave for IGMP
• Enabling fast convergence
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
18 Part Number: 53-1005289-01
Perform the following port-specific IGMP snooping task:
•Configuring the IGMP version for individual ports in a VLAN
IGMP snooping mcache entries and group addresses
An IGMP snooping group address entry is created when an IGMP join message is received for a group. An IGMP snooping mcache entry is
created when data traffic is received for that group. Each mcache entry represents one data stream, and multiple mcache entries (up to 32)
can share the same hardware (MAC) address entry. The egress port list for the mcache entry is obtained from the IGMP group address
entry. If there is no existing IGMP group address entry when an mcache entry is created, data traffic for that multicast group is dropped in
hardware. If there is an existing IGMP group address entry when an mcache is created, data traffic for that multicast group is switched in
hardware.
IGMP snooping software resource limits
These are the IGMP snooping mcache resource limits for Brocade devices.
• Ruckus ICX 7150 switches support 3072 IGMP snooping mcache entries for Layer 2 multicast.
• ICX 7750 switches support 8192 IGMP snooping mcache entries.
• ICX 7750 routers support 6000 IGMP snooping mcache entries.
• ICX 7250 devices support 8192 IGMP snooping mcache entries.
• ICX 7450 devices support 8192 IGMP snooping mcache entries.
Changing the maximum number of supported IGMP snooping mcache
entries
You can configure the system-max igmp-snoop-mcache command to change the maximum number of IGMP snooping cache entries
supported on a device.
Device(config)#system-max igmp-snoop-mcache 2000
Syntax: [no] system-max igmp-snoop-mcache
num
The
num
variable is a value from 256 through 8192. The default is 512.
Setting the maximum number of IGMP group addresses
The configured number of IGMP group addresses is the upper limit of an expandable database. Client memberships exceeding the group
limit are not processed. Configure the system-max igmp-snoop-group-addr command to define the maximum number of IGMP group
addresses.
Device(config)# system-max igmp-snoop-group-addr 1600
Syntax: [no] system-max igmp-snoop-group-addr
num
The
num
variable is a value from 256 to 8192. The default for IGMP snooping group addresses is 4096.
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 19
Enabling IGMP snooping globally on the device
When you globally enable IGMP snooping, you can specify IGMP V2 or IGMP V3. The ip multicast version command enables IGMP V3.
device(config)#ip multicast version 3
Syntax: [no] ip multicast version [2 | 3]
If you do not specify a version number, IGMP V2 is assumed.
Configuration notes for Layer 3 devices
• If Layer 3 multicast routing is enabled on your system, do not attempt to enable Layer 2 IGMP snooping. Layer 2 IGMP snooping
is automatically enabled with Layer 3 multicast routing.
• If the "route-only" feature is enabled on the Layer 3 Switch, then IP multicast traffic reduction will not be supported.
• IGMP snooping is not supported on the default VLAN of Layer 3 Switches.
Disabling the flooding of unregistered IPv6 multicast frames in an MLD-snooping-enabled VLAN
NOTE
Disabling the flooding of unregistered IPv6 multicast frames in an MLD-snooping-enabled VLAN is supported only on the Brocade
ICX 7750 (standalone and stacking) platform.
Support for this feature on the Brocade ICX 7750 was introduced in FastIron 8.0.10d. In releases prior to FastIron 8.0.30, support
for this feature on the Brocade ICX 7750 was for devices in standalone mode only.
To disable the flooding of unregistered IPv6 multicast frames in an MLD-snooping-enabled VLAN, use the ipv6 multicast disable-ooding
command in global configuration mode.
The following example disables flooding of unregistered IPv6 multicast frames.
Device(config)# ipv6 multicast disable-flooding
Configuring the IGMP mode
You can configure active or passive IGMP modes on the Ruckus device. The default mode is passive. If you specify an IGMP mode for a
VLAN, it overrides the global setting.
•Active - When active IGMP mode is enabled, a Ruckus device actively sends out IGMP queries to identify multicast groups on the
network, and makes entries in the IGMP table based on the group membership reports it receives.
NOTE
Routers in the network generally handle this operation. Use the active IGMP mode only when the device is in a stand-alone Layer
2 Switched network with no external IP multicast router attachments. In this case, enable the active IGMP mode on only one of
the devices and leave the other devices configured for passive IGMP mode.
•Passive - When passive IGMP mode is enabled, it forwards reports to the router ports which receive queries. IGMP snooping in
the passive mode does not send queries. However, it forwards queries to the entire VLAN.
Configuring the global IGMP mode
To globally set the IGMP mode to active, enter the following command.
device(config)#ip multicast active
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
20 Part Number: 53-1005289-01
Syntax: [no] ip multicast [ active | passive ]
If you do not enter either active or passive, the passive mode is assumed.
Configuring the IGMP mode for a VLAN
If you specify an IGMP mode for a VLAN, it overrides the global setting.
To set the IGMP mode for VLAN 20 to active, enter the following commands.
device(config)#vlan 20
device(config-vlan-20)#multicast active
Syntax: [no] multicast [ active | passive]
Configuring the IGMP version
Use the procedures in this section to specify the IGMP version.
Configuring the global IGMP version
To globally specify IGMP V2 or IGMP V3, refer to Enabling IGMP snooping globally on the device on page 20.
Configuring the IGMP version for a VLAN
You can specify the IGMP version for a VLAN. For example, the following commands configure VLAN 20 to use IGMP V3.
device(config)#vlan 20
device(config-vlan-20)#multicast version 3
Syntax: [no] multicast version [2 | 3 ]
If no IGMP version is specified, then the globally-configured IGMP version is used. If an IGMP version is specified for individual ports, those
ports use that version, instead of the VLAN version.
Configuring the IGMP version for individual ports in a VLAN
You can specify the IGMP version for individual ports in a VLAN. For example, the following commands configure ports 1/2/4, 1/2/5, and
1/2/6 to use IGMP V3. The other ports either use the IGMP version specified with the multicast version command, or the globally-
configured IGMP version.
device(config)#vlan 20
device(config-vlan-20)#multicast port-version 3 ethernet 1/2/4 to 1/2/6
Syntax: [no] multicast port-version [2 | 3 ] ethernet
unit/slot/port
[ethernet
unit/slot/port
| to
unit/slot/port
]
To specify a list of ports, enter each port as ethernet
unit/slot/port
followed by a space. For example, ethernet 1/1/24 ethernet 1/3/24
ethernet 1/4/17.
To specify a range of ports, enter the first port in the range as ethernet
port
followed by the last port in the range. For example, ethernet
1/1/1 to 1/1/8.
You can combine lists and ranges in the same command. For example: enable ethernet 1/1/1 to 1/1/8 ethernet 1/1/24 ethernet 1/4/24
ethernet 1/4/17.
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 21
Configuring static groups to specific ports
A snooping-enabled VLAN cannot forward multicast traffic to ports that do not receive IGMP membership reports. If clients cannot send
reports, you can configure a static group which applies to specific ports. The static group allows packets to be forwarded to the static
group ports even though they have no client membership reports.
device(config)#vlan 20
device(config-vlan-20)#multicast static-group 224.1.1.1 count 2 ethernet 1/1/3 ethernet 1/1/5 to 1/1/7
Disabling IGMP snooping on a VLAN
When IGMP snooping is enabled globally, you can still disable it for a specific VLAN. For example, the following commands cause IGMP
snooping to be disabled for VLAN 20. This setting overrides the global setting.
device(config)#vlan 20
device(config-vlan-20)#multicast disable-multicast-snoop
Syntax: [no] multicast disable-multicast-snoop
Modifying the age interval for group membership entries
When the device receives a group membership report, it makes an entry for that group in the IGMP group table. The age interval specifies
how long the entry can remain in the table before the device receives another group membership report. When multiple devices connect
together, all devices must be configured for the same age interval, which must be at least twice the length of the query interval, so that
missing one report won't stop traffic. Non-querier age intervals must be the same as the age interval of the querier.
To modify the age interval, enter the following command.
device(config)#ip multicast age-interval 280
Syntax: [no] ip multicast age-interval
interval
The
interval
parameter specifies the aging time. You can specify a value from 20 through 26000 seconds. The default is 260 seconds.
Modifying the query interval (active IGMP snooping mode only)
If IP multicast traffic reduction is set to active mode, you can modify the query interval to specify how often the device sends general
queries. When multiple queriers connect together, they must all be configured with the same query interval.
To modify the query interval, enter the following command.
device(config)#ip multicast query-interval 120
Syntax: [no] ip multicast query-interval
interval
The
interval
parameter specifies the time between queries. You can specify a value from 10 through 3600 seconds. The default is 125
seconds.
Modifying the maximum response time
The maximum response time is the number of seconds that a client can wait before responding to a query sent by the switch.
To change the IPv4 multicast maximum response time, enter the following command.
device(config)#ip multicast max-response-time 5
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
22 Part Number: 53-1005289-01
To change the IPv6 multicast maximum response time, enter the following command.
device(config)# ipv6 multicast max-response-time 5
Syntax: [no] ip multicast max-response-time
interval
Syntax: [no] ipv6 multicast max-response-time
interval
For
interval
variable, enter a value from 1 through 25 seconds. The default is 10 seconds.
Configuring report control
A device in passive mode forwards reports and leave messages from clients to the upstream router ports that are receiving queries.
You can configure report control to rate-limit report forwarding within the same group to no more than once every 10 seconds. This rate-
limiting does not apply to the first report answering a group-specific query.
NOTE
This feature applies to IGMP V2 only. The leave messages are not rate limited.
IGMP V2 membership reports of the same group from different clients are considered to be the same and are rate-limited.
Use the ip multicast report-control command to alleviate report storms from many clients answering the upstream router query.
device(config)#ip multicast report-control
Syntax: [no] ip multicast-report-control
The original command, ip igmp-report-control , has been renamed to ip multicast report-control . The original command is still
accepted; however, it is renamed when you configure a show conguration command.
Modifying the wait time before stopping traffic when receiving a leave
message
You can define the wait time before stopping traffic to a port when a leave message is received. The device sends group-specific queries
once per second to ask if any client in the same port still needs this group. Due to internal timer granularity, the actual wait time is between
n and (n+1) seconds (n is the configured value).
device(config)#ip multicast leave-wait-time 1
Syntax: [no] ip multicast leave-wait-time
num
num
is the number of seconds from 1 through 5. The default is 2 seconds.
Modifying the multicast cache age time
You can set the time for an mcache to age out when it does not receive traffic. The traffic is hardware switched. One minute before aging
out an mcache, the device mirrors a packet of this mcache to CPU to reset the age. If no data traffic arrives within one minute, this mcache
is deleted. A lower value quickly removes resources consumed by idle streams, but it mirrors packets to CPU often. A higher value is
recommended only data streams are continually arriving.
device(config)#ip multicast mcache-age 180
Syntax: [no] ip multicast mcache-age
num
num
is the number of seconds from 60 through 3600. The default is 60 seconds.
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 23
NOTE
The mcache age value configured may not expire accurately. You may notice a delay of 0 to 60 seconds.
Enabling or disabling error and warning messages
The device prints error or warning messages when it runs out of software resources or when it receives packets with the wrong checksum
or groups. These messages are rate-limited. You can turn off these messages by entering the following command.
device(config)#ip multicast verbose-off
Syntax: [no] ip multicast verbose-o
Configuring static router ports
The Ruckus device forwards all multicast control and data packets to router ports which receive queries. Although router ports are learned,
you can force multicast traffic to specified ports even though these ports never receive queries. To configure static router ports, enter the
following commands.
device(config)#vlan 70
device(config-vlan-70)#multicast router-port ethernet 1/1/4 to 1/1/5 ethernet 1/1/8
Syntax: [no] multicast router-port ethernet
unit/slot/port
[ ethernet
unit/slot/port
| to
unit/slot/port
]
To specify a list of ports, enter each port as ethernet
unit/slot/port
followed by a space. For example, ethernet
1/1/24
ethernet
1/2/17
ethernet
1/4/24
.
To specify a range of ports, enter the first port in the range as ethernet
unit/slot/port
followed by the last port in the range. For example,
ethernet
1/1/1
to
1/1/8
.
You can combine lists and ranges in the same command. For example, enable ethernet
1/1/1
to
1/1/8
ethernet
1//1/24
ethernet
1/2/17
ethernet
1/4/24
.
Configuring the Layer 2 mode IPv4 querier address
You can configure an IPv4 querier address for every VLAN. This functionality is available only for multicast snooping.
In releases before FastIron 08.0.50, you cannot specifically configure a querier address per VLAN. Instead, in an IPv4 environment, the
device internally attempts to select an address, either a VE address and a loopback address for a router image, or a management port
address for a switch image.
Starting with FastIron release 08.0.50, you can configure a Layer 2 mode querier IP address. You can now plan an elected querier location
suitable for your network, and use the most suitable querier location. This address can be configured regardless of whether the current
multicast snooping mode is set to active or passive. Once the mode changes to active, the configured IP address is used as a querier
address. You can configure a different querier IP address for every VLAN.
1. Enter global configuration mode.
device# configure terminal
2. Enter VLAN configuration mode.
device(config)# vlan 100
3. Enter the multicast querier-address command followed by the IPv4 address.
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
24 Part Number: 53-1005289-01
The following example configures an IPv4 address as the multicast querier address for the VLAN.
device# configure terminal
device(config)# vlan 100
device(config-vlan-100)# multicast querier-address 2.2.2.2
Turning off static group proxy
If a device has been configured for static groups, it acts as a proxy and sends membership reports for the static groups when it receives
general or group-specific queries. When a static group configuration is removed, it is deleted from the active group table immediately.
However, leave messages are not sent to the querier, and the querier must age out the group. Proxy activity can be turned off. The default
is on. To turn proxy activity off for VLAN 20, enter the following commands.
device(config)#vlan 20
device(config-vlan-20)#multicast proxy-off
Syntax: [no] multicast proxy-o
Enabling IGMP V3 membership tracking and fast leave for the VLAN
IGMP V3 gives clients membership tracking and fast leave capability. In IGMP V2, only one client on an interface needs to respond to a
router's queries. This can leave some clients invisible to the router, making it impossible to track the membership of all clients in a group.
When a client leaves the group, the device sends group-specific queries to the interface to see if other clients on that interface need the
data stream of the client who is leaving. If no client responds, the device waits a few seconds before it stops the traffic. You can configure
the wait time using the ip multicast leave-wait-time command.
IGMP V3 requires every client to respond to queries, allowing the device to track all clients. When tracking is enabled, and an IGMP V3
client sends a leave message and there is no other client, the device immediately stops forwarding traffic to the interface. This feature
requires the entire VLAN be configured for IGMP V3 with no IGMP V2 clients. If a client does not send a report during the specified group
membership time (the default is 260 seconds), that client is removed from the tracking list.
Every group on a physical port keeps its own tracking record. However, it can only track group membership; it cannot track by (source,
group). For example, Client A and Client B belong to group1 but each receives traffic streams from different sources. Client A receives a
stream from (source_1, group1) and Client B receives a stream from (source_2, group1). The device still waits for the configured leave-wait-
time before it stops the traffic because these two clients are in the same group. If the clients are in different groups, then the waiting period
is not applied and traffic is stopped immediately.
To enable the tracking and fast leave feature for VLAN 20, enter the following commands.
device(config)#vlan 20
device(config-vlan-20)#multicast tracking
Syntax: [no] multicast tracking
The membership tracking and fast leave features are supported for IGMP V3 only. If any port or any client is not configured for IGMP V3,
then the multicast tracking command is ignored.
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 25
Enabling fast leave for IGMP V2
When a device receives an IGMP V2 leave message, it sends out multiple group-specific queries. If no other client replies within the waiting
period, the device stops forwarding traffic. When fast-leave-v2 is configured, and when the device receives a leave message, it immediately
stops forwarding to that port. The device does not send group specific-queries. When fast-leave-v2 is configured on a VLAN, you must not
have multiple clients on any port that is part of the VLAN. In a scenario where two devices connect, the querier device should not be
configured for fast-leave-v2 because the port might have multiple clients through the non-querier. The number of queries, and the waiting
period (in seconds) can be configured using the ip multicast leave-wait-time command. The default is 2 seconds.
To configure fast leave for IGMP V2, enter the following commands.
device(config)#vlan 20
device(config-vlan-20)#multicast fast-leave-v2
Syntax: [no] multicast fast-leave-v2
Enabling fast convergence
In addition to sending periodic general queries, an active device sends general queries when it detects a new port. However, because the
device does not recognize the other device's port up event, multicast traffic might still require up to the query-interval time to resume after a
topology change. Fast convergence allows the device to listen to topology change events in Layer 2 protocols such as spanning tree, and
then send general queries to shorten the convergence time.
If the Layer 2 protocol cannot detect a topology change, fast convergence may not work in some cases. For example, if the direct
connection between two devices switches from one interface to another, the rapid spanning tree protocol (802.1w) considers this
optimization, rather than a topology change. In this example, other devices will not receive topology change notifications, and will be unable
to send queries to speed up the convergence. Fast convergence works well with the regular spanning tree protocol in this case.
To enable fast-convergency, enter the following commands.
device(config)#vlan 70
device(config-vlan-70)#multicast fast-convergence
Syntax: multicast fast-convergence
Displaying the IGMP snooping configuration
To display the global IGMP snooping configuration, enter the show ip multicast command at any level of the CLI.
device# show ip multicast
Summary of all vlans. Please use "sh ip mu vlan <vlan-id>" for details
Version=2, Intervals: Query=30, Group Age=80, Max Resp=10, Other Qr=65,
Leave Wait=2, Robustness=2
Replication resource sharing: Enabled.
VL20: dft V2, glb cfg active, 0 grp, 0 (*G) cache, no rtr port,
My Query address: 20.1.1.1 (configured)
VL30: cfg V3, glb cfg active, track, 0 grp, 0 (SG) cache, no rtr port,
My Query address: 30.1.1.1 (configured)
VL40: dft V2, glb cfg active, 0 grp, 0 (*G) cache, no rtr port,
My Query address: None
VL100: dft V2, vlan cfg passive, 0 grp, 0 (*G) cache, rtr ports,
router ports: e2/1/15(80) 10.1.1.1,
My Query address: None
VL200: dft V2, vlan cfg passive, 0 grp, 0 (*G) cache, rtr ports,
router ports: e2/1/15(80) 20.2.2.2,
My Query address: None
ICX7250-24 Router#
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
26 Part Number: 53-1005289-01
To display the IGMP snooping information for a specific VLAN, enter the following command.
device# show ip multicast vlan 4050
Version=2, Intervals: Query=125, Group Age=260, Max Resp=10, Other Qr=255,
Leave Wait=2, Robustness=2
VL4050: dft V2, glb cfg passive, , pimsm (glb cfg), 0 grp, 100 (*G) cache, rtr ports,
router ports: e1/1/1(85) 192.168.1.3, e1/1/41(85) 192.168.1.4, e1/1/4(85) 192.168.1.2,
My Query address: None
e1/1/1 has 0 grp, non-QR (passive), default V2 trunk
e1/1/4 has 0 grp, non-QR (QR=192.168.1.2, age=80, mrt=100), default V2 trunk
e1/1/41 has 0 grp, non-QR (passive), default V2 trunk
Syntax: show ip multicast vlan
vlan-id
If you do not specify a
vlan-id
, information for all VLANs is displayed.
The following table describes the information displayed by the show ip multicast vlan command.
Field Description
Version The global IGMP version. In this example, the device is configured for IGMP
version 2.
Query How often a querier sends a general query on the interface. In this example,
the general queries are sent every 125 seconds.
Group Age The number of seconds membership groups can be members of this group
before aging out.
Max Resp The maximum number of seconds a client waits before replying to a query.
Other Qr How long it took a switch with a lower IP address to become a new querier.
This value is 2 x Query + Max Resp.
cfg The IGMP version for the specified VLAN. In this example, VL10: cfg V3
indicates that VLAN 10 is configured for IGMP V3.
vlan cfg The IGMP configuration mode, which is either passive or active.
pimsm Indicates that PIM SM is enabled on the VLAN.
rtr port The router ports, which are the ports receiving queries.
Displaying IGMP snooping errors
To display information about possible IGMP errors, enter the show ip multicast error command.
device#show ip multicast error
snoop SW processed pkt: 173, up-time 160 sec
Syntax: show ip multicast error
The following table describes the output from the show ip multicast error command.
Field Description
SW processed pkt The number of multicast packets processed by IGMP snooping.
up-time The time since the IGMP snooping is enabled.
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 27
Displaying IGMP group information
To display default, maximum, current, and configured values for system maximum parameters, use the show default values command. The
following output example does not show complete output; it shows only IGMP group values.
device(config)#show default values
System Parameters Default Maximum Current Configured
igmp-snoop-group-add 4096 8192 5000 5000
To display information about IGMP groups, enter the show ip multicast group command.
device#show ip multicast group
p-:physical, ST:static, QR:querier, EX:exclude, IN:include, Y:yes, N:no
VL70 : 3 groups, 4 group-port, tracking_enabled
group p-port ST QR life mode source
1 224.1.1.2 1/1/33 no yes 120 EX 0
2 224.1.1.1 1/1/33 no yes 120 EX 0
3 226.1.1.1 1/1/35 yes yes 100 EX 0
4 226.1.1.1 1/1/33 yes yes 100 EX 0
In this example, an IGMP V2 group is in EXCLUDE mode with a source of 0. The group only excludes traffic from the 0 (zero) source list,
which actually means that all traffic sources are included.
To display detailed IGMP group information for a specific group, enter the show ip multicast group detail command.
device#show ip multicast group 226.1.1.1 detail
Display group 226.1.1.1 in all interfaces in details.
p-:physical, ST:static, QR:querier, EX:exclude, IN:include, Y:yes, N:no
VL70 : 1 groups, 2 group-port, tracking_enabled
group p-port ST QR life mode source
1 226.1.1.1 1/1/35 yes yes 120 EX 0
group: 226.1.1.1, EX, permit 0 (source, life):
life=120, deny 0:
group p-port ST QR life mode source
2 226.1.1.1 1/1/33 yes yes 120 EX 0
group: 226.1.1.1, EX, permit 0 (source, life):
life=120, deny 0:
If the tracking and fast leave features are enabled, you can display the list of clients that belong to a particular group by entering the
following command.
device#show ip multicast group 224.1.1.1 tracking
Display group 224.1.1.1 in all interfaces with tracking enabled.
p-:physical, ST:static, QR:querier, EX:exclude, IN:include, Y:yes, N:no
VL70 : 1 groups, 1 group-port, tracking_enabled
group p-port ST QR life mode source
*** Note: has 1 static groups to the entire vlan, not displayed here
1 224.1.1.1 1/1/33 no yes 100 EX 0
receive reports from 1 clients: (age)
(10.2.100.2 60)
Syntax: show ip multicast group [
group-address
[detail] [tracking]]
If you want a report for a specific multicast group, enter that group's address for
group-address
.
Enter detail to display the source list of a specific VLAN.
Enter tracking for information on interfaces that have tracking enabled.
The following table describes the information displayed by the show ip multicast group command.
Field Description
group The address of the group (destination address in this case, 224.1.1.1)
p-port The physical port on which the group membership was received.
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
28 Part Number: 53-1005289-01
Field Description
ST Yes indicates that the IGMP group was configured as a static group; No
means the address was learned from reports.
QR Yes means the port is a querier port; No means it is not. A port becomes a
non-querier port when it receives a query from a source with a lower source
IP address than the device.
life The number of seconds the group can remain in EXCLUDE mode. An
EXCLUDE mode changes to INCLUDE mode if it does not receive an
"IS_EX" or "TO_EX" message during a certain period of time. The default is
260 seconds. There is no life displayed in INCLUDE mode.
mode Indicates current mode of the interface: INCLUDE or EXCLUDE. If the
interface is in INCLUDE mode, it admits traffic only from the source list. If an
interface is in EXCLUDE mode, it denies traffic from the source list and
accepts the rest.
source Identifies the source list that will be included or excluded on the interface.
For example, if an IGMP V2 group is in EXCLUDE mode with a source of 0,
the group excludes traffic from the 0 (zero) source list, which actually means
that all traffic sources are included.
Displaying IGMP snooping mcache information
To display default, maximum, current, and configured values for system maximum parameters, use the show default values command. The
following output example does not show complete output; it shows only IGMP mcache values.
device(config)#show default values
System Parameters Default Maximum Current Configured
igmp-snoop-mcache 512 8192 300 300
The IGMP snooping mcache contains multicast forwarding information for VLANs. To display information in the multicast forwarding
mcache, enter the show ip multicast mcache command.
device#show ip multicast mcache
Example: (S G) cnt=: cnt is number of SW processed packets
OIF: e1/1/22 TR(1/1/32,1/1/33), TR is trunk, e1/1/32 primary, e1/1/33 output
vlan 10, 1 caches. use 1 VIDX
1 (10.10.10.2 239.0.0.3) cnt=0
OIF: tag e2
age=2s up-time=2s change=2s vidx=8191 (ref-cnt=1)
Syntax: show ip multicast mcache
The following table describes the output of the show ip multicast mcache command.
Field Description
(source group) Source and group addresses of this data stream. (* group) means match
group only; (source group) means match both.
cnt The number of packets processed in software. Packets are switched in
hardware, which increases this number slowly.
OIF The output interfaces. If entire vlan is displayed, this indicates that
static groups apply to the entire VLAN.
age The mcache age. The mcache will be reset to 0 if traffic continues to arrive,
otherwise the mcache will be aged out when it reaches the time defined by
the ip multicast mcache-age command.
uptime The up time of this mcache in seconds.
vidx Vidx specifies output port list index. Range is from 4096 through 8191
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 29
Field Description
ref-cnt The vidx is shared among mcaches having the same output interfaces. Ref-
cnt indicates the number of mcaches using this vidx.
Displaying software resource usage for VLANs
To display information about the software resources used, enter the show ip multicast resource command.
device#show ip multicast resource
alloc in-use avail get-fail limit get-mem size init
igmp group 256 1 255 0 32000 1 16 256
igmp phy port 1024 1 1023 0 200000 1 22 1024
.... entries deleted ...
snoop mcache entry 128 2 126 0 8192 3 56 128
total pool memory 109056 bytes
has total 2 forwarding hash
VIDX sharing hash : size=2 anchor=997 2nd-hash=no fast-trav=no
Available vidx: 4060. IGMP/MLD use 2
Syntax: show ip multicast resource
The following table describes the output displayed by the show ip multicast resource command.
Field Description
alloc The allocated number of units.
in-use The number of units which are currently being used.
avail The number of available units.
get-fail This displays the number of resource failures.
NOTE
It is important to pay attention to this field.
limit The upper limit of this expandable field. The limit of multicast group is
configured by the system-max igmp-snoop-group-addr command. The limit
of snoop mcache entry is configured by the system-max igmp-snoop-
mcache command.
get-mem The number of memory allocation. This number must continue to increase.
size The size of a unit (in bytes).
init The initial allocated amount of memory. More memory may be allocated if
resources run out.
Available vidx The output interface (OIF) port mask used by mcache. The entire device has
a maximum of 4096 vidx. Different mcaches with the same OIF share the
same vidx. If vidx is not available, the stream cannot be hardware-switched.
Displaying the status of IGMP snooping traffic
To display status information for IGMP snooping traffic, enter the show ip multicast trac command.
device#show ip multicast traffic
IGMP snooping: Total Recv: 22, Xmit: 26
Q: query, Qry: general Q, G-Qry: group Q, GSQry: group-source Q, Mbr: member
Recv QryV2 QryV3 G-Qry GSQry MbrV2 MbrV3 Leave
VL1 0 0 0 0 4 0 0
VL70 18 0 0 0 0 0 0
Recv IsIN IsEX ToIN ToEX ALLOW BLOCK Pkt-Err
VL1 0 4 0 0 0 0 0
VL70 0 0 0 0 0 0 0
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
30 Part Number: 53-1005289-01
Send QryV2 QryV3 G-Qry GSQry MbrV2 MbrV3
VL1 0 0 8 0 0 0
VL70 0 0 0 0 0 18
VL70 pimsm-snooping, Hello: 12, Join/Prune: 9
Syntax: show ip multicast trac
The following table describes the information displayed by the show ip multicast trac command.
Field Description
Q Query
Qry General Query
QryV2 Number of general IGMP V2 queries received or sent.
QryV3 Number of general IGMP V3 queries received or sent.
G-Qry Number of group-specific queries received or sent.
GSQry Number of group source-specific queries received or sent.
Mbr The membership report.
MbrV2 The IGMP V2 membership report.
MbrV3 The IGMP V3 membership report.
IsIN Number of source addresses that were included in the traffic.
IsEX Number of source addresses that were excluded in the traffic.
ToIN Number of times the interface mode changed from EXCLUDE to INCLUDE.
ToEX Number of times the interface mode changed from INCLUDE to EXCLUDE.
ALLO Number of times that additional source addresses were allowed on the
interface.
BLK Number of times that sources were removed from an interface.
Pkt-Err Number of packets having errors, such as checksum.
Pimsm-snooping hello, join, prune Number of PIM sparse hello, join, and prune packets
Displaying querier information
You can use the show ip multicast vlan command to display the querier information for a VLAN. This command displays the VLAN
interface status and if there is any other querier present with the lowest IP address. The following list provides the combinations of querier
possibilities:
• Active Interface with no other querier present
• Passive Interface with no other querier present
• Active Interface with other querier present
• Passive Interface with other querier present
Displaying the active interface with no other querier present
The following example shows the output in which the VLAN interface is active and no other querier is present with the lowest IP address.
device#show ip multicast vlan 10
Version=2, Intervals: Query=125, Group Age=260, Max Resp=10, Other Qr=260
VL10: dft
V2, vlan cfg active, 0 grp, 0 (*G) cache, no rtr port,
Vlan Querier address configured: 20.1.1.1
1/1/16 has 0 groups,
This interface is Querier
default V2
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 31
1/1/24 has 0 groups,
This interface is Querier
default V2
2/1/16 has 0 groups,
This interface is Querier
default V2
2/1/24 has 0 groups,
This interface is Querier
default V2
3/1/1 has 0 groups,
This interface is Querier
default V2
3/1/4 has 0 groups,
This interface is Querier
default V2
Syntax: show ip multicast vlan
vlan-id
If you do not specify a
vlan-id
, information for all VLANs is displayed.
Displaying the passive interface with no other querier present
The following example shows the output in which the VLAN interface is passive and no other querier is present with the lowest IP address.
device#show ip multicast vlan 10
Version=2, Intervals: Query=125, Group Age=260, Max Resp=10, Other Qr=260
VL10: dft V2, vlan cfg passive, 0 grp, 0 (*G) cache, no rtr port,
1/1/16 has 0 groups,
This interface is non-Querier (passive)
default V2
1/1/24 has 0 groups,
This interface is non-Querier (passive)
default V2
2/1/16 has 0 groups,
This interface is non-Querier (passive)
default V2
2/1/24 has 0 groups,
This interface is non-Querier (passive)
default V2
3/1/1 has 0 groups,
This interface is non-Querier (passive)
default V2
3/1/4 has 0 groups,
This interface is non-Querier (passive)
default V2
Displaying the active Interface with other querier present
The following example shows the output in which the VLAN interface is active and another querier is present with the lowest IP address.
device#show ip multicast vlan 10
Version=2, Intervals: Query=125, Group Age=260, Max Resp=10, Other Qr=260
VL10: dft V2, vlan cfg active, 7 grp, 6 (*G) cache, rtr ports,
router ports: 2/1/24(260) 10.5.5.5, 3/1/4(260) 10.8.8.8,
1/1/16 has 4 groups,
This interface is Querier
default V2
group: 226.6.6.6, life = 240
group: 228.8.8.8, life = 240
group: 230.0.0.0, life = 240
group: 224.4.4.4, life = 240
1/1/24 has 1 groups,
This interface is Querier
default V2
group: 228.8.8.8, life = 240
2/1/16 has 4 groups,
This interface is Querier
default V2
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
32 Part Number: 53-1005289-01
group: 226.6.6.6, life = 240
group: 228.8.8.8, life = 240
group: 230.0.0.0, life = 240
group: 224.4.4.4, life = 240
2/1/24 has 2 groups,
This interface is non-Querier
Querier is 10.5.5.5
Age is 0
Max response time is 100
default V2
**** Warning! has V3 (age=0) nbrs
group: 234.4.4.4, life = 260
group: 226.6.6.6, life = 260
3/1/1 has 4 groups,
This interface is Querier
default V2
group: 238.8.8.8, life = 260
group: 228.8.8.8, life = 260
group: 230.0.0.0, life = 260
group: 224.4.4.4, life = 260
3/1/4 has 1 groups,
This interface is non-Querier
Querier is 10.8.8.8
Age is 0
Max response time is 100
default V2
**** Warning! has V3 (age=0) nbrs
group: 236.6.6.6, life = 260
Displaying the passive interface with other querier present
The following example shows the output in which the VLAN interface is passive and another querier is present with the lowest IP address.
device#show ip multicast vlan 10
Version=2, Intervals: Query=125, Group Age=260, Max Resp=10, Other Qr=260
VL10: dft V2, vlan cfg passive, 7 grp, 6 (*G) cache, rtr ports,
router ports: 2/1/24(260) 10.5.5.5, 3/1/4(260) 10.8.8.8,
1/1/16 has 4 groups,
This interface is non-Querier (passive)
default V2
group: 226.6.6.6, life = 260
group: 228.8.8.8, life = 260
group: 230.0.0.0, life = 260
group: 224.4.4.4, life = 260
1/1/24 has 1 groups,
This interface is non-Querier (passive)
default V2
group: 228.8.8.8, life = 260
2/1/16 has 4 groups,
This interface is non-Querier (passive)
default V2
group: 226.6.6.6, life = 260
group: 228.8.8.8, life = 260
group: 230.0.0.0, life = 260
group: 224.4.4.4, life = 260
2/1/24 has 2 groups,
This interface is non-Querier (passive)
Querier is 10.5.5.5
Age is 0
Max response time is 100
default V2
**** Warning! has V3 (age=0) nbrs
group: 234.4.4.4, life = 260
group: 226.6.6.6, life = 260
3/1/1 has 4 groups,
This interface is non-Querier (passive)
default V2
group: 238.8.8.8, life = 260
group: 228.8.8.8, life = 260
group: 230.0.0.0, life = 260
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 33
group: 224.4.4.4, life = 260
3/1/4 has 1 groups,
This interface is non-Querier (passive)
Querier is 10.8.8.8
Age is 0
Max response time is 100
default V2
**** Warning! has V3 (age=0) nbrs
group: 236.6.6.6, life = 260
Clearing the IGMP mcache
To clear the mcache on all VLANs, enter the clear ip multicast mcache command.
device#clear ip multicast mcache
Syntax: clear ip multicast mcache
Clearing the mcache on a specific VLAN
To clear the mcache on a specific VLAN, enter the following command.
device#clear ip multicast vlan 10 mcache
Syntax: clear ip multicast vlan
vlan-id
mcache
The
vlan-id
parameter specifies the specific VLAN in which the mcache needs to be cleared.
Clearing traffic on a specific VLAN
To clear the traffic counters on a specific VLAN, enter the following command.
device# clear ip multicast vlan 10 traffic
Syntax: clear ip multicast vlan
vlan-id
trac
The
vlan-id
parameter specifies the specific VLAN in which traffic counters need to be cleared.
Clearing IGMP counters on VLANs
To clear IGMP snooping on error and traffic counters for all VLANs, enter the clear ip multicast counters command.
device#clear ip multicast counters
Syntax: clear ip multicast counters
IPv4 Multicast VLAN Traffic Reduction
IGMP snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
34 Part Number: 53-1005289-01
Disabling the flooding of unregistered IPv4 multicast
frames in an IGMP-snooping-enabled VLAN
NOTE
Disabling the flooding of unregistered IPv4 multicast frames in an IGMP-snooping-enabled VLAN is supported on the following
platforms:
• The Brocade ICX 7750 (standalone and stacking)
• The Brocade ICX 7450 (standalone and stacking)
• The Brocade ICX 7250 (standalone and stacking)
• The Ruckus ICX 7150 (standalone and stacking)
Support for this feature on the Brocade ICX 7750 was introduced in FastIron 8.0.10d. In releases prior to FastIron 8.0.30, support for this
feature on the Brocade ICX 7750 was for devices in standalone mode only.
To disable the flooding of unregistered IPv4 multicast frames in an IGMP-snooping-enabled VLAN, use the ip multicast disable-ooding
command in global configuration mode.
The following example disables flooding of unregistered IPv4 multicast frames.
device(config)# ip multicast disable-flooding
PIM SM traffic snooping overview
When multiple PIM sparse routers connect through a snooping-enabled device, the Ruckus device always forwards multicast traffic to these
routers. For example, PIM sparse routers R1, R2, and R3 connect through a device. Assume R2 needs traffic, and R1 sends it to the
device, which forwards it to both R2 and R3, even though R3 does not need it. A PIM SM snooping-enabled device listens to join and
prune messages exchanged by PIM sparse routers, and stops traffic to the router that sends prune messages. This allows the device to
forward the data stream to R2 only.
PIM SM traffic snooping requires IGMP snooping to be enabled on the device. IGMP snooping configures the device to listen for IGMP
messages. PIM SM traffic snooping provides a finer level of multicast traffic control by configuring the device to listen specifically for PIM SM
join and prune messages sent from one PIM SM router to another through the device.
Application examples of PIM SM traffic snooping
Figure 1 shows an example application of the PIM SM traffic snooping feature. In this example, a device is connected through an IP router
to a PIM SM group source that is sending traffic for two PIM SM groups. The device also is connected to a receiver for each of the groups.
When PIM SM traffic snooping is enabled, the device starts listening for PIM SM join and prune messages and IGMP group membership
reports. Until the device receives a PIM SM join message or an IGMP group membership report, the device forwards IP multicast traffic out
all ports. Once the device receives a join message or group membership report for a group, the device forwards subsequent traffic for that
group only on the ports from which the join messages or IGMP reports were received.
In this example, the router connected to the receiver for group 239.255.162.1 sends a join message toward the group source. Because
PIM SM traffic snooping is enabled on the device, the device examines the join message to learn the group ID, then makes a forwarding
entry for the group ID and the port connected to the receiver router. The next time the device receives traffic for 239.255.162.1 from the
group source, the device forwards the traffic only on port 1/4/1, because that is the only port connected to a receiver for the group.
IPv4 Multicast VLAN Traffic Reduction
PIM SM traffic snooping overview
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 35
Notice that the receiver for group 239.255.162.69 is directly connected to the device. As a result, the device does not see a join message
on behalf of the client. However, because IGMP snooping also is enabled, the device uses the IGMP group membership report from the
client to select the port for forwarding traffic to group 239.255.162.69 receivers.
The IGMP snooping feature and the PIM SM traffic snooping feature together build a list of groups and forwarding ports for the VLAN. The
list includes PIM SM groups learned through join messages as well as MAC addresses learned through IGMP group membership reports. In
this case, even though the device never sees a join message for the receiver for group 239.255.162.69, the device nonetheless learns
about the receiver and forwards group traffic to the receiver.
The device stops forwarding IP multicast traffic on a port for a group if the port receives a prune message for the group.
Notice that the ports connected to the source and the receivers are all in the same port-based VLAN on the device. This is required for the
PIM SM snooping feature. The devices on the edge of the Global Ethernet cloud are configured for IGMP snooping and PIM SM traffic
snooping. Although this application uses multiple devices, the feature has the same requirements and works the same way as it does on a
single device.
The following figure shows another example application for PIM SM traffic snooping. This example shows devices on the edge of a Global
Ethernet cloud (a Layer 2 Packet over SONET cloud). Assume that each device is attached to numerous other devices such as other Layer
2 Switches and Layer 3 Switches (routers).
NOTE
This example assumes that the devices are actually Ruckus devices running Layer 2 Switch software.
IPv4 Multicast VLAN Traffic Reduction
PIM SM traffic snooping overview
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
36 Part Number: 53-1005289-01
FIGURE 1 PIM SM traffic reduction in Global Ethernet environment
The devices on the edge of the Global Ethernet cloud are configured for IGMP snooping and PIM SM traffic snooping. Although this
application uses multiple devices, the feature has the same requirements and works the same way as it does on a single device.
Configuration notes and limitations for PIM SM snooping
• PIM SM snooping applies only to PIM SM version 2 (PIM SM V2).
• PIM SM traffic snooping is supported in the Layer 2, base Layer 3, and full Layer 3 code.
• IGMP snooping must be enabled on the device that will be running PIM SM snooping. The PIM SM traffic snooping feature
requires IGMP snooping.
NOTE
Use the passive mode of IGMP snooping instead of the active mode. The passive mode assumes that a router is sending group
membership queries as well as join and prune messages on behalf of receivers. The active mode configures the device to send
group membership queries.
• All the device ports connected to the source and receivers or routers must be in the same port-based VLAN.
IPv4 Multicast VLAN Traffic Reduction
PIM SM traffic snooping overview
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 37
• The PIM SM snooping feature assumes that the group source and the device are in different subnets and communicate through a
router. The source must be in a different IP subnet than the receivers. A PIM SM router sends PIM join and prune messages on
behalf of a multicast group receiver only when the router and the source are in different subnet. When the receiver and source are
in the same subnet, they do not need the router in order to find one another. They find one another directly within the subnet.
The device forwards all IP multicast traffic by default. Once you enable IGMP snooping and PIM SM traffic snooping, the device initially
blocks all PIM SM traffic instead of forwarding it. The device forwards PIM SM traffic to a receiver only when the device receives a join
message from the receiver. Consequently, if the source and the downstream router are in the same subnet, and PIM SM traffic snooping is
enabled, the device blocks the PIM SM traffic and never starts forwarding the traffic. This is because the device never receives a join
message from the downstream router for the group. The downstream router and group find each other without a join message because
they are in the same subnet.
NOTE
If the "route-only" feature is enabled on a Layer 3 switch, PIM SM snooping traffic is not supported.
PIM SM snooping configuration
Configuring PIM SM snooping on a Brocade device consists of the following global and VLAN-specific tasks.
Perform the following global PIM SM snooping task:
• Enabling or disabling PIM SM snooping
Perform the following VLAN-specific PIM SM snooping tasks:
• Enabling PIM SM snooping on a VLAN
• Disabling PIM SM snooping on a VLAN
Enabling or disabling PIM SM snooping
Use PIM SM snooping only in topologies where multiple PIM sparse routers connect through a device. PIM SM snooping does not work on
a PIM dense mode router which does not send join messages and traffic to PIM dense ports is stopped. A PIM SM snooping-enabled
device displays a warning if it receives PIM dense join or prune messages.
To enable PIM sparse snooping globally, enter the ip pimsm-snooping command.
device(config)#ip pimsm-snooping
This command enables PIM SM traffic snooping. The PIM SM traffic snooping feature assumes that the network has routers that are
running PIM SM.
NOTE
The device must be in passive mode before it can be configured for PIM SM snooping.
To disable the feature, enter the no ip pimsm-snooping command.
device(config)#no ip pimsm-snooping
If you also want to disable IP multicast traffic reduction, enter the no ip multicast command.
device(config)#no ip multicast
Syntax: [no] ip pimsm-snooping
IPv4 Multicast VLAN Traffic Reduction
PIM SM snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
38 Part Number: 53-1005289-01
Enabling PIM SM snooping on a VLAN
You can enable PIM SM snooping for a specific VLAN. For example, the following commands enable PIM SM snooping on VLAN 20.
device(config)#vlan 20
device(config-vlan-20)#multicast pimsm-snooping
Syntax: [no] multicast pimsm-snooping
Disabling PIM SM snooping on a VLAN
When PIM SM snooping is enabled globally, you can still disable it for a specific VLAN. For example, the following commands disable PIM
SM snooping for VLAN 20. This setting overrides the global setting.
device(config)#vlan 20
device(config-vlan-20)#multicast disable-pimsm-snoop
Syntax: [no] multicast disable-pimsm-snoop
PIM SM snooping show commands
This section shows how to display information about PIM SM snooping, including:
•Displaying PIM SM snooping information on page 39
•Displaying PIM SM snooping information on a Layer 2 switch on page 39
•Displaying PIM SM snooping information for a specific group or source group pair on page 40
Displaying PIM SM snooping information
To display PIM SM snooping information, enter the show ip multicast pimsm-snooping command.
Device#show ip multicast pimsm-snooping
Example: Port: 7/3 (ref_count=1)
ref_count: no of entries in pimsm snoop cache added this oif)
vlan 503, has 1 caches.
1 (* 225.1.1.1) has 3 pim join ports out of 4 OIF
4/23 (ref_count=2), 4/13 (ref_count=1), 4/5 (ref_count=3),
Syntax: show ip multicast pimsm-snooping [
vlan-id
]
Use the
vlan-id
parameter to display PIM SM snooping information for a specific VLAN.
Refer to the
FastIron Command Reference
for more information on PIM SM commands.
Displaying PIM SM snooping information on a Layer 2 switch
You can display PIM SM snooping information for all groups by entering the following command at any level of the CLI on a Layer 2 Switch.
device# show ip multicast pimsm-snooping vlan 100
VLAN 100, has 2 caches
1(*230.1.1.1) has 1 pim join ports out of 1OIF
1(age=60)
1 has 1 src: 10.20.20.66(60)
2(* 230.2.2.2) has 1 pim join ports out of 1 OIF
1(age=60)
1 has 1 src: 10.20.20.66(60)
IPv4 Multicast VLAN Traffic Reduction
PIM SM snooping show commands
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 39
Syntax: show ip multicast pimsm-snooping vlan
vlan-id
Enter the ID of the VLAN for the vlan
vlan-id
parameter.
If you want to display PIM SM snooping information for one source or one group, enter a command as in the following example. The
command also displays the (source, port) list of the group.
device# show ip multicst pimsm-snooping 230.1.1.1
Show pimsm snooping group 230.1.1.1 in all vlans
VLAN 10, has 2 caches
1(*230.1.1.1) has 1 pim join ports out of 1 OIF
1(age=120)
1 has 1 src:10.20.20.66(120)
Syntax: show ip multicast pimsm-snooping [
group-address
|
source-address
]
If the address you entered is within the range of source addresses, then the router treats it as the source address. Likewise, if the address
falls in the range of group addresses, then the router assumes that you are requesting a report for that group.
The following table describes the information displayed by the show ip multicast pimsm-snooping command.
Field Description
VLAN ID The port-based VLAN to which the following information applies and the
number of members in the VLAN.
PIM SM Neighbor list The PIM SM routers that are attached to the Layer 2 Switch ports.
The value following "expires" indicates how many seconds the Layer 2
Switch will wait for a hello message from the neighbor before determining
that the neighbor is no longer present and removing the neighbor from the
list.
Multicast Group The IP address of the multicast group.
NOTE
The fid and CAM index values are used by Brocade Technical
Support for troubleshooting.
Forwarding Port The ports attached to the group receivers. A port is listed here when it
receives a join message for the group, an IGMP membership report for the
group, or both.
PIMv2 Group Port The ports on which the Layer 2 Switch has received PIM SM join messages
for the group.
Source, Port list The IP address of each PIM SM source and the Layer 2 Switch ports
connected to the receivers of the source.
Refer to the
FastIron Command Reference
for information on PIM SM snooping commands.
Displaying PIM SM snooping information for a specific group or source
group pair
To display PIM SM snooping information for a specific group, enter the following command at any level of the CLI.
device#show ip multicast pimsm-snooping 230.1.1.1
Show pimsm snooping group 230.1.1.1 in all vlans
vlan 10,has 2 caches.
1 (*230.1.1.1) has 1 pim join ports out of 1 OIF
1(age=120)
1 has 1 src:10.20.20.66(120)
IPv4 Multicast VLAN Traffic Reduction
PIM SM snooping show commands
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
40 Part Number: 53-1005289-01
To display PIM SM snooping information for a specific (source, group) pair, enter the following command at any level of the CLI.
device#show ip multicast pimsm-snooping 230.2.2.2 20.20.20.66
Show pimsm snooping source 10.20.20.66, group 230.2.2.2 in all vlans
vlan 10:(*230.2.2.2) has 1 pim join ports out of 2 OIF
1(age=0)
1 has 1 src:10.20.20.66(0)
Syntax: show ip multicast pimsm-snooping
group-address
[
source-ip-address
]
The Ruckus device determines which address is the group address and which one is the source address based on the ranges that the
address fall into. If the address is within the range of source addresses, then the router treats it as the source address. Likewise, if the
address falls in the range of group addresses, then the router assumes it is a group address.
The following table describes the information displayed by the show ip multicast pimsm-snooping command.
Field Description
vlan The VLAN membership ID of the source.
port The port on which the source is sending traffic. In this example, the port
number is 1.
age The age of the port, in seconds.
src The source address and age. The age (number of seconds) is indicated in
brackets immediately following the source.
IPv4 Multicast VLAN Traffic Reduction
PIM SM snooping show commands
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 41
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
42 Part Number: 53-1005289-01
IPv6 Multicast VLAN Traffic Reduction
• MLD snooping overview.......................................................................................................................................... 43
• MLD snooping configuration....................................................................................................................................46
• Displaying MLD snooping information......................................................................................................................54
• Clearing MLD counters on all VLANs....................................................................................................................... 58
• Clearing the mcache on all VLANs...........................................................................................................................59
• Clearing the mcache on a specific VLAN................................................................................................................. 59
• Clearing traffic counters on a specific VLAN............................................................................................................ 59
• Disabling the flooding of unregistered IPv6 multicast frames in an MLD-snooping-enabled VLAN............................ 59
• PIM6 SM traffic snooping overview..........................................................................................................................60
• PIM6 SM snooping configuration.............................................................................................................................62
• Displaying PIM6 SM snooping information...............................................................................................................63
• Displaying PIM6 SM snooping for a VLAN............................................................................................................... 63
MLD snooping overview
The default method a device uses to process an IPv6 multicast packet is to broadcast it to all ports except the incoming port of a VLAN.
Packets are flooded by hardware without going to the CPU, which may result in some clients receiving unwanted traffic.
If a VLAN is not Multicast Listening Discovery (MLD) snooping-enabled, it floods IPv6 multicast data and control packets to the entire VLAN
in hardware. When snooping is enabled, MLD packets are trapped to the CPU. Data packets are mirrored to the CPU and flooded to the
entire VLAN. The CPU then installs hardware resources so subsequent data packets can be hardware-switched to desired ports without
going through the CPU. If there is no client report, the hardware resource drops the data stream.
MLD protocols provide a way for clients and a device to exchange messages, and allow the device to build a database indicating which
port wants what traffic. Since the MLD protocols do not specify forwarding methods, MLD snooping or multicast protocols such as IPv6
PIM-Sparse Mode (PIM6 SM) are required to handle packet forwarding. PIM6 SM can route multicast packets within and outside a VLAN,
while MLD snooping can switch packets only within a VLAN.
MLD snooping provides multicast containment by forwarding traffic only to those clients that have MLD receivers for a specific multicast
group (destination address). The device maintains the MLD group membership information by processing MLD reports and generating
messages so traffic can be forwarded to ports receiving MLD reports. This is analogous to IGMP Snooping on Ruckus Layer 3 switches.
An IPv6 multicast address is a destination address in the range of FF00::/8. A limited number of multicast addresses are reserved. Because
packets destined for the reserved addresses may require VLAN flooding, Data packets destined to these addresses are flooded to the
entire VLAN by hardware and mirrored to the CPU. Multicast data packets destined to addresses outside the FF0X::00X range and
FFXX:XXXX:XXXX:XXXX:XXXX:XXXX:1:2 are snooped. A client must send MLD reports in order to receive traffic.
An MLD device periodically sends general queries and sends group queries upon receiving a leave message, to ensure no other clients at
the same port still want this specific traffic before removing it. MLDv1 allows clients to specify which group (destination IPv6 address) will
receive traffic. (MLDv1 cannot choose the source of the traffic.) MLDv2 deals with source-specific multicasts, adding the capability for
clients to INCLUDE or EXCLUDE specific traffic sources. An MLDv2 device's port state can either be in INCLUDE or EXCLUDE mode.
There are different types of group records for client reports. Clients respond to general queries by sending a membership report containing
one or more of the following records associated with a specific group:
•Current-state record - Indicates the sources from which the client wants to receive or not receive traffic. This record contains the
addresses of the multicast sources and indicates whether or not traffic will be included (IS_IN) or excluded (IS_EX) from that source
address.
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 43
•Filter-mode-change record - If the client changes its current state from IS_IN to IS_EX, a TO_EX record is included in the
membership report. Likewise, if a client current state changes from IS_EX to IS_IN, a TO_IN record appears in the membership
report.
•MLDv1 leave report - Equivalent to a TO_IN (empty) record in MLDv2. This record means that no traffic from this group will be
received, regardless of the source.
•An MLDv1 group report - Equivalent to an IS_EX (empty) record in MLDv2. This record means that all traffic from this group will be
received, regardless of the source.
•Source-list-change record - If the client wants to add or remove traffic sources from its membership report, the report can include
an ALLOW record, which contains a list of new sources from which the client wishes to receive traffic. The report can also contain
a BLOCK record, which lists current traffic sources from which the client wants to stop receiving traffic.
Support for MLD snooping and Layer 3 IPv6 multicast routing together
on the same device
The Brocade device supports global Layer 2 IPv6 multicast traffic reduction (MLD snooping) and Layer 3 IPv6 multicast routing (PIM-
Sparse) together on the same device in the full Layer 3 software image, as long as the Layer 2 feature configuration is at the VLAN level.
Forwarding mechanism in hardware
MAC-based forwarding implementation on ICX devices
Multicast Listening Discovery (MLD) snooping on ICX devices is based on MAC address entries. When an IPv6 multicast data packet is
received, the packet destination MAC is matched with the MAC address entries in the IPv6 multicast table. If a match is found, packets are
sent to the ports associated with the MAC address. If a match is not found, packets are flooded to the VLAN and copied to the CPU.
For IPv6 multicast, the destination MAC address is in the format 33-33-xx-yy-zz-kk, where xx-yy-zz-kk are the 32 lowest bits of the IPv6
multicast group address. For example, the IPv6 group address 0xFF3E:40:2001:660:3007:123:0034:5678 maps to the IPv6 MAC address
33-33-00-34-56-78.
For two multicast traffic streams, Source_1 and Group1 (S1,G1) and Source_2 and Group2 (S2,G2), with the same or different source
addresses, if the lowest 32 bits of the 128-bit IPv6 group address are the same, they would map to the same destination MAC.
Hardware resources for MLD and PIMv6 SM snooping
Brocade devices allocate/program fdb/mac entries and application VLAN (vidx) to achieve multicast snooping in hardware. If a data packet
does not match any of these resources, it might be sent to the CPU, which increases the CPU burden. This can happen if the device runs
out of hardware resource, or is unable to install resources for a specific matching address due to hashing collision. The hardware hashes
addresses into available entries, with some addresses hashed into the same entry. If the collision number in an entry is more than the
hardware chain length, the resource cannot be installed.
MLD snooping configuration notes and feature limitations
• Servers (traffic sources) are not required to send Multicast Listening Discovery (MLD) memberships.
• The default MLD version is V1, where the source address is not sensitive. In this version, (S1,G1) and (S2,G1) would be
considered the same group as (*,G1).
IPv6 Multicast VLAN Traffic Reduction
MLD snooping overview
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
44 Part Number: 53-1005289-01
• If MLDv2 is configured on any port of a VLAN, you can check the source information, but because MLD snooping is MAC based,
(S,G) switching is not feasible.
• Hardware resources are installed only when there is data traffic.
• You can configure the maximum number of groups and the multicast cache (mcache) number.
• The device supports static groups applying to specific ports. The device acts as a proxy to send MLD reports for the static groups
when receiving queries.
• A user can configure static router ports, forcing all multicast traffic to be sent to these ports.
• Brocade devices support fast leave for MLDv1, which stops traffic immediately to any port that has received a leave message.
• Brocade devices support tracking and fast leave for MLDv2, which tracks all MLDv2 clients. If the only client on a port leaves,
traffic is stopped immediately.
• An MLD device can be configured as a querier (active) or non-querier (passive). Queriers send queries. Non-queriers listen for
queries and forward them to the entire VLAN.
• Every VLAN can be independently configured as a querier or a non-querier.
• A VLAN that has a connection to an IPv6 PIM-enabled port on another router should be configured as a non-querier. When
multiple snooping devices connect together and there is no connection to IPv6 PIM ports, only one device should be configured
as the querier. If multiple devices are configured as active, only one will continue to send queries after the devices have exchanged
queries. Refer to the MLD snooping-enabled queriers and non-queriers section.
• An MLD device can be configured to rate-limit the forwarding of MLDv1 membership reports to queriers.
• Because an IPv6 link-local address as the source address when sending queries, a global address is not required.
• The MLD implementation allows snooping on some VLANs or on all VLANs. MLD can be enabled or disabled independently for
each VLAN. In addition, individual ports of a VLAN can be configured as MLDv1 and MLDv2. In general, global configuration
commands such as ipv6 multicast.... apply to all VLANs except those with a local multicast... configuration, which supersedes
the global configuration. Configuring the version on a port or a VLAN only affects the device sent query version. The device always
processes all versions of client reports regardless of the version configured.
• MLD snooping requires hardware resources. If the device has insufficient resources, the data stream without a resource is mirrored
to the CPU in addition to being VLAN flooded, which can cause high CPU usage. To avoid this situation, Brocade recommends
that you avoid enabling snooping globally unless necessary.
• To receive data traffic, MLD snooping requires clients to send membership reports. If a client does not send reports, you must
configure a static group to force traffic to client ports.
• Multicast Router Discovery (MRD) messages are useful for determining which nodes attached to a switch have multicast routing
enabled. This capability is useful in a Layer 2 bridge domain with snooping switches. By utilizing MRD messages, Layer 2 switches
can determine where to send multicast source data and group membership messages. Multicast source data and group
membership reports must be received by all multicast routers on a segment. Using the group membership protocol Query
messages to discover multicast routers is insufficient due to query suppression.
Because Brocade does not support MRD, this can lead to stream loss when non-Querier router ports age out on the Querier after the initial
Query election. To avoid such stream loss, configure a static router port on the querier on each interface that connects to a non-querier
snooping device.
On the ICX devices, if MLDv2 is configured on any port of a VLAN, you can check the source information, but because MLD snooping is
MAC-based, (S,G) switching is not feasible.
MLD/PIMv6 SM snooping over Multi-Chasis Trunking is only supported on the Brocade ICX 7750.
Use MLD v2 only in a source-specific application. Because each VLAN can be configured for the version independently, some VLANs might
match (* G) while others match (S G)
IPv6 Multicast VLAN Traffic Reduction
MLD snooping overview
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 45
MLD snooping-enabled queriers and non-queriers
An MLD snooping-enabled device can be configured as a querier (active) or non-querier (passive). An MLD querier sends queries; a non-
querier listens for MLD queries and forwards them to the entire VLAN. When multiple MLD snooping devices are connected together, and
there is no connection to an IPv6 PIM-enabled port, one of the devices should be configured as a querier. If multiple devices are configured
as queriers, after multiple devices exchange queries, then all devices except the winner (the device with the lowest address) stop sending
queries. Although the system works when multiple devices are configured as queriers, Ruckus recommends that only one device, preferably
the one with the traffic source, is configured as the querier.
VLANs can also be independently configured as queriers or non-queriers. If a VLAN has a connection to an IPv6 PIM-enabled port on
another router, the VLAN should be configured as a non-querier.
Because non-queriers always forward multicast data traffic and MLD messages to router ports which receive MLD queries or IPv6 PIM
hellos, Ruckus recommends that you configure the devices with the data traffic source (server) as queriers. If a server is attached to a non-
querier, the non-querier always forwards traffic to the querier regardless of whether or not there are clients on the querier.
NOTE
In a topology with one or more connected devices, at least one device must be running PIM, or configured as active. Otherwise,
no devices can send queries, and traffic cannot be forwarded to clients.
To configure the MLD mode (querier or non-querier) on an MLD snooping-enabled device, refer to Configuring the global MLD mode on
page 48. To configure the MLD mode on a VLAN, refer to Configuring the MLD mode for a VLAN on page 50.
MLD and VLAN configuration
You can configure MLD snooping on some VLANs or all VLANs. Each VLAN can be independently enabled or disabled for MLD snooping,
or can be configured with MLDv1 or MLDv2. In general, the IPv6 MLD snooping commands apply globally to all VLANs except those
configured with VLAN-specific MLD snooping commands. VLAN-specific MLD snooping commands supersede global IPv6 MLD snooping
commands.
MLDv1 with MLDv2
MLD snooping can be configured as MLDv1 or MLDv2 on individual ports on a VLAN. An interface or router sends queries and reports that
include the MLD version with which it has been configured. The version configuration applies only to the sending of queries. The snooping
device recognizes and processes MLDv1 and MLDv2 packets regardless of the version configured.
NOTE
To avoid version deadlock, when an interface receives a report with a lower version than that for which it has been configured, the
interface does not automatically downgrade the running MLD version.
MLD snooping configuration
Configuring Multicast Listening Discovery (MLD) snooping on an IPv6 device consists of the following global and VLAN-specific tasks.
MLD snooping global tasks
•Configuring hardware and software resource limits
• Disabling transmission and receipt of MLD packets on a port
•Configuring the MLD mode: active or passive (must be enabled for MLD snooping)
• Modifying the age interval
IPv6 Multicast VLAN Traffic Reduction
MLD snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
46 Part Number: 53-1005289-01
• Modifying the interval for query messages (active MLD mode only)
• Specifying the global MLD version
• Enabling and disabling report control (rate limiting)
• Modifying the leave wait time
• Modifying the mcache age interval
• Disabling error and warning messages
MLD snooping VLAN-specific tasks:
•Configuring the MLD mode for the VLAN: active or passive
• Enabling or disabling MLD snooping for the VLAN
•Configuring the MLD version for the VLAN
•Configuring the MLD version for individual ports
•Configuring static groups
•Configuring static router ports
• Disabling proxy activity for a static group
• Enabling client tracking and the fast leave feature for MLDv2
•Configuring fast leave for MLDv1
•Configuring fast-convergence
Configuring the hardware and software resource limits
The system supports up to 8K of hardware-switched multicast streams. The following are the resource limits:
NOTE
In Release 8.0.10a and later releases, ICX 7750 router image supports 6144 MLD snooping mcache entries; ICX 7750 switch
image supports 8192 MLD snooping mcache entries.
TABLE 2 MLD snooping limits
Platform Groups Mcache
Default Maximum Default Maximum
ICX 7150 1024 3072 512 3072
ICX 7250 4096 8192 512 8192
ICX 7450 4096 8192 512 8192
ICX 7750 4096 8192 512 6144
To define the maximum number of MLD snooping mcache entries, enter the system-max mld-snoop-mcache
num
command.
Device(config)#system-max mld-snoop-mcache 8000
Syntax:[no] system-max mld-snoop-mcache
num
The
num
variable is a value from 256 to 8192. The default is 512. The configured number is the upper limit of an expandable database.
Client memberships exceeding the group limits are not processed.
To define the maximum number of multicast group addresses supported, enter the system-max mld-snoop-group-addr
num
command.
Device(config)#system-max mld-snoop-group-addr 4000
IPv6 Multicast VLAN Traffic Reduction
MLD snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 47
Syntax:[no] system-max mld-snoop-group-addr
num
For all devices, the
num
variable is a value from 256 to 8192. The default is 4096.
Configuring the global MLD mode
You can configure a Ruckus device for either active or passive (default) MLD mode. If you specify an MLD mode for a VLAN, the MLD mode
overrides the global setting.
• Active - In active MLD mode, a device actively sends out MLD queries to identify IPv6 multicast groups on the network, and
makes entries in the MLD table based on the group membership reports it receives from the network.
• Passive - In passive MLD mode, the device forwards reports to the router ports which receive queries. MLD snooping in passive
mode does not send queries, but does forward queries to the entire VLAN.
To globally set the MLD mode to active, enter the ipv6 multicast active command.
device(config)#ipv6 multicast active
Syntax: [no] ipv6 multicast [ active | passive ]
Omitting both the active and passive keywords is the same as entering ipv6 multicast passive .
NOTE
The ipv6 mld-snooping command is replaced by the ipv6 multicast command; the mld-snooping command is replaced by the
multicast6 command.
Modifying the age interval
When the device receives a group membership report, it makes an entry in the MLD group table for the group in the report. The age interval
specifies how long the entry can remain in the table without the device receiving another group membership report. When multiple devices
connect together, all devices should be configured with the same age interval. The age interval should be at least twice that of the query
interval, so that missing one report will not stop traffic. For a non-querier, the query interval should equal that of the querier.
To modify the age interval, enter a command such as the following.
device(config)#ipv6 multicast age-interval 280
Syntax:[no] ipv6 multicast age-interval
interval
The interval parameter specifies the aging time. You can specify a value from 20 to 7200 seconds. The default is 260 seconds.
Modifying the query interval (active MLD snooping mode only)
If the MLD mode is set to active, you can modify the query interval, which specifies how often the Brocade device sends group membership
queries. By default, queries are sent every 60 seconds. When multiple queriers connect together, all queriers should be configured with the
same interval.
To modify the query interval, enter the ipv6 multicast query-interval
interval
command.
Device(config)#ipv6 multicast query-interval 120
Syntax: [no] ipv6 multicast query-interval
interval
The
interval
parameter specifies the interval between queries. You can specify a value from 10 to 3600 seconds. The default is 125
seconds.
IPv6 Multicast VLAN Traffic Reduction
MLD snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
48 Part Number: 53-1005289-01
Configuring the global MLD version
The default version is MLDv1. You can specify the global MLD version on the device as either MLDv1 or MLDv2. For example, the following
command configures the device to use MLDv2.
device(config)#ipv6 multicast version 2
Syntax: [no] ipv6 multicast version {1 | 2}
You can also specify the MLD version for individual VLANs, or individual ports within VLANs. If no MLD version is specified for a VLAN, then
the globally configured MLD version is used. If an MLD version is specified for individual ports in a VLAN, those ports use that version
instead of the version specified for the VLAN or the globally specified version. The default is MLDv1.
Configuring report control
When a device is in passive mode, it forwards reports and leave messages from clients to the upstream router ports that are receiving
queries.
You can configure report control to rate-limit report forwarding for the same group to no more than once per 10 seconds. This rate limiting
does not apply to the first report answering a group-specific query.
NOTE
This feature applies to MLDv1 only. The leave messages are not rate limited.
MLDv1 membership reports for the same group from different clients are considered to be the same, and are rate-limited. This alleviates the
report storm caused by multiple clients answering the upstream router query.
To enable report-control, enter the ipv6 multicast report-control command.
device(config)#ipv6 multicast report-control
Syntax: [no] ipv6 multicast report-control
Modifying the wait time before stopping traffic when receiving a leave
message
You can define the wait time before stopping traffic to a port when the device receives a leave message for that port. The device sends
group-specific queries once per second to determine if any client on the same port still needs the group.
Device(config)#ipv6 multicast leave-wait-time 1
Syntax: [no] ipv6 multicast leave-wait-time
num
The
num
variable is a value from 1 to 5. The default is 2. Because of the internal timer accuracy, the actual wait time is between n and (n+1)
seconds, where n is the configured value.
Modifying the multicast cache aging time
You can set the time for a multicast cache (mcache) to age out when it does not receive traffic. Two seconds before an mcache is aged out,
the device mirrors a packet of the mcache to the CPU to reset the age. If no data traffic arrives within two seconds, the mcache is deleted.
Note that with ICX devices, where MAC-based MLD snooping is supported, more than one mcache can be mapped to the same
destination MAC. Hence, when an mcache entry is deleted, the MAC entry may not be deleted. If you configure a lower value, the resource
IPv6 Multicast VLAN Traffic Reduction
MLD snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 49
consumed by idle streams is quickly removed, but packets are mirrored to the CPU more frequently. Configure a higher value only when
data streams are arriving consistently.
You can use the show ipv6 multicast mcache command to view the currently configured mcache age. Refer to the “Enabling or disabling
PIM6 SM snooping” section.
To modify the multicast cache age out time, enter the ipv6 multicast mcache-age command.
Device(config)#ipv6 multicast mcache-age 180
Syntax: [no] ipv6 multicast mcache-age
num
The
num
variable is a value from 60 to 3600 seconds, and the default is 60 seconds.
NOTE
The mcache age value configured may not expire accurately. You may notice a delay of 0 to 60 seconds.
Disabling error and warning messages
Error or warning messages are printed when the device runs out of software resources or when it receives packets with the wrong
checksum or groups. These messages are rate limited. You can turn off these messages by entering the ipv6 multicast verbose-o
command.
device(config)#ipv6 multicast verbose-off
Syntax: [no] ipv6 multicast verbose-o
Configuring the MLD mode for a VLAN
You can configure a VLAN for either the active or passive (default) MLD mode. The VLAN setting overrides the global setting:
• Active - In active MLD mode, the device actively sends out MLD queries to identify IPv6 multicast groups on the network, and
makes entries in the MLD table based on the group membership reports it receives from the network.
• Passive - In passive MLD mode, the device forwards reports to router ports that receive queries. MLD snooping in the passive
mode does not send queries. However, it does forward queries to the entire VLAN.
To set the MLD mode for VLAN 20 to active, enter the following commands.
device(config)#vlan 20
device(config-vlan-20)#multicast6 active
Syntax: [no] multicast6 [active | passive]
The default mode is passive.
Disabling MLD snooping for the VLAN
When MLD snooping is enabled globally, you can disable it for a specific VLAN. For example, the following commands disable MLD
snooping for VLAN 20. This setting overrides the global setting for VLAN 20.
device(config)#vlan 20
device(config-vlan-20)#multicast6 disable-mld-snoop
Syntax: [no] multicast6 disable-mld-snoop
IPv6 Multicast VLAN Traffic Reduction
MLD snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
50 Part Number: 53-1005289-01
Configuring the MLD version for the VLAN
You can specify the MLD version for a VLAN. For example, the following commands configure VLAN 20 to use MLDv2.
device(config)#vlan 20
device(config-vlan-20)#multicast6 version 2
Syntax: [no] multicast6 version [1 | 2]
When no MLD version is specified, the globally-configured MLD version is used. If an MLD version is specified for individual ports, these
ports use that version, instead of the version specified for the VLAN.
Configuring the MLD version for individual ports
You can specify the MLD version for individual ports in a VLAN. For example, the following commands configure ports 1/1/4, 1/1/5, 1/1/6
and 1/2/1 to use MLDv2. The other ports use the MLD version specified with the multicast6 version command, or the globally configured
MLD version.
Device(config)#vlan 20
Device(config-vlan-20)#multicast6 port-version 2 ethernet 1/2/1 ethernet 1/1/4 to 1/1/6
Syntax: [no] multicast6 port-version [1 | 2 ] ethernet
unit/slot/port
Configuring static groups
A snooping-enabled VLAN cannot forward multicast traffic to ports that do not receive MLD membership reports. To allow clients to send
reports, you can configure a static group that applies to individual ports on the VLAN. You cannot configure a static group that applies to
the entire VLAN.
The maximum number of supported static groups in a VLAN is 512, and the maximum number of supported static groups for individual
ports in a VLAN is 256. The static group forwards packets to the static group ports even if they have no client membership reports.
Configure a static group for specific ports on VLAN 20 using commands similar to the following.
device(config)#vlan 20
device(config-vlan-20)#multicast6 static-group ff05::100 count 2 ethe 1/1/3 ethe 1/1/5 to 1/1/7
Syntax: [no] multicast6 static-group
ipv6-address
[ count
num
] [
unit/slot/port
]
The
ipv6-address
parameter is the IPv6 address of the multicast group.
The count is optional, which allows a contiguous range of groups. Omitting the count
num
is equivalent to the count being 1.
Configuring the Layer 2 Mode IPv6 Querier Address
You can configure an IPv6 querier address for every VLAN. This functionality is available only for multicast snooping.
In releases prior to FastIron 08.0.50, you could not specifically configure a querier address per VLAN. Instead, in an IPv6 environment, a
system MAC-dependent link local address was used as a querier address.
Starting with FastIron release 08.0.50, you can configure a Layer 2 mode querier IP address. You can now plan an elected querier location
suitable for your network and use the most suitable querier location. This address can be configured regardless of whether the current
IPv6 Multicast VLAN Traffic Reduction
MLD snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 51
multicast snooping mode is set to active or passive. Once the mode changes to active, the configured IP address is used as a querier
address. You can configure a different querier IP address for every VLAN.
1. Enter global configuration mode.
device# configure terminal
2. Enter VLAN configuration mode.
device(config)# vlan 100
3. Enter the multicast6 querier-address command followed by the IPv6 address.
The following example configures an IPv6 address as the multicast querier address for the VLAN.
device# configure terminal
device(config)# vlan 100
device(config-vlan-100)# multicast6 querier-address FE80::44
Configuring static router ports
All multicast control and data packets are forwarded to router ports that receive queries. Although router ports are learned, you can
configure static router ports to force multicast traffic to specific ports, even though these ports never receive queries. To configure static
router ports, enter commands such as the following:
Device(config)#vlan 70
Device(config-vlan-70)#multicast6 router-port ethernet 1/1/4 to 1/1/5 ethernet 1/1/8
Syntax: [no] multicast6 router-port ethernet
unit/slot/port
Disabling static group proxy
A device with statically configured groups acts as a proxy and sends membership reports for its static groups when it receives general or
group-specific queries. When a static group configuration is removed, the group is immediately deleted from the active group table.
However, the device does not send leave messages to the querier. The querier should age out the group. The proxy activity can be disabled
(the default is enabled).
device(config)#vlan 20
device(config-vlan-20)#multicast6 proxy-off
Syntax: [no] multicast6 proxy-o
By default, MLD snooping proxy is enabled.
Enabling MLDv2 membership tracking and fast leave for the VLAN
MLDv2 provides membership tracking and fast leave services to clients. In MLDv1, only one client per interface must respond to a router
queries; leaving some clients invisible to the router, which makes it impossible for the device to track the membership of all clients in a
group. In addition, when a client leaves the group, the device sends group-specific queries to the interface to see if other clients on that
interface need the data stream of the client who is leaving. If no client responds, the device waits a few seconds before stopping the traffic.
You can configure the wait time with the ipv6 multicast6 leave-wait-time command. See Enabling or disabling PIM6 SM snooping for
more information.
MLDv2 requires that every client respond to queries, allowing the device to track every client. When the tracking feature is enabled, the
device immediately stops forwarding traffic to the interface if an MLDv2 client sends a leave message, and there is no other client. This
IPv6 Multicast VLAN Traffic Reduction
MLD snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
52 Part Number: 53-1005289-01
feature requires the entire VLAN to be configured for MLDv2 and have no MLDv1 clients. If a client does not send a report during the
specified group membership time (the default is 140 seconds), that client is removed from the tracking list.
Every group on a physical port keeps its own tracking record. However, it can track group membership only; it cannot track by (source,
group). For example, Client A and Client B belong to group1 but each is receiving traffic from different sources. Client A receives a traffic
stream from (source_1, group1) and Client B receives a traffic stream from (source_2, group1). The device waits for the configured
leave-
wait-time
before it stops the traffic because the two clients are in the same group. If the clients are in different groups, the waiting period is
ignored and traffic is stopped immediately.
To enable tracking and fast leave for VLAN 20, enter the following commands.
device(config)#vlan 20
device(config-vlan-20)#multicast6 tracking
Syntax: [no] multicast6 tracking
The membership tracking and fast leave features are supported for MLDv2 only. If a port or client is not configured for MLDv2, the
multicast6 tracking command is ignored.
Configuring fast leave for MLDv1
When a device receives an MLDv1 leave message, it sends out multiple group-specific queries. If no other client replies within the waiting
period, the device stops forwarding traffic to this port. Configuring fast-leave-v1 allows the device to stop forwarding traffic to a port
immediately upon receiving a leave message. The device does not send group-specific queries. When fast-leave-v1 is configured on a
VLAN, make sure you do not have multiple clients on any port that is part of the VLAN. In a scenario where two devices connect, the
querier device should not be configured for fast-leave-v1, because the port might have multiple clients through the non-querier. The number
of queries and the waiting period (in seconds) can be configured using the ipv6 multicast leave-wait-time command. See Enabling or
disabling PIM6 SM snooping for more information.
To configure fast leave for MLDv1, use commands such as the following.
device(config)#vlan 20
device(config-vlan-20)#multicast6 fast-leave-v1
Syntax: [no] multicast6 fast-leave-v1
Enabling fast convergence
In addition to periodically sending general queries, an active (querier) device sends out general queries when it detects a new port.
However, since it does not recognize the other device port-up event, the multicast traffic might still use the query-interval time to resume
after a topology change. Configuring fast-convergence allows the device to listen to topology change events in Layer 2 protocols, such as
spanning tree, and send general queries to shorten the convergence time.
If the Layer 2 protocol is unable to detect a topology change, the fast-convergence feature may not work. For example, if the direct
connection between two devices switches from one interface to another, the rapid spanning tree protocol (802.1w) considers this an
optimization action, rather than a topology change. In this case, other devices will not receive topology change notifications and will be
unable to send queries to speed up the convergence. The original spanning tree protocol does not recognize optimization actions, and fast-
convergence works in all cases.
To enable fast-convergence, enter commands such as the following.
device(config)#vlan 70
device(config-vlan-70)#multicast6 fast-convergence
Syntax: [no] multicast6 fast-convergence
IPv6 Multicast VLAN Traffic Reduction
MLD snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 53
Displaying MLD snooping information
You can display the following MLD snooping information:
• MLD snooping error information
• Group and forwarding information for VLANs
• Information about MLD snooping mcache
• MLD memory pool usage
• Status of MLD traffic
• MLD information by VLAN
Displaying MLD snooping error information
To display information about possible MLD errors, enter the following command.
device#show ipv6 multicast error
snoop SW processed pkt: 173, up-time 160 sec
Syntax: show ipv6 multicast error
The following table describes the output from the show ipv6 multicast error command.
Field Description
SW processed pkt The number of IPv6 multicast packets processed by MLD snooping.
up-time The MLD snooping up time.
Displaying MLD group information
To display default, maximum, current, and configured values for system maximum parameters, use the show default values command. The
following output example does not show complete output; it shows only MLD group values.
Device(config)#show default values
System Parameters Default Maximum Current Configured
MLD-snoop-group-addr 4096 8192 5000 5000
To display MLD group information, enter the show ipv6 multicast group command.
Device#show ipv6 multicast group
p-:physical, ST:static, QR:querier, EX:exclude, IN:include, Y:yes, N:no
VL1 : 263 grp, 263 grp-port, tracking_enabled
group p-port ST QR life mode source
1 ff0e::ef00:a0e3 1/1/7 N Y 120 EX 0
2 ff01::1:f123:f567 1/1/9 N Y IN 1
NOTE
In this example, an MLDv1 group is in EXCLUDE mode with a source of 0. The group excludes traffic from the 0 (zero) source list,
which actually means that all traffic sources are included.
To display detailed MLD group information, enter the following command.
Device#show ipv6 multicast group ff0e::ef00:a096 detail
Display group ff0e::ef00:a096 in all interfaces in details.
p-:physical, ST:static, QR:querier, EX:exclude, IN:include, Y:yes, N:no
VL1 : 1 grp, 1 grp-port, tracking_enabled
group p-port ST QR life mode source
IPv6 Multicast VLAN Traffic Reduction
Displaying MLD snooping information
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
54 Part Number: 53-1005289-01
1 ff0e::ef00:a096 1/1/7 N Y 100 EX 0
group: ff0e::ef00:a096, EX, permit 0 (source, life):
life=100, deny 0:
If tracking and fast leave are enabled, you can display the list of clients for a particular group by entering the following command.
Device#show ipv6 multicast group ff0e::ef00:a096 tracking
Display group ff0e::ef00:a096 in all interfaces with tracking enabled.
p-:physical, ST:static, QR:querier, EX:exclude, IN:include, Y:yes, N:no
VL1 : 1 grp, 1 grp-port, tracking_enabled
group p-port ST QR life mode source
1 ff0e::ef00:a096 1/1/7 N Y 80 EX 0
receive reports from 1 clients: (age)
(2001:DB8::1011:1213:1415 60)
Syntax: show ipv6 multicast group [
group-address
[ detail ] [ tracking ] ]
To receive a report for a specific multicast group, enter that group address for
group-address
.
Enter the detail keyword to display the source list of a specific VLAN.
Enter the tracking keyword for information on interfaces that are tracking-enabled.
The following table describes the information displayed by the show ipv6 multicast group command.
Field Description
group The address of the IPv6 group (destination IPv6 address).
p-port The physical port on which the group membership was received.
ST Yes indicates that the MLD group was configured as a static group; No
means it was learned from reports.
QR Yes means the port is a querier port; No means it is not. A port becomes a
non-querier port when it receives a query from a source with a lower source
IP address than the port.
life The number of seconds the group can remain in EXCLUDE mode. An
EXCLUDE mode changes to INCLUDE if it does not receive an IS_EX or
TO_EX message during a specified period of time. The default is 140
seconds. There is no life displayed in INCLUDE mode.
mode The current mode of the interface: INCLUDE or EXCLUDE. If the interface is
in INCLUDE mode, it admits traffic only from the source list. If the interface
is in EXCLUDE mode, it denies traffic from the source list and accepts the
rest.
source Identifies the source list that will be included or excluded on the interface.
An MLDv1 group is in EXCLUDE mode with a source of 0. The group
excludes traffic from 0 (zero) source list, which actually means that all traffic
sources are included.
group If you requested a
detailed
report, the following information is displayed:
• The multicast group address
• The mode of the group
• Sources from which traffic will be admitted (INCLUDE) or denied
(EXCLUDE) on the interface.
• The life of each source list.
If you requested a
tracking/fast leave
report, the clients from which reports
were received are identified.
IPv6 Multicast VLAN Traffic Reduction
Displaying MLD snooping information
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 55
Displaying MLD snooping mcache information
To display default, maximum, current, and configured values for system maximum parameters, use the show default values command. The
following output example does not show complete output; it shows only MLD mcache values.
device(config)#show default values
System Parameters Default Maximum Current Configured
mld-snoop-mcache 512 8192 512 512
The MLD snooping mcache contains multicast forwarding information for VLANs. To display information in the multicast forwarding mcache,
enter the show ipv6 multicast mcache command.
device#show ipv6 multicast mcache
Example: (S G) cnt=: (S G) are the lowest 32 bits, cnt: SW proc. count
OIF: 1/1/22 TR(1/1/32,1/1/33), TR is trunk, 1/1/32 primary, 1/1/33 output
vlan 1, has 2 cache
1 (abcd:ef50 0:100), cnt=121
OIF: 1/1/11 1/1/9
age=0s up-time=120s vidx=4130 (ref-cnt=1)
2 (abcd:ef50 0:101), cnt=0
OIF: entire vlan
age=0s up-time=0s vidx=8191 (ref-cnt=1)
vlan 70, has 0 cache
Syntax: show ipv6 multicast mcache
The following table describes the output from the show ipv6 multicast mcache command. Displaying software resource usage for VLANs
Field Description
(abcd:ef50 0:100): The lowest 32 bits of source and group. It is displayed in XXXX:XXXX hex
format. Here XXXX is a 16-bit hex number.
cnt The number of packets processed in software.
OIF Output interfaces.
age The mcache age in seconds. The mcache is reset to 0 if traffic continues to
arrive, otherwise it is aged out when it reaches the time defined by ipv6
multicast mcache-age.
uptime The up time of this mcache in seconds.
vidx The vidx is shared among mcaches using the same output interfaces. The
vidx specifies the output port list, which shows the index. Valid range is from
4096 to 8191.
ref-cnt The number of mcaches using this vidx.
To display information about the software resources used, enter the following command.
device#show ipv6 multicast resource
alloc in-use avail get-fail limit get-mem size init
mld group 512 9 503 0 32000 272 28 256
mld phy port 1024 16 1008 0 200000 279 21 1024
snoop group hash 512 9 503 0 59392 272 20 256
.... Entries deleted
total pool memory 194432 bytes
has total 1 forwarding hash
Available vidx: 4061
Syntax: show ipv6 multicast resource
The following table describes the output from the show ipv6 multicast resource command.
IPv6 Multicast VLAN Traffic Reduction
Displaying MLD snooping information
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
56 Part Number: 53-1005289-01
Field Displays
alloc The allocated number of units.
in-use The number of units which are currently used.
avail The number of available units.
get-fail The number of resource failures
NOTE
It is important to pay close attention to this field.
limit The upper limit of this expandable field. The MLD group limit is configured
using the system-max mld-snoop-group-addr command. The snoop
mcache entry limit is configured using the system-max mld-snoop-
mcache command.
get-mem The current memory allocation. This number should continue to increase.
size The size of a unit (in bytes).
init The initial allocated amount of memory.
NOTE
This number can be increased. (More memory can be allocated
if necessary.)
Available vidx The output interface (OIF) port mask used by mcache. The entire device has
a maximum of 4096 vidx. Different mcaches with the same OIF share the
same vidx. If vidx is not available, the stream cannot be hardware-switched.
Displaying status of MLD snooping traffic
To display status information for MLD snooping traffic, enter the show ipv6 multicast trac command.
device#show ipv6 multicast traffic
MLD snooping: Total Recv: 32208, Xmit: 166
Q: query, Qry: general Q, G-Qry: group Q, GSQry: group-source Q, Mbr: member
Recv QryV1 QryV2 G-Qry GSQry MbrV1 MbrV2 Leave
VL1 0 0 0 0 31744 208 256
VL70 0 0 0 0 0 0 0
Recv IsIN IsEX ToIN ToEX ALLOW BLOCK Pkt-Err
VL1 1473 31784 0 1 1 7 0
VL70 0 0 0 0 0 0 0
Send QryV1 QryV2 G-Qry GSQry MbrV1 MbrV2
VL1 0 0 166 0 0 0
VL70 0 0 0 0 0 0
Syntax: show ipv6 multicast trac
The following table describes the information displayed by the show ipv6 multicast trac command.
Field Description
Q Query
Qry General Query
QryV1 Number of general MLDv1 queries received or sent.
QryV2 Number of general MLDv2 snooping queries received or sent.
G-Qry Number of group specific queries received or sent.
GSQry Number of group source specific queries received or sent.
MBR The membership report.
MbrV1 The MLDv1 membership report.
IPv6 Multicast VLAN Traffic Reduction
Displaying MLD snooping information
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 57
Field Description
MbrV2 The MLDv2 membership report.
IsIN Number of source addresses that were included in the traffic.
IsEX Number of source addresses that were excluded in the traffic.
ToIN Number of times the interface mode changed from EXCLUDE to INCLUDE.
ToEX Number of times the interface mode changed from INCLUDE to EXCLUDE.
ALLO Number of times additional source addresses were allowed on the interface.
BLK Number of times sources were removed from an interface.
Pkt-Err Number of packets having errors such as checksum errors.
Displaying MLD snooping information by VLAN
You can display MLD snooping information for all VLANs or for a specific VLAN. For example, to display MLD snooping information for
VLAN 70, enter the show ipv6 multicast vlan command.
device#show ipv6 multicast vlan 70
version=1, query-t=60, group-aging-t=140, max-resp-t=3, other-qr-present-t=123
VL70: cfg V2, vlan cfg passive, 2 grp, 0 (SG) cache, rtr ports,
router ports: 1/1/36(120) 2001:DB8::2e0:52ff:fe00:9900,
1/1/26 has 2 grp, non-QR (passive), cfg V1
1/1/26 has 2 grp, non-QR (passive), cfg V1
group: ff10:1234::5679, life = 100
group: ff10:1234::5678, life = 100
1/1/35 has 0 grp, non-QR (QR=2001:DB8::2e0:52ff:fe00:9900, age=20), dft V2 trunk
Syntax: show ipv6 multicast vlan [
vlan-id
]
If you do not specify the
vlan-id
variable, information for all VLANs is displayed.
The following table describes information displayed by the show ipv6 multicast vlan command.
Field Description
version The MLD version number.
query-t How often a querier sends a general query on the interface.
group-aging-t Number of seconds membership groups can be members of this group
before aging out.
rtr-port The router ports which are the ports receiving queries. The display router
ports: 1/1/36(120) 2001:DB8::2e0:52ff:fe00:9900 means port
1/1/36 has a querier with 2001:DB8::2e0:52ff:fe00:9900 as the link-local
address, and the remaining life is 120 seconds.
max-resp-t The maximum number of seconds a client can wait before it replies to the
query.
non-QR Indicates that the port is a non-querier.
QR Indicates that the port is a querier.
Clearing MLD counters on all VLANs
The clear commands for MLD snooping should only be used in troubleshooting situations or when recovering from error conditions.
To clear MLD snooping error and traffic counters on all VLANs, enter the clear ipv6 multicast counters command.
device#clear ipv6 multicast counters
IPv6 Multicast VLAN Traffic Reduction
Clearing MLD counters on all VLANs
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
58 Part Number: 53-1005289-01
Syntax: clear ipv6 multicast counters
Clearing the mcache on all VLANs
To clear the mcache on all VLANs, enter the clear ipv6 multicast mcache command.
device#clear ipv6 multicast mcache
Syntax: clear ipv6 multicast mcache
Clearing the mcache on a specific VLAN
To clear the mcache on a specific VLAN, enter the clear ipv6 multicast vlan mcache command.
device#clear ipv6 multicast vlan 10 mcache
Syntax: clear ipv6 multicast vlan
vlan-id
mcache
The
vlan-id
parameter specifies the specific VLAN from which to clear the cache.
Clearing traffic counters on a specific VLAN
To clear the traffic counters on a specific VLAN, enter the clear ipv6 multicast vlan trac command.
device#clear ipv6 multicast vlan 10 traffic
Syntax: clear ipv6 multicast vlan
vlan-id
trac
The
vlan-id
parameter specifies the specific VLAN from which to clear the traffic counters.
Disabling the flooding of unregistered IPv6 multicast
frames in an MLD-snooping-enabled VLAN
NOTE
Disabling the flooding of unregistered IPv6 multicast frames in an MLD-snooping-enabled VLAN is supported only on the Brocade
ICX 7750 (standalone and stacking) platform.
Support for this feature on the Brocade ICX 7750 was introduced in FastIron 8.0.10d. In releases prior to FastIron 8.0.30, support
for this feature on the Brocade ICX 7750 was for devices in standalone mode only.
To disable the flooding of unregistered IPv6 multicast frames in an MLD-snooping-enabled VLAN, use the ipv6 multicast disable-ooding
command in global configuration mode.
The following example disables flooding of unregistered IPv6 multicast frames.
Device(config)# ipv6 multicast disable-flooding
IPv6 Multicast VLAN Traffic Reduction
Disabling the flooding of unregistered IPv6 multicast frames in an MLD-snooping-enabled VLAN
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 59
PIM6 SM traffic snooping overview
When multiple PIM sparse routers connect through a snooping-enabled device, the Ruckus device always forwards multicast traffic to these
routers. For example, PIM sparse routers R1, R2, and R3 connect through a device. Assume R2 needs traffic, and R1 sends it to the
device, which forwards it to both R2 and R3, even though R3 does not need it. A PIM6 SM snooping-enabled device listens to join and
prune messages exchanged by PIM sparse routers, and stops traffic to the router that sends prune messages. This allows the device to
forward the data stream to R2 only.
PIM6 SM traffic snooping requires MLD snooping to be enabled on the device. MLD snooping configures the device to listen for MLD
messages. PIM6 SM traffic snooping provides a finer level of multicast traffic control by configuring the device to listen specifically for PIM6
SM join and prune messages sent from one PIM6 SM router to another through the device.
Application examples of PIM6 SM traffic snooping
Figure 2 shows an example application of the PIM6 SM traffic snooping feature. In this example, a device is connected through an IP router
to a PIM6 SM group source that is sending traffic for two PIM6 SM groups. The device also is connected to a receiver for each of the
groups.
When PIM6 SM traffic snooping is enabled, the device starts listening for PIM6 SM join and prune messages and MLD group membership
reports. Until the device receives a PIM6 SM join message or an MLD group membership report, the device forwards IP multicast traffic out
all ports. Once the device receives a join message or group membership report for a group, the device forwards subsequent traffic for that
group only on the ports from which the join messages or MLD reports were received.
In this example, the router connected to the receiver for group ff1e::1:2 sends a join message toward the group source. Because PIM6 SM
traffic snooping is enabled on the device, the device examines the join message to learn the group ID, then makes a forwarding entry for the
group ID and the port connected to the receiver router. The next time the device receives traffic for ff1e::1:2 from the group source, the
device forwards the traffic only on port 1/5/1, because that is the only port connected to a receiver for the group.
Notice that the receiver for group ff1e::3:4 is directly connected to the device. As a result, the device does not see a join message on behalf
of the client. However, because MLD snooping also is enabled, the device uses the MLD group membership report from the client to select
the port for forwarding traffic to group ff1e::3:4 receivers.
The MLD snooping feature and the PIM6 SM traffic snooping feature together build a list of groups and forwarding ports for the VLAN. The
list includes PIM6 SM groups learned through join messages as well as MAC addresses learned through MLD group membership reports.
In this case, even though the device never sees a join message for the receiver for group ff1e::3:4, the device nonetheless learns about the
receiver and forwards group traffic to the receiver.
The device stops forwarding IP multicast traffic on a port for a group if the port receives a prune message for the group.
Notice that the ports connected to the source and the receivers are all in the same port-based VLAN on the device. This is required for the
PIM6 SM snooping feature. The devices on the edge of the Global Ethernet cloud are configured for MLD snooping and PIM6 SM traffic
snooping. Although this application uses multiple devices, the feature has the same requirements and works the same way as it does on a
single device.
The following figure shows another example application for PIM6 SM traffic snooping. This example shows devices on the edge of a Global
Ethernet cloud (a Layer 2 Packet over SONET cloud). Assume that each device is attached to numerous other devices such as other Layer
2 Switches and Layer 3 Switches (routers).
NOTE
This example assumes that the devices are actually Ruckus devices running Layer 2 Switch software.
IPv6 Multicast VLAN Traffic Reduction
PIM6 SM traffic snooping overview
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
60 Part Number: 53-1005289-01
FIGURE 2 PIM6 SM traffic reduction in Global Ethernet environment
The devices on the edge of the Global Ethernet cloud are configured for MLD snooping and PIM6 SM traffic snooping. Although this
application uses multiple devices, the feature has the same requirements and works the same way as it does on a single device.
Configuration notes and limitations for PIM6 SM snooping
• PIM6 SM snooping applies only to PIM6 SM version 2 (PIM6 SM V2).
• PIM6 SM traffic snooping is supported in the Layer 2, base Layer 3, and full Layer 3 code.
• MLD snooping must be enabled on the device that will be running PIM6 SM snooping. The PIM6 SM traffic snooping feature
requires MLD snooping.
NOTE
Use the passive mode of MLD snooping instead of the active mode. The passive mode assumes that a router is sending group
membership queries as well as join and prune messages on behalf of receivers. The active mode configures the device to send
group membership queries.
• All the device ports connected to the source and receivers or routers must be in the same port-based VLAN.
IPv6 Multicast VLAN Traffic Reduction
PIM6 SM traffic snooping overview
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 61
• The PIM6 SM snooping feature assumes that the group source and the device are in different subnets and communicate through
a router. The source must be in a different IP subnet than the receivers. A PIM6 SM router sends PIM join and prune messages on
behalf of a multicast group receiver only when the router and the source are in different subnet. When the receiver and source are
in the same subnet, they do not need the router in order to find one another. They find one another directly within the subnet.
The device forwards all IP multicast traffic by default. Once you enable MLD snooping and PIM6 SM traffic snooping, the device initially
blocks all PIM6 SM traffic instead of forwarding it. The device forwards PIM6 SM traffic to a receiver only when the device receives a join
message from the receiver. Consequently, if the source and the downstream router are in the same subnet, and PIM6 SM traffic snooping is
enabled, the device blocks the PIM6 SM traffic and never starts forwarding the traffic. This is because the device never receives a join
message from the downstream router for the group. The downstream router and group find each other without a join message because
they are in the same subnet.
NOTE
If the "route-only" feature is enabled on a Layer 3 Switch, PIM6 SM traffic snooping will not be supported.
PIM6 SM snooping configuration
Configuring PIM6 SM snooping on a Brocade device consists of the following global and VLAN-specific tasks.
Perform the following global PIM6 SM snooping task:
• Enabling or disabling PIM6 SM snooping
Perform the following VLAN-specific PIM6 SM snooping tasks:
• Enabling PIM6 SM snooping on a VLAN
• Disabling PIM6 SM snooping on a VLAN
Enabling or disabling PIM6 SM snooping
Use PIM6 SM snooping only in topologies where multiple PIM sparse routers connect through a device. PIM6 SM snooping does not work
on a PIM dense mode router which does not send join messages and traffic to PIM dense ports is stopped. A PIM6 SM snooping-enabled
device displays a warning if it receives PIM dense join or prune messages.
Perform the following steps to enable PIM6 SM snooping globally.
1. Enable MLD snooping passive globally.
device(config)#ipv6 multicast passive
2. Enable PIM6 SM snooping globally.
device(config)#ipv6 pimsm-snooping
This command enables PIM6 SM traffic snooping. The PIM6 SM traffic snooping feature assumes that the network has routers
that are running PIM6 SM.
To disable PIM6 SM snooping, enter the no ipv6 pimsm-snooping command.
device(config)#no ipv6 pimsm-snooping
If you also want to disable IP multicast traffic reduction, enter the no ipv6 multicast command.
device(config)#no ipv6 multicast
Syntax: [no] ipv6 pimsm-snooping
IPv6 Multicast VLAN Traffic Reduction
PIM6 SM snooping configuration
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
62 Part Number: 53-1005289-01
Enabling PIM6 SM snooping on a VLAN
Perform the following steps to enable PIM6 SM snooping on a VLAN.
1. Configure a VLAN and add the ports that are connected to the device and host in the same port-based VLAN.
device(config)#vlan 20
device(config-vlan-20)#untagged etherenet 1/1/5 ethernet 1/1/7 ethernet 1/1/11
2. Enable MLD snooping passive on the VLAN.
device(config-vlan-20)#multicast6 passive
3. Enable PIM6 SM snooping on the VLAN.
device(config-vlan-20)#multicast6 pimsm-snooping
Syntax: [no] multicast6 pimsm-snooping
Disabling PIM6 SM snooping on a VLAN
When PIM6 SM snooping is enabled globally, you can still disable it for a specific VLAN. For example, the following commands disable PIM6
SM snooping for VLAN 20. This setting overrides the global setting.
device(config)#vlan 20
device(config-vlan-20)#multicast6 disable-pimsm-snoop
Syntax: [no] multicast6 disable-pimsm-snoop
Displaying PIM6 SM snooping information
To display PIM6 SM snooping information, enter the show ipv6 multicast pimsm-snooping command.
Device#show ipv6 multicast pimsm-snooping
Example: Port: 1/7/3 (ref_count=1)
ref_count: no of entries in pimsm snoop cache added this oif)
vlan 503, has 1 caches.
1 (* 2:3) has 1 pim join ports out of 1 OIF
1/1/4 (ref_count=2),
Refer to the
FastIron Command Reference
for more information on PIM SM commands.
Displaying PIM6 SM snooping for a VLAN
You can display PIM6 SM snooping information for all groups by entering the following command at any level of the CLI on a Layer 2 switch.
Device#show ipv6 multicast pimsm-snooping vlan 25
vlan 25, has 2 caches.
1 (0:11 1:3) has 2 pim join ports out of 2 OIF
1/1/2 (age=30), 2/1/3 (age=30),
1/1/2 has 1 src: 15::11(30),
2/1/3 has 1 src: 15::11(30),
2 (0:16 1:3) has 2 pim join ports out of 2 OIF
2/1/3 (age=90), 1/1/2 (age=10),
1/1/2 has 1 src: 15::16(10),
IPv6 Multicast VLAN Traffic Reduction
Displaying PIM6 SM snooping for a VLAN
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 63
Syntax: show ipv6 multicast pimsm-snooping vlan
vlan-id
Enter the ID of the VLAN for the
vlan-id
parameter.
The following table describes the information displayed by the show ipv6 multicast pimsm-snooping command.
Field Description
VLAN ID The port-based VLAN to which the following information applies and the
number of members in the VLAN.
PIM6 SM Neighbor list The PIM6 SM routers that are attached to the Layer 2 Switch ports.
The value following "expires" indicates how many seconds the Layer 2
Switch will wait for a hello message from the neighbor before determining
that the neighbor is no longer present and removing the neighbor from the
list.
Multicast Group The IP address of the multicast group.
NOTE
The fid and camindex values are used by Brocade Technical
Support for troubleshooting.
Forwarding Port The ports attached to the group receivers. A port is listed here when it
receives a join message for the group, an MLD membership report for the
group, or both.
PIMv2 Group Port The ports on which the Layer 2 Switch has received PIM6 SM join
messages for the group.
Source, Port list The IP address of each PIM6 SM source and the Layer 2 Switch ports
connected to the receivers of the source.
Refer to the
FastIron Command Reference
for more information on PIM SM commands.
IPv6 Multicast VLAN Traffic Reduction
Displaying PIM6 SM snooping for a VLAN
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
64 Part Number: 53-1005289-01
IPv4 Multicast Protocols
• Overview of IP multicasting......................................................................................................................................65
• Support for Multicast Multi-VRF...............................................................................................................................66
• Changing global IP multicast parameters.................................................................................................................66
• Adding an interface to a multicast group..................................................................................................................69
• Multicast non-stop routing.......................................................................................................................................70
• Passive multicast route insertion .............................................................................................................................72
• IP multicast boundaries........................................................................................................................................... 73
• PIM Dense ............................................................................................................................................................. 75
• PIM convergence on MAC movement..................................................................................................................... 86
• PIM Sparse ............................................................................................................................................................ 86
• IP multicast PIM neighbor filter................................................................................................................................ 93
• PIM Passive.............................................................................................................................................................94
• Multicast Outgoing Interface (OIF) list optimization................................................................................................... 95
• Displaying system values.........................................................................................................................................95
• Displaying PIM resources........................................................................................................................................ 95
• Displaying PIM Sparse configuration information and statistics................................................................................ 97
• Clearing the PIM forwarding cache........................................................................................................................ 108
• Displaying PIM traffic statistics...............................................................................................................................108
• Clearing the PIM message counters...................................................................................................................... 110
• Displaying PIM RPF............................................................................................................................................... 110
•Configuring Multicast Source Discovery Protocol...................................................................................................111
•Configuring MSDP mesh groups .......................................................................................................................... 123
• MSDP Anycast RP................................................................................................................................................ 125
• PIM Anycast RP.................................................................................................................................................... 129
• Static multicast routes........................................................................................................................................... 131
• IGMP Proxy...........................................................................................................................................................131
• IGMP V3............................................................................................................................................................... 134
Overview of IP multicasting
Multicast protocols allow a group or channel to be accessed over different networks by multiple stations (clients) for the receipt and
transmission of multicast data.
Distribution of stock quotes, video transmissions such as news services and remote classrooms, and video conferencing are all examples of
applications that use multicast routing.
Ruckus devices support the Protocol-Independent Multicast (PIM) protocol, along with the Internet Group Membership Protocol (IGMP).
PIM is a broadcast and pruning multicast protocol that delivers IP multicast datagrams. This protocol employs reverse path lookup check
and pruning to allow source-specific multicast delivery trees to reach all group members. PIM builds a different multicast tree for each
source and destination host group.
Multicast terms
The following terms are commonly used in discussing multicast-capable devices. These terms are used throughout this chapter:
Node: A device.
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 65
Root Node: The node that initiates the tree building process. It is also the device that sends the multicast packets down the multicast
delivery tree.
Upstream: The direction from which a device receives multicast data packets. An upstream device is a node that sends multicast packets.
Downstream: The direction to which a device forwards multicast data packets. A downstream device is a node that receives multicast
packets from upstream transmissions.
Group Presence: A multicast group has been learned from one of the directly connected interfaces. Members of the multicast group are
present on the device.
Intermediate nodes: Devices that are in the path between source devices and leaf devices.
Leaf nodes: Devices that do not have any downstream devices.
Multicast Tree: A unique tree is built for each source group (S,G) pair. A multicast tree is comprised of a root node and one or more nodes
that are leaf or intermediate nodes.
Support for Multicast Multi-VRF
Multicast Multi-VRF support for the Brocade device includes the following:
• PIM (PIM-SM and PIM-DM) The procedure for configuring PIM within a VRF instance is described in the “Enabling PIM on the
device and an interface” and the “Configuring global PIM Sparse parameters” sections.
changes to system-max command
Several changes have been made to the system-max commands in support of Multicast Multi-VRF.
The system-max pim-mcache command has been deprecated and replaced by the system max pim-hw-mcache command.
The following new runtime commands have been introduced:
max-mcache This command is described in the “Defining the maximum number of PIM cache entries” section.
ip igmp max-group-address This command, which is described in the “Defining the maximum number of IGMP group ” section,
addresses replaces the system-max igmp-max-group-address command.
Show and clear command support
The following show and clear commands support Multicast Multi-VRF:
• clear ip igmp [ vrf vrf-name ] cache
• clear ip igmp [ vrf vrf-name ] traffic
• show ip igmp [vrf vrf-name] group [group-address [detail] [tracking]]
• show ip igmp [vrf vrf-name] interface [ve number | ethernet unit/slot/port | tunnel num]
• show ip igmp [vrf vrf-name] settings
• show ip igmp [vrf vrf-name] traffic
Changing global IP multicast parameters
The following sections apply to PIM-DM, PIM-SM, and IGMP.
IPv4 Multicast Protocols
Support for Multicast Multi-VRF
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
66 Part Number: 53-1005289-01
Concurrent support for multicast routing and snooping
Multicast routing and multicast snooping instances work concurrently on the same device. For example, you can configure PIM routing on
certain VEs interfaces and snooping on other VEs or VLANs. The limitation is that either multicast snooping or routing can be enabled on a
VE interface or VLAN, but not on both. This is because all of the multicast data and control packets (IGMP, PIM) received on the snooping
VLAN are handled by multicast snooping and do not reach the multicast routing component. Similarly, any multicast data or control packets
received on a VE interface enabled with PIM routing are handled by the PIM routing component and are not seen by the IGMP or PIM
snooping component.
The following considerations apply when configuring concurrent operation of Multicast Routing and Snooping.
1. Either multicast snooping or routing can be enabled on a VE or VLAN but not both.
2. Snooping can be enabled globally by configuring the ip multicast
active
|
passive
command.
3. The global snooping configuration is inherited by all current VLANs that are not enabled for multicast routing.
4. The global snooping configuration is also inherited by all new VLANs. Enabling multicast routing on a newly created VLAN or VE
automatically disables snooping on the VLAN or VE.
5. When a VLAN-level snooping is configured, it is displayed.
Defining the maximum number of PIM cache entries
You can use the following run-time command to define the maximum number of repeated PIM traffic being sent from the same source
address and being received by the same destination address. To define this maximum for the default VRF, enter the following commands.
device(config)# router pim
device(config-pim-router)# max-mcache 999
Syntax: [no] max-cache
num
The
num
variable specifies the maximum number of multicast cache entries for PIM in the default VRF. If not defined by this command, the
maximum value is determined by the system-max pim-hw-mcache command or by available system resources.
To define the maximum number of PIM Cache entries for a specified VRF, use the following command.
device(config)# router pim vrf vpn1
device(config-pim-router-vrf-vpn1)# max-mcache 999
Syntax: [no] router pim [ vrf
vrf-name
]
The vrf parameter specified with the router pim command allows you to configure the max-mcache command for a virtual routing and
forwarding (VRF) instance specified by the
vrf-name
variable.
The
num
variable specifies the maximum number of multicast cache entries for PIM in the specified VRF. If not defined by this command,
the maximum value is determined by the system-max command option pim-hw-mcache or by available system resources.
Defining the maximum number of IGMP group addresses
You can use the ip igmp max-group-address run-time command to set the maximum number of IGMP addresses for the default virtual
routing and forwarding (VRF) instance or for a specified VRF. To define this maximum for the default VRF, enter the following command.
device(config)# ip igmp max-group-address 1000
Syntax: [no] ip igmp max-group-address
num
The
num
variable specifies the maximum number of IGMP group addresses for all VRFs, including the default VRF. If not defined by this
command, the maximum value is determined by available system resources.
IPv4 Multicast Protocols
Changing global IP multicast parameters
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 67
To define this maximum for a specified VRF, enter the following commands.
device(config)# vrf vpn1
device(config-vrf-vpn1)# address-family ipv4
device(config-vrf-vpn1-ipv4)# ip igmp max-group-address 1000
Syntax: [no] vrf
vrf-name
Syntax: [no] address-family ipv4
Syntax: [no] ip igmp max-group-address
num
The vrf parameter specifies the VRF instance specified by the
vrf-name
variable.
The
num
parameter specifies the number of IGMP group addresses that you want to make available for the specified VRF. If not defined by
this command, the maximum value is determined by available system resources.
Changing IGMP V1 and V2 parameters
IGMP allows Ruckus devices to limit the multicast of IGMP packets to only those ports on the device that are identified as IP Multicast
members.
The device actively sends out host queries to identify IP Multicast groups on the network, inserts the group information in an IGMP packet,
and forwards the packet to IP Multicast neighbors.
The following IGMP V1 and V2 parameters apply to PIM:
• IGMP query interval - Specifies how often the Ruckus device queries an interface for group membership. Possible values are 2 -
3600. The default is 125.
• IGMP group membership time - Specifies how many seconds an IP Multicast group can remain on a Ruckus device interface in
the absence of a group report. Possible values are 5 - 26000. The default is 260.
• IGMP maximum response time - Specifies how many seconds the Ruckus device will wait for an IGMP response from an interface
before concluding that the group member on that interface is down and removing the interface from the group. Possible values are
1 - 25. The default is 10.
Modifying IGMP (V1 and V2) query interval period
The IGMP query interval period defines how often a device will query an interface for group membership. Possible values are 2 to 3600
seconds and the default value is 125 seconds.
To modify the default value for the IGMP (V1 and V2) query interval, enter the following:
Device(config)# ip igmp query-interval 120
Syntax: [no] ip igmp query-interval
num
The
num
variable specifies the number of seconds and can be a value from 2 to 3600.
The default value is 125.
Modifying IGMP (V1 and V2) membership time
Group membership time defines how long a group will remain active on an interface in the absence of a group report. Possible values are
from 5 to 26000 seconds and the default value is 260 seconds.
To define an IGMP (V1 and V2) membership time of 240 seconds, enter the following.
device(config)# ip igmp group-membership-time 240
IPv4 Multicast Protocols
Changing global IP multicast parameters
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
68 Part Number: 53-1005289-01
Syntax: [no] ip igmp group-membership-time
num
The
num
variable specifies the number of seconds and can be a value from 5 to 26000.
The default value is 260.
Modifying IGMP (V1 and V2) maximum response time
Maximum response time defines how long the Brocade device will wait for an IGMP (V1 and V2) response from an interface before
concluding that the group member on that interface is down and removing the interface from the group. Possible values are 1 to 25. The
default is 10.
To change the IGMP (V1 and V2) maximum response time, enter a command such as the following at the global CONFIG level of the CLI.
Device(config)# ip igmp max-response-time 8
Syntax:[no] ip igmp max-response-time
num
The
num
variable specifies the number of seconds and can be a value from 1 to 25. The default is 10.
Security enhancement for IGMP
A security enhancement was made to IGMPv2 to comply with the following recommendation of RFC 2236: “Ignore the Report if you cannot
identify the source address of the packet as belonging to a subnet assigned to the interface on which the packet was received.”
NOTE
When used in applications such as IP-TV (or any multicast application in general), the administrator should ensure that the set-top
box (or multicast client) is configured on the same subnet as the v.e. configured on the device. This is typically the case but is
emphasized here to ensure correct operation. Without this configuration, IGMP messages received by the device are ignored,
which causes an interruption in any multicast traffic directed towards the set-top box (multicast client).
Adding an interface to a multicast group
You can manually add an interface to a multicast group. This is useful in the following cases:
• Hosts attached to the interface are unable to add themselves as members of the group using IGMP.
• There are no members for the group attached to the interface.
When you manually add an interface to a multicast group, the device forwards multicast packets for the group but does not itself accept
packets for the group.
You can manually add a multicast group to individual ports only. If the port is a member of a virtual routing and forwarding (VRF) interface,
you must add the ports to the group individually.
To manually add a port to a multicast group, enter a command such as the following at the configuration level for the port.
Device(config-if-e10000-1/1/1)# ip igmp static-group 224.2.2.2
This command adds port 1/1 to multicast group 224.2.2.2.
To add a port that is a member of a VRF interface to a multicast group, enter a command such as the following at the configuration level for
the virtual routing interface.
Device(config-vif-1)# ip igmp static-group 224.2.2.2 ethernet 1/4/2
This command adds port 1/4/2 in VRF interface 1 to multicast group 224.2.2.2.
IPv4 Multicast Protocols
Adding an interface to a multicast group
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 69
Syntax: [no] ip igmp static-group
ip-addr
[ ethernet
unit/slot//port
]
The
ip-addr
variable specifies the group number.
The ethernet
unit/slot/port
parameter specifies the port number. Use this parameter if the port is a member of a VRF interface, and you are
entering this command at the configuration level for the VRF interface.
Manually added groups are included in the group information displayed by the following commands:
•show ip igmp group
•show ip pim group
To display static multicast groups in the default VRF, enter the following command.
device# show ip igmp static
Group Address Interface Port List
----------------------------------
224.2.2.2 v1 ethe 1/4/2
Syntax: show ip igmp [ vrf
vrf_name
] static
The vrf parameter allows you to display static IGMP groups for the VRF instance specified by the
vrf_name
variable.
Multicast non-stop routing
Multicast non-stop routing (NSR) provides hitless-failover support on all platforms for IPv4 multicast features (default and non-default VRFs):
PIM-DM, PIM-SM, and PIM-SSM.
If multicast NSR is enabled, the software state is kept in sync between the active and standby modules. The standby module is NSR ready
when the software state of the standby and active modules are in sync. When the standby module is NSR ready, a hitless-failover does not
result in a disruption to the multicast forwarding state or traffic
If Multicast NSR is not enabled, or if the standby module is not NSR ready, the software state of the standby and active modules are not in
sync. In this case, after a switchover or failover occurs, the new active module enters protocol learning phase for a duration of 55 seconds.
During this phase, it learns the protocol state information from its PIM neighbors and local clients. During this period, new multicast flows
will not be forwarded, but the existing mutlicast flows (which existed prior to switchover or failover) are forwarded in hardware without any
disruption. At the end of the period, all the existing flows are deleted from hardware and they are reprogrammed as per the newly learned
state information. Multicast traffic will incur a slight disturbance until the new active module reprograms the hardware with new forwarding
state information.
The following message is displayed on the console of the active and standby modules to indicate that the standby module is NSR ready:
Mcastv4 is NSR ready
Configuration considerations
• Multicast NSR is not supported for IPv6 multicast.
• When multicast NSR is turned on, unicast routing must be protected by NSR or graceful restart on all multicast VRFs.
Configuring multicast non-stop routing
To globally enable multicast non-stop routing for all VRFs, enter the ip multicast-nonstop-routing command on the CLI as shown in this
example:
Device(config)#ip multicast-nonstop-routing
IPv4 Multicast Protocols
Multicast non-stop routing
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
70 Part Number: 53-1005289-01
Syntax: ip multicast-nonstop-routing
During a hitless upgrade and switchover, this syslog message is generated on the CLI. The message displayed depends on which version
of PIM is configured.
PIM v4 is configured
MCASTv4 protocol receives switchover event
Mcastv4 protocol switchover done
PIM v6 is configured
MCASTv6 protocol receives switchover event
Mcastv6 protocol switchover done
The syslog message shows the state transition of multicast NSR as the standby module takes over as the active module. The multicast
data traffic will continue to flow during state transition.
Displaying the multicast NSR status
To display the multicast nonstop routing (NSR) status, enter the following command:
Device# show ip pim nsr
Global Mcast NSR Status
NSR: ON
Switchover In Progress Mode: FALSE
The following table displays the output from the show ip pim nsr command.
Field Description
NSR The NSR field indicates whether the ip multicast-nonstop-routing
command is enabled (ON) or disabled (OFF).
Switchover in Progress Mode The Switchover in Progress Mode field indicates whether the multicast
traffic is in the middle of a switchover (displaying a TRUE status), or not
(displaying a FALSE status).
Displaying counter and statistic information for multicast NSR
To display multicast NSR counter and statistic information, enter the following command.
device#show ip pim counter nsr
Mcache sync (entity id: 203)
pack: 0
unpack: 0
ack: 0
RPset sync (entity id: 201)
pack: 0
unpack: 0
ack: 0
BSR status (entity id: 202)
pack: 1
unpack: 0
ack: 1
Syntax: show ip pim [vrf
vrf_name
] counter nsr
The vrf parameter allows you to display IP PIM counters for the VRF instance specified by the
vrf-name
variable.
The following table displays the output from the show ip pim counter nsr command.
IPv4 Multicast Protocols
Multicast non-stop routing
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 71
This field... Displays...
Mcache sync The mcache NSR sync queue that carries the NSR sync message for
mcache updates.
pack The number of NSR sync messages that are packed from the active module
to the standby module.
unpack The number of NSR sync messages that are received and unpacked by the
standby module.
ack The number of NSR sync acknowledgements received by the active
module.
RPset sync The RPset sync queue that carries the NSR sync message for RPset
update.
BSR status The BSR status sync queue that carries the NSR sync message for BSR
information update.
Passive multicast route insertion
To prevent unwanted multicast traffic from being sent to the CPU, PIM routing and passive multicast route insertion (PMRI) can be used
together to ensure that multicast streams are forwarded out only ports with interested receivers and unwanted traffic is dropped in hardware
on Layer 3 switches.
PMRI enables a Layer 3 switch running PIM Sparse to create an entry for a multicast route (for example, (S,G)), with no directly attached
clients or when connected to another PIM device (transit network).
When a multicast stream has no output interfaces (OIF), the Layer 3 switch can drop packets in hardware if the multicast traffic meets either
of the following conditions:
In PIM-SM:
• The route has no OIF
and
• If directly connected source passed source reverse-path forwarding (RPF) check
and
completed data registration with reverse
path (RP)
or
• If non directly connected source passed source RPF check.
In PIM-DM:
• The route has no OIF
and
• passed source RPF check
and
• Device has no downstream PIM neighbor.
If the OIF is inserted after the hardware-drop entries are installed, the hardware entries will be updated to include the OIFs.
NOTE
Disabling hardware-drop does not immediately take away existing hardware-drop entries, they will go through the normal route
aging processing when the traffic stops.
Configuring PMRI
PMRI is enabled by default. To disable PMRI, enter commands such as the following.
device(config)# router pim
device(config-pim-router)# hardware-drop-disable
Syntax: [no] hardware-drop-disable
IPv4 Multicast Protocols
Passive multicast route insertion
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
72 Part Number: 53-1005289-01
Displaying hardware-drop
Use the show ip pim sparse command to display if the hardware-drop feature has been enabled or disabled.
device(config)#show ip pim sparse
Global PIM Sparse Mode Settings
Maximum Mcache : 12992 Current Count : 0
Hello interval : 30 Neighbor timeout : 105
Join/Prune interval : 60 Inactivity interval : 180
Hardware Drop Enabled : Yes Prune Wait Interval : 3
Bootstrap Msg interval : 60 Candidate-RP Msg interval : 60
Register Suppress Time : 60 Register Probe Time : 10
Register Stop Delay : 10 Register Suppress interval : 60
SSM Enabled : Yes SPT Threshold : 1
SSM Group Range : 232.0.0.0/8
Route Precedence : mc-non-default mc-default uc-non-default uc-default
IP multicast boundaries
The IP multicast boundary feature is designed to selectively allow or disallow multicast flows to configured interfaces.
The ip multicast-boundary command allows you to configure a boundary on a PIM enabled interface by defining which multicast groups
may not forward packets over a specified interface. This includes incoming and outgoing packets. By default, all interfaces that are enabled
for multicast are eligible to participate in a multicast flow provided they meet the multicast routing protocol’s criteria for participating in a
flow.
Configuration considerations
• Only one ACL can be bound to any interface.
• Normal ACL restrictions apply as to how many software ACLs can be created, but there is no hardware restrictions on ACLs with
this feature.
• Creation of a static IGMP client is allowed for a group on a port that may be prevented from participation in the group on account
of an ACL bound to the port’s interface. In such a situation, the ACL would prevail and the port will not be added to the relevant
entries.
• Either standard or extended ACLs can be used with the multicast boundary feature. When a standard ACL is used, the address
specified is treated as a group address and NOT a source address.
• When a boundary is applied to an ingress interface, all packets destined to a multicast group that is filtered out will be dropped by
software. Currently, there is no support to drop such packets in hardware.
• The ip multicast-boundary command may not stop clients from receiving multicast traffic if the filter is applied on the egress
interface up-stream from RP.
Configuring multicast boundaries
To define boundaries for PIM enabled interfaces, enter a commands such as the following.
device(config)# interface ve 40
device(config-vif-40)#ip multicast-boundary MyBrocadeAccessList
Syntax: [no] ip multicast-boundary
acl-spec
Use the
acl-spec
parameter to define the number or name identifying an access list that controls the range of group addresses affected by
the boundary.
IPv4 Multicast Protocols
IP multicast boundaries
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 73
Use the no ip multicast boundary command to remove the boundary on a PIM enabled interface.
The ACL, MyBrocadeAccessList can be configured using standard ACL syntax. Some examples of how ACLs can be used to filter
multicast traffic are as follows:
Standard ACL to permit multicast traffic
To permit multicast traffic for group 225.1.0.2 and deny all other traffic, enter the following command.
device(config)# access-list 10 permit host 225.1.0.2
device(config)# access-list 10 deny any
Extended ACL to deny multicast traffic
To deny multicast data traffic from group 225.1.0.1 and permit all other traffic, enter the following command.
device(config)# access-list 101 deny ip any host 225.1.0.1
device(config)# access-list 101 permit ip any any
Extended ACL to permit multicast traffic
To permit multicast data traffic from source 97.1.1.50 for group 225.1.0.1 and deny all other traffic, enter the following commands:
Device(config)# access-list 102 permit ip host 97.1.1.50 host 225.1.0.1
Device(config)# access-list 102 deny ip any any
Displaying multicast boundaries
To display multicast boundary information, enter the show ip pim interface command.
device# show ip pim interface ethernet 1/1/7
Flags : SM - Sparse Mode v2, DM - Dense Mode v2, P - Passive Mode
---------+---------------+----+---+-----------------------+---+---------+-------+------+---------+
Interface|Local |Mode|St | Designated Router |TTL|Multicast| VRF | DR | Override
|Address | | |Address Port|Thr|Boundary | | Prio | Interval
---------+---------------+----+---+-----------------------+---+---------+-------+------+---------+
e1/1/7 30.0.0.1 SM Ena Itself 1 None default 1 3000ms
Total Number of Interfaces : 1
Syntax: show ip pim [ vrf
vrf-name
] interface [ethernet
unit/slot/port
| loopback
num
| ve
num
| tunnel
num
]
The vrf keyword allows you to display multicast boundary information for the VRF instance identified by the
vrf-name
variable.
The ethernet parameter specifies the physical port by its unit, slot, and port number.
The loopback parameter specifies the loopback port.
The veparameter specifies a virtual interface.
The tunnel parameter specifies a GRE tunnel interface that is being configured. The GRE tunnel interface is enabled under the device PIM
configuration.
The following table describes the output from the show ip pim interface ethernet command.
Field Description
Interface Name of the interface.
Local Address IP address of the interface.
Mode PIM mode, dense or sparse..
IPv4 Multicast Protocols
IP multicast boundaries
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
74 Part Number: 53-1005289-01
Field Description
St PIM status for this interface, enabled or disabled.
Designated Router Address, Port Address, port number of the designated router.
TTL Thr Time to live threshold. Multicast packets with TTL less than this threshold
value are not be forwarded on this interface.
Multicast Boundary Multicast boundary ACL, if one exists.
VRF Name of the VRF.
DR Prio Designated router priority assigned to this interface.
Override Interval Effective override interval in milliseconds.
PIM Dense
NOTE
This section describes the "dense" mode of PIM, described in RFC 3973. Refer to PIM Sparse on page 86 for information about
PIM Sparse.
PIM was introduced to simplify some of the complexity of the routing protocol at the cost of additional overhead tied with a greater
replication of forwarded multicast packets. PIM builds source-routed multicast delivery trees and employs reverse path check when
forwarding multicast packets.
There are two modes in which PIM operates: Dense and Sparse. The Dense Mode is suitable for densely populated multicast groups,
primarily in the LAN environment. The Sparse Mode is suitable for sparsely populated multicast groups with the focus on WAN.
PIM uses the IP routing table instead of maintaining its own, thereby being routing protocol independent.
Initiating PIM multicasts on a network
Once PIM is enabled on each device, a network user can begin a video conference multicast from the server on R1 as shown in Figure 3 on
page 76. When a multicast packet is received on a PIM-capable device interface, the interface checks its IP routing table to determine
whether the interface that received the message provides the shortest path back to the source. If the interface does provide the shortest
path back to the source, the multicast packet is then forwarded to all neighboring PIM devices. Otherwise, the multicast packet is discarded
and a prune message is sent back upstream.
In Figure 3 on page 76, the root node (R1) is forwarding multicast packets for group 229.225.0.1, which it receives from the server, to its
downstream nodes, R2, R3, and R4. Device R4 is an intermediate device with R5 and R6 as its downstream devices. Because R5 and R6
have no downstream interfaces, they are leaf nodes. The receivers in this example are those workstations that are resident on devices R2,
R3, and R6.
Pruning a multicast tree
As multicast packets reach these leaf devices, the devices check their IGMP databases for the group. If the group is not in the IGMP
database of the device, the device discards the packet and sends a prune message to the upstream device. The device that discarded the
packet also maintains the prune state for the source, group (S,G) pair. The branch is then pruned (removed) from the multicast tree. No
further multicast packets for that specific (S,G) pair will be received from that upstream device until the prune state expires. You can
configure the PIM Prune Timer (the length of time that a prune state is considered valid).
IPv4 Multicast Protocols
PIM Dense
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 75
For example, in the “Transmission of multicast packets from the source to host group members” figure, the sender with address 207.95.5.1
is sending multicast packets to the group 229.225.0.1. If a PIM device receives any groups other than that group, the device discards the
group and sends a prune message to the upstream PIM device.
In the “Pruning leaf nodes from a multicast tree” figure, device R5 is a leaf node with no group members in its IGMP database. Therefore,
the device must be pruned from the multicast tree. R5 sends a prune message upstream to its neighbor device R4 to remove itself from the
multicast delivery tree and install a prune state, as seen in the “Pruning leaf nodes from a multicast tree” figure. Device 5 will not receive any
further multicast traffic until the prune age interval expires.
When a node on the multicast delivery tree has all of its downstream branches (downstream interfaces) in the prune state, a prune message
is sent upstream. In the case of R4, if both R5 and R6 are in a prune state at the same time, R4 becomes a leaf node with no downstream
interfaces and sends a prune message to R1. With R4 in a prune state, the resulting multicast delivery tree would consist only of leaf nodes
R2 and R3.

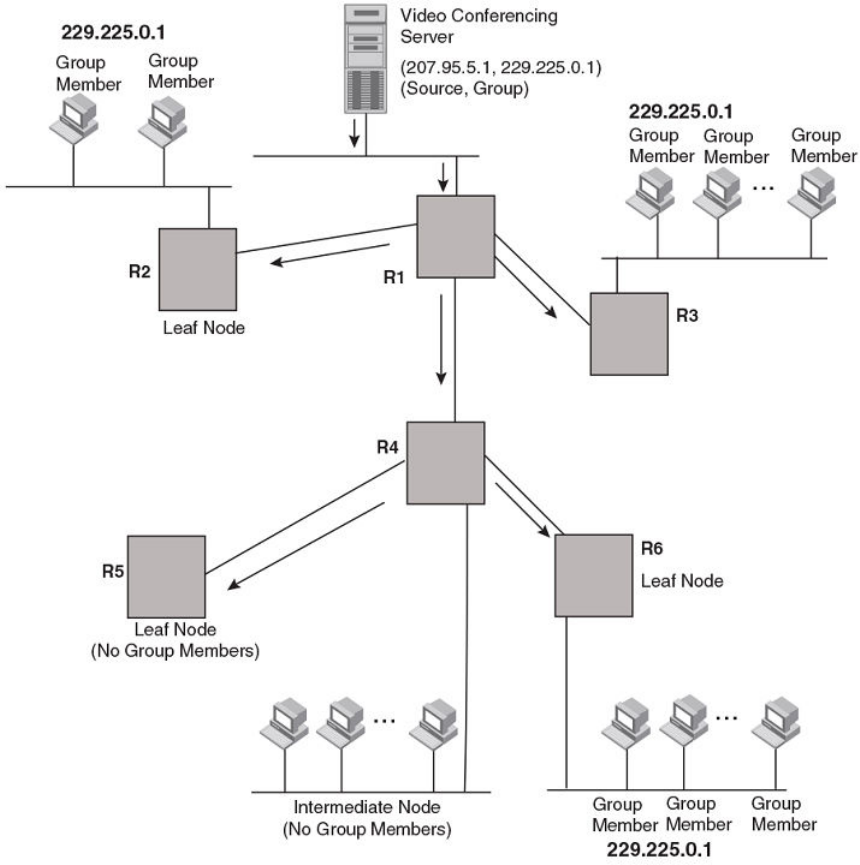

FIGURE 3 Transmission of multicast packets from the source to host group members
IPv4 Multicast Protocols
PIM Dense
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
76 Part Number: 53-1005289-01

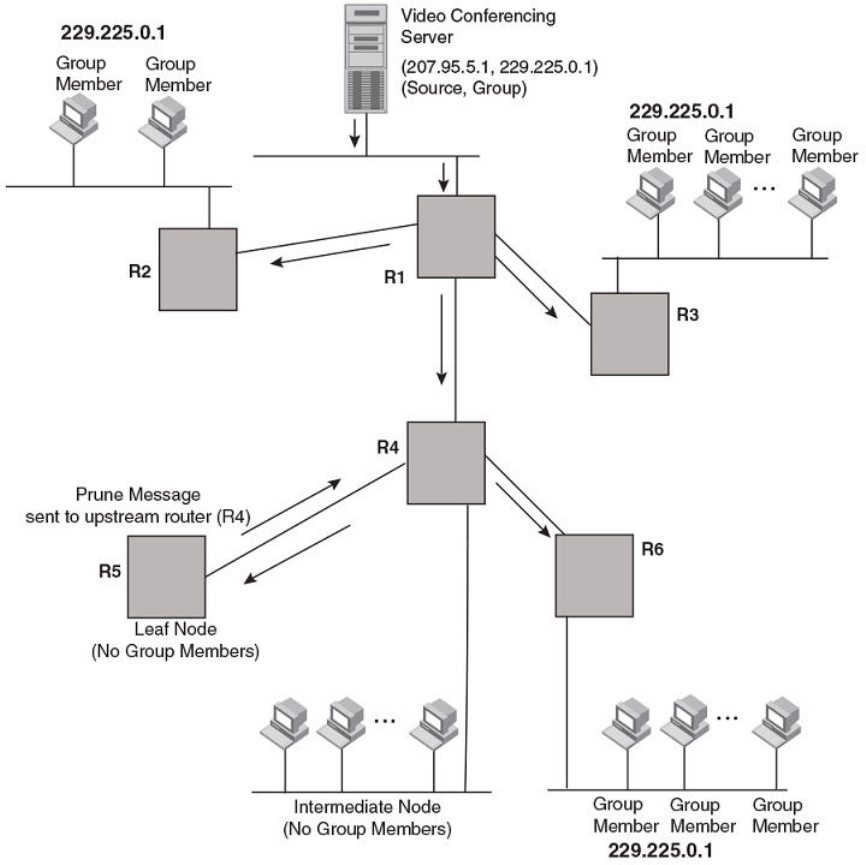

FIGURE 4 Pruning leaf nodes from a multicast tree
Grafts to a multicast tree
A PIM device restores pruned branches to a multicast tree by sending graft messages towards the upstream device. Graft messages start
at the leaf node and travel up the tree, first sending the message to its neighbor upstream device.
In the preceding example, if a new 229.255.0.1 group member joins on device R6, which was previously pruned, a graft is sent upstream to
R4. Since the forwarding state for this entry is in a prune state, R4 sends a graft to R1. Once R4 has joined the tree, R4 along with R6 once
again receive multicast packets.
Prune and graft messages are continuously used to maintain the multicast delivery tree. You do not need to configure anything.
IPv4 Multicast Protocols
PIM Dense
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 77
PIM DM versions
The Ruckus device supports only PIM V2. PIM DM V2 sends messages to the multicast address 224.0.0.13 (ALL-PIM-ROUTERS) with
protocol number 103.
Configuring PIM DM
NOTE
This section describes how to configure the "dense" mode of PIM, described in RFC 1075. Refer to Configuring PIM Sparse on
page 88 for information about configuring PIM Sparse.
Enabling PIM on the device and on an interface
By default, PIM is disabled. To enable PIM:
• Enable the feature globally.
•Configure the IP interfaces that will use PIM.
• Enable PIM locally on the ports that have the IP interfaces you configured for PIM.
Suppose you want to initiate the use of desktop video for fellow users on a sprawling campus network. All destination workstations have
the appropriate hardware and software but the devices that connect the various buildings need to be configured to support PIM multicasts
from the designated video conference server as shown in the “Pruning leaf nodes from a multicast tree” figure.
PIM is enabled on each of the devices shown in the “Pruning leaf nodes from a multicast tree” figure, on which multicasts are expected. You
can enable PIM on each device independently or remotely from one of the devices with a Telnet connection. Follow the same steps for each
device. All changes are dynamic.
Globally enabling and disabling PIM
To globally enable PIM, enter the following command.
Device(config)# router pim
Syntax:[no] router pim
The [no] router pim command behaves in the following manner:
• Entering a router pim command to enable PIM does not require a software reload.
• Entering a no router pim command removes all configuration for PIM multicast on a device (router pim level) only.
Enabling PIM for a specified VRF
To enable PIM for the VRF named "blue", use the following commands.
Device(config)# router pim vrf blue
Syntax: [no] router pim [ vrf
vrf-name
]
The vrf parameter allows you to configure PIM (PIM-DM and PIM-SM) on the virtual routing and forwarding instance (VRF) specified by the
vrf-name
variable. All PIM parameters available for the default device instance are configurable for a VRF-based PIM instance.
The [no] router pim vrf command behaves in the following manner:
• Entering the router pim vrf command to enable PIM does not require a software reload.
• Entering a no router pim vrf command removes all configuration for PIM multicast on the specified VRF.
IPv4 Multicast Protocols
PIM Dense
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
78 Part Number: 53-1005289-01
Modifying PIM global parameters
PIM global parameters come with preset values. The defaults work well in most networks, but you can modify the following parameters if
necessary:
• Neighbor timeout
• Hello timer
• Prune timer
• Prune wait timer
• Graft retransmit timer
• Inactivity timer
Modifying neighbor timeout
Neighbor timeout is the interval after which a PIM device will consider a neighbor to be absent. Absence of PIM hello messages from a
neighboring device indicates that a neighbor is not present.
The interval can be set between 3 and 65535 seconds, and it should not be less than 3.5 times the hello timer value. The default value is
105 seconds.
To apply a PIM neighbor timeout value of 360 seconds to all ports on the device operating with PIM, enter the following.
Device(config)# router pim
Device(config-pim-router)# nbr-timeout 360
Syntax: [no] nbr-timeout
seconds
The default is 105 seconds. The range is 35 to 65535 seconds.
Modifying hello timer
This parameter defines the interval at which periodic hellos are sent out PIM interfaces. Devices use hello messages to inform neighboring
devices of their presence. The interval can be set between 10 and 3600 seconds, and the default rate is 30 seconds.
To apply a PIM hello timer of 120 seconds to all ports on the device operating with PIM, enter the following.
Device(config)# router pim
Device(config-pim-router)# hello-timer 120
Syntax: [no] hello-timer
10-3600
The default is 30 seconds.
Modifying prune timer
This parameter defines how long a PIM device will maintain a prune state for a forwarding entry.
The first received multicast interface is forwarded to all other PIM interfaces on the device. If there is no presence of groups on that
interface, the leaf node sends a prune message upstream and stores a prune state. This prune state travels up the tree and installs a prune
state.
A prune state is maintained until the prune timer expires or a graft message is received for the forwarding entry. The default value is 180
seconds.
To set the PIM prune timer to 90, enter the following.
Device(config)# router pim
Device(config-pim-router)# prune-timer 90
IPv4 Multicast Protocols
PIM Dense
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 79
Syntax: [no] prune-timer
seconds
The default is 180 seconds. The range is 60 to 3600 seconds.
Modifying the prune wait timer
The prune-wait command allows you to configure the amount of time a PIM device will wait before stopping traffic to neighbor devices that
do not want the traffic. The value can be from zero to 30 seconds. The default is three seconds. A smaller prune wait value reduces flooding
of unwanted traffic.
A prune wait value of zero causes the PIM device to stop traffic immediately upon receiving a prune message. If there are two or more
neighbors on the physical port, then the prune-wait command should not be used because one neighbor may send a prune message
while the other sends a join message at the same time, or within less than three seconds.
To set the prune wait time to zero, enter the following commands.
Device(config)#router pim
Device(config-pim-router)#prune-wait 0
Syntax: [no] prune-wait
seconds
The
seconds
can be 0 - 30. A value of 0 causes the PIM device to stop traffic immediately upon receiving a prune message. The default is 3
seconds.
To view the currently configured prune wait time, enter the show ip pim dense command as described in the Displaying basic PIM Dense
configuration information” section.
Modifying graft retransmit timer
The graft retransmit timer defines the interval between the transmission of graft messages.
A graft message is sent by a device to cancel a prune state. When a device receives a graft message, the device responds with a Graft Ack
(acknowledge) message. If this Graft Ack message is lost, the device that sent the graft message will resend it.
To change the graft retransmit timer from the default of 180 to 90 seconds, enter the following.
Device(config)# router pim
Device(config-pim-router)# graft-retransmit-timer 90
Syntax: [no] graft-retransmit-timer
seconds
The default is 180 seconds. The range is from 60 to 3600 seconds.
Modifying inactivity timer
The device deletes a forwarding entry if the entry is not used to send multicast packets. The PIM inactivity timer defines how long a
forwarding entry can remain unused before the device deletes it.
To apply a PIM inactivity timer of 90 seconds to all PIM interfaces, enter the following.
Device(config)# router pim
Device(config-pim-router)# inactivity-timer 90
Syntax: [no] inactivity-timer
seconds
The default is 180 seconds. The range is from 60 to 3600 seconds.
IPv4 Multicast Protocols
PIM Dense
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
80 Part Number: 53-1005289-01
Selection of shortest path back to source
By default, when a multicast packet is received on a PIM-capable interface in a multi-path topology, the interface checks its IP routing table
to determine the shortest path back to the source. If the alternate paths have the same cost, the first alternate path in the table is picked as
the path back to the source. For example, in the following example, the first four routes have the same cost back to the source. However,
137.80.127.3 is chosen as the path to the source since it is the first one on the list. The device rejects traffic from any port other than Port
V11 on which 137.80.127.3 resides
Total number of IP routes: 19
Type Codes - B:BGP D:Connected I:ISIS S:Static R:RIP O:OSPF Cost - Dist/Metric
Destination Gateway Port Cost Type
..
172.17.41.4 137.80.127.3 v11 2 O
172.17.41.4 137.80.126.3 v10 2 O
172.17.41.4 137.80.129.1 v13 2 O
172.17.41.4 137.80.128.3 v12 2 O
172.17.41.8 0.0.0.0 1/2 1 D
Failover time in a multi-path topology
When a port in a multi-path topology fails, multicast devices, depending on the routing protocol being used, take a few seconds to establish
a new path, if the failed port is the input port of the downstream device.
Configuring a DR priority
The DR priority option lets you give preference to a particular device in the DR election process by assigning it a numerically higher DR
priority. This value can be set for IPv4 interfaces. To set a DR priority higher than the default value of 1, use the ip pim dr-priority command
as shown:
device(config-if-e10000-1/3/24)# ip pim dr-priority 50
Syntax: [no] ip pim dr-priority
priority-value
The
priority-value
variable is the value that you want to set for the DR priority. Optional values are: 0 - 65535. The default value is 1.
The no option removes the command and sets the DR priority back to the default value of 1.
The following information may be useful for troubleshooting.
1. If more than one device has the same DR priority on a subnet (as in the case of default DR priority on all), the device with the
numerically highest IP address on that subnet is elected as the DR.
2. The DR priority information is used in the DR election ONLY IF ALL the PIM devices connected to the subnet support the DR
priority option. If there is at least one PIM device on the subnet that does not support this option, then the DR election falls back to
the backwards compatibility mode in which the device with the numerically highest IP address on the subnet is declared the DR
regardless of the DR priority values.
Displaying basic PIM Dense configuration information
To display PIM Dense configuration information, enter the following command at any CLI level.
Device(config)# show ip pim dense
Global PIM Dense Mode Settings
Maximum Mcache : 12992 Current Count : 2
Hello interval : 30 Neighbor timeout : 105
Join/Prune interval : 60 Inactivity interval : 180
Hardware Drop Enabled : Yes Prune Wait Interval : 3
IPv4 Multicast Protocols
PIM Dense
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 81
Graft Retransmit interval : 180 Prune Age : 180
Route Precedence : mc-non-default mc-default uc-non-default uc-default
Syntax: show ip pim [ vrf
vrf-name
] dense
The vrf keyword allows you to display PIM dense configuration information for the VRF instance identified by the
vrf-name
variable.
This display shows the following information.
Field Description
Maximum Mcache The maximum number multicast cache entries allowed on the device.
Current Count The number of multicast cache entries currently used.
Hello interval How frequently the device sends hello messages out the PIM dense
interfaces.
Neighbor timeout The interval after which a PIM device will consider a neighbor to be absent.
Join/Prune interval How long a PIM device will maintain a prune state for a forwarding entry.
Inactivity interval How long a forwarding entry can remain unused before the device deletes
it.
Hardware Drop Enabled Displays Yes if the Passive Multicast Route Insertion feature is enabled and
No if it is not.
Prune Wait Interval The amount of time a PIM device waits before stopping traffic to neighbor
devices that do not want the traffic. The value can be from zero to three
seconds. The default is three seconds.
Graft Retransmit interval The interval between the transmission of graft messages.
Prune Age The number of packets the device sends using the path through the RP
before switching to using the SPT path.
Route Precedence The route precedence configured to control the selection of routes based
on the four route types:
• Non-default route from the mRTM
• Default route from the mRTM
• Non-default route from the uRTM
• Default route from the uRTM
Displaying all multicast cache entries in a pruned state
Use the following command to display all multicast cache entries that are currently in a pruned state and have not yet aged out.
Device(config)# show ip pim prune
1 (104.1.1.2 231.0.1.1):
e2/2,2/2(150)
2 (108.1.1.100 231.0.1.1):
e2/2,2/2(150)
3 (104.1.1.2 231.0.1.2):
e2/2,2/2(150)
4 (108.1.1.100 231.0.1.2):
e2/2,2/2(150)
5 (108.1.1.100 231.0.1.3):
e2/2,2/2(150)
6 (104.1.1.2 231.0.1.4):
e2/2,2/2(150)
7 (108.1.1.100 231.0.1.4):
e2/2,2/2(150)
8 (104.1.1.2 231.0.1.5):
e2/2,2/2(150)
9 (108.1.1.100 231.0.1.5):
e2/2,2/2(150)
Total Prune entries: 9
IPv4 Multicast Protocols
PIM Dense
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
82 Part Number: 53-1005289-01
Syntax: show ip pim [vrf
vrf-name
] prune
Displaying all multicast cache entries
You can use the following command to display all multicast cache entries.
Brocade(config)# show ip pim mcache
IP Multicast Mcache Table
Entry Flags : SM - Sparse Mode, SSM - Source Specific Multicast, DM - Dense Mode
RPT - RPT Bit, SPT - SPT Bit, LSRC - Local Source, LRCV - Local Receiver
HW - HW Forwarding Enabled, FAST - Resource Allocated, TAG - Need For
Replication Entry
REGPROB - Register In Progress, REGSUPP - Register Suppression Timer
MSDPADV - Advertise MSDP, NEEDRTE - Route Required for Src/RP, PRUN - DM
Prune Upstream
Interface Flags: IM - Immediate, IH - Inherited, WA - Won Assert
MJ - Membership Join, MI - Membership Include, ME - Membership Exclude
BR - Blocked RPT, BA - Blocked Assert, BF - Blocked Filter, BI - Blocked IIF
Total entries in mcache: 20
1 (140.140.140.3, 225.0.0.1) in v340 (tag e1/1/8), Uptime 00:00:02
Source is directly connected
Flags (0x200004e1) DM HW FAST TAG
fast ports: ethe 1/4/6 ethe 1/8/26
AgeSltMsk: 1, L2 FID: 8188, DIT: 3
Forwarding_oif: 2
L3 (HW) 2:
TR(e1/4/6,e1/4/6)(VL330), 00:00:02/0, Flags: IM
e1/8/26(VL310), 00:00:02/0, Flags: IM
Src-Vlan: 340
Syntax: show ip pim mcache [
source-address
|
group-address
| counts | dense |
dit-idx
| g_entries | receiver | sg_entries | sparse | ssm ]
The
source-address
parameter selects the multicast cache source address.
The
group-address
parameter selects the multicast cache group address.
The counts keyword indicates the count of entries.
The dense keyword displays only the PIM Dense Mode entries.
The
dit-idx
variable allows you to display all entries that match a specified dit.
The g_entries keyword displays only the (*, G) entries.
The receiver keyword allows you to display all entries that egress a specified interface.
The sg_entries keyword displays only the (S, G) entries.
The sparse keyword displays only the PIM Sparse Mode entries.
The ssm keyword displays only the SSM entries.
TABLE 3 Output fields from the show ip pim mcache command
Field Description
Total entries in mcache Shows the total number of PIM mcache entries
MJ Membership Join
MI Membership Include
ME Membership Exclude - Legend for the mcache entry printed once per page,
it gives the explanation of each of the flags used in the entry.
BR Blocked RPT
BA Blocked Assert
IPv4 Multicast Protocols
PIM Dense
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 83
TABLE 3 Output fields from the show ip pim mcache command (continued)
Field Description
BF Blocked Filter
BI Blocked IIF
Uptime Shows the software entry uptime.
upstream neighbor Shows the upstream neighbor for the Source/RP based on the type of
entry. For (*,G) it shows the upstream neighbor towards the RP. For (S,G)
entries it shows the upstream neighbor towards the source.
Flags Flags Represent Entry flags in hex format in the braces. And indicates the
meaning of the flags set in abbreviated string whose explanations are as
follows. Only shows the flags which are set.
SM - Shows If the entry is created by PIM Sparse Mode
DM - Shows If DM mode entry is enabled
SSM - Shows If the SSM mode entry is enabled
RPT - Shows If the entry is on the Rendezvous Point (RP)
SPT - Shows If the entry is on the source tree
LSRC - Shows If the source is in a directly-connected interface
LRcv - Shows If the receiver is directly connected to the router
REG - if the data registration is in progress
L2REG - if the source is directly connected to the router
REGSUPP - if the register suppression timer is running
RegProbe
HW - Shows If the candidate for hardware forwarding is enabled
FAST - Shows If the resources are allocated for hardware forwarding
TAG - Shows If there is a need for allocating entries from the replication
table
MSDPADV - Shows If RP is responsible for the source and must be
advertised to its peers.
NEEDRTE - Shows If there is no route to the source and RP is available
PRUNE - Shows If PIM DM Prune to upstream is required
RP Show the IP address of the RP.
fast ports Shows forwarding port mask.
AgeSltMsk Shows the slot number on which active module expects ingress traffic. This
value is 1 if the entry is programmed in hardware and is 0 if the entry is not
programmed in hardware.
L2 FID Hardware Resource allocated for the traffic switched to receivers in the
ingress VLAN.
DIT Hardware Resource allocated for router receivers.
RegPkt Shows the number of packets forwarded due to the Register decapsulation.
This field is displayed only on the active module. This field displays only
those entries for which the device is the RP. However, for a PIM DM entry
the RegPkt field is not displayed for the (S,G) entries on the active module.
Number of matching entries Shows the total number of mcache entries matching a particular multicast
filter specified.
IPv4 Multicast Protocols
PIM Dense
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
84 Part Number: 53-1005289-01
TABLE 3 Output fields from the show ip pim mcache command (continued)
Field Description
Outgoing interfaces Section This section consists of three parts. L3 OIFs, L2OIFs and Blocked OIFs.
And each section has Format of L3/L2/Blocked followed by (HW/SW)
followed by count of the number of OIF in each section.
Additionally, each section displays the OIFs one per line. And shows the OIF
in the format eth/Tr(Vlan) followed by uptime/expiry time, followed by the
Flags associated with each OIF.
L3 Shows whether the traffic is routed out of the interface.
L2 Shows whether the traffic is switched out of the interface.
HW Shows whether the entry is hardware forwarded.
SW Shows whether the entry is software forwarded.
Eth/Tr(VL1) Shows the outgoing interface on the specified VLAN.
Flags (explanation of flags in the OIF section) Shows the flags set in each of the Outgoing interface in abbreviated string
format whose explanations are as follows. Legend of this shown at the top
of each entry
IM - Immediate
IH - Inherited
MJ - Membership Join
MI - Membership Include
ME - Membership Exclude
BR - Blocked due to SG RPT
BA - Blocked due to Assert
BF - Blocked due to Filter
BI - Blocked IIF (Incoming interface) matches OIF
Src-VLAN VLAN associated with the ingress interface.
MCTPEERF - Traffic Forw By Cluster Peer CCEP Applies only to Layer 3 multicast routing over MCT. This means multicast
traffic for this stream is forwarded by cluster peer [remote] CCEP port
because of flow load balancing
You can use the following command to filter the output to display only entries that egress ethernet port 1/1/1.
device#show ip pim mcache receiver ethernet 1/1/1
You can use the following command to filter the output to display only the Source Specific Multicast (SSM) routes in the mcache.
device#show ip pim mcache ssm
You can use the following command to filter the output to display only the Sparse Mode routes in the mcache.
device#show ip pim mcache sparse
You can use the following command to filter the output to display only the Dense Mode routes in the mcache.
device#show ip pim mcache dense
You can use the following command to filter the output to display only the entries matching a specific source.
device#show ip pim mcache 1.1.1.1
IPv4 Multicast Protocols
PIM Dense
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 85
You can use the following command to filter the output to display only the entries matching a specific group.
device#show ip pim mcache 239.1.1.1
Displaying information across VRFs
Use the following command to display information across all active VRFs.
Brocade#show ip pim all-vrf
bsr Bootstrap router
flow-count Show flowcache counters
hw-resource PIM hw resources
interface PIM interface
neighbor PIM neighbor states
resource PIM resources
rp-set List of rendezvous point (RP) candidates
traffic Active multicast traffic
PIM convergence on MAC movement
PIM convergence occurs when the PIM module is notified of a topology change.
The notification is triggered upon a change in port status, Reverse Path Forwarding (RPF) failure in the hardware, or by the unicast routing
module if there is a change in the Layer 3 topology. If the topology change occurs without setting off any of the two events or if the Layer 3
topology change is not notified by the unicast routing module, PIM convergence does not take place.
If there is a change in the source traffic at the Layer 2 interface level, the RPF check fails because only loose RPF check is supported (loose
RPF check detects the change in the source traffic only at the Layer 3 interface level). A notification for a change in the source traffic at the
Layer 2 interface level can be triggered by establishing a signaling process for MAC address movement. The MAC address movement
notification triggers RPF check on MAC movement for directly connected sources. The MAC address movement notification can be
triggered by configuring the ip multicast-routing rpf-check mac-movement command. The MAC address movement notification triggers
a notification to the PIM module which results in convergence. PIM convergence is supported in both PIM Sparse and PIM Dense modes.
PIM convergence on MAC movement is supported on the Brocade ICX 7xxx switches.
NOTE
PIM convergence on MAC movement is applicable only in a topology where the multicast source port and PIM routers are in the
same Layer 2 domain.
PIM Sparse
Ruckus devices support Protocol Independent Multicast (PIM) Sparse version 2. PIM Sparse provides multicasting that is especially suitable
for widely distributed multicast environments. The Ruckus implementation is based on RFC 2362.
In a PIM Sparse network, a PIM Sparse device that is connected to a host that wants to receive information for a multicast group must
explicitly send a join request on behalf of the receiver (host).
PIM Sparse devices are organized into domains. A PIM Sparse domain is a contiguous set of devices that all implement PIM and are
configured to operate within a common boundary. Figure 5 shows a simple example of a PIM Sparse domain. This example shows three
devices configured as PIM Sparse devices. The configuration is described in detail following the figure.
IPv4 Multicast Protocols
PIM convergence on MAC movement
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
86 Part Number: 53-1005289-01

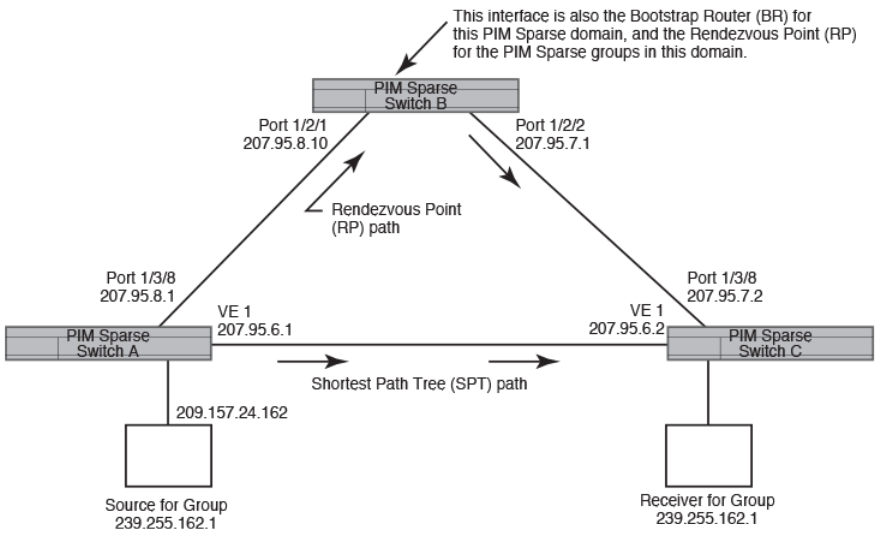

FIGURE 5 Example PIM Sparse domain
PIM Sparse device types
Devices that are configured with PIM Sparse interfaces also can be configured to fill one or more of the following roles:
• PMBR - A PIM device that has some interfaces within the PIM domain and other interface outside the PIM domain. PBMRs
connect the PIM domain to the Internet.
• BSR - The Bootstrap Router (BSR) distributes RP information to the other PIM Sparse devices within the domain. Each PIM
Sparse domain has one active BSR. For redundancy, you can configure ports on multiple devices as candidate BSRs. The PIM
Sparse protocol uses an election process to select one of the candidate BSRs as the BSR for the domain. The BSR with the
highest BSR priority (a user-configurable parameter) is elected. If the priorities result in a tie, then the candidate BSR interface with
the highest IP address is elected. In the example in Figure 5 on page 87, PIM Sparse device B is the BSR. Port 1/2/2 is configured
as a candidate BSR.
• RP - The RP is the meeting point for PIM Sparse sources and receivers. A PIM Sparse domain can have multiple RPs, but each
PIM Sparse multicast group address can have only one active RP. PIM Sparse devices learn the addresses of RPs and the groups
for which they are responsible from messages that the BSR sends to each of the PIM Sparse devices. In the example in Figure 5
on page 87, PIM Sparse device B is the RP. Port 1/2/2 is configured as a candidate Rendezvous Point (RP). To enhance overall
network performance, the Ruckus device uses the RP to forward only the first packet from a group source to the group’s
receivers. After the first packet, the Ruckus device calculates the shortest path between the receiver and source (the Shortest
Path Tree, or SPT) and uses the SPT for subsequent packets from the source to the receiver. The Ruckus device calculates a
separate SPT for each source-receiver pair.
NOTE
It is recommended that you configure the same ports as candidate BSRs and RPs.
IPv4 Multicast Protocols
PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 87
RP paths and SPT paths
Figure 5 on page 87 shows two paths for packets from the source for group 239.255.162.1 and a receiver for the group. The source is
attached to PIM Sparse device A and the recipient is attached to PIM Sparse device C. PIM Sparse device B in is the RP for this multicast
group. As a result, the default path for packets from the source to the receiver is through the RP. However, the path through the RP
sometimes is not the shortest path. In this case, the shortest path between the source and the receiver is over the direct link between
device A and device C, which bypasses the RP (device B).
To optimize PIM traffic, the protocol contains a mechanism for calculating the Shortest Path Tree (SPT) between a given source and
receiver. PIM Sparse devices can use the SPT as an alternative to using the RP for forwarding traffic from a source to a receiver. By default,
the Ruckus device forwards the first packet they receive from a given source to a given receiver using the RP path, but forward subsequent
packets from that source to that receiver through the SPT. In Figure 5 on page 87, device A forwards the first packet from group
239.255.162.1’s source to the destination by sending the packet to device B, which is the RP. Device B then sends the packet to device C.
For the second and all future packets that device A receives from the source for the receiver, device A forwards them directly to device C
using the SPT path.
Configuring PIM Sparse
To configure a Ruckus device for PIM Sparse, perform the following tasks:
•Configure the following global parameter:
– Enable the PIM Sparse mode of multicast routing.
•Configure the following interface parameters:
–Configure an IP address on the interface
– Enable PIM Sparse.
– Identify the interface as a PIM Sparse border, if applicable.
•Configure the following PIM Sparse global parameters:
– Identify the Ruckus device as a candidate PIM Sparse Bootstrap Router (BSR), if applicable.
– Identify the Ruckus device as a candidate PIM Sparse Rendezvous Point (RP), if applicable.
– Specify the IP address of the RP (if you want to statically select the RP).
NOTE
It is recommended that you configure the same Ruckus device as both the BSR and the RP.
Current limitations
The implementation of PIM Sparse in the current software release has the following limitations:
• PIM Sparse and regular PIM (dense mode) cannot be used on the same interface.
• You cannot configure or display PIM Sparse information using the Web Management Interface. (You can display some general PIM
information, but not specific PIM Sparse information.)
Configuring global PIM Sparse parameters
To configure basic global PIM Sparse parameters, enter commands such as the following on each Brocade device within the PIM Sparse
domain.
Device(config)# router pim
Syntax: [no] router pim
IPv4 Multicast Protocols
PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
88 Part Number: 53-1005289-01
NOTE
You do not need to globally enable IP multicast routing when configuring PIM Sparse.
The command in this example enables IP multicast routing, and enables the PIM Sparse mode of IP multicast routing. The command does
not configure the Brocade device as a candidate PIM Sparse Bootstrap Router (BSR) and candidate Rendezvous Point (RP). You can
configure a device as a PIM Sparse device without configuring the Brocade device as a candidate BSR and RP. However, if you do
configure the device as one of these, it is recommended that you configure the device as both of these. Refer to the “Configuring BSRs”
section.
Entering a no router pim command does the following:
• Disables PIM.
• Removes all configuration for PIM multicast on a Brocade device (router pim level) only.
Enabling PIM Sparse for a specified VRF
To enable PIM for the VRF named "blue", use the following commands.
Device(config)# router pim vrf blue
Syntax: [no] router pim [vrf
vrf-name
]
The vrf parameter allows you to configure PIM (PIM-DM and PIM-SM) on the virtual routing instance (VRF) specified by the
vrf-name
variable. All PIM parameters available for the default router instance are configurable for a VRF-based PIM instance.
The no router pim vrf command behaves in the following manner:
• Entering the router pim vrf command to enable PIM does not require a software reload.
• Entering a no router pim vrf command removes all configuration for PIM multicast on the specified VRF.
Configuring PIM interface parameters
After you enable IP multicast routing and PIM Sparse at the global level, you must enable it on the individual interfaces connected to the
PIM Sparse network.
To enable PIM Sparse mode on an interface, enter commands such as the following.
device(config)# interface ethernet 1/2/2
device(config-if-e10000-1/2/2)# ip address 207.95.7.1 255.255.255.0
device(config-if-e10000-1/2/2)# ip pim-sparse
Syntax: [no] ip pim-sparse
The commands in this example add an IP interface to port 1/2/2, then enable PIM Sparse on the interface.
If the interface is on the border of the PIM Sparse domain, you also must enter the following command.
device(config-if-e10000-1/2/2)# ip pim border
Syntax: [no] ip pim border
Configuring BSRs
In addition to the global and interface parameters described in the previous sections, you need to identify an interface on at least one device
as a candidate PIM Sparse Bootstrap router (BSR) and candidate PIM Sparse rendezvous point (RP).
IPv4 Multicast Protocols
PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 89
NOTE
It is possible to configure the device as only a candidate BSR or RP, but it is recommended that you configure the same interface
on the same device as both a BSR and an RP.
This section describes how to configure BSRs. Refer to the “Configuring RPs” section for instructions on how to configure RPs.
To configure the device as a candidate BSR, enter commands such as the following.
Device(config)# router pim
Device(config-pim-router)# bsr-candidate ethernet 1/2/2 30 255
These commands configure the PIM Sparse interface on port 1/2/2 as a BSR candidate, with a hash mask length of 30 and a priority of
255.
Syntax: [no] bsr-candidate { ethernet
unit/slot/port
| loopback
num
| ve
num
| tunnel }
num hash-mask-length
[
priority
]
The ethernet
unit/slot/port
, loopback
num
, ve
num
, and tunnel
num
parameters specify the interface. The device will advertise the IP
address of the specified interface as a candidate BSR.
• Enter ethernet
unit/slot/port
for a physical interface (port).
• Enter ve
num
for a virtual interface.
• Enter loopback
num
for a loopback interface.
• Enter tunnel
num
for a GRE tunnel interface.
The
numhash-mask-length
variable specifies the number of bits in a group address that are significant when calculating the group-to-RP
mapping. You can specify a value from 1 to 32.
NOTE
it is recommended that you specify 30 for IP version 4 (IPv4) networks.
The
priority
variable specifies the BSR priority. You can specify a value from 0 to 255. When the election process for BSR takes place, the
candidate BSR with the highest priority becomes the BSR. The default is 0.
Configuring RPs
Enter a command such as the following to configure the device as a candidate RP.
Device(config-pim-router)# rp-candidate ethernet 1/2/2
Syntax: [no] rp-candidate ethernet { ethernet
unit/slot/port
| loopback
num
| ve
num
| tunnel
num
}
The ethernet
unit/slot/port
, loopback
num
, ve
num
, and tunnel
num
parameters specify the interface. The device will advertise the IP
address of the specified interface as a candidate RP.
• Enter ethernet
unit/slot/port
for a physical interface (port).
• Enter ve
num
for a virtual interface.
• Enter loopback
num
for a loopback interface.
• Enter tunnel
num
for a GRE tunnel interface.
By default, this command configures the device as a candidate RP for all group numbers beginning with 224. As a result, the device is a
candidate RP for all valid PIM Sparse group numbers. You can change this by adding or deleting specific address ranges. Consider the
following when configuring the RP.
• When the candidate RP is configured, before explicitly specifying the groups that it serves, the c-rp does, by default, serve all the
groups in the PIMSM multicast range, but this includes all groups beginning with 224.x.x.x all the way up to 239.x.x.x. This is
IPv4 Multicast Protocols
PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
90 Part Number: 53-1005289-01
reflected in the "rp-candidate add 224.0.0.0 4" line displayed as part of the runtime configuration. This entry will be referred to as
the DEFAULT PREFIX.
• When any group prefix is explicitly added (and the 224.0.0.0/4 prefix itself can also be explicitly added through CLI), the default
prefix is implicitly removed. Now, the only groups served by the candidate RP, are the groups that have been explicitly added.
• All explicitly added groups can be removed using the "delete" option or "no ... add" option. However, once all the explicitly added
groups are deleted from the Candidate RP group prefix list, the default prefix becomes active once more. This default group prefix
CANNOT BE REMOVED.
• It is not possible to punch holes in the group prefix range. For instance executing
rp-candidate add 228.0.0.0/16
and then,
rp-candidate delete 228.0.1.0/24
is not permissible. It cannot be used to ensure that the rp-candidate will serve all group prefixes in the 228.0.0.0/16 range except those in
the 228.0.1.0/24 range.
The following example narrows the group number range for which the device is a candidate RP by explicitly adding a range.
Device(config-pim-router)# rp-candidate add 224.126.0.0 16
Syntax: [no] rp-candidate add
group-addr
mask-bits
The
group-addr
mask-bits
variable specifies the group address and the number of significant bits in the subnet mask. In this example, the
device is a candidate RP for all groups that begin with 224.126. When you add a range, you override the default. The device then becomes
a candidate RP only for the group address ranges you add.
You also can delete the configured rp-candidate group ranges by entering the following command.
Device(config-pim-router)# rp-candidate delete 224.126.22.0 24
Syntax: [no] rp-candidate delete
group-addr
mask-bits
The usage of the
group-addr
mask-bits
parameter is the same as for the rp-candidate add command.
Updating PIM-Sparse forwarding entries with new RP configuration
If you make changes to your static RP configuration, the entries in the PIM-Sparse multicast forwarding table continue to use the old RP
configuration until they are aged out.
The clear pim rp-map command allows you to update the entries in the static multicast forwarding table immediately after making RP
configuration changes. This command is meant to be used with rp-address command.
To update the entries in a PIM sparse static multicast forwarding table with new RP configuration, enter the following command at the
privileged EXEC level of the CLI.
Device(config)# clear ip pim rp-map
Syntax: clear ip pim [ vrf
vrf-name
] rp-map
Use the vrf keyword to clear the PIM sparse static multicast forwarding table for a VRF instance specified by the
vrf-name
variable.
Statically specifying the RP
It is recommended that you use the PIM Sparse protocol’s RP election process so that a backup RP can automatically take over if the
active RP router becomes unavailable. However, if you do not want the RP to be selected by the RP election process but instead you want
to explicitly identify the RP by P address, use the rp-address command.
IPv4 Multicast Protocols
PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 91
If you explicitly specify the RP, the device uses the specified RP for all group-to-RP mappings and overrides the set of candidate RPs
supplied by the BSR.
NOTE
Specify the same IP address as the RP on all PIM Sparse devices within the PIM Sparse domain. Make sure the device is on the
backbone or is otherwise well connected to the rest of the network.
To specify the IP address of the RP, enter commands such as the following.
Device(config)# router pim
Device(config-pim-router)# rp-address 207.95.7.1
Syntax: [no] rp-address
ip-addr
The
ip-addr
variable specifies the IP address of the RP.
The command in this example identifies the device interface at IP address 207.95.7.1 as the RP for the PIM Sparse domain. The device
uses the specified RP and ignore group-to-RP mappings received from the BSR.
ACL-based RP assignment
The rp-address command allows multiple static rendezvous point (RP) configurations. For each static RP, an ACL can be given as an
option to define the multicast address ranges that the static RP permit or deny to serve.
A static RP by default serves the range of 224.0.0.0/4 if the RP is configured without an ACL name. If an ACL name is given but the ACL is
not defined, the static RP is set to inactive mode and it will not cover any multicast group ranges.
The optional static RP ACL can be configured as a standard ACL or as an extended ACL. For an extended ACL, the destination filter will be
used to derive the multicast group range and all other filters are ignored. The content of the ACL needs to be defined in the order of prefix
length; the longest prefix must be placed at the top of the ACL definition.
If there are overlapping group ranges among the static RPs, the static RP with the longest prefix match is selected. If more than one static
RP covers the exact same group range, the highest IP static RP will be used.
Configuration considerations:
• The Static RP has higher precedence over RP learnt from the BSR.
• There is a limit of 64 static RPs in the systems.
Configuring an ACL based RP assignment
To configure an ACL based RP assignment, enter commands such as the following.
device(config)# router pim
device(config-pim-router)# rp-address 130.1.1.1 acl1
Syntax: [no] rp-address
ip_address
[
acl_name_or_id
]
Use the ip address parameter to specify the IP address of the device you want to designate as an RP device.
Use the
acl name
or
id
(optional) parameter to specify the name or ID of the ACL that specifies which multicast groups use this RP.
IPv4 Multicast Protocols
PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
92 Part Number: 53-1005289-01
Displaying the static RP
Use the show ip pim rp-set command to display static RP and the associated group ranges.
device(config)# show ip pim rp-set
Static RP and associated group ranges
-------------------------------------
Static RP count: 4
130.1.1.1
120.1.1.1
120.2.1.1
124.1.1.1
Number of group prefixes Learnt from BSR: 0
No RP-Set present.
Use the show ip pim rp-map command to display all current multicast group addresses to RP address mapping.
device(config)# show ip pim rp-map
Number of group-to-RP mappings: 5
-------------------------------------------
S.No Group address RP address
-------------------------------------------
1 225.1.1.1 25.0.0.25
2 225.1.1.2 25.0.0.25
3 225.1.1.3 25.0.0.25
4 225.1.1.4 25.0.0.25
5 225.1.1.5 25.0.0.25
IP multicast PIM neighbor filter
The IP multicast PIM neighbor filter feature allows you to control which devices can be PIM neighbors.
When two PIM-enabled neighbor devices exchange Hello packets at regular intervals they become PIM neighbors by default. The IP
multicast PIM neighbor filter feature gives you more control over which devices can be PIM neighbors by configuring the ip pim neighbor-
lter command or ipv6 pim neighbor-lter command. You can configure the ACL to filter PIM Hello packets from sources you want to
deny or allow, thereby controlling those devices' eligibility to become PIM neighbors.
FIGURE 6 Multicast PIM filter topology
TABLE 4 Configurations for devices running IP multicast PIM filters
Device 1 Device 2
access-list 10 deny host 10.0.0.2
access-list 10 permit any
interface ethernet 1/1/1
enable
ip address 10.0.0.1/24
ip pim-sparse
interface ethernet 1/1/2
enable
ip address 10.0.0.2/24
ip pim-sparse
IPv4 Multicast Protocols
IP multicast PIM neighbor filter
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 93
TABLE 4 Configurations for devices running IP multicast PIM filters (continued)
ip pim neighbor-filter 10
Limitations
ACLs deny all access by default and you must configure the access-list permit command to permit access to one or more devices. You
can configure the access-list permit all command on an interface to permit traffic on the interface to pass through without filtering.
An interface can have only one ACL configured on it.
There are no checks to validate whether an ACL applies to an interface. If the interface has no ACL, a warning that no filtering can occur is
displayed.
The IP multicast PIM neighbor filter feature supports a maximum of 128 PIM neighbor filters for both IPv4 and IPv6.
Precedence-value matching in extended-ACL configurations is not supported. Refer to the
FastIron Security Configuration Guide
for
information on ACLs.
Configuring IPv4 PIM neighbor filtering
Configure an ACL and apply it to an interface to control neighbor access.
1. Configure an ACL named 10 to deny access to the device 10.10. 102.
Device(config)#access-list 10 deny host 10.10.10.2
You can identify the ACL by name as an ASCII string, by a number in the range 1 to 99 (for a standard ACL), or by a number in the
range 100 to 199 (for an extended ACL).
2. Configure ACL 10 to permit access to all other devices.
Device(config)#access-list 10 permit any
3. Configure an Ethernet interface.
Device(config)#interface ethernet 1/3/2
Configures an interface and enters interface configuration mode.
4. Configure a filter that applies ACL 10 to the interface.
Device(config-if-e1000-1/3/2)#ip pim neighbor-filter 10
Prevents the host that is specified in ACL 10, 10.10.10.2, from becoming a PIM neighbor on the interface.
PIM Passive
PIM Passive is used to reduce and minimize unnecessary PIM Hello and other PIM control messages.
PIM Passive allows you to specify that the interface is "passive" in regards to PIM. No PIM control packets are sent or processed (if
received), but hosts can still send and receive multicast traffic and IGMP control traffic on the interface. Also, PIM Passive prevents any
malicious router from taking over as the designated router (DR), which can prevent all hosts on the LAN from joining multicast traffic outside
the LAN.
The following guidelines apply to PIM Passive:
• PIM Passive is a Layer 3 interface [Ethernet/VE] level feature.
IPv4 Multicast Protocols
PIM Passive
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
94 Part Number: 53-1005289-01
• Because the loopback interfaces are never used to form PIM neighbors, PIM Passive is not supported on loopback interfaces.
• Both PIM SM and PIM DM modes support PIM Passive.
• Applying PIM Passive on an interface requires PIM to be enabled on the interface.
• The sent and received statistics of a PIM Hello message are not changed for an interface while it is configured as PIM passive.
To enable PIM Passive on an interface, enter the following commands:
device# configure terminal
device(config)# router pim
device(config-pim-router)# exit
device(config)# interface ethernet 2
device(config-if-e1000-2)# ip pim
device(config-if-e1000-2)# ip pim passive
device(config-if-e1000-2)# exit
device(config)# interface ve 2
device(config-vif-2)# ip pim-sparse
device(config-vif-2)# ip pim passive
device(config-vif-2)# exit
Syntax: [no] ip pim passive
Multicast Outgoing Interface (OIF) list optimization
Each multicast route entry maintains a list of outgoing interfaces (OIF List) to which an incoming multicast data packet matching the route is
replicated. In hardware-forwarded route entries, these OIF lists are stored inside the hardware in replication tables which are limited in size.
In many deployment scenarios, more than one multicast route can have identical OIF lists and can optimize usage of the replication table
entries by sharing them across multiple multicast routes.
Multicast OIF list optimization keeps track of all the OIF lists in the system. It manages the hardware replication resources optimally, in real
time, by dynamically assigning or re-assigning resources to multicast route entries to suit their current OIF list requirements, while
maximizing resource sharing.
NOTE
IPv4 multicast routes do not share hardware replication table entries with IPv6 multicast routes even if they share the same OIF
lists.
Displaying system values
To display default, maximum, current, and configured values for system maximum parameters, use the show default values command. The
following output example does not show complete output; it shows only PIM hardware mcache values.
device(config)#show default values
System Parameters Default Maximum Current Configured
pim-hw-mcache 1024 6144 1500 1500
Displaying PIM resources
To display the hardware resource information, such as hardware allocation, availability, and limit for software data structure, enter the show
ip pim resource command.
device# show ip pim resource
Global PIM Parameters :-
GLOBAL Ipv4 MULTICAST CLASS Size:16811 bytes
IPv4 Multicast Protocols
Displaying PIM resources
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 95
GLOBAL Ipv4 PIM CLASS Size:1065 bytes
MULTICAST IPV4 CLASS Num alloc:5, System max:129, Size:1228 bytes
PIM IPV4 CLASS Num alloc:5, System max:129, Size:50440
Vrf Instance : default-vrf
--------------------------------------
alloc in-use avail get-fail limit get-mem size init
NBR list 256 3 253 0 512 4 90 256
RP set list 256 4 252 0 1536 5032 43 256
Static RP 64 0 64 0 64 0 36 64
LIF Entry 512 0 512 0 512 0 41 512
Anycast RP 64 0 64 0 64 0 190 64
timer 256 0 256 0 59392 4 64 256
prune 128 0 128 0 29696 0 34 128
pimsm J/P elem 1024 0 1024 0 48960 1258 29 1024
Timer Data 256 1 255 0 59392 2 28 256
mcache SLIB Sync 280 0 280 0 64960 20 28 280
mcache 56 2 54 0 12992 2 796 56
graft if no mcache 197 0 197 0 45704 0 64 197
HW replic vlan 2000 3 1997 0 464000 4 66 2000
HW replic port 1024 3 1021 0 237568 4 78 1024
pim/dvm intf. group 256 0 256 0 59392 0 24 256
pim/dvm global group 256 2 254 0 59392 2 46 256
repl entry(Global) 1024 0 1024 0 237568 4 43 1024
IGMP Resources(All Vrfs):
groups 256 2 254 0 4096 2 210 256
group-memberships 256 2 254 0 4096 2 142 256
sources 56 1 55 0 12992 606 59 56
client sources 56 0 56 0 12992 0 81 56
ssm-map 256 0 256 0 256 0 18 256
ssm-map-sources 256 0 256 0 59392 0 1024 256
Hardware-related Resources:
Total (S,G) entries 1
Total SW FWD entries 0
Total sw w/Tag MVID entries 0
Total sw w/Tag invalid MVID entries 0
Total HW FWD entries 1
Total hw w/Tag MVID entries 0
Total hw w/Tag invalid MVID entries 0
Syntax: show ip pim [all-vrf | [ vrf
vrf-name
] ] resource
The vrf parameter allows you to display hardware resource information for the VRF instance identified by the
vrf-name
variable.
The following table displays the output from the show ip pim resource command.
TABLE 5 Output from the show ip pim resource command
Field Description
Num alloc Number of VRF instances allocated.
System max Maximum number of VRFs allowed in the system.
Size Size of one instance of the resource in bytes.
alloc Number of nodes of that data that are currently allocated in memory.
in-use Number of allocated nodes in use.
avail Number of allocated nodes are not in use.
get-fail Number of allocation failures for this node.
limit Maximum number of nodes that can be allocated for a data structure. This
may or may not be configurable, depending on the data structure
get-mem Number of successful allocations for this node.
size Size of the node in bytes.
init Number of nodes that are allocated during initialization time.
IPv4 Multicast Protocols
Displaying PIM resources
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
96 Part Number: 53-1005289-01
To display usage and fail-count information for SG entries on each VRF, use the show ip pim all-vrf hw-resource command.
device# show ip pim all-vrf hw-resource
VRF Usage Fail
default-vrf 3072 8
blue 3072 0
-------------------------------
Total usage 6144
System-max limit for SG entries: 6144
Syntax: show ip pim [all-vrf | [ vrf
vrf-name
] ] hw-resource
The vrf parameter allows you to display hardware resource information for the VRF instance identified by the
vrf-name
variable.
The following table displays the output from the show ip pim all-vrf hw-resource command.
TABLE 6 Output from the show ip pim all-vrf hw-resource command
Field Description
VRF Name of the VRF.
Usage Number of allocated SG entries in this VRF.
Fail Number of failures while allocating SG entries in this VRF (due to the
system-max limit.
Total usage Total number of SG entries in the system (all VRFs).
System-max limit for SG entries Configured system limit for pim-hw-mcache.
Displaying PIM Sparse configuration information and
statistics
You can display the following PIM Sparse information:
• Basic PIM Sparse configuration information
• Group information
• BSR information
• Candidate RP information
• RP-to-group mappings
• RP information for a PIM Sparse group
• RP set list
• PIM neighbor information
• The PIM flow cache
• The PIM multicast cache
• PIM traffic statistics
• PIM counter statistics
IPv4 Multicast Protocols
Displaying PIM Sparse configuration information and statistics
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 97
Displaying basic PIM Sparse configuration information
To display PIM Sparse configuration information, enter the following command at any CLI level.
Device(config)# show ip pim sparse
Global PIM Sparse Mode Settings
Maximum Mcache : 12992 Current Count : 2
Hello interval : 30 Neighbor timeout : 105
Join/Prune interval : 60 Inactivity interval : 180
Hardware Drop Enabled : Yes Prune Wait Interval : 3
Bootstrap Msg interval : 60 Candidate-RP Msg interval : 60
Register Suppress Time : 60 Register Probe Time : 10
Register Stop Delay : 10 Register Suppress interval : 60
SSM Enabled : Yes SPT Threshold : 1
SSM Group Range : 232.0.0.0/8
Route Precedence : mc-non-default mc-default uc-non-default uc-default
Syntax: show ip pim [vrf
vrf-name
] sparse
The vrf keyword allows you to display PIM sparse configuration information for the VRF instance identified by the
vrf-name
variable.
This example shows the PIM Sparse configuration information on PIM Sparse device A in Figure 5 on page 87.
The following table shows the information displayed by the show ip pim sparse command.
TABLE 7 Output of the show ip pim sparse command
This field... Displays...
Global PIM Sparse mode settings
Maximum mcache Maximum number of multicast cache entries.
Current Count Number of multicast cache entries used.
Hello interval How frequently the device sends IPIM Sparse hello messages to its PIM
Sparse neighbors. This field shows the number of seconds between hello
messages. PIM Sparse routers use hello messages to discover one another.
Neighbor timeout Number of seconds the device waits for a hello message from a neighbor
before determining that the neighbor is no longer present and is not
removing cached PIM Sparse forwarding entries for the neighbor. Default is
105 seconds.
Join or Prune interval How frequently the device sends IPv6 PIM Sparse Join or Prune messages
for the multicast groups it is forwarding. This field shows the number of
seconds between Join or Prune messages.
The device sends Join or Prune messages on behalf of multicast receivers
that want to join or leave an PIM Sparse group. When forwarding packets
from PIM Sparse sources, the device sends the packets only on the
interfaces on which it has received join requests in Join or Prune messages
for the source group.
Inactivity interval Number of seconds a forwarding entry can remain unused before the router
deletes it. Default is 180 sec.
Hardware Drop Enabled Indicates whether hardware drop is enabled or disabled.
To prevent unwanted multicast traffic from being sent to the CPU, PIM
Routing and Passive Multicast Route Insertion (PMRI) can be used together
to ensure that multicast streams are only forwarded out ports with
interested receivers and unwanted traffic is dropped in the hardware on
Layer 3 Switches.
Prune Wait Interval Number of seconds a PIM device waits before stopping traffic to neighbor
devices that do not want the traffic. Range is from zero to three seconds.
Default is three seconds.
IPv4 Multicast Protocols
Displaying PIM Sparse configuration information and statistics
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
98 Part Number: 53-1005289-01
TABLE 7 Output of the show ip pim sparse command (continued)
This field... Displays...
Bootstrap Msg interval How frequently the BSR configured on the device sends the RP set to the
RPs within the PIM Sparse domain. The RP set is a list of candidate RPs
and their group prefixes. The group prefix of a candidate RP indicates the
range of PIM Sparse group numbers for which it can be an RP.
NOTE
This field contains a value only if an interface on the device is
elected to be the BSR. Otherwise, the field is blank.
Candidate-RP Msg interval Number of seconds the candidate RP configured on the Layer 3 switch
sends candidate RP advertisement messages to the BSR. Default is 60
seconds.
Register Suppress Time This is the mean interval between receiving a Register-Stop and allowing
registers to be sent again. A lower value means more frequent register
bursts at RP, while a higher value means longer join latency for new
receivers. Default: 60 seconds.
Register Probe Time Number of seconds the PIM router waits for a register-stop from an RP
before it generates another NULL register to the PIM RP. Default is 10
seconds.
Register Stop Delay Register stop message. Default is 10 seconds.
Register Suppress interval Number of seconds that it takes the designated router to send a Register-
encapsulated date to the RP after receiving a Register-Stop message.
Default is 60 seconds.
SSM Enabled If yes, Source-Specific Multicast is configured globally on this router.
SPT threshold Number of packets the device sends using the path through the RP before
switching to the SPT path. Default is 1 packet.
SSM Group Range Source-Specific Multicast group range.
Route Precedence The route precedence configured to control the selection of routes based
on the four route types:
• Non-default route from the mRTM
• Default route from the mRTM
• Non-default route from the uRTM
• Default route from the uRTM
Displaying a list of multicast groups
To display PIM group information, enter the following command at any CLI level.
Device(config)# show ip pim group
Total number of groups for VRF default-vrf: 7
1 Group 226.0.34.0
Group member at e1/2/9: v59
Group member at e1/1/16: v57
2 Group 226.0.77.0
Group member at e1/2/9: v59
Group member at e1/1/16: v57
3 Group 226.0.120.0
Group member at e1/2/9: v59
Group member at e1/1/16: v57
4 Group 226.0.163.0
Group member at e1/2/9: v59
Group member at e1/1/16: v57
5 Group 226.0.206.0
Group member at e1/2/9: v59
Group member at e1/16: v57
IPv4 Multicast Protocols
Displaying PIM Sparse configuration information and statistics
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 99
6 Group 226.0.249.0
Group member at e1/2/9: v59
Group member at e1/1/16: v57
7 Group 226.0.30.0
Group member at e1/2/9: v59
Group member at e1/1/16: v57
device(config)#
Syntax: show ip pim [vrf
vrf-name
] group
The vrf keyword allows you to display PIM group information for the VRF instance identified by the
vrf-name
variable.
The following table describes the output from this command:
TABLE 8 Output from the show ip pim group command
This field... Displays...
Total number of Groups Lists the total number of IP multicast groups the device is forwarding.
NOTE
This list can include groups that are not PIM Sparse groups. If
interfaces on the device are configured for regular PIM (dense
mode), these groups are listed too.
Index The index number of the table entry in the display.
Group The multicast group address
Ports The device ports connected to the receivers of the groups.
Displaying BSR information
To display BSR information, enter the following command at any CLI level.
device(config)# show ip pim bsr
PIMv2 Bootstrap information for Vrf Instance : default-vrf
------------------------------------------------------------------------------
This system is the Elected BSR
BSR address: 1.51.51.1. Hash Mask Length 32. Priority 255.
Next bootstrap message in 00:01:00
Configuration:
Candidate loopback 2 (Address 1.51.51.1). Hash Mask Length 32. Priority 255.
Next Candidate-RP-advertisment in 00:01:00
RP: 1.51.51.1
group prefixes:
224.0.0.0 / 4
Candidate-RP-advertisement period: 60
This example shows information displayed on a device that has been elected as the BSR. The next example shows information displayed
on a device that is not the BSR. Notice that some fields shown in the example above do not appear in the example below
device(config)#show ip pim bsr
PIMv2 Bootstrap information for Vrf Instance : default-vrf
----------------------------------------------------------------------------
BSR address: 1.51.51.1. Hash Mask Length 32. Priority 255.
Next Candidate-RP-advertisment in 00:00:30
RP: 1.51.51.3
group prefixes:
224.0.0.0 / 4
Candidate-RP-advertisement period: 60
device(config)#
Syntax: show ip pim [vrf
vrf-name
] bsr
The vrf keyword allows you to display BSR information for the VRF instance identified by the
vrf-namevrf-name
variable.
IPv4 Multicast Protocols
Displaying PIM Sparse configuration information and statistics
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
100 Part Number: 53-1005289-01
The following table describes the output from this command.
TABLE 9 Output from the show ip pim bsr command
This field... Displays...
BSR address The IP address of the interface configured as the PIM Sparse Bootstrap
Router (BSR).
BSR priority The priority assigned to the interface for use during the BSR election
process. During BSR election, the priorities of the candidate BSRs are
compared and the interface with the highest BSR priority becomes the
BSR.
Hash mask length The number of significant bits in the IP multicast group comparison mask.
This mask determines the IP multicast group numbers for which the device
can be a BSR. The default is 32 bits, which allows the device to be a BSR
for any valid IP multicast group number.
NOTE
This field appears only if this device is a candidate BSR.
Next bootstrap message in Indicates how much time will pass before the BSR sends the next bootstrap
message. The time is displayed in "hh:mm:ss" format.
NOTE
This field appears only if this device is the BSR.
Next Candidate-RP-advertisement message in Indicates how much time will pass before the BSR sends the next
candidate PR advertisement message. The time is displayed in "hh:mm:ss"
format.
NOTE
This field appears only if this device is a candidate BSR.
RP Indicates the IP address of the Rendezvous Point (RP).
NOTE
This field appears only if this device is a candidate BSR.
group prefixes Indicates the multicast groups for which the RP listed by the previous field is
a candidate RP.
NOTE
This field appears only if this device is a candidate BSR.
Candidate-RP-advertisement period Indicates how frequently the BSR sends candidate RP advertisement
messages.
NOTE
This field appears only if this device is a candidate BSR.
Displaying candidate RP information
To display candidate RP information, enter the following command at any CLI level.
device# show ip pim rp-candidate
Next Candidate-RP-advertisement in 00:00:10
RP: 207.95.7.1
group prefixes:
224.0.0.0 / 4
Candidate-RP-advertisement period: 60
IPv4 Multicast Protocols
Displaying PIM Sparse configuration information and statistics
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 101
This example show information displayed on a device that is a candidate RP. The next example shows the message displayed on a device
that is not a candidate RP.
device# show ip pim rp-candidate
This system is not a Candidate-RP.
Syntax: show ip pim [vrf
vrf-name
] rp-candidate
This command displays candidate RP information for the VRF instance identified by the
vrf-name
variable.
The following table describes the output from this command.
TABLE 10 Output from the show ip pim rp-candidate command
This field... Displays...
Candidate-RP-advertisement in Indicates how time will pass before the BSR sends the next RP message.
The time is displayed in "hh:mm:ss" format.
NOTE
This field appears only if this device is a candidate RP.
RP Indicates the IP address of the Rendezvous Point (RP).
NOTE
This field appears only if this device is a candidate RP.
group prefixes Indicates the multicast groups for which the RP listed by the previous field is
a candidate RP.
NOTE
This field appears only if this device is a candidate RP.
Candidate-RP-advertisement period Indicates how frequently the BSR sends candidate RP advertisement
messages.
NOTE
This field appears only if this device is a candidate RP.
Displaying RP-to-group mappings
To display RP-to-group-mappings, enter the following command at any CLI level.
device# show ip pim rp-map
Number of group-to-RP mappings: 6
Group address RP address
-------------------------------
1 239.255.163.1 99.99.99.5
2 239.255.163.2 99.99.99.5
3 239.255.163.3 99.99.99.5
4 239.255.162.1 99.99.99.5
5 239.255.162.2 43.43.43.1
6 239.255.162.3 99.99.99.5
Syntax: show ip pim [vrf
vrf-name
] rp-map
The vrf option allows you to display candidate RP-to-group mappings for the VRF instance identified by the
vrf-name
variable.
The following table describes the output from this command.
IPv4 Multicast Protocols
Displaying PIM Sparse configuration information and statistics
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
102 Part Number: 53-1005289-01
TABLE 11 Output of the show ip pim rp-map command
This field... Displays...
Group address Indicates the PIM Sparse multicast group address using the listed RP.
RP address Indicates the IP address of the Rendezvous Point (RP) for the listed PIM
Sparse group.
Displaying RP Information for a PIM Sparse group
To display RP information for a PIM Sparse group, enter the following command at any CLI level.
device# show ip pim rp-hash 239.255.162.1
RP: 207.95.7.1, v2
Info source: 207.95.7.1, via bootstrap
Syntax: show ip pim [vrf
vrf-name
] rp-hash
group-addr
The vrf option allows you to display RP information for the VRF instance identified by the
vrf-name
variable.
The
group-addr
parameter is the address of a PIM Sparse IP multicast group.
The following table describes the output from this command.
TABLE 12 Output from the show ip pim command
This field... Displays...
RP Indicates the IP address of the Rendezvous Point (RP) for the specified PIM
Sparse group.
Info source Indicates the source of the RP information. It can be a static-RP
configuration or learned via the bootstrap router. If RP information is learned
from the boot strap, the BSR IP address is also displayed.
Displaying the RP set list
To display the RP set list for the device elected as BSR, enter the following command at any CLI level.
device(config)# show ip pim rp-set
Static RP
---------
Static RP count: 2
1.51.51.4
1.51.51.5
Number of group prefixes Learnt from BSR: 1
Group prefix = 224.0.0.0/4 # RPs: 2
RP 1: 1.51.51.1 priority=0 age=60 holdtime=150
RP 2: 1.51.51.3 priority=0 age=30 holdtime=150
To display the RP set list for devices that are not elected as BSR, enter the following command at any CLI level.
Brocade(config)# show ip pim rp-set
Static RP
---------
Static RP count: 2
1.51.51.4
1.51.51.5
Number of group prefixes Learnt from BSR: 1
Group prefix = 224.0.0.0/4 # RPs expected: 2
# RPs received: 2
RP 1: 1.51.51.1 priority=0 age=60 holdtime=150
RP 2: 1.51.51.3 priority=0 age=30 holdtime=150
Syntax: show ip pim [ vrf
vrf-name
] rp-set
IPv4 Multicast Protocols
Displaying PIM Sparse configuration information and statistics
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 103
The vrf option allows you to display the RP set list for the VRF instance identified by the
vrf-name
variable.
The following table describes the output from this command.
TABLE 13 Output from the show ip pim vrf rp-set command
This field... Displays...
Number of group prefixes The number of PIM Sparse group prefixes for which the RP is responsible.
Group prefix Indicates the multicast groups for which the RP listed by the previous field is
a candidate RP.
RPs expected or received Indicates how many RPs were expected and received in the latest
bootstrap message.
RP
num
Indicates the RP number. If there are multiple RPs in the PIM Sparse
domain, a line of information for each RP is listed, in ascending numerical
order.
priority The RP priority of the candidate RP. During the election process, the
candidate RP with the highest priority is elected as the RP.
age The age (in seconds) of this RP-set.
holdtime Indicates the time in seconds for which this rp-set information is valid.
If this rp-set information is not received from BSR within the holdtime
period, the rp-set information is aged out and deleted.
Displaying multicast neighbor information
To display information about PIM neighbors, enter the following command at any CLI level.
device(config)# show ip pim nbr
--------+--------+---------------+--------+---+---------+---------+-----+----------------+-----------+----+
Port |PhyPort |Neighbor |Holdtime|T |PropDelay|Override |Age |UpTime |VRF |Prio
| | |sec |Bit|msec |msec |sec | | |
--------+--------+---------------+--------+---+---------+---------+-----+----------------+-----------+----+
v2 e1/1/1 2.1.1.2 105 1 500 3000 0 00:44:10 default-vrf 1
v4 e1/2/2 4.1.1.2 105 1 500 3000 10 00:42:50 default-vrf 1
v5 e1/1/4 5.1.1.2 105 1 500 3000 0 00:44:00 default-vrf 1
v22 e1/1/1 22.1.1.1 105 1 500 3000 0 00:44:10 default-vrf 1
Total Number of Neighbors : 4
device(config)#
Syntax: show ip pim [vrf
vrf-name
] neighbor
The vrf option allows you to display information about the PIM neighbors for the VRF instance identified by the
vrf-name
variable.
The following table describes the output from this command.
TABLE 14 Output from the show ip pim vrf neighbor command
This field... Displays...
Port The interface through which the device is connected to the neighbor.
Phyport When there is a virtual interface, this is the physical port to which the
neighbor is connected.
Neighbor The IP interface of the PIM neighbor.
Holdtime sec Indicates how many seconds the neighbor wants this device to hold the
entry for this neighbor in memory. The neighbor sends the Hold Time in
Hello packets:
• If the device receives a new Hello packet before the Hold Time
received in the previous packet expires, the device updates its
table entry for the neighbor.
IPv4 Multicast Protocols
Displaying PIM Sparse configuration information and statistics
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
104 Part Number: 53-1005289-01
TABLE 14 Output from the show ip pim vrf neighbor command (continued)
This field... Displays...
• If the device does not receive a new Hello packet from the
neighbor before the Hold time expires, the device assumes the
neighbor is no longer available and removes the entry for the
neighbor.
Age sec The number of seconds since the device received the last hello message
from the neighbor.
UpTime sec The number of seconds the PIM neighbor has been up. This timer starts
when the device receives the first Hello messages from the neighbor.
VRF The VRF in which the interface is configured. This can be a VRF that the
port was assigned to or the default VRF of the device.
Priority The DR priority that is used in the DR election process. This can be a
configured value or the default value of 1.
Displaying the PIM multicast cache
To display the PIM multicast cache, enter the following command at any CLI level.
Brocade(config)# show ip pim mcache 10.140.140.14 230.1.1.9
IP Multicast Mcache Table
Entry Flags : SM - Sparse Mode, SSM - Source Specific Multicast, DM - Dense Mode
RPT - RPT Bit, SPT - SPT Bit, LSRC - Local Source, LRCV - Local Receiver
HW - HW Forwarding Enabled, FAST - Resource Allocated, TAG - Need For Replication Entry
REGPROB - Register In Progress, REGSUPP - Register Suppression Timer
MSDPADV - Advertise MSDP, NEEDRTE - Route Required for Src/RP, PRUN - DM Prune Upstream
Interface Flags: IM - Immediate, IH - Inherited, WA - Won Assert
MJ - Membership Join, MI - Membership Include, ME - Membership Exclude
BR - Blocked RPT, BA - Blocked Assert, BF - Blocked Filter, BI - Blocked IIF
Total entries in mcache: 20
1 (10.140.140.14, 230.1.1.9) in v1001 (tag e1/4/29), Uptime 00:03:12
upstream neighbor 10.11.11.13
Flags (0x600680e1) SM SPT LRCV HW FAST TAG
fast ports: ethe 1/4/29 ethe 1/5/2
AgeSltMsk: 1, L2 FID: 8188, DIT: 8 , AvgRate: 0, profile: none
Forwarding_oif: 3, Immediate_oif: 0, Blocked_oif: 0
L3 (HW) 2:
e1/4/29(VL13), 00:03:12/0, Flags: MJ
e1/5/2(VL1004), 00:03:12/0, Flags: MJ
L2 (HW) 1:
e1/5/2, 00:00:07/0, Flags: MJ
L2 MASK: ethe 1/5/2
Src-Vlan: 1001
Syntax: show ip pim [vrf
vrf-name
] mcache [
source-address
|
group-address
| counts | dense | dit-idx
dit-idx
| g_entries | receiver |
sg_entries | sparse | ssm]
The vrf option allows you to display the PIM multicast cache for the VRF instance identified by the
vrf-name
variable.
The
source-address
parameter selects the multicast cache source address.
The
group-address
parameter selects the multicast cache group address.
The counts keyword indicates the count of entries.
The dense keyword displays only the PIM Dense Mode entries.
The
dit-idx
variable allows you to display all entries that match a specified dit.
The g_entries keyword displays only the (*, G) entries.
The receiver keyword allows you to display all entries that egress a specified interface.
IPv4 Multicast Protocols
Displaying PIM Sparse configuration information and statistics
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 105
The sg_entries keyword displays only the (S, G) entries.
The sparse keyword displays only the PIM Sparse Mode entries.
The ssm keyword displays only the SSM entries.
The following table describes the output from this command.
TABLE 15 Output fields from the show ip pim mcache command
Field Description
Total entries in mcache Shows the total number of PIM mcache entries
MJ Membership Join
MI Membership Include
ME Membership Exclude - Legend for the mcache entry printed once per page,
it gives the explanation of each of the flags used in the entry.
BR Blocked RPT
BA Blocked Assert
BF Blocked Filter
BI Blocked IIF
Uptime Shows the entry uptime
upstream neighbor Shows the upstream neighbor for the Source/RP based on the type of
entry. For (*,G) it shows the upstream neighbor towards the RP. For (S,G)
entries it shows the upstream neighbor towards the source.
Flags Flags Represent Entry flags in hex format in the braces. And indicates the
meaning of the flags set in abbreviated string whose explanations are as
below. Only shows the flags which are set.
SM - Shows If the entry is created by PIM Sparse Mode
DM - Shows If DM mode entry is enabled
SSM - Shows If the SSM mode entry is enabled
RPT - Shows If the entry is on the Rendezvous Point (RP)
SPT - Shows If the entry is on the source tree
LSRC - Shows If the source is in a directly-connected interface
LRcv - Shows If the receiver is directly connected to the router
REG - if the data registration is in progress
L2REG - if the source is directly connected to the router
REGSUPP - if the register suppression timer is running
RegProbe
HW - Shows If the candidate for hardware forwarding is enabled
FAST - Shows If the resources are allocated for hardware forwarding
TAG - Shows If there is a need for allocating entries from the replication
table
MSDPADV - Shows If RP is responsible for the source and must be
advertised to its peers.
NEEDRTE - Shows If there is no route to the source and RP is available
PRUNE - Shows If PIM DM Prune to upstream is required
RP Show the IP address of the RP.
IPv4 Multicast Protocols
Displaying PIM Sparse configuration information and statistics
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
106 Part Number: 53-1005289-01
TABLE 15 Output fields from the show ip pim mcache command (continued)
Field Description
fast ports Shows forwarding port mask.
AgeSltMsk Shows the slot number on which active module expects ingress traffic.
L2 FID Shows the hardware resource allocated for the traffic switched to receivers
in the ingress VLAN.
DIT Shows the hardware resource allocated for routed receivers.
RegPkt Shows Count of Packets forwarded due to the Register decapsulation.
AvgRate Shows the average Rate of packets ingressing for this entry over 30
seconds.
Profile Shows the Profile ID associated with the Stream.
Number of matching entries Shows the total number of mcache entries matching a particular multicast
filter specified.
Outgoing interfaces Section This section consists of three parts. L3 OIFs, L2OIFs and Blocked OIFs.
And each section has Format of L3/L2/Blocked followed by (HW/SW)
followed by count of the number of OIF in each section.
Additionally, each section displays the OIFs one per line. And shows the OIF
in the format eth/Tr(Vlan) followed by uptime/expiry time, followed by the
Flags associated with each OIF.
L3 Shows whether the traffic is routed out of the interface.
L2 Shows whether the traffic is switched out of the interface.
HW Shows whether the entry is hardware forwarded.
SW Shows whether the entry is software forwarded
Eth/Tr(VL1) Shows the outgoing interface on the specified VLAN.
Flags (explanation of flags in the OIF section) Shows the flags set in each of the Outgoing interface in abbreviated string
format whose explanations are as below. Legend of this shown at the top of
each entry
IM - Immediate
IH - Inherited
MJ - Membership Join
MI - Membership Include
ME - Membership Exclude
BR - Blocked due to SG RPT
BA - Blocked due to Assert
BF - Blocked due to Filter
BI - Blocked IIF (Incoming interface) matches OIF
Src-Vlan Shows the VLAN associated with the ingress interface.
MCTPEERF - Traffic Forw By Cluster Peer CCEP Applies only to Layer 3 multicast routing over MCT. This means multicast
traffic for this stream is forwarded by cluster peer [remote] CCEP port
because of flow load balancing
Displaying the PIM multicast cache for DIT
To display the PIM multicast cache for a specified dit, enter the following command at any CLI level.
Brocade#show ip pim mcache dit-idx 2
IP Multicast Mcache Table
IPv4 Multicast Protocols
Displaying PIM Sparse configuration information and statistics
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 107
Entry Flags : SM - Sparse Mode, SSM - Source Specific Multicast, DM - Dense Mode
RPT - RPT Bit, SPT - SPT Bit, LSRC - Local Source, LRCV - Local Receiver
HW - HW Forwarding Enabled, FAST - Resource Allocated, TAG - Need For Replication Entry
REGPROB - Register In Progress, REGSUPP - Register Suppression Timer
MSDPADV - Advertise MSDP, NEEDRTE - Route Required for Src/RP, PRUN - DM Prune Upstream
Interface Flags: IM - Immediate, IH - Inherited, WA - Won Assert
MJ - Membership Join, MI - Membership Include, ME - Membership Exclude
BR - Blocked RPT, BA - Blocked Assert, BF - Blocked Filter, BI - Blocked IIF
Total entries in mcache: 30
1 (20.20.20.100, 225.1.1.1) in v220 (tag e1/1/13), Uptime 07:12:07
upstream neighbor 220.220.220.1
Flags (0x200680e1) SM SPT LRCV HW FAST TAG
fast ports: ethe 1/1/11
AgeSltMsk: 1, L2 FID: 105c, DIT: 2 , AvgRate: 0, profile: none
Forwarding_oif: 1, Immediate_oif: 0, Blocked_oif: 0
L3 (HW) 1:
e1/1/11(VL40), 07:12:07/0, Flags: MJ
Src-Vlan: 220
2 (20.20.20.100, 225.1.1.2) in v220 (tag e1/1/13), Uptime 00:01:00
upstream neighbor 220.220.220.1
Flags (0x200680e1) SM SPT LRCV HW FAST TAG
fast ports: ethe 1/1/11
AgeSltMsk: 1, L2 FID: 105c, DIT: 2 , AvgRate: 0, profile: none
Forwarding_oif: 1, Immediate_oif: 0, Blocked_oif: 0
L3 (HW) 1:
e1/1/11(VL40), 00:01:00/0, Flags: MJ
Src-Vlan: 220
3 (20.20.20.100, 225.1.1.3) in v220 (tag e1/1/13), Uptime 00:01:00
upstream neighbor 220.220.220.1
Flags (0x200680e1) SM SPT LRCV HW FAST TAG
fast ports: ethe 1/1/11
AgeSltMsk: 1, L2 FID: 105c, DIT: 2 , AvgRate: 0, profile: none
Forwarding_oif: 1, Immediate_oif: 0, Blocked_oif: 0
L3 (HW) 1:
e1/1/11(VL40), 00:01:00/0, Flags: MJ
Src-Vlan: 220
Syntax: show ip pim [vrf
vrf-name
] mcache dit-idx
dit
The
dit
variable allows you to display an entry that matches a specified dit.
Clearing the PIM forwarding cache
You can clear the PIM forwarding cache using the following command.
device# clear ip pim cache
Syntax: clear ip pim [vrf
vrf-name
] cache
Use the vrf option to clear the PIM forwarding cache for a VRF instance specified by the
vrf-name
variable.
Displaying PIM traffic statistics
To display PIM traffic statistics, enter the following command at any CLI level.
device(config)# show ip pim traffic
Port HELLO JOIN-PRUNE ASSERT REGISTER REGISTER BOOTSTRAP CAND. RP Err
GRAFT(DM) STOP(SM) MSGS (SM) ADV. (SM)
-------+---------+-----------+---------+---------+---------+---------+---------+---
Rx Rx Rx Rx Rx Rx Rx Rx
------+---------+-----------+---------+---------+---------+---------+---------+---
v30 0 0 0 0 0 0 0 0
v50 2526 1260 0 0 0 1263 0 0
v150 2531 0 0 0 0 1263 0 0
IPv4 Multicast Protocols
Clearing the PIM forwarding cache
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
108 Part Number: 53-1005289-01
v200 2531 0 0 0 0 1 0 0
Port HELLO JOIN-PRUNE ASSERT REGISTER REGISTER BOOTSTRAP CAND. RP Err
GRAFT(DM) STOP(SM) MSGS (SM) ADV. (SM)
-------+---------+-----------+---------+---------+---------+---------+---------+---
Tx Tx Tx Tx Tx Tx Tx
------+---------+-----------+---------+---------+---------+---------+---------+---
v30 2528 0 0 0 0 0 0
v50 2540 1263 0 0 0 2 0
v150 2529 0 0 0 0 1262 0
v200 2529 0 0 0 0 1262 0
Brocade#show ip pim traffic rx
Port HELLO JOIN-PRUNE ASSERT REGISTER REGISTER BOOTSTRAP CAND. RP Err
GRAFT(DM) STOP(SM) MSGS (SM) ADV. (SM)
-------+---------+-----------+---------+---------+---------+---------+---------+---
Rx Rx Rx Rx Rx Rx Rx Rx
------+---------+-----------+---------+---------+---------+---------+---------+---
v30 0 0 0 0 0 0 0 0
v50 2526 1260 0 0 0 1263 0 0
v150 2531 0 0 0 0 1263 0 0
v200 2531 0 0 0 0 1 0 0
Brocade#show ip pim traffic tx
Port HELLO JOIN-PRUNE ASSERT REGISTER REGISTER BOOTSTRAP CAND. RP Err
GRAFT(DM) STOP(SM) MSGS (SM) ADV. (SM)
-------+---------+-----------+---------+---------+---------+---------+---------+---
Tx Tx Tx Tx Tx Tx Tx
------+---------+-----------+---------+---------+---------+---------+---------+---
v30 2528 0 0 0 0 0 0
v50 2540 1263 0 0 0 2 0
v150 2529 0 0 0 0 1262 0
v200 2530 0 0 0 0 1262 0
Brocade#show ip pim traffic join-prune
Port Packet Join Prune Avg Aggr Last Aggr
-----+---------+---------+---------+---------+----------
Rx Rx Rx Rx Rx
-----+---------+---------+---------+---------+----------
v30 0 0 0 0 0
v50 1260 1260 0 1 1
v150 0 0 0 0 0
v200 0 0 0 0 0
Port Packet Join Prune Avg Aggr Last Aggr
-----+---------+---------+---------+---------+----------
Tx Tx Tx Tx Tx
-----+---------+---------+---------+---------+----------
v30 0 0 0 0 0
v50 1263 1262 1 1 1
v150 0 0 0 0 0
v200 0 0 0 0 0
Brocade#show ip pim traffic join-prune rx
Port Packet Join Prune Avg Aggr Last Aggr
-----+---------+---------+---------+---------+----------
Rx Rx Rx Rx Rx
-----+---------+---------+---------+---------+----------
v30 0 0 0 0 0
v50 1260 1260 0 1 1
v150 0 0 0 0 0
v200 0 0 0 0 0
Brocade#show ip pim traffic join-prune tx
Port Packet Join Prune Avg Aggr Last Aggr
-----+---------+---------+---------+---------+----------
Tx Tx Tx Tx Tx
-----+---------+---------+---------+---------+----------
v30 0 0 0 0 0
v50 1264 1263 1 1 1
v150 0 0 0 0 0
v200 0 0 0 0 0
Syntax: show ip pim [vrf
vrf-name
] trac [join-prune | rx | tx ]
•vrf --PIM traffic statistics for the VRF instance identified by
vrf-name
•join-prune --Join/prune statistics.
IPv4 Multicast Protocols
Displaying PIM traffic statistics
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 109
•rx --Received PIM traffic statistics.
•tx --Transmitted PIM traffic statistics.
NOTE
If you have configured interfaces for standard PIM (dense mode) on the device, statistics for these interfaces are listed first by the
display.
The following table describes the output for this show command.
TABLE 16 Output from the show ip pim vrf traffic command
This field... Displays...
Port The port or virtual interface on which the PIM interface is configured.
Hello The number of PIM Hello messages sent or received on the interface.
J or P The number of Join or Prune messages sent or received on the interface.
NOTE
Unlike PIM dense, PIM Sparse uses the same messages for
Joins and Prunes.
Register The number of Register messages sent or received on the interface.
RegStop The number of Register Stop messages sent or received on the interface.
Assert The number of Assert messages sent or received on the interface.
Total Recv or Xmit The total number of IGMP messages sent and received by the device.
Total Discard or chksum The total number of IGMP messages discarded, including a separate
counter for those that failed the checksum comparison.
Clearing the PIM message counters
You can clear the PIM message counters using the following command.
device# clear ip pim traffic
Syntax: clear ip pim [vrf
vrf-name
] trac
Use the vrf option to clear the PIM message counters for a VRF instance specified by the
vrf-name
variable.
Displaying PIM RPF
The show ip pim rfp command displays what PIM sees as the reverse path to the source as shown in the following. While there may be
multiple routes back to the source, the one displayed by this command is the one that PIM thinks is best.
device# show ip pim vrf eng rpf 130.50.11.10
Source 130.50.11.10 directly connected on e4/1
Syntax: show ip pim [vrf
vrf-name
] rpf
ip-address
The
ip-address
variable specifies the source address for RPF check.
The vrf option to display what PIM sees as the reverse path to the source for a VRF instance specified by the
vrf-name
variable.
IPv4 Multicast Protocols
Clearing the PIM message counters
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
110 Part Number: 53-1005289-01
Configuring Multicast Source Discovery Protocol
The Multicast Source Discovery Protocol (MSDP) is used by Protocol Independent Multicast (PIM) Sparse devices to exchange source
information across PIM Sparse domains. Devices running MSDP can discover PIM Sparse sources in other PIM Sparse domains.
The following figure shows an example of some PIM Sparse domains. For simplicity, this example shows one Designated Router (DR), one
group source, and one receiver for the group. Only one PIM Sparse device within each domain needs to run MSDP.

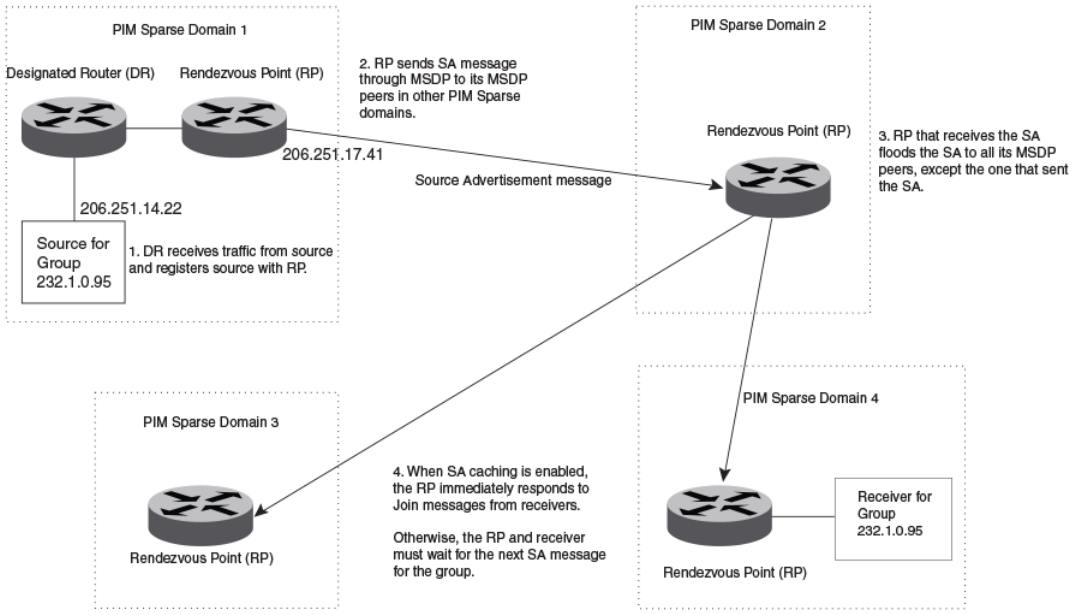

FIGURE 7 PIM Sparse domains joined by MSDP devices
In this example, the source for PIM Sparse multicast group 232.0.1.95 is in PIM Sparse domain 1. The source sends a packet for the group
to its directly attached DR. The DR sends a PIM register message for this flow to the RPDR. The RP is configured for MSDP, which enables
the RP to exchange source information with other PIM Sparse domains by communicating with RPs in other domains that are running
MSDP.
The RP sends the source information to each peer through a Source Active message. The message contains the IP address of the source,
the group address to which the source is sending, and the IP address of the RP.
In this example, the Source Active message contains the following information:
• Source address: 206.251.14.22
• Group address: 232.1.0.95
• RP address: 206.251.17.41
Figure 7 shows only one peer for the MSDP device (which is also the RP here) in domain 1, so the Source Active message goes to only that
peer. When an MSDP device has multiple peers, it sends a Source Active message to each of those peers. Each peer sends the Source
IPv4 Multicast Protocols
Configuring Multicast Source Discovery Protocol
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 111
Advertisement to other MSDP peers. The RP that receives the Source Active message also sends a Join message to the source if the RP
that received the message has receivers for the group and source.
Peer Reverse Path Forwarding flooding
When the MSDP device (also the RP) in domain 2 receives the Source Active message from the peer in domain 1, the MSDP device in
domain 2 forwards the message to all other peers. This propagation process is sometimes called "peer Reverse Path Forwarding (RPF)
flooding". In Figure 7 on page 111, the MSDP device floods the Source Active message it receives from the peer in domain 1 to peers in
domains 3 and 4.
The MSDP device in domain 2 does not forward the Source Active back to the peer in domain 1, because that is the peer from which the
device received the message. An MSDP device never sends a Source Active message back to the peer that sent it. The peer that sent the
message is sometimes called the "RPF peer". The MSDP device uses the unicast routing table for its Exterior Gateway Protocol (EGP) to
identify the RPF peer by looking for the route entry that is the next hop toward the source. Often, the EGP protocol is Border Gateway
Protocol (BGP) version 4.
NOTE
MSDP depends on BGP for inter-domain operations.
The MSDP routers in domains 3 and 4 also forward the Source Active message to all peers except the ones that sent them the message.
Figure 7 on page 111 does not show additional peers.
Source Active caching
When an MSDP device that is also an RP receives a Source Active message, it checks the PIM sparse multicast group table for receivers
for that group. If there are receivers for that group being advertised in the Source Active message, the RP sends a Join message towards
the source.
In Figure 7 on page 111, if the MSDP device and RP in domain 4 has a table entry for the receiver, the RP sends a Join message on behalf
of the receiver back through the RPF tree to the source, in this case the source in domain 1.
Source Active caching is enabled in MSDP on Ruckus devices. The RP caches the Source Active messages it receives even if the RP does
not have a receiver for the group. Once a receiver arrives, the RP can then send a Join to the cached source immediately.
The size of the cache used to store MSDP Source Active messages is 4K. MSDP SA cache size can be configured using the system-max
msdp-sa-cache command. The default value is 4K; the range is 1K to 8K.
Configuring MSDP
To configure MSDP, perform the following tasks:
• Enable MSDP.
•Configure the MSDP peers.
NOTE
The PIM Sparse Rendezvous Point (RP) is also an MSDP peer.
NOTE
Devices that run MSDP usually also run BGP. The source address used by the MSDP device is normally configured to be the
same source address used by BGP.
IPv4 Multicast Protocols
Configuring Multicast Source Discovery Protocol
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
112 Part Number: 53-1005289-01
Enabling MSDP
To enable MSDP, enter the following command.
device(config)# router msdp
Syntax: [no] router msdp
Enabling MSDP for a specified VRF
The vrf parameter allows you to configure MSDP on the virtual routing instance (VRF) specified by the
vrf-name
variable. All MSDP
parameters available for the default router instance are configurable for a VRF-based MSDP instance.
To enable MSDP for the VRF named "blue", enter the following commands.
device(config)# router msdp vrf blue
device(config-msdp-router-vrf-blue)
Syntax: [no] router msdp [vrf
vrf-name
]
The vrf parameter allows you to configure MSDP on the virtual routing instance (VRF) specified by the
vrf-name
variable.
Entering the no router msdp vrf command removes the MSDP configuration from the specified VRF only.
Configuring MSDP peers
To configure an MSDP peer, enter a command such as the following at the MSDP configuration level.
device(config-msdp-router)# msdp-peer 205.216.162.1
To configure an MSDP peer on a VRF, enter the following commands at the MSDP VRF configuration level.
device(config)# router msdp vrf blue
device(config-msdp-router-vrf-blue)# msdp-peer 205.216.162.1
Syntax: [no] msdp-peer
ip-addr
[connect-source loopback
num
]
The
ip-addr
parameter specifies the IP address of the neighbor.
The connect-source loopback
num
parameter specifies the loopback interface you want to use as the source for sessions with the neighbor
and must be reachable within the VRF.
NOTE
It is strongly recommended that you use the connect-source loopback
num
parameter when issuing the msdp-peer command. If
you do not use this parameter, the device uses the IP address of the outgoing interface. You should also make sure the IP
address of the connect-source loopback is the source IP address used by the PIM-RP, and the BGP device.
The commands in the following example add an MSDP neighbor and specify a loopback interface as the source interface for sessions with
the neighbor. By default, the device uses the subnet address configured on the physical interface where you configure the neighbor as the
source address for sessions with the neighbor.
device(config)# interface loopback 1
device(config-lbif-1)# ip address 9.9.9.9/32
device(config)# router msdp
device(config-msdp-router)# msdp-peer 2.2.2.99 connect-source loopback 1
IPv4 Multicast Protocols
Configuring Multicast Source Discovery Protocol
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 113
Disabling an MSDP peer
To disable an MSDP peer, enter the following command at the configure MSDP router level.
device(config-msdp-router)# msdp-peer 205.216.162.1 shutdown
To disable the MSDP VRF peer named "blue", enter the following commands.
device(config)# router msdp vrf blue
device(config-msdp-router-vrf-blue)# no msdp-peer 205.216.162.1
Syntax: [no] msdp-peer
ip-addr
shutdown
The
ip-addr
parameter specifies the IP address of the MSDP peer that you want to disable.
Designating the interface IP address as the RP IP address
When an RP receives a Source Active message, it checks its PIM Sparse multicast group table for receivers for the group. If a receiver
exists the RP sends a Join to the source.
By default, the IP address included in the RP address field of the SA message is the IP address of the originating RP. An SA message can
use the IP address of any interface on the originating RP. (The interface is usually a loopback interface.)
To designate an interface IP address to be the IP address of the RP, enter commands such as the following.
device(config)# interface loopback 2
device(config-lbif-2)# ip address 2.2.1.99/32
device(config)# router msdp
device(config-msdp-router)# originator-id loopback 2
device(config-msdp-router)# exit
To specify VRF information, enter the following commands at the MSDP VRF configuration level.
device(config)# interface loopback 2
device(config-lbif-2)# ip address 2.2.1.99/32
device(config)# router msdp vrf blue
device(config-msdp-router-vrf blue)# originator-id loopback 2
device(config-msdp-router-vrf blue)# exit
Syntax: [no] originator-id
type
number
The originator-id command instructs MSDP to use the specified interface IP address as the IP address of the RP in an SA message. This
address must be the address of the interface used to connect the RP to the source. The default address used is the RP IP address.
The
type
parameter indicates the type of interface used by the RP. Ethernet, loopback and virtual routing interfaces (ve) can be used.
The
number
parameter specifies the interface number (for example: loopback number, port number or virtual routing interface number.)
Filtering MSDP source-group pairs
You can filter individual source-group pairs in MSDP Source-Active messages:
•sa-lter in - Filters source-group pairs received in Source-Active messages from an MSDP neighbor.
•sa-lter originate - Filters self-originated source-group pairs in outbound Source-Active messages sent to an MSDP neighbor
•sa-lter out - Filters self-originated and forwarded source-group pairs in outbound Source-Active messages sent to an MSDP
neighbor
IPv4 Multicast Protocols
Configuring Multicast Source Discovery Protocol
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
114 Part Number: 53-1005289-01
Filtering incoming and outgoing Source-Active messages
The following example configures filters for incoming Source-Active messages from three MSDP neighbors:
• For peer 2.2.2.99, all source-group pairs in Source-Active messages from the neighbor are filtered (dropped).
• For peer 2.2.2.97, all source-group pairs except those with source address matching 10.x.x.x and group address of 235.10.10.1
are permitted.
• For peer 2.2.2.96, all source-group pairs except those associated with RP 2.2.42.3 are permitted.
To configure filters for incoming Source-Active messages, enter commands at the MSDP VRF configuration level.
To configure filters for outbound Source-Active messages, enter the optional out keyword.
The following commands configure extended ACLs. The ACLs will be used in route maps, which will be used by the Source-Active filters.
device(config)# access-list 123 permit ip 10.0.0.0 0.255.255.255 host 235.10.10.1
device(config)# access-list 124 permit ip host 2.2.42.3 any
device(config)# access-list 125 permit ip any any
The following commands configure the route maps.
device(config)# route-map msdp_map deny 1
device(config-routemap msdp_map)# match ip address 123
device(config-routemap msdp_map)# exit
device(config)# route-map msdp_map permit 2
device(config-routemap msdp_map)# match ip address 125
device(config-routemap msdp_map)# exit
device(config)# route-map msdp2_map permit 1
device(config-routemap msdp2_map)# match ip address 125
device(config-routemap msdp2_map)# exit
device(config)# route-map msdp2_rp_map deny 1
device(config-routemap msdp2_rp_map)# match ip route-source 124
device(config-routemap msdp2_rp_map)# exit
device(config)# route-map msdp2_rp_map permit 2
device(config-routemap msdp2_rp_map)# match ip route-source 125
device(config-routemap msdp2_rp_map)# exit
The following commands configure the Source-Active filters.
To specify VRF information, enter the following commands at the MSDP VRF configuration level.
device(config)# router msdp vrf blue
device(config-msdp-router-vrf blue)# sa-filter in 2.2.2.99
device(config-msdp-router-vrf blue)# sa-filter in 2.2.2.97 route-map msdp_map
device(config-msdp-router-vrf blue)# sa-filter in 2.2.2.96 route-map msdp2_map rp-route-map msdp2_rp_map
The sa-lter commands configure the following filters:
•sa-lter in 2.2.2.99 - This command drops all source-group pairs received from neighbor 2.2.2.99.
NOTE
The default action is to deny all source-group pairs from the specified neighbor. If you want to permit some pairs, use route maps.
•sa-lter in 2.2.2.97 route-map msdp_map - This command drops source-group pairs received from neighbor 2.2.2.97 if the
pairs have source addresses matching 10.x.x.x and group address 235.10.10.1.
•sa-lter in 2.2.2.96 route-map msdp2_map rp-route-map msdp2_rp_map - This command accepts all source-group pairs
except those associated with RP 2.2.42.3.
Syntax: [no] sa-lter in | originate | out
ip-addr
[route-map
map-tag
] [rp-route-map
rp-map-tag
]
Selecting the in option applies the filter to incoming Source-Active messages.
Selecting the originate option applies the filter to self-originated outbound Source-Active messages.
IPv4 Multicast Protocols
Configuring Multicast Source Discovery Protocol
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 115
Selecting the out option applies the filter to self-originated and forwarded outbound Source-Active messages.
The
ip-addr
parameter specifies the IP address of the MSDP neighbor. The filters apply to Source-Active messages received from or sent to
this neighbor.
The route-map
map-tag
parameter specifies a route map. The device applies the filter to source-group pairs that match the route map. Use
the match ip address
acl-id
command in the route map to specify an extended ACL that contains the source addresses.
The rp-route-map
rp-map-tag
parameter specifies a route map to use for filtering based on Rendezvous Point (RP) address. Use this
parameter if you want to filter Source-Active messages based on their originating RP. Use the match ip route-source
acl-id
command in the
route map to specify an extended ACL that contains the RP address.
NOTE
The default filter action is deny. If you want to permit some source-group pairs, use a route map.
Filtering advertised Source-Active messages
The following example configures the device to advertise all source-group pairs except the ones that have source address 10.x.x.x.
The following commands configure extended ACLs to be used in the route map definition.
device(config)# access-list 123 permit ip 10.0.0.0 0.255.255.255 any
device(config)# access-list 125 permit ip any any
The following commands use the above ACLs to configure a route map which denies source-group with source address 10.x.x.x and any
group address, while permitting everything else.
device(config)# route-map msdp_map deny 1
device(config-routemap msdp_map)# match ip address 123
device(config-routemap msdp_map)# exit
device(config)# route-map msdp_map permit 2
device(config-routemap msdp_map)# match ip address 125
device(config-routemap msdp_map)# exit
The following commands configure the Source-Active filter.
device(config)# router msdp
device(config-msdp-router)# sa-filter originate route-map msdp_map
To specify VRF information, enter the following commands at the MSDP VRF configuration level.
device(config)# router msdp vrf blue
device(config-msdp-router-vrf blue)# sa-filter originate route-map msdp_map
Syntax: [no] sa-lter originate [route-map
map-tag
]
The route-map
map-tag
parameter specifies a route map. The router applies the filter to source-group pairs that match the route map. Use
the match ip address
acl-id
command in the route map to specify an extended ACL that contains the source and group addresses.
NOTE
The default filter action is deny. If you want to permit some source-group pairs, use a route map. A permit action in the route map
allows the device to advertise the matching source-group pairs. A deny action in the route map drops the source-group pairs from
advertisements.
IPv4 Multicast Protocols
Configuring Multicast Source Discovery Protocol
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
116 Part Number: 53-1005289-01
Displaying MSDP information
You can display the following MSDP information:
•Summary information - The IP addresses of the peers, the state of the device MSDP session with each peer, and statistics for
keepalive, source active, and notification messages sent to and received from each of the peers
•VRF Information - Summary information for a specific VRF
•Peer information - The IP address of the peer, along with detailed MSDP and TCP statistics
•Source Active cache entries - The source active messages cached by the router.
Displaying summary information
To display summary MSDP information, enter the show ip msdp vrf blue summary command.
Brocade(config)#show ip msdp vrf blue summary
MSDP Peer Status Summary
KA: Keepalive SA:Source-Active NOT: Notification
Peer Address Peer As State KA SA NOT Age
In Out In Out In Out
40.40.40.1 1001 ESTABLISH 59 59 0 0 0 0 6
40.40.40.3 1001 ESTABLISH 59 59 0 0 0 0 47
47.1.1.2 N/A ESTABLISH 59 59 0 0 0 0 47
Brocade(config)#
Syntax: show ip msdp summary
The following table describes the output from this command.
TABLE 17 MSDP summary information
This field... Displays...
Peer address The IP address of the peer interface with the device
State The state of the MSDP device connection with the peer. The state can be
one of the following:
• CONNECTING - The session is in the active open state.
• ESTABLISHED - The MSDP session is fully up.
• INACTIVE - The session is idle.
• LISTENING - The session is in the passive open state.
KA In The number of MSDP keepalive messages the MSDP device has received
from the peer
KA Out The number of MSDP keepalive messages the MSDP device has sent to
the peer
SA In The number of source active messages the MSDP device has received from
the peer
SA Out The number of source active messages the MSDP device has sent to the
peer
NOT In The number of notification messages the MSDP router has received from
the peer
NOT Out The number of notification messages the MSDP router has sent to the peer
IPv4 Multicast Protocols
Configuring Multicast Source Discovery Protocol
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 117
Displaying peer information
To display MSDP peer information, enter the following command.
Brocade#show ip msdp peer
IP Address State Mesh-group-name
1 77.1.1.2 ESTABLISH
Keep Alive Time Hold Time Age
60 75 53
Message Sent Message Received
Keep Alive 1240 1239
Notifications 0 0
Source-Active 0 0
Lack of Resource 0
Last Connection Reset Reason:Reason Unknown
Notification Message Error Code Received:Unspecified
Notification Message Error SubCode Received:Not Applicable
Notification Message Error Code Transmitted:Unspecified
Notification Message Error SubCode Transmitted:Not Applicable
Local IP Address: 55.1.1.2
TCP Connection state: ESTABLISHED
Local host: 55.1.1.2, Local Port: 8730
Remote host: 77.1.1.2, Remote Port: 639
ISentSeq: 1207132337 SendNext: 1207132386 TotUnAck: 0
SendWnd: 16381 TotSent: 49 ReTrans: 0
IRcvSeq: 4000739 RcvNext: 4000788 RcvWnd: 16384
TotalRcv: 49 RcvQue: 0 SendQue: 0
Input SA Filter:Not Applicable
Input (S,G) route-map:None
Input RP route-map:None
Output SA Filter:Not Applicable
Output (S,G) route-map:None
Output RP route-map:None
Syntax: show ip msdp [vrf
vrf-name
] peer
The following table describes the output from this command.
TABLE 18 MSDP peer information
This field... Displays...
Total number of MSDP peers The number of MSDP peers configured on the device
IP Address The IP address of the peer’s interface with the device
State The state of the MSDP device connection with the peer. The state can be
one of the following:
• CONNECTING - The session is in the active open state.
• ESTABLISHED - The MSDP session is fully up.
• INACTIVE - The session is idle.
• LISTENING - The session is in the passive open state.
Keep Alive Time The keepalive time, which specifies how often this MSDP device sends
keep alive messages to the neighbor. The keep alive time is 60 seconds and
is not configurable.
Hold Time The hold time, which specifies how many seconds the MSDP device will
wait for a KEEPALIVE or UPDATE message from an MSDP neighbor before
deciding that the neighbor is dead. The hold time is 90 seconds and is not
configurable.
Keep Alive Message Sent The number of keepalive messages the MSDP device has sent to the peer.
Keep Alive Message Received The number of keepalive messages the MSDP device has received from the
peer.
Notifications Sent The number of notification messages the MSDP device has sent to the
peer.
IPv4 Multicast Protocols
Configuring Multicast Source Discovery Protocol
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
118 Part Number: 53-1005289-01
TABLE 18 MSDP peer information (continued)
This field... Displays...
Notifications Received The number of notification messages the MSDP device has received from
the peer.
Source-Active Sent The number of source active messages the MSDP device has sent to the
peer.
Source-Active Received The number of source active messages the MSDP device has received from
the peer.
Last Connection Reset Reason The reason the previous session with this neighbor ended.
Notification Message Error Code Received The MSDP device has received a notification message from the neighbor
that contains an error code corresponding to one of the following errors.
Some errors have subcodes that clarify the reason for the error. Where
applicable, the subcode messages are listed underneath the error code
messages:
• 1 - Message Header Error
• 2 - SA-Request Error
• 3 - SA-Message or SA-Response Error
• 4 - Hold Timer Expired
• 5 - Finite State Machine Error
• 6 - Notification
• 7 - Cease
For information about these errors, refer to section 17 in the Internet draft
describing MSDP, "draft-ietf-msdp-spec".
Notification Message Error SubCode Received See above.
Notification Message Error Code Transmitted The error message corresponding to the error code in the NOTIFICATION
message this MSDP router sent to the neighbor. See the description for the
Notification Message Error Code Received field for a list of possible codes.
Notification Message Error SubCode Transmitted See above.
TCP Statistics
TCP connection state The state of the connection with the neighbor. Can be one of the following:
• LISTEN - Waiting for a connection request.
• SYN-SENT - Waiting for a matching connection request after
having sent a connection request.
• SYN-RECEIVED - Waiting for a confirming connection request
acknowledgment after having both received and sent a
connection request.
• ESTABLISHED - Data can be sent and received over the
connection. This is the normal operational state of the
connection.
• FIN-WAIT-1 - Waiting for a connection termination request from
the remote TCP, or an acknowledgment of the connection
termination request previously sent.
• FIN-WAIT-2 - Waiting for a connection termination request from
the remote TCP.
• CLOSE-WAIT - Waiting for a connection termination request from
the local user.
• CLOSING - Waiting for a connection termination request
acknowledgment from the remote TCP.
• LAST-ACK - Waiting for an acknowledgment of the connection
termination request previously sent to the remote TCP (includes
an acknowledgment of the connection termination request).
IPv4 Multicast Protocols
Configuring Multicast Source Discovery Protocol
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 119
TABLE 18 MSDP peer information (continued)
This field... Displays...
• TIME-WAIT - Waiting for enough time to pass to be sure the
remote TCP received the acknowledgment of the connection
termination request.
• CLOSED - There is no connection state.
Local host The IP address of the MSDP device interface with the peer.
Local port The TCP port the MSDP router is using for the BGP4 TCP session with the
neighbor.
Remote host The IP address of the neighbor.
Remote port The TCP port number of the peer end of the connection.
ISentSeq The initial send sequence number for the session.
SendNext The next sequence number to be sent.
TotUnAck The number of sequence numbers sent by the MSDP device that have not
been acknowledged by the neighbor.
SendWnd The size of the send window.
TotSent The number of sequence numbers sent to the neighbor.
ReTrans The number of sequence numbers the MSDP device retransmitted because
they were not acknowledged.
IRcvSeq The initial receive sequence number for the session.
RcvNext The next sequence number expected from the neighbor.
RcvWnd The size of the receive window.
TotalRcv The number of sequence numbers received from the neighbor.
RcvQue The number of sequence numbers in the receive queue.
SendQue The number of sequence numbers in the send queue.
Displaying Source Active cache information
To display the Source Actives in the MSDP cache, use the following command.
device # show ip msdp vrf blue sa-cacheTotal of 10 SA cache entriesIndex RP address (Source, Group)
Orig Peer Age1 2.2.2.2 (192.6.1.10, 227.1.1.1) 192.1.1.2 0 2 2.2.2.2 (192.6.1.10, 227.1.1.2)
192.1.1.2 0 3 2.2.2.2 (192.6.1.10, 227.1.1.3) 192.1.1.2 0 4 2.2.2.2 (192.6.1.10, 227.1.1.4)
192.1.1.2 0 5 2.2.2.2 (192.6.1.10, 227.1.1.5) 192.1.1.2 0 6 2.2.2.2 (192.6.1.10, 227.1.1.6)
192.1.1.2 0 7 2.2.2.2 (192.6.1.10, 227.1.1.7) 192.1.1.2 0 8 2.2.2.2 (192.6.1.10, 227.1.1.8)
192.1.1.2 0 9 2.2.2.2 (192.6.1.10, 227.1.1.9) 192.1.1.2 0 10 2.2.2.2 (192.6.1.10, 227.1.1.10)
192.1.1.2 0
Syntax: show ip msdp [ vrf
vrf-name
] sa-cache [
source-address
|
group-address
| peer-as as-number | counts | orig-rp rp-address |
peer peer-address ] [ rejected | self-originated ] ]
The
source-address
parameter selects the source address of the SA entry.
The
group-address
parameter selects the group address of the SA entry.
The peer-as keyword specifies the BGP AS Number of the forwarding peer.
The counts keyword displays only the count of entries.
The orig-rp keyword specifies the originating RP address.
The peer keyword specifies the peer address.
IPv4 Multicast Protocols
Configuring Multicast Source Discovery Protocol
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
120 Part Number: 53-1005289-01
The rejected keyword displays the rejected SAs.
The self-originated keyword displays the self-originated SAs.
The following table describes the output from this command.
TABLE 19 MSDP source active cache
This field... Displays...
Total The number of entries the cache currently contains.
Index The cache entry number.
RP The RP through which receivers can access the group traffic from the
source
SourceAddr The IP address of the multicast source.
GroupAddr The IP multicast group to which the source is sending information.
Orig Peer The peer from which this source-active entry was received.
Age The number of seconds the entry has been in the cache
You can use the following command to filter the output to display only the entries matching a specific source.
device#show ip msdp sa-cache 1.1.1.1
You can use the following command to filter the output to display only the entries matching a specific group.
device#show ip msdp sa-cache 239.1.1.1
You can use the following command to filter the output to display only the SA cache entries that are
received from peers in the BGP AS Number 100.
device#show ip msdp sa-cache 100
You can use the following command to filter the output to display only the SA cache entries that are
originated by the RP 1.1.1.1.
device#show ip msdp sa-cache orig-rp 1.1.1.1
You can use the following command to filter the output to display only the SA cache entries that are
received from the peer 1.1.1.1.
device#show ip msdp sa-cache peer 1.1.1.1
You can use the following command to display the rejected SAs. You can further narrow down by quoting the reason for rejection.
device#show ip msdp sa-cache rejected
You can use the following command to display the self-originated SAs.
device#show ip msdp sa-cache self-originated
Displaying MSDP RPF-Peer
To display MSDP peer information for the RP 1.1.1.1, enter the following command.
device# show ip msdp rpf-peer 1.1.1.1
MSDP Peer Status Summary
KA: Keepalive SA:Source-Active NOT: Notification
Peer Address Peer As State KA SA NOT Age
IPv4 Multicast Protocols
Configuring Multicast Source Discovery Protocol
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 121
In Out In Out In Out
40.40.40.3 1001 ESTABLISH 62 62 0 0 0 0 7
Brocade#
Syntax: show ip msdp [vrf
vrf-name
] rpf-peer ip-addr
Displaying MSDP Peer
To display MSDP peer information, enter the following command.
Brocade# show ip msdp peer 40.40.40.3
MSDP Peer Status Summary
KA: Keepalive SA:Source-Active NOT: Notification
Peer Address Peer As State KA SA NOT Age
In Out In Out In Out
40.40.40.3 1001 ESTABLISH 62 62 0 0 0 0 7
Brocade#
Syntax: show ip msdp peer
peer-addr
Displaying MSDP VRF RPF-Peer
To display MSDP peer information for a specific VRF, enter the following command.
Brocade#sh ip msdp vrf Blue rpf-peer 40.40.40.2
MSDP Peer Status Summary
KA: Keepalive SA:Source-Active NOT: Notification
Peer Address Peer As State KA SA NOT Age
In Out In Out In Out
40.40.40.2 1001 ESTABLISH 5569 5568 0 0 0 0 57
Syntax: show ip msdp vrf
VRF-name
rpf-peer
ip-addr
Clearing MSDP information
You can clear the following MSDP information:
• Peer information
• Source active cache
• MSDP statistics
Clearing peer information
To clear MSDP peer information, enter the following command at the Privileged EXEC level of the CLI.
device# clear ip msdp peer 205.216.162.1
Syntax: clear ip msdp peer [
ip-addr
]
The command in this example clears the MSDP peer connection with MSDP router 205.216.162.1. The CLI displays a message to indicate
when the connection has been successfully closed. To clear all the peers, omit the
ip-addr
variable from the command.
Clearing peer information on a VRF
To clear the MSDP VRF peers, enter the following command at the MSDP VRF configuration level.
device#clear ip msdp vrf blue peer 207.207.162.5
IPv4 Multicast Protocols
Configuring Multicast Source Discovery Protocol
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
122 Part Number: 53-1005289-01
Syntax: clear ip msdp [vrf
vrf-name
] peer [
ip-addr
]
Clearing the source active cache
To clear the source active cache, enter the following command at the Privileged EXEC level of the CLI.
device# clear ip msdp sa-cache
Syntax: clear ip msdp sa-cache [
ip-addr
]
The command in this example clears all the cache entries. Use the
ip-addr
variable to clear only the entries matching either a source or a
group.
Clearing the source active cache for a VRF
To clear the MSDP VRF source active cache by entering the following command at the MSDP VRF configuration level.
device#clear ip msdp sa-cache
vrf blue
Syntax: clear ip msdp [vrf
vrf-name
] sa-cache [
ip-addr
]
Clearing MSDP statistics
To clear MSDP statistics, enter the following command at the Privileged EXEC level of the CLI.
device# clear ip msdp statistics
Syntax: clear ip msdp statistics [
ip-addr
]
The command in this example clears statistics for all the peers. To clear statistics for only a specific peer, enter the IP address of the peer.
Clearing MSDP VRF statistics
To clear the MSDP VRF statistics by entering the following command.
device# clear ip msdp vrf blue statistics
Syntax: clear ip msdp [vrf
vrf-name
] statistics [
ip-addr
]
The command in this example clears statistics for all the peers. To clear statistics for only a specific peer, enter the IP address of the peer.
The command in this example clears all statistics for all the peers in the VRF "blue".
Configuring MSDP mesh groups
A PIM Sparse domain can have several RPs that are connected to each other to form an MSDP mesh group. To qualify as a mesh group,
the RPs have to be fully meshed; that is, each RP must be connected to all peer RPs in a domain. (Refer to Figure 8.)
A mesh group reduces the forwarding of SA messages within a domain. Instead of having every RP in a domain forward SA messages to all
the RPs within that domain, only one RP forwards the SA message. Since an MSDP mesh group is fully meshed, peers do not forward SA
messages received in a domain from one member to any member of the group. The RP that originated the SA or the first RP in a domain
that receives the SA message is the only one that forwards the message to the members of a mesh group. An RP can forward an SA
message to any MSDP router as long as that peer is farther away from the originating RP than the current MSDP router.
IPv4 Multicast Protocols
Configuring MSDP mesh groups
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 123
The following figure shows an example of an MSDP mesh group. In a PIM-SM mesh group the RPs are configured to be peers of each
other. They can also be peers of RPs in other domains.

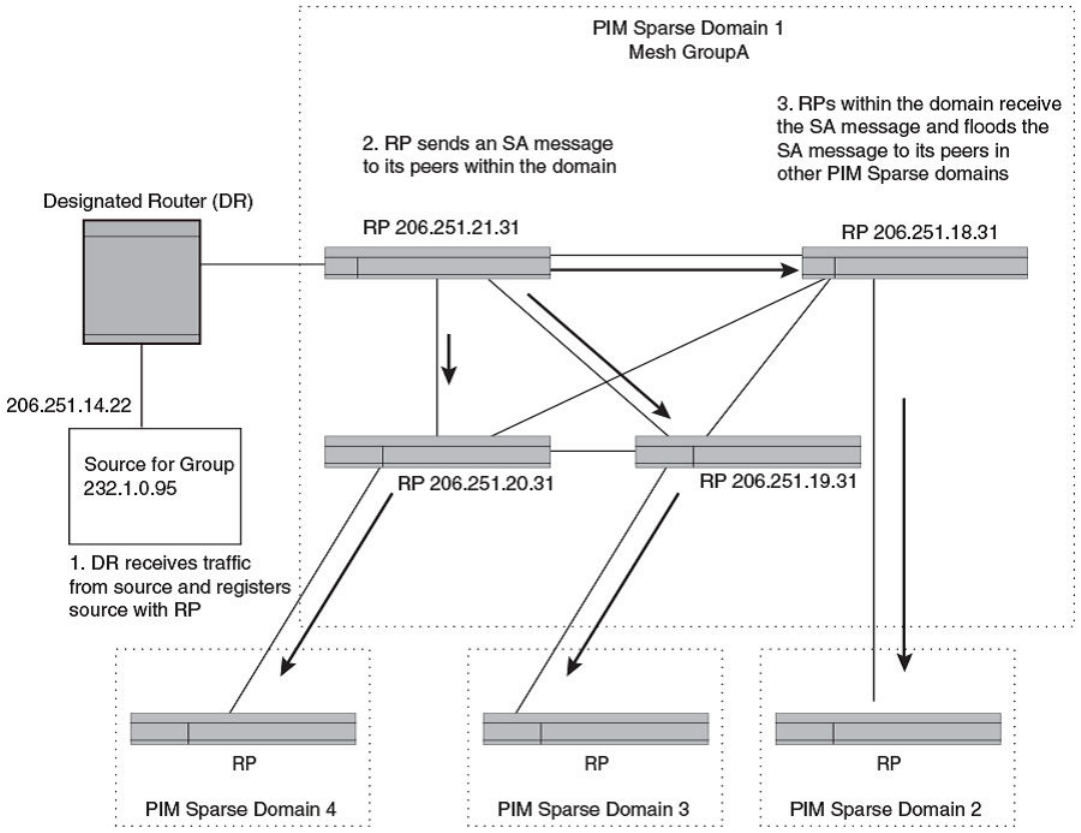

FIGURE 8 Example of MSDP mesh group
PIM Sparse Domain 1 in Figure 8 contains a mesh group with four RPs. When the first RP, for example, RP 206.251.21.31 originates or
receives an SA message from a peer in another domain, it sends the SA message to its peers within the mesh group. However, the peers
do not send the message back to the originator RP or to each other. The RPs then send the SA message farther away to their peers in
other domains.The process continues until all RPs within the network receive the SA message.
Configuring MSDP mesh group
To configure an MSDP mesh group, enter commands such as the following on each device that will be included in the mesh group.
device(config)# router msdp
device(config-msdp-router)# msdp-peer 206.251.18.31 connect-source loopback 2
IPv4 Multicast Protocols
Configuring MSDP mesh groups
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
124 Part Number: 53-1005289-01
device(config-msdp-router)# msdp-peer 206.251.19.31 connect-source loopback 2
device(config-msdp-router)# msdp-peer 206.251.20.31 connect-source loopback 2
device(config-msdp-router)# mesh-group GroupA 206.251.18.31
device(config-msdp-router)# mesh-group GroupA 206.251.19.31
device(config-msdp-router)# mesh-group GroupA 206.251.20.31
device(config-msdp-router)# exit
Syntax: [no] mesh-group
group-name
peer-address
The sample configuration above reflects the configuration in Figure 8 on page 124. On RP 206.251.21.31 you specify its peers within the
same domain (206.251.18.31, 206.251.19.31, and 206.251.20.31).
You first configure the MSDP peers using the msdp-peer command to assign their IP addresses and the loopback interfaces.
Next, place the MSDP peers within a domain into a mesh group. Use the mesh-group command. There are no default mesh groups.
The
group-name
parameter identifies the mesh group. Enter up to 31 characters for group-name. You can have up to 4 mesh groups within
a multicast network. Each mesh group can include up to 15 peers.
The
peer-address
parameter specifies the IP address of the MSDP peer that is being placed in the mesh group. Each mesh group can
include up to 32 peers.
NOTE
On each of the device that will be part of the mesh group, there must be a mesh group definition for all the peers in the mesh-
group.
A maximum of 32 MSDP peers can be configured per mesh group.
You can use the show ip msdp [ vrf
vrf-name
] mesh-group
group-name
command to view the details of a specific mesh-group or the
mesh-group details for the VRF instance specified by the
vrf-name
variable. .
MSDP Anycast RP
MSDP Anycast RP is a method of providing intra-domain redundancy and load-balancing between multiple Rendezvous Points (RP) in a
Protocol Independent Multicast Sparse mode (PIM-SM) network. It is accomplished by configuring all RPs within a domain with the same
anycast RP address which is typically a loopback IP address. Multicast Source Discovery Protocol (MSDP) is used between all of the RPs in
a mesh configuration to keep all RPs in sync regarding the active sources.
PIM-SM routers are configured to register (statically or dynamically) with the RP using the same anycast RP address. Since multiple RPs
have the same anycast address, an Interior Gateway Protocol (IGP) such as OSPF routes the PIM-SM router to the RP with the best route.
If the PIM-SM routers are distributed evenly throughout the domain, the loads on RPs within the domain will be distributed. If the RP with
the best route goes out of service, the PIM-SM router’s IGP changes the route to the closest operating RP that has the same anycast
address.
This configuration works because MSDP is configured between all of the RPs in the domain. Consequently, all of the RPs share information
about active sources.
This feature uses functionality that is already available on the Ruckus device but re-purposes it to provide the benefits desired as described
in RFC 3446.
Configuring MSDP Anycast RP
To configure MSDP Anycast RP, you must perform the following tasks:
•Configure a loopback interface with the anycast RP address on each of the RPs within the domain and enable PIM-SM on these
interfaces.
IPv4 Multicast Protocols
MSDP Anycast RP
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 125
• Ensure that the anycast RP address is leaked into the IGP domain. This is typically done by enabling the IGP on the loopback
interface (in passive mode) or redistributing the connected loopback IP address into the IGP.
NOTE
The anycast RP address *must* not be the IGP router-id.
• Enable PIM-SM on all interfaces on which multicast routing is desired.
• Enable an IGP on each of the loopback interfaces and physical interfaces configured for PIM-SM.
•Configure loopback interfaces with unique IP addresses on each of the RPs for MSDP peering. This loopback interface is also
used as the MSDP originator-id.
• The non-RP PIM-SM routers may be configured to use the anycast RP address statically or dynamically (by the PIMv2 bootstrap
mechanism).
Example
The example shown in Figure 9 is a simple MSDP Anycast-enabled network with two RPs and two PIM-SM routers. Loopback 1 in RP 1
and RP 2 have the same IP address. Loopback 2 in RP1 and Loopback 2 in RP2 have different IP addresses and are configured as MSDP
peering IP addresses in a mesh configuration.
In the PIM configuration for PIM-SM routers PIMR1 and PIMR2 the RP address is configured to be the anycast RP address that was
configured on the Loopback 1 interfaces on RP1 and RP2. OSPF is configured as the IGP for the network and all of the devices are in
OSPF area 0.
Since PIMR1 has a lower cost path to RP1 and PIMR2 has a lower cost path to RP2 they will register with the respective RPs when both
are up and running. This shares the load between the two RPs. If one of the RPs fails, the higher-cost path to the IP address of Loopback 1
on the RPs is used to route to the still-active RP.
The configuration examples demonstrate the commands required to enable this application.
IPv4 Multicast Protocols
MSDP Anycast RP
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
126 Part Number: 53-1005289-01

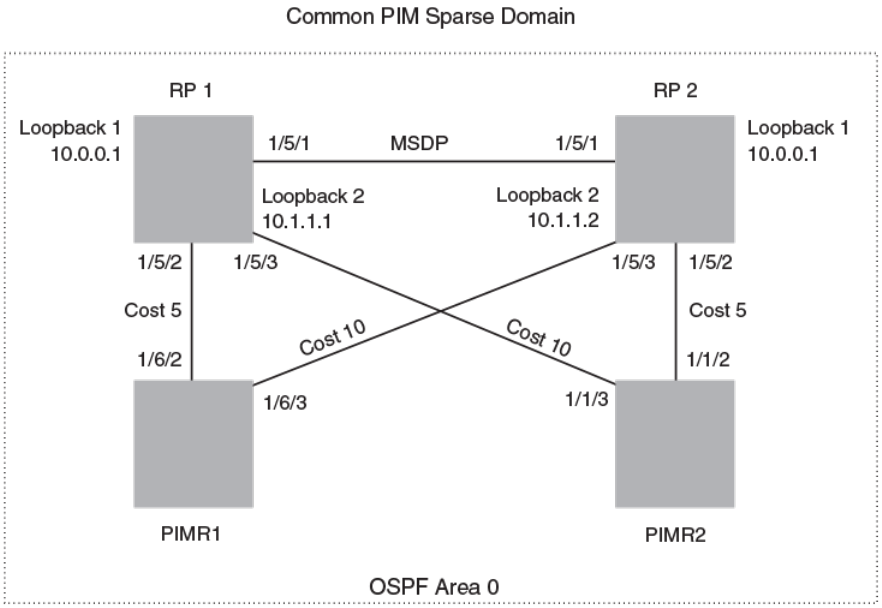

FIGURE 9 Example of a MDSP Anycast RP network
RP 1 configuration
The following commands provide the configuration for the RP 1 router in Figure 9.
RP1(config)#router ospf
RP1(config-ospf-router)# area 0
RP1(config-ospf-router)# exit
RP1(config)# interface loopback 1
RP1(config-lbif-1)# ip ospf area 0
RP1(config-lbif-1)# ip ospf passive
RP1(config-lbif-1)# ip address 10.0.0.1/32
RP1(config-lbif-1)# ip pim-sparse
RP1(config-lbif-1)# exit
RP1(config)# interface loopback 2
RP1(config-lbif-2)# ip ospf area 0
RP1(config-lbif-2)# ip ospf passive
RP1(config-lbif-2)# ip address 10.1.1.1/32
RP1(config-lbif-2)# exit
RP1(config)# interface ethernet 1/5/1
RP1(config-if-e1000-1/5/1)# ip ospf area 0
RP1(config-if-e1000-1/5/1)# ip address 192.1.1.1/24
RP1(config-if-e1000-1/5/1)# ip pim-sparse
RP1(config)# interface ethernet 1/5/2
RP1(config-if-e1000-1/5/2)# ip ospf area 0
RP1(config-if-e1000-1/5/2)# ip ospf cost 5
RP1(config-if-e1000-1/5/2)# ip address 192.2.1.1/24
RP1(config-if-e1000-1/5/2)# ip pim-sparse
RP1(config)# interface ethernet 1/5/3
RP1(config-if-e1000-1/5/3)# ip ospf area 0
RP1(config-if-e1000-1/5/3)# ip ospf cost 10
RP1(config-if-e1000-1/5/3)# ip address 192.3.1.1/24
IPv4 Multicast Protocols
MSDP Anycast RP
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 127
RP1(config-if-e1000-1/5/3)# ip pim-sparse
RP1(config-if-e1000-1/5/3)# exit
RP1(config)# router pim
RP1(config-pim-router)# rp-candidate loopback 1
RP1(config-pim-router)# exit
RP1(config)# router msdp
RP1(config-msdp-router)# msdp-peer 10.1.1.2 connect-source loopback 2
RP1(config-msdp-router)# originator-id loopback 2
RP 2 configuration
The following commands provide the configuration for the RP 2 router in Figure 9.
RP2(config)#router ospf
RP2(config-ospf-router)# area 0
RP2(config-ospf-router)# exit
RP2(config)# interface loopback 1
RP2(config-lbif-1)# ip ospf area 0
RP2(config-lbif-1)# ip ospf passive
RP2(config-lbif-1)# ip address 10.0.0.1/32
RP2(config-lbif-1)# ip pim-sparse
RP2(config-lbif-1)# exit
RP2(config)# interface loopback 2
RP2(config-lbif-2)# ip ospf area 0
RP2(config-lbif-2)# ip ospf passive
RP2(config-lbif-2)# ip address 10.1.1.2/32
RP2(config-lbif-2)# exit
RP2(config)# interface ethernet 1/5/1
RP2(config-if-e1000-1/5/1)# ip ospf area 0
RP2(config-if-e1000-1/5/1)# ip address 192.1.1.2/24
RP2(config-if-e1000-1/5/1)# ip pim-sparse
RP2(config)# interface ethernet 1/5/2
RP2(config-if-e1000-1/5/2)# ip ospf area 0
RP2(config-if-e1000-1/5/2)# ip ospf cost 5
RP2(config-if-e1000-1/5/2)# ip address 192.5.2.1/24
RP2(config-if-e1000-1/5/2)# ip pim-sparse
RP2(config)# interface ethernet 1/5/3
RP2(config-if-e1000-1/5/3)# ip ospf area 0
RP2(config-if-e1000-1/5/3)# ip ospf cost 10
RP2(config-if-e1000-1/5/3)# ip address 192.6.1.2/24
RP2(config-if-e1000-1/5/3)# ip pim-sparse
RP2(config-if-e1000-1/5/3)# exit
RP2(config)# router pim
RP2(config-pim-router)# rp-candidate loopback 1
RP2(config-pim-router)# exit
RP2(config)# router msdp
RP2(config-msdp-router)# msdp-peer 10.1.1.1 connect-source loopback 2
RP2(config-msdp-router)# originator-id loopback 2
PIMR1 configuration
The following commands provide the configuration for the PIMR1 router in Figure 9.
PIMR1(config)#router ospf
PIMR1(config-ospf-router)# area 0
PIMR1(config-ospf-router)# exit
PIMR1(config)# interface ethernet 1/6/2
PIMR1(config-if-e1000-1/6/2)# ip ospf area 0
PIMR1(config-if-e1000-1/6/2)# ip ospf cost 5
PIMR1(config-if-e1000-1/6/2)# ip address 192.2.1.2/24
PIMR1(config-if-e1000-1/6/2)# ip pim-sparse
PIMR1(config)# interface ethernet 1/6/3
PIMR1(config-if-e1000-1/6/3)# ip ospf area 0
PIMR1(config-if-e1000-1/6/3)# ip ospf cost 10
PIMR1(config-if-e1000-1/6/3)# ip address 192.6.1.1/24
PIMR1(config-if-e1000-1/6/3)# ip pim-sparse
PIMR1(config-if-e1000-1/6/3)# exit
PIMR1(config)# router pim
IPv4 Multicast Protocols
MSDP Anycast RP
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
128 Part Number: 53-1005289-01
PIMR1(config-pim-router)# rp-address 10.0.0.1
PIMR1(config-pim-router)# exit
PIMR2 configuration
The following commands provide the configuration for the PIMR2 router in Figure 9.
PIMR2(config)#router ospf
PIMR2(config-ospf-router)# area 0
PIMR2(config-ospf-router)# exit
PIMR2(config)# interface ethernet 1/1/2
PIMR2(config-if-e1000-1/1/2)# ip ospf area 0
PIMR2(config-if-e1000-1/1/2)# ip ospf cost 5
PIMR2(config-if-e1000-1/1/2)# ip address 192.5.2.2/24
PIMR2(config-if-e1000-1/1/2)# ip pim-sparse
PIMR2(config)# interface ethernet 1/1/3
PIMR2(config-if-e1000-1/1/3)# ip ospf area 0
PIMR2(config-if-e1000-1/1/3)# ip ospf cost 10
PIMR2(config-if-e1000-1/1/3)# ip address 192.3.1.2/24
PIMR2(config-if-e1000-1/1/3)# ip pim-sparse
PIMR2(config-if-e1000-1/1/3)# exit
PIMR2(config)# router pim
PIMR2(config-pim-router)# rp-address 10.0.0.1
PIMR2(config-pim-router)# exit
PIM Anycast RP
PIM Anycast RP is a method of providing load balancing and fast convergence to PIM RPs in an IPv4 multicast domain. The RP address of
the Anycast RP is a shared address used among multiple PIM routers, known as PIM RP. The PIM RP routers create an Anycast RP set.
Each router in the Anycast RP set is configured using two IP addresses; a shared RP address in their loopback address and a separate,
unique ip address. The loopback address must be reachable by all PIM routers in the multicast domain. The separate, unique ip address is
configured to establish static peering with other PIM routers and communication with the peers.
When the source is activated in a PIM Anycast RP domain, the PIM First Hop (FH) will register the source to the closet PIM RP. The PIM RP
follows the same MSDP Anycast RP operation by decapsulating the packet and creating the (s,g) state. If there are external peers in the
Anycast RP set, the router will re-encapsulate the packet with the local peering address as the source address of the encapsulation. The
router will unicast the packet to all Anycast RP peers. The re-encapsulation of the data register packet to Anycast RP peers ensures source
state distribution to all RPs in a multicast domain.
Configuring PIM Anycast RP
A new PIM CLI is introduced for PIM Anycast RP under the router pim sub mode. The PIM CLI specifies mapping of the RP and the
Anycast RP peers.
To configure PIM Anycast RP, enter the following command.
device(config)#router pim
device(config-pim-router)#rp-address 100.1.1.1
device(config-pim-router)#anycast-rp 100.1.1.1 my-anycast-rp-set-acl
Syntax: [no] anycast-rp
rp-address
anycast-rp-set-acl
The
rp address
parameter specifies a shared RP address used among multiple PIM routers.
The anycast-rp-set-acl parameter specifies a host based simple acl used to specifies the address of the Anycast RP set, including a local
address.
IPv4 Multicast Protocols
PIM Anycast RP
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 129
The following example is a configuration of PIM Anycast RP 100.1.1.1.The example avoids using loopback 1 interface when configuring PIM
Anycast RP because the loopback 1 address could be used as a router-id. A PIM First Hop router will register the source with the closest
RP. The first RP that receives the register will re-encapsulate the register to all other Anycast RP peers. Please refer to Figure 10 as
described in the configuration of PIM Anycast RP 100.1.1.1.
device(config)#interface loopback 2
device(config-lbif-2)#ip address 100.1.1.1/24
device(config-lbif-2)#ip pim-sparse
device(config-lbif-2)#interface loopback 3
device(config-lbif-3)#ip address 1.1.1.1/24
device(config-lbif-3)#ip pim-sparse
device(config-lbif-3)#router pim
device(config-pim-router)#rp-address 100.1.1.1
device(config-pim-router)#anycast-rp 100.1.1.1 my-anycast-rp-set
device(config-pim-router)#ip access-list standard my-anycast-rp-set
device(config-std-nacl)#permit host 1.1.1.1
device(config-std-nacl)#permit host 2.2.2.2
device(config-std-nacl)#permit host 3.3.3.3
The RP shared address 100.1.1.1 is used in the PIM domain. IP addresses 1.1.1.1, 2.2.2.2, and 3.3.3.3 are listed in the ACL that forms the
self inclusive Anycast RP set. Multiple anycast-rp instances can be configured on a system; each peer with the same or different Anycast
RP set.
NOTE
The PIM software supports up to eight PIM Anycast-RP routers. All deny statements in the anycast_rp_set acl and additional
routers more than eight listed in an access list are ignored.
The example shown in the following figure is a PIM Anycast-enabled network with 3 RPs, 1 PIM-FH router connecting to its active source
and local receiver. Loopback 2 in RP1, RP2, and RP3 have the same IP addresses 100.1.1.1. Loopback 3 in RP1, RP2, and RP3 each
have separate IP addresses configured to communicate with their peers in the Anycast RP set.
FIGURE 10 Example of a PIM Anycast RP network
Displaying information for a PIM Anycast RP interface
To display information for a PIM Anycast RP interface, enter the following command.
device(config)#show ip pim anycast-rp
Number of Anycast RP: 1
Anycast RP: 100.1.1.1
ACL ID: 200
ACL Name: my-anycast-rp-set
ACL Filter: SET
Peer List:
1.1.1.1
IPv4 Multicast Protocols
PIM Anycast RP
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
130 Part Number: 53-1005289-01
2.2.2.2
3.3.3.3
Syntax: show ip pim [vrf
vrf-name
] anycast-rp
The following table describes the parameters of the show ip pim anycast-rp command:
TABLE 20 Display of show ip pim anycast-rp
This field... Displays...
Number of Anycast RP: The Number of Anycast RP specifies the number of Anycast RP sets in the
multicast domain.
Anycast RP: The Anycast RP address specifies a shared RP address used among
multiple PIM routers.
ACL ID: The ACL ID specifies the ACL ID assigned.
ACL Name The ACL Name specifies the name of the Anycast RP set.
ACL Filter The ACL Filter specifies the ACL filter state SET or UNSET.
Peer List The Peer List specifies host addresses that are permitted in the Anycast RP
set.
NOTE
MSDP and Anycast RP do not interoperate. If transitioning from MSDP to Anycast RP or vice versa, all RPs in the network must
be configured for the same method of RP peering; either Anycast RP or MSDP.
Static multicast routes
Configure static multicast routes to control the network paths, administrative distance, and precedence for multicast routes.
Static multicast routes allow you to control the network path used by multicast traffic. Static multicast routes are especially useful when the
unicast and multicast topologies of a network are different. By configuring static multicast routes you don't have to make the topologies
similar.
NOTE
In IP multicasting, source IP addresses are unicast addresses while destination IP addresses are multicast (group) addresses.
Therefore, in IP multicasting, a route lookup is done for source IP address, rather than its destination IP address.
You can configure more than one static multicast route. The device always uses the most specific route that matches a multicast source
address. Thus, if you want to configure a multicast static route for a specific multicast source and also configure another multicast static
route for all other sources, you can configure two static routes
Configure the distance keyword in the ip mroute command to specify the administrative distance, which the device uses to determine the
best path for a route. When comparing multiple paths for a route, the device prefers the path with the lower administrative distance. To
ensure that the default static route is used, configure a low administrative distance value. However, the device prefers directly connected
routes over other routes, no matter what the administrative distance.
Configure the route-precedence command to specify a precedence table that dictates how routes are selected for multicast.
IGMP Proxy
IGMP Proxy provides a means for routers to receive any or all multicast traffic from an upstream device if the router is not able to run PIM
and runs only IGMP. IGMP Proxy supports IGMP v1, v2, and v3.
IPv4 Multicast Protocols
IGMP Proxy
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 131
IGMP Proxy enables the router to issue IGMP host messages on behalf of hosts that the router discovered through standard PIM interfaces.
The router acts as a proxy for its hosts and performs the host portion of the IGMP task on the upstream interface as follows:
• When queried, the router sends group membership reports for the groups learned.
• When one of its hosts joins a multicast address group to which none of its other hosts belong, the router sends unsolicited
membership reports to that group.
• When the last of its hosts in a particular multicast group leaves the group, the router sends an unsolicited leave group membership
report to group (multicast IP address 224.0.0.2).
IGMP proxy configuration notes
When using IGMP Proxy, you must do the following.
1. Configure PIM on all multicast client ports to build the group membership table. The group membership table will be reported by
the proxy interface. Refer to Globally enabling and disabling PIM on page 78.
2. Enable IP multicast on an interface to an upstream router that will be the IGMP proxy interface and configure IGMP Proxy on that
interface.
IGMP proxy limitations
• IGMP Proxy cannot be enabled on the same interface on which PIM SM or PIM DM is enabled.
• IGMP Proxy is only supported in a PIM Dense environment where there are IGMP clients connected to the Ruckus device. The
Ruckus device does not send IGMP reports on an IGMP proxy interface for remote clients connected to a PIM neighbor,because it
is not aware of groups that the remote clients are interested in. Static groups on the other PIM interfaces are included in proxy
reports.
• PIM DM must be enabled in passive mode. This is a change from the previous implementation; to be backward compatible, PIM-
DM passive mode is enabled in passive mode indirectly if PIM-DM is not enabled explicitly.
Configuring IGMP Proxy
Perform the following steps to configure IGMP Proxy.
1. Configure router PIM globally.
device(config)# router pim
2. Configure an IP address on the interface (physical, virtual routing, or tunnel interface) that will serve as the IGMP proxy for an
upstream device by entering commands such as the following.
device(config)# interface ethernet 1/1/3
device(config-if-e1000-1/1/3)# ip address 10.95.5.1/24
3. Enable PIM passive on the interface.
device(config-if-e1000-1/1/3)# ip pim passive
4. Enable IGMP Proxy on the interface.
device(config-if-e1000-1/1/3)# ip igmp proxy
Syntax: [no] ip igmp proxy
IPv4 Multicast Protocols
IGMP Proxy
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
132 Part Number: 53-1005289-01
Filtering groups in proxy report messages
Once IGMP Proxy is configured and the router receives a query on an IGMP Proxy interface, the router sends a report in response to the
query before the IGMP maximum response time expires.
You can filter out groups in proxy report messages by specifying an access list name or number.
Brocade(config-if-e1000-1/1/3)# ip igmp proxy group-filter ACL1
Syntax: [no] ip igmp proxy group-lter
access_list
To remove the group filter association without disabling the proxy, please apply the command ip igmp proxy without the group filter option.
Displaying IGMP Proxy information
Use the show ip igmp proxy command to see information about the proxy groups and interfaces on the default VRF. For other VRF
instances, use the same command with the vrf option. For example, show ip igmp proxy vrf
vrf_name
.
Brocade#sh ip igmp proxy
Proxy instance name: default-vrf
Total proxy groups: 4
Address Mode Source ref flags
count count
--------------------------------------------------------
225.1.1.1 exclude 0 0 0
225.1.1.2 exclude 0 0 0
225.1.1.3 exclude 0 0 0
225.1.1.4 exclude 0 0 0
Proxy interfaces
----------------
Name Oper Cfg Unsoli Filter Filter
Version Robust Interval Acl Id Name
-----------------------------------------------------
e1/1/3 2 2 1 0
Syntax: show ip igmp proxy
The report shows the following information.
TABLE 21 Output of show ip igmp proxy
Field Description
Address Group address.
Mode Multicast group mode. Can be "exclude" or "include."
Source count Number sources in the given mode. A group in IGMP v2 has exclude mode
with zero sources.
ref count Number of proxy interfaces where the responses (query, state, change, etc)
are scheduled.
flags Can be "0" or "1." "1" indicates that the group state has changed and it
needs to be reevaluated before a response is generated. "0" indicates that
no change in state response is scheduled.
Name Interface name.
Oper version Current querier version or configured version.
Cfg Robust Configured robustness value.
Unsoli Interval Unsolitcited report interval in seconds.
Filter Acl Id Number of the access list.
Filter Name Name of the access list.
IPv4 Multicast Protocols
IGMP Proxy
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 133
Use the show ip igmp proxy summary command to see summary information.
Brocade# show ip igmp proxy summary
Proxy instances:
-----------------------------------
Inst-Name Total Grps
-----------------------------------
default-vrf 4
The report shows the following information.
TABLE 22 Output of show ip igmp proxy summary
Field Description
Inst-Name Number of the proxy instance.
Total Grps NUmber of proxy groups.
Syntax: show ip igmp proxy summary
Use the show ip igmp proxy stats command to see information about queries and reports on a specific
interface.
Brocade# show ip igmp proxy stats
Intf genQv1 genQv2 genQv3 GrpQ SrcQ Rprtv1 Rprtv2 Rprtv3 leave
RX RX RX RX RX TX TX TX TX
--------------------------------------------------------------------------------
v3000 0 0 0 0 0 0 0 0 0
Syntax: show ip igmp proxy stats
The report shows the following information.
TABLE 23 Output of show ip igmp proxy stats
Field Description
Intf Interface
genQv1 RX IGMP v1 general query received on proxy interface.
genQv2 RX IGMP v2 general query received on proxy interface.
genQv3 RX IGMP v3 general query received on proxy interface.
GrpQ RX Group query received.
SrcQ RX Source query received.
Rprtv1 TX IGMP v1 report generated.
Rprtv2 TX IGMP 2 report generated.
Rprtv3 TX IGMP v3 report generated.
leave TX IGMP v2 leave generated.
IGMP V3
The Internet Group Management Protocol (IGMP) allows an IPV4 system to communicate IP Multicast group membership information to its
neighboring routers. The routers in turn limit the multicast of IP packets with multicast destination addresses to only those interfaces on the
router that are identified as IP Multicast group members.
In IGMP V2, when a router sent a query to the interfaces, the clients on the interfaces respond with a membership report of multicast
groups to the router. The router can then send traffic to these groups, regardless of the traffic source. When an interface no longer needs to
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
134 Part Number: 53-1005289-01
receive traffic from a group, it sends a leave message to the router which in turn sends a group-specific query to that interface to see if any
other clients on the same interface is still active.
In contrast, IGMP V3 provides selective filtering of traffic based on traffic source. A router running IGMP V3 sends queries to every multicast
enabled interface at the specified interval. These general queries determine if any interface wants to receive traffic from the router. The
following are the three variants of the Query message:
• A "General Query" is sent by a multicast router to learn the complete multicast reception state of the neighboring interfaces. In a
General Query, both the Group Address field and the Number of Sources (N) field are zero.
• A "Group-Specific Query" is sent by a multicast router to learn the reception state, with respect to a *single* multicast address, of
the neighboring interfaces. In a Group-Specific Query, the Group Address field contains the multicast address of interest, and the
Number of Sources (N) field contains zero.
• A "Group-and-Source-Specific Query" is sent by a multicast router to learn if any neighboring interface desires reception of
packets sent to a specified multicast address, from any of a specified list of sources. In a Group-and-Source-Specific Query, the
Group Address field contains the multicast address of interest, and the Source Address [i] fields contain the source address(es) of
interest.
The hosts respond to these queries by sending a membership report that contains one or more of the following records that are associated
with a specific group:
• Current-State Record that indicates from which sources the interface wants to receive and not receive traffic. The record contains
source address of interfaces and whether or not traffic will be received or included (IS_IN) or not received or excluded (IS_EX) from
that source.
The following messages are generated by hosts, not the response Query. These messages are generated when there is a change in the
group member state.
• Filter-mode-change record. If the interface changes its current state from IS_IN to IS_EX, a TO_EX record is included in the
membership report. Likewise, if an interface’s current state changes from IS_EX to IS_IN, a TO_IN record appears in the
membership report.
IGMP V2 Leave report is equivalent to a TO_IN (empty) record in IGMP V3. This record means that no traffic from this group will be received
regardless of the source.
An IGMP V2 group report is equivalent to an IS_EX (empty) record in IGMP V3. This record means that all traffic from this group will be
received regardless of source.
• Source-List-Change Record. If the interface wants to add or remove traffic sources from its membership report, the membership
report can have an ALLOW record, which contains a list of new sources from which the interface wishes to receive traffic. It can
also contains a BLOCK record, which lists current traffic sources from which the interfaces wants to stop receiving traffic.
In response to membership reports from the interfaces, the router sends a Group-Specific or a Group-and-Source Specific query to the
multicast interfaces. For example, a router receives a membership report with a Source-List-Change record to block old sources from an
interface. The router sends Group-and-Source Specific Queries to the source and group (S,G) identified in the record. If none of the
interfaces is interested in the (S,G), it is removed from (S,G) list for that interface on the router.
Each IGMP V3-enabled router maintains a record of the state of each group and each physical port within a virtual routing interface. This
record contains the group, group-timer, filter mode, and source records information for the group or interface. Source records contain
information on the source address of the packet and source timer. If the source timer expires when the state of the group or interface is in
Include mode, the record is removed.
Default IGMP version
IGMP V3 is available for Ruckus devices; however, these routers are shipped with IGMP V2-enabled. You must enable IGMP V3 globally or
per interface.
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 135
Also, you can specify what version of IGMP you want to run on a device globally, on each interface (physical port or virtual routing interface),
and on each physical port within a virtual routing interface. If you do not specify an IGMP version, IGMP V2 will be used.
Compatibility with IGMP V1 and V2
Different multicast groups, interfaces, and routers can run their own version of IGMP. Their version of IGMP is reflected in the membership
reports that the interfaces send to the router. Routers and interfaces must be configured to recognized the version of IGMP you want them
to process.
An interface or router sends the queries and reports that include its IGMP version specified on it. It may recognize a query or report that has
a different version. For example, an interface running IGMP V2 can recognize IGMP V3 packets, but cannot process them. Also, a router
running IGMP V3 can recognize and process IGMP V2 packet, but when that router sends queries to an IGMP V2 interface, the
downgraded version is supported, no the upgraded version.
If an interface continuously receives queries from routers that are running versions of IGMP that are different from what is on the interface,
the interface logs warning messages in the syslog every five minutes. Reports sent by interfaces to routers that contain different versions of
IGMP do not trigger warning messages; however, you can see the versions of the packets using the show ip igmp trac command.
The version of IGMP can be specified globally, per interface (physical port or virtual routing interface), and per physical port within a virtual
routing interface. The IGMP version set on a physical port within a virtual routing interface supersedes the version set on a physical or virtual
routing interface. Likewise, the version on a physical or virtual routing interface supersedes the version set globally on the device. The
sections below present how to set the version of IGMP.
Globally enabling the IGMP version
To globally identify the IGMP version on a Ruckus device, enter the following command.
device(config)# ip igmp version 3
Syntax: [no] ip igmp version
version-number
Enter 1, 2, or 3 for
version-number
. Version 2 is the default version.
Enabling the IGMP version per interface setting
To specify the IGMP version for a physical port, enter a command such as the following.
device(config)# interface ethernet 1/1/5
device(config-if-1/1/5)# ip igmp version 3
To specify the IGMP version for a virtual routing interface on a physical port, enter a command such as the following.
device(config)# interface ve 3
device(config-vif-1)# ip igmp version 3
Syntax: [no] ip igmp version
version-number
Enter 1, 2, or 3 for
version-number
. Version 2 is the default version.
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
136 Part Number: 53-1005289-01
Enabling the IGMP version on a physical port within a virtual routing
interface
To specify the IGMP version recognized by a physical port that is a member of a virtual routing interface, enter a command such as the
following.
device(config)# interface ve 3
device(config-vif-3)# ip igmp version 2
device(config-vif-3)# ip igmp port-version 3 ethernet 1/1/3 to ethernet 1/1/7 ethernet 1/2/9
In this example, the second line sets IGMP V2 on virtual routing interface 3. However, the third line set IGMP V3 on ethernet ports 1/1/3
through 1/1/7 and 1/2/9. All other ports in this virtual routing interface are configured with IGMP V2.
Syntax: [no] ip igmp port-version
version-number
ethernet
unit/slot/port
Enter 1, 2, or 3 for
version-number
. IGMP V2 is the default version.
The ethernet
unit/slot/port
parameter specifies which physical port within a virtual routing interface is being configured.
Enabling membership tracking and fast leave
NOTE
The IGMP V3 fast leave feature is supported in include mode, but does not work in the exclude mode.
IGMP V3 provides membership tracking and fast leave of clients. In IGMP V2, only one client on an interface needs to respond to a router’s
queries; therefore, some of the clients may be invisible to the router, making it impossible for the switch to track the membership of all
clients in a group. Also, when a client leaves the group, the switch sends group specific queries to the interface to see if other clients on
that interface need the data stream of the client who is leaving. If no client responds, the switch waits three seconds before it stops the
traffic.
IGMP V3 contains the tracking and fast leave feature that you enable on virtual routing interfaces. Once enabled, all physical ports on that
virtual routing interface will have the feature enabled. IGMP V3 requires all clients to respond to general and group specific queries so that all
clients on an interface can be tracked. Fast leave allows clients to leave the group without the three second waiting period, if the following
conditions are met:
• If the interface, to which the client belongs, has IGMP V3 clients only. Therefore, all physical ports on a virtual routing interface
must have IGMP V3 enabled and no IGMP V1 or V2 clients can be on the interface. (Although IGMP V3 can handle V1 and V2
clients, these two clients cannot be on the interface in order for fast leave to take effect.)
• No other client on the interface is receiving traffic from the group to which the client belongs.
Every group on the physical interface of a virtual routing interface keeps its own tracking record. It can track by (source, group).
For example, two clients (Client A and Client B) belong to group1 but each is receiving traffic streams from different sources. Client A
receives a stream from (source_1, group1) and Client B receives it from (source_2, group1). Now, if Client B leaves, the traffic stream
(source_2, group1) will be stopped immediately. The show ip igmp group tracking command displays that clients in a group that are being
tracked.
If a client sends a leave message, the client is immediately removed from the group. If a client does not send a report during the specified
group membership time (the default is 140 seconds), that client is removed from the tracking list.
To enable the tracking and fast leave feature, enter commands such as the following.
device(config)# interface ve 13
device(config-vif-13)# ip igmp tracking
Syntax: [no] ip igmp tracking
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 137
Creating a static IGMP group
You can configure one or more physical ports to be a permanent (static) member of an IGMP group based on the range or count.
To configure two static groups starting from 226.0.0.1, enter either this command:
Device(config)# interface ethernet 1/1/5
Device(config-if-e1000-1/1/5)# ip igmp static-group 226.0.0.1 count 2
Or this command:
Device(config)# interface ethernet 1/1/5
Device(config-if-e1000-1/1/5)# ip igmp static-group 226.0.0.1 to 226.0.0.2
Syntax: [no] ip igmp static-group
ip-address
[ count
count-number
| to
ip-address
]
Enter the IP address of the static IGMP group for
ip-address
. The count-number range is 2-256.
To configure two static groups on virtual ports starting from 226.0.0.1, enter either this command:
Device(config)# interface ethernet 1/1/5
Device(config-if-e1000-1/1/5)# ip igmp static-group 226.0.0.1 count 2 ethernet 1/1/5
Or this command:
Device(config)# interface ve 10
Device(config-vif-10)# ip igmp static-group 226.0.0.1 to 226.0.0.2 ethernet 1/1/5
Syntax: [no] ip igmp static-group
ip-address
[ count
count-number
| to
ip-address
] ethernet
unit/slot/port
Enter the IP address of the static IGMP group for
ip-address
. The count-number range is 2-256.
Enter the ID of the physical port of the VLAN that will be a member of the group for ethernet
unit/slot/port
.
NOTE
IGMPv3 does not support static IGMP group members.
NOTE
Static IGMP groups are supported only in Layer 3 mode.
Setting the query interval
The IGMP query interval period defines how often a switch will query an interface for group membership. Possible values are 2-3600
seconds and the default value is 125 seconds, but the value you enter must be a little more than twice the group membership time.
To modify the default value for the IGMP query interval, enter the following.
device(config)# ip igmp query-interval 120
Syntax: [no] ip igmp query-interval
2-3600
The interval must be a little less than one half of the group membership time.
Setting the group membership time
Group membership time defines how long a group will remain active on an interface in the absence of a group report. Possible values are
from 5 - 26000 seconds and the default value is 260 seconds.
To define an IGMP membership time of 240 seconds, enter the following.
device(config)# ip igmp group-membership-time 240
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
138 Part Number: 53-1005289-01
Syntax: [no] ip igmp group-membership-time
5-26000
Setting the maximum response time
The maximum response time defines the maximum number of seconds that a client can wait before it replies to the query sent by the router.
Possible values are 1 - 25. The default is 10.
To change the IGMP maximum response time, enter a command such as the following at the global CONFIG level of the CLI.
device(config)# ip igmp max-response-time 8
Syntax: [no] ip igmp max-response-time
num
The
num
parameter specifies the maximum number of seconds for the response time. Enter a value from 1 - 25. The default is 10.
Displaying IGMPv3 information
The sections below present the show commands available for IGMP V3.
Displaying IGMP group status
You can display the status of all IGMP multicast groups on a device by entering the following command.
device# show ip igmp group
Total 2 entries
------------------------------------------------------
Idx Group Address Port Intf Mode Timer Srcs
---+----------------+------+------+---------+-----+----
1 232.0.0.1 e1/6/2 v30 include 0 7
2 226.0.0.1 e1/6/2 v30 exclude 240 2
e1/6/3 e1/6/3 include 0 3
Total number of groups 2
To display the status of one IGMP multicast group, enter a command such as the following.
device# show ip igmp group 239.0.0.1 detail
Total 2 entries
-----------------------------------------------------
Idx Group Address Port Intf Mode Timer Srcs
---+----------------+------+------+-------+-----+----
1 226.0.0.1 e1/6/2 v30 exclude 218 2
S: 40.40.40.12
S: 40.40.40.11
S: 40.40.40.10
S: 40.40.40.2 (Age: 218)
S: 40.40.40.3 (Age: 218)
226.0.0.1 e1/6/3 e1/6/3 include 0 3
S: 30.30.30.3 (Age: 165)
S: 30.30.30.2 (Age: 165)
S: 30.30.30.1 (Age: 165)
If the tracking and fast leave feature is enabled, you can display the list of clients that belong to a particular group by entering commands
such as the following.
device# show ip igmp group 224.1.10.1 tracking
Total 2 entries
-----------------------------------------------------
Idx Group Address Port Intf Mode Timer Srcs
---+----------------+------+------+-------+-----+----
1 226.0.0.1 e1/6/2 v30 exclude 253 3
S: 40.40.40.12
S: 40.40.40.11
S: 40.40.40.10
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 139
S: 40.40.40.2 (Age: 253)
C: 10.10.10.1 (Age: 253)
S: 40.40.40.3 (Age: 253)
C: 10.10.10.1 (Age: 253)
226.0.0.1 e1/6/3 e1/6/3 include 0 3
S: 30.30.30.3 (Age: 196)
C: 10.2.0.1 (Age: 196)
S: 30.30.30.2 (Age: 196)
C: 10.2.0.1 (Age: 196)
S: 30.30.30.1 (Age: 196)
C: 10.2.0.1 (Age: 196)
Syntax: show ip igmp [vrf [
vrf-name
] group [
group-address
[ detail ] [tracking ] ]
If you want a report for a specific multicast group, enter that group’s address for
group-address
. Omit the
group-address
if you want a
report for all multicast groups.
The vrf parameter specifies that you want to display IGMP group information for the VRF specified by the
vrf-name
variable.
Enter detail if you want to display the source list of the multicast group.
Enter tracking if you want information on interfaces that have tracking enabled.
IGMP V2 and V3 statistics displayed on the report for each interface.
TABLE 24 Output of show ip igmp group
This field Displays
Group The address of the multicast group
Port The physical port on which the multicast group was received.
Intf The virtual interface on which the multicast group was received.
Timer Shows the number of seconds the interface can remain in exclude mode.
An exclude mode changes to include mode if it does not receive an "IS_EX"
or "TO_EX" message during a certain period of time. The default is 140
seconds.
Mode Indicates current mode of the interface: include or exclude. If the interface is
in Include mode, it admits traffic only from the source list. If an interface is in
exclude mode, it denies traffic from the source list and accepts the rest.
Srcs Identifies the source list that will be included or excluded on the interface.
If IGMP V2 group is in exclude mode with a #_src of 0, the group excludes
traffic from 0 (zero) source list, which means that all traffic sources are
included.
Clearing the IGMP group membership table
To clear the IGMP group membership table, enter the following command.
device# clear ip igmp cache
Syntax: clear ip igmp [vrf
vrf-name
] cache
This command clears the IGMP membership for the default router instance or for a specified VRF.
Use the vrf option to clear the traffic information for a VRF instance specified by the
vrf-name
variable.
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
140 Part Number: 53-1005289-01
Displaying static IGMP groups
The following command displays static IGMP groups for the "eng" VRF.
device#show ip igmp vrf eng static
Group Address Interface Port List
----------------+---------+---------
229.1.0.12 1/4/1 ethe 1/4/1
229.1.0.13 1/4/1 ethe 1/4/1
229.1.0.14 1/4/1 ethe 1/4/1
229.1.0.92 1/4/1 ethe 1/4/1
Syntax: show ip igmp [ vrf
vrf-name
] static
The vrf parameter specifies that you want to display static IGMP group information for the VRF specified by the
vrf-name
variable.
TABLE 25 Output of show ip igmp vrf static
This field Displays
Group Address The address of the multicast group.
Interface Port List The physical ports on which the multicast groups are received.
Displaying the IGMP status of an interface
You can display the status of a multicast enabled port by entering a command such as the following.
device# show ip igmp interface
---------+------+---------+---------------+---------+-----+-----+---------
Intf/Port|Groups| Version |Querier | Timer |V1Rtr|V2Rtr|Tracking
| |Oper Cfg| |OQrr GenQ| | |
---------+------+----+----+---------------+----+----+-----+-----+---------
e1/6/3 1 3 3 Self 0 94 No No Disabled
e1/6/4 0 2 - Self 0 94 No No Disabled
v30 1 3 3 Disabled
e1/6/2 3 - Self 0 20 No No
v40 0 3 3 Disabled
e1/6/2 3 - Self 0 20 No No
v50 0 2 - Disabled
e1/2/1 2 - Self 0 29 No No
e1/6/8 2 - 50.1.1.10 46 0 No Yes
e1/6/1 2 - Self 0 115 No Yes
Syntax: show ip igmp [ vrf
vrf-name
] interface [ ve
number
[ group
A.B.C.D
] | ethernet
unit/slot/port
| tunnel
num
]
The vrf parameter specifies that you want to display IGMP interface information for the VRF specified by the
vrf-name
variable.
Enter ve and its
number
, or ethernet and its
unit/slot/port
to display information for a specific virtual routing interface, or ethernet interface.
The tunnel
num
parameter specifies a GRE tunnel interface that is being configured. The GRE tunnel interface is enabled under the router
PIM configuration.
Entering an address for
group-address
displays information for a specified group on the specified interface.
The report shows the following information:
TABLE 26 Output of show ip igmp interface
This field Displays
Intf The virtual interface on which IGMP is enabled.
Port The physical port on which IGMP is enabled.
Groups The number of groups that this interface or port has membership.
Version
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 141
TABLE 26 Output of show ip igmp interface (continued)
This field Displays
Oper The IGMP version that is operating on the interface.
Cfg The IGMP version that is configured for this interface.
Querier Where the Querier resides:
The IP address of the router where the querier is located
or
Self - if the querier is on the same router as the intf or port.
Max response
oQrr Other Querier present timer.
GenQ General Query timer
V1Rtr Whether IGMPv1 is present on the intf or port.
V2Rtr Whether IGMPv2 is present on the intf or port.
Tracking Fast tracking status:
Enabled
or
Disabled
Displaying IGMP traffic status
To display the traffic status on each virtual routing interface, enter the following command.
device# show ip igmp traffic
Recv QryV2 QryV3 G-Qry GSQry MbrV2 MbrV3 Leave IsIN IsEX ToIN ToEX ALLOW BLK
v5 29 0 0 0 0 0 0 0 0 0 0 0 0
v18 15 0 0 0 0 30 0 60 0 0 0 0 0
v110 0 0 0 0 0 97 0 142 37 2 2 3 2
Send QryV1 QryV2 QryV3 G-Qry GSQry
v5 0 2 0 0 0
v18 0 0 30 30 0
v110 0 0 30 44 11
Syntax: show ip igmp [vrf
vrf-name
] trac
The vrf parameter specifies that you want to display IGMP traffic information for the VRF specified by the
vrf-name
variable.
The report shows the following information:
TABLE 27 Output of show ip igmp vrf traffic
This field Displays
QryV2 Number of general IGMP V2 query received or sent by the virtual routing
interface.
QryV3 Number of general IGMP V3 query received or sent by the virtual routing
interface.
G-Qry Number of group specific query received or sent by the virtual routing
interface.
GSQry Number of source specific query received or sent by the virtual routing
interface.
MbrV2 The IGMP V2 membership report.
MbrV3 The IGMP V3 membership report.
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
142 Part Number: 53-1005289-01
TABLE 27 Output of show ip igmp vrf traffic (continued)
This field Displays
Leave Number of IGMP V2 "leave" messages on the interface. (See ToEx for IGMP
V3.)
IsIN Number of source addresses that were included in the traffic.
IsEX Number of source addresses that were excluded in the traffic.
ToIN Number of times the interface mode changed from exclude to include.
ToEX Number of times the interface mode changed from include to exclude.
ALLOW Number of times that additional source addresses were allowed or denied
on the interface:
BLK Number of times that sources were removed from an interface.
Clearing IGMP traffic statistics
To clear statistics for IGMP traffic, enter the following command.
device# clear ip igmp traffic
Syntax: clear ip igmp [ vrf
vrf-name
] trac
This command clears all the multicast traffic information on all interfaces on the device.
Use the vrf option to clear the traffic information for a VRF instance specified by the
vrf-name
variable. T
Displaying IGMP settings
To display global IGMP settings or IGMP settings for a specified VRF. To display global IGMP settings, enter the following command.
Brocade#show ip igmp settings
IGMP Global Configuration
Query Interval : 125s Configured Interval : 125
Max Response Time : 10s
Group Membership Time : 260s
Operating Version : 2 Configured Version : 0
Robustness Variable : 2
Router Alert Check : Enabled
Last Member Query Interval: 1 Last Member Query Count: 2
Older Host Present Timer : 260
Maximum Group Address : 4096
Syntax: show ip igmp [vrf
vrf-name
] settings
The vrf parameter specifies that you want to display IGMP settings information for the VRF specified by the
vrf-name
variable.
The report shows the following information:
TABLE 28 Output of show ip igmp settings
This field Displays
Query Interval How often the router will query an interface for group membership.
Configured Query Interval The query interval that has been configured for the router.
Max Response Time The length of time in seconds that the router will wait for an IGMP (V1 or V2)
response from an interface before concluding that the group member on
that interface is down and removing it from the group.
Group Membership Time The length of time in seconds that a group will remain active on an interface
in the absence of a group report.
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 143
TABLE 28 Output of show ip igmp settings (continued)
This field Displays
Configured Version The IGMP version configured on the router.
Operating Version The IGMP version operating on the router.
Robustness Variable The Robustness Variable allows tuning for the expected packet loss on a
network. If a network is expected to be lossy, the Robustness Variable may
be increased. IGMP is robust to (Robustness Variable -1) packet losses. The
Robustness Variable must not be zero, and should not be one. Default: 2
Router Alert Check IGMP (v2/v3) messages have a router-alert option in the IP header. By
default this is validated by the router and it drops the packets without the
router-alert option. If this check is disabled, IGMP messages without the
router-alert option are accepted.
Last Member Query Interval The Last Member Query Interval is the Max Response Time used to
calculate the Max Resp Code inserted into Group-Specific Queries sent in
response to Leave Group messages. It is also the Max Response Time
used in calculating the Max Resp Code for Group-and-Source-Specific
Query messages. Default: 10 (1 second)
Last Member Query Count The Last Member Query Count is the number of Group-Specific Queries
sent before the router assumes there are no local members. The Last
Member Query Count is also the number of Group-and-Source-Specific
Queries sent before the router assumes there are no listeners for a particular
source. Default: the Robustness Variable.
Older Host Present Timer The Older Host Present Interval is the time-out for transitioning a group
back to IGMPv3 mode when an older version report is sent for that group.
When an older version report is received, routers set their Older Host
Present Timer to Older Host Present Interval.
This value must be ((the Robustness Variable) times (the Query Interval)) plus
(one Query Response Interval).
Maximum Group Address This value indicates the maximum number of group address that can be
accepted by the router.
Source-Specific Multicast
Using the Any-Source Multicast (ASM) service model, sources and receivers register with a multicast address. The protocol uses regular
messages to maintain a correctly configured broadcast network where all sources can send data to all receivers and all receivers get
broadcasts from all sources.
With Source-Specific Multicast (SSM), the "channel" concept is introduced where a "channel" consists of a single source and multiple
receivers who specifically register to get broadcasts from that source. Consequently, receivers are not burdened with receiving data they
have no interest in, and network bandwidth requirements are reduced because the broadcast need only go to a sub-set of users. The
address range 232/8 has been assigned by the Internet Assigned Numbers Authority (IANA) for use with SSM.
IGMP V3 and Source Specific Multicast protocols
When IGMP V3 and PIM Sparse (PIM-SM) is enabled, the source specific multicast service (SSM) can be configured. SSM simplifies PIM-
SM by eliminating the RP and all protocols related to the RP. IGMPv3 and PIM-SM must be enabled on any ports that you want SSM to
operate.
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
144 Part Number: 53-1005289-01
Configuring PIM SSM group range
PIM Source Specific Multicast (SSM) is a subset of the PIM SM protocol. In PIM SSM mode, the shortest path tree (SPT) is created at the
source. The SPT is created between the receiver and source, but the SPT is built without the help of the RP. The router closest to the
interested receiver host is notified of the unicast IP address of the source for the multicast traffic. PIM SSM goes directly to the source-
based distribution tree without the need of the RP connection. PIM SSM is different from PIM SM because it forms its own SPT, without
forming a shared tree. The multicast address group range is 232.0.0.0/8.
To configure a single SSM group address, enter the following command under the router pim configuration:
device(config)#router pim
device(config-pim-router)#ssm-enable range 232.1.1.1/8
Syntax: [no] ssm-enable range
group-address
address-mask
The
group-address
parameter specifies the multicast address for the SSM address range. If this is not configured, the range will default to
232/8 as assigned by the Internet Assigned Numbers Authority (IANA) for use with SSM.
The
address-mask
parameter specifies the mask for the SSM address range.
To disable SSM, use the [no] form of this command.
Displaying source-specific multicast configuration information
To display PIM Sparse configuration information, use the show ip pim sparse command as described in Displaying basic PIM Sparse
configuration information on page 98.
Configuring multiple SSM group ranges
The ssm-enable range
acl-id/acl-name
command allows you to configure multiple SSM group ranges using an ACL.
Configuration Considerations
• The existing ssm-enable range
group-addressaddress-mask
command will continue to exist.
• The ACL must be configured with the SSM group address in the permit clause of the ssm-enable range
acl-id
or
acl-name
command. If the ssm-enable range
group-addressaddress-mask
command permits a clause, then that group will also operate in
the PIM-SM mode.
• If the ssm-enable range
acl-id or acl-name
command is configured with a non-existent or empty ACL, then the SSM group will
operate in PIM-SM mode (non PIM-SSM mode). However when an ACL is added or updated, then the group will exist in a PIM-
SSM mode. By default, an empty ACL will deny all.
• By default, the group address mentioned in the IGMPv2 ssm-mapping ACL will decide if the group address is a PIM-SSM group
or non PIM-SSM group. Therefore, if a user wants to prevent a group from operating in PIM-SSM mode, then the user’s
configuration must consistently deny the group in all configuration options for PIM-SSM range.
• ACL of any type (named or unnamed, standard or extended) can be used to specify the SSM group range. If an extended ACL is
used, then the destination ip address should be used to specify the group address. Any configuration in the source address of an
extended ACL is ignored. Only permit statements are considered in the ACL configuration. Any deny statements in the ACL clause
are also ignored.
To configure multiple SSM group address using an ACL, enter the following command under the router pim configuration:
device(config)#router pim
device(config-pim-router)#ssm-enable range xyz
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 145
The example displayed above configures PIM so that it uses the group addresses allowed by ACL, xyz as its PIM SSM range.
Syntax: [no] ssm-enable range
acl-id
or
acl-name
The
acl-id/acl-name
parameter specifies the ACL id or name used to configure multiple SSM group ranges.
To disable the SSM mapping range ACL, use the [no] form of this command.
NOTE
The ssm-enable range
acl-id acl-name
or command also supports IPv6 traffic. The ssm-enable range
acl-id acl-name
or
command must be configured under the IPv6 router pim configuration to support IPv6.
Displaying information for PIM SSM range ACL
To display information for PIM SSM range ACL configuration enter the following command at any CLI level:
device#show ip pim sparse
Global PIM Sparse Mode Settings
Maximum Mcache : 0 Current Count : 0
Hello interval : 30 Neighbor timeout : 105
Join/Prune interval : 60 Inactivity interval : 180
Register Suppress Time : 60 Register Probe Time : 10
SPT Threshold : 1 Hardware Drop Enabled : Yes
Bootstrap Msg interval : 60 Candidate-RP Msg interval : 60
Register Stop Delay : 60 Register Suppress interval : 60
SSM Enabled : Yes
SSM Group Range : 224.1.1.1/24
SSM Group Range ACL : xyz
Route Precedence : mc-non-default mc-default uc-non-default uc-default
NOTE
The show ipv6 pim sparse command also displays PIM SSM range ACL configuration.
IGMPv2 SSM mapping
The PIM-SSM feature requires all IGMP hosts to send IGMPv3 reports. Where you have an IGMPv2 host, this can create a compatibility
problem. In particular, the reports from an IGMPv2 host contain a Group Multicast Address but do not contain source addresses. The
IGMPv3 reports contain both the Group Multicast Address and one or more source addresses. This feature converts IGMPv2 reports into
IGMPv3 reports through use of the ip igmp ssm-map commands and a properly configured ACL.
The ACL used with this feature filters for the Group Multicast Address. The ACL is then associated with one or more source addresses
using the ip igmp ssm-map command. When the ip igmp ssm-map enable command is configured, IGMPv3 reports are sent for IGMPv2
hosts.
The following sections describe how to configure the ACL and the ip igmp ssm-map commands to use the IGMPv2 SSM mapping feature:
•Configuring an ACL for IGMPv2 SSM mapping
•Configuring the IGMPv2 SSM Mapping Commands
NOTE
IGMPv2 SSM Mapping is not supported for IGMP static groups.
Configuring an ACL for IGMPv2 SSM mapping
You can use either a standard or extended ACL to identify the group multicast address you want to add source addresses to when creating
a IGMPv3 report.
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
146 Part Number: 53-1005289-01
For standard ACLs, you must create an ACL with a permit clause and the
ip-source-address
variable must contain the group multicast
address. This can be configured directly with a subnet mask or with the host keyword in which case a subnet mask of all zeros (0.0.0.0) is
implied.
In the following example, access-list 20 is configured for the group multicast address: 224.1.1.0 with a subnet mask of 0.0.0.255.
device(config)# access-list 20 permit 224.1.1.0 0.0.0.225
In the following example, access-list 20 is configured for the group multicast address: 239.1.1.1 by including the host keyword.
device(config)# access-list 20 host 239.1.1.1
For extended ACLs, the
source address
variable must contain either 000 or the any keyword. Additionally, the extended ACL must be
configured with a permit clause and the host keyword. This can be configured directly with a subnet mask or with the host keyword in
which case a subnet mask of all zeros (0.0.0.0) is implied.
The
ip-destination-address
variable must contain the group multicast address.
In the following example, access-list 100 is configured for the group multicast address: 232.1.1.1 with a subnet mask of 0.0.0.255.
device(config)# access-list 20 permit 224.1.1.0 0.0.0.225
In the following example, access-list 100 is configured for the group multicast address: 232.1.1.1.
device(config)# access-list 100 permit any host 232.1.1.1
Configuring the IGMPv2 SSM mapping commands
The ip ssm-map commands are used to enable the IGMPv2 mapping feature and to define the maps between IGMPv2 Group addresses
and multicast source addresses as described in the following sections.
Enabling IGMPv2 SSM mapping
To enable the IGMPv2 mapping feature enter the command as shown in the following.
device(config)# ip igmp ssm-map enable
Syntax: [no] ip igmp ssm-map enable
The no option is used to turn off the IGMPv2 mapping feature that has previously been enabled.
Configuring the map between an IGMPv2 group address and a multicast source
To configure a map between an IGMPv2 Group address and a multicast source address use the ip igmp ssm-map static command, as
shown in the following.
device(config)# ip igmp ssm-map 20 1.1.1.1
Syntax: [no] ip igmp ssm-map
aci-id
source-address
The
acl-id
variable specifies the ACL ID that contains the group multicast address.
The
source-address
variable specifies the source address that you want to map to the group multicast address specified in the ACL.
The no option is used to delete a previously configured SSM map.
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 147
Example configuration
In the following example configuration, one extended ACL and two standard ACLs are defined with group multicast addresses. The ip igmp
ssm-map commands are configured to map the ACLs to source addresses and to enable the feature on the router.
device(config)# access-list 20 host 239.1.1.1
device(config)# access-list 20 permit 224.1.1.0 0.0.0.225
device(config)# access-list 100 permit any host 232.1.1.1
device(config)# ip igmp ssm-map 20 1.1.1.1
device(config)# ip igmp ssm-map 20 2.2.2.2
device(config)# ip igmp ssm-map 100 1.1.1.1
device(config)# ip igmp ssm-map enable
Displaying an IGMP SSM mapping information
The show ip igmp ssm-map command displays the association between a configured ACL and source address mapped to it, as shown in
the following.
device# show ip igmp ssm-map
+---------+-----------------+
| Acl id | Source Address |
+---------+-----------------+
20 1.1.1.1
100 1.1.1.1
20 2.2.2.2
20 2.2.2.3
20 2.2.2.4
20 2.2.2.5
20 2.2.2.6
Syntax: show ip igmp [vrf
vrf-name
] ssm-map
The show ip igmp ssm-map
group-address
displays the ACL ID that has the specified multicast group address in its permit list and lists
the source addresses mapped to the specified multicast group address, as shown in the following.
device# show ip igmp ssm-map 232.1.1.1
+---------+-----------------+
| Acl id | Source Address |
+---------+-----------------+
20 1.1.1.1
100 1.1.1.1
20 2.2.2.2
20 2.2.2.3
20 2.2.2.4
20 2.2.2.5
20 2.2.2.6
Syntax: show ip igmp ssm-map
group-address
IPv4 Multicast Protocols
IGMP V3
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
148 Part Number: 53-1005289-01
IPv6 Multicast Protocols
• IPv6 PIM Sparse ...................................................................................................................................................149
• IPv6 PIM convergence on MAC movement........................................................................................................... 177
• PIM Anycast RP.................................................................................................................................................... 177
• Multicast Listener Discovery and source-specific multicast protocols.....................................................................179
• IPv6 Multicast Boundaries..................................................................................................................................... 188
IPv6 PIM Sparse
IPv6 Protocol Independent Multicast (PIM) Sparse is supported. IPv6 PIM Sparse provides multicasting that is especially suitable for widely
distributed multicast environments.
In an IPv6 PIM Sparse network, an IPv6 PIM Sparse router that is connected to a host that wants to receive information for a multicast
group must explicitly send a join request on behalf of the receiver (host).

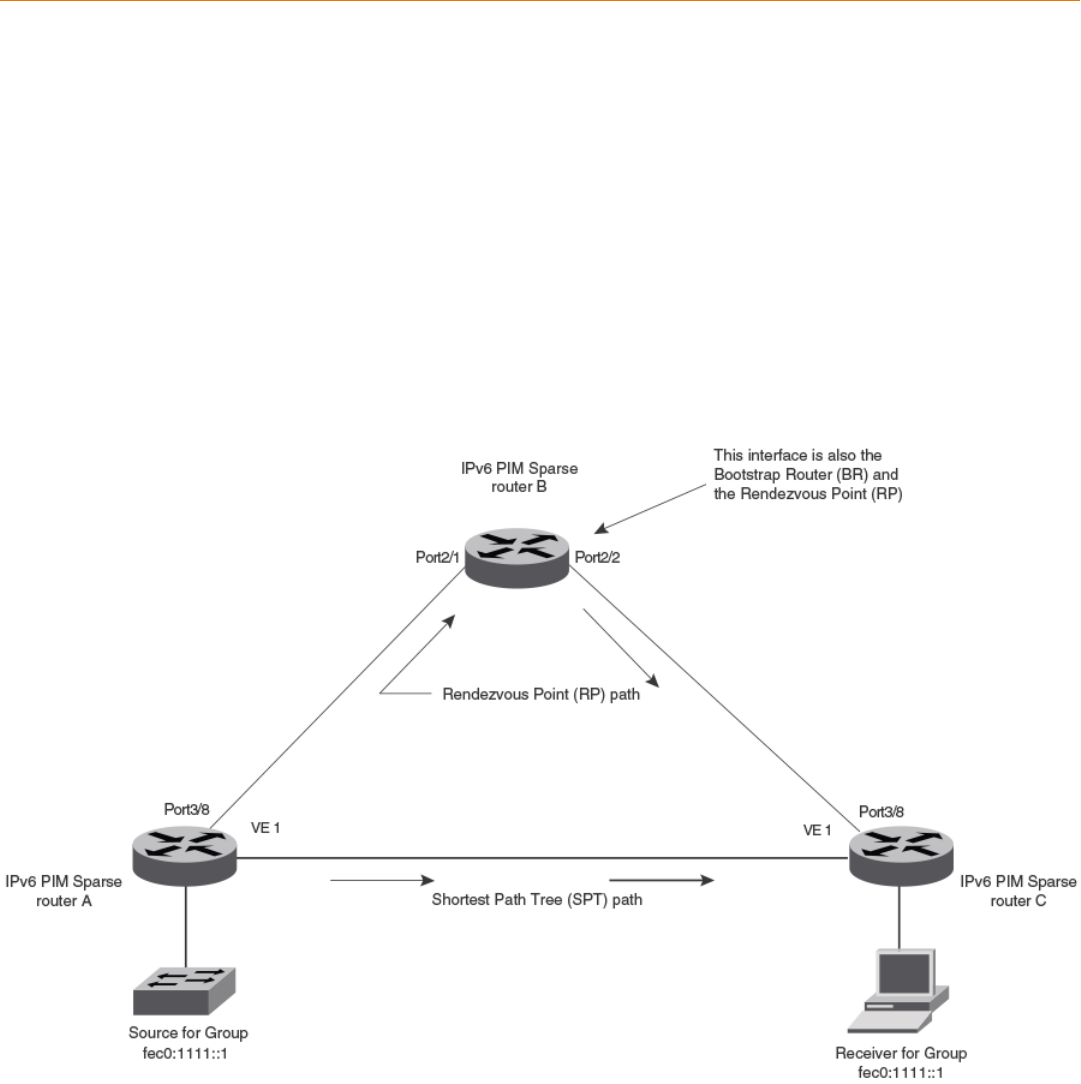

FIGURE 11 Example IPv6 PIM Sparse domain
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 149
PIM Sparse router types
Routers that are configured with PIM Sparse interfaces also can be configured to fill one or more of the following roles:
• BSR - The Bootstrap Router (BSR) distributes RP information to the other PIM Sparse routers within the domain. Each PIM Sparse
domain has one active BSR. For redundancy, you can configure ports on multiple routers as candidate BSRs. The PIM Sparse
protocol uses an election process to select one of the candidate BSRs as the BSR for the domain. The BSR with the highest BSR
priority (a user-configurable parameter) is elected. If the priorities result in a tie, then the candidate BSR interface with the highest
IP address is elected. In the example in Figure 11 on page 149, PIM Sparse router B is the BSR. Port 1/2/2 is configured as a
candidate BSR.
• RP - The Rendezvous Point (RP) is the meeting point for PIM Sparse sources and receivers. A PIM Sparse domain can have
multiple RPs, but each PIM Sparse multicast group address can have only one active RP. PIM Sparse routers learn the addresses
of RPs and the groups for which they are responsible from messages that the BSR sends to each of the PIM Sparse routers. In
the example in Figure 11 on page 149, PIM Sparse router B is the RP. Port 1/2/2 is configured as a candidate Rendezvous Point
(RP).
To enhance overall network performance, the device uses the RP to forward only the first packet from a group source to the group
receivers. After the first packet, the device calculates the shortest path between the receiver and the source (the Shortest Path Tree, or SPT)
and uses the SPT for subsequent packets from the source to the receiver. The device calculates a separate SPT for each source-receiver
pair.
NOTE
It is recommended that you configure the same ports as candidate BSRs and RPs.
RP paths and SPT paths
Figure 11 on page 149 shows two paths for packets from the source for group fec0:1111::1 and a receiver for the group. The source is
attached to PIM Sparse router A and the recipient is attached to PIM Sparse router C. PIM Sparse router B is the RP for this multicast
group. As a result, the default path for packets from the source to the receiver is through the RP. However, the path through the RP
sometimes is not the shortest path. In this case, the shortest path between the source and the receiver is over the direct link between router
A and router C, which bypasses the RP (router B).
To optimize PIM traffic, the protocol contains a mechanism for calculating the Shortest Path Tree (SPT) between a given source and a
receiver. PIM Sparse routers can use the SPT as an alternative to using the RP for forwarding traffic from a source to a receiver. By default,
the device forwards the first packet it receives from a given source to a given receiver using the RP path, but subsequent packets from that
source to that receiver through the SPT. In Figure 11 on page 149, router A forwards the first packet from group fec0:1111::1 source to the
destination by sending the packet to router B, which is the RP. Router B then sends the packet to router C. For the second and all future
packets that router A receives from the source for the receiver, router A forwards them directly to router C using the SPT path.
RFC 3513 and RFC 4007 compliance for IPv6 multicast scope-based
forwarding
The IPv6 multicast implementation recognizes scopes and conforms to the scope definitions in RFC 3513. Per RFC 3513, scopes 0 and 3
are reserved and packets are not forwarded with an IPv6 destination multicast address of scopes 0 and 3. Additionally, scopes 1 and 2 are
defined as Node-Local and Link-Local and are not forwarded. Thus, the implementation forwards only those packets with an IPv6 multicast
destination address with scope 4 or higher.
RFC 4007 defines ‘scope zones’ and requires that the forwarding of packets received on any interface of a particular scope zone be
restricted to that scope zone. Currently, the device supports one zone for each scope, and the default zone for scope 4 and higher consists
of all interfaces in the system. Thus, the default zones for scope 4 and higher are the same size.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
150 Part Number: 53-1005289-01
Configuring PIM Sparse
To configure the device for IPv6 PIM Sparse, perform the following tasks:
• Enable the IPv6 PIM Sparse of multicast routing.
•Configure VRF then enable IPv6 Protocol Independent Multicast Sparse mode (PIM-SM) for a specified VRF, if applicable.
•Configure an IPv6 address on the interface.
• Enable IPv6 PIM Sparse.
• Identify the interface as an IPv6 PIM Sparse border, if applicable.
• Identify the device as a candidate PIM Sparse Bootstrap Router (BSR), if applicable.
• Identify the device as a candidate PIM Sparse Rendezvous Point (RP), if applicable.
• Specify the IP address of the RP (if you want to statically select the RP).
NOTE
It is recommended that you configure the same device as both the BSR and the RP.
IPv6 PIM-Sparse mode
To configure a device for IPv6 PIM Sparse, perform the following tasks:
• Identify the Layer 3 switch as a candidate sparse Rendezvous Point (RP), if applicable.
• Specify the IPv6 address of the RP (to configure statically).
The following example enables IPv6 PIM-SM routing. Enter the following command at the configuration level to enable IPv6 PIM-SM
globally.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)#
To enable IPv6 PIM Sparse mode on an interface, enter commands such as the following.
device(config)# interface ethernet 1/2/2
device(config-if-e10000-1/2/2)# ipv6 address a000:1111::1/64
device(config-if-e10000-1/2/2)# ipv6 pim-sparse
Syntax: [no] ipv6 pim-sparse
Use the no option to remove IPv6 PIM sparse configuration from the interface.
The commands in this example add an IPv6 interface to port 1/2/2, then enable IPv6 PIM Sparse on the interface.
Configuring IPv6 PIM-SM on a virtual routing interface
You can enable IPv6 PIM-SM on a virtual routing interface by entering commands such as the following.
device(config)# interface ve 15
device(config-vif-15)# ipv6 address a000:1111::1/64
device(config-vif-15)# ipv6 pim-sparse
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 151
Enabling IPv6 PIM-SM for a specified VRF
To enable IPv6 PIM-SM for the VRF named "blue", create the VRF named "blue", enable it for IPv6 routing, and then enable IPv6 PIM-SM
for the VRF, as shown in the following example.
device(config)# vrf blue
device(config-vrf-blue)# rd 11:1
device(config-vrf-blue)# address-family ipv6
device(config-vrf-blue-ipv6)# router pim
device(config-pim-router)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)
Syntax: [no] ipv6 router pim [ vrf
vrf-name
]
The vrf parameter allows you to configure IPv6 PIM-SM on the virtual routing instance (VRF) specified by the
vrf-name
variable. All PIM
parameters available for the default router instance are configurable for a VRF-based PIM instance.
Use the no option to remove all configuration for PIM multicast on the specified VRF.
Configuring BSRs
In addition to the global and interface parameters configured in the prior sections, you must identify an interface on at least one device as a
candidate PIM Sparse bootstrap router (BSR) and a candidate PIM Sparse rendezvous point (RP).
NOTE
You can configure the device as only a candidate BSR or an RP, but it is recommended that you configure the same interface on
the same device as both a BSR and an RP.
To configure the device as a candidate BSR, enter commands such as the following.
Device(config)# ipv6 router pim
Device(config-ip6-pim-router)# bsr-candidate ethernet 1/1/3 32 64
This command configures Ethernet interface 1/1/3 as the BSR candidate with a mask length of 32 and a priority of 64.
To configure the device as a candidate BSR for a specified VRF, enter the commands as shown in the following example.
Device(config)# ipv6 router pim vrf blue
Device(config-ipv6-pim-router-vrf-blue)# bsr-candidate ethernet 1/1/3 32 64
Syntax: [no] bsr-candidate { ethernet
unit/slot/port
| loopback
num
| ve
num
| tunnel
num
}
hash-mask-length
[
priority
]
Use the no form of the command to remove the candidate BSR configuration for a specified VRF.
The ethernet
unit/slot/port
, loopback
num
, ve
num
, and tunnel
num
parameters specify the interface. The device will advertise the IP
address of the specified interface as a candidate BSR.
• Enter ethernet
unit/slot/port
for a physical interface (port).
• Enter ve
num
for a virtual interface.
• Enter loopback
num
for a loopback interface.
• Enter tunnel
num
for a GRE tunnel interface.
The
hash-mask-length
variable specifies the number of bits in a group address that are significant when calculating the group-to-RP
mapping. You can specify a value from 1 through 32.
The
priority
variable specifies the BSR priority. You can specify a value from 0 through 255. When the election process for BSR takes place,
the candidate BSR with the highest priority becomes the BSR. The default is 0.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
152 Part Number: 53-1005289-01
Setting the BSR message interval
The BSR message interval timer defines the interval at which the BSR sends RP candidate data to all IPv6-enabled routers within the IPv6
PIM Sparse domain. The default is 60 seconds.
To set the IPv6 PIM BSR message interval timer to 16 seconds, enter commands such as the following.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# bsr-msg-interval 16
To set the IPv6 PIM BSR message interval timer to 16 seconds for a specified VRF, enter the commands as shown in the following example.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# bsr-msg-interval 16
Syntax: [no] bsr-msg-interval
num
The
num
parameter specifies the number of seconds and can be from 10 - 65535. The default is 60.
Use the no option to disable a timer that has been configured.
Configuring candidate RP
Enter a command such as the following to configure the device as a candidate RP.
Device(config)# ipv6 router pim
Device(config-ipv6-pim-router)# rp-candidate ethernet 1/2/2
To configure the device as a candidate RP for a specified VRF, enter the commands as shown in the following example.
Device(config)# ipv6 router pim vrf blue
Device(config-ipv6-pim-router-vrf-blue)# rp-candidate ethernet 1/2/2
Syntax: [no] rp-candidate { ethernet
unit/slot/port
| loopback
num
| ve
num
| tunnel
num
}
The ethernet
unit/slot/port
, loopback
num
, ve
num
, and tunnel
num
parameters specify the interface. The device will advertise the
specified interface IP address as a candidate RP.
• Enter ethernet
unit/slot/port
for a physical interface (port).
• Enter loopback
num
for a loopback interface.
• Enter ve
num
for a virtual interface.
• Enter tunnel
num
for a GRE tunnel interface.
To add address ranges for which the device is a candidate RP, enter commands such as the following.
Device(config)# ipv6 router pim
Device(config-ipv6-pim-router)# rp-candidate add ff02::200:2 64
To add address ranges for a specified VRF for which the device is a candidate RP, enter commands such as the following.
Device(config)# ipv6 router pim vrf blue
Device(config-ipv6-pim-router-vrf-blue)# rp-candidate add ff02::200:2 64
Syntax: [no] rp-candidate add
group-ipv6address
mask-bits
You can delete the configured RP candidate group ranges by entering commands such as the following.
Device(config)# ipv6 router pim
Device(config-ipv6-pim-router)# rp-candidate delete ff02::200:1 128
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 153
You can delete the configured RP candidate group ranges for a specified VRF by entering commands such as the following:
Device(config)# ipv6 router pim vrf blue
Device(config-ipv6-pim-router-vrf-blue)# rp-candidate delete ff02::200:1 128
Syntax: [n]o rp-candidate delete
group-ipv6address
mask-bits
The usage for the
group-ipv6address
mask-bits
parameter is the same as for the rp-candidate add command.
Statically specifying the RP
It is recommended that you use the IPv6 PIM Sparse mode RP election process so that a backup RP can automatically take over if the
active RP router becomes unavailable. However, if you do not want the RP to be selected by the RP election process but instead you want
to explicitly identify the RP by its IPv6 address, use the rp-address command.
If you explicitly specify the RP, the device uses the specified RP for all group-to-RP mappings and overrides the set of candidate RPs
supplied by the BSR.
NOTE
Specify the same IP address as the RP on all IPv6 PIM Sparse routers within the IPv6 PIM Sparse domain. Make sure the device
is on the backbone or is otherwise well-connected to the rest of the network.
To specify the IPv6 address of the RP, enter commands such as the following.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# rp-address 31::207
The command in the previous example identifies the router interface at IPv6 address 31:207 as the RP for the IPv6 PIM Sparse domain. The
device will use the specified RP and ignore group-to-RP mappings received from the BSR.
To specify the IPv6 address of the RP for a specified VRF, enter commands such as the following.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# rp-address 31::207
Syntax: [no] rp-address
ipv6-addr
The
ipv6-addr
parameter specifies the IPv6 address of the RP.
Updating IPv6 PIM Sparse forwarding entries with a new RP configuration
If you make changes to your static RP configuration, the entries in the IPv6 PIM Sparse multicast forwarding table continue to use the old
RP configuration until they are aged out.
The clear IPv6 pim rp-map command allows you to update the entries in the static multicast forwarding table immediately after making RP
configuration changes. This command is meant to be used with the rp-address command.
To update the entries in an IPv6 PIM Sparse static multicast forwarding table with a new RP configuration, enter the following command at
the privileged EXEC level of the CLI.
device(config)# clear ipv6 pim rp-map
Syntax: clear ipv6 pim [ vrf
vrf_name
] rp-map
Embedded Rendezvous Point
Global deployment of IPv4 multicast relies on Multicast Source Discovery Protocol (MSDP) to convey information about the active sources.
Because IPv6 provides more address space, the RP address can be included in the multicast group address.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
154 Part Number: 53-1005289-01
NOTE
The IPv6 group address must be part of the FF70:/12 prefix.
Embedded RP support is enabled by default. You can disable it using the following commands.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# no rp-embedded
To disable embedded RP support for a specified VRF, enter the following commands.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# no rp-embedded
Syntax: [no] rp-embedded
Changing the Shortest Path Tree threshold
In a typical IPv6 PIM Sparse domain, there may be two or more paths from a designated router (DR) for a multicast source to an IPv6 PIM
group receiver:
• Path through the RP - This is the path the device uses the first time it receives traffic for an IPv6 PIM group. However, the path
through the RP may not be the shortest path from the device to the receiver.
• Shortest Path - Each IPv6 PIM Sparse router that is a DR for an IPv6 receiver calculates a short path tree (SPT) towards the
source of the IPv6 multicast traffic. The first time the device configured as an IPv6 PIM router receives a packet for an IPv6 group,
it sends the packet to the RP for that group, which in turn will forward it to all the intended DRs that have registered with the RP.
The first time the device is a recipient, it receives a packet for an IPv6 group and evaluates the shortest path to the source and
initiates a switchover to the SPT. Once the device starts receiving data on the SPT, the device proceeds to prune itself from the
RPT.
By default, the device switches from the RP to the SPT after receiving the first packet for a given IPv6 PIM Sparse group. The device
maintains a separate counter for each IPv6 PIM Sparse source-group pair.
You can change the number of packets the device receives using the RP before switching to using the SPT.
To change the number of packets the device receives using the RP before switching to the SPT, enter commands such as the following.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# spt-threshold 1000
To change the number of packets the device receives using the RP before switching to the SPT for a specified VRF, enter commands such
as the following.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# spt-threshold 1000
Syntax: [no] spt-threshold
num
The
num
parameter specifies the number of packets. If you enter a specific number of packets, the device does not switch over to using
the SPT until it has sent the number of packets you specify using the RP.
Setting the RP advertisement interval
To specify how frequently the candidate RP configured on the device sends candidate RP advertisement messages to the BSR, enter
commands such as the following.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# rp-adv-interval 180
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 155
To specify how frequently the candidate RP configured on the device sends candidate RP advertisement messages to the BSR for a
specified VRF, enter commands such as the following.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# rp-adv-interval 180
Syntax: rp-adv-interval
seconds
The
seconds
parameter specifies the number of seconds in a range from 10 through 65535. The default is 60 seconds.
Changing the PIM Join and Prune message interval
By default, the device sends PIM Sparse Join or Prune messages every 60 seconds. These messages inform other PIM Sparse routers
about clients who want to become receivers (Join) or stop being receivers (Prune) for PIM Sparse groups.
NOTE
Use the same Join or Prune message interval on all the PIM Sparse routers in the PIM Sparse domain. If the routers do not all use
the same timer interval, the performance of PIM Sparse can be adversely affected.
To change the Join or Prune interval, enter commands such as the following:
Device(config)# ipv6 router pim
Device(config-ipv6-pim-router)# message-interval 30
To change the Join or Prune interval for a specified VRF, enter the commands as shown in the following example:
Device(config)# ipv6 router pim vrf blue
Device(config-ipv6-pim-router-vrf-blue)# message-interval 30
Syntax: [no] message-interval
seconds
The
seconds
parameter specifies the number of seconds and can be from 10 through 18724 seconds. The default is 60 seconds.
Modifying neighbor timeout
Neighbor timeout is the interval after which a PIM router will consider a neighbor to be absent. If the timer expires before receiving a new
hello message, the PIM router will time out the neighbor.
To apply an IPv6 PIM neighbor timeout value of 50 seconds to all ports on the router operating with PIM, enter the commands such as the
following.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# nbr-timeout 50
To apply an IPv6 PIM neighbor timeout value of 50 seconds for a specified VRF operating with PIM, enter the commands such as the
following.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# nbr-timeout 50
Syntax: [no] nbr-timeout
seconds
The
seconds
parameter specifies the number of seconds. The valid range is from 35 through 65535 seconds. The default is 105.
Setting the prune wait interval
The prune-wait command allows you to set the amount of time the PIM router should wait for a join override before pruning an Outgoing
Interface List Optimization (OIF) from the entry.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
156 Part Number: 53-1005289-01
To change the default join override time to 2 seconds, enter commands such as the following.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# prune-wait 2
To change the default join override time to 2 seconds for a specified VRF, enter commands such as the following.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# prune-wait 2
Syntax: [no] prune-wait
seconds
The
seconds
parameter specifies the number of seconds. The valid range is from 0 through 30 seconds. The default is 3 seconds.
Setting the register suppress interval
The register-suppress-time command allows you to set the amount of time the PIM router uses to periodically trigger the NULL register
message.
NOTE
The register suppress time configuration applies only to the first hop PIM router.
To change the default register suppress time to 90 seconds, enter commands such as the following:
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# register-suppress-time 90
To change the default register suppress time to 90 seconds for a specified VRF, enter commands such as the following:
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# register-suppress-time 90
Syntax: [no] register-suppress-time
seconds
The
seconds
parameter specifies the number of seconds. The valid range is from 60 through 120 seconds. The default is 60 seconds.
Setting the register probe time
The register-probe-time command allows you to set the amount of time the PIM router waits for a register-stop from an RP before it
generates another NULL register to the PIM RP. The register probe time configuration applies only to the first hop PIM router.
NOTE
Once a PIM first hop router successfully registers with a PIM RP, the PIM first hop router will not default back to the data
registration. All subsequent registers will be in the form of the NULL registration.
To change the default register probe time to 20 seconds, enter commands such as following.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# register-probe-time 20
To change the default register probe time to 20 seconds for a specified VRF, enter commands such as the following.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# register-probe-time 20
Syntax: [no] register-probe-time
seconds
The
seconds
parameter specifies the number of seconds. The valid range is from 10 through 50 seconds. The default is 10 seconds.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 157
Setting the inactivity timer
The router deletes a forwarding entry if the entry is not used to send multicast packets. The IPv6 PIM inactivity timer defines how long a
forwarding entry can remain unused before the router deletes it.
To apply an IPv6 PIM inactivity timer of 160 seconds to all IPv6 PIM interfaces, enter the following.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# inactivity-timer 160
To apply an IPv6 PIM inactivity timer of 160 seconds for a specified VRF, enter the commands as shown in the following example.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# inactivity-timer 160
Syntax: [no] inactivity-timer
seconds
The
seconds
parameter specifies the number of seconds. The valid range is 60 through 3600 seconds. The default is 180 seconds.
NOTE
The inactivity timer configured may expire with a delay of 0 to 60 seconds.
Changing the hello timer
The hello timer defines the interval at which periodic hellos are sent out to PIM interfaces. Routers use hello messages to inform neighboring
routers of their presence. To change the hello timer, enter a command such as the following.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# hello-timer 62
To change the hello timer for a specified VRF, enter the commands as shown in the following example.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# hello-timer 62
Syntax: [n]o hello-timer
seconds
The
seconds
parameter specifies the number of seconds. The valid range is 10 through 3600 seconds. The default is 30 seconds.
Enabling Source-Specific Multicast
Using the Any-Source Multicast (ASM) service model, sources and receivers register with a multicast address. The protocol uses regular
messages to maintain a correctly configured broadcast network where all sources can send data to all receivers and all receivers get
broadcasts from all sources.
With Source-Specific Multicast (SSM), the "channel" concept is introduced where a "channel" consists of a single source and multiple
receivers that specifically register to get broadcasts from that source. Consequently, receivers are not burdened with receiving data they
have no interest in, and network bandwidth requirements are reduced because the broadcast need only go to a subset of users. The
address range ff30:/12 has been assigned by the Internet Assigned Numbers Authority (IANA) for use with SSM.
SSM simplifies IPv6 PIM-SM by eliminating the RP and all protocols related to the RP.
Configuring Source-Specific Multicast
IPv6 PIM-SM must be enabled on any ports on which you want SSM to operate. Enter the ssm-enable command under the IPv6 router
PIM level to globally enable SSM filtering.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# ssm-enable
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
158 Part Number: 53-1005289-01
To enable SSM for a specified VRF and user-defined address range, enter the commands as shown in the following.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# ssm-enable ff44::/32
Syntax: [no] ssm-enable [ range
address-range
]
The range
address-range
option allows you to define the SSM range of IPv6 multicast addresses.
Configuring a DR priority
The DR priority option lets a network administrator give preference to a particular router in the DR election process by giving it a numerically
higher DR priority. To set a DR priority higher than the default value of 1, use the ipv6 pim dr-priority command as shown in the example
below.
device(config-if-e10000-3/2/4)# ipv6 pim dr-priority 50
To set a DR priority higher than the default value of 1 on a virtual Ethernet interface, use the ipv6 pim dr-priority command as shown in the
following.
device(config)# interface ve 10
device(config-vif-10)# ipv6 pim dr-priority 50
Syntax: [no] ipv6 pim dr-priority
priority-value
The
priority-value
variable is the value that you want to set for the DR priority. The range of values is from 0 through 65535. The default
value is 1.
The no option removes the command and sets the DR priority back to the default value of 1.
The following information may be useful for troubleshooting:
• If more than one router has the same DR priority on a subnet (as in the case of default DR priority on all), the router with the
numerically highest IP address on that subnet will get elected as the DR.
• The DR priority information is used in the DR election only if all the PIM routers connected to the subnet support the DR priority
option. If there is at least one PIM router on the subnet that does not support this option, then the DR election falls back to the
backwards compatibility mode in which the router with the numerically highest IP address on the subnet is declared the DR
regardless of the DR priority values.
Passive Multicast Route Insertion
To prevent unwanted multicast traffic from being sent to the CPU, IPv6 PIM routing and Passive Multicast Route Insertion (PMRI) can be
used together to ensure that multicast streams are only forwarded out ports with interested receivers and unwanted traffic is dropped in
hardware on Layer 3 routers.
PMRI enables a Layer 3 switch running IPv6 PIM Sparse to create an entry for a multicast route (for example, (S,G)), with no directly
attached clients or when connected to another PIM router (transit network).
When a multicast stream has no output interfaces, the Layer 3 switch can drop packets in hardware if the multicast traffic meets the
following conditions in IPv6 PIM-SM.
• The route has no OIF.
• The directly connected source passes source RPF check and completes data registration with the RP, or the non-directly
connected source passes source RPF check.
If the OIF is inserted after the hardware-drop entries are installed, the hardware entries will be updated to include the OIFs.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 159
NOTE
Disabling hardware-drop does not immediately take away existing hardware-drop entries, they will go through the normal route
aging processing when the traffic stops.
Configuring PMRI
PMRI is enabled by default. To disable PMRI, enter the following commands.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# hardware-drop-disable
To disable PMRI for a specified VRF, enter the commands as shown in the following example.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# hardware-drop-disable
Syntax: [no] hardware-drop-disable
Displaying hardware-drop
Use the show ipv6 pim sparse command to display if the hardware-drop feature has been enabled or disabled.
Brocade# show ipv6 pim sparse
Global PIM Sparse Mode Settings
Maximum Mcache : 4096 Current Count : 7
Hello interval : 30 Neighbor timeout : 105
Join/Prune interval : 60 Inactivity interval : 180
Hardware Drop Enabled : Yes Prune Wait Interval : 3
Bootstrap Msg interval : 60 Candidate-RP Msg interval : 60
Register Suppress Time : 60 Register Probe Time : 10
Register Stop Delay : 10 Register Suppress interval : 60
SSM Enabled : Yes SPT Threshold : 1
SSM Group Range : ff3x::/32
Route Precedence : mc-non-default mc-default uc-non-default uc-default
Embedded RP Enabled : Yes
Displaying system values
To display default, maximum, current, and configured values for system maximum parameters, use the show default values command. The
following output example does not show complete output; it shows only PIM6 hardware mcache values.
device(config)#show default values
System Parameters Default Maximum Current Configured
pim6-hw-mcache 512 1024 1024 1024
Displaying PIM Sparse configuration information and statistics
You can display the following PIM Sparse information:
• Basic PIM Sparse configuration information
• IPv6 interface information
• Group information
• BSR information
• Candidate RP information
• RP-to-group mappings
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
160 Part Number: 53-1005289-01
• RP information for an IPv6 PIM Sparse group
• RP set list
• Multicast neighbor information
• The IPv6 PIM multicast cache
• IPv6 PIM RPF
• IPv6 PIM counters
• IPv6 PIM resources
• IPv6 PIM traffic statistics
Displaying basic PIM Sparse configuration information
Enter the show ipv6 pim sparse command at any CLI level to display IPv6 PIM Sparse configuration information.
Brocade# show ipv6 pim sparse
Global PIM Sparse Mode Settings
Maximum Mcache : 4096 Current Count : 7
Hello interval : 30 Neighbor timeout : 105
Join/Prune interval : 60 Inactivity interval : 180
Hardware Drop Enabled : Yes Prune Wait Interval : 3
Bootstrap Msg interval : 60 Candidate-RP Msg interval : 60
Register Suppress Time : 60 Register Probe Time : 10
Register Stop Delay : 10 Register Suppress interval : 60
SSM Enabled : Yes SPT Threshold : 1
SSM Group Range : ff30::/32
Route Precedence : mc-non-default mc-default uc-non-default uc-default
Embedded RP Enabled : Yes
Syntax: show ipv6 pim [ vrf
vrf-name
] sparse
The vrf parameter allows you to configure IPv6 PIM on the virtual routing instance (VRF) specified by the
vrf-name
variable.
The following table displays the output from the show ipv6 pim sparse command.
TABLE 29 Output from the show ipv6 pim sparse command
Field Description
Global PIM Sparse mode settings
Maximum mcache Maximum number of multicast cache entries.
Current Count Number of multicast cache entries used.
Hello interval How frequently the device sends IPv6 PIM Sparse hello messages to its
IPv6 PIM Sparse neighbors. This field shows the number of seconds
between hello messages. IPv6 PIM Sparse routers use hello messages to
discover one another.
Neighbor timeout Number of seconds the device waits for a hello message from a neighbor
before determining that the neighbor is no longer present and is not
removing cached IPv6 PIM Sparse forwarding entries for the neighbor.
Default is 105 seconds.
Join or Prune interval How frequently the device sends IPv6 PIM Sparse Join or Prune messages
for the multicast groups it is forwarding. This field shows the number of
seconds between Join or Prune messages.
The device sends Join or Prune messages on behalf of multicast receivers
that want to join or leave an IPv6 PIM Sparse group. When forwarding
packets from IPv6 PIM Sparse sources, the device sends the packets only
on the interfaces on which it has received join requests in Join or Prune
messages for the source group.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 161
TABLE 29 Output from the show ipv6 pim sparse command (continued)
Field Description
Inactivity interval Number of seconds a forwarding entry can remain unused before the router
deletes it. Default is 180 sec.
Hardware Drop Enabled Indicates whether hardware drop is enabled or disabled.
To prevent unwanted multicast traffic from being sent to the CPU, PIM
Routing and Passive Multicast Route Insertion (PMRI) can be used together
to ensure that multicast streams are only forwarded out ports with
interested receivers and unwanted traffic is dropped in the hardware on
Layer 3 Switches.
Prune Wait Interval Number of seconds a PIM device waits before stopping traffic to neighbor
devices that do not want the traffic. Range is from zero to three seconds.
Default is three seconds.
Bootstrap Msg interval How frequently the BSR configured on the device sends the RP set to the
RPs within the IPv6 PIM Sparse domain. The RP set is a list of candidate
RPs and their group prefixes. The group prefix of a candidate RP indicates
the range of IPv6 PIM Sparse group numbers for which it can be an RP.
NOTE
This field contains a value only if an interface on the device is
elected to be the BSR. Otherwise, the field is blank.
Candidate-RP Msg interval Number of seconds the candidate RP configured on the Layer 3 switch
sends candidate RP advertisement messages to the BSR. Default is 60
seconds.
Register Suppress Time This is the mean interval between receiving a Register-Stop and allowing
registers to be sent again. A lower value means more frequent register
bursts at RP, while a higher value means longer join latency for new
receivers. Default: 60 seconds.
Register Probe Time Number of seconds the PIM router waits for a register-stop from an RP
before it generates another NULL register to the PIM RP. Default is 10
seconds.
Register Stop Delay Register stop message. Default is 10 seconds.
Register Suppress interval Number of seconds that it takes the designated router to send Register-
encapsulated data to the RP after receiving a Register-Stop message.
Default is 60 seconds.
SSM Enabled If yes, source-specific multicast is configured globally on this router.
SPT threshold Number of packets the device sends using the path through the RP before
switching to the SPT path. Default is 1 packet.
SSM Group Range Source-specific multicast group range.
Route Precedence The route precedence configured to control the selection of routes based
on the four route types:
• Non-default route from the mRTM
• Default route from the mRTM
• Non-default route from the uRTM
• Default route from the uRTM
Embedded RP Enabled Indicates whether the embedded RP is enabled or disabled.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
162 Part Number: 53-1005289-01
Displaying IPv6 PIM interface information
You can display IPv6 PIM multicast interface information using the show ipv6 pim interface command.
device# show ipv6 pim interface ethernet 1/1/7
Flags : SM - Sparse Mode v2
---------+---------------------------------------------------+----+---+---+---------+-------
+----------------
Interface|Global Address |Mode|St |TTL|Multicast| VRF | DR |
Override
| + Designated Router Port | | |Thr|Boundary | | Prio |
Interval
---------+---------------------------------------------------+----+---+---+---------+-------
+----------------
e1/1/1 a141::1 SM Ena 1 None default 1 3000ms
+ Itself
Total Number of Interfaces : 1
Syntax: show ipv6 pim [ vrf
vrf-name
] interface [ ethernet
unit/slot/port
| loopback
num
| ve
num
]
The vrf option allows you to display multicast boundary information for the VRF instance identified by the
vrf-name
variable.
The ethernet
unit/slot/port
parameter specifies the physical port.
The loopback
num
parameter specifies the loopback port.
The ve
num
parameter specifies a virtual interface.
The following table displays the output from the show ip pim interface ethernet command.
TABLE 30 Output from the show ipv6 pim interface ethernet command
Field Description
Interface Name of the interface.
Global Address IP address of the interface.
Port Port number of the designated router.
Mode PIM mode.
St State.
TTL Thr Time to live threshold.
Multicast Boundary Multicast boundary, if one exists.
VRF Name of the VRF.
DR Prio Designated router priority.
Override Interval Override interval in milliseconds.
Displaying a list of multicast groups
To display IPv6 PIM group information, enter the show ipv6 pim group command at any CLI level.
device# show ipv6 pim group
Total number of groups: 1
1 Group ff7e:a40:2001:3e8:27:0:1:2
Group member at e1/3/1: v31
Syntax: show ipv6 pim [ vrf
vrf-name
] group
The vrf parameter allows you to display IPv6 PIM group information for the VRF instance identified by the
vrf-name
variable.
The following table displays the output from the show ipv6 pim group command.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 163
TABLE 31 Output from the show ipv6 pim group command
Field Description
Total number of Groups Lists the total number of IPv6 multicast groups the device is forwarding.
Group The multicast group address.
Group member at Interface unit/slot/port.
Displaying BSR information
To display information on a device that has been elected as the BSR, enter the show ipv6 pim bsr command at the CLI level.
Brocade# show ipv6 pim bsr
PIMv2 Bootstrap information for Vrf Instance : default-vrf
------------------------------------------------------------------
This system is the Elected BSR
BSR address: 2006:1001::1. Hash Mask Length 64. Priority 32.
Next bootstrap message in 00:01:00
Configuration:
Candidate loopback 1 (Address 2006:1001::1). Hash Mask Length 64. Priority 32.
Next Candidate-RP-advertisment in 00:00:50
RP: 2006:1001::1
group prefixes:
ff00:: / 8
Candidate-RP-advertisement period: 60
Candidate-RP-advertisement period: 60
Candidate-RP-advertisement period: 60
The following example shows information displayed on a device that is not the BSR. Notice that some fields shown in the previous example
do not appear in the following example.
Brocade# show ipv6 pim bsr
PIMv2 Bootstrap information for Vrf Instance : default-vrf
------------------------------------------------------------
BSR address: 2006:1001::1. Hash Mask Length 64. Priority 32.
This system is not a Candidate-RP.
This system is not a Candidate-RP.
Syntax: show ipv6 pim [ vrf
vrf-name
] bsr
The vrf parameter allows you to display IPv6 PIM BSR information for the VRF instance identified by the
vrf-name
variable.
The following table displays the output from the show ipv6 pim bsr command.
TABLE 32 Output from the show ipv6 pim bsr command
Field Description
BSR address The IPv6 address of the interface configured as the IPv6 PIM Sparse
Bootstrap Router (BSR).
BSR priority The priority assigned to the interface for use during the BSR election
process. During BSR election, the priorities of the candidate BSRs are
compared and the interface with the highest BSR priority becomes the
BSR.
Hash mask length The number of significant bits in the IPv6 multicast group comparison mask.
This mask determines the IPv6 multicast group numbers for which the
device can be a BSR. The default is 32 bits, which allows the device to be a
BSR for any valid IPv6 multicast group number.
NOTE
This field appears only if this device is a candidate BSR.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
164 Part Number: 53-1005289-01
TABLE 32 Output from the show ipv6 pim bsr command (continued)
Field Description
Next bootstrap message in Indicates how many seconds will pass before the BSR sends its next
Bootstrap message.
NOTE
This field appears only if this device is the BSR.
Next Candidate-RP-advertisement message in Indicates how many seconds will pass before the BSR sends its next
candidate RP advertisement message.
NOTE
This field appears only if this device is a candidate BSR.
RP Indicates the IPv6 address of the Rendezvous Point (RP).
NOTE
This field appears only if this device is a candidate BSR.
group prefixes Indicates the multicast groups for which the RP listed by the previous field is
a candidate RP.
NOTE
This field appears only if this device is a candidate BSR.
Candidate-RP-advertisement period Indicates how frequently the BSR sends candidate RP advertisement
messages.
NOTE
This field appears only if this device is a candidate BSR.
Displaying candidate RP information
To display candidate RP information, enter the show ipv6 rp-candidate command at any CLI level.
device# show ipv6 pim rp-candidate
Next Candidate-RP-advertisement in 00:00:10
RP: 1be::11:21
group prefixes:
ff00:: / 8
Candidate-RP-advertisement period: 60
This example shows information displayed on a device that is a candidate RP. The following example shows the message displayed on a
device that is not a candidate RP.
device# show ipv6 pim rp-candidate
This system is not a Candidate-RP.
Syntax: show ipv6 pim [ vrf
vrf-name
] rp-candidate
The vrf parameter allows you to display IPv6 candidate RP information for the VRF instance identified by the
vrf-name
variable.
The following table displays the output from the show ipv6 pim rp-candidate command.
TABLE 33 Output from the show ipv6 pim rp-candidate command
Field Description
Candidate-RP-advertisement in Indicates how many seconds will pass before the BSR sends its next RP
message.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 165
TABLE 33 Output from the show ipv6 pim rp-candidate command (continued)
Field Description
NOTE
This field appears only if this device is a candidate RP.
RP Indicates the IPv6 address of the Rendezvous Point (RP).
NOTE
This field appears only if this device is a candidate RP.
group prefixes Indicates the multicast groups for which the RP listed by the previous field is
a candidate RP.
NOTE
This field appears only if this device is a candidate RP.
Candidate-RP-advertisement period Indicates how frequently the BSR sends candidate RP advertisement
messages.
NOTE
This field appears only if this device is a candidate RP.
Displaying RP-to-group mappings
To display RP-to-group-mappings, enter the show ipv6 pim rp-map command at any CLI level.
Brocade#show ipv6 pim rp-map
Number of group-to-RP mappings: 3
-------------------------------------------------------------------------------
S.No Group address RP address
-------------------------------------------------------------------------------
1 ff07::c:1 3200:12::32
2 ff07::c:2 3200:12::32
3 ff07::c:3 3200:12::32
Number of group-to-RP mappings: 3
Brocade#
Syntax: show ipv6 pim [ vrf
vrf-name
] rp-map
The vrf parameter allows you to display IPv6 RP-to-group-mappings for the VRF instance identified by the
vrf-name
variable.
The following table displays the output from the show ipv6 rp-map command.
TABLE 34 Output from the show ipv6 pim rp-map command
Field Description
Index The index number of the table entry in the display.
Group address Indicates the IPv6 PIM Sparse multicast group address using the listed RP.
RP address Indicates the Iv6 address of the Rendezvous Point (RP) for the listed PIM
Sparse group.
Displaying RP information for an IPv6 PIM Sparse group
To display RP information for an IPv6 PIM Sparse group, enter the following command at any CLI level.
device# show ipv6 pim rp-hash ff1e::1:2
RP: 2001:3e8:255:255::17, v2
Info source: 2001:3e8:255:255::17, via bootstrap
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
166 Part Number: 53-1005289-01
Syntax: show ipv6 pim [ vrf
vrf-name
] rp-hash
group-addr
The vrf parameter allows you to display RP information for a PIM Sparse group for the VRF instance identified by the
vrf-name
variable.
The
group-addr
parameter is the address of an IPv6 PIM Sparse IP multicast group.
The following table displays the output from the show ipv6 pim rp-hash
group-addr
command.
TABLE 35 Output from the show ipv6 pin rp-hash
group-addr
command
Field Description
RP Indicates the IPv6 address of the Rendezvous Point (RP) for the specified
IPv6 PIM Sparse group.
Following the IPv6 address is the port or virtual interface through which this
device learned the identity of the RP.
Info source Indicates the IPv6 address on which the RP information was received.
Following the IPv6 address is the method through which this device learned
the identity of the RP.
Displaying the RP set list
To display the RP set list, enter the show ipv6 pim rp-set command at any CLI level.
device# show ipv6 pim rp-set
Static RP
---------
Static RP count: 1
100::1
Number of group prefixes Learnt from BSR: 0
No RP-Set present
Syntax: show ipv6 pim [ vrf
vrf-name
] rp-set
The vrf parameter allows you to display the RP set for the VRF instance identified by the
vrf-name
variable.
The following table displays the output from the show ipv6 pim rp-set command.
TABLE 36 Output from the show ipv6 pim rp-set command
Field Description
Number of group prefixes The number of IPv6 PIM Sparse group prefixes for which the RP is
responsible.
Group prefix Indicates the multicast groups for which the RP listed by the previous field is
a candidate RP.
RPs expected or received Indicates how many RPs were expected and received in the latest
Bootstrap message.
RP
num
Indicates the RP number. If there are multiple RPs in the IPv6 PIM Sparse
domain, a line of information for each of them is listed, and they are
numbered in ascending numerical order.
priority The RP priority of the candidate RP. During the election process, the
candidate RP with the highest priority is elected as the RP.
age The age (in seconds) of this RP-set.
NOTE
If this device is not a BSR, this field contains zero. Only the BSR
ages the RP-set.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 167
Displaying multicast neighbor information
To display information about IPv6 PIM neighbors, enter the show ipv6 pim neighbor command at any CLI level.
Device#show ipv6 pim neighbor
-------+--------+--------------------------+--------+---+
PPort |PhyPort |Neighbor |Holdtime|T |
| | |sec |Bit|
-------+--------+--------------------------+--------+---+-
vv503 e2/1/11 fe80::204:ff:fe05:6 105 1
+ 2006:503::1001
vv503 2/1/11 fe80::768e:f8ff:fe2c:cb80 105 1
+ 2006:503::1004
Total Number of Neighbors : 2
[output continued]
+---------+---------+-----+----------+--------+----+
|PropDelay|Override |Age |UpTime |VRF |Prio
|msec |msec |sec | | |
+---------+---------+-----+----------+--------+----+
500 3000 25 06:50:10 default 1
500 3000 12 06:50:10 default 1
Syntax: show ipv6 pim [ vrf
vrf-name
] neighbor
The vrf
vrf-name
keyword allows you to display the IPv6 PIM neighbors for the VRF instance identified by the
vrf-name
variable.
The following table displays the output from the show ipv6 pim neighbor command.
TABLE 37 Output from the show ipv6 pim neighbor command
Field Description
Port The routing interface through which the device is connected to the neighbor.
Phyport The physical interface through which the device is connected to the
neighbor.
Neighbor The IPv6 interface of the IPv6 PIM neighbor interface.
Holdtime sec Indicates how many seconds the neighbor wants this device to hold the
entry for this neighbor in memory. The neighbor sends the Hold Time in its
hello packets.
• If the device receives a new hello packet before the Hold Time
received in the previous packet expires, the device updates its
table entry for the neighbor.
• If the device does not receive a new hello packet from the
neighbor before the Hold time expires, the device assumes the
neighbor is no longer available and removes the entry for the
neighbor.
T Bit Specifies the ability of the sending router to disable joins suppression.
PropDelay msec Expected propagation delay over the local link.
Override msec Default delay interval over which to randomize, when scheduling a delayed
join message.
Age sec The number of seconds since the device received the last hello message
from the neighbor.
UpTime The number of seconds the PIM neighbor has been up. This timer starts
when the device receives the first hello messages from the neighbor.
VRF
Prio The DR priority that is used in the DR election process. This can be a
configured value or the default value of 1.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
168 Part Number: 53-1005289-01
Displaying the IPv6 PIM multicast cache
To display the IPv6 PIM multicast cache, enter the show ipv6 pim mcache command at any CLI level.
device#show ipv6 pim mcache
IP Multicast Mcache Table
Entry Flags : SM - Sparse Mode, SSM - Source Specific Multicast, DM - Dense Mode
RPT - RPT Bit, SPT - SPT Bit, LSRC - Local Source, LRCV - Local Receiver
HW - HW Forwarding Enabled, FAST - Resource Allocated, TAG - Need For Replication Entry
REGPROB - Register In Progress, REGSUPP - Register Suppression Timer
MSDPADV - Advertise MSDP, NEEDRTE - Route Required for Src/RP, PRUN - DM Prune Upstream
Interface Flags: IM - Immediate, IH - Inherited, WA - Won Assert
MJ - Membership Join, MI - Membership Include, ME - Membership Exclude
BR - Blocked RPT, BA - Blocked Assert, BF - Blocked Filter, BI - Blocked IIF
Total entries in mcache: 4
1 (*, ff05::4422) RP 2006:1001::1, in v503 (tag e2/1/11), Uptime 1d 00:27:26 (SM)
upstream neighbor fe80::204:ff:fe05:6 (2006:503::1001)
Flags (0x002604a2) SM RPT LRCV TAG
slow ports: ethe 3/1/1
AgeSltMsk: 0, L2 FID: 8192, DIT: NotReq, profile: none
Forwarding_oif: 1, Immediate_oif: 1, Blocked_oif: 0
L3 (SW) 1:
e3/1/1(VL170), 1d 00:27:26/0, Flags: MJ
2 (2006:170::1010, ff34::500) in v170 (tag e3/1/1), Uptime 00:37:51, Rate 0 (SM)
Source is directly connected. RP 2006:1001::1
Flags (0x20429ce1) SM SPT REG L2REG LSRC HW FAST TAG
fast ports: ethe 2/1/11
AgeSltMsk: 1, L2 FID: 4188, DIT: 1 , AvgRate: 0, profile: none
Forwarding_oif: 1, Immediate_oif: 1, Blocked_oif: 0
L3 (HW) 1:
TR(e2/1/11,e2/1/11)(VL503), 00:37:26/183, Flags: IM
Src-Vlan: 170
Syntax: show ipv6 pim mcache [ multicast cache entries source/group address | multicast cache ipv6-group-address ]
Syntax: show ipv6 pim [ vrf
vrf-name
] mcache [ source-address | group-address | counts | dense | dit-idx
dit-idx
| g_entries | receiver |
sg_entries | sparse | ssm ]
The vrf option allows you to display the IPv6 PIM multicast cache for the VRF instance identified by the
vrf-name
variable.
The
source-address
parameter selects the multicast cache source address.
The
group-address
parameter selects the multicast cache group address.
The counts keyword indicates the count of entries.
The dense keyword displays only the PIM Dense Mode entries.
The
dit-idx
variable allows you to display all entries that match a specified dit.
The g_entries keyword displays only the (*, G) entries.
The receiver keyword allows you to display all entries that egress a specified interface.
The sg_entries keyword displays only the (S, G) entries.
The sparse keyword displays only the PIM Sparse Mode entries.
The ssm keyword displays only the SSM entries.
The following table describes the output parameters of the show ipv6 pim vrf mcache command.
TABLE 38 Output parameters of the show ipv6 pim mcache command
Field Description
Total entries in mcache Shows the total number of PIM mcache entries.
upstream neighbor Shows the upstream neighbor for the Source/RP based on the type of
entry.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 169
TABLE 38 Output parameters of the show ipv6 pim mcache command (continued)
Field Description
For (*,G) it shows the upstream neighbor towards the RP. For (S,G) entries it
shows the upstream neighbor towards the source.
Flags Show the flags associated with the forward entry.
slow ports ethe Shows the forwarding port ID of the mcache entry which is in the software
forwarding path.
AgeSltMsk Shows the slot number on which MP expects ingress traffic.
L2 FID Shows the hardware resource allocated for the traffic switched to receivers
in the ingress VLAN.
DIT Shows the hardware resource allocated for routed receivers.
AvgRate Shows the average data traffic rate for the mcache entry
profile Shows the profile ID associated with the stream.
Forwarding_oif Shows the number of outgoing interfaces of the mcache entry.
immediate_oifs Shows the local immediate outgoing interface of the mcache entry.
blocked_oifs Shows the PIM Sparse mode blocked outgoing interfaces.
L3 (SW) 1 Shows whether the traffic is switched or routed out of the interface.
L3 (HW) 1 The forwarding entries by using hardware.
Src-Vlan VLAN associated with the ingress interface.
Displaying IPv6 PIM RPF
The show ipv6 pim rpf command displays what PIM sees as the reverse path to the source. While there may be multiple routes back to the
source, the one displayed by the show ipv6 pim rpf command is the one that PIM thinks is best.
device# show ipv6 pim rpf 2008:165::1010
upstream nbr 2006:503::1001 on v503
Syntax: show ipv6 pim [ vrf
vrf-name
] rpf
ip-address
The vrf parameter allows you to display what PIM sees as the reverse path to the source for a VRF instance specified by the
vrf-name
variable.
The
ip-address
variable specifies the source address for RPF check.
Displaying IPv6 PIM counters
You can display the number of default-vlan-id changes that have occurred since the applicable VRF was created and how many times a
tagged port was placed in a VLAN since the applicable VRF was created, as shown in the following example.
Brocade#show ipv pim vrf eng counter
Event Callback:
DFTVlanChange : 0 VlanPort : 0
LP to MP IPCs:
SM_REGISTER : 8315 MCAST_CREATE : 0
S_G_AGEOUT : 3 WRONG_IF : 0
ABOVE_THRESHOLD: 0 MCAST_FIRST_DATA : 3
SET KAT : 3 SET KAT INFINITY : 3
MP to LP IPCs:
INIT : 25 INSERT_VPORT : 30
DELETE_VPORT : 186 DELETE_VIF : 162
MOVE_VPORT : 0 DEL_ENTRY : 16
INSERT_SOURCE : 0 DELETE_SOURCE : 0
RESET_SRC_LIST : 0 MOVE_TNNL_PORT : 0
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
170 Part Number: 53-1005289-01
FLAG_CHANGE : 6 FDB_VIDX_CHANGE: 0
OIF_FLAG_CHANGE :0
Error Counters:
PIM_PKT_DRP : 0 PIM_PKT_DRP(Glb) : 0
MCGRP_PKT_DRP: 0 MCGRP_PKT_DRP(Gl): 0
RPSET_MAXED : 0
Syntax: show ipv6 pim [ vrf
vrf-name
] counter
The vrf parameter allows you to display IPv6 PIM counters for the VRF instance identified by the
vrf-name
variable.
The following table displays the output from the show ipv6 vrf eng counter command.
TABLE 39 Output from the show ipv6 pim vrf eng counter command
Field Description
DFTVlanChange The number of default-vlan-id changes that have occurred since the
applicable VRF was created.
VlanPort The number of times that a tagged port was placed in a VLAN since the
applicable VRF was created.
Displaying the IPv6 PIM resources
To display the hardware resource information, such as hardware allocation, availability, and limit for software data structure, enter the show
ipv6 pim resource command.
Brocade#show ipv6 pim vrf white res
Global PIM Parameters :-
GLOBAL Ipv6 MULTICAST CLASS Size:23573 bytes
GLOBAL Ipv6 PIM CLASS Size:2162 bytes
MULTICAST IPV6 CLASS Num alloc:2, System max:17, Size:1346 bytes
PIM IPV6 CLASS Num alloc:2, System max:17, Size:50485
Vrf Instance : white
--------------------------------------
alloc in-use avail get-fail limit get-mem size init
NBR list 64 2 62 0 512 73 96 64
RP set list 256 1 255 0 1536 12824 49 256
Static RP 64 0 64 0 64 0 42 64
LIF Entry 512 0 512 0 512 0 47 512
Anycast RP 64 0 64 0 64 0 190 64
timer 64 0 64 0 14848 65 64 64
prune 32 0 32 0 7424 0 34 32
pimsm J/P elem 1024 0 1024 0 48960 640448 29 128
Timer Data 512 2 510 0 14848 1409 28 64
mcache SLIB Sync 1120 2 1118 0 64960 9502 34 280
mcache 896 2 894 0 12992 5570 1144 56
graft if no mcache 197 0 197 0 45704 0 64 197
HW replic vlan 1000 2 998 0 116000 170179 66 500
HW replic port 1024 2 1022 0 59392 170179 81 256
pim/dvm intf. group 64 0 64 0 14848 0 24 64
pim/dvm global group 512 0 512 0 14848 6700 46 64
repl entry(Global) 1024 2 1022 0 237568 40644 49 1024
MLD Resources(All Vrfs):
groups 1024 0 1024 0 4096 7100 328 256
phy-ports 2048 0 2048 0 4096 7600 148 256
exist-phy-port 1792 0 1792 0 12992 196484 62 56
group-query 56 0 56 0 12992 0 84 56
Hardware-related Resources:
Total (S,G) entries 2
Total SW FWD entries 0
Total sw w/Tag MVID entries 0
Total sw w/Tag invalid MVID entries 0
Total HW FWD entries 2
Total hw w/Tag MVID entries 2
Total hw w/Tag invalid MVID entries 0
Brocade#
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 171
Syntax: show ipv6 pim [ all-vrf | [ vrf
vrf-name
] ] resource
The vrf parameter allows you to display hardware resource information for the VRF instance identified by the
vrf-name
variable.
The following table displays the output from the show ipv6 pim resource command.
TABLE 40 Output from the show ipv6 pim resource command
Field Description
Num alloc Number of allocated PIM resources.
System max Maximum number of VRF resources.
Size Internal size.
alloc Number of nodes of that data that are currently allocated in memory.
in-use Number of allocated nodes in use.
avail Number of allocated nodes are not in use.
get-fail Number of allocated notes that failed.
limit Maximum number of nodes that can be allocated for a data structure. This
may or may not be configurable, depending on the data structure
get-mem Current memory allocation.
size Unit size.
init Initial number.
To display usage and fail-count information for SG entries on each VRF, use the show ipv6 pim all-vrf hw-resource command.
device# show ipv6 pim all-vrf hw-resource
VRF In-Use Fail
default-vrf 3072 8
blue 3072 0
-------------------------------
Total usage 6144
System-max limit for SG entries: 6144
Syntax: show ipv6 pim [ all-vrf | [ vrf
vrf-name
] ] hw-resource
The vrf parameter allows you to display hardware resource information for the VRF instance identified by the
vrf-name
variable.
The following table displays the output from the show ipv6 pim all-vrf hw-resource command.
TABLE 41 Output from the show ipv6 pim all-vrf hw-resource command
Field Description
VRF Name of the VRF.
Usage Number of allocated SG entries in this VRF.
Fail Number of failures while allocating SG entries in this VRF (due to system-
max limit).
Total usage Total number of SG entries in the system (All-VRFs).
System-max limit for SG entries Configured system limit using the pim6-hw-mcache command.
Displaying PIM traffic statistics
To display IPv6 PIM traffic statistics, enter the show ipv6 pim trac command at any CLI level.
device# show ipv6 pim traffic
Port HELLO JOIN-PRUNE ASSERT REGISTER REGISTER BOOTSTRAP CAND. RP Err
GRAFT(DM) STOP(SM) MSGS (SM) ADV. (SM)
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
172 Part Number: 53-1005289-01
-------+---------+-----------+---------+---------+---------+---------+---------+---
Rx Rx Rx Rx Rx Rx Rx Rx
------+---------+-----------+---------+---------+---------+---------+---------+---
v170 0 0 0 0 0 0 0 0
v501 0 0 0 0 0 0 0 0
v503 3302 2524 0 0 0 0 0 0
Port HELLO JOIN-PRUNE ASSERT REGISTER REGISTER BOOTSTRAP CAND. RP Err
GRAFT(DM) STOP(SM) MSGS (SM) ADV. (SM)
-------+---------+-----------+---------+---------+---------+---------+---------+---
Tx Tx Tx Tx Tx Tx Tx
------+---------+-----------+---------+---------+---------+---------+---------+---
v170 3576 0 0 0 0 0 0
v501 1456 0 0 0 0 0 0
v503 1456 1314 0 0 0 2 0
Syntax: show ipv6 pim [ vrf
vrf-name
] trac
The vrf parameter allows you to display IPv6 traffic statistics for the VRF instance identified by the
vrf-name
variable.
The following table displays the output from the show ipv6 pim trac command.
TABLE 42 Output from the show ipv6 pim traffic command
Field Description
Port The port or virtual interface on which the IPv6 PIM interface is configured.
Hello The number of IPv6 PIM Hello messages sent or received on the interface.
Join-Prune The number of Join or Prune messages sent or received on the interface.
NOTE
Unlike PIM dense, PIM Sparse uses the same messages for
Joins and Prunes.
Assert The number of Assert messages sent or received on the interface.
Register Graft (DM) The number of Register messages sent or received on the interface.
Regiser Stop (SM) The number of Register Stop messages sent or received on the interface.
Bootstrap Msgs (SM) The number of bootstrap messages sent or received on the interface.
Cand. RP Adv. (SM) The total number of Candidate-RP-Advertiment messages sent or received
on the interface.
Err The total number of MLD messages discarded, including a separate
counter for those that failed the checksum comparison.
Clearing the IPv6 PIM forwarding cache
You can clear the IPv6 PIM forwarding cache using the clear ipv6 pim cache command.
device# clear ipv6 pim cache
Syntax: clear ipv6 pim [ vrf
vrf-name
] cache
Use the vrf parameter to clear the IPv6 PIM forwarding cache for a VRF instance specified by the
vrf-name
variable.
Clearing the IPv6 PIM message counters
You can clear the IPv6 PIM message counters using the clear ipv6 pim counters command.
device# clear ipv6 pim counters
Syntax: clear ipv6 pim [ vrf
vrf-name
] counters
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 173
Use the vrf parameter to clear the IPv6 PIM message counters for a VRF instance specified by the
vrf-name
variable.
Updating PIM Sparse forwarding entries witha new RP configuration
If you make changes to your static RP configuration, the entries in the IPv6 PIM Sparse multicast forwarding table continue to use the old
RP configuration until they are aged out.
The clear IPv6 pim rp-map command allows you to update the entries in the static multicast forwarding table immediately after making RP
configuration changes. This command is meant to be used with rp-address command.
To update the entries in an IPv6 PIM Sparse static multicast forwarding table with a new RP configuration, enter the clear ipv6 pim rp-map
command at the privileged EXEC level of the CLI.
device(config)# clear ipv6 pim rp-map
Syntax: clear ipv6 pim [ vrf
vrf-name
] rp-map
Use the vrf parameter to clear the IPv6 PIM Sparse static multicast forwarding table for a VRF instance specified by the
vrf-name
variable.
Clearing the IPv6 PIM traffic
To clear counters on IPv6 PIM traffic, enter the clear ipv6 pim trac command.
device# clear ipv6 pim traffic
Syntax: clear ipv6 pim [ vrf
vrf-name
] trac
Use the vrf par meter to clear counters on IPv6 PIM traffic for a VRF instance specified by the
vrf-name
variable.
Defining the maximum number of IPv6 PIM cache entries
You can use the max-mcache command to define the maximum number of repeated PIM traffic being sent from the same source address
and being received by the same destination address. To define the maximum for the default VRF, enter the max-mcache command.
Device(config)# ipv6 router pim
Device(config-ipv6-pim-router)# max-mcache 999
Syntax: [no] max-mcache
num
The
num
variable specifies the maximum number of IPv6 multicast cache entries for PIM in the default VRF. If not defined by this command,
the maximum value is determined by the system max command parameter, pim6-hw-mcache, or by available system resources.
To define the maximum number of IPv6 PIM cache entries for a specified VRF, use the following command.
Device(config)# ipv6 router pim vrf blue
Device(config-ipv6-pim-router-vrf-blue)# max-mcache 999
Syntax: [no] ipv6 router pim [ vrf
vrf-name
]
The vrf parameter specified with the ipv6 router pim command allows you to configure the max-mcache command for a virtual routing
instance (VRF) specified by the variable
vrf-name
.
The vrf parameter specified with the router pim command allows you to configure the max-mcache command for a virtual routing instance
(VRF) specified by the variable
vrf-name
.
The
num
variable specifies the maximum number of multicast cache entries for PIM in the specified VRF. If not defined by this command,
the maximum value is determined by the system max command parameter,
pim6-hw-mcache
, or by available system resources.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
174 Part Number: 53-1005289-01
There is a system-max command parameter change with the following new runtime command:
Syntax: system-max pim6-hw-mcache
The system-max pim6-hw-mcache command sets the maximum number of SG entries that are allowed in the hardware.
Configuring a static multicast route within a VRF
You can configure a static multicast route within a virtual routing instance (VRF).
1. Configure a VRF.
Device(config)# vrf vpn1
2. Configure the VRF address family for IPv6 and enter IPv6 address family configuration mode.
Device (config-vrf-vpn1)#address-family ipv6
3. Configure the destination IPv6 address.
Device (config-vrf-vpn1-ipv6)#ipv6 mroute 2001:0DB8:0:1::1/120 5100::192:1:1:1
Configuring the route precedence by specifying the route types
Precedence tables specify how routes are selected for multicast
PIM must be enabled at the global level.
Configure the none keyword to fill up the precedence table and ignore certain types of routes.
1. Enable PIM at the global level.
Device(config)# ipv6 router pim
2. Configure a precedence table.
Device(config-ipv6-pim-router)# route-precedence mc-non-default uc-non-default mc-default uc-default
Configures a precedence table for multicast route selection that first looks for a non-default route from the mRTM, then a non-
default route from the uRTM, then a default route from the mRTM, and then a default route from the uRTM.
3. Configure the none keyword to fill up the precedence table in order to ignore certain types of route.
Device(config-ipv6-pim-router)# route-precedence mc-non-default mc-default uc-non-default none
Configures a precedence table for multicast route selection that ignores the default route from uRTM .
4. Return to global level.
Device(config-ipv6-pim-router)# exit
5. Enable PIM for a VRF.
Device(config)# ipv6 router pim vrf blue
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 175
6. Configure a precedence table for the VRF.
Device (config-ipv6-pim-router-vrf-blue)# route-precedence mc-non-default uc-non-default mc-default
uc-default
Configures a precedence table that specifies a non-default route from the mRTM, then a non-default route from the uRTM, then a
default route from the mRTM, and then a default route from the uRTM for the specified VRF,.
7. Configure the none keyword to fill up the precedence table.
Device(config-ipv6-pim-router-vrf-blue)# route-precedence mc-non-default mc-default uc-non-default
none
Configures a precedence table that specifies the unicast default route for multicast for the specified VRF.
The following examples show how to configure the route precedence and display the route-precedence setting.
Device(config-ipv6-pim-router)#route-precedence mc-non-default mc-default uc-non-default uc-default
Device(config-ipv6-pim-router)#show ipv6 pim sparse
Global PIM Sparse Mode Settings
Maximum Mcache : 12992 Current Count : 2
Hello interval : 30 Neighbor timeout : 105
Join/Prune interval : 60 Inactivity interval : 180
Hardware Drop Enabled : Yes Prune Wait Interval : 3
Bootstrap Msg interval : 60 Candidate-RP Msg interval : 60
Register Suppress Time : 60 Register Probe Time : 10
Register Stop Delay : 10 Register Suppress interval : 60
SSM Enabled : No SPT Threshold : 1
Route Precedence : mc-non-default mc-default uc-non-default uc-default
Embedded RP Enabled : Yes
Device(config-ipv6-pim-router)#route-precedence admin-distance
Device(config-ipv6-pim-router)#show ipv6 pim sparse
Global PIM Sparse Mode Settings
Maximum Mcache : 12992 Current Count : 2
Hello interval : 30 Neighbor timeout : 105
Join/Prune interval : 60 Inactivity interval : 180
Hardware Drop Enabled : Yes Prune Wait Interval : 3
Bootstrap Msg interval : 60 Candidate-RP Msg interval : 60
Register Suppress Time : 60 Register Probe Time : 10
Register Stop Delay : 10 Register Suppress interval : 60
SSM Enabled : No SPT Threshold : 1
Route Precedence : admin-distance
Embedded RP Enabled : Yes
Device(config-ipv6-pim-router)
Configuring IPv6 PIM neighbor filtering
Configure an ACL and apply it to an interface to control neighbor access.
1. Configure an ACL named f10.
Device(config)#ipv6 access-list f10
Identify the ACL as an ASCII string.
Configures an ACL and enters ACL configuration mode.
2. Configure ACL f10 to deny access to the device fe80::102.
Device(config-ipv6-access-list f10)#deny ipv6 host fe80::102 any
NOTE
In this case, fe80::102 is is the link-local address of the interface.
IPv6 Multicast Protocols
IPv6 PIM Sparse
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
176 Part Number: 53-1005289-01
3. Configure ACL f10 to permit access to all other devices.
Device(config-ipv6-access-list f10)#permit ipv6 any any
4. Return to global configuration mode.
Device(config-ipv6-access-list f10)#exit
5. Configure an Ethernet interface.
Device(config)#interface ethernet 1/3/2
Configures an interface and enters interface configuration mode.
6. Configure a filter that applies ACL f10 to the interface.
Device(config-if-e1000-1/3/2)#ipv6 pim neighbor-filter f10
Prevents the host that is specified in ACL f10, fe80::102, from becoming an IPv6 PIM neighbor on the interface.
IPv6 PIM convergence on MAC movement
PIM convergence occurs when the PIM module is notified of a topology change.
The notification is triggered upon a change in port status, Reverse Path Forwarding (RPF) failure in the hardware, or by the unicast routing
module if there is a change in the Layer 3 topology. If the topology change occurs without a change in port status or RPF failure, or if the
Layer 3 topology change is not notified by the unicast routing module, PIM convergence does not take place.
If there is a change in the source traffic at Layer 2 interface, the RPF check fails because only loose RPF check is supported (loose RPF
check detects the change in the source traffic only at the Layer 3 interface level). A notification for a change in the source traffic at the Layer
2 interface can be triggered by MAC address movement. The MAC address movement notification triggers RPF check on MAC movement
for directly connected sources. The MAC address movement notification can be triggered by configuring the ipv6 multicast-routing rpf-
check mac-movement command. The MAC address movement notification triggers a notification to the PIM module which results in
convergence. IPv6 PIM convergence is supported only in PIM Sparse mode and is not supported in PIM Dense mode.
PIM convergence on MAC movement is supported on the Brocade ICX 7150, ICX 7250, ICX 7450, and Brocade ICX 7750.
NOTE
PIM convergence on MAC movement is applicable only when the multicast source and PIM routers are in the same Layer 2
domain.
PIM Anycast RP
PIM Anycast RP is a method of providing load balancing and fast convergence to PIM RPs in an IPv6 multicast domain. The RP address of
the Anycast RP is a shared address used among multiple PIM routers, known as PIM RP. The PIM RP routers create an Anycast RP set.
Each router in the Anycast RP set is configured using two IPv6 addresses: a shared RP address in their loopback address and a separate,
unique IPv6 address. The loopback address must be reachable by all PIM routers in the multicast domain. The separate, unique IP address
is configured to establish static peering with other PIM routers and communication with the peers.
When the source is activated in a PIM Anycast RP domain, the PIM First Hop (FH) will register the source to the closet PIM RP. The PIM RP
follows the same MSDP Anycast RP operation by decapsulating the packet and creating the (s,g) state. If there are external peers in the
Anycast RP set, the router will re-encapsulate the packet with the local peering address as the source address of the encapsulation. The
router will unicast the packet to all Anycast RP peers. The re-encapsulation of the data register packet to Anycast RP peers ensures source
state distribution to all RPs in a multicast domain.
IPv6 Multicast Protocols
PIM Anycast RP
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 177
Configuring PIM Anycast RP
A new PIM CLI is introduced for PIM Anycast RP under the router pim submode. The PIM CLI specifies mapping of the RP and the Anycast
RP peers.
To configure PIM Anycast RP, enter the following commands.
device(config)# ipv6 router pim
device(config-ipv6-pim-router)# rp-address 1001::1
device(config-ipv6-pim-router)# anycast-rp 1001::1 my-anycast-rp-set-acl
To configure PIM Anycast RP for a specified VRF, enter the commands as shown in the following example.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# rp-address 1001::1
device(config-ipv6-pim-router-vrf-blue)# anycast-rp 1001::1 my-anycast-rp-set-acl
Syntax: [no] anycast-rp
rp-address
my-anycast-rp-set-acl
The
rp address
parameter specifies a shared RP address used among multiple PIM routers.
The
my-anycast-rp-set-acl
parameter specifies a host-based simple ACL used to specify the address of the Anycast RP set, including a
local address.
The following example is a configuration of PIM Anycast RP 1001:1.The example avoids using the loopback 1 interface when configuring
PIM Anycast RP because the loopback 1 address could be used as a router-id. A PIM First Hop router will register the source with the
closest RP. The first RP that receives the register will re-encapsulate the register to all other Anycast RP peers. Refer to the figure “Example
of a PIM Anycast RP network” as described in the configuration of PIM Anycast RP 1001:1.
device(config)# interface loopback 2
device(config-lbif-2)# ipv6 address 1001::1/96
device(config-lbif-2)# ipv6 pim-sparse
device(config-lbif-2)# interface loopback 3
device(config-lbif-3)# ipv6 address 1:1:1::1/96
device(config-lbif-3)# ipv6 pim-sparse
device(config-lbif-3)# ipv6 router pim
device(config-ipv6-pim-router)# rp-address 1001::1
device(config-ipv6-pim-router)# anycast-rp 1001::1 my-anycast-rp-set
device(config-ipv6-pim-router)# ipv6 access-list my-anycast-rp-set
device(config-std-nacl)# permit ipv6 host 1:1:1::1 any
device(config-std-nacl)# permit ipv6 host 2:2:2::2 any
device(config-std-nacl)# permit ipv6 host 3:3:3::3 any
The RP shared address 1001:1 is used in the PIM domain. IPv6 addresses 1:1:1::1, 2:2:2::2, and 3:3:3::3 are listed in the ACL that forms
the self-inclusive Anycast RP set. Multiple Anycast RP instances can be configured on a system; each peer with the same or different
Anycast RP set.
NOTE
The PIM Anycast CLI applies to only PIM routers running RP. All deny statements in the anycast_rp_set ACL are ignored.
The example shown in the figure “Example of a PIM Anycast RP network”is a PIM Anycast-enabled network with three RPs and one PIM-
FH router connecting to its active source and local receiver. Loopback 2 in RP1, RP2, and RP3 each have the same IP addresses 1001:1.
Loopback 3 in RP1, RP2, and RP3 each have separate IP address configured to communicate with their peers in the Anycast RP set.
IPv6 Multicast Protocols
PIM Anycast RP
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
178 Part Number: 53-1005289-01

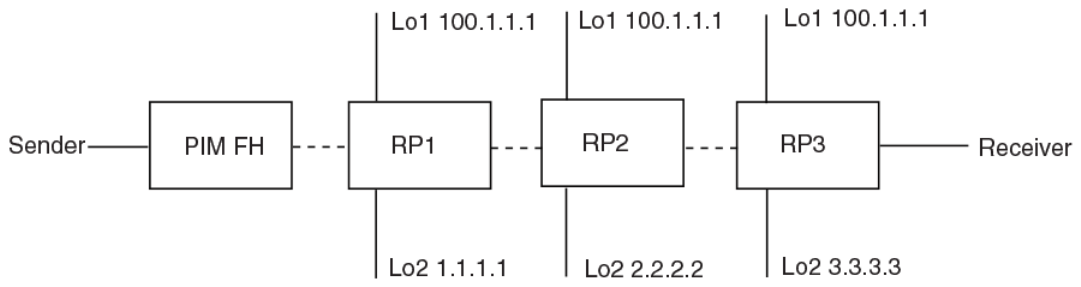

FIGURE 12 Example of a PIM Anycast RP network
Displaying information for an IPv6 PIM Anycast RP interface
To display information for an IPv6 PIM Anycast RP interface, enter the show ipv6 pim anycast-rp command.
device(config)# show ipv6 pim anycast-rp
Number of Anycast RP: 1
Anycast RP: 1001::1
ACL ID: 200
ACL Name: my-anycast-rp-set
ACL Filter: SET
Peer List:
1:1:1::1
2:2:2::2
3:3:3::3
Syntax: show ipv6 pim [ vrf
vrf-name
] anycast-rp
The vrf parameter allows you to display information for an IPv6 Anycast RP interface for the VRF instance identified by the
vrf-name
variable.
The following table describes the parameters of the show ipv6 pim anycast-rp command.
TABLE 43 Output from the show ipv6 pim anycast-rp command
Field Description
Number of Anycast RP Specifies the number of Anycast RP sets in the multicast domain.
Anycast RP Specifies a shared RP address used among multiple PIM routers.
ACL ID Specifies the ACL ID assigned.
ACL Name Specifies the name of the Anycast RP set.
ACL Filter Specifies the ACL filter state SET or UNSET.
Peer List Specifies host addresses that are permitted in the Anycast RP set.
Multicast Listener Discovery and source-specific
multicast protocols
Multicast Listener Discovery Version 2 (MLDv2) protocol is supported. IPv6 routers use the MLDv2 protocol to discover multicast listeners,
or nodes that wish to receive multicast packets on directly attached links. MLDv2 supports source filtering, the ability of a node to send
reports on traffic that is from a specific address source or from all multicast addresses except the specified address sources. The
information is then provided to the source-specific multicast (SSM) routing protocols such as PIM-SSM.
IPv6 Multicast Protocols
Multicast Listener Discovery and source-specific multicast protocols
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 179
The IPv6 router stores a list of multicast addresses for each attached link. For each multicast address, the IPv6 router stores a filter mode
and a source list. The filter mode is set to INCLUDE if all nodes in the source list for a multicast address are in the INCLUDE state. If the filter
mode is INCLUDE, then only traffic from the addresses in the source list is allowed. The filter mode is set to EXCLUDE if at least one of the
nodes in the source list is in an EXCLUDE state. If the filter mode is EXCLUDE, traffic from nodes in the source list is denied and traffic from
other sources is allowed.
The source list and filter mode are created when the IPv6 querier router sends a query. The querier router is the one with the lowest source
IPv6 address. It sends out any of the following queries:
• General query - The querier sends this query to learn all multicast addresses that need to be listened to on an interface.
• Address specific query - The querier sends this query to determine if a specific multicast address has any listeners.
• Address specific and source specific query - The querier sends this query to determine if specified sources of a specific multicast
address have any listeners.
In response to these queries, multicast listeners send the following reports:
• Current state - This report specifies the source list for a multicast address and whether the filter mode for that source list is
INCLUDE or EXCLUDE.
• Filter-mode change - This report specifies if there has been a change to the filter mode for the source list and provides a new
source list.
• Source list change - This report specifies the changes to the source list.
MLDv1 is compatible with IGMPv2 and MLDv2 is compatible with IGMPv3.
Enabling MLDv2
The default MLD version when PIM Sparse Mode (PIM-SM) is enabled on an interface is MLDv1. You must configure the ipv6 mld version
2 command to enable MLDv2.
To enable MLDv2, enter the following command at the interface level.
device(config)# ipv6 router pim
device(config-if-e10000-1/1/1)# ipv6 mld version 2
Syntax: [no] ipv6 mld version 2
Configuring MLD parameters for default and non-default VRFs
MLD allows you to configure the following parameters on default and non-default VRFs:
• Group membership time - Setting the group membership time on page 181
• Max group address - Defining the maximum number of MLD group addresses on page 181
• Max response time - Setting the maximum response time on page 181
• Query interval - Setting the query interval on page 182
• Last listener query count - Setting the last listener query interval on page 182
• Last listener query interval - Setting the last listener query interval on page 182
• Robustness - Setting the robustness on page 182
• Version - Setting the version on page 183
IPv6 Multicast Protocols
Multicast Listener Discovery and source-specific multicast protocols
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
180 Part Number: 53-1005289-01
Setting the group membership time
You can set the group membership time for the default VRF or for a specified VRF. Group membership time defines how long a group will
remain active on an interface in the absence of a group report. Possible values are from 5 through 26,000 seconds and the default value is
260 seconds.
To define an MLD group membership time of 2000 seconds, enter the following command.
device(config)# ipv6 mld group-membership-time 2000
Syntax: [no] ipv6 mld group-membership-time
5-26000
To define an MLD group membership time of 2000 seconds for a specified VRF, enter the following commands.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# ipv6 mld group-membership-time 2000
Syntax: [no] ipv6 router pim [ vrf
vrf-name
]
The vrf parameter specifies the virtual routing instance (VRF) specified by the variable
vrf-name
.
Defining the maximum number of MLD group addresses
You can use the following run-time command to set the maximum number of MLD addresses for the default VRF or for a specified VRF. To
define this maximum for the default VRF, enter the following command.
device(config)# ipv6 mld max-group-address 1000
Syntax: [no] ipv6 mld max-group-address
num
The
num
variable specifies the maximum number of MLD group addresses you want to make available for the default VRF. If not defined by
this command, the maximum value is determined by available system resources.
To define this maximum for a specified VRF, enter the following commands.
device(config)# ipv6 router pim vrf blue
device(config-vrf-blue)# address-family ipv6
device(config-vrf-blue-ipv6)# ipv6 mld max-group-address 1000
Syntax: [no] vrf
vrf-name
Syntax:[no] address-family ipv6
Syntax: [no] ipv6 mld max-group-address
num
The vrf parameter specifies the virtual routing instance (VRF) specified by the variable
vrf-name
.
Setting the maximum response time
You can define the maximum amount of time a multicast listener has to respond to queries by entering a command such as the following.
device(config)# ipv6 mld max-response-time 5
Syntax: [no] ipv6 mld max-response-time
seconds
The
seconds
variable specifies the MLD maximum response time in seconds. You can specify from 1 through 25 seconds. The default is 10
seconds.
To define the maximum amount of time a multicast listener has to respond to queries for a specified VRF, enter the following commands.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# ipv6 mld max-response-time 5
IPv6 Multicast Protocols
Multicast Listener Discovery and source-specific multicast protocols
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 181
Syntax: [no] ipv6 router pim [ vrf
vrf-name
]
The vrf parameter specifies the virtual routing instance (VRF) specified by the variable
vrf-name
.
Setting the query interval
You can define the frequency at which MLD query messages are sent. For example, if you want queries to be sent every 50 seconds, enter
a command such as the following.
device(config)# ipv6 mld query-interval 50
Syntax: [no] ipv6 mld query-interval
seconds
The
seconds
variable specifies the MLD query interval in seconds. You can specify from 2 through 3600 seconds. The default value is 125
seconds.
To define the frequency at which MLD query messages are sent for a specified VRF, enter the following commands.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# ipv6 mld query-interval 50
Syntax: [no] ipv6 router pim [ vrf
vrf-name
]
The vrf parameter specifies the virtual routing instance (VRF) specified by the variable
vrf-name
.
Setting the last listener query interval
The Last Listener Query Interval is the Maximum Response Delay inserted into Multicast-Address-Specific Queries sent in response to Done
messages, and is also the amount of time between Multicast- Address-Specific Query messages. When the device receives an MLDv1
leave message or an MLDv2 state change report, it sends out a query and expects a response within the time specified by this value. Using
a lower value allows members to leave groups more quickly. You can set the last listener query interval by entering a command such as the
following.
device(config)# ipv6 mld llqi 5
Syntax: [no] ipv6 mld llqi
seconds
The
seconds
variable sets the last listener query interval in seconds. You can specify from 1 through 25 seconds. The default is 1.
To set the last listener query interval for a specified VRF, enter the following commands.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# ipv6 mld llqi 5
Syntax: [no] ipv6 router pim [ vrf
vrf-name
]
The vrf parameter specifies the virtual routing instance (VRF) specified by the variable
vrf-name
.
Setting the robustness
You can specify the number of times that the switch sends each MLD message from this interface. Use a higher value to ensure high
reliability from MLD. You can set the robustness by entering a command such as the following.
device(config)# ipv6 mld robustness 3
Syntax: ipv6 mld robustness
seconds
The
seconds
variable sets the MLD robustness in seconds. You can specify from 2 through 7 seconds. The default is 2 seconds.
IPv6 Multicast Protocols
Multicast Listener Discovery and source-specific multicast protocols
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
182 Part Number: 53-1005289-01
To set the robustness for a specified VRF, enter the following commands.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# ipv6 mld robustness 3
Syntax: [no] ipv6 router pim [ vrf
vrf-name
]
The vrf parameter specifies the virtual routing instance (VRF) specified by the variable
vrf-name
.
Setting the version
You can use this command to set the MLD version (1 or 2) globally. You can select the version of MLD by entering a command such as the
following.
device(config)# ipv6 mld version 1
Syntax: ipv6 mld version
version-number
The
version-number
variable sets the MLD version. You can specify 1 or 2 for the MLD version.The default version is 2.
To set the global MLD version for a specified VRF, enter the following commands.
device(config)# ipv6 router pim vrf blue
device(config-ipv6-pim-router-vrf-blue)# ipv6 mld version 1
Syntax: [no] ipv6 router pim [ vrf
vrf-name
]
The vrf parameter specifies the virtual routing instance (VRF) specified by the variable
vrf-name
.
Configuring MLD parameters at the interface level
The following MLD parameters can be configured at the interface level:
• Port- version - Specifying a port version on page 183
• Static-group - Specifying a static group on page 183
• Tracking - Enabling MLD tracking on an interface on page 184
• Version - Setting the version on an interface on page 184
Specifying a port version
To set the MLD version on a virtual Ethernet interface, enter the following commands as shown in the example.
device(config)# interface ve 10
device(config-vif-10)# ipv6 mld port-version 2
Syntax: ipv6 mld port-version
version-number
Enter 1 or 2 for
version-number
. Be sure to enter 2 if you want to use source filtering.
Specifying a static group
A multicast group is usually learned when an MLDv1 report is received. You can configure one or more static groups without having to
receive an MLDv1 report.
To configure two static groups, starting from ff0d::1, without having to receive an MLDv1 report on a virtual Ethernet interface, enter either
this command:
Device(config-if-e1000-1/1/5)# ipv6 mld static-group ff0d::1 count 2
IPv6 Multicast Protocols
Multicast Listener Discovery and source-specific multicast protocols
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 183
Or this command:
Device(config-if-e1000-1/1/5)# ipv6 mld static-group ff0d::1 to ff0d::2
To configure two static groups on virtual ports starting from ff0d::1, enter either this command:
Device(config)# interface ve 10
Device(config-vif-10)# ipv6 mld static-group ff0d::1 count 2 ethernet 1/1/5
Or this command:
Device(config)# interface ve 10
Device(config-vif-10)# ipv6 mld static-group ff0d::1 to ff0d::2 ethernet 1/1/5
Syntax: ipv6 mld static-group
multicast-group-address
[ count
count-number
| to
multicast-group-address
] [ ethernet
unit/slot/port
[ ethernet
unit/slot/port
| to
unit/slot/port
] * ]
Enter the IPv6 multicast group address for the
multicast-group-address
.
The
count-number
range is 2-256.
Enter the number of the port that will be included in this static group for the ethernet
unit/slot/port
parameter. The asterisk (*) in the syntax
means that you can enter as many port numbers as you want to include in the static group. For a virtual routing interface (ve), specify the
physical Ethernet ports on which to add the group address.
Enabling MLD tracking on an interface
When MLD tracking is enabled, a Layer 3 switch tracks all clients that send membership reports. When a Leave message is received from
the last client, the device immediately stops forwarding to the physical port (without waiting 3 seconds to confirm that no other clients still
want the traffic). To enable MLD tracking on a virtual interface, enter the following commands.
device(config)# interface ve 10
device(config-vif-10)# ipv6 mld tracking
Syntax: ipv6 mld tracking
Setting the version on an interface
You can use this command to set the MLD version (1 or 2) on an interface. You can select the version of MLD by entering a command such
as the following.
device(config)# interface ve 10
device(config-vif-10)# ipv6 mld version 2
Syntax: ipv6 mld version
version-number
The
version-number
variable sets the MLD version on an interface. You can specify 1 or 2 for the MLD version.The default version is 2.
Displaying MLD group information
To display the list of multicast groups, enter a command such as the following.
device #show ipv6 mld group
Total 2 groups
--------------------------------------------------------------------------------------
Idx Group Address Port Intf GrpCmpV Mode Timer Srcs
----+----------------------------------------+------+------+-------+-------+-----+----
1 ff05::4422 e3/1/1 v170 Ver1 exclude 221 0
2 ff3f::300 e3/1/1 v170 Ver2 include 0 1
Total number of groups 2
IPv6 Multicast Protocols
Multicast Listener Discovery and source-specific multicast protocols
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
184 Part Number: 53-1005289-01
Syntax: show ipv6 mld [ vrf
vrf-name
] group
The vrf parameter allows you to display the list of IPv6 MLD groups for the VRF instance identified by the
vrf-name
variable.
The following table displays the output from the show ipv6 mld group command.
TABLE 44 Output from the show ipv6 mld group command
Field Description
IDX Index for the MLD group.
Group Address IPv6 address of the multicast group.
Port The physical port to which the group belongs.
Intf The routing interface to which the port belongs.
GrpCmpV The version of the MLD group report message.
Mode Indicates if the filter mode of the multicast group is in INCLUDE or
EXCLUDE.
Timer The number of seconds the interface can remain in its current mode.
Total number of groups The total number of MLD groups.
Displaying MLD definitions for an interface
To display the MLD parameters on an interface, including the various timers, the current querying router, and whether or not MLD is
enabled, enter the following command.
Brocade#show ipv6 mld interface
---------+------+---------+---------------------------------------+--
Intf/Port|Groups| Version | Querier | Timer |V1Rtr| Tracking
| |Oper Cfg| |OQrr GenQ| |
---------+------+----+----+---------------------------------------+--
e1/1/1 0 2 - Self 0 0 No Disabled
v40 0 2 - Disabled
e3/1/1 1 2 - Self 0 0 No
e2/1/1 1 2 - Self 0 0 No
e1/1/1 1 2 - Self 0 0 No
v50 0 2 - Disabled
e1/1/2 0 2 - Self 0 0 No
v220 0 2 - Disabled
e1/1/1 3 2 - Self 0 12 No
Syntax: show ipv6 mld [ vrf
vrf-name
] interface [ ethernet
unit/slot/port
| ve
num
[ group
A.B.C.D
] ]
The vrf parameter allows you to display MLD parameters on an interface for the VRF instance identified by the
vrf-name
variable.
Enter ve and its number, or ethernet and its port address to display MLD information for a specific virtual routing interface or an Ethernet
interface.
The following table displays the output from the show ipv6 mld interface command.
TABLE 45 Output from the show ipv6 mld interface command
Field Description
version Version of the MLD being used.
query int Query interval in seconds.
max resp time Number of seconds multicast groups have to respond to queries.
group mem time Number of seconds multicast groups can be members of this group before aging out.
(details) The following is displayed for each interface:
• The port ID
IPv6 Multicast Protocols
Multicast Listener Discovery and source-specific multicast protocols
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 185
TABLE 45 Output from the show ipv6 mld interface command (continued)
Field Description
• The default MLD version being used
• The multicast protocol used
• IPV6 address of the multicast interface
• If the interface has groups, the group source list, IPv6 multicast address, and the filter mode are
displayed.
To display the MLD parameters on an interface for a specified VRF, enter the following command as shown in the example below.
device(config)# show ipv6 mld vrf public interface
---------+------+---------+---------------------------------------+---------+-----+---------
Intf/Port|Groups| Version |Querier | Timer |V1Rtr|Tracking
| | Oper Cfg| | OQrr GenQ| |
---------+------+----+----+---------------------------------------+----+----+-----+---------
v6 0 2 - Disabled
e1/5/1 2 - fe80::20c:dbff:fee2:5000 11 0 No
v61 0 2 - Disabled
e1/1/1 2 - Self 0 122 No
Displaying MLD settings
To display MLD settings for the "eng" VRF, enter the following command.
device# show ipv6 mld vrf eng settings
MLD Global Configuration
Query Interval : 125s Configured Interval : 125s
Max Response Time : 10s
Group Membership Time : 260s
Operating Version : 2 Configured Version : 0
Robustness Variable : 2
Last Member Query Interval: 1s Last Member Query Count: 2
Older Host Present Timer : 260s
Syntax: show ipv6 mld [ vrf
vrf-name
] settings
The vrf parameter specifies that you want to display information for MLD settings for the VRF specified by the
vrf-name
variable.
The following table displays the output from the show ipv6 mld vrf eng settings command.
TABLE 46 Output from the show ipv6 mld vrf eng settings command
Field Description
Query Interval How often the router will query an interface for group membership.
Configured Interval The interval that has been configured for the router.
Max Response Time The length of time in seconds that the router will wait for an IGMP (V1 or V2)
response from an interface before concluding that the group member on
that interface is down and removing it from the group.
Group Membership Time The length of time in seconds that a group will remain active on an interface
in the absence of a group report.
Operating Version The IGMP version operating on the router.
Configured Version The IGMP version configured on the router.
Robustness Variable Used to fine-tune for unexpected loss on the subnet. The value is used to
calculate the group interval.
Last Member Query Interval Indicates when a leave is received; a group-specific query is sent. The last
member query count is the number of queries with a time interval of (LMQT)
is sent.
IPv6 Multicast Protocols
Multicast Listener Discovery and source-specific multicast protocols
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
186 Part Number: 53-1005289-01
TABLE 46 Output from the show ipv6 mld vrf eng settings command (continued)
Field Description
Last Member Query Count Specifies the number of group-specific queries when a leave is received.
Displaying static MLD groups
The following command displays static MLD groups for the "cs" VRF.
device# show ipv6 mld vrf cs static
Group Address Interface Port List
----------------------------------------+---------+---------
ff1e:1::1 v3 ethe 1/2/10
ff1e:a::7f v3 ethe 1/2/10
Syntax: show ipv6 mld [ vrf
vrf-name
] static
The vrf parameter specifies that you want to display static MLD group information for the VRF specified by the
vrf-name
variable.
The following table displays the output from the show ipv6 mld vrf cs static command.
TABLE 47 Output from the show ipv6 mld vrf cs static command
Field Description
Group Address The address of the multicast group.
Interface Port List The physical ports on which the multicast groups are received.
Displaying MLD traffic
To display information on MLD traffic, enter a command such as the following.
device# show ipv6 mld traffic
Recv QryV1 QryV2 G-Qry GSQry MbrV1 MbrV2 Leave IS_IN IS_EX ToIN ToEX ALLO BLK
e1/3/1 0 0 0 0 0 0 0 0 0 0 0 0 0
e1/3/2 0 0 0 0 0 0 0 0 0 0 0 0 0
e1/6/18 0 0 0 0 0 176 0 110 0 0 0 66 0
e1/6/19 0 0 0 0 0 176 0 110 0 0 0 66 0
e1/6/20 0 0 0 0 0 176 0 110 0 0 0 66 0
e1/6/25 0 0 0 0 0 176 0 110 0 0 0 66 0
l1 0 0 0 0 0 0 0 0 0 0 0 0 0
Send QryV1 QryV2 G-Qry GSQry
e1/3/1 0 0 0 0
e1/3/2 0 0 0 0
e1/6/18 0 10 10 0
e1/6/19 0 10 10 0
e1/6/20 0 10 10 0
e1/6/25 0 10 10 0
l1 0 0 0 0
R2#
The report has a Receive and a Send section.
Syntax: show ipv6 mld [ vrf
vrf-name
] trac
The vrf parameter specifies that you want to display information on MLD traffic for the VRF specified by the
vrf-name
variable.
The following table displays the output from the show ipv6 mld trac command.
IPv6 Multicast Protocols
Multicast Listener Discovery and source-specific multicast protocols
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 187
TABLE 48 Output from the show ipv6 mld traffic command
Field Description
QryV1 Number of general MLDv1 queries received or sent by the virtual routing
interface.
QryV2 Number of general MLDv2 queries received or sent by the virtual routing
interface.
G-Qry Number of group-specific queries received or sent by the virtual routing
interface.
GSQry Number of source specific queries received or sent by the virtual routing
interface.
MbrV1 Number of MLDv1 membership reports received.
MbrV2 Number of MLDv2 membership reports received.
Leave Number of MLDv1 "leave" messages on the interface. (See 2_Ex for
MLDv2.)
Is_IN Number of source addresses that were included in the traffic.
Is_EX Number of source addresses that were excluded in the traffic.
ToIN Number of times the interface mode changed from exclude to include.
ToEX Number of times the interface mode changed from include to exclude.
ALLOW Number of times that additional source addresses were allowed or denied
on the interface.
BLK Number of times that sources were removed from an interface.
Clearing IPv6 MLD traffic
To clear counters on IPv6 MLD traffic, enter the following command.
device# clear ipv6 mld traffic
Syntax: clear ipv6 mld [ vrf
vrf-name
] trac
Use the vrf option to clear counters on IPv6 MLD traffic for a VRF instance specified by the
vrf-name
variable.
Clearing the IPv6 MLD group membership table cache
You can clear the IPv6 PIM group membership table cache using the following command.
device# clear ipv6 pim cache
Syntax: clear ipv6 pim [ vrf
vrf-name
] cache
Use the vrf option to clear the IPv6 PIM group membership table cache for a VRF instance specified by the
vrf-name
variable.
IPv6 Multicast Boundaries
The Multicast Boundary feature is designed to selectively allow or disallow multicast flows to configured interfaces.
The ipv6 multicast-boundary command allows you to configure a boundary on PIM enabled interface by defining which multicast groups
may not forward packets over a specified interface. This includes incoming and outgoing packets. By default, all interfaces that are enabled
for multicast are eligible to participate in a multicast flow provided they meet the multicast routing protocol’s criteria for participating in a
flow.
IPv6 Multicast Protocols
IPv6 Multicast Boundaries
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
188 Part Number: 53-1005289-01
Configuration considerations
• Only one ACL can be bound to any interface.
• Normal ACL restrictions apply as to how many software ACLs can be created, but there is no hardware restrictions on ACLs with
this feature.
• Creation of a static MLD client is allowed for a group on a port that may be prevented from participation in the group on account of
an ACL bound to the port’s interface. In such a situation, the ACL would prevail and the port will not be added to the relevant
entries.
• Either standard or extended ACLs can be used with the multicast boundary feature. When a standard ACL is used, the address
specified is treated as a group address and NOT a source address.
• When a boundary is applied to an ingress interface, all packets destined to a multicast group that is filtered out will be dropped by
software. Currently, there is no support to drop such packets in hardware.
• The ipv6 multicast-boundary command may not stop clients from receiving multicast traffic if the filter is applied on the egress
interface up-stream from RP.
Configuring multicast boundaries
To define boundaries for PIM enabled interfaces, enter commands such as the following.
device(config)# interface ethernet 1/1/2
device(config-if-e1000-1/1/2)#ipv6 multicast-boundary MyBrocadeAccessList
Syntax: [no] ipv6 multicast-boundary
acl-spec
Use the
acl-spec
parameter to define the number or name identifying an access list that controls the range of group addresses affected by
the boundary.
Use the no ipv6 multicast boundary command to remove the boundary on a PIM enabled interface.
The ACL, MyBrocadeAccessList can be configured using standard ACL syntax. Some examples of how ACLs can be used to filter
multicast traffic are as follows:
ACL to permit multicast traffic
To permit multicast traffic for group ff1e::300 and deny all other traffic, enter the following commands.
Brocade(config)# ipv6 access-list abc
Brocade(config-ipv6-access-list abc)# permit ipv6 any host ff1e::300
Brocade(config-ipv6-access-list abc)# deny ipv6 any any
To permit multicast data traffic from source 5555::14 for group ff55::5514 and deny all other traffic, enter the following commands.
Brocade(config)# ipv6 access-list ex2
Brocade(config-ipv6-access-list ex2)# permit ipv6 host 5555::14 host ff55::5514
Brocade(config-ipv6-access-list ex2)# deny ipv6 any any
ACL to deny multicast traffic
To deny multicast data traffic for group ff55::55 and permit all other traffic, enter the following commands.
Brocade(config)# ipv6 access-list ex1
Brocade(config-ipv6-access-list ex1)# deny ipv6 any host ff55::55
Brocade(config-ipv6-access-list ex1)# permit ipv6 any any
IPv6 Multicast Protocols
IPv6 Multicast Boundaries
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 189
Displaying multicast boundaries
To display multicast boundary information, use the show ipv6 pim interface command. In this example, abc is the name of the access list.
Device# show ipv6 pim interface ethernet 1/1/7
Flags : SM - Sparse Mode v2
---------+---------------------------------------------------+----+---+---+---------+
Interface|Global Address |Mode|St |TTL|Multicast|
| + Designated Router Port | | |Thr|Boundary |
---------+---------------------------------------------------+----+---+---+---------+
e1/1/1 a141::1 SM Ena 1 abc
[output continued]
-------+----------------
VRF | DR | Override
| Prio | Interval
-------+----------------
default 1 3000ms
+ Itself
Total Number of Interfaces : 1
IPv6 Multicast Protocols
IPv6 Multicast Boundaries
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
190 Part Number: 53-1005289-01
IP Multicast Switch Port Extender
Stacking
• Switch Port Extender and IP Multicast...................................................................................................................191
• IP multicast hardware entry optimization................................................................................................................197
Switch Port Extender and IP Multicast
In a Switch Port Extender (SPX) stacking configuration, forwarding decisions always occur in the Control Bridge (CB) units, even for traffic
that ingresses on a Port Extender (PE) port.
NOTE
Switch Port Extender is not supported on the Ruckus ICX 7150.
In the upstream direction (from a PE to a CB), the packets are tagged with an E-Tag to identify the ingress PE port. In the downstream
direction (from a CB to a PE), the packets are tagged with an E-Tag to identify the egress PE ports. E-channel identifiers (E-CIDs) contained
in the E-Tag header are used to identify a single or a set of PE ports.
NOTE
For details on SPX configuration and terminology, refer to the
FastIron Ethernet Switch Port Extender Configuration Guide
.
Multicast E-CID and IEE 802.1BR
The point-to-multipoint E-channels used for remote replication are identified by an E-CID with a value in the range of 0x1000 to 0x3FFF
(values less than this are reserved for E-CIDs associated with point-to-point E-channels).
Multicast E-CID Manager
IEEE 802.1BR facilitates the use of multicast E-CIDs (point-to-multipoint) for replication of multicast packets by PE units.
The Multicast E-CID Manager maintains the ME-CIDs and hides the management, programming, and other issues from the applications.
The Multicast E-CID Manager allocates and manages ME-CIDs on CB and PE units. The sharing of ME-CIDs is enabled by default. The
following are the responsibilities of the Multicast E-CID Manager:
• Allocate, update, and delete ME-CIDs.
• ME-CID-based forwarding entry management on PE units.
Considerations for multicast forwarding on PE units
• The PE unit performs local replication of multi-destination traffic. The PE unit can perform replication within a VLAN, but not across
VLANs.
• In an SPX domain, the following actions are not supported in a VLAN or VE on which multicast snooping or multicast routing is
enabled:
– Connecting a PIM router to a PE port
– Connecting a multicast (IGMP or MLD) querier switch to a PE port.
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 191
• Multi-destination traffic forwarding and replication on PE units is performed using forwarding entries in the Layer 2 table.
• A lookup is performed using a multicast E-CID in the E-tag header.
• Forwarding cache entries are set up, updated, or torn down based on the E-channel register Control and Status Protocol (CSP)
messages from the CB unit.
• SPX multicast deployment can be used to route the multicast traffic back to the ingress PE port.
Layer 2 multicast in an SPX configuration
Layer 2 multicast traffic forwarding behaves differently in an SPX stack configuration.
In releases prior to FastIron 8.0.40, Layer 2 forwarding lookup occurred on the ingress packet process of the unit. With the introduction of
SPX stacking, Layer 2 forwarding lookup for the traffic that ingresses on a PE port always occurs on the CB. For multi-destination traffic, the
CB sends a single copy of the packet to the PE unit, while the PE unit takes care of local replication. The E-CID of the source PE port is
carried in the E-Tag header (as the ingress E-CID) so that the source PE unit can perform source port pruning.
The following figure illustrates how multicast traffic forwarding occurs on Layer 2 devices.
IP Multicast Switch Port Extender Stacking
Switch Port Extender and IP Multicast
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
192 Part Number: 53-1005289-01

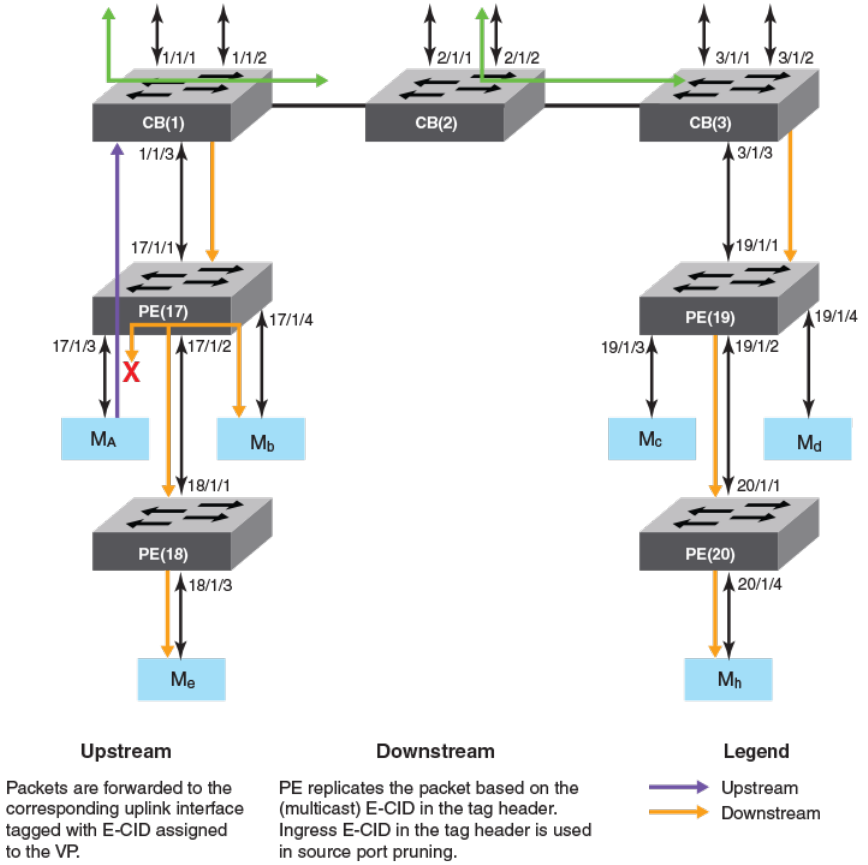

FIGURE 13 Multicast traffic forwarding on Layer 2 devices
The following explains Layer 2 multicast forwarding.
• The Multicast E-CID Manager on the CB sets up the multicast E-CID forwarding path on the PE using the 802.1BR Control and
Status Protocol (CSP).
• A lookup is performed on the PE unit using the multicast E-CID in the packet 802.1BR E-tag header.
• Multi-destination traffic sent by the CB on its cascade ports or LAG ports is always VLAN tagged.
• The PE removes the VLAN tag while replicating the traffic on an untagged VLAN port.
Layer 2 multicast scaling numbers
The following table lists the SPX stacking scaling numbers with IPv4 and IPv6 multicast snooping optimization turned on.
IP Multicast Switch Port Extender Stacking
Switch Port Extender and IP Multicast
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 193
TABLE 49 Layer 2 multicast scaling numbers with optimization turned on
System parameter Scaling number
IGMP Groups 8192
IGMP Mcache 8192
MLD Groups 8192
MLD Mcache 8192
The following table lists the SPX stacking scaling numbers with IPv4 and IPv6 multicast snooping optimization turned off. This is the default
behavior.
TABLE 50 Layer 2 multicast scaling number with optimization turned off
System parameter Scaling number
IGMP Groups 8192
IGMP Mcache 10241
MLD Groups 8192
MLD Mcache 10241
Layer 3 multicast in an SPX configuration
In a Layer 3 multicast SPX stacking configuration, Layer 3 forwarding lookup for the traffic that ingresses on a PE port is always performed
in the CB.
For multi-destination traffic, the CB sends a single copy of the packet for each VLAN to be replicated to the PE unit, while the PE unit
performs local replication within the VLAN.
The following figure describes multicast traffic forwarding on Layer 3 devices.
1With PE ports being OIFs (receiver ports) and a maximum of 8 SPX ports on each CB unit. This number can be higher with a lesser number of SPX
ports on each CB unit.
IP Multicast Switch Port Extender Stacking
Switch Port Extender and IP Multicast
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
194 Part Number: 53-1005289-01

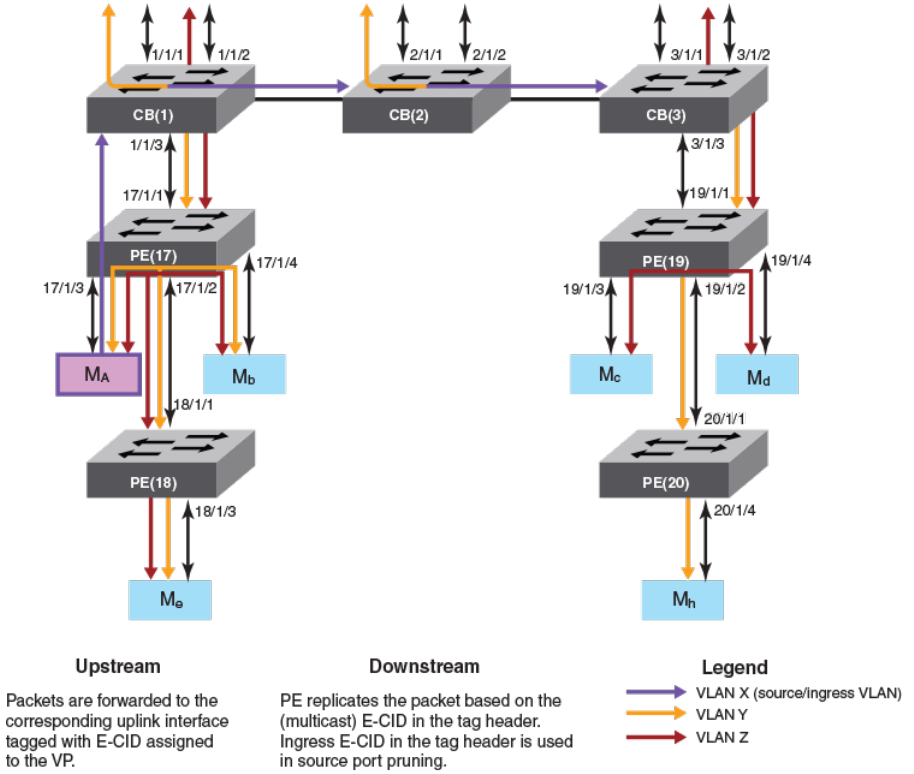

FIGURE 14 Multicast traffic forwarding on Layer 3 devices
The following describes Layer 3 multicast forwarding in an SPX configuration.
• The Multicast E-CID Manager on the Control Bridge sets up the multicast E-CID forwarding path on the PE using Control and
Status Protocol (CSP).
• A lookup is performed on the PE unit using the multicast E-CID in the E-Tag header.
• Multi-destination traffic sent by a CB on its cascade ports or LAGs is always VLAN tagged.
• The PE unit removes the VLAN tag while replicating the traffic on an untagged VLAN port.
• The PE unit can perform local replication within the VLAN.
• The CB sends a copy of the packet for each VLAN with multicast E-CIDs.
• The CB tracks inactivity of PIM mcache entries.
Layer 3 multicast scaling numbers
The following table details the SPX stacking scaling numbers with IPv4 and IPv6 multicast snooping optimization turned on.
IP Multicast Switch Port Extender Stacking
Switch Port Extender and IP Multicast
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 195
TABLE 51 Multicast scaling numbers with optimization turned on
System parameter Scaling number
IGMP Groups 8192
PIMv4 Mcache 6144
MSDP Peers 64
MSDP SA cache 4096
MLD Groups 8192
PIMv6 Mcache 2048
The following table details the SPX stacking scaling numbers with IPv4 and IPv6 multicast snooping optimization turned off. This is the
default behavior.
TABLE 52 Multicast scaling numbers with optimization turned off
System parameter Scaling number
IGMP Groups 8192
PIMv4 Mcache 10242
MSDP Peers 64
MSDP SA cache 4096
MLD Groups 8192
PIMv6 Mcache 10242
Displaying multicast SPX information
You can view ME-CID topology and summary information using a variety of show commands.
Use the following commands to verify multicast SPX information.
Enter the User EXEC or Privileged EXEC mode to run the multicast SPX show commands.
The following example of the show spx multicast cache command displays the SPX multicast cache information.
device# show spx multicast cache
1 E-CID: 5120 UpTime: 00:03:05 LastUpdate: 00:02:29
HWSltMsk: 0x1, L2MC: 1025(Shr), SetID: 0x31255948
Ports 5:
17/1/1 (00:03:05) 17/1/3 (00:02:37) 17/1/5 (00:03:05) 17/1/7 (00:03:05)
17/1/10(00:02:29)
2 E-CID: 6451 UpTime: 00:01:31 LastUpdate: 00:00:44
HWSltMsk: 0x1, L2MC: 1025(Shr), SetID: 0x31255948
Ports 5:
17/1/1 (00:01:20) 17/1/3 (00:00:44) 17/1/5 (00:01:20) 17/1/7 (00:01:31)
17/1/10(00:01:31)
3 E-CID: 9276 UpTime: 00:00:07 LastUpdate: 00:00:07
HWSltMsk: 0x1, L2MC: 1027(Shr), SetID: 0x31739250
Ports 2:
17/1/2 (00:00:07) 17/1/14(00:00:07)
2With PE ports being OIFs (receiver ports) and a maximum of 8 SPX ports on each CB unit. This number can be higher with a lesser number of SPX
ports on each CB unit.
IP Multicast Switch Port Extender Stacking
Switch Port Extender and IP Multicast
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
196 Part Number: 53-1005289-01
The following example of the show spx multicast optimization command displays the multicast replication resource optimization details.
device# show spx multicast optimization 2
Total L2MCs Allocated: 2; Available: 7166; Failed: 0
Index L2MC SetId Users Set
1. 1027 0x31739250 1 {<17/1/14>,<17/1/2>,}
2. 1025 0x31255948 2 {<17/1/10>,<17/1/7>,<17/1/5>,<17/1/3>,
<17/1/1>,}
Sharability Coefficient: 50%
The following example of the show spx multicast resource command displays the multicast memory pool details.
device# show spx multicast resource
alloc in-use avail get-fail limit get-mem size init
fwd mcache 64 3 61 0 14848 3 62 64
tx port info 256 12 244 0 59392 12 23 256
IP multicast hardware entry optimization
IP multicast (IPMC) entries are used to replicate Layer 3 multicast packets in the hardware. Each multicast route entry points to the IPMC
entry to replicate this flow at the hardware level.
If multiple route entries share the same Output Interfaces (OIFs) for replication, a single IPMC entry is shared with all the route entries. IPMC
entry optimization reduces the usage of IPMC entries in the hardware, which in turn helps scalability in environments with a large number of
multicast traffic flows. However, in a stacking setup, replication sharing may cause a momentary traffic drop in certain scenarios. This traffic
drop occurs for existing receivers of a multicast flow. Traffic drops take place because when a flow moves from a shared IPMC to a new
IPMC, the new IPMC needs to be programmed on all the stack units. IPMC programming on all the stack units does not occur at the same
time. IPMC information is synchronized to the stack units, and it must be programmed locally on the specific units. Because the IPMC
programming must be handled locally, the programming of IPMC entries is delayed on stack units.
Layer 2 multicast packets also share the IPMC entries in the same way. Momentary traffic loss does not occur on non-SPX stack for Layer
2 multicast traffic. However, an SPX stack uses IPMC entries for Layer 2 multicast replication, hence a momentary traffic loss may occur if
the flow moves to a new IPMC because of sharing.
How disabling IP multicast hardware entry optimization works
If a network environment does not have a large number of traffic flows, and is sensitive to traffic drops, IPMC optimization can be disabled
globally. When you disable IPMC optimization, a separate IPMC is allocated for each multicast traffic flow, even though they have the same
OIF combinations. When the OIF of a flow changes, the same IPMC is used to program the modified OIFs. Because the IPMC entries
remain the same, existing receivers that have not changed on the stack units continue to receive traffic and there are no traffic drops.
IPMC optimization can be disabled for IPv4 and IPv6 multicast flows independently. When IPMC optimization is disabled through the CLI, all
the multicast flows (across all VRFs) are deleted and must be re-programmed. As these flows are relearned, separate IPMC entries are
allocated for each flow. This behavior continues even when IPMC optimization is re-enabled.
Disabling multicast hardware entry optimization
You can disable Layer 2 and Layer 3 multicast hardware entry optimization for IPv4 and IPv6 multicast flows. The following commands need
to be run only on the active unit.
1. Enter the congure terminal command to access global configuration mode.
device# configure terminal
IP Multicast Switch Port Extender Stacking
IP multicast hardware entry optimization
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
Part Number: 53-1005289-01 197
2. Enter the no ip multicast-routing optimization command followed by the oif-list and all keywords to disable Layer 3 IPMC
sharing for IPv4 multicast flows. To disable Layer 3 IPMC sharing for IPv6 multicast flows, enter the no ipv6 multicast-routing
optimization command followed by the oif-list and all keywords.
device(config)# no ip multicast-routing optimization oif-list all
device(config)# no ipv6 multicast-routing optimization oif-list all
3. Enter the no ip multicast optimization command followed by the oif-list and all keywords to disable Layer 2 IPMC sharing for
IPv4 multicast flows. To disable Layer 2 IPMC sharing for IPv6 multicast flows, enter the no ipv6 multicast optimization
command followed by the oif-list and all keywords.
device(config)# no ip multicast optimization oif-list all
device(config)# no ipv6 multicast optimization oif-list all
NOTE
Entry optimization is disabled by default on the ICX 7750 for Layer 2 and Layer 3 multicast traffic.
IP Multicast Switch Port Extender Stacking
IP multicast hardware entry optimization
Ruckus FastIron IP Multicast Configuration Guide, 08.0.70
198 Part Number: 53-1005289-01
