- Contents
- Preface
- Document conventions
- Text formatting conventions
- Command syntax conventions
- Notes, cautions, and warnings
- A Caution statement alerts you to situations that can be potentially hazardous to you or cause damage to hardware, firmware, software, or data.
- A Danger statement indicates conditions or situations that can be potentially lethal or extremely hazardous to you. Safety labels are also attached directly to products to warn of these conditions or situations.
- Brocade resources
- Contacting Brocade Technical Support
- Document feedback
- What’s new in this document
- Brocade ICX 7450 features
- Views of the Brocade ICX 7450 switch
- Figure 1 Front view of the Brocade ICX 7450-24
- Figure 2 Front view of the Brocade ICX 7450-24P
- Figure 3 Front view of the Brocade ICX 7450-32ZP
- Figure 4 Front view of the Brocade ICX 7450-48
- Figure 5 Front view of the Brocade ICX 7450-48P

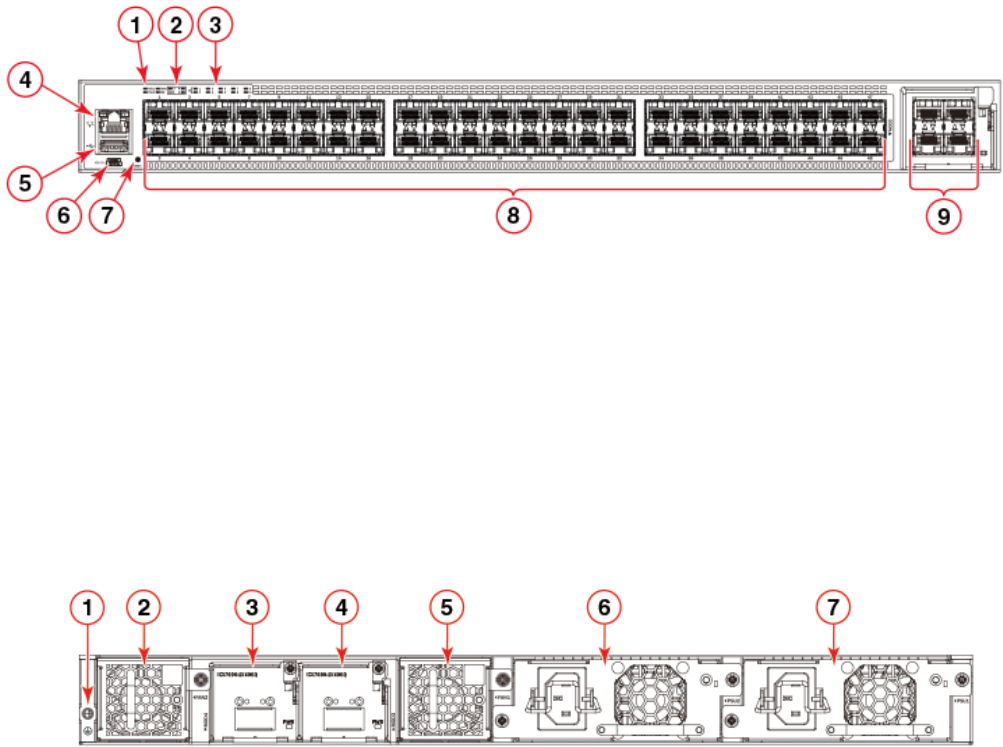

- Figure 6 Front view of the Brocade ICX 7450-48F
- Figure 7 Rear view of the Brocade ICX 7450
- Brocade ICX 7450 slot and Ethernet port numbering
- Supported expansion modules
- Supported transceivers and cables
- Unpacking the device
- Installation and safety considerations
- Installation tasks
- Installation precautions
- General precautions
- Do not install the device in an environment where the operating ambient temperature might exceed 50°C (122°F).
- Make sure the airflow around the front and sides of the device is not restricted.
- Never leave tools inside the device.
- Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the manufacturer’s instructions.
- Lifting precautions
- Power precautions
- Use a separate branch circuit for each AC power cord, which provides redundancy in case one of the circuits fails.
- To avoid high voltage shock, do not open the device while the power is on.
- Ensure that the device does not overload the power circuits, wiring, and over-current protection. To determine the possibility of overloading the supply circuits, add the ampere (amp) ratings of all devices installed on the same circuit as the device...
- Disconnect the power cord from all power sources to completely remove power from the device.
- Before plugging a cable to any port, be sure to discharge any static charge stored on the cable by touching the electrical contacts to ground surface.
- If the installation requires a different power cord than the one supplied with the device, make sure you use a power cord displaying the mark of the safety agency that defines the regulations for power cords in your country. The mark is your assuranc...
- DC-DC power source cautions
- For DC system, use grounding wire of at least 12 American Wire Gauge (AWG). The grounding wire should be attached to the DC input connector (as shown in Figure 39); the other end connects to the building ground.
- For the DC input circuit to the system, make sure there is a 20 Amp circuit breaker, minimum 60 VDC, double pole, on the input terminal block to the power supply. The input wiring for connection to the product should be copper wire, 12 AWG, marked VW...
- General precautions
- Installing the device on a desktop
- Figure 1 Attaching the adhesive feet
- 1. Attach the four adhesive feet to the bottom of the device.
- 2. Set the device on a flat desktop, table, or shelf near an AC power source. Make sure that adequate ventilation is provided for the system. A 7.62 cm (3-inch) clearance is recommended on each side.
- 3. If installing a single device only, go to “Powering on the system”.
- 4. If installing multiple devices, attach the adhesive feet to each device. Place each device squarely on top of the one below.
- Installing the device in a rack
- Two-post rack mount installation
- Figure 2 Two-post rack mounting positions
- 1. Remove the rack mount kit from the shipping carton. The kit contains the following items:

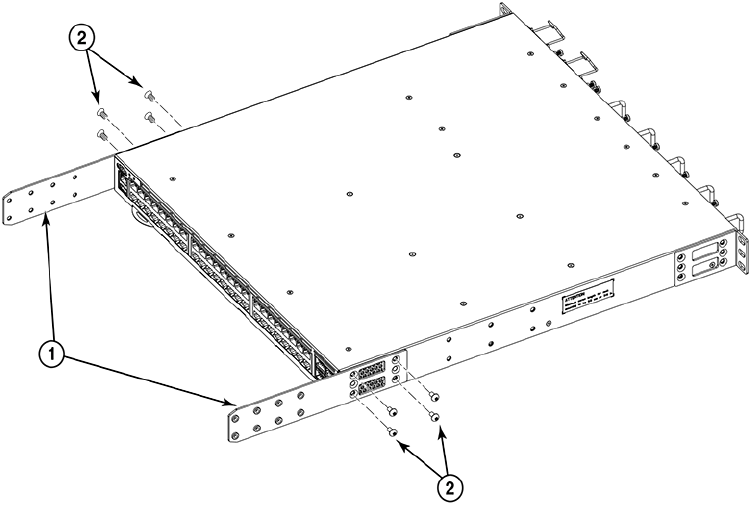

- 2. Attach the mounting brackets to the sides of the device as illustrated in Figure 3 using the 8-32 x 5/16 in. screws.
- Figure 3 Attaching the mounting brackets for a Brocade ICX 7450
- 3. Position the device in the rack, providing temporary support under the switch until the rail kit is secured to the rack.
- 4. Attach the front right bracket to the rail rack using two 10-32 x 5/8 in. screws and the appropriate round-hole or square-hole retainer nuts.
- 5. Repeat step 4 to attach the left front bracket to the left front rack rail and tighten all 10-32 x 5/8 in. screws to a torque of 25 in-lb (29 cm-kg). Refer to Figure 4.
- Figure 4 Installing the Brocade ICX 7450 in a 2-post rack
- Installing the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks (XBR-R000295)
- Installation requirements
- Time and items required

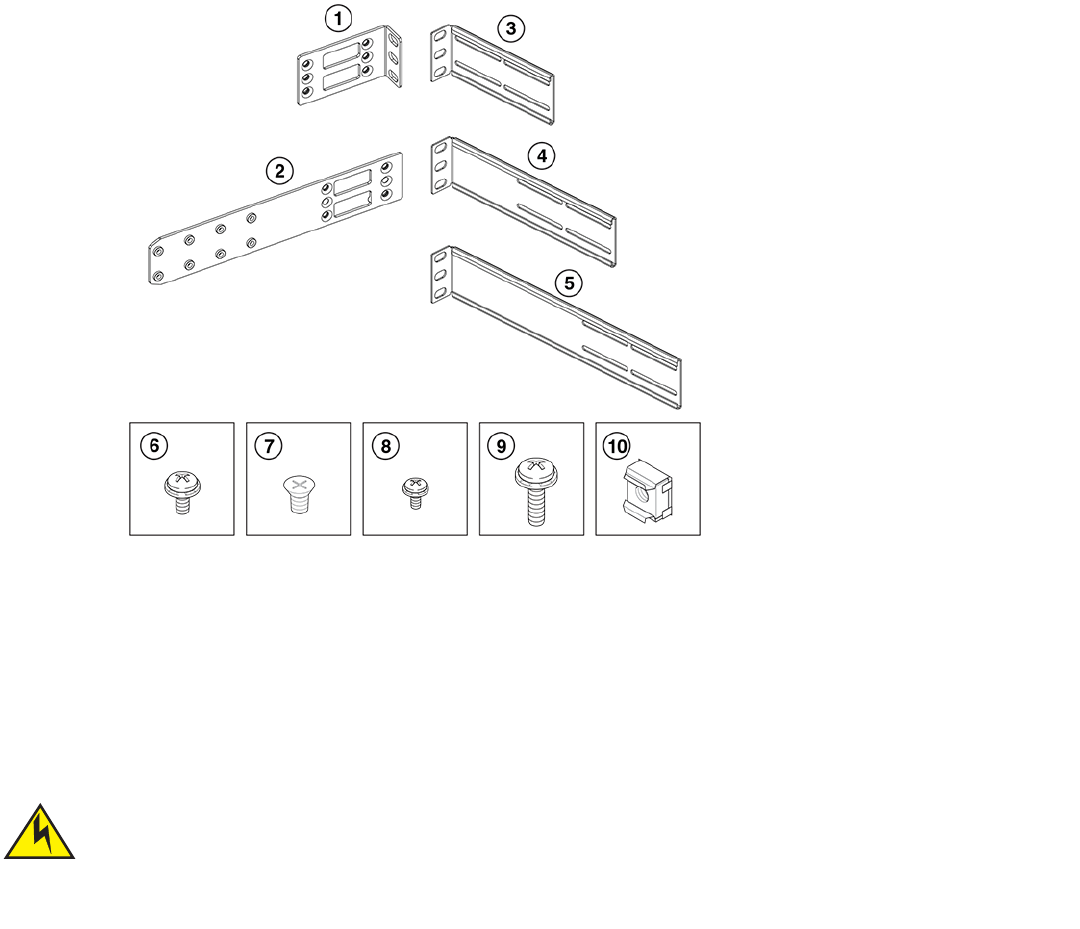

- Parts list
- Flush-front mounting the device in the rack
- The device must be turned off and disconnected from the fabric during this procedure.
- 1. “Attaching the front brackets” on page 33
- 1. Position the right front bracket with the flat side against the right side of the device at the front of the device, as shown in Figure 6.
- 2. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the bracket and then into the holes on the side of the device. Use the upper and lower screw holes, leaving the center holes empty.
- 3. Repeat Step 1 and Step 2 to attach the left front bracket to the left side of the device.
- 4. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
- Figure 6 Attaching the front brackets
- 1. Select the proper length extension bracket for your rack depth.
- 2. Position the right extension bracket along the side of the device as shown in Figure 7.
- 3. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the extension bracket and then into the holes on the side of the device. Use the upper and lower screw holes, leaving the center holes empty.
- 4. Repeat Step 1 and Step 2 to attach the left extension bracket to the left side of the device.
- 5. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
- Figure 7 Attaching the extension brackets to the device

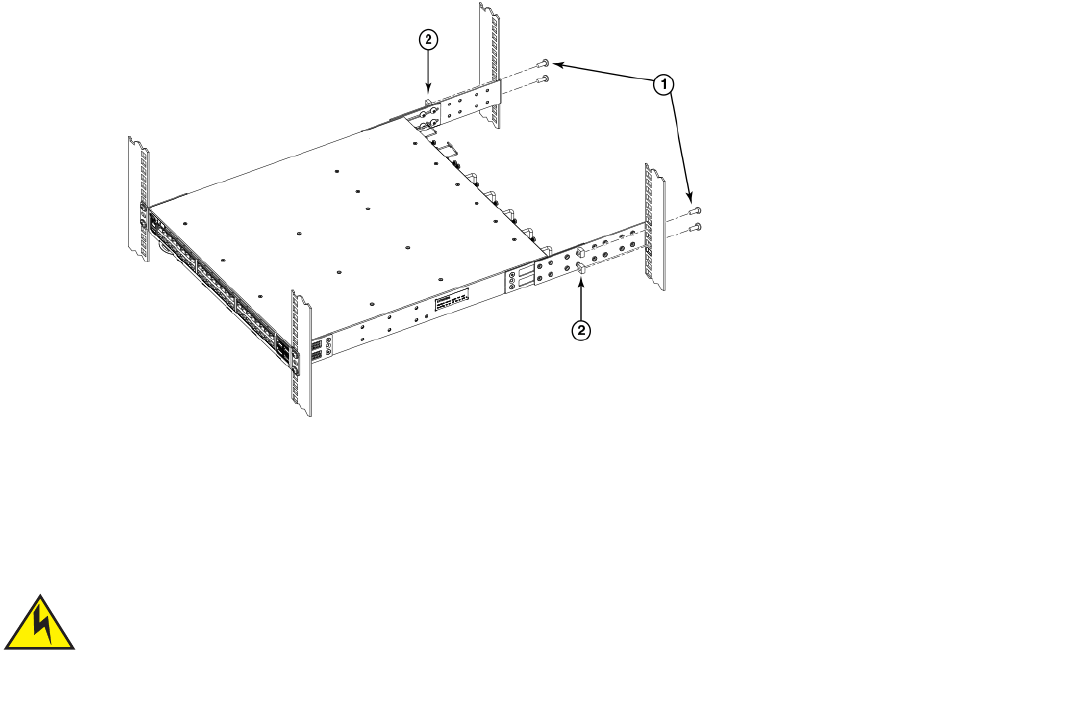

- 1. Position the device in the rack, as shown in Figure 8, providing temporary support under the device until the rail kit is secured to the rack.
- 2. Attach the right front bracket to the right front rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket.
- 3. Attach the left front bracket to the left front rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket.
- 4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
- Figure 8 Positioning the device in the rack
- 1. Select the proper length rear bracket for your rack depth.
- 2. Slide the right rear bracket onto the right extension, as shown in Figure 9.
- 3. Attach the brackets using four 6-32 x 1/4-in. panhead screws.
- 4. Repeat step 2 and step 3 to attach the left rear bracket to the left extension.
- 5. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lb (10 cm-kg).
- Figure 9 Attaching the rear brackets to the extensions
- Figure 10 Attaching the medium or long rear brackets to the extensions
- 1. Attach the right rear bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts, as shown in Figure 11. Use the upper and lower holes in the bracket.
- 2. Attach the left rear bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket.
- 3. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
- Figure 11 Attaching the rear brackets to the rack posts
- The device must be turned off and disconnected from the fabric during this procedure.
- Flush-rear (recessed) mounting the device in the rack
- The device must be turned off and disconnected from the fabric during this procedure.
- 1. “Attaching the front brackets to the rear of the device” on page 38
- 1. Position the right front bracket with the flat side against the right rear side of the device, as shown in Figure 12.
- 2. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the bracket and then into the holes on the side of the device. Use the upper and lower screw holes, leaving the center holes empty.
- 3. Repeat Step 1 and Step 2 to attach the left rear bracket to the left side of the device.
- 4. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
- Figure 12 Attaching the front brackets to the rear of the device
- 1. Select the proper length extension bracket for your rack depth.

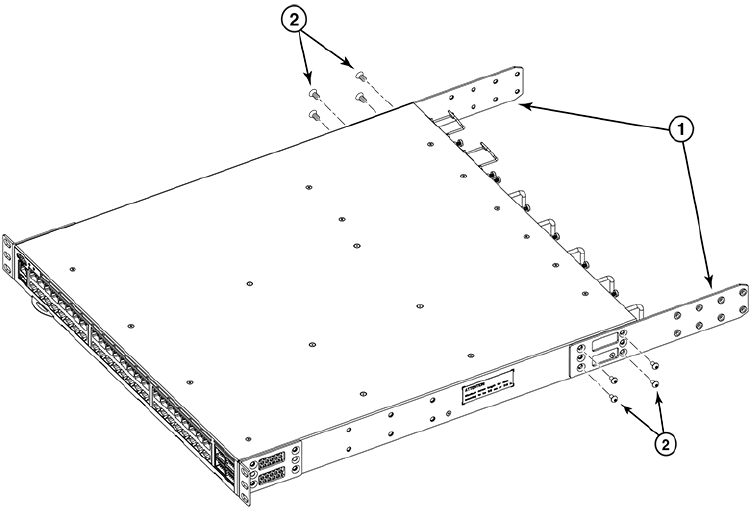

- 2. Position the right extension along the side of the device as shown in Figure 13.
- 3. Attach the bracket using four 8-32 x 5/16-in. flathead screws.
- 4. Repeat Step 1 and Step 2 to attach the left front extension to the left side of the device.
- 5. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
- Figure 13 Attaching the bracket extensions to the device
- 1. Position the device in the rack, as shown in Figure 14, providing temporary support under the device until the rail kit is secured to the rack.
- 2. Attach the right front bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket.
- 3. Attach the left front bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket.
- 4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
- Figure 14 Positioning the device in the rack
- 1. Select the proper length rear bracket for your rack depth.
- 2. Slide the right rear bracket onto the right extension, as shown in Figure 15.
- 3. Attach the brackets using four 6-32 x 1/4-in. screws.
- 4. Repeat Step 2 and Step 3 to attach the left rear bracket to the left extension.
- 5. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lb (10 cm-kg).
- Figure 15 Attaching the rear brackets to the extensions at the front of the device
- Figure 16 Attaching the medium or long rear brackets to the extensions
- 1. Attach the right rear bracket to the right front rack post using two 10-32 x 5/8-in. screws and two retainer nuts, as shown in Figure 17. Use the upper and lower holes in the bracket.
- The device must be turned off and disconnected from the fabric during this procedure.
- Installing the Universal Four-Post Rack Kit (XBR-R000296)
- Installation requirements
- Time and items required
- Flush-front mounting
- The device must be turned off and disconnected from the fabric during this procedure.
- 1. “Attaching the front brackets” on page 45
- 1. Position the right front bracket with the flat side against the right side of the device at the front of the device, as shown in Figure 19.
- 2. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the bracket and then into the holes on the side of the device. Use the upper and lower screw holes, leaving the center holes empty.
- 3. Repeat Step 1 and Step 2 to attach the left front bracket to the left side of the device.
- 4. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
- Figure 19 Attaching the front brackets
- 1. Select the proper length extension bracket for your rack depth.
- 2. Position the right extension bracket along the side of the device as shown in Figure 20.
- 3. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the extension bracket and then into the holes on the side of the device. Use the upper and lower screw holes, leaving the center holes empty.
- 4. Repeat Step 1 and Step 2 to attach the left extension bracket to the left side of the device.
- 5. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
- Figure 20 Attaching the extension brackets to the device
- 1. Position the device in the rack, as shown in Figure 21, providing temporary support under the device until the rail kit is secured to the rack.
- 2. Attach the right front bracket to the right front rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket.
- 3. Attach the left front bracket to the left front rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket.
- 4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
- Figure 21 Positioning the device in the rack
- 1. Select the proper length rear bracket for your rack depth.
- 2. Slide the right rear bracket onto the right extension and attach to the extension by inserting four 6-32 x 1/4-in. panhead screws through the bracket holes. If possible, leave at least one empty vertical pair of holes between the screws for better...
- 3. Repeat step 2 to attach the left rear bracket to the left extension.
- 4. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lb (10 cm-kg).
- Figure 22 Attaching the rear brackets to the extensions
- 1. Attach the right rear bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts, as shown in Figure 23. Use the upper and lower holes in the bracket.
- 2. Attach the left rear bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket.
- 3. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
- Figure 23 Attaching the rear brackets to the rack posts
- The device must be turned off and disconnected from the fabric during this procedure.
- Flush-rear (recessed) mounting
- The device must be turned off and disconnected from the fabric during this procedure.
- 1. “Attaching the front brackets to the rear of the device” on page 49
- 1. Position the right front bracket with the flat side against the right rear side of the device, as shown in Figure 24.
- 2. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the bracket and then into the holes on the side of the device. Use the upper and lower screw holes, leaving the center holes empty.
- 3. Repeat step 1 and step 2 to attach the left rear bracket to the left side of the device.
- 4. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
- Figure 24 Attaching the front brackets to the rear of the device
- 1. Select the proper length extension bracket for your rack depth.
- 2. Position the right extension along the side of the device as shown in Figure 25.
- 3. Attach the bracket using four 8-32 x 5/16-in. flathead screws.
- 4. Repeat step 1 and step 2 to attach the left front extension to the left side of the device.
- 5. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
- Figure 25 Attaching the bracket extensions to the device
- 1. Position the device in the rack, as shown in Figure 26, providing temporary support under the device until the rail kit is secured to the rack.
- 2. Attach the right front bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket.
- 3. Attach the left front bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket.
- 4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
- Figure 26 Positioning the device in the rack
- 1. Select the proper length rear bracket for your rack depth.
- 2. Slide the right rear bracket onto the right extension, as shown in Figure 27.
- 3. Attach the brackets using four 6-32 x 1/4-in. screws.
- 4. Repeat step 2 and step 3 to attach the left rear bracket to the left extension.
- 5. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lb (10 cm-kg).
- Figure 27 Attaching the rear brackets to the extensions at the front of the device
- Figure 28 Attaching the short or long rear brackets to the extensions
- 1. Attach the right rear bracket to the right front rack post using two 10-32 x 5/8-in. screws and two retainer nuts, as shown in Figure 29. Use the upper and lower holes in the bracket.
- The device must be turned off and disconnected from the fabric during this procedure.
- Connecting devices in a stack
- Grounding the system
- Figure 36 Connecting the grounding terminal
- 1. Ensure that the rack in which the Brocade ICX 7450 is mounted is properly grounded and in compliance with local regulations.
- 2. Ensure that there is a good electrical connection to the grounding point on the rack (no paint or isolating surface treatment).
- 3. Crimp the included grounding lug to a grounding wire of at least 12 American Wire Gauge (AWG). The 12 AWG wire and grounding lug should be crimped together using a proper tool.
- 4. Attach the 12 AWG stranded copper wire to the grounding terminal on the Brocade ICX 7450 using the screw included in the grounding kit.
- 5. Attach the grounding wire to the grounding point on the rack.
- Powering on the system
- Power supplies
- Power supply usage
- Using a second power supply
- Installing and replacing a power supply unit
- Power supplies are hot-swappable. However, they should be inserted or removed without a power cord being connected to a power source to avoid damage.
- For Brocade ICX 7450 devices, be sure that the airflow direction of the power supply unit matches that of installed fan trays. The power supplies and fan trays are clearly labeled with either a green arrow with an “E”, or an orange arrow with an ...
- Installing an AC power supply
- Figure 37 Installing an AC power supply unit
- 1. If replacing a power supply, remove the previously installed power supply from the appropriate slot by removing the two screws with a Phillips screwdriver.
- 2. If installing a new power supply into a slot covered with a filler panel:
- a. Using a Phillips screwdriver, unscrew the screws on the filler panel.
- b. Remove the filler panel.
- 3. Before opening the package that contains the power supply, touch the bag to the switch casing to discharge any potential static electricity. Brocade recommends using an ESD wrist strap during installation.
- 4. Remove the power supply from the anti-static shielded bag.
- 5. Holding the power supply level, guide it into the carrier rails on each side and gently push it all the way into the slot, ensuring that it firmly engages with the connector.
- 6. When you are sure the power supply has properly engaged the connector, tighten the retainer screws to secure the power supply in the slot.
- Empty fan and power supply slots must be covered using filler panels.
- Installing a DC power supply
- 1. Remove the previously installed power supply from the appropriate slot by removing the chassis attachment screws located in the upper right and lower left of the power supply unit using a flat-head screwdriver. Refer to item 1 in Figure 38.
- Figure 38 DC power supply screws
- 2. Before opening the package that contains the DC power supply, touch the bag of the switch casing to discharge any potential static electricity. Brocade recommends using an ESD wrist strap during installation.
- 3. Remove the DC power supply from the anti-static shielded bag.
- 4. Insert the DC power supply source wires into the DC wiring assembly, matching the terminals. Refer to Figure 39.
- Figure 39 DC power supply wiring assembly
- 5. Use the wire-tightening screws to secure the wires.
- 6. Insert the earth ground wire into the ground terminal on the DC wiring assembly. Refer to Figure 39.
- 7. Insert the DC power supply wiring assembly with the wires connected into the power supply and tighten the assembly screws. Refer to Figure 39.
- 8. Using the handle on the power supply, hold the power supply level and guide it into the carrier rails on each side of the power supply slot. Gently push the power supply all the way into the slot, ensuring that it firmly engages with the connector.
- 9. When you are sure the power supply has properly engaged the connector, tighten the chassis attachment screws to secure the power supply in the slot.
- Figure 38 DC power supply screws
- 1. Remove the previously installed power supply from the appropriate slot by removing the chassis attachment screws located in the upper right and lower left of the power supply unit using a flat-head screwdriver. Refer to item 1 in Figure 38.
- Attaching a PC or terminal
- Connecting to the management port
- Installing an SFP or SFP+ transceiver
- Laser radiation. Do not view directly with optical instruments. Class 1M laser products.
- For safety reasons, the ESD wrist strap should contain a series 1 megohm resistor.
- 1. Remove any protector plugs from the transceivers and the ports.
- 2. Making sure that the bail (wire handle) is in the unlocked position, place the SFP or SFP+ transceiver in the correctly oriented position on the port, as shown in Figure 40.
- 3. Slide the SFP or SFP+ transceiver into the port until you feel it click into place; then close the bail.
- Figure 40 Installing an SFP or SFP+ transceiver in a port slot
- 1. Remove any protector plugs from the transceivers and the ports.
- Connecting network devices
- Connectors
- Connecting a network device to a copper port
- Connecting a network device to a fiber port
- 1. Remove the protective covering from the fiber-optic port connectors and store the covering for future use.
- 2. Before cabling a fiber-optic transceiver, Brocade strongly recommends cleaning the cable connectors and the port connectors. For more information, refer to “Cleaning the fiber-optic connectors” on page 64.
- 3. Gently insert the cable connector (a tab on each connector should face upward) into the transceiver connector until the tabs lock into place.
- 4. Observe the link and activity LEDs to determine if the network connections are functioning properly. For more information about the LED indicators, refer to “LED activity interpretation” on page 65.
- Brocade ICX 7450 Operation
- 1. Remove the protective covering from the fiber-optic port connectors and store the covering for future use.
- LED activity interpretation
- Brocade ICX 7450 front-panel LEDs
- Brocade ICX 7450 rear-panel LEDs
- LED patterns
- Table 1 Management port left (10/100/1000 Mbps) status LED
- Table 2 Management port right (activity) status LED
- Table 3 PSU1 and PSU2 LEDs
- Table 4 DIAG LED
- Table 5 MS LED
- Table 6 MOD LED
- Table 7 Stack ID LEDs
- Table 8 10/100/1000 Mbps RJ-45 port LEDs
- Table 9 100/1000 Mbps and 2.5 GbE RJ-45 port LEDs
- Table 10 RJ-45 PoE LEDs
- Table 11 100/1000 Mbps SFP module port LEDs
- Table 12 1/10 Gbps RJ-45 module port LEDs
- Table 13 1/10 GbE SFP+ module port LEDs
- Table 14 40 GbE mode QSFP+ module port LEDs (left-side LED)
- Table 15 4x10 GbE mode QSFP+ module port LEDs
- Table 16 Module power LED (all media, service and stacking modules)
- Table 17 Fan tray LED
- Diagnostic tests and monitoring
- Temperature threshold levels
- Hardware maintenance schedule
- Replacing a fiber-optic transceiver
- Removing a fiber-optic transceiver
- For safety reasons, the ESD wrist strap should contain a series 1 megaohm resistor.
- 1. Put on the ESD wrist strap and ground yourself by attaching the clip end to a metal surface (such as an equipment rack).
- 2. Disconnect the fiber cable connector from the port connector.
- 3. Unlock the fiber-optic transceiver by pulling the bail latch forward, away from the front of the slot.
- 4. Grasp the bail latch and pull the fiber-optic transceiver out of the slot.
- 5. Store the copper or fiber-optic transceiver in a safe, static-free place or in an anti-static bag.
- 6. Install a new fiber-optic transceiver in the slot.
- 1. Put on the ESD wrist strap and ground yourself by attaching the clip end to a metal surface (such as an equipment rack).
- For safety reasons, the ESD wrist strap should contain a series 1 megaohm resistor.
- Cabling a fiber-optic transceiver
- Cleaning the fiber-optic connectors
- Removing a fiber-optic transceiver
- FRU removal and replacement procedures
- Replacing a power supply unit
- Remove the power cord from a power supply before you install it in or remove it from the device. Otherwise, the power supply or the device could be damaged as a result. (The device can be running while a power supply is being installed or removed, bu...
- For the Brocade ICX 7450 devices, be sure that the airflow direction of the power supply unit matches that of the installed fan tray. The power supplies and fan trays are clearly labeled with either a green arrow with an “E,” or an orange arrow w...
- Because the cooling system relies on pressurized air, do not leave any of the power supply and fan tray slots empty longer than two minutes while the switch is operating. If a power supply or fan tray fails, leave it in the switch until it can be rep...
- Disassembling any part of the power supply and fan tray voids the warranty and regulatory certifications. There are no user-serviceable parts inside the power supply and fan tray.
- Determining the need to replace a power supply
- Time and items required
- Replacing a power supply
- 1. To leave the Brocade ICX 7450 in service while replacing a power supply, verify that the other power supply (the one not being replaced) has been powered on for at least four seconds and has a steady green status LED.
- 2. Before opening the package that contains the power supply, touch the bag to the switch casing to discharge any potential static electricity. Brocade recommends using an ESD wrist strap during installation.
- 3. Remove the power supply from the anti-static shielded bag.
- 4. Ensure that the replacement power supply has the same part number and airflow label as the power supply being replaced.
- 5. Unplug the power cord from the power supply that is being replaced.
- 6. Using the Phillips screwdriver, unscrew the two captive screws on the power supply.
- 7. Remove the power supply from the chassis by pulling the handle on the power supply out and away from the chassis.
- Do not force the installation. If the power supply does not slide in easily, ensure that the power supply is correctly oriented before continuing.
- 8. Holding the power supply level, guide it into the carrier rails on each side and gently push it all the way into the slot, ensuring that it firmly engages with the connector.
- 9. When you are sure the power supply has properly engaged the connector, tighten the retainer screws to secure the power supply in the slot.
- 10. Plug the power cord into the power supply to power on the unit.
- 11. Verify that the front-panel PSU LED for the new power supply displays steady green while the Brocade ICX 7450 is operating. If the LED is not steady green, ensure that the power supply is securely installed and seated properly. For information ab...
- 1. To leave the Brocade ICX 7450 in service while replacing a power supply, verify that the other power supply (the one not being replaced) has been powered on for at least four seconds and has a steady green status LED.
- Replacing fan trays
- For the Brocade ICX 7450 devices, be sure that the airflow direction of the fan tray matches that of the installed power supply unit. The power supplies and fan trays are clearly labeled with either a green arrow with an “E,” or an orange arrow w...
- Because the cooling system relies on pressurized air, do not leave any of the power supply and fan tray slots empty longer than two minutes while the switch is operating. If a power supply or fan tray fails, leave it in the switch until it can be rep...
- Disassembling any part of the power supply and fan tray voids the warranty and regulatory certifications. There are no user-serviceable parts inside the power supply and fan tray.
- Determining the need to replace a fan tray
- Time and items required
- Installing or replacing the fan assembly
- 1. If replacing a fan assembly:
- a. Using a Phillips screwdriver, unscrew the captive screw on the fan assembly.
- b. Remove the fan assembly from the chassis by pulling the handle on the fan assembly out and away from the chassis.
- c. Ensure that the replacement fan assembly has the same part number and airflow label as the fan assembly being replaced.
- 2. If installing a new fan assembly into a slot covered with a filler panel:
- a. Using a Phillips screwdriver, unscrew the captive screw on the filler panel.
- a. Using a Phillips screwdriver, unscrew the captive screw on the fan assembly.
- Do not force the installation. If the fan tray does not slide in easily, ensure that it is correctly oriented before continuing.
- 5. Holding the fan tray level, guide it into the carrier rails on each side and gently push it all the way into the slot, ensuring that it firmly engages with the connector.
- 6. When you are sure the fan tray has properly engaged the connector, tighten the captive screw to secure the fan tray in the slot.
- 7. Verify correct installation by running the show chassis command.
- Empty fan and power supply slots must be covered using filler panels.
- 1. If replacing a fan assembly:
- Replacing an expansion module or service module
- Disassembling any part of the expansion module or service module voids the warranty and regulatory certifications. There are no user-serviceable parts inside the expansion module assembly.
- Time and items required
- Installing or replacing an expansion module or service module
- 1. Power off the switch.
- The expansion modules are not hot-swappable.
- 2. If replacing an expansion module:
- a. Pull the release latch lever on the module into its open position.
- a. Using a Phillips screwdriver, unscrew the captive screws on the filler panel.
- b. Remove the filler panel.
- 4. Before opening the package that contains the new expansion module, touch the bag to the switch casing to discharge any potential static electricity. It is recommended that you wear an ESD wrist strap during installation.
- 5. Remove the expansion module from the anti-static shielded bag.
- Do not force the installation. If the expansion module does not slide in easily, ensure that it is correctly oriented before continuing.
- 6. Holding the expansion module level, guide it into the carrier rails on each side and gently push it all the way into the slot, ensuring that it firmly engages with the connector.
- 7. When you are sure the expansion module has properly engaged the connector, tighten the captive screws to secure the expansion module in the slot.
- 8. Push the release latch lever on the module into its closed position.
- 9. Power on the switch.
- 10. Verify correct installation by running the show module command.
- Empty expansion module slots must be covered using filler panels.
- Brocade ICX 7450 Specifications
- System specifications
- Ethernet
- LEDs
- Other
- Weight and physical dimensions
- Environmental requirements
- Power supply specifications (per PSU)
- Power consumption (typical configuration)
- Power consumption (maximum configuration)
- Power consumption (modules)
- Data port specifications (Ethernet)
- Serial port specifications (pinout - mini-USB)
- Serial port specifications (pinout RJ-45)
- Serial port specifications (protocol)
- Memory specifications
- Regulatory compliance (EMC)
- Regulatory compliance (safety)
- Regulatory compliance (environmental)
- USA (FCC CFR 47 Part 15 Warning)
- Industry Canada statement
- Europe and Australia (CISPR 22 Class A Warning)
- Germany (Noise Warning)
- Japan (VCCI)
- Korea
- China
- BSMI statement (Taiwan)
- Cautions
- Danger notices
Part Number: 53-1003899-04
Publication Date: 15 June 2017
Brocade ICX 7450 Switch Hardware
Installation Guide
HARDWARE INSTALLATION GUIDE
Copyright © 2017, Brocade Communications Systems, Inc. All Rights Reserved.
Brocade, Brocade Assurance, the B-wing symbol, ClearLink, DCX, Fabric OS, HyperEdge, ICX, MLX, MyBrocade, OpenScript, VCS, VDX, Vplane, and
Vyatta are registered trademarks, and Fabric Vision is a trademark of Brocade Communications Systems, Inc., in the United States and/or in other
countries. Other brands, products, or service names mentioned may be trademarks of others.
Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning any equipment, equipment
feature, or service offered or to be offered by Brocade. Brocade reserves the right to make changes to this document at any time, without notice, and
assumes no responsibility for its use. This informational document describes features that may not be currently available. Contact a Brocade sales office
for information on feature and product availability. Export of technical data contained in this document may require an export license from the United States
government.
The authors and Brocade Communications Systems, Inc. assume no liability or responsibility to any person or entity with respect to the accuracy of this
document or any loss, cost, liability, or damages arising from the information contained herein or the computer programs that accompany it.
The product described by this document may contain open source software covered by the GNU General Public License or other open source license
agreements. To find out which open source software is included in Brocade products, view the licensing terms applicable to the open source software, and
obtain a copy of the programming source code, please visit http://www.brocade.com/support/oscd.
Brocade ICX 7450 Switch Hardware Installation Guide 3
Part Number: 53-1003899-04
Contents
Preface
Document conventions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Text formatting conventions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Command syntax conventions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Notes, cautions, and warnings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Brocade resources
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Contacting Brocade Technical Support
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Brocade customers
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Brocade OEM customers
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Document feedback
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
About This Document
What’s new in this document
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Brocade ICX 7450 Overview
Brocade ICX 7450 features
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Brocade ICX 7450 customizable switches
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Views of the Brocade ICX 7450 switch
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Brocade ICX 7450 slot and Ethernet port numbering
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Supported expansion modules
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Supported transceivers and cables
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
QSFP+ 40GBase-SR-BD support
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Installing the Brocade ICX 7450
Unpacking the device
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Installation and safety considerations
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Electrical considerations
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Environmental considerations
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Location considerations
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Rack considerations
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Recommendations for cable management
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Installation tasks
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Installation precautions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
General precautions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Lifting precautions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Power precautions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
DC-DC power source cautions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Installing the device on a desktop
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installing the device in a rack
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Two-post rack mount installation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks (XBR-R000295)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Installation requirements
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Time and items required
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Parts list
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Flush-front mounting the device in the rack
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Flush-rear (recessed) mounting the device in the rack
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Installing the Universal Four-Post Rack Kit (XBR-R000296)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Installation requirements
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Time and items required
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Flush-front mounting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Flush-rear (recessed) mounting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Connecting devices in a stack
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Stacking ports
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Stacking configuration requirements
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Stacking cables
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Stack size
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Stacking topologies
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Grounding the system
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Powering on the system
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Power supplies
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Power supply usage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Using a second power supply
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Installing and replacing a power supply unit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Installing an AC power supply
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Installing a DC power supply
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Attaching a PC or terminal
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Connecting to the management port
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Installing an SFP or SFP+ transceiver
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Connecting network devices
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Connectors
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Connecting a network device to a copper port
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Connecting a network device to a fiber port
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Brocade ICX 7450 Operation
LED activity interpretation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Brocade ICX 7450 front-panel LEDs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Brocade ICX 7450 rear-panel LEDs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
LED patterns
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Diagnostic tests and monitoring
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Managing the Brocade ICX 7450
Temperature threshold levels
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Hardware maintenance schedule
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Replacing a fiber-optic transceiver
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Removing a fiber-optic transceiver
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Cabling a fiber-optic transceiver
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Cleaning the fiber-optic connectors
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
FRU removal and replacement procedures
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Brocade ICX 7450 Switch Hardware Installation Guide 5
Part Number: 53-1003899-04
Replacing a power supply unit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Determining the need to replace a power supply
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Time and items required
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Replacing a power supply
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Replacing fan trays
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Determining the need to replace a fan tray
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Time and items required
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Installing or replacing the fan assembly
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Replacing an expansion module or service module
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Time and items required
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Installing or replacing an expansion module or service module
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Brocade ICX 7450 Specifications
System specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Ethernet
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
LEDs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Other
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Weight and physical dimensions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Environmental requirements
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Power supply specifications (per PSU)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Power consumption (typical configuration)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Power consumption (maximum configuration)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Power consumption (modules)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Data port specifications (Ethernet)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Serial port specifications (pinout - mini-USB)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Serial port specifications (pinout RJ-45)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Serial port specifications (protocol)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Memory specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Regulatory compliance (EMC)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Regulatory compliance (safety)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Regulatory compliance (environmental)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Brocade ICX 7450 Regulatory Statements
USA (FCC CFR 47 Part 15 Warning)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Industry Canada statement
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Europe and Australia (CISPR 22 Class A Warning)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Germany (Noise Warning)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Japan (VCCI)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Korea
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
China
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
BSMI statement (Taiwan)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Brocade ICX 7450 Cautions and Danger Notices
Cautions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Danger notices
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
6Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Switch Hardware Installation Guide 7
Part Number: 53-1003899-04
Preface
•
Document conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
•
Brocade resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
•
Contacting Brocade Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
•
Document feedback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Document conventions
The document conventions describe text formatting conventions, command syntax conventions, and important notice formats used in
Brocade technical documentation.
Text formatting conventions
Text formatting conventions such as boldface, italic, or Courier font may be used in the flow of the text to highlight specific words or
phrases.
Command syntax conventions
Bold and italic text identify command syntax components. Delimiters and operators define groupings of parameters and their logical
relationships.
Format Description
bold text Identifies command names
Identifies keywords and operands
Identifies the names of user-manipulated GUI elements
Identifies text to enter at the GUI
italic text Identifies emphasis
Identifies variables
Identifies document titles
Courier font
Identifies CLI output
Identifies command syntax examples
Convention Description
bold text Identifies command names, keywords, and command options.
italic text Identifies a variable.
value In Fibre Channel products, a fixed value provided as input to a command option is
printed in plain text, for example, --show WWN.
[ ] Syntax components displayed within square brackets are optional.
Default responses to system prompts are enclosed in square brackets.
8Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Preface
Brocade resources
Notes, cautions, and warnings
Notes, cautions, and warning statements may be used in this document. They are listed in the order of increasing severity of potential
hazards.
NOTE
A Note provides a tip, guidance, or advice, emphasizes important information, or provides a reference to related information.
ATTENTION
An Attention statement indicates a stronger note, for example, to alert you when traffic might be interrupted or the device might
reboot.
Brocade resources
Visit the Brocade website to locate related documentation for your product and additional Brocade resources.
You can download additional publications supporting your product at www.brocade.com. Select the Brocade Products tab to locate your
product, then click the Brocade product name or image to open the individual product page. The user manuals are available in the
resources module at the bottom of the page under the Documentation category.
To get up-to-the-minute information on Brocade products and resources, go to MyBrocade. You can register at no cost to obtain a user
ID and password.
Release notes are available on MyBrocade under Product Downloads.
White papers, online demonstrations, and data sheets are available through the Brocade website.
{ x | y | z } A choice of required parameters is enclosed in curly brackets separated by
vertical bars. You must select one of the options.
In Fibre Channel products, square brackets may be used instead for this purpose.
x | yA vertical bar separates mutually exclusive elements.
< > Nonprinting characters, for example, passwords, are enclosed in angle brackets.
... Repeat the previous element, for example, member[member...].
\ Indicates a “soft” line break in command examples. If a backslash separates two
lines of a command input, enter the entire command at the prompt without the
backslash.
CAUTION
A Caution statement alerts you to situations that can be potentially hazardous to you or cause damage to hardware, firmware,
software, or data.
DANGER
A Danger statement indicates conditions or situations that can be potentially lethal or extremely hazardous to you. Safety
labels are also attached directly to products to warn of these conditions or situations.
Brocade ICX 7450 Switch Hardware Installation Guide 9
Part Number: 53-1003899-04
Contacting Brocade Technical Support
As a Brocade customer, you can contact Brocade Technical Support 24x7 online, by telephone, or by e-mail. Brocade OEM customers
contact their OEM/Solutions provider.
Brocade customers
For product support information and the latest information on contacting the Technical Assistance Center, go to
http://www.brocade.com/services-support/index.html.
If you have purchased Brocade product support directly from Brocade, use one of the following methods to contact the Brocade
Technical Assistance Center 24x7.
Brocade OEM customers
If you have purchased Brocade product support from a Brocade OEM/Solution Provider, contact your OEM/Solution Provider for all of
your product support needs.
•
OEM/Solution Providers are trained and certified by Brocade to support Brocade® products.
•
Brocade provides backline support for issues that cannot be resolved by the OEM/Solution Provider.
•
Brocade Supplemental Support augments your existing OEM support contract, providing direct access to Brocade expertise.
For more information, contact Brocade or your OEM.
•
For questions regarding service levels and response times, contact your OEM/Solution Provider.
Document feedback
To send feedback and report errors in the documentation you can use the feedback form posted with the document or you can e-mail the
documentation team.
Quality is our first concern at Brocade and we have made every effort to ensure the accuracy and completeness of this document.
However, if you find an error or an omission, or you think that a topic needs further development, we want to hear from you. You can
provide feedback in two ways:
•
Through the online feedback form in the HTML documents posted on www.brocade.com.
•
By sending your feedback to documentation@brocade.com.
Provide the publication title, part number, and as much detail as possible, including the topic heading and page number if applicable, as
well as your suggestions for improvement.
Online Telephone E-mail
Preferred method of contact for nonurgent
issues:
•
My Cases through MyBrocade
•
Software downloads and licensing tools
•
Knowledge Base
Required for Sev 1-Critical and Sev
2-High issues:
•
Continental US: 1-800-752-8061
•
Europe, Middle East, Africa, and Asia Pacific:
+800-AT FIBREE (+800 28 34 27 33)
•
For areas unable to access toll free number:
+1-408-333-6061
•
Toll-free numbers are available in many countries.
support@brocade.com
Please include:
•
Problem summary
•
Serial number
•
Installation details
•
Environment description
10 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Preface
Document feedback
Brocade ICX 7450 Switch Hardware Installation Guide 11
Part Number: 53-1003899-04
About this Document
•
What’s new in this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
What’s new in this document
There are no enhancements in this edition.
12 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
About this Document
What’s new in this document
Brocade ICX 7450 Switch Hardware Installation Guide 13
Part Number: 53-1003899-04
Brocade ICX 7450 Overview
•
Brocade ICX 7450 features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
•
Views of the Brocade ICX 7450 switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
•
Brocade ICX 7450 slot and Ethernet port numbering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
•
Supported expansion modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
•
Supported transceivers and cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Brocade ICX 7450 features
The Brocade ICX 7450 is a high-density aggregation switch that offers 10/100 Mbps Ethernet, 1/10 Gigabit Ethernet (GbE), and
10/40 GbE line rates, low latency cut-through switching, and up to 336 Gbps throughput for campus LAN and classic Ethernet data
center environments.
The Brocade ICX 7450 switch features:
•
Comprehensive support for a range of 1 GbE, 10 GbE, and 40 GbE optics (refer to the latest Brocade Optics Family Data
Sheet)
•
Dual redundant, hot-swappable power supplies available with intake or exhaust airflow
(250 W AC or 510 W DC for non-PoE switches, and 1000 W AC or 510 W DC for PoE switches)
•
ICX 7450-24P and ICX 7450-48P copper ports support PoE, PoE+, High PoE, and PoH
•
ICX 7450-48F SFP ports support 1 GbE transceivers
•
ICX 7450-32ZP copper ports support PoE, PoE+, High PoE, and PoH
•
1 GbE SFP module with four 10M/100M/1 GbE SFP ports
•
10 GbE SFP+ module with four 1/10 GbE SFP+ ports
•
10 GbE copper module with four 1/10 GbE RJ-45 ports
•
Two 40 GbE QSFP+ or four 10 GbE SFP+ stacking ports (supporting stacking for up to twelve switches)
•
Dual redundant, hot-swappable fan trays available with intake or exhaust airflow.
•
One Gigabit Ethernet port (RJ-45) and one serial management port (mini-USB) to configure and manage the switch through the
CLI
•
One USB port for the transfer of software and configuration files from an external disk drive
Brocade ICX 7450 customizable switches
The Brocade ICX 7450 base systems do not ship with power supplies, fans, stacking modules, or media expansion modules. Fans,
power supplies, and expansion modules are ordered separately to allow for building the system that meets your network needs. Table 1
lists the available power supplies, fans, and expansion modules.
TABLE 1 SKUs for creating custom Brocade ICX 7450 switches
Part Description
ICX7400-4X1GF Brocade ICX 7450 4-port 10M/100M/1 Gbe SFP expansion module
ICX7400-4X10GF Brocade ICX 7450 4-port 1/10 GbE SFP+ uplink / stacking expansion module
14 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Overview
Views of the Brocade ICX 7450 switch
Views of the Brocade ICX 7450 switch
Figure 1 shows the front view of the Brocade ICX 7450-24 switch.
FIGURE 1 Front view of the Brocade ICX 7450-24
ICX7400-4X10GC Brocade ICX 7450 4-port 1/10 GbE copper expansion module
ICX7400-1X40GQ Brocade ICX 7450 1-port 40 GbE QSFP+ data uplink / stacking module
RPS15-E Brocade ICX non-PoE 250 W AC PSU, power-supply-side exhaust (port-side intake) airflow
RPS15-I Brocade ICX non-PoE 250 W AC PSU, power-supply-side intake (port-side exhaust) airflow
RPS16-E Brocade ICX PoE+ 1000 W AC PSU, power-supply-side exhaust (port-side intake) airflow
RPS16-I Brocade ICX PoE+ 1000 W AC PSU, power-supply-side intake (port-side exhaust) airflow
RPS16DC-E Brocade ICX 510 W DC PSU, power-supply-side exhaust (port-side intake) airflow
RPS16DC-I Brocade ICX 510 W DC PSU, power-supply-side intake (port-side exhaust) airflow
ICX-FAN10-E Brocade ICX 7450 power-supply-side exhaust airflow fan (two fans required with two power supplies)
ICX-FAN10-I Brocade ICX 7450 power-supply-side intake airflow fan (two fans required with two power supplies)
CC-MINIUSB-RJ45 Console cable, male mini-USB to male RJ-45
ICX7450-RMK FRU, Rack mount kit, 2-post, ICX 7450
XBR-R000295 FRU, Universal rack mount kit, 4-post 24-32-inch depth rack, DX6740T/VDX6740T-1G
PCEURO Power Cord for RPS15/16, European version
PCUK Power Cord for RPS15/16, United Kingdom version
PCAUS Power Cord for use in Australia
PCJAPAN Power Cord for RPS15/16, Japan version
PCCHINA2-IEC309 Power Cord, China, IEC309 TO C13, 10A, 250V
PCSWISS-C1312G-HF Power Cord, Swiss, SEV1011 TO C13, 10A, 250V, halogen free
PCINDIA 6-foot AC power cord for India
1System LEDs 2Mini-USB console port
3 Media/Stacking module LEDs 4 Reset button
TABLE 1 SKUs for creating custom Brocade ICX 7450 switches (Continued)
Part Description
Brocade ICX 7450 Switch Hardware Installation Guide 15
Part Number: 53-1003899-04
Figure 2 shows the front view of the Brocade ICX 7450-24P switch.
NOTE
PoE/PoE+ power is available to ports 1-24. High PoE/PoH is limited to ports 1-8.
FIGURE 2 Front view of the Brocade ICX 7450-24P
Figure 3 shows the front view of the Brocade ICX 7450-32ZP switch.
NOTE
PoE/PoE+ power is available to ports 1-32. High PoE/PoH is limited to ports 1-8.
FIGURE 3 Front view of the Brocade ICX 7450-32ZP
5 Stack unit ID display 6 10/100/1000Base-T RJ-45 ports 1/1/1 - 1/1/24
7 Management port (RJ-45) 8 SFP/SFP+ (1/2/1 - 1/2/4) & QSFP+ (1/2/1)
9 USB port (for flash drive)
1System LEDs 2Mini-USB console port
3 Media/Stacking module LEDs 4 Reset button
5 Stack unit ID display 6 10/100/1000Base-T RJ-45 ports 1/1/1 - 1/1/24
7 Management port (RJ-45) 8 SFP/SFP+ (1/2/1 - 1/2/4) & QSFP+ (1/2/1)
9 USB port (for flash drive)
16 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Overview
Views of the Brocade ICX 7450 switch
Figure 4 shows the front view of the Brocade ICX 7450-48 switch.
FIGURE 4 Front view of the Brocade ICX 7450-48
Figure 5 shows the front view of the Brocade ICX 7450-48P switch.
NOTE
PoE/PoE+ power is available to ports 1-48. High PoE/PoH is limited to ports 1-8.
FIGURE 5 Front view of the Brocade ICX 7450-48P
1System LEDs 2Mini-USB console port
3 Media/Stacking module LEDs 4 Reset button
5 Stack unit ID display 6 10/100/1000Base-T RJ-45 ports 1/1/1 - 1/1/24
7 Management port (RJ-45) 8 100M/1G/2.5GBase-T RJ-45 ports 1/1/25 -
1/1/32
9 USB port (for flash drive) 10 SFP+ ports 1/2/1 - 1/2/4
1System LEDs 2Mini-USB console port
3 Media/Stacking module LEDs 4 Reset button
5 Stack unit ID display 6 10/100/1000Base-T RJ-45 ports 1/1/1 - 1/1/48
7 Management port (RJ-45) 8 SFP+ ports 1/2/1 - 1/2/4
9 USB port (for flash drive)
Brocade ICX 7450 Switch Hardware Installation Guide 17
Part Number: 53-1003899-04
Figure 6 shows the front view of the Brocade ICX 7450-48F switch.
FIGURE 6 Front view of the Brocade ICX 7450-48F
Figure 7 shows the rear view of the Brocade ICX 7450 switch.
FIGURE 7 Rear view of the Brocade ICX 7450
1System LEDs 2Mini-USB console port
3 Media/Stacking module LEDs 4 Reset button
5 Stack unit ID display 6 10/100/1000Base-T RJ-45 ports 1/1/1 - 1/1/48
7 Management port (RJ-45) 8 SFP+ ports 1/2/1 - 1/2/4
9 USB port (for flash drive)
1System LEDs 2Mini-USB console port
3 Media/Stacking module LEDs 4 Reset button
5 Stack unit ID display 6 SFP port LEDs 1/1/1 - 1/1/48
7 Management port (RJ-45) 8 SFP+ ports 1/2/1 - 1/2/4
9 USB port (for flash drive)
1 Grounding terminal 2 Fan tray 1
3 Fan tray 2 4 Power supply unit 2
5 Uplink / Stacking module 4 6 Power supply unit 1
7 Uplink / Stacking module 3
18 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Overview
Brocade ICX 7450 slot and Ethernet port numbering
Brocade ICX 7450 slot and Ethernet port numbering
Many CLI commands require users to enter port numbers as part of the command syntax, and many show command outputs display
port numbers. The port numbers are entered and displayed in stack-unit/slot number/port number format.
The Brocade ICX 7450 contains the following slots and Ethernet ports:
•
Slot 1 and Slot 2 are located on the front of the Brocade ICX 7450-24 and ICX 7450-24P devices. Slot 1 contains 1 GbE
RJ-45 ports 1/1/1 through 1/1/24, with odd port numbers on the top row and port 1/1/1 on the left. Slot 2 contains 1/10
GbE SFP+ ports 1/2/1 and 1/2/3 on the top row (left to right), and ports 1/2/2 and 1/2/4 on the bottom row (left to right).
Refer to the following figure.
FIGURE 8 Brocade ICX 7450-24 and ICX 7450-24P slot numbering
•
Slot 1 and Slot 2 are located on the front of the Brocade ICX 7450-32ZP devices. Slot 1 contains 1 GbE RJ-45 ports 1/1/1
through 1/1/24 and 2.5 GbE RJ-45 ports 1/1/25 through 1/1/32, with odd port numbers on the top row and port 1/1/1 on
the left. Slot 2 contains 1/10 GbE SFP+ ports 1/2/1 and 1/2/3 on the top row (left to right), and ports 1/2/2 and 1/2/4 on the
bottom row (left to right). Refer to the following figure.
FIGURE 9 Brocade ICX 7450-32ZP slot numbering
•
Slot 1 and Slot 2 are located on the front of the Brocade ICX 7450-48 and ICX 7450-48P devices. Slot 1 contains 1 GbE
RJ-45 ports 1/1/1 through 1/1/48, with odd port numbers on the top row and port 1/1/1 on the left. Slot 2 contains 1/10
GbE SFP+ ports 1/2/1 and 1/2/3 on the top row (left to right), and ports 1/2/2 and 1/2/4 on the bottom row (left to right).
Refer to the following figure.
FIGURE 10 Brocade ICX 7450-48 and ICX 7450-48P slot numbering
1 Slot 1 – 1GBase-T RJ-45 ports 1/1/1 - 1/1/24 2 Slot 2 – SFP+ ports 1/2/1 - 1/2/4
1 Slot 1 – 1GBase-T RJ-45 ports 1/1/1 - 1/1/32 2 Slot 2 – SFP+ ports 1/2/1 - 1/2/4
1 Slot 1 – 1GBase-T RJ-45 ports 1/1/1 - 1/1/48 2 Slot 2 – SFP+ ports 1/2/1 - 1/2/4
Brocade ICX 7450 Switch Hardware Installation Guide 19
Part Number: 53-1003899-04
•
Slot 1 and Slot 2 are located on the front of the Brocade ICX 7450-48F device. Slot 1 contains 1 GbE SFP ports 1/1/1
through 1/1/48, with odd port numbers on the top row and port 1/1/1 on the left. Slot 2 contains 1/10 GbE SFP+ ports 1/2/1
and 1/2/3 on the top row (left to right), and ports 1/2/2 and 1/2/4 on the bottom row (left to right). Refer to the following figure.
FIGURE 11 Brocade ICX 7450-48F slot numbering
•
Slot 3 is located on the rear of the Brocade ICX 7450 switch and with a single-port module installed contains 40 GbE QSFP+
stacking/data port 1/3/1. With a 4-port module installed, Slot 3 contains 1/10 GbE SFP+ ports 1/3/1 and 1/3/3 on the top
row (left to right), and ports 1/3/2 and 1/3/4 on the bottom row (left to right). Refer to Figure 12.
•
Slot 4 is also located on the rear of the Brocade ICX 7450 switch and with a single-port module installed contains 40 GbE
QSFP+ stacking/data port 1/4/1. With a 4-port module installed, Slot 4 contains 1/10 GbE SFP+ ports 1/4/1 and 1/4/3 on
the top row (left to right), and ports 1/4/2 and 1/4/4 on the bottom row (left to right). Refer to Figure 12.
FIGURE 12 Brocade ICX 7450 rear slot numbering
Supported expansion modules
A 4-port 1 GbE SFP expansion module can be installed in the slots shown in Table 2 on page 20 and Table 4 on page 20. The
expansion module supports 1 GbE optics (refer to the Brocade Optics Family Data Sheet).
A 4-port 1/10 GbE SFP+ expansion module can be purchased and installed in the slots shown in Table 2 on page 20 and Table 4 on
page 20. The expansion module supports 1 GbE and 10 GbE optics (refer to the Brocade Optics Family Data Sheet).
A 4-port 1/10 GbE copper expansion module can be installed in the slots shown in Table 2 on page 20 and Table 4 on page 20. The
expansion module supports 1 GbE and 10 GbE copper wired connections.
A 1-port 40 GbE QSFP+ expansion module can be installed in the slots shown in Table 2 on page 20 and Table 4 on page 20. The
expansion module supports 40 GbE optics. This module can be used for data uplink or stacking.
Modules are supported in slots where “Yes” is indicated.
1 Slot 1 – SFP ports 1/1/1 - 1/1/48 2 Slot 2 – SFP+ ports 1/2/1 - 1/2/4
1 Slot 3 – 40 GbE QSFP+ stacking/data port 1/3/1
or 1/10 GbE SFP+ data ports 1/3/1 - 1/3/4
2 Slot 4 – 40 GbE QSFP+ stacking/data port 1/4/1
or 1/10 GbE SFP+ data ports 1/4/1 - 1/4/4
20 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Overview
Supported expansion modules
Instructions for installing or replacing an expansion module or service module are described in “Replacing an expansion module or service
module” on page 74.
TABLE 2 Brocade ICX 7450-24 and 24P expansion slots and supported media modules
Module Slot 2 Slot 3 Slot 4
ICX7400-4X1GF 4X1G 4X10M/100
M
4X1G 4X100M 4X1G 4X100M
Yes Yes No No No No
ICX7400-4X10GF 4X10G 4X1G 4X10G 4X1G 4X10G 4X1G
Yes Yes Yes Yes Yes Yes
ICX7400-4X10GC 4X10G 4X1G 4X10G 4X1G 4X10G 4X1G
Yes Yes Yes Yes Yes Yes
ICX7400-1X40GQ 40G 4X10G 40G 4X10G 40G 4X10G
Yes No Yes No Yes No
TABLE 3 Brocade ICX 7450-32ZP expansion slots and supported media modules
Module Slot 2 Slot 3 Slot 4
ICX7400-4X10GF 4X10G 4X1G 4X10G 4X1G 4X10G 4X1G
Yes Yes Yes Yes Yes Yes
ICX7400-4X10GC 4X10G 4X1G 4X10G 4X1G 4X10G 4X1G
Yes Yes Yes Yes Yes Yes
ICX7400-1X40GQ 40G 4X10G 40G 4X10G 40G 4X10G
No No Yes No Yes No
TABLE 4 Brocade ICX 7450-48, 48P and 48F expansion slots and supported media modules
Module Slot 2 Slot 3 Slot 4
ICX7400-4X1GF 4X1G 4X10M/100
M
4X1G 4X100M 4X1G 4X100M
Yes Yes No No No No
ICX7400-4X10GF 4X10G 4X1G 4X10G 4X1G 4X10G 4X1G
Yes Yes Yes Yes Yes Yes
ICX7400-4X10GC 4X10G 4X1G 4X10G 4X1G 4X10G 4X1G
Yes Yes Yes Yes Yes Yes
ICX7400-1X40GQ 40G 4X10G 40G 4X10G 40G 4X10G
No No Yes No Yes No
Brocade ICX 7450 Switch Hardware Installation Guide 21
Part Number: 53-1003899-04
FIGURE 13 40 GbE QSFP+ expansion module
NOTE
Pull the release lever down before removing a media or stacking module.
Supported transceivers and cables
For a list of supported transceivers and cables, refer to the Brocade Optics Family Data Sheet.
QSFP+ 40GBase-SR-BD support
The Brocade ICX 7450 supports 40GBASE-SR-BD bi-directional (BiDi) QSFP+ transceivers with duplex LC optics. The 40 GbE BiDi
optics support two 20 GbE channels over duplex fiber cable, with the transmit and receive of each channel operating at two wavelengths
on a single fiber.
The 40 GbE BiDi transceivers enable 40 GbE links to be supported on installed 10 GbE duplex fiber infrastructure. This transceiver is for
data only, it is not supported for stacking.
1Release lever latch 2QSFP+ slot
3 Module slot LEDs 4 Expansion module power LED
22 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Overview
Supported transceivers and cables
Brocade ICX 7450 Switch Hardware Installation Guide 23
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
•
Unpacking the device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
•
Installation and safety considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
•
Installation tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
•
Installation precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
•
Installing the device on a desktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
•
Installing the device in a rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
•
Two-post rack mount installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
•
Installing the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks (XBR-R000295). . . . . . . . . . . . . . . . . . . . . . . . 31
•
Installing the Universal Four-Post Rack Kit (XBR-R000296) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
•
Connecting devices in a stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
•
Grounding the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
•
Powering on the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
•
Power supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
•
Attaching a PC or terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
•
Connecting to the management port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
•
Installing an SFP or SFP+ transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Unpacking the device
The Brocade ICX 7450 ships with all of the items listed in the following list. Verify the contents of your shipping container. If any items are
missing, contact the place of purchase.
The following items are included in your shipping carton:
•
A Brocade ICX 7450 switch
•
One China ROHS sheet (regulatory information)
•
One Read Me sheet (software notice)
•
One rubber foot kit (containing four rubber feet)
•
One rack-mount kit (containing two mounting ears and eight screws)
•
One console cable (Mini-USB to RJ-45, 8 feet long)
•
One grounding kit, containing one grounding lug and one grounding screw
•
One AC power cord (for ICX 7450-24, 24P, 48, 48P, and 48F units)
•
One RJ-45-to-DB9 adapter
•
Installed filler panels for the PSU slot, expansion module slot, or fan tray slot where such modules are not supplied for the switch
model type
CAUTION
Procedures in this manual are intended for qualified service personnel.
24 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installation and safety considerations
NOTE
A stacking cable is not included in the shipping carton and must be ordered separately.
Installation and safety considerations
You can install the Brocade ICX 7450 in the following ways:
•
As a standalone unit on a flat surface.
•
In an EIA rack using a fixed-rail rack mount kit. The optional 4-post universal rack mount kit can be ordered from your switch
retailer to support up to a 30-inch deep rack. The 4-post rack mount kit includes mid-mount and rear-mount brackets.
•
In a 2-post Telco rack using a flush-mount rack kit. The 2-post rack mount ears are included with the switch and support various
mounting positions (refer to Figure 2).
Electrical considerations
To install and operate the switch successfully, ensure compliance with the following requirements:
•
The primary outlet is correctly wired, protected by a circuit breaker, and grounded in accordance with local electrical codes.
•
The supply circuit, line fusing, and wire size are adequate, as specified by the electrical rating on the switch nameplate.
•
The power supply standards are met.
Environmental considerations
For successful installation and operation of the switch, ensure that the following environmental requirements are met:
•
Because the Brocade ICX 7450 can be ordered with fans that move air either front to back or back to front, be sure to orient
your switch with the airflow pattern of any other devices in the rack. All equipment in the rack should force air in the same
direction to avoid intake of exhaust air.
•
Some combinations of intake and exhaust airflows may not be compatible with your environment. Consult your fan and power
supply module FRU kit to determine the correct configuration.
•
The ambient air temperature does not exceed 50°C (122°F) while the switch is operating.
Location considerations
Before installing the device, plan its location and orientation relative to other devices and equipment. Devices can be mounted in a
standard 19-inch equipment rack or on a flat surface.
The site should meet the following requirements:
•
Maintain the operating environment as specified in “Environmental considerations” on page 24.
•
The Brocade ICX 7450 should be installed with its top and bottom covers parallel to the floor. The Brocade ICX 7450 should
not be installed upside down.
•
Allow a minimum of 3 in. of space between the front and the back of the device and walls or other obstructions for proper airflow.
•
Allow at least 3 in. of space at the front and back of the device for the twisted-pair, fiber-optic, and power cabling.
•
Allow access for installing, cabling, and maintaining the devices.
•
Allow the status LEDs to be clearly visible.
Brocade ICX 7450 Switch Hardware Installation Guide 25
Part Number: 53-1003899-04
•
Allow for twisted-pair cables to be routed away from power lines, fluorescent lighting fixtures, and other sources of electrical
interference, such as radios and transmitters.
•
Allow for the unit to be connected to a separate grounded power outlet that provides 100 to 240 VAC, 50 to 60 Hz, is within 2
m (6.6 ft) of each device, and is powered from an independent circuit breaker. As with any equipment, a filter or surge
suppressor is recommended.
Rack considerations
For successful installation and operation of the switch in a rack, ensure the following rack requirements are met:
•
The rack must be a standard EIA rack.
•
The equipment in the rack is grounded through a reliable branch circuit connection and maintains ground at all times. Do not rely
on a secondary connection to a branch circuit, such as a power strip.
•
Airflow and temperature requirements are met on an ongoing basis, particularly if the switch is installed in a closed or multi rack
assembly.
•
The additional weight of the switch does not exceed the rack’s weight limits or unbalance the rack in any way.
•
The rack is secured to ensure stability in case of unexpected movement, such as an earthquake.
Recommendations for cable management
Cables can be organized and managed in a variety of ways; for example, use cable channels on the sides of the rack or patch panels to
reduce the potential for tangling the cables. The following list provides some recommendations for cable management:
NOTE
You should not use tie wraps with fiber-optic cables because they are easily overtightened and can damage the optical fibers.
Velcro-like wraps are recommended.
•
Plan for the rack space required for cable management before installing the switch.
•
Leave at least 1 m (3.28 ft) of slack for each port cable. This provides room to remove and replace the switch, allows for
inadvertent movement of the rack, and helps prevent the cables from being bent to less than the minimum bend radius.
•
For easier maintenance, label the cables and record the devices to which they are connected.
•
Keep LEDs visible by routing port cables and other cables away from the LEDs.
Installation tasks
Follow the steps listed in Table 1 to install your device. Details for each of these steps are provided on the pages indicated.
CAUTION
Before plugging a cable to any port, be sure to discharge any static charge stored on the cable by touching the electrical
contacts to ground surface.
26 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installation precautions
Installation precautions
Follow all precautions when installing a device.
General precautions
TABLE 1 Installation tasks
Task
number
Task Where to find more information
1 Ensure that the physical environment that will host the device has the proper
cabling and ventilation.
“Installation and safety considerations” on page 24
2 If customizing a Brocade ICX 7450 baseline chassis:
1 Install at least one power supply unit.
2 Install at least one fan.
3 Install an expansion module.
“Installing and replacing a power supply unit” on page 58
“Installing or replacing the fan assembly” on page 70
“Installing or replacing an expansion module or service
module” on page 71
3 Install the device on a desktop, or a rack “Installing the device on a desktop” on page 28
“Installing the device in a rack” on page 28
4 Connect devices in a stack. “Connecting devices in a stack” on page 53
5 Plug the device into a nearby power source that adheres to the regulatory
requirements outlined in this manual.
“Powering on the system” on page 57
6 Attach a terminal or PC to the device. This will enable you to configure the
device through the command line interface (CLI).
“Attaching a PC or terminal” on page 61
7 Assign a password for additional access security. No default password is
assigned to the CLI.
Brocade FastIron Management Configuration Guide
8 Before attaching equipment to the device, you must configure an interface IP
address to the subnet on which the device will be located. Initial IP address
configuration is performed using the CLI with a direct serial connection.
Brocade FastIron Management Configuration Guide
9 Connect network equipment to the system. “Connecting network devices” on page 63
10 Test IP connectivity to other devices by pinging them and tracing routes. Brocade FastIron Management Configuration Guide
11 Continue configuring the device using the CLI. Brocade FastIron Management Configuration Guide
12 Secure access to the device. Brocade FastIron Management Configuration Guide
CAUTION
Do not install the device in an environment where the operating ambient temperature might exceed 50°C (122°F).
CAUTION
Make sure the airflow around the front and sides of the device is not restricted.
CAUTION
Never leave tools inside the device.
Brocade ICX 7450 Switch Hardware Installation Guide 27
Part Number: 53-1003899-04
Lifting precautions
Power precautions
DC-DC power source cautions
CAUTION
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the manufacturer’s
instructions.
CAUTION
Make sure the rack housing the device is adequately secured to prevent it from becoming unstable or falling over.
CAUTION
Use a separate branch circuit for each AC power cord, which provides redundancy in case one of the circuits fails.
CAUTION
To avoid high voltage shock, do not open the device while the power is on.
CAUTION
Ensure that the device does not overload the power circuits, wiring, and over-current protection. To determine the possibility
of overloading the supply circuits, add the ampere (amp) ratings of all devices installed on the same circuit as the device.
Compare this total with the rating limit for the circuit. The maximum ampere ratings are usually printed on the devices near the
input power connectors.
CAUTION
Disconnect the power cord from all power sources to completely remove power from the device.
CAUTION
Before plugging a cable to any port, be sure to discharge any static charge stored on the cable by touching the electrical
contacts to ground surface.
CAUTION
If the installation requires a different power cord than the one supplied with the device, make sure you use a power cord
displaying the mark of the safety agency that defines the regulations for power cords in your country. The mark is your
assurance that the power cord can be used safely with the device.
CAUTION
For DC system, use grounding wire of at least 12 American Wire Gauge (AWG). The grounding wire should be attached to the
DC input connector (as shown in Figure 39); the other end connects to the building ground.
28 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installing the device on a desktop
Installing the device on a desktop
Complete the following steps to install the Brocade ICX 7450 on a desktop or other flat surface.
FIGURE 1 Attaching the adhesive feet
1. Attach the four adhesive feet to the bottom of the device.
2. Set the device on a flat desktop, table, or shelf near an AC power source. Make sure that adequate ventilation is provided for the
system. A 7.62 cm (3-inch) clearance is recommended on each side.
3. If installing a single device only, go to “Powering on the system”.
4. If installing multiple devices, attach the adhesive feet to each device. Place each device squarely on top of the one below.
Installing the device in a rack
NOTE
You need a #2 Phillips screwdriver for installation.
Before mounting the switch in a rack, pay particular attention to the following factors:
•
Temperature: Because the temperature within a rack assembly may be higher than the ambient room temperature, check that
the rack-environment temperature is within the specified operating temperature range. (Refer to “Environmental considerations”
on page 24.)
•
Mechanical loading: Do not place any equipment on top of a rack-mounted unit.
•
Circuit overloading: Be sure that the supply circuit to the rack assembly is not overloaded.
CAUTION
For the DC input circuit to the system, make sure there is a 20 Amp circuit breaker, minimum 60 VDC, double pole, on the
input terminal block to the power supply. The input wiring for connection to the product should be copper wire, 12 AWG,
marked VW-1, and rated minimum 90°C.
CAUTION
Make sure the rack housing the device is adequately secured to prevent it from becoming unstable or falling over.
Brocade ICX 7450 Switch Hardware Installation Guide 29
Part Number: 53-1003899-04
•
Grounding: Rack-mounted equipment should be properly grounded. Particular attention should be given to supply connections
other than direct connections to the mains electricity supply.
To mount the product into a four-post rack, you can order one of two four-post rack kits with the part number XBR-R000295 or
XBR-000296. For the procedures to install these kits, refer to “Installing the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks
(XBR-R000295)” on page 31 and “Installing the Universal Four-Post Rack Kit (XBR-R000296)” on page 42.
Two-post rack mount installation
The Brocade ICX 7450 can be installed in a two-post rack in various mounting positions, as shown in Figure 2.
FIGURE 2 Two-post rack mounting positions
NOTE
Use the following procedure when installing the Brocade ICX 7450 in a two-post rack. For four-post racks, follow the procedures
in “Installing the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks (XBR-R000295)” on page 31 or “Installing the Universal
Four-Post Rack Kit (XBR-R000296)” on page 42.
Use the following steps to mount the Brocade ICX 7450 in a two-post rack.
1. Remove the rack mount kit from the shipping carton. The kit contains the following items:
•
Two L-shaped mounting brackets
•
Eight 8-32 x 5/16 in., panhead Phillips screws
2. Attach the mounting brackets to the sides of the device as illustrated in Figure 3 using the 8-32 x 5/16 in. screws.
NOTE
Be sure to use only the screws included in the Brocade ICX 7450 kit.
1 Front flush mount 2 Reverse mid-mount
3 Reverse-front mount 4 Rear mount
5 Front mid-mount 6 Two-post rack, side view
30 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Two-post rack mount installation
FIGURE 3 Attaching the mounting brackets for a Brocade ICX 7450
3. Position the device in the rack, providing temporary support under the switch until the rail kit is secured to the rack.
4. Attach the front right bracket to the rail rack using two 10-32 x 5/8 in. screws and the appropriate round-hole or square-hole
retainer nuts.
5. Repeat step 4 to attach the left front bracket to the left front rack rail and tighten all 10-32 x 5/8 in. screws to a torque of 25
in-lb (29 cm-kg). Refer to Figure 4.
FIGURE 4 Installing the Brocade ICX 7450 in a 2-post rack
Proceed to “Attaching a PC or terminal” on page 61.
Brocade ICX 7450 Switch Hardware Installation Guide 31
Part Number: 53-1003899-04
Installing the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks
(XBR-R000295)
Use the following instructions to install a 1U, 1.5U, or 2U device in a 19-in. (48.3 cm) EIA rack using the 1U, 1.5U, and 2U Universal Kit
for Four-Post Racks (XBR-R000295).
The device can be installed so that the port side is either flush with the front posts or recessed with the non-port side flush with the rear
posts. A recessed position allows a more gradual bend in the fiber-optic cables connected to the device and less interference in the aisle
at the front of the rack.
NOTE
Hardware devices illustrated in these procedures are only for reference and may not depict the device you are installing into the
rack.
Installation requirements
Review the installation and facility requirements for your product before mounting the device. Refer to the hardware installation guide for
your product for more information.
Use Electronic Industries Association (EIA) standard racks. Provide space in a 19-in. (48.3 cm) EIA rack, as required for the device type,
with a minimum distance of 24 in. (609.60 mm) and a maximum distance of 32 in. (812.80 mm) between the front and back posts.
Time and items required
Allow 15 to 30 minutes to complete this procedure. Note the following requirements to ensure correct installation and operation.
The following items are required to install the device using the Universal Four-Post Rack Kit:
•
Clamps or other means of temporarily supporting the device in the rack
•
#2 Phillips torque screwdriver
•
1/4-inch slotted-blade torque screwdriver
Parts list
The following parts are provided with the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks Installation (XBR-R000296).
CAUTION
Use the screws specified in the procedure. Using longer screws can damage the device.
32 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installing the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks (XBR-R000295)
FIGURE 5 Rack kit parts
Flush-front mounting the device in the rack
NOTE
The illustrations in the rack installation procedures show a 1U device, but the instructions are the same for a 1.5U or 2U device.
The illustrations in the rack installation procedures are for reference only and may not show the actual device.
Complete the following tasks to install the device in a four-post rack:
1. “Attaching the front brackets” on page 33
2. “Attaching the extension brackets to the device” on page 33
3. “Installing the device in the rack” on page 34
4. “Attaching the rear brackets to the extensions” on page 35
5. “Attaching the rear brackets to the rack posts” on page 36
1 Front brackets (2) 2 Bracket extensions (2)
3 Rear brackets, short (2) 4 Rear brackets, medium (2)
5 Rear brackets, long (2) 6 Screw, 8-32 x 5/16-in., panhead Phillips (8)
7 Screw, 8-32 x 5/16-in., flathead Phillips (16) 8 Screw, 6-32 x 1/4-in., panhead Phillips (8)
9 Screw, 10-32 x 5/8-in., panhead Phillips (8) 10 Retainer nut, 10-32 (8)
CAUTION
The device must be turned off and disconnected from the fabric during this procedure.
Brocade ICX 7450 Switch Hardware Installation Guide 33
Part Number: 53-1003899-04
Attaching the front brackets
Complete the following steps to attach the front brackets to the device.
1. Position the right front bracket with the flat side against the right side of the device at the front of the device, as shown in
Figure 6.
2. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the bracket and then into the holes on the side
of the device. Use the upper and lower screw holes, leaving the center holes empty.
3. Repeat Step 1 and Step 2 to attach the left front bracket to the left side of the device.
4. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
FIGURE 6 Attaching the front brackets
Attaching the extension brackets to the device
Complete the following steps to attach the extension brackets to the device. There are medium and long extension brackets that you can
use for this step. Choose the correct extension bracket for the depth of your rack.
1. Select the proper length extension bracket for your rack depth.
2. Position the right extension bracket along the side of the device as shown in Figure 7.
3. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the extension bracket and then into the holes
on the side of the device. Use the upper and lower screw holes, leaving the center holes empty.
4. Repeat Step 1 and Step 2 to attach the left extension bracket to the left side of the device.
5. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
1 Device 2 Front brackets
3 Screws, 8-32 x 5/16-in., flathead Phillips
34 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installing the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks (XBR-R000295)
FIGURE 7 Attaching the extension brackets to the device
Installing the device in the rack
Complete the following steps to install the device in the rack.
1. Position the device in the rack, as shown in Figure 8, providing temporary support under the device until the rail kit is secured to
the rack.
2. Attach the right front bracket to the right front rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use
the upper and lower holes in the bracket.
3. Attach the left front bracket to the left front rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the
upper and lower holes in the bracket.
4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
1 Bracket extensions 2 Screws, 8-32 x 5/16-in., flathead Phillips
Brocade ICX 7450 Switch Hardware Installation Guide 35
Part Number: 53-1003899-04
FIGURE 8 Positioning the device in the rack
Attaching the rear brackets to the extensions
Complete the following steps to attach the rear brackets to the extensions. There are short and long rear brackets that you can use for this
step. Choose the correct bracket for the depth of your rack.
1. Select the proper length rear bracket for your rack depth.
2. Slide the right rear bracket onto the right extension, as shown in Figure 9.
The short rear brackets are shown. Use the first and third vertical pairs of holes for the screws.
Refer to Figure 10 for the positioning of the medium or long brackets and screws.
3. Attach the brackets using four 6-32 x 1/4-in. panhead screws.
4. Repeat step 2 and step 3 to attach the left rear bracket to the left extension.
5. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lb (10 cm-kg).
1 Screws, 10-32 x 5/8-in., panhead Phillips 2 Retainer nuts, 10-32
36 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installing the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks (XBR-R000295)
FIGURE 9 Attaching the rear brackets to the extensions
FIGURE 10 Attaching the medium or long rear brackets to the extensions
Attaching the rear brackets to the rack posts
Complete the following steps to attach the rear brackets to the rack posts.
1. Attach the right rear bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts, as
shown in Figure 11. Use the upper and lower holes in the bracket.
2. Attach the left rear bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the
upper and lower holes in the bracket.
3. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
1 Rear brackets 2 Screws, 6-32 x 1/4-in., panhead Phillips
1 Rear bracket, medium or long 2 Screws, 6-32 x 1/4-in., panhead Phillips
Brocade ICX 7450 Switch Hardware Installation Guide 37
Part Number: 53-1003899-04
FIGURE 11 Attaching the rear brackets to the rack posts
Flush-rear (recessed) mounting the device in the rack
The flush-rear (recessed) mounting is similar to the flush-front mounting except that the brackets are reversed on the device.
NOTE
The illustrations in the rack installation procedures show a 1U device, but the instructions are the same for a 1.5U or 2U device.
The illustrations in the rack installation procedures are for reference only and may not show the actual device.
Complete the following tasks to install the device in a four-post rack:
1. “Attaching the front brackets to the rear of the device” on page 38
2. “Attaching the extensions to the front of the device” on page 38
3. “Installing the device in the rack” on page 39
4. “Attaching the rear brackets to the extensions at the front of the device” on page 40
5. “Attaching the rear brackets to the front rack posts” on page 41
1 Screws, 10-32 x 5/8-in., panhead Phillips 2 Retainer nuts, 10-32
CAUTION
The device must be turned off and disconnected from the fabric during this procedure.
38 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installing the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks (XBR-R000295)
Attaching the front brackets to the rear of the device
NOTE
In this installation, the brackets are named as listed in the parts list even though the installation of the brackets is reversed from
the flush-front installation.
Complete the following steps to attach the front brackets to the rear of the device.
1. Position the right front bracket with the flat side against the right rear side of the device, as shown in Figure 12.
2. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the bracket and then into the holes on the side
of the device. Use the upper and lower screw holes, leaving the center holes empty.
3. Repeat Step 1 and Step 2 to attach the left rear bracket to the left side of the device.
4. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
FIGURE 12 Attaching the front brackets to the rear of the device
Attaching the extensions to the front of the device
Complete the following steps to attach the extension brackets to the front of the device. There are medium and long extension brackets
that you can use for this step. Choose the correct extension for the depth of your rack.
1. Select the proper length extension bracket for your rack depth.
2. Position the right extension along the side of the device as shown in Figure 13.
3. Attach the bracket using four 8-32 x 5/16-in. flathead screws.
1 Device 2 Screws, 8-32 x 5/16-in., flathead Phillips
3Front brackets
Brocade ICX 7450 Switch Hardware Installation Guide 39
Part Number: 53-1003899-04
4. Repeat Step 1 and Step 2 to attach the left front extension to the left side of the device.
5. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
FIGURE 13 Attaching the bracket extensions to the device
Installing the device in the rack
Complete the following steps to install the device in the rack.
1. Position the device in the rack, as shown in Figure 14, providing temporary support under the device until the rail kit is secured to
the rack.
2. Attach the right front bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the
upper and lower holes in the bracket.
3. Attach the left front bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the
upper and lower holes in the bracket.
4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
1 Extension brackets 2 Screws, 8-32 x 5/16-in., flathead Phillips
40 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installing the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks (XBR-R000295)
FIGURE 14 Positioning the device in the rack
Attaching the rear brackets to the extensions at the front of the device
Complete the following steps to attach the rear brackets to the extensions. There are short and long front brackets that you can use for this
step. Choose the correct bracket for the depth of your rack.
1. Select the proper length rear bracket for your rack depth.
2. Slide the right rear bracket onto the right extension, as shown in Figure 15.
The short rear brackets are shown. Use the first and third vertical pairs of holes for the screws.
Refer to Figure 16 for the positioning of the medium or long brackets and screws.
3. Attach the brackets using four 6-32 x 1/4-in. screws.
4. Repeat Step 2 and Step 3 to attach the left rear bracket to the left extension.
5. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lb (10 cm-kg).
1 Screws, 10-32 x 5/8-in., panhead Phillips 2 Retainer nuts, 10-32
Brocade ICX 7450 Switch Hardware Installation Guide 41
Part Number: 53-1003899-04
FIGURE 15 Attaching the rear brackets to the extensions at the front of the device
FIGURE 16 Attaching the medium or long rear brackets to the extensions
Attaching the rear brackets to the front rack posts
Complete the following steps to attach the rear brackets to the front rack posts.
1. Attach the right rear bracket to the right front rack post using two 10-32 x 5/8-in. screws and two retainer nuts, as shown in
Figure 17. Use the upper and lower holes in the bracket.
2. Attach the left rear bracket to the left front rack post using two 10-32 x 5/8-in. screws and two retainer nuts. Use the upper and
lower holes in the bracket.
1 Rear brackets, short 2 Screws, 6-32 x 1/4-in., panhead Phillips
1 Rear bracket, medium or long 2 Screws, 6-32 x 1/4-in., panhead Phillips
42 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installing the Universal Four-Post Rack Kit (XBR-R000296)
3. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
FIGURE 17 Attaching the rear brackets to the front rack posts
Installing the Universal Four-Post Rack Kit (XBR-R000296)
Use the following instructions to install a device in EIA racks that are between L-12.7 to 81.28 cm deep (L-5.0 to 32.0 in.), where L is the
chassis depth, using the Universal Four-Post Rack Kit (XBR-R000296).
There are two ways you can mount the device in a four-post rack:
•
With the port side flush with the front posts
•
With the nonport side flush with the rear posts in a recessed position
A recessed position allows a more gradual bend in the fiber-optic cables connected to the switch and less interference in the aisle at the
front of the rack.
NOTE
Although this document describes how to install both single height (1U) and double height (2U) switches, the illustrations show a
1U switch as a typical installation.
NOTE
Hardware devices illustrated in these procedures are only for reference and may not depict the device you are installing into the
rack.
1 Screws, 10-32 x 5/8-in., panhead Phillips 2 Retainer nuts, 10-32
Brocade ICX 7450 Switch Hardware Installation Guide 43
Part Number: 53-1003899-04
Installation requirements
Provide space in an EIA rack with the following minimum and maximum distances between the front and back posts.
NOTE
For 1U and 2U devices, two people are required to install the device in a rack. One person holds the device, while the other screws
in the front and rear "L" brackets.
Note that if chassis depth (L) is less than 40.64 cm (16 in.), the chassis will not fit into a rack with a maximum depth of 81.28 cm (32 in.)
using the universal four-post rack kit. The maximum rack depth for a chassis less than 40.64 cm (16 in.) is 81.28 cm (32 in.) minus the
difference between the chassis depth and 40.64 cm (16 in.). For example, a chassis with a depth (L) of 35.56 cm (14 in.) is 5.08 cm (2
in.) smaller than 40.64 cm (16 in.), so it will install into a rack with a maximum depth of 81.28 cm (32 in.) - 5.08 cm (2 in.) = 76.2 cm (30
in.).
Review the installation and facility requirements for your product before mounting the device. Refer to “Facility requirements” on page 10
for more information.
Time and items required
Allow 15 to 30 minutes to complete the installation.
The following items are required to install the device using the Universal Four-Post Rack Kit:
•
#2 Phillips torque screwdriver
•
1/4-inch slotted-blade torque screwdriver
TABLE 2 Space requirements
Chassis with port-side
side vents
Notes Chassis depth Minimum rack depth Maximum rack depth
No Applicable to port-side and nonport-side flush mounts. L L-12.7 cm (L-5 in.) 81.28 cm (32 in.)
Yes Applicable to port-side flush mounts. L L-12.7 cm (L-5 in.) 81.28 cm (32 in.)
Yes Applicable to nonport-side flush mounts. L L 81.28 cm (32 in.)
44 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installing the Universal Four-Post Rack Kit (XBR-R000296)
FIGURE 18 Items in the Universal Four-Post Rack Kit
Ensure that the items listed and illustrated in Figure 18 are included in the kit. Note that not all parts may be used with certain installations
depending on the device type.
Flush-front mounting
1 Front brackets (2) 2 Extension brackets, medium (2)
3 Rear brackets, short (2) 4 Rear brackets, long (2)
5 Extension brackets, long (2) 6 Screw, 8-32 x 5/16-in., panhead Phillips (8)
7 Screw, 8-32 x 5/16-in., flathead Phillips (16) 8 Screw, 6-32 x 1/4-in., panhead Phillips (8)
9 Screw, 10-32 x 5/8-in., panhead Phillips (8) 10 Retainer nut, 10-32 (8)
CAUTION
Use the screws specified in the procedure. Using longer screws can damage the device.
CAUTION
The device must be turned off and disconnected from the fabric during this procedure.
Brocade ICX 7450 Switch Hardware Installation Guide 45
Part Number: 53-1003899-04
NOTE
The illustrations in the rack installation procedures show a 1U device, but the instructions are the same for a 2U device. The
illustrations in the rack installation procedures are for reference only and may not show the actual device.
Complete the following tasks to install the device in a four-post rack:
1. “Attaching the front brackets” on page 45
2. “Attaching the extension brackets to the device” on page 45
3. “Installing the device in the rack” on page 46
4. “Attaching the rear brackets to the extensions” on page 47
5. “Attaching the rear brackets to the rack posts” on page 48
Attaching the front brackets
Complete the following steps to attach the front brackets to the device.
1. Position the right front bracket with the flat side against the right side of the device at the front of the device, as shown in
Figure 19.
2. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the bracket and then into the holes on the side
of the device. Use the upper and lower screw holes, leaving the center holes empty.
3. Repeat Step 1 and Step 2 to attach the left front bracket to the left side of the device.
4. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
FIGURE 19 Attaching the front brackets
Attaching the extension brackets to the device
Complete the following steps to attach the extension brackets to the device. There are medium and long extension brackets that you can
use for this step. Choose the correct extension bracket for the depth of your rack.
1 The Brocade device 2 Front brackets
3 Screws, 8-32 x 5/16-in., flathead Phillips
46 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installing the Universal Four-Post Rack Kit (XBR-R000296)
1. Select the proper length extension bracket for your rack depth.
2. Position the right extension bracket along the side of the device as shown in Figure 20.
3. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the extension bracket and then into the holes
on the side of the device. Use the upper and lower screw holes, leaving the center holes empty.
4. Repeat Step 1 and Step 2 to attach the left extension bracket to the left side of the device.
5. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
FIGURE 20 Attaching the extension brackets to the device
Installing the device in the rack
Complete the following steps to install the device in the rack.
1. Position the device in the rack, as shown in Figure 21, providing temporary support under the device until the rail kit is secured to
the rack.
2. Attach the right front bracket to the right front rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use
the upper and lower holes in the bracket.
3. Attach the left front bracket to the left front rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the
upper and lower holes in the bracket.
4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
1 Extension brackets 2 Screws, 8-32 x 5/16-in., flathead Phillips
Brocade ICX 7450 Switch Hardware Installation Guide 47
Part Number: 53-1003899-04
FIGURE 21 Positioning the device in the rack
Attaching the rear brackets to the extensions
Complete the following steps to attach the rear brackets to the extensions. There are short and long rear brackets that you can use for this
step. Choose the correct bracket for the depth of your rack.
1. Select the proper length rear bracket for your rack depth.
2. Slide the right rear bracket onto the right extension and attach to the extension by inserting four 6-32 x 1/4-in. panhead screws
through the bracket holes. If possible, leave at least one empty vertical pair of holes between the screws for better support.
3. Repeat step 2 to attach the left rear bracket to the left extension.
4. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lb (10 cm-kg).
FIGURE 22 Attaching the rear brackets to the extensions
1 Screws, 10-32 x 5/8-in., panhead Phillips 2 Retainer nuts, 10-32
1 Rear brackets 2 Screws, 6-32 x 1/4-in., panhead Phillips
48 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installing the Universal Four-Post Rack Kit (XBR-R000296)
Attaching the rear brackets to the rack posts
Complete the following steps to attach the rear brackets to the rack posts.
1. Attach the right rear bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts, as
shown in Figure 23. Use the upper and lower holes in the bracket.
2. Attach the left rear bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the
upper and lower holes in the bracket.
3. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
FIGURE 23 Attaching the rear brackets to the rack posts
Flush-rear (recessed) mounting
The flush-rear (recessed) mounting is similar to the flush-front mounting except that the brackets are reversed on the device.
NOTE
The illustrations in the rack installation procedures show a 1U device, but the instructions are the same for a 2U device. The
illustrations in the rack installation procedures are for reference only and may not show the actual device.
Complete the following tasks to install the device in a four-post rack:
1. “Attaching the front brackets to the rear of the device” on page 49
2. “Attaching the extensions to the front of the device” on page 49
3. “Installing the device in the rack” on page 50
4. “Attaching the rear brackets to the extensions at the front of the device” on page 51
1 Screws, 10-32 x 5/8-in., panhead Phillips 2 Retainer nuts, 10-32
CAUTION
The device must be turned off and disconnected from the fabric during this procedure.
Brocade ICX 7450 Switch Hardware Installation Guide 49
Part Number: 53-1003899-04
5. “Attaching the rear brackets to the front rack posts” on page 52
Attaching the front brackets to the rear of the device
NOTE
In this installation, the brackets are named as listed in the parts list even though the installation of the brackets is reversed from
the flush-front installation.
Complete the following steps to attach the front brackets to the rear of the device.
1. Position the right front bracket with the flat side against the right rear side of the device, as shown in Figure 24.
2. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the bracket and then into the holes on the side
of the device. Use the upper and lower screw holes, leaving the center holes empty.
3. Repeat step 1 and step 2 to attach the left rear bracket to the left side of the device.
4. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
FIGURE 24 Attaching the front brackets to the rear of the device
Attaching the extensions to the front of the device
Complete the following steps to attach the extension brackets to the front of the device. There are medium and long extension brackets
that you can use for this step. Choose the correct extension for the depth of your rack.
1. Select the proper length extension bracket for your rack depth.
2. Position the right extension along the side of the device as shown in Figure 25.
3. Attach the bracket using four 8-32 x 5/16-in. flathead screws.
4. Repeat step 1 and step 2 to attach the left front extension to the left side of the device.
5. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lb (17 cm-kg).
1 The Brocade device 2 Front brackets
3 Screws, 8-32 x 5/16-in., flathead Phillips
50 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installing the Universal Four-Post Rack Kit (XBR-R000296)
FIGURE 25 Attaching the bracket extensions to the device
Installing the device in the rack
Complete the following steps to install the device in the rack.
1. Position the device in the rack, as shown in Figure 26, providing temporary support under the device until the rail kit is secured to
the rack.
2. Attach the right front bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the
upper and lower holes in the bracket.
3. Attach the left front bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the
upper and lower holes in the bracket.
4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
1 Extension brackets 2 Screws, 8-32 x 5/16-in., flathead Phillips
Brocade ICX 7450 Switch Hardware Installation Guide 51
Part Number: 53-1003899-04
FIGURE 26 Positioning the device in the rack
Attaching the rear brackets to the extensions at the front of the device
Complete the following steps to attach the rear brackets to the extensions. There are short and long front brackets that you can use for this
step. Choose the correct bracket for the depth of your rack.
1. Select the proper length rear bracket for your rack depth.
2. Slide the right rear bracket onto the right extension, as shown in Figure 27.
The short rear brackets are shown. Use the first and third vertical pairs of holes for the screws.
Refer to Figure 28 for the positioning of the short or long brackets and screws.
3. Attach the brackets using four 6-32 x 1/4-in. screws.
4. Repeat step 2 and step 3 to attach the left rear bracket to the left extension.
5. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lb (10 cm-kg).
1 Screws, 10-32 x 5/8-in., panhead Phillips 2 Retainer nuts, 10-32
52 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Installing the Universal Four-Post Rack Kit (XBR-R000296)
FIGURE 27 Attaching the rear brackets to the extensions at the front of the device
FIGURE 28 Attaching the short or long rear brackets to the extensions
Attaching the rear brackets to the front rack posts
Complete the following steps to attach the rear brackets to the front rack posts.
1. Attach the right rear bracket to the right front rack post using two 10-32 x 5/8-in. screws and two retainer nuts, as shown in
Figure 29. Use the upper and lower holes in the bracket.
2. Attach the left rear bracket to the left front rack post using two 10-32 x 5/8-in. screws and two retainer nuts. Use the upper and
lower holes in the bracket.
3. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
1 Rear brackets, short 2 Screws, 6-32 x 1/4-in., panhead Phillips
1 Rear bracket, short or long 2 Screws, 6-32 x 1/4-in., panhead Phillips
Brocade ICX 7450 Switch Hardware Installation Guide 53
Part Number: 53-1003899-04
FIGURE 29 Attaching the rear brackets to the front rack posts
Connecting devices in a stack
The Brocade ICX 7450 can operate as a standalone device or as a member of a stack. A stack is a group of devices—Brocade stackable
units and their connected stacking links—that are connected so that the stack is managed as a single entity.
You can mix any Brocade ICX 7450 models together in a stack. A stack cannot contain other device types.
Stacking ports
There are two QSFP+ ports on the rear panel that can be used as stacking ports. The following figure shows these ports in slot 3 and slot
4 (right to left).
FIGURE 30 Stacking ports (rear panel)
Ports 1/3/1 and 1/4/1 are default stacking ports. Default stacking ports have the capability to accept special stacking packets during a
CLI-initiated command sequence of the Secure Setup utility.
The 4x10 GbE SFP+ ports on the front panel can also be used as stacking ports. The following figure shows these ports in slot 2. 10 GbE
stacking is not supported in slots 3 and 4. The 4x10 GbE copper module (ICX7400-4X10GC) does not support stacking.
1 Screws, 10-32 x 5/8-in., panhead Phillips 2 Retainer nuts, 10-32
1 Module 3 – 40 GbE QSFP+ stacking port 1/3/1 2 Module 4 – 40 GbE QSFP+ stacking port 1/4/1
54 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Connecting devices in a stack
FIGURE 31 Stacking ports (front panel)
Default stacking ports can be changed to Ports 1/2/1 and 1/2/3 if a 4x10 GbE SFP+ module is installed in slot 2. Refer to the Brocade
FastIron Stacking Configuration Guide for more information on configuring 4x10 Gbps stacking ports.
NOTE
40 Gbps stacking on the rear panel and 4x10 Gbps stacking on the front panel cannot be configured at the same time
Stacking configuration requirements
Before configuring the stack using the CLI, physically connect the devices using stacking cables. For information about configuring a
stack, refer to the Brocade FastIron Stacking Configuration Guide.
Stacking cables
Use QSFP+ direct attached copper stacking cables or QSFP+ optics with fiber cables to connect the Brocade ICX 7450 devices in a
stack. The copper cable lengths for 40 GbE ports are 0.5 meter, 1 meter, 3 meters, or 5 meters.
NOTE
Stacking cables are not included in the shipping carton and must be ordered separately.
Stack size
A traditional stack can contain a maximum of twelve Brocade ICX 7450 devices. A stack cannot contain other device types.
Stacking topologies
Both linear and ring topologies are supported in a stack. In a linear stack topology, there is a connection between each switch that carries
two-way communications across the stack.
For example, in a four-unit stack using a linear topology, unit 1 connects to unit 2, unit 2 to unit 3, and unit 3 to unit 4.
Figure 32 shows a supported rear panel linear stacking topology.
Brocade ICX 7450 Switch Hardware Installation Guide 55
Part Number: 53-1003899-04
FIGURE 32 Rear panel linear stacking topology
In a ring stack topology, there is an extra connection between the logical first and last devices, forming a “ring” or “closed-loop.” The
closed-loop connection provides a redundant path for the stack link, so if one link fails, stack communications can be maintained.
For example, in a three-unit stack using a ring topology, unit 1 connects to unit 2, unit 2 connects to unit 3, and unit 3 connects to unit 1.
Figure 33 shows a supported rear panel ring stacking topology.
FIGURE 33 Rear panel ring stacking topology
The following figures show linear and ring stacking using slot 2 on the front panel. Only the ICX7400-4X10GF module supports stacking
using slot 2.
Figure 34 shows a supported front panel linear stacking topology.
FIGURE 34 Front panel linear stacking topology
56 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Grounding the system
Figure 35 shows a supported front panel ring stacking topology.
FIGURE 35 Front panel ring stacking topology
NOTE
For more information about stacking, refer to the Brocade FastIron Stacking Configuration Guide.
Grounding the system
The rear panel of the Brocade ICX 7450 includes a single-screw grounding terminal. The surface area around this terminal is not painted
to provide a good electrical connection. Before connecting power to the device, the grounding terminal must be connected to ground to
ensure proper operation and to meet electromagnetic interference (EMI) and safety requirements.
FIGURE 36 Connecting the grounding terminal
NOTE
Use the grounding lug and screw included in the Brocade ICX 7450 grounding kit.
Perform the following steps to connect to the grounding terminal.
1. Ensure that the rack in which the Brocade ICX 7450 is mounted is properly grounded and in compliance with local regulations.
2. Ensure that there is a good electrical connection to the grounding point on the rack (no paint or isolating surface treatment).
3. Crimp the included grounding lug to a grounding wire of at least 12 American Wire Gauge (AWG). The 12 AWG wire and
grounding lug should be crimped together using a proper tool.
4. Attach the 12 AWG stranded copper wire to the grounding terminal on the Brocade ICX 7450 using the screw included in the
grounding kit.
1 Grounding terminal
Brocade ICX 7450 Switch Hardware Installation Guide 57
Part Number: 53-1003899-04
5. Attach the grounding wire to the grounding point on the rack.
NOTE
The terminal for the connection of a grounding conductor is not to be used with an aluminum conductor.
Powering on the system
After you complete the physical installation, you can power on the system.
1. Install alternating-current (AC) and direct-current (DC) power supplies in the switch.
2. Attach AC or DC power cables to the power supply connectors on the rear panel.
3. Connect the power cables to the 100-240 VAC or 40-72 VDC power source.
NOTE
To turn the system off, simply unplug the power cable or cables.
NOTE
The equipment should be installed near a power source and in an easily accessible location.
Power supplies
The Brocade ICX 7450 supports alternating-current (AC) and direct-current (DC) power supplies. The Brocade ICX 7450 is capable of
running on one power supply and one fan. The second power supply and second fan provide redundancy.
If the second power supply and second fan slot are unused, you must cover them with filler panels.
NOTE
Brocade recommends that the Brocade ICX 7450 switch operates with two power supplies and two fan trays installed. If a power
supply or fan tray fails, it must be replaced as soon as possible.
NOTE
AC and DC power supplies cannot be installed and used in the same device. Mismatched power supplies in the same device
cause continual reboot on power up.
Power supply usage
The Brocade ICX 7450-24P, ICX 7450-32ZP, and ICX 7450-48P models support specific AC or DC power supply inputs and
numbers of POE, POE+, High PoE, and PoH ports.
TABLE 3 AC power supply and PoE usage
Model Maximum PoE
output power draw
(Watts)
Maximum number
of PoE ports
supported (15.4W)
Maximum number
of PoE+ ports
supported (30W)
Maximum number
of High PoE ports
supported (60W)
Maximum number
of PoH ports
supported (95W)
ICX 7450-24P 748 Watts 24 24 8 7
ICX 7450-32ZP 748 Watts 32 24 8 7
ICX 7450-48P 748 Watts 48 24 8 7
58 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Power supplies
Using a second power supply
In the event of an AC power loss or power supply failure, a redundant power supply (second power supply) can be installed as a backup
power source to a switch. Each power supply provides a load-sharing and redundant power source (up to 250 W AC or 510 W DC for
non-PoE switches, and 1000 W AC or 510 W DC for PoE switches).
Brocade recommends that you pay attention to the PoE, PoE+, High PoE, and PoH port configuration (referred to as PoE in this section)
of the switch when using a redundant power supply. When using a single power supply, a PoE switch has a maximum number of
supported PoE ports. Brocade recommends that when a redundant power source is used for a PoE switch, that the maximum number of
PoE ports supported by the switch must not exceed that which can be supported by a single power supply.
For example, a Brocade ICX 7450-24P has two power supplies installed. If you increase the maximum number of PoE ports that can be
supported, and if the primary power supply fails, the redundant power supply cannot guarantee the device is protected by backup power.
The redundant power supply will not have enough power to sustain the failed primary power supply. In this case, the device can go down
even with the redundant power supply connected.
Installing and replacing a power supply unit
When installing or replacing a power supply unit, keep in mind the following:
•
Power supplies can be swapped in or out while the device is running. The remaining power supply provides enough power for
the device.
•
The airflow direction of the power supply must match that of the installed fan trays. All must be either exhaust or intake.
Installing an AC power supply
Use the following steps to install an AC power supply in the Brocade ICX 7450.
TABLE 4 DC power supply and PoE usage
Model Maximum p ower
draw from DC line
input (Watts)
Maximum number
of PoE ports
supported (15.4W)
Maximum number
of PoE+ ports
supported (30W)
Maximum number
of High PoE ports
supported (60W)
Maximum number
of PoH ports
supported (95W)
ICX 7450-24P 258.5 Watts 16 8 4 2
ICX 7450-32ZP 258.5 Watts 16 8 4 2
ICX 7450-48P 258.5 Watts 16 8 4 2
CAUTION
Power supplies are hot-swappable. However, they should be inserted or removed without a power cord being connected to a
power source to avoid damage.
CAUTION
For Brocade ICX 7450 devices, be sure that the airflow direction of the power supply unit matches that of installed fan trays.
The power supplies and fan trays are clearly labeled with either a green arrow with an “E”, or an orange arrow with an “I.”
Brocade ICX 7450 Switch Hardware Installation Guide 59
Part Number: 53-1003899-04
FIGURE 37 Installing an AC power supply unit
1. If replacing a power supply, remove the previously installed power supply from the appropriate slot by removing the two screws
with a Phillips screwdriver.
2. If installing a new power supply into a slot covered with a filler panel:
a. Using a Phillips screwdriver, unscrew the screws on the filler panel.
b. Remove the filler panel.
3. Before opening the package that contains the power supply, touch the bag to the switch casing to discharge any potential static
electricity. Brocade recommends using an ESD wrist strap during installation.
4. Remove the power supply from the anti-static shielded bag.
5. Holding the power supply level, guide it into the carrier rails on each side and gently push it all the way into the slot, ensuring that
it firmly engages with the connector.
6. When you are sure the power supply has properly engaged the connector, tighten the retainer screws to secure the power supply
in the slot.
When the Brocade ICX 7450 is powered on, the LEDs on the power supply rear panel should light up green to confirm that the power
supply is correctly installed and supplying power.
Installing a DC power supply
NOTE
AC and DC power supplies cannot be installed and used in the same device. Mismatched power supplies in the same device
cause continual reboot on power up.
Use the following steps to install a DC power supply in the Brocade ICX 7450.
CAUTION
Empty fan and power supply slots must be covered using filler panels.
60 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Power supplies
1. Remove the previously installed power supply from the appropriate slot by removing the chassis attachment screws located in
the upper right and lower left of the power supply unit using a flat-head screwdriver. Refer to item 1 in Figure 38.
FIGURE 38 DC power supply screws
2. Before opening the package that contains the DC power supply, touch the bag of the switch casing to discharge any potential
static electricity. Brocade recommends using an ESD wrist strap during installation.
3. Remove the DC power supply from the anti-static shielded bag.
4. Insert the DC power supply source wires into the DC wiring assembly, matching the terminals. Refer to Figure 39.
FIGURE 39 DC power supply wiring assembly
1 Chassis attachment screws 2 Assembly screws
1 Wire-tightening screws 2 Earth ground wire
3 DC power source wires 4 Assembly screws
Brocade ICX 7450 Switch Hardware Installation Guide 61
Part Number: 53-1003899-04
5. Use the wire-tightening screws to secure the wires.
6. Insert the earth ground wire into the ground terminal on the DC wiring assembly. Refer to Figure 39.
NOTE
This equipment installation must meet NEC/CEC Code requirements. Consult local authorities for regulations.
7. Insert the DC power supply wiring assembly with the wires connected into the power supply and tighten the assembly screws.
Refer to Figure 39.
8. Using the handle on the power supply, hold the power supply level and guide it into the carrier rails on each side of the power
supply slot. Gently push the power supply all the way into the slot, ensuring that it firmly engages with the connector.
9. When you are sure the power supply has properly engaged the connector, tighten the chassis attachment screws to secure the
power supply in the slot.
When the Brocade ICX 7450 is powered on, the power LED on the front of the device should turn green to confirm that the power supply
is correctly installed and supplying power. Refer to “Brocade ICX 7450 front-panel LEDs” on page 65.
Attaching a PC or terminal
To assign an IP address, you must have access to the command line interface (CLI). The CLI is a text-based interface that can be
accessed through a direct serial connection to the device and through Telnet connections. The CLI is described in detail in the Brocade
FastIron Management Configuration Guide.
Access the CLI by connecting to the console port. After you assign an IP address, you can access the system through Telnet or Brocade
Network Advisor.
Use the following steps to attach a management station to the console port.
1. Connect a PC or terminal to the console management port on the front of the Brocade ICX 7450 using the mini-USB serial
console port cable.
For port pinout information for the mini-USB serial console port, refer to <Link>“Serial port specifications (pinout - mini-USB)”
on page 83.
NOTE
You must run a terminal emulation program on the PC.
2. Launch the terminal emulation program and set the following session parameters:
•
Baud: 9600 bps
•
Data bits: 8
•
Parity: None
•
Stop bits: 1
•
Flow control: None
The console serial communication port serves as a connection point for management by a PC.
62 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Connecting to the management port
Connecting to the management port
The Gigabit Ethernet management port (RJ-45) on the Brocade ICX 7450 front panel provides an out-of-band network connection to
the device. After you assign an IP address, you can access the Brocade ICX 7450 from anywhere in the attached network using Telnet, a
web browser, or other network management tools, such as Brocade Network Advisor. To prevent unauthorized access, Brocade
recommends that the management port only be connected to a secure private network.
To manage the Brocade ICX 7450 through its management port, connect the port to the management Ethernet network using Category
5 or better cable.
Management of the Brocade ICX 7450 is described in detail in the Brocade FastIron Management Configuration Guide.
Installing an SFP or SFP+ transceiver
Before removing a fiber-optic transceiver, have the following items available:
•
The protective covering that you removed from the fiber-optic transceiver port when you initially installed the module
•
An ESD wrist strap with a plug for connection to the ESD connector on the switch
To monitor the transceivers, the show media command output shows the transceiver information for all transceiver interfaces on the
switch. Brocade provides support for third-party transceivers, but may require a Brocade transceiver be used for troubleshooting.
Support will not be provided if there is an issue with a third-party transceiver.
Complete the following steps to install an SFP or SFP+ transceiver.
1. Remove any protector plugs from the transceivers and the ports.
2. Making sure that the bail (wire handle) is in the unlocked position, place the SFP or SFP+ transceiver in the correctly oriented
position on the port, as shown in Figure 40.
3. Slide the SFP or SFP+ transceiver into the port until you feel it click into place; then close the bail.
NOTE
Each SFP or SFP+ transceiver has a 10-pad gold-plated edge connector on the bottom. The correct position to insert an SFP or
SFP+ transceiver in the upper row of ports is with the gold-plated edge down. The correct position to insert an SFP or SFP+
transceiver in the lower row of ports is with the gold-plated edge up.
DANGER
Laser radiation. Do not view directly with optical instruments. Class 1M laser products.
CAUTION
For safety reasons, the ESD wrist strap should contain a series 1 megohm resistor.
Brocade ICX 7450 Switch Hardware Installation Guide 63
Part Number: 53-1003899-04
FIGURE 40 Installing an SFP or SFP+ transceiver in a port slot
Connecting network devices
Brocade devices support connections to other vendors’ routers, switches, and hubs, as well other Brocade devices.
Connectors
For port pinouts, refer to <Link>“Serial port specifications (pinout - mini-USB)” on page 83.
Connecting a network device to a copper port
For copper connections to another Brocade device or any other devices, use straight-through or crossover UTP cabling.
Automatic MDI or MDIX detection
All 10/100/1000 Mbps and 10 Gbps Ethernet copper ports on the devices support automatic Media Dependent Interface (MDI) and
Media Dependent Interface Crossover (MDIX) detection. Automatic MDI or MDIX detection is enabled on all copper ports by default. For
each port, you can disable automatic MDI or MDIX, designate the port as an MDI port, or designate the port as an MDIX port.
For more information about automatic MDI or MDIX detection and configuration details, refer to the Brocade FastIron Management
Configuration Guide.
Connecting a network device to a fiber port
For direct attachment from the device to a 1 GbE network interface card, switch, or router, using a fiber-optic transceiver, you will need
fiber cabling with an LC connector.
For information about transceivers supported on Brocade ICX 7450 devices, refer to the Brocade Optics Family Data Sheet.
To connect the device to another network device using a fiber port, you must complete the following tasks:
•
Install a fiber-optic transceiver (SFP, or SFP+). Refer to “Installing an SFP or SFP+ transceiver” on page 62.
•
Cable the fiber-optic transceiver
64 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Installing the Brocade ICX 7450
Connecting network devices
Cabling a fiber-optic transceiver
Use the following steps to cable a fiber-optic transceiver.
1. Remove the protective covering from the fiber-optic port connectors and store the covering for future use.
2. Before cabling a fiber-optic transceiver, Brocade strongly recommends cleaning the cable connectors and the port connectors.
For more information, refer to “Cleaning the fiber-optic connectors” on page 64.
3. Gently insert the cable connector (a tab on each connector should face upward) into the transceiver connector until the tabs lock
into place.
4. Observe the link and activity LEDs to determine if the network connections are functioning properly. For more information about
the LED indicators, refer to “LED activity interpretation” on page 65.
NOTE
To verify that a Brocade ICX 7450 can reach another device through the network, use the ping command at any level of the CLI.
For more information, refer to the Brocade FastIron Management Configuration Guide.
Cleaning the fiber-optic connectors
To avoid problems with the connection between the fiber-optic transceiver (SFP, SFP+, or QSFP+) and the fiber cable connectors,
Brocade strongly recommends cleaning both connectors each time you disconnect and reconnect them. Dust can accumulate in the
connectors and cause problems such as reducing the optic launch power.
To clean the fiber cable connectors, Brocade recommends using a fiber-optic reel-type cleaner. When not using an SFP connector, make
sure to keep the protective covering in place.
Brocade ICX 7450 Switch Hardware Installation Guide 65
Part Number: 53-1003899-04
Brocade ICX 7450 Operation
•
LED activity interpretation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
•
Brocade ICX 7450 front-panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
•
Brocade ICX 7450 rear-panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
•
LED patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
•
Diagnostic tests and monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
LED activity interpretation
System activity and status can be determined through the activity of the LEDs on the switch.
There are three possible LED states: off (no light), a steady light, and a flashing light. Flashing lights may be slow, fast, or flickering. The
LED colors are either green or amber.
Sometimes, the LEDs flash either of the colors during boot, POST, or other diagnostic tests. This is normal; it does not indicate a problem
unless the LEDs do not indicate a healthy state after all boot processes and diagnostic tests are complete.
Brocade ICX 7450 front-panel LEDs
The Brocade ICX 7450-24 has the following LEDs on the front panel:
•
Two management port status LEDs (green) for speed and link/activity
•
Two power supply unit (PSU) bicolor status LEDs (green and amber) labeled PSU1 and PSU2
•
One DIAG (diagnostic) bicolor status LED (green and amber)
•
One MS (stacking configuration) bicolor status LED (green and amber)
•
Three MOD (media expansion module) monocolor status LEDs (green)
•
Ten stack ID (stack identifier) monocolor indicator LEDs (green)
•
24 1 GbE port status LEDs (green for 1 GbE and amber for 10/100 Mbps Ethernet) which indicate 1 GbE or 10/100 Mbps
Ethernet mode of operation
1G SFP module LEDs:
•
Four 1 GbE SFP port bicolor status LEDs (green for 1 GbE and amber for 10/100 Mbps Ethernet) which indicate 1 GbE or
10/100 Mbps Ethernet mode of operation
10G SFP+ module LEDs:
•
Four 1/10 GbE SFP+ port bicolor status LEDs (green for 10 GbE and amber for 1 GbE) which indicate 1 GbE or 10 GbE mode
of operation
40G QSFP+ module LEDs:
•
Four 40 GbE QSFP+ port bicolor status LEDs (green for 1x40 GbE and amber for 4x10 GbE) which indicate 1x40 GbE or
4x10 GbE mode of operation
Figure 1 shows the LEDs on the Brocade ICX 7450-24 front panel. The up-arrow port status LEDs for the 1 GbE ports correspond to
the upper, odd-numbered ports; the down-arrow port status LEDs correspond to the lower, even-numbered ports.
66 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Operation
Brocade ICX 7450 front-panel LEDs
FIGURE 1 Brocade ICX 7450-24 front-panel LEDs
The Brocade ICX 7450-24P has the following LEDs on the front panel:
•
Two management port status LEDs (green) for speed and link/activity
•
Two power supply unit (PSU) bicolor status LEDs (green and amber) labeled PSU1 and PSU2
•
One DIAG (diagnostic) bicolor status LED (green and amber)
•
One MS (stacking configuration) bicolor status LED (green and amber)
•
Three MOD (media expansion module) monocolor status LEDs (green)
•
Ten stack ID (stack identifier) monocolor indicator LEDs (green)
•
24 1 GbE port bicolor status LEDs (green for 1 GbE and amber for 10/100 Mbps Ethernet) which indicate 1 GbE or 10/100
Mbps Ethernet mode of operation
•
24 PoE+ port monocolor status LEDs (green for providing power to attached device)
1G SFP module LEDs:
•
Four 1 GbE SFP port bicolor status LEDs (green for 1 GbE and amber for 10/100 Mbps Ethernet) which indicate 1 GbE or
10/100 Mbps Ethernet mode of operation
10G SFP+ module LEDs:
•
Four 1/10 GbE SFP+ port bicolor status LEDs (green for 10 GbE and amber for 1 GbE) which indicate 1 GbE or 10 GbE mode
of operation
40G QSFP+ module LEDs:
•
Four 40 GbE QSFP+ port bicolor status LEDs (green for 1x40 GbE and amber for 4x10 GbE) which indicate 1x40 GbE or
4x10 GbE mode of operation
1 Management port speed and link/activity LEDs 2 Stack ID LEDs
Indicates stack unit identifier (1-12).
3 PSU1 and PSU2 status LEDs
PSU1 corresponds to the right power supply slot
on the rear panel and PSU2 to the left power
supply slot, as viewed from the rear.
4 Ports 1-24 speed/link/activity LED
5 DIAG (diagnostic) status LED and MS (stacking
configuration) status LED
6 MOD2 1/10 GbE module speed andlink/activity
LEDs
7 MOD (media expansion module) LEDs. Module 2
is located on the right side of the front panel.
Module 3 and 4 are the right and left stacking
modules on the rear panel, as viewed from the rear.
8 MOD2 1/10 GbE power LED
Brocade ICX 7450 Switch Hardware Installation Guide 67
Part Number: 53-1003899-04
Figure 2 shows the LEDs on the Brocade ICX 7450-24P front panel. The up-arrow port status LEDs for the 1 GbE ports correspond to
the upper, odd-numbered ports; the down-arrow port status LEDs correspond to the lower, even-numbered ports.
FIGURE 2 Brocade ICX 7450-24P front-panel LEDs
NOTE
PoE/PoE+ power is available to ports 1-24. High PoE/PoH is limited to ports 1-8.
The Brocade ICX 7450-32ZP has the following LEDs on the front panel:
•
Two management port status LEDs (green) for speed and link/activity
•
Two power supply unit (PSU) bicolor status LEDs (green and amber) labeled PSU1 and PSU2
•
One DIAG (diagnostic) bicolor status LED (green and amber)
•
One MS (stacking configuration) bicolor status LED (green and amber)
•
Three MOD (media expansion module) monocolor status LEDs (green)
•
Ten stack ID (stack identifier) monocolor indicator LEDs (green)
•
24 1 GbE port bicolor status LEDs for ports 1-24 (green for 1 GbE and amber for 10/100 Mbps Ethernet) which indicate 1
GbE or 10/100 Mbps Ethernet mode of operation
•
8 2.5 GbE port bicolor status LEDs for ports 25-32 (green for 2.5 GbE and amber for 100/1000 Mbps Ethernet) which
indicate 2.5 GbE, 1 GbE, or 100 Mbps Ethernet mode of operation
•
32 PoE+ port monocolor status LEDs (green for providing power to attached device)
1 Management port speed and link/activity LEDs 2 Ports 1-24 speed and link/activity LEDs
3 PSU1 and PSU2 status LEDs
PSU1 corresponds to the right power supply slot
on the rear panel and PSU2 to the left power
supply slot, as viewed from the rear.
4 PoE power LEDs. The PoE indicator is on if a port is
providing power to the connected device, and off if it
is not supplying power.
5 DIAG (diagnostic) status LED and MS (stacking
configuration) status LED
6 MOD2 1/10 GbE module speed andlink/activity
LEDs
7 MOD (media expansion module) LEDs. Module 2
is located on the right side of the front panel.
Module 3 and 4 are the right and left stacking
modules on the rear panel, as viewed from the rear.
8 MOD2 1/10 GbE power LED
9 Stack ID LEDs
Indicates stack unit identifier (1-12).
68 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Operation
Brocade ICX 7450 front-panel LEDs
10G SFP+ module LEDs:
•
Four 1/10 GbE SFP+ port bicolor status LEDs (green for 10 GbE and amber for 1 GbE) which indicate 1 GbE or 10 GbE mode
of operation
40G QSFP+ module LEDs:
•
Four 40 GbE QSFP+ port bicolor status LEDs (green for 1x40 GbE and amber for 4x10 GbE) which indicate 1x40 GbE or
4x10 GbE mode of operation
Figure 3 shows the LEDs on the Brocade ICX 7450-32ZP front panel. The up-arrow port status LEDs for the 1 GbE and 2.5 GbE ports
correspond to the upper, odd-numbered ports; the down-arrow port status LEDs correspond to the lower, even-numbered ports.
FIGURE 3 Brocade ICX 7450-32ZP front-panel LEDs
NOTE
PoE/PoE+ power is available to ports 1-32. High PoE/PoH is limited to ports 1-8.
The Brocade ICX 7450-48 has the following LEDs on the front panel:
•
Two management port status LEDs (green) for speed and link/activity
•
Two power supply unit (PSU) bicolor status LEDs (green and amber) labeled PSU1 and PSU2
•
One DIAG (diagnostic) bicolor status LED (green and amber)
•
One MS (stacking configuration) bicolor status LED (green and amber)
•
Three MOD (media expansion module) monocolor status LEDs (green)
•
Ten stack ID (stack identifier) monocolor indicator LEDs (green)
•
48 1 GbE bicolor port status LEDs (green for 1 GbE and amber for 10/100 Mbps Ethernet) which indicate 1 GbE or 10/100
Mbps Ethernet mode of operation
1 Management port speed and link/activity LEDs 2 Ports 1-32 speed and link/activity LEDs
3 PSU1 and PSU2 status LEDs
PSU1 corresponds to the right power supply slot
on the rear panel and PSU2 to the left power
supply slot, as viewed from the rear.
4 PoE power LEDs. The PoE indicator is on if a port is
providing power to the connected device, and off if it
is not supplying power.
5 DIAG (diagnostic) status LED and MS (stacking
configuration) status LED
6 MOD2 10 GbE module speed and link/activity LEDs
7 MOD (media expansion module) LEDs. Module 2
is located on the right side of the front panel.
Module 3 and 4 are the right and left stacking
modules on the rear panel, as viewed from the rear.
8 MOD2 10 GbE module power LED
9 Stack ID LEDs
Indicates stack unit identifier (1-12).
Brocade ICX 7450 Switch Hardware Installation Guide 69
Part Number: 53-1003899-04
1G SFP module LEDs:
•
Four 1 GbE SFP port bicolor status LEDs (green) for 1 GbE and amber for 10/100 Mbps Ethernet) which indicate 1 GbE or
10/100 Mbps Ethernet mode of operation
10G SFP+ module LEDs:
•
Four 1/10 GbE SFP+ port bicolor status LEDs (green for 10 GbE and amber for 1 GbE) which indicate 1 GbE or 10 GbE mode
of operation
40G QSFP+ module LEDs:
•
One 40 GbE QSFP+ port bicolor status LED (green for 1x40 GbE and amber for 4x10 GbE) which indicates 1x40 GbE mode
of operation
Figure 4 shows the LEDs on the Brocade ICX 7450-48 front panel. The up-arrow port status LEDs for the 1 GbE ports correspond to
the upper, odd-numbered ports; the down-arrow port status LEDs correspond to the lower, even-numbered ports.
FIGURE 4 Brocade ICX 7450-48 front-panel LEDs
The Brocade ICX 7450-48P has the following LEDs on the front panel:
•
Two management port status LEDs (green) for speed and link/activity
•
Two power supply unit (PSU) bicolor status LEDs (green and amber) labeled PSU1 and PSU2
•
One DIAG (diagnostic) bicolor status LED (green and amber)
•
One MS (stacking configuration) bicolor status LED (green and amber)
•
Three MOD (media expansion module) monocolor status LEDs (green)
1 Management port speed and link/activity LEDs 2 Stack ID LEDs
Indicates stack unit identifier (1-12).
3 PSU1 and PSU2 status LEDs
PSU1 corresponds to the right power supply slot
on the rear panel and PSU2 to the left power
supply slot, as viewed from the rear.
4 Ports 1-48 speed/link/activity LED
5 DIAG (diagnostic) status LED and MS (stacking
configuration) status LED
6 MOD2 1/10 GbE module speed andlink/activity
LEDs
7 MOD (media expansion module) LEDs. Module 2
is located on the right side of the front panel.
Module 3 and 4 are the right and left stacking
modules on the rear panel, as viewed from the rear.
8 MOD2 1/10 GbE power LED
70 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Operation
Brocade ICX 7450 front-panel LEDs
•
Ten stack ID (stack identifier) monocolor indicator LEDs (green)
•
48 1 GbE port bicolor status LEDs (green for 1 GbE and amber for 10/100 Mbps Ethernet) which indicate 1 GbE or 10/100
Mbps Ethernet mode of operation
•
48 PoE+ port monocolor status LEDs (green for providing power to attached device)
1G SFP module LEDs:
•
Four 1 GbE SFP port bicolor status LEDs (green for 1 GbE and amber for 10/100 Mbps Ethernet) which indicate 1 GbE or
10/100 Mbps Ethernet mode of operation
10G SFP+ module LEDs:
•
Four 1/10 GbE SFP+ port bicolor status LEDs (green for 10 GbE and amber for 1 GbE) which indicate 1 GbE or 10 GbE mode
of operation
40G QSFP+ module LEDs:
•
One 40 GbE QSFP+ port bicolor status LED (green for 1x40 GbE and amber for 4x10 GbE) which indicates 1x40 GbE mode
of operation
Figure 5 shows the LEDs on the Brocade ICX 7450-48P front panel. The up-arrow port status LEDs for the 1 GbE ports correspond to
the upper, odd-numbered ports; the down-arrow port status LEDs correspond to the lower, even-numbered ports.
FIGURE 5 Brocade ICX 7450-48P front-panel LEDs
NOTE
PoE/PoE+ power is available to ports 1-48. High PoE/PoH is limited to ports 1-8.
1 Management port speed and link/activity LEDs 2 Ports 1-48 speed and link/activity LEDs
3 PSU1 and PSU2 status LEDs
PSU1 corresponds to the right power supply slot
on the rear panel and PSU2 to the left power
supply slot, as viewed from the rear.
4 PoE power LEDs. The PoE indicator is on if a port is
providing power to the connected device, and off if it
is not supplying power.
5 DIAG (diagnostic) status LED and MS (stacking
configuration) status LED
6 MOD2 1/10 GbE module speed andlink/activity
LEDs
7 MOD (media expansion module) LEDs. Module 2
is located on the right side of the front panel.
Module 3 and 4 are the right and left stacking
modules on the rear panel, as viewed from the rear.
8 MOD2 1/10 GbE power LED
9 Stack ID LEDs
Indicates stack unit identifier (1-12).
Brocade ICX 7450 Switch Hardware Installation Guide 71
Part Number: 53-1003899-04
The Brocade ICX 7450-48F has the following LEDs on the front panel:
•
Two management port monocolor status LEDs (green) for speed and link/activity
•
Two power supply unit (PSU) bicolor status LEDs (green and amber) labeled PSU1 and PSU2
•
One DIAG bicolor status LED (green and amber)
•
One MS bicolor status LED (green and amber)
•
Three MOD monocolor status LEDs (green)
•
Ten stack ID (stack ID) monocolor status LEDs (green)
•
48 1 GbE SFP port bicolor status LEDs (green for 1 GbE and amber for 10/100 Mbps Ethernet) that indicate 1 GbE or 100
Mbps mode of operation
1G SFP module LEDs:
•
Four 1 GbE SFP port bicolor status LEDs (green for 1 GbE and amber for 10/100 Mbps Ethernet) which indicate 1 GbE or
10/100 Mbps Ethernet mode of operation
10G SFP+ module LEDs:
•
Four 1/10 SFP+ GbE port bicolor status LEDs (green for 10 GbE and amber for 1 GbE) which indicate 1 GbE or 10 GbE mode
of operation
40G QSFP+ module LEDs:
•
One 40 GbE QSFP+ port bicolor status LED (green for 1x40 GbE and amber for 4x10 GbE) which indicates 1x40 GbE mode
of operation
Figure 6 shows the LEDs on the Brocade ICX 7450-48F front panel. The up-arrow port status LEDs for the 10 GbE ports correspond to
the upper, odd-numbered ports; the down-arrow port status LEDs correspond to the lower, even-numbered ports.
FIGURE 6 Brocade ICX 7450-48F front-panel LEDs
1 Management port speed and link/activity LEDs 2 Stack ID LEDs
Indicates stack unit identifier (1-12).
3 PSU1 and PSU2 status LEDs
PSU1 corresponds to the right power supply slot
on the rear panel and PSU2 to the left power
supply slot, as viewed from the rear.
4 Ports 1-48 speed and link/activity LED
5 DIAG (diagnostic) status LED and MS (stacking
configuration) status LED
6 MOD2 1/10 GbE module speed andl ink/activity
LEDs
7 MOD (media expansion module) LEDs. Module 2
is located on the right side of the front panel.
Module 3 and 4 are the right and left stacking
modules on the rear panel, as viewed from the rear.
8 MOD2 1/10 GbE power LED
72 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Operation
Brocade ICX 7450 rear-panel LEDs
Brocade ICX 7450 rear-panel LEDs
The Brocade ICX 7450 has the following LEDs on the rear panel:
•
Expansion module power LED: One bicolor status LED (green and amber)
•
QSFP+ module LEDs: Four status LEDs (green) for the stacking port on the QSFP+ modules. Only the first LED is currently
used, and indicates the status of the port in 40 GbE mode.
•
Power supply LEDs: One bicolor status LED (green and amber) on each installed power supply
•
Fan tray LEDs: One bicolor status LED (green and amber) on each installed fan tray
Figure 7 shows the LEDs on the rear panel of the Brocade ICX 7450.
FIGURE 7 Brocade ICX 7450 rear-panel LEDs
LED patterns
The following tables describe the Brocade ICX 7450 LED patterns.
1 FAN2 fan tray LED 2 MOD3 power LED
3 MOD4 40 GbE QSFP+ link/activity LED for
stacking
4FAN1 fan tray LED
5 MOD4 power LED 6 PSU2 status LED
7 MOD3 40 GbE QSFP+ link/activity LED for
stacking
8 PSU1 status LED
TABLE 1 Management port left (10/100/1000 Mbps) status LED
LED state Status of hardware Recommended action
Off (no light) Not cabled or 10/100 Mbps link is up. No action required.
Steady green A 1000 Mbps link is up. No action required.
TABLE 2 Management port right (activity) status LED
LED state Status of hardware Recommended action
Off (no light) Not cabled or no packets are being transmitted or received. No action required.
Blinking green There is traffic and packets are being transmitted or received at 1000
Mbps.
No action required.
Brocade ICX 7450 Switch Hardware Installation Guide 73
Part Number: 53-1003899-04
TABLE 3 PSU1 and PSU2 LEDs
LED state Status of hardware Recommended action
Off (no light) System is off or there is no power. Verify the system is on and has
completed booting.
Steady green PSU is on and functioning properly. No action required.
Steady amber PSU is missing power or in a faulty state (such as PSU fan failure). Verify that the PSU power cord is
connected to a functioning power
source.
Replace power supply.
TABLE 4 DIAG LED
LED state Status of hardware Recommended action
Off (no light) Diagnostic is off. No action required.
Blinking green System self-diagnostic test is in progress. No action required.
Steady green System self-diagnostic test has successfully completed. No action required.
Steady amber System self-diagnostic test has detected a fault. Contact support.
TABLE 5 MS LED
LED state Status of hardware Recommended action
Off (no light) Stacking mode is enabled and the switch is a stack member operating
in slave mode, or the switch is operating in standalone mode.
No action required.
Blinking green Device is initializing. No action required.
Steady green Stacking mode is enabled and the switch is the stack master. No action required.
Steady amber Stacking mode is enabled and the switch is the standby controller. No action required.
Blinking amber Stacking mode is initializing and the switch is in stacking master
arbitration/selection state.
No action required.
TABLE 6 MOD LED
LED state Status of hardware Recommended action
Off (no light) Module is used for stacking or no module is installed. For stacking
modules, this means that
stacking mode is enabled and the switch is a stack member, or the
switch is operating in standalone mode.
No action required.
Steady green Module is operating normally. For stacking modules, this means that
stacking mode is enabled and the switch is the stack master.
No action required.
TABLE 7 Stack ID LEDs
LED state Status of hardware Recommended action
Off (no light) System is off or there is no power. Verify the system is on and has
completed booting.
Steady green Indicates stack unit identifier. (Unit numbers 11 and 12 are shown by
using the 10+ LED in combination with the 1 or 2 LED.)
No action required.
74 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Operation
LED patterns
TABLE 8 10/100/1000 Mbps RJ-45 port LEDs
LED state Status of hardware Recommended action
Off (no light) Not cabled. No action required.
Steady green Link is up in 1000 Mbps mode. No action required.
Blinking green There is 1000 Mbps traffic and packets are being transmitted or
received.
No action required.
Steady amber Link is up in 10/100 Mbps mode. No action required.
Blinking amber There is 10/100 Mbps traffic and packets are being transmitted or
received.
No action required.
TABLE 9 100/1000 Mbps and 2.5 GbE RJ-45 port LEDs
LED state Status of hardware Recommended action
Off (no light) Not cabled. No action required.
Steady green Link is up in 2.5 GbE mode. No action required.
Blinking green There is 2.5 GbE traffic and packets are being transmitted or
received.
No action required.
Steady amber Link is up in 100/1000 Mbps mode. No action required.
Blinking amber There is 100/1000 Mbps traffic and packets are being transmitted or
received.
No action required.
TABLE 10 RJ-45 PoE LEDs
LED state Status of hardware Recommended action
Steady green Port is providing PoE
1
power to a connected device.
1. Indicates PoE, PoE+, High PoE, or PoH.
No action required.
Off Port is not providing PoE power. No action required.
TABLE 11 100/1000 Mbps SFP module port LEDs
LED state Status of hardware Recommended action
Off (no light) Not cabled. No action required.
Steady green Link is up in 1 GbE mode. No action required.
Blinking green There is 1 GbE traffic and packets are being transmitted or received. No action required.
Steady amber Link is up in 100 Mbps mode. No action required.
Blinking amber There is 100 Mbps traffic and packets are being transmitted or
received.
No action required.
TABLE 12 1/10 Gbps RJ-45 module port LEDs
LED state Status of hardware Recommended action
Off (no light) Not cabled. No action required.
Steady green Link is up in 10 GbE mode. No action required.
Blinking green There is 10 GbE traffic and packets are being transmitted or received. No action required.
Steady amber Link is up in 1 GbE mode. No action required.
Blinking amber There is 1 GbE traffic and packets are being transmitted or received. No action required.
Brocade ICX 7450 Switch Hardware Installation Guide 75
Part Number: 53-1003899-04
Diagnostic tests and monitoring
Brocade FastIron software includes diagnostic tests to help you troubleshoot the hardware. System diagnostic software is designed to
fulfill the purpose of offline diagnostics. In offline diagnostics, you must turn the diagnostic flags on or off to execute diagnostic tests
during the next bootup.
The CLI commands for system diagnostic tests are dm diag and dm alt-diag. These diagnostic tests verify all available hardware
components including:
•
I2C devices
TABLE 13 1/10 GbE SFP+ module port LEDs
LED state Status of hardware Recommended action
Off (no light) Not cabled. No action required.
Steady green Link is up in 10 GbE mode. No action required.
Blinking green There is 10 GbE traffic and packets are being transmitted or received. No action required.
Steady amber Link is up in 1 GbE mode. No action required.
Blinking amber There is 1 GbE traffic and packets are being transmitted or received. No action required.
TABLE 14 40 GbE mode QSFP+ module port LEDs (left-side LED)
LED state Status of hardware Recommended action
Off (no light) Not cabled. No action required.
Steady green Link is up in 40 GbE mode (MOD2 data uplink mode or
MOD3/MOD4 stacking mode).
No action required.
Blinking green There is 40 GbE traffic and packets are being transmitted or received. No action required.
TABLE 15 4x10 GbE mode QSFP+ module port LEDs
LED state Status of hardware Recommended action
Off (no light) Not cabled. No action required.
Steady amber Port lane link is up in 10 GbE mode (MOD2 data uplink mode). No action required.
Blinking amber There is 10 GbE traffic and packets are being transmitted or received. No action required.
TABLE 16 Module power LED (all media, service and stacking modules)
LED state Status of hardware Recommended action
Off (no light) Module is not receiving power. Replace module.
Steady green Module is on and functioning properly. No action required.
Steady amber Module is on and booting up. No action required.
TABLE 17 Fan tray LED
LED state Status of hardware Recommended action
Off (no light) Fan tray is not powered on. No action required.
Steady green Fan tray is on and functioning properly. No action required.
Steady amber Fan tray has nonfunctioning fans. Replace fan tray.
76 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Operation
Diagnostic tests and monitoring
•
EEPROMS
•
CPU packet
•
Line rate
During system diagnostic testing, the system is completely under the control of the diagnostic software. All hardware components are
verified, and results are displayed on the console. In cases where a failure is detected, results and corrective actions will be displayed. After
the system diagnostic testing is complete, the system exits from the diagnostic mode and reloads the system for normal operation.
System diagnostic testing runs at link speeds of 10 Gbps or 40 Gbps (for MOD2 QSFP+ data uplink ports) or 40 Gbps (for
MOD3/MOD4 QSFP+ stacking ports) depending on the speed of the link being tested and the type of port.
Brocade ICX 7450 Switch Hardware Installation Guide 77
Part Number: 53-1003899-04
Managing the Brocade ICX 7450
•
Temperature threshold levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
•
Hardware maintenance schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
•
Replacing a fiber-optic transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
•
FRU removal and replacement procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
•
Replacing a power supply unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
•
Replacing fan trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
•
Replacing an expansion module or service module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Temperature threshold levels
The fan speed settings are set by the Brocade ICX 7450, and are not configurable.
Hardware maintenance schedule
Brocade ICX 7450 switch hardware components require minimal maintenance. Brocade recommends cleaning the fiber-optic
connectors on a fiber-optic port and the connected fiber cable each time you disconnect the cable.
Replacing a fiber-optic transceiver
You can remove an SFP, SFP+, or QSFP+ transceiver from a slot and replace it with a new one while the Brocade ICX 7450 is powered
on and running.
This section provides information about the following tasks:
•
Removing a copper or fiber-optic transceiver
•
Cabling a fiber-optic transceiver
•
Cleaning the fiber-optic connectors
Removing a fiber-optic transceiver
While removing a fiber-optic transceiver, be sure to wear an ESD wrist strap that is connected to ground.
CAUTION
The procedures in this chapter are for qualified service personnel.
CAUTION
Do not unscrew and remove the top cover of the Brocade ICX 7450. There are no user-serviceable parts inside the Brocade
ICX 7450.
78 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Managing the Brocade ICX 7450
Replacing a fiber-optic transceiver
To remove a fiber-optic transceiver from an SFP, SFP+, or QSFP+ slot, do the following.
1. Put on the ESD wrist strap and ground yourself by attaching the clip end to a metal surface (such as an equipment rack).
2. Disconnect the fiber cable connector from the port connector.
3. Unlock the fiber-optic transceiver by pulling the bail latch forward, away from the front of the slot.
NOTE
On 1000Base-SX ports, the bail latch is enclosed in a black sleeve, and on 1000Base-LX ports, the bail latch is enclosed in a
blue sleeve.
NOTE
The bail latch may be attached to either the top or the bottom of the SFP, SFP+, or QSFP+ transceiver.
4. Grasp the bail latch and pull the fiber-optic transceiver out of the slot.
5. Store the copper or fiber-optic transceiver in a safe, static-free place or in an anti-static bag.
6. Install a new fiber-optic transceiver in the slot.
Cabling a fiber-optic transceiver
Use the following steps to cable a fiber-optic transceiver.
1. Remove the protective covering from the fiber-optic port connectors and store the covering for future use.
NOTE
Before cabling a fiber-optic transceiver, Brocade strongly recommends cleaning the cable connectors and the port connectors.
For more information, refer to “Cleaning the fiber-optic connectors” on page 78.
2. Gently insert the cable connector (a tab on each connector should face upward) into the transceiver connector until the tabs lock
into place.
3. Observe the link and active LEDs to determine if the network connections are functioning properly.
Cleaning the fiber-optic connectors
To avoid problems with the connection between the fiber-optic transceiver (SFP, SFP+, or QSFP+) and the fiber cable connectors,
Brocade strongly recommends cleaning both connectors each time you disconnect and reconnect them. Dust can accumulate in the
connectors and cause problems such as reducing the optic launch power.
To clean the fiber cable connectors, Brocade recommends using a fiber-optic reel-type cleaner. When not using an SFP, SFP+, or
QSFP+ connector, make sure to keep the protective covering in place.
CAUTION
For safety reasons, the ESD wrist strap should contain a series 1 megaohm resistor.
Brocade ICX 7450 Switch Hardware Installation Guide 79
Part Number: 53-1003899-04
FRU removal and replacement procedures
The field-replaceable units (FRUs) in the Brocade ICX 7450 can be removed and replaced by using a #1 Phillips screwdriver. The
switches can continue operating during the FRU replacement if the conditions specified in these procedures are followed. This covers
both the power supply unit (PSU) FRUs and fan FRUs.
If a mismatched power source or fan tray is installed by mistake, a warning is sent to the console. The warning messages will be similar to
the following:
•
For a fan mismatch: [WARNING, Brocade ICX 7450, MISMATCH in Fan Air Flow direction. Replace FRU with fan air flows in
the same direction.
•
For a power supply: [WARNING, Brocade ICX 7450, MISMATCH in PSU Air Flow direction. Replace PSU with air flows in the
same direction
You can use external labels as a guide. The power supplies and fan trays are labeled with an airflow symbol on the faceplate to indicate
whether the assembly takes in or exhausts air. The symbol also appears on the top of the FRU. All FRUs in a chassis must have the same
label affixed so that airflow direction is consistent. Figure 1 illustrates examples of the airflow labels.
FIGURE 1 Examples of airflow symbols
The green E symbol indicates an exhaust FRU. This unit pulls air in from the front of the switch and exhausts it out the rear side. This is
called front-to-back airflow or forward airflow.
The orange I symbol indicates an intake FRU. This unit pulls air in from the rear side of the switch and exhausts it out the front side. This is
called back-to-front airflow or reverse airflow.
The show chassis command displays a device’s airflow direction: Front-to-Back or Back-to-Front.
Replacing a power supply unit
CAUTION
This document describes how to change FRUs for units with either an air intake or air exhaust. You must replace a failed FRU
with a FRU of the same type. This applies to both power supplies and fans. A new FRU must have the same part number
(P/N) as the FRU being replaced. The manufacturing P/N is located on the top of the FRU.
CAUTION
Remove the power cord from a power supply before you install it in or remove it from the device. Otherwise, the power supply
or the device could be damaged as a result. (The device can be running while a power supply is being installed or removed,
but the power supply itself should not be connected to a power source.)
80 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Managing the Brocade ICX 7450
Replacing a power supply unit
NOTE
Maintain all power supply and fan trays in operational condition to provide redundancy.
Table 3 on page 73 describes the Brocade ICX 7450 power supply status LED colors, behaviors, and actions required, if any.
Determining the need to replace a power supply
Use one of the following methods to determine the status of the power supplies:
•
Check the PSU1 and PSU2 LEDs on the switch front panel or power supply status LED (refer to Table 3 on page 73).
•
Enter the show chassis command at the prompt to display power supply status.
Time and items required
Replacing a power supply in the Brocade ICX 7450 should take less than two minutes to complete.
You need the following items to replace a power supply in a Brocade ICX 7450:
•
A new power supply (must have the same part number and the same airflow label as the power supply being replaced)
•
A #1 Phillips screwdriver
Replacing a power supply
Complete the following steps to replace a power supply in a Brocade ICX 7450.
1. To leave the Brocade ICX 7450 in service while replacing a power supply, verify that the other power supply (the one not being
replaced) has been powered on for at least four seconds and has a steady green status LED.
2. Before opening the package that contains the power supply, touch the bag to the switch casing to discharge any potential static
electricity. Brocade recommends using an ESD wrist strap during installation.
3. Remove the power supply from the anti-static shielded bag.
4. Ensure that the replacement power supply has the same part number and airflow label as the power supply being replaced.
5. Unplug the power cord from the power supply that is being replaced.
6. Using the Phillips screwdriver, unscrew the two captive screws on the power supply.
7. Remove the power supply from the chassis by pulling the handle on the power supply out and away from the chassis.
CAUTION
For the Brocade ICX 7450 devices, be sure that the airflow direction of the power supply unit matches that of the installed fan
tray. The power supplies and fan trays are clearly labeled with either a green arrow with an “E,” or an orange arrow with an “I.”
CAUTION
Because the cooling system relies on pressurized air, do not leave any of the power supply and fan tray slots empty longer
than two minutes while the switch is operating. If a power supply or fan tray fails, leave it in the switch until it can be replaced.
CAUTION
Disassembling any part of the power supply and fan tray voids the warranty and regulatory certifications. There are no
user-serviceable parts inside the power supply and fan tray.
Brocade ICX 7450 Switch Hardware Installation Guide 81
Part Number: 53-1003899-04
8. Holding the power supply level, guide it into the carrier rails on each side and gently push it all the way into the slot, ensuring that
it firmly engages with the connector.
9. When you are sure the power supply has properly engaged the connector, tighten the retainer screws to secure the power supply
in the slot.
10. Plug the power cord into the power supply to power on the unit.
The power supply will immediately attempt to power up.
11. Verify that the front-panel PSU LED for the new power supply displays steady green while the Brocade ICX 7450 is operating.
If the LED is not steady green, ensure that the power supply is securely installed and seated properly. For information about the
PSU1 and PSU2 LEDs on the switch front panel, refer to Table 3 on page 73.
You can enter the show chassis command at the command line prompt to display power supply status.
Replacing fan trays
The Brocade ICX 7450 includes two redundant, hot-swappable fan units. However, it can run on one power supply and one fan. In that
case, the empty power supply and fan slot must be covered using the filler panels.
NOTE
Maintain all power supply and fan trays in operational condition to provide redundancy.
Determining the need to replace a fan tray
Enter the show chassis command in the command line interface to display fan status.
Time and items required
Replacing a fan assembly in the Brocade ICX 7450 should take less than two minutes to complete.
You need the following items to replace a fan assembly in the Brocade ICX 7450:
CAUTION
Do not force the installation. If the power supply does not slide in easily, ensure that the power supply is correctly
oriented before continuing.
CAUTION
For the Brocade ICX 7450 devices, be sure that the airflow direction of the fan tray matches that of the installed power supply
unit. The power supplies and fan trays are clearly labeled with either a green arrow with an “E,” or an orange arrow with an “I.”
CAUTION
Because the cooling system relies on pressurized air, do not leave any of the power supply and fan tray slots empty longer
than two minutes while the switch is operating. If a power supply or fan tray fails, leave it in the switch until it can be replaced.
CAUTION
Disassembling any part of the power supply and fan tray voids the warranty and regulatory certifications. There are no
user-serviceable parts inside the power supply and fan tray.
82 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Managing the Brocade ICX 7450
Replacing an expansion module or service module
•
A new fan assembly (must have the same part number and the same airflow label as the fan assembly being replaced; refer to
Figure 1 on page 79 for the location of the airflow label)
•
A #1 Phillips screwdriver
Installing or replacing the fan assembly
Complete the following steps to install or replace a fan assembly in a Brocade ICX 7450.
1. If replacing a fan assembly:
a. Using a Phillips screwdriver, unscrew the captive screw on the fan assembly.
b. Remove the fan assembly from the chassis by pulling the handle on the fan assembly out and away from the chassis.
c. Ensure that the replacement fan assembly has the same part number and airflow label as the fan assembly being replaced.
2. If installing a new fan assembly into a slot covered with a filler panel:
a. Using a Phillips screwdriver, unscrew the captive screw on the filler panel.
b. Remove the filler panel.
3. Before opening the package that contains the new fan tray, touch the bag to the switch casing to discharge any potential static
electricity. It is recommended that you wear an ESD wrist strap during installation.
4. Remove the fan tray from the anti-static shielded bag.
5. Holding the fan tray level, guide it into the carrier rails on each side and gently push it all the way into the slot, ensuring that it
firmly engages with the connector.
6. When you are sure the fan tray has properly engaged the connector, tighten the captive screw to secure the fan tray in the slot.
NOTE
The fans are controlled automatically by the device.
7. Verify correct installation by running the show chassis command.
Replacing an expansion module or service module
The Brocade ICX 7450 includes one front-panel slot and two rear-panel slots for media expansion or service modules, including a 4-port
SFP 1 GbE module, a 4-port SFP+ 10 GbE module, a 4-port Copper 10 GbE module, or a 1-port QSFP+ 40 GbE module. The slots in
which these modules can be installed are listed in Table 2 on page 20. If not installed, the empty expansion module slot must be covered
using the filler panel.
CAUTION
Do not force the installation. If the fan tray does not slide in easily, ensure that it is correctly oriented before
continuing.
CAUTION
Empty fan and power supply slots must be covered using filler panels.
CAUTION
Disassembling any part of the expansion module or service module voids the warranty and regulatory certifications. There are
no user-serviceable parts inside the expansion module assembly.
Brocade ICX 7450 Switch Hardware Installation Guide 83
Part Number: 53-1003899-04
Time and items required
Replacing an expansion module or service module in the Brocade ICX 7450 should take less than two minutes to complete.
You need the following items to replace an expansion module or service module in the Brocade ICX 7450:
•
A new expansion module or service module
•
A #1 Phillips screwdriver
Installing or replacing an expansion module or service module
Complete the following steps to install or replace an expansion module or service module in the Brocade ICX 7450.
1. Power off the switch.
2. If replacing an expansion module:
a. Pull the release latch lever on the module into its open position.
b. Using a Phillips screwdriver, unscrew the two captive screws on the expansion module.
c. Remove the expansion module from the chassis by pulling the handle on the expansion module out and away from the
chassis.
3. If installing a new expansion module into a slot covered with a filler panel:
a. Using a Phillips screwdriver, unscrew the captive screws on the filler panel.
b. Remove the filler panel.
4. Before opening the package that contains the new expansion module, touch the bag to the switch casing to discharge any
potential static electricity. It is recommended that you wear an ESD wrist strap during installation.
5. Remove the expansion module from the anti-static shielded bag.
6. Holding the expansion module level, guide it into the carrier rails on each side and gently push it all the way into the slot, ensuring
that it firmly engages with the connector.
7. When you are sure the expansion module has properly engaged the connector, tighten the captive screws to secure the
expansion module in the slot.
8. Push the release latch lever on the module into its closed position.
9. Power on the switch.
10. Verify correct installation by running the show module command.
CAUTION
The expansion modules are not hot-swappable.
CAUTION
Do not force the installation. If the expansion module does not slide in easily, ensure that it is correctly oriented
before continuing.
CAUTION
Empty expansion module slots must be covered using filler panels.
84 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Managing the Brocade ICX 7450
Replacing an expansion module or service module
Brocade ICX 7450 Switch Hardware Installation Guide 85
Part Number: 53-1003899-04
Brocade ICX 7450 Specifications
•
System specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
•
Ethernet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
•
LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
•
Other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
•
Weight and physical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
•
Environmental requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
•
Power supply specifications (per PSU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
•
Power consumption (typical configuration) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
•
Power consumption (maximum configuration) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
•
Power consumption (modules) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
•
Data port specifications (Ethernet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
•
Serial port specifications (pinout - mini-USB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
•
Serial port specifications (protocol) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
•
Memory specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
•
Regulatory compliance (EMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
•
Regulatory compliance (safety) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
•
Regulatory compliance (environmental). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
System specifications
TABLE 1
System component Description
Enclosure Stackable up to 12 switches per stack, chassis-mountable in a standard 2 or 4-post rack
Power supplies Dual redundant, hot-swappable power supplies supported with 250 W AC intake or exhaust airflow for
non-PoE switches, 1000 W AC with intake or exhaust airflow for PoE switches, and 510 W DC intake or
exhaust airflow for PoE or non-PoE switches. Shipping bundle has one power supply and one fan unit.
Fans One dual redundant, hot-swappable fan unit with intake or exhaust airflow
Cooling Forced-air cooling front-to-back or back-to-front
86 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Specifications
Ethernet
Ethernet
These are standard modules for shipping bundles. For Brocade ICX 7450 non-bundled switches, expansion modules need to be ordered
separately.
System architecture Non-blocking shared-memory switch
ICX 7450-24: 24 1-GbE RJ-45 ports, four 10-GbE SFP+ uplink ports, two 40-GbE QSFP+ stacking
ports, one power supply, and one fan unit
ICX 7450-24P: 24 1-GbE RJ-45 ports (supporting PoE, PoE+, High PoE, PoH), four 10-GbE SFP+ uplink
ports, two 40-GbE QSFP+ stacking ports, one power supply, and one fan unit
ICX7450-32ZP: 24 1-GbE RJ-45 ports, 8 2.5-GbE RJ-45 ports (supporting PoE, PoE+, High PoE, PoH),
four 10-GbE SFP+ uplink ports, two 40-GbE QSFP+ stacking ports, one power supply, and one fan unit
ICX 7450-48: 48 1-GbE RJ-45 ports, four 10-GbE SFP+ uplink ports, two 40-GbE QSFP+ stacking
ports, one power supply, and one fan unit.
ICX 7450-48P: 48 1-GbE RJ-45 ports (supporting PoE, PoE+, High PoE, PoH), four 10-GbE SFP+ uplink
ports, two 40-GbE QSFP+ stacking ports, one power supply, and one fan unit.
ICX 7450-48F: 48 1-GbE SFP ports, four 10-GbE SFP+ uplink ports, two 40-GbE QSFP+ stacking ports,
one power supply, and one fan unit
System processors BCM56548 with dual-core ARM Cortex A9 processor running at 1 GHz
TABLE 2
System component Description Maximum ports supported
40 GbE QSFP+ ports 1 40 GbE QSFP+ stacking or uplink port 3 (slot 2-4) for ICX 7450-24/24P
2 (slot 3-4) for ICX 7450-48/48P/48F/32ZP
10 GbE SFP+ ports 4 10 GbE SFP+ uplink ports 12 (slot 2-4)
10 GbE copper ports 4 10 GbE RJ-45 uplink ports 12 (slot 2-4)
1 GbE SFP ports (optional
modules)
4 1 GbE SFP uplink ports 12 (slot 2-4)
1 GbE RJ-45 front-panel ports 24 1 GbE RJ-45 ports for ICX 7450-24/24P/32ZP
48 1 GbE RJ-45 ports for ICX 7450-48/48P
24/48 (slot 1)
2.5 GbE RJ-45 front-panel ports 8 2.5 GbE RJ-45 ports for ICX 7450-32ZP 8 (slot 1)
1 GbE SFP front-panel ports 48 1 GbE SFP for ICX 7450-48F 48 (slot 1)
Ethernet management port 1 RJ-45 port with 10/100/1000 Mbps auto-negotiating
capability
N/A
TABLE 1
System component Description
Brocade ICX 7450 Switch Hardware Installation Guide 87
Part Number: 53-1003899-04
LEDs
Other
Weight and physical dimensions
TABLE 3
System component Description
Switch status and
management
Six LED types indicate switch status:
PSU (power supply unit)
DIAG (diagnostics)
MS (stacking configuration)
Stack ID (1-12)
MOD (expansion module or service module)
PWR (expansion module or service module power)
Ports LEDs indicate port status (speed and link/activity) and PoE status (on and off)
TABLE 4
System component Description
Serial cable 1 (Mini-USB to RJ-45)
RJ-45 to DB9 adapter 1
AC power cord, power clip For ICX 7450-24, 24P, 48, 48P, and 48F units
TABLE 5
Model Height Width Depth Weight (with
basic modules)
Fully loaded weight
(no transceivers)
ICX 7450-24 4.37 cm
1.72 inches
40.00 cm
17.32 inches
39.37 cm
15.50 inches
6.40 kg
14.11 lb
8.57 kg
18.89 lb
ICX 7450-24P 4.37 cm
1.72 inches
40.00 cm
17.32 inches
39.37 cm
15.50 inches
6.90 kg
15.21 lb
9.02 kg
19.89 lb
ICX 7450-32ZP 4.37 cm
1.72 inches
40.00 cm
17.32 inches
39.37 cm
15.50 inches
7.14 kg
15.74 lb
8.91 kg
19.64 lb
ICX 7450-48 4.37 cm
1.72 inches
40.00 cm
17.32 inches
39.37 cm
15.50 inches
6.50 kg
14.33 lb
8.74 kg
19.20 lb
ICX 7450-48P 4.37 cm
1.72 inches
40.00 cm
17.32 inches
39.37 cm
15.50 inches
7.10 kg
15.65 lb
9.21 kg
20.30 lb
ICX 7450-48F 4.37 cm
1.72 inches
40.00 cm
17.32 inches
39.37 cm
15.50 inches
6.80 kg
14.99 lb
8.94 kg
19.71 lb
88 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Specifications
Environmental requirements
Environmental requirements
Power supply specifications (per PSU)
TABLE 6
Condition Operational Non-operational
Ambient Temperature -5°C to 50°C (23°F to 122°F)
NOTE: Maximum operation temperature of 50°C applies to sea level
and decreases by 1°C for every 1000 feet altitude increase
per NEBS rule. If Back-to-Front airflow is chosen and only a
single fan is in service, maximum operation temperature
decreases by 5°C.
-40°C to 70°C (-40°F to 158°F)
Relative Humidity (non-condensing) 10% to 90% at 50°C (122°F) 5% to 95% at 70°C (158°F)
Altitude (above sea level) 0 to 3,048 m (10,000 ft) 0 to 12,000 m (39,370 ft)
Shock 20 G, 11 ms, half-sine wave 33 G, 11 ms, half-sine wave
Vibration 1 G sine, 0.4 grms random, 5-500 Hz 2.4 G sine, 1.1 grms random, 5-500 Hz
Airflow Nominal: 5-7 cfm, Maximum: 17-20 cfm. N/A
Heat dissipation
(+/- 5%)
NOTE: Refer to “Power consumption (typical configuration)” on
page 89 and “Power consumption (maximum configuration)”
on page 89 for detailed information on heat dissipation.
N/A
Operating noise ICX 7450-24: 46 dBA
ICX 7450-24P: 49 dBA
ICX 7450-32ZP: 47 dBA
ICX 7450-48: 47 dBA
ICX 7450-48P: 49 dBA
ICX 7450-48F: 46 dBA
N/A
MTBF @ 25°C ICX 7450-24: 399,973 Hours
ICX 7450-24P: 317,719 Hours
ICX 7450-32ZP: 568,376 Hours
ICX 7450-48: 376,635 Hours
ICX 7450-48P: 297,862 Hours
ICX 7450-48F: 330,154 Hours
N/A
TABLE 7
Power supply
model
Maximum
output power
rating (DC)
Input voltage Input line
frequency
Maximum
input current
Input line
protection
Maximum
inrush
current
AC RPS15-E 250 W 100-240V~ 50-60Hz 4.0A Fuses 35A
AC RPS15-I 250 W 100-240V~ 50-60Hz 4.0A Fuses 35A
AC RPS16-E 1000 W 100-240V~ 50-60Hz 11.8A Fuses 35A
AC RPS16-I 1000 W 100-240V~ 50-60Hz 11.8A Fuses 35A
DC RPS16DC-E 510 W 40-72V - 15.5A Fuses 40A
DC RPS16DC-I 510 W 40-72V - 15.5A Fuses 40A
Brocade ICX 7450 Switch Hardware Installation Guide 89
Part Number: 53-1003899-04
Power consumption (typical configuration)
All 1 G and two 10 G ports are linked up (no other port links), loading with 10 percent traffic rate and no PoE load. 2 fan FRUs, 4x10GC
uplink, and no stacking module. Fans at nominal speed.
ICX7450-32ZP: 24 1-Gig+8 2.5-Gig and Slot1: Empty, Slot2: 4x10GF, Slot3: 4x10GF ports are linked UP, loading with 10% traffic
rate. Two Fans at nominal speed.
Power consumption (maximum configuration)
All 1 G and two 10 G ports are linked up (no other port links), loading with 100 percent traffic rate and 100 percent PoE load. 2 PSUs,
two fan FRUs, 4x10GC uplink, no stacking module, fans at high speed.
ICX7450-32ZP: 24 1-Gig + 8 2.5Gig and Slot1: Empty, Slot2: 4x10GF, Slot3: 4x10GF are linked UP, 100% traffic and PoE load.
TABLE 8
Model name
(Input power ±5%)
@100 VAC Input @200 VAC Input @-48VDC Minimum number
of power supplies
Notes
ICX 7450-24 88.5 W
302 BTU/hr
87.6 W
299 BTU/hr
80.6W
276 BTU/hr
1 x 250 W AC
1 x 510 W DC
1 PSU
100.1 W
342 BTU/hr
99.2 W
339 BTU/hr
85.3W
291 BTU/hr
1 x 250 W AC
1 x 510 W DC
2 PSUs
ICX 7450-24P 95.3 W
325 BTU/hr
94.1 W
321 BTU/hr
82.6W
282 BTU/hr
1 x 1000 W AC
1 x 510 W DC
1 PSU,
no PoE load.
112.9 W
386 BTU/hr
111.7 W
381 BTU/hr
87.58 W
291 BTU/hr
1 x 1000 W AC
1 x 510 W DC
2 PSUs,
no PoE load
ICX 7450-32ZP 120.46 W
411.14 BTU/hr
118.59 W
404.76 BTU/hr
105.27 W
359.29 BTU/hr
1 x 1000 W AC
1 x 510 W DC
1 PSU,
no PoE load.
130.57 W
445.65 BTU/hr
128.32 W
437.97 BTU/hr
109.31 W
373.08 BTU/hr
2 x 1000 W AC
2 x 510 W DC
2 PSUs,
no PoE load
ICX 7450-48 117.6 W
402 BTU/hr
115.9 W
442 BTU/hr
107.6 W
367 BTU/hr
1 x 250 W AC
1 x 510 W DC
1 PSU
129.4 W
451 BTU/hr
128.4 W
438 BTU/hr
115.94 W
396 BTU/hr
1 x 250 W AC
1 x 510 W DC
2 PSUs
ICX 7450-48P 129.7 W
443 BTU/hr
143 W
488 BTU/hr
115.1W
393 BTU/hr
1 x 1000 W AC
1 x 510 W DC
1 PSU,
no PoE load.
128.2 W
438 BTU/hr
141.1 W
482 BTU/hr
118.82W
406 BTU/hr
1 x 1000 W AC
1 x 510 W DC
2 PSUs,
no PoE load
ICX 7450-48F 141.4 W
420 BTU/hr
139.6 W
477 BTU/hr
129.2W
441 BTU/hr
1 x 250 W AC
1 x 510 W DC
1 PSU
152.8 W
522 BTU/hr
151.6 W
518 BTU/hr
132.78W
474 BTU/hr
1 x 250 W AC
1 x 510 W DC
2 PSUs
90 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Specifications
Power consumption (modules)
Power consumption (modules)
TABLE 9
Model name
(Input power ±5%)
@100 VAC
input
@200 VAC
input
@-48VDC Minimum number
of power supplies
Notes
ICX 7450-24 119.7 W
409 BTU/hr
118.5 W
405 BTU/hr
113.8 W
388 BTU/hr
1 x 250 W AC
1 x 510 W DC
1 PSU
134.9 W
461 BTU/hr
133 W
454 BTU/hr
125.24 W
428 BTU/hr
1 x 250 W AC
1 x 510 W DC
2 PSUs
ICX 7450-24P 947 W
3232 BTU/hr
919 W
3137 BTU/hr
387.2 W
1322 BTU/hr
1 x 1000 W AC
1 x 510 W DC
1 PSU
1402 W
4785 BTU/hr
1374 W
4690 BTU/hr
669.06 W
2284 BTU/hr
2 x 1000 W AC
2 x 510 W DC
2 PSUs required
for PoE loading
ICX 7450-32ZP 167.1 W
570.33 BTU/hr
164.06 W
559.95 BTU/hr
145.98 W
498.24 BTU/hr
2 x 1000 W AC
2 x 510 W DC
1 PSU
11853.08 W
6324.71
BTU/hr
1763.55 W
6019.14
BTU/hr
698.79 W
2385.03 BTU/hr
2 x 1000 W AC
2 x 510 W DC
2 PSUs required
for PoE loading
ICX 7450-48 154.4 W
527 BTU/hr
151.8 W
518 BTU/hr
146.1 W
499 BTU/hr
1 x 250 W AC
1 x 510 W DC
1 PSU
168.8 W
576 BTU/hr
167.4 W
572 BTU/hr
156.68 W
535 BTU/hr
1 x 250 W AC
1 x 510 W DC
2 PSUs
ICX 7450-48P 998 W
3406 BTU/hr
958 W
3270 BTU/hr
421.4 W
1438 BTU/hr
1 x 1000 W AC
1 x 510 W DC
1 PSU
1809 W
6174 BTU/hr
1769 W
6038 BTU/hr
704.12 W
2403 BTU/hr
1 x 1000 W AC
1 x 510 W DC
2 PSUs required
for PoE loading
ICX 7450-48F 178.3 W
609 BTU/hr
175.7 W
606 BTU/hr
167.1W
570 BTU/hr
1 x 250 W AC
1 x 510 W DC
1 PSU
196.4 W
670 BTU/hr
194.1 W
663 BTU/hr
177.64W
606 BTU/hr
1 x 250 W AC
1 x 510 W DC
2 PSUs
TABLE 10
Name Description Power consumption
ICX7400-4X1GF 4-port 1 GbE SFP expansion module Typical = 5.40 W
Maximum = 5.76 W
ICX7400-4X10GF 4-port 1/10 GbE SFP+ expansion module Typical = 12.96 W
Maximum = 15.72 W
ICX7400-4X10GC 4-port 1/10 GbE copper expansion module Typical = 18.72 W
Maximum = 20.76 W
ICX7400-1X40GQ 1-port 40 GbE QSFP+ data uplink / stacking module Typical = 5.64 W
Maximum = 7.38 W
Brocade ICX 7450 Switch Hardware Installation Guide 91
Part Number: 53-1003899-04
Data port specifications (Ethernet)
ICX-FAN10-E Power-supply exhaust airflow fan (two fans required if
two power supplies are used)
Typical = 4.68 W
Maximum = 16.68 W
ICX-FAN10-I Power-supply intake airflow fan (two fans required if two
power supplies are used)
Typical = 4.68 W
Maximum = 16.68 W
TABLE 11
Model name Port type Number (in module) Description
ICX 7450-24 40 GbE 2 (ICX7400-1X40GQ) QSFP+ stacking ports, compatible with LR4 or SR4 optical transceivers, or direct
attached copper cable
10 GbE 4 (ICX7400-4X10GC) SFP+ uplink ports, compatible with ER, LR, LRM, SR, ZR, or USR optical transceivers
1 GbE 4 (ICX7400-4X1GF) SFP uplink ports, compatible with SX or LX optical transceivers
1 GbE 24 (slot 1) RJ-45 ports
ICX 7450-24P 40 GbE 2 (ICX7400-1X40GQ) QSFP+ stacking ports, 40 Gbps, compatible with LR4 or SR4 optical transceivers, or
direct attached copper cable
10 GbE 4 (ICX7400-4X10GC) SFP+ uplink ports, compatible with ER, LR, LRM, SR, ZR, or USR optical transceivers
1 GbE 4 (ICX7400-4X1GF) SFP uplink ports, compatible with SX or LX optical transceivers
1 GbE 24 (slot 1) RJ-45 ports with PoE support
ICX 7450-32ZP 40 GbE 2 (ICX7400-1X40GQ) QSFP+ stacking ports, 40 Gbps, compatible with LR4 or SR4 optical transceivers, or
direct attached copper cable.
10 GbE 4 (ICX7400-4X10GC) SFP+ uplink ports, compatible with ER, LR, LRM, SR, ZR, or USR optical transceivers
2.5 GbE 8 (slot 1) RJ-45 ports with PoE support
1 GbE 24 (slot 1) RJ-45 ports with PoE support
ICX 7450-48 40 GbE 2 (ICX7400-1X40GQ) QSFP+ stacking ports, compatible with LR4 or SR4 optical transceivers, or direct
attached copper cable
10 GbE 4 (ICX7400-4X10GC) SFP+ uplink ports, compatible with ER, LR, LRM, SR, ZR, or USR optical transceivers
1 GbE 4 (ICX7400-4X1GF) SFP uplink ports, compatible with SX or LX optical transceivers
1 GbE 48 (slot 1) RJ-45 ports
ICX 7450-48P 40 GbE 2 (ICX7400-1X40GQ) QSFP+ stacking ports, compatible with LR4 or SR4 optical transceivers, or direct
attached copper cable
10 GbE 4 (ICX7400-4X10GC) SFP+ uplink ports, compatible with ER, LR, LRM, SR, ZR. or USR optical transceivers
1 GbE 4 (ICX7400-4X1GF) SFP uplink ports, compatible with SX or LX optical transceivers
1 GbE 48 (slot 1) RJ-45 ports with PoE support
TABLE 10
Name Description Power consumption
92 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Specifications
Serial port specifications (pinout - mini-USB)
Serial port specifications (pinout - mini-USB)
Serial port specifications (pinout RJ-45)
Serial port specifications (protocol)
ICX 7450-48F 40 GbE 2 (ICX7400-1X40GQ) QSFP+ stacking ports, compatible with LR4 or SR4 optical transceivers, or direct
attached copper cable
10 GbE 4 (ICX7400-4X10GC) SFP+ uplink ports, compatible with ER, LR, LRM, SR, ZR, or USR optical transceivers
1 GbE 4 (ICX7400-4X1GF) SFP uplink ports, compatible with SX or LX optical transceivers
1 GbE 48 (slot 1) SFP ports, compatible with 100Base-FX IR or LR SFP optic for SMF, 100Base-FX SFP
optic MMF, 1000Base-BXD SFP optic SMF, 1000Base-BXU SFP optic SMF,
1000Base-LHA SFP optic SMF, 1000Base-LX SFP optic SMF, 1000Base-SX SFP
optic MMF, 1000BASE-TX SFP Copper
TABLE 12
Pin Signal Description
1 Reserved Not used
2 UART0_RX Debug port (data received by ICX)
3 UART0_TX Console port (data transmitted by ICX)
4 Reserved Not used
5GND Ground
TABLE 13
Pin Signal Description
1 Not supported N/A
2 Not supported N/A
3 UART1_TXD Transmit data to ICX
4 GND Logic ground
5 Not supported N/A
6 UART1_RXD Receive data from ICX
7 Not supported N/A
8 Not supported N/A
TABLE 14
Parameter Value
Baud 9600
Data bits 8
Parity None
TABLE 11
Model name Port type Number (in module) Description
Brocade ICX 7450 Switch Hardware Installation Guide 93
Part Number: 53-1003899-04
Memory specifications
Regulatory compliance (EMC)
•
FCC Part 15, Subpart B (Class A)
•
EN 55022 (CE mark) (Class A)
•
EN 55024 (CE mark) (Immunity) for Information Technology Equipment
•
ICES-003 (Canada) (Class A)
•
AS/NZ 55022 (Australia) (Class A)
•
VCCI (Japan) (Class A)
•
EN 61000-3-2
•
EN 61000-3-3
•
EN 61000-6-1
Regulatory compliance (safety)
•
CAN/CSA-C22.2 No. 60950/UL 60950 - Safety of Information Technology Equipment
•
EN 60825 Safety of Laser Products - Part 1: Equipment Classification, Requirements and User’s Guide
•
EN 60950/IEC 60950 Safety of Information Technology Equipment
Regulatory compliance (environmental)
•
2014/35/EU and 2014/30/EU
•
2011/65/EU – Restriction of the use of certain hazardous substance in electrical and electronic equipment (EU RoHS)
•
2012/19/EU – Waste electrical and electronic equipment (EU WEEE)
•
94/62/EC – packaging and packaging waste (EU)
•
2006/66/EC – batteries and accumulators and waste batteries and accumulators (EU battery directive)
Stop bits 1
Flow control None
TABLE 15
Memory Type Size
Main memory DDR3 2 GB
Boot Flash NOR Flash 8 MB
Compact Flash eUSB NAND flash 2 GB
eUSB Drive USB 2 GB
TABLE 14
Parameter Value
94 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Specifications
Regulatory compliance (environmental)
•
1907/2006 of the European Parliament and of the Council of 18 December 2006 concerning the Registration, Evaluation,
Authorisation and Restriction of Chemicals (EU REACH)
•
Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act of 2010 – U.S. Conflict Minerals
•
30/2011/TT-BCT – Vietnam circular
•
SJ/T 11363-2006 Requirements for Concentration Limits for Certain Hazardous Substances in EIPs (China)
•
SJ/T 11364-2006 Marking for the Control of Pollution Caused by EIPs (China)
Brocade ICX 7450 Switch Hardware Installation Guide 95
Part Number: 53-1003899-04
Brocade ICX 7450 Regulatory
Statements
•
USA (FCC CFR 47 Part 15 Warning) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
•
Industry Canada statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
•
Europe and Australia (CISPR 22 Class A Warning) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
•
Germany (Noise Warning). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
•
Japan (VCCI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
•
Korea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
•
China . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
•
BSMI statement (Taiwan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
USA (FCC CFR 47 Part 15 Warning)
This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
Industry Canada statement
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
English translation of above statement
This Class A digital apparatus complies with Canadian ICES-003.
Europe and Australia (CISPR 22 Class A Warning)
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to
take adequate measures.
Germany (Noise Warning)
Maschinenlärminformations-Verordnung - 3. GPSGV, der höchste Schalldruckpegel beträgt 53.0 dB(A) gemäss EN ISO 7779.
English translation of above statement
CAUTION
Changes or modifications made to this device which are not expressly approved by Brocade could void the user’s authority to
operate the equipment.
96 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Regulatory Statements
Japan (VCCI)
Machine noise information regulation - 3. GPSGV, the highest sound pressure level value is 53.0 dB(A) in accordance with EN ISO
7779.
Japan (VCCI)
English translation of above statement
This is Class A product based on the standard of the Voluntary Control Council For Interference by Information Technology Equipment
(VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be
required to take corrective actions.
Korea
English translation of above statement
Class A device (Broadcasting Communication Device for Office Use): This device obtained EMC registration for office use (Class A), and
may be used in places other than home. Sellers and/or users need to take note of this.
Brocade ICX 7450 Switch Hardware Installation Guide 97
Part Number: 53-1003899-04
China
English translation of above statement
This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to
take adequate measures.
98 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Regulatory Statements
BSMI statement (Taiwan)
BSMI statement (Taiwan)
English translation of above statement
Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be
required to take adequate measures.
Brocade ICX 7450 Switch Hardware Installation Guide 99
Part Number: 53-1003899-04
Brocade ICX 7450 Cautions and
Danger Notices
•
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
•
Danger notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Cautions
A caution calls your attention to a possible hazard that can damage equipment.
“Vorsicht” weist auf die Gefahr einer möglichen Beschädigung des Gerätes hin.
Une mise en garde attire votre attention sur un risque possible d'endommagement de l'équipement. Ci-dessous, vous trouverez les
mises en garde utilisées dans ce manuel.
Un mensaje de precaución le advierte sobre un posible peligro que pueda dañar el equipo. Las siguientes son precauciones utilizadas en
este manual.
TABLE 1
CAUTION All devices with DC power supplies (Brocade ICX 7450) are intended for installation in restricted access areas only. A restricted
access area is where access can be gained only by service personnel through the use of a special tool, lock and key, or other
means of security, and is controlled by the authority responsible for the location.
VORSICHT Alle Geräte mit Gleichstromeingangsschaltung (Brocade ICX 7450) sind nur zur Installation in Sperrbereichen bestimmt. Ein
Sperrbereich ist ein Ort, zu dem nur Wartungspersonal mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer anderen
Schutzvorrichtung Zugang hat. Er unterliegt außerdem der Kontrolle durch die für den Standort verantwortliche Stelle.
MISE EN GARDE Tous les équipements dotés d'un bloc d'alimentation en courant continu (Brocade ICX 7450) sont conçus pour l'installation
dans des zones à accès réglementé uniquement. Une zone à accès réglementé est un local qui n'est accessible que par le
personnel d'entretien à l'aide d'un outil, verrou ou clé conçus à cet effet, ou de tout autre accessoire de sécurité, et qui est
contrôlé par l'autorité responsable de ce local.
PRECAUCIÓN Todos aquellos dispositivos con fuentes de alimentación de CC (Brocade ICX 7450) están diseñados para su instalación en
zonas de acceso restringido solamente. Una zona de acceso restringido es un lugar al que sólo puede acceder personal de
mantenimiento haciendo uso de una herramienta especial, una llave y un candado, o algún otro medio de seguridad, y que está
controlado por la autoridad responsable.
Table 0.1:
CAUTION Do not install the device in an environment where the operating ambient temperature might exceed 50° C (122° F).
VORSICHT Das Gerät darf nicht in einer Umgebung mit einer Umgebungsbetriebstemperatur von über 50° C (122° F) installiert werden.
MISE EN GARDE N'installez pas le dispositif dans un environnement où la température d'exploitation ambiante risque de dépasser 50° C (122°
F).
PRECAUCIÓN No instale el instrumento en un entorno en el que la temperatura ambiente de operación pueda exceder los 50° C (122° F).
100 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Cautions and Danger Notices
Cautions
Table 0.2:
CAUTION Make sure the airflow around the front, sides, and back of the device is not restricted.
VORSICHT Stellen Sie sicher, dass an der Vorderseite, den Seiten und an der Rückseite der Luftstrom nicht behindert wird.
MISE EN GARDE Vérifiez que rien ne restreint la circulation d'air devant, derrière et sur les côtés du dispositif et qu'elle peut se faire librement.
PRECAUCIÓN Asegúrese de que el flujo de aire en las inmediaciones de las partes anterior, laterales y posterior del instrumento no esté
restringido.
Table 0.3:
CAUTION Use a separate branch circuit for each AC power cord, which provides redundancy in case one of the circuits fails.
VORSICHT Es empfiehlt sich die Installation eines separaten Stromkreiszweiges für jede Wechselstrom-Elektroschnur als Redundanz im
Fall des Ausfalls eines Stromkreises.
MISE EN GARDE Utilisez un circuit de dérivation différent pour chaque cordon d’alimentation C.A. Ainsi, il y aura un circuit redondant en cas de
panne d’un des circuits.
PRECAUCIÓN Use un circuito derivado separado para cada cordón de alimentación de CA, con lo que se proporcionará redundancia en caso
de que uno de los circuitos falle.
Table 0.4:
CAUTION Ensure that the device does not overload the power circuits, wiring, and over-current protection. To determine the possibility of
overloading the supply circuits, add the ampere (amp) ratings of all devices installed on the same circuit as the device. Compare
this total with the rating limit for the circuit. The maximum ampere ratings are usually printed on the devices near the input power
connectors.
VORSICHT Stromkreise, Verdrahtung und Überlastschutz dürfen nicht durch das Gerät überbelastet werden. Addieren Sie die
Nennstromleistung (in Ampere) aller Geräte, die am selben Stromkreis wie das Gerät installiert sind. Somit können Sie
feststellen, ob die Gefahr einer Überbelastung der Versorgungsstromkreise vorliegt. Vergleichen Sie diese Summe mit der
Nennstromgrenze des Stromkreises. Die Höchstnennströme (in Ampere) stehen normalerweise auf der Geräterückseite neben
den Eingangsstromanschlüssen.
MISE EN GARDE Assurez-vous que le dispositif ne risque pas de surcharger les circuits d'alimentation, le câblage et la protection de surintensité.
Pour déterminer le risque de surcharge des circuits d'alimentation, additionnez l'intensité nominale (ampères) de tous les
dispositifs installés sur le même circuit que le dispositif en question. Comparez alors ce total avec la limite de charge du circuit.
L'intensité nominale maximum en ampères est généralement imprimée sur chaque dispositif près des connecteurs d'entrée
d'alimentation.
PRECAUCIÓN Verifique que el instrumento no sobrecargue los circuitos de corriente, el cableado y la protección para sobrecargas. Para
determinar la posibilidad de sobrecarga en los circuitos de suministros, añada las capacidades nominales de corriente (amp) de
todos los instrumentos instalados en el mismo circuito que el instrumento. Compare esta suma con el límite nominal para el
circuito. Las capacidades nominales de corriente máximas están generalmente impresas en los instrumentos, cerca de los
conectores de corriente de entrada.
Brocade ICX 7450 Switch Hardware Installation Guide 101
Part Number: 53-1003899-04
TABLE 2
CAUTION Use the erase startup-config command only for new systems. If you enter this command on a system you have already
configured, the command erases the configuration. If you accidentally do erase the configuration on a configured system, enter
the write memory command to save the running configuration to the startup-config file.
VORSICHT Verwenden Sie den Befehl "erase startup-config” (Löschen Startup-Konfig) nur für neue Systeme. Wenn Sie diesen Befehl in
ein bereits konfiguriertes System eingeben, löscht der Befehl die Konfiguration. Falls Sie aus Versehen die Konfiguration eines
bereits konfigurierten Systems löschen, geben Sie den Befehl “write memory” (Speicher schreiben) ein, um die laufende
Konfiguration in der Startup-Konfig-Datei zu speichern.
MISE EN GARDE N'utilisez la commande erase startup-config que pour les nouveaux systèmes. Si vous entrez cette commande sur un système
que vous avez déjà configuré, elle efface la configuration. Si vous effacez la configuration par accident sur un système
configuré, entrez la commande write memory pour enregistrer la configuration actuelle dans le fichier startup-config.
PRECAUCIÓN Use el comando erase startup-config (borrar configuración de inicio) para sistemas nuevos solamente. Si usted introduce este
comando en un sistema que ya ha configurado, el comando borrará la configuración. Si usted borra accidentalmente la
configuración en un sistema ya configurado, introduzca el comando write memory (escribir memoria) para guardar la
configuración en ejecución en el archivo startup-config.
TABLE 3
CAUTION Never leave tools inside the chassis.
VORSICHT Lassen Sie keine Werkzeuge im Chassis zurück.
MISE EN GARDE Ne laissez jamais d'outils à l'intérieur du châssis.
PRECAUCIÓN No deje nunca herramientas en el interior del chasis.
Table 0.5:
CAUTION Changes or modifications made to this device that are not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
VORSICHT Falls dieses Gerät verändert oder modifiziert wird, ohne die ausdrückliche Genehmigung der für die Einhaltung der
Anforderungen verantwortlichen Partei einzuholen, kann dem Benutzer der weitere Betrieb des Gerätes untersagt werden.
MISE EN GARDE Les éventuelles modifications apportées à cet équipement sans avoir été expressément approuvées par la partie responsable
d'en évaluer la conformité sont susceptibles d'annuler le droit de l'utilisateur à utiliser cet équipement.
PRECAUCIÓN Si se realizan cambios o modificaciones en este dispositivo sin la autorización expresa de la parte responsable del
cumplimiento de las normas, la licencia del usuario para operar este equipo puede quedar anulada.
TABLE 4
CAUTION Remove the power cord from a power supply before you install it in or remove it from the device. Otherwise, the power supply
or the device could be damaged as a result. (The device can be running while a power supply is being installed or removed, but
the power supply itself should not be connected to a power source.)
VORSICHT Nehmen Sie vor dem Anschließen oder Abtrennen des Geräts das Stromkabel vom Netzteil ab. Ansonsten könnten das
Netzteil oder das Gerät beschädigt werden. (Das Gerät kann während des Anschließens oder Annehmens des Netzteils laufen.
Nur das Netzteil sollte nicht an eine Stromquelle angeschlossen sein.)
MISE EN GARDE Enlevez le cordon d'alimentation d'un bloc d'alimentation avant de l'installer ou de l'enlever du dispositif. Sinon, le bloc
d'alimentation ou le dispositif risque d'être endommagé. (Le dispositif peut être en train de fonctionner lorsque vous installez ou
enlevez un bloc d'alimentation, mais le bloc d'alimentation lui-même ne doit pas être connecté à une source d'alimentation.)
PRECAUCIÓN Retire el cordón de corriente del suministro de corriente antes de instalarlo o retírarlo del instrumento. De no hacerse así, el
suministro de corriente o el instrumento podrían resultar dañados. (El instrumento puede estar encendido mientras se instala o
retira un suministro de corriente, pero el suministro de corriente en sí no deberá conectado a la corriente).
102 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Cautions and Danger Notices
Cautions
TABLE 5
CAUTION Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the manufacturer’s
instructions.
VORSICHT Es besteht Explosionsgefahr, wenn ein unzulässiger Batterietyp eingesetzt wird. Verbrauchte Batterien sind entsprechend den
geltenden Vorschriften zu entsorgen.
MISE EN GARDE Risque d'explosion en cas de remplacement de la pile par un modèle incorrect. Débarrassezvous des piles usagées
conformément aux instructions.
PRECAUCIÓN Riesgo de explosión si se sustituye la batería por una de tipo incorrecto. Deshágase de las baterías usadas de acuerdo con las
instrucciones.
TABLE 6
CAUTION To avoid high voltage shock, do not open the device while the power is on.
VORSICHT Das eingeschaltete Gerät darf nicht geöffnet werden, da andernfalls das Risiko eines Stromschlags mit Hochspannung besteht.
MISE EN GARDE Afin d'éviter tout choc électrique, n'ouvrez pas l'appareil lorsqu'il est sous tension.
PRECAUCIÓN Para evitar una descarga de alto voltaje, no abra el dispositivo mientras esté encendido.
TABLE 7
CAUTION For the ICX 7450 devices, be sure that the airflow direction of the power supply unit matches that of the installed fan tray. The
power supplies and fan trays are clearly labeled with either a green arrow with an “E,” or an orange arrow with an “I.”
VORSICHT Vergewissern Sie sich bei den ICX 7450-Geräten, dass die Luftstromrichtung des Netzteils der der eingebauten Lüftereinheit
entspricht. Die Netzteile und Lüftereinheiten sind eindeutig mit einem grünen Pfeil und dem Buchstaben "E" oder einem
orangefarbenen Pfeil mit dem Buchstaben “I” gekennzeichnet.
MISE EN GARDE Pour les équipements de type ICX 7450, veillez à ce que le sens de circulation de l'air du bloc d'alimentation corresponde à
celui du tiroir de ventilation installé. Les blocs d'alimentation et les tiroirs de ventilation sont étiquetés d'une flèche verte avec un
" E " ou d'une flèche orange avec un " I ".
PRECAUCIÓN En el caso de dispositivos ICX 7450, asegúrese de que la dirección del flujo de aire de la unidad de alimentación se
corresponda con la de la bandeja del ventilador instalada. Los dispositivos de alimentación y las bandejas del ventilador están
etiquetadas claramente con una flecha verde y una “E” o con una flecha naranja y una “I”.
TABLE 8
CAUTION For the ICX 7450 devices, be sure that the airflow direction of the fan tray matches that of the installed power supply unit. The
power supplies and fan trays are clearly labeled with either a green arrow with an “E,” or an orange arrow with an “I.”
VORSICHT Vergewissern Sie sich bei den ICX 7450-Geräten, dass die Luftstromrichtung der Lüftereinheit der des eingebauten Netzteils
entspricht. Die Netzteile und Lüftereinheiten sind eindeutig mit einem grünen Pfeil und dem Buchstaben “E” oder einem
orangefarbenen Pfeil mit dem Buchstaben "I" gekennzeichnet.
MISE EN GARDE Pour les équipements de type ICX 7450, veillez à ce que le sens de circulation de l'air du tiroir de ventilation corresponde à celui
du bloc d'alimentation installé. Les blocs d'alimentation et les tiroirs de ventilation sont étiquetés d'une flèche verte avec un " E "
ou d'une flèche orange avec un " I ".
PRECAUCIÓN En el caso de dispositivos ICX 7450, asegúrese de que la dirección del flujo de aire de la bandeja del ventilador se corresponda
con la de la unidad de alimentación. Los dispositivos de alimentación y las bandejas del ventilador están etiquetadas claramente
con una flecha verde y una “E” o con una flecha naranja y una “I”.
Brocade ICX 7450 Switch Hardware Installation Guide 103
Part Number: 53-1003899-04
TABLE 9
CAUTION If you do not install a power supply in a slot, you must keep the slot panel in place. If you run the device with an uncovered slot,
the system will overheat.
VORSICHT Wenn Sie in einem Einschub kein Netzteil einsetzen, müssen Sie die Blende im Einschub lassen. Der Betrieb des Geräts mit
einem offenen Einschub kann zur Überhitzung des Systems führen.
MISE EN GARDE Si vous n'installez pas de bloc d'alimentation dans un emplacement, vous devez laisser le cache de protection en place. Si vous
faites fonctionner l’équipement avec un emplacement vide, sans cache, le système risque de surchauffer.
PRECAUCIÓN Si no hay ninguna fuente de alimentación instalada en una ranura, debe dejar la tapa correspondiente puesta en la ranura. Si
pone en funcionamiento el dispositivo con una ranura descubierta, el sistema se sobrecalentará.
Table 0.6:
CAUTION For the DC input circuit to the system of a Brocade ICX 7450 make sure there is a 20 Amp circuit breaker, minimum 60 VDC,
double pole, on the input lugs to the power supply. The input wiring for connection to the product should be Listed copper wire,
12 AWG, marked VW-1, and rated minimum 90°C.
VORSICHT Bei der Gleichstromeingangsschaltung zum System eines Brocade ICX 7450, muss sichergestellt werden, dass an den
Eingangskabelschuhen zur Stromversorgung ein zweipoliger Schalter mit 20 Ampere und mindestens 60 V Gleichstrom
vorhanden ist. Die Eingangsleitung zum Anschluss an das Produkt sollte als Kupferdraht, 12 AWG, angegeben, als VW-1
gekennzeichnet und für mindestens 90°C bemessen sein.
MISE EN GARDE Pour le circuit d'alimentation en courant continu du système Brocade ICX 7450, vérifier la présence d'un disjoncteur bipolaire
20 A, minimum 60 VCC, sur l'entrée de l'alimentation. Les câbles d'alimentation du produit doivent être des fils de cuivre
homologués de section 2.1 mm² (12 AWG), marqués VW-1 et testés à 90°C.
PRECAUCIÓN Para el circuito de entrada de CC al sistema de un Brocade ICX 7450, verifique que existe un disyuntor catalogado por 20
amperios, 60 VCC como mínimo, bipolar, en las orejetas de entrada a la fuente de alimentación. El cableado de entrada para la
conexión al producto deberá ser de cable de cobre catalogado, 12 AWG, marcado con VW-1, y tener una capacidad nominal
mínima para 90°C.
TABLE 10
CAUTION Before plugging a cable to any port, be sure to discharge the voltage stored on the cable by touching the electrical contacts to
ground surface.
VORSICHT Bevor Sie ein Kabel in einen Anschluss einstecken, entladen Sie jegliche im Kabel vorhandene elektrische Spannung, indem Sie
mit den elektrischen Kontakten eine geerdete Oberfläche berühren.
MISE EN GARDE Avant de brancher un câble à un port, assurez-vous de décharger la tension du câble en reliant les contacts électriques à la terre.
PRECAUCIÓN Antes de conectar un cable en cualquier puerto, asegúrese de descargar la tensión acumulada en el cable tocando la superficie
de conexión a tierra con los contactos eléctricos.
TABLE 11
CAUTION For DC systems, use grounding wire of at least 12 American Wire Gauge (AWG). The grounding wire should be attached to the
DC input connector (as shown in Figure 39); the other end connects to the building ground.
VORSICHT Für Gleichstromsystem verwenden Erdungskabel von mindestens 12AWG (3.31 mm2) (amerikanische Norm für
Drahtquerschnitte). Der Erdungsdraht sollte DC-Eingang angeschlossen werden (wie in Figure 39 zeigen #14), das andere
Ende verbindet sich mit dem Baugrund.
MISE EN GARDE Pour les systèmes d'alimentation courant continu (C.C), utilisez un fil de mise à terre d'au moins de 12 AWG (ou 3.31mm2). Le
fil de mise à terre doit être relié au connecteur du circuit d'alimentation (voir Figure 39); l'autre extrémité se connecte à la prise
terre du batiment.
PRECAUCIÓN Para el sistema CC, utilice un cable de tierra de al menos 12 AWG (Ancho de cable de EEUU). El cable de tierra debe estar
acoplado al conector de entrada de CC (según se muestra en la Figure 39); el otro extremo se conecta al suelo del edificio.
104 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Cautions and Danger Notices
Danger notices
Danger notices
A danger notification calls your attention to a possible hazard that can cause injury or death. The following are the warnings used in this
manual.
“Gefahr” weist auf eine mögliche Gefährdung hin, die zu Verletzungen oder Tod führen können. Sie finden die folgenden Warnhinweise in
diesem Handbuch.
Un danger attire votre attention sur un risque possible de blessure ou de décès. Ci-dessous, vous trouverez les avertissements utilisés
dans ce manuel.
Una señal de peligro le llama la atención sobre cualquier posible peligro que pueda ocasionar daños personales o la muerte. A
continuación se dan las advertencias utilizadas en este manual.
TABLE 12
CAUTION Power supplies are hot-swappable. However, they should be inserted or removed without a power cord being connected to a
power source to avoid damage.
VORSICHT Netzteile sind hot-swap-fähig. Sie sollten jedoch eingesetzt oder entfernt werden, ohne dass ein Stromkabel mit einer
Stromquelle verbunden ist, um Beschädigungen zu vermeiden.
MISE EN GARDE Les unités d’alimentation sont permutables à chaud. Cependant, et pour éviter tout dommage, elles doivent être insérées ou
retirées sans cordon d’alimentation relié à une source d’alimentation.
PRECAUCIÓN Los proveedores de energía son deslizables por calor. Sin embargo deben insertarse o extraerse sin ningún cable de
alimentación conectado a la fuente de alimentación para evitar daños.
Table 0.7:
CAUTION For safety reasons, the ESD wrist strap should contain a series 1 megaohm resistor.
VORSICHT Aus Sicherheitsgründen sollte ein EGB-Armband zum Schutz von elektronischen gefährdeten Bauelementen mit einem 1
Megaohm-Reihenwiderstand ausgestattet sein.
MISE EN GARDE Pour des raisons de sécurité, la dragonne ESD doit contenir une résistance de série 1 méga ohm.
PRECAUCIÓN Por razones de seguridad, la correa de muñeca ESD deberá contener un resistor en serie de 1 mega ohmio.
Table 0.8:
DANGER The procedures in this manual are for qualified service personnel.
GEFAHR Die Verfahren in diesem Handbuch sind nur für qualifiziertes Wartungspersonal gedacht.
DANGER Les procédures décrites dans ce manuel doivent être effectuées par le personnel de service qualifié uniquement.
PELIGRO Los procedimientos de este manual se han hecho para personal de servicio cualificado.
Table 0.9:
DANGER Make sure the rack housing the device is adequately secured to prevent it from becoming unstable or falling over.
GEFAHR Stellen Sie sicher, dass das Gestell die Unterbringung des Geräts auf angemessene Weise gesichert ist, so dass das Gestell
nicht wackeln oder umfallen kann.
DANGER Vérifiez que le bâti ou le support abritant le dispositif est bien fixé afin qu'il ne devienne pas instable ou qu'il ne risque pas de
tomber.
PELIGRO Verifique que el bastidor que alberga el instrumento está asegurado correctamente para evitar que pueda hacerse inestable o
que caiga.
Brocade ICX 7450 Switch Hardware Installation Guide 105
Part Number: 53-1003899-04
Table 0.10:
DANGER Mount the devices you install in a rack as low as possible. Place the heaviest device at the bottom and progressively place
lighter devices above.
GEFAHR Montieren Sie die Geräte im Gestell so tief wie möglich. Platzieren Sie das schwerste Gerät ganz unten, während leichtere
Geräte je nach Gewicht (je schwerer desto tiefer) darüber untergebracht werden.
DANGER Montez les dispositifs que vous installez dans un bâti ou support aussi bas que possible. Placez le dispositif le plus lourd en bas
et le plus léger en haut, en plaçant tous les dispositifs progressivement de bas en haut du plus lourd au plus léger.
PELIGRO Monte los instrumentos que instale en un bastidor lo más bajos posible. Ponga el instrumento más pesado en la parte inferior y
los instrumentos progresivamente más livianos más arriba.
Table 0.11:
DANGER Disconnect the power cord from all power sources to completely remove power from the device.
GEFAHR Ziehen Sie das Stromkabel aus allen Stromquellen, um sicherzustellen, dass dem Gerät kein Strom zugeführt wird.
DANGER Débranchez le cordon d'alimentation de toutes les sources d'alimentation pour couper complètement l'alimentation du
dispositif.
PELIGRO Para desconectar completamente la corriente del instrumento, desconecte el cordón de corriente de todas las fuentes de
corriente.
Table 0.12:
DANGER If the installation requires a different power cord than the one supplied with the device, make sure you use a power cord
displaying the mark of the safety agency that defines the regulations for power cords in your country. The mark is your
assurance that the power cord can be used safely with the device.
GEFAHR Falls für die Installation ein anderes Stromkabel erforderlich ist (wenn das mit dem Gerät gelieferte Kabel nicht passt), müssen
Sie sicherstellen, dass Sie ein Stromkabel mit dem Siegel einer Sicherheitsbehörde verwenden, die für die Zertifizierung von
Stromkabeln in Ihrem Land zuständig ist. Das Siegel ist Ihre Garantie, dass das Stromkabel sicher mit Ihrem Gerät verwendet
werden kann.
DANGER Si l'installation nécessite un cordon d'alimentation autre que celui fourni avec le dispositif, assurez-vous d'utiliser un cordon
d'alimentation portant la marque de l'organisation responsable de la sécurité qui définit les normes et régulations pour les
cordons d'alimentation dans votre pays. Cette marque vous assure que vous pouvez utiliser le cordon d'alimentation avec le
dispositif en toute sécurité.
PELIGRO Si la instalación requiere un cordón de corriente distinto al que se ha suministrado con el instrumento, verifique que usa un
cordón de corriente que venga con la marca de la agencia de seguridad que defina las regulaciones para cordones de corriente
en su país. Esta marca será su garantía de que el cordón de corriente puede ser utilizado con seguridad con el instrumento.
Table 0.13:
DANGER Remove both power cords before servicing.
GEFAHR Trennen Sie beide Netzkabel, bevor Sie Wartungsarbeiten durchführen.
DANGER Retirez les deux cordons d'alimentation avant toute maintenance.
PELIGRO Desconecte ambos cables de alimentación antes de realizar reparaciones.
Table 0.14:
DANGER Laser radiation. Do not view directly with optical instruments. Class 1M Laser Products.
GEFAHR Laserstrahlung! Schauen Sie nicht direkt mit optischen Instrumenten in den Laserstrahl herein. Klasse 1M Laserprodukte.
106 Brocade ICX 7450 Switch Hardware Installation Guide
Part Number: 53-1003899-04
Brocade ICX 7450 Cautions and Danger Notices
Danger notices
DANGER Rayonnement de laser. Ne regardez pas directement avec les instruments optiques. Produits de laser de la classe 1M.
PELIGRO Radiacion de Laser. No vea directamente con Instrumentos Opticos. Clase 1M de Productos de Laser.
Table 0.14:
