Ruckus ICX 7650 Switch
Technical Specifications
TECHNICAL SPECIFICATIONS

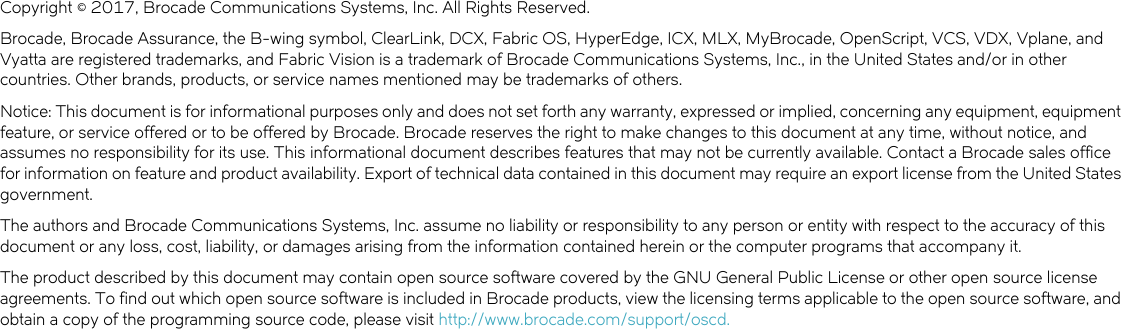

Copyright © 2017, Brocade Communications Systems, Inc. All Rights Reserved.
Brocade, Brocade Assurance, the B-wing symbol, ClearLink, DCX, Fabric OS, HyperEdge, ICX, MLX, MyBrocade, OpenScript, VCS, VDX, Vplane, and
Vyatta are registered trademarks, and Fabric Vision is a trademark of Brocade Communications Systems, Inc., in the United States and/or in other
countries. Other brands, products, or service names mentioned may be trademarks of others.
Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning any equipment, equipment
feature, or service offered or to be offered by Brocade. Brocade reserves the right to make changes to this document at any time, without notice, and
assumes no responsibility for its use. This informational document describes features that may not be currently available. Contact a Brocade sales office
for information on feature and product availability. Export of technical data contained in this document may require an export license from the United States
government.
The authors and Brocade Communications Systems, Inc. assume no liability or responsibility to any person or entity with respect to the accuracy of this
document or any loss, cost, liability, or damages arising from the information contained herein or the computer programs that accompany it.
The product described by this document may contain open source software covered by the GNU General Public License or other open source license
agreements. To find out which open source software is included in Brocade products, view the licensing terms applicable to the open source software, and
obtain a copy of the programming source code, please visit http://www.brocade.com/support/oscd.
Ruckus ICX 7650 Switch Technical Specifications 3
Part Number: 53-1005302-01
DRAFT: BROCADE CONFIDENTIAL
Contents
Ruckus ICX 7650 Specifications
System specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Weight and physical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Environmental requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Power supply specifications (per PSU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Power consumption (typical configuration) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Power consumption (maximum configuration) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Power consumption (modules) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Data port specifications (Ethernet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Serial port specifications (pinout - mini-USB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Serial port specifications (pinout RJ-45) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Serial port specifications (protocol) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Memory specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Regulatory compliance (EMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Regulatory compliance (safety) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Regulatory compliance (environmental). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4Ruckus ICX 7650 Switch Technical Specifications
Part Number: 53-1005302-01
DRAFT: BROCADE CONFIDENTIAL
Ruckus ICX 7650 Switch Technical Specifications 5
Part Number: 53-1005302-01
DRAFT: BROCADE CONFIDENTIAL

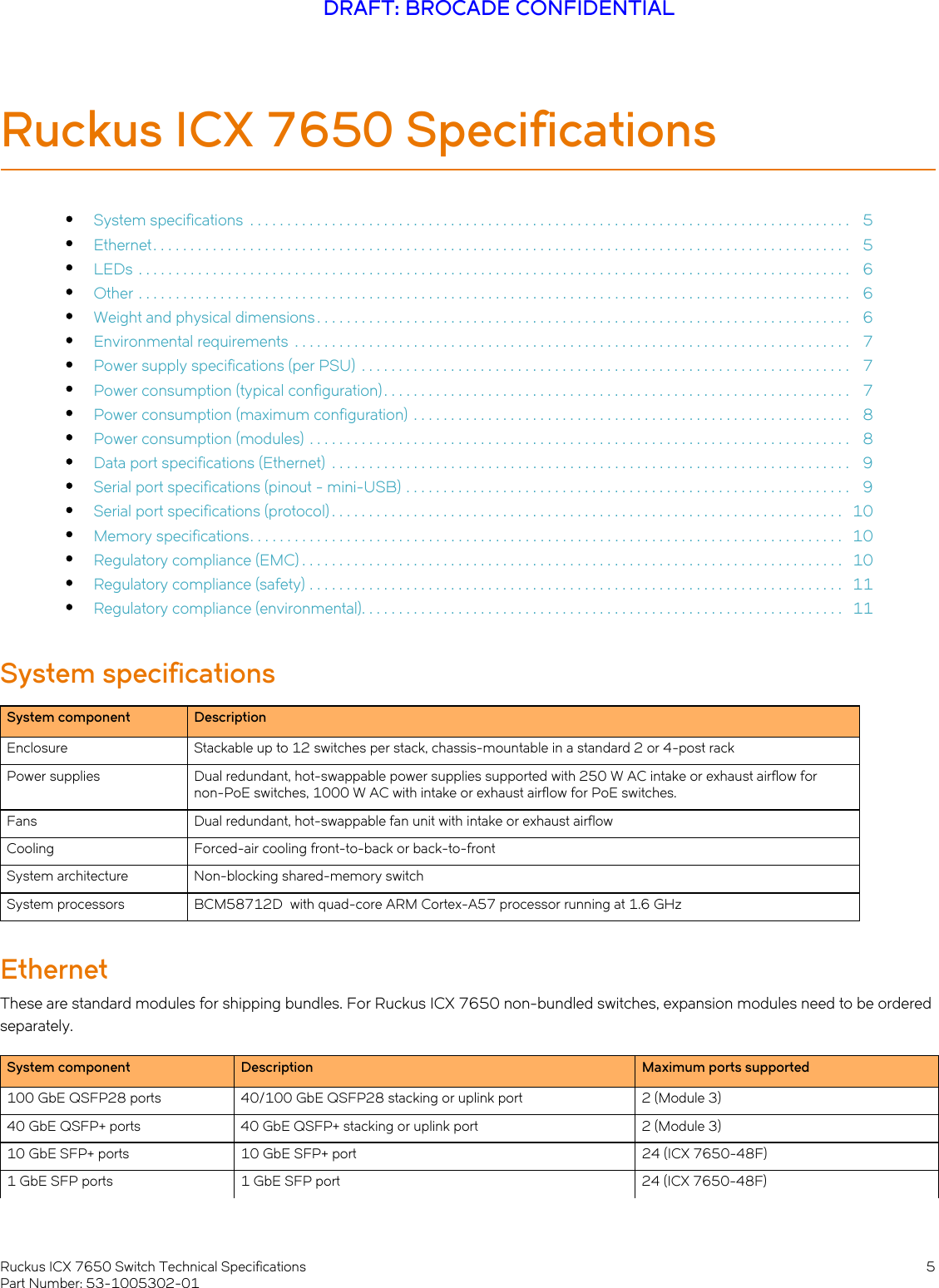

Ruckus ICX 7650 Specifications
•System specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
•Ethernet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
•LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
•Other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
•Weight and physical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
•Environmental requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
•Power supply specifications (per PSU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
•Power consumption (typical configuration). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
•Power consumption (maximum configuration) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
•Power consumption (modules) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
•Data port specifications (Ethernet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
•Serial port specifications (pinout - mini-USB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
•Serial port specifications (protocol) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
•Memory specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
•Regulatory compliance (EMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
•Regulatory compliance (safety) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
•Regulatory compliance (environmental). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
System specifications
Ethernet
These are standard modules for shipping bundles. For Ruckus ICX 7650 non-bundled switches, expansion modules need to be ordered
separately.
System component Description
Enclosure Stackable up to 12 switches per stack, chassis-mountable in a standard 2 or 4-post rack
Power supplies Dual redundant, hot-swappable power supplies supported with 250 W AC intake or exhaust airflow for
non-PoE switches, 1000 W AC with intake or exhaust airflow for PoE switches.
Fans Dual redundant, hot-swappable fan unit with intake or exhaust airflow
Cooling Forced-air cooling front-to-back or back-to-front
System architecture Non-blocking shared-memory switch
System processors BCM58712D with quad-core ARM Cortex-A57 processor running at 1.6 GHz
System component Description Maximum ports supported
100 GbE QSFP28 ports 40/100 GbE QSFP28 stacking or uplink port 2 (Module 3)
40 GbE QSFP+ ports 40 GbE QSFP+ stacking or uplink port 2 (Module 3)
10 GbE SFP+ ports 10 GbE SFP+ port 24 (ICX 7650-48F)
1 GbE SFP ports 1 GbE SFP port 24 (ICX 7650-48F)
6Ruckus ICX 7650 Switch Technical Specifications
Part Number: 53-1005302-01
Ruckus ICX 7650 Specifications
LEDs
DRAFT: BROCADE CONFIDENTIAL
LEDs
Other
Weight and physical dimensions

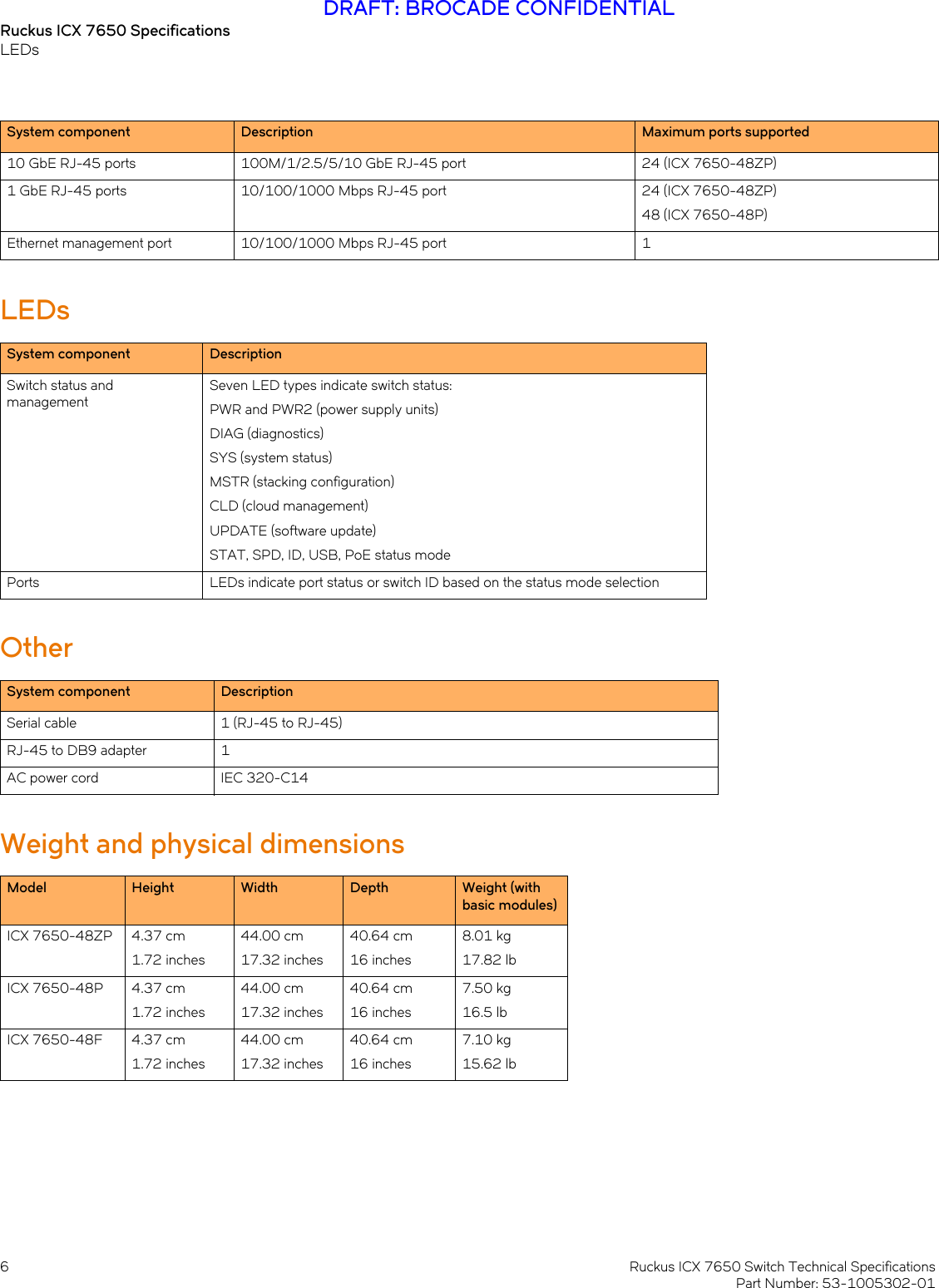

10 GbE RJ-45 ports 100M/1/2.5/5/10 GbE RJ-45 port 24 (ICX 7650-48ZP)
1 GbE RJ-45 ports 10/100/1000 Mbps RJ-45 port 24 (ICX 7650-48ZP)
48 (ICX 7650-48P)
Ethernet management port 10/100/1000 Mbps RJ-45 port 1
System component Description
Switch status and
management
Seven LED types indicate switch status:
PWR and PWR2 (power supply units)
DIAG (diagnostics)
SYS (system status)
MSTR (stacking configuration)
CLD (cloud management)
UPDATE (software update)
STAT, SPD, ID, USB, PoE status mode
Ports LEDs indicate port status or switch ID based on the status mode selection
System component Description
Serial cable 1 (RJ-45 to RJ-45)
RJ-45 to DB9 adapter 1
AC power cord IEC 320-C14
Model Height Width Depth Weight (with
basic modules)
ICX 7650-48ZP 4.37 cm
1.72 inches
44.00 cm
17.32 inches
40.64 cm
16 inches
8.01 kg
17.82 lb
ICX 7650-48P 4.37 cm
1.72 inches
44.00 cm
17.32 inches
40.64 cm
16 inches
7.50 kg
16.5 lb
ICX 7650-48F 4.37 cm
1.72 inches
44.00 cm
17.32 inches
40.64 cm
16 inches
7.10 kg
15.62 lb
System component Description Maximum ports supported
Ruckus ICX 7650 Switch Technical Specifications 7
Part Number: 53-1005302-01
Ruckus ICX 7650 Specifications
Environmental requirements
DRAFT: BROCADE CONFIDENTIAL
Environmental requirements
Power supply specifications (per PSU)
Power consumption (typical configuration)
All 1 G and two 10 G ports are linked up (no other port links), loading with 10 percent traffic rate and no PoE load. 2 fan FRUs, 4x10GC
uplink, and no stacking module. Fans at nominal speed.
ICX7650-48ZP: 24 1-Gig+24 2.5-Gig and Slot2: Empty, Slot3: 2x40GQ ports are linked UP, loading with 10% traffic rate. Two Fans at
nominal speed.
Condition Operational Non-operational
Ambient Temperature 0°C to 45°C (32°F to 113°F) at sea level -40°C to 70°C (-40°F to 158°F)
Relative Humidity (non-condensing) 10% to 90% at 50°C (122°F) 10% to 90% at 70°C (158°F)
Altitude (above sea level) 0 to 3,048 m (10,000 ft) 0 to 12,000 m (39,370 ft)
Shock 20 G, 11 ms, half-sine wave 33 G, 11 ms, half-sine wave
Vibration 1 G sine, 0.4 grms random, 5-500 Hz 2.4 G sine, 1.1 grms random, 5-500 Hz
Airflow Nominal: 10-25 cfm, Maximum: 54-72 cfm. N/A
Heat dissipation (+/- 5%) NOTE: Refer to “Power consumption (typical configuration)” on
page 7 and “Power consumption (maximum configuration)”
on page 8 for detailed information on heat dissipation.
N/A
Operating noise ICX 7650-48ZP: 56.4 dBA
ICX 7650-48P: 46.7 dBA
ICX 7650-48F: 48.3 dBA
N/A
Power supply
model
Maximum
output power
rating (DC)
Input voltage Input line
frequency
Maximum
input current
Input line
protection
Maximum
inrush
current
RPS15-E 250 W 100-240V~ 50-60Hz 4.0A Fuses 35A
RPS15-I 250 W 100-240V~ 50-60Hz 4.0A Fuses 35A
RPS16-E 1000 W 100-240V~ 50-60Hz 11.8A Fuses 35A
RPS16-I 1000 W 100-240V~ 50-60Hz 11.8A Fuses 35A
Model name
(Input power ±5%)
@100 VAC Input @200 VAC Input Minimum number
of power supplies
Notes
ICX 7650-48ZP 120.46 W
411.14 BTU/hr
118.59 W
404.76 BTU/hr
1 x 1000 W AC 1 PSU,
no PoE load.
130.57 W
445.65 BTU/hr
128.32 W
437.97 BTU/hr
2 x 1000 W AC 2 PSUs,
no PoE load
ICX 7650-48P 129.7 W
443 BTU/hr
143 W
488 BTU/hr
1 x 1000 W AC 1 PSU,
no PoE load.
128.2 W
438 BTU/hr
141.1 W
482 BTU/hr
1 x 1000 W AC 2 PSUs,
no PoE load
8Ruckus ICX 7650 Switch Technical Specifications
Part Number: 53-1005302-01
Ruckus ICX 7650 Specifications
Power consumption (maximum configuration)
DRAFT: BROCADE CONFIDENTIAL
Power consumption (maximum configuration)
All 1 G and two 10 G ports are linked up (no other port links), loading with 100 percent traffic rate and 100 percent PoE load. 2 PSUs,
two fan FRUs, 4x10GC uplink, no stacking module, fans at high speed.
ICX7650-48ZP: 24 1-Gig + 24 10-Gig and Slot2: 4x10GF, Slot3: 2x100GQ are linked UP, 100% traffic and PoE load.
Power consumption (modules)
ICX 7650-48F 141.4 W
420 BTU/hr
139.6 W
477 BTU/hr
1 x 250 W AC 1 PSU
152.8 W
522 BTU/hr
151.6 W
518 BTU/hr
1 x 250 W AC 2 PSUs
Model name
(Input power ±5%)
@100 VAC
input
@200 VAC
input
Minimum number
of power supplies
Notes
ICX 7650-48ZP 167.1 W
570.33 BTU/hr
164.06 W
559.95 BTU/hr
2 x 1000 W AC 1 PSU
11853.08 W
6324.71
BTU/hr
1763.55 W
6019.14
BTU/hr
2 x 1000 W AC 2 PSUs required
for PoE loading
ICX 7650-48P 998 W
3406 BTU/hr
958 W
3270 BTU/hr
1 x 1000 W AC 1 PSU
1809 W
6174 BTU/hr
1769 W
6038 BTU/hr
1 x 1000 W AC 2 PSUs required
for PoE loading
ICX 7650-48F 178.3 W
609 BTU/hr
175.7 W
606 BTU/hr
1 x 250 W AC 1 PSU
196.4 W
670 BTU/hr
194.1 W
663 BTU/hr
1 x 250 W AC 2 PSUs
Name Description Power consumption
ICX7600-4X10GF 4-port 1/10 GbE SFP+ expansion module Typical = 12.96 W
Maximum = 15.72 W
ICX7600-2X40GQ 2-port 40 GbE QSFP+ data uplink / stacking module Typical = 5.64 W
Maximum = 7.38 W
ICX7600-1X100GQ 1-port 100 GbE QSFP28 data uplink / stacking module Typical = 5.64 W
Maximum = 7.38 W
ICX-FAN12-E Power-supply exhaust airflow fan (two fans required if
two power supplies are used)
Typical = 4.68 W
Maximum = 16.68 W
ICX-FAN12-I Power-supply intake airflow fan (two fans required if two
power supplies are used)
Typical = 4.68 W
Maximum = 16.68 W
Model name
(Input power ±5%)
@100 VAC Input @200 VAC Input Minimum number
of power supplies
Notes
Ruckus ICX 7650 Switch Technical Specifications 9
Part Number: 53-1005302-01
Ruckus ICX 7650 Specifications
Data port specifications (Ethernet)
DRAFT: BROCADE CONFIDENTIAL

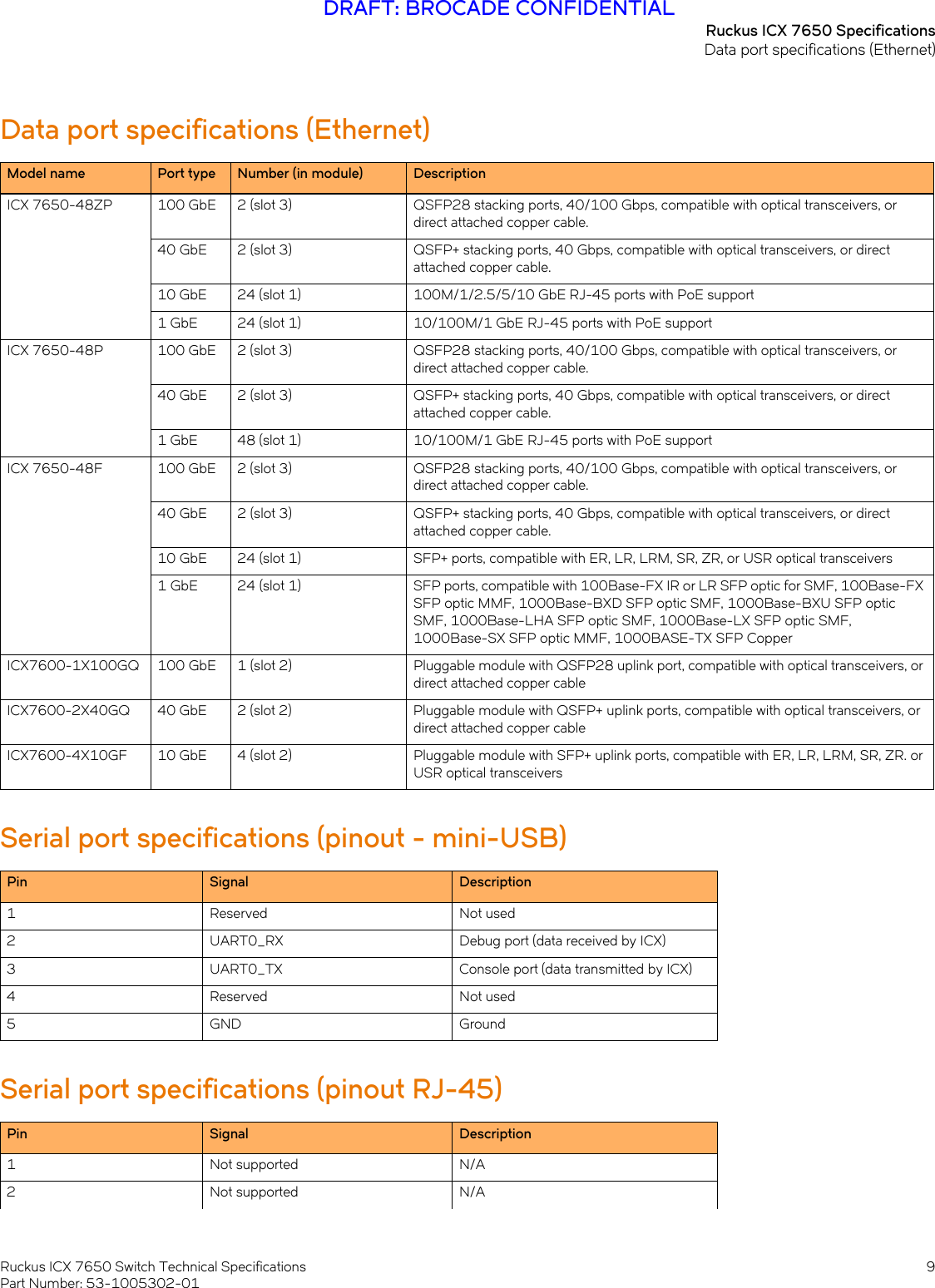

Data port specifications (Ethernet)
Serial port specifications (pinout - mini-USB)
Serial port specifications (pinout RJ-45)
Model name Port type Number (in module) Description
ICX 7650-48ZP 100 GbE 2 (slot 3) QSFP28 stacking ports, 40/100 Gbps, compatible with optical transceivers, or
direct attached copper cable.
40 GbE 2 (slot 3) QSFP+ stacking ports, 40 Gbps, compatible with optical transceivers, or direct
attached copper cable.
10 GbE 24 (slot 1) 100M/1/2.5/5/10 GbE RJ-45 ports with PoE support
1 GbE 24 (slot 1) 10/100M/1 GbE RJ-45 ports with PoE support
ICX 7650-48P 100 GbE 2 (slot 3) QSFP28 stacking ports, 40/100 Gbps, compatible with optical transceivers, or
direct attached copper cable.
40 GbE 2 (slot 3) QSFP+ stacking ports, 40 Gbps, compatible with optical transceivers, or direct
attached copper cable.
1 GbE 48 (slot 1) 10/100M/1 GbE RJ-45 ports with PoE support
ICX 7650-48F 100 GbE 2 (slot 3) QSFP28 stacking ports, 40/100 Gbps, compatible with optical transceivers, or
direct attached copper cable.
40 GbE 2 (slot 3) QSFP+ stacking ports, 40 Gbps, compatible with optical transceivers, or direct
attached copper cable.
10 GbE 24 (slot 1) SFP+ ports, compatible with ER, LR, LRM, SR, ZR, or USR optical transceivers
1 GbE 24 (slot 1) SFP ports, compatible with 100Base-FX IR or LR SFP optic for SMF, 100Base-FX
SFP optic MMF, 1000Base-BXD SFP optic SMF, 1000Base-BXU SFP optic
SMF, 1000Base-LHA SFP optic SMF, 1000Base-LX SFP optic SMF,
1000Base-SX SFP optic MMF, 1000BASE-TX SFP Copper
ICX7600-1X100GQ 100 GbE 1 (slot 2) Pluggable module with QSFP28 uplink port, compatible with optical transceivers, or
direct attached copper cable
ICX7600-2X40GQ 40 GbE 2 (slot 2) Pluggable module with QSFP+ uplink ports, compatible with optical transceivers, or
direct attached copper cable
ICX7600-4X10GF 10 GbE 4 (slot 2) Pluggable module with SFP+ uplink ports, compatible with ER, LR, LRM, SR, ZR. or
USR optical transceivers
Pin Signal Description
1 Reserved Not used
2 UART0_RX Debug port (data received by ICX)
3 UART0_TX Console port (data transmitted by ICX)
4 Reserved Not used
5GND Ground
Pin Signal Description
1 Not supported N/A
2 Not supported N/A
10 Ruckus ICX 7650 Switch Technical Specifications
Part Number: 53-1005302-01
Ruckus ICX 7650 Specifications
Serial port specifications (protocol)
DRAFT: BROCADE CONFIDENTIAL
Serial port specifications (protocol)
Memory specifications
Regulatory compliance (EMC)
•FCC Part 15, Subpart B (Class A)
•EN 55032 (CE mark) (Class A)
•EN 55024 (CE mark) (Immunity) for Information Technology Equipment
•ICES-003 (Canada) (Class A)
•AS/NZ 55032 (Australia/New Zealand) (Class A)
•VCCI (Japan) (Class A)
•EN 300 386
•CNS 13438 (BSMI) (Taiwan) (Class A)
•KN 32 (South Korea) (Class A)
•KN 35 (South Korea) (Class A)
•TCVN 7189 / TCVN 7317 (Vietnam) (Class A)
•EN 61000-3-2
3 UART1_TXD Transmit data to ICX
4 GND Logic ground
5 Not supported N/A
6UART1_RXDReceive data from ICX
7 Not supported N/A
8 Not supported N/A
Parameter Value
Baud 9600
Data bits 8
Parity None
Stop bits 1
Flow control None
Memory Type Size
Main memory DDR4 2133 SO-DIMM 4 GB
Boot Flash SPI Flash 16 MB
M.2 Flash Module NAND flash 16 GB
Pin Signal Description
Ruckus ICX 7650 Switch Technical Specifications 11
Part Number: 53-1005302-01
Ruckus ICX 7650 Specifications
Regulatory compliance (safety)
DRAFT: BROCADE CONFIDENTIAL
•EN 61000-3-3
Regulatory compliance (safety)
•CAN/CSA-C22.2 No. 60950/UL 60950 - Safety of Information Technology Equipment
•EN 60825 Safety of Laser Products - Part 1: Equipment Classification, Requirements and User’s Guide
•EN 60950/IEC 60950 Safety of Information Technology Equipment
Regulatory compliance (environmental)
•2014/35/EU and 2014/30/EU
•2011/65/EU – Restriction of the use of certain hazardous substance in electrical and electronic equipment (EU RoHS)
•2012/19/EU – Waste electrical and electronic equipment (EU WEEE)
•94/62/EC – packaging and packaging waste (EU)
•2006/66/EC – batteries and accumulators and waste batteries and accumulators (EU battery directive)
•1907/2006 of the European Parliament and of the Council of 18 December 2006 concerning the Registration, Evaluation,
Authorisation and Restriction of Chemicals (EU REACH)
•Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act of 2010 – U.S. Conflict Minerals
•30/2011/TT-BCT – Vietnam circular
•SJ/T 11363-2006 Requirements for Concentration Limits for Certain Hazardous Substances in EIPs (China)
•SJ/T 11364-2006 Marking for the Control of Pollution Caused by EIPs (China)
12 Ruckus ICX 7650 Switch Technical Specifications
Part Number: 53-1005302-01
Ruckus ICX 7650 Specifications
Regulatory compliance (environmental)
DRAFT: BROCADE CONFIDENTIAL
Page 1 of 12 - Ruckus ICX 7650 Switch Technical Specifications Campus Icx7650-technicalspecification
Page 2 of 12 - Ruckus ICX 7650 Switch Technical Specifications Campus Icx7650-technicalspecification
Page 3 of 12 - Ruckus ICX 7650 Switch Technical Specifications Campus Icx7650-technicalspecification
Page 4 of 12 - Ruckus ICX 7650 Switch Technical Specifications Campus Icx7650-technicalspecification
Page 5 of 12 - Ruckus ICX 7650 Switch Technical Specifications Campus Icx7650-technicalspecification
Page 6 of 12 - Ruckus ICX 7650 Switch Technical Specifications Campus Icx7650-technicalspecification
Page 7 of 12 - Ruckus ICX 7650 Switch Technical Specifications Campus Icx7650-technicalspecification
Page 8 of 12 - Ruckus ICX 7650 Switch Technical Specifications Campus Icx7650-technicalspecification
Page 9 of 12 - Ruckus ICX 7650 Switch Technical Specifications Campus Icx7650-technicalspecification

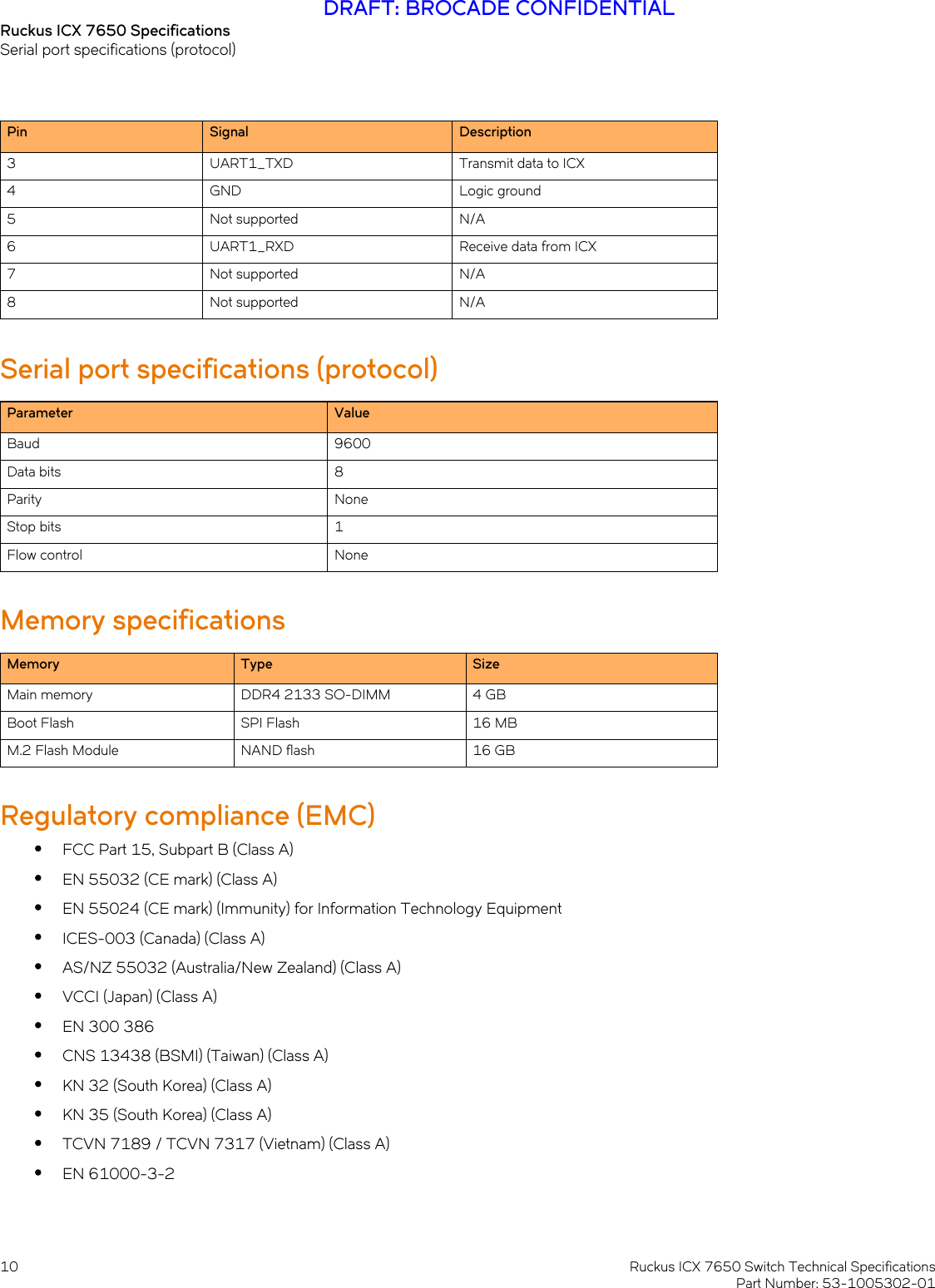

Page 10 of 12 - Ruckus ICX 7650 Switch Technical Specifications Campus Icx7650-technicalspecification
Page 11 of 12 - Ruckus ICX 7650 Switch Technical Specifications Campus Icx7650-technicalspecification
Page 12 of 12 - Ruckus ICX 7650 Switch Technical Specifications Campus Icx7650-technicalspecification

Navigation menu
