Ruckus SZ 100/vSZ E Administrator Guide For SmartZone 3.1.1 Smart Zone (SZ 100/v E) 100 Vsz 3 1 Rev D 20160209
2016-02-10
User Manual: Ruckus SmartZone 3.1.1 Administrator Guide (SZ-100/vSZ-E)
Open the PDF directly: View PDF .
Page Count: 279 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- Contents
- About This Guide
- Navigating the Web Interface
- Setting Up the Controller for the First Time

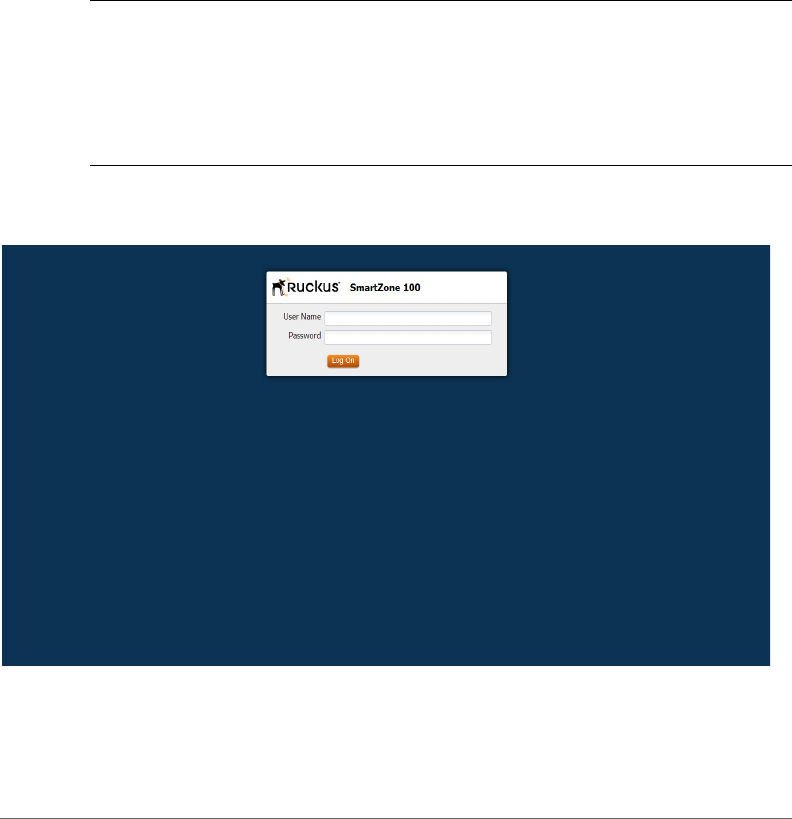

- Logging On to the Web Interface
- Web Interface Features

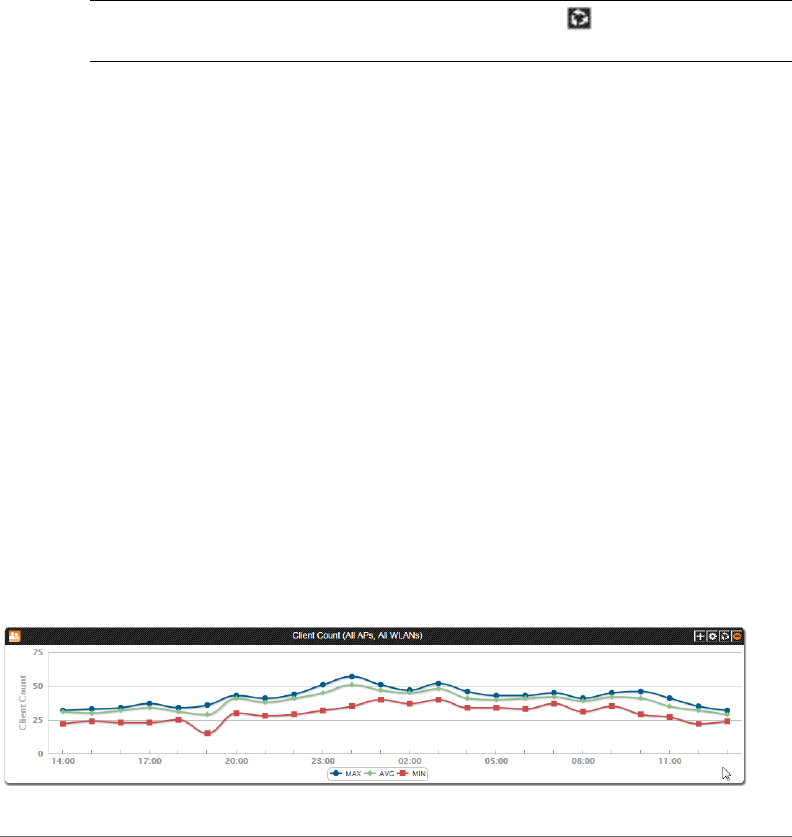

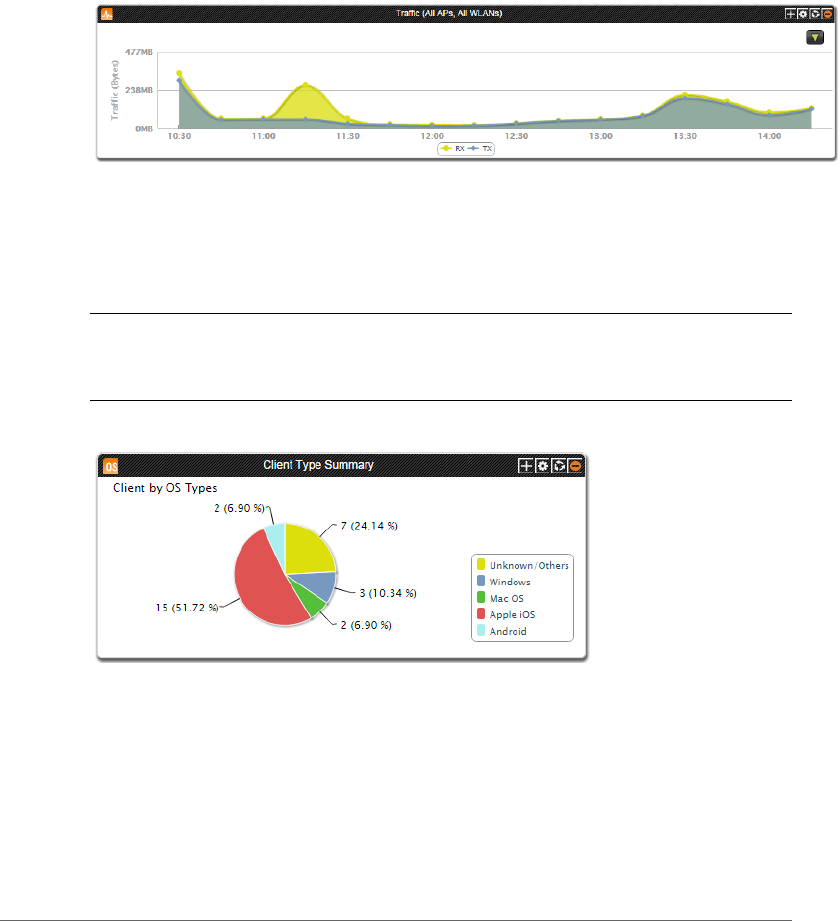

- Using Widgets on the Dashboard

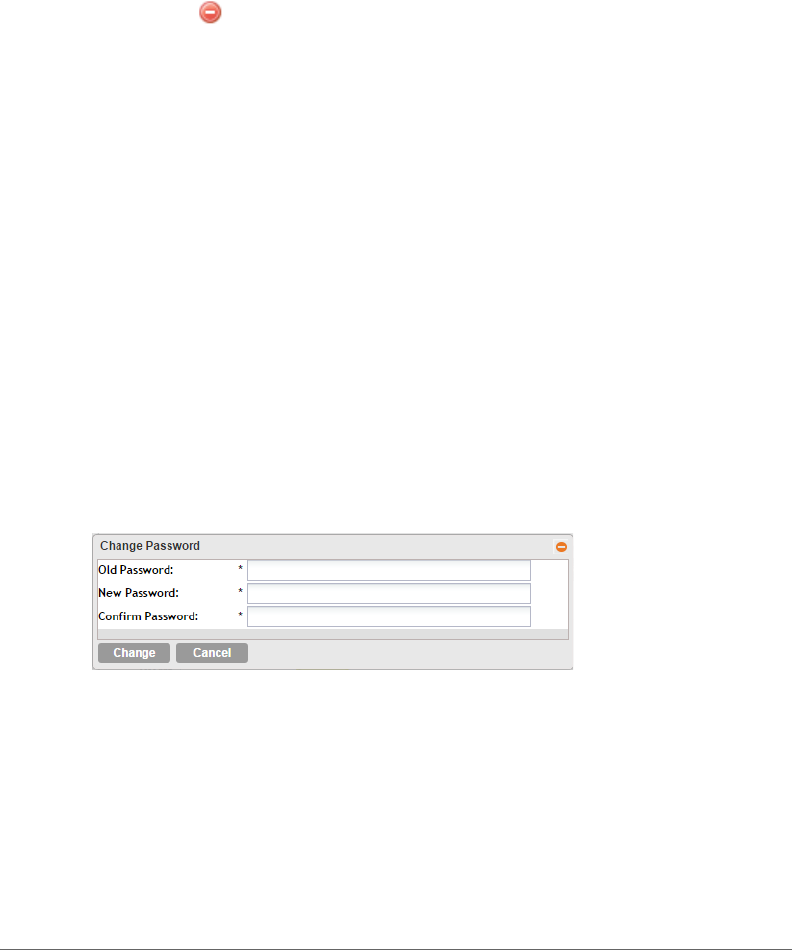

- Changing the Administrator Password
- Logging Off the Web Interface

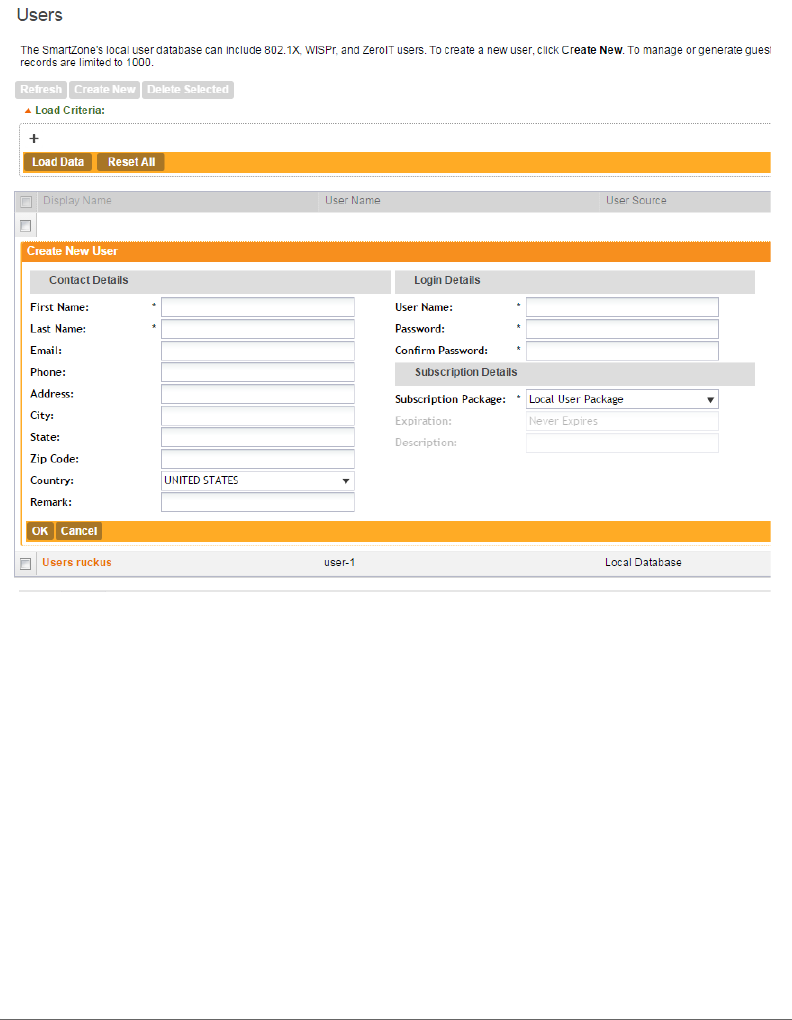

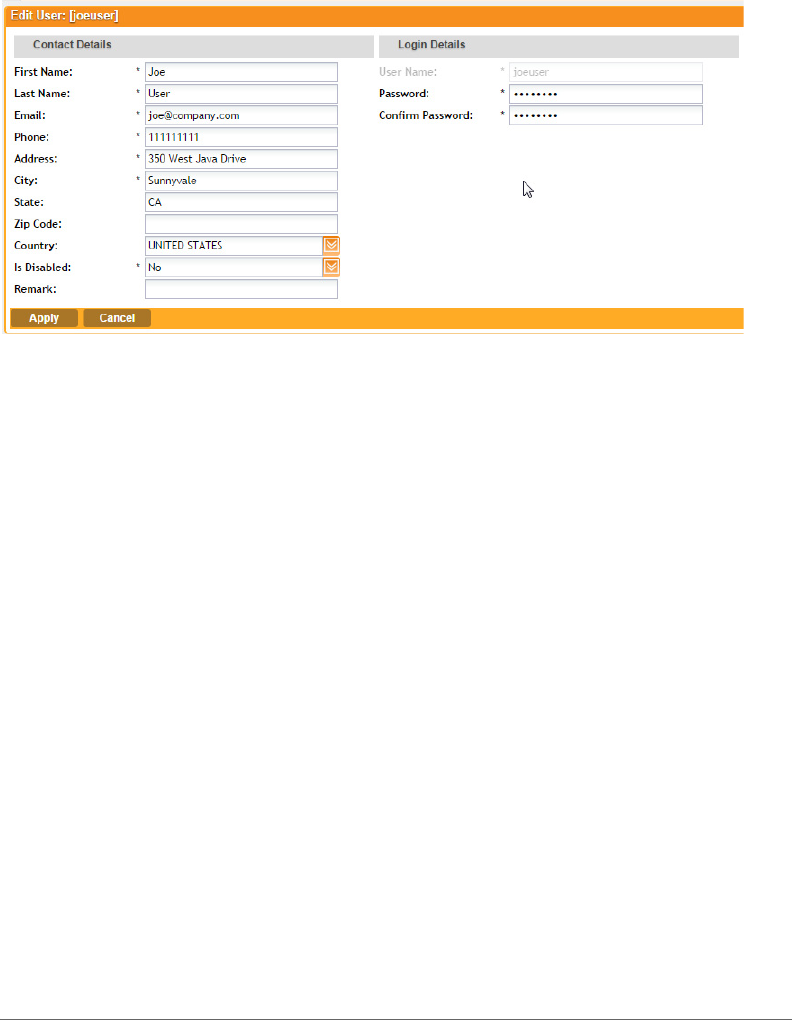

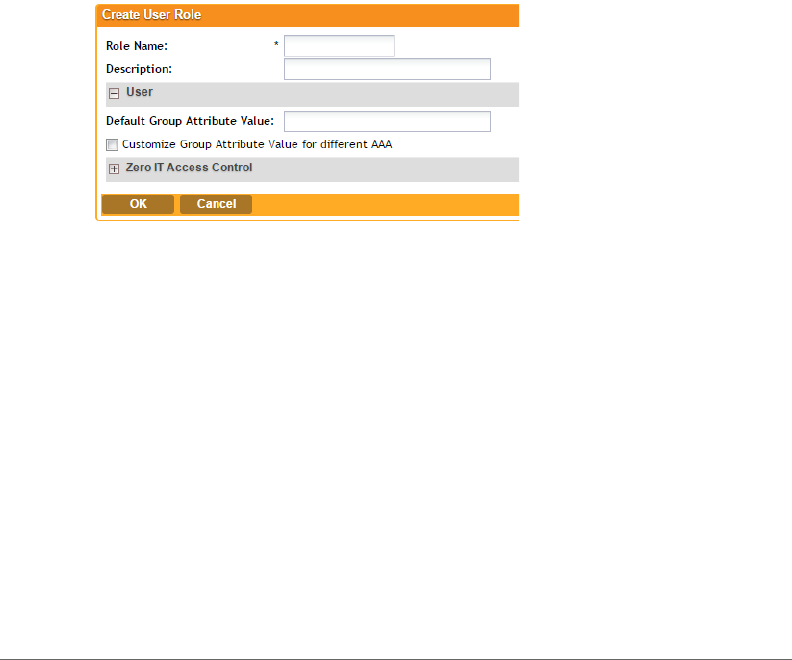

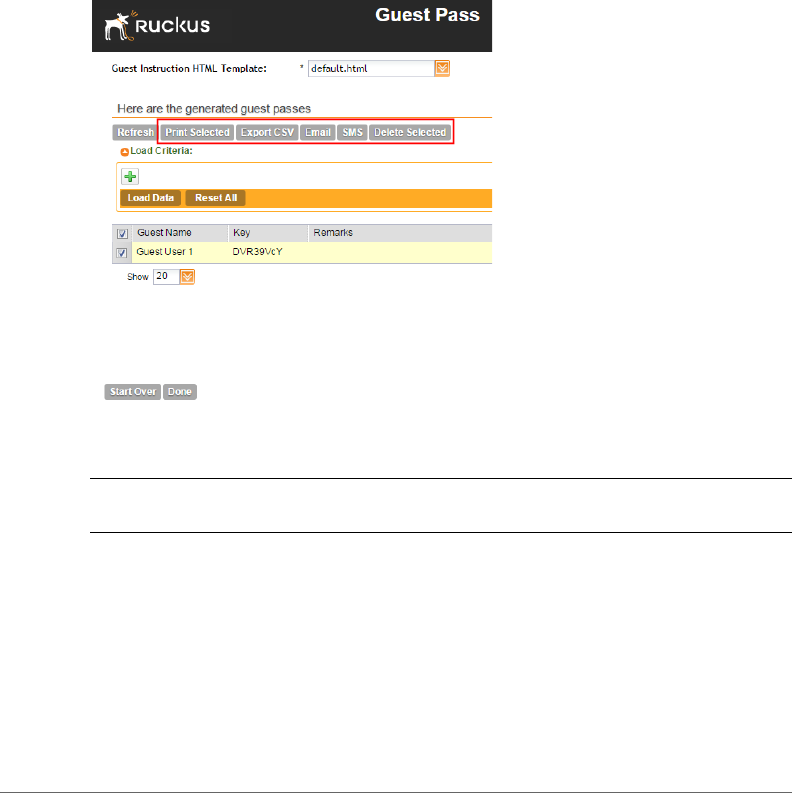

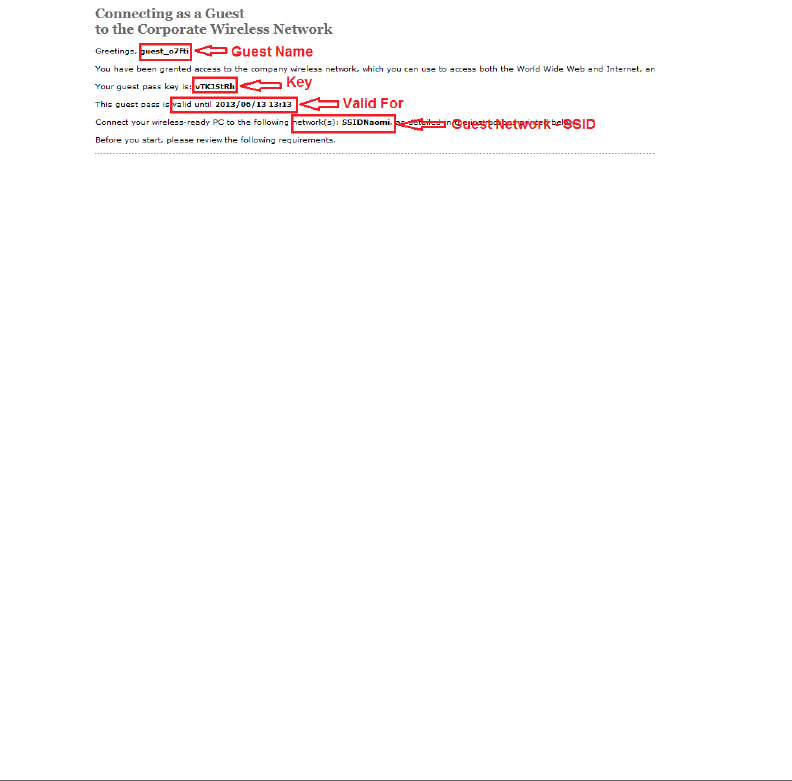

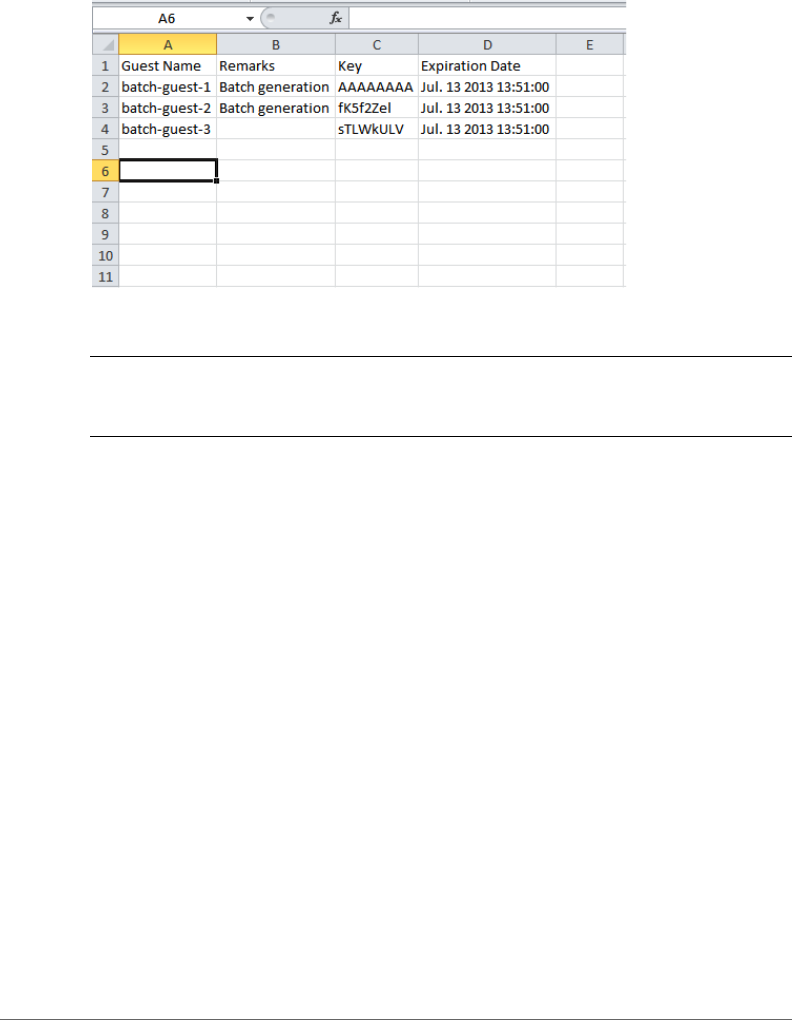

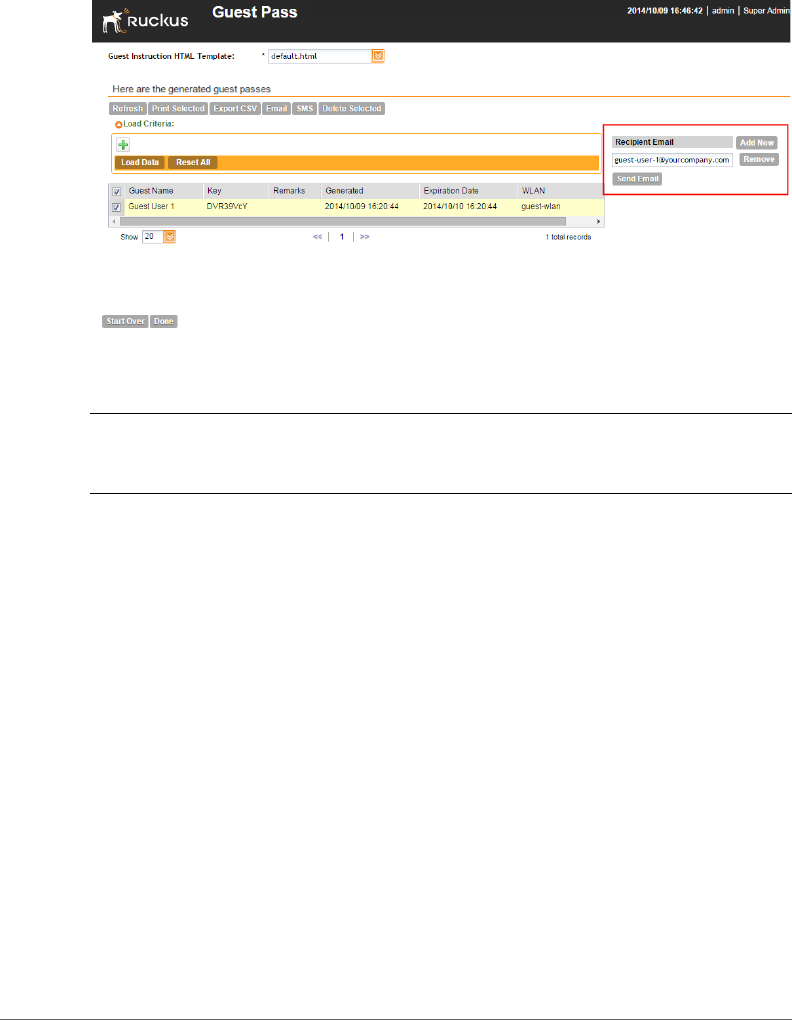

- Working with User Accounts, Guest Passes, and User Roles
- Configuring the Wireless Network

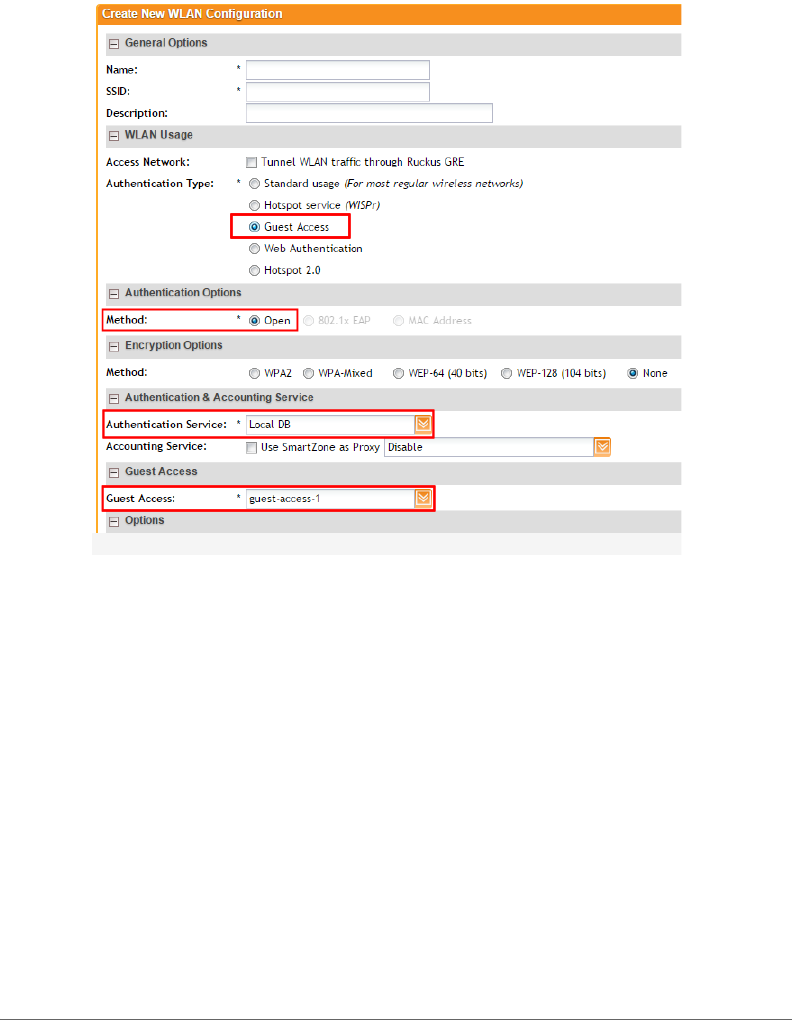

- Configuring WLANs
- Configuring WLAN Groups
- Configuring Access Points
- Controlling Access to the Wireless Network

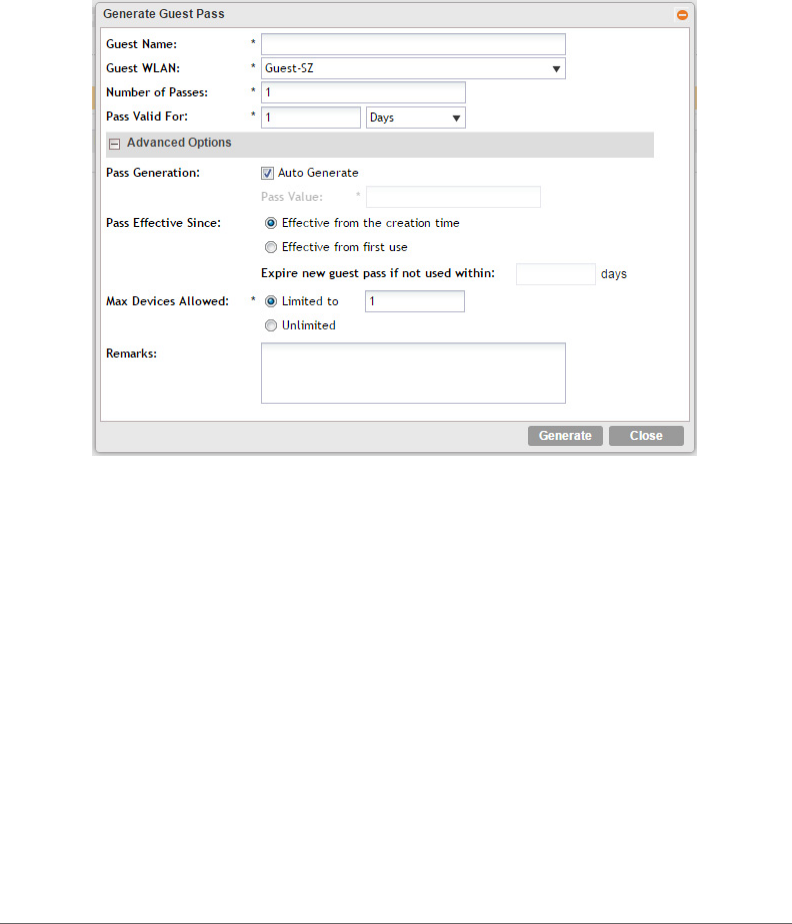

- Managing Guest Access
- Working with Hotspot (WISPr) Portals
- Working with Hotspot 2.0 Services
- Working with Web Authentication Services
- Working with AAA Servers
- Configuring Location Services
- Configuring Bonjour Gateway Policies
- Configuring System Settings
- Configuring Network Settings
- Configuring Log Settings

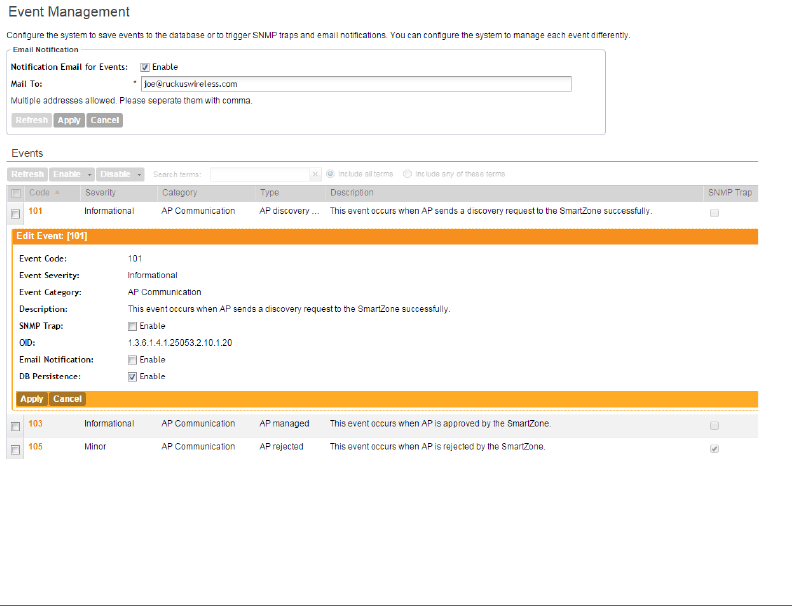

- Configuring Event Management
- Configuring Event Thresholds

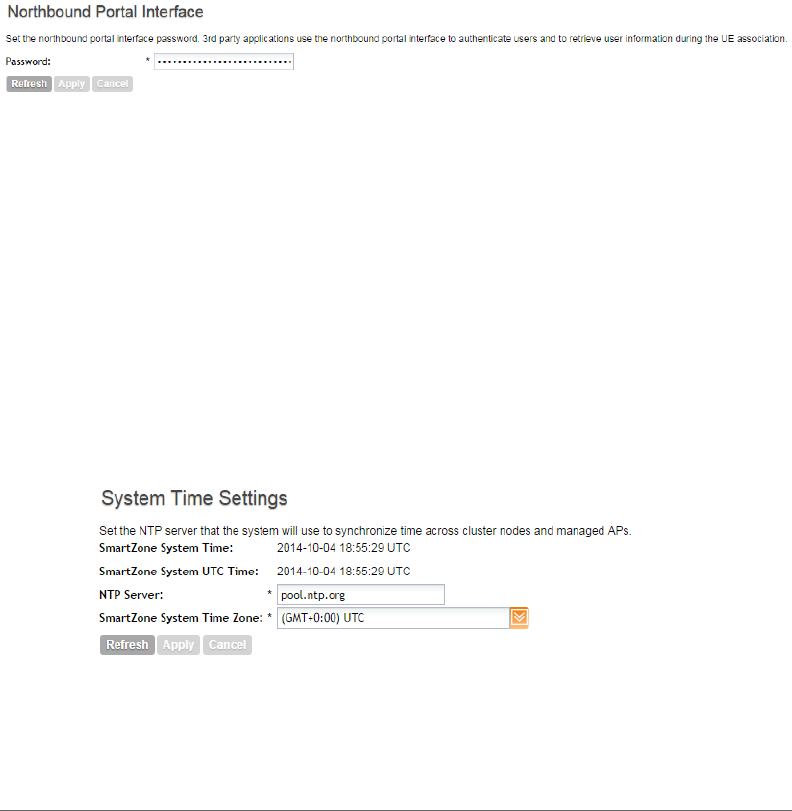

- Configuring the Northbound Portal Interface
- Configuring the System Time
- Configuring an External Email Server

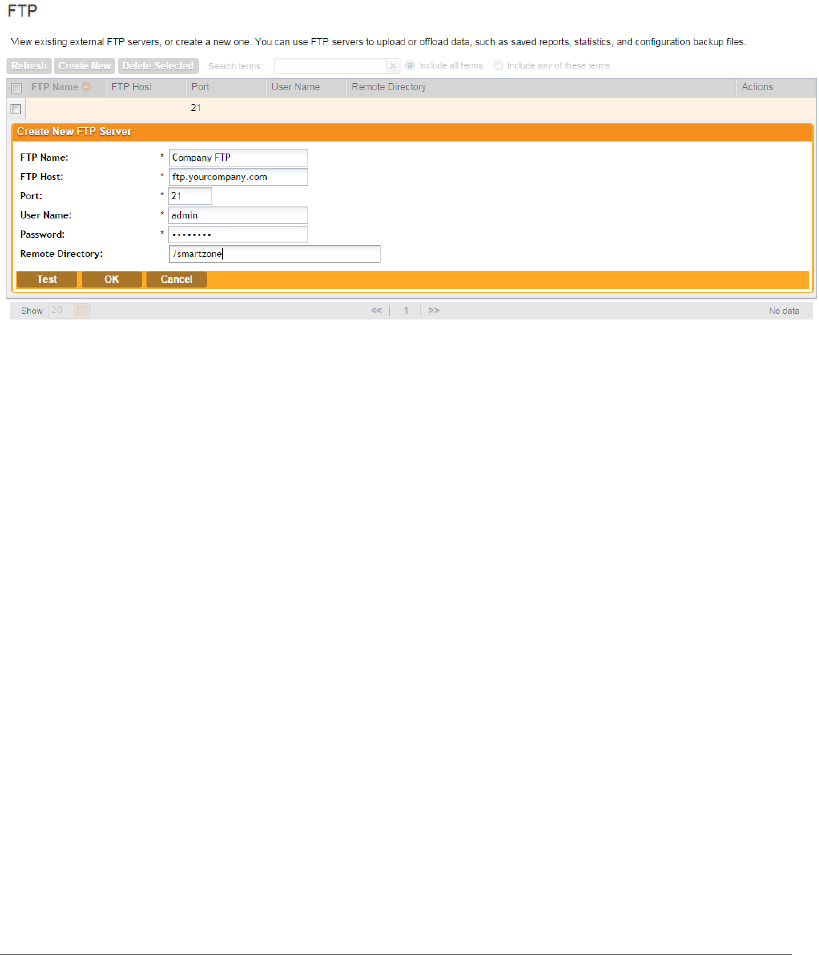

- Configuring External FTP Servers

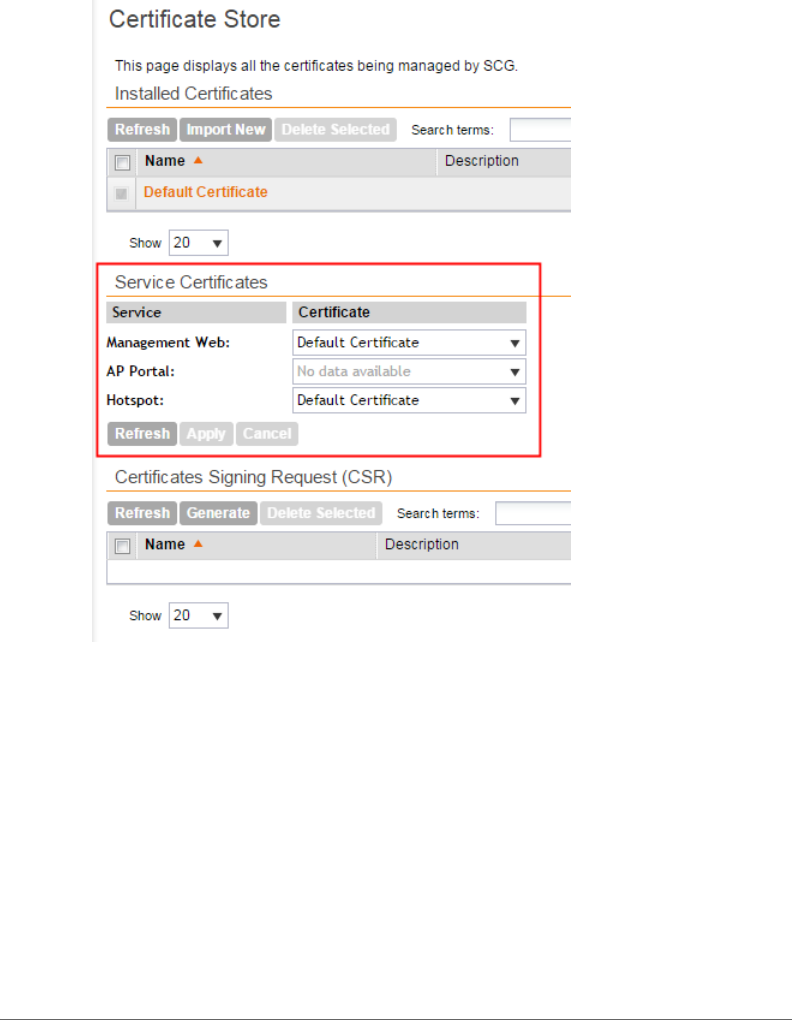

- Managing the Certificate Store

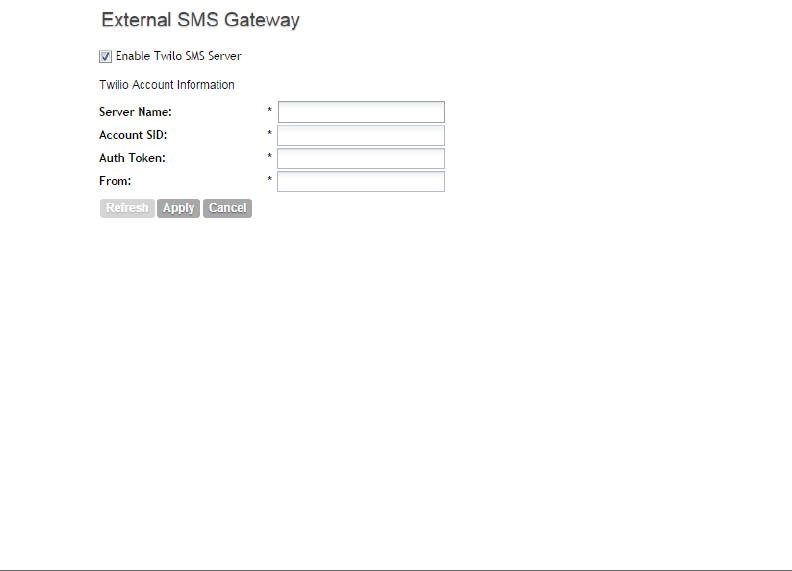

- Configuring the External SMS Gateway
- Configuring SNMP Settings

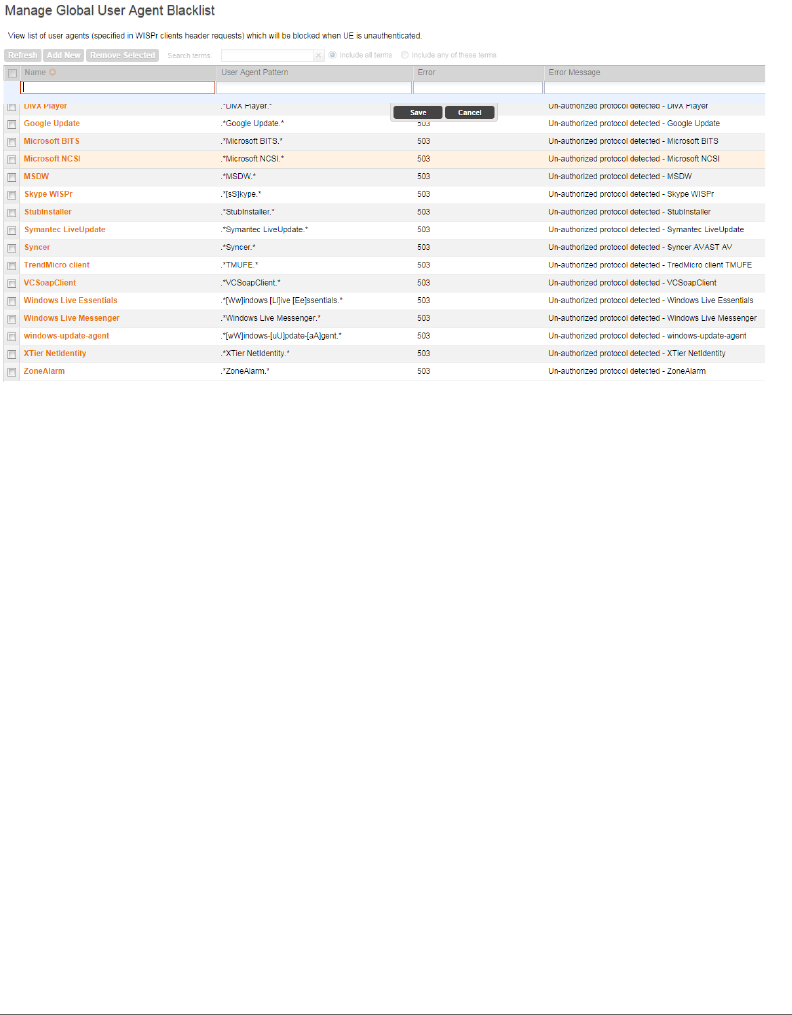

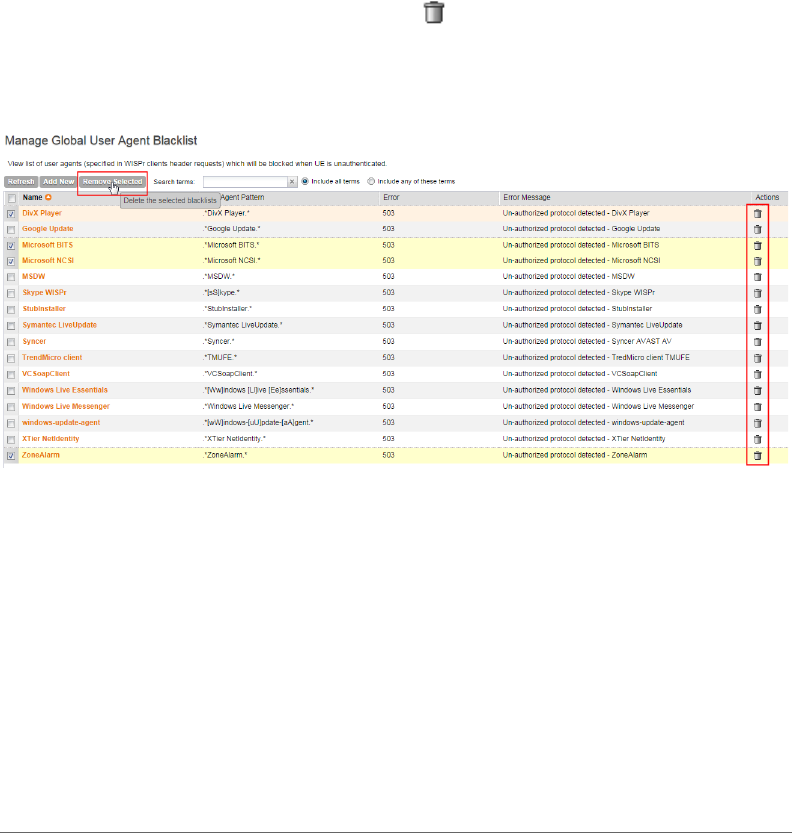

- Managing the User Agent Blacklist

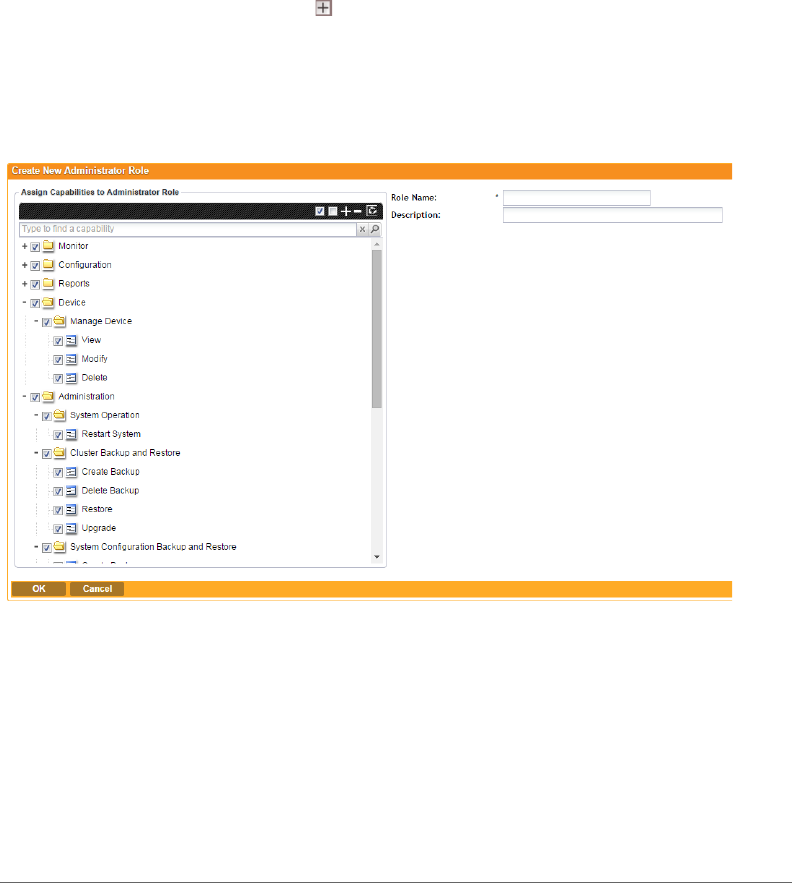

- Managing Administrators, Administrator Roles, and Administrator Authentication
- Monitoring the Wireless Network
- Working with Reports
- Performing Administrative Tasks

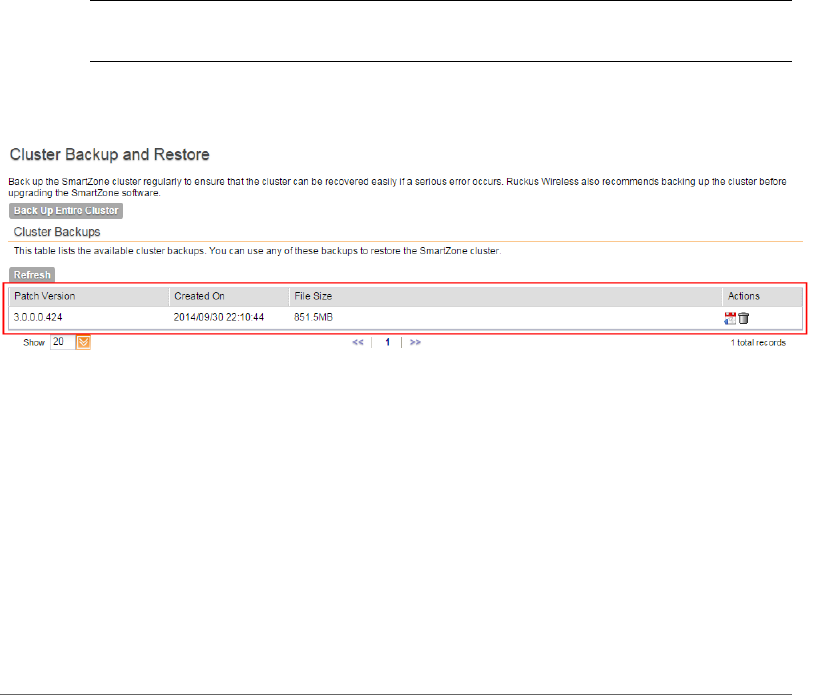

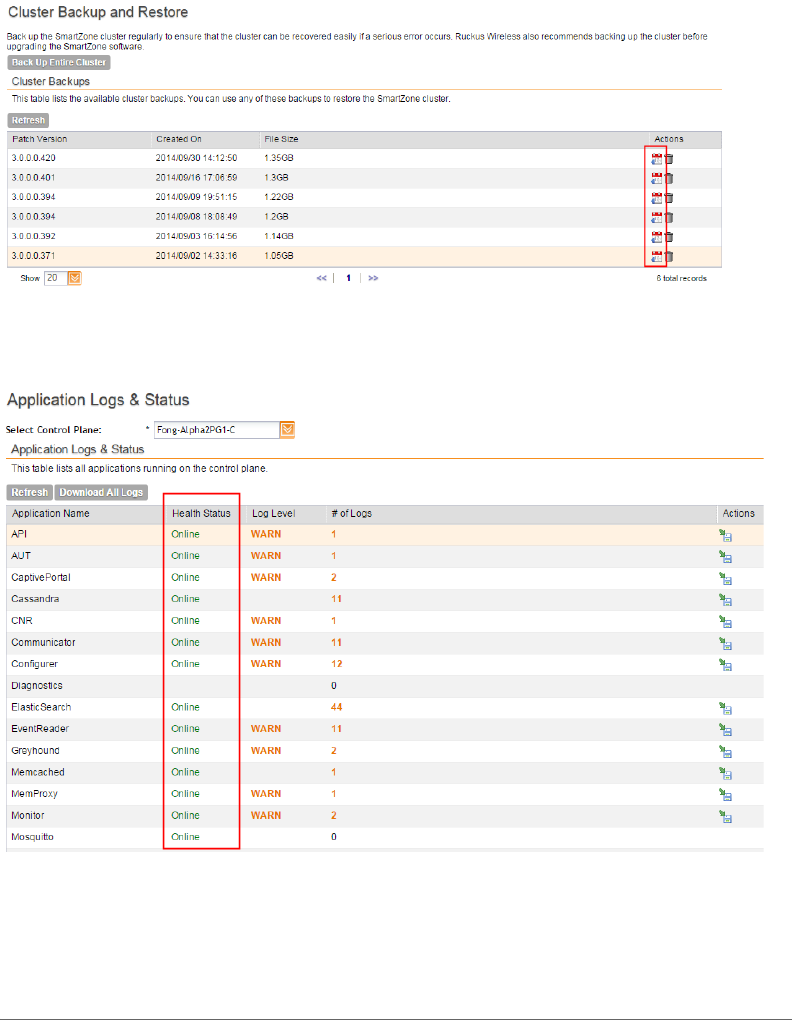

- Backing Up and Restoring Clusters
- Backing Up and Restoring the Controller’s Network Configuration from an FTP Server
- Backing Up and Restoring System Configuration
- Resetting a Node to Factory Settings
- Upgrading the Controller
- Working with Logs

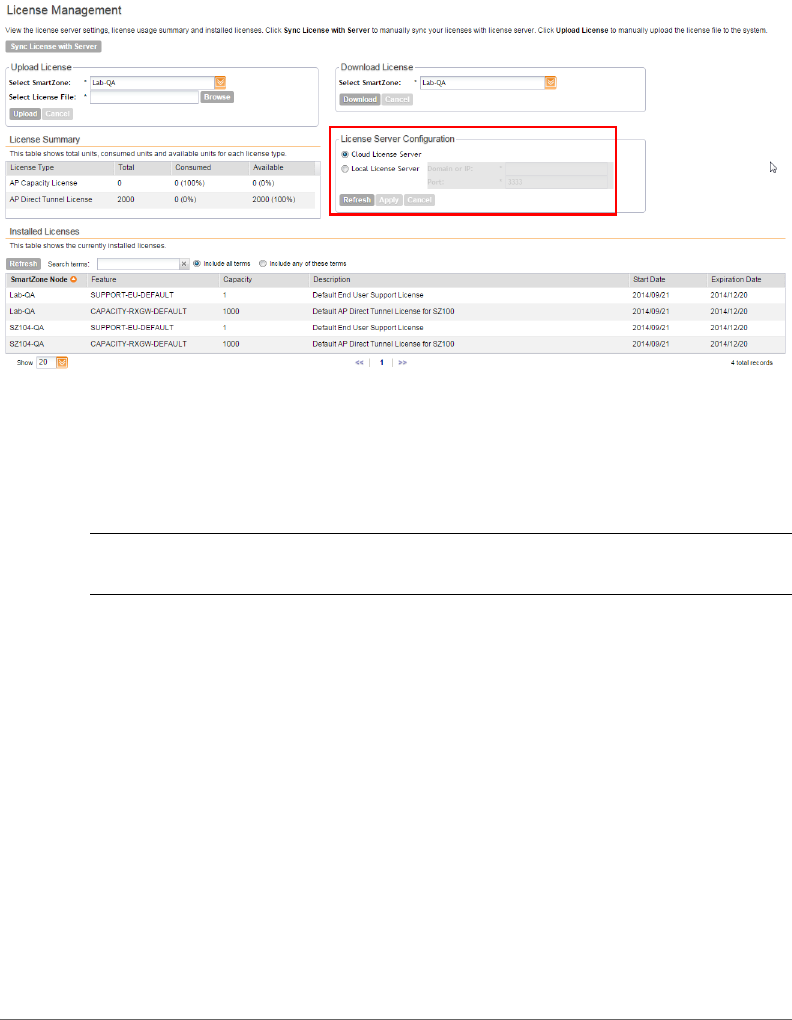

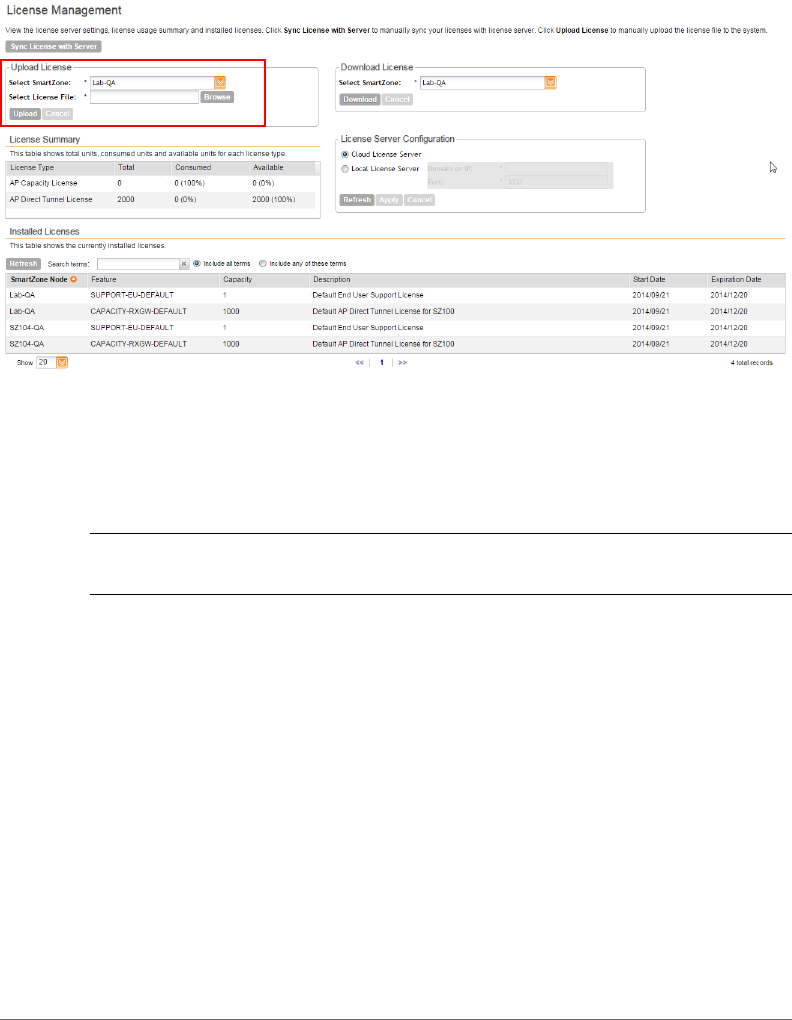

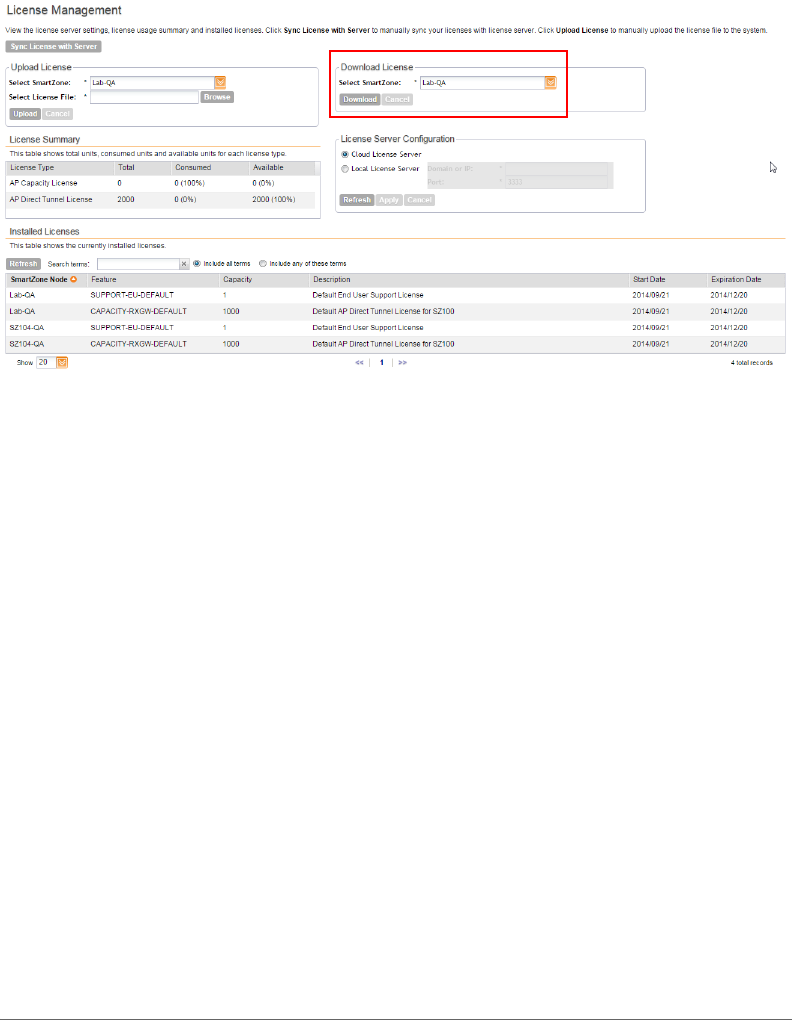

- Managing Licenses
- Ports to Open for AP-Controller Communication
- Index
![](asset-1.png)
Ruckus Wireless™
SmartZone™ 100/
Virtual SmartZone™ Essentials
Administrator Guide for SmartZone 3.1.1
Part Number 800-70944-001 Rev D
Published February 2016
www.ruckuswireless.com
![](asset-2.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 2
Copyright Notice and Proprietary Information
Copyright 2016. Ruckus Wireless, Inc. All rights reserved.
No part of this documentation may be reproduced, transmitted, or translated, in any form or by any means, electronic,
mechanical, manual, optical, or otherwise, without prior written permission of Ruckus Wireless, Inc. (“Ruckus”), or as
expressly provided by under license from Ruckus.
Destination Control Statement
Technical data contained in this publication may be subject to the export control laws of the United States of America.
Disclosure to nationals of other countries contrary to United States law is prohibited. It is the reader’s responsibility to
determine the applicable regulations and to comply with them.
Disclaimer
THIS DOCUMENTATION AND ALL INFORMATION CONTAINED HEREIN (“MATERIAL”) IS PROVIDED FOR GENERAL
INFORMATION PURPOSES ONLY. RUCKUS AND ITS LICENSORS MAKE NO WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, WITH REGARD TO THE MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE
MATERIAL IS ERROR-FREE, ACCURATE OR RELIABLE. RUCKUS RESERVES THE RIGHT TO MAKE CHANGES OR
UPDATES TO THE MATERIAL AT ANY TIME.
Limitation of Liability
IN NO EVENT SHALL RUCKUS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUEN-
TIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, DATA OR USE, INCURRED BY YOU OR ANY
THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT OR TORT, ARISING FROM YOUR ACCESS TO, OR USE
OF, THE MATERIAL.
Trademarks
Ruckus Wireless, Ruckus, the bark logo, ZoneFlex, FlexMaster, ZoneDirector, SmartMesh, Channelfly, Smartcell,
SmartZone, Dynamic PSK, and Simply Better Wireless are trademarks of Ruckus Wireless, Inc. in the United States
and other countries. All other product or company names may be trademarks of their respective owners.
![](asset-3.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 2
Third Party and Open Source Licenses Used in This Product
This product includes software developed by the Apache Software Foundation (http://www.apache.org/).
This product includes software developed by the OpenSymphony Group (http://www.opensymphony.com/).
This product includes software developed by the Visigoth Software Society (http://www.visigoths.org/).
This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
This product includes software written by Tim Hudson (tjh@cryptsoft.com).
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).
Copyright © 1999-2003 The Apache Software Foundation. All rights reserved.
Copyright © 2001-2004 The OpenSymphony Group. All rights reserved.
Copyright © 2003 The Visigoth Software Society. All rights reserved.
Copyright © 2011 John Resig, http://jquery.com/
Copyright © 1998-2011 The OpenSSL Project. All rights reserved.
Copyright © 1995-1998 Eric Young (eay@cryptsoft.com). All rights reserved.
Apache 2.0
Apache License
Version 2.0, January 2004
http://www.apache.org/licenses/
TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION
1. Definitions.
"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through
9 of this document.
"Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License.
"Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under
common control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to
cause the direction or management of such entity, whether by contract or
otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such
entity.
"You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License.
"Source" form shall mean the preferred form for making modifications, including but not limited to software source code,
documentation source, and configuration files.
"Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including
but not limited to compiled object code, generated documentation, and conversions to other media types.
"Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as
indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below).
"Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work
and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original
work of authorship. For the purposes of this License, Derivative Works shall not include works that remain separable
from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof. "Contribution" shall
mean any work of authorship, including the original version of the Work and any modifications or additions to that Work
or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner
or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this
definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its
representatives, including but not limited to communication on electronic mailing lists, source code control systems,
and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and
improving the Work, but excluding communication that is conspicuously marked or otherwise designated in writing by
the copyright owner as "Not a Contribution."
"Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received
by Licensor and subsequently incorporated within the Work.
![](asset-4.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 3
2. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to
You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare
Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works
in Source or Object form.
3. Grant of Patent License. Subject to the terms and conditions of this License, each Contributor hereby grants to You
a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent
license to make, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies
only to those patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone
or by combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute
patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a
Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses
granted to You under this License for that Work shall terminate as of the date such litigation is filed.
4. Redistribution. You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with
or without modifications, and in Source or Object form, provided that You meet the following conditions:
(a) You must give any other recipients of the Work or Derivative Works a copy of this License; and
(b) You must cause any modified files to carry prominent notices stating that You changed the files; and
(c) You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and
attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the
Derivative Works; and
(d) If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must
include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not
pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed
as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or,
within a display generated by the Derivative Works, if and wherever such third-party notices normally appear. The
contents of the NOTICE file are for informational purposes only and do not modify the License. You may add Your own
attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from
the Work, provided that such additional attribution notices cannot be construed as modifying the License.
You may add Your own copyright statement to Your modifications and may provide additional or different license terms
and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole,
provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this
License.
5. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for
inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional
terms or conditions.
Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you
may have executed with Licensor regarding such Contributions.
6. Trademarks. This License does not grant permission to use the trade names, trademarks, service marks, or product
names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and
reproducing the content of the NOTICE file.
7. Disclaimer of Warranty. Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each
Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND,
either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT,
MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the
appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions
under this License.
8. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence), contract, or
otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall
any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages
of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited
to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial
damages or losses), even if such Contributor has been advised of the possibility of such damages.
9. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose
to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights
consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your
sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each
Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting
any such warranty or additional liability.
END OF TERMS AND CONDITIONS
![](asset-5.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 4
APPENDIX: How to apply the Apache License to your work.
To apply the Apache License to your work, attach the following boilerplate notice, with the fields enclosed by brackets
"[]" replaced with your own identifying information. (Don't include the brackets!) The text should be enclosed in the
appropriate comment syntax for the file format. We also recommend that a file or class name and description of purpose
be included on the same "printed page" as the copyright notice for easier identification within third-party archives.
Copyright [yyyy] [name of copyright owner]
Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with
the License. You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and limitations under the License.
Apache 1.1
/* ====================================================================
* The Apache Software License, Version 1.1
*
* Copyright (c) 2000 The Apache Software Foundation. All rights
* reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*
* 1. Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
*
* 2. Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in
* the documentation and/or other materials provided with the
* distribution.
*
* 3. The end-user documentation included with the redistribution,
* if any, must include the following acknowledgment:
* "This product includes software developed by the
* Apache Software Foundation (http://www.apache.org/)."
* Alternately, this acknowledgment may appear in the software itself,
* if and wherever such third-party acknowledgments normally appear.
*
* 4. The names "Apache" and "Apache Software Foundation" must
* not be used to endorse or promote products derived from this
* software without prior written permission. For written
* permission, please contact apache@apache.org.
*
* 5. Products derived from this software may not be called "Apache",
* nor may "Apache" appear in their name, without prior written
* permission of the Apache Software Foundation.
*
* THIS SOFTWARE IS PROVIDED ``AS IS'' AND ANY EXPRESSED OR IMPLIED
* WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
* OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
![](asset-6.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 5
* DISCLAIMED. IN NO EVENT SHALL THE APACHE SOFTWARE FOUNDATION OR
* ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
* LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
* USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
* ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT
* OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
* SUCH DAMAGE.
* ====================================================================
*
* This software consists of voluntary contributions made by many
* individuals on behalf of the Apache Software Foundation. For more
* information on the Apache Software Foundation, please see
* <http://www.apache.org/>.
*
* Portions of this software are based upon public domain software
* originally written at the National Center for Supercomputing Applications,
* University of Illinois, Urbana-Champaign.
*/
Object-Graph Navigation Language (OGNL)
OpenSymphony Apache Software License Version 1.1
General information:
Copyright (c) 2001-2004 The OpenSymphony Group. All rights reserved.
The OpenSymphony Software License, Version 1.1
(this license is derived and fully compatible with the Apache Software License - see http://www.apache.org/LICENSE.txt)
Copyright (c) 2001-2004 The OpenSymphony Group. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following
conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided with the distribution.
3. The end-user documentation included with the redistribution, if any, must include the following acknowledgment:
'This product includes software developed by the OpenSymphony Group (http://www.opensymphony.com/).' Alter-
nately, this acknowledgment may appear in the software itself, if and wherever such third-party acknowledgments
normally appear.
4. The names 'OpenSymphony' and 'The OpenSymphony Group' must not be used to endorse or promote products
derived from this software without prior written permission. For written permission, please contact license@opensym-
phony.com.
5. Products derived from this software may not be called 'OpenSymphony' or 'WebWork', nor may 'OpenSymphony'
or 'WebWork' appear in their name, without prior written permission of the OpenSymphony Group.
THIS SOFTWARE IS PROVIDED 'AS IS' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE APACHE SOFTWARE FOUNDATION OR ITS CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,
OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
![](asset-7.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 6
Freemarker
Copyright (c) 2003 The Visigoth Software Society. All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
2. The end-user documentation included with the redistribution, if any, must include the following acknowlegement:
"This product includes software developed by the Visigoth Software Society (http://www.visigoths.org/)." Alternately,
this acknowlegement may appear in the software itself, if and wherever such third-party acknowlegements normally
appear.
3. Neither the name "FreeMarker", "Visigoth", nor any of the names of the project contributors may be used to endorse
or promote products derived from this software without prior written permission. For written permission, please contact
visigoths@visigoths.org.
4. Products derived from this software may not be called "FreeMarker" or "Visigoth" nor may "FreeMarker" or "Visigoth"
appear in their names without prior written permission of the Visigoth Software Society.
THIS SOFTWARE IS PROVIDED ``AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE VISIGOTH SOFTWARE SOCIETY OR ITS CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING,BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,DATA,
OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
-----------------------------------------------------------------------------
This software consists of voluntary contributions made by many individuals on
behalf of the Visigoth Software Society. For more information on the Visigoth
Software Society, please see http://www.visigoths.org/
Java Beans Activation Framework
COMMON DEVELOPMENT AND DISTRIBUTION LICENSE (CDDL) Version 1.0
1. Definitions.
1.1. Contributor. means each individual or entity that creates or contributes to the creation of Modifications.
1.2. Contributor Version. means the combination of the Original Software, prior Modifications used by a Contributor (if
any), and the Modifications made by that particular Contributor.
1.3. Covered Software. means (a) the Original Software, or (b) Modifications, or (c) the combination of files containing
Original Software with files containing Modifications, in each case including portions thereof.
1.4. Executable. means the Covered Software in any form other than Source Code.
1.5. Initial Developer. means the individual or entity that first makes Original Software available under this License.
1.6. Larger Work. means a work which combines Covered Software or portions thereof with code not governed by the
terms of this License.
1.7. License. means this document.
1.8. Licensable. means having the right to grant, to the maximum extent possible, whether at the time of the initial grant or
subsequently acquired, any and all of the rights conveyed herein.
1.9. Modifications. means the Source Code and Executable form of any of the following:
A. Any file that results from an addition to, deletion from or modification of the contents of a file containing Original
Software or previous Modifications;
B. Any new file that contains any part of the Original Software or previous Modification; or
C. Any new file that is contributed or otherwise made available under the terms of this License.
1.10. Original Software. means the Source Code and Executable form of computer software code that is originally
released under this License.
1.11. Patent Claims. means any patent claim(s), now owned or hereafter acquired, including without limitation, method,
process, and apparatus claims, in any patent Licensable by grantor.
1.12. Source Code. means (a) the common form of computer software code in which modifications are made and (b)
associated documentation included in or with such code.
![](asset-8.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 7
1.13. You. (or .Your.) means an individual or a legal entity exercising rights under, and complying with all of the terms
of, this License. For legal entities, .You. includes any entity which controls, is controlled by, or is under common control
with You. For purposes of this definition, .control. means (a) the power, direct or indirect, to cause the direction or
management of such entity, whether by contract or otherwise, or (b) ownership of more than fifty percent (50%) of the
outstanding shares or beneficial ownership of such entity.
2. License Grants.
2.1. The Initial Developer Grant.
Conditioned upon Your compliance with Section 3.1 below and subject to third party intellectual property claims, the
Initial Developer hereby grants You a world-wide, royalty-free, non-exclusive license:
(a) under intellectual property rights (other than patent or trademark) Licensable by Initial Developer, to use, reproduce,
modify, display, perform, sublicense and distribute the Original Software (or portions thereof), with or without Modifica-
tions, and/or as part of a Larger Work; and
(b) under Patent Claims infringed by the making, using or selling of Original Software, to make, have made, use, practice,
sell, and offer for sale, and/or otherwise dispose of the Original Software (or portions thereof).
(c) The licenses granted in Sections 2.1(a) and (b) are effective on the date Initial Developer first distributes or otherwise
makes the Original Software available to a third party under the terms of this License.
(d) Notwithstanding Section 2.1(b) above, no patent license is granted: (1) for code that You delete from the Original
Software, or (2) for infringements caused by: (i) the modification of the Original Software, or (ii) the combination of the
Original Software with other software or devices.
2.2. Contributor Grant.
Conditioned upon Your compliance with Section 3.1 below and subject to third party intellectual property claims, each
Contributor hereby grants You a world-wide, royalty-free, non-exclusive license:
a) under intellectual property rights (other than patent or trademark) Licensable by Contributor to use, reproduce, modify,
display, perform, sublicense and distribute the Modifications created by such Contributor (or portions thereof), either
on an unmodified basis, with other Modifications, as Covered Software and/or as part of a Larger Work;
and
(b) under Patent Claims infringed by the making, using, or selling of Modifications made by that Contributor either alone
and/or in combination with its Contributor Version (or portions of such combination), to make, use, sell, offer for sale,
have made, and/or otherwise dispose of: (1) Modifications made by that Contributor (or portions thereof); and (2) the
combination of Modifications made by that Contributor with its Contributor Version (or portions of such
combination).
(c) The licenses granted in Sections 2.2(a) and 2.2(b) are effective on the date Contributor first distributes or otherwise
makes the Modifications available to a third party.
(d) Notwithstanding Section 2.2(b) above, no patent license is granted: (1) for any code that Contributor has deleted
from the Contributor Version; (2) for infringements caused by: (i) third party modifications of Contributor Version, or (ii)
the combination of Modifications made by that Contributor with other software (except as part of the Contributor Version)
or other devices; or (3) under Patent Claims infringed by Covered Software in the absence of Modifications made by
that Contributor.
3. Distribution Obligations.
3.1. Availability of Source Code.
Any Covered Software that You distribute or otherwise make available in Executable form must also be made available
in Source Code form and that Source Code form must be distributed only under the terms of this License. You must
include a copy of this License with every copy of the Source Code form of the Covered Software You distribute or
otherwise make available. You must inform recipients of any such Covered Software in Executable form as to how they
can obtain such Covered Software in Source Code form in a reasonable manner on or through a medium customarily
used for software exchange.
3.2. Modifications.
The Modifications that You create or to which You contribute are governed by the terms of this License. You represent
that You believe Your Modifications are Your original creation(s) and/or You have sufficient rights to grant the rights
conveyed by this License.
3.3. Required Notices.
You must include a notice in each of Your Modifications that identifies You as the Contributor of the Modification. You
may not remove or alter any copyright, patent or trademark notices contained within the Covered Software, or any
notices of licensing or any descriptive text giving attribution to any Contributor or the Initial Developer.
3.4. Application of Additional Terms.
![](asset-9.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 8
You may not offer or impose any terms on any Covered Software in Source Code form that alters or restricts the
applicable version of this License or the recipients. rights hereunder. You may choose to offer, and to charge a fee for,
warranty, support, indemnity or liability obligations to one or more recipients of Covered Software. However, you may
do so only on Your own behalf, and not on behalf of the Initial Developer or any Contributor. You must make it absolutely
clear that any such warranty, support, indemnity or liability obligation is offered by You alone, and You hereby agree to
indemnify the Initial Developer and every Contributor for any liability incurred by the Initial Developer or such Contributor
as a result of warranty, support, indemnity or liability terms You offer.
3.5. Distribution of Executable Versions.
You may distribute the Executable form of the Covered Software under the terms of this License or under the terms of
a license of Your choice, which may contain terms different from this License, provided that You are in compliance with
the terms of this License and that the license for the Executable form does not attempt to limit or alter the recipient.s
rights in the Source Code form from the rights set forth in this License. If You distribute the Covered Software in
Executable form under a different license, You must make it absolutely clear that any terms which differ from this License
are offered by You alone, not by the Initial Developer or Contributor. You hereby agree to indemnify the Initial Developer
and every Contributor for any liability incurred by the Initial Developer or such Contributor as a result of any such terms
You o ffer.
3.6. Larger Works.
You may create a Larger Work by combining Covered Software with other code not governed by the terms of this
License and distribute the Larger Work as a single product. In such a case, You must make sure the requirements of
this License are fulfilled for the Covered Software.
4. Versions of the License.
4.1. New Versions.
Sun Microsystems, Inc. is the initial license steward and may publish revised and/or new versions of this License from
time to time. Each version will be given a distinguishing version number. Except as provided in Section 4.3, no one other
than the license steward has the right to modify this License.
4.2. Effect of New Versions.
You may always continue to use, distribute or otherwise make the Covered Software available under the terms of the
version of the License under which You originally received the Covered Software. If the Initial Developer includes a notice
in the Original Software prohibiting it from being distributed or otherwise made available under any subsequent version
of the License, You must distribute and make the Covered Software available under the terms of the version of the
License under which You originally received the Covered Software. Otherwise, You may also choose to use, distribute
or otherwise make the Covered Software available under the terms of any subsequent version of the License published
by the license steward.
4.3. Modified Versions.
When You are an Initial Developer and You want to create a new license for Your Original Software, You may create and
use a modified version of this License if You: (a) rename the license and remove any references to the name of the
license steward (except to note that the license differs from this License); and (b) otherwise make it clear that the license
contains terms which differ from this License.
5. DISCLAIMER OF WARRANTY.
COVERED SOFTWARE IS PROVIDED UNDER THIS LICENSE ON AN .AS IS. BASIS, WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES THAT THE COVERED
SOFTWARE IS FREE OF DEFECTS, MERCHANTABLE, FIT FOR A PARTICULAR PURPOSE OR NON-INFRINGING.
THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE COVERED SOFTWARE IS WITH YOU. SHOULD
ANY COVERED SOFTWARE PROVE DEFECTIVE IN ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR ANY
OTHER CONTRIBUTOR) ASSUME THE COST OF ANY NECESSARY SERVICING, REPAIR OR CORRECTION. THIS
DISCLAIMER OF WARRANTY CONSTITUTES AN ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY COVERED
SOFTWARE IS AUTHORIZED HEREUNDER EXCEPT UNDER THIS DISCLAIMER.
6. TERMINATION.
6.1. This License and the rights granted hereunder will terminate automatically if You fail to comply with terms herein
and fail to cure such breach within 30 days of becoming aware of the breach. Provisions which, by their nature, must
remain in effect beyond the termination of this License shall survive.
6.2. If You assert a patent infringement claim (excluding declaratory judgment actions) against Initial Developer or a
Contributor (the Initial Developer or Contributor against whom You assert such claim is referred to as .Participant.)
alleging that the Participant Software (meaning the Contributor Version where the Participant is a Contributor or the
Original Software where the Participant is the Initial Developer) directly or indirectly infringes any patent, then any and
all rights granted directly or indirectly to You by such Participant, the Initial Developer (if the Initial Developer is not the
![](asset-a.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 9
Participant) and all Contributors under Sections 2.1 and/or 2.2 of this License shall, upon 60 days notice from Participant
terminate prospectively and automatically at the expiration of such 60 day notice period, unless if within such 60 day
period You withdraw Your claim with respect to the Participant Software against such Participant either unilaterally or
pursuant to a written agreement with Participant.
6.3. In the event of termination under Sections 6.1 or 6.2 above, all end user licenses that have been validly granted by
You or any distributor hereunder prior to termination (excluding licenses granted to You by any distributor) shall survive
termination.
7. LIMITATION OF LIABILITY.
UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY, WHETHER TORT (INCLUDING NEGLIGENCE),
CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL DEVELOPER, ANY OTHER CONTRIBUTOR, OR ANY
DISTRIBUTOR OF COVERED SOFTWARE, OR ANY SUPPLIER OF ANY OF SUCH PARTIES, BE LIABLE TO ANY
PERSON FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY CHARACTER
INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOST PROFITS, LOSS OF GOODWILL, WORK STOPPAGE,
COMPUTER FAILURE OR MALFUNCTION, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES, EVEN
IF SUCH PARTY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. THIS LIMITATION OF
LIABILITY SHALL NOT APPLY TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULTING FROM SUCH PARTY.S
NEGLIGENCE TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME JURISDICTIONS DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THIS EXCLUSION
AND LIMITATION MAY NOT APPLY TO YOU.
8. U.S. GOVERNMENT END USERS.
The Covered Software is a .commercial item,. as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of
.commercial computer software. (as that term is defined at 48 C.F.R. º 252.227-7014(a)(1)) and commercial computer
software documentation. as such terms are used in 48 C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R. 12.212 and
48 C.F.R. 227.7202-1 through 227.7202-4 (June 1995), all U.S. Government End Users acquire Covered Software with
only those rights set forth herein. This U.S. Government Rights clause is in lieu of, and supersedes, any other FAR,
DFAR, or other clause or provision that addresses Government rights in computer software under this License.
9. MISCELLANEOUS.
This License represents the complete agreement concerning subject matter hereof. If any provision of this License is
held to be unenforceable, such provision shall be reformed only to the extent necessary to make it enforceable. This
License shall be governed by the law of the jurisdiction specified in a notice contained within the Original Software
(except to the extent applicable law, if any, provides otherwise), excluding such jurisdiction.s conflict-of-law provisions.
Any litigation relating to this License shall be subject to the jurisdiction of the courts located in the jurisdiction and venue
specified in a notice contained within the Original Software, with the losing party responsible for costs, including, without
limitation, court costs and reasonable attorneys. fees and expenses. The application of the United Nations Convention
on Contracts for the International Sale of Goods is expressly excluded. Any law or regulation which provides that the
language of a contract shall be construed against the drafter shall not apply to this License. You agree that You alone
are responsible for compliance with the United States export administration regulations (and the export control laws
and regulation of any other countries) when You use, distribute or otherwise make available any Covered Software.
10. RESPONSIBILITY FOR CLAIMS.
As between Initial Developer and the Contributors, each party is responsible for claims and damages arising, directly
or indirectly, out of its utilization of rights under this License and You agree to work with Initial Developer and Contributors
to distribute such responsibility on an equitable basis. Nothing herein is intended or shall be deemed to constitute any
admission of liability.
NOTICE PURSUANT TO SECTION 9 OF THE COMMON DEVELOPMENT AND DISTRIBUTION LICENSE (CDDL)
The code released under the CDDL shall be governed by the laws of the State of California (excluding conflict-of-law
provisions). Any litigation relating to this License shall be subject to the jurisdiction of the Federal Courts of the Northern
District of California and the state courts of the State of California, with venue lying in Santa Clara County, California.
JQuery
Copyright (c) 2011 John Resig, http://jquery.com/
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated
documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to
use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to
whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the
Software.
![](asset-b.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 10
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM,
DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
OpenSSL
LICENSE ISSUES
==============
The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay
license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source
licenses. In case of any license issues related to OpenSSL please contact openssl-core@openssl.org.
OpenSSL License
---------------
/* ====================================================================
* Copyright (c) 1998-2011 The OpenSSL Project. All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*
* 1. Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
*
* 2. Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in
* the documentation and/or other materials provided with the
* distribution.
*
* 3. All advertising materials mentioning features or use of this
* software must display the following acknowledgment:
* "This product includes software developed by the OpenSSL Project
* for use in the OpenSSL Toolkit. (http://www.openssl.org/)"
*
* 4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to
* endorse or promote products derived from this software without
* prior written permission. For written permission, please contact
* openssl-core@openssl.org.
*
* 5. Products derived from this software may not be called "OpenSSL"
* nor may "OpenSSL" appear in their names without prior written
* permission of the OpenSSL Project.
*
* 6. Redistributions of any form whatsoever must retain the following
* acknowledgment:
* "This product includes software developed by the OpenSSL Project
* for use in the OpenSSL Toolkit (http://www.openssl.org/)"
*
* THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY
* EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
* IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
![](asset-c.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 11
* PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR
* ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
* NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
* LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
* HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
* STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
* ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED
* OF THE POSSIBILITY OF SUCH DAMAGE.
* ====================================================================
*
* This product includes cryptographic software written by Eric Young
* (eay@cryptsoft.com). This product includes software written by Tim
* Hudson (tjh@cryptsoft.com).
*
*/
Original SSLeay License
-----------------------
/* Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com)
* All rights reserved.
*
* This package is an SSL implementation written
* by Eric Young (eay@cryptsoft.com).
* The implementation was written so as to conform with Netscapes SSL.
*
* This library is free for commercial and non-commercial use as long as
* the following conditions are aheared to. The following conditions
* apply to all code found in this distribution, be it the RC4, RSA,
* lhash, DES, etc., code; not just the SSL code. The SSL documentation
* included with this distribution is covered by the same copyright terms
* except that the holder is Tim Hudson (tjh@cryptsoft.com).
*
* Copyright remains Eric Young's, and as such any Copyright notices in
* the code are not to be removed.
* If this package is used in a product, Eric Young should be given attribution
* as the author of the parts of the library used.
* This can be in the form of a textual message at program startup or
* in documentation (online or textual) provided with the package.
** Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
* 1. Redistributions of source code must retain the copyright
* notice, this list of conditions and the following disclaimer.
* 2. Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the distribution.
* 3. All advertising materials mentioning features or use of this software
* must display the following acknowledgement:
* "This product includes cryptographic software written by
* Eric Young (eay@cryptsoft.com)"
![](asset-d.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 12
* The word 'cryptographic' can be left out if the rouines from the library
* being used are not cryptographic related :-).
* 4. If you include any Windows specific code (or a derivative thereof) from
* the apps directory (application code) you must include an acknowledgement:
* "This product includes software written by Tim Hudson (tjh@cryptsoft.com)"
*
* THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND
* ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
* IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
* ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE
* FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
* DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
* OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
* HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
* LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
* OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
* SUCH DAMAGE.
*
* The licence and distribution terms for any publically available version or
* derivative of this code cannot be changed. i.e. this code cannot simply be
* copied and put under another distribution licence
* [including the GNU Public Licence.]
*/
![](asset-e.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 3
Contents
About This Guide
Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Documentation Feedback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1 Navigating the Web Interface
Setting Up the Controller for the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Logging On to the Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Web Interface Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Main Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Sidebar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Content Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Miscellaneous Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using Widgets on the Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Widgets That You Can Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Client Count Summary Widget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
AP Summary Widget. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
System Summary Widget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Traffic Summary Widget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Client Type Summary Widget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Wireless Network Summary Widget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Top 10 APs by Client Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Top 10 Clients by Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Widget Slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Adding a Widget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Adding a Widget to a Widget Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Displaying a Widget in a Widget Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Moving a Widget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Deleting a Widget. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Changing the Administrator Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Logging Off the Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
![](asset-f.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 4
2 Working with User Accounts, Guest Passes, and User Roles
Working with User Accounts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Creating a User Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Editing a User Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Working with Guest Passes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Generating Guest Passes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Step 1: Create a Guest Access Portal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Step 2: Create a Guest Access WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Step 3: Generate a Guest Pass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Step 4: Send Guest Passes to Guest Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Printing the Guest Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Exporting the Guest Pass to CSV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Sending the Guest Pass via Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Sending the Guest Pass via SMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Generating Guest Passes from an Imported CSV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Viewing the List of Guest Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Deleting Guest Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Creating a Guest Pass Printout Template. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Working with User Roles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Creating a User Role . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
3 Configuring the Wireless Network
Configuring WLANs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Creating a WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Client Load Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Key Points About Client Load Balancing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Band Balancing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Client Admission Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Bypassing Apple CNA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Viewing Existing WLANs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Deleting WLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Configuring WLAN Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Notes About WLAN Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Creating a WLAN Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Viewing Existing WLAN Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Deleting WLAN Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Working with WLAN Schedule Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Creating a WLAN Schedule Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Viewing WLAN Schedule Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
![](asset-10.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 5
Deleting WLAN Schedule Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Configuring Access Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Configuring Common AP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Channel Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Client Load Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Key Points About Load Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Band Balancing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
ChannelFly and Background Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Benefits of ChannelFly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Disadvantages of ChannelFly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Background Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
VLAN Pooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Creating a VLAN Pooling Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Assigning the VLAN Pooling Profile to a WLAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Using a VLAN Pooling Profile to Override the VLAN Settings of a WLAN Group . . . 77
Configuring Model-Based Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Configuring AP Ethernet Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Designating an Ethernet Port Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Trunk Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Access Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
General Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Configuring AP Tunnel Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Tagging Critical APs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Creating IPSec Profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Managing Access Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Viewing a List of Managed Access Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Provisioning and Swapping Access Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Options for Provisioning and Swapping APs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Understanding How Swapping Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Editing AP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Editing Swap Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Deleting an Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Controlling Access to the Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Working with User Traffic Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Creating a User Traffic Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Viewing User Traffic Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Assigning Priorities to Traffic Profile Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Deleting Traffic Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Controlling L2 Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
![](asset-11.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 6
Creating an L2 Access Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Viewing L2 Access Policies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Deleting L2 Access Policies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Controlling Device Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Creating a Device Access Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Viewing Device Access Policies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Deleting Device Access Policies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Managing Guest Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Creating a Guest Access Portal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Viewing Guest Access Portals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Deleting Guest Access Portals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Working with Hotspot (WISPr) Portals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Creating a Hotspot (WISPr) Portal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Configuring Smart Client Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Configuring the Logon URL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Assigning a WLAN to Provide a Hotspot Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Working with Hotspot 2.0 Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Working with Web Authentication Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Adding an AAA Server for the Web Authentication Service . . . . . . . . . . . . . . . . . . . . . 113
Creating a Web Authentication Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Creating a WLAN for the Web Authentication Service. . . . . . . . . . . . . . . . . . . . . . . . . 115
Working with AAA Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Working with Proxy AAA Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Adding a Proxy AAA Authentication Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
RADIUS Service Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Adding a Proxy AAA Accounting Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Deleting Proxy AAA Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Working with Non-Proxy AAA Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Adding a Non-Proxy AAA Authentication Server . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Adding a Non-Proxy AAA Accounting Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Deleting Non-Proxy AAA Servers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Configuring Location Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Configuring Bonjour Gateway Policies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Creating a Bonjour Gateway Rule on the AP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Applying a Bonjour Policy to an AP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
4 Configuring System Settings
Configuring Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Setting the System IP Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
![](asset-12.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 7
Configuring the Physical Interface Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Configuring the User Defined Interface Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Creating and Configuring Static Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Configuring Log Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Event Severity Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Default Event Severity to Syslog Priority Mapping. . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Configuring Event Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Enabling or Disabling Notifications for a Single Event . . . . . . . . . . . . . . . . . . . . . . . . . 145
Viewing Enabled Notifications for Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Configuring Event Thresholds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Events with Configurable Thresholds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Configuring the Northbound Portal Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Configuring the System Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
How APs Synchronize Time with the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Configuring an External Email Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Configuring External FTP Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Managing the Certificate Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Generating a Certificate Signing Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Importing an SSL Certificate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Assigning Certificates to Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Configuring the External SMS Gateway. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Configuring SNMP Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Enabling Global SNMP Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Configuring the SNMPv2 Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Configuring the SNMPv3 Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Managing the User Agent Blacklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Adding a User Agent to the Blacklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Deleting User Agents from the Blacklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
5 Managing Administrators, Administrator Roles, and Administrator
Authentication
Managing Administrator Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Creating an Administrator Account. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Managing Administrator Roles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Creating an Administrator Role. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Editing an Administrator Role . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Cloning an Existing Administrator Role . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Managing RADIUS Servers for Administrator Authentication . . . . . . . . . . . . . . . . . . . . . 172
Adding a RADIUS Server for Administrator Authentication . . . . . . . . . . . . . . . . . . . . . 172
![](asset-13.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 8
Using a Backup RADIUS Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Testing an AAA Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Authenticating an Administrator Using an External AAA Server. . . . . . . . . . . . . . . . . . 176
6 Monitoring the Wireless Network
Monitoring Managed Access Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Viewing a Summary of Access Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Exporting the Access Point List to CSV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Viewing the Configuration of an Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Downloading the Support Log from an Access Point . . . . . . . . . . . . . . . . . . . . . . . . . 184
Restarting an Access Point Remotely. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Running Ping and Traceroute on an Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Viewing Managed APs on Google Maps™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Monitoring the Mesh Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Monitoring Wireless Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Viewing a Summary of Wireless Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Exporting the Wireless Client List to CSV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Viewing Information About a Wireless Client. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Measuring Wireless Network Throughput with SpeedFlex . . . . . . . . . . . . . . . . . . . . . 192
Monitoring Managed Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Monitoring the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Viewing the System Cluster Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Displaying the Chassis View of Cluster Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Starting the Node Real-time Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Monitoring Rogue Access Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Monitoring Location Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Viewing All Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Exporting the Alarm List to CSV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Clearing Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Acknowledging Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Viewing All Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Exporting the Event List to CSV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Monitoring Administrator Activities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Exporting the Administrator Activity List to CSV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
7Working with Reports
Types of Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Client Number Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Client Number vs Airtime Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
![](asset-14.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 9
Continuously Disconnected APs Report. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Failed Client Associations Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
New Client Associations Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
System Resource Utilization Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
TX/RX Bytes Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Creating a New Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Step 1: Define the General Report Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Step 2: Define the Resource Filter Criteria . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Step 3: Define the Time Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Step 4: Define the Report Generation Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Step 5: Enable Email Notifications (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Step 6: Export the Report to an FTP Server (Optional) . . . . . . . . . . . . . . . . . . . . . . . . 217
Step 7: Save the Report. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Viewing a List of Existing Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Deleting a Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
8 Performing Administrative Tasks
Backing Up and Restoring Clusters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Creating a Cluster Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Restoring a Cluster Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Deleting a Cluster Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Backing Up and Restoring the Controller’s Network Configuration from an FTP Server. 224
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Backing Up to an FTP Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Restoring from an FTP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Backing Up and Restoring System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Creating a System Configuration Backup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Exporting the Configuration Backup to an FTP Server Automatically . . . . . . . . . . . . . 236
Scheduling a Configuration Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Downloading a Copy of the Configuration Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Restoring a System Configuration Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Deleting a Configuration Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Resetting a Node to Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
What Happens After Reset to Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Using the Web Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Using the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Upgrading the Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Before You Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Performing the Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
![](asset-15.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 10
Verifying the Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Rolling Back to a Previous Software Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Recovering a Cluster from an Unsuccessful Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . 245
If the Controller Has Local Configuration Backup . . . . . . . . . . . . . . . . . . . . . . . . . . 245
If the Controller Has an FTP Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Working with Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Available System Log Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Downloading All Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Downloading Snapshot Logs Generated from the CLI . . . . . . . . . . . . . . . . . . . . . . . . 249
Managing Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Default Licenses in the SmartZone 100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Supported License Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
AP Capacity License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Default AP Capacity License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
AP Tunneling Capacity License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Default AP Tunneling Capacity License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Support License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Default Support License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Viewing Installed Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Viewing the License Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Configuring the License Server to Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Importing a License File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Downloading a Copy of the Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Synchronizing the Controller with the License Server . . . . . . . . . . . . . . . . . . . . . . . . . 259
A Ports to Open for AP-Controller Communication
AP-SCG/SZ/vSZ Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
AP-ZD Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Index
![](asset-16.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 11
About This Guide
This Administrator Guide describes how to configure the
Ruckus Wireless™ SmartZone™ 100 (SZ-100)/Virtual SmartZone™ Essentials
(vSZ-E) and how to use the web interface to manage access points that are reporting
to the SZ-100/vSZ-E (collectively referred to as “the controller” throughout this
guide). This guide is written for those responsible for installing and managing network
equipment. Consequently, it assumes that the reader has basic working knowledge
of local area networking, wireless networking, and wireless devices.
NOTE: If release notes are shipped with your product and the information there
differs from the information in this guide, follow the instructions in the release notes.
Most user guides and release notes are available in Adobe Acrobat Reader Portable
Document Format (PDF) or HTML on the Ruckus Wireless Support website at
https://support.ruckuswireless.com/documents.
![](asset-17.png)
Document Conventions
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 12
Document Conventions
Tab l e 1 and Table 2 list the text and notice conventions that are used throughout
this guide.
Related Documentation
In addition to this Administrator Guide, each SZ-100/vSZ-E documentation set
includes the following:
•Getting Started Guide/Quick Setup Guide: Provides step-by-step instructions
on how to set up and configure the controller out of the box.
•Online Help: Provides instructions for performing tasks using the controller’s web
interface. The online help is accessible from the web interface and is searchable.
•Release Notes: Provide information about the current software release, including
new features, enhancements, and known issues.
Table 1. Text conventions
Convention Description Example
monospace Represents information as it
appears on screen
[Device name]>
monospace bold Represents information that
you enter
[Device name]> set
ipaddr 10.0.0.12
default font bold Keyboard keys, software
buttons, and field names
On the Start menu, click All
Programs.
italics Screen or page names Click Advanced Settings.
The Advanced Settings page
appears.
Table 2. Notice conventions
Notice Type Description
NOTE Information that describes important features or instructions
Caution! Information that alerts you to potential loss of data or potential
damage to an application, system, or device
Warning Information that alerts you to potential personal injury
![](asset-18.png)
Documentation Feedback
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 13
Documentation Feedback
Ruckus Wireless is interested in improving its documentation and welcomes your
comments and suggestions. You can email your comments to Ruckus Wireless at:
docs@ruckuswireless.com
When contacting us, please include the following information:
• Document title
• Document part number (on the cover page)
• Page number (if appropriate)
For example:
• SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1
• Part number: 800-70944-001
• Page 88
![](asset-19.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 14
1
Navigating the Web Interface
In this chapter:
•Setting Up the Controller for the First Time
•Logging On to the Web Interface
•Web Interface Features
•Using Widgets on the Dashboard
•Changing the Administrator Password
•Logging Off the Web Interface
NOTE: Before continuing, make sure that you have already set up the controller as
described in the Getting Started Guide or Quick Setup Guide for your controller
platform.
Setting Up the Controller for the First Time
For information on how to set up the controller for the first time, including instructions
for running and completing the controller’s Setup Wizard, see the Getting Started
Guide or Quick Setup Guide for your controller platform.
Logging On to the Web Interface
Before you can log on to the controller web interface, you must have the IP address
that you assigned to the Management (Web) interface when you set up the controller
on the network using the Setup Wizard. Once you have this IP address, you can
access the web interface on any computer that can reach the Management (Web)
interface on the IP network.
Follow these steps to log on to the controller web interface.
1On a computer that is on the same subnet as the Management (Web) interface,
start a web browser. Supported web browsers include:
• Google Chrome 30 and later (recommended)
• Safari 6 and later (Mac OS)
• Safari 5.1.7 and later (Windows)
![](asset-1a.png)
Logging On to the Web Interface
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 15
• Mozilla Firefox 28 and later
• Internet Explorer 10 and later
2In the address bar, type the IP address that you assigned to the Management
(Web) interface, and then append a colon and 8443 (the controller’s
management port number) at the end of the address.
For example, if the IP address that you assigned to the Management (Web)
interface is 10.10.101.1, then you should enter:
https://10.10.101.1:8443
NOTE: The controller web interface requires an HTTPS connection. You must
append https (not http) to the Management interface IP address to connect to
the web interface. If a browser security warning appears, this is because the default
SSL certificate (or security certificate) that the controller is using for HTTPS
communication is signed by Ruckus Wireless and is not recognized by most web
browsers.
The controller web interface logon page appears.
Figure 1. The controller logon page
3Log on to the controller web interface using the following logon details:
•User Name: admin
![](asset-1b.png)
Web Interface Features
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 16
•Password: {the password that you set when you ran the Setup Wizard}
4Click Log On.
The web interface refreshes, and then displays the Dashboard, which indicates that
you have logged on successfully.
Web Interface Features
The web interface (shown in Figure 2) is the primary interface that you will use to:
• Manage access points and WLANs
• Create and manage users and roles
• Monitor wireless clients, managed devices, and rogue access points
• View alarms, events, and administrator activity
• Generate reports
• Perform administrative tasks, including backing up and restoring system config-
uration, upgrading the cluster upgrade, downloading support, performing
system diagnostic tests, viewing the statuses of controller processes, and
uploading additional licenses (among others)
![](asset-1c.png)
Web Interface Features
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 17
Figure 2. The controller web interface features
The following sections describe the web interface features that are called out in
Figure 2:
•Main Menu
•Sidebar
•Content Area
•Miscellaneous Bar
Main menu Miscellaneous bar
Sidebar Content area
![](asset-1d.png)
Web Interface Features
Main Menu
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 18
Main Menu
This is the primary navigation menu. The main menu contains the following items:
•Dashboard: The page that loads after you log on, it provides graphical summary
of what is happening on the controller and its managed access points. The
Dashboard uses widgets to display graphical summaries of system statuses,
access point statuses, client count, etc. For more information on the Dashboard
widgets, see Using Widgets on the Dashboard.
•Monitor: Contains options for viewing information about WLANs, access points,
wireless clients, system information, alarms, events, and administrator activity.
For more information, see Monitoring the Wireless Network.
•Configuration: Contains options for managing WLANs, access points, and
system settings. For more information, see Configuring the Wireless Network.
•Report: Contains options for generating various types of reports, including
network tunnel statistics and historical client statistics. For more information, see
Working with Reports.
•Administration: Contains options for performing administrative tasks, such as
backing up and restoring the database, upgrading the system, downloading log
files, performing diagnostic tests, and managing administrator accounts. For
more information, see Performing Administrative Tasks.
Sidebar
The sidebar, located on the left side of the Content Area, provides additional options
related to the submenu that you clicked. For example, sidebar items under
Configuration > Access Points include common AP settings and AP tunnel settings.
On some pages, the sidebar also includes a tree that you can use to filter the
information you want to show in the Content Area.
Content Area
This large area displays tables, forms, and information that are relevant to submenu
and sidebar items that you clicked.
![](asset-1e.png)
Web Interface Features
Miscellaneous Bar
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 19
Miscellaneous Bar
This shows the following information (from left to right):
• System date and time: Displays the current system date and time. This is
obtained by the controller from the NTP time server that has been configured.
•Administrator user name: Displays the user name of the administrator that is
currently logged on.
•Administrator role: Displays the administrator role (for example, Super Admin) of
the user that is currently logged on.
• My Account link: Clicking this link displays the following links:
•Change Password: Click this link to change your administrator password.
For more information, see Changing the Administrator Password.
•Preference: Click this link to configure the session timeout settings. In Session
Timeout Settings, type the number of minutes (1 to 1440 minutes) of inactivity
after which the administrator will be logged off of the web interface automat-
ically.
•Log Off: Click this to log off the controller web interface. For more information,
see Logging Off the Web Interface.
• : Click this icon to launch the Online Help, which provides information on how
to perform management tasks using the web interface.
![](asset-1f.png)
Using Widgets on the Dashboard
Widgets That You Can Display
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 20
Using Widgets on the Dashboard
The dashboard provides a quick summary of what is happening on the controller
and its managed access points. It uses widgets to display at-a-glance information
about managed access points, associated clients, and system summary, among
others.
This section describes the widgets that you can display and how to add, move, and
delete widgets from the dashboard.
NOTE: To refresh the information on each widget, click (refresh button) on the
upper-right corner of the widget.
Widgets That You Can Display
The controller supports the following dashboard widgets:
•Client Count Summary Widget
•AP Summary Widget
•System Summary Widget
•Traffic Summary Widget
•Client Type Summary Widget
•Wireless Network Summary Widget
•Top 10 APs by Client Count
•Top 10 Clients by Traffic
Client Count Summary Widget
The client count (all APs, all WLANs) widget displays a graph of the number of
wireless clients that are associated with access points that the controller is
managing. You can display client count by AP or WLAN.
The client count summary widget requires two widget slots.
Figure 3. The client count summary widget
![](asset-20.png)
Using Widgets on the Dashboard
Widgets That You Can Display
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 21
AP Summary Widget
The AP summary widget includes a pie chart that shows the connection status of
managed APs. You can configure the pie chart to show access point data based
on their connection status, model, and mesh role.
This widget requires one widget slot.
Figure 4. The AP summary widget
System Summary Widget
The system summary widget displays information about the controller system,
including the system name, system uptime, serial number, system version number,
AP capacity license (consumed versus total) and AP direct tunnel license (consumed
versus total).
This widget requires one widget slot.
Figure 5. The system summary widget
![](asset-21.png)
Using Widgets on the Dashboard
Widgets That You Can Display
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 22
Traffic Summary Widget
The traffic summary widget displays a graph of TX and RX throughputs (in bytes).
This widget requires two widget slots.
Figure 6. The traffic summary widget
Client Type Summary Widget
The client type summary widget displays a pie chart that shows the types of OS
that associated wireless clients are using.
This widget requires one widget slot.
NOTE: The default refresh interval for the client type summary widget is 15 minutes.
When you add the widget, you can configure this refresh interval to any value
between 1 and 30 minutes.
Figure 7. The client type summary widget
![](asset-22.png)
Using Widgets on the Dashboard
Widgets That You Can Display
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 23
Wireless Network Summary Widget
The wireless network summary widget displays details about the APs, WLANs, and
clients that the controller is managing. It also displays the number of alarms and
events that the controller has generated.
This widget requires one widget slot.
Figure 8. The wireless network summary widget
Top 10 APs by Client Count
The top 10 APs by client count widget displays the ten APs with the most number
of clients associated with them. This widget requires one widget slot.
Figure 9. The top 10 APs by client count widget
![](asset-23.png)
Using Widgets on the Dashboard
Widget Slots
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 24
Top 10 Clients by Traffic
The top 10 clients by traffic widget displays the ten clients with the highest traffic
volume. This widget requires one widget slot.
Figure 10. The top 10 clients by traffic widget
Widget Slots
The controller provides nine slots on the dashboard for placing widgets. Note that
some widgets are wider (for example, the client count summary and traffic widgets)
and require two widget slots. Make sure that there are enough empty slots on the
dashboard before you add or move a widget.
Adding a Widget
Follow these steps to add a widget to the dashboard.
1Click the icon in the upper-left corner of the page (below the Ruckus Wireless
icon). The icons for adding widgets appear (see Ta bl e 1 ).
Table 1. Icons for adding widgets
Icon Widget Name
Client count summary widget
AP summary widget
System summary widget
Traffic summary widget
Client type summary widget
![](asset-24.png)
Using Widgets on the Dashboard
Adding a Widget to a Widget Slot
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 25
2Click the icon for the widget that you want to add. A configuration form, which
contains widget settings that you can configure, appears.
3Configure the widget settings.
4Click OK. The page refreshes, and then the widget that you added appears on
the dashboard.
You have completed adding a widget. To add another widget, repeat the same
procedure.
Adding a Widget to a Widget Slot
A single widget slot can contain multiple widgets of the same size (one-slot widgets
versus two-slot widgets). For example, you can add the client count summary
widget and traffic summary widget (both are two-slot widgets) to the same widget
slot.
Follow these steps to add a widget to a widget slot.
1Locate an existing widget slot to which you want to add a widget.
2Click the icon that is on the upper-right hand corner of the widget slot. A
submenu appears and displays the widgets that you can add to the widget slot.
3Click the name of the widget that you want to add to the widget slot. The widget
configuration window appears.
NOTE: You can only add a widget once. If a widget already exists in a different
widget slot, you will be unable to add it to another widget slot.
4Configure the information that you want the widget to display and the interval at
which to refresh the information on the widget.
NOTE: The refresh intervals for the client count summary and traffic summary
widgets are non-configurable.
Wireless network summary widget
Top 10 APs by Client Count
Top 10 Clients by Traffic Count
Table 1. Icons for adding widgets
Icon Widget Name
![](asset-25.png)
Using Widgets on the Dashboard
Displaying a Widget in a Widget Slot
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 26
5Click OK. The widget slot refreshes, and then the widget that you added appears.
You have completed adding a widget to a widget slot.
Displaying a Widget in a Widget Slot
A widget slot that contains multiple widgets automatically cycles through the
different widgets that have been added to it at one-minute intervals. If you want to
view a specific widget in a widget slot, you can manually display it.
Follow these steps to display a widget that belongs to a widget slot manually.
1Locate the widget slot that contains the widget that you want to display.
2Click the icon that is on the upper-right hand corner of the widget slot. A
submenu appears and displays the widgets that have been added to the widget
slot.
3Click the name of the widget that you want to display. The widget slot refreshes,
and the widget that you clicked appears.
You have completed displaying a widget in a widget slot.
Moving a Widget
Follow these steps to move a widget from one widget slot to another.
1Make sure that there are sufficient slots for the widget that you want to move.
2Hover your mouse pointer on the title bar of the widget. The pointer changes
into a four-way arrow.
3Click-and-hold the widget, and then drag it to the empty slot to which you want
to move it.
4Release the widget.
You have completed moving a widget to another slot.
![](asset-26.png)
Changing the Administrator Password
Deleting a Widget
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 27
Deleting a Widget
Follow these steps to delete a widget.
1Locate the widget that you want to delete.
2Click the icon that is in the upper-right hand corner of the widget. A
confirmation message appears.
3Click Yes to confirm.
The dashboard refreshes, and then the widget that you deleted disappears from
the page.
Changing the Administrator Password
Follow these steps to change the administrator password.
1On the Miscellaneous Bar, click Change Password. The Change Password form
appears.
2In Old Password, type your current password.
3In New Password, type the new password that you want to use.
4In Confirm Password, retype the new password above.
5Click Change.
You have completed changing your administrator password. The next time you log
on to the controller, remember to use your new administrator password.
Figure 11. The Change Password form
Logging Off the Web Interface
Follow these steps to log off the web interface.
1On the Miscellaneous Bar, click Log Off. A confirmation message appears.
2Click Yes. The controller logs you off the web interface. The logon page appears
with the following message above the Ruckus Wireless logo:
Log off successful
![](asset-27.png)
Logging Off the Web Interface
Deleting a Widget
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 28
You have completed logging off the web interface.
Figure 12. The message “Log off successful” indicates that you have successfully logged off
the web interface
![](asset-28.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 29
2
Working with User Accounts, Guest
Passes, and User Roles
In this chapter:
•Working with User Accounts
•Working with Guest Passes
•Working with User Roles
Working with User Accounts
A user is a registered user account that may be given access to the controller
hotspot. A user account contains a user’s personal information, logon information,
and the subscription package that he or she has been assigned.
This section describes the following tasks:
•Creating a User Account
•Editing a User Account
Creating a User Account
Follow these steps to create a user account.
1Go to Configuration > Identity > Users.
2Click Create New.
3In the Contact Details section, fill out the following boxes:
•First Name
•Last Name
•Email
• Phone
•Country
•City
• Street
•Zip Code
![](asset-29.png)
Working with User Accounts
Creating a User Account
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 30
• State: Select Enabled to enable this user profile or select Disabled.
•Remark
4In the Login Details section, fill out the following boxes to create the logon
credentials of this user:
•User Name: Type a name for this user. The user name is not case-sensitive
and will always be displayed in lowercase characters.
•Password: Type a password for this user. The password must be at least
eight characters in length.
•Confirm Password: Retype the password above.
5In the Subscription Details section, configure the following settings:
•Subscription Package: Select the subscription package that you want to
assign to the user.
•Expiration: This field is automatically populated with the expiration value of
the subscription package that you selected above.
•Description: This field is automatically populated with the description of the
subscription package that you selected above.
6Click OK.
You have completed creating a user account.
![](asset-2a.png)
Working with User Accounts
Editing a User Account
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 31
Figure 13. Creating a user account
Editing a User Account
Follow these steps to edit an existing user account.
1Go to Configuration > Identity > Users.
2Locate the user account that you want to edit, and then click the user name.
The Edit User: [{User Name}] form appears.
3Edit the user account by updating the fields in the Contact Details and Login
Details sections.
4Click OK.
![](asset-2b.png)
Working with Guest Passes
Generating Guest Passes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 32
Figure 14. Editing a user account
Working with Guest Passes
Similar to user accounts, guest passes in the controller allow users to gain access
to the controller hotspots. However, unlike user accounts, guest pass users are not
required to provide personal information to access the controller hotspots and can
therefore remain anonymous.
Guest passes are generated for specific WLANs only – guest pass users will only
be able to gain access to the WLANs for which the guest pass was generated.
Generating Guest Passes
Generating guest passes involves four steps:
Step 1: Create a Guest Access Portal
Step 2: Create a Guest Access WLAN
Step 3: Generate a Guest Pass
Step 4: Send Guest Passes to Guest Users
Step 1: Create a Guest Access Portal
Follow the instructions in Creating a Guest Access Portal to create at least one guest
access portal. When you finish creating a guest access portal, continue to Step 2:
Create a Guest Access WLAN
![](asset-2c.png)
Working with Guest Passes
Generating Guest Passes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 33
Step 2: Create a Guest Access WLAN
Follow these steps to create a WLAN that will be used for guest access only.
1Go to Configuration > Wireless Network > WLANs.
2In the WLAN Configuration section, click Create New.
3In General Options, configure the following:
•Name
• SSID
• Description
4In WLAN Usage, configure the following:
•In Access Network, select the Tunnel WLAN traffic through Ruckus GRE
check box if you want to tunnel the traffic from this WLAN back to the
controller.
•In Authentication Type, click Guest Access.
5Configure the rest of the WLAN settings. For details on each setting, see Creating
a WLAN.
6When you finish creating a guest access WLAN, continue to Step 3: Generate
a Guest Pass.
![](asset-2d.png)
Working with Guest Passes
Generating Guest Passes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 34
Figure 15. Creating a WLAN for guest access only
Step 3: Generate a Guest Pass
Follow these steps to generate a guest pass.
1Click Configuration > Identity > Guests > Guest Passes. The Guest Passes page
appears.
2Click Generate Guest Pass. The Generate Guest Pass screen appears.
3Configure the following options:
•Guest Name: Type a name that you want to assign to the guest user.
•Guest WLAN: Select the guest WLAN that you created in Step 2: Create a
Guest Access WLAN.
•Number of Passes: Type the number of guest passes that you want to
generate.
![](asset-2e.png)
Working with Guest Passes
Generating Guest Passes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 35
•Pass Valid For: Set the validity period for the guest pass by filling in the two
boxes. For example, if you want the guest pass to be valid for seven days,
type 7 in the first box, and then select Days in the second box.
4Configure the advanced options:
•Pass Generation: Select the Auto Generate check box if you want the
controller to generate the guest pass key automatically. If you want to
generate the guest pass manually, clear the Auto Generate check box.
NOTE: If you are generating more than one guest pass, the Auto Generate check
box is selected automatically and is not configurable.
•Pass Effective Since: Set the guest pass validity period by selecting one of
the following options:
-Effective from the creation time: This type of guest pass is valid from
the time it is first created to the specified expiration time, even if it is not
being used by any end user.
-Effective from first use: This type of guest pass is valid from the time
the user uses it to authenticate with the controller until the specified
expiration time. An additional parameter (Guest Pass will expire in X days)
can be configured to specify when an unused guest pass will expire
regardless of use. The default is 7 days.
-Expire guest pass if not used within [ ] days: If you want this guest
pass to expire if it is unused after you generated it, type the number of
days in the box (maximum value is 365 days).
•Max Devices Allowed: Set the number of users that can share this guest pass.
-Limited to [ ]: If you want a limited number of users to share this guest
pass, click this option, and then type the number in the box.
-Unlimited: If you want an unlimited number of users to share this guest
pass, click this option.
-Session Duration: If you clicked Unlimited, this option appears. If you
want require users to log on again after their sessions expire, select the
Require guest re-login after [ ] check box, and then select a time
increment. If this feature is disabled, connected users will not be required
to re-log in until the guest pass expires.
•In Remarks (optional), type your notes about this guest pass, if any.
5Click Generate. The page refreshes, and then the guest pass you generated
appears in a table, along with other guest passes that exist on the controller.
![](asset-2f.png)
Working with Guest Passes
Generating Guest Passes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 36
6Click OK to close the pop-up message.
You have completed generating a guest pass. You are now ready to send the guest
pass to guest users. See Step 4: Send Guest Passes to Guest Users for information.
Figure 16. Generating a guest pass
![](asset-30.png)
Working with Guest Passes
Generating Guest Passes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 37
Step 4: Send Guest Passes to Guest Users
On the page that appears after you generate a guest pass are options for delivering
the guest pass to guest users (see Figure 17). These delivery options include:
• Print Selected: See Printing the Guest Pass.
• Export CSV: See Exporting the Guest Pass to CSV.
• Email: See Sending the Guest Pass via Email.
•SMS: See Sending the Guest Pass via SMS.
Figure 17. Options for delivering guest passes to guest users
Printing the Guest Pass
NOTE: If your browser is blocking pop-ups, make you temporarily disable the pop-
up blocker so you can view and print the guest pass.
After you generate the guest pass, you can print the guest pass information, which
contains the guest user information and instructions on how to connect to the
hotspot, and give it to the guest user.
Follow these steps to print a guest pass.
1Select the guest passes that you want to print by selecting the check boxes
before them.
![](asset-31.png)
Working with Guest Passes
Generating Guest Passes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 38
2In Guest Instruction HTML Template, select a printout template to use. The
default printout template (default.html) is selected by default. If you created
custom printout templates (see Creating a Guest Pass Printout Template), they
will appear in the drop-down menu.
3Click Print Selected. A new browser page appears, which displays the guest
pass and available printing options.
4Configure your printer settings, and then print the guest passes.
You have completed printing the guest passes.
Figure 18. What a guest pass printout looks like
Exporting the Guest Pass to CSV
Follow these steps to export the last generated guest passes to a comma-separated
value (CSV) file.
1Select the guest passes that you want to export to CSV by selecting the check
boxes before them.
2Click Export CSV. Your web browser downloads the CSV file to its default
download location.
3Go to your web browser’s default download location and look for a file named
guestpass[number].csv.
4Using Microsoft Excel or a similar application, open the CSV file. The CSV file
displays the details of the guest passes, including:
•Guest Name
•Remarks
•Key
• Expiration Date
You have completed exporting the last generated guest passes to CSV.
![](asset-32.png)
Working with Guest Passes
Generating Guest Passes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 39
Figure 19. A sample CSV of generated guest passes when opened in Excel
Sending the Guest Pass via Email
NOTE: To send guest passes via email, you must have added an external email
server to the controller. See Configuring an External Email Server for more
information.
Follow these steps to send the guest pass via email.
1Select the guest passes that you want to send via email by selecting the check
boxes before them.
2Click Email. The Recipient Email form appears on the right side of the page (see
Figure 20).
3Click Add New.
4In the box that appears below, type the email address to which you want to send
the guest passes.
5To add another recipient, click Add New again, and then type another email
address.
6When you have finished adding all the email recipients, click Send Email. A
dialog box appears and informs you that the emails have been sent to the
message queue successfully
7Click OK to close the dialog box.
You have completed sending guest passes via email.
![](asset-33.png)
Working with Guest Passes
Generating Guest Passes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 40
Figure 20. Use the Recipient Email form to specify who will receive the guest passes via email
Sending the Guest Pass via SMS
NOTE: To send guest passes via email, you must have added an external SMS
gateway to the controller. See Configuring the External SMS Gateway for more
information.
Follow these steps to send the guest pass via email.
1Select the guest passes that you want to send via SMS by selecting the check
boxes before them.
2Click SMS. SMS options appears on the right side of the page (see Figure 21).
3In Guest Instruction SMS Template, select the SMS template that you want to
use.
4Click Add New.
5In the box that appears below, type the phone number to which you want to
send the guest passes via SMS.
6To add another SMS recipient, click Add New again, and then type another
phone number.
7When you have finished adding all the SMS recipients, click Send SMS. A dialog
box appears and informs you that the SMS messages have been sent to the
message queue successfully
8Click OK to close the dialog box.
You have completed sending guest passes via SMS.
![](asset-34.png)
Working with Guest Passes
Generating Guest Passes from an Imported CSV
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 41

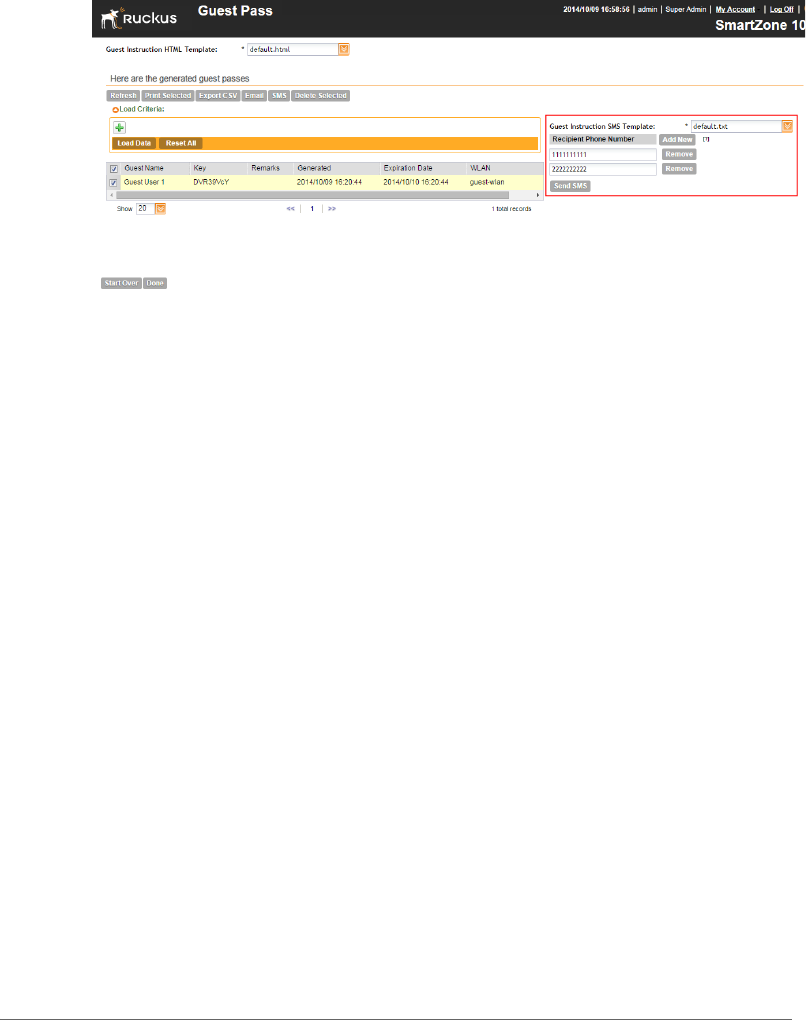

Figure 21. Options for sending guest passes via SMS
Generating Guest Passes from an Imported CSV
You can also manually define the guest passes that you want to generate in a
comma-separated value (CSV) file (a sample of which is available for download from
the Guest Pass page).
Follow these steps to generate guest passes from an imported CSV file.
1Click Configuration > Identity > Users.
2Click Guest Pass > Guest Pass Service. The Guest Pass page appears.
3Click Import Guest Pass, and then click Next.
4Look for the following text under Browse:
To download a sample guest pass, click here.
5Click the here link to download the sample CSV file.
6Using Microsoft Excel or a similar application, open the CSV file.
7In the CSV file, fill out the following columns:
•#Guest Name (Must): Assign a user name to the guest pass user.
• Remarks (Optional): Add some notes or comments about this guest pass.
•Key: Enter a guest pass key or leave it blank so the controller can generate
the key automatically.
![](asset-35.png)
Working with Guest Passes
Generating Guest Passes from an Imported CSV
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 42

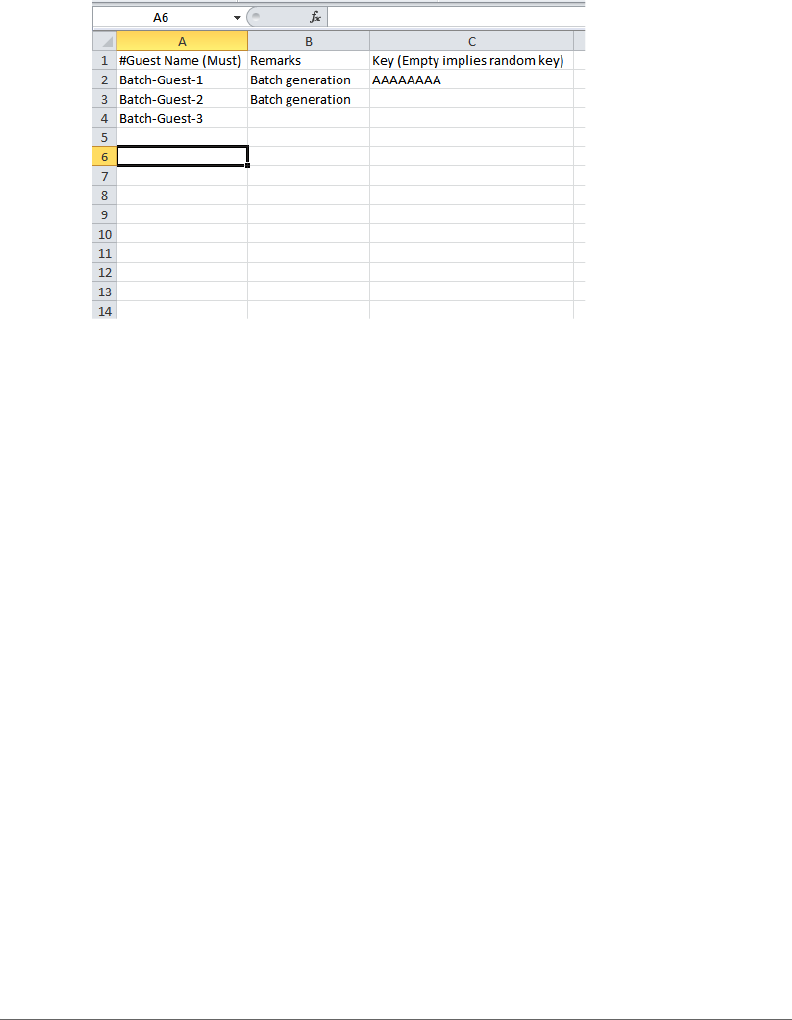

Figure 22. The sample CSV file when opened in Excel
8Save the CSV file.
9Go back to the Guest Pass page, and then configure the following settings on
the Common Guest Pass Settings:
•Guest WLAN: Select the guest WLAN that you created in Step 2: Create a
Guest Access WLAN.
•Pass Valid For: Set the validity period for the guest pass by filling in the two
boxes. For example, if you want the guest pass to be valid for seven days,
type 7 in the first box, and then select Days in the second box.
10 Configure the advanced options:
•Pass Effective Since: Set the guest pass validity period by selecting one of
the following options:
-Effective from the creation time: This type of guest pass is valid from
the time it is first created to the specified expiration time, even if it is not
being used by any end user.
-Effective from first use: This type of guest pass is valid from the time
the user uses it to authenticate with the controller until the specified
expiration time. An additional parameter (Guest Pass will expire in X days)
can be configured to specify when an unused guest pass will expire
regardless of use. The default is 7 days.
-Expire guest pass if not used within [ ] days: If you want this guest
pass to expire if it is unused after you generated it, type the number of
days in the box (maximum value is 365 days).
![](asset-36.png)
Working with Guest Passes
Generating Guest Passes from an Imported CSV
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 43
•Max Devices Allowed: Set the number of users that can share this guest pass.
-Limited to [ ]: If you want a limited number of users to share this guest
pass, click this option, and then type the number in the box.
-Unlimited: If you want an unlimited number of users to share this guest
pass, click this option.
-Session Duration: If you clicked Unlimited, this option appears. If you
want require users to log on again after their sessions expire, select the
Require guest re-login after [ ] check box, and then select a time
increment. If this feature is disabled, connected users will not be required
to re-log in until the guest pass expires.
11 In Guest List CSV File (at the top of the page), click Browse, and then select the
CSV file you edited earlier. The page refreshes, and the number of guest passes
that the controller has identified in the CSV file appears below the Browse button.
12 Click Generate. The page refreshes, and then the guest pass you generated
appears in a table, along with other guest passes that exist on the controller.
You have completed generating a guest pass. You are now ready to send the guest
pass to guest users. See Step 4: Send Guest Passes to Guest Users for information.

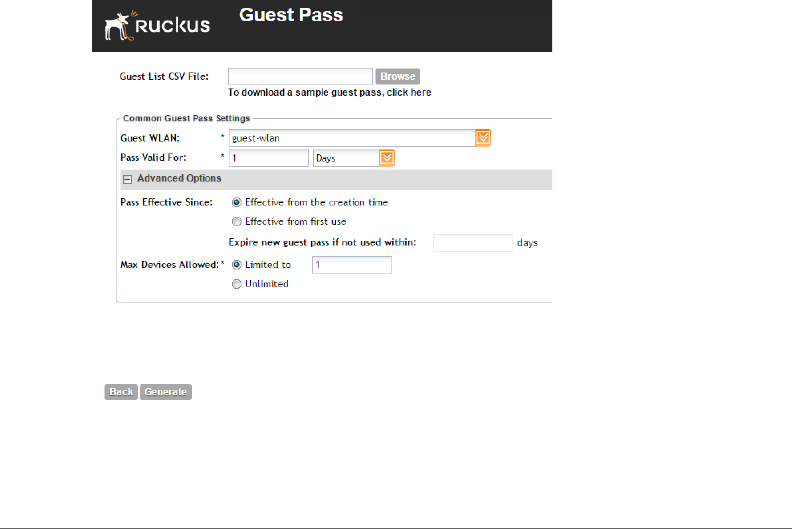

Figure 23. The Guest Pass page for importing a CSV file
![](asset-37.png)
Working with Guest Passes
Viewing the List of Guest Users
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 44
Viewing the List of Guest Users
Follow these steps to view guest users that currently exist on the controller.
1Click Configuration > Identity > Users.
2Click the User Type column to sort all existing user accounts by user type.
All users of the user type “Guest” are guest users.
You have completed view the list of guest users.
Deleting Guest Users
Follow these steps to delete guest users.
1Click Configuration > Identity > Users.
2Select the check boxes before the guest user accounts that you want to delete.
Click Delete Selected. A confirmation message appears.
3Click Yes to confirm. The page refreshes, and the guest user accounts that you
deleted disappears from the list.
NOTE: To delete a single guest pass, click the (delete) icon that is in the same
row as the guest pass name.
You have completed deleting a guest pass or guest passes.

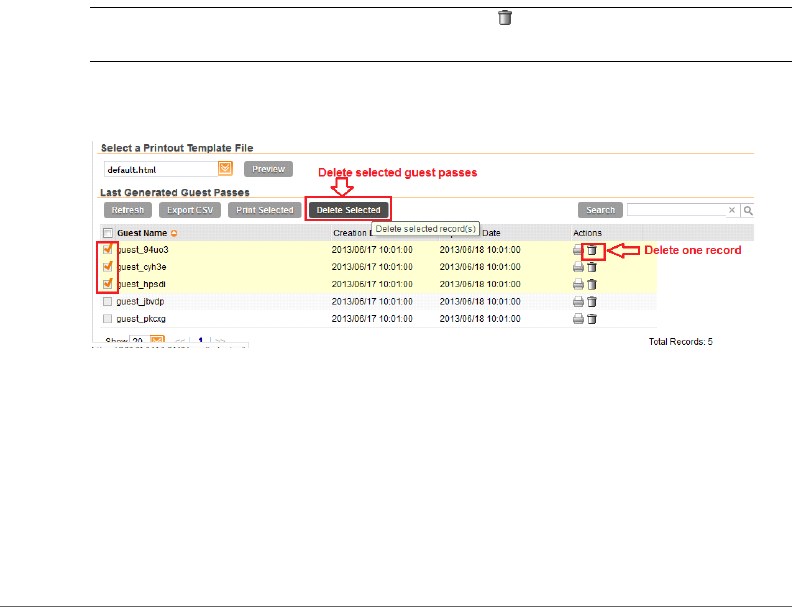

Figure 24. Deleting a single guest pass or multiple guest passes
![](asset-38.png)
Working with Guest Passes
Creating a Guest Pass Printout Template
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 45
Creating a Guest Pass Printout Template
A guest pass printout template contains variables for the information that guest
users need to connect to the controller hotspots (for example, guest name, key,
and WLAN name), as well as the actual instructions for connecting to the WLAN.
A default printout template exists in the controller. If you want to create your own
printout template, follow these steps.
1Go to Configuration > Identity > Users.
2Click Guest Pass > Manage Templates. The Manage Guest Instruction
Templ ates page appears.
3Using an HTML editor, create a new HTML or text file.
4Add content to the file. Typically, a printout template contains instructions for
connecting to the controller hotspot. See Figure 25 for the content of the default
printout template.

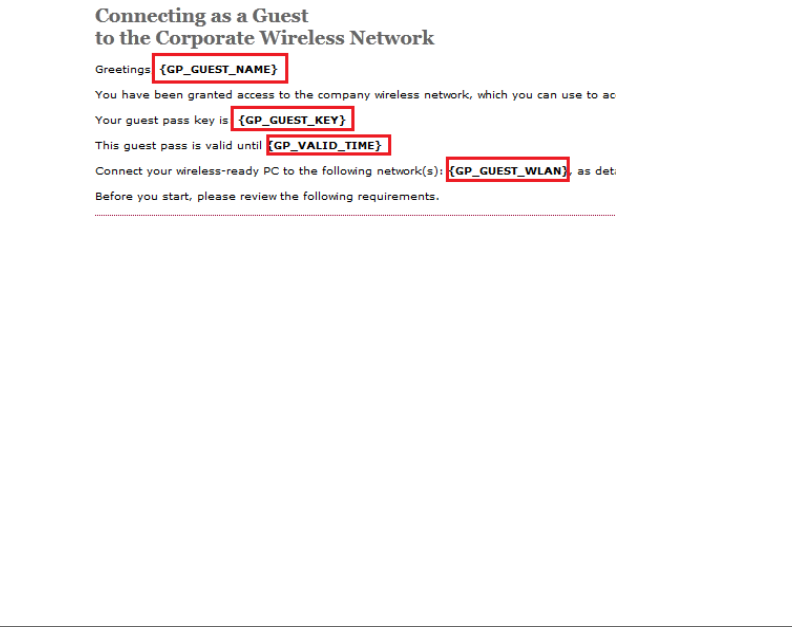

Figure 25. Content of the default printout template
5Insert the following variables into the content of your template:
• {GP_GUEST_NAME}: This is the guest pass user name.
• {GP_GUEST_KEY}: This is the guest pass key.
• {GP_VALID_TIME}: This is the expiration date and time of the guest pass.
• {GP_GUEST_WLAN}: This is the WLAN with which the guest user can
associate using the guest name and guest key.
6Save the file.
7On the Manage Guest Instruction Templates page, click the appropriate Upload
button for the template that you are creating. The Upload a Template File form
appears on the right side of the page.
8Configure the Upload a Template File options:
![](asset-39.png)
Working with User Roles
Creating a User Role
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 46
• Template Name: Type a name for the template that you are uploading.
• Template File: Click Browse, and select the template file you created.
9Click Upload. An information message box appears and informs you that the
template file has been uploaded successfully.
10 Click OK. The template file you uploaded now appears in the list of templates.
Figure 26. The Upload a Template File form
Working with User Roles
The controller provides a default role (named “Default) that is automatically applied
to all new user accounts. This role links all users to the internal WLAN and permits
access to all WLANs by default. As an alternative, you can create additional roles
that you can assign to selected wireless network users, to limit their access to certain
WLANs, to allow them to log on with non-standard client devices, or to grant
permission to generate guest passes. (You can then edit the “default” role to disable
the guest pass generation option.)
Creating a User Role
Follow these steps to create a user role.
1Go to Configuration > Identity > Roles.
2Click Create New. The Create User Role form appears.
3Configure the options in the Create User Role form.
• Name: Type a name for this user role.
• Description: Type a description for this user role.
• Default Group Attribute Value: (Fill in this field only if you are creating a user
role based on group attributes extracted from an Active Directory or LDAP
server.) Enter the User Group name here. Active Directory/LDAP users with
the same group attributes are automatically mapped to this user role.
• WLANS: Specify whether this role will have access to all WLAN or to specific
WLANs only.
![](asset-3a.png)
Working with User Roles
Creating a User Role
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 47
- Allow Zero IT Access to All WLANs: Click this to allow this user role access
to all WLANs.
- Allow Zero IT Access to Selected WLANs Only. Click to allow this user
role access to specific WLANs only. You must select the WLAN to which
this user role will have access.
• Max Devices Allowed: Set the number of users that can share this role.
- Limited to [ ]: If you want a limited number of users to share this role pass,
click this option, and then type the number in the box.
- Unlimited: If you want an unlimited number of users to share this role, click
this option.
4Click OK.
You have completed creating a user role.
Figure 27. Creating a user role
![](asset-3b.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 48
3
Configuring the Wireless Network
In this chapter:
•Configuring WLANs
•Configuring WLAN Groups
•Configuring Access Points
•Controlling Access to the Wireless Network
•Managing Guest Access
•Working with Hotspot (WISPr) Portals
•Working with Hotspot 2.0 Services
•Working with Web Authentication Services
•Working with AAA Servers
•Configuring Location Services
•Configuring Bonjour Gateway Policies
![](asset-3c.png)
Configuring WLANs
Creating a WLAN
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 49
Configuring WLANs
•Creating a WLAN
•Viewing Existing WLANs
•Deleting WLANs
Creating a WLAN
Follow these steps to create a WLAN.
1Go to Configuration > Wireless Network > WLANs.
2In the WLAN Configuration section, click Create New.
3In General Options, configure the following:
•Name: Type a name for this WLAN.
•SSID: Type a short name for the WLAN. The SSID is the WLAN name that is
broadcast on the wireless network.
•HESSID: Type the homogeneous extended service set identifier (HESSID).
The HESSID is a 6-octet MAC address that identifies the homogeneous ESS.
The HESSID value must be identical to one of the BSSIDs in the homoge-
neous ESS.
•Description: Type a brief description of the qualifications/purpose for this
WLAN (for example, Engineering or Voice).
4In WLAN Usage, configure the following:
•In Access Network, select the Tunnel WLAN traffic through Ruckus GRE
check box if you want to tunnel the traffic from this WLAN back to the
controller. Tunnel mode enables wireless clients to roam across different APs
on different subnets. If the WLAN has clients that require uninterrupted
wireless connection (for example, VoIP devices), Ruckus Wireless recom-
mends enabling tunnel mode. When you enable this option, you need to
select core network for tunneling WLAN traffic back to the controller.
•In Authentication Type, click one of the following options.
-Standard usage (For most regular wireless networks): This is a regular
WLAN suitable for most wireless networks.
-Hotspot (WISPr): Click this option if want to use a hotspot portal that
you previously created.
![](asset-3d.png)
Configuring WLANs
Creating a WLAN
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 50
-Guest Access and Hotspot 2.0 Onboarding: Click this option if you
want guest users to use this WLAN and offer Hotspot 2.0 service to guest
users. After you complete creating this WLAN for guest access, you can
start generating guest passes (see Working with Guest Passes).
NOTE: For more information about Hotspot 2.0 online signup, see the Hotspot 2.0
Reference Guide for this release.
-Web Authentication: Click this option if you want to require all WLAN
users to complete a web-based logon to this network every time they
attempt to connect (see Working with Web Authentication Services).
-Hotspot 2.0: Click this option if you want a Hotspot 2.0 operator profile
that you previously created to use this WLAN. See the Hotspot 2.0
Reference Guide for this release.
-Hotspot 2.0 Secure Online Signup (OSEN): Click this option if you want
to use this WLAN for Hotspot 2.0 OSEN. See the Hotspot 2.0 Reference
Guide for this release for more information.
5in Authentication Options, click the authentication method by which users will
be authenticated prior to gaining access to the WLAN. The level of security
should be determined by the purpose of the WLAN you are creating.
•Open (Default): No authentication mechanism is applied to connections. If
WPA or WPA2 encryption is used, this implies WPA-PSK authentication.
NOTE: If you clicked Web Authentication in Authentication Type, Open is the only
available authentication option.
•802.1x EAP: A very secure authentication/encryption method that requires
a back-end authentication server, such as a RADIUS server. Your choice
mostly depends on the types of authentication the client devices support and
your local network authentication environment.
•MAC Address: Authenticate clients by MAC address. MAC address authen-
tication requires a RADIUS server and uses the MAC address as the user
logon name and password. You have two options for the MAC address format
to use for authenticating clients:
- Use user defined text as authentication password (default is device MAC
address)
- Set device MAC address in 802.1x format 00-10-A4-23-19-C0. (The
default is 0010a42319c0).
![](asset-3e.png)
Configuring WLANs
Creating a WLAN
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 51
6In Encryption Options, select an encryption method to use. WPA and WPA2 are
both encryption methods certified by the Wi-Fi Alliance and are the
recommended encryption methods. The Wi-Fi Alliance will be mandating the
removal of WEP due to its security vulnerabilities, and Ruckus Wireless
recommends against using WEP if possible.
•WPA2: Enhanced WPA encryption using stronger TKIP or AES encryption
algorithm.
•WPA-Mixed: Allows mixed networks of WPA and WPA2 compliant devices.
Use this setting if your network has a mixture of older clients that only support
WPA and TKIP, and newer client devices that support WPA2 and AES.
•WEP-64 (40 bits): Provides a lower level of encryption, and is less secure,
using 40-bit WEP encryption.
•WEP-128 (104 bits): Provides a higher level of encryption than WEP-64,
using a 104-bit key for WEP encryption. However, WEP is inherently less
secure than WPA.
•None: No encryption; traffic is sent in clear text.
CAUTION! If you set the encryption method to WEP-64 (40 bit) or WEP-128 (104
bit) and you are using an 802.11n or 802.11ac AP for the WLAN, the AP will operate
in 802.11g mode.
7In Hotspot Portal, configure the following options.
NOTE: This section only appears if you clicked Hotspot (WISPr) in WLAN Usage
> Authentication Type.
•Hotspot (WISPr) Portal: Select the hotspot that you want this WLAN to use.
This option appears only when Hotspot (WISPr) is selected as the WLAN
usage type. This hotspot portal may be the hotspot that you created in
Creating a Hotspot (WISPr) Portal.
•Bypass CNA: Select the Enable check box if you want to bypass the Apple
CNA feature on iOS and OS X devices that connect to this WLAN. See
Bypassing Apple CNA for more information.
•Authentication Service: Select the authentication server that you want to use
for this WLAN. Options include Local DB, Always Accept, and any AAA
servers that you previously added (see Working with AAA Servers). Addition-
ally, if you want the controller to proxy authentication messages to the AAA
server, select the Use Controller as Proxy check box.
![](asset-3f.png)
Configuring WLANs
Creating a WLAN
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 52
•Accounting Service: Select the RADIUS Accounting server that you want to
use for this WLAN. You must have added a RADIUS Accounting server
previously (see Working with AAA Servers). Additionally, if you want the
controller to proxy accounting messages to the AAA server, select the Use
Controller as Proxy check box.
8In Guest Access Portal, configure the following options:
NOTE: This section only appears if you clicked Guest Access + Hotspot 2.0
Online Signup in WLAN Usage > Authentication Type.
•Guest Portal Service: Select the guest access portal that you created earlier
for this onboarding WLAN.
•Bypass CNA: Select the Enable check box if you want to bypass the Apple
CNA feature on iOS and OS X devices that connect to this WLAN. See
Bypassing Apple CNA for more information.
•Guest Authentication: Select Guest to require users to enter their guest
credentials, or select Always Accept to allow users without guest credentials
to authentication.
•Guest Accounting: Select the RADIUS Accounting server that you want to
use for this WLAN. You must have added a RADIUS Accounting server
previously (see Working with AAA Servers). Additionally, if you want the
controller to proxy accounting messages to the AAA server, select the Use
SCG as Proxy check box.
9In the Online Signup/Onboarding Service section, configure the following
options:
NOTE: This section only appears if you clicked Guest Access + Hotspot 2.0
Online Signup in WLAN Usage > Authentication Type.
•Hotspot 2.0 Signup: Select the Hotspot 2.0 devices check box to enable
support for Hotspot 2.0 devices. See the Hotspot 2.0 Reference Guide for
this release for more information.
•Zero-IT Onboarding: Select the Non-Hotspot 2.0 devices (i.e., legacy
devices) and Hotspot Rel 1 devices check box.
•Onboarding Portal: Select the portal signup profile that you want this guest
WLAN to use.
•Authentication Services: Select the authentication server that you previously
added to the controller.
![](asset-40.png)
Configuring WLANs
Creating a WLAN
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 53
10 In the Authentication & Accounting Service section, configure the following
options:
•Web Authentication Portal: Select the web authentication portal that you
created previously. See Working with Web Authentication Services for more
information.
•Bypass CNA: Select the Enable check box if you want to bypass the Apple
CNA feature on iOS and OS X devices that connect to this WLAN. See
Bypassing Apple CNA for more information.
•Authentication Service: Select the authentication server that you want to use
for this WLAN. Options include Local DB, Always Accept, and any AAA
servers that you previously added (see Working with AAA Servers). Addition-
ally, if you want the controller to proxy authentication messages to the AAA
server, select the Use SCG as Proxy check box.
•Accounting Service: Select the RADIUS Accounting server that you want to
use for this WLAN. You must have added a RADIUS Accounting server
previously (see Working with AAA Servers). Additionally, if you want the
controller to proxy accounting messages to the AAA server, select the Use
SCG as Proxy check box.
11 In Options, configure the following options:
•Wireless Client Isolation: Wireless client isolation enables subnet restrictions
for connected clients. Click Enable if you want to prevent wireless clients
associated with the same AP from communicating with each other locally.
The default value is Disable.
•Priority: Set the priority of this WLAN to Low if you would prefer that other
WLAN traffic takes priority. For example, if you want to prioritize internal traffic
over guest WLAN traffic, you can set the priority in the guest WLAN config-
uration settings to “Low.” By default, all WLANs are set to high priority.
12 In RADIUS Options, click + (plus sign) to display the options, and then configure
the following:
•NAS ID: Select how to the RADIUS server will identify the AP. Options include:
- WLAN BSSID
- AP MAC
- User-defined
•NAS Request Timeout: Type the timeout period (in seconds) after, which an
expected RADIUS response message is considered to have failed.
![](asset-41.png)
Configuring WLANs
Creating a WLAN
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 54
•NAS Max Number of Retries: Type the number of failed connection attempts
after which the controller will fail over to the backup RADIUS server.
•NAS Reconnect Primary: If the controller fails over to the backup RADIUS
server, this is the interval (in minutes) at which the controller will recheck the
primary RADIUS server if it is available. The default interval is 5 minutes.
•Call STA ID: Use either WLAN BSSID or AP MAC as the station calling ID.
Select one.
13 In Advanced Options, configure the following options:
• User Traffic Profile: If you want this WLAN to use a user traffic profile that you
previously created, select it from the drop-down menu. Otherwise, select
System Default. For more information, see Creating a User Traffic Profile.
•L2 Access Control: If you want this WLAN to use an L2 access control policy
that you previously created, select it from the drop-down menu. Otherwise,
select Disable. For more information, see Creating an L2 Access Policy.
•Device Policy: If you want this WLAN to use a device policy that you previously
created, select it from the drop-down menu. Otherwise, select Disable. For
more information, see Controlling Device Access.
• Access VLAN: By default, all wireless clients associated with APs that the
controller is managing are segmented into a single VLAN (with VLAN ID 1). If
you want to tag this WLAN traffic with a different VLAN ID, enter a valid VLAN
ID (2-4094) in the box.
•Hide SSID: Select this check box if you do not want the ID of this WLAN
advertised at any time. This will not affect performance or force the WLAN
user to perform any unnecessary tasks.
•Client Load Balancing: To disable client load balancing on this WLAN, select
the Do not perform client load balancing for this WLAN service check
box. For more information, see Client Load Balancing.
•Proxy ARP: Select this check box to enable proxy ARP. When proxy ARP is
enabled on a WLAN, the AP provides proxy service for stations when
receiving neighbor discovery packets (for example, ARP request and ICMPv6
Neighbor Solicit messages), and acts on behalf of the station in delivering
ARP replies. When the AP receives a broadcast ARP/Neighbor Solicit request
for a known host, the AP replies on behalf of the host. If the AP receives a
request for an unknown host, it forwards the request at the rate limit specified.
![](asset-42.png)
Configuring WLANs
Creating a WLAN
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 55
•Max Clients: This option limits the number of clients that can associate with
this WLAN per AP (default is 100). You can also limit the total number of
clients that a specific AP (or radio, on dual radio APs) will manage.
•802.11d: Select this check box to enable this standard on this WLAN.
802.11d provides specifications for compliance with additional regulatory
domains (countries or regions) that were not defined in the original 802.11
standard. Click this option if you are operating in one of these additional
regulatory domains.
•Force DHCP: Enable this option to force clients to obtain a valid IP address
from DHCP within the specified number of seconds. This prevents clients
configured with a static IP address from connecting to the WLAN. Addition-
ally, if a client performs Layer 3 roaming between different subnets, in some
cases the client sticks to the former IP address. This mechanism optimizes
the roaming experience by forcing clients to request a new IP address.
•DHCP Option 82: Select the Enable DHCP Option 82 check box to enable
this feature. When this feature is enabled and an AP receives a DHCP request
from a wireless client, the AP will encapsulate additional information (such as
VLAN ID, AP name, SSID and MAC address) into the DHCP request packets
before forwarding them to the DHCP server. The DHCP server can then use
this information to allocate an IP address to the client from a particular DHCP
pool based on these parameters.
•Client TX/RX Statistics: Select the Ignore statistics from unauthorized
clients check box if you do not want the controller to monitor traffic statistics
for unauthorized clients.
•Inactivity Timeout: Select this check box and enter a value in seconds (60 to
600) after which idle clients will be disconnected.
•Client Fingerprinting: By selecting this check box, the controller will attempt
to identify client devices by their operating system, device type and host
name, if available. This makes identifying client devices easier on the Dash-
board, Monitor and Client Details pages.
•OFDM Only: Select the check box to force clients associated with this WLAN
to use only Orthogonal Frequency Division Multiplexing (OFDM) to transmit
data. OFDM-only allows the client to increase management frame transmis-
sion speed from CCK rates to OFDM rates. This feature is implemented per
WLAN and only affects the 2.4GHz radio.
![](asset-43.png)
Configuring WLANs
Creating a WLAN
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 56
•BSS Min Rate: Select this check box to set the BSS rates of management
frames from default rates (CCK rates for 2.4G or OFDM rate – 6Mbps for 5G]
to the desired rates. By default, BSS Min Rate is disabled.
NOTE: OFDM-only takes higher priority than BSS-minrate. However, OFDM-only
relies on BSS-minrate to adjust its rate for management frames.
•Mgmt Tx Rate: To set the maximum transmit rate for management frame,
select a value (in Mbps) from the drop-down list.
•Service Schedule: Use the Service Schedule tool to control which hours of
the day, or days of the week to enable/disable WLAN service. Options
include:
-Always On: Click this enable this WLAN at all times.
-Always Off: Click this option to disable the WLAN service at all times.
-Specific: Click this to set specific hours during which this WLAN will be
enabled. For example, a WLAN for student use at a school can be
configured to provide wireless access only during school hours. Click on
a day of the week to enable/disable this WLAN for the entire day. Colored
cells indicate WLAN enabled. Click and drag to select specific times of
day. You can also disable a WLAN temporarily for testing purposes, for
example.
NOTE: The service schedule feature will not work properly if the controller does not
have the correct time. To ensure that the controller always maintains the correct
time, point the controller to an NTP server’s IP address, as described in Configuring
the System Time.
•Band Balancing: Client band balancing between the 2.4GHz and 5GHz radio
bands is disabled by default on all WLANs. To disable band balancing for this
WLAN only (when enabled globally), select the Do not perform band
balancing for this WLAN service check box. For more information, see
Band Balancing.
14 Click OK at the bottom of the form.
You have completed creating and configuring a WLAN service of the AP zone.
![](asset-44.png)
Configuring WLANs
Creating a WLAN
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 57
Figure 28. The Create New WLAN Configuration form
Client Load Balancing
Enabling load balancing can improve WLAN performance by helping to spread the
wireless client load between nearby access points, so that one AP does not get
overloaded while another sits idle. The load balancing feature can be controlled from
within the controller web interface to balance the number of clients per radio on
adjacent APs.
“Adjacent APs” are determined by the controller at startup by measuring the RSSI
during channel scans. After startup, the controller uses subsequent scans to update
the list of adjacent radios periodically and when a new AP sends its first scan report.
When an AP leaves, the controller immediately updates the list of adjacent radios
and refreshes the client limits at each affected AP.
![](asset-45.png)
Configuring WLANs
Creating a WLAN
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 58
Once the controller is aware of which APs are adjacent to each other, it begins
managing the client load by sending the configured client limits to the APs. These
limits are “soft values” that can be exceeded in several scenarios, including:
1When a client’s signal is so weak that it may not be able to support a link with
another AP
2When a client’s signal is so strong that it really belongs on this AP.
The APs maintain these configured client limits and enforce them once they reach
the limits by withholding probe responses and authentication responses on any
radio that has reached its limit.
Key Points About Client Load Balancing
Before you enable load balancing, keep the following considerations in mind:
• The load balancing rules apply only to client devices; the AP always responds
to another AP that is attempting to set up or maintain a mesh network.
• Load balancing does not disassociate clients already connected.
• Load balancing takes action before a client association request, reducing the
chance of client misbehavior.
• The process does not require any time-critical interaction between APs and the
controller.
• Provides control of adjacent AP distance with safeguards against abandoning
clients.
• Can be disabled on a per-WLAN basis. For instance, on a voice WLAN, load
balancing may not be desired due to voice roaming considerations.
• Background scanning must be enabled on the WLAN for load balancing to work.
Band Balancing
Band balancing balances the client load on radios by distributing clients between
the 2.4 GHz and 5 GHz radios. This feature is enabled by default and set to a target
of 25% of clients connecting to the 2.4 GHz band. To balance the load on a radio,
the AP encourages dual-band clients to connect to the 5 GHz band when the
configured percentage threshold is reached.
![](asset-46.png)
Configuring WLANs
Viewing Existing WLANs
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 59
Client Admission Control
Client admission control allows APs to adaptively allow or deny the association of
clients based on the potential throughput of the currently associated clients. This
helps prevent APs from becoming overloaded with clients and improves user
experience for wireless users.
As an administrator, you can help maintain a positive user experience for wireless
users on the network by configuring the following client admission control settings:
• Minimum client count
• Maximum radio load
• Minimum client throughput
Client admission control is implemented on a per radio basis and is currently only
supported on 802.11n APs.
Bypassing Apple CNA
Some Apple iOS and OS X clients include a feature called Captive Network Assistant
(CNA), which allows clients to connect to an open captive portal WLAN without
displaying the logon page.
When a client connects to a wireless network, the CNA feature launches a pre-
browser login utility and it sends a request to a success page on the Apple website.
If the success page is returned, the device assumes it has network connectivity and
no action is taken. However, this login utility is not a fully functional browser, and
does not support HTML, HTML5, PHP or other embedded video. In some situations,
the ability to skip the login page for open WLANs is a benefit. However, for other
guest or public access designs, the lack of ability to control the entire web
authentication process is not desirable.
The controller provides an option to work around the Apple CNA feature if it is not
desirable for your specific deployment. With CNA bypass enabled, captive portal
(web-based authentication) logon must be performed by opening a browser to any
unauthenticated page (HTTP) to get redirected to the logon page.
Viewing Existing WLANs
Follow these steps to view a list of existing WLANs.
1Click Configuration > Wireless Network > WLAN. The WLANs page appears.
2Look for the WLAN Configuration section. All existing WLANs are listed in the
section and their basic settings, including the:
![](asset-47.png)
Configuring WLAN Groups
Deleting WLANs
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 60
• WLAN name
• SSID
• Description
• Auth Method (authentication method)
•Encryptions
• Actions (that you can perform)
You have completed viewing a list of existing WLANs.
Deleting WLANs
Follow these steps to delete WLANs.
1Go to Configuration > WLAN. The WLANs page appears.
2Look for the WLAN Configuration section.
3Locate the WLAN or WLANs that you want to delete.
4Select the check boxes (first column) for the WLANs that you want to delete.
5Click Delete Selected.
The WLANs that you selected disappear from the list. You have completed deleting
WLANs.
NOTE: If you are deleting a single WLAN, you can also click the icon (under the
Actions column) that is in the same row as the WLAN that you want to delete.
Configuring WLAN Groups
A WLAN group is a way of specifying which APs or AP groups provide which WLAN
services. If your wireless network covers a large physical environment (for example,
multi-floor or multi-building office) and you want to provide different WLAN services
to different areas of your environment, you can use WLAN groups to do this.
For example, if your wireless network covers three building floors (1st floor to 3rd
floor) and you need to provide wireless access to visitors on the 1st floor, you can
do the following:
1Create a WLAN service (for example, “Guest Only Service”) that provides guest-
level access only.
2Create a WLAN group (for example, “Guest Only Group”), and then assign “Guest
Only Service” (WLAN service) to “Guest Only Group” (WLAN group).
![](asset-48.png)
Configuring WLAN Groups
Notes About WLAN Groups
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 61
3Assign APs on the 1st Floor (where visitors need wireless access) to your “Guest
Only Group”.
Any wireless client that associates with APs assigned to the “Guest Only Group” will
get the guest-level access privileges defined in your “Guest Only Service.” APs on
the 2nd and 3rd floors can remain assigned to the default WLAN Group and provide
normal-level access.
Notes About WLAN Groups
Before you start using WLAN groups to provision WLAN settings to APs or AP
groups, take note of the following important notes:
• Creating WLAN groups is optional. If you do not need to provide different WLAN
services to different areas in your environment, you do not need to create a WLAN
group.
• A default WLAN group called “default” exists. The first 27 WLANs that you create
are automatically assigned to this default WLAN group.
• A WLAN group can include a maximum of 27 member WLANs. For dual radio
APs, each radio can be assigned to only one WLAN group (single radio APs can
be assigned to only one WLAN group).
![](asset-49.png)
Configuring WLAN Groups
Creating a WLAN Group
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 62
Creating a WLAN Group
Follow these steps to create a WLAN group.
1Go to Configuration > WLAN. The WLANs page appears.
2Look for the WLAN Groups section.
3Click Create New.
4In Group Name, type a descriptive name that you want to assign to this WLAN
group. For example, if this WLAN will contain WLANs that are designated for
guest users, you can name this as Guest WLAN Group.
5In Description (optional), type some notes or comments about this group.
6Under WLAN List, select the check boxes for the WLANs that you want to be
part of this WLAN group. The VLAN Override and NAS-ID columns for the
selected WLANs become active.
7In the VLAN override settings, choose whether to override the VLAN configured
for each member WLAN. Available options include:
• No Change: Click this option if you want the WLAN to keep the same VLAN
tag (default: 1).
• Tag: Click this option to override the VLAN configured for the WLAN service.
8In the NAS-ID settings, choose whether to override the NAS-ID configured for
each member WLAN. Available options include:
• No Change: Click this option if you want the WLAN to keep the same NAS-
ID tag.
• User-defined: Click this option to override the NAS-ID that has been assigned
to this WLAN service.
9Click Create New. The Create New form disappears and the WLAN group that
you created appears in the table under WLAN Groups.
You may now assign this WLAN group to an AP or AP group.
Viewing Existing WLAN Groups
Follow these steps to view a list of existing WLAN groups.
1Go to Configuration > WLAN. The WLANs page appears.
2Look for the WLAN Groups section. All existing WLAN groups and their basic
settings are shown, including the:
• WLAN group name
• Description
![](asset-4a.png)
Configuring WLAN Groups
Deleting WLAN Groups
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 63
• Actions (that you can perform)
3To view WLANs that belong to a particular WLAN group, click the WLAN group
name.
You have completed viewing existing WLAN groups.
Deleting WLAN Groups
Follow these steps to delete WLAN groups.
1Go to Configuration > WLAN. The WLANs page appears.
2Scroll down to the WLAN Group section.
3Locate the WLAN group or groups that you want to delete.
4Select the check boxes (first column) for the WLAN groups that you want to
delete.
5Click Delete Selected.
The WLAN groups that you selected disappear from the list. You have completed
deleting WLAN groups.
NOTE: If you are deleting a single WLAN group, you can also click the icon
(under the Actions column) that is in the same row as the WLAN group that you
want to delete.
Working with WLAN Schedule Profiles
A WLAN schedule profile specifies the hours of the day or week during which a
WLAN service will be enabled or disabled. For example, a WLAN for student use at
a school can be configured to provide wireless access only during school hours.
Create a WLAN schedule profile, and then when you configure a WLAN, select the
schedule profile to enable or disable the WLAN service during those hours/days.
NOTE: This feature will not work properly if the system does not have the correct
time. To ensure that the system always maintains the correct time, configure an NTP
server and point the system to the NTP server’s IP address, as described in
Configuring the System Time.
NOTE: WLAN service schedule times should be configured based on your
browser’s current timezone. If your browser and the target AP/WLAN are in different
timezones, configure the on/off times according to the desired schedule according
to your local browser. For example if you wanted a WLAN in Los Angeles to turn on
![](asset-4b.png)
Configuring WLAN Groups
Working with WLAN Schedule Profiles
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 64
at 9 AM and your browser was set to New York time, please configure the WLAN
service schedule to enable the WLAN at noon. When configuring the service
schedule, all times are based on your browser's timezone setting.
Creating a WLAN Schedule Profile
Follow these steps to create a WLAN schedule profile.
1Go to Configuration > WLAN. The WLANs page appears.
2Scroll down to the WLAN Schedule Profiles section.
3Click Create New. The Create New WLAN Schedule Table form appears.
4Set a WLAN schedule.
• To enable or disable the WLAN for an entire day, click the day of the week
under the Time column.
• To enable or disable the WLAN for specific hour of a specific day, click the
squares in the table. A single square represents 30 minutes (two-15 minute
blocks).
Blue-colored cells indicate the hours when the WLAN is enabled. Clear (or white)
cells indicate the hours when the WLAN is disabled.
5Click Create New. The page refreshes, and then the schedule you created
appears in the WLAN Scheduler Profiles section.
You have completed creating a WLAN schedule profile. This WLAN schedule profile
will now appear as an option
Figure 29. Creating a schedule profile
![](asset-4c.png)
Configuring WLAN Groups
Working with WLAN Schedule Profiles
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 65

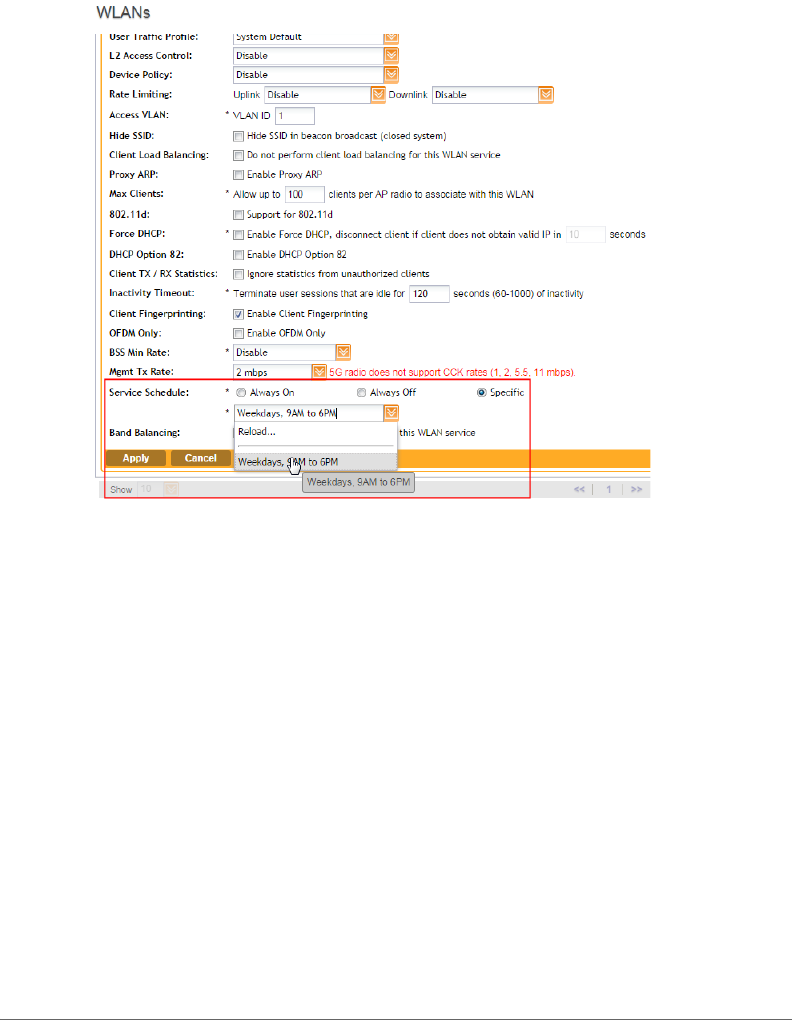

Figure 30. Selecting the schedule profile when creating or editing a WLAN
Viewing WLAN Schedule Profiles
Follow these steps to view a list of existing WLAN schedule profiles.
1Go to Configuration > WLAN. The WLANs page appears.
2Look for the WLAN Schedule Profiles section. All existing WLAN schedule
profiles and their basic settings are shown, including the:
• WLAN schedule name
• Description
• Actions (that you can perform)
3To view the schedule that has been defined in a particular schedule profile, click
the schedule profile name.
You have completed viewing existing WLAN schedule profiles.
![](asset-4d.png)
Configuring Access Points
Configuring Common AP Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 66
Deleting WLAN Schedule Profiles
Follow these steps to delete WLAN schedule profiles.
1Go to Configuration > WLAN. The WLANs page appears.
2Scroll down to the WLAN Schedule Profiles section.
3Locate the profile or profiles that you want to delete.
4Select the check boxes (first column) for the profiles that you want to delete.
5Click Delete Selected.
The profiles that you selected disappear from the list. You have completed deleting
WLAN schedule profiles.
NOTE: If you are deleting a single profile, you can also click the icon (under the
Actions column) that is in the same row as the profile that you want to delete.
Configuring Access Points
This section describes how to configure the settings of access points that are
managed by the controller.
•Configuring Common AP Settings
•Configuring Model-Based Settings
•Configuring AP Tunnel Settings
•Tagging Critical APs
•Managing Access Points
Configuring Common AP Settings
Follow these steps to configure the settings that are common to all APs, such as
the country code, mesh options, and radio options.
1Go to Configuration > Access Points > Common Settings.
2In the General Options section, configure the following:
• AP Firmware: This field shows the current SmartZone AP firmware version
on controller. This is not configurable.
•Country Code: Select the country in which you are operating the access
points. Different countries and regions maintain different rules that govern
which channels can be used for wireless communications. Set the country
code to the proper regulatory region ensuring that the controller network does
not violate local and national regulatory restrictions.
![](asset-4e.png)
Configuring Access Points
Configuring Common AP Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 67
•Location: Type a location name (for example, Ruckus Wireless HQ) for this AP.
•Location Additional Information: Type additional information about the AP
location (for example, 350 W Java Dr, Sunnyvale, CA 94089, United States).
•GPS Coordinates: Type the longitude and latitude coordinates for the AP’s
location.
•AP Admin Logon: Specify the user name and password that administrators
can use to log on directly to the managed access point’s native web interface.
The following boxes are provided:
-Logon ID: Type the admin user name.
-Password: Type the admin password.
•AP Time Zone: Set the time zone that you want APs to use by selecting one
of the following options:
-Follow the System Zone: Select this option if you want managed APs
to use the same time zone as the controller, which the controller obtains
from the NTP server you configured in Configuring the System Time.
-User Defined: Select this option if you want to set the time zone used by
the APs manually, and then configure the time zone abbreviation (for
example, CST, GMT, etc.), GMT offset, and daylight saving time (DST)
support.
•AP IP Mode: This field shows the IP addressing mode (either IPv4 only or
IPv6 only) that managed APs use. This is the device IP mode that you
selected when you completed the Setup Wizard. This field is not configurable.
3In the Mesh Options section, configure the following:
•Enable mesh networking: Select this check box if you want managed APs
to automatically form a wireless mesh network, in which participant nodes
(APs) cooperate to route packets.
NOTE: Dual band APs can only mesh with other dual band APs, while single band
APs can only mesh with other single band APs.
•Mesh Name (ESSID): Type a name for the mesh network. Alternatively, do
nothing to accept the default mesh name that the controller has generated.
•Mesh Passphrase: Type a passphrase that contains at least 12 characters.
This passphrase will be used by the controller to secure the traffic between
Mesh APs. Alternatively, click Generate to generate a random passphrase
with 32 characters or more.
![](asset-4f.png)
Configuring Access Points
Configuring Common AP Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 68
4In Radio Options, configure the following:
• Configure the following options under Radio Options b/g/n (2.4GHz):
- Channelization: Set the channel width used during transmission to either
20 or 40 (MHz), or select Auto to set it automatically.
-Channel: Select the channel to use for the b/g/n (2.4GHz) radio, or select
Auto to set it automatically.
-TX Power Adjustment: Select the preferred TX power, if you want to
manually configure the transmit power on the 2.4GHz radio. By default,
TX power is set to Full on the 2.4GHz radio
• Configure the following options under Radio Options a/n/c (5GHz):
-Channelization: Set the channel width used during transmission to either
20, 40, or 80 (MHz), or select Auto to set it automatically.
-Channel (Indoor): Select the indoor channel to use for the a/n/c (5GHz)
radio, or select Auto to set it automatically.
-Channel (Outdoor): Select the outdoor channel to use for the a/n/c (5GHz)
radio, or select Auto to set it automatically.
-TX Power Adjustment: Select the preferred TX power, if you want to
manually configure the transmit power on the 5GHz radio. By default, TX
power is set to Full on the 5GHz radio.
5In Syslog Options, select the Enable external syslog server for APs check box
if you want to send sys to a remote syslog server. Configure the following options
that appear after you select the check box.
•Server Address: Type the IP address (IPv4 or IPv6) or host name of the syslog
server on the network.
•Port: Type the syslog port number on the server. The default port number is
514.
•Facility for Event: Select the facility level that will be used by the syslog
message. Options include Keep Original (default), Local0, Local1, Local2,
Local3, Local4, Local5, Local6, and Local7.
•Priority: Accept or change the default severity to priority mapping. See Default
Event Severity to Syslog Priority Mapping.
6In Advanced Options, configure the following:
•Channel Mode: If you want to allow outdoor APs to use wireless channels
that are regulated as indoor-use only, select the Allow indoor channels check
box. For more information, see Channel Mode.
![](asset-50.png)
Configuring Access Points
Configuring Common AP Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 69
• Auto Channel Selection: You can adjust the AP channel to 2.4 GHz or 5 GHz
frequencies by selecting the appropriate check-box. Further, you can auto-
matically adjust the AP to optimize performance by choosing one of the
following:
- Background Scanning
- ChannelFly
•Background Scanning: If you want APs to evaluate radio channel usage
automatically, enable and configure the background scanning settings on
both the 2.4GHz and 5GHz radios. By default, background scanning is
enabled on both radios and is configured to run every 20 seconds.
•Smart Monitor: To disable the WLANs of an AP whenever the AP uplink or
Internet connection becomes unavailable, select the Enable check box. And
then, configure the following options:
-Health Check Interval: Set the interval (between 5 and 60 seconds) at
which the controller will check the AP’s uplink connection. The default
value is 10 seconds.
-Health Check Retry Threshold: Set the number of times (between 1 and
10 times) that the controller will check the AP’s uplink connection. If the
controller is unable to detect the uplink after the configured number of
retries, the controller will disable the AP’s WLANs. The default value is 3
retries.
NOTE: When the controller disables the AP’s WLANs, the AP creates a log for the
event. When the AP’s uplink is restored, the AP sends the event log (which contains
the timestamp when the WLANs were disabled, and then enabled) to the controller.
• VLAN Pooling: To automatically segment large groups of clients (that may or
may not be connected to the same SSID) into multiple smaller subgroups
using multiple VLANs, select the Allow VLAN pooling overlapping check
box. Refer to VLAN Pooling for the additional settings that you need to
configure to get VLAN pooling to work on the wireless network.
•Rogue AP Detection: Select the Report rogue access points check box to
enable rogue device detection in logs and email alarm event notifications.
-Report all rogue devices: Send alerts for all rogue AP events.
-Report only malicious rogue devices of type: Select which event types
to report. Events include SSID spoofing, same network, and MAC
spoofing.
![](asset-51.png)
Configuring Access Points
Configuring Common AP Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 70
-Protect the network from malicious rogue access points: Select this
check box to automatically protect your network from network connected
rogue APs, SSID-spoofing APs and MAC-spoofing APs. When one of
these rogue APs is detected (and this check box is enabled), the Ruckus
Wireless AP automatically begins sending broadcast de-authentication
messages spoofing the rogue’s BSSID (MAC) to prevent wireless clients
from connecting to the malicious rogue AP. This option is disabled by
default.
•Client Load Balancing: Improve WLAN performance by enabling load
balancing. Load balancing spreads the wireless client load between nearby
access points, so that one AP does not get overloaded while another sits idle.
Load balancing must be enabled on a per-radio basis. To enable load
balancing, select the Enable loading balancing on [2.4GHz or 5GHz] check
box, and then set or accept the default Adjacent Radio Threshold values
(50dB for the 2.4GHz radio and 43dB for the 5GHz radio).
NOTE: For more information about load balancing, see Client Load Balancing.
•Band Balancing: Client band balancing between the 2.4 GHz and 5 GHz
radio bands is enabled by default on all WLANs. For more information, see
Band Balancing.
•Location Based Service: If you have an LBS server on the network, select
the Enable LBS Server check box, and then select the server from the list.
NOTE: For more information about location based services, see Configuring
Location Services.
•Hotspot 2.0 Venue Profile: If managed APs are providing Hotspot 2.0
services, select the name of the venue profile that you previously created.
See the Hotspot 2.0 Reference Guide for this release for more information.
•Client Admission Control: To enable client admission control on a specific
wireless radio, select the Enable check box, and then set the load thresholds
on the AP at which it will stop accepting new clients by setting values for the
following:
- Min Client Count
- Max Radio Load (%)
- Min Client Throughput (Mbps)
![](asset-52.png)
Configuring Access Points
Configuring Common AP Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 71
NOTE: For more information about client admission control, see Client Admission
Control.
•AP Reboot Timeout: Set the time after which the AP will reboot automatically
when it is unable to reach the default gateway or the control interface.
-Reboot AP if it cannot reach default gateway after [ ] minutes: The default
timeout is 30 minutes.
-Reboot AP if it cannot reach SCG after [ ]: The default timeout is 2 hours.
7Click Apply.
You have completed configuring the common AP settings.

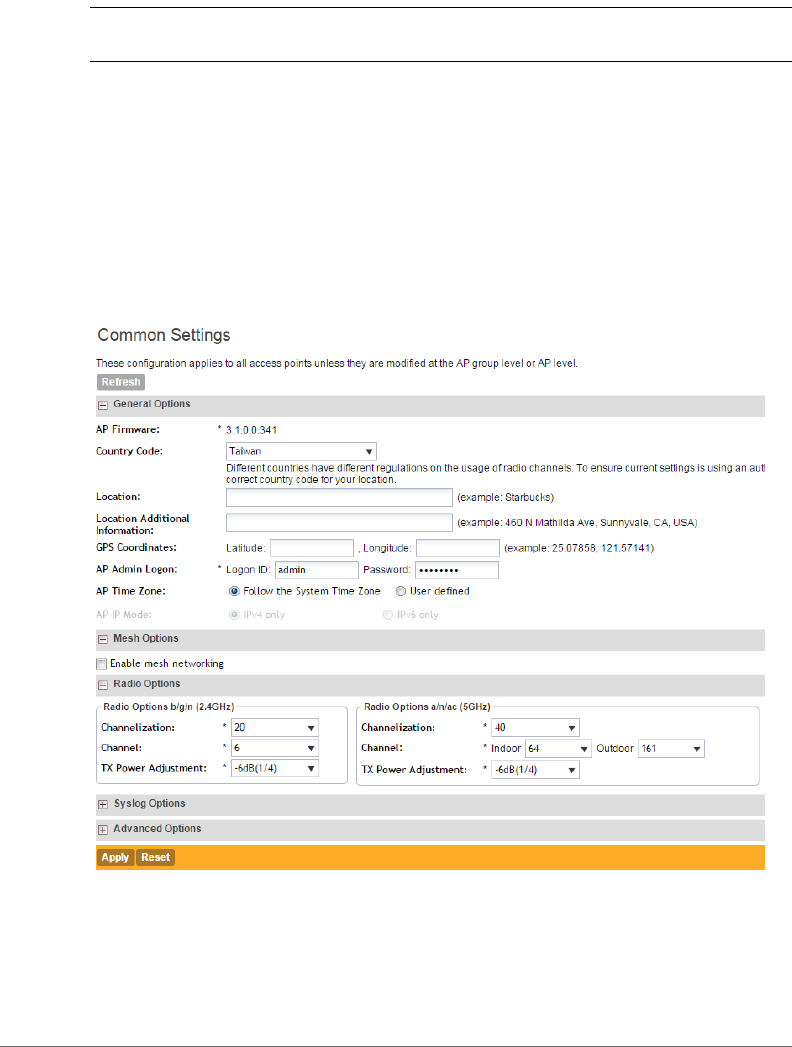

Figure 31. The Common Settings page
Channel Mode
Some countries restrict certain 5GHz channels to indoor use only. For instance,
Germany restricts channels in the 5.15 GHz to 5.25 GHz band to indoor use. When
ZoneFlex Outdoor APs and bridges with 5 GHz radios (ZoneFlex 7762, 7782, 7761-
![](asset-53.png)
Configuring Access Points
Configuring Common AP Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 72
CM and 7731) are set to a country code where these restrictions apply, the AP or
bridge can no longer be set to an indoor-only channel and will no longer select from
amongst a channel set that includes these indoor-only channels when SmartSelect
or auto channel selection is used, unless the administrator configures the AP to
allow use of these channels.
For instance, if the AP is installed in a challenging indoor environment (such as a
warehouse), the administrator may want to allow the AP to use an indoor-only
channel. These channels can be enabled for use through the AP CLI or controller
web interface by configuring Configuration > Access Points > Common Settings >
Advanced Options > Channel Mode and selecting the Allow indoor channels
(allow ZoneFlex Outdoor APs to use channels regulated as indoor use-only)
check box.
If you have a dual-band ZoneFlex Indoor AP functioning as a RAP with dual-band
ZoneFlex Outdoor APs functioning as MAPs, the mesh backhaul link must initially
use a non-indoor-only channel. Your ZoneFlex Outdoor MAPs may fail to join if the
mesh backhaul link is using a restricted indoor-only channel.
Client Load Balancing
Enabling load balancing can improve WLAN performance by helping to spread the
wireless client load between nearby access points, so that one AP does not get
overloaded while another sits idle. The load balancing feature can be controlled from
within the controller web interface to balance the number of clients per radio on
adjacent APs.
“Adjacent APs” are determined by the controller at startup by measuring the RSSI
during channel scans. After startup, the controller uses subsequent scans to update
the list of adjacent radios periodically and when a new AP sends its first scan report.
When an AP leaves, the controller immediately updates the list of adjacent radios
and refreshes the client limits at each affected AP.
Once the controller is aware of which APs are adjacent to each other, it begins
managing the client load by sending the configured client limits to the APs. These
limits are “soft values” that can be exceeded in several scenarios, including:
• When a client’s signal is so weak that it may not be able to support a link with
another AP
• When a client’s signal is so strong that it really belongs on this AP.
The APs maintain these configured client limits and enforce them once they reach
the limits by withholding probe responses and authentication responses on any
radio that has reached its limit.
![](asset-54.png)
Configuring Access Points
Configuring Common AP Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 73
Key Points About Load Balancing
Before you enable load balancing, keep the following considerations in mind:
• The load balancing rules apply only to client devices; the AP always responds
to another AP that is attempting to set up or maintain a mesh network.
• Load balancing does not disassociate clients already connected.
• Load balancing takes action before a client association request, reducing the
chance of client misbehavior.
• The process does not require any time-critical interaction between APs and the
controller.
• Provides control of adjacent AP distance with safeguards against abandoning
clients.
• Can be disabled on a per-WLAN basis. For instance, on a voice WLAN, load
balancing may not be desired due to voice roaming considerations.
• Background scanning must be enabled on the WLAN for load balancing to work.
Band Balancing
Band balancing balances the client load on radios by distributing clients between
the 2.4 GHz and 5 GHz radios. This feature is enabled by default and set to a target
of 25% of clients connecting to the 2.4 GHz band. To balance the load on a radio,
the AP encourages dual-band clients to connect to the 5 GHz band when the
configured percentage threshold is reached.
ChannelFly and Background Scanning
SmartZone controllers offer the ChannelFly and Background Scanning automatic
channel selection methods for spectrum utilization and performance optimization.
While Background Scanning must be enabled for rogue AP detection, AP location
detection and radio power adjustment, either can be used for automatic channel
optimization.
The main difference between ChannelFly and Background Scanning is that Chan-
nelFly determines the optimal channel based on real-time statistical analysis of actual
throughput measurements, while Background Scanning uses channel measure-
ment and other techniques to estimate the impact of interference on Wi-Fi capacity
based on progressive scans of all available channels.
![](asset-55.png)
Configuring Access Points
Configuring Common AP Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 74
NOTE: If you enable ChannelFly, Background Scanning can still be used for
adjusting radio power and rogue detection while ChannelFly manages the channel
assignment. Both cannot be used at the same time for channel management.
Benefits of ChannelFly
With ChannelFly, the AP intelligently samples different channels while using them
for service. ChannelFly assesses channel capacity every 15 seconds and changes
channel when, based on historical data, a different channel is likely to offer higher
capacity than the current channel. Each AP makes channel decisions based on this
historical data and maintains an internal log of channel performance individually.
When ChannelFly changes channels, it utilizes 802.11h channel change announce-
ments to seamlessly change channels with no packet loss and minimal impact to
performance. The 802.11h channel change announcements affect both wireless
clients and Ruckus mesh nodes in the 2.4 GHz and/or 5 GHz bands.
Initially (in the first 30-60 minutes) there will be more frequent channel changes as
ChannelFly learns the environment. However, once an AP has learned about the
environment and which channels are most likely to offer the best throughput
potential, channel changes will occur less frequently unless a large measured drop
in throughput occurs.
ChannelFly can react to large measured drops in throughput capacity in as little as
15 seconds, while smaller drops in capacity may take longer to react to.
Disadvantages of ChannelFly
Compared to Background Scanning, ChannelFly takes considerably longer for the
network to settle down. If you will be adding and removing APs to your network
frequently, Background Scanning may be preferable. Additionally, if you have clients
that do not support the 802.11h standard, ChannelFly may cause significant
connectivity issues during the initial capacity assessment stage.
You can enable/disable ChannelFly per band. If you have 2.4 GHz clients that do
not support 802.11h, Ruckus recommends disabling ChannelFly for 2.4 GHz but
leaving it enabled for the 5 GHz band.
![](asset-56.png)
Configuring Access Points
Configuring Common AP Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 75
Background Scanning
Using Background Scanning, SmartZone controllers regularly samples the activity
in all Access Points to assess RF usage, to detect rogue APs and to determine
which APs are near each other for mesh optimization. These scans sample one
channel at a time in each AP so as not to interfere with network use. This information
is then applied in AP Monitoring and other controller monitoring features. You can,
if you prefer, customize the automatic scanning of RF activity, deactivate it if you
feel it's not helpful, or adjust the frequency, if you want scans at greater or fewer
intervals.
NOTE: Background Scanning must be enabled for SmartZone controllers to detect
rogue APs on the network.
VLAN Pooling
When Wi-Fi is deployed in a high density environment such as a stadium or a
university campus, the number of IP addresses required for client devices can easily
run into the thousands. Placing thousands of clients into a single large subnet or
VLAN can result in degraded performance due to factors like broadcast and
multicast traffic.
To address this problem, VLAN pooling allows administrators to a deploy pool of
multiple VLANs to which clients are assigned, thereby automatically segmenting
large groups of clients into multiple smaller subgroups, even when connected to
the same SSID. As the client device joins the WLAN, the VLAN is assigned to one
of the VLANs in the pool based on a hash of the client’s MAC address.
To use the VLAN pooling feature, you first need to create a VLAN pooling profile,
and then you can assign the profile to a specific WLAN or override the VLAN settings
of a WLAN group.
![](asset-57.png)
Configuring Access Points
Configuring Common AP Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 76
Creating a VLAN Pooling Profile
Follow these steps to create a VLAN pooling.
1Go to Configuration > WLANs.
2In the VLAN Pooling Profiles section, click Create New. The Create New VLAN
Pooling Profile form appears.
3In Name, type a name for the profile.
4In Description (optional), type a short description for this profile.
5In VLANs, type the VLAN IDs to be assigned to this pool. VLAN IDs can be
separated by hyphens, commas, or a combination (for example, 7-10, 13, 17,
20-28).
6Click OK.
Each VLAN pool can contain up to 16 VLANs, and a maximum of 64 VLAN pools
can be created. Each WLAN can be configured with a single VLAN pool.
You have completed creating a VLAN pooling profile.

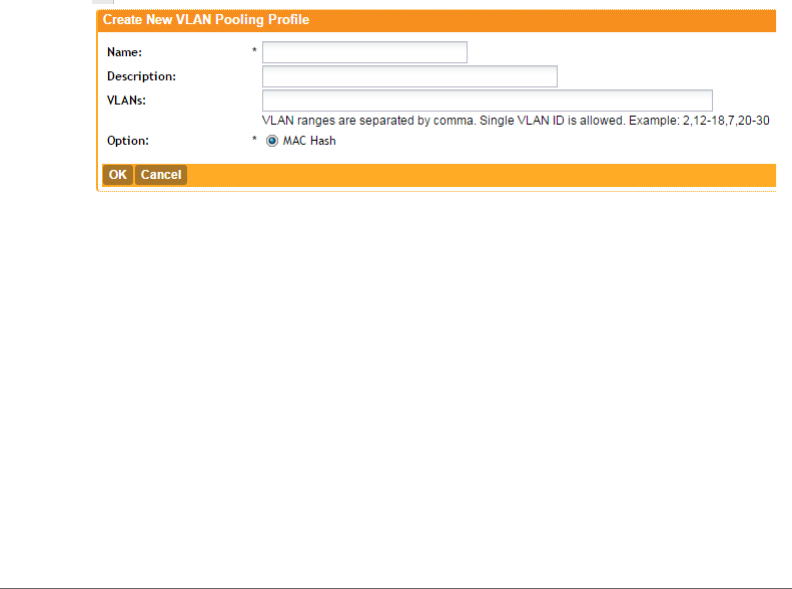

Figure 32. The Create New VLAN Pooling Profile form
Assigning the VLAN Pooling Profile to a WLAN
Follow these steps to assign the VLAN pooling profile to a specific WLAN.
1Go to Configuration > WLANs.
2In the WLAN Configuration section, click Create New to create a new WLAN or
click a WLAN name to edit it.
3Expand the Advanced Options section, and locate the Access VLAN entry.
4Select the Enable VLAN Pooling check box, and then select the VLAN pooling
profile that you created earlier.
5Click OK.
![](asset-58.png)
Configuring Access Points
Configuring Common AP Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 77
You have completed assigning a VLAN pooling profile to a WLAN. Clients connecting
to this WLAN will now be automatically assigned to a VLAN from the specified VLAN
pool.

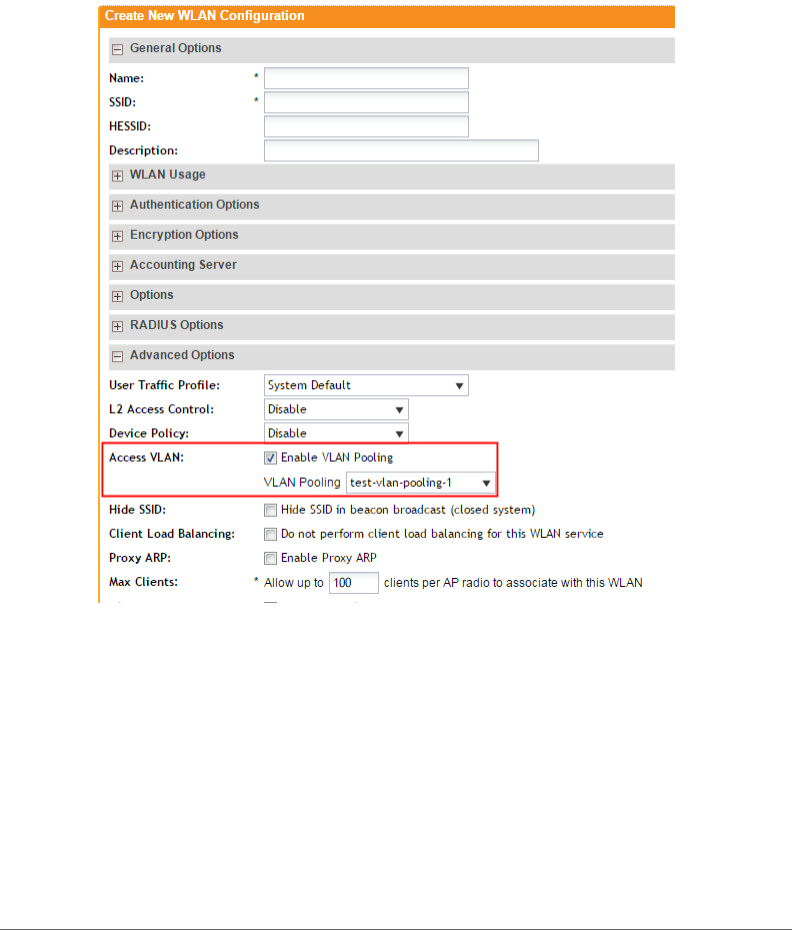

Figure 33. Under the Advanced Options section, locate the Access VLAN entry
Using a VLAN Pooling Profile to Override the VLAN Settings of a WLAN Group
If you want to override the original VLAN settings of a WLAN with the VLAN pool
that you created earlier, follow these steps.
1Go to Configuration > WLANs.
2In the WLAN Groups section, click Create New to create a new WLAN group
or click a WLAN group name to edit it.
3Expand the WLAN List section, and then select the check boxes for the member
WLANs for which you want to override the VLAN settings.
![](asset-59.png)
Configuring Access Points
Configuring Common AP Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 78
4In the VLAN Override column, select Pooling, and then select the VLAN pooling
profile that you want to apply to each of the selected member WLANs.
5Click Apply.
You have completed overriding the VLAN settings of a WLAN group using a VLAN
pooling profile.

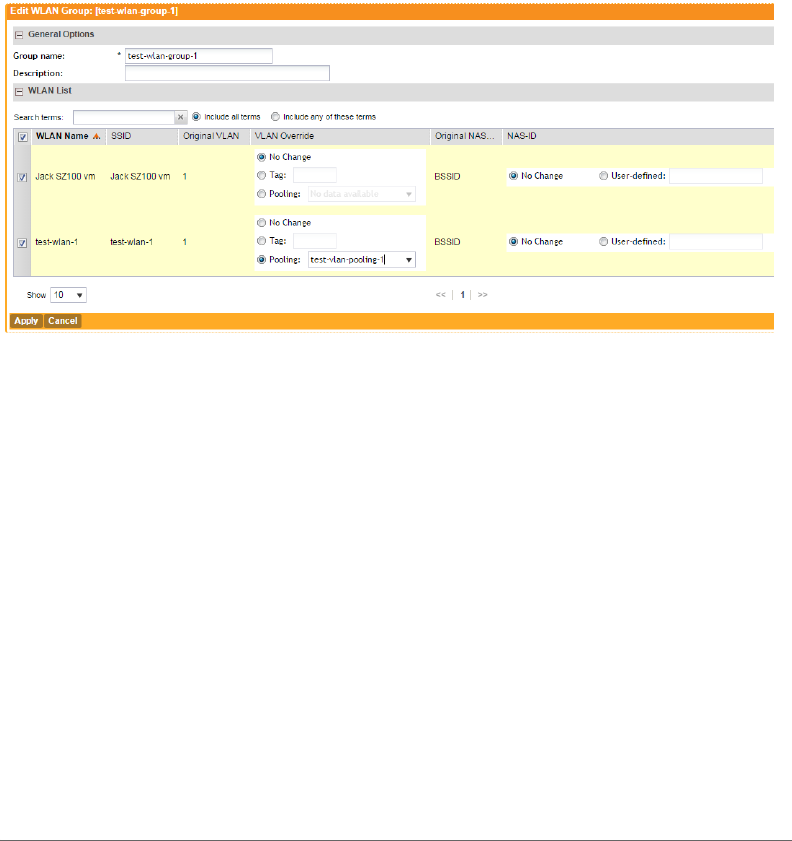

Figure 34. In the VLAN Override column, select the VLAN pooling profile to apply each of the
selected WLANs
![](asset-5a.png)
Configuring Access Points
Configuring Model-Based Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 79
Configuring Model-Based Settings
The following AP settings can be applied to all APs of a particular model:
•Internal Heater: Enable internal heaters (specific AP models only).
NOTE: For the internal heater to be operational, ZoneFlex 7762 APs must be
powered by the supplied PoE injector and its associated power adapter or a
standard 802.3at PSE. For the PoE Out port to be operational, ZoneFlex 7762 APs
must be powered by the supplied PoE injector and its associated power adapter.
•PoE Out Ports: Enable PoE out ports (specific ZoneFlex AP models only).
NOTE: If the controller country code is set to United Kingdom, an additional “Enable
5.8 GHz Channels” option will be available for outdoor 11n/11ac APs. Enabling this
option allows the use of restricted C-band channels. These channels are disabled
by default and should only be enabled by customers with a valid license to operate
on these restricted channels.
•Disable Status LEDs: When managed by the controller, you can disable the
external LEDs on certain ZoneFlex models, such as the 7300 series APs. This
can be useful if your APs are installed in a public location and you don’t want to
draw attention to them.
•External Antenna: External antenna configuration is available for the 5 GHz radio
on the ZoneFlex 7762, and for the 2.4 and 5 GHz radios on the 7782-E APs.
Once enabled, enter a gain value in the range of 0 to 90dBi.
•Radio Band: (ZoneFlex 7321 only) Select 2.4 GHz or 5 GHz radio band for the
7321 APs.
•Port Settings: See Configuring AP Ethernet Ports.
Configuring AP Ethernet Ports
You can use AP groups to control Ethernet ports on all APs of a certain model. Then,
if you want to override the port settings for a specific AP, you can do so by editing
the AP configuration, enabling the Override check box in the Model Specific Control
section, and then configuring the AP settings that you want to override.
Follow these steps to configure the Ethernet ports for all APs of the same model.
1Go to Configuration > Access Points > Model Based Settings.
2In Select an AP model, select the AP model that you want to configure from the
list.
![](asset-5b.png)
Configuring Access Points
Configuring Model-Based Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 80
3In Port Setting, for any enabled ports, you can choose whether the port will be
used as a Trunk Port, an Access Port or a General Port. The following restrictions
apply:
• All APs must be configured with at least one Trunk Port.
• For single port APs (for example, ZoneFlex R300), the single LAN port must
be a trunk port and is therefore not configurable.
• For ZoneFlex 7055, the LAN5/Uplink port on the rear of the AP is defined as
a Trunk Port and is not configurable. The four front-facing LAN ports are
configurable.
• For all other APs, you can configure each port individually as either a Trunk
Port, Access Port or General Port (see Designating an Ethernet Port Type for
more information.)
4Click Apply.
You have completed configuring AP model specific settings.

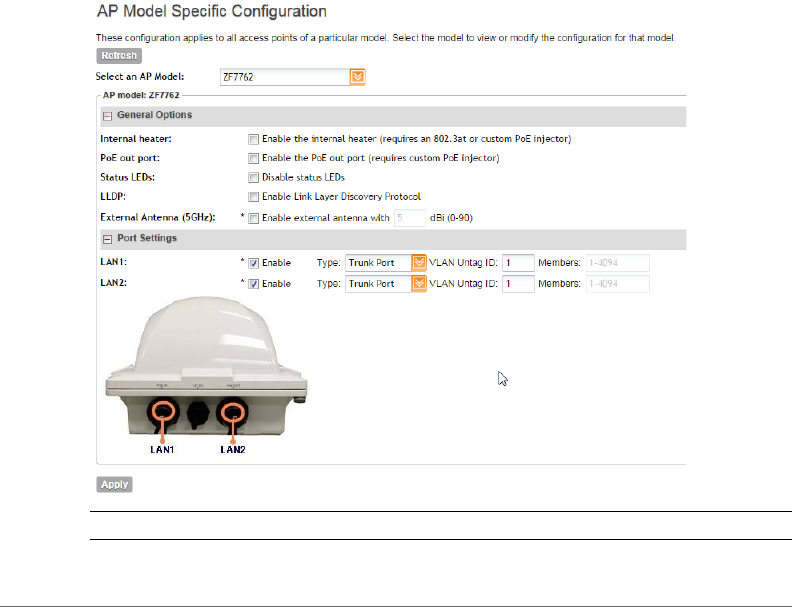

Figure 35. Configuring AP model specific settings
NOTE: To disable a LAN port entirely, clear the Enable check box.
![](asset-5c.png)
Configuring Access Points
Configuring Model-Based Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 81
Designating an Ethernet Port Type
Ethernet ports can be configured as one of the following port types:
•Trunk Ports
•Access Ports
•General Ports
Trunk links are required to pass VLAN information between switches. Access ports
provide access to the network and can be configured as members of specific
VLANs, thereby separating the traffic on these ports from traffic on other VLANs.
General ports are user-defined ports that can have any combination of up to 20
VLAN IDs assigned.
For most ZoneFlex APs, you can set which ports you want to be your Access, Trunk
and General Ports from the controller web interface, as long as at least one port on
each AP is designated as a Trunk Port.
By default, all ports are enabled as Trunk Ports with Untag VLAN set as 1 (except
for ZoneFlex 7025, whose front ports are enabled as Access Ports by default). If
configured as an Access Port, all untagged ingress traffic is the configured Untag
VLAN, and all egress traffic is untagged. If configured as a Trunk Port, all untagged
ingress traffic is the configured Untag VLAN (by default, 1), and all VLAN-tagged
traffic on VLANs 1-4094 will be seen when present on the network.
The default Untag VLAN for each port is VLAN 1. Change the Untag VLAN to:
• Segment all ingress traffic on this Access Port to a specific VLAN.
• Redefine the native VLAN on this Trunk Port to match your network configuration.
Trunk Ports
Trunking is a function that must be enabled on both sides of a link. If two switches
are connected together, for example, both switch ports must be configured as trunk
ports. The Trunk Port is a member of all the VLANs that exist on the AP/switch and
carries traffic for all those VLANs between switches.
Access Ports
All Access Ports are set to Untag VLAN 1 by default. This means that all Access
Ports belong to the native VLAN and are all part of a single broadcast domain. To
remove ports from the native VLAN and assign them to specific VLANs, select
Access Port and enter any valid VLAN ID in the VLAN ID field (valid VLAN IDs are
2-4094).
![](asset-5d.png)
Configuring Access Points
Configuring AP Tunnel Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 82
The following table describes the behavior of incoming and outgoing traffic for
Access Ports with VLANs configured.
General Ports
General ports are user-specified ports that can have any combination of up to 20
VLAN IDs assigned. Enter multiple valid VLAN IDs separated by commas or a range
separated by a hyphen.
Configuring AP Tunnel Settings
Follow these steps to configure the AP tunnel settings.
1Go to Configuration > Wireless Network > Access Points > AP Tunnel Settings.
2In Tunnel Type, select the tunneling protocol that you want the controller to use
for AP traffic. Option include:
• Ruckus GRE
•SoftGRE
• SoftGRE + IPSec
CAUTION! Selecting the SoftGRE + IPSec tunneling protocol will prevent APs that
do not support Internet Protocol Security (IPsec) from joining the controller.
3Configure the setting for the tunneling protocol that you selected.
If you selected Ruckus GRE, configure the following settings:
•Ruckus Tunnel Mode: Select a protocol to use for tunneling WLAN traffic
back to the controller.
-GRE + UDP: Select this option to allow APs behind a NAT server to tunnel
WLAN traffic back to the controller.
-GRE: Select this option to tunnel regular WLAN traffic only.
Table 2. Access Ports with VLANs configured
VLAN Settings Incoming Traffic (from Client) Outgoing Traffic (to Client)
Access Port, Untag
VLAN 1
All incoming traffic is native
VLAN (VLAN 1).
All outgoing traffic on the port
is sent untagged.
Access Port, Untag
VLAN [2-4094]
All incoming traffic is sent to the
VLANs specified.
Only traffic belonging to the
specified VLAN is forwarded.
All other VLAN traffic is
dropped.
![](asset-5e.png)
Configuring Access Points
Configuring AP Tunnel Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 83
•Tunnel Encryption: Select the Enable tunnel encryption check box if you
want managed APs to decrypt 802.11 packets, and then use an AES
encrypted tunnel to send them to the controller. By default, when WLAN
traffic is tunneled to the controller, only the management traffic is encrypted;
data traffic is unencrypted.
•WAN Interface MTU: Set the maximum transmission unit (MTU) for the tunnel
to either Auto (default) or a specific size (850 to 1500 bytes). MTU is the size
of the largest protocol data unit that can be passed on the controller network.
If you selected Soft GRE, configure the following settings:
•Name: Type a name for the profile that you are creating.
•Description: Type a short description of the profile.
•Primary Gateway Address: Type the IP address or fully-qualified domain
name (FQDN) of the primary gateway server.
•Secondary Gateway Address: If you have a secondary gateway server on
the network, type its IP address or FQDN in the box provided. If the controller
is unable to reach the primary gateway server, it will automatically attempt to
reach the secondary gateway address that you specify here.
•Gateway Path MTU: Set the maximum transmission unit (MTU) for the
gateway path. Options include Auto (default) and Manual (range is 850 to
1500 bytes).
•ICMP Keep Alive Period: Type the time interval (in seconds) at which APs
send a keepalive message to the active third party WLAN gateway. The range
is 1 to 180 seconds and the default value is 10 seconds.
•ICMP Keep Alive Retry: Type the number of keepalive attempts that APs wait
for a response from the active third party WLAN gateway before failing over
to the standby WLAN gateway. The range is 2 to 10 retries and the default
value is 5 retries.
4Click Apply.
You have completed configuring the AP tunnel settings.
![](asset-5f.png)
Configuring Access Points
Tagging Critical APs
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 84
Figure 36. Configuring the AP tunnel settings
Tagging Critical APs
A critical AP is an AP that exceeds the daily traffic threshold (sum of uplink and
downlink) data bytes configured on the controller web interface. Follow these steps
to tag critical APs automatically.
1Go to Configuration > Wireless Network > Access Points > Critical AP Rules.
2Select the Enable Auto Tagging Critical APs check box.
3Under Auto Tagging Rules, select Daily Traffic Bytes Exceeds Threshold.
4Under Rule Threshold, specify the threshold.
• In the first box, type a value that you want to set as the traffic threshold. This
value will be applied in conjunction with the data unit that you will select in
the second box.
• In the second box, select the data unit for the threshold – M for megabytes
or G for gigabytes.
5Click Apply.
APs that exceed the daily traffic threshold that you specified will appear highlighted
on the Access Points page and the Access Point details page. Additionally, the
controller will send an SNMP trap to notify that an AP has been disconnected.
![](asset-60.png)
Configuring Access Points
Creating IPSec Profiles
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 85

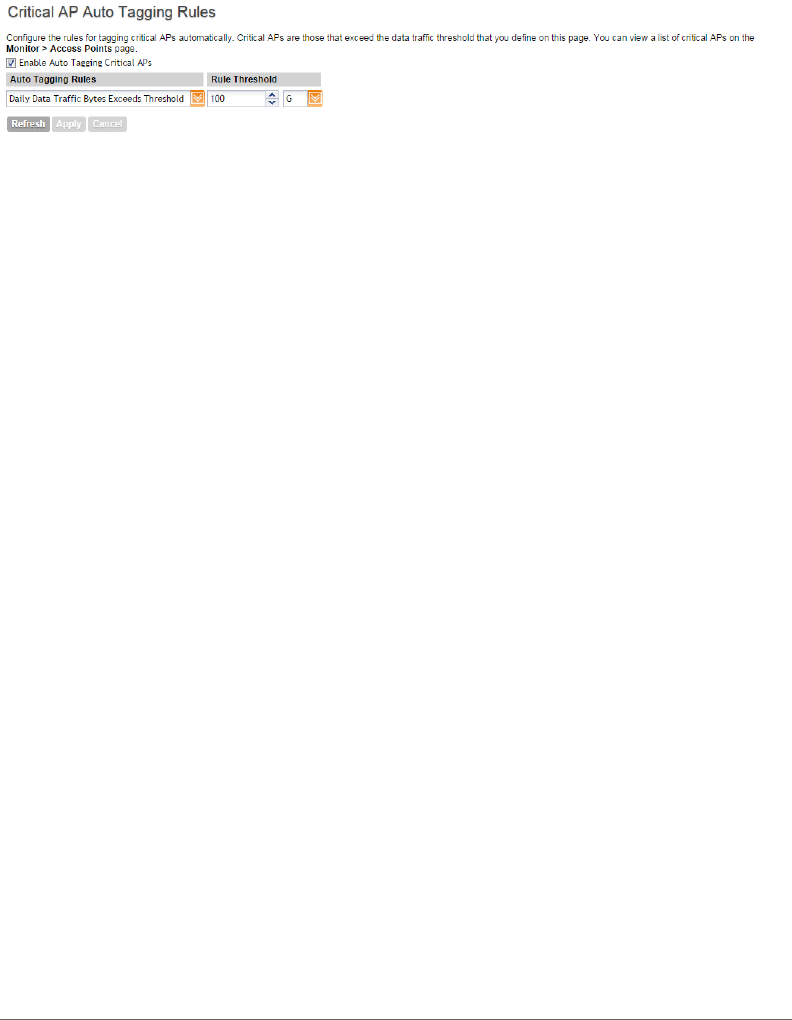

Figure 37. Configuring critical AP tagging rules
Creating IPSec Profiles
Follow these steps to create an IPSec profile that APs can use when the AP tunnel
settings are set to SoftGRE + IPSec.
1Go to the Configuration > Access Points > IPSec page.
2Click Create New. The Create IPSec Profile form appears.
3In General Options, configure the following:
•Name: Type name for the IPSec profile that you are creating.
•Description: Type a description for this profile.
•Security Gateway: Type the IP address or FQDN of the IPSec server. If you
use the IP address, the IP address format that you must enter will depend
on the IP mode that is configured on the controller.
4In Authentication, configure the following:
•Type: Click Preshared Key to use PSK for authentication or click Certificate
to use an X.509 certificate on the certificate authority (CA) or registration
authority (RA) server. The controller uses the CMPv2 protocol to obtain the
signed certificate from the CA/RA server.
•Preshared Key: If you clicked Preshared Key in Type, type the PSK in this
box. The PSK must be eight to 128 ASCII characters in length.
5In Security Association, configure the following:
•IKE Proposal Type: Click Default to use the default Internet Key Exchange
(IKE) security association (SA) proposal type or click Specific to manually
configure the IKE SA proposal. If you clicked Specific, you will need to
configure the following settings:
-Encryption Algorithm: Options include 3DES, AES128, AES192, and
AES256.
-Integrity Algorithm: Options include MD5, SHA1, AES-XCBC, SHA256,
SHA384, and SHA512.
![](asset-61.png)
Configuring Access Points
Creating IPSec Profiles
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 86
-Pseudo-Random Function: Options include Use integrity ALG, PRF-MD5,
PRF-SHA1, PRF-AES-XCBC, PRF-AES-CMAC, PRF-SHA256, and PRF-
SHA384.
-DH Group: Options for Diffie-Hellman groups for IKE include modp768,
modp1024, modp1536, modp2048, modp3072, modp4096,
modp6144, and modp8192.
•ESP Proposal Type: Click Default to use the default Encapsulating Security
Payload (ESP) SA proposal type or click Specific to manually configure the
ESP proposal. If you clicked Specific, you will need to configure the following
settings:
-Encryption Algorithm: Options include 3DES, AES128, AES192, AES256,
and NONE.
-Integrity Algorithm: Options include MD5, SHA1, AES-XCBC, SHA256,
SHA384, and SHA512
-DH Group: Options for Diffie-Hellman groups for ESP include None,
modp768, modp1024, modp1536, modp2048, modp3072, modp4096,
modp6144, and modp8192.
6In Rekey Options, configure the following:
•Internet Key Exchange: To set time interval at which the IKE key renews,
select a time unit (day, hour, or minute) from the drop-down list, and then
type a number in the box. To disable IKE rekey, select the Disable check box.
•Encapsulating Security Payload: To set time interval at which the ESP key
renews, select a time unit (day, hour, or minute) from the drop-down list, and
then type a number in the box. To disable ESP rekey, select the Disable
check box.
7In Certificate Management Protocol, configure the following:
•DHCP Option 43 Sub Code for CA/RA Address: Set the DHCP Option 43
subcode that will be used to discover the address of the CA/RA server on
the network. The default subcode is 8.
•CA/RA Address: Type the IP address or FQDN of the CA/RA server. If you
use the IP address, the IP address format that you must enter will depend
on the IP mode that is configured on the controller.
•Server Path: Type the path to the X.509 certificate on the CA/RA server.
•DHCP Option 43 Sub Code for Subject Name of CA/RA: Set the DHCP
Option 43 subcode that will be used to discover the subject name of the CA/
RA server on the network. The default subcode is 5.
![](asset-62.png)
Configuring Access Points
Creating IPSec Profiles
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 87
•Subject Name of CA/RA: Type an ASCII string that represents the subject
name of the CA/RA server.
8In Advanced Options, configure the following:
•DHCP Option 43 Sub Code for Security Gateway: Set the DHCP Option 43
subcode that will be used to discover the address of the security gateway
on the network. The default subcode is 7.
•Retry Limit: Set the number of times that the controller will attempt to discover
the address of the security gateway. The default retry count is 5. Accepted
values are 0 (disable) to 16.
•Replay Window: Set the ESP replay window (in packets). The default size is
32 packets. Accepted values are 0 (disable) to 32 packets.
•IP Compression: To enable IP Payload Compression Protocol (IPComp)
compression before encryption, click Enable. The default value is Disable.
•Force NAT-T: To enforce UDP encapsulation of ESP packets, click Enable.
The default value is Disable.
•Dead Peer Detection: By default, the IKE protocol runs a health check with
remote peer to ensure that it is alive. To disable this health check, click
Disable.
•NAT-T Keep Alive Interval: To set the keep alive interval (in seconds) for NAT
traversal, type a value in the box. The default keep alive interval is 20 seconds.
Accepted values are 1 to 65536. To disable the keep alive interval, click
Disable.
•FailOver Options: To configure the failover settings when APs are unable to
connect, configure the following:
-Retry Period: Set the number of days (minimum 3 days) during which APs
will keep attempting to connect. To keep try indefinitely, select the Forever
check box.
-Retry Interval: Set the interval (in minutes) between each retry attempt.
The default retry interval is 1 minute. Accepted values are from 1 to 30
minutes.
-Retry Mode: If you want APs to fall back to the specified primary security
gateway, click Revertive. If you want APs to maintain connectivity with
the security gateway to which they are currently connected, click Non-
revertive.
9Click OK.
![](asset-63.png)
Configuring Access Points
Managing Access Points
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 88

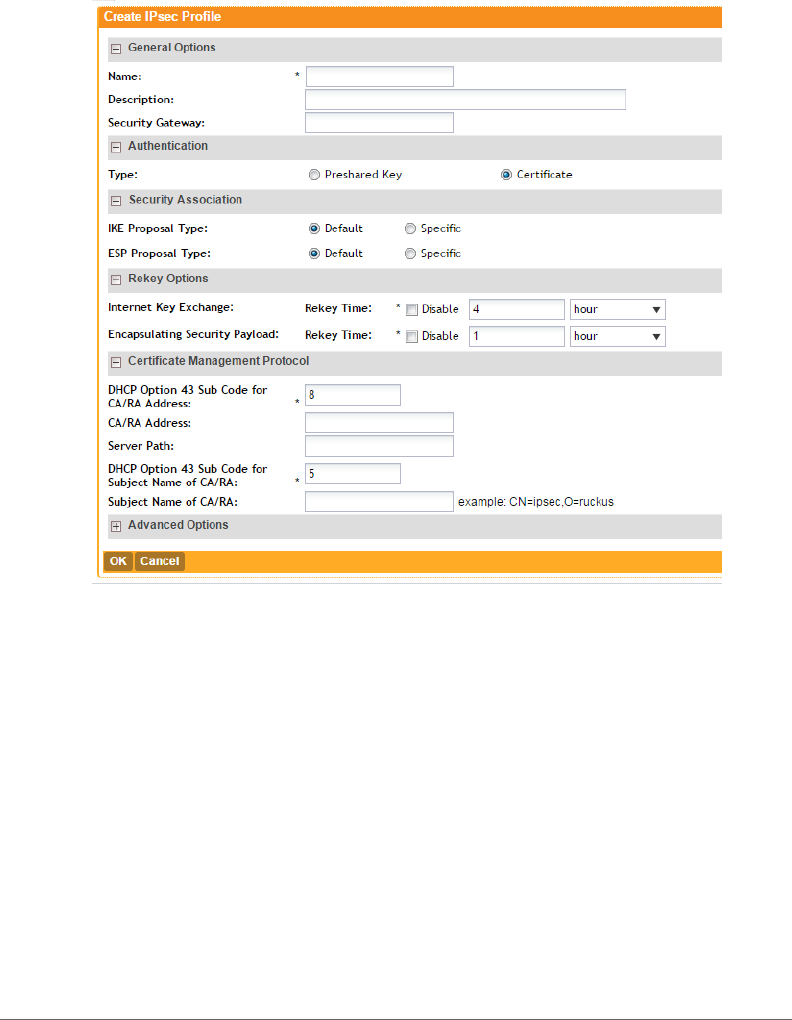

Figure 38. Creating an IPSec profile
Managing Access Points
Once you set up the controller, access points will be able to join or register with the
controller automatically. After an access point registers successfully with the
controller, you can update its configuration by following the steps described in this
section.
Viewing a List of Managed Access Points
After an access point registers successfully with the controller, it appears on the
Access Points page, along with other managed access points. Follow these steps
to view a list of managed access points.
1Go to Configuration > Wireless Network > Access Points. A list of access points
that are being managed by the controller appears on the Access Points page.
These are all the access points that belong to all management domains.
![](asset-64.png)
Configuring Access Points
Managing Access Points
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 89
2The list of managed access points displays details about each access point,
including its:
• AP MAC address
• AP name
• Model (AP model)
• AP firmware
• IP address (internal IP address)
• External IP address
• Provision Method
• Provision State
• Administrative Status
• Status
• Configuration Status
• Registered On (date the access point joined the controller network)
• Registration State
• Actions (actions that you can perform)
NOTE: By default, the Access Points page displays 10 access points per page
(although you have the option to display up to 250 access points per page). If the
controller is managing more than 10 access points, the pagination links at the
bottom of the page are active. Click these pagination links to view the succeeding
pages on which the remaining access points are listed.

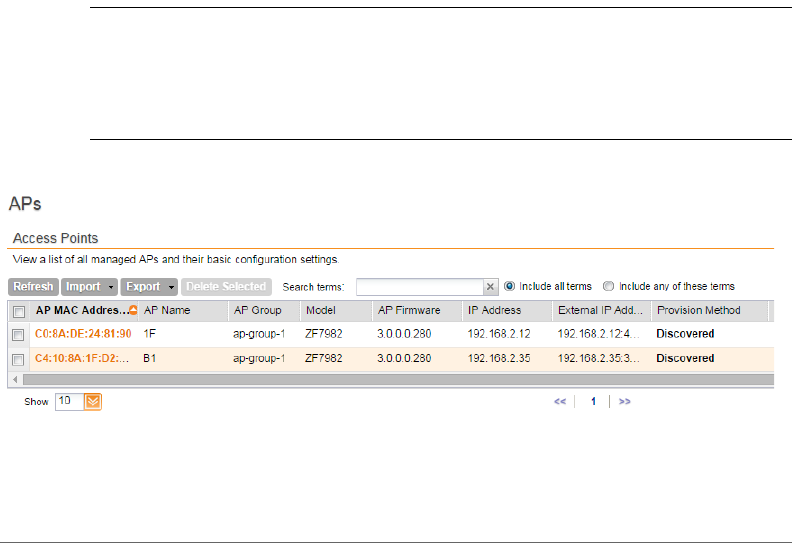

Figure 39. Viewing a list of managed access points
![](asset-65.png)
Configuring Access Points
Managing Access Points
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 90
Provisioning and Swapping Access Points
The controller supports the provisioning and swapping of access points. As an
administrator you can:
• Upload a file containing list of AP and the pre-provisioned configuration data for
each AP. The controller processes the file and provides details on regarding the
import results (including a list of failed APs and failure reasons).
• Modify or delete pre-provisioning data if AP does not connect to the controller
• Monitor the status and stage of the pre-provisioned APs
• Manually lock or unlock APs
• Upload a file containing list of AP pairs for swapping. The controller processes
the file and provide the detailed import result (including a list of failed APs and
failure reasons).
• Manually enter the AP swap pair
• Delete the swap configuration if AP fails to contact the controller
• Monitor the status and stage of the swapping AP pairs
• Manually swap the APs
Options for Provisioning and Swapping APs
Use the following buttons on the Access Points page to perform the AP provisioning
and swapping.
•Import Batch Provisioning APs: Click this button to import the provisioning file.
The controller displays the import results. Any errors that occur during the import
process will be listed by the controller.
•Export All Batch Provisioning APs: Click this button to download a CSV file
that lists all APs that have been provisioned. The exported CSV contains the
following information:
• AP MAC Address
•Model
• AP Name
• Description
•Location
• GPS Coordinates
• Logon ID
• Password
![](asset-66.png)
Configuring Access Points
Managing Access Points
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 91
• Administrative State
• IP Address
•Network Mask
• Gateway
• Primary DNS
• Secondary DNS
• Provision Checklist
• Serial Number
NOTE: The exported CSV file for all batch provisioned APs only contains pre-
provisioned APs. It does not contain swapping APs or auto discovered APs.
NOTE: If no APs have been pre-provisioned, you will still be able to export the CSV
file but it will be empty (except for the column titles).
•Import Swapping APs: Manually trigger the swapping of two APs by clicking
the swap action in the row. You can also edit the pre-provision configuration only
if the AP does not connect to the controller. Click the AP MAC address to bring
up the configuration edit form, and then select Pre-provision Configuration.
•Export All Batch Swapping APs: Click this button to download a CSV file that
lists all APs that have been swapped. The exported CSV contains the following
information:
• Swap In AP MAC
• Swap In AP Model
• Swap Out AP MAC
NOTE: The exported CSV file for batch swapping APs only contains swapping APs.
It does not contain pre-provisioned APs or auto discovered APs.
•Delete Selected: To delete multiple pre-provisioned APs simultaneously, select
the check boxes before the AP MAC addresses, and then click Delete Selected.
To delete a single pre-provisioned AP, click the icon that is in the same row
as the AP MAC address. If the AP has not contacted the controller, the AP record
disappears from the table. If the AP comes up later, the controller treats it as a
discovered AP. If the AP is connected to the controller, the delete operation is
similar to the AP delete operation.
![](asset-67.png)
Configuring Access Points
Managing Access Points
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 92
Figure 40. Options for provisioning and swapping APs
Understanding How Swapping Works
The following table lists how the controller handles swapping by detailing each stage.
For example, you have entered swap configuration as Swap In: A and Swap out: B.
Editing AP Configuration
Follow these steps to update the configuration of a managed access point.
1Go to the Configuration > Wireless Network > Access Points.
2On the APs page, locate the access point whose configuration you want to
update.
3Click the MAC address of the access point. The Edit AP configuration form
appears.
4Update the access point configuration by modifying the options in the form.
5Click OK.
You have completed editing the AP configuration.
Table 3. AP swapping stages
Stage State A Stage A State B Stage B
1. Enter data Swapping Not Registered Approved Waiting for swap in AP
registration
2. AP register Swapping Waiting for
swapping in
Approved Waiting for swapping
out
3. User swap Approved Swapped in Swapping Swapped out
4: Second
swap
Swapping Swapped out
and waiting for
swapping in
Approved Swapped in and
waiting for swapping
out
![](asset-68.png)
Configuring Access Points
Managing Access Points
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 93
NOTE: The loc parameter (which holds the Location attribute in the AP
configuration) in the controller's Captive Portal redirection to the configured hotspot
login portal is encoded using the Hex encoder from the
org.apache.commons.codec.binary library. If you have hotspots on the network and
you are using an external portal, take note of the encoding mechanism for the loc
parameter so your external portal can decode it.

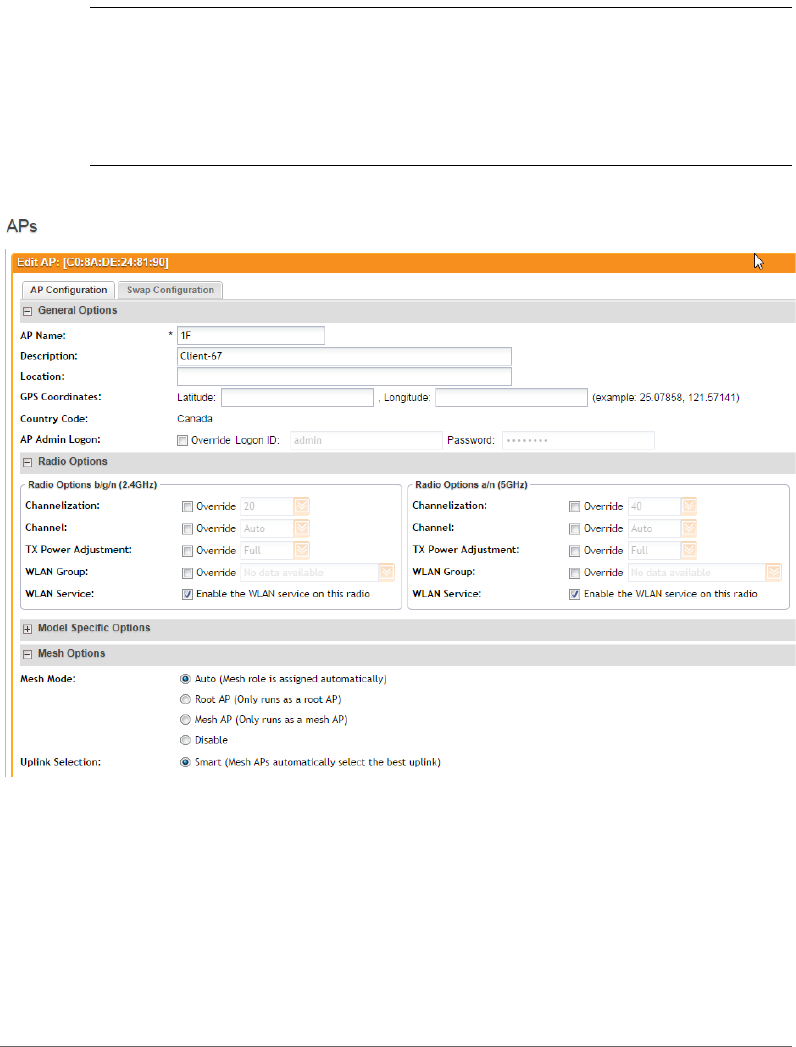

Figure 41. The Edit AP configuration form
Editing Swap Configuration
The controller supports the swapping or replacement of a managed AP with a new
AP of the same model. This feature is useful when you want to avoid service
interruption because you need to replace an AP in the field.
By configuring the swap settings, you can easily and automatically export and apply
the settings of the old AP to the new AP.
Follow these steps to configure the swap settings of an AP.
![](asset-69.png)
Configuring Access Points
Managing Access Points
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 94
1Go to the Configuration > Wireless Network > Access Points.
2On the APs page, locate the access point whose swap configuration you want
to update.
3Click the AP MAC address of the access point.
4Click the Swap Configuration tab.
5Update the access point configuration by modifying the options in the form.
6Click OK.
You have completed editing the swap configuration.

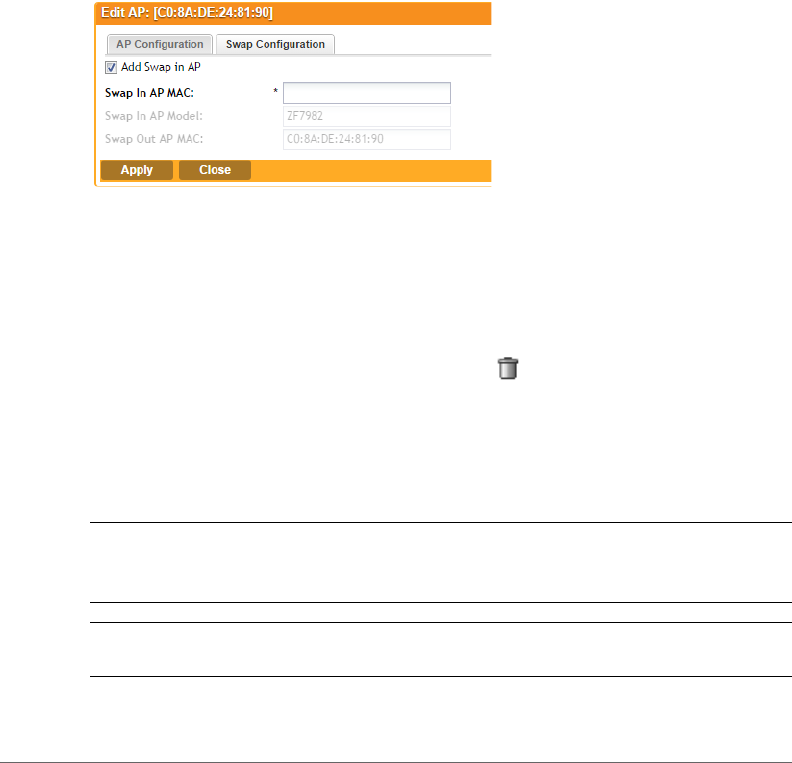

Figure 42. The Edit AP > Swap Configuration form
Deleting an Access Point
Follow these steps to delete an access point that is currently registered with the
controller.
1Go to the Configuration > Wireless Network > Access Points.
2On the APs page, locate the access point that you want to delete.
3Once you locate the access point, click the icon that is under the Actions
column. A confirmation message appears.
4Click OK.
The list of managed access points refreshes, and then the access point that you
deleted disappears from the list.
NOTE: Wireless clients that are associated with the access point that you deleted
will still be able to connect to the network until the next time the access point
attempts to rejoin the controller.
NOTE: After you delete an access point, it could take approximately two minutes
before it appears on the Configuration > Wireless Network > APs page again.
![](asset-6a.png)
Controlling Access to the Wireless Network
Working with User Traffic Profiles
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 95
Controlling Access to the Wireless Network
•Working with User Traffic Profiles
•Controlling L2 Access
•Controlling Device Access
Working with User Traffic Profiles
A traffic profile defines whether the system will allow or block a particular type of
traffic based on a number of attributes, including:
• Source IP address (specific IP address or IP address range)
• Source port number (specific port or port range)
• Destination IP address (specific IP address or IP address range)
• Destination port number (specific port or port range)
• Network protocol (TCP, UDP, etc.)
• Traffic direction
Creating a User Traffic Profile
Follow these steps to create a user traffic profile.
1Go to Configuration > Wireless Network > Access Control.
2In the User Traffic Profiles section, click Create New.
3In Name, type a name for this profile.
4In Description, type a short description for this profile.
5In Default Access, select whether you want the controller to allow or block users
using this profile if the user traffic does not match any of the rules you defined.
6In the Rules section, click Create New.
NOTE: By default, two default rules exist (Allow DNS and Allow DHCP) when you
create a new profile. You can modify these rules or even delete them.
7In Source IP, specify the source IP address to which this rule will apply.
• To apply this rule to an IP address range, type the network address and the
subnet mask.
• To apply this rule to a single IP, clear the Subnet check box, and then enter
the IP address.
8In Source Port, specify the source port to which this rule will apply.
![](asset-6b.png)
Controlling Access to the Wireless Network
Working with User Traffic Profiles
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 96
• To apply this rule to a port range, type the starting and ending port numbers
in the two boxes.
• To apply this rule to a single port number, clear the Range check box, and
then enter the port number.
9In Destination IP, specify the destination IP address to which this rule will apply.
• To apply this rule to an IP address range, type the network address and the
subnet mask.
• To apply this rule to a single IP, clear the Subnet check box, and then enter
the IP address.
10 In Destination Port, specify the source port to which this rule will apply.
• To apply this rule to a port range, type the starting and ending port numbers
in the two boxes.
• To apply this rule to a single port number, clear the Range check box, and
then enter the port number.
11 In Protocol, select the network protocol to which this rule will apply. Supported
protocols include:
•TCP
• UDP
• UDPLITE
• ICMP (ICMPv4)
•ICMPV6
• IGMP
•ESP
•AH
•SCTP
12 In Direction, leave as is. Only one traffic direction (upstream) is supported in this
release.
13 Click Create New.
You have completed creating a user traffic profile. The next time you a WLAN, this
profile will appear as one of the options for User Traffic Profile.
![](asset-6c.png)
Controlling Access to the Wireless Network
Working with User Traffic Profiles
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 97
Viewing User Traffic Profiles
Follow these steps to view a list of existing user traffic profiles.
1Go to Configuration > Wireless Network > Access Control. The Access Control
page appears.
2Look for the User Traffic Profiles section. All existing user traffic profiles and their
basic settings are shown, including the:
• User traffic profile name
• Description
• Default access (allow or block)
• Actions (that you can perform)
3To view the type of traffic that has been defined in a particular user traffic profile,
click the profile name.
You have completed viewing existing user traffic profiles.
Assigning Priorities to Traffic Profile Rules
The controller applies the rules you have created to user traffic in the same order as
they appear in the table. If you want a particular rule to have higher priority over other
rules, click the green up arrow icon under the Actions column. If you want a rule to
have lower priority, click the green down arrow icon.
When you finish setting the rule priorities, click OK to save your changes.
Deleting Traffic Profiles
Follow these steps to delete user traffic schedule profiles.
1Go to Configuration > Wireless Network > Access Control. The Access Control
page appears.
2Scroll down to the User Traffic Profiles section.
3Locate the profile or profiles that you want to delete.
4Select the check boxes (first column) for the profiles that you want to delete.
5Click Delete Selected.
The profiles that you selected disappear from the list. You have completed deleting
user traffic profiles.
NOTE: If you are deleting a single profile, you can also click the icon (under the
Actions column) that is in the same row as the profile that you want to delete.
![](asset-6d.png)
Controlling Access to the Wireless Network
Controlling L2 Access
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 98
Controlling L2 Access
Another method to control access to the network is by defining Layer 2/MAC
address access control lists (ACLs), which can then be applied to one or more
WLANs or WLAN groups. L2 ACLs are either allow-only or deny-only; that is, an
ACL can be set up to allow only specified clients or to deny only specified clients.
MAC addresses that are in the deny list are blocked at the AP.
Creating an L2 Access Policy
Follow these steps to create an L2 access policy.
1Go to Configuration > Wireless Network > Access Control.
2Scroll down to the L2 Access Control section, and then click Create New.
3In Name, type a name for this policy.
4In Description, type a short description for this policy.
5In Restriction, select the default action that the controller will take if no rules are
matched. Available options include:
• Only allow all stations listed below
• Only block all stations listed below
6In the Rules section, click Create New.
7In MAC Address, type the MAC address to which this L2 access policy applies.
8Click Create New. The page refreshes, and then the L2 access policy that you
created appears in the L2 Access Control section.
You have completed creating an L2 access policy.
Viewing L2 Access Policies
Follow these steps to view a list of existing L2 access profiles.
1Go to Configuration > Wireless Network > Access Control. The Access Control
page appears.
2Look for the L2 Access Control section. All existing L2 access policies and their
basic settings are shown, including the:
• Profile name
• Description
• Default access (allow or block)
• Actions (that you can perform)
![](asset-6e.png)
Controlling Access to the Wireless Network
Controlling L2 Access
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 99
3To view or change the MAC address has been defined in a particular L2 access
policy, click the profile name.
You have completed viewing existing L2 access policies.
Deleting L2 Access Policies
Follow these steps to delete L2 access policies.
1Go to Configuration > Wireless Network > Access Control. The Access Control
page appears.
2Scroll down to the L2 Access Control section.
3Locate the policy or policies that you want to delete.
4Select the check boxes (first column) for the policies that you want to delete.
5Click Delete Selected.
The policies that you selected disappear from the list. You have completed deleting
L2 access policies.
NOTE: If you are deleting a single policy, you can also click the icon (under the
Actions column) that is in the same row as the policy that you want to delete.
![](asset-6f.png)
Controlling Access to the Wireless Network
Controlling Device Access
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 100
Controlling Device Access
In response to the growing numbers of personally owned mobile devices such as
smart phones and tablets being brought into the network, IT departments are
requiring more sophisticated control over how devices connect, what types of
devices can connect, and what they are allowed to do once connected.
Using device access policies, the system can identify the type of client attempting
to connect, and perform control actions such as permit/deny, rate limiting, and
VLAN tagging based on the device type.
Once a device access policy has been created, you can apply the policy to any
WLANs or WLAN groups for which you want to control access by device type. You
could, for example, allow only Apple iOS devices on one WLAN and only Linux
devices on another.
Creating a Device Access Policy
Follow these steps to create a device access policy.
1Go to Configuration > Wireless Network > Access Control.
2Scroll down to the Device Access Policies section.
3In Name, type a name for this policy.
4In Description, type a short description for this policy.
5In Default Access, select either Allow or Block. This is the default action that
the system will take if no rules are matched.
6In the Rules section, click Create New. The Create New Device Policy Profile
form appears.
7Configure the rule settings:
•Description: Type a description for this rule.
•Action: Select either Allow or Block. This is the action that the system will
take if the client matches any of the attributes in the rule.
•Device Type: Select from any of the supported client types.
•Uplink Rate: Select the uplink rate limit for this client type, or click Disable.
•Downlink Rate: Select the download rate limit for this client type, or select
Disable.
•VLAN: Segment this client type into a specified VLAN (1~4094; if no value is
entered, this policy does not impact device VLAN assignment).
8To add a new rule, click Create New again, and then repeat Step 7.
![](asset-70.png)
Controlling Access to the Wireless Network
Controlling Device Access
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 101
9When you finish creating all the rules that you want to add to the policy, click
Create New at the bottom of the form. The page refreshes, and then the policy
that you created appears under the Device Policies section.
You have completed creating a device access policy.
Viewing Device Access Policies
Follow these steps to view a list of existing device access policies.
1Go to Configuration > Wireless Network > Access Control. The Access Control
page appears.
2Scroll down to the Device Access Policies section. All existing device access
policies and their basic settings are shown, including the:
•Name
• Description
• Default access (allow or block)
• Actions (that you can perform)
3To view or update policy settings, click the policy name.
You have completed viewing device access policies.
Deleting Device Access Policies
Follow these steps to delete device access policies.
1Go to Configuration > Wireless Network > Access Control. The Access Control
page appears.
2Scroll down to the Device Access Policies section.
3Locate the policy or policies that you want to delete.
4Select the check boxes (first column) for the policies that you want to delete.
5Click Delete Selected.
The policies that you selected disappear from the list. You have completed deleting
device access policies.
NOTE: If you are deleting a single policy, you can also click the icon (under the
Actions column) that is in the same row as the policy that you want to delete.
![](asset-71.png)
Managing Guest Access
Creating a Guest Access Portal
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 102
Managing Guest Access
Using the controller’s guest access features, you can provide visitors to your
organization limited access to a guest WLAN with configurable guest policies, or
given the option to self-activate their devices to an internal WLAN using Zero-IT
activation via the bring your own device (BYOD) onboarding portal (or both).
The following sections describe how to configure guest WLANs and access policies
that control guest use of your network.
•Creating a Guest Access Portal
•Viewing Guest Access Portals
•Deleting Guest Access Portals
Creating a Guest Access Portal
Each guest WLAN must be associated with a guest access portal, which defines
the behavior of the guest WLAN interface. Follow these steps to create a guest
access portal.
1Go to Configuration > Wireless Network > Guest Access. The Guest Access
Portal page appears.
2Click Create New. The Create New Guest Access Portal form appears.
3In General Options, configure the following:
•Portal Name: Type a name for the guest access portal that you are creating.
•Portal Description: Type a short description of the guest access portal.
•Language: Select the display language to use for the buttons on the guest
access logon page.
4In Redirection, select where to redirect the user after successfully completing
authentication.
•Redirect to the URL that the user intends to visit: Allows the guest user
to continue to their destination without redirection.
•Redirect to the following URL: Redirect the user to a specified web page
(entered into the text box) prior to forwarding them to their destination. When
guest users land on this page, they are shown the expiration time for their
guest pass.
5In Guest Access, configure the following:
![](asset-72.png)
Managing Guest Access
Creating a Guest Access Portal
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 103
•Guest Pass SMS Gateway: You can deliver the guest pass to the user using
Short Message Service (SMS). But first you need to configure an SMS server
on the Configuration > System > External SMS Gateway page. If you
previously configured an SMS server, you can select it here or you can select
Disable.
•Terms and Conditions: To require users to read and accept your terms and
conditions prior to use, Show Terms And Conditions check box. The box
below, which contains the default Terms of Use text, becomes editable. Edit
the text or leave it unchanged to use the default text.
•Web Portal Logo: By default, the guest hotspot logon page displays the
Ruckus Wireless logo. To use your own logo, click the Upload button, select
your logo (recommended size is 138 x 40 pixels, maximum file size is 20KB),
and then click Upload.
•Web Portal Title: Type your own guest hotspot welcome text or accept the
default welcome text (“Welcome to the Guest Access login page”).
6In User Session, configure the following:
•Session Timeout: Specify a time limit after which users will be disconnected
and required to log on again.
•Grace Period: Set the time period during which clients will not need to re-
authenticate after getting disconnected from the hotspot. Enter a number (in
minutes) between 1 and 144,000.
7Click OK.
You have completed creating a guest access portal.
![](asset-73.png)
Managing Guest Access
Viewing Guest Access Portals
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 104

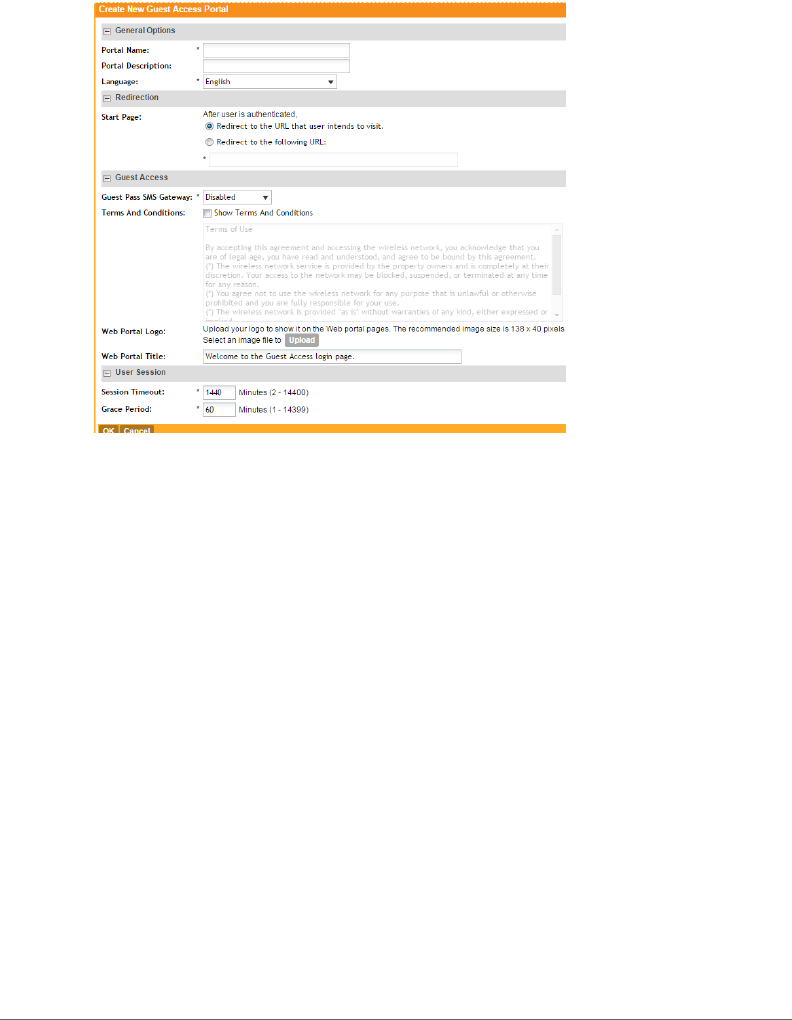

Figure 43. Creating a guest access portal
Viewing Guest Access Portals
Follow these steps to view a list of existing guest access portals.
1Go to Configuration > Wireless Network > Guest Access. The Guest Access
Portal page appears and displays all existing guest access portals and their basic
settings are shown, including the following:
•Name
• Description
• Actions (that you can perform)
2To view or update policy settings, click the policy name.
You have completed viewing device access policies.
![](asset-74.png)
Managing Guest Access
Deleting Guest Access Portals
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 105

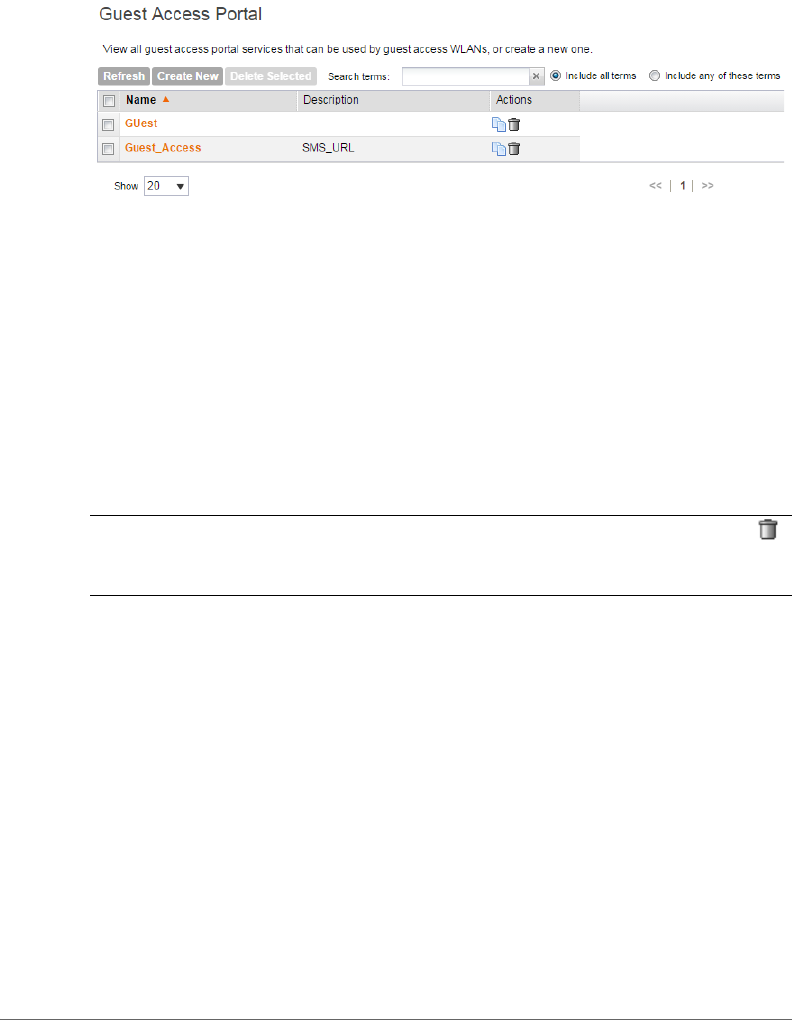

Figure 44. Viewing guest access portals
Deleting Guest Access Portals
Follow these steps to delete guest access portals.
1Go to Configuration > Wireless Network > Guest Access. The Guest Access
Portal page appears.
2Locate the service or services that you want to delete.
3Select the check boxes (first column) for the services that you want to delete.
4Click Delete Selected.
The services that you selected disappear from the list. You have completed deleting
guest access portals.
NOTE: If you are deleting a single guest access portal, you can also click the
icon (under the Actions column) that is in the same row as the service that you want
to delete.
![](asset-75.png)
Working with Hotspot (WISPr) Portals
Deleting Guest Access Portals
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 106
Working with Hotspot (WISPr) Portals
A hotspot is a venue or area that provides Internet access to devices with wireless
networking capability such as notebooks and smart phones. Hotspots are
commonly available in public venues such as hotels, airports, coffee shops and
shopping malls.
Use the controller’s Configuration > Wireless Network > Hotspot (WISPr) page to
configure a traditional (WISPr 1.0) hotspot service to provide public access to users
via its WLANs. In addition to the controller and its managed APs, you will need the
following to deploy a hotspot:
• Captive Portal: A special web page, typically a login page, to which users that
have associated with your hotspot will be redirected for authentication purposes.
Users will need to enter a valid user name and password before they are allowed
access to the Internet through the hotspot.
• RADIUS Server: A Remote Authentication Dial-In User Service (RADIUS) server
through which users can authenticate.
For installation and configuration instructions for the captive portal and RADIUS
server software, refer to the documentation that was provided with them. After
completing the steps below, you will need to edit the WLAN(s) for which you want
to enable the hotspot service.
The controller supports up to 32 WISPr hotspot portal entries, each of which can
be assigned to multiple WLANs.
This section covers the following topics:
•Creating a Hotspot (WISPr) Portal
NOTE: In addition to hotspot (WISPr) services, the controller provides Hotspot 2.0
services. For information on Hotspot 2.0 services, see Working with Hotspot 2.0
Services.
![](asset-76.png)
Working with Hotspot (WISPr) Portals
Creating a Hotspot (WISPr) Portal
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 107
Creating a Hotspot (WISPr) Portal
This section describes the basic settings that you need to configure to create a
hotspot portal.
NOTE: Before creating a hotspot, you need to create a user defined interface. For
information on how to create a user defined interface, see Configuring the User
Defined Interface Settings.
Follow these steps to configure the hotspot portal.
1Click Configuration > Wireless Network > Hotspot (WISPr). The Hotspot (WISPr)
Portal page appears.
2Click Create New. The form for creating a new hotspot portal appears.
3In the General Options section, configure the following options:
•Portal Name: Type a name for the hotspot portal.
•Portal Description: Type a description for the hotspot portal.
4In the Redirection section, configure the following options:
•Smart Client Support: Select one of the following options:
-None: Select this option to disable Smart Client support on the hotspot
portal.
-Enable: Selection this option to enable Smart Client support.
-Only Smart Client Allowed: Select this option to allow only Smart Clients
to connect to the hotspot portal.
For more information, see Configuring Smart Client Support.
•Logon URL: Type the URL of the subscriber portal (the page where hotspot
users can log in to access the service). For more information, see Configuring
the Logon URL.
•Start Page: Set where users will be redirected after they log in successfully:
-Redirect to the URL that user intends to visit: You could redirect users
to the page that they want to visit.
-Redirect to the following URL: You could set a different page where
users will be redirected (for example, your company website).
5In the User Session section, configure the following options:
•Session Timeout: Set a time limit (in minutes) after which users will be
disconnected from the hotspot portal and will be required to log on again.
![](asset-77.png)
Working with Hotspot (WISPr) Portals
Creating a Hotspot (WISPr) Portal
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 108
•Grace Period: Set the time period (in minutes) during which disconnected
users are allowed access to the hotspot portal without having to log on again.
6In the Location Information section, configure the following options:
•Location ID: Type the ISO and ITU country and area code that the AP includes
in accounting and authentication requests. The required code includes:
- isocc (ISO-country-code): The ISO country code that the AP includes in
RADIUS authentication and accounting requests.
- cc (country-code): The ITU country code that the AP includes in RADIUS
authentication and accounting requests.
- ac (area-code): The ITU area code that the AP includes in RADIUS
authentication and accounting requests.
-network
The following is an example of what the Location ID entry should look like:
isocc=us,cc=1,ac=408,network=RuckusWireless
•Location Name: Type the name of the location of the hotspot portal.
7In Walled Garden, click Create New to add a walled garden. A walled garden is
a limited environment to which an unauthenticated user is given access for the
purpose of setting up an account.
In the box provided, type a URL or IP address to which you want to grant
unauthenticated users access. You can add up to 128 network destinations to
the walled garden. Network destinations can be any of the following:
• IP address (for example, 10.11.12.13)
• Exact website address (for example, www.ruckuswireless.com)
• Website address with regular expression (for example, *.ruckuswireless.com,
*.com, *)
After the account is established, the user is allowed out of the walled garden.
URLs will be resolved to IP addresses. Users will not be able to click through to
other URLs that may be presented on a page if that page is hosted on a server
with a different IP address. Avoid using common URLs that are translated into
many IP addresses (such as www.yahoo.com), as users may be redirected to
re-authenticate when they navigate through the page.
8Click OK.
You have completed configuring a hotspot portal. For additional steps that you need
to perform to ensure that the hotspot portal works, see Working with Hotspot
(WISPr) Portals.
![](asset-78.png)
Working with Hotspot (WISPr) Portals
Creating a Hotspot (WISPr) Portal
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 109

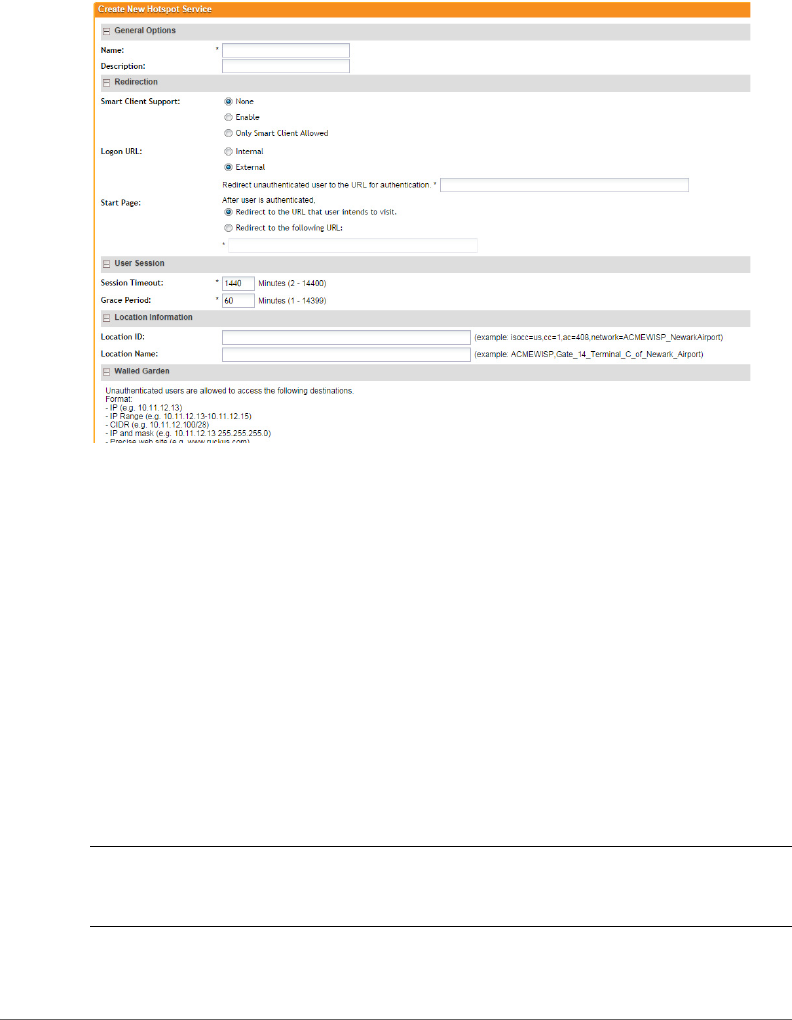

Figure 45. Creating a hotspot
Configuring Smart Client Support
Ruckus Wireless hotspots support the WISPr Smart Client feature, which allows
client devices to log on to a hotspot seamlessly without requiring the user to go
through the logon page. The controller provides the following options for supporting
Smart Clients:
•None: Click this option to prevent Smart Client applications from logging on to
WLANs that include this hotspot configuration.
•Enable: Click this option to allow Smart Client applications to log on to WLANs
that include this hotspot configuration.
•Only Smart Client Allowed: Click this option to allow only Smart Client
applications to log on to WLANs that include this hotspot configuration. All other
applications or browsers that attempt to access the hotspot will be shown a
custom message, which you can enter in the box provided.
CAUTION! Clicking Only Smart Client Allowed requires the use of the internal
Subscriber Portal. The Logon URL and Start Page options are unavailable when the
Only Smart Client Allowed option is selected
![](asset-79.png)
Working with Hotspot (WISPr) Portals
Creating a Hotspot (WISPr) Portal
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 110

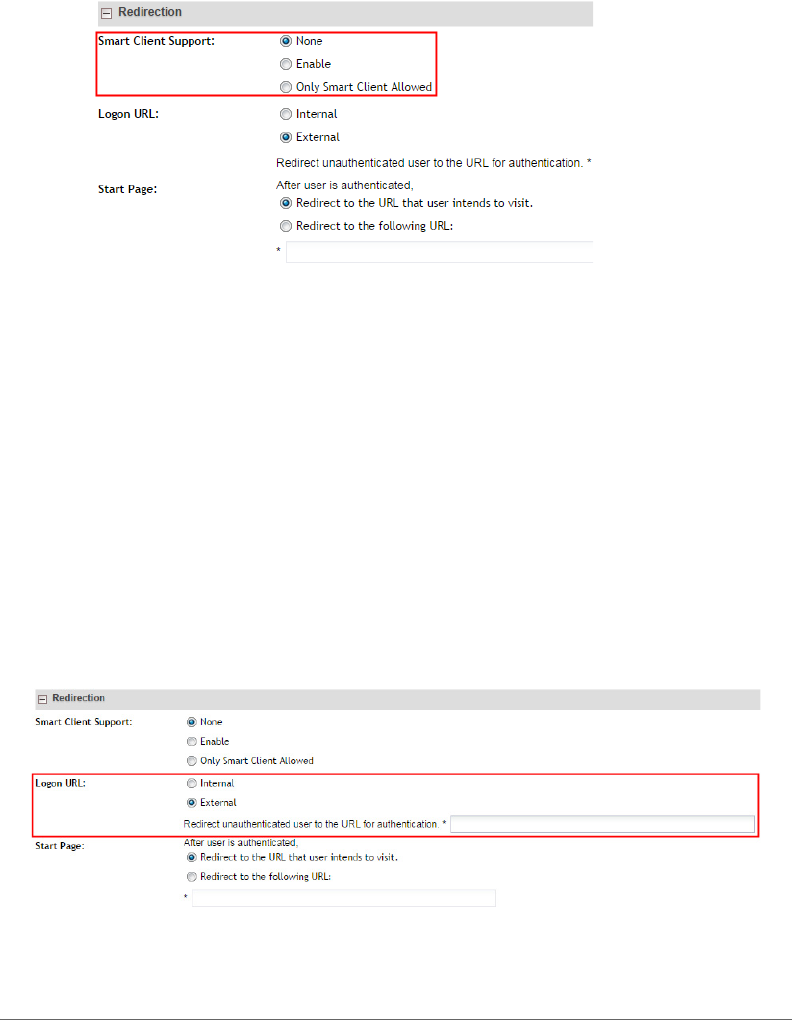

Figure 46. Smart Client support options
Configuring the Logon URL
The Logon URL refers to the location of the Subscriber Portal module that serves
the logon form for authenticating hotspot users. There are two options available for
the logon URL: Internal and External.
•Internal: Click this option if you want to use the Subscriber Portal module that
is built into the controller.
•External: Click this option if you want to use the Subscriber Portal module that
is installed on an external server. In the text box below, type the URL to the
Subscriber Portal on the external server. In the example below, the Subscriber
Portal module is installed on a server with the IP address 172.21.11.248, hence
the logon URL is:
http://172.21.11.248:9997/SubscriberPortal/login
Figure 47. In Logon URL, click either Internal or External
![](asset-7a.png)
Working with Hotspot (WISPr) Portals
Assigning a WLAN to Provide a Hotspot Service
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 111
Assigning a WLAN to Provide a Hotspot Service
After you create a hotspot service, you need to specify the WLANs to which you
want to deploy the hotspot configuration.
Follow these steps to configure an existing WLAN to provide the hotspot service.
1Go to Configuration > Wireless Network > WLANs.
2In the WLANs section, look for the WLAN that you want to assign as a hotspot
WLAN, and then click the WLAN name. The Editing WLAN Config: [WLAN name]
form appears.
3In Authentication Type, click Hotspot (WISPr).
4Scroll down to the Hotspot Portal section (only visible when Authentication Type
is set to Hotspot (WISPr)).
5Select the name of the hotspot portal that you previously created.
6Click Apply.
You have completed assigning a WLAN to provide a hotspot service.

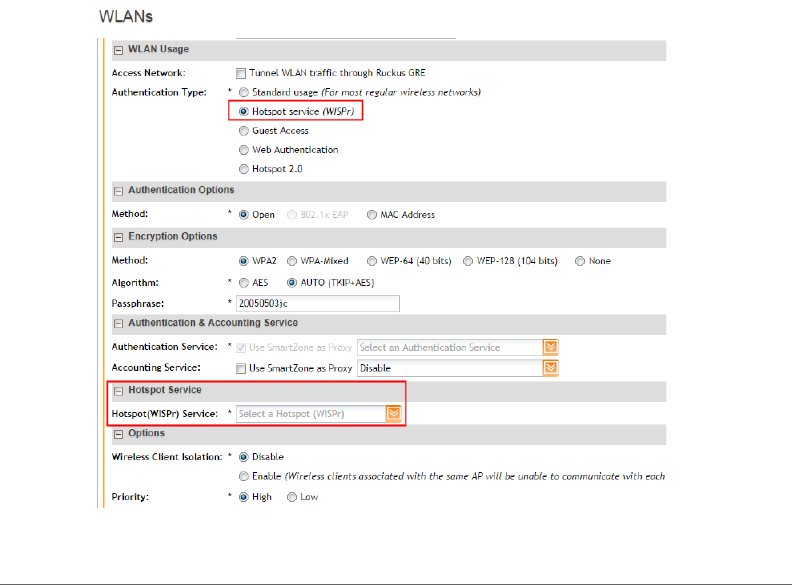

Figure 48. Assigning a WLAN to provide hotspot
![](asset-7b.png)
Working with Hotspot 2.0 Services
Assigning a WLAN to Provide a Hotspot Service
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 112
Working with Hotspot 2.0 Services
Hotspot 2.0 is a newer Wi-Fi Alliance specification that allows for automated roaming
between service provider access points when both the client and access gateway
support the newer protocol.
Hotspot 2.0 (also known as “Passpoint™”, the trademark name of the Wi-Fi Alliance
certification) aims to improve the experience of mobile users when selecting and
joining a Wi-Fi hotspot by providing information to the station prior to association.
This information can then be used by the client to automatically select an appropriate
network based on the services provided and the conditions under which the user
can access them. In this way, rather than being presented with a list of largely
meaningless SSIDs to choose from, the Hotspot 2.0 client can automatically select
and authenticate to an SSID based on the client’s configuration and services offered,
or allow the user to manually select an SSID for which the user has login credentials.
The controller’s Hotspot 2.0 implementation complies with the IEEE 802.11u
standard and the Wi-Fi Alliance Hotspot 2.0 Technical Specification.
See the Hotspot 2.0 Reference Guide for this release for information on configuring
Hotspot 2.0 services, including:
• Working with Hotspot 2.0 operator profiles
• Working with Hotspot 2.0 identity providers
• Creating a Hotspot 2.0 online signup portal
![](asset-7c.png)
Working with Web Authentication Services
Adding an AAA Server for the Web Authentication Service
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 113
Working with Web Authentication Services
Web authentication (also known as a “captive portal”) redirects users to a logon
web page the first time they connect to this WLAN, and requires them to log on
before granting access to use the WLAN.
Enabling a web authentication service requires the following steps:
•Adding an AAA Server for the Web Authentication Service
•Creating a Web Authentication Service
•Creating a WLAN for the Web Authentication Service
Adding an AAA Server for the Web Authentication
Service
Decide whether you want to use a proxy or non-proxy AAA server. A proxy AAA
server is used when APs send authentication/accounting messages to the controller
and the controller forwards these messages to an external AAA server. On the other
hand, a non proxy AAA server is used when the APs connect to the external AAA
server directly.
• For instructions on how to add a proxy AAA server, see Adding a Proxy AAA
Authentication Server.
• For instructions on how to add a non-proxy AAA server, see Adding a Non-Proxy
AAA Authentication Server.
Creating a Web Authentication Service
Follow these steps to create a web authentication service.
1Go to Configuration > Wireless Network > Web Authentication. The Web
Authentication Portal page appears.
2Click Create New.
3In General Options, configure the following options:
•Portal Name: Type a name for the web authentication service that you are
creating.
•Portal Description: Type a brief description of the service.
•Language: Select the display language that you want to use on the web
authentication portal.
4In Redirection, select where to redirect the user after successfully completing
authentication.
![](asset-7d.png)
Working with Web Authentication Services
Creating a Web Authentication Service
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 114
•Redirect to the URL that the user intends to visit: Allows the guest user
to continue to their destination without redirection.
•Redirect to the following URL: Redirect the user to a specified web page
(entered into the text box) prior to forwarding them to their destination. When
guest users land on this page, they are shown the expiration time for their
guest pass.
5In User Session, configure the following:
•Session Timeout: Set the time (in minutes) after which inactive users will be
disconnected and required to log in again.
•Grace Period: Set the time period (in minutes) during which disconnected
users are allowed access to the hotspot portal without having to log on again.
6Click OK.
You have completed creating a web authentication service.

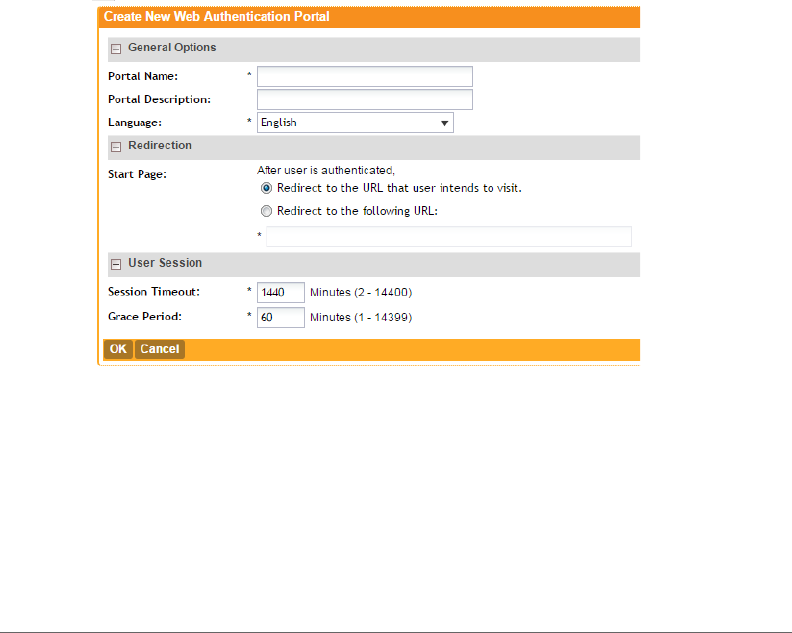

Figure 49. The Create New Web Authentication Portal page
![](asset-7e.png)
Working with Web Authentication Services
Creating a WLAN for the Web Authentication Service
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 115
Creating a WLAN for the Web Authentication Service
Follow these steps to create a WLAN that you can use for a web authentication
service.
1Go to Configuration > Wireless Network > WLANs.
2In the WLAN Configuration section, click Create New.
3In General Options, configure the following:
•Name
• SSID
• Description
4In Authentication Type, click Web Authentication.
5In Authentication & Accounting Server, select the RADIUS and/or RADIUS
Accounting server that you created earlier in Adding an AAA Server for the Web
Authentication Service.
6In Web Authentication, select the web authentication service that you created
earlier in Creating a Web Authentication Service. This service contains, among
others, the start page where users will be redirected when they associate with
this WLAN.
7Configure the remaining WLAN options as desired. For information on these
options, see Creating a WLAN.
8Click OK.
You have completed creating a WLAN for web authentication.
After you create a WLAN that will be used for web authentication, you must then
provide all users with the URL to your logon page. After they discover the WLAN
on their wireless device or laptop, they open their browser, connect to the logon
page and enter the required login information.
![](asset-7f.png)
Working with Web Authentication Services
Creating a WLAN for the Web Authentication Service
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 116

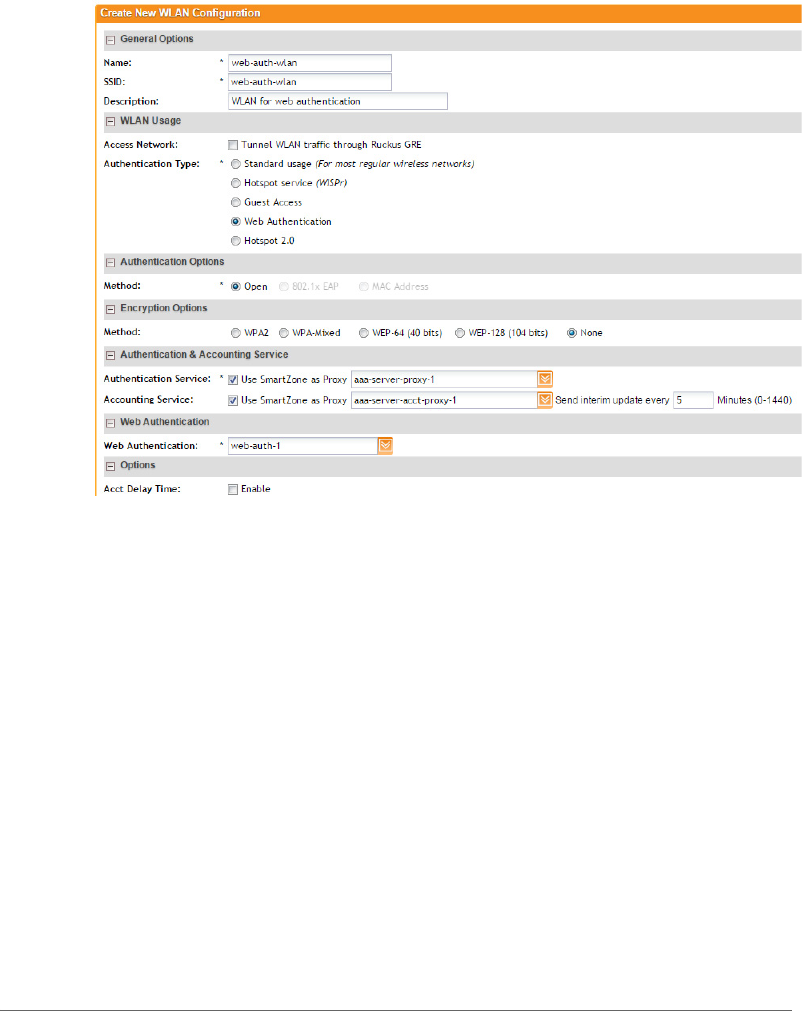

Figure 50. Creating a WLAN to provide web authentication
![](asset-80.png)
Working with AAA Servers
Working with Proxy AAA Servers
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 117
Working with AAA Servers
Add AAA servers to the controller so you can use them to authenticate users
attempting to associate with controller-managed APs. This section covers:
•Working with Proxy AAA Servers
•Working with Non-Proxy AAA Servers
Working with Proxy AAA Servers
A proxy AAA server is used when APs send authentication/accounting messages
to the controller and the controller forwards these messages to an external AAA
server.
•Adding a Proxy AAA Authentication Server
•Adding a Proxy AAA Accounting Server
•Deleting Proxy AAA Servers
Adding a Proxy AAA Authentication Server
Follow these steps to add an AAA server to the controller that can be use for
authenticating users.
1Go to Configuration > Wireless Network > AAA Servers > Proxy AAA.
2In the Authentication Service section, click Create New. The Create New
Authentication Service form appears.
3In Name, type a name for the authentication service that you are adding.
4In Friendly Name (optional), type an alternative name that is easy to remember.
5In Description (optional), type a description for the authentication service.
6In Type, select one of the following options:
• RADIUS (see RADIUS Service Options)
• Active Directory
•LDAP
•OAuth
7Configure the settings for the authentication service type that you selected.
8Click OK. The page refreshes and the authentication service you have added
appears on the list of existing authentication services.
You have completed adding an authentication service to the controller.
![](asset-81.png)
Working with AAA Servers
Working with Proxy AAA Servers
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 118

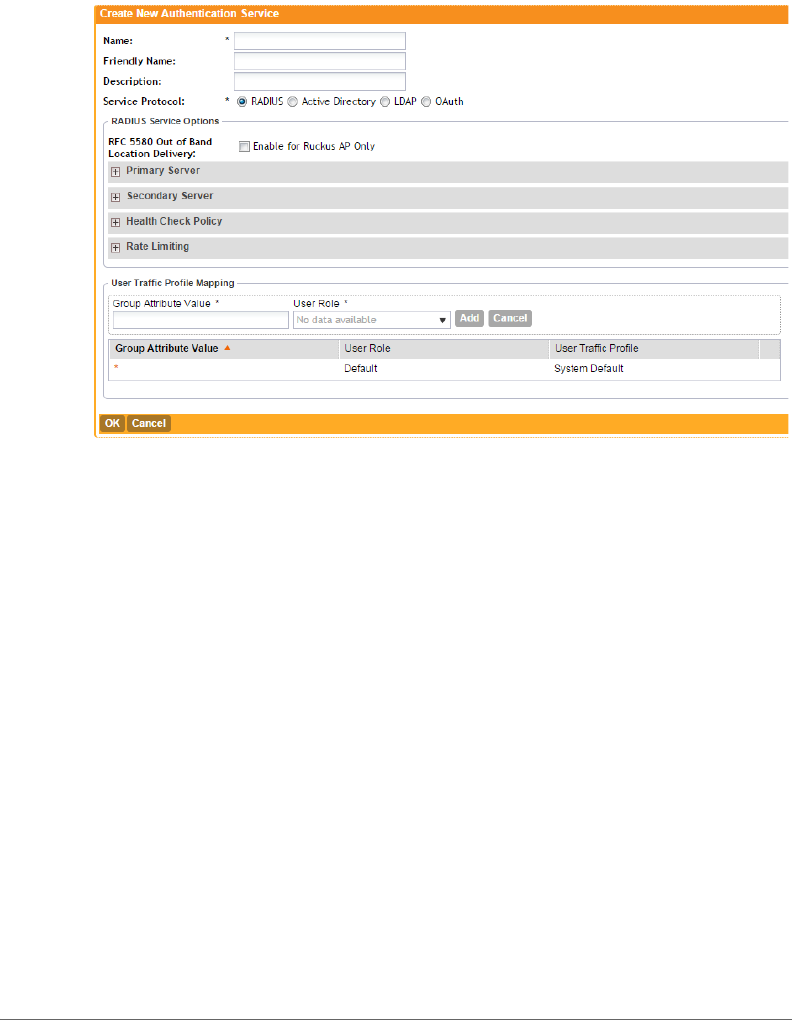

Figure 51. The Create New Authentication Service form
RADIUS Service Options
If you selected RADIUS in Adding a Proxy AAA Authentication Server, you need to
configure the following options:
•RFC 5580 Out of Band Location Delivery: If you want out-of-band location
delivery (RFC 5580) to apply only to Ruckus Wireless APs, select the Enable for
Ruckus AP Only check box.
•Primary Server: Configure the primary RADIUS server settings.
•IP Address: Type the IP address of the RADIUS server.
•Port: Type the port number of the RADIUS server. The default RADIUS server
port number is 1812 and the default RADIUS Accounting server port number
is 1813.
•Shared Secret: Type the RADIUS shared secret.
•Confirm Secret: Retype the shared secret to confirm.
•Secondary Server: If you have a secondary RADIUS server on the network that
you want to use as a backup, select the Enable Secondary Server check box,
and then configure the settings below.
![](asset-82.png)
Working with AAA Servers
Working with Proxy AAA Servers
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 119
• Automatic Fallback Disable: By default, when a secondary RADIUS server is
enabled and the primary RADIUS server becomes unavailable, the secondary
server takes over the handling of RADIUS requests. When the primary server
becomes available again, it takes back control over RADIUS requests from
the secondary server.
If you want to prevent the primary server from retaking control over RADIUS
requests from the secondary server, select the Automatic Fallback Disable
check box.
•IP Address: Type the IP address of the secondary AAA server.
•Port: Type the port number of the secondary AAA server port number. The
default RADIUS server port number is 1812 and the default RADIUS
Accounting server port number is 1813.
•Shared Secret: Type the AAA shared secret.
•Confirm Secret: Retype the shared secret to confirm.
•Health Check Policy: These options define the health monitoring settings of the
primary and secondary RADIUS servers, when the controller is configured as
RADIUS proxy for RADIUS Authentication and Accounting messages.
•Response Window: Set the time (in seconds) after which, if the AAA server
does not respond to a request, the controller will initiate the “zombie period”
(see below). If the primary AAA server does not respond to RADIUS messages
sent after Response Window expires, the controller will forward the retrans-
mitted RADIUS messages to the secondary AAA server. Note that the zombie
period is not started immediately after the Response Window expires, but
after the configured Response Window plus ¼ of the configured Zombie
Period. The default Response Window is 20 seconds.
•Zombie Period: Set the time (in seconds) after which, if the AAA server does
not respond to ANY packets during the zombie period, it will be considered
to inactive or unreachable. An AAA server that is marked “zombie” (inactive
or unreachable) will be used for proxying with a low priority. If there are other
live AAA servers, the controller will attempt to use these servers first instead
of the zombie AAA server. The controller will only proxy requests to a zombie
server only when there are no other live servers. Any request that is proxied
to an AAA server will continue to be sent to that AAA server until the home
server is marked inactive or unreachable. At that point, the request will fail
over to another server, if a live AAA server is available. The default Zombie
Period is 40 seconds.
![](asset-83.png)
Working with AAA Servers
Working with Proxy AAA Servers
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 120
•Revive Interval: Set the time (in seconds) after which, if no RADIUS messages
are proxied to the AAA server after it has been marked as inactive or
unreachable, the controller will mark the AAA server as active again (and
assume that it has become reachable again). The default Revive Interval is
120 seconds.
•No Response Fail: Click Yes to respond with a reject message to the NAS if
no response is received from the RADIUS server. Click No to skip sending a
response.
CAUTION! To ensure that the RADIUS failover mechanism functions correctly,
either accept the default values for the Response Window, Zombie Period, and
Revive Interval, or make sure that the value for Response Window is always higher
than the value for RADIUS NAS request timeout multiplied by the value for RADIUS
NAS max number of retries. For information on configuring the RADIUS NAS request
timeout and max number of retries, see Configuring WLANs and Configuring WLAN
Groups. For 3rd party APs, you must ensure that the configured Response Window
on the controller is higher than the RADIUS NAS request timeout multiplied by the
RADIUS value. The maximum number of retries is configured at the 3rd party
controller/AP.
9Rate Limiting: Configure the following options.
•Maximum Outstanding Requests (MOR): Set the maximum outstanding
requests per server. Type 0 to disable it, or set a value between 10 and 4096.
•Threshold (% of MOR): Set a percentage value of the MOR at which (when
reached) the controller will generate an event. For example, if the MOR is set
to 1000 and the threshold is set to 50%, the controller will generate an event
when the number of outstanding requests reaches 500.
•Sanity Timer: Set a timer (in seconds) that will be started whenever a condition
that generates an event is reached. This helps prevent conditions that trigger
events which occur frequently.
10 Click OK.
You have completed configuring the RADIUS service options.
![](asset-84.png)
Working with AAA Servers
Working with Proxy AAA Servers
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 121
Adding a Proxy AAA Accounting Server
Follow these steps to add an AAA server to the controller that can be used user
accounting user.
1Go to Configuration > Wireless Network > AAA Servers > Proxy AAA.
2In the Accounting Service section, click Create New. The Create New
Accounting Service form appears.
3In Name, type a name for the accounting service that you are adding.
4In Description (optional), type a description for the accounting service.
5In RADIUS Service Options, configure the available options. Refer to see RADIUS
Service Options for more information.
6Click OK. The page refreshes and the accounting service you have added
appears on the list of existing accounting services.
You have completed adding an accounting service to the controller.
Figure 52. The Create New Accounting Service form
![](asset-85.png)
Working with AAA Servers
Working with Non-Proxy AAA Servers
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 122
Deleting Proxy AAA Servers
Follow these steps to delete proxy AAA servers.
1Go to Configuration > Wireless Network > AAA Servers.
1In the Proxy AAA or Non-Proxy AAA section, locate the AAA server or servers
that you want to delete.
2Select the check boxes (first column) for the AAA server or servers that you want
to delete.
3Click Delete Selected.
The AAA servers that you selected disappear from the list. You have completed
deleting AAA servers.
NOTE: If you are deleting a single AAA server, you can also click the icon (under
the Actions column) that is in the same row as the AAA server that you want to delete.
Working with Non-Proxy AAA Servers
A non proxy AAA server is used when the APs connect to the external AAA server
directly.
•Adding a Non-Proxy AAA Authentication Server
•Adding a Non-Proxy AAA Accounting Server
•Deleting Non-Proxy AAA Servers
Adding a Non-Proxy AAA Authentication Server
Follow these steps to add a non-proxy AAA authentication server to the controller.
1Go to Configuration > Wireless Network > AAA Servers > Non-Proxy AAA. The
Non-Proxy AAA page appears.
2Under the Authentication Service section, click Create New.
3In General Options, configure the following:
•Name: Type a name for the AAA server that you are adding.
•Description: Type a short description of the AAA server.
•Type: Click the type of AAA server that you are adding. Options include:
-RADIUS
- Active Directory
-LDAP
![](asset-86.png)
Working with AAA Servers
Working with Non-Proxy AAA Servers
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 123
•Backup RADIUS (appears if you clicked RADIUS or RADIUS Accounting
above): Select the Enable backup RADIUS server check box if a secondary
RADIUS server exists on the network.
•Global Catalog (appears if you clicked Active Directory above): Select the
Enable Global Catalog support if you the Active Directory server to provide
a global list of all objects in a forest.
4Configure the other options that appear in the form.
If you selected RADIUS, configure the following options in the Primary Server
section:
•IP Address: Type the IP address of the AAA server.
•Port: Type the port number of the AAA server. The default RADIUS server
port number is 1812.
•Shared Secret: Type the AAA shared secret.
•Confirm Secret: Retype the shared secret to confirm.
In the Secondary Server section, configure the settings of the secondary
RADIUS server.
NOTE: The Secondary Server section is only visible if you selected the Enable
backup RADIUS server check box earlier.
-IP Address: Type the IP address of the secondary AAA server.
-Port: Type the port number of the secondary AAA server port number.
The default RADIUS server port number is 1812.
-Shared Secret: Type the AAA shared secret.
-Confirm Secret: Retype the shared secret to confirm.
If you clicked Active Directory, configure the following options:
•IP Address: Type the IP address of the AD server.
•Port: Type the port number of the AD server. The default port number (389)
should not be changed unless you have configured the AD server to use a
different port.
•Windows Domain Name: Type the Windows domain name assigned to the
AD server (for example, domain.ruckuswireless.com).
If you clicked LDAP, configure the following options:
•IP Address: Type the IP address of the LDAP server.
•Port: Type the port number of the LDAP server.
![](asset-87.png)
Working with AAA Servers
Working with Non-Proxy AAA Servers
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 124
•Base DN: Type the base DN in LDAP format for all user accounts (for example,
dc=ldap,dc=com).
•Admin DN: Type the admin DN in LDAP format (for example,
cn=Admin;dc=<Your Domain>,dc=com).
•Admin Password: Type the administrator password for the LDAP server.
•Confirm Password: Retype the administrator password to confirm.
•Key Attribute: Type a key attribute to denote users (for example, default: uid)
•Search Filter: Type a search filter (for example, objectClass=Person).
5Click OK.
You have completed adding a non-proxy AAA authentication server.

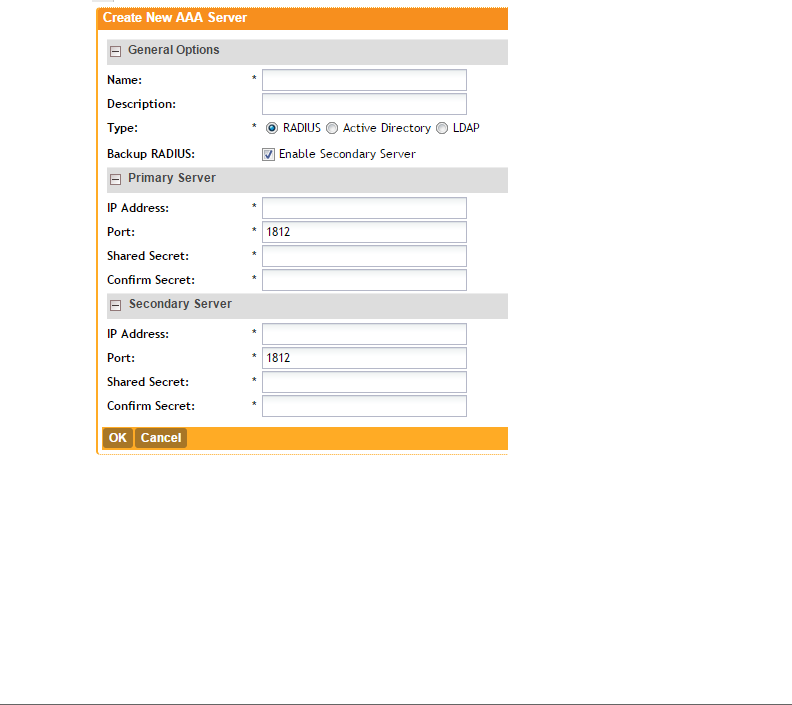

Figure 53. The Create New AAA Server form for adding a non-proxy AAA authentication server
Adding a Non-Proxy AAA Accounting Server
Follow these steps to add a non-proxy AAA (RADIUS) accounting server to the
controller.
1Go to Configuration > Wireless Network > AAA Servers > Non-Proxy AAA. The
Non-Proxy AAA page appears.
2Under the Accounting Service section, click Create New.
![](asset-88.png)
Working with AAA Servers
Working with Non-Proxy AAA Servers
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 125
3In General Options, configure the following:
•Name: Type a name for the AAA server that you are adding.
•Description: Type a short description of the AAA server.
•Backup RADIUS: Select the Enable Secondary Server check box if a
secondary RADIUS accounting server exists on the network.
4In the Primary Server section, configure the following options:
•IP Address: Type the IP address of the AAA server.
•Port: Type the port number of the AAA server. The default RADIUS accounting
server port number is 1813.
•Shared Secret: Type the AAA shared secret.
•Confirm Secret: Retype the shared secret to confirm.
5In the Secondary Server section, configure the options for the secondary
RADIUS accounting server.
NOTE: The Secondary Server section is only visible if you selected the Enable
Secondary Server check box earlier.
•IP Address: Type the IP address of the secondary AAA server.
•Port: Type the port number of the secondary AAA server port number. The
default RADIUS accounting server port number is 1813.
•Shared Secret: Type the AAA shared secret.
•Confirm Secret: Retype the shared secret to confirm.
6Click OK.
You have completed adding a non-proxy AAA accounting server.
![](asset-89.png)
Working with AAA Servers
Working with Non-Proxy AAA Servers
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 126

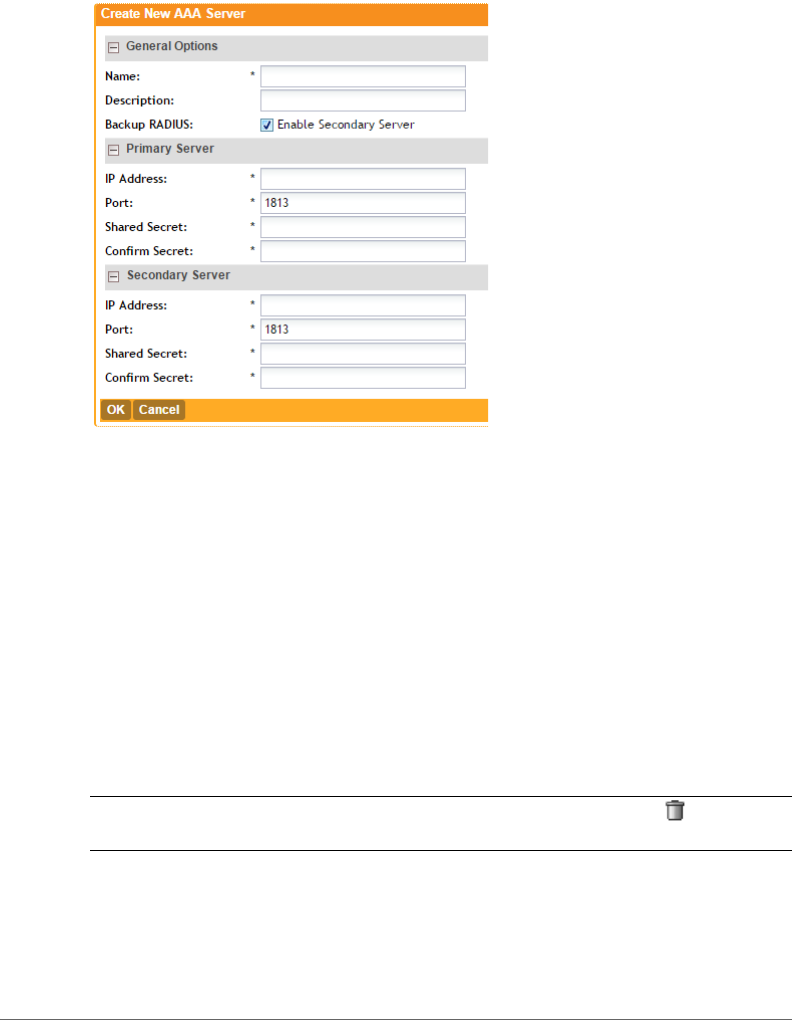

Figure 54. The Create New AAA Server form for adding a non-proxy AAA accounting server
Deleting Non-Proxy AAA Servers
Follow these steps to delete non-proxy AAA servers.
1Go to Configuration > Wireless Network > AAA Servers > Non-Proxy AAA
section.
1In the Authentication Service or Accounting Service, locate the AAA server or
servers that you want to delete.
2Select the check boxes (first column) for the AAA server or servers that you want
to delete.
3Click Delete Selected.
The AAA servers that you selected disappear from the list. You have completed
deleting AAA servers.
NOTE: If you are deleting a single AAA server, you can also click the icon (under
the Actions column) that is in the same row as the AAA server that you want to delete.
![](asset-8a.png)
Configuring Location Services
Working with Non-Proxy AAA Servers
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 127
Configuring Location Services
If your organization purchased the Ruckus Wireless SmartPositioning Technology
(SPoT) location service, the controller must be configured with the venue information
that is displayed in the SPoT Administration Portal.
After completing purchase of the SPoT location service, you will be given account
login information that you can use to log into the SPoT Administration Portal. The
Admin Portal provides tools for configuring and managing all of your “venues” (the
physical locations in which SPoT service is deployed). After a venue is successfully
set up, you will need to enter the same venue information in the controller.
The following section lists the steps required for configuring the controller to
communicate with the SPoT Location Server.
Follow these steps to configure the controller for SPoT communication.
1Log on to the SPoT Administration Portal.
2On the Venues page, click Config next to the venue for which you want to
configure Location Services on the controller.
3In Controller Settings, take note of the values for the following:
• Venue Name
• Server Address
•Port
• Password
4On the controller web interface, go to Configuration > Wireless Network >
Location Services.
5Click Create New.
6Enter the information you obtain in Step 3 from the SPoT Administration Portal
into the four fields provided.
7Click OK to save your changes.
8Go to Configuration > Wireless Networks > Access Points > APs.
9Scroll down to the AP Groups section, and then click Create New or click an
existing AP group name to configure it for SPoT location services.
10 On the Create New or Edit AP Groups: [{AP Group Name}] form, scroll down to
the Advanced Options section.
11 In Location Based Service, configure the following:
•Override: Select this check box.
![](asset-8b.png)
Configuring Location Services
Working with Non-Proxy AAA Servers
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 128
•Enable LBS service: Select this check box, and then select the venue you
created earlier.
12 Click Apply.
The controller will begin trying to communicate with the SPoT location server. Once
the APs have successfully connected to the SPoT server, you can view the status
of your SPoT-enabled APs on the Monitor > Location Services page. See Monitoring
Location Services.

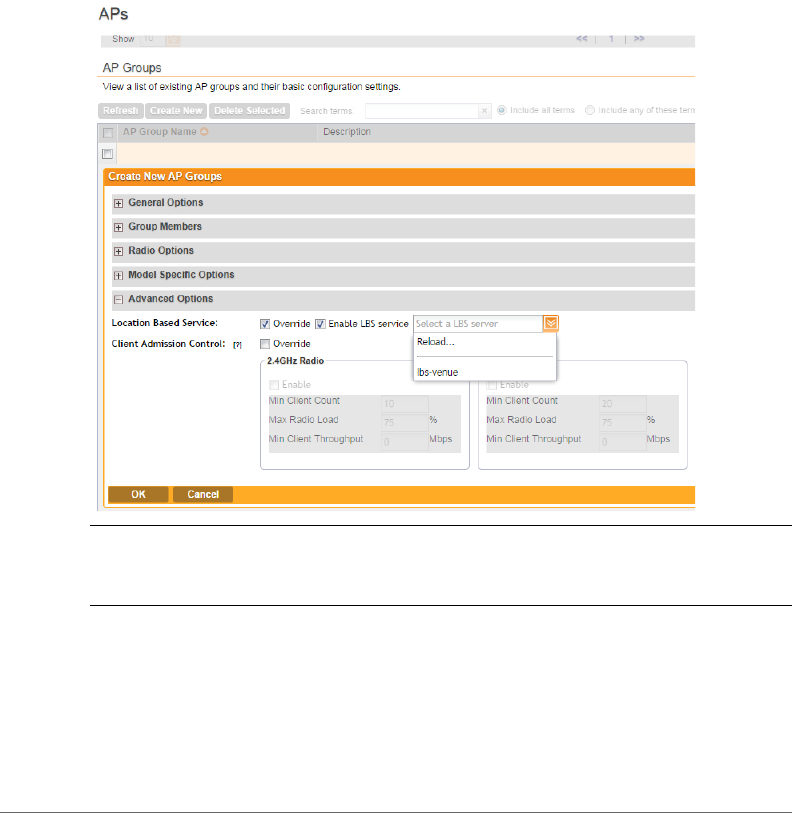

Figure 55. Enabling location services for the AP group
NOTE: For information on configuring and managing the Ruckus Wireless
SmartPositioning Technology (SPoT) service, refer to the SPoT User Guide, which
is available for download from https://support.ruckuswireless.com.
![](asset-8c.png)
Configuring Bonjour Gateway Policies
Creating a Bonjour Gateway Rule on the AP
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 129
Configuring Bonjour Gateway Policies
Bonjour™ is Apple’s implementation of a zero-configuration networking protocol
for Apple devices over IP. It allows OS X and iOS devices to locate other devices
such as printers, file servers and other clients on the same broadcast domain and
use the services offered without any network configuration required.
Multicast applications such as Bonjour require special consideration when being
deployed over wireless networks. Bonjour only works within a single broadcast
domain, which is usually a small area. This is by design to prevent flooding a large
network with multicast traffic. However, in some situations, a user may want to offer
Bonjour services from one VLAN to another.
The controller’s Bonjour gateway feature addresses this requirement by providing
an mDNS proxy service configurable from the web interface to allow administrators
to specify which types of Bonjour services can be accessed from/to which VLANs.
In order for the Bonjour Gateway to function, the following network configuration
requirements must be met:
1The target networks must be segmented into VLANs.
2VLANs must be mapped to different SSIDs.
3The controller must be connected to a VLAN trunk port.
Additionally, if the VLANs to be bridged by the gateway are on separate subnets, the
network has to be configured to route traffic between them.
Creating a Bonjour Gateway Rule on the AP
Using the Bonjour gateway feature, Bonjour bridging service is performed on a
designated AP rather than on the controller. Offloading the Bonjour policy to an AP
is necessary if a Layer 3 switch or router exists between the controller and the APs.
The controller identifies a single AP that meets the memory/processor requirements
(this feature is only supported on certain APs), and delivers a set of service rules -
a Bonjour policy - to the AP to perform the VLAN bridging.
NOTE: This feature is only supported on the following access points: R300, R500,
R600, R700, 7982, 7372/52, 7055, 7782/81, SC-8800 series.
Here are the requirements and limitations of the Bonjour gateway feature:
• Bonjour policy deployment to an AP takes effect after the AP joins the controller.
![](asset-8d.png)
Configuring Bonjour Gateway Policies
Creating a Bonjour Gateway Rule on the AP
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 130
• Some APs of one local area link must be on one subnet. The switch interfaces
connected to these APs in a local area link to must be configured in VLAN-trunk
mode. Only by doing so can the designated AP can receive all the multicast
Bonjour protocol packets from other VLANs.
• Dynamic VLANs are not supported.
• Some AP models are incompatible with this feature due to memory requirements.
Follow these steps to create rules for an AP that will bridge Bonjour services across
VLANs.
1Go to Configuration > Wireless Network > Bonjour Gateway Policies.
2Click Create New to create a Bonjour gateway policy. The Create Bonjour policy
form appears.
3In Name, type a name for the policy.
4In Description, type a description for the policy.
5In the Rules section, click Create New to create a rule.
6Configure the following options:
•Bridge Service: Select the Bonjour service from the list.
•From VLAN: Select the VLAN from which the Bonjour service will be adver-
tised.
•To VLA N: Select the VLAN to which the service should be made available.
•Notes: Add optional notes for this rule.
7Click Save to save the rule.
8To create another rule, repeat Step 6 and Step 7.
9After you finish creating all rules that you require, click OK.
10 Select the Enable Bonjour gateway on the AP check box.
You have completed creating a Bonjour gateway policy.
![](asset-8e.png)
Configuring Bonjour Gateway Policies
Applying a Bonjour Policy to an AP
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 131

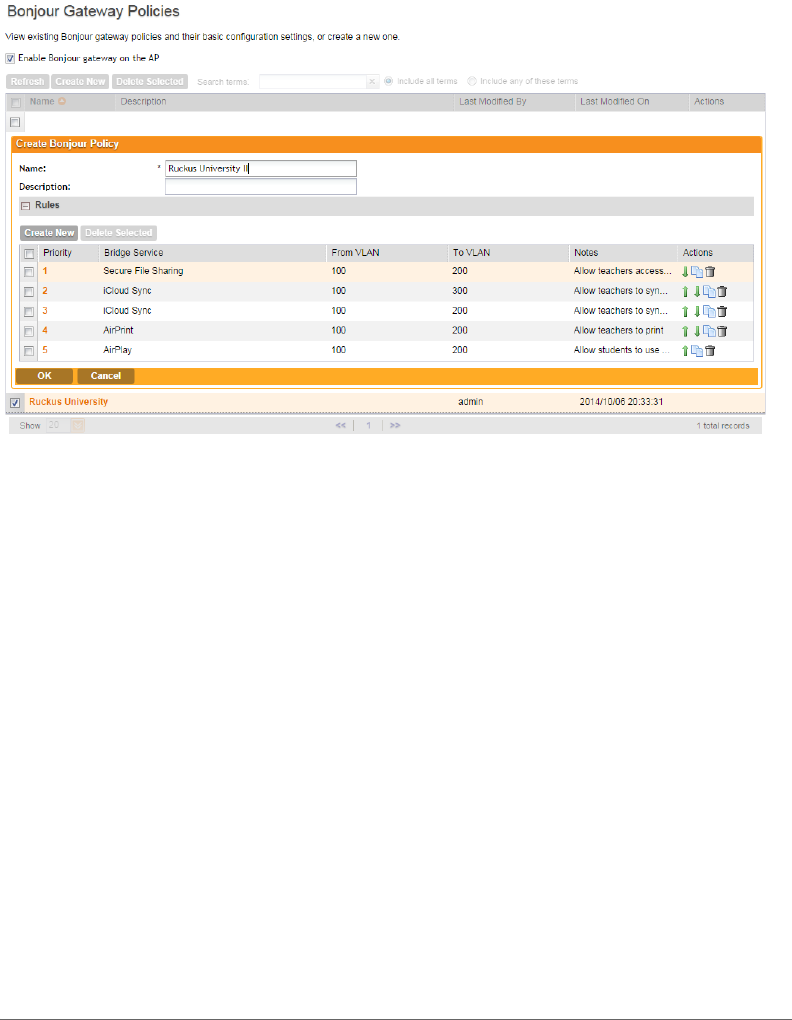

Figure 56. Creating a Bonjour gateway policy
Applying a Bonjour Policy to an AP
Once you have created an Bonjour policy for an AP, you will need to designate the
AP that will be responsible for implementing this policy.
Follow these steps to apply an Bonjour policy to an AP.
1Go to Configuration > Wireless Network > Access Points > APs.
2From the list of APs, click the MAC address of the AP to which you want to apply
the Bonjour policy. The Edit AP [{MAC address}] form appears.
3Scroll down to the Advanced Options section, and then locate the Bonjour
Gateway option.
4Select the Enable as bonjour gateway with policy check box, and then select
the Bonjour policy that you want to apply to the AP (see Figure 57).
5Click Apply.
You have completed applying a Bonjour gateway policy to an AP
![](asset-8f.png)
Configuring Bonjour Gateway Policies
Applying a Bonjour Policy to an AP
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 132

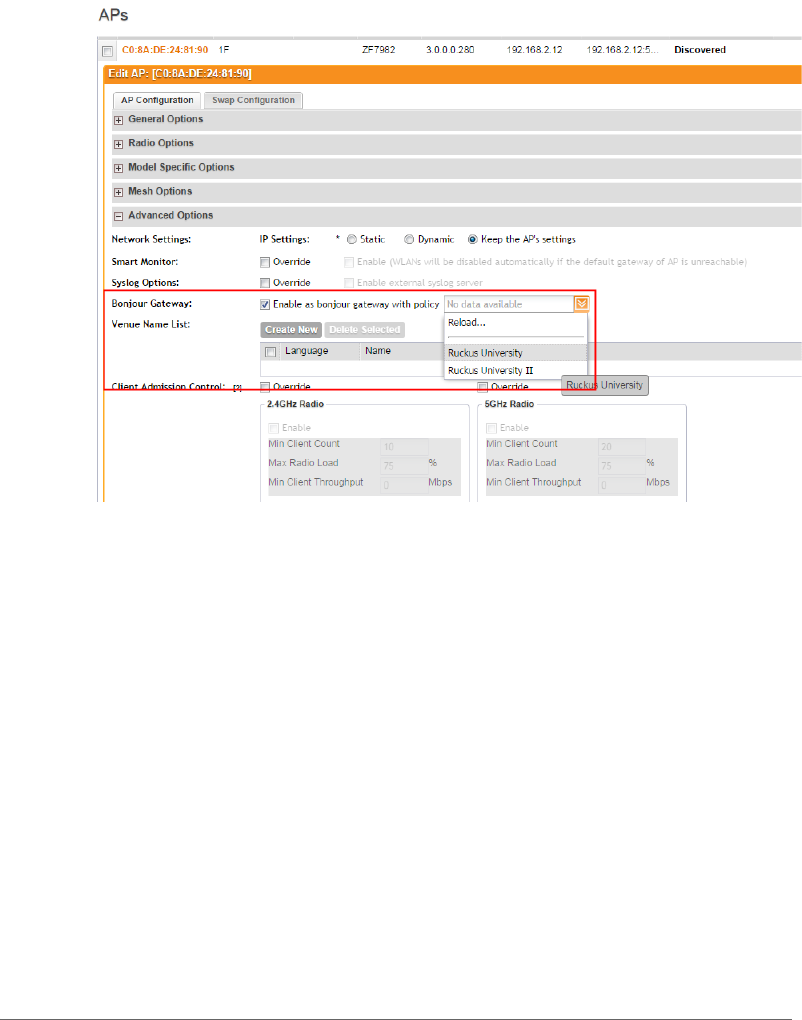

Figure 57. Applying a Bonjour gateway policy to an AP
![](asset-90.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 133
4
Configuring System Settings
In this chapter:
•Configuring Network Settings
•Configuring Log Settings
•Configuring Event Management
•Configuring Event Thresholds
•Configuring the Northbound Portal Interface
•Configuring the System Time
•Configuring an External Email Server
•Configuring External FTP Servers
•Configuring the External SMS Gateway
•Managing the Certificate Store
•Configuring SNMP Settings
•Managing the User Agent Blacklist
![](asset-91.png)
Configuring Network Settings
Setting the System IP Mode
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 134
Configuring Network Settings
Follow these steps to view nodes that belong to the cluster, go to Configuration >
System > Network Settings. The Cluster: {Cluster Name} page appears.

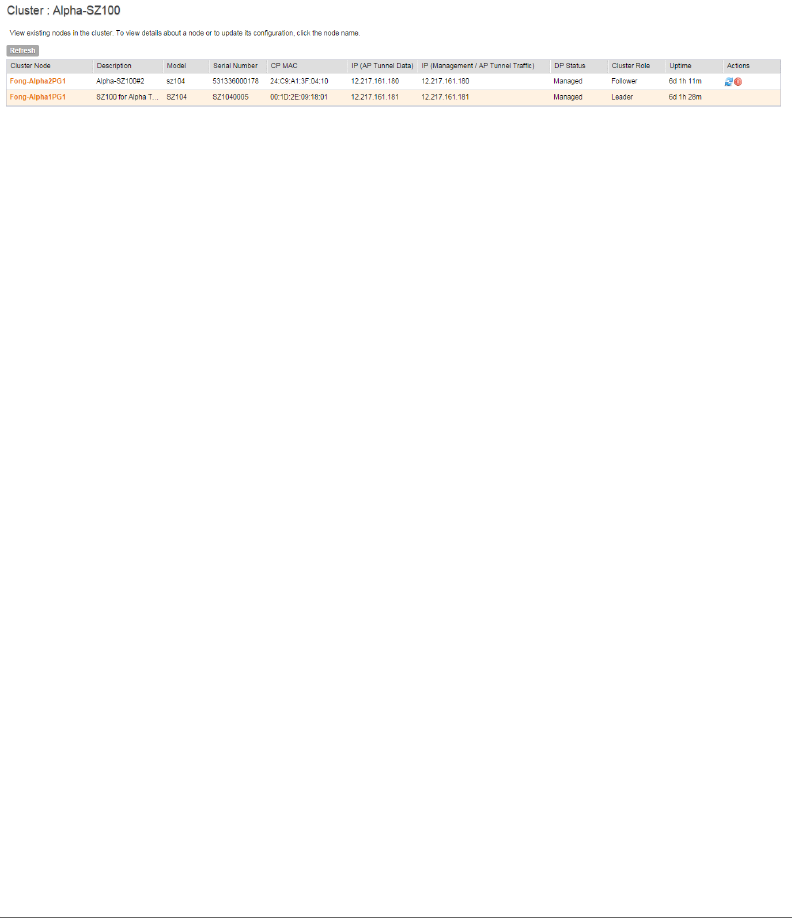

Figure 58. The Cluster: {Cluster Name} page displays all the nodes that belong to the cluster
To edit the network settings of a node, click the node name. The Cluster Node
Configuration form appears and displays the following three tabs:
• Physical Interfaces
• User Defined Interfaces
• Static Routes
Setting the System IP Mode
The controller supports IPv4 only and IPv4 and IPv6 addressing modes. The system
IP mode controls the format of the IP address that you need to enter in a number
of IP address-related settings (for example, cluster plane addresses, static routes,
etc.)
Follow these steps to change the controller’s system IP mode.
1Go to Configuration > System > Network Settings. The Cluster page appears.
2In the System IP Mode section, select the system IP mode that you want to
controller to use. Options include:
•IPv4 Only
• IPv4 and IPv6
3Click Apply.
You have completed setting the system IP mode.
![](asset-92.png)
Configuring Network Settings
Configuring the Physical Interface Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 135

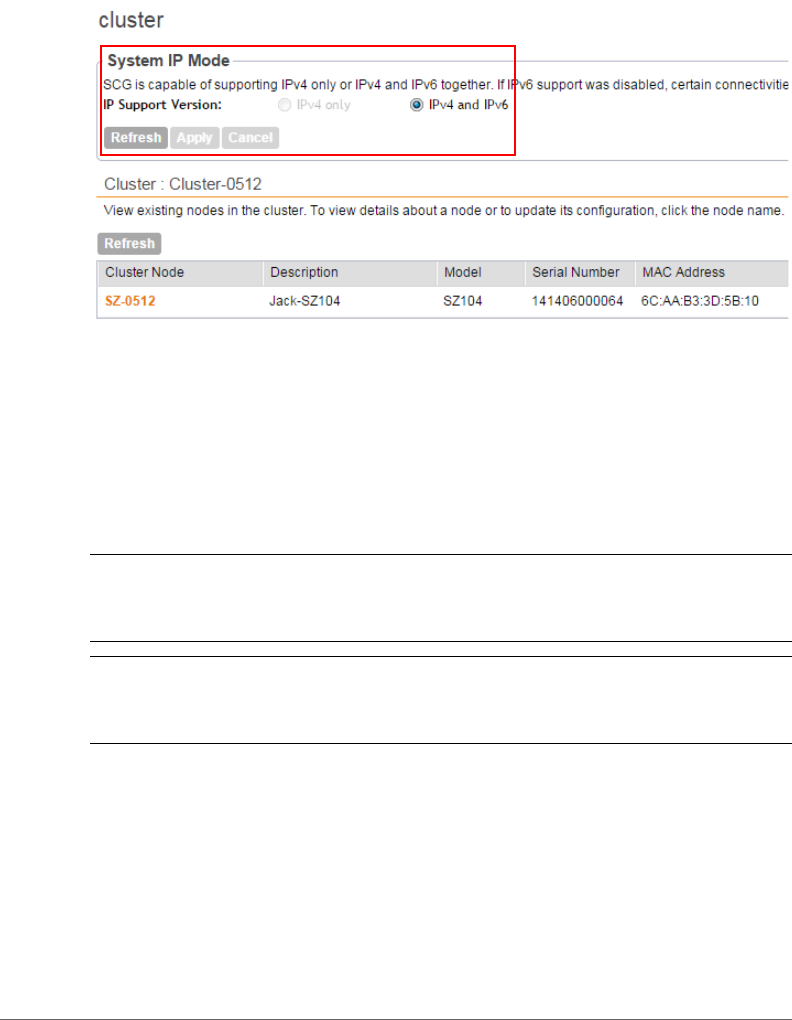

Figure 59. The System IP Mode section
Configuring the Physical Interface Settings
Follow these steps to configure the physical interface settings of a node.
1Locate the interface settings that you want to update. You can update one of
the following interfaces:
aManagement & AP Control
bAP Tunnel Data
NOTE: If you selected One Port Grouping (combined management and AP tunnel
traffic into a single interface) when you completed the Setup Wizard, only one
interface appears on the Physical Interface tab – Management/AP Tunnel Traffic.
CAUTION! Although it is possible to use DHCP to assign IP address settings to
the management and AP control interface automatically, Ruckus Wireless strongly
recommends assigning a static IP address to this interface.
2Configure the following settings for the interface that you want to update.
aIP Mode: Configure the IP address mode by clicking one of the following
options:
-Static: Click this if you want to assign an IP address to this interface
manually.
-DHCP: Click this if you want this interface to obtain an IP address
automatically from a DHCP server on the network. After you click this
option, most of the options below it will be grayed out. Continue to Step 3.
![](asset-93.png)
Configuring Network Settings
Configuring the Physical Interface Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 136
bIP Address: Enter the IP address that you want to the assign to this interface.
cSubnet Mask: Enter the subnet mask for the IP address above.
dGateway: Enter the IP address of the gateway router.
ePrimary DNS: Enter the IP address of the primary DNS server.
fSecondary DNS: Enter the IP address of the secondary DNS server.
3If the system IP mode is set to IPv4 and IPv6, you will also need to configure the
IPv6 interfaces. Configure the IPv6 address mode by clicking one of the following
options in IP Mode:
•Static: Click this if you want to assign an IPv6 address to this interface
manually, and then configure the following:
-IP Address: Enter an IPv6 address (global only) with a prefix length (for
example, 1234::5678:0:C12/123) is required. Link-local addresses are
unsupported.
-Gateway: Enter an IPv6 address (global or link-local) without a prefix
length. For example, 1234::5678:0:C12 (global address without a prefix
length) and fe80::5678:0:C12 (link-local address without a prefix length).
•Auto: Click this if you want the interface to obtain its IP address from Router
Advertisements (RAs) or from a DHCPv6 server on the network.
4Click Apply.
The controller restarts and applies the updated network interface settings. You have
completed updating the physical interface settings.
NOTE: For information on how to configure the management IP address from the
command line interface, refer to Changing the Management IP Address from the CLI.
![](asset-94.png)
Configuring Network Settings
Configuring the User Defined Interface Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 137
Figure 60. The Physical Interface tab on a two-port group controller
Configuring the User Defined Interface Settings
NOTE: The user defined interface (UDI) is unavailable in Virtual SmartZone (High-
Scale and Essentials).
Use the User Defined Interface tab to configure the hotspot portal settings (captive
portal, subscriber portal, and Web proxy). Note that you can only create one user
defined interface, and it must be for a hotspot portal and must use the control
interface as its physical interface.
NOTE: The control plane and the user-defined interface (UDI) must be on different
subnets. If the control plane and UDI are on the same subnet and assigned the
same IP address, APs will be unable to communicate with the control plane. If the
control plane and UDI are on the same subnet and assigned different IP addresses,
hotspot clients will not be redirected to the logon URL for user authentication.
Follow these steps to configure the settings on the User Defined Interface tab.
1Click the User Defined Interface tab.
2Click the Create New button.
3Configure the following interface settings:
aName: Enter a name for this interface.
bIP Address: Enter an IP address to assign to this interface.
cSubnet Mask: Enter a subnet mask for the IP address above.
dGateway: Enter the IP address of the gateway router.
eVLAN: Enter the VLAN ID that you want to assign to this interface.
![](asset-95.png)
Configuring Network Settings
Creating and Configuring Static Routes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 138
fPhysical Interface: Select Control Interface.
gService: Select Hotspot.
4Click Save.
5Click Apply.
You have completed configuring the user defined interface settings.

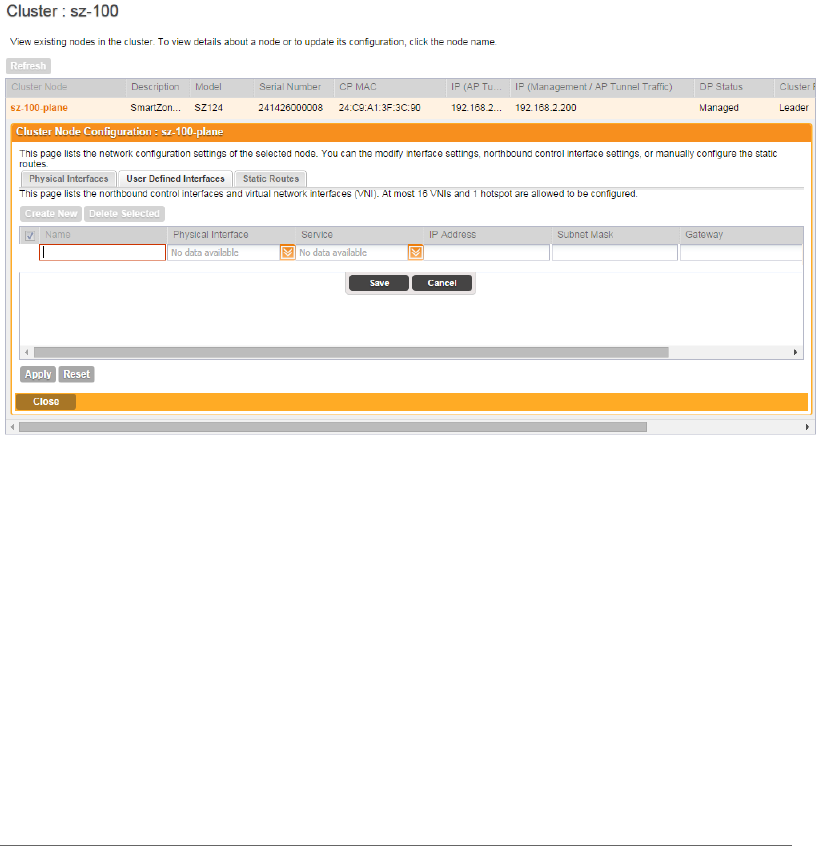

Figure 61. The User Defined Interface tab
Creating and Configuring Static Routes
To configure a static route, enter the destination IP address and related information
for the destination. You can also assign a metric (or priority) to help the controller
determines the route to choose when there are multiple routes to the same
destination.
Follow these steps to configure a static route.
1Click the Static Routes tab.
2Click the Create New button.
3Configure the following interface settings:
aNetwork Address: Enter the destination IP address of this route.
bSubnet Mask: Enter a subnet mask for the IP address above.
![](asset-96.png)
Configuring Network Settings
Creating and Configuring Static Routes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 139
cGateway: Enter the IP address of the gateway router.
dInterface: Select the physical interface to use for this route.
eMetric: This represents the number of routers between the network and the
destination.
4Click Save.
5Click Apply.
You have completed configuring a static route.

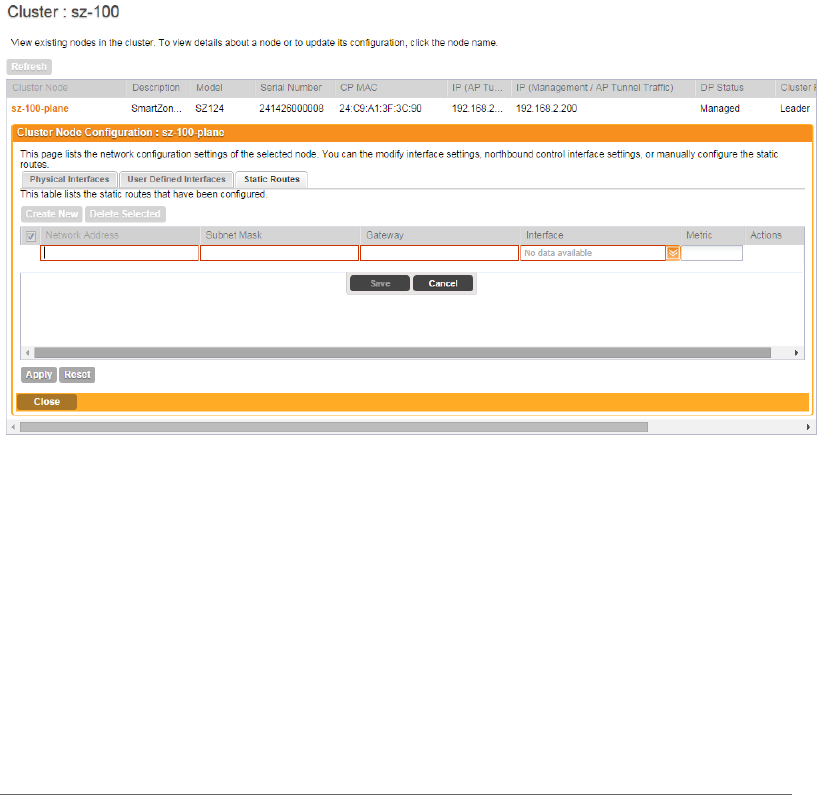

Figure 62. The Static Route tab
![](asset-97.png)
Configuring Log Settings
Creating and Configuring Static Routes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 140
Configuring Log Settings
The controller maintains an internal log file of current events and this file has a fixed
capacity. At a certain point, the controller will start deleting the oldest entries in log
file to make room for newer entries. If you want to keep a permanent record of all
events that the controller generated, you can configure the controller to send the
log contents to a syslog server on the network.
Follow these steps to configure the syslog server settings.
1Go to Configuration > System > Log Settings.
2Select the Enable logging to remote syslog server check box.
3In Syslog Server Address, type the IP address of the syslog server on the
network.
4In Syslog Server Port, type the syslog port number on the server.
NOTE: To verify that the syslog server that you intend to use is reachable, click the
Ping Syslog Server button.
5Select the facility level (default is Local0, range is Local0 to Local7) for each of
the following log types:
•Facility for Application
•Facility for Administrator
•Facility for Events
6In Event Filter, select one of the following options to specify which events will be
sent to the syslog server:
•All events: Click this option to send all controller events to the syslog server.
•All events except client associate/disassociate events: Click this option
to send all controller events (except client association and disassociation
events) to the syslog server.
•All events above a severity: Click this option to send all controller events
that are above the event severity that you specify in Event Severity.
-Event Severity: (This option only appears when All events above a
severity is selected.) Select the lowest severity level for which events will
be sent to the syslog server. For example, if you select Major, all events
that are major and higher (including critical) will be sent to the syslog server.
For the order of event severity that the controller follows, see Event
Severity Levels.
![](asset-98.png)
Configuring Log Settings
Creating and Configuring Static Routes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 141
7In Priority, accept or change the default severity to priority mapping. See Default
Event Severity to Syslog Priority Mapping.
8Click Apply.
You have completed configuring the log settings.

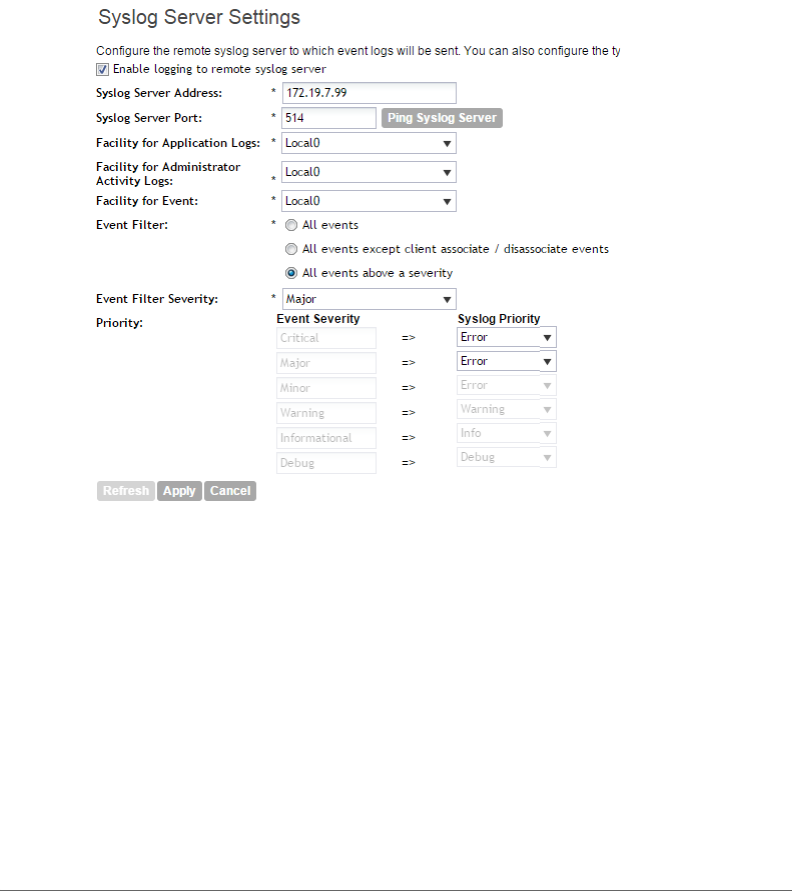

Figure 63. Syslog server settings
![](asset-99.png)
Configuring Log Settings
Event Severity Levels
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 142
Event Severity Levels
Tab l e 4 describes the event severity levels (1 to 6, with 1 being the most severe)
that the controller follows.
Default Event Severity to Syslog Priority Mapping
Tab l e 5 lists the default event severity to syslog priority mapping in the controller.
Table 4. Event severity levels in the controller
Level Message Description
1 Critical A critical condition that must resolved immediately
2 Major An error condition that must be resolved
3 Minor An error condition that must be checked to determine if it
needs to be resolved
4 Warning Warning message, not an error, but indication that an error
will occur if action is not taken
5 Informational Normal operational messages - may be harvested for
reporting, measuring throughput, etc. - no action required.
6 Debug Info useful to developers for debugging the application, not
useful during operations.
Table 5. Event severity to syslog priority mapping
Event Severity Syslog Priority
Critical Error
Major Error
Minor Warning
Warning Warning
Informational Info
Debug Debug
![](asset-9a.png)
Configuring Event Management
Default Event Severity to Syslog Priority Mapping
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 143
Configuring Event Management
By default, the controller saves a record of all events that occur to its database. You
can configure the controller to also send SNMP traps and email notifications for
specific events whenever they occur.
NOTE: Verify that global SNMP traps are enabled to ensure that the controller can
send SNMP traps for alarms. For information on how to enable global SNMP traps,
refer to Enabling Global SNMP Traps.
Follow these steps to configure the controller to send traps and email notifications
for events.
1Go to Configuration > System > Event Management.
2In the Email Notification section, select the Enable check box, and then type an
email address or email addresses in the Mail To box. If you want to send
notifications to multiple recipients, use a comma to separate the email
addresses.
3In the Events section, go over the table and select the events for which you want
to send traps or email notifications (or both).
• If you know the event code, event type, or description, type the full or partial
text into the search box on the upper-right hand corner of the table, and then
click the magnifying glass (search) icon.
• If you want to select all events, click the check box before the Code table
heading.
NOTE: By default, the Events table displays up to 20 events per page. If you are
enabling SNMP traps and email notifications for 10 or more events, Ruckus Wireless
recommends changing the number of events shown per page. To do this, scroll
down to the bottom of the page, and then change the value for Show to 250
(maximum).
4After you have selected all of the events for which you want to send traps or
email notifications, scroll up to the beginning of the Events table, and then click
Enable. A submenu appears and displays the following links:
•Enable SNMP Trap: Click this link to enable SNMP trap notifications for all
selected events.
•Enable Email: Click this link to enable email notifications for all selected
events.
![](asset-9b.png)
Configuring Event Management
Default Event Severity to Syslog Priority Mapping
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 144
•Enable DB Persistence: Click this link to enable saving of all selected events
to the controller database. If an event is already currently enabled, it will stay
enabled after you click this link.
A confirmation message appears.
5Click Yes.
NOTE: You can only enable one of these three notification options at a time (for
example, SNMP trap notifications only). If you want to enable another option, repeat
steps 5 and 6.
You have completed enabling a notification option for the selected events.
Figure 64. Selecting all events on the Event Management page
![](asset-9c.png)
Configuring Event Management
Enabling or Disabling Notifications for a Single Event
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 145
Enabling or Disabling Notifications for a Single Event
Follow these steps to enable or disable notifications for a single event.
1Go to Configuration > System > Event Management.
2Under Events, locate the event for which you want to enable or disable
notifications.
3Click the event code. The Edit Event: [Event Code] form appears.
4Select the check box for a notification type to enable it, or clear the check box
to disable it. Options include:
•SNMP Trap
• Email Notification
• DB Persistence
5Click Apply.
You have completed enable or disabling notifications for a single event.
Figure 65. Select or clear check boxes to enable or disable notifications
![](asset-9d.png)
Configuring Event Management
Viewing Enabled Notifications for Events
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 146
Viewing Enabled Notifications for Events
Follow these steps to view the notification types that are enabled for events.
1Go to Configuration > System.
2On the sidebar, click Event Management.
3Scroll down to the bottom of the page, and then select 250 in Show. The page
refreshes, and then displays up to 250 events.
4Check the SNMP Trap, Email, and DB Persistence columns on the right side of
the table. A check mark under each column indicates that the notification option
is enabled for the event.
To view the notification options that are enabled for the events on the next page,
click >> at the bottom of the table. The page refreshes, and then displays the
remaining events.
![](asset-9e.png)
Configuring Event Thresholds
Viewing Enabled Notifications for Events
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 147
Configuring Event Thresholds
An event threshold defines a set of conditions related to the controller hardware that
need to be met before the controller triggers an event. You can accept the default
threshold values or you can update the threshold values to make them more suitable
to your deployment or controller environment.
Follow these steps to configure the threshold for an event.
1Go to Configuration > System > Event Threshold. The Event Threshold page
appears and displays the list of events with configurable thresholds (see Ta bl e 6),
including the event code, severity level, default value and accepted range, and
unit of measurement for each event.
2Locate the event threshold that you want to configure.
3Click the event name under the Name column. The threshold value for the event
become edits. Next to the threshold value, the acceptable range is shown.
4Edit the threshold value.
5Click Apply.
Repeat the same procedure to edit the threshold of another event.
Figure 66. Configuring the CPU Usage event threshold
![](asset-9f.png)
Configuring Event Thresholds
Events with Configurable Thresholds
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 148
Events with Configurable Thresholds
Tab l e 6 lists controller hardware events for which you can configure the event
thresholds, including their default values and acceptable ranges.
Table 6. List of hardware events with configurable thresholds
Event Event Code Severity Threshold Value Unit
CPU Usage 950 Critical Default: 80
Range: 60 to 90
Percent
Disk Usage 952 Critical Default: 80
Range: 60 to 90
Percent
Memory Usage 951 Critical Default: 80
Range: 60 to 90
Percent
Baseboard
Temperature
902 Major Default: 75
Range: 0 to 75
Degree Celsius
Processor
Temperature
907 Major Default: 75
Range: 0 to 75
Degree Celsius
![](asset-a0.png)
Configuring the Northbound Portal Interface
Events with Configurable Thresholds
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 149
Configuring the Northbound Portal Interface
Follow these steps to configure the northbound portal interface.
1Go to Configuration > System > Log Settings.
2In Password, type the password for the northbound portal interface.
3Click Apply.
You have completed setting the password for the northbound portal interface.
Figure 67. The Northbound Portal Interface page
Configuring the System Time
The controller uses an external network time protocol (NTP) server to synchronize
the times across cluster nodes and managed access points.
Follow these steps to set the system time.
1Go to Configuration > System > System Time.
2In NTP Server, type the server address that you want to use. The default NTP
server address is pool.ntp.org.
3In System Time Zone, select the time zone that you want the controller to use.
The default time zone is (GMT +0:00) UTC.
4Click Apply.
Figure 68. System time settings
![](asset-a1.png)
Configuring an External Email Server
How APs Synchronize Time with the Controller
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 150
How APs Synchronize Time with the Controller
When an AP joins the controller, it automatically synchronizes its time with the
controller system time. After that, the AP automatically synchronizes its time with
the controller every day.
Configuring an External Email Server
If you want to receive copies of the reports that the controller generates or to email
guest passes to users, you need to configure the SMTP server settings and the
email address from which the controller will send the reports. Follow these steps to
configure the SMTP server settings.
1Go to Configuration > System > External Email Server.
2Select the Enable SMTP Server check box.
3In Logon Name, type the logon or user name provided by your ISP or mail
administrator. This might be just the part of your email address before the @
symbol, or it might be your complete email address. If you are using a free email
service (such as Hotmail™ or Gmail™), you typically have to type your complete
email address.
4In Password, type the password that is associated with the user name above.
5In SMTP Server Host, type the full name of the server provided by your ISP or
mail administrator. Typically, the SMTP server name is in the format
smtp.company.com.
6In SMTP Server Port, type the SMTP port number provided by your ISP or mail
administrator. Often, the SMTP port number is 25 or 587. The default SMTP port
value is 25.
7In Mail From, type the email address from which the controller will send email
notifications.
8In Mail To, type the email address to which the controller will send alarm
messages. You can send alarm messages to a single email address.
9If your mail server uses encryption, select the encryption method in Encryption
Options. Options include TLS and STARTTLS. Check with your ISP or mail
administrator for the correct encryption settings that you need to set.
10 Click Apply.
You have completed configuring the external email server that the controller will use
to send out email notifications and messages.
![](asset-a2.png)
Configuring External FTP Servers
How APs Synchronize Time with the Controller
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 151
Figure 69. The SMTP Server Settings page
Configuring External FTP Servers
The controller enables you to automatically back up statistics files, reports, and
system configuration backups to an external FTP server. However, before you can
do this, you must add at least one FTP server to the controller.
Follow these steps to add an FTP server to which the controller will export data
automatically.
1Go to Configuration > System > External FTP Servers.
2Click Create New. The Create New FTP Server form appears.
3In FTP Name, type a name that you want to assign to the FTP server that you
are adding.
4In FTP Host, type the IP address of the FTP server.
5In Port, type the FTP port number. The default FTP port number is 21.
6In User Name, type user name of the FTP account that you want to use.
7In Password, type the password that is associated with the FTP user name
above.
8In Remote Directory, type the path on the remote FTP server to which data will
be exported from the controller. The path must start with a forward slash (/), as
shown in Figure 70.
9To verify that the FTP server settings and logon information are correct, click
Test. If the server and logon settings are correct, the following message appears:
Test completed successfully.
10 Click OK.
![](asset-a3.png)
Managing the Certificate Store
How APs Synchronize Time with the Controller
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 152
You have completed adding an FTP server to the controller. You may create
additional FTP servers as required.
Figure 70. Adding an external FTP server to the controller
Managing the Certificate Store
The certificate store is the central storage for all the security certificates that the
controller uses for its web interface, AP portal, and hotspots.
By default, a Ruckus Wireless-signed SSL certificate (or security certificate) exists
in the controller. However, because this default certificate is signed by Ruckus
Wireless and is not recognized by most web browsers, a security warning appears
whenever you connect to the web interface or users connect to the AP portal or a
hotspot. To prevent these security warnings from appearing, you can import an SSL
certificate that is issued by a recognized certificate authority.
![](asset-a4.png)
Managing the Certificate Store
Generating a Certificate Signing Request
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 153
Figure 71. The web certificate warning that appears when you attempt to access the controller
web interface in Mozilla Firefox
This section describes the steps you need to perform to import and apply an SSL
certificate to the web interface, AP portal, or hotspots. Topics include:
•Generating a Certificate Signing Request
•Importing an SSL Certificate
•Assigning Certificates to Services
NOTE: If you are implementing Hotspot 2.0 on the network and you want to support
anonymous authentication using OSU Server-Only Authenticated L2 Encryption
Network (OSEN), you will need to import a trust root certificate, server or
intermediate certificate and private key.
Generating a Certificate Signing Request
This section describes how to generate a certificate signing request (which you need
to obtain a signed certificate) and how to import a signed certificate into the
controller.
NOTE: If you already have an SSL certificate that you want to import into the
controller, go to Importing an SSL Certificate.
![](asset-a5.png)
Managing the Certificate Store
Generating a Certificate Signing Request
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 154
If you do not have an SSL certificate, you will need to create a certificate signing
request (CSR) file and send it to an SSL certificate provider to purchase an SSL
certificate. The controller web interface provides a form that you can use to create
the CSR file. Follow these steps to generate a certificate request.
1Go to Configuration > System > Certificate Store. The Certificate Store page
appears.
2In the Certificate Signing Request (CSR) section, click Generate. The Generate
New Certificate Signing Request (CSR) form appears.
3In Name, type a name for this CSR.
4In Description, type a description for this CSR.
5In the Certificates Signing Request (CSR) section, fill out the following boxes:
•Common Name: Type the fully qualified domain name of your Web server.
This must be an exact match (for example, www.ruckuswireless.com).
•Email: Type your email address (for example, joe@ruckuswire-
less.com).
•Organization: Type the complete legal name of your organization (for example,
Ruckus Wireless, Inc.). Do not abbreviate your organization name.
•Organization Unit: Type the name of the division, department, or section in
your organization that manages network security (for example, Network
Management).
•Locality/City: Type the city where your organization is legally located (for
example, Sunnyvale).
•State/Province: Type the state or province where your organization is legally
located (for example, California) Do not abbreviate the state or province
name.
•Country: Select the country where your organization is location from the drop-
down list.
6Click OK. The controller generates the certificate request. When the certificate
request file is ready, your web browser automatically downloads it.
7Go to the default download folder of your Web browser and locate the certificate
request file. The file name is myreq.zip.
8Use a text editor (for example, Notepad) to open the certificate request file.
9Go to the website of your preferred SSL certificate provider, and then follow the
instructions for purchasing an SSL certificate.
![](asset-a6.png)
Managing the Certificate Store
Generating a Certificate Signing Request
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 155
10 When you are prompted for the certificate signing request, copy and paste the
entire content of myreq.csr, and then complete the purchase.
After the SSL certificate provider approves your CSR, you will receive the signed
certificate via email. The following is an example of a signed certificate that you
will receive from your SSL certificate provider:
-----BEGIN CERTIFICATE-----
MIIFVjCCBD6gAwIBAgIQLfaGuqKukMumWhbVf5v4vDANBgkqhkiG9w0B
AQUFADCBƒnsDELMAkGA1UEBhMCVVMxFzAVBgNVBAoTDlZlcmlTaWduLC
BJbmMuMR8wHQYDVQQLƒnBgEFBQcBAQRtMGswJAYIKwYBBQUHMAGGGGh0
dHA6Ly9vY3NwLnZlcmlzaWduLmNvƒnbTBDBggrBgEFBQcwAoY3aHR0cD
ovL1NWUlNlY3VyZS1haWEudmVyaXNpZ24uY29tƒnL1NWUlNlY3VyZTIw
MDUtYWlhLmNlcjBuBggrBgEFBQcBDARiMGChXqBcMFowWDBWƒnFglpbW
FnZS9naWYwITAfMAcGBSsOAwIaBBRLa7kolgYMu9BSOJsprEsHiyEFGD
AmƒnFiRodHRwOi8vbG9nby52ZXJpc2lnbi5jb20vdnNsb2dvMS5naWYw
DQYJKoZIhvcNƒnAQEFBQADggEBAI/S2dmm/kgPeVAlsIHmx-
751o4oq8+fwehRDBmQDaKiBvVXGZ5ZMƒnnoc3DMyDjx0SrI9lkPsn223
CV3UVBZo385g1T4iKwXgcQ7/WF6QcUYOE6HK+4ZGcƒnHermFf3fv3C1-
FoCjq+zEu8ZboUf3fWbGprGRA+MR/dDI1dTPtSUG7/zWjXO5jC//
ƒn0pykSldW/q8hgO8kq30S8JzCwkqrXJfQ050N4TJtgb/
YC4gwH3BuB9wqpRjUahTiƒnK1V1-
ju9bHB+bFkMWIIMIXc1Js62JClWzwFgaGUS2DLE8xICQ3wU1ez8RUPGn
wSxAƒnYtZ2N7zDxYDP2tEiO5j2cXY7O8mR3ni0C30=ƒn
-----END CERTIFICATE-----
11 Copy the content of the signed certificate, and then paste it into a text file. Save
the file.
You may now import the signed certificate into the controller. Refer to Importing an
SSL Certificate for more information.
![](asset-a7.png)
Managing the Certificate Store
Importing an SSL Certificate
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 156
Figure 72. Generating a certificate signing request
Importing an SSL Certificate
When you have an SSL certificate issued by an SSL certificate provider, you can
import it into the controller and use it for HTTPS communication. To complete this
procedure, you will need the following items:
• The signed server certificate
• The intermediate CA certificate (at least one)
• The private key file
NOTE: The file size of each signed certificate and intermediate certificate must not
exceed 8192 bytes. If a certificate exceeds 8192 bytes, you will be unable to import
it into the controller.
Follow these steps to import a signed server certificate.
1Copy the signed certificate file, intermediate CA certificate file, and private key
file to a location (either on the local drive or a network share) that you can access
from the controller web interface.
2Go to Configuration > SCG System.
3On the sidebar, click Certificate Store. The Certificate Store page appears.
![](asset-a8.png)
Managing the Certificate Store
Importing an SSL Certificate
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 157
4In the Installed Certificates section, click Import New. The Import New Certificate
form appears.
5Import the server certificate by completing the following steps:
aIn Server Certificate, click Browse. The Open dialog box appears.
bLocate and select the certificate file, and then click Open.
6Import the intermediate CA certificate by completing the following steps:
aIn Intermediate CA certificate, click Browse. The Open dialog box appears.
bLocate and select the intermediate CA certificate file, and then click Open.
7If you need to upload additional intermediate CA certificates to establish a chain
of trust to the signed certificate, repeat the above step.
NOTE: If you are using this SSL certificate for a Hotspot 2.0 configuration, you must
also import a root CA certificate. See the Hotspot 2.0 Reference Guide for this
release.
8When you finish uploading all the required intermediate certificates, import the
private key file either by uploading file itself or selecting the CSR you generated
earlier.
• To upload the private key file, click Upload, then click Browse, then locate
and select the private key file, and then click Open.
aTo select the CSR, click Using CSR, then select the CSR that you generated
earlier.
9In Key Passphrase, enter the passphrase that has been assigned to private key
file.
10 Click OK. The page refreshes and the certificate you imported appears in the
Installed Certificate section.
You have completed importing a signed SSL certificate to the controller.
![](asset-a9.png)
Managing the Certificate Store
Assigning Certificates to Services
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 158
Figure 73. The Import New Certificate form
Assigning Certificates to Services
Follow these steps to specify the certificate that each secure service will use.
1Go to Configuration > System > Certificate Store. The Certificate Store page
appears.
2In the Service Certificates section, select the certificate that you want to use for
each service.
3Click Apply.
You have completed assigning certificates to services.
![](asset-aa.png)
Managing the Certificate Store
Assigning Certificates to Services
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 159
Figure 74. The Service Certificates section
![](asset-ab.png)
Configuring the External SMS Gateway
Assigning Certificates to Services
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 160
Configuring the External SMS Gateway
If you want to deliver guest passes to guest users via SMS, you can configure the
controller to use an existing Twilio account for SMS delivery. The first step is to
inform the controller of your Twilio account information.
Follow these steps to configure an external SMS gateway for the controller.
1Go to Configuration > System > External SMS Gateway.
2Select the Enable Twilio SMS Server check box.
3Under Twilio Account Information, configure the following:
• Server Name
• Account SID
• Auth Token
• From (phone number)
4Click Apply.
You have completed configuring the external SMS gateway for the controller.
Figure 75. Configuring the external SMS gateway settings
![](asset-ac.png)
Configuring SNMP Settings
Assigning Certificates to Services
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 161
Configuring SNMP Settings
The controller supports the Simple Network Management Protocol (SNMP v2 and
v3), which allows you to query controller information, such as system status, AP list,
etc., and to set a number of system settings using a Network Management System
(NMS) or SNMP MIB browser. You can also enable SNMP traps to receive immediate
notifications for possible AP and system issues.
The procedure for enabling the internal SNMP agents depends on whether your
network is using SNMPv2 or SNMPv3. SNMPv3 mainly provides security enhance-
ments over the earlier version, and therefore requires you to enter authorization
passwords and encryption settings, instead of simple clear text community strings.
Both SNMPv2 and SNMPv3 can be enabled at the same time. The SNMPv3
framework provides backward compatibility for SNMPv1 and SNMPv2c manage-
ment applications so that existing management applications can still be used to
manage the controller with SNMPv3 enabled.
This section covers the following topics:
•Enabling Global SNMP Traps
•Configuring the SNMPv2 Agent
•Configuring the SNMPv3 Agent
Figure 76. Enabling SNMP traps
![](asset-ad.png)
Configuring SNMP Settings
Enabling Global SNMP Traps
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 162
Enabling Global SNMP Traps
By default, the global SNMP trap setting is disabled, which means that the controller
will be unable to send out trap notifications, even if you enabled the SNMPv2 and
SNMPv3 agents to send out traps.
Follow these steps to enable global SNMP traps.
1Go Configuration > System > SNMP Settings.
2Select the Enable SNMP Traps Globally check box.
3Click Apply. A message appears, confirming that you have updated the global
trap settings.
Configuring the SNMPv2 Agent
Follow these steps to configure the SNMPv2 agent.
1In the SNMPv2 Agent section, click Add Community. Options for adding a
community appear.
2Configure the read-only community settings by following these steps:
aIn the text box under Community, type the read-only community string (for
example, public). Applications that send SNMP Get-Requests to the
controller (to retrieve information) will need to send this string along with the
request before they will be allowed access.
bUnder Privilege, select the check boxes for the privileges that you want to
grant to this community. A read-only community is typically granted the Read
privilege. Available privileges include:
-Read
-Write
-Trap: Select this privilege if you want to send SNMP trap notifications for
this community. To add a trap target, click Add Trap Target, and then
configure the following options (required) that appear below:
-Target IP Address: Type the IP address of the SNMP trap server on the
network.
-Target Port: Type the SNMP trap server port.
3Click Add Community again. A second set of configuration options for adding
a community appears.
4Configure the read-write community settings by following these steps:
![](asset-ae.png)
Configuring SNMP Settings
Configuring the SNMPv3 Agent
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 163
aIn the text box under Community, type the read-write community string (for
example, private). Applications that send SNMP Set-Requests to the
controller (to set certain SNMP MIB variables) will need to send this string
along with the request before they will be allowed access. The default value
is private.
bUnder Privilege, select the check boxes for the privileges that you want to
grant to this community. A read-write community is typically granted the Read
and Write privileges. Available privileges include:
•Read
•Write
•Trap: Select this privilege if you want to send SNMP trap notifications for this
community. When this check box is selected, the Add Trap Target button
becomes active. Click Add Trap Target, and then configure the following
settings (required):
-Target IP Address: Type the IP address of the SNMP trap server on the
network.
-Target Port: Type the SNMP trap server port.
5Click Apply.
You have completed configuring the read-only and read-write communities for the
SNMPv2 agent. To add another community, click Add Community again, and then
repeat the procedure above.
Configuring the SNMPv3 Agent
Follow these steps to configure the SNMPv3 agent.
1In the SNMPv3 Agent section, click Add User. Options for adding a user appear.
2Under User, type a user name between 1 and 31 characters.
3Under Authentication, select one of the following authentication methods:
•None: Use no authentication.
•MD5: Message-Digest algorithm 5, message hash function with 128-bit
output.
•SHA: Secure Hash Algorithm, message hash function with 160-bit output.
4Under Auth Pass Phrase, type a pass phrase between 8 and 32 characters in
length.
5Under Privacy, select one of the following privacy methods:
![](asset-af.png)
Managing the User Agent Blacklist
Configuring the SNMPv3 Agent
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 164
•None: Use no privacy method.
•DES: Data Encryption Standard, data block cipher.
•AES: Advanced Encryption Standard, data block cipher.
6Under Privacy Phrase (active only if you selected either DES or AES above), enter
a privacy phrase between 8 and 32 characters in length.
7Under Privilege, select the check boxes for the privileges that you want to grant
to this community. A read-only community is typically granted the Read privilege,
whereas a read-write community is granted the Read and Write privileges.
Available privileges include:
•Read
•Write
•Trap: Select this privilege if you want to send SNMP trap notifications for this
community. When this check box is selected, the Add Trap Target button
becomes active. Click Add Trap Target, and then configure the following
settings (required):
-Target IP Address: Type the IP address of the SNMP trap server on the
network.
-Target Port: Type the SNMP trap server port.
8Repeat the steps above to create as many SNMPv3 agent users are you require.
9Click Apply.
You have completed configuring the SNMPv3 agent settings.
Managing the User Agent Blacklist
By default, the controller automatically blocks certain user agents (or software used
by a user) from accessing hotspots provided by controller-managed APs. These
blocked user agents include:
•ZoneAlarm
•VCSoapClient
• XTier NetIdentity
• DivX Player
• Symantec LiveUpdate
• Windows Live Messenger
• StubInstaller
![](asset-b0.png)
Managing the User Agent Blacklist
Adding a User Agent to the Blacklist
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 165
• windows-update-agent
• Windows Live Essentials
• Microsoft Dr. Watson for Windows (MSDW)
• Avast Antivirus Syncer
• Microsoft Background Intelligent Transfer Service (BITS)
• Google Update
• TrendMicro client
• Skype WISPr
When the controller blocks any of these user agents, an error message appears on
the user device. You can add or remove user agents to this blacklist.
NOTE: In 3.0 and earlier releases, Microsoft NCSI was included in the user agent
blacklist. This prevented Windows Network Awareness, a feature that allows
Windows services and applications to automatically select the network connection
best suited to their tasks, from working properly. Microsoft NCSI has been removed
from the user agent blacklist in 3.1 and later releases.
Adding a User Agent to the Blacklist
Follow these steps to add a user agent to the blacklist.
1Go to Configuration > System > Manage User Agent Blacklist.
2Click Add New. Four boxes appear, where you can enter the name, user agent
pattern, error, and error message to display on the user agent.
3Click Save.
4To add another user agent, repeat Step 2 and Step 3.
You have completed adding an agent to the black list.
![](asset-b1.png)
Managing the User Agent Blacklist
Adding a User Agent to the Blacklist
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 166
Figure 105. Adding a user agent to the black list
![](asset-b2.png)
Managing the User Agent Blacklist
Deleting User Agents from the Blacklist
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 167
Deleting User Agents from the Blacklist
Follow these steps to delete user agents from the blacklist.
1Go to Configuration > System > Manage User Agent Blacklist.
2Locate the user agents that you want to delete from the blacklist, and then select
the check box before the user agent names.
3Click Remove Selected.
The page refreshes, and then the user agents you deleted disappear from the list.
To delete a single user agent, click the icon that is in the same row as the user
agent name.
You have completed deleting user agents from the blacklist.
Figure 77. Deleting user agents
![](asset-b3.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 168
5
Managing Administrators,
Administrator Roles, and
Administrator Authentication
In this chapter:
•Managing Administrator Accounts
•Managing Administrator Roles
•Managing RADIUS Servers for Administrator Authentication
Managing Administrator Accounts
The controller supports the creation of additional administrator accounts. This allows
you to share or delegate management and monitoring functions with other members
of your organization.
In this section:
•Creating an Administrator Account
Creating an Administrator Account
Follow these steps to create an administrator account.
1Go to Administration > Administrators > Administrators.
2Click Create New. The Create New Administrator Account form appears.
3Configure the following options:
•Account Name: Type the name that this administrator will use to log on to
the controller.
•Real Name: Type the actual name (for example, John Smith) of the adminis-
trator.
•Password: Type the password that this administrator will use (in conjunction
with the Account Name) to log on to the controller.
•Confirm Password: Type the same password as above.
•Phone: Type the phone number of this administrator.
![](asset-b4.png)
Managing Administrator Roles
Creating an Administrator Role
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 169
•Email: Type the email address of this administrator.
•Job Title: Type the job title or position of this administrator in your organization.
4Click OK.
The page refreshes, and then the administrator account that you created appears
on the Administrator Accounts page.
Figure 78. The Create New Administrator Account form
Managing Administrator Roles
In addition to creating administrator accounts, you can also create administrator
roles, which define the tasks that each administrator can perform.
In this section:
•Creating an Administrator Role
•Editing an Administrator Role
•Cloning an Existing Administrator Role
Creating an Administrator Role
Follow these steps to create a new administrator role.
1Go to Configuration > Administrators > Administrator Roles.
2Click Create New. The Create New Administrator Role form appears.
3Configure the following options:
•Role Name: Type a name for the administrator role that you are creating.
![](asset-b5.png)
Managing Administrator Roles
Editing an Administrator Role
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 170
•Description: type a short description for the administrator role.
•Assign Capabilities to Administrator Role (tree located on the left side of the
form): Select the administrator capabilities that you want to assign to this role.
If you plan to grant this administrator role most of the capabilities that are
available, click Select All, and then clear the check boxes for the capabilities
that you do not want this role to have.
4Remember to click the icon next to each folder to view all capabilities that are
included.
5Click OK.
The page refreshes, and the role you created appears on the page.
Figure 79. The Create New Administrator Role form
Editing an Administrator Role
Follow these steps to edit an existing administrator role.
1Go to Configuration > Administrators > Administrator Roles.
2Click the name of the administrator role that you want to edit. The Edit
Administrator Role form appears.
![](asset-b6.png)
Managing Administrator Roles
Cloning an Existing Administrator Role
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 171
3In the Assign Capabilities to Administrator Role tree (located on the left side of
the form), add or remove capabilities from the role. Remember to click the
icon next to each folder to view all capabilities that are included.
• To add a capability, select the check box next to it.
• To remove a capability, clear the check box next to it.
4Click Apply.
You have completed editing an administrator role.
NOTE: The system created administrator roles, which are present by default on the
controller, cannot be edited.
Cloning an Existing Administrator Role
If you want to create a new administrator role with capabilities that are similar to an
existing role, cloning the existing administrator role may be the faster way to create
that new role.
Follow these steps to clone an existing administrator role.
1Go to Configuration > Administrators > Administrator Roles.
1Locate the role that you want to clone.
2Under the Actions column, click the icon that is in the same row as the role
that you want to clone. A dialog appears and prompts you for the name that you
want to assign to the clone role. The default name is Clone of [Original Role
Name].
3Type a new name or leave the name as is.
4Click Apply. The page refreshes, and then the role that you created appears on
the Administrator Roles page.
You have completed cloning an existing administrator role. Unless you want the new
role to have exactly the same capabilities as the original role, you may want to edit it.
Figure 80. The Clone dialog box
![](asset-b7.png)
Managing RADIUS Servers for Administrator Authentication
Adding a RADIUS Server for Administrator Authentication
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 172
Managing RADIUS Servers for Administrator
Authentication
You can add RADIUS servers that you want to use for authorizing and authenticating
administrators.
In this section:
•Adding a RADIUS Server for Administrator Authentication
•Using a Backup RADIUS Server
Adding a RADIUS Server for Administrator
Authentication
Follow these steps to add a RADIUS server that the controller can use for authen-
ticating administrators.
NOTE: If you want to use a primary and secondary RADIUS servers for
authenticating administrator, follow the steps in Using a Backup RADIUS Server.
1Go to Configuration > Administrators > AAA for Administrators.
2Click Create New. The Create New Administrator RADIUS Server form appears.
3In Name, type a name for the RADIUS server.
4In Type, select the type of RADIUS server that you are using. Options include:
•RADIUS: Click this option to use a Remote Authentication Dial-In User
Service (RADIUS) server on the network for authenticating controller admin-
istrators.
•TACACS+: Click this option to use a Terminal Access Controller Access-
Control System Plus (TACACS+) server on the network for authentication
controller administrators.
5In Realm, type the realm (or realms) to which the RADIUS server belongs. If the
RADIUS server belongs to multiple realms, use a comma (,) to separate the realm
names.
6Make sure that the Enable backup RADIUS support check box is not selected.
If you want to use a backup RADIUS server, follow the steps in Using a Backup
RADIUS Server instead.
7In IP Address, type the IP address of the RADIUS server.
8In Port, type the UDP port that the RADIUS server is using. The default port is
1812.
![](asset-b8.png)
Managing RADIUS Servers for Administrator Authentication
Using a Backup RADIUS Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 173
9In Shared Secret, type the shared secret. Retype the same secret in Confirm
Secret.
10 Click OK.
You have completed adding a RADIUS server for authenticating administrators.

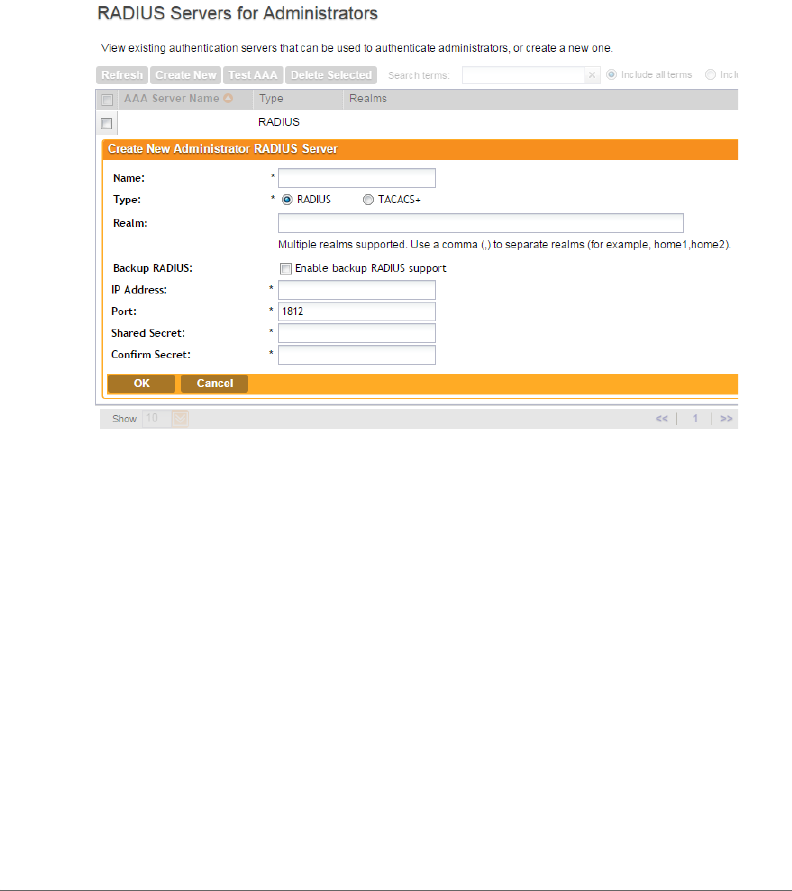

Figure 81. The Create New Administrator RADIUS Server form
Using a Backup RADIUS Server
If a backup RADIUS server is available on the network, you can use it as a backup
server when the primary server is unavailable. When you select the check box,
additional fields appear that you need to fill in.
Follow these steps to enable support for a backup RADIUS server for authenticating
administrators.
1Select the Enable backup RADIUS support check box.
2In the Primary Server section, fill out the IP address, port number, and shared
secret as you did in the previous section.
3In the Secondary Server section, fill out the IP Address, port number and shared
secret for the backup server (these fields can neither be left empty nor be the
same values as those of the primary server).
![](asset-b9.png)
Managing RADIUS Servers for Administrator Authentication
Using a Backup RADIUS Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 174
4In the Failover Policy section, configure the following settings:
•Request Timeout: Type the timeout period (in seconds) after which an
expected RADIUS response message is considered to have failed.
•Max Number of Retries: Type the number of failed connection attempts after
which the controller will fail over to the backup RADIUS server.
•Reconnect Primary: Type the number of minutes after which the controller
will attempt to reconnect to the primary RADIUS server after failover to the
backup server.
5Click OK.
You have completed adding primary and secondary RADIUS servers for authenti-
cating administrators.

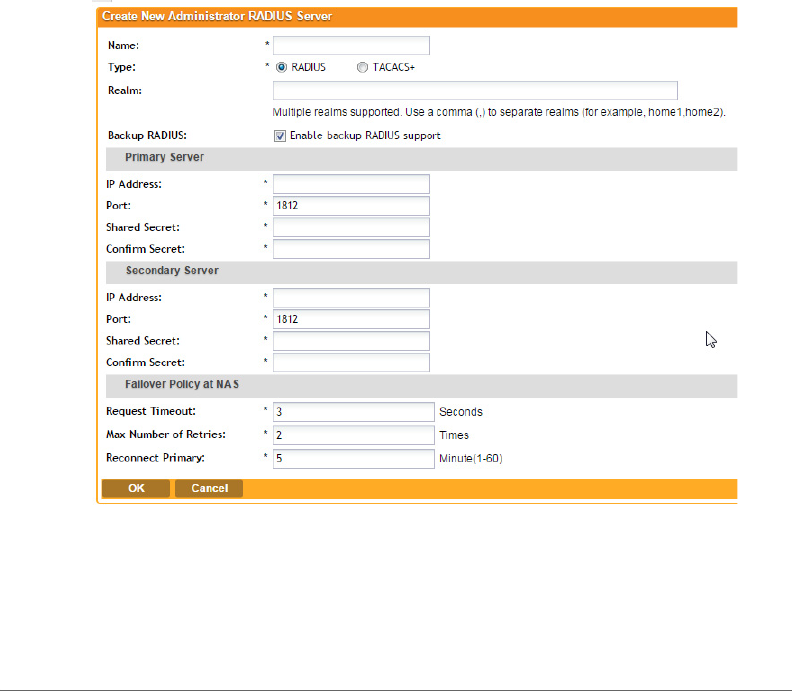

Figure 82. Enabling the backup RADIUS server
![](asset-ba.png)
Managing RADIUS Servers for Administrator Authentication
Testing an AAA Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 175
Testing an AAA Server
To ensure that the controller administrators will be able to authenticate successfully
with the RADIUS server type that you selected, Ruckus Wireless strongly recom-
mends testing the AAA server after you set it up. The test queries the RADIUS server
for a known authorized user and return groups associated with the user that can
be used for configuring roles within the controller.
Follow these steps to test an AAA server.
1Go to Configuration > Administrators > AAA for Administrators.
2Click Test AAA. The Test AAA Servers form appears.
3In Name, select one of the AAA servers that you previous created.
4In User Name, type an existing user name on the AAA server that you selected.
5In Password, type the password for the user name you specified.
6Click Te st .
If the controller was able to connect to the authentication server and retrieve the
configured groups/attributes, the information appears at the bottom of the page.
If the test was unsuccessful, there are two possible results (other than success) that
will be displayed to inform you if you have entered information incorrectly:
• Admin invalid
• User name or password invalid
These results can be used to troubleshoot the reasons for failure to authenticate
administrators with an AAA server through the controller.
Figure 83. The Test AAA Servers form
![](asset-bb.png)
Managing RADIUS Servers for Administrator Authentication
Authenticating an Administrator Using an External AAA Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 176
Authenticating an Administrator Using an External AAA
Server
Follow these steps to create and configure an administrator account to be authen-
ticated by an external AAA server.
1Log on to the controller web interface using a super admin account.
2Go to Configuration > Administrators. Create an administrator account (see
Creating an Administrator Account for instructions).
Take note of the account name that you assign to the account. You will use this
account name later when you log on to the web interface. In the example below,
the account name is “wsg”.

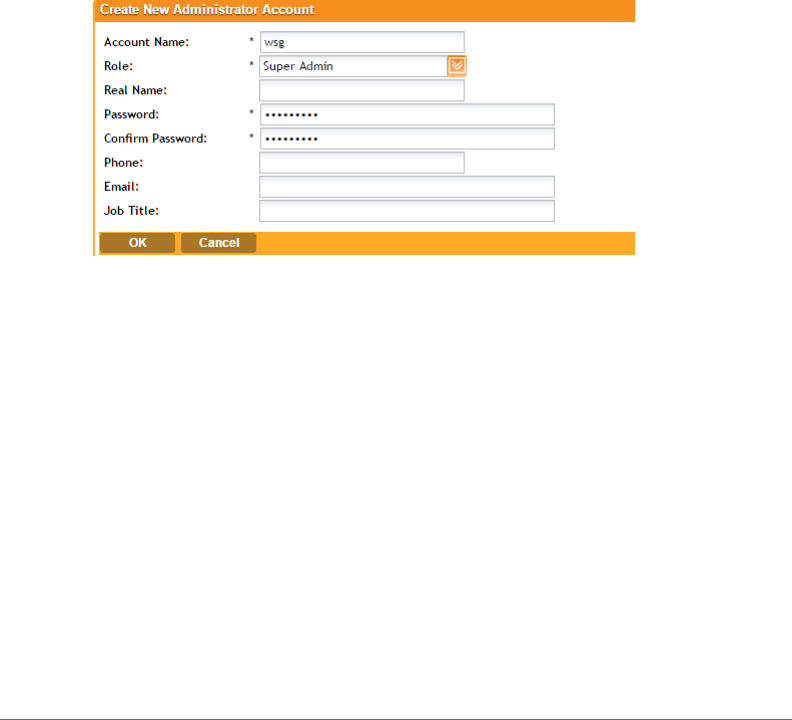

Figure 84. Create an administrator account
3Go to Configuration > AAA for Administrators. Create an AAA server profile (see
Adding a RADIUS Server for Administrator Authentication) and specify a realm.
Take note of the realm name. You will use realm name later when you log on to
the web interface. In the example below, the realm name is “scguser”.
![](asset-bc.png)
Managing RADIUS Servers for Administrator Authentication
Authenticating an Administrator Using an External AAA Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 177

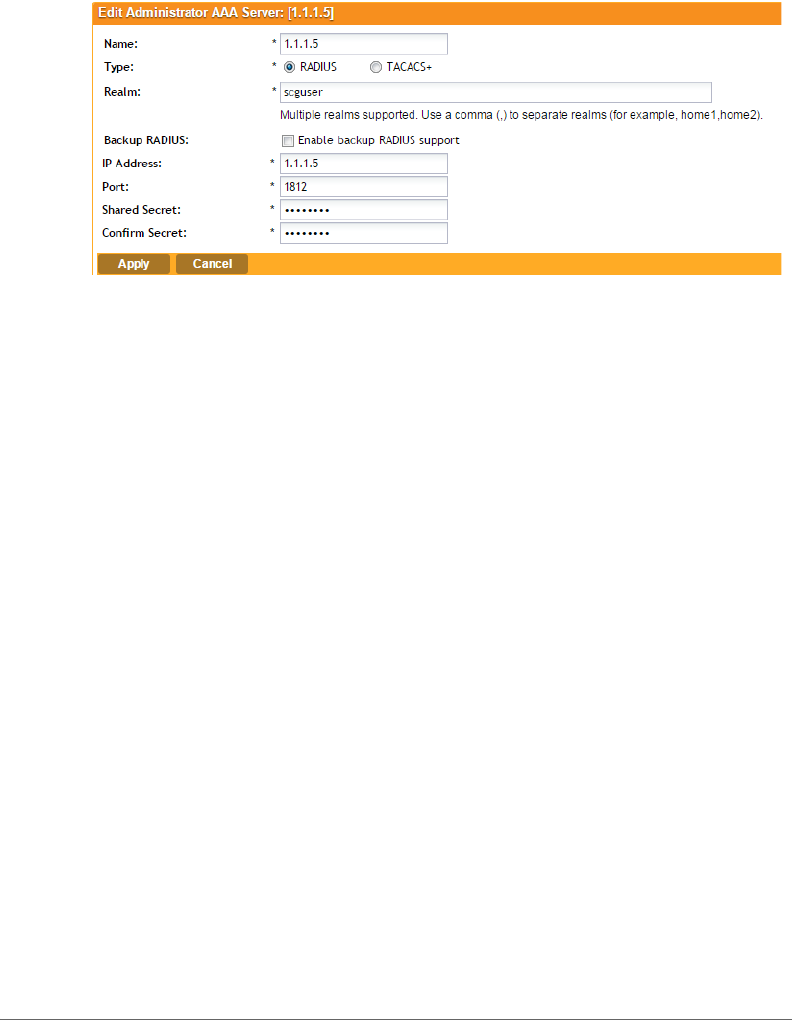

Figure 85. Create an AAA server profile
4On the FreeRADIUS server, create a dictionary file.
aName it dictionary.ruckus, and then save it in the path /usr/share/
freeradius.
bAdd the following to the dictionary file, and then save it:
VENDOR ruckuswireless 25053
BEGIN-VENDOR ruckuswireless
ATTRIBUTE WSG-User 10 String
END-VENDOR ruckuswireless
cSave the dictionary file.
5Edit the /etc/freeradius/dictionary file, add the text below, and then
save the file.
$INCLUDE /usr/share/freeradius/dictionary.ruckus
6Add the administrator user name you created in Step 2 to the list of FreeRADIUS
users. Edit the /etc/freeradius/users file, adding the text below, and then
save the file.
wsg Cleartext-Password := "wsg"
WSG-User="wsg"
Where:
•The value for WSG-User is the is the administrator user name that you
created in Step 2.
•The value wsg Cleartext-Password is the password you assigned to
the administrator user name above.
![](asset-bd.png)
Managing RADIUS Servers for Administrator Authentication
Authenticating an Administrator Using an External AAA Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 178
7Log on to the controller web interface, and then use the account name and realm
combination (accountname@realm) as the user name.
For example, if the account name is “wsg” and the realm name is “scguser”,
enter “wsg@scguser” in User Name.

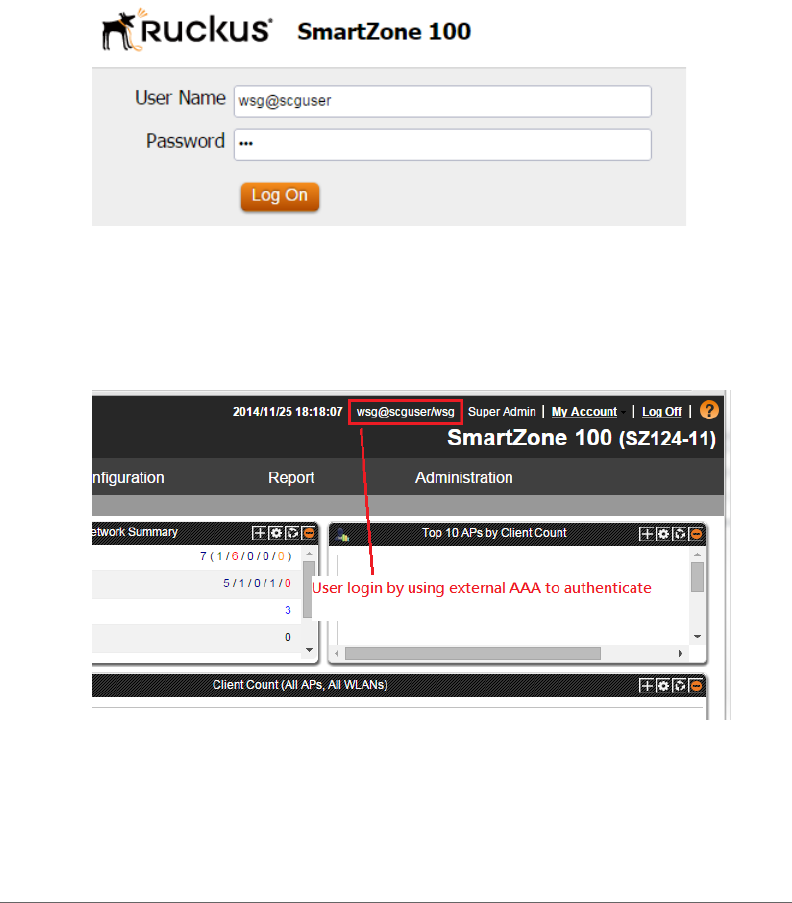

Figure 86. In User Name, use {accountname@realmname}
8After you log on successfully, check the miscellaneous bar on the upper-right
corner of the web interface and verify that you are logged on using the
{accountname@realmname} credentials.
Figure 87. Verify that you are logged on using the {accountname@realmname} credentials
You have completed logging on to the web interface using an account authenticated
by an external AAA server.
![](asset-be.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 179
6
Monitoring the Wireless Network
In this chapter:
•Monitoring Managed Access Points
•Viewing Managed APs on Google Maps™
•Monitoring the Mesh Network
•Monitoring Wireless Clients
•Monitoring Managed Devices
•Monitoring the System
•Monitoring Rogue Access Points
•Monitoring Location Services
•Viewing All Alarms
•Viewing All Events
•Monitoring Administrator Activities
![](asset-bf.png)
Monitoring Managed Access Points
Viewing a Summary of Access Points
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 180
Monitoring Managed Access Points
This section provides information on how to monitor and view information about the
access points that you are managing using the controller.
Topics covered include:
•Viewing a Summary of Access Points
•Exporting the Access Point List to CSV
•Viewing the Configuration of an Access Point
•Downloading the Support Log from an Access Point
Viewing a Summary of Access Points
Follow these steps to view a summary of existing access points.
Go to Monitor > Access Points. The Access Points page appears and displays a
table that lists all access points that controller is currently managing.

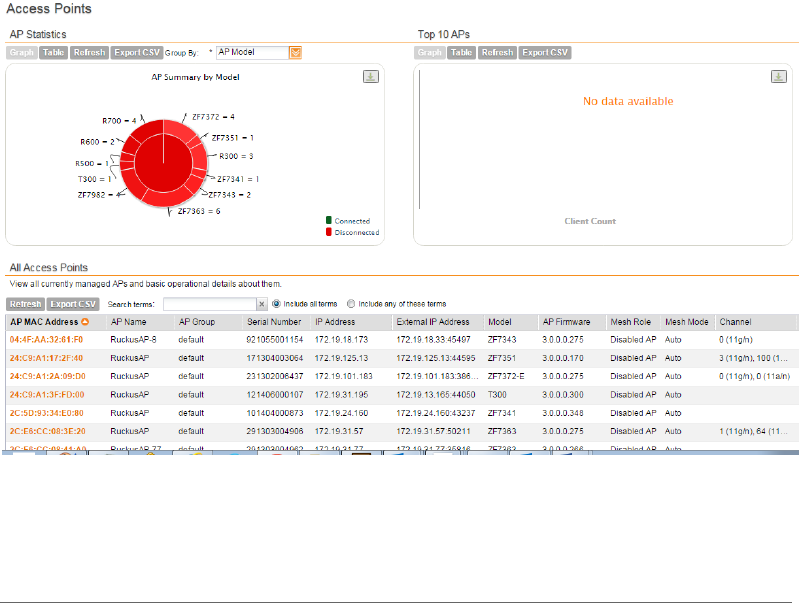

Figure 88. The Monitor > Access Points page displays all controller-managed access points
![](asset-c0.png)
Monitoring Managed Access Points
Viewing a Summary of Access Points
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 181
Tab l e 7 lists the access point details are shown in the table on the Access Points
page.
Table 7. Access point details
Column Name Description
AP MAC Address MAC address of the access point. Clicking this link loads a page
that displays detailed information about the access point. See
Viewing the Configuration of an Access Point.
AP Name Name assigned to the access point
AP Group AP group to which the AP belongs (if any)
Serial Number Serial number of the AP
IP Address Internal IP address assigned to the access point
External IP
Address
If the device is behind a NAT server, this is the IP address and port
number that the controller will use to communicate with the device.
Model Model number of the Ruckus Wireless access point
AP Firmware Firmware version that is installed on the access point
Mesh Role Indicates whether mesh networking is enabled on the access point
and the mesh role that is assigned to it. Possible values include:
• Disabled: Mesh networking is disabled.
• Mesh AP
• Root AP
• eMesh AP
Mesh Mode Shows the mesh mode (Auto, Root, Mesh) of the AP
Channel Indicates the radio channels used by the AP to provide WLAN
services
Status Indicates whether the access point is currently connected (online)
or disconnected (offline)
Configuration
Status
Show any of the following statuses:
• New Configuration: Appears when the AP has pending
configuration change from the controller that needs to be
applied.
• Up-to-date: Appears when the AP’s configuration is
synchronized with the controller.
![](asset-c1.png)
Monitoring Managed Access Points
Viewing a Summary of Access Points
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 182
# of Clients Indicates the number of wireless clients that are currently
associated with the access point. Clicking the number of clients
(link, except when zero) loads a page that displays detailed
information about the wireless clients. See Viewing a Summary of
Wireless Clients.
Last Seen Indicates the date and time when the access point last reported to
the controller
Administrative
State
Shows either Locked or Unlocked.
Registration State Shows either Discovery, Approved, or Rejected.
Clients Bonjour
Gateway
Indicates whether Bonjour gateway service is enabled, disabled or
not supported on this AP.
LBS service status Indicates whether LBS service is enabled, disabled or not
supported on this AP.
Actions Icons for actions that you can perform, including:
• – Click to view detailed configuration of this access point.
• – Click to download the support log from this access point.
See Downloading the Support Log from an Access Point.
• – Click to run network connectivity tests (PING and
traceroute) on this access point.
• – Click to restart the access point.
Table 7. Access point details (Continued)
Column Name Description
![](asset-c2.png)
Monitoring Managed Access Points
Exporting the Access Point List to CSV
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 183
Exporting the Access Point List to CSV
If you want to be able to view a list of all APs that the controller is currently managing
in a spreadsheet program such as Microsoft Excel, export the AP list to a comma-
separated value (CSV) file.
Follow these steps to export the AP list to a CSV file.
1Go to Monitor > Access Points.
2Click the Export CSV button in the content area.
3Check the default download folder of your web browser and look for a file named
RuckusAPList.csv.
4Use a spreadsheet application (for example, Microsoft™ Excel™) to view the
contents of the CSV file.
You have completed exporting the access point list to CSV.

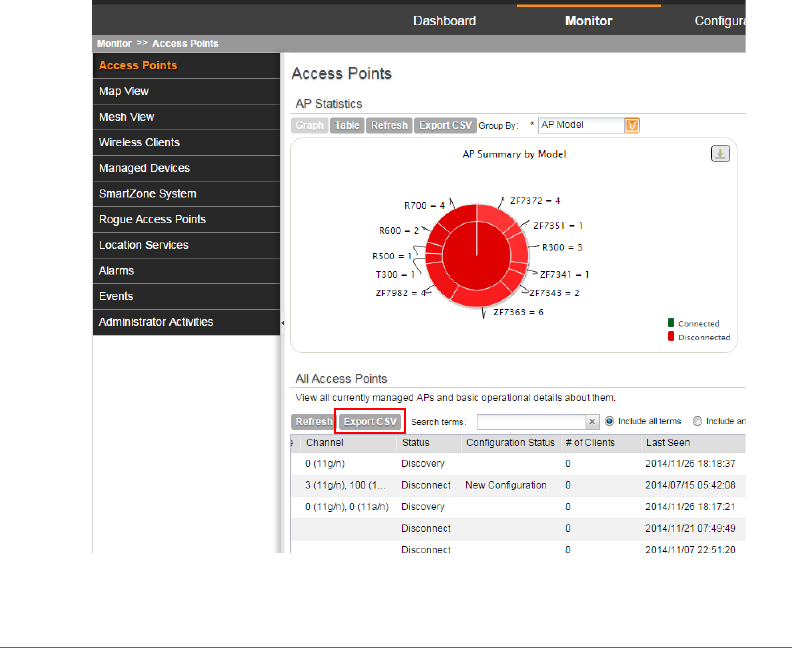

Figure 89. Click Export CSV to download the AP list
![](asset-c3.png)
Monitoring Managed Access Points
Viewing the Configuration of an Access Point
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 184
Viewing the Configuration of an Access Point
Follow these steps to view the configuration of an access point.
1Go to Monitor > Access Points.
2On the Access Points page, locate the access point whose details you want to
view.
3Under the Actions column, click the icon that is in the same row as the MAC
address of the access point.
The page refreshes and displays the AP Edit: [MAC Address] form appears, which
displays the AP’s configuration details (shown in Figure 90).

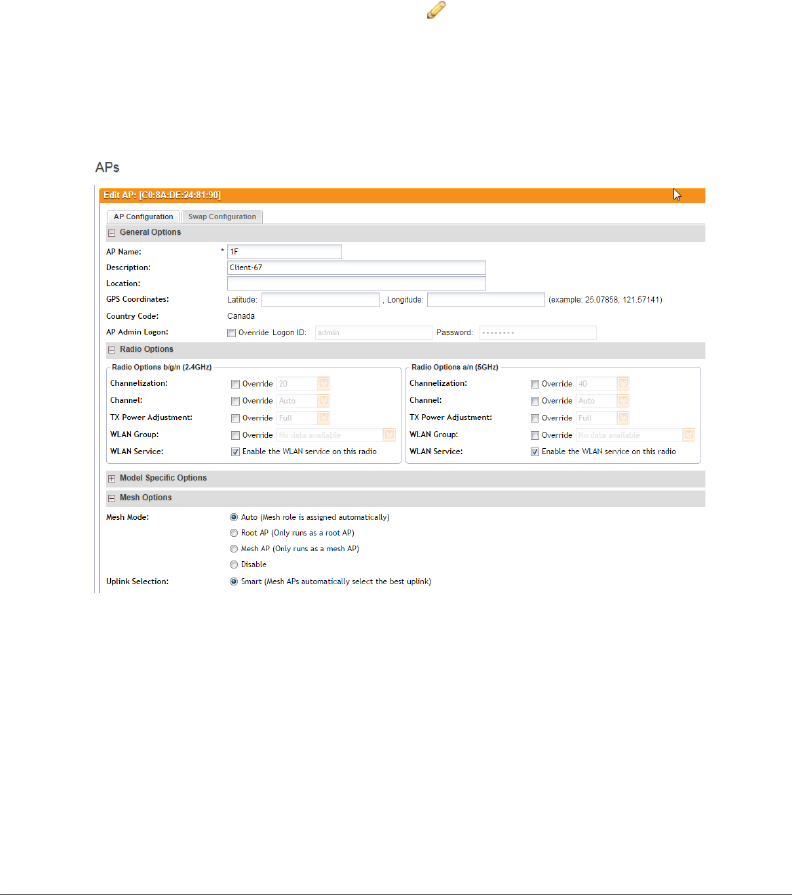

Figure 90. Page showing the access point configuration details
Downloading the Support Log from an Access Point
If you are experiencing issues with an access point, Ruckus Wireless Support may
request you to download the support log from the access point. The support log
contains important technical information that may be help Ruckus Wireless Support
troubleshoot the issue with the access point.
Follow these steps to download the support log from an access point.
1Go to Monitor > Access Points.
![](asset-c4.png)
Monitoring Managed Access Points
Restarting an Access Point Remotely
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 185
2On the Access Points page, locate the access point from which you want to
download the support log.
3Under the Actions column, click the icon that is in the same row as the MAC
address of the access point.
4Check the default download folder for your web browser and look for a file named
SupportLog_{AP-MAC-address}.log.
5Use a text editor (for example, Notepad) to view the contents of the text file.
6Send the support log file to Ruckus Wireless Support, along with your support
request.
You have completed downloading the support log from an access point.
Restarting an Access Point Remotely
Follow these steps to restart an access point remotely from the web interface.
1Go to Monitor > Access Points.
2On the Access Points page, locate the access point that you want to restart.
3Click the icon that is in the same row as the MAC address of the access
point. The following confirmation message appears:
Are you sure you want to restart this AP?
4Click Ye s. The controller sends a restart command to the access point, and then
the access point restarts itself.
You have completed restarting an access point remotely.
Running Ping and Traceroute on an Access Point
The controller web interface provides two commonly used tools – ping and
traceroute – that allow you to diagnose connectivity issues on managed access
points.
Follow these steps to run the ping and traceroute on an access point.
1Go to Monitor > Access Points.
2On the Access Points page, locate the access point on which you want to run
the ping or traceroute tool.
3Click the icon that is in the same row as the MAC address of the access
point. The Network Connectivity window appears.
![](asset-c5.png)
Monitoring Managed Access Points
Running Ping and Traceroute on an Access Point
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 186
4In IP Address, type an IP address to check whether the access point can connect
to it. For example, type 199.238.178.36 if you want to check if the access
point can connect to the Ruckus Wireless website.
5Click either Ping or Trace Route (depending on which test you want to run).
The blank box below is populated with the test results.
You have completed running a ping or traceroute test.
![](asset-c6.png)
Viewing Managed APs on Google Maps™
Running Ping and Traceroute on an Access Point
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 187
Viewing Managed APs on Google Maps™
If GPS coordinates were configured for some or all of the APs that the controller is
managing, you can view the AP locations on Google Maps™.
To view APs that the controller is managing on Google Maps, go to Monitor > Map
View. The page refreshes and displays managed APs on Google Maps.
To view a summary of details about an AP on the map, click the icon for the AP. A
text bubble appears and displays the AP details (see Figure 91).

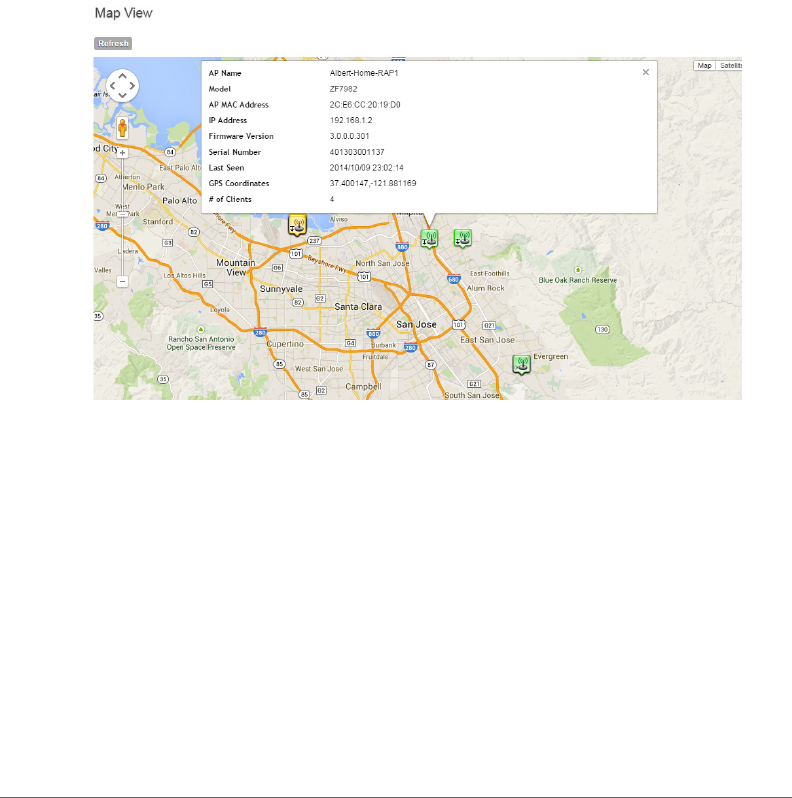

Figure 91. APs that have their GPS coordinates configured appear on Google Maps
![](asset-c7.png)
Monitoring the Mesh Network
Running Ping and Traceroute on an Access Point
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 188
Monitoring the Mesh Network
To view Smart Mesh topologies of any mesh trees present on your network, go to
Monitor > Mesh View. This page also displays non-meshing APs controlled by the
controller and provides a number of action icons to troubleshoot and diagnose
mesh-related issues.
Figure 92. View the mesh network status on the Monitor > Mesh View page
Monitoring Wireless Clients
This section provides information on how to monitor and view information about
wireless clients that associate with the managed access points. Topics covered
include:
•Viewing a Summary of Wireless Clients
•Exporting the Wireless Client List to CSV
•Viewing Information About a Wireless Client
![](asset-c8.png)
Monitoring Wireless Clients
Viewing a Summary of Wireless Clients
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 189
Viewing a Summary of Wireless Clients
Follow these steps to view a summary of wireless clients that are currently associ-
ated with the managed access points.
Go to Monitor > Wireless Clients. The Wireless Clients page appears and displays
a table that lists all wireless clients that are currently associated with managed
access points.
Figure 93. View all currently active wireless clients on the Monitor > Wireless Clients page
Tab l e 8 lists the wireless client details that are shown in the table.
Table 8. Wireless client details
Column Name Description
STA MAC Address MAC address of the wireless station. Clicking this link loads a page
that displays detailed information about the wireless client. See
Viewing Information About a Wireless Client.
IP Address IP address assigned to the wireless client
OS Type Operating system that the wireless client is using
Host Name Host name of the wireless client
![](asset-c9.png)
Monitoring Wireless Clients
Exporting the Wireless Client List to CSV
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 190
Exporting the Wireless Client List to CSV
Follow these steps to export the wireless point list to a CSV file.
1Go to Monitor > Wireless Clients.
2Click the Export CSV button in the content area.
3Check the default download folder of your web browser and look for a file named
clients.csv.
4Use a spreadsheet application (for example, Microsoft™ Excel™) to view the
contents of the CSV file.
You have completed exporting the wireless client list to CSV.
Viewing Information About a Wireless Client
Follow these steps to view information about a wireless client.
AP Name Name assigned to the access point. Clicking this link loads a page
that displays detailed information about the access point. See
Viewing the Configuration of an Access Point.
AP MAC Address MAC address of the AP
WLAN (SSID) Name of the WLAN service or SSID with which the wireless client
is associated.
VLAN VLAN ID assigned to the wireless client
Channel Radio channel used by the wireless client to access the WLAN
service on the access point
Status Indicates whether the wireless client is authorized or unauthorized
to access the WLAN service
User Name Name of the user logged on to the wireless client
Auth Method Authentication method used by the access point
Encryption Method Encryption method used by the access point
Actions Icons for actions that you can perform, including:
• – Click to disconnect the wireless client from the access
point.
• - Click to start the SpeedFlex wireless performance tool.
Table 8. Wireless client details
Column Name Description
![](asset-ca.png)
Monitoring Wireless Clients
Viewing Information About a Wireless Client
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 191
1Go to Monitor > Wireless Clients.
2Locate the wireless client whose details you want to view.
3Under the STA MAC Address column, click the MAC address of the wireless
client.
The Associated Client page appears and displays general information about the
wireless client, including its MAC address, IP address, authentication method,
encryption method, connection details, operating system, and traffic statistics,
among others. Recent connectivity events that occurred on the wireless client are
displayed in the Client Events section at the bottom of the page.

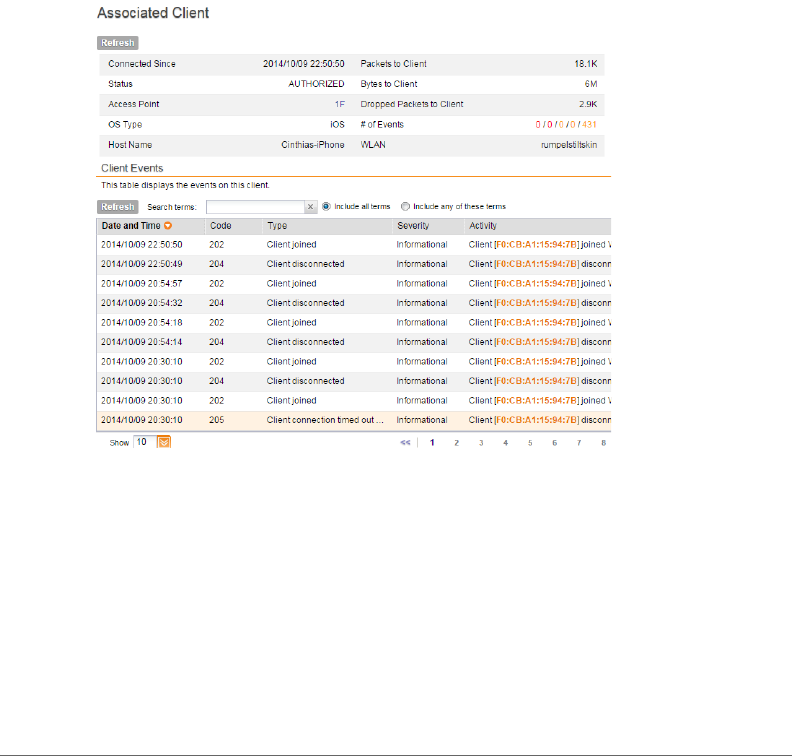

Figure 94. The Associated Client page shows wireless client information
![](asset-cb.png)
Monitoring Wireless Clients
Measuring Wireless Network Throughput with SpeedFlex
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 192
Measuring Wireless Network Throughput with
SpeedFlex
SpeedFlex is a wireless performance tool included in the controller that you can use
to measure the downlink throughput between the controller and an AP. When
performing a site survey, you can use SpeedFlex to help find the optimum location
for APs on the network with respect to user locations.
NOTE: SpeedFlex is unable to measure the throughput between two devices if
those two devices are not on the same VLAN or the same subnet.
Follow these steps to measure the throughput of an AP from the controller web
interface.
1Find out the MAC address of the AP that you want to use for this test procedure.
2Log on to the controller web interface.
3If you want to test AP throughput, click Monitor > Access Points.
4In the list of APs, look for the MAC address of the AP that you want to test, and
then click (SpeedFlex icon) that is in the same row. The SpeedFlex Wireless
Performance Test interface loads, showing a speedometer and the IP address
of the AP that you want to test.
5In Protocol, select UDP.
If you are testing AP throughput, you have the option to test both Downlink and
Uplink throughput. Both options are selected by default. If you only want to test
one of them, clear the check box for the option that you do not want to test.
6Click the Start button.
A progress bar appears below the speedometer as SpeedFlex generates traffic to
measure the downlink or uplink throughput. One throughput test typically runs for
10-30 seconds. If you are testing AP throughput and you selected both the Downlink
and Uplink options, both tests should take about one minute to complete.
When the tests are complete, the results appear below the Start button. Information
that is shown includes the downlink/uplink throughput and the packet loss
percentage during the tests.
![](asset-cc.png)
Monitoring Managed Devices
Measuring Wireless Network Throughput with SpeedFlex
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 193
Figure 95. The SpeedFlex page
Monitoring Managed Devices
Managed devices refer to user equipment (UE) that have associated with the
controller-managed APs using the Zero-IT onboarding process.
To view a list of managed devices, go to Monitor > Managed Devices. The Managed
Devices page appears and displays all currently managed devices and their details.
Tab l e 9 describes the details about managed devices that are displayed on the
Managed Devices page.
Table 9. Information available on the Managed Devices page
Column Description
MAC MAC address of the device
User Name User name of the device user
![](asset-cd.png)
Monitoring Managed Devices
Measuring Wireless Network Throughput with SpeedFlex
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 194
Figure 96. The Managed Devices page
User Source Shows either “Local DB” if the devices was authenticated
locally using the SCG database or, if the device was
authenticated using an external AAA server, the AAA server
name.
OS Type Operating system used by the device
Is Connected Current connection status (“Yes” for connected, “No” for
disconnected)
Zero-IT Provisioning
Created On Date when the device first associated with the controller-
managed AP
Table 9. Information available on the Managed Devices page
Column Description
![](asset-ce.png)
Monitoring the System
Viewing the System Cluster Overview
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 195
Monitoring the System
This section provides information on how to view information about the status of
the controller system, including its cluster planes and cluster events. It also
describes how to use the chassis view and to start the cluster monitor.
Topics covered include:
•Viewing the System Cluster Overview
•Displaying the Chassis View of Cluster Nodes
•Starting the Node Real-time Monitor
Viewing the System Cluster Overview
The system cluster overview provides summary information the controller cluster.
To view the cluster overview, go to Monitor > System. The Cluster Node: [{Cluster
Name}] page appears, as shown in Figure 97.
![](asset-cf.png)
Monitoring the System
Viewing the System Cluster Overview
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 196

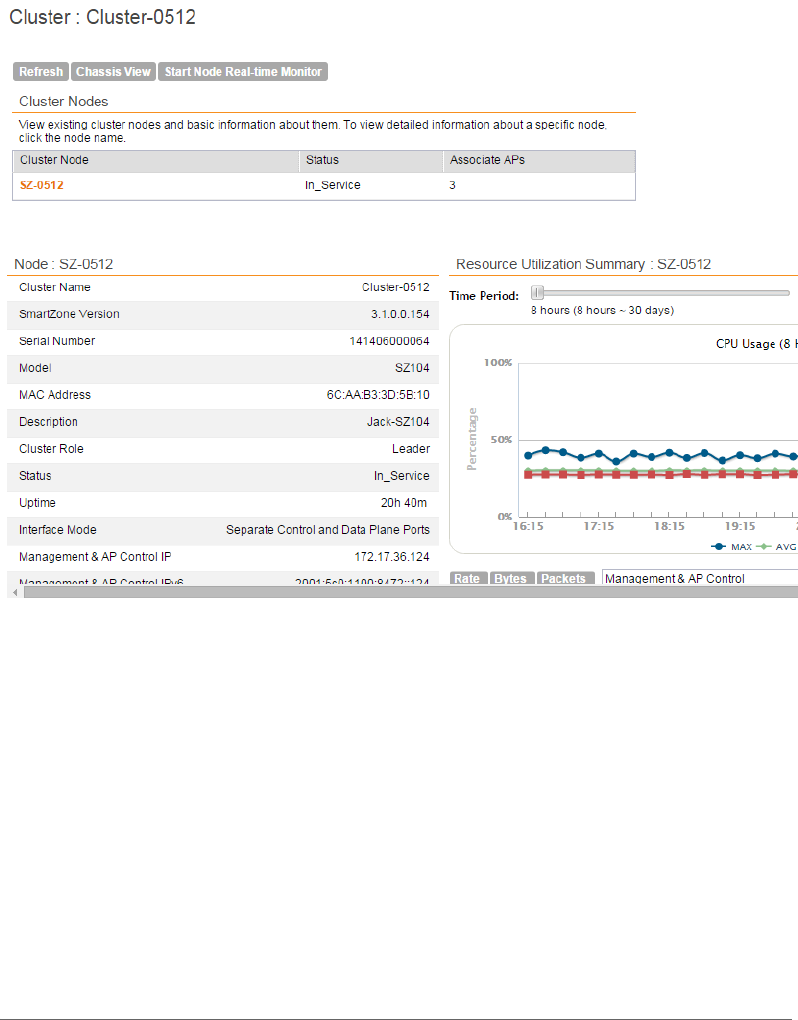

Figure 97. The Cluster Node: [{Cluster Name}] page
![](asset-d0.png)
Monitoring the System
Displaying the Chassis View of Cluster Nodes
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 197
Displaying the Chassis View of Cluster Nodes
The chassis view provides a graphical representation of the control panel (on the
front panel of the controller), including the LEDs. Use the LEDs to check the status
of the ports and power supplies on the controller. Fan status is also displayed on
the chassis view.
To view the chassis of the cluster node, click Chassis View on the Cluster Node:
[{Cluster Name}] page.
NOTE: The information on the chassis view updates automatically every 30
seconds. This polling frequency is not configurable.

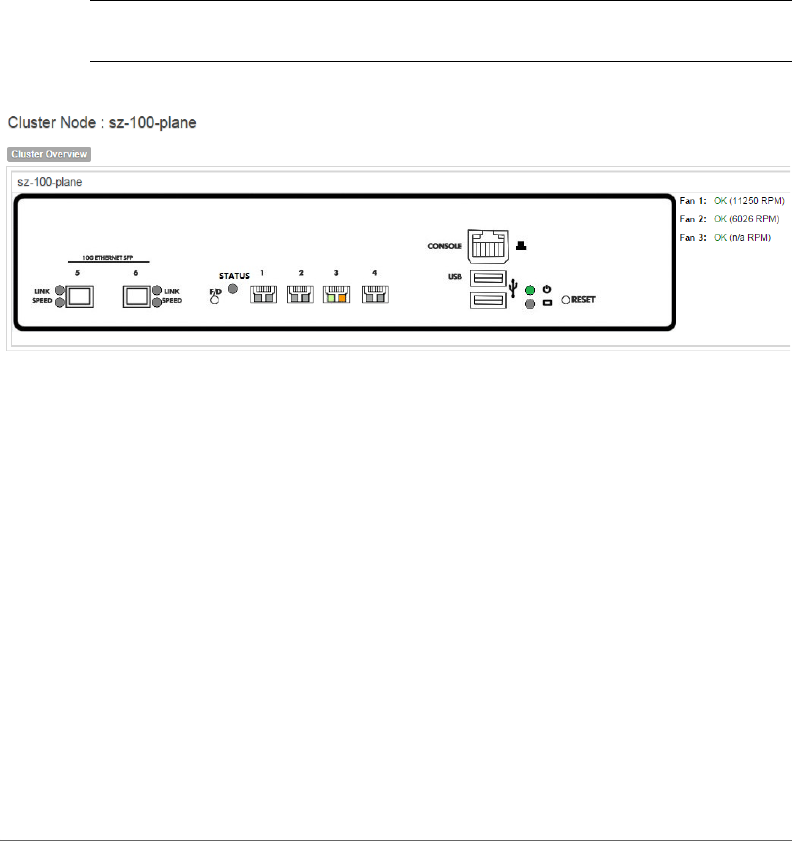

Figure 98. The chassis view page displays the chassis of all nodes in the cluster
Starting the Node Real-time Monitor
The Node Real-time Monitor page displays graphs and charts of the controller
system resources. Use this monitor to understand how system resources on the
cluster nodes are being used.
To start the cluster real-time monitor, click Start Node Real-time Monitor on the
Cluster Node: [{Cluster Name}] page. A new browser page or tab appears
(depending on your browser settings), and then the Node Real-time Monitor page
appears.
![](asset-d1.png)
Monitoring the System
Starting the Node Real-time Monitor
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 198

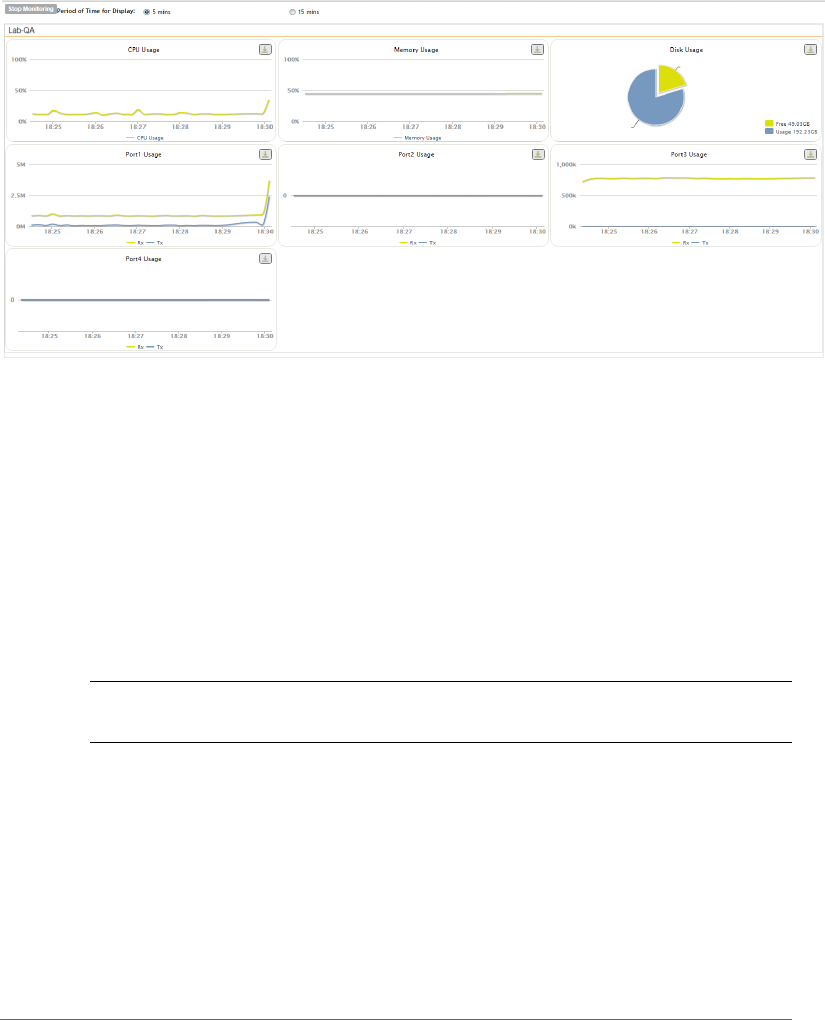

Figure 99. The Node Real-time Monitor page
The resource graphs and charts that are shown on the Cluster Real-time Monitor
page include:
• CPU Usage
• Memory Usage
• Disk Usage
•Port1 Usage
•Port2 Usage
•Port3 Usage
•Port4 Usage
NOTE: On some controller models, you may see additional graphs for Port 5 and
Port 6 usage.
To stop the Cluster Real-time Monitor, click the Stop Monitoring button on the
upper-left part of the page.
![](asset-d2.png)
Monitoring Rogue Access Points
Starting the Node Real-time Monitor
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 199
Monitoring Rogue Access Points
“Rogue” (or unauthorized) APs pose problems for a wireless network in terms of
airtime contention, as well as security. Usually, a rogue AP appears in the following
way: an employee obtains another manufacturer's AP and connects it to the LAN,
to gain wireless access to other LAN resources. This would potentially allow even
more unauthorized users to access your corporate LAN - posing a security risk.
Rogue APs also interfere with nearby Ruckus Wireless APs, thus degrading overall
wireless network coverage and performance.
The controller’s rogue AP detection options include identifying the presence of a
rogue AP, categorizing it as either a known neighbor AP or as a malicious rogue.
If you enabled rogue AP detection when you configured the common AP settings
(see Configuring Common AP Settings), click Monitor > Rogue Access Points. The
Rogue Access Points page displays all rogue APs that the controller has detected
on the network, including the following information:
•Rogue MAC: MAC address of the rogue AP.
•Type: Type of rogue AP detected. Possible values include:
•Rogue: A normal rogue AP. This rogue AP has not yet been categorized as
malicious or non-malicious.
•Malicious AP (SSID-spoof): A malicious rogue AP that uses the same SSID
as an controller-managed AP (also known as an Evil-twin AP).
•Malicious AP (MAC-spoof): A malicious rogue AP that has the same BSSID
(MAC) as one of the virtual APs managed by the controller.
•Malicious AP (Same-Network): A malicious rogue AP that is connected to the
same wired network.
•Malicious AP (User-Blocked): A rogue AP that has been marked as malicious
by the user.
•Channel: Radio channel used by the rogue AP.
•Radio: WLAN standards with which the rogue AP complies.
•SSID: WLAN name that the rogue AP is broadcasting.
•Encryption: Indicates whether the wireless signal is encrypted or not.
•Last Detected: Date and time when the rogue AP was last detected by the
controller.
![](asset-d3.png)
Monitoring Rogue Access Points
Starting the Node Real-time Monitor
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 200
Figure 100. The Monitor > Rogue Access Points page
![](asset-d4.png)
Monitoring Location Services
Starting the Node Real-time Monitor
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 201
Monitoring Location Services
To monitor SmartPositioning location servers that you have configured on the
Configuration > Wireless Network > Location Services, go to Monitor > Location
Services.
NOTE: For information on configuring and administering of Ruckus Wireless
SmartPositioning Technology (SPoT) service, see the SPoT User Guide, which is
available for download on https://support.ruckuswireless.com.

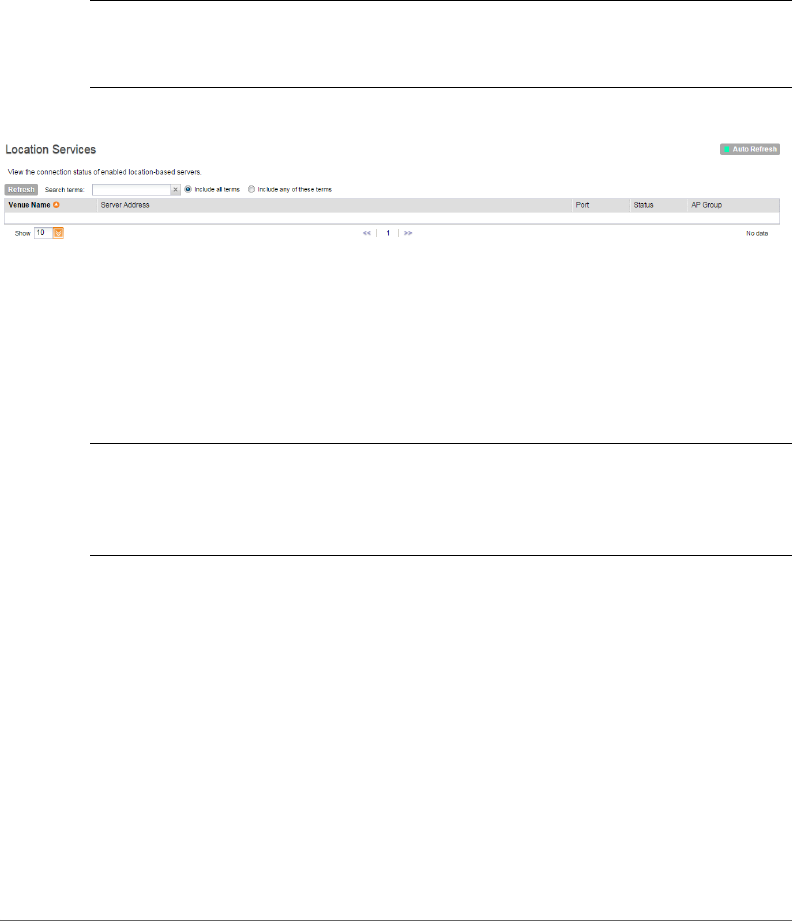

Figure 101. Monitor > Location Services page
Viewing All Alarms
Alarms are a type of event that typically warrants your attention. Alarms are
generated by managed access points and the controller system.
To view recent alarms that have been generated, go to Monitor > All Alarms. The
All Alarms page displays the 20 most recent alarms.
NOTE: By default, the All Alarms page displays up to 20 event entries per page.
You can change the number of alarms to display per page by selecting a number
in Show. Options range from 10 to 250 entries per page. Alternatively, you can click
the >> (next) link to display the next 20 alarms on another page.
![](asset-d5.png)
Viewing All Alarms
Starting the Node Real-time Monitor
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 202
Figure 102. The All Alarms page displays the most recent alarm entries
Tab l e 1 0 lists the alarm details that are displayed on the All Alarms page.
Table 10. Alarm details
Column Name Description
Date and Time Date and time when the alarm was triggered
Code Alarm code (see the Alarm and Event Reference Guide for your
controller platform for more information)
Alarm Type Type of alarm event that occurred (for example, AP reset to factory
settings)
Severity Severity level assigned to the alarm. Possible values include (from
most severe to least severe):
• Critical
• Major
• Minor
Status Indicates whether the alarm has already been cleared or still
outstanding
Activity Displays additional details about the alarm, including (if available)
the specific access point, control plane, or data plane that triggered
the alarm
![](asset-d6.png)
Viewing All Alarms
Exporting the Alarm List to CSV
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 203
Exporting the Alarm List to CSV
Follow these steps to export the alarm list to a CSV file.
1Go to Monitor > All Alarms.
2Click the Export CSV button in the content area.
3Check the default download folder of your web browser and look for a file named
alarms.csv.
4Use a spreadsheet application (for example, Microsoft™ Excel™) to view the
contents of the CSV file.
You have completed exporting the alarm list to CSV.
Acknowledged On Date and time when you or another administrator acknowledge the
alarm
Cleared By If the alarm has been cleared, this shows the name of the
administrator who cleared the alarm.
Cleared On If the alarm has been cleared, this shows the date and time when
the alarm was cleared.
Comments If the alarm was cleared manually, this shows the comment entered
by the administrator who cleared the alarm. If the alarm was cleared
automatically, shows Auto Cleared.
Activity Displays additional details about the alarm, including (if available)
the specific access point, control plane, or data plane that triggered
the alarm
Actions Icons for actions that you can perform, including:
• – Click this to take ownership of issue. Acknowledging an
alarm lets other administrators know that someone is already
looking into the issue.
• – Click this to clear the alarm. You may clear an alarm to let
other administrators know that you have already resolved the
issue. When you click this icon, a text box appears where you
can enter comments or notes about the resolved issue. Click
Clear when done.
Table 10. Alarm details (Continued)
Column Name Description
![](asset-d7.png)
Viewing All Events
Clearing Alarms
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 204
Clearing Alarms
Clearing an alarm removes the alarm from the list but keeps it on the controller’s
database. Do one of the following to clear a single alarm or multiple alarms.
• To clear a single alarm, select the check box that is in the same row as the alarm,
and then click Clear Alarm. Alternatively, click the icon.
• To clear multiple alarms, select the check boxes for the alarm that you want to
clear, and then click Clear Alarm.
• To clear all alarms that are currently displayed on the page, click the check box
before the Date and Time column, and then click Clear Alarm.
Acknowledging Alarms
Acknowledging an alarm lets other administrators know that you have examined
the alarm. After you acknowledge an alarm, it will remain on the list of alarms and
will show the date and time that you acknowledged it. Do one of the following to
acknowledge a single alarm or multiple alarms.
• To acknowledge a single alarm, select the check box that is in the same row as
the alarm, and then click Acknowledge Alarm. Alternatively, click the icon.
• To acknowledge multiple alarms, select the check boxes for the alarm that you
want to clear, and then click Acknowledge Alarm.
• To acknowledge all alarms that are currently displayed on the page, click the
check box before the Date and Time column, and then click Acknowledge
Alarm.
Viewing All Events
An event is an occurrence or the detection of certain conditions in and around the
network. An AP being rebooted, an AP changing its IP address, and a user updating
an AP’s configuration are all examples of events.
NOTE: Events that require your attention are called alarms. For information on
alarms, refer to Viewing All Alarms.
Follow these steps to view recent events that have been detected by the controller.
Go to Monitor > All Events. The All Events page appears and displays the 20 most
recent events that have occurred.
![](asset-d8.png)
Viewing All Events
Acknowledging Alarms
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 205
NOTE: By default, the Events page displays up to 20 event entries per page. You
can change the number of events to display per page by selecting a number in
Show. Options range from 10 to 250 entries per page. Alternatively, you can click
the >> (next) link to display the next 20 events on another page.
Figure 103. The All Events page lists the most recent events that have occurred
Tab l e 1 1 lists the event details that are displayed on the Events page.
Table 11. Event details
Column Name Description
Date and Time Date and time when the event occurred
Code Event code (see the Alarm and Event Reference Guide for your
controller platform for more information)
Event Type Type of event that occurred (for example, AP configuration
updated)
![](asset-d9.png)
Viewing All Events
Exporting the Event List to CSV
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 206
Exporting the Event List to CSV
Follow these steps to export the event list to a CSV file.
1Go to Monitor > All Events.
2Click the Export CSV button in the content area.
3Check the default download folder of your web browser and look for a file named
events.csv.
4Use a spreadsheet application (for example, Microsoft™ Excel™) to view the
contents of the CSV file.
You have completed exporting the event list to CSV.
Severity Severity level assigned to the event. Possible values include (from
most severe to least severe):
• Critical
• Major
• Minor
•Warning
• Information
Activity Displays additional details about the event, including (if available)
the specific access point, control plane, or data plane that triggered
the event
Table 11. Event details
Column Name Description
![](asset-da.png)
Monitoring Administrator Activities
Exporting the Event List to CSV
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 207
Monitoring Administrator Activities
The controller keeps a record of all actions and configuration changes that admin-
istrators perform on the server. This feature enables you and other administrators
in the organization to determine what changes were made to the controller and by
whom.
Follow these steps to view a record of actions that were performed by administra-
tors.
Go to Monitor > Administrator Activities. The Administrator Activities page displays
the 20 most recent administrator actions.
NOTE: By default, the Administrator Activities page displays up to 20 administrator
actions per page. You can change the number of administrator actions to display
per page by selecting a number in Show. Options range from 10 to 250 entries per
page. Alternatively, you can click the >> (next) link to display the next 20
administrator actions on another page.

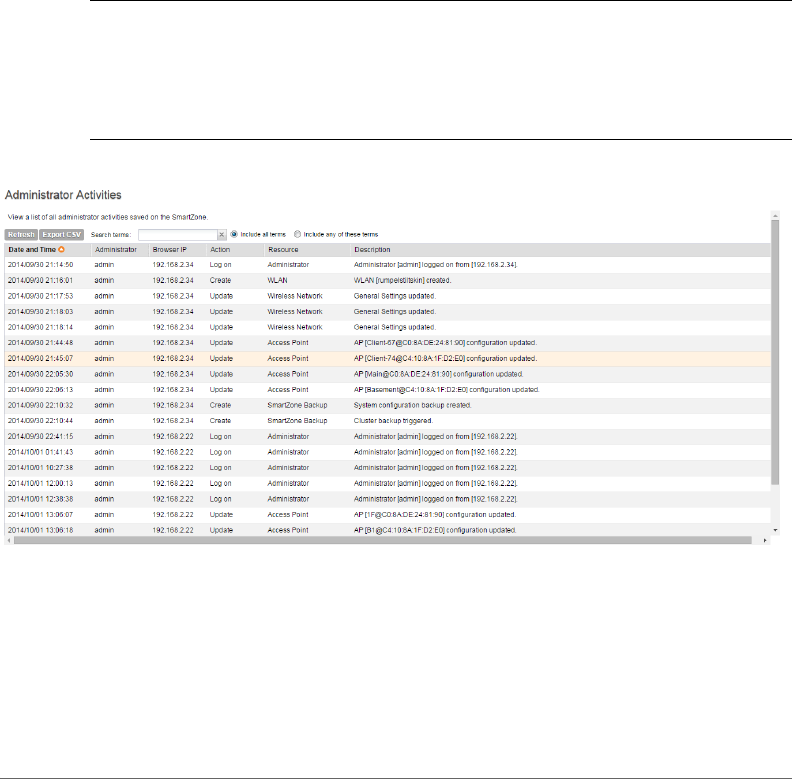

Figure 104. The Administrator Activities page displays the most recent administrator actions
![](asset-db.png)
Monitoring Administrator Activities
Exporting the Administrator Activity List to CSV
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 208
Tab l e 1 2 lists the administrator activity details that are displayed on the Administrator
Activities page.
Exporting the Administrator Activity List to CSV
Follow these steps to export the administrator activity list to a CSV file.
1Go to Monitor > Administrator Activities.
2Click the Export CSV button in the content area.
3Check the default download folder for your web browser and look for a file named
audits.csv.
4Use a spreadsheet application (for example, Microsoft™ Excel™) to view the
contents of the CSV file.
You have completed exporting the administrator activity list to CSV.
Table 12. Administrator activity details
Column Name Description
Date and Time Date and time when the alarm was triggered
Administrator Name of the administrator who performed the action
Browser IP IP address of the browser that the administrator used to log on to
the controller
Action Action performed by the administrator
Resource Target of the action performed by the administrator. For example,
if the action is Create and the object is Hotspot Service,
this means that the administrator created a new hotspot portal.
Description Displays additional details about the action. For example, if the
administrator created a new hotspot portal, this column may show
the following:
Hotspot [company_hotspot] created
![](asset-dc.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 209
7
Working with Reports
In this chapter:
•Types of Reports
•Creating a New Report
•Viewing a List of Existing Reports
•Deleting a Report
Type s of Rep ort s
The controller provides the following types of reports:
•Client Number Report
•Client Number vs Airtime Report
•Continuously Disconnected APs Report
•Failed Client Associations Report
•New Client Associations Report
•System Resource Utilization Report
•TX/RX Bytes Report
NOTE: If you download a CSV report created by SCG, the file naming convention
is as follows:
<report type>-YYYY-MM-DD_HH-MM-SS-MS_ZZ
where:
MS stands for three-digit milliseconds.
ZZ is a random number to avoid the file name conflict when a user subscribes to
several reports but based on the same filter. ZZ ranges between 00-99.
For example: New_Client-2015-11-17_08-00-16-031_59.csv
![](asset-dd.png)
Types of Reports
Client Number Report
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 210
Client Number Report
The Client Number report shows a historical view of the maximum and minimum
number of clients connect to the system. Client number can be shown in different
time intervals for a specified duration. The report can be generated based on a
specific AP, SSID, or radio.
Client Number vs Airtime Report
The Client Number vs Airtime report shows a historical view of the average number
of clients connected to the system and the corresponding airtime (TX, RX, Busy).
Client number and airtime can be shown in different time intervals for a specified
duration. The report can be generated based on a specific AP or radio.
Continuously Disconnected APs Report
The Continuously Disconnected APs report shows a list of access points discon-
nected within the specified time range.
Failed Client Associations Report
The Failed Client Associations report shows a historical view of the number of failed
client associations. Failed client associations can be shown in different time intervals
for a specified duration. The report can be generated based on a specific AP, SSID,
or radio.
New Client Associations Report
The New Client Associations report shows a historical view of the number of new
client associations. New client Associations can be shown in different time intervals
for a specified duration. The report can be generated based on a specific AP, SSID,
or radio.
System Resource Utilization Report
The System Resource Utilization report shows a historical view of the CPU and
memory usage of the system. The CPU and memory usage can be shown in different
time intervals for a specific duration. The report can be generated based on specific
plane.
![](asset-de.png)
Types of Reports
TX/RX Bytes Report
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 211
TX/RX Bytes Report
The TX/RX Bytes report shows a historical view of the transmitted (TX) and received
(RX) bytes of the system. The transmitted and received bytes can be shown in
different time intervals for a specified duration. The report can be generated based
on a specific AP, SSID or radio.
![](asset-df.png)
Creating a New Report
Step 1: Define the General Report Details
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 212
Creating a New Report
Follow these steps to create a new report.
1On the Saved Reports List page, click Create New. The Create New Report
form appears.
2Complete the following steps to create a new report:
Step 1: Define the General Report Details
Step 2: Define the Resource Filter Criteria
Step 3: Define the Time Filter
Step 4: Define the Report Generation Schedule
Step 5: Enable Email Notifications (Optional)
Step 7: Save the Report
Step 1: Define the General Report Details
Configure the following options in the General Information section.
•Title: Type a name for the report that you are creating.
•Description: Type a brief description for the report.
•Report Type: Select the type of report that you want to create. For detailed
description of the various report types, refer to Types of Reports.
•Output Format: Select the format in which the controller will generate the report.
You can select one or both of the following check boxes:
•CSV: A comma-separated version of the report. You will need a spreadsheet
application (for example, Microsoft™ Excel™) to view the report in CSV
format.
•PDF: A portable document format version of the report. You will need a PDF
reader (for example, Adobe™ Acrobat™) to view the report in PDF.
Continue to Step 2: Define the Resource Filter Criteria.
![](asset-e0.png)
Creating a New Report
Step 2: Define the Resource Filter Criteria
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 213

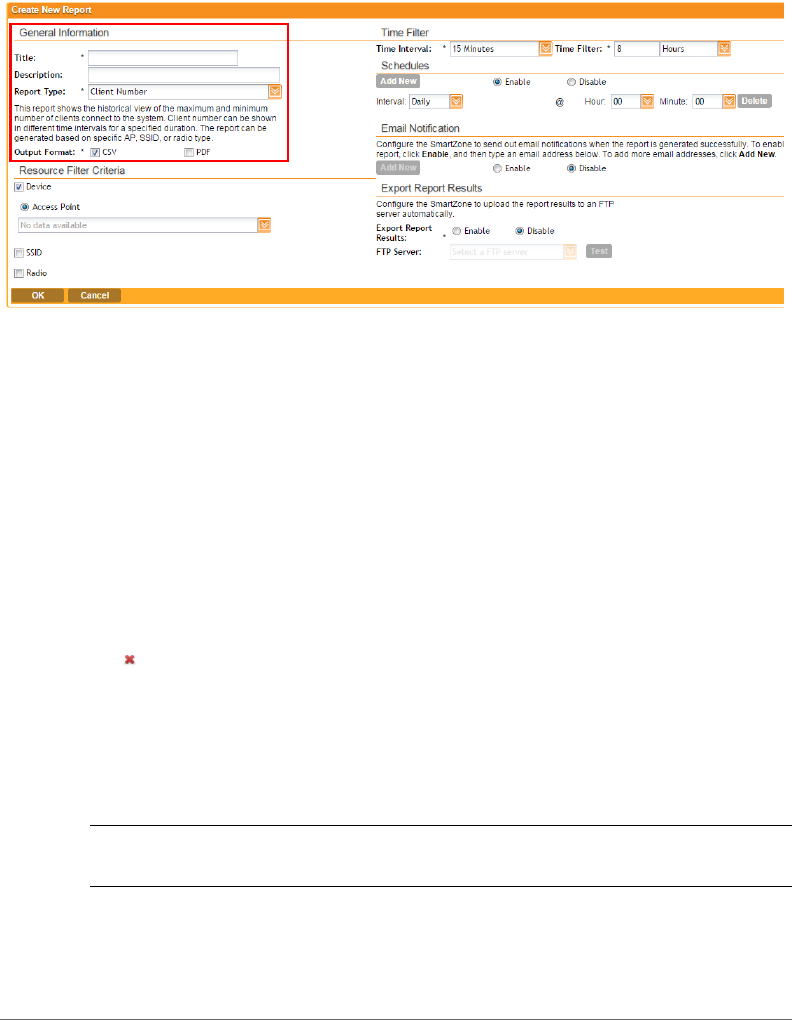

Figure 105. The General Information section
Step 2: Define the Resource Filter Criteria
In this step, you will define the resources upon which the report that you are creating
will be generated. Configure the following options in the Resource Filter Criteria
section.
•Device: Select one of the following device resources:
•Access Point: If you base the report upon this device resource, you must
select the name of the specific access point from the drop-down list. You
can only select one access point to include in the report.
•SSID: Select the SSID or SSIDs that you want to include in the report. If you
want to include multiple SSIDs in the report, select the SSIDs from the drop-
down list one at a time. To delete an SSID that you selected previously, click the
icon next to the SSID.
If you do not select an SSID, all existing SSIDs that belong to the device resource
you selected in Device will be included in the report.
•Radio: Select the radio (2.4G or 5G) that you want to include in the report. If you
do not select a radio, both 2.4G and 5G radios belong to the device resource
you selected in Device will be included in the report.
NOTE: You must select at least one resource. You can also select and define all
three available resources.
Continue to Step 3: Define the Time Filter.
![](asset-e1.png)
Creating a New Report
Step 3: Define the Time Filter
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 214

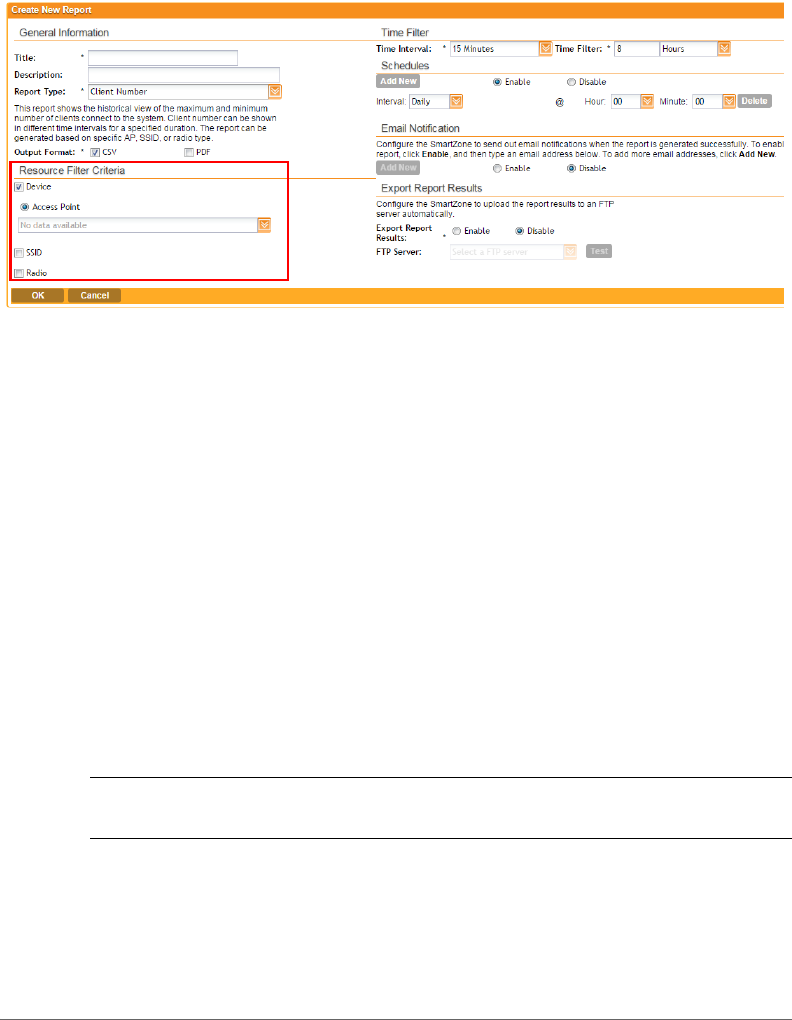

Figure 106. The Resource Filter Criteria section
Step 3: Define the Time Filter
In this step, you will define the time filter to use when generating the report. Configure
the following options in the Time Filter section.
•Time Interval: Select the interval at which to generate the report. Available time
interval options include:
•15 Minutes
•Hourly
• Daily
•Monthly
•Time Filter: Select the time or date period for which to generate the report.
Depending on the time interval that you set above, available periods include:
•Hours
•Days
•Months
NOTE: The controller uses this time interval-time filter combination to determine the
period from which to generate the report and how often to generate it.
Continue to Step 4: Define the Report Generation Schedule.
![](asset-e2.png)
Creating a New Report
Step 4: Define the Report Generation Schedule
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 215

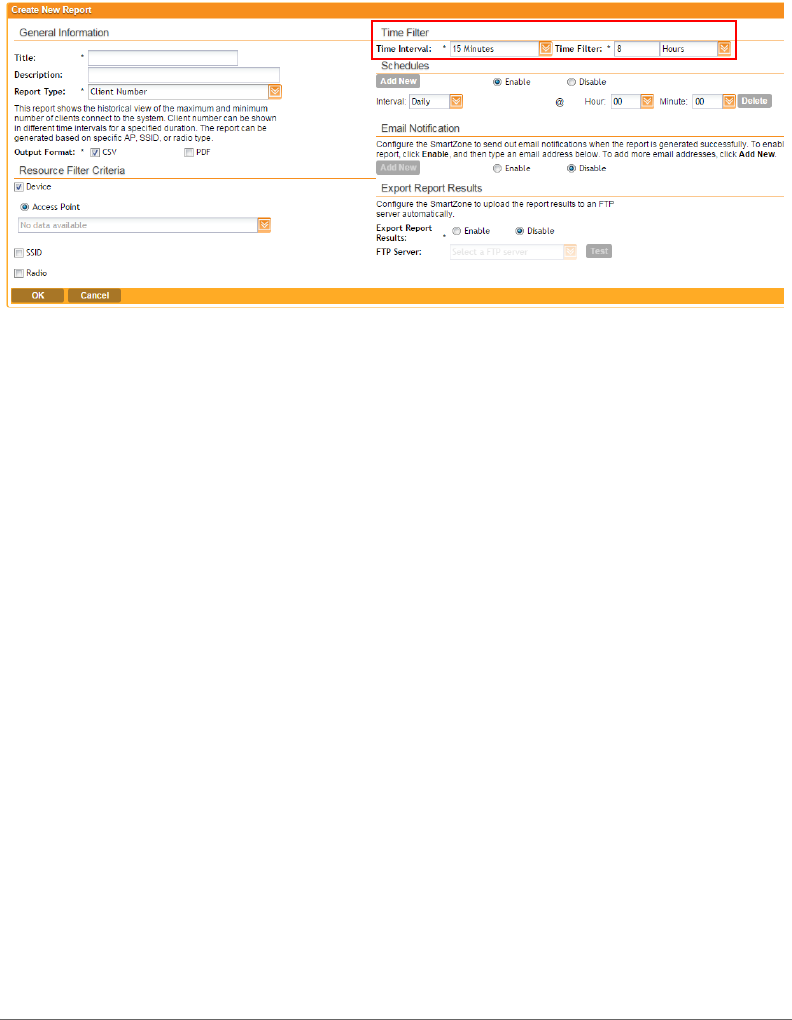

Figure 107. The Time Filter section
Step 4: Define the Report Generation Schedule
In this step, you will define the report generation schedule. Configure the following
options in the Schedules section.
1In the Schedules section, click Add New.
2In Interval, select one of the following time intervals:
•Monthly: If you select this interval, select the day of the month in Every when
the controller will generate the report.
•Weekly: If you select this interval, select the day of the week in Every when
the controller will generate the report.
• Daily
•Hourly
3In @Hour (except when Hourly interval is selected above), select the hour of the
day when the controller will generate the report. The controller uses the 24-hour
clock format.
4In Minute, select the minute of the hour when the controller will generate the
report. This minute setting will be used in conjunction with the hour setting that
you selected above (except when Hourly interval is selected).
5If you want to add more schedules, click the Add New button again, and then
repeat steps 2-4. You can create as many schedules as required. Schedules
may overlap if needed.
6Continue to Step 5: Enable Email Notifications (Optional).
![](asset-e3.png)
Creating a New Report
Step 5: Enable Email Notifications (Optional)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 216
Figure 108. The Time Filter section
Step 5: Enable Email Notifications (Optional)
In this optional step, you can configure the controller to send email notifications
whenever a report has been generated. Configure the following in the Email
Notification section.
NOTE: Make sure you configure the SMTP settings (see Configuring an External
Email Server). If the SMTP settings are not configured, the controller will be unable
to send out email notifications even if you enable this feature in this section.
1In the Email Notification section, click the Enable button.
2In the text box below, type the email address to which to send the notification.
3To add another email address, click Add New, and then type the second email
address in the text box that appears.
NOTE: You can add as many email addresses as needed by clicking the Add New
button, and then typing an additional email address. Note, though, that you must
only type a single email address in each text box.
4Continue to Step 6: Export the Report to an FTP Server (Optional).
![](asset-e4.png)
Creating a New Report
Step 6: Export the Report to an FTP Server (Optional)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 217
Figure 109. The Email Notification section
Step 6: Export the Report to an FTP Server (Optional)
In this optional step, you can configure the controller to automatically upload a copy
of a report to an external FTP server whenever it is generated. Configure the following
in the Export Report Results section.
1In Export Report Results, click Enable.
2In FTP Server, select the FTP server to which you want to automatically export
the reports. The FTP server options that appear here are those that you created
in Configuring External FTP Servers.
3Continue to Step 7: Save the Report
Figure 110. The Email Notification section
![](asset-e5.png)
Viewing a List of Existing Reports
Step 7: Save the Report
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 218
Step 7: Save the Report
After you complete steps 1 through 5, review the settings that you have configured
to make sure they are correct. To save the report, click OK at the bottom of the
page. The page refreshes, and the report that you created appears in the Saved
Report List page.
You have completed creating a report.
Viewing a List of Existing Reports
Follow these steps to view a list of reports that have been configured.
Go to Report > Saved Reports. The Saved Report List page appears, displaying
a summary of all reports that have been configured. Summary details include:
•Title
• Description
• Report Template
• Time Filter
• Resource Filter
• Schedule
• Status
• Actions that you can perform
To view a report, click the icon that is in the same row as the report name. The
Report Result page appears, displaying versions of the report that have been
generated based on the time interval defined in the report schedule. To download
and view a comma-separated value (CSV) version of the report, click the CSV link
that is in the same row as the version that you want to view.
Deleting a Report
Follow these steps to delete an existing report.
1Go to Report > Saved Reports. The Saved Report List page appears, displaying
a summary of all reports that have been configured.
2From the list of reports, locate the report that you want to delete.
3Once you locate the report, click the icon that is under the Actions column.
A confirmation message appears.
![](asset-e6.png)
Deleting a Report
Step 7: Save the Report
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 219
4Click OK. The list of reports refreshes, and then the report that you deleted
disappears from the list.
You have completed deleting a report.
![](asset-e7.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 220
8
Performing Administrative Tasks
In this chapter:
•Backing Up and Restoring Clusters
•Backing Up and Restoring the Controller’s Network Configuration from an FTP
Server
•Backing Up and Restoring System Configuration
•Resetting a Node to Factory Settings
•Upgrading the Controller
•Working with Logs
•Managing Licenses
Backing Up and Restoring Clusters
Back up the controller cluster periodically to ensure that you can restore the control
plane, data plane, and AP firmware versions as well as the system configuration in
the cluster if is a system failure occurs.
This section covers the following topics:
•Creating a Cluster Backup
•Restoring a Cluster Backup
•Deleting a Cluster Backup
NOTE: If you are managing an SZ-100, you can also perform these procedures
from the command line interface. Note, however, that you will need to execute the
commands on each node. For more information, see the SmartZone 100 Command
Line Interface Reference Guide.
![](asset-e8.png)
Backing Up and Restoring Clusters
Creating a Cluster Backup
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 221
Creating a Cluster Backup
Follow these steps to back up an entire controller cluster.
1Take note of the current system time. You can view the system time on the
Configuration > System > System Time.
2Go to Administration > Cluster Backup & Restore.
3Click Back Up Entire Cluster. A confirmation message appears.
4Click Yes to confirm. The following message appears:
The cluster is in maintenance mode. Please wait a few
minutes.
When the cluster backup process is complete, a new entry appears in the Cluster
Backups section with a Created On value that is approximate to the time when
you started the cluster backup process.
CAUTION! If you have an FTP server, back up the entire cluster and upload the
backup files from all the nodes in a cluster to a remote FTP server.
You have completed backing up the controller cluster.
Figure 111. A new entry appears in the Cluster Backups section
![](asset-e9.png)
Backing Up and Restoring Clusters
Restoring a Cluster Backup
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 222
Restoring a Cluster Backup
Follow these steps to restore a cluster backup.
CAUTION! You must perform the restore procedure on the exact same node where
you generated the cluster backup.
1Go to Administration > Cluster Backup & Restore.
2In the Cluster Backups section, locate the cluster backup that you want to
restore.
3Click the icon that is in the same row as the cluster backup. A confirmation
message appears.
4Click Yes. The page refreshes, and then a message appears, informing you that
the controller will reboot itself. It also show you the progress status.
NOTE: The cluster restore process may take several minutes to complete.
When the restore process is complete, the controller logs you off the web
interface automatically.
CAUTION! Do not refresh the controller web interface while the restore process is
in progress. Wait for the restore process to complete successfully.
5Log back on to the controller web interface.
NOTE: If the web interface displays the message “Cluster is out of
service. Please try again in a few minutes.” appears after you log
on to the controller web interface, wait for about three minutes. The dashboard will
appear shortly. The message appears because the controller is still initializing its
processes.
6Go to Administration > Upgrade, and then check the Current System Information
section and verify that all nodes in the cluster have been restored to the previous
version and are all in service.
7Go to Administration > Diagnostics, and then click Application Logs & Status
on the sidebar. Check the Health Status column and verify that all of the controller
processes are online (see Figure 113).
You have completed restoring the cluster backup.
![](asset-ea.png)
Backing Up and Restoring Clusters
Restoring a Cluster Backup
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 223
Figure 112. Under Actions, click the calendar icon to start the cluster restore process
Figure 113. After the upgrade is complete, go to the Application Logs & Status page and verify
that all of the controller processes are online
![](asset-eb.png)
Backing Up and Restoring the Controller’s Network Configuration from an FTP Server
Deleting a Cluster Backup
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 224
Deleting a Cluster Backup
Follow these steps to delete a cluster backup.
1Go to Administration > Cluster Backup and Restore.
2In the Cluster Backups section, locate the cluster backup that you want to delete.
3Click the icon that is in the same row as the cluster backup. The following
confirmation message appears:
Are you sure you want to delete the selected resource?
4Click Yes . The page refreshes and the row is deleted from the Cluster Backups
list.
Backing Up and Restoring the Controller’s
Network Configuration from an FTP Server
In addition to backing up and restoring the controller’s network configuration from
its own database, the controller supports backup and restore of its network
configuration from an FTP server using the CLI. This section describes the require-
ments for backing up and restoring the controller network configuration from an
FTP server, the information that is included in the backup file, and how to perform
the backup and restore process.
Requirements
To back up and restore the controller network configuration from an FTP server, the
controller must have already been set up and in service. In case of a multi-node
cluster, all the nodes in the cluster must be in service.
Backing Up to an FTP Server
Follow these steps to back up the controller network configuration to an FTP server.
1Log on to the controller from the CLI. See Accessing the Command Line Interface
for more information.
2At the prompt, enter en to enable privileged mode.
![](asset-ec.png)
Backing Up and Restoring the Controller’s Network Configuration from an FTP Server
Backing Up to an FTP Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 225

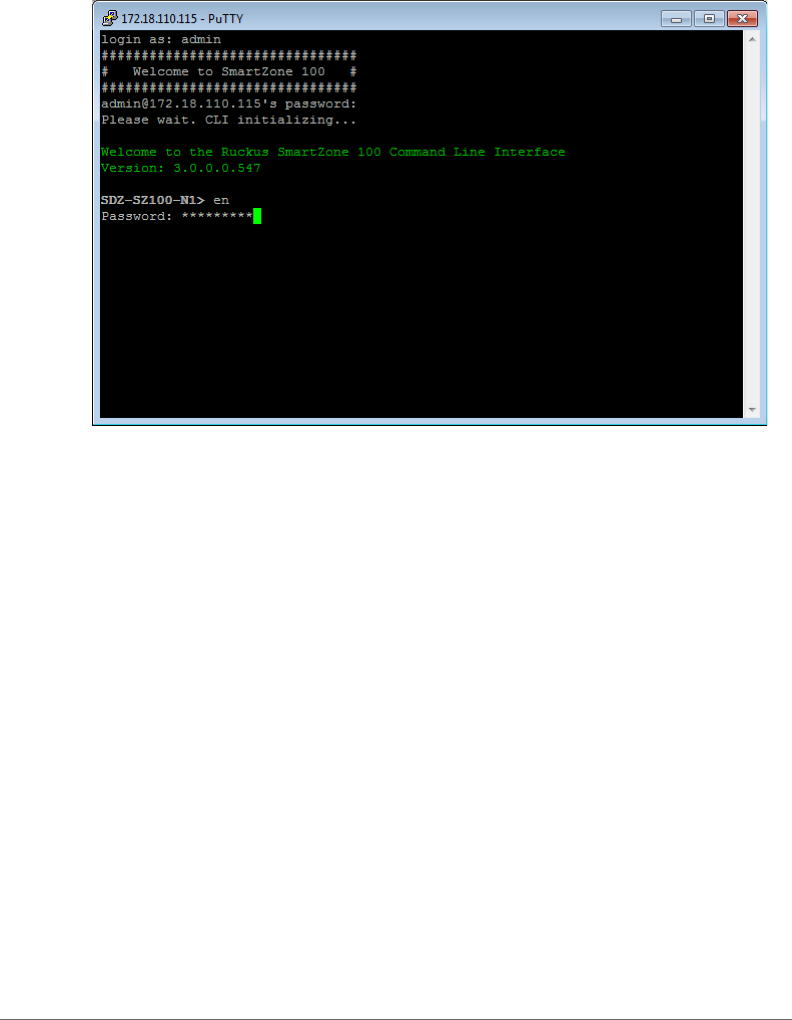

Figure 114. Enable privileged mode
3Enter show cluster-state to display the statuses of the node and the
cluster. Before continuing to the next step, verify that both the node and the
cluster are in service.
![](asset-ed.png)
Backing Up and Restoring the Controller’s Network Configuration from an FTP Server
Backing Up to an FTP Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 226

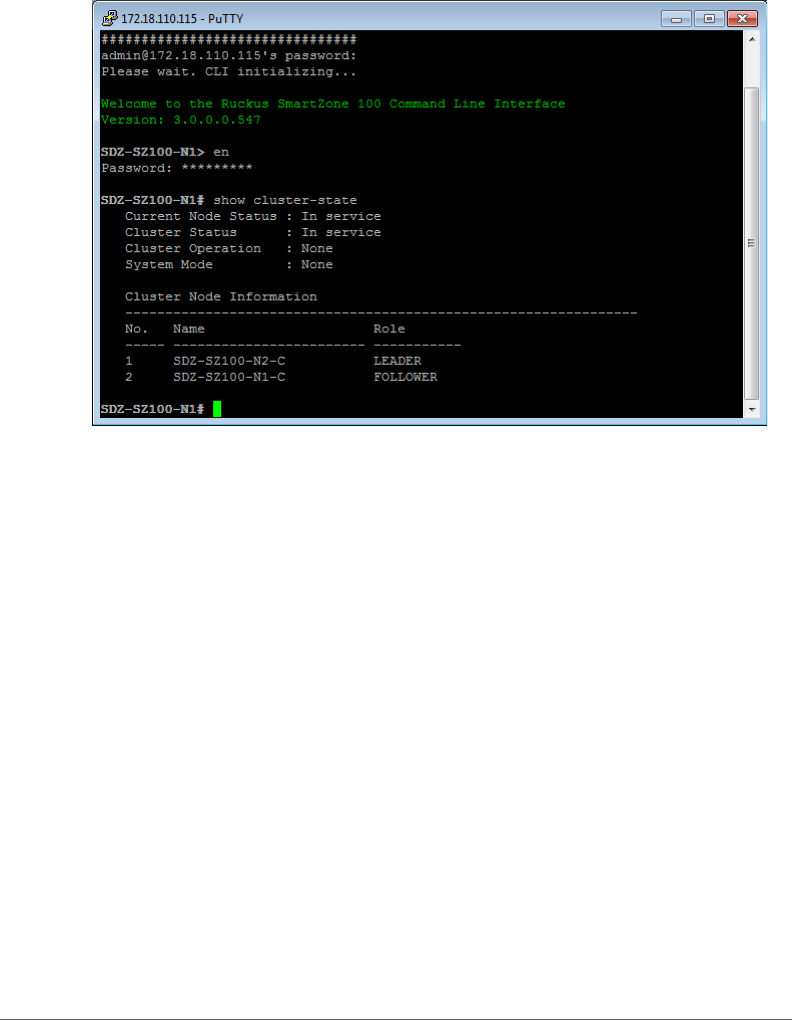

Figure 115. Verify that both the node and the cluster are in service
4Enter backup network to back up the controller network configuration. A
confirmation message appears.
5Enter yes to confirm. The controller creates a backup of its network
configuration on its database.
![](asset-ee.png)
Backing Up and Restoring the Controller’s Network Configuration from an FTP Server
Backing Up to an FTP Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 227

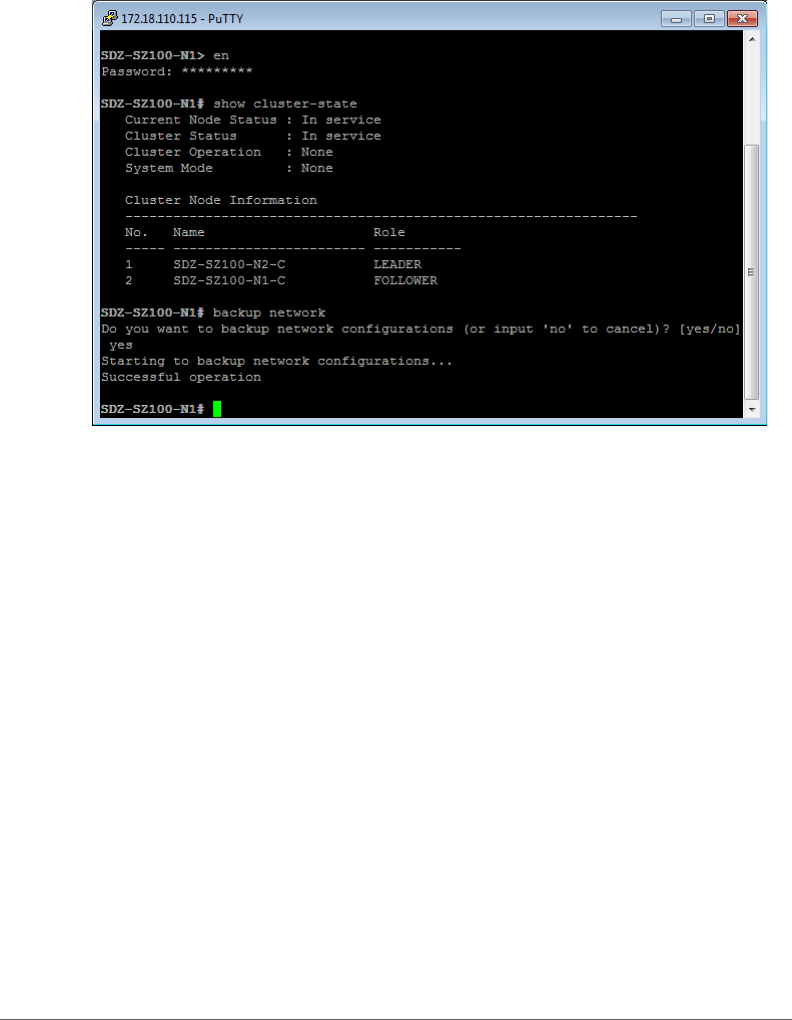

Figure 116. Enter yes to confirm that you want to back up the controller configuration
6Enter show backup-network to view a list of backup files that have been
created. Verify that the Created On column displays an entry that has a time
stamp that is approximate to the time you started the backup.
![](asset-ef.png)
Backing Up and Restoring the Controller’s Network Configuration from an FTP Server
Backing Up to an FTP Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 228

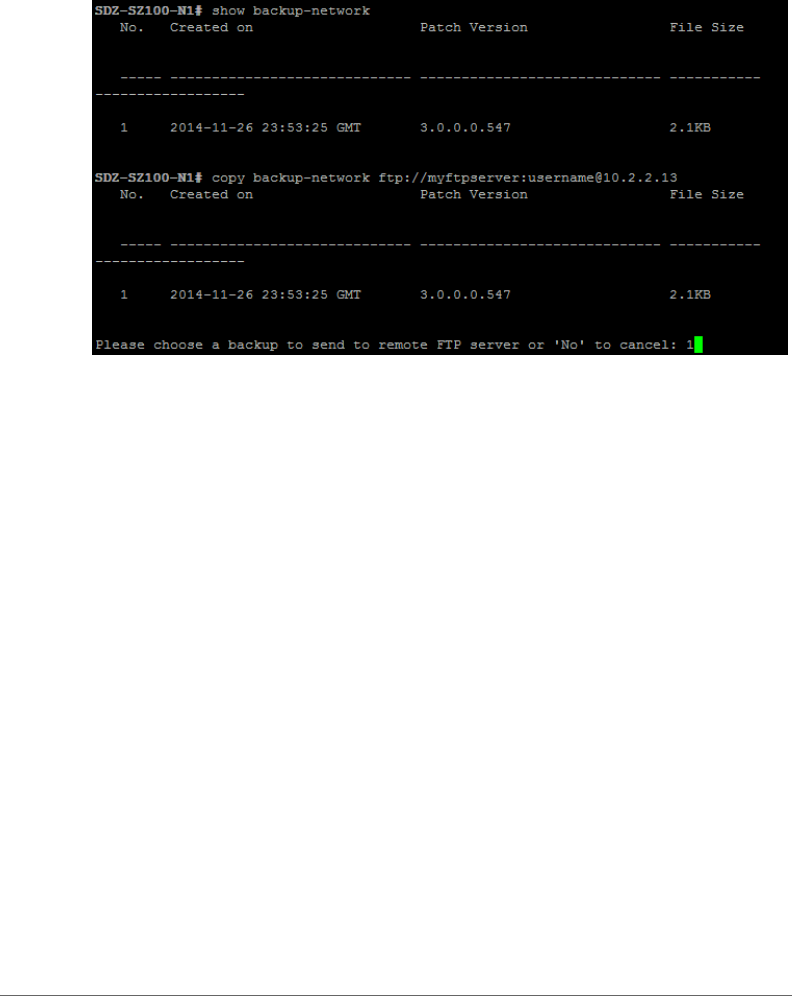

Figure 117. Enter the “show backup-network” command
7Enter copy backup-network {ftp-url}, where {ftp-url} (remove the
braces) is the URL or IP address of the FTP server to which you want to back
up the cluster configuration.
The console prompts you to choose the number that corresponds to the backup
file that you want to export to the FTP server.
8Enter the number of the backup file that you want to export to the FTP server.
![](asset-f0.png)
Backing Up and Restoring the Controller’s Network Configuration from an FTP Server
Backing Up to an FTP Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 229
Figure 118. Enter the number that corresponds to the backup file that you want to export to
the FTP server
The controller encrypts the backup file, and then exports it to the FTP server.
When the export process is complete, the following message appears on the
CLI:
Succeed to copy to remote FTP server
Successful operation
9Using an FTP client, log on to the FTP server, and then verify that the backup file
exists. The file format of the backup file is
network_<YYYYMMDDHHmmss>_<controller-version>.bak.
For example, if you created the backup file on October 24th 2013 at 02:40:22
and the controller version is 2.5.0.0.402, you should see a file named
network_20131024024022_2.5.0.0.402.bak
on the FTP server.
You have completed backing up the controller to an FTP server.
![](asset-f1.png)
Backing Up and Restoring the Controller’s Network Configuration from an FTP Server
Restoring from an FTP Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 230
Restoring from an FTP Server
Before you continue, take note of the following limitations with restoring a backup
file of the controller’s network configuration from an FTP server:
• In this current release, restoring the entire cluster from an FTP server is unsup-
ported. The restore process must be performed on one node at a time.
• Restoring from an FTP server can only be performed using the CLI.
CAUTION! Restoring a backup file to the controller requires restarting all of the
controller services.
Follow these steps to restore a backup file of the controller network configuration
that you previously uploaded to an FTP back to the controller.
1Log on to the controller from the CLI. See Accessing the Command Line Interface
for more information.
2At the prompt, enter en to enable privileged mode.
Figure 119. Enable privileged mode
3Enter show cluster-state to display the statuses of the node and the
cluster. Before continuing to the next step, verify that both the node and the
cluster are in service.
Figure 120. Verify that both the node and the cluster are in service
4Enter the following command to log on to the FTP server and check for available
backup files that can be copied to the controller:
copy <ftp-url> backup-network
5If multiple backup files exist on the FTP server, the CLI prompts you to select the
number that corresponds to the file that you want to copy back to the controller.
If a single backup file exists, the CLI prompts you to confirm that you want to
copy the existing backup file to the controller.
![](asset-f2.png)
Backing Up and Restoring the Controller’s Network Configuration from an FTP Server
Restoring from an FTP Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 231
When the controller finishes copying the selected backup file from the FTP server
back to the controller, the following message appears:
Succeed to copy the chosen file from the remote FTP server
6Enter show backup-network to verify that the backup file was copied back
to the controller successfully.

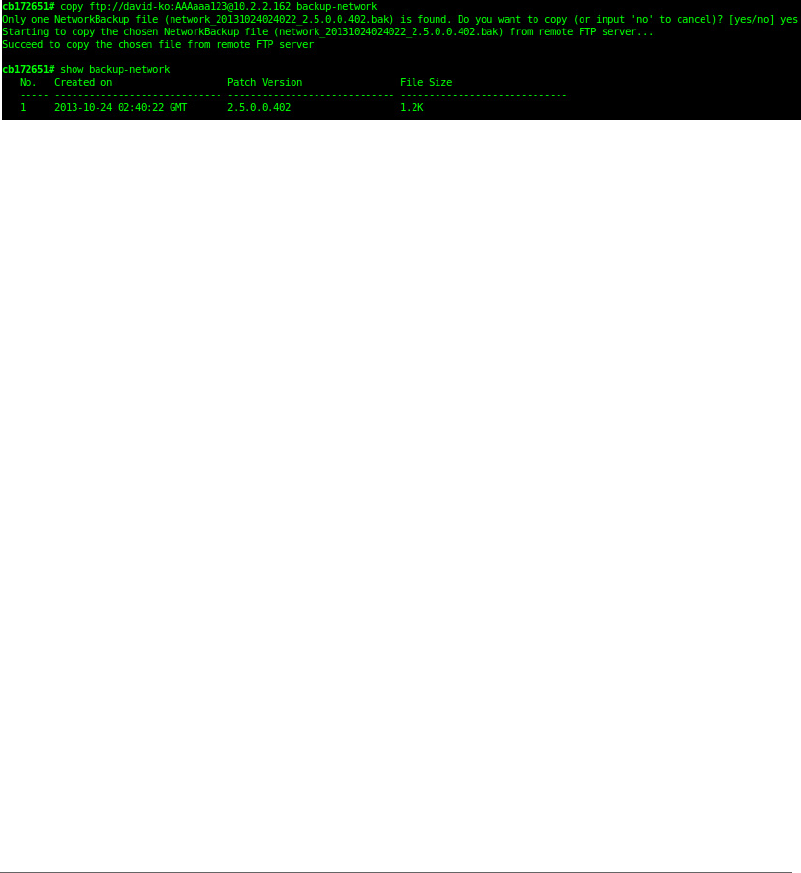

Figure 121. Verify that the backup file was copied to the controller successfully
7Run restore network to start restoring the contents of the backup file to
the current controller. The CLI displays a list of backup files, and then prompts
you to select the backup file that you want to restore to the controller.
8Enter the number that corresponds to the backup file that you want to restore.
The CLI displays the network configuration that the selected backup file contains.
If the serial number of the current controller matches the serial number contained
in one of the backup files, the CLI automatically selects the backup file to restore
and displays the network configuration that it contains.
![](asset-f3.png)
Backing Up and Restoring the Controller’s Network Configuration from an FTP Server
Restoring from an FTP Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 232

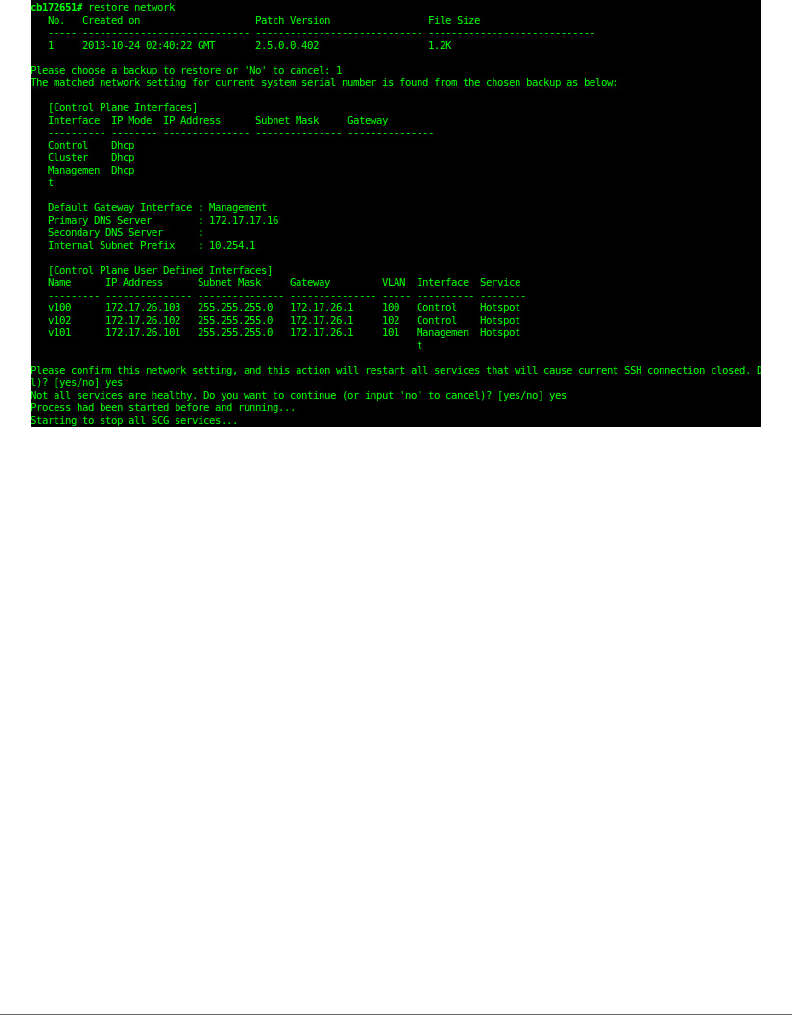

Figure 122. Enter the number that corresponds to the backup file that you want to restore
9Typ e yes to confirm that you want to restore the selected backup file. The
controller starts the restore process and performs the following steps:
aStop all services.
bBack up the current network configuration. This will enable the controller to
roll back to the current configuration, in case there is an issue with the restore
process.
cClean up the current network configuration. The controller deletes its previous
network configuration, including static routes, name server, user defined
interfaces, etc.
dRestore the network configuration contained in the selected backup file.
eRestart all services.
When the restore process is complete, the following message appears on the
CLI:
All services are up!
![](asset-f4.png)
Backing Up and Restoring the Controller’s Network Configuration from an FTP Server
Restoring from an FTP Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 233

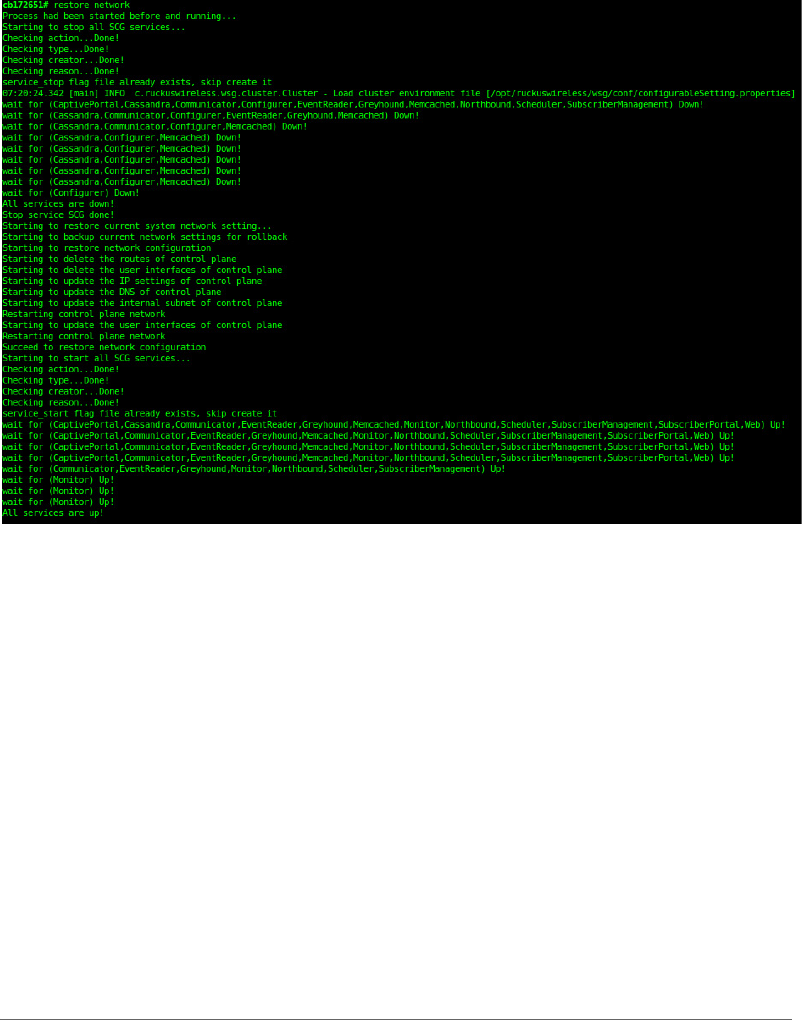

Figure 123. The controller performs several steps to restore the backup file
10 Do the following to verify that the restore process was completed successfully:
•Run show cluster-state to verify that the node and the cluster are back
in service.
•Run show interface to verify that all of the network configuration settings
have been restored.
![](asset-f5.png)
Backing Up and Restoring the Controller’s Network Configuration from an FTP Server
Restoring from an FTP Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 234

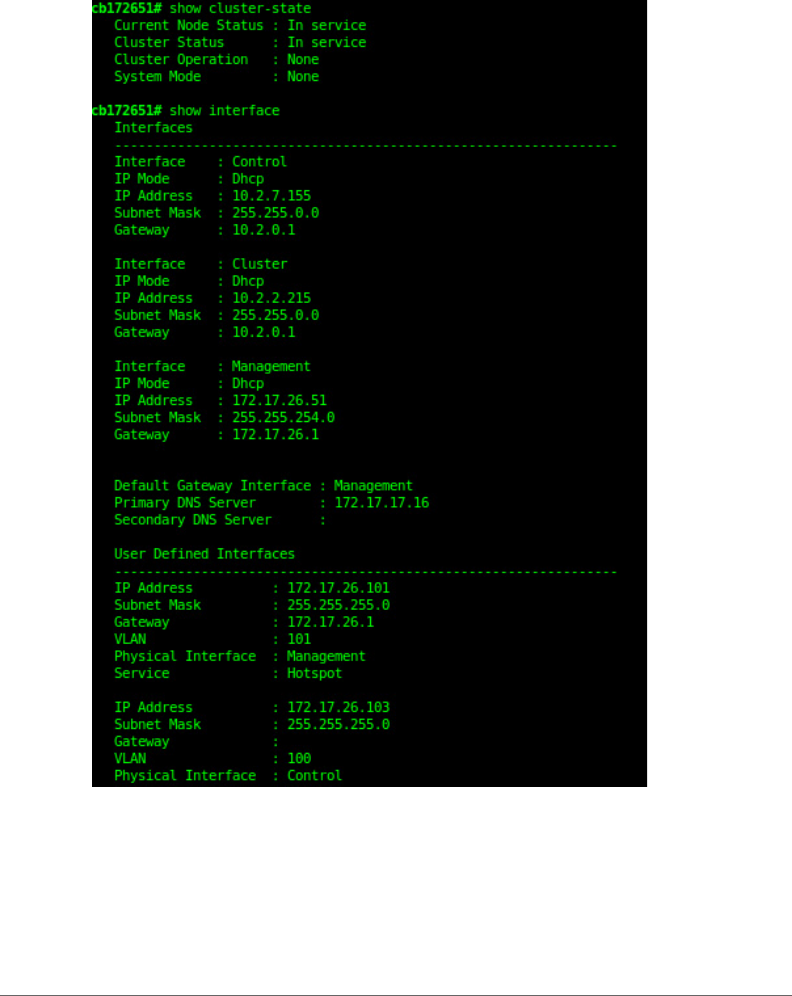

Figure 124. Verify that the node and cluster are back in service and that the network
configuration has been restored successfully
You have completed importing and applying the network configuration backup from
the FTP server to the controller.
![](asset-f6.png)
Backing Up and Restoring System Configuration
Restoring from an FTP Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 235
Backing Up and Restoring System
Configuration
Ruckus Wireless strongly recommends that you back up the controller database
periodically. This will help ensure that you can restore the system configuration
settings easily if the database becomes corrupted for any reason.
Tab l e 1 3 lists the information that is included in the system configuration backup file.
CAUTION! A system configuration backup does not include control plane settings
and user-defined interface settings.
NOTE: If you are managing an SZ-100, you can also perform system configuration
backup and restore from the controller’s command line interface. For more
information, see the SmartZone 100 Command Line Interface Reference Guide.
Table 13. What’s backed up in the system configuration backup file
Configuration Data Administration Data Report Data Identity Data
• Services and
profiles
• System settings
• Administrator
accounts
• Cluster backups
•System
configuration
backups
• Upgrade settings
and history
• Uploaded system
diagnostic scripts
• Installed licenses
• Saved reports
• Historical client
statistics
• Network tunnel
statistics
• Created user
accounts
• Generated guest
passes
![](asset-f7.png)
Backing Up and Restoring System Configuration
Creating a System Configuration Backup
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 236
Creating a System Configuration Backup
Follow these steps to create a backup of the controller database.
1Go to Administration > Configuration Backup and Restore.
2Click Back Up Configuration. The following confirmation message appears:
Are you sure you want to backup the controller’s config-
uration?
3Click OK. A progress bar appears as the controller creates a backup of the its
database.
When the backup process is complete, the progress bar disappears, and the
Configuration Backup Status section appears and shows the following information:
•Latest backup started: Date and time when configuration backup was initiated
•Finished at: Date and time when configuration backup was completed
•Status: Shows either Successful or Failed
• Progress Status: Shows the current status of the backup process
The backup file appears under the System Configuration Backups section.
Exporting the Configuration Backup to an FTP Server
Automatically
In addition to backing up the configuration file manually, you can configure the
controller to export the configuration file to an FTP server automatically whenever
you click Back Up Configuration.
Follow these steps to back up the configuration file to an FTP server automatically.
1Go to Administration > System Configuration Backup and Restore.
2Go to the Auto Export Backup section.
3In Auto Export Backup, click Enable.
4In FTP Server, select the FTP server to which you want to export the backup file.
The FTP server options that appear here are those that you created in
“Configuring External FTP Servers” on page 151.
5Click Te st . The controller attempts to establish connection to the FTP server
using the user name and password that you supplied. If the connection attempt
is successful, the following message appears:
FTP server connection established successfully.
![](asset-f8.png)
Backing Up and Restoring System Configuration
Scheduling a Configuration Backup
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 237
If the connection attempt is unsuccessful, verify that the FTP server details
(including the user name and password) are correct, and then click Test again.
6After you verify the controller is able to connect to the FTP server successfully,
click Apply to save the FTP server settings.
You have completed configuring the controller to export the configuration backup
file to an FTP server. When you click the Back Up Configuration button (see
Creating a System Configuration Backup), a copy of the configuration backup will
be uploaded to the FTP server automatically.
Scheduling a Configuration Backup
You also have the option to configure the controller to backup its configuration
automatically based on a schedule you specify. Follow these steps to schedule a
configuration backup.
1Go to Administration > Configuration Backup and Restore.
2Scroll down to the Schedule Backup section.
3In Schedule Backup, click Enable.
4In Interval, set the schedule when the controller will automatically create a backup
of its configuration. Options include:
• Daily
• Weekly
•Monthly
5Define the schedule further by configuring the following options:
•Every: If you selected Weekly in the previous step, select the day of the week
when the controller will generate the backup. If you selected Monthly, select
the day of the month.
•Hour: Select the hour of the day when the controller will generate the backup.
•Minute: Select the minute of the hour.
6Click Apply.
You have completed configuring the controller to create a backup automatically.
When a scheduled configuration backup is generated, it appears in the System
Configuration Backups section.
![](asset-f9.png)
Backing Up and Restoring System Configuration
Downloading a Copy of the Configuration Backup
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 238

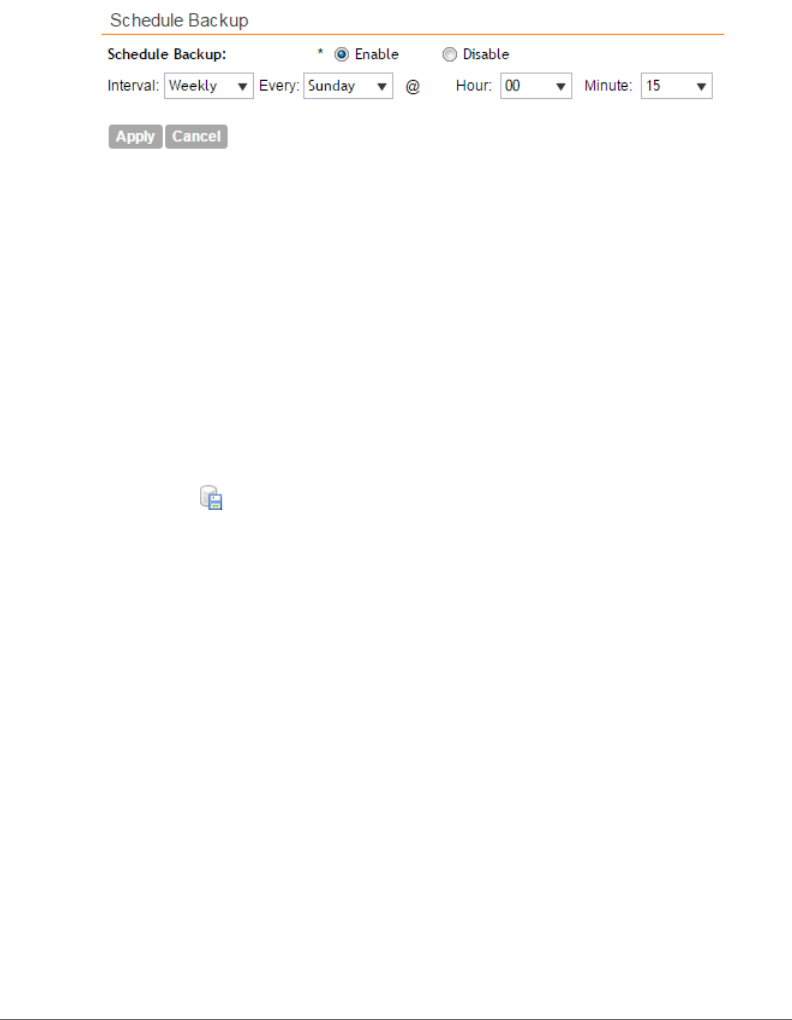

Figure 125. Configure the schedule in the Schedule Backup section
Downloading a Copy of the Configuration Backup
After you create a configuration backup, you have the option to download the
backup file from the System Configuration Backups section. Follow these steps to
download the backup file to the computer that you are using to access the controller
web interface.
1Go to Administration > System Configuration Backup and Restore.
2Scroll down to the System Configuration Backups section.
3Locate the entry for the backup file that you want to download. If multiple backup
files appear in the list, use the date when you created the backup to find the
backup entry that you want.
4Click the icon that is in the same row as the backup file that you want to
download.
Your web browser downloads the backup file to its default download folder.
5Check the default download folder for your web browser and look for a file that
resembles the following naming convention:
{Cluster Name}_Backup-
Conf_{MMdd}_db_{MM}_{dd}_{HH}_{mm}.bak
For example, if the controller cluster is named ClusterA and you created the
configuration backup on September 7 at 11:08 AM, the backup file name will be:
ClusterA_BackupConf_0907_db_09_07_11_08.bak
You have completed downloading a copy of the configuration backup.
![](asset-fa.png)
Backing Up and Restoring System Configuration
Restoring a System Configuration Backup
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 239
Restoring a System Configuration Backup
Follow these steps to restore a backup controller database.
1Go to Administration > Configuration Backup and Restore.
2In the System Configuration Backups section, locate the backup file that you
want to restore.
3Once you locate the backup file, click the icon that is in the same row as the
backup file. A confirmation message appears.
NOTE: Take note of the backup version that you are using. At the end of this
procedure, you will use the backup version to verify that the restore process was
completed successfully.
4Click Yes. The following message appears:
System is restoring. Please wait...
When the restore process is complete, the controller logs you off the web
interface automatically.
5Log on to the controller web interface.
6Check the web interface pages (for example, Configuration, Report, and Identity)
and verify that the settings and data contained in the backup file have been
restored successfully to the controller.
You have completed restoring a system configuration backup file.
Deleting a Configuration Backup
Follow these steps to delete a backup of the controller database
1Go to Administration > Configuration Backup and Restore.
2In the System Configuration Backups section, locate the backup version that
you want to delete.
3Once you locate the backup file, click the icon under the Actions column. A
confirmation message appears.
4Click Yes . The page refreshes, and the backup file that you deleted disappears
from the System Configuration Backups section.
You have completed deleting a backup file.
![](asset-fb.png)
Resetting a Node to Factory Settings
What Happens After Reset to Factory Settings
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 240
Resetting a Node to Factory Settings
You can reset a node in a cluster to factory settings by removing it from the cluster.
When you reset a node to factory settings, all of its system configuration settings
are completely erased and its IP address reverts to 192.168.2.2.
There are two methods to reset a node to factory settings:
•Using the Web Interface
•Using the CLI
CAUTION! Resetting a node to factory settings will erase all of its system
configuration settings, backup files, and cluster settings. Before resetting a node to
factory settings, Ruckus Wireless strongly recommends that you export all of the
backup files on the controller to an FTP server using either the web interface or CLI.
What Happens After Reset to Factory Settings
Before resetting a node to factory settings, consider the following notes:
• All of the system configuration settings of the node will be erased. This includes
all of the domain,, user, and system settings, as well as all of the controller
backups.
• The node will revert to its default IP address – 192.168.2.2.
• The controller software version will not be reset to its original software version
when you first set it up. It will keep the existing software version at the time you
reset it to factory settings.
Using the Web Interface
To remove a node from a cluster, it must be a follower node. If the node that you
want to remove from the cluster is the leader node, make sure you demote it to a
follower node first before continuing with this procedure.
Follow these steps to remove a node from the cluster and reset it to factory settings.
1Log on to the controller web interface of the leader node.
2Go to Configuration > System > Network Settings. The Cluster: [{Cluster Name}]
page appears.
3Locate the node that you want to reset.
4Click the icon that is in the same row as the node that you want to reset to
factory settings. A confirmation message appears.
![](asset-fc.png)
Resetting a Node to Factory Settings
Using the CLI
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 241
5Click Yes. The page refreshes, and then the node the you deleted disappears
from the Cluster: [{Cluster Name}] page.
You have completed removing a node from the cluster and resetting it to factory
settings.
NOTE: After the controller is reset to factory settings, the controller allows the data
blade interface IP address and gateway address to be on different subnets.
Using the CLI
You can also use the command line interface to remove a node from a cluster and
reset it to factory settings. See Accessing the Command Line Interface for informa-
tion on how to gain access to the CLI.
After you log on to the CLI of the node, follow these steps to reset a node to factory
settings.
1At the prompt, enter set-factory. A confirmation message appears.
Figure 126. Enter set-factory to reset the node to factory settings
2Enter yes to confirm.
3Enter reload. This command is required to trigger the factory reset process. A
confirmation message appears.
4Enter yes to confirm. The controller reboots, and then triggers the factory reset
process.
Figure 127. Enter reload to trigger the factory reset process
The controller reboots. You have completed resetting the node to factory default
settings.
![](asset-fd.png)
Upgrading the Controller
Before You Upgrade
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 242
Upgrading the Controller
Ruckus Wireless may periodically release controller software updates that contain
new features, enhancements, and fixes for known issues. These software updates
may be made available on the Ruckus Wireless support website or released through
authorized channels.
This section covers the following topics:
•Before You Upgrade
•Performing the Upgrade
•Verifying the Upgrade
•Rolling Back to a Previous Software Version
Before You Upgrade
WARNING! Please review the following points carefully before proceeding with the
upgrade procedure.
• Although the software upgrade process has been designed to preserve all
controller settings, Ruckus Wireless strongly recommends that you back up the
cluster before performing an upgrade. Having a cluster backup will ensure that
you can easily restore the system if the upgrade process fails for any reason. For
information on how to back up the cluster, refer to Creating a Cluster Backup.
• Ruckus Wireless strongly recommends that you ensure that controller interface
cables are not altered during the upgrade procedure.
• Ruckus Wireless strongly recommends that you ensure that the power supply
is not disrupted during the upgrade procedure.
• Before upgrading the controller, verify that the timestamp of the most recent
upgrade or fresh installation process is correct and not later than the current
date and time. You can find this information in the System Upgrade History
section of the Administration > Upgrade page. If the timestamp is later than the
current date and time, DO NOT upgrade the controller. Contact Ruckus Wireless
Support for more information.
NOTE: If you are managing an SZ-100, you can also perform system configuration
backup, restore, and upgrade from the controller’s command line interface. For more
information, see the SmartZone 100 Command Line Interface Reference Guide.
![](asset-fe.png)
Upgrading the Controller
Performing the Upgrade
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 243
Performing the Upgrade
Follow these steps to upgrade the controller software.
CAUTION! Ruckus Wireless strongly recommends backing up the cluster before
performing the upgrade. If the upgrade process fails for any reason, you can use
the latest backup file to restore the cluster. See Backing Up and Restoring Clusters.
NOTE: Before starting this procedure, you should have already obtained a valid
controller software upgrade file from Ruckus Wireless Support or an authorized
reseller.
1Copy the software upgrade file that you received from Ruckus Wireless to the
computer where you are accessing the controller web interface or to any location
on the network that is accessible from the web interface.
2Go to Administration > Upgrade.
3In the Patch File Upload section, click the Browse button, and then browse to
the location of the software upgrade file. Typically, the file name of the software
upgrade file is
SZ-installer_{version}.ximg.
4Select the software upgrade file, and then click Open.
5Click Upload to upload the software upgrade file. The controller uploads the file
to its database, and then performs file verification.
After the file is verified, the Upgrade Pending Patch Information section is
populated with information about the upgrade file. The Upgrade and Backup
& Upgrade buttons also appear in this section.
6Start the upgrade process by clicking one of the following buttons:
•Upgrade: Click this button to start the upgrade process without backing up
the current cluster or its system configuration.
•Backup & Upgrade: Click this button to back up the cluster and system
configuration before performing the upgrade.
CAUTION! Ruckus Wireless strongly recommends usage of backup and upgrade
icon while performing the upgrade. If the upgrade process fails for any reason, you
can use the latest backup file to restore the cluster. See Backing Up and Restoring
Clusters.
A confirmation message appears.
![](asset-ff.png)
Upgrading the Controller
Verifying the Upgrade
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 244
7Click Yes . The controller starts the process that you selected. The screens that
appear next will depend on the process that you selected to upgrade
immediately or to back up and then upgrade the controller.
When the upgrade (or backup-and-upgrade) process is complete, the controller
logs you off the web interface automatically. The controller web interface may display
the “The system is down...” message as it completes the upgrade process. Wait for
a few minutes until the web interface log on page appears.
When the controller’s logon page appears again, you have completed performing
the upgrade. Continue to Verifying the Upgrade to check if the upgrade was
completed successfully.
Verifying the Upgrade
Follow these steps to verify that the controller upgrade was completed successfully.
1Log on to the controller web interface.
2Go to Administration > Upgrade.
3In the Current System Information section, check the value for Controller Version.
If the firmware version is newer than the firmware version that the controller was
using before you started the upgrade process, then the upgrade process was
completed successfully.
Rolling Back to a Previous Software Version
There are two scenarios in which you may want to roll back the controller software
to a previous version:
1You encounter issues during the software upgrade process and the controller
cannot be upgraded successfully. In this scenario, you can only perform the
software rollback from the CLI using the restore local command. If you
have a two-node cluster, run the restore local command on each of the
nodes to restore them to the previous software before attempting to upgrade
them again.
2You prefer a previous software version to the newer version to which you have
upgraded successfully. For example, you feel that the controller does not operate
normally after you upgraded to the newer version and you want to restore the
previous software version, which was more stable. In this scenario, you can
perform the software rollback either from the web interface or the CLI. If you have
a two-node cluster, you must have cluster backup on both of the nodes.
![](asset-100.png)
Upgrading the Controller
Recovering a Cluster from an Unsuccessful Upgrade
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 245
To ensure that you will be able to roll back to a previous version, Ruckus Wireless
strongly recommends the following before attempting to upgrade the controller
software:
• Always back up the controller before attempting a software upgrade. If you are
managing a multi-node cluster, back up the entire cluster, and then verify that
the backup process completes successfully. See Creating a Cluster Backup for
the local backup instructions. If you have a local backup and you want to roll
back the controller to a previous software version, follow the same procedure
described in Restoring a Cluster Backup.
• If you have an FTP server, back up the entire cluster and upload the backup files
from all the nodes in a cluster to a remote FTP server. See Backing Up to an FTP
Server for remote backup instructions and Restoring from an FTP Server for
remote restore instructions.
Recovering a Cluster from an Unsuccessful Upgrade
If an issue occurs during the upgrade process (for example, a power outage occurs
or one of the interfaces goes down), you can recover the cluster if the controller has
either a local configuration backup or a remote (FTP) configuration backup.
If the Controller Has Local Configuration Backup
Follow these steps to recover a cluster when the controller has a configuration
backup stored locally.
1Unplug the cluster interface cables of each node in the cluster to isolate each
individual node.
2On each of the nodes in the cluster, perform the following:
aLog on to the CLI, and then execute restore local. This command will
restore the system configuration of the node from a local backup.
bWhen the CLI indicates that the restore local command has been
completed successfully, plug in the cluster interface cable.
You have completed recovering the controller cluster using a local configuration
backup.
If the Controller Has an FTP Backup
Follow these steps to recover a cluster when the controller has a configuration
backup on a remote FTP server. See Backing Up to an FTP Server for more
information.
![](asset-101.png)
Upgrading the Controller
Recovering a Cluster from an Unsuccessful Upgrade
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 246
You must perform steps on each of the nodes in the cluster.
1Log on to the CLI of each of the nodes.
2Execute the set-factory command to reset the node to factory settings.
NOTE: See Resetting a Node to Factory Settings for more information.
3Using the CLI, set up the controller as a standalone unit.
4Copy the cluster configuration backup from the FTP server to the controller.
5Execute the restore local command from the CLI.
6When the CLI indicates that the restore local command has been
completed successfully, plug in the cluster interface cable.
Repeat the same procedure until you have restore the cluster configuration backup
from the FTP server to all of the nodes in the cluster.
You have completed recovering the controller cluster using an FTP backup.
![](asset-102.png)
Working with Logs
Available System Log Types
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 247
Working with Logs
This section describes the logs that are available in the controller and how to
download them.
•Available System Log Types
•Downloading All Logs
•Downloading Snapshot Logs Generated from the CLI
Available System Log Types
The controller generates logs for all the applications that are running on the server.
Tab l e 1 4 lists the controller applications that are running.
the
Table 14. Controller applications and log types
Application Description
API Stands for application program interface (API), this provides an
interface for customers to configure and monitor the system
AUT Manages the sessions in the controller’s TTG module
CaptivePortal Performs portal redirect for clients and manages the walled garden
and blacklist
Cassandra The controller’s database server that stores most of the run-time
information and statistical data
CNR An application that obtains TTG configuration updates and applies
the settings to related modules
Configurer Performs configuration synchronization and cluster operations (for
example, join, remove, upgrade, backup, and restore)
Diagnostics An interface that customers can use to upload Ruckus Wireless
scripts for performing troubleshooting or applying software
patches
ElasticSearch Scalable real-time search engine used in the controller
Memcached The controller’s memory cache that stores client authentication
information for fast authentication or roaming
MemProxy Replicates MemCached entries to other cluster nodes
Mosquitto A lightweight method used to carry out messaging between LBS
and APs
![](asset-103.png)
Working with Logs
Downloading All Logs
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 248
Downloading All Logs
Follow these steps to download all available logs from the controller.
1Go to Administration > Diagnostics.
2On the sidebar, click Application Logs & Status.
3In Select Control Plane, select the control plane from which you want to
download logs.
4Click the Download All Logs button. Your web browser downloads the logs in
GZIP Compressed Tar Archive (with .TGZ extension) to its default download
location.
5Go to your web browser’s default download location and verify that the TGZ file
was downloaded successfully.
6Use your preferred compression/decompression program to extract the log files
from the TGZ file.
7When the log files are extracted (for example, adminweb.log,
cassandra.log, communicator.log, etc.), use a text editor to open and
view the log contents.
NC The Node Controller, which monitors all of the controller’s TTG
processes
Northbound Performs UE authentication and handles approval or denial of UEs
to AP
RadiusProxy Sets the RADIUS dispatch rules and synchronizes configuration to
each cluster node
SMF An application that monitors the health of TTG processes
SNMP Provides a framework for the monitoring devices on a network. The
SNMP manager is the system used to control and monitor the
activities of network hosts using SNMP.
SubscriberManage
ment
A process for maintaining local user credentials for WISPr
authentication
SubscriberPortal Internal portal page for WISPr (hotspot)
System Collects and sends log information from all processes
Web Runs the controller’s management web server
Table 14. Controller applications and log types
Application Description
![](asset-104.png)
Working with Logs
Downloading Snapshot Logs Generated from the CLI
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 249
You have completed downloading all the controller logs.

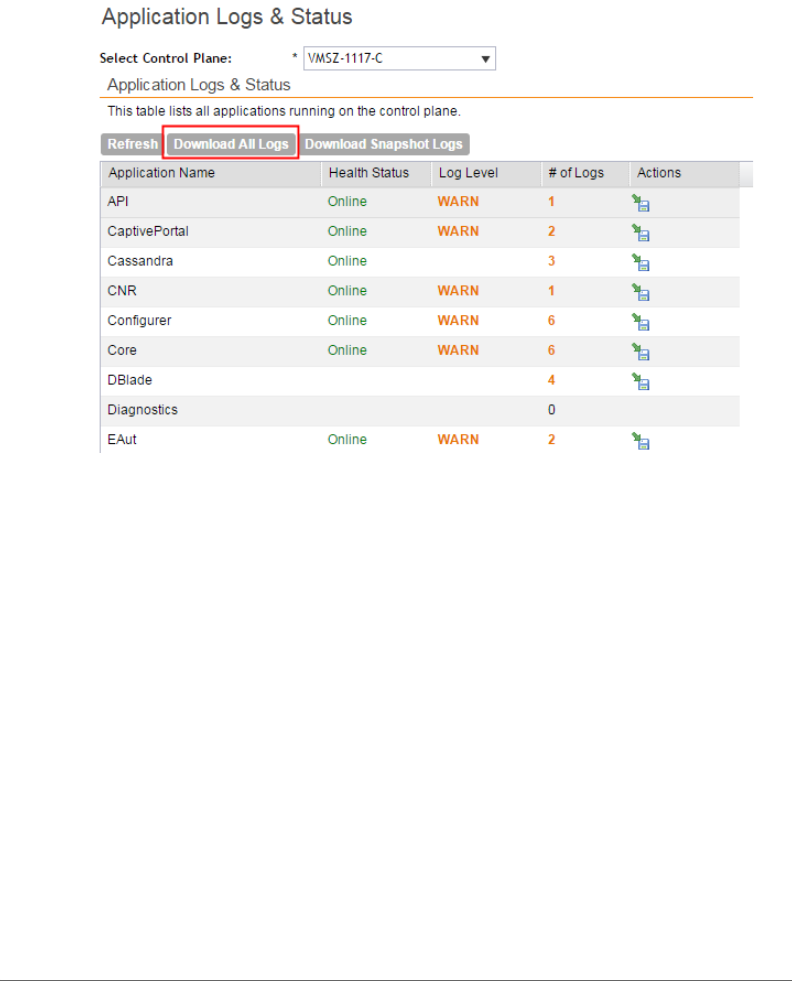

Figure 128. Click the Download All Logs button
Downloading Snapshot Logs Generated from the CLI
Snapshot logs contain system and configuration information, such as the AP list,
configurations settings, event list, communicator logs, SSH tunnel lists, etc. If you
triggered the controller to generate a snapshot from the CLI, you have the option to
download snapshot logs from the web interface.
Follow these steps to download the CLI-generated snapshot logs from the web
interface.
1On the CLI, trigger the controller to generate a snapshot.
2Log on to the web interface.
3Go to Administration > Diagnostics.
4On the sidebar, click Application Logs & Status.
5Click Download Snapshot Logs. Your web browser downloads a tar (.TGZ) file
that contains all available snapshot logs.
6Go to your browser’s default download folder, and then verify that the snapshot
log file or files have been downloaded successfully.
![](asset-105.png)
Working with Logs
Downloading Snapshot Logs Generated from the CLI
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 250
7Extract the contents of the tar file.
You have completed downloading snapshot logs from the controller.
Figure 129. Click Download Snapshot Logs to download all available snapshot logs
![](asset-106.png)
Managing Licenses
Default Licenses in the SmartZone 100
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 251
Managing Licenses
NOTE: This section only applies to the SZ-100.
Depending on the number of Ruckus Wireless APs that you need to manage with
the controller, you may need to upgrade the controller license as your network
expands. The maximum number of access points that the controller can manage
is controlled by the license file that came with the controller. If the number of access
points on the network exceeds the limit in the license file, you will need to obtain an
additional license file and upload it to the controller.
NOTE: For information on obtaining additional license files, contact Ruckus
Wireless Support or an authorized Ruckus Wireless reseller.
The maximum number of access points that a license supports depends on its
stock-keeping unit (SKU).
This section covers the following topics:
•Default Licenses in the SmartZone 100
•Supported License Types
•Viewing Installed Licenses
•Viewing the License Summary
•Configuring the License Server to Use
•Importing a License File
•Downloading a Copy of the Licenses
•Synchronizing the Controller with the License Server
Default Licenses in the SmartZone 100
The SmartZone 100 comes embedded with default licenses to enable you to
manage a limited number of APs right out of the box without having to register or
purchase add-on licenses. Ta bl e 1 5 lists the default licenses in the controller.
Table 15. Default licenses
License Type Number
Default AP Capacity License 50 APs
Default AP Tunneling Capacity License 10 APs
Default End User Support License 90 days
![](asset-107.png)
Managing Licenses
Supported License Types
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 252
If the default licenses are insufficient for the number of APs that you are planning to
manage with the controller, contact Ruckus Wireless Support or an authorized
reseller (see Importing a License File for information on how to upload a license file).
All default licenses are activated as soon as you complete the controller setup. Once
the controller connects to the license server and successfully downloads add-on
license data (if any) from it, the behavior of each default license may change.
•AP Capacity License: Any add-on AP capacity licenses will accumulate on top
on the default license. For example, if you purchased 100 AP capacity licenses
and added them to the controller, the controller will show a total of 150 AP
capacity licenses -- this includes the 50 default licenses plus the 100 add-on
licenses.
•AP Tunneling and Support Licenses: Any add-on AP tunneling or support
licenses will replace the default license in controller. Unlike AP capacity licenses,
they will not accumulate on top of the default licenses.
•Time-restricted Default Licenses: Default licenses with time restriction (for
example, the default end user support license) will remain activated until they
expire. If a time-restricted add-on license is removed from the controller and a
default license of the same type exists on the controller and has not expired, this
default license will be reactivated and enabled.
Supported License Types
The SZ100 supports the following types of licenses:
•AP Capacity License
•Default AP Capacity License
•AP Tunneling Capacity License
•Default AP Tunneling Capacity License
•Support License
•Default Support License
AP Capacity License
The AP capacity license (CAPACITY-AP) is an add-on license that enables the
management of Ruckus Wireless access points. This is a permanent license (that
is, no expiration date).
![](asset-108.png)
Managing Licenses
Supported License Types
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 253
Default AP Capacity License
The default AP capacity license (CAPACITY-AP-DEFAULT) is same as the AP
capacity license. This license, however, is embedded into the controller and is non-
transferable. The default AP capacity license allows you to manage up to 50 APs
using the controller.
AP Tunneling Capacity License
The AP tunneling capacity license (CAPACITY-RXGW) is an add-on license that
enables the management of APs with SoftGRE capability. This is also known as
SoftGRE Capacity License or RXGW Capacity License. The AP tunneling capacity
license is a permanent license (that is, no expiration date).
Default AP Tunneling Capacity License
The default AP tunneling capacity license (CAPACITY-RXGW-DEFAULT) is the same
as the AP tunneling capacity license. This license, however, is embedded into the
controller and is non-transferable. The default AP tunneling capacity license allows
you to manage up to 10 APs with SoftGRE capability.
Support License
The Support License enables the controller to perform a system upgrade. There are
three types of support licenses:
• End User Support License
• Partner Support License
• Advanced Replacement Support License
Default Support License
The default support license (SUPPORT-EU-DEFAULT) is same as the end user
support license, but with a 90-day expiration time. This license is embedded into
the controller and is non-transferable. The controller comes with one default support
license.
![](asset-109.png)
Managing Licenses
Viewing Installed Licenses
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 254
Viewing Installed Licenses
You can view the details of all the licenses that you have uploaded to the controller
in the Installed Licenses section. Ta bl e 1 6 lists the different columns that appear in
the Installed Licenses section.
Figure 130. The Installed Licenses section
Table 16. Information in the Installed License section
Column Name Description
Controller Node The name of the node to which the license was uploaded
Feature The stock-keeping unit (SKU) code of the license file
Capacity The number of units or license seats that the license file
provides
Description The type of license (see Supported License Types)
Start Date The date when the license file was activated
Expiration Date For time-bound licenses, this column shows the date when
the license file expires. For permanent licenses, this column
shows “Permanent.”
![](asset-10a.png)
Managing Licenses
Viewing the License Summary
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 255
Viewing the License Summary
You can view details of total, consumed, and available licenses for the different
license types in the License Summary section. Tab le 17 lists the different columns
that appear in the Installed Licenses section.
Figure 131. The License Summary section
Table 17. Information in the License Summary section
Column Name Description
License Type The type of license file
Total The maximum number of access points that can be supported
by all the licenses that have been uploaded to the controller.
Consumed The number of license seats that have been used. One access
point uses up one license seat. For example, if three access
points have registered with the controller, the Consumed field
will show 3.
Available The number of license seats remaining. For example, if all your
licenses support up to 5000 access points, and the controller
has used up three licenses so far, the Available field will show
4997.
![](asset-10b.png)
Managing Licenses
Configuring the License Server to Use
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 256
Configuring the License Server to Use
Ruckus Wireless provides two options for managing the licenses that you have
purchased for the controller:
• Cloud License Server: Also known as the SmartLicense server, this a cloud-
based server that stores all of the licenses and support entitlements that you
have purchased for the controller. For information on how to set up and activate
your SmartLicense account, see the SmartLicense User Guide.
• Local License Server (LLS): This is a license server that is installed onsite where
the controller is deployed. For information on how to obtain and set up the LLS
server, see the SmartCell Gateway Local Licensing Server User Guide.
Follow these steps to select a license server that the controller will use.
1Go to Administration > License.
2In License Server Configuration, select one of the following:
•Cloud License Server: Select this option to use the Ruckus Wireless Smar-
tLicense server.
•Local License Server: Select this option to use an LLS that you have set up
on the network, and then configure the following:
- Domain or IP: Type the FQDN or IP address of the LLS.
- Port: Type the port number. Port range is from 0 to 65535 (default is 3333).
3Click Apply. A confirmation message appears.
4Click Yes. The controller saves the selected license server configuration, deletes
all of its saved license data, and then automatically synchronizing the license
information with the selected license server.
You have completed configuring the license server that the controller will use.
![](asset-10c.png)
Managing Licenses
Importing a License File
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 257
Figure 132. The License Server Configuration section
Importing a License File
If the controller is disconnected from the Internet or is otherwise unable to commu-
nicate with the Ruckus Wireless SmartLicense system (due to firewall policies, etc.),
you can manually import a license entitlement file into the controller.
NOTE: The option to import a license file manually into the controller is only available
if the controller is using the cloud license server.
Follow these steps to import a license file into the controller.
1Obtain the license file. You can do this by logging on to your Ruckus Wireless
Support account, going to the license management page, and then downloading
the license file (the license file is in .bin format).
2Log on to the controller web interface, and then go to Administration > License.
3In Select Controller under Upload License, select the node for which you are
uploading the license file.
4In Select License File, click Browse, locate the license file (.bin file) that you
downloaded from your Ruckus Wireless Support account, and then select it.
5Click Upload. The page refreshes, and the information in the Installed Licenses
section changes to reflect the updated information imported from the
SmartLicense platform.
You have completed importing a license file manually.
![](asset-10d.png)
Managing Licenses
Downloading a Copy of the Licenses
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 258
Figure 133. The Upload License section
Downloading a Copy of the Licenses
If you need to release licenses bound to an offline controller and allow those licenses
to be used elsewhere (on a different controller), you can download a copy of the
controller licenses.
NOTE: The option to download a copy of the controller licenses is only available if
the controller is using the Ruckus Wireless cloud license server
Follow these steps to download a binary copy of the license files.
1Go to Administration > License.
2In License Server Configuration, verify that Cloud License Server is selected.
3Locate the Download License section.
4In Select Controller, select the controller node for which you want to download
the license files.
5Click Download. Your web browser downloads the license files from the
controller.
6When the download is complete, go to the default download folder that you have
configured for your web browser, and then verify that the binary copy of the
license files (with .bin extension) exists.
You have completed downloading copies of the controller licenses.
![](asset-10e.png)
Managing Licenses
Synchronizing the Controller with the License Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 259
Figure 134. The Download License section
Synchronizing the Controller with the License Server
By default, the controller automatically synchronizes its license data with the
selected license server every 24 hours. If you made changes to the controller
licenses (for example, you purchased additional licenses) and you want the controller
to download the updated license data immediately, you can trigger a manual
synchronization.
Follow these steps to trigger the controller to manually synchronize with the license
server.
1Go to Administration > License.
2Click Sync License with Server. The message “Start sync with license server...”
appears as the controller synchronizes its license data with the server.
When the sync process is complete, the message “Sync license with the license
server successful” appears. If the previously saved license data are different the
latest license data on the server, the information in the Installed Licenses section
refreshes to reflect the latest data.
You have completed manually synchronizing the controller with the license server.
![](asset-10f.png)
Managing Licenses
Synchronizing the Controller with the License Server
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 260
Figure 135. A message appears to indicate that the sync process was successful
![](asset-110.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 261
A
Ports to Open for AP-Controller
Communication
AP-SCG/SZ/vSZ Communication
The table below lists the ports that must be opened on the network firewall to ensure
that the SCG/SZ/vSZ (controller), managed APs, and RADIUS servers can commu-
nicate with each other successfully.
Table 18. Ports to open for AP-SCG/SZ/vSZ communication
Port
Number
Layer 4
Protocol
Source Destination Configurable
from Web
Interface?
Purpose
21 TCP AP Controller Yes FTP upload of reports,
statistics, and
configuration backups
22 TCP AP Controller
(control plane)
No SSH tunnel
49 TCP TACACS
+ server
Controller Yes TACACS+ based
authentication of
controller administrators
91 TCP AP Controller
(control plane)
No AP firmware upgrade
123 UDP AP Controller
(control plane)
No NTP sync up
• Not required in 2.1.2,
2.1.3, 2.5.1, 2.6, 3.0
• Required in1.x, 2.1,
2.1.1, 2.5
443 TCP AP Controller
(control plane)
No Access to the SCG/vSZ/
SZ web interface via
HTTPS
![](asset-111.png)
AP-SCG/SZ/vSZ Communication
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 262
8443 TCP Any Controller No Access to the SCG/vSZ/
SZ web interface via
HTTPS
23232 TCP AP SCG (data plane) No GRE tunnel
23233 UDP AP SCG (data plane) Yes GRE tunnel (required only
when tunnel mode is
GRE over UDP)
12222/
12223
UDP AP Controller No LWAPP discovery
1812/1813 UDP AP RADIUS Yes AAA authentication and
accounting
8022 No (SSH) Any Management
interface
Yes Management ACL for
one-port configuration
8090 TCP Any Controller No Allows unauthorized UEs
to browse to an HTTP
website
8099 TCP Any Controller No Allows unauthorized UEs
to browse to an HTTPS
website
8100 TCP Any Controller No Allows unauthorized UEs
to browse using a proxy
UE
8111 TCP Any Controller No Allows authorized UEs to
browse using a proxy UE
9080 HTTP Any Controller No Northbound Portal
Interface for hotspots
9443 HTTPS Any Controller No Northbound Portal
Interface for hotspots
9998 TCP Any Controller No Internal WISPr portal
Table 18. Ports to open for AP-SCG/SZ/vSZ communication
Port
Number
Layer 4
Protocol
Source Destination Configurable
from Web
Interface?
Purpose
![](asset-112.png)
AP-ZD Communication
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 263
AP-ZD Communication
The table below lists the ports that must be opened on the network firewall to ensure
that the ZoneDirector (ZD), its managed APs, and other network devices can
communicate with each other successfully.
Table 19. Ports to open for AP-ZoneDirector communication
Port
Number
Layer 4
Protocol
Source Destination Configurable
from Web
Interface?
Purpose
21 TCP AP ZD No AP firmware upgrade (the
firewall must be stateful for
PASV FTP transfers)
22 TCP AP ZD No AP statistics reporting (via
SSH)
22 TCP Any ZD No Access to the ZoneDirector
CLI (via SSH)
49 TCP TACACS+
server
ZD Yes TACACS+ based
authentication of
ZoneDirector administrators
80 TCP Any ZD No Access to the ZoneDirector
web interface (via HTTP)
443 TCP ZD FlexMaster No Registration, inform,
firmware upgrade
messages
8443 TCP Any ZD No Access to the ZoneDirector
web interface (via HTTPS)
18301 UDP AP ZD No SpeedFlex
12222/
12223
UDP AP ZD No LWAPP discovery
443/33003 TCP ZD (primary) ZD (backup) No Smart Redundancy
![](asset-113.png)
AP-ZD Communication
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 264
Varies
(specified in
FM
Inventory
'Device
Web Port
Number
Mapping')
TCP FlexMaster ZD Yes Access to the ZoneDirector
web interface
Table 19. Ports to open for AP-ZoneDirector communication
Port
Number
Layer 4
Protocol
Source Destination Configurable
from Web
Interface?
Purpose
![](asset-114.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 265
Index
Numerics
802.11d 55
A
access point
rebooting 185
restarting remotely 185
access points
downloading support log 184
exporting to CSV 183
monitoring 180
viewing a summary 180
viewing configuration 184
acknowledge 203
Administration page 18
administrative tasks
backup 236
deleting
backup 239
restore 239
upgrading 242
administrator activity
exporting to CSV 208
administrator password 27
changing 27
alarm severity 202, 206
alarm types 202, 205
alarms
exporting to CSV 203
severity 202, 206
types 202, 205
AP IP mode 67
AP status summary 21
B
backing up
FTP 224
backup 236
deleting 239
restoring 239
C
client count summary 20
client fingerprinting 55
client number report 210
client type summary widget 22
communication ports 261
Configuration page 18
content area 18
continuously disconnected APs report
210
creating
report 212
D
Dashboard page 18
deleting
report 218
DHCP Option 82 55
downloading
system logs 248
E
exporting
access points 183
alarms 203
F
firewall ports 261
Force DHCP 55
G
Google Maps 187
I
inactivity timeout 55
IPSec 85
IPv4 67
IPv6 67
![](asset-115.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 266
L
logging off 27
logging on 14
logon page 15
M
main menu 18
management port number 15
mesh role 181
miscellaneous bar 19
Monitor page 18
monitoring
access points 180
N
network connectivity 185
P
pages
Administration 18
Configuration 18
Dashboard 18
Monitor 18
Report 18
password 16
patch file 243
ping 185
ports to open 261
R
rebooting access point 185
report notification 216
Report page 18
report schedule 215
reports
client number 210
continuously disconnected APs 210
creating 212
deleting 218
email notifications 216
system resource utilization 210
TX/RX bytes 211
types 209
viewing list 218
restarting access point 185
restoring
backup 239
FTP 230
S
sidebar 18
software upgrade file 243
support log 184
supported web browsers 14
system logs
available logs 247
downloading 248
system resource utilization report 210
system summary 21
system upgrade 242
T
TACACS+ 172
traceroute 185
TX/RX bytes report 211
U
upgrading
system 242
user name 15
V
verifying upgrade 244
VLAN pooling 75
W
Web browser 14
Web interface 14
Administration 18
Configuration 18
Dashboard 18
features 16
logging off 27
logging on 14
Monitor 18
password 16
Report 18
user name 15
widget slot 26
widget slots 24
widgets 20
adding a widget to a widget slot 25
![](asset-116.png)
SZ-100/vSZ-E Administrator Guide for SmartZone 3.1.1, 800-70944-001 Rev D 267
adding to the dashboard 24
AP status summary 21
available slots 24
available widgets 20
client count summary 20
client type summary 22
deleting 27
displaying a widget in a widget slot 26
moving to another slot 26
system summary 21
wireless clients
exporting to CSV 190
monitoring 188
viewing information 190
viewing summary 189
![](asset-117.png)
