About This Guide
This Virtual SmartZone™ (vSZ) Getting Started Guide provides information on how
to set up the vSZ virtual appliance on the network. You can install the vSZ on any
of the supported hypervisors.
Topics covered in this guide include preparing your chosen hypervisor. installing the
vSZ image on to the hypervisor, and completing the vSZ Setup Wizard.
This guide is intended for use by those responsible for installing and setting up
network equipment. Consequently, it assumes a basic working knowledge of local
area networking, wireless networking, and wireless devices.
NOTE: If release notes are shipped with your product and the information there
differs from the information in this guide, follow the instructions in the release notes.
Most user guides and release notes are available in Adobe Acrobat Reader Portable
Document Format (PDF) or HTML on the Ruckus Wireless Support website at
https://support.ruckuswireless.com/documents.
About This Guide
Document Conventions
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 7
Document Conventions
Tabl e 1 and Table 2 list the text and notice conventions that are used throughout
this guide.
Related Documentation
For a complete list of documents that accompany this release, refer to the Release
Notes.
Documentation Feedback
Ruckus Wireless is interested in improving its documentation and welcomes your
comments and suggestions. You can email your comments to Ruckus Wireless at:
docs@ruckuswireless.com
When contacting us, please include the following information:
• Document title
Table 1. Text conventions
Convention Description Example
monospace Represents information as it
appears on screen
[Device name]>
monospace bold Represents information that
you enter
[Device name]> set
ipaddr 10.0.0.12
default font bold Keyboard keys, software
buttons, and field names
On the Start menu, click All
Programs.
italics Screen or page names Click Advanced Settings. The
Advanced Settings page
appears.
Table 2. Notice conventions
Notice Type Description
NOTE Information that describes important features or instructions
CAUTION! Information that alerts you to potential loss of data or potential
damage to an application, system, or device
WARNING! Information that alerts you to potential personal injury
About This Guide
Documentation Feedback
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 8
• Document part number (on the cover page)
• Page number (if appropriate)
For example:
• Virtual SmartZone (vSZ) Getting Started Guide
• Part number: 800-71029-001
• Page 88
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 9
1
Preparing to Install the vSZ
In this chapter:
•Preparing a Hypervisor
•Obtaining the vSZ Distribution
•Preparing the vSZ Interface Settings to Use
•Determining the System Resources That the Virtual Machine Requires
Preparing a Hypervisor
Tabl e 3 lists the hypervisors (and their release versions) on which you can install the
vSZ.
The vSZ installation procedures for each of these hypervisors vary. For more
information, see Installing the vSZ on a Hypervisor.
Obtaining the vSZ Distribution
From the vSZ download page on the Ruckus Wireless support website, download
the .OVA file and documentation for the controller. The vSZ distribution package,
which is based on the Open Virtualization Format (OVF) framework, consists of a
virtual appliance containing the following files:
• Description file (.ovf)
• Manifest file (.mf)
• Virtual machine state file (.vmdk)
Table 3. Hypervisors that the vSZ supports
Vendor Hypervisor Version
VMWare ESXi 5.x
Windows Windows Server Hyper-V Windows Server Hyper-V
KVM CentOS 7.0
Preparing to Install the vSZ
Preparing the vSZ Interface Settings to Use
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 10
These three files are consolidated into a TAR archive file and distributed as an Open
Virtual Appliance (OVA) package. This OVA package can be imported directly into
your chosen hypervisor.
Preparing the vSZ Interface Settings to Use
The vSZ comes with the option to operate with either one (1) network interface or
three (3) network interfaces (see Ta ble 4 ). Once the network interface configuration
has been made and setup executed, the number of network interfaces can no longer
be modified.
CAUTION! If you choose to operate the vSZ with three network interfaces, you
must configure the three vSZ interfaces to be on three different subnets when you
run the Setup Wizard. Failure to do so may result in loss of access to the web
interface or failure of system functions and services.
Before installing the vSZ, prepare the following required network settings:
• IP address
•Netmask
• Gateway
• Primary DNS server
• Secondary DNS server
Table 4. vSZ interfaces
Interface Description
AP Used for AP configuration and client traffic
Cluster Used for cluster traffic
Management (Web) Used for management traffic. The IP address that you assign
to this interface will be the IP address at which you can access
the vSZ web interface.
Preparing to Install the vSZ
Determining the System Resources That the Virtual Machine Requires
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 11
Determining the System Resources That the
Virtual Machine Requires
The number of APs and clients that vSZ can support depends on the system
resources (CPU and memory) that the virtual machine running vSZ has. vSZ is
capable of automatically scaling to and supporting a higher number of APs and
clients if it determines, at system bootup, that there is sufficient CPU and memory
on the virtual machine to support more APs and clients.
Tabl e 5 (vSZ High-Scale profile configuration) and Tab le 6 (vSZ Essentials profile
configuration) list the maximum recommended number of APs and clients that the
vSZ can support based on the available vCPU and memory available on the virtual
machine1. The first row in Tab le 5 , for example, shows that to support up to 25 APs,
the vSZ must have at least 2-core CPU and 8GB of RAM. Whenever the CPU or
memory settings are changed, the virtual controller instance must be rebooted for
the updated settings to be applied to it.
CAUTION! When either your AP count or wireless client count reaches the
recommended maximum number in the tables below, you must also allocate
additional system resources to the virtual machine. For example, if you initially
allocated Level 1 resources to the VM to handle 25 APs and your AP count increases
to 26, you must update the VM resources to Level 2 to prevent performance-related
issues.
All resource levels in the following tables are provided based on Intel Xeon CPU E5-
2630v2 @2.60 GHz. If the server on which you are hosting the controller software
is using a different CPU generation and/or model, it may perform differently. In this
case, CPU adjustments can be made to generate the same level of performance.
1. These scalability figures have been observed on the vSZ for vSZ 3.2
Table 5. High Scale profile configuration: Recommended system resources
AP
Count
Client
Count
Resource
Level
Max
Nodes per
Cluster
Disk
Size
(GB)
vCPU
(Core)
RAM
(GB)
Physical Free
RAM in MB
(Threshold)
Max
Preserved
Events
25 500 1 2 100 2 8 8001 (7900) 15k
50 1000 2 2 100 2 8 8001 (7900) 30k
100 2000 3 2 100 2 8 8001 (7900) 60k
500 10000 4 2 100 4 9 9011(8900) 300k
Preparing to Install the vSZ
Determining the System Resources That the Virtual Machine Requires
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 12
Clustering Limitations
If you are deploying the vSZ in clusters, take note of the following limitations:
• vSZ-H supports clustering of up to 4 nodes when using Resource Level 4. At 4
nodes, the maximum number of APs and clients that can be supported are
30,000 and 300,000 respectively.
• vSZ-E supports clustering of up to 4 nodes when using Resource Level 2. Above
2 nodes in a cluster at Resource Level 2, additional 2 CPU cores need to be
added to each node to support the added search capabilities and replication.
At 4 nodes, the maximum number of APs and clients that can be supported are
3,000 and 60,000 respectively.
1000 20000 5 2 100 4 11 11031 (11000) 600k
2500 50000 6 2 300 6 15 15071(15000) 1500k
10000 100000 7 4 600 24 48 48401 (48000) 3000k
Table 6. Essentials profile configuration: Recommended system resources
AP
Count
Client
Count
Resource
Level
Max
Nodes per
Cluster
Disk
Size
(GB)
vCPU
(Core)
RAM
(GB)
PhysicalFree
RAM in MB
(Threshold)
Max
Preserved
Events
100 2000 1 2 100 2 12 12041(12000
)
1k
1024 25000 2 4 250 8 20 20121(20000
)
10k
Table 5. High Scale profile configuration: Recommended system resources
AP
Count
Client
Count
Resource
Level
Max
Nodes per
Cluster
Disk
Size
(GB)
vCPU
(Core)
RAM
(GB)
Physical Free
RAM in MB
(Threshold)
Max
Preserved
Events
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 13
2
Installing the vSZ on a Hypervisor
In this chapter:
•Installing the vSZ on VMWare™ vSphere Hypervisor
•Installing the vSZ on Windows Server Hyper-V
•Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
Installing the vSZ on VMWare™ vSphere
Hypervisor
Follow these steps to install the vSZ on a VMWare vSphere hypervisor:
•Before You Begin
•Creating a vSZ Instance from the OVA File
•Allocating Resources and Assigning Network Interfaces
•Powering on the vSZ Virtual Machine
Before You Begin
Verify that you have the prerequisites before installing the vSZ on VMWare vSphere.
• Verify that vSphere client is installed.
• You can deploy the vSZ only on hosts that are running ESXi version 5.1 or later.
• The vSZ appliance requires at least 100GB of disk space and is limited to a
maximum size of 600GB. The vSZ appliance can be deployed with thin-
provisioned virtual disks that can grow to the maximum size of 600GB.
Installing the vSZ on a Hypervisor
Installing the vSZ on VMWare™ vSphere Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 14
Creating a vSZ Instance from the OVA File
Before continuing, make sure you have already downloaded the vSZ distribution
package from the Ruckus Wireless. See Obtaining the vSZ Distribution for more
information.
NOTE: The following procedure describes how to create a vSZ instance using the
vSphere Web Client.
Follow these steps to create a vSZ instance from the OVA file.
1Use the VMWare vSphere client to log on to the ESXi management interface.
2Click File > Deploy OVF Template. The Source screen of the Deploy OVF
Template wizard appears.
Figure 1. Click Deploy OVF Template
Installing the vSZ on a Hypervisor
Installing the vSZ on VMWare™ vSphere Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 15
3Click Browse to locate the .ova file that you downloaded earlier. Select the
template.
Figure 2. Click Browse, and then locate and select .ova file
Installing the vSZ on a Hypervisor
Installing the vSZ on VMWare™ vSphere Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 16
4Click Next. The OVF Template Details screen appears.
Figure 3. The OVF Template Details screen
5Review the OVA virtual appliance details, and then click Next. The End User
License Agreement (EULA) screen appears.
Installing the vSZ on a Hypervisor
Installing the vSZ on VMWare™ vSphere Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 17
6Click Accept to agree to the EULA terms, and then click Next. The Host/Cluster
screen appears.
Figure 4. Accept the EULA for the vSZ OVA
Installing the vSZ on a Hypervisor
Installing the vSZ on VMWare™ vSphere Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 18
7Select the host or cluster on which you want to run the deployed template, and
then click Next. The Resource Pool screen appears.
Figure 5. Select the destination host or cluster
Installing the vSZ on a Hypervisor
Installing the vSZ on VMWare™ vSphere Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 19
8Select the resource pool within which you want to deploy the template, and then
click Next. The storage screen appears.
Figure 6. Select the resource pool for the OVA template
Installing the vSZ on a Hypervisor
Installing the vSZ on VMWare™ vSphere Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 20
9Select the destination storage (data store) for virtual machine files, and then click
Next. The Disk Format screen appears.
Figure 7. Select the data store for the virtual machine files
Installing the vSZ on a Hypervisor
Installing the vSZ on VMWare™ vSphere Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 21
10 Select the disk format that is appropriate for your deployment scenario. Options
include:
• Thick Provision Lazy Zeroed
• Thick Provision Eager Zeroed
• Thin Provision
Figure 8. Select the disk format for your deployment scenario
Installing the vSZ on a Hypervisor
Installing the vSZ on VMWare™ vSphere Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 22
11 Click Next. The Network Mapping screen appears.
12 Select the ESXi virtual network interface that you want to use for the control
interface, and then click Next. The Ready to Complete screen appears. For more
information see, Allocating Resources and Assigning Network Interfaces.
NOTE: The installation screen only allows you to select the virtual network interface
for the control interface. After you complete the installation (and before you power
on and set up the vSZ), you will need to adjust the cluster and management
interfaces as appropriate.
Figure 9. Select the virtual network interface that the template will use
Installing the vSZ on a Hypervisor
Installing the vSZ on VMWare™ vSphere Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 23
13 Review the settings that you have configured on the previous screens.
If you find a setting that you want to change, click Back until you reach the screen
where you can edit the setting. Update the setting, and then click Next until you
reach the Ready to Complete screen again.
Figure 10. Review the settings that you have configured
14 Make sure that the Power on after deployment check box is clear so you can
adjust the network settings before the vSZ setup.
CAUTION! If you power on the vSZ after installation, you will no longer be able to
adjust the network settings.
15 Click Finish.
ESXi deploys the new vSZ instance. When ESXi completes the deployment, the new
vSZ instance appears on the list of installed virtual machines on the target host.
Installing the vSZ on a Hypervisor
Installing the vSZ on VMWare™ vSphere Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 24
Figure 11. The vSZ instance appears on the list of installed VMs
You have completed creating a vSZ instance from the OVA file.
Allocating Resources and Assigning Network Interfaces
Before starting the vSZ instance for the first time, edit the virtual machine settings
to allocate CPU and memory resources to the vSZ and to assign the ESXi network
interfaces to the remaining vSZ interfaces (cluster and management).
NOTE: Before continuing, review Determining the System Resources That the
Virtual Machine Requires and determine the minimum resources that you need to
allocate to the vSZ instance. If the setup program detects that the vSZ instance
does not have sufficient resources, it will halt the setup process.
Installing the vSZ on a Hypervisor
Installing the vSZ on VMWare™ vSphere Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 25
Follow these steps to allocate resources and assign network interfaces to the vSZ.
1On the list of virtual machines, click the new vSZ instance.
2Click Actions to display the additional options, and then click Edit Settings.
3Set the number of CPUs and the amount of RAM to allocate to the vSZ instance.
By default, the OVA template is set to 4 CPUs and 8GB of RAM.
4Under Network adapter 1, verify that it is the same ESXi network interface that
you selected for the control interface during the OVA import process. Ensure that
the Connect at Power On check box is selected.
5Under Network adapter 2, select the ESXi network interface for the cluster
interface from the drop-down list. Ensure that the Connect at Power On option
is selected.
6Under Network adapter 3, select the ESXi network interface for the management
interface from the drop-down list. Ensure that the Connect at Power On option
is selected.
NOTE: While assigning interfaces, ensure that each interface is in a different sub-
net.
Installing the vSZ on a Hypervisor
Installing the vSZ on VMWare™ vSphere Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 26
Figure 12. Select the interfaces to use
7Click OK.
You have completed allocating resources and assigning network interfaces to the
vSZ.
Powering on the vSZ Virtual Machine
The next step is to power on the vSZ virtual appliance.
1From the list of virtual machines on the host, click the vSZ instance.
2Under Basic Tasks, click Power on the virtual machine.
Installing the vSZ on a Hypervisor
Installing the vSZ on Windows Server Hyper-V
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 27

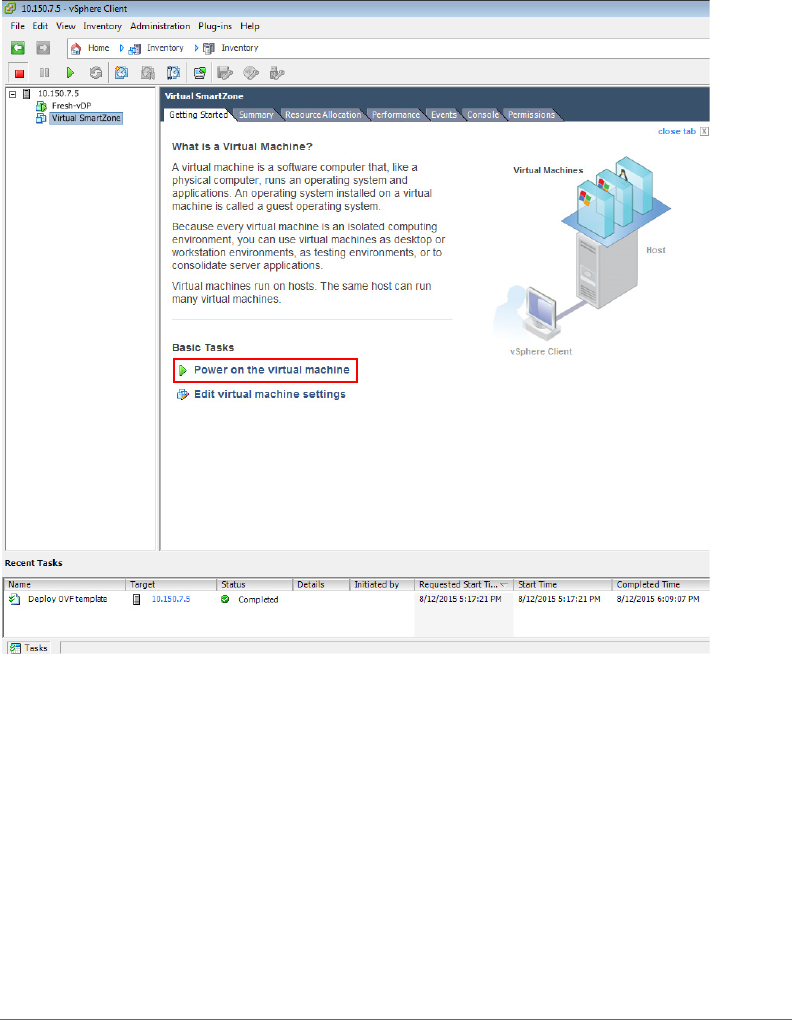

Figure 13. Click Power on the virtual machine
3Open a console window to monitor the startup process. To do this, click the
Console tab.
After the vSZ completes its startup process, you are ready to configure its interfaces
using a console connection to perform this task.
For information on how to configure the vSZ interface, see Configuring the Virtual
Machine Interfaces.
Installing the vSZ on Windows Server Hyper-V
Before you begin, verify that Hyper-V is enabled on Windows Server.
Follow these steps to install the vSZ on Windows Server Hyper-V.
Installing the vSZ on a Hypervisor
Installing the vSZ on Windows Server Hyper-V
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 28
1Obtain a copy of the vSZ image in VHD format.
2Extract the vSZ image to the .vhd disk file.
3Copy the image to the Windows Server on which you are running Hyper-V.
4On the Windows Server, click Start > Administrative Tools, and then double-
click Hyper-V Manager.
5In the Hyper-V Manager, select the Hyper-V core for which you want to create a
virtual machine and click Action > New > Virtual Machine.
The New Virtual Machine Wizard appears and displays the Before You Begin
screen.
Figure 14. Click Action > New > Virtual Machine
6Click Next. The Specify Name and Location screen appears.
Installing the vSZ on a Hypervisor
Installing the vSZ on Windows Server Hyper-V
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 29
Figure 15. The New Virtual Machine Wizard screen
7In Name, type a name for the virtual machine that you are installing (for example,
Virtual SmartZone).
Installing the vSZ on a Hypervisor
Installing the vSZ on Windows Server Hyper-V
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 30
Figure 16. Specify Name and Location
8Specify the folder on the server where you want to install the virtual machine.
• To install the virtual machine in the default location, make sure that the Store
the virtual machine in a different location check box is clear.
• To install the virtual machine in a location other than the default, select the
Store the virtual machine in a different location check box, and then
browse to or type the new location.
9Click Next. The Specify Generation screen appears.
Installing the vSZ on a Hypervisor
Installing the vSZ on Windows Server Hyper-V
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 31
Figure 17. Specify Generation
10 Select Generation 1 for the virtual machine that you are installing. Hyper-V offers
Generation 1 and Generation 2. See the Hyper-V documentation for more
information about these two generations.
11 Click Next. The Assign Memory screen appears.
Installing the vSZ on a Hypervisor
Installing the vSZ on Windows Server Hyper-V
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 32
Figure 18. Assign Memory
12 In Startup memory, type 12000 MB which is the minimum recommended
memory that Ruckus Wireless recommends for deploying vSZ. You can type a
higher value if more memory is available on the server. For more information, see
Tabl e 5.
13 Click Next. The Configure Networking screen appears.
Installing the vSZ on a Hypervisor
Installing the vSZ on Windows Server Hyper-V
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 33
Figure 19. Configuring Network
14 In Connection, select the network adapter that you want the virtual machine to
use.
15 Click Next. The Connect Virtual Hard Disk screen appears.
Installing the vSZ on a Hypervisor
Installing the vSZ on Windows Server Hyper-V
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 34
Figure 20. Connect Virtual Hard Disk
16 Select Use an existing virtual hard disk.
17 Click Browse to specify the location of the existing virtual hard disk for the virtual
machine to use.
Installing the vSZ on a Hypervisor
Installing the vSZ on Windows Server Hyper-V
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 35
Figure 21. Selecting Virtual Hard Disk
18 Click Next. The Completing New Virtual Machine Wizard screen appears.
Installing the vSZ on a Hypervisor
Installing the vSZ on Windows Server Hyper-V
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 36
Figure 22. Completing New Virtual Machine Wizard
19 Review the settings that you can configure for the virtual machine.
If you find any setting that need to be changed, click Previous until you reach
the screen where you can update the setting. Update the setting, and then click
Next until the Completing New Virtual Machine Wizard screen appears again.
20 Click Finish to install the virtual machine. When Windows Server completes
installing the virtual machine, the New Virtual Machine Wizard disappears and
the virtual machine you installed appears on the list of virtual machines on Hyper-
V Manager.
Installing the vSZ on a Hypervisor
Installing the vSZ on Windows Server Hyper-V
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 37
Figure 23. The virtual machine you installed appears on the list of virtual machines on Hyper-
V Manager
21 Right-click the virtual machine you installed, and then click Start to power on
the virtual machine.
Figure 24. Right-click the virtual machine, and then click Start
The Virtual Machine Connection screen appears.
Installing the vSZ on a Hypervisor
Installing the vSZ on Windows Server Hyper-V
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 38
Figure 25. Virtual Machine Connection
22 Login to the virtual machine with your credentials.
Figure 26. Login to the Virtual Machine
Installing the vSZ on a Hypervisor
Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 39
You have now completed installing the vSZ on Windows Server Hyper-V.
Installing the vSZ on a Kernel-based Virtual
Machine Hypervisor
This section describes how to install the vSZ on a KVM hypervisor.
•Extracting the vSZ Image
•Setting Up the vSZ
Extracting the vSZ Image
The vSZ image for a kernel-based virtual machine (KVM) is distributed in QCOW2
format.
1Obtain the vSZ image in QCOW2 format.
2Copy the image to the KVM.
3Open the terminal window.
4Make the image bin file executable by entering the following command:
chmod +x {file name of the controller QCOW bin}
See Figure 27 for an example.
Installing the vSZ on a Hypervisor
Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 40

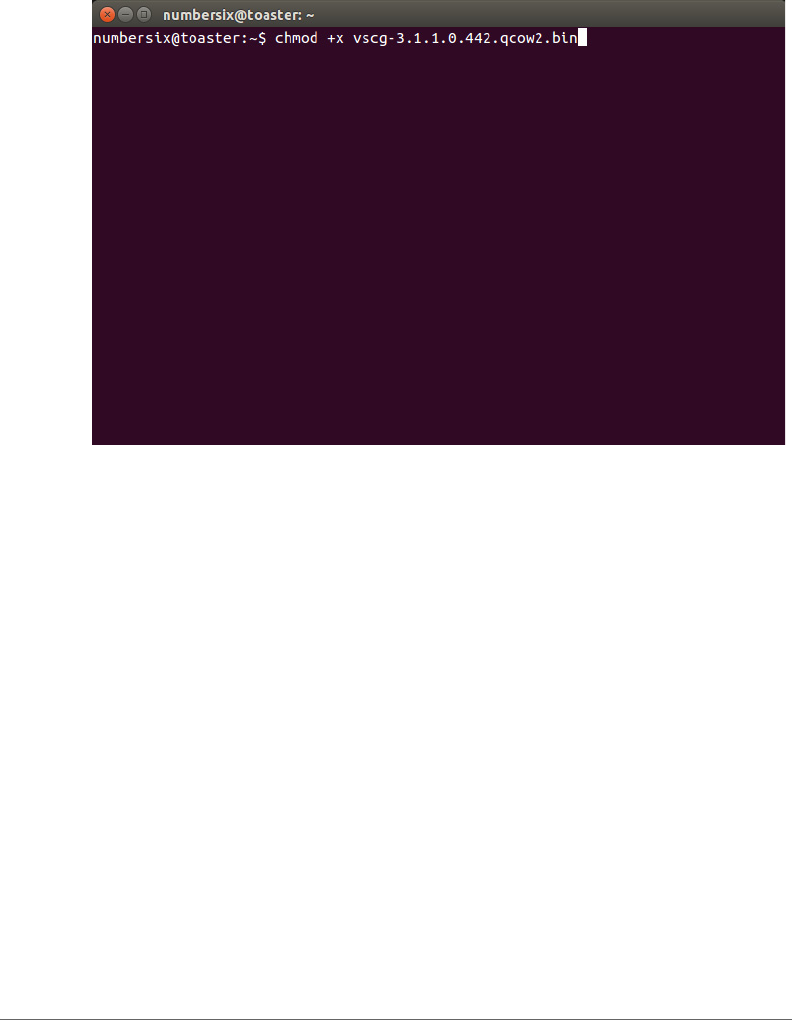

Figure 27. Make the bin file executable
5Extract the contents of the QCOW2 bin file. See Figure 28.
Installing the vSZ on a Hypervisor
Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 41
Figure 28. Extract the contents of the QCOW2 image
The end user license agreement appears on screen.
6At the Accept this agreement? [yes/no] prompt, enter yes.
Installing the vSZ on a Hypervisor
Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 42
Figure 29. Accept the EULA terms
The KVM continues to extract the contents of the image. When the extraction
process is complete, the QCOW2 file appears in the same directory as the .bin
file.
Figure 30. The QCOW2 file appears in the same directory as the .bin file
Installing the vSZ on a Hypervisor
Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 43
NOTE: If the “uudecode: command not found” error appears during the extraction
process, install the “sharutils” package on the KVM, and then try extracting the
image again.
7Resize the vSZ disk image, if necessary. By default, the vSZ disk size is 50GB.
If you want to allocate more disk space to the vSZ, run the qemu-img command.
The complete syntax is as follows:
qemu-img resize {file name of the controller QCOW bin}
+size
Setting Up the vSZ
This section describes how to set up the vSZ using the Red Hat Virtual Machine
Manager (also known as “virt-manager”). If you are installing the vSZ on a different
hypervisor or virtual machine monitor, the procedure may be slightly different. Refer
to the hypervisor documentation for more information.
Follow these steps to set up the vSZ on the Virtual Machine Manager.
1Start the Virtual Machine Manager by clicking Applications > System Tools >
Virtual Machine Manager. Or double-click the Virtual Machine Manager icon if
it appears on the desktop. The Virtual Machine Manager interface appears.
Installing the vSZ on a Hypervisor
Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 44
Figure 31. The Virtual Machine Manager interface
2In File, click Create New VM. Or click the New VM icon. The New VM screen
appears.
Installing the vSZ on a Hypervisor
Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 45
Figure 32. After you click Create New VM, the New VM screen appears
3Configure the options on the New VM (Step 1 of 4) screen.
•In Name, type a name that you want to assign to the virtual machine.
•In Choose how you would like to install the operating system, click Import
existing disk image.
Installing the vSZ on a Hypervisor
Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 46
Figure 33. Type a name and select how you want to install the operating system
4Click Forward. The Locate Existing Storage dialog box appears.
5Browse to the location of the vSZ QCOW2 image, select the image file, and then
click Open. The New VM (Step 2 of 4) screen reappears and displays the storage
path to the QCOW2 image file that you selected.
Installing the vSZ on a Hypervisor
Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 47
Figure 34. Browse to the vSZ QCOW2 image
6In the lower portion of the New VM (Step 2 of 4) screen, select the operating
system type and version.
•In OS type, select Linux.
•In Version, select Generic 2.6.x kernel.
Installing the vSZ on a Hypervisor
Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 48
Figure 35. Select the operating system and version
7Click Forward. The New VM (Step 3 of 4) screen appears.
8Configure the memory and CPU settings of the virtual machine.
•In Memory (RAM), set to memory (in MB) that you want to allocate to the vSZ.
•In CPU, set the number of CPUs that you want to allocate to the vSZ.
For more information see, Tab l e 5
Installing the vSZ on a Hypervisor
Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 49
Figure 36. Configure the memory and CPU settings
Installing the vSZ on a Hypervisor
Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 50
9Click Forward. The New VM (Step 4 of 4) screen appears and displays a
summary of the settings you configured.
Figure 37. A summary of the settings you configured appears
10 Verify that the settings you configured on the previous screens are correct. If you
need to make changes to any of the settings, click Back until you reach the
screen on which the setting appears, make the change, and then click Forward
until you reach the New VM (Step 4 of 4) screen again.
11 Click Finish to install the vSZ on the virtual machine.
12 After you complete installing the vSZ on the virtual machine, decide how many
interfaces you want the vSZ to use. The vSZ supports either a single interface
or three interfaces. By default, a single interface exists after installation.
• If you want the vSZ to use a single interface, you do not need to take action
in this step. Continue to the next step.
• If you want the vSZ to use three interfaces, you must create the two additional
interfaces before the initial bootup of the vSZ. Once the vSZ has completed
its initial bootup, you will no longer be able to change the number of interfaces.
Installing the vSZ on a Hypervisor
Installing the vSZ on a Kernel-based Virtual Machine Hypervisor
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 51
CAUTION! If you want to add interfaces, you must do so before the initial bootup
of the vSZ. After the initial bootup, you will no longer be able to change the number
of interfaces.
Figure 38. By default, a single interface exists
13 Power on the virtual machine. The vSZ performs its initial bootup.
14 When the vSZ login prompt appears, enter admin.
You have completed setting up the vSZ on a KVM hypervisor. You are now ready to
start the vSZ Setup Wizard. See Using the Setup Wizard to Install vSZ for more
information.
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 52
3
Installing the vSZ on Microsoft
Azure
In this chapter:
•Logging into Microsoft Azure
•Creating a Storage Account and Container
•Uploading the vSZ Image to Microsoft Azure
•Creating a vSZ Image on Microsoft Azure
•Creating a Network
•Creating a vSZ Virtual Machine
•Configuring Port Numbers for Virtual Machines
•Assigning a Static Internal IP Address to a Virtual Machine
•Assigning a Static Public IP Address to a VM
This section describes how to install the vSZ on Microsoft Azure.
Logging into Microsoft Azure
Follow these steps to login to Microsoft Azure:
1Click http://azure.microsoft.com/en-us/ to access the Microsoft Azure site.
2Click the Portal tab as show in the figure.
Figure 39. Portal tab
3The Microsoft Azure login page appears and redirects you to the Ruckus Wireless
login page as shown in the figure.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 53
Figure 40. Microsoft Azure login page
If the page does not redirected to the Ruckus Wireless login page and asks to you
choose a user account, select the Work or school account as shown in the figure.
The Ruckus Wireless login page appears.
4Enter your User name and Password to login.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 54
Creating a Storage Account and Container
To create a Microsoft Azure storage account, perform the following steps:
1From the Microsoft Azure page, click Create a storage account. The Create a
storage screen appears.
Figure 41. Creating a storage account
2In URL, type the URL.
3In Location/Affinity Group, type the location of the storage.
4In Replication, select an option from the drop-down list.
5Click Create Storage Account. The Storage screen appears listing the new
storage account.
Figure 42. New storage account listed
6Select the storage account and click Containers > Create a Container.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 55
Figure 43. Creating a storage container
The New Container screen appears.
Figure 44. New container
7In Name, type the name of the storage container.
8In Access, select an option from the drop-down list.
9Click the icon. The new container is listed in the Containers tab.
Figure 45. New container listed
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 56
Uploading the vSZ Image to Microsoft Azure
Before you Begin
Ensure that you have installed Windows Azure Power Shell (web platform installer)
from http://go.microsoft.com/fwlink/p/?linkid=320376&clcid=0x409.
Follow these steps to upload the vSZ image to Microsoft Azure:
1Open Microsoft Azure PowerShell and type the add-azureaccount
command. The Microsoft Azure Login screen appears.
2Type t he User name and Password.
3Click Sign in. A success message appears confirming your Microsoft Azure
account is added.
Figure 46. Account creation success message
4Type command add-azurevhd to initiate uploading the image.
NOTE: Ensure that the URL in Destination and Microsoft Azure storage are the
same.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 57
Figure 47. Verifying URLs match
Figure 48. Uploading the vSZ image
After the vSZ image is uploaded, a confirmation message appears.
Figure 49. vSZ message indicating image upload is complete
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 58
Creating a vSZ Image on Microsoft Azure
Follow these steps to create a vSZ image on Microsoft Azure:

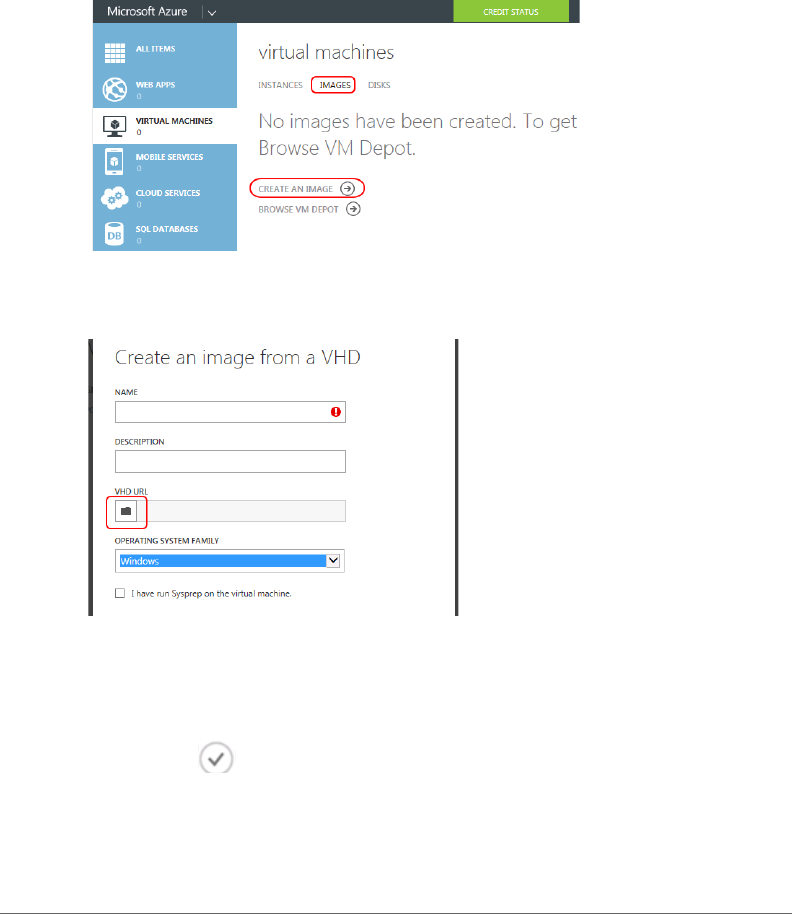

1From the Microsoft Azure page, click Virtual Machines > Images.
Figure 50. Creating an image
2Click Create an Image. The Create an Image from VHD screen appears.
Figure 51. Creating an image from VHD
3In Name, type the name of the image.
4In Description, provide a brief description about the image.
5Click VHD URL and browse to the cloud storage to select the VHD file.
6In Operating System Family, select an option from the drop-down list.
7Click the icon. The new image is listed in the Images tab.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 59
Figure 52. A new vSZ image is created
Creating a Network
Follow these steps to create a virtual network:
1From the Microsoft Azure page, click Networks > Virtual Networks.
Figure 53. Creating a virtual network
2Click Create a Virtual Network. The Virtual Network Details screen appears.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 60
Figure 54. Virtual Network Details screen
3In Name, type the name of the virtual network.
4In Location, select a location from the drop-down list.
5Click the icon. The DNS Servers and VPN Connectivity screen appears.
Figure 55. DNS Servers and VPN Connectivity screen
6In DNS Server, type the name of the server and IP address.
7Configure the VPN connectivity. You can choose between a point-to-site or site-
to-site connectivity.
8Click the icon. The Virtual Network Address Spaces screen appears.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 61
Figure 56. Virtual Network Address Spaces screen
9Type the address space and subnet information as appropriate.
10 Click the icon. The virtual network is created and listed in the networks page.
Figure 57. The new virtual network is added and listed in the Networks page
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 62
Creating a vSZ Virtual Machine
Follow these steps to create a vSZ virtual machine:
1From the Microsoft Azure page, click Virtual Machines > Instances. The New
screen appears.
Figure 58. New screen

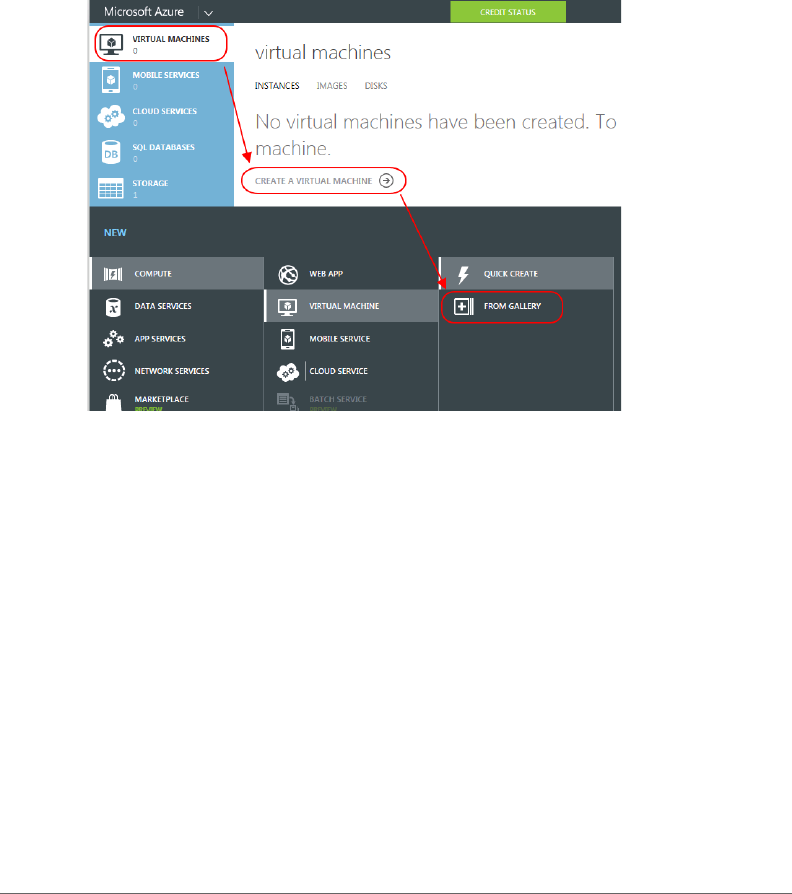

2Click Compute > Virtual Machine > Quick Create > From Gallery. The Choose
an Image screen appears.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 63
Figure 59. Choosing an image
3Click My Images. A list of images you created appears.
Figure 60. A list of images
4Select and image.
5Click the icon. The Virtual Machine Configuration screen appears.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 64
Figure 61. Virtual machine configuration - screen 1
6In Virtual Machine Name, type the name of the VM.
7In Tier, select Standard.
8In Size, select an option from the drop-down list.
9In New User Name, type the user name.
10 In Authentication, select the Provide a Password option. Type the new password
and confirm.
11 Click the icon. The next configuration screen appears.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 65
Figure 62. Virtual machine configuration - screen 2
12 In Cloud Service, select a service from the drop-down list.
13 In Cloud Service DNS Name, type the DNS name.
14 In Region/Affinity Group/Virtual Network, select an option from the drop-down
list.
15 In Virtual Network Subnets, select an option from the drop-down list.
16 In Availability Set, select an option from the drop-down list.
17 In End Points, type the values as appropriate.
Additionally, you can configure the following ports:
Table 7. Port numbers to configure virtual machines
Feature Port Number
vscg_ftp 21
vscg_ap-fw 91
vscg_ap-key 443
vscg_gui 8443
vscg_wispr01 8090
vscg_wispr02 8099
vscg_wispr03 8100
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 66
18 Click the icon. The next configuration screen appears.
Figure 63. Virtual machine configuration - screen 3
19 In VM Agent, select the check-box to enable VM agent.
20 Click the icon. The new VM is listed in the Virtual Machines page.
Figure 64. The new VM is created and listed
vscg_wispr04 8111
vscg_wispr05 9998
vscg_nbi01 9080
vscg_nbi02 9443
vscg_lwapp 12223
Table 7. Port numbers to configure virtual machines
Feature Port Number
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 67
Configuring Port Numbers for Virtual Machines
Follow these steps to configure port numbers for your VM using Microsoft Azure:
1From the Microsoft Azure page, click Virtual Machines > Instances.
Figure 65. Selecting a VM
2Select the virtual machine to configure the ports.
3Click Endpoints.
4Select Add Endpoint.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 68
Figure 66. Adding endpoints
The Add Endpoint screen appears.
Figure 67. Add Endpoint - screen 1
5Select Add a stand-alone end point.
6Click the icon. The next configuration screen appears.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 69
Figure 68. Adding Endpoint - screen 2
7In Name, type the name of the endpoint.
8In Protocol, select the protocol from the drop-down list.
9In Public Report, type 8443.
10 In Private Report, type 8443.
11 Click the icon. The endpoint is created and listed in the Endpoints tab for
the VM.
Figure 69. A new endpoint for the VM is created and listed
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 70
Assigning a Static Internal IP Address to a Virtual
Machine
A Virtual machine in a network is assigned an internal IP address. These addresses
change when the VM is restarted. Some scenarios such as the following might
require VMs to have a static internal IP address that does not change:
• If the VM is an internal DNS server.
• If the VM is a node within a cluster.
• If the VM is part of a site-to-site VPN connection.
Before You Begin
Ensure that a vSZ virtual machine is created using Microsoft Azure.
Also, ensure that you assign an internal IP for the VM before configuring the virtual
network.
Follow these steps to assign an static internal IP to a VM:
1From the Microsoft Azure page, click Virtual Machines > Instances.
2From the Virtual Machines page, select the VM.
NOTE: An internal IP is assigned to the VM by default when it is created.
Figure 70. Default IP assigned to the VM
3Click Shutdown.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 71
Figure 71. Shutting down the VM
4Verify that the VM has stopped running.
Figure 72. Verifying VM has stopped running
5Open command prompt.
6Enter the Test-AzureStaticVnetIP -VnetName <name> -IPAddress
<test IP address> command to verify that the IP address is available to
assign to the VM.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 72
Figure 73. Verifying IP address availability
7Assign the available IP (10.250.1.10 in this example) to the VM using the Get-
AzureVM -ServiceName vsz03 -Name vsz03 `| Set-
AzureStaticVNetIP -IPAddress 10.250.1.10 `| Update-
AzureVM commands.
Figure 74. Assigning the static IP to the VM
8From the Virtual Machines page, select the VM.
9Click Start.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 73
Figure 75. Starting the VM
10 Click the VM properties and verify that the IP address has changed.
Figure 76. Verifying static IP address is assigned to the VM
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 74
Assigning a Static Public IP Address to a VM
Microsoft Azure assigns a dynamic IP address to a VM when it is created. In addition,
a static public IP address must be assigned to a VM as DNS names cannot be
configured in a vSZ; resulting in changes to the public IP address.
NOTE: Microsoft Azure currently only supports assigning static public IP addresses
to VMs through the command line interface (CLI).
Follow these steps to assign a static public IP address to a VM:
1Open the command prompt and create a static IP by typing the New-
AzureReservedIP-ReservedIPName <name>-Label <label name>-
Location <location name> command.
Figure 77. Creating a static IP address
2Verify that the static IP address is created by typing the Get-
AzureReservedIP command.
Figure 78. Verifying static IP address is created
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 75
3Select a VM to assign the static public IP by typing the get-azurevm
command.
Figure 79. Selecting the VM to assign a static IP address
4Set the IP address to the VM by typing the Set-
AzureReservedIPAssociation-ReservedIPName <name>-
ServiceName <name> command.
Figure 80. Setting the IP address
5Verify that the static public IP address to assigned to the VM by typing the Get-
AzureReservedIP command.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 76
Figure 81. Verifying that the IP address is assigned
6From the Microsoft Azure page, click Virtual Machines > Instances and verify
that DNS Name.
7Select the VM.
8Click the Dashboard tab. Verify that you are able to see the updated Public IP
address.
Installing the vSZ on Microsoft Azure
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 77
Figure 82. Verifying the DNS name and static public IP address changes
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 78
4
Installing the vSZ on the Google
Computing Engine
In this chapter:
•Logging into GCE and Selecting a Project
•Creating a Storage Bucket
•Uploading the vSZ image to a Storage
•Creating a vSZ Image for Virtual Machines
•Creating Networks and Configuring Firewall Rules
•Creating Virtual Machine (VM) Instances
This section describes how to install the vSZ on a GCE.
Before you begin
Ensure that you have created an account with GCE and have the login details for
the same.
Logging into GCE and Selecting a Project
Follow these steps to login to the GCE site:
1Click http://cloud.google.com to access the Google Cloud Platform website.
2Select My console as shown.
Figure 83. GCE Page - My console
3Login to the account with your user name and password.
4Click Sign in. A list of projects you created is displayed.
NOTE: You can create projects by clicking Create a project in the drop-down.
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 79
5Click Select a project to choose a project as shown.
Figure 84. Selecting a Project
Creating a Storage Bucket
You can create storage for the objects you create. Follow these steps to create
storage:
1From Google Developers Console, click Storage > Cloud Storage > Browser.
The Cloud Storage Buckets screen appears.
2Click Create bucket. The New bucket screen appears.
Figure 85. Creating a Storage Bucket
3In Name, type the name of the storage bucket
4In Storage class, select the storage class you want. You can choose from
Standard, DRA, and Nearline in the drop-down list.
5In Location, select the location from the drop-down list.
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 80
Figure 86. New Bucket Information
6Click Create. The storage bucket you created is listed in the browser.
7To create another storage, click Create bucket as shown.
Figure 87. Creating Another Storage Bucket
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 81
Uploading the vSZ image to a Storage
Follow these steps to upload a vSZ image to the storage bucket you created:
1Select the storage bucket to upload the vSZ image as shown.
Figure 88. Selecting the Storage
2Click Upload files.
Figure 89. Uploading the vSZ Image
3Browse to the location of the vSZ image and select it.
NOTE: Only images with file-type *.raw.tar.gz can be selected.
4Click Open.
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 82
Figure 90. Selecting the vSZ Image
The status of the upload process is displayed.
5The image is listed in the storage bucket after the image is uploaded.
Figure 91. vSZ Image Uploaded to Storage Bucket
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 83
Creating a vSZ Image for Virtual Machines
Follow these steps to create a vSZ image for virtual machines:
1From Google Developers Console, click Compute > Compute Engine >
Images. A page displaying a list of images appears.
Figure 92. Creating a New Image
2Click New Image. The Create a new image screen appears.
Figure 93. Create a New Image Screen
3In Name, type the name of the image.
4In Description, provide a brief description about the image.
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 84
5In Encryption, select an option from the drop-down list containing Automatic
(recommended) and Customer supplied.
6In Source, select Cloud storage file.
7In Cloud Storage file, click Browse to select the file.
8Click Create. The new image is listed.
Figure 94. The New Image is Listed
Creating Networks and Configuring Firewall Rules
Follow these steps to create a network and configure firewall rules for your network:
1From Google Developers Console, click Networking > Networks. A page
displaying a list of networks appears.
Figure 95. List of Networks
2Click Create network. The Create a network screen appears.
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 85
Figure 96. Creating a Network
3In Name, type the name of the network.
4In Description, provide a brief description about the network.
5In Address range, specify the address range for the network.
6In Gateway, type the gateway address.
7Under Firewall rules, select the rule you want to apply to the network.
8Click Create. A page including the new network appears.
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 86
Figure 97. The New Network is Created
9From the network list, select a network for which you want to add or configure
firewall rules.
10 To add a firewall rule, click Add firewall rule. The Create a firewall rule screen
appears.
Figure 98. Creating a Firewall Rule
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 87
11 In Name, type the name of the rule.
12 In Description, provide a brief description about the rule.
13 In Network, type the network address.
14 In Source filter, select Allow from any source.
15 In Source IP ranges, type the range.
16 In Allowed protocols and ports, type the protocols and ports that will be allowed.
17 In Target t ags, specify a tag name. It is recommended that you provide a tag as
all network instances with this tag will adhere to the firewall rule.
18 Click Create. A page displaying the new firewall rule appears.
Figure 99. Adding Firewall Rules
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 88
Creating Virtual Machine (VM) Instances
Follow these steps to create new VM instances:
1From Google Developers Console, click Compute > Compute Engine > VM
instances. The Compute Engine VM instances screen appears.
2Click Create instance. The Create a new instance screen appears.
Figure 100. Creating a new VM Instance
3In Name, type the name of the VM instance.
4In Zone, select a zone from the drop-down list.
5In Machine type, CPU and Memory are selected by default. To modify, click
Change. The Select a machine type screen appears.
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 89
Figure 101. Select a Machine Type
6Click Select.
7In Boot disk, a standard image is selected by default. To modify, click Change.
The Boot disk screen appears.
8From Your image, select the image you want to include.
9Click Select.
10 In Firewall, select the options as appropriate.
11 In Project access, allow API access as appropriate.
12 In Management, type the values as appropriate.
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 90
Figure 102. VM Management
NOTE: Ensure that the tag provided is the same as the one provided while creating
a firewall rule. This ensures port mapping happens correctly.
13 In Disk, select the options as appropriate.
Figure 103. VM Disk Configuration
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 91
14 In Networking, select the options as appropriate.
15 In Access and security, select the options as appropriate.
Table 8. External IP Address Options for VM Network Configuration
External IP Options Description
Ephemeral The VM is assigned a dynamic public IP address
None The VM instance is not assigned an external IP address
New static IP address The VM is assigned a static public IP address
Installing the vSZ on the Google Computing Engine
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 92
Figure 104. VM Access and Security Configuration
16 Click Create. The VM instances page appears listing the new VM that is created.
Figure 105. New VM is Created
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 93
5
Configuring the Virtual Machine
Interfaces
The vSZ comes with the option to operate with either one (1) network interface or
three (3) network interfaces. Therefore the procedure for setting up the vSZ interface
depends on the number of interfaces that it has.
Follow the procedure below that corresponds to the number of interfaces that the
vSZ you are installing has.
•Setting Up th vSZ with One Interface
•Setting Up the vSZ with Three Interfaces
NOTE: By default, the VMWare ESXi package comes with three network interfaces.
If you want to deploy the vSZ with only one interface, you can edit the virtual machine
settings to remove the extra interfaces. The KVM package, on the other hand,
comes with a single interface. If you want to deploy the vSZ with three interfaces,
edit the virtual machine settings to create two additional interfaces.
Setting Up th vSZ with One Interface
Follow these steps to set up the vSZ with a single network interface.
1Log on to the console using the following credentials:
• User name: admin
• Password: admin
2At the vSZ> prompt, enter en to enable privileged mode.
3At the Password prompt, enter admin. The vSZ# prompt appears.
4Enter setup. The console displays the current network settings (if any), and then
displays the following prompt:
Do you want to setup network? [YES/no]
Configuring the Virtual Machine Interfaces
Setting Up th vSZ with One Interface
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 94
Figure 106. At the vSZ> prompt, enter setup
5Enter YES. The next screen prompts you to select the profile configuration that
you want to use for this instance of vSZ. The options include:
• (1) High-Scale
• (2) Essentials
6Enter the number that corresponds to the profile configuration that you want to
deploy.
NOTE: If you selected Essentials and the virtual machine has insufficient memory
resources available (for example, the VM has only 8GB of RAM when the minimum
RAM requirement is 12GB), you will be unable to continue with the setup process.
Figure 107. Enter the number that corresponds to the profile that you want to deploy
Configuring the Virtual Machine Interfaces
Setting Up th vSZ with One Interface
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 95
7At the Select IP Version Support prompt, enter one of the following
options:
• 1: IPv4 Only
• 2: IPv4 and IPv6
8At the Select IP configuration prompt, enter 1 to set up the single vSZ
interface (for Control [AP], Cluster, and Management [Web]) manually.
9Configure the IP address, netmask, and gateway of the control interface, and
the press <Enter>. The IP address configuration that you entered appears.
10 When the prompt Are these correct? (y/n) appears, enter y to confirm
the IP address configuration.
Figure 108. Configure the IP address settings of the single interface
11 When the prompt Select system default gateway (Control,
Cluster, Management)? appears, enter Control.
NOTE: This entry is case-sensitive. Make sure you enter the system default gateway
exactly as shown at the prompt.
Configuring the Virtual Machine Interfaces
Setting Up th vSZ with One Interface
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 96
Figure 109. When prompted for the system default gateway, enter Control
12 At the Primary DNS Server prompt, enter the primary DNS server on the
network.
13 At the Secondary DNS Server prompt, enter the secondary DNS server (if
any) on the network.
Configuring the Virtual Machine Interfaces
Setting Up th vSZ with One Interface
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 97
14 At the Control NAT IP prompt, enter the public IP address of the NAT server
on the network. If you are not deploying the vSZ behind a NAT server, press
<Enter> without typing an IP address.
NOTE: Ensure that each vSZ is associated with a dedicated NAT device.
Figure 110. Enter the public IP address of the NAT server (if any)
15 Enter restart network.
You have completed configuring the vSZ interfaces. You are now ready to run the
vSZ Setup Wizard. See Using the Setup Wizard to Install vSZ.
Configuring the Virtual Machine Interfaces
Setting Up the vSZ with Three Interfaces
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 98
Setting Up the vSZ with Three Interfaces
1Log on to the console using the following credentials:
• User name: admin
• Password: admin
2At the vSZ> prompt, enter en to enable privileged mode.
3At the Password prompt, enter admin. The vSZ# prompt appears.
4Enter setup. The console displays the current network settings (if any), and then
displays the following prompt:
Do you want to setup network? [YES/no]
Figure 111. At the vSZ> prompt, enter setup
5At the Select IP configuration appears prompt, enter 1 to set up the
control interface manually.
aConfigure the IP address, netmask, and gateway of the control interface, and
the press <Enter>. The IP address configuration that you entered appears.
bWhen the message Are these correct? appears, enter y to confirm the IP
address configuration.
Configuring the Virtual Machine Interfaces
Setting Up the vSZ with Three Interfaces
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 99
Figure 112. Configure the IP address settings of the control interface
6At the Select IP configuration prompt, enter 1 to set up the cluster
interface manually.
aConfigure the IP address, netmask, and gateway of the cluster interface, and
then press <Enter>. The IP address configuration that you entered appears.
bWhen the message Are these correct? appears, enter y to confirm the IP
address configuration.
7At the Select IP configuration prompt, enter 1 to set up the
management interface manually.
aConfigure the IP address, netmask, and gateway of the management inter-
face, and the press <Enter>. The IP address configuration that you entered
appears.
NOTE: Take note of the IP address that you assign to the management interface –
you will use this IP address to log on to the vSZ web interface.
bWhen the message Are these correct? appears, enter y to confirm the IP
address configuration.
Configuring the Virtual Machine Interfaces
Setting Up the vSZ with Three Interfaces
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 100
8When the message Select system default gateway (Control,
Cluster, Management)?, enter Control or Management, depending on
your network topology (see Important Notes About Selecting the System Default
Gateway).
NOTE: This entry is case-sensitive. Make sure you enter the system default gateway
exactly as shown at the prompt.
Figure 113. When prompted for the system default gateway, enter either Management or
Control (depending on your network design)
9When prompted, enter the primary and secondary DNS server IP addresses.
10 Enter restart network.
You have completed configuring the vSZ interfaces. You are now ready to run the
vSZ Setup Wizard. See Using the Setup Wizard to Install vSZ.
Configuring the Virtual Machine Interfaces
Important Notes About Selecting the System Default Gateway
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 101
Important Notes About Selecting the System
Default Gateway
Depending on your network topology, you may select either the Management or
Control interface as the system default gateway.
• If all of the managed APs are located in different locations on the Internet, the
vSZ may not know all of the IP subnets of these APs. In this case, the control
interface should be set as the default gateway for the vSZ and you will need to
add a static route to reach the management network.
• If all of the managed APs belong to a single subnet or to multiple subnets on
which you can set the route statically, then you can set the management interface
as the default gateway users can set default gateway for the vSZ and set static
routes for the vSZ to reach all of its managed APs.
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 102
6
Using the Setup Wizard to Install
vSZ
In this chapter:
•Before You Begin
•Step 1: Start the Setup Wizard and Set the Language
•Step 2: Select the Profile Configuration That Corresponds to Your vSZ License
•Step 3: Configure the Management IP Address Settings
•Step 4: Configure the Cluster Settings
•Step 5: Set the Administrator Password
•Step 6: Verify the Settings
•Logging On to the Web Interface
Using the Setup Wizard to Install vSZ
Before You Begin
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 103
Before You Begin
The Setup Wizard helps you perform the initial configuration of the vSZ by presenting
the vSZ configuration options in a set of easy-to-complete screens.
The Setup Wizard will prompt you to select one of the two available profile
configurations (High-Scale profile and Essentials profile). You must select the profile
configuration that corresponds to the vSZ license that you purchased.
Before you start the Setup Wizard, make sure you know the profile configuration
that you need to select. If you are unsure which profile configuration you need to
select, contact Ruckus Wireless Support.
Follow these steps to run and complete the vSZ Setup Wizard:
Step 1: Start the Setup Wizard and Set the Language
Step 2: Select the Profile Configuration That Corresponds to Your vSZ License
Step 3: Configure the Management IP Address Settings
Step 4: Configure the Cluster Settings
Step 5: Set the Administrator Password
Step 6: Verify the Settings
NOTE: This guide describes the Setup Wizard screens that appear when you select
the High-Scale profile configuration. If you select the Essentials profile configuration,
the screens that appear may be slightly different.
Using the Setup Wizard to Install vSZ
Step 1: Start the Setup Wizard and Set the Language
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 104
Step 1: Start the Setup Wizard and Set the
Language
1Start your web browser, and then enter the following in the address bar:
https://{management-IP-address}:8443
Where management-IP-address is the address you assigned to the manage-
ment interface.
The vSZ Setup Wizard appears, displaying the Language page.
Figure 114. The Language page
2Select your preferred language for the vSZ web interface. Available options
include:
•English
• Traditional Chinese
• Simplified Chinese
3Click Next. The Profile page appears.
Using the Setup Wizard to Install vSZ
Step 2: Select the Profile Configuration That Corresponds to Your vSZ License
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 105
Step 2: Select the Profile Configuration That
Corresponds to Your vSZ License
1Select the profile configuration that corresponds to the vSZ license that you
purchased. Available profile configurations include:
• High Scale
• Essentials
2Click Apply. The message Applying profile appears, and then the
Management IP page appears.
Figure 115. The Profile page
Using the Setup Wizard to Install vSZ
Step 3: Configure the Management IP Address Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 106
Step 3: Configure the Management IP
Address Settings
NOTE: The vSZ comes in either a single network interface or three network
interfaces (one interface each for Control (AP), Cluster, and Management (Web)
traffic). The following procedure assumes that the vSZ you are installing uses a single
network interface.
WARNING! If the vSZ that you are installing comes with three network interfaces,
you must configure each of the three interfaces to be on three different subnets.
Failure to do so may result in loss of access to the web interface or failure of system
functions and services.
1In IP Version Support, select one of the following options:
•IPv4 Only: Click this option if you want the controller to obtain an IPv4
address from a DHCP server on the network.
•IPv4 and IPv6: Click this option if you want the controller to obtain both IPv4
and IPv6 addresses from DHCP and DHCPv6 servers on the network.
Using the Setup Wizard to Install vSZ
Step 3: Configure the Management IP Address Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 107
Figure 116. Select the IP version support
2Configure the IP address settings of the Control (AP/DataPlane) interface.
aUnder the IPv4 section, click Static, and then enter the network settings that
you want to assign to the AP/DataPlane interface, through which client traffic
and configuration data are sent and received.
NOTE: Although it is possible to use DHCP to assign IP address settings to the
Control interface automatically, Ruckus Wireless strongly recommends assigning a
static IP address to this interface.
The following network settings are required (others are optional):
- IP address
-Netmask
- Default gateway
Using the Setup Wizard to Install vSZ
Step 3: Configure the Management IP Address Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 108
bIf you clicked IPv4 and IPv6 at the beginning of this procedure, under the
IPv6 section, click Auto Configuration if you want the controller to obtain its
IP address from Router Advertisements (RAs) or from a DHCPv6 server on
the network. If you want to manually assign the IPv6 network address, click
Static, and then set the values for the following:
-IP address (IPv6): Enter an IPv6 address (global only) with a prefix length
(for example, 1234::5678:0:C12/123). Link-local addresses are
unsupported.
-Gateway: Enter an IPv6 address (global or link-local) without a prefix
length. Here are examples:
• Global address without a prefix length: 1234::5678:0:C12
• Link-local address without a prefix length: fe80::5678:0:C12
cClick the Cluster tab when done.
Figure 117. The Cluster tab
Using the Setup Wizard to Install vSZ
Step 3: Configure the Management IP Address Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 109
3On the Cluster tab, click Static under the IPv4 section, and then enter the
network settings that you want to assign to the cluster interface, through which
cluster data will be sent and received.
NOTE: Although it is possible to use DHCP to assign IP address settings to the
Cluster interface automatically, Ruckus Wireless strongly recommends assigning a
static IP address to this interface.
The following network settings are required (others are optional):
• IP address
•Netmask
• Default gateway
Click the Management (Web) tab when done.
Figure 118. The Management (Web) tab
4On the Management (Web) tab, configure the IP address settings of the
management interface.
Using the Setup Wizard to Install vSZ
Step 3: Configure the Management IP Address Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 110
aUnder the IPv4 section, click Static, and then enter the network settings that
you want to assign to the AP/DataPlane interface, through which client traffic
and configuration data are sent and received.
NOTE: Although it is possible to use DHCP to assign IP address settings to the
Control interface automatically, Ruckus Wireless strongly recommends assigning a
static IP address to this interface.
The following network settings are required (others are optional):
- IP address
-Netmask
- Default gateway
bIf you clicked IPv4 and IPv6 at the beginning of this procedure, under the
IPv6 section, click Auto Configuration if you want the management (web)
interface to obtain its IP address from Router Advertisements (RAs) or from
a DHCPv6 server on the network. If you want to manually assign the IPv6
network address, click Static, and then set the values for the following:
-IP address (IPv6): Enter an IPv6 address (global only) with a prefix length
(for example, 1234::5678:0:C12/123). Link-local addresses are
unsupported.
-Gateway: Enter an IPv6 address (global or link-local) without a prefix
length. Here are examples:
• Global address without a prefix length: 1234::5678:0:C12
• Link-local address without a prefix length: fe80::5678:0:C12
5At the bottom of the screen (see Figure 119), select the interface that you want
to set as the default system gateways for IPv4 and IPv6 (if enabled), and then
type the primary and secondary DNS server addresses.
NOTE: The appropriate interface to use as the default system gateway depends
on the topology of your network. See Important Notes About Selecting the Gateway
for more information.
Using the Setup Wizard to Install vSZ
Step 3: Configure the Management IP Address Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 111
Figure 119. Select the IPv4 and IPv6 (if enabled) default system gateways
6Check the network settings that you have configured on the Control, Cluster,
and Management tabs and the default gateway that you have selected. Verify
that they are all correct.
7Click the Apply to continue. The controller validates and applies the network
settings that you have configured.
Using the Setup Wizard to Install vSZ
Step 3: Configure the Management IP Address Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 112
Figure 120. The controller validates and applies the network settings you have configured
CAUTION! It may take the controller up to 15 minutes to activate its interfaces. If
an error message appears after you apply the network interface settings, wait at
least 15 minutes, and then try again.
NOTE: If the controller is unable to validate the network settings that you configured,
an error message appears. If this happens, check the network settings that you
configured and verify that you are able to connect to the IP address that you assigned
to the Management (Web) interface.
8Update the IP address settings of the administrative computer with the same
subnet settings that you assigned to the Management (Web) interface
(see Step 4).
Continue to Step 4: Configure the Cluster Settings.
Using the Setup Wizard to Install vSZ
Step 4: Configure the Cluster Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 113
Important Notes About Selecting the Gateway
Depending on your network topology, you may select either the Management or
Control interface as the gateway.
• If all of the managed APs are located in different locations on the Internet, the
controller may not know all of the IP subnets of these APs. In this case, the
control interface should be set as the default system gateway of the controller
and you will need to add a static route to reach the management network.
• If all of the managed APs belong to a single subnet or to multiple subnets on
which you can set the route statically, then you can set the management interface
as the default gateway users can set default system gateway of the controller
and set static routes for the controller to reach all of its managed APs.
Step 4: Configure the Cluster Settings
The next step is to configure the vSZ cluster settings. The actions that you need to
perform in this step depend on whether you are creating a new cluster (with this
vSZ as the first node) or you are setting up this vSZ to join an existing cluster.
•If This vSZ Is Forming a New Cluster
•If This vSZ Is Joining an Existing Cluster
Using the Setup Wizard to Install vSZ
Step 4: Configure the Cluster Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 114
Figure 121. The Cluster Information page, showing the New Cluster option
Using the Setup Wizard to Install vSZ
Step 4: Configure the Cluster Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 115
If This vSZ Is Forming a New Cluster
Follow these steps if you want to use this vSZ to create a new cluster.
1On the Cluster Information page, configure the following settings:
•In vSZ Cluster Setting, select New Cluster.
•In Cluster Name, type a name that you want to assign to this new cluster.
NOTE: The Cluster Name and Controller Name boxes only accept alphanumeric
characters, hyphens (-), and underscores (_). They do not accept the space
character or other special characters (for example, $, *, #, !).
•In Controller Name, type a name for the vSZ controller in this new cluster.
•In Controller Description, type a description for the vSZ controller.
•In NTP Server, type the address of the NTP server from which members of
the cluster will obtain and synchronize time. The default NTP server is
pool.ntp.org.
CAUTION! Before continuing, verify that the cluster settings are correct. Once the
cluster is created, you will be unable to edit its settings without rebuilding the cluster
from scratch.
2Click Next to continue to the Administrator page (see Step 5: Set the
Administrator Password).
If This vSZ Is Joining an Existing Cluster
If this is not the first vSZ cluster on the network, you can set up this vSZ virtual
appliance to join an existing cluster.
CAUTION! To add this vSZ to an existing cluster, the entire target cluster must be
in a healthy state (no node must be in “out of service” state). If any member node
is out of service, the join request will fail. You will need to remove any out-of-service
node from the cluster before you can add a new node successfully.
CAUTION! A vSZ cluster supports a maximum of four nodes. If you are building a
vSZ-E cluster with more than two nodes, two (2) additional cores must be added
to each node to support the added search and replication capabilities.
Follow these steps to configure this vSZ to join an existing cluster.
1In vSZ Cluster Setting, select Join Existing Cluster.
2In Cluster Name, type the name of the cluster that this vSZ is joining.
Using the Setup Wizard to Install vSZ
Step 4: Configure the Cluster Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 116
NOTE: The Cluster Name and Controller Name boxes only accept alphanumeric
characters, hyphens (-), and underscores (_). They do not accept the space
character or other special characters (for example, $, *, #, !).
3In Controller Name (optional), type a name that you want to assign to this new
controller.
4In Controller Description, type a description for this new controller.
5In Join Exist vSZ Cluster IP, type the IP address of the leader in the existing cluster.
6In Admin Password, type the administrator password to the web interface of the
leader node.
7Click Next to continue to the Administrator page. See Step 5: Set the
Administrator Password.
Figure 122. The Cluster Information page, showing the Join Existing Cluster option
Using the Setup Wizard to Install vSZ
Step 5: Set the Administrator Password
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 117
NOTE: If the firmware version on this vSZ (shown in the lower left area of the Cluster
Information page) does not match the firmware version of the cluster, a message
appears and prompts you to upgrade the vSZ firmware. Click Upgrade, and then
follow the prompts to perform the upgrade.
Step 5: Set the Administrator Password
1On the Administrator page, configure the web interface and CLI passwords. All
fields are required.
•Admin Password: Type a password that you want to use to access the web
interface.
•Confirm Password: Retype the password above to confirm.
•Enable Password: Type a password that you want to use to enable CLI
access to the vSZ.
•Confirmation Password: Retype the password above to confirm.
NOTE: The web interface and CLI passwords must be at least eight (8) characters
and must include one number, one letter, and one special character (for example,
$, *, #, !).
2Click Next to continue. The Confirmation page appears and displays all the vSZ
settings that you have configured using the Setup Wizard.
Using the Setup Wizard to Install vSZ
Step 5: Set the Administrator Password
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 118
Figure 123. Set the web interface and CLI passwords
Using the Setup Wizard to Install vSZ
Step 6: Verify the Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 119
Step 6: Verify the Settings
Verify that all the settings displayed on the Confirmation page are correct. If they
are all correct, click Finish to apply the settings and activate the vSZ on the network.
Figure 124. The Confirmation page
NOTE: If you find an incorrect setting, click the Back button until you reach the
related page, and then edit the settings. When you finish editing the settings, click
the Next button until you reach the Confirmation page again.
A progress bar appears and displays the progress of applying the settings, starting
the vSZ services, and activating the vSZ on the network.
When the process is complete, the progress bar shows the message 100% Done.
The page also shows the IP address through which you can access the vSZ web
interface to manage the appliance.
Using the Setup Wizard to Install vSZ
Step 6: Verify the Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 120
Figure 125. Setup is complete when the progress bar shows “100% Done”
Congratulations! You have completed the Setup Wizard. You are now ready to log
on to the web interface. Go to https://{management-IP-adddress}:8443,
and then log on with the user name and password that you assigned to the web
interface.
Using the Setup Wizard to Install vSZ
Logging On to the Web Interface
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 121
Logging On to the Web Interface
You can access the vSZ web interface from any computer that is on the same subnet
as the management (web) interface.
Follow these steps to log on to the vSZ web interface.
1On a computer that is on the same subnet as the Management (Web) interface,
start a web browser.
2In the address bar, enter the IP address that you assigned to the Management
(Web) interface and append a colon and 8443 (vSZ management port number)
at the end of the address.
For example, if the IP address that you assigned to the Management (Web)
interface is 10.10.101.1, then you should enter:
https://10.10.101.1:8443
The vSZ web interface logon page appears.
Figure 126. vSZ web interface logon page
3Log on to the vSZ web interface using the following logon details:
•User Name: admin
• Password: {the password that you set when you ran the vSZ
Setup Wizard}
4Click Log On.
Using the Setup Wizard to Install vSZ
Logging On to the Web Interface
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 122
The web interface refreshes, and then displays the vSZ dashboard page, which
indicates that you have logged on successfully.
You are now ready to configure the vSZ.
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 123
7
Configuring the vSZ High-Scale for
the First Time
NOTE: This chapter describes the initial configuration tasks that Ruckus Wireless
recommends you perform for the vSZ High-Scale. The initial configuration of the
vSZ Essentials is more straightforward and, therefore, is not described here. For
information on configuring the vSZ Essentials, refer to the vSZ Essentials
Administrator Guide.
In this chapter:
•Creating an AP Zone
•Configuring AAA Servers and Hotspot Settings
•Creating a Registration Rule
•Defining the WLAN Settings of an AP Zone
•Configuring DHCP Option 43
•Verifying That Wireless Clients Can Associate with a Managed AP
•What to Do Next
Configuring the vSZ High-Scale for the First Time
Creating an AP Zone
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 124
Creating an AP Zone
The first step in configuring the vSZ is to create an AP zone. An AP zone functions
as a way of grouping APs and applying a particular set of settings (including WLANs
and their settings) to these groups of APs. Each AP zone can include up to six WLAN
services.
A zone called Staging Zone exists by default. Any AP that registers with the vSZ
that is not assigned a specific zone is automatically assigned to the Staging Zone.
Follow these steps to create a new AP zone.
1Click Configuration > AP Zones.
2Click Create New.
Figure 127. Creating a new AP zone
3Configure the options listed in Tabl e 9.
Table 9. Configuration options in the Create New Zone form
Option Description
General Options
Zone Name Type a name that you want to assign to this new zone.
Description Type a description for this new zone.
AP Firmware Displays the latest AP firmware available on the vSZ. If
you want this zone to use a different firmware, click
Change, and then select a firmware from the list.
Configuring the vSZ High-Scale for the First Time
Creating an AP Zone
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 125
Country Code Different countries and regions maintain different rules
that govern which channels can be used for wireless
communications.
Set the country code to the proper regulatory region
ensures that your vSZ network does not violate local and
national regulatory restrictions.
AP Admin Logon Specify the user name and password that
administrators can use to log on directly to the managed
access point’s native web interface.
The following boxes are provided:
•Logon ID: Type the admin user name.
•Password: Type the admin password.
Syslog Options If you have a syslog server on the network and you want
the vSZ to send syslog data to it, select the Enable
external syslog server for APs in this zone check box.
The following boxes are provided:
•IP Address: Type the IP address of the syslog server.
•Port: Type the port number that has been opened on
the server for syslog data. The default port number is
514.
Mesh Options
Enable Select the Enable mesh networking in this zone check
box if you want managed devices that belong to this
zone to be able to form a mesh network automatically.
Radio Options
Radio Options b/g/n (2.4GHz) Configure the following 2.4GHz radio options:
•Channelization: Select either 20MHz or 40MHz
channel width.
•Channel: Select Auto or manually assign a channel
for the 2.4GHz radio.
•TX Power Adjustment: Manually set the transmit
power on all 2.4GHz radios (default is Full).
Table 9. Configuration options in the Create New Zone form (Continued)
Option Description
Configuring the vSZ High-Scale for the First Time
Creating an AP Zone
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 126
Radio Options a/n (5GHz) Configure the following 5GHZ radio options:
•Channelization: Select either 20MHz or 40MHz
channel width.
•Channel (Indoor and Outdoor): Select Auto or
manually assign channels to the indoor and outdoor
5GHz radios.
•TX Power Adjustment: Manually set the transmit
power on all 5GHz radios (default is Full).
AP GRE Tunnel Options
Tunnel Type Select a protocol to use for tunneling WLAN traffic back
to the vSZ. Options include Ruckus GRE and SoftGRE.
Tunnel Profile Select the tunnel profile that you want to use. If you want
to use Ruckus GRE tunneling for this AP zone, you can
use the default tunnel profile or you can select a profile
that you created. If you want to use Soft GRE tunneling,
you must first create a Soft GRE tunnel profile.
NOTE: Instructions for creating Ruckus GRE and Soft
GRE tunnel profiles are provided in the Administrator
Guide for this release.
Advanced Options
Channel Mode If you want to allow outdoor APs that belong to this zone
to use wireless channels that are regulated as indoor use
only, select the Allow indoor channels check box.
Background Scanning If you want APs to automatically evaluate radio channel
usage, enable and configure the background scanning
settings on both the 2.4GHz and 5GHz radios.
By default, background scanning is enabled on both
radios and set to run every 20 seconds.
Table 9. Configuration options in the Create New Zone form (Continued)
Option Description
Configuring the vSZ High-Scale for the First Time
Creating an AP Zone
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 127
4Click Create New to finish creating your first AP Zone. When the vSZ completes
creating the AP zone, the following confirmation message appears:
AP zone created successfully. Do you want to view the zone
information?
5Click Yes to view the zone details, or click No to close the confirmation message
and return to the zone list.
Client Load Balancing Improve WLAN performance by enabling load
balancing. Load balancing spreads the wireless client
load between nearby access points, so that one AP
does not get overloaded while another site idles. Load
balancing must be enabled on a per-radio basis. To
enable load balancing, select the Enable load
balancing on [2.4GHz or 5GHz] check box, and then
set or accept the default Adjacent Radio Threshold
(50dB for the 2.4GHz radio and 43dB for the 5GHz
radio).
Smart Monitor To disable the WLANs of an AP (that belongs to this
zone) whenever the AP uplink or Internet connection
becomes unavailable, select the Enable check box. And
then, configure the following options:
•Health Check Interval: Set the interval (between 5 and
60 seconds) at which the vSZ will check the AP’s
uplink connection. The default value is 10 seconds.
•Health Check Retry Threshold: Set the number of
times (between 1 and 10 times) that the vSZ will check
the AP’s uplink connection. If the vSZ is unable to
detect the uplink after the configured number of
retries, the vSZ will disable the AP’s WLANs. The
default value is 3 retries.
NOTE: When the vSZ disables the AP’s WLANs, the AP
creates a log for the event. When the AP’s uplink is
restored, the AP sends the event log (which contains the
timestamp when the WLANs were disabled, and then
enabled) to the vSZ.
Table 9. Configuration options in the Create New Zone form (Continued)
Option Description
Configuring the vSZ High-Scale for the First Time
Configuring AAA Servers and Hotspot Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 128
You have completed creating your first AP zone. You can create additional AP zones,
if needed.
Configuring AAA Servers and Hotspot
Settings
NOTE: If you do not have an AAA server on the network, skip this step.
If you have an existing RADIUS (AAA) server on the network, you can set up hotspot
services across the network using the Ruckus Wireless access points that the vSZ
is managing. To provide hotspot services, you need to add at least one AAA server
to the vSZ and create a hotspot service.
AAA servers and hotspot settings must be configured on a per-AP zone basis.
Adding an AAA Server
Follow these steps to add an AAA server to an AP zone.
1Go to Configuration > AP Zones.
2Click the AP zone for which you want to add an AAA server. Alternatively, click
the AP zone from the Management Domains tree.
3Under the AP Zones menu on the sidebar, click AAA.
4Click Create New. The Create New RADIUS Server form appears.
5In the General Options section, configure the following settings:
•Name: Type a name for the AAA server that you are adding.
•Description: Type a description for the AAA server that you are adding.
•Typ e: Click either RADIUS or RADIUS Accounting, depending on the type
of RADIUS server that you are using.
•Backup RADIUS: If a backup RADIUS server exists on the network, you may
enable RADIUS backup support by selecting the Enable backup RADIUS
support check box.
6Configure the options in the Health Check Policy section. These options define
the health monitoring settings of the primary RADIUS server by the secondary
RADIUS server. The secondary RADIUS is responsible for monitoring the health
of the primary RADIUS and for periodically synchronizing its settings to match
those of the primary RADIUS.
Configuring the vSZ High-Scale for the First Time
Configuring AAA Servers and Hotspot Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 129
•Response Window: Set the time (in seconds) during which the secondary
RADIUS must wait for a response from the primary RADIUS. If the secondary
RADIUS does not receive a response during the defined Response Window,
the Zombie Period (see below) is started for the primary RADIUS. The default
Response Window is 20 seconds.
•Zombie Period: Set the time (in seconds) during which the secondary RADIUS
must wait for a response from the primary RADIUS before marking it as
“down”. If the secondary RADIUS does not receive a response during the
defined Zombie Period, the Revive Interval (see below) is started for the
primary server. The default Zombie Period is 40 seconds. If the primary
RADIUS still does not respond when the Zombie Period expires, it will be
marked as down and the secondary RADIUS will start receiving new requests
from the Network Access Server (NAS).
•Revive Interval: Set the time (in seconds) during which the secondary RADIUS
must wait for the primary RADIUS to start responding to requests again. If
the primary RADIUS starts responding before the Revive Interval expires, new
requests will be forwarded to the primary RADIUS again. The default Revive
Interval is 120 seconds.
•No Response Fail: Click Yes to respond with a reject message to the NAS if
no response is received from the RADIUS server. Click No to skip sending a
response.
7In the Primary Server section, configure the following settings:
•IP Address: Type the IP address of the AAA server.
•Port: Type the AAA port number. The default AAA port number is 1812.
•Shared Secret: Type the AAA shared secret.
•Confirm Secret: Retype the AAA shared secret that you typed above.
8If you selected the Enable backup RADIUS support check box, the Secondary
Server section is visible. Configure the following Secondary Server settings:
•IP Address: Type the IP address of the secondary AAA server.
•Port: Type the AAA port number. The default AAA port number is 1812.
•Shared Secret: Type the AAA shared secret.
•Confirm Secret: Retype the AAA shared secret that you typed above.
9Click Create New. The following message appears to confirm that you have
successfully added the AAA server to the vSZ:
Authentication server created successfully.
Configuring the vSZ High-Scale for the First Time
Configuring AAA Servers and Hotspot Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 130
The page refreshes, and then the AAA server that you created appears under the
AAA Servers Configuration section.
Figure 128. The Create New RADIUS Server form
Creating a Hotspot Service
NOTE: If you do not want to provide a hotspot service to users, skip this step.
NOTE: Before creating a hotspot, you need to create a user defined interface. For
information on how to create a user defined interface, see the Administrator Guide
for release 2.5.
A hotspot service requires an AAA server. Before creating a hotspot service, make
sure you have already added an AAA server to the vSZ. For more information, refer
to Adding an AAA Server.
Follow these steps to create a hotspot service for an AP zone.
1Go to Configuration > AP Zones.
2Click the AP zone for which you want to create a hotspot service. Alternatively,
click the AP zone from the Management Domains tree.
3Under the AP Zones menu on the sidebar, click WISPr (Hotspot).
4Click Create New. The Create New Hotspot Service form appears.
Configuring the vSZ High-Scale for the First Time
Configuring AAA Servers and Hotspot Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 131
5Configure the hotspot service settings listed in Table 10.
Table 10. Hotspot service settings
Setting Description
General Options
Name Type a name for this new hotspot service that you are
creating.
Description Type a description for this new hotspot service (for
example, Main Office Lobby).
Type Click Registered Users if you want only users with
existing profiles on the vSZ to be able to connect to this
hotspot. Click Guest-Access if you want guest users to
be able to connect to this hotspot.
Redirection
Smart Client Support • None: Click to disable Smart Client support.
•Enable: Click to enable Smart Client support.
•Only Smart Client allowed: Click to allow only
Smart Clients to access this hotspot service.
Logon URL Type the URL of the subscriber portal (the page where
hotspot users can log in to access the service). For more
information, see the section “Configuring the Logon
URL” in the Administrator Guide for release 2.5.
Start Page Set where users will be redirected after logging in
successfully. You could redirect them to the page that
they want to visit, or you could set a different page where
users will be redirected (for example, your company
website).
User Session
Session Timeout Set a time limit after which users will be disconnected
from the hotspot service and required to log on again.
Allowed session timeout range is between 2 and 14400
minutes. The default value is 1440 minutes.
Grace Period Allow disconnected users a grace period after
disconnection, during which clients will not need to re-
authenticate. Allowed grace period range is between 1
and 14399 minutes. The default value is 60 minutes.
Configuring the vSZ High-Scale for the First Time
Configuring AAA Servers and Hotspot Settings
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 132
6Click Create New.
The page refreshes, and then the hotspot that you created appears under the WISPr
(Hotspot) Configuration section.
Location Information
Location ID Type a location ID for the hotspot, for example:
isocc=us,cc=1,ac=408,network=ACMEWISP
_NewarkAirport
Location Name Type a location name for the hotspot, for example:
ACMEWISP,Gate_14_Terminal_C_of_Newark
_Airport
Walled Garden Click Create New to add a walled garden, which is a
limited environment to which an unauthenticated user is
given access for the purpose of setting up an account.
In the box provided, type a URL or IP address to which
you want to grant unauthenticated user access. You can
add up to 128 network destinations to the walled
garden. Network destinations can be any of the
following:
• IP address (for example, 10.11.12.13)
• Exact website address (for example,
www.ruckuswireless.com)
• Website address with regular expression (for
example, *.ruckuswireless.com, *.com, *)
After the account is established, the user is allowed out
of the walled garden. URLs will be resolved to IP
addresses. Users will not be able to click through to
other URLs that may be presented on a page if that page
is hosted on a server with a different IP address.
Avoid using common URLs that are translated into many
IP addresses (such as www.yahoo.com), as users
may be redirected to re-authenticate when they navigate
through the page.
Table 10. Hotspot service settings (Continued)
Setting Description
Configuring the vSZ High-Scale for the First Time
Creating a Registration Rule
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 133
Figure 129. The Create New Hotspot Service form
Creating a Registration Rule
Registration rules enable the vSZ to assign an AP to an AP zone automatically based
on the rule that the AP matches.
Follow these steps to create a registration rule.
1Go to Configuration > AP Zones.
2On the sidebar on the left, click AP Registration Rules. The AP Registration
Rules page appears.
3Click Create New. A form appears.
4In Rule Description, type a name that you want to assign to this rule.
5In Rule Type, click the basis upon which you want to create the rule. Options
include:
•IP Address: If you select this option, type the From (starting) and To (ending)
IP address that you want to use.
•Subnet Mask: If you select this option, type the IP address and subnet mask
pair to use for matching.
•GPS Coordinates: If you select this option, type the GPS coordinates to use
for matching. Access points that have been assigned the same GPS coor-
dinates will be automatically assigned to the AP zone that you will choose in
the next step.
Configuring the vSZ High-Scale for the First Time
Creating a Registration Rule
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 134
•Provision Tag: If the access points that are joining the vSZ have been
configured with provision tags, click the Provision Tag option, and then type
a tag name in the Provision Tag box. Access points with matching tags will
be automatically assigned to the AP zone that you will choose in the next step.
NOTE: Provision tags can be configured on a per-AP basis from the access point’s
command line interface.
6In Zone Name, click the drop-down list to display available AP zones, and then
click an AP zone to which APs that match this rule will be assigned.
7Click OK.
You have completed creating an AP registration rule.
Figure 130. Creating an AP registration rule
To create another registration rule, repeat the preceding steps. You can create as
many registration rules as you need to manage access points on the network.
Configuring the vSZ High-Scale for the First Time
Creating a Registration Rule
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 135
Configuring the Rule Priority
The vSZ applies registration rules in the same order as they appear in the AP
Registration Rules table (highest to lowest priority). If you want a particular registra-
tion rule to have higher priority, you must move it up the table. Once an AP matches
a registration rule, the vSZ assigns the AP to the zone specified in the rule and stops
processing the remaining rules.
Follow these steps to configure the rule priority.
1Go to Configuration > AP Zones.
2On the sidebar on the left, click AP Registration Rules. The AP Registration
Rules page appears and displays the rules that you have created.
3Change the priority of each registration rule as required.
• To give a rule higher priority, move it up the table by clicking the (up-
arrow) icon that is in the same row as the rule name.
• To give a rule lower priority, move it down the table by clicking the (down-
arrow) icon that is in the same row as the rule name.
4When you finish configuring the rule priority, click Update Priorities to save your
changes.
Figure 131. Change the rule priority by clicking the up-arrow or down-arrow
Configuring the vSZ High-Scale for the First Time
Defining the WLAN Settings of an AP Zone
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 136
Defining the WLAN Settings of an AP Zone
Follow these steps to configure the WLAN settings of an AP zone.
1Go to Configuration > AP Zones.
2Click the AP zone for which you want to add the WLAN settings. Alternatively,
click the AP zone from the Management Domains tree.
3Under the AP Zones menu on the sidebar, click WLAN.
4Click Create New. The Create New WLAN Configuration form appears.
5Configure the WLAN settings listed in Ta b le 1 1 . You can find a detailed
description of each setting in the succeeding sections.
Table 11. Overview of WLAN settings
WLAN Setting Description
General Options Enter the WLAN name and description. See General
Options.
WLAN Usage Select the usage type (standard WLAN or hotspot). See
WLAN Usage.
Authentication Options Select an authentication method for this WLAN (open or
802.1X EAP). See Authentication Options.
Encryption Options Select an encryption method (WPA, WPA2, WPA Mixed,
and WEP), encryption algorithm (AES or TKIP) and enter
a WPA passphrase/WEP key. See Encryption Options.
Authentication & Accounting
Service
This section only appears when certain authentication
options are selected. See Authentication & Accounting
Service.
Options Select whether web-based authentication (captive
portal) will be used, and which type of authentication
server will be used to host credentials (local database,
Active Directory, RADIUS, LDAP). Also, enable or
disable Wireless Client Isolation, Zero-IT Activation,
Dynamic PSK and Priority for this WLAN.
See Options.
Advanced Options Select an accounting server and configure ACLs, rate
limiting, VLAN/dynamic VLAN settings, tunneling,
background scanning, maximum client threshold, and
service schedule. See Advanced Options.
Configuring the vSZ High-Scale for the First Time
Defining the WLAN Settings of an AP Zone
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 137
6Click OK to finish creating the WLAN service.
You have completed creating your first WLAN. To create another WLAN, repeat Step
4 to Step 6. You can create up to six WLANs per AP zone.
Figure 132. Configuring the WLAN settings of an AP zone
General Options
•Name/ESSID: Type a short name (2-31 characters) for this WLAN. In general,
the WLAN name is the same as the advertised SSID (the name of the wireless
network as displayed in the client’s wireless configuration program). However,
you can also separate the ESSID from the WLAN name by entering a name for
the WLAN in the first field, and a broadcast SSID in the second field. In this way,
you can advertise the same SSID in multiple locations (controlled by the same
vSZ) while still being able to manage the different WLANs independently. Each
WLAN “name” must be unique within the vSZ, while the broadcast SSID can be
the same for multiple WLANs.
•Description: Enter a brief description of the qualifications or purpose of this
WLAN (for example, Engineering or Voice).
WLAN Usage
•In Access Network, select the Tunnel WLAN traffic to vSZ check box if you want
to tunnel the traffic from this WLAN back to the vSZ. Tunnel mode enables
wireless clients to roam across different APs on different subnets. If the WLAN
has clients that require uninterrupted wireless connection (for example, VoIP
Configuring the vSZ High-Scale for the First Time
Defining the WLAN Settings of an AP Zone
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 138
devices), Ruckus Wireless recommends enabling tunnel mode. When you
enable this option, you need to select core network for tunneling WLAN traffic
back to the vSZ.
• In Authentication Type, click one of the following options:
•Standard usage (For most regular wireless networks): This is a regular
WLAN suitable for most wireless networks.
•Hotspot service (WISPr): Click this option if want to use a hotspot (WISPr)
service that you previously created.
•Hotspot 2.0: Click this option if you want to use a Hotspot 2.0 profile that
you previously created.
•Guest Access: Click this option if you want to use this WLAN for guest
access.
Authentication Options
Authentication defines the method by which users are authenticated prior to gaining
access to the WLAN. The level of security should be determined by the purpose of
the WLAN you are creating.
•Open [Default]: No authentication mechanism is applied to connections. If WPA
or WPA2 encryption is used, this implies WPA-PSK authentication.
•802.1X/EAP: Uses 802.1X authentication against a user database.
•MAC Address: Uses the MAC address of a client for authentication. MAC
address authentication requires a RADIUS server and uses the MAC address as
the user logon name and password. You have two options for the MAC address
format to use for authenticating clients:
• Use user defined text as authentication password (default is device MAC
address)
• Set device MAC address in 802.1x format 00-10-A4-23-19-C0. The default
is 0010a42319c0.
Encryption Options
Encryption choices include WPA, WPA2, WPA-Mixed, WEP and none. WPA and
WPA2 are both encryption methods certified by the Wi-Fi Alliance and are the
recommended encryption methods. The Wi-Fi Alliance will be mandating the
removal of WEP due to its security vulnerabilities, and Ruckus Wireless recommends
against using WEP if possible.
Configuring the vSZ High-Scale for the First Time
Defining the WLAN Settings of an AP Zone
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 139
Method
•WPA: Standard Wi-Fi Protected Access with either TKIP or AES encryption.
•WPA2: Enhanced WPA encryption using the stronger AES encryption algorithm.
•WPA-Mixed: Allows mixed networks of WPA and WPA2 compliant devices. Use
this setting if your network has a mixture of older clients that only support WPA
and TKIP, and newer client devices that support WPA2 and AES.
•WEP-64: Provides a lower level of encryption, and is less secure, using 40-bit
WEP encryption.
•WEP-128: Provides a higher level of encryption than WEP-64, using a 104-bit
key for WEP encryption. However, WEP is inherently less secure than WPA.
•None: No encryption; communications are sent in clear text.
CAUTION! If you set the encryption method to WEP-64 (40 bit) or WEP-128 (104
bit) and you are using an 802.11n AP for the WLAN, the AP will operate in 802.11g
mode.
Algorithm (For WPA or WPA2 Encryption Only)
•TKIP: This algorithm provides greater compatibility with older client devices, but
retains many of the security weaknesses of WEP. Therefore, if you select TKIP
encryption, 11n devices will be limited to 11g transfer rates. Furthermore, the
Wi-Fi Alliance will be mandating the removal of TKIP, so it should not be used.
•AES: This algorithm provides enhanced security over TKIP, and is the only
encryption algorithm supported by the 802.11i standard. Choose AES encryp-
tion if you are confident that all of your clients will be using 802.11i-compliant
NICs.
•Auto: Automatically selects TKIP or AES encryption based on the client’s
capabilities. Note that since it is possible to have clients using both TKIP and
AES on the same WLAN, only unicast traffic is affected (broadcast traffic must
fall back to TKIP; therefore, transmit rates of broadcast packets from 11n APs
will be at lower 11g rates).
CAUTION! If you set the encryption algorithm to TKIP and you are using an 802.11n
AP for the WLAN, the AP will operate in 802.11g mode.
Configuring the vSZ High-Scale for the First Time
Defining the WLAN Settings of an AP Zone
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 140
CAUTION! If you set the encryption algorithm to TKIP, the AP will only be able to
support up to 26 clients. When this limit is reached, additional clients will be unable
to associate with the AP. On the other hand, if you select AES or none, the AP will
be able to support up to 256 clients (less if wireless mesh is also enabled on the
same radio).
WEP Key/Passphrase
•WEP Key: WEP methods only. Click the Hex field, and then type the required
key text. If the key is for WEP 64 encryption, enter ten hexadecimal characters
(any combination of 0-9, A-F). If it is for WEP 128 encryption, enter 26 hexadec-
imal characters (any combination of 0-9, A-F).
•Passphrase: WPA-PSK methods only. Click in this field and type the text of the
passphrase used for authentication. The passphrase must contain between
eight and 63 characters (or 64 hexadecimal characters).
Authentication & Accounting Service
•Authentication Service: This option appears only when 802.1x EAP is selected
as the authentication method. Select the authentication server that you want to
use for this WLAN. Only AAA servers that you previously added appear here.
•Accounting Service: This option appears only when 802.1x EAP is selected in
Authentication method. Additionally, you must have added a RADIUS
Accounting server previously. Select the RADIUS Accounting server from the
drop-down list, as a proxy for vSZ.
Options
•Wireless Client Isolation: This option appears only when Standard Usage is
selected as the WLAN usage type. Wireless client isolation enables subnet
restrictions for connected clients. Click Enable if you want to prevent wireless
clients associated with the same AP from communicating with each other locally.
The default value is Disable.
•Priority: Set the priority of this WLAN to Low if you would prefer that other WLAN
traffic takes priority. For example, if you want to prioritize internal traffic over guest
WLAN traffic, you can set the priority in the guest WLAN configuration settings
to “Low.” By default, all WLANs are set to high priority.
Configuring the vSZ High-Scale for the First Time
Defining the WLAN Settings of an AP Zone
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 141
RADIUS Options
NOTE: The RADIUS Options section only appears when Authentication Type (under
WLAN Usage) is set to Standard usage (For most regular wireless networks).
•RADIUS NAS ID: Select how the RADIUS server will identify the AP:
• WLAN BSSID
• AP MAC
• User-defined
•RADIUS NAS Request Timeout: Type the timeout period (in seconds) after, which
an expected RADIUS response message is considered to have failed.
•RADIUS NAS Max Number of Retries: Type the number of failed connection
attempts after which the vSZ will fail over to the backup RADIUS server.
•RADIUS NAS Reconnect Primary: If the vSZ fails over to the backup RADIUS
server, this is the interval (in minutes) at which the vSZ will recheck the primary
RADIUS server if it is available. The default interval is 5 minutes.
•Call STA ID: Use either WLAN BSSID or AP MAC as the station calling ID. Select
one.
Advanced Options
•Rate Limiting: Rate limiting controls fair access to the network. When enabled,
the network traffic throughput of each network device (client) is limited to the
rate specified in the traffic policy, and that policy can be applied on either the
uplink or downlink.
Toggle the Uplink and/or Downlink drop-down lists to limit the rate at which
WLAN clients upload/download data. The “Disabled” state means rate limiting
is disabled; thus, traffic flows without prescribed limits.
•Access VLAN: By default, all wireless clients associated with APs that the vSZ
is managing are segmented into a single VLAN (with VLAN ID 1). If you want to
tag this WLAN traffic with a different VLAN ID, enter a valid VLAN ID (2-4094) in
the box. Select the Enable Dynamic VLAN check box to allow the vSZ to assign
VLAN IDs on a per-user basis. Before enabling dynamic VLAN, you need to
define on the RADIUS server the VLAN IDs that you want to assign to users.
•Hide SSID: Click this option if you do not want the ID of this WLAN advertised
at any time. This will not affect performance or force the WLAN user to perform
any unnecessary tasks.
Configuring the vSZ High-Scale for the First Time
Defining the WLAN Settings of an AP Zone
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 142
•Proxy ARP: When enabled on a WLAN, the AP provides proxy service for stations
when receiving neighbor discovery packets (for example, ARP requests and
ICMPv6 Neighbor Solicit messages), and acts on behalf of the station in
delivering ARP replies. When the AP receives a broadcast ARP/Neighbor Solicit
request for a known host, the AP replies on behalf of the host. If the AP receives
a request for an unknown host, it forwards the request at the rate limit specified
•Max Clients: Limit the number of clients that can associate with this WLAN per
AP (default is 100). You can also limit the total number of clients that a specific
AP (or radio, on dual radio APs) will manage.
•802.11d: The 802.11d standard provides specifications for compliance with
additional regulatory domains (countries or regions) that were not defined in the
original 802.11 standard. Enable this option if you are operating in one of these
additional regulatory domains.
•DHCP Option 82: When this option is enabled and an AP receives a DHCP
request from a wireless client, the AP will encapsulate additional information
(such as VLAN ID, AP name, SSID and MAC address) into the DHCP request
packets before forwarding them to the DHCP server. The DHCP server can then
use this information to allocate an IP address to the client from a particular DHCP
pool based on these parameters.
•Client TX/RX Statistics: Select the Ignore statistics from unauthorized clients
check box if you do not want the vSZ to monitor traffic statistics for unauthorized
clients.
•Inactivity Timeout: Select the check box and enter a value in minutes (6 to 600
minutes) after which idle clients will be disconnected.
•Client Fingerprinting: If you select this check box, the vSZ will attempt to identify
client devices by their operating system, device type, and host name, if available.
This makes identifying client devices easier on the Dashboard, Monitor and Client
Details pages.
•Disable WLAN: Select this option to disable this WLAN service.
Configuring the vSZ High-Scale for the First Time
Configuring DHCP Option 43
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 143
Configuring DHCP Option 43
To enable the vSZ to manage an AP, the AP must be able to locate the vSZ on the
network successfully and register with it. The easiest way to ensure that APs can
successfully locate the vSZ on the network is by configuring DHCP Option 43 on
your DHCP server.
DHCP Option 43 enables the DHCP server on your network to provide the vSZ
server address – either IP address or FQDN– (specifically, the IP address assigned
to the vSZ’s control plane or cluster plane interface) to DHCP clients, including APs
that are connected to the network.
The procedure for configuring DHCP option 43 varies, depending on the DHCP
server that you are using. Refer to the documentation provided with your DHCP
server software for information on how to configure DHCP option 43.
NOTE: The following procedure describes how to configure DHCP option 43 on a
Linux server (Fedora). If your DHCP server is running on a different platform, refer
to the DHCP server documentation for the relevant instructions.
Follow these steps to configure DHCP option 43 on a Linux server.
1Log on to your DHCP server via a console terminal (for example, PuTTY).
2Go to /etc directory.
3Run vi dhcpd.conf. This command opens the DHCP configuration file for
editing.
4At the beginning of the DHCP configuration file, insert the following lines:
option space VendorInfo;
option VendorInfo.WSG code 6 = text;
OR
option space VendorInfo;
option VendorInfo.SCG code 6 = text;
CAUTION! Make sure that space characters exist in “6 = text”. Omitting these
space characters could result in AP connectivity issues.
5Under the subnet section, insert the following lines:
Vendor-option-space VendorInfo;
Configuring the vSZ High-Scale for the First Time
Configuring DHCP Option 43
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 144
option VendorInfo.WSG "{control-ip-address-or-fqdn}"
OR
Vendor-option-space VendorInfo;
option VendorInfo.SCG "{control-ip-address-or-fqdn}"
NOTE: {control-ip-address-or-fqdn} must be the IP address or FQDN
of the control plane (br0).
Remember to remove the curly brackets ({ }) that enclose the IP addresses or
FQDNs. If the control plane IP addresses are mapped to proper names on the
DNS server, you could also use FQDN host names instead of IP addresses.
The vSZ supports two formats for vendor information:
• Plain IP address or FQDN (for example, 10.2.0.87 or
server.company.com)
• URL-based IP address or FQDN (for example, https://10.2.0.87/
wsg/ap or https://server.company.com/wsg/ap) where
10.2.0.87 or server.company.com is the IP address or FQDN of the
control plane interface, respectively.
Inserting Multiple IP Addresses or URLs
If you want to insert multiple IP addresses or URLs, use any of the following
formats:
• URL format
-option VendorInfo.WSG "https://10.2.0.87/wsg/
ap,https://10.2.0.88/wsg/ap", or
- option VendorInfo.SCG "https://10.2.0.87/wsg/
ap,https://10.2.0.88/wsg/ap"
• IP address format
-option VendorInfo.WSG "10.2.0.87,10.2.0.88", or
- option VendorInfo.SCG "10.2.0.87,10.2.0.88"
CAUTION! Take care not to insert any space characters before or after the comma
(,) character that separates the multiple IP addresses or URLs.
6Save the changes.
7Restart the DHCP server to apply the new settings.
You have completed configuring DHCP option 43 on a Linux server.
Configuring the vSZ High-Scale for the First Time
Configuring DHCP Option 43
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 145
Figure 133. Editing dhcpd.conf
Configuring the vSZ High-Scale for the First Time
Verifying That Wireless Clients Can Associate with a Managed AP
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 146
Verifying That Wireless Clients Can Associate
with a Managed AP
The last step in the vSZ setup process is to verify that APs can register with the vSZ
and that wireless clients can associate with the APs successfully.
Follow these steps to verify that wireless clients can connect to the network.
1Verify that the vSZ is connected to the backbone network.
2Physically connect an AP to the same network as the vSZ. If DHCP option 43
was configured correctly, this AP should be able to locate the vSZ on the network
and to register with it successfully.
3Check the vSZ Dashboard. The AP zone that you created earlier should have at
least one member AP (the AP that you connected to the network in Step 2). The
AP count appears green, which indicates that it is online.
4Associate a wireless client with the AP. The following describes the procedure if
you are using a Windows-based wireless client.
aIn the system tray, right-click the (Wireless Network Connection) icon, and
then click View Available Wireless Networks.
bIn the list of available wireless network, click the wireless network name (SSID)
that you configured on the AP.
cClick Connect.
Your wireless client connects to the wireless network. After the wireless client
connects to the wireless network successfully, the wireless client icon in the
system tray changes to .
5Start your web browser, and then enter www.ruckuswireless.com in the
address bar.
If you are able to connect to the Ruckus Wireless website, you have completed
setting up the vSZ on the network. Congratulations!
Configuring the vSZ High-Scale for the First Time
What to Do Next
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 147
What to Do Next
For more information on configuring and managing the vSZ, refer to the Adminis-
trator Guide for your vSZ platform, which is available for download on the Ruckus
Wireless Support website at
https://support.ruckuswireless.com/documents
NOTE: For a complete list of documentation that is available for your vSZ profile
configuration, refer to the Release Notes.
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 148
8
Ensuring That APs Can Discover the
Controller on the Network
Before the controller can start managing an AP, the AP must first be able to discover
the controller on the network when it boots up. This chapter describes procedures
that you can perform to ensure that APs can discover and register with the controller
on the network.
In this chapter:
•Is LWAPP2SCG Enabled on the Controller?
•Method 1: Perform Auto Discovery of the Controller Using the SmartLicense
Server
•Method 2: Perform Auto Discovery on Same Subnet, then Transfer the AP to
Intended Subnet
•Method 3: Register the Controller with the DNS Server
•Method 4: Configure DHCP Option 43 on the DHCP Server
•Method 5: Manually Configure the Controller Address on the AP’s Web Interface
Ensuring That APs Can Discover the Controller on the Network
Is LWAPP2SCG Enabled on the Controller?
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 149
Is LWAPP2SCG Enabled on the Controller?
All of the controller discovery methods described in this chapter require
LWAPP2SCG (the application that enables APs to discover and be managed by a
controller) to be installed and enabled on the controller. See Tabl e 12 to check if
your controller release includes the LWAPP2SCG application and whether it is
enabled or disabled by default.
Obtaining the LWAPP2SCG Application
If your controller release does not have the LWAPP2SCG application pre-installed,
contact Ruckus Wireless Support to obtain a copy of the LWAPP2SCG application
files and installation instructions.
Enabling LWAPP2SCG
If the LWAPP2SCG application is pre-installed but disabled in your controller
release, do the following to enable it:
1Log on to the controller’s console.
2Enter en to enable privileged mode.
3Enter config.
4Enter lwapp2scg.
5Enter policy accept-all.
You have completed enabling the LWAPP2SCG application on the controller.
Table 12. LWAPP2SCG availability on each controller release
Controller
Release
LWAPP Discovery Default Setting AP Compatibility
SCG 1.1.2, 2.1.2 Application installed by
administrator. See Obtaining
the LWAPP2SCG Application.
Disabled • ZF-AP Release 9.6.x –
9.8.x
• AP Release 100.0.x
and later
SCG 2.5.x Enabled by administrator. See
Enabling LWAPP2SCG.
Disabled
SCG 2.6.x Enabled by administrator. See
Enabling LWAPP2SCG.
Disabled • ZF-AP Release 9.7.x –
9.8.x
• AP Release 100.0.x
and later
Release 3.0.x and
later
Enabled by default Enabled
Ensuring That APs Can Discover the Controller on the Network
Method 1: Perform Auto Discovery of the Controller Using the SmartLicense Server
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 150
Method 1: Perform Auto Discovery of the
Controller Using the SmartLicense Server
NOTE: This guide assumes that you have already activated the controller’s licenses
on the SmartLicense server. If you have not activated the controller’s licenses, see
the Virtual SmartZone Quick Setup Guide for this release for more information.
The Ruckus Wireless SmartLicense registration server is a cloud-based, HTTPS-
enabled web server that allows an access point to query information about its parent
controller by sending its serial number and base MAC address.
After you ensure that the controller’s licenses have been activated on the SmartLi-
cense server, you only need to connect the AP to the network, ensure that it has
Internet connectivity, and then reboot the AP. Upon reboot, the AP will automatically
attempt to discover its parent controller by sending the following HTTPS query to
ap-registrar.ruckuswireless.com (the SmartLicense server URL):
https://ap-registrar.ruckuswireless.com/
controller?ap_mac=APMAC&ap_serial=APSERIAL
Where APMAC is the AP’s MAC address (for example, APMAC: 74:91:1A:20:59:90)
and APSERIAL (for example, APSERIAL: 311003001685) is the AP’s serial number,
both of which are printed on the AP’s product label.
If the AP is unable to discover its parent controller after the first attempt, it will
continue to do so:
• Once every 5 minutes for up to 60 minutes (12 queries)
• Once every hour for the remaining day (23 queries)
• Once every 24-hour for the remaining two weeks (12 queries)
If the AP is still unable to discover its parent controller after two weeks of uptime,
this cloud-based controller discovery method will be disabled permanently. You will
need to reset the AP to factory default settings to re-enable this controller discovery
method.
Ensuring That APs Can Discover the Controller on the Network
Method 2: Perform Auto Discovery on Same Subnet, then Transfer the AP to Intended Subnet
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 151
Method 2: Perform Auto Discovery on Same
Subnet, then Transfer the AP to Intended
Subnet
If you are deploying the AP and the controller on different subnets, let the AP perform
auto discovery on the same subnet as the controller before moving the AP to another
subnet. To do this, connect the AP to the same network as the controller. When
the AP starts up, it will discover and attempt to register with the controller. Approve
the registration request if auto approval is disabled. After the AP registers with the
controller successfully, transfer it to its intended subnet. It will be able to find and
communicate with the controller once you reconnect it to the other subnet.
NOTE: If you use this method, make sure that you do not change the IP address
of the controller after the AP discovers and registers with it. If you change the
controller’s IP address, the AP will no longer be able to communicate with it and will
be unable to rediscover it.
Method 3: Register the Controller with the
DNS Server
If you register the controller with your DNS server, supported APs that request IP
addresses from your DHCP server will also obtain DNS related information that will
enable them to discover controllers on the network. Using the DNS information they
obtained during the DHCP request, APs will attempt to resolve the controller IP
address using RuckusController.{DNS domain name} and
zonedirector.{DNS domain name}.
To register the controller with the DNS server, do the following.
1Open the DNS zone file, and then add two records with the following information:
• Record Key#1: RuckusController
Type: A (IPv4 Domain Name Translation)
Value: (IP address of the controller)
• Record Key#2: zonedirector
Type: A (IPv4 Domain Name Translation)
Value: (IP address of the controller)
Ensuring That APs Can Discover the Controller on the Network
Method 3: Register the Controller with the DNS Server
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 152
Figure 134. Add records for “RuckusController” and “zonedirector” to the DNS zone file
2Save the zone file.
3Open the DHCP configuration file, and then insert the DNS domain name in the
DHCP configuration file. For example, if the DNS domain name is “38.jack”, insert
the following line into the DHCP configuration file:
option domain-name “38.jack”
Ensuring That APs Can Discover the Controller on the Network
Method 3: Register the Controller with the DNS Server
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 153
Figure 135. Insert option domain-name “38.jack”
4Save the DHCP configuration file.
When the AP obtains the DNS domain name from the DHCP server (using “Domain
Name option 15” in the DHCP-offer packet), it will resolve
“RuckusController.{domain-name}” and “zonedirector.{domain-name}” through the
DNS server, and then it will obtain the controller’s IP address from the DNS server’s
response.
NOTE: If the AP uses a static IP address or it cannot obtain the DNS domain name
from the DHCP server, the AP will attempt to resolve “RuckusController” and
“zonedirector” without a domain name from the DNS server as the FQDN of
controller's control interface.
You have completed registering the controller with the DNS server.
Ensuring That APs Can Discover the Controller on the Network
Method 4: Configure DHCP Option 43 on the DHCP Server
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 154
Method 4: Configure DHCP Option 43 on the
DHCP Server
Another method for the AP to discover the controller on the network automatically
is to configure the DHCP server on the network. To do this, you will need to configure
DHCP Option 43 (043 Vendor Specific Info) with the IP address of the controller on
the network. When an AP requests an IP address from the DHCP server, the DHCP
server will send a list of controller IP addresses to the AP. If there are multiple
controller devices on the network, the AP will automatically select a controller to
register with from this list of IP addresses.
DHCP Option 43 enables the DHCP server on your network to provide the
controller’s server address – either IP address or FQDN– (specifically, the IP address
assigned to the controller’s control plane or cluster plane interface) to DHCP clients,
including APs that are connected to the network.
The procedure for configuring DHCP option 43 varies, depending on the DHCP
server that you are using. Refer to the documentation provided with your DHCP
server software for information on how to configure DHCP option 43.
NOTE: The following procedure describes how to configure DHCP option 43 on a
Linux server (Fedora). If your DHCP server is running on a different platform, refer
to the DHCP server documentation for the relevant instructions.
CAUTION! If you have a ZoneDirector controller on the network and you do not
want APs to be managed by this ZoneDirector controller, you must disable auto
approval on the ZoneDirector web interface. Log on to the ZoneDirector web
interface, and then go to Configure > Access Points > Access Points Policies page,
and then clear the Approval check box.
Follow these steps to configure DHCP option 43 on a Linux server.
1Log on to your DHCP server via a console terminal (for example, PuTTY).
2Go to /etc directory.
3Run vi dhcpd.conf. This command opens the DHCP configuration file for
editing.
Ensuring That APs Can Discover the Controller on the Network
Method 4: Configure DHCP Option 43 on the DHCP Server
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 155
4At the beginning of the DHCP configuration file, insert the following lines:
option VendorInfo.WSG_sub6 code 6=text;
option VendorInfo.WSG_sub3 code 3=text;
option VendorInfo.WSG_sub6 "<Controller IP>";
option VendorInfo.WSG_sub3 "<Controller IP>";
For example, if you only have one controller on the network and its IP address
is 120.0.0.3, then these lines in the DHCP configuration file should look like in
Figure 136Sample DHCP Option 43 configuration.
Figure 136. Sample DHCP Option 43 configuration
If you have a two-node controller cluster on the network, use a comma to
separate the control interface IP addresses in option VendorInfo.WSG, for
example:
option VendorInfo.WSG “120.0.0.3,120.0.0.4”
where 120.0.0.3 is the control interface IP address of the first controller and
120.0.0.4 is the control interface IP address of the second controller.
5Save the DHCP configuration file.
6Restart the DHCP server to apply the new settings.
7Verify that the LWAPP2SCG application is enabled on the controller. To verify,
log on to the controller’s CLI, and then enter the following command:
show running-config lwapp2scg
If LWAPP2SCG is enabled, the value for ACL Policy should show as Accept
all.
Ensuring That APs Can Discover the Controller on the Network
Method 4: Configure DHCP Option 43 on the DHCP Server
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 156
Figure 137. “Accept all” indicates that LWAPP2SCG is enabled
If LWAPP2SCG is disabled, do the following to enable it:
aEnter config.
bEnter lwapp2scg.
cEnter policy.
dEnter one of the following commands:
- accept {MAC
-address}: Enter this command if you only want specific APs to be
managed by the controller. See Figure 139.
-accept-all: Enter this command if you want all APs that discover the
controller to be managed by it.
Figure 138. Options that appear after you enter the “policy” command
Ensuring That APs Can Discover the Controller on the Network
Method 5: Manually Configure the Controller Address on the AP’s Web Interface
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 157
Figure 139. Enter accept {MAC address} if you only want specific APs to be managed by the
controller
8Reset the AP to factory default settings, and then connect it to a network subnet
where it can communicate with the controller.
9Reboot the AP.
After the AP reboots, it will obtain an IP address and the IP address of its parent
controller from the DHCP server. Once the AP registers with the controller, it will
download and install the latest SmartZone AP firmware.
You have completed
Method 5: Manually Configure the Controller
Address on the AP’s Web Interface
1Log on to the AP’s web interface.
2Go to the Administration > Management page.
3In Primary Controller Address, type the IP address of the controller that you want
to manage the AP.
4In Secondary Controller Address, type the IP address of a backup controller that
you want to manage the AP if the primary controller is unavailable.
5Click Apply.
You have completed manually configuring the controller’s IP address on the AP’s
web interface.
Ensuring That APs Can Discover the Controller on the Network
What to Do Next
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 158
Figure 140. Set the IP addresses of the primary and secondary controllers that you want to
manage the AP
What to Do Next
For more information on configuring and managing the controller, refer to the Virtual
SmartZone Administrator Guide for this release, which is available for download on
the Ruckus Wireless Support website at http://support.ruckuswireless.com.
NOTE: For a complete list of documentation that is available for this vSZ release,
refer to the Release Notes.
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 159
Index
Numerics
802.11d 142
A
AAA server 128
ACLs 136
AES 139
AP zone 124, 136
authentication options 138
B
background scanning 126
backup RADIUS 128
C
client fingerprinting 142
cluster name 115
cluster setting 115
controller name 115, 116
country code 125
creating a new cluster 115
D
description file 9
DHCP Option 43 143
DHCP Option 82 142
DHCP server 143
disable WLAN 142
Dynamic VLAN 141
E
encryption algorithm 139
encryption options 138
ESSID 137
ESXi 9
F
firmware version 117
G
gateway 10
GCE
configuring firewalls 84
configuring networks 84
creating vSZ image 83
storage bucket 79
uploading vSZ image 81
virtual machines 83, 88
H
hide SSID 141
hotspot 128
hotspot service 130
Hyper-V 9
hypervisors 9
I
inactivity timeout 142
interface settings 10
IP address 10
J
joining a cluster 115
K
KVM 9
L
logging on 121
M
management interface 121
manifest file 9
max clients 142
mesh settings 125
Microsoft Azure 52
configuring ports 67
creating vSZ image 58
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 160
endpoint 67
static IP address 70
static public IP address 74
storage account 54
storage container 55
uploading vSZ image 56
virtual machines 62
virtual network 59
N
netmask 10
NTP server 115
O
OVA 10
P
passphrase 140
primary DNS server 10
proxy ARP 142
R
RADIUS 128
RADIUS Accounting 128
rate limiting 141
recommended system resources 11
registration rule 133
priority 135
rule priority 135
S
setup wizard 103
software version 117
SSID
hiding 141
staging zone 124
T
TKIP 139
V
virtual machine
recommended system resources 11
virtual machine state file 9
vSZ Getting Started Guide for SmartZone 3.2, 800-71029-001 Rev B 161
VLAN 141
VMWare 9
vSphere client 13
vSZ
required disk space 13
W
Web interface 121
WEP key 140
WEP-128 139
WEP-64 139
WLAN
disabling 142
WLAN name 137
WLAN settings 136
WLAN usage 137
WPA 139
WPA2 139
WPA-Mixed 139
Copyright © 2006-2015. Ruckus Wireless, Inc.
350 West Java Dr. Sunnyvale, CA 94089. USA
www.ruckuswireless.com

Navigation menu
