RuiXingHengFang Network 0M301 8 channel LoRaWAN Gateway Module User Manual

RuiXingHengFang Network(Shenzhen) Co., Ltd. 8 channel LoRaWAN Gateway Module Users Manual

Users Manual

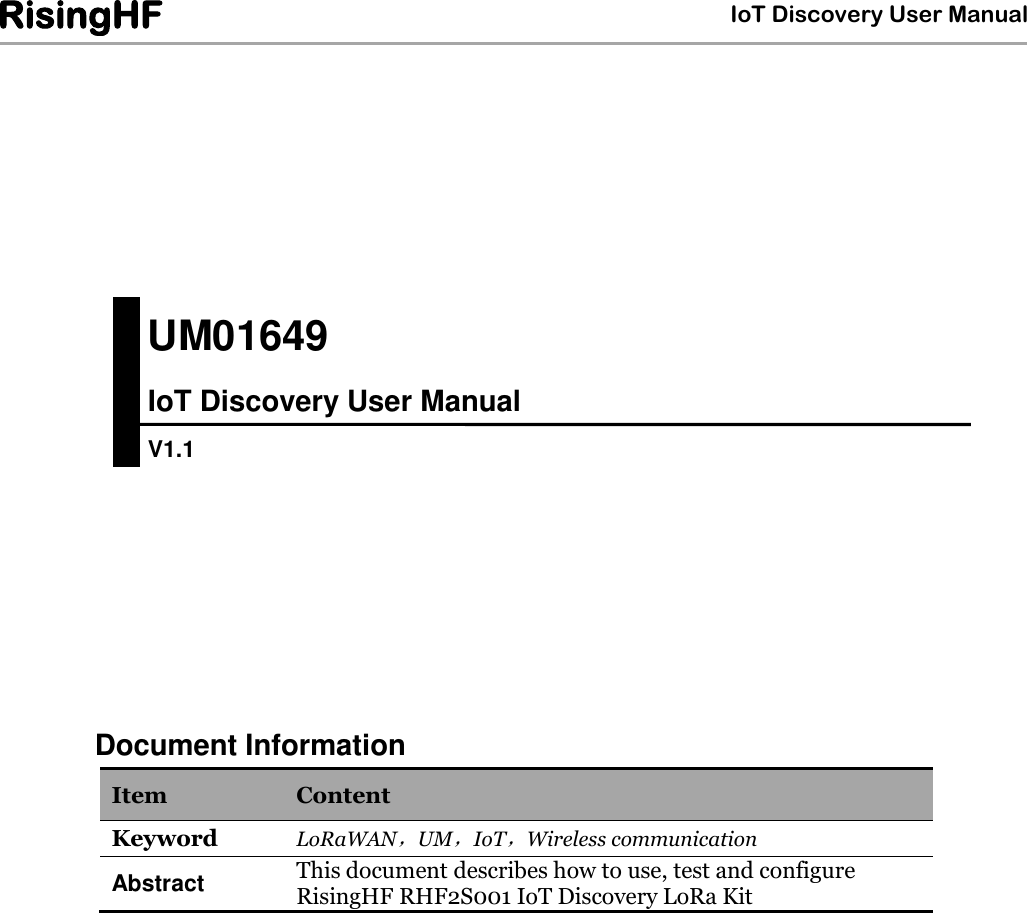

IoT Discovery User Manual RisingHF Document Information Item Content Keyword LoRaWAN，UM，IoT，Wireless communication Abstract This document describes how to use, test and configure RisingHF RHF2S001 IoT Discovery LoRa Kit UM01649 IoT Discovery User Manual V1.1

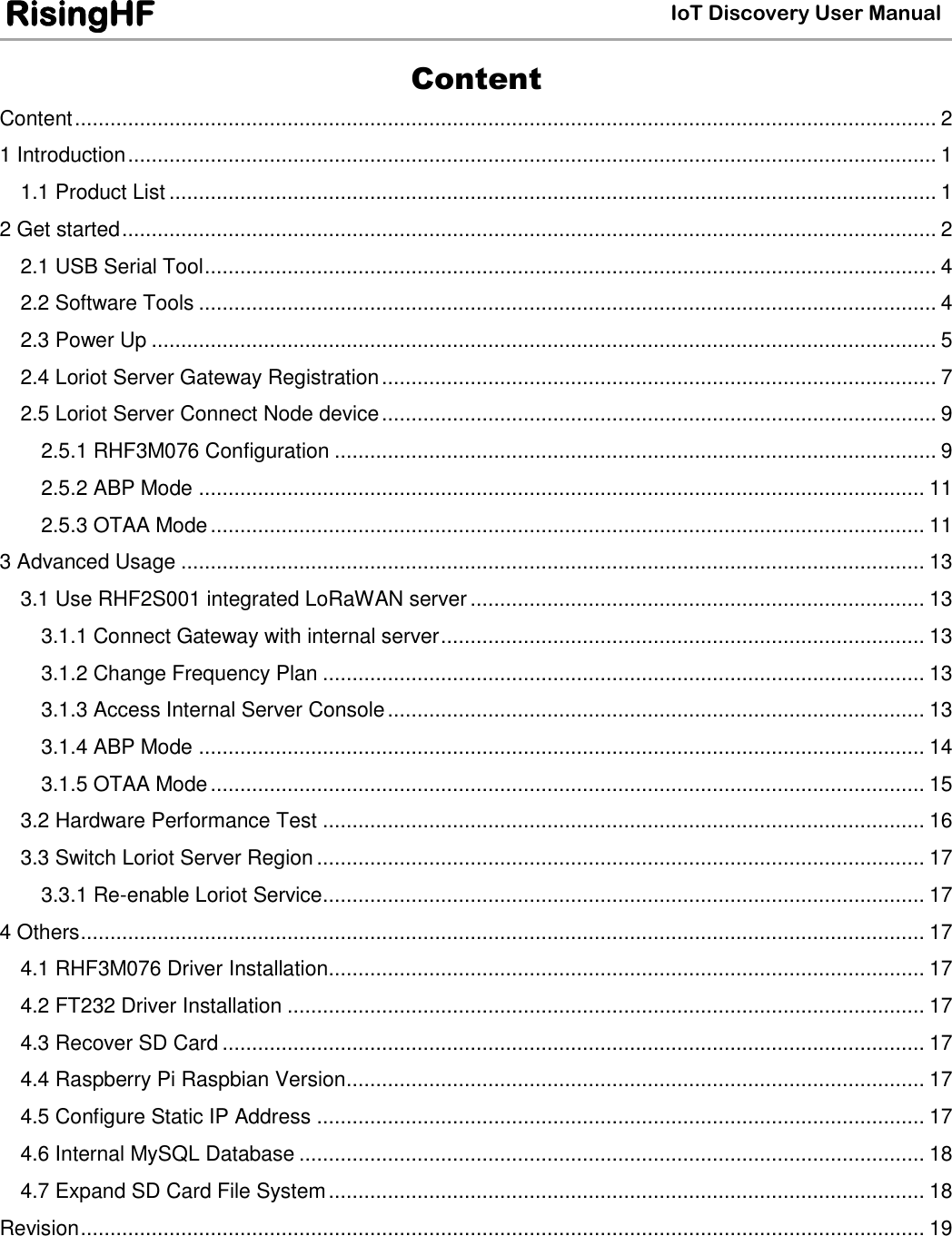

IoT Discovery User Manual RisingHF Content Content .................................................................................................................................................. 2 1 Introduction ......................................................................................................................................... 1 1.1 Product List .................................................................................................................................. 1 2 Get started .......................................................................................................................................... 2 2.1 USB Serial Tool ............................................................................................................................ 4 2.2 Software Tools ............................................................................................................................. 4 2.3 Power Up ..................................................................................................................................... 5 2.4 Loriot Server Gateway Registration .............................................................................................. 7 2.5 Loriot Server Connect Node device .............................................................................................. 9 2.5.1 RHF3M076 Configuration ...................................................................................................... 9 2.5.2 ABP Mode ........................................................................................................................... 11 2.5.3 OTAA Mode ......................................................................................................................... 11 3 Advanced Usage .............................................................................................................................. 13 3.1 Use RHF2S001 integrated LoRaWAN server ............................................................................. 13 3.1.1 Connect Gateway with internal server .................................................................................. 13 3.1.2 Change Frequency Plan ...................................................................................................... 13 3.1.3 Access Internal Server Console ........................................................................................... 13 3.1.4 ABP Mode ........................................................................................................................... 14 3.1.5 OTAA Mode ......................................................................................................................... 15 3.2 Hardware Performance Test ...................................................................................................... 16 3.3 Switch Loriot Server Region ....................................................................................................... 17 3.3.1 Re-enable Loriot Service...................................................................................................... 17 4 Others ............................................................................................................................................... 17 4.1 RHF3M076 Driver Installation ..................................................................................................... 17 4.2 FT232 Driver Installation ............................................................................................................ 17 4.3 Recover SD Card ....................................................................................................................... 17 4.4 Raspberry Pi Raspbian Version .................................................................................................. 17 4.5 Configure Static IP Address ....................................................................................................... 17 4.6 Internal MySQL Database .......................................................................................................... 18 4.7 Expand SD Card File System ..................................................................................................... 18 Revision ............................................................................................................................................... 19

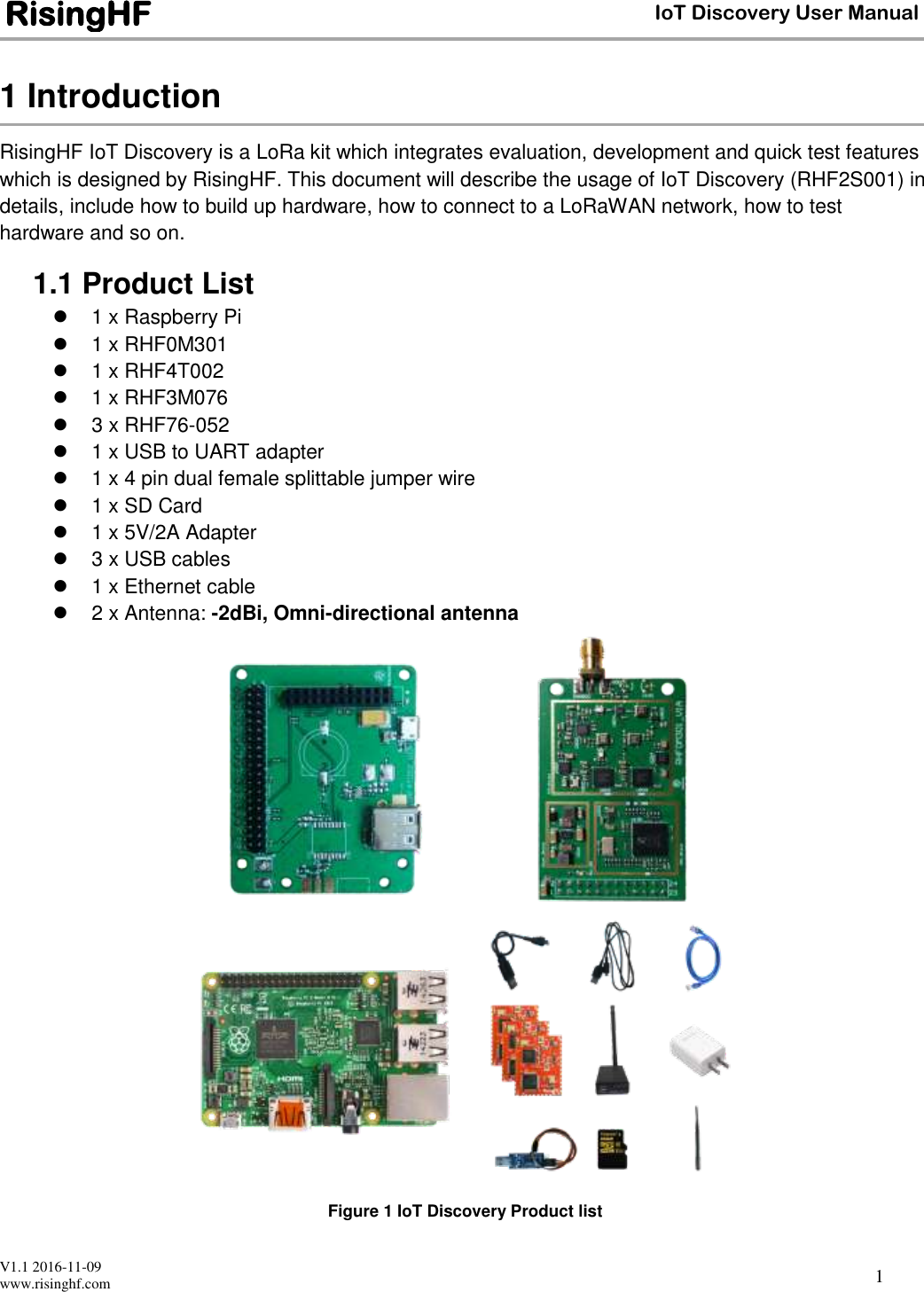

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 1 1 Introduction RisingHF IoT Discovery is a LoRa kit which integrates evaluation, development and quick test features which is designed by RisingHF. This document will describe the usage of IoT Discovery (RHF2S001) in details, include how to build up hardware, how to connect to a LoRaWAN network, how to test hardware and so on. 1.1 Product List  1 x Raspberry Pi  1 x RHF0M301  1 x RHF4T002  1 x RHF3M076  3 x RHF76-052  1 x USB to UART adapter  1 x 4 pin dual female splittable jumper wire  1 x SD Card  1 x 5V/2A Adapter  3 x USB cables  1 x Ethernet cable  2 x Antenna: -2dBi, Omni-directional antenna Figure 1 IoT Discovery Product list

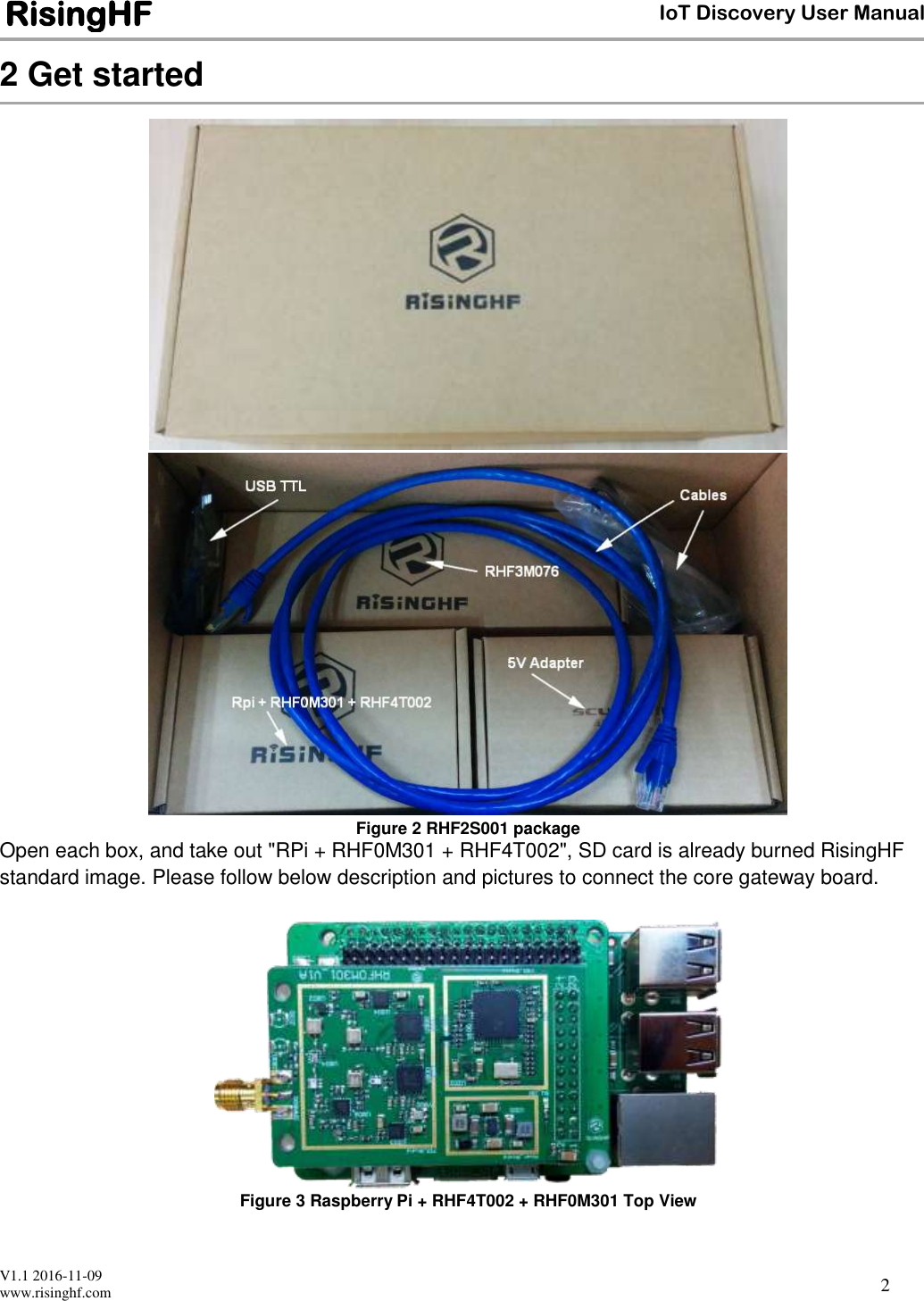

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 2 2 Get started Figure 2 RHF2S001 package Open each box, and take out "RPi + RHF0M301 + RHF4T002", SD card is already burned RisingHF standard image. Please follow below description and pictures to connect the core gateway board. Figure 3 Raspberry Pi + RHF4T002 + RHF0M301 Top View

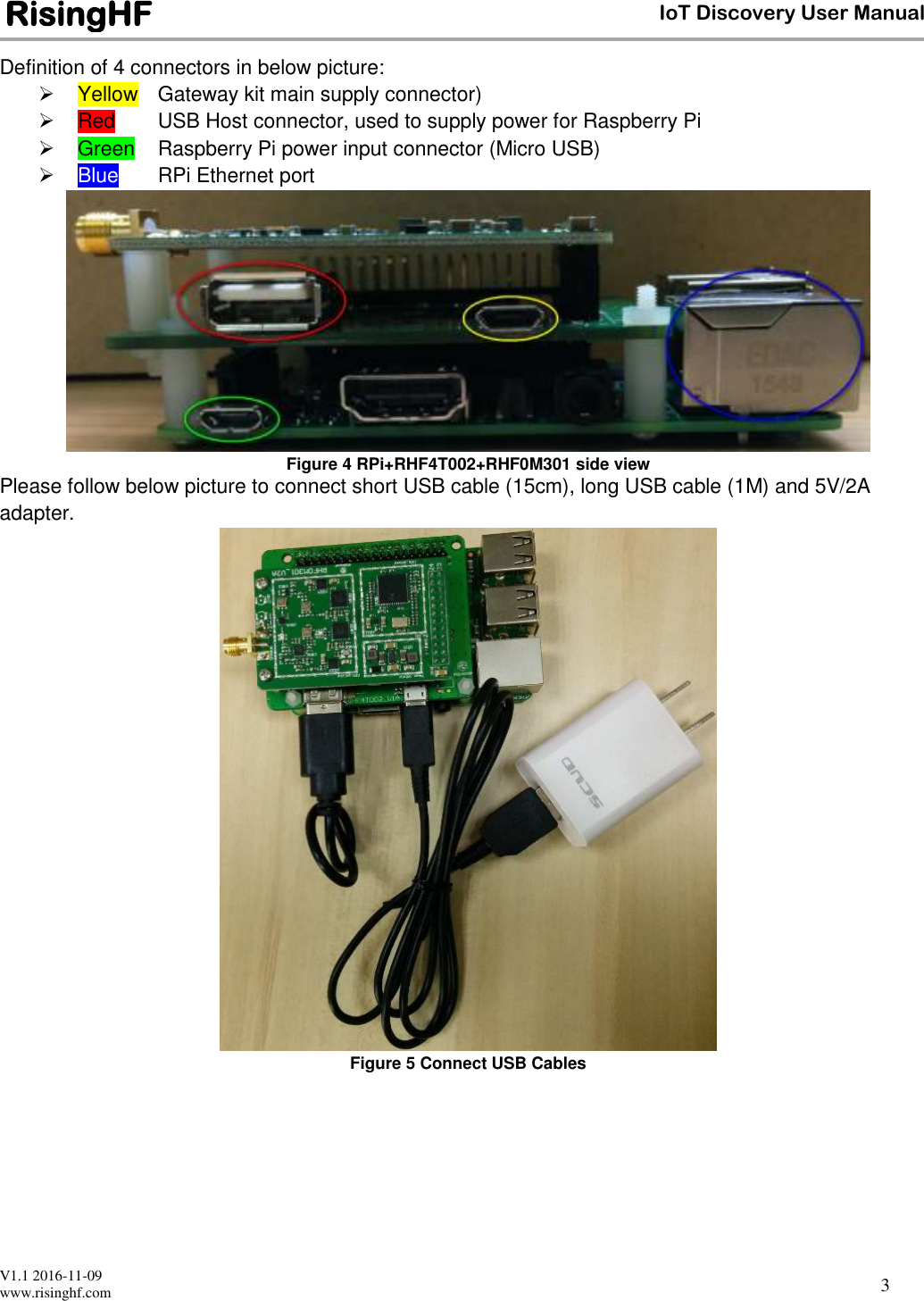

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 3 Definition of 4 connectors in below picture:  Yellow Gateway kit main supply connector)  Red USB Host connector, used to supply power for Raspberry Pi  Green Raspberry Pi power input connector (Micro USB)  Blue RPi Ethernet port Figure 4 RPi+RHF4T002+RHF0M301 side view Please follow below picture to connect short USB cable (15cm), long USB cable (1M) and 5V/2A adapter. Figure 5 Connect USB Cables

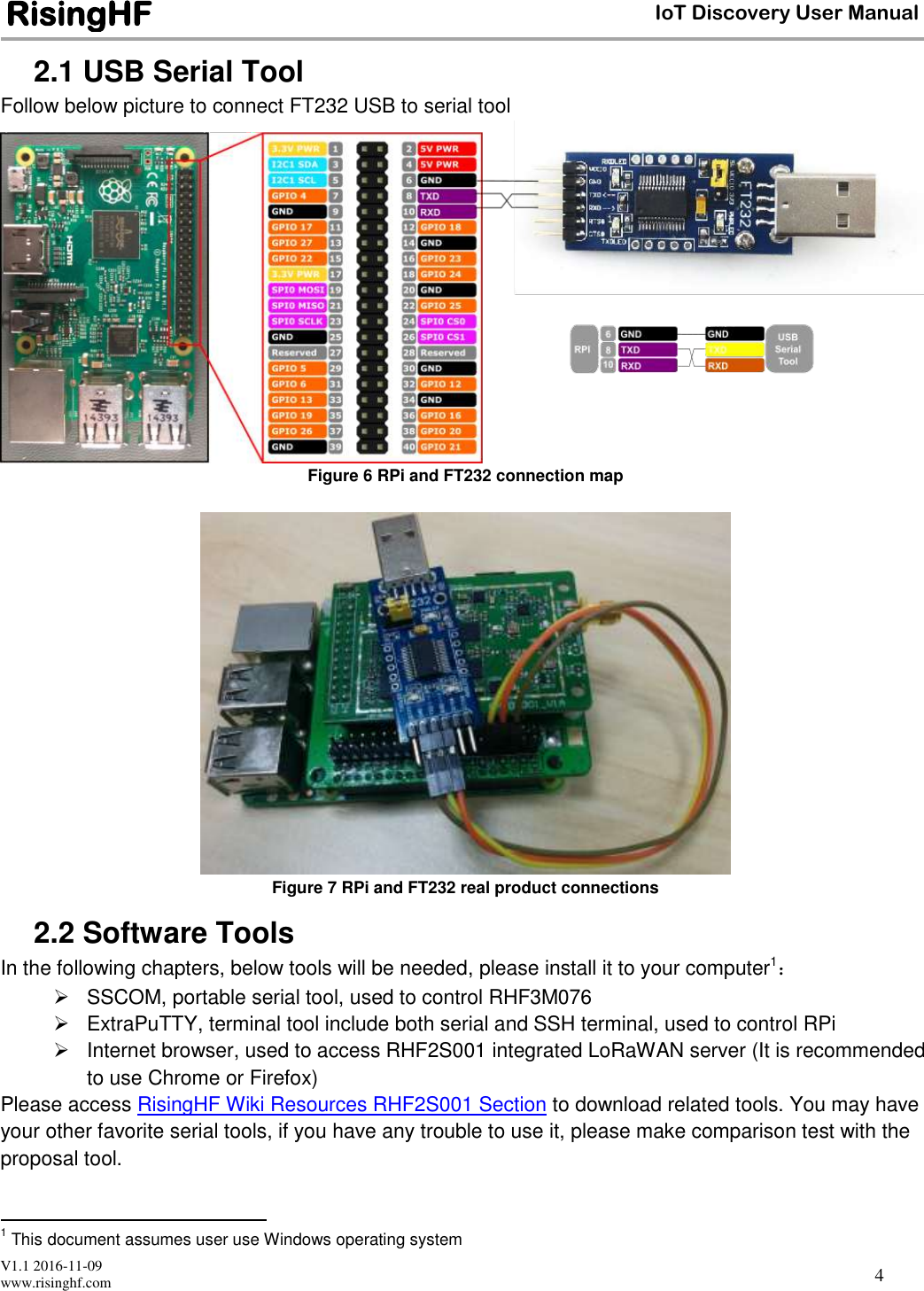

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 4 2.1 USB Serial Tool Follow below picture to connect FT232 USB to serial tool Figure 6 RPi and FT232 connection map Figure 7 RPi and FT232 real product connections 2.2 Software Tools In the following chapters, below tools will be needed, please install it to your computer1：  SSCOM, portable serial tool, used to control RHF3M076  ExtraPuTTY, terminal tool include both serial and SSH terminal, used to control RPi  Internet browser, used to access RHF2S001 integrated LoRaWAN server (It is recommended to use Chrome or Firefox) Please access RisingHF Wiki Resources RHF2S001 Section to download related tools. You may have your other favorite serial tools, if you have any trouble to use it, please make comparison test with the proposal tool. 1 This document assumes user use Windows operating system

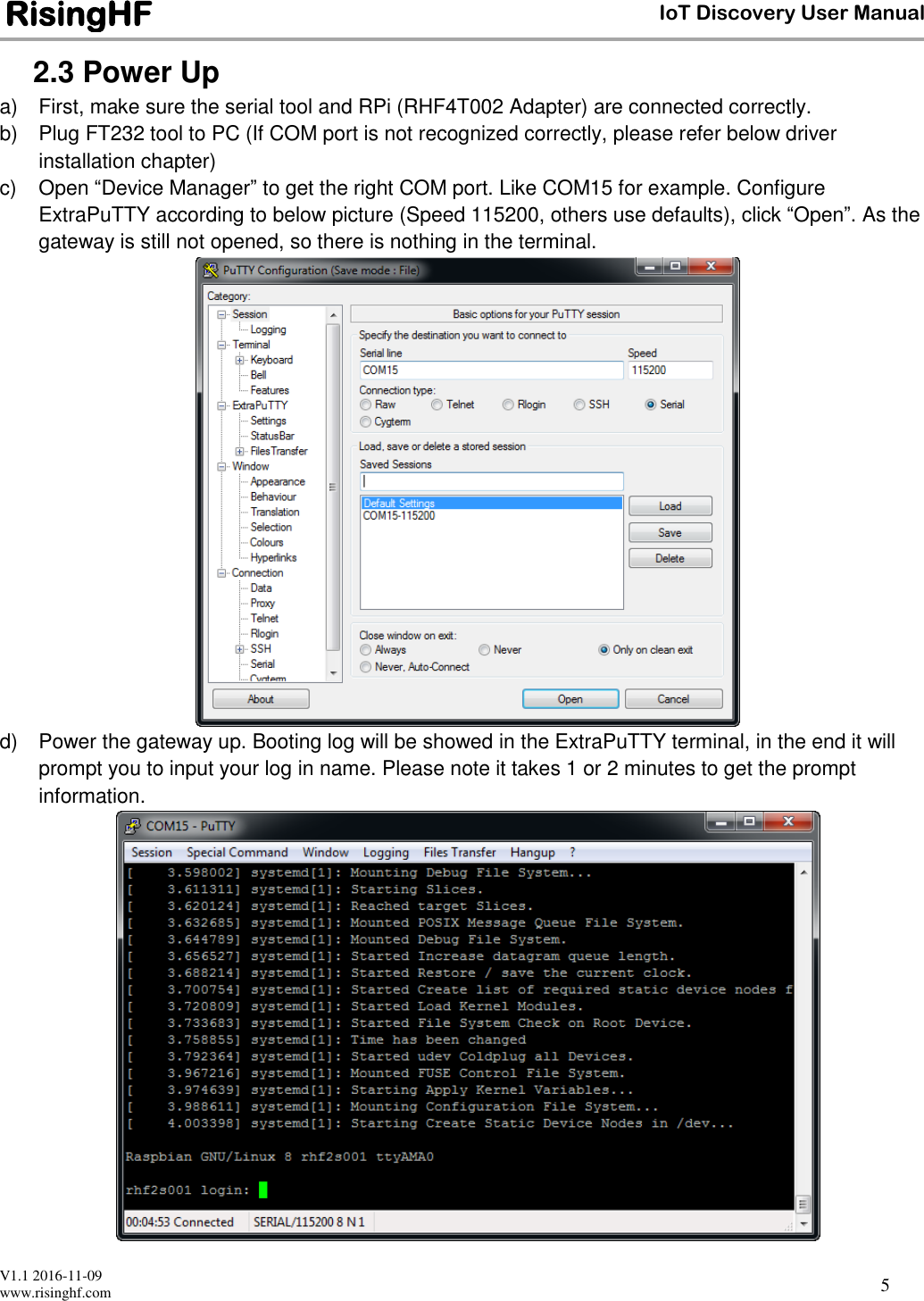

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 5 2.3 Power Up a) First, make sure the serial tool and RPi (RHF4T002 Adapter) are connected correctly. b) Plug FT232 tool to PC (If COM port is not recognized correctly, please refer below driver installation chapter) c) Open “Device Manager” to get the right COM port. Like COM15 for example. Configure ExtraPuTTY according to below picture (Speed 115200, others use defaults), click “Open”. As the gateway is still not opened, so there is nothing in the terminal. d) Power the gateway up. Booting log will be showed in the ExtraPuTTY terminal, in the end it will prompt you to input your log in name. Please note it takes 1 or 2 minutes to get the prompt information.

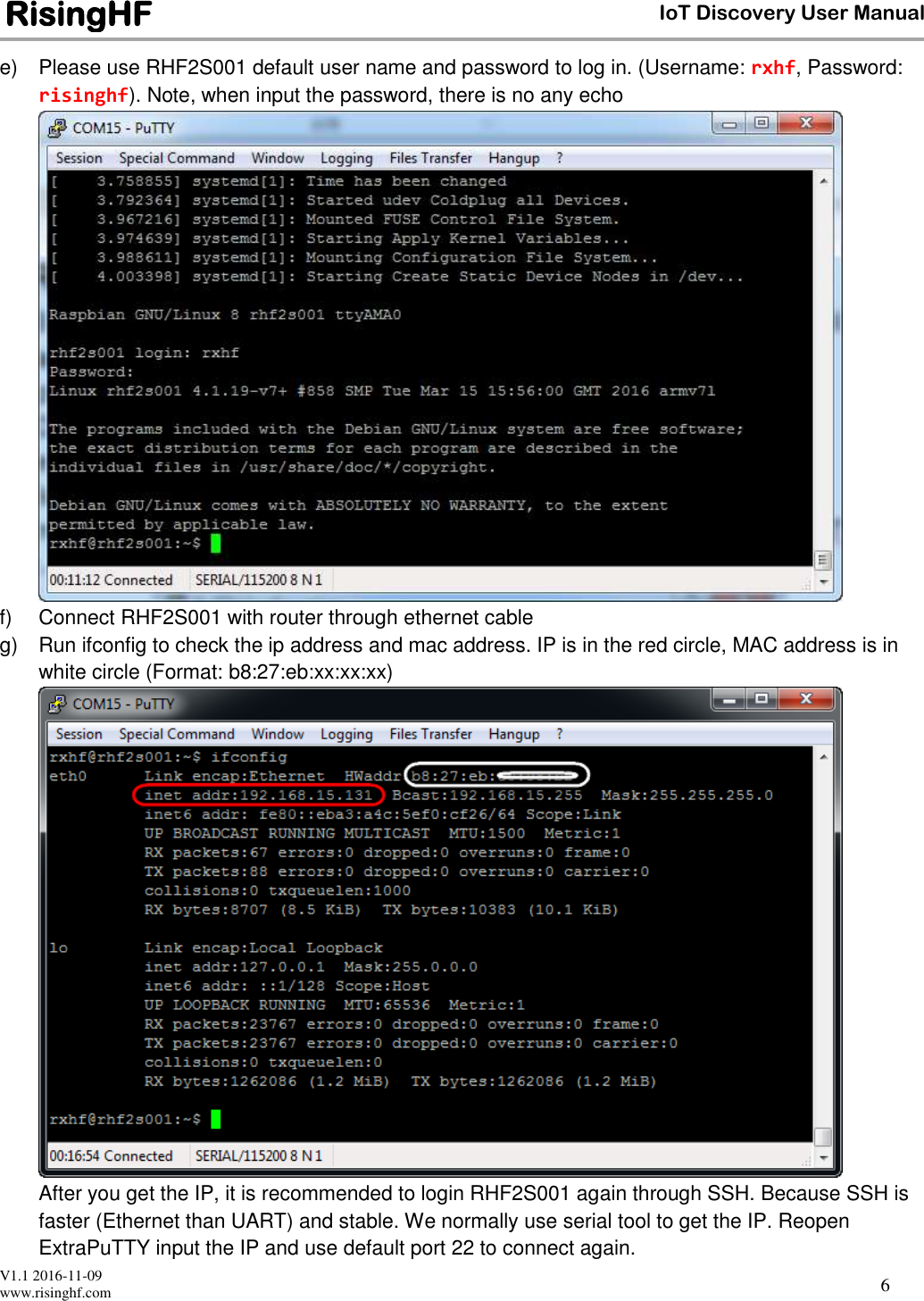

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 6 e) Please use RHF2S001 default user name and password to log in. (Username: rxhf, Password: risinghf). Note, when input the password, there is no any echo f) Connect RHF2S001 with router through ethernet cable g) Run ifconfig to check the ip address and mac address. IP is in the red circle, MAC address is in white circle (Format: b8:27:eb:xx:xx:xx) After you get the IP, it is recommended to login RHF2S001 again through SSH. Because SSH is faster (Ethernet than UART) and stable. We normally use serial tool to get the IP. Reopen ExtraPuTTY input the IP and use default port 22 to connect again.

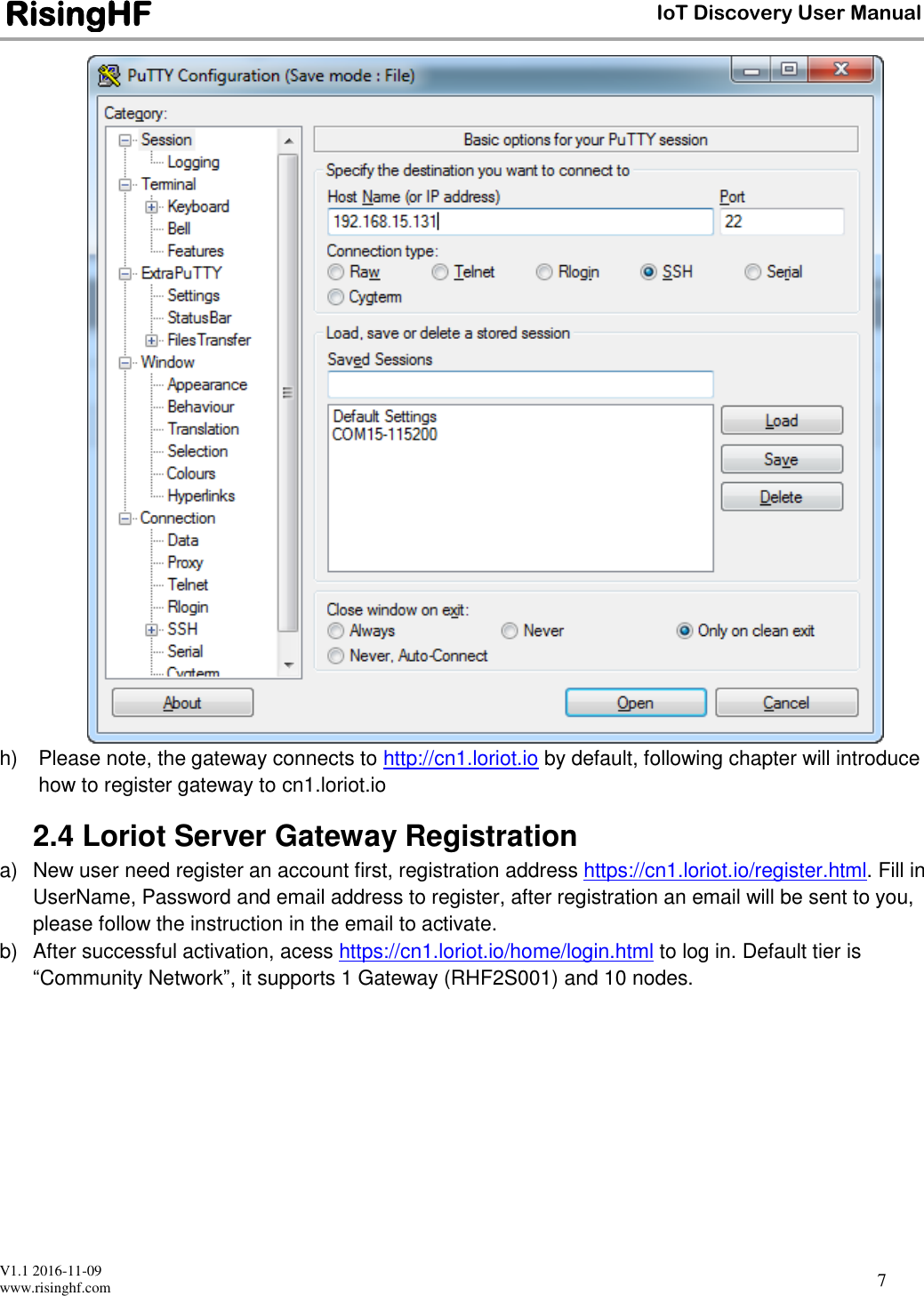

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 7 h) Please note, the gateway connects to http://cn1.loriot.io by default, following chapter will introduce how to register gateway to cn1.loriot.io 2.4 Loriot Server Gateway Registration a) New user need register an account first, registration address https://cn1.loriot.io/register.html. Fill in UserName, Password and email address to register, after registration an email will be sent to you, please follow the instruction in the email to activate. b) After successful activation, acess https://cn1.loriot.io/home/login.html to log in. Default tier is “Community Network”, it supports 1 Gateway (RHF2S001) and 10 nodes.

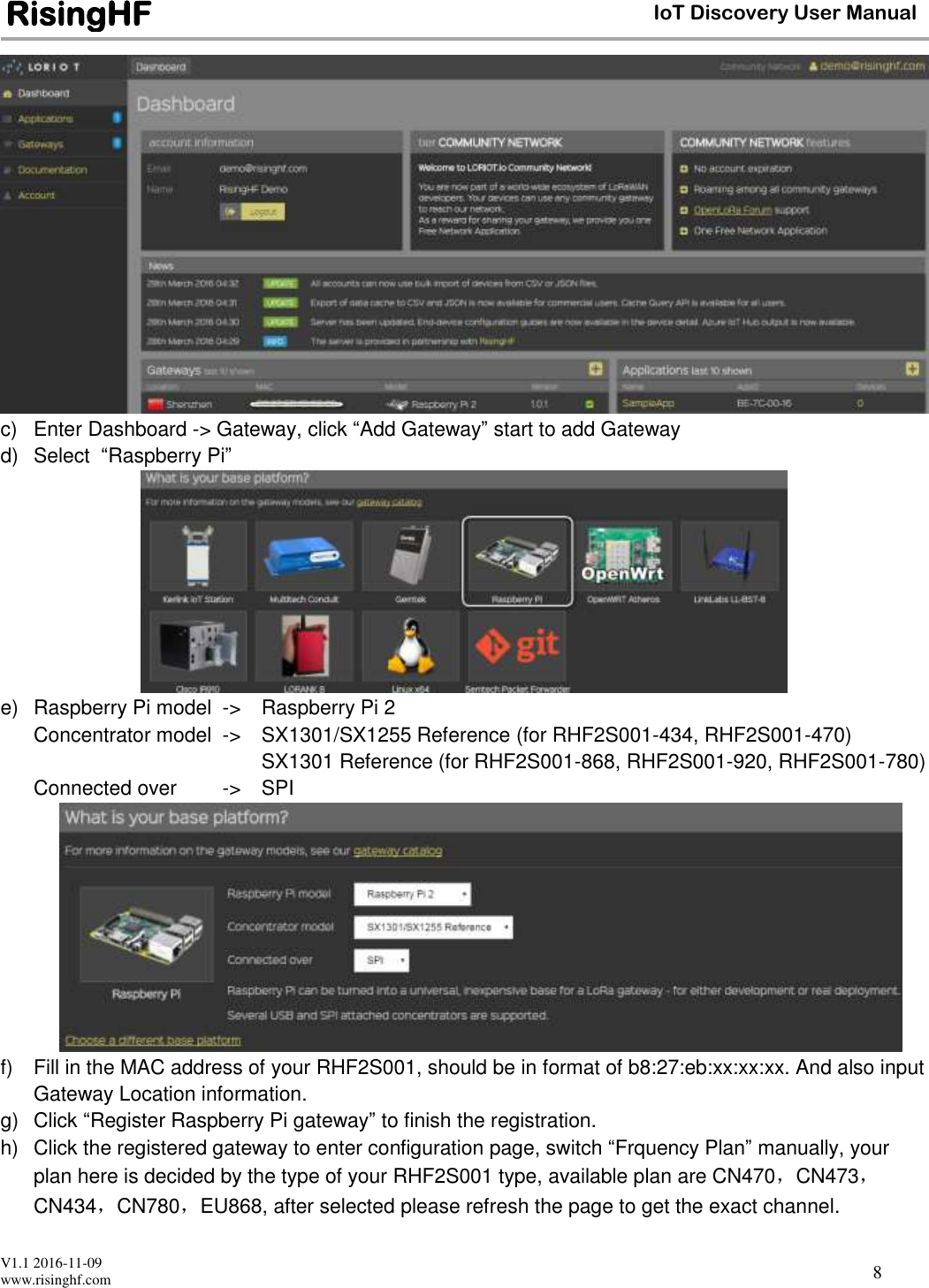

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 8 c) Enter Dashboard -> Gateway, click “Add Gateway” start to add Gateway d) Select “Raspberry Pi” e) Raspberry Pi model -> Raspberry Pi 2 Concentrator model -> SX1301/SX1255 Reference (for RHF2S001-434, RHF2S001-470) SX1301 Reference (for RHF2S001-868, RHF2S001-920, RHF2S001-780) Connected over -> SPI f) Fill in the MAC address of your RHF2S001, should be in format of b8:27:eb:xx:xx:xx. And also input Gateway Location information. g) Click “Register Raspberry Pi gateway” to finish the registration. h) Click the registered gateway to enter configuration page, switch “Frquency Plan” manually, your plan here is decided by the type of your RHF2S001 type, available plan are CN470，CN473，CN434，CN780，EU868, after selected please refresh the page to get the exact channel.

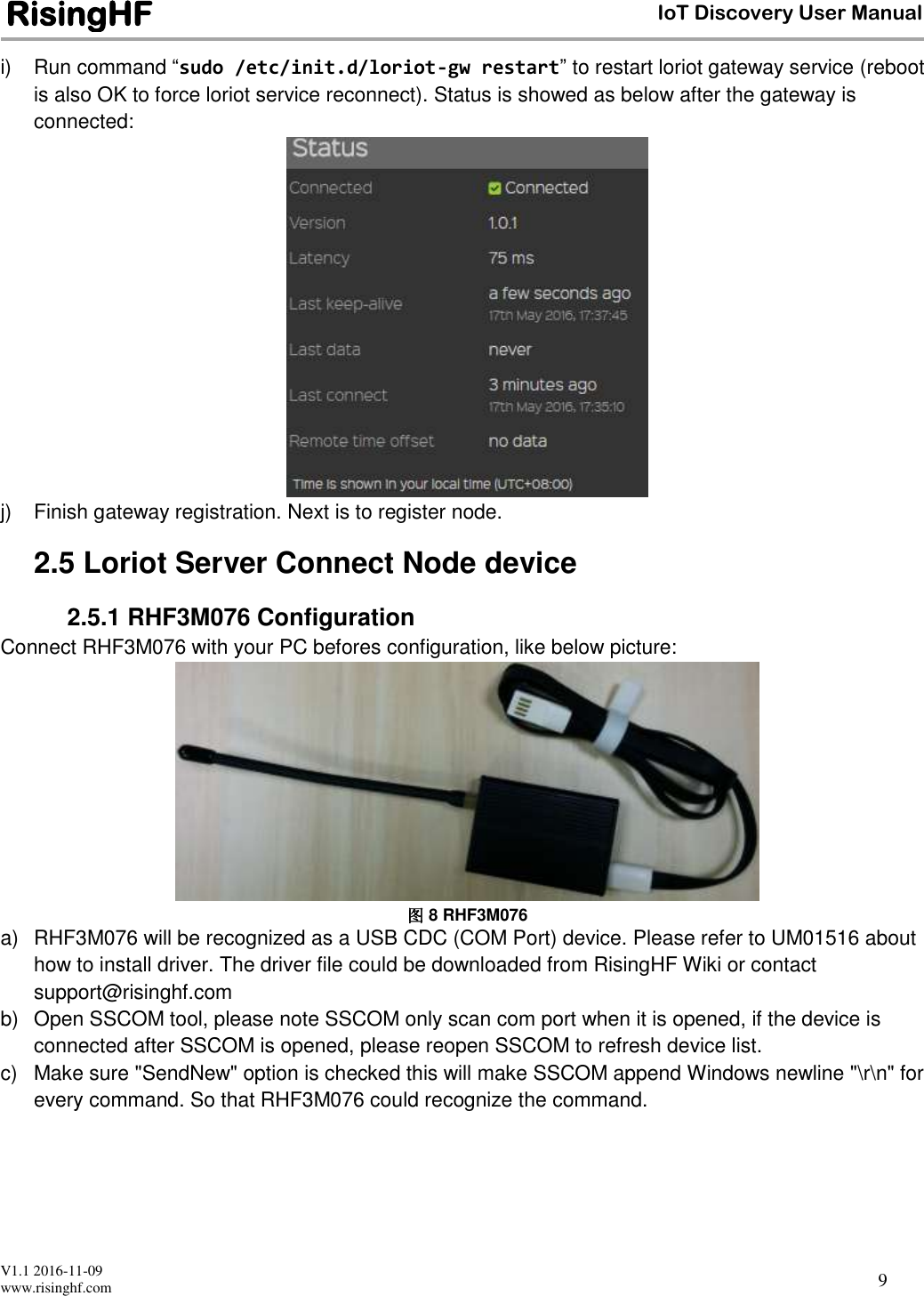

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 9 i) Run command “sudo /etc/init.d/loriot-gw restart” to restart loriot gateway service (reboot is also OK to force loriot service reconnect). Status is showed as below after the gateway is connected: j) Finish gateway registration. Next is to register node. 2.5 Loriot Server Connect Node device 2.5.1 RHF3M076 Configuration Connect RHF3M076 with your PC befores configuration, like below picture: 图 8 RHF3M076 a) RHF3M076 will be recognized as a USB CDC (COM Port) device. Please refer to UM01516 about how to install driver. The driver file could be downloaded from RisingHF Wiki or contact support@risinghf.com b) Open SSCOM tool, please note SSCOM only scan com port when it is opened, if the device is connected after SSCOM is opened, please reopen SSCOM to refresh device list. c) Make sure "SendNew" option is checked this will make SSCOM append Windows newline "\r\n" for every command. So that RHF3M076 could recognize the command.

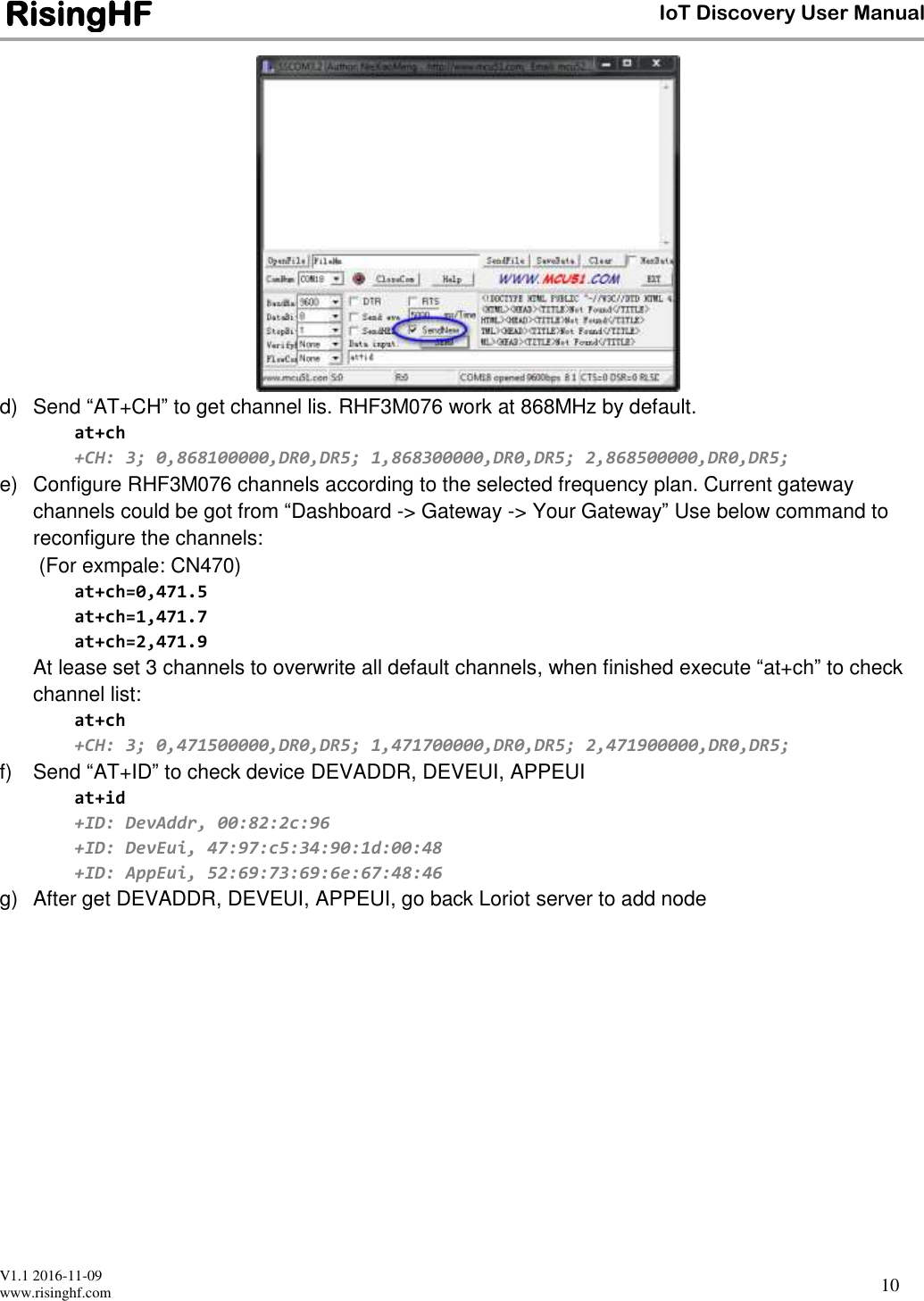

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 10 d) Send “AT+CH” to get channel lis. RHF3M076 work at 868MHz by default. at+ch +CH: 3; 0,868100000,DR0,DR5; 1,868300000,DR0,DR5; 2,868500000,DR0,DR5; e) Configure RHF3M076 channels according to the selected frequency plan. Current gateway channels could be got from “Dashboard -> Gateway -> Your Gateway” Use below command to reconfigure the channels: (For exmpale: CN470) at+ch=0,471.5 at+ch=1,471.7 at+ch=2,471.9 At lease set 3 channels to overwrite all default channels, when finished execute “at+ch” to check channel list: at+ch +CH: 3; 0,471500000,DR0,DR5; 1,471700000,DR0,DR5; 2,471900000,DR0,DR5; f) Send “AT+ID” to check device DEVADDR, DEVEUI, APPEUI at+id +ID: DevAddr, 00:82:2c:96 +ID: DevEui, 47:97:c5:34:90:1d:00:48 +ID: AppEui, 52:69:73:69:6e:67:48:46 g) After get DEVADDR, DEVEUI, APPEUI, go back Loriot server to add node

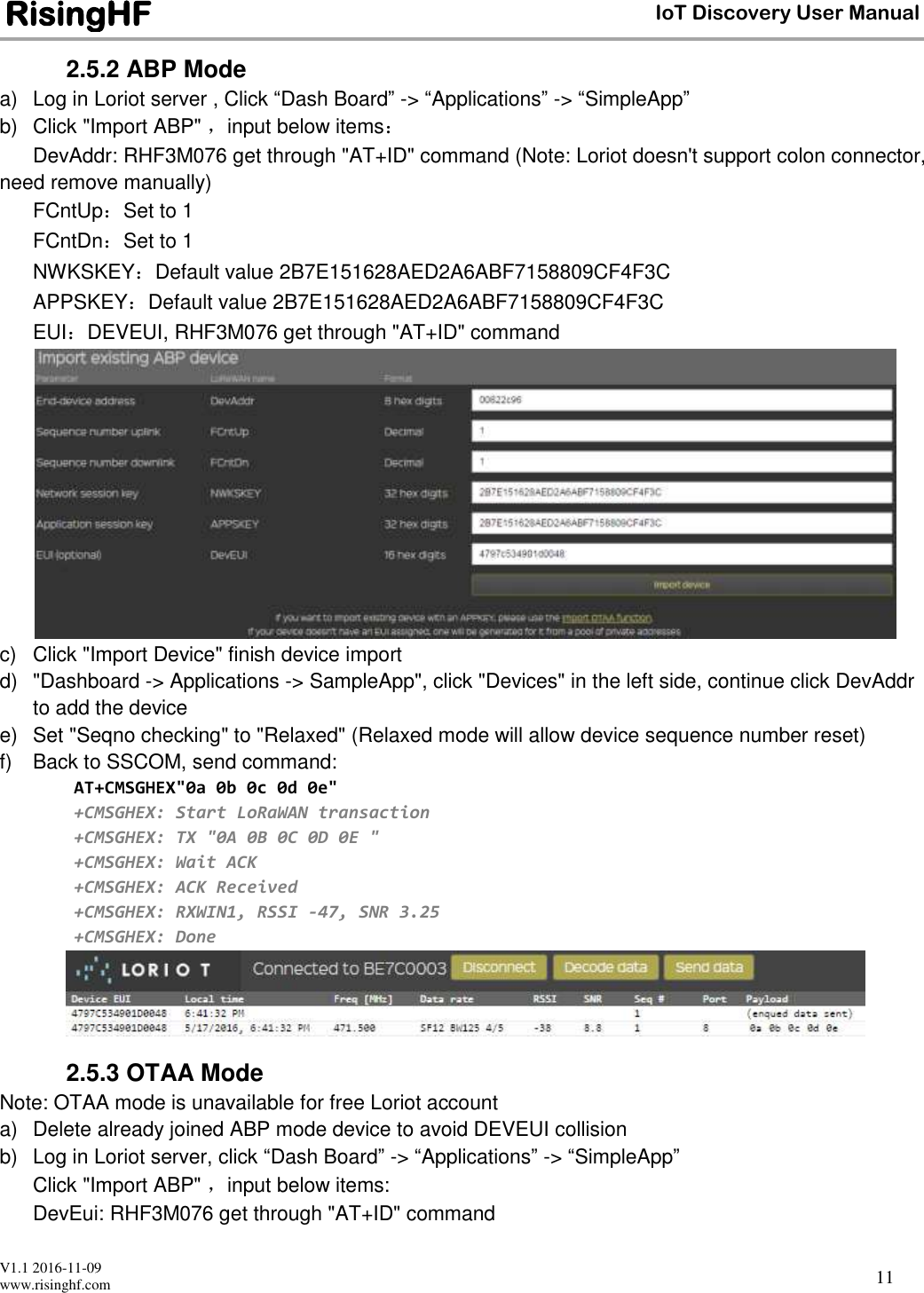

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 11 2.5.2 ABP Mode a) Log in Loriot server , Click “Dash Board” -> “Applications” -> “SimpleApp” b) Click "Import ABP" ，input below items： DevAddr: RHF3M076 get through "AT+ID" command (Note: Loriot doesn't support colon connector, need remove manually) FCntUp：Set to 1 FCntDn：Set to 1 NWKSKEY：Default value 2B7E151628AED2A6ABF7158809CF4F3C APPSKEY：Default value 2B7E151628AED2A6ABF7158809CF4F3C EUI：DEVEUI, RHF3M076 get through "AT+ID" command c) Click "Import Device" finish device import d) "Dashboard -> Applications -> SampleApp", click "Devices" in the left side, continue click DevAddr to add the device e) Set "Seqno checking" to "Relaxed" (Relaxed mode will allow device sequence number reset) f) Back to SSCOM, send command: AT+CMSGHEX"0a 0b 0c 0d 0e" +CMSGHEX: Start LoRaWAN transaction +CMSGHEX: TX "0A 0B 0C 0D 0E " +CMSGHEX: Wait ACK +CMSGHEX: ACK Received +CMSGHEX: RXWIN1, RSSI -47, SNR 3.25 +CMSGHEX: Done 2.5.3 OTAA Mode Note: OTAA mode is unavailable for free Loriot account a) Delete already joined ABP mode device to avoid DEVEUI collision b) Log in Loriot server, click “Dash Board” -> “Applications” -> “SimpleApp” Click "Import ABP" ，input below items: DevEui: RHF3M076 get through "AT+ID" command

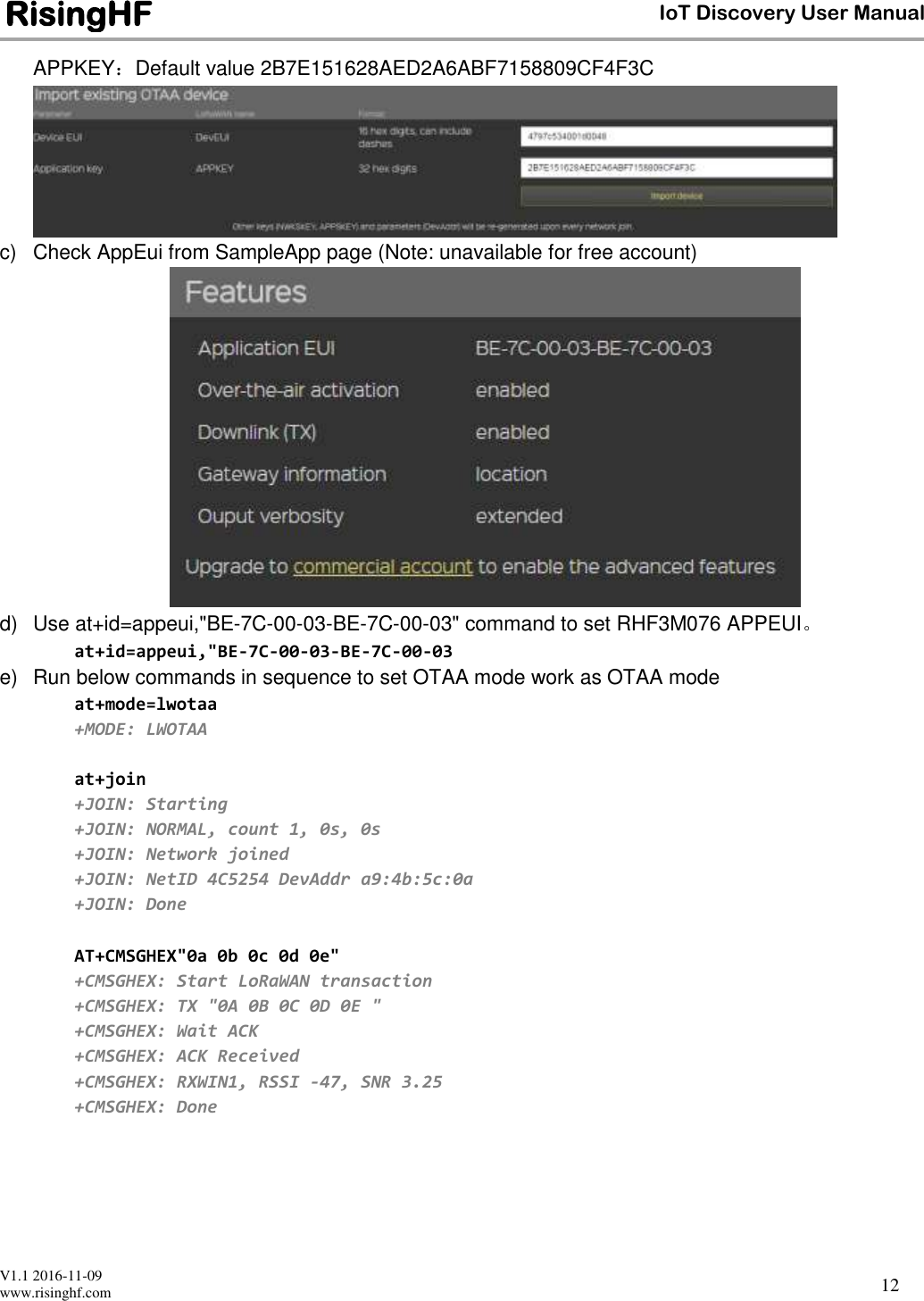

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 12 APPKEY：Default value 2B7E151628AED2A6ABF7158809CF4F3C c) Check AppEui from SampleApp page (Note: unavailable for free account) d) Use at+id=appeui,"BE-7C-00-03-BE-7C-00-03" command to set RHF3M076 APPEUI。 at+id=appeui,"BE-7C-00-03-BE-7C-00-03 e) Run below commands in sequence to set OTAA mode work as OTAA mode at+mode=lwotaa +MODE: LWOTAA at+join +JOIN: Starting +JOIN: NORMAL, count 1, 0s, 0s +JOIN: Network joined +JOIN: NetID 4C5254 DevAddr a9:4b:5c:0a +JOIN: Done AT+CMSGHEX"0a 0b 0c 0d 0e" +CMSGHEX: Start LoRaWAN transaction +CMSGHEX: TX "0A 0B 0C 0D 0E " +CMSGHEX: Wait ACK +CMSGHEX: ACK Received +CMSGHEX: RXWIN1, RSSI -47, SNR 3.25 +CMSGHEX: Done

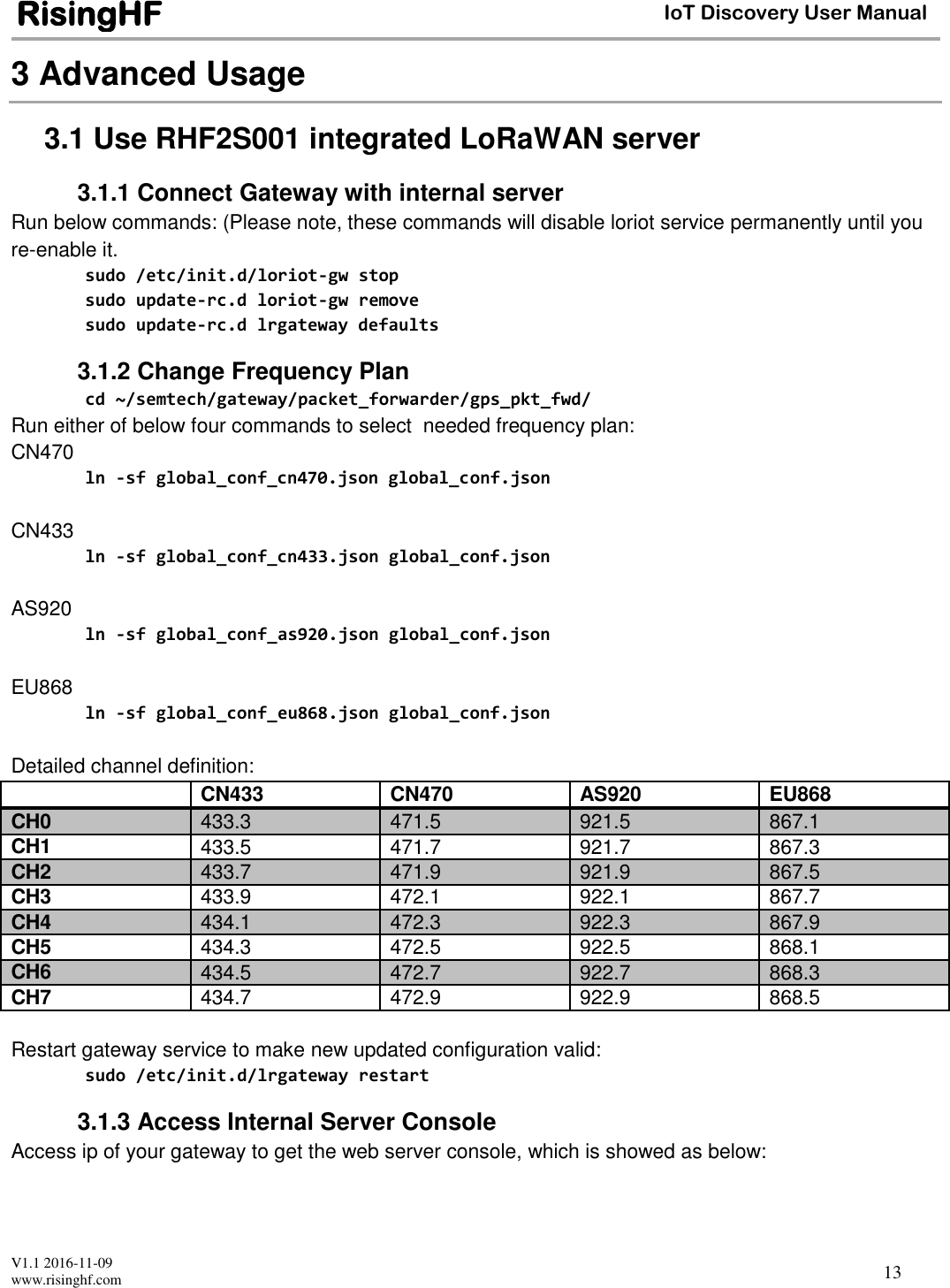

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 13 3 Advanced Usage 3.1 Use RHF2S001 integrated LoRaWAN server 3.1.1 Connect Gateway with internal server Run below commands: (Please note, these commands will disable loriot service permanently until you re-enable it. sudo /etc/init.d/loriot-gw stop sudo update-rc.d loriot-gw remove sudo update-rc.d lrgateway defaults 3.1.2 Change Frequency Plan cd ~/semtech/gateway/packet_forwarder/gps_pkt_fwd/ Run either of below four commands to select needed frequency plan: CN470 ln -sf global_conf_cn470.json global_conf.json CN433 ln -sf global_conf_cn433.json global_conf.json AS920 ln -sf global_conf_as920.json global_conf.json EU868 ln -sf global_conf_eu868.json global_conf.json Detailed channel definition: CN433 CN470 AS920 EU868 CH0 433.3 471.5 921.5 867.1 CH1 433.5 471.7 921.7 867.3 CH2 433.7 471.9 921.9 867.5 CH3 433.9 472.1 922.1 867.7 CH4 434.1 472.3 922.3 867.9 CH5 434.3 472.5 922.5 868.1 CH6 434.5 472.7 922.7 868.3 CH7 434.7 472.9 922.9 868.5 Restart gateway service to make new updated configuration valid: sudo /etc/init.d/lrgateway restart 3.1.3 Access Internal Server Console Access ip of your gateway to get the web server console, which is showed as below:

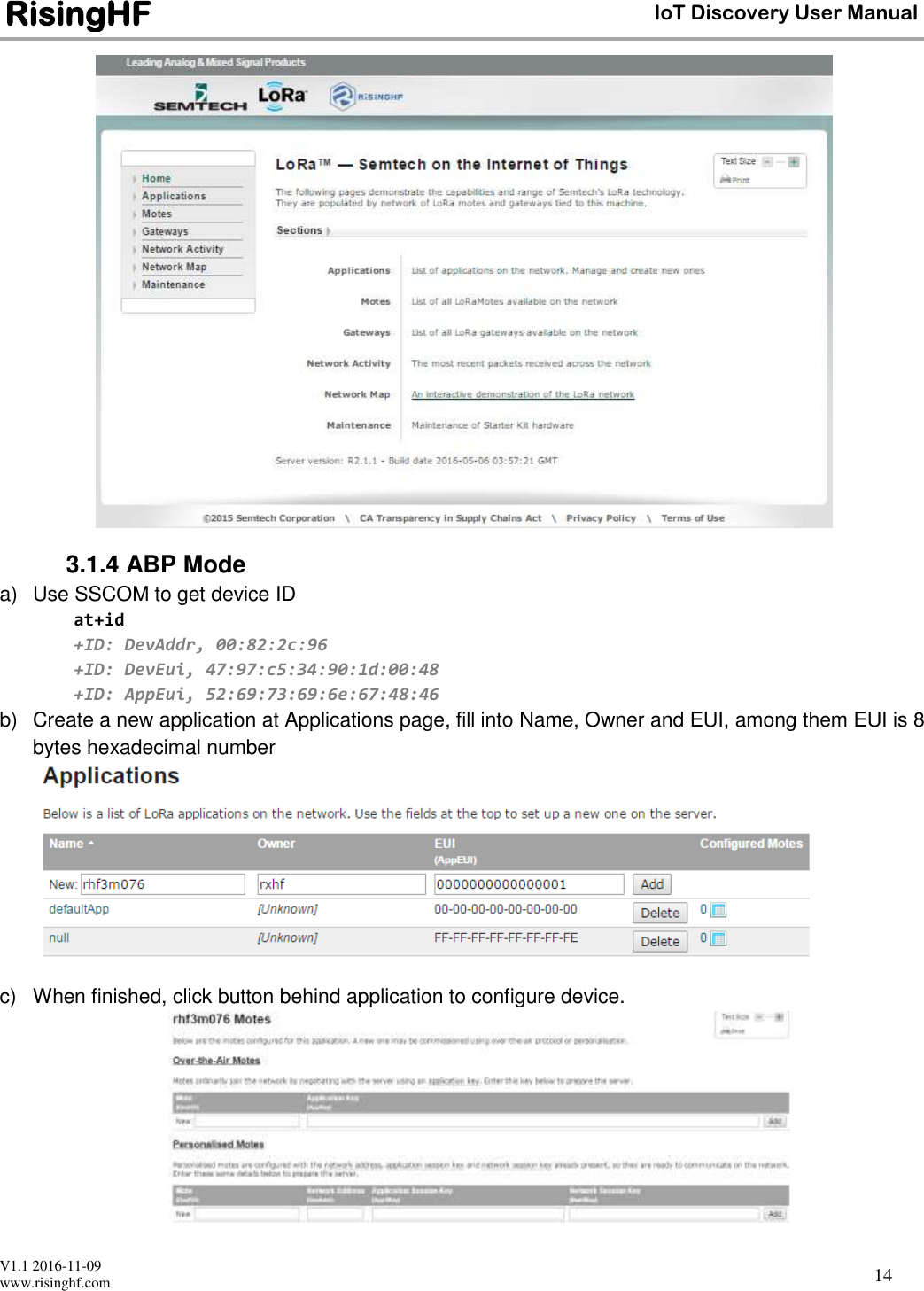

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 14 3.1.4 ABP Mode a) Use SSCOM to get device ID at+id +ID: DevAddr, 00:82:2c:96 +ID: DevEui, 47:97:c5:34:90:1d:00:48 +ID: AppEui, 52:69:73:69:6e:67:48:46 b) Create a new application at Applications page, fill into Name, Owner and EUI, among them EUI is 8 bytes hexadecimal number c) When finished, click button behind application to configure device.

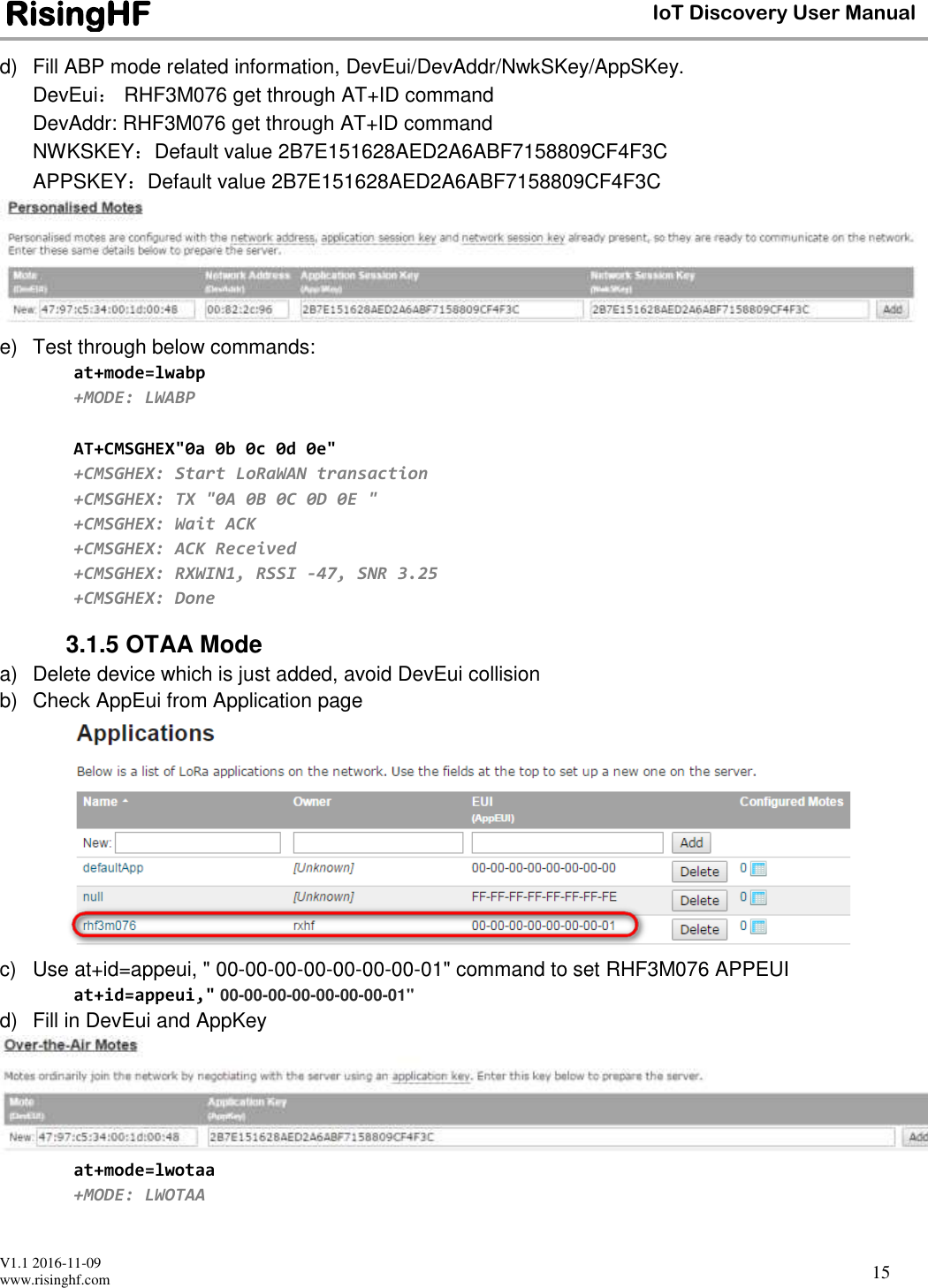

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 15 d) Fill ABP mode related information, DevEui/DevAddr/NwkSKey/AppSKey. DevEui： RHF3M076 get through AT+ID command DevAddr: RHF3M076 get through AT+ID command NWKSKEY：Default value 2B7E151628AED2A6ABF7158809CF4F3C APPSKEY：Default value 2B7E151628AED2A6ABF7158809CF4F3C e) Test through below commands: at+mode=lwabp +MODE: LWABP AT+CMSGHEX"0a 0b 0c 0d 0e" +CMSGHEX: Start LoRaWAN transaction +CMSGHEX: TX "0A 0B 0C 0D 0E " +CMSGHEX: Wait ACK +CMSGHEX: ACK Received +CMSGHEX: RXWIN1, RSSI -47, SNR 3.25 +CMSGHEX: Done 3.1.5 OTAA Mode a) Delete device which is just added, avoid DevEui collision b) Check AppEui from Application page c) Use at+id=appeui, " 00-00-00-00-00-00-00-01" command to set RHF3M076 APPEUI at+id=appeui," 00-00-00-00-00-00-00-01" d) Fill in DevEui and AppKey at+mode=lwotaa +MODE: LWOTAA

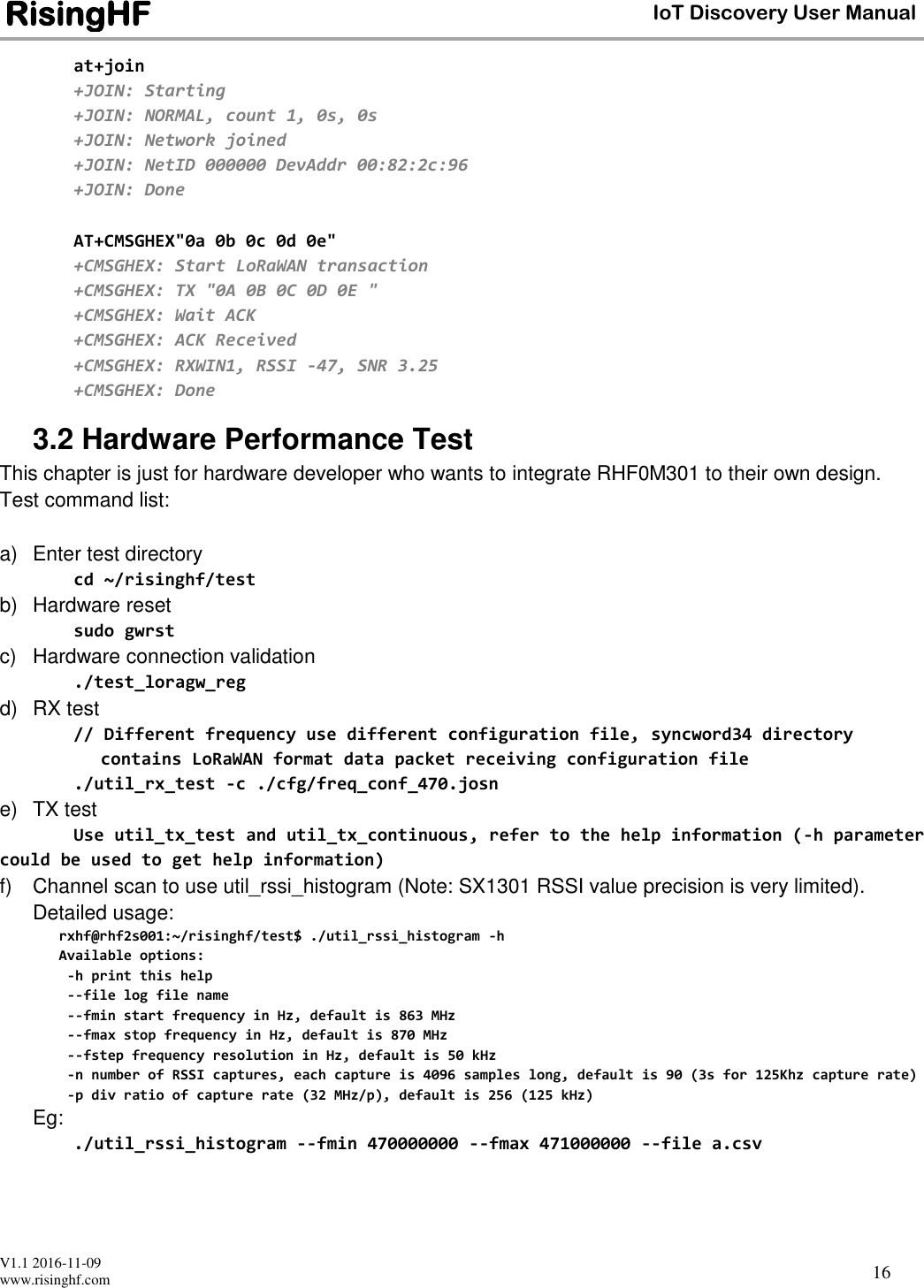

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 16 at+join +JOIN: Starting +JOIN: NORMAL, count 1, 0s, 0s +JOIN: Network joined +JOIN: NetID 000000 DevAddr 00:82:2c:96 +JOIN: Done AT+CMSGHEX"0a 0b 0c 0d 0e" +CMSGHEX: Start LoRaWAN transaction +CMSGHEX: TX "0A 0B 0C 0D 0E " +CMSGHEX: Wait ACK +CMSGHEX: ACK Received +CMSGHEX: RXWIN1, RSSI -47, SNR 3.25 +CMSGHEX: Done 3.2 Hardware Performance Test This chapter is just for hardware developer who wants to integrate RHF0M301 to their own design. Test command list: a) Enter test directory cd ~/risinghf/test b) Hardware reset sudo gwrst c) Hardware connection validation ./test_loragw_reg d) RX test // Different frequency use different configuration file, syncword34 directory contains LoRaWAN format data packet receiving configuration file ./util_rx_test -c ./cfg/freq_conf_470.josn e) TX test Use util_tx_test and util_tx_continuous, refer to the help information (-h parameter could be used to get help information) f) Channel scan to use util_rssi_histogram (Note: SX1301 RSSI value precision is very limited). Detailed usage: rxhf@rhf2s001:~/risinghf/test$ ./util_rssi_histogram -h Available options: -h print this help --file log file name --fmin start frequency in Hz, default is 863 MHz --fmax stop frequency in Hz, default is 870 MHz --fstep frequency resolution in Hz, default is 50 kHz -n number of RSSI captures, each capture is 4096 samples long, default is 90 (3s for 125Khz capture rate) -p div ratio of capture rate (32 MHz/p), default is 256 (125 kHz) Eg: ./util_rssi_histogram --fmin 470000000 --fmax 471000000 --file a.csv

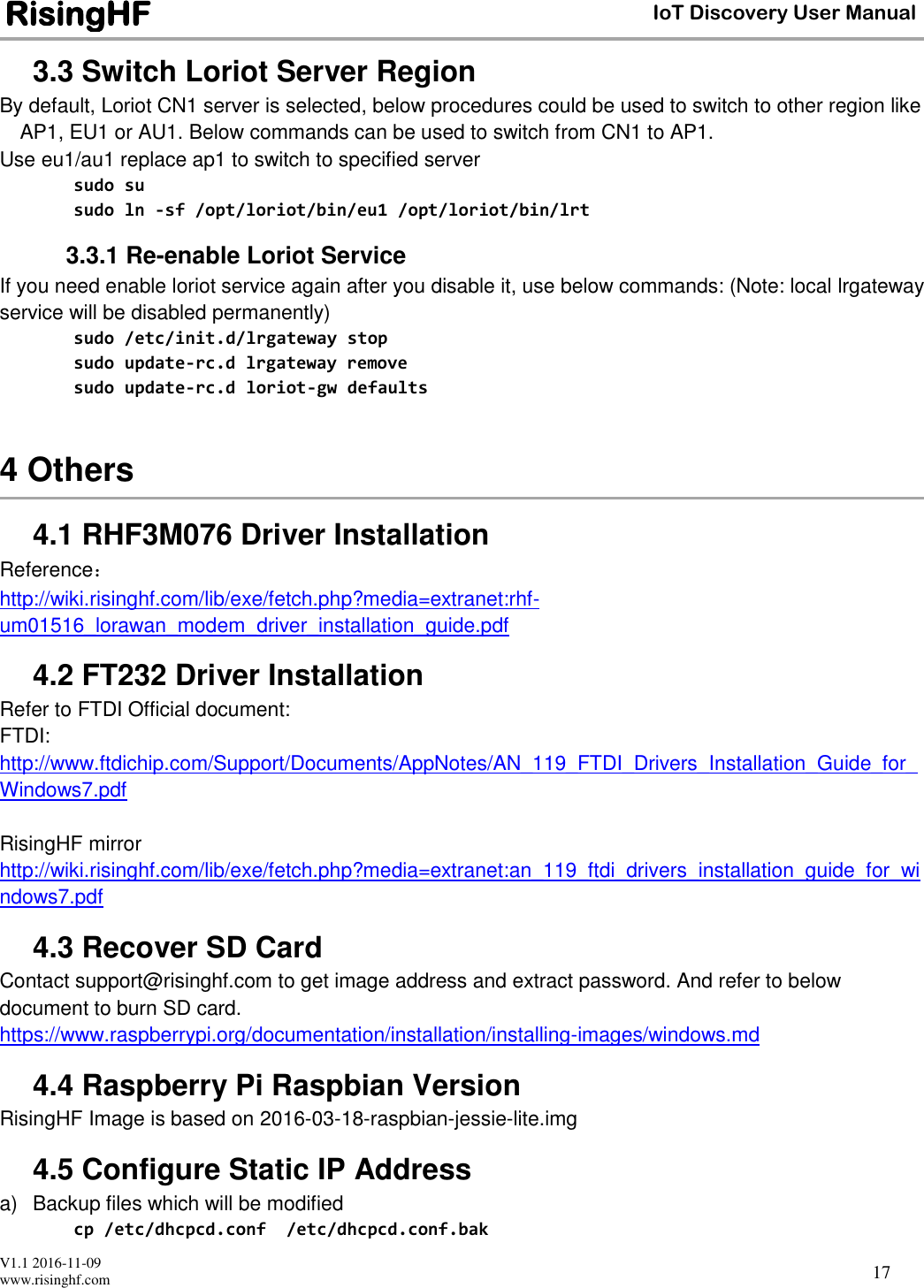

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 17 3.3 Switch Loriot Server Region By default, Loriot CN1 server is selected, below procedures could be used to switch to other region like AP1, EU1 or AU1. Below commands can be used to switch from CN1 to AP1. Use eu1/au1 replace ap1 to switch to specified server sudo su sudo ln -sf /opt/loriot/bin/eu1 /opt/loriot/bin/lrt 3.3.1 Re-enable Loriot Service If you need enable loriot service again after you disable it, use below commands: (Note: local lrgateway service will be disabled permanently) sudo /etc/init.d/lrgateway stop sudo update-rc.d lrgateway remove sudo update-rc.d loriot-gw defaults 4 Others 4.1 RHF3M076 Driver Installation Reference： http://wiki.risinghf.com/lib/exe/fetch.php?media=extranet:rhf-um01516_lorawan_modem_driver_installation_guide.pdf 4.2 FT232 Driver Installation Refer to FTDI Official document: FTDI: http://www.ftdichip.com/Support/Documents/AppNotes/AN_119_FTDI_Drivers_Installation_Guide_for_Windows7.pdf RisingHF mirror http://wiki.risinghf.com/lib/exe/fetch.php?media=extranet:an_119_ftdi_drivers_installation_guide_for_windows7.pdf 4.3 Recover SD Card Contact support@risinghf.com to get image address and extract password. And refer to below document to burn SD card. https://www.raspberrypi.org/documentation/installation/installing-images/windows.md 4.4 Raspberry Pi Raspbian Version RisingHF Image is based on 2016-03-18-raspbian-jessie-lite.img 4.5 Configure Static IP Address a) Backup files which will be modified cp /etc/dhcpcd.conf /etc/dhcpcd.conf.bak

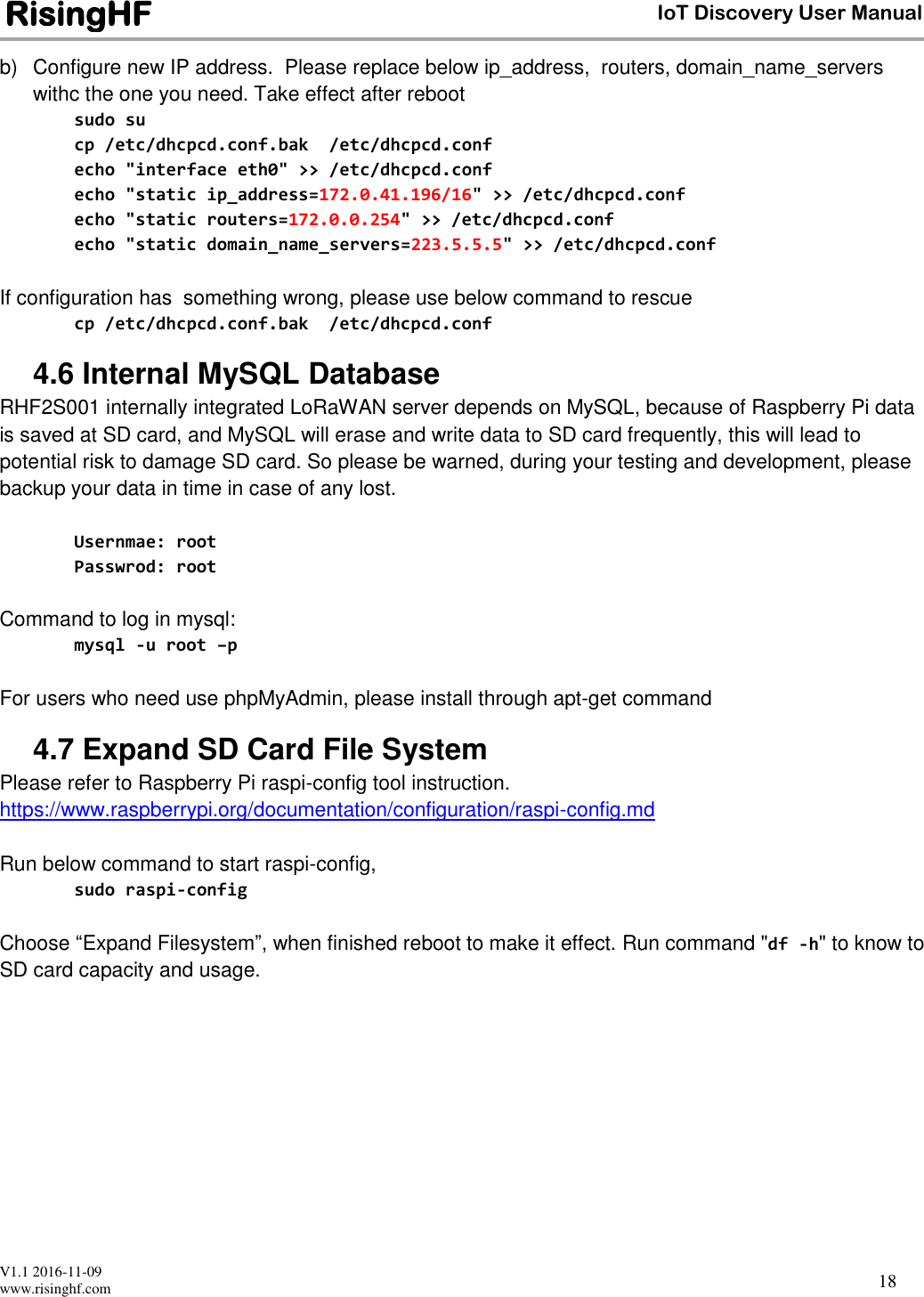

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 18 b) Configure new IP address. Please replace below ip_address, routers, domain_name_servers withc the one you need. Take effect after reboot sudo su cp /etc/dhcpcd.conf.bak /etc/dhcpcd.conf echo "interface eth0" >> /etc/dhcpcd.conf echo "static ip_address=172.0.41.196/16" >> /etc/dhcpcd.conf echo "static routers=172.0.0.254" >> /etc/dhcpcd.conf echo "static domain_name_servers=223.5.5.5" >> /etc/dhcpcd.conf If configuration has something wrong, please use below command to rescue cp /etc/dhcpcd.conf.bak /etc/dhcpcd.conf 4.6 Internal MySQL Database RHF2S001 internally integrated LoRaWAN server depends on MySQL, because of Raspberry Pi data is saved at SD card, and MySQL will erase and write data to SD card frequently, this will lead to potential risk to damage SD card. So please be warned, during your testing and development, please backup your data in time in case of any lost. Usernmae: root Passwrod: root Command to log in mysql: mysql -u root –p For users who need use phpMyAdmin, please install through apt-get command 4.7 Expand SD Card File System Please refer to Raspberry Pi raspi-config tool instruction. https://www.raspberrypi.org/documentation/configuration/raspi-config.md Run below command to start raspi-config, sudo raspi-config Choose “Expand Filesystem”, when finished reboot to make it effect. Run command "df -h" to know to SD card capacity and usage.

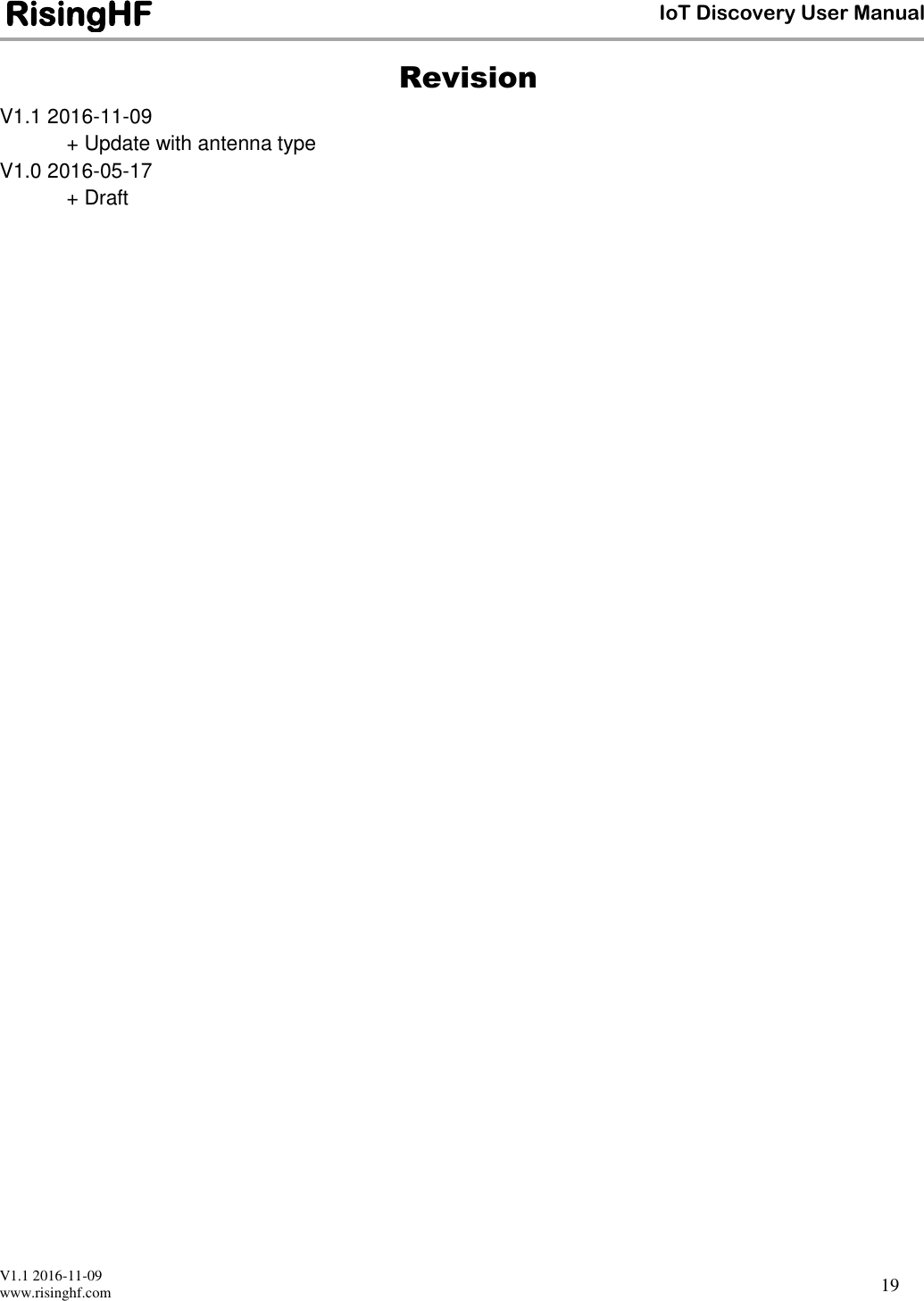

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 19 Revision V1.1 2016-11-09 + Update with antenna type V1.0 2016-05-17 + Draft

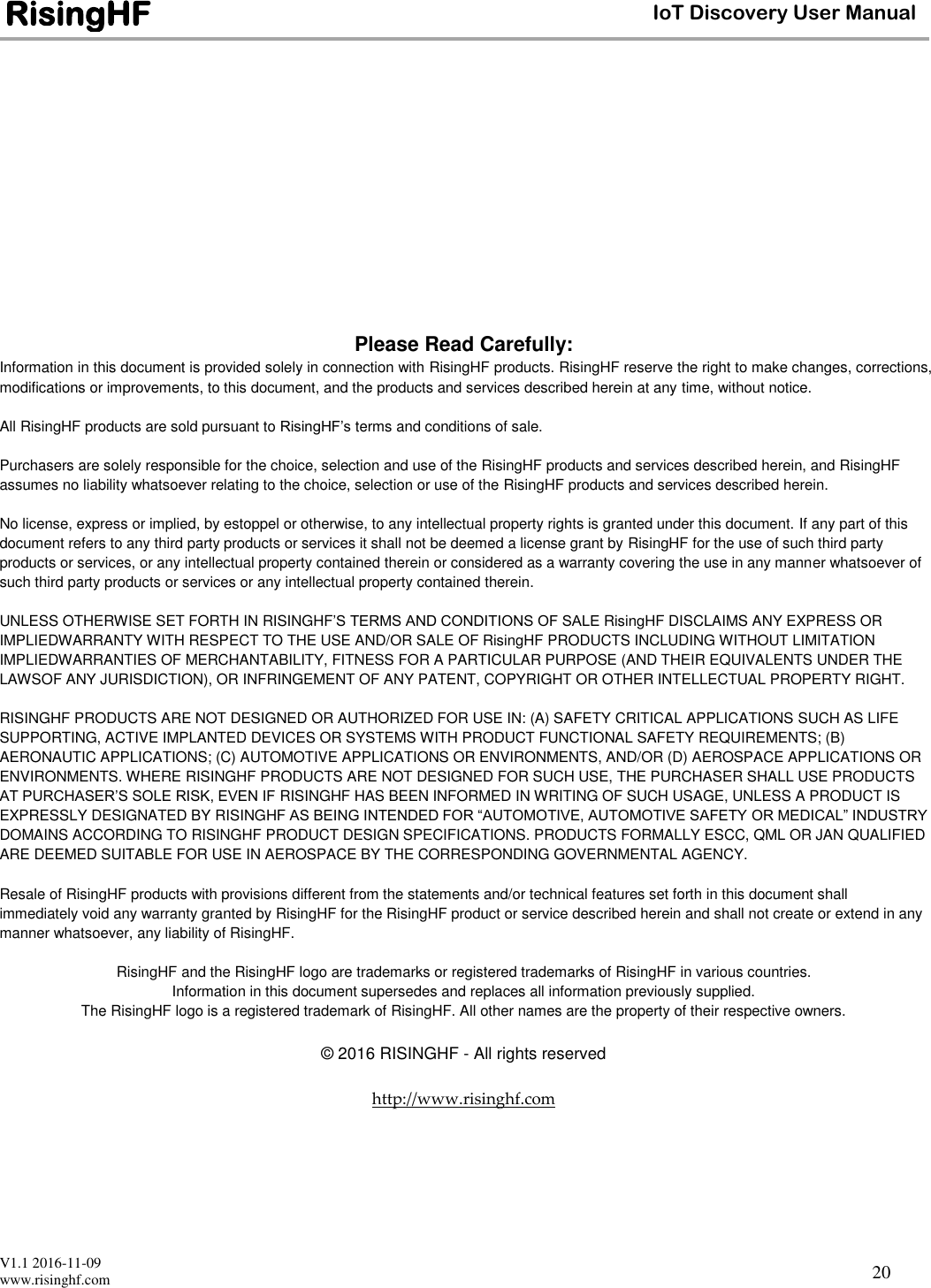

V1.1 2016-11-09 www.risinghf.com IoT Discovery User Manual RisingHF 20 Please Read Carefully: Information in this document is provided solely in connection with RisingHF products. RisingHF reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All RisingHF products are sold pursuant to RisingHF’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the RisingHF products and services described herein, and RisingHF assumes no liability whatsoever relating to the choice, selection or use of the RisingHF products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by RisingHF for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN RISINGHF’S TERMS AND CONDITIONS OF SALE RisingHF DISCLAIMS ANY EXPRESS OR IMPLIEDWARRANTY WITH RESPECT TO THE USE AND/OR SALE OF RisingHF PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIEDWARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWSOF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. RISINGHF PRODUCTS ARE NOT DESIGNED OR AUTHORIZED FOR USE IN: (A) SAFETY CRITICAL APPLICATIONS SUCH AS LIFE SUPPORTING, ACTIVE IMPLANTED DEVICES OR SYSTEMS WITH PRODUCT FUNCTIONAL SAFETY REQUIREMENTS; (B) AERONAUTIC APPLICATIONS; (C) AUTOMOTIVE APPLICATIONS OR ENVIRONMENTS, AND/OR (D) AEROSPACE APPLICATIONS OR ENVIRONMENTS. WHERE RISINGHF PRODUCTS ARE NOT DESIGNED FOR SUCH USE, THE PURCHASER SHALL USE PRODUCTS AT PURCHASER’S SOLE RISK, EVEN IF RISINGHF HAS BEEN INFORMED IN WRITING OF SUCH USAGE, UNLESS A PRODUCT IS EXPRESSLY DESIGNATED BY RISINGHF AS BEING INTENDED FOR “AUTOMOTIVE, AUTOMOTIVE SAFETY OR MEDICAL” INDUSTRY DOMAINS ACCORDING TO RISINGHF PRODUCT DESIGN SPECIFICATIONS. PRODUCTS FORMALLY ESCC, QML OR JAN QUALIFIED ARE DEEMED SUITABLE FOR USE IN AEROSPACE BY THE CORRESPONDING GOVERNMENTAL AGENCY. Resale of RisingHF products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by RisingHF for the RisingHF product or service described herein and shall not create or extend in any manner whatsoever, any liability of RisingHF. RisingHF and the RisingHF logo are trademarks or registered trademarks of RisingHF in various countries. Information in this document supersedes and replaces all information previously supplied. The RisingHF logo is a registered trademark of RisingHF. All other names are the property of their respective owners. © 2016 RISINGHF - All rights reserved http://www.risinghf.com

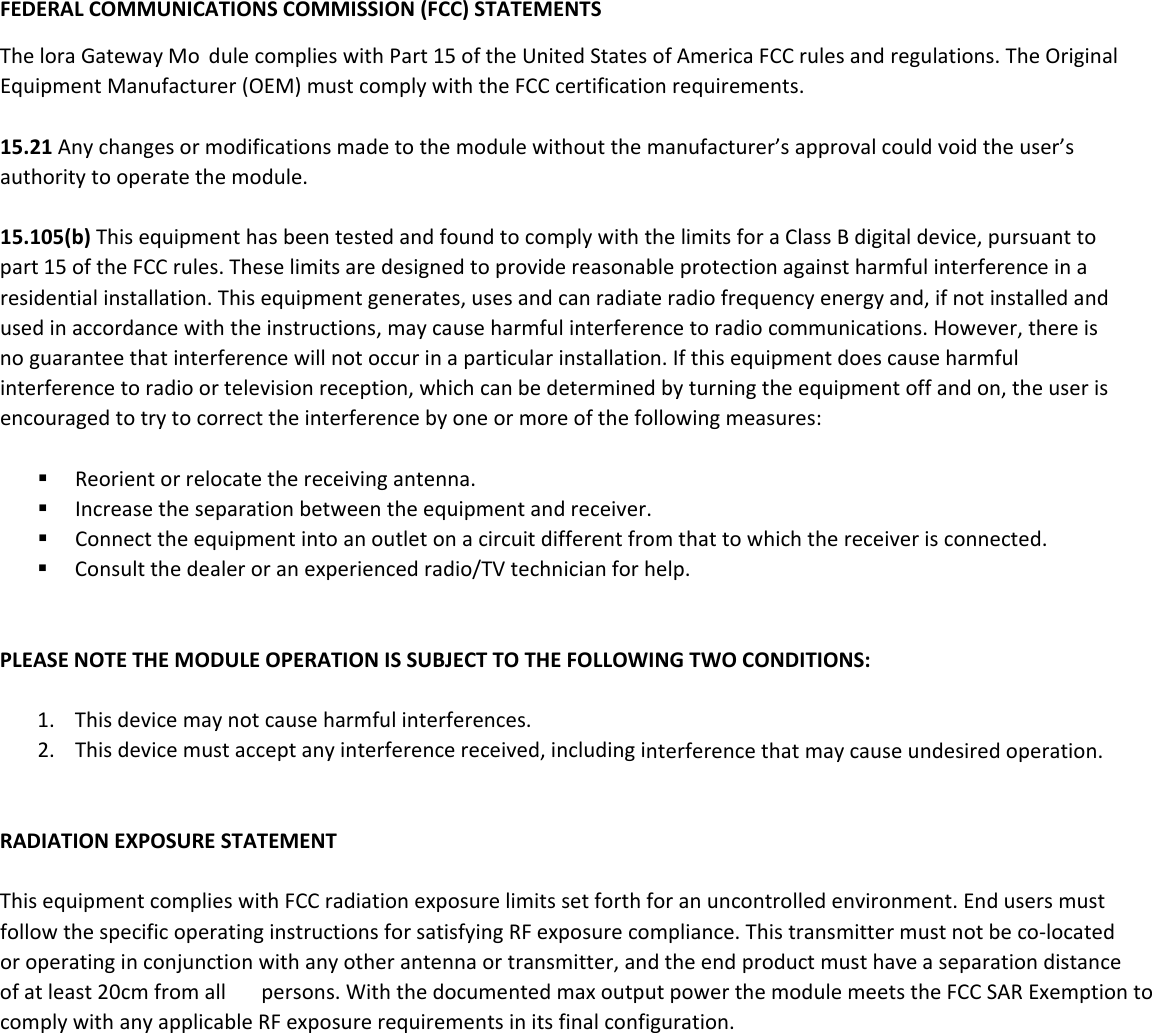

FEDERALCOMMUNICATIONSCOMMISSION(FCC)STATEMENTSThelora GatewayMo dulecomplieswithPart15oftheUnitedStatesofAmericaFCCrulesandregulations.TheOriginalEquipmentManufacturer(OEM)mustcomplywiththeFCCcertificationrequirements.15.21Anychangesormodificationsmadetothemodulewithoutthemanufacturer’sapprovalcouldvoidtheuser’sauthoritytooperatethemodule.15.105(b)ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCrules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: Reorientorrelocatethereceivingantenna. Increasetheseparationbetweentheequipmentandreceiver. Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. Consultthedealeroranexperiencedradio/TVtechnicianforhelp.PLEASENOTETHEMODULEOPERATIONISSUBJECTTOTHEFOLLOWINGTWOCONDITIONS:1. Thisdevicemaynotcauseharmfulinterferences.2. Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.RADIATIONEXPOSURESTATEMENTThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.EndusersmustfollowthespecificoperatinginstructionsforsatisfyingRFexposurecompliance.Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter,andtheendproductmusthaveaseparationdistanceofatleast20cmfromall persons.WiththedocumentedmaxoutputpowerthemodulemeetstheFCCSARExemptiontocomplywithanyapplicableRFexposurerequirementsinitsfinalconfiguration.

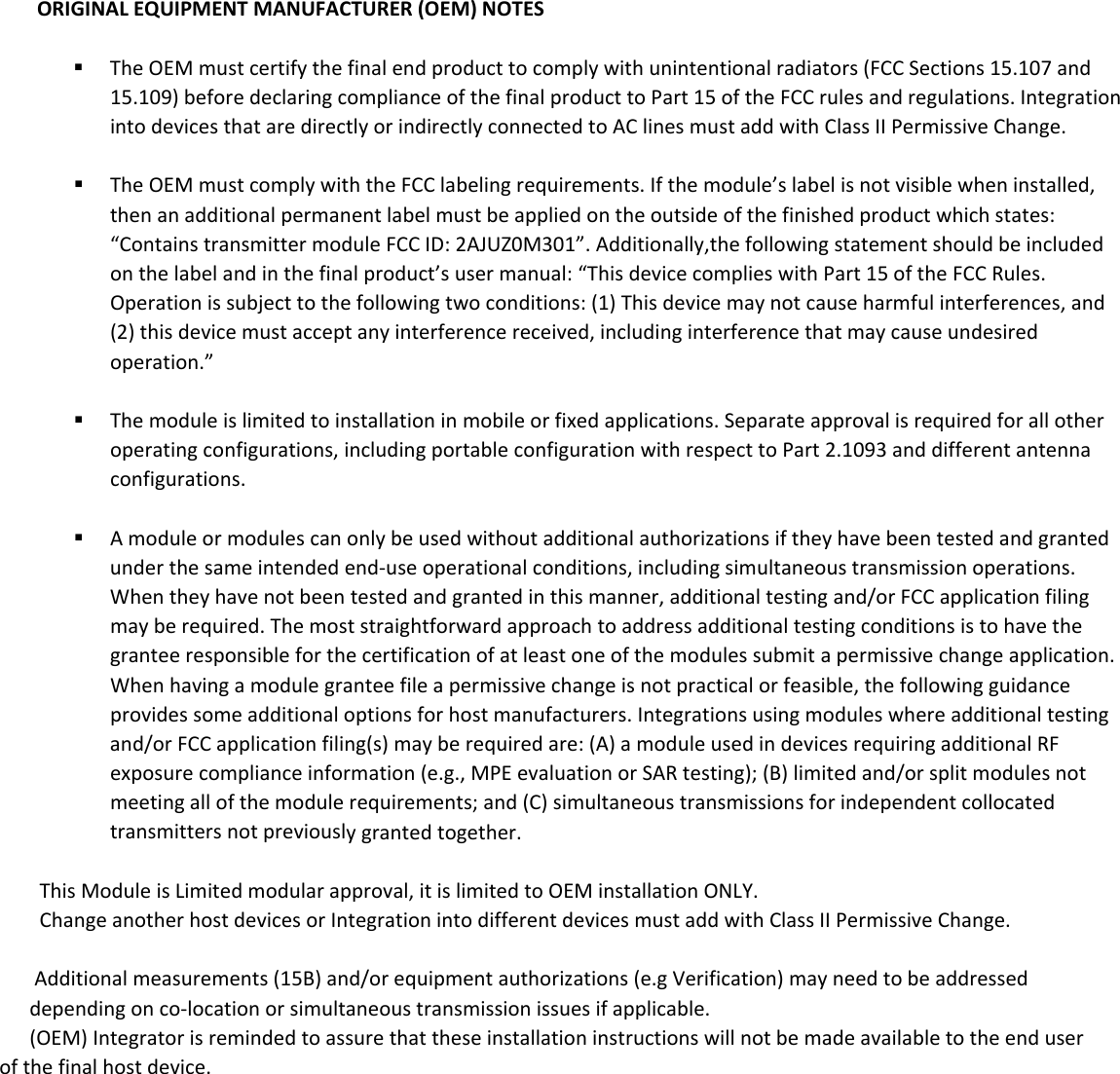

ORIGINALEQUIPMENTMANUFACTURER(OEM)NOTES TheOEMmustcertifythefinalendproducttocomplywithunintentionalradiators(FCCSections15.107and15.109)beforedeclaringcomplianceofthefinalproducttoPart15oftheFCCrulesandregulations.IntegrationintodevicesthataredirectlyorindirectlyconnectedtoAClinesmustaddwithClassIIPermissiveChange. TheOEMmustcomplywiththeFCClabelingrequirements.Ifthemodule’slabelisnotvisiblewheninstalled,thenanadditionalpermanentlabelmustbeappliedontheoutsideofthefinishedproductwhichstates:“ContainstransmittermoduleFCCID:2AJUZ0M301”.Additionally,the followingstatementshould be included onthelabelandinthefinalproduct’susermanual:“ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterferences,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.” Themoduleislimitedtoinstallationinmobileorfixedapplications.Separateapprovalisrequiredforallotheroperatingconfigurations,includingportableconfigurationwithrespecttoPart2.1093anddifferentantennaconfigurations. Amoduleormodulescanonlybeusedwithoutadditionalauthorizationsiftheyhavebeentestedandgrantedunderthesameintendedend‐useoperationalconditions,includingsimultaneoustransmissionoperations.Whentheyhavenotbeentestedandgrantedinthismanner,additionaltestingand/orFCCapplicationfilingmayberequired.Themoststraightforwardapproachtoaddressadditionaltestingconditionsistohavethegranteeresponsibleforthecertificationofatleastoneofthemodulessubmitapermissivechangeapplication.Whenhavingamodulegranteefileapermissivechangeisnotpracticalorfeasible,thefollowingguidanceprovidessomeadditionaloptionsforhostmanufacturers.Integrationsusingmoduleswhereadditionaltestingand/orFCCapplicationfiling(s)mayberequiredare:(A)amoduleusedindevicesrequiringadditionalRFexposurecomplianceinformation(e.g.,MPEevaluationorSARtesting);(B)limitedand/orsplitmodulesnotmeetingallofthemodulerequirements;and(C)simultaneoustransmissionsforindependentcollocatedtransmittersnotpreviouslygrantedtogether. This Module is Limited modular approval, it is limited to OEM installation ONLY. Change another host devices or Integration into different devices must add with Class II Permissive Change. Additional measurements (15B) and/or equipment authorizations (e.g Verification) may need to be addressed depending on co-location or simultaneous transmission issues if applicable. (OEM) Integrator is reminded to assure that these installation instructions will not be made available to the end user of the final host device. 
