RuiXingHengFang Network 1S001 RHF1S001 IP64 T&H; sensor User Manual

RuiXingHengFang Network(Shenzhen) Co., Ltd. RHF1S001 IP64 T&H; sensor Users Manual

Users Manual

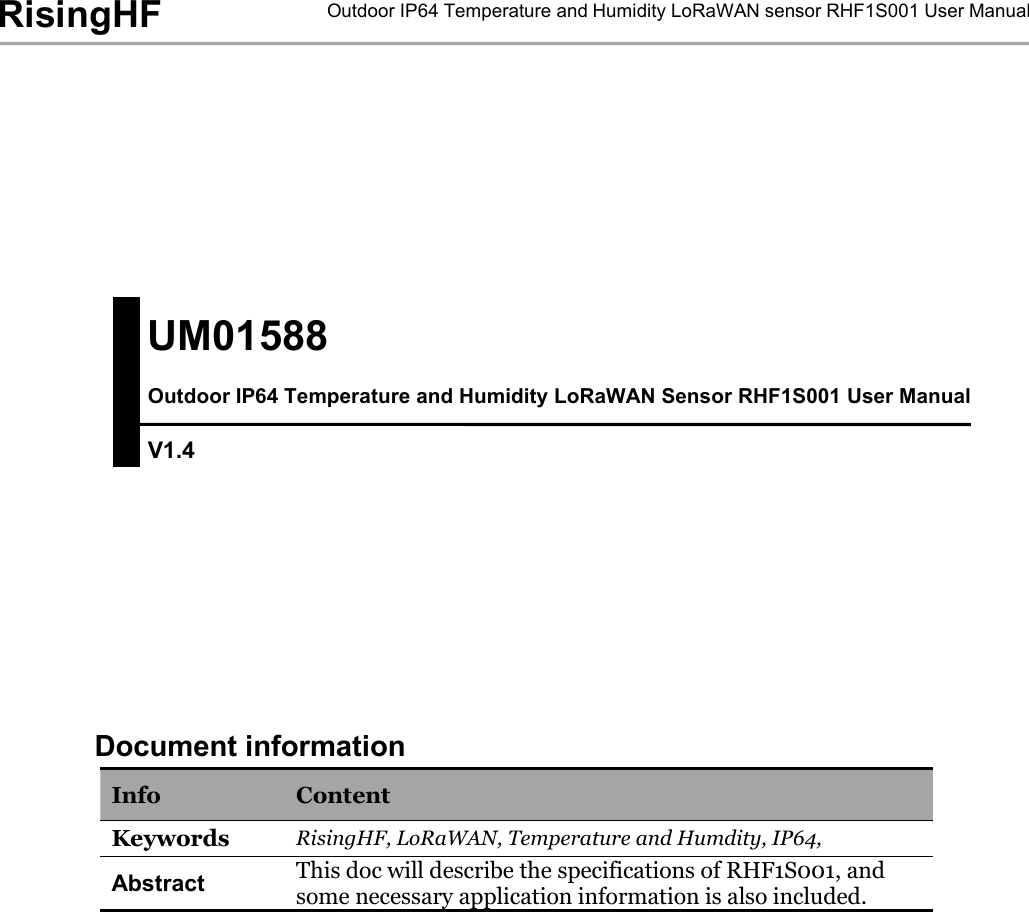

Outdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHFDocument informationInfoContentKeywordsRisingHF, LoRaWAN, Temperature and Humdity, IP64,AbstractThis doc will describe the specifications of RHF1S001, andsome necessary application information is also included.UM01588Outdoor IP64 Temperature and Humidity LoRaWAN Sensor RHF1S001 User ManualV1.4

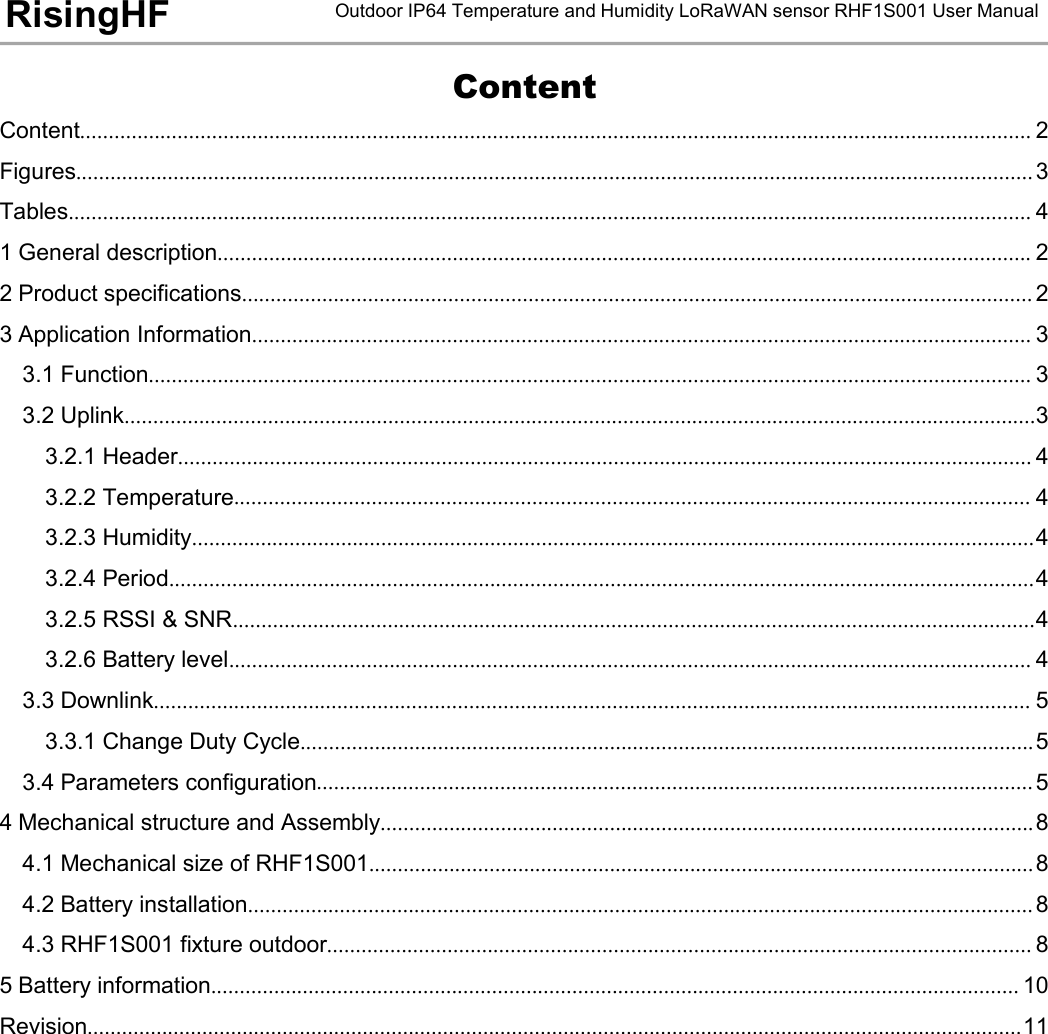

Outdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHFContentContent...................................................................................................................................................................... 2Figures....................................................................................................................................................................... 3Tables........................................................................................................................................................................ 41 General description.............................................................................................................................................. 22 Product specifications.......................................................................................................................................... 23 Application Information........................................................................................................................................ 33.1 Function.......................................................................................................................................................... 33.2 Uplink...............................................................................................................................................................33.2.1 Header..................................................................................................................................................... 43.2.2 Temperature........................................................................................................................................... 43.2.3 Humidity...................................................................................................................................................43.2.4 Period.......................................................................................................................................................43.2.5 RSSI & SNR............................................................................................................................................43.2.6 Battery level............................................................................................................................................ 43.3 Downlink......................................................................................................................................................... 53.3.1 Change Duty Cycle................................................................................................................................53.4 Parameters configuration............................................................................................................................. 54 Mechanical structure and Assembly..................................................................................................................84.1 Mechanical size of RHF1S001....................................................................................................................84.2 Battery installation......................................................................................................................................... 84.3 RHF1S001 fixture outdoor........................................................................................................................... 85 Battery information............................................................................................................................................. 10Revision...................................................................................................................................................................11

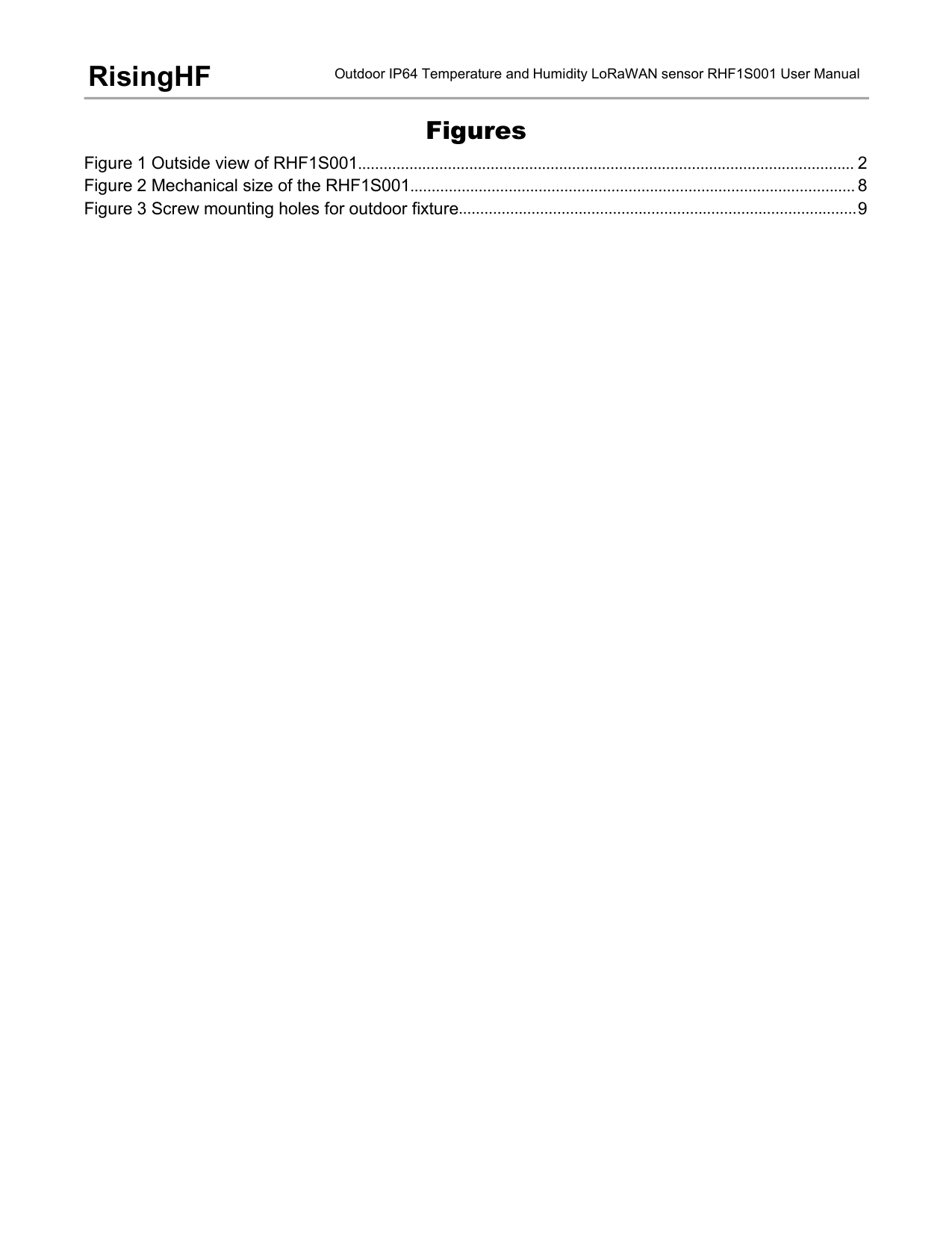

Outdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHFFiguresFigure 1 Outside view of RHF1S001.................................................................................................................... 2Figure 2 Mechanical size of the RHF1S001........................................................................................................ 8Figure 3 Screw mounting holes for outdoor fixture.............................................................................................9

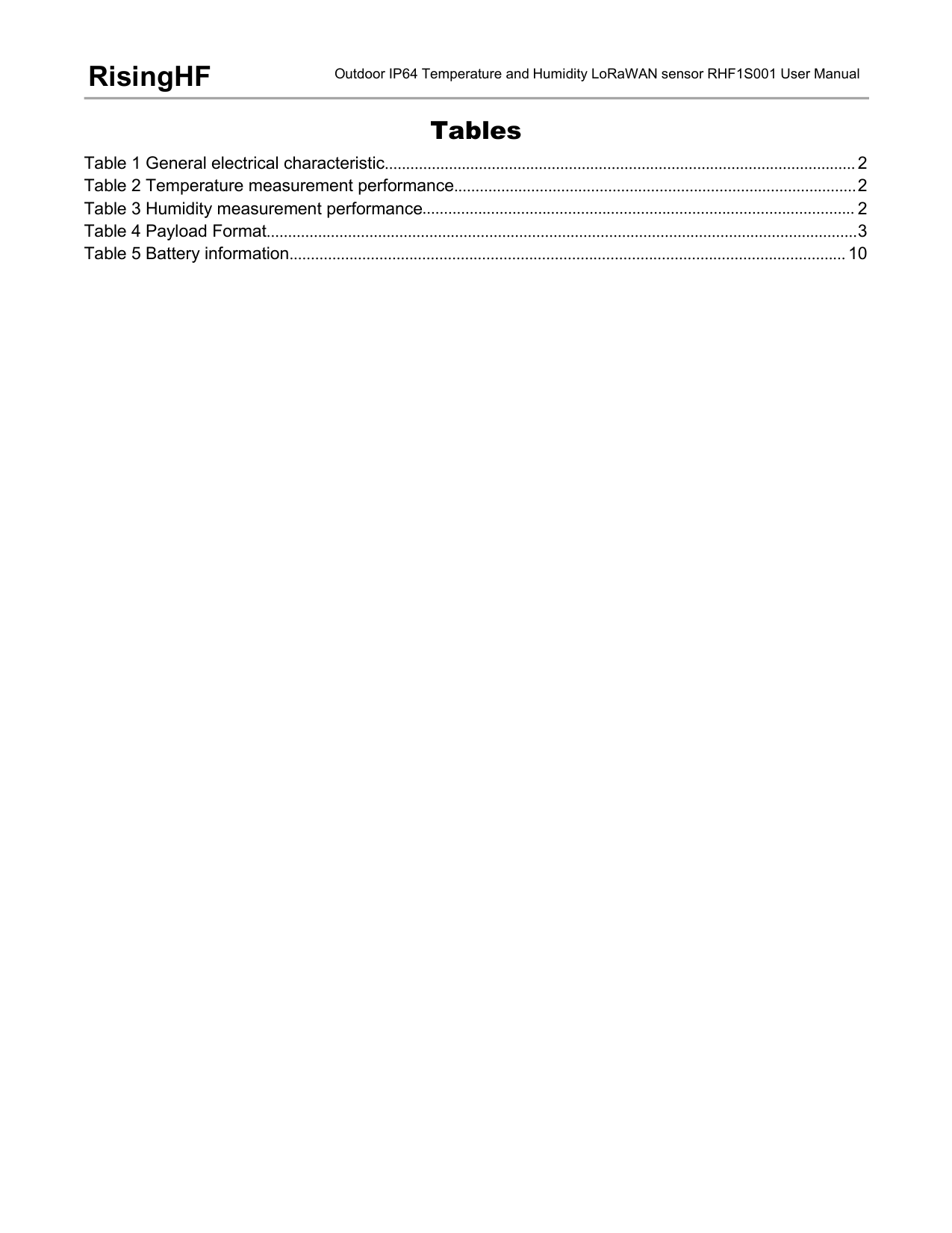

Outdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHFTablesTable 1 General electrical characteristic.............................................................................................................. 2Table 2 Temperature measurement performance..............................................................................................2Table 3 Humidity measurement performance..................................................................................................... 2Table 4 Payload Format..........................................................................................................................................3Table 5 Battery information.................................................................................................................................. 10

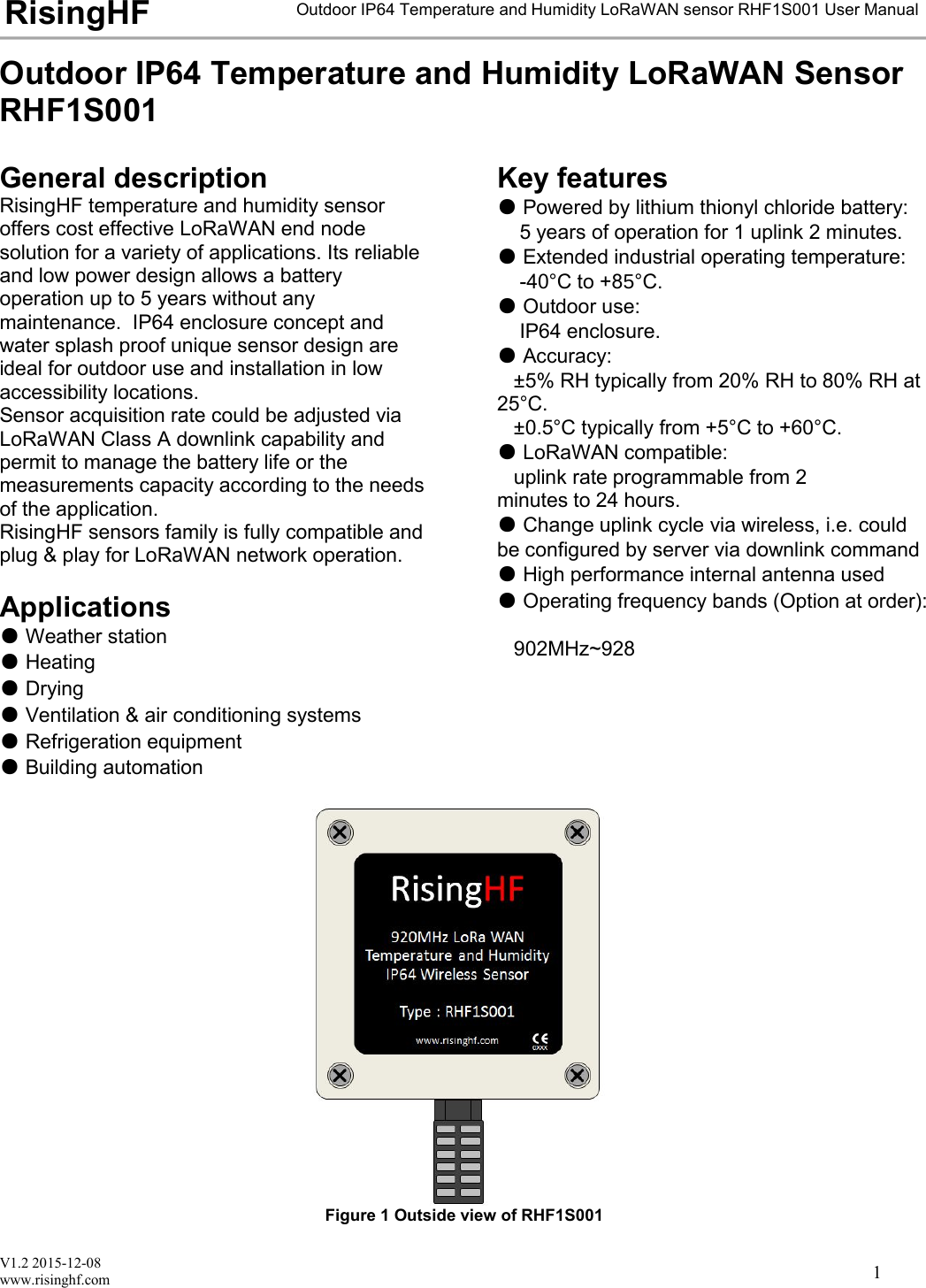

V1.2 2015-12-08www.risinghf.comOutdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHF1Outdoor IP64 Temperature and Humidity LoRaWAN SensorRHF1S001General descriptionRisingHF temperature and humidity sensoroffers cost effective LoRaWAN end nodesolution for a variety of applications. Its reliableand low power design allows a batteryoperation up to 5 years without anymaintenance. IP64 enclosure concept andwater splash proof unique sensor design areideal for outdoor use and installation in lowaccessibility locations.Sensor acquisition rate could be adjusted viaLoRaWAN Class A downlink capability andpermit to manage the battery life or themeasurements capacity according to the needsof the application.RisingHF sensors family is fully compatible andplug & play for LoRaWAN network operation.Applications●Weather station●Heating●Drying●Ventilation & air conditioning systems●Refrigeration equipment●Building automationKey features●Powered by lithium thionyl chloride battery:5 years of operation for 1 uplink 2 minutes.●Extended industrial operating temperature:-40°C to +8°C.●Outdoor use:IP64 enclosure.●Accuracy:±5% RH typically from 20% RH to 80% RH at25°C.±0.5°C typically from +5°C to +60°C.●LoRaWAN compatible:uplink rate programmable from 2minutes to 24 hours.●Change uplink cycle via wireless, i.e. couldbe configured by server via downlink command●High performance internal antenna used●Operating frequency bands (Option at order):902MHz~928Figure 1 Outside view of RHF1S001

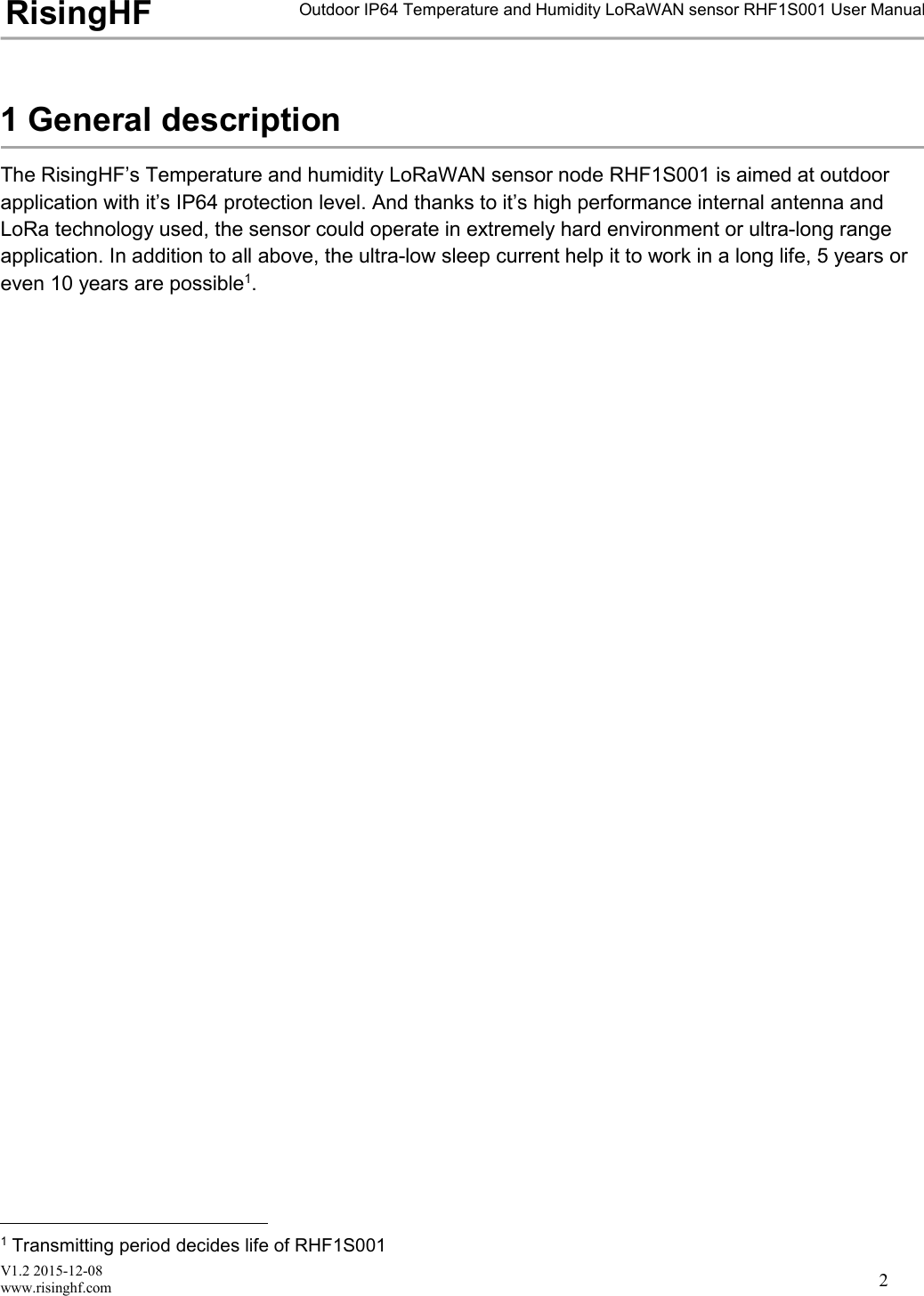

V1.2 2015-12-08www.risinghf.comOutdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHF21 General descriptionThe RisingHF’s Temperature and humidity LoRaWAN sensor node RHF1S001 is aimed at outdoorapplication with it’s IP64 protection level. And thanks to it’s high performance internal antenna andLoRa technology used, the sensor could operate in extremely hard environment or ultra-long rangeapplication. In addition to all above, the ultra-low sleep current help it to work in a long life, 5 years oreven 10 years are possible1.1Transmitting period decides life of RHF1S001

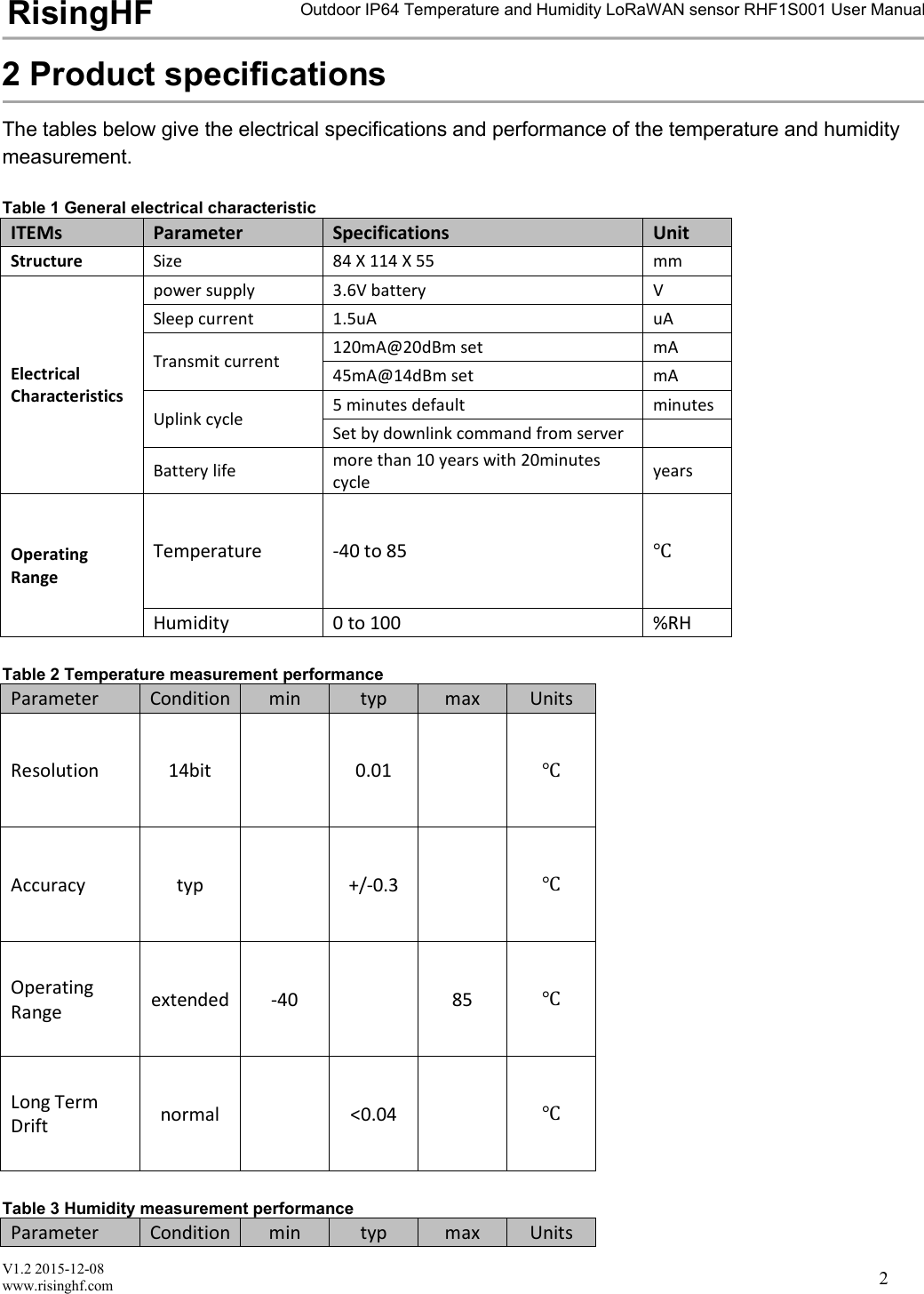

V1.2 2015-12-08www.risinghf.comOutdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHF22 Product specificationsThe tables below give the electrical specifications and performance of the temperature and humiditymeasurement.Table 1 General electrical characteristicITEMsParameterSpecificationsUnitStructureSize84 X 114 X 55mmElectricalCharacteristicspower supply3.6V batteryVSleep current1.5uAuATransmit current120mA@20dBm setmA45mA@14dBm setmAUplink cycle5 minutes defaultminutesSet by downlink command from serverBattery lifemore than 10 years with 20minutescycleyearsOperatingRangeTemperature-40 to 85℃Humidity0 to 100%RHTable 2 Temperature measurement performanceParameterConditionmintypmaxUnitsResolution14bit0.01℃Accuracytyp+/-0.3℃OperatingRangeextended-4085℃Long TermDriftnormal<0.04℃Table 3 Humidity measurement performanceParameterConditionmintypmaxUnits
V1.2 2015-12-08www.risinghf.comOutdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHF3Resolution12bit0.04%RHAccuracytyp+/-3.0%RHNonlinearity<0.1%RHOperatingRangeextended0100%RHLong TermDriftnormal<0.5%RH3 Application Information3.1 FunctionRHF1Sxxx software implements LoRaWAN ABP mode with ADR enabled, it is a LoRaWAN Class Adevice, DevAddr, NwkSKey, AppSKey are stored in the node. This 3 information is necessary for nodeto connect a network. DevAddr will be labeled to the surface of the device, however NwkSKey andAppSKey will be kept secret to make node safe. RisingHF promises only expose to this 2 session keysdevice owner. RisingHF will supply key in in the form of information list.After power on, RHF1Sxxx will keep detect the status of magnet sensor, when magnet stays the same,then RHF1Sxxx will reports magnet status and temperature and humidity to server in a fixed duty cyclewhich could be customized by user through downlink. Magnet status change will trigger a reportimmediately, depends on current data rate, response time could range from 100ms to 2s.According to LoRaWAN specification, downlink response time is decided by uplink duty cycle, usershould refer the needed response time to choose uplink duty cycle. Detailed downlink and uplinkdefinition are described below.Note: For prototype device, Semtech’s default NwkSKey, AppSKey and AppKey are used, sothat user could connect device to Semtech IoT server easily.Default NwkSKey: 0x2B, 0x7E, 0x15, 0x16, 0x28, 0xAE, 0xD2, 0xA6, 0xAB, 0xF7, 0x15, 0x88, 0x09,0xCF, 0x4F, 0x3CDefault APPSKey: 0x2B, 0x7E, 0x15, 0x16, 0x28, 0xAE, 0xD2, 0xA6, 0xAB, 0xF7, 0x15, 0x88, 0x09,0xCF, 0x4F, 0x3CDefault APPKey: 0x2B, 0x7E, 0x15, 0x16, 0x28, 0xAE, 0xD2, 0xA6, 0xAB, 0xF7, 0x15, 0x88, 0x09,0xCF, 0x4F, 0x3C3.2 UplinkTable 4 Payload FormatBytes1212111ItemHeaderTemperatureHumidityPeriodRSSISNRBatteryFor example, get payload 01 6c 68 9d 39 30 90 29 C8, then extract payload information like below.

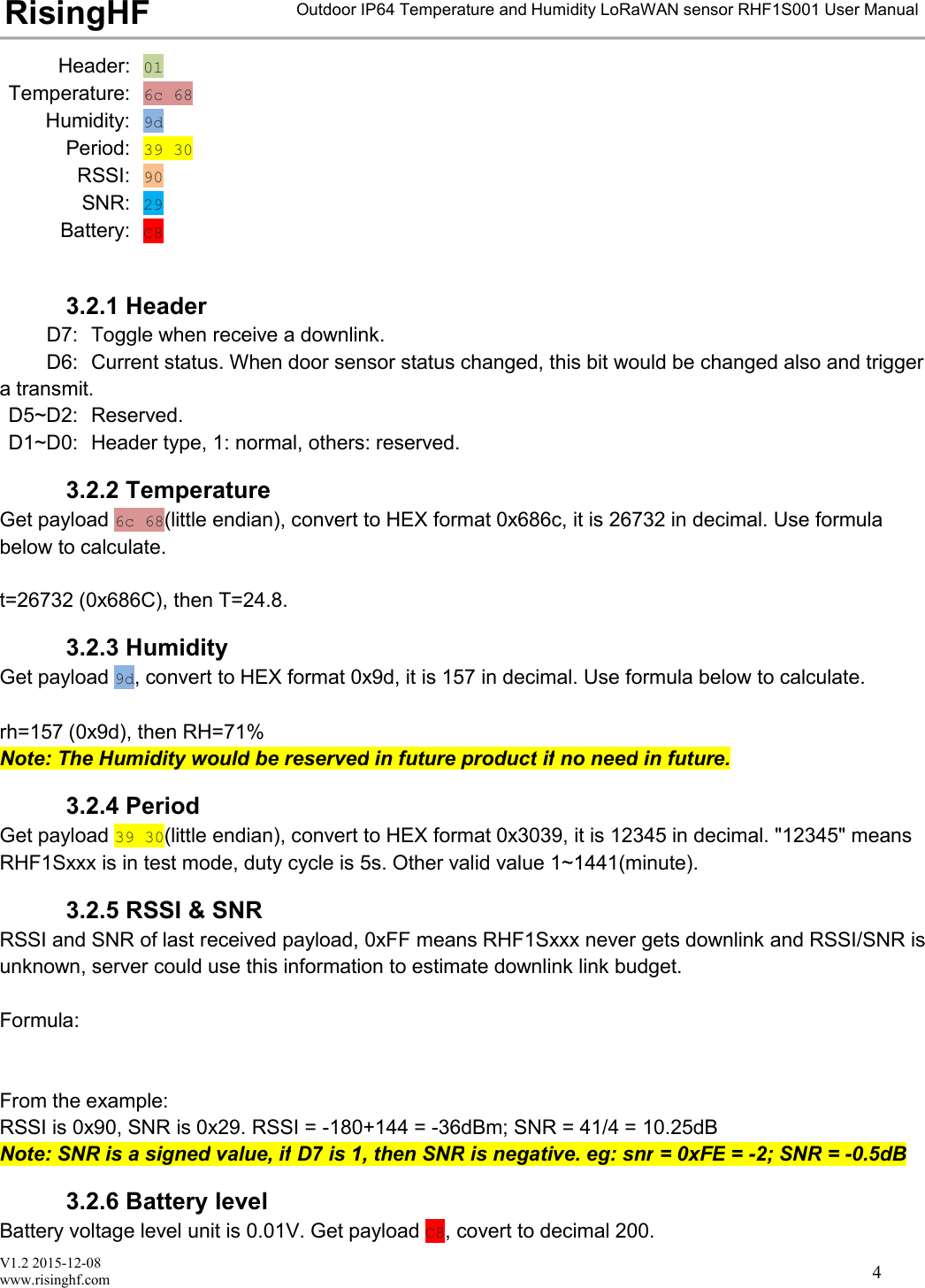

V1.2 2015-12-08www.risinghf.comOutdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHF4Header: 01Temperature: 6c 68Humidity: 9dPeriod: 39 30RSSI: 90SNR: 29Battery: C83.2.1 HeaderD7: Toggle when receive a downlink.D6: Current status. When door sensor status changed, this bit would be changed also and triggera transmit.D5~D2: Reserved.D1~D0: Header type, 1: normal, others: reserved.3.2.2 TemperatureGet payload 6c 68(little endian), convert to HEX format 0x686c, it is 26732 in decimal. Use formulabelow to calculate.t=26732 (0x686C), then T=24.8.3.2.3 HumidityGet payload 9d, convert to HEX format 0x9d, it is 157 in decimal. Use formula below to calculate.rh=157 (0x9d), then RH=71%Note: The Humidity would be reserved in future product if no need in future.3.2.4 PeriodGet payload 39 30(little endian), convert to HEX format 0x3039, it is 12345 in decimal. "12345" meansRHF1Sxxx is in test mode, duty cycle is 5s. Other valid value 1~1441(minute).3.2.5 RSSI & SNRRSSI and SNR of last received payload, 0xFF means RHF1Sxxx never gets downlink and RSSI/SNR isunknown, server could use this information to estimate downlink link budget.Formula:From the example:RSSI is 0x90, SNR is 0x29. RSSI = -180+144 = -36dBm; SNR = 41/4 = 10.25dBNote: SNR is a signed value, if D7 is 1, then SNR is negative. eg: snr = 0xFE = -2; SNR = -0.5dB3.2.6 Battery levelBattery voltage level unit is 0.01V. Get payload C8, covert to decimal 200.

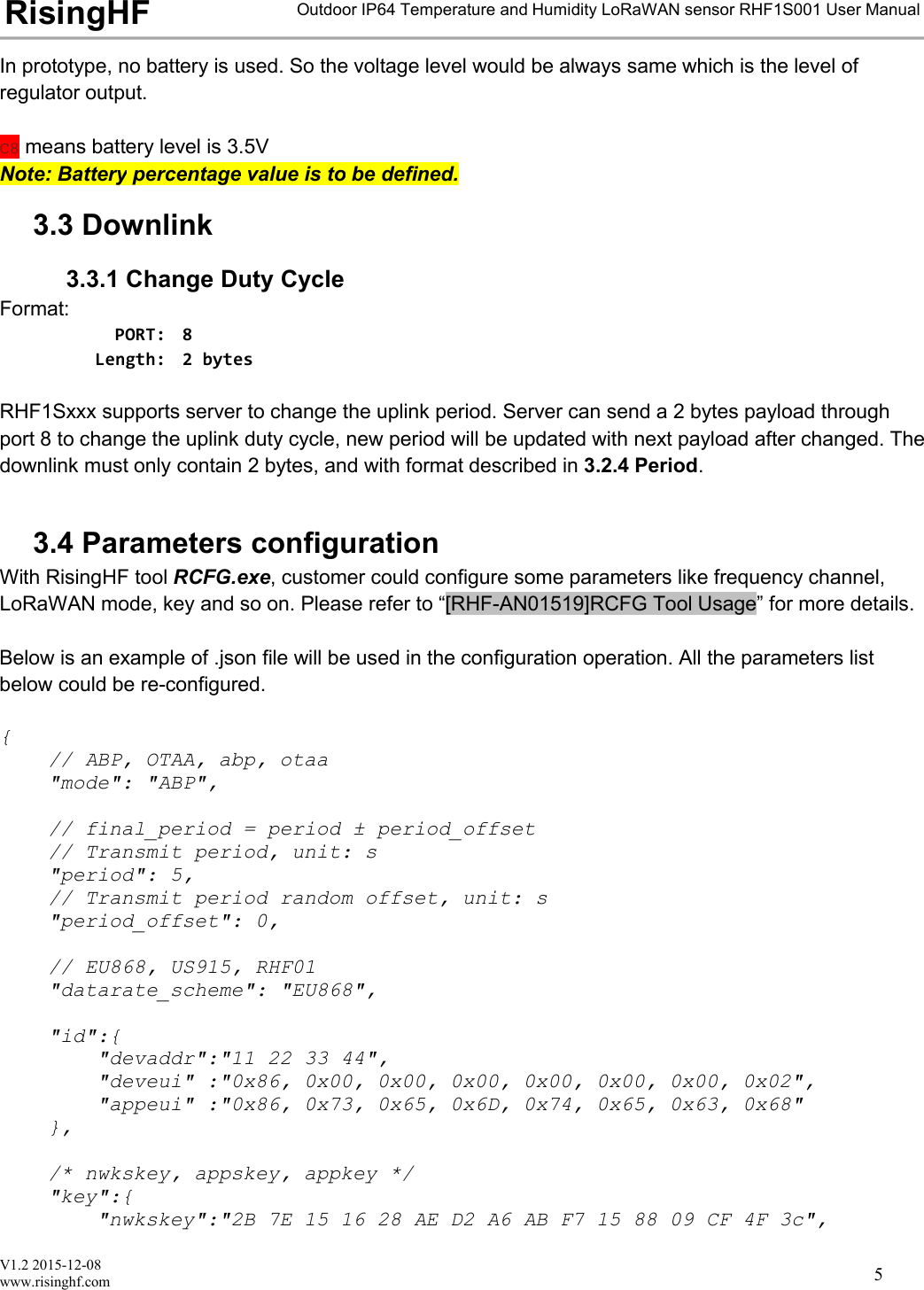

V1.2 2015-12-08www.risinghf.comOutdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHF5In prototype, no battery is used. So the voltage level would be always same which is the level ofregulator output.C8 means battery level is 3.5VNote: Battery percentage value is to be defined.3.3 Downlink3.3.1 Change Duty CycleFormat:PORT: 8Length: 2 bytesRHF1Sxxx supports server to change the uplink period. Server can send a 2 bytes payload throughport 8 to change the uplink duty cycle, new period will be updated with next payload after changed. Thedownlink must only contain 2 bytes, and with format described in 3.2.4 Period.3.4 Parameters configurationWith RisingHF tool RCFG.exe, customer could configure some parameters like frequency channel,LoRaWAN mode, key and so on. Please refer to “[RHF-AN01519]RCFG Tool Usage” for more details.Below is an example of .json file will be used in the configuration operation. All the parameters listbelow could be re-configured.{// ABP, OTAA, abp, otaa"mode": "ABP",// final_period = period ± period_offset// Transmit period, unit: s"period": 5,// Transmit period random offset, unit: s"period_offset": 0,// EU868, US915, RHF01"datarate_scheme": "EU868","id":{"devaddr":"11 22 33 44","deveui" :"0x86, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x02","appeui" :"0x86, 0x73, 0x65, 0x6D, 0x74, 0x65, 0x63, 0x68"},/* nwkskey, appskey, appkey */"key":{"nwkskey":"2B 7E 15 16 28 AE D2 A6 AB F7 15 88 09 CF 4F 3c",

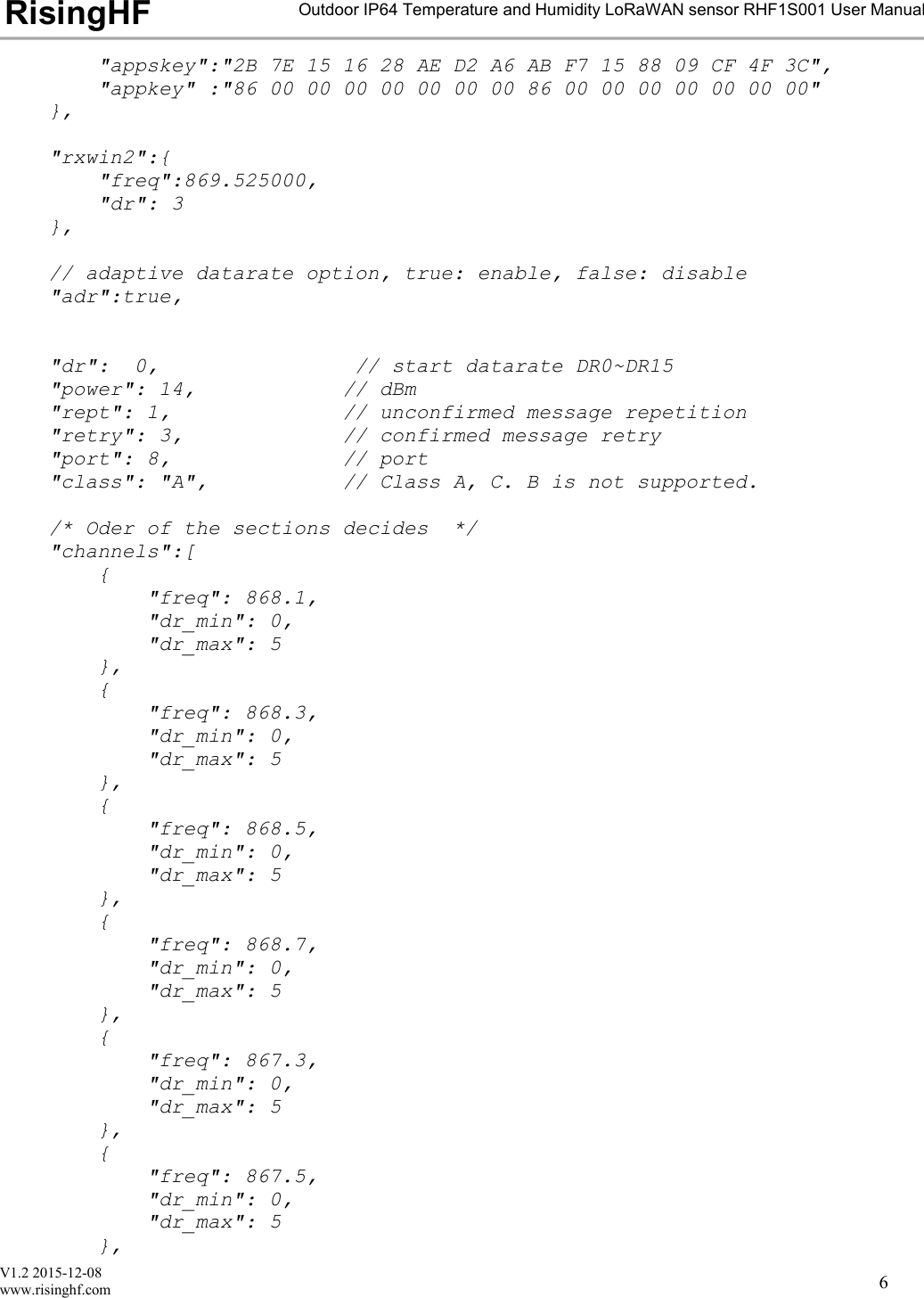

V1.2 2015-12-08www.risinghf.comOutdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHF6"appskey":"2B 7E 15 16 28 AE D2 A6 AB F7 15 88 09 CF 4F 3C","appkey" :"86 00 00 00 00 00 00 00 86 00 00 00 00 00 00 00"},"rxwin2":{"freq":869.525000,"dr": 3},// adaptive datarate option, true: enable, false: disable"adr":true,"dr": 0, // start datarate DR0~DR15"power": 14, // dBm"rept": 1, // unconfirmed message repetition"retry": 3, // confirmed message retry"port": 8, // port"class": "A", // Class A, C. B is not supported./* Oder of the sections decides */"channels":[{"freq": 868.1,"dr_min": 0,"dr_max": 5},{"freq": 868.3,"dr_min": 0,"dr_max": 5},{"freq": 868.5,"dr_min": 0,"dr_max": 5},{"freq": 868.7,"dr_min": 0,"dr_max": 5},{"freq": 867.3,"dr_min": 0,"dr_max": 5},{"freq": 867.5,"dr_min": 0,"dr_max": 5},

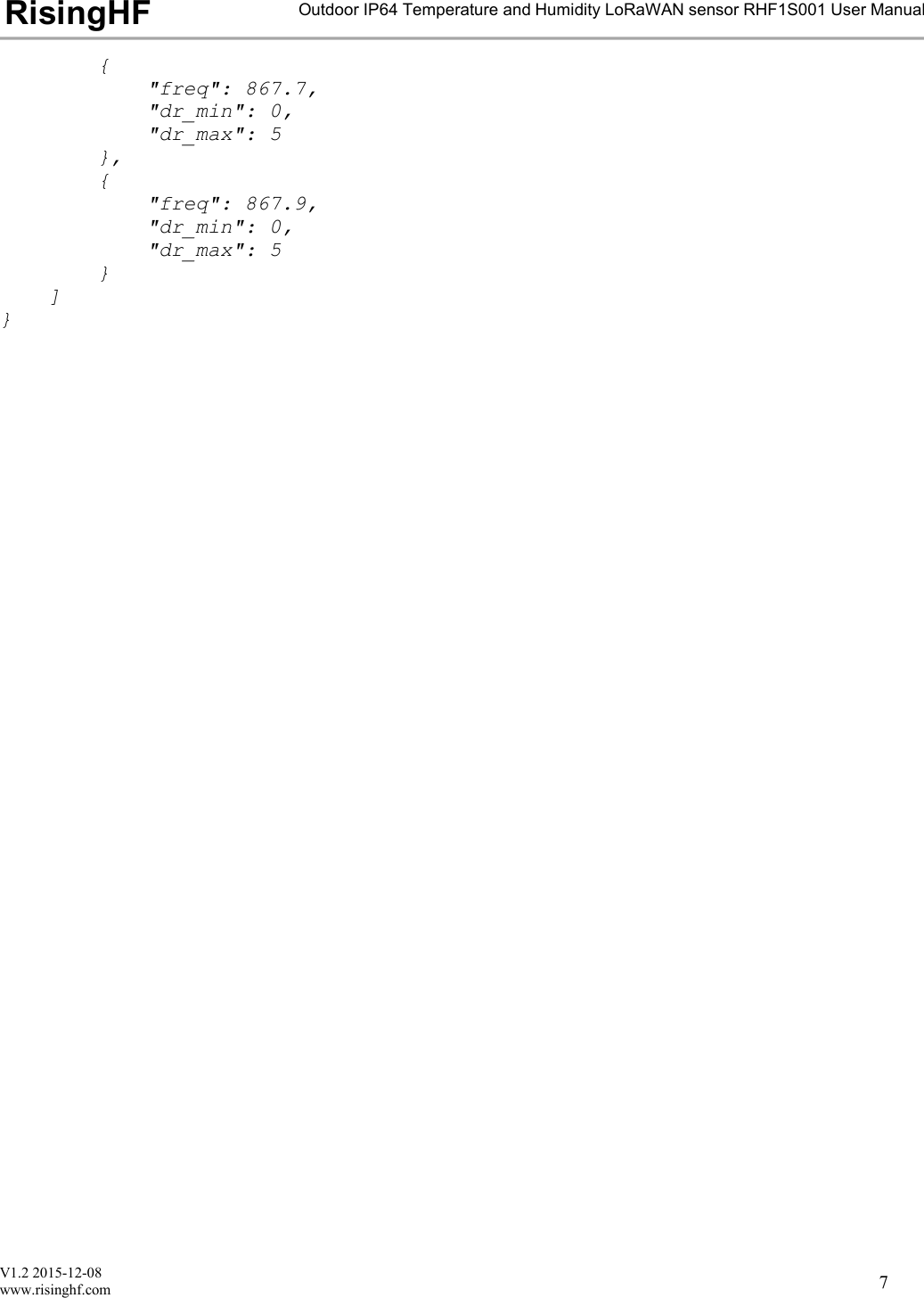

V1.2 2015-12-08www.risinghf.comOutdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHF7{"freq": 867.7,"dr_min": 0,"dr_max": 5},{"freq": 867.9,"dr_min": 0,"dr_max": 5}]}

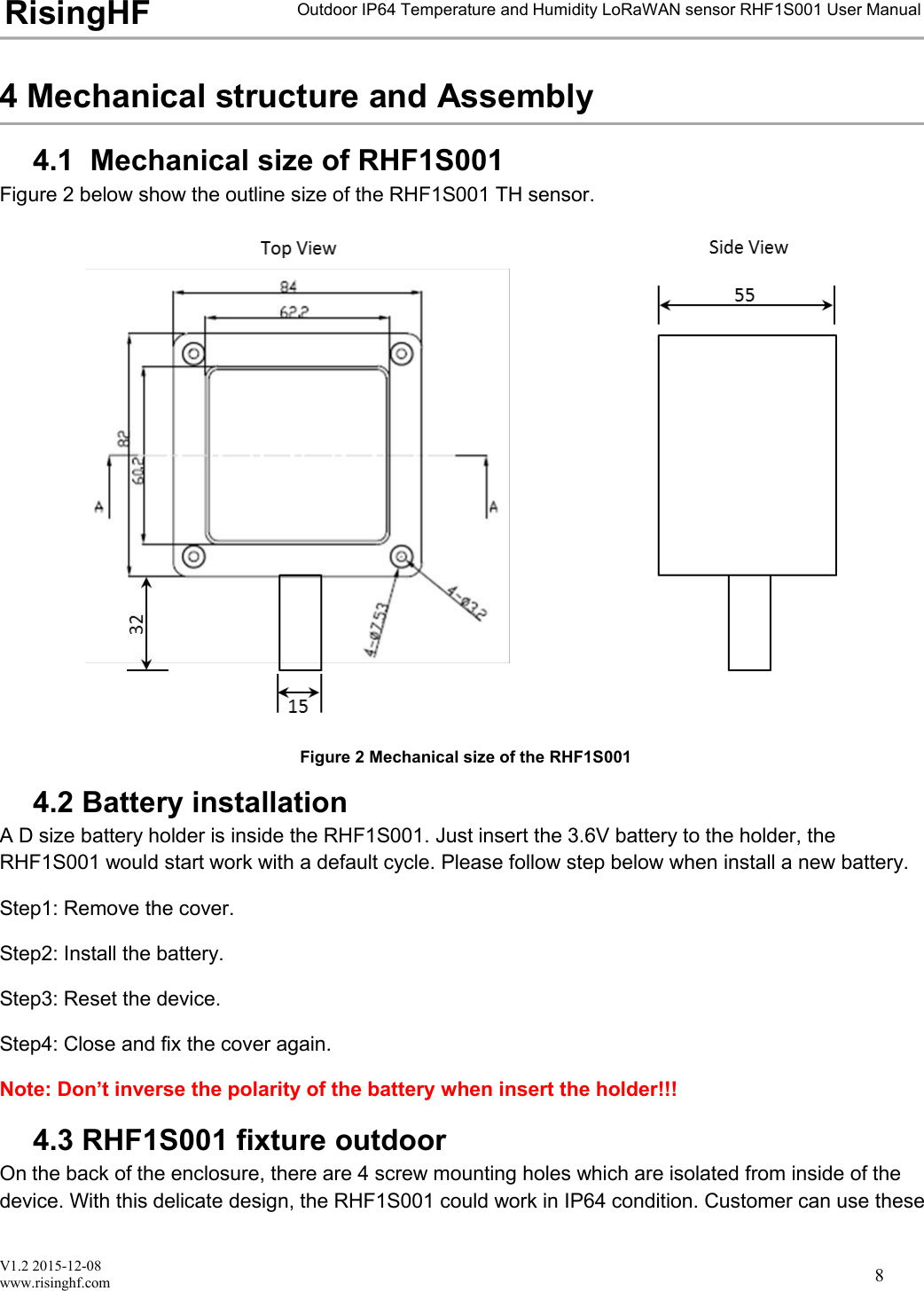

V1.2 2015-12-08www.risinghf.comOutdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHF84 Mechanical structure and Assembly4.1 Mechanical size of RHF1S001Figure 2 below show the outline size of the RHF1S001 TH sensor.Figure 2 Mechanical size of the RHF1S0014.2 Battery installationA D size battery holder is inside the RHF1S001. Just insert the 3.6V battery to the holder, theRHF1S001 would start work with a default cycle. Please follow step below when install a new battery.Step1: Remove the cover.Step2: Install the battery.Step3: Reset the device.Step4: Close and fix the cover again.Note: Don’t inverse the polarity of the battery when insert the holder!!!4.3 RHF1S001 fixture outdoorOn the back of the enclosure, there are 4 screw mounting holes which are isolated from inside of thedevice. With this delicate design, the RHF1S001 could work in IP64 condition. Customer can use these

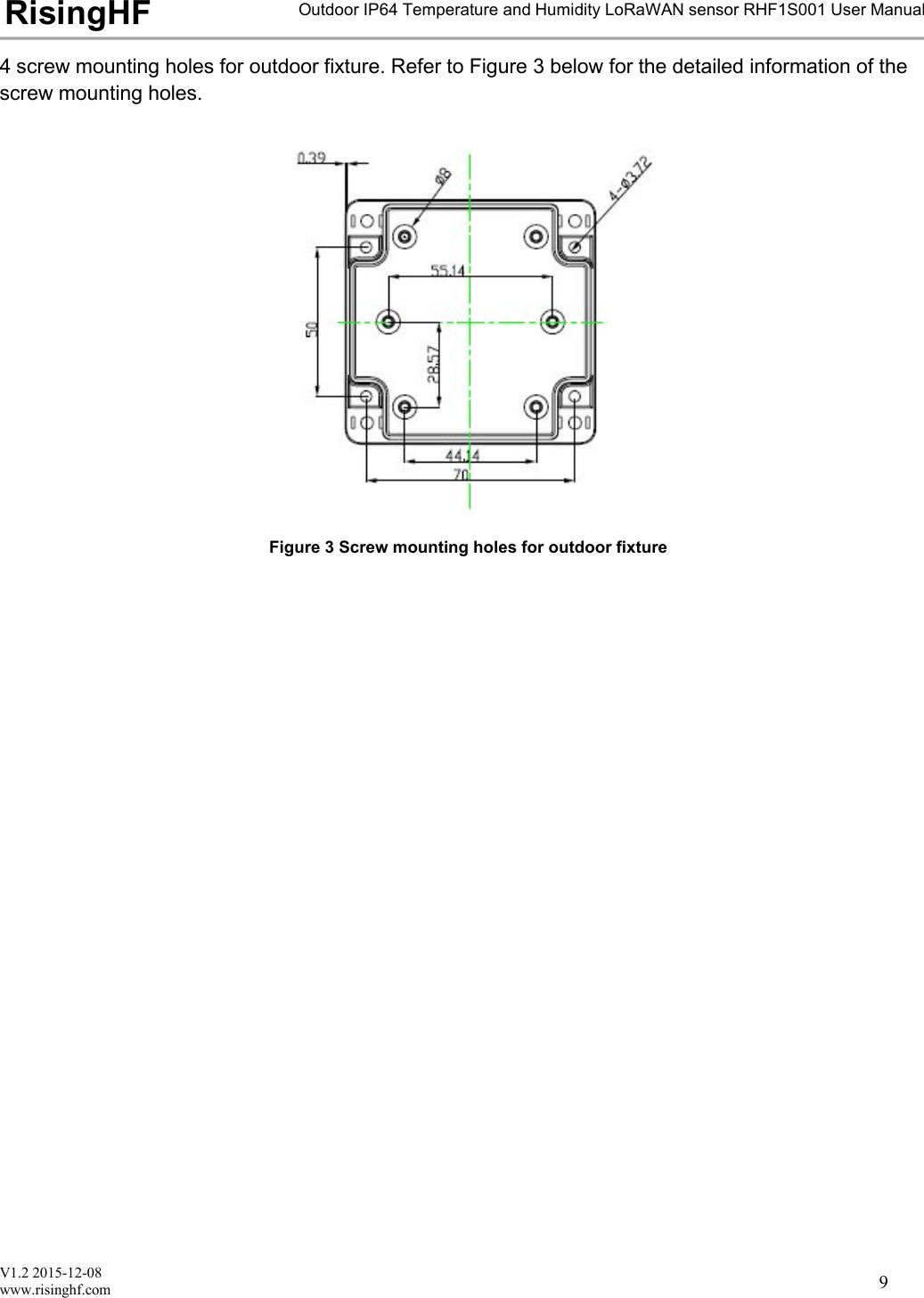

V1.2 2015-12-08www.risinghf.comOutdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHF94 screw mounting holes for outdoor fixture. Refer to Figure 3 below for the detailed information of thescrew mounting holes.Figure 3 Screw mounting holes for outdoor fixture

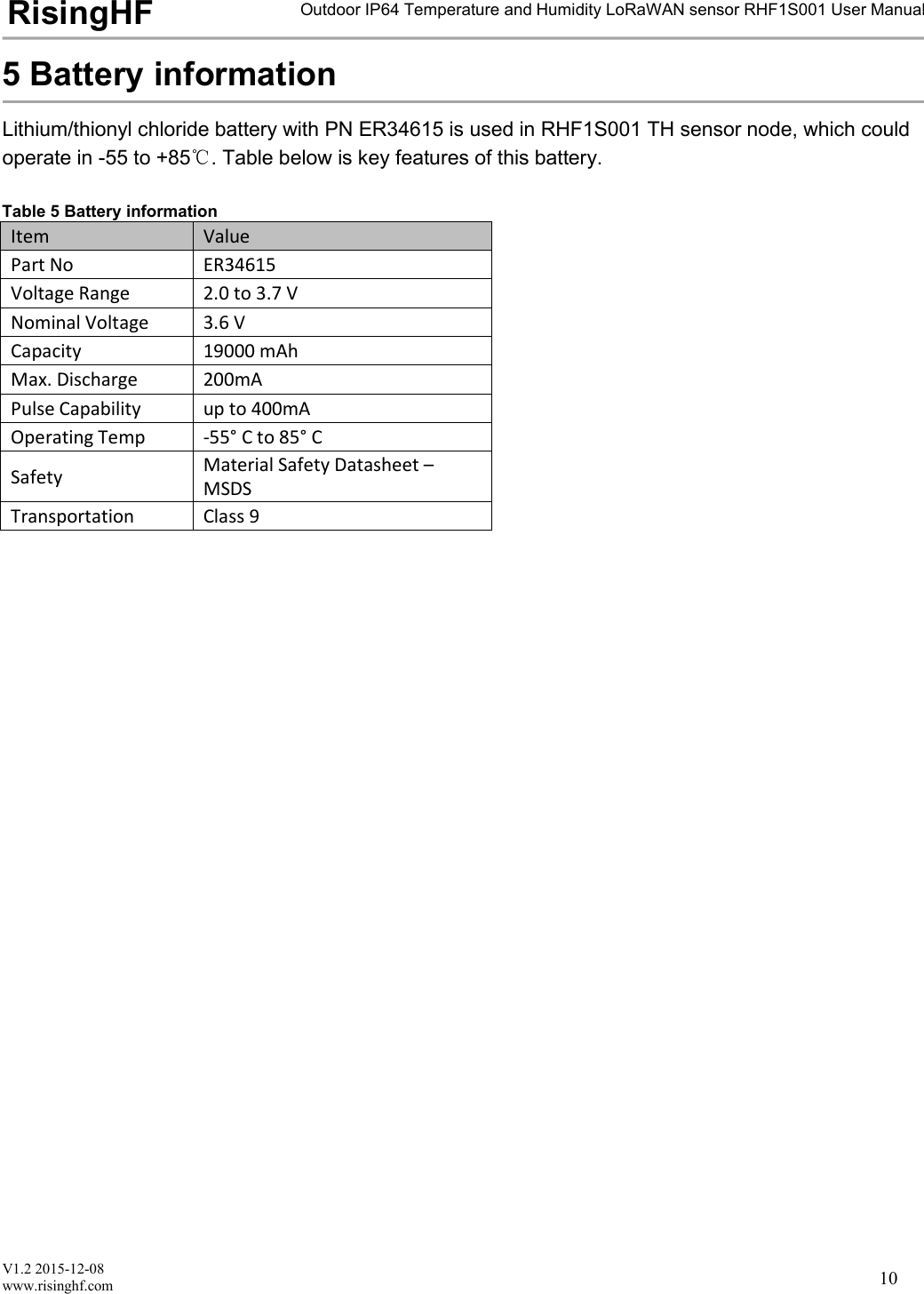

V1.2 2015-12-08www.risinghf.comOutdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHF105 Battery informationLithium/thionyl chloride battery with PN ER34615 is used in RHF1S001 TH sensor node, which couldoperate in -55 to +85℃. Table below is key features of this battery.Table 5 Battery informationItemValuePart NoER34615Voltage Range2.0 to 3.7 VNominal Voltage3.6 VCapacity19000 mAhMax. Discharge200mAPulse Capabilityup to 400mAOperating Temp-55° C to 85° CSafetyMaterial Safety Datasheet –MSDSTransportationClass 9

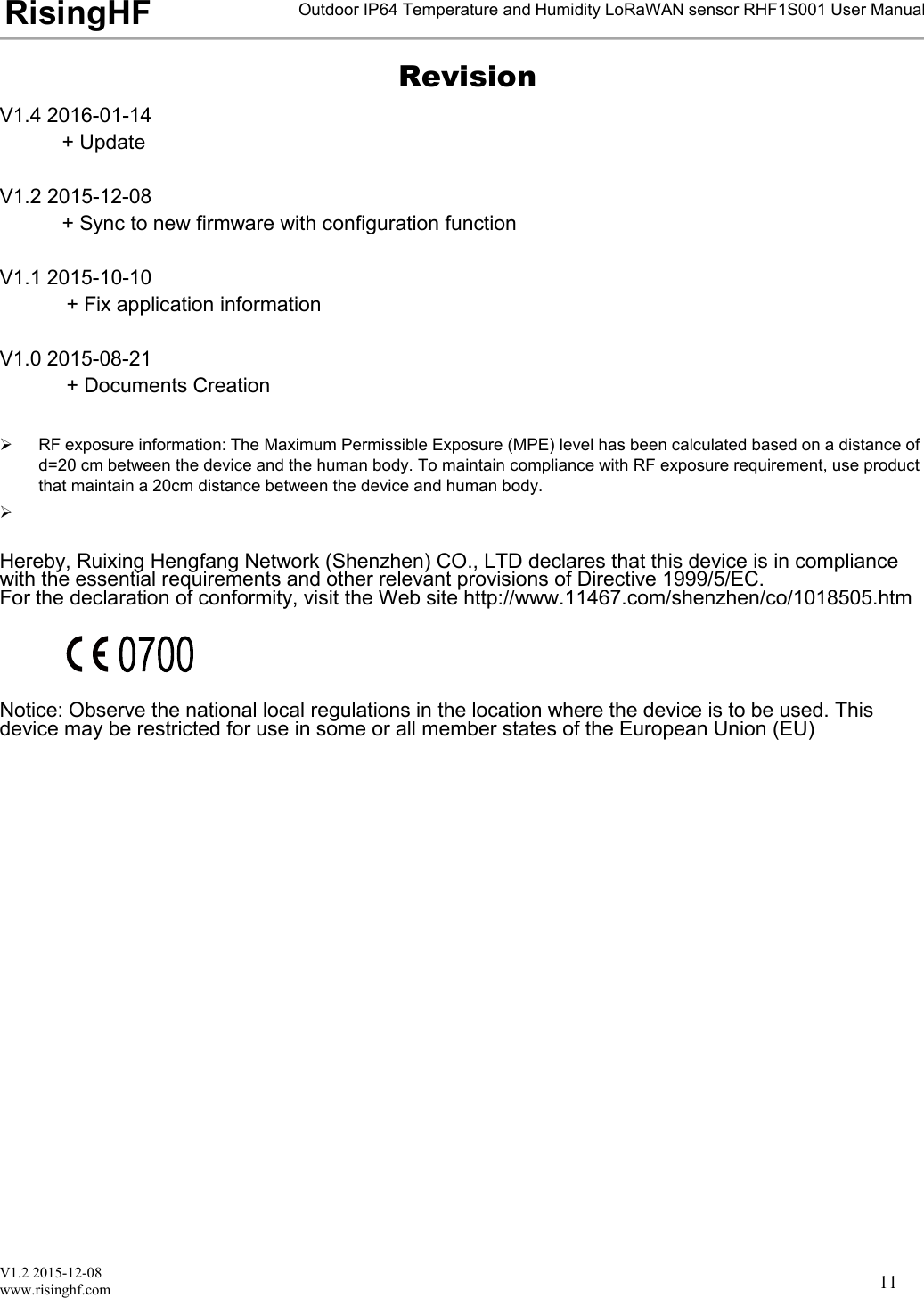

V1.2 2015-12-08www.risinghf.comOutdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHF11RevisionV1.4 2016-01-14+ UpdateV1.2 2015-12-08+ Sync to new firmware with configuration functionV1.1 2015-10-10+ Fix application informationV1.0 2015-08-21+ Documents CreationRF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance ofd=20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use productthat maintain a 20cm distance between the device and human body.Hereby, Ruixing Hengfang Network (Shenzhen) CO., LTD declares that this device is in compliancewith the essential requirements and other relevant provisions of Directive 1999/5/EC.For the declaration of conformity, visit the Web site http://www.11467.com/shenzhen/co/1018505.htmNotice: Observe the national local regulations in the location where the device is to be used. Thisdevice may be restricted for use in some or all member states of the European Union (EU)

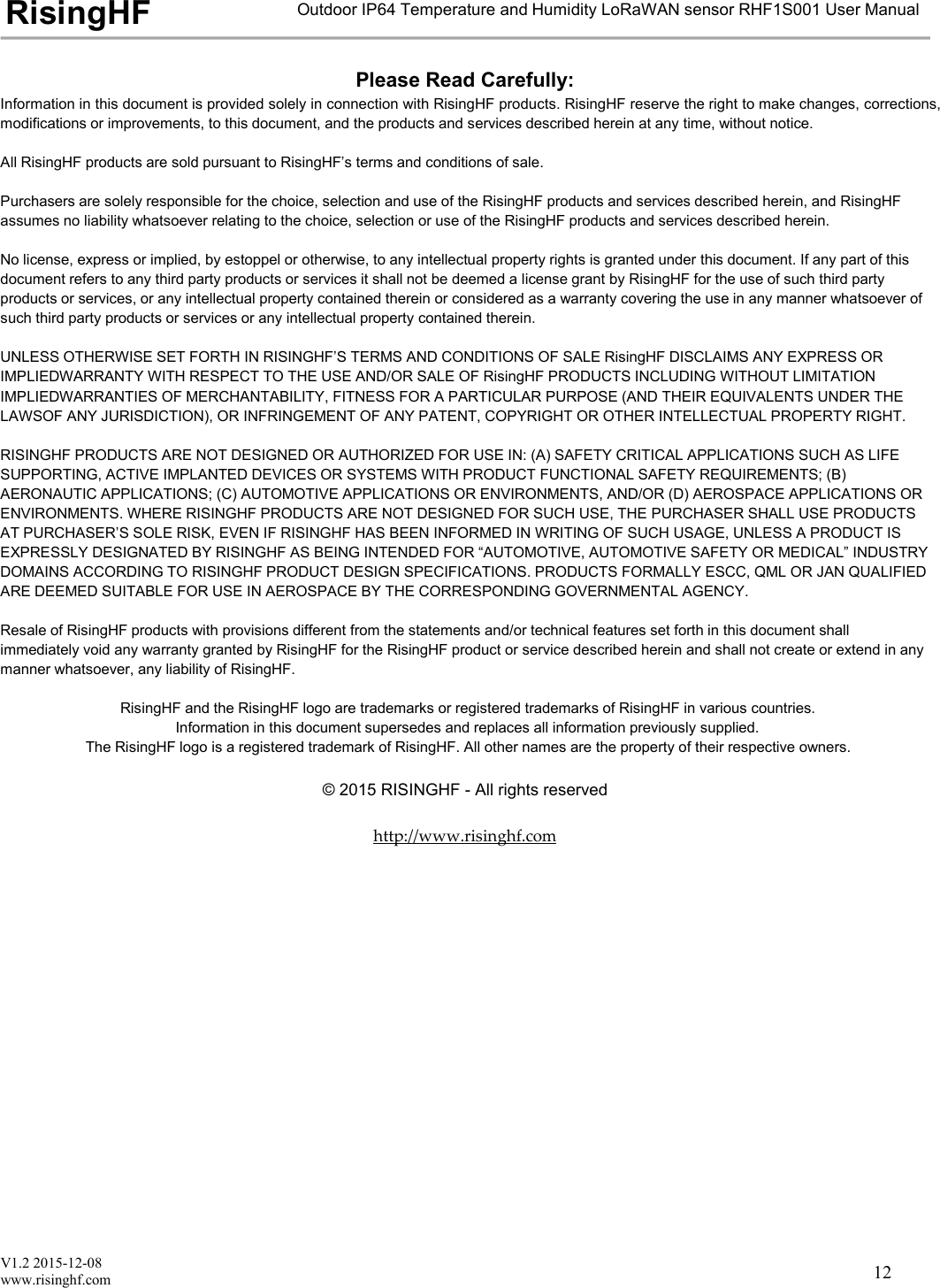

V1.2 2015-12-08www.risinghf.comOutdoor IP64 Temperature and Humidity LoRaWAN sensor RHF1S001 User ManualRisingHF12Please Read Carefully:Information in this document is provided solely in connection with RisingHF products. RisingHF reserve the right to make changes, corrections,modifications or improvements, to this document, and the products and services described herein at any time, without notice.All RisingHF products are sold pursuant to RisingHF’s terms and conditions of sale.Purchasers are solely responsible for the choice, selection and use of the RisingHF products and services described herein, and RisingHFassumes no liability whatsoever relating to the choice, selection or use of the RisingHF products and services described herein.No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of thisdocument refers to any third party products or services it shall not be deemed a license grant by RisingHF for the use of such third partyproducts or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever ofsuch third party products or services or any intellectual property contained therein.UNLESS OTHERWISE SET FORTH IN RISINGHF’S TERMS AND CONDITIONS OF SALE RisingHF DISCLAIMS ANY EXPRESS ORIMPLIEDWARRANTY WITH RESPECT TO THE USE AND/OR SALE OF RisingHF PRODUCTS INCLUDING WITHOUT LIMITATIONIMPLIEDWARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THELAWSOF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.RISINGHF PRODUCTS ARE NOT DESIGNED OR AUTHORIZED FOR USE IN: (A) SAFETY CRITICAL APPLICATIONS SUCH AS LIFESUPPORTING, ACTIVE IMPLANTED DEVICES OR SYSTEMS WITH PRODUCT FUNCTIONAL SAFETY REQUIREMENTS; (B)AERONAUTIC APPLICATIONS; (C) AUTOMOTIVE APPLICATIONS OR ENVIRONMENTS, AND/OR (D) AEROSPACE APPLICATIONS ORENVIRONMENTS. WHERE RISINGHF PRODUCTS ARE NOT DESIGNED FOR SUCH USE, THE PURCHASER SHALL USE PRODUCTSAT PURCHASER’S SOLE RISK, EVEN IF RISINGHF HAS BEEN INFORMED IN WRITING OF SUCH USAGE, UNLESS A PRODUCT ISEXPRESSLY DESIGNATED BY RISINGHF AS BEING INTENDED FOR “AUTOMOTIVE, AUTOMOTIVE SAFETY OR MEDICAL” INDUSTRYDOMAINS ACCORDING TO RISINGHF PRODUCT DESIGN SPECIFICATIONS. PRODUCTS FORMALLY ESCC, QML OR JAN QUALIFIEDARE DEEMED SUITABLE FOR USE IN AEROSPACE BY THE CORRESPONDING GOVERNMENTAL AGENCY.Resale of RisingHF products with provisions different from the statements and/or technical features set forth in this document shallimmediately void any warranty granted by RisingHF for the RisingHF product or service described herein and shall not create or extend in anymanner whatsoever, any liability of RisingHF.RisingHF and the RisingHF logo are trademarks or registered trademarks of RisingHF in various countries.Information in this document supersedes and replaces all information previously supplied.The RisingHF logo is a registered trademark of RisingHF. All other names are the property of their respective owners.© 2015 RISINGHF - All rights reservedhttp://www.risinghf.com

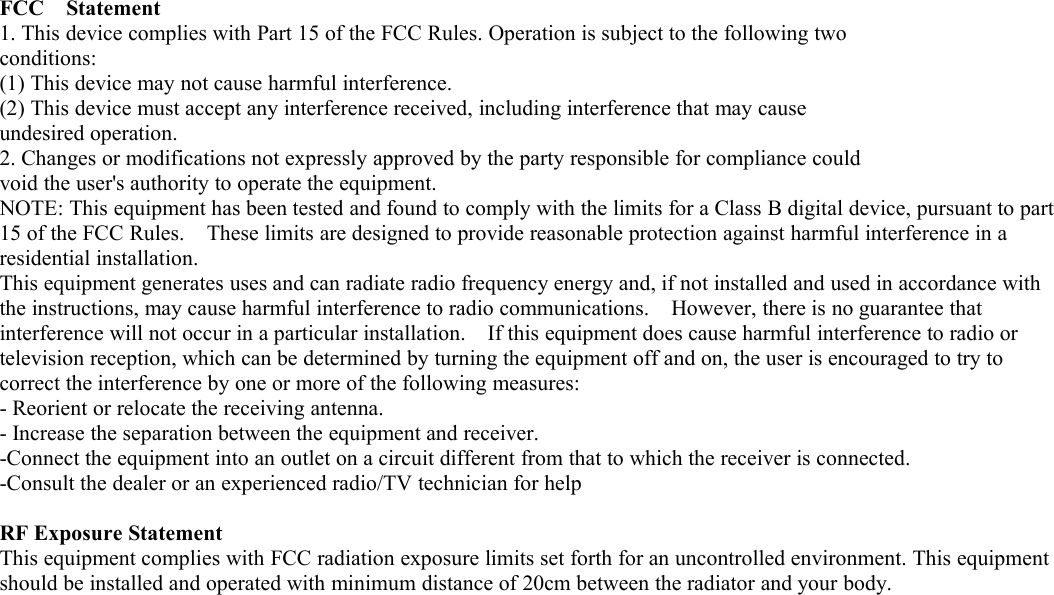

FCC Statement1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may causeundesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in aresidential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for helpRF Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipmentshould be installed and operated with minimum distance of 20cm between the radiator and your body.
