LS-3 Series
LS-5 Series
Home Theater Projectors
LS-3
LS-3/CineWide™
LS-5
LS-5/CineWide™
INSTALLATION/OPERATION MANUAL
Runco LS-3/LS-5 Installation/Operation Manual iii
PRELIMINARY
RuncoCare™ Standard Two Year Limited
Warranty
Congratulations on your purchase of a Runco® product! With proper installation, setup and care, you should enjoy many years
of unparalleled video performance.
This RuncoCare Standard Limited Warranty is provided free of charge by Runco International with the purchase of a covered
Runco product. The following sets forth Runco’s Standard Limited Warranty applicable to all Runco projectors, processors,
LCD and plasma display products, with the exception of the following models: XP-103DHD, SC-1, SC-1a and VW-100HD1.
The following terms and conditions of the RuncoCare Standard Limited Warranty represent a contract between us, Runco
International and you, the customer who has purchased a Runco product. This contract applies to purchases of covered
Runco products occurring on or after September 1, 2008. Runco reserves the right to change the terms of this contract, and
such changes shall apply to purchases of covered Runco products that occur on or after any future effective date.
• Two-year protection from defects in material and workmanship
• Access to 24x7 phone support
• Complimentary, second-day one-way shipping
Runco warrants its products to be free from defects in material and workmanship during the warranty period provided below.
If, in Runco’s determination, a product proves to be defective in material or workmanship during the warranty period, Runco
will repair the product, replace the product with a similar new or like new product, or refund a prorata share of the purchase
price (calculated based on the remainder of the warranty period and the thencurrent MSRP2 of a similar product), if repair or
replacement of the product is determined by Runco to not be feasible.
Runco products are warranted for two (2) years from the date of shipment from Runco. Lamps are warranted six (6) months
from the date of shipment or 1000 hours, whichever comes first. All other accessories, which includes, but is not limited to,
cables, remotes, carrying cases, lens cap and other peripherals sold with the Runco product, are warranted for ninety (90)
days from the date of shipment. Repaired product or replacement lamp is subsequently warranted for the remaining portion (if
any) of the original warranty term or 90 days from the date the product was shipped to you, whichever is longer.
This RuncoCare Standard Limited Warranty is valid only for the first customer who purchases the covered product from an
authorized Runco dealer or distributor. This warranty is not transferable. You may be required to provide proof of purchase in
order to receive warranty services.
1. Runco may update this list of products excluded from this warranty from time to time at Runco’s sole discretion, but updates to
the list of covered products will not apply on a retroactive basis.
RuncoCare Standard Features
Warranty Coverage
2. MSRP is defined as the most recent product price listed on Runco’s price list.
Length of Warranty
Eligibility
iv Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
In the event of a product defect, please follow the warranty claim procedure provided below:
1. The Customer is required to contact a Runco dealer or Runco Technical Support via email at support@runco.com or via
phone at (toll free) 800-23RUNCO (800-237-8626). If the customer is located outside North America, call +3589 4200 554
in Europe for product service.
2. Be prepared to provide the date of purchase, the place of purchase, serial number, product model number, description of
the problem and troubleshooting steps already attempted.
3. Runco Technical Support staff will attempt to correct any minor issues that may be causing the problem. If Runco is
unable to fix the problem to the customer’s satisfaction, Runco will issue a Return Material Authorization (RMA) if it is
determined that the claim was made within the coverage period of the Standard Limited Warranty.
4. The customer will need to return the defective product to the Runco repair depot location specified by the Runco technical
support representative. The customer will need to properly package the defective product, consisting of the product only,
and not include any accessories (e.g., cables, remotes, carrying cases, lens, lens cap and other peripherals) and return it
to the Runco repair depot specified by the technical support representative. It is the customer’s responsibility to properly
package the hardware, include all appropriate materials, and return it to the location specified by the Runco technical
support department. The customer will need to address and resolve any shipping damage claims directly with the shipping
company.
5. The customer is responsible for providing a suitable box to ship the defective product to an authorized Runco repair depot.
Boxes may be purchased from a Runco technical support representative.
6. The customer is responsible for paying freight charges to ship the defective product to an authorized Runco repair depot.
7. Runco will pay freight charges to return the repaired/replacement product to the customer from the Runco repair depot.
8. Once an RMA has been created, the customer may contact serviceorders@runco.com for followup questions or
confirmation status of the claim process.
This RuncoCare Standard Limited Warranty does not include or is limited by the following:
1. Products not purchased from an authorized Runco dealer
2. Rental costs incurred by the customer in the event of product defect or failure
3. Any product with a defaced, modified, or removed serial number
4. Damage, deterioration, or malfunction resulting from:
a Accident, abuse, misuse, neglect, improper ventilation, fire, water, disaster, lightning, or other acts of nature, smoke
exposure (cigarette or otherwise), unauthorized product modification (including use of an unauthorized mount), or failure
to follow instructions supplied with the product
b Repair or attempted repair by anyone not authorized by Runco
c Any damage to the product due to shipment
d Removal or installation of the product
e Causes external to the product, such as electric power fluctuations or failure
f Use of supplies or parts not meeting Runco’s specifications
g Normal wear and tear
h Expected lamp degradation and normal decrease in lamp output over a period of time or as the lamp is consumed
i Customer caused defects, including but not limited to, scratched/defaced/altered plastics
RuncoCare Claim Procedure
Warranty Exclusions
Runco LS-3/LS-5 Installation/Operation Manual v
PRELIMINARY
j Failure to follow maintenance procedures as outlined in the product’s user guide where a schedule is specified for
regular cleaning of the product
k Opening the product and/or tampering with internal circuitry
l Products lost, stolen or discarded
m Any damage or dissatisfaction associated with latent images, “burnin,” or any other damage determined by Runco to be
the result of customer use patterns
n Any other cause, which does not relate to a product defect in material or workmanship
5. Removal, installation, and setup service charges are excluded from this Standard Limited warranty
6. Runco’s warranty does not cover black uniformity issues or other LCD issues associated with usage outside the Runco
recommended guidelines and specifications for the product
7. Second day shipment delivery time and availability may vary based on origin and destination and Runco is unable to deliver
to PO Box and FPO Box addresses
Runco offers extended and expanded service plans. For information on additional product protection, please email
serviceorders@runco.com or call (toll free) 800-23RUNCO (800-237-8626).
Please visit http://www.runco.com/info.html to register product.
RUNCO PROVIDES NO WARRANTIES, EXPRESS OR IMPLIED, EXCEPT THOSE EXPRESSLY PROVIDED HEREIN. RUNCO
EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.
Extended Service Options
Online Product Registration
Limitation of Implied Warranties
vi Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
RUNCO’S MAXIMUM AGGREGATE LIABILITY HEREUNDER IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF
THE PRODUCT.
1. RUNCO SHALL NOT BE LIABLE FOR DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECT IN THE PRODUCT,
DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS,
LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR
OTHER COMMERCIAL LOSS, EVEN IF THE CUSTOMER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
2. RUNCO SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE
DAMAGES ANY OTHER DAMAGES, WHETHER INCIDENTAL, INDIRECT, CONSEQUENTIAL OR OTHERWISE.
3. RUNCO SHALL NOT BE LIABLE FOR ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.
This warranty gives you specific legal rights, and you may have other rights, which vary from locality to locality. Some localities
do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the
above limitations and exclusions may not apply to you.
© Copyright 2009 Runco International, LLC (“Runco”). This document contains proprietary information protected by copyright,
trademark and other intellectual property laws. All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic or other means, in any form, without prior written permission of Runco.
The trademarks reporduced in this Runco Owner’s Manual and used on the Runco Products are either owned by Runco or are
licensed by Runco. You may not reproduce or use the trademarks without the prior written consent of Runco.
Runco Products are manufactured under one or more of the following patents: US. Patent 6755540 and Other Patents
Pending.
Exclusion of Damages
Effect of Local Law
COPYRIGHT AND TRADEMARKS:
Runco LS-3/LS-5 Installation/Operation Manual vii
PRELIMINARY
Thank you for your purchase of this quality Runco video product! For the best performance, please read this manual carefully
as it is your guide through the menus and operation.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for the replacement of
the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point
where they exit from the apparatus.
11. Only use the attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

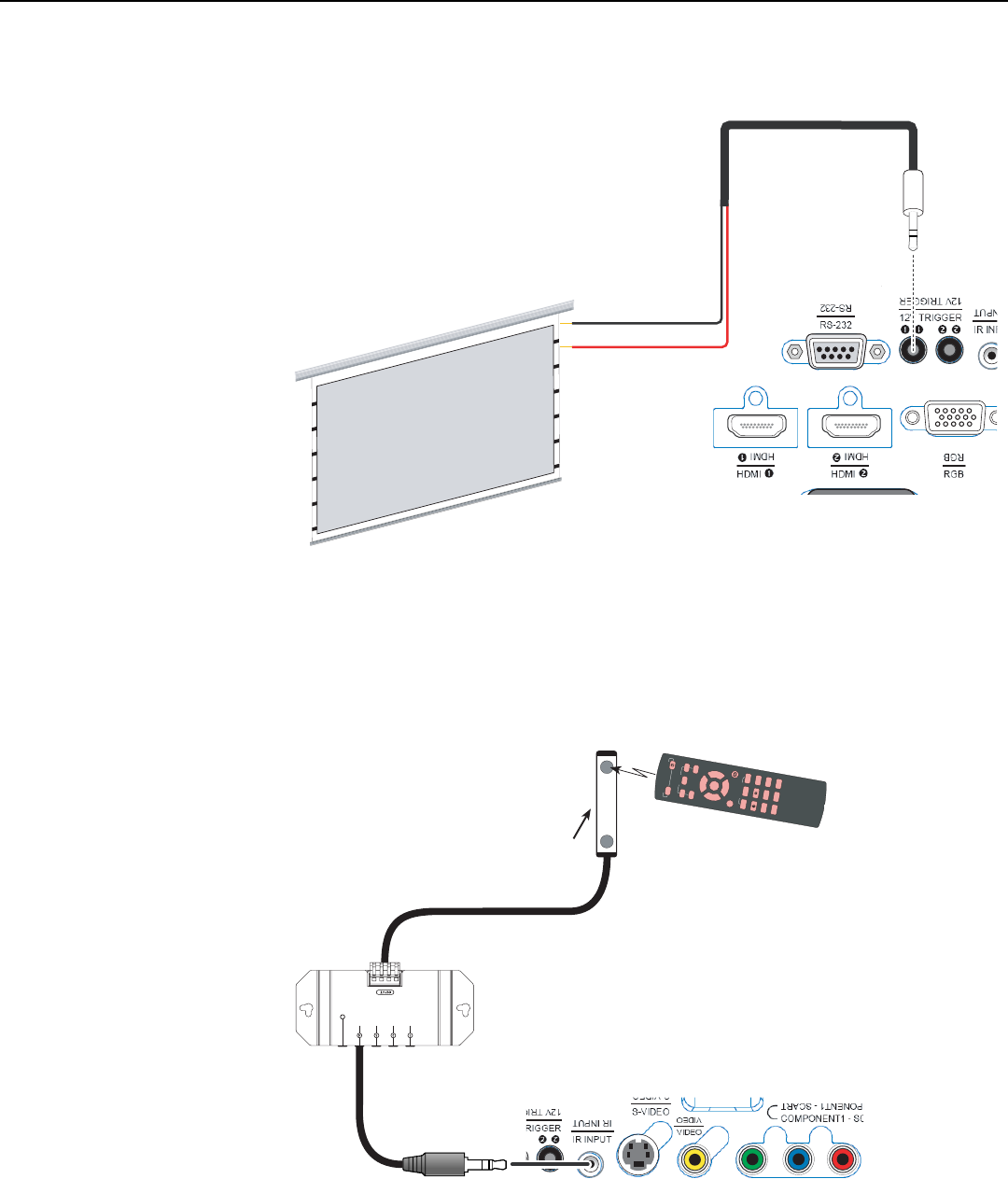

15. The +12V trigger only outputs 12Vdc signal for triggering. Do not connect to any other power input or output. This could
cause damage to this unit.
16. Keep the packing material in case the equipment should ever need to be shipped.

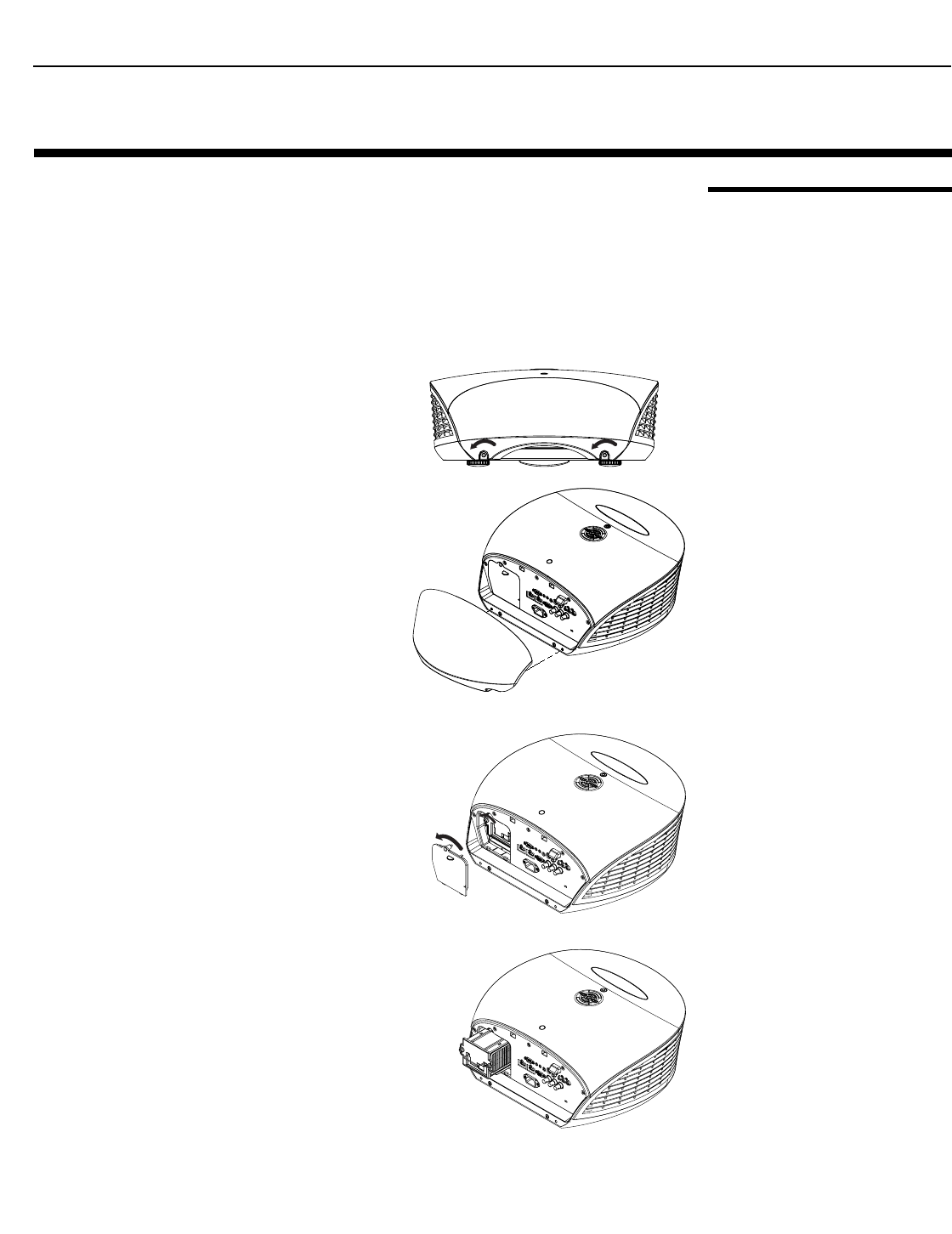

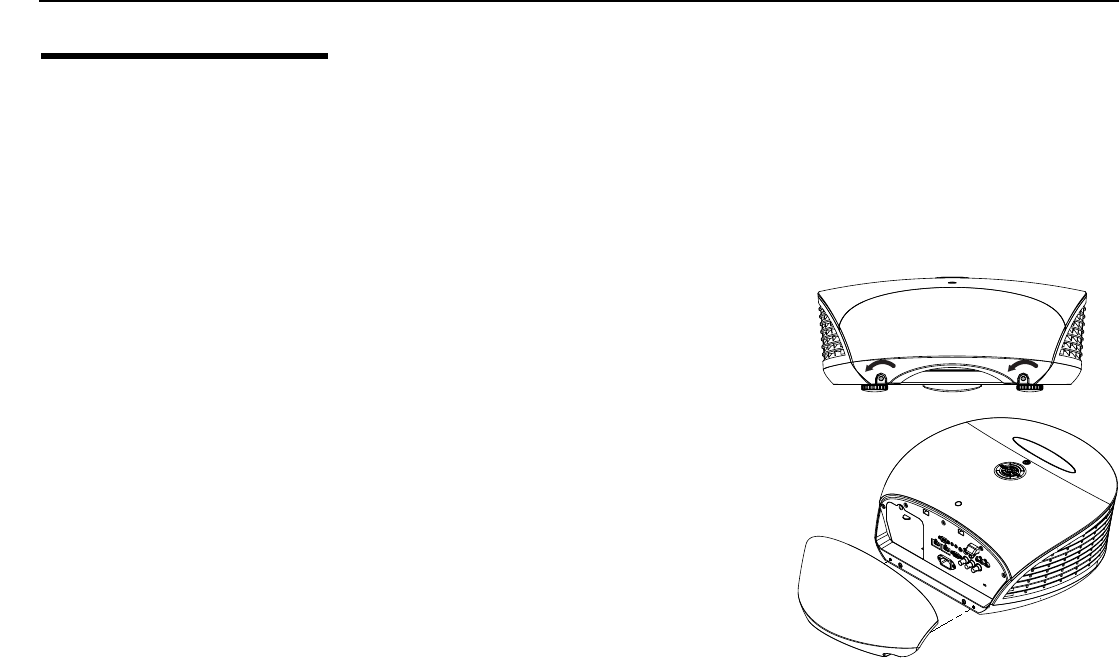

17. The lamp becomes extremely hot during operation. Allow the projector to cool down for approximately 45 minutes prior to
removing the lamp assembly for replacement.
18. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond rated life could cause them to
explode in rare occasions.
Important Safety Instructions
WARNING
This symbol is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock.
This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
viii Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
19. Never look directly into the lens when the lamp is on.
Manufacturer’s Name: Runco International, LLC
Manufacturer’s Address: 1195 NW Compton Drive, Beaverton, OR 97006-1992
hereby declares that the Products’ Model Numbers:
LS-3, LS-3/CineWide, LS-5 and LS-5/CineWide
conform with the provisions of:
Council Directive 2004/108/EC on Electromagnetic Compatibility;
EN 55022 “Limits and methods of measurements of radio interference characteristics of information technology equipment”
1998;
EN 55024 “Limits and methods of measurements of immunity characteristics of information technology equipment” 1998;
Including:
• EN 61000-4-2 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 2:
Electrostatic discharge immunity test”
• EN 61000-4-3 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 3: Radiated,
Radio-Frequency, Electromagnetic Field Immunity Test”
• EN 61000-4-4 “Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 4: Electrical
fast transient/burst immunity test”
• EN 61000-4-5 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 5: Surge
immunity test"
• EN 61000-4-6 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 6: Conducted
disturbances induced by radio-frequency fields immunity test"
• EN 61000-4-8 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 8: Conducted
disturbances induced by power frequency magnetic fields immunity test"
• EN 61000-4-11 "Electromagnetic compatibility (EMC) Part 4: Testing and measurement techniques Section 11: Voltage
dips, short interruptions and voltage variations immunity tests"
And:
• EN 61000-3-2 "Electromagnetic compatibility (EMC) Part 3, Section 2: Limits for harmonic current emissions (equipment
input current up to and including 16 A per phase)" 2000;
• EN 61000-3-3 "Electromagnetic compatibility (EMC) Part 3, Section 3: Limitations of voltage changes, voltage
fluctuations and flicker in public low-voltage supply systems, for equipment with rated current up to and including 16 A
and not subject to conditional connection" 1995;
Council Directive 2006/95/EC and amended by M1 and C1 on Low Voltage Equipment Safety;
EN 60950 “Safety of information technology equipment, including electrical business equipment”
The Technical Construction file required by this Directive is maintained at the corporate headquarters of Runco International,
LLC, located at 1195 NW Compton Drive, Beaverton, OR 97006-1992.
Date of Declaration: November 2009
Compliance Information
DECLARATION OF CONFORMITY:
Runco LS-3/LS-5 Installation/Operation Manual ix
PRELIMINARY
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
The Product contains small amounts of tin, lead and/or mercury. Disposal of these materials may be regulated due to
environmental considerations.
Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be
hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws.
For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG.
For lamp specific disposal information check WWW.LAMPRECYCLE.ORG.
This symbol found on your product or on its packaging, indicates that this product should not be treated as
household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences to the environment and human health, which could
otherwise be caused by inappropriate disposal of this product. The recycling of materials will help to conserve
natural resources. This symbol is only valid in the European Union. If you wish to discard this product, please
contact your local authorities or dealer and ask for the correct method of disposal.
FCC PART 15:
INDUSTRY CANADA (ICES-003):
PRODUCT DISPOSAL:
IMPORTANT RECYCLE INSTRUCTIONS
DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC EQUIPMENT (Applicable throughout the European
Union and other European countries with separate collection programs)
x Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Notes:
Runco LS-3/LS-5 Installation/Operation Manual xi
1Table of Contents
PRELIMINARY
RuncoCare™ Standard Two Year Limited Warranty ................................................... iii
Important Safety Instructions ....................................................................................... vii
Compliance Information .............................................................................................. viii
1. Introduction ...............................................................................................................1
About This Manual .......................................................................................................1
Target Audience .....................................................................................................1
If You Have Comments About This Manual... ..........................................................1
Textual and Graphic Conventions ...........................................................................1
Using This Manual ........................................................................................................2
Description, Features and Benefits ...............................................................................3
Key Features and Benefits ......................................................................................4
Parts List ................................................................................................................4
2. Controls and Functions ............................................................................................5
LS-3/LS-5 at a Glance .................................................................................................5
LS-3/LS-5 Rear Panel ..................................................................................................9
LS-3/LS-5 Remote Control ........................................................................................11
3. Installation ...............................................................................................................13
Remote Control ..........................................................................................................13
Notes on Batteries ................................................................................................13
Notes on Remote Control Operation.....................................................................13
Quick Setup ...............................................................................................................15
Installation Considerations ..........................................................................................16
Installation Type ....................................................................................................16
Ambient Light .......................................................................................................17
Throw Distance.....................................................................................................17
Vertical and Horizontal Position.............................................................................18
Lens Shift .............................................................................................................19
Folded Optics .......................................................................................................21
Other Considerations ............................................................................................21
Installing the Optional CineWide Lens Mount ..............................................................21
Installing the Fixed CineWide Base Plate...............................................................22
Table of Contents
xii Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Mounting the LS-3/LS-5 .............................................................................................23
Floor Mounting (Upright) .......................................................................................23
Ceiling Mounting (Inverted)....................................................................................23
Adjusting the Projection Angle ..............................................................................23
Connections to the LS-3/LS-5 ....................................................................................24
Connector Panel Access.......................................................................................24
Connecting Source Components to the LS-3/LS-5...............................................25
RS-232 Controller Connection ..............................................................................29
Connecting 12-Volt Trigger Output to External Theater Equipment .......................30
Connecting an External IR Receiver ......................................................................30
Connecting to AC Power ......................................................................................31
Turning on the Power .................................................................................................31
Lens Adjustments ......................................................................................................31
Focus and Zoom ..................................................................................................31
Lens Shift .............................................................................................................31

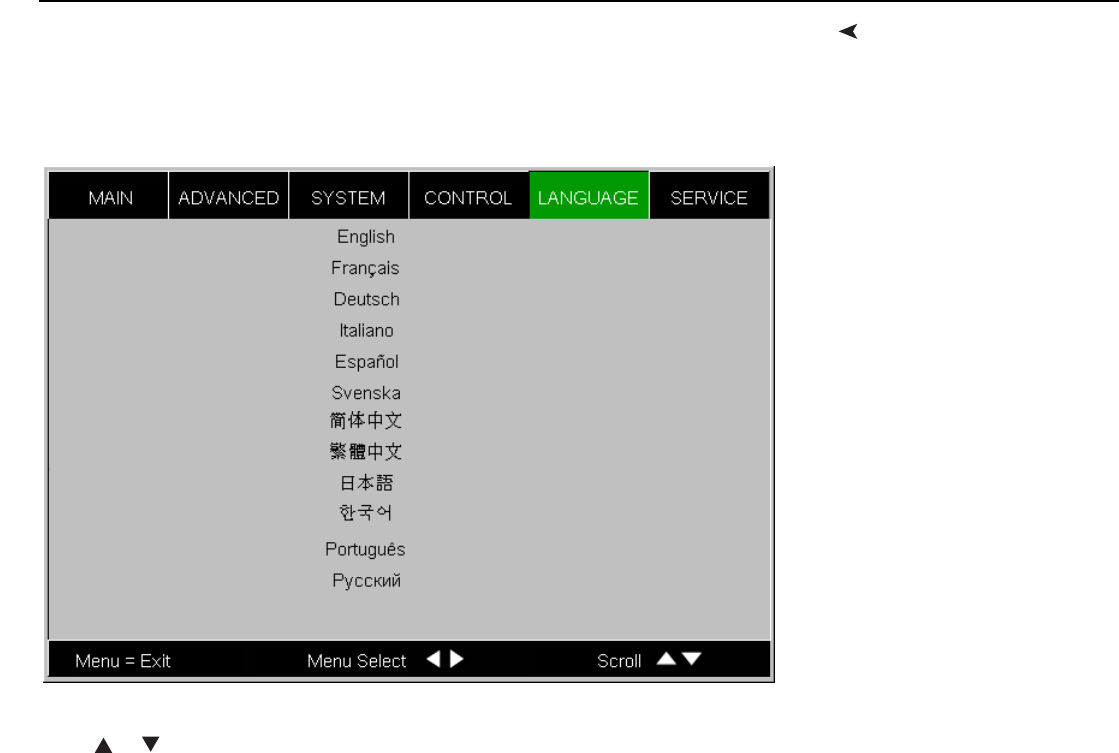

Changing the OSD Language .....................................................................................33
Adjusting the Picture Orientation ................................................................................33
Rear Projection .....................................................................................................33
Ceiling Mode.........................................................................................................33
Installing and Adjusting the CineWide Anamorphic Lens .............................................34
4. Operation .................................................................................................................37
Selecting Video Memory .............................................................................................37

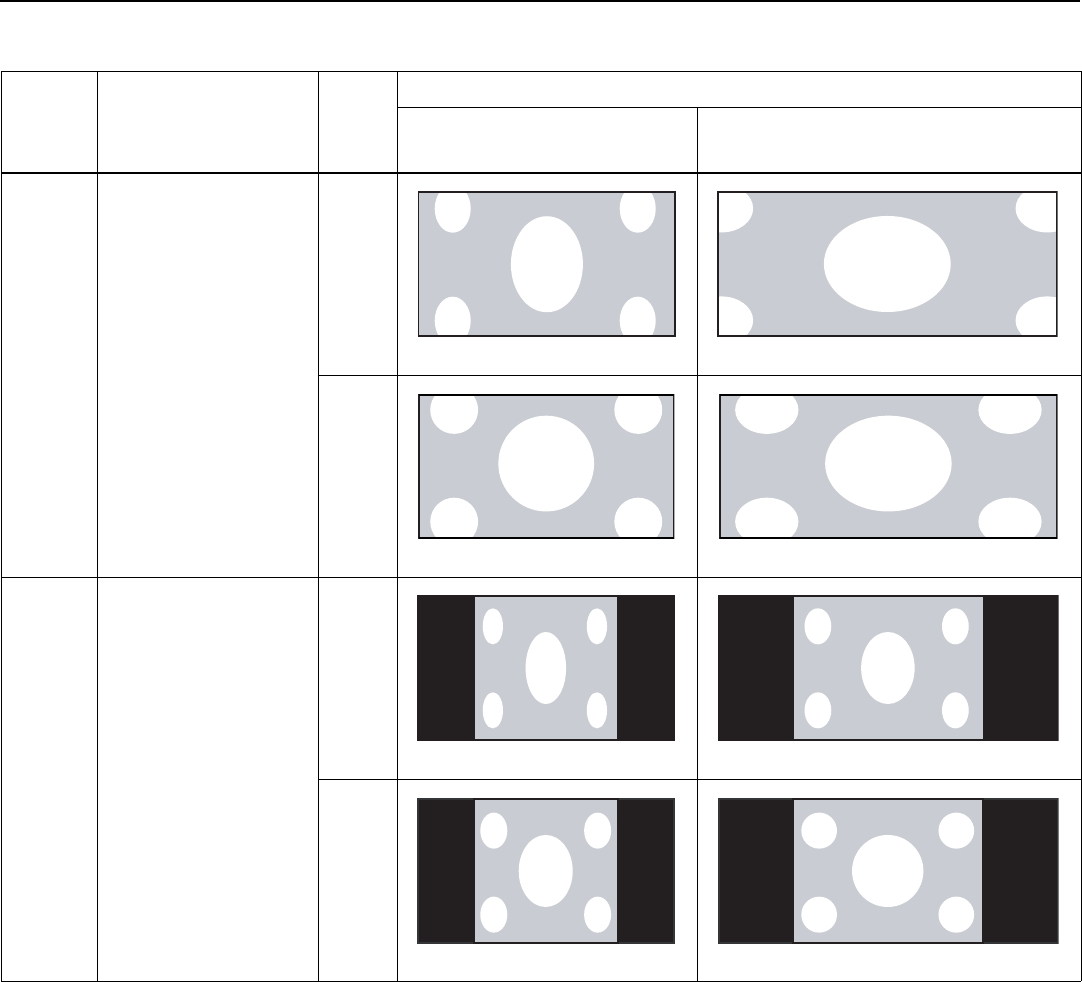

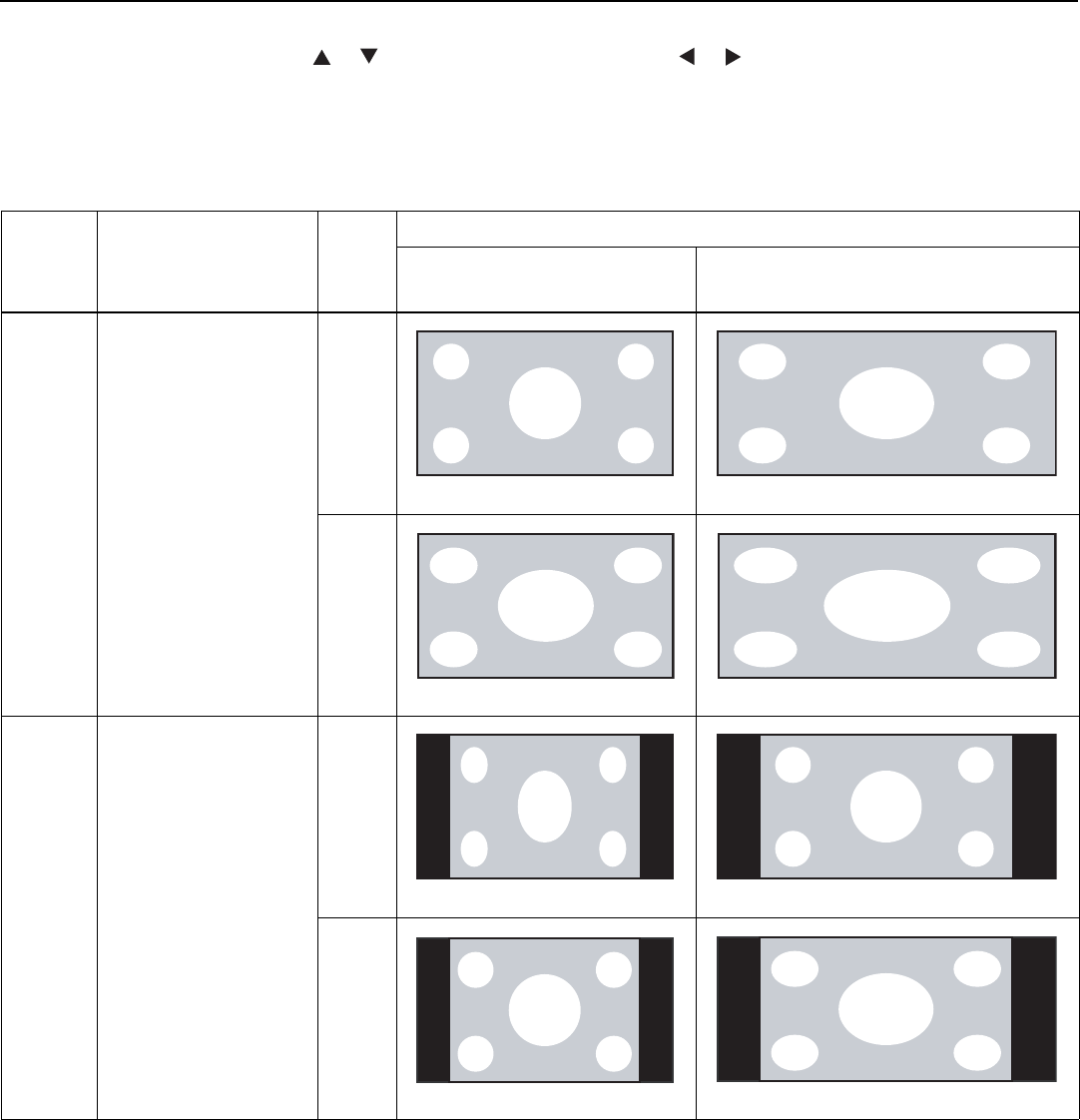

Selecting an Aspect Ratio ..........................................................................................37
Selecting An Input Source ..........................................................................................37
Using Picture-In-Picture (PIP) .....................................................................................38
Using the On-Screen Menus ......................................................................................39
Main .....................................................................................................................41
Advanced .............................................................................................................51
System .................................................................................................................57

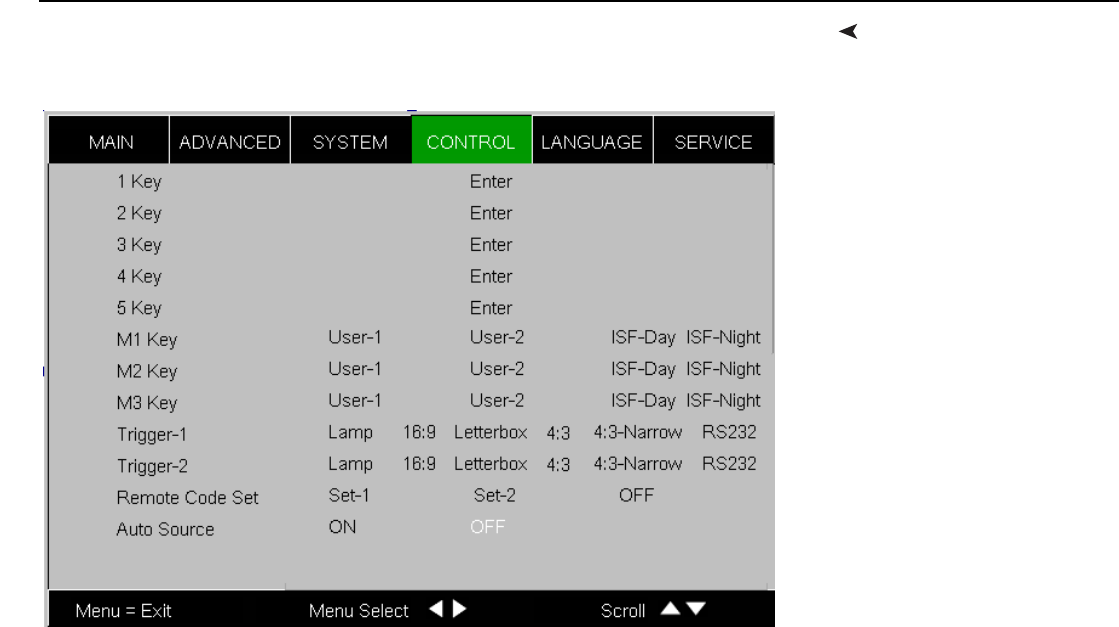

Control .................................................................................................................61

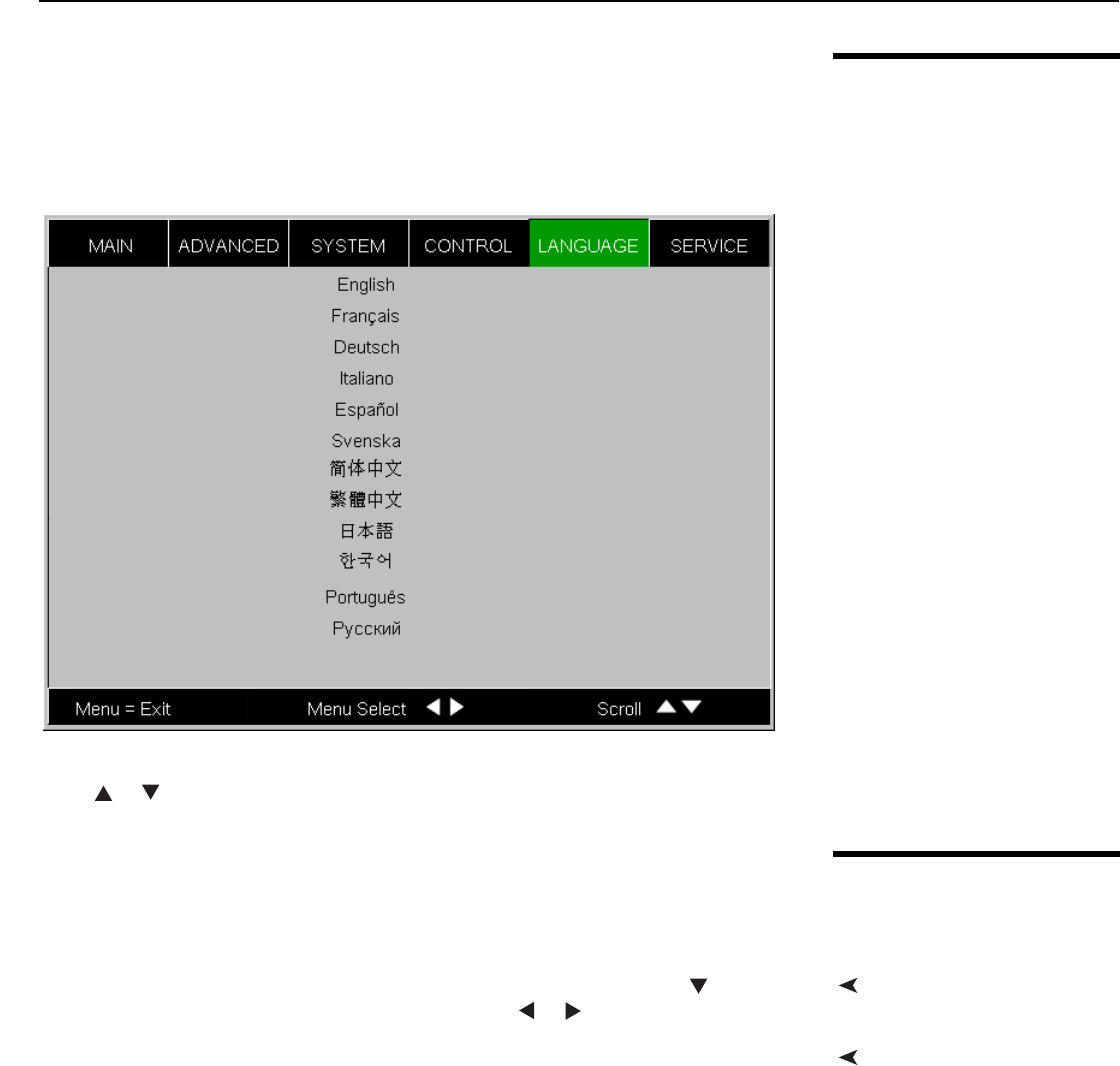

Language .............................................................................................................63
Service .................................................................................................................64
5. Maintenance and Troubleshooting ........................................................................67
Lamp Replacement ....................................................................................................67
Troubleshooting Tips ..................................................................................................68
Table of Contents
Runco LS-3/LS-5 Installation/Operation Manual xiii
PRELIMINARY
6. Serial Communications ..........................................................................................71
RS-232 Connection and Port Configuration ...............................................................71
Serial Command Syntax .............................................................................................71
Key Commands....................................................................................................71
Operations Commands.........................................................................................74
RS-232 Error Codes .............................................................................................82
7. Specifications ..........................................................................................................83
LS-3/LS-5 Specifications ............................................................................................83
LS-3/LS-5 Dimensions ...............................................................................................86
Supported Timings .....................................................................................................87
Table of Contents
xiv Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Notes:
Runco LS-3/LS-5 Installation/Operation Manual xv
1List of Figures
PRELIMINARY
2-1. LS-3/LS-5 Front/Side View...........................................................................................5

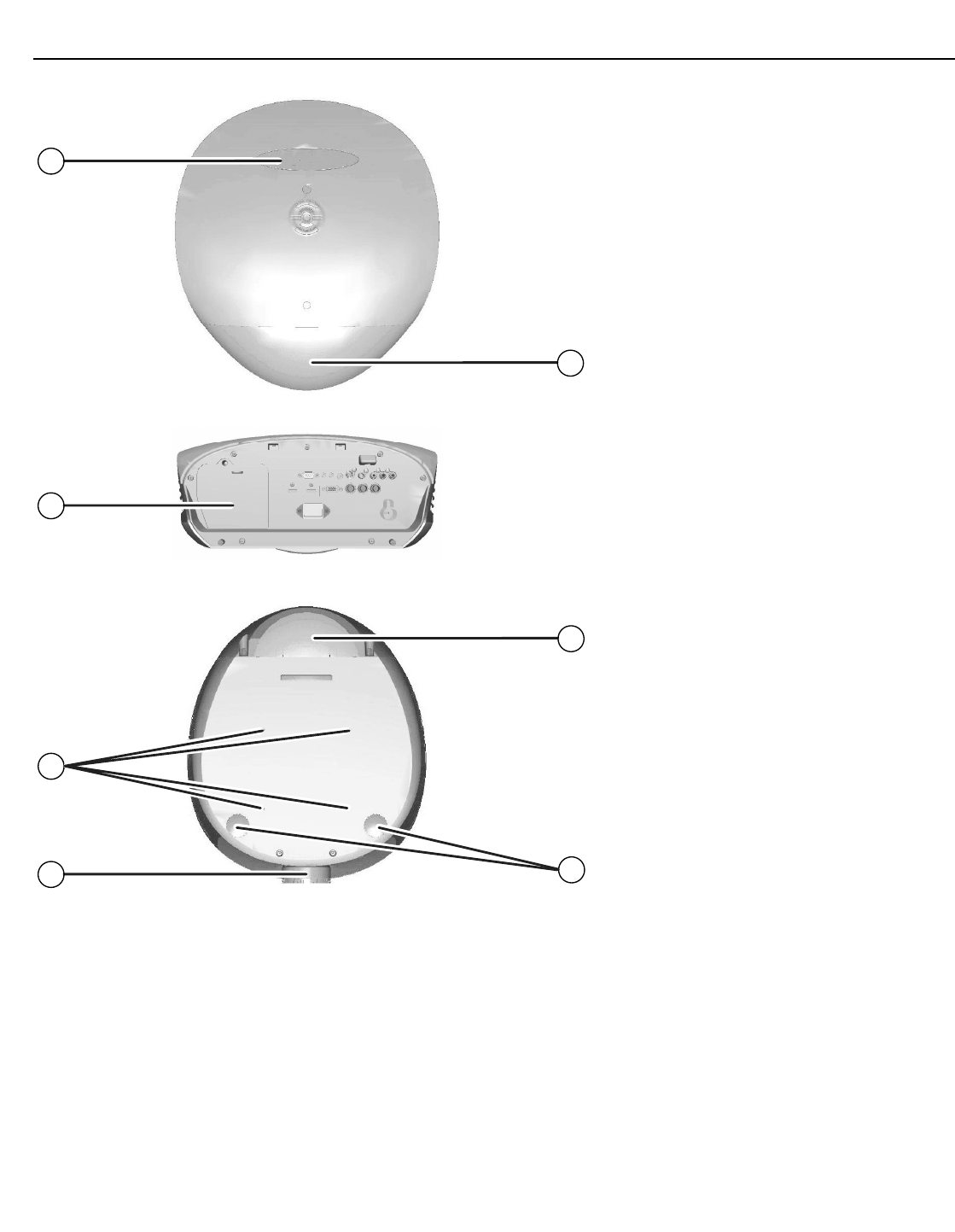

2-2. LS-3/LS-5 Rear/Bottom/Top View................................................................................7
2-3. LS-3/LS-5 Rear Panel ..................................................................................................9
3-1. IR Reception Angles ...................................................................................................14

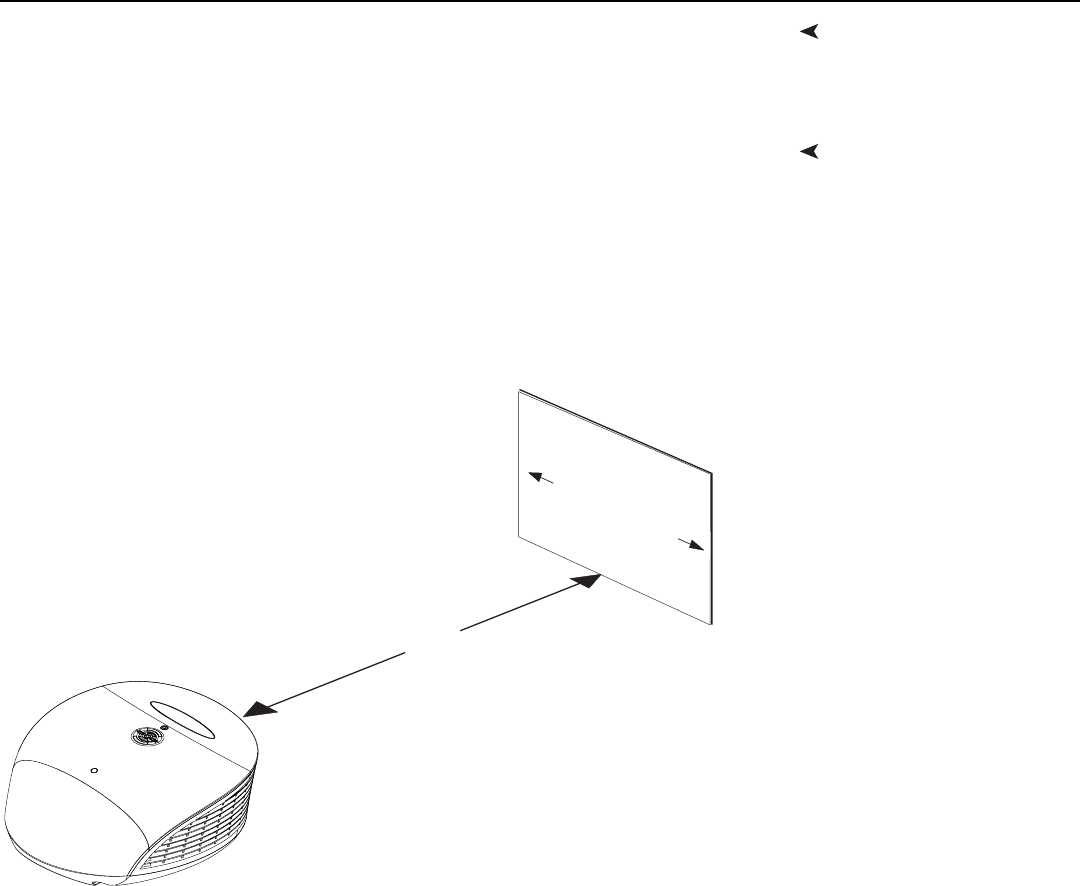

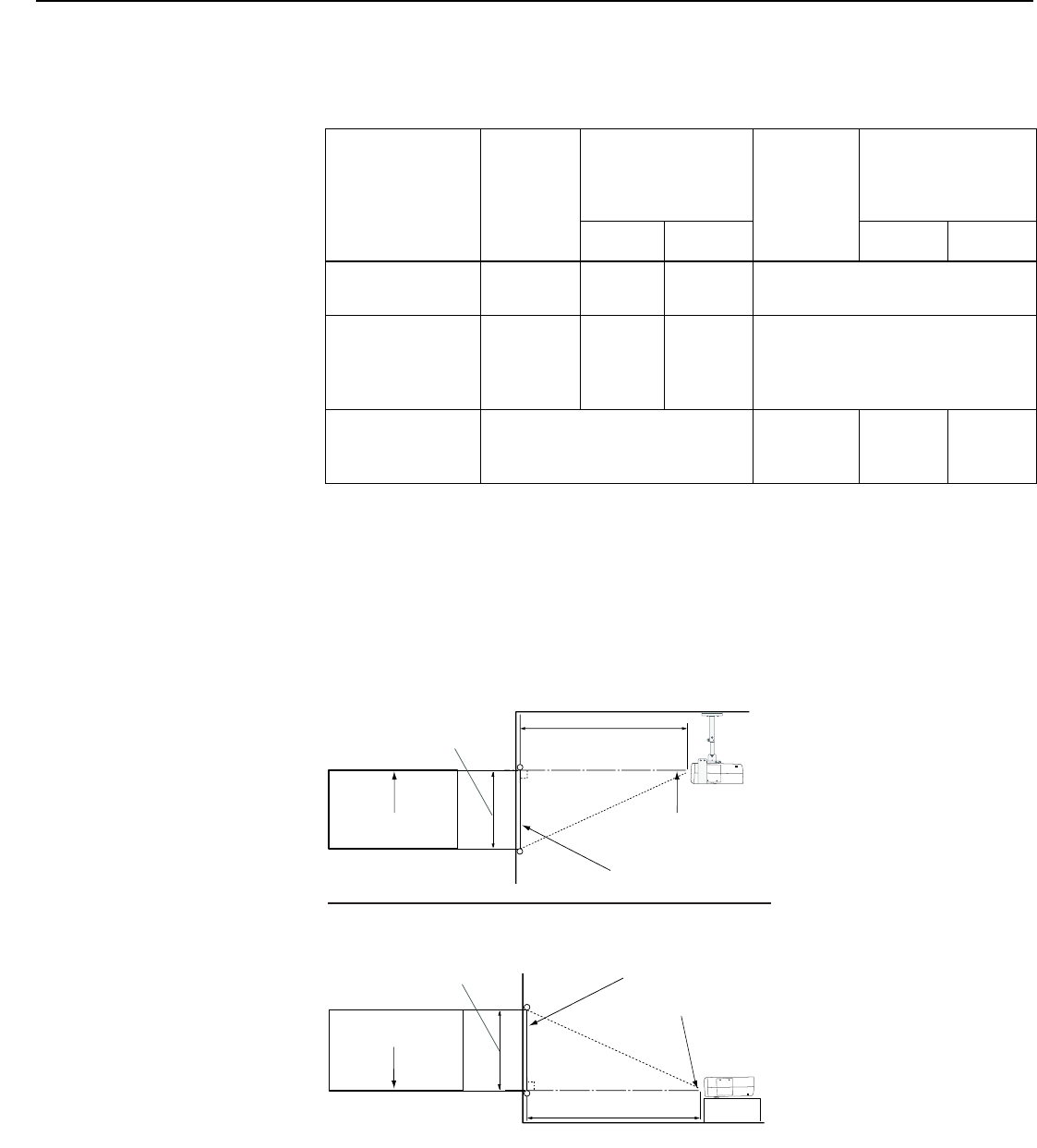

3-2. Estimating Throw Distance .........................................................................................17
3-3. Projector Placement ...................................................................................................18

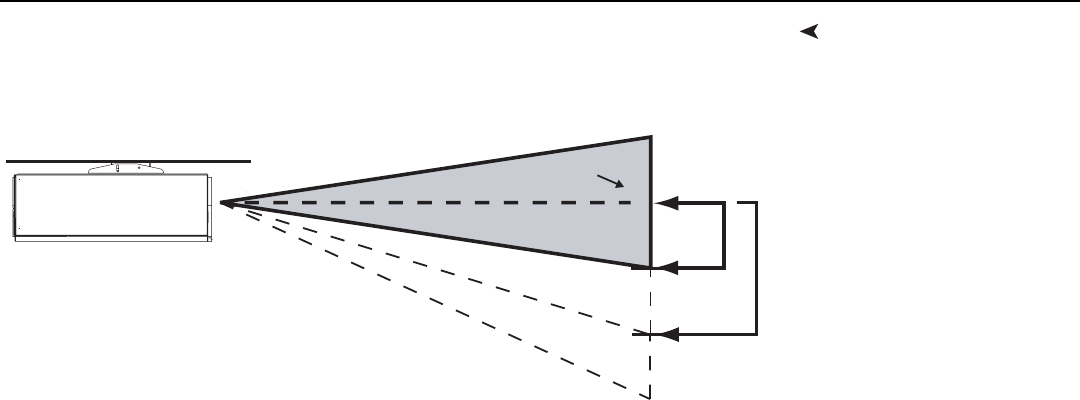

3-4. Vertical Lens Shift (Example Only)...............................................................................19

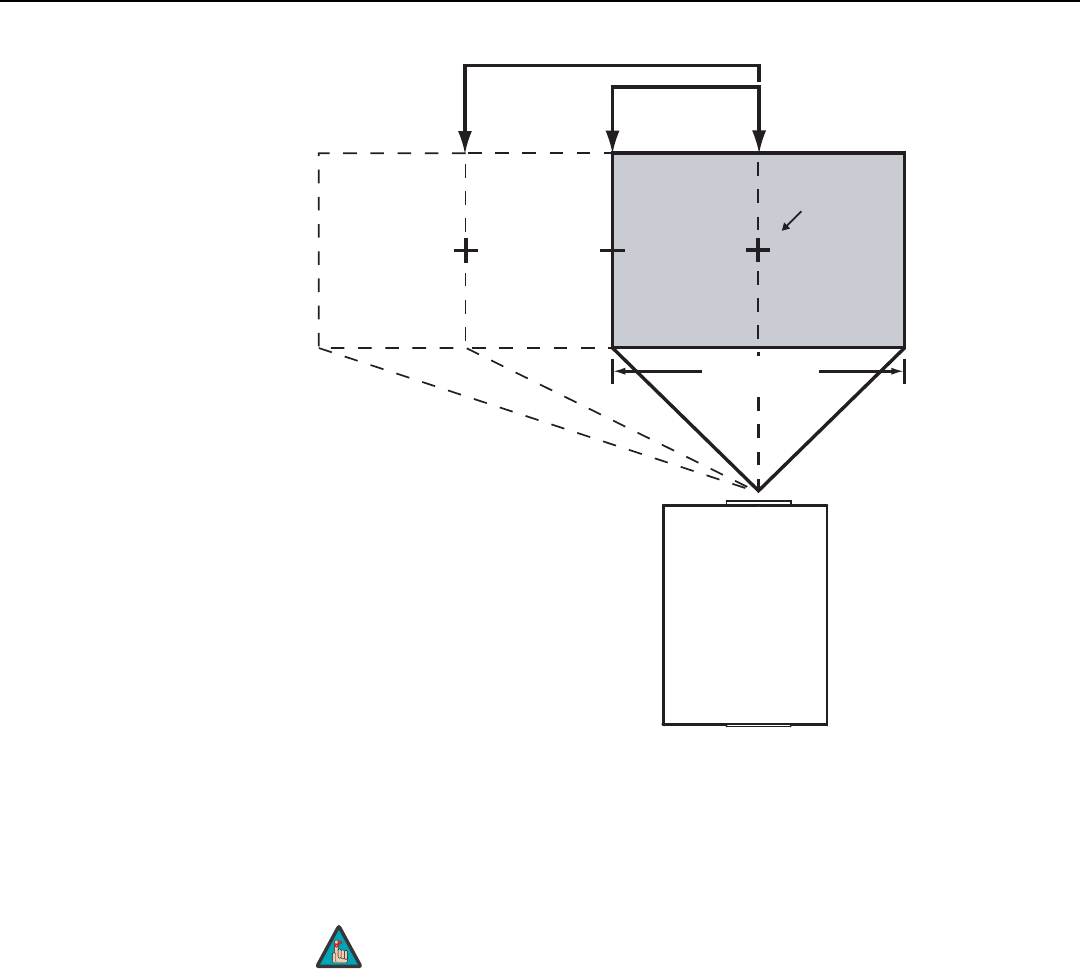

3-5. Horizontal Lens Shift (Example Only)...........................................................................20
3-6. Folded Optics.............................................................................................................21

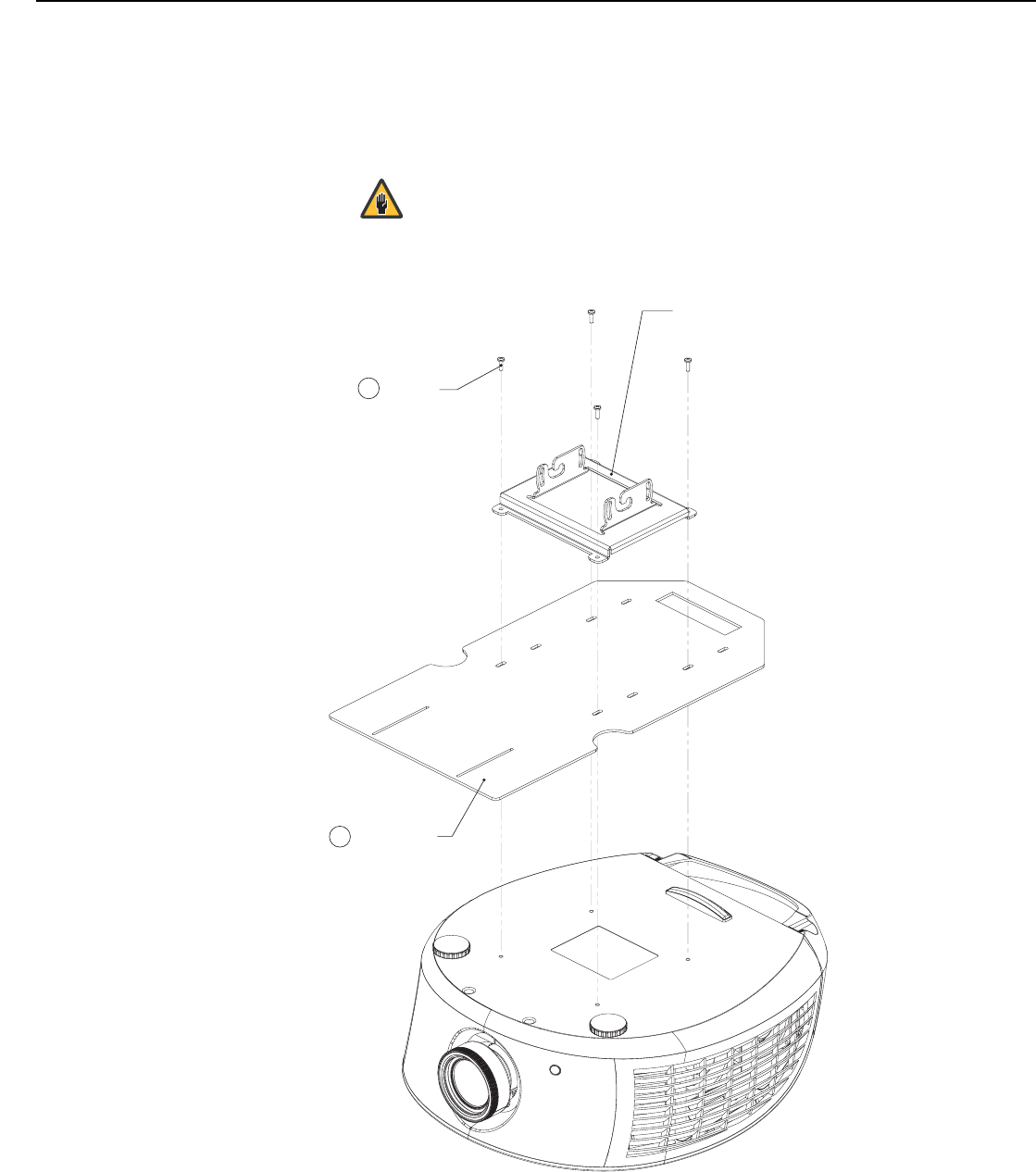

3-7. Projector with Whitney (Prismatic) Lens Base Plate - Bottom View .............................22

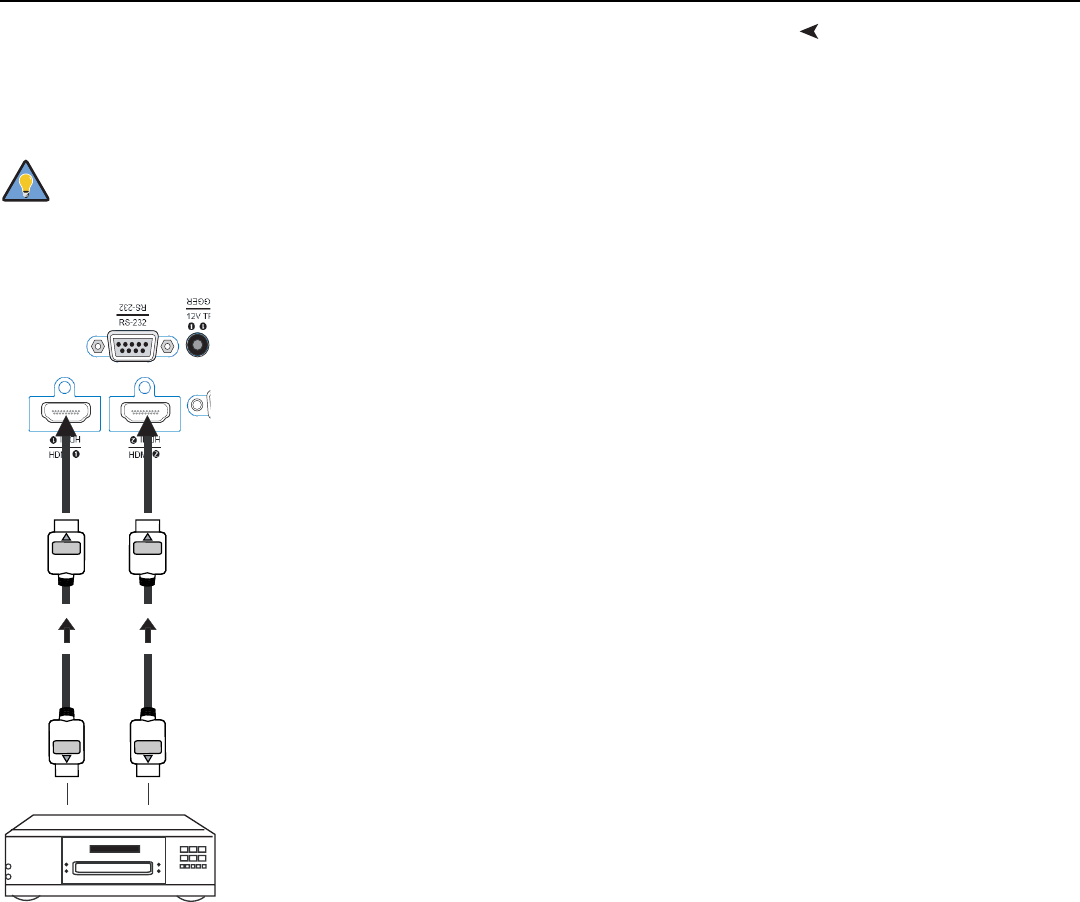

3-8. HDMI/DVI Source Connections ..................................................................................25
3-9. RGB Connections ......................................................................................................26
3-10. Component Video Connections................................................................................27
3-11. Composite and S-Video Connections.......................................................................28

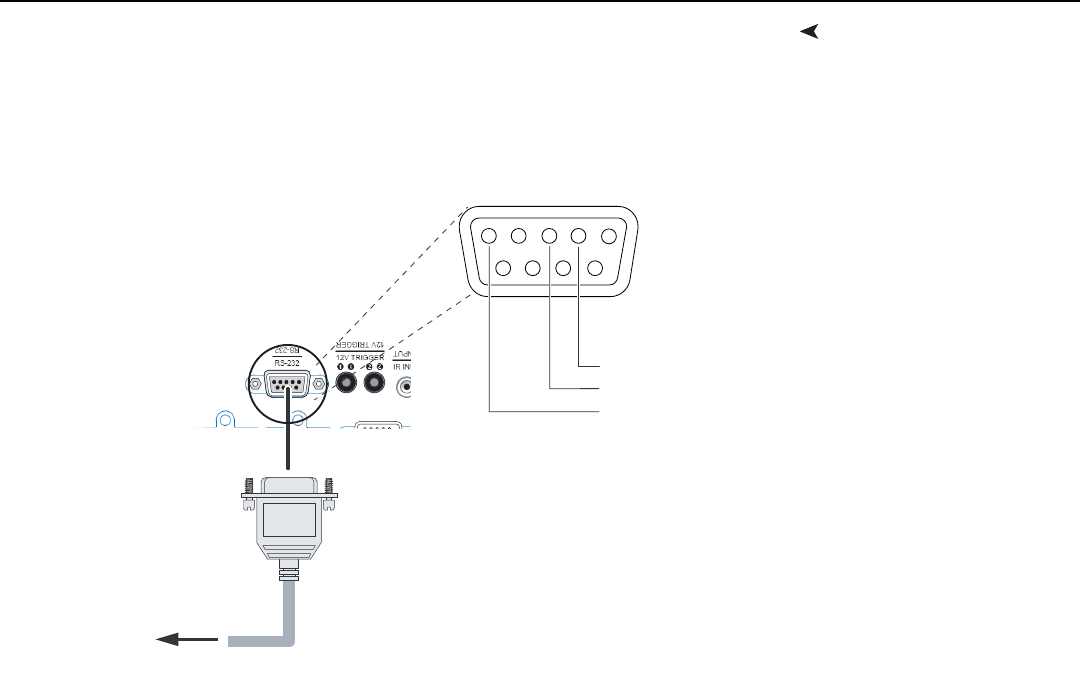

3-12. RS-232 Control System Connection.........................................................................29
3-13. 12-Volt Trigger Output Connection ...........................................................................30
3-14. External IR Receiver Connection...............................................................................30

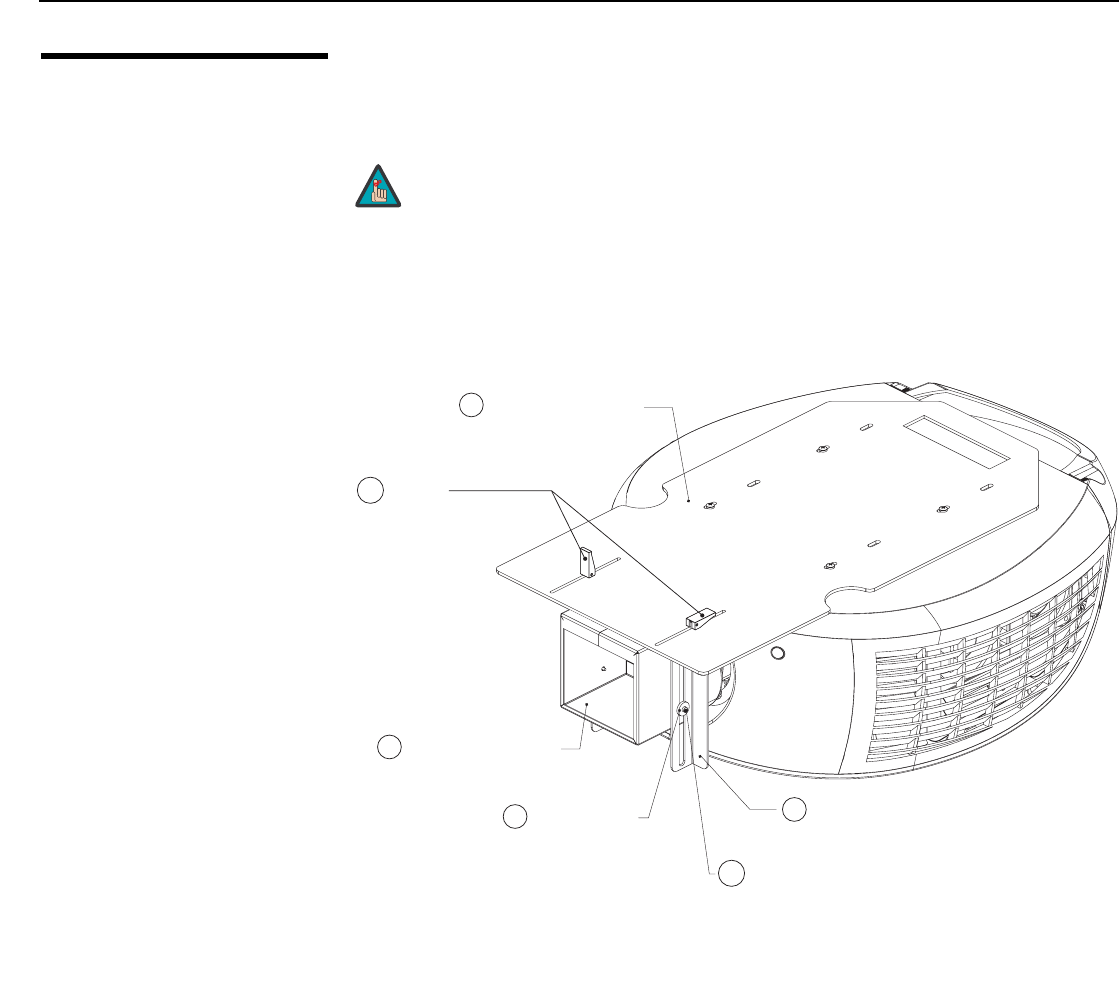

3-15. Anamorphic Lens Mounting Assembly - Exploded View ...........................................34
4-1. LS-3/LS-5 OSD Menu Structure.................................................................................40

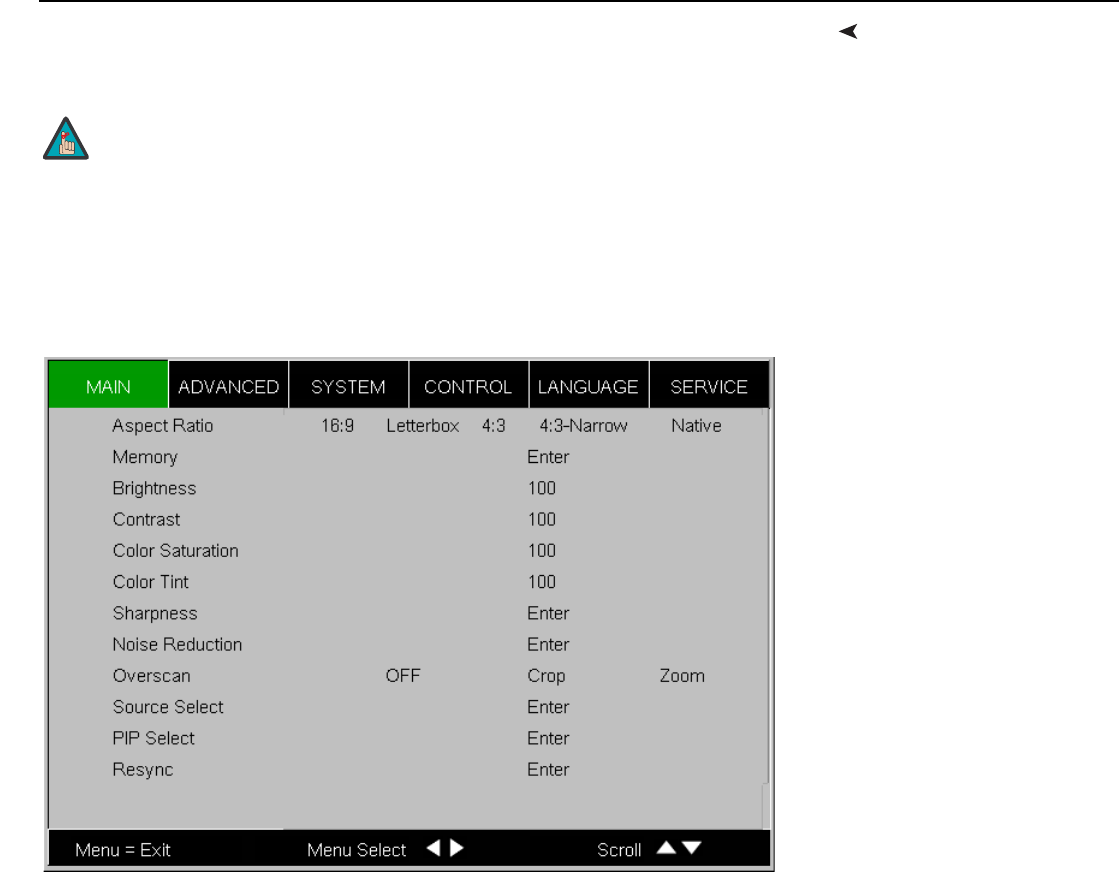

4-2. LS-3/LS-5 Main Menu ................................................................................................41

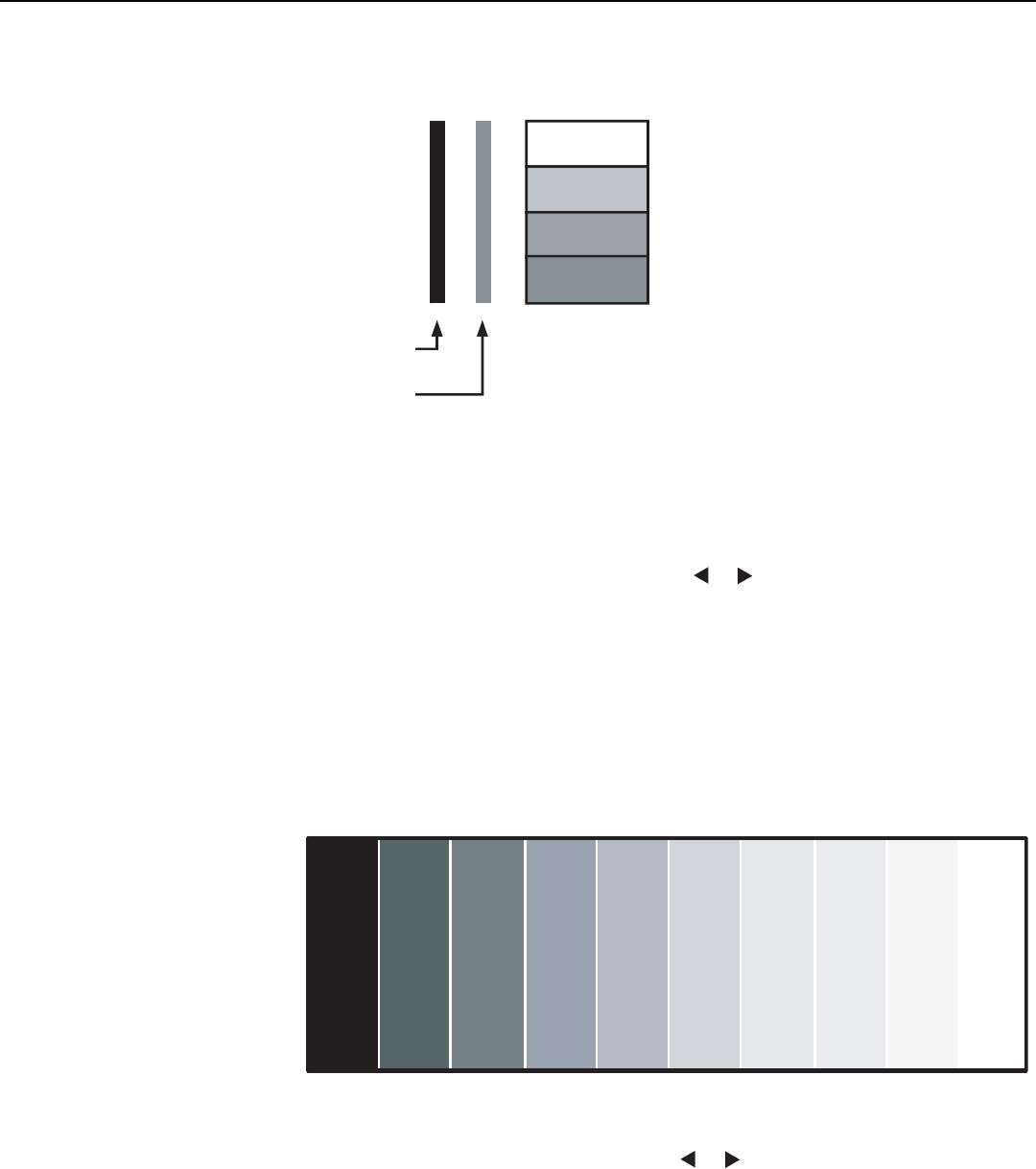

4-3. Typical PLUGE Pattern for Adjusting Brightness .........................................................46
4-4. Typical Gray Bar Pattern for Adjusting Contrast ..........................................................46

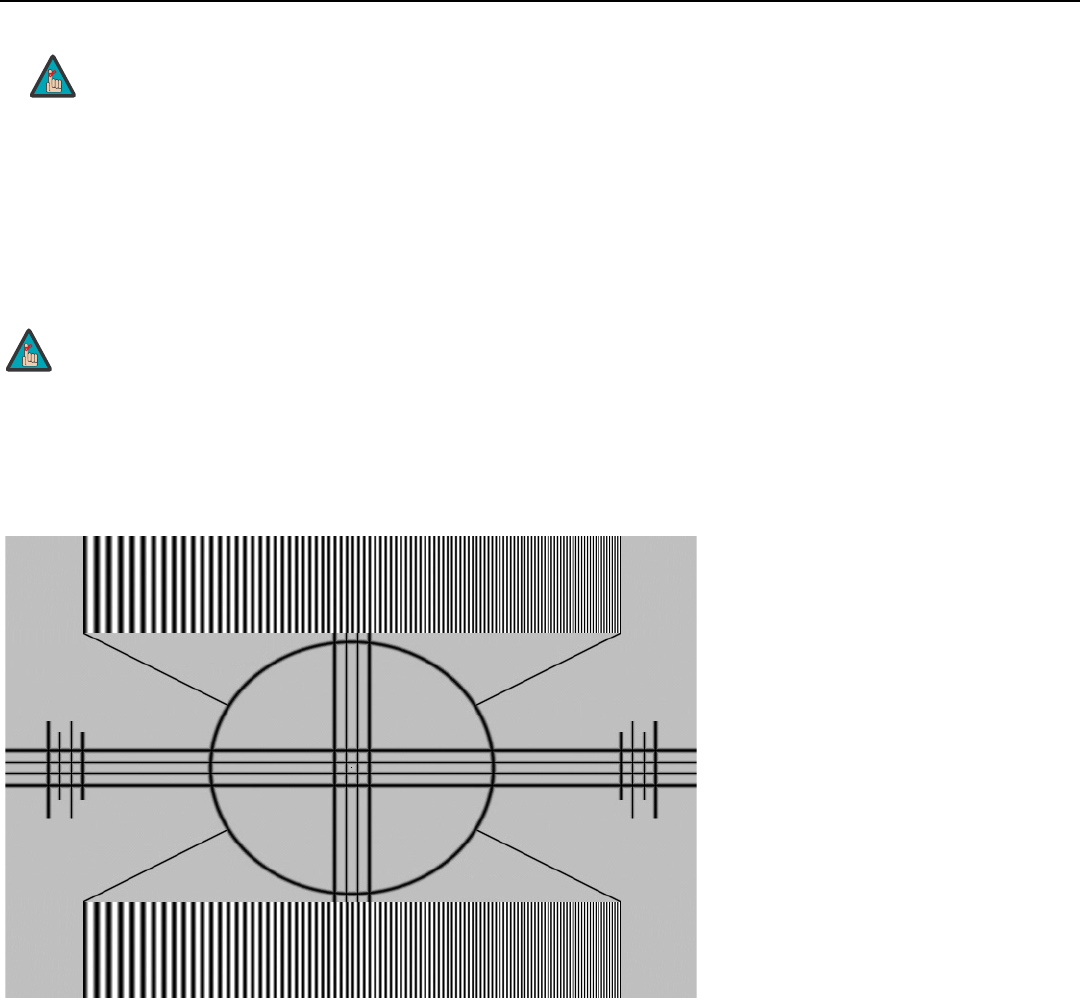

4-5. Typical Test Pattern for Adjusting Sharpness..............................................................47

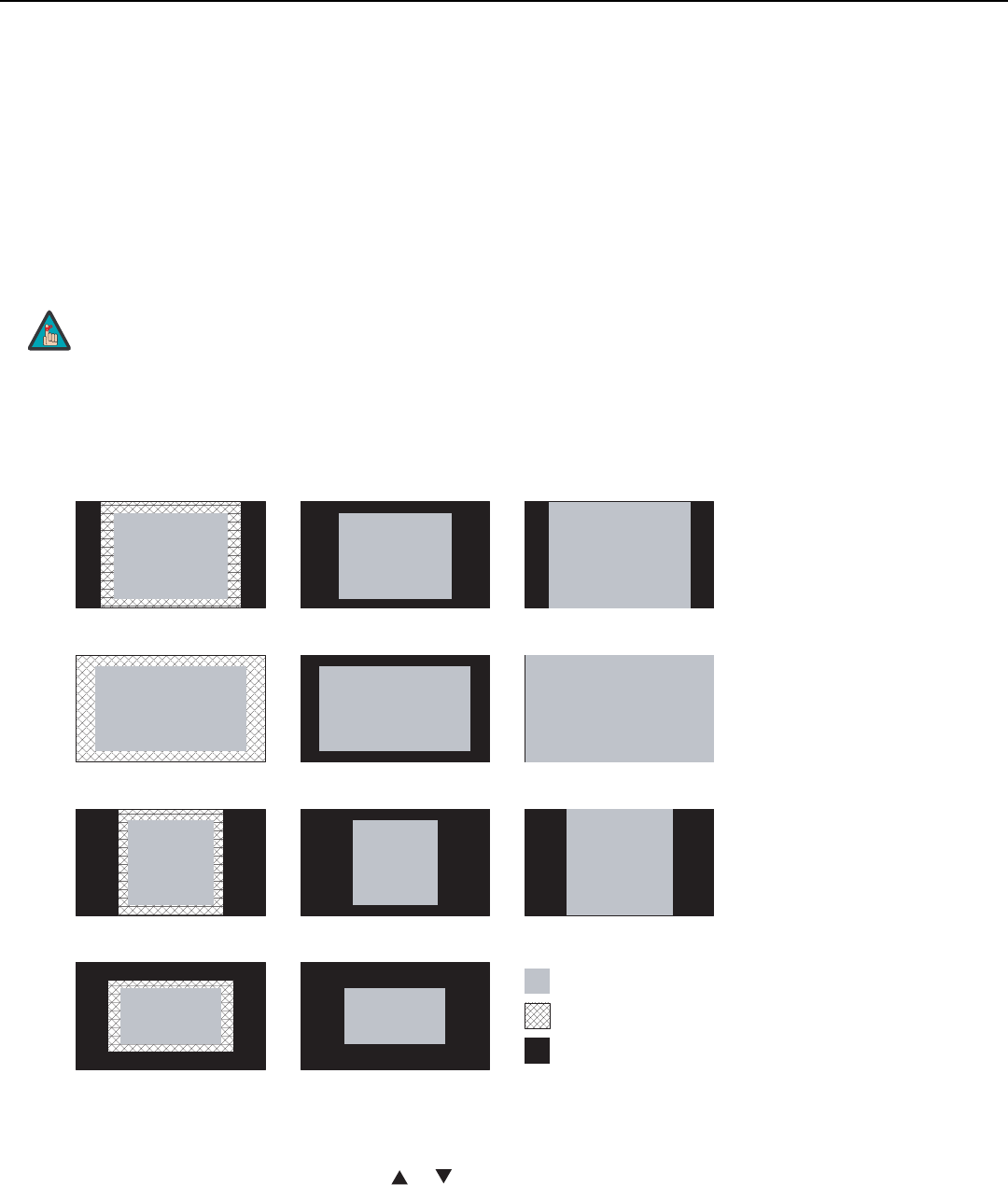

4-6. Overscan Examples....................................................................................................49
4-7. Source Select Sub-Menu ...........................................................................................50

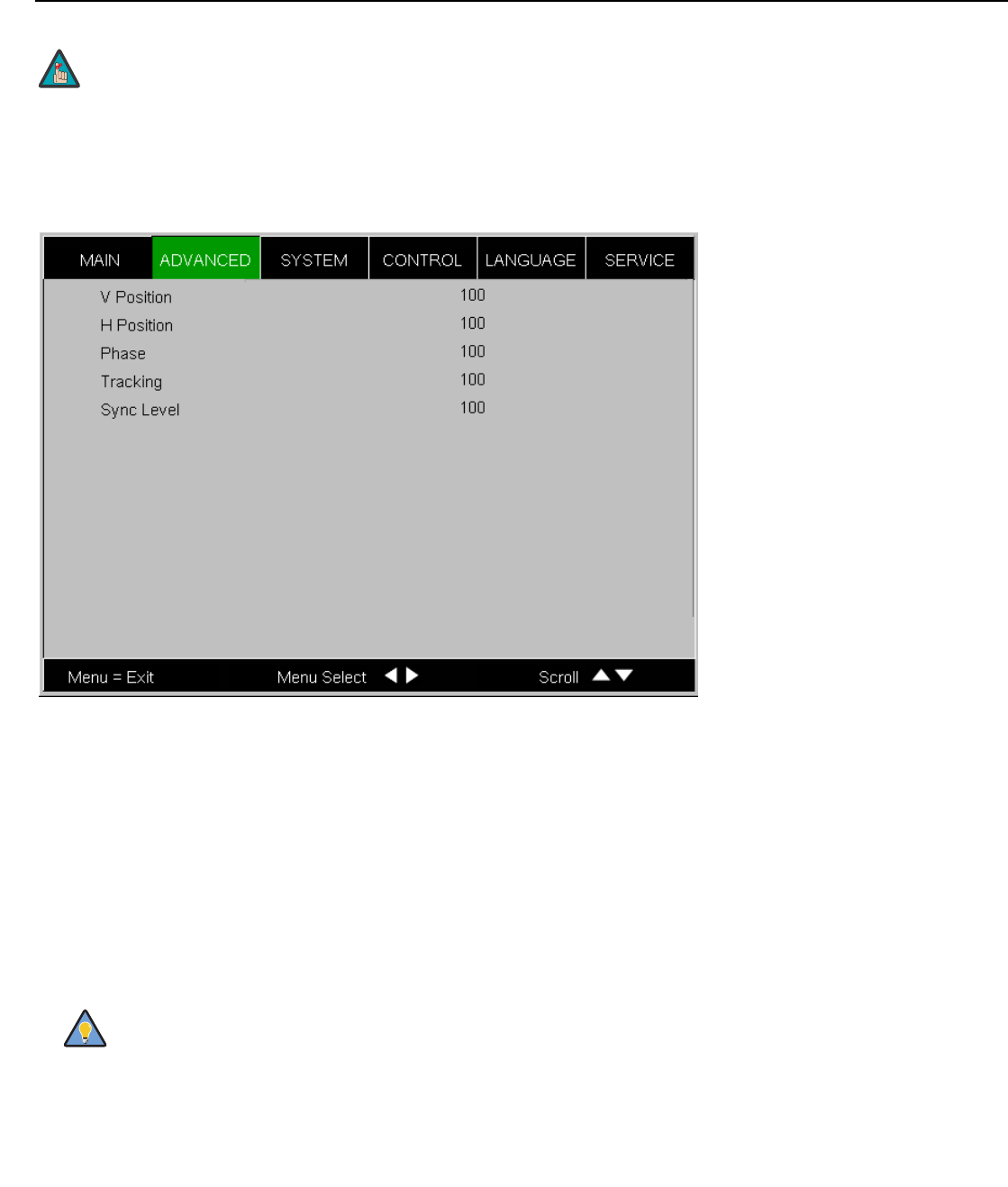

4-8. LS-3/LS-5 Advanced Menu........................................................................................51
4-9. RGB Adjust Sub-Menu ...............................................................................................54
4-10. Fine Sync Sub-Menu ................................................................................................55

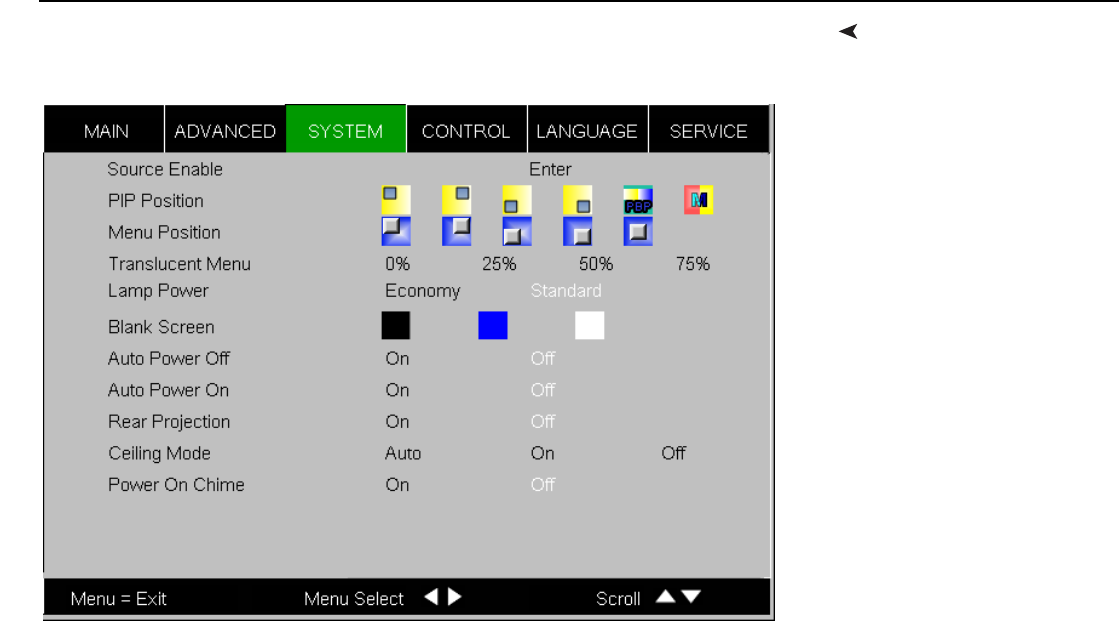

4-11. LS-3/LS-5 System Menu..........................................................................................57

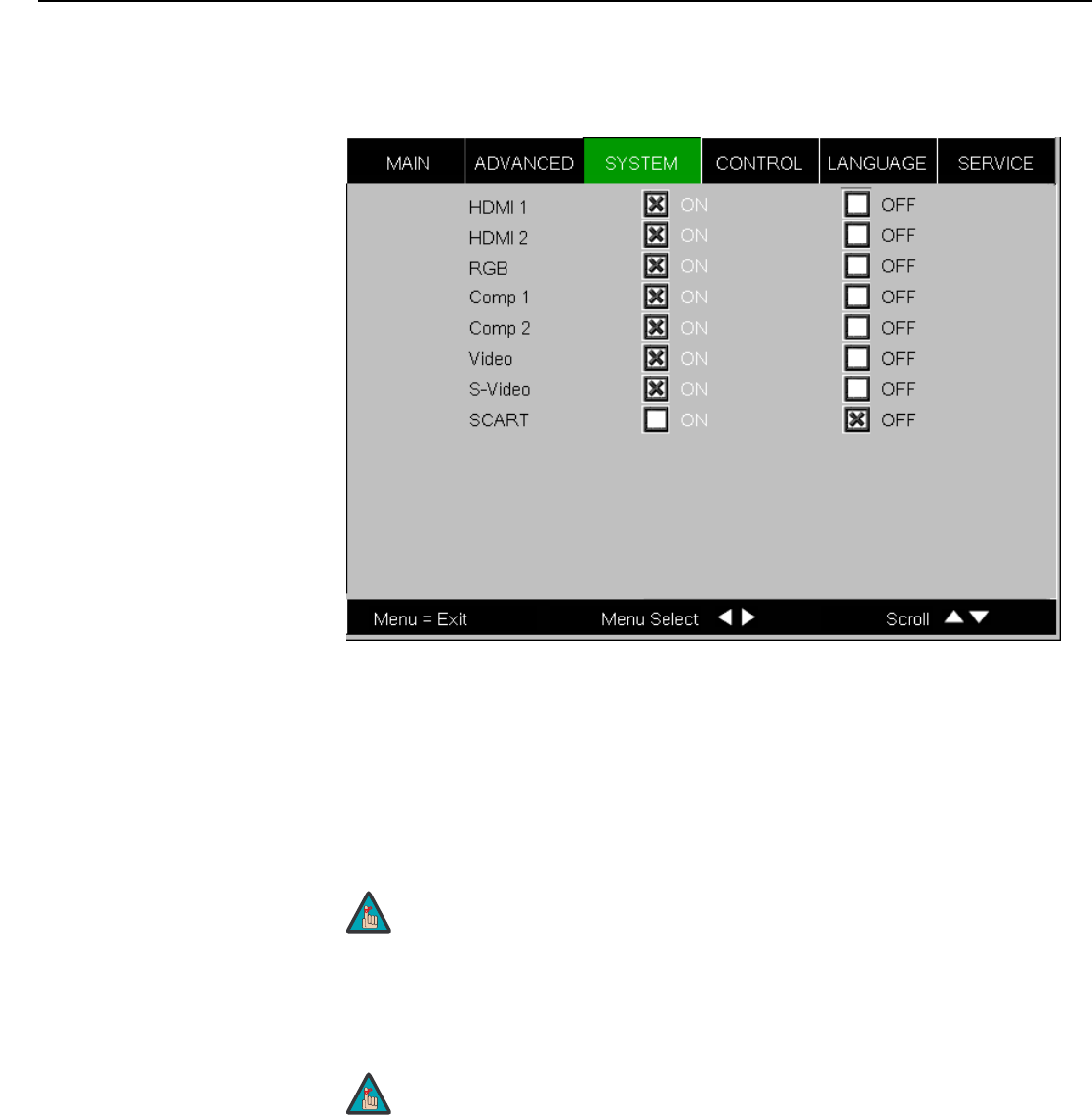

4-12. Source Enable Sub-Menu ........................................................................................58
4-13. PIP and PBP areas for 1080p Display.......................................................................59
4-14. PIP Split-Screen Mode .............................................................................................60

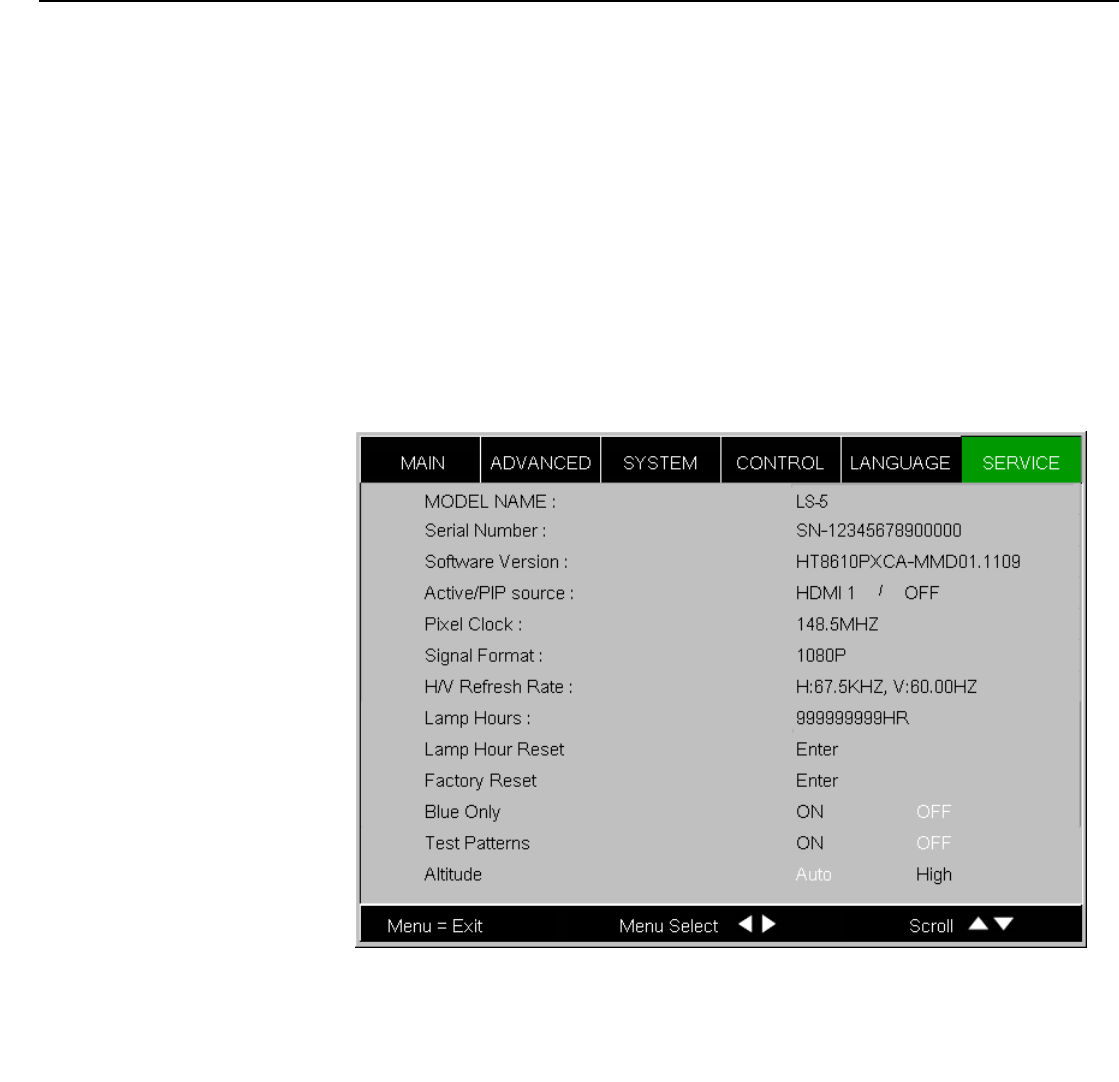

4-15. LS-3/LS-5 Service Menu ..........................................................................................64

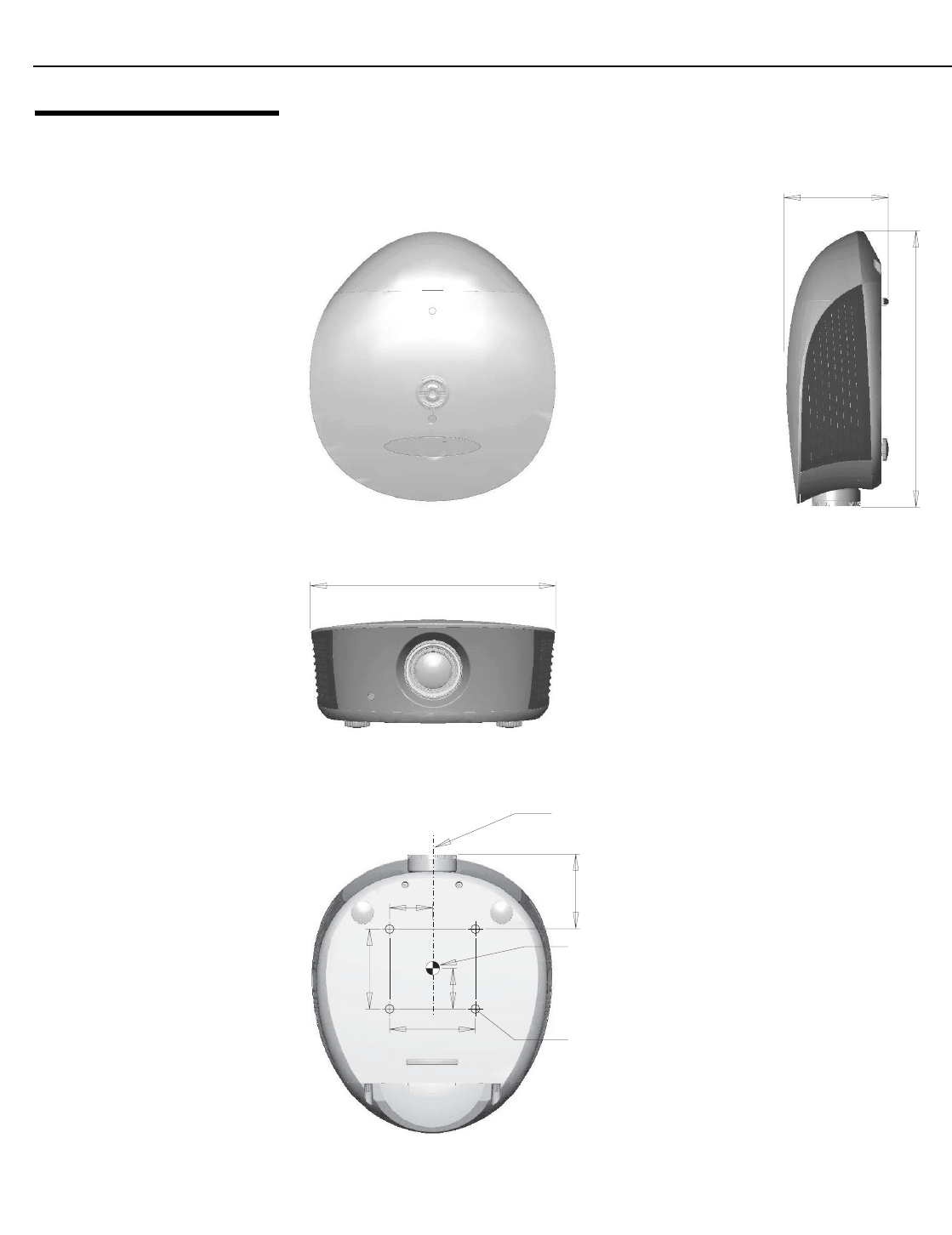

7-1. LS-3/LS-5 Dimensions ...............................................................................................86
List of Figures
xvi Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Notes:
Introduction
Runco LS-3/LS-5 Installation/Operation Manual 1
PRELIMINARY
1.1
About This Manual
This Owner’s Manual describes how to install, set up and operate the Runco LS-3/LS-5
Digital Light Processing (DLP™) Projector.
Throughout this manual, the Runco LightStyle™ Series LS-3/LS-5 Home Theater
Projector is referred to as the “LS-3/LS-5.”
Target AudienceRunco has prepared this manual to help home theater installers and end users get the
most out of the LS-3/LS-5.
Runco has made every effort to ensure that this manual is accurate as of the date it was
printed. However, because of ongoing product improvements and customer feedback, it
may require updating from time to time. You can always find the latest version of this and
other Runco product manuals on-line, at www.Runco.com.
If You Have Comments
About This Manual...
Runco welcomes your comments about this manual. Send them to info@Runco.com.
Textual and Graphic
Conventions
Text Conventions: The following conventions are used in this manual, in order to clarify
the information and instructions provided:
• Remote and built-in keypad button identifiers are set in upper-case bold type; for
example, “Press EXIT to return to the previous menu.”
• Computer input (commands you type) and output (responses that appear on-screen) is
shown in monospace (fixed-width) type; for example: “To change the aspect ratio to
Letterbox, type op aspect = 1 <Enter>. ”
• All keys with functional names are initial-capped, set in bold type and enclosed in angle
brackets. These keys are the following: <Enter>, <Spacebar>, <Control>,
<Esc> and <Tab>.
•<Enter> indicates that you may press either the RETURN or ENTER key on your
keyboard if it has both keys.
In addition to these conventions, underlining, boldface and/or italics are occasionally used
to highlight important information, as in this example:
1. Introduction
A carriage return must be used after each command or string.
Note
Introduction
2 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Graphic Conventions: These symbols appear in numerous places throughout the
manual, to emphasize points that you must keep in mind to avoid problems with your
equipment or injury:
1.2
Using This Manual
Use the following table to locate the specific information you need in this manual.
TIPS highlight time-saving short cuts and helpful guidelines for using
certain features.
NOTES emphasize text with unusual importance or special
significance. They also provide supplemental information.
CAUTIONS alert users that a given action or omitted action can
degrade performance or cause a malfunction.
WARNINGS appear when a given action or omitted action can result
in damage to the equipment, or possible non-fatal injury to the user.
DANGER appears when a given action can cause severe injury or
death.
Tip
Note
Caution
WARNING
DANGER!
If you need... ... Turn to page:
Information about obtaining service iv
General information about the LightStyle™ Series LS-3/LS-5
Home Theater Projector
3
Installation instructions 13
First-time configuration instructions 31
Advanced configuration instructions 51
Troubleshooting tips 68
Specifications for the LightStyle™ Series LS-3/LS-5 Home The-
ater Projector
83
Introduction
Runco LS-3/LS-5 Installation/Operation Manual 3
PRELIMINARY
1.3
Description, Features
and Benefits
Elegant and electrifying, the LightStyle™ Series LS-3/LS-5 Home Theater Projector is
Runco’s first-ever 1080p projector designed for both performance and esthetics. Where
sleek design encompasses incredible performance, this stylish combination of legendary
Runco engineering and impactful design yield a powerhouse that elevates the bar for
affordable home theater projection.
Designed inside and out by Runco’s award-winning engineering and design team, the
LS-3/LS-5 incorporates Runco’s proprietary engineering, advanced features and
performance enhancements to achieve an elevated home theater experience. Combining
a 1080p native resolution DLP™ light engine featuring Runco’s powerful SuperOnyx™
technology with ConstantContrast™ for bright, pristine, high-definition images with deep
black levels and significant contrast, the LS-3/LS-5 projects pristine images from any
source.
The LS-3/LS-5 is equipped with a precision optics package offering zoom, focus and lens
shift controls and a throw range of 1.85:1 to 2.40:1. For installations requiring shorter
throw distances, the LS-3/LS-5 is optionally available with a lens that offers a throw range
of 1.56:1 to 1.86:1.
To ensure a perfect fit in any room at any time, the LS-3/LS-5 incorporates the ISF™
(Imaging Science Foundation) calibration suite for optimal performance in various rooms
and lighting conditions. These calibration tools feature day and night calibration memory
settings, individual sharpness and noise reduction controls, programmable image memory
selection keys, built-in test patterns and a dark room-optimized remote.
Runco’s advanced ViVix™ digital video processing enhances the LS-3/LS-5 picture
quality and provide artifact-free scaling. Rounding out this impressive projector are
discrete input source, aspect ratio and power on/off, as well as an RS-232 interface for
seamless integration with automation control systems.
For uncompromised widescreen reproduction of movies originally filmed in the
CinemaScope™ 2:35:1 format, the LS-3/LS-5 can also be paired with Runco’s
award-winning CineWide™ technology. Through an ingenious combination of software,
electronics and precision anamorphic optics, CineWide maintains constant image height
on the screen just as in a movie theater. When a viewer transitions from 1.78:1 (16:9)
program material to superwide 2.35:1, the image simply gets wider while image height is
maintained.
With Runco CineWide, the projection system is able to use the full pixel array, thereby
producing a 2.35:1 image with enhanced resolution and increased brightness. No
resolution or image area is lost to those black bars that contain no picture information.
CineWide requires the use of a 2.35:1 or similar aspect ratio superwide
format screen.
Note
Introduction
4 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Key Features and Benefits The LS-3/LS-5 offers these key features and benefits:
• Native Resolution: 1920 x 1080 (16:9 Native Aspect Ratio)
• DLP system using high-performance Digital Micromirror Device (DMD)
• Customized color wheel produces wide dynamic range and rich grayscale
• ConstantContrast™ provides for infinitely variable adjustment of the light path through
the optics, enabling the perfect balance of black and white levels for any type of video
source material
• Picture in Picture function allows you to display two inputs on the screen at the same
time
• Two (2), HDMI 1.3 Inputs with High-bandwidth Digital Content Protection (HDCP)
• HDTV Compatible
Additional Features of the LS-5:
• Greater optical contrast (up to 15,000:1 with ConstantContrast enabled)
• Horizontal (as well as vertical) lens shift
• Expanded connectivity (additional component video input and 12-volt trigger output)
Parts List Your LS-3/LS-5 is shipped with the following items. If any items are missing or damaged,
please contact your Runco dealer or Runco Customer Service at (800) 23RUNCO.
• LS-3/LS-5 DLP Projector
• Remote Control Unit and two (2), AA-size batteries
• AC Power Cords (North America, Europe, United Kingdom)
• Source Connection Cables:
• Component Video
•HDMI to HDMI
• Warranty information and registration card
• Cleaning Cloth
• 5.0-mm Hex wrench (for lens shift adjustment)
• Runco LS-3/LS-5 Installation/Operation Manual (this document)
• Runco LS-3/LS-5 Quick Setup Guide
Optional Accessories:
• CineWide™ technology (fixed, secondary anamorphic lens)
• Ceiling mount kit (part number 997-4214-00)
• Short-throw lens, 1.56:1-1.86:1
• Replacement Lamp (part number 997-5268-00)
➤
➤
Controls and Functions
Runco LS-3/LS-5 Installation/Operation Manual 5
PRELIMINARY
2.1
LS-3/LS-5 at a Glance
Figure 2-1 and Figure 2-2 show the key LS-3/LS-5 components.
Figure 2-1. LS-3/LS-5 Front/Side View
•TOP IR SENSOR
Receives infrared signals from the remote control unit.
•POWER BUTTON/STATUS LED
Indicates projector status as follows:
• Solid green = AC power present, ready to turn on (lamp not lit)
• Flashing green = lamp is warming up or cooling down; keypad functions not allowed
• Off = Lamp lit, projector functioning normally
• Alternating green/red = Lamp problem (door open, unable to strike, end of life), user
intervention likely to fix problem
• Flashing red = Over temperature, user intervention (clear vents, turn on AC) may fix
problem
• Solid red = Error that requires servicing (fan fail, Power-on self-test fail etc.)
•EXHAUST VENT
Warm air exits the projector through this vent. Ensure that it is not blocked.
•FOCUS RING
Rotate this to focus the projected image.
•PROJECTION LENS
Available in two versions: standard throw range (1.85:1 to 2.40:1) and short throw
range (1.56:1 to 1.86:1).
2. Controls and Functions
System
Keypad
Intake
Vent
Front
IR Sensor
Top IR Sensor
Power Button/
Status LED
Exhaust Vent
(on side)
Focus Ring
Projection Lens
Zoom Ring
Controls and Functions
6 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
•ZOOM RING
Rotate this to change the projected image size.
•FRONT IR SENSOR
Receives infrared signals from the remote control unit.
•INTAKE VENT
Internal fans draw cool air into the projector through this vent.

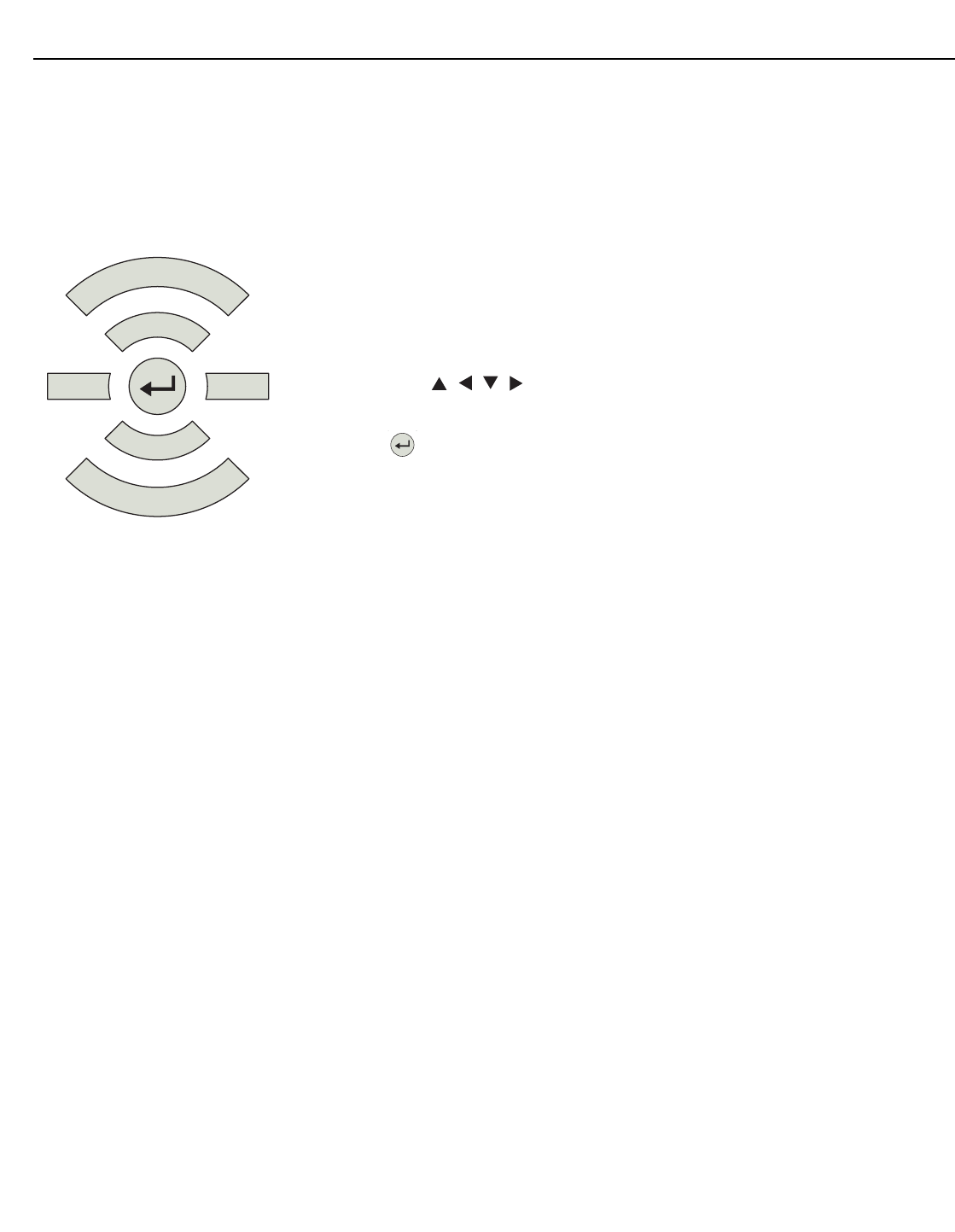

•SYSTEM KEYPAD
Provides an alternative to using the remote control unit to select a source or navigate
the on-screen display (OSD) controls.
SOURCE
Use this button to select a video source.
Cursor Keys ( , , , )
Use these buttons to select items or settings, adjust settings or switch display patterns.
ENTER ( )
Press to select a highlighted menu item or confirm a changed setting.
MENU
Press this button to show or hide the OSD menus.
▲
▲
SOURCE
MENU
►◄
Controls and Functions
Runco LS-3/LS-5 Installation/Operation Manual 7
PRELIMINARY
Figure 2-2. LS-3/LS-5 Rear/Bottom/Top View
2
6
3
7
1
5
4
Controls and Functions
8 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
1. RUNCO LOGO BADGE
Remove to access the lens shift
controls.
2. REAR COVER
Remove to access connectors.
3. LAMP MODULE COVER
Remove this cover to access the lamp compartment.
4. CABLE OPENING
Pass cables through this opening.
5. CEILING MOUNT HOLES
Use these to attach the ceiling bracket to the projector. Use M4 screws with a
maximum screw depth of 10 mm (0.39 inch).
6. ADJUSTABLE FEET
Use these when the projector is installed in a table-top configuration to level the image
and/or adjust the projection angle.
7. PROJECTION LENS
The inside of the lens barrel is threaded to accommodate a standard, 72-mm lens
filter. For example, with a smaller screen you can install a neutral-density filter to
reduce the overall light output.
Vertical Lens Shift Horizontal
Lens Shift
(LS-5 only)
Controls and Functions
Runco LS-3/LS-5 Installation/Operation Manual 9
PRELIMINARY
2.2
LS-3/LS-5 Rear Panel
Figure 2-3 shows the LS-3/LS-5 rear panel.

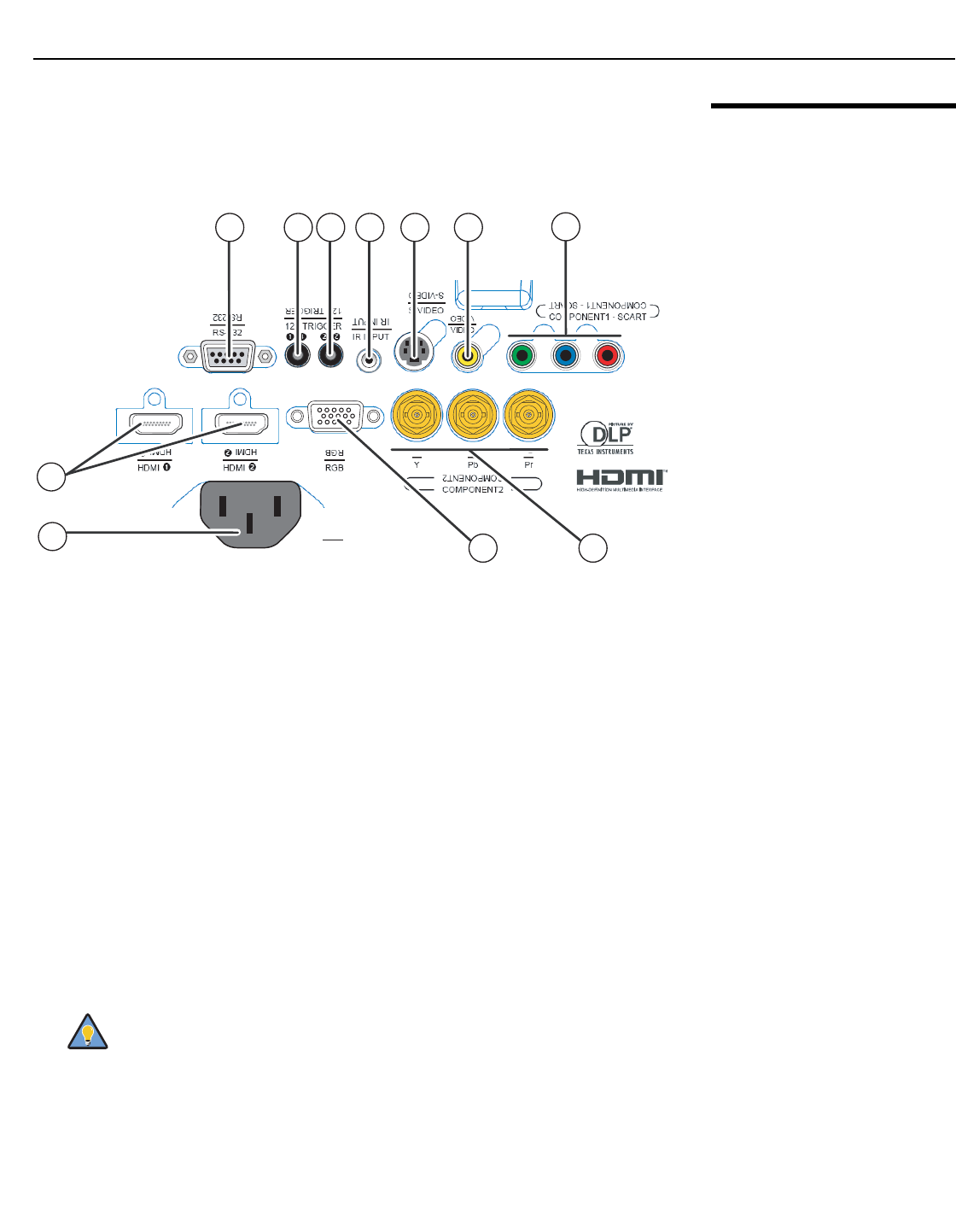

Figure 2-3. LS-3/LS-5 Rear Panel
1. HDMI 1 (Digital)
HDMI 2 (Digital)
HDCP-compliant digital video inputs for connecting an HDMI or DVI source.
2. POWER INPUT (100 to 240 VAC)
Connect the LS-3/LS-5 to power here.
3. RGB
Provides a standard, 15-pin VGA-style connection to either an RGB or component
high-definition source, or to a personal computer. The LS-3/LS-5 automatically
detects the input signal resolution.
4. COMPONENT 2 (LS-5 only)
Three BNCs for connecting component (YPbPr) video sources.
5. COMPONENT 1/SCART (RCA connectors)
Standard- or high-definition (480i/480p/576i/576p/720p/1080i/1080p) Component
(YPrPb) input for connecting a DVD/HD-DVD/BD player, HD set-top box or other
SD/HD source. Also provides RGB input for RGBS sources.
6. VIDEO
Standard composite video input for connecting a VCR, laser disc player or other
composite video source. Also provides composite sync input for RGBS sources.
AC
AC
1
5
23
6
78911
4(LS-5
only)
(LS-5
only)
10
For best results, do not run your DVD player in progressive mode.
Tip
Controls and Functions
10 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
7. S-VIDEO
A standard S-Video input for connecting a DVD player, satellite receiver or Super VHS
(S-VHS) VCR.
8. IR INPUT
Wired input from a Niles- or Xantech-compatible, infrared (IR) repeater system.
9. TRIGGER 2 (3.5-mm, mini phono jack) (LS-5 only)
Provides 12 (+/- 1.5) volt switched output for screen relays with 250mA current
capacity and short protection.
10. TRIGGER 1
Provides 12 (+/- 1.5) volt switched output for screen relays with 250mA current
capacity and short protection.
11. RS-232
A female, 9-pin D-sub connector for interfacing with a PC or home theater
automation/control system.
Controls and Functions
Runco LS-3/LS-5 Installation/Operation Manual 11
PRELIMINARY
2.3
LS-3/LS-5 Remote
Control
1. ON
Use this button to turn
the projector on.
2. OFF
Use this button to turn
the projector off.
3. Source Selection
Buttons (1-5):
Press to select a video
source. By default, these
buttons are assigned as
follows: 1 = HDMI 1; 2 =
HDMI 2; 3 =
Component 1; 4 =
S-Video; 5 = Video.
However, you can assign
each button to any
source you wish.
4. Cursor Keys ( , , ,
)
Use these buttons to
select items or settings,
adjust settings or switch
display patterns.
ENTER
Press to select a
highlighted menu item or
confirm a changed
setting.
5. Aspect Ratio Selection Button
Press this button repeatedly to select one of the following aspect ratios:
16 : 9: For viewing 16:9 DVDs or HDTV programs in their native aspect ratio.
Letterbox: For viewing LaserDisc movies or non-anamorphic DVDs on a 16:9
screen.
4 : 3: Scales the input signal to fit 4:3 sources in the center of the screen.
4:3 Narrow: Scales the input signal to fit 4:3 sources in the center of the screen when
using an anamorphic lens.
Native: Displays source image in its native resolution without re-sizing or overscan.
6. MENU
Press this button to show or hide the OSD controls.
7. Memory Preset Buttons (M1 / M2 / M3)
Press to recall settings for the current input from one of three memory presets. By
default, these buttons are assigned as follows: M1 = User Memory 1; M2 = User
Memory 2; 3 = ISF Night. However, you can assign each button to any memory
preset you wish.
ON
l
POWER OFF
1
4
2 3
5
M1
GAM M A
PIP
M2
OS
SWAP
M3
SHARP
NR
LIGHT
▲
▼
▲
▼
ENTER
MENU
USER MEMORY
SOURCE
9
1
4
2
3
5
7
6
8
10
Controls and Functions
12 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
8. Picture Adjustment Buttons:
Contrast
Press to adjust white level.
Brightness
Press to adjust black level.
Sharpness (SHARP)
Press to adjust sharpness.
Gamma (GAMMA)
Press to select a gamma curve.
Overscan (OS)
Press to select an overscan mode.
Noise Reduction (NR)
Press to adjust noise reduction level.
9. LIGHT
Press momentarily to activate remote backlighting. Press and hold for five (5) seconds
to illuminate the projector rear panel, to facilitate connecting cables in a dark room.
10. Picture-In-Picture (PIP) Controls:
PIP
Press repeatedly to activate/deactivate PIP mode or select the desired PIP image
source.
SWAP
Press to swap the PIP image with the active source image.
Installation
Runco LS-3/LS-5 Installation/Operation Manual 13
PRELIMINARY
3.1
Remote Control

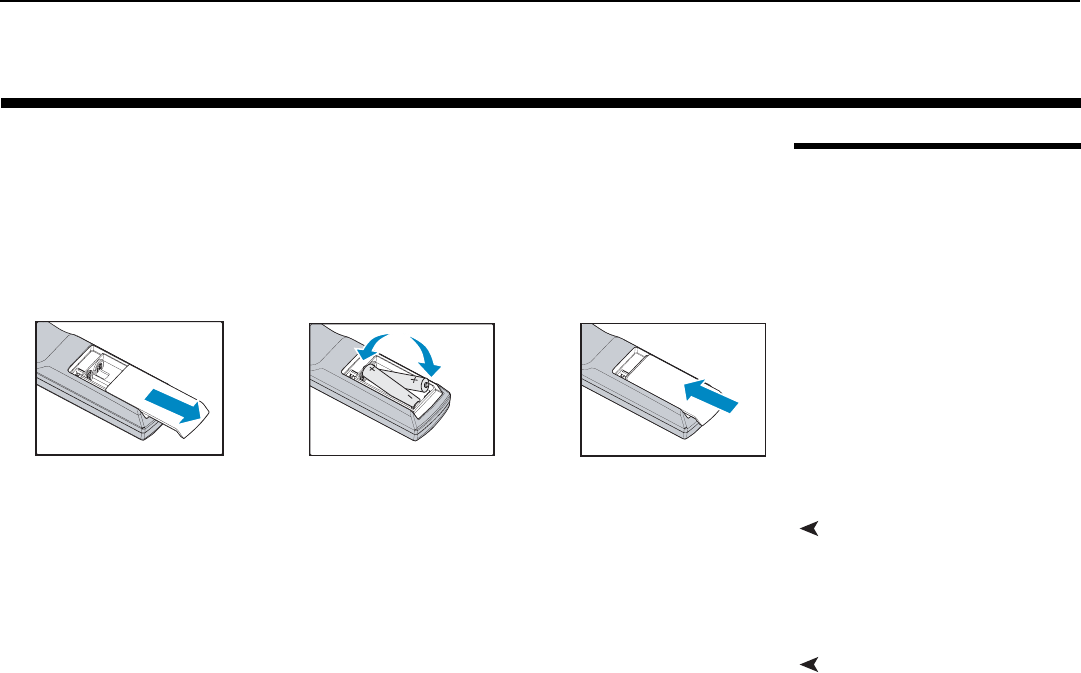

To install batteries in the remote control:
1. Slide the battery compartment cover in the direction of the arrow to remove it.
2. Install two AA batteries with the correct polarity.
3. Replace the cover.
Notes on Batteries• Make sure that the battery polarities are correct when installing the batteries.
• Do not mix an old battery with a new one or different types of batteries.
• If you will not use the remote control for a long time, remove the batteries to avoid
damage from battery leakage.
Notes on Remote Control
Operation
• In most situations, you can simply point the remote control at the screen which will
reflect the IR signal from the remote back toward the IR receiver on the projector. In
some cases, however, ambient conditions may prevent this. If so, point the remote
control at the projector and try again.
• If the effective range of the remote control decreases, or it stops working, replace the
batteries with new ones.
• The remote control may fail to operate if the infrared remote sensor is exposed to bright
sunlight or fluorescent lighting.
3. Installation
1. 2. 3.
Installation
14 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
• The projector’s front IR receiver has a range of approximately 40 feet (12.19 meters);
the top IR receiver has a range of approximately 20 feet (6.10 meters). Figure 3-1
shows the reception angles of the front and top IR receivers.
Figure 3-1. IR Reception Angles
Installation
Runco LS-3/LS-5 Installation/Operation Manual 15
PRELIMINARY
3.2
Quick Setup
Table 3-1 gives a quick overview of the LS-3/LS-5 installation process. The sections
following this one provide detailed instructions.
Installation should be performed by a qualified custom video
installation specialist.
Table 3-1. Installation Overview
Step Procedure For Details, Refer
to page...
1Choose a location for the projector 16
2Mount the projector 23
3Connect signal sources to the LS-3/LS-5 25
4Connect external controller to RS-232 port and/or IR repeater
system (optional)
29
5Connect 12-volt trigger output to retractable screen or other,
+12V trigger-activated equipment (optional)
30
6Apply power to the projector 31
7Primary lens adjustments: projected image size (zoom), position
(shift) and focus
19, 31
8Change the OSD Language (optional) 33
9For rear-screen and/or ceiling-mount installations, select the
proper picture orientation
33
10
Projector calibration: adjust the following for each input; save
settings when finished:
Aspect ratio
Brightness
Contrast
Color level
Tint
Input position
41
Note
Installation
16 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
3.3
Installation
Considerations
Proper installation of your projector will ensure the quality of your display. Whether you are
installing a projector temporarily or permanently, you should take the following into
account to ensure your projector performs optimally.
Installation Type Choose the installation type that best suits your needs: front or rear screen, floor mount or
inverted mount. Table 3-2 compares these various installation methods.
➤
Table 3-2. Projector Installation Options
Advantages Considerations
Front Screen, Floor Mount Installation
• Easy to set up
• Can be moved or changed quickly
• Easy to access
• Shares floor space with audience
Front Screen, Inverted Mount (ceiling) Installation
• Does not take up audience space
• Projector is unobtrusive
• Projector cannot be accidentally moved
• Installation is more permanent
• Projector access is more difficult
Rear Screen, Floor Mount Installation
• Projector is completely hidden
• Projector is easily accessed
• Usually good ambient light rejection
• Requires separate room
• Installation cost is usually higher
Rear Screen, Inverted Mount (ceiling) Installation
• Projector is completely hidden
• Usually good ambient light rejection
• Requires separate room
• Installation cost is usually higher
Rear Screen, Floor Mount with Mirror
• Projector is completely hidden
• Usually good ambient light rejection
• Requires less space behind screen than
other rear screen installations
• Requires separate room
• Installation cost is usually higher
Installation
Runco LS-3/LS-5 Installation/Operation Manual 17
PRELIMINARY
Ambient LightIn general, minimize or eliminate light sources directed at the screen. Contrast ratio in your
images will be noticeably reduced if light directly strikes the screen, such as when a shaft
of light from a window or floodlight falls on the image. Images may then appear washed
out and less vibrant.
Throw DistanceThrow distance is the distance measured from the front of the projector to the screen.
This is an important calculation in any projector installation as it determines whether or not
you have enough room to install your projector with a desired screen size and if your
image will be the right size for your screen.
You can quickly estimate the throw distance by taking the width of the screen and
multiplying it by the lens throw ratio; see Figure 3-2. The result of this calculation tells you
roughly how far back the projector should be positioned from the screen in order to
project a focused image large enough to fill the screen.
Figure 3-2. Estimating Throw Distance
Estimating Throw Distance
Throw Distance (TD) =
Screen Width (w) x Lens Throw Ratio
TD
Screen width (w)
Installation
18 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Table 3-3 lists the available LS-3/LS-5 Series lens options and their associated throw
ratios.
Vertical and Horizontal
Position
Proper placement of the projector relative to the screen will yield a rectangular,
perfectly-centered image that completely fills the screen.
Ideally, the projector should be positioned perpendicular to the screen and in such a way
that the lens center is aligned with either the top or bottom edge of the screen area, and
centered horizontally. See Figure 3-3.
Figure 3-3. Projector Placement
Table 3-3. Throw Ratios for the LS-3/LS-5 Series
Projector Model
Throw
Ratio with
Primary
Lens Only
Throw Range in
inches, with
72.6x40.8-inch
(1.78:1) Screen
Throw Ratio
with
Primary
Lens and
Anamorphic
Lens
Throw Range in
inches, with
96x40.8-inch (2.35:1)
Screen
Minimum Maximum Minimum Maximum
Standard
LS-3/LS-5 1.85 – 2.40 134.31 174.24 (n/a)
Standard
LS-3/LS-5 with
Optik A Primary
Lens
1.56 – 1.86 113.26 135.03 (n/a)
LS-3/LS-5/
CineWide (Whitney
Anamorphic Lens)
(n/a) 1.85 – 2.40 177.60 230.40
➤
Screen
Height Projection Distance
Ceiling
x
Lens CenterLens Center
Ceiling Installation
Screen
Height
Floor
Lens Center
Projection Distance
Floor Installation
Lens Center
x
Installation
Runco LS-3/LS-5 Installation/Operation Manual 19
PRELIMINARY
Lens ShiftYou can use the lens shift controls on the projector to center the image on the screen.
Lens shift is generally expressed as a percentage of the screen height or width, as shown
in Figure 3-4 and Figure 3-5.
Figure 3-4. Vertical Lens Shift (Example Only)
Vertical Lens Shift: The LS-3/LS-5 provides up to 25% of upward vertical lens
shift and up to 60% of downward vertical lens shift. For example, with a 100 x 56
inch (1.78:1) screen, you can shift the image up to 14.00 inches (0.36 meters) above or
33.60 inches (0.85 meters) below the screen center.
Horizontal Lens Shift (LS-5 Only): The LS-5 provides up to 7.5% of horizontal lens
shift left or right. For example, with a 100 x 56 inch (1.78:1) screen, you can shift the
image up to 7.50 inches (0.19 meters) left or right of the screen center.
50% Height
Lens Shift
(0.5 x H)
100% Height
Lens Shift
(1.0 x H)
Screen Center
0%
Note: This is a general example of lens shift. Lenses vary in their shift capabilities. No particular
lens or projector is used in this example.
Installation
20 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Figure 3-5. Horizontal Lens Shift (Example Only)
1. With no vertical or horizontal lens shift, the lens center and
screen center are aligned with each other.
2. Vertical shift limits are percentages of the screen height.
Horizontal shift limits are percentages of the screen width.
3. Vertical lens shift figures are for ceiling mount
configurations. For floor installations (where the projector is
upright), reverse the up/down vertical lens shift percentages.
0%
Screen Center
100% Width Lens Shift
(1.0 x W) 50% Width Lens Shift
(0.5 x W)
Screen Width (W)
Note: This is a general example of lens shift. Lenses vary in their shift capabilities. No particular
lens or projector is used in this example.
Note
Installation
Runco LS-3/LS-5 Installation/Operation Manual 21
PRELIMINARY
Folded OpticsIn rear-screen applications where space behind the projector is limited, a mirror may be
used to fold the optical path, as shown in Figure 3-6. The position of the projector and
mirror must be accurately set. If you are considering this type of installation, contact your
dealer for assistance.

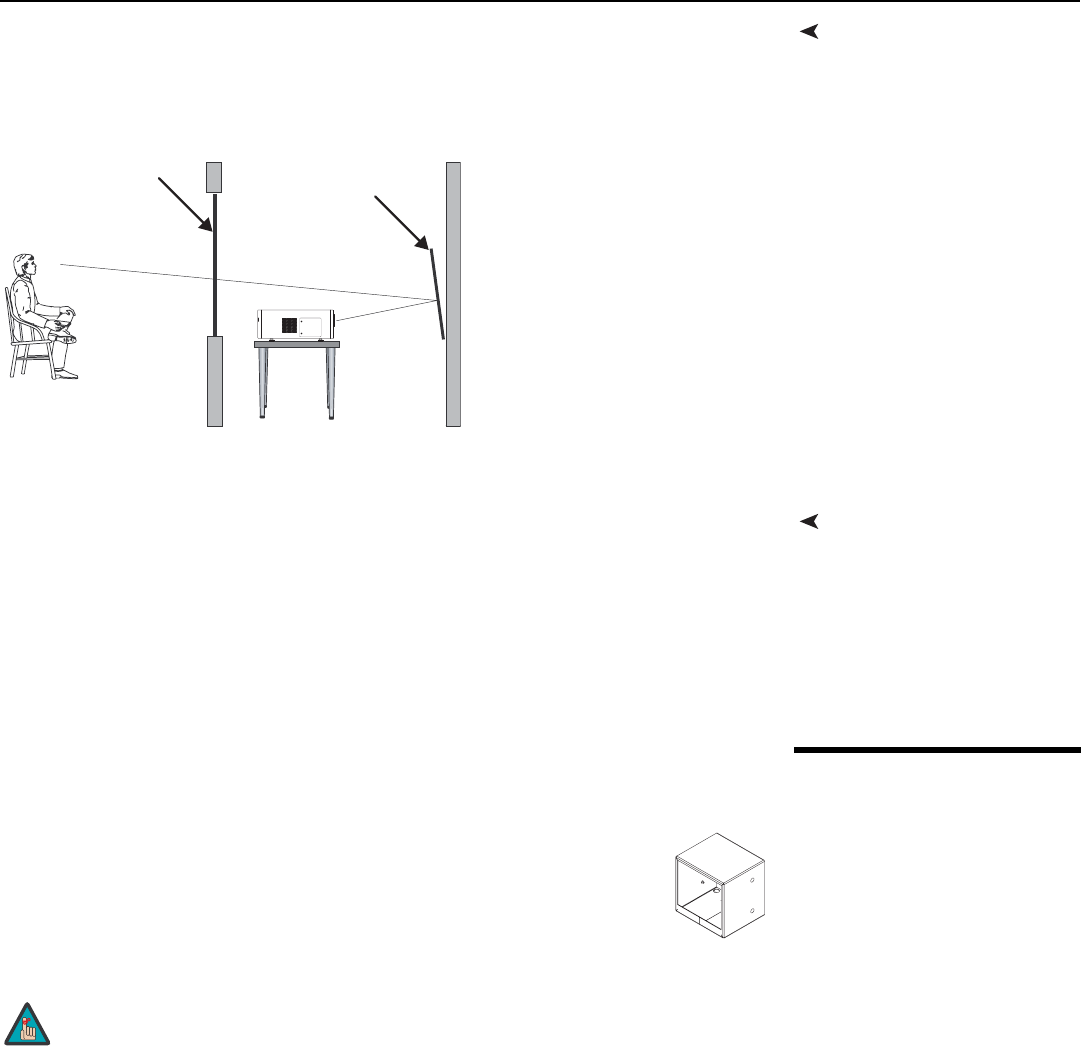

Figure 3-6. Folded Optics
Other ConsiderationsOther considerations and tips that can help improve your installation:
• Keep the ambient temperature constant and below 35°C (95°F). Keep the projector
away from heating and/or air conditioning vents. Changes in temperature may cause
drifts in the projector circuitry, which may affect performance.
Keep the projector away from devices that radiate electromagnetic energy such as motors
and transformers. Common sources of these include slide projectors, speakers, power
amplifiers and elevators.
3.4
Installing the Optional
CineWide Lens Mount
If you are installing a standard (non-CineWide) LS-3/LS-5, skip this step and proceed with
Mounting the LS-3/LS-5 (page 23).
If you are installing an LS-3/LS-5/CineWide, proceed with Installing the
Fixed CineWide Base Plate (page 22).
Screen
Mirror
1. Do not install the CineWide lens yet, only the fixed CineWide
base plate. You will install the CineWide lens after you install the
projector and adjust the primary lens.
2. Some components shipped with your projector may differ slightly
from what is shown in these instructions.
Note
Installation
22 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Installing the Fixed
CineWide Base Plate
To install the fixed CineWide base plate on a LS-3/LS-5/CineWide with a prismatic
anamorphic lens:
1. Place the projector upside down on a blanket or other soft surface.
2. Secure the CineWide base plate and Ceiling Mount Plate (if used) to the projector with
the four, M4 x 0.7 x 14mm screws provided with the CineWide lens base plate.
Figure 3-7. Projector with Whitney (Prismatic) Lens Base Plate - Bottom View
➤
1. Do not use the mounting screws provided with the ceiling
mounting kit. Use only the hardware provided with the CineWide
lens base plate.
2. DO NOT OVER-TIGHTEN THE SCREWS.
Caution
Ceiling Mount Plate
(part of Ceiling Mount Kit)
Anamorphic
Lens Base Plate
Screw,
Phillips
Pan-Head,
M4 x 0.7 x
14mm (4x)
1
2
Installation
Runco LS-3/LS-5 Installation/Operation Manual 23
PRELIMINARY
3.5
Mounting the
LS-3/LS-5
There are several methods for mounting the projector. Depending on your chosen
installation, one method may be more suitable than another.
Floor Mounting (Upright)In typical front and rear screen installations, the projector can be mounted to a secure and
level surface such as a table or cart. Carts are useful when moving a projector during a
presentation or from site to site. If possible, lock the wheels when it’s in position to prevent
it from being moved during a presentation.
Ceiling Mounting
(Inverted)
For fixed installations, and for those that want the projector out of sight or have a limited
space for projector and audience, you can invert the LS-3/LS-5 and suspend it from the
ceiling using a specially-designed ceiling mount fixture.
Adjusting the Projection
Angle
If the screen is significantly higher or lower than the projector, you can also tilt the
projector at a slight angle. In a ceiling installation, you do this by adjusting the ceiling
mount.
For a floor installation, turn the adjustable feet at the bottom of the projector to adjust the
projection angle.
If you do this, you may need to vertically shift the image to compensate. For detailed
instructions, refer to Lens Adjustments on page 31.
For ceiling installations, use Runco-approved mounting hardware
and M4 screws with a maximum screw depth of 10 mm (0.39 inch).
Install the mount kit according to the instructions provided with it.
Note
Installation
24 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
3.6
Connections to the
LS-3/LS-5
Proceed as follows to connect the LS-3/LS-5 to your video sources, external controller(s)
– if present – and AC power.
When connecting your equipment:
• Use the correct signal cables for each source.
• Ensure that the cables are securely connected. Tighten the thumbscrews on
connectors that have them.
Connector Panel Access Using a flat-blade screwdriver, loosen the two
screws holding the rear compartment cover
in place.
Then, remove the rear compartment cover by
tilting it upward.
➤
Installation
Runco LS-3/LS-5 Installation/Operation Manual 25
PRELIMINARY
Connecting Source
Components to the
LS-3/LS-5
Connect your video sources to the LS-3/LS-5 as shown and described in the sections
that follow.
HDMI/DVI Connections: See Figure 3-8.
Figure 3-8. HDMI/DVI Source Connections
Use the HDMI inputs whenever possible. This ensures the highest
video quality because the signal is carried in the digital domain
throughout the entire signal path, from source component output
into the projector.
Tip
HDMI or DVI Source(s)
(BD/HD-DVD/DVD Player,
HD Set Top Box,
Game Console etc.)
Installation
26 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
RGB Connections: Connect your personal computer or other RGB source to the RGB
input.
Optionally, if the source outputs RGB with composite sync, connect the green, blue and
red outputs to the Y, Pb and Pr terminals on the COMPONENT 1/SCART input and the
sync output to the VIDEO input.
See Figure 3-9.

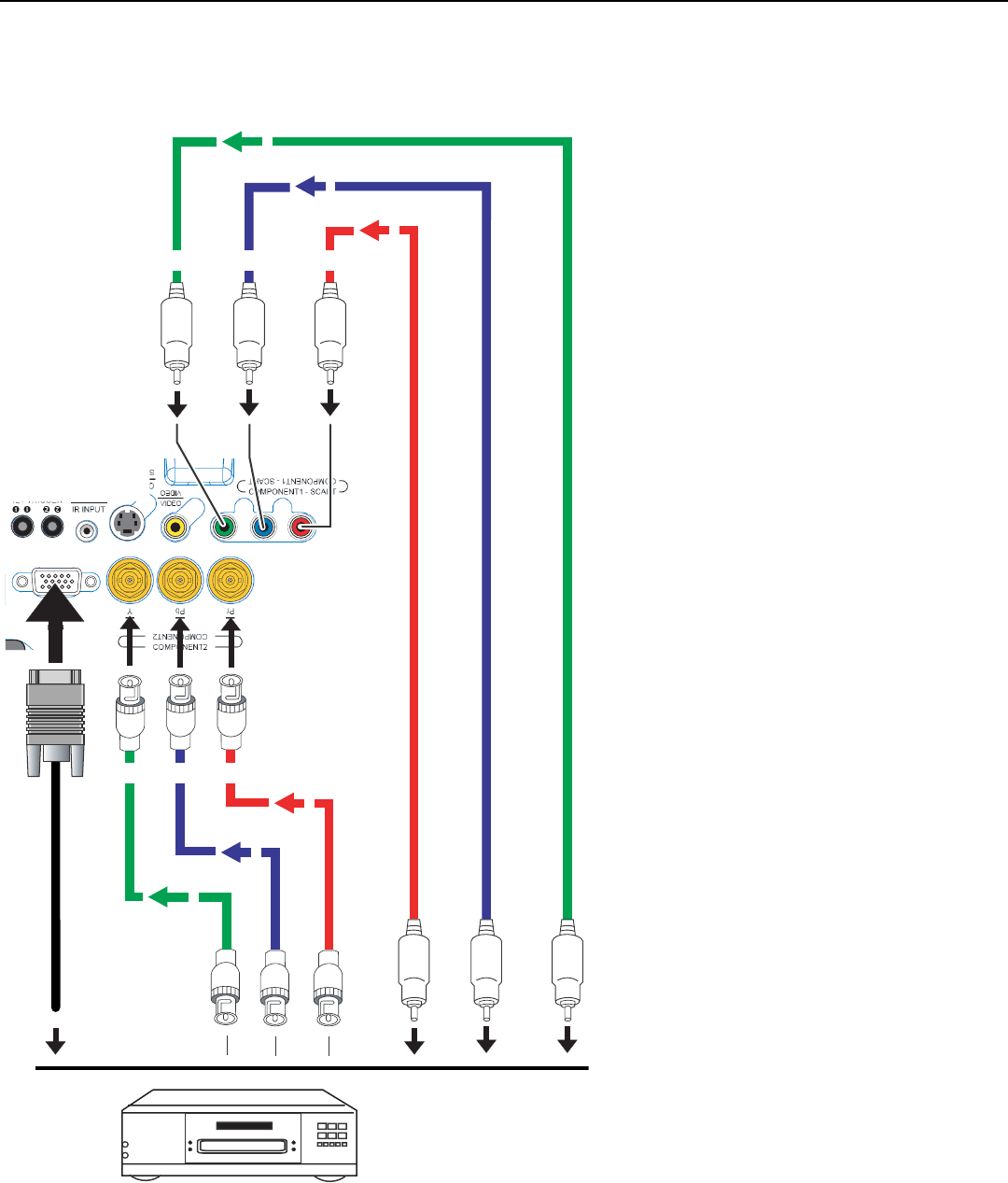

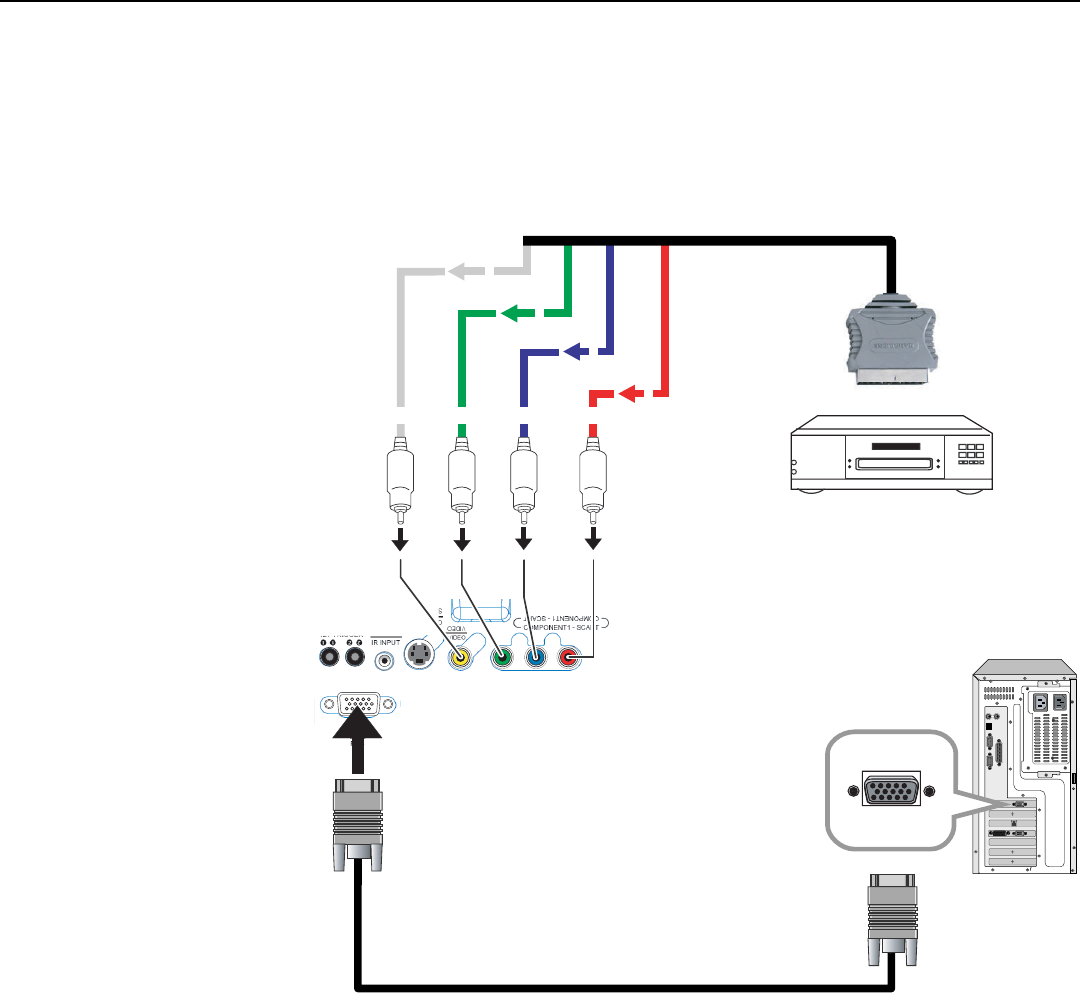

Figure 3-9. RGB Connections
Sync Green Blue Red
Personal
Computer
DVD Player or
Other SCART RGBS
Source
Installation
Runco LS-3/LS-5 Installation/Operation Manual 27
PRELIMINARY
Component Video Connections: Connect your component video sources to the
COMPONENT 1/SCART, COMPONENT 2 (LS-5 only) or RGB inputs as shown in
Figure 3-10.
Figure 3-10. Component Video Connections
Y Pb Pr
Y Pb Pr
DTV Set-Top Box or
Other Component
(YPbPr) Source
Installation
28 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Composite/S-Video Connections: Connect your Composite and S-Video sources to
the LS-3/LS-5 as shown in Figure 3-11.

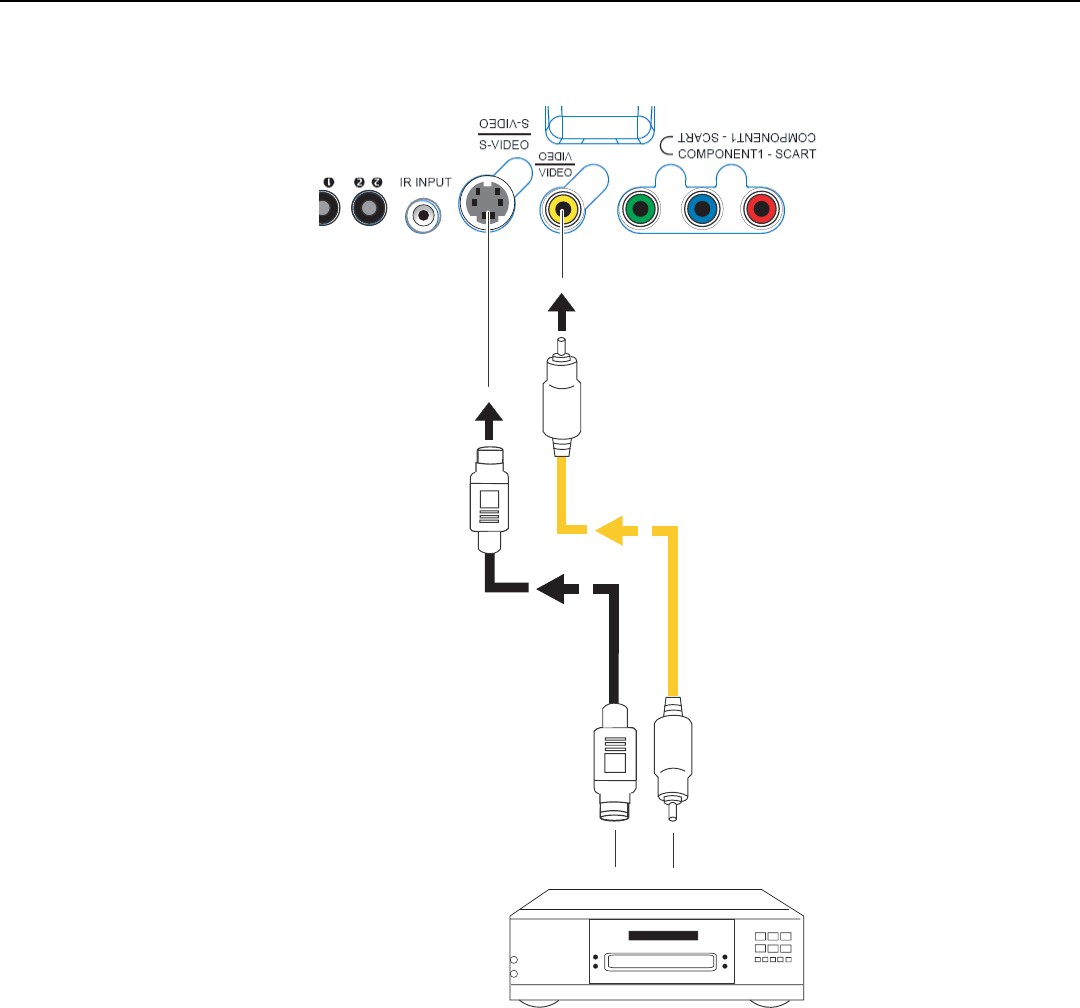

Figure 3-11. Composite and S-Video Connections
DVD Player, VCR,
Satellite Receiver,
Laser Disc etc.
Installation
Runco LS-3/LS-5 Installation/Operation Manual 29
PRELIMINARY
RS-232 Controller
Connection
Connect a PC or home theater control/automation system (if present) to the RS-232 port
on the LS-3/LS-5; see Figure 3-12. Use a standard, 9-pin serial cable, wired
straight-through.
For more information about using this connection, refer to Serial Communications on
page 71.
Figure 3-12. RS-232 Control System Connection
1
2
345
7
89 6
to Automation/
Control System
or PC
2 Transmit Data
3 Receive Data
5 Ground
(none of the other pins are used)
Installation
30 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Connecting 12-Volt
Trigger Output to External
Theater Equipment
If your home theater contains a retractable screen, screen mask or other 12-volt
trigger-activated equipment, connect it to the 12-volt trigger output(s) as shown in Figure
3-13.
Figure 3-13. 12-Volt Trigger Output Connection
Connecting an External IR
Receiver
If infrared signals from the remote control cannot reach the projector due to excessive
distance or obstructions such as walls or cabinet doors, you can connect an external IR
repeater system to the IR INPUT on the LS-3/LS-5 to extend the range of the remote
control. See Figure 3-14.
Figure 3-14. External IR Receiver Connection
➤
Tip = +12V
Sleeve = Ground
Retractable Screen or other
12-volt trigger-activated
device
➤
ON
l
POWER OFF
1
4
23
5
M1
GAMMA
PIP
M2
OS
SWAP
M3
SHARP
NR
LIGHT
▲
▼
▲
▼
ENTER
MENU
USER MEM ORY
SOURCE
(3.5-mm, mini
phono plug)
IR Sensor
IR Repeater
Remote Control
Installation
Runco LS-3/LS-5 Installation/Operation Manual 31
PRELIMINARY
Connecting to AC PowerThe LS-3/LS-5 ships with various types of AC power cords. Choose the one that is
appropriate to your locale.
Plug the female end of the power cord into the AC receptacle on the rear of the projector
(AC 100V ~ 240V); see Figure 2-3. Then, connect the other end to your AC power source.
3.7
Turning on the Power
1. Turn on your source components.
2. Press the ON button on the remote control to turn on the LS-3/LS-5. The LED
flashes green to indicate that it is warming up.
3. When the projector is ready for use, the LED turns off.
3.8

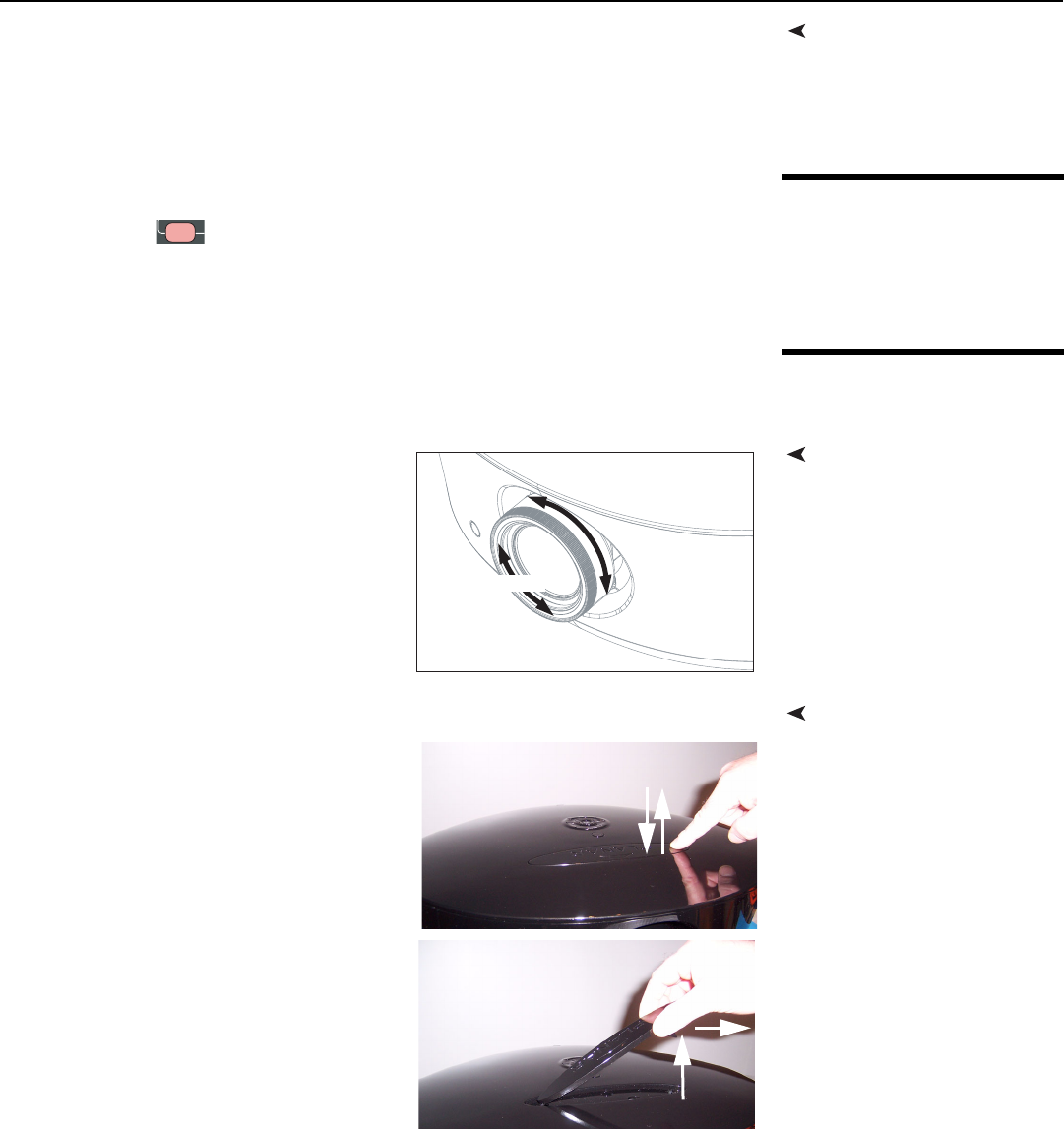

Lens Adjustments
The LS-3/LS-5 gives you a great deal of control over the picture size, position and focus.
Focus and ZoomTo focus the projected image, grasp the lens
by the front ring and rotate it.
To make the picture smaller (zoom out) or
larger (zoom in), rotate the zoom ring in the
appropriate direction.

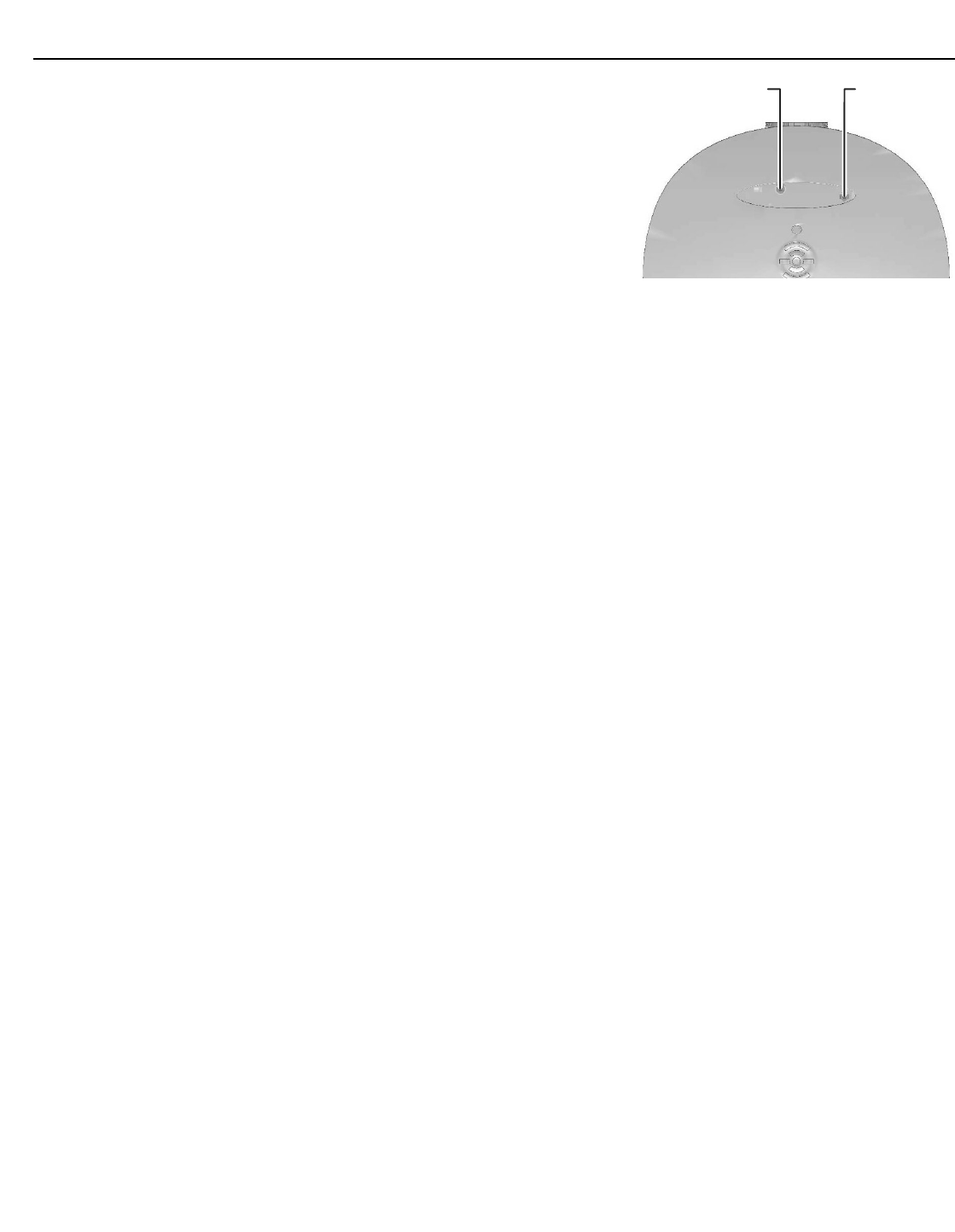

Lens ShiftTo access the lens shift controls:
1. Locate the Runco badge at the top of the
projector. Press on the side of the badge
nearest the “R” to release it.
2. Carefully lift the badge up, then away from
the projector.
ON
l
Zoom Out
Zoom In
Focus
Installation
32 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY

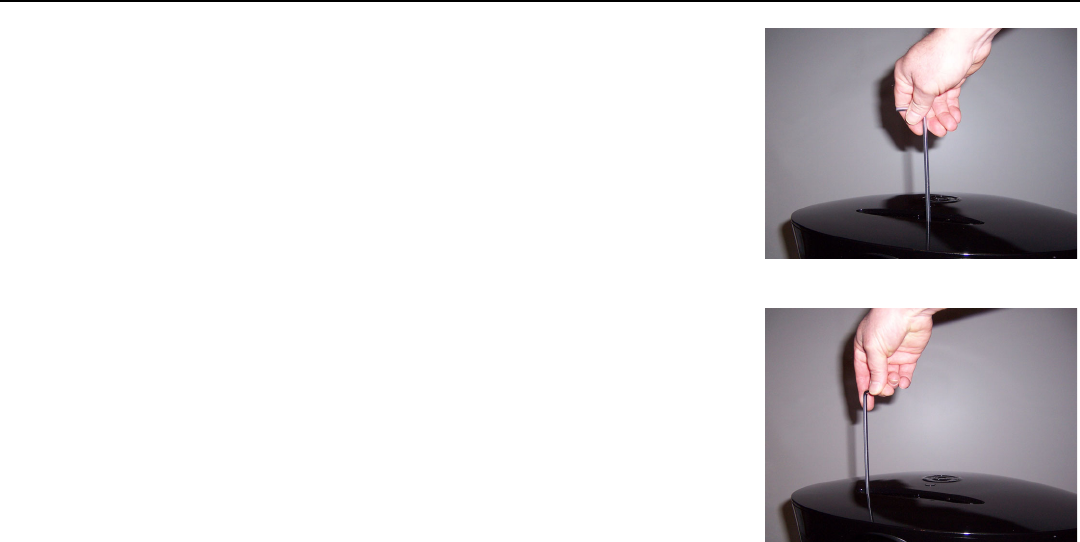

Vertical Lens Shift: To shift the projected
image vertically, insert the provided hex
wrench into the hole at the top of the projector
(directly above the lens). Then, turn the
wrench as shown to shift the lens in the
desired direction.
Horizontal Lens Shift (LS-5 only): To shift
the projected image horizontally, insert the
provided hex wrench into the hole at the top
of the projector. Then, turn the wrench as
shown to shift the lens in the desired direction.
When you have finished adjusting the lens position, re-install the Runco badge.
Installation
Runco LS-3/LS-5 Installation/Operation Manual 33
PRELIMINARY
3.9
Changing the OSD
Language
When you turn on the LS-3/LS-5 for the first time, the OSD Language Menu appears.
The LS-3/LS-5 can display the menus in English, French, German, Italian, Spanish,
Swedish, Traditional Chinese, Simplified Chinese, Japanese, Korean, Portuguese or
Russian.
Press or to select a language. Then, press ENTER to confirm your selection.
3.10
Adjusting the Picture
Orientation
If the LS-3/LS-5 is installed behind the screen, you must change the picture orientation to
match the installation method. To do this, press MENU on the remote control. Then,
select System from the Main Menu.
Rear ProjectionIf the projector is used in a rear-projection application (see Figure 3-6), press repeatedly
to select Rear Projection from the System Menu. Press or to set it to On.
Ceiling ModeIf the projector is ceiling-mounted, the LS-3/LS-5 automatically inverts the image. If this
automatic inversion is not desired, select Ceiling Mode from the System Menu and set it to
Off.
Installation
34 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
3.11
Installing and
Adjusting the
CineWide Anamorphic
Lens
If you are installing an LS-3/LS-5LT/CineWide, proceed as follows to install and adjust the
anamorphic lens.
The CineWide anamorphic lens mount kit consists of everything shown in Figure 3-15.
Some components shipped with your projector may differ slightly from what is shown in
these instructions.
Figure 3-15. Anamorphic Lens Mounting Assembly - Exploded View
It is extremely important that the primary lens is properly
adjusted before you install the anamorphic lens. Ensure that
the image from the primary lens is perfectly centered on the
screen.
Note
3 Height/Pitch Adjustment
Screw, 4-40 x 1/4" (4x)
4 Swell
Latch
Assembly
(2x)
1 Anamorphic Lens
2 Washer (4x)
6 Anamorphic Lens
Base Plate
5 Anamorphic Lens
Mounting Bracket
Installation
Runco LS-3/LS-5 Installation/Operation Manual 35
PRELIMINARY
1. Use the Height/Pitch Adjustment Screws (3) and Washers (2) to attach the Lens
Mounting Bracket (5) to the Anamorphic Lens (1).
2. Remove the nut and rubber collar from each Swell Latch Assembly (4).
3. Secure the lens (with the mounting bracket attached) to the Lens Base Plate (6) using
the swell latches.
Adjusting the Lens Height and Angle:
1. Project a white field on the screen.
2. Loosen the four Height/Pitch Adjustment Screws just enough to allow vertical
movement of the lens assembly.

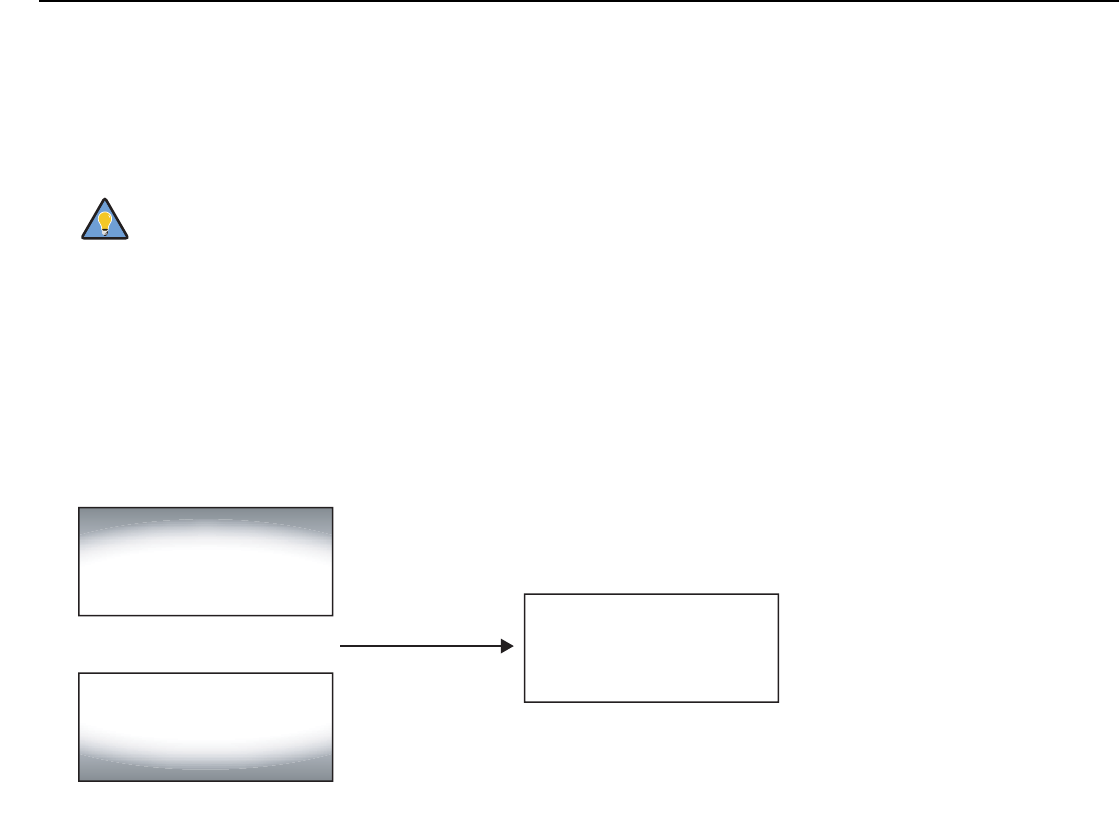

3. Slowly move the anamorphic lens into place so that there are no shadows on the top
or bottom of the screen:
To avoid clipping the corners of the image, position the anamorphic
lens as close as possible to the primary lens.
Tip
Too High
Too Low
Correct position
Installation
36 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
4. Then, adjust the anamorphic lens angle so that the projected image is rectangular:
The anamorphic lens will almost always be angled with respect to the projector; this is
normal.
5. When the height and angle are properly set, tighten the Height/Pitch Adjustment
Screws to secure the lens in place.

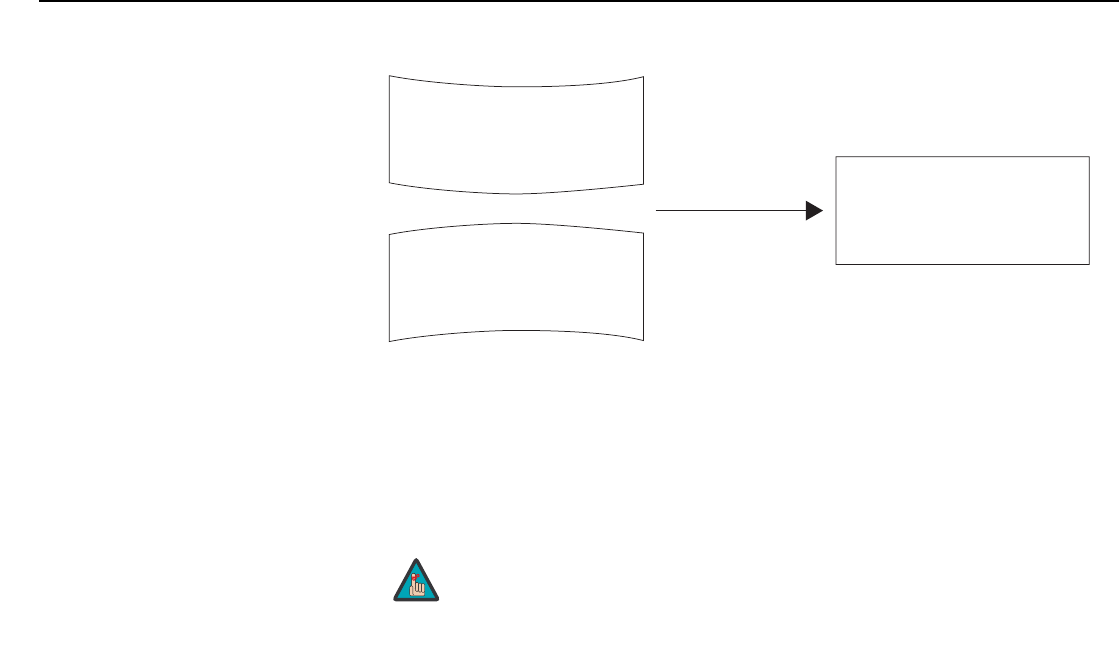

There may be some pincushion distortion even after the lens is
properly adjusted, especially at shorter throw distances. If this is the
case, Runco recommends that you slightly over-scan the image into
the screen frame area to mask the distortion.
Correct Lens Angle
Incorrect Lens Angle
Note
Operation
Runco LS-3/LS-5 Installation/Operation Manual 37
PRELIMINARY

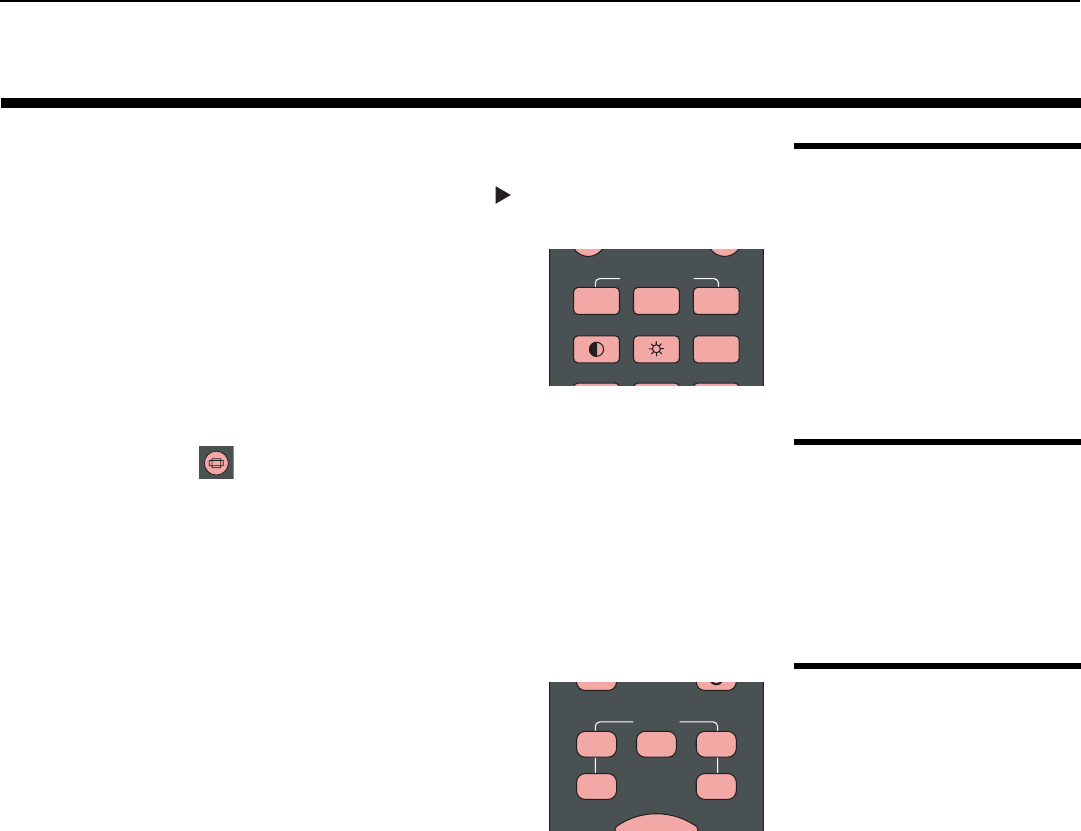

4.1
Selecting Video
Memory
Press M1, M2 or M3 to recall settings from a memory preset. Then, press ENTER to
confirm your selection. Or, to cancel the operation, press to select Cancel and press
ENTER.
You can assign each of these three buttons to any of four
memory presets. For more information, refer to M1 Key /
M2 Key / M3 Key on page 61.
4.2
Selecting an Aspect
Ratio
Press the aspect ratio ( ) button to select the appropriate aspect ratio for the type of
program material being viewed.
4.3
Selecting An Input
Source
When you turn on the LS-3/LS-5, it switches to the last
selected input and looks for a valid signal.
Use these buttons on the remote control to select an
input source directly. You can assign each of these five
buttons to any input. The default assignments are: 1 =
HDMI 1, 2 = HDMI 2, 3 = Component 1, 4 = S-Video, 5 =
Video.
For more information, refer to 1 Key / 2 Key / 3 Key / 4 Key / 5 Key on page 61.
4. Operation
M1 M2 M3
SHARP
USER MEMORY
1
4
2 3
5
SOURCE
Operation
38 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
4.4
Using
Picture-In-Picture (PIP)
For PIP purposes, there are three groups of inputs
separated by their display modes:
• Video (SD) group: Video, S-Video and SCART
inputs.
• Graphic (HD) group: Component 1, Component 2 and RGB inputs.
• Digital Video group: HDMI 1 and HDMI 2 inputs.
PIP shows one input from any of these groups within or beside one input from either of the
other two groups.
• Press PIP to enable the PIP function. Once enabled, press PIP repeatedly to select the
desired PIP source or turn PIP off.
• Press SWAP to swap the main and PIP images.
For more information, refer to PIP Position on page 59.
For each source, Table 4-1 shows which of the other sources are available as a PIP
source.
Table 4-1. Available Main and PIP Source Combinations
PIP Input Source
VIDEO S-VIDEO SCART COMP 1 COMP 2 RGB HDMI
2
HDMI
1
Main Input Source
VIDEO
–––
√ √ √ √ √
S-VIDEO
–––
√ √ √ √ √
SCART
–––
√ √ √ √ √
COMP 1
√√√
– – –
√ √
COMP 2
√√√
– – –
√ √
RGB
√√√
– – –
√ √
HDMI 2
√ √ √ √ √ √
– –
HDMI 1
√ √ √ √ √ √
– –
Notes:
1. “
√
” means that that source is available as a PIP source with a given main source; “–” means that
it is not.
2. Disabled sources (refer to Source Enable on page 58) are not available as PIP sources.
PIP SWAP LIGHT
Operation
Runco LS-3/LS-5 Installation/Operation Manual 39
PRELIMINARY
4.5
Using the On-Screen
Menus
1. Press the MENU button on the remote control or system keypad to display the Main
Menu.
2. There are six menus. Press or to select a sub-menu.
3. Press or to select a sub-menu item.
4. For each sub-menu item, the currently-selected value appears in white text or is
otherwise highlighted. Press or to choose a setting for that item, or press
ENTER to go to another sub-menu.
5. Press MENU to return to the previous menu.
6. From the Main Menu, press MENU to turn off the OSD menu.
The LS-3/LS-5 OSD menus are arranged hierarchically, as shown in Figure 4-1.
Depending on the selected input source and signal characteristics, some menu options
may not be available.
Operation
40 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Figure 4-1. LS-3/LS-5 OSD Menu Structure
Main
Aspect Ratio 16:9, 4:3, Letterbox, 4:3
Narrow or Native
Memory
Recall Memory
Save Settings
Save ISF
Brightness
0 ... 50* ... 100
Contrast
Color
Color Tint
Sharpness
Sharpness
Sharpness Mode
(Simple or Advanced)
Horizontal Sharpness
Vertical Sharpness
Diagonal Sharpness
Sharpness Overshoot
Horizontal Texture
Vertical Texture
Diagonal Texture
Texture Overshoot
Noise Threshold
Noise Reduction
Noise Reduction
Noise Reduction Mode
(Simple or Advanced)
General Noise Reduction
Block Artifact Reduction
Mosquito Noise Reduction
Overscan Off, Crop or Zoom
Source Select
HDMI 1, HDMI 2, RGB,
Comp. 1, Comp. 2, Video,
S-Video or SCART
PIP Select
Off, HDMI 1, HDMI 2, RGB,
Comp. 1, Comp. 2, Video,
S-Video or SCART
Resync (press ENTER to execute)
Advanced
Color Space Auto, REC709, REC601,
RGB-PC or RGB-Video
Video Standard Auto, NTSC, PAL or SECAM
Gamma 2.5, 2.2, Video, 2.0 or Graphics
Color Temperature 5500K, 6500K, 7500K, 9300K
or Native
DLP Frame Rate Auto, 48 Hz, 50 Hz or 60 Hz
Color Gamut Auto, REC709, SMPTE-C, EBU
or Native
SatCo On or Off
ConstantContrast On or Off
Adaptive Contrast On or Off
RGB Adjust Red / Green / Blue Offset
Red / Green / Blue Gain
Fine Sync
V. Position
H. Position
Phase
Tracking
Sync Level
System
Source Enable On or Off for each source
PIP Position
Top Left, Top Right, Bottom
Left, Bottom Right,
Picture-by-Picture or
Split Screen
Menu Position Top Left, Top Right, Bottom
Left, Bottom Right or Center
Translucent Menu 0% (opaque), 25%, 50% or
75%
Lamp Power Economy or Standard
Blank Screen Black, Blue or White
Auto Power Off
On or OffAuto Power On
Rear Projection
Ceiling Mode Auto, On or Off
Power On Chime On or Off
Control
1 Key
HDMI 1, HDMI 2, RGB,
Comp. 1, Comp. 2, Video,
S-Video or SCART
2 Key
3 Key
4 Key
5 Key
M1 Key User Memory 1,
User Memory 2, ISF Day or
ISF Night
M2 Key
M3 Key
Trigger 1 Lamp, 16:9, Letterbox, 4:3,
4:3 Narrow or RS-232
Trigger 2
Remote Code Set Set 1 or Set 2
Auto Source On or Off
Language English, French, German, Italian, Spanish, Swedish,
Traditional Chinese, Simplified Chinese, Japanese,
Korean, Portuguese or Russian
Service
Model Name
(read-only)
Unit Serial Number
Software Version
Active/PIP Source
Pixel Clock
Signal Format
H/V Refresh Rate
Lamp Hours
Lamp Hour Reset Reset? (Yes or No)
Factory Reset Reset Everything?
(Yes or No)
Blue Only On or Off
Test Patterns On or Off
Altitude Auto or High
Operation
Runco LS-3/LS-5 Installation/Operation Manual 41
PRELIMINARY
MainThe LS-3/LS-5 Main Menu, shown in Figure 4-2, provides access to the most
commonly-used projector functions.
Figure 4-2. LS-3/LS-5 Main Menu
1. For best results, Runco recommends that you set
ConstantContrast to Off before adjusting Brightness, Contrast and
other image quality settings in this menu (refer to
ConstantContrast on page 54). After you have completed the
initial calibration, set ConstantContrast to On if desired.
2. Image controls only operate on the active source. To adjust the PIP
source, switch to the PIP source (thereby making it the active
source), adjust the controls and then switch back.
Note
Operation
42 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Aspect Ratio: To change the aspect ratio (size and shape) of the projected image, press
or to highlight Aspect Ratio. Use the or buttons to select the appropriate
aspect ratio for your screen size, installed lens configuration and the type of program
material being viewed, then press ENTER; refer to Table 4-2.
Table 4-2. Aspect Ratio Settings
Aspect
Ratio
Setting
Description
Aspect
Ratio of
Source
Signal
Geometry of Projected Image
With Standard Lens
(1.78:1 Screen) With Anamorphic Lens (2.35:1 Screen)
16:9
16:9 linearly scales the
source active image
horizontally and vertically
to fill a 16:9 screen.
16:9
4:3
4:3
4:3 linearly scales the
source active image
horizontally and vertically
to fill a 4:3 screen.
16:9
4:3
Operation
Runco LS-3/LS-5 Installation/Operation Manual 43
PRELIMINARY
Letterbox
Letterbox mode scales
(zooms in on) a 4:3
image linearly (by the
same amount on all
sides) to fill a 16:9
display, cropping the top
and bottom of the image.
16:9
4:3
4:3
Narrow
4:3 Narrow linearly scales
the source active image
horizontally, so that a 4:3
source has the correct
aspect ratio when using
an anamorphic lens.
16:9
4:3
Table 4-2. Aspect Ratio Settings (continued)
Aspect
Ratio
Setting
Description
Aspect
Ratio of
Source
Signal
Geometry of Projected Image
With Standard Lens
(1.78:1 Screen) With Anamorphic Lens (2.35:1 Screen)
Operation
44 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY

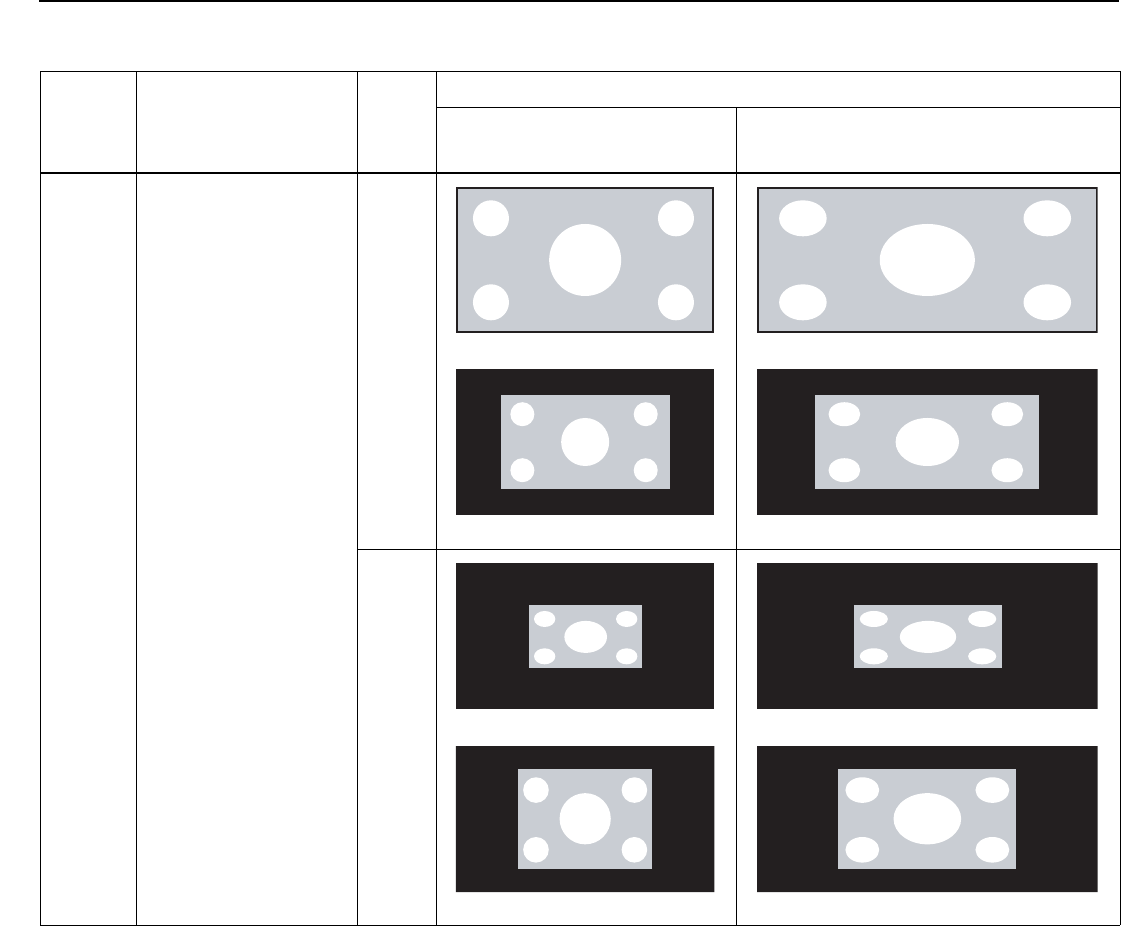

Native
Select Native to display
the source signal in its
native resolution,
centered in the display
area with no re-sizing or
overscan.
This means, for example,
that 720p HDTV
programs will display with
unused pixels on all
sides: 320 on the left and
right sides and 180
above and below.
With SDTV and EDTV
sources, the LS-3/LS-5
scales the image
horizontally to achieve a
16:9 aspect ratio.
16:9
4:3
Table 4-2. Aspect Ratio Settings (continued)
Aspect
Ratio
Setting
Description
Aspect
Ratio of
Source
Signal
Geometry of Projected Image
With Standard Lens
(1.78:1 Screen) With Anamorphic Lens (2.35:1 Screen)
1080i HDTV Image
720p HDTV Image
1080i HDTV Image
720p HDTV Image
480i SDTV Image
1024x768 PC Image
480i SDTV Image
1024x768 PC Image
Operation
Runco LS-3/LS-5 Installation/Operation Manual 45
PRELIMINARY
Memory: Select Memory from the Main menu, then press ENTER to recall image quality
settings previously saved, or to save changed settings in any of four memory locations.
•Recall Memory: Select Recall Memory from the Memory menu to recall saved image
quality settings. Unless you select Default (see below), this control affects all sources,
not just the active source.
•User Memory 1 and User Memory 2 contain the factory default settings when the
projector is initially turned on.
• When you recall the ISF Day or ISF Night memory settings, all settings associated
with these stored values are grayed out. This prevents unintended adjustments from
being made. To remove this restriction, choose User Memory 1 or User Memory
2.
ISF Day and ISF Night are grayed out unless these custom settings have already
been saved.
•Choose Default to restore the factory-default settings for the active source only.
The other sources are unaffected.
•Save Settings: Select Save Settings from the Memory menu to save any
image-related settings you have changed to User Memory 1 or User Memory 2.
The following items are saved (for all sources, not just the active source):
•Brightness / Contrast
•Color / Color Tint
•Sharpness (all settings in sub-menu)
•Noise Reduction (all settings in sub-menu)
•Color Space
•Video Standard
•Gamma
•Color Temperature
•DLP Frame Rate
•Color Gamut
•SatCo
•ConstantContrast
•Adaptive Contrast
•RGB Adjust (all settings in sub-menu)
•Lamp Power
•Save ISF: Select Save ISF from the Memory menu to save any image-related settings
you have changed to the ISF Day or ISF Night memory location.
The settings that are saved are the same as those saved with the Save Settings
command (see above).
You must enter a passcode to access the Save ISF
sub-menu.
Note
Operation
46 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Brightness: On your external test pattern source, select a PLUGE pattern. (PLUGE is an
acronym for “Picture Line-Up Generation Equipment.”) Figure 4-3 shows a typical PLUGE
pattern.
Figure 4-3. Typical PLUGE Pattern for Adjusting Brightness
PLUGE patterns vary but generally consist of some combination of black, white and gray
areas against a black background. The example above includes two vertical bars and four
shaded boxes.
Select Brightness from the Main menu. Use the or buttons to adjust the level so that:
• The darkest black bars disappear into the background.
• The dark gray areas are barely visible.
• The lighter gray areas are clearly visible.
• The white areas are a comfortable level of true white.
• The image contains only black, gray and white (no color).
Contrast: On your external test pattern source, select a stepped, gray-bar pattern like the
one shown in Figure 4-4.
Figure 4-4. Typical Gray Bar Pattern for Adjusting Contrast
Select Contrast from the Main menu. Use the or buttons to adjust the contrast up
until the top two bars become almost the same brightness, then down just until the
brightness change between these bars is consistent with the other bars.
Below Black
A
bove Black
Operation
Runco LS-3/LS-5 Installation/Operation Manual 47
PRELIMINARY
Color: To adjust the overall color intensity, select Color from the Main menu. Decrease
this setting if colors are overly saturated; increase it if colors appear muted or washed out.
Color Tint: Tint or “hue” is the ratio of red to green in the color portion of the image. To
adjust the tint, select Color Tint from the Main menu. Decrease this setting to shift the hue
toward red; increase it to shift the hue toward green.
Sharpness: “Sharpness” is the amount of high-frequency detail in the image. To adjust
this, select Sharpness from the Main menu and press ENTER. On your external test
pattern source, select a pattern like the one shown in Figure 4-5.

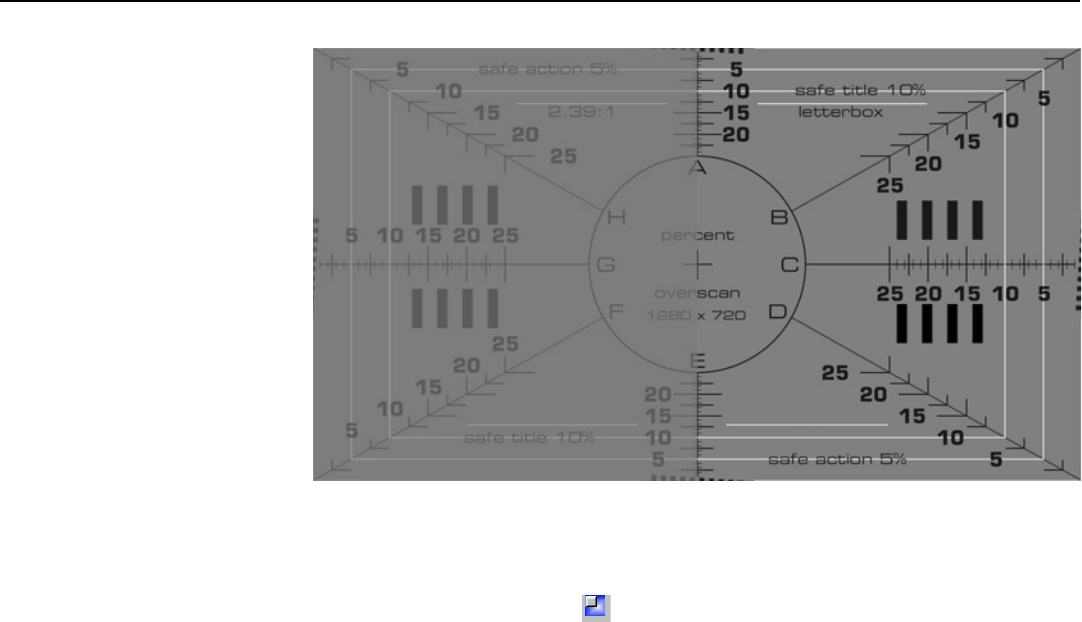

Figure 4-5. Typical Test Pattern for Adjusting Sharpness
•Sharpness (Simple Mode): Adjust as needed, looking for white edges around the
transitions from black to gray and differently-sized lines in the “sweep” patterns at the
top and bottom. Lower the sharpness setting to eliminate them.
Brightness and Contrast controls are interactive. A change to one
may require a subtle change to the other in order to achieve the
optimum setting.
Like the Brightness and Contrast controls, the color and tint controls
are interactive. A change to one may require a subtle change to the
other in order to achieve the optimum setting.
Note
Note
Operation
48 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
•Sharpness Mode: Sharpness Mode allows or prevents access to the detailed
sharpness controls in this menu.
In most cases, Simple mode provides a sufficient level of control to produce the best
picture from the most popular sources. In Simple mode, only the Sharpness (top-most)
slider is adjustable; the others are grayed out.
Choose Advanced mode if you need more precise control over sharpness. In
Advanced mode, only the top slider is grayed out.
•Horizontal Sharpness / Vertical Sharpness / Diagonal Sharpness: Use these
controls to enhance image detail along horizontal, vertical and diagonal edges
respectively.
•Sharpness Overshoot: Use the Sharpness Overshoot control to minimize or eliminate
rings or shadows on dominant edges that cannot be removed using the “simple”
Sharpness control.
•Horizontal Texture / Vertical Texture / Diagonal Texture / Texture Overshoot:
Use these controls to remove artifacts from textured areas that cannot be removed
using the “simple” Sharpness control.
•Noise Threshold: The Noise Threshold setting adjusts the frequency below which the
Sharpness controls have an effect. Frequencies above the threshold are considered
“noise.”
Generally, the higher the setting, the more noticeable the effect of any adjustments will
be.
Noise Reduction: To apply noise reduction to the source signal, select Noise Reduction
from the Main menu and press ENTER. Noise Reduction is useful for clearing up noisy
images from interlaced SD sources.
•Noise Reduction (Simple Mode): Use the or button to adjust as desired,
keeping in mind that reducing noise (which reduces high frequencies) may also soften
the image.
•Noise Reduction Mode: Noise Reduction Mode allows or prevents access to the
detailed noise reduction controls in this menu.
In most cases, Simple mode provides a sufficient level of control to produce the best
picture from the most popular sources. In Simple mode, only the Noise Reduction
(top-most) slider is adjustable; the others are grayed out.
Choose Advanced mode if you need more precise control over noise reduction. In
Advanced mode, only the top slider is grayed out.
•General Noise Reduction: General Noise Reduction is temporal and spatial noise
reduction for all types of inputs. The scene is analyzed for differences from frame to
frame and reduces those differences that are not determined to be motion.
•Block Artifact Reduction: Use this control to reduce or eliminate so-called “block
artifacts” in MPEG-compressed video signals (digital broadcasts or DVDs). Set it as
needed to minimize distortion within horizontal and vertical block boundaries.
•Mosquito Noise Reduction: Use this control to reduce or eliminate so-called
“mosquito noise” in MPEG-compressed video signals. Set it as needed to minimize
distortion around the edges of moving objects, moving artifacts around edges and/or
blotchy noise patterns superimposed over the objects.
Operation
Runco LS-3/LS-5 Installation/Operation Manual 49
PRELIMINARY
Overscan: Some television programs are produced based on the assumption that older
television sets may not display the outer edges of the broadcast picture area. Overscan
effectively hides these inactive, outer edges of the image. Choose one of the following:
•Off: This setting leaves the image as-is.
• Crop: This setting adds a mask at the left and right edges of the source active image
equal to 3% of the displayed horizontal resolution, and at the top and bottom edges
equal to 3% of the displayed vertical resolution.
•Zoom: This setting adds a factor to the scaling of the source active image so that the
vertical and horizontal resolutions are 106% of the size determined by the aspect ratio
function. Anything outside of the original image area is removed.
Figure 4-6 illustrates the effect of each overscan setting for each aspect ratio.
Figure 4-6. Overscan Examples
Source Select: To select a video source, press or to highlight Source Select, then
press ENTER. This displays the Source Select sub-menu, shown in Figure 4-7.
When the Aspect Ratio is set to Native, set Overscan to Off or Crop.
Note
Off Crop Zoom
4:3
16:9
4:3
Narrow
Native
(720p)
= Source Image Area
= Edge Noise
= Screen (16:9)
Operation
50 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
The default source selection is HDMI 1. All sources that are not available per the source
enable function (refer to Source Enable on page 58) are grayed out.

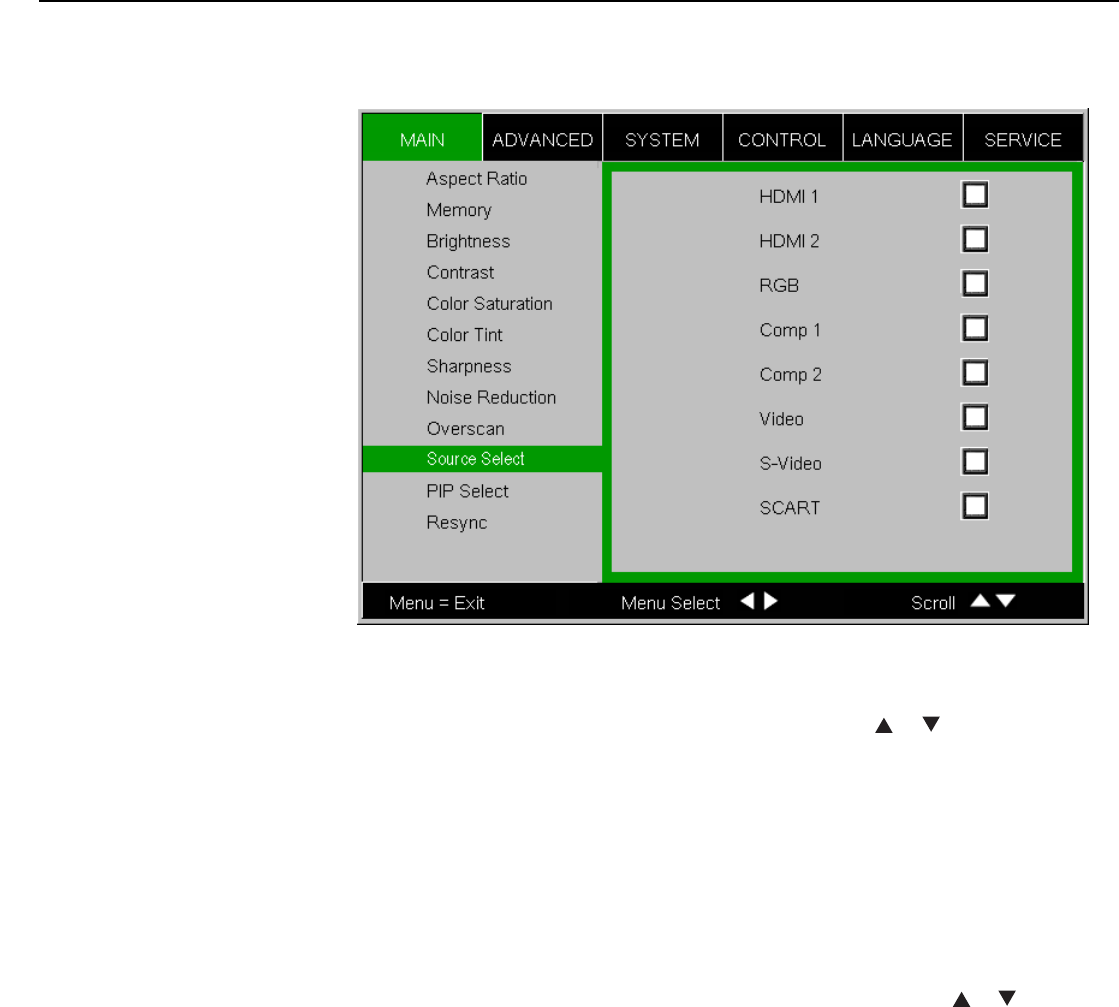

Figure 4-7. Source Select Sub-Menu
PIP Select: To select a PIP (secondary) video source, press or to highlight PIP
Select, then press ENTER. The default PIP selection is Off.
All sources that are not available per the source enable function (refer to Source Enable
on page 58) are grayed out.
All sources that cannot be used for PIP due to a shared electronic path with the Active
source are grayed out. The PIP source is a saved setting for each source, like brightness
and contrast.
If for some reason the current PIP source becomes invalid (by disabling it in the source
enable menu, for instance), PIP Select automatically resets to Off.
Resync: If the projected image becomes unstable or degraded, press or to highlight
Resync, then press ENTER. This causes a re-acquisition of the active source and the PIP
source, if present. It also changes any Fine Sync settings (described on page page 55) for
this timing to the default setting.
Operation
Runco LS-3/LS-5 Installation/Operation Manual 51
PRELIMINARY
AdvancedUse the controls in the Advanced menu, shown in Figure 4-8, to perform advanced image
adjustments.

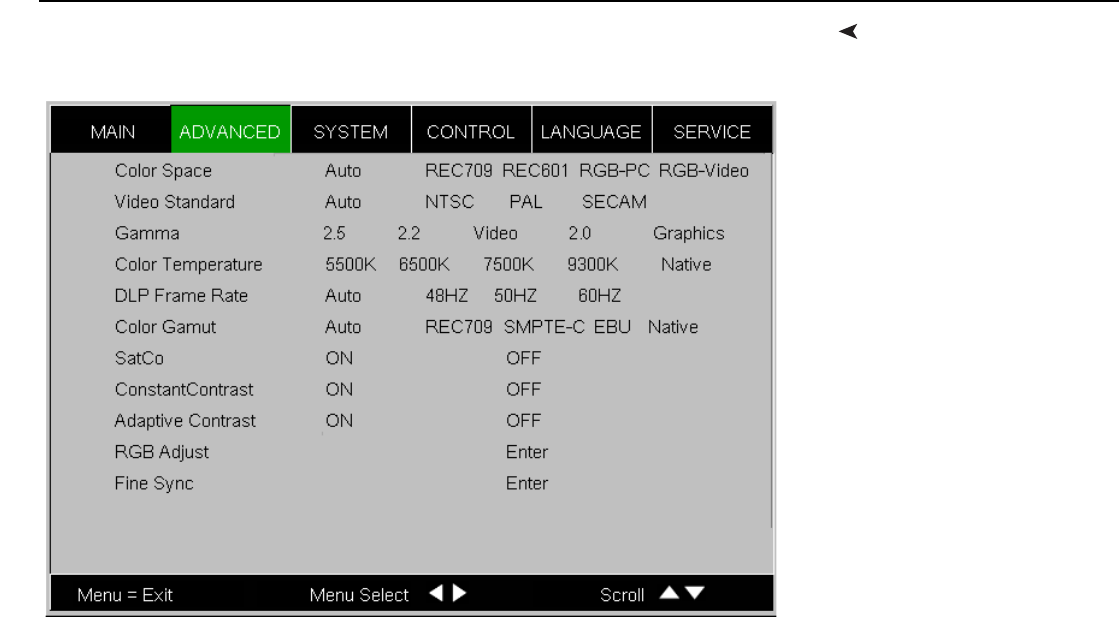

Figure 4-8. LS-3/LS-5 Advanced Menu
Color Space: Select Color Space from the Advanced menu to choose the color space of
the source signal for HDMI, RGB, and component connections.
• The default setting, Auto, functions as follows:
•HDMI: If the Auxiliary Video Information (AVI) infoframe contains color space and/or
range data, the LS-3/LS-5 uses that information. Otherwise, for RGB sources, the
LS-3/LS-5 uses the RGB-Video color space. For component SDTV and EDTV
resolutions, REC601 is used. For other component video resolutions, REC709 is
used.
•RGB: If Hsync or Vsync signals are present, the LS-3/LS-5 uses the RGB-PC color
space. Otherwise, REC601 is used for SDTV and EDTV sources, and REC709 for
all other sources.
•Component: For SDTV and EDTV resolutions, the LS-3/LS-5 uses the REC601
color space. For all other resolutions REC709 is used.
In most cases, the Auto setting determines the correct color space to use. If it does not,
you can force the LS-3/LS-5 to use a specific color space. Choose one of the following:
•REC709 sets the color space matrix to that defined in ITU-R BT.709.
•REC601 sets the color space matrix to that defined in ITU-R BT.601.
•RGB-PC uses RGB color space and sets black at 0,0,0 RGB and white at
255,255,255 RGB, assuming an 8-bit image.
•RGB-Video uses RGB color space and sets black at 16,16,16 RGB and white at
235,235,235, assuming an 8-bit image, to correspond to the luminance values defined
in digital component standards.
Operation
52 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Video Standard: Select Video Standard from the Advanced menu to specify the color
system for composite video or S-Video input signals.
Different countries use different formats for video signals. Select the appropriate Video
Standard for your region:
•Auto: The color systems are automatically identified and the format is set accordingly.
• PAL: This is the standard used in Europe, Australia and many other parts of the world,
typically with a 50Hz frame rate.
•SECAM: This is a standard format used mainly in France and Russia.
•NTSC: This is the standard format used mainly in the United States and Japan.
Gamma: Select Gamma from the Advanced menu to choose a DLP de-gamma curve.
Used correctly, the Gamma control can improve contrast while maintaining good details
for blacks and whites.
If excess ambient light washes out the image and it becomes difficult or impossible to see
details in dark areas, lower the gamma setting to compensate. This improves contrast
while maintaining good details for blacks. Conversely, if the image is washed out and
unnatural, with excessive detail in black areas, increase the setting.
•2.5 sets the gamma to a 2.5 power law.
•2.2 sets the gamma to a 2.2 power law.
•Video is similar to 2.2 gamma but differs in dark areas of the image to correspond to
the function that video cameras use to create images.
•2.0 sets the gamma to a 2.0 power law.
•Graphics should only be used for computer presentations that require increased
brightness at the cost of grayscale accuracy.
Color Temperature: Color temperature defines the “color of gray;” that is, adjusts the
75% white point to various color points.
To choose a color temperature setting, select Color Temperature from the Advanced
menu. Then, press or to select 5500K, 6500K, 7500K, 9300K or Native. The default
setting, 6500K, is appropriate for most situations. Higher settings produce a “bluer”
picture; lower ones impart a reddish hue to the image. Select Native to disable white
point adjustment of the source signal.
Operation
Runco LS-3/LS-5 Installation/Operation Manual 53
PRELIMINARY
DLP Frame Rate: Select DLP Frame Rate from the Advanced menu to choose the
output frame rate. You can have the LS-3/LS-5 automatically determine the optimum
frame rate, or you can force it to use a specific frame rate.
• The default setting, Auto, frame locks to the main source if it has a vertical refresh rate
of between 48 and 62Hz. Vertical refresh rates of from 24 to 31Hz are doubled. Frame
rates between 31 and 48Hz and greater than 62Hz are converted to 60Hz.
• Select 48Hz to force the output frame rate to 48Hz. Use this setting to eliminate 2:3
pull-down judder with 60Hz film-based sources.
•50Hz and 60Hz force the output frame rate to 50Hz and 60Hz respectively.
Color Gamut: Select Color Gamut from the Advanced menu to select a color gamut
(range) that may be different from the default color gamut.
Each setting defines the precise hue of each primary (red, green and blue) and secondary
(yellow, cyan and magenta) color component used to generate the millions of colors
produced in displays. Changing either or both of these numbers changes the hue of the
color and relocates the “triangle” for possible colors. For example, changing the x/y
coordinates for red moves the color closer to either orange or violet, which in turn affects
all displayed colors having a red component.
•Auto automatically chooses the appropriate color gamut:
•SMPTE C for NTSC, 480i and 480p sources.
•EBU for PAL, SECAM, 576i and 576p sources.
•REC709 for all other sources.
•REC709 chooses the REC709 color gamut.
• Select SMPTE-C to choose the SMPTE-C color gamut.
• Select EBU to choose the EBU color gamut.
• Select Native to use REC709 for cyan, magenta, and yellow and uncorrected values
for red, green, and blue.
Table 4-3 lists the x- and y-coordinates for each primary and secondary color component.
If PIP is active, the LS-3/LS-5 converts the PIP source frame rate to
the same frame rate as the main source.
Table 4-3. x/y Color Gamut Values
Primary
Color
Color Gamut Settings and Associated x/y Values
REC709 SMPTE “C” EBU
x y x y x y
Red 0.640 0.330 0.635 0.340 0.640 0.330
Yellow 0.419 0.505 0.421 0.506 0.418 0.502
Green 0.300 0.600 0.305 0.595 0.290 0.600
Cyan 0.225 0.329 0.228 0.326 0.220 0.329
Blue 0.150 0.060 0.155 0.070 0.150 0.060
Magenta 0.321 0.154 0.318 0.162 0.328 0.158
Note
Operation
54 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
SatCo: Select SatCo from the Advanced menu to enable (On) or disable (Off)
BrilliantColor processing, which improves brightness in grays and secondary colors by
using the spoke light from the color wheel.
ConstantContrast: Select ConstantContrast from the Advanced menu to enable (On) or
disable (Off) the ConstantContrast actuator in the optical engine. ConstantContrast uses
a dynamic iris that modulates light to the DMD based on the actual content of the video
material. Runco recommends that you disable ConstantContrast before adjusting
Brightness, Contrast or other image settings.
Adaptive Contrast: Adaptive Contrast enhancement expands the light and dark portions
of an output image according to the mean luminance of the input image.
RGB Adjust: To remove any trace of color from the white areas of the projected image,
choose RGB Adjust from the Advanced menu and press ENTER. This displays the RGB
Adjust sub-menu, shown in Figure 4-9.

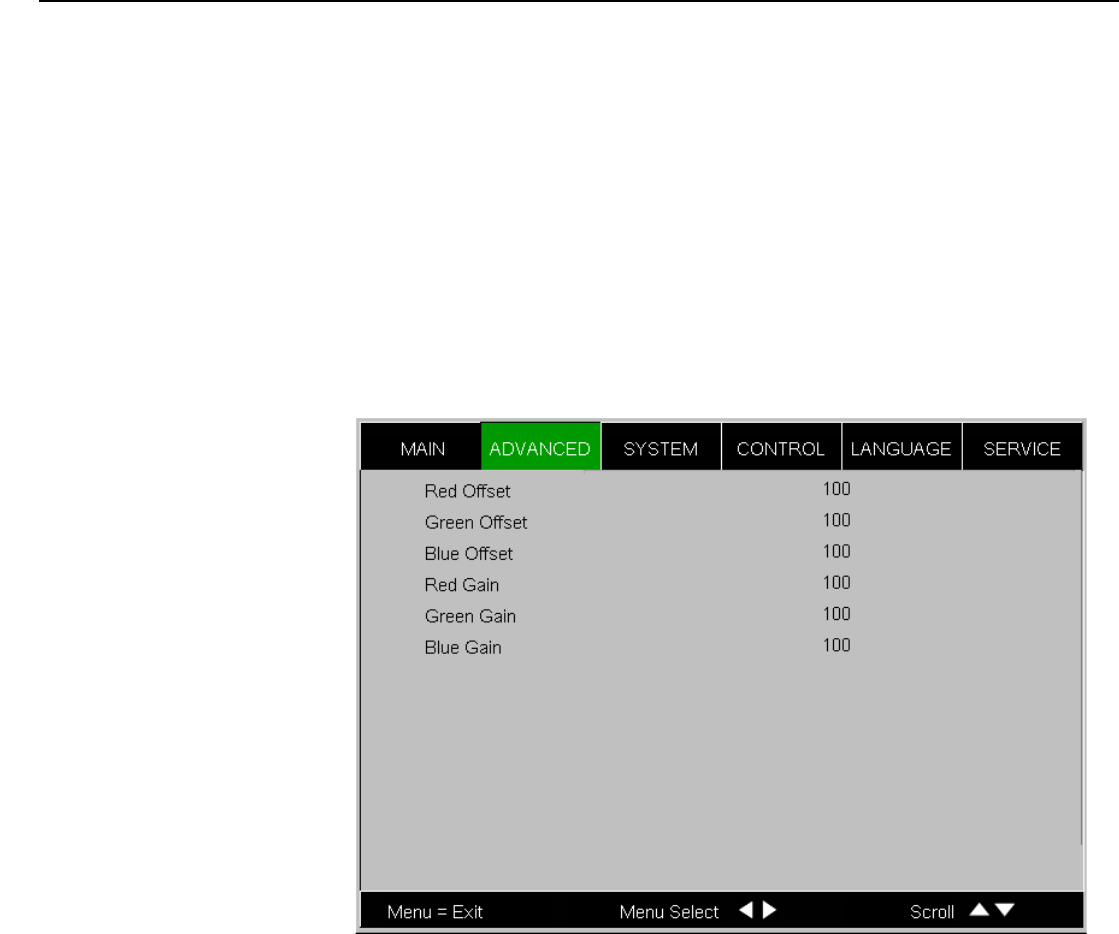

Figure 4-9. RGB Adjust Sub-Menu
•Gain: Use the Gain controls to correct color imbalances in the bright areas of the
image. A good way to do this is to use a test pattern consisting mostly of solid white
areas, such as an 80 IRE “window” pattern. If the white areas contain traces of red,
green or blue, decrease the Gain for that color.
•Offset: Use the Offset controls in the RGB Adjust sub-menu to correct color
imbalances in the dark areas of the image. A good way to do this is to use a test
pattern consisting mostly of dark gray areas, such as a 30 IRE “window” pattern. If the
gray areas contain traces of red, green or blue, decrease the Offset for that color.
The Gain controls increase or decrease the full-scale input range; the Offset controls
shift the entire range, resulting in a change in brightness.
Operation
Runco LS-3/LS-5 Installation/Operation Manual 55
PRELIMINARY
Fine Sync: To fine-tune the position and other image attributes, choose Fine Sync from
the Advanced menu and press ENTER. This displays the Fine Sync sub-menu, shown in
Figure 4-10.
Figure 4-10. Fine Sync Sub-Menu
• V Position: This control adjusts the vertical position of the image within the designated
image area, up to 25 per cent of the image height up or down.
•H Position: This control adjusts the horizontal position of the image within the
designated image area, up to 25 per cent of the image width left or right.
• Phase (RGB or Component sources): This control adjusts the phase of the pixel
sampling clock relative to the incoming signal. Adjust the phase when an RGB or
Component image still shows shimmer or “noise” after Tracking has been optimized.
For best results, use a good test pattern such as a smooth gray consisting of a clear
pattern of black and white pixels, or a similar “half on, half off” graphic image. Adjust the
slidebar until the image stabilizes and each pixel is clearly defined. You may notice that
you can stabilize the image at more than one point. Use either setting in such cases.
Generally, higher Gain settings reduce the image contrast; higher
Offset settings reduce the image brightness.
Adjust the Phase after adjusting Tracking (see below). If some
shimmer from a video or HDTV source persists, use the Noise
Reduction controls (described on page page 48) to remove
high-frequency noise from the signal.
Note
Tip
Operation
56 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
• Tracking (RGB or Component sources): Tracking determines the frequency of the
pixel sampling clock, indicated by the number of incoming pixels per line, so that all
pixels generated by a particular source are sampled.
Steady flickering or several soft vertical stripes or bands across the entire image
indicates poor pixel tracking. Proper pixel tracking helps ensure that the image quality
is consistent across the screen, that aspect ratio is maintained and that pixel phase
(see above) can be optimized.
• Sync Level (Component sources only): Select Sync Level to adjust the voltage level
of the LS-3/LS-5 Sync signal detection circuitry.
Sync Level adjustment is occasionally necessary when a DVD player or HDTV source
signal drops “below black” (for example, during scenes with explosions or when
subtitles are present) and causes the projector to temporarily lose sync. If the Sync
Level from the source is persistently too low, the projector won’t sync with the source
at all.
The range is from 50 to 256 millivolts (mV) inclusive. The default setting is 240 mV and
should rarely require adjustment.
Operation
Runco LS-3/LS-5 Installation/Operation Manual 57
PRELIMINARY
SystemUse the controls in the System menu, shown in Figure 4-11, to adjust the lamp, change
the display orientation and perform other, common installation tasks.
Figure 4-11. LS-3/LS-5 System Menu
Operation
58 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Source Enable: To enable or disable selection of a source, choose Source Enable from
the System menu and press ENTER. This displays the Source Enable sub-menu, shown
in Figure 4-12.
Figure 4-12. Source Enable Sub-Menu
•HDMI 1/HDMI 2: Enables or disables the HDMI 1 and HDMI 2 sources.
• RGB: Enables or disables the RGB source.
•Comp 1/Comp 2: Enables or disables the Component 1 and Component 2 sources.
• Video: Enables or disables the Composite video source.
• S-Video: Enables or disables the S-Video source.
• SCART: Enables or disables the SCART RGBS source.
If either Component 1 or Video is enabled, SCART must be disabled.
If SCART is enabled, both Component 1 and Video must be disabled.
Note
Note
Operation
Runco LS-3/LS-5 Installation/Operation Manual 59
PRELIMINARY
PIP Position: To change the position of the PIP image, choose PIP Position from the
System menu; see Figure 4-13. Choose one of the following:
• Top Left: This places the PIP source into a 644x362 designated image area at the top
left of the screen.
• Top Right: This places the PIP source into a 644x362 designated image area at the
top right of the screen.
• Bottom Left: This places the PIP source into a 644x362 designated image area at the
bottom left of the screen-safe area of the DMD.
• Bottom Right: This places the PIP source into a 644x362 designated image area at
the bottom right of the screen-safe area of the DMD.
• Picture-By-Picture: This reduces the designated image area of the Active source to
921x518 and places it next to the PIP source, which is also in a 921x518 image area.
These two images are centered on the screen.
• Split Screen: This is a special mode in which the active source is also used as the PIP
source and placed in a PIP area equal to half the display on the left side. This results in
the right half of the image being the active source and the left half is the PIP source.
The LS-3/LS-5 applies the User Memory 2 settings to the PIP image.
Split-screen mode is useful for viewing “before” and “after” settings for Sharpness,
Noise Reduction and other advanced image parameters. See Figure 4-14.
Figure 4-13. PIP and PBP areas for 1080p Display
DMD Area 1920x1080
Screen-Safe Area 1842x1036
921x518 921x518
644x362
PIP
(top right)
PBP2PBP1
Operation
60 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Figure 4-14. PIP Split-Screen Mode
Menu Position: Select Menu Position from the System menu to change the OSD menu
position. The default setting is “ “ (top left).
Translucent Menu: Select Translucent Menu from the System menu to adjust the
degree of translucence (show-through) in the menus and message boxes. 0% means that
the menus are opaque. The default setting is 25%.
Lamp Power: Select Lamp Power from the System menu to adjust the lamp output level.
You can choose to run the lamp as bright as possible (230W; this is the default setting) or
you can choose the Economy (180W) setting. Generally, lower lamp output prolongs the
life of the lamp, but decreases brightness. This setting is per source, not global, so it can
be saved like other user settings.
Blank Screen: Select Blank Screen from the System menu to choose the color of the
blank screen that appears when no source signal is present. The options are Black, Blue
and White. The default is Black.
Auto Power Off: Set Auto Power Off to On to have the LS-3/LS-5 turn itself off after 20
minutes of inactivity (no source signal present).
Auto Power On: Setting Auto Power On to On causes the projector to automatically
power up when AC power is present. If the projector is plugged into a switched AC outlet,
this allows the projector to be turned on using a wall switch instead of the remote control
unit. If you do not need this capability, set Auto Power On to Off (this is the default
setting).
Rear Projection: This control reverses all images and menus, and is necessary when the
projector is used in rear-projection applications. The default is Off.
Ceiling Mode: This control flips the image so the projector can be used in ceiling
mounted installations. The default setting, Auto, automatically determines the orientation
using an internal sensor.
Power On Chime: This controls the audible chime at startup.
Operation
Runco LS-3/LS-5 Installation/Operation Manual 61
PRELIMINARY
ControlSelect Control from the Main Menu to set various options related to control of the
projector.
1 Key / 2 Key / 3 Key / 4 Key / 5 Key: These menu items assign the function of the
keys numbered 1 through 5 on the remote.
There are eight sources corresponding to the eight connections to the projector. When
you assign a source to a numbered key, the projector immediately goes to that source
when the key assigned to it is pressed.
If the chosen source is disabled via the Source Enable menu (refer to page 4.-58), this
setting has no effect.
M1 Key / M2 Key / M3 Key: These menu items assign which memory setting to recall
when the M1, M2 or M3 key on the remote is pressed.
Trigger 1: Select Trigger 1 from the Control menu to specify when the Trigger 1 port
outputs 12 volts. There is a three-second delay before activation to prevent operation
while selecting an aspect ratio.
•Lamp causes the port to output 12 volts whenever the lamp is on.
•16:9 causes the port to output 12 volts whenever the 16:9 aspect ratio is chosen.
•Letterbox causes the port to output 12 volts whenever the Letterbox aspect ratio is
chosen. The output stops if PIP is enabled (PIP source is set to anything other than off).
•4:3 causes the port to output 12 volts whenever the 4:3 aspect ratio is chosen. The
output stops if PIP is enabled (PIP source is set to anything other than off).
•4:3 Narrow causes the port to output 12 volts whenever the 4:3 Narrow aspect ratio is
chosen. The output stops if PIP is enabled (that is, the PIP source is set to anything
other than off).
Operation
62 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
•RS232 causes the port to output 12 volts when an RS232 screen trigger 1 “on”
command is received and stop when a trigger 1 “off” command is received. The 12 volt
output also stops when the projector is turned off.
Trigger 2 (LS-5 only): Select Trigger 2 from the Control menu to configure the Trigger 2
output. Trigger 2 operates identically to Trigger 1.
Remote Code Set: Select Remote Code Set from the Control menu to specify the
remote IR code set to which the LS-3/LS-5 responds. The default is Set-1. Choose Set-2
if other equipment in the theater responds to commands from the LS-3/LS-5 remote
control in ways that are unexpected or undesirable.
When you select a different remote code set on the LS-3/LS-5, you must re-program the
remote control unit to use that same code set. To do this, press and hold the LIGHT and
ENTER buttons simultaneously for approximately five seconds. When the code set has
changed, the remote control back-lighting “blinks” to visually confirm the change.
Table 6-1 lists the IR codes associated with each remote control button.
Auto Source: This control chooses whether or not to scan for other active sources if the
current source is not available. The default setting is Off.
Operation
Runco LS-3/LS-5 Installation/Operation Manual 63
PRELIMINARY
LanguageSelect Language from the Main Menu to change the OSD Language.
The LS-3/LS-5 can display the menus in English, French, German, Italian, Spanish,
Swedish, Traditional Chinese, Simplified Chinese, Japanese, Korean, Portuguese or
Russian.
Press or to select a language. Then, press ENTER to confirm your selection.
Operation
64 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Service Access the Service Menu, shown in Figure 4-15, to view information that uniquely
identifies your projector and indicates its current operational status:
•Model Name
•Unit Serial Number
•Software Version
•Active/PIP Source
•Pixel Clock
•Signal Format
•H/V Refresh Rate
•Lamp Hours (number of lamp hours elapsed since the last reset)
Should you ever need to contact Runco Technical Support, this information will help them
answer your questions and/or resolve product performance issues.
Figure 4-15. LS-3/LS-5 Service Menu
You can also perform various maintenance tasks, such as resetting the lamp hour
counter, from this menu.
➤
Operation
Runco LS-3/LS-5 Installation/Operation Manual 65
PRELIMINARY
Lamp Hour Reset: When you replace the projector lamp (refer to Lamp Replacement
on page 67), you should also reset the lamp hour counter. To do this, select Lamp Hour
Reset from the Service menu, then press ENTER. Press ENTER again to confirm the
reset. Or, to cancel the operation, press on the remote to highlight No, then press
ENTER.
Factory Reset: Select Factory Reset from the Service menu to restore all projector
settings – except those listed below – to their factory-default values:
•Lamp Hours
• User Memory 1 / User Memory 2
•ISF Day
•ISF Night
• Model Name / Serial Number
• Language
Blue Only: This feature removes all red and green color information from the image, and
is useful for color-calibrating the projector or other video components.
Test Patterns: The LS-3/LS-5 has numerous internal test patterns that are useful to
technicians for advanced calibration, measurement and fault isolation purposes. To
access them, select Test Patterns from the Service menu and set it to On.
The available test patterns are:
•White
• Black
•Red
•Green
• Blue
•Cyan
• Magenta
• Yellow
• ANSI Checkerboard
• Horizontal Gray Ramp
•Focus Grid
Press or on the remote control unit or built-in keypad to cycle through the test
patterns.
Reset the Lamp Hour counter ONLY after you replace the lamp.
Otherwise, the reported “Lamp Hours” will be inaccurate.
Do not exceed the recommended lamp life. An old lamp becomes
increasingly fragile and prone to sudden failure.
The OSD menus are not available when in “test pattern” mode.
Note
WARNING
Note
Operation
66 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
To turn test patterns off, press any key other than or on the remote control unit or
built-in keypad.
Altitude: Select Altitude from the Service Menu to control the operation of the projector’s
cooling fan.
In most cases, the default setting (Auto) will maintain the correct operating temperature. If
the lamp frequently turns off due to overheating, or in certain high-altitude operating
environments, you may need to change this setting to High.
Maintenance and Troubleshooting
Runco LS-3/LS-5 Installation/Operation Manual 67
PRELIMINARY
5.1
Lamp Replacement
The lamp should be replaced when it reaches the end of its life (typically between 2000
and 4000 hours depending on the Lamp Power setting), or sooner if a noticeable
degradation in brightness occurs. Contact your Runco dealer to obtain a replacement
lamp.
1. Turn off the projector and unplug the power cord. Allow the projector to cool
down for approximately 60 minutes prior to removing the lamp assembly for
replacement.
2. Using a flat-blade screwdriver, loosen
the two screws holding the rear
compartment cover in place.
3. Remove the rear compartment cover
by tilting it upward.
4. Loosen the screw on the lamp cover
and pull the lamp cover out.
5. Loosen the two screws on the lamp
module.
6. Pull the lamp module handle firmly to
remove the lamp module.
7. Perform Steps 6 through 2 (in reverse
order) to install the new lamp module.
8. Turn on the power and reset the lamp
timer.
5. Maintenance and Troubleshooting
Maintenance and Troubleshooting
68 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
5.2
Troubleshooting Tips
Table 5-1 provides some general guidelines for troubleshooting problems you may
encounter with the LS-3/LS-5. If the suggested solutions fail to resolve the problem or if
you encounter an issue not described here, please contact Runco Technical Support.
Table 5-1. Troubleshooting Chart
Symptom Possible Cause(s) Solution
The projector does not turn
on.
• The LS-3/LS-5 is not
plugged in or the AC outlet
is not active.
• Lamp cover is not securely
attached.
• Ensure that the LS-3/LS-5
is plugged in and that the
AC outlet is active.
• Securely attach the lamp
cover.
The projector does not turn
back on after it was powered
off.
• The projector will not turn
on for two minutes after
power-off, to protect the
lamp.
• Wait until the LS-3/LS-5
completes its cool-down
(POWER LED lights solid
green).
The remote control does not
work correctly.
• The batteries have run out.
• IR code set mismatch
between remote control
unit and projector.
• Replace the batteries.
• Press and hold the LIGHT
and ENTER remote
control buttons
simultaneously until the
remote control
back-lighting “blinks”
(approximately five
seconds). Then, try again.
The projector is on and OSD
menus appear, but there is no
video image on-screen.
• Incorrect source selection.
• Source component is not
turned on.
• Source component is
connected incorrectly or
not at all.
• Select the correct source.
• Turn on the source.
• Check cable connection
from source component to
projector.
A projected image from a
DVD is split or otherwise
scrambled.
• DVD player is connected
to the Component input
and set to progressive
scan mode.
• Turn off progressive scan
on the DVD player.
Image is blurred. • The lens is not correctly
focused.
• Adjust the focus.
Image is too bright and/or
lacks definition in the bright
areas of the image.
• Contrast is set too high. • Lower the contrast setting.
Image appears “washed out”
and/or dark areas appear too
bright.
• Brightness is set too high. • Lower the brightness
setting.
Note: You can obtain more detailed information about the cause of the error condition using
RS-232 commands. Refer to RS-232 Error Codes on page 82 for more information.
Maintenance and Troubleshooting
Runco LS-3/LS-5 Installation/Operation Manual 69
PRELIMINARY
Colors in the image are
swapped; for example, reds
appear blue or vice versa.
•The Red/Pr, Green/Y or
Blue/Pb outputs from the
source are connected to
the wrong inputs on the
LS-3/LS-5.
• Ensure that the source
outputs are connected to
the correct LS-3/LS-5
input.
LED is flashing alternating
green and red.
• The lamp cover is open.
• The lamp has failed or
exceeded its usage life.
• Close the lamp cover.
• Replace the lamp with a
new one.
LED is flashing red. • LS-3/LS-5 internal
temperature is too high.
• Power off the LS-3/LS-5
and allow it to cool down.
Ensure that the intake and
exhaust vents are not
blocked. Turn the
projector back on. If the
problem persists, please
contact Runco Technical
Support for assistance.
LED lights solid red. • Fans are not working
properly or power-on
self-test has failed (Note).
• Please contact Runco
Technical Support for
assistance.
Table 5-1. Troubleshooting Chart (continued)
Symptom Possible Cause(s) Solution
Note: You can obtain more detailed information about the cause of the error condition using
RS-232 commands. Refer to RS-232 Error Codes on page 82 for more information.
Maintenance and Troubleshooting
70 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Notes:
Serial Communications
Runco LS-3/LS-5 Installation/Operation Manual 71
PRELIMINARY
6.1
RS-232 Connection
and Port Configuration
To interface the LS-3/LS-5 with a home theater automation/control system or a PC
running terminal emulation software:
1. Connect it to your control system or PC as shown in Figure 3-12.
2. Start a terminal session on your PC using a terminal-emulation program, such as
HyperTerminal.
3. Configure the RS-232 controller or PC serial port as follows: 38400 bps, no parity, 8
data bits, 1 stop bit and no flow control.
4. Type ky or op followed by a command from among those listed in Table 6-1 or
Table 6-2 and press <Enter>. For example, to change the aspect ratio to Letterbox,
type op aspect = 1<Enter>.
6.2
Serial Command
Syntax
Serial commands to the LS-3/LS-5 take the following form:
• Commands are in ASCII format.
• Spaces and tabs can be used to improve readability and are ignored by the projector.
• All commands must end with a carriage return (ASCII hex 0D) to signify that the
projector can now read and execute the command.
• Commands are not case-sensitive.
The LS-3/LS-5 supports two types of commands: key commands and operation
commands. Key commands mimic pressing a button on the remote control. Operation
commands tell the projector exactly what to do.
All commands start with 2 letters:
ky for key commands.
op for operations commands.
Key CommandsThe syntax for key commands is simple:
ky <keyname>[CR]
Some key command examples:
ky menu[CR] Bring up or cancel menu display.
ky mem.sw[CR] Switch to next user memory.
ky asp.16.9[CR] Apply 16:9 aspect ratio.
The response from the projector for key commands will be the same command in
UPPERCASE.
Input: ky mem.sw[CR]
Response: KY MEM.SW [CR]
6. Serial Communications
Serial Communications
72 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Table 6-1 lists the serial command key names and IR codes.

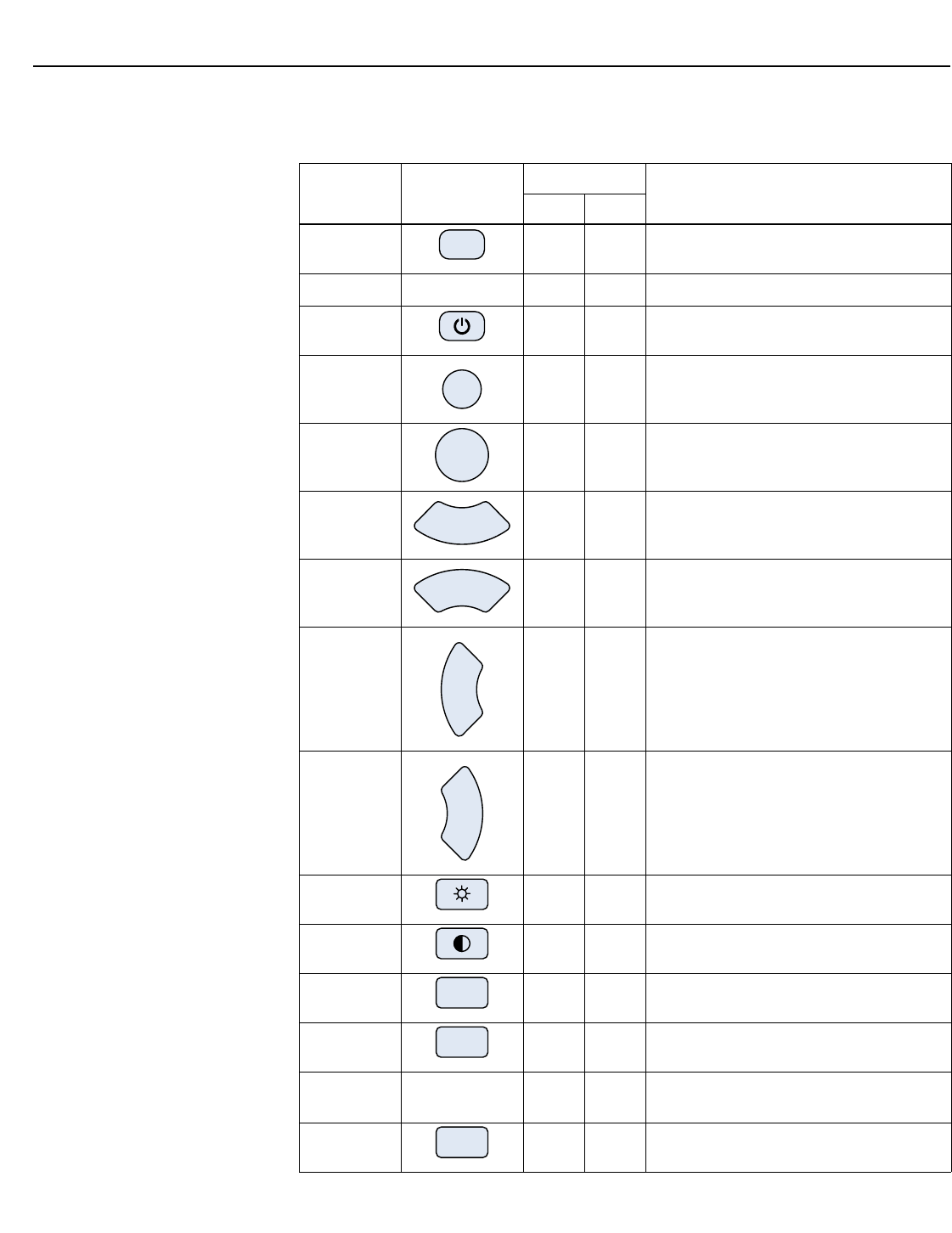

Table 6-1. Serial Command Key Names and IR Codes
RS232
Keyname Remote Button
IR Code
Description
Set 1 Set 2
pow.on 0x01 0xB7 Turn power on.
src.sw (none) 0x02 0xB8 Switch to the next source.
pow.off 0x09 0xB9 Turn power off.
menu 0x15 0xBA Bring up or cancel menu display.
enter 0x17 0xBB Keypad enter.
cur.down 0x18 0xBC Keypad down arrow.
cur.up 0x1A 0xBD Keypad up arrow.
cur.left 0x1D 0xBE Keypad left arrow.
cur.righ 0x1F 0xBF Keypad right arrow.
bright 0x80 0xC0 Bring up or cancel brightness slider.
contrast 0x81 0xC1 Bring up or cancel contrast slider.
sharp 0x82 0xC2 Bring up or cancel sharpness slider.
nr 0x83 0xC3 Bring up or cancel noise reduction slider.
resync (none) 0x84 0xC4 Force reacquisition of active and PIP
source
gam.sw 0x85 0xC5 Switch to the next gamma.
l
MENU
ENT ER
▼
▲
▲
▼
SHARP
NR
GAMM A
Serial Communications
Runco LS-3/LS-5 Installation/Operation Manual 73
PRELIMINARY
gam.crt (none) 0x86 0xC6 Switch to CRT gamma.
gam.film (none) 0x87 0xC7 Switch to Film gamma.
gam.vide (none) 0x88 0xC8 Switch to Video gamma.
gam.brig (none) 0x89 0xC9 Switch to Bright Room gamma.
gam.pc (none) 0x8A 0xCA Switch to PC gamma.
src.1 0x8B 0xCB Switch the active source to source 1.
src.2 0x8C 0xCC Switch the active source to source 2.
src.3 0x8D 0xCD Switch the active source to source 3.
src.4 0x8E 0xCE Switch the active source to source 4.
src.5 0x8F 0xCF Switch the active source to source 5.
bla.tog (none) 0x90 0xD0 Toggles between blank screen and regular
display.
bla.on (none) 0x91 0xD1 Turn blank screen on.
bla.off (none) 0x92 0xD2 Turn blank screen off.
osc.sw 0x93 0xD3 Switch to the next Overscan mode.
osc.zoom (none) 0x94 0xD4 Switch to Overscan Zoom.
osc.crop (none) 0x95 0xD5 Switch to Overscan Crop.
osc.off (none) 0x96 0xD6 Switch to Overscan Off.
mem.sw (none) 0x97 0xD7 Switch to the next user memory.
mem.1 0x98 0xD8 Recall user memory associated with the M1
key.
mem.2 0x99 0xD9 Recall user memory associated with the M2
key.
mem.3 0x9A 0xDA Recall user memory associated with the M3
key.
isf.day (none) 0x9B 0xDB Recall ISF Day user memory.
isf.nigh (none) 0x9C 0xDC Recall ISF Night user memory.
asp.sw 0x9D 0xDD Switch to the next aspect ratio.
Table 6-1. Serial Command Key Names and IR Codes (continued)
RS232
Keyname Remote Button
IR Code
Description
Set 1 Set 2
1
2
3
4
5
OS
M1
M2
M3
Serial Communications
74 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Operations Commands Operations commands allow more flexible and direct control of the projector. The syntax
for operations commands is as follows:
op <operation> <command>[CR]
(Precede <operation> and <command> with a space.)
The command type can be one of 5 functions:
asp.16.9 (none) 0x9E 0xDE Apply 16:9 aspect ratio to the active
source.
asp.4.3 (none) 0x9F 0xDF Apply 4:3 aspect ratio to the active source.
asp.lett (none) 0xA0 0xE0 Apply Letterbox aspect ratio to the active
source.
asp.narr (none) 0xA1 0xE1 Apply 4:3 Narrow aspect ratio to the active
source.
pip.sw 0xA3 0xE3 Switch to next “PIP Select” state.
pip.1 (none) 0xA4 0xE4 Change “PIP Select” to source 1.
pip.2 (none) 0xA5 0xE5 Change “PIP Select” to source 2.
pip.3 (none) 0xA6 0xE6 Change “PIP Select” to source 3.
pip.4 (none) 0xA7 0xE7 Change “PIP Select” to source 4.
pip.5 (none) 0xA8 0xE8 Change “PIP Select” to source 5.
pip.off (none) 0xA9 0xE9 Change “PIP Select” to off.
pip.swap 0xAA 0xEA Swap the PIP image with the active source
image.
pow.tog (none) 0xAC 0xEC Toggles between power on and power off.
lit.tog 0xAD 0xED Activates remote backlighting only when
pressed momentarily. When held for five
seconds or more, the IR code for toggling
the projector I/O panel light is transmitted.
Table 6-1. Serial Command Key Names and IR Codes (continued)
RS232
Keyname Remote Button
IR Code
Description
Set 1 Set 2
PIP
SW A P
LIGHT
➤
Operations Control Commands
Function Command Action on unit
Set = <value> Makes the unit take that value.
Get ?Asks what the current value is.
Increment +Adds 1 to the current value.
Serial Communications
Runco LS-3/LS-5 Installation/Operation Manual 75
PRELIMINARY
Table 6-2 lists the valid operations commands. For all but Execute functions, the response
from the projector is the command and “= <value>” where <value> is the current value or
“NA” if the value is not available. For Execute functions the response is the same
command. All responses are in UPPERCASE.
Some operations command examples:
Input: op bright ? [CR]
Response: OP BRIGHT = 100 [CR]
Input: op bright + [CR]
Response: OP BRIGHT = 101 [CR]
Input: op bright = 127 [CR]
Response: OP BRIGHT = 127 [CR]
Input: op bright - [CR]
Response: OP BRIGHT = 126 [CR]
Input: op resync [CR]
Response: OP RESYNC [CR]
Input: op sharp.mode = 1 [CR]
Response: OP SHARP.MODE = 1 [CR]
Input: op sharp.simple = 50 [CR]
Response: OP SHARP.SIMPLE = NA [CR]
Input: op sharp.simple ? [CR]
Response: OP SHARP.SIMPLE = NA [CR]
The last three commands show what happens when a control is grayed out. In this case,
the sharpness mode was set to advanced (value = 1) and then the simple sharpness slider
was attempted to be adjusted and queried. The response was “NA” or not available.
Decrement -Subtracts 1 from the current value.
Execute (none) Performs an action such as a reset.
Table 6-2. Serial Commands
Operation Commands Values Notes
aspect = ? 0 = 16:9
1 = Letterbox
2 = 4:3
3 = 4:3 Narrow
4 = Native
memory = ? 0 = User Memory 1
1 = User Memory 2
2 = ISF Day
3 = ISF Night
4 = Default
? only returns a value if
ISF Day or ISF Night is
active, otherwise it returns
NA
Serial Communications
76 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
save.mem = 0 = User Memory 1
1 = User Memory 2
save.isf = 0 = ISF Day
1 = ISF Night
bright = ? + - 0 - 200
contrast = ? + - 0 - 200
saturat = ? + - 0 - 200
tint = ? + - 0 - 200
sharp.simple = ? + - 0 - 200
sharp.mode = ? 0 = Simple
1 = Advanced
horiz.sharp = ? + - 0 - 200
vert.sharp = ? + - 0 - 200
diag.sharp = ? + - 0 - 200
sharp.over = ? + - 0 - 200
horiz.text = ? + - 0 - 200
vert.text = ? + - 0 - 200
diag.text = ? + - 0 - 200
text.over = ? + - 0 - 200
noise.thresh = ? + - 0 - 200
nr.simple = ? + - 0 - 200
nr.mode = ? 0 = Simple
1 = Advanced
nr.general = ? + - 0 - 200
block.reduct = ? + - 0 - 200
mosq.noise = ? + - 0 - 200
overscan = ? 0 = Off
1 = Crop
2 = Zoom
Table 6-2. Serial Commands (continued)
Operation Commands Values Notes
Serial Communications
Runco LS-3/LS-5 Installation/Operation Manual 77
PRELIMINARY
source.sel = ? 0 = HDMI 1
1 = HDMI 2
2 = RGB
3 = YPrPb 1
4 = YPrPb 2
5 = S-Video
6 = Video
7 = SCART
pip.select = ? 0 = Off
1 = HDMI 1
2 = HDMI 2
3 = RGB
4 = YPrPb 1
5 = YPrPb 2
6 = S-Video
7 = Video
8 = SCART
resync (execute)
color.space = ? 0 = Auto
1 = REC709
2 = REC601
3 = RGB-PC
4 = RGB-Video
video.stand = ? 0 = Auto
1 = NTSC
2 = PAL
3 = SECAM
gamma = ? 0 = CRT
1 = Film
2 = Video
3 = Bright
4 = Graphics
color.temp = ? 0 = 5500K
1 = 6500K
2 = 7500K
3 = 9300K
dlp.frame = ? 0 = Auto
2 = 48 Hz
3 = 50 Hz
4 = 60 Hz
color.gamut = ? 0 = Auto
1 = REC709
2 = SMPTE C
3 = EBU
4 = Native
Table 6-2. Serial Commands (continued)
Operation Commands Values Notes
Serial Communications
78 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
satco = ? 0 = Off
1 = Smooth
ccont = ? 0 = Off
1 = On
lens.aper = ? 0 = Closed
1 = Open
red.off = ? + - 0-200
green.off = ? + - 0-200
blue.off = ? + - 0-200
red.gain = ? + - 0-200
green.gain = ? + - 0-200
blue.gain = ? + - 0-200
vert.pos = ? + - 0-200
horiz.pos = ? + - 0-200
phase = ? + - 0-200
tracking = ? + - 0-200
sync.level = ? + - 0-200
pip.pos = ? 0 = Top left
1 = Top right
2 = Bottom left
3 = Bottom right
4 = Picture by picture
5 = Split screen
lamp.pow = ?
Serial Communications
Runco LS-3/LS-5 Installation/Operation Manual 79
PRELIMINARY
auto.pow.off = ? 0 = Off
1 = On
auto.pow.on = ? 0 = Off
1 = On
rear.proj = ? 0 = Off
1 = On
ceil.mode = ? 0 = Off
1 = On
2 = Auto
power.chime = ? 0 = Off
1 = On
1.key
2.key
3.key
4.key
5.key
= ? 0 = HDMI 1
1 = HDMI 2
2 = RGB
3 = YPrPb 1
4 = YPrPb 2
5 = S-video
6 = Video
7 = SCART
m1.key
m2.key
m3.key
= ? 0 = User Memory 1
1 = User Memory 2
2 = ISF Day
3 = ISF Night
trig.1
trig.2
= ? 0 = Lamp
1 = 16:9
2 = Letterbox
3 = 4:3
4 = 4:3 Narrow
5 = RS232
remote.set = ? 0 = Set 1
1 = Set 2
auto.source = ? 0 = Off
1 = On
model.name ? <string>
ser.number ? <string>
soft.version ? <string>
Table 6-2. Serial Commands (continued)
Operation Commands Values Notes
Serial Communications
80 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
act.source
pip.source
? 0 = HDMI 1
1 = HDMI 2
2 = RGB
3 = YPrPb 1
4 = YPrPb 2
5 = S-video
6 = Video
7 = SCART
h.refresh ? <number> kHz
v.refresh ? <number> Hz
pixel.clock ? <number> MHz
signal ? <string>
lamp.hours ? <number>
total.hours ? <number>
environment ? <string> temperatures
lamp.reset (execute)
fact.reset (execute)
blue.only = 0 = Off
1 = On
pattern = 0 = White
1 = Black
2 = Red
3 = Green
4 = Blue
5 = Cyan
6 = Magenta
7 = Yellow
8 = ANSI Checkerboard
9 = Horizontal Gray Ramp
10 = Focus Grid
language = ? 0 = English
1 = French
2 = German
3 = Italian
4 = Spanish
5 = Swedish
6 = Chinese-Simplified
7 = Chinese-Traditional
8 = Japanese
9 = Korean
10= Portuguese
11 = Russian
OSD language only
Table 6-2. Serial Commands (continued)
Operation Commands Values Notes
Serial Communications
Runco LS-3/LS-5 Installation/Operation Manual 81
PRELIMINARY
status ?0 = Standby
1 = Powering Up
2 = Displaying
3 = Cooling Down
4 = Error
errcode ?Refer to RS-232 Error
Codes, below.
msgbox = ? 0 = On
1 = Off
This control enables or
disables the display of
power off, source and
adjustment message
boxes (brightness, con-
trast etc.). Default value is
ON.
cal.text1
cal.text2
cal.text3
=Up to 30 characters. The LS-3/LS-5 start-up
screen is customizable
with three lines of text of
up to 30 characters each.
This text appears below
the “CALIBRATED FOR:”
text in the logo screen.
The allowable characters
are all numbers, letters
(uppercase and lower-
case), spaces, and sym-
bols available in the ASCII
code set.
Table 6-2. Serial Commands (continued)
Operation Commands Values Notes
Serial Communications
82 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
RS-232 Error Codes If an errcode ? command returns one of the following values, you have encountered a
likely system error requiring the attention of a qualified service technician. Try resetting the
projector by powering it off, allowing it to cool and powering it on again. Refer to Table 6-3
and contact your dealer if the problem persists.
The specific code number identifies the source of the error detected, and is particularly
useful in cases where the projector is far away. For example, the code “7” means that
Fan 1 has failed.
➤
Table 6-3. RS-232 Error Codes
Error Code LED Indication Description
0Inlet NTC thermal sensor is over temperature.
1DMD NTC thermal sensor is over temperature.
2Lamp 1 over temperature.
4Ballast 1 over temperature.
6Fan failure upon system power-up.
7Fan 1 failed.
8Fan 2 failed.
9Fan 3 failed.
10 Fan 4 failed.
11 Fan 5 failed.
12 Fan 6 failed.
15 DDP3021 communication failure upon system
power-up.
16 Lamp failed to ignite (three attempts) upon system
power-up.
17 Lamp failed during operation.
18 Ballast UART communication failure.
19 PCF8575 external GPIO communication failure.
20 Lamp door is open.
21 Gennum SPI communication failure upon system
power-up.
22 System hardware I2C communication failure.
23 System software I2C communication failure.
24 EEPROM checksum error.
25 EDID checksum error.
Specifications
Runco LS-3/LS-5 Installation/Operation Manual 83
PRELIMINARY
7.1
LS-3/LS-5
Specifications
Table 7-1 lists the LS-3/LS-5 specifications.
7. Specifications
Table 7-1. LS-3/LS-5 Specifications
Signal Compatibility
Video Support: HDMI and DVI with HDCP for digital video, Component
and RGB HDTV (1080p, 1080i, 720p), Component and
RGB EDTV (576p, 480p), Component, Composite and
S-Video SDTV (576i, 480i), RGB SCART with adapter,
NTSC/NTSC 4.43, PAL (B,G)/(D,K)/I/M/N, SECAM
Computer Support: Digital and Analog up to 1920x1080 @ 60Hz,
Macintosh®
Communication: RS-232, IR remote, on-board keypad
Connectivity
(2) HDMI V1.3 with HDCP: HDTV RGB and Component, EDTV, SDTV, HDMI (High
Definition Multimedia Interface) with HDCP (High
Bandwidth Digital Content Protection), DVI via adapter
(1) Component (3 x RCA, gold): HDTV, EDTV, SDTV
SCART RGBS via component and composite inputs
(adapter not included)
(1) Component
(LS-5 only; 3 x BNC, 75 ohm):
HDTV, EDTV, SDTV
(1) RGB (HD15): HDTV, RGBHV, YUV, EDTV
(1) S-Video (4-pin mini-DIN): SDTV
(1) Composite (RCA, gold): SDTV
(1) 3.5mm mini jack (LS-3):
(2) 3.5mm mini jack (LS-5):
12V (+/-1.5V) screen trigger (250mA)
(1) 9 pin D-sub: RS-232 for discrete commands and software upgrades
Communication Parameters: 38400 bps, no parity, 8
data bits, 1 stop bit, no flow control
(1) 3.5mm mini jack: IR input for Niles/Xantech compatible IR repeater
systems
Communication Protocol: Conforms to NEC standard IR
protocol, 38-kHz carrier frequency, custom code =
0x06F9
Specifications
84 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
Performance
Microdisplay: Texas Instruments DLP® 1080p DMD
Native Resolution: Full HD, 1920 x 1080 (2,073,600 pixels)
Aspect Ratios: Native (Pixel-to-Pixel), 16:9, Letterbox, 4:3, 4:3 Narrow,
Letterbox (Anamorphic lens compatible)
Projection Lens: All glass, F/2.5~2.71, f = 39.1~50.1mm, 1.3x manual
zoom, made in Japan
Throw Ratios: 1.85 – 2.40 (distance/width) – Standard lens
1.56 – 1.86 (distance/width) – Optional short-throw lens
Vertical Lens Shift Range
(Ceiling Mount):
LS-3:
Down = 25% to 60% of screen height below lens center
(50% to 120% of one half of the screen height)
LS-5:
Up = 25% of screen height above lens center
(50% of one half of the screen height)
Down = 60% of screen height below lens center
(120% of one half of the screen height)
Horizontal Lens Shift Range: LS-3: None
LS-5: 7.5% of screen width left or right of lens center
(15% of one half of the screen width)
Video Lumens: 1,000 ANSI lumens (maximum) calibrated at D65
Sequential Contrast –
ConstantContrast On:
LS-3: 10,000:1 typical
LS-5: 15,000:1 typical
Cooling Performance: High efficiency adaptive voltage side-to-side cooling
with low system acoustic noise level and low light
pollution cabinet
Projection Modes: Front, Rear, Ceiling (front/rear)
Lamp: User replaceable 180/230W HPM (selectable), 4000
hour lifetime at 180W setting
Video Processing: Runco advanced ViVix processing with 10 bit
independent dual channel image processing, true 1080i
deinterlacing, MPEG artifact reduction (block and
mosquito noise), latest motion adaptive processing, 3D
noise reduction, detail enhancement, rich color
processing and noise reduction, less than one frame
latency
Calibration: Full RGB gain/offset control (White Balance), Gamma,
Contrast, Color Temperature, Brightness
Table 7-1. LS-3/LS-5 Specifications (continued)
Specifications
Runco LS-3/LS-5 Installation/Operation Manual 85
PRELIMINARY
General
Dimensions: 20.8" (530mm) L x 17.9" (455mm) W x 7.8" (200mm) H
(see Figure 7-1)
Weight (without lens): 24.3 lbs. (11.00 kg)
Operating Temperature: 50°F to 104°F (10°C to 40°C)
Operating Altitude: Sea Level - 7,500 feet (2,300m), 95° F (35° C) up to
10,000 feet (3,048m)
Operating Humidity: 0% to 85% non-condensing
Universal Power Supply: 100V - 240V at 50-60Hz (auto-ranging), true soft power
Power Consumption: 400 Watts (1365.2 BTUs/hour)
Regulatory: FCC Part 15 Class B, CE Class B, UL, cUL, CB, RoHS,
WEEE, local conformances as required
Menu Languages: English, French, Italian, German, Spanish, Swedish,
Traditional Chinese, Simplified Chinese, Japanese,
Korean, Portuguese, Russian
Limited Warranty: Projector: Two (2) years parts and labor from the date of
delivery to the end user.
Lamp: 1000 hours or six (6) months, whichever comes
first.
Specifications are subject to change without notice.
Table 7-1. LS-3/LS-5 Specifications (continued)
Specifications
86 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
7.2
LS-3/LS-5 Dimensions
Figure 7-1 shows the LS-3/LS-5 dimensions, in millimeters.
Figure 7-1. LS-3/LS-5 Dimensions
150
160 CEILING MOUNT HOLES
M4 x 10mm MAXIMUM (4x)
75
135
530
200
455
80
LENS CENTER LINE
APPROXIMATE CENTER
OF GRAVITY
Specifications
Runco LS-3/LS-5 Installation/Operation Manual 87
PRELIMINARY
7.3
Supported Timings
Table 7-2 lists the signal types supported by each input on the LS-3/LS-5.
Table 7-2. Supported Signal Timings by Input
Format Resolution Refresh
Rate (Hz)
Horizontal
Frequency
(kHz)
Pixel Frequency
(MHz)
Supported? (√ = Yes, – = No)
RGB Component 1
Component 2
HDMI 1
HDMI 2
Composite
S-Video
640x480 640x480 60.00 31.469 25.175 √–√–
66.59 35.892 29.862 √–√–
75.00 37.500 31.500 √–√–
85.00 43.269 36.000 √–√–
800x600 800x600 60.00 37.879 40.000 √–√–
75.00 46.875 49.500 √–√–
85.00 53.674 56.250 √–√–
832x624 832x624 74.54 52.849 60.036 √–√–
848x480 848x480 48.00 25.270 27.089 √–√–
60.00 31.020 33.750 √–√–
1024x768 1024x768 60.00 48.363 65.000 √–√–
75.00 60.023 78.750 √–√–
85.00 68.677 94.500 √–√–
1280x720 1280x720 47.95 37.833 64.769 √–√–
1280x1024 1280x1024 60.00 63.981 108.000 √–√–
75.00 79.976 135.000 √–√–
85.00 91.146 157.500 √–√–
1600x1200 1600x1200 60.00 75.000 162.000 √–√–
1680x1050 1680x1050 59.94 69.830 164.240 √–√–
1920x1080 1920x1080 47.95 56.821 150.007 √–√–
480/60i 720x487 59.94 15.734 13.500 –√ √ √
480/60p 720x483 59.94 31.469 27.000 √ √ √ –
576/50i 720x576 50.00 15.625 14.750 –√ √ √
576/50p 720x576 50.00 31.250 29.000 √ √ √ –
720/50p 1280x720 50.00 37.500 75.250 √ √ √ –
720/60p 1280x720 60.00 45.000 74.250 √ √ √ –
1080/50i 1920x1080 50.00 28.125/31.250 74.250/72.000 √ √ √ –
1080/60i 1920x1080 59.94/60.00 33.716/33.750 74.175/74.250 √ √ √ –
1080/24p 1920x1080 23.98/24.00 26.978/27.000 74.175/74.250 √ √ √ –
Specifications
88 Runco LS-3/LS-5 Installation/Operation Manual
PRELIMINARY
1080/50p 1920x1080 50.00 56.250 148.500 √ √ √ –
1080/60p 1920x1080 59.94/60.00 67.433/67.500 148.350/148.500 √ √ √ –
NTSC 3.58 –59.94/60.00 15.734/15.750 3.580 – – – √
NTSC 4.43 –59.94/60.00 15.734/15.750 4.430 – – – √
PAL-B/G –50.00 15.625 4.430 – – – √
PAL-M –59.94/60.00 15.734/15.750 3.580 – – – √
PAL-N –50.00 15.625 3.580 – – – √
PAL-60 –59.94/60.00 15.734/15.750 4.430 – – – √
SECAM –50.00 13.500 4.250/4.410 – – – √
Table 7-2. Supported Signal Timings by Input (continued)
Format Resolution Refresh
Rate (Hz)
Horizontal
Frequency
(kHz)
Pixel Frequency
(MHz)
Supported? (√ = Yes, – = No)
RGB Component 1
Component 2
HDMI 1
HDMI 2
Composite
S-Video
Runco International • (800) 23RUNCO • Fax (503) 748-8161 • www.runco.com
020-1033-00 Rev. A
November 2009
