Heat Watch
Wireless Temperature Sensor
User's Manual
Revision 2
©2018 Heat Watch
Usage
This Heat Watch Temperature Sensor is one component in the Heat Watch
Heat Management System. Sensors are installed in various locations
throughout a climate controlled space, to provide real time, wireless
temperature data to the Heat Watch Management System.
Installing the Wall Plate
Locate the Heat Watch Sensor Wall Plate (Fig 1), and secure to the wall using
appropriate mounting methods.

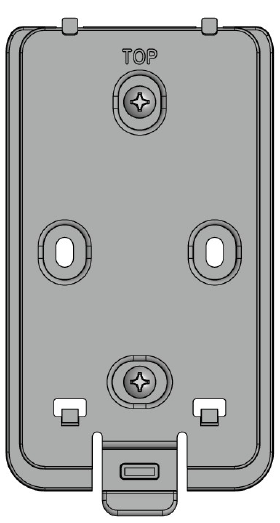

Figure 1 – Heat Watch Sensor Wall Plate
Depending upon wall construction, the Wall Plate may be mounted with
screws, wall anchors, or double sided adhesive tape. It is recommended to
install the Wall Plate in a horizontal orientation, with the release latch towards
the right side of the unit, or vertically, with the release latch towards the
bottom.

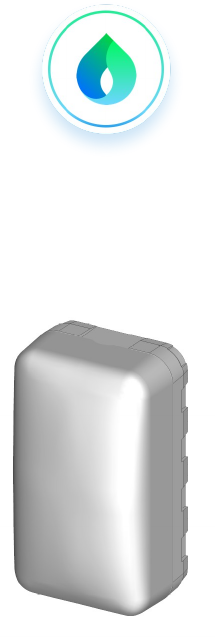

Installing the Sensor
Before installing the Sensor, note the serial number listed on the bottom of the
unit. This will be needed later to verify the operation of the unit, and
complete system configuration.
Align the 4 locking posts in the Wall Plate with the 4 square holes in the back
of the Heat Watch Temperature Sensor. Slide the Sensor towards the release
latch approximately 1/8” (3mm) until a click is heard. Verify that the Sensor
is securely mounted to the wall.
Operation
The Heat Watch Temperature Sensor comes pre-installed with a long-life
lithium battery, so no additional steps are required for installation. Operation
can be verified when configuring the Heat Watch Controller Gateway. Refer
to its User's Manual for details.
FCC ID: 2AQX2-HWSEN915
This device complies with Part 15 of FCC Rules. Operation is subject to the
following conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by Heat Watch could void
the user's authority to operate the equipment.
Notice of Modular Approval
All products utilizing this module are required to be furnished with a label on
the exterior of the enclosure stating:
“Contains FCC ID: 2AQX2-HWSEN915”
“Contains IC: 24232-HWSEN915”
In addition, such products are also required to provide regulatory compliance
statements on products and manuals, as required by FCC, IC, and/or any other
regulatory bodies.
RF Exposure WARNING
This equipment is approved only for mobile applications. Antenna(s) used for
this transmitter must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.
IC Notice:
This radio transmitter [IC: 24232-HWSEN915] has been approved by
Innovation, Science and Economic Development Canada to operate with the
antenna types listed below, with the maximum permissible gain indicated.
Antenna types not included in this list that have a gain greater than the
maximum gain indicated for any type listed are strictly prohibited for use with
this device.
Le présent émetteur radio [IC: 24232-HWSEN915] a été approuvé par
Innovation, Sciences et Développement économique Canada pour fonctionner
avec les types d'antenne énumérés ci-dessous et ayant un gain admissible
maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est
supérieur au gain maximal indiqué pour tout type figurant sur la liste, sont
strictement interdits pour l'exploitation de l'émetteur.
This device contains licence-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may
cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est
conforme aux CNR d’Innovation, Sciences et Développement économique
Canada applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
List of Approved Antennas:
Type Gain
Whip +3.0 dBi
