Russound Cav6 6 Users Manual CAV6.6 Rev 5

CAV6.6 Six-Zone to the manual 2512ae52-5e0c-4721-8baf-e6f1a7a1875d

: Russound Russound-Cav6-6-Users-Manual-525906 russound-cav6-6-users-manual-525906 russound pdf

Open the PDF directly: View PDF .
Page Count: 116 [warning: Documents this large are best viewed by clicking the View PDF Link!]

CAV6.6

Six-Zone, Six-Source

Audio-Video Controller Amplifier

INSTRUCTION MANUAL

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER. NO USER - SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and mainte-

nance (servicing) instructions in the literature accompanying the

appliance.

POWER CORD NOTICE FOR INTERNATIONAL OPERATION

For 230V, 50Hz operation please select the power cord for your

area. Select the plug for your area at one end and a IEC320 con-

nector at the other. It is not necessary to make any other

changes. If you have any questions please call Russound Inc. at

1-800-638-8055 or 603-659-5170

Safety Instructions:

1. Read Instructions - All the safety and operating instructions should be

read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be

retained for future reference.

3. Heed Warnings - All warnings on the appliance in the operating instruc-

tions should be adhered to.

4. Follow Instructions - All operating and user instructions

should be followed.

5. Water and Moisture - The appliance should not be

used near water; for example, near a bathtub, wash-

bowl, kitchen sink, laundry tub, in a wet basement,

or near a swimming pool.

6. Carts and Stands - The appliance should be used only

with a cart or stand that is recommended by the manufacturer. An

appliance and cart combination should be moved with care. Quick

stops, excessive force and uneven surfaces may cause the appliance

and cart combination to overturn.

7. Wall or ceiling Mounting - The appliance should be mounted to a wall

or ceiling only as recommended by the manufacturer.

8. Ventilation - The appliance should be situated so that its location or

position does not interfere with its proper ventilation. For example, the

appliance should not be situated on a bed, sofa, rug, or similar surface

that may block the ventilation openings, or placed in a built-in installa-

tion, such as a bookcase or cabinet that may impede the flow of air

through the ventilation openings.

9. Heat - The appliance should be situated away from heat sources such

as radiators, heat registers, stoves, or other appliances (including

amplifiers) that produce heat.

10.Power Sources - The appliance should be connected to a power supply

only of the type described in the operating instructions or as marked on

the appliance.

11.Grounding or Polarization - Precaution should be taken so that the

grounding or polarization means of an appliance is not defeated.

12.Power Cord Protection - Power supply cords should be routed so that

they are not likely to be walked on or pinched by items placed upon or

against them, paying particular attention to cords at plugs, receptacles,

and the point where they exit from the appliance.

13.Cleaning - The appliance should be cleaned only as recommended by

the manufacturer.

14.Non-use Periods - The power cord of the appliance should be

unplugged from the outlet when left unused for a long period of time.

15.Object and Liquid Entry - Care should be taken so that objects do not

fall and liquids are not spilled into the enclosure through the openings.

16.Damage Requiring Service - The appliance should be serviced by quali-

fied service personnel when:

A.The power supply cord or the plug has been damaged; or

B.Objects have fallen, liquid has been spilled into the appliance; or

C.The appliance has been exposed to rain; or

D.The appliance does not appear to operate normally; or

E.The appliance has been dropped or the enclosure is damaged.

17.Servicing - The user should not attempt to service the appliance beyond

that described in the operating instructions. All other servicing should

be referred to qualified service personnel.

Precautions:

1. Power – WARNING: BEFORE TURNING ON THE POWER FOR THE

FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

All models are designed for use with either AC120V, 60Hz or AC240,

50Hz voltages. The unit will autoswitch to either of these voltages

2. Do Not Touch The CAV6.6 With Wet Hands – Do not handle the CAV6.6

or power cord when your hands are wet or damp. If water or any other

liquid enters the CAV6.6 cabinet, take the CAV6.6 to a qualified service

person for inspection.

3. Location of CAV6.6 – Place the CAV6.6 in a well - ventilated location.

Take special care to provide plenty of ventilation on all sides of the

CAV6.6 especially when it is placed in an audio rack. If ventilation is

blocked, the CAV6.6 may overheat and malfunction. Do not expose the

CAV6.6 to direct sun light or heating units as the CAV6.6 internal com-

ponents temperature may rise and shorten the life of the components.

Avoid damp and dusty places.

4. Care – From time to time you should wipe off the front and side panels

of the cabinet with a soft cloth. Do not use rough material, thinners,

alcohol or other chemical solvents or cloths since this may damage the

finish or remove the panel lettering.

IMPORTANT SAFEGUARDS

2

TABLE OF CONTENTS

USER SECTION

Product Introduction....................................................................................................................................................5

Component Guide

CAV6.6 Controller (Front panel operation)..............................................................................................................6-7

UNO-S2 Keypad .....................................................................................................................................................8

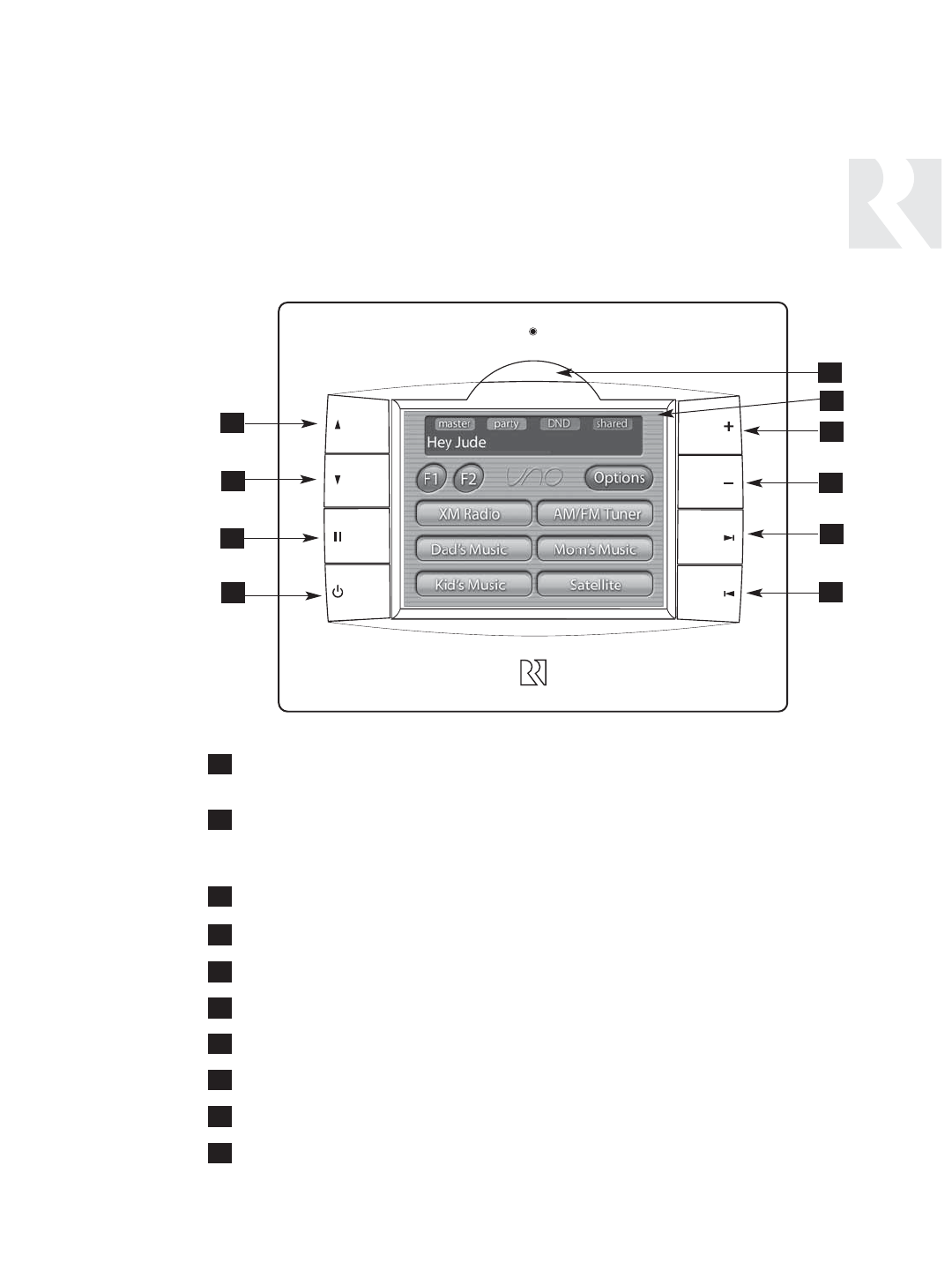

UNO-TS2 Touchscreen............................................................................................................................................9

UNO-S1 Keypad ...................................................................................................................................................10

SRC2 Remote Control...........................................................................................................................................11

Operation

UNO-S2 Keypad Button Functions..........................................................................................................................12

UNO-S2 User Menu - Setting Preferences...............................................................................................................13

UNO-S1 Keypad Button Functions..........................................................................................................................14

UNO-S1 User Menu - Setting Preferences...............................................................................................................15

UNO-TS2 Touchscreen Button Functions ................................................................................................................16

UNO-TS2 - Setting Preferences..............................................................................................................................17

INSTALLER SECTION

Getting Started

Unpacking ...........................................................................................................................................................18

System Components............................................................................................................................................18

Tools Needed.......................................................................................................................................................18

System Installation Considerations.........................................................................................................................18

Connection Tips...................................................................................................................................................18

Component Guide

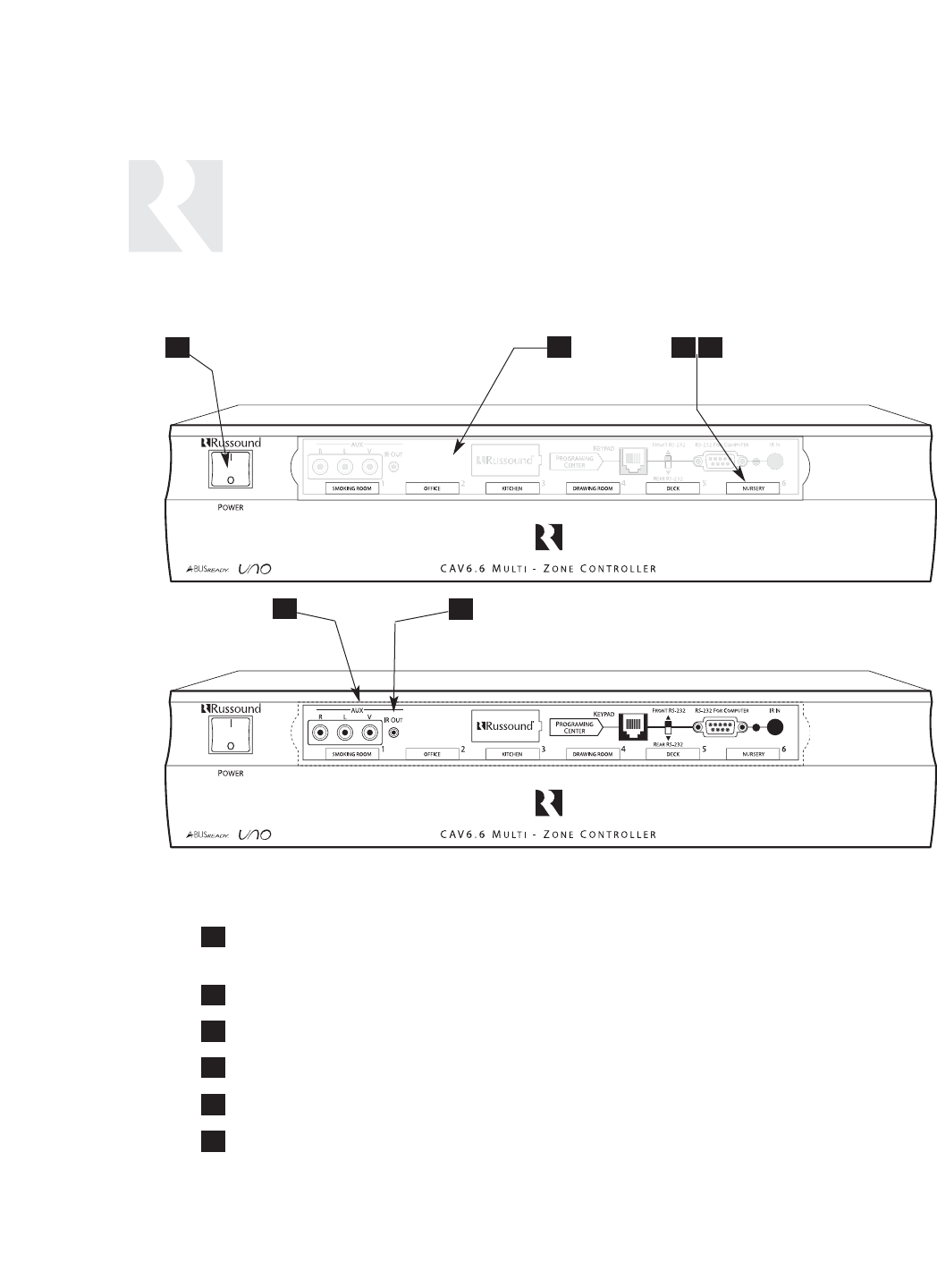

CAV6.6 Controller Front Panel...............................................................................................................................19

CAV6.6 Controller Rear Panel...........................................................................................................................20-21

UNO Keypad OS Update Port................................................................................................................................22

UNO Keypad Rear Panel .......................................................................................................................................23

Wiring Instructions

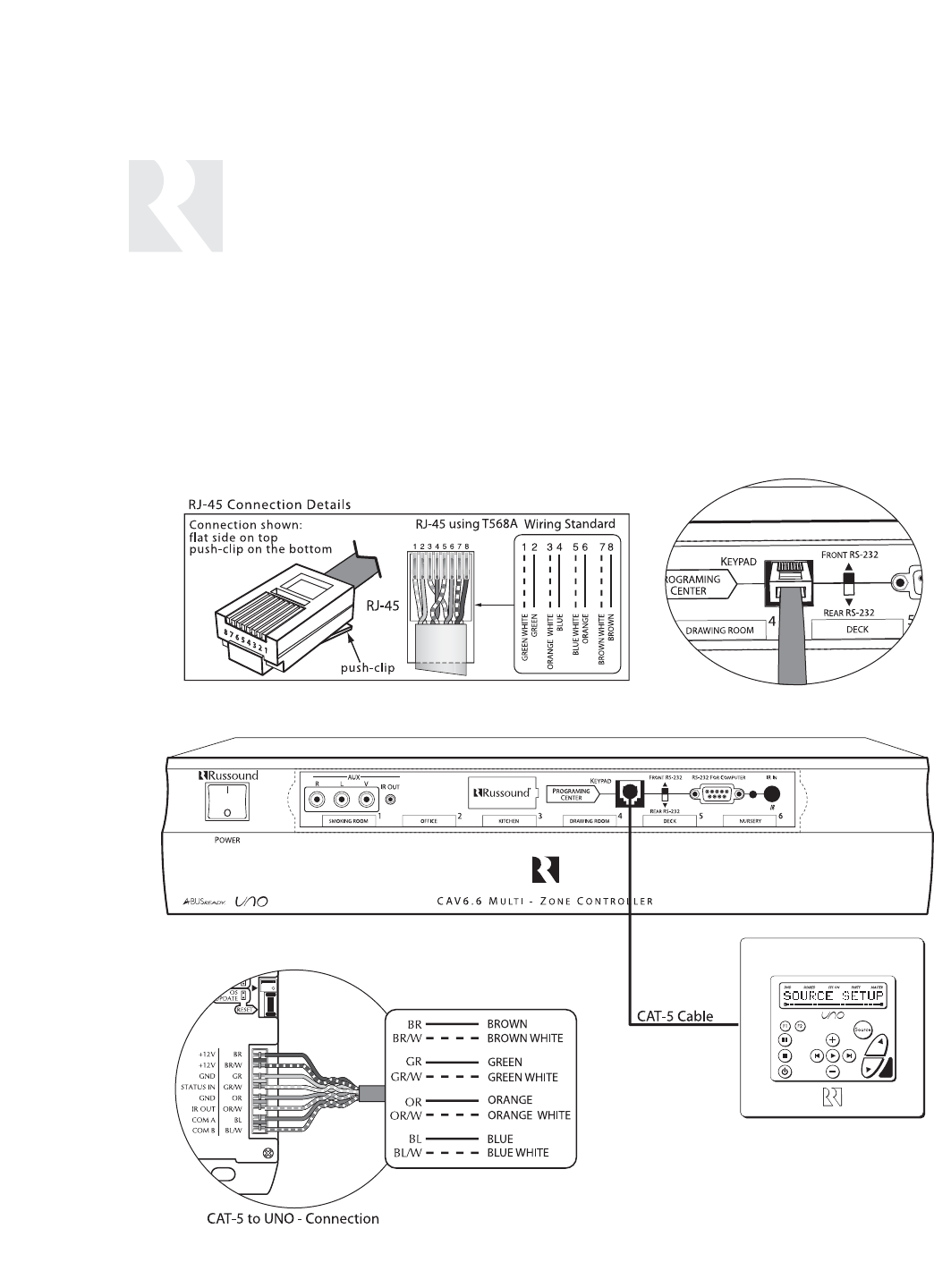

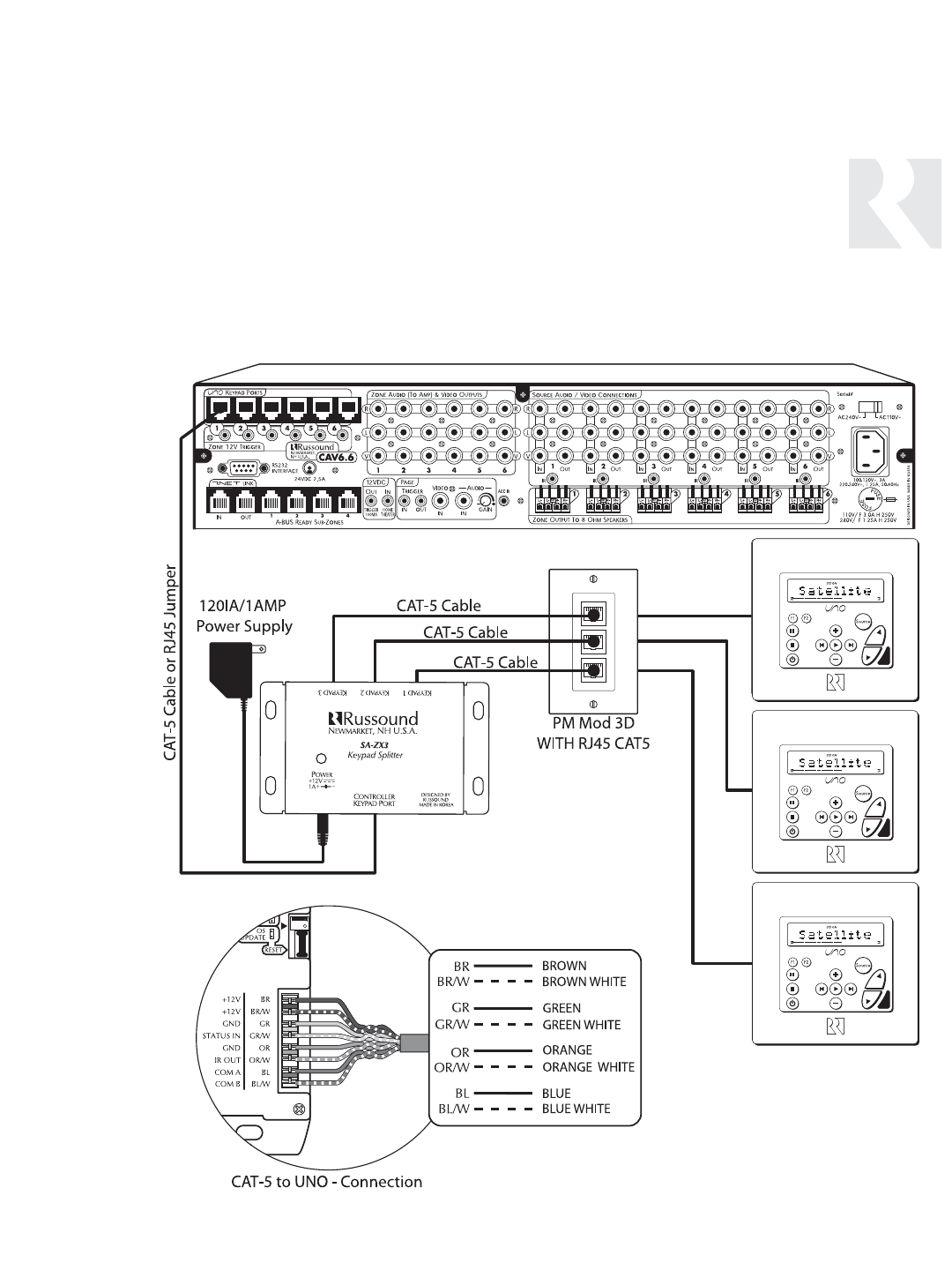

Keypad Wiring......................................................................................................................................................24

Speaker Wiring ....................................................................................................................................................24

UNO-S2 Keypad Installation

Keypad Connections.............................................................................................................................................25

IR Receiver Connection.........................................................................................................................................26

Keypad Location ..................................................................................................................................................27

Keypad Installation ...............................................................................................................................................27

Making Connections

UNO Keypad Port Connection ...............................................................................................................................28

Source Audio/Video Input Connections ..................................................................................................................29

Source Audio/Video Loop Output Connection.........................................................................................................30

Speaker Connections............................................................................................................................................31

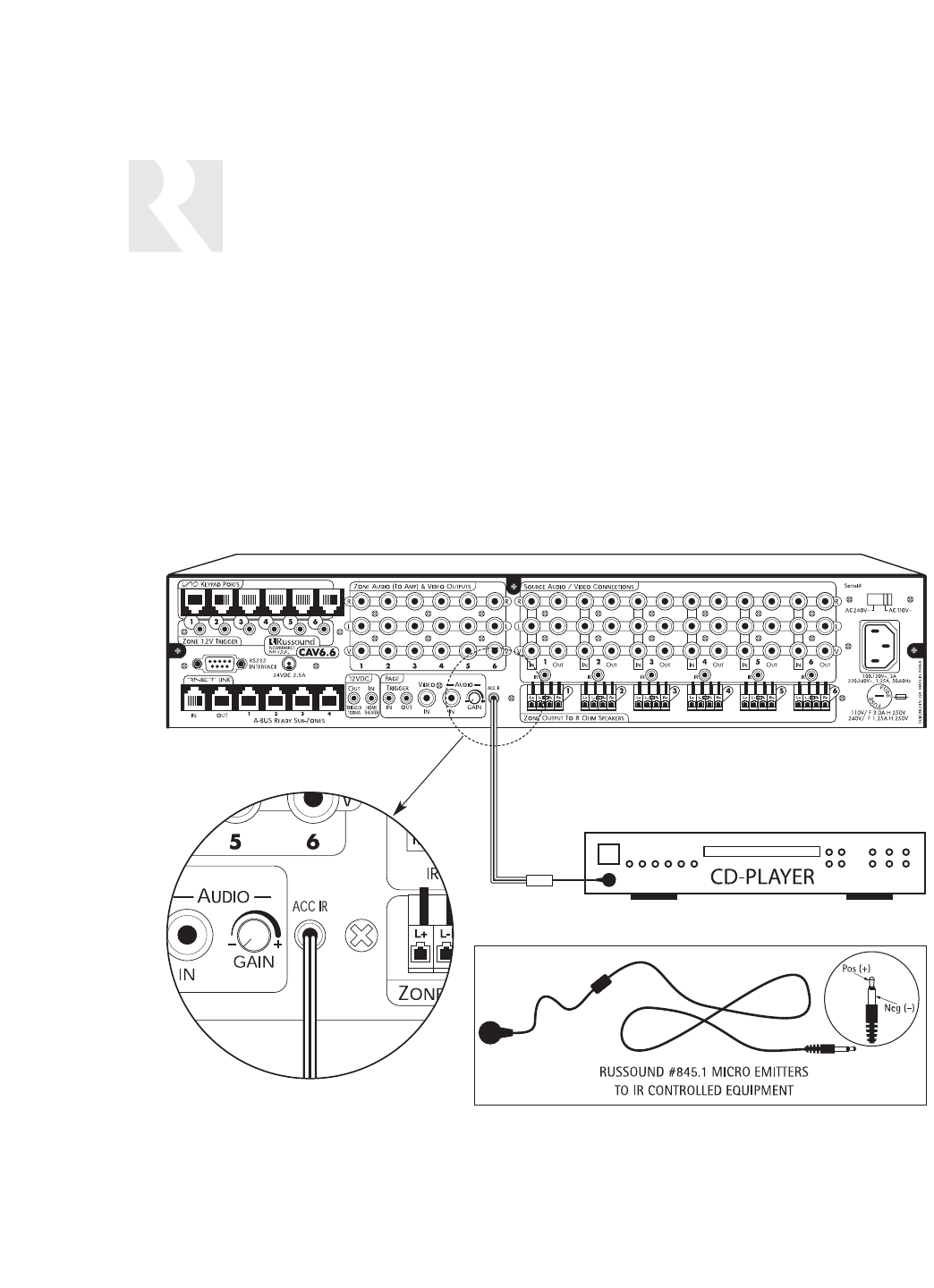

Accessory IR Connection......................................................................................................................................32

Zone Audio/Video Outputs ....................................................................................................................................33

A-BUS Ready Sub-zone Connection........................................................................................................................34

12VDC Trigger In/Out

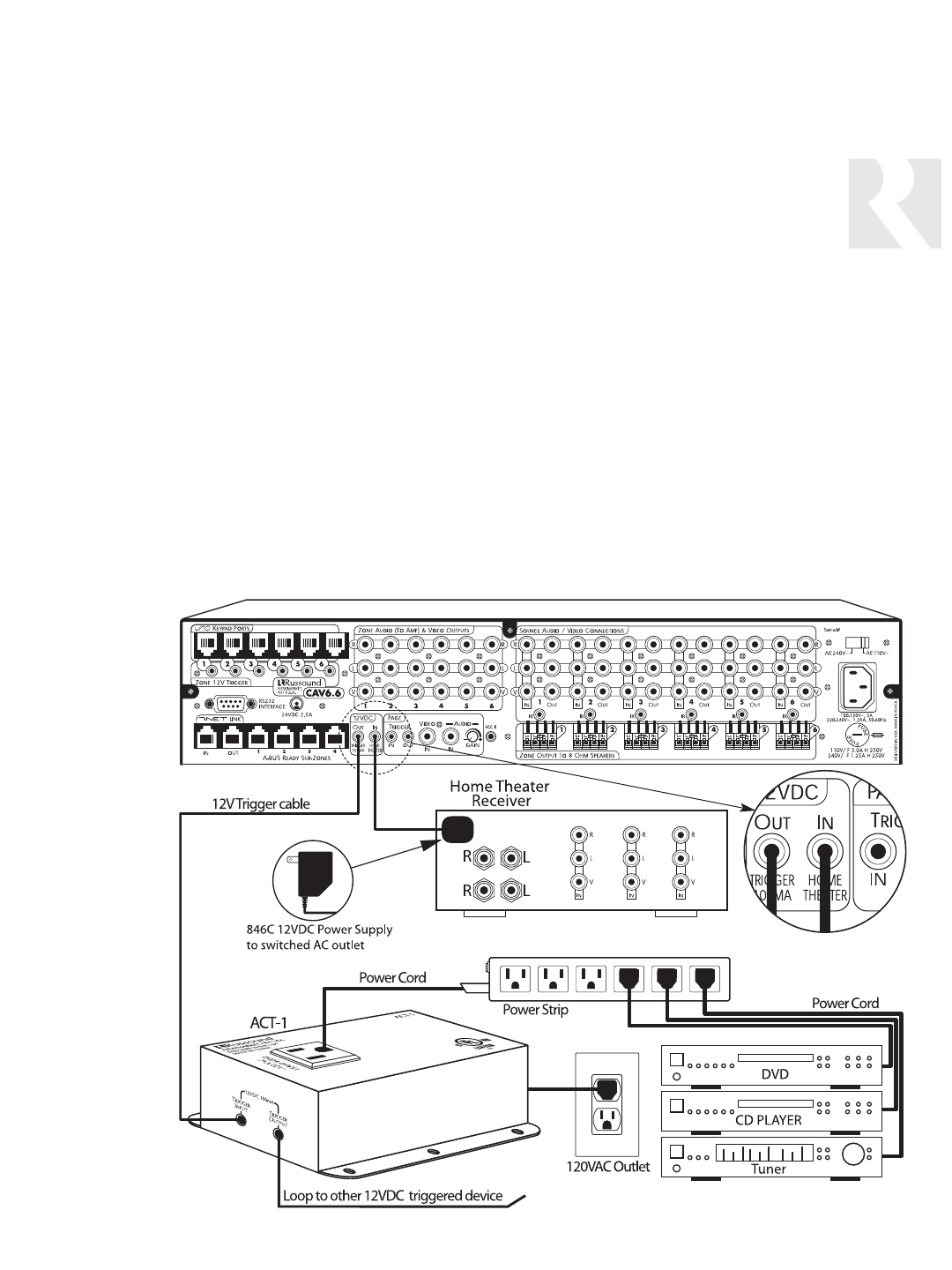

Home Theater Trigger In ..................................................................................................................................35

50mA Trigger Out............................................................................................................................................35

Page Trigger In/Out ....................................................................................................................................36-37

Page Audio/Video In....................................................................................................................................36-37

Zone Trigger Out.............................................................................................................................................38

3

TABLE OF CONTENTS

RNET Link In/Out - Multiple Controllers...................................................................................................................39

RNET Link In/Out - RNET-enabled Components.......................................................................................................40

RS-232 Interface..................................................................................................................................................41

Programming Center Keypad Port Connection........................................................................................................42

Initial Install Test .......................................................................................................................................................43

Programming

System Programming Overview........................................................................................................................44-45

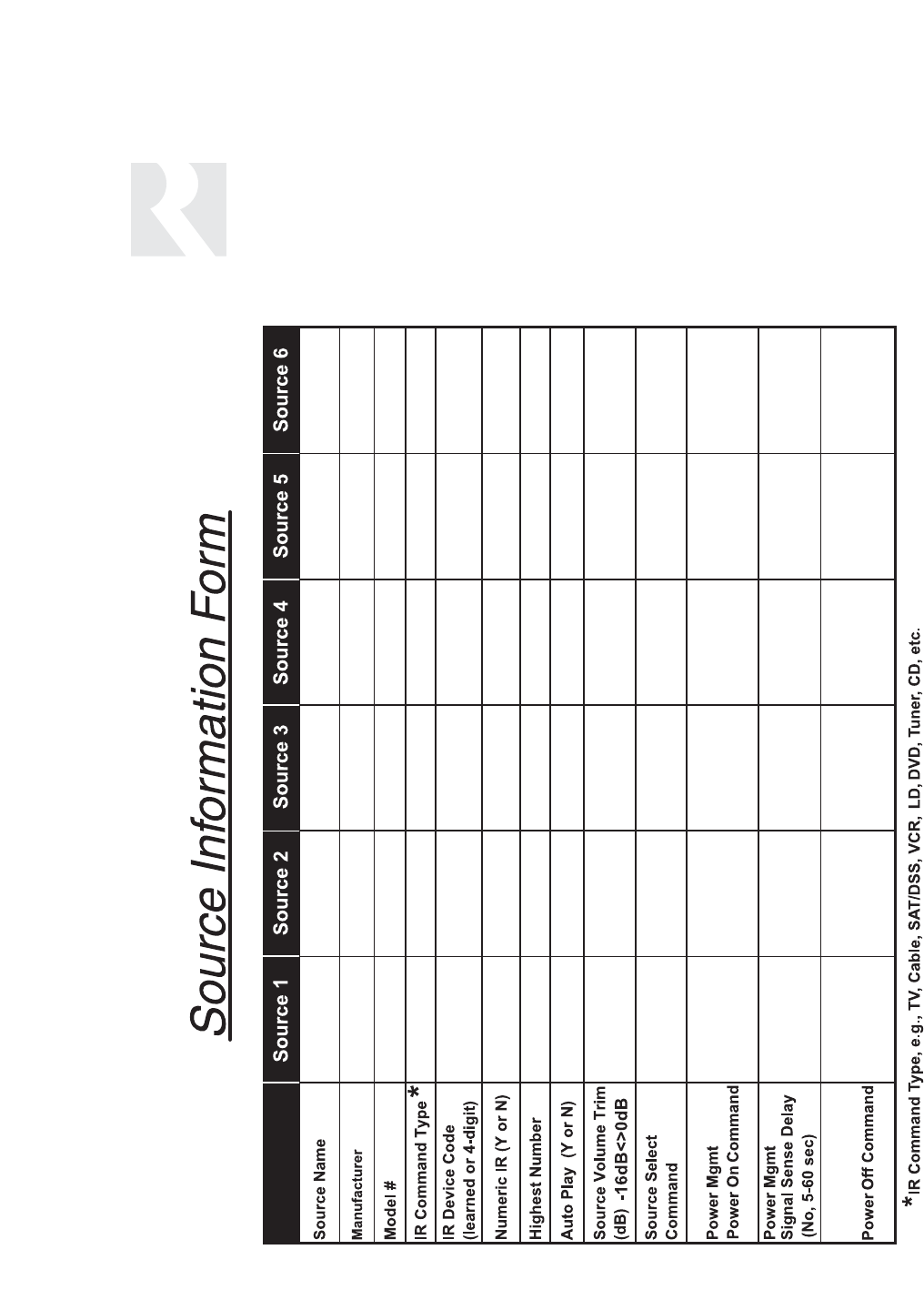

Source Information Form......................................................................................................................................46

Zone Information Form .........................................................................................................................................47

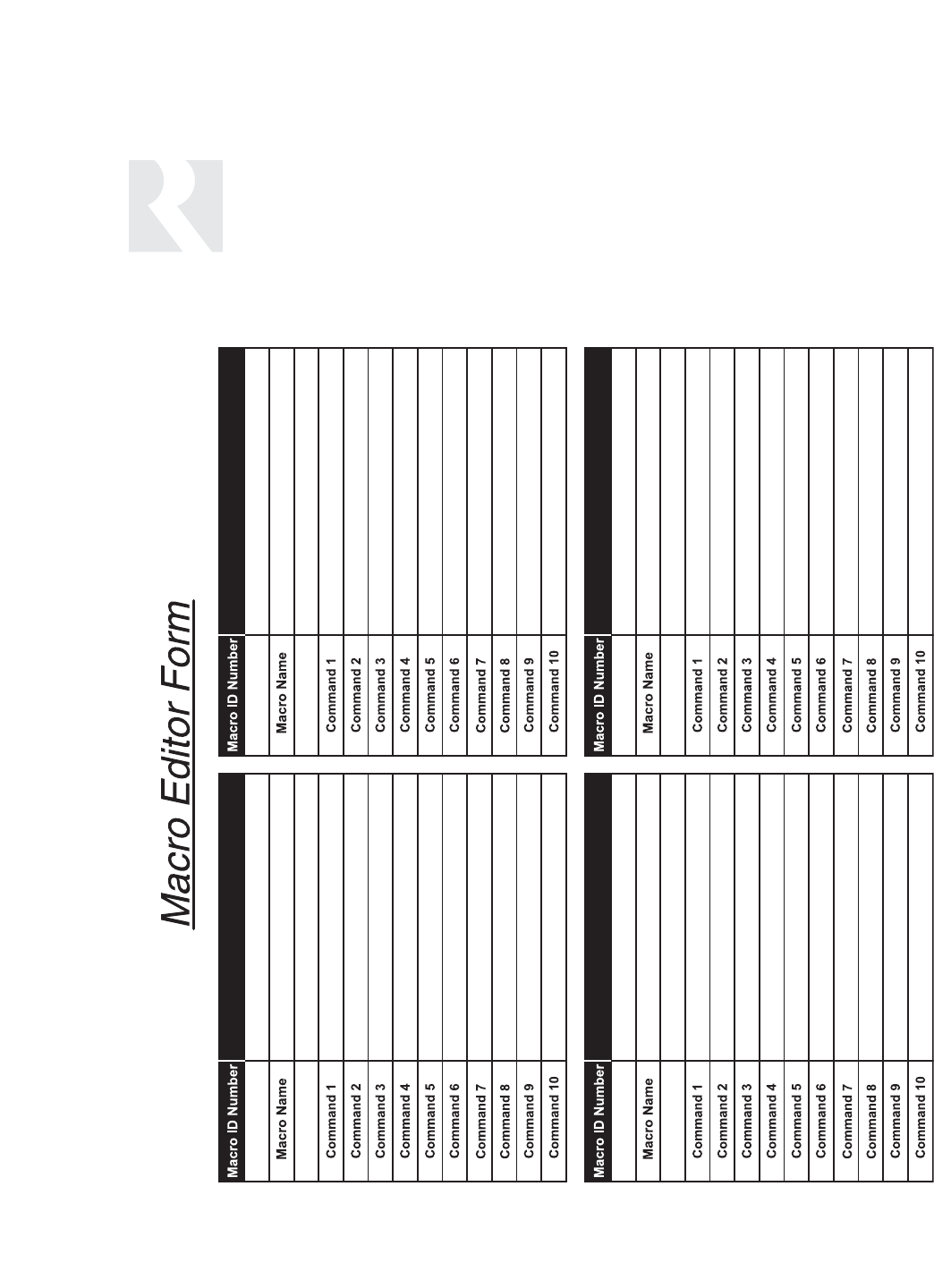

Macro Editor Form...............................................................................................................................................48

Installation Menu..............................................................................................................................................49-61

Installation Menu Overview ...............................................................................................................................49

Source Setup .............................................................................................................................................50-56

Basic Setup..............................................................................................................................................50-51

Zone Setup ................................................................................................................................................56-57

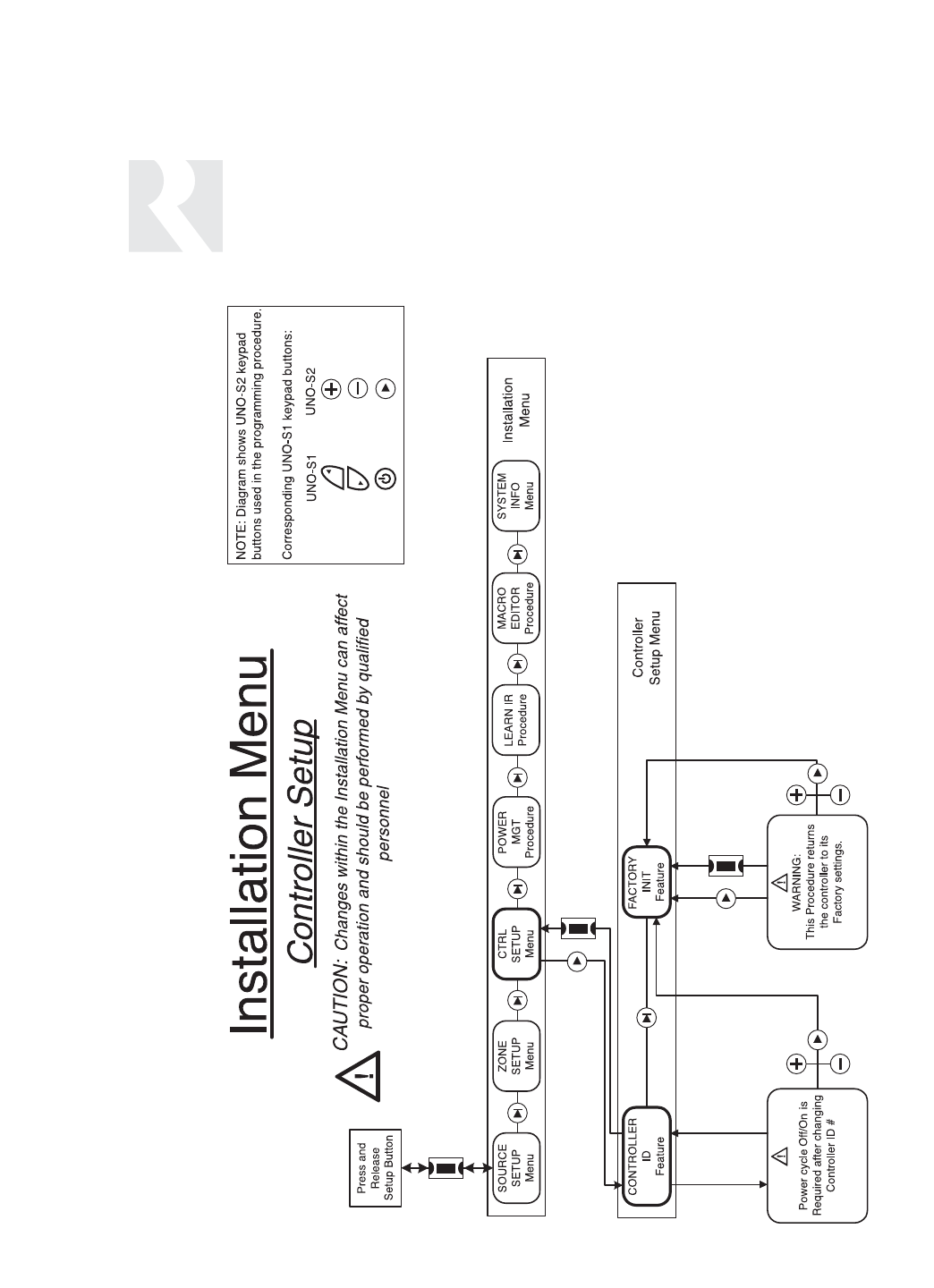

Controller Setup..............................................................................................................................................57

Power Management ....................................................................................................................................57-59

Learn IR.....................................................................................................................................................59-60

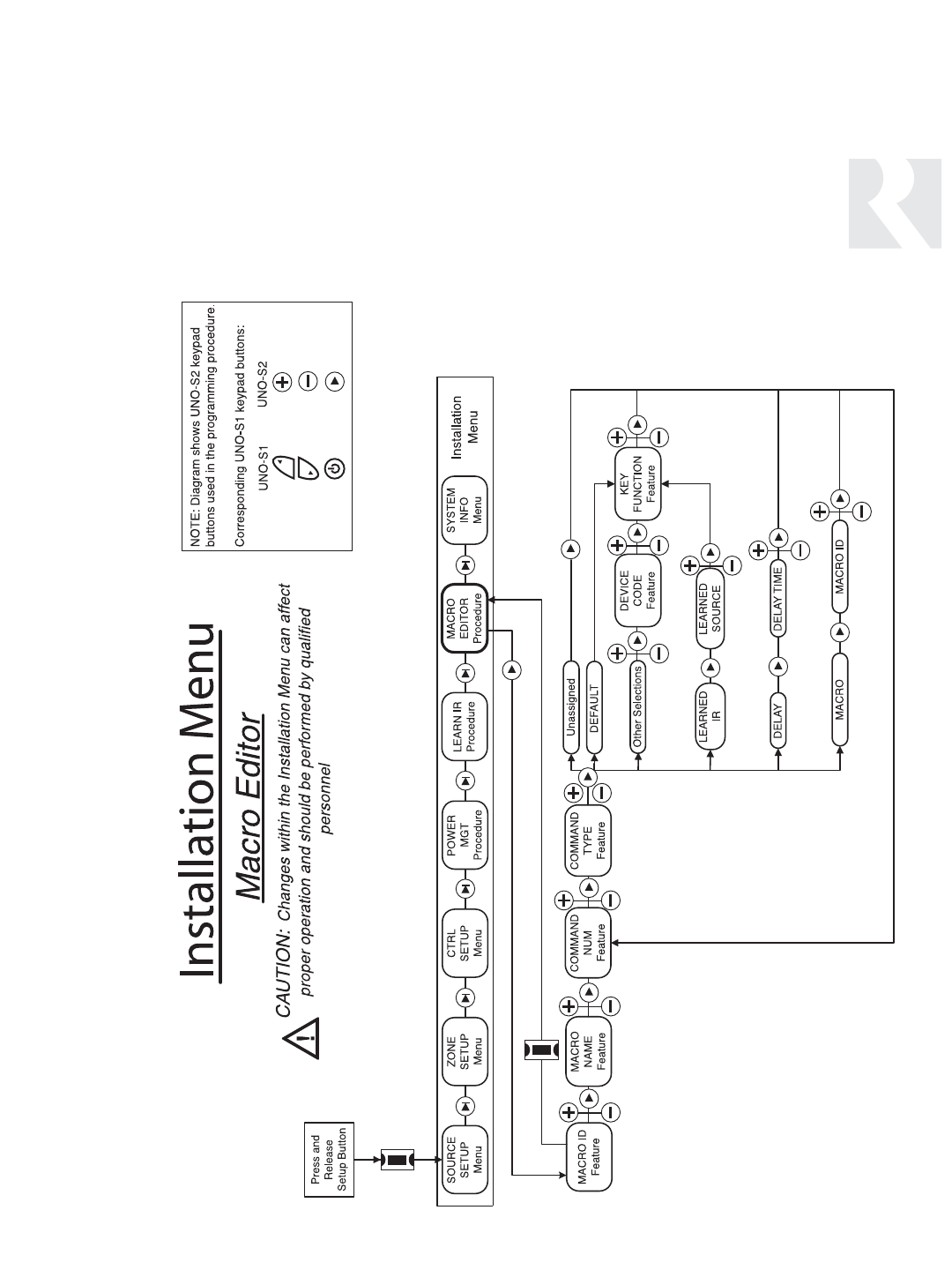

Macro Editor ..............................................................................................................................................60-61

System Info.....................................................................................................................................................61

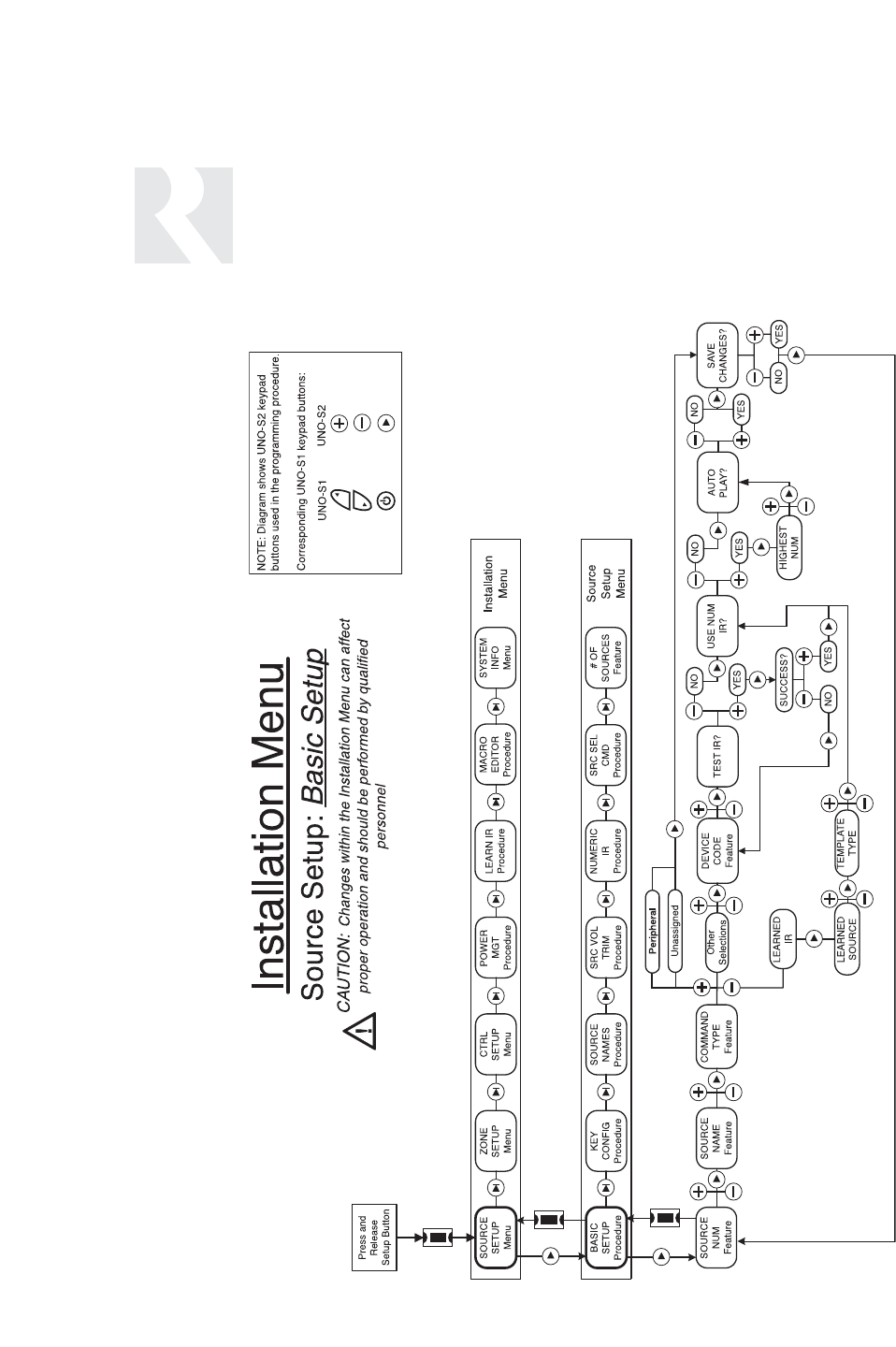

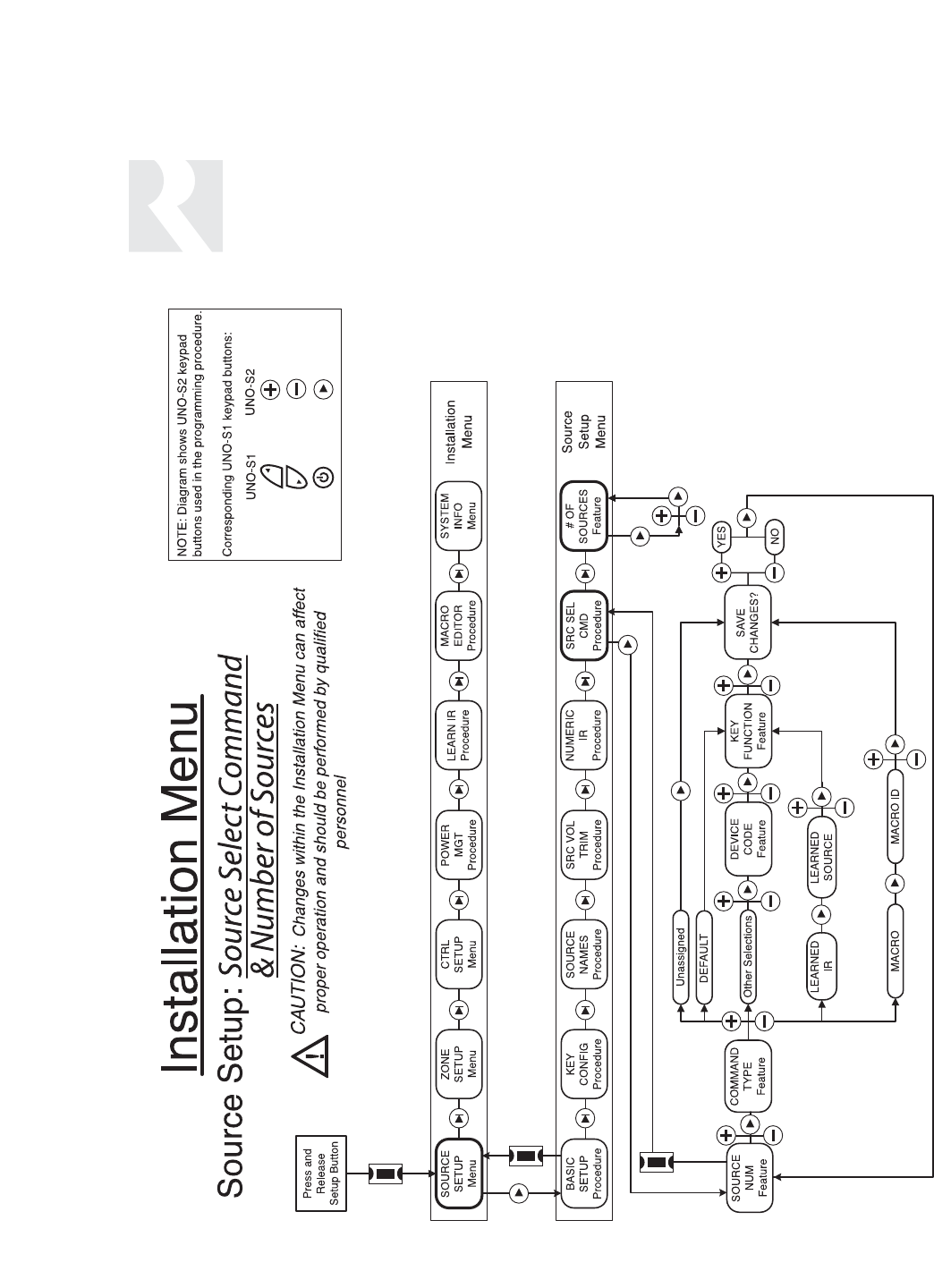

Setup Menu Flow Charts..............................................................................................................................62-72

Basic Setup .................................................................................................................................................62

Key Configuration.........................................................................................................................................63

Source Names/Volume Trim..........................................................................................................................64

Numeric IR...................................................................................................................................................65

Source Select/Number of Sources ................................................................................................................66

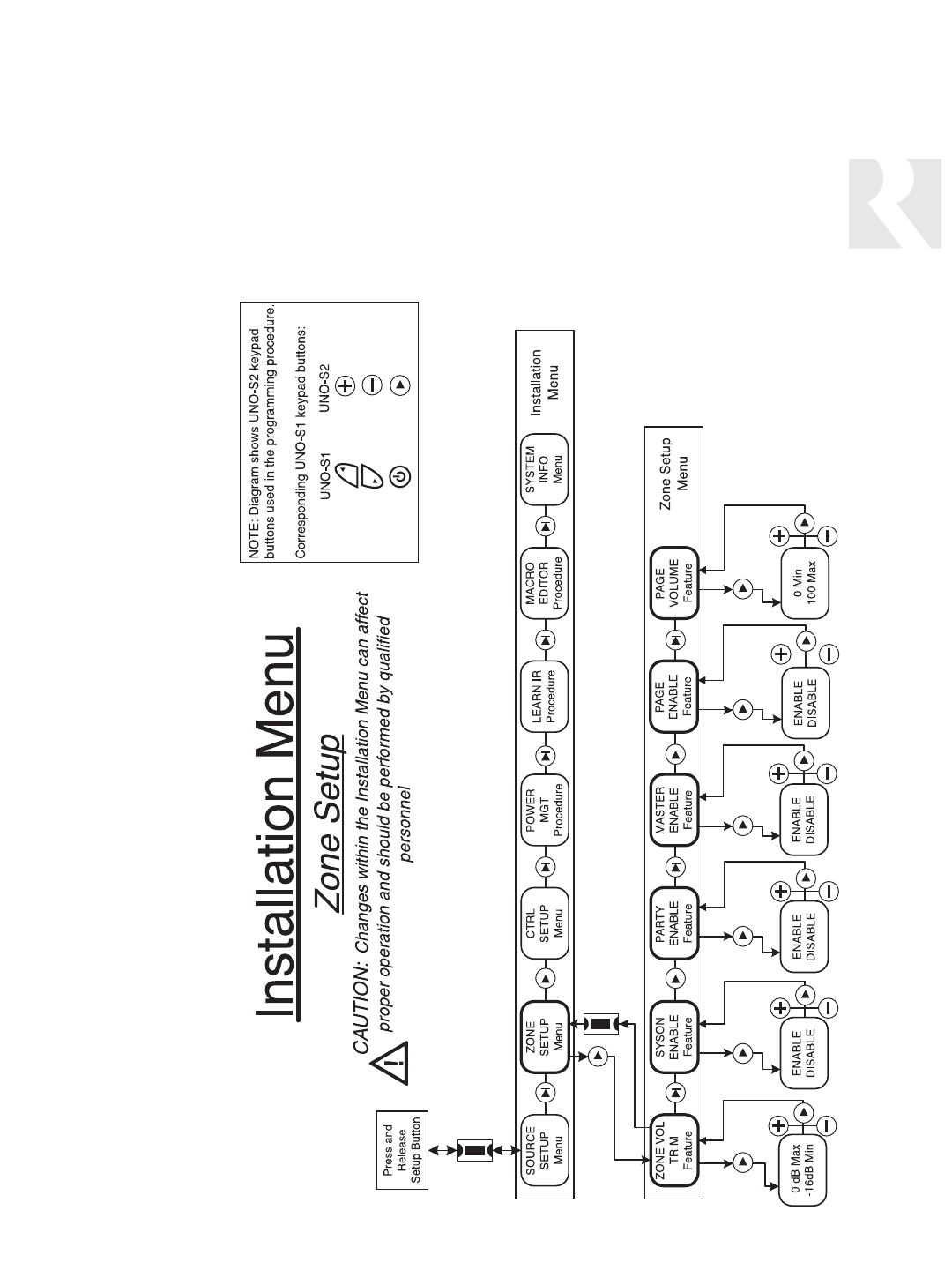

Zone Setup..................................................................................................................................................67

Controller Setup...........................................................................................................................................68

Power Management......................................................................................................................................69

Learn IR.......................................................................................................................................................70

Macro Editor................................................................................................................................................71

System Info..................................................................................................................................................72

REFERENCE SECTION

Keypad Diagnostic Menu ...........................................................................................................................................73

IR Device Code List..............................................................................................................................................74-77

Source Names List...............................................................................................................................................78-79

Sample System Configurations

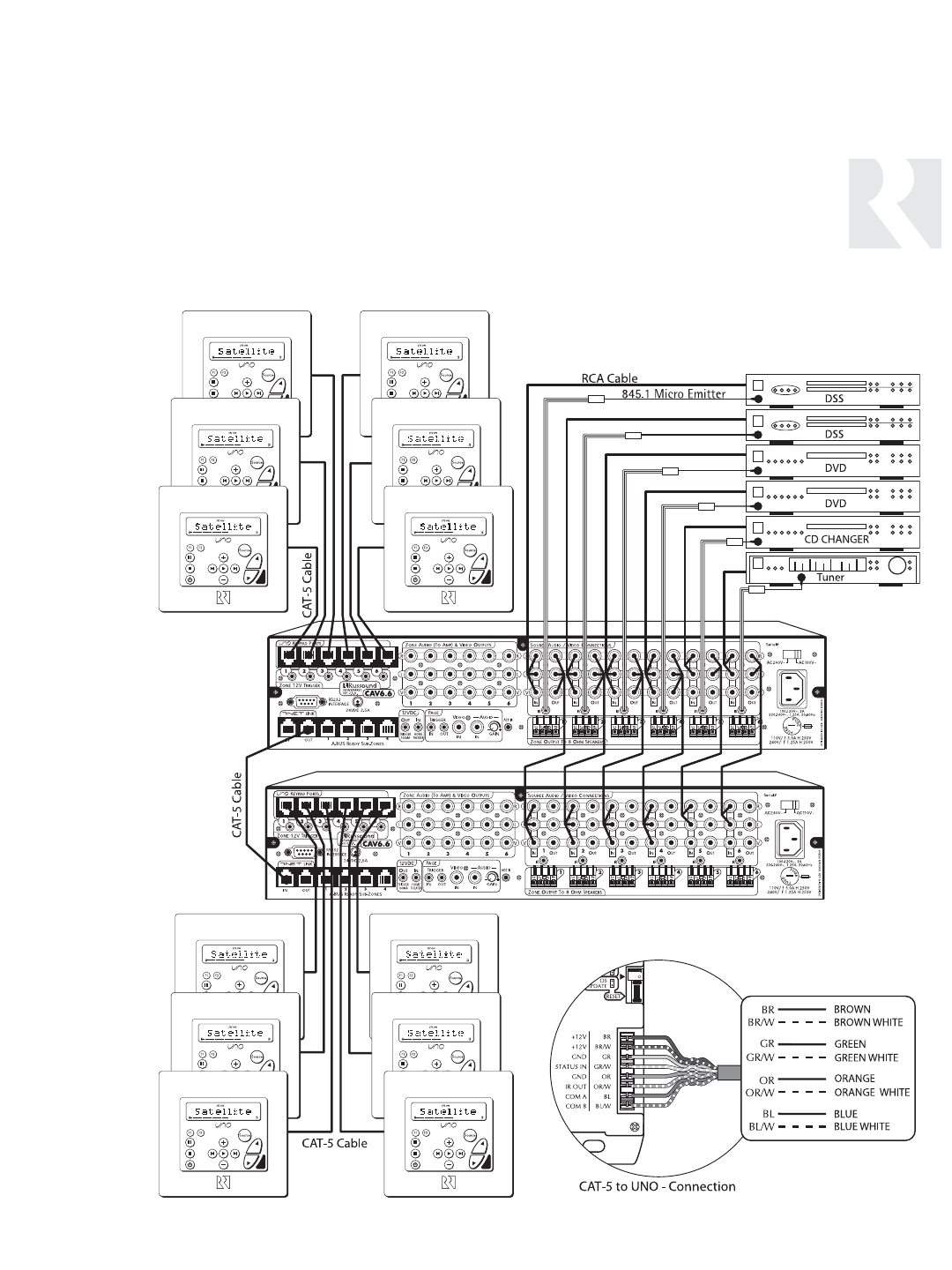

1 -Six Zones and Six Sources...........................................................................................................................80-81

2 - Integrate Multiple CAV6.6's .........................................................................................................................82-83

3 - Zone Keypad Expansion..............................................................................................................................84-85

4 - A-BUS Ready Sub-zone Addition...................................................................................................................86-87

5 - Additional Amplification ...............................................................................................................................88-89

6 - Home Theater............................................................................................................................................90-91

IR Key Code List ................................................................................................................................................92-113

Technical Specifications...........................................................................................................................................114

Warranty ................................................................................................................................................................115

4

5

PRODUCT INTRODUCTION

Thank you for choosing the Russound®CAV6.6 controller amplifier to enhance your home with distrib-

uted audio and video. This controller’s state-of-the-art features and components blend seamlessly with

your unique lifestyle and preferences.

Besides distributing and controlling six A-V sources to six rooms (zones), your CAV6.6 offers many

features that increase your enjoyment of living. Here are several features that you may find

particularly beneficial.

Favorites

The F1 and F2 buttons on the UNO-S2 keypad, UNO-TS2 touchscreen and SRC2 remote control

are preset favorites. These easy-to-set buttons make it possible to hear your favorite radio sta-

tion or watch your favorite satellite channel at just the right volume in your room with just a

button push. Want something new? Just re-save the Favorite with a new choice.

Do Not Disturb

The Do Not Disturb mode prevents unwanted interruptions in your room and stops changes to your

selected A/V source. You may have a nursery or study that you want to keep quiet, or maybe you are

watching a DVD and don’t want it interrupted. Simply set the Do Not Disturb mode to “on” using the

User Menu, and be free from paging, Party Mode interaction and system-wide functions like “All On”

or “All Off.”

Party Mode

Ready to set the mood? In Party Mode, you just pick the source and the sound settings and hear the

music throughout all the rooms. The Master keypad simultaneously controls all the keypads in all the

rooms to effortlessly select or control the components. A great benefit of the Party Mode feature is

the ability to transfer the Master keypad mode to any keypad in the system. If the living room is the

center of the party, use that room’s keypad as Master. If the party moves to the sunroom and porch,

that room’s keypad can be set to Master instead.

Front (Aux) A/V In

This handy feature lets you easily hook up an additional temporary audio-video source through the

front of the controller. This way, your teenager can set up a game console when his friends come

over, and easily take it down without having to leave the games set up in the living room. Or your

family can watch the video camera playback of the holiday gathering while everyone is still there.

Here at Russound we are proud to continue providing innovative and intuitive A/V product solutions to

the world. When you link the industry-leading CAV6.6 controller with Russound’s commitment to its

products and customers, you have truly made – “the right connection.”

6

USER

COMPONENT GUIDE

CAV6.6 Controller-Front Panel

MAIN POWER SWITCH - Supplies power to the CAV6.6. The power switch for the

CAV6.6 controller is "on" in the up position.

REMOVABLE COVER LENS - Covers the connections on the front of the CAV6.6

ROOM LED ON/OFF INDICATORS - Indicates when a room is on (green) or off (red)

ROOM LABEL WINDOW - Holds the selected room Label (included)

AUX A/V LINE INPUTS - Supports connection of a seventh A/V source to the CAV6.6

AUX IR OUT PORT - Connects IR emitter for IR control of the Aux A/V source component

1

4

2

5

3

231 4

56

6

Front A/V AUX Connections

The AUX Input is located to the right of the

power switch on the front panel. Connect the

Left, Right, and Video Input Connectors to the

source component using quality RCA signal

cables.

The AUX IR jack adjacent to the line input

accepts an IR Emitter with a 1/8” plug (e.g.,

Russound 845.1 IR emitter). The emitter’s other

end attaches to the IR window of the component

to control the auxiliary source.

USER

COMPONENT GUIDE

CAV6.6 Controller-Front Panel

7

8

LCD PANEL - 12-character backlit display shows status of the room, source,

volume, and more

MODE - “SYS-ON” indicates system on, “DND” shows when Do Not Disturb is active,

“SHARED” indicates same source selected in multiple rooms, “PARTY”shows when

Party Mode is enabled, and “MASTER” indicates the Master Keypad in Party Mode

SOURCE SELECT BUTTON - Scrolls through the sources directly connected to the

CAV6.6. Press and hold brings up the USER MENU for loudness, bass, treble, etc.

VOLUME UP/DOWN BUTTONS - Raises and lowers the volume for the room

IR RECEIVER - Receives IR signals and passes them to the controller and source

equipment. Also used when operating the UNO Keypad by using the SRC2 remote

COMMAND KEYS - Pressing the command keys controls the source equipment

POWER BUTTON - Turns room ON or OFF when pressed once, press and hold a

second time will turn on or off all CAV6.6 rooms

F1 AND F2 BUTTONS - Selects Favorite 1 or Favorite 2 - preset user-selected

favorite settings per room

VOLUME INDICATOR - Line extends to indicate volume level of the room

1

4

7

2

5

3

6

4

3

5

7

8

1

6

USER

COMPONENT GUIDE

UNO-S2 Keypad

2

8

9

9

Command Keys

9

USER

COMPONENT GUIDE

UNO-TS2 Touchscreen

IR RECEIVER - Receives IR signals and passes them to the controller and source

equipment. Also used when operating the touchscreen by using the SRC2 remote

TOUCHSCREEN - Full color resistive touchscreen with multi-sound feedback. Screen

can be programmed to go blank after a period of inactivity. Touching the screen any-

where reactivates it.

PLUS - Adjust setting for selected source

MINUS - Adjust setting for selected source

NEXT - Go to next selection for selected source

PREVIOUS - Go to previous selection for selected source

POWER - Turn room power on/off. Press and hold for system all on/all off

PAUSE - Pause/mute for selected source

VOLUME DOWN - Adjust volume down for room controlled by touchscreen

VOLUME UP - Adjust volume up for room controlled by touchscreen

5

4

3

2

1

6

7

8

9

10

5

4

3

2

1

6

7

8

9

10

10

USER

COMPONENT GUIDE

UNO-S1 Keypad

LCD PANEL - 5-character backlit display shows source, volume and room status

(messages scroll, then display first 5 characters of message)

SOURCE SELECT - Scrolls through the available sources. Press and hold brings up

the USER MENU for loudness, bass, treble, etc.

VOLUME UP/DOWN BUTTONS - Raises and lowers the volume for the room

IR RECEIVER - Receives IR signals and passes them to the controller and source equip-

ment. Also used when operating the UNO Keypad by using the SRC2 remote

POWER BUTTON - Turns room ON or OFF when pressed once, press and hold a sec-

ond time will turn on or off all rooms

COMMAND KEYS - Pressing the command keys controls the source equipment

102.5

1

2

3

4

5

6

1

4

2

5

3

6

(press) (press and hold)

(press) (press and hold)

11

USER

COMPONENT GUIDE

SRC2 Remote Control

POWER - Turns room or Local Source on and

off.

RUSSOUND DEVICE BUTTON - Used for

SRC2 control of zone keypad.

NUMBER BUTTONS - Buttons (0-9) for direct

selection of channels or discs.

VOLUME UP/DOWN - Raises and lowers the

volume for the room you are in, or for the

selected Local Device.

CURSOR KEYS - Issues IR commands for

source equipment, allowing movement

through menus and program screens.

COMMAND KEYS - Controls the selected

device (e.g., VCR, DVD, or CD player) with

these buttons.

SOURCE - Directly select sources connected to

the Russound controller while in the Russound

mode.

F1 AND F2 BUTTONS - Selects and saves

Favorite 1 or Favorite 2 preset selections.

INPUT - Scrolls through sources while in the

Russound mode, or switches inputs on

selected Local Source.

LOCAL DEVICE BUTTONS - Selects Local

Source to be controlled by SRC2.

SETUP - Use for programming SRC2 using

the built-in library or by learning-in codes.

1

4

4

7

7

2

5

8

3

3

6

9

11

10

6

9

1

2

5

8

10

11

12

Room On/Off

Press and release to turn on the UNO

System Keypad. This also turns on the corre-

sponding CAV6.6’s room, and any presets previ-

ously assigned will be activated, including set-

tings for bass, volume, last source selected,

etc. Press and release to turn off the UNO

System Keypad. This will also put the corresponding

CAV6.6’s room into a standby state.

System All On/Off

An “All On” command is issued by pressing

and holding for 3 seconds, after an initial room

has been turned on. An “All Off” command can

be issued to all rooms by pressing and holding

after the room has been turned off.

System On Indicator

When the room is off, but the system is on in

another room, is illuminated by a green

backlight and the "SYS ON" icon remains visible.

Source Select Button

scrolls through the six A/V source inputs

and the Aux source. To change sources, press

and release . As the sources are sequentially

selected, each source's name appears on the

keypad LCD panel. When a source is selected in

more than one room, the “SHARED” icon will

appear on all UNO Keypads using that source.

is also used to enter the User Menu with a

press and hold action. (See next page for User

Menu)

Volume Up/Down Buttons

The room’s audio output is adjusted using .

F1 and F2 Buttons

The and buttons are user favorite pre-

sets. These presets can be selected at any time

to recall source selection, volume, and favorite

channel, disk, etc. To store a favorite preset: first,

adjust the room settings and select a source to be

stored. Next, press and hold the desired or

button until SAVED is displayed on the LCD

panel. Now a press and release of the button will

recall the favorite preset. To set a favorite num-

bered disk or channel, use or to select a

disk or channel (e.g., channel 45). Wait for the

keypad to show the source name, then press

and hold the F1 or F2 within 15 seconds of set-

ting the numeric selection to save the setting.

Command Keys

The command keys allow control of the selected

source at the UNO Keypad. The command keys are

activated with a press and release, or press and

hold to access secondary functions.

USER

OPERATION

UNO-S2 Keypad Button Functions

13

The User Menu allows the user to adjust the

audio properties and control functions of a par-

ticular room.

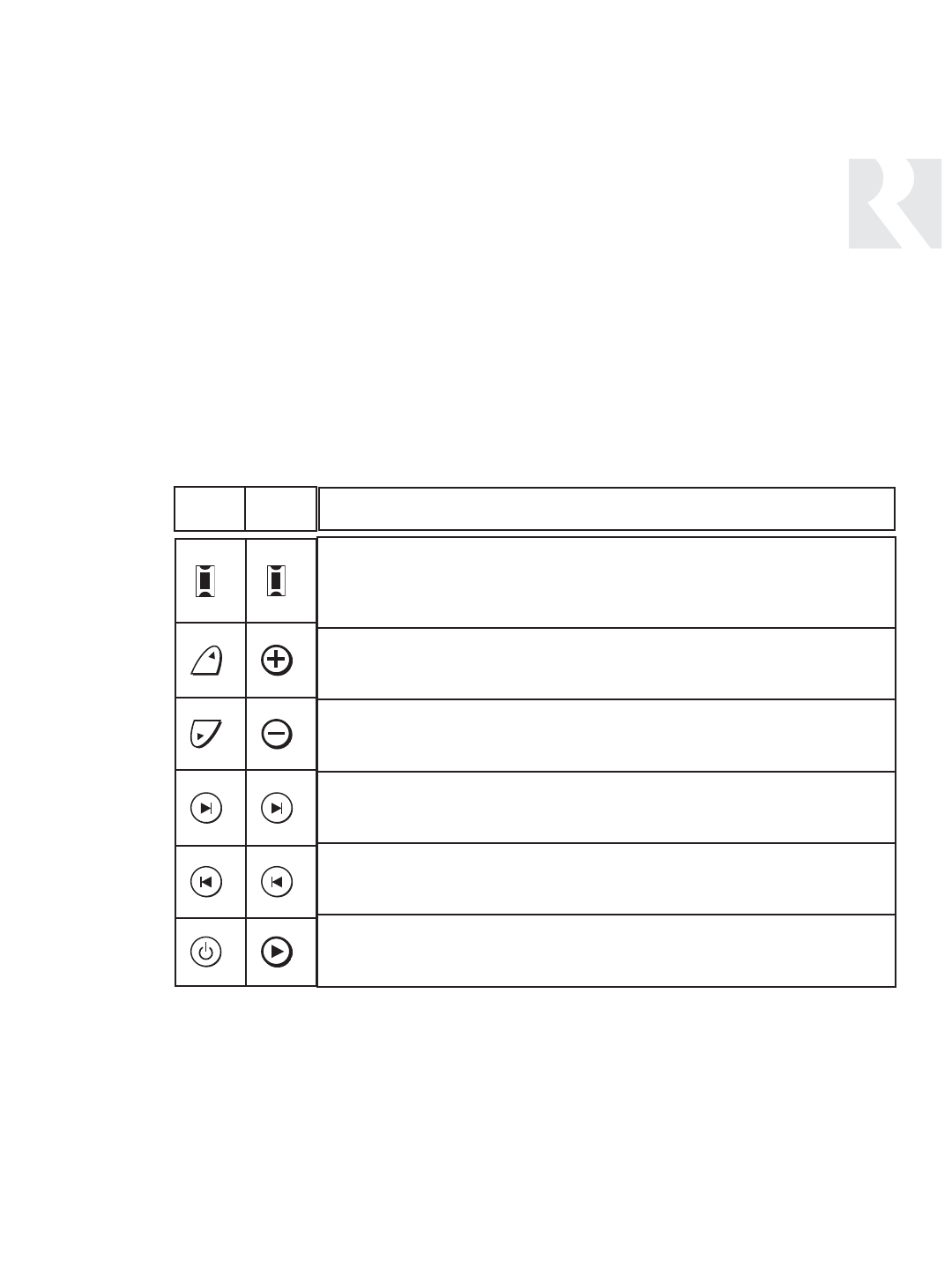

The following keys are used to navigate and

make changes while using the User Menu:

To enter the User Menu, press and hold dur-

ing normal operation. To exit the User Menu,

press and release .

Adjust feature setting (increment).

Adjust feature setting (decrement).

Go to next feature.

Go to previous feature.

View current feature setting.

The following features make up the User Menu:

BASS TREBLE LOUDNESS BALANCE

TURN ON VOL BG COLOR DO NOT

DSTRB PARTY MODE FRONT A/V IN

Feature and Setting:

1. BASS

-10 < Bass:Flat > +10

2. TREBLE

-10 < Treble:Flat > +10

3. LOUDNESS (more bass, fuller sound)

On or Off

4. BALANCE

Left -10 < Center > Right +10

5. TURN ON VOL (default room volume level)

0 to 100

6. BG COLOR (keypad background light)

Amber or Green or Off

7. DO NOT DSTRB - On or Off (default)

Do Not Disturb means do not disturb this room

or selected source. This stops pages from

being sent to this room, stops an “All Off," "All

On" or Party Mode command from affecting this

room.

When another UNO Systems Keypad selects the

same source, a DND icon will appear alerting

the user the source is in Do Not Disturb mode.

8. PARTY MODE - Master (Enable) or Off (Disable)

When in “PARTY MODE” the system is primarily

controlled by a “MASTER” keypad. Party Mode

links all rooms to the same source which is

selected by the Master Keypad room. Any key-

pad in the system can become a Master keypad

(if enabled) but only one Master Keypad may

exist at a time in Party Mode. Selecting Master

keypad mode from another keypad will transfer

Master keypad control to that room and release

it from the first. When the source selected in the

Master keypad room is changed then the source

for all rooms changes as well.

Volume level changes at the Master Keypad will

be reflected in all rooms in Party Mode. Non-

Master rooms in Party Mode can temporarily

override Master Keypad volume level adjustments

for their particular room preference. F1 and F2

favorite presets selected from the Master Keypad

will be enabled in all rooms in Party Mode. Master

Keypad will not change Bass, Treble, or Loudness

adjustments for any other rooms other than the

Master Keypad room. Every other keypad will still

operate its respective bass, treble, balance and

loudness adjustments for that room.

9. FRONT (AUX) A/V IN - Enabled or Disabled

Allows the system to select a seventh source option

through the controller's front panel AUX connection

for use with camcorders, game consoles, etc.

USER

OPERATION

UNO-S2 User Menu - Setting Preferences

14

USER

OPERATION

UNO-S1 Keypad Button Functions

The UNO-S1 keypad operates in a similar

manner as the UNO-S2 keypad.

Room On/Off

Press and release to turn on the UNO

System Keypad. This also turns on the corre-

sponding CAV6.6’s room, and any presets previ-

ously assigned will be activated, including set-

tings for bass, volume, last source selected,

etc. Press and release to turn off the UNO

System Keypad. This will also put the corresponding

CAV6.6’s room into a standby state.

System All On/Off

An “All On” command is issued by pressing

and holding for 3 seconds, after an initial room

has been turned on. An “All Off” command can

be issued to all rooms by pressing and holding

after the room has been turned off.

System On Indicator

When the room is off, but the system is on in

another room, is illuminated by a green

backlight and the "SYS ON" icon remains visible.

Source Select Button

scrolls through the six audio source inputs.

To change sources, press and release . As

the sources are sequentially selected, each

source's name appears on the keypad LCD

panel. When a source is selected in more than

one room, the “SHARED” icon will appear on all

UNO Keypads using that source. is also

used to enter the User Menu with a press and

hold action. (See next page for User Menu)

Volume Up/Down Buttons

The room’s audio output is adjusted using .

Command Keys

The command keys allow control of the

selected source at the UNO Keypad. The command

keys are activated with a press and release, or

press and hold to access secondary functions.

15

USER

OPERATION

UNO-S1 User Menu - Setting Preferences

The UNO-S1 User Menu allows the user to

adjust the audio properties and control func-

tions of a particular room.

To enter or exit the User Menu, press and hold

during normal operation. The following keys

are used to navigate and make changes while

using the User Menu:

Press and hold to adjust feature setting

(increment)

Press and hold to adjust feature setting

(decrement)

Go to next feature.

Go to previous feature.

View current feature setting.

UNO-S1 User Menu

Note: When within the UNO-S1 User Menu, if no

keys are pressed, the display will revert back to

its runtime display.

The following features make up the User Menu:

Bass Treb Loud Bal OnVol

Bkgnd DND Party FrtAV

Feature and Setting:

1. Bass -10 < Bass:Flat > +10

2. Treb (Treble) -10 < Treble:Flat > +10

3. Loud (Loudness) (more bass, fuller sound)

On or Off

4. Bal (Balance) Left 10 < Center > Right 10

5. OnVol (Turn on Volume) (default room volume

level) 0 to 100 (in steps of 2)

6. Bkgnd (Background Color) (keypad back-

ground light) Amber or Green or Off

7. DND (Do Not Disturb) - On or Off (default)

Do Not Disturb means do not disturb this room or

selected source. This stops pages from being

sent to this room, stops an “All Off," "All On" or

Party Mode command from affecting this room.

When another UNO Systems Keypad selects the

same source, a DND message will scroll on the

the LCD panel, alerting the user the source is in

Do Not Disturb mode.

8. Party (Party Mode) - Master or Off

When in “PARTY MODE” the system is primarily

controlled by a “MASTER” Keypad. Party Mode

links all rooms to the same source which is

selected by the Master Keypad room. Any keypad

in the system can become a Master Keypad (if

enabled) but only one Master Keypad may exist at

a time in Party Mode. Selecting Master Keypad

mode from another keypad will transfer Master

Keypad control to that room and release it from

the first. When the source selected in the Master

Keypad room is changed then the source for all

rooms changes as well. The keypad will scroll a

PARTY message on the LCD panel. It will scroll a

MASTR message in lieu of PARTY if Master is

enabled.

Volume level changes at the Master Keypad will

be reflected in all rooms in Party Mode. Non-

Master rooms in Party Mode can temporarily over-

ride Master Keypad volume level adjustments for

their particular room preference. Master Keypad

will not change Bass, Treble, or Loudness adjust-

ments for any other rooms other than the Master

Keypad room. Every other keypad will still operate

its respective bass, treble, balance and loudness

adjustments for that room.

9. FrtAV (Front A/V Aux In) - Enabled/Disabled

Allows the system to select a seventh source

option through a controller's front panel AUX

connection for use with camcorders, game con-

soles, etc.

16

USER

OPERATION

UNO-TS2 Touchscreen Button Functions

Room On/Off

To turn on the room and the touchscreen, touch

the UNO-TS2 screen anywhere, or press and

release the power button. Any presets previously

assigned will be activated, including settings for

bass, volume, last source selected, etc. Press

and release the power button to turn off the touch-

screen, and to put the room into a standby state.

System All On/Off

An “All On” command is issued by pressing the

power button and holding for 3 seconds, after

an initial room has been turned on. An “All Off”

command can be issued to all rooms by press-

ing and holding the power button after the room

has been turned off.

System On Indicator

When the room is off, but the system is on in

another room, the power button is illuminated by

a red backlight.

Volume Up/Down Buttons

The room’s audio output is adjusted using the

volume up/down hard buttons on the side of the

touchscreen.

F1 and F2 Buttons

The F1 and F2 buttons are user favorite presets.

These presets can be selected at any time to

recall source selection, volume, and favorite chan-

nel, disc, etc. To store a favorite preset: first,

adjust the room settings and select a source to be

stored. Next, press and hold either F1 or F2 until

“SAVED” is displayed on the LCD panel. Now a

press and release of the button will recall the

favorite preset. To set a favorite numbered disc or

channel, use Plus or Minus to select a disc or

channel from its source screen. Wait for the touch-

screen to show the source name, then press and

hold F1 or F2 within 15 seconds of setting the

numeric selection.

Source Select Button

The six buttons in the middle of the touch-

screen’s home page show the six assigned

names of the sources. To select a source, press

the button assigned to that source. To change

sources, return to the home screen and press

another source button. As the sources are

selected, each source's name appears on the

touchscreen’s LCD panel. When a source is

selected in more than one room, the “shared”

icon will be lit on all UNO Keypads using that

source.

Source Control Screens

As each source button is pressed, a different

screen appears that is customized to the

source. These source screens come in “sets”

which may have more than one screen per

source that provide source information and

selection options. In addition, the hard buttons

on the right side of the touchscreen have sec-

ondary functions that are indicated with text on

the specific source screens.

UNO-TS2 Home screen

17

The Options button on the UNO-TS2 home screen

brings up room setting options and screen adjust-

ments. (For more detailed information, consult the

UNO-TS2 Instruction Manual)

Features

Turn On Volume - This sets the room’s default vol-

ume when the room is turned on.

Party Mode - When in “PARTY MODE” the system is

primarily controlled by a “MASTER” Keypad. Party Mode

links all rooms to the same source which is selected by

the Master Keypad room. Any keypad in the system can

become a Master Keypad (if enabled) but only one

Master Keypad may exist at a time in Party Mode.

Do Not Disturb - Do Not Disturb means do not disturb

this room and selected source. This stops an “All Off" or

Party Mode command from affecting this room. When

another UNO Systems Keypad selects the same source,

a DND icon will appear alerting the user the source is in

Do Not Disturb mode.

Sound Control

Bass - Adjust the bass level for the room

Balance - Adjust the left-to-right speaker balance for

the room

Treble - Adjust the treble for the room

Loudness - Turn loudness (more bass, fuller sound at

“low” volumes) on or off for the room. A checkmark

appears to indicate “Loudness” activation.

Options screen

Options

Features screen

Stream 3

Party Mode Off

USER

USER MENU SETTINGS

UNO-TS2 - Setting Preferences

Sound Control screen

Treble:+2

18

INSTALLER

GETTING STARTED

Unpacking the Components

• Keep the original carton and packing materials

for future shipment or storage.

• Check for any visible signs of damage. If

you encounter any concealed damage, con-

sult your Russound dealer before proceeding

to install the unit.

• Retain the sales receipt as it establishes the

duration of the limited warranty and provides

information for insurance purposes.

Tools needed for installation:

• Drill with a 1/2” x 6” drill bit

• Keyhole saw

• Flat head screwdriver (medium size)

• Phillips Screwdriver (cordless recommended)

• 110 punchdown tool (included)

• Modular RJ-45 crimper and connectors

• Pair of diagonal cutters or wire strippers

• Stud finder

• Steel wire fish tape

• Cable staples

• PLASTIC double-gang electrical work boxes

System Installation Considerations

There are several factors to consider before

installing the Russound CAV6.6 controller:

• What are the intended listening zones, and

what zones require audio and video distribution

or audio only?

• Are A-BUS®sub-zones needed? A-BUS sub-

zones are only available for zones 1 - 4. The

A-KP2 amplified keypad can provide direct

source selection for only the first four sources

when in ‘Multi’ source mode.

• What system options and accessories might

be required for features such as paging, local

sources, etc.?

• From where in each zone will the user prefer

to control the system? Where will the keypads

be located? Where will the speakers be located?

• Where will the source equipment be located?

The CAV6.6 must have proper ventilation above

and below for air circulation and heat dissipation.

A rack-mount location may require fans and vents.

Connection Tips

• It is recommended that the CAV6.6 and the

source equipment be plugged into a dedicated

20-amp circuit with an isolated ground. A power

line conditioner can reduce interference prob-

lems caused by noise found in some electrical

systems.

• Disconnect all live power cords before making

connections to the controller.

• Verify that all connections and polarity are

correct.

• Keep all power cords away from all signal

cables to prevent humming from induced noise.

• Choose reliable signal cables/patch cords.

• Label all wires with room location at both ends

of the wire.

Do not connect the controller's main power feed until all other connections have

been made and verified. Live connection or removal of the keypad wiring or other

wiring when the system is powered can cause communication problems in the

network. Double-check terminations during each phase of the installation to pre-

vent accidental damage. Incorrect wiring is the number one cause for non-war-

ranty product damage.

INSTALLER

COMPONENT GUIDE

CAV6.6 Controller-Front Panel

1

7

2 5

8

3

6

9

10

11

4

PROGRAM SELECTOR COVER - Protects the Program Selector Switch

KEYPAD PROGRAMMING PORT - Accepts an RJ-45 terminated UNO keypad for programming

FRONT/REAR RS-232 SWITCH - Selects front or rear RS-232 connection for programming

RS-232 INTERFACE - Front and rear RS-232 connections for software updates, and allows

zones to be controlled by PC or other RS-232 interface devices

IR CONFIRMATION LED - IR Learning and preprogrammed IR output confirmation LED

IR RECEIVER - Receives IR signal when learning IR codes into the CAV6.6

ZONE LABEL - Selectable backlit labels identify active zones

OS PROGRAM SELECTOR SWITCH - Selects either Main or Aux IC when updating OS software

MAIN LED - Illuminates when the Main Micro-Controller IC is selected to be programmed

AUX LED - Illuminates when the AUX IC is selected to be programmed

RESET BUTTON - Resets the CAV6.6 when OS updates are completed

1

4

7

2

5

8

9

3

6

10

11

19

20

17 16 14 12131519 1821 20

ZONE 12VDC TRIGGER OUT - 12VDC 50ma is available whenever the corresponding

zone is turned on

UNO KEYPAD PORTS - One UNO Keypad Port for each of the six CAV6.6 Zones

24VDC 2.5A INPUT - Provides power to the A-BUS READY SUB-ZONES when used

with a 24VDC 2.5A power supply (e.g., Russound A-PS)

ZONE AUDIO/VIDEO OUTPUTS - Variable line audio with fixed video, used to connect

to an external amplifier and television monitor

AUDIO/VIDEO SOURCE LOOP OUTPUTS - Six sets of buffered Audio/Video Line Level

Loop Output connections

AC 240V-AC 110V Switch - Switches A/C input Voltage between 110VAC and

240VAC

AC 120/240 INPUT - Grounded 3-terminal plug detachable power cord connection

for the CAV6.6

FUSE HOLDER - Holds a replaceable fuse for A/C input connection

110VAC operation-F 3A H 250V, 240VAC operation-F 1.25A H 250V

SOURCE IR OUTPUTS - Six routed source-specific IR Output jacks allow for IR control

of source equipment

4

7

2

5

8

3

6

9

1

41 3 6

9 711

INSTALLER

COMPONENT GUIDE

CAV6.6 Controller-Rear Panel

10

52

8

21

SPEAKER OUTPUTS - Connect 8 Ohm speakers for each zone by using detachable

color-coded modular snap connectors

AUDIO/VIDEO INPUTS - Six sets of Audio/Video Line Level input connections for

CAV6.6 source components

ACC IR OUTPUT - ACC IR Output jack will pass all IR signals from all keypads

PAGE LINE LEVEL AUDIO GAIN CONTROL - Adjusts the Line Level Audio Page Input

PAGE A/V INPUTS - RCA jacks allow for one Audio/Video Page Input. Signal sensing

is used on Page Audio In to initiate a page

PAGE 12VDC TRIGGER OUT - Page Trigger Out supplies 12VDC whenever 12VDC is

applied to the Page 12VDC Trigger In

PAGE 12VDC TRIGGER IN - Applying 12VDC to the Page 12VDC Trigger In jack will

activate Audio/Video Page for assigned CAV6.6 Zones and initiate a page (overrides

signal sense)

HOME THEATER 12VDC TRIGGER IN - 12VDC input jack notifies the CAV6.6 that

additional A/V components are active, e.g., home theater equipment

12VDC TRIGGER OUT - 12VDC 50ma Trigger Out turns on when any zone is on

A-BUS READY SUB-ZONES - A-BUS Amplified Control Modules and Hubs can be added

for additional sub-zones of audio (Zones 1 to 4 only)

RNET LINK IN AND LINK OUT - Links multiple CAV6.6’s, also links future Russound

components that are RNET compatible

RS-232 INTERFACE - The RS-232 Interface on the rear and on the front, allows the

zones to be controlled by PC or other devices that have an RS-232 Interface. The

RS-232 Interface also allows for software updates and programming

20

21

19

18

17

16

15

14

13

12

10

11

INSTALLER

COMPONENT GUIDE

CAV6.6 Controller-Rear Panel

22

INSTALLER

COMPONENT GUIDE

UNO Keypad-OS Update Port

2

OS UPDATE PORT- Connection for programming

cable used to update UNO keypad OS software.

SETUP BUTTON - Activates Installer Setup mode

and accesses update menus

RESET BUTTON - Resets UNO-TS2 after update

OS UPDATE/RUN JUMPER - Pins are jumpered

during OS update, and removed during normal

operation.

Software Update

If a keypad update is released, it will be available

online at

www.russound.com

through the Document

Center, under RNET Systems. Before starting the

update procedure, download updates to a PC and con-

nect the correct programming cable from the PC to

the OS update port on the front of the keypad.

Required Russound Cable for Programming

UNO-S2, UNO-TS2

- use Programming Cable P/N 2500-121036

UNO-S1

- use Advanced Programming Cable P/N 2500-521065

(Do not put RS-232 level signals into the pins)

1

2

4

4

1

UNO-S2 Keypad

UNO-TS2 Touchscreen

UNO-S1 Keypad

OS Update Port

OS Update Port

3

3

1

KOREA

EXTERNAL IR RECEIVER IN CONNECTOR - Connection for an external IR Receiver

OS UPDATE JUMPER - Selects “Run” or “OS Update” mode

RESET BUTTON - (UNO-S2) Reset whenever changing from RUN to OS update

(UNO-TS2) Reset after touchscreen firmware update

110 PUNCHDOWN CONNECTOR - Termination for CAT-5 connection between the UNO Keypad

and the CAV6.6 controller

1

2

3

4

2

1

4

INSTALLER

COMPONENT GUIDE

UNO Keypads-Rear Panel

N

EWMARKET

, NH U.S.A.

DESIGNED IN USA MADE IN KOREA

BR

GR

OR

+12V

BR/W+12V

GND

GR/W

GND

OR/W

COM A

BL/WCOM B

BL

IR OUT

UNO-S1

System Control Keypad

STATUS IN

NEWMARKET, NH USA

BR

BR/W

GR

GR/W

OR

OR/W

BL/W

+12V

+12V

GND

STATUS IN

GND

IR OUT

COM A

COM B

BL

EXTERNAL IR

RECEIVER IN

RESET

RNET

+12V

GND

SIGNAL

STATUS

DESIGNED IN USA MADE IN KOREA

UNO-TS2

1

UNO-TS2

UNO-S2 UNO-S1

3

4

4

3

23

24

INSTALLER

WIRING INSTRUCTIONS

RJ-45 Connections

The CAT-5 T568A wiring stan-

dard shown on the right is used

for the RJ-45 terminations.

Keypad Wiring

For the UNO keypads, the following connections

are used to terminate the CAT-5 wire to the 110

punchdown on the keypad:

CAT-5 WIRE COLOR TYPE

Brown . . . . . . . . . . . . . . . . . . . +12V

Brown/White . . . . . . . . . . . . . . +12V

Green . . . . . . . . . . . . . . . . . . Ground

Green/White. . . . . . . . . . . . Status In

Orange . . . . . . . . . . . . . . . . . Ground

Orange/White. . . . . . . . . . . . . IR Out

Blue . . . . . . . . . . . . . . . . . . . COM A

Blue/White . . . . . . . . . . . . . . COM B

• To determine the amount of CAT-5 wire

required for the system installation, first

decide how many keypads will be used, then

determine the distance between each intend-

ed keypad location to the intended CAV6.6

location. The maximum recommended wire

run length is 250 feet for each UNO Keypad.

• Make sure that the entire wire path

between keypads and CAV6.6 is clear and

not obstructed by a floor ceiling joist, or

masonry wall which can’t be drilled through.

• Confirm ahead of time that you can drill an

outlet hole easily and in an unobtrusive spot

to connect wires with the CAV6.6.

• Label wires with keypad and room location.

This simplifies CAV6.6 hook-up once the key-

pads and speakers are installed.

• If you plan to use an additional IR receiver

with an UNO keypad, first determine the loca-

tion of the IR receiver, then measure the dis-

tance from the intended location to the UNO

keypad location. Incorporating optional IR

receivers will require additional wire. Consult

the selected IR receiver model’s manual for

the specific wire needs.

Speaker Wiring

• Standard 16-gauge 4-conductor stranded

speaker wire can be run up to to 125 feet;

14-gauge wire can be run up to 250 feet.

• When running wire, pay particular attention

to the following areas:

• Avoid locations concealing pipes, heating

ducts and AC wiring in the general vicinity.

• Avoid running wires close to house electri-

cal wiring for any distance. If you have to run

them parallel, make sure to space the wires

at least two feet from the AC line.

25

CAT-5 Connection

The UNO-S2 Keypad uses a 110-punchdown

terminal to provide a simple installation and

strong connection for CAT-5 cable’s eight con-

ductors. Punchdown terminals require the use of

a punchdown tool which has been provided with

the keypad kit. Attach the CAT-5 cable to the

110 punchdown terminal on the UNO-S2 Keypad

as shown, matching the conductor colors to the

connection color guide. The keypad will not

operate properly if the terminations deviate from

the required connection order.

Caution:

Take care when using an impact 110 punchdown

tool, as this may overspread the contact points.

Use of the impact tool may propel stray bits of wire

and jacket into the keypad’s chassis and possibly

cause a short in the circuitry. Gently shake or blow

air through the keypad chassis to remove stray wire

before the keypad is installed into the junction box.

Jumper Setting

The jumper settings on the back of the UNO-S2

Keypad can be set for “Run” and “OS Update.” The

jumper setting must be in the “Run” position before

the keypad is mounted into the junction box, and

must remain set in “Run” to operate the keypad.

The jumper will be set to “OS Update” only while

updating the keypad’s operating systems.

INSTALLER

UNO-S2 KEYPAD-INSTALLATION

UNO-S2 Keypad Connections

Punchdown Tool

CAT-5 Connections (back of keypad)

Jumper Setting

(back of keypad)

Punchdown Tool

The UNO-S2 keypad has an External IR Receiver

In terminal for connecting an external IR receiver

such as the Russound SaphIR 858, 862 Eye, or

860 Phantom. Use 2 twisted pair wire with

one pair connecting GND (GROUND) and IR (SIG-

NAL) and the other pair connecting ST (STATUS)

and V+ (+12VDC). If the wire has a shield, con-

nect it to ground at the UNO-S2 only.

KOREA

Back of

Russound 858

Back of

UNO-S2

INSTALLER

UNO-S2 KEYPAD-INSTALLATION

IR Receiver Connection

26

INSTALLER

UNO-S2 KEYPAD-INSTALLATION

Keypad Location

The best infrared remote performance is achieved

with the keypad away from any direct sunlight,

plasma TV, and low voltage lighting controls. Also

consider convenience when choosing a location.

Choose a place that is easily seen from the posi-

tion where a person is most likely to be located.

Check whether or not you can route the wire to

the location you have chosen.

Keypad Installation

To install a double-gang keypad, you will need to

use a UL/CSA approved plastic double-gang

electrical box (do not use metal boxes).

• Route CAT-5 wire to the junction box from the

CAV6.6.

• Use the supplied 110 punchdown tool to con-

nect each wire to its corresponding color

labeled on the punchdown terminal.

• Ensure jumper settings on keypads are in the

run positions.

• Mount the keypad in the electrical box and

attach the cover plate. Repeat the steps until all

keypads are installed.

Plastic Double-Gang

Electrical Box

UNO-S2

Back Plate Screw

Screw

Screwless

Cover Plate

27

28

The UNO System Keypad Ports are located on

the back of the CAV6.6 in the top left corner.

Connections made at the UNO Keypad Ports are

made using CAT-5 T568A RJ-45 wire configura-

tion. CAT-5 is color-coded for ease of installa-

tion. For a clean installation when wiring from an

UNO System Keypad Port use an RJ-45 CAT-5

patch cable to connect from the keypad port to

an RJ-45 Wall Plate (optional). Using the same

CAT-5 T568A RJ-45 wiring configuration, use

CAT-5 from the RJ-45 Wall Plate to the keypad.

If using more than one keypad on a zone, con-

nect a SA-ZX3 UNO System Keypad Splitter

(optional) directly to the UNO System Keypad

Port instead of going through the wall plate.

Always use the CAT-5 T568A RJ-45 wire configu-

ration when wiring any of the UNO System

Keypad Ports.

(See Sample System Configuration 3, page 84)

INSTALLER

MAKING CONNECTIONS

UNO System Keypad Port Connection

29

The CAV6.6 supports up to six audio/video

sources. The Source Inputs are located at the

back panel. Connect each source output using

quality RCA signal cables. Connect the Video, and

the Left and Right Audio outputs from each

source to the corresponding inputs on the

CAV6.6 controller. Label each cable with the

name of the selected source and the Source

Audio/Video input number located on the CAV6.6.

Source IR Connections

Each source component has a designated IR

port on the back of the CAV6.6. This IR port is

directly below the Source Audio/Video

Input/Output Connections.

1. Using an IR emitter (the Russound 845.1 is

recommended) attach the end of the emitter

with the 1/8”plug to the IR emitter port below

the source input.

2. Remove the adhesive back at the other end

of the emitter and attach the emitter over the

source component’s IR window.

3. In order to control this source component

with IR, the source must be selected at the key-

pad receiving the command.

INSTALLER

MAKING CONNECTIONS

Source Audio/Video Input Connections

The CAV6.6 has six buffered, fixed-level

audio/video source loop outputs. This source loop

configuration allows the CAV6.6 to pass source

signals to another component, such as a home

theater receiver or to another CAV6.6 for sharing

sources in a multiple controller system.

The Source Loop Outputs are located directly to

the right of the Source Audio/Video Inputs. Use

quality RCA signal cables to ensure quality trans-

ference of Audio/Video signals.

INSTALLER

MAKING CONNECTIONS

Source Audio/Video Loop Output Connections

30

31

The speakers are connected to the CAV6.6

using modular snap speaker connectors. Each

of these color coded connectors is designated

for the speaker set of a particular amplified

zone. To avoid confusion, connect one zone

speaker set at a time starting with Zone 1, tak-

ing care to keep zone and speaker wire identi-

ties straight. Note: An 8 Ohm minimum speaker

is required for each amplified output.

1.Pull the speaker wire conductors apart so

they’re separated for the first two inches from

their ends.

2.Using a wire stripper, remove 1/4 inch of

insulation from each conductor. Twist the

strands in each conductor into tight spirals.

3.Remove the modular four-color connector for

Zone 1. The color code is as follows:

WHITE -- L+ (left channel positive)

GREEN -- L- (left channel negative)

BLACK -- R- (right channel negative)

RED -- R+ (right channel positive)

Lift the black lever for each connection until it

locks open and insert the proper speaker

wire, matching channel and polarity for all

four wires. Snap the lever down. Insert the

modular connector into its designated output

on the back of the CAV6.6.

4.Complete the same steps for the remaining

zones. Label each set of speaker wires with

the zone and location.

INSTALLER

MAKING CONNECTIONS

Speaker Connections

32

The Accessory IR jack on the rear of the CAV6.6

allows control of any source equipment without

that source being selected on the keypad. The

connection for the ACC IR jack is made using an

IR emitter with the 1/8’’ plug. The Russound

845.1 single IR emitter is recommended, or use

an IR connecting block such as the Russound

857 which allows multiple units to be controlled

through the ACC IR Port.

INSTALLER

MAKING CONNECTIONS

ACC IR Connection

33

The CAV6.6 has six Zone Audio/Video outputs.

The Variable Audio outputs can be used if addi-

tional amplification is desired (e.g., Russound

R235LS two-channel amplifier). The Zone

Audio/Video Outputs are located slightly to the

left of center on the rear of the CAV6.6.

Use quality RCA signal cables to ensure a con-

stant quality Audio signal. Video for the zone will

be routed via the Video connection.

Use RG59 Coax Cable or an RG6 Cable with 95%

copper braided shield and solid copper core up to

150 feet long for video connections to monitors.

INSTALLER

MAKING CONNECTIONS

Zone Audio (to Amp) and Video Outputs

A-BUS products can easily expand the CAV6.6

audio system by adding A-BUS Ready Sub-zones

to the first four CAV6.6 zones. The A-BUS Ready

Sub-zones are located on the back of the

CAV6.6 at the bottom left corner. The A-BUS

Ready Sub-zones are powered by a 24VDC

power supply such as the A-PS.

Use an RJ-45 CAT-5 T568A configuration patch

cable to connect the A-BUS Ready Sub-zone

port to an RJ-45 wall plate (optional) for a clean

installation. Using the same T568A RJ-45 wiring

configuration, attach CAT-5 from the RJ-45 wall

plate to an A-BUS hub or amplified control mod-

ule such as the A-KP2 keypad.

If using an A-BUS hub with the A-BUS Ready Sub-

zone, the hub should be located near the

CAV6.6 and wired directly instead of first going

through the wall plate.

INSTALLER

MAKING CONNECTIONS

A-BUS Ready Sub-zone Connection

34

12VDC Home Theater Trigger In

This 12VDC Trigger input is used to control

Power Management of the audio/video sources

possibly being shared with a home theater sys-

tem. When the source equipment is off and

12VDC is provided to the trigger, the sources will

be turned on until it is removed. When the last

zone on the CAV6.6 is turned off, 12VDC pres-

ence to the trigger input will prevent the sources

from being turned off. The connections for the

trigger are made using a two-conductor cable

with 1/8” male mini-plug. The tip is positive (+)

and the sleeve is negative (-).

12VDC 50mA Trigger Out

The 12VDC 50mA trigger out can be used to

engage any 12VDC trigger device or component

such as the Russound ACT-1 triggered outlet.

The connections for the trigger out are made

using a two-conductor cable with 1/8” male

mini-plug jacks at each end. The tip is positive

(+) and sleeve is negative (-).

INSTALLER

MAKING CONNECTIONS

12VDC Trigger In/Out

35

36

12VDC Page Trigger In

When 12VDC is applied to the Page Trigger In,

the system will page audio that is connected to

the Page Audio Input and interrupt the video out-

puts with the page video signal. The Page Trigger

In is located in the Page connection area of the

CAV6.6 Controller. The connections for the trig-

ger are made using a two-conductor cable with

1/8” male mini-plug jacks. The tip is positive (+)

and sleeve is negative (-). This allows for the con-

nection of an external paging or muting device

such as the Russound DIM-1 Doorbell Interface

Module. The CAV6.6 can be programmed to

mute audio and video for one or all zones as pre-

ferred when the 12VDC is applied.

12VDC Page Trigger Out

Page Trigger Out 12VDC output is available

under several programmable situations, such as

for triggering an external amplifier, muting

device or other paging component dependent

on the Page Trigger In 12VDC. The connections

for the output are made using a two-conductor

cable with 1/8” male mini-plug jacks at each

end. The tip is positive (+) and sleeve is nega-

tive (-). The default setting for the Page Trigger

Out provides 12VDC whenever 12VDC is applied

to the Page Trigger In.

In some cases noise or interference may be

generated by external devices that are connected

to the 12 volt trigger outputs of the CAV. It may

be necessary to use a ferrite bead to reduce

this interference. Two to three turns of the con-

necting cable through the bead may be needed.

Page Audio/Video In

The Page Audio/Video Inputs accept line level

audio/video signals. The paging inputs interface

with the page output of a telephone, camera, or

other peripheral device. Connect the audio/video

signals using quality RCA cables.

INSTALLER

MAKING CONNECTIONS

12VDC Trigger In/Out

37

INSTALLER

MAKING CONNECTIONS

12VDC Trigger In/Out

Zone 12VDC Trigger Outputs

Zone 12VDC Triggers are located directly under

the UNO Keypad Ports. The 12VDC Trigger is

engaged when the corresponding zone is turned

on and disengaged when the zone is turned off.

The trigger can be used to engage any 12VDC

trigger device or component such as the

Russound R235LS amplifier. The connections for

the trigger outputs are made using a two-con-

ductor cable with 1/8” male mini-plug jacks at

each end. The tip is positive (+) and sleeve is

negative (-).

INSTALLER

MAKING CONNECTIONS

12VDC Trigger In/Out

38

39

The RNET Link In and Link Out is used to con-

nect two or more (up to 6) CAV6.6 or CAM6.6

controllers. The connection is made using a

CAT-5 patch cable from the Link Out of the mas-

ter controller and into the Link In of the next

controller. Along with RNET data signals, the

RNET Link In and Link Out jack passes the six

source IR signals. The CAT-5 patch cable should

not exceed 18 inches in length to avoid potential

cross-talk between the source-specific IR repeat-

ing signal lines. These are only for source-specif-

ic IR remote repeating, not codes initiated from

the controller’s internal IR library.

Note: If two or more CAV6.6 controllers will be

connected using the RNET Link In and Link Out

ports, each controller must have a unique

Controller ID (see Controller Setup - Flow

Chart on page 68) prior to being connected

through the RNET ports. The Controller ID

assignment must be performed during the

Controller Setup section of the Installation menu.

Controller #1 is always the LAST controller

to be powered on in a multi-controller

system.

CAM6.6

INSTALLER

MAKING CONNECTIONS

RNET Link In and Link Out - Multiple Controllers

40

INSTALLER

MAKING CONNECTIONS

RNET Link In and Link Out - RNET-enabled Components

The RNET Link In and Link Out is also used to

connect the CAV6.6 to other Russound

RNET-enabled products. The connection is made

using a CAT-5 patch cable from the Link Out of

the controller and into the Link In of the RNET-

enabled component. Another CAT-5 patch cable

can be used to link out of that component and

link into another RNET-enabled component in the

system.

RNET-enabled components fully integrate with

CAV6.6 and CAM6.6 multi-zone systems. They

communicate through the RNET Link In and Link

Out connection. These components can be con-

trolled via the UNO keypad or the SRC2 remote

control, and display source information on the

keypads. The CAT-5 patch cable should not

exceed 18 inches in length.

INOUT

LINK

AUDIO OUTPUTS

1394

IR INPOWER

+12VDC

6A MAX

MOUSE

KEYBOARD

CRT VGA S-VIDEO

COMPOSITE

VIDEO

RS232

INTERFACE

USB 2.0/1.1

LAN

SMS3

Smart Media Server

US

C

ASSEMBLED IN THE USA

NEWMARKET, NH

RS-232

INTERFACE 12VDC 1.5A

INOUT

NEWMARKET, NH U.S.A.

ST2

Smart Tuner

LINK KEYPAD PORTS

Serial#

MADE IN KOREA

TUNER 1

FM COAX

LOOP

ANTENNA

IR LR

AUDIO OUTPUT

IR LR

AUDIO OUTPUT

TUNER 2

ANTENNA

41

The CAV6.6 supports RS-232 communication

with various third-party automation systems

through the RS-232 ports. These ports are also

used for firmware updates, and for controller

programming through the PC Power Tool soft-

ware program.

The two RS-232 com ports are located on the

front and the back of the CAV6.6 and use a

DB-9 cable connection. Before performing

updates or programming, select a front or rear

RS-232 port and set the Front/Rear RS-232

switch on the front of the controller as well. The

switch is located next to the DB-9 port.

For RS-232 protocol, available firmware updates

and the RNET Backup Utility, see the Document

Center at

www.russound.com.

Look for the

Technical Documents under RNET Systems.

INSTALLER

MAKING CONNECTIONS

RS-232 Interface

42

The CAV6.6 can be programmed via keypad

connection using CAT-5 and the T568A RJ-45

wire configuration. An UNO-S2 Keypad can be

attached to the controller at the Programming

Center Keypad Port Connection.

The Programming Center Keypad Port is

designed for use in local programming, specifi-

cally for learning IR commands directly into the

IR receiver on the controller’s front panel.

(see

Learn IR flow chart on page 70)

.

The CAV6.6 can also be programmed from any

UNO-S2 keypad connected to its keypad ports.

INSTALLER

MAKING CONNECTIONS

Programming Center Keypad Port Connection

43

Before proceeding to the system programming section, it’s important to conduct an initial test to

determine that the hardware components are working properly.

1. Connect the speaker wires from Zone #1 to the CAV6.6 Zone #1 speaker output connectors.

2. Connect an UNO keypad to Keypad Port #1 on the rear of the CAV6.6.

3. Connect a source to the Source #1 Input on the CAV6.6 using RCA A/V patch cables.

4. Plug a supplied 845.1 IR emitter into the Source #1 IR Output Jack and adhere the emitter end

to the source equipment’s IR window.

5. Plug in the main power cords for the CAV6.6 and the source.

6. Turn on the main power switch on the CAV6.6 and the source.

7. Manually command the source to provide audio or use the source remote control.

8. Press the power button on the UNO keypad and select Source #1.

9. To verify emitter placement, take source equipment’s factory remote control and aim at a key-

pad (not in same room as source equipment). Source equipment should respond to IR command.

Congratulations – you should now hear the source through the speakers in Zone #1. Now that you

have confirmed the hardware operation, you can proceed to System Programming to set up keypad

source control.

If there is no sound, follow these diagnostic steps:

1. Check the source to see that it is operating properly.

2. Check the RCA A/V cable connections from the source to the Source #1 Input on the CAV6.6.

3. Check the speaker connections and verify that they are correct and are connected to the

Zone #1 speaker outputs.

4. Check to see that the keypad is connected to the Zone #1 Keypad Port and verify the CAT-5 is

properly terminated at both ends.

If none of these steps produce successful results, call Russound Tech Support for further assistance.

INSTALLER

INITIAL INSTALL TEST

This manual includes items that are designed to assist in the programming process.

Sample Configurations (Pages 80-91)

A series of sample configurations are provided to showcase a variety of system designs and compo-

nent options.

Forms (pages 46-48)

Three blank reproducible forms are included as planning tools when determining sources, settings

and zone preferences. The Source and Zone Information forms and the Macro Editor form should be

completed before programming and referred to during the installation menu process. This speeds up

programming time and reduces missed or incorrect entries. These forms also serve as system refer-

ence documents if future troubleshooting is needed.

IR Device Codes (Pages 74-77)

This list of command type IR device codes reflects the built-in IR codes in the CAV6.6 library. During

programming, these codes will be entered for each source at the “Device Code” prompt. If a code is

not listed for a source, the Learn IR procedure is available to learn in and centrally store IR codes.

Key Functions (Pages 92-113)

This list of key functions identifies what IR codes are supported for each command type (source) by

the built-in library. “Learned Only” indicates that this function is not supported and must be learned

into the CAV6.6. This list of key functions reflects the different available key functions associated with

what you see on the LCD panel when performing the Key Configuration procedure in the Installation

Menu. The list of functions corresponds with the command types above (e.g., Tuner, CD player, etc.).

Source Names (Pages 78-79)

A list of assignable Source Names is provided for advance selection and source form completion

before programming.

Flow Charts (Pages 62-72)

Installation Menu flow charts provide a graphical representation of the programming process.

Installation Menu (Pages 49-61)

The Installation Menu provides the step-by-step complete programming procedure for the keypad and

the controller.

Although you can begin programming at any point within the Installation Menu, the following sequence

is recommended for initial installations, as it progresses from the most basic requirements to the

more advanced features.

1. Controller Setup (CTRLR SETUP) (Page 57)

This procedure sets the controller ID number within the system. This number must be manually set

when multiple CAV6.6’s are linked through RNET within one system. This procedure is not necessary

for systems with only one CAV6.6.

(continued)

INSTALLER

PROGRAMMING

System Programming Overview

44

2. Number of Sources (# of Sources/SOURCE SETUP) (Page 56)

This procedure sets the number of sources used in the system. This prevents the user from selecting

a source input that is not used.

3. Basic Setup (SOURCE SETUP) (Page 50)

This procedure is mandatory to set up each source for keypad source control and is the cornerstone

of the programming process.

4. Learn IR (Page 59)

This procedure is used when the source-specific IR code is not found in the built-in IR code library.

This allows IR commands to be learned into the system and centrally stored.

5. Macro Editor (Page 60)

This procedure compiles multiple IR codes to be initiated by a single button press. One macro can

have up to 10 commands, including other macros, and up to 132 macros can be entered.

6. Source Volume Trim (SOURCE SETUP) (Page 53)

This procedure matches audio output signals for all sources for seamless switching.

7. Numeric IR (SOURCE SETUP) (Page 53)

This procedure sets up control of a source that supports direct numeric commands.

8. Key Configuration (SOURCE SETUP) (Page 51)

This procedure customizes individual key functions on a per-zone basis for source control.

9. Power Management (Page 57)

This function incorporates IR macro commands to automatically control the power state of the sources

when the system is in use or when a home theater is sharing sources. This advanced feature uses audio

signal monitoring to confirm source power, which provides the user with worry-free operation.

10. Zone Volume Trim (ZONE SETUP) (Page 56)

This procedure limits the maximum volume allowed in a zone, regardless of keypad volume adjust-

ment.

11. System On Enable (SYSON ENABLE/ZONE SETUP) (Page 56)

This feature allows a zone to join or opt out of an “all on” command.

12. Party Enable (ZONE SETUP) (Page 56)

This feature allows a zone to join or opt out of Party Mode participation.

13. Master Enable (ZONE SETUP) (Page 56)

This feature allows a zone the option of becoming a Master keypad in Party Mode.

14. Page Enable (ZONE SETUP) (Page 57)

This feature allows a zone to hear or to block paging.

15. Page Volume (ZONE SETUP) (Page 57)

This feature allows adjustment of the paging volume in a zone.

INSTALLER

PROGRAMMING

System Programming Overview (cont’d)

45

46

INSTALLER

PROGRAMMING

Source Information Form

47

INSTALLER

PROGRAMMING

Zone Information Form

48

INSTALLER

PROGRAMMING

Macro Editor Form

49

INSTALLER

INSTALLATION MENU OVERVIEW

There are three item types in the installation menu:

Menu – “Folder” that holds procedures and/or feature options.

Procedure – A series of steps to perform a guided operation, such as configuring a button.

Feature – The actual settings that will change the system configuration.

The following UNO-S1 and UNO-S2 buttons are used to navigate and make selections while using

the installation menus. The UNO-TS2 does not support access to the Installation Menu.

UNO-S1 Keypad Five-character Display

The UNO-S1 keypad abbreviates information as necessary to appear in its five-character display.

In the following menu procedures, the UNO-S1 five-character abbreviation is shown in parentheses

underneath the 12-character version.

UNO-S1 UNO-S2

Setup button (located under cover plate on the keypad’s right side) - Press

and release while in normal operating mode to enter the Installation Menu.

Press to back out of any procedure and return to beginning of Installation

Menu, then to normal operating mode.

Adjust feature setting (increment)

Adjust feature setting (decrement)

Go to next menu / procedure / feature.

Not available while performing a pro-

cedure

Go to previous menu / procedure / feature.

Not available while performing a

procedure

Enter menu / begin procedure / show current feature setting.

While perform-

ing a procedure, it is also used to advance to the next sequential feature

setting once the current feature has been viewed or adjusted.

Button Function

50

INSTALLER

INSTALLATION MENU

The following items make up the Installation Menu:

SOURCE SETUP (SrcSu) ZONE SETUP (ZonSu) CTRLR SETUP (CtlSu)

POWER MGT (PwMgt) LEARN IR (LrnIR) MACRO EDITOR (MacEd)

SYSTEM INFO (SInfo)

SOURCE SETUP (SrcSu)

Source Setup allows the system’s sources to be configured.

The following items can be found in the SOURCE SETUP menu:

BASIC SETUP (BasSu) KEY CONFIG (KeyCf) SOURCE NAMES (SrcNm)

SRC VOL TRIM (SrcVT) NUMERIC IR (NumIR) SRC SEL CMD (SrcSC)

# OF SOURCES (#Srcs)

BASIC SETUP (BasSu)

NOTE: The BASIC SETUP procedure should be performed for each source before proceeding to other

source setting changes.

This procedure uses built-in source “templates” to quickly and easily configure the source settings

needed for basic operation of the source component. Before performing BASIC SETUP, connect the

source components to the CAV 6.6 as outlined in the Source Connections section. Also be sure that

all sources are powered on.

See Basic Setup - Flow Chart on page 62

1. SOURCE NUM – Select the source to be configured.

(Src #)

2. SOURCE NAME – Select the name for the source (e.g., DVD, Aux 2, Jazz, etc.).

(Name)

3. COMMAND TYPE – Select the type of command template (e.g., CD, TV, etc.). Selecting

(CmdTp) the command type template will tell the CAV 6.6 how to configure the

key’s command and text for the source component.

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. (See Learning IR procedure for instructions on how

to learn IR codes.)

INSTALLER

INSTALLATION MENU

Basic Setup (cont’d.)

ii. TEMPLATE TYP – Select the template type to define what type of source compo-

(TType) nent is being used. (This will tell the CAV 6.6 how to configure

the key commands and text for the source component if it is a

learned source.) Procedure advances to USE NUM IR? (step 7).

b. Selected: Unassigned The template for the selected source is cleared. (All key

(Unasg) assignments and other source settings will be erased.)

Procedure advances to SAVE CHANGES (step 10)

c. All Other Selections: Procedure advances to DEVICE CODE (step 4)

4. DEVICE CODE – Enter source component code number listed in this manual’s

(DevCd) Reference section.

5. TEST IR? – If “Yes” is selected, the CAV 6.6 sends a power command to the

(TstIR) source component. If “No” is selected, the procedure advances

to USE NUM IR? (step 7)

6. SUCCESS? – If the power to the source component was turned off, select

(OK?) “Yes” otherwise select “No.” By selecting “No” the Procedure

returns to DEVICE CODE (step 4) to allow selection of another

code number from the provided list.

7. USE NUM IR? – Indicates the source component has numeric scrolling, such as

(NumIR) multi-disc CD player (See NUMERIC IR Setup Procedure for

advanced settings or more information). “No” advances menu to

AUTO PLAY (step 9).

8. HIGHEST NUM – Enter the highest possible number; for example, a 100-disc CD

(High#) player would have a max number of 100.

9. AUTO PLAY? – “Yes” tells the CAV 6.6 to issue a PLAY command whenever the

(AtoPl) source is selected for listening. This option is skipped if the

source type (COMMAND TYPE) chosen does not have a PLAY

command associated with it.

10. SAVE CHANGES? – Select “yes” to save changes. Procedure returns to SOURCE

(Save?) NUM to allow configuration of another source.

KEY CONFIG (KeyCf)

Key Configuration defines zone-specific key functions for each source.

See Key Config. - Flow Chart

on page 63

1. ZONE NUM – Select the zone the key will be configured for. Changes are made

(Zone#) for that zone only; default setting is “All Zones.”

51

52

INSTALLER

INSTALLATION MENU

Key Config (cont’d.)

2. SOURCE NUM – Select the source the key will be configured for.

(Src #)

3. SELECT A KEY – Using or , select the keypad key to be configured.

(SelKy)

4. KEY TYPE – Either “Key Press,” “Key Hold” or “Both” will activate the command.

(KeyTp)

5. KEY NAME – Name that appears on the keypad display when the command is

(KeyNm) activated.

6. COMMAND TYPE – Select the type of source command (e.g., CD, TV, etc.).

(CmdTp)

a. Selected: Learned IR – Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 8)

b. Selected: Unassigned The key configuration is cleared. Procedure advances to SAVE

(Unasg) CHANGES (step 9)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 8)

d. Selected: Macro: (To build macros, see Macro Editor page 60)

i. MACRO - Macro loads a series of commands which are processed when

(Macro) activated.

ii. MACRO ID – Enter the macro ID number. Menu advances to SAVE CHANGES

(MacID) (step 9)

e. All Other Selections: Procedure advances to DEVICE CODE (step 7)

7. DEVICE CODE – Enter source component code number listed in this manual’s

(DevCd) Reference section.

8. KEY FUNCTION – Select a function for the button.

(KeyFn)

9. SAVE CHANGES? – Select “yes” to save changes. Procedure advances to ZONE NUM

(Save?) (step 1)

INSTALLER

INSTALLATION MENU

SOURCE NAMES (SrcNm)

This procedure allows the installer to customize the source names for the sources attached to

the CAV6.6.

See Source Setup Menu on Page 50 and Source Names/Vol Trim - Flow

Chart on page 64

1. SOURCE NUM – Select the source number this name will be assigned to.

(Src #)

2. SOURCE NAME – Select the name. SOURCE NUM will reappear on the LCD panel;

(Name) repeat the instructions for each source to be labeled.

SRC VOL TRIM (SrcVT)

This procedure allows the installer to adjust the output level of an individual source. The output vol-

ume is adjustable by 16 dB. At 0 dB (the default setting), the volume is at max output; at -16 dB the

volume is at the lowest setting possible for that source only.

See Source Setup Menu on Page 50

and Source Names/Vol Trim - Flow Chart on page 64

1. SOURCE NUM – Select the source number this level will be set for.

(Src #)

2. TRIM LEVEL – 0 dB is max output volume, -16 dB is lowest setting.

(Trim)

NUMERIC IR (NumIR)

Numeric IR allows the installer to program source specific number functions (Channel 12, Disk 89, etc.).

See Source Setup Menu on Page 50 and Numeric IR - Flow Chart on page 65

1. SOURCE NUM – Select the source number this function will be configured for.

(Src #)

2. USE NUM IR? – Tells the system whether the source component has numeric

(NumIR) scrolling, such as 100-disc CD player. A selection of “no” dis-

ables Numeric IR and advances to SAVE CHANGES

3. HIGHEST NUM – Enter the highest possible number; for example, the 100-disc CD

(High#) player would have a max number of 100.

4. NUMERIC TEXT – Select Numeric descriptive text.

(NmTxt)

5. PREFIX CMD – Tells the system whether a command will be issued prior to the

(Prefx) selection of the numerical value (e.g.,

Disc

1,2). If “no,” proce

dure advances to SUFFIX CMD (step 9)

6. COMMAND TYPE – Select the type of command (e.g., CD, TV, etc.).

(CmdTp)

53

54

INSTALLER

INSTALLATION MENU

Numeric IR (cont’d)

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 8)

b. Selected: Unassigned The numeric IR Prefix command is cleared. Procedure advances

(Unasg) to SUFFIX CMD (step 9)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 8)

d. Selected: Macro: (To build macros, see Macro Editor page 60)

i. MACRO - Macro loads a series of commands which are processed when

(Macro) activated.

ii. MACRO ID – Enter the macro ID number. Menu advances to SUFFIX CMD (step 9)

(MacID)

e. All Other Selections: Procedure advances to DEVICE CODE (step 7)

7. DEVICE CODE – Source component code for IR control.

(DevCd)

8. KEY FUNCTION – Select a function (Disc, etc.).

(KeyFn)

9. SUFFIX CMD – Tells the system whether a command will be issued after the

(Sufix) selection of the numerical value (e.g., 1, 2

Enter

). If “no,” proce-

dure advances to SAVE CHANGES (step 13)

10. COMMAND TYPE – Select the type of source command (e.g., CD, TV, etc.).

(CmdTp)

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 12)

b. Selected: Unassigned The numeric IR Suffix command is cleared. Procedure advances

(Unasg) to SOURCE NUM (step 1)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 12)

d. Selected: Macro: (To build macros, see Macro Editor page 60)

55

INSTALLER

INSTALLATION MENU

Numeric IR (cont’d)

i. MACRO - Macro loads a series of commands which are processed when

(Macro) activated.

ii. MACRO ID – Enter the macro ID number. Menu advances to SAVE CHANGES

(MacID) (step 13)

e. All Other Selections: Procedure advances to DEVICE CODE (step 11)

11. DEVICE CODE – Source component code for IR control.

(DevCd)

12. KEY FUNCTION – Select a function (Enter, Play, etc.).

(KeyFn)

13. SAVE CHANGES? – Select “yes” to save the changes.

(Save?)

SRC SEL CMD (SrcSC)

This procedure permits a command to be sent to the source component when the source component

is initially selected.

See Source Setup Menu on Page 50 and Source Select Command & # Of

Sources - Flow Chart on page 66

1. SOURCE NUM – Select the source number this command will be configured for.

(Src #)

2. COMMAND TYPE – Select the type of source command (e.g., CD, TV, etc.).

(CmdTp)

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 4)

b. Selected: Unassigned The source select command is cleared. Procedure advances to

(Unasg) SAVE CHANGES (step 5)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 4)

d. Selected: Macro: (To build macros, see Macro Editor page 60)

i. MACRO - Macro loads a series of commands which are processed when

(Macro) activated.

ii. MACRO ID – Enter the macro ID number. Menu advances to SAVE CHANGES

(MacID) (step 5)

56

INSTALLER

INSTALLATION MENU

Source Select Command (cont’d)

e. All Other Selections: Procedure advances to DEVICE CODE (step 3)

3. DEVICE CODE – Source component code for IR control.

(DevCd)

4. KEY FUNCTION – Select a function (Play, Enter, etc.).

(KeyFn)

5. SAVE CHANGES? – Select “yes” to save the changes.

(Save?)

# OF SOURCES (#Srcs)

At this field it is necessary to enter the number of sources used in the CAV6.6 system (1 to 6). This

limits the sources displayed on the keypad in the normal running mode when the source button is

pressed, but also limits source selections in the configuration menus.

See Source Setup Menu on

Page 50 and Source Select Command & # Of Sources - Flow Chart on page 66

ZONE SETUP (ZonSu)

NOTE: This procedure should be performed using the keypad installed in the zone to be configured.

See Installation Menu on Page 50 and Zone Setup - Flow Chart on page 67

Zone Setup allows the installer to adjust properties of the UNO Keypad controlled CAV6.6 zone. This

series of menus allows the system’s zones to be configured for these properties:

ZON VOL TRIM (ZonVT) SYSON ENABLE (SysOn) PARTY ENABLE (PtyEn) MAS-

TER ENABL (MstEn) PAGE ENABLE (PagEn) PAGE VOLUME (PagVl)

1. ZON VOL TRIM - This feature allows the installer to adjust the output volume to

(ZonVT) each zone. -16 dB (lowest) to 0 dB (max)(default).

2. SYSON ENABLE - This feature is either disabled or enabled. If disabled (default), an

(SysOn) All On command activated from another zone will not turn on the

disabled zone. If enabled, an All On command activated from

another zone will turn on the enabled zone.

3. PARTY ENABLE - This feature is either disabled or enabled. If disabled, Party Mode

(PtyEn) activation from another zone will not affect the disabled zone. If

enabled (default), the zone will participate with Party Mode.

4. MASTER ENABLE - This feature is either disabled or enabled. If disabled, the zone

(MstEn) cannot host a master keypad during Party Mode. If enabled

(default), the zone has the option of hosting the Master keypad.

57

5. PAGE ENABLE - This feature is either disabled or enabled. It allows the option of

(PagEn) receiving or blocking a page in a zone. If disabled, the page will

not be sent to the zone. If enabled (default), the page will be

sent to the zone.

6. PAGE VOLUME - This feature allows the installer to adjust the Page Volume for the

(PagVl) zone, from 0 (min) to 100 (max).

CTRLR SETUP (CtlId)

Controller Setup is the basic configuration of the controller. This setup menu selects the options for

Controller ID and Factory Initialization.

See Installation Menu on Page 50 and Controller Setup -

Flow Chart on page 68

1. CONTROLLER ID - This defines the Controller ID for this system. The default is 1 but

(CtlId) when multiple controllers are used, each additional controller ID

must be sequential and unique and be set before being connect-

ed to the system. Note that the system must be restarted before

the controller will assume the new ID.

2. FACTORY INIT -

WARNING: This procedure returns the controller to its

(FInit)

original settings - use with discretion.

Factory Initialization allows the installer to erase all programmed

settings and returns the settings to the factory default settings.

All settings including source equipment IR commands will need to

be reentered. An “Are you sure?” prompt and a “no” response

allows the installer to cancel the reset; a “yes” at the prompt will

load factory/default settings.

POWER MGT (PwMgt)

The CAV6.6 is capable of managing the power state of the connected source equipment. The power

management is configured on a source-by-source basis.

All sources that have power management enabled are initialized by a “POWER ON” command or

macro which must cause the source to produce an audio signal. Power management is initialized

when the first keypad is turned on or when the home theater trigger input has 12VDC present. The

12VDC trigger output is turned on when the first zone is turned on.

All sources that have power management enabled are turned off by the “POWER OFF” command after

all zones have been turned off, with a timeout of five minutes.The 12VDC trigger output is turned off

INSTALLER

INSTALLATION MENU

Zone Setup (cont’d)

58

one minute after that. This timeout is postponed for as long as the home theater trigger input has

12VDC present.

See Installation Menu on Page 50 and Power Management - Flow Chart on

page 69

1. SOURCE NUM – Select the source number this feature will be configured for.

(Src #)

2. SENSE DELAY – This option tells the controller how long to wait before looking for

(Delay) the source’s audio signal to confirm that the component respon-

ded to the command (if a macro is selected for the Power On

command). A sense delay must be long enough to allow the

macro to cycle through.

3. POWER ON CMD – Tells the controller to turn on the selected source equipment (by

(OnCmd) SOURCE NUMBER) when any of the UNO System Keypads is

turned on. If “no,” procedure advances to POWER OFF CMD (step 7)

4. COMMAND TYPE – Select the type of source command (e.g., CD, TV, etc.).

(CmdTp)

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 6)

b. Selected: Unassigned The Power On command is cleared. Procedure advances to

(Unasg) POWER OFF CMD (step 7)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 6)

d. Selected: Macro: (To build macros, see Macro Editor page 60)

i. MACRO - Macro loads a series of commands which are processed when

(Macro) activated.

ii. MACRO ID – Enter the macro ID number. Menu advances to POWER OFF CMD

(MacID) (step 7)

e. All Other Selections: Procedure advances to DEVICE CODE (step 5)

5. DEVICE CODE – Source component code for IR control.

(DevCd)

6. KEY FUNCTION – Select a function (Play, Enter, etc.).

(KeyFn)

INSTALLER

INSTALLATION MENU

Power Management (cont’d)

59

7. POWER OFF CMD – Tells the controller to turn off the selected source equipment (by

(OfCmd) SOURCE NUMBER) when the last of the UNO System Keypads is

turned off. If “no,” procedure advances to SAVE CHANGES (step 11)

8. COMMAND TYPE – Select the type of source command (e.g., CD, TV, etc.).

(CmdTp)

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 10)

b. Selected: Unassigned The Power Off command is cleared. Procedure advances to

(Unasg) SAVE CHANGES (step 11)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 10)

d. Selected: Macro: (To build macros, see Macro Editor page 60)

i. MACRO – Macro loads a series of commands which are processed when

(Macro) activated.

ii. MACRO ID – Enter the macro ID number.Menu advances to SAVE CHANGES

(MacID) (step 11)

e. All Other Selections: Procedure advances to DEVICE CODE (step 9)

9. DEVICE CODE – Source component code for IR control.

(DevCd)

10. KEY FUNCTION – Select Keypad function.

(KyFn)

11. SAVE CHANGES? – Select “yes” to save the changes.

(Save?)

LEARN IR (LrnIR)

This procedure allows IR commands to be learned into the system and be centrally stored in the main

controller to let the system access the same IR codes that operate the source equipment.

NOTE: IR codes must be learned in pointing the source’s remote control at the CAV6.6’s front panel

IR receiver. Use a keypad connected to the CAV6.6’s front panel programming port for convenience

in navigating the Learn IR procedure menu.

See Installation Menu on Page 50 and Learn IR -

Flow Chart on page 70

INSTALLER

INSTALLATION MENU

Power Management (cont’d)

60

1. LEARNED SRC – Select the source whose commands will be learned into the con-

(LnSrc) troller.

2. KEY FUNCTION – Select the function to be learned or deleted.

(KeyFn)

3. LEARN/DELETE – Select Learn IR Now or Delete IR. If Learn IR Now, a “USE

(Ln/Dl) REMOTE” prompt appears. Point the learning remote at the

controller’s IR window. If Delete IR, procedure returns to

LEARNED SRC (step 1)

4. TEST IR? – If “yes,” sends the learned command to the source component

(TstIR) to test the IR. If the component responds, the IR test was a

success. If the component does not respond the Code was not

learned properly. If “no,” menu goes back to LEARNED SRC

(step 1)

5. SUCCESS? - Asks if the IR test was a success

(OK?) IF YES - If the test was a success, specify “yes” and proceed to

KEY FUNCTION (step 2)

IF NO - If the test was a failure, specify “no” and LEARN/DELETE

(step 3) reappears on the display allowing another code to be

learned in.

MACRO EDITOR (MacEd)

This procedure is used to create a sequence of commands that are launched with one key touch or

other event. Up to 132 macros can be created for the system, and each macro can contain up to 10

commands including other macros.

See Installation Menu on Page 50 and Macro Editor - Flow

Chart on page 71

1. MACRO ID – Number of Macro up to 132 including any previously named

(MacID) macros.

2. MACRO NAME – Name of Macro (optional).

(MacNm)

3. COMMAND NUM – Number of Command up to 10.

(Cmd#)

4. COMMAND TYPE – Select the type of source command (e.g., CD, TV, etc.).

(CmdTp)

a. Selected: Learned IR Choose Learned IR if the pre-programmed IR code library does

(LrnIR) not support the source component.

INSTALLER

INSTALLATION MENU

Learn IR (cont’d)

INSTALLER

INSTALLATION MENU

Macro Editor (cont’d)

i. LEARNED SRC – Select the learned source bank to be assigned to the source

(LnSrc) component. Procedure advances to KEY FUNCTION (step 6)

b. Selected: Unassigned Selected command and subsequent commands are cleared.

(Unasg) Procedure advances to COMMAND NUM (step 3)

c. Selected: Default Default selects the same device type and device code previously

(Deflt) setup in BASIC SETUP. Procedure advances to KEY FUNCTION

(step 6)

d. Selected: Macro:

i. MACRO - A macro can “call” another macro if a sequence of more than 10

(Macro) commands is needed.

ii. MACRO ID – Enter the macro ID number. Menu advances to COMMAND NUM

(MacID) (step 3)

e. Selected: Delay Enter a 1- to 60-second delay time to postpone delivery of the

(Delay) next command in the macro. Procedure advances to COMMAND

NUM (step 3)

f. All Other Selections: Procedure advances to DEVICE CODE (step 6)

5. DEVICE CODE – Source component code for IR control.

(DevCd)

6. KEY FUNCTION – Select a function (Play, etc.).

(KeyFn)

SYSTEM INFO (SInfo)

System Info allows the installer to view the controller’s manufacturing build properties.

See Installation Menu on Page 50 and System Info - Flow Chart on page 72

#CONTROLLERS (#Ctls) BUILD TIME (BTime) BUILD DATE (Bdate) VERSION (Ver)

1. #CONTROLLERS - Displays the number of CAV6.6 controllers in the system.

(#Ctls)

2. BUILD TIME - Displays the Software Build Time of the controller.

(BTime)

3. BUILD DATE - Displays the Software Build Date of the controller.

(BDate)

4. VERSION - Displays the software version of the CAV6.6.

(Ver)

61

62

INSTALLER

SETUP MENU FLOW CHARTS

Source Setup: Basic Setup

63

INSTALLER

SETUP MENU FLOW CHARTS

Source Setup: Key Configuration

64

INSTALLER

SETUP MENU FLOW CHARTS

Source Setup: Source Names/Volume Trim

65

INSTALLER

SETUP MENU FLOW CHARTS

Source Setup: Numeric IR

66

INSTALLER

SETUP MENU FLOW CHARTS

Source Setup: Source Select Command/# of Sources

67

INSTALLER

SETUP MENU FLOW CHARTS

Zone Setup

68

INSTALLER

SETUP MENU FLOW CHARTS

Controller Setup

69

INSTALLER

SETUP MENU FLOW CHARTS

Power Management

70

INSTALLER

SETUP MENU FLOW CHARTS

Learn IR

71

INSTALLER

SETUP MENU FLOW CHARTS

Macro Editor

72

INSTALLER

SETUP MENU FLOW CHARTS

System Info

73

INSTALLER

KEYPAD DIAGNOSTIC MENU

UNO Keypad Diagnostics Menu

The Diagnostics Menu allows the installer to run

a diagnostic check on the keypad and to verify

the firmware version. The Diagnostics Menu also

contains the update firmware procedure for

updating the UNO-S1 and UNO-S2’s firmware.

To access the Diagnostics Menu, press and hold

the Setup button on the right side of the keypad

until “DIAGNOSTICS” appears on the display. The

menus are outlined in the diagram below.

When finished, press and release the Setup but-

ton again (except for the Update Firmware where

the power must be cycled).

Note: Do not change Controller ID settings in

this menu. Controller ID is set in the Controller

Setup menu (see Controller Setup Menu on

page 57).

74

INSTALLER

IR DEVICE CODES

Device Codes for TVs:

Admiral 0093, 0463

Advent 0761, 0842

Aiko 0092

Akai 0030, 0672, 0702, 0812

Albatron 0700, 0843

America Action 0180

Anam 0180

AOC 0030

Apex Digital 0748, 0765, 0767, 0879, 1943

Audiovox 0451, 0180, 0092, 0623

Bell & Howell 0154

BenQ 1032

Bradford 0180

Broksonic 0236, 0463, 1935, 1911

Candle 0030

Carnivale 0030

Carver 0054

Celebrity 0000

Celera 0765

Changhong 0765

Citizen 0060, 0030, 0092

Clarion 0180

Comm’l Solutions 1447, 0047

Contec 0180

Craig 0180

Crosley 0054

Crown 0180

Curtis Mathes 0047, 1147, 1347, 0054, 0154,

0451, 0093, 0060, 0030, 0145,

0166, 0702

CXC 0180

Daewoo 0451, 1661, 0672, 0092, 0661,

0623

Dell 1080

Denon 0145

Dumont 0017

Durabrand 0463, 0180, 0178, 0171, 1034

Electroband 0000

Emerson 0154, 0236, 0463, 0180, 0178,

0171, 1911, 0623

Envision 0030

ESA 0812, 0171

Fisher 0154

Fujitsu 0853, 0809, 0683

Funai 0180, 0171, 1904

Futuretech 0180

Gateway 1756, 1755

GE 1447, 0047, 1147, 1347, 0051,

0451, 0178, 1922, 1917

Gibralter 0017, 0030

Go Video 0886

GoldStar 0030, 0178

Grunpy 0180

Haier 1034

Hallmark 0178

Harley Davidson 1904

Harman/Kardon 0054

Harvard 0180

Havermy 0093

Helios 0865

Hello Kitty 0451

Hisense 0748

Hitachi 1145, 0145, 1960, 1904

Hyundai 0849

Infinity 0054

Inteq 0017

JBL 0054

JCB 0000

Jensen 0761

JVC 0053, 1253, 1923, 0731

KEC 0180

Kenwood 0030

KLH 0765, 0767

KTV 0180, 0030

LG 0178, 0700, 0856

Lloyd’s 1904

LXI 0047, 0054, 0154, 0156, 0178

Magnavox 1454, 0054, 0030, 0706, 1904,

1254

Marantz 0054, 0030

Matsushita 0250

Maxent 1755

Megapower 0700

Megatron 0178, 0145

Memorex 0154, 0463, 0150, 0178, 1911

MGA 0150, 0030, 0178

Midland 0047, 0017, 0051

Mitsubishi 0093, 1250, 0150, 0178, 1917

Monivision 0843, 0700

Motorola 0093

MTC 0060, 0030

Multitech 0180

NAD 0156, 0178, 0866

NEC 0030

Nikko 0030, 0178, 0092

Norcent 0748, 0824

NTC 0092

Onwa 0180

Optimus 0154, 0250, 0166

Optonica 0093

Orion 0236, 0463, 1911, 1463

Panasonic 0250, 0051, 1941

Penney 0047, 0156, 0051, 0060, 0030,

0178, 1347

Philco 0054, 0030

Philips 1454, 0054, 1961, 0690

Pilot 0030

Pioneer 0166, 0679, 0866

Portland 0092

Prima 0761

Princeton 0700

Prism 0051

Proscan 1447, 0047, 1347, 1922

Proton 0178

Pulsar 0017

Quasar 0250, 0051

Radio Shack 0047, 0154, 0180, 0030, 0178,

1904

RCA 1447, 0047, 1047, 1347, 1917,

0679, 1247, 1547, 1948, 0090,

1147, 1922

Realistic 0154, 0180, 0030, 0178

Runco 0017, 0030

Sampo 0030, 1755

Samsung 0060, 0812, 0702, 0030, 0178,

0766, 1959, 1060

Sansui 0463, 1935, 1911, 1904

Sanyo 0154, 0088

Scotch 0178

Scott 0236, 0180, 0178

Sears 0047, 0054, 0154, 0156, 0178,

0171, 1904

Sharp 0093, 1917

Sheng Chia 0093

Sony 1100, 0000, 1904

Soundesign 0180, 0178

Squareview 0171

SSS 0180

Starlite 0180

Studio Experience 0843

Supreme 0000

SVA 0748, 0865

Sylvania 0054, 0030, 0171

Symphonic 0180, 0171, 1904

Tandy 0093

Tatung 1756

Technics 0051, 0250

Techwood 0051

Teknika 0054, 0180, 0150, 0060, 0092

Telefunken 0702

Thomas 1904

TMK 0178

TNCi 0017

Toshiba 0154, 0156, 0060, 1256, 1156,

1656, 1356, 1945, 1935

TVS 0463

V Inc. 1756

Vector Research 0030

Victor 0053

Vidikron 0054

Vidtech 0178

Viewsonic 1755

Wards 0054, 0030, 0178, 0866, 1156

Waycon 0156

Westinghouse 0889

WhiteWestinghouse 0463, 0623

Yamaha 0030

Zenith 0017, 0463, 0178, 1911, 0092,

1904

Device Codes for Cable:

ABC 0003, 0008

Americast 0899

Bell South 0899

Clearmaster 0883

ClearMax 0883

Coolmax 0883

Director 0476

General Instrument 0003, 0476, 0810, 0276

GoldStar 0144

Hamlin 0009, 0273

Jerrold 0003, 0276, 0476, 0810

Memorex 0000

Motorola 0476, 0276, 0810, 1254, 1376

Multitech 0883

Pace 0237, 1877

Panasonic 0000, 0107

Paragon 0000

Philips 0317, 1305

Pioneer 0144, 0533, 0877, 1877

Pulsar 0000

Quasar 0000

RadioShack 0883

Regal 0273, 0279

Runco 0000

Samsung 0144

Scientific Atlanta 0008, 0477, 0877, 1877

Sony 1006 (continued next page)

75

Device Codes for Cable: (cont’d)

Starcom 0003

Supercable 0276

Supermax 0883

Torx 0003

Toshiba 0000

Tristar 0883

V2 0883

Viewmaster 0883

Vision 0883

Vortex View 0883

Zenith 0000, 0525, 0899

Device Codes for Video Acc:

ABS 1272

Alienware 1272

CyberPower 1272

D-Link 1554

Escient 1151, 1371, 1370, 1373, 1372

Gateway 1272

Hewlett Packard 1272, 1267

Howard Computers1272

iBUYPOWER 1272

LG 1415

Linksys 1365

Media Center PC 1272

Microsoft 1272

Mind 1272

Motorola 1363

Northgate 1272

Panasonic 1120

Pioneer 1010

Samsung 1190, 1490

Sensory Science 1126

Sharp 1010

SMC 1456

Sony 1272, 1324, 1364

Systemax 1272

Tagar Systems 1272

Toshiba 1272

Touch 1272

Viewsonic 1272, 1329

ZT Group 1272

Device Codes for SAT/DSS:

AlphaStar 0772

Century 0856

Chaparral 0216

Crossdigital 1109

DirecTV 0392, 0566, 0639, 1639, 1142,

0247, 0749, 1749, 0724, 0819,

1856, 1076, 1109, 0099, 1640,

1108, 1392, 1442, 1414

Dish Network Sys 1005, 0775, 1775, 1505

Dishpro 1005, 0775, 1505, 1775

Echostar 1005, 0775, 1775, 1505

Expressvu 0775, 1775

GE 0566

General Instrument 0869

GOI 0775, 1775

Hisense 1535

Hitachi 0819, 1250

HTS 0775, 1775

Hughes Net. Sys. 0749, 1142, 1749, 1442

I-Lo 1535

JVC 0775, 1775

LG 1414

Magnavox 0724, 0722

Memorex 0724

Mitsubishi 0749

Motorola 0869

Next Level 0869

Panasonic 0247, 0701

Paysat 0724

Philips 1142, 0749, 1749, 0724, 1076,

0722, 0099, 1442, 0856

Proscan 0392, 0566

Proton 1535

RadioShack 0869

RCA 0392, 0566, 0143, 0855, 1392

Samsung 1276, 1109, 1108

Sony 0639, 1639, 1640

Star Choice 0869

Tivo 1142, 1442

Toshiba 0749, 1749, 0790, 1285

UltimateTV 1392,1640

Uniden 0724, 0722

US Digital 1535

USDTV 1535

Voom 0869

Zenith 0856, 1856

Device Codes for VCRs:

ABS 1972

Admiral 0048, 0209

Adventura 0000

Aiko 0278

Aiwa 0037, 0000

Akai 0041

Alienware 1972

America Action 0278

American High 0035

Asha 0240

Audiovox 0037, 0278

Beaumark 0240

Bell & Howell 0104

Broksonic 0184, 0121, 0209, 0002, 0479

Calix 0037

Canon 0035

Carver 0081

CCE 0072, 0278

Citizen 0037, 0278

Colt 0072

Craig 0037, 0047, 0240, 0072

Curtis Mathes 0060, 0035, 0162, 0041

Cybernex 0240

CyberPower 1972

Daewoo 0045, 0278

Dell 1972

Denon 0042

DirecTV 0739

Durabrand 0039, 0038

Dynatech 0000

Electrohome 0037

Electrophonic 0037

Emerex 0032

Emerson 0037, 0184, 0000, 0121, 0043,

0209, 0002, 0278, 0479

Fisher 0047, 0104

Fuji 0035, 0033

Funai 0000

Garrard 0000

Gateway 1972

GE 0035, 0060, 0240

Go Video 0432

GoldStar 0037, 0038

Gradiente 0000

Harley Davidson 0000

Harman/Kardon 0081, 0038

Harwood 0072

Hewlett Packard 1972

HI-Q 0047

Hitachi 0000, 0042, 0041, 0089

Howard Computers1972

Hughes Net. Sys. 0042, 0739

iBUYPOWER 1972

Jensen 0041

JVC 0067, 0041

KEC 0037, 0278

Kenwood 0067, 0041, 0038

KLH 0072

Kodak 0035, 0037

Lloyd's 0000

Logik 0072

LXI 0037

Magnavox 0035, 0039, 0081, 0000, 0149

Magnin 0240

Marantz 0035, 0081

Marta 0037

Matsushita 0035, 0162

Media Center PC 1972

MEI 0035

Memorex 0035, 0162, 0037, 0048, 0039,

0047, 0240, 0000, 0104, 0209,

0479

MGA 0240, 0043

MGN Technology 0240

Microsoft 1972

Mind 1972

Minolta 0042

Mitsubishi 0067, 0043

Motorola 0035, 0048

MTC 0240, 0000

Multitech 0000, 0072

NEC 0104, 0067, 0041, 0038

Nikko 0037

Noblex 0240

Northgate 1972

Olympus 0035

Optimus 1062, 0162, 0037, 0048, 0104,

0432

Orion 0184, 0209, 0002, 0479

Panasonic 1062, 0035, 0162, 0225, 0616

Penney 0035, 0037, 0240, 0042, 0038

Pentax 0042

Philco 0035

Philips 0035, 0081, 0618, 0739

Pilot 0037

Pioneer 0067

Polk Audio 0081

Profitronic 0240

Proscan 0060

Protec 0072 (continued next page)

INSTALLER

IR DEVICE CODES

76

Device Codes for VCRs: (cont’d)

Pulsar 0039

Quasar 0035, 0162

Radio Shack 0000

Radix 0037

Randex 0037

RCA 0060, 0240, 0042, 0149, 0880

Realistic 0035, 0037, 0048, 0047, 0000,

0104

ReplayTV 0616

Runco 0039

Samsung 0045, 0240

Sanky 0048, 0039

Sansui 0000, 0067, 0209, 0041, 0479

Sanyo 0047, 0240, 0104

Scott 0184, 0045, 0121, 0043

Sears 0035, 0037, 0047, 0000, 0042,

0104

Sharp 0048

Shintom 0072

Shogun 0240

Singer 0072

Sonic Blue 0616

Sony 0035, 0032, 0033, 0000, 0636,

1972

STS 0042

Sylvania 0035, 0081, 0000, 0043

Symphonic 0000

Systemax 1972

Tagar Systems 1972

Tatung 0041

Teac 0000, 0041

Technics 0035, 0162

Teknika 0035, 0037, 0000

Thomas 0000

Tivo 0618, 1503, 0739, 0636

TMK 0240

Toshiba 0045, 0043, 1008, 1972, 1503

Totevision 0037, 0240

Touch 1972

Unitech 0240

Vector 0045

Vector Research 0038

Video Concepts 0045

Videomagic 0037

Videosonic 0240

Viewsonic 1972

Villain 0000

Wards 0035, 0060, 0048, 0047, 0081,

0000, 0042, 0240, 0072, 0149

White Westinghouse 0209, 0072

XR-1000 0035, 0000, 0072

Yamaha 0038

Zenith 0039, 0033, 0000, 0209, 0479

ZT Group 1972

Device Codes for Laser Disc

Players:

Denon 0059

Mitsubishi 0059

NAD 0059

Optimus 0059

Panasonic 0204

Pioneer 0059

Quasar 0204

Sony 0201

Technics 0204

Device Codes for DVD Players:

Allegro 0869

Apex Digital 0672, 0717, 0797, 1061, 0796,

1056, 0794, 1020

Aspire Digital 1168

Blaupunkt 0717

Blue Parade 0571

Broksonic 0695

CineVision 0869

Coby 1086

CyberHome 0816, 1129

Daewoo 0784, 0833, 1172, 0869

Denon 0490

DVD2000 0521

Emerson 0591, 0675

Enterprise 0591

Fisher 0670

Funai 0675

Gateway 1073, 1194, 1158, 1077

GE 0522, 0717

Go Video 0744, 0715, 0833, 1099, 0783,

1075, 1730, 0869, 1158

Greenhill 0717

Hitachi 0573, 0664

Hiteker 0672

Initial 0717

JVC 0558, 0623, 0867

Kenwood 0490, 0534

KLH 0717, 1020

Koss 0651

Lasonic 0798

LG 0591, 0869

Lite-On 1158, 1058

Magnavox 0503, 0539, 0675

Marantz 0539

Memorex 0695

Microsoft 0522

Mintek 0839, 0717

Mitsubishi 1521, 0521

Nesa 0717

Onkyo 0503

Oritron 0651

Panasonic 0490, 1762

Philips 0503, 0539, 0646, 0675, 0885

Pioneer 0525, 0571

Polaroid 1086, 1061

Polk Audio 0539

Proscan 0522

Qwestar 0651

RCA 0522, 0571, 0717, 0822

Rio 0869

Rotel 0623

Sampo 0752

Samsung 0490, 0573, 1075, 0820

Sansui 0695

Sanyo 0695, 0670, 0873

Sharp 0630, 0752

Sherwood 1077

Shinsonic 0533, 0839

Sonic Blue 0869, 1099

Sony 0533, 0864, 1033

Sylvania 0675

Symphonic 0675

Technics 0490

Theta Digital 0571

Toshiba 0503, 1154, 0695

Urban Concepts 0503

US Logic 0839

Xbox 0522

Yamaha 0490, 0539, 0545

Zenith 0503, 0591, 0869

Device Codes for Tuner/Amp:

ADC 0531

Aiwa 0189, 1405, 0158, 0121

Anam 1609, 1074

Audiotronic 1189

Bose 1229

Capetronic 0531

Carver 0189, 1189

Coby 1263

Dell 1383

Denon 1360, 1142

Gateway 1517

Glory Horse 1263

Harman/Kardon 0110, 0189

Hewlett Packard 1181

Integra 0135

JBL 0110

JVC 0074, 1263

Kenwood 1313, 1569, 0027

KLH 1428

Linn 0189

Magnavox 1189, 1269, 0189, 0531

Marantz 1189, 1269, 0039, 0189

MCS 0039

Mitsubishi 1393

Onkyo 0135

Optimus 1023, 0670, 0531, 1074

Panasonic 0039, 0309

Philips 1189, 1269, 0189

Pioneer 1023, 0150, 0014, 0630, 0531

Polk Audio 0189

Proscan 1254

Quasar 0039

RadioShack 1263

RCA 1023, 1609, 1254, 1074, 0531

Rio 1383

Sansui 0189

Sharper Image 1263

Sonic Blue 1383

Sony 1058, 1759, 0158, 1406

Soundesign 0670

Stereophonics 1023

Sunfire 1313

Teac 1074

Technics 1308, 0039, 0309

Thorens 1189

Victor 0074

Wards 0158, 0189, 0014

Yamaha 0176, 1276, 1176

INSTALLER

IR DEVICE CODES

77

Device Codes for Amp and

Misc. Audio:

Aiwa 0159

Altec Lansing 1485

Cambridge Sound.1530

Creative 0872

Durabrand 1561

GE 0078

Harman/Kardon 0892

JVC 0331

Left Coast 0892

Lenoxx 1561

Marantz 0892, 1491

Motorola 1464

Omnifi 1605

Optimus 0395

Philips 0892

Polk Audio 0892

Realistic 0395

Russound 1302

Sony 0159

Soundesign 0078

Victor 0331

Wards 0078

Yamaha 0354

Device Codes for CD Players:

Aiwa 0157

Burmester 0420

Calif. Audio Labs 0029

Carver 0157, 0179

Denon 0873, 0003

DKK 0000

DMX Electronics 0157

Emerson 0305

Fisher 0179

Garrard 0420

Genexxa 0032, 0305

Harman/Kardon 0157, 0173

Hitachi 0032

Integra 0101

JVC 0072

Kenwood 0681, 0028, 0037, 0190

KLH 1318

Krell 0157

Linn 0157

LXI 0305

Magnavox 0157, 0305

Marantz 0029, 0157

MCS 0029

Miro 0000

Mission 0157

MTC 0420

NSM 0157

Onkyo 0868, 0101

Optimus 1063, 0000, 0032, 0037, 1075,

0179, 0145, 0420, 0087, 0305

Panasonic 0029

Parasound 0420

Philips 0157

Pioneer 1063, 0032, 0305

Polk Audio 0157

Proton 0157

QED 0157

Quad 0157

Quasar 0029

RadioShack 1075

RCA 0032, 0305, 0179, 0053, 0420

Realistic 0420, 0179

Rotel 0157, 0420

SAE 0157

Sansui 0157, 0305

Sanyo 0087, 0179

Scott 0305

Sears 0305

Sharp 0861, 0037

Sherwood 1067

Sonic Frontiers 0157

Sony 0490, 0000, 0100

Soundesign 0145

Symphonic 0305

TAG McLaren 0157

Tascam 0420

Teac 0420

Technics 0029

Victor 0072

Wards 0157, 0053

Yamaha 0888, 0036

Device Codes for Home Control:

Accutek 1215

Bionaire 1215

Frigidaire 1333

GE 0240

GoldStar 1537

Holmes 1215

Lasko 0846

LG 1537

Lutron 0597

One For All 0167

RadioShack 0240

Russound 1232, 1233

Security System 0167

Sharper Image 0846

Universal X10 0167

Whirlpool 1332

Windmere 1215

X10 0167

INSTALLER

IR DEVICE CODES

78

SOURCE NAMES

UNO-S1 UNO-S2

Aux AUX

Aux 1 AUX 1

Aux 2 AUX 2

Blues Blues

Cable Cable

Cbl 1 Cable 1

Cbl 2 Cable 2

Cbl 3 Cable 3

CDCh CD Changer

CDCh1 CD Changer 1

CDCh2 CD Changer 2

CDCh3 CD Changer 3

CD CD Player

CD 1 CD Player 1

CD 2 CD Player 2

CD 3 CD Player 3

Class Classical

Compr Computer

Cntry Country

CustomName1

CustomName2

UNO-S1 UNO-S2

CustomName3

CustomName4

CustomName5

CustomName6

CustomName7

CustomName8

CustomName9

CustomName10

Dance Dance Music

DigCb Digitl Cable

DSS DSS Receiver

DSS 1 DSS 1

DSS 2 DSS 2

DSS 3 DSS 3

DVDCh DVD Changer

DVDC1 DVD Changr1

DVDC2 DVD Changr2

DVDC3 DVD Changr3

DVD DVD Player

DVD 1 DVD Player 1

DVD 2 DVD Player 2

UNO-S1 UNO-S2

DVD 3 DVD Player 3

FDoor Front Door

Hers Her Music

His His Music

www. Intrnet Radio

Jazz Jazz

Kids Kids Music

LD Laser Disk

MSrvr Media Server

MSvr1 Media Svr 1

MSvr2 Media Svr 2

MSvr3 Media Svr 3

MiniD Mini Disk

Misc Misc Lrnd IR

Mood Mood Music

MornM MorningMusic

MP3 MP3

Oldes Oldies

Pop Pop

RDoor Rear Door

Relig Religious

79

SOURCE NAMES

UNO-S1 UNO-S2

RepTV ReplayTV

Rock Rock

Sat Satellite

Sat 1 Satellite 1

Sat 2 Satellite 2

Sat 3 Satellite 3

SatRd Sat Radio

Src 1 Source 1

Src 2 Source 2

Src 3 Source 3

Src 4 Source 4

Src 5 Source 5

Src 6 Source 6

Src 7 Source 7

Src 8 Source 8

Spcl Special

Tape Tape

Tape1 Tape 1

Tape2 Tape 2

TiVo TIVO

Tuner Tuner

UNO-S1 UNO-S2

Tun 1 Tuner 1

Tun 2 Tuner 2

Tun 3 Tuner 3

TV TV

VCR VCR

VCR 1 VCR 1

VCR 2 VCR 2

<XM> <<<XM>>>

XM 1 XM 1

XM 2 XM 2

XM 3 XM 3

XM XM Radio

80

The configuration shows how the CAV6.6 distrib-

utes audio/video throughout the house using six

UNO System Keypads and six audio/video

source components.

Source Components

The configuration allows for any zone to select

any one of the six source inputs.

Keypads

The configuration uses a single UNO-S2 Keypad

per zone. Each keypad is connected to the

CAV6.6’s Keypad Port using the RJ-45 T568A

wiring configuration. Each keypad port number

corresponds with the zone number. This gives

complete control of the zone to one keypad.

The UNO-S2 Keypad can control the source

equipment, volume for the zone, source selection,

tone control, mute, and other functions.

Programmable functions are also possible. The

IR receiver on the keypad also allows the

SRC2 and other remotes to control not only the

zone but also the source equipment.

IR Remote control through Keypad

To control the source components via IR from

the UNO-S2 Keypad, an IR emitter must be con-

nected from the source component to the

CAV6.6. The emitter is shown connected from

the IR receiver on the source component to the

source component’s IR emitter output port on

the rear on the CAV6.6. This type of configura-

tion allows independent control over more than

one identical source component. The IR from the

remote will be routed to the selected source.

When using the SRC2 remote, simply select

“UNO” at the top of the remote, select source

1-6 and operate the source.

Speakers

Connect the speakers to the amplified CAV6.6

zones 1 through 6 using a “Home Run” from the

individual amplified speaker outputs to the

speakers. Use the detachable modular snap

speaker connectors which are color coded and

labeled for easy installation. For most installations,

16 gauge 4-conductor wire is recommended.

SAMPLE SYSTEM CONFIGURATION 1

Six Zones and Six Sources

Components List:

1 - CAV6.6 Controller

6 - UNO-S2 Keypads

3 - pair Advantage Iso-Mount™ Speakers

3 - pair Advantage Twist & Tilt™ Speakers

6 - 845.1 Micro Emitters

81

SAMPLE SYSTEM CONFIGURATION 1

Six Zones and Six Sources

82

This configuration uses an additional CAV6.6 to

add six additional amplified zones, controlled

through UNO-S2 Keypads. The source compo-

nents are connected to both CAV6.6s with RCA

cables using the source in/loop out to intercon-

nect the audio/video signals.

RNET Link In and Link Out

Multiple CAV6.6s can be integrated as the two

shown in this configuration. An RJ-45 CAT-5

patch cable allows for communication between

the two CAV6.6s. System commands such as

paging, ALL OFF, ALL ON, IR control, and PC

control are transferred from one CAV6.6 to

another through the Link In and Link Out Ports

using the patch cable.

Source Components

The same six audio/video source components

are used for both CAV6.6s. The source com-

ponents are connected to the Source

Audio/Video Input Connections on the first

CAV6.6 while the Audio/Video Source Output

Connections from the first CAV6.6 are con-

nected to the Source Audio/Video Input

Connections on the second CAV6.6.

Keypads

This configuration uses a single UNO-S2 Keypad

per zone on each of the CAV6.6s. Each keypad

is connected to the UNO System Keypad Port

using the CAT-5 T568A RJ-45 wiring configura-

tion. This gives complete control of each of the

12 UNO System Controlled Zones to the corre-

sponding UNO-S2 Keypad.

Individual zone settings such as volume, source

selection, on/off, tone control and amplification

are controlled through the UNO System Keypad.

IR controls for zone and source equipment are

controlled through the UNO-S2 Keypad.

Programming Note: When programming

multiple controllers with identical configurations,

remove the RNET link cables between con-

trollers before starting any controller program-

ming procedures.

SAMPLE SYSTEM CONFIGURATION 2

Integrate Multiple CAV6.6’s

Components List:

2 - CAV6.6 Controllers

12 - UNO-S2 Keypads

6 - 845.1 Micro Emitters

83

SAMPLE SYSTEM CONFIGURATION 2

Integrate Multiple CAV6.6’s

84

This configuration uses a SA-ZX3 Keypad

Splitter hub to connect up to three UNO-S2 key-

pads to one CAV6.6 UNO keypad port. For clean

installations, use RJ-45 CAT-5 patch cables with

the T568A configuration.

To connect from the SA-ZX3 to an RJ-45 wall

plate (optional), use the patch cables to wire for

the wall plate to the keypad. Connect the con-

troller keypad port using the patch cable.

Mount the SA-ZX3 Keypad Splitter hub near the

controller using screws or hook and loop fasten-

er. The SA-ZX3 requires a 12VDC 1A power sup-

ply, such as the Russound 1201A Power Supply.

SAMPLE SYSTEM CONFIGURATION 3

Zone Keypad Expansion

Components List:

1 - CAV6.6 Controller

3 - UNO-S2 Keypads

1 - SA-ZX3 Keypad Splitter

1 - 1201A 12VDC Power Supply

1 - PlateMate™ MOD3D

3 - MOD RJ-45 CAT-5

85

SAMPLE SYSTEM CONFIGURATION 3

Zone Keypad Expansion

86

Adding A-BUS allows sub-zoning of the audio dis-

tribution of the CAV6.6 system. This configura-

tion demonstrates sub-zoning of the first zone

through the use of an A-BUS expansion hub.

Only the first four (1-4) CAV6.6 zones can be

expanded using the same numbered (1-4) A-BUS

Ready Sub-Zone ports.

Powering the A-BUS Ready Sub-Zones

The four A-BUS Ready Sub-Zone ports must be

powered by a Russound A-PS 24VDC 2.5A

power supply, which is plugged into the 24VDC

2.5A POWER INPUT jack on the rear of the

CAV6.6. This is only required when amplified

control modules are used without an A-BUS hub.

A-BUS Hub

The A-BUS Hub is used with A-BUS amplified

control modules to create additional audio sub-

zones and listening options. Using an A-H2 Hub

connected to a CAV6.6 A-BUS Ready Sub-Zone

port provides two additional A-BUS Sub-Zones.

The A-H2 requires a 24VDC 2.5A Power Supply

such as the Russound A-PS power supply. Mount

the A-H2 near the CAV6.6 and source equipment

using screws or hook and loop fastener.

CAT-5 Connections

The A-H2 Hub connects to the CAV6.6 A-BUS

Ready Sub-Zone Port using RJ-45 CAT-5 cables.

The cable connects from the CAV6.6 Sub-Zone

port to the Expansion Input port on the Hub,

then from the Hub keypad output to the RJ-45

wall plate.

Keypad Connections

The A-BUS A-KP2 amplified keypad and the

A-VC2 amplified volume control connect to the

Hub via the wall plate. Use the CAT-5 T568A RJ-

45 wiring configuration for these connections.

Multi-Source Mode Switch

The Multi-Source Mode switch is located on the

side of the A-KP2 keypad. It can be set to multi

or single source. When the switch is set to

"multi," it allows the selection of sources 1

through 4 on the CAV6.6. If "single" is selected,

the A-KP2 will not allow source selection from

the keypad, but will allow selections by IR

remote.

Speakers

The speakers for the A-BUS Ready Sub-Zone are

connected to the individual A-BUS amplified con-

trol modules. The speaker wire is connected to

the keypad using the screw terminal on the rear

of the keypad.

SAMPLE SYSTEM CONFIGURATION 4

A-BUS Ready Sub-Zone Addition

Components List:

1 - CAV6.6 Controller

1 - A-H2 A-BUS 2-Zone Single Source

Surface Mount Hub

1 - A-PS Power Supply

1 - PlateMate MOD 2S

2 - MOD RJ-45 CAT-5

1 - A-VC2 Amplified Volume Control

1 - A-KP2 Amplified Keypad

1 - pair Advantage Iso-Mount Speakers

1 - pair Advantage Twist & Tilt Speakers

87

12 34

L

IR EMITTERS

IR CONFIRM

DESIGNED IN USA MADE IN KOREA

P

OWER

24VDC 2A

S

TATU S

12VDC 100mA

N

EWMARKET

, NH U.S.A.

R

A-H2

2-ZONE, 1-SOURCE

SURFACE MOUNT AUDIO HUB

AUDIO

IN

12

KEYPAD OUTPUTS

E

XPANSION

I

NPUT

B

YPASS

S

TATU S

SAMPLE SYSTEM CONFIGURATION 4

A-BUS Ready Sub-Zone Addition

88

Additional amplification can be added to the CAV6.6

when more power or more speakers are desired.

This configuration adds an external amplifier to

the CAV6.6. The Zone Audio (To Amp) Outputs

are variably controlled by the associated UNO-

S2 keypad and can be connected to an external

amplifier. The figure shows an amplifier used in

this manner. The configuration has five zones

connected to an additional amplifier with one

zone outputting to speakers.

Source Components

In this configuration, three of a possible six

audio/video source input components are used.

The source components are connected to the

source Audio/Video Input Connections at the

first three inputs using quality RCA cables.

Zone Audio (To Amp) & Video Outputs

In this option the Zone Audio (To Amp) Outputs for

zones 2 through 6 have the outputs connected to

the inputs of an external amplifier. The speakers

for these zones are run to the output of the exter-

nal amplifier for each of these zones.

An amplified subwoofer is attached to the Zone

Audio Output for zone 1 while its amplified

CAV6.6 output speaker connection is also still

intact. This allows the user to increase the out-

put of the bass response while keeping the

stereo output from the CAV6.6.

Keypads

The configuration uses a single UNO-S2 Keypad

per zone on the CAV6.6. Each keypad is con-

nected to the UNO System Keypad Port using

the CAT-5 T568A RJ-45 wiring configuration.

This gives complete control of each of the 6

UNO System Controlled Zones to the correspon-

ding UNO-S2 Keypad.

SAMPLE SYSTEM CONFIGURATION 5

Additional Amplification

Components List:

1 - CAV6.6 Controller

6 - UNO-S2 Keypads

1 - R1250MC Multi-zone Amplifier

3 - pair Advantage Iso-Mount Speakers

3 - pair Advantage Twist & Tilt Speakers

3 - 845.1 Micro Emitters

89

SAMPLE SYSTEM CONFIGURATION 5

Additional Amplification

90

Home Theater systems can share sources with

a CAV6.6 Controller to provide additional listen-

ing and viewing options. In this configuration,

the Home Theater Receiver provides a 12VDC

signal to the CAV6.6 at the Home Theater

12VDC In Port. The 12VDC signal tells the con-

troller to leave any shared home theater source

equipment powered when all CAV6.6 zones are

off, temporarily bypassing the source power

management feature. The 12VDC connected to

the CAV6.6’s Home Theater trigger allows the

source equipment to be left on.

Source Components

In this configuration, three audio source compo-

nents are used of a possible six audio/video

source inputs. The source components are con-

nected using quality RCA cables to the first

three inputs.

Source Loop Outputs

The Source Loop Outputs are connected to the

CAV6.6 and to the Home Theater Receiver

source inputs using RCA cables. This enables

the source equipment to be shared between the

two components.

Keypads

Three UNO-S2 Keypads are connected to the

CAV6.6 Controller using the CAT-5 T568A RJ-45

wiring configuration. This gives complete control

of each of the three zones to the corresponding

UNO-S2 Keypad.

Front Left and Right Speakers

Zone 1 uses the same pair of speakers as the

Home Theater front main left and right speak-

ers. The amplified output from zone 1 connects

to the input on the back of the SRM-2.1 speaker

relay module. The Home Theater left and right

front main speaker outputs are connected to the

input on the front of the SRM-2.1. Zone 1 12V

Trigger output is connected to the 12V +/- on

the back of the SRM-2.1. When zone 1 is pow-

ered on, the SRM-2.1 is triggered allowing audio

from zone 1 of the CAV6.6 to power the speak-

ers. When the UNO System Keypad for zone 1

is shut off, 12VDC is no longer provided to the

SRM-2.1, and the output of the SRM-2.1 is

switched to the Home Theater front left and

right amplified speaker output.

SAMPLE SYSTEM CONFIGURATION 6

Home Theater

Components List:

1 - CAV6.6 Controller

3 - UNO-S2 Keypads

1 - SRM-2.1 Speaker Relay Module

1 - pair Advantage Iso-Mount Speakers

1 - 846C 12VDC Power Supply

3 - 845.1 Micro Emitters

91

SAMPLE SYSTEM CONFIGURATION 6

Home Theater

INSTALLER

KEY CODES

TV (HDTV)

KEY FUNCTION UNO-S1 TV (HDTV)

1 1 Digit 1

2 2 Digit 2

3 3 Digit 3

4 4 Digit 4

5 5 Digit 5

6 6 Digit 6

7 7 Digit 7

8 8 Digit 8

9 9 Digit 9

0 0 Digit 0

Volume Up VolUp Volume Up

Volume Down VolDn Volume Down

Mute Mute Mute

Channel Up Ch Up Channel Up

Channel Dn Ch Dn Channel Down

Power Power Power On/Off

Enter Enter Channel Enter

Prev Channel PrvCh Last Channel

TV/Video TVVid Learned Only

TV/VCR TVVCR Learned Only

A/B A / B Learned Only

TV/DVD TVDVD Learned Only

TV/LD TV LD Learned Only

Input Input TV/Video

TV/DSS TVDSS Learned Only

Play Play Learned Only

Stop Stop Learned Only

Search Fwd SrchF Learned Only

Search Rev SrchR Learned Only

KEY FUNCTION UNO-S1 TV (HDTV)

Pause Pause Learned Only

Record Recrd Learned Only

Menu Menu Menu (Picture)

Menu Up MenuU Menu Up, Adjust Up

Menu Dn MenuD Menu Dn, Adjust Dn

Menu Left MenuL Menu Left

Menu Right MenuR Menu Right

Select Sel Menu Select

Exit Exit Exit, Cancel

Display Displ Display, OSD, Info

Guide Guide Guide

Page Up PageU Adjust up

Page Down PageD Adjust Down

Disk Disk Learned Only

Plus 10 Pls10 +100

Open/Close Op/Cl Learned Only

Random Randm Learned Only

Track Fwd TkFwd Learned Only

Track Rev TkRev Learned Only

Sur On/Off SurOn Surround On/Off

Sur Mode SurMd Learned Only

Surround Up SurUp Learned Only

Surround Dn SurDn Learned Only

PIP PIP Learned Only

PIP Move PIP M PIP Move

PIP Swap PIP S PIP Swap

Program Progm Learned Only

Sleep Sleep Learned Only

On On On, Power On/Off

92

93

KEY FUNCTION UNO-S1 TV (HDTV)

Off Off Off, Power On/Off

11 11 Learned Only

12 12 Learned Only

13 13 Learned Only

14 14 Learned Only

15 15 Learned Only

16 16 Learned Only

Bright Brght Learned Only

Dim Dim Learned Only

Close Close Learned Only

Open Open Learned Only

Halt Halt Learned Only

AM/FM AM/FM Learned Only

Cue Cue Learned Only

Disk Up DiskU Learned Only

Disk Down DiskD Learned Only

Info Info Learned Only

External Src ExtSr External Antenna

Live/Intro Intro Learned Only

Menu Menu Menu (Audio)

Back Back Back

Fav Channel FavCh Favorite

Display Fmt DFrmt Fmt,Wide,16:9,Aspct

SAP SAP SAP, CC

Slow Slow Learned Only

PIP On PIPOn PIP ON

PIP Off PIPOf PIP OFF

PIP Freeze PIPFr PIP Freeze

PIP Input PIPIn PIP Input

KEY FUNCTION UNO-S1 TV (HDTV)

PIP Chan Up PIPCU PIP Channel Up

PIP Chan Dn PIPCD PIP Channel Down

Input 1 In 1 VID1,Video,TVp1

Input 2 In 2 VID2,TVp2

Input 3 In 3 VID3,TVp3

Input 4 In 4 VID4,TVp4

Input 5 In 5 VID5,AV1,VCR,BNC

Input 6 In 6 VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component

Input 8 In 8 CAB,SAT,S-Video

Input 9 In 9 AV, Tuner

Input 10 In 10 AUX, RGB

INSTALLER

KEY CODES

TV (HDTV)

94

INSTALLER

KEY CODES

CABLE

KEY FUNCTION UNO-S1 CABLE

1 1 Digit 1

2 2 Digit 2

3 3 Digit 3

4 4 Digit 4

5 5 Digit 5

6 6 Digit 6

7 7 Digit 7

8 8 Digit 8

9 9 Digit 9

0 0 Digit 0

Volume Up VolUp Volume Up

Volume Down VolDn Volume Down

Mute Mute Mute

Channel Up Ch Up Channel Up

Channel Dn Ch Dn Channel Down

Power Power Power On/Off

Enter Enter Channel Enter

Prev Channel PrvCh Last Channel

TV/Video TVVid Learned Only

TV/VCR TVVCR Learned Only

A/B A / B Learned Only

TV/DVD TVDVD Learned Only

TV/LD TV LD Learned Only

Input Input Bypass, A/B

TV/DSS TVDSS Learned Only

Play Play Play

Stop Stop Stop

Search Fwd SrchF Fast Forward

Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 CABLE

Pause Pause Pause

Record Recrd Record

Menu Menu Menu, Settings

Menu Up MenuU Menu Up

Menu Dn MenuD Menu Down

Menu Left MenuL Menu Left

Menu Right MenuR Menu Right

Select Sel Menu Select

Exit Exit Exit, Cancel

Display Displ Info, Display, OSD

Guide Guide Guide

Page Up PageU Page Up

Page Down PageD Page Down

Disk Disk Learned Only

Plus 10 Pls10 +100

Open/Close Op/Cl Learned Only

Random Randm Learned Only

Track Fwd TkFwd Quick Skip,Advance

Track Rev TkRev Instant Replay

Sur On/Off SurOn Day Down

Sur Mode SurMd Learned Only

Surround Up SurUp Learned Only

Surround Dn SurDn Learned Only

PIP PIP Learned Only

PIP Move PIP M Learned Only

PIP Swap PIP S Learned Only

Program Progm Learned Only

Sleep Sleep Learned Only

On On On, Power On/Off

95

KEY FUNCTION UNO-S1 CABLE

PIP Chan Up PIPCU Learned Only

PIP Chan Dn PIPCD Learned Only

Input 1 In 1 A,VID1,Video,TVp1

Input 2 In 2 B,VID2,TVp2

Input 3 In 3 C,VID3,TVp3

Input 4 In 4 VID4,TVp4

Input 5 In 5 VID5,AV1,VCR,BNC

Input 6 In 6 VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component

Input 8 In 8 CAB,SAT,S-Video

Input 9 In 9 AV, Tuner

Input 10 In 10 AUX, RGB

KEY FUNCTION UNO-S1 CABLE

Off Off Off, Power On/Off

11 11 Learned Only

12 12 Learned Only

13 13 Learned Only

14 14 Learned Only

15 15 Learned Only

16 16 Learned Only

Bright Brght Learned Only

Dim Dim Learned Only

Close Close Learned Only

Open Open Learned Only

Halt Halt Learned Only

AM/FM AM/FM Learned Only

Cue Cue Learned Only

Disk Up DiskU Learned Only

Disk Down DiskD Learned Only

Info Info Learned Only

External Src ExtSr External AV Source

Live/Intro Intro Return to Live

Menu Menu PPV (Wink)

Back Back Back

Fav Channel FavCh Favorite

Display Fmt DFrmt Help

SAP SAP Day Up

Slow Slow Learned Only

PIP On PIPOn Learned Only

PIP Off PIPOf Learned Only

PIP Freeze PIPFr Learned Only

PIP Input PIPIn Learned Only

INSTALLER

KEY CODES

CABLE

96

INSTALLER

KEY CODES

VIDEO ACC

KEY FUNCTION UNO-S1 VIDEO ACC

1 1 Digit 1

2 2 Digit 2

3 3 Digit 3

4 4 Digit 4

5 5 Digit 5

6 6 Digit 6

7 7 Digit 7

8 8 Digit 8

9 9 Digit 9

0 0 Digit 0

Volume Up VolUp Volume Up

Volume Down VolDn Volume Down

Mute Mute Mute

Channel Up Ch Up Channel Up

Channel Dn Ch Dn Channel Down

Power Power Power On/Off

Enter Enter Channel Enter

Prev Channel PrvCh Last Channel

TV/Video TVVid Learned Only

TV/VCR TVVCR Learned Only

A/B A / B Learned Only

TV/DVD TVDVD Learned Only

TV/LD TV LD Learned Only

Input Input TV/Video, DTV

TV/DSS TVDSS Learned Only

Play Play Play

Stop Stop Stop

Search Fwd SrchF Fast Forward

Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 VIDEO ACC

Pause Pause Pause

Record Recrd Record

Menu Menu Menu, Home

Menu Up MenuU Menu Up

Menu Dn MenuD Menu Dn

Menu Left MenuL Menu Left

Menu Right MenuR Menu right

Select Sel Menu Select

Exit Exit Exit, Cancel, Go

Display Displ Info, Display, OSD

Guide Guide Guide, View

Page Up PageU Page Up, Scroll Up

Page Down PageD Page Dn, Scroll Dn

Disk Disk Learned Only

Plus 10 Pls10 +100. +10

Open/Close Op/Cl Learned Only

Random Randm Learned Only

Track Fwd TkFwd Skip Up, Next

Track Rev TkRev Skip Dn, Previous

Sur On/Off SurOn Learned Only

Sur Mode SurMd Learned Only

Surround Up SurUp Learned Only

Surround Dn SurDn Learned Only

PIP PIP Learned Only

PIP Move PIP M PIP Move

PIP Swap PIP S PIP Swap

Program Progm Learned Only

Sleep Sleep Learned Only

On On On, Power On/Off

97

KEY FUNCTION UNO-S1 VIDEO ACC

Off Off Off, Power On/Off

11 11 Learned Only

12 12 Learned Only

13 13 Learned Only

14 14 Learned Only

15 15 Learned Only

16 16 Learned Only

Bright Brght Learned Only

Dim Dim Learned Only

Close Close Learned Only

Open Open Learned Only

Halt Halt Learned Only

AM/FM AM/FM Learned Only

Cue Cue Learned Only

Disk Up DiskU Learned Only

Disk Down DiskD Learned Only

Info Info Learned Only

External Src ExtSr Ext. Antenna, Web

Live/Intro Intro Learned Only

Menu Menu Setup,Prgrm,Options

Back Back Learned Only

Fav Channel FavCh Favorites

Display Fmt DFrmt Fmt,Wide,16:9,Aspct

SAP SAP Language, MTS

Slow Slow Learned Only

PIP On PIPOn PIP ON

PIP Off PIPOf PIP OFF

PIP Freeze PIPFr PIP Freeze

PIP Input PIPIn PIP Input

KEY FUNCTION UNO-S1 VIDEO ACC

PIP Chan Up PIPCU PIP Channel Up

PIP Chan Dn PIPCD PIP Channel Down

Input 1 In 1 VID1,Video,TVp1

Input 2 In 2 VID2,TVp2

Input 3 In 3 VID3,TVp3

Input 4 In 4 VID4,TVp4

Input 5 In 5 VID5,AV1,VCR,BNC

Input 6 In 6 VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component

Input 8 In 8 CAB,SAT,S-Video

Input 9 In 9 AV, Tuner

Input 10 In 10 AUX, RGB

INSTALLER

KEY CODES

VIDEO ACC

98

INSTALLER

KEY CODES

SAT/DSS

KEY FUNCTION UNO-S1 SAT/DSS

1 1 Digit 1

2 2 Digit 2

3 3 Digit 3

4 4 Digit 4

5 5 Digit 5

6 6 Digit 6

7 7 Digit 7

8 8 Digit 8

9 9 Digit 9

0 0 Digit 0

Volume Up VolUp Volume Up

Volume Down VolDn Volume Down

Mute Mute Mute

Channel Up Ch Up Channel Up

Channel Dn Ch Dn Channel Down

Power Power Power On/Off

Enter Enter Channel Enter

Prev Channel PrvCh Last Channel

TV/Video TVVid Learned Only

TV/VCR TVVCR Learned Only

A/B A / B Learned Only

TV/DVD TVDVD Learned Only

TV/LD TV LD Learned Only

Input Input TV/DSS/SAT

TV/DSS TVDSS Learned Only

Play Play Play

Stop Stop Stop

Search Fwd SrchF Fast Forward

Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 SAT/DSS

Pause Pause Pause

Record Recrd Record

Menu Menu Menu (PVR, Tivo)

Menu Up MenuU Menu Up

Menu Dn MenuD Menu Down

Menu Left MenuL Menu Left

Menu Right MenuR Menu Right

Select Sel Menu Select

Exit Exit Exit, Cancel

Display Displ Info, Display, OSD

Guide Guide Guide

Page Up PageU Page Up,ThumbsUp

Page Down PageD Page Dn,ThumbsDn

Disk Disk Learned Only

Plus 10 Pls10 +100

Open/Close Op/Cl Learned Only

Random Randm Learned Only

Track Fwd TkFwd Quick Skip,Advance

Track Rev TkRev Instant Replay

Sur On/Off SurOn Learned Only

Sur Mode SurMd Learned Only

Surround Up SurUp Learned Only

Surround Dn SurDn Learned Only

PIP PIP Learned Only

PIP Move PIP M Learned Only

PIP Swap PIP S Learned Only

Program Progm Learned Only

Sleep Sleep Learned Only

On On On, Power On/Off

99

KEY FUNCTION UNO-S1 SAT/DSS

PIP Chan Up PIPCU Learned Only

PIP Chan Dn PIPCD Learned Only

Input 1 In 1 VID1,Video,TVp1

Input 2 In 2 VID2,TVp2

Input 3 In 3 VID3,TVp3

Input 4 In 4 VID4,TVp4

Input 5 In 5 VID5,AV1,VCR,BNC

Input 6 In 6 VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component

Input 8 In 8 CAB,SAT,S-Video

Input 9 In 9 AV, Tuner

Input 10 In 10 AUX, RGB

KEY FUNCTION UNO-S1 SAT/DSS

Off Off Off, Power On/Off

11 11 Learned Only

12 12 Learned Only

13 13 Learned Only

14 14 Learned Only

15 15 Learned Only

16 16 Learned Only

Bright Brght Learned Only

Dim Dim Learned Only

Close Close Learned Only

Open Open Learned Only

Halt Halt Learned Only

AM/FM AM/FM Learned Only

Cue Cue Learned Only

Disk Up DiskU Learned Only

Disk Down DiskD Learned Only

Info Info Learned Only

External Src ExtSr External AV Source

Live/Intro Intro Return to Live

Menu Menu Menu (DTV)

Back Back Back

Fav Channel FavCh Favorite

Display Fmt DFrmt Fmt,Wide,16:9,Aspct

SAP SAP Alt/Audio,Lang.,CC

Slow Slow Slow

PIP On PIPOn Learned Only

PIP Off PIPOf Learned Only

PIP Freeze PIPFr Learned Only

PIP Input PIPIn Learned Only

INSTALLER

KEY CODES

SAT/DSS

100

INSTALLER

KEY CODES

VCR

KEY FUNCTION UNO-S1 VCR

1 1 Digit 1

2 2 Digit 2

3 3 Digit 3

4 4 Digit 4

5 5 Digit 5

6 6 Digit 6

7 7 Digit 7

8 8 Digit 8

9 9 Digit 9

0 0 Digit 0

Volume Up VolUp Volume Up

Volume Down VolDn Volume Down

Mute Mutte Mute

Channel Up Ch Up Channel Up

Channel Dn Ch Dn Channel Down

Power Power Power On/Off

Enter Enter Channel Enter

Prev Channel PrvCh Last Channel

TV/Video TVVid Learned Only

TV/VCR TVVCR Learned Only

A/B A / B Learned Only

TV/DVD TVDVD Learned Only

TV/LD TV LD Learned Only

Input Input TV/VCR

TV/DSS TVDSS Learned Only

Play Play Play

Stop Stop Stop

Search Fwd SrchF Fast Forward

Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 VCR

Pause Pause Pause

Record Recrd Record

Menu Menu Menu (PVR,Tivo)

Menu Up MenuU Menu Up

Menu Dn MenuD Menu Down

Menu Left MenuL Menu Left

Menu Right MenuR Menu Right

Select Sel Menu Select

Exit Exit Exit, Cancel

Display Displ Display, OSD, Info

Guide Guide Guide,VCR+,Prgrm

Page Up PageU Thmubs Up

Page Down PageD Thmubs Down

Disk Disk Learned Only

Plus 10 Pls10 +100

Open/Close Op/Cl Learned Only

Random Randm Learned Only

Track Fwd TkFwd QuickSkip/Adv,Indx TrkUp

Track Rev TkRev Instnt Rplay,Indx Trk Dn

Sur On/Off SurOn Learned Only

Sur Mode SurMd Learned Only

Surround Up SurUp Learned Only

Surround Dn SurDn Learned Only

PIP PIP Learned Only

PIP Move PIP M Learned Only

PIP Swap PIP S Learned Only

Program Progm Learned Only

Sleep Sleep Learned Only

On On On, Power On/Off

101

KEY FUNCTION UNO-S1 VCR

Off Off Off, Power On/Off

11 11 Learned Only

12 12 Learned Only

13 13 Learned Only

14 14 Learned Only

15 15 Learned Only

16 16 Learned Only

Bright Brght Learned Only

Dim Dim Learned Only

Close Close Learned Only

Open Open Learned Only

Halt Halt Learned Only

AM/FM AM/FM Learned Only

Cue Cue Learned Only

Disk Up DiskU Learned Only

Disk Down DiskD Learned Only

Info Info Learned Only

External Src ExtSr Input Select

Live/Intro Intro Return to Live,Auto Track

Menu Menu Menu

Back Back Clear

Fav Channel FavCh Replay Zones, Indx Mark

Display Fmt DFrmt Record Speed

SAP SAP SAP, CC

Slow Slow Slow

PIP On PIPOn Learned Only

PIP Off PIPOf Learned Only

PIP Freeze PIPFr Learned Only

PIP Input PIPIn Learned Only

KEY FUNCTION UNO-S1 VCR

PIP Chan Up PIPCU Learned Only

PIP Chan Dn PIPCD Learned Only

Input 1 In 1 VID1,Video,TVp1

Input 2 In 2 VID2,TVp2

Input 3 In 3 VID3,TVp3

Input 4 In 4 VID4,TVp4

Input 5 In 5 VID5,AV1,VCR,BNC

Input 6 In 6 VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component

Input 8 In 8 CAB,SAT,S-Video

Input 9 In 9 AV, Tuner

Input 10 In 10 AUX, RGB

INSTALLER

KEY CODES

VCR

102

INSTALLER

KEY CODES

LASER DISC

KEY FUNCTION UNO-S1 LASER DISC

1 1 Digit 1

2 2 Digit 2

3 3 Digit 3

4 4 Digit 4

5 5 5Digit 5

6 6 6Digit 6

7 7 Digit 7

8 8 Digit 8

9 9 Digit 9

0 0 Digit 0

Volume Up VolUp Volume Up

Volume Down VolDn Volume Down

Mute Mute Mute

Channel Up Ch Up Learned Only

Channel Dn Ch Dn Learned Only

Power Power Power On/Off

Enter Enter Learned Only

Prev Channel PrvCh Repeat

TV/Video TVVid Learned Only

TV/VCR TVVCR Learned Only

A/B A / B Learned Only

TV/DVD TVDVD Learned Only

TV/LD TV LD Learned Only

Input Input TV,LD,Input Select

TV/DSS TVDSS Learned Only

Play Play Play

Stop Stop Stop

Search Fwd SrchF Chapter/Skip Up

Search Rev SrchR Chapter/Skip Dn

KEY FUNCTION UNO-S1 LASER DISC

Pause Pause Pause

Record Recrd Learned Only

Menu Menu Menu, Program

Menu Up MenuU Menu Up

Menu Dn MenuD Menu Down

Menu Left MenuL Menu Left

Menu Right MenuR Menu Right

Select Sel Menu Select

Exit Exit Exit, Cancel

Display Displ Display, OSD, Info

Guide Guide Learned Only

Page Up PageU Disk Skip, Disk Up

Page Down PageD Disk Down

Disk Disk Learned Only

Plus 10 Pls10 +10

Open/Close Op/Cl Learned Only

Random Randm Learned Only

Track Fwd TkFwd Chapter/Skip Up

Track Rev TkRev Chapter/Skip Down

Sur On/Off SurOn Audio

Sur Mode SurMd Learned Only

Surround Up SurUp Learned Only

Surround Dn SurDn Learned Only

PIP PIP Learned Only

PIP Move PIP M Learned Only

PIP Swap PIP S Learned Only

Program Progm Learned Only

Sleep Sleep Learned Only

On On On, Power On/Off

103

KEY FUNCTION UNO-S1 LASER DISC

Off Off Off, Power On/Off

11 11 Learned Only

12 12 Learned Only

13 13 Learned Only

14 14 Learned Only

15 15 Learned Only

16 16 Learned Only

Bright Brght Learned Only

Dim Dim Learned Only

Close Close Learned Only

Open Open Learned Only

Halt Halt Learned Only

AM/FM AM/FM Learned Only

Cue Cue Learned Only

Disk Up DiskU Learned Only

Disk Down DiskD Learned Only

Info Info Learned Only

External Src ExtSr Ext AV Src,CDV,VCD,Karaok

Live/Intro Intro Intro,Search,Scan

Menu Menu Learned Only

Back Back Learned Only

Fav Channel FavCh Mark

Display Fmt DFrmt Learned Only

SAP SAP Subtitle, CC

Slow Slow Slow

PIP On PIPOn Learned Only

PIP Off PIPOf Learned Only

PIP Freeze PIPFr Learned Only

PIP Input PIPIn Learned Only

KEY FUNCTION UNO-S1 LASER DISC

PIP Chan Up PIPCU Learned Only

PIP Chan Dn PIPCD Learned Only

Input 1 In 1 VID1,Video,TVp1

Input 2 In 2 VID2,TVp2

Input 3 In 3 VID3,TVp3

Input 4 In 4 VID4,TVp4

Input 5 In 5 VID5,AV1,VCR,BNC

Input 6 In 6 VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component

Input 8 In 8 CAB,SAT,S-Video

Input 9 In 9 AV, Tuner

Input 10 In 10 AUX, RGB

INSTALLER

KEY CODES

LASER DISC

104

INSTALLER

KEY CODES

DVD

KEY FUNCTION UNO-S1 DVD

1 1 Digit 1, Traack 1

2 2 Digit 2, Track 2

3 3 Digit 3, Track 3

4 4 Digit 4, Track 4

5 5 Digit 5, Track 5

6 6 Digit 6, Track 6

7 7 Digit 7, Track 7

8 8 Digit 8,Track 8

9 9 Digit 9, Track 9

0 0 Digit 0, Track 10

Volume Up VolUp Volume Up

Volume Down VolDn Volume Down

Mute Mute Mute

Channel Up Ch Up Channel Up

Channel Dn Ch Dn Channel Down

Power Power Power On/Off

Enter Enter Channel Enter

Prev Channel PrvCh Last Channel,Repeat

TV/Video TVVid Learned Only

TV/VCR TVVCR Learned Only

A/B A / B Learned Only

TV/DVD TVDVD Learned Only

TV/LD TV LD Learned Only

Input Input TV/DVD,Input Select

TV/DSS TVDSS Learned Only

Play Play Play

Stop Stop Stop

Search Fwd SrchF Fast Forward

Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 DVD

Pause Pause Pause

Record Recrd Record

Menu Menu Disk Menu

Menu Up MenuU Menu Up

Menu Dn MenuD Menu Dn

Menu Left MenuL Menu Left

Menu Right MenuR Menu right

Select Sel Menu Select

Exit Exit Exit, Cancel, Return

Display Displ Display, OSD, Info

Guide Guide Title

Page Up PageU Disk Skip, Disk Up

Page Down PageD Disk Down

Disk Disk Learned Only

Plus 10 Pls10 +100. +10

Open/Close Op/Cl Learned Only

Random Randm Learned Only

Track Fwd TkFwd Chapter/Skip Up

Track Rev TkRev Chapter/Skip Down

Sur On/Off SurOn Audio, Language

Sur Mode SurMd Learned Only

Surround Up SurUp Learned Only

Surround Dn SurDn Learned Only

PIP PIP Learned Only

PIP Move PIP M Learned Only

PIP Swap PIP S Learned Only

Program Progm Learned Only

Sleep Sleep Learned Only

On On On, Power On/Off

105

KEY FUNCTION UNO-S1 DVD

Off Off Off, Power On/Off

11 11 Learned Only

12 12 Learned Only

13 13 Learned Only

14 14 Learned Only

15 15 Learned Only

16 16 Learned Only

Bright Brght Learned Only

Dim Dim Learned Only

Close Close Learned Only

Open Open Learned Only

Halt Halt Learned Only

AM/FM AM/FM Learned Only

Cue Cue Learned Only

Disk Up DiskU Learned Only

Disk Down DiskD Learned Only

Info Info Learned Only

External Src ExtSr External AV Source

Live/Intro Intro Intro,Search,Scan

Menu Menu Setup Menu

Back Back Clear

Fav Channel FavCh Mark

Display Fmt DFrmt Format Wide,Zoom,Aspect

SAP SAP Subtitle, CC

Slow Slow Slow

PIP On PIPOn Learned Only

PIP Off PIPOf Learned Only

PIP Freeze PIPFr Learned Only

PIP Input PIPIn Learned Only

KEY FUNCTION UNO-S1 DVD

PIP Chan Up PIPCU Learned Only

PIP Chan Dn PIPCD Learned Only

Input 1 In 1 VID1,Video,TVp1

Input 2 In 2 VID2,TVp2

Input 3 In 3 VID3,TVp3

Input 4 In 4 VID4,TVp4

Input 5 In 5 VID5,AV1,VCR,BNC

Input 6 In 6 VID6,AV2,VDP,DVD,DVI

Input 7 In 7 TV, Component

Input 8 In 8 CAB,SAT,S-Video

Input 9 In 9 AV, Tuner

Input 10 In 10 AUX, RGB

INSTALLER

KEY CODES

DVD

106

INSTALLER

KEY CODES

RECEIVER

KEY FUNCTION UNO-S1 RECEIVER

1 1 Digit 1

2 2 Digit 2

3 3 Digit 3

4 4 Digit 4

5 5 Digit 5

6 6 Digit 6

7 7 Digit 7

8 8 Digit 8

9 9 Digit 9

0 0 Digit 0

Volume Up VolUp Volume Up

Volume Down VolDn Volume Down

Mute Mute Mute

Channel Up Ch Up Preset Up

Channel Dn Ch Dn Preset Down

Power Power Power On/Off

Enter Enter 5.1, Prologic

Prev Channel PrvCh Last Channel, Repeat

TV/Video TVVid Learned Only

TV/VCR TVVCR Learned Only

A/B A / B Learned Only

TV/DVD TVDVD Learned Only

TV/LD TV LD Learned Only

Input Input DVD/Tuner,Input Select

TV/DSS TVDSS Learned Only

Play Play Play

Stop Stop Stop

Search Fwd SrchF Fast Forward

Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 RECEIVER

Pause Pause Pause

Record Recrd Record

Menu Menu Disk menu, Menu

Menu Up MenuU Menu Up, Adjust Up

Menu Dn MenuD Menu Dn, Adjust Dn

Menu Left MenuL Menu Left

Menu Right MenuR Menu Right

Select Sel Menu Select, Continue

Exit Exit Exit, Cancel

Display Displ Display, OSD, Info

Guide Guide Title

Page Up PageU Adjust Up

Page Down PageD Adjust Down

Disk Disk Learned Only

Plus 10 Pls10 Band, FM/AM

Open/Close Op/Cl Learned Only

Random Randm Random

Track Fwd TkFwd Skip Up

Track Rev TkRev Skip Down

Sur On/Off SurOn Srrd Mode/On Off,Audio Lang

Sur Mode SurMd Learned Only

Surround Up SurUp Learned Only

Surround Dn SurDn Learned Only

PIP PIP Learned Only

PIP Move PIP M Learned Only

PIP Swap PIP S Learned Only

Program Progm Learned Only

Sleep Sleep Learned Only

On On On, Power On/Off

107

KEY FUNCTION UNO-S1 RECEIVER

Off Off Off, Power On/Off

11 11 Learned Only

12 12 Learned Only

13 13 Learned Only

14 14 Learned Only

15 15 Learned Only

16 16 Learned Only

Bright Brght Learned Only

Dim Dim Learned Only

Close Close Learned Only

Open Open Learned Only

Halt Halt Learned Only

AM/FM AM/FM Learned Only

Cue Cue Learned Only

Disk Up DiskU Learned Only

Disk Down DiskD Learned Only

Info Info Learned Only

External Src ExtSr External AV Source

Live/Intro Intro Intro,Search,Scan

Menu Menu Menu

Back Back Clear

Fav Channel FavCh Mark

Display Fmt DFrmt FormatWide,Zoom,Aspect

SAP SAP Learned Only

Slow Slow Slow

PIP On PIPOn Learned Only

PIP Off PIPOf Learned Only

PIP Freeze PIPFr Learned Only

PIP Input PIPIn Learned Only

KEY FUNCTION UNO-S1 RECEIVER

PIP Chan Up PIPCU Learned Only

PIP Chan Dn PIPCD Learned Only

Input 1 In 1 CD

Input 2 In 2 Tuner

Input 3 In 3 DVD, LD

Input 4 In 4 VCR, VID1

Input 5 In 5 VID5,AV1,VCR,BNC

Input 6 In 6 TV, VID2

Input 7 In 7 LD, VID3

Input 8 In 8 AUX, VID4

Input 9 In 9 DAT, Cable

Input 10 In 10 Phono SAT

INSTALLER

KEY CODES

RECEIVER

108

INSTALLER

KEY CODES

AMP/MISC AUDIO

KEY FUNCTION UNO-S1 AMP/MISC AUDIO

1 1 Digit 1

2 2 Digit 2

3 3 Digit 3

4 4 Digit 4

5 5 Digit 5

6 6 Digit 6

7 7 Digit 7

8 8 Digit 8

9 9 Digit 9

0 0 Digit 0

Volume Up VolUp Volume Up

Volume Down VolDn Volume Down

Mute Mute Mute

Channel Up Ch Up Preset Up

Channel Dn Ch Dn Preset Down

Power Power Power On/Off

Enter Enter 5.1, Prologic

Prev Channel PrvCh Repeat

TV/Video TVVid Learned Only

TV/VCR TVVCR Learned Only

A/B A / B Learned Only

TV/DVD TVDVD Learned Only

TV/LD TV LD Learned Only

Input Input Bypass,Input Slct

TV/DSS TVDSS Learned Only

Play Play Play

Stop Stop Stop

Search Fwd SrchF Fast Forward

Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 AMP/MISC AUDIO

Pause Pause Pause

Record Recrd Record

Menu Menu Menu, Program

Menu Up MenuU Menu Up, Adjust Up

Menu Dn MenuD Menu Dn, Adjust Dn

Menu Left MenuL Menu Left

Menu Right MenuR Menu Right

Select Sel Menu Select, Cont

Exit Exit Exit, Cancel

Display Displ Display, OSD, Info

Guide Guide Learned Only

Page Up PageU Adjust Up

Page Down PageD Adjust Down

Disk Disk Learned Only

Plus 10 Pls10 Band, FM/AM

Open/Close Op/Cl Learned Only

Random Randm Learned Only

Track Fwd TkFwd Skip Up

Track Rev TkRev Skip Down

Sur On/Off SurOn Srrd Mode/On Off,Audio Lang

Sur Mode SurMd Learned Only

Surround Up SurUp Learned Only

Surround Dn SurDn Learned Only

PIP PIP Learned Only

PIP Move PIP M Learned Only

PIP Swap PIP S Learned Only

Program Progm Learned Only

Sleep Sleep Learned Only

On On On, Power On/Off

109

KEY FUNCTION UNO-S1 AMP/MISC AUDIO

Off Off Off, Power On/Off

11 11 Learned Only

12 12 Learned Only

13 13 Learned Only

14 14 Learned Only

15 15 Learned Only

16 16 Learned Only

Bright Brght Learned Only

Dim Dim Learned Only

Close Close Learned Only

Open Open Learned Only

Halt Halt Learned Only

AM/FM AM/FM Learned Only

Cue Cue Learned Only

Disk Up DiskU Learned Only

Disk Down DiskD Learned Only

Info Info Learned Only

External Src ExtSr External AV Source

Live/Intro Intro Intro,Search,Scan

Menu Menu Learned Only

Back Back Clear

Fav Channel FavCh Learned Only

Display Fmt DFrmt Learned Only

SAP SAP Learned Only

Slow Slow Learned Only

PIP On PIPOn Learned Only

PIP Off PIPOf Learned Only

PIP Freeze PIPFr Learned Only

PIP Input PIPIn Learned Only

KEY FUNCTION UNO-S1 AMP/MISC AUDIO

PIP Chan Up PIPCU Learned Only

PIP Chan Dn PIPCD Learned Only

Input 1 In 1 CD

Input 2 In 2 Tuner

Input 3 In 3 DVD, LD

Input 4 In 4 TAPE, MD

Input 5 In 5 VCR, VID1

Input 6 In 6 TV, VID2

Input 7 In 7 LD, VID3

Input 8 In 8 AUX, VID4

Input 9 In 9 DAT, Cable

Input 10 In 10 Phono, SAT

INSTALLER

KEY CODES

AMP/MISC AUDIO

110

INSTALLER

KEY CODES

CD

KEY FUNCTION UNO-S1 CD

11

Digit 1, Track 1,Dsc1

22

Digit 2, Track 2,Dsc2

33

Digit 3, Track 3,Dsc3

44

Digit 4, Track 4,Dsc4

55

Digit 5, Track 5,Dsc5

66

Digit 6, Track 6,Dsc6

77

Digit 7, Track 7,Dsc7

88

Digit 8,Track 8,Dsc8

99

Digit 9, Track 9,Dsc9

00

Digit 0, Trck10,Dsc10

Volume Up VolUp Volume Up

Volume Down VolDn Volume Down

Mute Mute Mute

Channel Up Ch Up Learned Only

Channel Dn Ch Dn Learned Only

Power Power Power On/Off

Enter Enter Set

Prev Channel PrvCh Repeat

TV/Video TVVid Learned Only

TV/VCR TVVCR Learned Only

A/B A / B Learned Only

TV/DVD TVDVD Learned Only

TV/LD TV LD Learned Only

Input Input DVD/Tuner Input Select

TV/DSS TVDSS Learned Only

Play Play Play

Stop Stop Stop

Search Fwd SrchF Fast Forward

Search Rev SrchR Rewind

KEY FUNCTION UNO-S1 CD

Pause Pause Pause

Record Recrd Record

Menu Menu Disk, Edit

Menu Up MenuU Menu Up

Menu Dn MenuD Menu Down

Menu Left MenuL Menu Left

Menu Right MenuR Menu Right

Select Sel Menu Select, Cont

Exit Exit Exit, Cancel

Display Displ Display, OSD, Info

Guide Guide Group,Magazine

Page Up PageU Disk Skip, Disk Up

Page Down PageD Disk Down

Disk Disk Learned Only

Plus 10 Pls10 +10, +100

Open/Close Op/Cl Learned Only

Random Randm Learned Only

Track Fwd TkFwd Skip Up

Track Rev TkRev Skip Down

Sur On/Off SurOn Learned Only

Sur Mode SurMd Learned Only

Surround Up SurUp Learned Only

Surround Dn SurDn Learned Only

PIP PIP Learned Only

PIP Move PIP M Learned Only

PIP Swap PIP S Learned Only

Program Progm Learned Only

Sleep Sleep Learned Only

On On On, Power On/Off

111

KEY FUNCTION UNO-S1 CD

Off Off Off, Power On/Off

11 11 Learned Only

12 12 Learned Only

13 13 Learned Only

14 14 Learned Only

15 15 Learned Only

16 16 Learned Only

Bright Brght Learned Only

Dim Dim Learned Only

Close Close Learned Only

Open Open Learned Only

Halt Halt Learned Only

AM/FM AM/FM Learned Only

Cue Cue Learned Only

Disk Up DiskU Learned Only

Disk Down DiskD Learned Only

Info Info Learned Only

External Src ExtSr CD/CDR/MD,Input Select

Live/Intro Intro Intro,Search,Scan

Menu Menu Menu, Program

Back Back Track, Clear

Fav Channel FavCh Finalize, Index

Display Fmt DFrmt Learned Only

SAP SAP Learned Only

Slow Slow Learned Only

PIP On PIPOn Learned Only

PIP Off PIPOf Learned Only

PIP Freeze PIPFr Learned Only

PIP Input PIPIn Learned Only

KEY FUNCTION UNO-S1 CD

PIP Chan Up PIPCU Learned Only

PIP Chan Dn PIPCD Learned Only

Input 1 In 1 CD

Input 2 In 2 Tuner

Input 3 In 3 DVD, LD

Input 4 In 4 Tape, MD

Input 5 In 5 VCR, VID1

Input 6 In 6 TV, VID2

Input 7 In 7 LD, VID3

Input 8 In 8 AUX, VID4

Input 9 In 9 DAT, Cable

Input 10 In 10 Phono, SAT

INSTALLER

KEY CODES

CD

112

INSTALLER

KEY CODES

HOME CONTROL

KEY FUNCTION UNO-S1 HOME CONTROL

1 1 Digit 1

2 2 Digit 2

3 3 Digit 3

4 4 Digit 4

5 5 Digit 5

6 6 Digit 6

7 7 Digit 7

8 8 Digit 8

9 9 Digit 9

0 0 Digit 0

Volume Up VolUp Volume Up

Volume Down VolDn Volume Down

Mute Mute Mute

Channel Up Ch Up Bright,Raise Up

Channel Dn Ch Dn Dim,Lower Down

Power Power Power On/Off

Enter Enter Learned Only

Prev Channel PrvCh Learned Only

TV/Video TVVid Learned Only

TV/VCR TVVCR Learned Only

A/B A / B Learned Only

TV/DVD TVDVD Learned Only

TV/LD TV LD Learned Only

Input Input Home, Source

TV/DSS TVDSS Learned Only

Play Play Play

Stop Stop Stop

Search Fwd SrchF Fast Forward,Open

Search Rev SrchR Rewind, Close

KEY FUNCTION UNO-S1 HOME CONTROL

Pause Pause Pause

Record Recrd Record

Menu Menu Menu

Menu Up MenuU Menu Up, Mode

Menu Dn MenuD Menu Dn, Timer

Menu Left MenuL Menu Left,Oscillate

Menu Right MenuR Menu Right,Speed

Select Sel Menu Select, Light

Exit Exit Exit, Cancel

Display Displ Learned Only

Guide Guide Learned Only

Page Up PageU Learned Only

Page Down PageD Learned Only

Disk Disk Learned Only

Plus 10 Pls10 Learned Only

Open/Close Op/Cl Learned Only

Random Randm Learned Only

Track Fwd TkFwd Learned Only

Track Rev TkRev Learned Only

Sur On/Off SurOn Learned Only

Sur Mode SurMd Learned Only

Surround Up SurUp Learned Only

Surround Dn SurMd Learned Only

PIP PIP Learned Only

PIP Move PIP M Learned Only

PIP Swap PIP S Learned Only

Program Progm Learned Only

Sleep Sleep Learned Only

On On On, Power On/Off

113

KEY FUNCTION UNO-S1 HOME CONTROL

Off Off Off, Power On/Off

11 11 Learned Only

12 12 Learned Only

13 13 Learned Only

14 14 Learned Only

15 15 Learned Only

16 16 Learned Only

Bright Brght Learned Only

Dim Dim Learned Only

Close Close Learned Only

Open Open Learned Only

Halt Halt Learned Only

AM/FM AM/FM Learned Only

Cue Cue Learned Only

Disk Up DiskU Learned Only

Disk Down DiskD Learned Only

Info Info Learned Only

External Src ExtSr External Source

Live/Intro Intro Learned Only

Menu Menu Learned Only

Back Back Learned Only

Fav Channel FavCh Learned Only

Display Fmt DFrmt Learned Only

SAP SAP Learned Only

Slow Slow All On

PIP On PIPOn Learned Only

PIP Off PIPOf Learned Only

PIP Freeze PIPFr Learned Only

PIP Input PIPIn Learned Only

KEY FUNCTION UNO-S1 HOME CONTROL

PIP Chan Up PIPCU Learned Only

PIP Chan Dn PIPCD Learned Only

Input 1 In 1 Source/Scene 1

Input 2 In 2 Source/Scene 2

Input 3 In 3 Source/Scene 3

Input 4 In 4 Source/Scene 4

Input 5 In 5 Source/Scene 5

Input 6 In 6 Source/Scene 6

Input 7 In 7 Source/Scene 7

Input 8 In 8 Source/Scene 8

Input 9 In 9 Source/Scene 9

Input 10 In 10 Source/Scene 10

INSTALLER

KEY CODES

HOME CONTROL

114

TECHNICAL SPECIFICATION

CAV6.6 Controller/Amplifier

Dimensions: 17"W x 12"D x 3.5"H (43 x 30.5 x 9 cm)

Weight: 18 lbs. (8.1 kg)

Power Supply: 110 or 240 VAC

Fuse Rating: 110V input; F3A H 250V US and Canada

240V input; F1.25A H 250V Europe

Frequency Response: 20Hz-20kHz +/- 0.5dB

Watts per channel: 20 Watts RMS x 12 into 8 Ohms

Total Harmonic Distortion: 0.05%

Signal to Noise Ratio: 88dB

A/V Source Inputs: 7 (Including front AUX A/V input)

A/V Source Outputs: 6

Zones: 6

A-BUS Ready Ports: 4

Source Audio Input: 5V Peak to Peak, 10k Ohms

Source Audio Loop Output: Unity Gain, 10k Ohms

Source Video Input: 1V Peak to Peak, 75 Ohms

Source Video Loop Output: 1V Peak to Peak, 75 Ohms

Zone Video Output: 1V Peak to Peak, 75 Ohms

Zone Variable Line Audio Output: 5.6V Peak to Peak, 4 Ohms @ 1KHz

Trigger Outputs: 6 Zone, 1 Common. 12VDC 50mA each

Trigger Inputs: 1 Home Theater

UNO-S2 Keypad

Dimensions: 3.65"W x 1.125"D x 4.3"H (9.2 x 10.9 x 2.8 cm)

Fits 2 Gang UL/CSA Approved Junction Box

Weight: 6 oz. (170 g)

Power Requirements: 12 VDC 180mA

CAT-5 Connection: 110 punchdown

115

WARRANTY & REPAIR

The Russound CAV6.6 is fully guaranteed against all defects in materials and workmanship for two (2)

years from the date of purchase. During this period, Russound will replace any defective parts and

correct any defect in workmanship without charge for either parts or labor.

For this warranty to apply, the unit must be installed and used according to its written instructions. If

service is necessary, it must be performed by Russound. The unit must be returned to Russound at

the owner's expense and with prior written permission. Accidental damage and shipping damage are

not considered defects, nor is damage resulting from abuse or from servicing by an agency or per-

son not specifically authorized in writing by Russound.

This Warranty does not cover:

• Damage caused by abuse, accident, misuse, negligence,

or improper installation or operation

•Power surges and lightning strikes

•Normal wear and maintenance

•Products that have been altered or modified

•Any product whose identifying number, decal, serial number, etc.

has been altered, defaced or removed

Russound sells products only through authorized Dealers and Distributors to ensure that customers

obtain proper support and service. Any Russound product purchased from an unauthorized dealer or

other source, including retailers, mail order sellers and online sellers will not be honored or serviced

under existing Russound warranty policy. Any sale of products by an unauthorized source or other

manner not authorized by Russound shall void the warranty on the applicable product.

Damage to or destruction of components due to application of excessive power voids the warranty on

those parts. In these cases, repairs will be made on the basis of the retail value of the parts and

labor. To return for repairs, the unit must be shipped to Russound at the owner's expense, along with

a note explaining the nature of service required. Be sure to pack the unit in a corrugated container

with at least three (3) inches of resilient material to protect the unit from damage in transit.

Before returning a unit for repair, call Russound at (603) 659-5170 for a Return Authorization number.

Write this number on the shipping label and ship to:

Russound

ATTN: Service

5 Forbes Road

Newmarket, NH 03857
