OPERATOR'S MANUAL

IMPORTANT MANUAL

THANK YOU

Thank you for buying this quality product. This modern

outdoor power tool will provide many hours of useful

service. You will find it to be a great labor-saving device,

This operator's manual provides you with easy-to-under-

stand operating instructions. Read the whole manual

and follow all the instructions to keep your new outdoor

power tool in top operating condition, The other manual

that came with your power tool, the parts manual.

contains all the information that you need to order parts.

PRODUCT REFERENCES, ILLUSTRATIONS AND

SPECIFICATIONS

All information, illustrations and specifications in this

manua_ are based on the latest product information

available at the time of printing. We reserve the right to

make changes at any time without notice.

Click-Link ® is a registered trademark of Ryobi Outdoor

Products.

Bump Head TM is a trademark of Ryobi Outdoor

Products.

SERVICE INFORMATION

Service on this unit both within and after the warranty

period should be performed only by an authorized and

approved service dealer.

Dial:

1-800-345-8746 in the United States or

1-800-265-6778 in Canada

to obtain the listing of the authorized service dealer

nearest you.

DO NOT RETURN THE UNIT TO THE RETAILER,

NOTE:PROOF OF PURCHASE WILL BE REQUIRED

FOR WARRANTY SERVICE.

Make sure this manual is carefully read and understood

before starting or operating this equipment.

THIS PRODUCT IS COVERED BY ONE OR MORE OF

THE US PATENTS LISTED BELOW: 5,076,149;

4,901,682; 4,779,405; 4,651,422; 4,505,040; 4,463,498;

4,369,742; 4,342,236; 4,223,441; 2,125,688; D-249,012;

0-239,329;

OTHER PATENTS PENDING.

I, California Emission Regulations ................. 3

II. Rules for Safe Operation ..................... 4-8

A, Important Safety Information ............... 4-5

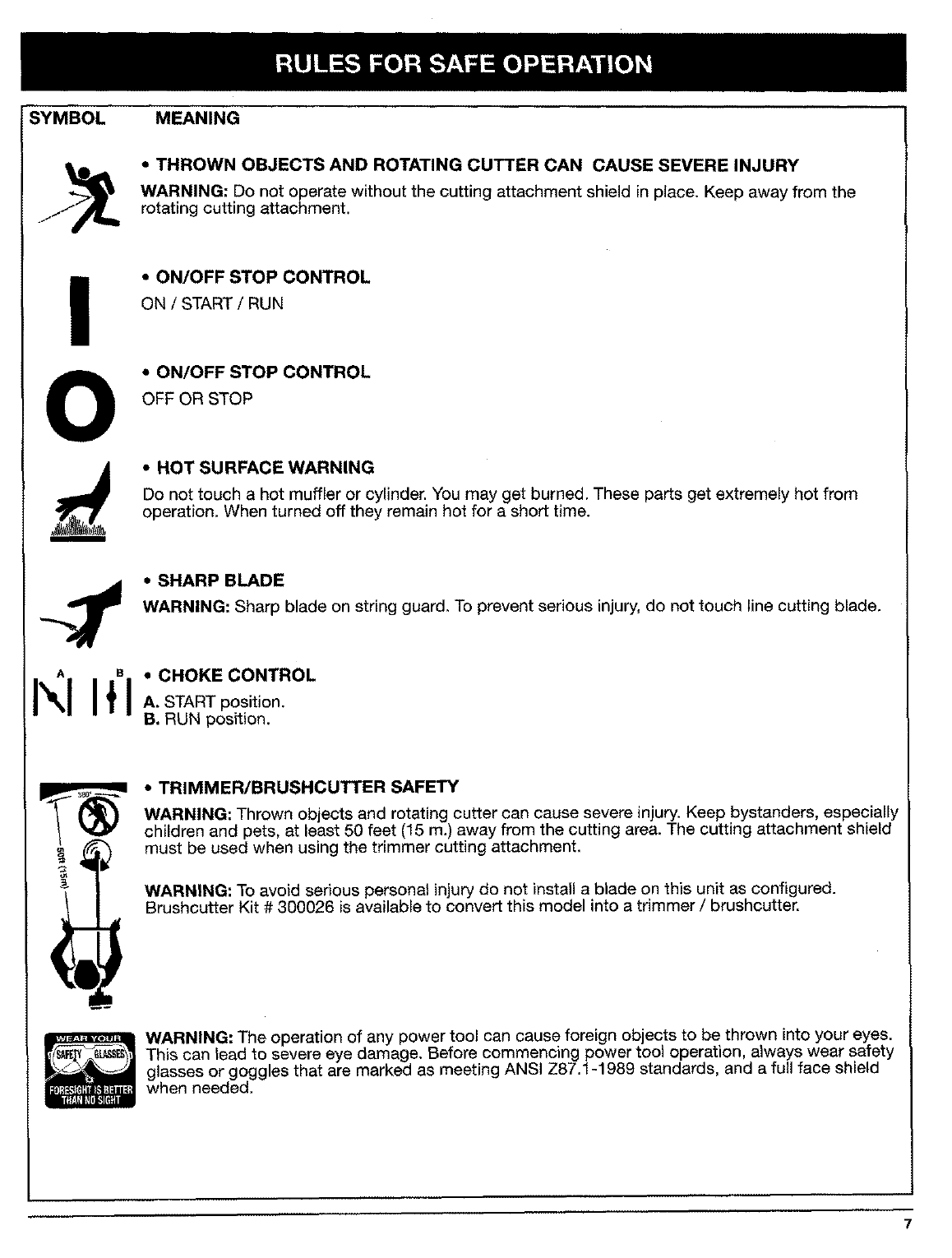

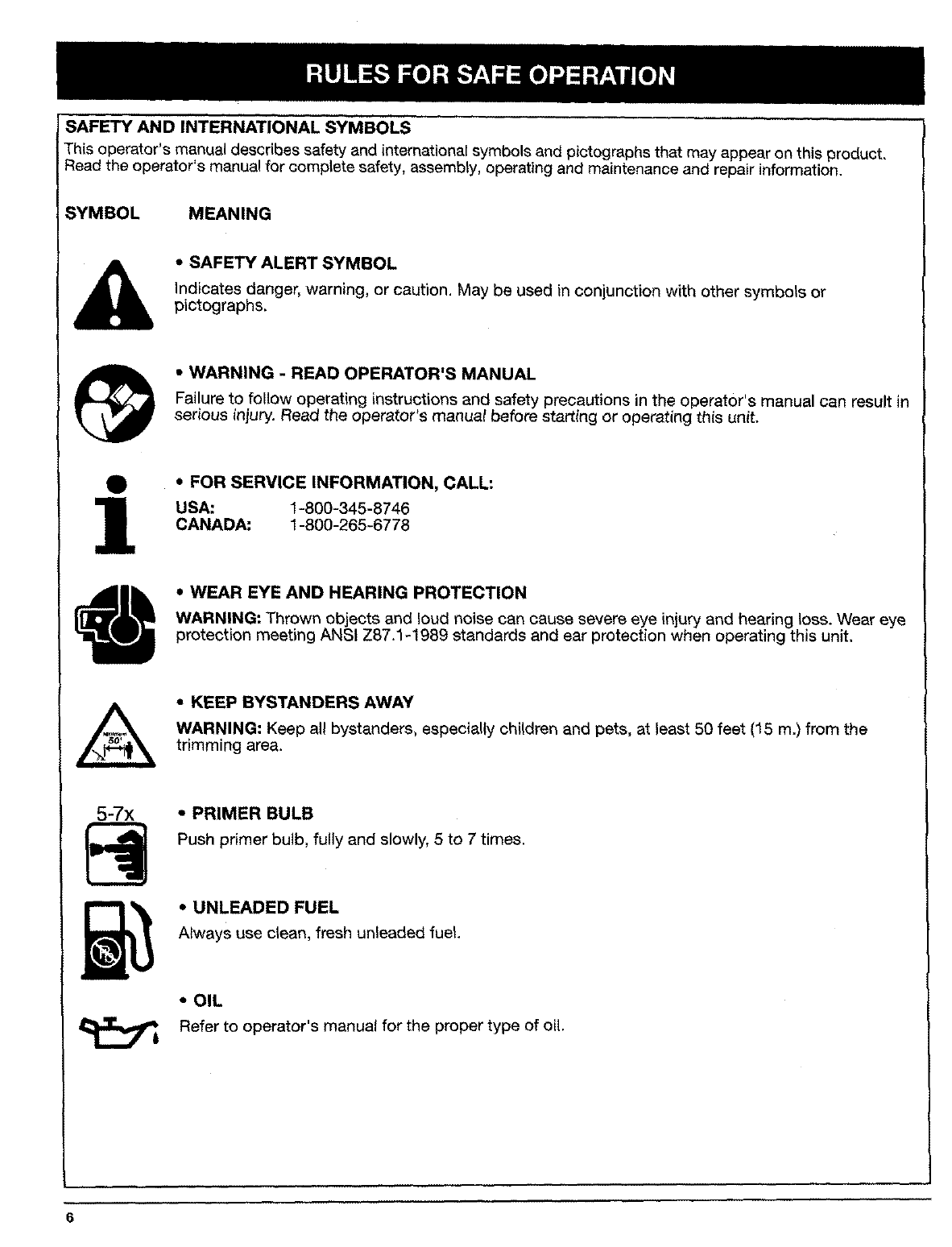

B. Safety and International Symbols ........... 6-7

C, Know Your Unit ........................... 8

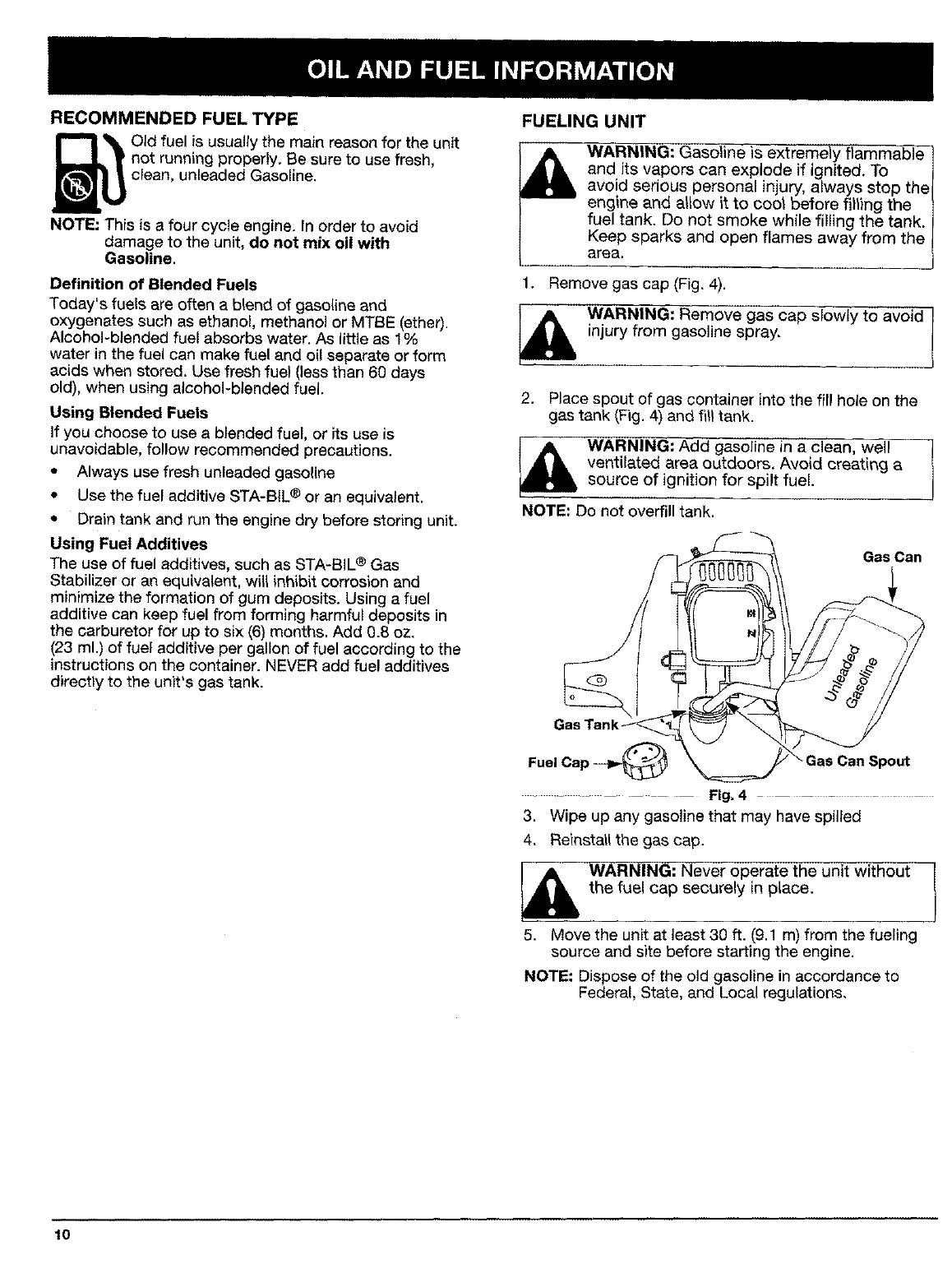

IlL Oil and Fuel Information .................... 9-10

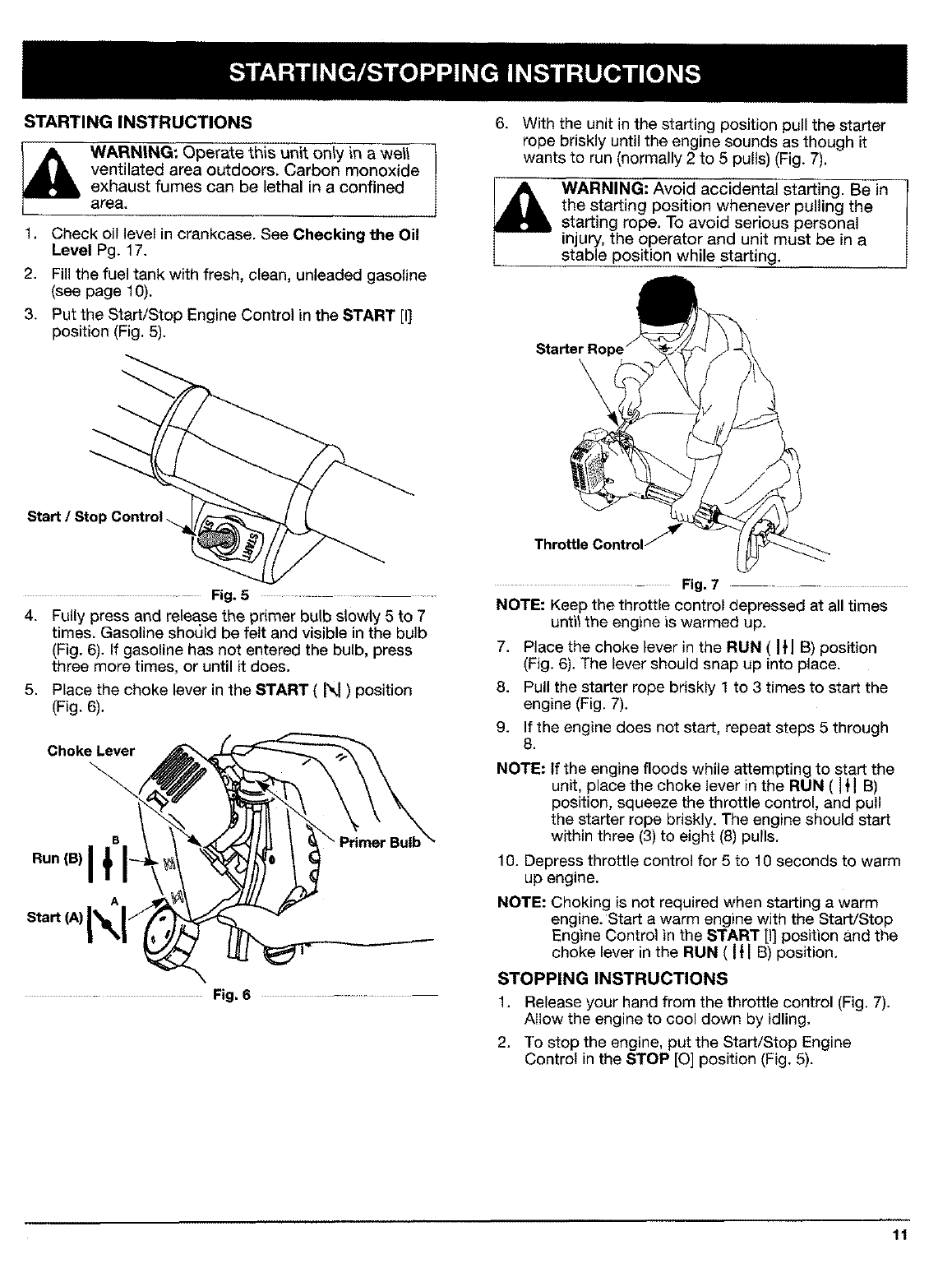

IV, Starting/Stopping Instructions ................. 11

V* Operating Instructions .................... 12-14

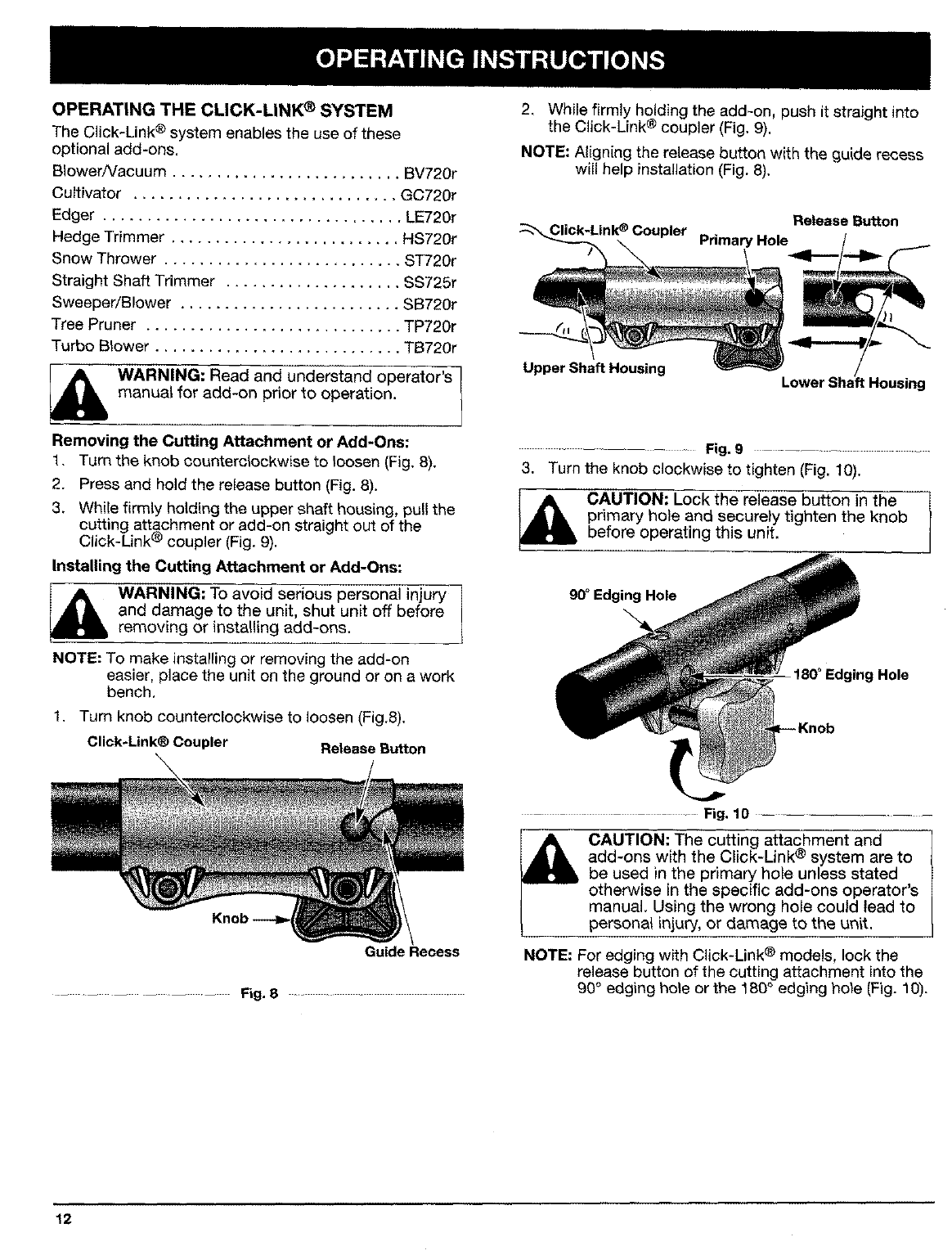

A. Operating the Click-Link System ............. 12

B, Holding the Trimmer ...................... 13

C, Adjusting the D Handle ..................... 13

D. Adjusting Trimming Line Length ............. 13

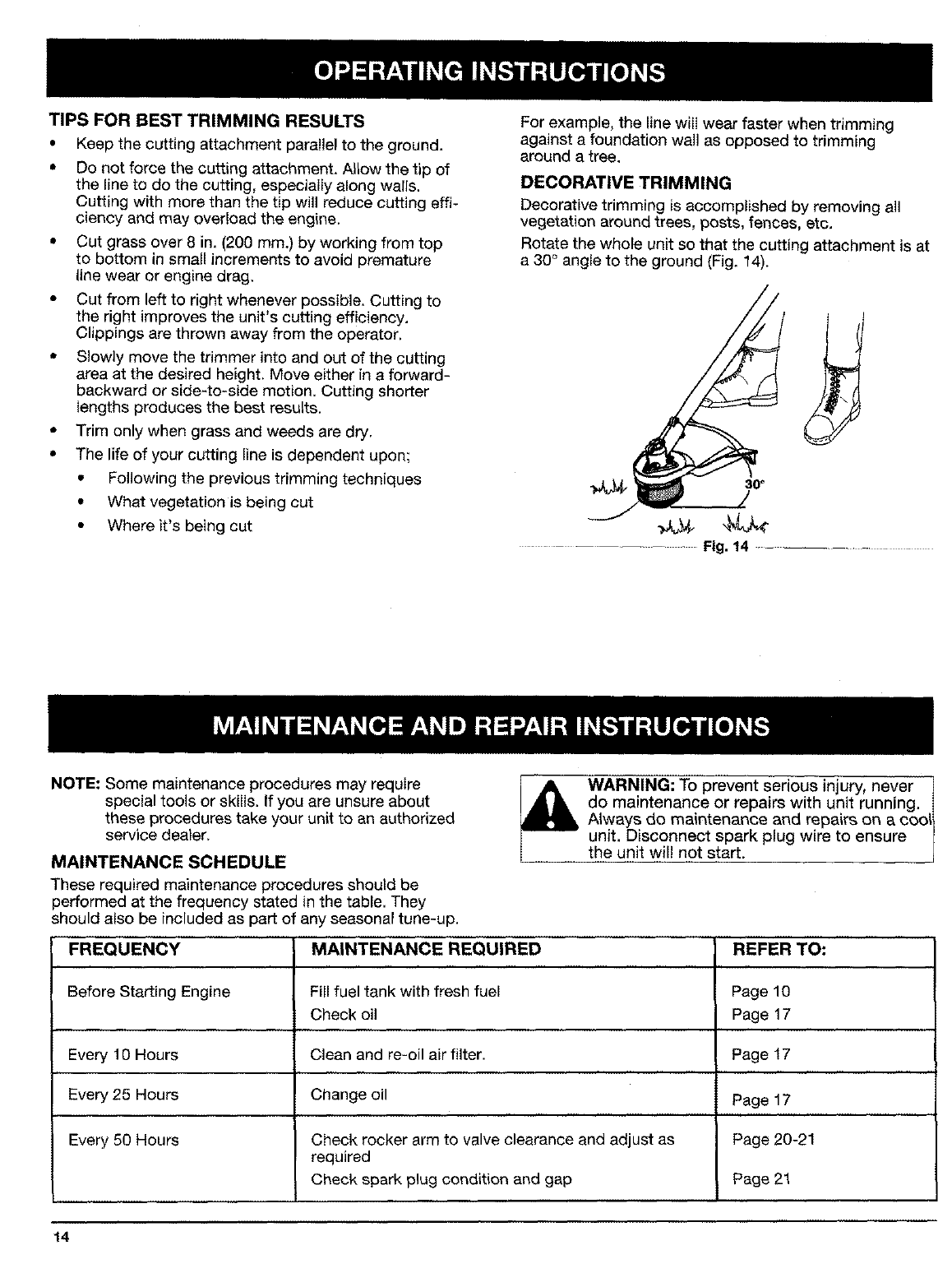

E. Tips for Best Trimming Results .............. 14

F. Decorative Trimming ...................... 14

Vl. Maintenance and Repair Instructions ......... 14-22

A. Maintenance Schedule .................... 14

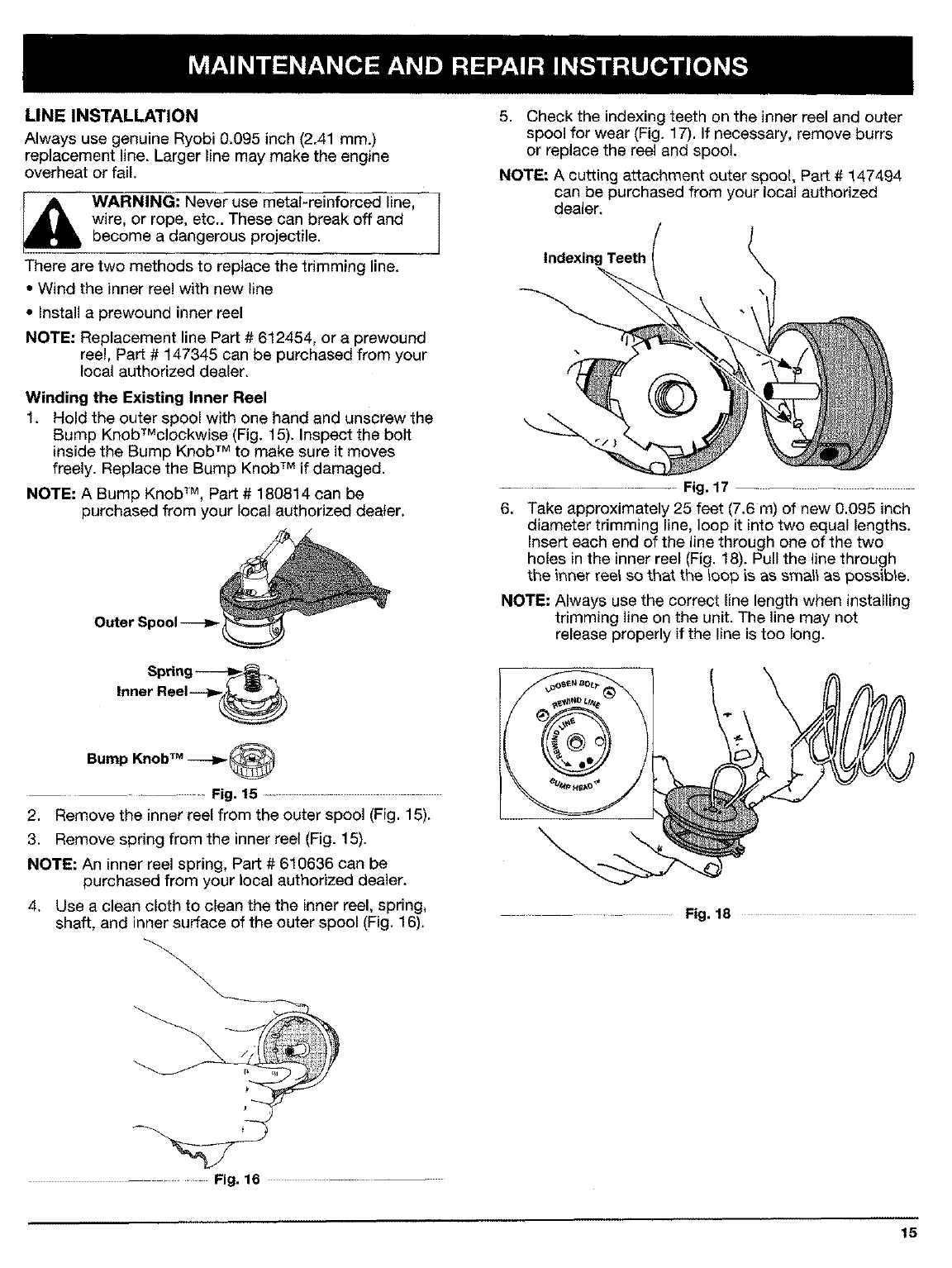

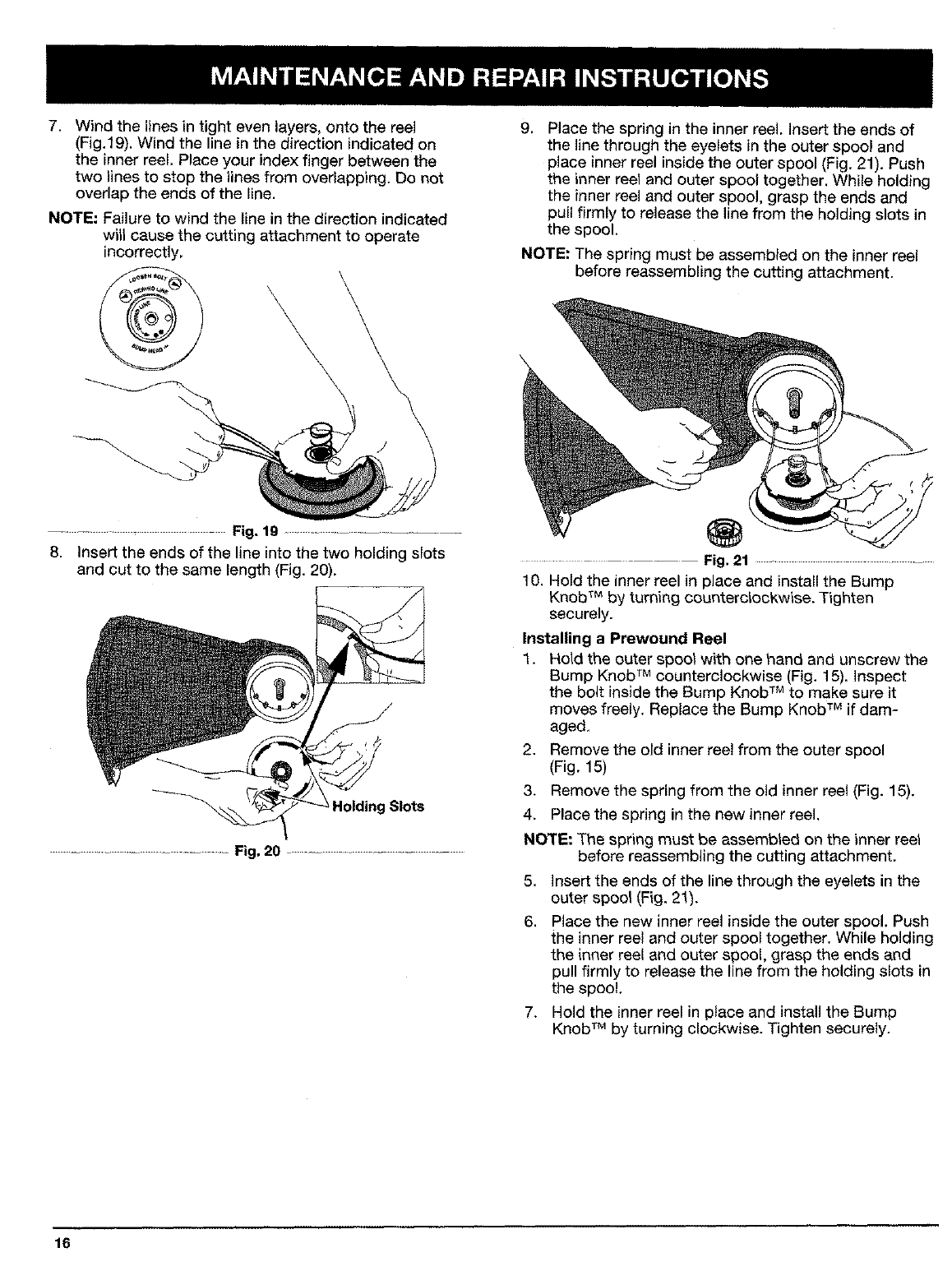

B. Line Installation ....................... 15-16

C. Installing a Prewound Reel ................. 16

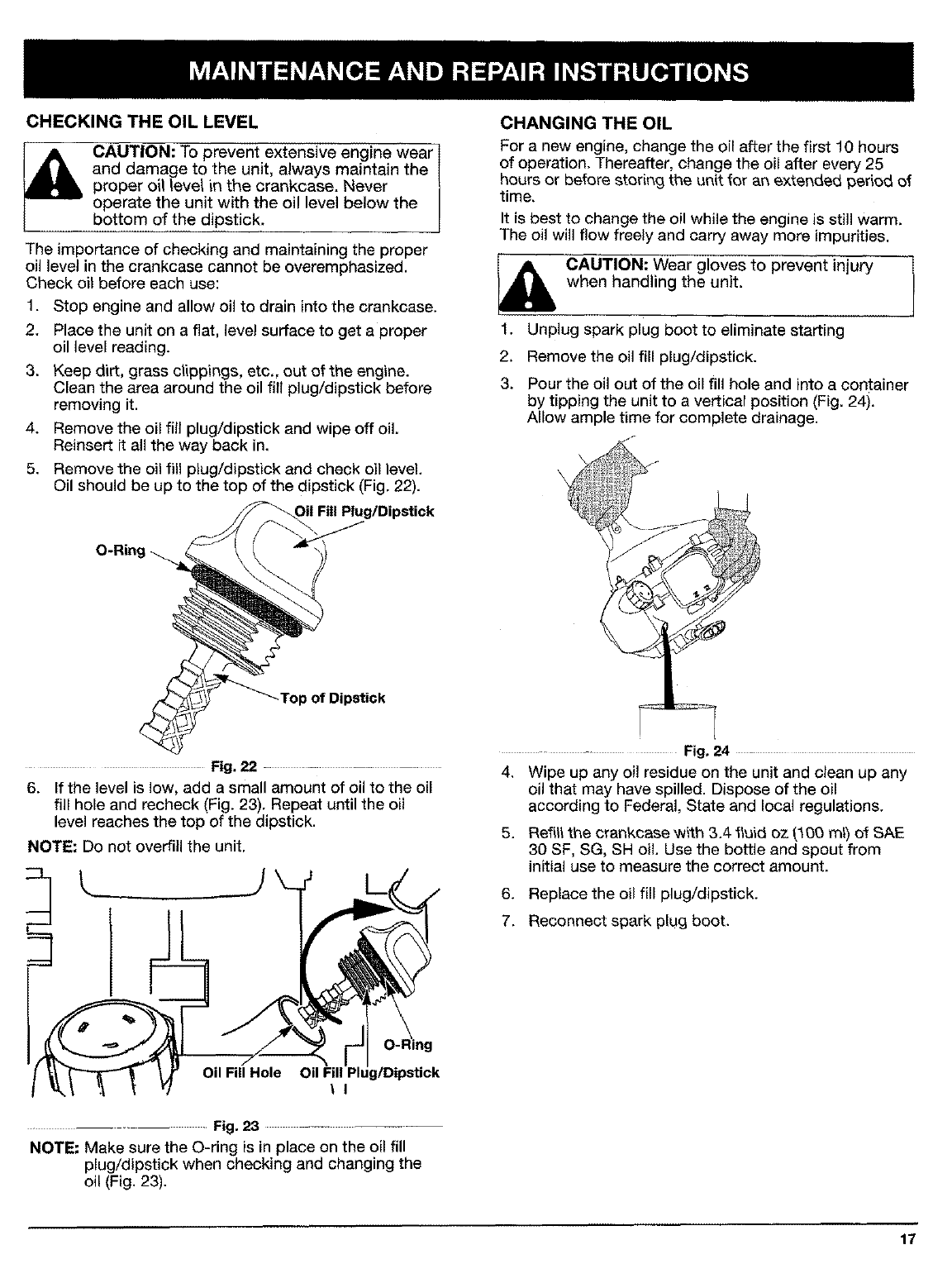

D. Checking the Oil Level ..................... 17

E. Changing the Oi! ......................... 17

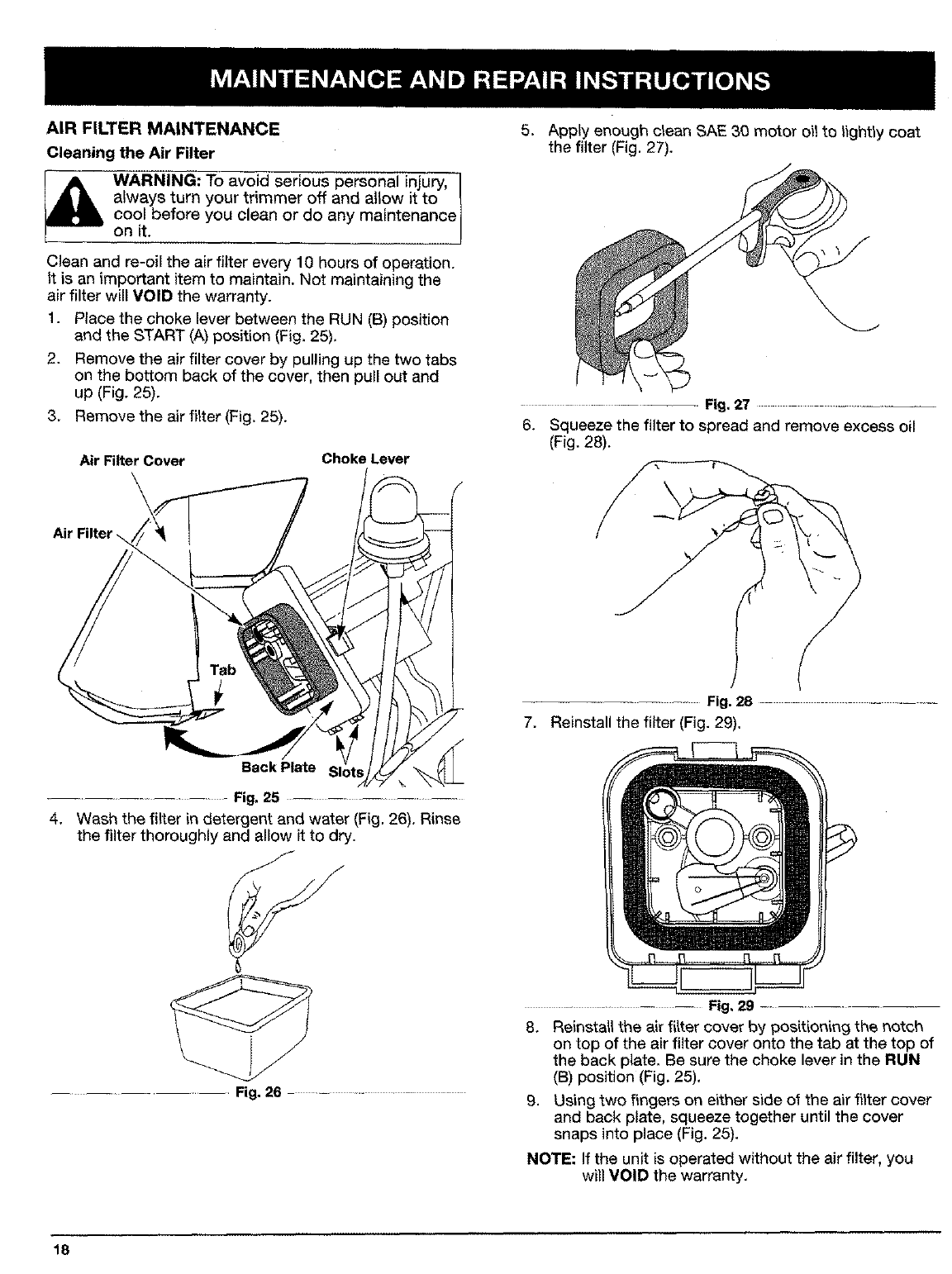

F, Air Filter Maintenance ..................... 18

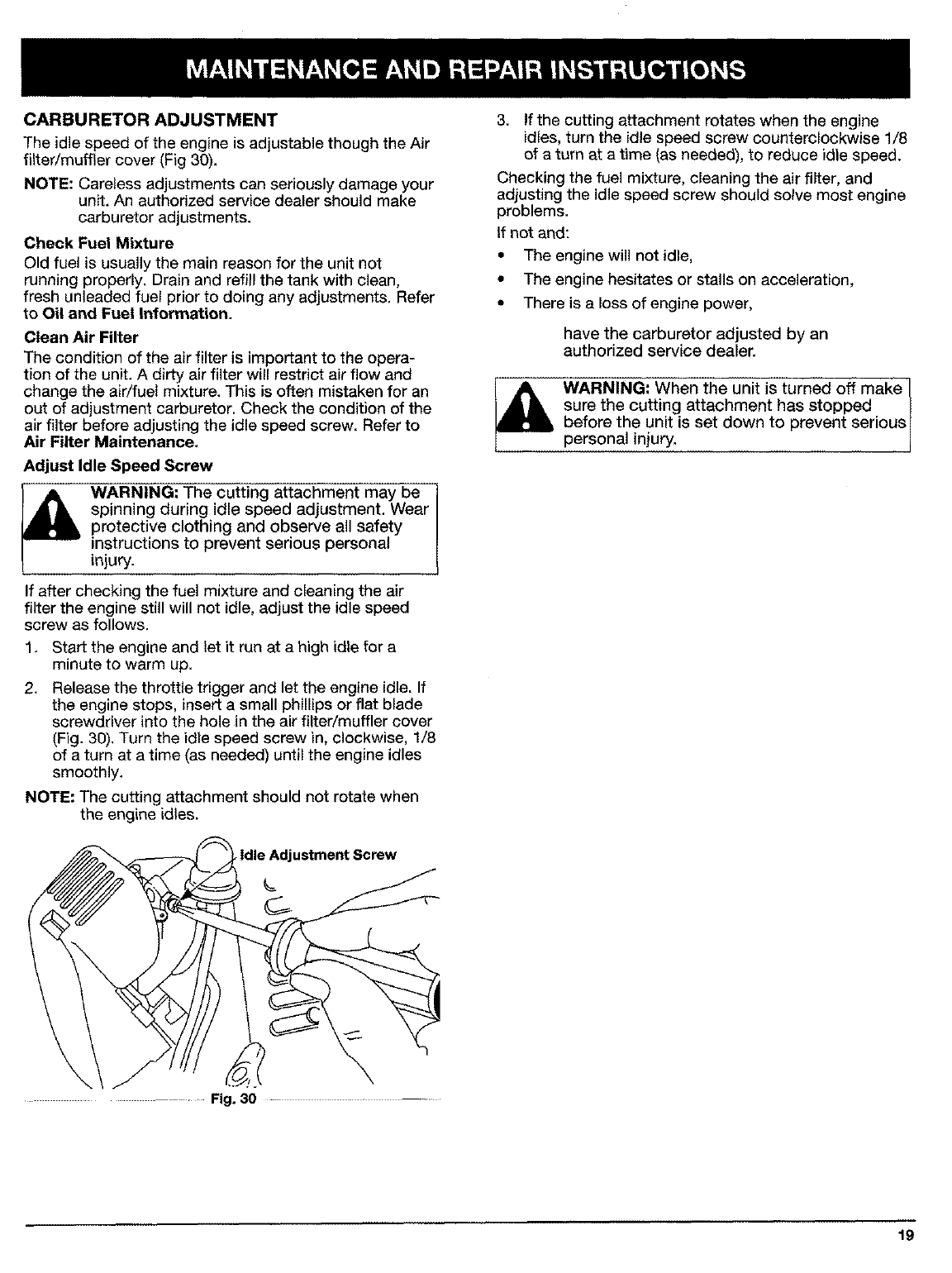

G. Carburetor Adjustment .................... 19

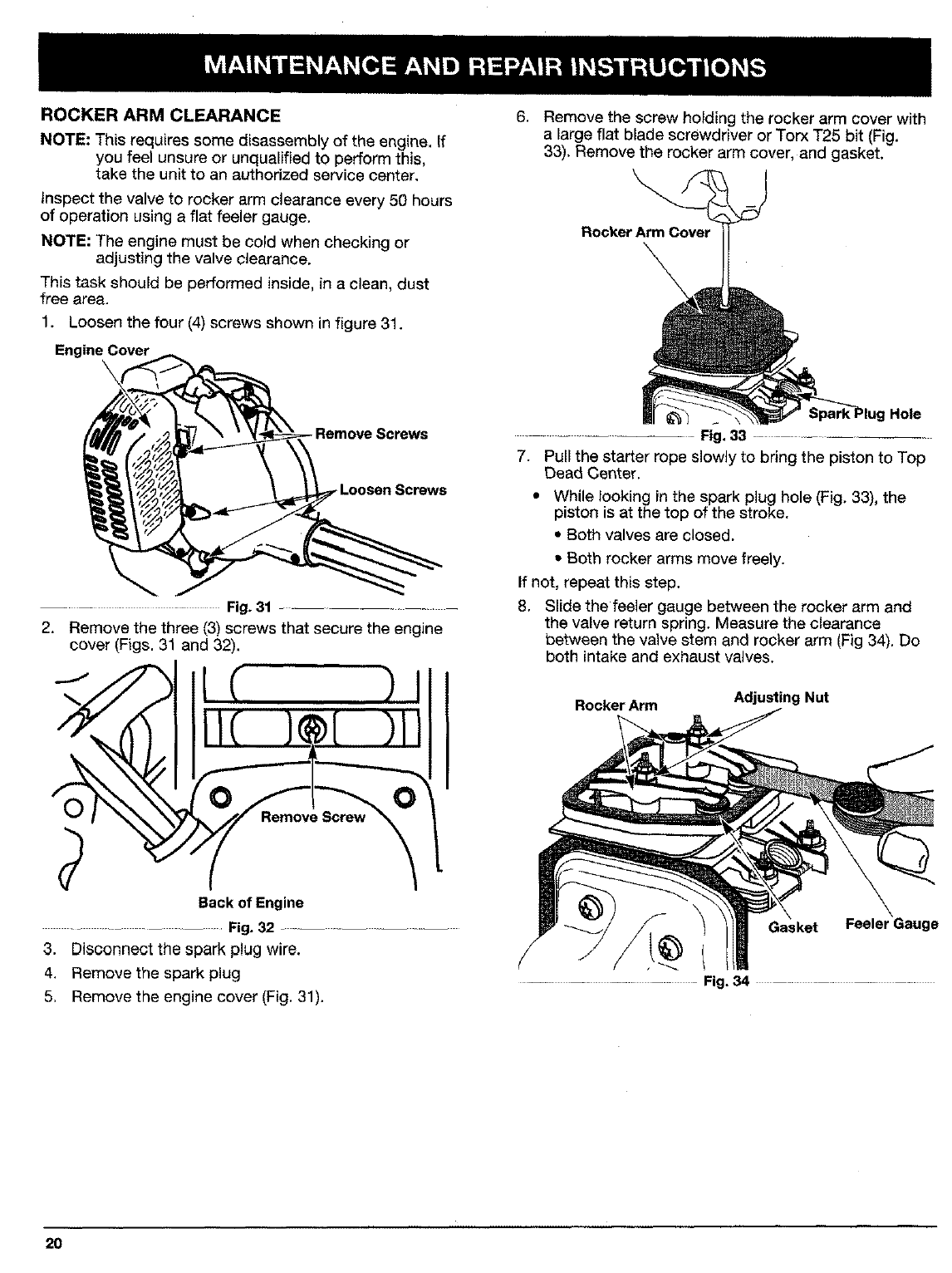

H. Rocker Arm Clearance .................. 20-21

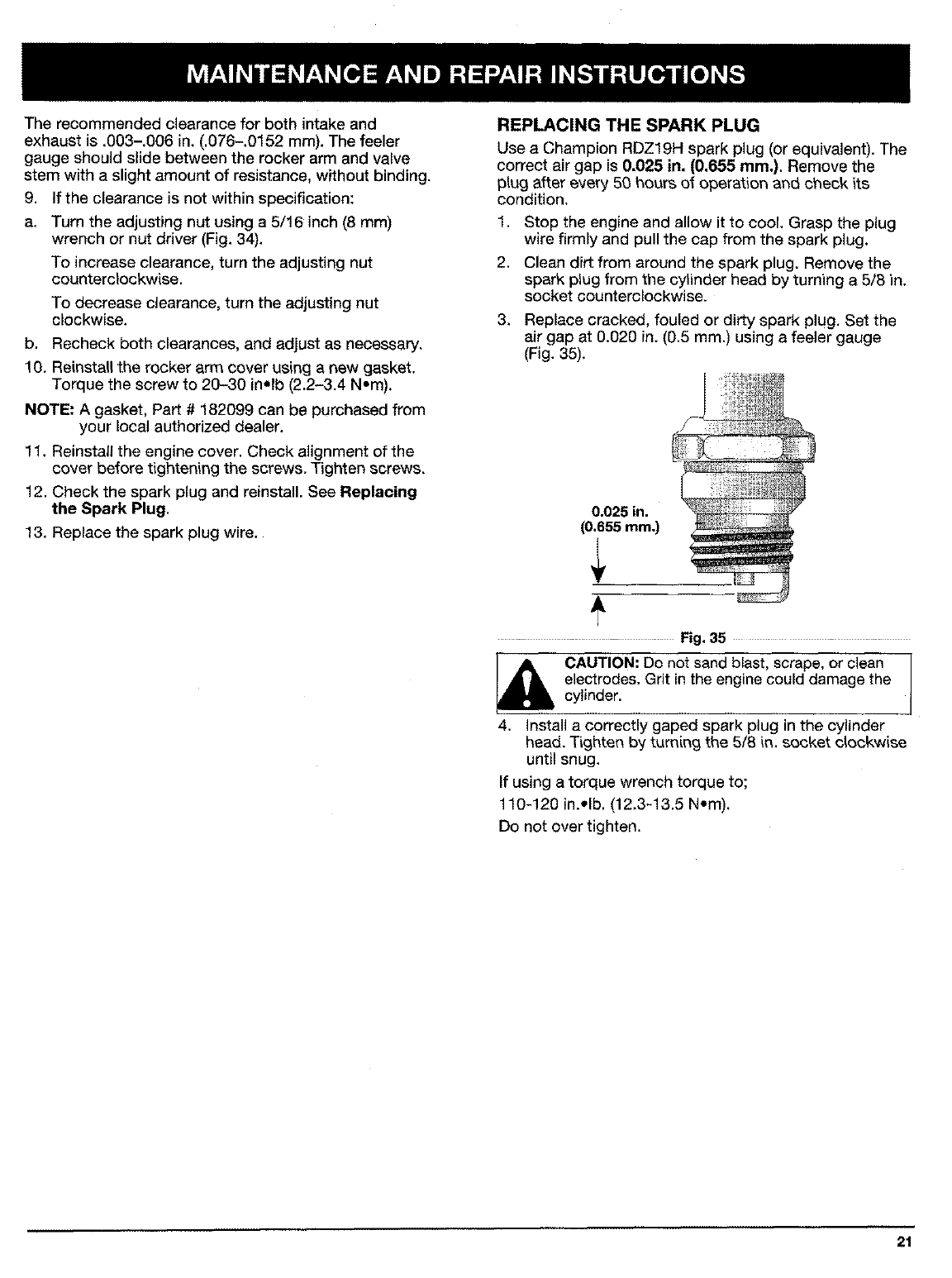

!. Replacing the Spark Plug 21

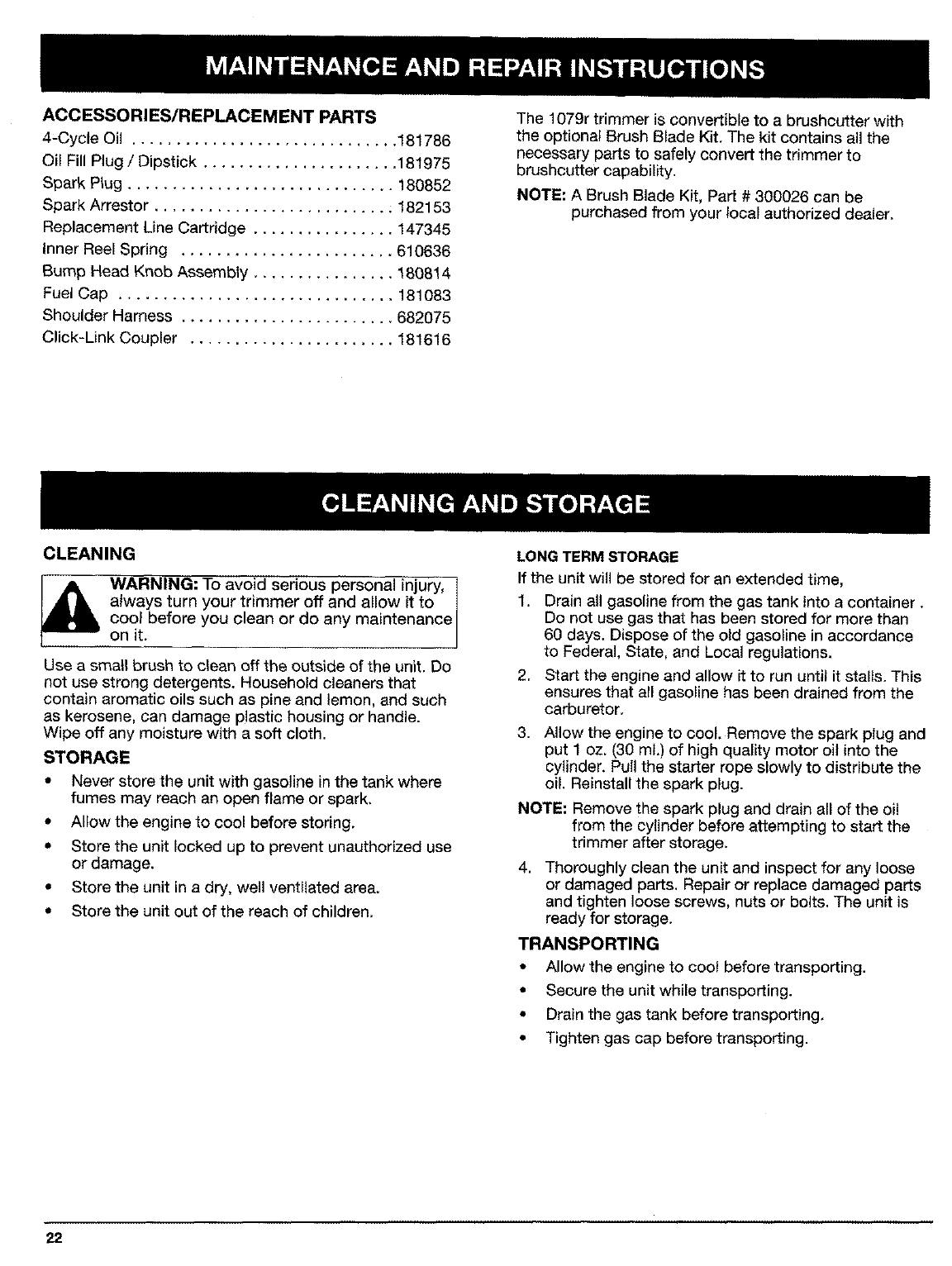

J. Accessories/Replacement l_arts' : ::::::::: ::: 22

VII. Cleaning and Storage ........................ 22

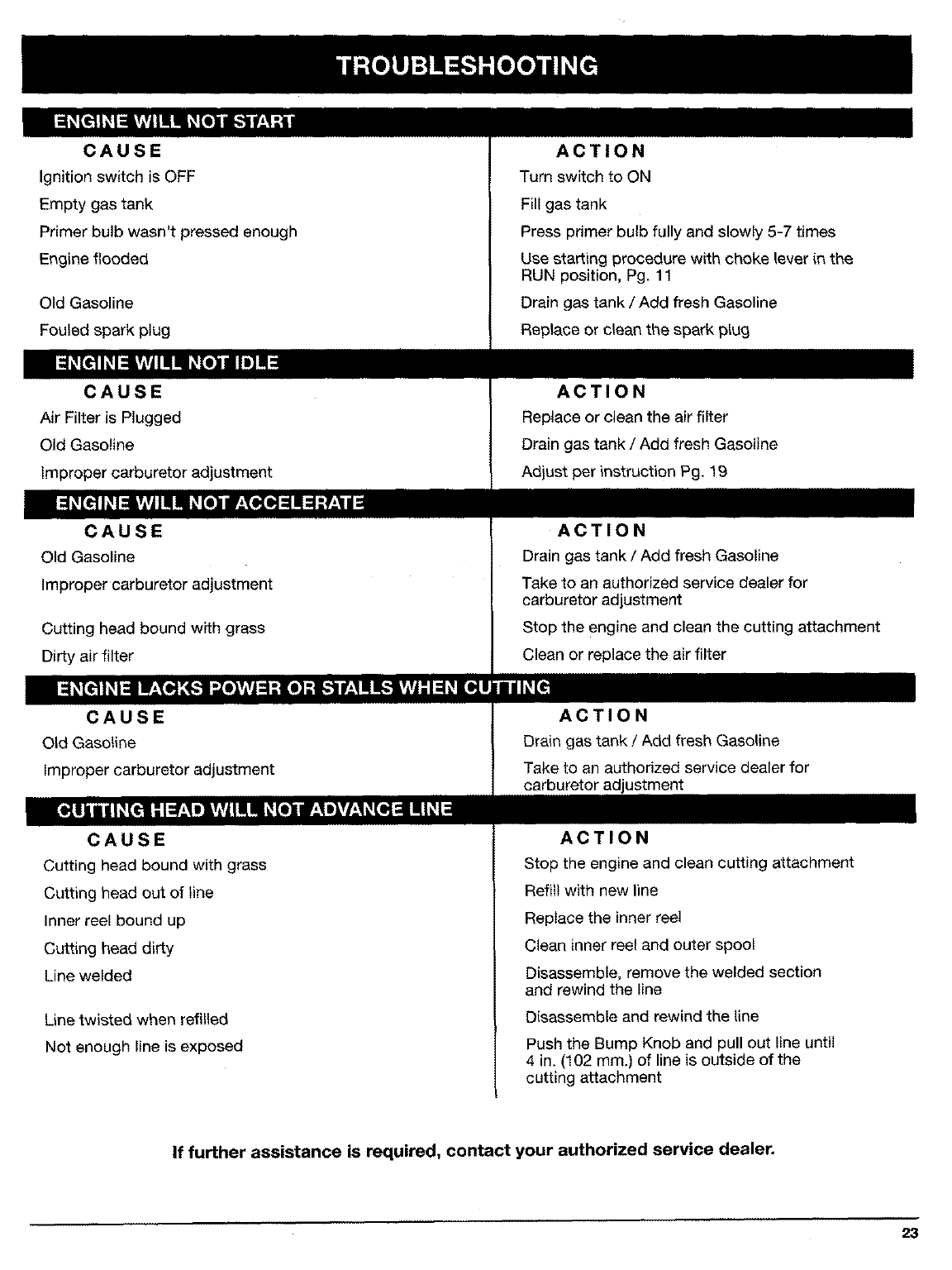

VllL Troubleshootleg Chart ....................... 23

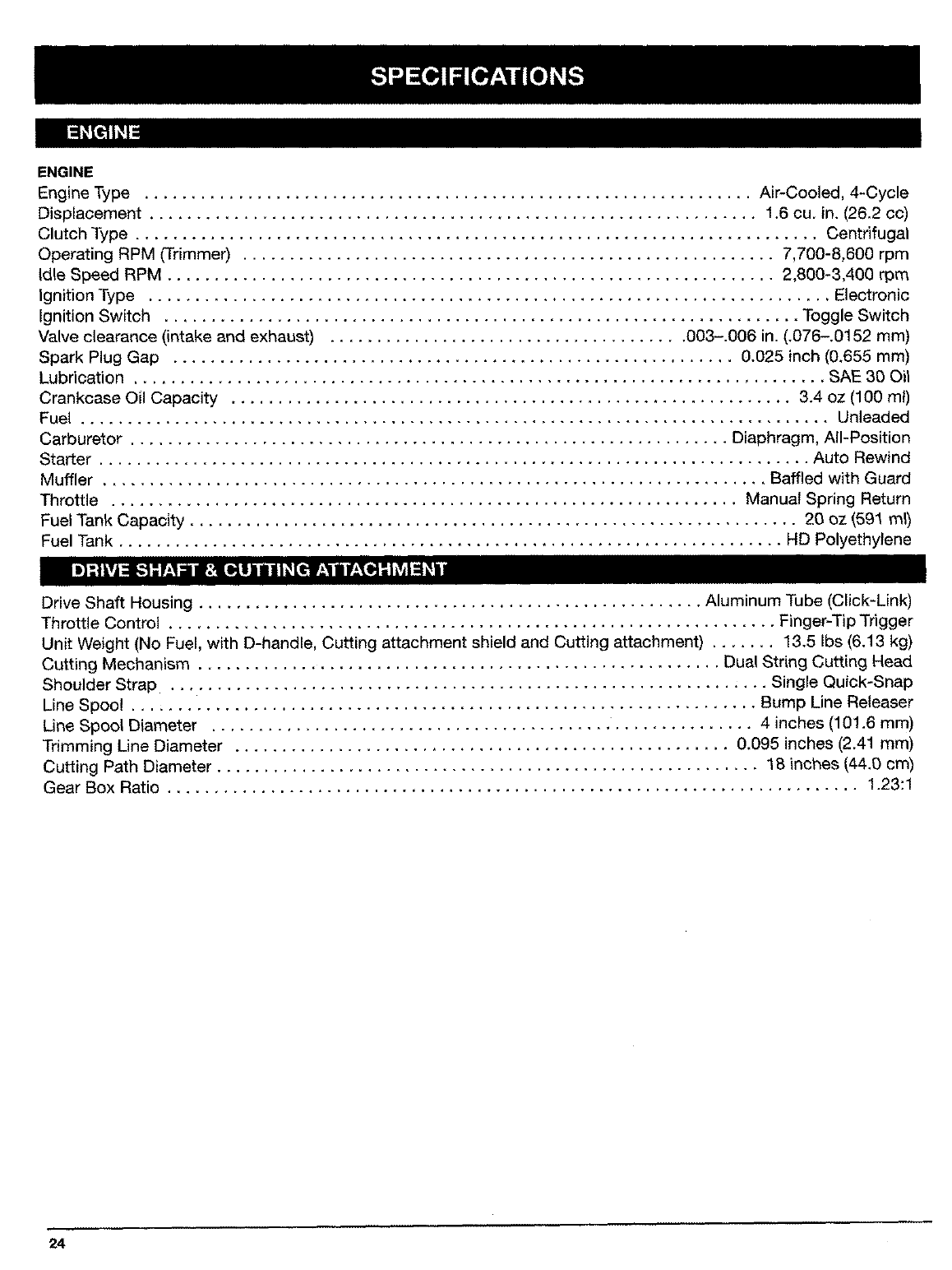

IX, Specifications .............................. 24

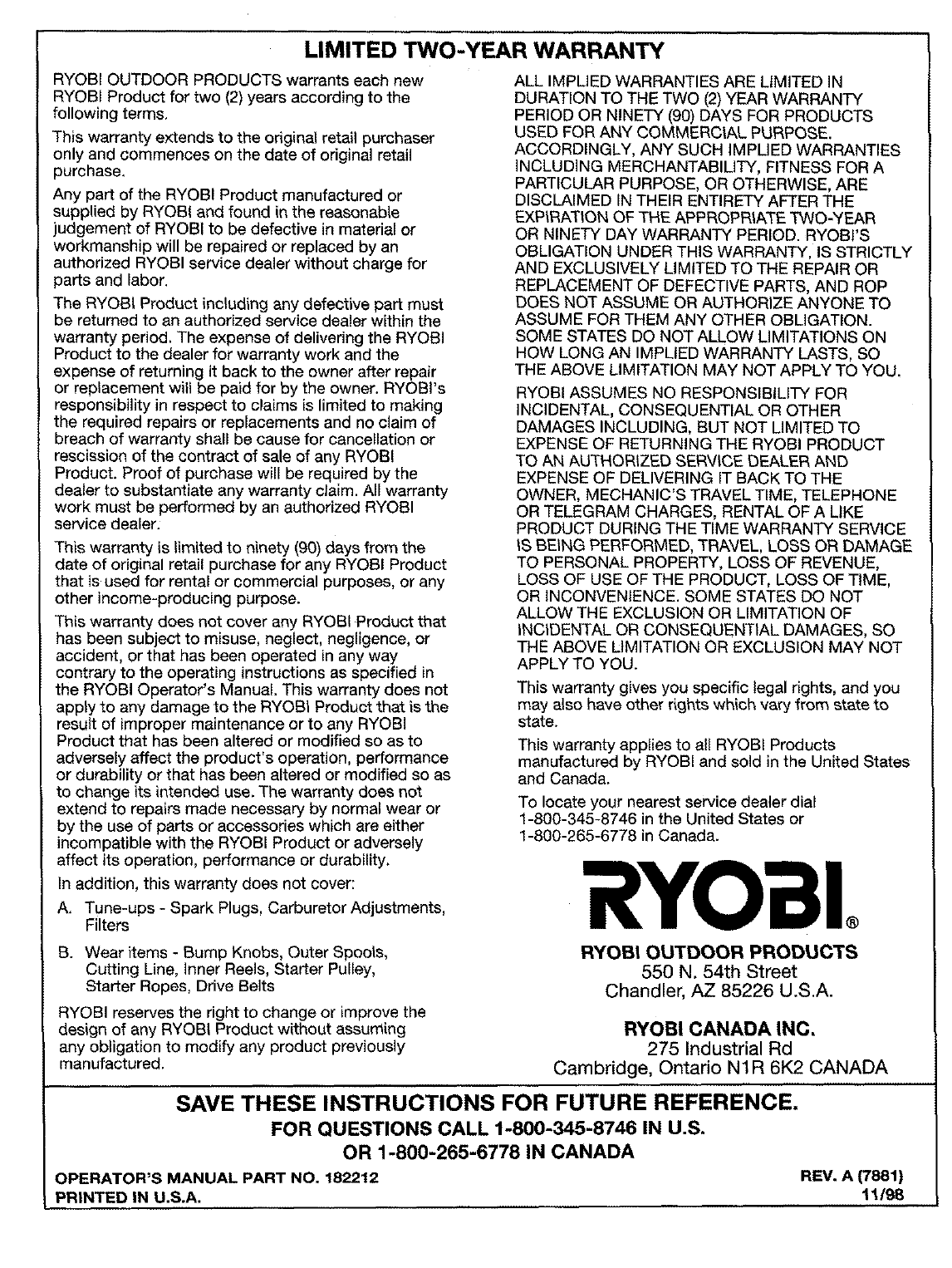

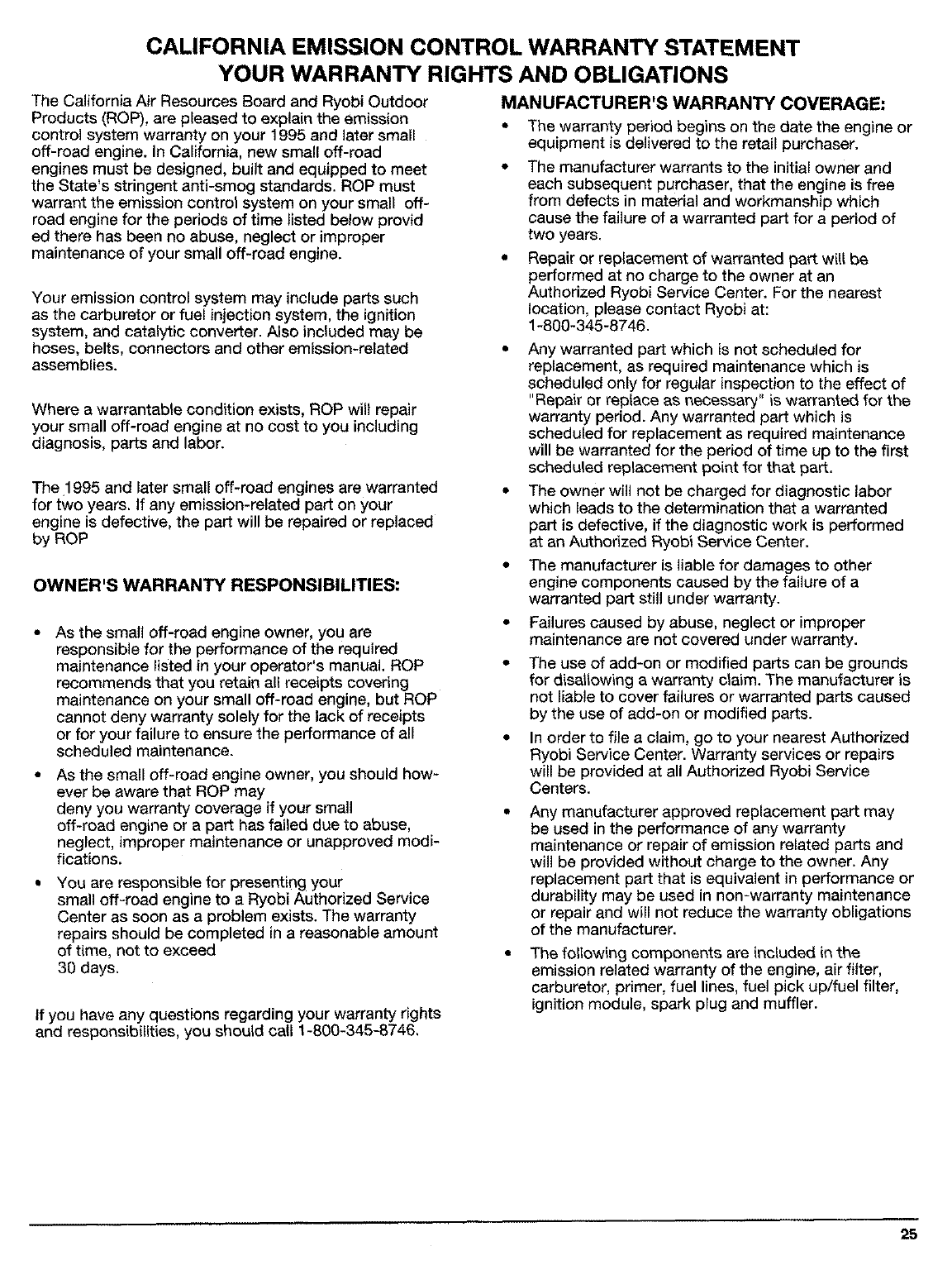

X, Warranty ............................... 25-26

CONTENTS OF CARTON

This carton should include of the following:

= Model 1079r Trimmer

.Operator's Manual

• Parts Manual

•Product Registration Card

•Bottle of 4-Cycle Oil

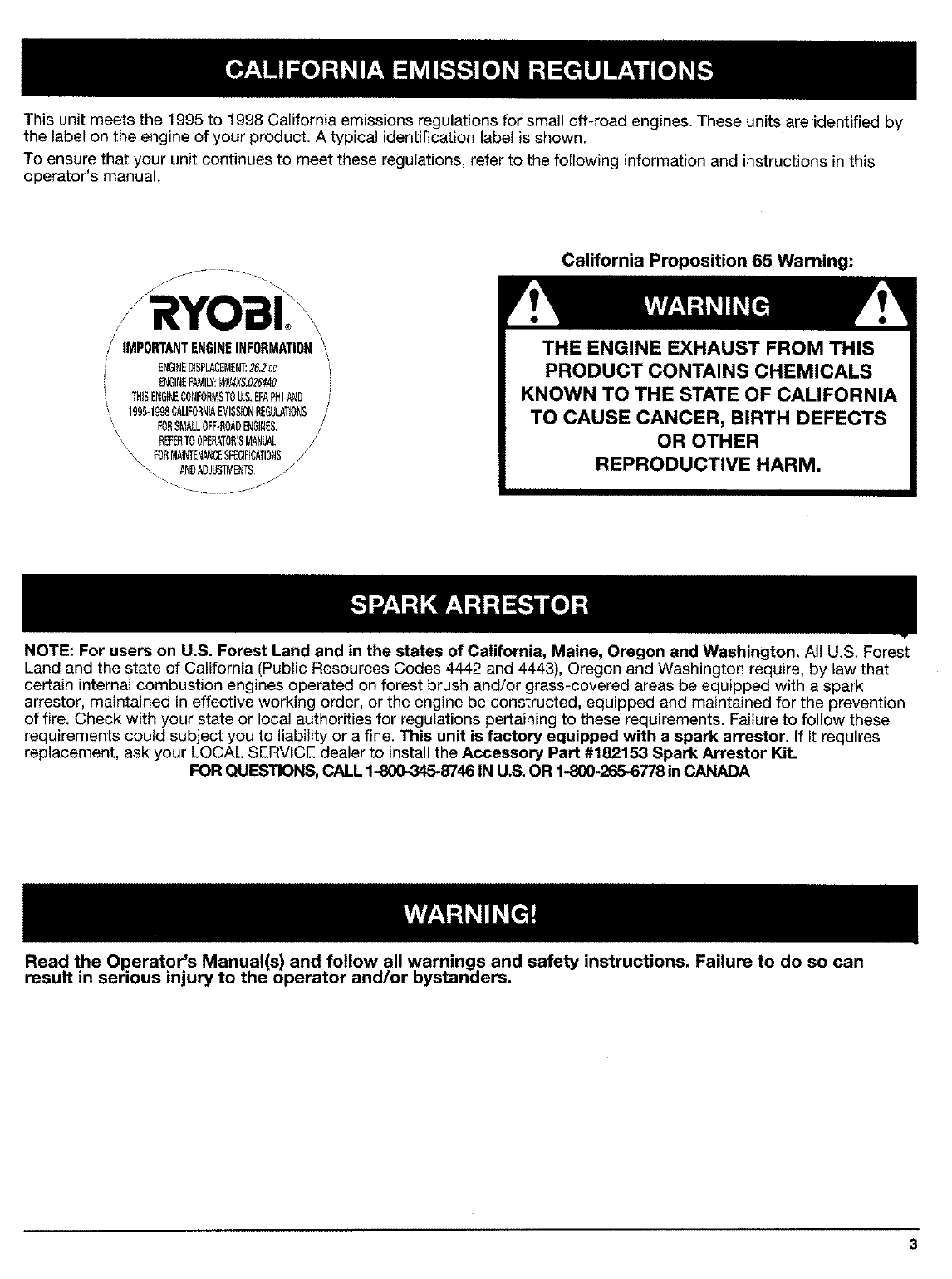

This unit meets the 1995 to 1998 California emissions regulations for small off-road engines. These units are identified by

the label on the engine of your product. A typical identification label is shown.

To ensure that your unit continues to meet these regulations, refer to the following information and instructions in this

operator's manual.

f-- .

RYOB[

IMPORTANTENGINEINFORMATION\,

ENGINEDISPLACEMENT:26.2c¢

ENGINEFAMILY:WN4XS.O264AO J

THISENGINECONFORMSTOU.S,EPAPHIAND

1995-1998CAUFORNIAEMISSIONREGULATIONS/

FORSMALLOPE*ROADENSINES./

NEPERTOOPERATOR'SMANUAL

FORMAINTENANCESPECIFICATIONS/

_ANDADJUa"TMENTSj//

California Proposition 65 Warning:

THE ENGINE EXHAUST FROM THIS

PRODUCT CONTAINS CHEMICALS

KNOWN TO THE STATE OF CALIFORNIA

TO CAUSE CANCER, BIRTH DEFECTS

OR OTHER

REPRODUCTIVE HARM,

NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington. All U.S. Forest

Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that

certain internal combustion engines operated on forest brush and/or grass-covered areas be equipped with a spark

arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention

of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these

requirements coutd subject you to liability or a fine. This unit is factory equipped with aspark arrestor. If it requires

replacement, ask your LOCAL SERVICE dealer to install the Accessory Part #182153 Spark Arrestor Kit.

FOR QUESTIONS, CALL 1-800-345-8746 IN U.8. OR t -800-265-6778 in CANADA

Read the Operator's Manual(s) and follow all warnings and safety instructions. Failure to do so can

result in serious injury to the operator and/or bystanders.

The purpose of safety symbols is to attract your atten-

tion to possible dangers. The safety symbols, and their

explanations, deserve your careful attention and

understanding. The safety warnings do not by them-

selves eliminate any danger. The instructions or

warnings they give are not substitutes for proper acci-

dent prevention measures.

SYMBOL MEANING

SAFETY ALERT SYMBOL: Indicates dan-

ger, warning, or caution, Attention is required

in order to avoid serious personal injury. May

be used in conjunction with other symbols or

pictographs.

NOTE= Advises you of information or instructions vital

to the operation or maintenance of the equipment.

DANGER: Failure to obey a safety warning

will result in serious injury to yourself or to

others. Always follow the safety precautions

to reduce the risk of fire, electric shock, and

personal injury,

WARNING: Failure to obey a safety warning

can result in injury to yourself and others.

Always follow the safety precautions to

reduce the risk of fire, electric shook, and

personal injury.

CAUTION; Failure to obey a safety warning

may result in property damage or persona_

injury to yourself or to others. Always follow

the safety precautions to reduce the risk of

fire, electric shock, and personal injury.

•IMPORTANT SAFETY INFORMATION *

READ ALL INSTRUCTIONS BEFORE

OPERATING

•Read the instructions carefully. Be familiar with the

controls and proper use of the unit.

• Do not operate this unit when tired, ill, or under the

influence of alcohol, drugs, or medication.

•Children and teens under the age of 15 must not use

the unit, except for teens guided by an adult.

• Inspect the unit before use. Replace damaged parts.

Check for fue! leaks. Make sure allfasteners are in

place and secure. Replace cutting attachment parts

that are cracked, chipped, or damaged in any way.

Make sure the cutting attachment is properly

installed and securely fastened. Be sure the cutting

attachment shield is properly attached, and

positioned as recommended. Failure to so can result

in personal injury to the operator and bystanders, as

well as damage to the unit

• Use only 0.095 inch (2.41 ram) diameter genuine

Ryobi replacement line. Never use metal-reinforced

line, wire, or rope, etc.. These can break off and

become a dangerous projectile.

• Be aware of the risk of injury to the head, hands and

feet.

• Clear the area to be cut before each use. Remove all

objects such as rocks, broken glass, nails, wire, or

string which can be thrown or become entangled in

the cutting attachment. Clear the area of children,

bystanders, and pets. At a minimum, keep all

children, bystanders and pets outside a 50 ft. (15 m.)

radius; there still may be e risk to bystanders from

thrown objects. Bystanders should be encouraged to

wear eye protection. If you are approached, stop the

engine and cutting attachment immediately.

• Squeeze the throttle control and check that it returns

automatically to the neutral position. Make all

adjustments or repairs before using unit.

SAFETY WARNINGS FOR GAS TRIMMERS

WARNING: Gasoline is highly flammable, and its vapors

can explode if ignited. Take the following precautions:

• Store fuel only in containers specifically designed

and approved for the storage of such materials.

• Avoid creating a source of ignition for spi_led fuel Do

not start the engine until fuel vapors dissipate.

• Always stop the engine and allow it to cool before

filling the fuel tank. Never remove the cap of the fuel

tank, or add fuel, when the engine is hot. Never

operate the unit without the fuel cap securely in

place. Loosen the fuel tank cap slowly to relieve any

pressure in the tank.

• Mix and add fuel in a clean, well-ventilated area

outdoors where there are no sparks or flames.

Slowly remove the fuel cap only after stopping

engine. Do not smoke while fueling or mixing fuel.

Wipe up any spilled fuel from the unit immediately.

• Move the unit at least 30 ft. (9,1 m) from the fueling

source and site before starting the engine, Do not

smoke, keep sparks and open flames from the area

while adding fuel or operating the unit.

WHILE OPERATING

Never start or run the unit inside a closed room or

building. Breathing exhaust fumes can kill, Operate

this unit only in a well ventilated area outdoors.

Wear safety glasses or goggles that are marked as

meeting ANSI Z87.1-1989 standards, and

ear/hearing protection when operating this unit.

Wear a face or dust mask if the operation is dusty,

Long sleeve shirts are recommended,

Wear heavy, long pants, boots and gloves. Do not

wear loose clothing, jewelry, short pants, sandals or

go barefoot, Secure hair above shoulder level

The cutting attachment shield must always be in

place while operating the unit as a trimmer. Do not

operate unit without both trimming lines extended,

and the proper line installed. Do not extend the

trimming line beyond the length of the shield.

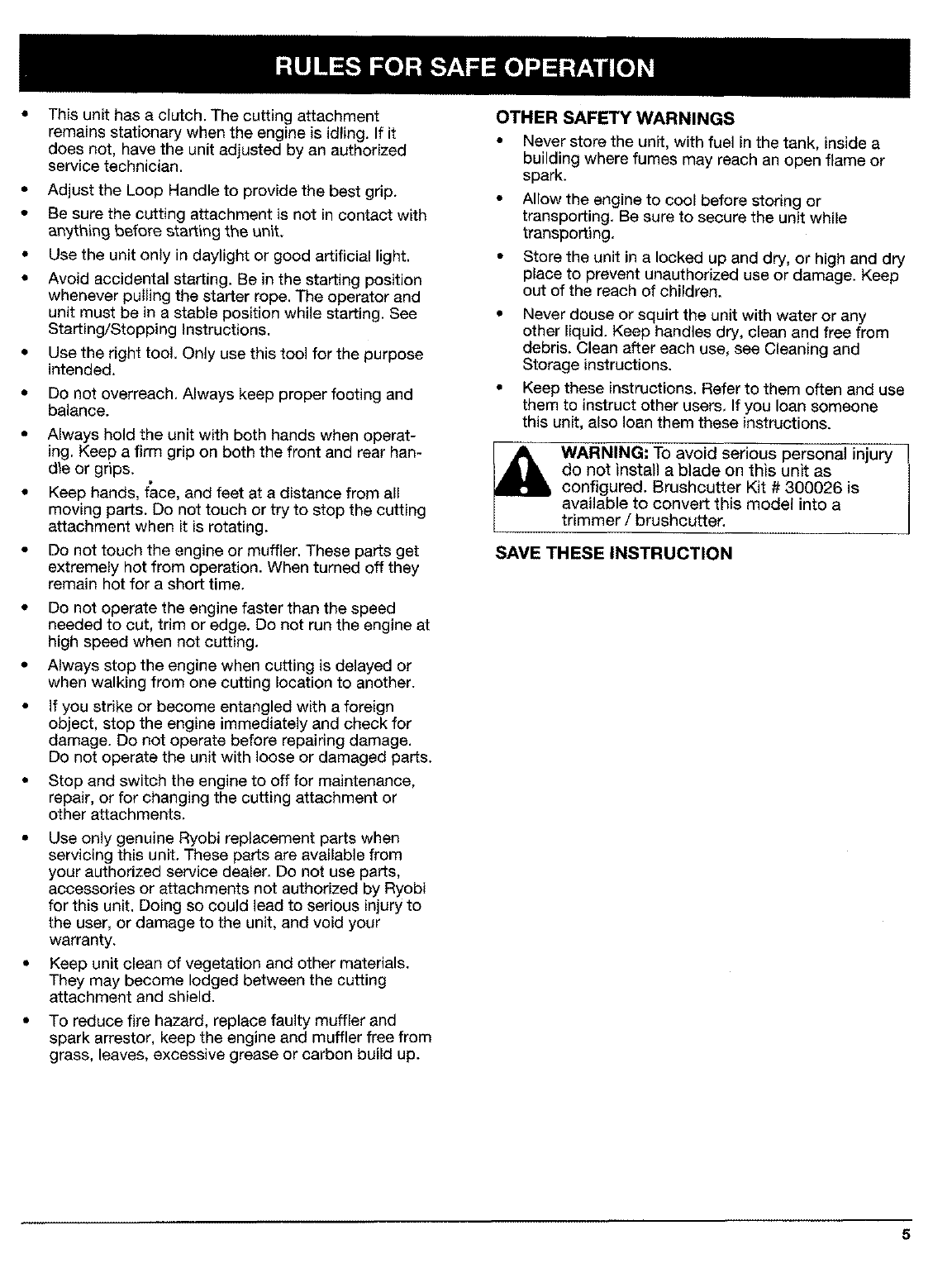

This unit has a clutch. The cutting attachment

remains stationary when the engine is idling. If it

does not, have the unit adjusted by an authorized

service technician.

Adjust the Loop Handle to provide the best grip.

Be sure the cutting attachment is not in contact with

anything before starting the unit.

Use the unit only in daylight or good artificial light.

Avoid accidental starting. Be in the starting position

whenever pulling the starter rope. The operator and

unit must be in a stable position while starting. See

Starting/Stopping Instructions.

Use the right tool. Only use this tool for the purpose

intended.

Do not overreach, Always keep proper footing and

balance.

Always hold the unit with both hands when operat-

ing. Keep a firm grip on both the front and rear han-

dle or grips,

Keep hands, face, and feet at a distance from all

moving parts. Do not touch or try to stop the cutting

attachment when it is rotating.

Do not touch the engine or muffler. These parts get

extremely hot from operation. When turned off they

remain hot for a short time,

Do not operate the engine faster than the speed

needed to cut, trim or edge. Do not run the engine at

high speed when not cutting.

Always stop the engine when cutting is delayed or

when walking from one cutting location to another.

If you strike or become entangled with a foreign

object, stop the engine immediately and check for

damage. Do not operate before repairing damage.

Do not operate the unit with loose or damaged parts.

Stop and switch the engine to off for maintenance,

repair, or for changing the cutting attachment or

other attachments.

Use only genuine Ryobi replacement parts when

servicing this unit. These parts are available from

your authorized service dealer. Do not use parts,

accessories or attachments not authorized by Ryobi

for this unit. Doing so could lead to serious injury to

the user, or damage to the unit, and void your

warranty.

Keep unit clean of vegetation and other materials,

They may become lodged between the cutting

attachment and shield.

To reduce fire hazard, replace faulty muffler and

spark arrestor, keep the engine and muffler free from

grass, leaves, excessive grease or carbon build up.

OTHER SAFETY WARNINGS

• Never store the unit, with fuel in the tank, inside a

building where fumes may reach an open flame or

spark.

• Allow the engine to cool before storing or

transporting. Be sure to secure the unit while

transporting.

• Store the unit in a locked up and dry, or high and dry

place to prevent unauthorized use or damage. Keep

out of the reach of children.

• Never douse or squirt the unit with water or any

other liquid. Keep handles dry, clean and free from

debris. Clean after each use, see Cleaning and

Storage instructions.

• Keep these instructions. Refer to them often and use

them to instruct other users, If you loan someone

this unit, also loan them these instructions.

WARNING: To avoid serious personal injury

do not install a blade on this unit as

configured. Brushcutter Kit # 300026 is

available to convert this model into a

trimmer /brushcutter.

SAVE THESE INSTRUCTION

SAFETY AND INTERNATIONAL SYMBOLS

This operator's manual describes safety and international symbols and pictographs that may appear on this product,

Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.

SYMBOL MEANING

• SAFETY ALERT SYMBOL

Indicates danger, warning, or caution. May be used in conjunction with other symbols or

pictographs.

*WARNING -READ OPERATOR'S MANUAL

Failure to follow operating instructions and safety precautions in the operator's manual can result in

serious injury. Read the operator's manuat before starting or operating this unit.

i•FOR SERVICE INFORMATION, CALL:

USA: 1-800-345-8746

CANADA: 1-800-265-6778

•WEAR EYE AND HEARING PROTECTION

WARNING: Thrown objects and loud noise can cause severe eye injury and hearing loss. Wear eye

protection meeting ANSI Z87.1-1989 standards and ear protection when operating this unit,

• KEEP BYSTANDERS AWAY

WARNING: Keep all bystanders, especially children and pets, at least 50 feet (15 m.) from the

trimming area.

5-7x •PRIMER BULB

Push primer bulb, fully and slowly, 5 to 7 times.

•UNLEADED FUEL

Always use clean, fresh unleaded fuel.

* OIL

Refer to operator's manual for the proper type of oil.

i ......

SYMBOL MEANING

/_ • THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY

WARNING: Do not operate without the cutting attachment shield in place. Keep away from the

..,. rotating cutting attachment.

• ON/OFF STOP CONTROL

ON /START /RUN

•ON/OFF STOP CONTROL

OFF OR STOP

• HOT SURFACE WARNING

Do not touch a hot muffler or cylinder. You may get burned. These parts get extremely hot from

operation. When turned off they remain hot for a short time.

A B

I\1

• SHARP BLADE

WARNING: Sharp blade on string guard. To prevent serious injury, do not touch line cutting blade.

• CHOKE CONTROL

A. START position.

B. RUN position.

• TRIMMER/BRUSHCUTTER SAFETY

WARNING: Thrown objects and rotating cutter can cause severe injury. Keep bystanders, especially

children and pets, at least 50 feet (15 m.) away from the cutting area. The cutting attachment shield

must be used when using the trimmer cutting attachment.

WARNING: To avoid serious personal injury do not install a blade on this unit as configured.

Brushcutter Kit # 300026 is available to convert this model into a trimmer /brushcutter.

WARNING: The operation of any power tool can cause foreign objects to be thrown into your eyes.

This can lead to severe eye damage. Before commencing power tool operation, always wear safety

glasses or goggles that are marked as meeting ANSI Z87.1-1989 standards, and a full face shield

when needed.

APPLICATIONS

As a trimmer;

• Cutting grass and light weeds,

• Edging

• Decorative trimming around trees, fences,

etc.

With optional brushcutter kit;

• Cutting weeds and light bush of up to 1/2

inch in diameter.

Other optional accessories may be used with

the 1079r. See list of add-ons on page 12.

Spark Plug

Gas Cap

Throttle Control

Air Filter Cover Primer Bulb

On/Off Stop Control

Shaft Housing

Oil Fill Plug /Dipstick

Gear Housing Attachment Shield

Cuffing Attachment Line Cutting Blade

RECOMMENDED OIL TYPE

Using the proper type and weight of oil in the

_crankcase is extremely important. Check the

oil before each use and change the oil

regularly. Failure to use the correct oil, or

using dirty oil, can cause premature engine wear and

failure.

Use a high-quality SAE 30 weight oil of API (American

Petroleum Institute) service class SG, SF, SH.

ADDING OIL TO CRANKCASE - INITIAL USE

NOTE: This unit is shipped without being filled with oil.

In order to avoid damage to the unit, put oil in

the crankcase before attempting to start unit.

Your unit is supplied with one 3.4 fluid oz. (100 mL)

bottle of SAE 30 SF, SG, SH oil (Fig. 1).

NOTE: Save the bottle to measure the correct amount

for future oi! changes.

1. Open the bottle of oil (Fig. 1).

4-OJC_ MotorOfl

....... Fig.

Place the unit on a flat level surface.

Remove the oil plug /dipstick from the crankcase

(Fig. 2).

Oil Fill Plug/Dipstick

....... Fig, 2 ..........

4. Pour the entire bottle of oil into the oil fill hole

(Fig. 3).

Oil Fill

-Fig.3 ...............

NOTE: Never add oil to the fuel or fuel tank.

5. Wipe up any oil that may have spilled and reinstall

the oil fill plug /dipstick.

The importance of checking and maintaining the proper

oil level in the crankcase cannot be overemphasized.

Check oil before each use and change as needed. See

Changing the Oil Pg. 17.

RECOMMENDED FUEL TYPE

OId fuel is usually the main reason for the unit

not running properly. Be sure to use fresh,

clean, unleaded Gasoline.

NOTE; This is a four cycle engine. In order to avoid

damage to the unit, do not mix oil with

Gasoline,

Definition of Blended Fuels

Today's fuels are often a blend of gasoline and

oxygenates such as ethanol, methanol or MTBE (ether).

Alcohol-blended fuel absorbs water. As little as 1%

water in the fuel can make fuel and oil separate or form

acids when stored. Use fresh fuel (less than 60 days

old), when using alcohol-blended fuel.

Using Blended Fuels

If you choose to use a blended fuel, or its use is

unavoidable, follow recommended precautions.

•Always use fresh unleaded gasoline

• Use the fuel additive STA-BIL ® or an equivalent.

• Drain tank and run the engine dry before storing unit.

Using Fuel Additives

The use of fuel additives, such as STA-BIL ® Gas

Stabilizer or an equivalent, will inhibit corrosion and

minimize the formation of gum deposits. Using a fuel

additive can keep fuel from forming harmful deposits in

the carburetor for up to six (6) months. Add 0.8 oz.

(23 ml.) of fuel additive per gallon of fuel according to the

instructions on the container. NEVER add fuel additives

directly to the unit's gas tank.

FUELING UNIT

WARNING: Gasoline is extremely flammable

and its vapors can explode if ignited. To

avoid serious personal injury, always stop the

engine and allow it to coot before filling the

fuel tank. Do not smoke while filling the tank.

Keep sparks and open flames away from the

area.

1. Remove gas cap (Fig. 4).

WARNING: Remove gas cap slowly to avoid

injury from gasoline spray.

2. Place spout of gas container into the fill hole on the

gas tank (Fig. 4) and fill tank.

WARNING: Add gasoline in a clean, well -]

ventilated area outdoors. Avoid creating a

source of ignition for spilt fuel.

NOTE: Do not overfill tank.

Gas Can

Fuel Cap --I_ O

......... Fig,4 .....

3. Wipe up any gasoline that may have spilled

4. Reinstall the gas cap.

_ARNING: Never operate the unit without j

the fuel cap securely in place.

5. Move the unit at least 30 ft. (9.1 m) from the fueling

source and site before starting the engine.

NOTE: Dispose of the old gasoline in accordance to

Federal, State, and Local regulations.

STARTING INSTRUCTIONS

WARNING; Operate this unit only in a we_t

ventilated area outdoors. Carbon monoxide

exhaust fumes can be lethal in a confined

area.

1. Check oil level in crankcase. See Checking the Oil

Level Pg. 17,

2. Fill the fuel tank with fresh, clean, unleaded gasoline

(see page 10).

3. Put the Start/Stop Engine Control in the START [I]

position (Fig. 5).

6. With the unit in the starting position pull the starter

rope briskly until the engine sounds as though it

wants to run (normally 2 to 5 pulls) (Fig. 7).

WARNING: Avoid accidental starting. Be in

the starting position whenever pulling the

starting rope. To avoid serious personal

injury, the operator and unit must be in a

stable position while starting.

Starter Ro

Start /Stop

Throttle Control _

Fig. 5 ..................

4. Fully press and release the primer bulb slowly 5 to 7

times. Gasoline should be felt and visible in the bulb

(Fig. 6). If gasoline has not entered the bulb, press

three more times, or until it does,

5. Place the choke lever in the START ( N ) position

(Fig. 6).

Choke Lever

Start (A)

...... Fig. 6 .............

Fig,7 ......

NOTE: Keep the throttle control depressed at all times

until the engine is warmed up.

7. Place the choke lever in the RUN ( 1½1B) position

(Fig. 6). The lever should snap up into place.

8. Pull the starter rope briskly 1 to 3 times to start the

engine (Fig. 7).

9. If the engine does net start, repeat steps 5 through

NOTE: If the engine floods while attempting to start the

unit, place the choke lever in the RUN ( I { I B)

position, squeeze the throttle control, and pull

the starter rope briskly. The engine should start

within three (3) to eight (8) pulls.

10. Depress throttle control for 5 to 10 seconds to warm

up engine.

NOTE: Choking is not required when starting a warm

engine. Start a warm engine with the Start/Stop

Engine Control in the START [I] position and the

choke lever in the RUN ( I|1 B) position.

STOPPING INSTRUCTIONS

1. Release your hand from the throttle control (Fig. 7).

Allow the engine to cool down by idling.

2. To stop the engine, put the Start/Stop Engine

Control in the STOP [O] position (Fig. 5).

OPERATING THE CLICK-LINK ®SYSTEM

The Click-Link ® system enables the use of these

optional add-ons.

Blower/Vacuum .......................... BV720r

Cultivator .............................. GC720r

Edger .................................. LE720r

Hedge Trimmer .......................... HS720r

Snow Thrower ........................... ST720r

Straight Shaft Trimmer .................... SS725r

Sweeper/Blower ......................... SB720r

Tree Pruner ............................. TP72Or

Turbo B_ower ............................ TB720r

WARNING: Read and understand operator's

manual for add-on prior to operation.

2. While firmly holding the add-on, push it straight into

the Click-Link ® coupler (Fig. 9).

NOTE: Aligning the release button with the guide recess

will help installation (Fig. 8).

Release Button

Click-Link _Coupler Primary Hole

Upper Shaft Housing Lower Shaft Housing

Removing the Cutting Attachment or Add-Ons:

1. Turn the knob counterclockwise to loosen (Fig. 8).

2. Press and hold the release button (Fig. 8).

3. While firmly holding the upper shaft housing, pul! the

cutting attachment or add-on straight out of the

Click-Link ® coupler (Fig. 9).

Installing the Cutting Attachment or Add-Ons:

WARNING: To avoid serious personal injury_

and damage to the unit, shut unit off before I

removing or installing add-ons, j

NOTE: To make installing or removing the add-on

easier, place the unit on the ground or on a work

bench.

1. Turn knob counterclockwise to loosen (Fig.8).

Click-Link® Coupler Release Button

......... Fig.g .......

3, Turn the knob clockwise to tighten (Fig. 10).

_lb AUTION: Lock the release button in the

primary hole and securely tighten the knob

before operating this unit.

90°Edging Hole

180°Edging Hole

Guide Recess

......... Fig. 8 ......

- Fig. 10

CAUTION: The cutting attachment and

add-ons with the Cliok-Link ® system are to

be used in the primary hole unless stated

otherwise in the specific add-ons operator's

manual. Using the wrong hole could lead to

personal injury, or damage to the unit.

NOTE: For edging with Click-Link ® models, lock the

release button of the cutting attachment into the

90° edging hole or the 180° edging hole (Fig. 10).

HOLDING THE TRIMMER

_ARNING: Always wear eye, hearing, foot

and body protection to reduce the risk of

injury when operating this unit.

Before operating the unit, stand in the operating position

(Fig. 11). Check for the following:

•The operator is wearing eye protection and proper

clothing.

• The right arm is slightly bent, and the hand is holding

the shaft grip.

•The left arm is straight, and the hand is holding the

handle.

• The unit is below waist level.

The cutting attachment is parallel to the ground and

easily contacts the vegetation to be cut without the

operator having to bend over.

Fig. 11

ADJUSTING THE D HANDLE

If the Dhandle is not adjusted to provide you with a

comfortable operation position:

1. Loosen the four (4) screws with a Phillips screwdriver

(Fig. 12).

2. Position the D handle forward or backward to the

location that will provide you the best grip.

3. Tighten the screws securely.

D Handle

4Screws

ADJUSTING TRIMMING LINE LENGTH

The Bump Head TM cutting attachment al!ows you to

release trimming line without stopping the engine. To

release more line, lightly tap the cutting attachment on

the ground (Fig. !3) while operating the trimmer at high

speed.

NOTE: Always keep the trimming line fully extended.

Line release becomes more difficult as cutting

line becomes shorter

Fig. 13 ........

Each time the head is bumped, about 1 inch (25.4 mm.)

of trimming line is released. A blade in the cutting

attachment shield will cut the iine to the proper length if

excess line is released.

For best results, tap the Bump Head TM on bare ground

or hard soil. If line release is attempted intall grass, the

engine may stall. Always keep the trimming line fully

extended, Line release becomes more difficult as the

cutting line becomes shorter,

NOTE; Do not rest the Bump Head TM on the ground.

CAUTION: Do not remove or alter the line ]

cutting blade assembly. Excessive line length r

will make the clutch overheat. This may lead |

to serious personal iniury or damage to the

unit. /

Some line breakage will occur from:

• Entanglement with foreign matter

• Normal line fatigue

• Attempting to cut thick, stalky weeds

• Forcing the line into objects such as walls or fence

posts

- Fig. 12 ...................

TIPS FOR BEST TRIMMING RESULTS

• Keep the cutting attachment parallel to the ground.

• Do not force the cutting attachment. Allow the tip of

the line to do the cutting, especially along walls.

Cutting with more than the tip will reduce cutting effi-

ciency and may overload the engine.

• Cut grass over 8 in. (200 mm.) by working from top

to bottom in small increments to avoid premature

line wear or engine drag.

• Cut from left to right whenever possible. Cutting to

the right improves the unit's cutting efficiency.

Clippings are thrown away from the operator.

• Slowly move the trimmer into and out of the cutting

area at the desired height. Move either in e forward-

backward or side-to-side motion. Cutting shorter

lengths produces the best results.

• Trim only when grass and weeds are dry.

• The life of your cutting line is dependent upon;

• Following the previous trimming techniques

• What vegetation is being cut

• Where it's being cut

For example, the line will wear faster when trimming

against a foundation wal! as opposed to trimming

around a tree.

DECORATIVE TRIMMING

Decorative trimming is accomplished by removing all

vegetation around trees, posts, fences, etc,

Rotate the whole unit so that the cutting attachment is at

a 30° angle to the ground (Fig. 14).

30 °

......... Fig. 14 .........

NOTE: Some maintenance procedures may require

special tools or skills. If you are unsure about

these procedures take your unit to an authorized

service dealer.

MAINTENANCE SCHEDULE

These required maintenance procedures should be

performed at the frequency stated in the table. They

should also be included as part of any seasonal tune-up.

WARNING: To prevent serious injury, never 1

do maintenance or repairs with unit running. I

Always do maintenance and repairs on a cool 1

unit. Disconnect spark plug wire to ensure

the unit wil! not start.

FREQUENCY MAINTENANCE REQUIRED REFER TO:

Before Starting Engine Fill fuel tank with fresh fuel Page 10

Check oil Page 17

Every 10 Hours Clean and re-oil air filter. Page 17

Every 25 Hours Change oil Page 17

Every 50 Hours Check rocker arm to valve clearance and adjust as Page 20-21

required

Check spark plug condition and gap Page 21

LINE INSTALLATION

Always use genuine Ryobi 0.095 inch (2.41 mm.)

replacement line. Larger line may make the engine

overheat or fail.

WARNING: Never use metal-reinforced line,

wire, or rope, etc.. These can break off and

become a dangerous projectile.

There are two methods to replace the trimming line.

•Wind the inner ree! with new line

• Install a prewound inner reel

NOTE: Replacement line Part # 612454, or a prewound

ree!, Part # 147345 can be purchased from your

local authorized dealer.

Winding the Existing Inner Reel

1. Hold the outer spool with one hand and unscrew the

Bump KnobTMclockwise (Fig. 15). Inspect the bolt

inside the Bump Knob TM to make sure it moves

freely. Replace the Bump Knob TM if damaged.

NOTE: A Bump Knob TM, Part # 180814 can be

purchased from your local authorized dealer.

Outer Spool

Bump Knob TM -----_ _

........ Fig. 15 .......

2. Remove the inner reel from the outer spool (Fig. 15).

3. Remove spring from the inner reel (Fig. 15).

NOTE: An inner reel spring, Part # 610636 can be

purchased from your local authorized dealer.

4. Use a clean cloth to clean the the inner reel, spring,

shaft, and inner surface of the outer spool (Fig. 16).

5. Check the indexing teeth on the inner reel and outer

spool for wear (Fig. 17). If necessary, remove burrs

or replace the reel and spool.

NOTE: A cutting attachment outer spool, Part # 147494

can be purchased from your local authorized

dealer,

Indexing Teeth I

............. Fig. 17 .............

6. Take approximately 25 feet (7.6 m) of new 0.095 inch

diameter trimming line, loop it into two equal lengths.

Insert each end of the line through one of the two

holes in the inner reel (Fig. 18). Pull the line through

the inner feet so that the loop is as small as possible.

NOTE: Always use the correct line length when installing

trimming line on the unit. The line may not

release properly if the line is too long.

...... Fig. 18

...... Fig. 16 .............

7. Wind the lines in tight even layers, onto the reel

(Fig,19). Wind the line in the direction indicated on

the inner reel. Place your index finger between the

two lines to stop the lines from overlapping. Do not

overlap the ends of the line.

NOTE: Failure to wind the line in the direction indicated

will cause the cutting attachment to operate

incorrectly.

9. Place the spring in the inner reel. Insert the ends of

the line through the eyelets in the outer spool and

place inner reel inside the outer spool (Fig. 21). Push

the inner reel and outer spool together. While holding

the inner reel and outer spool, grasp the ends and

pull firmly to release the line from the holding slots in

the spool.

NOTE: The spring must be assembled on the inner reel

before reassembling the cutting attachment.

....... Fig. 19 ...............

8. Insert the ends of the line into the two holding slots

and cut to the same length (Fig. 20).

ISlots

............... Fig. 20 .............

......... Fig.21 ......

10. Held the inner reel in place and install the Bump

Knob TM by turning counterclockwise. Tighten

securely.

Installing a Prewound Reel

1. Hold the outer spoo_ with one hand and unscrew the

Bump Knob TM counterclockwise (Fig. 15). Inspect

the bolt inside the Bump Knob TM to make sure it

moves freely. Replace the Bump Knob TM if dam-

aged.

2. Remove the old inner reel from the outer spool

(Fig. 15)

3. Remove the spring from the old inner reel (Fig. 15),

4. Place the spring in the new inner reel,

NOTE: The spring must be assembled on the inner reel

before reassembling the cutting attachment.

Insert the ends of the line through the eyelets in the

outer spool (Fig. 21).

Place the new inner reel inside the outer spool. Push

the inner reel and outer spool together. While holding

the inner reel and outer spool, grasp the ends and

pull firmly to release the line from the holding slots in

the spool.

7. Hold the inner reel in place and install the Bump

Knob TM by turning clockwise. Tighten securely.

CHECKING THE OIL LEVEL

CAUTION: To prevent extensive engine wear

and damage to the unit, always maintain the

proper oil level in the crankcase. Never

operate the unit with the oil level below the

bottom of the dipstick.

The importance of checking and maintaining the proper

oil level in the crankcase cannot be overemphasized.

Check oil before each use:

1. Stop engine and allow oil to drain into the crankcase.

2. Place the unit on a flat, level surface to get a proper

oil level reading.

3, Keep dirt, grass cSppings, etc., out of the engine.

Clean the area around the oil fill plug/dipstick before

removing it.

4. Remove the oil fill plug/dipstick and wipe off oil.

Reinsert it all the way back in.

5. Remove the oil fill plug/dipstick and check oil level.

Oil should be up to the top of the dipstick (Fig. 22).

CHANGING THE OIL

For a new engine, change the oil after the first 10 hours

of operation. Thereafter, change the oil after every 25

hours or before storing the unit for an extended period of

time.

It is best to change the oil while the engine is still warm.

The oil will flow freely and carry away more impurities.

CAUTION: Wear gloves to prevent injury ]

when handling the unit. r

1. Unplug spark plug boot to eliminate starting

2. Remove the oil fill plug/dipstick.

3. Pour the oil out of the oil fill hole and into a container

by tipping the unit to a vertical position (Fig. 24).

Allow ample time for complete drainage,

O-Ring

-Top of Dipstick

Fig. 22 ..........

6. If the level is low, add a small amount of oil to the oil

fill hole and recheck (Fig. 23). Repeat until the oil

level reaches the top of the dipstick.

NOTE: Do not overfill the unit.

Oil Fill

.... Fig.23 ..........

NOTE: Make sure the O-ring is in place on the oil fill

plug/dipstick when checking and changing the

oil (Fig, 23).

-_ Fig.24

4, Wipe up any oil residue on the unit and clean up any

oil that may have spilled. Dispose of the oil

according to Federal, State and local regulations,

5. Refitt the crankcase with 3.4 tluid oz (100 ml) of SAE

30 SF, SG, SH oil. Use the bottle and spout from

initial use to measure the correct amount.

6. Replace the oil fill plug/dipstick.

7. Reconnect spark plug boot.

AIR FILTER MAINTENANCE

Cleaning the Air Filter

_lb ARNING: To avoid serious personal injury,

always turn your trimmer off and allow it to

cool before you clean or do any maintenance

on it.

Clean and re-oil the air filter every 10 hours of operation.

it is an important item to maintain. Not maintaining the

air filter will VOID the warranty.

1. Place the choke lever between the RUN (B) position

and the START (A) position (Fig. 25),

2. Remove the air filter cover by pulling up the two tabs

on the bottom back of the cover, then pull out and

up (Fig. 25).

3. Remove the air filter (Fig. 25).

Air Filter Cover Choke Lever

5. Apply enough clean SAE 30 motor oi_to lightly coat

the filter (Fig. 27).

........... Fig,27 ............

6. Squeeze the filter to spread and remove excess oil

(Fig. 28).

............ Fig, 28 ............

7. Reinstall the filter (Fig. 29).

Back Plate

................. Fig, 25 .............

4. Wash the filter in detergent and water (Fig. 26). Rinse

the filter thoroughly and allow it to dry.

............. Fig. 26 ......

......... Fig. 29

8. Reinstall the air filter cover by positioning the notch

on top of the air filter cover onto the tab at the top of

the back plate. Be sure the choke lever in the RUN

(B) position (Fig. 25).

9. Using two fingers on either side of the air filter cover

and back plate, squeeze together until the cover

snaps into place (Fig. 25).

NOTE: If the unit is operated without the air filter, you

will VOID the warranty,

CARBURETOR ADJUSTMENT

The idle speed of the engine is adjustable though the Air

filter/muffler cover (Fig 30).

NOTE= Careless adjustments can seriously damage your

unit. An authorized service dealer should make

carburetor adjustments.

Check Fuel Mixture

Old fuel is usually the main reason for the unit not

running properly. Drain and refill the tank with clean,

fresh unleaded fuel prior to doing any adjustments. Refer

to Oil and Fuel Information.

Clean Air Filter

The condition of the air filter is important to the opera-

tion of the uniL A dirty air filter will restrict air flow and

change the air/fuel mixture. This is often mistaken for an

out of adjustment carburetor. Check the condition of the

air filter before adjusting the idle speed screw. Refer to

Air Filter Maintenance.

Adjust Idle Speed Screw

WARNING: The cutting attachment may be

spinning during idle speed adjustment. Wear

protective clothing and observe all safety

instructions to prevent serious personal

injury.

If after checking the fuel mixture and cleaning the air

filter the engine still will not idle, adjust the idle speed

screw as follows.

Start the engine and let it run at a high idle for a

minute to warm up.

Release the throttle trigger and let the engine idle. If

the engine stops, insert a small phillips or flat blade

screwdriver into the hole in the air filter!muffler cover

(Fig. 30). Turn the idle speed screw in, clockwise, 1/8

of a turn at a time (as needed) until the engine idles

smoothly.

NOTE: The cutting attachment should not rotate when

the engine idles.

.Idle Adjustment Screw

3. If the cutting attachment rotates when the engine

idles, turn the idle speed screw counterclockwise 1/8

of a turn at a time (as needed), to reduce idle speed.

Checking the fuel mixture, cleaning the air filter, and

adjusting the idle speed screw should solve most engine

problems.

If not and"

• The engine will not idle,

•The engine hesitates or stalls on acceleration,

• There is a loss of engine power,

have the carburetor adjusted by an

authorized service dealer.

WARNING: When the unit is turned off make[

sure the cutting attachment has stopped |

before the unit is set down to prevent serious I

personal injury, i

.... Fig. 3() ..........

ROCKER ARM CLEARANCE

NOTE: This requires some disassembly of the engine, tf

you feel unsure or unqualified to perform this,

take the unit to an authorized service center.

Inspect the valve to rocker arm clearance every 50 hours

of operation using aflat feeler gauge.

NOTE: The engine must be cold when checking or

adjusting the valve clearance,

This task should be performed inside, in a clean, dust

free area.

1. Loosen the four (4) screws shown in figure 31.

Engine Cover

6. Remove the screw holding the rocker arm cover with

a large flat blade screwdriver or Torx T25 bit (Fig.

33). Remove the rocker arm cover, and gasket.

Rocker Arm Cover

•Loosen Screws

......... Fig.31 ............

2. Remove the three (3) screws that secure the engine

cover (Figs. 31 and 32),

I[ )1

I1( )11

Back of Engine

........ Fig. 32 .......

3. Disconnect the spark plug wire.

4. Remove the spark plug

5. Remove the engine cover (Fig. 31).

Hole

........ Fig.33 ........

7. Pull the starter rope slowly to bring the piston to Top

Dead Center.

• While looking inthe spark plug hole (Fig. 33), the

piston is at the top of the stroke.

• Both valves are closed.

=Both rocker arms move freely.

If not, repeat this step.

8. Slide the feeler gauge between the rocker arm and

the valve return spring. Measure the clearance

between the valve stem and rocker arm (Fig 34). Do

both intake and exhaust valves.

Rocker Arm Adjusting Nut

Gasket Feeler Gauge

................... Fig. 34 ...............

Therecommended clearance for both intake and

exhaust is ,003-.006 in, (.076-.0152 mm). The feeler

gauge should slide between the rocker arm and valve

stem with a slight amount of resistance, without binding.

9. If the clearance is not within specification:

a. Turn the adjusting nut using a 5/16 inch (8 mm)

wrench or nut driver (Fig. 34).

To increase clearance, turn the adjusting nut

counterclockwise.

To decrease clearance, turn the adjusting nut

clockwise.

b. Recheck both clearances, and adjust as necessary.

10. Reinstall the rocker arm cover using a new gasket.

Torque the screw to 20-30 Jn*lb (2.2-3.4 N,m).

NOTE: A gasket, Part # 182099 can be purchased from

your local authorized dealer.

11. Reinstall the engine cover. Check alignment of the

cover before tightening the screws. Tighten screws.

12. Check the spark plug and reinstall. See Replacing

the Spark Plug.

13. Replace the spark plug wire.

REPLACING THE SPARK PLUG

Use a Champion RDZ19H spark plug (or equivalent). The

correct air gap is 0,025 in, (0,655 ram,). Remove the

plug after every 50 hours of operation and check its

condition,

1. Stop the engine and allow it to cool Grasp the plug

wire firmly and pull the cap from the spark plug,

2. Clean dirt from around the spark plug, Remove the

spark plug from the cylinder head by turning a 5/8 in.

socket counterclockwise.

3, Replace cracked, fouled or dirty spark plug. Set the

air gap at 0,020 in. (0.5 mm.) using a feeler gauge

(Fig. 35),

0.025 in.

(0.655 mm.)

Fig, 35

_b AUTION: Do not sand blast, scrape, or clean

electrodes. Grit inthe engine could damage the

cylinder.

4. Install a correctly gaped spark plug in the cylinder

head, Tighten by turning the 5/8 in. socket c_ockwise

until snug,

If using a torque wrench torque to;

110-120 in.,Ib. (12.3-13.5 Nom),

Do not over tighten.

ACCESSORIES/REPLACEMENT PARTS

4-Cycle Oil .............................. 181786

Oil Fill Plug/Dipstick ...................... 181975

Spark Plug .............................. 180852

Spark Arrestor .......................... ; 182153

Replacement Line Cartridge ................ 147345

Inner Reel Spring ........................ 610636

Bump Head Knob Assembly ................ 180814

Fuel Cap ............................... 181083

Shoulder Harness ........................ 682075

Click-Link Coupler ....................... 181616

The 1079r trimmer is convertible to a brushcutter with

the optional Brush Blade Kit. The kit contains all the

necessary parts to safely convert the trimmer to

brushcutter capability.

NOTE: A Brush Blade Kit, Part # 300026 can be

purchased from your local authorized dealer.

CLEANING

WARNING; To avoid serious personal injury, I

always turn your trimmer off and allow it to I

cool before you clean or do any maintenance

on it.

Use a small brush to clean off the outside of the unit. Do

not use strong detergents. Household cleaners that

contain aromatic oils such as pine and lemon, and such

as kerosene, can damage plastic housing or handle.

Wipe off any moisture with a soft cloth.

STORAGE

•Never store the unit with gasoline in the tank where

fumes may reach an open flame or spark,

• Allow the engine to cool before storing.

• Store the unit locked up to prevent unauthorized use

or damage.

• Store the unit in a dry, well ventilated area.

•Store the unit out of the reach of children,

LONG TERM STORAGE

If the unit will be stored for an extended time,

1. Drain all gasoline from the gas tank into a container.

Do not use gas that has been stored for more than

60 days. Dispose of the old gasoline in accordance

to Federal, State, and Local regulations.

2, Start the engine and allow it to run until it stalls. This

ensures that all gasoline has been drained from the

carburetor.

3. Allow the engine to cool. Remove the spark plug and

put 1 oz. (30 ml.) of high quality motor oil into the

cylinder. Pull the starter rope slowly to distribute the

oil. Reinstall the spark plug.

NOTE: Remove the spark plug and drain all of the oil

from the cylinder before attempting to start the

trimmer after storage.

4. Thoroughly clean the unit and inspect for any loose

or damaged parts. Repair or replace damaged parts

and tighten loose screws, nuts or bolts. The unit is

ready for storage.

TRANSPORTING

•Allow the engine to cool before transporting.

• Secure the unit while transporting.

• Drain the gas tank before transporting.

•Tighten gas cap before transporting.

CAUSE

Ignition switch is OFF

Empty gas tank

Primer bulb wasn't pressed enough

Engine flooded

Old Gasoline

Fouled spark plug

CAUSE

Air Filter is Plugged

Old Gasoline

Improper carburetor adjustment

CAUSE

Old Gasoline

Improper carburetor adjustment

Cutting head bound with grass

Dirty air filter

CAUSE

Old Gasoline

Improper carburetor adjustment

CAUSE

Cutting head bound with grass

Cutting head out of line

Inner reel bound up

Cutting head dirty

Line welded

Une twisted when refilled

Not enough line is exposed

ACTION

Turn switch to ON

Fill gas tank

Press primer bulb fully and slowly 5-7 times

Use starting procedure with choke lever in the

RUN position, Pg. 11

Drain gas tank /Add fresh Gasoline

Replace or clean the spark plug

ACTION

Replace or clean the air filter

Drain gas tank /Add fresh Gasoline

Adjust per instruction Pg, 19

ACTION

Drain gas tank /Add fresh Gasoline

Take to an authorized service dealer for

carburetor adjustment

Stop the engine and clean the cutting attachment

Clean or replace the air filter

ACTION

Drain gas tank /Add fresh Gasoline

Take to an authorized service dealer for

carburetor adjustment

ACTION

Stop the engine and clean cutting attachment

Refill with new line

Replace the inner reel

Clean inner reel and outer spool

Disassemble, remove the welded section

and rewind the line

Disassemble and rewind the line

Push the Bump Knob and pull out line until

4 in. (102 ram.) of line is outside of the

cutting attachment

If further assistance is required, contact your authorized service dealer.

ENGINE

Engine Type ................................................................. Air-Cooled, 4-Cycle

Displacement ................................................................. 1.6 cu. in. (26.2 co)

Clutch Type ......................................................................... Centrifugal

Operating RPM (Trimmer) ......................................................... 7,700-8,600 rpm

Idle Speed RPM ................................................................. 2,800-3,400 rpm

Ignition Type ......................................................................... Electronic

Ignition Switch .................................................................... Toggle Switch

Valve clearance (intake and exhaust) ...................................... 003-.006 in. (.076-.0152 mm)

Spark Plug Gap ............................................................ 0.025 inch (0.655 mm)

Lubrication .......................................................................... SAE 30 Oil

Crankcase Oil Capacity ............................................................ 3.4 oz (100 ml)

Fuel ................................................................................ Unleaded

Carburetor ................................................................ Diaphragm, All-Position

Starter ............................................................................ Auto Rewind

Muffler ....................................................................... Baffled with Guard

Throttle ................................................................... Manual Spring Return

Fuel Tank Capacity ................................................................. 26 oz (591 ml)

Fuel Tank ....................................................................... HD Polyethylene

Drive Shaft Housing ...................................................... Aluminum Tube (Click-Link)

Throttle Control ................................................................. Finger-Tip Trigger

Unit Weight (No Fuel, with D-handle, Cutting attachment shield and Cutting attachment) ....... 13.5 Ibs (6.13 kg)

Cutting Mechanism ........................................................ Dual String Cutting Head

Shoulder Strap ................................................................ Single Quick-Snap

Line Spool ................................................................... Bump Line Releaser

Line Spool Diameter .......................................................... 4 inches (101.6 mm)

Trimming Line Diameter ..................................................... 0.095 inches (2.41 mm)

Cutting Path Diameter .......................................................... 18 inches (44.0 cm)

Gear Box Ratio .......................................................................... 1.23:1

CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board and Ryobi Outdoor

Products (ROP), are pleased to explain the emission

control system warranty on your 1995 and later small

off-road engine. In California, new small off-road

engines must be designed, built and equipped to meet

the State's stringent anti-smog standards. ROP must

warrant the emission control system on your small off-

road engine for the periods of time listed below provid

ed there has been no abuse, neglect or improper

maintenance of your small off-road engine.

Your emission control system may include parts such

as the carburetor or fuel injection system, the ignition

system, and catalytic converter. Also included may be

hoses, belts, connectors and other emission-related

assemblies.

Where a warrantable condition exists, ROP wilt repair

your small off-road engine at no cost to you including

diagnosis, parts and labor.

The 1995 and later small off-road engines are warranted

for two years. If any emission-related pert on your

engine is defective, the part will be repaired or replaced

by ROP

OWNER'S WARRANTY RESPONSIBILITIES:

MANUFACTURER'S WARRANTY COVERAGE:

• The warranty period begins on the date the engine or

equipment is delivered to the retail purchaser.

• The manufacturer warrants to the initial owner and

each subsequent purchaser, that the engine is free

from defects in material and workmanship which

cause the failure of a warranted part for aperiod of

two years.

• Repair or replacement of warranted part wilt be

performed at no charge to the owner at an

Authorized Ryobi Service Center. For the nearest

location, please contact Ryobi at:

1-800-345-8746.

• Any warranted part which is not scheduled for

replacement, as required maintenance which is

scheduled only for regular inspection to the effect of

"Repair or replace as necessary" is warranted for the

warranty period. Any warranted part which is

scheduled for replacement as required maintenance

will be warranted for the period of time up to the first

scheduled replacement point for that part.

• The owner will not be charged for diagnostic labor

which leads to the determination that a warranted

part is defective, if the diagnostic work is performed

at an Authorized Ryobi Service Center.

• The manufacturer is liable for damages to other

engine components caused by the failure of a

warranted part still under warranty.

• As the small off-road engine owner, you are

responsible for the performance of the required

maintenance listed in your operator's manual. ROP

recommends that you retain all receipts covering

maintenance on your small off-road engine, but ROP

cannot deny warranty solely for the lack of receipts

or for your failure to ensure the performance of all

scheduled maintenance.

• As the small off-road engine owner, you should how-

ever be aware that ROP may

deny you warranty coverage if your small

off-road engine or a part has failed due to abuse,

neglect, improper maintenance or unapproved modi-

fications.

•You are responsible for presenting your

small off-road engine to a Ryobi Authorized Service

Center as soon as a problem exists. The warranty

repairs should be completed in a reasonable amount

of time, not to exceed

30 days.

If you have any questions regarding your warranty rights

and responsibilities, you should call 1-800-345-8746,

Failures caused by abuse, neglect or improper

maintenance are not covered under warranty.

The use of add-on or modified parts can be grounds

for disallowing a warranty claim. The manufacturer is

not liable to cover failures or warranted parts caused

by the use of add-on or modified parts.

In order to file a claim, go to your nearest Authorized

Ryobi Service Center. Warranty services or repairs

will be provided at ell Authorized Ryobi Service

Centers.

Any manufacturer approved replacement part may

be used in the performance of any warranty

maintenance or repair of emission related parts and

will be provided without charge to the owner. Any

replacement part that is equivalent in performance or

durability may be used in non-warranty maintenance

or repair and will not reduce the warranty obligations

of the manufacturer.

The following components are included in the

emission related warranty of the engine, air filter,

carburetor, primer, fuel lines, fuel pick up/fuel filter,

ignition module, spark plug and muffler.

LIMITED TWO-YEAR WARRANTY

RYOBI OUTDOOR PRODUCTS warrants each new

RYOBI Product for two (2) years according to the

following terms,

This warranty extends to the original retail purchaser

only and commences on the date of original retail

purchase.

Any part of the RYOBI Product manufactured or

supplied by RYOBI and found in the reasonable

judgement of RYOBI to be defective in material or

workmanship will be repaired or replaced by an

authorized RYOBI service dealer without charge for

parts and labor.

The RYOBI Product including any defective part must

be returned to an authorized service dealer within the

warranty period. The expense of delivering the RYOBI

Product to the dealer for warranty work and the

expense of returning it back to the owner after repair

or replacement will be paid for by the owner. RYOBI's

responsibility in respect to claims is limited to making

the required repairs or replacements and no claim of

breach of warranty shall be cause for cancellation or

rescission of the contract of sale of any RYOBI

Product. Proof of purchase will be required by the

dealer to substantiate any warranty claim. All warranty

work must be performed by an authorized RYOBI

service dealer:

This warranty is limited to ninety (90) days from the

date of original retail purchase for any RYOBI Product

that is used for rental or commercial purposes, or any

other income-producing purpose.

This warranty does not cover any RYOBI Product that

has been subject to misuse, neglect, negligence, or

accident, or that has been operated in any way

contrary to the operating instructions as specified in

the RYOBI Operator's Manual. This warranty does not

apply to any damage to the RYOBI Product that is the

result of improper maintenance or to any RYOBI

Product that has been altered or modified so as to

adversely affect the product's operation, performance

or durability or that has been altered or modified so as

to change its intended use. The warranty does not

extend to repairs made necessary by normal wear or

by the use of parts or accessories which are either

incompatible with the RYOBI Product or adversely

affect its operation, performance or durability.

In addition, this warranty does not cover:

A. Tune-ups - Spark Plugs, Carburetor Adjustments,

Filters

B. Wear items - Bump Knobs, Outer Spools,

Cutting Line, Inner Reels, Starter Pulley,

Starter Ropes, Drive Belts

RYOBI reserves the right to change or improve the

design of any RYOBI Product without assuming

any obligation to modify any product previously

manufactured.

ALL IMPLIED WARRANTIES ARE LIMITED IN

DURATION TO THE TWO (2)YEAR WARRANTY

PERIOD OR NINETY (90) DAYS FOR PRODUCTS

USED FOR ANY COMMERCIAL PURPOSE.

ACCORDINGLY, ANY SUCH IMPLIED WARRANTIES

INCLUDING MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE, OR OTHERWISE, ARE

DISCLAIMED IN THEIR ENTIRETY AFTER THE

EXPIRATION OF THE APPROPRIATE TWO-YEAR

OR NINETY DAY WARRANTY PERIOD. RYOBI'S

OBLIGATION UNDER THIS WARRANTY, IS STRICTLY

AND EXCLUSIVELY LIMITED TO THE REPAIR OR

REPLACEMENT OF DEFECTIVE PARTS, AND ROP

DOES NOT ASSUME OR AUTHORIZE ANYONE TO

ASSUME FOR THEM ANY OTHER OBLIGATION.

SOME STATES DO NOT ALLOW LIMITATIONS ON

HOW LONG AN IMPLIED WARRANTY LASTS, SO

THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

RYOBI ASSUMES NO RESPONSIBILITY FOR

INCIDENTAL, CONSEQUENTIAL OR OTHER

DAMAGES INCLUDING, BUT NOT LIMITED TO

EXPENSE OF RETURNING THE RYOBI PRODUCT

TO AN AUTHORIZED SERVICE DEALER AND

EXPENSE OF DELIVERING IT BACK TO THE

OWNER, MECHANIC'S TRAVEL TIME, TELEPHONE

OR TELEGRAM CHARGES, RENTAL OF A LIKE

PRODUCT DURING THE TIME WARRANTY SERVICE

iS BEING PERFORMED, TRAVEL, LOSS OR DAMAGE

TO PERSONAL PROPERTY, LOSS OF REVENUE,

LOSS OF USE OF THE PRODUCT, LOSS OF TIME,

OR INCONVENIENCE. SOME STATES DO NOT

ALLOW THE EXCLUSION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO

THE ABOVE LIMITATION OR EXCLUSION MAY NOT

APPLY TO YOU.

This warranty gives you specific legal rights, and you

may also have other rights which vary from state to

state.

This warranty applies to all RYOBI Products

manufactured by RYOBI and sold in the United States

and Canada.

To locate your nearest service dealer dial

1-800-345-8746 in the United States or

1-800-265-6778 in Canada.

P.YOBI

RYOBI OUTDOOR PRODUCTS

550 N. 54th Street

Chandler, AZ 85226 U.S.A.

RYOBI CANADA INC.

275 Industrial Rd

Cambridge, Ontario N1R 6K2 CANADA

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

FOR QUESTIONS CALL 1-800-345-8746 IN U,S.

OR 1-800-265-6778 IN CANADA

OPERATOR'S MANUAL PART NO. 182212 REV. A (7881)

PRINTED IN U.S.A. 11/98

Ryobi 1079R User Manual TRIMMER Manuals And Guides L0403387

RYOBI Line Trimmers/Weedwackers, Gas Manual L0403387 RYOBI Line Trimmers/Weedwackers, Gas Owner's Manual, RYOBI Line Trimmers/Weedwackers, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
