OPERATOR'S MANUAL

DELUXE PUSH ROTARY

LAWN MOWER

• Assembly

• Operation

• Maintenance

• Service and Adjustments

•Storage

•Troubleshooting

AWARNING: This lawn mower is equipped with an internal combustion engine and

should not be used on or near any unimproved forest-covered, brush-covered or

grass-covered land unless the engine's exhaust system is equipped with a spark

arrester meeting applicable local or state laws (if any). If a spark arrester is used, it

should be maintained in effective working order by the operator.

In the state of California the above is required by law (Section 4442 of the California

Public Resources Code). Other states may have similar laws. Federal laws apply

on federal lands. A spark arrester for the muffler is available through your nearest

authorized service center.

193732 Rev. 1 02.23.05 BY Printed in U.S.A.

Safety Rules ................. 2-3 Maintenance ............. 16-18 Storage ..................... 20-21

Assembly ...................... 4-8 Service and Troubleshooting ........ 22-23

Operation .................... 9-15 Adjustments .............. 18-20

IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing ob-

jects. Failure to observe the following safety instructions could result in serious injury or death.

ALook for this symbol to point out impor-

tant safety precautions. It means

CAUTION!!! BECOME ALERT!!!

YOUR SAFETY IS INVOLVED.

_,WARNING: In order to prevent accidental

starting when setting up, transporting, ad-

justing or making repairs, always disconnect

spark plug wire and place wire where it cannot

come in contact with plug.

AWARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer and

birth defects or other reproductive harm.

AWARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State

of California to cause cancer and birth

defects or other reproductive harm. Wash

hands after handling.

A CAUTION: Muffler and

other engine parts become

extremely hot during

operation and remain hot

after engine has stopped.

To avoid severe burns on

contact, stay away from these areas.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions on the machine and in the

manual(s) before starting. Be thoroughly

familiar with the controls and the proper

use of the machine before starting.

• Do not put hands or feet near or under

rotating parts. Keep clear of the dis-

charge opening at all times.

• Only allow responsible individuals, who

are familiar with the instructions, to oper-

ate the machine.

• Clear the area of objects such as rocks,

toys, wire, bones, sticks, etc., which

could be picked up and thrown by blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Do not operate the mower when bare-

foot or wearing open sandals. Always

wear substantial foot wear.

• Do not pull mower backwards unless

absolutely necessary. Always look down

and behind before and while moving

backwards.

• Never direct discharged material toward

anyone. Avoid discharging material against

a wall or obstruction. Material may richo-

chet back toward the operator. Stop the

blade when crossing gravel surfaces.

• Do not operate the mower without

proper guards, plates, grass catcher or

other safety protective devices in place.

• See manufacturer's instructions for

proper operation and installation of

accessories. Only use accessories ap-

proved by the manufacturer.

• Stop the blade(s) when crossing gravel

drives, walks, or roads.

• Stop the engine (motor) whenever you

leave the equipment, before cleaning the

mower or unclogging the chute.

• Shut the engine (motor) off and wait until

the blade comes to complete stop before

removing grass catcher.

• Mow only in daylight /good artificial light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle; walk, never run.

• Disengage the self-propelled mech-

anism or drive clutch on mowers so

equipped before starting the engine.

• If the equipment should start to vibrate

abnormally, stop the engine (motor) and

check immediately for the cause. Vibra-

tion is generally a warning of trouble.

• Always wear safety goggles or safety glass-

es with side shields when operating mower.

II. SLOPE OPERATION

Slopes are a major factor related to slip &

fall accidents which can result in severe in-

jury. All slopes require extra caution. If you

feel uneasy on a slope, do not mow it.

DO:

• Mow across the face of slopes: never

up and down. Exercise extreme caution

2 when changing direction on slopes.

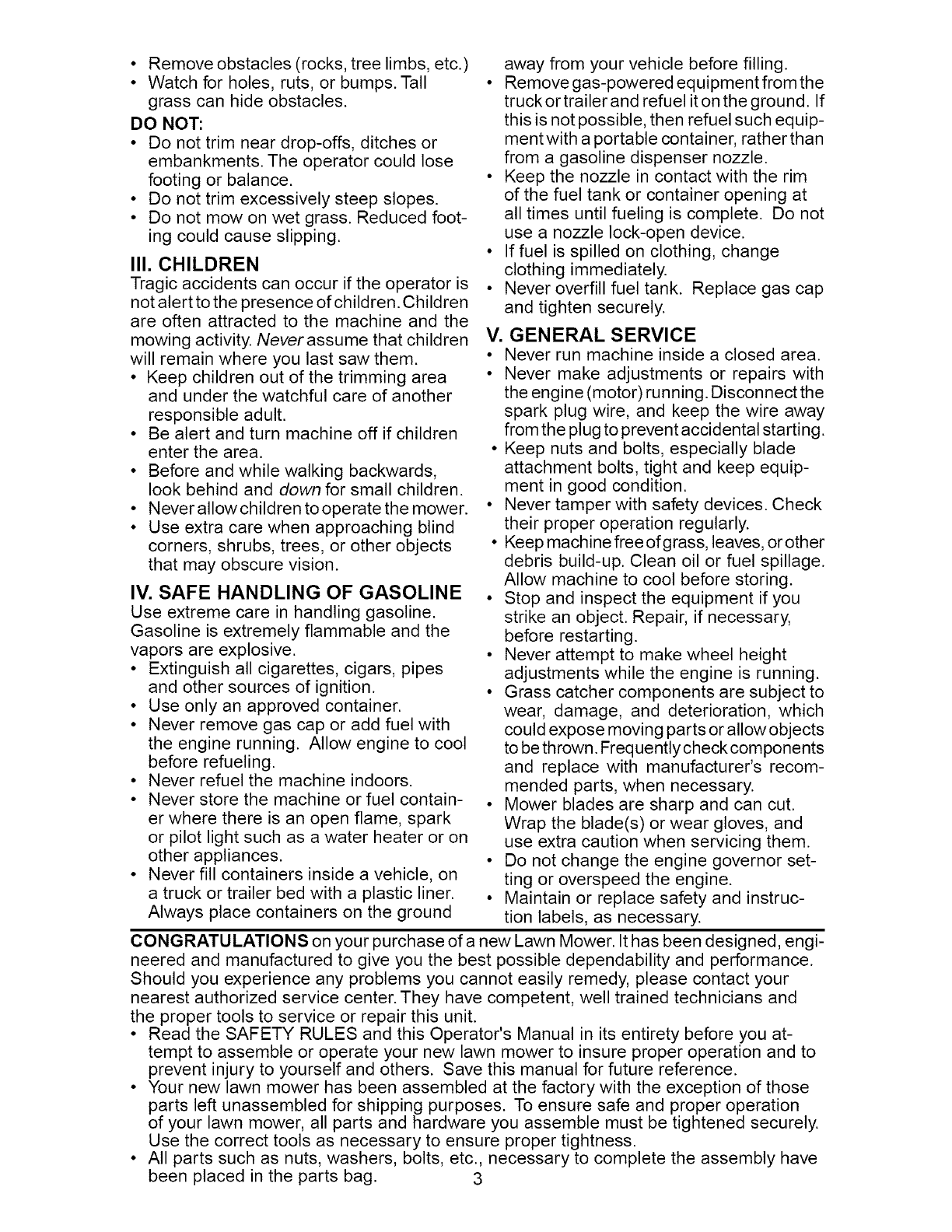

• Removeobstacles(rocks,treelimbs,etc.)

• Watchfor holes,ruts,or bumps.Tall

grasscan hideobstacles.

DO NOT:

• Do not trim near drop-offs,ditchesor

embankments.The operatorcouldlose

footingor balance.

• Do not trim excessivelysteepslopes.

• Do not mowon wet grass.Reducedfoot-

ing couldcauseslipping.

III. CHILDREN

Tragicaccidentscanoccurif the operatoris

notalertto thepresenceofchildren.Children

are often attracted to the machine and the

mowingactivity.Never assume that children

will remain where you last saw them.

• Keep children out of the trimming area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and while walking backwards,

look behind and down for small children.

• Neverallowchildren tooperate the mower.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SAFE HANDLING OF GASOLINE

Use extreme care in handling gasoline.

Gasoline is extremely flammable and the

vapors are explosive.

• Extinguish all cigarettes, cigars, pipes

and other sources of ignition.

• Use only an approved container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to cool

before refueling.

• Never refuel the machine indoors.

• Never store the machine or fuel contain-

er where there is an open flame, spark

or pilot light such as a water heater or on

other appliances.

• Never fill containers inside a vehicle, on

a truck or trailer bed with a plastic liner.

Always place containers on the ground

away from your vehicle before filling.

• Remove gas-powered equipment from the

truck or trailer and refuel it on the ground. If

this is not possible, then refuel such equip-

mentwith a portable container, rather than

from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do not

use a nozzle lock-open device.

• If fuel is spilled on clothing, change

clothing immediately.

• Never overfill fuel tank. Replace gas cap

and tighten securely.

V. GENERAL SERVICE

• Never run machine inside a closed area.

• Never make adjustments or repairs with

the engine (motor) running. Disconnect the

spark plug wire, and keep the wire away

from the plug to prevent accidental starting.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices. Check

their proper operation regularly.

• Keep machine free ofgrass, leaves, or other

debris build-up. Clean oil or fuel spillage.

Allow machine to cool before storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never attempt to make wheel height

adjustments while the engine is running.

• Grass catcher components are subject to

wear, damage, and deterioration, which

could expose moving parts or allow objects

to be thrown. Frequently check components

and replace with manufacturer's recom-

mended parts, when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Do not change the engine governor set-

ting or overspeed the engine.

• Maintain or replace safety and instruc-

tion labels, as necessary.

CONGRATULATIONS on your purchase of a new Lawn Mower. It has been designed, engi-

neered and manufactured to give you the best possible dependability and performance.

Should you experience any problems you cannot easily remedy, please contact your

nearest authorized service center. They have competent, well trained technicians and

the proper tools to service or repair this unit.

• Read the SAFETY RULES and this Operator's Manual in its entirety before you at-

tempt to assemble or operate your new lawn mower to insure proper operation and to

prevent injury to yourself and others. Save this manual for future reference.

• Your new lawn mower has been assembled at the factory with the exception of those

parts left unassembled for shipping purposes. To ensure safe and proper operation

of your lawn mower, all parts and hardware you assemble must be tightened securely.

Use the correct tools as necessary to ensure proper tightness.

• All parts such as nuts, washers, bolts, etc., necessary to complete the assembly have

been placed in the parts bag. 3

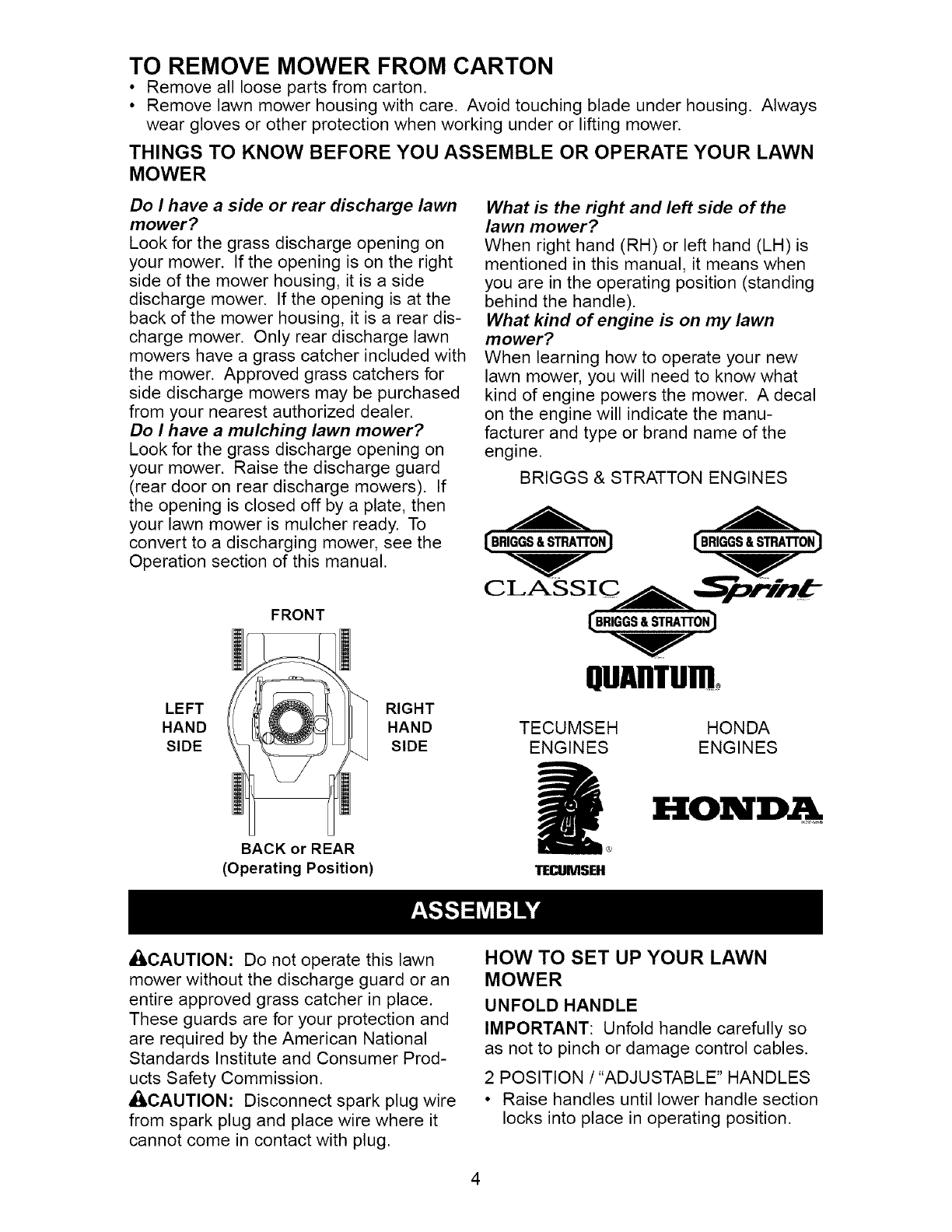

TO REMOVE MOWER FROM CARTON

•Remove all loose parts from carton.

• Remove lawn mower housing with care. Avoid touching blade under housing. Always

wear gloves or other protection when working under or lifting mower.

THINGS TO KNOW BEFORE YOU ASSEMBLE OR OPERATE YOUR LAWN

MOWER

Do Ihave a side or rear discharge lawn

mower?

Look for the grass discharge opening on

your mower. If the opening is on the right

side of the mower housing, it is a side

discharge mower. If the opening is at the

back of the mower housing, it is a rear dis-

charge mower. Only rear discharge lawn

mowers have a grass catcher included with

the mower. Approved grass catchers for

side discharge mowers may be purchased

from your nearest authorized dealer.

Do I have a mulching lawn mower?

Look for the grass discharge opening on

your mower. Raise the discharge guard

(rear door on rear discharge mowers). If

the opening is closed off by a plate, then

your lawn mower is mulcher ready. To

convert to a discharging mower, see the

Operation section of this manual.

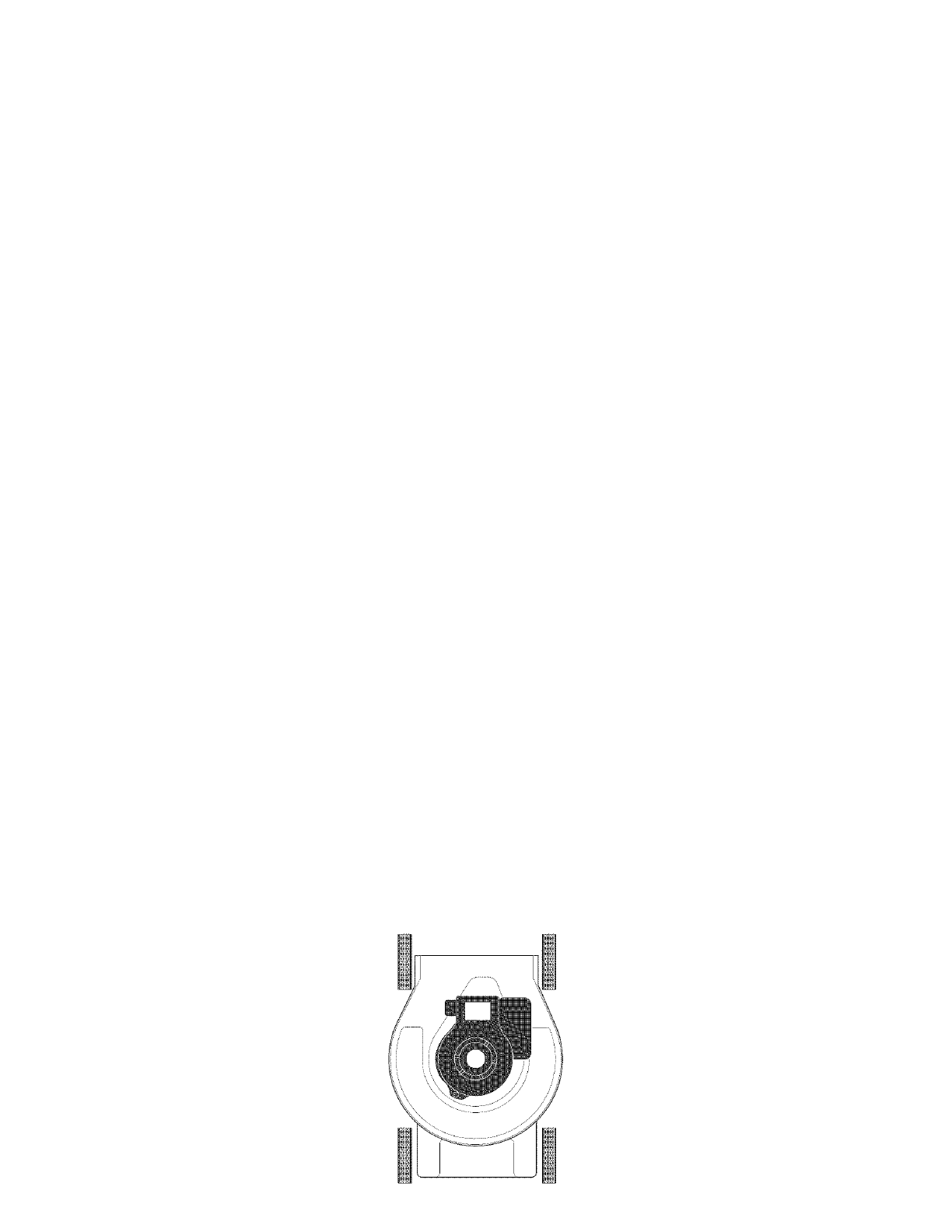

FRONT

LEFT

HAND

SIDE

RIGHT

HAND

SIDE

BACK or REAR

(Operating Position)

What is the right and left side of the

lawn mower?

When right hand (RH) or left hand (LH) is

mentioned in this manual, it means when

you are in the operating position (standing

behind the handle).

What kind of engine is on my lawn

mower?

When learning how to operate your new

lawn mower, you will need to know what

kind of engine powers the mower. A decal

on the engine will indicate the manu-

facturer and type or brand name of the

engine.

BRIGGS & STRATTON ENGINES

[BR_ON) [BR_ON]

CLASSIC/_N,,_mt-

QUAnTum

TECUMSEH

ENGINES

TEOIIMSBt

HONDA

ENGINES

HONDA

4_I,CAUTION: Do not operate this lawn

mower without the discharge guard or an

entire approved grass catcher in place.

These guards are for your protection and

are required by the American National

Standards Institute and Consumer Prod-

ucts Safety Commission.

ACAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come in contact with plug.

HOW TO SET UP YOUR LAWN

MOWER

UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

2 POSITION /"ADJUSTABLE" HANDLES

• Raise handles until lower handle section

locks into place in operating position.

Operator MOWING

presence POSITION

controlbar _,j,/

Upper

UP handle

Handle

knob

Lower handle

3 POSITION "QUICK" HANDLES

• Raise lower handle section to operating

position and squeeze the bottom ends

of lower handle towards each other until

the pin in handle can be inserted into

one of the three height adjustment holes.

3 POSITION "QUICK"

Handle pin

Handle

adjustment

bracket

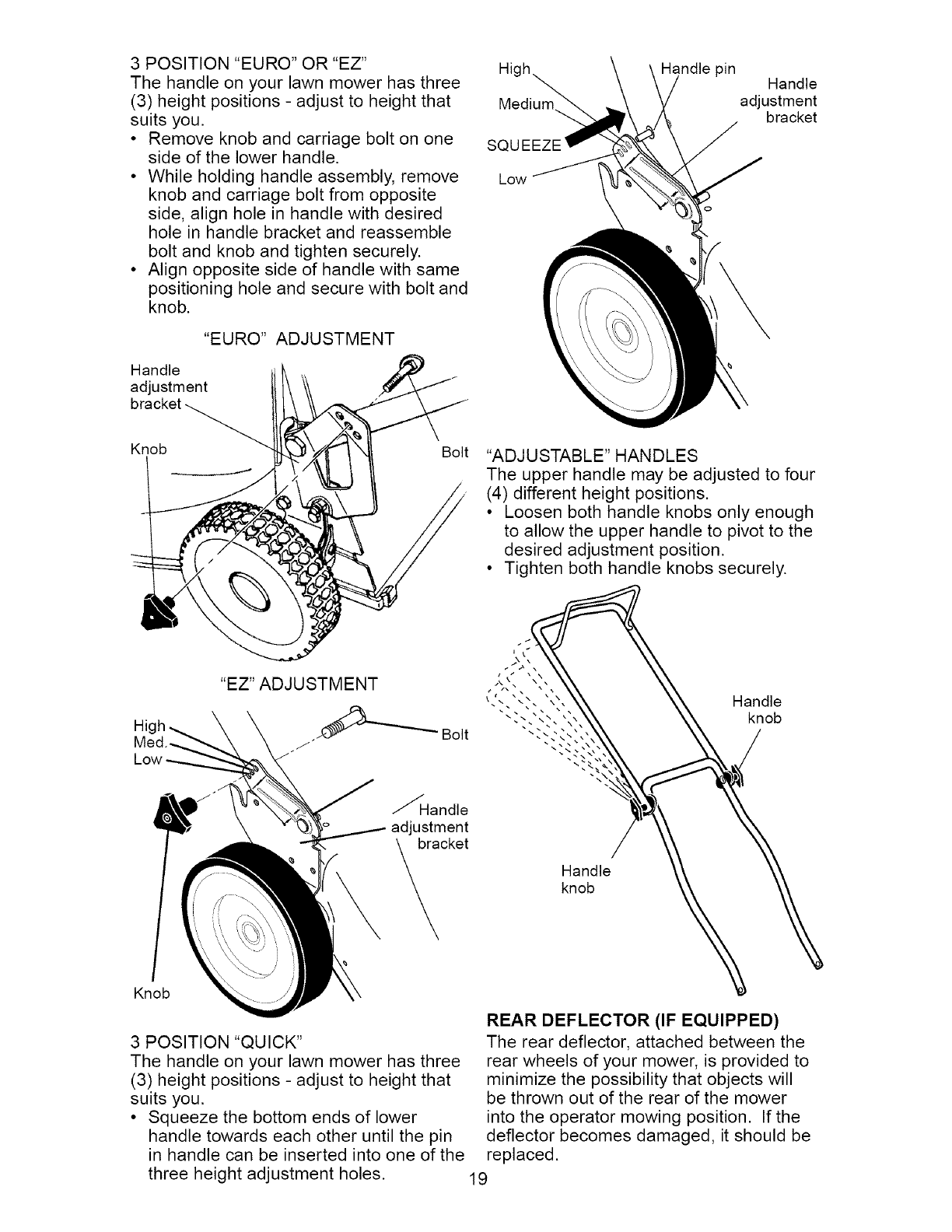

3 POSITION "EURO" /"EZ" HANDLES

• Raise lower handle section to operating

position and align hole in handle with

one of three height positioning holes.

• Insert handle bolt through handle and

bracket and secure with knob.

• Repeat for opposite side of handle.

3 POSITION "EURO"

Handle

adjustment

bracket

Knob Bolt

ALL HANDLES

• Raise upper handle section into place on

lower handle, remove protective padding

and tighten both handle knobs.

• Remove handle padding holding opera-

tor presence control bar to upper handle.

• Your lawn mower handle can be ad-

justed for your mowing comfort. Refer to

"ADJUST HANDLE" in the Service and

Adjustments section of this manual.

NOTE: For shipping purposes, the rear

wheels on your lawn mower may not be

adjusted to the same position as the front

wheels. Before operating mower adjust all

wheels to the same cutting height.

Knob

Handle

adjustment

bracket

INSTALL REAR WHEELS

(HIGH WHEEL MOWERS ONLY)

Some high wheel models require washers

which will be provided in a parts bag. If provid-

ed, install washers on the axle first as shown.

• Install one (1) rear wheel on the axle of

rear wheel adjuster.

Install 3/8-16 Iocknut and tighten securely.

Repeat procedure for other rear wheel.

Wheel Axle

assembly

Flanged

5 Iocknut

Wave

Washers

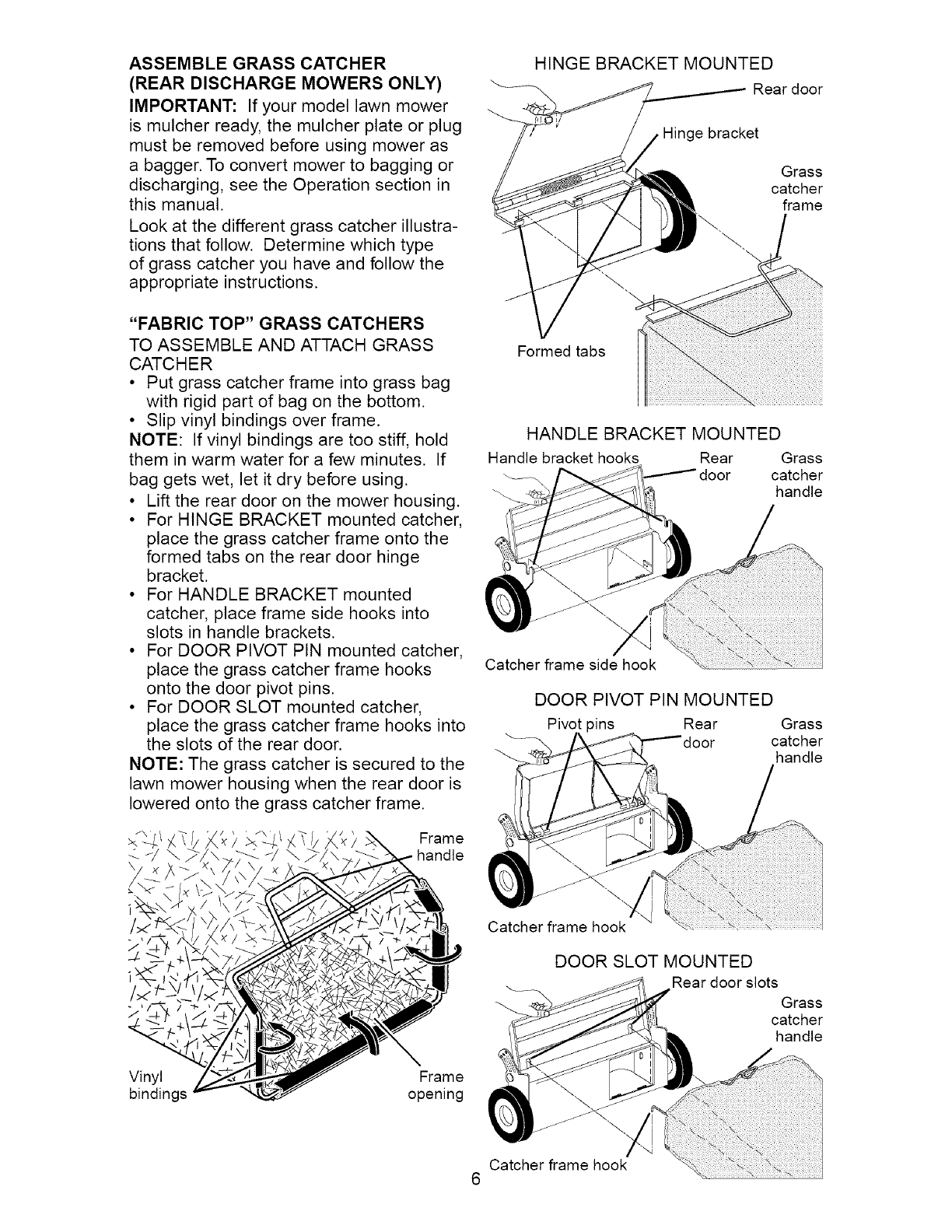

ASSEMBLE GRASS CATCHER

(REAR DISCHARGE MOWERS ONLY)

IMPORTANT: If your model lawn mower

is mulcher ready, the mulcher plate or plug

must be removed before using mower as

a bagger. To convert mower to bagging or

discharging, see the Operation section in

this manual.

Look at the different grass catcher illustra-

tions that follow. Determine which type

of grass catcher you have and follow the

appropriate instructions.

"FABRIC TOP" GRASS CATCHERS

TO ASSEMBLE AND ATTACH GRASS

CATCHER

• Put grass catcher frame into grass bag

with rigid part of bag on the bottom.

• Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for a few minutes. If

bag gets wet, let it dry before using.

• Lift the rear door on the mower housing.

• For HINGE BRACKET mounted catcher,

place the grass catcher frame onto the

formed tabs on the rear door hinge

bracket.

• For HANDLE BRACKET mounted

catcher, place frame side hooks into

slots in handle brackets.

• For DOOR PIVOT PIN mounted catcher,

place the grass catcher frame hooks

onto the door pivot pins.

• For DOOR SLOT mounted catcher,

place the grass catcher frame hooks into

the slots of the rear door.

NOTE: The grass catcher is secured to the

lawn mower housing when the rear door is

lowered onto the grass catcher frame.

Vinyl Frame

bindings opening

HINGE BRACKET MOUNTED

Rear door

Formed tabs

Hinge bracket

Grass

catcher

frame

HANDLE BRACKET MOUNTED

Handle bracket hooks Rear Grass

....... door catcher

_. handle

Catcher frame side hook

DOOR PIVOT PIN MOUNTED

Pivot pins Rear Grass

catcher

handle

Catcher frame hook

DOOR SLOT MOUNTED

Rear door slots

Grass

catcher

handle

Catcher frame hook

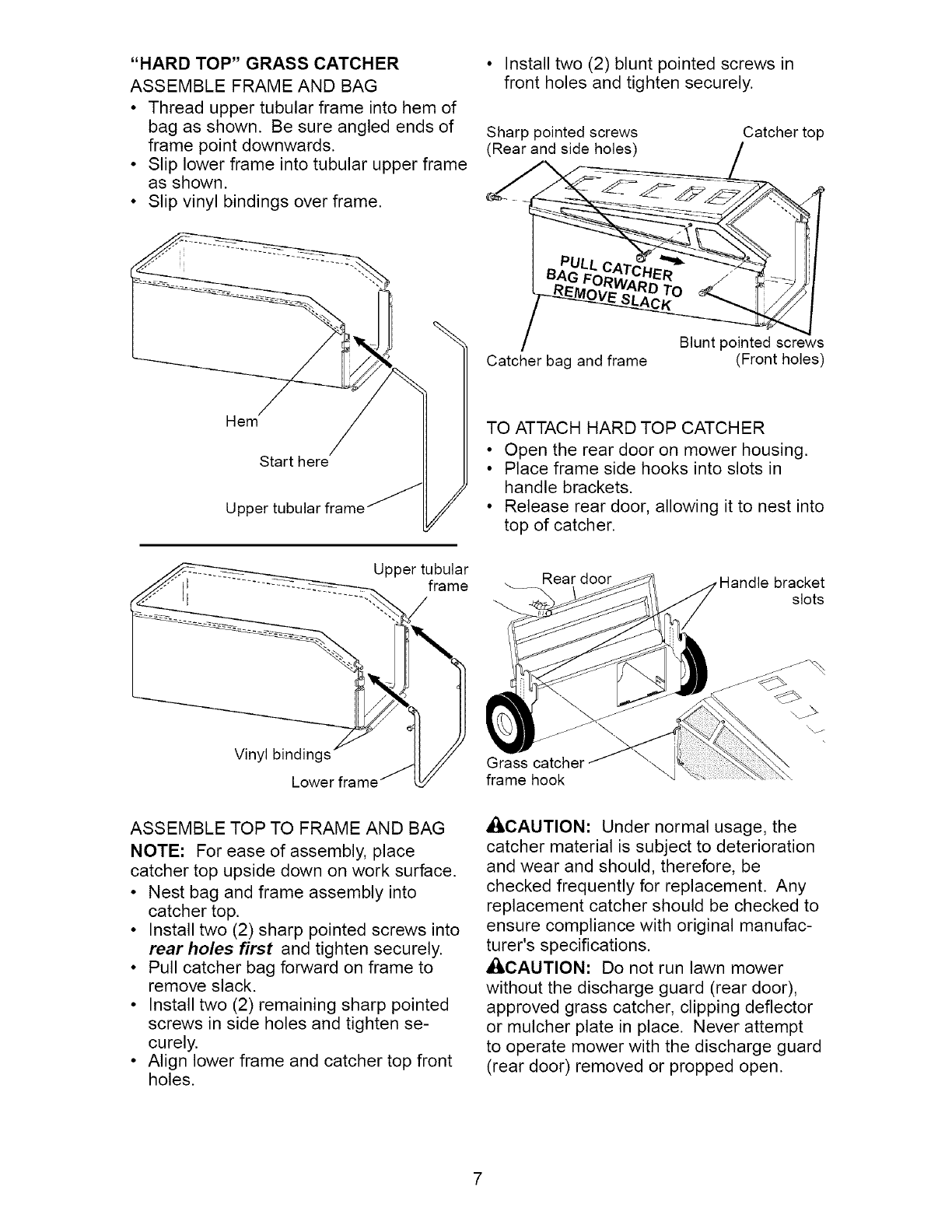

"HARD TOP" GRASS CATCHER

ASSEMBLE FRAME AND BAG

•Thread upper tubular frame into hem of

bag as shown. Be sure angled ends of

frame point downwards.

• Slip lower frame into tubular upper frame

as shown

• Slip vinyl bindings over frame.

• Install two (2) blunt pointed screws in

front holes and tighten securely.

Sharp pointed screws

(Rear and side holes) Catcher top

Hem

Start here

Upper tubular frame _

Catcher bag and frame

Blunt pointed screws

(Front holes)

TO ATTACH HARD TOP CATCHER

• Open the rear door on mower housing.

• Place frame side hooks into slots in

handle brackets.

• Release rear door, allowing it to nest into

top of catcher.

Vinyl bindings

Upper tubular

frame Rear door

Grass catcher

frame hook

slots

ASSEMBLE TOP TO FRAME AND BAG

NOTE: For ease of assembly, place

catcher top upside down on work surface.

• Nest bag and frame assembly into

catcher top.

• Install two (2) sharp pointed screws into

rear holes first and tighten securely.

• Pull catcher bag forward on frame to

remove slack.

• Install two (2) remaining sharp pointed

screws in side holes and tighten se-

curely.

• Align lower frame and catcher top front

holes.

ACAUTION: Under normal usage, the

catcher material is subject to deterioration

and wear and should, therefore, be

checked frequently for replacement. Any

replacement catcher should be checked to

ensure compliance with original manufac-

turer's specifications.

_CAUTION: Do not run lawn mower

without the discharge guard (rear door),

approved grass catcher, clipping deflector

or mulcher plate in place. Never attempt

to operate mower with the discharge guard

(rear door) removed or propped open.

SPARK PLUG BOOT

On some models a spark plug boot is

packed loose in the parts bag. If your

model has the boot, install on spark plug

wire and reconnect spark plug wire to

spark plug.

Spark plug

, r///

IMPORTANT: The engine alternator will

not charge a discharged battery.

ALL UNITS:

At the end of the mowing season the

battery should be charged for 48 hours to

protect the battery during winter storage.

ACAUTION: Always disconnect the

engine connector (male) from the battery

connector (female) to prevent accidental

starting when transporting or storing your

lawn mower after the season.

Boot

TO PREPARE BATTERY

(ELECTRIC START MODELS ONLY)

NOTE: Your battery must be charged

before you can start your lawn mower.

UNITS WITH HANDLE-MOUNTED KEY

SWITCH ONLY:

•Connect battery charger connector

(male) to harness connector (female).

UNITS WITH DECK-MOUNTED BATTERY

or TRIMPLATE-MOUNTED KEY SWITCH:

• Disconnect engine connector (male)

from battery connector (female).

• Connect battery charger connector

(male) to battery connector (female).

ALL UNITS:

• Plug battery charger into 110 volt A.C.

outlet.

• Leave battery charger connected for 24

hours before starting your engine for the

first time.

UNITS WITH HANDLE-MOUNTED KEY

SWITCH ONLY:

• After charging, disconnect harness

connector (female) from battery charger

connector (male).

Connect your battery charger to charge

battery after each use.

IMPORTANT: The engine will not recharge

your battery.

UNITS WITH DECK-MOUNTED BATTERY

or TRIMPLATE-MOUNTED KEY SWITCH:

• After charging, connect engine connector

(male) to battery connector (female).

Your engine has an integral alternator for

partial charging. Connect your battery

charger to charge battery as required.

HANDLE-MOUNTED KEY SWITCH

Engine \ Harness

connector connector

ale)

Charger

connector (male)

DECK-MOUNTED BATTERY

Engine

connector

(Male)

Battery

charger

/_/, charger

/_ connector

Battery connector(Female) (Male)

TRIMPLATE-MOUNTED KEY SWITCH

Charger connector Battery connector

(female)

Engine

8 connector (male) Battery charger

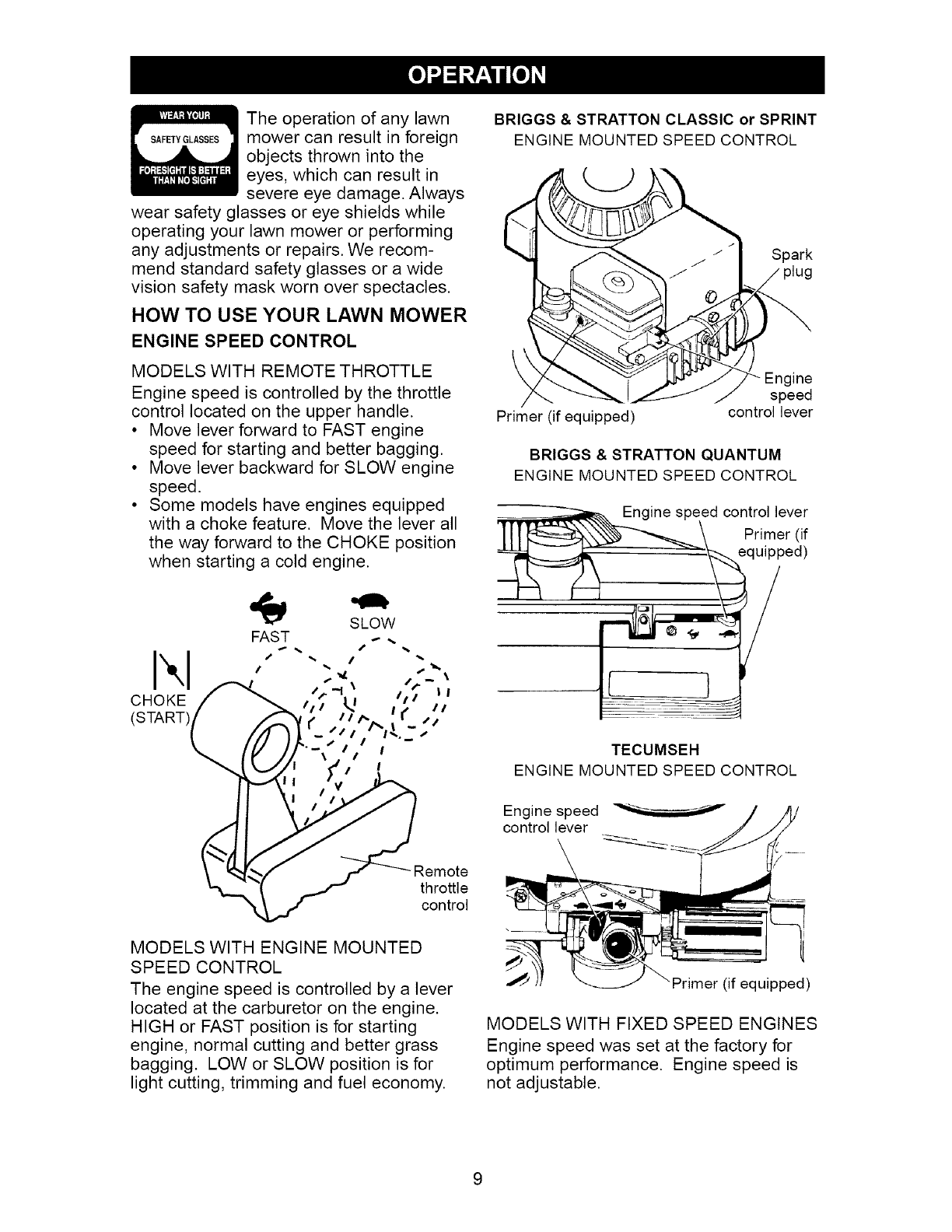

The operation of any lawn

SAFETYGLASSESmower can result in foreign

objects thrown into the

eyes, which can result in

severe eye damage. Always

wear safety glasses or eye shields while

operating your lawn mower or performing

any adjustments or repairs. We recom-

mend standard safety glasses or a wide

vision safety mask worn over spectacles.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED CONTROL

MODELS WITH REMOTE THROTTLE

Engine speed is controlled by the throttle

control located on the upper handle.

•Move lever forward to FAST engine

speed for starting and better bagging.

• Move lever backward for SLOW engine

speed.

• Some models have engines equipped

with a choke feature. Move the lever all

the way forward to the CHOKE position

when starting a cold engine.

MODELS WITH ENGINE MOUNTED

SPEED CONTROL

The engine speed is controlled by a lever

located at the carburetor on the engine.

HIGH or FAST position is for starting

engine, normal cutting and better grass

bagging. LOW or SLOW position is for

light cutting, trimming and fuel economy.

BRIGGS & STRATTON CLASSIC or SPRINT

ENGINE MOUNTED SPEED CONTROL

Spark

\Engine

I speed

Primer (if equipped) control lever

BRIGGS & STRATTON QUANTUM

ENGINE MOUNTED SPEED CONTROL

Engine speed control lever

__ \ Primer (if

TECUMSEH

ENGINE MOUNTED SPEED CONTROL

Engine speed

control lever

(if equipped)

MODELS WITH FIXED SPEED ENGINES

Engine speed was set at the factory for

optimum performance. Engine speed is

not adjustable.

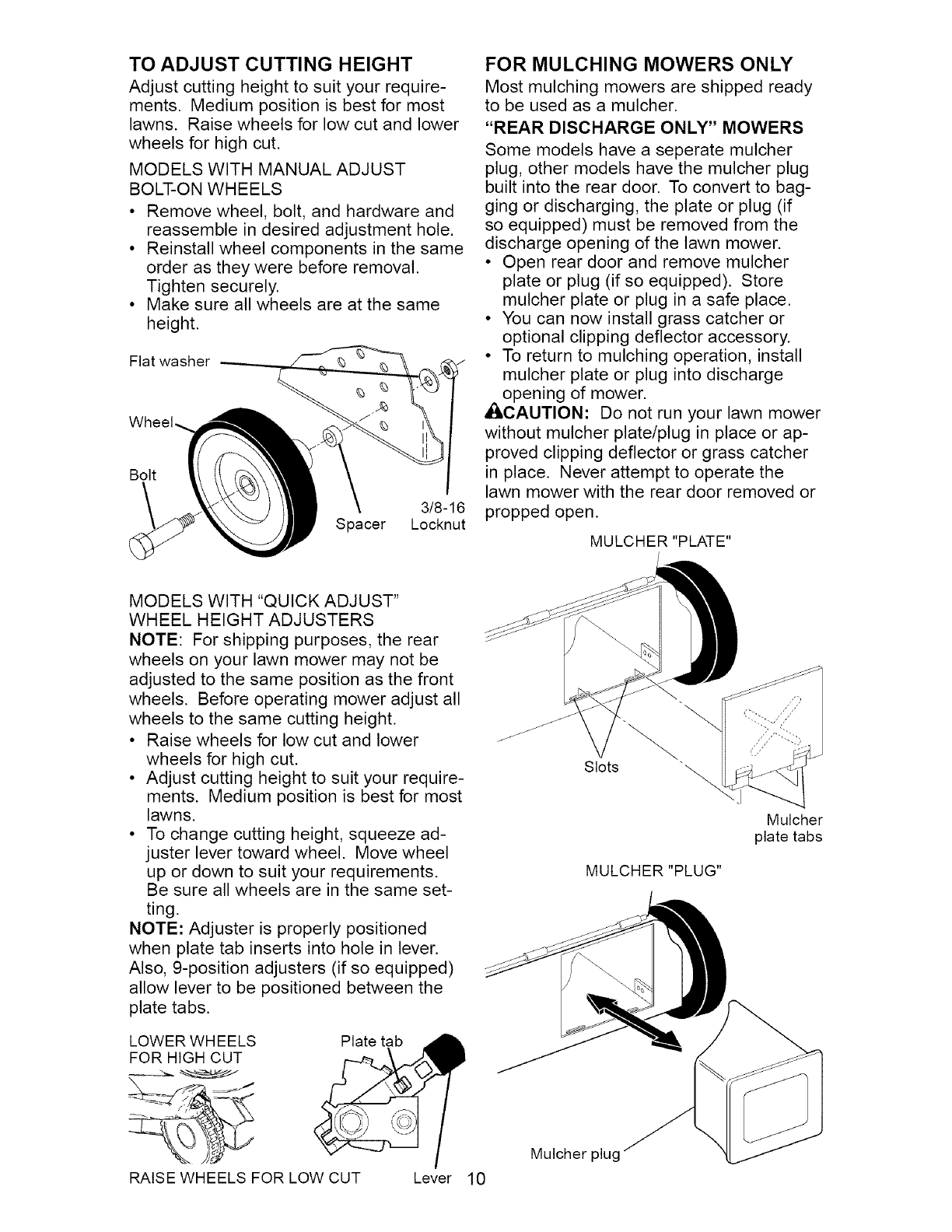

TO ADJUST CUTTING HEIGHT

Adjust cutting height to suit your require-

ments. Medium position is best for most

lawns. Raise wheels for low cut and lower

wheels for high cut.

MODELS WITH MANUAL ADJUST

BOLT-ON WHEELS

• Remove wheel, bolt, and hardware and

reassemble in desired adjustment hole.

• Reinstall wheel components in the same

order as they were before removal.

Tighten securely.

• Make sure all wheels are at the same

height.

Flat washer

Wheel_

Bolt

3/8-16

Spacer Locknut

FOR MULCHING MOWERS ONLY

Most mulching mowers are shipped ready

to be used as a mulcher.

"REAR DISCHARGE ONLY" MOWERS

Some models have a seperate mulcher

plug, other models have the mulcher plug

built into the rear door. To convert to bag-

ging or discharging, the plate or plug (if

so equipped) must be removed from the

discharge opening of the lawn mower.

• Open rear door and remove mulcher

plate or plug (if so equipped). Store

mulcher plate or plug in a safe place.

• You can now install grass catcher or

optional clipping deflector accessory.

• To return to mulching operation, install

mulcher plate or plug into discharge

opening of mower.

ACAUTION: Do not run your lawn mower

without mulcher plate/plug in place or ap-

proved clipping deflector or grass catcher

in place. Never attempt to operate the

lawn mower with the rear door removed or

propped open.

MULCHER "PLATE"

MODELS WITH "QUICK ADJUST"

WHEEL HEIGHT ADJUSTERS

NOTE: For shipping purposes, the rear

wheels on your lawn mower may not be

adjusted to the same position as the front

wheels. Before operating mower adjust all

wheels to the same cutting height.

• Raise wheels for low cut and lower

wheels for high cut.

• Adjust cutting height to suit your require-

ments. Medium position is best for most

lawns.

• To change cutting height, squeeze ad-

juster lever toward wheel. Move wheel

up or down to suit your requirements.

Be sure all wheels are in the same set-

ting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

LOWER WHEELS

FOR HIGH CUT

RAISE WHEELS FOR LOW CUT

Plate tab

Lever 10

Slots "_

MULCHER "PLUG"

Mulcher plug

Mulcher

plate tabs

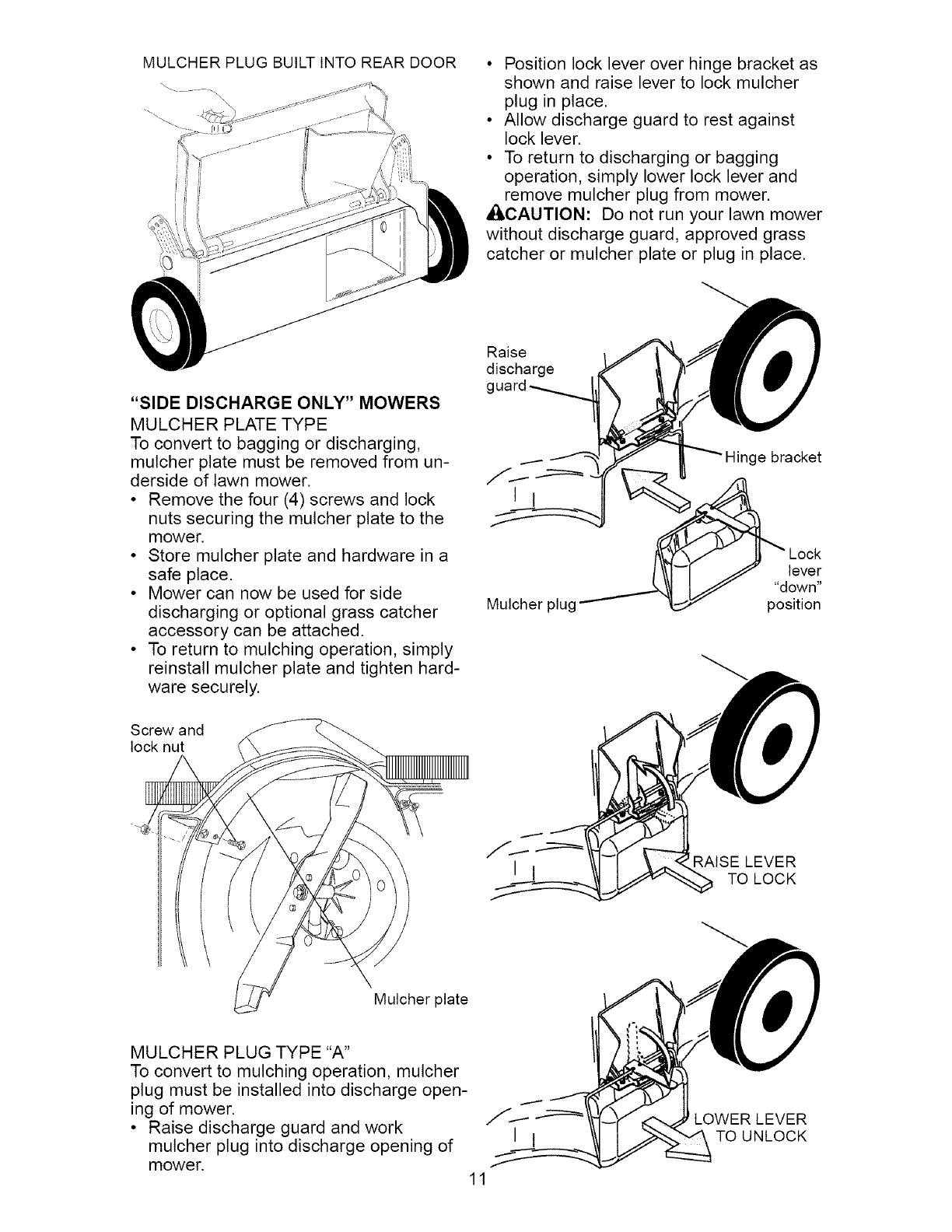

MULCHERPLUGBUILTINTOREARDOOR • Position lock lever over hinge bracket as

shown and raise lever to lock mulcher

plug in place.

• Allow discharge guard to rest against

lock lever.

• To return to discharging or bagging

operation, simply lower lock lever and

remove mulcher plug from mower.

ACAUTION: Do not run your lawn mower

without discharge guard, approved grass

catcher or mulcher plate or plug in place.

"SIDE DISCHARGE ONLY" MOWERS

MULCHER PLATE TYPE

To convert to bagging or discharging,

mulcher plate must be removed from un-

derside of lawn mower.

• Remove the four (4) screws and lock

nuts securing the mulcher plate to the

mower.

• Store mulcher plate and hardware in a

safe place.

• Mower can now be used for side

discharging or optional grass catcher

accessory can be attached.

• To return to mulching operation, simply

reinstall mulcher plate and tighten hard-

ware securely.

Screw and

lock nut

Raise

discharge

Mulcher plug

_gebracket

Lock

lever

"down"

position

RAISE LEVER

TO LOCK

Mulcher plate

MULCHER PLUG TYPE "A"

To convert to mulching operation, mulcher

plug must be installed into discharge open-

ing of mower.

• Raise discharge guard and work

mulcher plug into discharge opening of

mower. 11

LOWER LEVER

TO UNLOCK

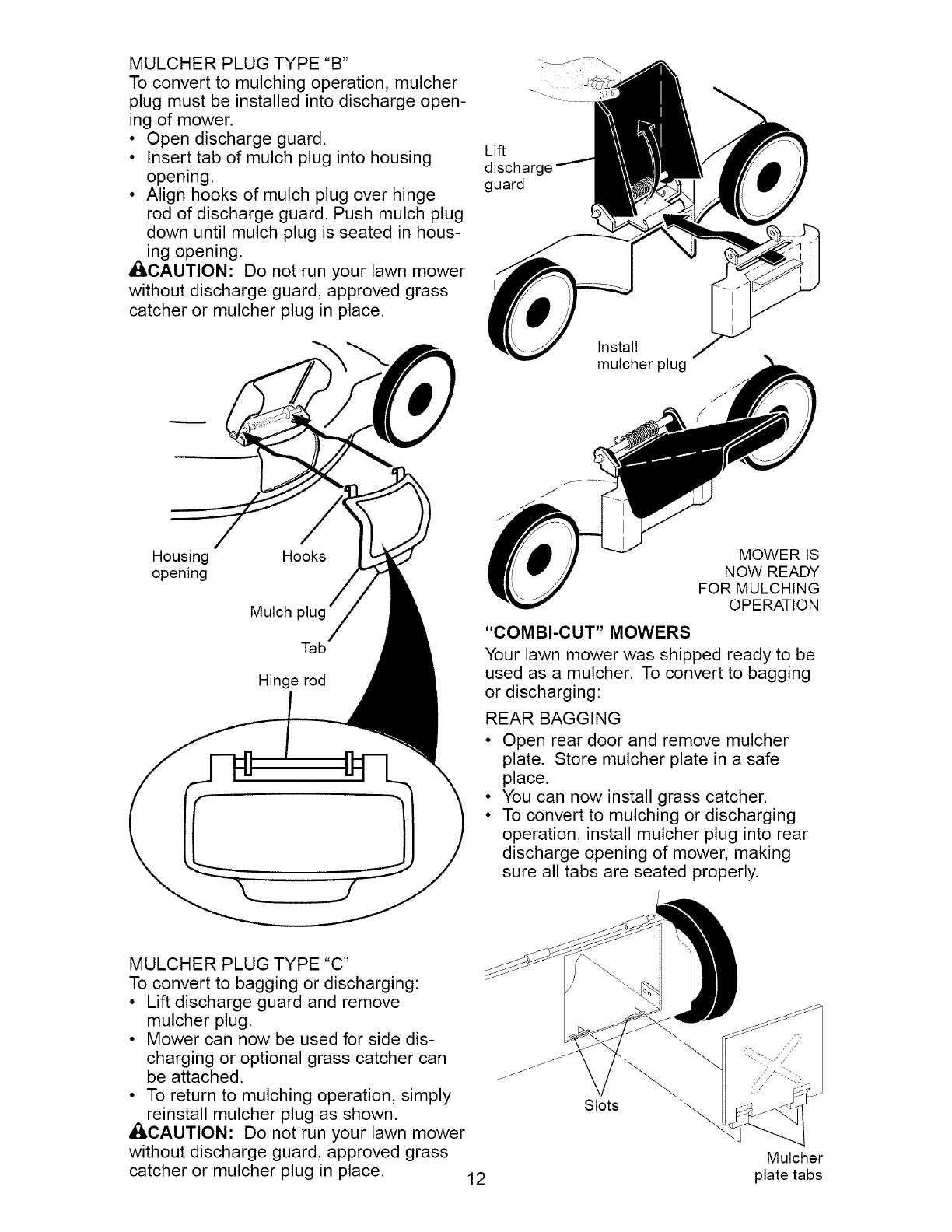

MULCHER PLUG TYPE "B"

To convert to mulching operation, mulcher

plug must be installed into discharge open-

ing of mower.

• Open discharge guard.

• Insert tab of mulch plug into housing

opening.

• Align hooks of mulch plug over hinge

rod of discharge guard. Push mulch plug

down until mulch plug is seated in hous-

ing opening.

_I_CAUTION: Do not run your lawn mower

without discharge guard, approved grass

catcher or mulcher plug in place.

Housing Hooks

opening

Mulch

Tab

Hinge rod

Lift

discharge

guard

Install

mulcher plug

MOWER IS

NOW READY

FOR MULCHING

OPERATION

"COMBI-CUT" MOWERS

Your lawn mower was shipped ready to be

used as a mulcher. To convert to bagging

or discharging:

REAR BAGGING

• Open rear door and remove mulcher

plate. Store mulcher plate in a safe

place.

• You can now install grass catcher.

• To convert to mulching or discharging

operation, install mulcher plug into rear

discharge opening of mower, making

sure all tabs are seated properly.

MULCHER PLUG TYPE "C"

To convert to bagging or discharging:

• Lift discharge guard and remove

mulcher plug.

• Mower can now be used for side dis-

charging or optional grass catcher can

be attached.

• To return to mulching operation, simply

reinstall mulcher plug as shown.

ACAUTION: Do not run your lawn mower

without discharge guard, approved grass

catcher or mulcher plug in place. 12

Slots "_

Mulcher

plate tabs

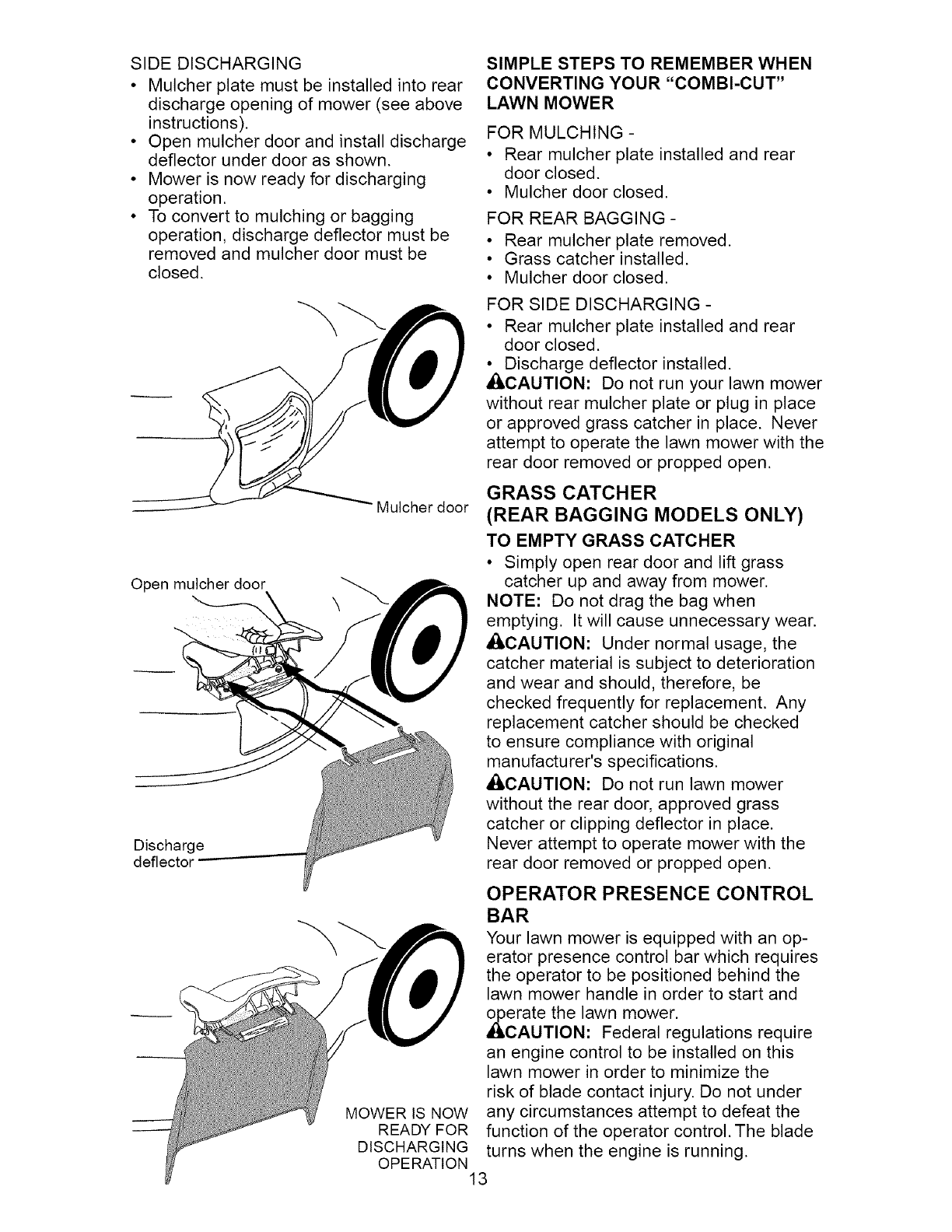

SIDE DISCHARGING

• Mulcher plate must be installed into rear

discharge opening of mower (see above

instructions).

• Open mulcher door and install discharge

deflector under door as shown.

• Mower is now ready for discharging

operation.

• To convert to mulching or bagging

operation, discharge deflector must be

removed and mulcher door must be

closed.

SIMPLE STEPS TO REMEMBER WHEN

CONVERTING YOUR "COMBI-CUT"

LAWN MOWER

FOR MULCHING -

• Rear mulcher plate installed and rear

door closed.

• Mulcher door closed

FOR REAR BAGGING -

• Rear mulcher plate removed

• Grass catcher installed

• Mulcher door closed

Open mulcher door

Discharge

deflector

Mulcher door

MOWER IS NOW

READY FOR

DISCHARGING

OPERATION

FOR SIDE DISCHARGING -

• Rear mulcher plate installed and rear

door closed.

• Discharge deflector installed.

_&CAUTION: Do not run your lawn mower

without rear mulcher plate or plug in place

or approved grass catcher in place. Never

attempt to operate the lawn mower with the

rear door removed or propped open.

GRASS CATCHER

(REAR BAGGING MODELS ONLY)

TO EMPTY GRASS CATCHER

• Simply open rear door and lift grass

catcher up and away from mower.

NOTE: Do not drag the bag when

emptying. It will cause unnecessary wear.

_CAUTION: Under normal usage, the

catcher material is subject to deterioration

and wear and should, therefore, be

checked frequently for replacement. Any

replacement catcher should be checked

to ensure compliance with original

manufacturer's specifications.

_I, CAUTION: Do not run lawn mower

without the rear door, approved grass

catcher or clipping deflector in place.

Never attempt to operate mower with the

rear door removed or propped open.

OPERATOR PRESENCE CONTROL

BAR

Your lawn mower is equipped with an op-

erator presence control bar which requires

the operator to be positioned behind the

lawn mower handle in order to start and

_erate the lawn mower.

CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the

risk of blade contact injury. Do not under

any circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

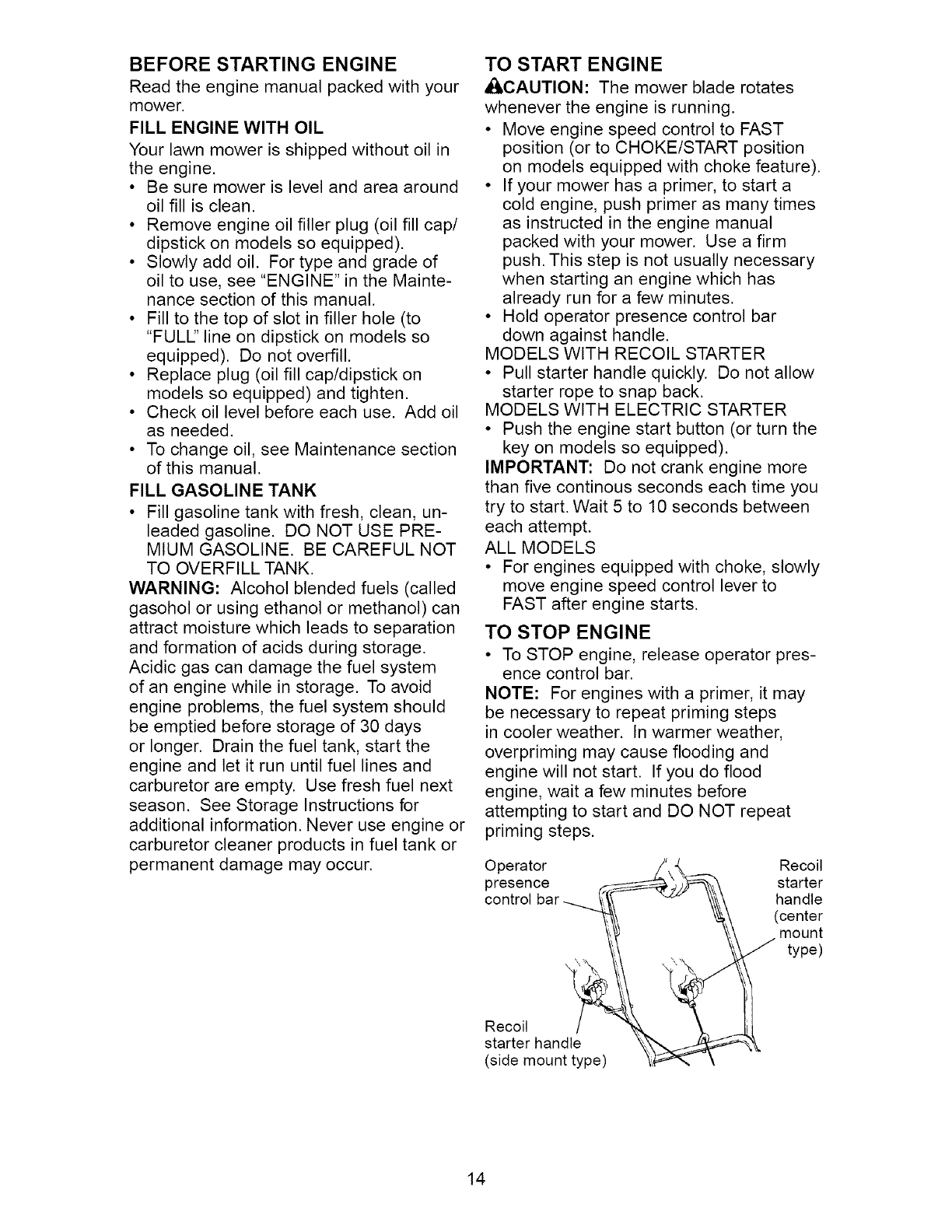

BEFORE STARTING ENGINE

Read the engine manual packed with your

mower.

FILL ENGINE WITH OIL

Your lawn mower is shipped without oil in

the engine.

• Be sure mower is level and area around

oil fill is clean.

• Remove engine oil filler plug (oil fill cap/

dipstick on models so equipped).

• Slowly add oil. For type and grade of

oil to use, see "ENGINE" in the Mainte-

nance section of this manual.

• Fill to the top of slot in filler hole (to

"FULl" line on dipstick on models so

equipped). Do not overfill.

• Replace plug (oil fill cap/dipstick on

models so equipped) and tighten.

• Check oil level before each use. Add oil

as needed.

• To change oil, see Maintenance section

of this manual.

FILL GASOLINE TANK

• Fill gasoline tank with fresh, clean, un-

leaded gasoline. DO NOT USE PRE-

MIUM GASOLINE. BE CAREFUL NOT

TO OVERFILL TANK.

WARNING: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separation

and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the fuel tank, start the

engine and let it run until fuel lines and

carburetor are empty. Use fresh fuel next

season. See Storage Instructions for

additional information. Never use engine or

carburetor cleaner products in fuel tank or

permanent damage may occur.

TO START ENGINE

_CAUTION: The mower blade rotates

whenever the engine is running.

• Move engine speed control to FAST

position (or to CHOKE/START position

on models equipped with choke feature).

• If your mower has a primer, to start a

cold engine, push primer as many times

as instructed in the engine manual

packed with your mower. Use a firm

push. This step is not usually necessary

when starting an engine which has

already run for a few minutes.

• Hold operator presence control bar

down against handle.

MODELS WITH RECOIL STARTER

• Pull starter handle quickly. Do not allow

starter rope to snap back.

MODELS WITH ELECTRIC STARTER

• Push the engine start button (or turn the

key on models so equipped).

IMPORTANT: Do not crank engine more

than five continous seconds each time you

try to start. Wait 5 to 10 seconds between

each attempt.

ALL MODELS

• For engines equipped with choke, slowly

move engine speed control lever to

FAST after engine starts.

TO STOP ENGINE

• To STOP engine, release operator pres-

ence control bar.

NOTE: For engines with a primer, it may

be necessary to repeat priming steps

in cooler weather. In warmer weather,

overpriming may cause flooding and

engine will not start. If you do flood

engine, wait a few minutes before

attempting to start and DO NOT repeat

priming steps.

Operator Recoil

presence starter

control handle

(center

mount

type)

Recoil

starter handle

(side mount type)

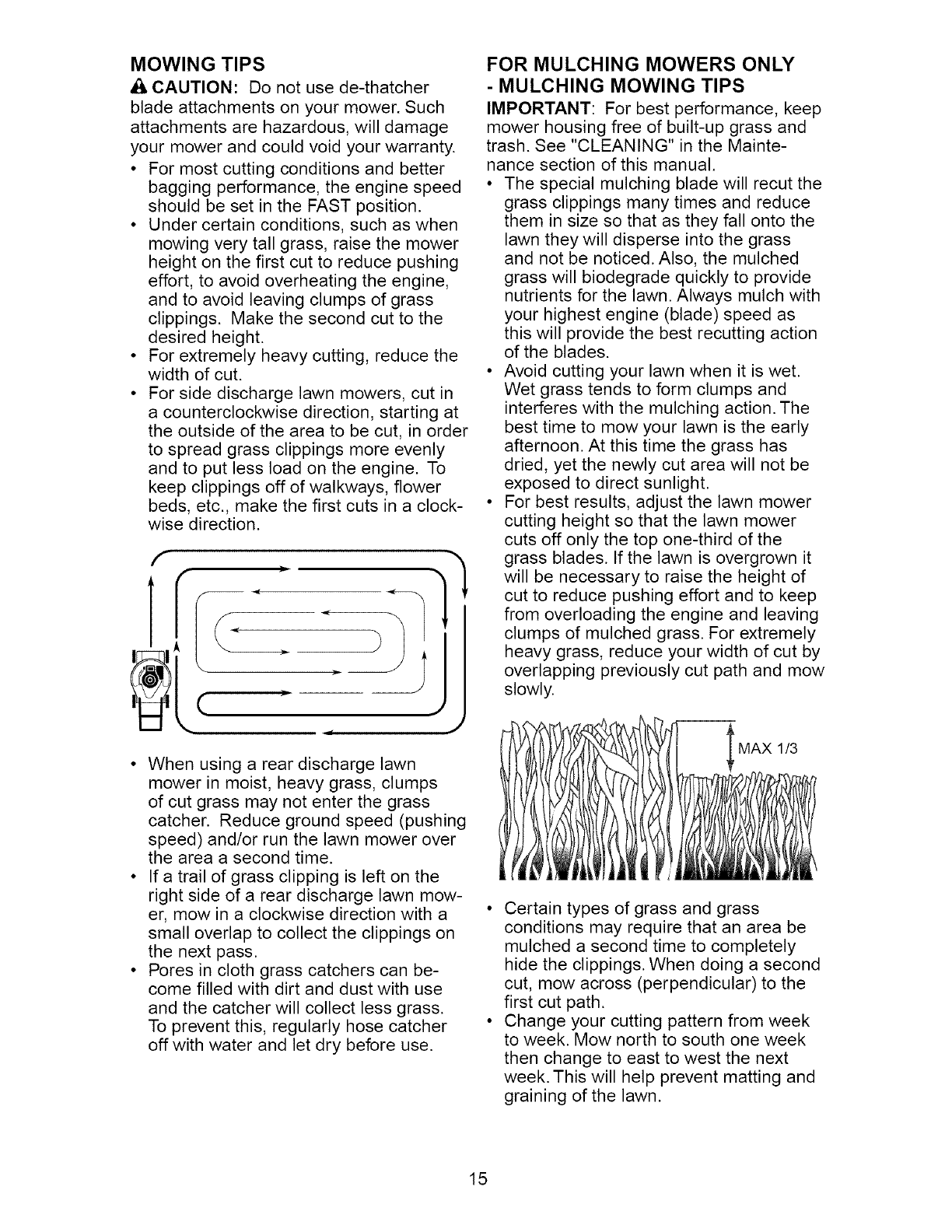

MOWING TIPS

A CAUTION: Do not use de-thatcher

blade attachments on your mower. Such

attachments are hazardous, will damage

your mower and could void your warranty.

•For most cutting conditions and better

bagging performance, the engine speed

should be set in the FAST position.

• Under certain conditions, such as when

mowing very tall grass, raise the mower

height on the first cut to reduce pushing

effort, to avoid overheating the engine,

and to avoid leaving clumps of grass

clippings. Make the second cut to the

desired height.

• For extremely heavy cutting, reduce the

width of cut.

• For side discharge lawn mowers, cut in

a counterclockwise direction, starting at

the outside of the area to be cut, in order

to spread grass clippings more evenly

and to put less load on the engine. To

keep clippings off of walkways, flower

beds, etc., make the first cuts in a clock-

wise direction.

FOR MULCHING MOWERS ONLY

-MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. See "CLEANING" in the Mainte-

nance section of this manual.

• The special mulching blade will recut the

grass clippings many times and reduce

them in size so that as they fall onto the

lawn they will disperse into the grass

and not be noticed. Also, the mulched

grass will biodegrade quickly to provide

nutrients for the lawn. Always mulch with

your highest engine (blade) speed as

this will provide the best recutting action

of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, yet the newly cut area will not be

exposed to direct sunlight.

• For best results, adjust the lawn mower

cutting height so that the lawn mower

cuts off only the top one-third of the

grass blades. If the lawn is overgrown it

will be necessary to raise the height of

cut to reduce pushing effort and to keep

from overloading the engine and leaving

clumps of mulched grass. For extremely

heavy grass, reduce your width of cut by

overlapping previously cut path and mow

slowly.

]

(

• When using a rear discharge lawn

mower in moist, heavy grass, clumps

of cut grass may not enter the grass

catcher. Reduce ground speed (pushing

speed) and/or run the lawn mower over

the area a second time.

• If a trail of grass clipping is left on the

right side of a rear discharge lawn mow-

er, mow in a clockwise direction with a

small overlap to collect the clippings on

the next pass.

• Pores in cloth grass catchers can be-

come filled with dirt and dust with use

and the catcher will collect less grass.

To prevent this, regularly hose catcher

off with water and let dry before use.

MAX 1/3

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a second

cut, mow across (perpendicular) to the

first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

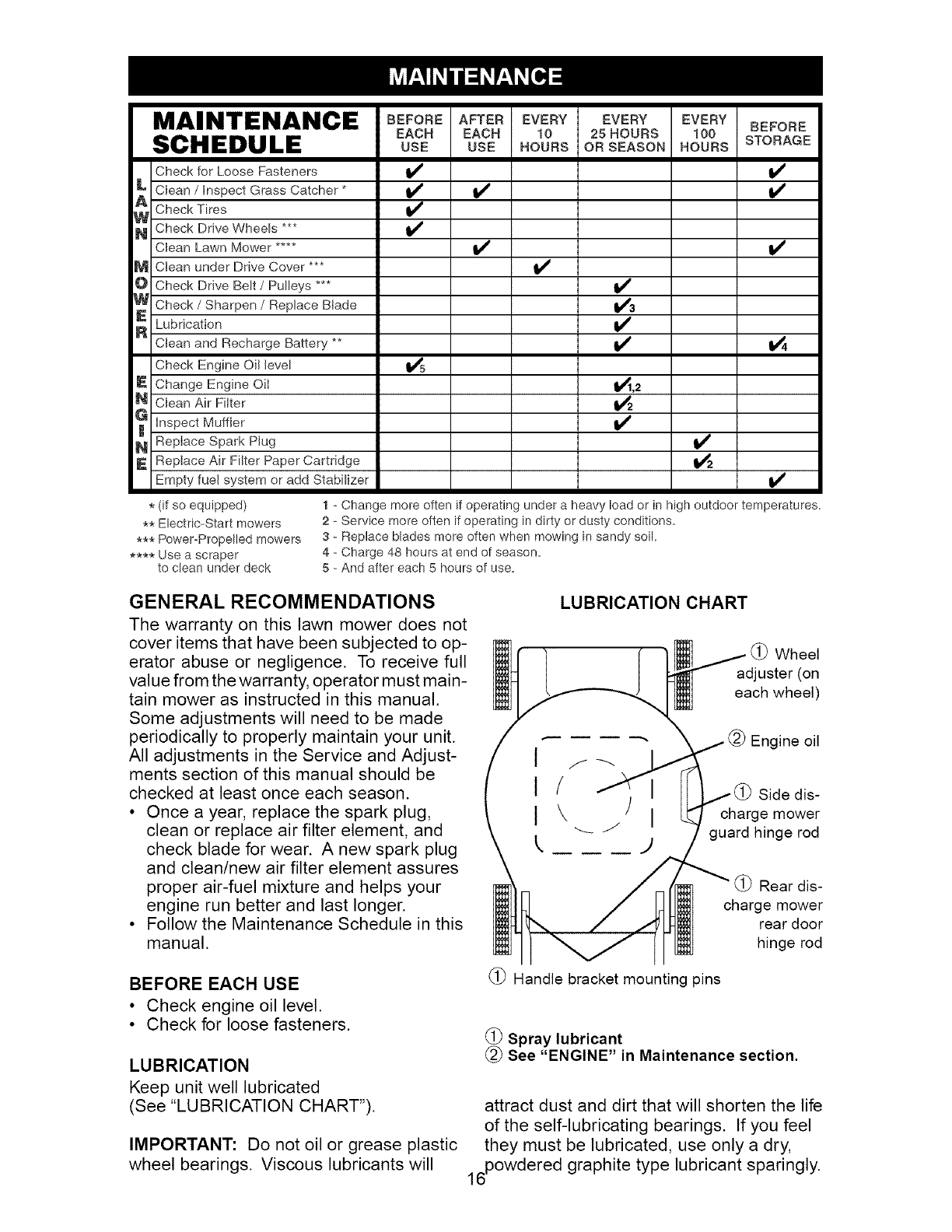

MAINTENANCE BEFOREAFTEREVERY

EACH EACH 10

SCHEDULE USE USE HOURS

Check for Loose Fasteners

LClean /inspect Grass Catcher *

_ Check Tires

N Check Drive Wheels ***

Clean Lawn Mower ....

M Clean under Drive Cover ***

O Check Drive Belt /Pulleys ***

_ Check /Sharpen /Replace Blade

R Lubrication

Clean and Recharge Battery **

Check Engine Oil level

E Change Engine OiI

N Clean Air Filter

t Inspect Muffler

N Replace Spark Plug

E Replace Air Filter Paper Cartridge

Empty fuel system or add Stabilizer

EVERY EVERY BEFORE

25HOURS 100 STORAGE

OR SEASON HOURS

v' V'

_,2

* (if so equipped)

** Electric-Start mowers

*** PoweFPropelled mowers

**** Use a scraper

to clean under deck

1 - Change mere often if operating under a heavy load or in high outdoor temperatures.

2 - Service more often if operating in dirty or dusty conditions.

3-Replace blades more often when mowing in sandy soil

4 - Charge 48 hours at end of season.

5 - And after each 5 hours of use.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not

cover items that have been subjected to op-

erator abuse or negligence. To receive full

value from the warranty, operator must main-

tain mower as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

All adjustments in the Service and Adjust-

ments section of this manual should be

checked at least once each season.

• Once a year, replace the spark plug,

clean or replace air filter element, and

check blade for wear. A new spark plug

and clean/new air filter element assures

proper air-fuel mixture and helps your

engine run better and last longer.

• Follow the Maintenance Schedule in this

manual.

BEFORE EACH USE

• Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated

(See "LUBRICATION CHART").

IMPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lubricants will

LUBRICATION CHART

(_ Wheel

adjuster (on

each wheel)

_) Engine oil

Side dis-

charge mower

guard hinge rod

Rear dis-

charge mower

rear door

hinge rod

(_) Handle bracket mounting pins

Spray lubricant

See "ENGINE" in Maintenance section.

attract dust and dirt that will shorten the life

of the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

6Powdered graphite type lubricant sparingly.

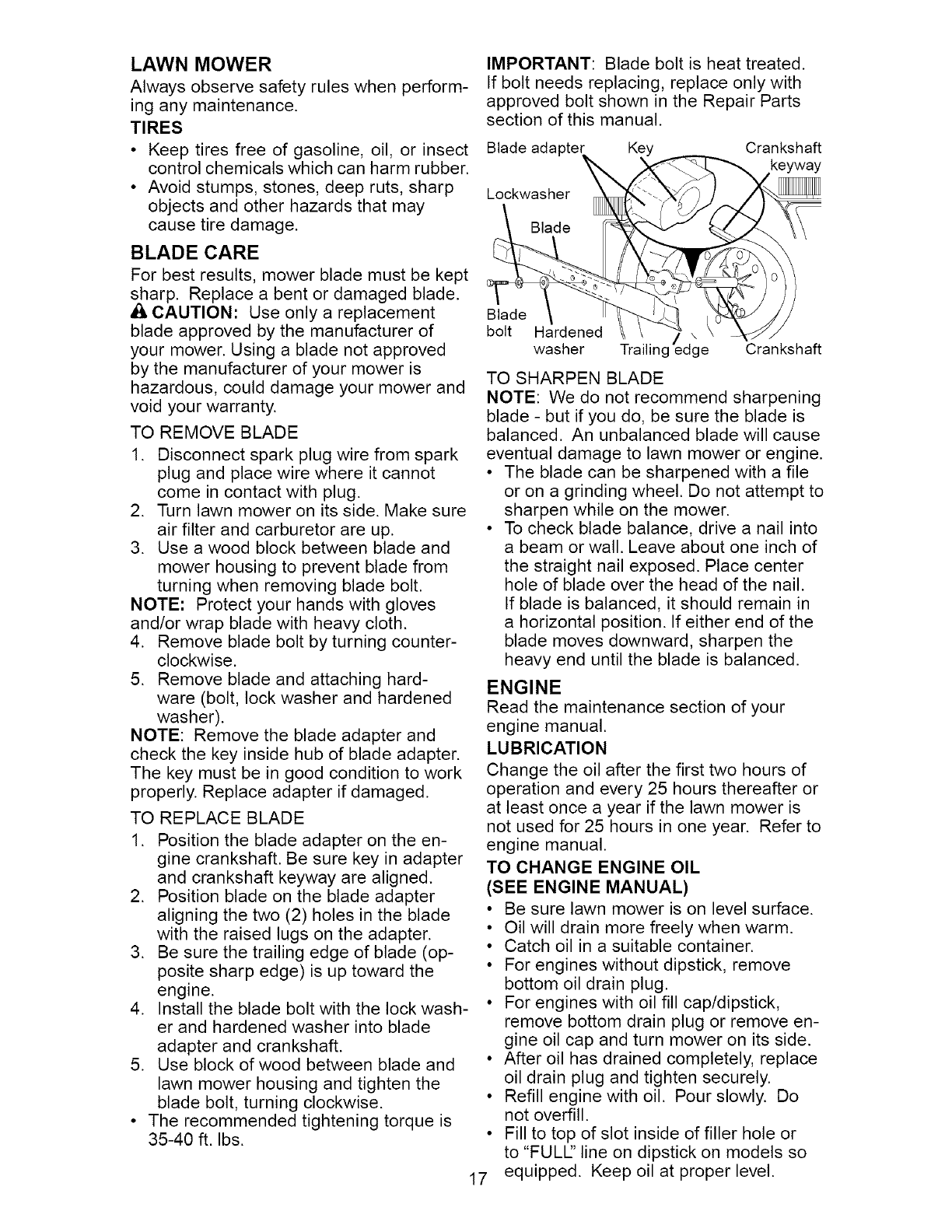

LAWN MOWER

Always observe safety rules when perform-

ing any maintenance.

TIRES

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

BLADE CARE

For best results, mower blade must be kept

sharp. Replace a bent or damaged blade.

CAUTION: Use only a replacement

blade approved by the manufacturer of

your mower. Using a blade not approved

by the manufacturer of your mower is

hazardous, could damage your mower and

void your warranty.

TO REMOVE BLADE

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with plug.

2. Turn lawn mower on its side. Make sure

air filter and carburetor are up.

3. Use a wood block between blade and

mower housing to prevent blade from

turning when removing blade bolt.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

4. Remove blade bolt by turning counter-

clockwise.

5. Remove blade and attaching hard-

ware (bolt, lock washer and hardened

washer).

NOTE: Remove the blade adapter and

check the key inside hub of blade adapter.

The key must be in good condition to work

properly. Replace adapter if damaged.

TO REPLACE BLADE

1. Position the blade adapter on the en-

gine crankshaft. Be sure key in adapter

and crankshaft keyway are aligned.

2. Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

3. Be sure the trailing edge of blade (op-

posite sharp edge) is up toward the

engine.

4. Install the blade bolt with the lock wash-

er and hardened washer into blade

adapter and crankshaft.

5. Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

• The recommended tightening torque is

35-40 ft. Ibs.

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approved bolt shown in the Repair Parts

section of this manual.

Blade adapter

Lockwasher _

bolt Hardened

washer

Key

TO SHARPEN BLADE

Crankshaft

iCrankshaft

NOTE: We do not recommend sharpening

blade - but if you do, be sure the blade is

balanced. An unbalanced blade will cause

eventual damage to lawn mower or engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt to

sharpen while on the mower.

• To check blade balance, drive a nail into

a beam or wall. Leave about one inch of

the straight nail exposed. Place center

hole of blade over the head of the nail.

If blade is balanced, it should remain in

a horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

ENGINE

Read the maintenance section of your

engine manual.

LUBRICATION

Change the oil after the first two hours of

operation and every 25 hours thereafter or

at least once a year if the lawn mower is

not used for 25 hours in one year. Refer to

engine manual.

TO CHANGE ENGINE OIL

(SEE ENGINE MANUAL)

• Be sure lawn mower is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• For engines without dipstick, remove

bottom oil drain plug.

• For engines with oil fill cap/dipstick,

remove bottom drain plug or remove en-

gine oil cap and turn mower on its side.

• After oil has drained completely, replace

oil drain plug and tighten securely.

• Refill engine with oil. Pour slowly. Do

not overfill.

• Fill to top of slot inside of filler hole or

to "FULl" line on dipstick on models so

equipped. Keep oil at proper level.

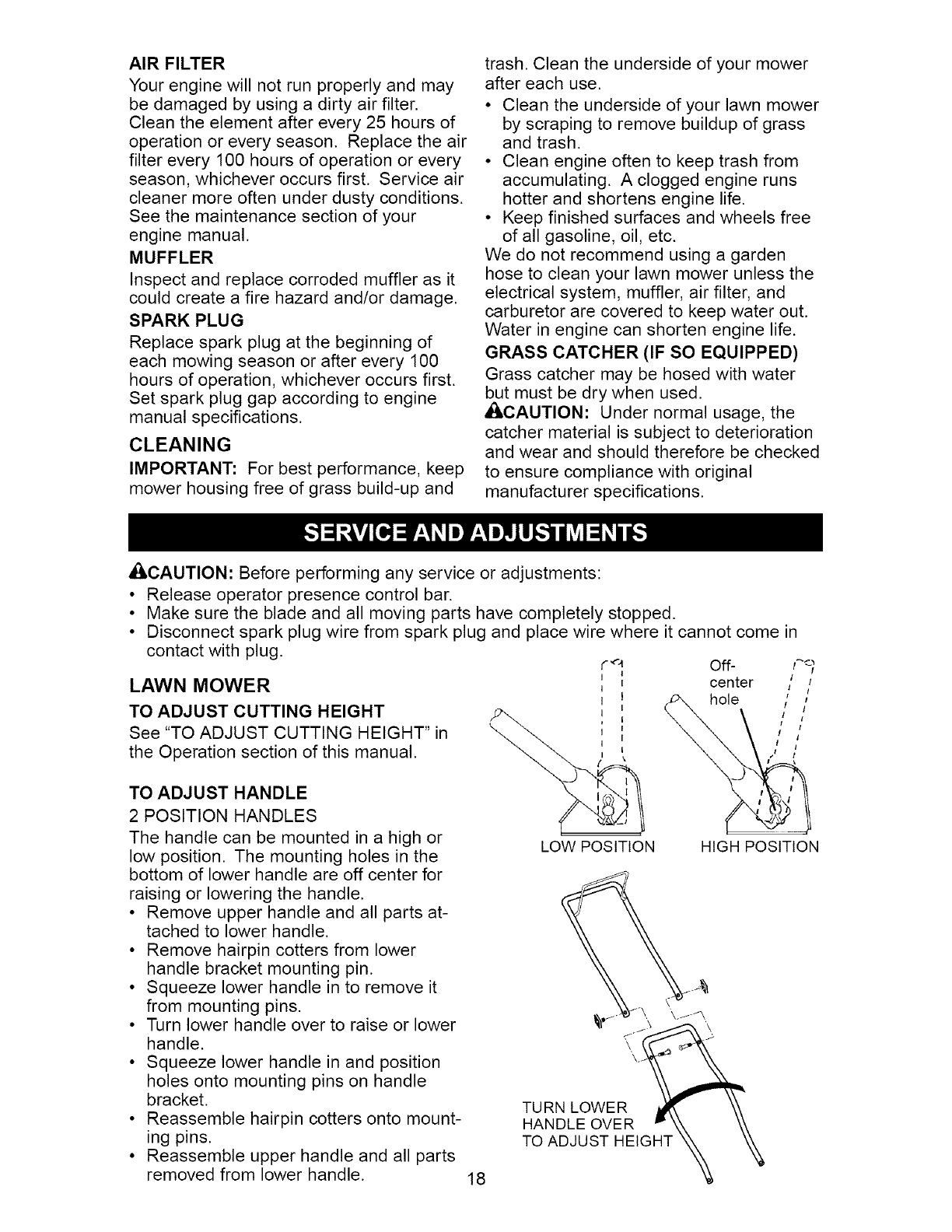

AIR FILTER

Yourenginewill not runproperlyand may

bedamagedby usinga dirty air filter.

Cleanthe elementafter every 25 hoursof

operationor everyseason. Replacethe air

filter every 100hours ofoperationor every

season,whicheveroccursfirst. Service air

cleanermoreoften underdusty conditions.

Seethe maintenancesectionof your

enginemanual.

MUFFLER

Inspect and replace corroded muffler as it

could create a fire hazard and/or damage.

SPARK PLUG

Replace spark plug at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Set spark plug gap according to engine

manual specifications.

CLEANING

IMPORTANT: For best performance, keep

mower housing free of grass build-up and

trash. Clean the underside of your mower

after each use.

• Clean the underside of your lawn mower

by scraping to remove buildup of grass

and trash.

• Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shortens engine life.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

We do not recommend using a garden

hose to clean your lawn mower unless the

electrical system, muffler, air filter, and

carburetor are covered to keep water out.

Water in engine can shorten engine life.

GRASS CATCHER (IF SO EQUIPPED)

Grass catcher may be hosed with water

but must be dry when used.

_h,CAUTION: Under normal usage, the

catcher material is subject to deterioration

and wear and should therefore be checked

to ensure compliance with original

manufacturer specifications.

_IbCAUTION: Before performing any service or adjustments:

• Release operator presence control bar.

• Make sure the blade and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in

contact with plug.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See "TO ADJUST CUTTING HEIGHT" in

the Operation section of this manual.

TO ADJUST HANDLE

2 POSITION HANDLES

The handle can be mounted in a high or

low position. The mounting holes in the

bottom of lower handle are off center for

raising or lowering the handle.

• Remove upper handle and all parts at-

tached to lower handle.

• Remove hairpin cotters from lower

handle bracket mounting pin.

• Squeeze lower handle in to remove it

from mounting pins.

• Turn lower handle over to raise or lower

handle.

• Squeeze lower handle in and position

holes onto mounting pins on handle

bracket.

• Reassemble hairpin cotters onto mount-

ing pins.

• Reassemble upper handle and all parts

removed from lower handle.

¢-,e4

LOW POSITION

Off- P_I

center /f

hole I' /

HIGH POSITION

TURN LOWER

HANDLE OVER

TO ADJUST HEIGHT

3 POSITION"EURO"OR"EZ"

The handleon your lawnmower hasthree

(3) heightpositions- adjust to heightthat

suits you.

• Removeknoband carriagebolton one

side of the lowerhandle.

• While holdinghandleassembly,remove

knob and carriageboltfrom opposite

side,align holein handlewith desired

hole in handlebracketand reassemble

boltand knob andtighten securely.

• Alignoppositeside of handlewith same

positioningholeand securewith bolt and

knob.

"EURO" ADJUSTMENT

Handle

adjustment

Knob Bolt

Hi ndle pin

Low

Handle

adjustment

bracket

"ADJUSTABLE" HANDLES

The upper handle may be adjusted to four

(4) different height positions.

• Loosen both handle knobs only enough

to allow the upper handle to pivot to the

desired adjustment position.

• Tighten both handle knobs securely.

Handle

knob

_andle

adjustment

cket

Handle

knob

Knob

3 POSITION "QUICK"

The handle on your lawn mower has three

(3) height positions - adjust to height that

suits you.

• Squeeze the bottom ends of lower

handle towards each other until the pin

in handle can be inserted into one of the

three height adjustment holes.

REAR DEFLECTOR (IF EQUIPPED)

The rear deflector, attached between the

rear wheels of your mower, is provided to

minimize the possibility that objects will

be thrown out of the rear of the mower

into the operator mowing position. If the

deflector becomes damaged, it should be

replaced.

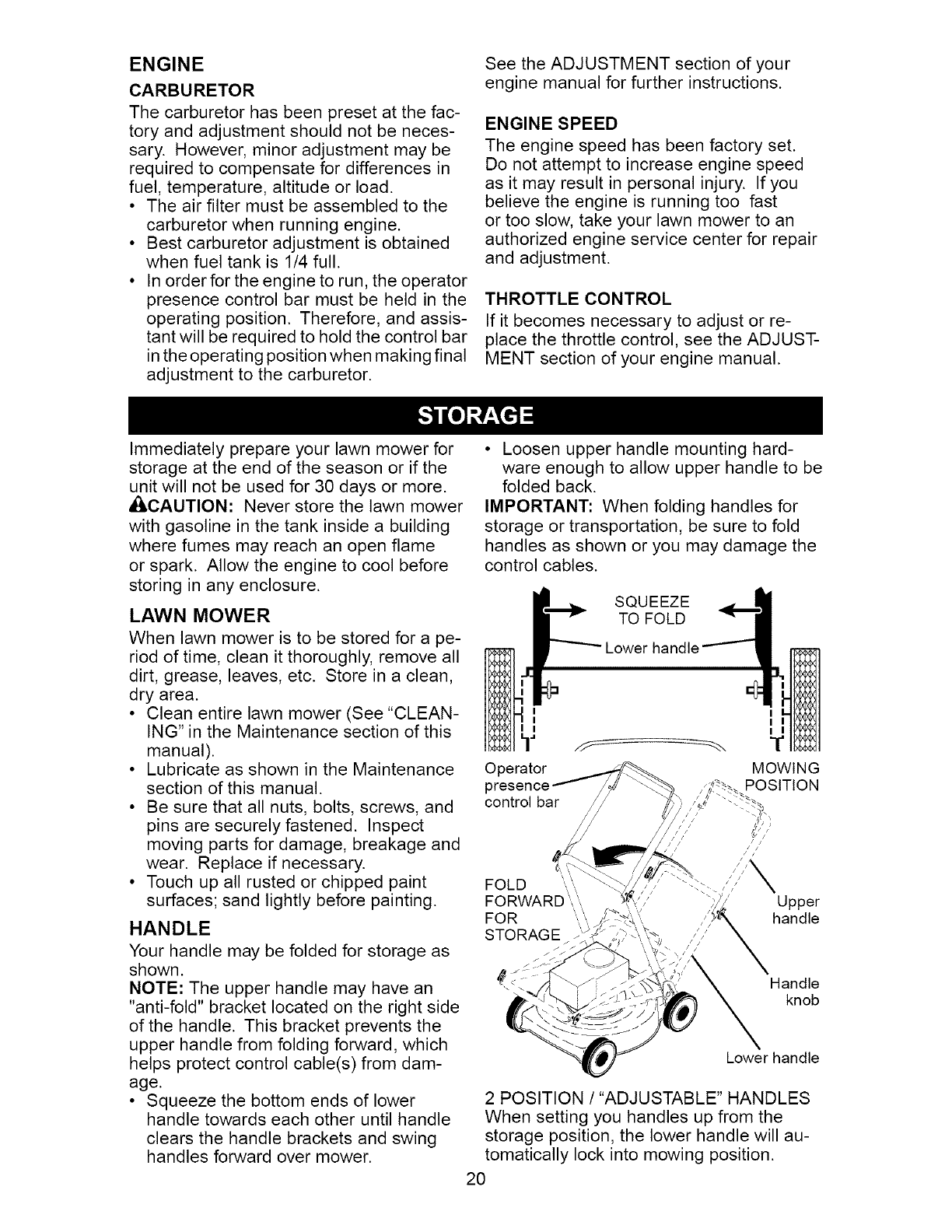

ENGINE

CARBURETOR

The carburetor has been preset at the fac-

tory and adjustment should not be neces-

sary. However, minor adjustment may be

required to compensate for differences in

fuel, temperature, altitude or load.

• The air filter must be assembled to the

carburetor when running engine.

• Best carburetor adjustment is obtained

when fuel tank is 1/4 full.

• In order for the engine to run, the operator

presence control bar must be held in the

operating position. Therefore, and assis-

tant will be required to hold the control bar

in the operating position when making final

adjustment to the carburetor.

See the ADJUSTMENT section of your

engine manual for further instructions.

ENGINE SPEED

The engine speed has been factory set.

Do not attempt to increase engine speed

as it may result in personal injury. If you

believe the engine is running too fast

or too slow, take your lawn mower to an

authorized engine service center for repair

and adjustment.

THROTTLE CONTROL

If it becomes necessary to adjust or re-

place the throttle control, see the ADJUST-

MENT section of your engine manual.

Immediately prepare your lawn mower for

storage at the end of the season or if the

unit will not be used for 30 days or more.

ACAUTION: Never store the lawn mower

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

LAWN MOWER

When lawn mower is to be stored for a pe-

riod of time, clean it thoroughly, remove all

dirt, grease, leaves, etc. Store in a clean,

dry area.

• Clean entire lawn mower (See "CLEAN-

ING" in the Maintenance section of this

manual).

• Lubricate as shown in the Maintenance

section of this manual.

• Be sure that all nuts, bolts, screws, and

pins are securely fastened. Inspect

moving parts for damage, breakage and

wear. Replace if necessary.

• Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

HANDLE

Your handle may be folded for storage as

shown.

NOTE: The upper handle may have an

"anti-fold" bracket located on the right side

of the handle. This bracket prevents the

upper handle from folding forward, which

helps protect control cable(s) from dam-

age.

• Squeeze the bottom ends of lower

handle towards each other until handle

clears the handle brackets and swing

handles forward over mower.

• Loosen upper handle mounting hard-

ware enough to allow upper handle to be

folded back.

IMPORTANT: When folding handles for

storage or transportation, be sure to fold

handles as shown or you may damage the

control cables.

SQUEEZE

TO FOLD

Lower handle

Operator MOWING

I POSITION

control bar

FOLD

FORWARD '\

FOR ".

STORAGE

//.

/ /

,/,%

Upper

handle

Handle

knob

Lower handle

2 POSITION /"ADJUSTABLE" HANDLES

When setting you handles up from the

storage position, the lower handle will au-

tomatically lock into mowing position.

3 POSITIONHANDLES

Whensettingup yourhandlefrom the stor-

age position,the lowerhandlewill require

manuallylockingintothe mowingposition.

3 POSITION"EURO"

Handle

adjustment

bracket

Knob Bolt

Knob

3 POSITION "EZ"

./'_ Bolt

Handle

adjustment

bracket

fuel hose, or tank during storage. Alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine while

in storage.

• Drain the fuel tank.

• Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation

of fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found

on stabilizer container. Run engine at least

10 minutes after adding stabilizer to allow

the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if us-

ing fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean oil. (See "ENGINE" in the

Maintenance section of this manual).

CYLINDER

• Remove spark plug.

• Pour one ounce (29 ml) of oil through

spark plug hole into cylinder.

• Pull starter handle slowly to distribute oil.

• Replace with new spark plug.

BATTERY (IF EQUIPPED)

Disconnect the battery from the engine

connector and charge battery 48 hours.

3 POSITION "QUICK"

Handle pin

SQUEEZE

Handle

adj

bracket

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential fuel

system parts such as carburetor, fuel filter,

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your unit indoors and

cover it to protect it from dust and dirt.

• Cover your unit with a suitable protective

cover that does not retain moisture. Do

not use plastic. Plastic cannot breathe,

which allows condensation to form and

will cause your unit to rust.

IMPORTANT: Never cover mower while

engine and exhaust areas are still warm.

_CAUTION: Never store the lawn mower

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TROUBLESHOOTING - See appropriate section in manual unless directed

to an authorized Service Center,

PROBLEM CAUSE

Does not start 1. Dirty air filter.

2. Out of fuel.

3. Stale fuel.

Loss of power

4. Water in fuel.

5. Spark plug wire is

disconnected.

6. Bad spark plug.

7. Loose blade or broken

blade adapter.

8. Control bar in released

position.

9. Control bar defective.

10. Fuel valve lever (if so

equipped) in OFF position.

11. Weak battery (if equipped).

12. Disconnected battery

connector (if equipped).

1. Rear of lawn mower

housing or cutting blade

dragging in heavy grass.

2. Cutting too much grass.

3. Dirty air filter.

4. Buildup of grass, leaves,

and trash under mower.

5. Too much oil in engine.

6. Walking speed too fast.

CORRECTION

1. Clean/replace air filter.

2. Fill fuel tank.

3. Drain fuel tank and refill tank

with fresh, clean gasoline.

4. Drain fuel tank and refill tank

with fresh, clean gasoline.

5. Connect wire to plug.

6. Replace spark plug.

7. Tighten blade bolt or

replace blade adapter.

8. Depress control bar to

handle.

9. Replace control bar.

10. Turn fuel valve lever

to the ON position.

11. Charge battery.

12. Connect battery to engine.

1. Raise cutting height.

2. Raise cutting height.

3. Clean/replace air filter.

4. Clean underside of mower

housing.

5. Check oil level.

6. Cut at slower walking speed.

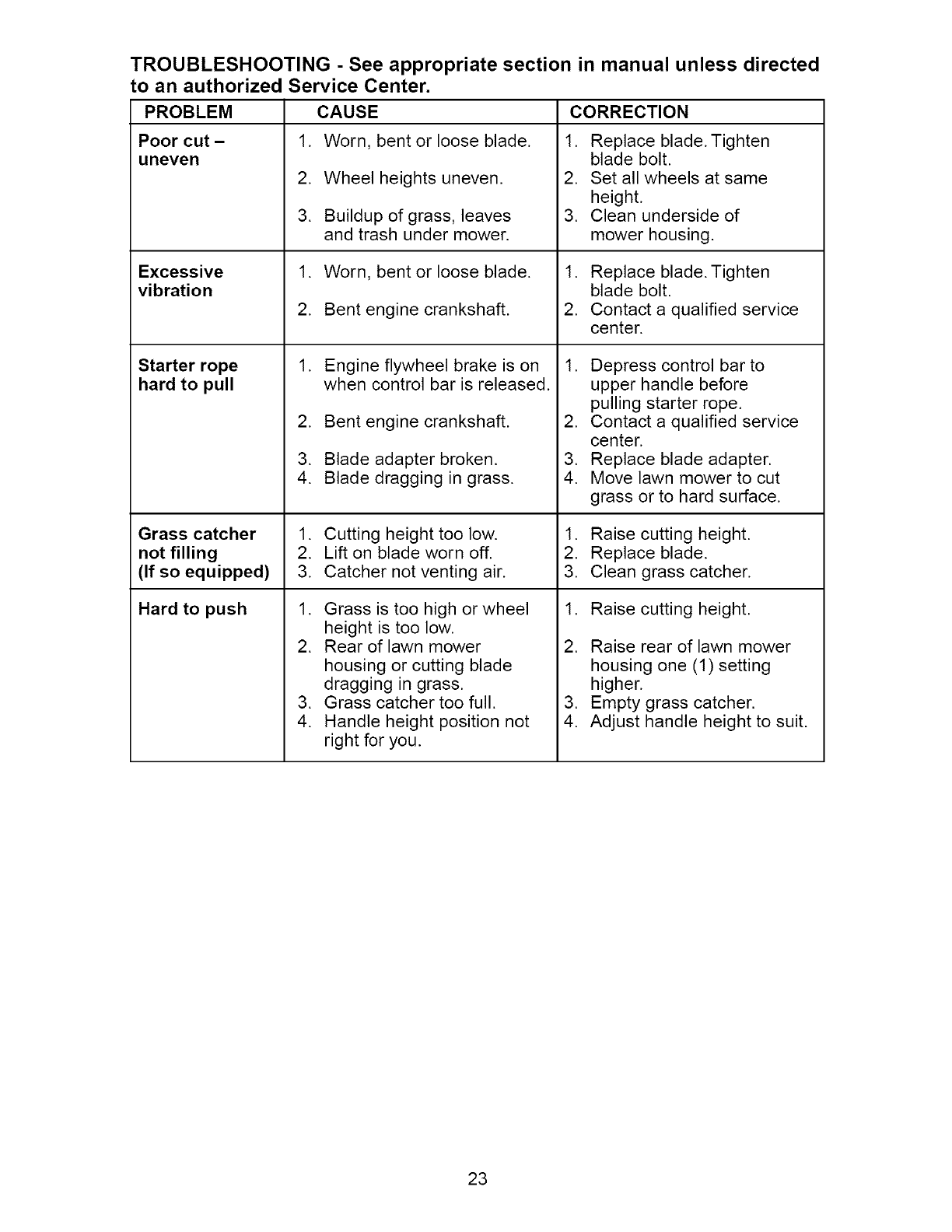

TROUBLESHOOTING - See appropriate section in manual unless directed

to an authorized Service Center.

PROBLEM CAUSE

Poor cut- 1. Worn, bent or loose blade.

uneven

2. Wheel heights uneven.

3. Buildup of grass, leaves

and trash under mower.

Excessive 1. Worn, bent or loose blade.

vibration

2. Bent engine crankshaft.

Starter rope

hard to pull

Grass catcher

not filling

(If so equipped)

Hard to push

1. Engine flywheel brake is on

when control bar is released.

2. Bent engine crankshaft.

3. Blade adapter broken.

4. Blade dragging in grass.

1. Cutting height too low.

2. Lift on blade worn off.

3. Catcher not venting air.

1. Grass is too high or wheel

height is too low.

2. Rear of lawn mower

housing or cutting blade

dragging in grass.

3. Grass catcher too full.

4. Handle height position not

right for you.

CORRECTION

1. Replace blade. Tighten

blade bolt.

2. Set all wheels at same

height.

3. Clean underside of

mower housing.

1. Replace blade. Tighten

blade bolt.

2. Contact a qualified service

center.

1. Depress control bar to

upper handle before

pulling starter rope.

2. Contact a qualified service

center.

3. Replace blade adapter.

4. Move lawn mower to cut

grass or to hard surface.

1. Raise cutting height.

2. Replace blade.

3. Clean grass catcher.

1. Raise cutting height.

2. Raise rear of lawn mower

housing one (1) setting

higher.

3. Empty grass catcher.

4. Adjust handle height to suit.

Ryobi 96116000200 User Manual MOWER Manuals And Guides L0504513

RYOBI Walk Behind Lawnmower, Gas Manual L0504513 RYOBI Walk Behind Lawnmower, Gas Owner's Manual, RYOBI Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
