SAVE THIS MANUAL FOR FUTURE REFERENCE
Your band saw has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using
this product.
Thank you for your purchase.
OPERATOR’S MANUAL
9 in. (229 mm) BAND SAW
BS902
2
Introduction ..................................................................................................................................................................... 2
� Warranty .......................................................................................................................................................................... 2
� General Safety Rules ....................................................................................................................................................... 3
� Specific Safety Rules ....................................................................................................................................................... 4
�Symbols ........................................................................................................................................................................ 5-6
�� Electrical .......................................................................................................................................................................... 7
�� Glossary of Terms ............................................................................................................................................................ 8
�� Features ...................................................................................................................................................................... 9-10
�� Tools Needed ................................................................................................................................................................. 11
�� Loose Parts ................................................................................................................................................................... 11
�� Assembly .................................................................................................................................................................. 12-15
� Operation ..................................................................................................................................................................16-18
Adjustments ..............................................................................................................................................................19-22
� Maintenance .............................................................................................................................................................22-23
� Troubleshooting ............................................................................................................................................................. 24
� Parts Ordering / Service ................................................................................................................................................ 26
TABLE OF CONTENTS
INTRODUCTION
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have
been given top priority in the design of this product making it easy to maintain and operate.
WARRANTY
RYOBI® POWER TOOL - LIMITED TWO YEAR WARRANTY AND 30 DAY EXCHANGE POLICY
One World Technologies, Inc., warrants its RYOBI® power tools with the following conditions:
30-DAY EXCHANGE POLICY: During the first 30 days after date of purchase, you may either request service under this
warranty or you may exchange any RYOBI® power tool which does not work properly due to defective workmanship or
materials by returning the power tool to the dealer from which it was purchased. To receive a replacement power tool
or requested warranty service, you must present proof of purchase and return all original equipment packaged with the
original product. The replacement power tool will be covered by the limited warranty for the balance of the two year period
from the date of the original purchase.
WHAT THIS WARRANTY COVERS: This warranty covers all defects in workmanship or materials in your RYOBI® power
tool for a period of two years from the date of purchase. With the exception of batteries, power tool accessories are
warranted for ninety (90) days. Batteries are warranted for two years.
HOW TO GET SERVICE: Just return the power tool, properly packaged and postage prepaid, to an Authorized Service
Center. You can obtain the location of the Service Center nearest you by contacting a service representative at One
World Technologies, Inc., P.O. Box 1207, Anderson, SC 29622-1207, by calling 1-800-525-2579 or by logging on to www.
ryobitools.com. When you request warranty service, you must also present proof of purchase documentation, which
includes the date of purchase (for example, a bill of sale). We will repair any faulty workmanship, and either repair or replace
any defective part, at our option. We will do so without any charge to you. We will complete the work in a reasonable time,
but, in any case, within ninety (90) days or less.
WHAT’S NOT COVERED: This warranty applies only to the original purchaser at retail and may not be transferred. This
warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defects resulting
from misuse, abuse, neglect, alteration, modification or repairs by other than Authorized Service Centers. One World
Technologies, Inc. makes no warranties, representations or promises as to the quality or performance of its power tools
other than those specifically stated in this warranty.
ADDITIONAL LIMITATIONS: Any implied warranties granted under state law, including warranties of merchantability or
fitness for a particular purpose, are limited to two years from the date of purchase. One World Technologies, Inc. is not
responsible for direct, indirect, or incidental damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
3
GENERAL SAFETY RULES
WARNING:
Read and understand all instructions. Failure to follow
all instructions listed below, may result in electric shock,
fire and/or serious personal injury.
READ ALL INSTRUCTIONS
KNOW YOUR POWER TOOL. Read the operator’s manual
carefully. Learn the applications and limitations as well
as the specific potential hazards related to this tool.
GUARD AGAINST ELECTRICAL SHOCK by preventing
body contact with grounded surfaces. For example: pipes,
radiators, ranges, refrigerator enclosures.
KEEP GUARDS IN PLACE and in good working order. Nev-
er operate the tool with any guard or cover removed. Make
sure all guards are operating properly before each use.
REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it on.
KEEP WORK AREA CLEAN. Cluttered areas and benches
invite accidents.
DO NOT USE IN DANGEROUS ENVIRONMENTS. Do
not use power tools near gasoline or other flammable
liquids, in damp or wet locations or expose them to rain.
Keep the work area well lit.
KEEP CHILDREN AND VISITORS AWAY. All
visitors should wear safety glasses and be kept a safe
distance from work area.
MAKE WORKSHOP CHILDPROOF with padlocks,
master switches, or by removing starter keys.
DON’T FORCE THE TOOL. It will do the job better and
safer at the feed rate for which it was designed.
USE THE RIGHT TOOL. Do not force the tool or attach-
ment to do a job for which it was not designed.
USE THE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. Use only a cord heavy
enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage resulting in
loss of power and overheating. A wire gauge size (A.W.G.)
of at least 16 is recommended for an extension cord 25
feet or less in length. If in doubt, use the next heavier
gauge. The smaller the gauge number, the heavier the cord.
WEAR THE PROPER APPAREL. Do not wear loose
clothing, neckties, or jewelry that can get caught in the
tool’s moving parts and cause personal injury. Nonslip
footwear is recommended when working outdoors. Wear
protective hair covering to contain long hair.
ALWAYS WEAR SAFETY GLASSES WITH SIDE
SHIELDS. Everyday eyeglasses have only impact-
resistant lenses, they are NOT safety glasses.
SECURE WORK. Use clamps or a vise to hold work
when practical. It’s is safer than using your hand and frees
both hands to operate the tool.
DO NOT OVERREACH. Keep proper footing and
balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp
and clean for better and safer performance. Follow
instructions for lubricating and changing accessories.
DISCONNECT TOOLS. When not in use, before
servicing, or when changing attachments, blades, bits,
cutters, etc., all tools should be disconnected from power
source.
REDUCE THE RISK OF UNINTENTIOINAL STARTING.
Be sure switch is off when plugging in any tool.
USE RECOMMENDED ACCESSORIES. Consult the
operator’s manual for recommended accessories. The
use of improper accessories may result in injury.
NEVER STAND ON TOOL. Serious injury could occur if the
tool is tipped or if the blade is unintentionally contacted.
CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment
of moving parts, binding of moving parts, breakage of
parts, mounting and any other conditions that may affect
its operation. A guard or other part that is damaged must
be properly repaired or replaced by an authorized service
center to avoid risk of personal injury.
DIRECTION OF FEED. Feed work into a blade or cutter
against the direction or rotation of the blade or cutter only.
NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
THE POWER OFF. Don't leave tool until it comes to a
complete stop.
DO NOT ABUSE CORD. Never carry tool by the cord or
yank it to disconnect from receptacle. Keep cord from
heat, oil, and sharp edges.
PROTECT YOUR LUNGS. Wear a face or dust mask if
the cutting operation is dusty.
PROTECT YOUR HEARING. Wear hearing protection
during extended periods of operation.
BLADE COASTS AFTER BEING TURNED OFF.
KEEP TOOL DRY, CLEAN, AND FREE FROM OIL AND
GREASE. Always use a clean cloth when cleaning. Never
use brake fluids, gasoline, petroleum-based products, or
any solvents to clean tool.
INSPECT TOOL CORDS AND EXTENSION CORDS
PERIODICALLY and, if damaged, have repaired by a
qualified service technician. Stay constantly aware of cord
location and keep it well away from the rotating wheel.
NEVER USE IN AN EXPLOSIVE ATMOSPHERE.
Normal sparking of the motor could ignite fumes.
USE ONLY OUTDOOR EXTENSION CORDS with ap-
proved ground connection that are intended for use
outdoors and so marked.
BE SURE BLADE PATH IS FREE OF NAILS. Inspect for
and remove all nails from lumber before cutting.
4
AVOID AWKWARD OPERATIONS AND HAND
POSITIONS where a sudden slip could cause your
hand to move into the blade. ALWAYS make sure you
have good balance. NEVER operate the miter saw
on the floor or in a crouched position.
ALLOW THE MOTOR TO COME UP TO FULL SPEED
before starting a cut to avoid binding or stalling.
DO NOT USE TOOL IF SWITCH DOES NOT TURN IT
ON AND OFF. Have defective switches replaced by an
authorized service center.
REPLACEMENT PARTS. All repairs, whether electrical
or mechanical, should be made by a qualified service
technician at an authorized service center.
WHEN SERVICING use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
KEEP HANDS AWAY FROM CUTTING AREA. Do not
hand hold pieces so small that your fingers go under
the blade guard. Do not reach underneath work or in
blade cutting path with your hands and fingers for any
reason.
NEVER CUT MORE THAN ONE PIECE AT A TIME or
stack more than one workpiece on the saw table at a
time.

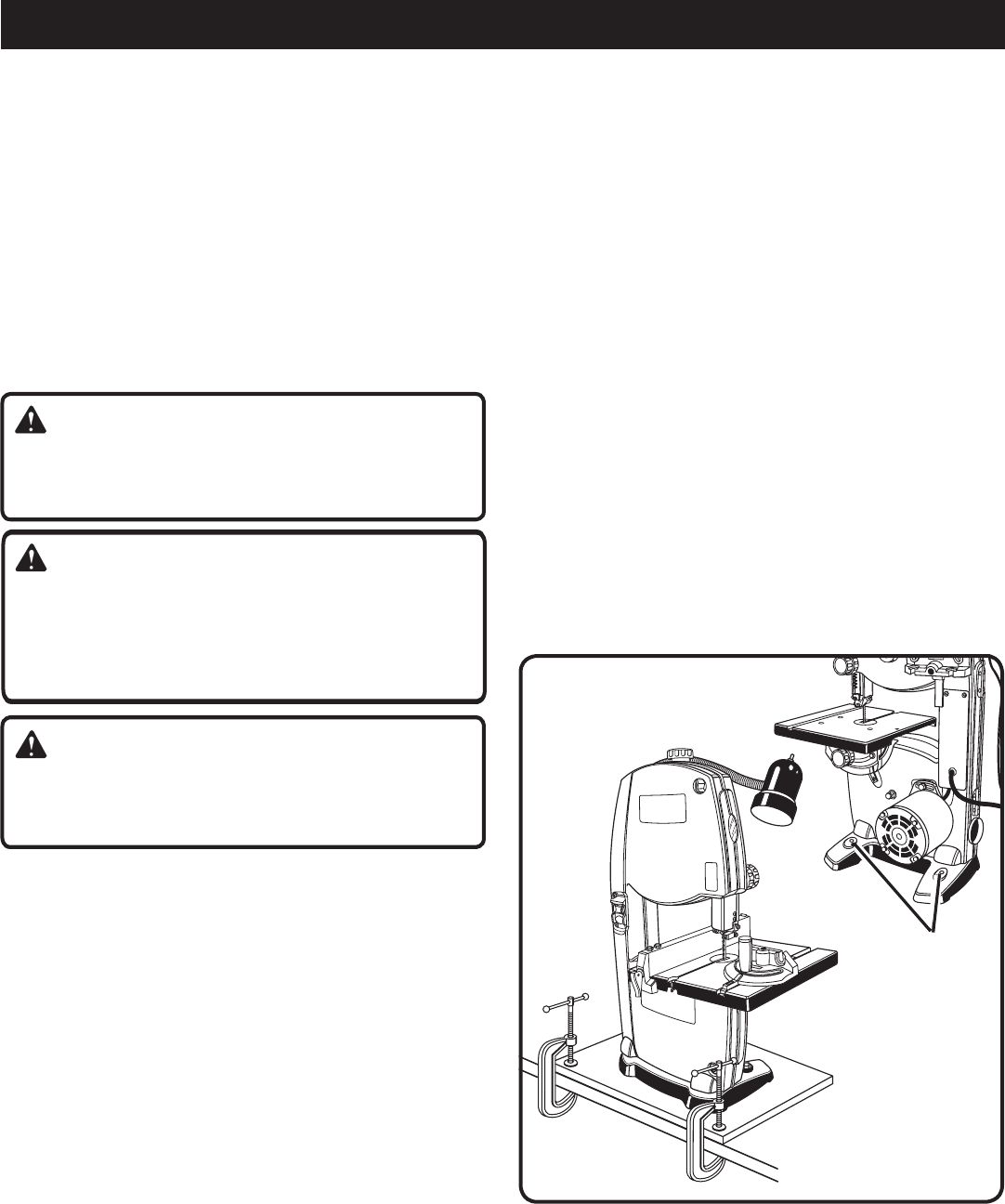

FIRMLY CLAMP OR BOLT your saw to a stable, level
workbench or table. The most comfortable table height
is approximately waist height.
DO NOT FEED THE MATERIAL TOO QUICKLY. Do not
force the workpiece against the blade.
USE ONLY CORRECT BLADES. Use the right blade size,
style and cutting speed for the material and the type of
cut. Blade teeth should point down toward the table.
BEFORE MAKING A CUT, BE SURE ALL ADJUST-
MENTS ARE SECURE.
ALWAYS SUPPORT LARGE WORKPIECES while cutting
to minimize risk of blade pinching and kickback. Saw may
slip, walk or slide while cutting large or heavy boards.
DO NOT REMOVE JAMMED CUTOFF PIECES until
blade has stopped.
SPECIFIC SAFETY RULES
NEVER START THE TOOL when the blade is in contact
with the workpiece.
NEVER TOUCH BLADE or other moving parts during
use.
BEFORE CHANGING THE SETUP, REMOVING COVERS,
GUARDS OR BLADES, unplug the saw and remove the
switch key.
HOLD THE WORKPIECE firmly against the saw table.
TO AVOID ACCIDENTAL BLADE CONTACT, minimize
blade breakage, and provide maximum blade support,
always adjust the blade guide assembly to just clear the
workpiece.
KEEP BLADES CLEAN, SHARP, AND WITH SUFFICIENT
SET. Sharp blades minimize stalling and kickbacks.
ALWAYS TURN OFF SAW before disconnecting it to
avoid accidental starting when reconnecting to a power
source.
DO NOT OPERATE THIS TOOL WHILE UNDER
THE INFLUENCE OF DRUGS, ALCOHOL OR ANY
MEDICATION.
STAY ALERT AND EXERCISE CONTROL. Watch what
you are doing and use common sense. Do not operate
tool when you are tired. Do not rush.
MAKE SURE WORK AREA HAS AMPLE LIGHTING to
see the work and that no obstructions will interfere with
safe operation BEFORE performing any work using your
saw.
The blade guides have been preset at the factory. These
settings are functional for some applications. We recom-
mend that you check and adjust blade guide settings
before first use of your saw. Refer to “Adjusting thrust
bearings, blade guide support, and blade guides”
procedures explained in the adjustments section of this
operator’s manual.
IF THE POWER SUPPLY CORD IS DAMAGED, it must
be replaced only by the manufacturer or by an authorized
service center to avoid risk.
SAVE THESE INSTRUCTIONS. Refer to them frequently
and use them to instruct other users. If you loan someone
this tool, loan them these instructions also.
WARNING:
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals
known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks
that are specially designed to filter out microscopic particles.
5
SYMBOLS
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the tool better and safer.
Read The Operator’s Manual
Safety Alert
No Hands Symbol
SYMBOL NAME DESIGNATION/EXPLANATION
Voltage
Current
Frequency (cycles per second)
Power
Time
Type of current
Type or a characteristic of current
Rotational speed, at no load
Double-insulated construction
Revolutions, strokes, surface speed, orbits, etc., per minute
Do not expose to rain or use in damp locations.
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection
Precautions that involve your safety.
Failure to keep your hands away from the blade will result in
serious personal injury.
Wet Conditions Alert
.../min Per Minute
Class II Construction
n
o
No Load Speed
Direct Current
Alternating Current
min Minutes
W Watt
Hz Hertz
A Amperes
V Volts
Hot Surface To reduce the risk of injury or damage, avoid contact with any
hot surface.
Always wear safety goggles or safety glasses with side shields and,
as necessary, a full face shield when operating this product.
6
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
CAUTION (Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
SERVICE
Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician. For
service we suggest you return the product to the nearest
AUTHORIZED SERVICE CENTER for repair. When servic-
ing, use only identical replacement parts.
WARNING:
To avoid serious personal injury, do not attempt to use this
product until you read thoroughly and understand com-
pletely the operator’s manual. If you do not understand
the warnings and instructions in the operator’s manual,
do not use this product. Call Ryobi customer service for
assistance.
WARNING:
SAVE THESE INSTRUCTIONS
The operation of any power tool can result in foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool operation, always wear safety goggles or
safety glasses with side shields and, when needed, a full face shield. We recommend Wide Vision
Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye
protection which is marked to comply with ANSI Z87.1.
SYMBOL SIGNAL MEANING
7
ELECTRICAL
SPEED AND WIRING
The no-load speed of this tool is approximately 3,000
sfpm. This speed is not constant and decreases under
a load or with lower voltage. For voltage, the wiring in a
shop is as important as the motor’s horsepower rating. A
line intended only for lights cannot properly carry a power
tool motor. Wire that is heavy enough for a short distance
will be too light for a greater distance. A line that can
support one power tool may not be able to support two
or three tools.
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reduce the risk of electric shock. This tool is equipped with
an electric cord having an equipment-grounding conduc-
tor and a grounding plug. The plug must be plugged into a
matching outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Do not modify the plug provided. If it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding conduc-
tor can result in a risk of electric shock. The conductor with
insulation having an outer surface that is green with or without
yellow stripes is the equipment-grounding conductor. If repair
or replacement of the electric cord or plug is necessary, do
not connect the equipment-grounding conductor to a live
terminal.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if
in doubt as to whether the tool is properly grounded.
Repair or replace a damaged or worn cord immediately.

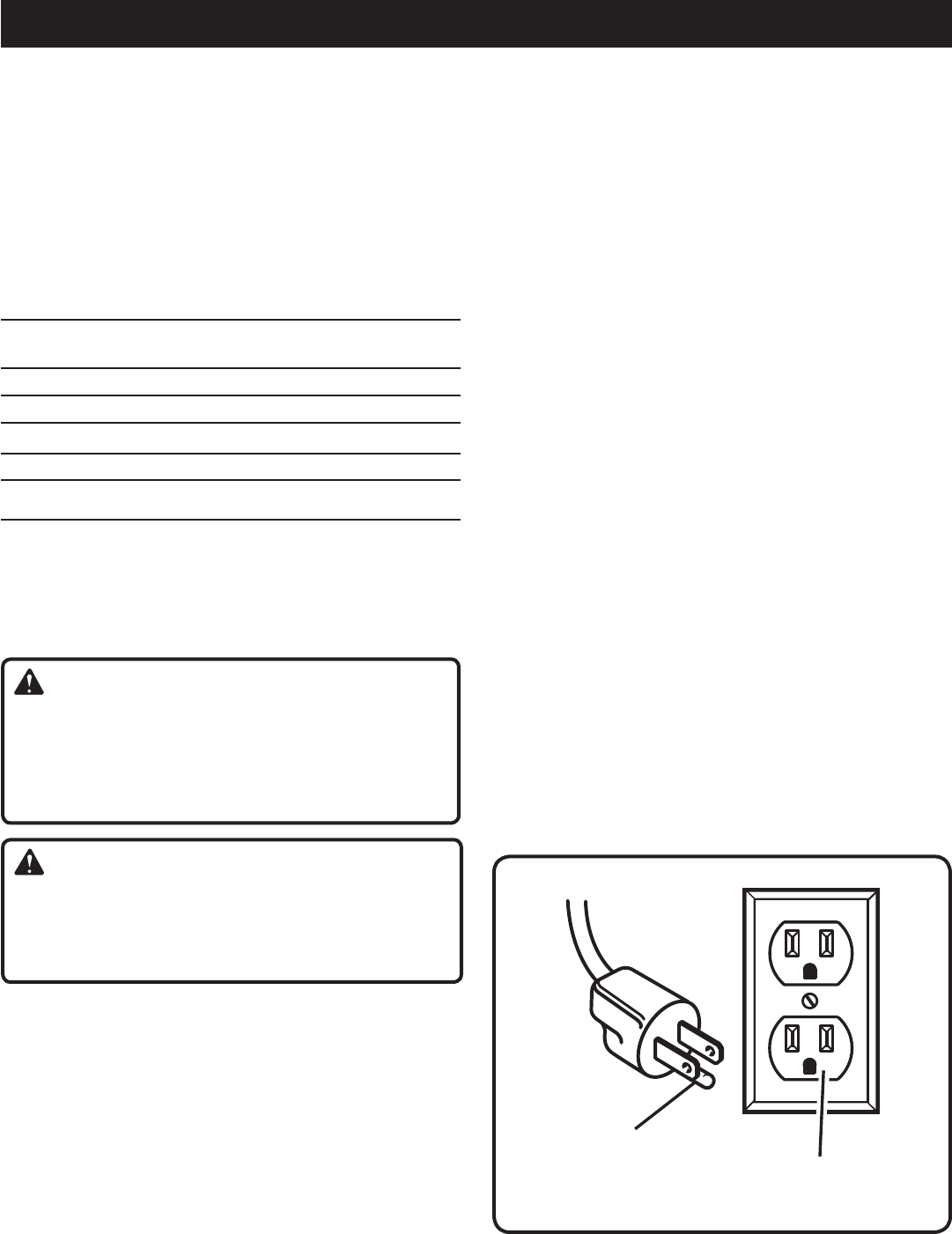

This tool is intended for use on a circuit that has an outlet
like the one shown in figure 1. It also has a grounding pin
like the one shown.
Fig. 1
EXTENSION CORDS
Use only 3-wire extension cords that have 3-prong ground-
ing plugs and 3-pole receptacles that accept the tool’s plug.
When using a power tool at a considerable distance from the
power source, use an extension cord heavy enough to carry
the current that the tool will draw. An undersized extension
cord will cause a drop in line voltage, resulting in a loss of
power and causing the motor to overheat. Use the chart
provided below to determine the minimum wire size required
in an extension cord. Only round jacketed cords listed by
Underwriter’s Laboratories (UL) should be used.
**Ampere rating (on tool data plate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25' 16 16 16 16 14 14
50' 16 16 16 14 14 12
100' 16 16 14 12 10 —
**Used on 12 gauge - 20 amp circuit.
NOTE: AWG = American Wire Gauge
When working with the tool outdoors, use an extension cord
that is designed for outside use. This is indicated by the
letters “WA” on the cord’s jacket.
Before using an extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
WARNING:
Keep the extension cord clear of the working area.
Position the cord so that it will not get caught on lumber,
tools or other obstructions while you are working with a
power tool. Failure to do so can result in serious personal
injury.
WARNING:
Check extension cords before each use. If damaged
replace immediately. Never use tool with a damaged cord
since touching the damaged area could cause electrical
shock resulting in serious injury.
ELECTRICAL CONNECTION
This tool is powered by a precision built electric motor. It
should be connected to a power supply that is 120 volts,
60 Hz, AC only (normal household current). Do not operate
this tool on direct current (DC). A substantial voltage drop
will cause a loss of power and the motor will overheat. If the
saw does not operate when plugged into an outlet, double
check the power supply.
GROUNDING
PIN 120V GROUNDED OUTLET
8
GLOSSARY OF TERMS
Non-Through Cuts
Any cutting operation where the blade does not extend
completely through the thickness of the workpiece.
Push Blocks (for jointer planers)
Device used to feed the workpiece over the jointer planer
cutterhead during any operation. This aid helps keep the
operator's hands well away from the cutterhead.
Push Blocks and Push Sticks (for table saws)
Devices used to feed the workpiece through the saw blade
during cutting operations. A push stick (not a push block)
should be used for narrow ripping operations. These aids
help keep the operator's hands well away from the blade.
Pilot Hole (drill presses)
A small hole drilled in a workpiece that serves as a guide for
drilling large holes accurately.
Resaw
A cutting operation to reduce the thickness of the workpiece
to make thinner pieces.
Resin
A sticky, sap-based substance that has hardened.
Revolutions Per Minute (RPM)
The number of turns completed by a spinning object in one
minute.
Ripping or Rip Cut
A cutting operation along the length of the workpiece.
Riving Knife/Spreader/Splitter (table saws)
A metal piece, slightly thinner than the blade, which helps
keep the kerf open and also helps to prevent kickback.
Saw Blade Path
The area over, under, behind, or in front of the blade. As it
applies to the workpiece, that area which will be or has been
cut by the blade.
Set
The distance that the tip of the saw blade tooth is bent (or
set) outward from the face of the blade.
Snipe (planers)
Depression made at either end of a workpiece by cutter
blades when the workpiece is not properly supported.
Through Sawing
Any cutting operation where the blade extends completely
through the thickness of the workpiece.
Throw-Back
The throwing back of a workpiece usually caused by the
workpiece being dropped into the blade or being placed
inadvertently in contact with the blade.
Workpiece or Material
The item on which the operation is being done.
Worktable
Surface where the workpiece rests while performing a
cutting, drilling, planing, or sanding operation.
Anti-Kickback Pawls (radial arm and table saws)
A devise which, when properly installed and maintained,
is designed to stop the workpiece from being kicked back
toward the front of the saw during a ripping operation.
Arbor
The shaft on which a blade or cutting tool is mounted.
Bevel Cut
A cutting operation made with the blade at any angle other
than 90° to the table surface.
Chamfer
A cut removing a wedge from a block so the end (or part of
the end) is angled rather than at 90°.
Compound Cut
A cross cut made with both a miter and a bevel angle.
Crosscut
A cutting or shaping operation made across the grain or the
width of the workpiece.
Cutterhead (planers and jointer planers)
A rotating cutterhead with adjustable blades or knives. The
blades or knives remove material from the workpiece.
Dado Cut
A non-through cut which produces a square-sided notch or
trough in the workpiece (requires a special blade).
Featherboard
A device used to help control the workpiece by guiding
it securely against the table or fence during any ripping
operation.
FPM or SPM
Feet per minute (or strokes per minute), used in reference
to blade movement.
Freehand
Performing a cut without the workpiece being guided by a
fence, miter gauge, or other aids.
Gum
A sticky, sap-based residue from wood products.
Heel
Alignment of the blade to the fence.
Kerf
The material removed by the blade in a through cut or the
slot produced by the blade in a non-through or partial cut.
Kickback
A hazard that can occur when the blade binds or stalls,
throwing the workpiece back toward operator.
Leading End
The end of the workpiece pushed into the tool first.
Miter Cut
A cutting operation made with the workpiece at any angle
to the blade other than 90°.
9
FEATURES
PRODUCT SPECIFICATIONS
Blade Width ...............................................1/8 in. to 3/8 in.
Blade Length .........................................59-1/4 - 59-1/2 in.
Frame to Blade Capacity ............................................. 9 in.
Cutting Thickness Capacity ..................................3-5/8 in.
SCALE
INDICATOR
LOCK
KNOB
SCALE
TABLE
LOCK
KNOB
DUST
EXHAUST
PORT
TRACKING
KNOB
ANGLE
ADJUSTMENT
KNOB
RAPIDSET™ BLADE
TENSION LEVER
WORKLIGHT
Table Size ................................ 11-13/16 in. x 11-13/16 in.
Input ............................... 120 V, 60 Hz, AC only, 2.5 Amps
No Load Speed ............................3,000 FPM (1,524 cm/s)
Dust Port ...............................................................2-1/4 in.
Net Weight ............................................................... 37 lbs.
Fig. 2
TRACKING
VIEW WINDOW
SAW BLADE
SWITCH
AND
SWITCH KEY
LATCH
BLADE TENSION
KNOB
LATCH
RIP
FENCE
MITER
GAUGE
SAW TABLE
BLADE
GUARD
TRACKLOCK®
BLADE GUIDE
10
FEATURES
SAW BLADE
Saw comes with a standard 1/4 in. (6 mm) blade.
SAW TABLE WITH THROAT PLATE
Your band saw has a square 11-13/16 in. (30 cm) aluminum
saw table with tilt control for maximum accuracy. The throat
plate, installed in the saw table at the factory, allows for
blade clearance.
SCALE AND SCALE INDICATOR
The scale and scale indicator show the angle or degree the
saw table is tilted for bevel cutting.
SWITCH AND SWITCH KEY
Your band saw has an easy access power switch. To lock
in the OFF position, remove the yellow switch key. Place
the key in a location inaccessible to children and others not
qualified to use the tool.
TABLE LOCK KNOB
Loosening the table lock knob allows the saw table to be
tilted at different angles. Tightening the table lock knob locks
the saw table in place.
TRACKING KNOB
Adjusts tracking to keep blade centered on the wheels.
TRACKING VIEW WINDOW
The tracking view window makes tracking adjustments
easier to see.
TRACKLOCK® BLADE GUIDES
Upper and lower TrackLock® blade guides helps keep the
blade from twisting during operation.
WORKLIGHT
Your band saw comes equipped with a worklight that lights
the work area for safer, more accurate cuts.
KNOW YOUR BAND SAW
The safe use of this product requires an understanding of
the information on the tool and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
ANGLE ADJUSTMENT KNOB
Tilts the saw table for bevel cutting.
BLADE GUARD
Protects the operator from coming in contact with the
blade.
BLADE GUIDE KNOB WITH LOCK LEVER
Use the blade guide knob and lock lever to adjust the blade
guide assembly to keep the blade from twisting or break-
ing. Always lock the blade guide assembly in place before
turning on the band saw.
DUST EXHAUST PORT
A 2-1/4 in. (57.15 mm) dust exhaust port makes dustless
cutting possible by blowing the dust away from the user.
Attach to the dust exhaust port when using a dust collection
system or shop vac.
LATCH
Easy open latches allow front cover to be opened for mak-
ing adjustments.
MITER GAUGE
This gauge aligns the wood for a crosscut. The easy-to-read
indicator shows the exact angle for a miter cut, with positive
stops at 90° and 45°.
RAPIDSET™ BLADE TENSION LEVER
Controls blade tension when changing blades and making
adjustments for various sawing applications.
RIP FENCE
A sturdy metal fence guides the workpiece and is secured
with the rip fence handle.
11
TOOLS NEEDED
The following tools (not included) are needed for making adjustments or installing the blade:
Fig. 5
PHILLIPS SCREWDRIVER
COMBINATION
SQUARE
LOOSE PARTS LIST
MITER GAUGE
4 mm HEX KEY
SAW TABLE
Fig. 4
FLAT HEAD SCREW
TABLE ALIGNING
BOLT
WASHER
WING NUT
RIP FENCE
WING SCREW
WORKLIGHT
Hex Key, 4 mm .............................................................. 1
Rip Fence ...................................................................... 1
Miter Gauge ................................................................... 1
Saw Table ...................................................................... 1
Wing Screw ................................................................... 1
Wing Nut ........................................................................ 1
Table Aligning Bolt ......................................................... 1
Flat Head Screw ............................................................ 3
Worklight ....................................................................... 1
Washer .......................................................................... 1
Switch Key .................................................................... 1
Operator’s Manual (not shown) ..................................... 1
SWITCH
KEY
The following items are included with the tool:
WARNING:
The use of attachments or accessories not listed might be hazardous and could cause serious personal injury.
12
ASSEMBLY
HOLES IN
SAW BASE
Fig. 5
UNPACKING
This product requires assembly.
Carefully remove the tool and any accessories from the
box. Place it on a level work surface.
NOTE: This tool is heavy. To avoid back injury, lift with
your legs, not your back, and get help when needed.
Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
If any parts are damaged or missing, please call 1-800-
525-2579 for assistance.
WARNING:
If any parts are damaged or missing, do not operate this
tool until the missing parts are replaced. Failure to do so
could result in possible serious personal injury.
WARNING:
Do not attempt to modify this tool or create accesso-
ries not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
Do not connect to power supply until assembly is
complete. Failure to comply could result in accidental
starting and possible serious personal injury.
MOUNTING BAND SAW TO WORKBENCH
If the band saw is to be used in a permanent location, we
recommend that you secure it to a workbench or other
stable surface. When mounting the saw to a workbench,
holes should be drilled through the supporting surface of
the workbench.
Each hole in the saw base should be bolted securely
using bolts, lock washers, and hex nuts (not included).
Place band saw on the workbench. Using the saw base
as a pattern, locate and mark the holes where the band
saw is to be mounted.
Drill holes through the workbench.
Place band saw on the workbench aligning holes in the
saw base with the holes drilled in the workbench.
Insert bolts (not included) and tighten securely with lock
washers and hex nuts (not included).
NOTE: All bolts should be inserted from the top. Install
the lock washers and hex nuts from the underside of the
bench.
Supporting surface where band saw is mounted should be
examined carefully after mounting to insure that no move-
ment during use can result. If any tipping or walking is noted,
secure workbench or support surface before beginning
cutting operation.
CLAMPING BAND SAW TO WORKBENCH
See Figure 5.
If the band saw is to be used as a portable tool, it is recom-
mended that you fasten it permanently to a mounting board
that can easily be clamped to a workbench or other supporting
surface. The mounting board should be of sufficient size to
avoid tipping of saw while in use. Any good grade plywood
or chipboard with a 3/4 in. thickness is recommended.
Mount saw to board using holes in saw base as a template
for hole pattern. Locate and mark the holes where the
band saw is to be mounted.
Follow the last three steps in the section Mounting Band
Saw to Workbench, shown above.
If lag bolts are used, make sure they are long enough to
13
ASSEMBLY
go through holes in the saw base and material the saw is
being mounted to. If machine bolts are being used, make
sure bolts are long enough to go through holes in the saw
base, the material being mounted to, and the lock washers
and hex nuts.
NOTE: It may be necessary to countersink hex nuts and
washers on bottom side of mounting board.
MOUNTING THE SAW TABLE
See Figures 6 and 7.
Standing at the front of the band saw, slide the saw table
pass the blade and through the slot moving from the right
side of the saw table to the left.
Align the screw holes in the saw table with the holes in
the saw table bracket.
Using the phillips screws, attach the saw table to the saw
table bracket. Tighten phillips screws securely.
Attach the table aligning bolt, washer, and wing nut to
the saw table.
NOTE: The wing nut goes below the saw table.
WING
NUT
WASHER
TABLE
ALIGNING
BOLT
Fig. 7
LOCK
KNOB
BLADE GUIDE
KNOB
Fig. 6
SCREW
SAW
TABLE
SAW TABLE
BRACKET
14
ASSEMBLY
SQUARING THE SAW TABLE TO THE BLADE
See Figure 8.
Turn the lock knob counterclockwise to unlock the blade
guide assembly. Turning the blade guide knob clockwise,
raise the blade guide assembly as far as it will go. Turn
the lock knob clockwise to retighten.
Place a small combination square on the saw table beside
the blade.
Loosen the table lock knob and rotate the angle
adjustment knob to tilt the saw table up or down to align
table 90° to blade (0° position). Retighten the table lock
knob.
Using a hex key, adjust the zero stop set screw until the
set screw just touches the saw housing.
Check squareness of the saw table to the blade. Make
readjustments if necessary.
Loosen screw on scale indicator with a phillips screwdriver
and align scale indicator to zero.
Tighten all screws securely.
ADJUSTING BLADE TENSION
See Figures 9 and 10.
Turn off and unplug the saw. Remove the switch key.
Before using the band saw, turn the blade tension knob
on the top of the saw clockwise to engage tension.
NOTE: Adjustments of blade tension can be made at
anytime.
Another method of checking blade tension has to do with the
sound the blade makes when plucked like a guitar string.
Pluck the back straight edge on the coasting side
opposite the blade guides while turning the tension knob.
Sound should be a musical note. Sound becomes higher
pitched as tension increases.
Using either method to check blade tension can be devel-
oped with practice.
Never increase blade tension so tight as to completely
compress the spring. When completely compressed, the
spring can no longer act as a shock absorber.
NOTE: Too much tension may cause the blade to break. Too
little tension may cause the blade to slip on the wheels.
Fig. 8
BLADE
GUARD
SMALL
COMBINATION
SQUARE
SAW
BLADE
ZERO STOP
SET SCREW
Fig. 9
BLADE TENSION KNOB
TO INCREASE
TENSION
TO DECREASE
TENSION
15
ASSEMBLY
TRACKING THE BLADE
See Figure 10.
NOTE: Adjust blade tension properly before making tracking
adjustments. Check that the blade guides are not interfering
with the blade.
To Adjust:
Open the front cover by releasing the upper and lower
latches. Watch the blade’s position on the upper tire
through the tracking view window as, by hand, you slowly
turn the upper wheel clockwise. If the blade moves away
from the center of the tire, the tracking must be adjusted.
Retighten hex nut.
If the blade has moved left or right of center:
NOTE: It may be necessary to loosen the hex nut for a larger
range of adjustments. Be sure to retighten after adjusting.
Turn the blade tracking knob (clockwise if blade has
moved left and counterclockwise if blade has moved right)
while turning the wheel by hand until the blade moves
back and rides in the center of the tire.
Check the position of the blade on the lower tire. The
blade should be completely on the tire. If not, adjust the
tracking until the blade is on both tires.
Rotate the upper wheel by hand in a clockwise direction
for a few more turns. Make sure the blade stays in the
same location on the tires. Readjust, if necessary, until
blade is tracking properly.
Close front cover and relatch.
NOTE: The 1/8 in. blade may not track properly in the center
of the wheel. It may be better to track this blade on the back
half of the upper wheel.
ATTACHING THE WORKLIGHT
See Figure 11.
Open the cover of the saw housing.
Slide the worklight bracket into the slot at the back of the
band saw housing and into the slots on the inside of the
band saw.
Securely tighten the wing screw clockwise to hold the
worklight firmly in place.
Close the saw housing cover.
IMPORTANT SAFETY INSTRUCTIONS
This worklight has a polarized plug (one blade wider than
the other) as a feature to reduce the risk of electric shock.
This plug will fit in a polarized outlet onlly one way. If the
plug does not fit fully in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician. Never use with
an extension cord unless the plug can be fully inserted. Do
not alter the plug.
Fig. 10
BLADE ON
WHEEL
BLADE
TENSION
KNOB
BLADE
TRACKING
KNOB
TRACKING
VIEW
WINDOW
WORKLIGHT
BRACKET
Fig. 11
16
OPERATION
WARNING:
Do not allow familiarity with tools to make you care-
less. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear safety goggles or safety glasses with side
shields when operating power tools. Failure to do so
could result in objects being thrown into your eyes
resulting in possible serious injury.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this tool. The use
of attachments or accessories not recommended can
result in serious personal injury.
WARNING:
To avoid blade contact, adjust the blade guide assembly
to just clear the workpiece. Failure to do so could result
in serious personal injury.
APPLICATIONS
You may use this tool for the purposes listed below:
Scroll cutting and circle cutting of wood and wood
composition products
Relief cutting of wood and wood composition products
BASIC OPERATION OF THE BAND SAW
A band saw is basically a “curve cutting” machine that can
also be used for straight-line cutting operations like cross
cutting, ripping, mitering, beveling, compound cutting, and
resawing. It is not capable of making inside or non-through
cuts.
This band saw is designed to cut wood and wood composi-
tion products only.
Before starting a cut, watch the saw run. If you experience
excessive vibration or unusual noise, stop immediately. Turn
the saw off, remove the switch key, and unplug the saw. Do
not restart until locating and correcting the problem.
CUTTING PROCEDURES
Hold the workpiece firmly against the saw table.
Use gentle pressure and both hands when feeding the
work into the blade. Do not force the work; allow the
blade to cut.
The smallest diameter circle that can be cut is determined
by blade width. A 1/4 in. wide blade will cut a minimum
diameter of 1-1/2 in.; a 1/8 in. wide blade will cut a
minimum diameter of 1/2 in.
Keep your hands away from the blade. Do not hand
hold pieces so small your fingers will go under the blade
guard.
Avoid awkward operations and hand positions where a
sudden slip could cause serious injury from contact with
the blade. Never place hands in blade path.
Use extra supports (tables, saw horses, blocks, etc.) when
cutting large, small or awkward workpieces.
Never use a person as a substitute for a table extension
or as additional support for a workpiece that is longer or
wider than the basic saw table.
When cutting irregularly shaped workpieces, plan your
work so it will not pinch the blade. For example, a piece
of molding must lay flat on the saw table. Workpieces
must not twist, rock or slip while being cut.
When backing up the workpiece, the blade may bind in
the kerf (cut). This is usually caused by sawdust clogging
the kerf or when the blade comes out of the guides. If this
happens:
Wait until the saw has come to a full and complete
stop.
Place the switch in the OFF position then remove the
switch key from the switch assembly. Store key in a safe
place.
Unplug the saw from the power source.
Wedge the kerf open with a flat screwdriver or wooden
wedge.
Open front cover and turn the upper wheel by hand while
backing up the workpiece.
RELIEF CUTS
Relief cuts are made when an intricate curve (too small
a radius for the blade) is to be cut. Cut through a scrap
section of the workpiece to curve in pattern line then carefully
back the blade out. Several relief cuts should be made for
intricate curves before following the pattern line as sections
are cutoff of curve “relieving” blade pressure.
17
OPERATION
SCROLL CUTTING
For general type scroll cutting, follow the pattern lines by
pushing and turning the workpiece at the same time. Do not
try to turn the workpiece while engaged in the blade without
pushing it – the workpiece could bind or twist the blade.
REMOVING JAMMED MATERIAL
Never remove jammed cutoff pieces until the blade has come
to a full and complete stop.
Place the switch in the OFF position, remove the switch
key from the switch assembly.
Unplug the saw from the power source before removing
jammed material.
AVOIDING INJURY
Make sure saw is level and does not rock. Saw should
always be on a firm, level surface with plenty of room for
handling and properly supporting the workpiece.
Bolt saw to the support surface to prevent slipping,
walking or sliding during operations like cutting long,
heavy boards.
Turn saw off, remove switch key, and unplug cord from
the power source before moving the saw.
Do not remove jammed cutoff pieces until blade has come
to a full and complete stop.
Choose the right size and style blade for the material and
type of cut you plan to do.
Make sure that the blade teeth point down toward the saw
table, that the blade guides, thrust bearings, and blade
tension are properly adjusted, that the blade guide knob
is tight, and that no parts have excessive play.
To avoid accidental blade contact, minimize blade
breakage, and provide maximum blade support, always
adjust the blade guide assembly to just clear the
workpiece.
Use only recommended accessories.
With the exception of the workpiece and related support
devises, clear everything off the saw table before turning
the saw on.
Properly support round materials such as dowel rods or
tubing because they have a tendency to roll during a cut
causing the blade to “bite”. To avoid this, always use a
“V” block or clamp workpiece to a miter gauge
Before removing loose pieces from the saw table, turn
saw off and wait for all moving parts to stop.
LOCKING THE SWITCH
See Figure 12.
Wait until the saw has come to a full and complete
stop.
Place the switch in the OFF position, remove the switch
key from the switch assembly. Store key in a safe
place.
BEFORE LEAVING THE SAW
See Figure 12.
Wait until the saw has come to a full and complete
stop.
Place the switch in the OFF position, remove the switch
key from the switch assembly. Store key in a safe
place.
Unplug the saw from the power source.
Make workshop childproof.
Lock the shop.
ON OFF
SWITCH
KEY
Fig. 12
18
OPERATION

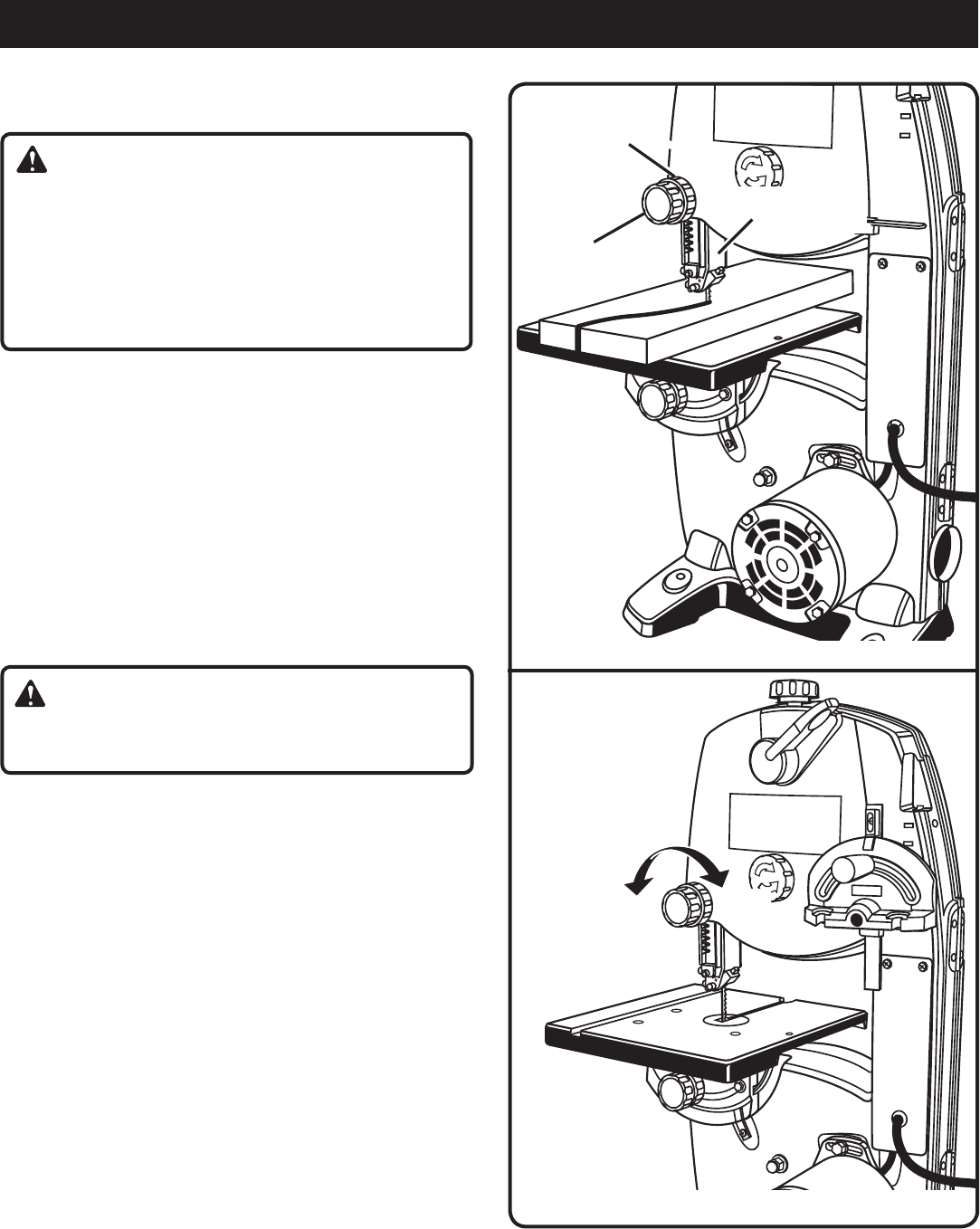

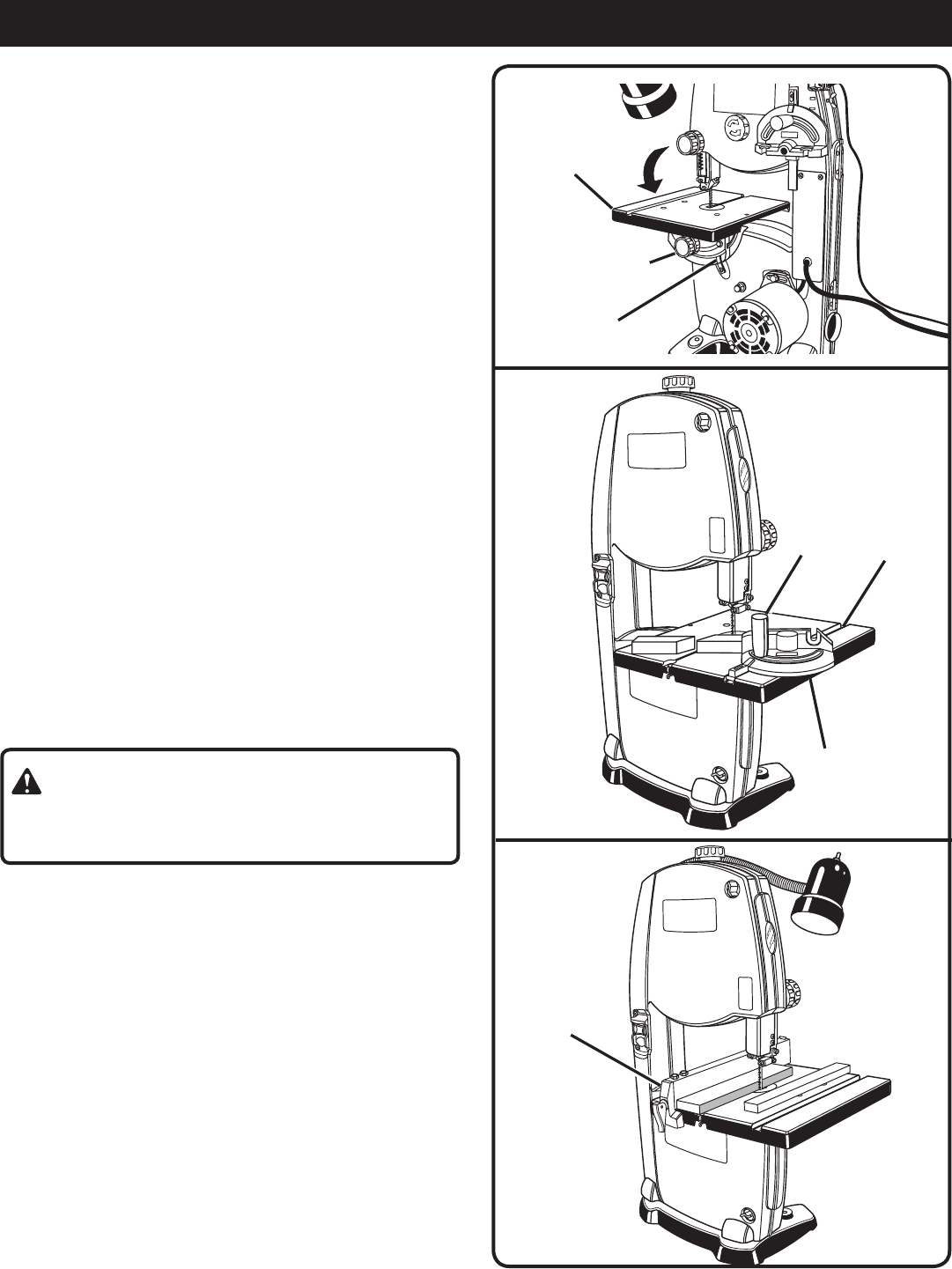

TILTING THE TABLE
See Figure 13.
Loosen the table lock handle slightly.
Turn the angle adjustment knob, tilting the saw table
toward the front of the saw housing until it reaches the
desired angle.
Using the scale indicator, check angle markings.
Retighten the table lock handle to hold saw table securely
in place.
USING THE MITER GAUGE
See Figures 13 and 14.
The miter gauge can be turned 60° to the right or left.
Loose the lock knob on the miter gauge.
With the miter gauge in the miter gauge slot, rotate the
gauge until the desired angle is reached on the index
scale.
Retighten the lock knob.
NOTE: For convenience, store the miter gauge in the slot
provide on the back of the band saw.
USING THE RIP FENCE
See Figure 15.
From either side of the saw table, slide the rip fence onto
the saw table. Check for a smooth, gliding action. Push the
locking handle down to automatically align and secure the
fence.
NOTE: Rip fence may be used on either side of the saw
table.
WARNING:
To reduce the risk of injury, always make sure the rip fence
is parallel to the blade before beginning any operation.
Fig. 13
TABLE LOCK
KNOB
SCALE
INDICATOR
SAW
TABLE
LOCK
KNOB
Fig. 14
MITER
GAUGE
MITER
GAUGE
SLOT
RIP FENCE
Fig. 15
19
ADJUSTMENTS

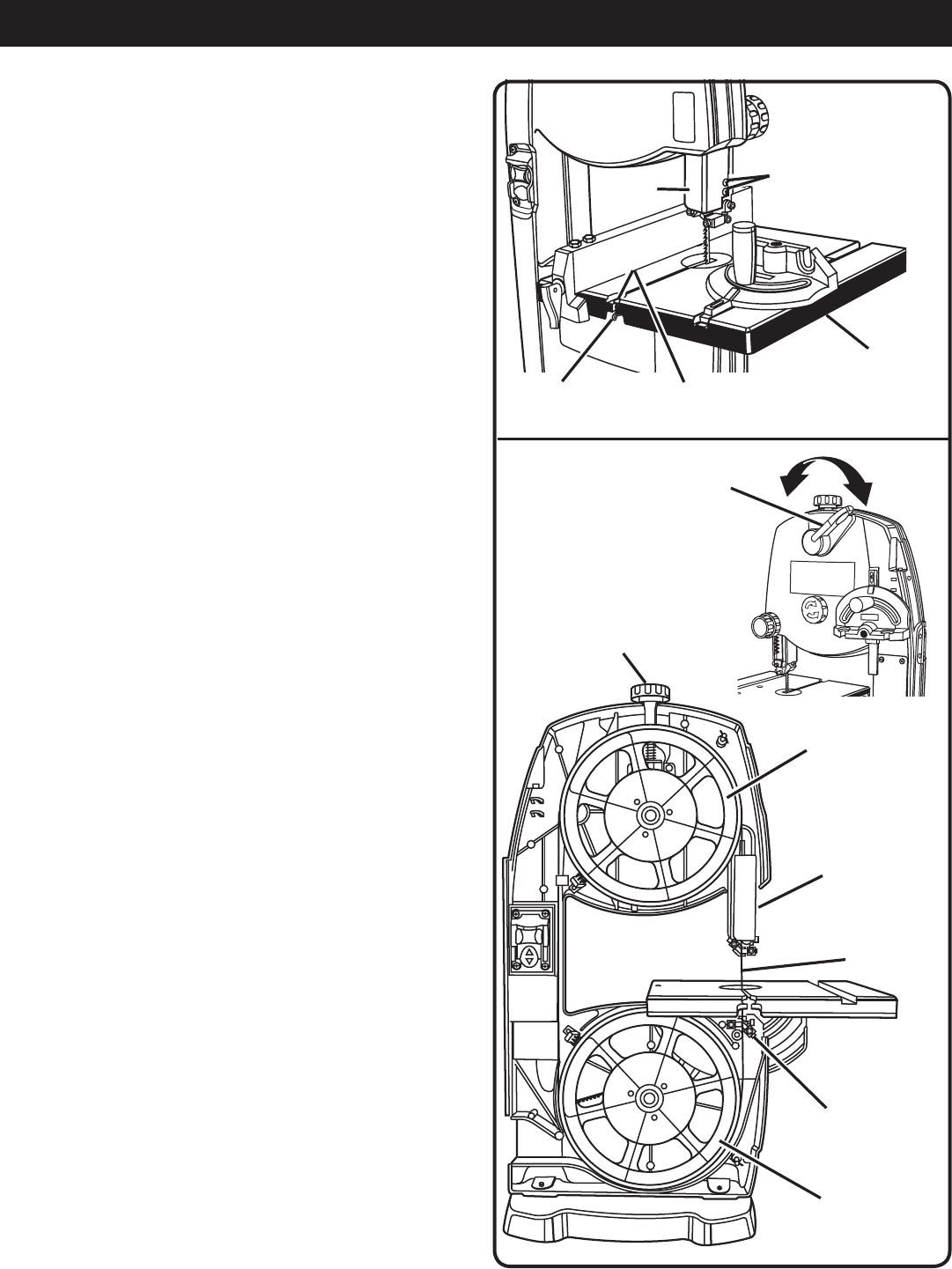

INSTALLING AND ADJUSTING THE BLADE
See Figures 16 and 17.
Loosen and remove the wing nut and table aligning bolt
from the saw table.
Open the front cover by releasing the upper and lower
latches.
Loosen the two set screws that hold the blade guard in
place using the 4 mm hex key provided then remove the
blade guard.
� Turn the lock knob counterclockwise to unlock the blade
guide assembly. Turning the blade guide knob (clockwise
raises the blade guide assembly; counterclockwise lowers
it), position the blade guide assembly about halfway
between the saw table and saw housing. Retighten the
lock knob.
Release blade tension by pushing the RapidSet™blade
tension lever to the left.
Carefully remove the old blade.
Wearing gloves, carefully uncoil the blade at arms length.
If the new blade was oiled to prevent rusting, it may need
to be wiped to keep the oil from your workpiece. Carefully
wipe in the same direction the teeth are pointing so the
rag does not catch on the teeth of the saw blade.
NOTE: The blade may need to be turned inside out if the
teeth are pointing in the wrong direction. Hold the blade
with both hands and rotate it inward.
With the teeth of the blade toward the front of the saw
and facing downward, place the blade through the lower
blade guides and around the lower wheel. Pull down on
the upper wheel to place the saw blade on the wheel.
Slowly turn the upper wheel to the right or clockwise by
hand to center the blade on the rubber tires.
Adjust the blade tension; check or adjust the blade track-
ing and re-engage the RapidSet™blade tension lever.
Adjust both upper and lower blade guides and thrust
bearings.
Reattach the aligning bolt, washer, and wing nut. Tighten
securely.
� Reattach the blade guard.
Close front cover.
Fig. 16
SAW
TABLE
Fig. 17
WING
NUT
BLADE
GUARD
TABLE ALIGNING
BOLT
SET SCREWS
LOWER
BLADE
GUIDES
BLADE GUIDE
ASSEMBLY
SAW BLADE
UPPER
WHEEL
BLADE
TENSION
KNOB
LOWER
WHEELS
RAPIDSET™ BLADE
TENSION LEVER
20
ADJUSTMENTS
Fig. 19
ADJUSTING BLADE GUIDE ASSEMBLY
See Figures 18 and 19.
WARNING:
The blade guides have been preset at the factory.
These settings are functional for some applications. We
recommend that you check and adjust blade guide
settings before first use of your saw. Refer to “Adjusting
thrust bearings, blade guide support, and blade guides”
procedures explained in the ADJUSTMENTS section of
this operator’s manual.
To prevent the blade from twisting or breaking, the blade
guide assembly should always be set approximately 1/8 in.
(3 mm) above the workpiece.
Turn the lock knob counterclockwise to unlock the blade
guide assembly.
As a guide, use a scrap piece of the same wood you are
about to cut to set the height of the blade guide assembly.
Adjust the blade guide assembly by turning the blade
guide knob.
Lock blade guide assembly in place by turning the lock
knob clockwise.
Always lock the blade guide assembly in place before
turning on the band saw.
WARNING:
To avoid personal injury, maintain proper adjustment of
blade tension, blade guides, and thrust bearings.
To check tension, raise the blade guide assembly all the
way up to expose the blade.
Push the blade to the side with moderate force; the blade
should flex approximately 1/8 in. (3 mm).
Fig. 18
BLADE GUIDE
KNOB
LOCK
KNOB
BLADE GUIDE
ASSEMBLY
LOCK
UNLOCK
21
ADJUSTMENTS

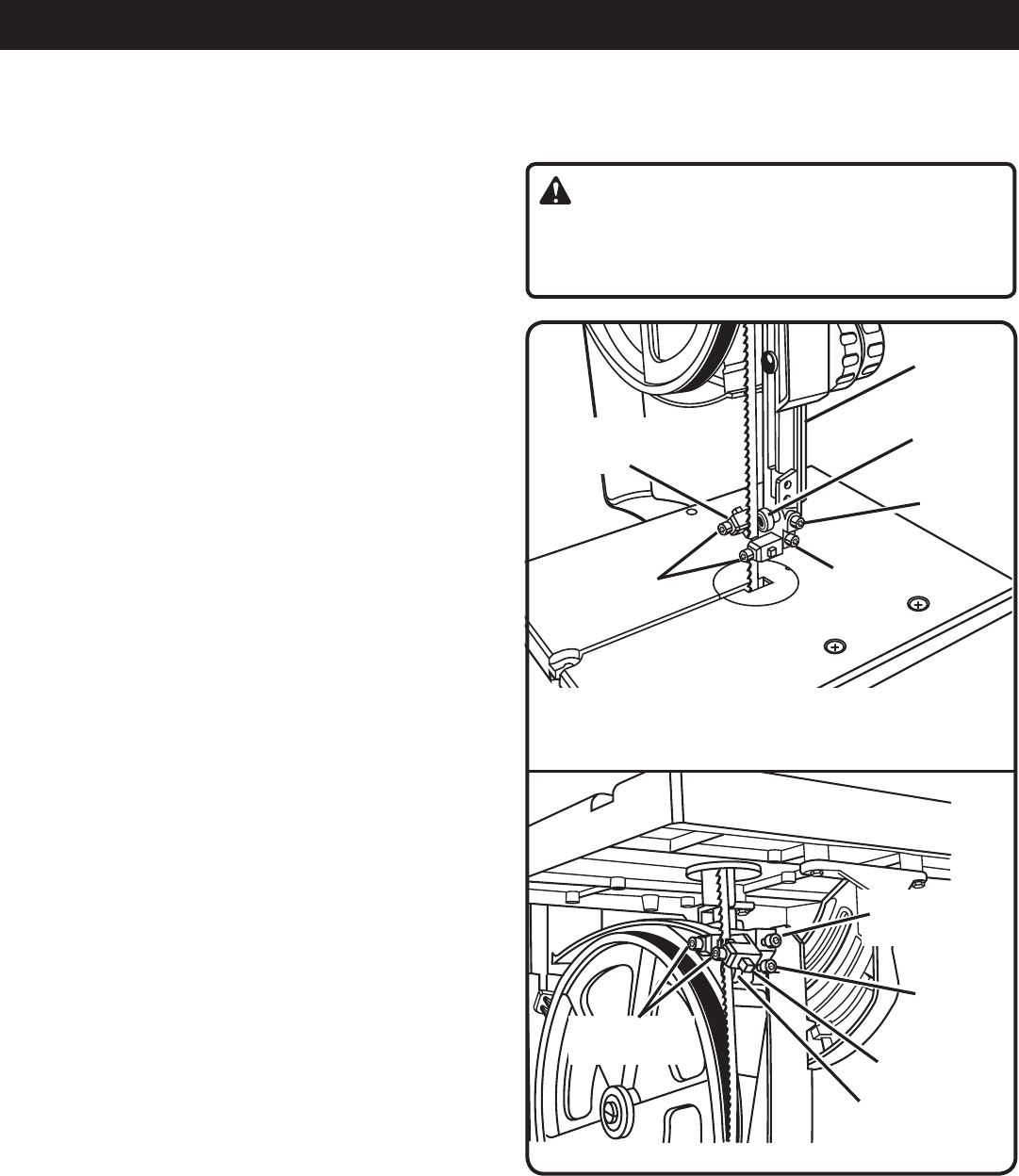

ADJUSTING THRUST BEARINGS, BLADE
GUIDE SUPPORT, AND BLADE GUIDES
See Figures 20 - 22.
The upper and lower blade guides and thrust bearings
support the band saw blade during cutting operations. The
adjustment of the guides and bearings should be checked
whenever a different blade is installed.
To Adjust Thrust Bearings:
The thrust bearings support the back edge of the blade
during cutting. The blade should not contact the thrust
bearings when you stop cutting. It is important that both
upper and lower thrust bearings be adjusted equally.
NOTE: The thrust bearing screw is the upper cap screw
located on the right side of the blade guide assembly. It is
the lower cap screw on the right side of the saw housing
below the saw table for the lower bearing. See Figures 20
and 21.
Remove the blade guard by loosening the two phillips
screws.
Turn the lock knob counterclockwise to unlock the blade
guide assembly. Turning the blade guide knob clockwise,
raise the blade guide assembly as far as it will go. Turn
the lock knob clockwise to retighten.
Adjust the thrust bearings first. Using the 4 mm hex key,
loosen the thrust bearing screw.
Move the thrust bearing to within 1/64 in. (0.4 mm) of the
blade. Tighten the thrust bearing screw securely. Repeat
this procedure on the lower thrust bearing located below
the saw table.
Replace the blade guard if no additional adjustments are
to be made.
To Adjust Blade Guide Support:
Remove the blade guard by loosening the two phillips
screws.
Adjust the position of the blade guide assembly. Loosen
the bottom screw on the right side of the blade guide
assembly using the 4 mm hex key.
Slide the upper blade guide support on the shaft until
the front edge of the blade guides are about 1/64 in. (0.4
mm) behind the gullet of the blade. Tighten the screw
securely. Repeat this procedure for the lower blade guide
support.
Replace the blade guard if no additional adjustments are
to be made. Fig. 21
BLADE
GUIDE
ASSEMBLY
BLADE GUIDE
SUPPORT SCREW
BLADE GUIDE
SCREWS
BLADE GUARD REMOVED
FOR CLARIFICATION ONLY
THRUST
BEARING
THRUST
BEARING
SCREW
Fig. 20
UPPER BLADE
GUIDE SUPPORT
LOWER BLADE
GUIDE SUPPORT
THRUST
BEARING
SCREW
THRUST BEARING
BLADE GUIDE
SCREWS
BLADE GUIDE
SUPPORT SCREW
NOTE: The lower blade guide support screw is the top screw
located on the right of the saw housing under the table. See
Figure 21.
WARNING:
Never operate saw without blade guard secured in
place. To do so could result in possible serious personal
injury.
22
MAINTENANCE
ADJUSTMENTS
To Adjust Blade Guides:
The blade guides help keep the blade from twisting and
binding. The blade will be ruined if the blade teeth hit the
blade guides while using the band saw. The set of teeth and
the sharpened edge of teeth will be damaged by hitting the
blade guides. Proper adjustment of the upper and lower
blade guides will prevent this from happening.
Remove the blade guard by loosening the two phillips
screws.
Loosen the two blade guide support screws that lock
the upper blade guides. Slide the two guides to within
1/32 in. (0.8 mm) of the blade. Do not pinch the blade.
Make sure one guide is not further away from the blade
than the other. Retighten the two blade guide support
screws securely.
Replace the blade guard if no additional adjustments are
to be made.
Repeat this procedure on the lower blade guides located
under the saw table. See Figure 21. Fig. 22
BLADE GUARD REMOVED
FOR CLARIFICATION ONLY
BLADE GUIDE
SUPPORT SCREW
BLADE GUIDES
THRUST
BEARING
SCREW
THRUST
BEARING
BLADE GUIDE
ASSEMBLY
UPPER BLADE
GUIDE
SUPPORT
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WARNING:
Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
Keep your band saw clean.
Remove sawdust from the inside frequently.
Do not allow pitch to accumulate on the saw table, blade
guides, or thrust bearings. Clean them with gum and pitch
remover.
Apply a thin coat of automobile type wax to the saw
table’s top so the wood slides easily while cutting.
WARNING:
To prevent accidental starting that could cause possible
serious personal injury, turn off the saw, remove the
switch key, and unplug the saw before working on the
band saw.
LUBRICATION
All of the bearings in this tool are lubricated with a sufficient
amount of high grade lubricant for the life of the unit under
normal operating conditions. Therefore, no further lubrica-
tion is required.
MOTOR/ELECTRICAL
Frequently vacuum or blow out sawdust from the motor.
BLADE GUIDES
See Figure 22.
Blade guides may become rounded and worn during use.
Remove the blade guides and file or grind flat.
Replace blade guides when filing or grinding has worn
them down and they can no longer be properly secured
in place.
23

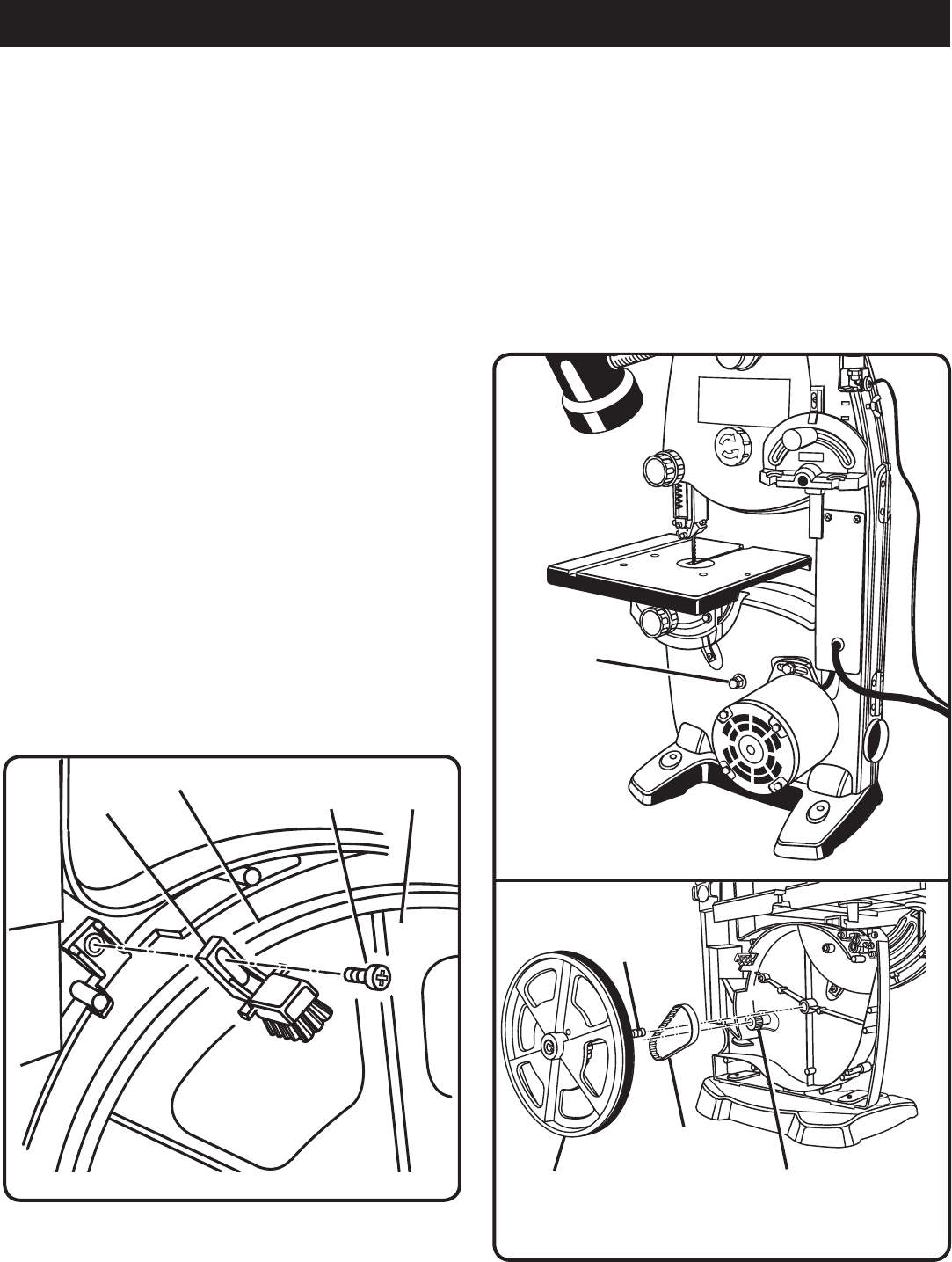

MAINTENANCE
LOWER
WHEEL
PULLEY
SHAFT
MOTOR PULLEY
Fig. 25
DRIVE BELT
Fig. 24
LOWER
WHEEL
BRUSH
Fig. 23
TIRE SCREW
Remove the nut and washer from the middle of the saw
housing. See Figure 24.
Pull the lower wheel away from the saw housing.
Remove the worn drive belt.
Place new drive belt on the pulley. As you slide the pul-
ley shaft back into the hole in the saw housing, place the
drive belt over the motor pulley.
Replace the nut and washer on the pulley shaft and re-
tighten.
Replace saw blade.
Check thrust bearings and blade guides.
NUT
AND
WASHER
TIRES
Cleaning tires:
Pitch and sawdust accumulates on tires and needs to be
removed with a fine wire brush or a piece of wood. Do
not use a sharp knife or any kind of solvent.
Replacing tires:
Open front cover and remove saw blade. See section on
Installing and Adjusting the Blade, page 17.
Pry the worn tire away from the wheel carefully.
Stretch the new tire around the wheel.
Replace the saw blade and close the front cover.
BRUSHES
See Figure 23.
There is a brush located inside the saw housing, next to the
lower wheel. It helps protect the tire and wheel by brushing
off saw dust. As the brush becomes worn, it will need to be
adjusted or replaced.
Remove the screw then pull the brush off.
Place the new brush in the groove.
Retighten using the screw.
DRIVE BELT
See Figures 24 and 25.
Due to wear or breakage, the drive belt may need to be
replaced. The drive belt is located behind the lower wheel
of the band saw.
Remove the saw blade and set it aside. See section on
Installing and Adjusting the Blade, page 17.
24
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Motor will not run. 1. Problem with On-Off switch or 1. Have worn parts replaced before
power cord. using band saw again.
2. Motor defective. 2. Do not attempt any repair. Have
tool repaired by a qualified
service technician.
Blade does not run in the approxi- 1. Not tracking properly. 1. Adjust tracking, See Adjustments
mate center of the upper wheel. section, Tracking the Blade.
Band Saw slows down when 1. Cutting too small a radius. 1. Stop feeding and back up the cutting.
material slightly until the band
saw speeds up.
2. Dull blade. 2. Replace blade.
Blade breaking. 1. Too much blade tension. 1. Adjust tension. See Adjustments
section, Adjusting Blade Tension.
2. Kink in blade caused by cutting 2. Use correct cutting technique.
too small radius or turning the See section, Operation.
material too fast when cutting.
3. Thrust bearings scarred or not 3. Replace the thrust bearings.
rotating.
Saw is noisy when running. 1. Too much blade tension. 1. Adjust tension. See Adjustments
section, Adjusting Blade Tension.
2. Blade guides and bearings 2. Adjust upper and lower blade
are in contact with the blade. guides and bearings. See Adjustments
sections, Adjusting Thrust Bearings,
Blade Guide Support, and Blade
Guides.
Blade will not cut straight. 1. Blade guides and bearings not 1. Adjust upper and lower blade
properly adjusted. guides and bearings. See Adjust-
ments sections, Adjusting Thrust
Bearings, Blade Guide Support,
and Blade Guides.
2. Worn or defective blade. 2. Replace blade.
Blade guides will not stay in position. 1. Blade guide screws have 1. Tighten blade guide screws
loosened. securely.
25
NOTES
• SERVICE
Now that you have purchased your tool, should a need ever exist for repair parts or service,
simply contact your nearest Authorized Service Center. Be sure to provide all pertinent
facts when you call or visit. Please call 1-800-525-2579 for your nearest Authorized
Service Center. You can also check our web site at www.ryobitools.com for a complete
list of Authorized Service Centers.
• MODEL NO. AND SERIAL NO.
The model number of this tool will be found on a plate attached to the motor housing.
Please record the model number and serial number in the space provided below.
• HOW TO ORDER REPAIR PARTS
When ordering repair parts, always give the following information:
• MODEL NUMBER
• SERIAL NUMBER
BS902
ONE WORLD TECHNOLOGIES, INC.
1428 Pearman Dairy Road, Anderson, SC 29625
Phone 1-800-525-2579
www.ryobitools.com
Ryobi® is a registered trademark of Ryobi® Limited used under license.
983000-267
4-20-06 (REV:02)
OPERATOR’S MANUAL
9 in. (229 mm) BAND SAW
BS902

Navigation menu
