For use only with the Ryobi R161 or R162 router (includes R1801M1 motor with R181FB1 base)
Your new router table has been engineered and manufactured to Ryobi's high standard for dependability, ease of
operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual.
Thank you for buying a Ryobi router table.

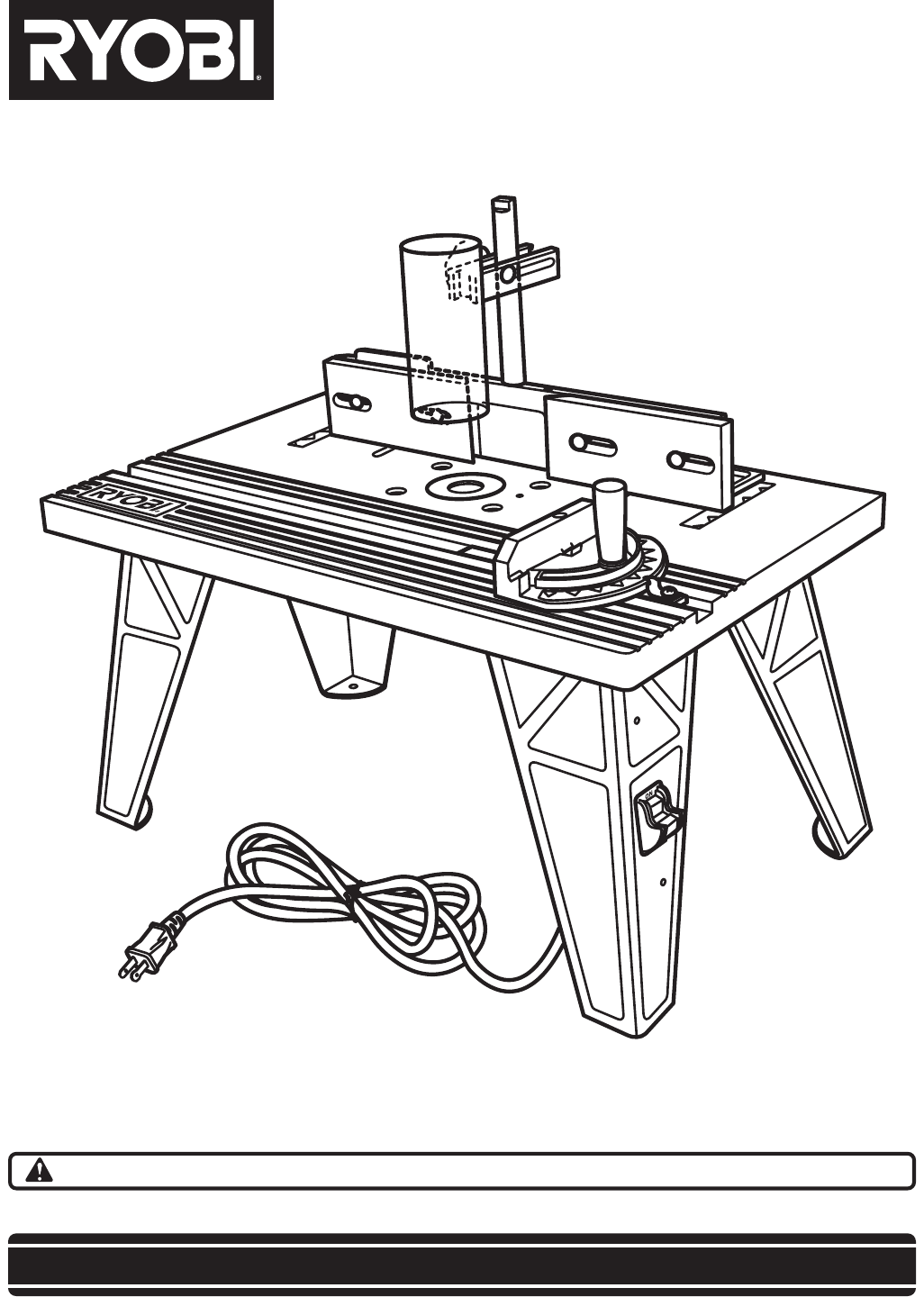

OPERATOR'S MANUAL
ROUTER TABLE
RT101 - DOUBLE INSULATED
SAVE THIS MANUAL FOR FUTURE REFERENCE
2
INTRODUCTION
QIntroduction ........................................................................................................................................................ 2
QRules for Safe Operation ................................................................................................................................3-4
QSymbols ............................................................................................................................................................. 5
QSpecifications .................................................................................................................................................... 6
QUnpacking .......................................................................................................................................................... 6
QFeatures ............................................................................................................................................................ 7
QAssembly ......................................................................................................................................................9-12
QAdjustments ................................................................................................................................................13-15
QOperation ....................................................................................................................................................15-16
QMaintenance .................................................................................................................................................... 16
QParts, Ordering, and Service ........................................................................................................................... 18
TABLE OF CONTENTS
Look for this symbol to point out important safety
precautions. It means attention!!! Your safety is involved.
GLASSES
SAFETY
WEAR YOUR
FORESIGHT IS BETTER
THAN NO SIGHT
The operation of any power tool can result in foreign objects being thrown into your eyes,
which can result in severe eye damage. Before beginning tool operation, always wear safety
goggles or safety glasses with side shields and a full face shield when needed. We
recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses
with side shields. Always wear eye protection which is marked to comply with ANSI Z87.1.
Your router table has many features for making the use
of a router more pleasant and enjoyable. Safety,
performance, and dependability have been given top
priority in the design of this router table making it easy to
maintain and operate.
WARNING:
Do not attempt to use this product until you have
read thoroughly and understand completely the
operator’s manual. Pay close attention to the safety
rules, including Dangers, Warnings, and Cautions. If
you use your router table properly and only for what
it is intended, you will enjoy years of safe, reliable
service.
3
RULES FOR SAFE OPERATION
Safe operation of this power tool requires that you read
and understand this operator's manual and all labels
affixed to the tool. Safety is a combination of common
sense, staying alert, and knowing how your tool works.
READ ALL INSTRUCTIONS
QKnow your power tool. Read operator’s manual
carefully. Learn its applications and limitations,
as well as the specific potential hazards related
to this tool. Following this rule will reduce the risk of
electric shock, fire, or serious injury.
QKeep guards in place and in good working order.
QRemove wrenches and adjusting keys. Form the
habit of ensuring that hex keys and adjusting wrenches
are removed before turning on the tool.
QKeep the work area clean. Cluttered work areas and
work benches invite accidents.
QDo not use in dangerous environments. Do not
use power tools in damp or wet locations, or expose
them to rain. Keep the work area well lit.
QKeep children and visitors away. All visitors should
be kept a safe distance from work area.
QMake workshop childproof with padlocks and mas-
ter switches or by removing starter keys.
QDo not force the tool. It will do the job better and
safer at the rate for which it was designed.
QUse the right tool. Do not force the tool or attach-
ment to do a job for which it was not designed.
QUse the proper extension cord. Make sure your
extension cord is in good condition. Use only a cord
heavy enough to carry the current your product will
draw. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating. A
wire gage size (A.W.G.) of at least 14 is recom-
mended for an extension cord 25 feet or less in
length. If in doubt, use the next heavier gage. The
smaller the gage number, the heavier the cord.
QInspect tool cords periodically and, if damaged,
have repaired at your nearest authorized service
center. Constantly stay aware of cord location.
Following this rule will reduce the risk of electric shock
or fire.
QDo not abuse cord. Never carry the tool by the
cord or yank it to disconnect it from the recep-
tacle. Keep cord away from heat, oil, and sharp
edges. Following this rule will reduce the risk of elec-
tric shock or fire.
QPolarized plugs. To reduce the risk of electric shock,
this equipment has a polarized plug (one blade is
wider than the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a
qualified electrician to install the proper outlet. Do not
change the plug in any way.
QWear proper apparel. Do not wear loose clothing,
gloves, neckties, rings, bracelets, or other jewelry
that can get caught in moving parts. Nonslip footwear
is recommended. Also wear protective hair covering
to contain long hair.
QAlways wear safety glasses. Everyday eyeglasses
have only impact-resistant lenses; they are NOT
safety glasses.
QProtect your lungs. Wear a face or dust mask if
the operation is dusty. Following this rule will re-
duce the risk of serious personal injury.
QProtect your hearing. Wear hearing protection
during extended periods of operation. Following
this rule will reduce the risk of serious personal in-
jury.
QSecure work. Use clamps or a vise to hold work
when practical. It is safer than using your hand and
frees both hands to operate tool.
QDo not overreach. Keep proper footing and balance
at all times.
QNever stand on tool. Serious injury could occur if the
tool is tipped or if the cutting tool is unintentionally
contacted.
QMaintain tools with care. Keep tools sharp and
clean for better and safer performance. Follow in-
structions for lubricating and changing accessories.
QAvoid accidental starting. Make sure switch is in off
position when plugging in tool.
QDisconnect tools before servicing, when not in
use, or when changing attachments.
QUse recommended accessories. Consult the
operator's manual for recommended accessories.
The use of improper accessories may cause risk of
injury.
4
RULES FOR SAFE OPERATION
WARNING:
Some dust created by power sanding, sawing,
grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples
of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are
specially designed to filter out microscopic particles.
QCheck damaged parts. Before using the tool, a
guard or other part that is damaged should be care-
fully checked to determine that it will operate properly
and perform its intended function. Check for align-
ment of moving parts, binding of moving parts, break-
age of parts, mounting and any other conditions that
may affect its operation. A guard or other part that is
damaged must be properly repaired or replaced.
QDirection of feed. Feed work into a blade or cutter
against the direction or rotation of the blade or cutter
only.
QKeep hands away from cutting area. Do not reach
underneath the table or in the cutting path with your
hands or fingers at any time while the tool is con-
nected to a power source.
QDo not use awkward hand positions.
QUse overhead guard when adjustable fence is not
in place.
QFirmly clamp or bolt the router table to a work
surface so that the router table surface is approxi-
mately hip height.
QNever leave tool running unattended. Turn the
power off. Do not leave tool until it comes to a
complete stop.
QInspect for and remove all nails from lumber be-
fore routing. Following this rule will reduce the risk
of serious personal injury.
QDrugs, alcohol, medication. Do not operate tool
while under the influence of drugs, alcohol, or any
medication. Following this rule will reduce the risk of
electric shock, fire, or serious personal injury.
QSave these instructions. Refer to them frequently
and use them to instruct others who may use this
tool. If you loan someone this tool, loan them
these instructions also.
5
Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type or a characteristic of current
n0No Load Speed Rotational speed, at no load
Class II Construction Designates double-insulated
construction tools
.../min Revolutions or Reciprocation Per Minute Revolutions, strokes, surface speed,
orbits etc. per minute
Safety Alert Indicates danger, warning or caution.
It means attention!!! Your safety is
involved.
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the
explanations with them, deserve your careful attention and understanding. The safety warnings do not by
themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident
prevention measures.
DANGER: Failure to obey a safety warning will result in serious injury to yourself or to others. Always
follow the safety precautions to reduce the risk of fire, electric shock and personal injury.
WARNING: Failure to obey a safety warning can result in serious injury to yourself or to others.
Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.
CAUTION: Failure to obey a safety warning may result in property damage or personal injury to
yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and
personal injury.
NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.
SYMBOL MEANING
SYMBOLS
Wet Conditions Alert Do not expose to rain or use in damp
locations.
SAVE THESE INSTRUCTIONS
6
SPECIFICATIONS
UNPACKING
INFORMATION
QCarefully remove the parts from the box. Make sure
that all items listed in the packing list are included.
QInspect the parts carefully to make sure no break-
age or damage occurred during shipping.
QDo not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
QIf any parts are damaged or missing, please call
1-800-525-2579 for assistance.
Table Dimensions 14 in. x 24 in. (35.6 cm x 61 cm)
Maximum Cutter Diameter 1-15/16 in. (4.9 cm)
Fence Length 16 in. (40.64 cm)
Miter Slot 3/8 in. x 3/4 in. x 24 in. (0.9 cm x 1.9 cm x 61 cm)
Rating 120 Volts, 60 Hz, AC only
Net Weight 18 lbs. (8.2 kg.)
WARNING:
If any parts are missing do not operate the product
until the missing parts are replaced. Failure to do so
could result in serious personal injury.
PACKING LIST
1. Router table surface (1)
2. Table leg (4)
3. Socket head screw (19)
4. Lock washer (19)
5. Hex key (1)
6. Switch box assembly (1)
7. Thread cutting screw (2)
8. Undertable guard (1)
9. Fence assembly (1)
10. Carriage bolt (2)
11. Fence lock knob (2)
12. Guard post (1)
13. Cutter guard assembly (1)
14. Miter gauge bar (1)
15. Miter gauge (1)
16. Miter gauge knob & washer (1 ea)
17. Rear safety guard (1)
18. Pan head machine screw (2)
19. Throat plate (5)
20. Starting pin
21. Flat head machine screw (3)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
7
DOUBLE INSULATION
Double insulation is a concept in safety in electric power
tools, which eliminates the need for the usual three-wire
grounded power cord. All exposed metal parts are
isolated from the internal metal motor components with
protecting insulation. Double insulated tools do not need
to be grounded.
WARNING:
The double insulated system is intended to protect
the user from shock resulting from a break in the
tool's internal wiring. Observe all normal safety pre-
cautions to avoid electrical shock.
Important: Servicing of a tool with double insulation
requires extreme care and knowledge of the system and
should be performed only by a qualified service
technician. For service, we suggest you return the tool to
your nearest authorized service center for repair. Always
use original factory replacement parts when servicing.
SWITCH
The router table has a conveniently located toggle
switch. In addition, the router table is equipped with a
switch key. You must insert the key to turn the switch on.
If you remove the key during operation, you can turn the
switch off, but you may not turn it on again until you
replace the key.
FENCE ASSEMBLY
The fence assembly provides an adjustable surface to
support and guide the work.
STARTING PIN
When you are unable to use the fence for a guide
because the workpiece is odd-shaped or too small, use
the starting pin for a guide. Only use piloted cutters when
using the starting pin.
FEATURES
CUTTER GUARD/VACUUM ATTACHMENT
The cutter guard provides a barrier to protect the operator
from contact with the cutter and is adjustable for all types
of cuts and materials. The cutter guard also doubles as
a vacuum attachment. You can insert a standard shop
vacuum into the top of the clear plastic ring to keep dust
down to a minimum.
MITER GAUGE
A miter gauge is used for mitered routing and to help
support wider pieces.
GUARDS
The undertable guard and rear safety guard ensure that
your hand, loose clothing, and other objects do not come
in contact with the cutter or collet during operation.
WARNING:
The undertable guard and rear safety guard must be
securely in place before using the router table. Fail-
ure to do so could result in serious personal injury.
THROAT PLATES
Five throat plates are included with the router table. The
throat plate provides a stable surface around the cutter
and prevents objects from falling through the throat and
damaging the spindle.
WARNING:
Do not allow familiarity with your router or router
table to make you careless. Remember that a care-
less fraction of a second is sufficient to inflict severe
injury.
8
FEATURES

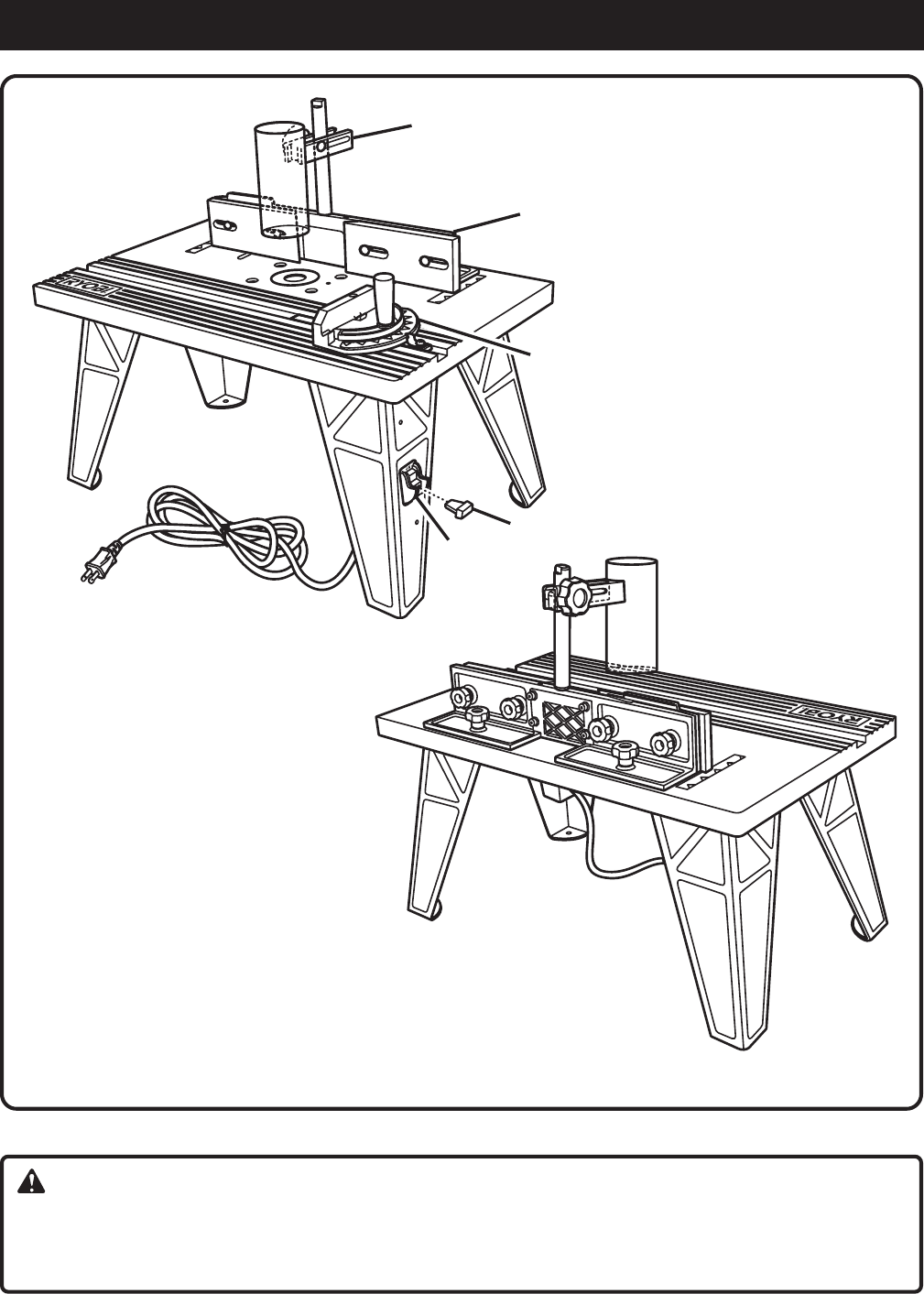

Fig. 1
WARNING:
Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a hazardous condition leading to possible serious
personal injury.
CUTTER GUARD/
VACUUM
ATTACHMENT
MITER
GAUGE
SWITCH
FENCE
FRONT VIEW
REAR VIEW
SWITCH KEY
9
ASSEMBLY
Fig. 2
WARNING:
The router or router table should never be con-
nected to a power supply when you are assembling
parts, making adjustments, installing or removing
cutters, cleaning, or when not in use. Disconnecting
the router and router table will prevent accidental
starting that could cause serious personal injury.
ASSEMBLING THE ROUTER TABLE
Assembling the router table involves attaching the legs,
the undertable guard, the switch box, the fence, the
cutter guard/vacuum attachment, and the miter gauge to
the router table.

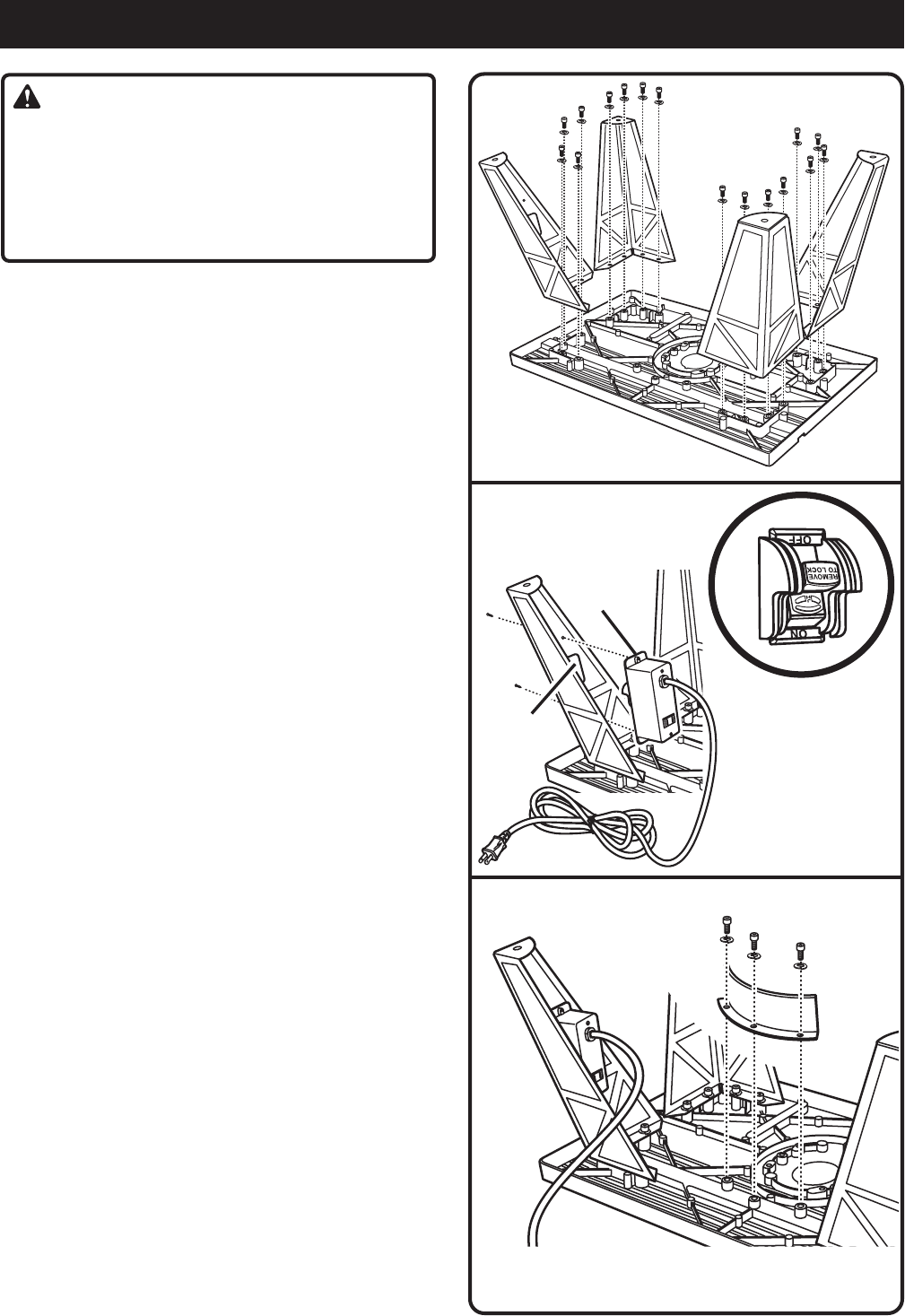

TO ATTACH THE LEGS
See Figure 2.
Follow these directions to attach the legs.
QPlace router table surface upside down on a flat,
level surface with the front edge closest to you.
QPlace each leg in a corner of the table.
NOTE: Two of the legs have been keyed for proper
placement. With the table surface upside down, place
the leg with four holes and two punched notches in
the front left corner of the table and the leg with six
holes in the front right corner of the table.
QAlign the four holes in the legs with the four corre-
sponding threaded holes in the table.
QUse the hex key to secure each leg with four socket
head screws and lock washers.
TO ATTACH THE SWITCH BOX
See Figure 3.
Follow these directions to attach the switch box.
QPlace the router table upside down on a flat surface.
QHold the switch box so that the words ON and OFF
on the toggle switch are upside down.
QInsert the switch box through the cutout in the left
front leg.
QAlign the two small holes in the mounting tabs with
the two small holes in the leg.
QUse a screwdriver to secure the switch box with two
thread cutting screws.
TO ATTACH THE UNDERTABLE GUARD
See Figure 4.
Follow these directions to attach the undertable guard.
QPlace the router table upside down on a flat surface.
QPosition the undertable guard around the throat of
the table.
QAlign the three holes of the guard with the threaded
holes in the table.
QUse the hex key to secure the undertable guard with
three socket head screws and lock washers.
Fig. 4
Fig. 3
SWITCH
BOX
CUTOUT
10
ASSEMBLY
Fig. 5
Fig. 7
Fig. 6

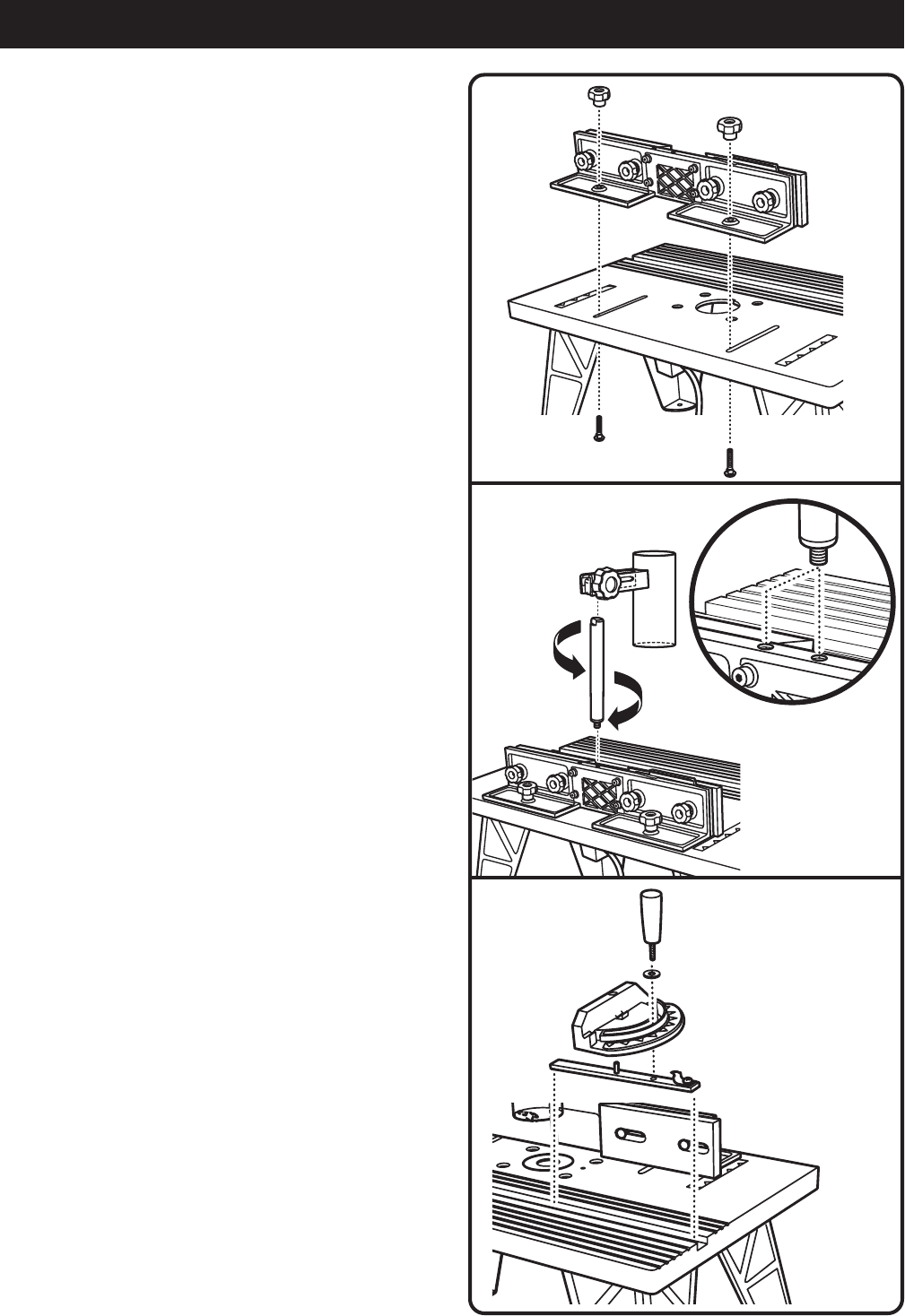

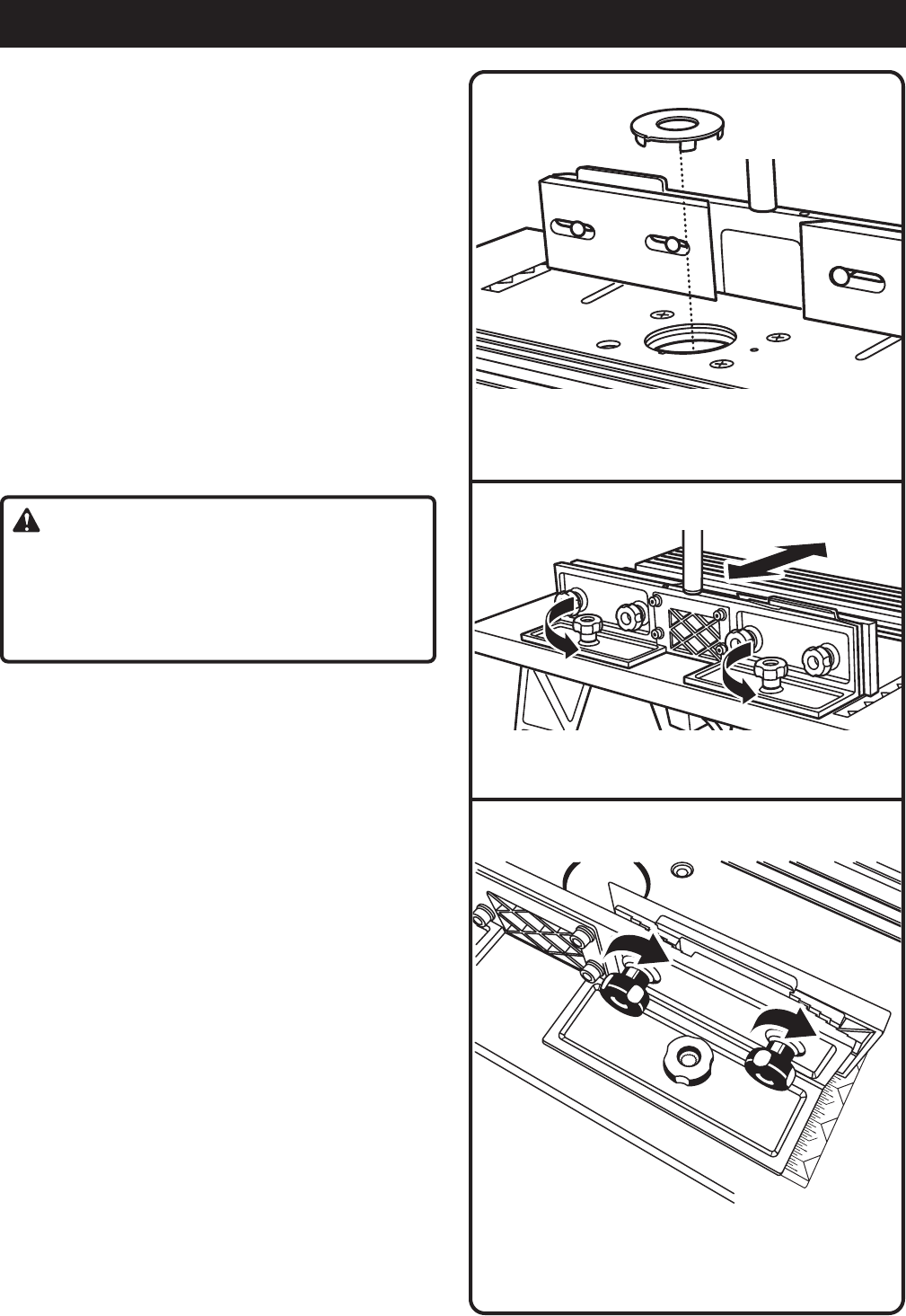

TO ATTACH THE FENCE
See Figure 5.
Follow these directions to attach the fence.
QPlace the router table right side up with the back
edge closest to you.
QPosition the fence on the table with the four black
knobs facing you.
QAlign the two holes on the bottom of the fence with
the two channels on the router table.
QSecure the fence to the table with the two fence lock
knobs and carriage bolts.

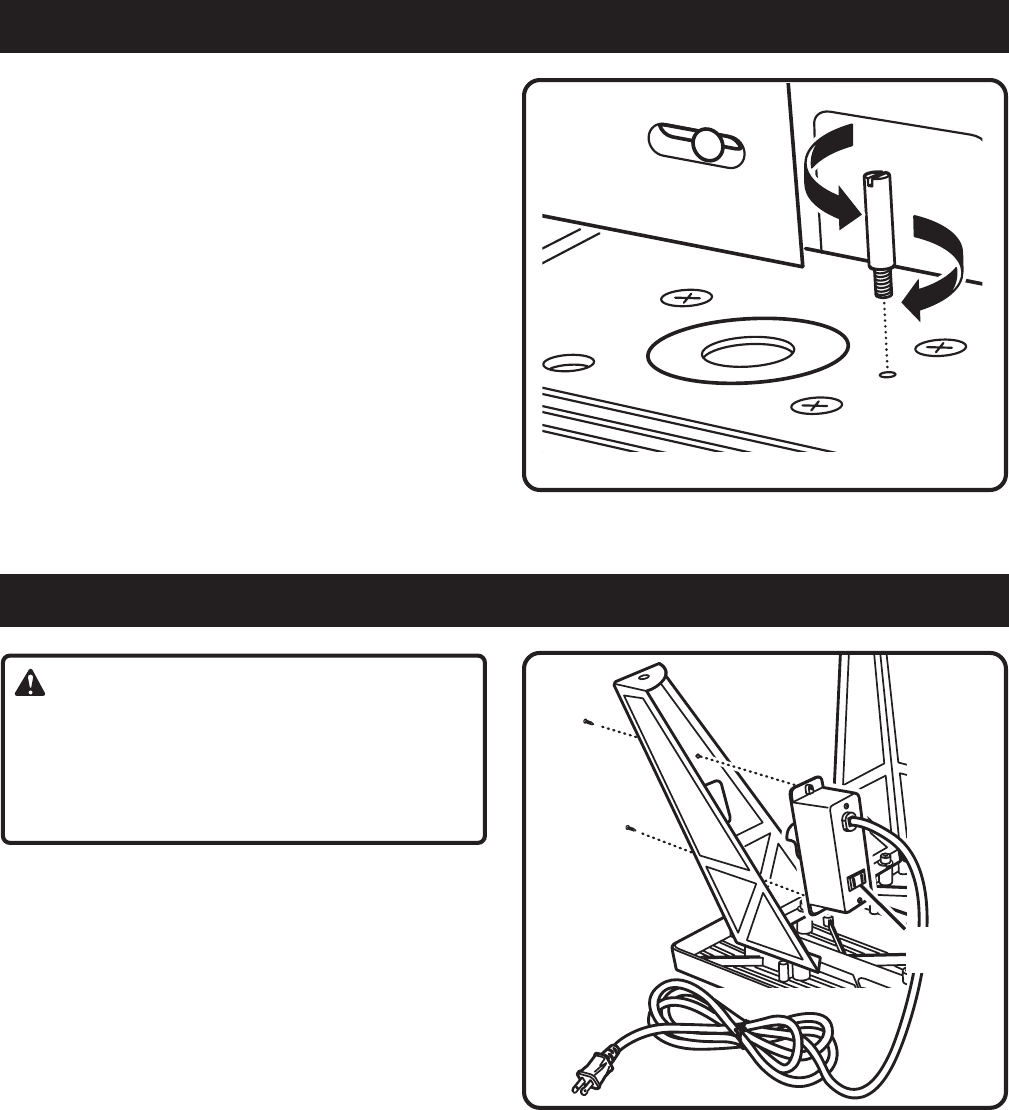

TO ATTACH THE CUTTER GUARD ASSEMBLY/
VACUUM ATTACHMENT
See Figure 6.
Follow these directions to attach the cutter guard
assembly/vacuum attachment.
QPlace the router table right side up with the back
edge closest to you.
QScrew the guard post securely into one of the
threaded holes on the top of the fence.
NOTE: When the fence is close to the cutter, place
the guard post in the off-center threaded hole to
provide protection from the cutter and allow for proper
suction for the vacuum.
QLoosen the clear plastic ring by turning the black
knob counterclockwise.
QSlide the ring over the guard post.
QCenter the cutter guard over the throat of the router
table.
QTighten the cutter guard by turning the black knob
clockwise.
NOTE: While routing, you can insert a standard
shop vacuum into the top of the clear plastic ring to
keep dust down to a minimum.
TO ATTACH THE MITER GAUGE
See Figure 7.
Follow these directions to attach the miter gauge.
QPlace the router table right side up with the front
edge closest to you.
QPlace the miter gauge bar in the track near the front
of the table with the pointer on the right.
QPosition the miter gauge onto the miter gauge bar
placing the miter gauge under the pointer and align-
ing the hole in the miter gauge over the small post in
the miter gauge bar.
QScrew the miter gauge knob into the threaded hole
in the miter gauge bar.
11
ASSEMBLY

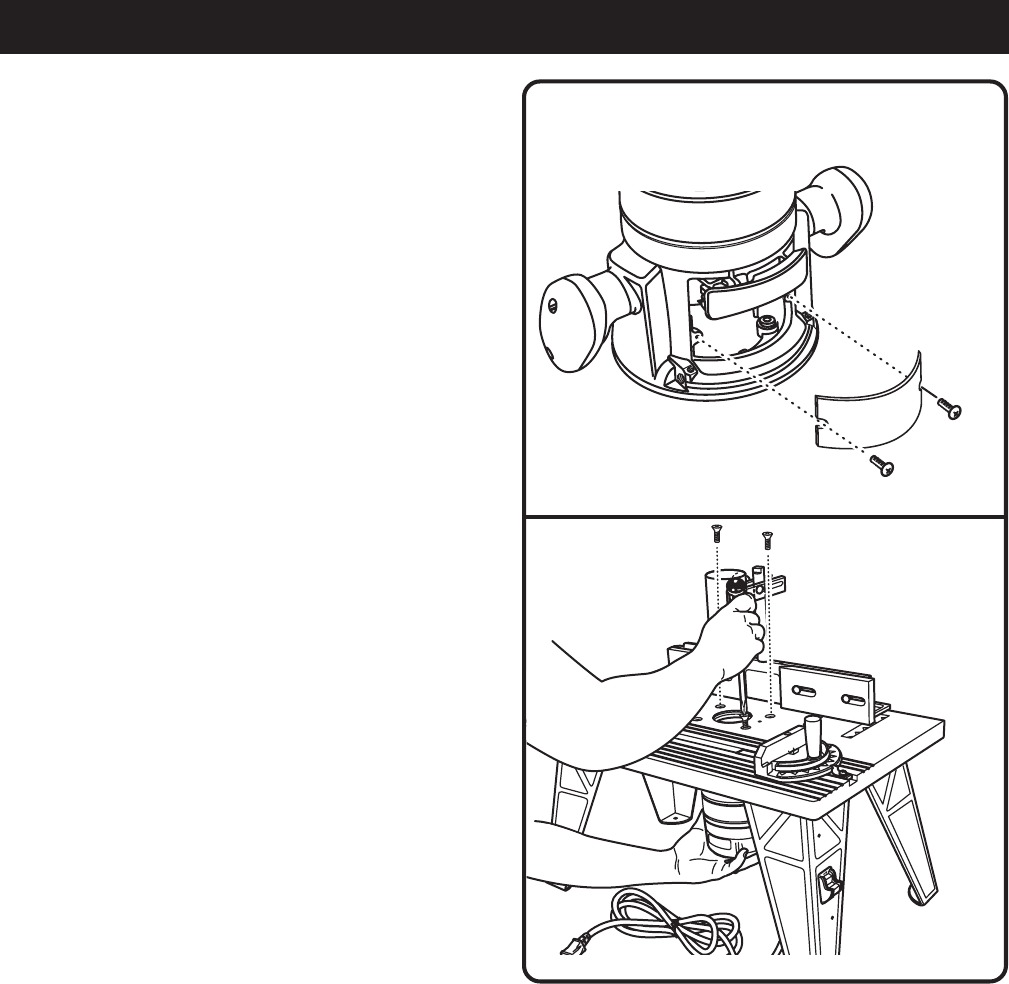

ATTACHING THE REAR SAFETY GUARD
TO THE ROUTER
See Figure 8.
Follow these directions to attach the rear safety guard to
the router.
QPlace the rear safety guard on the back of the
router.
QAlign the slots in the guard with the holes in the
router.
QSecure the rear safety guard to the router with the
two machine screws.

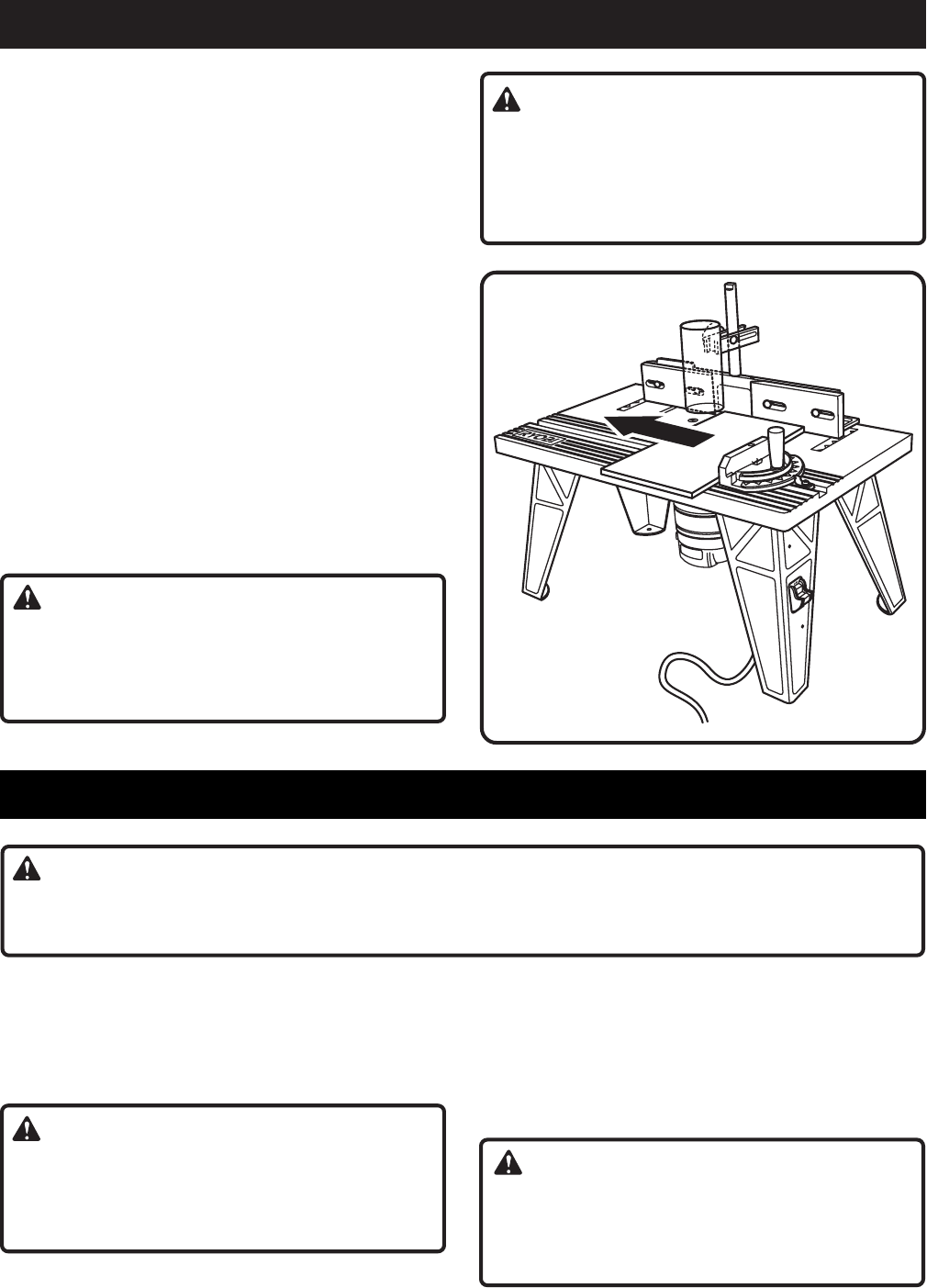

ATTACHING THE ROUTER TO THE TABLE
Attach the router to the router table after you have
assembled the table and installed the rear safety guard.
See Figure 9.
Follow these directions to attach the router to the table.
QPlace the router table right side up with the front
edge closest to you.
QBe sure the table is stable and rests on all four legs.
QHold the router upside down so that the front of the
router faces you.
QAlign the holes in the center of the table with the
holes in the router.
NOTE: To attach router, use the two right holes
and the back left hole.
QHold the router with one hand and securely tighten
each of the machine screws with the other hand.
Fig. 9
Fig. 8
12
ASSEMBLY
MOUNTING THE TABLE TO A WORK
SURFACE
See Figure 10a and 10b.
Follow these directions to mount the table to a work
surface.
QPlace the router table right side up on a sturdy work
surface, e.g., work stand, workbench, counter top.
QMark the holes with a pencil.
QRemove the router table.
QDrill four holes through the work surface.
QPlace the router table back on the work surface,
aligning the holes in the table legs with the holes in
the work surface.
NOTE: Position the router table surface at
approximately hip height.
QInsert four bolts (not included, 1/4-20 recommended)
and tighten securely with lock washers and hex nuts
(not included).
NOTE: If you plan to transport the router table to
different locations, we recommend that you attach it
permanently to a mounting board that you can easily
clamp to a work surface.
Fig. 10a
Fig. 10b
13
ADJUSTMENTS
Fig. 11
WARNING:
The router or router table should never be con-
nected to a power supply when you are assembling
parts, making adjustments, installing or removing
cutters, cleaning, or when not in use. Disconnecting
the router and router table will prevent accidental
starting that could cause serious personal injury.
INSERTING/REMOVING CUTTERS
Follow these directions to insert and remove cutters.
QUnplug the router and the router table.
WARNING:
Failure to unplug the router and router table could
result in accidental starting causing serious injury.
WARNING:
To prevent damage to the spindle or spindle lock,
always allow the motor to come to a complete stop
before engaging the spindle lock.
QRemove the screws from the rear safety guard.
QRemove the rear safety guard from the router.
QFollow the directions for installing and removing
cutters in the operator’s manual.
WARNING:
Use this router table only with a Ryobi router. Do not
attempt to use any other router with this table. Fail-
ure to heed this warning could result in improper
operation of the tool and serious personal injury.
QReturn the rear safety guard to its proper position.
QSecure the rear safety guard by inserting and tight-
ening the two screws previously removed.
WARNING:
If you are changing a cutter immediately after use, be
careful not to touch the cutter or collet with your hands
or fingers. They will get burned because of the heat
buildup from cutting. Always use the wrench provided.

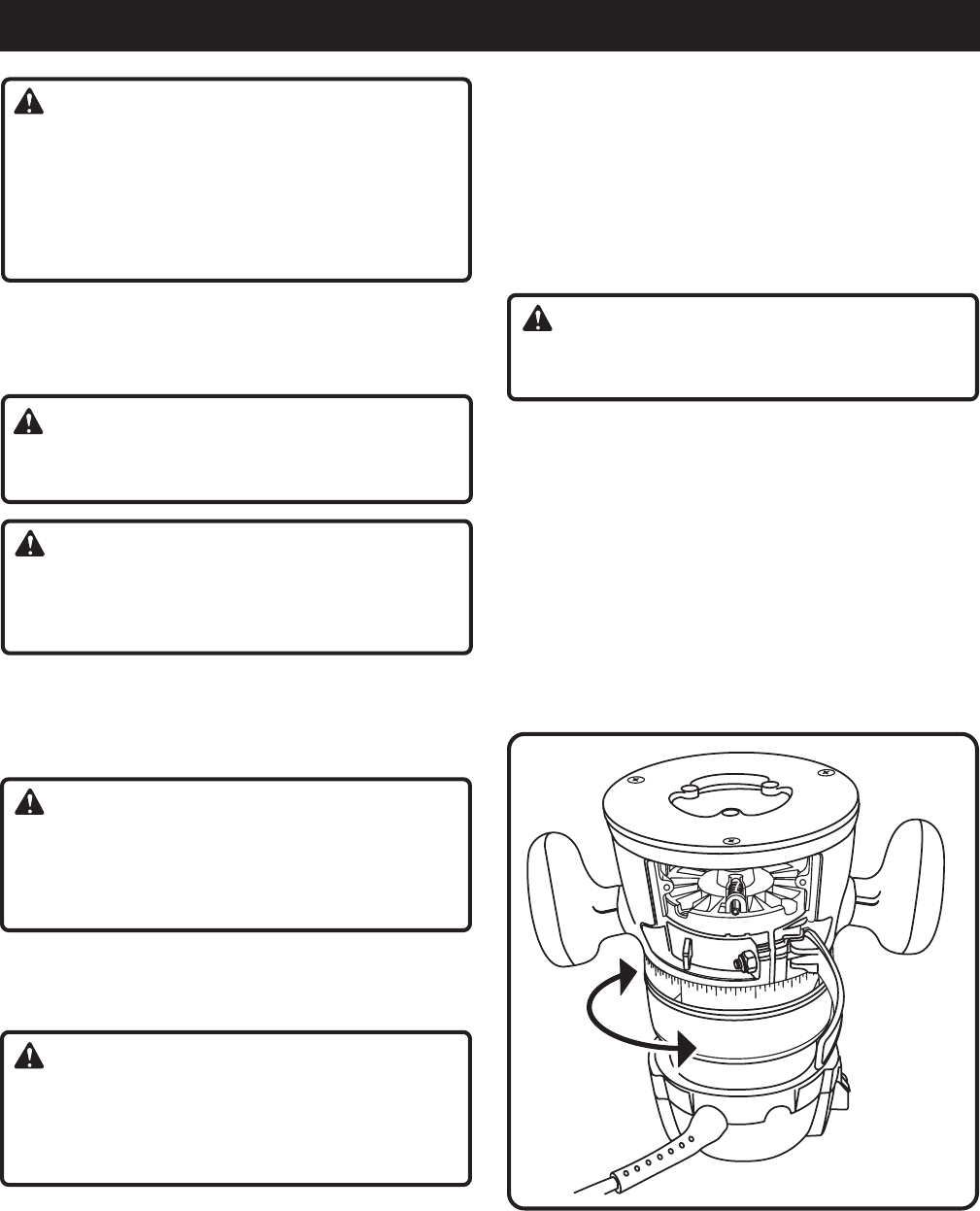

ADJUSTING DEPTH OF CUT
See Figure 11.
We recommend that cuts be made at a depth not
exceeding 1/8 in. (3.2 mm) and that several passes be
made to reach depths of cut greater than 1/8 in. (3.2
mm).
Follow these directions to adjust depth of cut.
QUnplug the router and the router table.
WARNING:
Failure to unplug the router and router table could
result in accidental starting causing serious injury.
QUnlock the clamping lever.
QTurn the depth adjusting ring until the tip of the
cutter touches the work surface (zero depth of cut).
QTurn depth indicator ring to zero depth of cut on the
scale.
QTurn the depth adjusting ring to the desired depth of
cut.
QLock the clamping lever securely.
NOTE: When you use certain cutters, you may need
to remove the black plastic subbase from the router
to achieve full depth of cut.
14
ADJUSTMENTS
INSERTING THROAT PLATES
See Figure 12.
The throat plate provides a stable surface around the
cutter and prevents objects from falling through the
throat and damaging the spindle.
The proper size throat plate depends on the size and
shape of the cutter. When inserted, the throat plate
opening should be within approximately 1/4 in.
(6.4 mm) of the outermost edge of the cutter.
Follow these directions to insert throat plates.
QPosition the throat plate over the throat opening in
the router table.
QAlign the tab in the throat plate with the slot in the
throat opening.
QSnap throat plate down and into place as shown.
NOTE: To remove throat plate, pull gently until the
throat plate snaps out.
WARNING:
Never attempt to operate router table without the
throat plate in place. Failure to do so could result in
the workpiece jamming or objects falling into the
rotating spindle, which could cause serious personal
injury.
POSITIONING THE FENCE
The fence enables you to support and guide the
workpiece.
See Figure 13.
Follow these directions to position the fence.
QLoosen the fence lock knobs.
QPosition the fence the proper distance from the cut-
ter based on the amount of material you plan to
remove.
QTighten the fence lock knobs.
ADJUSTING THE STEP RISERS
See Figure 14.
The step risers, located on the outfeed side of the fence,
enable you to support the workpiece as it exits the cutter.
The step risers provide support for routing operations
that remove up to 1/8 in. (3.2 mm) of material. The step
risers are adjustable in 1/32 in. (0.8 mm) increments.
Follow these directions to adjust the step risers.
QLoosen the knob bolts on the rear of the fence.
QPush the riser forward and toward the throat.
QTighten the knob bolts.
Fig. 12
Fig. 13
Fig. 14
4
3
2
in./po./pulg.
1
2
1
2
15
ADJUSTMENTS
INSERTING THE STARTING PIN
Place the starting pin on the router table and use it as a
pivot point when cutting small, odd-shaped pieces.
NOTE: It is not necessary to use the fence when you are
using the starting pin. Additionally, only use piloted
cutters when using the starting pin.
See Figure 15.
Follow these directions to insert the starting pin.
QPlace the starting pin into the threaded hole to the
right of the router table throat opening.
QTurn the pin clockwise to secure.
ADJUSTING THE MITER GAUGE
Follow these directions to adjust the miter gauge.
QLoosen the miter gauge knob.
QRotate the miter gauge to the desired angle.
QTighten the miter gauge knob.
Fig. 15
OPERATION
WARNING:
Always wear safety goggles or safety glasses with
side shields when operating this tool. Failure to do
so could result in dust, shavings, or loose particles
being thrown into your eyes, resulting in serious
injury.
USING THE ROUTER WITH THE ROUTER
TABLE
Observe the following rules when using the router with
the router table.
QRead the entire
Operator’s Manual
.
QAlways plug the router into the router table switched
outlet. Never plug a router table mounted router into
another power source.
QLock-on the router switch. Refer to the
Operator’s
Manual
for details.
QMake sure the router table switch is off. Remove the
switch key.
QPlug the router table power cord into a power source.
QAlways control the power to the router with the router
table switch whenever the router is mounted on the
table.
Fig. 16
SWITCHED
OUTLET
16
WARNING:
When servicing use only identical Ryobi replacement parts. Use of any other parts may create a hazard or cause
product damage.
GENERAL
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, carbon dust, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petro-
leum-based products, penetrating oils, etc. come in
contact with plastic parts. They contain chemicals
that can damage, weaken, or destroy plastic.
Electric tools used on fiberglass material, wallboard,
spackling compounds, or plaster are subject to
accelerated wear and possible premature failure, as the
MAINTENANCE
fiberglass chips and grindings are highly abrasive to
bearings, brushes, commutators, etc. Consequently, we
do not recommended that this tool be used for extended
work on these types of materials. If, however, you do
work with any of these materials, it is extremely important
that you clean the tool frequently by blowing it with an air
jet.
WARNING:
Always wear safety goggles or safety glasses with
side shields during power tool operation or when
blowing dust. If operation is dusty, also wear a dust
mask.
OPERATION
PERFORMING A ROUTING OPERATION
See Figure 16.
Follow these directions to perform a routing operation.
QRead the entire
Operator’s Manual
.
QAdjust the cutter guard so that it will not come in
contact with the workpiece or cutter during a cutting
operation.
QAdjust the infeed fence to support the uncut workpiece
and adjust the outfeed fence to support the workpiece
after the cut.
NOTE: The workpiece must always be tight against
the fence, unless you are using a ball-bearing piloted
cutter. Additionally, it may be necessary to remove
the center fence plate (with Ryobi logo) if using large
cutters.
QReconfirm that all router adjustments are securely
locked before connecting the router table to a power
source.
QFeed the workpiece from right to left with the cutter
located in the fence opening.
WARNING:
The direction of feed for the workpiece is always
against the sharp edges of the cutter and therefore
into the rotation of the cutter. Failure to heed this
warning can result in serious personal injury.
WARNING:
When operating the router with the router table, the
router must only be plugged into and controlled by
the router table switched outlet. To reduce the risk of
serious personal injury, never connect the table
mounted router into another power source.
Fig. 17
17
NOTES
OPERATOR'S MANUAL
ROUTER TABLE
RT101 - DOUBLE INSULATED
ONE WORLD TECHNOLOGIES, INC.
1428 Pearman Dairy Road, Anderson, SC 29625
www.ryobitools.com
Phone 1-800-525-2579
983000-134
3-24-06 (REV:01)
• SERVICE
Now that you have purchased your tool, should a need ever exist for repair parts or
service, simply contact your nearest Authorized Service Center. Be sure to provide all
pertinent facts when you call or visit. Please call 1-800-525-2579 for your nearest
Authorized Service Center. You can also check our Web site at www.ryobitools.com
for a complete list of Authorized Service Centers.
• MODEL NO. AND SERIAL NO.
The model number and serial number of this product are found on the label attached to the
front leg. Please record the serial number in the space provided below.
• HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS,
ALWAYS GIVE THE FOLLOWING INFORMATION:
• MODEL NUMBER
• SERIAL NUMBER
RT101
EXTENSION CORD CAUTION
When using a power tool at a considerable distance from a
power source, be sure to use an extension cord that has the
capacity to handle the current the tool will draw. An under-
sized cord will cause a drop in line voltage, resulting in over-
heating and loss of power. Use the chart to determine the mini-
mum wire size required in an extension cord. Only round jack-
eted cords should be used.
When working with a tool outdoors, use an extension cord
that is designed for outside use. This is indicated by the letters
"WA" on the cord's jacket.
Before using any extension cord, inspect it for loose or ex-
posed wires and cut or worn insulation.
**Ampere rating
(on tool faceplate) 0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25' 16 16 16 16 14 14
50' 16 16 16 14 14 12
100' 16 16 14 12 10 —
CAUTION: Keep the extension cord clear of the working
area. Position the cord so that it will not get caught on
lumber, tools or other obstructions while you are working
with a power tool.
**Used on 12 gauge - 20 amp circuit.
Ryobi® is a registered trademark of Ryobi Limited used under license.

Navigation menu
