User manual
OPERATING INSTRUCTIONS
LEATHERETTE BRIEFCASE
TURNTABLE
MODEL : TT-9311-BTM3EJ
MP3
DIGITAL
PLAYBACK
USB
FLASH MEMORY
MP3 PLAYBACK
E-2
WARNING:
- TO PERVENT FIRE OR SHOCK HAZARD,DO NTO EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
- TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER.
IMPORTANT SAFETY INSTRUCTIONS
1.READ INSTRUCTIONS-AII THE SAFETY AND OPERATING INSTRUCTIONS
SHOULD BE READ BEFORE THE APPLIANCE IS OPERATED.
2.RETAIN INSTRUCTIONS-THE SAFETY AND OPERATING INSTRUCTIONS
SHOULD BE RETAINED FOR FUTURE REFERENCE.
3.HEED WARNIGS-ALL WARNINGS ON THE APPLIANCE AND IN THE
OPERATING INSTRUCTIONS SHOULD BE ADHERED TO.
4.FOLLOW INSTRUCTIONS-ALL OPERATION AND USE INSTRUCTIONS
SHOULD BE FOLLOWED.
5.WATER AND MOISTURE - THE APPLIANCE SHOULD NOT BE USED
NEAR WATER;FOR EXAMPLE NEAR A BATHTUB, WASHBOWL,KITCHEN
SINK,LAUNDRY TUB,IN A WET BASEMENT OR NEAR A SWIMMING POOL
AND THE LIKE.
6.CARTS AND STANDS - THE APPLIANCE SHOULD BE USED ONLY WITH
A CART OR STAND THAT IS RECOMMENDED BY THE MANUFACTURER.
AN APPLIANCE AND CART COMBINATION SHOULD BE MOVED WITH
CARE. QUICK STOPS,EXCESSIVE FORCE AND UNEVEN SURFACES
MAY CAUSE THE APPLIANCE AND CART COMBINATION TO OVERTURN.
7.WALL AND CEILING MOUNTING - THE APPLIANCE SHOULD BE MOUNTED
TO A WALL OR CEILING ONLY AS RECOMMENDED BY THE MANUFACTURER.
8.VENTILATION - THE APPLIANCE SHOULD BE SITUATED SO THAT IS
LOCATION OR POSITION DOES NOT INTERFERE WITH ITS PROPER V
ENTILATION . FOR EXAMPLE, THE APPLIANCE SHOULD NOT BE SITUATED
ON A BED, SOFA, RUG OR SIMILAR SURFACE THE MAY BLOCK THE
VENTILATION OPENINGS;OR PLACED IN A BUILT - IN INSTALLATION SUCH
AS A BOOKCASE OR CABINET THAT MAY IMPEDE THE FLOW OF AIR
THROUGH THE VENTILATION OPENINGS.
9.HEAT - THE APPLIANCE SHOULD BE SITUATED AWAY FROM HEAT SOURCES
SUCH AS RADIATORS, HEAT REGISTERS, STOVES OR OTHER APPLIANCES
(INCLUDING AMPLIFIERS)THAT PRODUCE AWAY FROM HEAT.
10.POWER SOURCES - THE APPLIANCE SHOULD BE CONNECTED TO A POWER
SUPPLY ONLY OF THE TYPE DESCRIBED IN THE OPERATING INSTRUCTIONS
OR AS MARKED ON THE APPLIANCE.
11.GROUNDING OR POLARIZATION - PRECAUTIONS SHOULD BE TAKEN SO
THAT THE GROUNDING OR POLARIZATION MEANS OF AN APPLIANCE IS
NOT DEFEATED.
12.POWER - CORD PROTECTION - POWER SUPPLY CORDS SHOULD BE
ROUTED SO THAT THEY ARE NOT LIKELY TO BE WALKED ON OR PINCHED
BY ITEMS PLACED UPON OR AGAINST THEM, PAYING PARTICULAR
ATTENTION TO CORDS AT PLUGS, CONVENIENCE RECEPTACLES AND THE
POINT WHERE THEY EXIT FROM THE APPLIANCE.
E-4

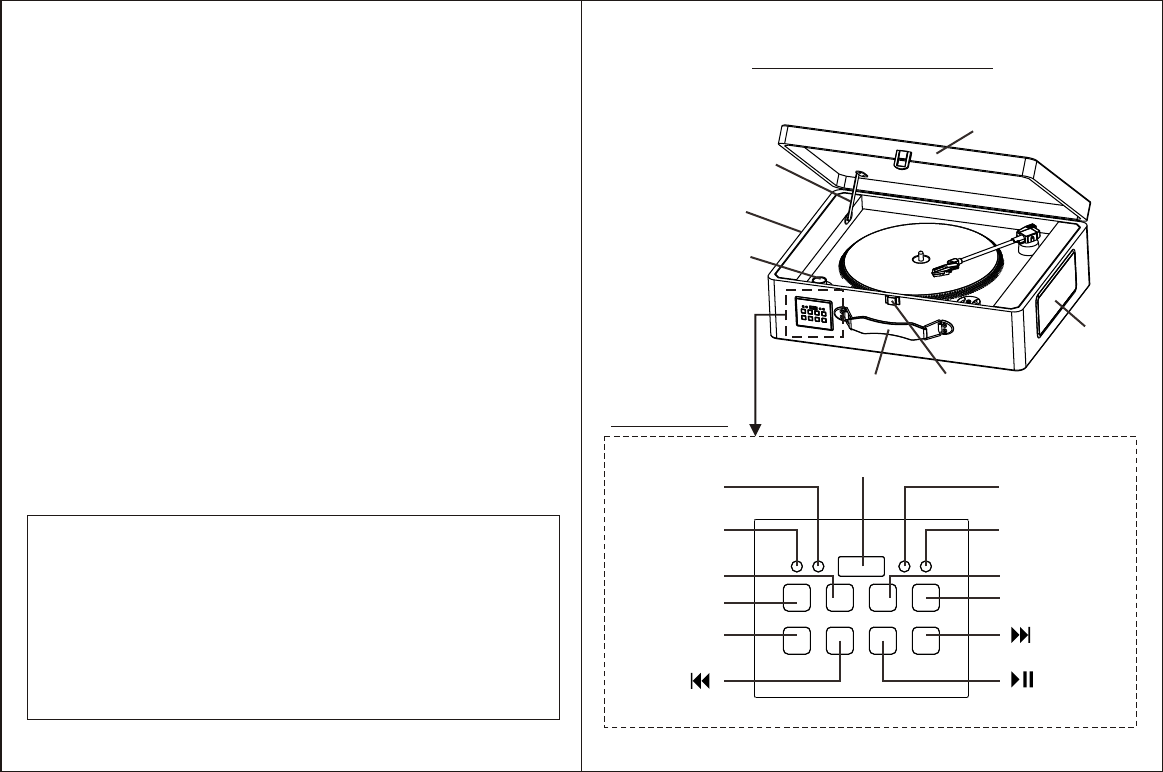

LOCATION OF CONTROLS
Phonograph Lid
support Bracket
Speaker
Speaker
VOLUME
Control
Handle Latch
Phonograph Lid
USB Socket
USB-MP3
PLAYER Button
STANDBY/ON
Button
PHONO-REC
Button
PHONO PLAYER
Button
BT Button
FRONT PANEL
STANDBY/ON
Indicator
USB PLAYER
Indicator
BT Indicator
PHONO PLAYER/
REC Indicator
E-3
13.PROTECTIVE ATTACHMENT PLUG - THE APPLIANCE IS EQUIPPED WITH AN
ATTACHMENT PLUG HAVING OVERLOAD PROTECTION. THIS IS A SAFETY
FEATURE. SEE INSTRUCTION MANUAL FOR REPLACEMENT OR RESETTING
OF PROTECTIVE DEVICE.IF REPLACEMENT OF THE HAS THE SAME
OVERLOAD PROTECTION AS THE ORIGINAL PLUG.
14.CLEANING - THE APPLIANCE SHOULD BE CLEANED ONLY AS RECOMMENDED
BY THE MANUFACTURER.
15.POWER LINES - AN OUTDOOR ANTENNA SHOULD BE LOCATED AWAY FROM
POWER LINES.
16.OUTDOOR ANTENNA GROUNDING - IF AN OUTSIDE ANTENNA IS CONNECTED
TO THE RECEIVER,BE SURE THE ANTENNA SYSTEM IS GROUNDED SO AS TO
PROVIDE SOME PROTECTION AGAINST VOLTAGE SURGES AND BUILT UP
STATIC CHARGES.
17.NONUSE PERIODS - THE POWER CORD OF THE APPLIANCE SHOULD BE
UNPLUGGED FROM THE OUTLET WHEN LEFT UNUSED FOR A LONG PERIOD
OF TIME.
18.OBJECT AND LIQUID ENTRY - CARE SHOULD BE TAKEN SO THAT OBJECTS
DO NOT FALL AND LIQUIDS ARE NOT SPILLED INTO THE ENCLOSURE
THROUGH OPENINGS.
19.DAMAGE REQUIRING SERVICE - THE APPLIANCE SHOULD BE SERVICED BY
QUALIFIED SERVICE PERSONNEL WHEN:
A. THE POWER SUPPLY CORD OR THE PLUG HAS BEEN DAMAGED OR
B. OBJECTS HAVE FALLEN OR LIQUID HAS BEEN SPILLED INTO THE
APPLIANCE OR
C. THE APPLIANCE HAS BEEN EXPOSED TO RAIN OR
D. THE APPLIANCE DOSE NOT APPEAR TO OPERATE NORMALLY OR EXHIBITS
A MARKED CHANGE IN PERFORMANCE OR
E. THE APPLIANCE HAS BEEN DROPPED OR THE ENCLOSURE DAMAGED
20.SERVICING - THE USER SHOULD NOT ATTEMPT TO SERVICE THE APPLIANCE
BEYOND THAT DESCRIBED IN THE OPERATING INSTRUCTIONS. ALL OTHER
SERVICING SHOULD BE REFERRED TO QUALIFIED SERVICE PERSONNEL.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the product.
NOTE: This product has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This product generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If the product does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures
: -Reorient or relocate the receiving antenna. -Increase the separation between the product and receiver. -
Connect the product into an outlet on a circuit different from that to which the receiver is connected. -
Consult the dealer or an experienced radio/TV technician for help.
E-5
E-6

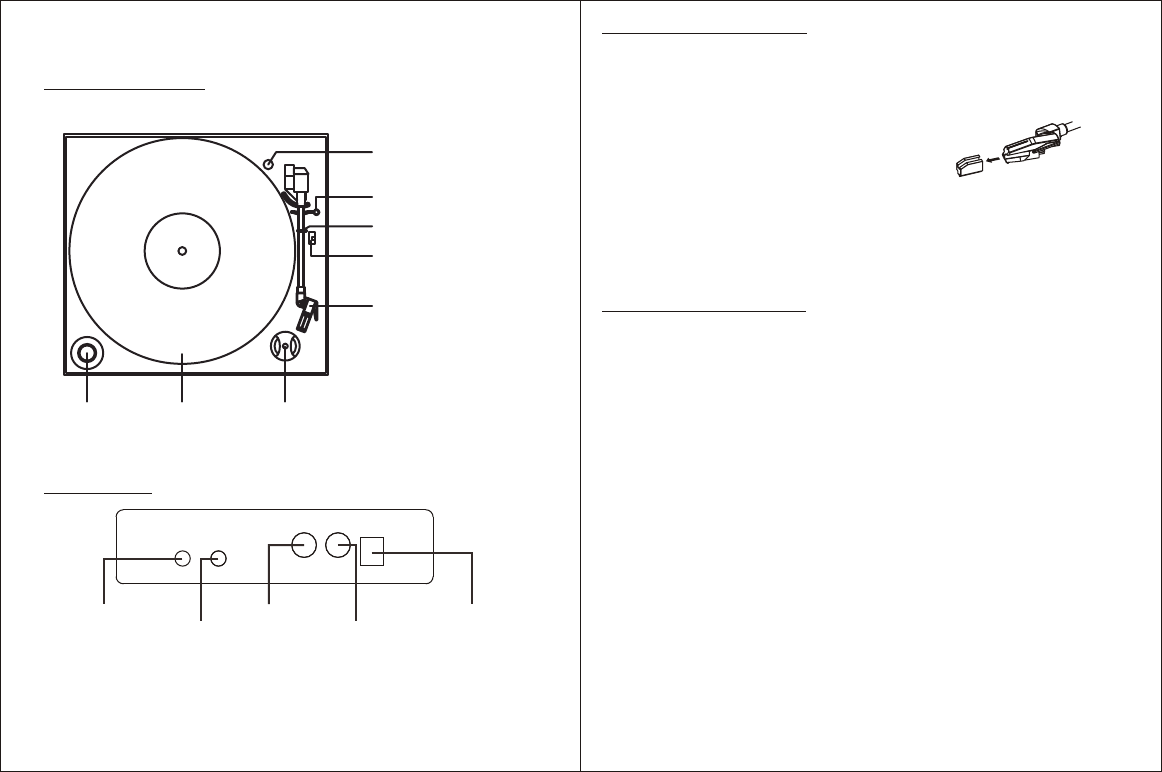

3.5mm AUX-IN Jack
LINE OUT R
LINE OUT L
DC INPUT Socket
TURNTABLE 45 RPM
ADAPTOR
BACK PANEL
TURNTABLE PANEL
TRANSIT SCREW
CROSSING
LIFT LEVER
SPEED SELECTOR
(33/45/78 RPM)
TONE ARM LOCK
TONE ARM WITH
STYLUS
VOLUME
CONTROL
HEADPHONE
POWERING ON THE UNIT
UNPACKING AND SET UP
- CONNECT THE AC ADAPTER TO THE DC INPUT SOCKET ON THE BACK OF
THE UNIT. THEN THE STANDBY/ON INDICATOR WILL LIGHT ON, NOW THE
UNIT ON "STANDBY" MODE.
- PRESS STANDBY/ON BUTTON. THE DESIRED PLAYING SOURCE INDICATOR
WILL LIGHT ON.
- WHEN YOU HAVE FINISHED USING THE SYSTEM, PRESS STANDBY/ON BUTTON
AGAIN, TURN OFF THE UNIT WITH VOICE MESSAGE: POWER OFF.
- CAREFULLY REMOVE THE UNIT FROM THE DISPLAY CARTON AND REMOVE
ALL PACKING MATERIAL FROM THE UNIT.
- UNWIND THE AC ADAPTOR JACK CABLE AND EXTEND IT TO ITS FULL LENGTH.
- PLACE THE UNIT ON A STABLE, LEVEL SURFACE, CONVENIENT TO AN AC
OUTLET OUT OF A STRONG MAGNETIC FIELD.
- CONNECT THE AC ADAPTOR PLUG TO YOUR AC OUTLET.
- REMOVE THE OPAQUE WHITE PLASTIC STYLUS
COVER FROM THE PHONOGRAPH STYLUS BY
SLIDING IT IN THE DIRECTION OF THE ARROW.
- DURING THIS OPERATION PAY ATTENTION TO THE STYLUS, BECAUSE THE
STYLUS DAMAGE IS NOT COVERED BY GUARANTEE.
- REMOVE THE TWIST-TIE THAT WAS USED TO SECURE THE TONE AR M
DURING THE SHIPMENT.
- RELEASE THE TONE ARM LOCK LEVEL.
E-7 E-8
AUX IN OPERATION
THIS UNIT PROVIDES AN AUXILIARY AUDIO SIGNAL INPUT JACK FOR
CONNECTING EXTERNAL AUDIO DEVICES LIKE MP3 PLAYERS, CD PLAYERS
AND OLDER, NON-DOCK-ABLE I PODS, SO YOU CAN LISTEN TO YOUR EXTERNAL
SOURCE THROUGH THE SPEAKERS OF THIS SYSTEM.
- USE AN AUDIO CABLE (NOT INCLUDED) WITH ONE 3.5 STEREO JACK ON EACH
END OF THE CABLE.
- PLUG ONE END INTO THE AUX-IN JACK ON THE MAIN UNIT AND THE OTHER
END TO THE LINE-OUT JACK OF AUDIO DEVICE.
- POWER ON BOTH DEVICES.
- THE VOLUME LEVEL CAN BE CONTROLLED THROUGH THE MAIN UNIT.
OPERATE ALL THE FUNCTIONS ON THE AUXILIARY DEVICE AS USUAL.
- PLEASE NOTE THAT AUX IN FUNCTION IS THE FIRST PRIORITY FUNCTION.
ONCE THE AUX JACK IS PLUG-IN, ALL INDICATORS ARE LIGHT OFF. THOSE
FUNCTIONS DON'T WORK WHILE AUX-IN FUNCTION IS USING. PLEASE UNPLUG
THE AUX-IN CABLE BEFORE USING USB-MP3/ PHONO/ BT FUNCTION.
NOTE
- IF THE LINE OUT JACK OF YOUR EXTERNAL DEVICE IS CONNECTED, YOU
ONLY NEED TO ADJUST THE VOLUME CONTROL OF THIS SYSTEM.
- MAKE SURE TONE ARM IS SECURELY LOCKED TO THE TONE ARM REST TO
AVOID ANY DAMAGE.
- PRESS STANDBY/ON BUTTON TO TURN OFF THE UNIT WHEN YOU ARE DONE.
DON'T FORGET TO TURN OFF THE POWER ON YOUR EXTERNAL DEVICE AS
WELL.
THIS SYSTEM INCLUDES A FULL-SIZE, 3-SPEED, BELT-DRIVE TURNTABLE THAT PLAYS
33, 45 AND 78 RPM RECORDS.
PLAYING RECORDS
- TO TURN THE SYSTEM ON, PRESS STANDBY/ON BUTTON AND SET THE VOLUME TO
A LOW LEVEL.
- PRESS PHONO BUTTON TO TURN PHONO MODE WITH PHONO INDICATOR IS LIGHT
ON. PLEASE BE SURE THAT YOU HAVE REMOVED THE STYLUS COVER FROM THE
STYLUS AND HAVE RELEASED THE TONE ARM LOCK.
- SET THE TURNTABLE SPEED SWITCH TO THE APPROPRIATE SPEED: 33, 45 OR 78
RPM. SET THE RECORD ONTO THE TURNTABLE. IF YOU ARE PLAYING 45 RPM
SINGLES, PLACE THE 45 RPM ADAPTER ON THE CENTER SPINDLE.
- WHEN YOU CHOOSE PLAY A CERTAIN SONG, PUT THE LIFT LEVER BACKWARD AND
MOVE THE TONE ARM TO THE RECORD. THEN PULL THE LIFT LEVER GENTLY
FORWARD, THE TONE ARM WILL GENTLY MOVE DOWN ONTO THE RECORD. THE
SONG WILL START PLAYING SET THE VOLUME CONTROL AS DESIRED.
- WHEN FINISH PLAYING PUT THE LIFT LEVER BACKWARD AND MOVE THE TONE ARM
BACK TO THE TONE ARM LOCK.
- IF THE RECORD IS PLAYING TO THE ENDING, THE TONE ARM WILL MOVE BACK TO
THE TONE ARM LOCK AUTOMATICALLY.
- PRESS STANDBY/NO BUTTON TO TURN OFF THE SYSTEM WHEN YOU ARE DONE.
- PLAY A PHONO RECORD ON THE TURNTABLE. AS YOUR DESIRED.
- PLUG USB DEVICE INTO USB SOCKET. THEN PRESS PHONO-REC BUTTON, THE
PHONO INDICATOR IS FLASHING, IT STARTS RECORDING THE MUSIC FROM THE PHONO
RECORD.
- PRESS PHONO-REC BUTTON AGAIN WHEN YOU FINISH RECORDING.
- PRESS USB-MP3 BUTTON WITH RED LIGHT IS ON, YOU CAN HEAR THE RECORDING
TRACK ON THE USB DEVICE.
PHONOGRAPH RECORDING OPERATION
- PHONO-REC IS ONLY FOR PHONOGRAPH RECORDING.
- PHONO-REC IS FOR RECORDING THE MUSIC FROM THE PHONO RECORD THROUGH
USB DEVICE.
NOTE
E-9 E-10

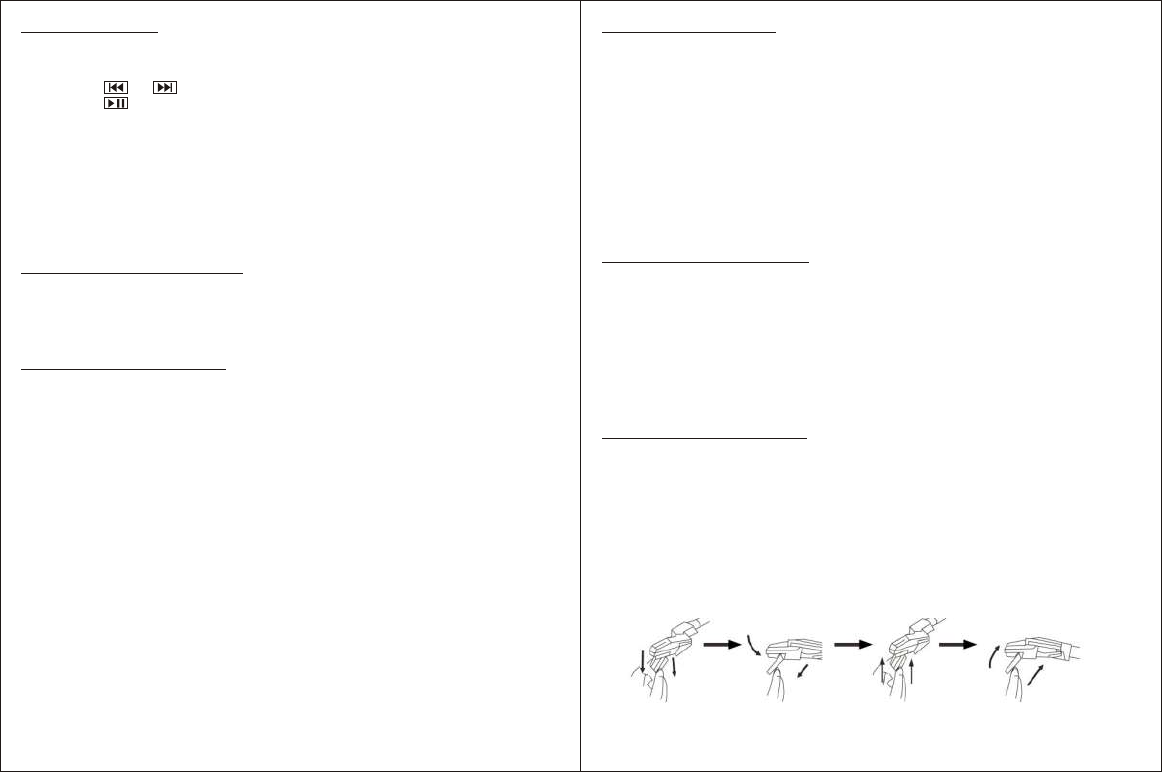

- PRESS USB-MP3 BUTTON TO TURN ON USB MODE WITH USB INDICATOR IS LIGHT ON.
- INSERT THE USB DEVICE INTO THE USB SOCKET ON THE SYSTEM, THE PLAYER WILL
START PLAYING THE TRACKS.
- PRESS THE OR BUTTONS TO CHOOSE YOUR DESIRED TRACK.
THE BUTTON TO PAUSE OR PLAY THE TRACK.
- PRESS THE STANDBY/ON BUTTON TO TURN OFF THE UNIT WHEN YOU ARE DONE.
- PRESS
USB OPERATION
- THE USB-MP3 PLAYING MODE HAS MEMORY FUNCTION. WHEN RE-INSERTING THE
SAME USB DEVICE, IT WILL RESUME THE TRACK PLAYING FROM THE LAST TIME.
- THE UNIT IS ONLY PLAYING THE MP3 FORMAT TRACKS.
NOTE
-
REMOVING THE USB DRIVE TO AVOID DAMAGE TO THE USB AND THE SYSTEM.
PLEASE BE SURE THE STOP PLAYBACKS AND TURN THE UNIT OFF BEFORE
REMOVING THE USB DRIVE
-
BT INDICATOR IS LIGHT ON.
- SET UP THE BLUETOOTH PLAYBACK DEVICE AND SEARCHING FOR "BT TURNTABLE"
AND CONNECT.
- IF ASKED FOR A PASS CODE, ENTER “0000”
*THIS IS A ONE-TIME EVENT PER DEVICE. TO PAIR YOUR UNIT TO ANOTHER DEVICE,
REPEAT THE ABOVE PREPARATION AND CONNECTION STEPS.
- YOU WILL HEAR A SIGNAL WITH DING-DONG SOUND.
- ENJOY YOUR MUSIC FROM YOUR PLAYBACK DEVICE.
PRESS BT BUTTON ON THE FRONT PANEL TO ACTIVATE THE BLUETOOTH MODE WITH
BLUETOOTH OPERATION
- THE NEXT TIME YOU TURN ON THE DEVICE IT WILL AUTOMATICALLY CONNECT TO THE
LAST BLUETOOTH PLAYBACK DEVICE CONNECTED. IF YOUR BLUETOOTH PLAYBACK
DOES NOT AUTOMATICALLY RECONNECT TO THE DEVICE, YOU WILL HAVE TO
RE-ESTABLISH THE CONNECTION TO YOUR BLUETOOTH DEVICE MANUALLY.
- IF YOU USE A SMART-PHONE AS YOUR BLUETOOTH PLAYBACK DEVICE, THE AUDIO
FILE WILL MUTED WHEN THERE IS AN INCOMING CALL. ACCEPTANCE/ TERMINATION
OF THE CALL IS CARRIED OUT VIA THE SMART PHONE. AFTER FINISHING THE CALL,
THE PLAYBACK WILL BE RESUME AUTOMATICALLY.
NOTE
- THIS SYSTEM INCLUDED A SET OF LINE OUT JACK WHICH ALLOW TO PLAY FROM
THE BT, USB-MP3 AND PHONOGRAPH OF THIS SYSTEM TO AN EXTERNAL PLAYBACK
DEVICE.
- INSERT THE AUDIO CABLE (L/R RCA CABLE, NOT INCLUDED) INTO THE "LINE OUT"
SOCKET OF THE UNIT.
- OPERATE THE UNIT AS USUAL.
- IN ORDER TO ACHIEVE BEST EFFECT IN SOUND, ADVISE SETTING THE UNIT VOLUME
INTO MINIMUM LEVEL.
- THROUGH THE SPEAKERS OF EXTERNAL PLAYBACK DEVICES, WE CAN HEAR THE
SOUND FROM THE UNIT.
LINEOUT OPERATION
- THE STEREO HEADPHONE JACK IS LOCATED ON THE BACK PANEL. CONNECT A SET
OF STEREO HEADPHONES (NOT SUPPLIED) TO THIS JACK FOR PRIVATE LISRENING.
WHEN HEADPHONE ARE IN USE, THE SPEAKERS WILL BE AUTOMATICALLY MUTED.
- WHEN USING HEADPHONES, ALWAYS SET THE VOLUME CONTROL TO A LOW LEVEL
BEFORE YOU PLUG-IN THE HEADPHONE JACK, THEN PLUG-IN THE HEADPHONE
JACK AND GRADUALLY INCREASE THE VOLUME TO A COMFORTABLE LISTENING
LEVEL.
HEADPHONE OPERATION
- LIFT THE TONE ARM OFF THE TONE ARM REST.
- AT THE FRONT END OF THE TONE ARM, PLACE THE TIP OF YOUR FINGERNAIL
BETWEEN THE RED STYLUS NOLDER AND THE BACK CARTRIDGE HOUSING AS
SHOWN, PRESS ON THE RED STYLUS HOLDER UNIT IT SEPARATES FORM THE
CARTRIDGE HOUSING.
- COMPLETELY REMOVE THE RED STYLUS HOLDER WITH WORN STYLUS AND
DISCARD IT.
- PLACE THE NEW RED STYLUS HOLDER WITH STYLUS UNDER THE CARTRIDGE
HOUSING. FIRST, PRESS UPWARD ON THE BACK SIDE OF THE STYLUS HOLDER,
AND THEN PRESS UP ON THE FRONT EDGE OF THE STYLUS HOLDER UNTIL IT
SNAPS INTO PLACE ON THE CARTRIDGE HOUSING.
REPLACING THE STYLUS
E-11 E-12
TO PROTECT THE TURNTABLE FORM THE DAMAGE DURING TRANSPORTATION, A SLIVER
TRANSIT SCREW IS LOCATED THE UPPER RIGHT THE TURNTABLE PLATFORM.
- BEFORE PLAYING. PLEASE USE A SCREWDRIVER TO TURN THE TRANSIT SCREW IN
CLOCKWISE DIRECTION (SCREW GOING DOWN) COMPLETELY TO UNLOCK THE
TURNTBALE.
- TO LOCK THE TURNTABLE AGAIN FOR TRANSPORTATION, PLEASE TURN SCREW IN
COUNTER- CLOCKWISE DIRECTION.
TRANSPORTING THE SYSTEM
-
- WHEN THE UNIT IS DUSTY, YOU MAY WIPE IT USING SOFT, NON-ABRASIVE
DUST CLOTH.
CARE OF THE UNIT IS THE SAME AS ANY PIECE OF FURNITURE.
CARE OF THE LEATHER CASE
IMPORTANT! TO REPLACE THE CARTRIDGE FROM THE TONE ARM PLEASE FOLLOW THE
PROCEDUCE BELOW.
CARE AND MAINTENANCE
- GENTLY LIFT OFF THE TONE ARM FROM
THE TONE ARM REST.
- BY USING YOUR LEFT HAND TO HOLD
THE TONE ARM AND USING YOUR RIGHT
HAND TO HOLD THE REAR PORTION OF
THE CARTRIDGE. THEN PUSH THE
CARTRIDGE BACKWARDS AND
DOWNWARDS ACCORDING TO THE
DIRECTION AS SHOWN TO THE LEFT TO
SEPARATE THE CARTRIDGE FROM THE
TONE ARM.
- USING EITHER A TWEEZER OR YOUR
FINGERS, CAREFULLY UNPLUG THE
TERMINALS TO THE NEW CARTRIDGE.
- CAREFULLY CONNECT THE TERMINALS
TO THE NEW CARTRIDGE
(NOT INCLUDED).
- TO RE-INSTALL THE NEW CARTRIDGE TO
THE TONE ARM. FIRST PLEASE LOCK THE
FRONT END OG THE NEW CARTRIDGE
ON THE HOOK OF THE TONE ARM.
- PRESS THE REAR SIDE OG THE NEW
CARTRIDGE UPWARDS TO LOCK IT ON
THE TO THE TONE ARM.
CAUTON: PLEASE DON'T DAMAGE THE STYLUS WHEN INSTALLING THE NEW CARTRIDGE.
E-13
SPECIFICATIONS
POWER SUPPLY : ................................... AC 100-240V ~ 50/60Hz
DC 9V 2000mAh
SPEAKER: .............................................. 3.5" x 2
WIRELESS RANGE (BT): ........................ 10M (30Ft.)
MAX. BT PAIRING MEMORY: ................... 2 DEVICES
SPECIFIC ATIONS AND FUNCTIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
IT IS CONNECTED WITH CONTINUAL IMPROVEMENT OF THE DEVICE.
- - -
