SAF Tehnika AS ARANETPRO Low Power Transmitter User Manual

SAF Tehnika A/S Low Power Transmitter

User Manual

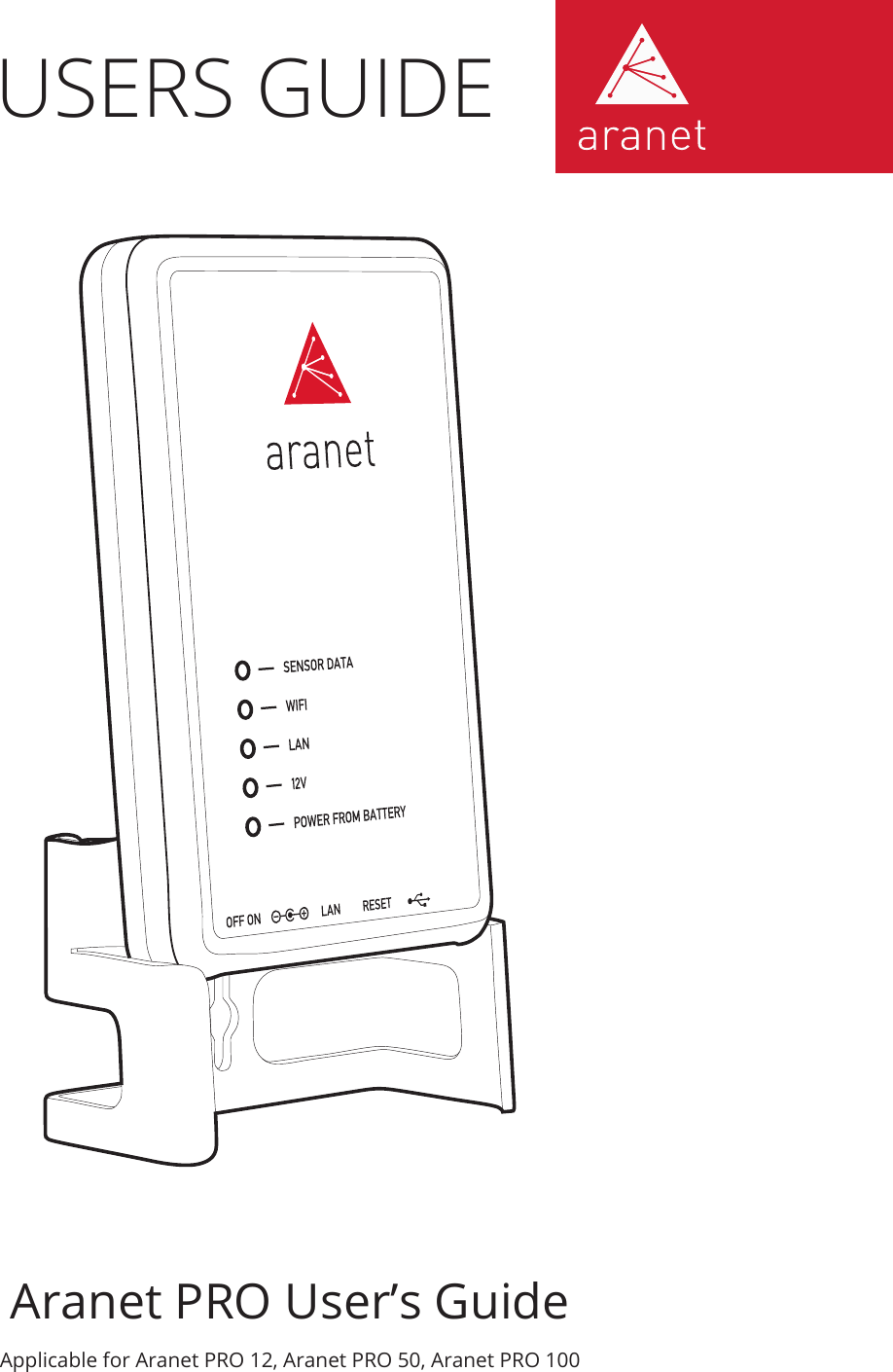

USERS GUIDEAranet PRO User’s GuideApplicable for Aranet PRO 12, Aranet PRO 50, Aranet PRO 100

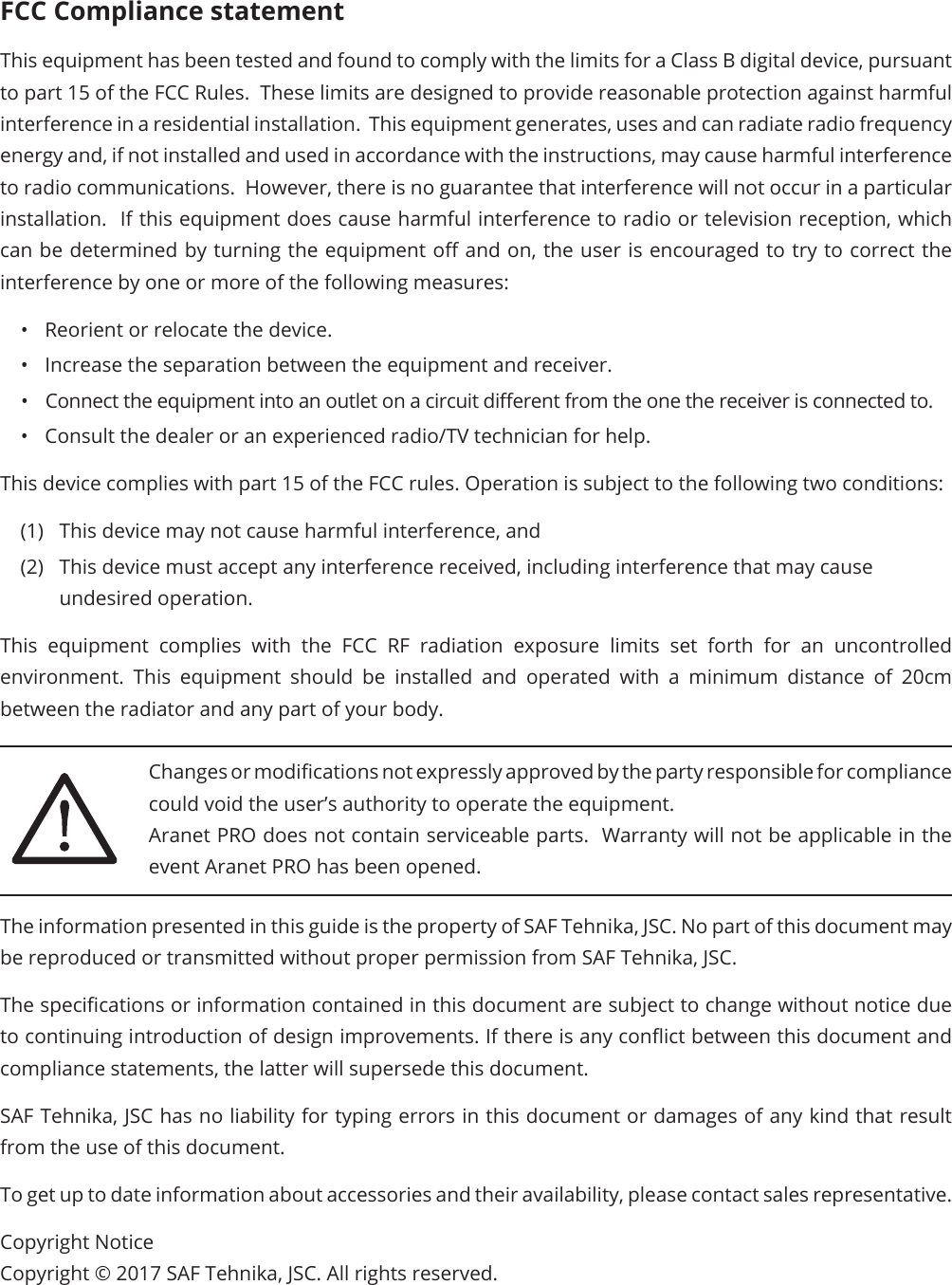

FCC Compliance statementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the device.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit dierent from the one the receiver is connected to.• Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.Aranet PRO does not contain serviceable parts. Warranty will not be applicable in the event Aranet PRO has been opened.The information presented in this guide is the property of SAF Tehnika, JSC. No part of this document may be reproduced or transmitted without proper permission from SAF Tehnika, JSC.The specications or information contained in this document are subject to change without notice due to continuing introduction of design improvements. If there is any conict between this document and compliance statements, the latter will supersede this document.SAF Tehnika, JSC has no liability for typing errors in this document or damages of any kind that result from the use of this document.To get up to date information about accessories and their availability, please contact sales representative.Copyright NoticeCopyright © 2017 SAF Tehnika, JSC. All rights reserved.

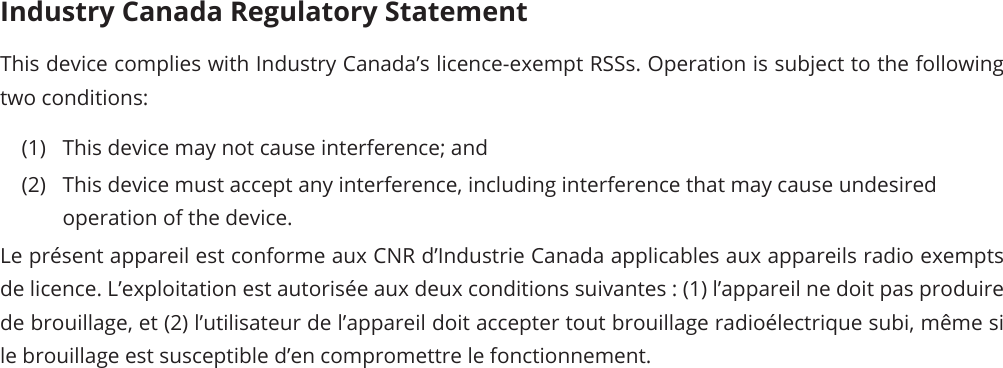

Industry Canada Regulatory Statement This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

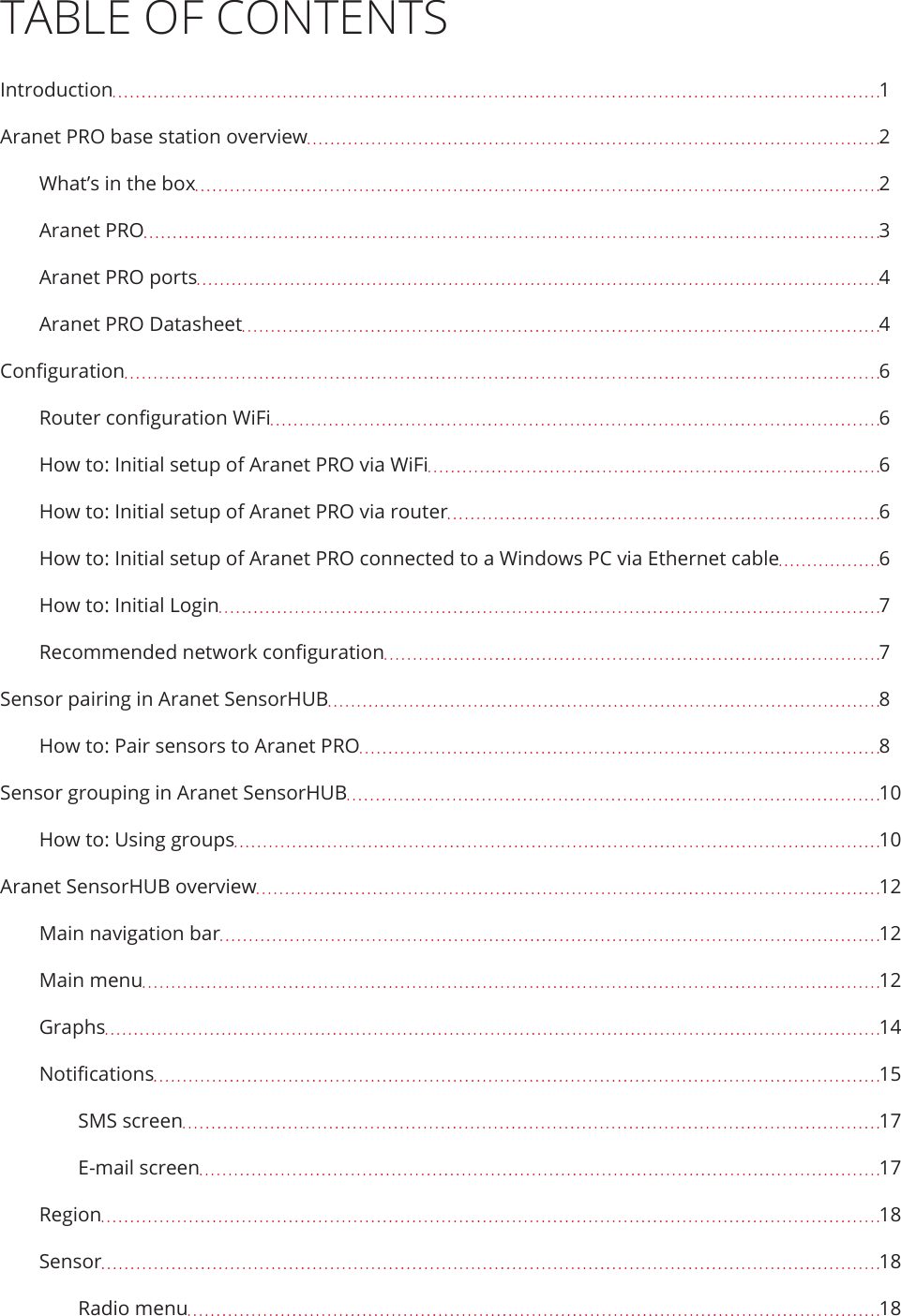

TABLE OF CONTENTSIntroduction 1Aranet PRO base station overview 2What’s in the box 2Aranet PRO 3Aranet PRO ports 4Aranet PRO Datasheet 4Conguration 6Router conguration WiFi 6How to: Initial setup of Aranet PRO via WiFi 6How to: Initial setup of Aranet PRO via router 6How to: Initial setup of Aranet PRO connected to a Windows PC via Ethernet cable 6How to: Initial Login 7Recommended network conguration 7Sensor pairing in Aranet SensorHUB 8How to: Pair sensors to Aranet PRO 8Sensor grouping in Aranet SensorHUB 10How to: Using groups 10Aranet SensorHUB overview 12Main navigation bar 12Main menu 12Graphs 14Notications 15SMS screen 17E-mail screen 17Region 18Sensor 18Radio menu 18

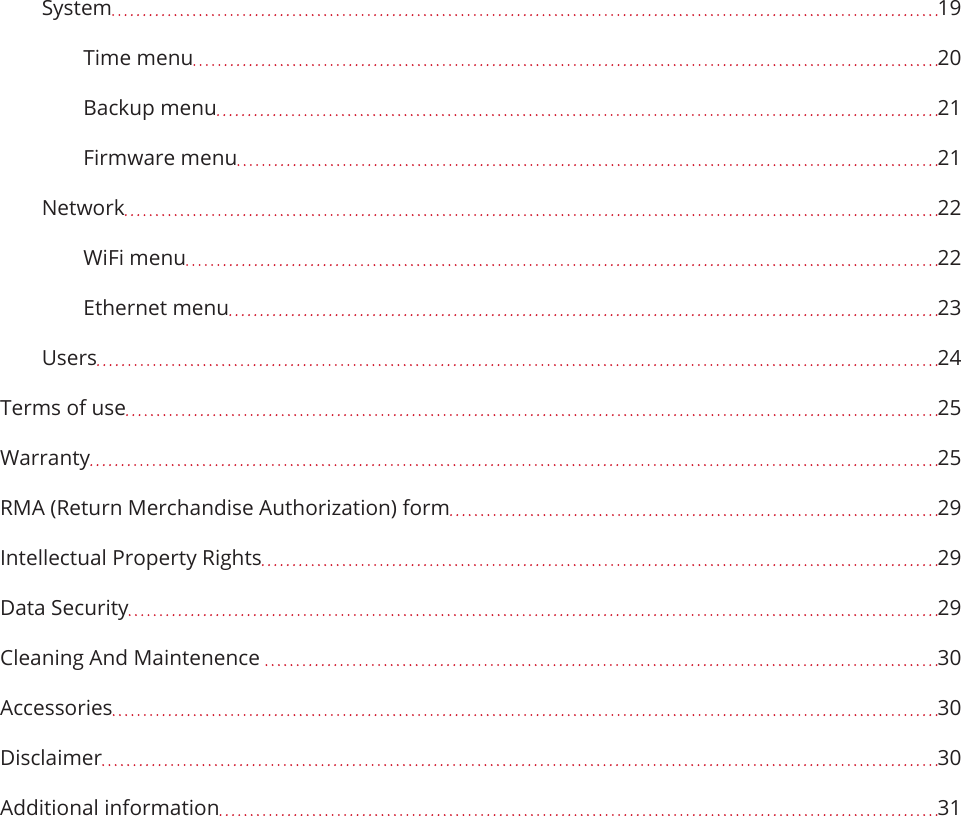

System 19Time menu 20Backup menu 21Firmware menu 21Network 22WiFi menu 22Ethernet menu 23Users 24Terms of use 25Warranty 25RMA (Return Merchandise Authorization) form 29Intellectual Property Rights 29Data Security 29Cleaning And Maintenence 30Accessories 30Disclaimer 30Additional information 31

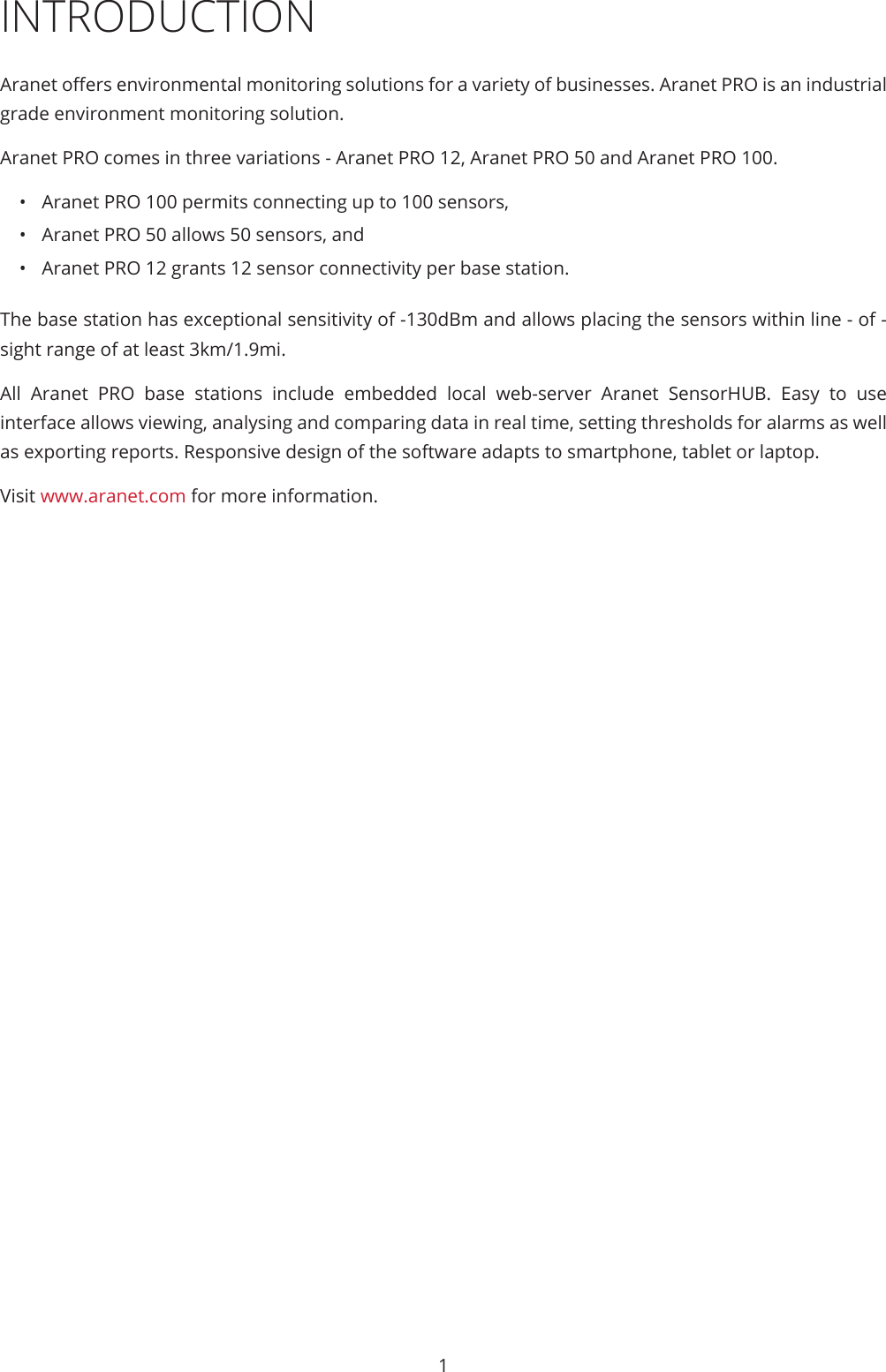

1INTRODUCTIONAranet oers environmental monitoring solutions for a variety of businesses. Aranet PRO is an industrial grade environment monitoring solution.Aranet PRO comes in three variations - Aranet PRO 12, Aranet PRO 50 and Aranet PRO 100.• Aranet PRO 100 permits connecting up to 100 sensors,• Aranet PRO 50 allows 50 sensors, and• Aranet PRO 12 grants 12 sensor connectivity per base station. The base station has exceptional sensitivity of -130dBm and allows placing the sensors within line - of - sight range of at least 3km/1.9mi.All Aranet PRO base stations include embedded local web-server Aranet SensorHUB. Easy to use interface allows viewing, analysing and comparing data in real time, setting thresholds for alarms as well as exporting reports. Responsive design of the software adapts to smartphone, tablet or laptop.Visit www.aranet.com for more information.

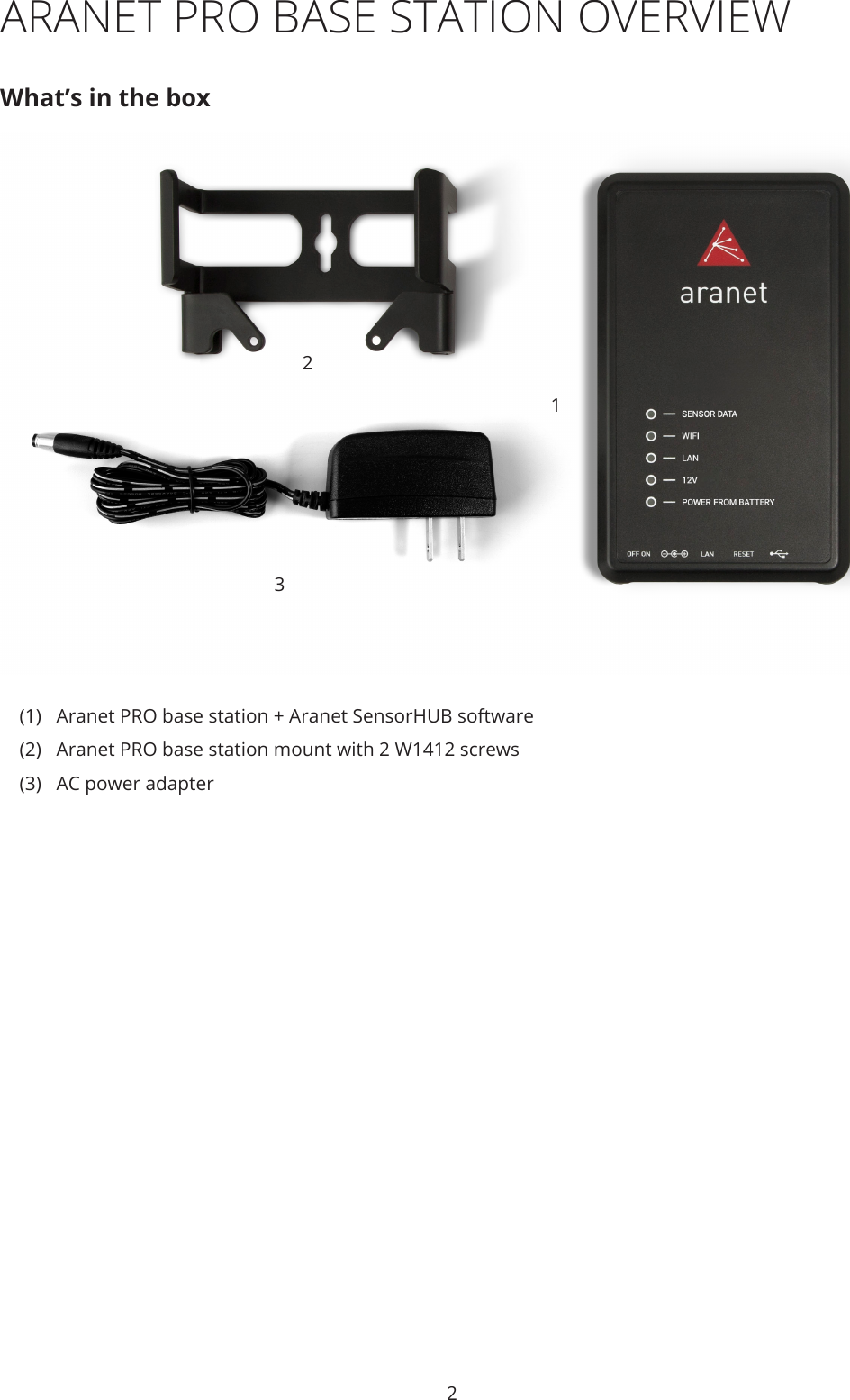

2ARANET PRO BASE STATION OVERVIEWWhat’s in the box(1) Aranet PRO base station + Aranet SensorHUB software(2) Aranet PRO base station mount with 2 W1412 screws(3) AC power adapter123

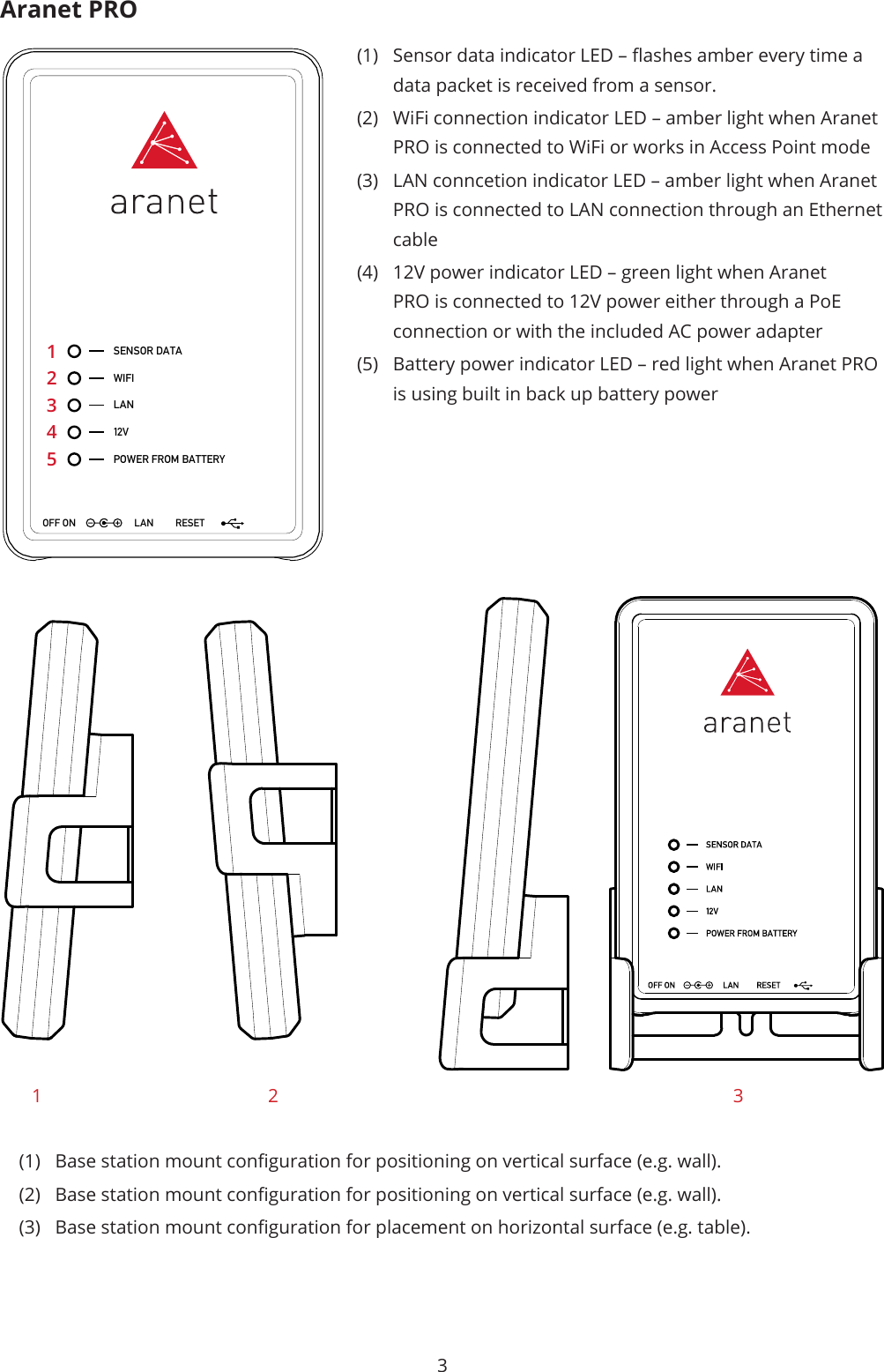

3Aranet PRO(1) Sensor data indicator LED – ashes amber every time a data packet is received from a sensor. (2) WiFi connection indicator LED – amber light when Aranet PRO is connected to WiFi or works in Access Point mode(3) LAN conncetion indicator LED – amber light when Aranet PRO is connected to LAN connection through an Ethernet cable(4) 12V power indicator LED – green light when Aranet PRO is connected to 12V power either through a PoE connection or with the included AC power adapter(5) Battery power indicator LED – red light when Aranet PRO is using built in back up battery power(1) Base station mount conguration for positioning on vertical surface (e.g. wall).(2) Base station mount conguration for positioning on vertical surface (e.g. wall).(3) Base station mount conguration for placement on horizontal surface (e.g. table).SENSOR DATAWIFILAN12VPOWER FROM BATTERYOFF ON LAN RESET123452 31

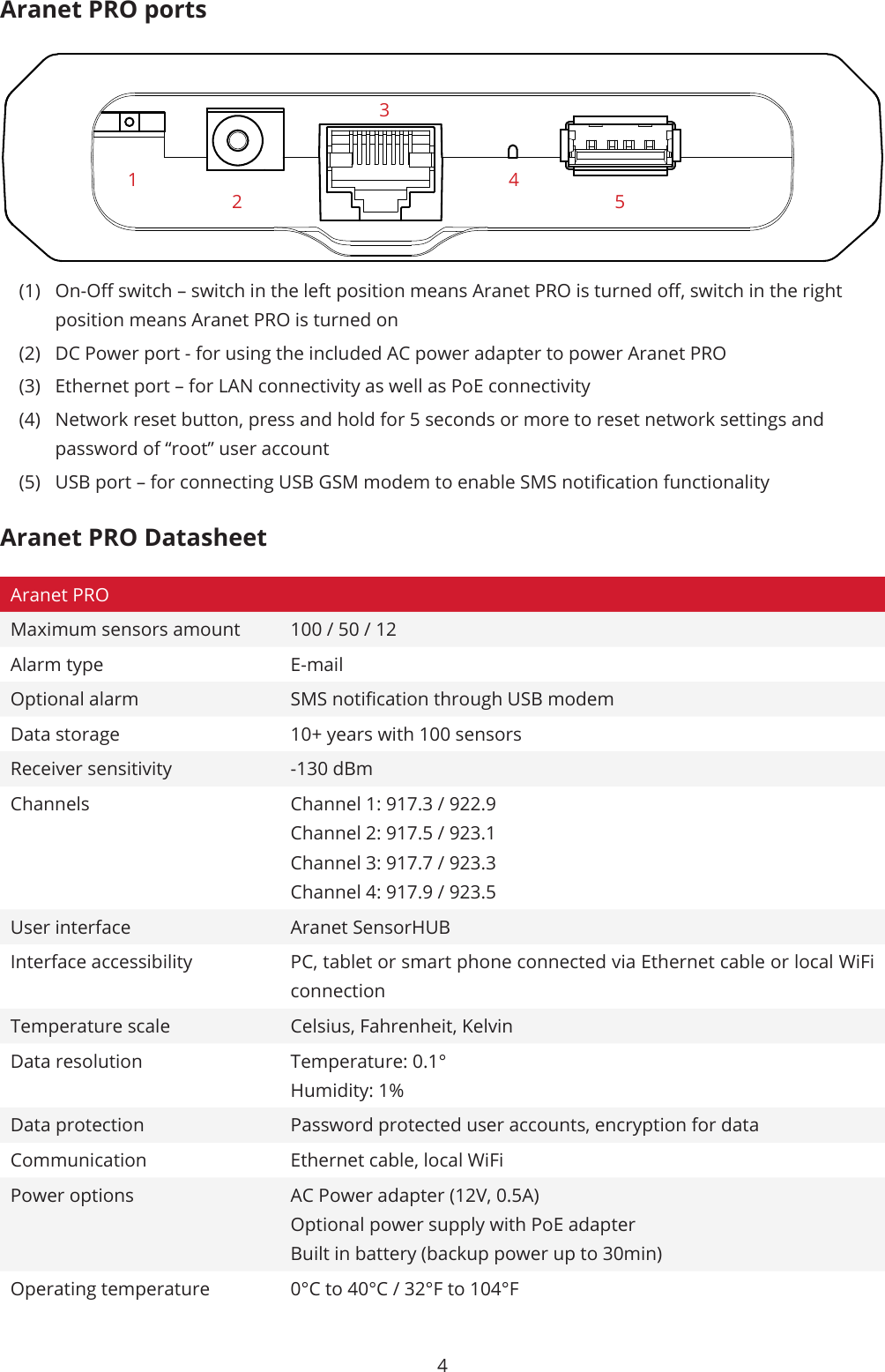

4Aranet PRO ports(1) On-O switch – switch in the left position means Aranet PRO is turned o, switch in the right position means Aranet PRO is turned on(2) DC Power port - for using the included AC power adapter to power Aranet PRO(3) Ethernet port – for LAN connectivity as well as PoE connectivity (4) Network reset button, press and hold for 5 seconds or more to reset network settings and password of “root” user account(5) USB port – for connecting USB GSM modem to enable SMS notication functionalityAranet PRO DatasheetAranet PROMaximum sensors amount 100 / 50 / 12Alarm type E-mailOptional alarm SMS notication through USB modemData storage 10+ years with 100 sensorsReceiver sensitivity -130 dBmChannels Channel 1: 917.3 / 922.9Channel 2: 917.5 / 923.1Channel 3: 917.7 / 923.3Channel 4: 917.9 / 923.5User interface Aranet SensorHUBInterface accessibility PC, tablet or smart phone connected via Ethernet cable or local WiFi connectionTemperature scale Celsius, Fahrenheit, KelvinData resolution Temperature: 0.1°Humidity: 1%Data protection Password protected user accounts, encryption for dataCommunication Ethernet cable, local WiFiPower options AC Power adapter (12V, 0.5A)Optional power supply with PoE adapterBuilt in battery (backup power up to 30min)Operating temperature 0°C to 40°C / 32°F to 104°F12345

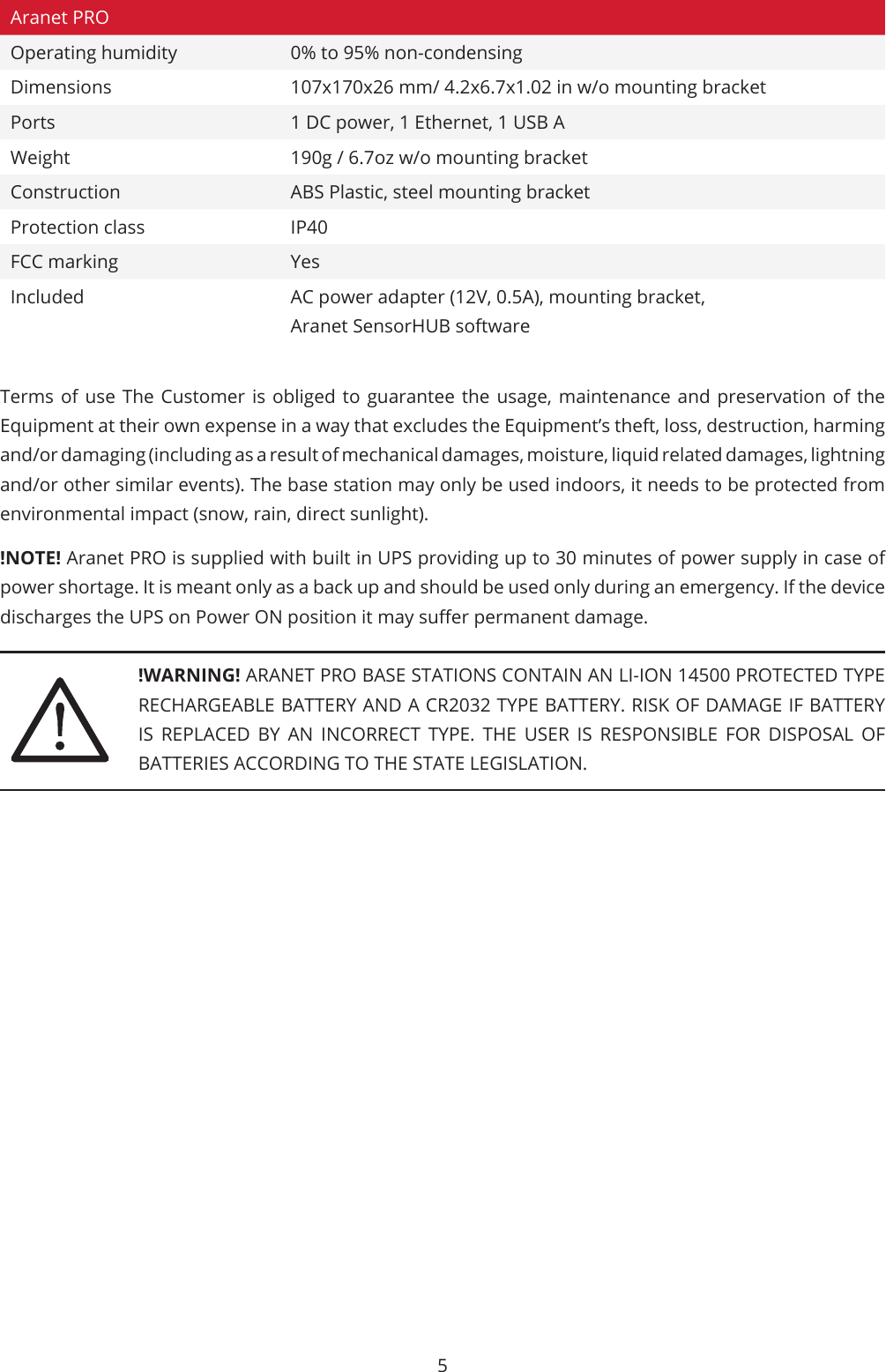

5Aranet PROOperating humidity 0% to 95% non-condensingDimensions 107x170x26 mm/ 4.2x6.7x1.02 in w/o mounting bracketPorts 1 DC power, 1 Ethernet, 1 USB AWeight 190g / 6.7oz w/o mounting bracketConstruction ABS Plastic, steel mounting bracketProtection class IP40FCC marking YesIncluded AC power adapter (12V, 0.5A), mounting bracket, Aranet SensorHUB softwareTerms of use The Customer is obliged to guarantee the usage, maintenance and preservation of the Equipment at their own expense in a way that excludes the Equipment’s theft, loss, destruction, harming and/or damaging (including as a result of mechanical damages, moisture, liquid related damages, lightning and/or other similar events). The base station may only be used indoors, it needs to be protected from environmental impact (snow, rain, direct sunlight).!NOTE! Aranet PRO is supplied with built in UPS providing up to 30 minutes of power supply in case of power shortage. It is meant only as a back up and should be used only during an emergency. If the device discharges the UPS on Power ON position it may suer permanent damage.!WARNING! ARANET PRO BASE STATIONS CONTAIN AN LI-ION 14500 PROTECTED TYPE RECHARGEABLE BATTERY AND A CR2032 TYPE BATTERY. RISK OF DAMAGE IF BATTERY IS REPLACED BY AN INCORRECT TYPE. THE USER IS RESPONSIBLE FOR DISPOSAL OF BATTERIES ACCORDING TO THE STATE LEGISLATION.

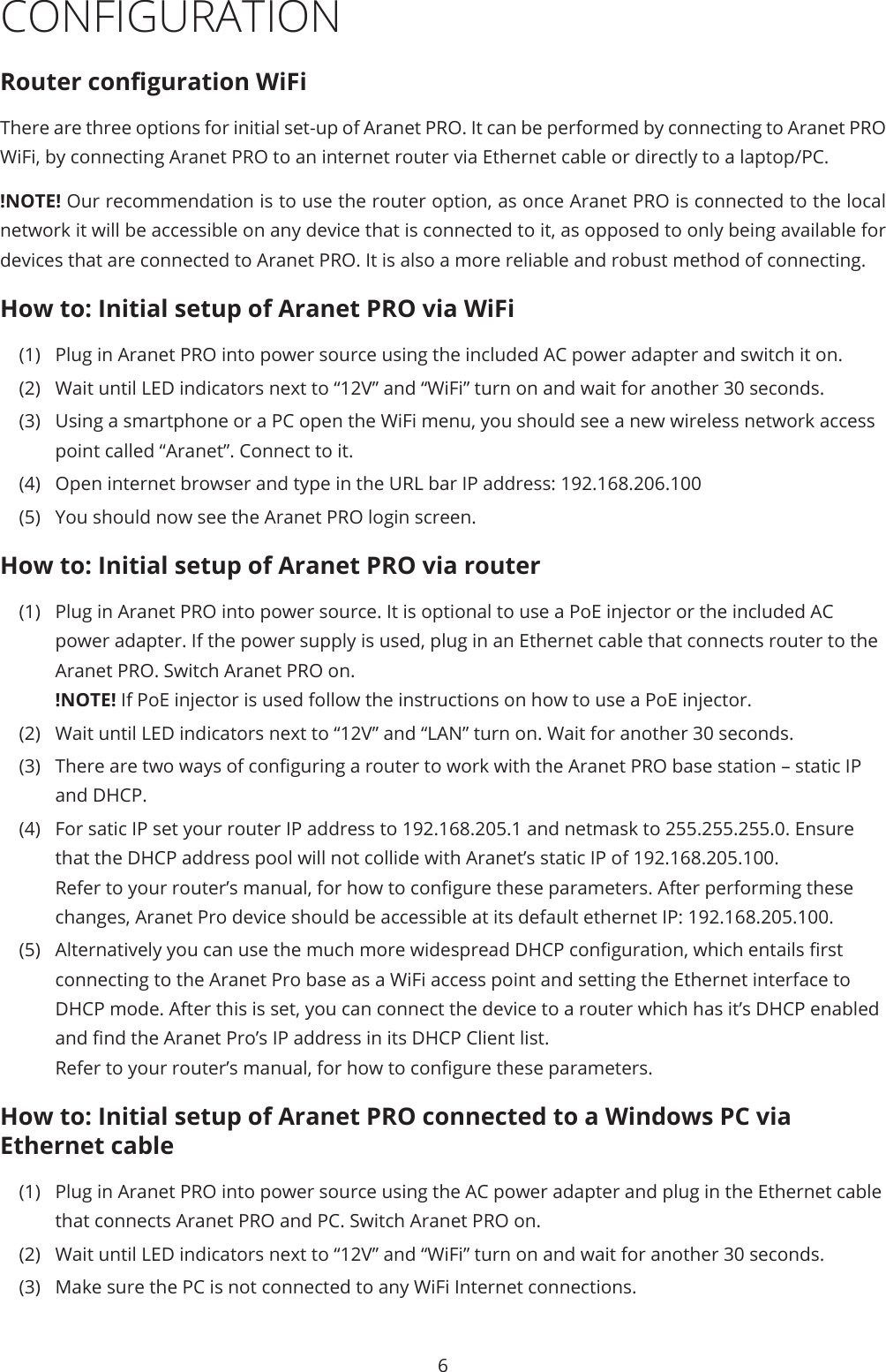

6CONFIGURATIONRouter conguration WiFiThere are three options for initial set-up of Aranet PRO. It can be performed by connecting to Aranet PRO WiFi, by connecting Aranet PRO to an internet router via Ethernet cable or directly to a laptop/PC. !NOTE! Our recommendation is to use the router option, as once Aranet PRO is connected to the local network it will be accessible on any device that is connected to it, as opposed to only being available for devices that are connected to Aranet PRO. It is also a more reliable and robust method of connecting.How to: Initial setup of Aranet PRO via WiFi(1) Plug in Aranet PRO into power source using the included AC power adapter and switch it on.(2) Wait until LED indicators next to “12V” and “WiFi” turn on and wait for another 30 seconds.(3) Using a smartphone or a PC open the WiFi menu, you should see a new wireless network access point called “Aranet”. Connect to it.(4) Open internet browser and type in the URL bar IP address: 192.168.206.100(5) You should now see the Aranet PRO login screen.How to: Initial setup of Aranet PRO via router(1) Plug in Aranet PRO into power source. It is optional to use a PoE injector or the included AC power adapter. If the power supply is used, plug in an Ethernet cable that connects router to the Aranet PRO. Switch Aranet PRO on. !NOTE! If PoE injector is used follow the instructions on how to use a PoE injector. (2) Wait until LED indicators next to “12V” and “LAN” turn on. Wait for another 30 seconds.(3) There are two ways of conguring a router to work with the Aranet PRO base station – static IP and DHCP.(4) For satic IP set your router IP address to 192.168.205.1 and netmask to 255.255.255.0. Ensure that the DHCP address pool will not collide with Aranet’s static IP of 192.168.205.100. Refer to your router’s manual, for how to congure these parameters. After performing these changes, Aranet Pro device should be accessible at its default ethernet IP: 192.168.205.100.(5) Alternatively you can use the much more widespread DHCP conguration, which entails rst connecting to the Aranet Pro base as a WiFi access point and setting the Ethernet interface to DHCP mode. After this is set, you can connect the device to a router which has it’s DHCP enabled and nd the Aranet Pro’s IP address in its DHCP Client list. Refer to your router’s manual, for how to congure these parameters.How to: Initial setup of Aranet PRO connected to a Windows PC via Ethernet cable(1) Plug in Aranet PRO into power source using the AC power adapter and plug in the Ethernet cable that connects Aranet PRO and PC. Switch Aranet PRO on. (2) Wait until LED indicators next to “12V” and “WiFi” turn on and wait for another 30 seconds.(3) Make sure the PC is not connected to any WiFi Internet connections.

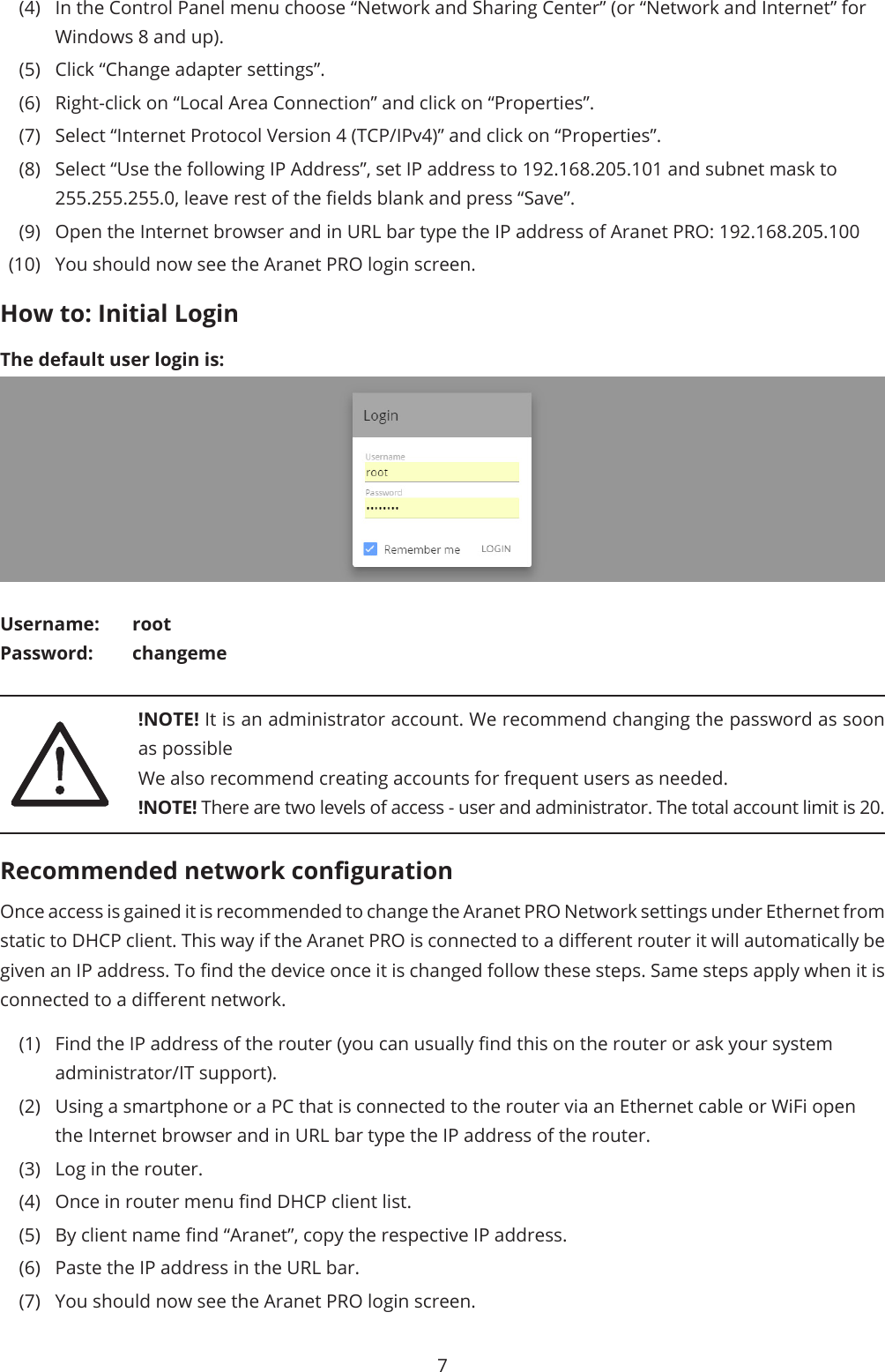

7(4) In the Control Panel menu choose “Network and Sharing Center” (or “Network and Internet” for Windows 8 and up).(5) Click “Change adapter settings”.(6) Right-click on “Local Area Connection” and click on “Properties”.(7) Select “Internet Protocol Version 4 (TCP/IPv4)” and click on “Properties”.(8) Select “Use the following IP Address”, set IP address to 192.168.205.101 and subnet mask to 255.255.255.0, leave rest of the elds blank and press “Save”.(9) Open the Internet browser and in URL bar type the IP address of Aranet PRO: 192.168.205.100(10) You should now see the Aranet PRO login screen.How to: Initial LoginThe default user login is:Username: rootPassword: changeme!NOTE! It is an administrator account. We recommend changing the password as soon as possibleWe also recommend creating accounts for frequent users as needed.!NOTE! There are two levels of access - user and administrator. The total account limit is 20.Recommended network congurationOnce access is gained it is recommended to change the Aranet PRO Network settings under Ethernet from static to DHCP client. This way if the Aranet PRO is connected to a dierent router it will automatically be given an IP address. To nd the device once it is changed follow these steps. Same steps apply when it is connected to a dierent network. (1) Find the IP address of the router (you can usually nd this on the router or ask your system administrator/IT support). (2) Using a smartphone or a PC that is connected to the router via an Ethernet cable or WiFi open the Internet browser and in URL bar type the IP address of the router.(3) Log in the router. (4) Once in router menu nd DHCP client list. (5) By client name nd “Aranet”, copy the respective IP address. (6) Paste the IP address in the URL bar.(7) You should now see the Aranet PRO login screen.

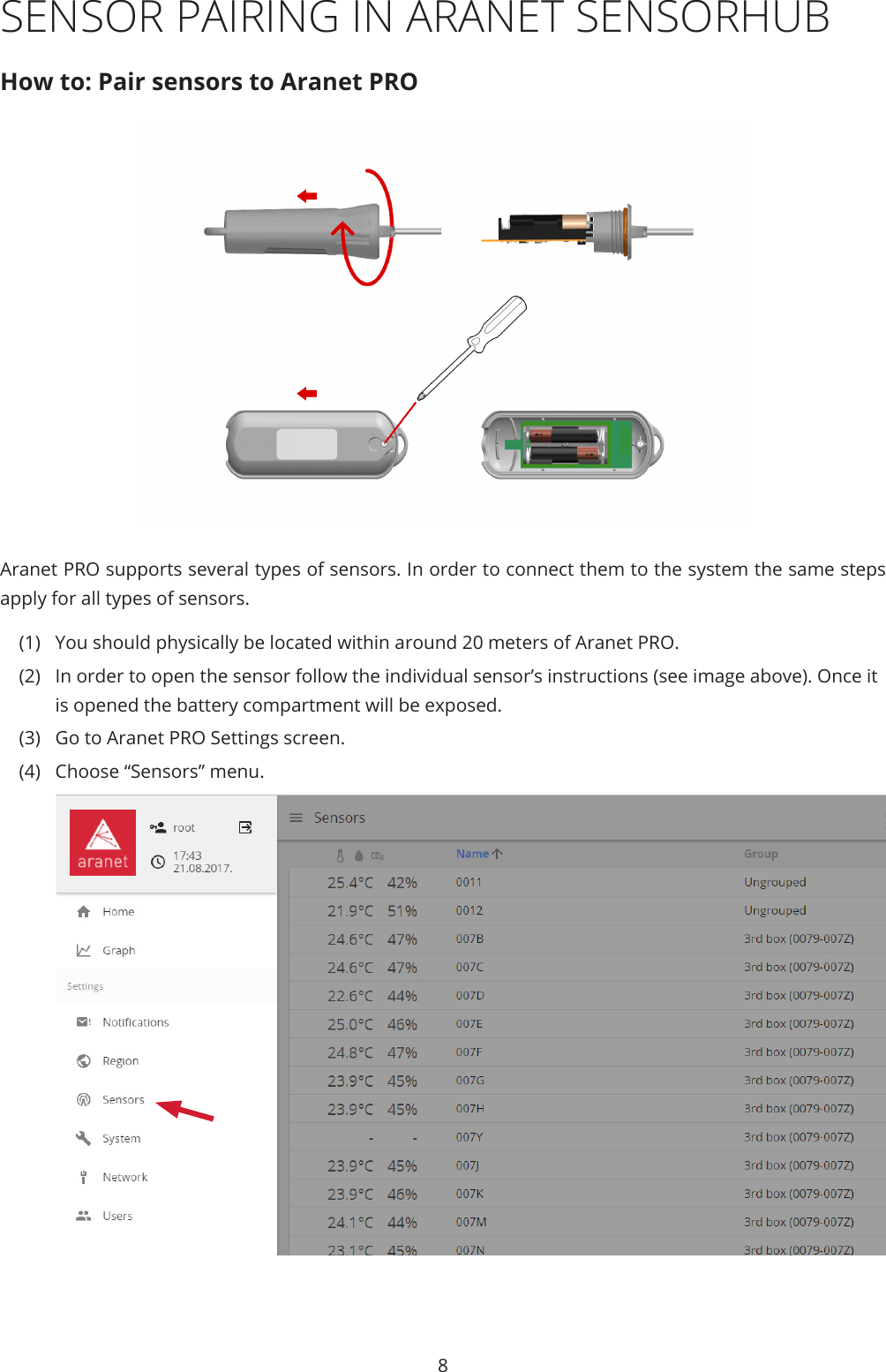

8SENSOR PAIRING IN ARANET SENSORHUBHow to: Pair sensors to Aranet PROAranet PRO supports several types of sensors. In order to connect them to the system the same steps apply for all types of sensors. (1) You should physically be located within around 20 meters of Aranet PRO. (2) In order to open the sensor follow the individual sensor’s instructions (see image above). Once it is opened the battery compartment will be exposed. (3) Go to Aranet PRO Settings screen.(4) Choose “Sensors” menu.

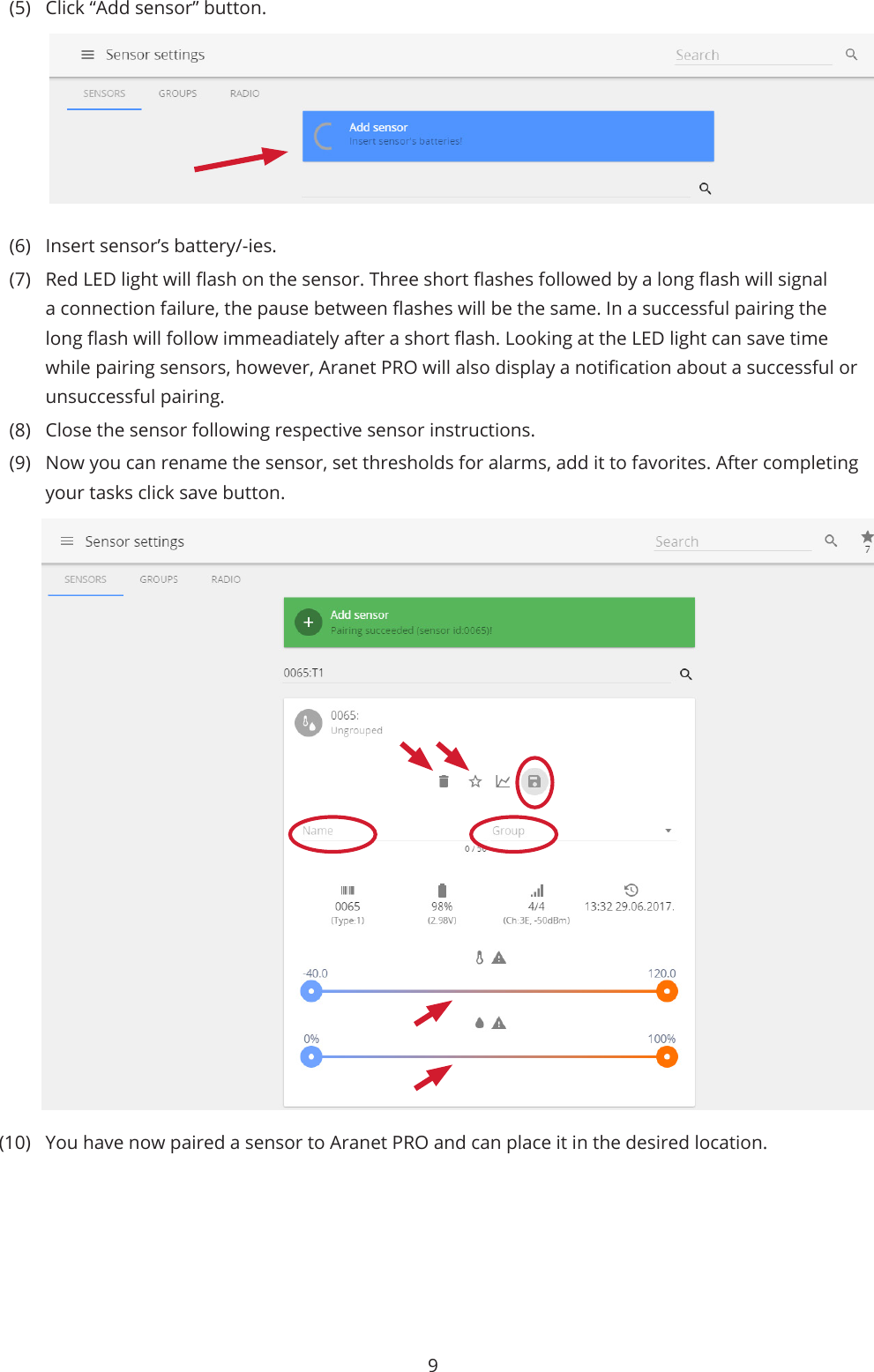

9(5) Click “Add sensor” button.(6) Insert sensor’s battery/-ies. (7) Red LED light will ash on the sensor. Three short ashes followed by a long ash will signal a connection failure, the pause between ashes will be the same. In a successful pairing the long ash will follow immeadiately after a short ash. Looking at the LED light can save time while pairing sensors, however, Aranet PRO will also display a notication about a successful or unsuccessful pairing. (8) Close the sensor following respective sensor instructions. (9) Now you can rename the sensor, set thresholds for alarms, add it to favorites. After completing your tasks click save button.(10) You have now paired a sensor to Aranet PRO and can place it in the desired location.

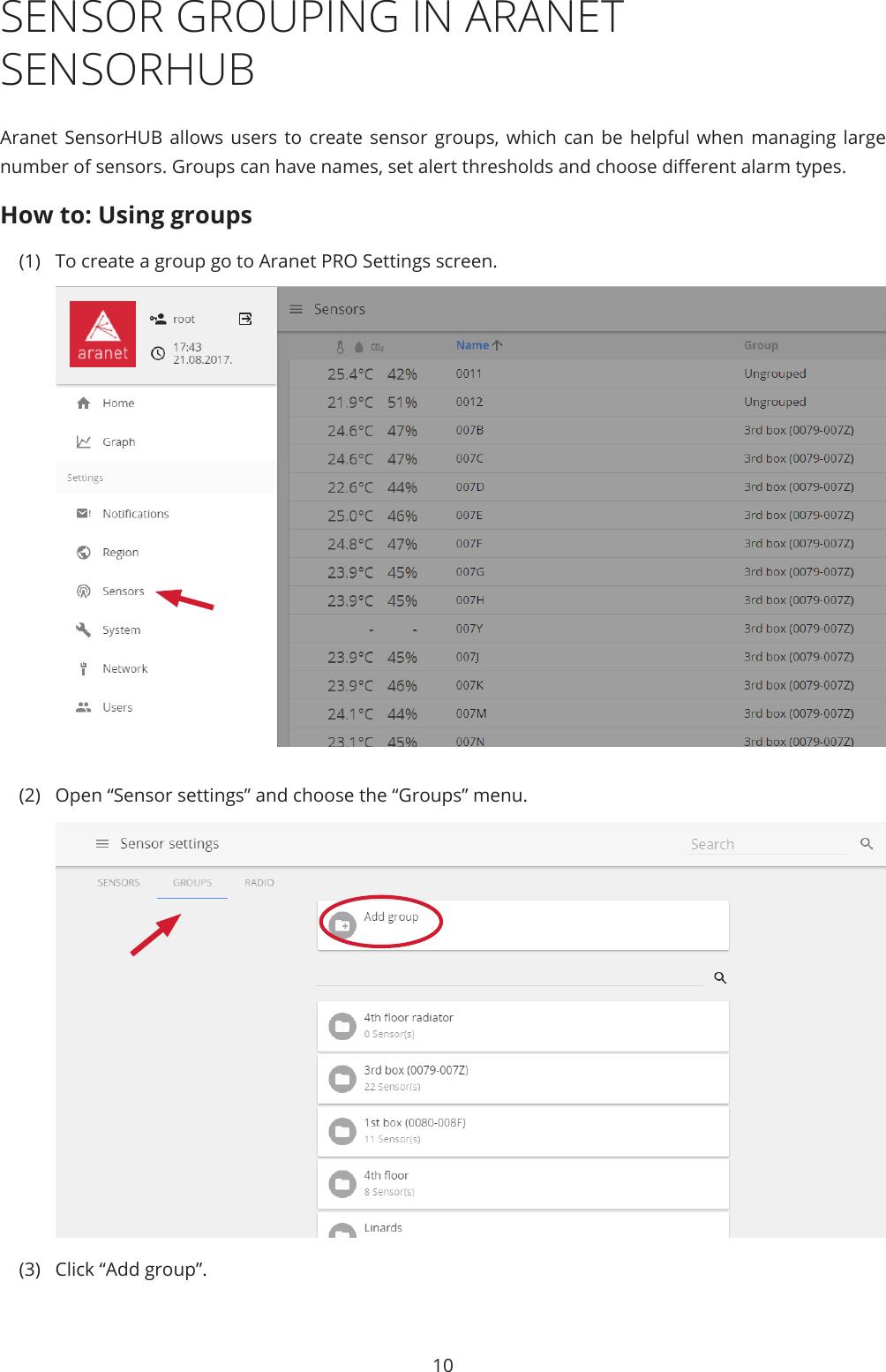

10SENSOR GROUPING IN ARANET SENSORHUBAranet SensorHUB allows users to create sensor groups, which can be helpful when managing large number of sensors. Groups can have names, set alert thresholds and choose dierent alarm types.How to: Using groups(1) To create a group go to Aranet PRO Settings screen.(2) Open “Sensor settings” and choose the “Groups” menu.(3) Click “Add group”.

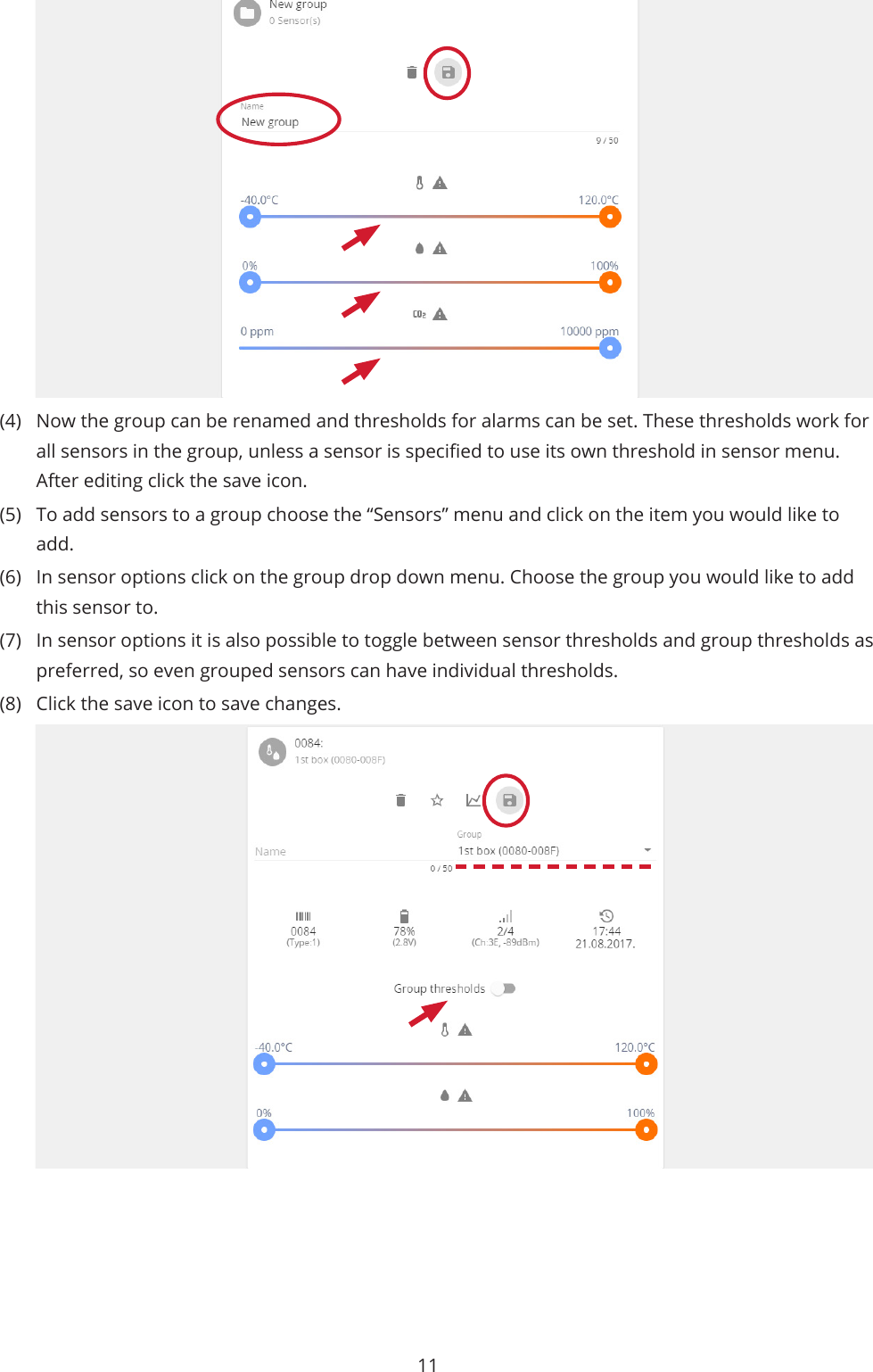

11(4) Now the group can be renamed and thresholds for alarms can be set. These thresholds work for all sensors in the group, unless a sensor is specied to use its own threshold in sensor menu. After editing click the save icon.(5) To add sensors to a group choose the “Sensors” menu and click on the item you would like to add. (6) In sensor options click on the group drop down menu. Choose the group you would like to add this sensor to. (7) In sensor options it is also possible to toggle between sensor thresholds and group thresholds as preferred, so even grouped sensors can have individual thresholds.(8) Click the save icon to save changes.

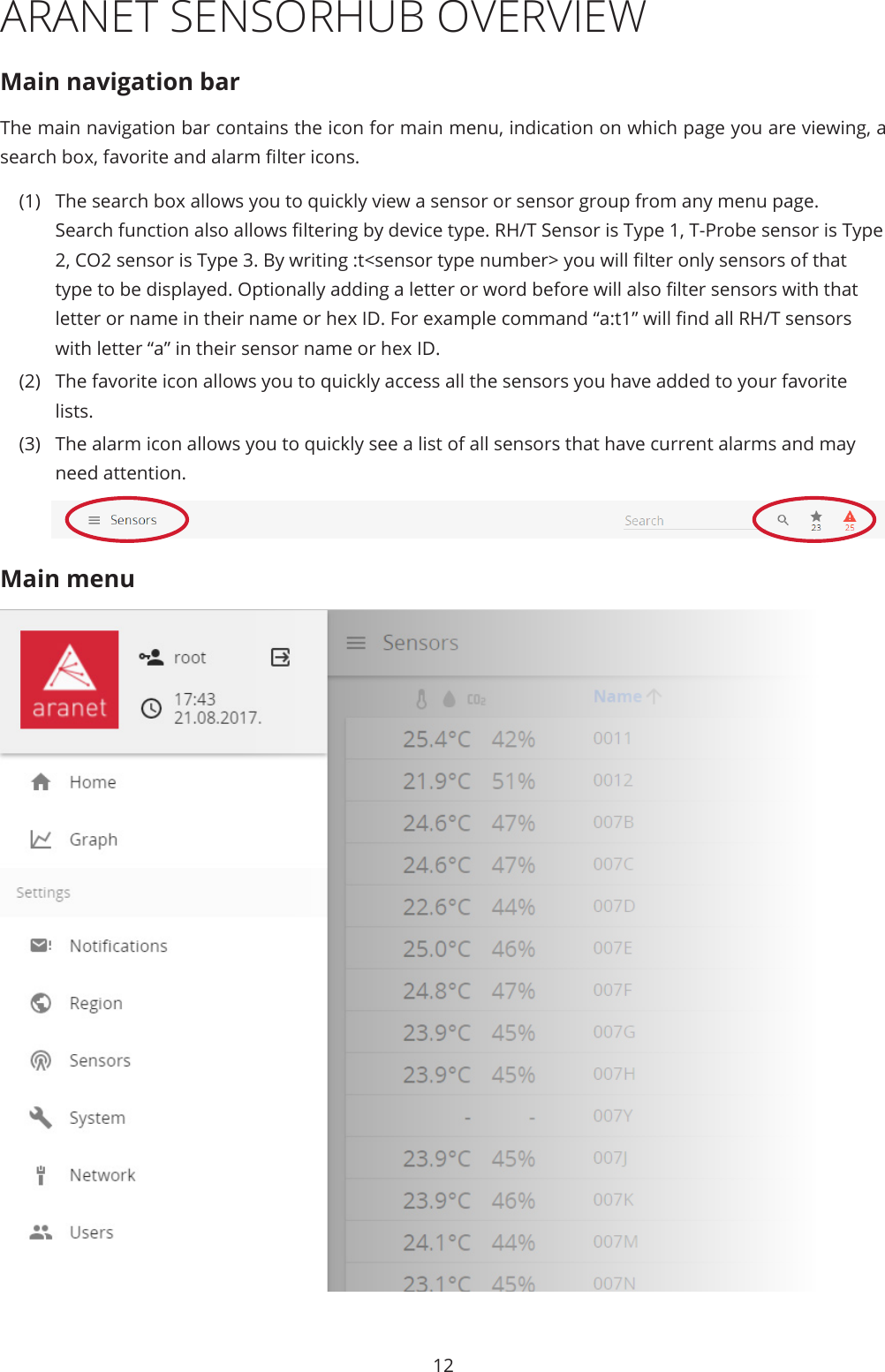

12ARANET SENSORHUB OVERVIEWMain navigation barThe main navigation bar contains the icon for main menu, indication on which page you are viewing, a search box, favorite and alarm lter icons.(1) The search box allows you to quickly view a sensor or sensor group from any menu page. Search function also allows ltering by device type. RH/T Sensor is Type 1, T-Probe sensor is Type 2, CO2 sensor is Type 3. By writing :t<sensor type number> you will lter only sensors of that type to be displayed. Optionally adding a letter or word before will also lter sensors with that letter or name in their name or hex ID. For example command “a:t1” will nd all RH/T sensors with letter “a” in their sensor name or hex ID. (2) The favorite icon allows you to quickly access all the sensors you have added to your favorite lists.(3) The alarm icon allows you to quickly see a list of all sensors that have current alarms and may need attention.Main menu

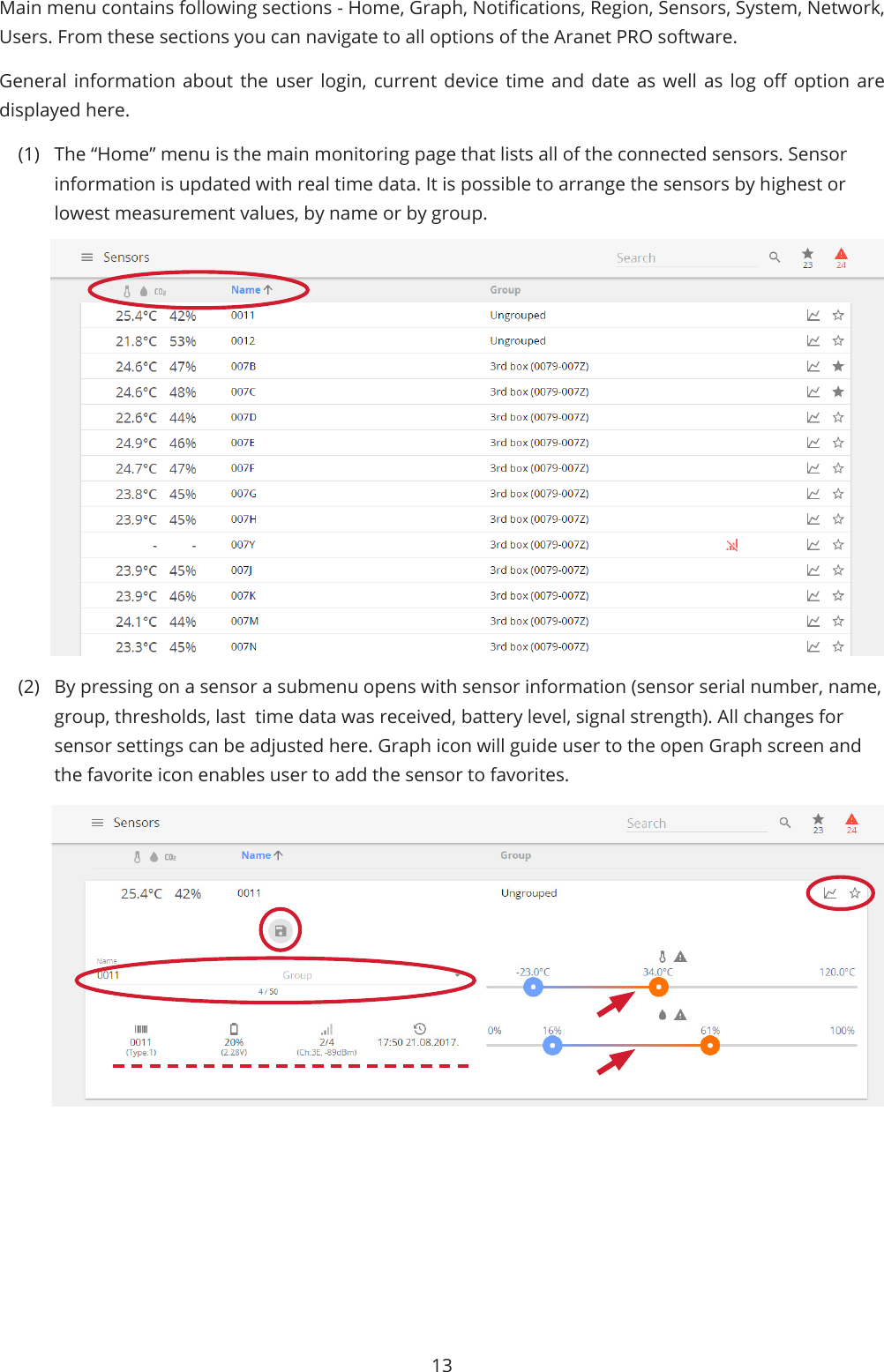

13Main menu contains following sections - Home, Graph, Notications, Region, Sensors, System, Network, Users. From these sections you can navigate to all options of the Aranet PRO software.General information about the user login, current device time and date as well as log o option are displayed here.(1) The “Home” menu is the main monitoring page that lists all of the connected sensors. Sensor information is updated with real time data. It is possible to arrange the sensors by highest or lowest measurement values, by name or by group. (2) By pressing on a sensor a submenu opens with sensor information (sensor serial number, name, group, thresholds, last time data was received, battery level, signal strength). All changes for sensor settings can be adjusted here. Graph icon will guide user to the open Graph screen and the favorite icon enables user to add the sensor to favorites.

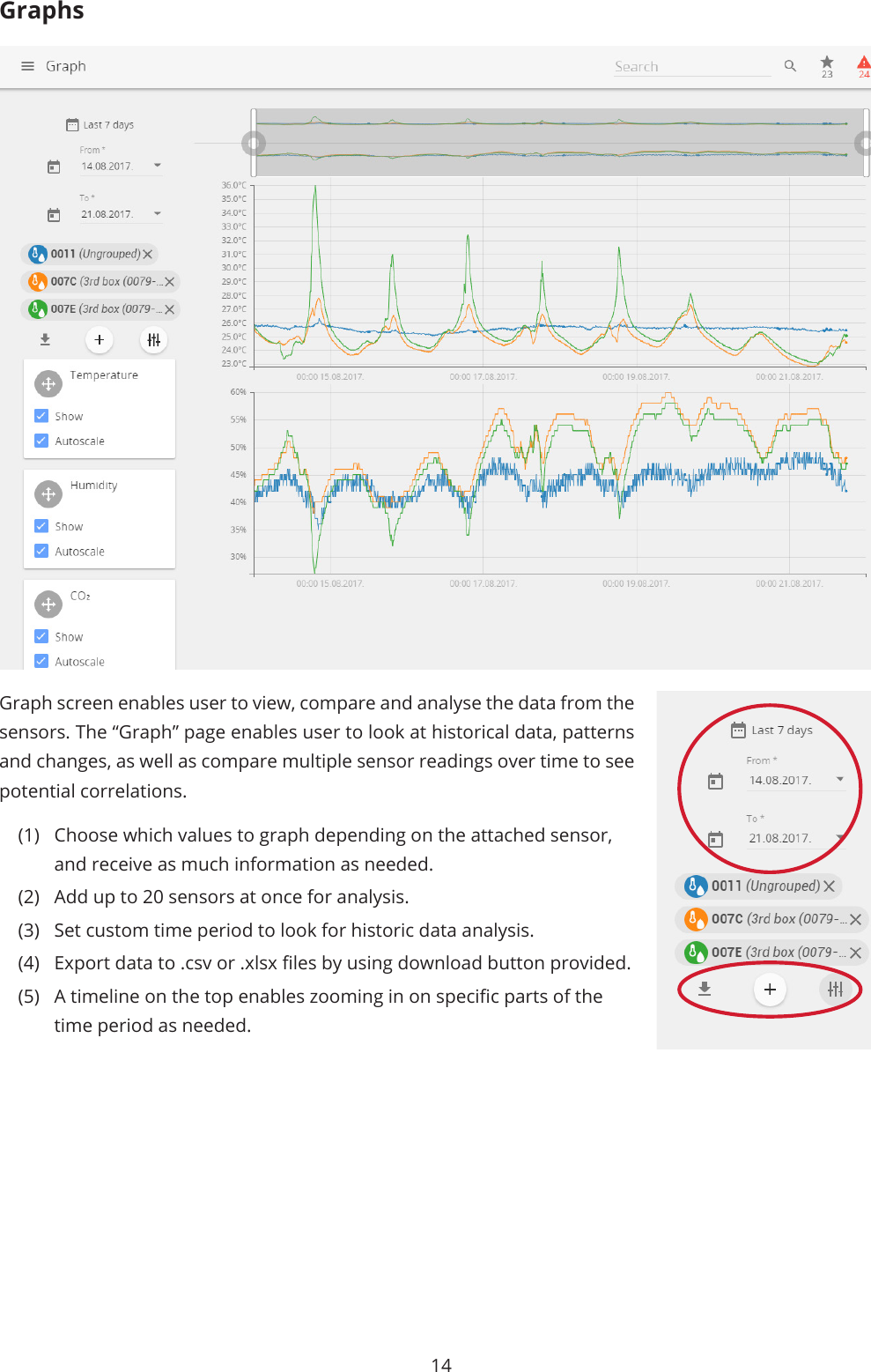

14GraphsGraph screen enables user to view, compare and analyse the data from the sensors. The “Graph” page enables user to look at historical data, patterns and changes, as well as compare multiple sensor readings over time to see potential correlations.(1) Choose which values to graph depending on the attached sensor, and receive as much information as needed.(2) Add up to 20 sensors at once for analysis.(3) Set custom time period to look for historic data analysis.(4) Export data to .csv or .xlsx les by using download button provided.(5) A timeline on the top enables zooming in on specic parts of the time period as needed.

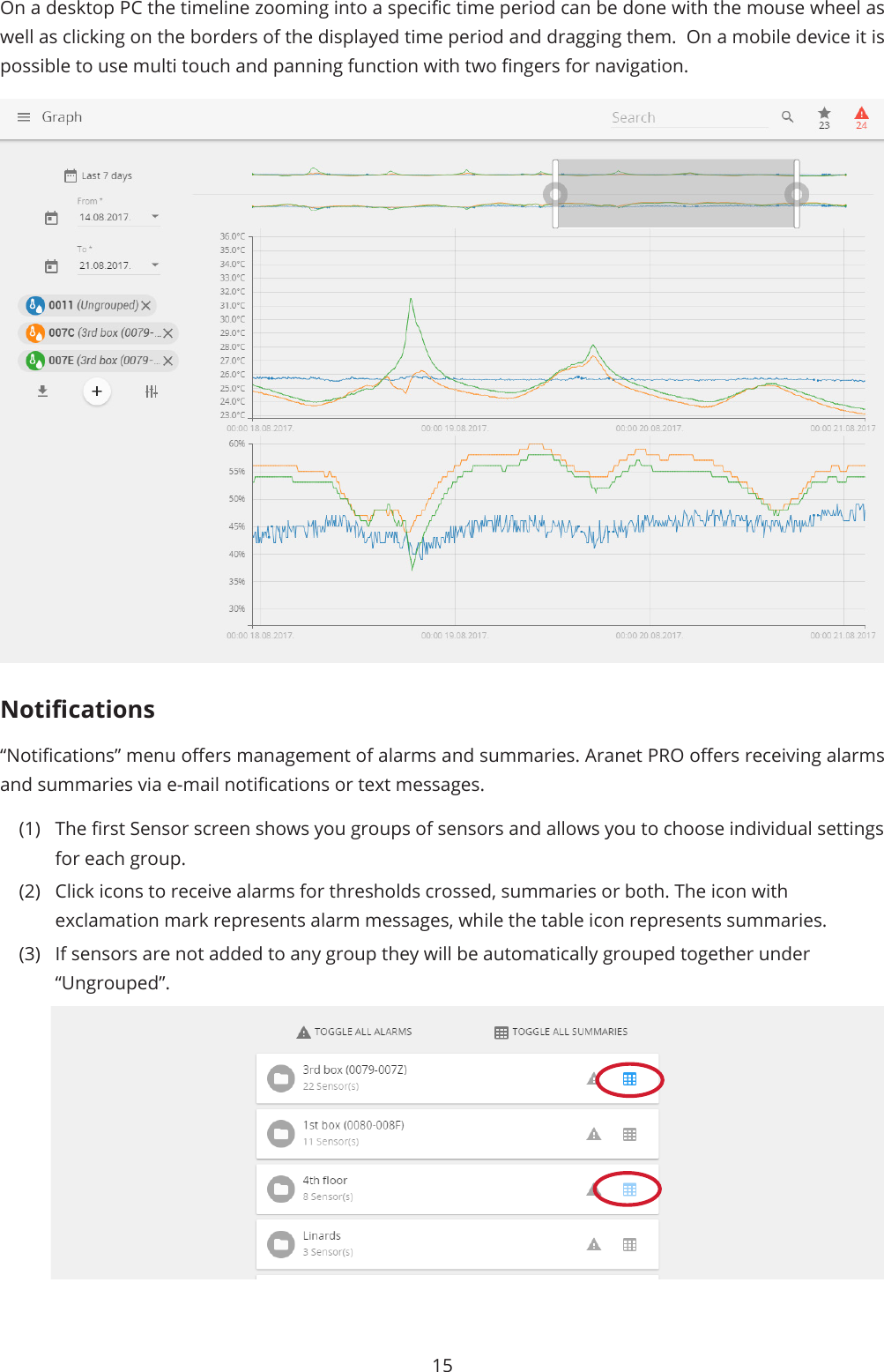

15On a desktop PC the timeline zooming into a specic time period can be done with the mouse wheel as well as clicking on the borders of the displayed time period and dragging them. On a mobile device it is possible to use multi touch and panning function with two ngers for navigation.Notications“Notications” menu oers management of alarms and summaries. Aranet PRO oers receiving alarms and summaries via e-mail notications or text messages. (1) The rst Sensor screen shows you groups of sensors and allows you to choose individual settings for each group. (2) Click icons to receive alarms for thresholds crossed, summaries or both. The icon with exclamation mark represents alarm messages, while the table icon represents summaries.(3) If sensors are not added to any group they will be automatically grouped together under “Ungrouped”.

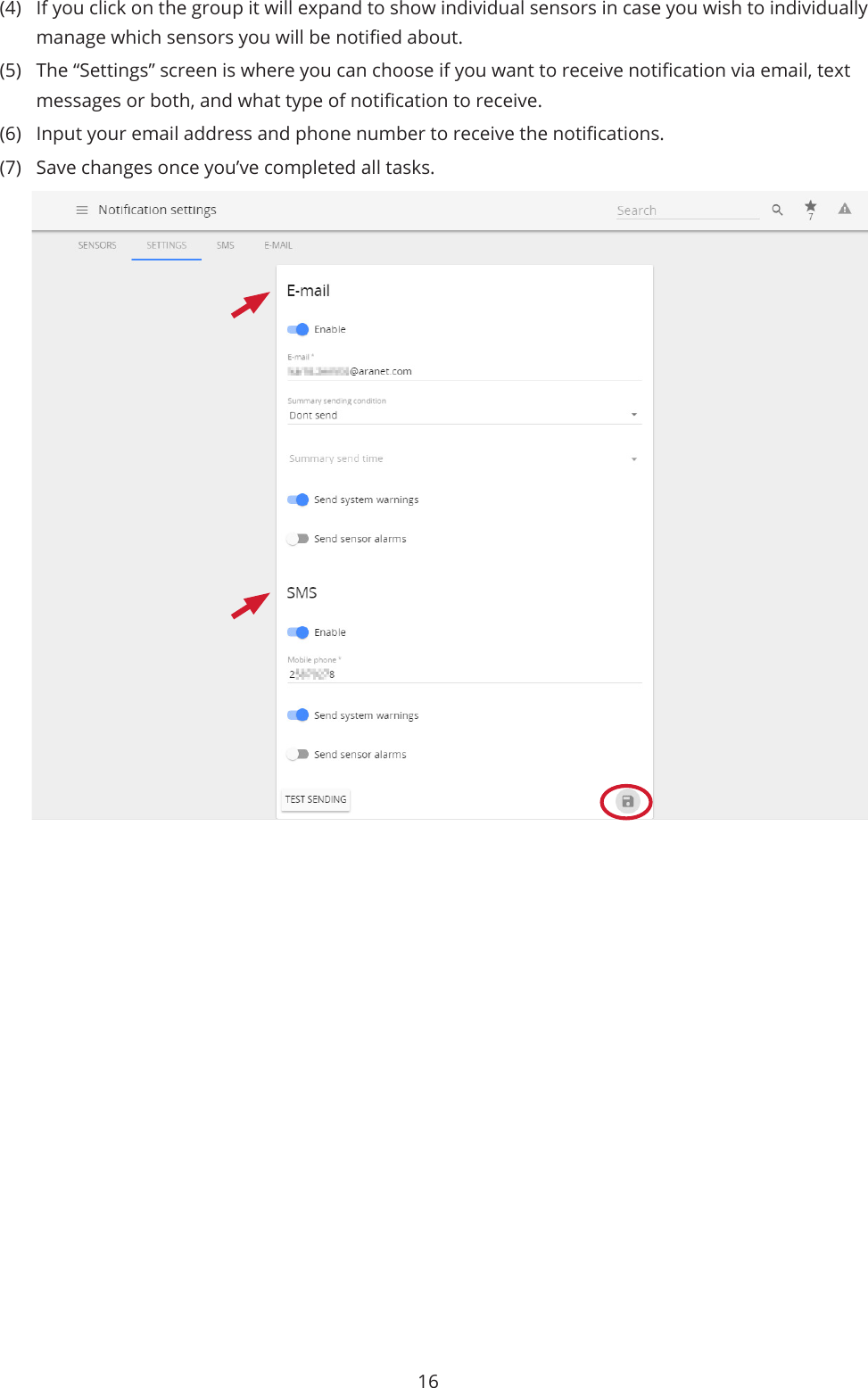

16(4) If you click on the group it will expand to show individual sensors in case you wish to individually manage which sensors you will be notied about.(5) The “Settings” screen is where you can choose if you want to receive notication via email, text messages or both, and what type of notication to receive. (6) Input your email address and phone number to receive the notications. (7) Save changes once you’ve completed all tasks.

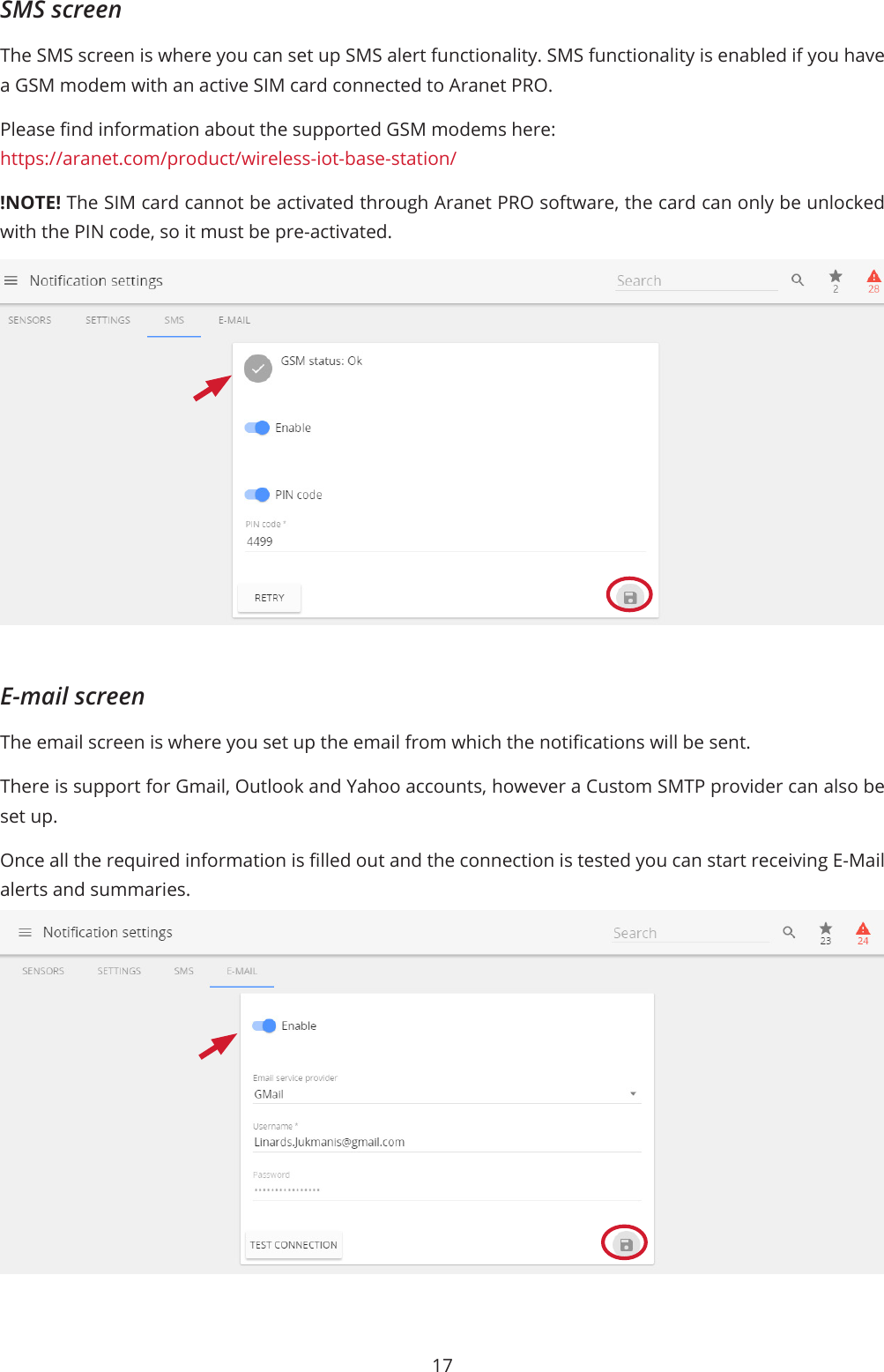

17SMS screenThe SMS screen is where you can set up SMS alert functionality. SMS functionality is enabled if you have a GSM modem with an active SIM card connected to Aranet PRO.Please nd information about the supported GSM modems here:https://aranet.com/product/wireless-iot-base-station/!NOTE! The SIM card cannot be activated through Aranet PRO software, the card can only be unlocked with the PIN code, so it must be pre-activated.E-mail screenThe email screen is where you set up the email from which the notications will be sent.There is support for Gmail, Outlook and Yahoo accounts, however a Custom SMTP provider can also be set up.Once all the required information is lled out and the connection is tested you can start receiving E-Mail alerts and summaries.

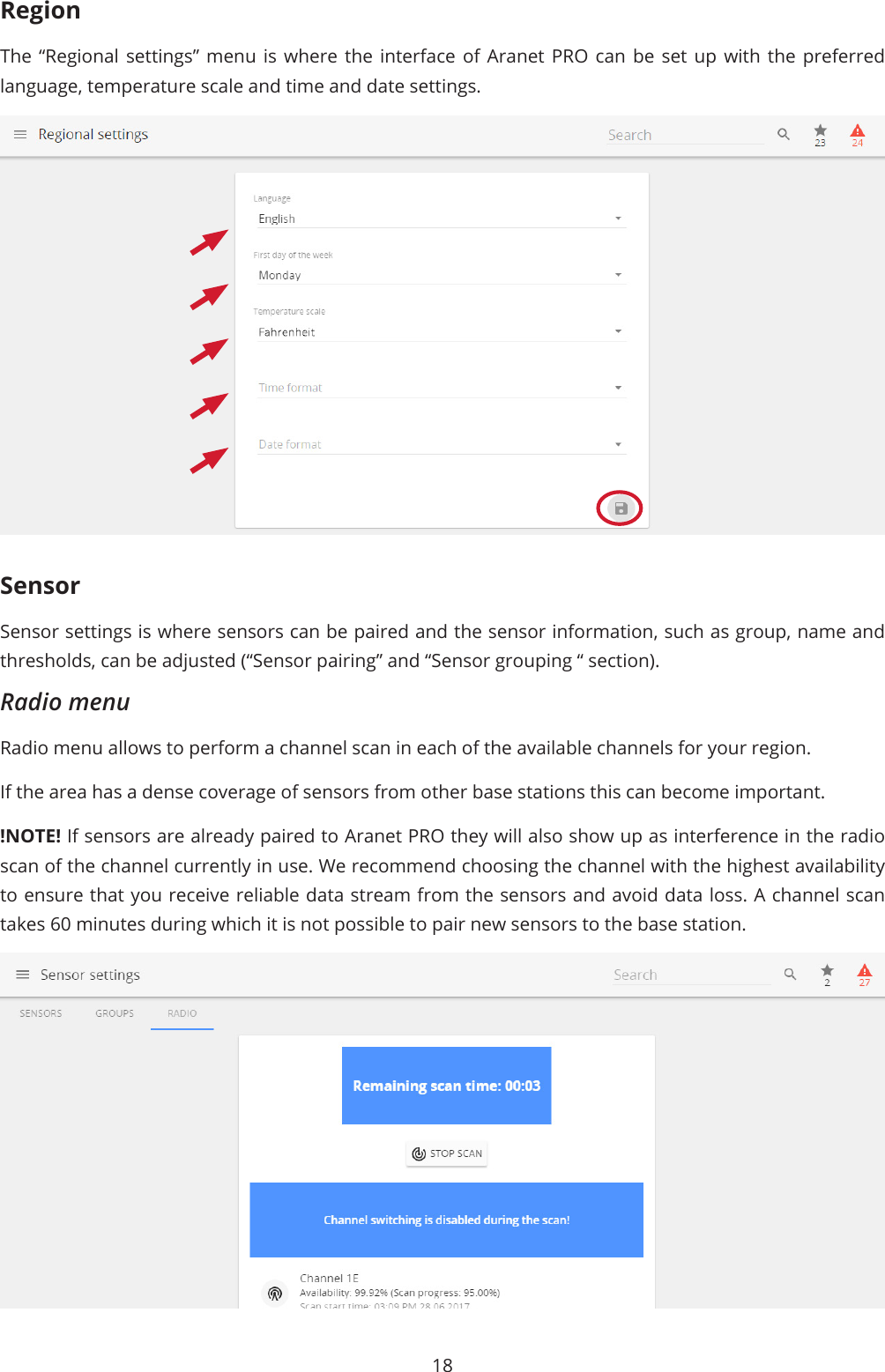

18RegionThe “Regional settings” menu is where the interface of Aranet PRO can be set up with the preferred language, temperature scale and time and date settings.SensorSensor settings is where sensors can be paired and the sensor information, such as group, name and thresholds, can be adjusted (“Sensor pairing” and “Sensor grouping “ section).Radio menuRadio menu allows to perform a channel scan in each of the available channels for your region. If the area has a dense coverage of sensors from other base stations this can become important. !NOTE! If sensors are already paired to Aranet PRO they will also show up as interference in the radio scan of the channel currently in use. We recommend choosing the channel with the highest availability to ensure that you receive reliable data stream from the sensors and avoid data loss. A channel scan takes 60 minutes during which it is not possible to pair new sensors to the base station.

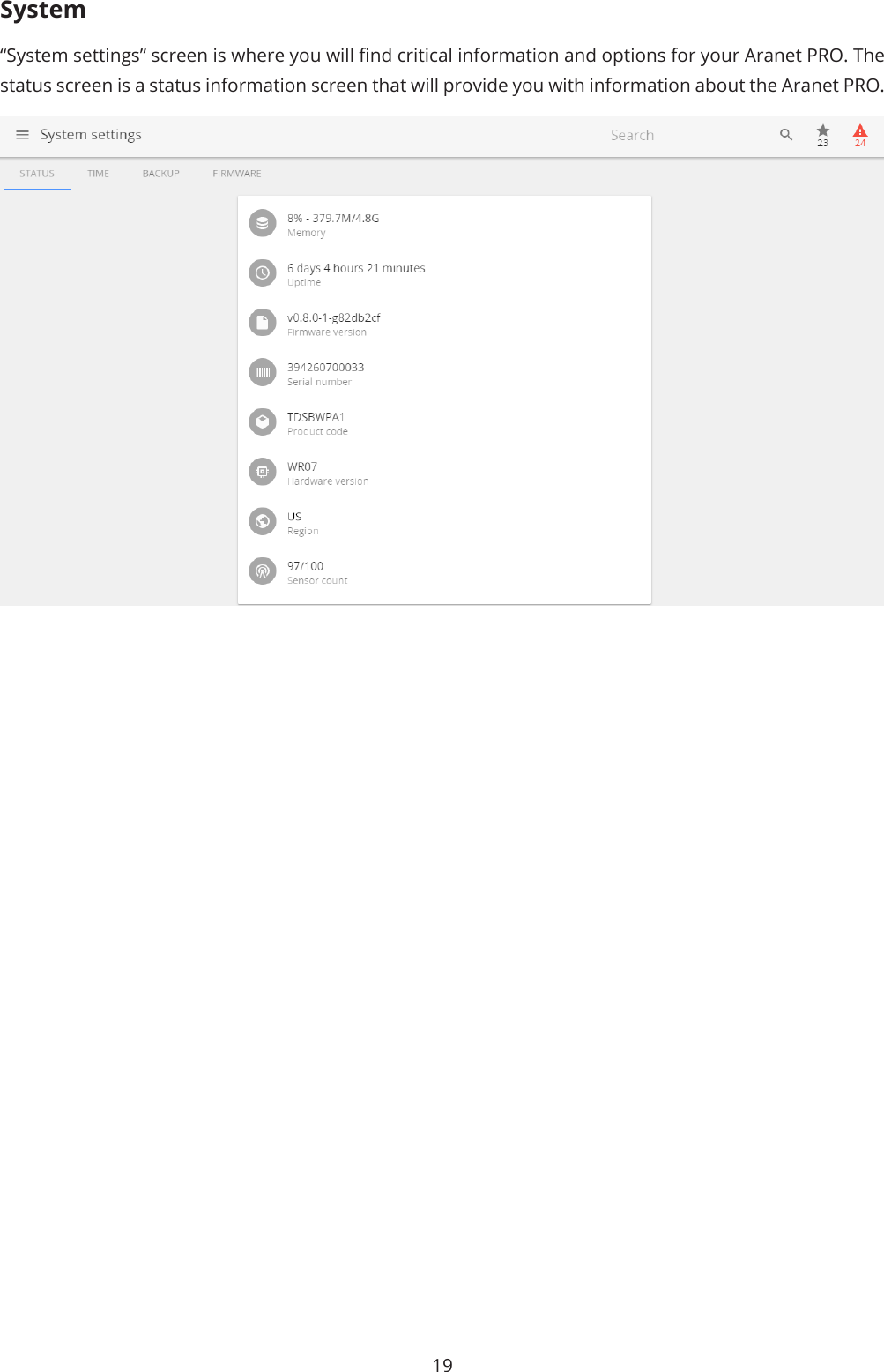

19System“System settings” screen is where you will nd critical information and options for your Aranet PRO. The status screen is a status information screen that will provide you with information about the Aranet PRO.

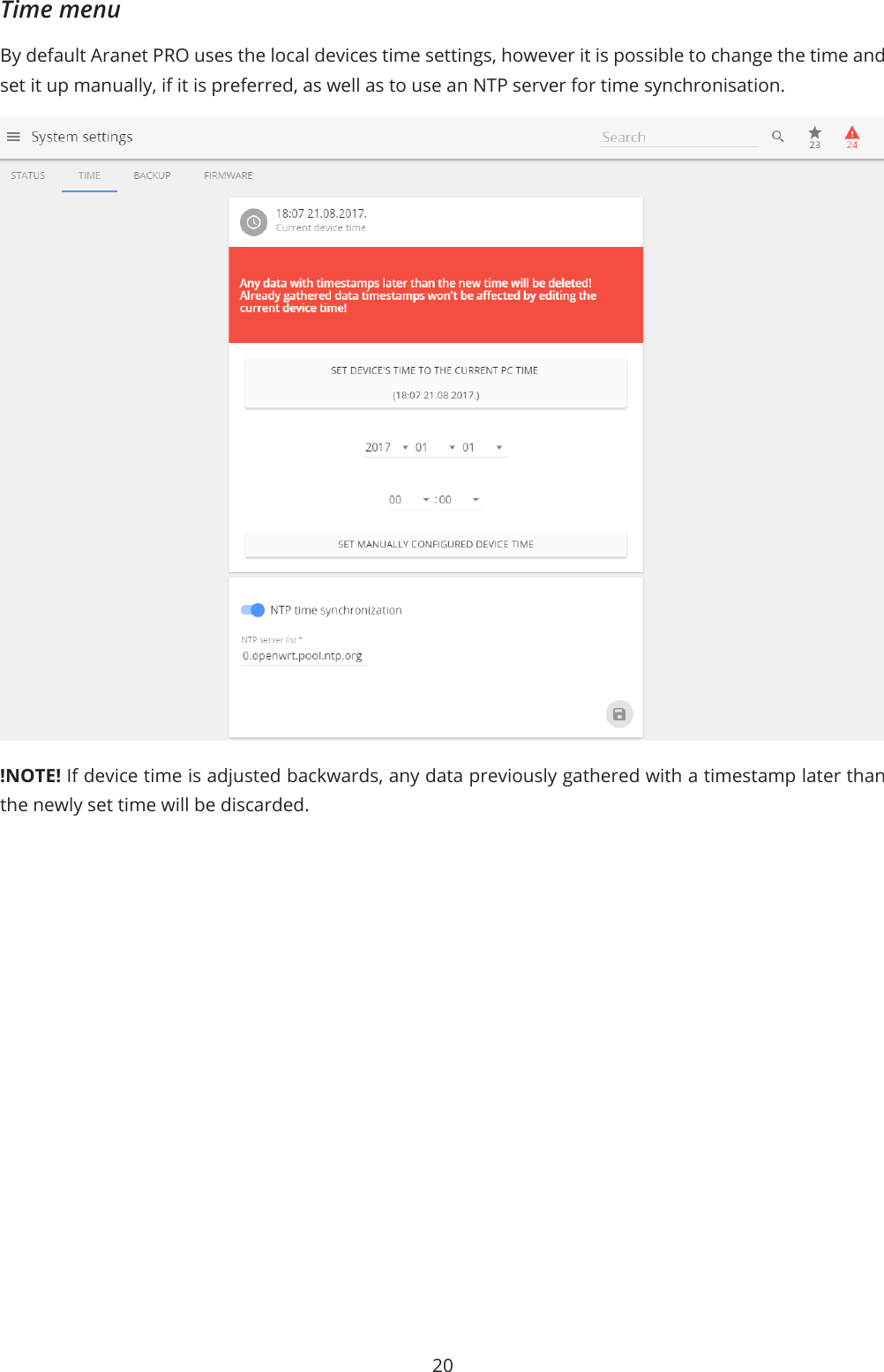

20Time menuBy default Aranet PRO uses the local devices time settings, however it is possible to change the time and set it up manually, if it is preferred, as well as to use an NTP server for time synchronisation.!NOTE! If device time is adjusted backwards, any data previously gathered with a timestamp later than the newly set time will be discarded.

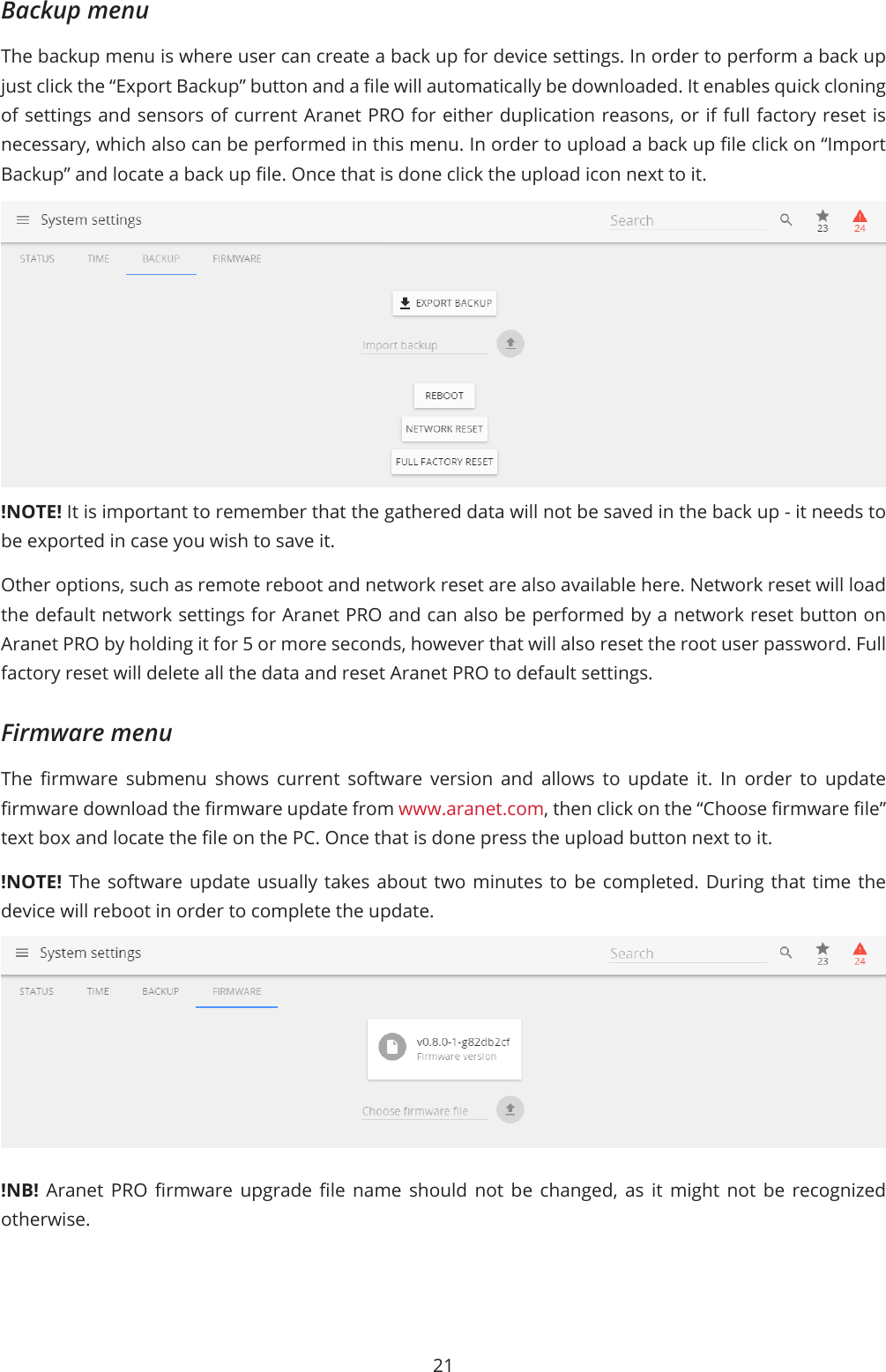

21Backup menuThe backup menu is where user can create a back up for device settings. In order to perform a back up just click the “Export Backup” button and a le will automatically be downloaded. It enables quick cloning of settings and sensors of current Aranet PRO for either duplication reasons, or if full factory reset is necessary, which also can be performed in this menu. In order to upload a back up le click on “Import Backup” and locate a back up le. Once that is done click the upload icon next to it.!NOTE! It is important to remember that the gathered data will not be saved in the back up - it needs to be exported in case you wish to save it.Other options, such as remote reboot and network reset are also available here. Network reset will load the default network settings for Aranet PRO and can also be performed by a network reset button on Aranet PRO by holding it for 5 or more seconds, however that will also reset the root user password. Full factory reset will delete all the data and reset Aranet PRO to default settings.Firmware menuThe rmware submenu shows current software version and allows to update it. In order to update rmware download the rmware update from www.aranet.com, then click on the “Choose rmware le” text box and locate the le on the PC. Once that is done press the upload button next to it. !NOTE! The software update usually takes about two minutes to be completed. During that time the device will reboot in order to complete the update.!NB! Aranet PRO rmware upgrade le name should not be changed, as it might not be recognized otherwise.

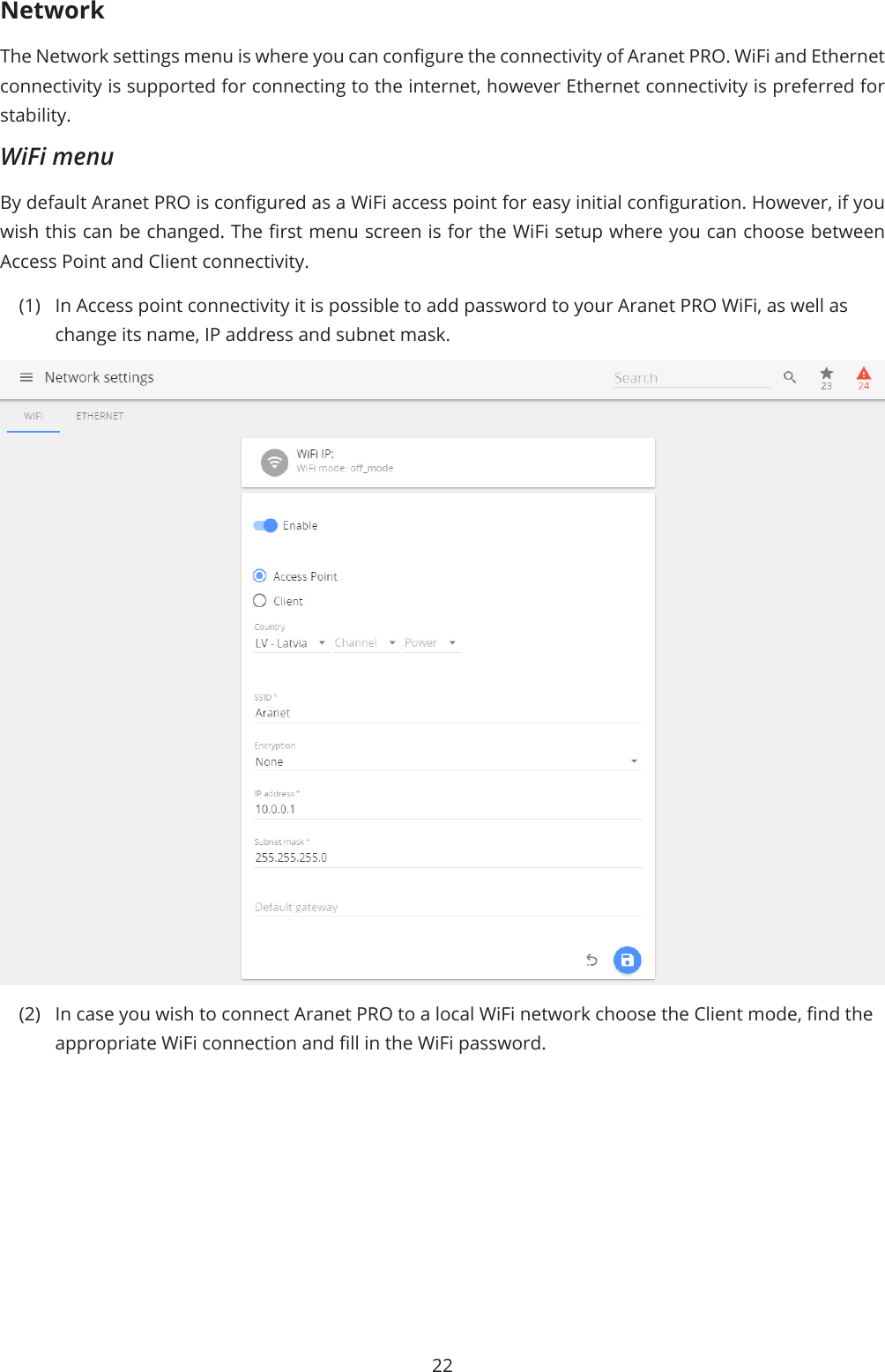

22NetworkThe Network settings menu is where you can congure the connectivity of Aranet PRO. WiFi and Ethernet connectivity is supported for connecting to the internet, however Ethernet connectivity is preferred for stability.WiFi menuBy default Aranet PRO is congured as a WiFi access point for easy initial conguration. However, if you wish this can be changed. The rst menu screen is for the WiFi setup where you can choose between Access Point and Client connectivity. (1) In Access point connectivity it is possible to add password to your Aranet PRO WiFi, as well as change its name, IP address and subnet mask.(2) In case you wish to connect Aranet PRO to a local WiFi network choose the Client mode, nd the appropriate WiFi connection and ll in the WiFi password.

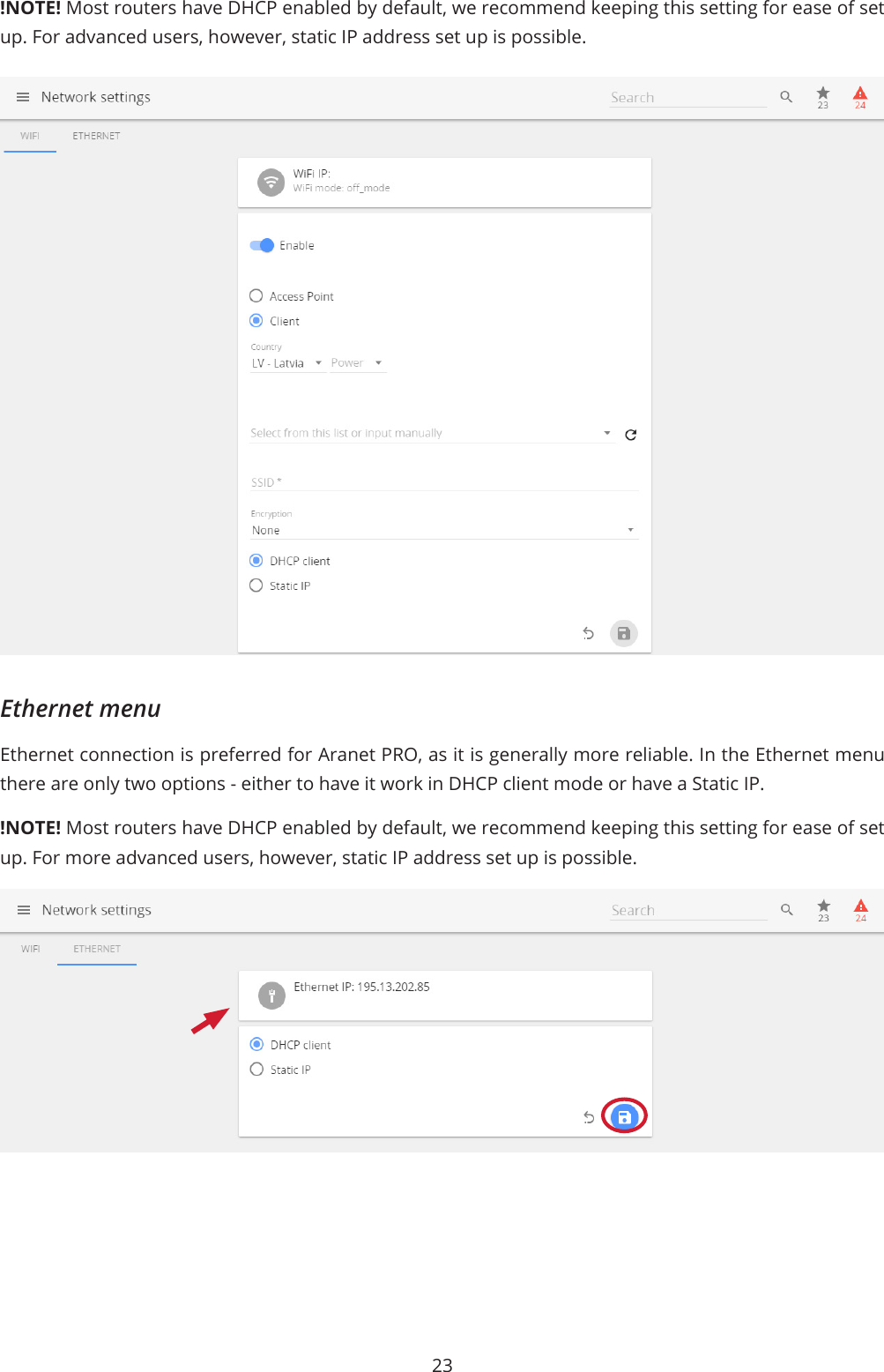

23!NOTE! Most routers have DHCP enabled by default, we recommend keeping this setting for ease of set up. For advanced users, however, static IP address set up is possible.Ethernet menuEthernet connection is preferred for Aranet PRO, as it is generally more reliable. In the Ethernet menu there are only two options - either to have it work in DHCP client mode or have a Static IP. !NOTE! Most routers have DHCP enabled by default, we recommend keeping this setting for ease of set up. For more advanced users, however, static IP address set up is possible.

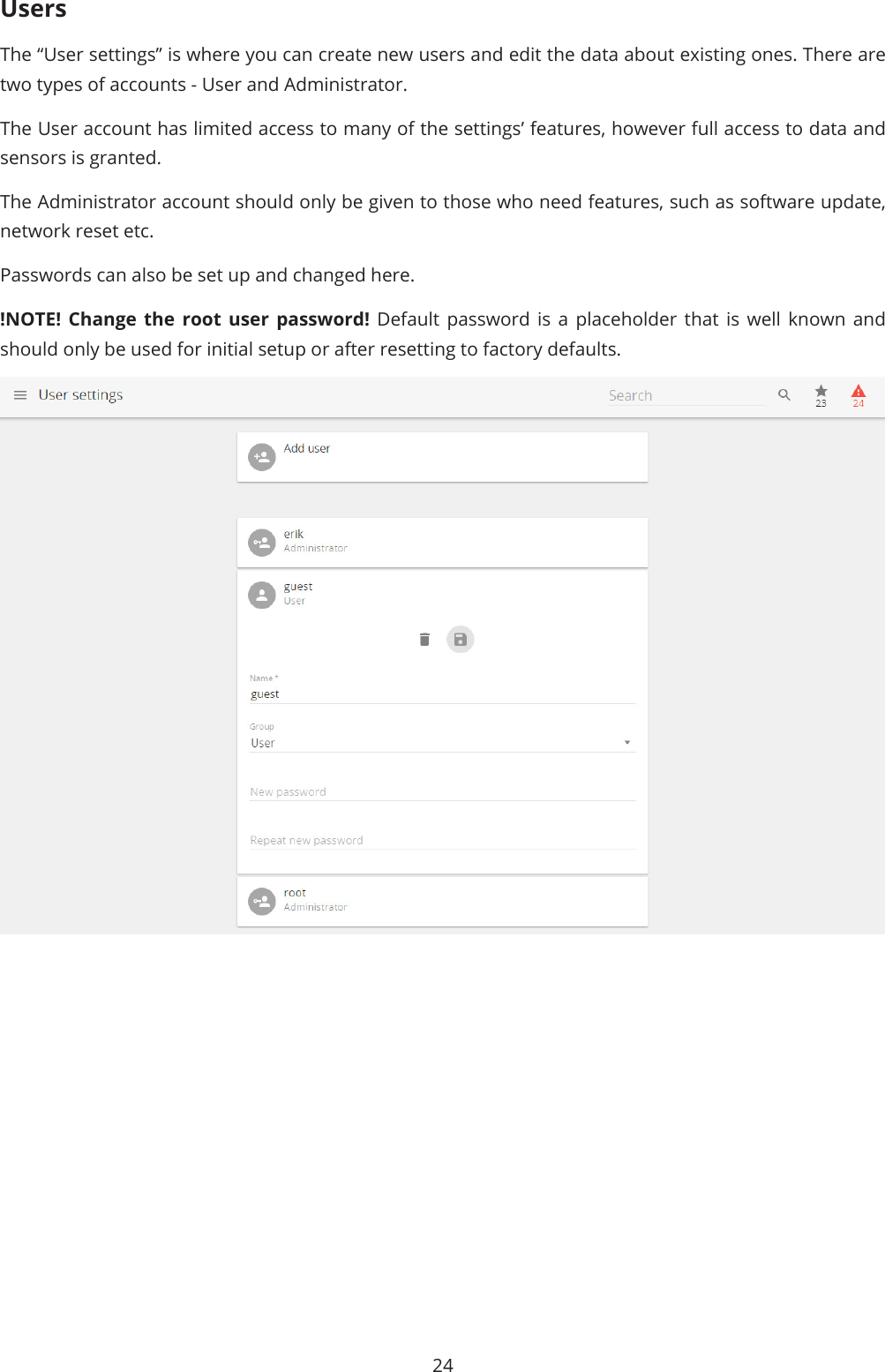

24UsersThe “User settings” is where you can create new users and edit the data about existing ones. There are two types of accounts - User and Administrator. The User account has limited access to many of the settings’ features, however full access to data and sensors is granted. The Administrator account should only be given to those who need features, such as software update, network reset etc. Passwords can also be set up and changed here. !NOTE! Change the root user password! Default password is a placeholder that is well known and should only be used for initial setup or after resetting to factory defaults.

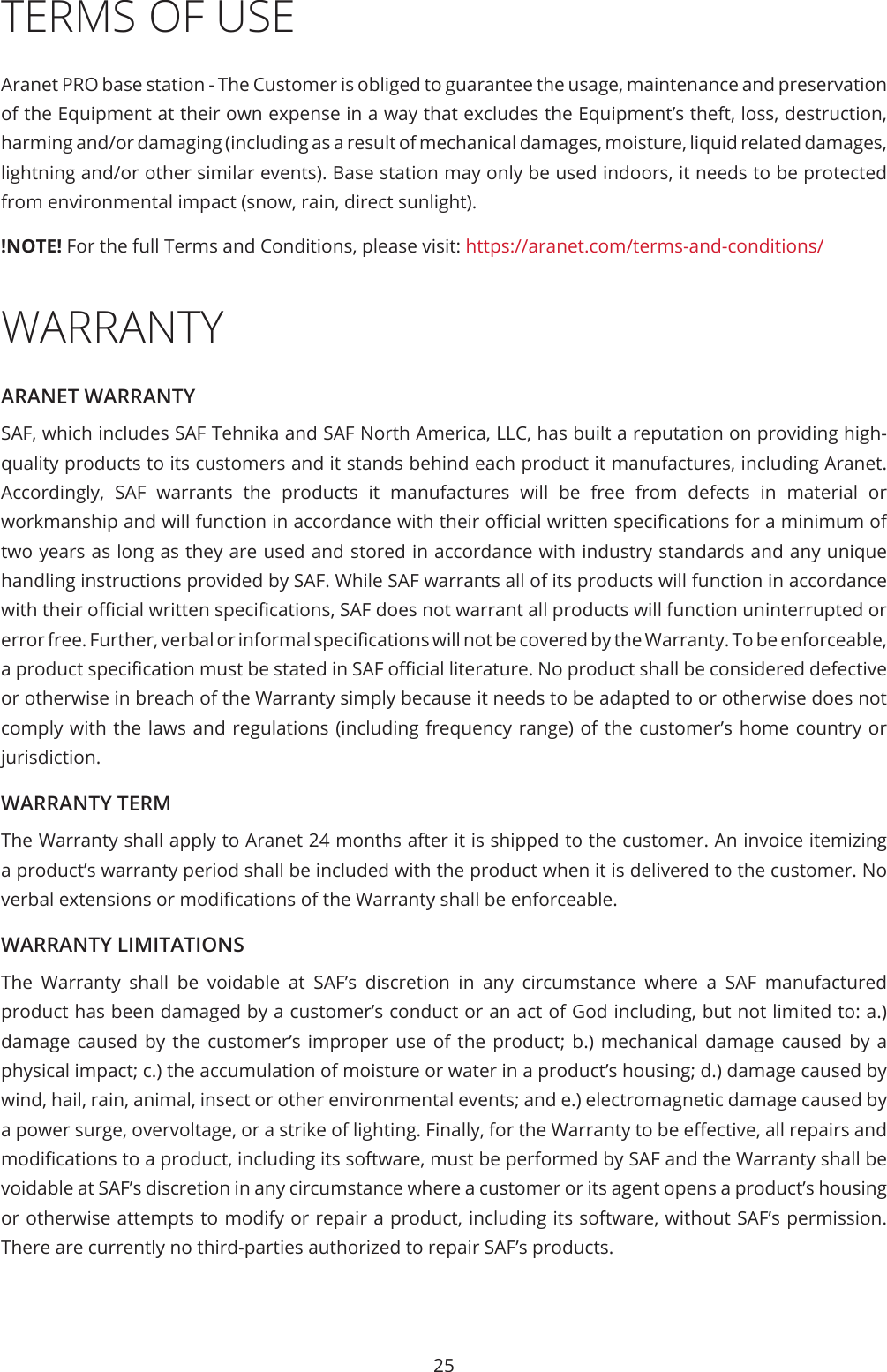

25TERMS OF USEAranet PRO base station - The Customer is obliged to guarantee the usage, maintenance and preservation of the Equipment at their own expense in a way that excludes the Equipment’s theft, loss, destruction, harming and/or damaging (including as a result of mechanical damages, moisture, liquid related damages, lightning and/or other similar events). Base station may only be used indoors, it needs to be protected from environmental impact (snow, rain, direct sunlight).!NOTE! For the full Terms and Conditions, please visit: https://aranet.com/terms-and-conditions/WARRANTYARANET WARRANTYSAF, which includes SAF Tehnika and SAF North America, LLC, has built a reputation on providing high-quality products to its customers and it stands behind each product it manufactures, including Aranet. Accordingly, SAF warrants the products it manufactures will be free from defects in material or workmanship and will function in accordance with their ocial written specications for a minimum of two years as long as they are used and stored in accordance with industry standards and any unique handling instructions provided by SAF. While SAF warrants all of its products will function in accordance with their ocial written specications, SAF does not warrant all products will function uninterrupted or error free. Further, verbal or informal specications will not be covered by the Warranty. To be enforceable, a product specication must be stated in SAF ocial literature. No product shall be considered defective or otherwise in breach of the Warranty simply because it needs to be adapted to or otherwise does not comply with the laws and regulations (including frequency range) of the customer’s home country or jurisdiction.WARRANTY TERMThe Warranty shall apply to Aranet 24 months after it is shipped to the customer. An invoice itemizing a product’s warranty period shall be included with the product when it is delivered to the customer. No verbal extensions or modications of the Warranty shall be enforceable.WARRANTY LIMITATIONSThe Warranty shall be voidable at SAF’s discretion in any circumstance where a SAF manufactured product has been damaged by a customer’s conduct or an act of God including, but not limited to: a.) damage caused by the customer’s improper use of the product; b.) mechanical damage caused by a physical impact; c.) the accumulation of moisture or water in a product’s housing; d.) damage caused by wind, hail, rain, animal, insect or other environmental events; and e.) electromagnetic damage caused by a power surge, overvoltage, or a strike of lighting. Finally, for the Warranty to be eective, all repairs and modications to a product, including its software, must be performed by SAF and the Warranty shall be voidable at SAF’s discretion in any circumstance where a customer or its agent opens a product’s housing or otherwise attempts to modify or repair a product, including its software, without SAF’s permission. There are currently no third-parties authorized to repair SAF’s products.

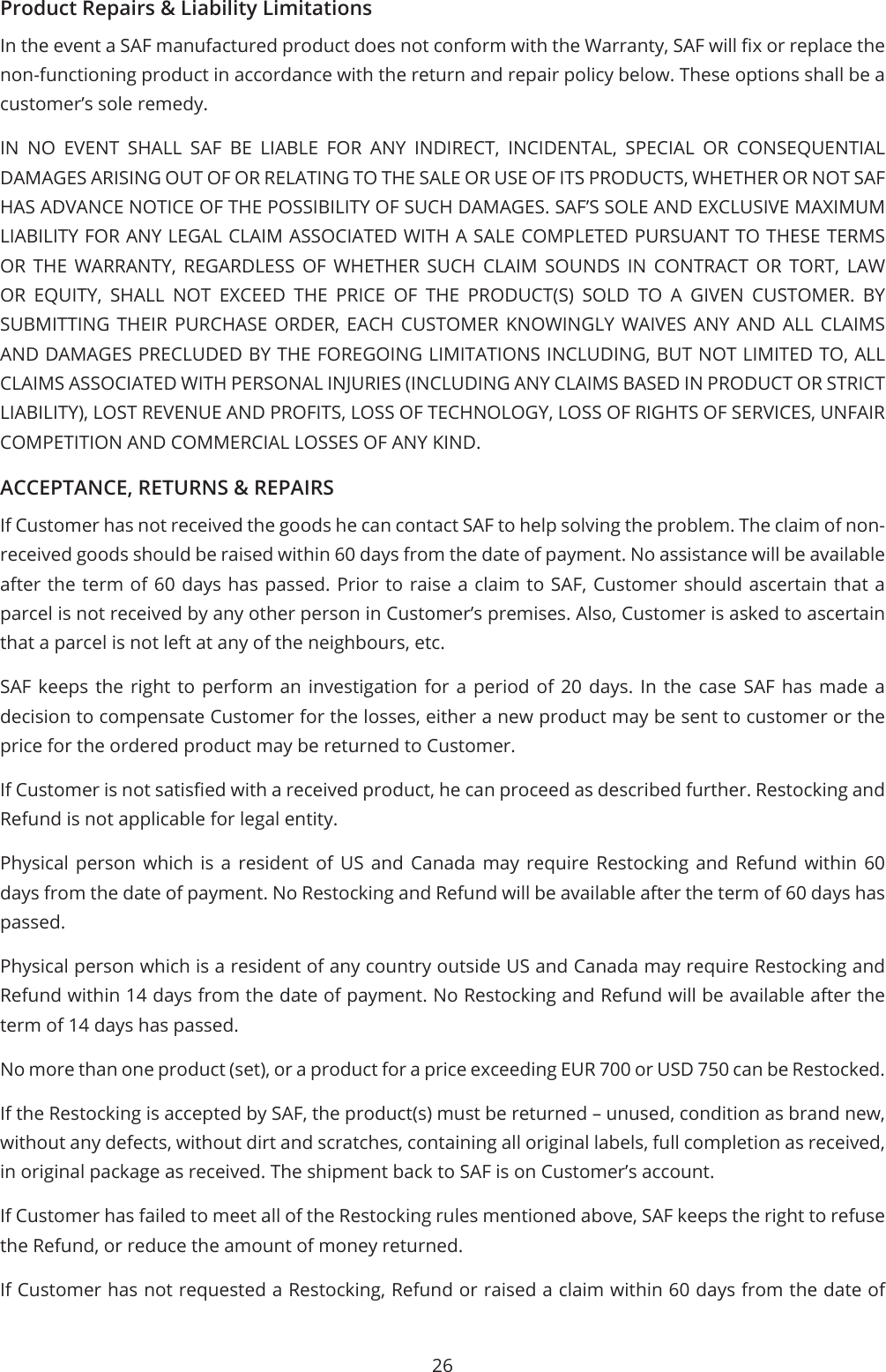

26Product Repairs & Liability LimitationsIn the event a SAF manufactured product does not conform with the Warranty, SAF will x or replace the non-functioning product in accordance with the return and repair policy below. These options shall be a customer’s sole remedy.IN NO EVENT SHALL SAF BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR RELATING TO THE SALE OR USE OF ITS PRODUCTS, WHETHER OR NOT SAF HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES. SAF’S SOLE AND EXCLUSIVE MAXIMUM LIABILITY FOR ANY LEGAL CLAIM ASSOCIATED WITH A SALE COMPLETED PURSUANT TO THESE TERMS OR THE WARRANTY, REGARDLESS OF WHETHER SUCH CLAIM SOUNDS IN CONTRACT OR TORT, LAW OR EQUITY, SHALL NOT EXCEED THE PRICE OF THE PRODUCT(S) SOLD TO A GIVEN CUSTOMER. BY SUBMITTING THEIR PURCHASE ORDER, EACH CUSTOMER KNOWINGLY WAIVES ANY AND ALL CLAIMS AND DAMAGES PRECLUDED BY THE FOREGOING LIMITATIONS INCLUDING, BUT NOT LIMITED TO, ALL CLAIMS ASSOCIATED WITH PERSONAL INJURIES (INCLUDING ANY CLAIMS BASED IN PRODUCT OR STRICT LIABILITY), LOST REVENUE AND PROFITS, LOSS OF TECHNOLOGY, LOSS OF RIGHTS OF SERVICES, UNFAIR COMPETITION AND COMMERCIAL LOSSES OF ANY KIND.ACCEPTANCE, RETURNS & REPAIRSIf Customer has not received the goods he can contact SAF to help solving the problem. The claim of non-received goods should be raised within 60 days from the date of payment. No assistance will be available after the term of 60 days has passed. Prior to raise a claim to SAF, Customer should ascertain that a parcel is not received by any other person in Customer’s premises. Also, Customer is asked to ascertain that a parcel is not left at any of the neighbours, etc.SAF keeps the right to perform an investigation for a period of 20 days. In the case SAF has made a decision to compensate Customer for the losses, either a new product may be sent to customer or the price for the ordered product may be returned to Customer.If Customer is not satised with a received product, he can proceed as described further. Restocking and Refund is not applicable for legal entity.Physical person which is a resident of US and Canada may require Restocking and Refund within 60 days from the date of payment. No Restocking and Refund will be available after the term of 60 days has passed.Physical person which is a resident of any country outside US and Canada may require Restocking and Refund within 14 days from the date of payment. No Restocking and Refund will be available after the term of 14 days has passed.No more than one product (set), or a product for a price exceeding EUR 700 or USD 750 can be Restocked.If the Restocking is accepted by SAF, the product(s) must be returned – unused, condition as brand new, without any defects, without dirt and scratches, containing all original labels, full completion as received, in original package as received. The shipment back to SAF is on Customer’s account.If Customer has failed to meet all of the Restocking rules mentioned above, SAF keeps the right to refuse the Refund, or reduce the amount of money returned.If Customer has not requested a Restocking, Refund or raised a claim within 60 days from the date of

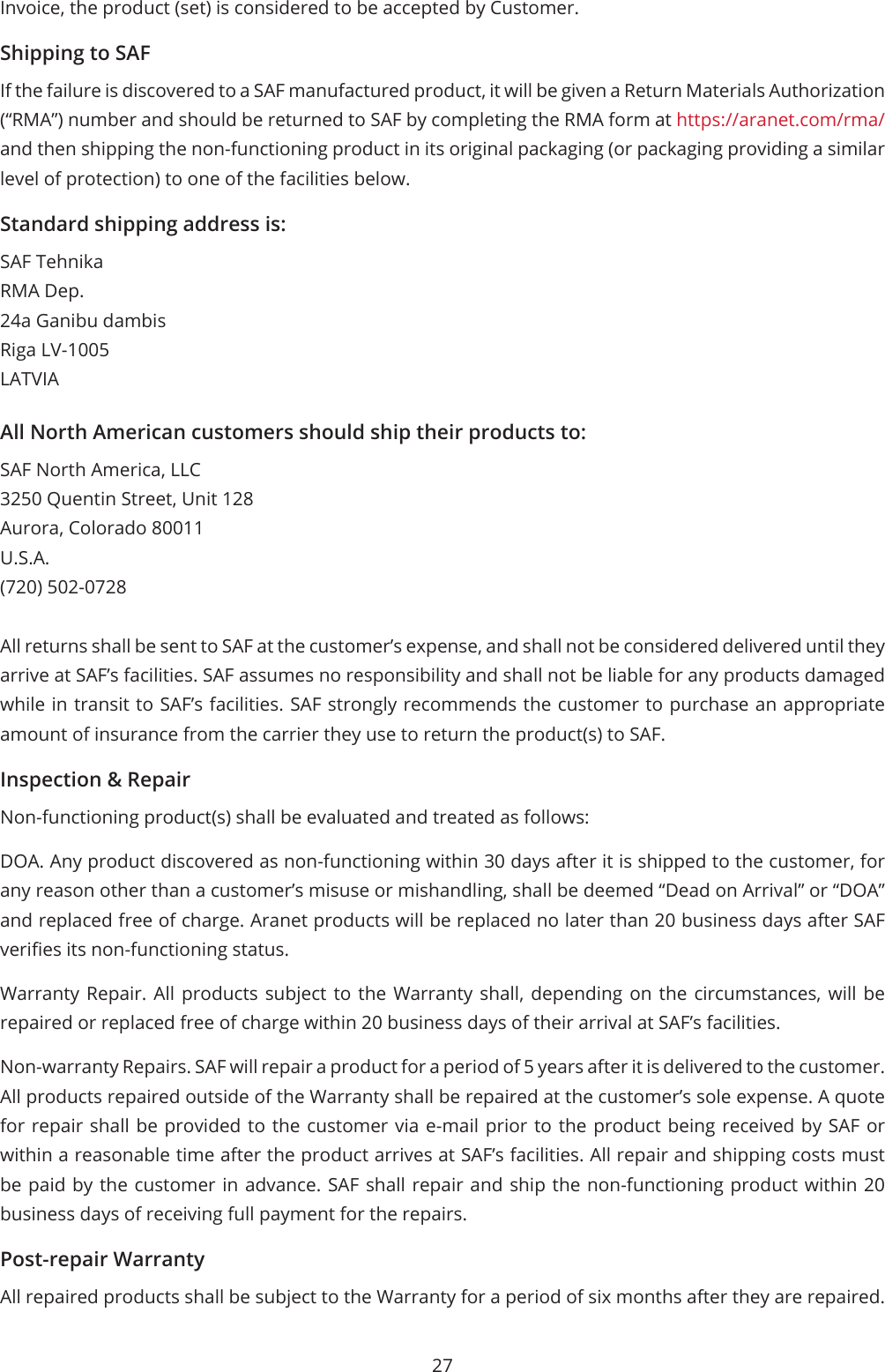

27Invoice, the product (set) is considered to be accepted by Customer.Shipping to SAFIf the failure is discovered to a SAF manufactured product, it will be given a Return Materials Authorization (“RMA”) number and should be returned to SAF by completing the RMA form at https://aranet.com/rma/ and then shipping the non-functioning product in its original packaging (or packaging providing a similar level of protection) to one of the facilities below.Standard shipping address is:SAF TehnikaRMA Dep.24a Ganibu dambisRiga LV-1005LATVIAAll North American customers should ship their products to:SAF North America, LLC3250 Quentin Street, Unit 128Aurora, Colorado 80011U.S.A.(720) 502-0728All returns shall be sent to SAF at the customer’s expense, and shall not be considered delivered until they arrive at SAF’s facilities. SAF assumes no responsibility and shall not be liable for any products damaged while in transit to SAF’s facilities. SAF strongly recommends the customer to purchase an appropriate amount of insurance from the carrier they use to return the product(s) to SAF.Inspection & RepairNon-functioning product(s) shall be evaluated and treated as follows:DOA. Any product discovered as non-functioning within 30 days after it is shipped to the customer, for any reason other than a customer’s misuse or mishandling, shall be deemed “Dead on Arrival” or “DOA” and replaced free of charge. Aranet products will be replaced no later than 20 business days after SAF veries its non-functioning status.Warranty Repair. All products subject to the Warranty shall, depending on the circumstances, will be repaired or replaced free of charge within 20 business days of their arrival at SAF’s facilities.Non-warranty Repairs. SAF will repair a product for a period of 5 years after it is delivered to the customer. All products repaired outside of the Warranty shall be repaired at the customer’s sole expense. A quote for repair shall be provided to the customer via e-mail prior to the product being received by SAF or within a reasonable time after the product arrives at SAF’s facilities. All repair and shipping costs must be paid by the customer in advance. SAF shall repair and ship the non-functioning product within 20 business days of receiving full payment for the repairs.Post-repair WarrantyAll repaired products shall be subject to the Warranty for a period of six months after they are repaired.

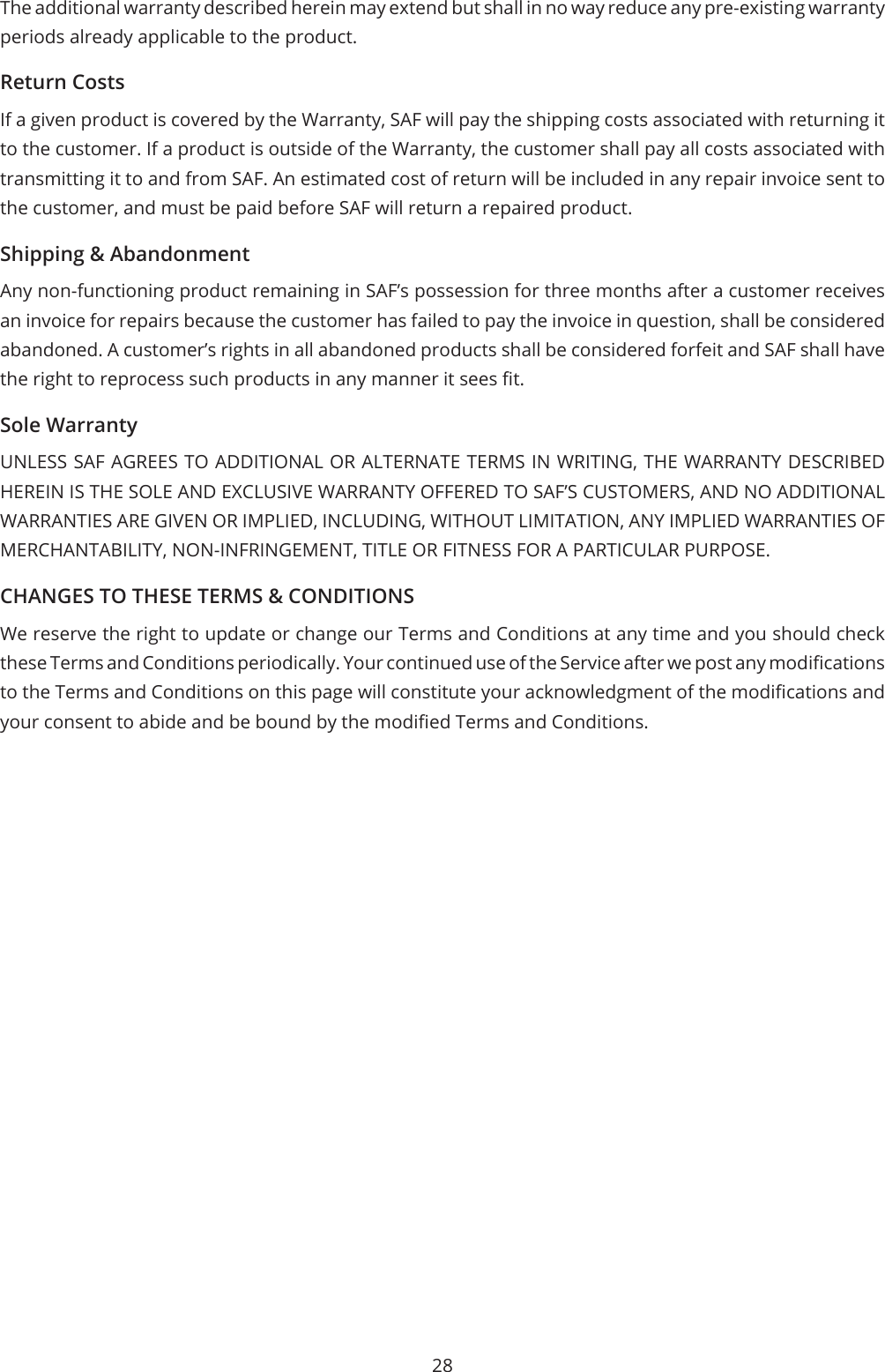

28The additional warranty described herein may extend but shall in no way reduce any pre-existing warranty periods already applicable to the product.Return CostsIf a given product is covered by the Warranty, SAF will pay the shipping costs associated with returning it to the customer. If a product is outside of the Warranty, the customer shall pay all costs associated with transmitting it to and from SAF. An estimated cost of return will be included in any repair invoice sent to the customer, and must be paid before SAF will return a repaired product.Shipping & AbandonmentAny non-functioning product remaining in SAF’s possession for three months after a customer receives an invoice for repairs because the customer has failed to pay the invoice in question, shall be considered abandoned. A customer’s rights in all abandoned products shall be considered forfeit and SAF shall have the right to reprocess such products in any manner it sees t.Sole WarrantyUNLESS SAF AGREES TO ADDITIONAL OR ALTERNATE TERMS IN WRITING, THE WARRANTY DESCRIBED HEREIN IS THE SOLE AND EXCLUSIVE WARRANTY OFFERED TO SAF’S CUSTOMERS, AND NO ADDITIONAL WARRANTIES ARE GIVEN OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, TITLE OR FITNESS FOR A PARTICULAR PURPOSE.CHANGES TO THESE TERMS & CONDITIONSWe reserve the right to update or change our Terms and Conditions at any time and you should check these Terms and Conditions periodically. Your continued use of the Service after we post any modications to the Terms and Conditions on this page will constitute your acknowledgment of the modications and your consent to abide and be bound by the modied Terms and Conditions.

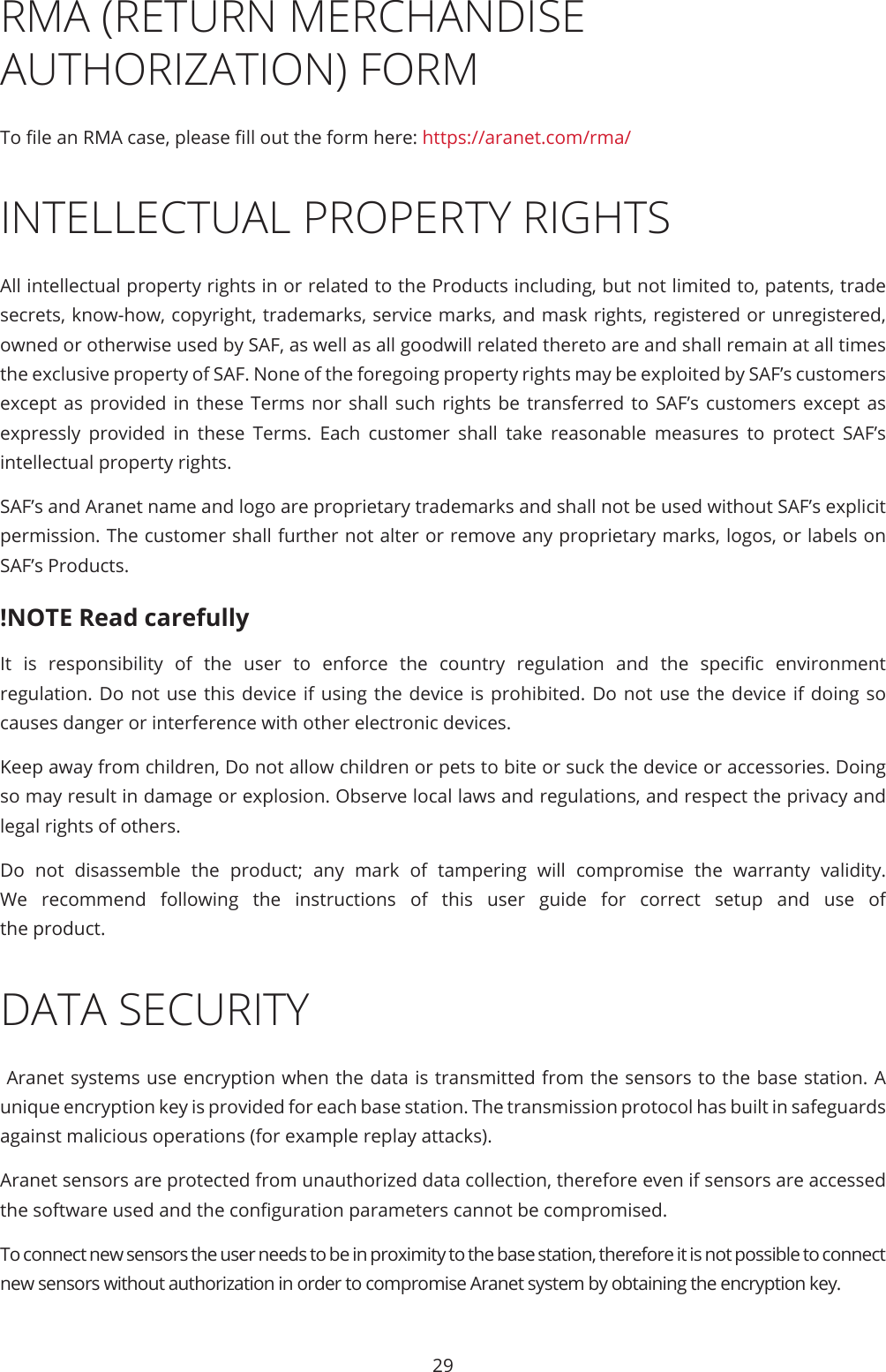

29RMA (RETURN MERCHANDISE AUTHORIZATION) FORMTo le an RMA case, please ll out the form here: https://aranet.com/rma/INTELLECTUAL PROPERTY RIGHTSAll intellectual property rights in or related to the Products including, but not limited to, patents, trade secrets, know-how, copyright, trademarks, service marks, and mask rights, registered or unregistered, owned or otherwise used by SAF, as well as all goodwill related thereto are and shall remain at all times the exclusive property of SAF. None of the foregoing property rights may be exploited by SAF’s customers except as provided in these Terms nor shall such rights be transferred to SAF’s customers except as expressly provided in these Terms. Each customer shall take reasonable measures to protect SAF’s intellectual property rights.SAF’s and Aranet name and logo are proprietary trademarks and shall not be used without SAF’s explicit permission. The customer shall further not alter or remove any proprietary marks, logos, or labels on SAF’s Products.!NOTE Read carefullyIt is responsibility of the user to enforce the country regulation and the specic environment regulation. Do not use this device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices.Keep away from children, Do not allow children or pets to bite or suck the device or accessories. Doing so may result in damage or explosion. Observe local laws and regulations, and respect the privacy and legal rights of others.Do not disassemble the product; any mark of tampering will compromise the warranty validity. We recommend following the instructions of this user guide for correct setup and use of the product.DATA SECURITY Aranet systems use encryption when the data is transmitted from the sensors to the base station. A unique encryption key is provided for each base station. The transmission protocol has built in safeguards against malicious operations (for example replay attacks).Aranet sensors are protected from unauthorized data collection, therefore even if sensors are accessed the software used and the conguration parameters cannot be compromised.To connect new sensors the user needs to be in proximity to the base station, therefore it is not possible to connect new sensors without authorization in order to compromise Aranet system by obtaining the encryption key.

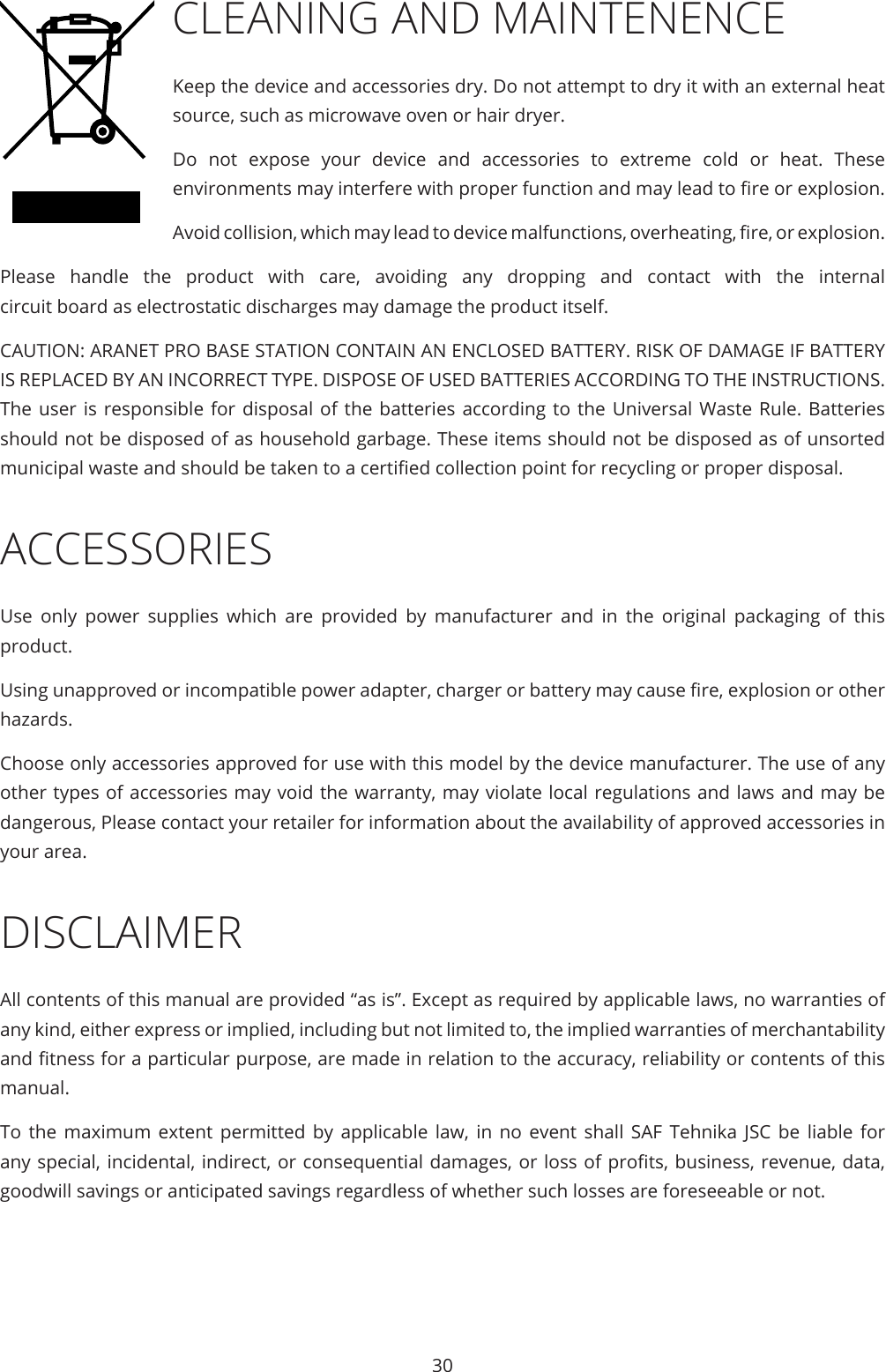

30CLEANING AND MAINTENENCE Keep the device and accessories dry. Do not attempt to dry it with an external heat source, such as microwave oven or hair dryer.Do not expose your device and accessories to extreme cold or heat. These environments may interfere with proper function and may lead to re or explosion. Avoid collision, which may lead to device malfunctions, overheating, re, or explosion.Please handle the product with care, avoiding any dropping and contact with the internal circuit board as electrostatic discharges may damage the product itself.CAUTION: ARANET PRO BASE STATION CONTAIN AN ENCLOSED BATTERY. RISK OF DAMAGE IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. The user is responsible for disposal of the batteries according to the Universal Waste Rule. Batteries should not be disposed of as household garbage. These items should not be disposed as of unsorted municipal waste and should be taken to a certied collection point for recycling or proper disposal.ACCESSORIESUse only power supplies which are provided by manufacturer and in the original packaging of this product.Using unapproved or incompatible power adapter, charger or battery may cause re, explosion or other hazards.Choose only accessories approved for use with this model by the device manufacturer. The use of any other types of accessories may void the warranty, may violate local regulations and laws and may be dangerous, Please contact your retailer for information about the availability of approved accessories in your area.DISCLAIMERAll contents of this manual are provided “as is”. Except as required by applicable laws, no warranties of any kind, either express or implied, including but not limited to, the implied warranties of merchantability and tness for a particular purpose, are made in relation to the accuracy, reliability or contents of this manual.To the maximum extent permitted by applicable law, in no event shall SAF Tehnika JSC be liable for any special, incidental, indirect, or consequential damages, or loss of prots, business, revenue, data, goodwill savings or anticipated savings regardless of whether such losses are foreseeable or not.

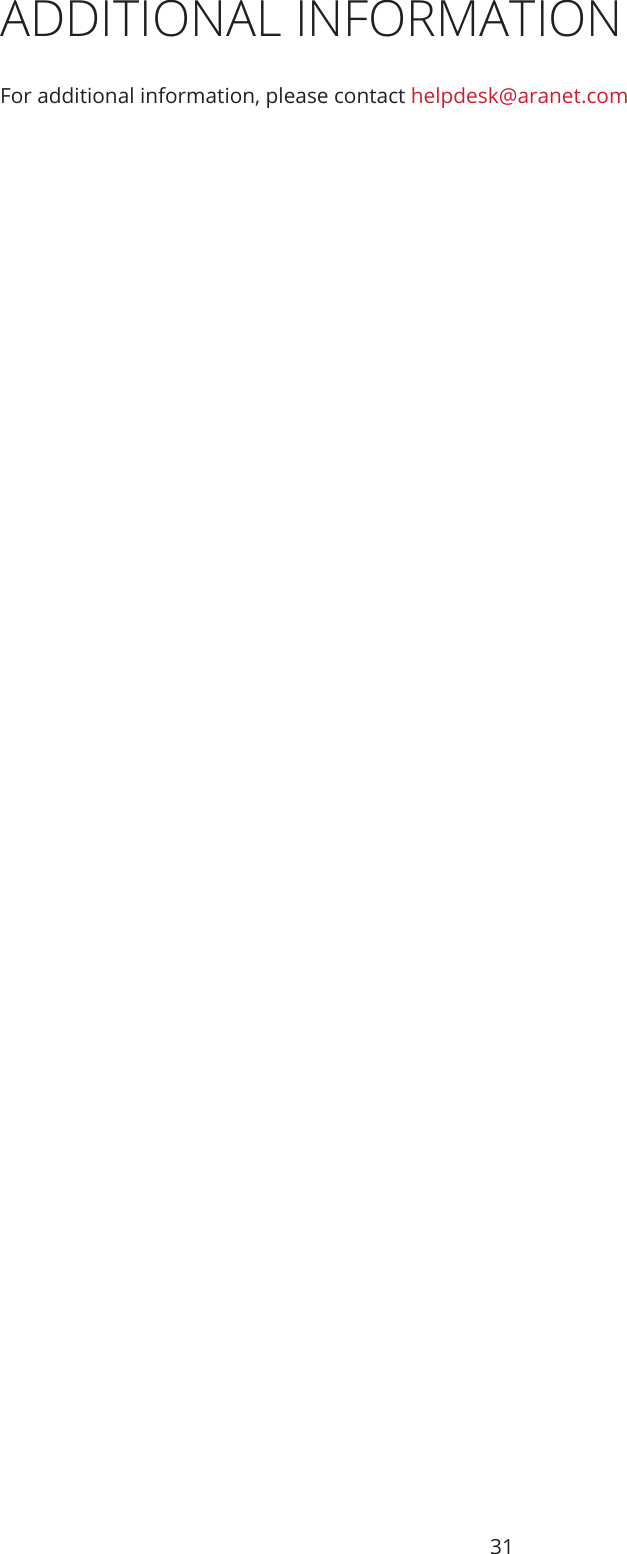

31ADDITIONAL INFORMATIONFor additional information, please contact helpdesk@aranet.com

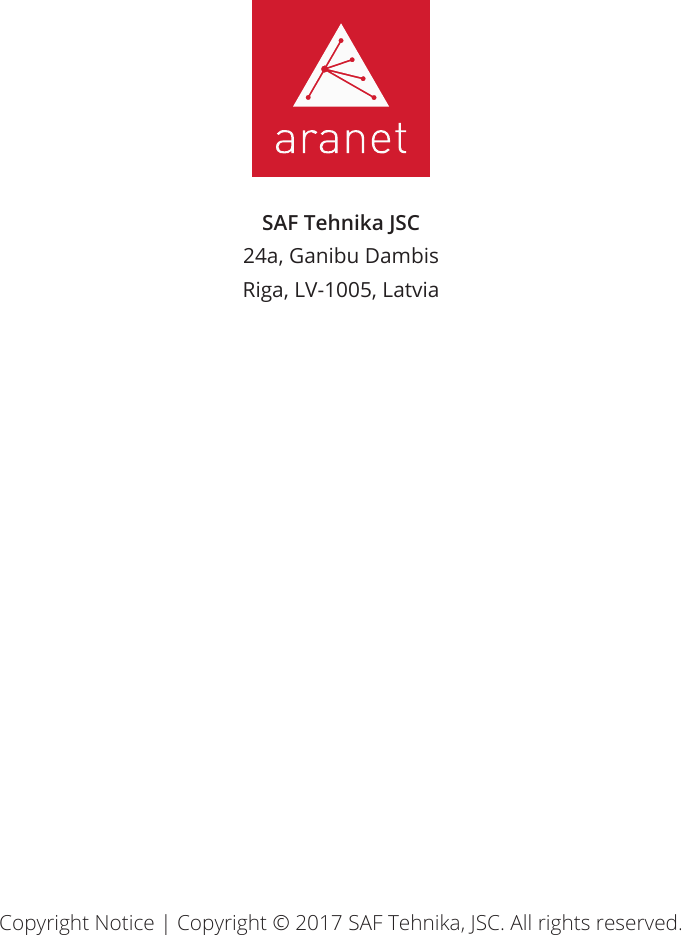

SAF Tehnika JSC24a, Ganibu Dambis Riga, LV-1005, LatviaCopyright Notice | Copyright © 2017 SAF Tehnika, JSC. All rights reserved.
