Users manual

BluetoothFMTransmitter



With2.1ADUALUSBCARCHARGER



USERGUIDE



BT66

Introduction

Thisdevice,LetsyoustreammusicandcallsdirectlyfromyourBluetoothdevicetoyourcarFM

stereosystem.Thebuilt‐inmicrophoneprovidesyouwithanamazinghandsfreefunction,italso

featuresaUSBandSDcardreaderthatletsyousteamyourfavoriteMP3andWMAtunestoyour

car’sstereosystem.Playmusicfilesfromexternaldevicebyconnectingyourmusicdeviceusingthe

Auxporttoo.ItalsocanchargeyourphoneusingtheDUALUSBchargingPort.ItsBluetoothchip

canbeusedwithawiderangeofdevicewhichcanmakecanyourdrivingmoreinteresting.



Packingcontents:

z Bluetoothdevice

z Aux‐incable

z ExtraFuse

z IRRemote

z UserGuide



Specification:

z Bluetoothversion:JLIC

z Frequencyrange:88.1‐107.9MHZ

z Frequencystability:±10ppml

z ProductInput:12‐24V

z Chargeroutput:5V/2.1A(intotal)

z MusicFormat:mp3,wma

z USB(Maxcapacity):32GB

z SDCard(Maxcapacity):32GB

z Audiinput:3.5mmstereojack.

z TransmitDistance:about10m



Features:

1.WirelesslytransmitphonecallfromBluetoothmobilephonetothecarFMstereosystem;

2.SwitchtoHands‐freemodeautomaticallyfrommusicplayingstatuswhenreceivingcalls;

3.Built‐inMicrophone

4.SupportsmusicplaybackfromUSBANDSDcard

5.3.5mmAuxjacktosupportplaybackfromexternalaudiodevices.

6.DualUSBoutputtochargeformobilephonesandotherdevices(Output5V/2.1A)

7.7.StrongandelegantdesignwithLCDfrequencydisplay.

8.Withremotecontrol

9.WithVoiceprompts



Compatibility:

ThisdevicemaybepairedasahandsfreekitwithanycompatibleBluetoothenableddevices.



Precautions:

Pleasereadallsafetyinstructionwanwarningscarefullybeforeusingthisproduct.Improperuseof

thisproductmayresultindamagetothisorattachedproducts.Toensuretheproductionworks

well,pleaseneverusethisinthefollowingconditions:

1.Moistorunderwaterconditions.

2.Conditionsnearheaterorhigh‐temperatureservice.

3.Conditionswithdirectandstrongsunshine,

4.Conditionswithaptfalling

5.Neverdismantletheproductwithoutduepermission,otherwiseitmaynullifythewarranty

clause.



OperationInstructions



UsingFMTransmitterfunction:

1. PlugtheFMtransmitterintoyourvehicle’scigarettelighterorpowerport.

2. TuneyourradiotoanunusedFMfrequency,thenmatchthesamefrequencyofthisunit.

3. InsertaUSBflashdriveintotheSDcardortheinwardUSBportwhichcontainingMP3filesinto

USBportormemorycardslotofthisunitaccordingly.ItwillplayandtransmittheMP3files

automatically.Payattention,onlytheinwardUSBPortcanserveasaUSBReader!

4. Line‐infunction:UsetheprovidedaudiocabletoconnectanMP3/MP4playersoranother

externaldevicetotheAUXinputofthisunit.Whenusingthisfunction,pleasestopplaybackof

USBormemorycard,andallfunctionswillbecontrolledbytheexternaldevice.



UsingBluetoothfunction:



1.UsingBluetoothforthefirsttime,youneedtopairyourmobilephonewiththisunit.Activate

yourmobilephone'sbluetoothfunction,thensearchnewdevice.Whenthemobilephonedetects

thisunit(namedas"BT‐T66"),pleasepairandconnectbyusingtheoriginalpassword"0000"

2.Inthemusicplayingmode,whenthereisanincomingcall,thisunitwillautomaticallyswitchto

telephonemode.



Bluetoothcalling



1. Pleasepresstheblue" "knobtoanswertheincomingcall.

2. Pleasepresstheblue"  "knobtohangoffacall.

3. Presstheblue“” knob twice to dial the last Number. 

4. Whenmakingacall,youcanonlydialthephonenumberbyyourmobilephone,butoncethe

callconnected,youcanusethehansfreefunctiontoenjoyit.



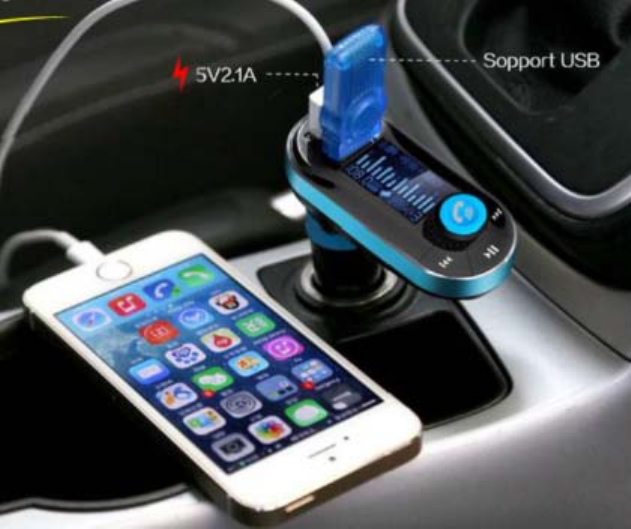

UsingUSBchargerfunction:



Whenthisunitpoweredfromcarlightersocket,connecttheUSBportofthisunittoyourmobile

phonewithaspecialUSBcable(notincluded),Thisunitwillserveasmobilephonecharger.Pay

attention!TheDualUSBportoutputs2.1Atogether,andthesmartchipwilldividethevoltage

basedontheneedofdeviceautomatically.ButonlytheoutwardUSBportcanchargetheiPad!



QuickGuide:



OperationGuideOnFMtransmitter OnRemoteController

1.Answer/hang

upthecall:

Press""button:answerthecall

Press" "button:hangoffthecall

Press””button

2.PlayandPause

themusic:

Press“ ”Button:Playthemusic

Press“ ”Buttonagain:Pauseplaying

Press““Button

3.Adjustthe

Volume:

RotateinclockwisetodecreaseVolume

RotateanticlockwisetoincreaseVolume

Press“Vol+”toincreasethe

Volume；

Press“VOL‐”todecreasethe

Volume；

4.Setfrequency:

Press“M”buttonfirst,then

press“”:increasethefrequency

Press””:decreasethefrequency

Press“CH+”button:Increase

0.1MHz

Press“CH‐”button:decrease

0.1MHz

Orpressthenumbersofthe

frequencywhatyoudesired,press

“CH+”toconfirm.

5.Choosemusic:Press“”Button:Playthenextsong

Press“”Button:Playtheprevioussong

Press  button:Playthenext

song;Press  button:Playthe

previoussong;

Orpressthenumberofthesong

thenpress  toconfirm

7.ChooseEQ:SupportbyremotecontrolleronlyPress“EQ”buttontochooseyour

favoriteEQ

8.Switchfolder:SupportbyremotecontrolleronlyPress"folder"buttontoswitch

folder



FCCStatement

Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould

voidtheuser'sauthoritytooperatetheequipment.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcan

radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe

instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno

guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause

harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningthe

equipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreof

thefollowingmeasures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐ Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp

Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo

conditions(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany

interferencereceived,includinginterferencethatmaycauseundesiredoperation.


