SAGE HUMAN ELECTRONICS SAGET91-M FM TRANSMITTER User Manual USERS MANUAL
SAGE HUMAN ELECTRONICS CO., LTD. FM TRANSMITTER USERS MANUAL
USERS MANUAL
Important Information Required By the FCC
The Manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the use’s authority to operate the
equipment

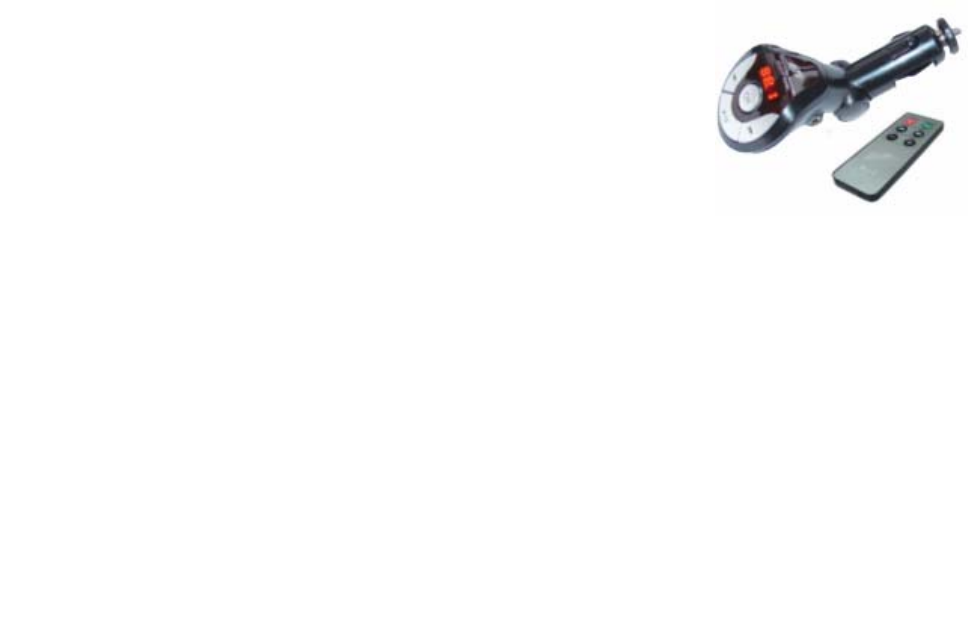

Car MP3 FM Transmitter (Full Frequency)
Description of goods, Specification, Manual Operation Instruction Guide
1、Description of goods
※ Built-in Fm transmitter
※Read MP3 songs from the USB flash disk directly and broadcast through the car FM tuner.
※Support USB Flash Disk, LINE-IN function enable you to enjoy music from the external audio device
to your car radio by the earphone jack , such as CD,MD player.
※ Four functional keys:：PLAY/PAUSE、PREV/V－、NEXT/V＋
※ Digital LED display: present frequency, volume, serial number of songs.
※ Plays the last frequency and tracks number when it restarts
※ Repeat play all music and Auto run.
※Frequency range:14 frequencies(88.1 ~ 89.1MHz and 106.7~107.9MHz)；
※Car cigar socket power supply (12V-24 DC power)
※ USB 2.0 interface with high transfer speed.
2、Specification
Specification
Details Technical Parameter
Model Name Car USB MP3 Fm Transmitter
USB Port USB2.0 and USB1.1
Audio Format: MP3(MPEG Audio Layer3)
Power Supply: DC 9～26V
Max USB port out current 1.2A
Bit Rate 32kbps～256kbps
FM Frequency 87.7 ~ 89.1MHz and 106.7~107.9MHz, More 0.2MHZ
Frequency setting By function key and Remote controller
Signal/Noise SNR 45db
Harmonic Distortion ≤1%
Audio source: USB Flash Disk,
Transmitting distance: Up 3～5 miter
Frequency Channel 14 channels
Automatic remembrance in out
of power station: and
remote control
With Remembrance of last running status (Frequency, song's
sequence, etc.)and Remote controller
3、Operation Guide
Operation Guide Car MP3 Player 6 Button Remote
Controller
1、How to play and stop Press “PLAY” Button : Play the music
Second Press “PLAY” Button: Stop
Press Press/Stop
Button
2、How to adjust the
Volume
Long Press “NEXT/V＋” button :Increase the
Volume；press “PREV/V－” Button :
decrease the Volume
Press “VOL+”” Increase
the Volume；Press
“VOL-”” reduce the
Volume；
3、How to change the
Frequency
Press “+”: increase the Frequency
Press” –“:decrease the frequency
Press “FREQ+” button::
Increase 0.1MHZ
button:
Press “FREQ-” button::
reduce 0.1MHZ
First Press FREQ+、
FREQ- ，And then
press NEXT/V＋
button to increase
1MHZ，press PREV/V
－ decrease 1MHZ
4、How to serial number
of the song
Short Press NEXT/V＋ Button: Play the next
song; Short Press PREV/V－ Button: Play the
previous song;
Press NEXT/V＋
Button: Play the next
song; Press PREV/V－
Button: Play the
previous song;
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation
