SAGE HUMAN ELECTRONICS SHXXX Outdoor Bluetooth Speaker User Manual Manual
SAGE HUMAN ELECTRONICS INTERNATIONAL CO.,LTD. Outdoor Bluetooth Speaker Manual
Manual
2 7
6 3
54
1 53 42
1714 15 16 18 191110 12 13
96 7 8
20
1
2
3
4
6
5
7
8
7.SD SDcard fig.7
8.USB control music from USB Card fig.8

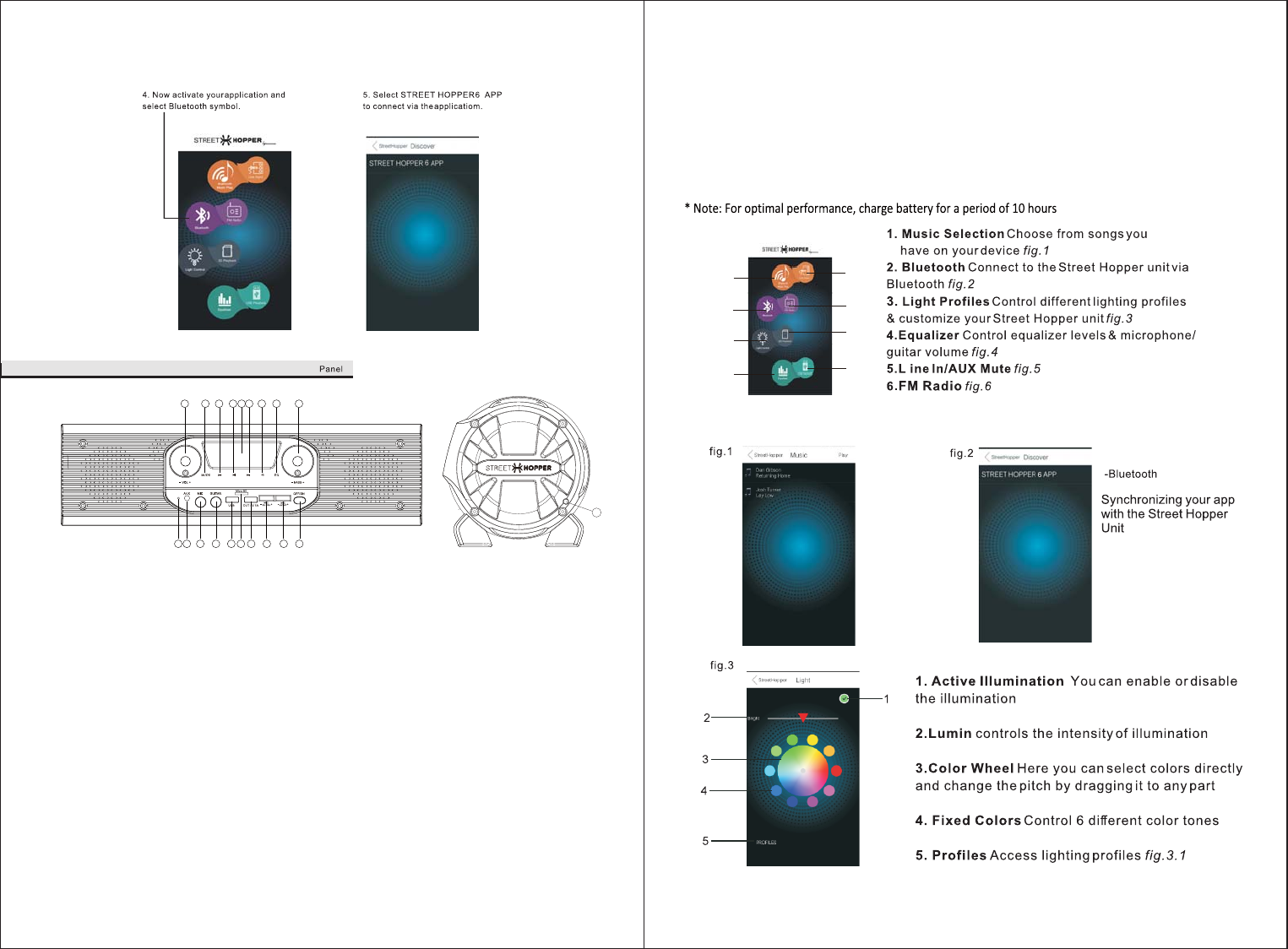

1.Volume /Mute: Adjusts main volume;Holding this button for 3 seconds will mute the unit.
2. MODE：USB/LINE IN/BLUETOOTH/FM:Switch functions by pressing button:
3. Previous Song
4. Play / Pause
5. LED Panel Function Display
6. Next Song

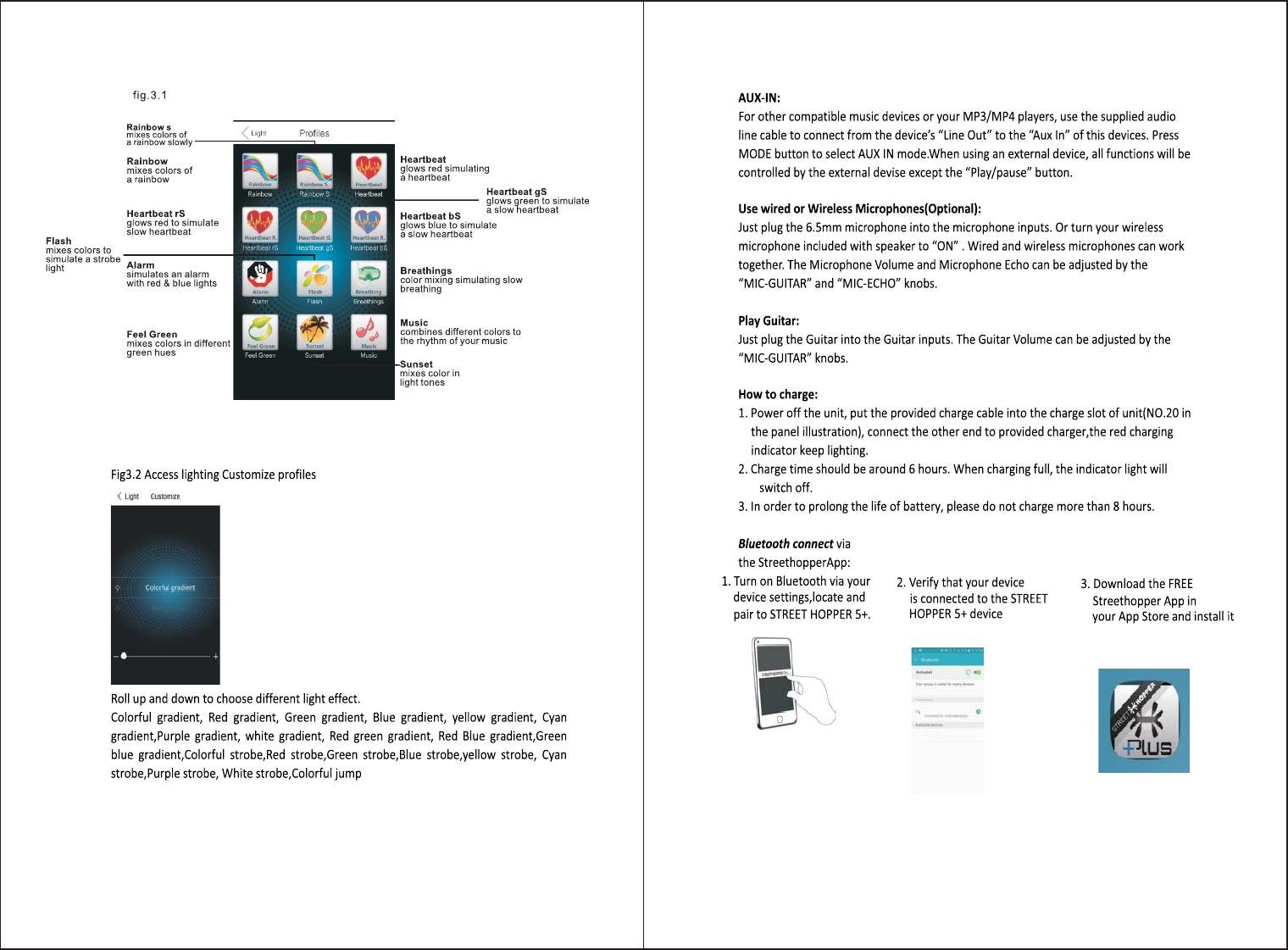

7. light control: Long press to Power on and off the LED,short press to change light
effect (Music,Rainbow,Rainbow S,heartbeat,heartbeat R.,Heartbeat G.,Heartbeat B.,
Alarm,Flash,Breathing,Feel Green,Sunset,Music)
8. EQ:Switch sound style:Popular,Rock,Urban,Jazz,Classical
9. Base-/+: Adjusts bass volume
10. Charge Indicating LED
Red, indicates Charging
Green indicates charging is complete
11. Aux in
12. Mic Input
13.Guitar Input
14.USB
15.SD card jack
16.Output (USB 5V 1A)
17.Mic Guitar Volume-/+: Adjusts Mic Guitar Volume
18.Echo Volume-/+: Adjusts Echo Volume
19.Power Button
20.Charger Input
