SAGEMCOM BROANDS FAST2704N WIRELESS ADSL ROUTER User Manual QIG 253xxxxxx Fast 2704N EN USA CA
SAGEMCOM SAS WIRELESS ADSL ROUTER QIG 253xxxxxx Fast 2704N EN USA CA
User Manual
Quick Installation Guide
F@ST 2704N
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 1 Lundi, 2. décembre 2013 1:37 13
F@ST 2704N
2
Sagemcom thanks you for choosing the range of F@ST 2704N routers while hoping that
it will provide you with full satisfaction.
F@ST 2704N products adapt the ADSL function respectively on POTS (ITU G.992.1/3/5
- Appendix A) and on ISDN (ITU G.992.1/3/5 - Appendix B).
F@ST 2704N equipment include four ethernet interfaces (LAN1 to LAN4), one ADSL
interface and one USB port (depending model).
CE marking:
The CE marking certifies that the product complies with the essential requirements of the
Directive
1999/5/EC concerning radio equipment and telecommunication equipment, and of
Directives 2006/95/EC concerning safety and 2004/108/EC concerning electromagnetic
compatibility, defined by the European Parliament and Council to reduce electromagnetic
interferences and protect the health and safety of users.
The product named F@ST 2704N can be operated in the European Union without
restrictions indoor but cannot be operated in France in the whole of the band until further
notice.
The EC declaration of conformity can be viewed in the support section of the Sagemcom
site www.sagemcom.com, or it can be obtained from the following address:
Sagemcom Broadband SAS
250, route de l'Empereur
92848 Rueil-Malmaison Cedex - FRANCE
Copyright © Sagemcom Broadband SAS
All rights reserved.
Sagemcom is a registered trademark.
Windows® is a registered trademark of Microsoft Corporation.
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 2 Lundi, 2. décembre 2013 1:37 13
3
F@ST 2704N
Contents of the pack
Before you carry out the installation, make sure that the pack contains the following
elements:
Item Description
1F@ST 2704N router
2Mains adapter
3ADSL line cable used to connect your router to your
telephone line
4Ethernet cable used to connect your router to the
Ethernet port of your computer
5Quick Installation Guide
6Filter/Splitter used to connect one phone set and your
router to your telephone line*
7Microfilter used to connect another phone set to your
telephone line*
* Option depending on pack content requested
5
4
3
2
1
7
6
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 3 Lundi, 2. décembre 2013 1:37 13
F@ST 2704N
4
Safety instructions
Power supply source
• Do not cover the router’s power adapter.
• The router comes with its own power adapter. Do not use another adapter.
• This class II adapter does not need to be grounded (earthed). The connection to the
electrical network should comply with the indications given on the label.
• Use a readily accessible AC power outlet located near the router. The power supply cord is
1.5 m long.
• Care should be taken to ensure that the power cord is routed, so it is not likely to be walked
on or pinched by items placed upon or next to it.
• The router is designed to be connected to a GG- (ground-to-ground) or GN-
(ground-to-neutral) type power supply network.
• The router is not designed to be connected to an electrical installation with IT type diagram
(neutral connected to earth through an impedance).
• Protection against short-circuits and leaks between the phase, neutral and earth should be
provided by the building’s electrical installation. The power supply circuit for this equipment
should be fitted with 16 A overcurrent protection and differential protection.
• Connect the router to the AC power via a readily accessible wall socket providing the electric
protection.
Location conditions
By choosing an appropriate location, you will preserve the longevity of the device. Ensure that
the selected location has the following characteristics:
• Install and use the router inside a building.
• The room temperature must not exceed 40 °C.
• Solar radiation: 700 w/m².
• Relative humidity: 5 to 85 % without condensation.
• The router can be placed on a desktop or fixed vertically in its wall mounting.
• Do not expose the router to strong sunlight or place it near a substantial source of heat.
• Do not place the router in an environment where it could be subjected to considerable steam
condensation.
• Do not expose the router to splashes of water.
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 4 Lundi, 2. décembre 2013 1:37 13
5
F@ST 2704N
• Avoid blocking any vent openings or exhaust exits on this equipment. Do not place
equipment in a built-in installation such as a cabinet that may impede the flow of air through
the ventilation openings.
• Do not use the router or its peripherals for outdoor transmissions.
Maintenance
• This equipment is not user serviceable and is to be serviced by qualified personnel only.
• Do not disassemble this equipment. If service is required, disconnect all power and phones
lines from the equipment and consult qualified service personnel.
• Do not use liquid or aerosol cleaning agents.
Environment
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical and
electronic products. The correct disposal of your old product helps prevent
potentially negative consequences on the environment and human health.
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 5 Lundi, 2. décembre 2013 1:37 13
F@ST 2704N
6
For North America
IMPORTANT SAFETY INSTRUCTIONS
When using this equipment, basic safety precautions should always be followed to
reduce the risk of fire, electric shock and injury to persons, including the following:
• The equipment is for indoor use in dry locations.
• Operate the equipment on maximum ambient temperature 40 °C, without any cover.
• Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or
laundry tub, in a wet basement or near a swimming pool.
• Avoid using a telephone (other than a cordless type) during an electrical storm. There may
be a remote risk of electric shock from lightning.
• Do not use the telephone to report a gas leak in the vicinity of the leak.
• To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA
Certified Telecommunication Line Cord.".
WARNING
To prevent fire or shock hazard. do not expose this appliance to rain or moisture.
This lightning flash with arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product’s enclosure that may be of sufficient magnitude.
The exclamation point within an equilateral is intended to alert the user to
presence of important operating and maintenance (servicing) instructions in
the informations accompanying the appliance.
CAUTION - RISK OF ELECTRIC SHOCK - DO NOT OPEN
Warning: To reduce the risk of electric shock, do not remove cover (or back) no user
serviceable parts inside. refer servicing to qualified service personnel.
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 6 Lundi, 2. décembre 2013 1:37 13
7
F@ST 2704N
USA
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 7 Lundi, 2. décembre 2013 1:37 13
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment and it also complies with Part 15 of the FCC RF Rules. This transmitter
must not be co-located or operating in conjunction with any other antenna or transmitter.
Operation is subject to the following two conditions:
• this device may not cause harmful interference, and
• this device must accept any interference received, including interference that may cause
undesired operation.
This device produces radio frequency energy in the 2.4 GHz spectrum. The antenna
must be positioned to keep a minimum distance of 20 cm (0.65 ft) from the radiating
element to any nearby person.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user
authority to operate the equipment.
FCC Terminal Equipment Statements
This equipment complies with Part 68 of the FCC rules and the requirements adopted by
the ACTA. On the back of this equipment is a label that contains, among other
information, a product identifier in the format US:NS3DL01BFAST2704N. If requested,
this number must be provided to the telephone company.
This equipment has a Universal Service Order Code (USOC) of RJ11C, a Facility
Interface Code (FIC) of METALLIC. The Telephone Company may request this
information when ordering service for this equipment.
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 8 Lundi, 2. décembre 2013 1:37 13
9
F@ST 2704N
A plug and jack used to connect this equipment to the premises wiring and telephone
network must comply with the applicable FCC Part 68 rules and requirements adopted
by the ACTA. A compliant telephone cord and modular plug is provided with this product.
It is designed to be connected to a compatible modular jack that is also compliant.
The REN is used to determine the number of devices that may be connected to a
telephone line. Excessive RENs on a telephone line may result in the devices not ringing
in response to an incoming call. In most but not all areas, the sum of RENs should not
exceed five (5.0). To be certain of the number of devices that may be connected to a line,
as determined by the total RENs, contact the local telephone company. For products
approved after July 23, 2001, the REN for this product is part of the product identifier that
has the format US:NS3DL01BFAST2704N. The digits represented by ## are the REN
without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is
separately shown on the label.
If this equipment causes harm to the telephone network, the telephone company will
notify you in advance that temporary discontinuance of service may be required. But if
advance notice isn't practical, the Telephone Company will notify the customer as soon
as possible. Also, you will be advised of your right to file a complaint with the FCC if you
believe it is necessary.
The Telephone Company may make changes to its facilities, equipment, operations or
procedures that could affect the operation of the equipment. If this happens the
Telephone Company will provide advance notice so you can make the necessary
modifications to maintain uninterrupted service.
This equipment is not user serviceable. If trouble is experienced with this equipment, for
repair or warranty information, please contact your Service Provider, or Sagemcom at:
+1 (972) 674-4100, or Sagemcom USA, 14651 N. Dallas Parkway, Suite 900, Dallas, TX
75254. If the equipment is causing harm to the telephone network, the Telephone
Company may request that you disconnect the equipment until the problem is resolved.
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 9 Lundi, 2. décembre 2013 1:37 13
F@ST 2704N
10
Connection to party line service is subject to state tariffs. Contact the state public utility
commission, public service commission or corporation commission for information.
If your home has specially wired alarm equipment connected to the telephone line,
ensure the installation of this equipment does not disable your alarm equipment. If you
have questions about what will disable alarm equipment, consult your telephone
company or a qualified installer.
This equipment connects to the telephone network that can be vulnerable to electrical
surges as a result of lightning strikes and other events. Such events can be very
destructive to equipment connected to both the telephone network and to AC power
sources. It is strongly recommended that a surge arrestor be used to connect this
equipment to AC power in order to reduce the possibility of damage resulting from such
events.
Canada
IC Warning
CS03:
This product meets the applicable Industry Canada technical specifications.
Le présent matériel est conforme aux spécifications techniques applicables dans
l'Industrie au Canada.
The Ringer Equivalence Number is an indication of the maximum number of devices
allowed to be connected to a telephone interface. The termination on an interface may
consist of any combination of devices subject only to the requirement that the sum of the
RENs of all the devices does not exceed five.
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 10 Lundi, 2. décembre 2013 1:37 13
11
F@ST 2704N
L’indice d’équivalence de la sonnerie (IES) sert à indiquer le nombre maximal de
terminaux qui peuvent être raccordés à une interface téléphonique. La terminaison d’une
interface peut consister en une combinaison quelconque de dispositifs, à la seule
condition que la somme d’indices d’équivalence de la sonnerie de tous les dispositifs
n’excède pas 5.
RSS(Category I Equipment):
This device complies with Industry Canada license-exempt RSS standard(s). Operation
is subject to the following two conditions:
1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause
undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that necessary for successful communication.
Radio apparatus containing digital circuitry which can function separately from the
operation of a transmitter or an associated transmitter, shall comply with ICES-003.
In such cases, the labeling requirements of the applicable RSS apply, rather than the
labeling requirements in ICES-003.
This Class B digital apparatus complies with Canadian ICES-003.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS
102 and compliance with RSS-102 RF exposure, users can obtain Canadian information
on RF exposure and compliance.
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 11 Lundi, 2. décembre 2013 1:37 13
F@ST 2704N
12
Cet appareil est conforme aux normes d'exemption de licence RSS d'Industry Canada.
Son fonctionnement est soumis aux deux conditions suivantes :
1. cet appareil ne doit pas causer d'interférence et
2. cet appareil doit accepter toute interférence, notamment les interférences qui
peuvent affecter son fonctionnement.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé
pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son
gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas
l’intensité nécessaire à l’établissement d’une communication satisfaisante.
Les appareils radio contenant des circuits numériques qui peuvent fonctionner
indépendamment d'un émetteur ou d'un émetteur connexe doivent être conformes aux
exigences de la NMB-003. Ce sont alors les exigences d'étiquetage du CNR pertinent,
plutôt que les exigences d'étiquetage de la NMB-003, qui s'appliquent à ces appareils.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
• Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de
RSS 102 et la conformité à l'exposition de RSS-102 RF, utilisateurs peut obtenir l'information
canadienne sur l'exposition et la conformité de RF.
IC Radiation Exposure Statement
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. This equipment should be installed and operated with a minimum
distance of 20 centimeters between the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune
autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une
distance minimum de 20 centimètres entre le radiateur et votre corps.
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 12 Lundi, 2. décembre 2013 1:37 13
13
F@ST 2704N

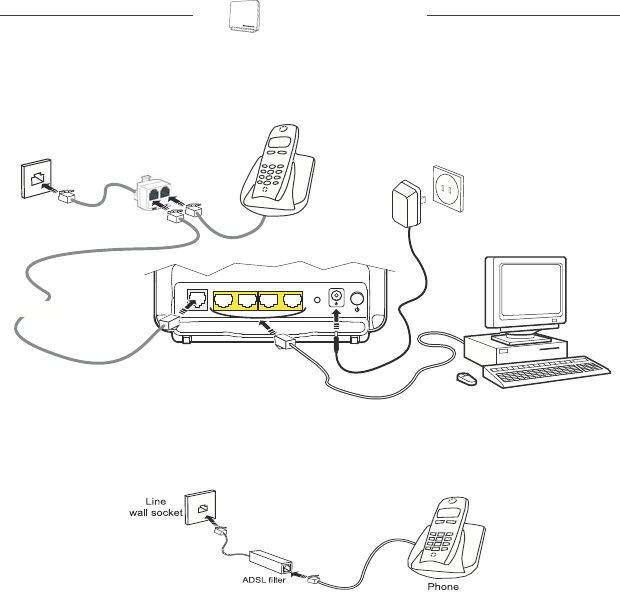

Connection
Connecting your router
Make the connections as shown in the diagram below.
Connecting additional telephones
Make the connections as shown in this diagram.
ETH1
RESET
PWR
ETH2ETH3ETH4
ADSL
LINE
PHONE
Filter/Spitter
LINE
MODEM
Line
wall socket
PWR
Phone set
Mains Adapter
with its lead
Mains
wall socket
Line cord
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 13 Lundi, 2. décembre 2013 1:37 13
F@ST 2704N
14
Router supervision
You can monitor the router’s activity and status using the following sources:
• status of the LEDs on the front and left panels of the router,
• using the router’s built-in "DSL Router" HTTP controller, available in the HTTP configuration
tool, accessible at http://myrouter or http://192.168.1.1.
Status of the LEDs on the front panel
LED Status Meaning
Power
Off Power Off
Green Power On
Red Router in rescue mode
ADSL
Green steady ADSL Up
Green blinking • ADSL Synchronisation in progress or
•down
Internet
Off • Power Off or
• The Internet account must be configured or
• Bridge mode
Green steady The Internet account is configured
Green blinking Tx/Rx traffic
Red Invalid or unauthorised Internet account
WLAN
Off Wi-Fi deactivated
Green steady Wi-Fi activated
Green blinking Wi-Fi Tx/Rx traffic
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 14 Lundi, 2. décembre 2013 1:37 13
15
F@ST 2704N
Button on the left panel
LAN x
(1 to 4)
Off No link detected on the Ethernet port
Green steady Ethernet port has detected a link with 100 Mbps device
Green blinking Tx/Rx traffic at 100 Mbps
WPS
Off WPS deactivated
Green steady WPS activated
Green blinking WPS Tx/Rx traffic
USB
Off No USB connection
Green steady USB connection available
Green blinking USB connection reading in progress
Button Meaning
WPS
Active the WPS mode
WLAN Active the Wi-Fi mode
LED Status Meaning
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 15 Lundi, 2. décembre 2013 1:37 13
Sagemcom Broadband SAS
Headquarters: 250, route de l’Empereur
92848 Rueil-Malmaison Cedex - FRANCE
Tel : +33 (0)1 57 61 10 00 - Fax : +33 (0)1 57 61 10 01
www.sagemcom.com
All rights reserved. The information and specifications included are subject to change without prior
notice. Sagemcom Broadband SAS tries to ensure that all information in this document is correct, but
does not accept liability for error or omission.
Non contractual document. All trademarks are registered by their respective owners. Simplified joint
stock company - Capital 35 703 000 Euros - 518 250 360 RCS NANTERRE.
253xxxxxxA - 12/13
QIG 253xxxxxx Fast 2704N_EN USA-CA.book Page 16 Lundi, 2. décembre 2013 1:37 13
