SAGEMCOM SAS WIRELESS xDSL BONDING ROUTER Sagem F4320
User Manual
F@ST 4320
User Manual
VER: 1.0
User Manual
i
FCC Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment. (Example- use only
shielded interface cables when connecting to computer or peripheral
devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. This transmitter must not be
co-located or operating in conjunction with any other antenna or
transmitter. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your
body.
This equipment complies with Part 15 of the FCC Rules.Operation is
subject to the following two conditions:
User Manual
ii
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such
modifications could void the user authority to operate the equipment.
FCC - PART 68
This equipment complies with Part 68 of the FCC rules and the
requirements adopted by the ACTA. On the bottom of this equipment
is a label that contains, among other information, a product identifier in
the format US:XXXXXXXX. If requested, this number must be
provided to the telephone company.
This equipment uses the following USOC jacks: RJ-11.
REN (RINGER EQUIVALENT NUMBERS) STATEMENT Notice:
The Ringer Equivalence Number (REN) assigned to each terminal
device provides an indication of the maximum number of terminals
allowed to be connected to a telephone interface. The termination on
an interface may consist of any combination of devices subject only to
the requirement that the sum of the Ringer Equivalence Numbers of all
the devices does not exceed 5.
ATTACHMENT LIMITATIONS STATEMENT
Notice: This equipment meets telecommunications network protective,
operational and safety requirements as prescribed in the appropriate
Terminal Equipment Technical Requirements document(s). This is
confirmed by marking the equipment with the Industry Canada
certification number. The Department does not guarantee the
equipment will operate to the user's satisfaction.
Before installing this equipment, users should ensure that it is
permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be installed
using an acceptable method of connection. The customer should be
aware that compliance with the above conditions may not prevent
degradation of service in some situations.
User Manual
iii
Repairs to certified equipment should be coordinated by a
representative designated by the supplier. Any repairs or alterations
made by the user to this equipment, or equipment malfunctions, may
give the telecommunications company cause to request the user to
disconnect the equipment.
Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines and internal metallic
water pipe system, if present, are connected together.
This precaution may be particularly important in rural areas. Caution:
Users should not attempt to make such connections themselves, but
should contact the appropriate electric inspection authority, or
electrician, as appropriate。
User Manual
i
Contents
1 Safety Precautions.............................................................................................1
2 Overview ............................................................................................................2
2.1 Application.............................................................................................2
2.2 Features ................................................................................................3
2.3 Standards Compatibility and Compliance.............................................. 4
3 Hardware Description and Installation ...............................................................5
3.1 Hardware Description............................................................................5
3.1.1 Front Panel .................................................................................5
3.1.2 Rear Panel and Side Panel ........................................................6
3.2 Hardware Installation............................................................................. 7
3.2.1 Choosing the Best Location for Wireless Operation...................7

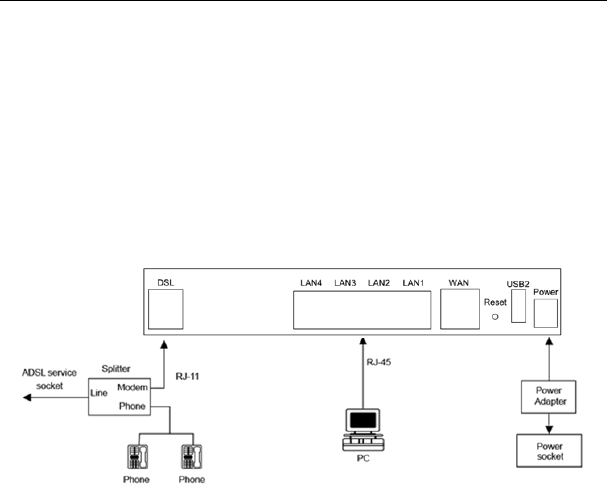

3.2.2 Connecting the Device ...............................................................7
4 PC Network Configuration and Login.................................................................9

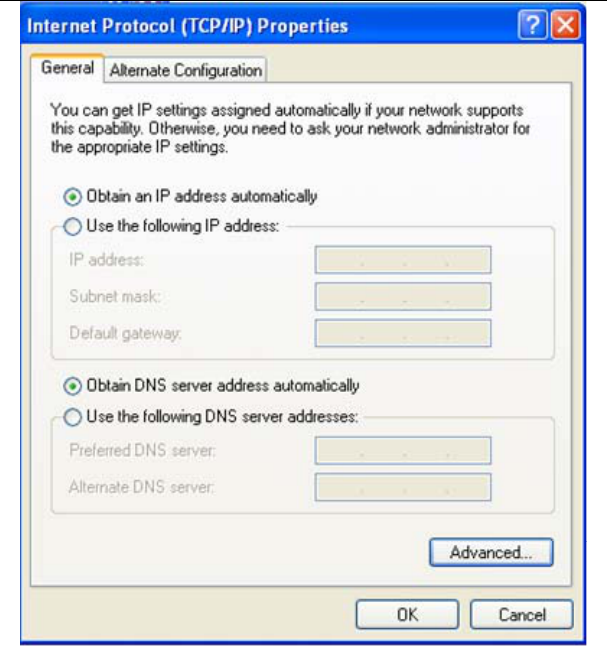

4.1 PC Network Configuration.....................................................................9

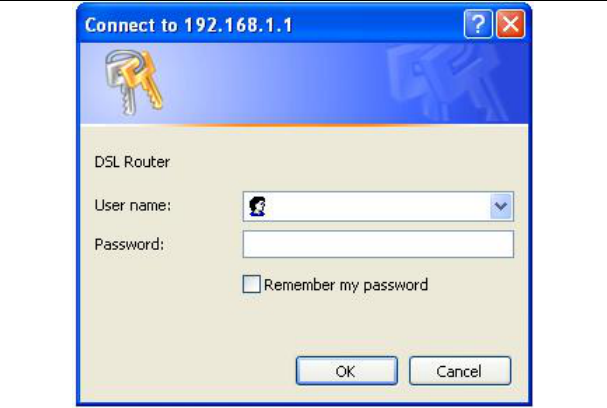

4.2 Logging In to the DSL Router.............................................................. 11
5 Web-Based Management ................................................................................12

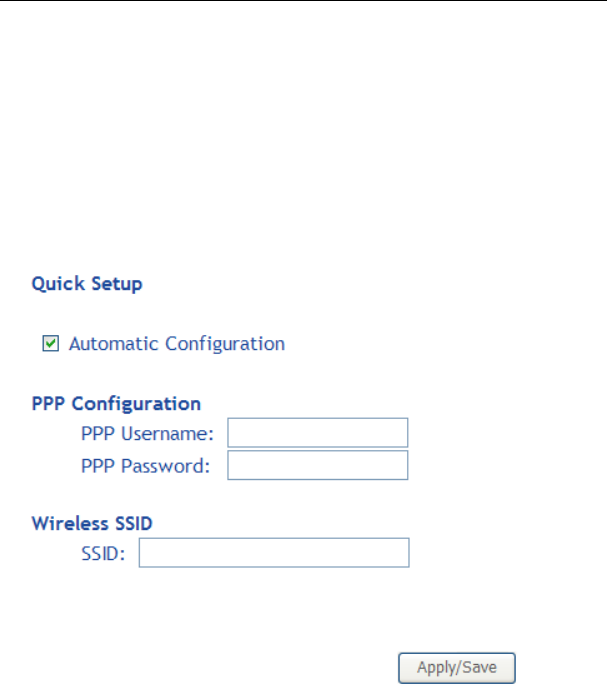

5.1 Quick Setup.........................................................................................12
5.2 Advanced Setup ..................................................................................15

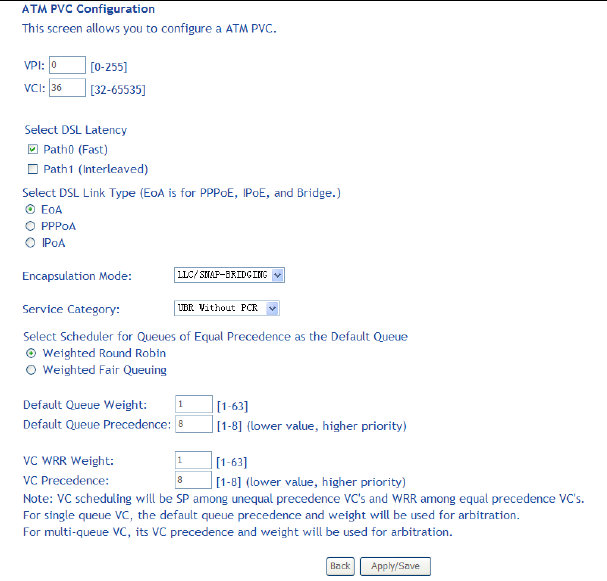

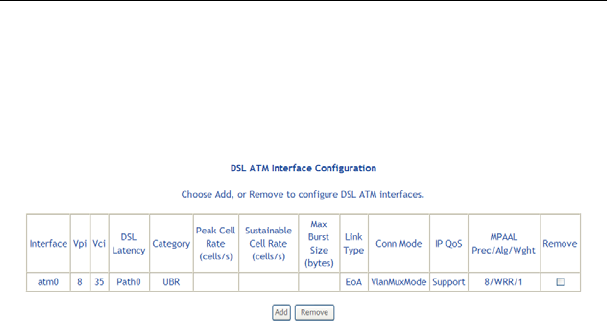

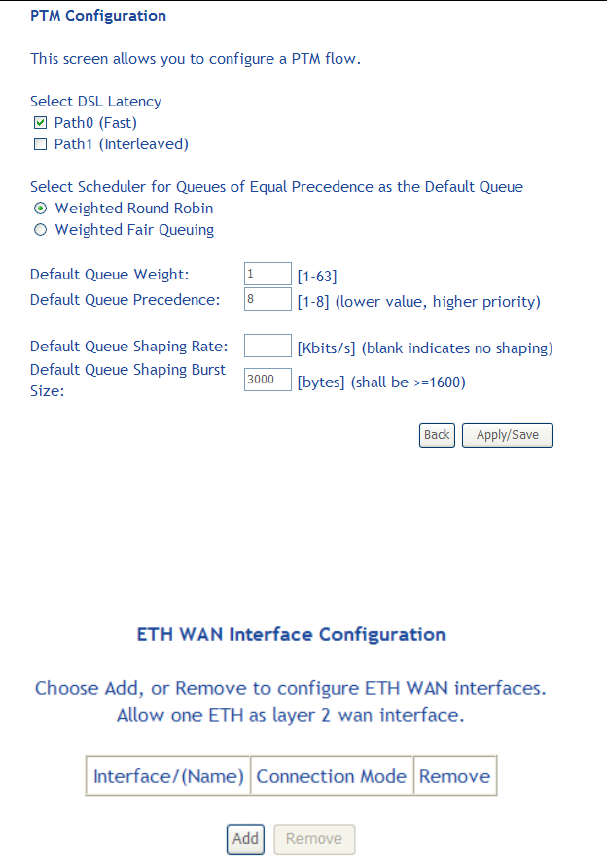

5.2.1 Layer2 Interface........................................................................15

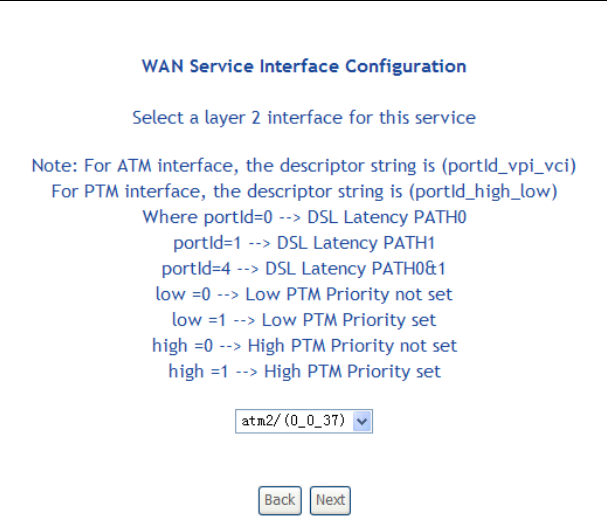

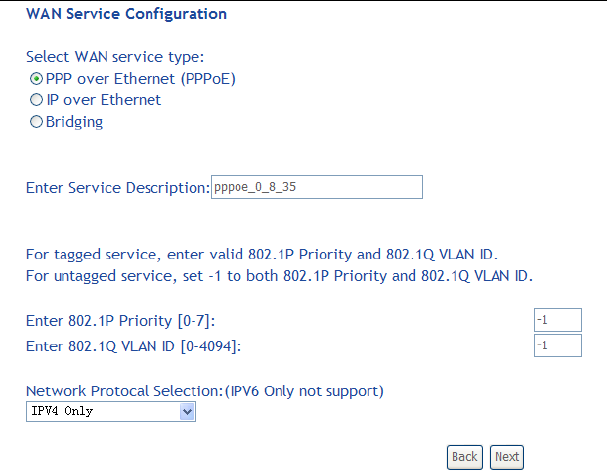

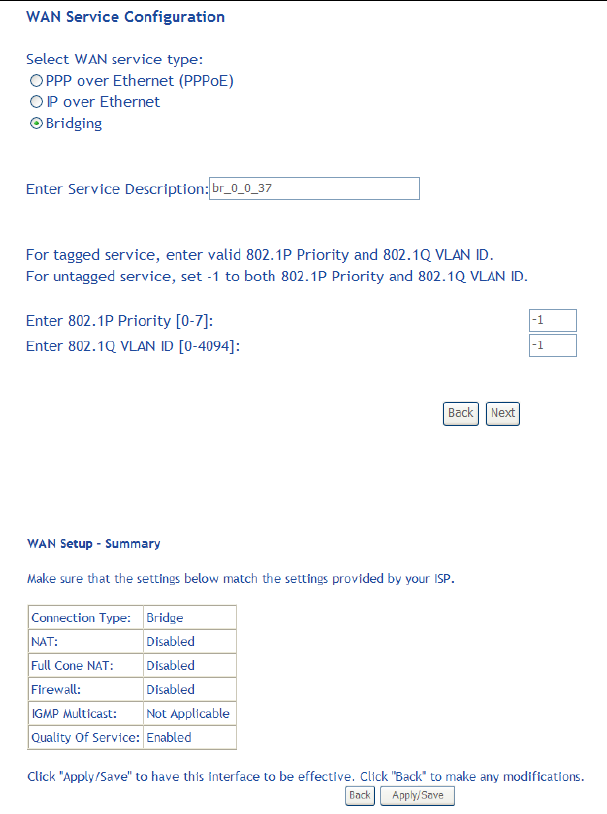

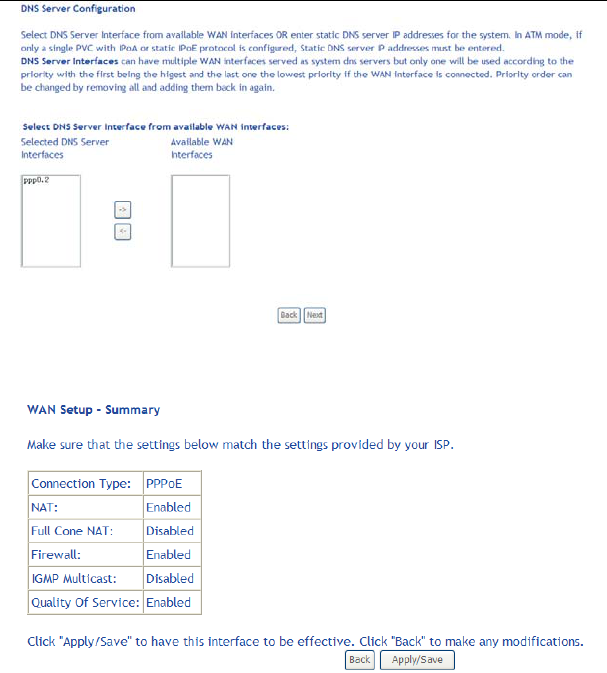

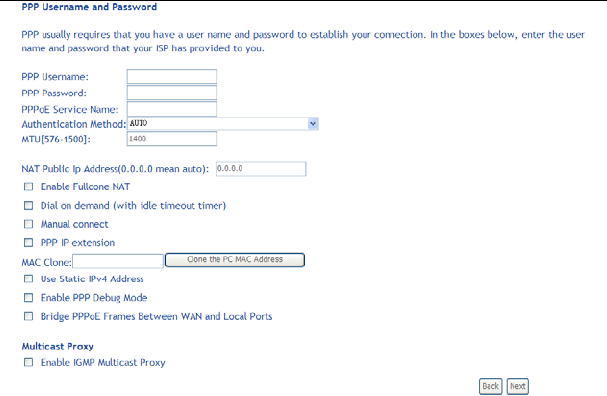

5.2.2 WAN Service ............................................................................19

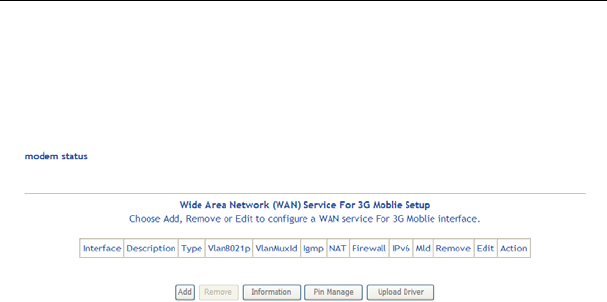

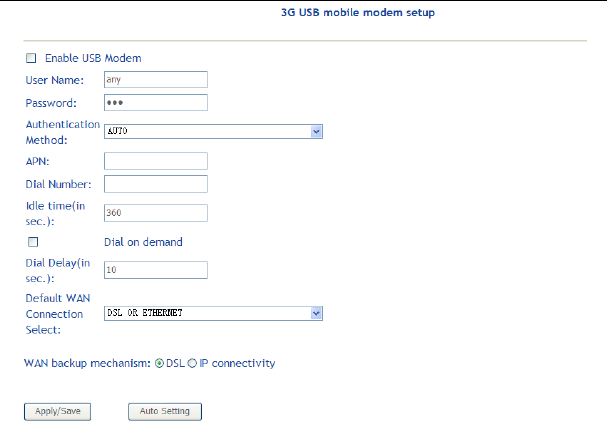

5.2.3 3G WAN Service....................................................................... 27
5.3 Wireless............................................................................................... 29

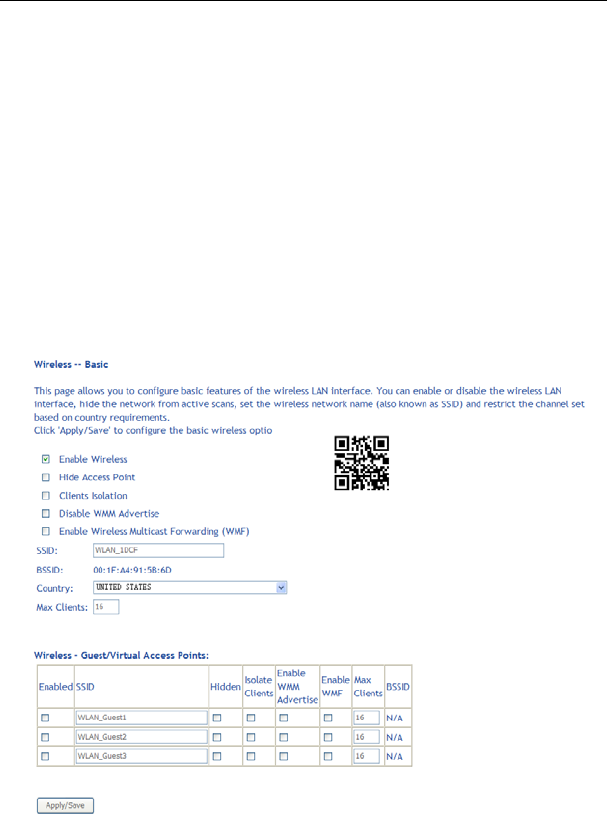

5.3.1 Basic Settings...........................................................................29

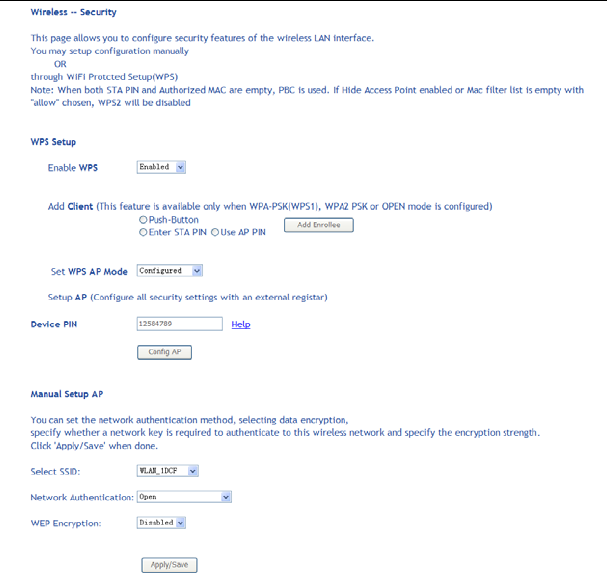

5.3.2 Security.....................................................................................30
5.4 Management........................................................................................32
5.4.1 Access Control..........................................................................33
5.4.2 Update Software....................................................................... 33
6 Q&A.................................................................................................................. 34
User Manual
1
1 Safety Precautions
Read the following information carefully before operating the device. Please follow
the following precaution items to protect the device from risks and damage caused
by fire and electric power:
Use volume labels to mark the type of power.
Use the power adapter that is packed within the device package.
Pay attention to the power load of the outlet or prolonged lines. An
overburden power outlet or damaged lines and plugs may cause electric
shock or fire accident. Check the power cords regularly. If you find any
damage, replace it at once.
Proper space left for heat dissipation is necessary to avoid any damage
caused by overheating to the device. The holes on the device are designed
for heat dissipation to ensure that the device works normally. Do not cover
these heat dissipation holes.
Do not put this device close to a place where a heat source exits or high
temperature occurs. Avoid the device from direct sunshine.
Do not put this device close to a place where is over damp or watery. Do not
spill any fluid on this device.
Do not connect this device to any PC or electronic product, unless our
customer engineer or your broadband provider instructs you to do this,
because any wrong connection may cause any power or fire risk.
Do not place this device on an unstable surface or support.
User Manual
2
2 Overview
The xDSL Router integrates wireless LAN and USB into one unit. It is designed to
provide a simple and cost-effective xDSL Internet connection for a private Ethernet
and 802.11b/802.11g/802.11n wireless network. The Router combines high-speed
xDSL Internet connection, Ethernet uplink, IP routing for the LAN and wireless
connectivity in one package. It is usually preferred to provide high access
performance applications for the individual users, the SOHOs, and the small
enterprises. The Router supports 3G WAN service.
The Router is easy to install and use. The Router connects to an Ethernet LAN or
computers via standard Ethernet ports. The xDSL connection is made using
ordinary telephone line with standard connectors. You can connect the Ethernet
interface of WAN to Internet with Ethernet cable for ETH uplink. Multiple
workstations can be networked and connected to the Internet by a single Wide
Area Network (WAN) interface and single global IP address. The advanced
security enhancements, packet filtering and port redirection, can help protect your
network from potentially devastating intrusions by malicious agents from outside
your network.
Network and Router management is done through the web-based management
interface that can be accessed through the local Ethernet using any web browser.
You may also enable remote management to enable configuration of the Router via
the WAN interface.
2.1 Application
Home gateway
SOHOs
Small enterprises
Higher data rate broadband sharing
Audio and video streaming and transfer
PC file and application sharing
Network and online gaming
USB storage
3G WAN service
User Manual
3
2.2 Features
User-friendly GUI for web configuration
Several pre-configured popular games. Just enable the game and the port
settings are automatically configured.
Compatible with all standard Internet applications
Industry standard and interoperable DSL interface
Simple web-based status page displays a snapshot of system configuration,
and links to the configuration pages
Downloadable flash software updates
Support for up to 8 permanent virtual circuits (PVC)
Support for up to 8 PPPoE sessions
Support RIP v1 & RIP v2
WLAN with high-speed data transfer rates, compatible with IEEE 802.11b/g/n
Optimized Linux 2.6 Operating System
IP routing and bridging
Asynchronous transfer mode (ATM) and digital subscriber line (DSL) support
Packet Transfer Mode (PTM)
Ethernet (ETH) Transfer Mode
Point-to-point protocol (PPP)
Network/port address translation (NAT/PAT)
Quality of service (QoS)
Wireless LAN security: WPA, 802.1x, RADIUS client
Universal plug-and-play(UPnP)
File server for network attached storage (NAS) devices
Print server
Web filtering
Management and control
- Web-based management (WBM)
- Command line interface (CLI)
- TR-069 WAN management protocol
- Simple Network Management Protocol (SNMP)
Remote update
System statistics and monitoring
DSL router is targeted at the following platforms: DSL modems, wireless
access points and bridge.
User Manual
4
2.3 Standards Compatibility and Compliance
Support application level gateway (ALG)
ITU G.992.1 (G.dmt)
ITU G.992.2 (G.lite)
ITU G.994.1 (G.hs)
ITU G.992.3 (ADSL2)
ITU G.992.5 (ADSL2+)
ITU G.993.1 (VDSL)
ITU G993.2 (VDSL2)
3G (WCDMA, CDMA2000, TD-SCDMA)
ANSI T1.413 Issue 2
IEEE 802.3
IEEE 802.3u
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
User Manual
5
3 Hardware Description and Installation
Note:
The figures in this document are for reference only.
3.1 Hardware Description
3.1.1 Front Panel
Figure 1 Front panel
The following table describes the indicators on the front panel.
Indicator Color Status Description
On The device is powered on and the device operates
normally.
Blink The software is upgrading.
Green
Off The device is powered off.
On The device is initiating.
Power
Red
Blink The software is upgrading.
On The WAN interface is connected to the Ethernet
cable.
Blink Network data is transmitting.
WAN Green
Off The WAN interface is not connected to the
Ethernet cable.
On Connection succeeds under Wi-Fi Protected
Setup.
Blink Negotiation is in progress under W-iFi Protected
Setup.
WPS Green
Off Wi-Fi Protected Setup is disabled.
DSL Green On DSL link has established.
User Manual
6
Indicator Color Status Description
Blink The DSL line is training.
Off Device is powered off.
On Internet is synchronized successfully in the route
mode.
Blink Internet data is being transmitted.
Green
Off Ethernet interface is disconnected.
Internet
Red On Authentication has failed.
3.1.2 Rear Panel and Side Panel
Figure 2 Rear panel
The following table describes the interfaces and the buttons.
Interface Description
DSL RJ-11 port. Connect the router to DSL connector or splitter through
telephone cable.
LAN 4~1 RJ-45 port, for connecting the router to a PC or another network
device.
WAN For connecting Ethernet cable to provide Ethernet uplink.
Reset Press the button for at least 1 second and then release it. System
restores the factory default settings.
User Manual
7
Interface Description
USB1/2 USB port, for connecting the 3G network card or other USB storage
devices.
Power Power interface, for connecting the power adapter.
On/Off Power switch.
WiFi WiFi switch, for enabling or disabling the WiFi function.
WPS
This button is used for enabling WPS PBC mode. If WPS is enabled,
press this button, and then the wireless router starts to accept the
negotiation of PBC mode.
Warning:
Do not press the Reset button unless you want to clear the current settings. The
Reset button is in a small circular hole on the rear panel. If you want to restore the
default settings, please press the Reset button gently for 1 second with a fine needle
inserted into the hole and then release the button. The system reboots and returns to
the factory defaults.
3.2 Hardware Installation
3.2.1 Choosing the Best Location for Wireless Operation
Many environmental factors may affect the effective wireless function of the DSL
Router. If this is the first time that you set up a wireless network device, read the
following information:
The access point can be placed on a shelf or desktop, ideally you should be able to
see the LED indicators in the front, as you may need to view them for troubleshooting.
Designed to go up to 100 meters indoors and up to 300 meters outdoors, wireless
LAN lets you access your network from anywhere you want. However, the numbers of
walls, ceilings, or other objects that the wireless signals must pass through limit signal
range. Typical ranges vary depending on types of materials and background RF
noise in your home or business.
3.2.2 Connecting the Device
Step 1 Connect the DSL port of the router and the Modem port of the splitter
with a telephone cable; connect the phone to the phone port of the
User Manual
8
splitter through a cable; and connect the incoming line to the Line port of
the splitter.
The spliiter has three ports:
Line: Connect to a wall phone jack (RJ-11 jack)
Modem: Connect to the Line interface of the router
Phone: Connect to a telephone set
Step 2 Connect the LAN port of the router to the network card of the PC through
an Ethernet cable.
Step 3 Plug the power adapter to the wall outlet and then connect the other end
of it to the Power port of the router.
The followig figure displays the connection of the DSL router, PC, and telephones.
Figure 3 Connecting the DSL router
Note:
If you use 3G WAN service, connect the 3G USB data card to the USB port of
the router.
If you use the Ethernet uplink, connect the WAN interface that is defined to the
Internet with Ethernet cable.
The xDSL uplink, 3G WAN service, and Ethernet uplink can not coexist.
User Manual
9
4 PC Network Configuration and Login
4.1 PC Network Configuration
Each network interface on the PC should either be configured with a statically defined
IP address and DNS address, or be instructed to automatically obtain an IP address
using the network DHCP server. DSL router provides a DHCP server on its LAN and
it is recommended to configure your LAN to automatically obtain its IP address and
DNS server IP address.
The configuration principle is identical but should be carried out differently on each
operating system.
The following displays the TCP/IP Properties dialog box on Windows XP.
User Manual
10
Figure 4 IP and DNS configuration
TCP/IP configuration steps for Windows XP are as follows:
Step 1 Choose Start > Control Panel > Network Connections.
Step 2 Right-click the Ethernet connection icon and choose Properties.
Step 3 On the General tab, select the Internet Protocol (TCP/IP) component
and click Properties.
Step 4 The Internet Protocol (TCP/IP) Properties window appears.
User Manual
11
Step 5 Select the Obtain an IP address automatically radio button.
Step 6 Select the Obtain DNS server address automatically radio button.
Step 7 If you want to set the IP address and subnet mask manually, you can set
the IP address and subnet mask of the computer to 192.168.1.x and
255.255.255.0 respectively. The range for x is from 2 to 254.
Step 8 Click OK to save the settings.
4.2 Logging In to the DSL Router
To log in to the DSL router, do as follows:
Step 1 Open a Web browser on your computer.
Step 2 Enter http://192.168.1.1 (the default IP address of the DSL router) in the
address bar. The login page appears.
Step 3 Enter the user name and the password. The default username and
password of the super user are admin and admin. The username and
password of the common user are user and user. You need not enter
the username and the password again if you select the option
Remember my password. It is recommended to change these default
values after logging in to the DSL router for the first time.
Step 4 Click OK to log in to the Web page. Otherwise, please click Cancel to
exit the login page.
User Manual
12
Figure 5 Login page
After logging in to the DSL router as a super user, you can query, configure, and
modify all the settings, and diagnose the system
5 Web-Based Management
This chapter describes how to use Web-based management of the DSL router, which
allows you to configure and control all of DSL router features and system parameters
in a user-friendly GUI.
5.1 Quick Setup
Choose Quick Setup and the following page is displayed.
User Manual
13
VPI (Virtual Path Identifier): The virtual path between two points in an ATM
network, and its valid value is from 0 to 255.
VCI (Virtual Channel Identifier): The virtual channel between two points in
an ATM network, ranging from 32 to 65535 (1 to 31 are reserved for known
protocols).
Encapsulation Mode: You can select LLC/SNAP-BRIDGING, or VC/MUX
Protocol: You can select the following items from the drop-down list: PPPoE,
DHCP, PPPoA, IPoA, or Bridge.
User Manual
14
PPP Username: The correct user name provided by your ISP.
PPP Password: The correct password provided by your ISP.
Use Static IP Address: If this function is disabled, the modem obtains an IP
address assigned by an uplink equipment such as BAS, through PPPoE
dial-up. If this function is enabled, the modem uses this IP address as the
WAN IP address.
SSID: The service set identification (SSID) is a unique name to identify the
router in the wireless LAN. Wireless stations associating to the router must
have the same SSID. Enter a descriptive name that is used when the
wireless client is connecting to the router.
Select Automatic Configuration to display the following page.
PPP Username: The correct user name provided by your ISP.
PPP Password: The correct password provided by your ISP.
SSID: The service set identification (SSID) is a unique name to identify the
router in the wireless LAN. Wireless stations associating to the router must
have the same SSID. Enter a descriptive name that is used when the
wireless client is connecting to the router.
After finishing setting, click Apply/Save to save the settings.
User Manual
15
5.2 Advanced Setup
5.2.1 Layer2 Interface
5.2.1.1 ATM Interface
Choose Advanced Setup > Layer2 Interface > ATM Interface . In this page, you
can add or remove to configure DSL ATM Interfaces.
Click Add to add ATM Interface and the following page appears.
User Manual
16
In this page, you can enter this PVC (VPI and VCI) value, and select DSL link type
(EoA is for PPPoE, IPoE, and Bridge.), encapsulation mode, service category.
VPI (Virtual Path Identifier): The virtual path between two points in an ATM
network, and its valid value is from 0 to 255.
VCI (Virtual Channel Identifier): The virtual channel between two points in
an ATM network, ranging from 32 to 65535 (1 to 31 are reserved for known
protocols).
DSL Link Type: EoA (it is for PPPoE, IPoE, and Bridge), PPPoA, or IPoA
Encapsulation Mode: LLC/SNAP-BRIDGING, or VC/MUX.
Service Category: UBR Without PCR, UBR With PCR, CBR, Non Realtime
VBR, Realtime VBR.
User Manual
17
Select Scheduler for Queues of Equal Precedence as the Default Queue:
Weighted Round Robin or Weighted Fair Queuing.
Click Apply/Save to save the configuration, and return the following page:
If you want to remove this Interface, please select the Remove check box and click
Remove.
5.2.1.2 PTM Interface
Choose Advanced Setup > Layer2 Interface > PTM Interface, and the following
page appears. In this page, you can add or remove to configure PTM WAN
Interfaces.
Click Add and the following page appears.
User Manual
18
In this page, you can select scheduler for queues of equal precedence and enter
the queue value. Click Apply/Save to save configuration.
5.2.1.3 ETH Interface
Choose Advanced Setup > Layer2 Interface > ETH Interface, and the following
page appears. In this page, you can add or remove to configure ETH WAN
Interfaces.
User Manual
19
Click Add and the following page appears.
In this page, you can select a ETH port. Click Apply/Save to save configuration.
Note:
If ETH Interface is selected, there are two WAN service types (PPPoE and
IPoE).
5.2.2 WAN Service
Choose Advanced Setup > WAN Service, and the following page appears.
In this page, you are allowed to add, remove, or edit a WAN service.
Note:
If PTM Interface is selected, there are three WAN service types: PPP over
Ethernet (PPPoE), IP over Ethernet, Bridging. And the corresponding
configurations of PTM WAN service are same as the configurations of ATM
WAN service.
User Manual
20
5.2.2.1 Adding a PPPoE WAN Service
This section describes the steps for adding the PPPoE WAN service.
Step1 In the Wide Area Network (WAN) Service Setup page, click the Add
button to display the following page. (At first, you must add a proper ATM
or PTM interface for this WAN service.)
Step2 In this page, you can select a ATM Interface for the WAN service. After
selecting the ATM interface, click Next to display the following page.
User Manual
21
Step3 In this page, select the WAN service type to be PPP over Ethernet
(PPPoE). Click Next to display the following page.
User Manual
22
Step4 In this page, you can modify the PPP username, PPP password, PPPoE
service name and authentication method.
PPP Username: The correct user name provided by your ISP.
PPP Password: The correct password provided by your ISP.
PPPoE Service Name: If your ISP provides it to you, please enter it. If not,
do not enter any information.
Authentication Method: The value can be AUTO, PAP, CHAP, or MSCHAP.
Usually, you can select AUTO.
Enable Fullcone NAT:. NAT is one where all requests from the same internal
IP address and port are mapped to the same external IP address and port.
Furthermore, any external host can send a packet to the internal host, by
sending a packet to the mapped external address.
Dial on demand (with idle timeout timer): If this function is enabled, you
need to enter the idle timeout time. Within the preset minutes, if the modem
does not detect the flow of the user continuously, the modem automatically
stops the PPPoE connection. Once it detects the flow (like access to a
webpage), the modem restarts the PPPoE dialup. If this function is disabled,
the modem performs PPPoE dial-up all the time. The PPPoE connnection
User Manual
23
does not stop, unless the modem is powered off and DSLAM or uplink
equipment is abnormal.
PPP IP extension: If you want to configure DMZ Host, you should enable it
first.
Use Static IPv4 Address: If this function is disabled, the modem obtains an
IP address assigned by an uplink equipment such as BAS, through PPPoE
dial-up. If this function is enabled, the modem uses this IP address as the
WAN IP address.
Enable PPP Debug Mode:Enable or disable this function.
Bridge PPPoE Frames Between WAN and Local Ports:Enable or disable
this function.
Enable IGMP Multicast Proxy:If you want PPPoE mode to support IPTV,
enable it.
Step5 After setting the parameters, click Next to display the following page.
Step6 In this page, select a preferred WAN interface as the system default
gateway and then click Next to display the following page.
User Manual
24
Step7 In this page, you can obtain the DNS server addresses from the selected
WAN interface. Click Next, and the following page appears.
Step8 In this page, it displays the information about the PPPoE settngs. Click
Apply/Save to save and apply the settings.
5.2.2.2 Adding a Bridge WAN service
This section describes the steps for adding the Bridge WAN service.
Step1 In the Wide Area Network (WAN) Service Setup page, click the Add
button to display the following page. (At first, you must add a proper ATM
User Manual
25
or PTM interface for this WAN service.) Click the Add button to display
the following page.
Step2 Select the proper ATM Interface and then click Next to display the
following page.
User Manual
26
Step3 In this page, you can select the WAN service type, and modify the service
description for this service. After finishing setting, click Next to display the
following page.
User Manual
27
Step4 In this page, it displays the information about the bridge settngs. Click
Apply/Save to save and apply the settings. You can modify the settings
by clicking the Back button if necessary.
5.2.3 3G WAN Service
Choose Advanced Setup > 3G Wan Service , and the following page appears.
This page is used to configure 3G connection. If you want to access the Internet
through 3G connection, a 3G network card is required. Connect the 3G network
card to the USB interface of the Router.
Information: Click it to display the information of the 3G network card.
Upload Driver: For a un-support USB dongle, click it to upload the new
driver for supporting the USB. The driver is a text file.
Click Add in the WAN Service for 3G Mobile Setup to display the following page.
User Manual
28
In this page, you are allowed to configure the settings of the 3G USB modem.
Enable USB Modem: If you want to access the Internet through the 3G
network card, you must enable the USB modem.
User Name: Username provided by your 3G ISP.
Password: Password provided by your 3G ISP.
Authentication Method: Select a proper authentication method in the drop -
down list. You can select Auto, PAP, CHAP, or MSCHAP.
APN: APN (Access Point Name) is used to identify the service type. Enter
the APN provided by your 3G ISP.
Dial Number: Enter the dial number provided by your 3G ISP.
Idle time (in sec.): If no traffic for the preset time, the 3G will disconnect
automatically.
Dial Delay (in sec.): The 3G delays dial after the DSL is disconnected.
Default WAN Connection Select: You can select DSL or ETHERNET or 3G
from the drop-down list.
WAN back mechanism: The 3G connection is backup for the DSL
connection.
User Manual
29
– - DSL: If the DSL is disconnected, the 3G starts to dial.
– - IP connectivity: If the system fails to ping the specified IP
address, the 3G starts to dial.
After finishing setting, click the Apply/Save button to save the settings.
You may also click the Auto Setting button to automatically configure the 3G
connection.
5.3 Wireless
Choose Wireless and the submenus of Wireless are shown as below:
5.3.1 Basic Settings
Choose Wireless > Basic to display the following page. In this page, the figure in
the right area is 2-dimensional code. It includes the wireless SSID and password.
You can obtain the wireless SSID and password through scanning this figure.
User Manual
30
This page allows you to configure the basic features of the wireless LAN interface.
Enable Wireless: Enable or disable the wireless function.
Hide Access Point: if you want to hide any access point for your router,
select this option, and then a station cannot obtain the SSID through the
passive scanning.
Clients Isolation: When many clients connect to the same access point,
they can access each other. If you want to disable the access between the
clients that connect to the same access point, you can select this option.
Disable WMM Advertise: After enabling this option, the transmission
performance multimedia of the voice and video data can be improved.
Enable Wireless Multicast Forwarding (WMF): After enabling this option,
the transmission quality of video service such as IPTV can be improved.
SSID: For the security reason, you should change the default SSID to a
unique name.
BSSID: Display the MAC address of the wireless interface.
Country: The name of the country with which your gateway is configured.
This parameter further specifies your wireless connection. For example, the
channel will adjust according to nations to adapt to each nation's frequency
provision.
Max Clients: Specify the maximum wireless client stations to be enabled to
link with AP. Once the clients exceed the max vlaue, all other clients are
refused. The value of maximum clients is 16.
Wireless - Guest/Virtual Access Points: If you want to make Guest/Virtual
network function be available, you have to check those boxes in the table
below. In the current software version, three virtual access points can be
configured.
After finishing setting, click Apply/Save to save the basic wireless settings and
make the settings take effect.
5.3.2 Security
Choose Wireless > Security to display the following page.
User Manual
31
This page allows you to configure the security features of the wireless LAN
interface. In this page, you can configure the network security settings by the Wi-Fi
Protected Setup (WPS) method or setting the network authentication mode.
WPS Setup
User Manual
32
There are 2 primary methods used in the Wi-Fi Protected Setup:
PIN entry, a mandatory method of setup for all WPS certified devices.
– Enter STA PIN: If you select it, you need to enter the station PIN from
client.
– Use AP PIN: The PIN is generated by AP.
Push button configuration (PBC), an actual push button on the hardware or
through a simulated push button in the software. (This is an optional method
on wireless client).
If you are using the PIN method, you will need a Registrar (access point/wireless
router) to initiate the registration between a new device and an active access
point/wireless router. (Note: The PBC method may also need a Registrar when
used in a special case where the PIN is all zeros)
In order to use the push-button for WPS authentication, you must ensure that the
network card support the function. if it supports, you need not to do any
configuration. You can press the WPS button directly to enable the WPS function.
5.4 Management
User Manual
33
5.4.1 Access Control
Passwords
Choose Management > Access Control > Passwords, and the following page
appears.
In the page, you can modify the username and password of different users.
After finishing setting, click the Apply/Save button to save and apply the settings.
5.4.2 Update Software
Choose Management > Update Software, and the following page appears.
If you want to upload the software, click the Browse… button to choose the new
software, and then click the Update Software button.
Note:
User Manual
34
When software update is in progress, do not shut down the router. After software
update completes, the router automatically reboots.
Please make sure that the new software for updating is correct, and do not use other
software to update the router.
6 Q&A
(1) Q: Why all the indicators are off?
A: Check the following:
The connection between the power adaptor and the power socket.
The status of the power switch.
(2) Q: Why the LAN indicator is off?
A: Check the following:
The connection between the ADSL router and your computer, hub, or
switch.
The running status of your PC, hub, or switch.
(3) Q: Why the DSL indicator is off?
A: Check the connection between the “DSL” port of router and the wall jack.
(4) Q: Why Internet access fails while the DSL indicator is on?
A: Check whether the VPI, VCI, user name, and password are correctly
entered.
(5) Q: Why I fail to access the web configuration page of the DSL router?
A: Choose Start > Run from the desktop, and ping 192.168.1.1 (IP address of
the DSL router). If the DSL router is not reachable, check the type of the
network cable, the connection between the DSL router and the PC, and
the TCP/IP configuration of the PC.
(6) Q: How to load the default settings after incorrect configuration?
A: To restore the factory default settings, turn on the device, and press the
reset button for at least 1 second, and then release it. The default IP
address and the subnet mask of the DSL router are 192.168.1.1 and
255.255.255.0, respectively.
User/password of super user: admin/admin
User/password of common user: user/user
