User Manual
Welcome to your
Hub
Setup
1.
2.
3.
Connect the SmartThings Hub to the wall power using
the supplied power cable.
Tip: The SmartThings Hub works best when placed
in a central location in your home. It should not be
placed on top of or immediately next to other
wireless devices.
Tip: You can also connect the SmartThings Hub to your
Wi-Fi router using the supplied Ethernet cable.
Download the free SmartThings app for Android or
iOS, and create an account for your home.
Follow the on-screen instructions in the SmartThings
app to connect the Hub to your Wi-Fi network and
complete setup.
If you have any difculty setting up your SmartThings Hub,
please visit Support.SmartThings.com for assistance.

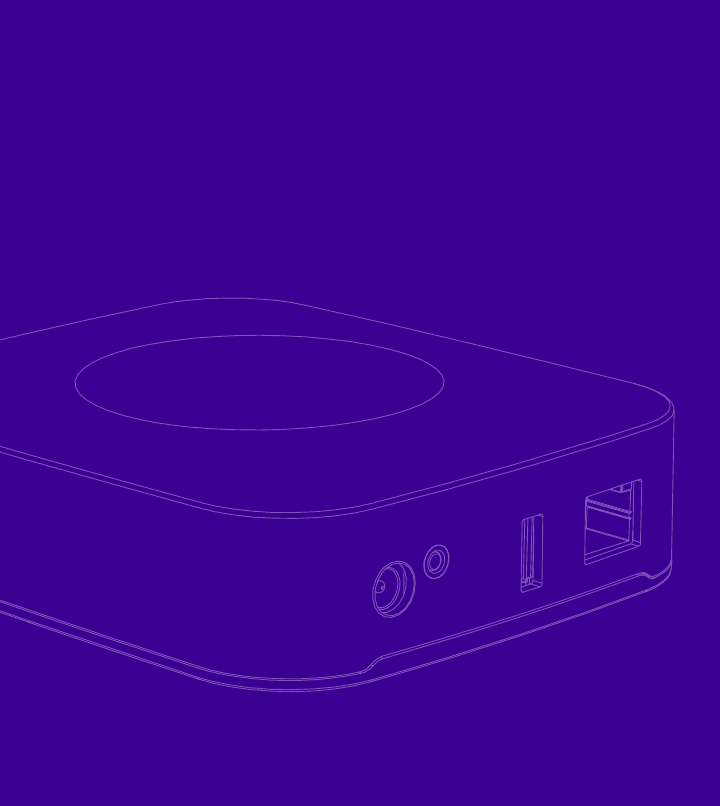

Power Connector
Network Connector
AC Plug
Hub
USB
Power Reset
Network (Ethernet)
Hub
Using your
Hub
Suggestions
There are many ways that you can use a SmartThings Hub as
the brain of your smart home:
Automate your lights, control your home’s temperature,
and help save money.
Teach your home a few new tricks and make life
a little bit easier.
Monitor, control, and help secure your home.
Visit SmartThings.com/Welcome for more ideas, tips, and
special offers.
Works with SmartThings
SmartThings works with a wide range of connected devices,
including lights, cameras, locks, thermostats, sensors,
and more.
Look for the Works with SmartThings label next time
you’re buying a connected device for your home, or visit
SmartThings.com to see the full list of compatible devices.
Revised 10/17. Copyright 2017. SmartThings, Inc. All rights reserved.
72°
Safety Instructions
• Read, keep, and follow these instructions. Heed all warnings.
• The SmartThings Water Leak Sensor is water-resistant but not
water-proof; avoid submerging it in water or liquid to keep interior
dry and to protect batteries. All other SmartThings products should
not be used near water or exposed to dripping or splashing of any
water or liquid.
• Clean only with a dry cloth.
• Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
• Only use attachments and accessories specied by the Manufacturer.
• Read our Product Usage Guidelines at:
www.SmartThings.com/Guidelines.
Safety Instructions: Hub
The power adapter acts as the mains disconnect device so ensure that
the Hub is installed near to an easily accessible mains socket.
Disconnect the network cable and power adapter or any other connected
peripherals if any of the following conditions exist:
• The power cable or connector is damaged or frayed.
• You want to clean the Hub (see Important Safety Instructions).
• The Hub or attached cables are exposed to rain, water/uids, or
excessive moisture.
• The Hub or its power adapter is damaged or has been dropped and
you suspect it needs to be serviced.
transmit, translate, sell, create derivative works, exploit, or distribute in
any manner or medium any content or services displayed through this
device.
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to
the following conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution
Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this
equipment.
Important Note: FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Canada Statement
This device complies with RSS-247 of the Industry Canada Rules.
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
Ce dispositif est conforme à la norme CNR-247 d’Industrie Canada
applicable aux appareils radio exempts de licence. Son fonctionnement
est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas
produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout
brouillage reçu, y compris un brouillage susceptible de provoquer un
fonctionnement indésirable.
Important Note for mobile device use Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Note Importante pour l’utilisation de dispositifs mobiles
Déclaration d’exposition aux radiations: Cet équipement est conforme aux
limites d’exposition aux rayonnements IC établies pour un environnement
non contrôlé. Cet équipement doit être installé et utilisé avec un
minimum de 20 cm de distance entre la source de rayonnement et
votre corps.
Disclaimer
Some content and services accessible through this device belong to third
parties and are protected by copyright, patent, trademark and/or other
intellectual property laws. Such content and services are provided solely
for your personal non-commercial use.
You may not use any content or services in a manner that has not been
authorised by the content owner or service provider. Without limiting the
foregoing, unless expressly authorised by the applicable content owner
or service provider, you may not modify, copy, republish, upload, post,
Avoid installing the SmartThings Hub inside or near to large
metal objects, or near to sources of radio interference.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
WARNING: No user-serviceable parts inside. Refer all
servicing to qualied service personnel.
IMPORTANT CONSUMER INFORMATION: Please read
before activating or using the device.
WARNING: This product contains chemicals known to the State of
California to cause cancer and reproductive toxicity. For more information,
please call 1-800-SAMSUNG (726-7864).
Tested to Comply With FCC Standards
FOR HOME OR OFFICE USE
Multipurpose Sensor
Manufacturer Model : STS-MLT-250
FCC ID : 2AF4S-STS-MLT-250
IC : 20753-STSMLT250
Motion Sensor
Manufacturer Model : STS-IRM-250
FCC ID : 2AF4S-STS-IRM-250
IC : 20753-STSIRM250
Arrival Sensor
Manufacturer Model : STS-PRS-250
FCC ID : 2AF4S-STS-PRS-250
IC : 20753-STSPRS250
Water Leak Sensor
Manufacturer Model : STS-WTR-250
FCC ID : 2AF4S-STS-WTR-250
IC : 20753-STSWTR250
Outlet
Manufacturer Model : STS-OUT-US-2
FCC ID : 2AF4S-STS-OUT-US-2
IC : 20753-STSOUTUS2
Hub
Manufacturer Model: STH-ETH-300
FCC ID: 24FAS-STH-ETH-300
IC ID: 20753-STHETH300
Contains FCC ID : D87-ZM5304-U
Contains IC : 11263A-ZM5304-U
This ZigBee Certied Product works with
ZigBee networks supporting the Home
Automation Prole.
Global 2.4 GHz wireless use.
ZigBee® Certied is a registered trademark
of the ZigBee Alliance.
US Certications
Certied under FCC Part 15.
Information to the User
Changes or modications not expressly approved by SmartThings, Inc.
could void your authority to operate the equipment.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence in a residential installation.
This equipment generates and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and the receiver
• Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Wi-Fi
Correct disposal of batteries in this product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the
product, its electronic accessories (e.g. charger, headset, USB cable), and
batteries should not be disposed of with other household waste.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate these items from other
types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Where marked, the chemical symbols Hg, Cd or Pb indicate that the
battery contains mercury, cadmium or lead above the reference levels
in EC Directive 2006/66. If batteries are not properly disposed of, these
substances can cause harm to human health or the environment.
Household users should contact either the retailer where they purchased
this product, or their local government ofce, for details of where and
how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for
disposal.
One (1) Year Limited Warranty
SmartThings, Inc. warrants this product (the “Product”) against defects
in materials and/or workmanship under normal use for a period of ONE
(1) YEAR from the date of purchase by the original purchaser (“Warranty
Period”). If a defect arises and a valid claim is received within the
Warranty Period, then as your sole remedy (and SmartThings’ sole
liability), SmartThings will at its option either 1) repair the defect at no
charge, using new or refurbished replacement parts, or 2) replace the
Product with a new product that is functionally equivalent to the original,
in each case within 30 days following receipt of the returned Product.
A replacement product or part, assumes the remaining warranty of the
original Product. When a Product or part is exchanged, any replacement
item becomes your property and the replaced Product or part becomes
SmartThings’ property.
Obtaining Service: To obtain warranty service, visit Support.SmartThings.
com to speak with a service agent or open a service request. Please be
prepared to describe the Product that needs service and the nature of the
problem. A purchase receipt is required. The Product must be insured,
and shipped freight prepaid and securely packaged. You must contact
support for a Return Material Authorization Number (“RMA Number”)
before shipping any Product, and include the RMA Number, a copy of your
purchase receipt and a description of the problem you are experiencing
with the Product. Any claim under this Limited Warranty must be
submitted to SmartThings before the end of the Warranty Period.
Exclusions: This warranty does not apply to: a) damage caused by failure
to follow instructions relating to the Product’s use or the installation of
components; b) damage caused by accident, abuse, misuse, transport,
neglect, re, oods, earthquake or other external causes; c) damage
caused by service performed by anyone who is not an authorized
representative of SmartThings; d) accessories used in conjunction with
a covered Product; e) a Product or part that has been modied to alter
functionality or capability; f) items intended to be periodically replaced
by the purchaser during the normal life of the Product, including,
without limitation, batteries, bulbs or cables; g) a Product that is used
commercially or for a commercial purpose, in each case as determined
by SmartThings.
EXCEPT FOR BODILY INJURY, SMARTTHINGS SHALL NOT BE LIABLE
FOR (I) ANY LOST PROFITS, COST OF PROCUREMENT OF SUBSTITUTE
PRODUCTS, OR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR (II)
ANY AMOUNTS IN EXCESS OF THE PURCHASE PRICE FOR THE PRODUCT,
IN EACH CASE WHETHER RESULTING FROM THE USE OF OR INABILITY
TO USE THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY, EVEN IF COMPANY HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSIONS MAY NOT
APPLY TO YOU.
TO THE EXTENT PERMITTED BY APPLICABLE LAW,
SMARTTHINGS DISCLAIMS ANY AND ALL STATUTORY OR IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. IF SMARTTHINGS
CANNOT LAWFULLY DISCLAIM STATUTORY OR IMPLIED WARRANTIES,
THEN TO THE EXTENT PERMITTED BY LAW, ALL SUCH WARRANTIES
SHALL BE LIMITED IN DURATION TO THE WARRANTY PERIOD. SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO
YOU.
This warranty gives you specic legal rights and you may also have other
rights, which vary from state to state. To exercise your rights under this
warranty, please follow the instructions above under the heading
“Obtaining Service”, or contact SmartThings at SmartThings, Inc., 665
Clyde Ave, Mountain View, CA 94043, USA.
Samsung is a registered trademark of Samsung Electronics Co., Ltd.
Android is a trademark of Google Inc. Other marks are the property of
their respective owners. Device purchase subject to additional
SmartThings terms and conditions.
Samsung SmartThings Use of Free and Open-Source Software
This document contains licensing information relating to the use of
free and open-source software (FOSS) with or within the Samsung
SmartThings Hub software. Any terms, conditions, or restrictions on FOSS
included within the Samsung SmartThings Hub software that are not
included within the original FOSS licenses are offered and imposed by
Samsung SmartThings alone. The authors,licensors, and distributors of
the FOSS disclaim all express or implied conditions, representations, and
warranties relating to the FOSS and any liability arising from use and
distribution of the FOSS. A document containing the complete and
current list of FOSS packages used in Samsung SmartThings Hub
software and mobile applications can be found here:
www.SmartThings.com/FOSS
The document at the URL above identies the FOSS packages used in the
Samsung SmartThings Hub software, the FOSS licenses that Samsung
SmartThings believes govern those FOSS packages, and copyright and
license notices associated with Samsung SmartThings’s use of the FOSS.
While Samsung SmartThings has sought to provide complete and
accurate licensing information for each FOSS package, Samsung
SmartThings does not represent or warrant that the licensing
information provided herein is correct or error-free. Recipients of the
product have the option to investigate the identied FOSS packages
to conrm the accuracy of the licensing information provided herein.
Recipients are also encouraged to notify Samsung SmartThings of any
inaccurate information or errors found in these notices.
Certain FOSS licenses, such as the GNU General Public License, GNU
Lesser (or Library) General Public License, and Mozilla Public License,
require Samsung SmartThings to make available to recipients the source
code corresponding to FOSS binaries distributed under those licenses.
Users who would like to download source code used by Samsung
SmartThings under those licenses can do so by logging in with their
Samsung SmartThings account at SmartThings.com. Users with
questions or concerns regarding Samsung SmartThings use of Free
or Open-Source Software can contact us via email at:
Support@SmartThings.com.
Deleting a Location (Home, Ofce, etc) in the SmartThings app will cause
all Z-Wave devices to be disconnected from the SmartThings Hub, requir-
ing them to be excluded and re-included.
Visit Support.SmartThings.com for more information.
