[ENGLISH 1

Video Camcorder

8ram

COLOR LCD

SCL700/L710/L750/L770

Hi[] SCL7001L7101L7501L770

Owner's Instruction Book

Before operating the unit, please read

this instruction book thoroughly, and retain it for

future reference.

IENGLISHI

Contents

Notices and Safety Instructions

Getting to Know Your Camcorder

Features

Descnpt_ons

•Front V_ewSFdeV_ewRear V_ew

• OSD [On Screen Dtsplayl

Accessones SupRhedw_ththe Camcorder

Remote Control iSCL710 L750 L770 onlyl

• Self Timer Recording

Preparing

Ad ust_n the Hand Strap and Shoulder Strap

Ltt_lum [_atter_ Installation

Connecting the Power Source

• To use the AC Power Adapter

• To use the Battery Pack

Using the Battery Pack

• Continuous Recording t_metable

• BatterryLevel Dtsplay

Insedtng andEjectmg a Cassette

Basic Recording

MakngYour F_rstRecording

H_ntsfor Stable Image Recordtnq

• Record_n9 wtti_LCD Mon¢[or

• Record_n_ewtth Vtewfinder

Ad ust_n9 the LCD

Ad ust_ngFocus of the VIEWFINDER

Playmgback a tape on the LCD

mad ust_ngthe LCD dunng PLAY

• Controlhng the Sound from the Speaker

• Vtewtng a sttrl Ptcture

• Prcture Search

Advanced Recording

Zoomm rnandOut

D_ltal _oom

EASY mode [for beglnnersl

CUSTOM-Creating your own customtzed recording settings

DIS iDrgttal Image StabFllzer SCL750'L770 only

MF AF [Ivlanual Focus Auto Focust

BLC

A

12

13 14 15

16

18

19

19

2O

21

22

22

23

24

24

25

26

27

29

29

29

30

31

32

33

33

33

33

34

35

37

38

39

40

41

IENGLISH_

Contents (continued)

ProqramAE (Automatic Exposurel

DSE IDrgttal Special Effects_in CAMERA mode

Settm and Recordln DATE TIME

SeIec_ng and Recor_ng a T_tle

Fade hqand Out

PIP (SCL750,L770 onry;;

Snap Shot ISCL750,L770 only;

White Balance

Demonstration

Setting the Date Title color

Lightrng Techniques

Playing back a Tape

To watch with LCD

To watch wtth TV monttor

Various Functrons in PLAYER mode

Adjusting the LCD

Setting the S_p_eakerQNIOFF

DSE i_ PLAYER mode

Multi Playback (Using the PAL60 Systeml

USB interface (SCL770 only)

Installing USB Media 2 0 Program

42

44

46

48

5O

51

52

53

54

55

56

57

57

59

6O

6O

6O

64

62

63

Maintenance

Creanlng and Taking care of the Camcorder

•Cleaning the Vtewflnder

• Cleaning the LCD Panel

• Cleaning the Vtdeo Heads

• Storing the Camcorder

Using Your Camcorder Abroad

Troubleshooting

Self DBgnosts Dtsplay

Checking

MoFstureCondensation

66

66

66

66

66

67

68

69

71

Specifications

Index

72

73

Warranty 75

A

IENGLISHI

Notices and Safety Instructions

Notices regarding rotation of LCD screen

Please rotate t_e LCD screen carefully as illustrated

Unintended rotation may cause da['nage to the inside of the

hinge that connects the LCD screen to [he Camcorder

1] LCD street, crosed

2] Standard recording by using the LCD screer,

31 Making a recording by looking at the LCD screen from the top

4] Making a recording by looking at the LCD screen from the front

51 Making a recording with the LCD screen closed

2) _

Notices regarding the LENS

d, Do not let the LENS point toward the sun

Direct sunlight can damage the CCD

I'Charge Coupled Dewce)

A

Notices and Safety Instructions

IENGLISH_

Notices regarding electronic viewfinder

1) Do not place the camcorder so that the

vlewflndef is pointing towards the sun

Direct sunlight can damage the msrde of the

vieMinder Be careful when p[acm9 the

camcorder under sunlight or by a window

2) Do not p_ck up the camcorder by the vieMmder

3_ Unintended rotabon may cause damage to the

v_ewf_nder

I,

2 X 3 X

Notices regarding moisture condensation

1) A sudden nse _natmosphenc temperature may cause condensation to

form inside the camcorder

for example

•When you take the camcorder from cold temperature outside to

warm temperature inside during the winter

•When you take the camcorder from cool temperature ms,de to

hot temperature outside dunn 9 the summer

2) If the DEW" protection feature is acWated, leave the camcorder m a

dry warm room with the cassette compartment opened and the battery

removed

3_ If the DEW" protection feature B activated unexpectedly

and you want to ovemde _t detach then reinstall the battery pack

and lithium battery

Please make sure that the condensabon has dBappeared

completely isee page 71) ,A

IENGLISHI

Notices and Safety Instructions

Notices regarding the battery pack

"l' Make sure that the battery pack is charged before recording outaoors

,,l, To preserve battery power keep your camcorder turned off when you are not operating rt

,,l, When your camcorder is in CAMERA mode if it is left in STANDBY for more than 5 minutes without operation

it will automatically turn off to protect against unexpected battery discharge

,,l, It is a good idea to use the v,ewflnder instead of the LCD when record,ng for a long t,me because the LCD uses

more battery power

,,l, Make sure that the battery pack is fitted firmly ,nto place

Dropping the battery pack might damage it

,,l, When the battery reaches the end of its life please contact your local dealer

The battenes have to be dealt with as chem,cal waste

Notices regarding the Lithium battery

Warnln_L Keep the LITHIUM BATTERY out of the reach of children Should the battery be swallowed,

consult a doctor =mmedlately

•t, The lithium battery ma,ntams the clock function TITLE CUSTOM function and preset contents memory

even if the battery pack or AC power adapter is removed

•t, The I_thlum battery for the camcorder lasts about 8-10 months under normal operation from trme of installation

•t, When the lithium battery becomes weak or dead the date/time indicator flashes about 5 seconds when

you set the power sw,tch to CAMERA In this case replace the lithium battery with type CR2025 {see page 21/

WARNING

LITHIUM BATTER'( MUST BE

REC_'CLED OR DISPOSED

OF PROPERLY

• When the hthlumbattery

becomes weak or dead please

contact your lecaI dealer The

battenes have to be dealt w_th

as chemical waste

A

Notices and Safety Instructions

IENGLISH_

Notices with Recording or Playback by using LCD

1) The LCD monitor is manufactured by using high precrslon technology

However there may de some tiny specks I red, blue or green in colorj

that appear on the LCD monitor These specks are normal and do not

affect the recorded picture in any way

2) When using the LCD monitor outdoors m direct sunlight

It may be difficult to view If this occurs use the vlewflnder

3_ The LCD monitor's OSD ,s turned off when the LCD is praced in the

fon.,vard direction

Notices regarding the hand strap

+ It Is very important to adjust the hand strap for better recording

(see page 20J

"l' Do not insert your hand in the hand strap forcibly,

the buckle may be darqaged

Notices regarding video head cleaning

'{' To ensure normal recording and clear picture clean the video heads When playing back the pictures

if they are noisy or hardly vlsrdle the video heads may de dirty If this happens, clean the video heads with a dry

type cassette cleaner

4, Do not use a wet type cassette cleaner It may damage the video heads i see page 661

5 minutes off timer in STANDBY mode

"l' To protect against tape and head-drum wear your camcorder w,II automabcally turn off ,f ,t ,sreft ,nSTANDBY

mode without operabon for more than 5 minutes A

LENGLISH]

Notices and Safety Instructions

Safety Instructions

]//'k This symbol tsintended to alert the user to the presence of unmsulated

___ /', dangerous voltaqe within the product s enclosure that may be of sufhclent

//'/'J_'X'X, magn_tudeto consbtute a risk of fire or electric shock

1

//',, This symbol is intended to alert the user to the presence of important

'|,

/', operating and malnterlance irlstructlonsm the literatureaccompanylrlg

/Z 'k this product

To prevent electnc shock match w_de

blade of plug to wide slot and fully

insert

1 READ INSTRUCTIONS

All the safety and operating irlstructlonsshouFdbe read

before the CAMCQRDER _soperated

2 RETAIN INSTRUCTIONS

The safety and operating instructions should be retained

for future reference

3HEED WARNINGS

All warnings on the CAMCORDER and in the operatlrlg

,nstructlons should be adhered to

4 FOLLOW INSTRUCTIONS

All operating and maintenance ,nstructrons should

be followed

5CLEANING

Unplug this CANICORDER from the wall outlet before

cleaning Do not use hquld or aerosol cleaners

Use a dry cloth used for dusbng caDnets

6 ATTACHMENTS

Do not use attachments not recommended by the

CAMCQRDER product manufacturer as they may be

hazardous

,A

WATER AND MOISTURE

Do not use this CAMCORDER near water

for example neara bathtub wash bowl kttchensink laundry

tub _na wet basement near a swm_mtngpool orlake

ACCESSORIES

Do not place thin CAMCORDER on an unstable cart stand

tnpod bracket or table

The CAMCORDER may fall causing senous injury to a child

or adult and senous damage to the umt

Use only with acart, stand tnpod bracket or table

recommended by the manufacturer or sord Wltrlthe

CAMCORDER Any mounting of trle untt should follow the

manufacturer s irlstructlons and should use a mounting

accessory recommended by the manufacturer

A An apphance and cart combFnabon

should be moved w_th care

QuFckstops excessive force and uneven surfaces may

cause the appliance and cart combnatlon to overturn

PORTABLE CART WARNING

(Symbol prowded by RETACI

[ENGLISHI

Notices and Safety Instructions

9. VENTILATION:

Slots and openings inthe cabinet are provided for

ventilation to ensure retiabte operation of

the CAMCORDER and to protect it from overheating.

These openings must not be blocked or covered.

Never place your CAMCORDER on a bed, sofa, rug, or

other similar surface: on or near a radiator or heat

register.

This CAMCORDER should not be placed in a built-in

installationsuch as a bookcase or rack untess

proper ventilation is provided or the manufacturer's

instructionshave been adhered to.

10. POWER SOURCES:

The CAMCORDER should be operated only from the type

of power source indicated on the label.

If you are not sure of the type of power supply at your

home, consult your appliance dealer or local power

company.

A CAMCORDER is intended to be operated from battery

power, or other sources, refer to the operating instructions.

11.GROUNDING OR POLARIZATION:

This CAMCORDER may be equipped with either a

polarized 2-wire AC line plug (a plug having one btade

wider than the other) or a 3-wire grounding type plug,

a plug having a third (grounding) pin.

If you are unable to insert the plug fully into the outlet,

try reversing the plug, If the plug still fails to fit,

contact your electrician to replace your outlet.

Do not defeat the safety purpose of the polarized piug.

12. POWER-CORD PROTECTION:

Power-supply cords should be routed so that they are not

liketyto be walked on or pinched by items placed upon or

against them, paying particular attention to cords or plugs,

convenient receptacles, and the point where they exit from

the unit.

13. OUTDOOR ANTENNA GROUNDING:

If an outside antenna or cable system is connected to the

CAMCORDER, be sure the antenna or cable system is

grounded to provide some protection against voltage

surges and built-up static charges, Section 810 of the

National Electrical Code, ANSt/NFPA No. 70-I984,

provides informationwith respect to proper grounding of

the mast and supporting structure, grounding of the

lead-in wire and supporting structure, grounding of the

mast and supporting structure, grounding of the lead-in

wire to an antenna discharge unit, size of grounding to

conductors, location of antenna-discharge unit, connection

to grounding electrodes and requirements for the

grounding electrode.

See figure below.

A=

IENGLISHI

Notices and Safety Instructions

14. LIGHTNING:

For added protection of this CAMCORDER during a

lightning storm or when itis left unattended and unused

for long periods of time, unptug it from the wall outlet and

disconnect the antenna or cable system.

This will prevent damage to the CAMCORDER due to

lightning and power-line surges.

15. POWER LINES:

An outside antenna system should not be located in the

vicinity of overhead power lines or other electric light or

power circuits where it can fail into such power lines or

circuits.

When installingan outside antenna system, extreme care

should be taken to keep from touching such power lines

or circuits as contact with them might be fatal.

16. OVERLOADING:

Do not overload wall outlets and extension cords as this

can result in a risk of fire or electric shock.

17. OBJECTS AND LIQUIDS:

Never push objects of any kind into this CAMCORDER

through openings as they may touch dangerous voltage

points or short out a part that could result in a fire or

electric shock.

Never spill liquids of any kind onto the CAMCORDER.

Should spillage occur, unplug uni and have it checked by

a technician before use.

18. SERVICING:

Do not attempt to service this CAMCORDER yourself.

Opening or removing covers may expose you to

dangerous voltage or other hazards,

Refer all servicing to qualified service personnel.

19. DAMAGE REQUIRING SERVICE:

Unplug this CAMCORDER from the wail outtet and

refer servicing to qualified service personnel under the

following conditions:

a. When the power-supplycord or plug is damaged.

b. If any liquid has been spilled onto, or objects have

fallen into the CAMCORDER.

c. If the CAMCORDER has been exposed to rain or water.

d. If the CAMCORDER does not operate normally by

following the operating instructions, adjust only those

controls that are covered by the operating instructions.

Improper adjustment of other controls may result in

damage and will often require extensive work by a

qualified technician to restore the CAMCORDER to its

normal operation.

e. If the CAMCORDER has been dropped or the cabinet

has been damaged.

f. When the CAMCORDER exhibits a distinct change in

performance, this indicatesa need for service.

20. REPLACEMENT PARTS:

When replacement parts are required, be sure the service

technician has used replacement parts specified by the

manufacturer and having the same characteristics as the

original part.

Unauthorized substitutions may result in fire,

electric shock or other hazards.

21. SAFETY CHECK:

Upon completion of any service or repairs to this

CAMCORDER, ask the service technician to perform

safety checks to determine that the CAMCORDER is

in safe operating order.

A

[ENGLISHI

Notices and Safety Instructions

NOTE TO CATV SYSTEM INSTALLER:

This reminder is provided to caIIthe CATV system installer's

attention to Article 820-40 of the NEC that provides guidelines

for proper grounding and, in particular, specifies that the

cable ground shall he connected to the grounding system of

the building as cIose to the point of cable entry as practical.

USER INSTALLER CAUTION:

Your authority to operate this FCC certified equipment could

be voided if you make changes or modifications not expressly

approved by this party responsible for compliance to part 15

FCC rules.

A

IENGLISHI

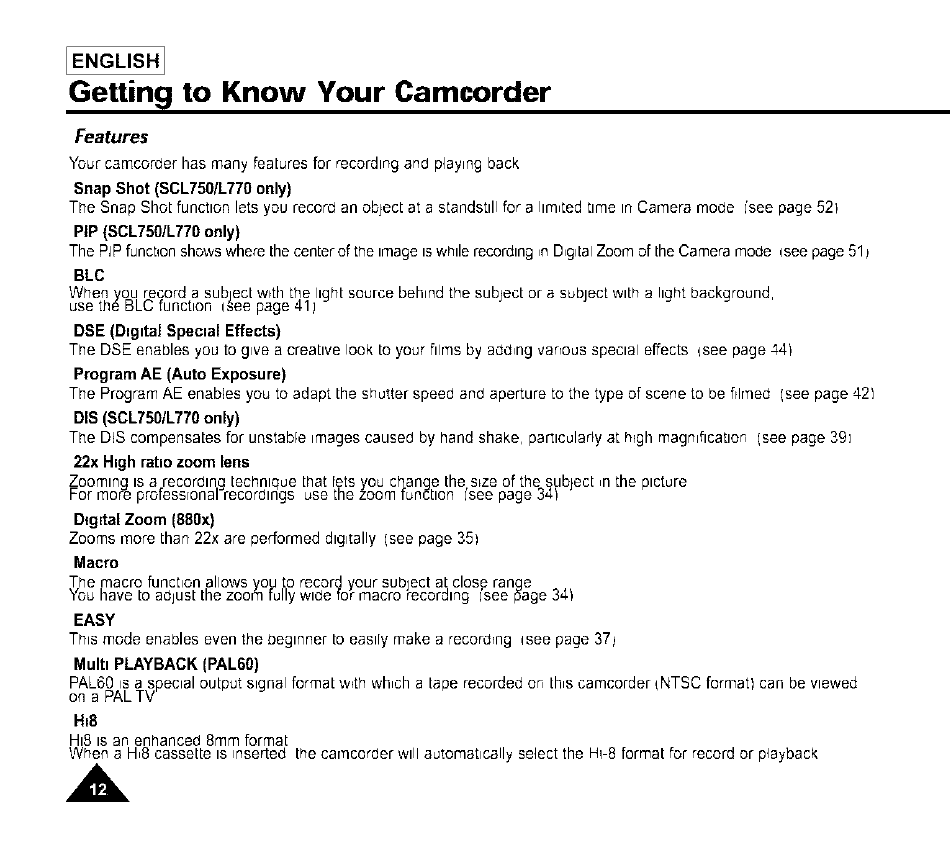

Getting to Know Your Camcorder

Features

Your camcorder has many features for recording and playing back

Snap Shot (SCL750/L770 only)

The Snap Shot function lets you record an object at a standst=ll for a I=m,tedt=me =nCamera mode I'see page 521

PIP (SCL750/L770 only)

The PIP function shows where thecenter of the image is while recording ,nD,gital Zoom of the Camera mode qsee page 51

BLC

When you record a sublect w_ththe light source behind the subject or a subject with a light background,

use the BLC function i=ee page 41j

DSE (Digital Special Effects)

The DSE enables you to give a creative look to your films by add,ng varrous special effects {see page 441

Program AE (Auto Exposure)

The Program AE enabEes you to adapt the shutter speed and aperture to the type of scene to be filmed (see page 421

DIS (SOL758/L770 only)

The DtS compensates for unstable images caused by hand shake, particularly at hrgh magnification (see page 39]

22x High ratio zoom lens

Zooming Is a recording technique that lets you chanqe the s_ze of the subject ,nthe picture

For more professronal recordings use the zoom function i'see page 341

Digital Zoom (880x)

Zooms more than 22x are performed digitally (see page 35)

Macro

The macro function allows you to record your sublect at close ranqe

You have to adjust the zoor'n fully wide for macro recording I'see 5age 341

EASY

Th_s mode enables even the beginner to easily make a recordrng Isee page 37_

Multi PLAYBACK (PAL60)

PAL60 is a special output signal format w_thwh,ch a tape recorded or, th,s camcorder {NTSC formatl can be wewed

on a PAL TV

H=8

HI8 B an enhanced 8ram format

When a H_8 cassette B inserted the car'qcorder will automatically select the H_-8format for record or playback

A

Getting to Know Your Camcorder

Front View

IENGLISH]

3 REC SEARCH - (REW),

2 PLAY/STILL (LIGHT)

4 REC SEARCH '+ (FF)

5 DATE/TIME (STOP)

6 TAPE EJECT

13 VIDEO LIGHT

I LENS

9 Remote Sensor

8 MIC

7 EVF

10 LCD

I1 CUSTOM

12 EASY

Lens (see page 72)

2 PLAY/STILL (LIGHT) (see page 58)

PLAY.'STILLworks m PLAYER mode

LIGHT worksin CAMERA mode

3 REC SEARCH - (nEW)

REC SEARCH '- works ,1 STANDBY mode Isee page 28_

REW works in PLAYER mode isee page 591

4 REC SEARCH +(FF)

REC SEARCH .+ works =nSTANDBY mode Isee page 28_

FF works m PLAYER mode Isee page 59_

5DATE/TIME (STOP)

DATE TIME works .7 CAMERA mode

isee page 471

STOP works m PLAYER mode (see page 581

6 TAPE EJECT (see page 26)

Use when ejecting the tape

7EVF (Electronic Vmwflnder)

8 MIC

MIC works m CAMERA mode

9 Remote Sensor (SCL71O/L75O/L770 only)

10 LCD (see page 29)

11 CUSTOM

CUSTOM works _nCAMERA mode

12 EASY

EASY works in CAMERA mode

13 VIDEO LIGHT (SCL7OO/L75O/L770 only) A

IENGLISHI

Getting to Know Your Camcorder

Side View

24 BLC

23 FADE

20 SPEAKER

22 LCD Open--

21 Ltth=umBattery

MENU ON/OFF

15 ENTER (MF)

16 UP/DOWN Dtal (VOLUME)

17 S-VIDEO out

18 PAE

19 DSE

14 MENU ON/OFF (see page 30)

MENU ON/OFF works in CAMERA and

PLAYER mode

15 ENTER (MF) (see page 30)

ENTER works in MENU mode

kIF works in CAMERA mode (see page 40]

16 UP/DOWN dial (VOLUME)

UP/DOWN dial works in MENU mode (see page 30]

VOLUME works tn PLAYER mode qsee page 60_

17 S-VIDEO out

18 PROGRAM AE (see page 42)

PROGRAM AE (Auto Exposurel works in

CAMERA mode

19 DSE (see page 44)

DSE works ,n CAr_4ERAand PLAYER mode

20 SPEAKER (see page 60)

Speaker works rn PLAYER mode

2t Ltthtum Battery(seepage21)

22 LCD open

23 FADE (see page 50)

FADE works in CAMERA mode

24 BLC (see page 41)

BLC works tn CAMERA mode

Getting to Know Your Camcorder

Rear View

36 BATTERY EJECT

25 ZOOM

26 CASSETTE

Compa_ment

IENGLISH_

37

28 AUDIONIDEO Out

32 START/STOF

35 Battery Pack

38 Recharging Ind=cator

34 DC Jack

31 POWER Sw=tch

$?__ 39 USB JACK (SCL770 only)

•'_'-- 33 External MIC

It-, (SCL750/L770 only)

LENS Cap

30 Hand Strap

25 ZOOM (see page 34)

26 Cassette Compartment

27 Hooks for Shoulder Strap (see page 21)

28 AUDIONIDEO out (see page 57)

29 LENS Cap

30 Hand Strap (see page 20)

31 POWER Switch (see page 22)

-CAMERA SeLectto record

- OFF Select to turn off the camcorder

- PLAYER Select to playback

32 START/STOP (see page 28}

START/STOP works in CAMERA mode

33 External MIC (SCL750/L770 only) (see page 72)

34 DC Jack (see page 22)

35 Battery Pack Compartment (see page 23)

36 BATTERY EJECT

37 SNAP SHOT/D ZOOM

SNAP SHOT works in CAMERA mode

(SCL750/L770 only see page 52)

D ZOOM works in CAMERA mode

(SCL700/L710 only see page 36j

38 Recharging Indicator (see page 23)

39 USB Jack (SCL770 only) (see page 65) A

IENGLISHI

Getting to Know Your Camcorder

OSD (On Screen Display)

•t, You can turn the OSD on/off by setting the Display menu on/off

•t, The TITLE, DATE/TIME, EASY and CUSTOM functions can be operaLed even after the OSD is Lurnedoff

•t, The OSD is displayed _nthe vtewfinder and the LCD monitor

a Zoom position (see page 34)

Indicates zoom postL_on

b DIS (SCL7501L770 only)

(see page 39)

Indtcates DIS ts activated

c Battery level (see page 25)

Indicates the power left in the battery

I' I

d Manual Focus (see page 40)

Indtcates manual focus rs on

AuLo Focus Is noL displayed

e BLC (see page 41)

Indtcates BLC ts acttvated

f Program AE (see page 42)

Indicates Program AE mode ,s

activated I _ _ ,_,_,_- '._

g Self record waiting timer

(SCL710/L7501L770 only) (see page 19)

Indicates 10 second timer

h Self record recording timer

(SCL710/L750fL770 only) (see page 19)

1'30seconds or ENDI

JDate (see page 46)

Indtcates the dale of the recording

A

OSD In CAMERA mode

bat rsq

OSD m PLAYER mode

rq

°

IENGLISH_

Getting to Know Your Camcorder

OSD (On Screen Display)

J T=me(see page 46)

Indicates the time you are recordFn9

k T=tle see page 48

ndlcates the recorded tlte you have set

It _ssupenmposed on the scene

ISelf dmgnosls (see page 68)

Displays different diagnostic indicators concerning the camcorder s operation

rn DSE (D=g=talSpecml Effect) (see page 44)

Indicates the DSE mode _sactwated

Theoperatron modesare GHOST STROBE SEPIA B&W NEG MIRROR ART MOSArC 169(WIDE_andCINEMA

n Wh=te Balance mode (see page 53)

Indicates the White Balance mode _sactivated

The White Balance modes are AUTO INDOOR( - - i and QLITDQQR(-÷- I

o Tape counter

Indicates amount of the tape used

13 Operation mode

Indicates the operation mode is actrvated

The operation modes are STBY REC •STOP PLAY( Ib'- i FFI I_- )REW( 4< ; EJECT

q HI8 see page 58)

Indicates you are using HI8 tape when recordng or p aylrlg back

rDEW L6J ) condensation (see page 71)

[_,OTlltOrSthe moisture condensation

s Digital zoom (see page 35

In,cares d_g_talzoom _sactwated

tSnap Shot (see pa_e 52

Indicates the time lett during Srlap Shot Recording

u Zero return (SCL710/L75O/L770 only) (see page 59)

Ind,cates that the zero return _sactivated

v PB DSE

Shows that the PB DSE mode _sactrve

w VOLUME

x EASY&CUSTOM

Shows when the easy or custom mode rsactive

y LIGHT (SCL7OO/L75O/L770only)

Shows when the Dght _sswitched on

z Remocon ( _1"_ OFF) (SCL71OlL75O/L770 only)

Indicates the remocorl off mode is activated

[ENGLISH]

Getting to Know Your Camcorder

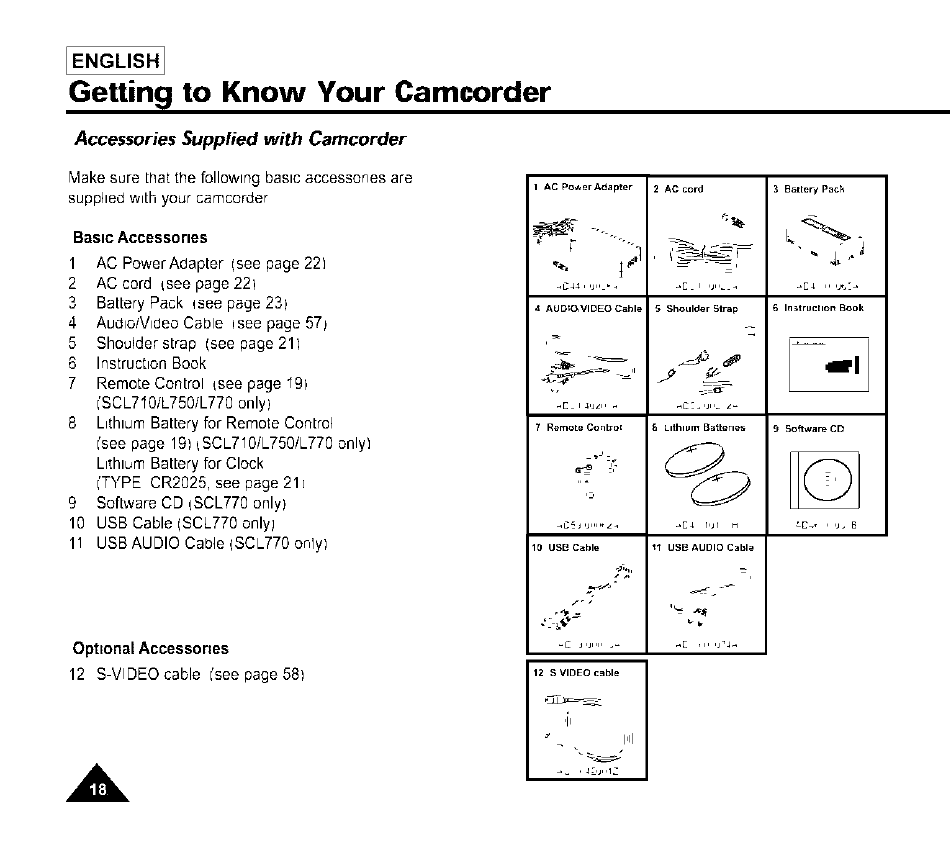

Accessories Supplied with Camcorder

"Vlakesure Lhat the followtng bastc accessories are

supphed with your camcorder

Basic Accessories

1 AC PowerAdapter (see page 221

2 AC cord {see page 221

3 Battery Pack isee page 23)

4 Audio/Video Cable qsee page 57_

5 Shoulder strap (see page 21)

6 Instruction Book

7Remote Control {see page "91

['SCL7"fO/L750/L770 only)

8 Dthtum Battery for Remote Control

['see page 19){SCL710/L75O/L770 onlyl

Dthtum BatLery for Clock

['TYPE CR2025, see page 21]

g Software CD tSCL770 only)

10 USB Cable (SCL770 onlyj

11 USB AUDIO Cable (SCL770 only)

Optional Accessories

12 S-VIDEO cable ['see page 58)

A

IAC PowerAdapter

--.

t_ I

_C 4_ ,U,, _

4 AU DIO,VIDEO C_ble

7Remote ConL_o_

_C_ j u,,,,* z_

10 USB C_ble

-C J u,,,, _-

12 SVIDEO c_ble

I,tl

2 AC c_rd

5 Shoulder Strap

z

S

_c;_ u,, Z-

Ldhlum Batteries

_E4 lul H

_USB AUDIO Cable

ME ,,, ,j_4_

B_tLery Pac_

InstrucLl_n Book

9Software CD

U©

Getting to Know Your Camcorder

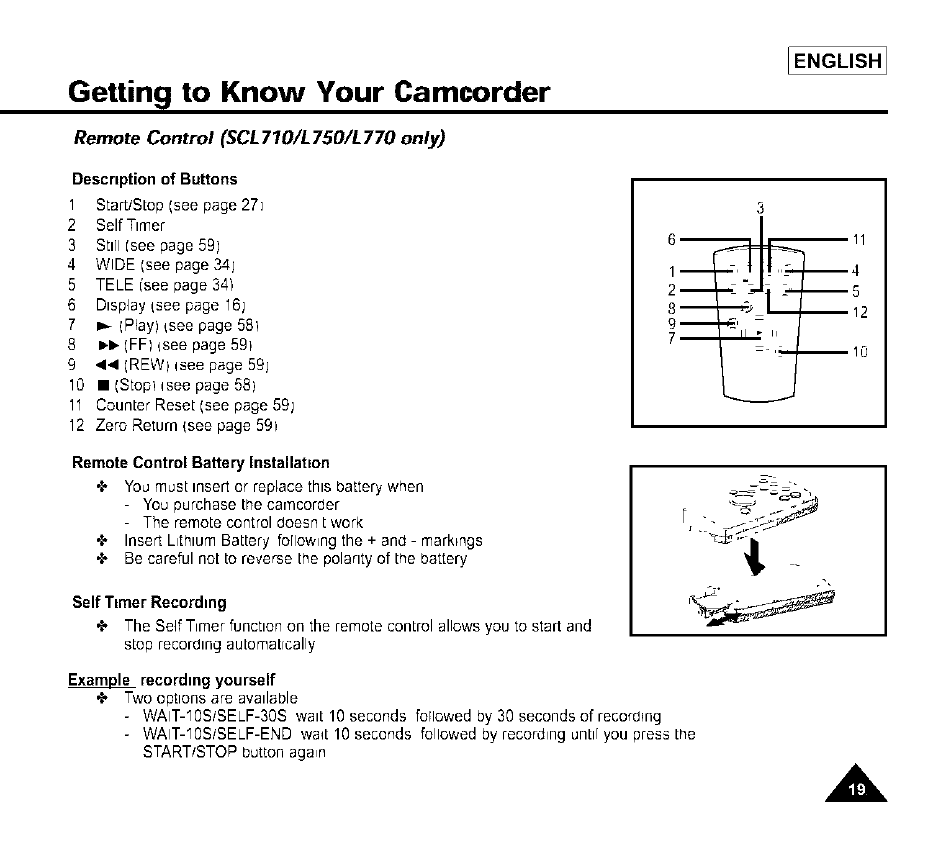

Remote Control (SCL 710/L 750/L 770 only)

IENGLISHJ

Description of Buttons

1 Start/Stop (see page 27]

2 Self Timer

3 Still Isee page 59)

4 WIDE (see page 34;

5 TELE ['see page 341

6 Display tsee page 16;

7 _.- {Play) {see page 581

8 _-I_-(FF] {see page 591

9 .ql< (REW) isee page 59;

10 •(Stopl isee page 58)

11 Counter Reset (see page 59;

12 Zero Return {see page 591

Remote Control Battery Installat=on

'_ You must insert or replace this battery when

- You purchase the camcorder

- The remote control doesnt work

,_ Insert Lithium Battery forlowlng the + and - markings

,._ Be careful not to reverse the polarity of the battery

Self Timer Recording

•t, The Self Timer function on the remote control allows you to start and

stop recording automatrcally

E_ recording yourself

Two options are available

- WAIT-IOS/SELF-30S wait 10 seconds followed by 30 seconds of recording

- WAIT-IOS/SELF-END wa_t 10 seconds followed by recording until you press the

START/STOP button aga,n

3

6--! 11

1 -...-]

21

8--

9--

7-- --10

IENGLISHI

Preparing

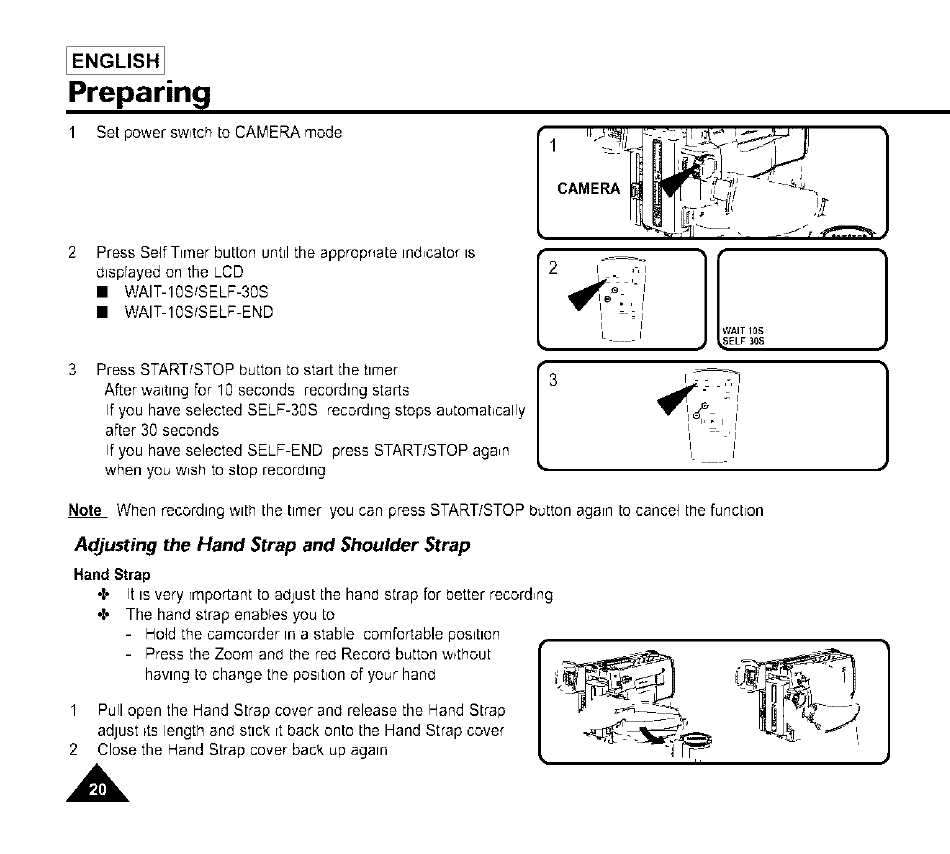

1 Set power sw_tch to CAMERA mode

2 Press Self Timer button until the appropriate tnd,catorts

disprayed on the LCD

• WAIT-10S/SELF-30S

• WAIT-10S/SELF-END

'

CAMERA _r -J_{r -- --_--, /

/

IIL i WAIT 10N

ELF 30S

3 Press START/STOP button to start the ttmer •

After waiting for 10 seconds recording starts [ 3

If you have selected SELF-30S recordmg stops automabcally

after 30 seconds

If you have selected SELF-END press START/STOP again

when you w_sh to stop recording

i ' i

Ii. jl }

Note When recordmg wt[h the bmer you can press START/STOP button agarn to cancel the funcbon

AdJusting the Hand Strap and Shoulder Strap

Hand Strap

•t, It ts very rmportantto adJust the hand strap for better recording

•t, The hand strap enables you to

- Hold the camcorder tn a stable comfortable posibon

- Press the Zoom and [he red Record button w_thout

havtng to change the posibon of your hand

1 Pull open the Hand Strap cover and release the Hand Strap

adjust _tslength and sttck rt back onto the Hand Strap cover

2 Close the Hand Strap cover back up agatn

A

IENGLISH_

Preparing

Shoulder Strap

+ The Shoulder Strap allows you to carry your camcorder withcomplete safety

1 Insert each end of the strap into the hooks on the cai'ncorder

2 Put the end of each strap through the buckle adjust the length

of the strap then pull it tight m the buckle

Lithium Battery Installation

"I' The lithium battery maintains the clock function title and preset contents of the memory even if the battery pack or

AC power adapter is removed

,,I, The lithium battery for the camcorder lasts about 8-10 months under normal operation from the time of installation

,,I, When the khlum battery becomes weak or dead the date/time indicator flashes for about 5 seconds when you set

the power switch to CAMERA

When this occurs replace the Iith,um battery with type CR2025

1 Take out the holder from the lithium battery compartment

2 Insert the + srde of the hthlum battery toward the bottom

of the hoFder

3 Remsert the holder into the lithium battery compartment

Note If the holder is inserted in the wrong direction

it wdl not fit correctly

Warning Keep the LITHIUM BATTERY out of the reach of

the children

Should the battery be swallowed, consult a doctor

immediately ,A

LENGLISHI

Preparing

Connecting the Power Source

4" There are b.'_oways to connect powersource

UsingtheAC PowerAdapter used for indoor recording

Using the Battery Pack used for outdoor recording

To use the AC Power Adapter

1 Connect the AC Power Adapter [o the AC cord

2 Connect the AC cord to a wall socket

Note The plug and ;,.,all socket type may be d_fferent depending on regional conditions

3 Connect the other end of the DC cable to DC jack of the ca['ncorder

4 To set the camcorder to the CAMERA mode

a Hold down the tab of [he power switch and push the switch to CAMERA mode

b Make sure that the Lens Cap is open

c Open [he LCD monitor and make sure that the image appears _n the LCD monitor

The LCD monitor is turned on automatically when it's opened more than 30 degrees

Note If the adapter is used next to a TV or the camcorder

_tmay cause the TV or camcorder to emit noise

,_1ove the adapter away from the TV camcorder or the antenna cable

Preparing

To use the Battery Pack

How long wtll the battery last for recording9

,,l, Dependson how often zoom tsused m recording Prepareas many batterypacks as posstble

IENGLISH_

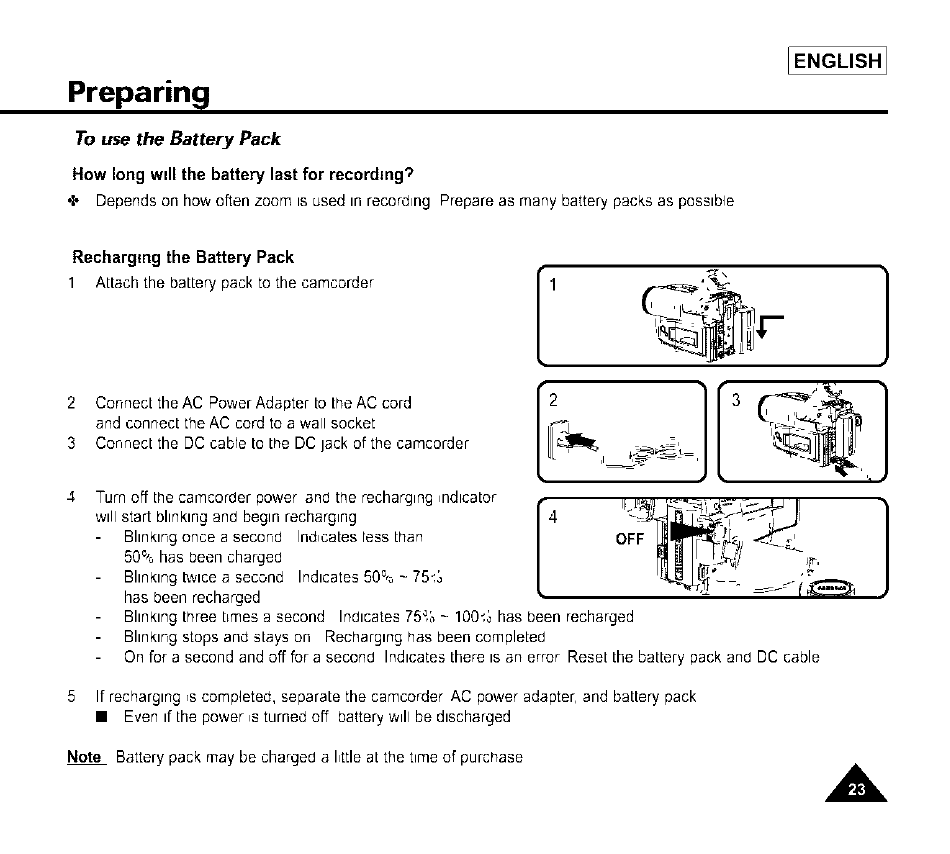

Recharging the Battery Pack

1 Attach the batterypack to the camcorder

', lilr

2 Connect the AC Power Adapter to [he AC cord

and connect the AC cord to awall socket

3 Connect the DC cadre to the DC Jack of the camcorder

Turn off the car'ncorder power and the recharging _ndlcator

will start blinking and begin recharging

Bhnkmg once a second Indicates tess than

50% has been charged

Bhnkmg b.vtcea second Indtcates 50% -75_:_

has been recharged

41

Bhnkmg three hmes a second Indtcates 75% - 100_:_has been recharged

Bhnkmg stops and stays on Recharging has been completed

On for a second and off for a second Indtcates there tsan error Reset the battery pack and DC cable

5 If recharging rscompleted, separate the camcorder AC power adapter, and battery pack

•Even d the power _sturned off battery will be dtscharged

Note Battery pack may be charged aI,ttle at the time of purchase A

[ENGLISHI

Preparing

Using the Battery Pack

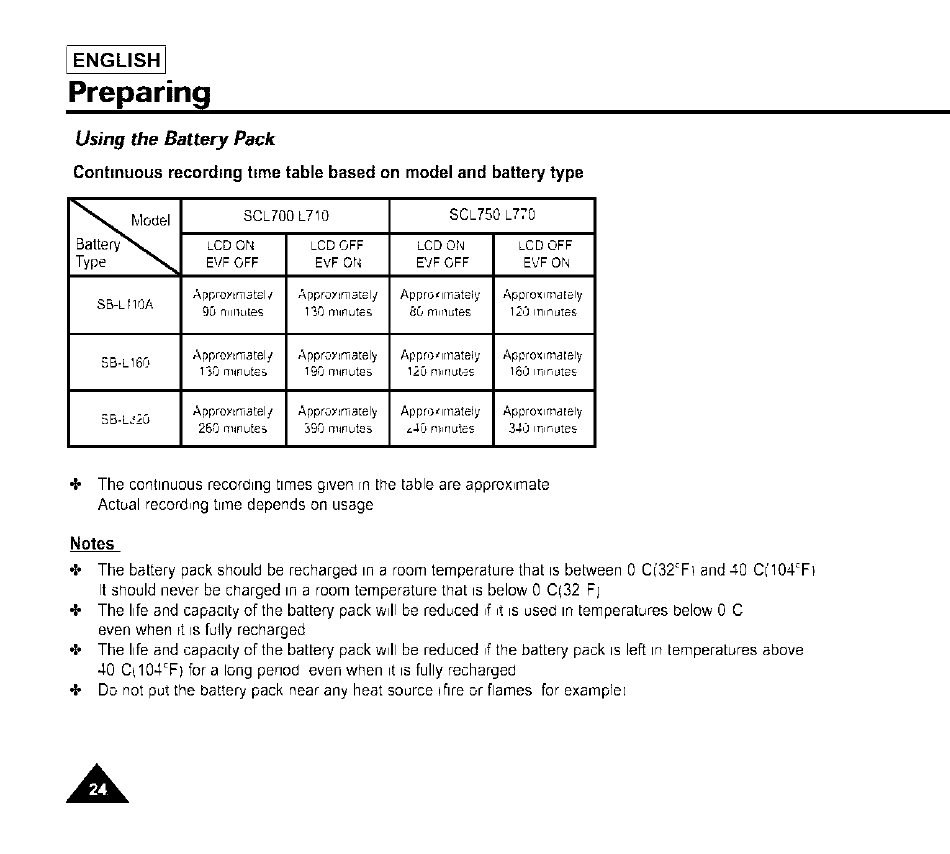

Continuous recording time table based on model and battery type

Model SCL700 L710 SCL750 L770

Battery LCD ON LCD OFF LCD ON LCD OFF

E/IF OFF EVF Or4 EVF OFF EVF ON

Appro>'kmatel7 Apprc>'kmatel/ Apprl3zHIiateFy Appro×lma[ely

SB-Lfl0A 90 r=III}L_[_S 130 m_nute_ 80 minutes 120 minutes

SB-L16:_ Approykmatel/ ApprcYkmately Approzlmately Appro×lmacely

130 m_nute_ 190 m_nutes 120 mlrlu[es 160 minutes

SB-Ld2O Approykmatel/ ApprcYkmately ApprozHIiately Appro×_ma[ely

260 m_nutes 390 m_nutes _.4:=rtllrlutes 34,3 minutes

•1, The continuous recording times given rnthe table are approximate

Actual recording brae depends on usage

Notes

•1, The battery pack should be recharged in a room temperature that is between 0 CI'32_FI and 40 CI'lO4_FI

It should never be charged in a room temperature that is below 0 C(32 FI

•1, The Ide and capacity of tile battery pack will be reduced _f_tis used in temperatures below 0 C

even when rt is fully recharged

•1, The Ide and capacity of the battery pack will be reduced _fthe battery pack is left in temperatures above

40 C_104CF) for a long period even when it is fully recharged

•1, Do not put the battery pack near any heat source Ifire or flames for exampre]

[ENGLISHI

Preparing

Battery Level Display

•t- The battery tevel display indicates the amount of power remaining

in the battery pack.

1. Fully charged

2. 10+40%consumed

3. 40+60% consumed

4. 60+80% consumed

(preparea charged one)

5. 80+95% consumed

(changethe battery)

6. 100%consumed

(camcorderwifl turn offsoon, change the battery as soon as possible)

_ 1

JI

_ 2

3

!

_°_+'_ 5

t

\,6

•t- Please refer to the table on page 24 for approximate continuous recording times.

•t- The recording time is affected by environmental temperature and conditions.

The recording time becomes very short in a cold environment. The continuous recording time in the operating

instructions is measured under the condiUon of using a fully charged battery pack at 25°C(77°F).

As the environmental temperature and conditions may be different when you actually use the camcordeh

the remaining battery time may not be the same as the approximate continuous recording times given

in these instructions.

Tips for Battery Identification.

A charge mark is provided onthe batterypack to helpyou rememberwhether it

has been chargedor not.

Twocolors are provided(red and black)-you may choosewhich one indicatescharged

and which indicates discharged.

Note: The charge mark does not affect the battery's charge status.

A

[ENGLISHI

Preparing

Inserting and Ejecting a Cassette

4, There are several cassette types depending on

Color system used

Recording/playback ttme

Hr8

Insertmg and Ejecting a Cassette

4" Check to see tf the battery pack ts _n place or the AC adapter _s

connected

t Press the EJECT button

The compartment opens automattcally

Insert the cassette ;',,tth the transparent wtndow facing outward

and the protectton tab toward the top

2 Press the PUSH mark untg the compartment chcks mto place

Note When you have recorded a cassette that you wish to keep

you can protect tt from betng acctdentally erased

aRecording Imposstble (Protecbon)

Push the red tab on the cassette to cover up the opening

a

, []

,A.

Recording poss=ble

If you no longer wish to keep the recordtng on the cassette

push the red tab back so that rt no longer covers up the opening

b

, []

IENGLISH_

Basic Recording

Making Your First Recording

Please make these preparations before recording

•Did you connect a power source?

(Battery Pack or AC Power Adapterl

• Did you set the power switch to CAMERA positron? /

CAMERA Lq_ _ f_,.

LS.

• Dtd you insert a cassette? isee page 26_

• Open the LCD monitor and make sure that STANDBY is displayed in the OSD

(if the red tab of the cassette is opened, STANDBY wrll not be displayed]

• Did you open the LENS CAP?

• Make sure the image you want to record appears m the LCD monttor

• Make sure the battery level mdtcates that there B enough remaining power for recording {see page 251

• We recommend that beginners who are using the camcorder for the first ttme

swttch the EASY mode on (see page 37]

To start recording press the red START/STOP button

Recording starts and REC should be dBplayed on the LCD

A

IENGLISHI

Basic Recording

b. Tostop recording, pressthe red START/STOPbutton

again.

When Recordingstops, STANDBYshould bedisplayed

on the LCD. [

Whena cassetteis loadedand the camcorderis left in STANDBYmode for over 5 minuteswithout being used,

itwill turn off automatically,To use it again, pushthe red START/STOP buttonor set the power switch to OFF and

then backto CAMERA,ThisAuto PowerOff featureis designedto save batterypower and to protect the Head Drum

and tape.

RECSEARCH

,e Youcan viewa recorded picturewith the REC SEARCH 8, O function

in STANDBYmode. REC SEARCH G allows youto reverse and

RECSEARCH _ allowsyou to forward,for as long as you keep pressing. REC SEARCH 8,

_, If you press the REC SEARCH O button briefly in STANDBY mode,

your camcorder will play back in reverse for 3 seconds and return to

the original position automatically. SEARCH _(

,A

Basic Recording

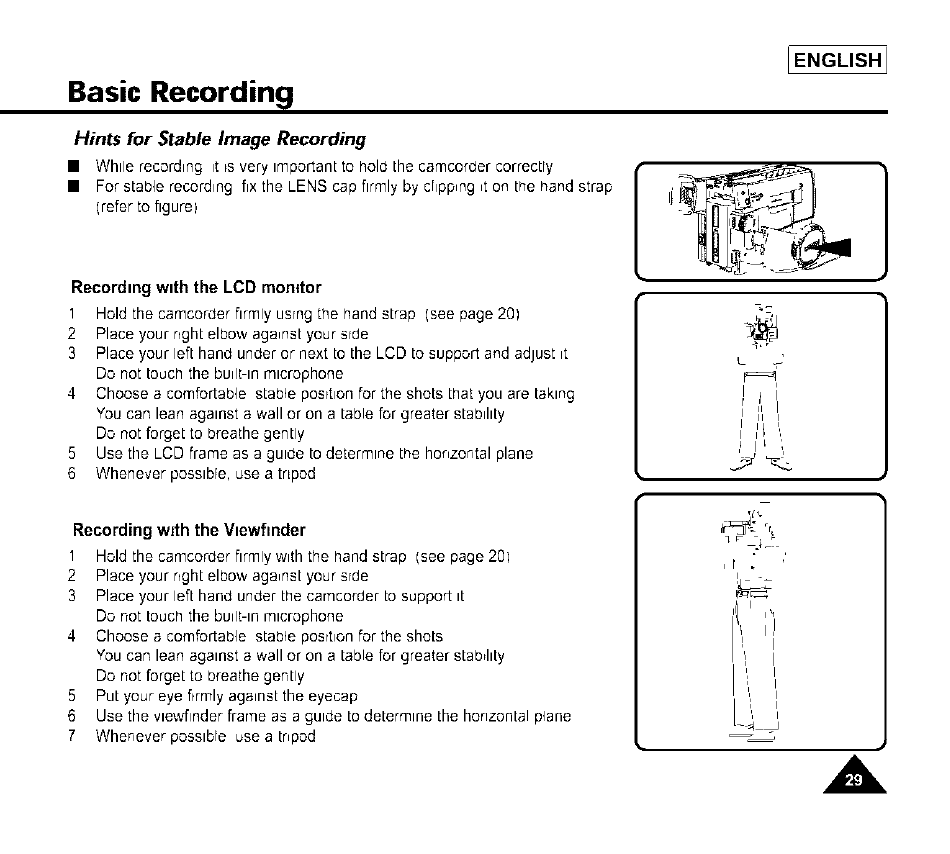

Hints for Stable Image Recording

•While recording _t_svery important to hold the camcorder correctry

• For stable recording fix the LENS cap firmly by chpp_ng _ton the hand strap

(refer to figure)

Recording with the LCD monitor

1 Hold the camcorder firmly usrng the hand strap (see page 201

2 Place your nght elbo;v against your srde

3 Place your left hand under or next to the LCD to support and adjust it

Do not touch the buflt-tn microphone

4 Choose a comfortable stable posrtlon for the shots that you are taking

You can lean against a wall or on a table for greater stability

Do not forget to breathe gently

5 Use the LCD frame as a guide to determine the horizontal plane

6 Whenever posstble, use a tripod

Recording with the Vmwfinder

1 Hold the camcorder firmly with the hand strap (see page 20)

2 Place your nght elbow against your srde

3 Place your left hand under the carncorder to support tt

Do not touch the bufl[-tn mtcrophone

4 Choose acomfortable stable posrbon for the shots

You can lean against a wall or on a table for greater stabdlty

Do not forget to breathe gently

5 Put your eye frrmly against the eyecap

6 Use the we_,drnder frame as a gutde to determtne the honzontal plane

7 Whenever possible use a tnpod

IENGLISH_

%-

I i

IiII ',

ir•

ih

I,I

I

I

I

I

i

A

[ENGLISHI

Basic Recording

AdJusting the LCD

+ Yourcamcorder is equippedwith a 2 Sinch color LiquidCrystal D_splay{LCD;screen which allowsyou to wew

recording or playback directly

Depending on the conditions _nwhich you are using the camcorder undoors or outdoors for examplel,

you can adjust

•Brightness

• Color

1 Make sure that the battery pack is in prace

2 Set the power switch to CAMERA mode [see page 22_

3 Open the LCD monitor then the LCD will turn on

4 Press the MENU ON/OFF button the MENU list will be dlsprayed

5 Turn the UP/DOWN dial to LCD ADJUST

6 Press ENTER

• The LCDADJUSTMENUw41be displayed

7 Turn the UP/DOWN dial to adjust the LCD brightness

8 Press ENTER

• The cursor will move to the next item

A

Basic Recording

9 Turn the UP/DOWN dial to adjust the LCD color setting

10 Press ENTER

• For further adjustment repeat steps 7, 8, 9

1I Press the MENU ON/OFF button to end the settm9

Notes • If you don't press a button within 30 seconds, the settm 9 w_lldisappear

• The MENU ON/OFF function wdl not operate _nEASY mode

IENGLISH_

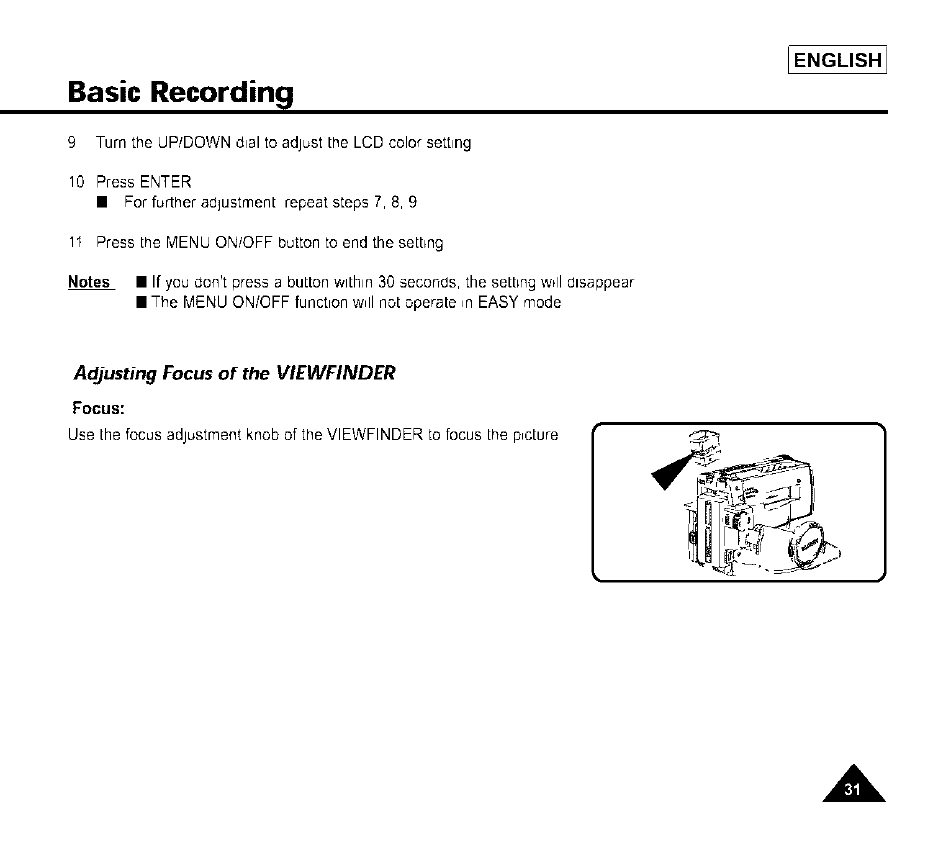

Adjusting Focus of the VIEWFINDER

Focus:

Use thefocusadjustment knob of the VIEWFINDERto focus thep_cture

A

[ENGLISHI

Basic Recordin 9

Playing back a tape on the LCD

,,t, You can monitor the playback picture on the LCD mon,tor

•t, Make sure that the battery pack Is In place

Hold down [rle tab of the power switch and push the switch to

PLAYER mode

2 Insert the tape you have just recorded

3 Open the LCD monitor and make sure that STOP is displayed on the OSD

Adjust the angle of the LOB monitor and set the brightness or the color

,f necessary

4 Press the _'<qREWI button to rewind the tape to the beginning

• To stop REWIND press the •tSTOPI button

• Camcorder stops automatically after rewm@ng

5 Press the IHI['PLAY/STILLJ button to start playback

• You can see the video you recorded or, the LCD

• To stop the PLAY operation press the • {STOPj button

Note You can also monitor the picture on a TV screen

after connecting the camcorder to a TV orVCR {see page 571

1',I"_L_L._t. _

PLAYER -_i_

2,',--"_ :_ r_'_-_ ,"

f,,

,

[ENGLISHI

Basic Recording

Adjusting the LCD during PLAY

The LCD adjustmentmethod in PLAYERmode is identicalto step number4 of page 30, exceptthe power switchmust

beset to PLAYER.

Controlling the Sound from the Speaker

•t, When you use the LCD monitor while playing back,

you can hear sound from the Speaker.

•t, Volume of the Speaker is controlled by the UP/DOWN dial tab

on the camcorder.

•t, if you close the LCD monitor, the LCD monitor and Speaker are

turned off.

•t, if the speaker does not work properly, check the following:

• is the LCD monitor closed?

• Is the volume adjusted to a low level?

• Is the speaker off? (see page 60)

Notes: • Lower the volume if vibration from the built-in speaker

causes screen disturbance.

• Volume display will automatically disappear 2 seconds

after adjusting,

Viewing a Still Picture

• Press INI (PLAY/STILL)buttonduring playback.

• To resumeplayback, press the IHI (PLAY/STILL)button

again,

Picture Search

• Keep pressing I,,_-(FF) or <_I(REW) button during playback.

• To resume normal playback, release the button.

PLAY/STILL

REW FF

A

[ENGLISHI

Advanced Recording

Zooming In and Out

'_ Zoom works _n CAMERA mode onry

÷ Zooming is a recording technique that lets you change the stze of the subject tn the p_cture For more professtonal

Iooktng recordings do not use the zoom functton too often

'_ You can also choose from two zoom speeds to suit d_fferent needs

•Gradual zoom 19-12 seconds from TELE/WlDE to WlDE/TELEI

• Htgh-Speed zoom 1'3-6 seconds from TELE/WlDE to WlDE/TELE)

'_ rise these features for d_fferent shots, please note that overuse of the zoom feature can lead to unprofessional

Iooktng results and a reduchon of battery pack usage t_r'qe

Move the zoom lever a IlttEefor a gradual zoom

move it further for a hFgh-speedzoom

Your zooming is monitored on the OSD

w T

2 T {Telephoto) srde

Subject appears closer

3 W (Wtde anglel stale

Subject appears further away

Note MACRO

If you cannot get a sharp focus in telephoto zoom move the lever to the W" stde unN the focus is sharp

You can record a subject that _sat least 1 mr'q away from the lens surface tn the wide angle posttion

IENGLISH]

Advanced Recording

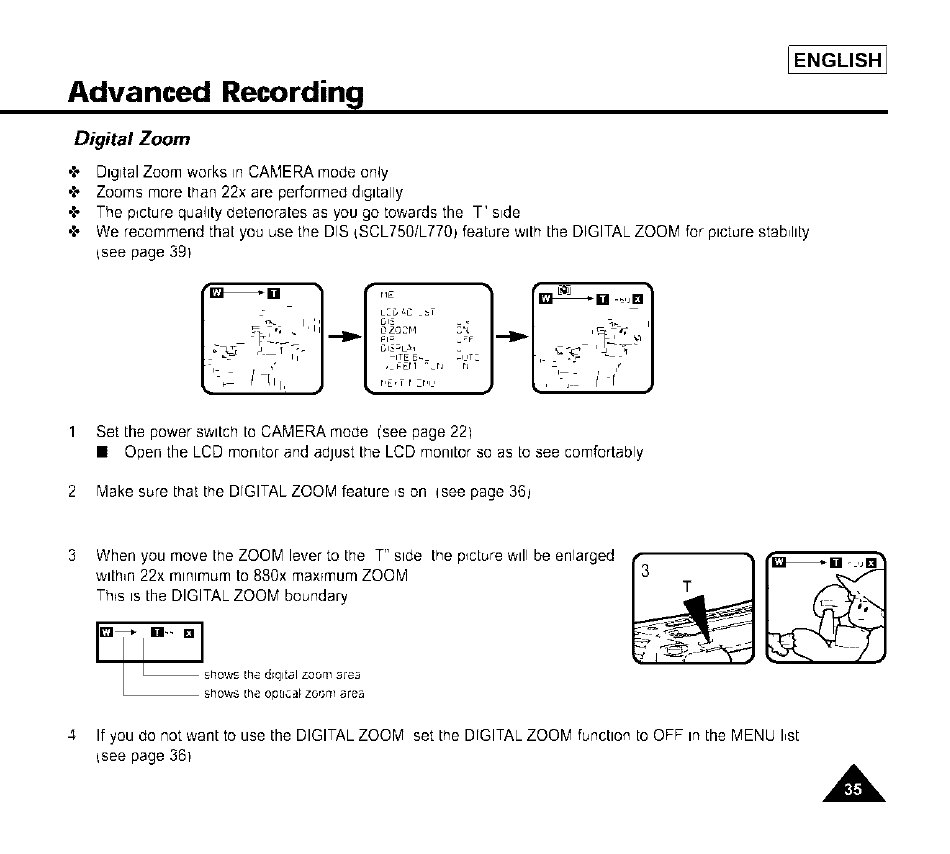

Digital Zoom

+ Digital Zoom works in CAMERA mode on4y

+ Zooms more than 22x are performed d_gltally

+ The p_cture quahty detenorates as you go towards the T' s_de

+ We recommend that you use the DIS {SCL750/L770_ feature with the DIGITAL ZOOM for picture stability

{see page 391

L:[5 _C ZT

[51_" •

OZO2H _,'_

,gErl -rl

r,ff,T r:r,,,

Set the power switch to CAMERA mode i'see page 221

• Open the LCD monitor and adjust trle LCD monitor so as to see comfortably

2 "Vlake sure that the DrGITAL ZOOM feature _son qsee page 36_

When you move the ZOOM lever to trle T" side the p_cture will be enlarged

;,.qtn_n22x minimum to 880x maxrmum ZOOM

Th_s is the DIGITAL ZOOM boundary

[]_ O'" [] SHOWS [he drqltal zoom area

_shows [he optical zoQm area

4 If youdo not want to use the DIGITALZOOM settheDrGITALZOOM functlorlto OFF in the MENU hst

_seepage 361 A

[ENGLISHI

Advanced Recording

Setting the DIGITAL ZOOM ON/OFF (SCL750/L770 only)

'{' The DIGITALZOOMfeature tsexplainedon page 35

1 Set the power sw_tch to CAMERA mode (see page 22]

2 Press the MENU ON/OFF button

•The MENU hst wtll appear

3Turn the UP/DOWN dial to D ZOOM

4 Press ENTER

• The DIGITALZOOMsetting wrllchange

5 Press the MENU ON/OFF button to end setttng

Settmg the DIGITAL ZOOM ON/OFF (SCL700/L710 only)

1 Set the power switch to CAMERA mode

2 Press D ZOOM ON/OFF button

• The DIGITAL ZOOM tndlcators wt[I be displayed or the screen,

and DIGITAL ZOOM functton wtll operate

3 Todeacttvate LheDIGITAL ZOOM functron press the D ZOOM button agatn

• The DIGITAL ZOOM tnd_catorsdisappear from the screen

Note The D ZOOM ON/OFF funcbon ;v_ll not operate tn EASY mode

L:D Z_DJJ$"

[;Zi :'1

- ._E_L'I H E_L ,

,L_ErI_:J_

r i_n,,

L_C_ZJ C:F

HI_E E_ L _l,_

HI_E _ L _,,_

_j _4 I i -_

IENGLISH_

Advanced Recording

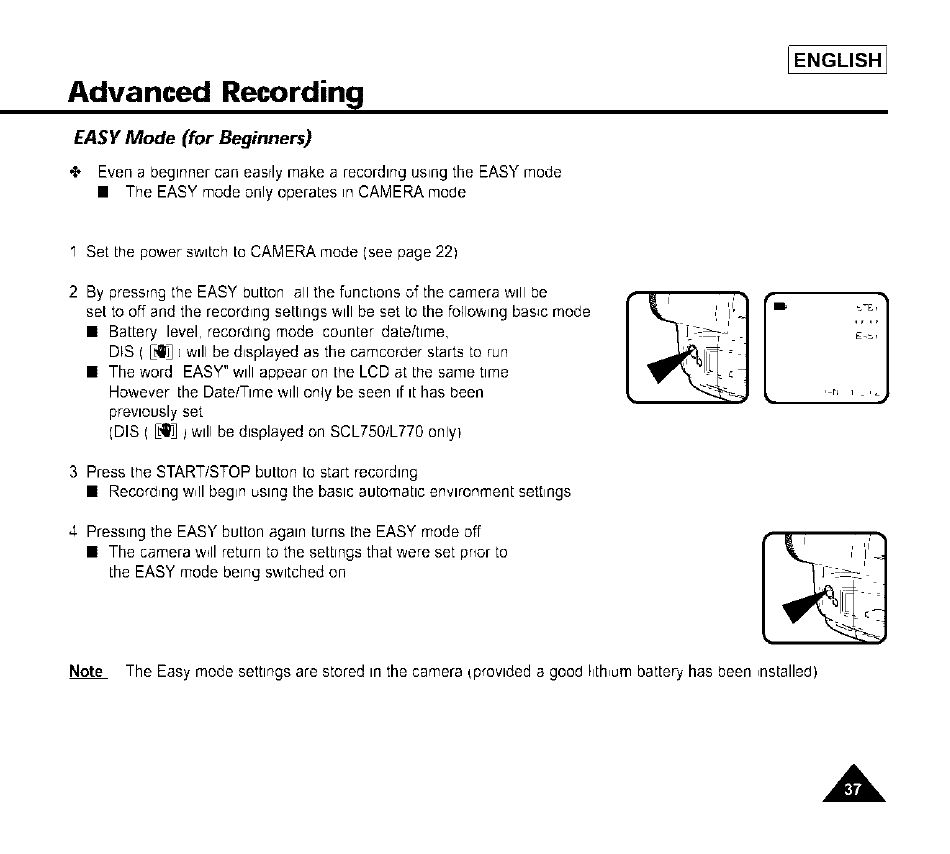

EASY Mode (for Beginners)

Even a beginner can easrly make a recording using the EASY mode

•The EASY mode only operates in CAMERA mode

I Set the power switch to CAMERA mode (see page 22)

2 By pressrng the EASY button all the functions of the camera will be

set to off and the recording settings will be set to the following basic mode

• Battery level, recording mode counter date/time.

DIS ( LL,i_J ] will be displayed as the camcorder starts to run

• The word EASY" will appear on the LCD at the same time

However the Date/Time will orW be seen if it has been

previously set

(DIS ( L_J _will be displayed on SCL75O/L770 onlyl

3 Press the START/STOP button to start recording

• Recording w_llbegin using the basic automatic environment settings

4 Pressing the EASY button again turns the EASY mode off

• The camera w_ll return to the settrngs that were set pnor to

the EASY mode being s;'.qtched on

Note The Easy mode settings are stored in the camera {prowded a good hth_umbattery has been _nstalled)

A

[ENGLISH]

Advanced Recording

CUSTOM.Creating your own customized recording settings

•t. You can customize the settings and save them for future use

•The CUSTOM function only operates in CAMERA mode

1 Set the power switch to CAMERA mode

2 Press the MENU ON/OFF button to bring up the MENU list

3 Turn the UP/DOWN d_al unN CUSTOM SET is highlighted

4 Press the ENTER button, [he CUSTOM menu will appear

• Set the status of each _temto what you want

5 To exit the menu, press the MENU ON/OFF button twice

6 By pressing the CUSTOM button, the Custom settings will come up

• Da[e/T_¢neand TitLewill only appear d these have been

set in advance (see page 46j

• The word CUSTOM" ;v_ll be d_splayed on the LCD at the same tlcqe

Example When the CUSTOM SET is set as follows,

.,rE_ • r_c _,° Pressrng the CUSTO'Vl button -" _- ':":--

-CETETIHEIILL C TE-IHE/JrITIrIII_ d splasy /".:: ........

#¢ :_. iZE I_ j L ......j

£,lTr zr,;, ,':nTIn;'£ j_, i_, ,_

irl£ '

u:D_DJJ_T

GI_ :FF

Gz__r, :FF

_1_ :FF

ITZ_ ., ,T:,

r,E ,-- r £r,i,

CU_TG_ _S£T

TIT•E _ET

TIT•E _FF

3 TITL£ :_ :# HTE

£T , ,,

",FF

C_TZ qr I_ _,_;

C_E :£_Z:T

£'IT r Zru,

A

7 Press the START/STOP button to start recording

• Recording will beg_n usrng the new CUSTOM settings

8 To sw_tch Custom off press the CUSTOM button once

• The camera w_llrevert to the settings that were set prror to the CUSTOM mode being switched on

Notes

• In CUSTOM mode, the DIS and PIP functrons are not available

• If you want to use these, you must first switch the EASY or CUSTOM mode off

• The CUSTOM settings w_llbe stored _nthe camera {prowded a good I_th_ucqbattery has been _nstalled]

IENGLISH]

Advanced Recording

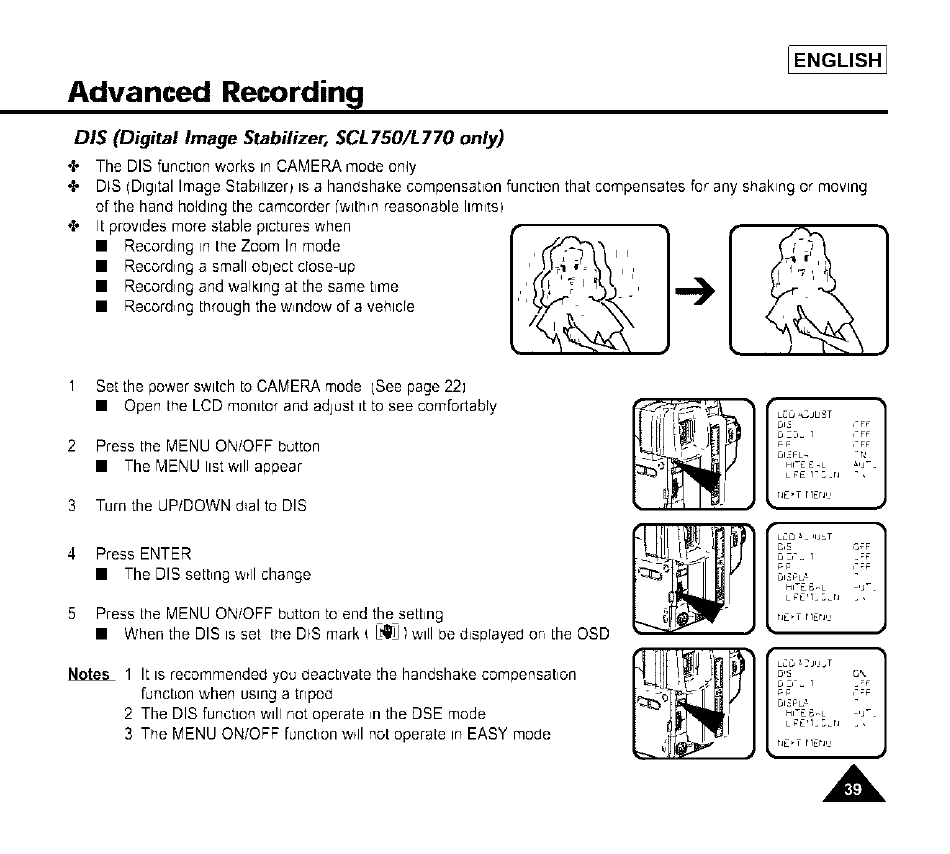

DIS (Digital Image Stabilizer, SCL 750/L 770 only)

•I, The DIS function works in CAMERA mode only

•I, DIS (Digital Image Stabllzeo is a handshake compensation function that compensates for any shaking or moving

of the hand holding the camcorder ['withinreasonable limits)

+ It prov,des more stable plctures when [_ ] [_j('_?', _I

•Recording rn the Zoom Inmode _1 l

• Recording a small obJeCtcrose-up

lRecord,ng and walklng at the same t,rne I_/_ _

• Record,ng through the w,ndow of a vehmre /%_.f "'2 - "

1 Set the power switch to CAMERA mode [See page 22j

• Open the LCD monitor and adJuSt it to see comfortabry

2 Press the MENU ON/OFF button

• The MENU list will appear

3 Turn the UP/DOWN O_alto DIS

4 Press ENTER

• The DISsetbngw_llchange

5 Press the MENU ON/OFF button to end the setting

• When the DIS is set the DIS mark { L_JJ);',,ill be displayed or, the OSD

Notes I It is recommended you deactrvate the handshake compensation

function when using a tripod

2 The DIS function will not operate ,n the DSE mode

3 The MENU ON/OFF funcbon w_llnot operate m EASY mode

A

[ENGLISHI

Advanced Recordin 9

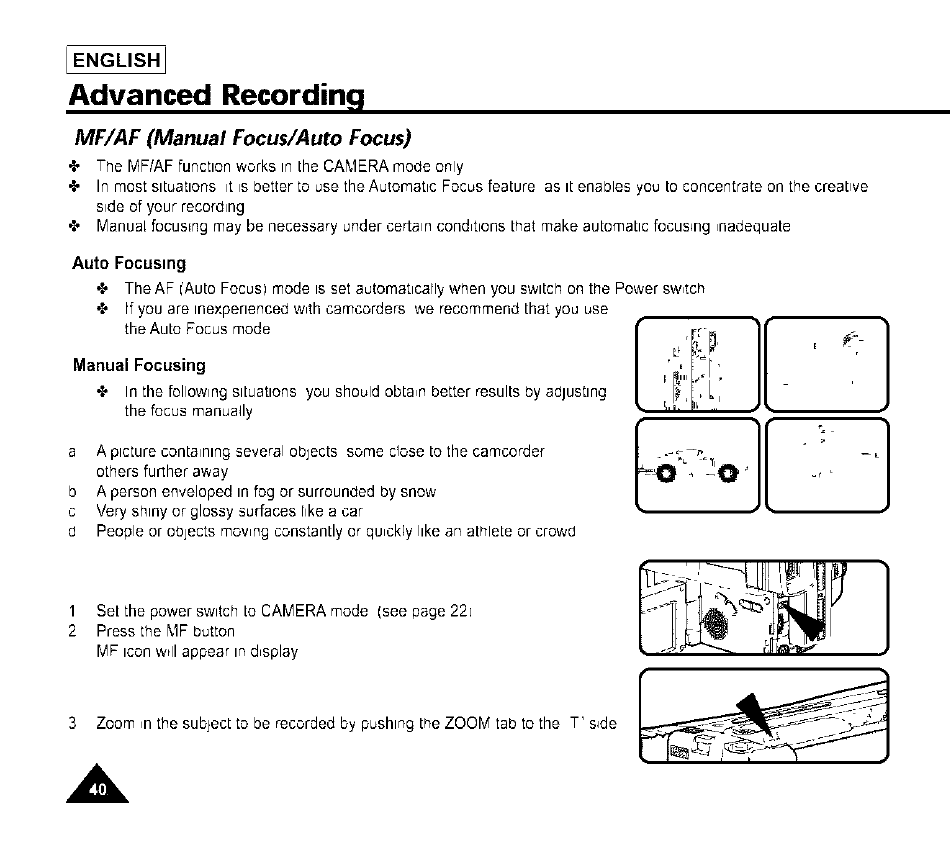

MF/AF (Manual Focus/Auto Focus)

4, The r,4F/AFfunction works in the CAMERA mode only

•t, In most situations tt ts better to use the Automatic Focus feature as it enables you to concentrate on the creative

side of your recording

4, Manual focusing may be necessary under certain conditions that make automatic focumng _nadequate

Auto Focusing

,,I, The AF ['AutoFocus) mode is set automaticallywhen you switchon the Power sw_tch

*l, if you are inexpenenced w_th camcorders we recommend that you use

the Auto Focus mode

Manual Focusing

•l' In the following siLuations you should obtain better results by abJusting

the focus manua41y

a A picture contatnlng several objects some close to the camcorder

others further away

b A person enveloped in fog or surrounded by snow

c Very shiny or glossy surfaces like a car

b People or objects mowng constantly or qu_ckEylike an athlete or crowb

L!,IL,

Foil l

1 SeL the power switch to CAMERA mode (see page 221

2 Press the MF button

MF icon ;'.,_11appear in d,splay

3 Zoom _nthe subject to be recorded by pushng the ZOOM tab to the T' rode

A

Advanced Recordin 9

4 Turn the UP/DOWN d_alup or down until the object ,s focused

5 You wdl obtain a sharp p_cture after zooming out

6 To return toAFqAuto Focus) press the MF button again

MF icon will d_sappear

Note The MF function will not operate in EASY mode

IENGLISH_

BLC

BLC works rn the CAMERA mode

Back lighting exists when the sub;ect is darker than the background

The subject is placed in front of a window

The person to de recorded _sweanng white or shiny

clothes and is placed against a dnght background

the person's face _stoo dark to d_st_ngu_shtheir features

The subject is outdoors and the background is overcast

The hght sources are too bnght

The subject is against a snowy background

Set the power switch to CAMERA mode (see page 22)

Press BLC button

• Normal- BLC- Normal

• BLC enhances only the subject

"BLC off "BLC on

i,

Note BLC function wdl not operate _n PAE or EASY mode A

[ENGLISHI

Advanced Recordin 9

PROGRAM AE (Automatic Exposure)

4, The PROGRAM AE function works rn the CAMERA mode only

4, The PROGRAM AE modes allow you to adjust shutter speeds and aperture to su_td_fferent recording conditions

They give you creative control over the depth of the field

•X, There are 6 auLomatlc exposure modes

1AUTO mode

•Auto balance between the subject and the background

•To be used rn normal conditions

• The shutter speed automatrcally varies from 1/60 to 1/250 second depending on the picture

2 SPORTS mode ( _)

• For recording people or obJeCtsmoving quickly you should able to pray back the p_cture in SLOWmotion on an

8 tara VCR or slop on a given image with very ItLLreblur

3 PORTRAIT mode ( _)

• For focusing on the background of the subJect the background being out of focus

The PORTRAIT mode is most effective when used outdoors

• The shutter speed automatrcally vanes from 1/60 to 1/1000 second dependtng on the p_cture

4 SPOTLIGHT mode ( _)

• To record correctly when there is only I_ghLon the subject and not the rest of the ptcture

• The shutter speed ts 1/60 second

5 SAND/SNOW mode ( _)

• For recording ;',,hen the people or obJects are darker than the background because of reflected Itght from sand

or snow

• The shutter speed auLomaLrcallyvanes from 1/60 to 1/250 second depending on the ptcture

6 HSS (High Speed Shutter) mode (_-)

• For recording fast-mowng subJects such as the players _ngolf or tenntsgames

• You may need to I_ghtthe recording area

A

Advanced Recordin 9

Setting the PROGRAM AE(Automatic Exposure) mode

1. Set the powerswitchto CAMERAmode.

2. Press the P.AE button, the (_) symbol will be displayed.

[ENGLISHI

3. Press the P.AE button until the appropriate symbol is displayed.

• No Display : Full Auto mode.

Notes:

• The P.AE mode chosen will be recorded on the tape.

• To end the RAE function, press the RAE button once or several times,

until the RAE Icon is no longer displayed.

• The RAE function will not operate in EASY mode.

• The BLC function will not operate in RAE mode.

,A,

[ENGLISHI

Advanced Recording

DSE (Digital Special Effects) in CAMERA mode

4"

4, There are several DSE modes

(SCL700/L710 8 modes SCL750/L770 10 modes)

The dtgital effects enable you to give a creattve look to your recordtng by adding various spectal

effects

Select the appropnate dtg_tal effect for the type of p_cture that you wtsh to record

1 Normal pcture

2 GHOST Thts mode gtves the image a dragging effect

(SCL750/L770 only)

3 STROBE Thts mode works by inserting a cuttrng effect on the tmage

There are 50 fields tn a normal recorded ptcture {SCL750/L770 onry)

4 SEPIA Th_s mode gives the tmage a SEPIA effect

5 B&W_Brack & Wh_tel Th_s mode allows the _mage to be recorded rn black

and whtte

6 NBG (Negat_vel This mode allows rmages to be recorded by reflecttng the

color of the _mage

7 MIRROR Thts mode cuts trle image tn half, ustng the mirror effect

8 ART Adds a paint-hke effect called solarizaLron to the image

9 MOSAIC This mode gives the tmage a checkered design

10 "T691WIDE) This mode provides a 16 9[WIDE) televiston dispray

11 CINEMA Th_s mode covers the upper/Iower portton of the screen to gtve a

movte-hke effect

Notes • DIS PIP functtons will not operate tn DSE mode

•DSB functton will not operate tn EASY or CUSTO'vl mode

iii

,11111

A

Advanced Recording

Selecting and recording DSE effects

1. Set the power switch to CAMERA mode.

2. Press the DSE button, GHOST or SEPIA will be displayed.

3. Keep pressing the DSE button, until the desired mode is

displayed.

4. Press the START/STOP button to start recording.

5. To exit the DSE functions, press the DSE button once or several

times until no DSE mode is displayed on the LCD.

[ENGLISHI

Notes: • It is recommended that you set the DSE mode in STBY mode.

• DSE functions will not operate in EASY or CUSTOM mode.

A

[ENGLISH]

Advanced Recording

Setting and Recording the DATE/TIME

"t, Setting and recording the date/time feature works in the CAMERA mode only

,,t, You can record the date/ttme on your tapes so you wtll know when t[ ;',,as made The date and brae are recorded

',_henever they are displayed or, the vrewf_nder or LCD

Setting aDATE/TIME

•t, Settingthe DATE/TIMEis possiblein CAMERASTANDBYmodeonly

Make sure that you have installed the LITHIUM BATTERY {see page 2II

The LITHIUM BATTERY is needed to maintain the clock

2 Set the power switch to CAMERA mode qsee page 22)

3 Press the MENU ON/OFF button, then the MENU list will appear

4 Turn the UP/DOWN dial until CLOCK SET IS highlighted

Press ENTER

•CLOCK SETTING Is possrble when the DATE and TIME appear

• BLINKENG indicates the possrble changes for the setting

The year wtll be the first to bhnk

6 Turn the UP/DOWN d_alto set the desired year

A

'll _'i :1_ :FF

:FF

_IT: g_ .i ,T:,

,E,-- r Er,t,

T TLE _ E"

TTLE :FF

:Ti-LE :,'k : ,MT:

2Er _:FF

,E,-- r Er,i, ,

Z,TrlEn,,

Advanced Recording

7. Press ENTER.

• The monthto be reset will blink.

8. Turn the UP/DOWN dial to set the desired month.

9. Press ENTER.

• The day to be reset will blink.

10. You can set the day, hour and minute following the same procedure

used for setting the year and month.

11. Press ENTER after setting the minute and the clock setting screen will

disappear. The selected date and time will then be displayed.

[ENGLISHI

CLOCK SETFING 1

IZ00 AM

_J_,_l 2oo_

_EXIT MEN

[ CLOCK SETFING ]

1200AM

_ 2oo5

_EXIT MEN

[ CLOCK SETFING ]

1200AM

_EXIT MEN

Recording the DATE/TiME

1, Make sure that you have set the DATE/TIME.

2. Set the power switch to CAMERA mode. (see page 22)

• Open the LCD monitor and adjust it to see comfortably.

3. Press the DATE/TIME button the required number of times.

• To record the date only, press the DATE/TIME button once.

• To record the date and time, press the DATE/TIME button twice.

4. Press the START/STOP button to record the DATE/TIME on your recording.

Notes:

• If your date and time settings are not maintained in the camcorder,

it means the installed LITHIUM BATTERY is discharged. (see page 2I)

• You cannot conceal the recorded date or time during playback.

• The DATE/TIME function cannot be turned off in EASY or CUSTOM mode.

[ENGLISHI

Advanced Recordin 9

Selecting and Recording a Title

•t, Selecting and recording a TITLE is possible in the CAMERA mode only

•t, The TITLE feature allows you to select a preset title stored ,n the camcorder's memory

•t, You can also select the language of the titles

Selecting a Language and Setting aTitle

•t, Selectrng a language is possible in CAMERA STANDBY mode only

•t, The factory default language is ENGLISH

You can change the language

"Make sure that you have _nstalled the LITHIUM BATTERY or have the AC adapter attached qsee page 21

2 Set trle power switch to CAMERA mode {see page 221

• Open the LCD monitor and adjust _tto see comfortably

3 Press the MENU ON/OFF button The MENU hst will appear

4 Turn the UP/DOWN d_al until TITLE SET _shtgh4tghted

5 Press ENTER

• A hst of availablelanguageswill appear

A,

LCD t, QJU_T

2 Z: 3r _,FF

,:_,_-. 31# :FF

2i5# . 3rl

HTZSaL .UT"

,L:zr ,z-r, ",rl

: ,2:_ _-ET

TITLE _.ET

TITLE :,FF

2TITLE 2. :g HTE

- : _E_-ET ':,FF '

Er,rSLI_HI_,_ L& Iuh I

=RE ,:-

IT.u.r4

S_. ,GH

q Smi.rl

Advanced Recordin 9

6. Turn the UP/DOWN dial to select the appropriate language.

• You may select languages from ENGLISH/FRENCH/

GERMAN/ITALIAN/SPANISH/RUSSIAN.

7. Press ENTER.

• Then, the title list in the languageyou chose will appear.

8. Turn UP/DOWNdial to whichever TITLE you desire.

9. Press ENTER.

• The selected title will appear on the screen for

2 ~ 3 seconds and will disappear. At the same,

the camcorder will return to the menu mode.

[ENGLISHI

Recording a Title

Note: • Make sure that you have selected a TITLE from

the TITLE list.

1. Set power switch to CAMERA mode,

• Open the LCD monitor and adjust it to see comfortably.

2. Press MENU.

3. Turn the UP/DOWN dial until TtTLE........OFF is highlighted,

4. Press ENTER to choose between OFF, AUTO-10S and CONTINUE.

5. Press START/STOP button to record the title with your picture.

• If you want to change TITLE recording time, select title recording time (OFF, AUTO-10S, CONTINUE) on MENU.

Notes: • The title moves horizontally from the right side to the left side 10 seconds after you turn on the title.

• MENU ON/OFF function will net operate in EASY or REC mode.

A

[ENGLISH]

Advanced Recordin l

Fade In and Out

'_ The FADE function works in CAMERA mode only

'_ You can give your Nms a professional look by using special

effects such as fading _nand out at the beglnn,ng or end of a

sequence

To Start Recording

I Before recording, hold down the FADE button

The picture and sound gradually disappear bade out)

2Press the START/STOP button and at the same time release

the FADE button

Recording starts and the picture and sound gradually appear

)fade in)

To Stop Recording (using FADE IN /FADE OUT)

3 When you wish to stop recording hold down the FADE button

The picture and sound gradually disappear bade out)

4 When the picture has disappeared

press the START/STOP button to stop record,ng

'l [I _lI kr_,Ji=[¢*

aFADE OUT

{Approx 4 seconds)

b FADE IN

_Approx 4 seconds)

A

Press the FADE button

Gradualappearance

a FADE OUT

I ...................

b FADE IN

Gradual disappearancel=

1[ ]

Release the FADE button

IENGLISH_

Advanced Recording

PIP (Picture-In-Picture, SCL750/L 770 only)

The PIPI Picture-ln-Picture_ feature works in combination with the DIGITAL ZOOM function by using a small,

superimposed screen to show an _r'qagethat _sw_der than the _r'qagebeing recorded

This should help you to get a more clear idea of what you are recording

The PIP function works in CAMERA mode only

1 Set the power sw_tch to CAMERA mode

2 Turn on DIGITAL ZOOM qsee page 35)

3 Press the MENU ON/OFF button the MENU Dst

wdl be d_splayed

4 Turn the UP/DOWN d_aluntil PIP OFF _shghhghted

5 Press ENTER PIP ON and a small screen

should appear

Check which part you are recording on the PIP screen and turn the

Zoom button to T' position to activate the DIGITAL ZOOM mode

•Start recording by pressing the START/STOP button

when the portion you want to record appears

7 Setting PIP ON to OFF in the MENU will make the small

screen disappear and s;v_tch the PIP mode off

Notes • When you use the PIP function while making a recording

the PIP screen will be recorded on the Tape

• The MENU ON/OFF functron wHI not operate in EASY mode

• PIP function will not operate _n DSE mode

CAMERA _'_::......

U.t3 a2Ji %T

tSiS ,-FF

t-2C= I:;g

P P "2FF

tSiS;La "R

HI-E g_ L alj_

L_ I.;_PJ ,

£.1- Hff,

ENTER

U.t5 a2. ,_r

tSl_ ,-FF

tSl_;La -R

L_ I.;_IJ ,

£.1_ Hff,

A

[ENGLISHI

Advanced Recordin_l

Snap Shot (SCL750/L770 only)

"t- With the SNAP SHOT feature your camcorder functions like a regular film camera,

allowing you to take single sNI p_ctures

The SNAP SHOT function operates in the CAMERA mode

I Set the power switch to CAMERA mode II fl 1

c*.ER*ffTr /4i,, _-_ I

2A_m the Camera at the _mage you want to record and

press the SNAP SHOT button

• At this t_me, de careful not to shake your camcorder because the

_magewill be blurred

3 After the SNAP SHOT button has been pressed,

your camcorder will record the still image for 6 seconds,

then automatically return to STANDBY mode

• You can check the rematning time for SNAP SHOT recordtng by

looking at the t_medtsplayed on the screen

• To stop SNAP SHOT recording, press the SNAP SHOT button

agatn

Notes

• If the camcorder ts knocked or shaken while taktng a SNAP SHOT the tmage may be blurred

• The SNAP SHOT functton will not operate in MENU mode

• SNAP SHOT functton wtll not operate tn DSE mode

A

IENGLISH]

Advanced Recording

White Balance

•t, WHITE BALANCE ts a recording functton that preserves trle unique color of tr]e object in any recordtng condttlon

•t, You may select the appropriate WHITE BALANCE mode to obtam good tmage color quahty

AUTO Thts mode is generally used to control the WHITE BALANCE automatically

INDOOR q-:- I Controls WHITE BALANCE according to the indoor ambtence

OUTDOOR (_ ; Controls WHITE BALANCE according to the outdoor ambience

Settmg a Wh=te Balance Mode

I

2

3

Set the power swttch to CAMERA mode

Press the MENU ON/OFF button then the MENU Itst wtll appear

Turn the UP/DOWN dta4 unttl

WHITE BAL AUTO _shtghhghted

Press ENTER

•\'ou can set _tto INDOOR or OUTDOOR

by pressing the ENTER button

Press the MENU ON/OFF button to extt

the WHITE BALANCE settmg screen

C 2: :,r .,F;

plF jF;

I'1 f. [ HTE_ • _ -

L:Zrl:,: - r , -,rl I

£,IT rzr.,

l&_IJ___, I' r:_ '_,!C "CJLI:T

,',,HITE 6AL _IJTO

. L :Zrl:':'r' -,rj

£,IT rzr,, ]....

== .,F;

_. #lP .,F:

B 5_.-, :,rJ ii

•:ZH:,z-r,

£,lr rzr.,

Note The MENU ON/OFF funcbon ;'.,_11not operate tn EASY or REC mode A

[ENGLISH]

Advanced Recording

Demonstration

"t, Demonstratton automaLfcally shows you Lhemajor funcbons that are tncluded wtLh your CarT]COrderso that

you may use them more easily

,,t, The DEMO funcLfon _sonly avatlable tn CAMERA mode when tape ts not tn Lhecamcorder

•t, The DemonsLratton operates repeaLedly until the POWER swtLch rs seL to OFF

I Set the power swttch to CAMERA mode

2 Press the MENU ON/OFF button then the MENU Itst wtll appear

3 Turn the UP/DOWN d_al so that DEMO _shtgh[tghted

4 Press ENTER to select ON

• Demonstration w_ll start

5 Set the POWER sw_tcn LoOFF to end the Demonstrattor,

Note The MENU ON/OFF funcLton wtll not operate tn EASY or REC mode

Advanced Recording

IENGLISHJ

Setting the Date/Title Color

1 Set the power sw,tch to CAMERA mode qsee page 221

2 Press the MENU ON/OFF button

•The MENU list will appear

3 Turn the UP/DOWN dial to D/TITLE COLOR WHITE

4 Press ENTER

• A list of availabrecolors will appear

5 Turn the UP/DOWN dial to select the appropnate color

6 Press ENTER

7 Press the MENU ON/OFF button to end setting

• The title and Date/tlrqe w41 appear _nthe color you chose

_-p

L_IH _LE& E _ L :13

LgE I.:_r_

_J nE,T ri_n,,

E

L=TETT £:"L"_ ELE=T

I HITEI

_Et5

_:EErl

gL IIE

if,IT IKpJIJ ,

[-

[ '_ I1L-- r_ -- gLIgEtSrl":if'T"1.....JZEffpjLLLCJIE[ I'ELL"%I"

if,IT IKpJIJ I

A

[ENGLISHI

Advanced Recording

Lighting Techniques

4, When you use your camcorder there are only two possrble recording enwronments

You will be recording outdoors ['Normalrecordtng or through an ND{Neutra4 Denstty) filter]

You will de recording indoors ['Videohght recommended or requtred)

4, The s,ng[e greatest tnfluence on p_cture qualtty ts the level of bnghtness measured ,n lux

4, The followtng table Itsts a few common sttuattons the correspondtng leveF of bnghtness and any associated

recommendations

Sttuat_ons Bnghtness (lux) Recommendattons

,e. Snow-covered mountatns or fieFds I00 000 ND filter recommended

,e. Sandy beach on a hot summer's day I00 000

,e. On a sunny day tn the mtddle of the afternoon 35 000 Normal recordtng

,e. On a gloomy day an hour after the sunnse 2 000

,e. Offtce wtth fluorescent Itghtlng near 1 000

to a wIRdOW

,e. On a sunny day an hour before the sunset 1 000

,e. Department store counter 500 to 700

,e. Room ht by two 30W fluorescent hghts 300 Wdeo Itght recommended

,e. Arcade at n,ght I50 to 200 Wdeo Itght required

,e. Candle light 10 to 15

After Recording

I Eject the tape that you have recorded _see page 261

2 If you want to protect accidental erasure of the tape you have recorded push the red tab on the cas-

sette

3 Set the POWER switch to OFF

4 Close the LENS cover

5 Remove the BATTERY PACK from the camcorder

A

IENGLISH_

Playing back a Tape

,_ To view a tape that you have recorded

,_ Prayback function works in PLAYER mode only

,_ There are twoways to see a tape

• To watch with LCD recommended for outdoor use

• To watch with TV monitor recommended for indoor use

To watch with LCD

,_ To view a tape using the LCD monitor (see page 32)

To watch with TV monitor

,_ It is practical to use a TV monitor to view tapes rndoors

'_ To play a tape baCkr the TV must feature a compatrble color system {see page 671

Connecting to a TV whtch has an Audio and Video input jack

'_ Use the Audio/Video cabre supphed w,th your camcorder

• The yellow plug Video

• The white plug Audlo['LI

i

@

=_, _ O

Connecting to a TV which has no Audio and Video input jack

'_ You can connect your camcorder to a TV through a VCR

• Set the input selector on the VCR to LINE

• The yellow plug Video

• The white plug Audlo['LI

Note To view the cassette on the televisron screen

select the channel reserved for your VCR on the telewslon

qRefer to your VCR or television _nstructlon book) A

[ENGLISH 1

Playing back a Tape

Notes:

• SCL7OOlL71OlL75OlL770featureamonauralaudiosystem. lfyourTVorVCRarestereo,

connect the audio cable to input "L" of your TV or VCR.

•You can use an S-VIDEO cabIe to obtain better quality pictures if you have an S-VIDEO connector on your TV.

•While playing back on a TV screen, close the LCD panel Otherwise, picture distortion may occur.

Playback

I. Use the TVNIDEO button to select VIDEO on your TV.

2. Connect power source (battery or AC Power Adapter) to the camcorder.

Set the power switch to PLAYER mode.

3. Insert a tape you want to see.

•Make sure that STOP is displayed.

4. Press the I_11 (PLAY/STILL) button.

•The picture you recorded appears on the TV after 2 to 3 seconds.

•Press • (STOP) to stop playing.

•If the tape reaches its end during playback,

the tape will rewind automatically.

PLAYER

Notes:

•Vibration from the built-in speaker can cause picture distortion.

•It is best to turn the built-in speaker off when your camcorder is connected to the TV.

•The system (Hi8/8mm) is selected automatically, depending on the tape format.

•This camcorder does not support LP recording and playback.

PLAY/STILL

A

Playing back a Tape

Various Functions in PLAYER mode

IENGLISH_

To view a STILL p=cture (Playback pause)

Press b,"ll IPLAY/STILLI button dunng playback

To resume playback press I_11 {PLAY/STILL] button again

Note Your camcorder will automatically stop if it is left for more than

5 m_nutes _n STILL mode without operabon _norder to

prevent tape and head-drum wear

To locate a scene (picture search)

Press I_ ['FF]or <-41 qRE\H) buttons during playback

To resume normar playback, release the buttons

Zero RETURN (SOL710/L750/L770 only)

•t, The ZERO RETURN funcbon works in STOP of PLAYER mode

•t, You can Fast Fo_ard or Rewind to 0 00 00 automatically

1 Set the power switch to PLAYER mode

•Make sure that STOP is d_splayed

2 Press the ZERO RETURN button

• Z RETURN is displayed

• FF or REW works automatically

Notes

• The ZERO RETURN button does not work when the TAPE COUNTER reads 0 00 00

• Set the COUNTER RESET to C RESET 0 00 00" in MENU mode at the start of the cassette or the required

sequence

When you wish to find this point on the tape again press Z RETURN button when playback _sstopped

A

[ENGLISH 1

Playing back aTape

AdJusting the LCD

+ The LCD control_nPLAYERmode is identicalto step 3 of page 30 except the power switch must be

set to PLAYER mode

Setting the Speaker ON/OFF

4* The speaker _sturned ON/OFF by opening/closing the LCD

4* The speaker ON/OFF setting operates when the LCD is opened

When it is set to OFF the speaker won t turn on even after opening

the LCD

1 Setthe power switch to PLAYER mode

2 Press the MENU ON/OFF button

then the MENU list will appear

3 Turn the UP/DOWN dial to SPEAKER

4 Press ENTER to switch the selection

5 Press the MENU ON/OFF button again to end the SPEAKER setting

....}

LCD _DJb_T

_L, "N :F

L_EI":.,

E,IT HE,

SpE_E_ C;F

_L, "N :F

E,IT HE,

Volume control

4* Speaker volume can be controlled by turning

the MENU dial during playback

Note When the MENU list is on volume will not be changed

DSE m PLAYER mode

The procedure for using DSE in PLAYER mode is the same as the procedure for using DSE _nCAMERA mode

except that the power sw_tch must be set to PLAYER _nstead of CAMERA Please refer [o pages 44 and 45

Note The GHOST STROBE NEG MIRROR MOSAIC CINEMA and I6 9qWIDEI effects w41 not operate when your

camcorder is in PLAYER mode

Pressing the DSE button will scroll through the available settings

,_at the one you require

Pla /in l back the Tape

Multi Playback (using the PAL60 System)

"I' This Camcorder can convert an NTSC tape recorded rn the SP mode to the PAL60" format

allowing you to view it on a PAL TV which has Verbcal sync adjustment circuitry for 60Hz

- PAL60" _sa special output signal format w_th which a PAL TV can be used to wew a tape recorded

by an NTSC recorder

IENGLISH_

1 Set POWER switch to PLAYER mode

2 Insert an NTSC tape you want to see

3 Press MENU ON/OFF button then the MENU hst w41 appear

4 Turn the UP/DOWN d_a4 to PAL CONV OFF"

5 Press ENTER then it will change to PAL CONV PAL60"

• Now you can see the p_cture by pressing the PLAY button

6 Press MENU ON/OFF button to end setting

Notes 1 Th_s Camcorder can not record using the PAL60" system

2 When an NTSC tape is being played back the p_cture on the PAL monitor screen may shr_nk in

the Verbcal direction

3 If the s_gnar recorded on the tape is in bad condltron the PAL6O playback system may ma4functlon

4 A PAL recorded tape can not be played back on this camcorder

A

[ENGLISH 1

USB interface (SCL770 only)

•Transferring a Digital Image through aUSB Connection

•t, You can easily transfer a still image from a camera, tape, memory to a PC without additional add-on cards

via a USB connection.

•t, If you transfer data to a PC, you need to install the software (Driver, Editing software) supplied with the

camcorder.

System Requirements

• CPU : InteP PentiumIP processorcampatibleor better

• Operatingsystem : Windows_ 98/98SE/ME/2000/XP

• RAM : 64 MBor more

• CD-ROM:4x CD-ROM drive

• VIDEO :65,000-coloror bettervideo displaycard

• AvailableUSB port

• Hard Disc : 4GB(SGB recommended) E

• Intel®Pentium IIT_Jsa trademark of the Intel Corporation.

• Windows _ Jsaregistered trademark of the Microso_ Corporation.

• AU other brands and names are property of their respective owners.

A

USB interface (SCL770 only)

Installing USB Media 2.0 Program

Do not connect the camcorder to PC before installing the program

If another camera or scanner _sconnected please disconnect ILIn advance

+ This explanation is based on Windows 98SE OS

How to install the program

1 Theinstallprogramautomaticallyoperatewhen the CD is insertedintoCD-ROM

I ENGLISH_

If the install program does not operate, please double chck Install exe in CD-ROM Drive

2 Click " to install the program

3 Followtheinstructionto _nstall

A

[ENGLISH 1

USB interface (SCL770 only)

4. The below window displays the folder to instalIthe program.

• Basically the program is installed in the following folder.

C:\Programfiles\Samsung\USB Media2.0

• Click to change the folder.

5. Connect the camcorder to PC.

6. PC finds a new hardware and install a driver automatically.

7. Ifthe driver is installed,the install is completed.

8. Execute USB Media 2.0 player on the Windows wall paper.

6,

• USB Media 2.0 User's Manual is included on the accompanying CD in Adobe's Portable Document Format (PDF).

The user's manual can be viewed using Acrobat Reader software, which is also included on the CD.

(The Acrobat Reader is a freeware product of Adobe Systems, Inc.)

A

USB interface (SCL770 only)

Connecting to a PC

1. Connect a USB cable to the USB port on the PC.

2. Connect the other end of the USB cable into the proper terminal on the camcorder. (USB jack)

3. Connect the audio cable to the Line input jack of the PC.

If the PC has no Line input jack, connect the audio cable to the MIC input jack.

In this case, however, a noise may be produced depending on the PC.

[ENGLISHI

•If you disconnect the USB cable from the PC or the camcorder while transferring, the data transmission will stop

and the data may be damaged.

• If you connect the USB cable to a PC via a USB HUB or simultaneously connect the USB cable along with other

USB devices, the camcorder may not work properly.

- In this case, remove the other USB devices from the PC and reconnect the camcorder.

USB Cable

USB AUDIO Cable

A

[ENGLISH 1

Maintenance

Cleaning and Taking care of the Camcorder

Cteanmg the Viewfinder

•Releasmg the Eyecap

1 Pull the VIEWFINDER up and then turn the screw counter-crockwtse

2 Pull the EYECAP out

3 Clean the EYECAP and the VlEWFINDER screen w_th a soft cloth

and cotton swab or a blower

•Reattachmg the Eyecap

4 Put the EYECAP on the VIEWFINDER

5 Put the screw back on

Cleaning the LCD panel

Open the LCD monttorand wtpe tt gentlyw,th a soft cloth

Becarefu[ not todamagethe panel

Cleanmg the Video Heads

[, ,. __JI =

•t, To ensure normal recording and clear p_ctures clean the video heads

•t, When the playback ptctures are noisy or hardly wstble, the vtdeo heads may be dirty

a Normal Ptcture

b c Notsy Ptcture

If thts happens, clean the video heads

with a dry type cassette cleaner

1 Set the power swttch to PLAYER mode

2 Insert the creanmg tape

3 Press the IHI {PLAY/STILL) button

4 Press the •{STQPI button after about 30 seconds

Check the qualtty of the ptcture usmg a video cassette

If it rs stt[I bad repeat the operation If the problem

continues, contact your local authorized serwce center

Storing the Camcorder

1 You must detach the BATTERY PACK from the

CarT]Corderwhen stonng

2 Keep the carT]corder _na venttlated dry and warm place

3 Do not Keep the camcorder in a place ;',,here the

temperature often changes such as in a car

pthe CarT]COrderm a stable place

[Ia jI b ,c,_

Using Your Camcorder Abroad

Using Your Camcorder Abroad

+ Each country or area has rtsown electric and TV color system

+ Before using your car'ncorder abroad check the following

IENGLISH_

Power sources

•You can use your camcorder in any country or area that uses 100V to 240V, 50/60 Hz

• Use acommercially available AC plug adapter d necessary, depending on the power used

Color system

• You can view your recording on the LCD or viewfinder

However to view a recording on a televisron or to make a copy to a video cassette recorder

the televisron or VCR must be NTSC or PAL60/Player mode onlyj compatible and have the approprrate

audto/vtdeo jacks

•_ PAL-compatible area

Austral_ar Austria BelgLum Bulgartar Ch_nar CIS, Czech Republm, Denmarkr Egypt, FnEand, France, Germany,

Greecer Great Britain, Holland, Hong Kongr Hungary, India, Nan, Iraq, Kuwait, Dbyar Malaysia Mauritius,

Rumania, Saud_Arab_a, Singapore, Slovak Republm, Spain, Sweden, Swttzedand Syria, Tilatlandr Tun=sta,etc

,,_ NTSC-compabble area

Bahamas, Canada, Central Amenca, Japan, Mextco, Ph_hpptnes, Korea, Ta=wan, Untted StateSr elc

Note You can make recordings with your camcorder anywhere in the wond

A

[ENGLISH 1

Troubleshooting

Troubleshooting

4" Before contacting a servrce center perform the following simple checks They might save you the time and

expense of aR unRecessary call

Self D=agnosts Display

Display Bhnkmg Inform that .. Action

slow the battery pack is alr'qost Change _tto a charged

discharged one

fast the battery pack is fully Change itto a charged

discharged battery

TAPE END I slow the tape has alr'qost reached Prepare a new one

ItS end

TAPE END I no the tape reached its end Change to a new one

TAPE rslow there is no tape _nthe car'qcorder Insert a tape

the tape _sprotected If you ;,.,ant to record

PROTECTION I slow from recording release the protecbon

D EMG slow the camcorder has some 1 Eject the tape

C EMG mechanical fault 2 Set to OFF

R EMG 3 Detach the battery

L EMG 4 Reattach the battery

"Please contact your local authorized

serwce center If the prob{em

continues

moisture condensation

slow has formed _nthe camcorder see page 7"

Troubleshooting

Checking

+ If you run _ntoany problem using the carncorder, use the following table to troubleshoot the problem

+ If these instructions do not allow you to solve the problem, take a note of

• The model and serial nurnber marked on the bottom of the camcorder

• Your warranty rf applicable

+ Then contact your nearest authorized serwce center

Symptom ExpJanatmnlSolutlon

You cannot switch the • Check the battery pack Isee page 231

camcorder on or the AC power adapter [see page 22_

Start,Stop does not • Check the POWER set it to CAMERA

operate while recording • You have reached the end of the cassette

• Check the record protecbon tab on the cassette [see page 26)

The camcorder goes • You have left the camcorder set to STANDBY

off automatically for more than 5 i_ilrlutes without using it rsee page 281

• The battery pack is fully used up [see page 25)

The battery pack _s • The atmosphenc temperature _stoo low isee page 25}

quickly exhausted • The battery pack has not been charged fully Isee page 231

• The battery pack is completely dead and cannot be recharged

bse another battery pack

You cannot eject the • The battery pack is fully used up

cassette from the • A mechanical fault mlgflt have occurred Isee page 68_

compartment

The DATE TfkIE indicator • The llthum battery _snot installed or _sfully used up Isee page 211

flashes more than 2 braes

when you set the

camcorder to CAMERA

The playback p_cture • The wdeo heads m_ghtbe d_dy Isee page 661

iS poor

You cannot operate any • A mechanical fault mlgflt have occurred Isee page 68)

fuqctlons on the camcorder

IENGLISH]

A

[ENGLISH 1

Troubleshooting

Symptom I Explanation/solution

A vertical stdpe appears when _, The contrast between the subject and the background is too great for the

you record a bright subject camcorder to operate normally. Make the background bright to reduce the

against a dark background contrast or use the BLC function while you are recording. (see page 4I)

(candle flame, for example).

The image quality on the LCD * The use of VIEWFINDER is recommended when recording under sunlight.

is poor. (see page 7)

_, Adjust the LCD. (see page 30)

The image in the viewfinder is _, The viewfinder lens has not been adjusted.

blurred. Turn the viewfinder focus ring until the screen comes into sharp focus.

(see page 31)

The tape does not move when _, Set the POWER switch to PLAYER.

you press the Play, Fast _, You have reached the beginning or end of the cassette.

Forward or Rewind buttons.

The picture does not appear in _, The LCD mooitor is opened.

the viewfinder.

There is no sound from the _, Make sure the SPEAKER is ON. (see page 60)

SPEAKER when playing back

the tape.

The Date/Time or Title disap- _, The lithium battery is not installed or is fully used up.

peared even though you had it (see page 21)

set.

,A

IENGLISHJ

Troubleshooting

Moisture Condensation

+ If the camcorder is brought directly from a cold place to a warm place moisture may condense insrde the

camcorder on the surface of the tape, or on the lens In this condition the tape may stick to the head drum and be

damaged or the unit may not operate correctly

To prevent posslbre dar'qage under these circumstances,

the camcorder has a built-in moisture sensor

+ If there is moisture inside the camcorder DEW [e_ is displayed

If this happens none of the functions except cassette erection will work

Open the cassette compartment and remove the battery for at least two

hours rna warm dry room

+ Please follo;v this procedure when the DEW protection feature is

unexpectedly activated and you want to ovemde it

(Please make sure that the condensabon has disappeared compretely I

1 Take the battery pack out

2 Take the lithium battery out

3 Put the lithium battery back

4 Put the battery pack back

":_ DEW

Ir''<_''_

(

1,__ _ ll!t"

A

[ENGLISH 1

Specifications

•t, These technical specifications and design may be changed without notice.

AI

Video signal

Usablecassette

Tapespeed

Speedmode

Recordingtime

FF or REW time

imagedevice

Opticalzoom ratio

Focallength: f

F

Filterdiameter

Focussystem

Macro

Min. Ulumination

LCD monitor

Size/Pic.cell

Method

System ' SCL700/L710/L750/L770

Recordingsystem Video: 2 rotaryheads Helicalscanning FM

Audio: FM monauralsystem

NTSC color, EIAstandard

Hi8 or 8ram

SP: 14.345mm/sec

Record:SP only Playback:SP only

P6-120:t20 min.

P6-120:approx. 6.5 min.

CCD (ChargeCoupledDevice)

22x

3.6-79.2 mm

1.6

46 mm

Inner

Auto wide macro

0.3 lux (visible)

2.5 inch/112k

TFT

Connectors I

Video out

Audio out

Externalmic

General

Power requirements

Powerconsumption

*Recording,LCDON

Built-inmic

Built-inspeaker

Operatingtemperature

Dimension(WxHxD)

Weight

Minijack, 1 Vp-p, 75 ohms, Unbalanced

Minijack, 7.7 dBs, imp.: lessthan 820 ohms

Monaural_3.5 (SCL750/L770)

OC8.4 V (1.5A)

SCL7OO/L710: 5.4W, SCL750/L770:5.9W

Condenser mic, omni-directional

Dynamic, 0.5 W standard

O°C to 4O°C (32°F to 104°F)

101x104x174 mm (3.g8x4.0gx6.85 inches)

780 g (1.716 Ibs)

Index [ENGLISHI

=A- =E-

ABROAD .............................................................................. 67

AC POWER ADAPTER ........................................................ 22

ADJUSTING ........................................................................ 30

AF ........................................................................................ 40

AUDIO .................................................................................. 56

AUTO FOCUSING .............................................................. 40

AUTO MODE........................................................................ 42

AUTO POWER OFF ............................................................ 28

EASY .................................................................................... 37

EJECT .................................................................................. 26

ENTER.................................................................................. 30

EXTERNAL MIC .................................................................. 72

-F-

FADEIN ................................................................................ 50

FADE OUT ............................................................................ 50

B- FAR ...................................................................................... 40

BATTERY.............................................................................. 23

BATTERY LEVEL ................................................................ 25

BATTERY PACK .................................................................. 23

BLC ...................................................................................... 41

BRIGHTNESS ...................................................................... 30

-c:

CAMERA .............................................................................. 22

CASSETTE .......................................................................... 26

CASSETTE HOLDER .......................................................... 15

CLEANING .......................................................................... 66

COLOR ................................................................................ 30

CONTENTS ............................................................................ 2

COUNTER ............................................................................ 59

CUSTOM .............................................................................. 38

DATE .................................................................................... 46

DATE/TIME .......................................................................... 46

DO CABLE............................................................................ 22

DEMO .................................................................................. 54

DEW .................................................................................... 71

DIGITAL ZOOM .................................................................... 35

DIMENSIONS ...................................................................... 72

DIS........................................................................................ 39

DISPLAY .............................................................................. 16

DSE ...................................................................................... 44

FF (FAST FORWARD) ........................................................ 59

FILTER DIAMETER .............................................................. 72

FOCAL LENGTH .................................................................. 72

=G-

GHOST ................................................................................ 44

-H-

HAND STRAP ...................................................................... 20

Hi8 ........................................................................................ 58

=L =

LCD ...................................................................................... 30

LENS .................................................................................... 13

LITHIUM BATTERY.............................................................. 21

-M-

MIRROR .............................................................................. 44

MOISTURE .......................................................................... 7I

MOSAIC................................................................................ 44

A

[ENGLISH 1

Index

-N- SNAP SHOT ........................................................................ 52

ND FILTER .......................................................................... 56

NEAR .................................................................................... 40

NEG ...................................................................................... 44

NTSC.................................................................................... 67

.,O-

OPERATION MODE ............................................................ 17

OSD .................................................................................... 16

SPEAKER ............................................................................ 60

SPECIFICATIONS................................................................ 70

SPORTS MODE .................................................................. 42

SPOTLIGHT MODE ............................................................ 42

START/STOP ...................................................................... 27

STILL.................................................................................... 59

STOP .................................................................................. 58

STROBE .............................................................................. 44

SYSTEM .............................................................................. 72

S-VIDEO ............................................................................ 58

_T _

PIP ...................................................................................... 51

PLAY .................................................................................... 58

PLAYER .............................................................................. 58

PORTRAIT MODE .............................................................. 42

POWER CONSUMPTION .................................................... 72

POWER REQUIREMENT .................................................... 72

POWER SWITCH ................................................................ 22

PROGRAM AE .................................................................... 42

TAPE COUNTER ................................................................ 17

TAPE EJECT ........................................................................ 26

TAPE END .......................................................................... 68

TIME .................................................................................... 46

TITLE .................................................................................. 48

TROUBLESHOOTING ........................................................ 69

TV MONITOR ...................................................................... 57

RECHARGING .................................................................... 23

REC SEARCH .................................................................... 28

REMOTECONTROL ............................................................ 19

REW (REWIND) .................................................................. 59

iS.

SAFETYINSTRUCTIONS .................................................... 4

SAND/SNOW MODE .......................................................... 42

SELF-30S ............................................................................ 19

SELF-END .......................................................................... 19

SELF DIAGNOSIS .............................................................. 68

SELF RECORD .................................................................... 19

SELF TIMER ........................................................................ 19

SEPIA .................................................................................. 44

SHOULDER STRAP ............................................................ 21

-V-

VIDEO .................................................................................. 57

VIDEO HEAD ...................................................................... 66

VOLUME .............................................................................. 60

-W-

WAiT-10S ............................................................................ 19

WEIGHT .............................................................................. 72

WHITE BALANCE ................................................................ 53

.Z .

ZERO RETURN .................................................................. 59

ZOOM .................................................................................. 34

A

[ENGLISHI

Warranty

SAMSUNG

LIMITED WARRANTY

SAMSUNG Electronics America Inc. (SEA), warrants that this product is free from defective material and

workmanship.

SEA further warrants that if product fails to operate properly within the specified warranty period and the failure is

due to improper workmanship or defective material, SEA will repair or replace the product at it's option.

All warranty repairs must be performed by a SEA authorized service center. The name and address of the

location nearest you can be obtained by calling toll free: 1-800 SAMSUNG (1-800-726-7864).

Labor

90 days carry-in

Parts

1 year

On carry-in models, transportation to and from the service center is the customer's responsibility.

The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase.

It must be presented to the authorized service center.

EXCLUSIONS(WHATIS NOT COVERED)

This warranty does not cover damage due to accident, fire, flood and/or other acts of God; misuse,

incorrectline voltage, improper installation, improper or unauthorized repairs, commercial use,

or damage that occurs in shipping.

Exterior and interior finish, lamps, and glass are net covered under this warranty.

Customer adjustments which are explained in the instruction manual are not covered under the terms of this

warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number.

This warranty is valid only on products purchased in the United States and Puerto Rico.

Some States do not allow the exclusions or limitations of incidental or consequential damages, or allow

limitations on hew long an implied warranty lasts, so the above limitations or exclusions may net apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

A

THIS CAMCORDER IS MANUFACTURED BY:

SAMSUNG Electronics America Inc.

105 Challenger Road Ridgefield Park N.J 07660-0511

Tel: 1-800-SAMSUNG (1-800-726-7864)

*SamsungElectronics'Internet HomePage

http://www.samsungusa.corn AD68-00441B
