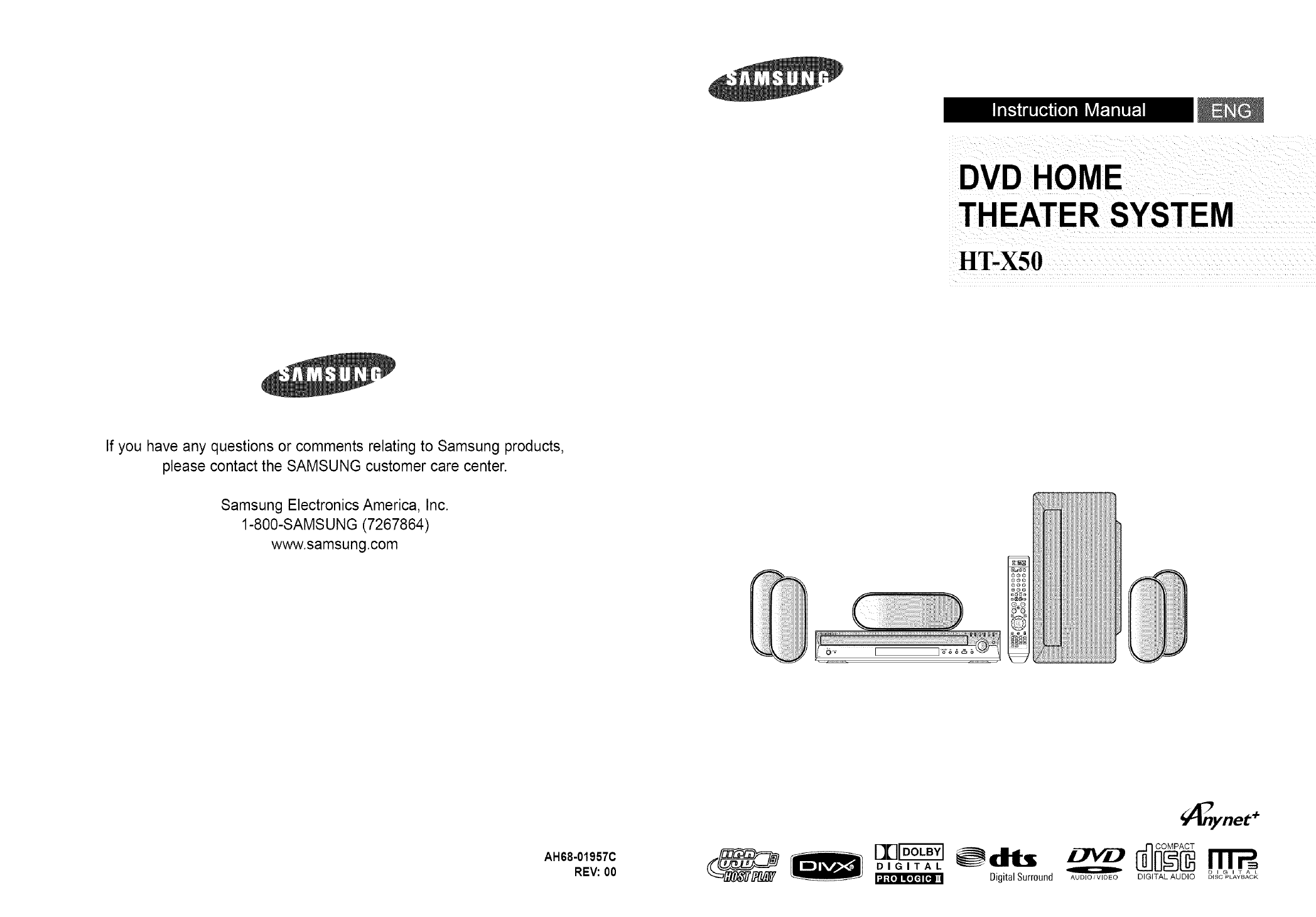

DVD HOME

THEATERSYSTEM

HT-X50

If you have any questions or comments relating to Samsung products,

please contact the SAMSUNG customer care center.

Samsung Electronics America, Inc.

1-800-SAMSUNG (7267864)

www.samsung.com

AH68-01957C

REV: 00 DIGITAL _dtts

Digital Surround

_ynet +

AUDIO/VIDEO DIGITAL AUDIO OlSC PLAYBACK

_f[=] I=[o][dl[=.]inn

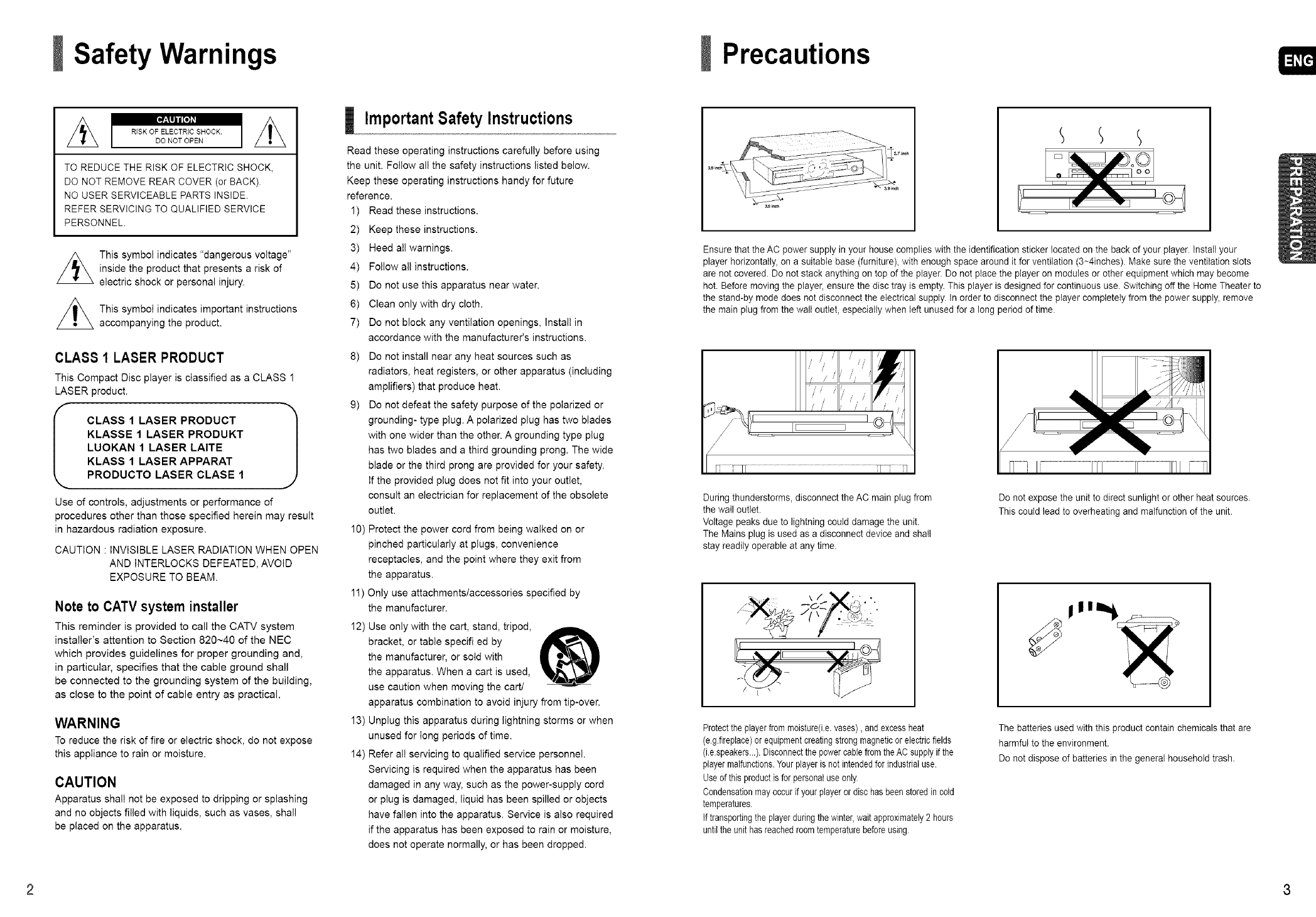

Safety Warnings

Z_ 1 RiSK OF ELECTRIC SHOCK.

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE REAR COVER (or BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

This symbol indicates "dangerous voltage"

inside the product that presents a risk of

electric shock or personal injury.

This symbol indicates important instructions

accompanying the product.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1

LASER product.

ICLASS 1 LASER PRODUCT 1

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LASER CLASE 1

Use of controls, adjustments or performance of

procedures other than those specified herein may result

in hazardous radiation exposure.

CAUTION : INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED, AVOID

EXPOSURE TO BEAM.

Note to CATV system installer

This reminder is provided to call the CATV system

installer's attention to Section 820~40 of the NEC

which provides guidelines for proper grounding and,

in particular, specifies that the cable ground shall

be connected to the grounding system of the building,

as close to the point of cable entry as practical.

WARNING

To reduce the risk of fire or electric shock, do not expose

this appliance to rain or moisture.

CAUTION

Apparatus shall not be exposed to dripping or splashing

and no objects filled with liquids, such as vases, shall

be placed on the apparatus.

Important Safety Instructions

Read these operating instructions carefully before using

the unit. Follow all the safety instructions listed below.

Keep these operating instructions handy for future

reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, Install in

accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as

radiators, heat registers, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding- type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety.

If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete

outlet.

10) Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

1!) Only use attachments/accessories specified by

the manufacturer.

12) Use only with the cart, stand, tripod,

bracket, or table specifi ed by

the manufacturer, or sold with

the apparatus. When a cart is used,

use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when

unused for Iong periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as the power-supply cord

or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus. Service is also required

if the apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

Precautions

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your

player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots

are not covered. Do not stack anything on top of the player. Do not place the player on modules or other equipment which may become

hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the Home Theater to

the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove

the main plug from the wall outlet, especially when left unused for a long period of time.

During thunderstorms, disconnect the AC main plug from

the wail outlet.

Voltage peaks due to lightning could damage the unit.

The Mains plug is used as a disconnect device and shall

stay readily operable at any time.

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and malfunction of the unit.

--O_" J_'.',"" '.

Protectthe playerfrommoisture(i.e,vases), and excessheat

(e g.firepIace)or equipmentcreatingstrongmagneticor electricfields

(i.e speakers...).Disconnectthe powercablefrom theAC supplyif the

playermalfunctions.Yourplayeris not intendedfor industrialuse.

Useof this productisfor personaluseonly.

Condensationmayoccur ifyour playeror dischas beenstoredincold

temperatures.

if transportingthe playerduringthe winter,wait approximately2 hours

until the unithasreachedroom temperaturebefore using.

The batteries used with this product contain chemicals that are

harmful to the environment.

Do not dispose of batteries in the general household trash.

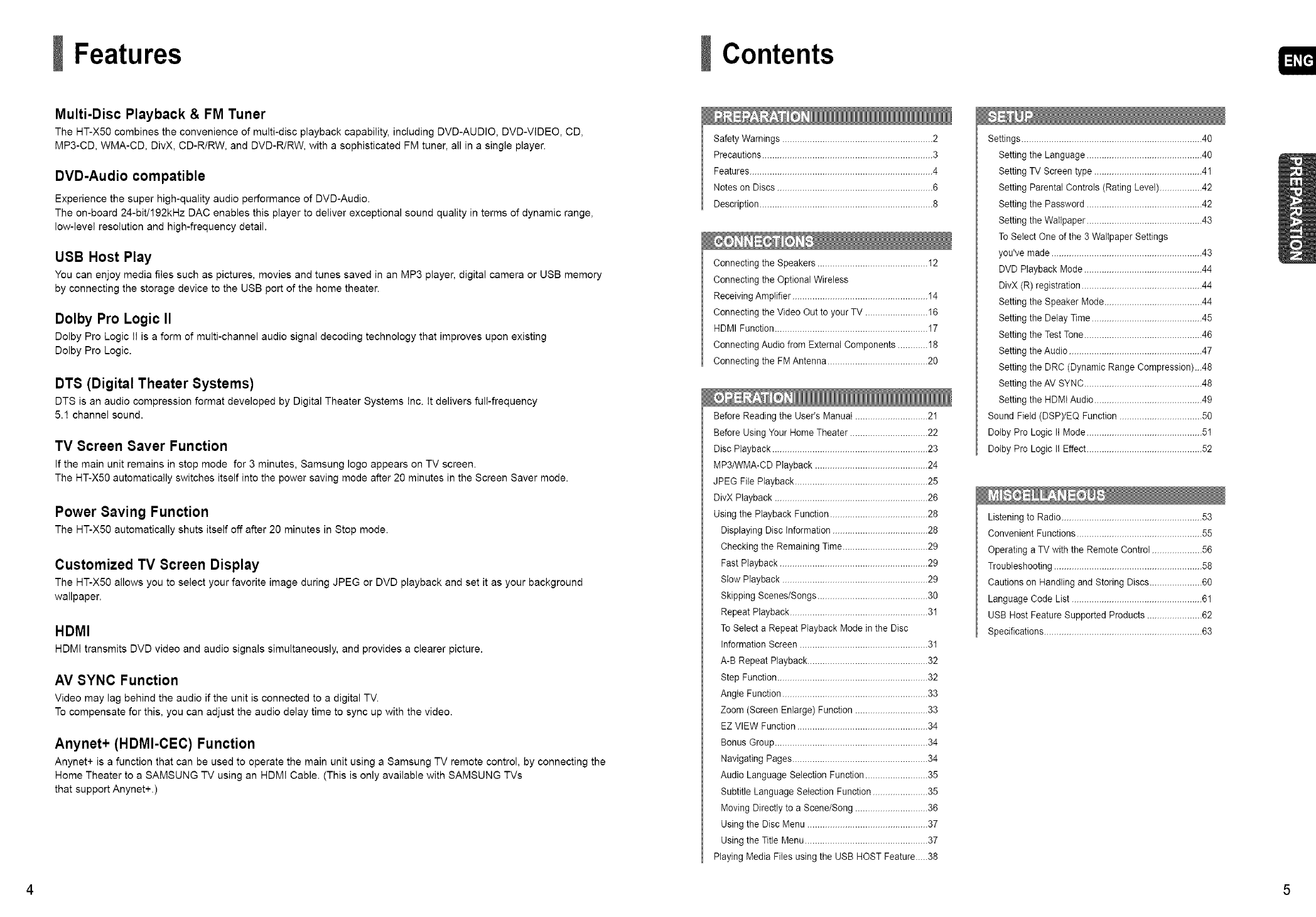

Features

Multi-Disc Playback & FM Tuner

The HT-X5O combines the convenience of multi-disc playback capability, including DVD-AUDIO, DVD-VIDEO CD,

MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD-R/RW, with a sophisticated FM tuner, all in a single player.

DVD-Audio compatible

Experience the super high-quality audio perfom_ance of DVD-Audio.

The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range,

low-level resolution and high-frequency detail.

USB Host Play

You can enjoy media files such as pictures, movies and tunes saved in an MP3 player, digital camera or USB memory

by connecting the storage device to the USB port of the home theater.

Dolby Pro Logic II

Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing

Dolby Pro Logic.

DTS (Digital Theater Systems)

DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency

5.I channel sound.

TV Screen Saver Function

If the main unit remains in stop mode for 3 minutes, Samsung logo appears on TV screen.

The HT-X50 automatically switches itself into the power saving mode after 20 minutes in the Screen Saver mode.

Power Saving Function

The HT-X5O automatically shuts itself off after 20 minutes in Stop mode.

Customized TV Screen Display

The HT-X5O allows you to select your favorite image during JPEG or DVD playback and set it as your background

wallpaper.

HDMI

HDM! transmits DVD video and audio signals simultaneously, and provides a clearer picture.

AV SYNC Function

Video may lag behind the audio if the unit is connected to a digital TV.

To compensate for this, you can adjust the audio delay time to sync up with the video.

Anynet+ (HDMI-CEC) Function

Anynet+ is a function that can be used to operate the main unit using a Samsung TV rernote control, by connecting the

Home Theater to a SAMSUNG TV using an HDM! Cable. (This is only available with SAMSUNG TVs

that support Anynet+.)

Contents

Safety Warnings ............................................................ 2

Precautions .................................................................... 3

Features ......................................................................... 4

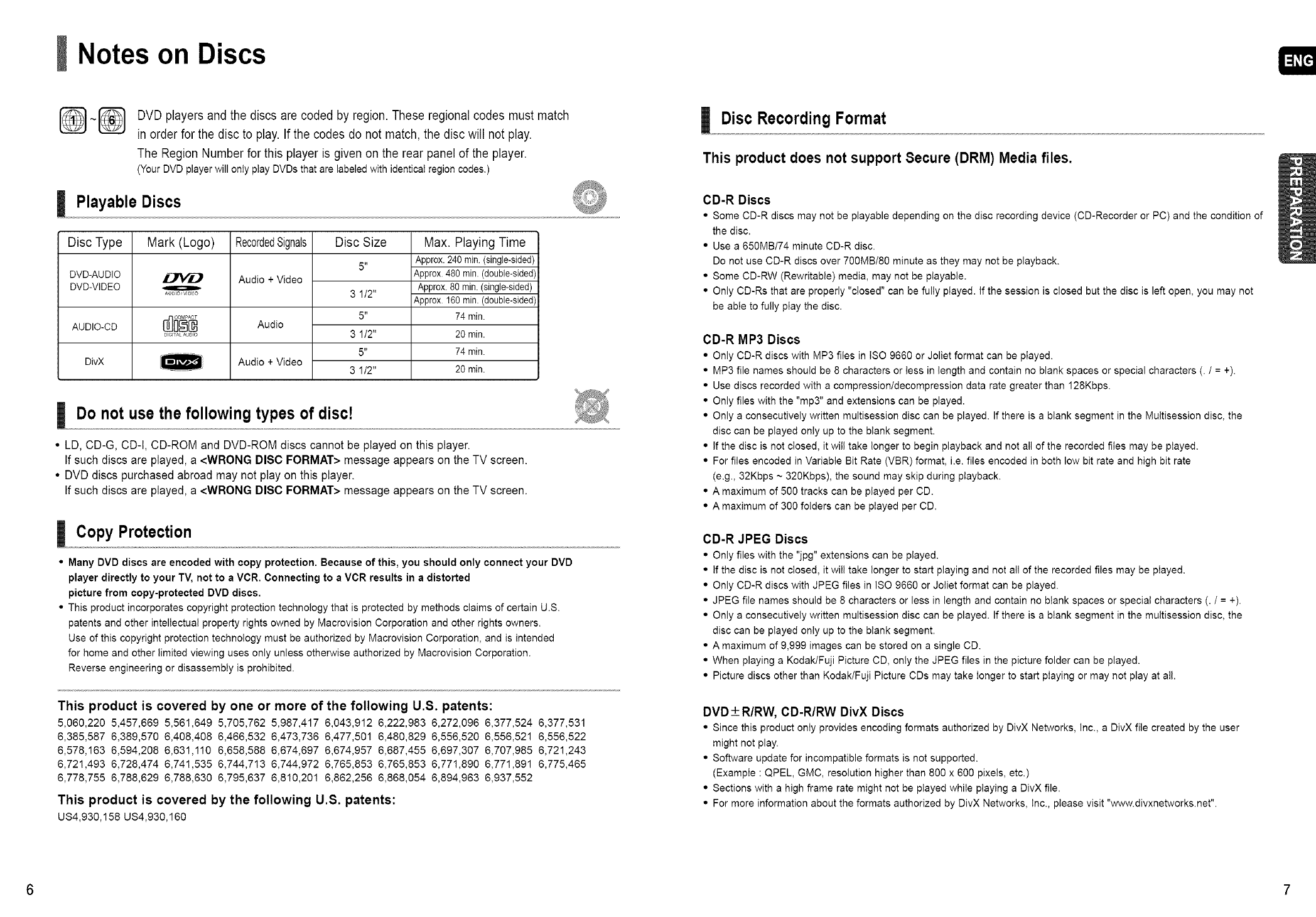

Notes on Discs .............................................................. 6

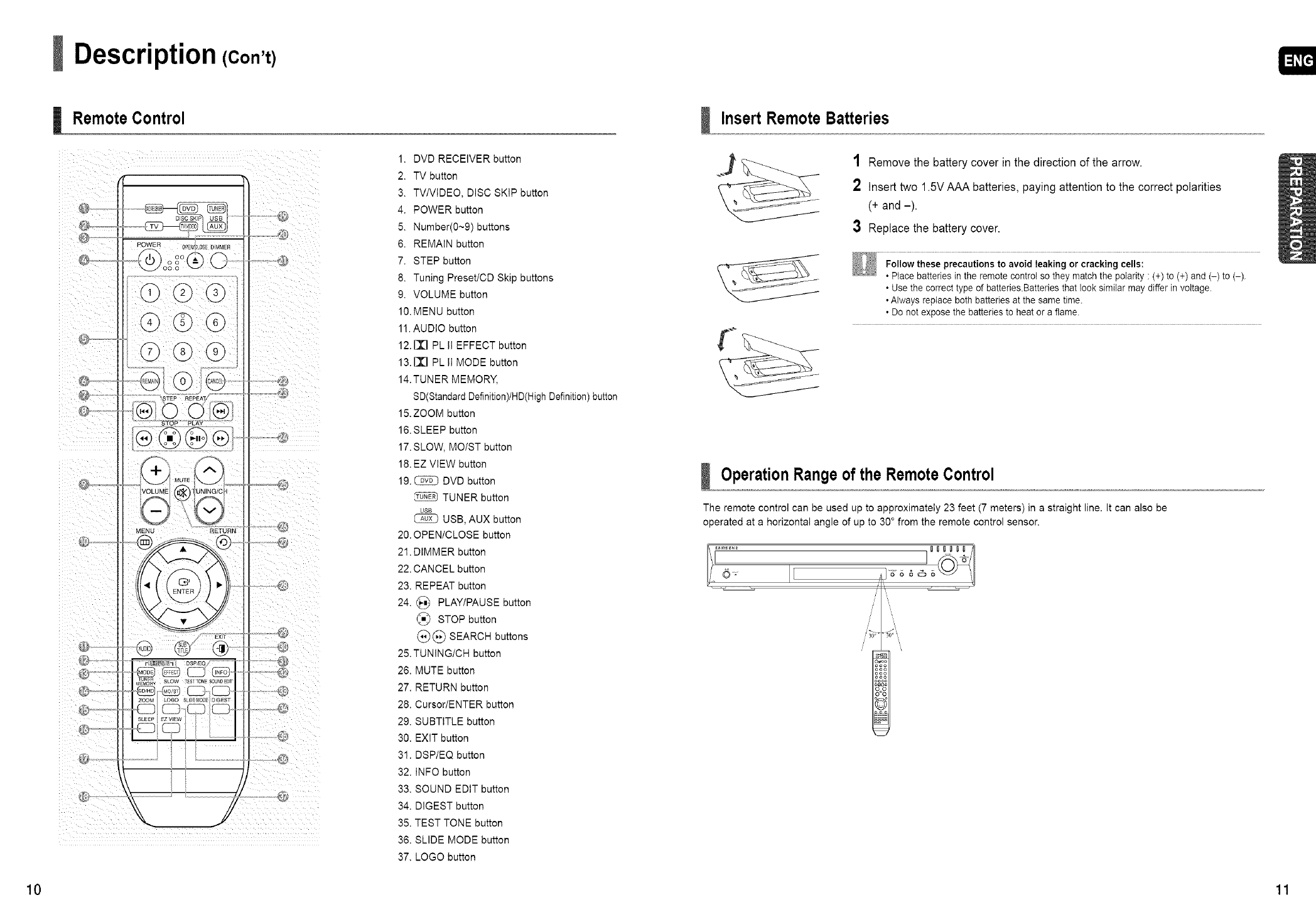

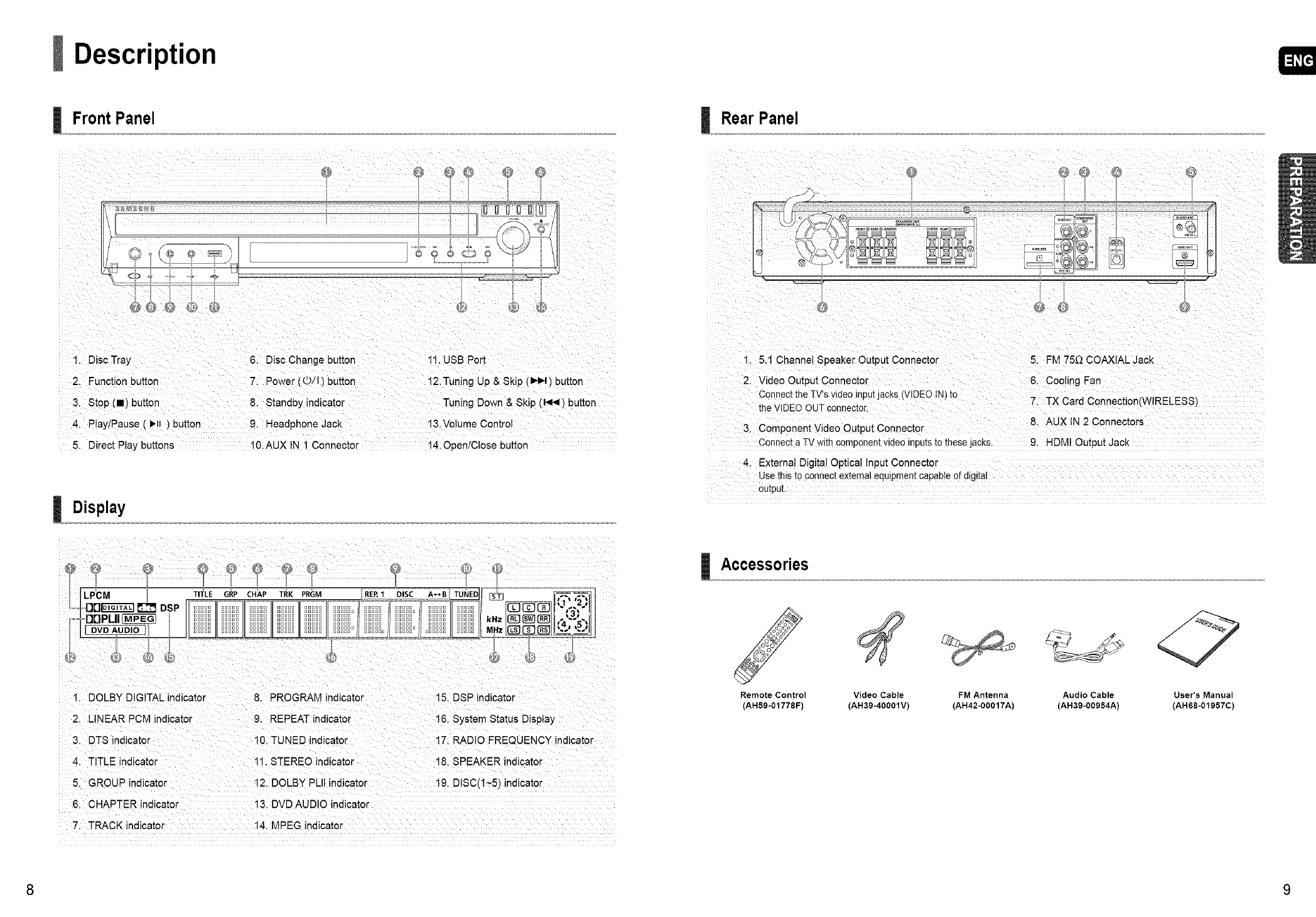

Description ..................................................................... 8

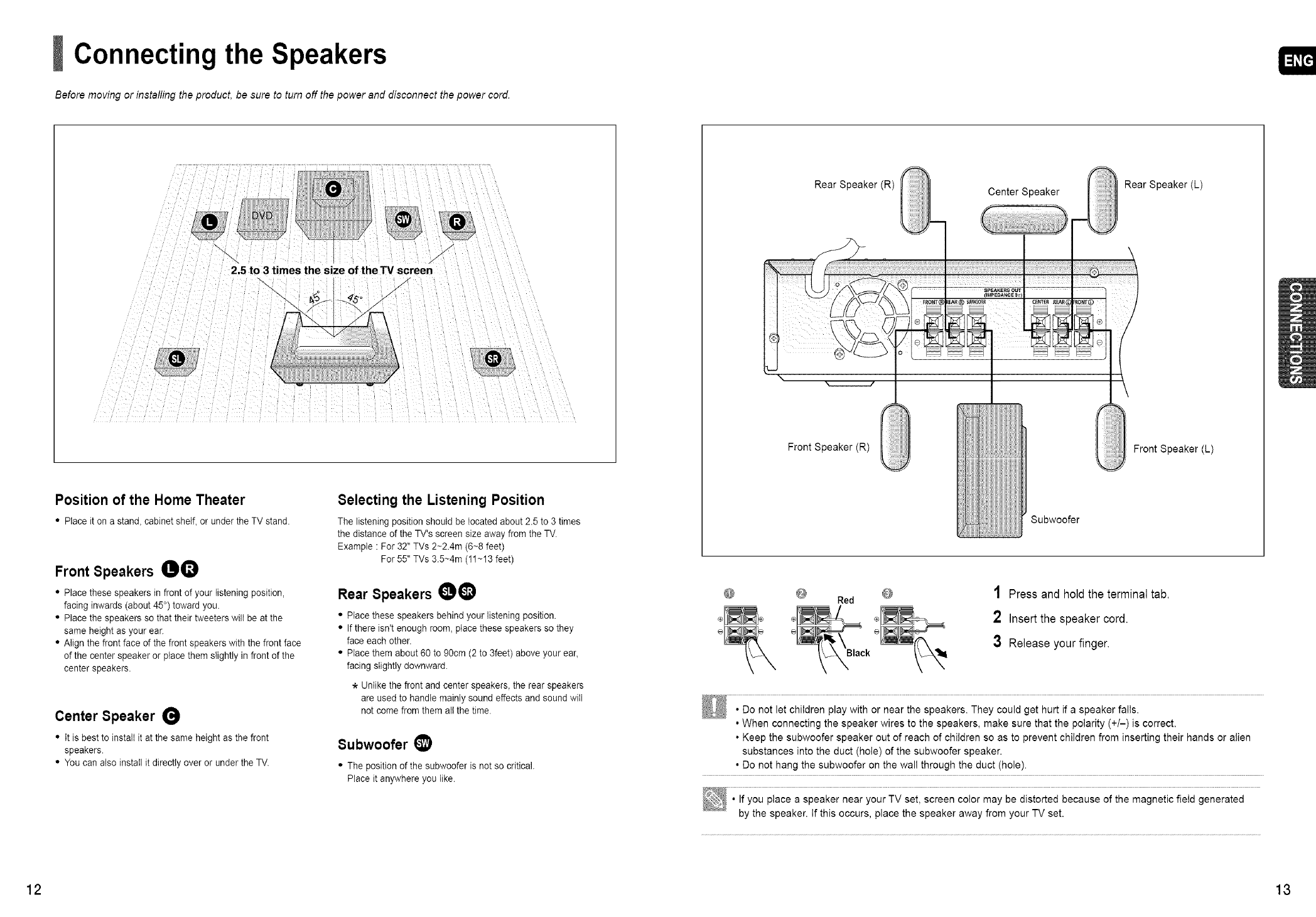

Connecting the Speakers ............................................ 12

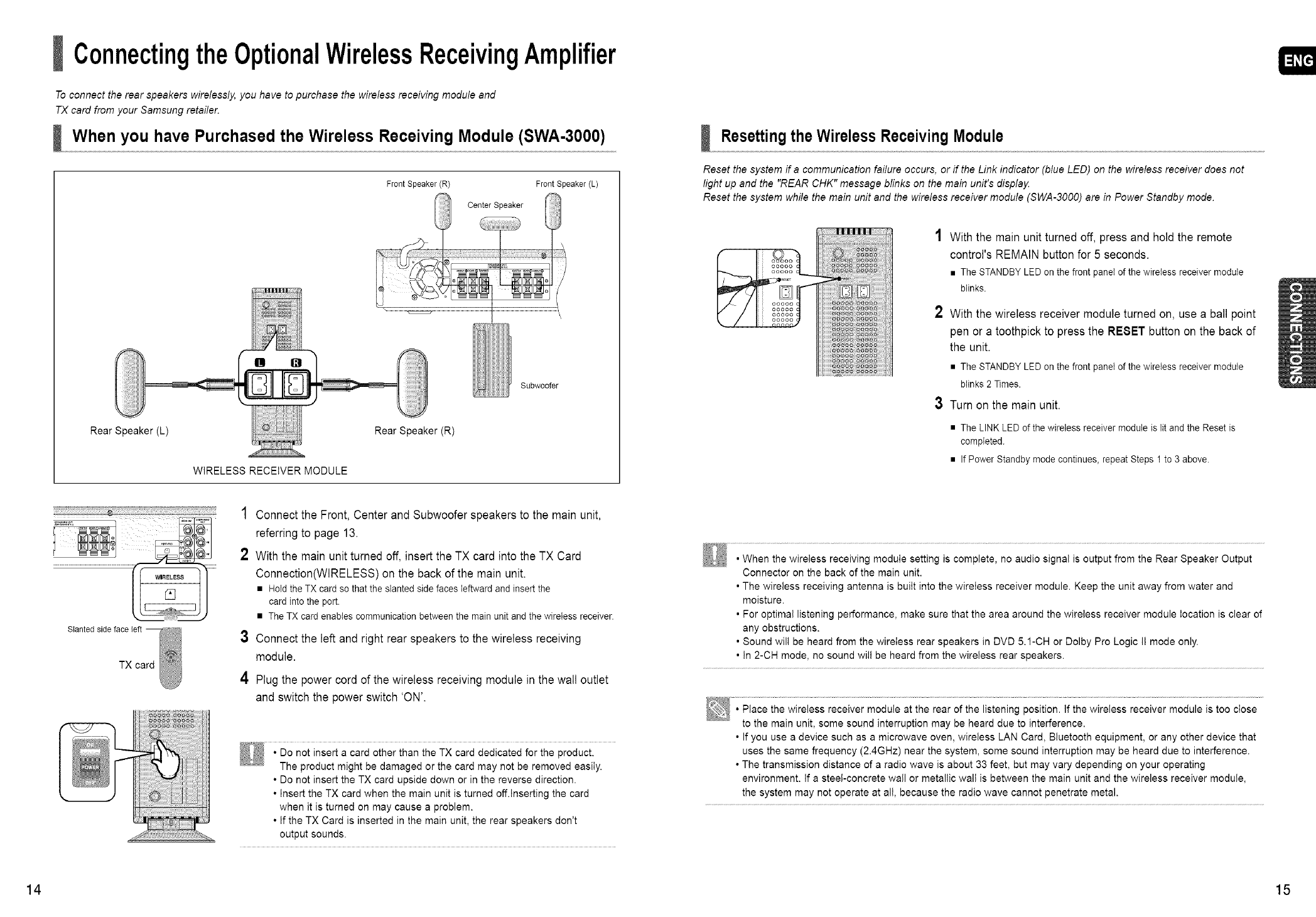

Connecting the Optional Wireless

Receiving Amplifier ...................................................... 14

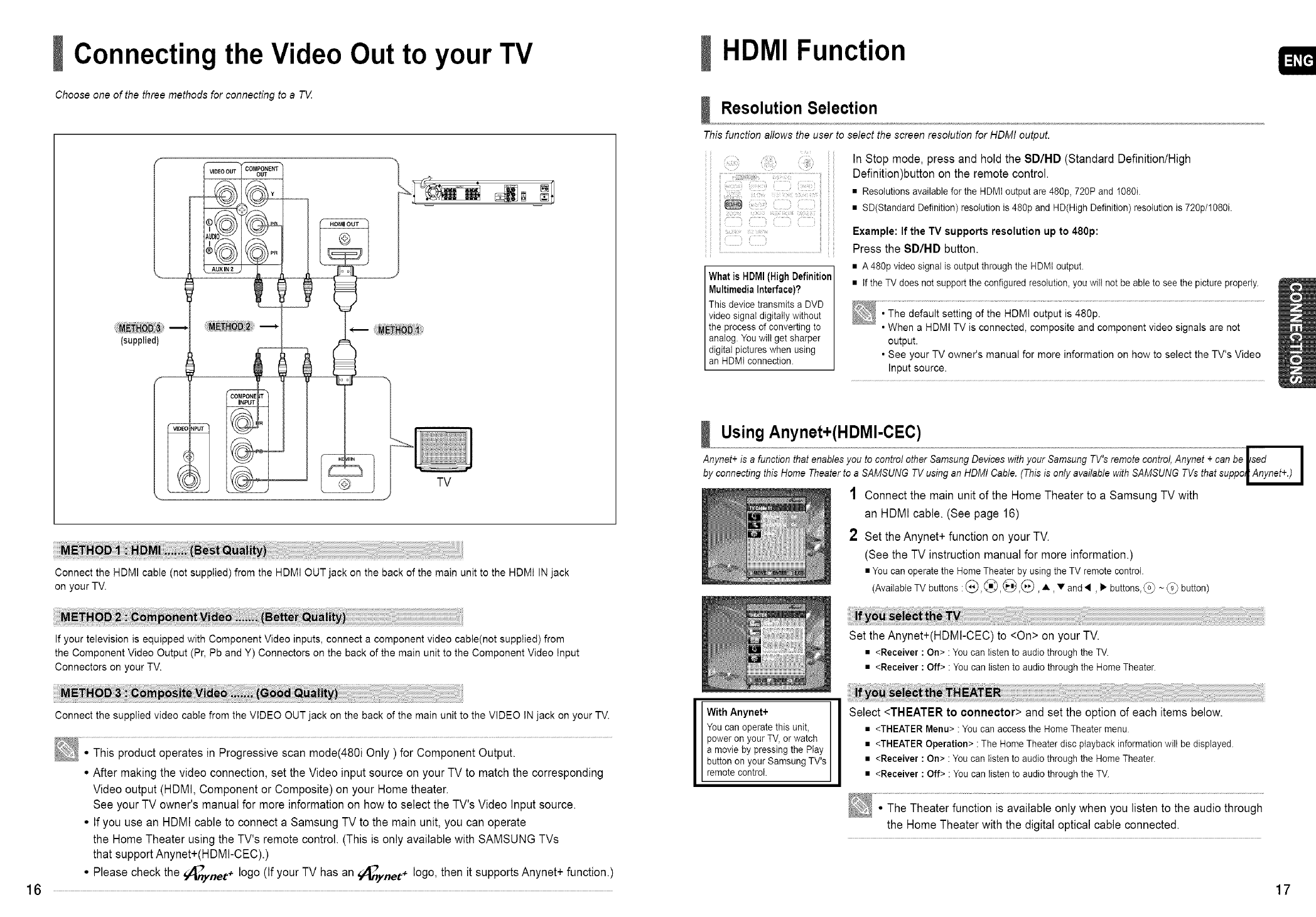

Connecting the Video Out to your TV ......................... 16

HDMI Function ............................................................. 17

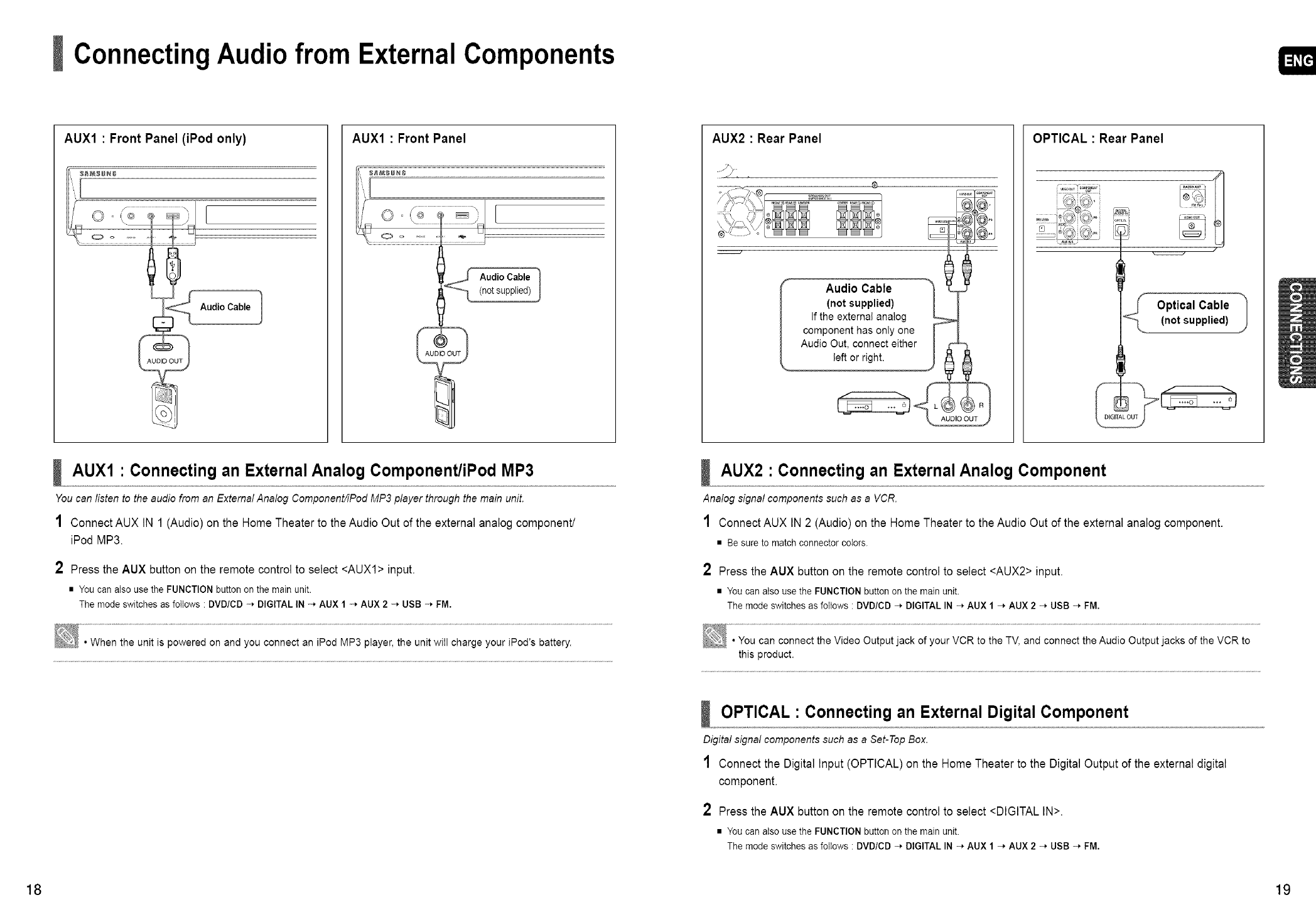

Connecting Audio from External Components ............18

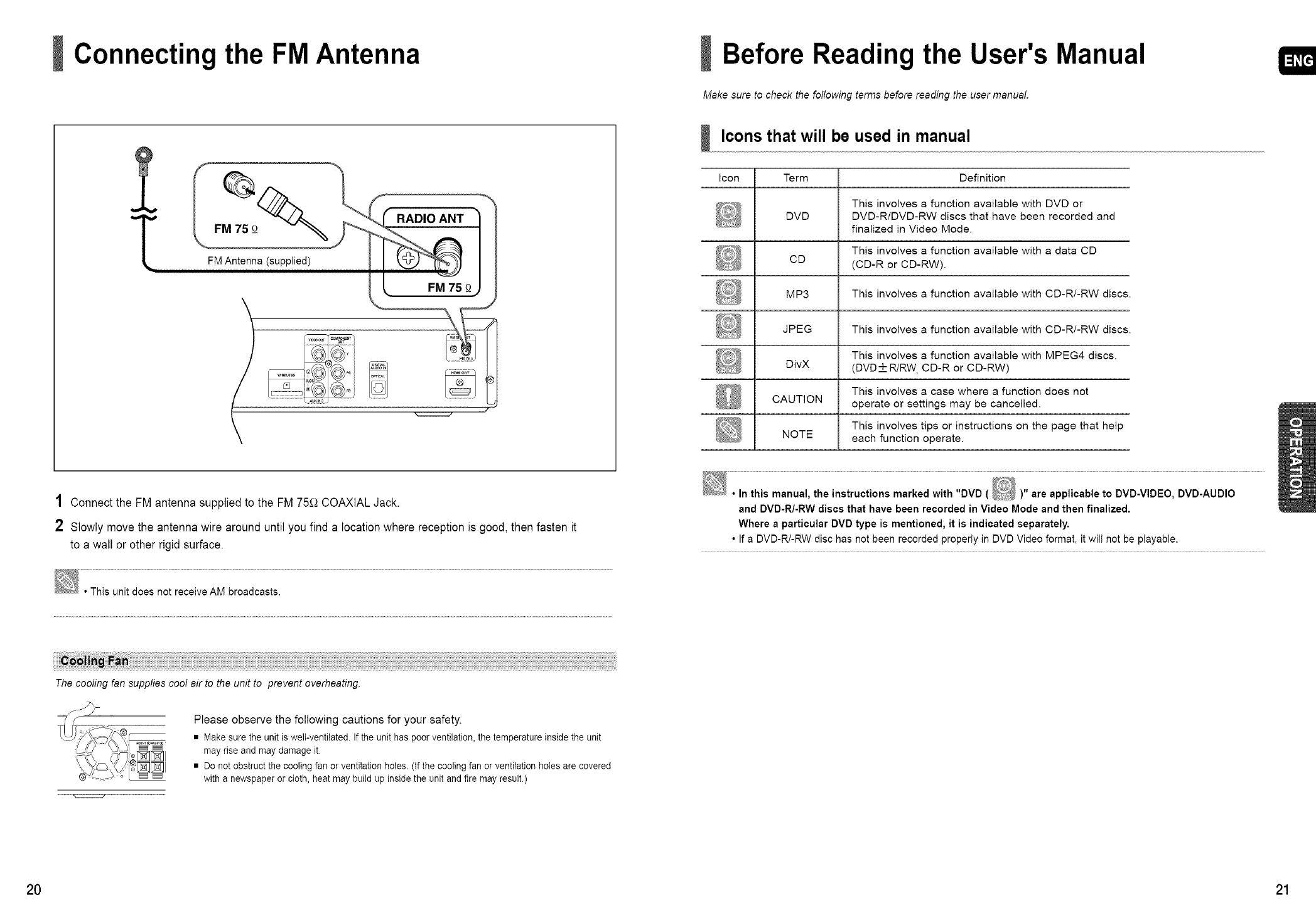

Connecting the FM Antenna........................................ 20

Before Reading the User's Manual .............................21

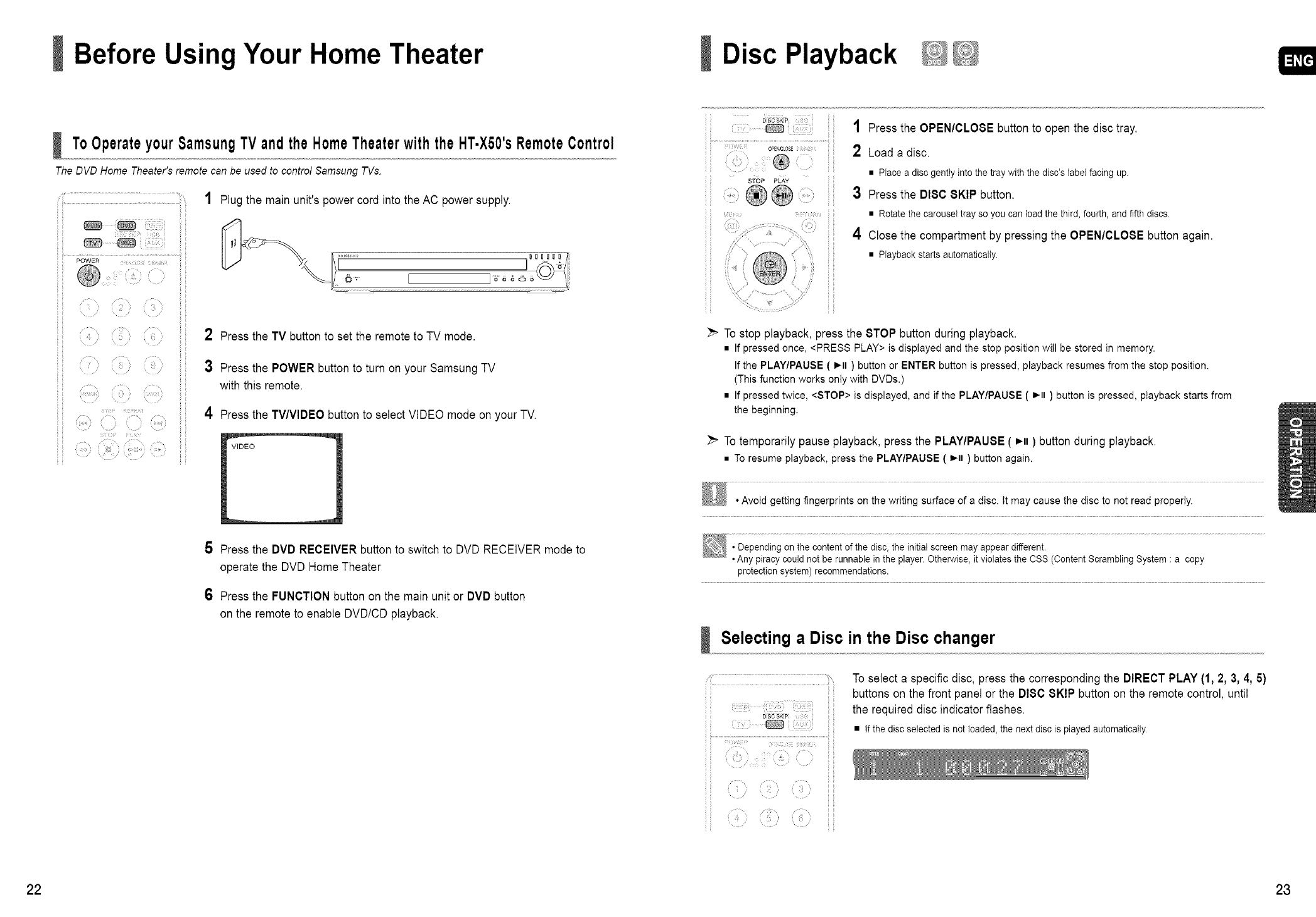

Before Using Your Home Theater ...............................22

Disc Playback .............................................................. 23

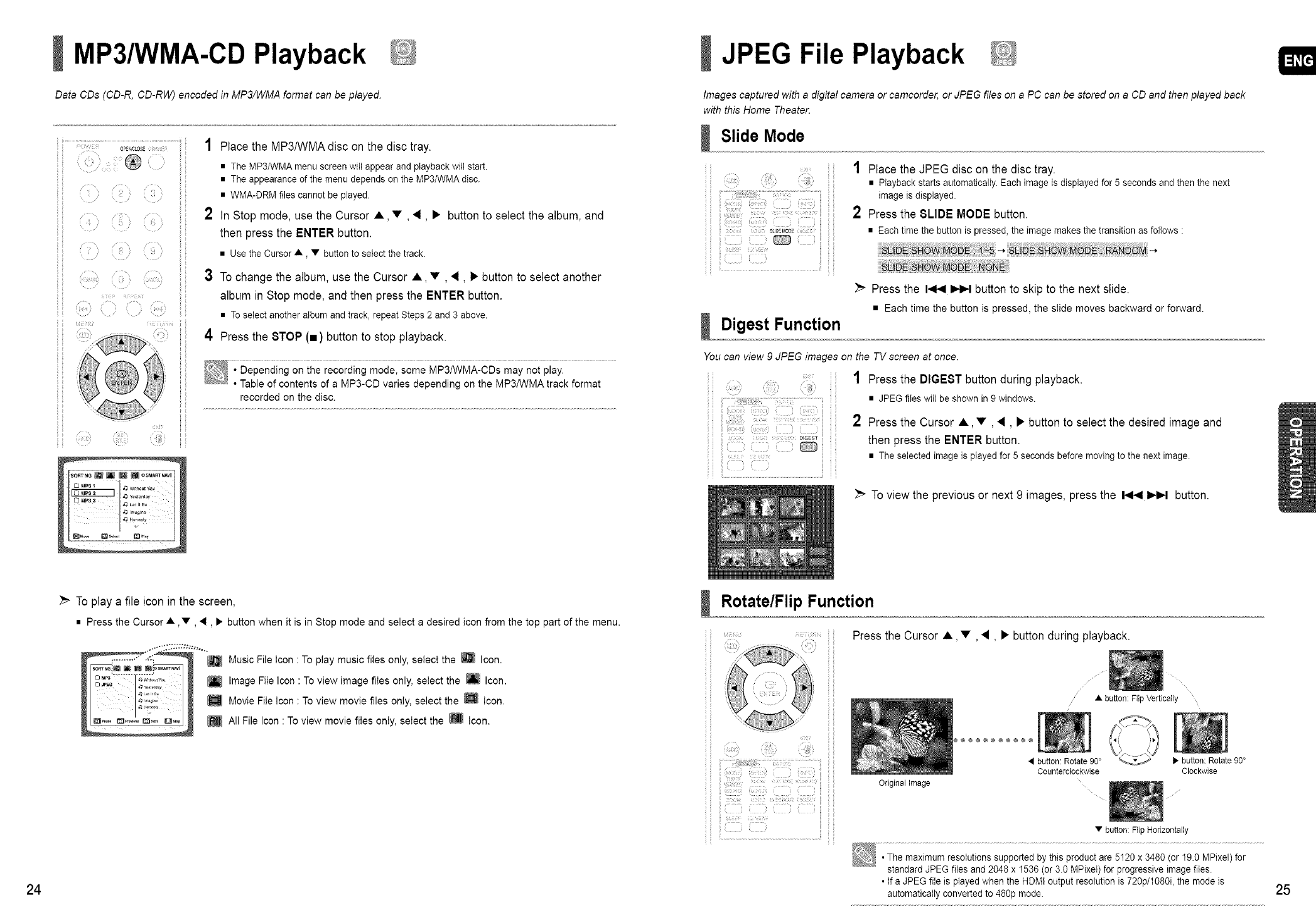

MP3/WMA-CD Playback ............................................. 24

JPEG File Playback ..................................................... 25

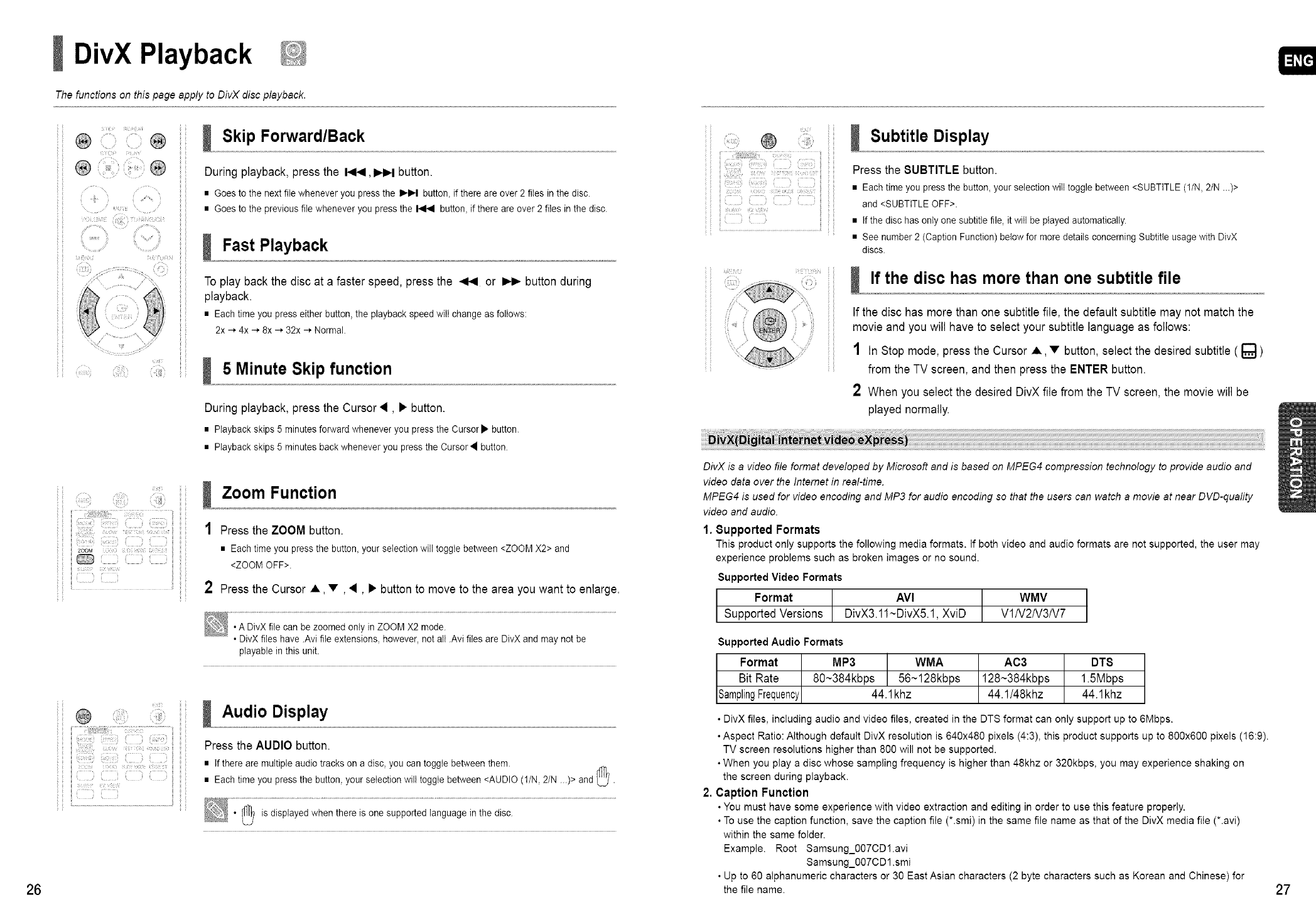

DivX Playback ............................................................. 26

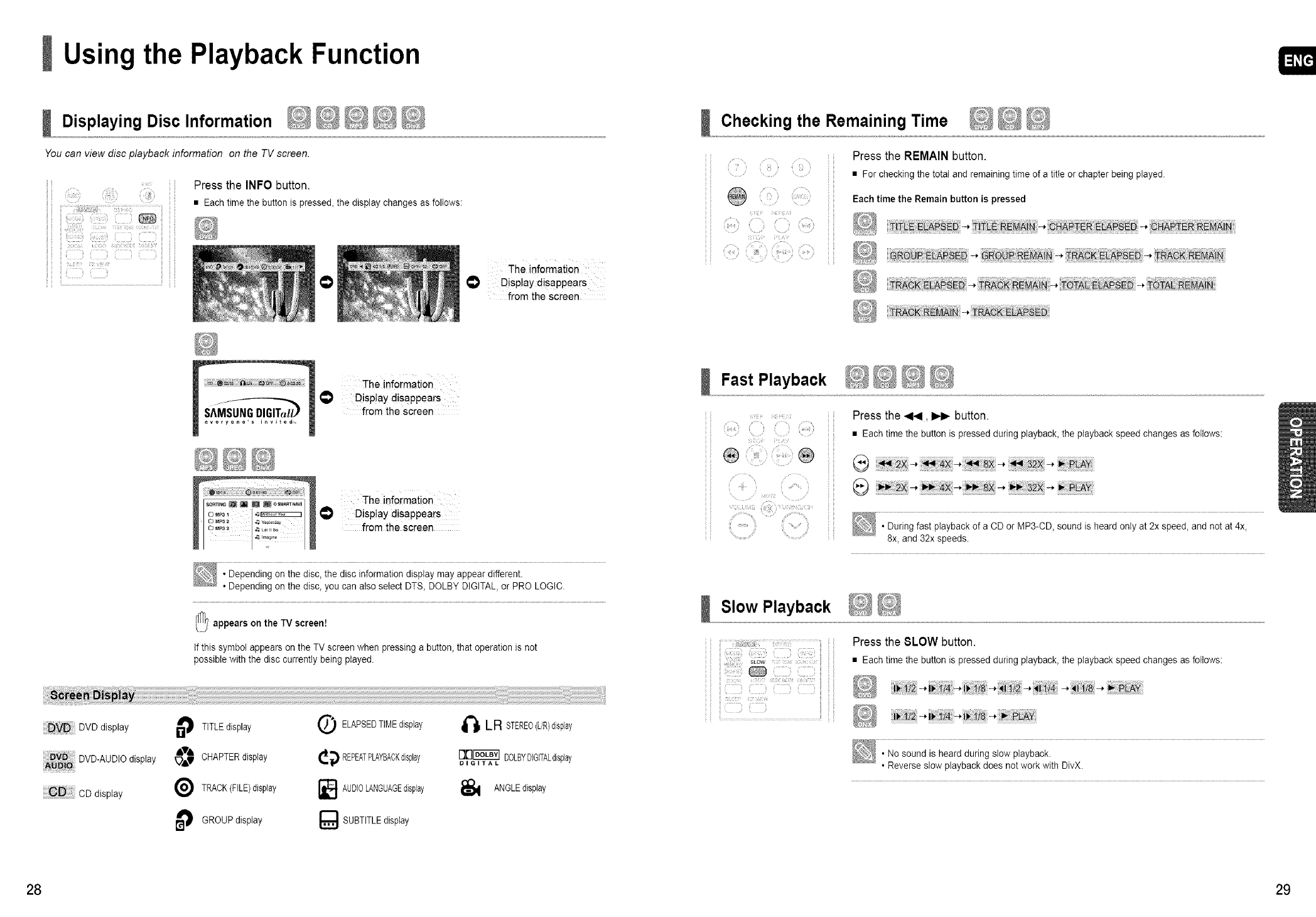

Using the Playback Function ....................................... 28

Displaying Disc Information ...................................... 28

Checking the Remaining Time ..................................29

Fast Playback ........................................................... 29

Stow Playback .......................................................... 29

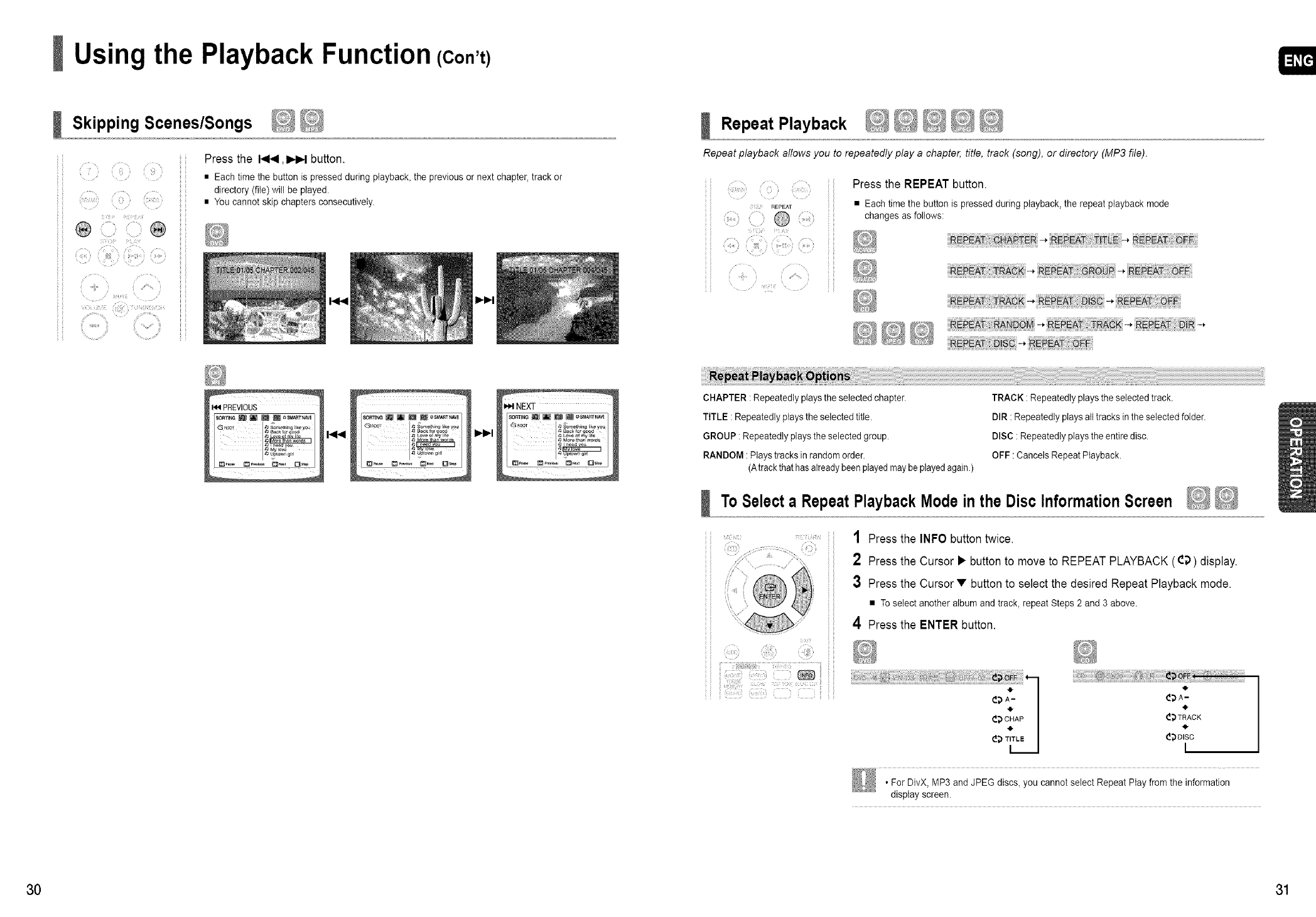

Skipping Scenes/Songs ............................................ 30

Repeat Playback....................................................... 31

To Select a Repeat Playback Mode in the Disc

Information Screen ................................................... 31

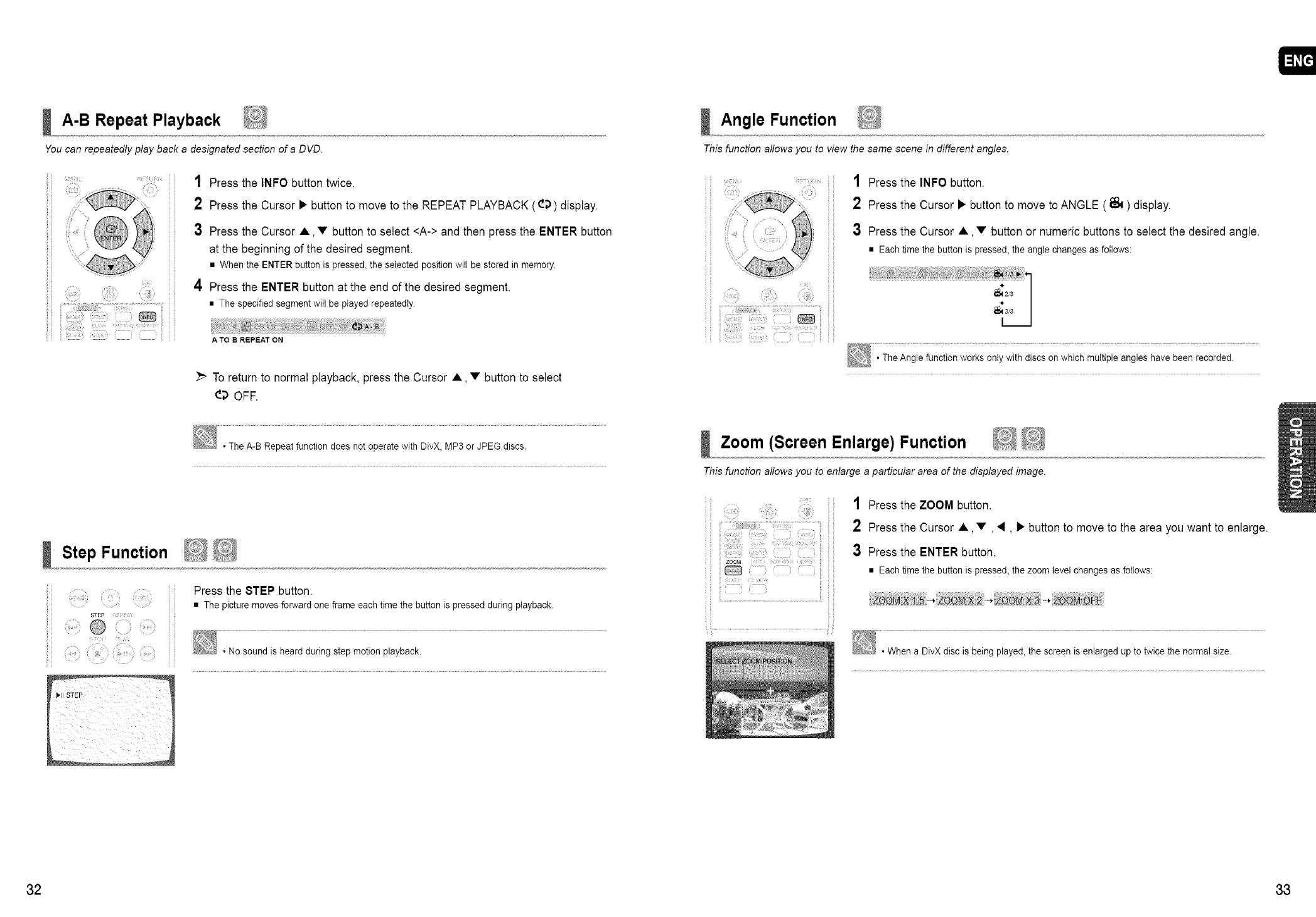

A-B Repeat Playback ................................................ 32

Step Function ............................................................ 32

Angte Function .......................................................... 33

Zoom (Screen Enlarge) Function .............................33

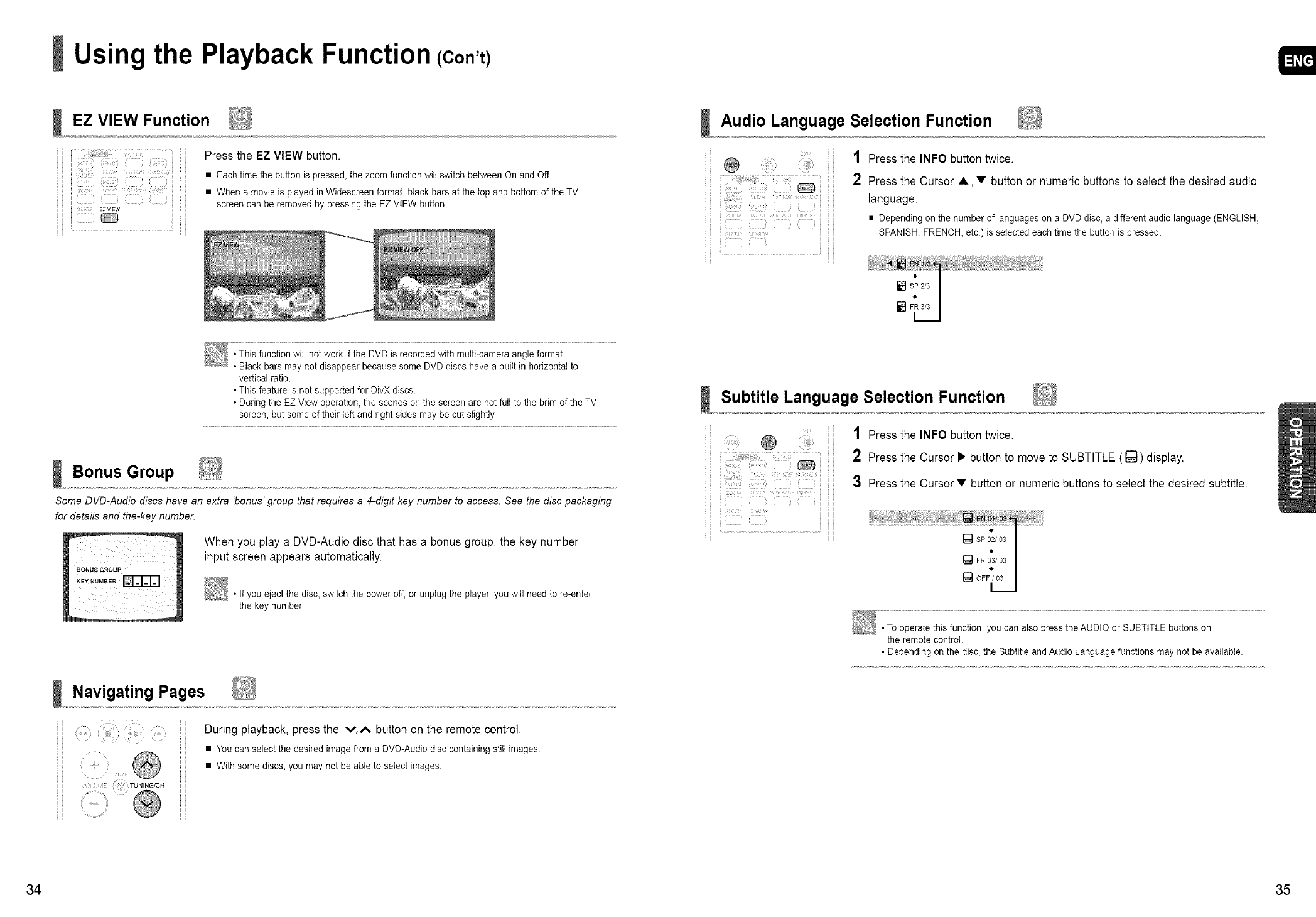

EZ VIEW Function .................................................... 34

Bonus Group ............................................................. 34

Navigating Pages ...................................................... 34

Audio Language Selection Function .........................35

Subtitle Language Selection Function ...................... 35

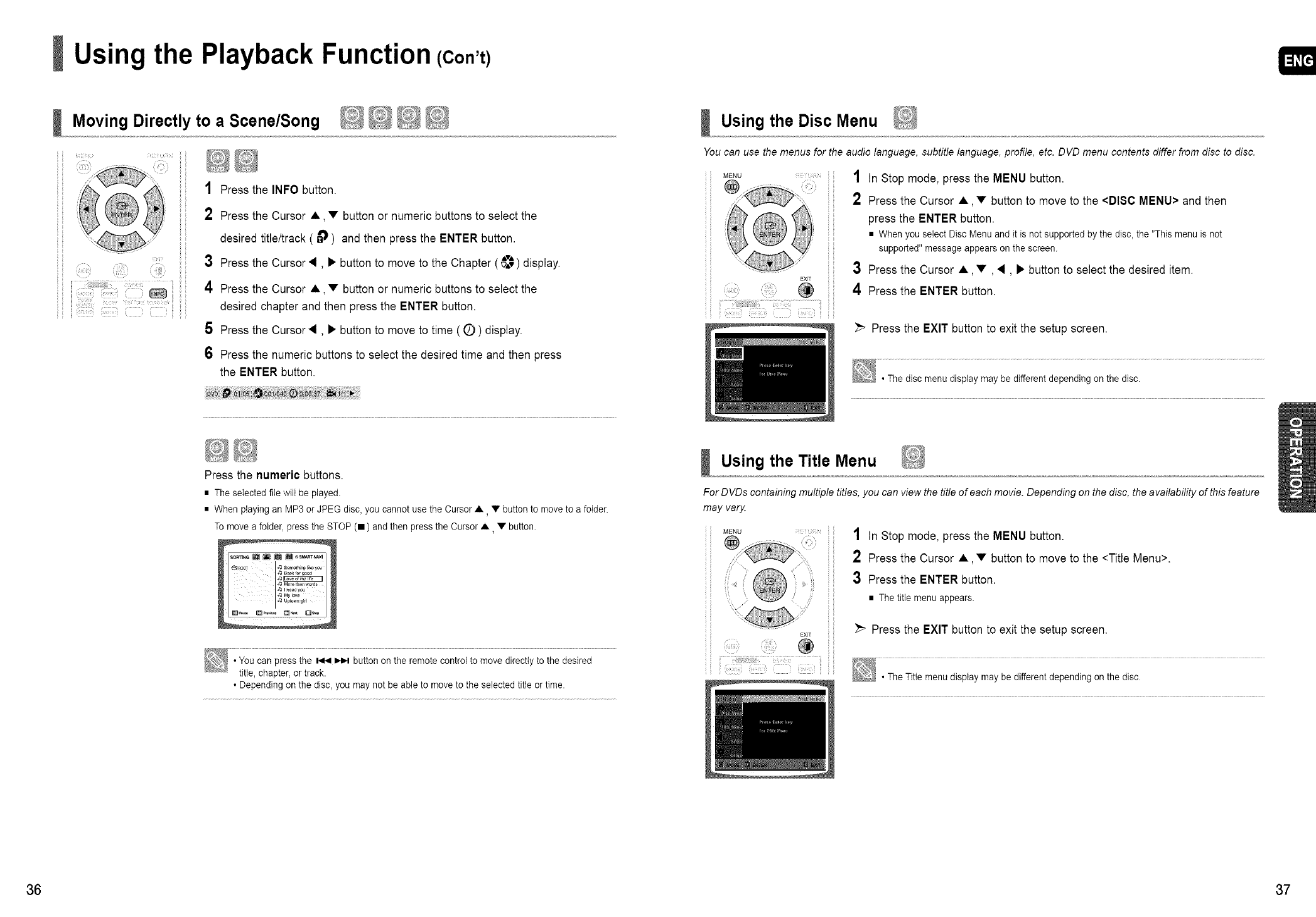

Moving Directly to a Scene/Song .............................36

Using the Disc Menu ................................................ 37

Using the Title Menu ................................................. 37

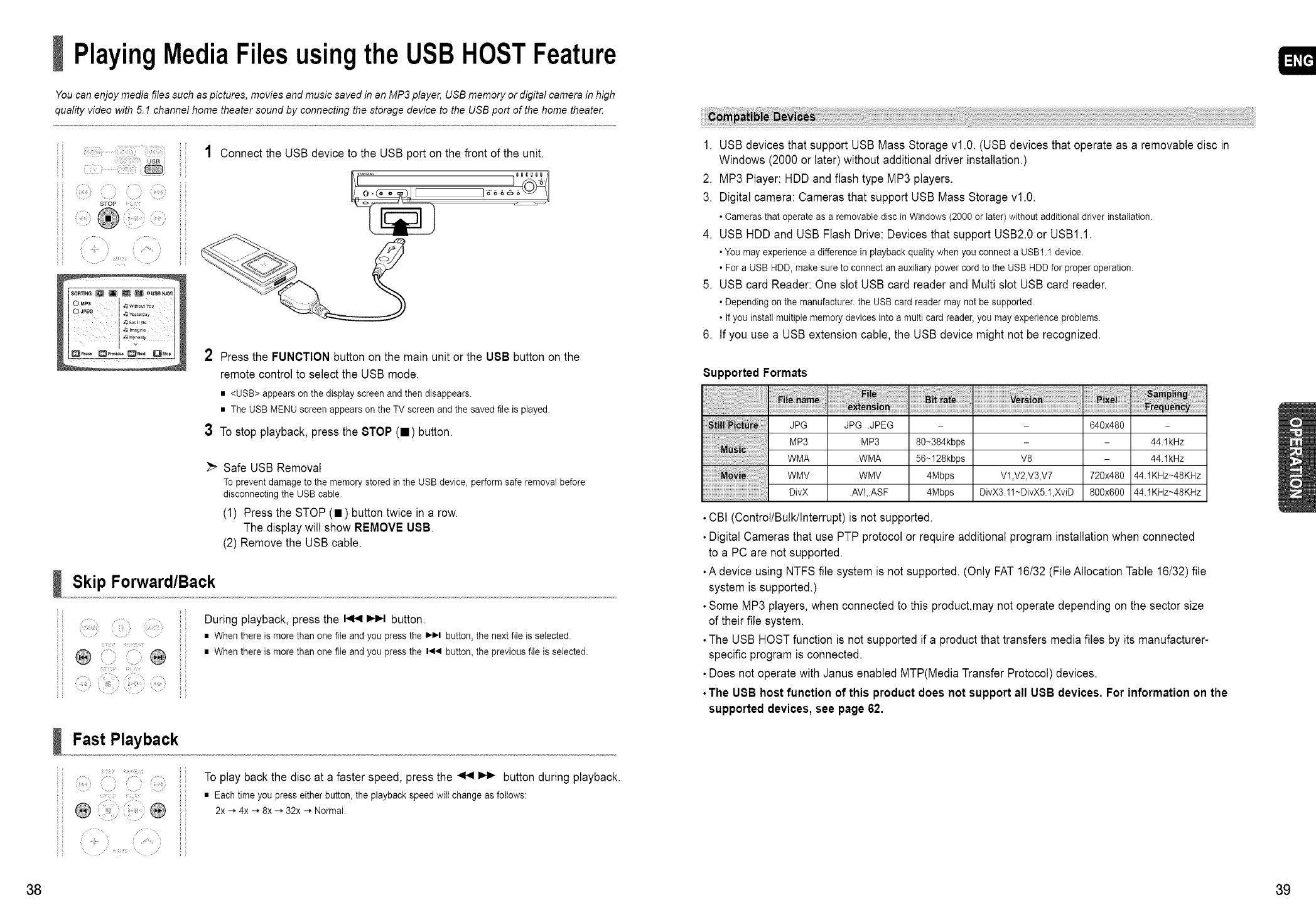

Playing Media Files using the USB HOST Feature._..38

Settings ........................................................................ 40

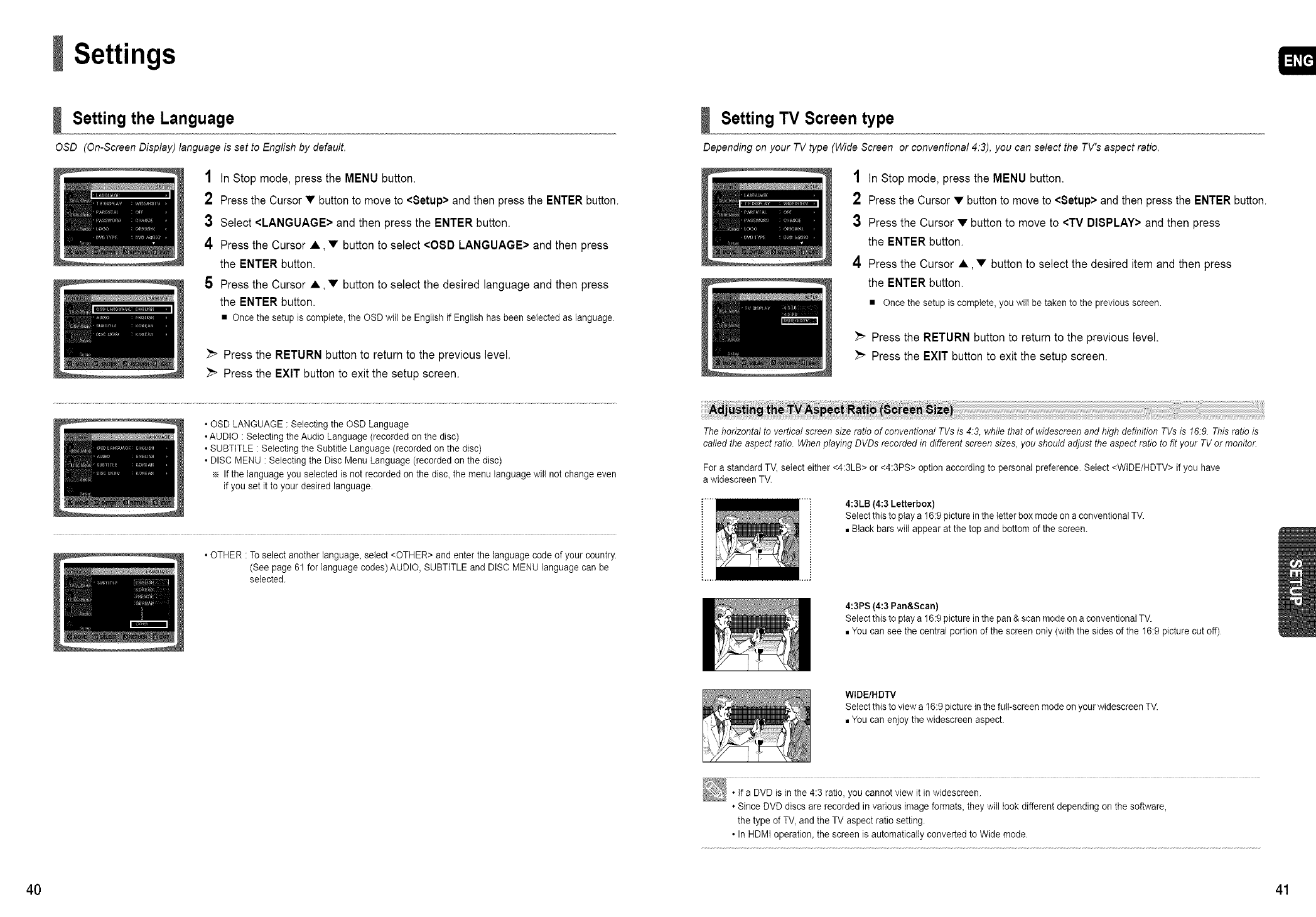

Setting the Language .............................................. 40

Setting TV Screen type ........................................... 41

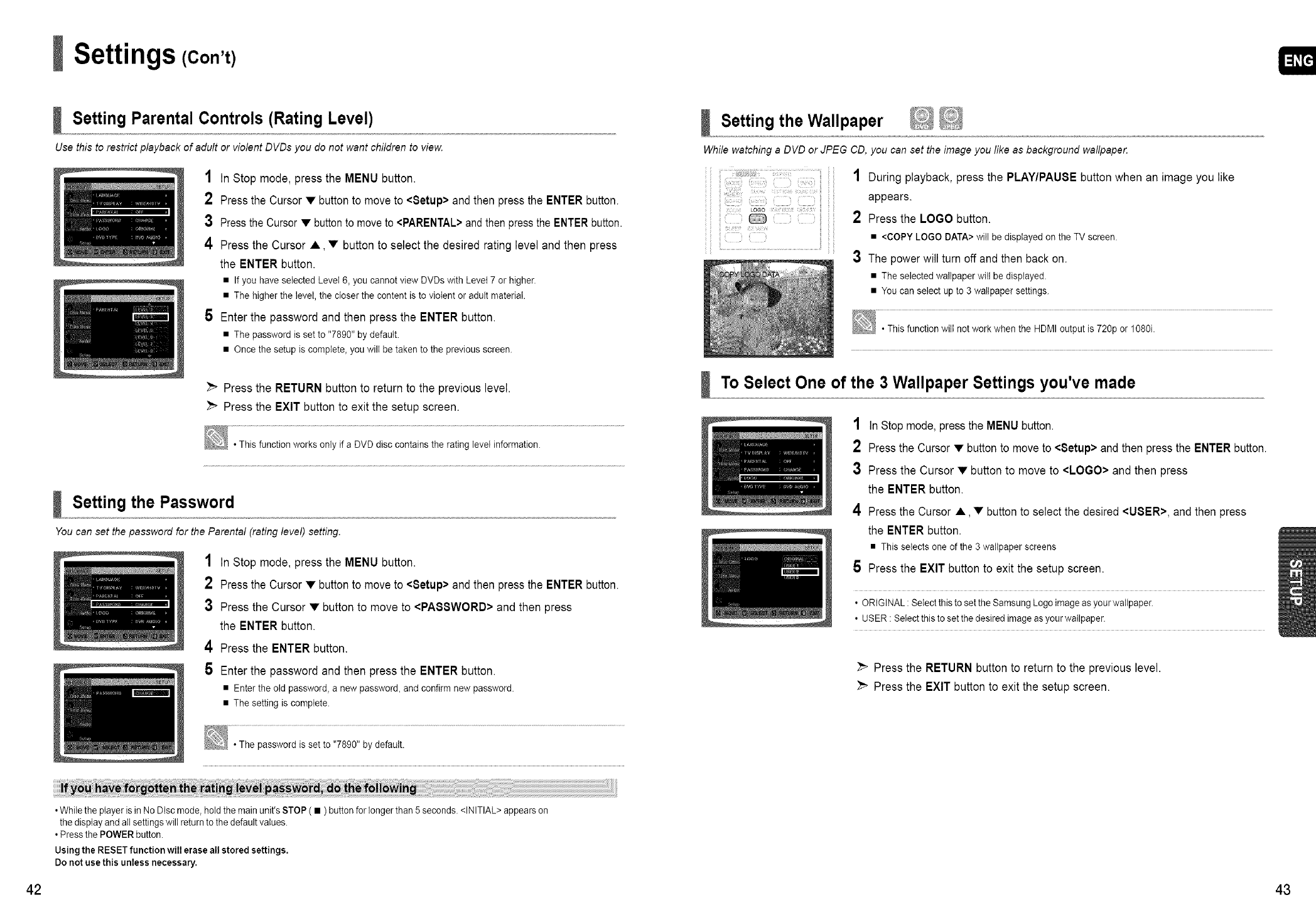

Setting Parental Controls (Rating Level).................42

Setting the Password .............................................. 42

Setting the Wallpaper .............................................. 43

To SeIect One of the 3 Wallpaper Settings

you've made ............................................................ 43

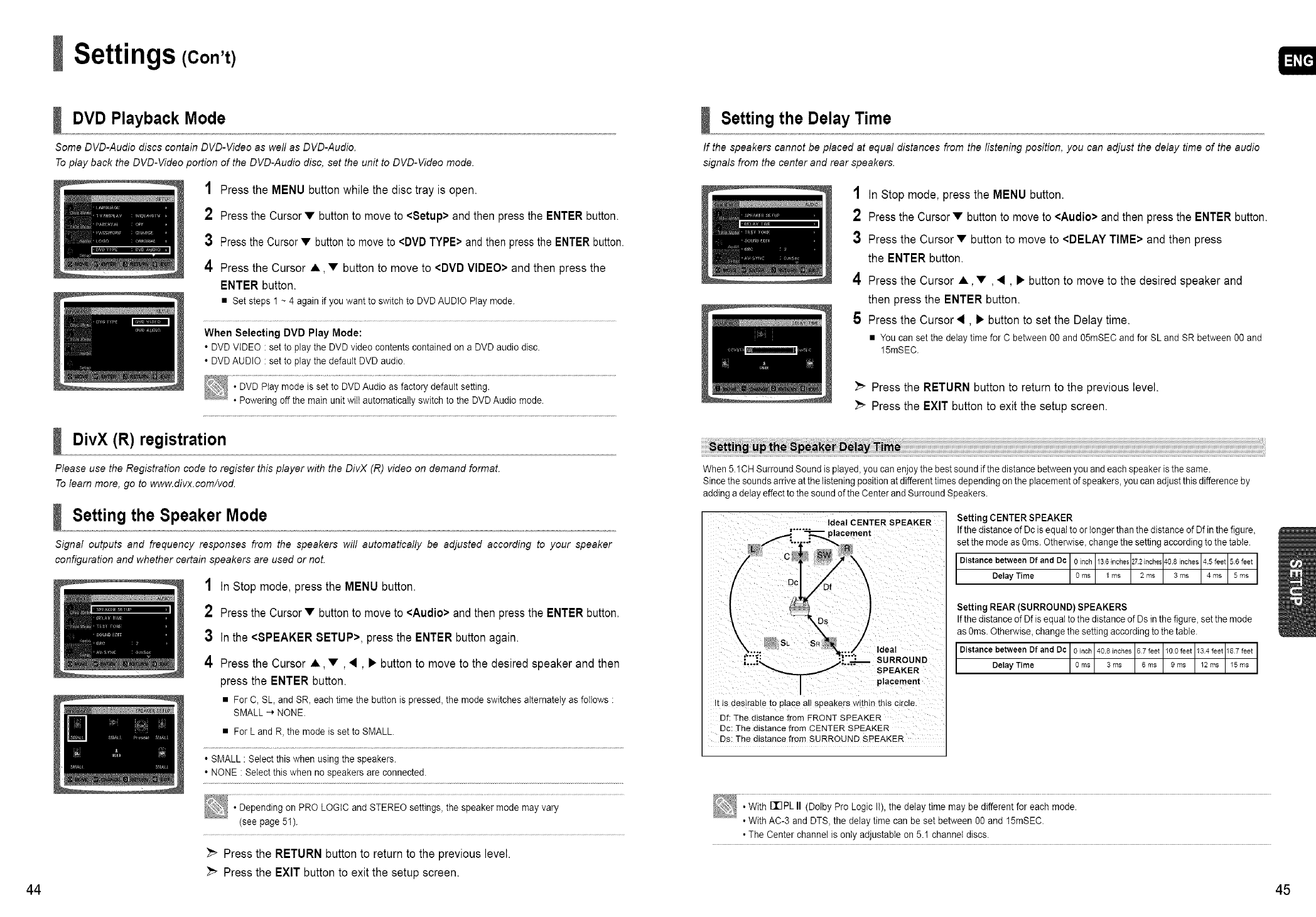

DVD Playback Mode ............................................... 44

DivX (R) registration ................................................ 44

Setting the Speaker Mode....................................... 44

Setting the Delay Time ............................................ 45

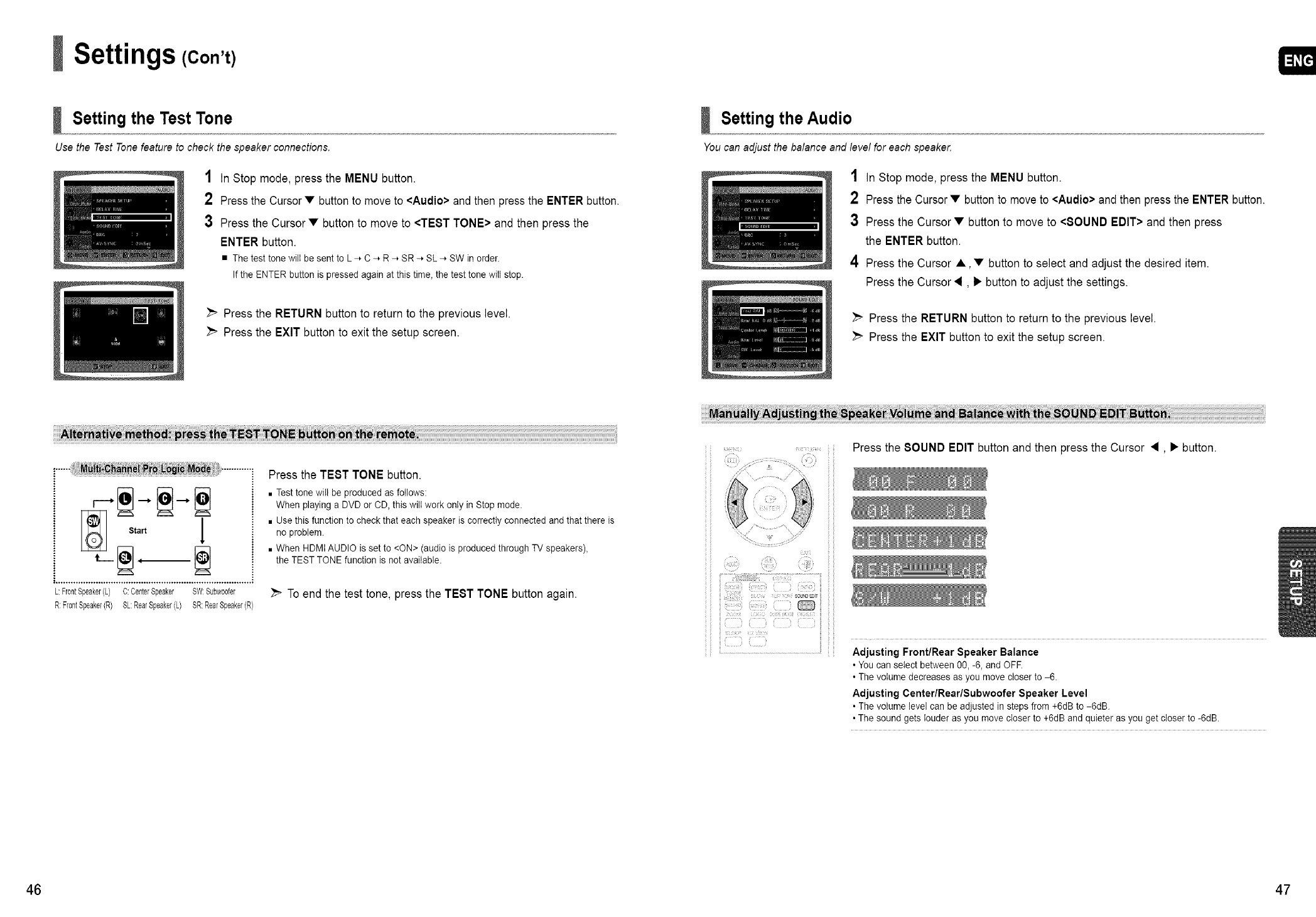

Setting the Test Tone............................................... 46

Setting the Audio ..................................................... 47

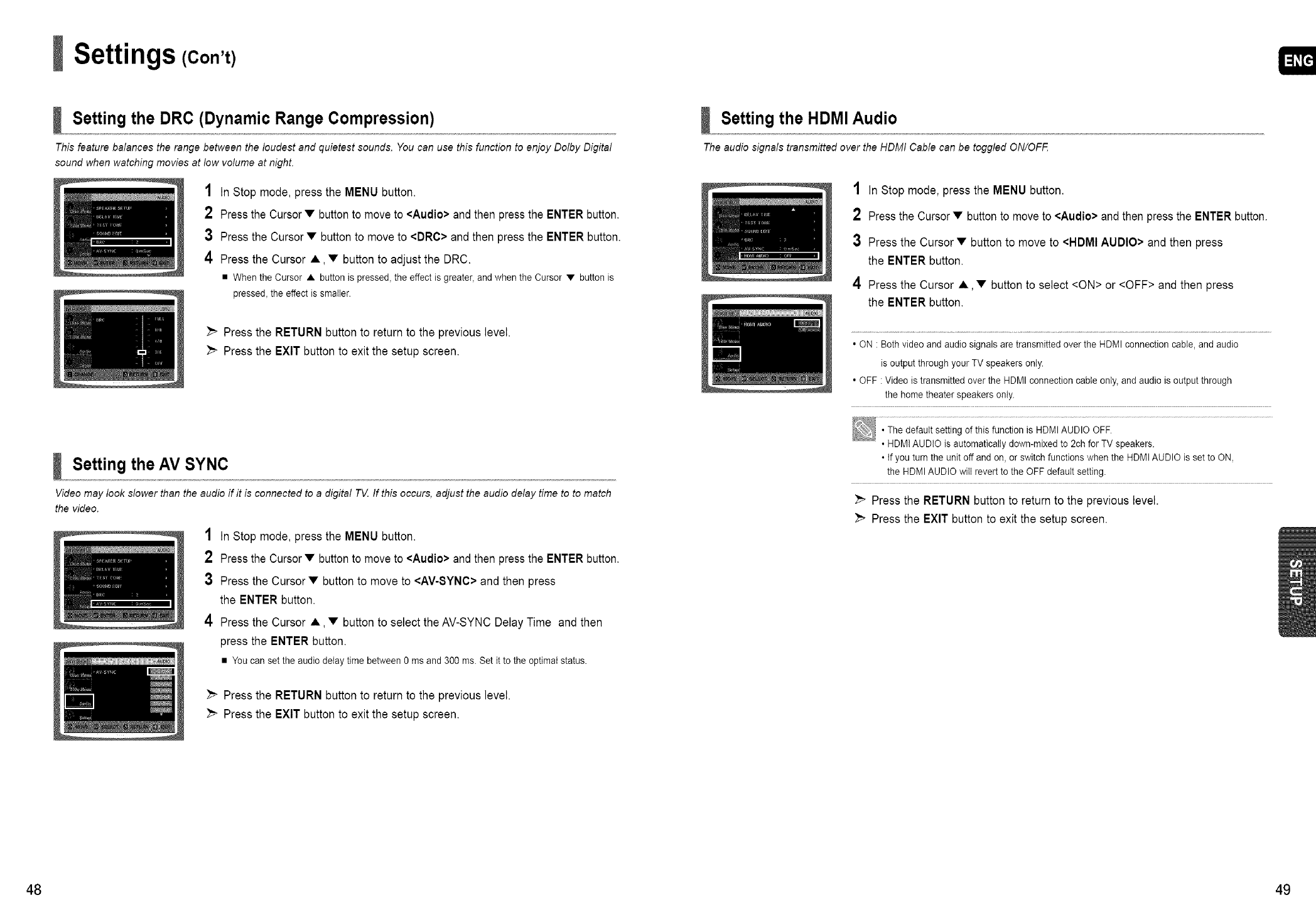

Setting the DRC (Dynamic Range Compression)...48

Setting the AV SYNC ............................................... 48

Setting the HDMI Audio ........................................... 49

Sound Field (DSP)/EQ Function ................................. 50

Dotby Pro Logic II Mode .............................................. 51

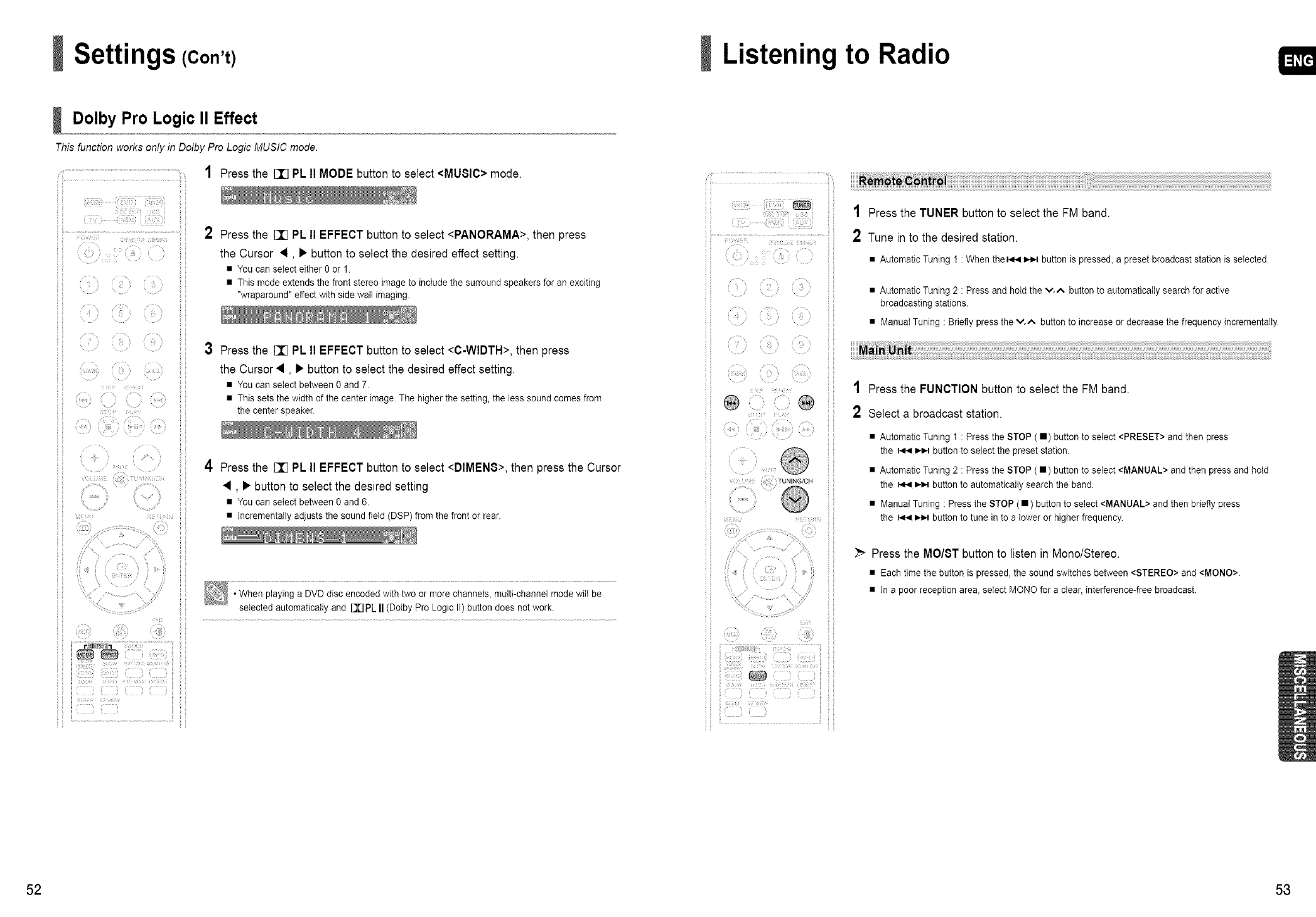

Dolby Pro Logic I! Effect .............................................. 52

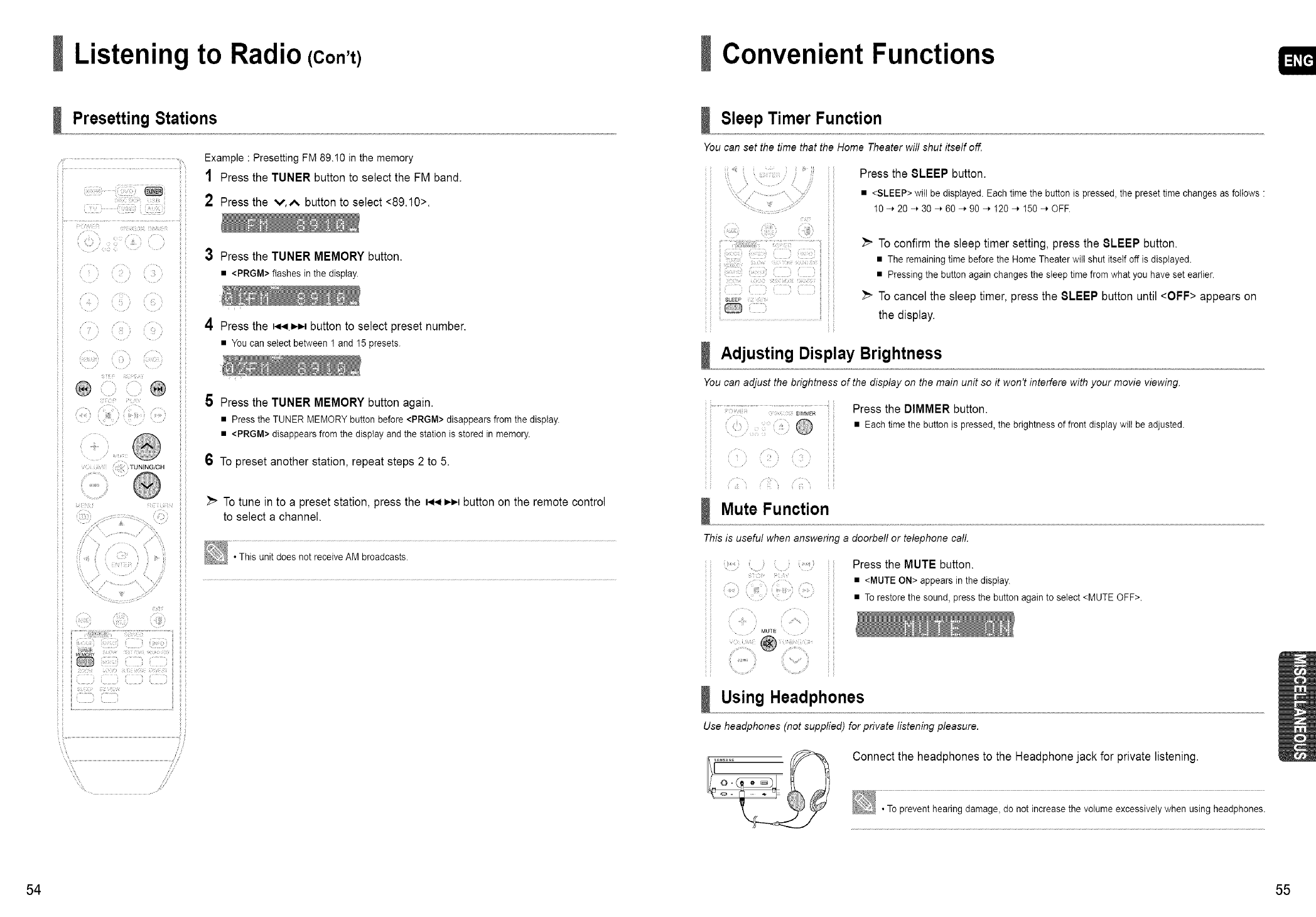

Listening to Radio ........................................................ 53

Convenient Functions .................................................. 55

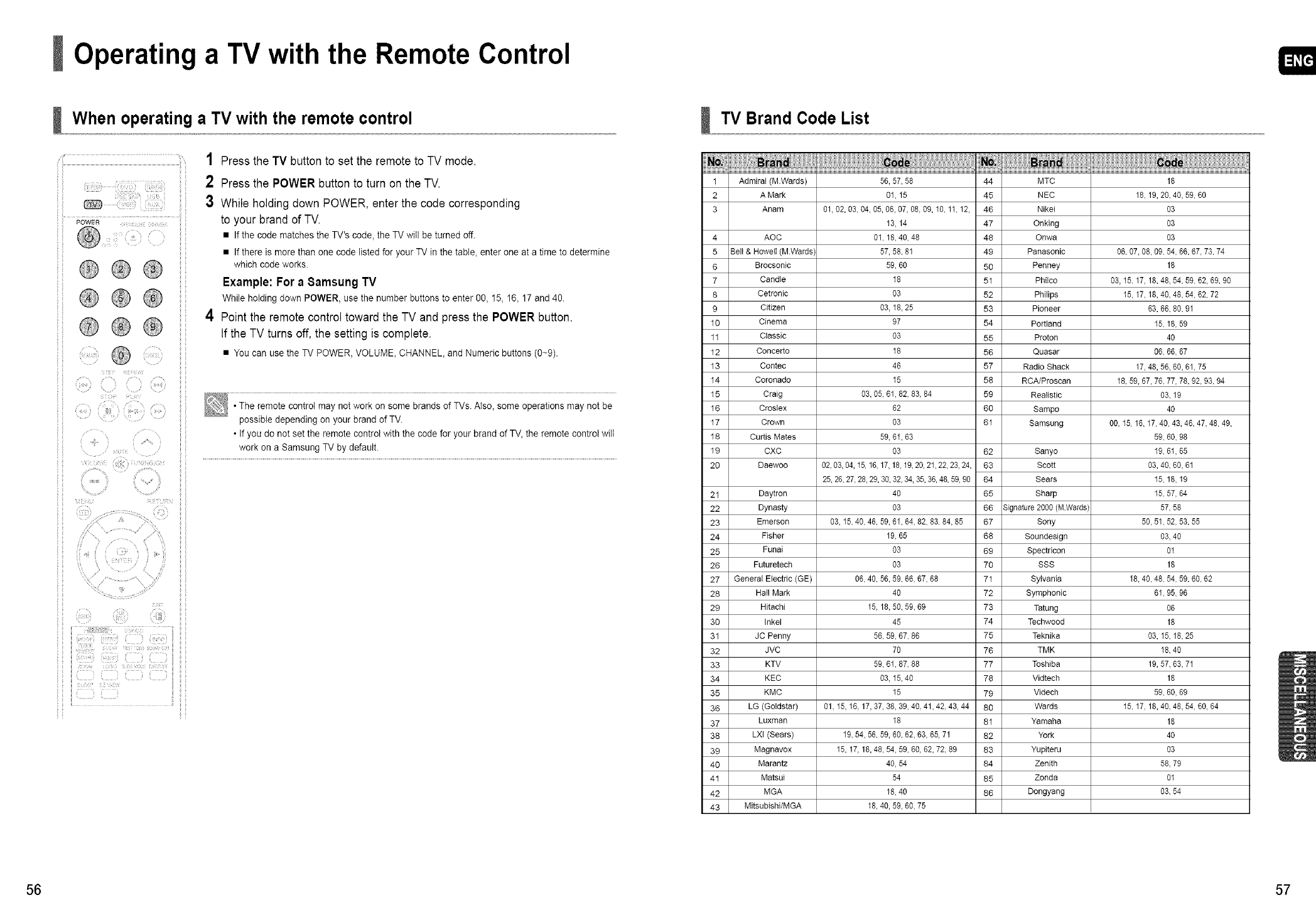

Operating a TV with the Remote Control ....................56

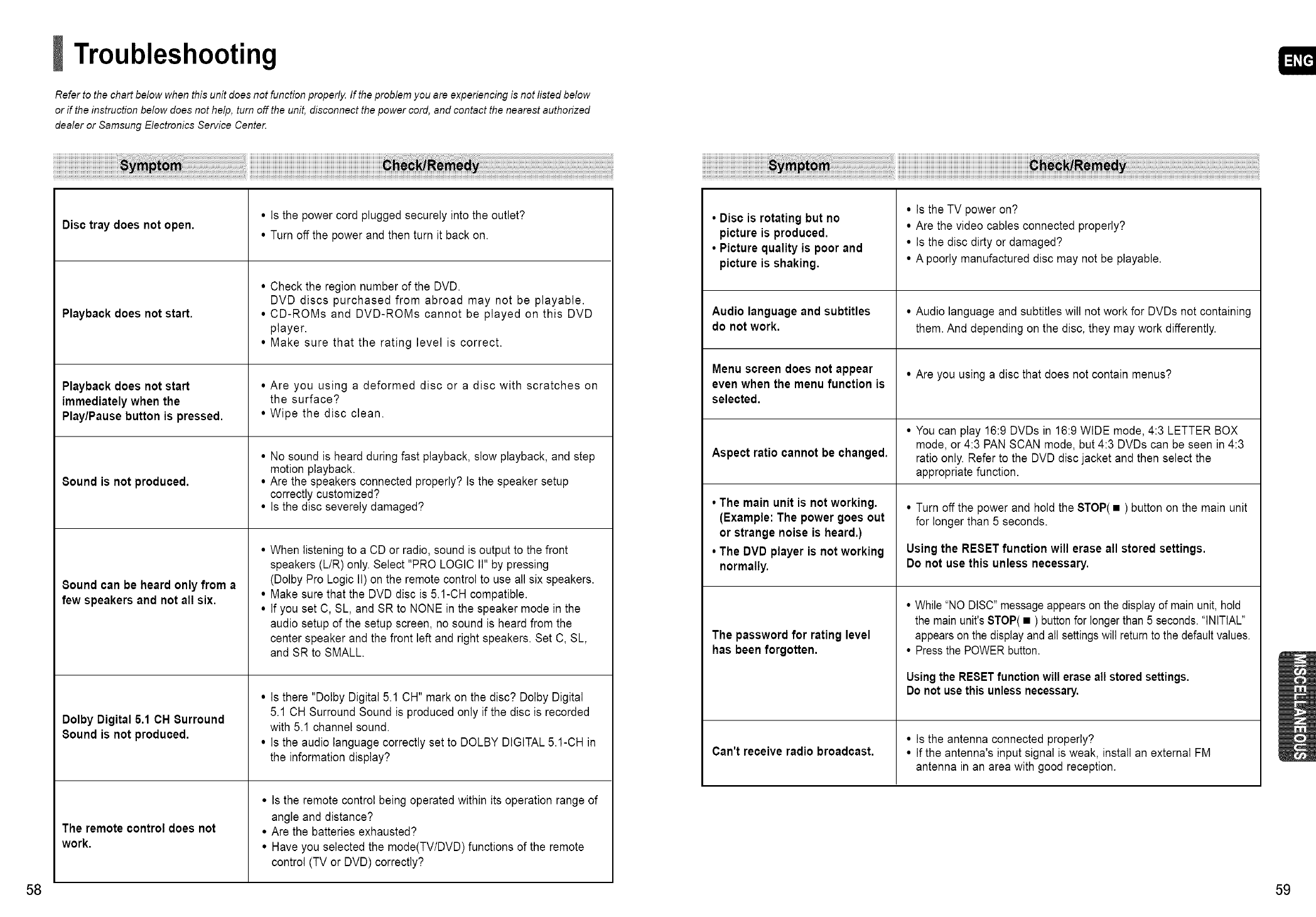

Troubleshooting ........................................................... 58

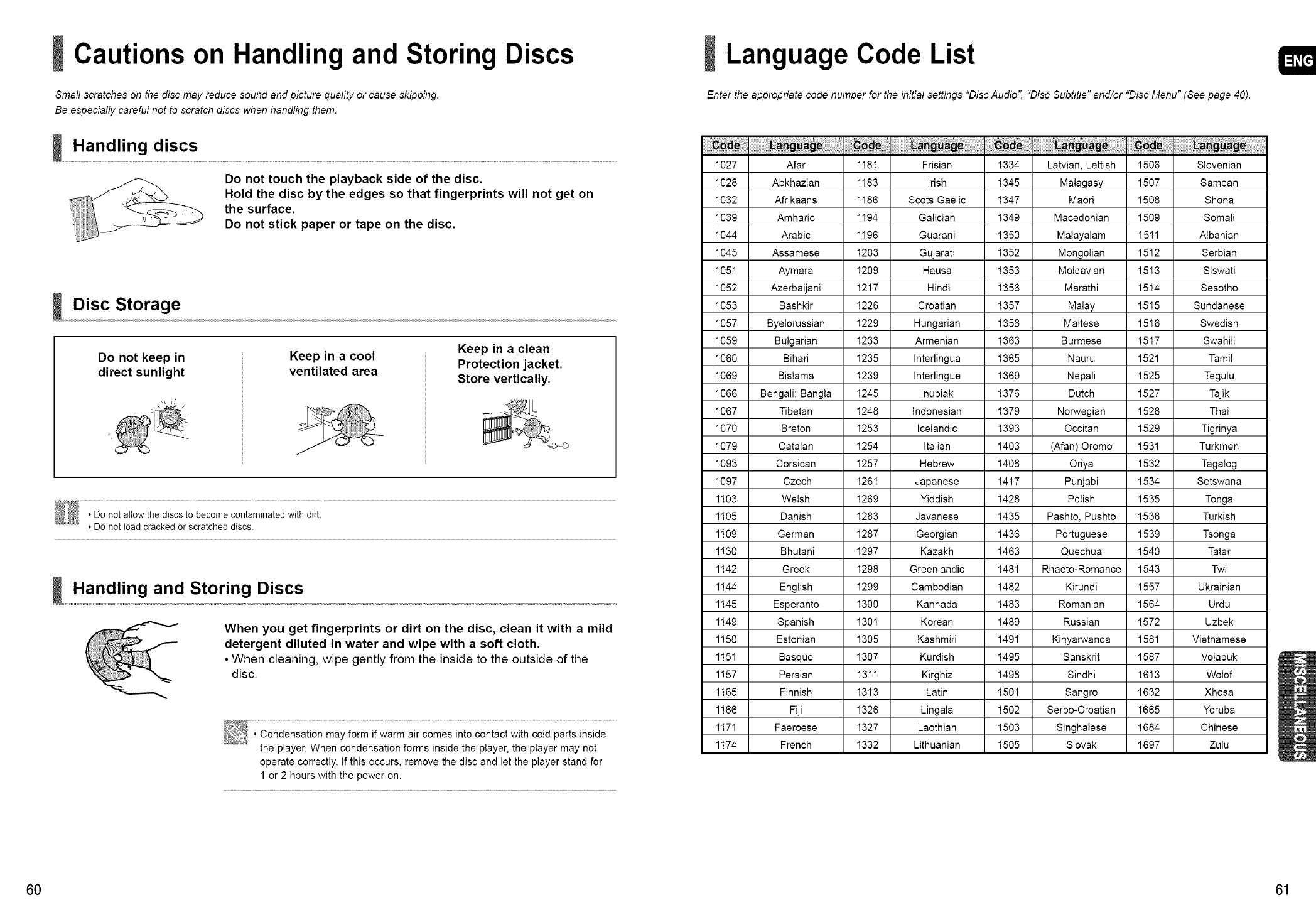

Cautions on Handling and Storing Discs ..................... 60

Language Code List .................................................... 61

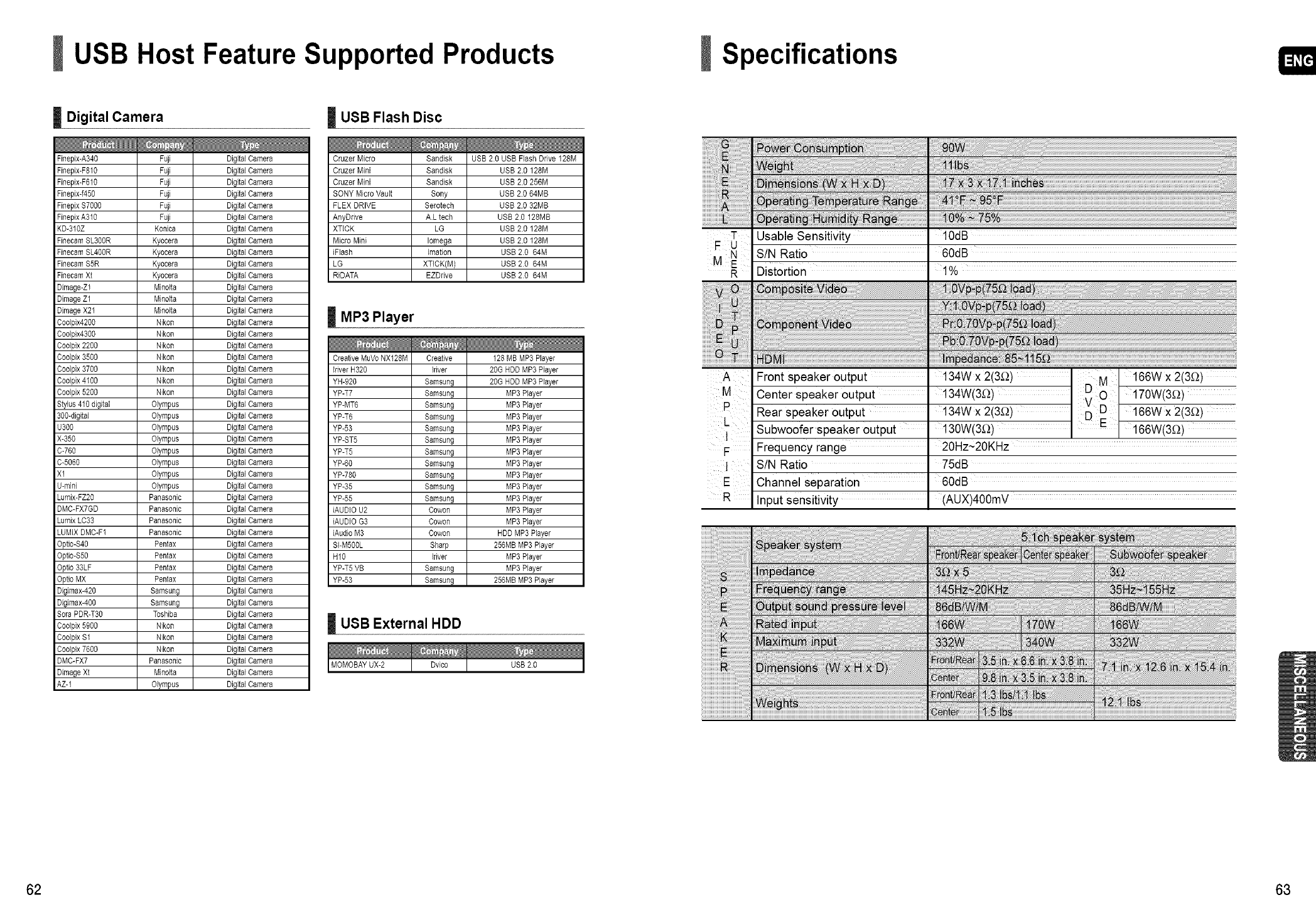

USB Host Feature Supported Products ...................... 62

Specifications ............................................................... 63

4 5

Notes on Discs

DVD players and the discs are coded by region. These regional codes must match

in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is given on the rear panel of the player.

(Your DVD player will only play DVDs that are labeled with identical region codes,)

Playable Discs

Disc Type

DVD-AUDIO

DVD-VIDEO

AUDIO-CD

Mark (Logo)

AUDIO/VIDEO

DIG[TALAUDIO

RecordedSignals

Audio + Video

Audio

Audio + VideoDivX

Do not use the following types of disc!

Disc Size

5"

3 112"

5"

3 112"

5"

31/2"

Max. Playing Time

Approx. 240 min (single-sided)

Approx 480 min. (double-sided

Approx. 80 min. (single-sided)

Approx 160 min. (double-sided

74 min.

20 min.

74 min.

20 min.

• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.

If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.

• DVD discs purchased abroad may not play on this player.

If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.

Copy Protection

•Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD

player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted

picture from copy-protected DVD discs.

• This product incorporates copyright protection technology that is protected by methods claims of certain U.S.

patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.

Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended

for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

This product is covered by one or more of the following U.S. patents:

5,060,220 5,457,669 5,561,649 5,705,762 5,987,417 6,043,912 6,222,983 6,272,096 6,377,524 6,377,531

6,385,587 6,389,570 6,408,408 6,466,532 6,473,736 6,477,501 6,480,829 6,556,520 6,556,521 6,556,522

6,578,163 6,594,208 6,631,110 6,658,588 6,674,697 6,674,957 6,687,455 6,697,307 6,707,985 6,721,243

6,721,493 6,728,474 6,741,535 6,744,713 6,744,972 6,765,853 6,765,853 6,771,890 6,771,891 6,775,465

6,778,755 6,788,629 6,788,630 6,795,637 6,810,201 6,862,256 6,868,054 6,894,963 6,937,552

This product is covered by the following U.S. patents:

US4,930,158 US4,930,160

Disc Recording Format

This product does not support Secure (DRM) Media files.

CD-R Discs

• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of

the disc.

• Use a 650MB/74 minute CD-R disc.

Do not use CD-R discs over 7O0MB/8O minute as they may not be playback.

• Some CD-RW (Rewritable) media, may not be playable.

• Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not

be able to fully piay the disc.

CD-R MP3 Discs

• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.

• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. I= +).

• Use discs recorded with a compressionldecompression data rate greater than 128Kbps.

• Only files with the "mp3" and extensions can be played.

• Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc, the

disc can be played only up to the blank segment.

• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.

• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate

(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.

• A maximum of 500 tracks can be played per CD.

• A maximum of 300 folders can be played per CD.

CD-R JPEG Discs

• Only files with the "jpg" extensions can be played.

• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be piayed.

• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. /= +).

• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the

disc can be played only up to the blank segment.

• A maximum of 9,999 images can be stored on a single CD.

• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.

• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

DVD + R/RW, CD-R/RW DivX Discs

• Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user

might not play.

• Software update for incompatible formats is not supported.

(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)

• Sections with a high frame rate might not be played while playing a DivX file.

• For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.net".

6 7

Description

Front Panel

9@@

I

1. Disc Tray 6. Disc Change button 11. USB Port

2. Function button 7. Power ((D/I) button 12. Tuning Up & Skip (_) button

3. Stop (11) button 8. Standby indicator Tuning Down & Skip (I,9.r_} button

4. Play/Pause ( !_, ) button 9. Headphone Jack 13.Volume Control

5. Direct Play buttons 10.AUX IN 1 Connector 14. OpenlCIose button

Display

2. LINEAR PCM indicator 9. REPEAT indicator 16, System Status Display

3. DTS indicator i0. TUNED indicator 17: RADIO FREQUENCY indicator

4, TITLE indicator tl, STEREO indicator 18. SPEAKER indicator

5 GROUP ind cator !2 DOEBYPill ndicator 19. D SC(!--5) ndicator

6. CHAPTER indicator 13. DVDAUD O indicator

7. TRACK indicator 14. MPEG indicator

RearPanel

Connect a TV with c0mpoaeat video inputs to these jacks. 9. HDMI Output Jack

4, External Digital Optical Input Connector

Use this t0 €onnect external equipment capable of digital

output.

Accessories

Remote Control Video Cable FMAntenna

(AH59-01778F) (AH39-40001V) (AH42-00017A)

Audio Cable User's Manual

(AH39-00954A) (AH68-01957C)

8 9

Description (Con't)

Remote Control

POWER 0P_N_ _0SE D MMER

@oOi°®O

©©@

@@@

©@@

-@

STOP PLAY

®®@®

MENU RETURN

! i

TuNr_

_EMO_ SLOW r_sl TO_ SOU_B_T

, -_C2) C2).

SLEEF [ EZ v EW

,,CDCD, ;

...........iii )

1. DVD RECEIVER button

2. TV button

3. TV/VIDEO, DISC SKiP button

4. POWER button

5. Number(0~9) buttons

6. REMAIN button

7. STEP button

8. Tuning Preset/CD Skip buttons

9. VOLUME button

10. MENU button

11. AUDIO button

12. I]D PL II EFFECT button

13. DD PL II MODE button

14.TUNER MEMORY,

SD(Standard Definition)/HD(High Definition) button

15. ZOOM button

16. SLEEP button

17. SLOW, MOIST button

18. EZ VIEW button

19. _ DVD button

TUNER button

USB

1_ USB, AUX button

20. OPEN/CLOSE button

21. DIMMER button

22. CANCEL button

23. REPEAT button

24. _ PLAY/PAUSE button

@ STOP button

(_)(_ SEARCH buttons

25. TUNING/CH button

26. MUTE button

27. RETURN button

28. Cursor/ENTER button

29. SUBTITLE button

30. EXIT button

31. DSP/EQ button

32. INFO button

33. SOUND EDIT button

34. DIGEST button

35. TEST TONE button

36. SLIDE MODE button

37. LOGO button

Insert Remote Batteries

1Remove the battery cover in the direction of the arrow.

Insert two 1.5V AAA batteries, paying attention to the correct polarities

(+ and -).

3Replace the battery cover.

Follow these precautions to avoid leaking or cracking cells:

•Place batteries in the remote control so they match the polarity : (+) to (+) and (-) to (-).

• Use the correct type of batteriesBatteries that look similar may differ in voltage.

• Always replace both batteries at the same time.

• Do not expose the batteries to heat or a flame.

OperationRangeof the Remote Control

The remote control can be used up to approximateiy 23 feet (7 meters) in a straight line. It can also be

operated at a horizontal angle of up to 30 ° from the remote control sensor.

]u_

10 11

Connecting the Speakers

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

,,,

2.5 to 3 times the size of the TV screen

/

Position of the Home Theater

•Place it on a stan& cabinet shelf_or under the TV stand.

Front Speakers 00

• Place these speakers in front of your listening position,

facing inwards (about 45°) toward you.

• Place the speakers so that their tweeters will be at the

same height as your ear.

• Align the front face of the front speakers with the front face

of the center speaker or place them slightly in front of the

center speakers.

Center Speaker 0

• It is best to instalt it at the same height as the front

speakers.

• You can also install it directly over or under the TV.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times

the distance of the TV's screen size away from the TV.

Example : For 32" TVs 2~2.4m (6~8 feet)

For 55" TVs 3.5~4m (11~13 feet)

Rear Speakers 00

• Place these speakers behind your listening position.

• If there isn't enough room, place these speakers so they

face each other.

• Place them about 60 to 90cm (2 to 3feet) above your ear,

facing slightly downward.

*Unlike the front and center speakers, the rear speakers

are used to handle mainly sound effects and sound wili

not come from them all the time.

Subwoofer _)

• The position of the subwoofer is not so critical.

Place it anywhere you like.

Rear Speaker(R) Center Speaker Rear Speaker (L)

\

Front Speaker (R)

Subwoofer

Front Speaker (L)

\

Red

Black

1Press and hold the terminal tab.

2Insert the speaker cord.

3Release your finger.

• Do not let children play with or near the speakers. They could get hurt if a speaker falls.

• When connecting the speaker wires to the speakers, make sure that the polarity (+/-) is correct.

• Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or alien

substances into the duct (hole) of the subwoofer speaker.

• Do not hang the subwoofer on the wall through the duct (hole).

• If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated

by the speaker. If this occurs, place the speaker away from your TV set.

12 13

ConnectingtheOptionalWirelessReceivingAmplifier

To connect the rear speakers wirelessly, you have to purchase the wireless receiving module and

TX card from your Samsung retailer.

When you have Purchased the Wireless Receiving Module (SWA-3000)

Front Speaker (R) Front Speaker (L)

Center Speaker

Subwoofer

Rear Speaker (L) Rear Speaker(R)

WIRELESS RECEIVER MODULE

!i!ii¸!¸¸¸!:/))i )i )i )i )i )_i ¸¸¸¸¸¸¸¸)¸¸¸¸)!i¸¸¸¸¸¸¸¸¸¸i!!;i i i¸ iii!iii)i!i(ii¸ii)? ? _)!ii i!i(i¸)!;i; iiiiii))i!; !; !;i;;

Slanted side face left

TX card

1Connect the Front, Center and Subwoofer speakers to the main unit,

referring to page 13.

2With the main unit turned off, insert the TX card into the TX Card

Connection(WIRELESS) on the back of the main unit.

• Hold the TX card so that the slanted side faces leftward and insert the

card into the port.

• The TX card enables communication between the main unit and the wireless receiver.

3Connect the left and right rear speakers to the wireless receiving

module.

4 Plug the power cord of the wireless receiving module in the wall outlet

and switch the power switch 'ON'.

• Do not insert a card other than the TX card dedicated for the product.

The product might be damaged or the card may not be removed easily.

• Do not insert the TX card upside down or in the reverse direction.

• Insert the TX card when the main unit is turned off.Inserting the card

when it is turned on may cause a problem.

• if the TX Card is inserted in the main unit, the rear speakers don't

output sounds.

Resettingthe Wireless ReceivingModule

Reset the system if a communication failure occurs, or if the Link indicator (blue LED) on the wireless receiver does not

light up and the "REAR CHK" message blinks on the main unit's displaj4

Reset the system while the main unit and the wireless receiver module (SWA-3000) are in Power Standby mode.

1With the main unit turned off, press and hold the remote

control's REMAIN button for 5 seconds.

• The STANDBY LED on the front panel of the wireless receiver module

blinks.

2 With the wireless receiver module turned on, use a ball point

pen or a toothpick to press the RE8ET button on the back of

the unit.

• The STANDBY LED on the front panel of the wireless receiver module

blinks 2 Times.

3 Turn on the main unit.

• The LINK LED of the wireless receiver module is lit and the Reset is

completed.

• If Power Standby mode continues, repeat Steps 1to 3 above.

• When the wireless receiving moduIe setting is complete, no audio signal is output from the Rear Speaker Output

Connector on the back of the main unit.

• The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and

moisture.

• For optimal listening performance, make sure that the area around the wireless receiver module location is clear of

any obstructions.

• Sound will be heard from the wireIess rear speakers in DVD 5.1-CH or Dolby Pro Logic I! mode on(y.

• In 2-CH mode, no sound will be heard from the wire(ess rear speakers.

• P(ace the wireless receiver modu(e at the rear of the listening position. If the wire(ess receiver module is too close

to the main unit, some sound interruption may be heard due to interference.

• If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device that

uses the same frequency (2.4GHz) near the system, some sound interruption may be heard due to interference.

• The transmission distance of a radio wave is about 33 feet, but may vary depending on your operating

environment. If a stee(-concrete wa(I or metallic wall is between the main unit and the wireless receiver modu(e,

the system may not operate at all, because the radio wave cannot penetrate metal.

14 15

16

Connecting the Video Out to your TV

Choose one of the three methods for connecting to a T_Z

(supplied)

COMPONENTo_

TV

Connect the HDMI cable (not supplied) from the HDMI OUT jack on the back of the main unit to the HDMI IN jack

on your TV.

If your television is equipped with Component Video inputs, connect a component video cable(not supplied) from

the Component Video Output (Pr, Pb and Y) Connectors on the back of the main unit to the Component Video Input

Connectors on your TV.

Connect the supplied video cable from the VIDEO OUT jack on the back of the main unit to the VIDEO IN jack on your TV.

• This product operates in Progressive scan mode(480i Only ) for Component Output.

• After making the video connection, set the Video input source on your TV to match the corresponding

Video output (HDMI, Component or Composite) on your Home theater.

See your TV owner's manual for more information on how to select the TV's Video Input source.

• If you use an HDMI cable to connect a Samsung TV to the main unit, you can operate

the Home Theater using the TV's remote control. (This is only available with SAMSUNG TVs

that support Anynet+(HDMI-CEC).)

• Please check the _-Tynet +logo (If your TV has an (_ynet+ logo, then it supports Anynet+ function.)

HDMI Function

Resolution Selection

This function allows the user to select the screen resolution for HDMI output.

In Stop mode, press and hold the SD/HD (Standard Definition/High

Definition)button on the remote control.

• Resolutionsavailablefor the HDMtoutputare 480p,720Pand 1080i.

• SD(StandardDefinition)resolutionis 480pandHD(HighDefinition)resolutionis720p/1080i.

i i

What is HDMI (High Definition

Multimedia Interface)?

TNs device transmits a DVD

video signal digitally without

the process of converting to

analog. Youwill get sharper

digital pictures when using

an HDMI connection.

Example: If the TV supports resolution up to 480p:

Press the SD/HD button.

• A480pvideosignalis outputthroughthe HDMIoutput.

• If theTVdoesnotsupporttheconfiguredresolution,you willnot be ableto seethe pictureproperly.

• The default setting of the HDMI output is 480p.

• When a HDMI TV is connected, composite and component video signals are not

output.

• See your TV owner's manual for more information on how to select the TV's Video

Input source.

Using Anynet+(HDMl-CEC)

Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control, Anynet +can be lsed I

by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that suppol Anynet+. ) I

1Connect the main unit of the Home Theater to a Samsung TV with

an HDMI cable. (See page 16)

2Set the Anynet+ function on your TV.

(See the TV instruction manual for more information.)

• You can operate the Home Theater by using the TV remote control.

lAva,ableTVbuttons: ", • and'q, buttons, button)

Set the Anynet+(HDMI-CEC) to <On> on your TV.

• <Receiver: On>: Youcan listento audiothroughthe TV.

• <Receiver: Off> :Youcan listento audiothroughtheHomeTheater.

With Anynet+ I

You can operate this unit, I

power on your TV, or watch

a movie by pressing the Play I

button on your Samsung TV's

remote centre. J

Select <THEATER to connector> and set the option of each items below.

• <THEATER Menu> : You can access the Home Theater menu.

• <THEATER Operation> : The Home Theater disc playback information will be displayed.

• <Receiver : On> : You can listen to audio through the Home Theater.

• <Receiver : Off> : You can listen to audio through the TV.

• The Theater function is available only when you listen to the audio through

the Home Theater with the digital optical cable connected.

17

ConnectingAudio from ExternalComponents

AUX1 : Front Panel (iPod only)

Audio Cable I

AUX1 : Front Panel

AUX1 •Connecting an External Analog Component/iPod MP3

You can listen to the audio from an External Analog Component/iPod MP3 player through the main unit.

1 Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external analog component/

iPod MP3.

2Press the AUX button on the remote control to select <AUXI> input.

• You can also use the FUNCTION button on the main unit.

The mode switches as follows • DVD/CD -_ DIGITAL IN -* AUX 1 -_ AUX 2 -_ USB -_ FM,

• When the unit is powered on and you connect an iPod MP3 player, the unit wilI charge your iPod's battery.

AUX2 : Rear Panel

IAudio Cable

(not supplied)

If the external analog

component has only one

Audio Out, connect either

left or right.

AUDIO OUT

OPTICAL : Rear Panel

_, ,_,_,

/A

Y

z

4/,°:',:°:t,':'o:)

AUX2 •Connecting an External Analog Component

Analog signal components such as a VCR.

1 Connect AUX IN 2 (Audio) on the HomeTheater to the Audio Out of the external analog component.

• Be sure to match connector colors.

2Press the AUX button on the remote control to select <AUX2> input.

• You can also use the FUNCTION button on the main unit.

The mode switches as foltows " DVD/CD -* DIGITAL IN -* AUX 1 -* AUX 2 -* USB -* FM.

• You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to

this product.

OPTICAL • Connecting an External Digital Component

Digital signal components such as a Set-Top Box.

1 Connect the Digital Input (OPTICAL) on the Home Theater to the Digital Output of the external digital

component.

2Press the AUX button on the remote control to select <DIGITAL IN>.

• You can also use the FUNCTION button on the main unit.

The mode switches as follows • DVD/CD -_ DIGITAL IN -_ AUX 1 -* AUX 2 -* USB -* FM.

18 19

Connecting the FM Antenna

RADIO ANT

FM Antenna (supplied)

FM 75 Q

1Connect the FM antenna supplied to the FM 75_-2COAXIAL Jack.

2 Slowly move the antenna wire around until you find a location where reception is good, then fasten it

to a wall or other rigid surface.

• This unit does not receive AM broadcasts.

The cooling fan supplies cool air to the unit to prevent overheating.

Please observe the following cautions for your safety.

• Make sure the unit is weIFventilated. If the unit has poor ventilation, the temperature inside the unit

may rise and may damage it.

• Do not obstruct the cooling fan or ventilation holes. (tf the cooling fan or ventilation holes are covered

with a newspaper or cloth, heat may build up inside the unit and fire may result.)

Before Reading the User's Manual

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual

Icon Term Definition

This involves a function available with DVD or

DVD DVD-R/DVD-RW discs that have been recorded and

finalized in Video Mode.

This involves a function available with a data CD

CD (CD-R or CD-RW).

MP3 This involves a function available with CD-R/-RW discs.

JPEG This involves a function available with CD-R/-RW discs.

This involves a function available with MPEG4 discs.

DivX (DVD_ R/RW CD-R or CD-RW)

This involves a case where a function does not

CAUTION operate or settings may be cancelled.

This involves tips or instructions on the page that help

NOTE each function operate.

• In this manual, the instructions marked with "DVD ( _, )" are applicable to DVD-VIDEO, DVD-AUDIO

and DVD-R/-RW discs that have been recorded in Video Mode and then finalized.

Where a particular DVD type is mentioned, it is indicated separately.

• If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.

20 21

Before Using Your Home Theater

ToOperateyourSamsungTVandthe HomeTheaterwiththeHT-XSO'sRemoteControl

The DVD Home Theater's remote can be used to control Samsung TVs.

i i

POWER ii_ii!ii,iii!iiiil)i_iiiiiii_,_

1Plug the main unit's power cord into the AC power supply.

2Press the TV button to set the remote to TV mode.

3Press the POWER button to turn on your Samsung TV

with this remote.

4 Press the TV/VlDEO button to select VIDEO mode on your TV.

VIDEO

6 Press the DVD RECEIVER button to switch to DVD RECEIVER mode to

operate the DVD Home Theater

Press the FUNCTION button on the main unit or DVD button

on the remote to enable DVD/CD playback.

Disc Playback

1 Press the OPEN/CLOSE button to open the disc tray.

2Load a disc.

• Placea discgentlyintothetraywiththedisc'slabelfacingup.

3Press the DISC 8KIP button.

• Rotatethe carousettrayso youcanloadthe third,fourth,andfifthdiscs•

4 Close the compartment by pressing the OPEN/CLOSE button again.

• Playbackstartsautomatically.

To stop playback, press the 8TOP button during playback.

• If pressed once, <PRESS PLAY> is displayed and the stop position will be stored in memory.

If the PLAY/PAUSE ( I_11) button or ENTER button is pressed, playback resumes from the stop position.

(This function works only with DVDs.)

• If pressed twice, <STOP> is displayed, and if the PLAY/PAUSE (I_11 ) button is pressed, ptayback starts from

the beginning.

To temporarily pause playback, press the PLAY/PAUSE ( _ll ) button during playback.

• To resume playback, press the PLAY/PAUSE( I_11) button again.

• Avoid getting fingerprints on the writing surface of a disc, it may cause the disc to not read properly,

•Depending on the content of the disc, the initial screen may appear different.

•Any piracy could not be runnable in the player. Otherwise, it violates the CSS (Content Scrambling System : a copy

protection system) recommendations.

Selecting a Disc in the Disc changer

• ii

:_i_iiiiiiii_i!i!iii!i__!_ii!ili_!!i,_!!ili_iii__!iii!ii!iiiiiii!!ii_i

To select a specific disc, press the corresponding the DIRECT PLAY (1, 2, 3, 4, 5)

buttons on the front panel or the DISC 8KIP button on the remote control, until

the required disc indicator flashes.

• Ifthediscselectedisnottoaded, thenextdiscis played automatically•

,i 4 ill i_ i 0

22 23

MP3/WMA-CD Playback

Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.

i i.............................................................

0PE _£L0S_

® i;

i

i i

i iil

i iil

i

!;iiii

SORTNG __ ___SfC_RfNAVI

1Place the MP3/WMA disc on the disc tray.

• The MP3/WMA menu screen will appear and ptayback will start.

• The appearance of the menu depends on the MP3/WMA disc.

• WMA-DRM files cannot be played.

2 In Stop mode, use the Cursor •, •, 4, • button to select the album, and

then press the ENTER button.

• Use the Cursor •, •button to select the track.

3To change the album, use the Cursor •, •, •, • button to select another

album in Stop mode, and then press the ENTER button.

• To select another album and track, repeat Steps 2 and 3 above•

4 Press the 8TOP (,,) button to stop playback.

• Depending on the recording mode, some MP3/WMA-CDs may not play.

• Table of contents of a MP3-CD varies depending on the MP3/WMA track format

recorded on the disc.

_" To play a file icon in the screen,

• Press the Cursor •, •, 4, • button when it is in Stop mode and select a desired icon from the top part of the menu.

Music File Icon : To ptay music files only, select the _ Icon.

Image FiIe Icon : To view image files only, select the _ Icon.

Movie FiIe Icon : To view movie files only, select the _ Icon.

All File Icon : To view movie flies oniy, select the _ Icon.

JPEG File Playback

Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back

with this Home Theater.

Slide Mode

i .......... i ii

ii ¸ii¸¸¸¸¸:¸£¸!!i!i!ii _ i!!!!!!il

ii

Digest Function

1 Place the JPEG disc on the disc tray.

• Playbackstartsautomatically.Eachimageis displayedfor 5 secondsandthenthe next

imageis displayed.

2 Press the SLIDE MODE button.

• Eachtimethebuttonis pressed,the imagemakesthetransitionasfollows:

Press the I<1<1IH_I button to skip to the next slide.

• Each time the button is pressed, the slide moves backward or forward.

You can wew 9 JPEG images on the TV screen at once.

1 Press the DIGEST button during playback.

• JPEGfileswiIIbe shownin9 windows.

2 Press the Cursor A, •, •, • button to select the desired image and

then press the ENTER button.

• The selectedimageis playedfor 5 secondsbeforemovingto the nextimage.

_" To view the previous or next 9 images, press the _ _ button.

Rotate/Flip Function

Press the Cursor A, •, •, • button during playback.

Original Image

• button:FlipVertically ,

÷¢@@®®÷¢

• button:Rotate90°

Counterclockwise I_ button: Rotate 90°

Clockwise

• button: Flip Horizontally

• The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for

standard JPEG files and 2048 x 1536 (or 3.0 MPixel) for progressive image files.

• Ifa JPEG file is played when the HDMI output resolution is 720p/1080i, the mode is

automatically converted to 480p mode.

24 25

26

DivX Playback

The functions on this page apply to DivX disc playback.

ISkip Forward/Back

During playback, press the I_1<, _ button.

• Goes to the next file whenever you press the I_ button, if there are over 2 flies inthe disc.

• Goes to the previous file whenever you press the I_ button, if there are over 2 files inthe disc.

JFast Playback

To play back the disc at a faster speed, press the _ or _ button during

playback.

• Eachtimeyoupresseitherbutton,the playbackspeedwill changeas follows:

2x -_ 4x -_ 8x-_ 32x-_ Normal.

Minute Skip function

During playback, press the Cursor _i, • button.

• Playback skips 5 minutes fop_vardwhenever you press the Cursor • button.

• Playback skips 5 minutes back whenever you press the Cursor< button.

!

1

2Press the Cursor A •, ,<

Zoom Function

Press the ZOOM button.

• Each time you press the button, your selection will toggte between <ZOOM X2> and

<ZOOM OFF>.

• button to move to the area you want to enlarge.

•A DivX file can be zoomed only in ZOOM X2 mode.

• DivX files have .Avi file extensions, however, not all .Avi files are DivX and may not be

playable in this unit.

IAudio Display

Press the AUDIO button.

• If there are multiple audio tracks on a disc, you can toggte between them. _fn

• Each time you press the button, your seIection will toggte between <AUDIO (l/N, 2/N ...)> and _.

• _ is displayed when there is one supported language in the disc.

Subtitle Display

Press the SUBTITLE button.

• Each time you press the button, your selection will toggle between <SUBTITLE (l/N, 2/N ...)>

and <SUBTITLE OFF>.

• If the disc has only one subtitle file, it will be played automatically.

• See number 2 (Caption Function) below for more details concerning Subtitle usage with DivX

discs.

IIf the disc has more than one subtitle file

If the disc has more than one subtitle file, the default subtitle may not match the

movie and you will have to select your subtitle language as follows:

1 In Stop mode, press the Cursor A, • button, select the desired subtitle ( _ )

from the TV screen, and then press the ENTER button.

2When you select the desired DivX file from the TV screen, the movie will be

played normally.

DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to provide audio and

video data over the Intemet in real-time.

MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quafity

video and audio.

1. Supported Formats

This product only supports the following media formats. If both video and audio formats are not supported, the user may

experience problems such as broken images or no sound.

Supported Video Formats

t Format AVI WMV

Supported Versions DivX3.11~DivX5.1, XviD Vl/V2/V3/V7

Supported Audio Formats

Format MP3 WMA

Bit Rate 80~384kbps 56~128kbps

SamplingFrequency 44.1khz

AC3

128~384kbps

44.1/48khz

DT8

1.5Mbps

44.1khz

,

• DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.

• Aspect Ratio: Although default DivX resolution is 640x480 pixels (4:3), this product supports up to 800x600 pixels (!6:9).

TV screen resolutions higher than 800 will not be supported.

• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on

the screen during playback.

Caption Function

• You must have some experience with video extraction and editing in order to use this feature properly.

• To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX media file (*.avi)

within the same folder.

Example. Root Samsung_007CDl.avi

Samsung_007CD1 .smi

• Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for

the file name. 27

Using the Playback Function

Displaying Disc Information _ _

You can view disc playback information on the TV screen.

Press the INFO button.

• Eachtimethebuttonis pressed,thedisplaychangesas follows:

0The information

O Display disappears

from the screen

s^Ms

everyone's inv_ted_

The information

Display disappears

from the screen

The information

DisplaY disaPpears

from the screen

• Depending on the disc, the disc information display may appear different.

• Depending on the disc, you can also select DTS, DOLBY DIGITAL, or PRO LOGIC•

_appears on the TV screen!

If this symbol appears on the TV screen when pressing a button, that operation is not

possibte with the disc currently being ptayed.

D\,,/_ DVDdisplay

DVD-AUDIOdisplay

CD display

TITLEdisplay

_8,V CHAPTERdisplay

TRACK(FILE)display

GROUP display

ELAPSEDTIMEdisplay

_ REPEATPLAYBACKdisplay

i_ AUDIOLANGUAGEdisplay

_ SUBTITLEdisplay

_'_ LR STEREO(L/R)display

_G_ DOLBYDIGITALdisplay

ANGLEdisplay

Checking the Remaining Time

..............

i (ii_i:iiii:_i?ii'i'i'i'i:_ij_i_ii,_i:i_,.......

Press the REMAIN button.

• Forcheckingthetotalandremainingtimeof a titleor chapterbeingplayed.

Each time the Remain button is pressed

Fast Playback

!! ...... _•_/ L!iiii:!:¸_

® ®

Press the ,_r_l, _ button.

• Eachtimethe buttonispressedduringplayback,theplaybackspeedchangesas follows:

• During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x,

8x, and 32x speeds.

Slow Playback

&_ow

Press the 8LOW button.

• Eachtimethe buttonispressedduringplayback,theplaybackspeedchangesas follows:

• No sound is heard during slow playback.

• Reverse slow playback does not work with DivX.

28 29

Using the Playback Function (Con't)

Skipping Scenes/Songs

_i!::_i!i!::,i_:ii;i:i,ii,:_

.il.¸¸ _ i¸¸ ...............;

• ,' • ,

Press the I<<, _ button.

• Eachtimethebuttonis pressedduringplayback,thepreviousornextchapter,trackor

directory(file)willbe played.

• Youcannotskip chaptersconsecutively.

I<<

Repeat Playback

Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).

l?i'_.;_,i:i_ l 0 _ .i_:._._,:_

..... !if!?

Press the REPEAT button.

• Eachtimethe buttonispressedduringplayback,therepeatplaybackmode

changesas follows:

CHAPTER : Repeatedly plays the selected chapter.

TITLE : Repeatedly plays the selected title.

GROUP :Repeatedly plays the selected group.

RANDOM :Plays tracks in random order.

(A track that hasalready been played may be playedagain.)

TRACK : Repeatedly plays the selected track.

DIR : Repeatedly plays atl tracks in the selected folder.

DISC : Repeatedly plays the entire disc.

OFF : Cancels Repeat Playback.

To SelectaRepeat PlaybackModein the Disc Information Screen

1Press the INFO button twice.

2Press the Cursor • button to move to REPEAT PLAYBACK (_#) display.

3Press the Cursor • button to select the desired Repeat Playback mode.

• Toselectanotheralbumandtrack,repeatSteps2 and3 above•

4Press the ENTER button.

_)TRACK

d;_oBc

I

• For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information

display screen.

30 31

A-B Repeat Playback

You can repeatedly play back a designated section of a DVD.

1Press the INFO button twice.

2Press the Cursor • button to move to the REPEAT PLAYBACK ((_)) display.

3Press the Cursor A • button to select <A-> and then press the ENTER button

at the beginning of the desired segment.

• WhentheENTERbuttonispressed,theselectedpositionwillbe storedinmemory•

4Press the ENTER button at the end of the desired segment.

• The specifiedsegmentwill be playedrepeatedly.

A TO B REPEAT ON

_" To return to normal playback, press the Cursor A, • button to select

(_# OFF.

Angle Function

This function allows you to view the same scene in different angles.

1Press the INFO button.

2Press the Cursor • button to move to ANGLE ( _N ) display.

3 Press the Cursor A • button or numeric buttons to select the desired angle.

• Eachtimethe buttonis pressed,theangtechangesasfollows:

•The Angle function works only with discs on which multiple angles have been recorded.

• The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.

Step Function

Press the STEP button.

• The picture moves forward one frame each time the button is pressed during playback.

Zoom (Screen Enlarge) Function

This function allows you to enlarge a particular area of the displayed image.

1Press the ZOOM button.

2Press the Cursor A, •, •, • button to move to the area you want to enlarge.

3Press the ENTER button.

• Each time the button is pressed, the zoom levet changes as follows:

-4' -4* -4*

• No sound is heard during step motion playback. • When a DivX disc is being played, the screen isenlarged up to twice the normal size.

32 33

Using the Playback Function (Con't)

EZ VIEW Function

i _ _ii::iiiiliii iiiiii

:EZ VIEW

Press the EZ VIEW button.

• Eachtimethe buttonispressed,thezoomfunctionwill switchbetweenOnandOff.

• Whena movieis playedin Widescreenformat,btackbars atthe topandbottomof the TV

screencanberemovedby pressingthe EZViEW button•

Audio Language Selection Function

',!i!:!!_.... _ii!ii!!!!;_

iiii,iii:i i! ii i !iii!!iiii'i' i!i i!!i! i !:i!ili:ii!iii

..... ii _iil

1Press the INFO button twice.

2Press the Cursor A, • button or numeric buttons to select the desired audio

language.

• Dependingonthe numberof languageson a DVD disc,a differentaudiolanguage(ENGLISH,

SPANISH,FRENCH,etc.) is selectedeachtimethebuttonis pressed.

• This function will not work if the DVD is recorded with multi-camera angle format.

• Black bars may not disappear because some DVD discs have a built-in horizontal to

vertical ratio.

• This feature is not supported for DivX discs.

• During the EZ View operation, the scenes on the screen are not full to the brim of the TV

screen, but some of their left and right sides may be cut slightly.

Bonus Group

Some DVD-Audio discs have an extra 'oonus' group that requires a 4-digit key number to access. See the disc packaging

for details and the-key number.

When you play a DVD-Audio disc that has a bonus group, the key number

input screen appears automatically.

_• If you eject the disc, switch the power off, or unplug the player, you will need to re-enter

Navigating Pages

During playback, press the v,A button on the remote control.

• Youcanselectthedesiredimagefroma DVD-Audiodisccontainingstill images•

• With somediscs,you maynotbe ableto selectimages.

Subtitle Language Selection Function

1 Press the INFO button twice.

2Press the Cursor • button to move to SUBTITLE (_]) display.

3Press the Cursor • button or numeric buttons to select the desired subtitle.

• Tooperate this function, you can also press the AUDIO or SUBTITLE buttons on

the remote control.

• Depending on the disc, the Subtitle and Audio Language functions may not be available.

34 35

Using the Playback Function (Con't)

Moving Directly to a Scene/Song _

ii!i i'ii1Press the INFO button.

2Press the Cursor ,&, •button or numeric buttons to select the

desired title/track ( _ ) and then press the ENTER button.

3Press the Cursor <, • button to move to the Chapter ( _AVJ'A) display.

4 Press the Cursor ,&, • button or numeric buttons to select the

desired chapter and then press the ENTER button.

6 Press the Cursor <, • button to move to time ( O ) display.

6 Press the numeric buttons to select the desired time and then press

the ENTER button.

Using the Disc Menu

You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc.

MENU ;

E×iT

_!::,!_!_,¸ i:_"_i_i!!,!!i:,@

ii!_ii,i!ii_iiiii,ii:ii_ ,'_:_:,_ii_'__ _ _i!i!i,i_?_iili!i

1In Stop mode, press the MENU button.

2Press the Cursor •, • button to move to the <DISC MENU> and then

press the ENTER button.

• Whenyou selectDiscMenuand itis notsupportedby thedisc,the"Thismenuis not

supported"messageappearsonthescreen.

3Press the Cursor •, •, <, • button to select the desired item.

4 Press the ENTER button.

_- Press the EXIT button to exit the setup screen.

• The disc menu display may be different depending on the disc•

Press the numeric buttons.

• The seIected file wilI be played•

• When playing an MP3 or JPEG disc, you cannot use the Cursor •, • button to move to a folder•

To move a folder, press the STOP (11) and then press the Cursor • • button.

• You can press the _14 _ button on the remote control to move directly to the desired

title, chapter, or track•

• Depending on the disc, you may not be able to move to the selected title or time.

Using the Title Menu

For D VDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this feature

may vary.

1In Stop mode, press the MENU button.

2Press the Cursor •, • button to move to the <Title Menu>.

3Press the ENTER button.

• Thetitlemenuappears.

Press the EXIT button to exit the setup screen.

• The Title menu display may be different depending on the disc.

36 37

PlayingMediaFilesusingthe USBHOSTFeature

You can enjoy media files such as pictures, movies and music saved in an MP3 player, USB memory or digital camera in high

quality video with 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater.

Connect the USB device to the USB port on the front of the unit.

2

3

Press the FUNCTION button on the main unit or the U8B button on the

remote control to select the USB mode.

• <USB>appearsonthedisplayscreenandthendisappears.

• The USBMENUscreenappearsonthe TVscreenandthesavedfile is played.

To stop playback, press the 8TOP (I) button.

Safe USB Removal

To prevent damage to the memory stored in the USB device, perform safe removal before

disconnecting the USB cable•

(1) Press the STOP (I) button twice in a row.

The display will show REMOVE USB.

(2) Remove the USB cable.

Skip Forward/Back

@ ...................@

_ii ,,i_ _ij _

: iiii iiii < i iliiii i i iii:i iiiiiiiiii:,

During playback, press the _ I_-I button.

• When there is more than one file and you press the I_,-I button, the next file is selected•

• When there is more than one fite and you press the i_1_1button, the previous file is selected•

Fast Playback

0 iiii To play back the disc at a faster speed, press the _1 _ button during playback.

• Eachtimeyoupresseitherbutton,the playbackspeedwill changeas follows:

2x -_ 4x -_ 8x-_ 32x-_ Normal.

1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc in

Windows (2000 or later) without additional driver installation.)

2. MP3 Player: HDD and flash type MP3 players.

3. Digital camera: Cameras that support USB Mass Storage v1.0.

• camerasthatoperateas a removablediscin Windows(2000orlater)withoutadditionaldriverinstallation.

4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USBI.1.

• Youmayexperiencea differencein playbackqualitywhenyouconnecta USB1.1device•

• Fora USBHDD,makesureto connectanauxiliarypowercordto the USBHDDfor properoperation.

5. USB card Reader: One slot USB card reader and Multi slot USB card reader.

• Dependingonthemanufacturer,the USBcardreadermaynotbe supported.

• If youinstallmultiplememorydevicesintoa multicard reader,youmayexperienceproblems•

6. If yOU use a USB extension cable, the USB device might not be recognized.

Supported Formats

JPG

MP3

WMA

WMV

DivX

JPG .JPEG

MP3

.WMA

.WMV

.AVI,.ASF

80~384kbps

56~128kbps

4Mbps

4Mbps

- 640x480 -

- - 44.1kHz

V8 - 44.1kHz

V1,V2,V3,V7 720x480 44.1KHz~48KHz

DivX3.11~DivX5.1,XviD 800x600 44.1KHz~48KHz

• CBI (Control/Bulk/Interrupt) is not supported.

• Digital Cameras that use PTP protocol or require additional program installation when connected

to a PC are not supported.

• A device using NTFS file system is not supported. (Only FAT 16/32 (File Allocation Table 16132)file

system is supported.)

• Some MP3 players, when connected to this product,may not operate depending on the sector size

of their file system.

• The USB HOST function is not supported if a product that transfers media files by its manufacturer-

specific program is connected.

• Does not operate with Janus enabled MTP(Media Transfer Protocol) devices.

•The USB host function of this product does not support all USB devices. For information on the

supported devices, see page 62.

38 39

Settings

Setting the Language

OSD (On-Screen Display) language is set to English by default.

1In Stop mode, press the MENU button.

2Pressthe Cursor •buttonto moveto <Setup> andthen press the ENTERbutton.

3Select <LANGUAGE> and then press the ENTER button.

4Press the Cursor A • button to select <OSD LANGUAGE> and then press

the ENTER button.

(5 Press the Cursor A • button to select the desired language and then press

the ENTER button.

• Oncethesetup is complete, theOSDwillbeEnglish if English hasbeenselectedas language.

_" Press the RETURN button to return to the previous level.

_" Press the EXIT button to exit the setup screen.

•OSD LANGUAGE : Selecting the OSD Language

•AUDIO : Selecting the Audio Language (recorded on the disc)

•SUBTITLE : Selecting the Subtitle Language (recorded on the disc)

• DISC MENU : Selecting the Disc Menu Language (recorded on the disc)

•_ If the language you selected is not recorded on the disc, the menu language will not change even

if you set it to your desired language.

•OTHER : Toselect another language, select <OTHER> and enter the language code of your country

(See page 61 for language codes) AUDIO, SUBTITLE and DISC MENU language can be

selected.

Setting TV Screen type

Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.

1In Stop mode, press the MENU button.

2Pressthe Cursor • buttonto moveto <Setup> and then pressthe ENTER button.

3Press the Cursor • button to move to <TV DISPLAY> and then press

the ENTER button.

4 Press the Cursor A • button to select the desired item and then press

the ENTER button.

• oncethesetup is complete, youwillbetakentotheprevious screen.

Press the RETURN button to return to the previous level.

_" Press the EXIT button to exit the setup screen.

The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is 169. This ratio is

called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor.

For a standard TV, select either <4:3LB> or <4:3PS> option according to personal preference. Select <WIDE/HDTV> if you have

a widescreen TV.

4:3LB (4:3 Letterbox)

Select this to play a 16:9 picture in the letter box mode on a conventional TV.

• Black bars will appear at the top and bottom of the screen.

4:3PS (4:3 Pan&Scan)

Select this to play a 16:9 picture in the pan & scan mode on a conventional TV.

• You can see the central portion of the screen only (with the sides of the 16:9 picture cut off).

WlDE/HDTV

Select this to view a 16:9 picture in the fuU-screenmode on your widescreen TV

• You can enjoy the widescreen aspect.

• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.

• Since DVD discs are recorded in various image formats, they will look different depending on the software,

the type of TV, and the TV aspect ratio setting.

• In HDM( operation, the screen is automatically converted to Wide mode

40 41

Settings (Con't)

Setting Parental Controls (Rating Level)

Use this to restrict playback of adult or violent DVDs you do not want children to view.

1 In Stop mode, press the MENU button.

2Pressthe Cursor • buttonto moveto <Setup> andthen press the ENTERbutton.

3Pressthe Cursor• buttonto moveto <PARENTAL>andthenpresstheENTERbutton.

4Press the Cursor A • button to select the desired rating level and then press

the ENTER button.

• If you have selected Level 6, you cannot view DVDs with Levet 7 or higher.

• The higher the levet, the closer the content is to violent or adult material.

6 Enter the password and then press the ENTER button.

• The password is set to "7890" by default.

• Once the setup is complete, you will be taken to the previous screen.

_" Press the RETURN button to return to the previous level.

_" Press the EXIT button to exit the setup screen.

• This function works only if a DVD disc contains the rating level information.

Setting the Password

You can set the password for the Parental (rating level) setting.

1 In Stop mode, press the MENU button.

2Pressthe Cursor • buttonto moveto <Setup> andthen press the ENTERbutton.

3Press the Cursor • button to move to <PASSWORD> and then press

the ENTER button.

4 Press the ENTER button.

Enter the password and then press the ENTER button.

• Enter the old password, a new password, and confirm new password.

• The setting is complete.

• The password is set to "7890" by default.

• While the player is in No Disc mode, hold the main unit's STOP ( • )button for longer than 5 seconds. <INITIAL> appears on

the display and atisettings will returnto the default values.

• Press the POWER button.

Using the RESET function will erase all stored settings.

Do not use this unless necessary.

Setting the Wallpaper

While watching a DVD or JPEG CD, you can set the image you like as background wallpape_

1 During playback, press the PLAY/PAUSE button when an image you like

appears.

2Press the LOGO button.

• <coPY LOGODATA>willbedisplayedon theTV screen.

3The power will turn off and then back on.

• Theselectedwallpaperwillbedisplayed.

• Youcanselectupto 3 wallpapersettings.

• This function wilI not work when the HDMI output is 720p or 1080i.

To Select One of the 3 Wallpaper Settings you've made

'1 In Stop mode,pressthe MENU button.

2Pressthe Cursor • buttonto moveto <Setup> and then pressthe ENTER button.

3Press the Cursor • button to move to <LOGO> and then press

the ENTER button.

4 Pressthe Cursor A • button to select the desired <USER>, and then press

the ENTER button.

• Thissetectsoneof the3wallpaper screens

Press the EXIT button to exit the setup screen.

• ORIGINAL :Select this to set the Samsung Logo image as your wallpaper.

• USER : Select this to set the desired image as your wallpaper.

Press the RETURN button to return to the previous level.

_" Press the EXIT button to exit the setup screen.

42 43

44

Settings (Con't)

DVD Playback Mode

Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.

To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.

1Press the MENU button while the disc tray is open.

2Pressthe Cursor• buttonto moveto <Setup> andthen press the ENTERbutton.

3Pressthe Cursor• buttonto moveto <DVDTYPE>andthen pressthe ENTERbutton.

4Press the Cursor ,&, • button to move to <DVD VIDEO> and then press the

ENTER button.

• Set steps 1 ~ 4 again if you want to switch to DVD AUDIO Play mode.

When Selecting DVD Play Mode:

• DVD VIDEO set to play the DVD video contents contained on a DVD audio disc.

• DVD AUDIO set to play the default DVD audio.

• DVD Play mode is set to DVD Audio as factory default setting.

• Powering off the main unit wilt automatically switch to the DVD Audio mode.

DivX (R) registration

Please use the Registration code to register this player with the DivX (R) video on demand format.

To learn more, go to www.divx.com/vod.

Setting the Speaker Mode

Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker

configuration and whether certain speakers are used or not.

1In Stop mode, press the MENU button.

2 Pressthe Cursor• buttonto moveto <Audio> and then pressthe ENTER button.

3 In the <SPEAKER SETUP>, pressthe ENTER button again.

4Press the Cursor A •, •, • button to move to the desired speaker and then

press the ENTER button.

• For C, SL, and SR, each time the button is pressed, the mode switches alternately as follows :

SMALL -* NONE.

• For L and R, the mode is set to SMALL.

• SMALL : Select this when using the speakers.

• NONE :SeIect this when no speakers are connected.

• Depending on PRO LOGIC and STEREO settings, the speaker mode may vary

(see page 51).

Press the RETURN button to return to the previous level.

Press the EXIT button to exit the setup screen.

Setting the Delay Time

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio

signals from the center and rear speakers.

IIn Stop mode, press the MENU button.

2Pressthe Cursor• buttonto moveto <Audio>and then pressthe ENTER button.

3 Press the Cursor • button to move to <DELAY TIME> and then press

the ENTER button.

4Press the Cursor A •, •, • button to move to the desired speaker and

then press the ENTER button.

6 Press the Cursor •, • button to set the Delay time.

• Youcansetthedelay timeforC between00and05mSECandforSLandSRbetween00and

15mSEC.

Press the RETURN button to return to the previous level.

_" Press the EXIT button to exit the setup screen.

When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker isthe same.

Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by

adding a delay effect to the sound of the Center and Surround Speakers.

IdeatCENTER SPEAKER

/

I

(gc

SL SR Ideal

SURROUND

SPEAKER

placement

It _sdesirable to place all speakers within this c_rc_e.

Df: The distance _rom FRONT SPEAKER

Dc: The distance =rom CENTER SPEAKER

Ds: The distance from SURROUND SPEAKER

Setting CENTER SPEAKER

If the distance of Dc is equal to or longer than the distance of Df inthe figure,

set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between DfandDe 0inch 136Jnches272inches40.8inches 45feet 56feet

De ay T me 0 ms ms 2 ms 3 ms 4 ms 5 ms

Setting REAR (SURROUND) SPEAKERS

If the distance of Df isequat to the distance of Ds in the figure, set the mode

as 0ms. Otherwise, change the setting according to the table.

DistansebetweenDfandDc 0inch 40.8inches 67feet 100feet 134feet 167feet

De ay Tree 0ms 3ms 6ms 9ms 12ms 15ms

• With [I]PL II (Doiby Pro Logic II), the delay time may be different for each mode.

• With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.

• The Center channel is onty adjustable on 5.1 channel discs.

45

Settings (Con't)

Setting the Test Tone

Use the Test Tone feature to check the speaker connections.

1In Stop mode, press the MENU button.

2Pressthe Cursor• buttonto moveto <Audio> and then pressthe ENTER button.

3Press the Cursor• button to move to <TEST TONE> and then press the

ENTER button.

• The test tone wilI be sent to L -_ C-* R -, SR -_ SL -* SW in order.

If the ENTER button is pressed again at this time, the test tone wili stop.

_ Press the RETURN button to return to the previous level.

_" Press the EXIT button to exit the setup screen.

Setting the Audio

You can adjust the balance and leve! for each speaker.

1 In Stop mode, press the MENU button.

2Pressthe Cursor• buttonto moveto <Audio> and then pressthe ENTER button.

3Press the Cursor • button to move to <80UND EDIT> and then press

the ENTER button.

4 Press the Cursor A • button to select and adjust the desired item.

Press the Cursor •, • button to adjust the settings.

_ Press the RETURN button to return to the previous level.

_ Press the EXIT button to exit the setup screen.

Start

L:FrontSpeaker(L) C:CenterSpeaker SW:Sebwoofer

R:FrontSpeaker(R) SL:RearSpeaker(L) SR:RearSpeaker(R)

Press the TEST TONE button.

• Test tone will be produced as follows:

When playing a DVD or CD, this wilt work only in Stop mode.

• Use this function to check that each speaker is correctly connected and that there is

no problem.

• When HDMt AUDIO is set to <ON> (audio is produced through TV speakers),

the TEST TONE function is not available.

_" To end the test tone, press the TEST TONE button again.

Press the 80UND EDIT button and then press the Cursor •, • button.

Adjusting Front/Rear Speaker Balance

• You can setect between 00, -6, and OFF.

• The volume decreases as you move closer to -6.

Adjusting Center/Rear/Subwoofer Speaker Level

• The volume level can be adjusted in steps from +6dB to -6dB.

• The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

46 47

Settings (Con't)

Setting the DRC (Dynamic Range Compression)

This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital

sound when watching movies at low volume at night.

1 In Stop mode, press the MENU button.

2Press the Cursor •button to move to <Audio> and then press the ENTER button.

3Press the Cursor • button to move to <DRC> and then press the ENTER button.

4Press the Cursor A • button to adjust the DRC.

•WhentheCursor • buttonis pressed,the effectisgreater,andwhentheCursor • buttonis

pressed,theeffectis smatler.

_ Press the RETURN button to return to the previous level.

_" Press the EXIT button to exit the setup screen.

Setting the AV SYNC

Video may look slower than the audio if it is connected to a digital T_ If this occurs, adjust the audio delay time to to match

the video.

1 In Stop mode, press the MENU button.

2Pressthe Cursor• buttonto moveto <Audio> and then pressthe ENTER button.

3Press the Cursor • button to move to <AV-SYNC> and then press

the ENTER button.

4 Press the Cursor A, • button to select the AV-SYNC Delay Time and then

press the ENTER button.

• Youcansettheaudiodelay timebetween0 msand300ms.Setit totheoptimal status.

Press the RETURN button to return to the previous level.

Press the EXIT button to exit the setup screen.

Setting the HDMI Audio

The audio signals transmitted over the HDMI Cable can be toggled ON/OFF

1 In Stop mode, press the MENU button.

2Pressthe Cursor• buttonto moveto <Audio> and then pressthe ENTER button.

3Press the Cursor • button to move to <HDMI AUDIO> and then press

the ENTER button.

4 Press the Cursor •, • button to select <ON> or <OFF> and then press

the ENTER button.

• ON : Both video and audio signals are transmitted over the HDMI connection cable, and audio

is output through your TV speakers only.

• OFF : Video is transmitted over the HDMI connection cable only, and audio is output through

the home theater speakers only.

• The default setting of this function is HDMI AUDIO OFF.

• HDMt AUDIO is automatically down-mixed to 2ch for TV speakers.

• tf you turn the unit off and on, or switch functions when the HDMI AUDIO is set to ON,

the HDMI AUDIO will revert to the OFF default setting.

Press the RETURN button to return to the previous level.

_- Press the EXIT button to exit the setup screen.

48 49

Settings (Con't)

Sound Field (DSP)/EQ Function

DSP(Digita! Signal Processor) : DSP modes have been designed to simulate different acoustic environments.

EQ : You can select ROCK, POR or CLASSIC to optimize the sound for the genre of music you are playing

_; .. • ... _iii?i!ii_,_ ._ • ...

)i

Press the DSP/EQ button.

• <DSP>appearsonthedisplaypanel.

• Eachtimethe buttonispressed,theselectionchangesasfollows:

"41-

"O"

"41-

41"

i ) );

Dolby Pro Logic II Mode

You can select the desired Dolby Pro Logic II audio mode.

Press the []E] PL II MODE button.

•Each time the button is pressed, the mode changes as follows.

m

¸, :'iii!iiii!iii

@

PRO LOGIC : You will experience a realistic multi-channel effect, as if using five speakers, while

using just the front left and right speakers.

• MATRIX :You will hear 5.1 channel surround sound•

PRO LOGIC II

• MUSIC: When listening to music, you can experience sound effects as if you are listening to the

actual performance.

• CINEMA : Adds realism to the movie soundtrack.

STEREO : Select this to listen to sound from the front left and right speakers and the subwoofer only.

POP, JAZZ, ROCK : Depending on the genre of music, you can select POP, JAZZ, and ROCK•

STUDIO : Provides a sense of presence as if in a studio•

CLUB : Simulates the sound of a dance club with a throbbing bass beat.

HALL : Provides a clear vocal as if listening in a concert hall.

MOVIE : Provides the feeling of a movie theater.

CHURCH : Gives the feel of being in a grand church•

PASS : Select this for normal listening.

• When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks

(L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to

surround sound•

• The DSP/EQ function is only available in STEREO mode.

Press the 13(3PL II mode button to show STEREO on the display.

• This feature works with CDs, MP3-CDs, 2 channel DVD-Audio, DivX and Dolby Digital discs.

• When playing a DVD disc encoded with two or more channels, multi-channel mode will be

selected automatically and DSP/EQ function does not work.

50 51

Settings (Con't) Listening to Radio

Dolby Pro Logic II Effect

This function works only in Dolby Pro Logic MUSIC mode.

...................................................................................1 Press the 13[qPL II MODE button to select <MUSIC> mode.

iil

,,, • iii

" _<_ii:'•_i_"'_•r':ii:'¸¸i_::i:ili::¸I_

_ _ _ _L,, _ _ /%, ii! _! iii

2Press the DE]PL II EFFECT button to select <PANORAMA>, then press

the Cursor •, • button to select the desired effect setting.

• YoucanselecteitherOor 1.

• This modeextendsthefrontstereoimageto includethesurroundspeakersfor an exciting

"wraparound"effectwithsidewallimaging.

3Press the DE]PL II EFFECT button to select <C-WIDTH>, then press

the Cursor •, • button to select the desired effect setting.

• YoucanselectbetweenOand 7.

• Thissets the widthof thecenterimage.The higherthesetting,the lesssoundcomesfrom

the centerspeaker.

4 Press the E]E]PL II EFFECT button to select <DIMENS>, then press the Cursor

•, • button to select the desired setting

• YoucansetectbetweenOand 6.

!!i!iiiiiiii!!.-- , ststheso d e , S , ro the rontore

• When playing a DVD disc encoded with two or more channels, multi-channel mode will be

selected automatically and I]DPL II (Dotby Pro Logic II) button does not work.

i ¸IIi! !il !iiiiiiiiii

iiil; i i!iii i:iiii

@ ........@( 'ii_ _i .i_,

!!ii!!ii!iii!

1 Press the TUNER button to select the FM band.

2Tune in to the desired station.

• Automatic Tuning 1 : When the_< _ button is pressed, a preset broadcast station is selected.

• Automatic Tuning 2 : Press and hold the v,A button to automatically search for active

broadcasting stations.

'1 Press the FUNCTION button to select the FM band.

2Select a broadcast station.

• Automatic Tuning 1 : Press the STOP (•) button to select <PRESET> and then press

the _ _ button to select the preset station.

• Automatic Tuning 2 : Press the STOP (•) button to select <MANUAL> and then press and hold

the _._ _,-_ button to automatically search the band.

• Manual Tuning : Press the STOP ( • ) button to select <MANUAL> and then briefly press

the _ _ button to tune in to a lower or higher frequency.

_- Press the MOIST button to listen in Mono/Stereo.

• Eachtimethebuttonis pressed,the soundswitchesbetween<STEREO>and<MONO>.

• In a poorreceptionarea,selectMONOfor a clear,interference-freebroadcast•

52 53

Listening to Radio (Con't)

Presetting Stations

fi !,.................................................................... i • Example : Presetting FM 89.!0 in the memory

1 Press the TUNER button to select the FM band.

2Press the v,,_ button to select <89.10>.

ill i:_:i :iii:::,:::;': i)iiii

)i

_iii : '!_'i!_' __

3Press the TUNER MEMORY button.

• <PRGM>flashesin thedisplay•

4Press the i.q4_ button to select preset number.

• Youcanselectbetween1 and15presets.

6 Press the TUNER MEMORY button again.

• PresstheTUNERMEMORYbuttonbefore<PRGM>disappearsfromthedisplay.

• <PRGM>disappearsfromthe displayandthe stationis storedin memory•

6 To preset another station, repeat steps 2 to 5.

,_ To tune in to a preset station, press the _ _ button on the remote control

to select a channel.

: _ • This unit does not receive AM broadcasts•

/J

zi

Convenient Functions

Sleep Timer Function

You can set the time that the Home Theater will shut itself ofit

)

.........i:)iiiiiiiiiiiiiiiiii!i:i'"'%;::Ti........ iii ii

ii!_iiiii_iiiiii_ii_:__!iiiii_iiii_iii)i___ __,;_:_:_i_))_iii

• • )) i i(

Press the SLEEP button.

• <SLEEP> will be displayed• Each time the button is pressed, the preset time changes as follows "

10 -* 20 -_ 30 -_ 60 -* 90 -_ 120 -_ 150 -_ OFF.

_" To confirm the sleep timer setting, press the SLEEP button.

• The remainingtimebeforetheHomeTheaterwilt shutitselfoff is displayed.

• Pressingthe buttonagainchangesthesleeptimefromwhatyouhaveset earlier.

To cancel the sleep timer, press the SLEEP button until <OFF> appears on

the display.

Adjusting Display Brightness

You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.

i i i

....... ........ Press the DIMMER button.

• Each time the button is pressed, the brightness of front display will be adjusted.

Mute Function

This is useful when answering a doorbell or telephone call.

:::iiiiii::!i:iiiii!!iiiiii iiiii:ii ::iii:i......

i_-_i_

ii _..................:i iiii

Press the MUTE button.

• <MUTEON>appearsin thedisplay.

• Torestorethesound,pressthebuttonagainto select <MUTEOFF>.

Using Headphones

Use headphones (not supplied) for private listening pleasure.

Connect the headphones to the Headphone jack for private listening.

• To prevent hearing damage, do not increase the volume excessively when using headphones•

54 55

Operating a TV with the Remote Control

When operating a TV with the remote control

POWER

1Press the TV button to set the remote to TV mode.

2 Press the POWER button to turn on the TV.

3While holding down POWER, enter the code corresponding

to your brand of TV.

• If the code matches the TV's code, the TV will be turned off.

• If there is more than one code listed for your TV in the table, enter one at a time to determine

which code works.

Example: For a 8amsung TV

While holding down POWER, use tile number buttons to enter 00, 15, l& 17 and 40.

4 Point the remote control toward the TV and press the POWER button.

If the TV turns off, the setting is complete.

• You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9).

• The remote control may not work on some brands of TVs. Also, some operations may not be

possible depending on your brand of TV.

• If you do not set the remote control with the code for your brand of TV_ the remote control wiiI

work on a Samsung TV by default.

TV Brand Code List

1 Admiral (M.Wards) 56157, 58 44

2 A Mark 01, 15 45

3 Anam 01.02,03,04,05,06,07,08,09, t0,11,12, 46

13,t4 47

4 AOC 01, 18,40, 48 48

5 Bell & Howell (MWards) 57. 58, 81 49

6 Brocsonic 59, 60 50

7 Candle 18 51

8 Cetronic 03 52

9 Citizen 03. 18,25 53

10 Cinema 97 54

11 Classic 03 55

12 Concerto 18 56

13 Contec 46 57

14 Coronado 15 58

15 Craig 03, 05, 61, 82, 83. 84 59

16 Croslex 62 60

17 Crown 03 61

18 Curtis Mates 59. 61, 63

19 CXC 03 62

20 Daewoo 02.03, 04, t5,16,17,18,19, 20,2t, 22,23,24, 63

25,26,27,28, 29,30,32, 34,35,36,48, 59,90 64

21 Daytron 40 65

22 Dynasty 03 66

23 Emerson 03, 15,40, 46, 59, 61, 64, 82, 83, 84, 85 67

24 Fisher 19,65 68

25 Funai 03 69

26 Futuretech 03 70

27 General Electric (GE) 06, 40, 56, 59, 66, 67, 68 71

28 Hall Mark 40 72

29 Hitachi 15, 18,50, 59, 69 73

30 lekel 45 74

31 JC Penny 56, 59, 67, 86 75

32 JVC 70 76

33 KTV 59, 61, 87, 88 77

34 KEC 03. 15,40 78

35 KMC 15 79

36 LG (Goldstar) 01, 15, 16, 17,37, 38, 39, 40, 41, 42, 43,44 80

37 Luxman 18 81

38 LXI (Sears) 19,54, 56, 59, 60, 62, 63, 65, 71 82

39 Magnavox 15, 17, 18,48, 54, 59, 60, 62, 72. 89 83

40 Marantz 40, 54 84

41 Matsui 54 85

42 MGA 18,40 86

43 Mitsubishi/MGA 18,40, 59, 60, 75

MTC 18

NEC 18. 19,20, 40, 59, 60

Nikei 03

Onking 03

Onwa 03

Panasonic 06, 07,08, 09,54, 66, 67, 73, 74

Penney 18

PMco 03, 15, 17, 18,48, 54, 59, 62, 69, 90

Philips 15, 17, 18,40, 48, 54, 62, 72

Pioneer 63, 66, 80, 91

Portland 15, 18,59

Proton 40

Quasar 06,66, 67

Radio Shack 17.48, 56, 60, 61, 75

RCA/Proscan 18, 59,67, 76,77, 78, 92, 93, 94

Realistic 03. 19

Sampo 40

Samsung 00, 15, 16, 17,40, 43, 46, 47, 48, 49,

59,60, 98

Sanyo 19,61,65

Scott 03, 40, 60, 61

Sears 15, 18, 19

Sharp 15,57, 64

Signature2000 (M.WardsI 57. 58

Sony 50, 51,52, 53, 55

Soundesign 03. 40

Spectricon 01

SSS 18

Sylvania 18.40, 48, 54, 59, 60, 62

Symphonic 61,95, 96

Tatung 06

Techwood 18

Teknika 03, 15, 18,25

TMK 18.40

Toshiba 19,57, 63, 71

Vidtech 18

Videch 59,60, 69

Wards 15, 17, 18,40, 48, 54, 60, 64

Yamaha 18

York 40

Yupiteru 03

Zenith 58. 79

Zonda 01

Dongyang 03. 54

56 57

Troubleshooting

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below

or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized

dealer or Samsung Electronics Service Cente_

Disc tray does not open.

Playback does not start,

Playback does not start

immediately when the

Play/Pause button is pressed.

Sound is not produced.

Sound can be heard only from a

few speakers and not all six.

Dolby Digital 5.1 CH Surround

Sound is not produced.

The remote control does not

work.

• Is the power cord plugged securely into the outlet?

• Turn off the power and then turn it back on.

• Check the region number of the DVD.

DVD discs purchased from abroad may not be playable.

• CD-ROMs and DVD-ROMs cannot be played on this DVD

player.

• Make sure that the rating level is correct.

• Are you using a deformed disc or a disc with scratches on

the surface?

• Wipe the disc clean.

• No sound is heard during fast playback, slow playback, and step

motion playback.

• Are the speakers connected properly? Is the speaker setup

correctly customized?

• Is the disc severely damaged?

• When listening to a CD or radio, sound is output to the front

speakers (L/R) only. Select "PRO LOGIC II" by pressing

(Dolby Pro Logic II) on the remote control to use all six speakers.

• Make sure that the DVD disc is 5.1-CH compatible.

• If you set C, SL, and SR to NONE in the speaker mode inthe

audio setup of the setup screen, no sound is heard from the

center speaker and the front left and right speakers. Set C, SL,

and SR to SMALL.

• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital

5.1 CH Surround Sound is produced only if the disc is recorded

with 5.1 channel sound.

• Is the audio language correctly set to DOLBY DIGITAL5.1-CH in

the information display?

• Is the remote control being operated within its operation range of

angle and distance?

• Are the batteries exhausted?

• Have you selected the mode(TVlDVD) functions of the remote

control (TV or DVD) correctly?

•Disc is rotating but no

picture is produced.

•Picture quality is poor and

picture is shaking.

Audio language and subtitles

do not work.

Menu screen does not appear

even when the menu function is

selected.

Aspect ratio cannot be changed.

•The main unit is not working,

(Example: The power goes out

or strange noise is heard.)

•The DVD player is not working

normally.

The password for rating level

has been forgotten.

Can't receive radio broadcast.

• Is the TV power on?

• Are the video cables connected properly?

• Is the disc dirty or damaged?

• A poorly manufactured disc may not be playable.

• Audio language and subtitles will not work for DVDs not containing

them. And depending on the disc, they may work differently.

• Are you using a disc that does not contain menus?

• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX

mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3

ratio only. Refer to the DVD disc jacket and then select the

appropriate function.

• Turn off the power and hold the STOP(• ) button on the main unit

for longer than 5 seconds.

Using the RESET function will erase all stored settings.

Do not use this unless necessary.

• While "NO DISC" messageappearson the displayof main unit,hold

the main unit's STOP(• ) buttonfor longerthan 5 seconds."INITIAL"

appears onthe displayand all settingswill return to the defaultvalues.

• Pressthe POWERbutton.

Usingthe RESETfunction will erase all stored settings,

Donot use this unless necessary.

• Is the antenna connected properly?

• If the antenna's input signal is weak, install an external FM

antenna in an area with good reception.

58 59

Cautions on Handling and Storing Discs

Small scratches on the disc may reduce sound and picture quality or cause skipping.

Be especially careful not to scratch discs when handling them.

Handling discs

Do not touch the playback side of the disc.

Hold the disc by the edges so that fingerprints will not get on

the surface.

Do not stick paper or tape on the disc.

Disc Storage

Do not keep in

direct sunlight

Keep in a cool

ventilated area

Keep in a clean

Protection jacket.

Store vertically.

• Do not allow the discs to become contaminated with dirt.

• Do not load cracked or scratched discs.

Handling and Storing Discs

When you get fingerprints or dirt on the disc, clean it with a mild

detergent diluted in water and wipe with a soft cloth.

• When cleaning, wipe gently from the inside to the outside of the

disc.

• Condensation may form if warm air comes into contact with cold parts inside

the player. When condensation forms inside the player, the player may not

operate correctly. If this occurs, remove the disc and let the player stand for

1 or 2 hours with the power on.

Language Code List

Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle" and/or "Disc Menu" (See page 40).

1027 Afar 118! Frisian 1334 Latvian, Lettish 1506 SIovenian

1028 Abkhazian 1183 Irish !345 Matagasy 1507 Samoan

1032 Afrikaans 1186 Scots Gaelic ! 347 Maori 1508 Shona

1039 Amharic 1194 Galician !349 Macedonian 1509 Somali

1044 Arabic 1196 Guarani 1350 Malayalam 15!1 Albanian

1045 Assamese !203 Gujarati 1352 Mongolian 1512 Serbian

1051 Aymara !209 Hausa !353 Moldavian 1513 Siswati

1052 Azerbaijani !217 Hindi !356 Marathi 1514 Sesotho

1053 Bashkir 1226 Croatian !357 Malay 1515 Sundanese

1057 Byelorussian !229 Hungarian !358 Maltese 1516 Swedish

1059 Bulgarian !233 Armenian !363 Burmese 1517 Swahili

1060 Bihari !235 Interlingua 1365 Nauru 1521 Tamil

1069 Bislama !239 Interlingue 1369 Nepali 1525 Tegulu

1066 Bengali; Bangla !245 Inupiak !376 Dutch 1527 Tajik

1067 Tibetan 1248 Indonesian !379 Norwegian 1528 Thai

1070 Breton 1253 Icelandic !393 Occitan 1529 Tigrinya

1079 Catalan !254 Italian !403 (Afan) Oromo 1531 Turkmen

1093 Corsican 1257 Hebrew !408 Oriya 1532 Tagatog

1097 Czech !261 Japanese !417 Punjabi 1534 Setswana

1!03 Welsh 1269 Yiddish 1428 Polish 1535 Tonga

1!05 Danish 1283 Javanese 1435 Pashto, Pushto 1538 Turkish

1!09 German 1287 Georgian 1436 Portuguese 1539 Tsonga

1!30 Bhutani 1297 Kazakh 1463 Quechua 1540 Tatar

1!42 Greek 1298 Greenlandic 1481 Rhaeto-Romance 1543 Twi

1!44 English 1299 Cambodian 1482 Kirundi 1557 Ukrainian

1!45 Esperanto 1300 Kannada 1483 Romanian 1564 Urdu

1!49 Spanish 1301 Korean 1489 Russian 1572 Uzbek

1!50 Estonian 1305 Kashmiri 149! Kinyarwanda 1581 Vietnamese

1!51 Basque 1307 Kurdish 1495 Sanskrit 1587 VoIapuk

1!57 Persian 1311 Kirghiz 1498 Sindhi 1613 WoIof

1!65 Finnish 13!3 Latin 1501 Sangro 1632 Xhosa

1!66 Fiji 1326 Lingala 1502 Serbo-Croatian 1665 Yoruba

1!71 Faeroese 1327 Laothian 1503 Singhalese 1684 Chinese

1!74 French 1332 Lithuanian 1505 Slovak 1697 Zulu

60 61

USB Host Feature Supported Products Specifications

Digital Camera

Finepix-A340 Fuji DigitalCamera

Finepix-F810 Fuji DigitalCamera

Finepix-F610 Fuji DigitalCamera

Finepix-f450 Fuji DigitalCamera

FinepixS7000 Fuji DigitalCamera

FinepixA310 Fuji DigitalCamera

KD-310Z Konica DigitalCamera

FinecamSL300R Kyocera DigitalCamera

FinecamSL400R Kyocera DigitalCamera

FinecamS5R Kyocera DigitalCamera

FinecamXt Kyocera DigitalCamera

Dimage-Zl Minolta DigitalCamera

DimageZl Minolta DigitalCamera

DimageX21 Minolta DigitalCamera

Coolpix4200 Nikon DigitalCamera

Coolpix4300 Nikon DigitalCamera

Coolpix2200 Nikon DigitalCamera

Coolpix3500 Nikon DigitalCamera

Coolpix3700 Nikon DigitalCamera

Coolpix4100 Nikon DigitalCamera

Coolpix5200 Nikon DigitalCamera

Stylus410 digital Olympus DigitalCamera

300-digital Olympus DigitalCamera

U300 Olympus DigitalCamera

X-350 Olympus DigitalCamera

C-760 Olympus DigitalCamera

C-5060 Olympus DigitalCamera

X1 Olympus DigitalCamera

U-mini Olympus DigitalCamera

Lumix-PZ20 Panasonic DigitalCamera

DMC-FX7GD Panasonic DigitalCamera

LumixL033 Panasonic DigitalCamera

LUMIXDMC-F1 Panasonic DigitalCamera

Optio-S4O Pentax DigitalCamera

Optic-S50 Pentax DigitalCamera

Optic 33LP Pentax DigitalCamera

Optic MX Pentax DigitalCamera

Digimax-420 Samsung DigitalCamera

Digimax-400 Samsung DigitalCamera

Sora PDR-T3O Toshiba DigitalCamera

Coolpix5900 Nikon DigitalCamera

Coolpix$1 Nikon DigitalCamera

Coolpix7600 Nikon DigitalCamera

DMC-FX7 Panasonic DigitalCamera

DimageXt Minolta DigitalCamera

AZ-1 Olympus DigitalCamera

IUSB Flash Disc

Cruzer Micro Sandisk USB 20 USBPlash Drive 128M

Cruzer Mini Sandisk USB20 128M

Cruzer Mini Sandisk USB20 256M

SONY Micro Vault Sony USB 20 64MB

FLEX DRIVE Serotech USB20 32MB

AnyDrive AL tech USB20 128MB

XTtCK LG USB20 128M

Micro Mini Iomega USB20 128M

iFlash Imation USB 20 64M

LG XTiCK(M) USB 20 64M

RiDATA EZDrive USB 20 64M

MP3 Player

CreativeMuVoNX128M Creative 128 MB MP3 Player

IriverH320 Ibver 2OGHDDMP3Player

YH-920 Samaung 20G HDDMP3Player

YP-T7 Samaung MP3Player

YP-MT6 Samaung MP3Player

YP-T6 Samsung MP3Player

YP-53 Samsung MP3Player

YP-ST5 Samsung MP3Player

YP-T5 Samaung MP3Player

YP-6O Samsung MP3Player

YP-780 Samsung MP3Player

YP-35 Samsung MP3Player

YP-55 Samaung MP3Player

iAUDIOU2 Cowon MP3Player

iAUDIOG3 Cowon MP3Player

iAudioM3 Cowon HDDMP3Player

SI-M50OL Sharp 256MBMP3Player

H1O Ibver MP3Player

YP-T5 VB Samaung MP3 Player

YP-53 Samsung 256MBMP3Player

IUSB External HDD

T

F U

a

MR

A Front speaker output

M Center speaker output

P Rear speaker output

L1 Subwoofer speaker output

F Frequency range

t SIN Ratio

E Channel separation

R Input sensitivity

iii'i !i !i!!i i i i! ! ! ! i ! ! i i i i ! i! ! ! ! i i i i i i i i i ! ! !i!i i i!iiiiii ii ii i i i i i!i!i ii iiii i i i i ii ii !ii! i!iiiii!!iii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i ! ! i!!iiiiiii i i i ii

¸if!fill¸iii iliiiiiiiiiiiiiiii

iiiiiiil;i_i_ _;i__ilii_i_i_i_i _!_;F iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii;;;;ii

Usable Sensitivity ' 10dB

S/N Ratio 60dB

Distortion '1%

62 63

Warranty

This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and

delivered new, inthe original carton to theoriginal consumer purchaser, iswarranted by SAMSUNG against manufacturing

defects in materials and workmanship for a limited warranty period of:

One (1) Year Parts /Ninety (90) days Labor

(90 days Parts and Labor for Commercial Use)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the

United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and

service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original

dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized

service center. Transportation of the product to and from the service center is the responsibility of the purchaser.

SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or

reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced

parts and products become the property of SAMSUNG and must be returned to SAMSUNG Replacement parts and

products assume the remaining original warranty, or ninety (90) days, whichever is longer.

SAMSUNG is obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand

name are set forth in the applicable end user license agreement. Non-SAMSUNG hardware and software products, if

provided, are on an "AS IS" basis. Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may

provide their own warranties.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to

the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to

the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and

uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish;

accidents, abuse, neglect, fire, water, lightningor other acts of nature; use of products, equipment, systems, utilities,

services, parts,supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied and

authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage,

fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and

environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation;

reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems.

SAMSUNG does not warrant uninterrupted or error-free operation of the product.

THEREARENOEXPRESSWARRANTIESOTHERTHANTHOSELISTEDANDDESCRIBEDABOVE,ANDNOWARRANTIES

WHETHEREXPRESSORIMPLIED,INCLUDING,BUTNOTLIMITEDTO,ANYIMPLIEDWARRANTIESOFMERCHANTABILITYOR

FITNESSFORAPARTICULARPURPOSE,SHALLAPPLYAFTERTHEEXPRESSWARRANTYPERIODSSTATEDABOVE,ANDNO

OTHEREXPRESSWARRANTYORGUARANTYGIVENBYANYPERSON,FiRMORCORPORATIONWtTHRESPECTTO

THISPRODUCTSHALLBEBINDINGONSAMSUNG.SAMSUNGSHALLNOTBELIABLEFORLOSSOFREVENUEORPROFITS,

FAILURETOREALIZESAVINGSOROTHERBENEFITS,ORANYOTHERSPECIAL,INCIDENTALORCONSEQUENTIALDAMAGES

CAUSEDBYTHEUSE,MISUSEORINABILITYTOUSETHISPRODUCT,REGARDLESSOFTHELEGALTHEORYONWHICH

THECLAIMISBASED,ANDEVENIFSAMSUNGHASBEENADVISEDOFTHEPOSSiBILiTYOFSUCHDAMAGES.NORSHALL

RECOVERYOFANYKiNDAGAINSTSAMSUNGBEGREATERINAMOUNTTHANTHEPURCHASEPRICEOFTHEPRODUCTSOLD

BYSAMSUNGANDCAUSINGTHEALLEGEDDAMAGE.WITHOUTLIMITINGTHEFOREGOING,PURCHASERASSUMESALLRISK

ANDLIABILITYFORLOSS,DAMAGEORINJURYTOPURCHASERANDPURCHASERiSPROPERTYANDTOOTHERSAND

THEIRPROPERTYARISINGOUTOFTHEUSE,MISUSEORINABILITYTOUSETHtSPRODUCTSOLDBYSAMSUNGNOTCAUSED

DIRECTLYBYTHENEGLIGENCEOFSAMSUNG.THISLIMITEDWARRANTYSHALLNOTEXTENDTOANYONEOTHERTHAN

THEORIGINALPURCHASEROFTHISPRODUCT,iSNONTRANSFERABLEANDSTATESYOUREXCLUSIVEREMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or

consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific

legal rights, and you may also have other rights which vary from state to state.

To obtain warranty hardware service, please contact SAMSUNG at:

SamsungElectronicsAmerica,Inc.

105ChallengerRoadRidgefietdPark,NJ07660-0511

1-800-SAMSUNG(726-7864)andwww.samsung.com

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Region

North America

Latin America

Europe

cIs

Asia Pacific

Country

CANADA

MEXICO

U.SA

ARGENTINE

BRAZIL

CHILE

COSTA RICA

ECUADOR

EL SALVADOR

GUATEMALA

JAMAICA

PANAMA

PUERTO RmCO

RER DOMINICA

TRINIDAD & TOBAGO

VENEZUELA

COLOMBIA

BELGIUM

CZECH REPUBLIC

DENMARK

FINLAND

FRANCE

GERMANY

HUNGARY

FrAMA

LUXEMBURG

NETHERLANDS

NORWAY

POLAND

PORTUGAL

SLOVAKBA

SPAIN

SWEDEN

U.K

Republic of Ireland

SwitzerJand

RUSSIA

KAZAHSTAN

UZBEKISTAN

UKRAINE

LITHUANIA

LATVIA

ESTONIA

AUSTRALIA

CHINA

HONG KONG

INDIA

INDONESIA

JAPAN

MALAYSIA

PHILIPPINES

SINGAPORE

THAILAND

TAIWAN

VIETNAM

SOUTH AFRICA

Web Site

www.samsung.com/ca

www.samsunq.com/mx

www,samsunc_.com

www.samsuncj.com/ar

www.samsung.com/br

www,samsung com/d

www.samsung.com/Batin

www samsung.com/latin

www samsung.com/latin

www samsung.com/latin

www,samsung,com/latin

www.samsung.com/latin

www.samsung.com/latin

www samsung.com/latin

www.samsung.com/latin

www.samsung.com/latin

www.samsunq.corn.co

www.sarnsung.com/be

Customer Care Center

I=800=SAMSUNG (7267864)

01 =800=SAMSUNG (7267864)

I=800=SAMSUNG (7267864)

0800=333=3733

0800=124=421

4004=0000

800=726=7864 (SAMSUNG)

0=800=507=7267

1=800=10=7267

800=6225

1=800=299=0013

1=800=234=7267

800-7267

1=800=682=3t 80

1=800=751=2676

1-800-7267-864

0=800=I00=5303

01=80001 t2112

02 201 2418

844 00O 844

Distributor pro Ceskou republiku :

Samsung Zrt. _eska organiza_n[ sloika

Vyskodilova 4, 14000 Praha 4

70701970

030-6227 515

3260 SAMSUNG or

08 25 08 65 65 (€ 0,15/Min)

01805 =121213 (€ 0,t4/Min)

06=80=SAMSUNG (7267864)

800=SAMSUNG (7267864)

0032 (0)2 201 24 18

0900 20 200 88 (€ 0,10/Min)

815=56 480

0801 801 881

80 8 200 128

0800-SAMSUNG (726786)

902 1011 30

0771 =400 200

0870 SAMSUNG (7267864)

0818 717 t00

0800=7267864

8=800=200=0400

8=800=080=1t 88

8=800=120=0400

8=800=502=0000

8=800=77777

800=7267

800=7267

1300 362 603

800=810=5858, 010=6475 1880

3698 = 4698

3030 8282

1800110011

0B00=112=8888

0120=327=527

1800=88=9999

1800=I0=SAMSUNG (7267864)

1800=SAMSUNG (7267864)

1800=29=3232

02=689=3232

0800=329=999

1 800 588 889

0860 7267864 (SAMSUNG)

800SAMSUNG (7267864)

8000=4726

www samsung.com/cz

www.samsung,com/dk

www,samsung corn/fi

www.samsung.com/rr

www.samsung.de

www.samsung.com/hu

www.samsung.com/it

www.samsungJu

www.samsung_com/nl

www.samsung_com/no

www.samsung.com/pl

www.samsung.com/pt

www.samsung.com/sk

www.samsung.com/es

www.samsung.com/se

www.samsunq.com/uk

www.samsunq.com/uk

www.samsung.com/ch

www.samsung.ru

www.samsunq.kz

www.samsun£.uz

www.samsung.com/ur

www.samsungJt

www.samsung.com/Rv/index.htm

www.samsunq ee

www samsung.corn/au

www,samsung,com.cn

www samsung,com/hk

www.samsung.com/in

www.samsung.com/id

www.samsunq.com/ip

www.samsunq.com/my

www.samsung_com/ph

www.samsunq,com/sg

www.samsung.com/th

www.samsung.com/tw

www.samsunq com/vn

www.samsung.com/za

Middle East & Africa UA.E www samsung.com/mea
