Jthe possibilities
Thank you for purchasing your Samsung product.
To receive more complete service.
please register your product at
www.samsung.com/global/register

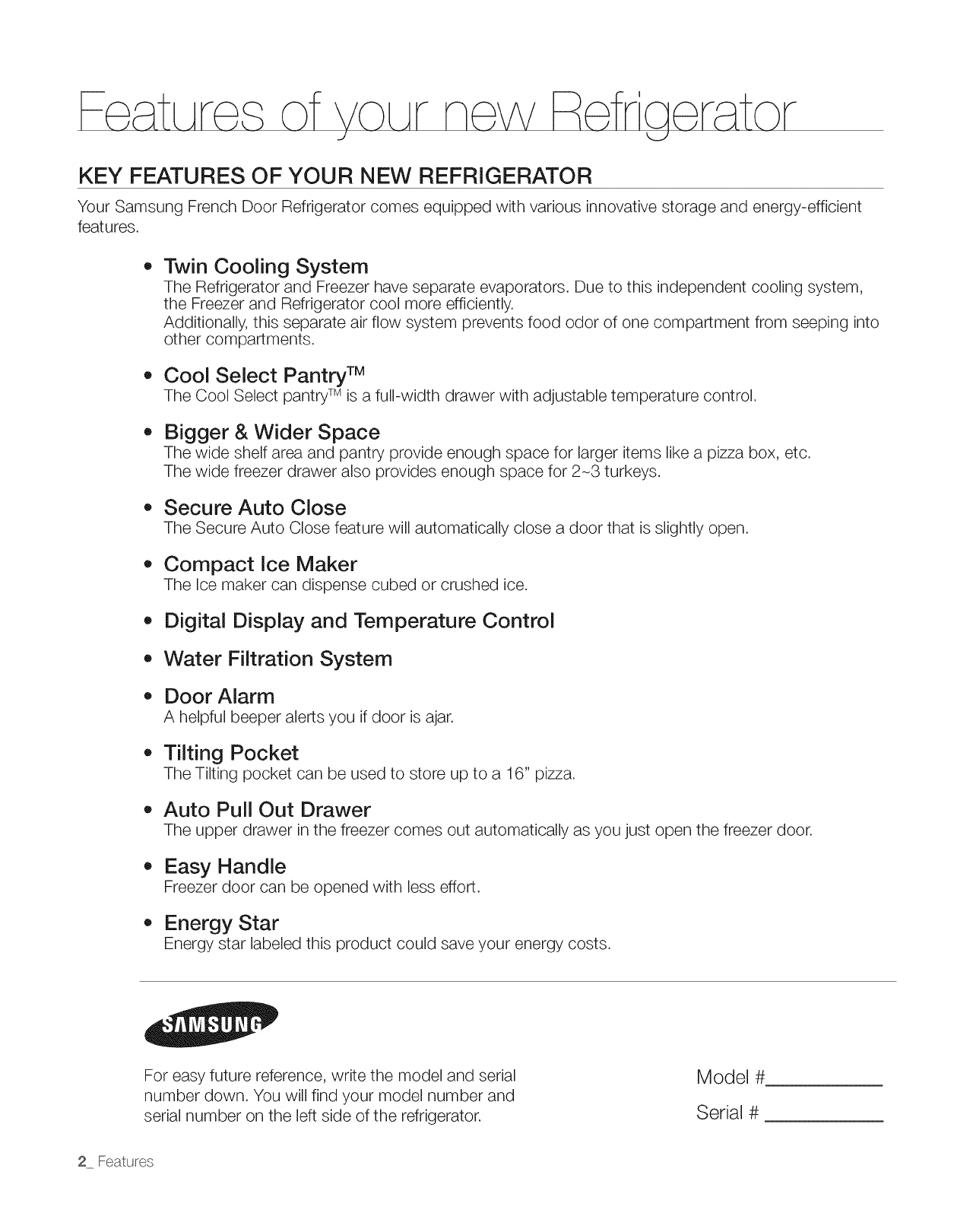

KEY FEATURES OF YOUR NEW REFRIGERATOR
Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efficient
features.
o Twin Cooling System
The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,
the Freezer and Refrigerator cool more efficiently.
Additionally, this separate air flow system prevents food odor of one compartment from seeping into
other compartments.
o Cool Select Pantry TM
The Cool Select pantry TM is a full-width drawer with adjustable temperature control.
,, Bigger & Wider Space
The wide shelf area and pantry provide enough space for larger items like a pizza box, etc.
The wide freezer drawer also provides enough space for 2-3 turkeys.
o Secure Auto Close
The Secure Auto Close feature will automatically close a door that is slightly open.
o Compact Ice Maker
The Ice maker can dispense cubed or crushed ice.
o Digital Display and Temperature Control
o Water Filtration System
o Door Alarm
A helpful beeper alerts you if door is ajar.
o Tilting Pocket
The Tilting pocket can be used to store up to a 16" pizza.
o Auto Pull Out Drawer
The upper drawer in the freezer comes out automatically as you just open the freezer door.
o Easy Handle
Freezer door can be opened with less effort.
o Energy Star
Energy star labeled this product could save your energy costs.
For easy future reference, write the model and serial
number down. You will find your model number and
serial number on the left side of the refrigerator.
Model #
Serial #
2 Features

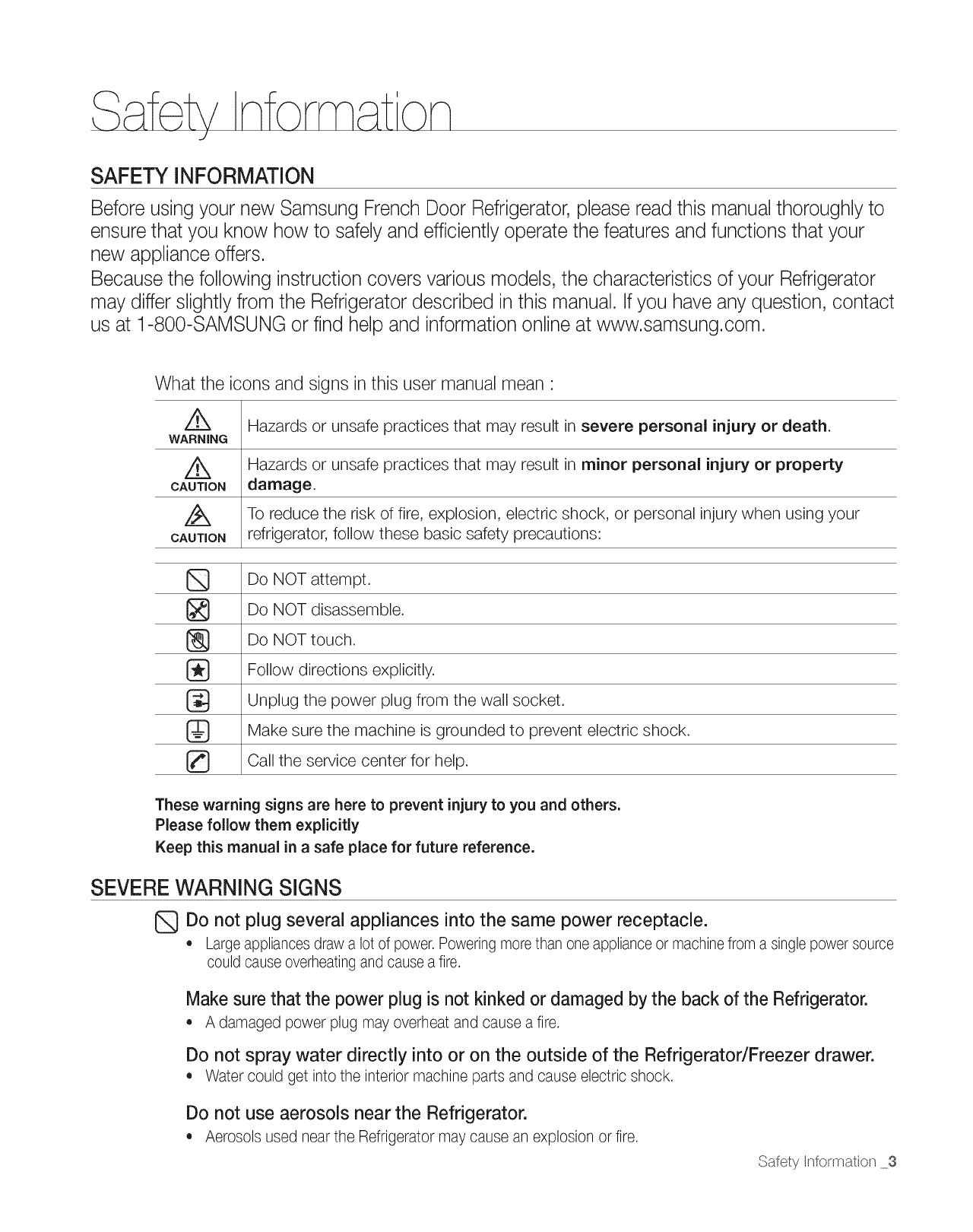

SAFETY INFORMATION
Before using your new Samsung French Door Refrigerator,please read this manual thoroughly to
ensure that you know how to safely and efficiently operate the features and functions that your
new appliance offers,
Because the following instruction covers various models, the characteristics of your Refrigerator
may differ slightly from the Refrigerator described in this manual, If you have any question, contact
us at 1-800-SAMSUNG or find help and information online at www,samsung,com,
What the icons and signs in this user manual mean '
Hazards or unsafe practices that may result in severe personal injury or death.
WARNING
Hazards or unsafe practices that may result in minor personal injury or property
CAUTION damage.
\ To reduce the risk of fire, explosion, electric shock, or personal injury when using your
CAUTION refrigerator, follow these basic safety precautions:
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
These warning signs are here to prevent injury to you and others.
Please follow them explicitly
Keep this manual in a safe place for future reference.
SEVERE WARNING SIGNS
QDo not plug several appliances into the same power receptacle.
•Large appliances draw a lot of power. Powering more than one appliance or machine from a single power source
could cause overheating and cause a fire.
Make sure that the power plug is not kinked or damaged by the back of the Refrigerator.
•A damaged power plug may overheat and cause a fire.
Do not spray water directly into or on the outside of the Refrigerator/Freezer drawer.
•Water could get into the interior machine parts and cause electric shock.
Do not use aerosols near the Refrigerator.
•Aerosols used near the Refrigerator may cause an explosion or fire.
Safety Inforrration 3

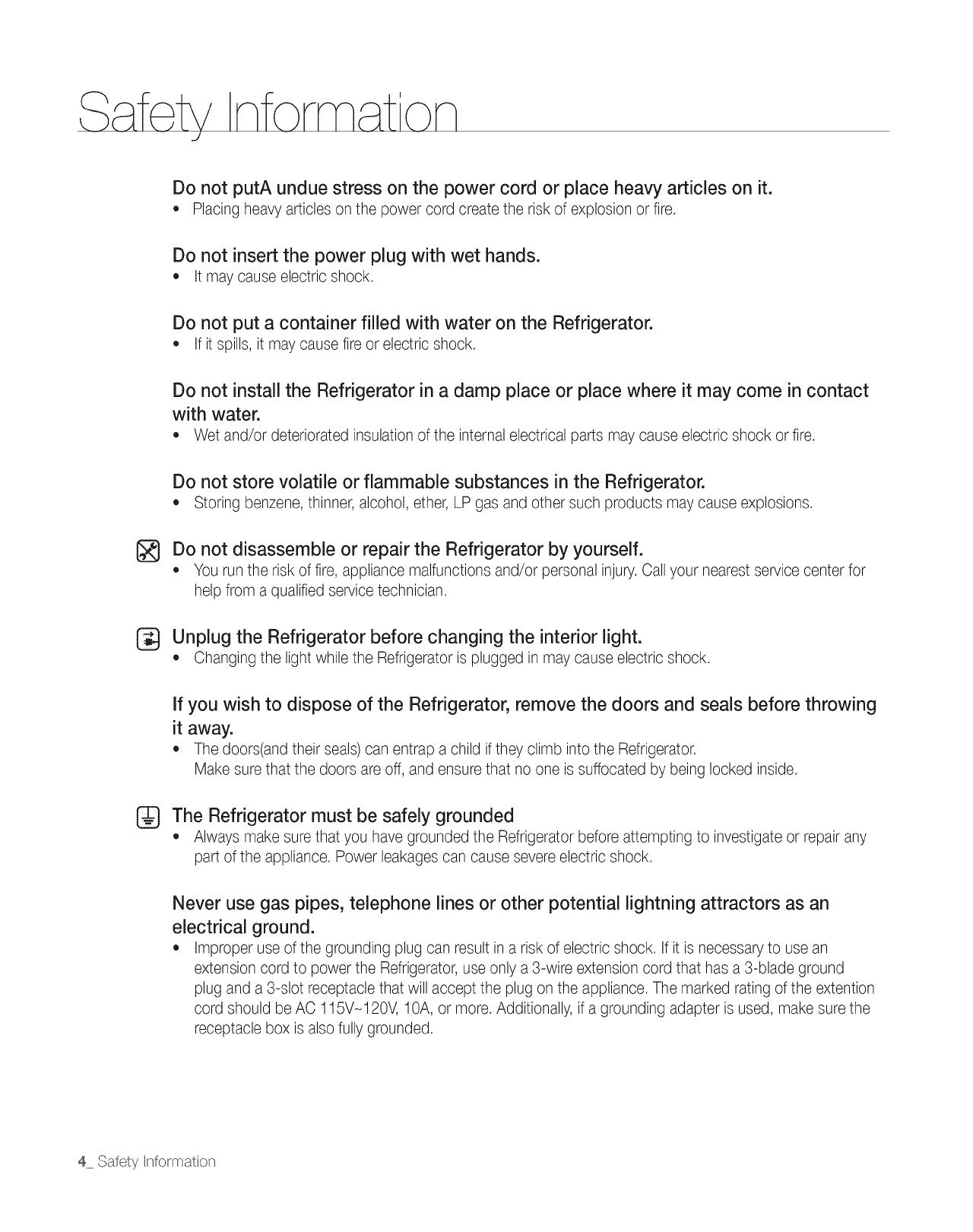

Do not putA undue stress on the power cord or place heavy articles on it.
• Placing heavy articles on the power cord create the risk of explosion or fire.
Do not insert the power plug with wet hands.
It may cause electric shock.
Do not put a container filled with water on the Refrigerator.
If it spills, it may cause fire or electric shock.
Do not install the Refrigerator in a damp place or place where it may come in contact
with water.
Wet and/or deteriorated insulation of the internal electrical parts may cause electric shock or fire.
Do not store volatile or flammable substances in the Refrigerator.
Storing benzene, thinner, alcohol, ether, LP gas and other such products may cause explosions.
Do not disassemble or repair the Refrigerator by yourself.
You run the risk of fire, appliance malfunctions and/or personal injury. Call your nearest service center for
help from a qualified service technician.
Unplug the Refrigerator before changing the interior light.
Changing the light while the Refrigerator is plugged in may cause electric shock.
If you wish to dispose of the Refrigerator, remove the doors and seals before throwing
it away.
The doors(and their seals) can entrap a child if they climb into the Refrigerator.
Make sure that the doors are off, and ensure that no one is suffocated by being locked inside.
@The Refrigerator must be safely grounded
Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any
part of the appliance. Power leakages can cause severe electric shock.
Never use gas pipes, telephone lines or other potential lightning attractors as an
electrical ground.
Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an
extension cord to power the Refrigerator, use only a 3-wire extension cord that has a 3-blade ground
plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extention
cord should be AC 115V-120V, 10A, or more. Additionally, if a grounding adapter is used, make sure the
receptacle box is also fully grounded.
4 Safety Info_rration

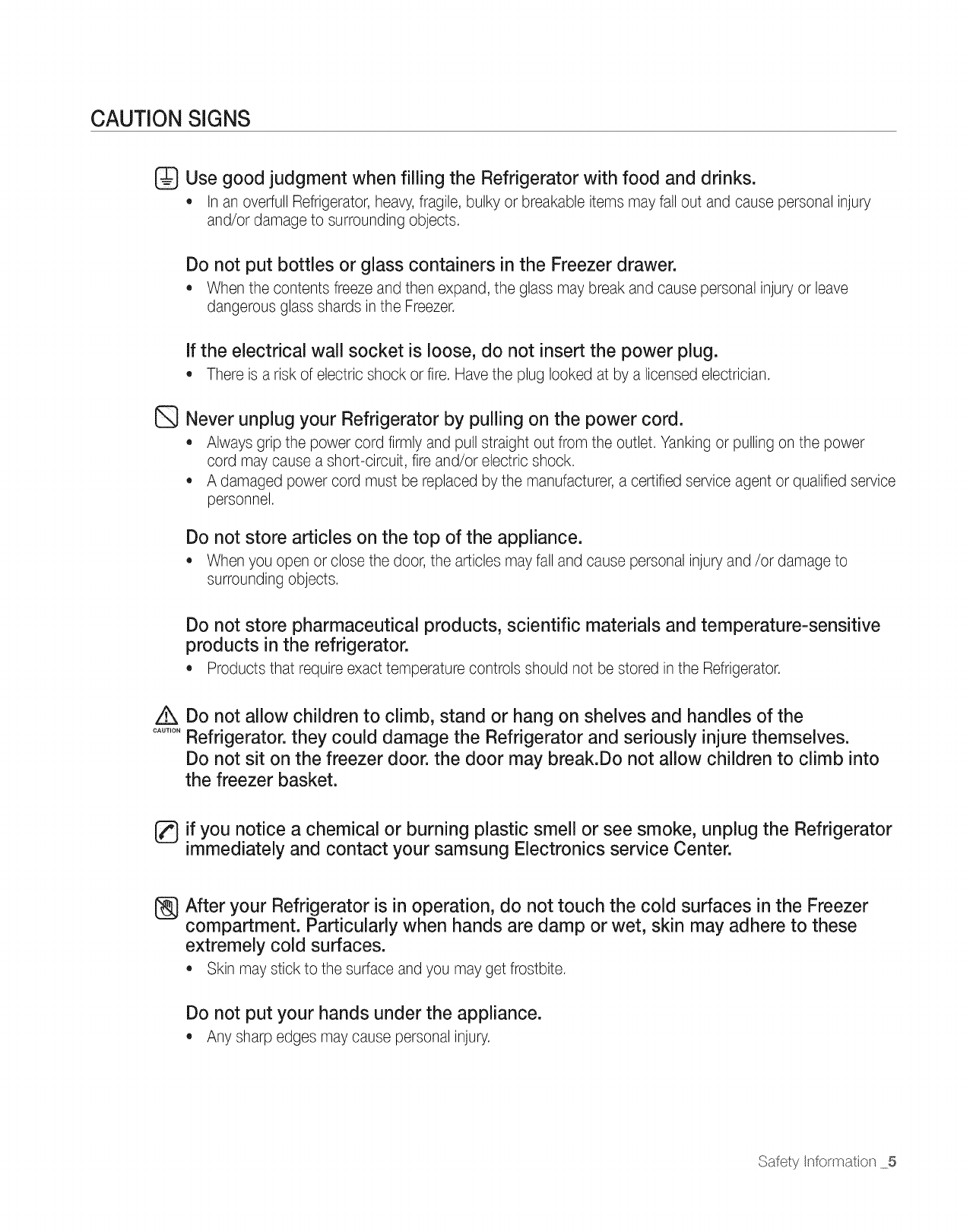

CAUTION SIGNS
Use good judgment when filling the Refrigerator with food and drinks.
• In an overfull Refrigerator, heavy, fragile, bulky or breakable items may fall out and cause personal injury
and/or damage to surrounding objects.
Do not put bottles or glass containers in the Freezer drawer.
When the contents freeze and then expand, the glass may break and cause personal injury or leave
dangerous glass shards in the Freezer.
If the electrical wall socket is loose, do not insert the power plug.
There is a risk of electric shock or fire. Have the plug looked at by a licensed electrician.
Never unplug your Refrigerator by pulling on the power cord.
Always grip the power cord firmly and pull straight out from the outlet. Yanking or pulling on the power
cord may cause a short-circuit, fire and/or electric shock.
A damaged power cord must be replaced by the manufacturer, a certified service agent or qualified service
personnel.
Do not store articles on the top of the appliance.
When you open or close the door, the articles may fall and cause personal injury and/or damage to
surrounding objects.
Do not store pharmaceutical products, scientific materials and temperature-sensitive
products in the refrigerator.
Products that require exact temperature controls should not be stored in the Refrigerator.
,6,
CAUTION
Do not allow children to climb, stand or hang on shelves and handles of the
Refrigerator. they could damage the Refrigerator and seriously injure themselves.
Do not sit on the freezer door. the door may break.Do not allow children to climb into
the freezer basket.
!f you notice a chemical or burning plastic smell or see smoke, unplug the Refrigerator
_mmediately and contact your samsung Electronics service Center.
®After your Refrigerator is in operation, do not touch the cold surfaces in the Freezer
compartment. Particularly when hands are damp or wet, skin may adhere to these
extremely cold surfaces.
Skin may stick to the surface and you may get frostbite.
Do not put your hands under the appliance.
Any sharp edges may cause personal injury.
Safety Info_rration 5
nform on

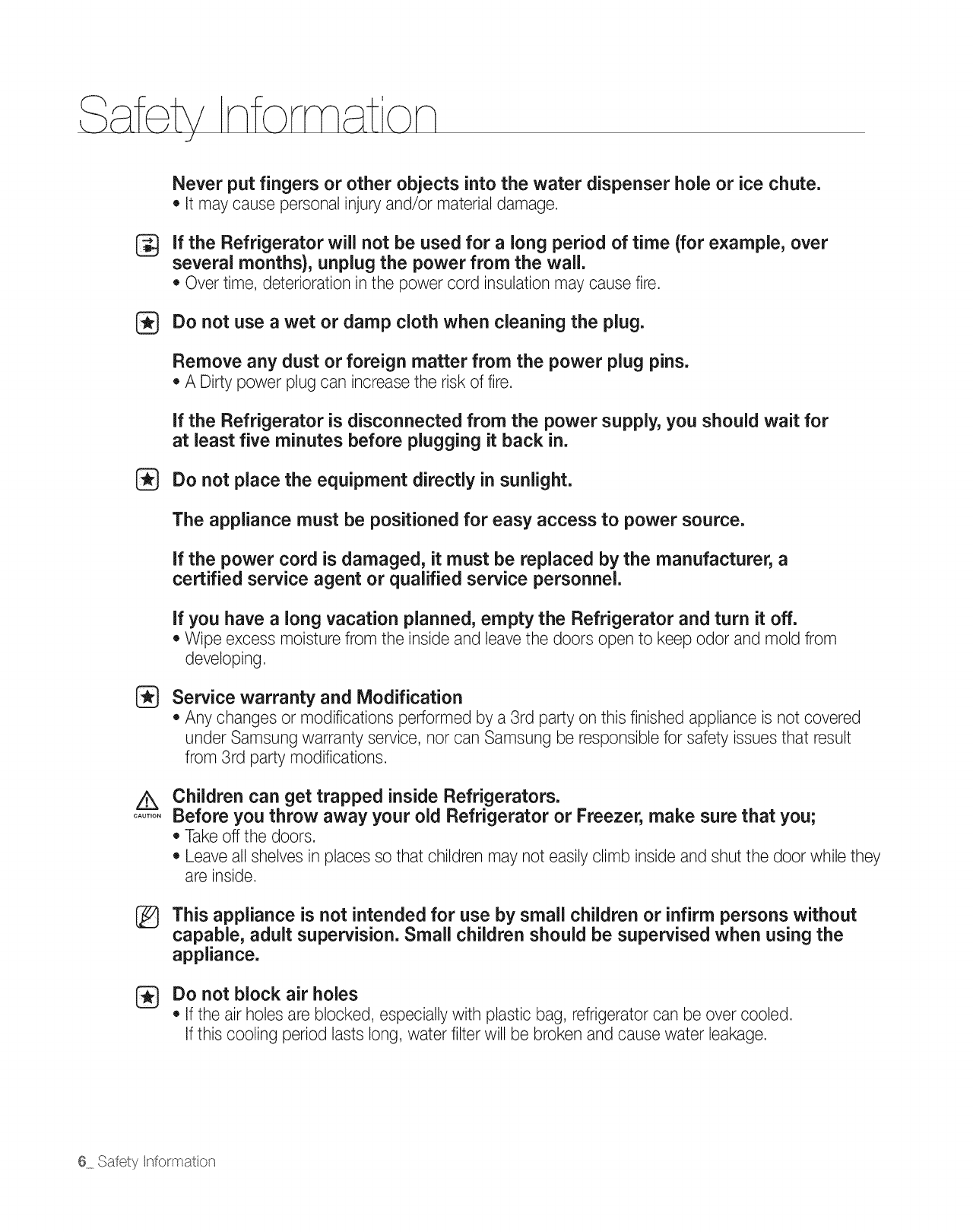

Never put fingers or other objects into the water dispenser hole or ice chute.
=It maycause personalinjuryand/or materialdamage.
If the Refrigerator will not be used for a long period of time (for example, over
several months}, unplug the power from the wall,
• Overtime, deteriorationinthe power cord insulationmaycausefire.
Do not use awet or damp cloth when cleaning the plug.
Remove any dust or foreign matter from the power plug pins,
A Dirtypower plugcan increasethe risk of fire.
If the Refrigerator is disconnected from the power supply, you should wait for
at least five minutes before plugging it back in,
Do not place the equipment directly in sunlight,
The appliance must be positioned for easy access to power source,
If the power cord is damaged, it must be replaced by the manufacturer, a
certified service agent or qualified service personnel,
if you have a long vacation planned, empty the Refrigerator and turn it off,
Wipe excess moisturefrom the insideand leavethe doorsopen to keep odor and mold from
developing.
Service warranty and Modification
Any changesor modificationsperformedby a 3rd partyon this finishedapplianceis not covered
under Samsungwarranty service,norcan Samsungbe responsiblefor safetyissuesthat result
from 3rd party modifications.
/K Children can get trapped inside Refrigerators,
....... Before you throw away your old Refrigerator or Freezer, make sure that you;
Takeoff the doors.
Leaveall shelvesinplacesso that childrenmaynot easilyclimb insideand shutthe door whilethey
are inside.
This appliance is not intended for use by small children or infirm persons without
capable, adult supervision. Small children should be supervised when using the
appliance,
Do not block air holes
If the air holesare blocked,especiallywith plastic bag, refrigeratorcan be over cooled.
Ifthis cooling periodlastslong, waterfilterwill be brokenand causewater leakage.
6 Safety Info_rration

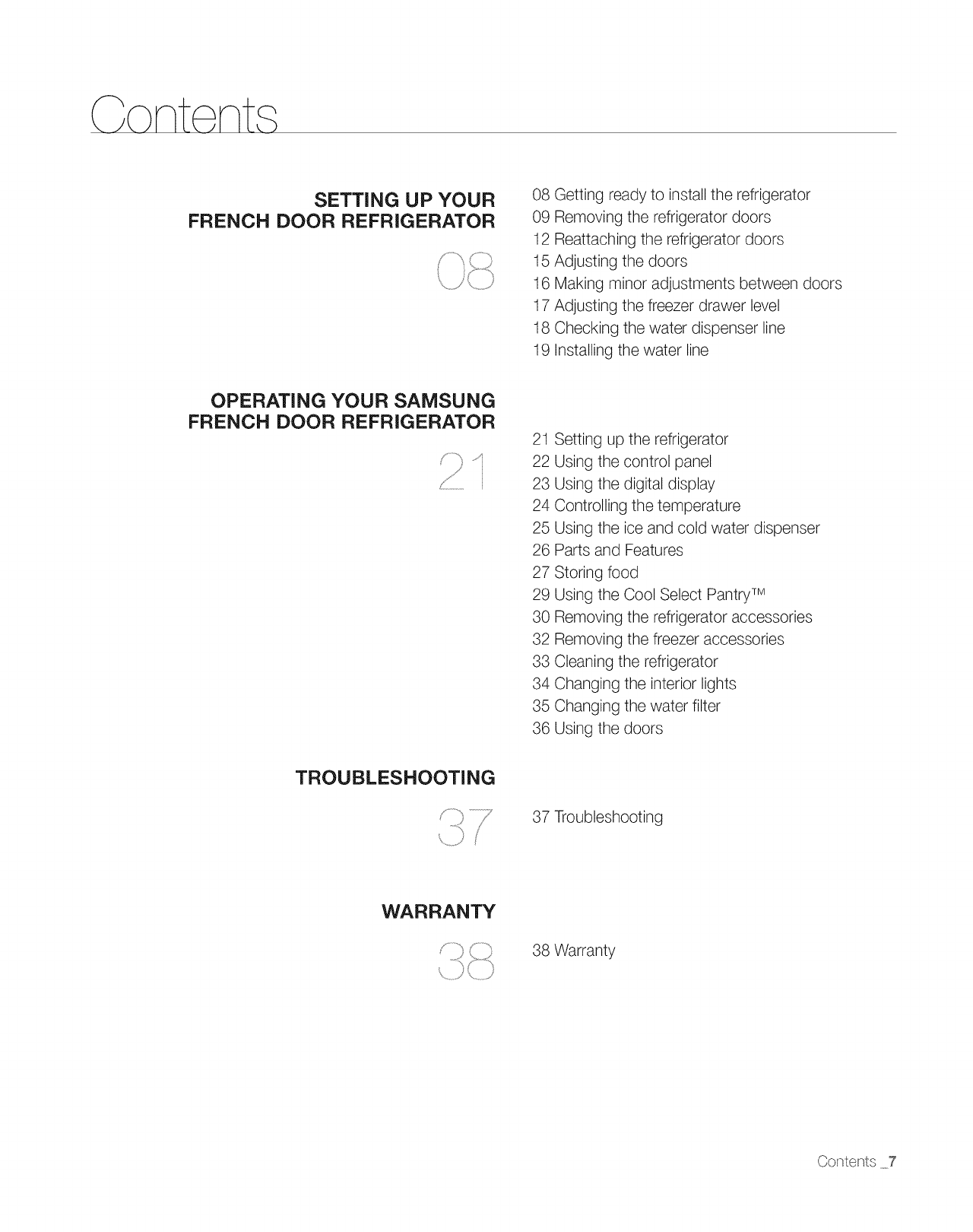

FRENCH
SETTING UP YOUR
DOOR REFRIGERATOR
08 Getting ready to install the refrigerator

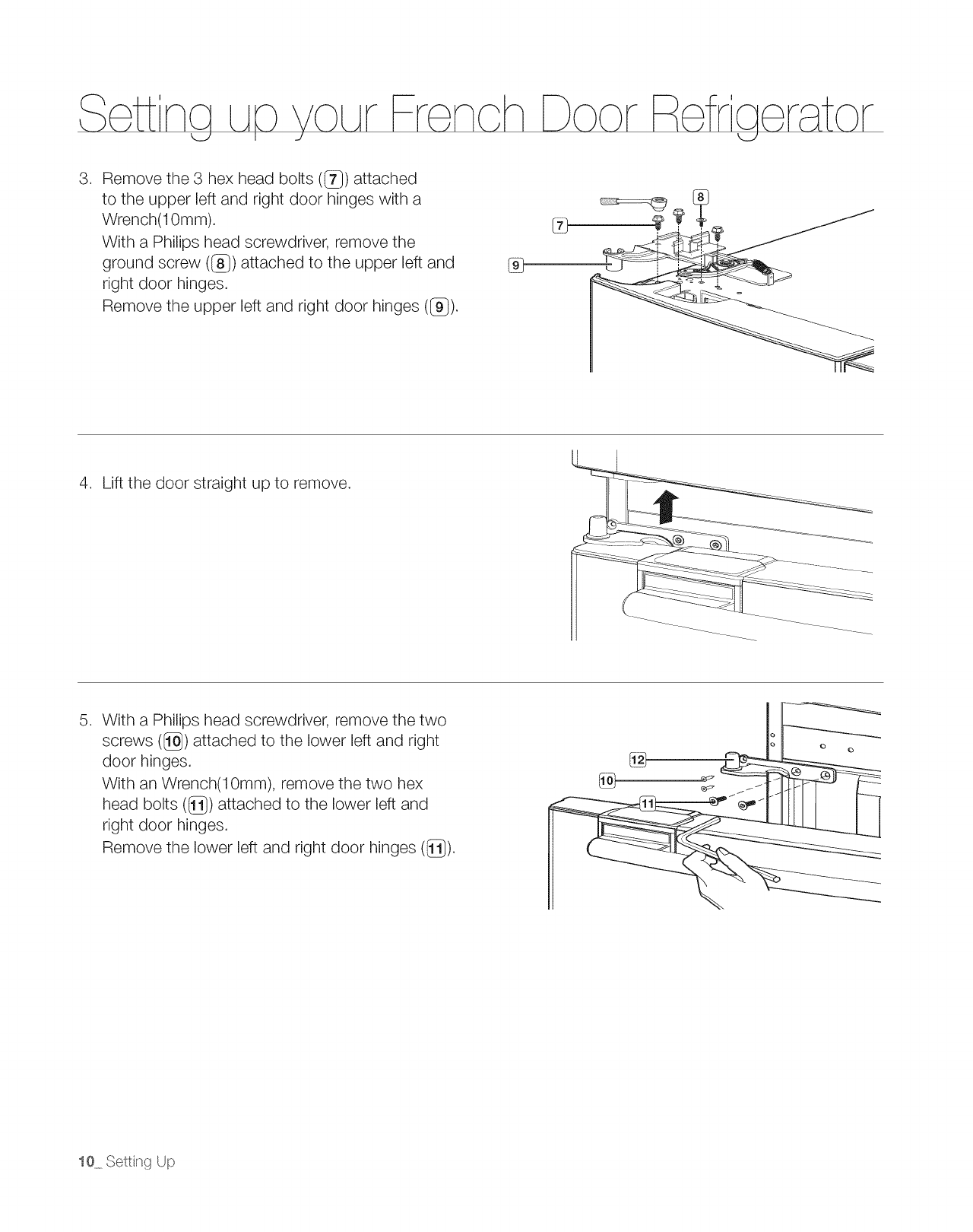

09 Removing the refrigerator doors

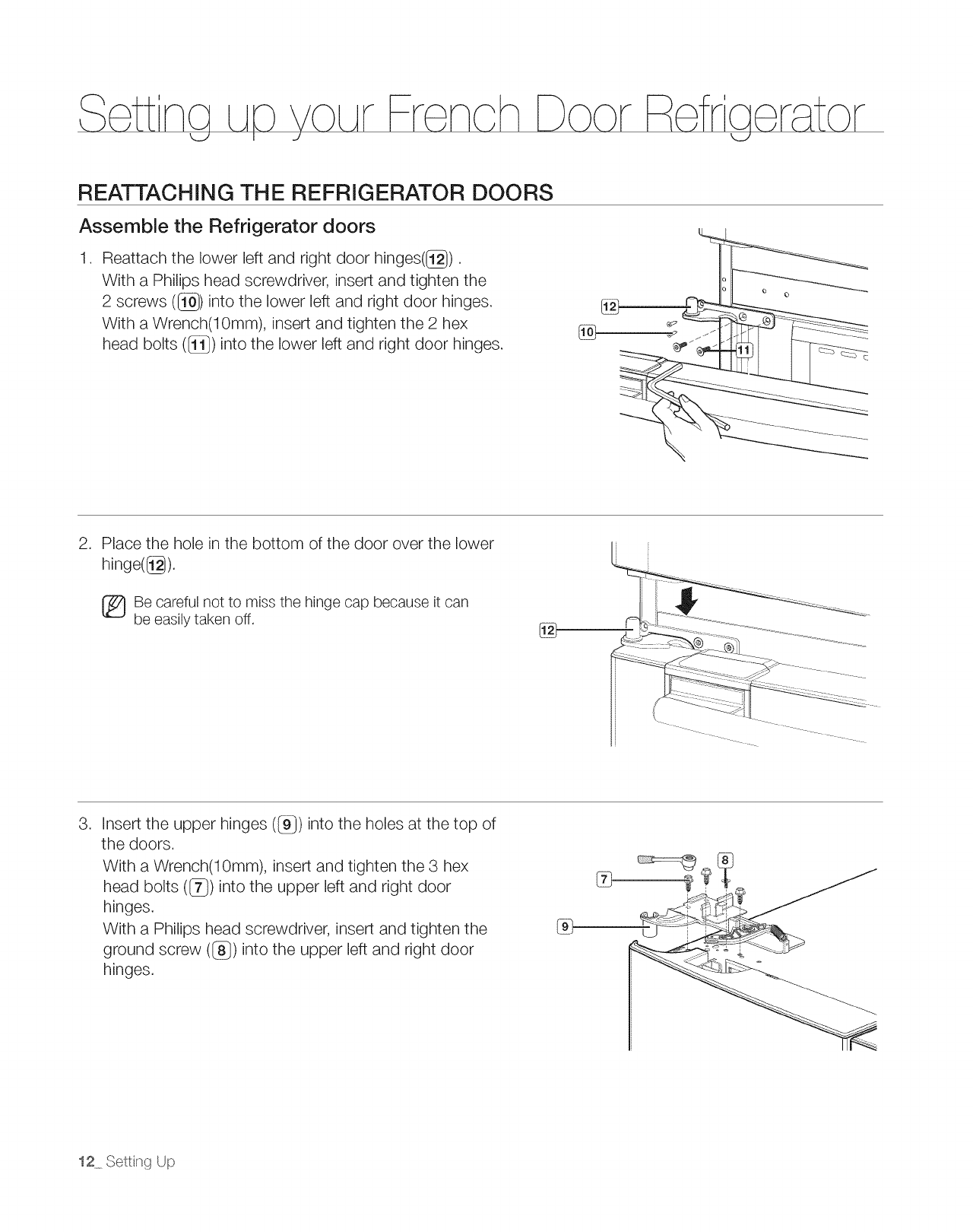

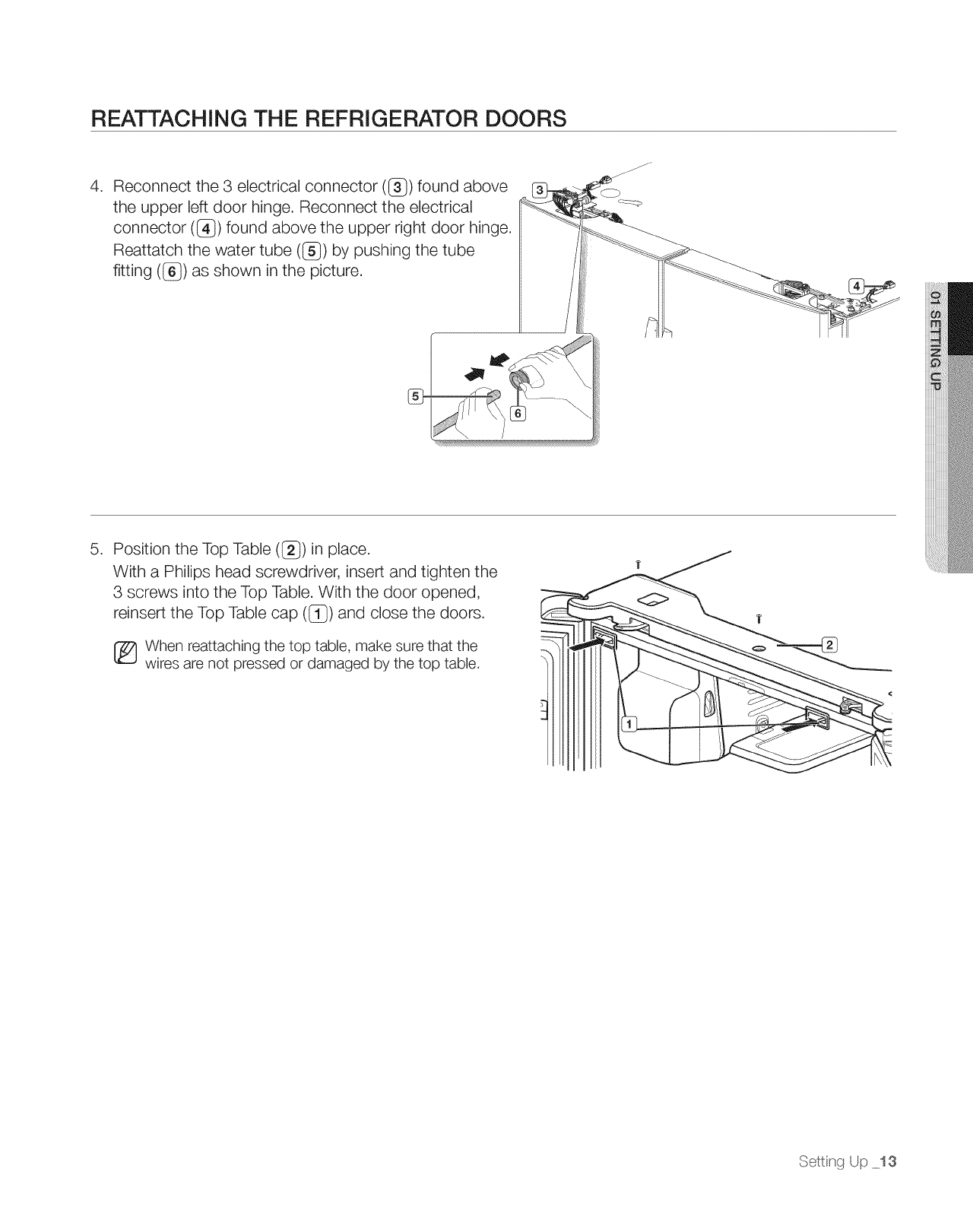

12 Reattaching the refrigerator doors

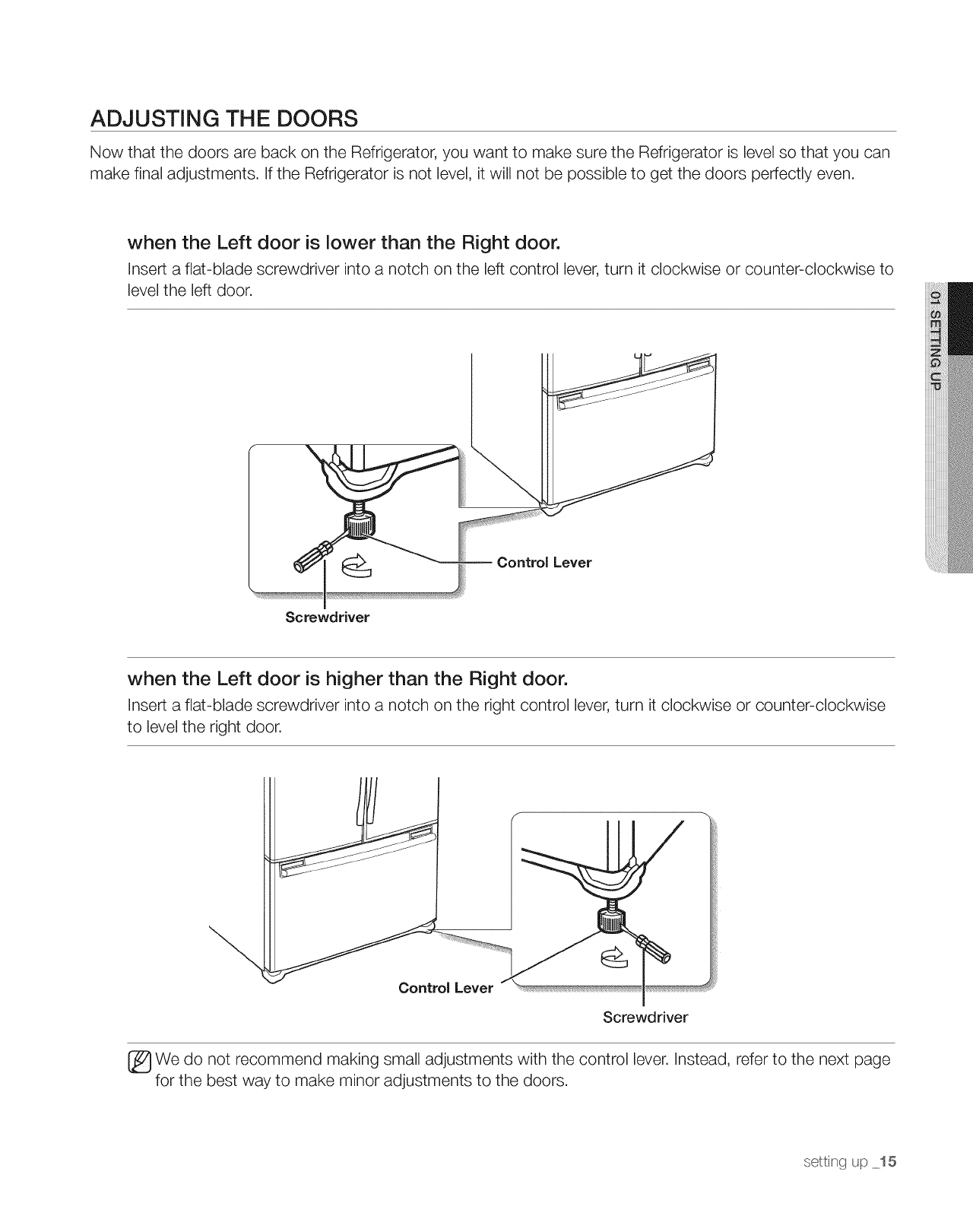

15 Adjusting the doors

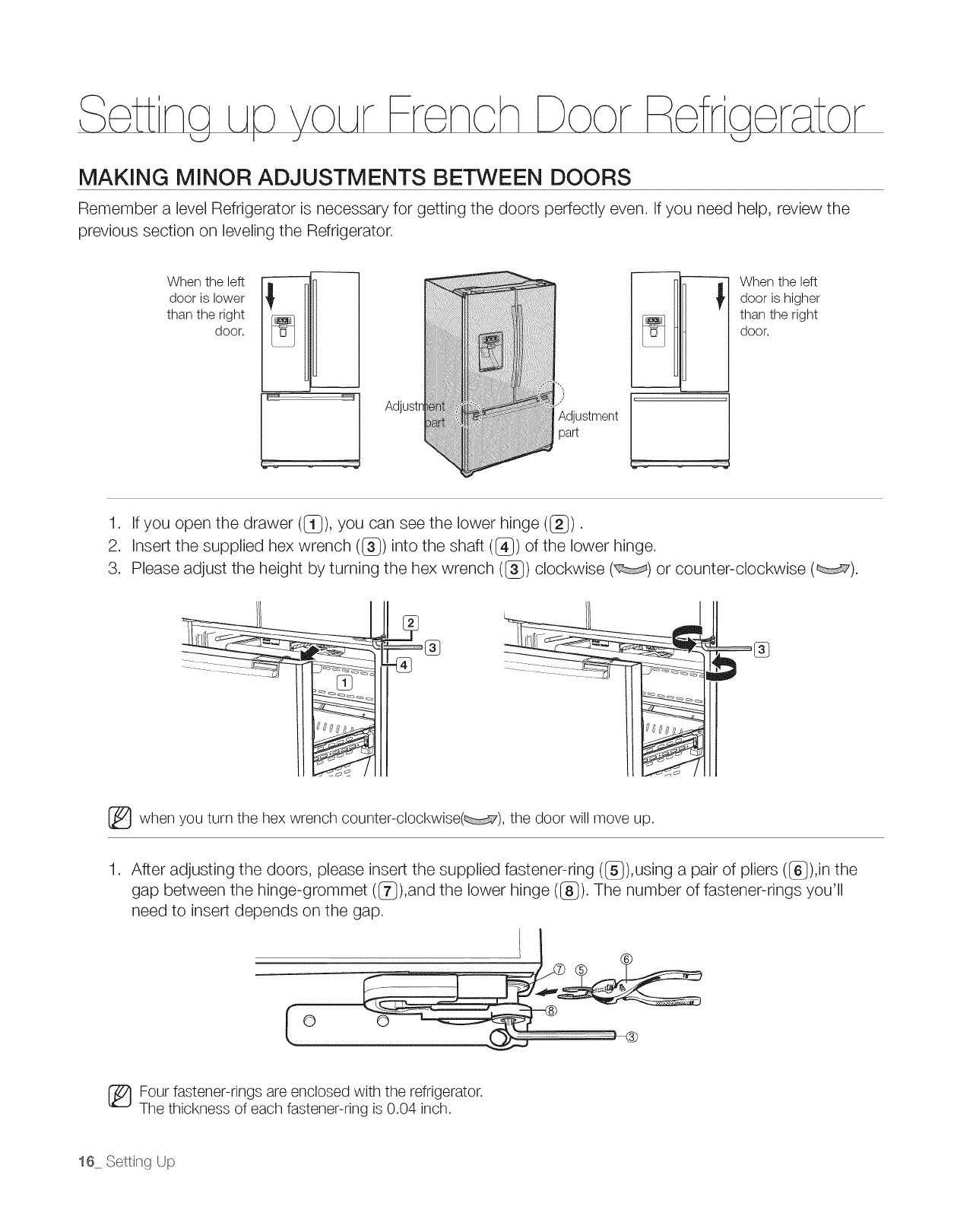

16 Making minor adjustments between doors

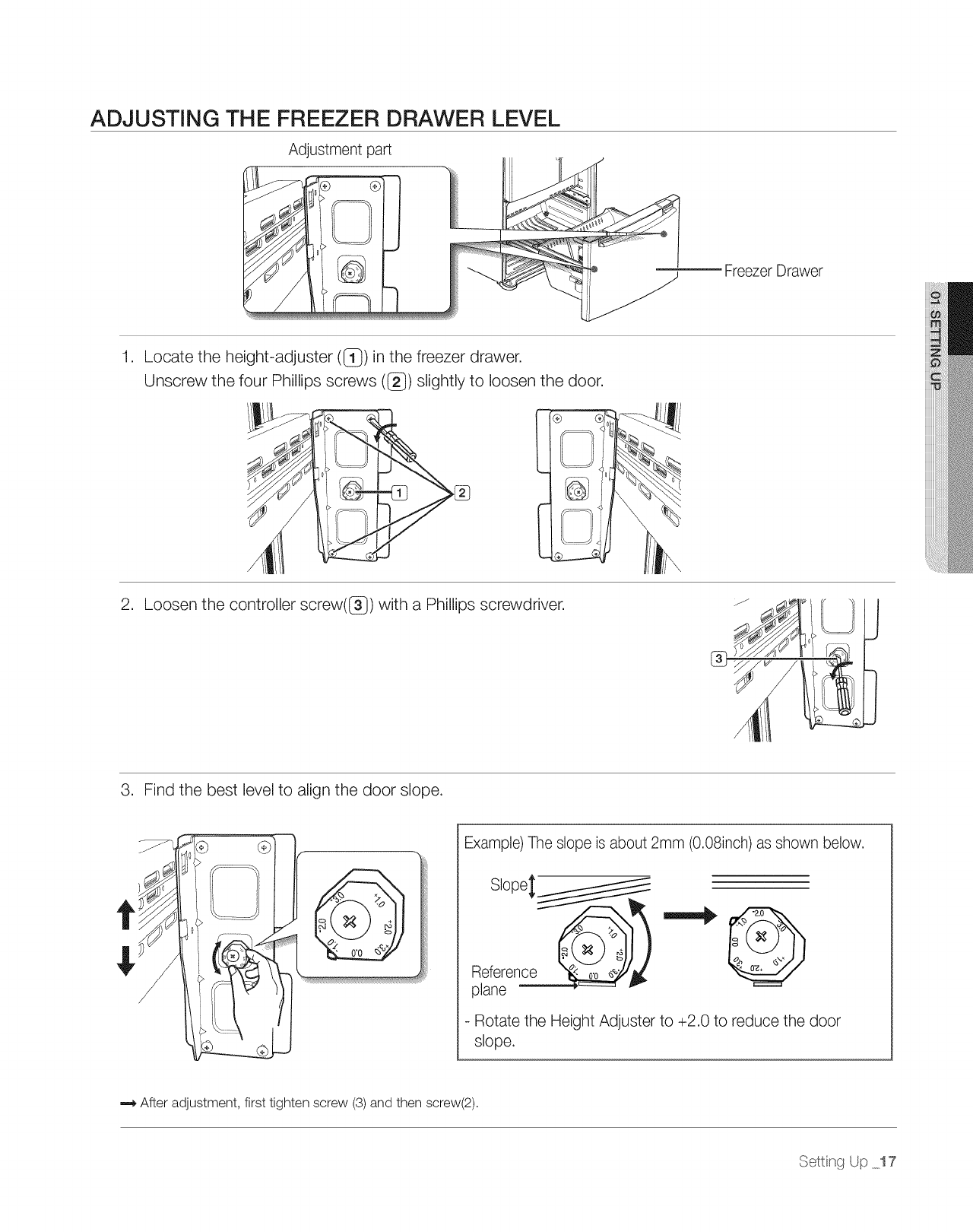

17 Adjusting the freezer drawer level

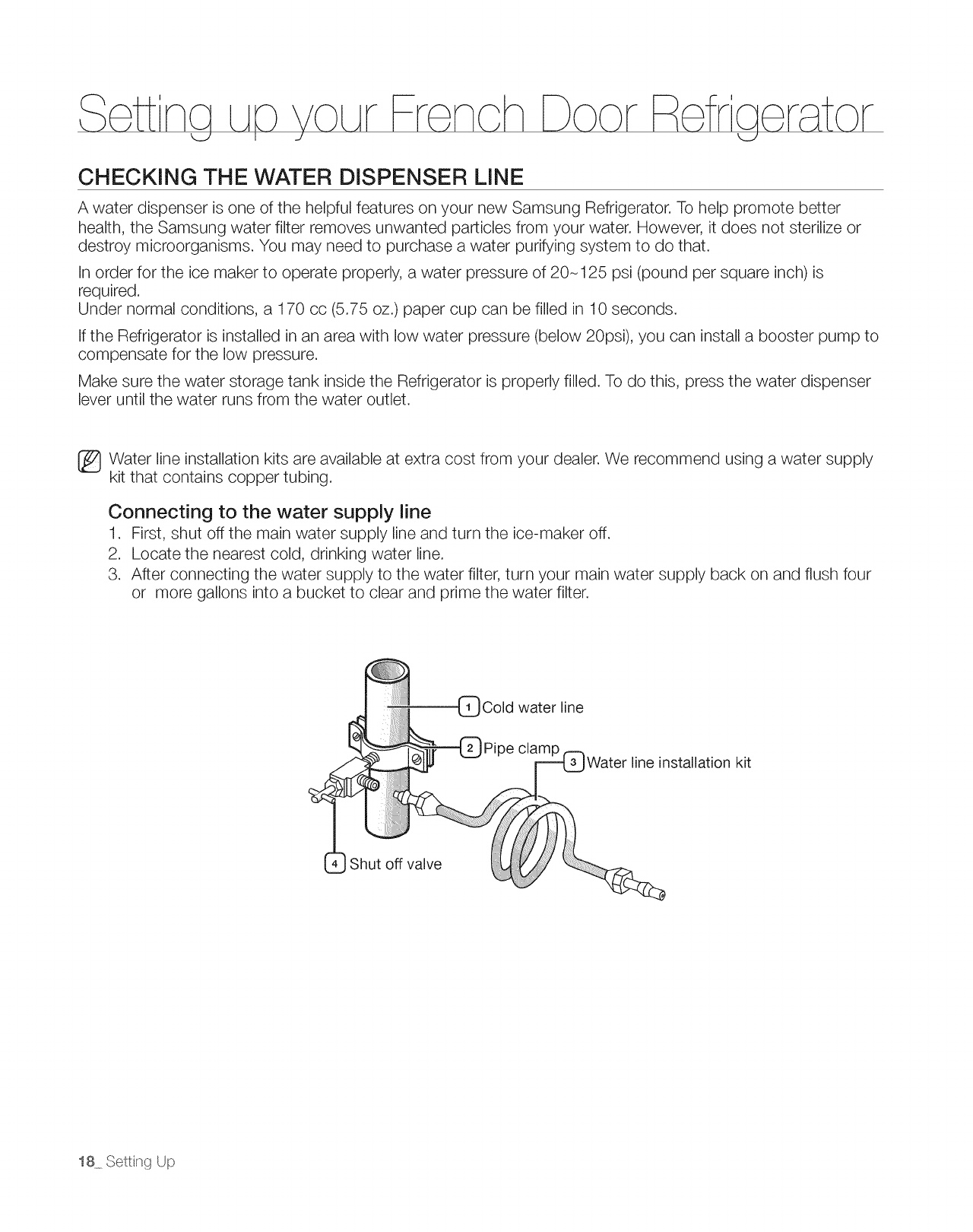

18 Checking the water dispenser line

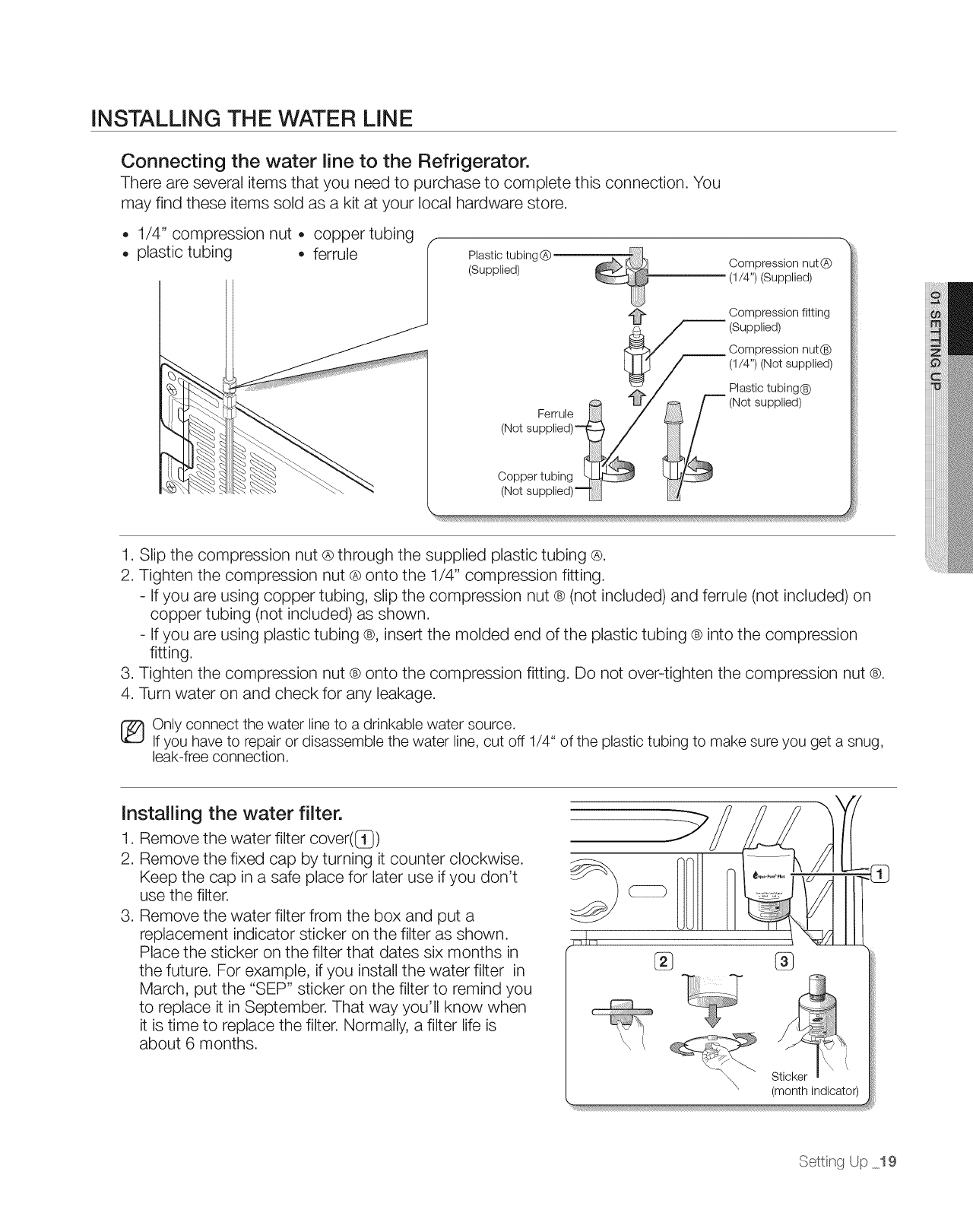

19 Installing the water line
OPERATING YOUR SAMSUNG
FRENCH DOOR REFRIGERATOR
_f
21 Setting up the refrigerator

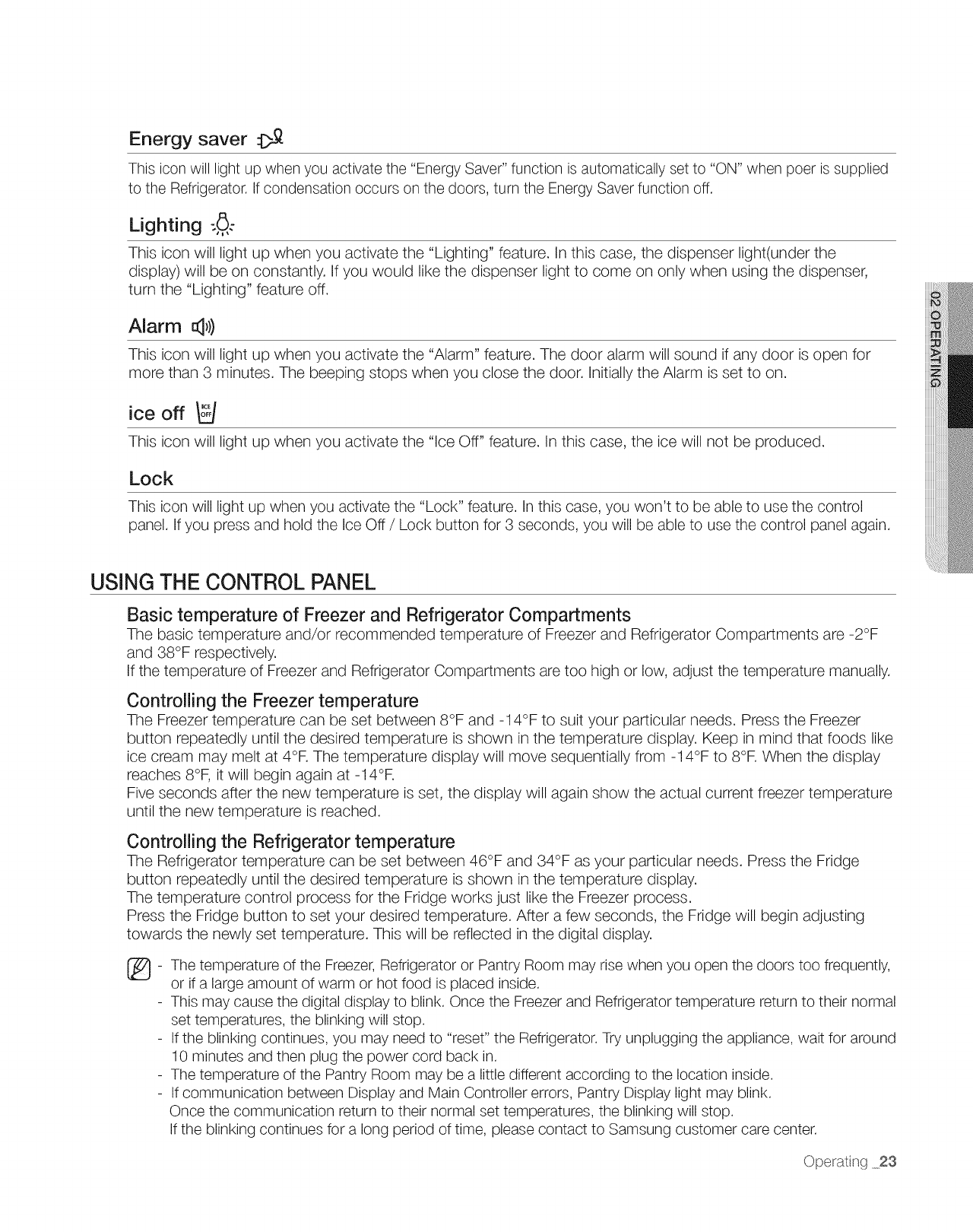

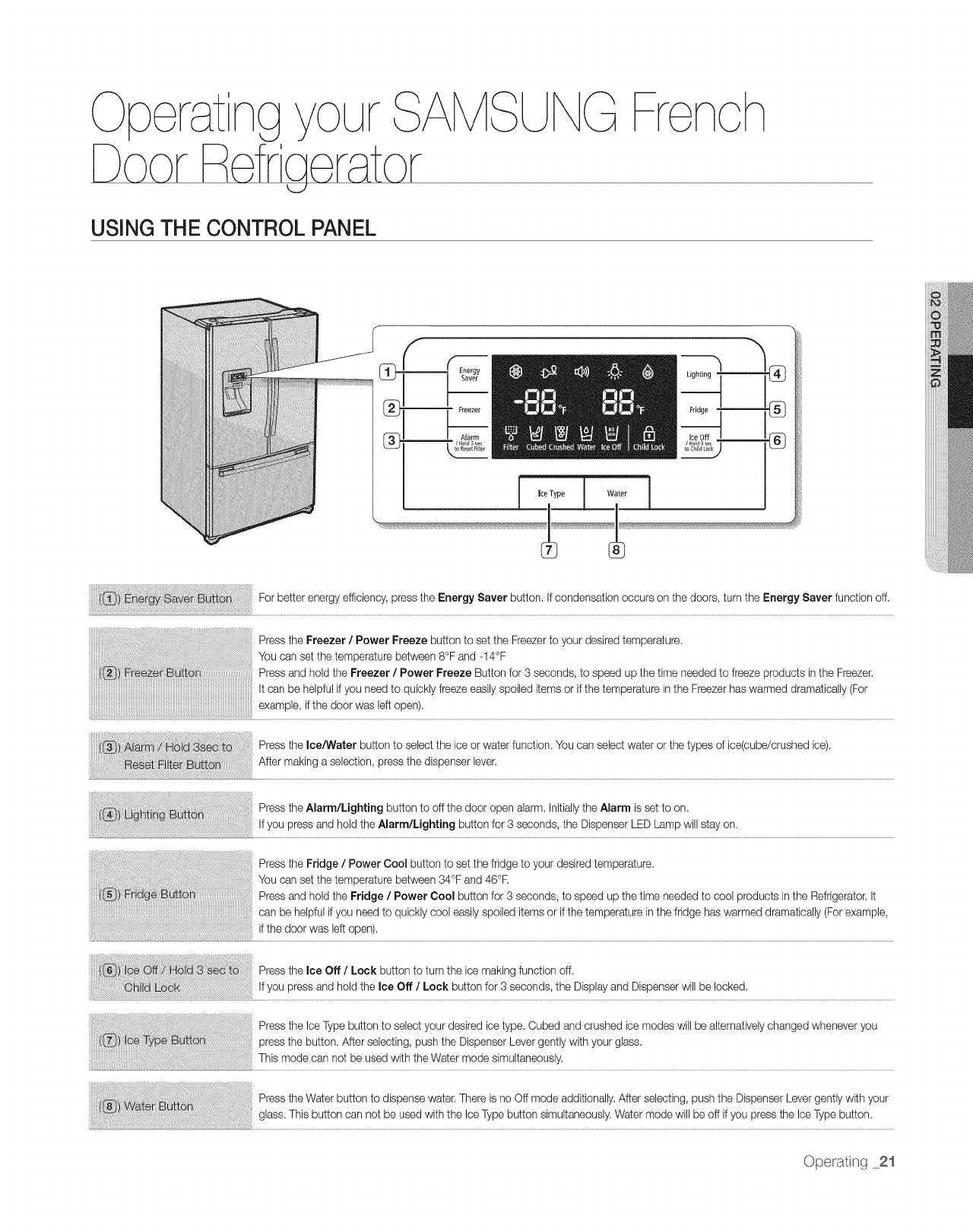

22 Using the control panel

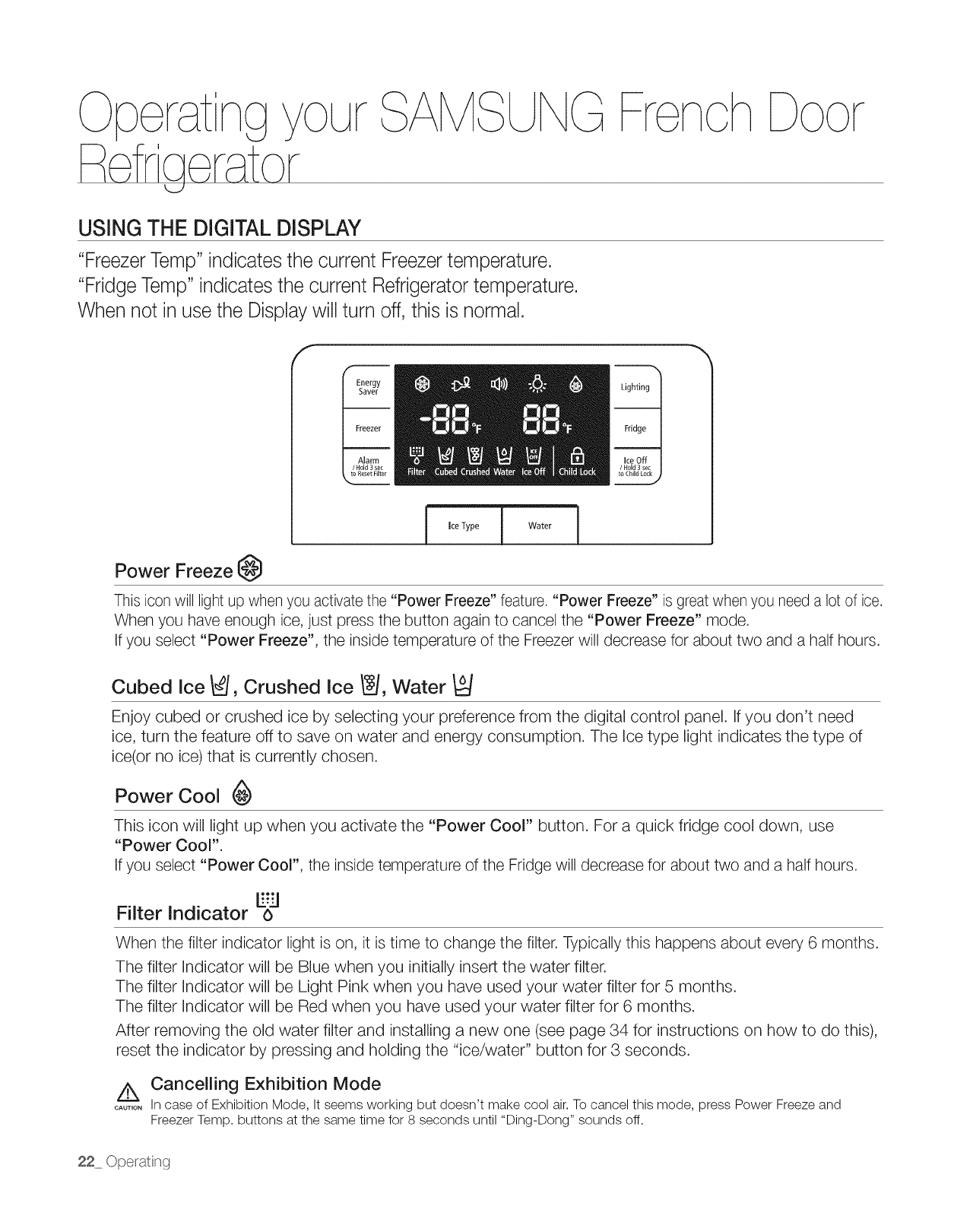

23 Using the digital display
24 Controlling the temperature

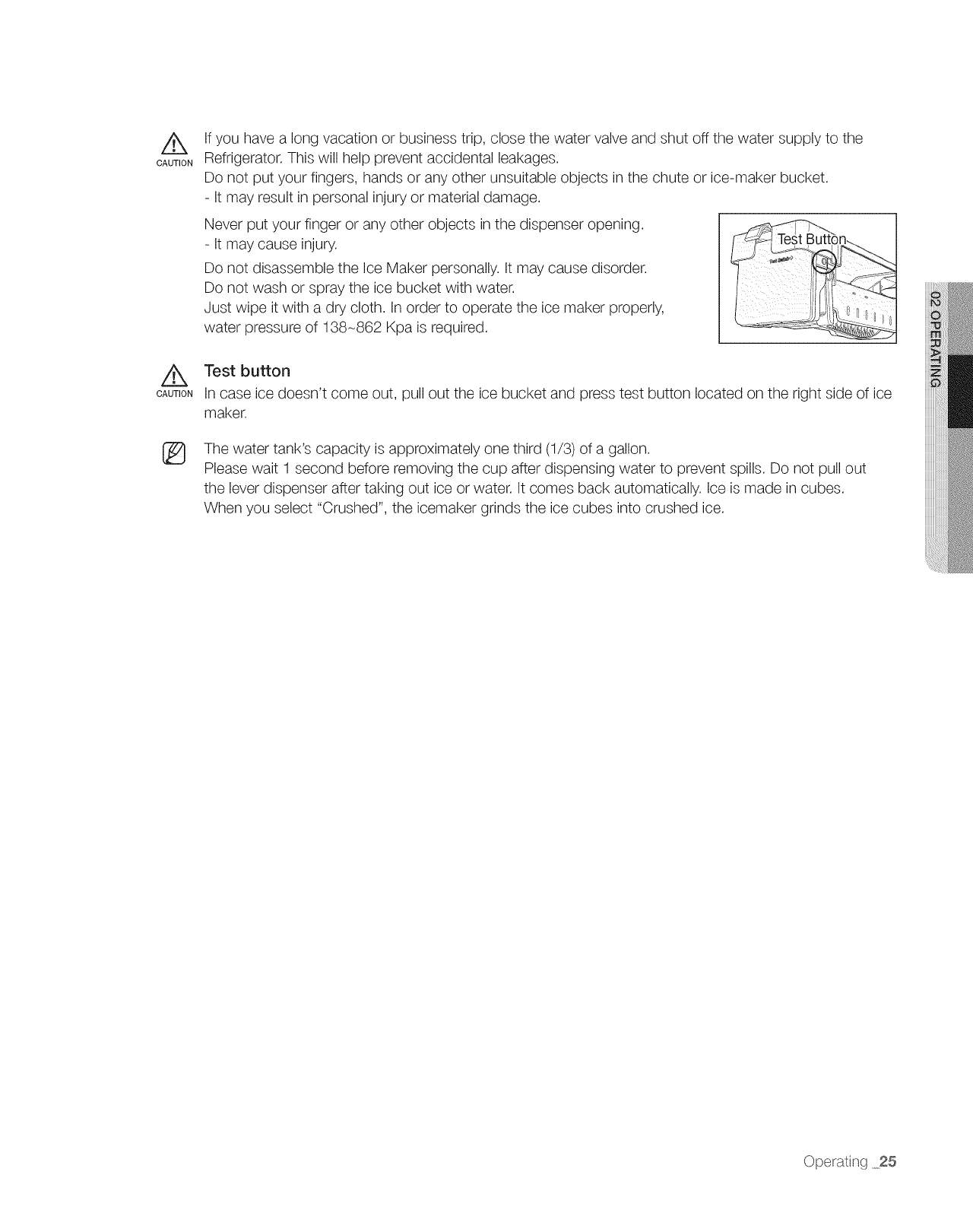

25 Using the ice and cold water dispenser

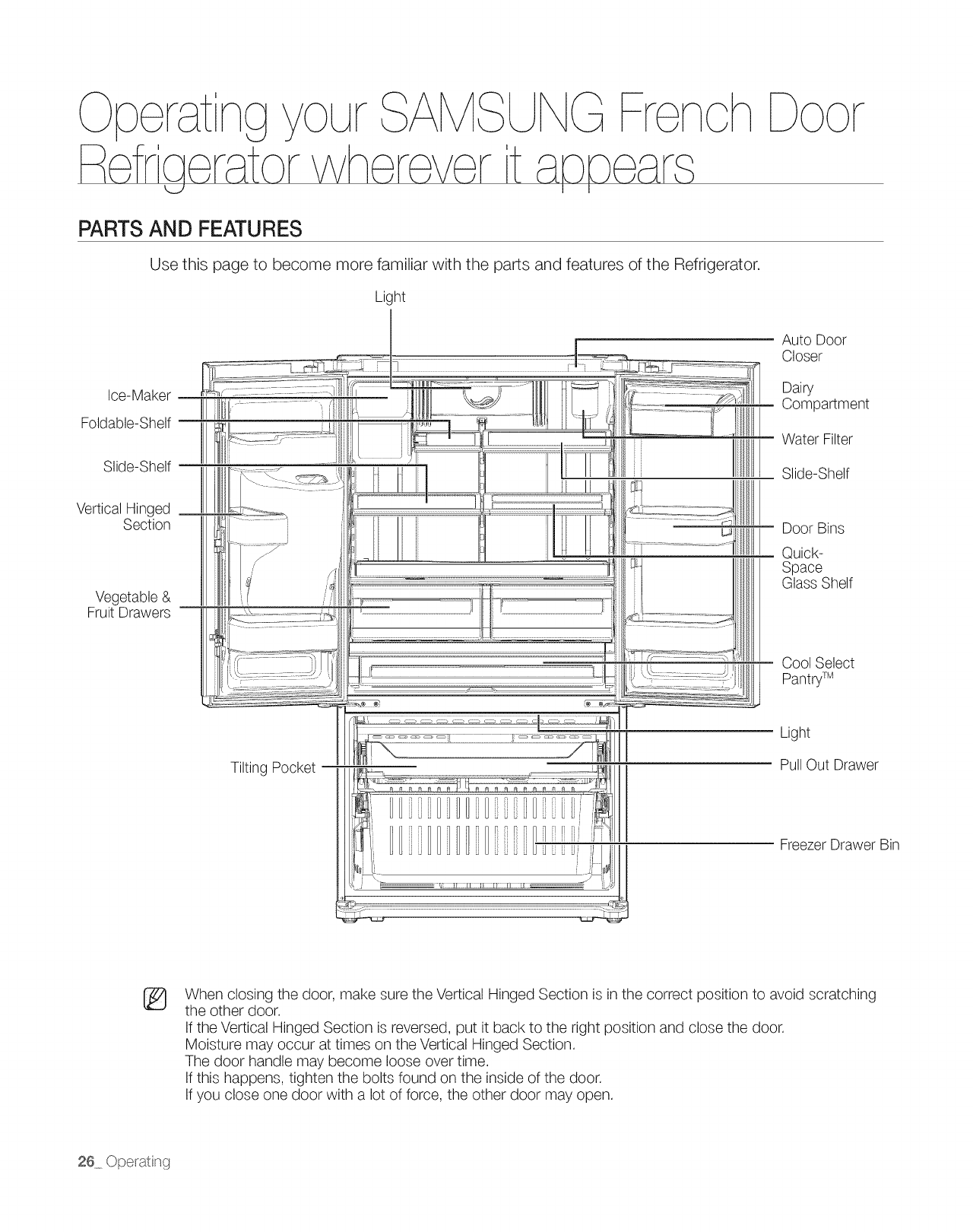

26 Parts and Features

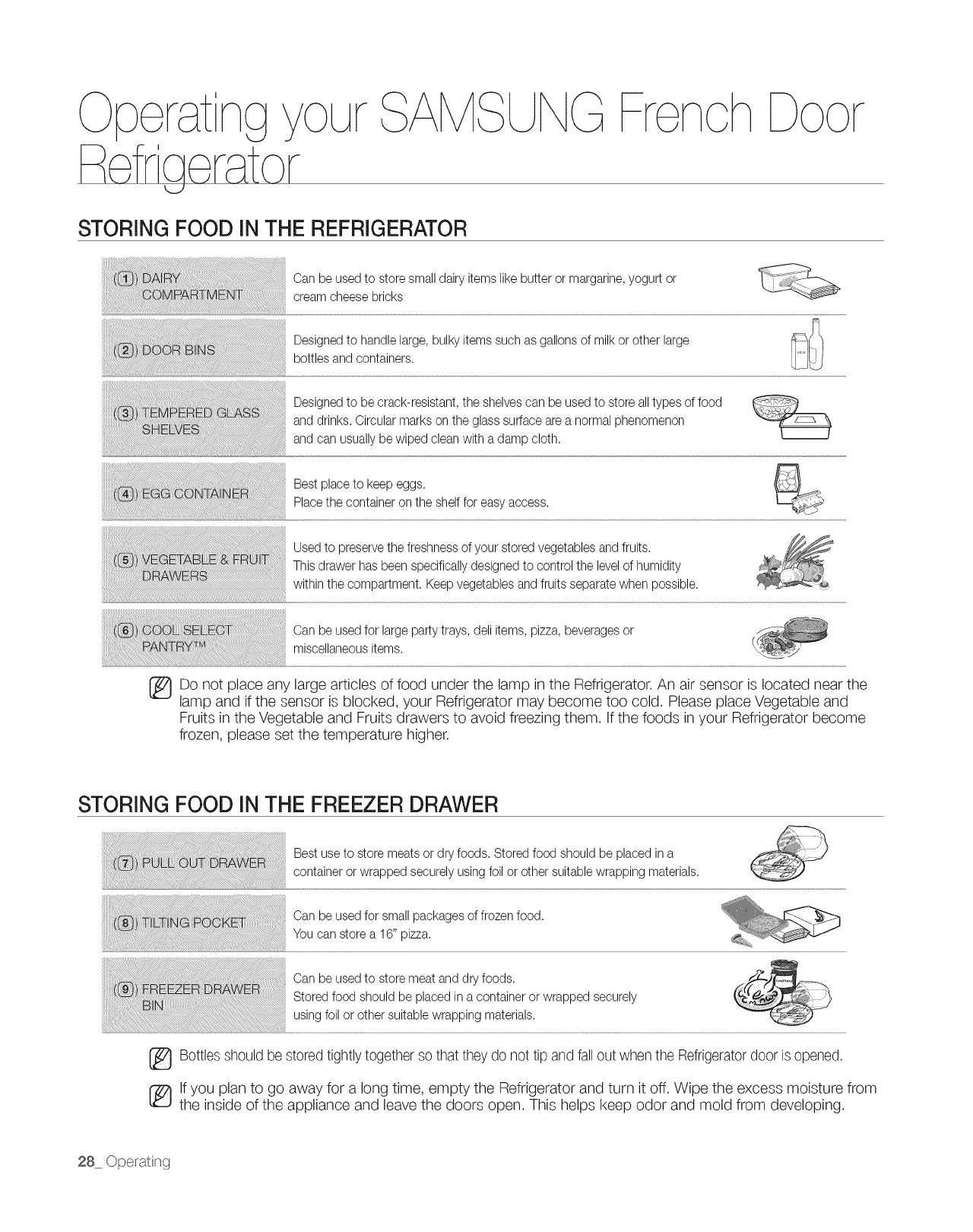

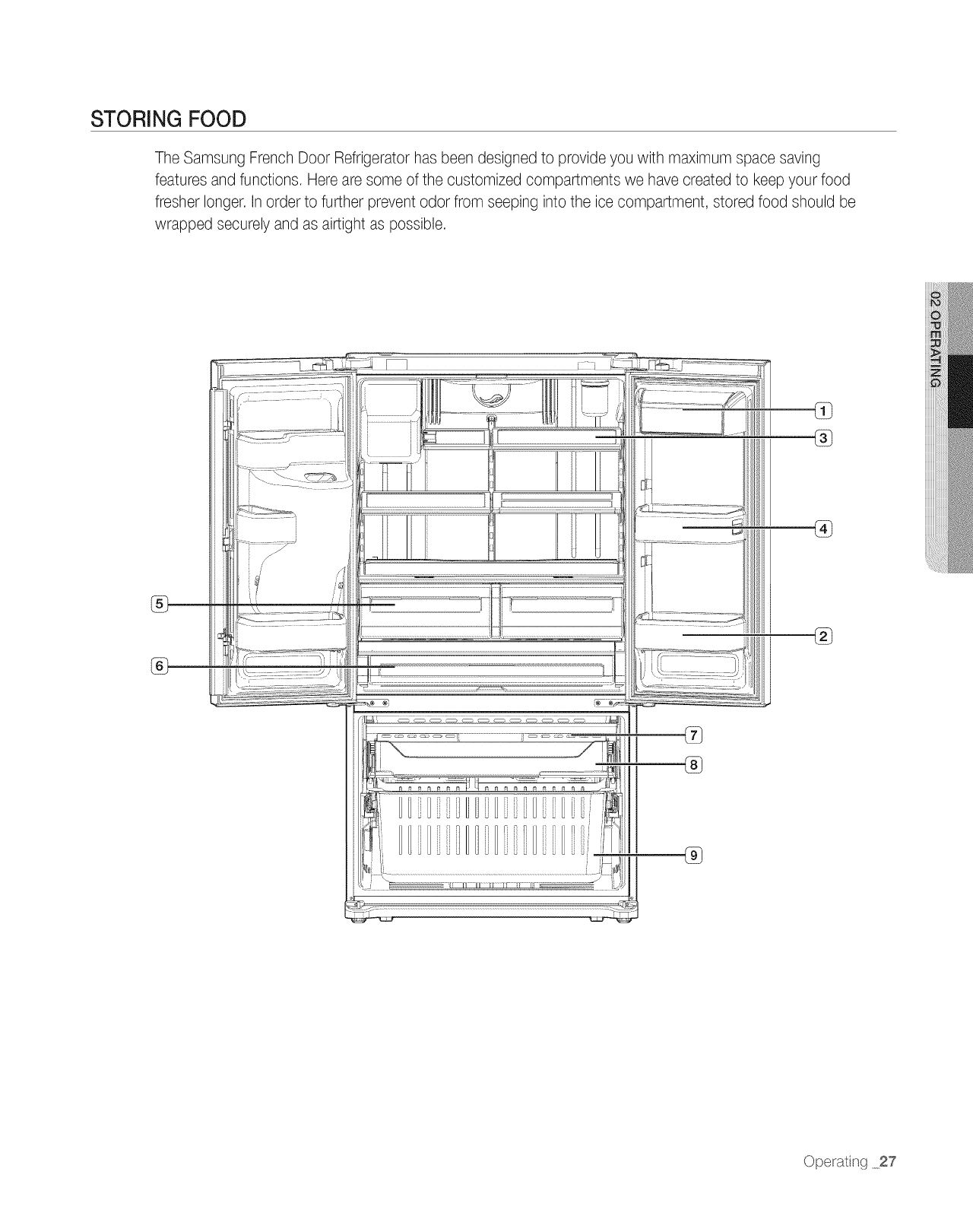

27 Storing food

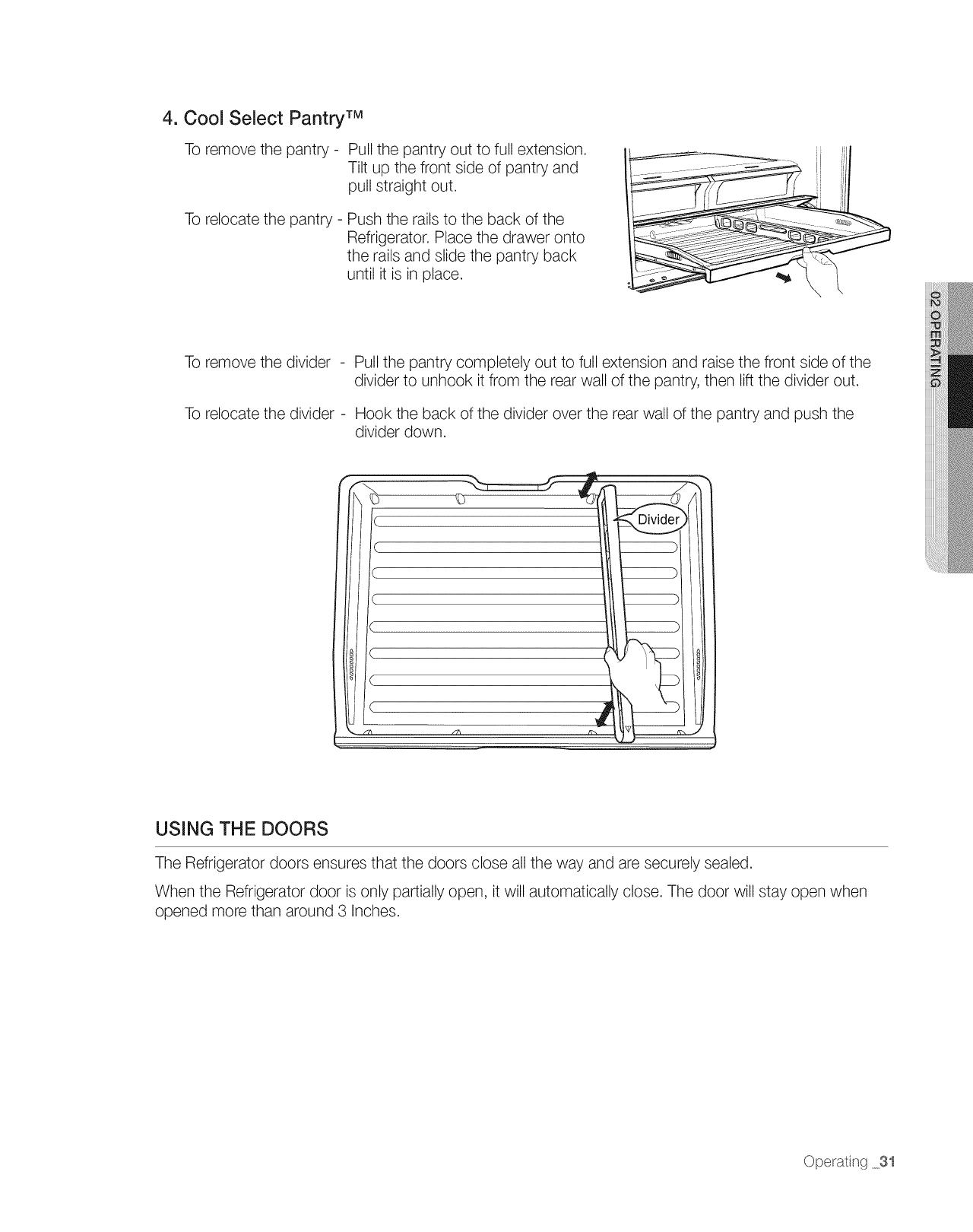

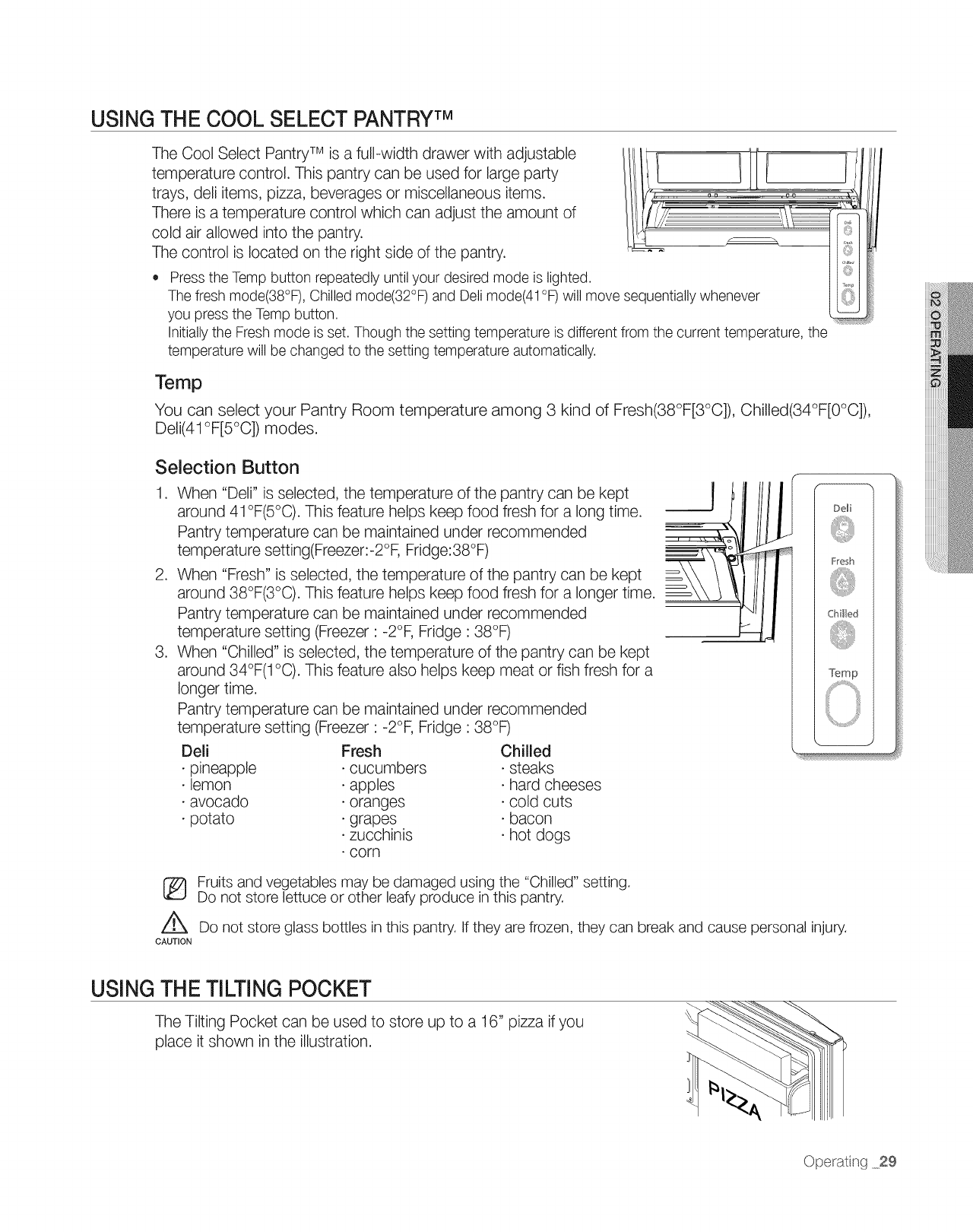

29 Using the Cool Select Pantry TM

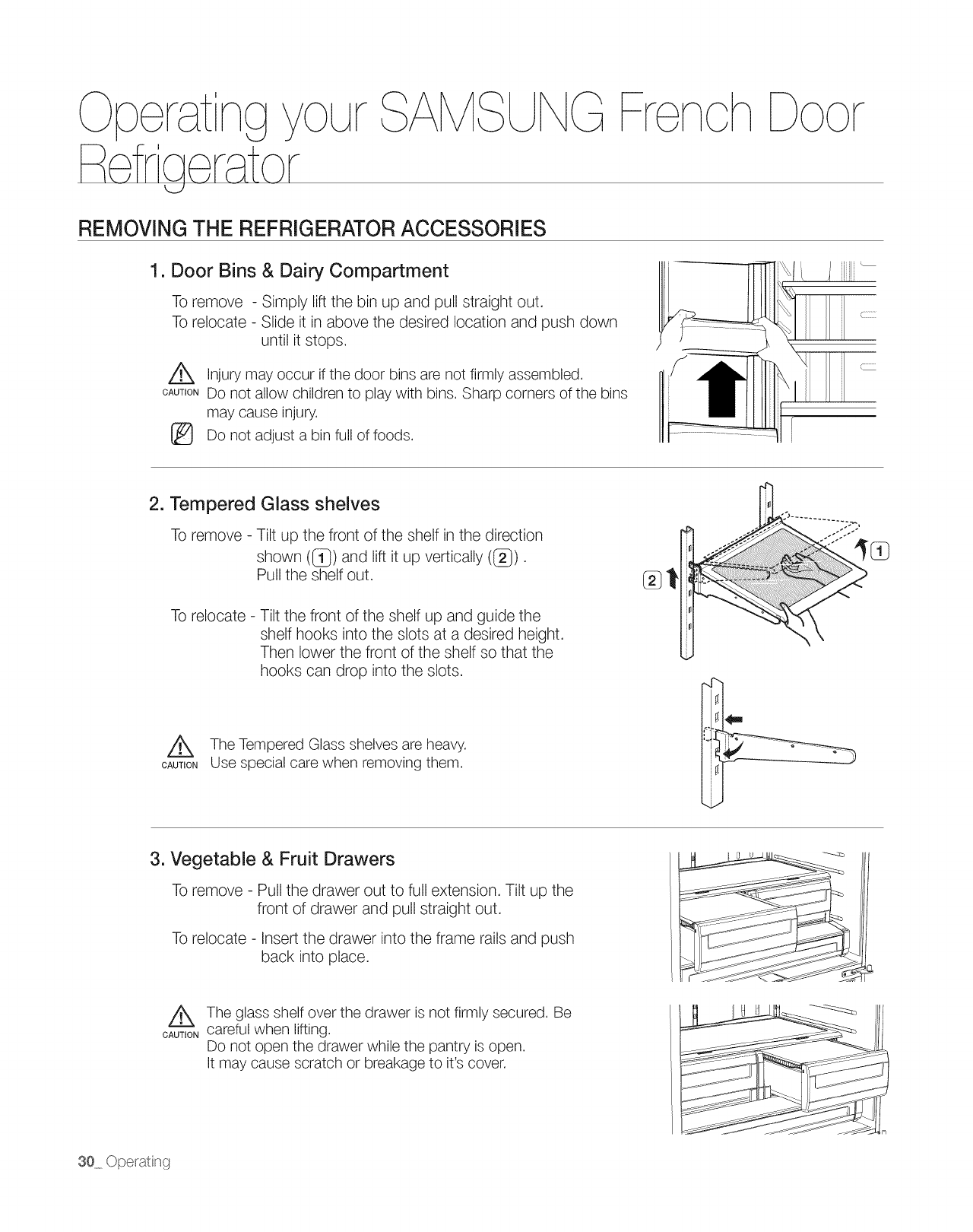

30 Removing the refrigerator accessories

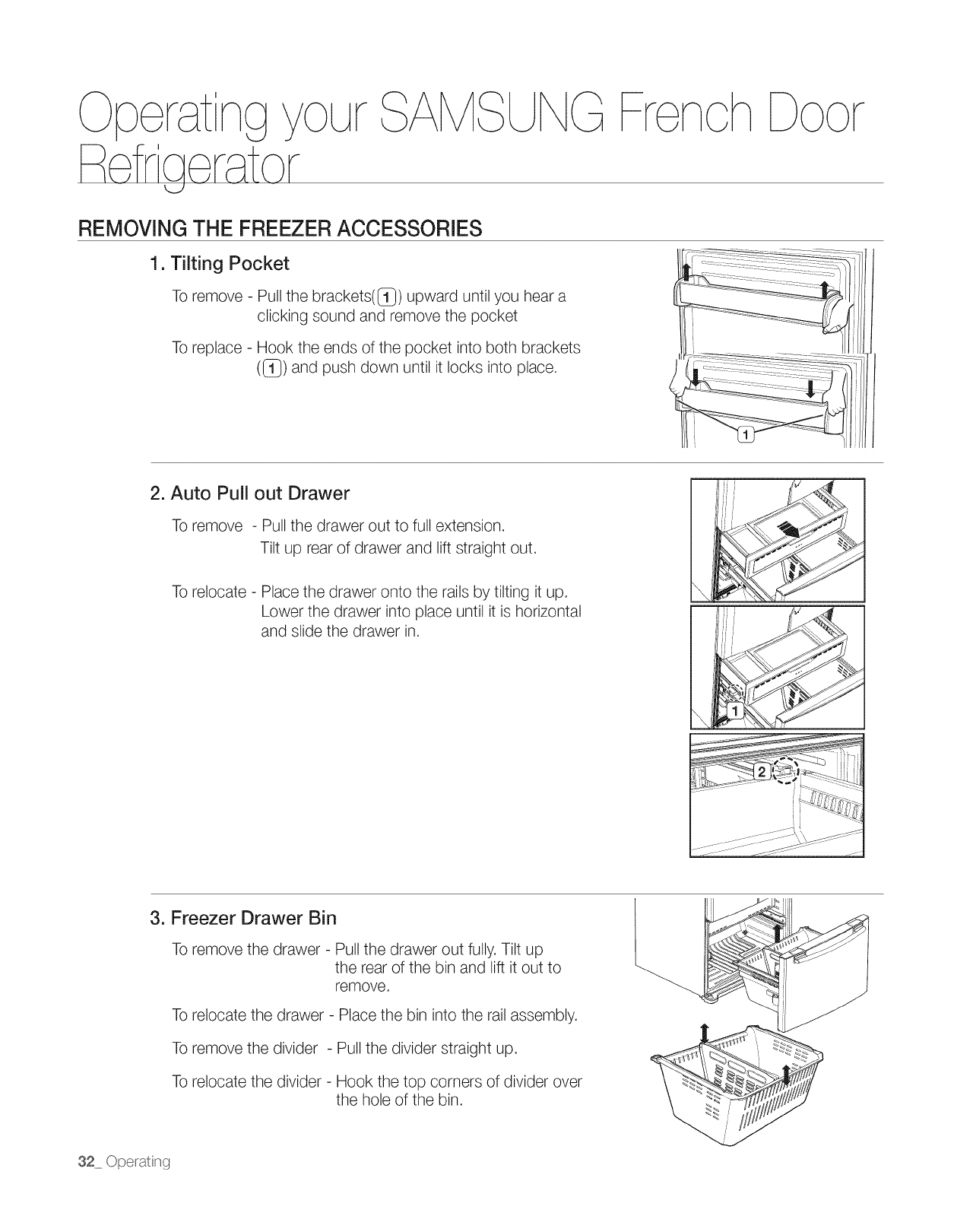

32 Removing the freezer accessories

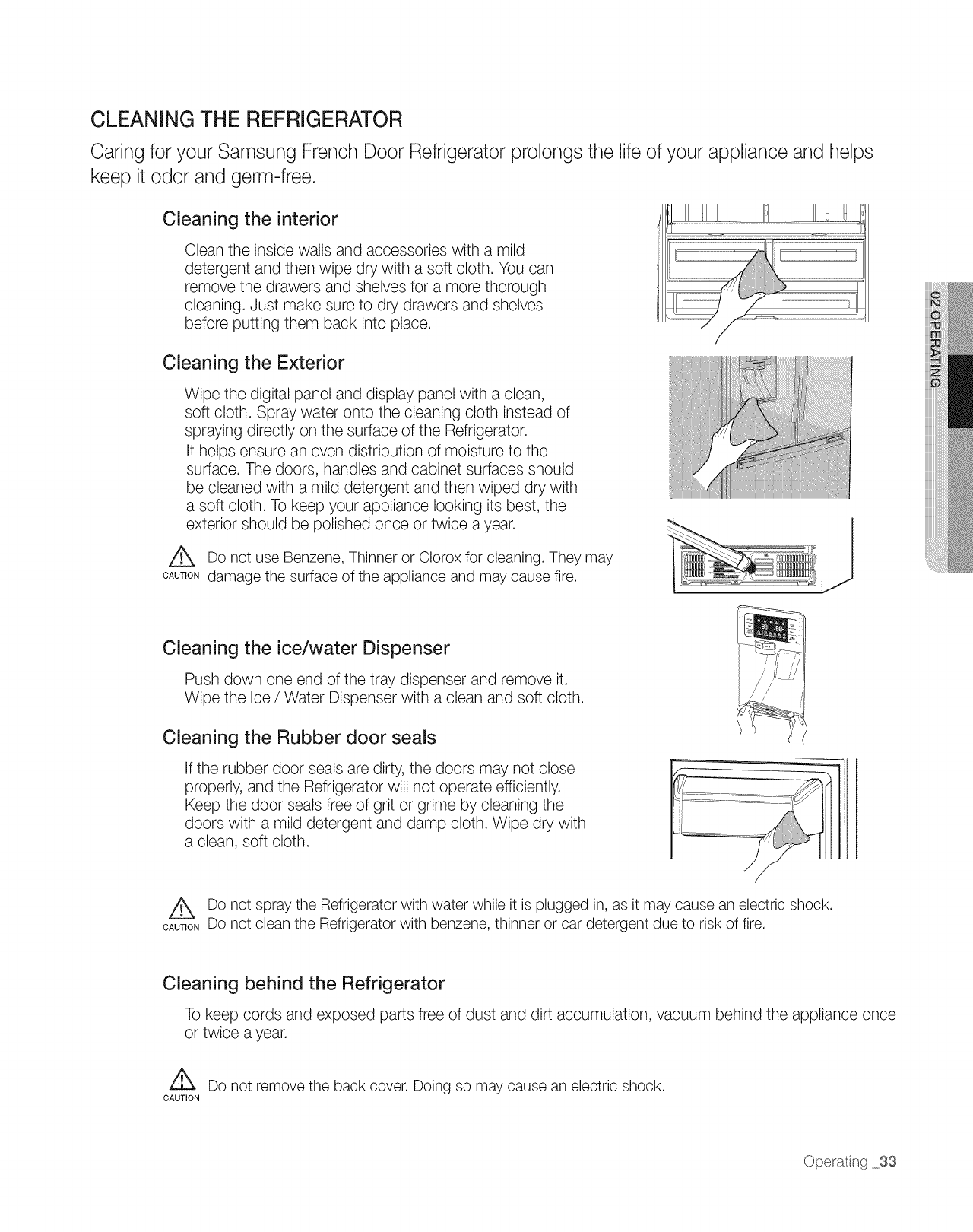

33 Cleaning the refrigerator

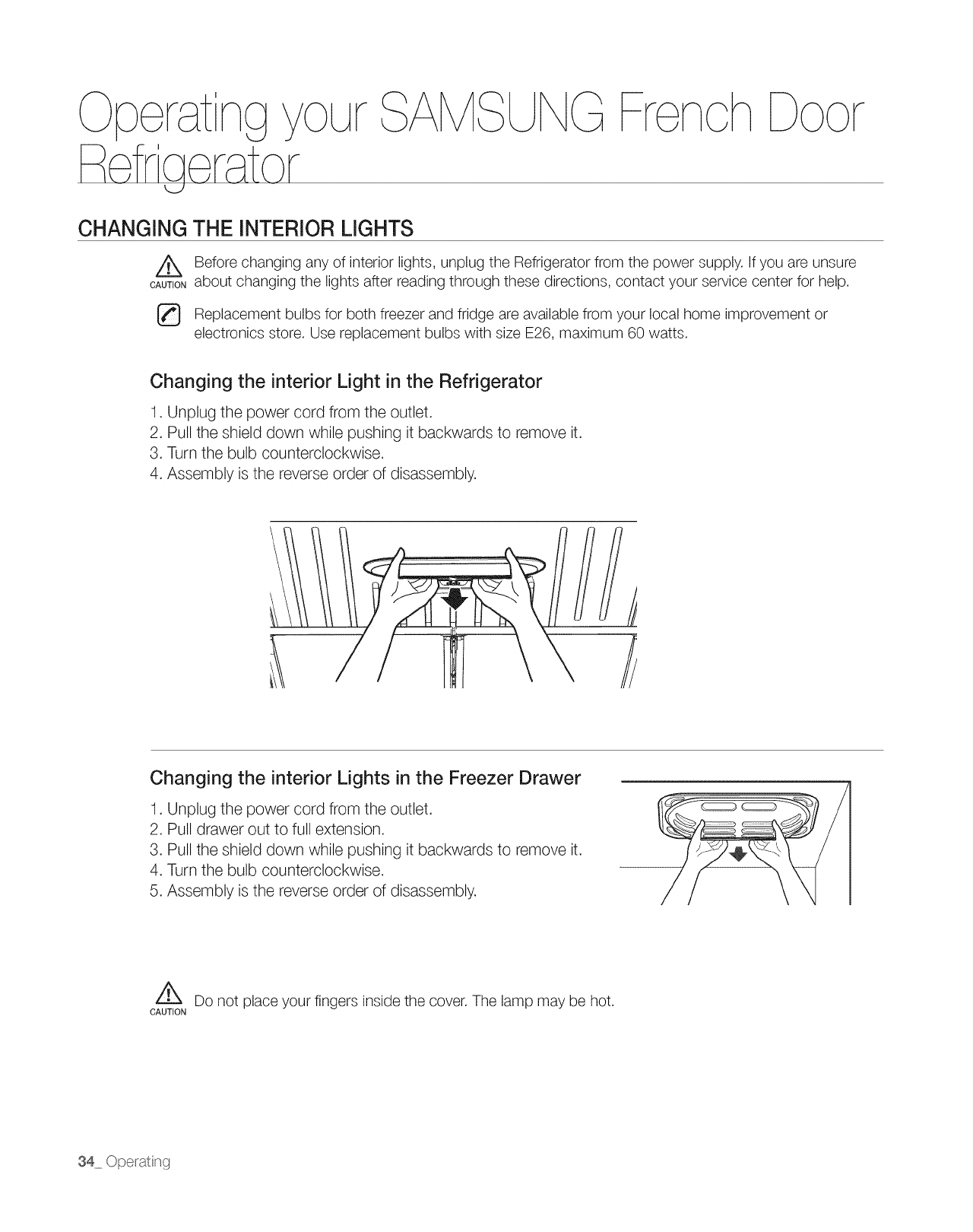

34 Changing the interior lights

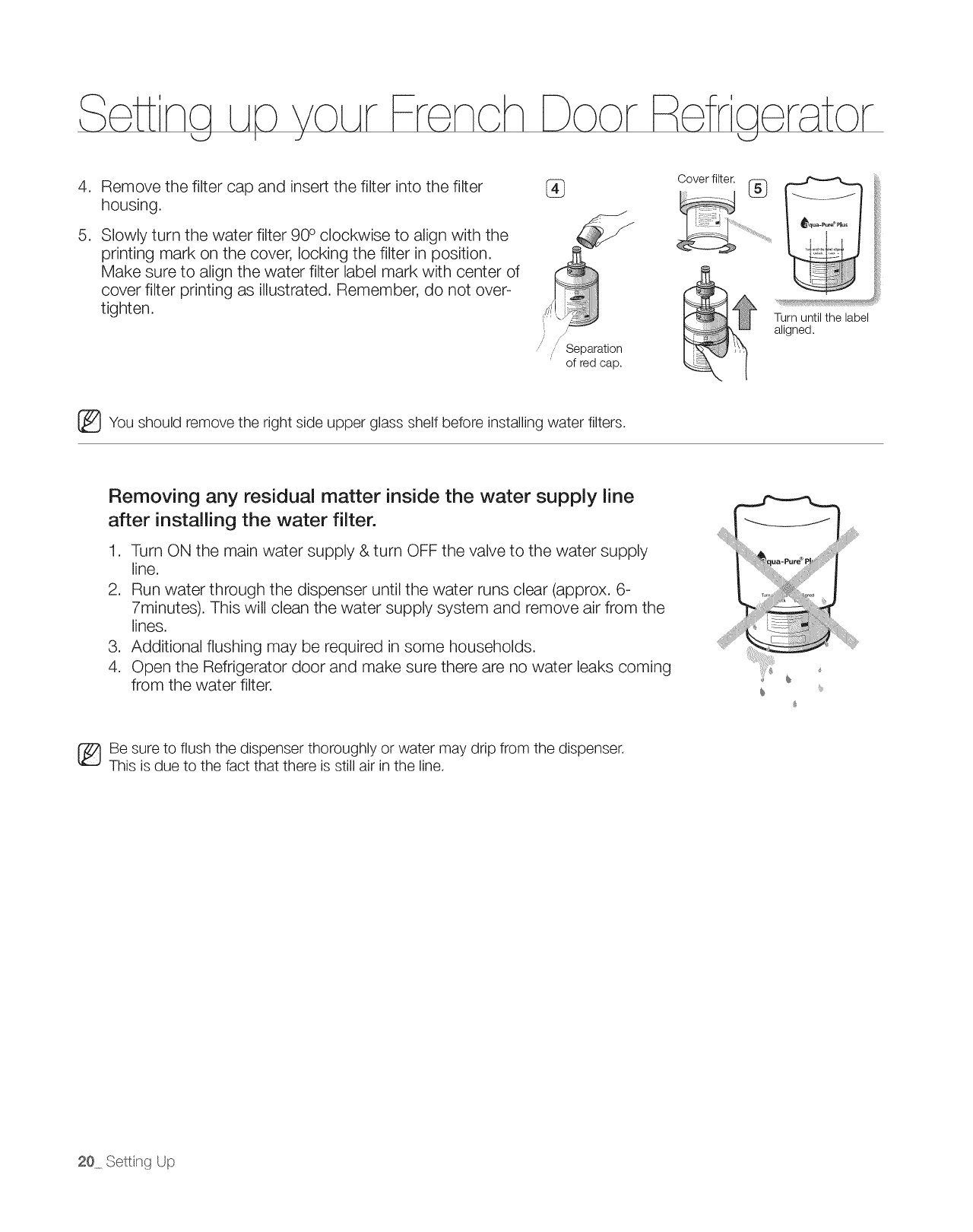

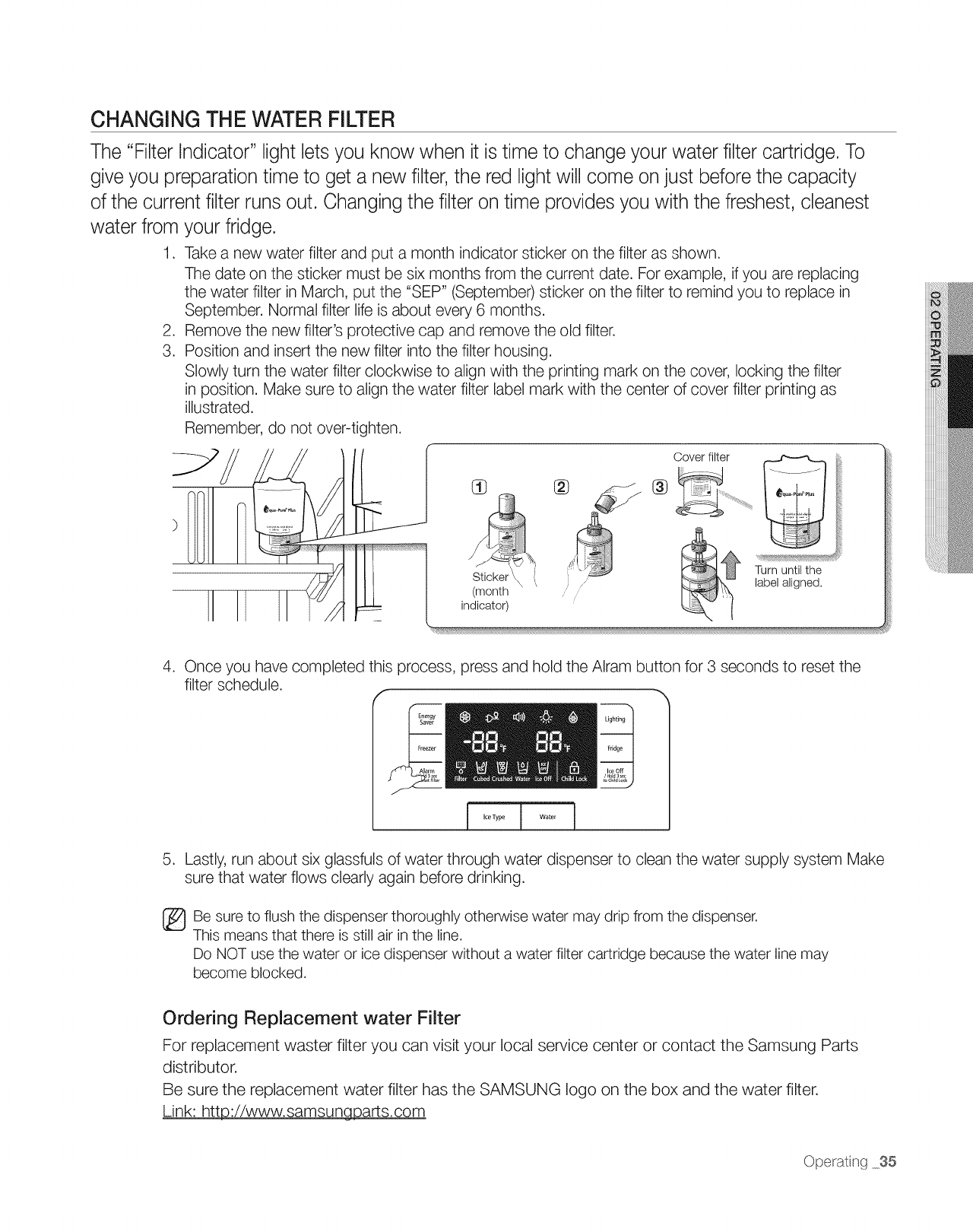

35 Changing the water filter
36 Using the doors
TROUBLESHOOTING

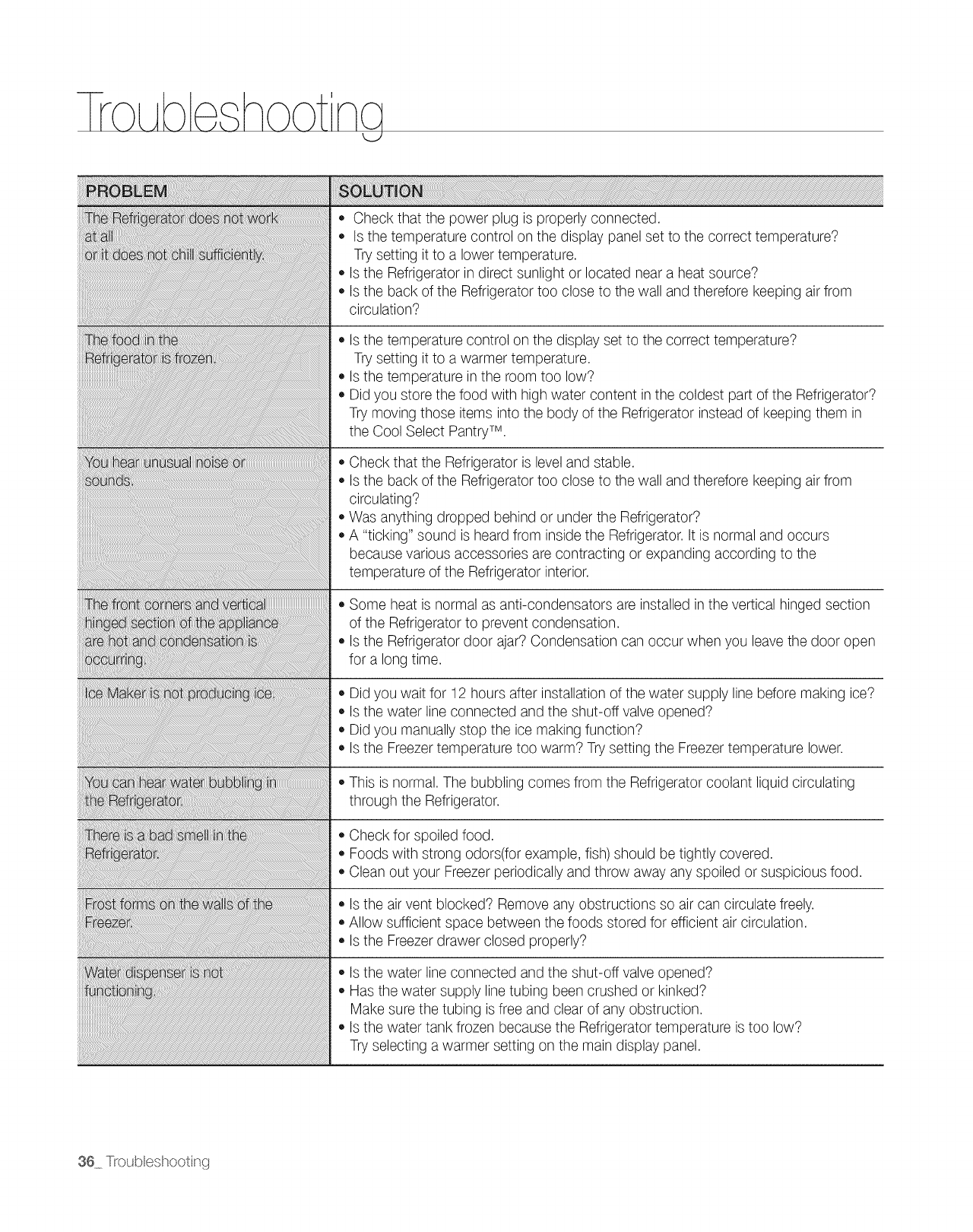

37 Troubleshooting

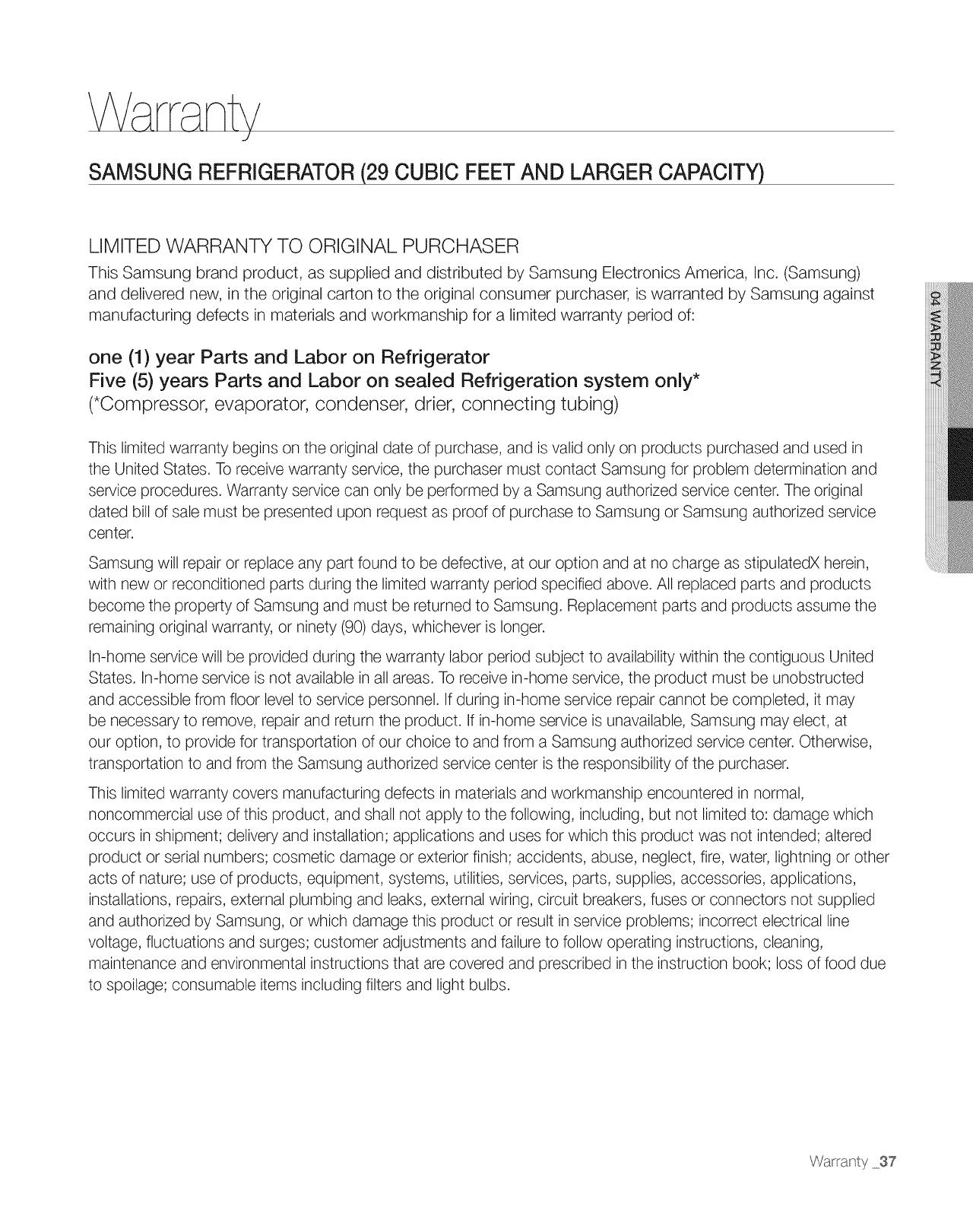

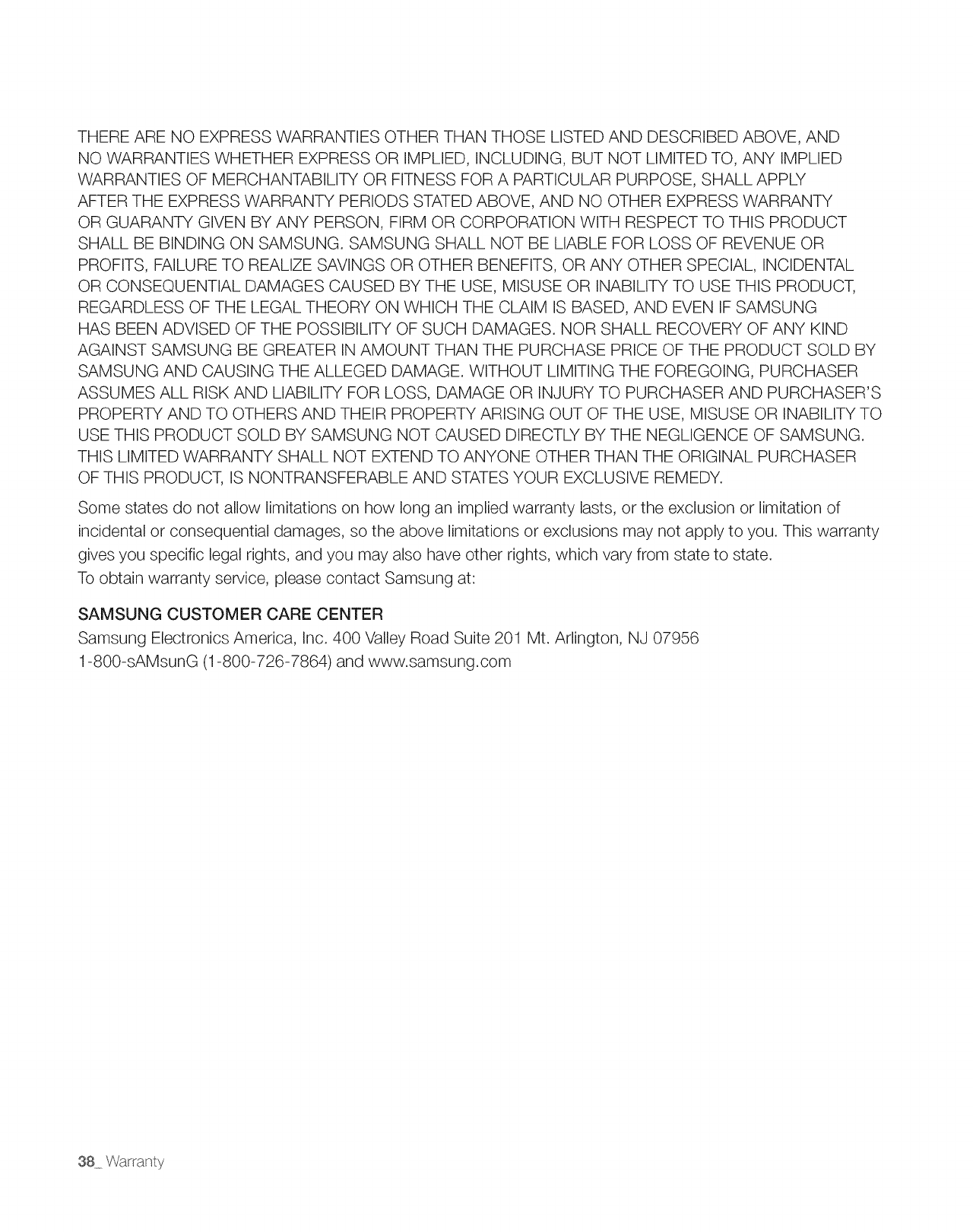

WARRANTY
ii !!i 38 Warranty

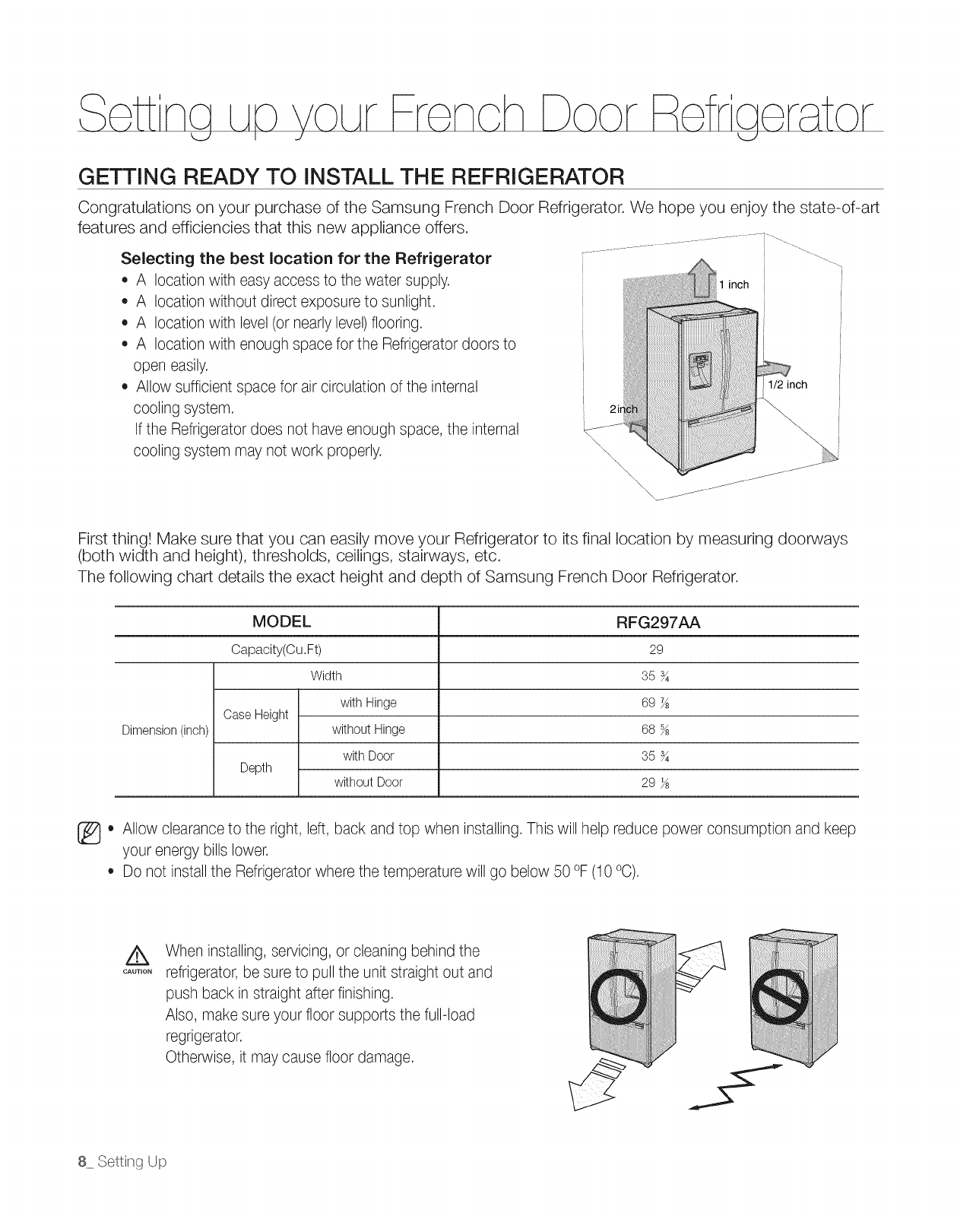

GETTING READY TO INSTALL THE REFRIGERATOR
Congratulations on your purchase of the Samsung French Door Refrigerator. We hope you enjoy the state-of-art
features and efficiencies that this new appliance offers.
Selecting the best location for the Refrigerator
• A location with easy access to the water supply.
A location without direct exposure to sunlight.
A location with level (or nearly level) flooring.
A location with enough space for the Refrigerator doors to
open easily.
Allow sufficient space for air circulation of the internal
cooling system.
If the Refrigerator does not have enough space, the internal
cooling system may not work properly.
/
j_
/f
First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways
(both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of Samsung French Door Refrigerator.
MODEL RFG297AA
Capacity(Cu. Ft) 29
Width 35 ¾
with Hinge 69 7_
Case Height
Dimension(inch) without Hinge 68
with Door 35 ¾
Depth without Door 29
®
Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep
your energy bills lower.
Do not install the Refrigerator where the temperature will go below 50 °F (10 °C).
CAUTION
When installing, servicing, or cleaning behind the
refrigerator, be sure to pull the unit straight out and
push back in straight after finishing.
Also, make sure your floor supports the full-load
regrigerator.
Otherwise, it may cause floor damage.
8 Setting Up

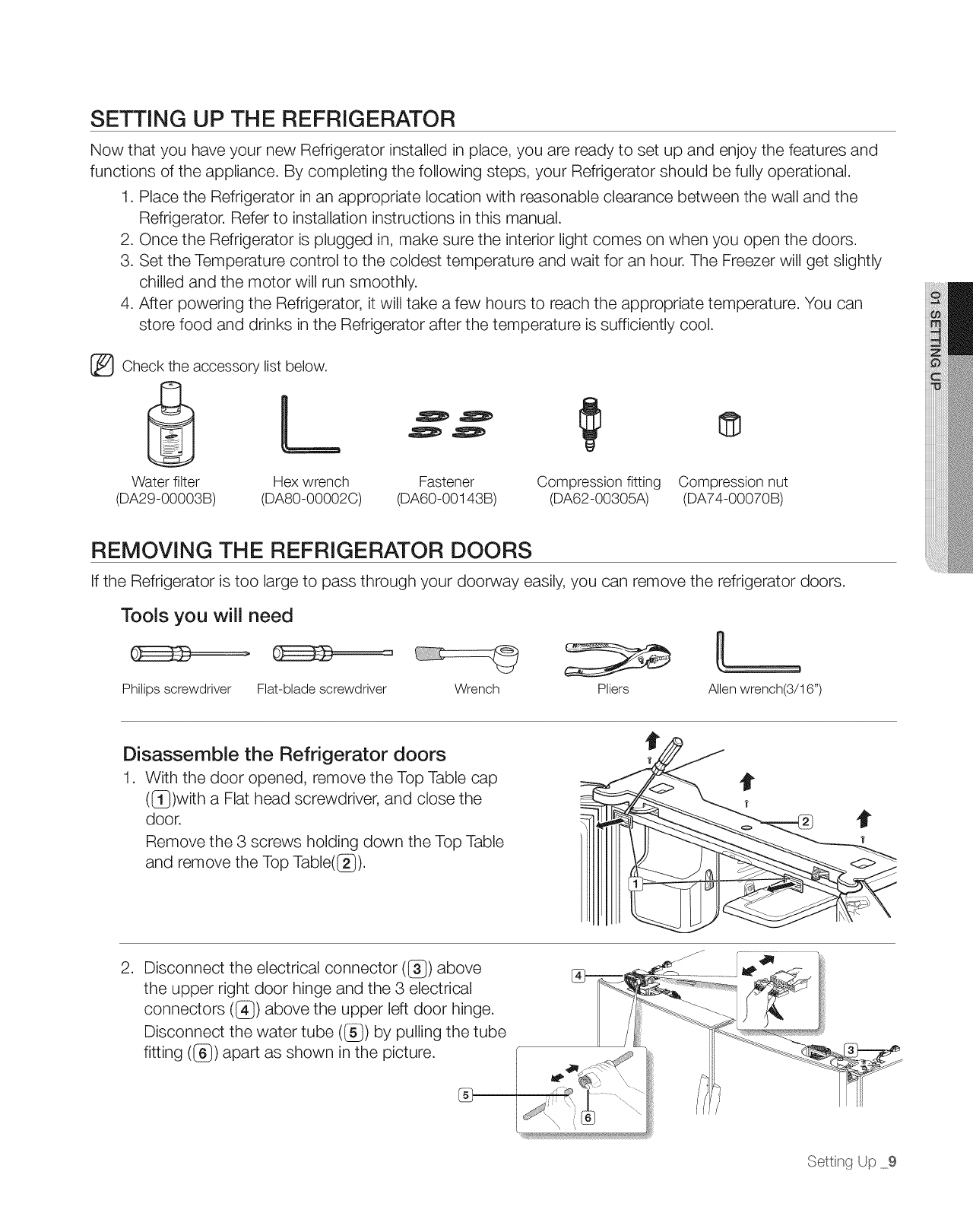

SETTING UP THE REFRIGERATOR
Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and
functions of the appliance. By completing the following steps, your Refrigerator should be fully operational.
1. Place the Refrigerator in an appropriate location with reasonable clearance between the wall and the
Refrigerator. Refer to installation instructions in this manual.
2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.
3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly
chilled and the motor will run smoothly.
4. After powering the Refrigerator, it will take a few hours to reach the appropriate temperature. You can
store food and drinks in the Refrigerator after the temperature is sufficiently cool.
®Check the accessory list below.
h
Water filter Hexwrench Fastener Compression fitting Compression nut
(DA29-00003B) (DA80-00002C) (DA60-00143B) (DA62-00305A) (DA74-00070B)
REMOVING THE REFRIGERATOR DOORS
If the Refrigerator is too large to pass through your doorway easily, you can remove the refrigerator doors.
Tools you will need
Philips screwdriver Flat-blade screwdriver Wrench Pliers Allen wrench(3/16")
Disassemble the Refrigerator doors
1. With the door opened, remove the Top Table cap
({_})with a Flat head screwdriver, and close the
door.
Remove the 3 screws holding down the Top Table
and remove the Top Table(G ).i
.Disconnect the electrical connector (_}) above
the upper right door hinge and the 3 electrical
connectors (@) above the upper left door hinge.
Disconnect the water tube (_) by pulling the tube
fitting ((_) apart as shown in the picture.
Setti_g Up 9
.Remove the 3 hex head bolts (1_) attached
to the upper left and right door hinges with a
Wrench(10ram).
With a Philips head screwdriver, remove the
ground screw (_) attached to the upper left and
right door hinges.
Remove the upper left and right door hinges ([_}).
%
, i ,
4. Lift the door straight up to remove.
.With a Philips head screwdriver, remove the two
screws (_}) attached to the lower left and right
door hinges_
With an Wrench(10mm), remove the two hex
head bolts (1_) attached to the lower left and
right door hinges_
Remove the lower left and right door hinges (1_).
10 Setting Up

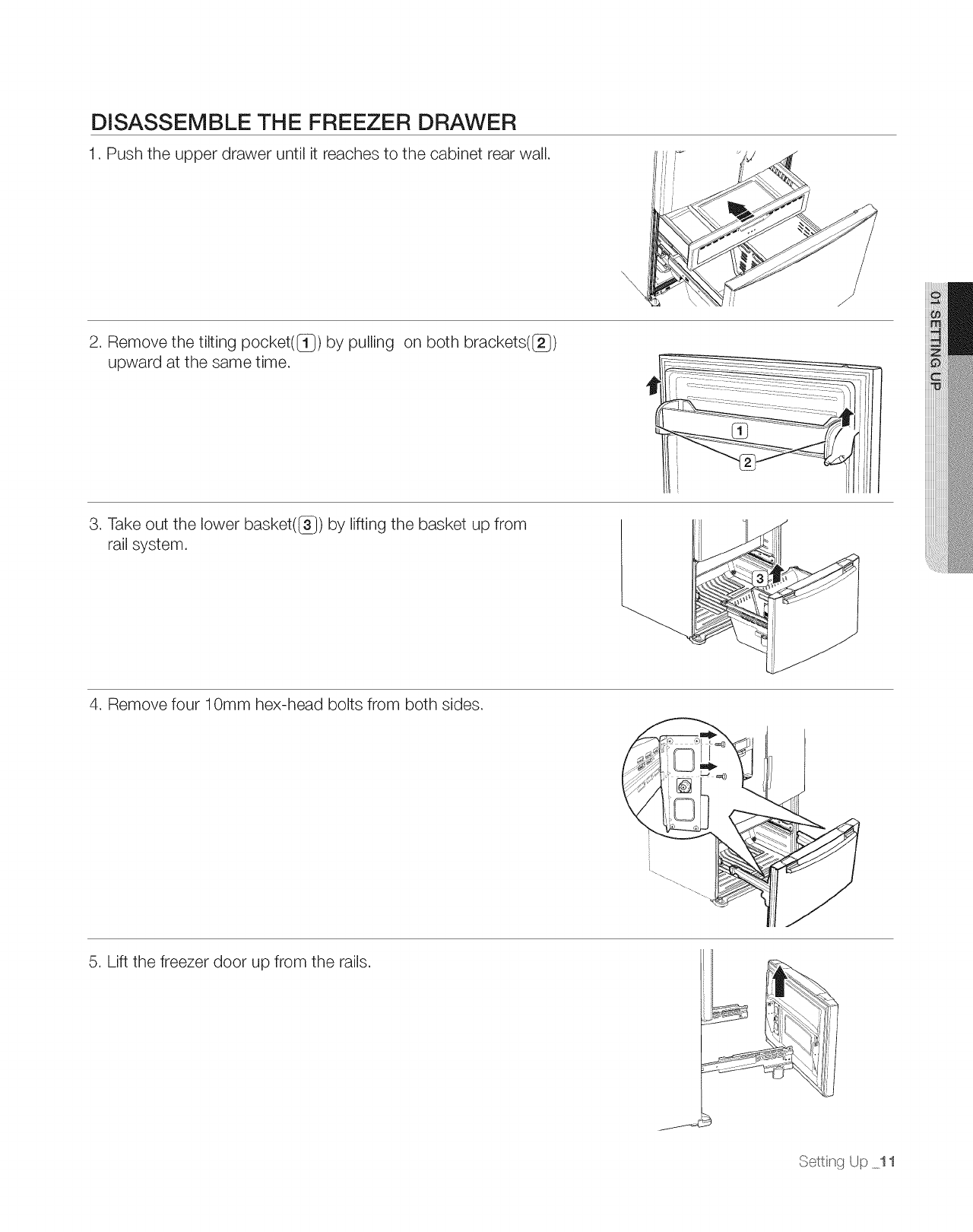

DISASSEMBLE THE FREEZER DRAWER
1. Push the upper drawer until it reaches to the cabinet rear wall.
/
2. Remove the tilting pocket(_}) by pulling on both brackets(_})
upward at the same time.
3. Take out the lower basket(l_})) by lifting the basket up from
rail system.
4. Remove four 10mm hex-head bolts from both sides.
5. Lift the freezer door up from the rails.
Settng Up 11
REATTACHING THE REFRIGERATOR DOORS
Assemble the Refrigerator doors
1. Reattach the lower left and right door hinges(G ) .
With a Philips head screwdriver, insert and tighten the
2 screws (1_) into the lower left and right door hinges.
With a Wrench(10mm), insert and tighten the 2 hex
head bolts (1_}) into the lower left and right door hinges.
@
.Place the hole in the bottom of the door over the lower
hinge(@).
(_)Be careful not to miss the hinge cap because it can
be easily taken off. @
.Insert the upper hinges (_) into the holes at the top of
the doors.
With a Wrench(lOmm), insert and tighten the 3 hex
head bolts ([_) into the upper left and right door
hinges.
With a Philips head screwdriver, insert and tighten the
ground screw ((_) into the upper left and right door
hinges.
%
12 Setting Up
REATTACHING THE REFRIGERATOR DOORS
.Reconnect the 3 electrical connector (_) found above
the upper left door hinge. Reconnect the electrical
connector (@) found above the upper right door hinge.
Reattatch the water tube (_}) by pushing the tube
fitting ([_) as shown in the picture.
%
.Position the Top Table (_)) in place.
With a Philips head screwdriver, insert and tighten the
3 screws into the Top Table. With the door opened,
reinsert the Top Table cap ([_)) and close the doors.
When reattaching the top table, make sure that the
wires are not pressed or damaged by the top table.
Setti_g Up 13

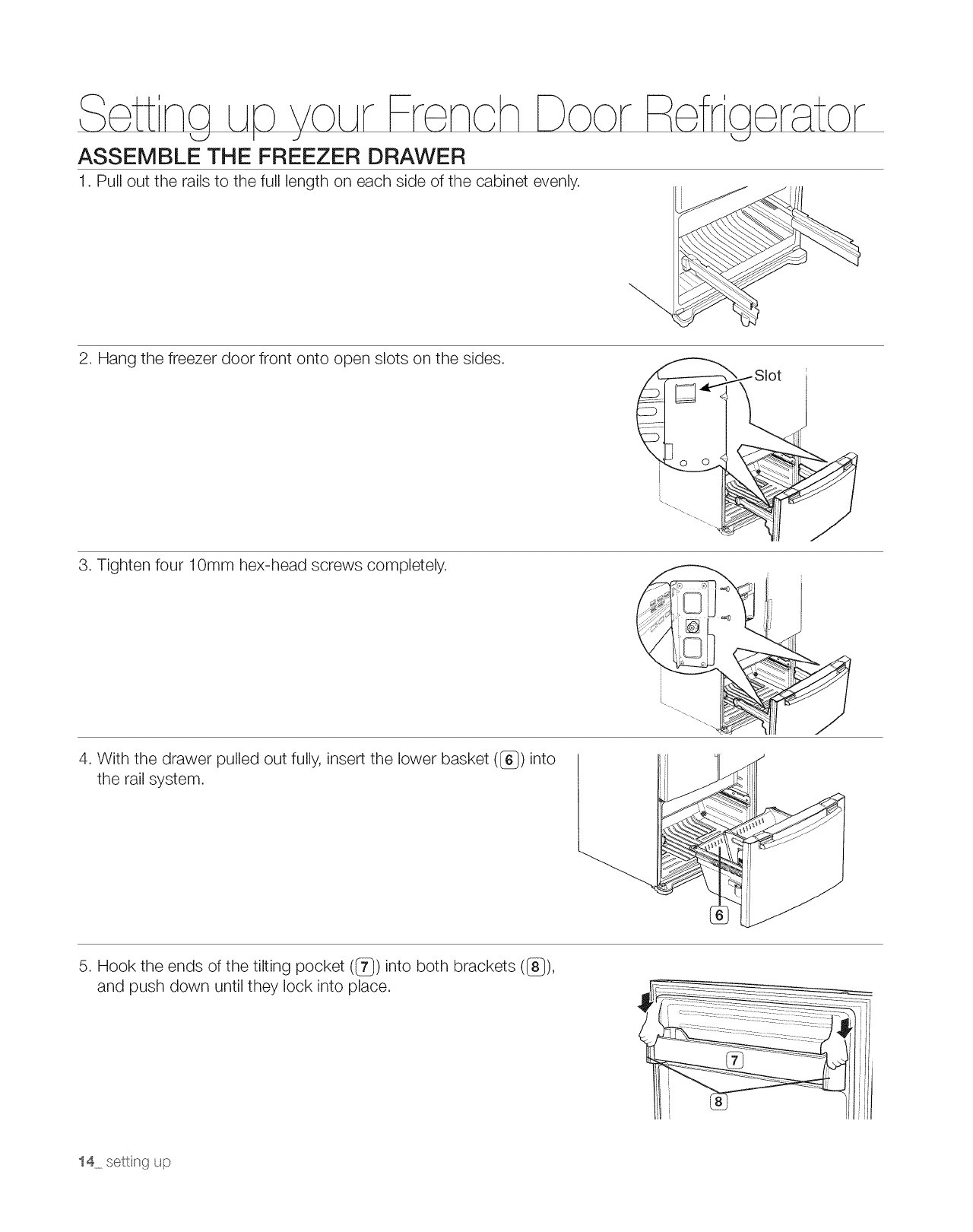

ASSEMBLE THE FREEZER DRAWER
1. Pull out the rails to the full length on each side of the cabinet evenly.
2. Hang the freezer door front onto open slots on the sides.
3. Tighten four lOmm hex-head screws completely.
4. With the drawer pulled out fully, insert the lower basket ((_) into
the rail system.
5. Hook the ends of the tilting pocket ((3_) into both brackets (_}),
and push down until they lock into place.
14 settng up
ADJUSTING THE DOORS
Now that the doors are back on the Refrigerator, you want to make sure the Refrigerator is level so that you can
make final adjustments. If the Refrigerator is not level, it will not be possible to get the doors perfectly even.
when the Left door is lower than the Right door.
Insert a flat-blade screwdriver into a notch on the left control lever, turn it clockwise or counter-clockwise to
level the left door.
Control Lever
Screwdriver
when the Left door is higher than the Right door.
Insert a flat-blade screwdriver into a notch on the right control lever, turn it clockwise or counter-clockwise
to level the right door.
Control Lever
Screwdriver
We do not recommend making small adjustments with the control lever. Instead, refer to the next page
for the best way to make minor adjustments to the doors.
setti_g up 15
MAKING MINOR ADJUSTMENTS BETWEEN DOORS
Remember a level Refrigerator is necessary for getting the doors perfectly even. If you need help, review the
previous section on leveling the Refrigerator.
When the left I
door is lower
than the right
door.
w
Adjustn Adjustment
part
When the left
door is higher
than the right
door.
1. If you open the drawer ((_), you can see the lower hinge ([_).
2. Insert the supplied hex wrench (_) into the shaft (@) of the lower hinge.
3. Please adjust the height by turning the hex wrench ([_) clockwise ( ) or counter-clockwise ( ).
_when you turn the hex wrench counter-clockwise( ), the door will move up.
.After adjusting the doors, please insert the supplied fastener-ring ([_),using a pair of pliers ([_),in the
gap between the hinge-grommet (_),and the lower hinge ([_). The number of fastener-rings you'll
need to insert depends on the gap.
O
Four fastener-rings are enclosed with the refrigerator.
The thickness of each fastener-ring is 0.04 inch.
16_ Setting Up
ADJUSTING THE FREEZER DRAWER LEVEL
Adjustment part
_ Hu _
Freezer Drawer
f_
.Locate the height-adjuster (1_)) in the freezer drawer.
Unscrew the four Phillips screws (I]_}) slightly to loosen the door.
E
2. Loosen the controller screw(G ) with a Phillips screwdriver.
3. Find the best level to align the door slope.
Example) The slope is about 2mm (0.08inch) as shown below.
SIope_______________________
Reference __
plane ._____ ,v
- Rotate the Height Adjuster to +2.0 to reduce the door
slope.
After adjustment, first tighten screw (3) and then screw(2).
Setti_g Up 17
CHECKING THE WATER DISPENSER LiNE
A water dispenser is one of the helpful features on your new Samsung Refrigerator. To help promote better
health, the Samsung water filter removes unwanted particles from your water. However, it does not sterilize or
destroy microorganisms. You may need to purchase a water purifying system to do that.
In order for the ice maker to operate properly, a water pressure of 20-125 psi (pound per square inch)is
required.
Under normal conditions, a 170 cc (5.75 oz.) paper cup can be filled in 10 seconds.
If the Refrigerator is installed in an area with low water pressure (below 20psi), you can install a booster pump to
compensate for the low pressure.
Make sure the water storage tank inside the Refrigerator is properly filled. To do this, press the water dispenser
lever until the water runs from the water outlet.
Water line installation kits are available at extra cost from your dealer. We recommend using a water supply
kit that contains copper tubing.
Connecting to the water supply line
1. First, shut off the main water supply line and turn the ice-maker off.
2. Locate the nearest cold, drinking water line.
3. After connecting the water supply to the water filter, turn your main water supply back on and flush four
or more gallons into a bucket to clear and prime the water filter.
QCold water line
Pipe clamp Water line installation kit
Shut off valve
18 Setting Up
INSTALLING THE WATER LINE
Connecting the water line to the Refrigerator.
There are several items that you need to purchase to complete this connection. You
may find these items sold as a kit at your local hardware store.
• 1/4" compression nut, copper tubing
, plastic tubing • ferrule
Plastic tubing®
(Supplied) Compression nut@
(1/4") (Supplied)
Compression fitting
(Supplied)
Ferrule
(Not supplied)
_NPPe_tp;_nd__
Compression nut@
(1/4") (Not supplied)
Plastic tubing O
(Not supplied)
1. Slip the compression nut ® through the supplied plastic tubing ®.
2. Tighten the compression nut ® onto the 1/4" compression fitting.
- If you are using copper tubing, slip the compression nut ® (not included) and ferrule (not included) on
copper tubing (not included) as shown.
- If you are using plastic tubing ®, insert the molded end of the plastic tubing ® into the compression
fitting.
3. Tighten the compression nut ® onto the compression fitting. Do not over-tighten the compression nut ®.
4. Turn water on and check for any leakage.
Only connect the water line to a drinkable water source.
If you have to repair or disassemble the water line, cut off 1/4" of the plastic tubing to make sure you get a snug,
leak-free connection.
Installing the water filter.
1. Remove the water filter cover(l_}})
2. Remove the fixed cap by turning it counter clockwise.
Keep the cap in a safe place for later use if you don't
use the filter.
3. Remove the water filter from the box and put a
replacement indicator sticker on the filter as shown.
Place the sticker on the filter that dates six months in
the future. For example, if you install the water filter in
March, put the "SEP" sticker on the filter to remind you
to replace it in September. That way you'll know when
it is time to replace the filter. Normally, a filter life is
about 6 months.
CZZD
Setti_g Up 19
.
.
Remove the filter cap and insert the filter into the filter
housing.
Slowly turn the water filter 90 ° clockwise to align with the
printing mark on the cover, locking the filter in position.
Make sure to align the water filter label mark with center of
cover filter printing as illustrated. Remember, do not over-
tighten.
i/
/z ¸
Separation
of red cap,
Cover filter, ®
Turn until the label
aligned,
_You should remove the right side upper glass shelf before installing water filters.
Removing any residual matter inside the water supply line
after installing the water filter.
1. Turn ON the main water supply & turn OFF the valve to the water supply
line.
2. Run water through the dispenser until the water runs clear (approx. 6-
7minutes). This will clean the water supply system and remove air from the
lines.
3. Additional flushing may be required in some households.
4. Open the Refrigerator door and make sure there are no water leaks coming
from the water filter.
®
Be sure to flush the dispenser thoroughly or water may drip from the dispenser.
This is due to the fact that there is still air in the line.
20 Setti-_g Up
©petit ng' r
DoorRefraerator 3U French
USING THE CONTROL PANEL
For better energy efficiency,press the Energy Saver button. If condensation occurs on the doors, turn the Energy Saver function off.
Press the Freezer /Power Freeze button to set the Freezerto your desiredtemperature.
You can set the temperature between 8°F and -14°F
Press and hold the Freezer /Power Freeze Button for 3 seconds, to speed up the time needed to freeze products in the Freezer.
It can be helpful ifyou need to quickly freeze easily spoiled itemsor ifthe temperature inthe Freezerhaswarmed dramatically (For
example, if the door was left open).
Press the Ice/Water button to select the ice or water function. You can select water or the types of ice(cube/crushed ice).
After making a selection, press the dispenser lever.
Press the Alarm/Lighting button to off the door open alarm. InitiallytheAlarm is set to on.
If you press and hold the Alarm/Lighting button for 3 seconds, the Dispenser LED Lamp will stay on.
Press the Fddge /Power Cool button to set the fridge to your desired temperature.
You can set the temperature between 34°F and 46°R
Press and hold the Fridge /Power Cool button for 3 seconds, to speed up the time needed to cool products in the Refrigerator.It
can be helpful ifyou need to quickly cool easily spoiled itemsor ifthe temperature inthe fridge has warmed dramatically (For example,
if the door was left open).
Press the Ice Off /Lock button to turn the ice making function off.
If you press and holdthe Ice Off /Lock button for 3 seconds, the Displayand Dispenser will be locked.
Press the Ice Type button to select your desired ice type. Cubed and crushed ice modes will be alternativelychanged wheneveryou
press the button. After selecting, push the Dispenser Lever gently with your glass.
This mode can not be used with the Water mode simultaneously.
Press the Water button to dispense water.There isno Off mode additionally.After selecting, push the Dispenser Levergently with your
glass. This button can not be used with the IceType button simultaneously.Water mode will be off if you press the Ice Type button.
re ctq
USING THE DIGITAL DISPLAY
"Freezer Temp" indicates the current Freezertemperature.
"Fddge Temp" indicates the current Refrigerator temperature.
When not in use the Display will turn off, this is normal.
E
I Alarm Ice Off I
/
Ice Type / Water
1
Power Freeze @
This icon will light up when you activate the "Power Freeze" feature. "Power Freeze" is great when you need a lot of ice.
When you have enough ice, just press the button again to cancel the "Power Freeze" mode.
If you select "Power Freeze", the inside temperature of the Freezer will decrease for about two and a half hours.
Cubed ice _, Crushed ice __J,Water _:_
Enjoy cubed or crushed ice by selecting your preference from the digital control panel. If you don't need
ice, turn the feature off to save on water and energy consumption. The Ice type light indicates the type of
ice(or no ice) that is currently chosen.
Power Cool _)
This icon will light up when you activate the "Power Cool" button. For a quick fridge cool down, use
"Power Cool".
If you select "Power Cool", the inside temperature of the Fridge will decrease for about two and a half hours.
E."J
Filter Indicator O
When the filter indicator light is on, it is time to change the filter. Typically this happens about every 6 months.
The filter Indicator will be Blue when you initially insert the water filter.
The filter Indicator will be Light Pink when you have used your water filter for 5 months.
The filter Indicator will be Red when you have used your water filter for 6 months.
After removing the old water filter and installing a new one (see page 34 for instructions on how to do this),
reset the indicator by pressing and holding the "ice/water" button for 3 seconds.
z_ Cancelling Exhibition Mode
....... In case of Exhibition Mode, It seems working but doesn't make cool air. To cancel this mode, press Power Freeze and
Freezer Temp. buttons at the same time for 8 seconds until "Ding-Dong" sounds off.
22 Ope_ating
Energy saver :D-£
This icon will light up when you activate the "Energy Saver" function is automatically set to "ON" when poet is supplied
to the Refrigerator. If condensation occurs on the doors, turn the Energy Saver function off.
Lighting _8_
This icon will light up when you activate the "Lighting" feature. In this case, the dispenser light(under the
display) will be on constantly. If you would like the dispenser light to come on only when using the dispenser,
turn the "Lighting" feature off.
Alarm @)
This icon will light up when you activate the "Alarm" feature. The door alarm will sound if any door is open for
more than 3 minutes. The beeping stops when you close the door. Initially the Alarm is set to on.
ice off o_
This icon will light up when you activate the "Ice Off" feature. In this case, the ice will not be produced.
Lock
This icon will light up when you activate the "Lock" feature. In this case, you won't to be able to use the control
panel. If you press and hold the Ice Off /Lock button for 3 seconds, you will be able to use the control panel again.
USING THE CONTROL PANEL
Basic temperature of Freezer and Refrigerator Compartments
The basic temperature and/or recommended temperature of Freezer and Refrigerator Compartments are -2°F
and 38°F respectively.
If the temperature of Freezer and Refrigerator Compartments are too high or low, adjust the temperature manually.
Controlling the Freezer temperature
The Freezer temperature can be set between 8°F and -14°F to suit your particular needs. Press the Freezer
button repeatedly until the desired temperature is shown in the temperature display. Keep in mind that foods like
ice cream may melt at 4°R The temperature display will move sequentially from -14°F to 8°R When the display
reaches 8°F, it will begin again at -14°R
Five seconds after the new temperature is set, the display will again show the actual current freezer temperature
until the new temperature is reached.
Controlling the Refrigerator temperature
The Refrigerator temperature can be set between 46°F and 34°F as your particular needs. Press the Fridge
button repeatedly until the desired temperature is shown in the temperature display.
The temperature control process for the Fridge works just like the Freezer process.
Press the Fridge button to set your desired temperature. After a few seconds, the Fridge will begin adjusting
towards the newly set temperature. This will be reflected in the digital display.
The temperature of the Freezer, Refrigerator or Pantry Room may rise when you open the doors too frequently,
or if a large amount of warm or hot food is placed inside.
This may cause the digital display to blink. Once the Freezer and Refrigerator temperature return to their normal
set temperatures, the blinking will stop.
If the blinking continues, you may need to "reset" the Refrigerator. Try unplugging the appliance, wait for around
10 minutes and then plug the power cord back in.
The temperature of the Pantry Room may be a little different according to the location inside.
If communication between Display and Main Controller errors, Pantry Display light may blink.
Once the communication return to their normal set temperatures, the blinking will stop.
If the blinking continues for a long period of time, please contact to Samsung customer care center.
3U renoh
USING THE COLD WATER DISPENSER
Press the Ice /Water button to select the type of you want
Using the ice Dispenser
Place a glass underneath the ice dispenser and push gently against the dispenser lever with your glass.
Make sure the glass is in line with the dispenser to prevent the ice from bouncing out.
CAUTION
If the Freezer door is left open for a long time, condensation may form or the
ice inside the Ice-Maker may clump. Please close the door as soon as possible.
The Ice Dispenser may eject only a few ice cubes if there is not enough ice in the
Ice-Maker. Use the ice Dispenser when there is enough ice.
If the Freezer door is open for a long time or a lot of ice is dispensed at once,
condensation may trickle down the Dispenser lever.
_PUSH
Using the water dispenser
Place a glass underneath the water outlet and push gently against the water dispenser lever with your
glass. Make sure the glass is in line with the dispenser to prevent the water from splashing out.
If you have just installed the Refrigerator or just installed a new water filter, pour out the first
six glassfuls of water to flush out impurities in the water supply system. Make sure water flows
cleanly before drinking.
Using the ice off Function
When selecting the Ice Off mode, remove all ice cubes from the bucket.
If you are not using the ice dispenser the ice cubes may clump together.
Pull the lock lever forward to throw away ice cubes or remove clumped ice
from the bucket. Push the bucket back until you hear a click.
24 Operat _g
CAUTION
If you have a long vacation or business trip, close the water valve and shut off the water supply to the
Refrigerator. This will help prevent accidental leakages.
Do not put your fingers, hands or any other unsuitable objects in the chute or ice-maker bucket.
- It may result in personal injury or material damage.
Never put your finger or any other objects in the dispenser opening.
- It may cause injury.
Do not disassemble the Ice Maker personally. It may cause disorder.
Do not wash or spray the ice bucket with water.
Just wipe it with a dry cloth. In order to operate the ice maker properly,
water pressure of 138-862 Kpa is required.
I o
_---_ I i
i iii ;iii
/_ Test button
CAUTION In case ice doesn't come out, pull out the ice bucket and press test button located on the right side of ice
maker.
®The water tank's capacity is approximately one third (1/3) of a gallon.
Please wait 1 second before removing the cup after dispensing water to prevent spills. Do not pull out
the lever dispenser after taking out ice or water. It comes back automatically. Ice is made in cubes.
When you select "Crushed", the icemaker grinds the ice cubes into crushed ice.
Op ratn FrenchDoor
PARTSAND FEATURES
Use this page to become more familiar with the parts and features of the Refrigerator.
Light
Ice-Maker
Foldable-Shelf
Slide-Shelf
Vertical Hinged
Section
Vegetable &
Fruit Drawers
Auto Door
Closer
Dairy
Compartment
Water Filter
Slide-Shelf
Door Bins
Quick-
Space
Glass Shelf
Cool Select
PantryTM
Tilting Pocket
IHDBIHIDDBIIDDtHIIUIi
Light
Pull Out Drawer
Freezer Drawer Bin
When closing the door, make sure the Vertical Hinged Section is in the correct position to avoid scratching
the other door.
If the Vertical Hinged Section is reversed, put it back to the right position and close the door.
Moisture may occur at times on the Vertical Hinged Section.
The door handle may become loose over time.
If this happens, tighten the bolts found on the inside of the door.
If you close one door with a lot of force, the other door may open.
26 Operating
STORING FOOD
The Samsung French Door Refrigerator has been designed to provide you with maximum space saving
features and functions. Here are some of the customized compartments we have created to keep your food
fresher longer. In order to further prevent odor from seeping into the ice compartment, stored food should be
wrapped securely and as airtight as possible.
®
®
®
@
SU French
STORING FOOD IN THE REFRIGERATOR
Can be usedto storesmall dairy items likebutter or margarine,yogurt or
cream cheesebricks
Designedto handle large,bulky itemssuch as gallons of milkor other large
bottles and containers.
Designedto be crack-resistant, the shelvescan be usedto store alltypes of food
and drinks. Circular marks on the glass surface are a normal phenomenon
and can usuallybe wiped clean with a damp cloth.
Best place to keep eggs.
Placethe container on the shelffor easyaccess.
Used to preservethe freshness of your stored vegetablesand fruits.
This drawer has been specificallydesigned to control the levelof humidity
within the compartment. Keep vegetables and fruits separate when possible.
Can be usedfor large party trays, dell items, pizza,beveragesor
miscellaneousitems.
_Do not place any large articles of food under the lamp in the Refrigerator. An air sensor is located near the
lamp and if the sensor is blocked, your Refrigerator may become too cold. Please place Vegetable and
Fruits in the Vegetable and Fruits drawers to avoid freezing them. If the foods in your Refrigerator become
frozen, please set the temperature higher.
STORING FOOD IN THE FREEZER DRAWER
Best use to store meatsor dry foods. Stored food should be placed ina
containeror wrapped securely usingfoil or other suitable wrapping materials.
Can be usedfor small packages of frozenfood.
You can store a 16" pizza.
Can be usedto store meatand dry foods.
Stored food should be placed ina container or wrapped securely
usingfoil or other suitable materials.
_ Bottles should be stored tightly together so that they do not tip and fallout when the Refrigeratordoor is opened.
lf you plan to go away for a long time, empty the Refrigerator and turn it off. Wipe the excess moisture from
the inside of the appliance and leave the doors open. This helps keep odor and mold from developing.
28 Operating
USING THE COOL SELECT PANTRYrM
The C°°l Select PantrytM is a full-width drawer with adjustable ]_/
temperature control. This pantry can be used for large party
trays, deli items, pizza, beverages or miscellaneous items.
There is a temperature control which can adjust the amount of
cold air allowed into the pantry.
The control is located on the right side of the pantry.
• Press the Temp button repeatedly until your desired mode is lighted.
The fresh mode(38°F), Chilled mode(32°F) and Dell mode(41°F) will move sequentially whenever
you press the Temp button.
Initiallythe Fresh mode is set. Though the setting temperature is different from the current temperature, the
temperature will be changed to the setting temperature automatically.
Temp
You can select your Pantry Room temperature among 3 kind of Fresh(38°F[3°C]), Chilled(34°F[0°C]),
Deli(41 °F[5°C]) modes.
Selection Button
1. When "Deli" is selected, the temperature of the pantry can be kept
around 41 °F(5°C). This feature helps keep food fresh for a long time.
Pantry temperature can be maintained under recommended
temperature setting(Freezer:-2°F, Fridge:38°F)
2. When "Fresh" is selected, the temperature of the pantry can be kept
around 38°F(3°C). This feature helps keep food fresh for a longer time.
Pantry temperature can be maintained under recommended
temperature setting (Freezer : -2°K Fridge : 38°F)
3. When "Chilled" is selected, the temperature of the pantry can be kept
around 34°F(1 °C). This feature also helps keep meat or fish fresh for a
longer time.
Pantry temperature can be maintained under recommended
temperature setting (Freezer : -2°K Fridge : 38°F)
Deli
•pineapple
•lemon
•avocado
•potato
Fresh Chilled
cucumbers •steaks
apples •hard cheeses
oranges •cold cuts
grapes •bacon
zucchinis •hot dogs
corn
®
CAUTION
Fruits and vegetables may be damaged using the "Chilled" setting.
Do not store lettuce or other leafy produce in this pantry.
Do not store glass bottles in this pantry. If they are frozen, they can break and cause personal injury.
USING THE TILTING POCKET
The Tilting Pocket can be used to store up to a 16" pizza if you
place it shown in the illustration.
REMOVING THE REFRIGERATOR ACCESSORIES
1. Door Bins & Dairy Compartment
To remove - Simply lift the bin up and pull straight out.
To relocate - Slide it in above the desired location and push down
until it stops.
CAUTION
®
Injury may occur if the door bins are not firmly assembled.
Do not allow children to play with bins. Sharp corners of the bins
may cause injury.
Do not adjust a bin full of foods.
2. Tempered Glass shelves
To remove - Tilt up the front of the shelf in the direction
shown (1_) and lift it up vertically (_)).
Pull the shelf out.
To relocate - Tilt the front of the shelf up and guide the
shelf hooks into the slots at a desired height.
Then lower the front of the shelf so that the
hooks can drop into the slots.
The Tempered Glass shelves are heaw.
CAUTIONUse special care when removing them.
i
i
J_
3. Vegetable & Fruit Drawers
To remove - Pull the drawer out to full extension. Tilt up the
front of drawer and pull straight out.
To relocate - Insert the drawer into the frame rails and push
back into place.
The glass shelf over the drawer is not firmly secured. Be
CAUTIONcareful when lifting.
Do not open the drawer while the pantry is open.
It may cause scratch or breakage to it's cover.
30 Operating
4. Cool Select Pantry TM
To remove the pantry - Pull the pantry out to full extension.
Tilt up the front side of pantry and
pull straight out.
To relocate the pantry - Push the rails to the back of the
Refrigerator. Place the drawer onto
the rails and slide the pantry back
until it is in place.
To remove the divider -
To relocate the divider -
Pull the pantry completely out to full extension and raise the front side of the
divider to unhook it from the rear wall of the pantry, then lift the divider out.
Hook the back of the divider over the rear wall of the pantry and push the
divider down.
C
USING THE DOORS
The Refrigerator doors ensures that the doors close all the way and are securely sealed.
When the Refrigerator door is only partially open, it will automatically close. The door will stay open when
opened more than around 3 Inches.
SU French
REMOVING THE FREEZER ACCESSORIES
1. Tilting Pocket
To remove - Pull the brackets({l_) upward until you hear a
clicking sound and remove the pocket
To replace - Hook the ends of the pocket into both brackets
(1_}) and push down until it locks into place.
2. Auto Pull out Drawer
To remove - Pull the drawer out to full extension.
Tilt up rear of drawer and lift straight out.
To relocate - Place the drawer onto the rails by tilting it up.
Lower the drawer into place until it is horizontal
and slide the drawer in.
liii
I_ii
, • / p! _
3. Freezer Drawer Bin
To remove the drawer - Pull the drawer out fully. Tilt up
the rear of the bin and lift it out to
remove.
To relocate the drawer - Place the bin into the rail assembly.
To remove the divider - Pull the divider straight up.
To relocate the divider - Hook the top corners of divider over
the hole of the bin.
32 Operating
CLEANING THE REFRIGERATOR
Caring for your Samsung French Door Refrigerator prolongs the life of your appliance and helps
keep it odor and germ-free.
Cleaning the interior
Clean the inside walls and accessories with a mild
detergent and then wipe dry with a soft cloth. You can
remove the drawers and shelves for a more thorough
cleaning. Just make sure to dry drawers and shelves
before putting them back into place.
Cleaning the Exterior
Wipe the digital panel and display panel with a clean,
soft cloth. Spray water onto the cleaning cloth instead of
spraying directly on the surface of the Refrigerator.
It helps ensure an even distribution of moisture to the
surface. The doors, handles and cabinet surfaces should
be cleaned with a mild detergent and then wiped dry with
a soft cloth. To keep your appliance looking its best, the
exterior should be polished once or twice a year.
Do not use Benzene, Thinner or Clorox for cleaning. They may
CAUTIONdamage the surface of the appliance and may cause fire.
Cleaning the ice/water Dispenser
Push down one end of the tray dispenser and remove it.
Wipe the Ice /Water Dispenser with a clean and soft cloth.
Cleaning the Rubber door seals
If the rubber door seals are dirty, the doors may not close
properly, and the Refrigerator will not operate efficiently.
Keep the door seals free of grit or grime by cleaning the
doors with a mild detergent and damp cloth. Wipe dry with
a clean, soft cloth.
//_ Do not spray the Refrigerator with water while it is plugged in, as it may cause an electric shock.
CAUTIONDOnot clean the Refrigerator with benzene, thinner or car detergent due to risk of fire.
Cleaning behind the Refrigerator
To keep cords and exposed parts free of dust and dirt accumulation, vacuum behind the appliance once
or twice a year.
z_ Do not remove the back cover. Doing so may cause an electric shock.
CAUTION
French
CHANGING THE INTERIOR LIGHTS
A Before changing any of interior lights, unplug the Refrigerator from the power supply. If you are unsure
CAUTIONabout changing the lights after reading through these directions, contact your service center for help.
bulbs for both freezer and available from local home
Replacement fridge are your improvement or
electronics store. Use replacement bulbs with size E26, maximum 60 watts.
Changing the interior Light in the Refrigerator
1. Unplug the power cord from the outlet.
2. Pull the shield down while pushing it backwards to remove it.
3. Turn the bulb counterclockwise.
4. Assembly is the reverse order of disassembly.
Changing the interior Lights in the Freezer Drawer
1. Unplug the power cord from the outlet.
2. Pull drawer out to full extension.
3. Pull the shield down while pushing it backwards to remove it.
4. Turn the bulb counterclockwise.
5. Assembly is the reverse order of disassembly.
A Do not place your fingers inside the cover. The lamp may be hot.
CAUTION
34 Operating
CHANGING THE WATER FILTER
The "Filter Indicator" light lets you know when it is time to change your water filter cartridge. To
give you preparation time to get a new filter, the red light will come on just before the capacity
of the current filter runs out. Changing the filter on time provides you with the freshest, cleanest
water from your fridge.
1. Take a new water filter and put a month indicator sticker on the filter as shown.
The date on the sticker must be six months from the current date. For example, if you are replacing
the water filter in March, put the "SEP" (September) sticker on the filter to remind you to replace in
September. Normal filter life is about every 6 months.
2. Remove the new filter's protective cap and remove the old filter.
3. Position and insert the new filter into the filter housing.
Slowly turn the water filter clockwise to align with the printing mark on the cover, locking the filter
in position. Make sure to align the water filter label mark with the center of cover filter printing as
illustrated.
Remember, do not over-tighten.
4. Once you have completed this process, press and hold the AIram button for 3 seconds to reset the
filter schedule. F -,
5. Lastly, run about six glassfuls of water through water dispenser to clean the water supply system Make
sure that water flows clearly again before drinking.
_Be sure to flush the dispenser thoroughly otherwise water may drip from the dispenser.
This means that there is still air in the line.
Do NOT use the water or ice dispenser without a water filter cartridge because the water line may
become blocked.
Ordering Replacement water Filter
For replacement waster filter you can visit your local service center or contact the Samsung Parts
distributor.
Be sure the replacement water filter has the SAMSUNG logo on the box and the water filter.
Link: http://www.samsu ngparts, com
]roLAb ,shoot
• Check that the power plug is properly connected.
Isthe temperature control on the display panel set to the correct tern_erature?
Try setting it to a lower temperature.
Is the Refrigerator in direct sunlight or located near a heat source?
Is the back of the Refrigerator too close to the wall and therefore keeping airfrom
circulation?
Is the temperature control on the display set to the correct temperature?
Try setting it to a warmer temperature.
Is the temperature in the room too low?
Did you store the food with high water content in the coldest part of the Refrigerator?
Try moving those items into the body of the Refrigerator instead of keeping them in
the Cool Select PantryTM.
Check that the Refrigerator is level and stable.
Is the back of the Refrigerator too close to the wall and therefore keeping airfrom
circulating?
Was anything dropped behind or under the Refrigerator?
A "ticking" sound is heard from inside the Refrigerator. It is normal and occurs
because various accessories are contracting or expanding according to the
temperature of the Refrigerator interior.
Some heat is normal as anti-condensators are installed in the vertical hinged section
of the Refrigerator to prevent condensation.
Is the Refrigerator door ajar? Condensation can occur when you leave the door open
for a long time.
Did you wait for 12 hours after installation of the water supply line before making ice?
Is the water line connected and the shut-off valve opened?
Did you manually stop the ice making function?
Is the Freezertemperature too warm? Trysetting the Freezer temperature lower.
This is normal. The bubbling comes from the Refrigerator coolant liquid circulating
through the Refrigerator.
Check for spoiled food.
Foods with strong odors(for example, fish) should be tightly covered.
Clean out your Freezer periodically and throw away any spoiled or suspicious food.
Is the airvent blocked? Remove any obstructions so air can circulate freely.
Allow sufficient space between the foods stored for efficient air circulation.
Is the Freezerdrawer closed properly?
Is the water line connected and the shut-off valve opened?
Has the water supply line tubing been crushed or kinked?
Make sure the tubing is free and clear of any obstruction.
Is the water tank frozen because the Refrigerator temperature is too low?
Try selecting a warmer setting on the main display panel.
36 Tnt)ubleshooting
SAMSUNG REFRIGERATOR (29 CUBIC FEET AND LARGER CAPACITY)
LIMITED WARRANTY TO ORIGINAL PURCHASER
This Samsung brand product, as supplied and distributed by Samsung Electronics America, Inc. (Samsung)
and delivered new, in the original carton to the original consumer purchaser, is warranted by Samsung against
manufacturing defects in materials and workmanship for a limited warranty period of:
one (1) year Parts and Labor on Refrigerator
Five (5) years Parts and Labor on sealed Refrigeration system only*
(*Compressor, evaporator, condenser, drier, connecting tubing)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in
the United States. To receive warranty service, the purchaser must contact Samsung for problem determination and
service procedures. Warranty service can only be performed by a Samsung authorized service center. The original
dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung authorized service
center.
Samsung will repair or replace any part found to be defective, at our option and at no charge as stipulatedX herein,
with new or reconditioned parts during the limited warranty period specified above. All replaced parts and products
become the property of Samsung and must be returned to Samsung. Replacement parts and products assume the
remaining original warranty, or ninety (90) days, whichever is longer.
In-home service will be provided during the warranty labor period subject to availability within the contiguous United
States. In-home service is not available in all areas. To receive in-home service, the product must be unobstructed
and accessible from floor level to service personnel. If during in-home service repair cannot be completed, it may
be necessary to remove, repair and return the product. If in-home service is unavailable, Samsung may elect, at
our option, to provide for transportation of our choice to and from a Samsung authorized service center. Otherwise,
transportation to and from the Samsung authorized service center is the responsibility of the purchaser.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,
noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which
occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered
product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other
acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications,
installations, repairs, external plumbing and leaks, external wiring, circuit breakers, fuses or connectors not supplied
and authorized by Samsung, or which damage this product or result in service problems; incorrect electrical line
voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning,
maintenance and environmental instructions that are covered and prescribed in the instruction book; loss of food due
to spoilage; consumable items including filters and light bulbs.
THEREARENOEXPRESSWARRANTIESOTHERTHANTHOSELISTEDANDDESCRIBEDABOVE,AND
NOWARRANTIESWHETHEREXPRESSORIMPLIED,INCLUDING,BUTNOTLIMITEDTO,ANYIMPLIED
WARRANTIESOFMERCHANTABILITYORFITNESSFORA PARTICULARPURPOSE,SHALLAPPLY
AFTERTHEEXPRESSWARRANTYPERIODSSTATEDABOVE,ANDNOOTHEREXPRESSWARRANTY
ORGUARANTYGIVENBYANYPERSON,FIRMORCORPORATIONWITHRESPECTTOTHISPRODUCT
SHALLBEBINDINGONSAMSUNG.SAMSUNGSHALLNOTBELIABLEFORLOSSOFREVENUEOR
PROFITS,FAILURETOREALIZESAVINGSOROTHERBENEFITS,ORANYOTHERSPECIAL,INCIDENTAL
ORCONSEQUENTIALDAMAGESCAUSEDBYTHEUSE,MISUSEORINABILITYTOUSETHISPRODUCT,
REGARDLESSOFTHELEGALTHEORYONWHICHTHECLAIMISBASED,ANDEVENIFSAMSUNG
HASBEENADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGES.NORSHALLRECOVERYOFANYKIND
AGAINSTSAMSUNGBEGREATERINAMOUNTTHANTHEPURCHASEPRICEOFTHEPRODUCTSOLDBY
SAMSUNGANDCAUSINGTHEALLEGEDDAMAGE.WITHOUTLIMITINGTHEFOREGOING,PURCHASER
ASSUMESALLRISKANDLIABILITYFORLOSS,DAMAGEORINJURYTOPURCHASERANDPURCHASER'S
PROPERTYANDTOOTHERSANDTHEIRPROPERTYARISINGOUTOFTHEUSE,MISUSEORINABILITYTO
USETHISPRODUCTSOLDBYSAMSUNGNOTCAUSEDDIRECTLYBYTHENEGLIGENCEOFSAMSUNG.
THISLIMITEDWARRANTYSHALLNOTEXTENDTOANYONEOTHERTHANTHEORIGINALPURCHASER
OFTHISPRODUCT,ISNONTRANSFERABLEANDSTATESYOUREXCLUSIVEREMEDY.
Somestatesdonotallowlimitationson howlonganimpliedwarrantylasts,ortheexclusionor limitationof
incidentalorconsequentialdamages,sotheabovelimitationsor exclusionsmaynotapplyto you.Thiswarranty
givesyouspecificlegalrights,andyoumayalsohaveotherrights,whichvaryfromstateto state.
Toobtainwarrantyservice,pleasecontactSamsungat:
SAMSUNGCUSTOMERCARECENTER
SamsungElectronicsAmerica,Inc.400ValleyRoadSuite201 Mt.Arlington,NJ07956
1-800-sAMsunG(1-800-726-7864)andwww.samsung.com
38 Warranty
rr err o 39
QUESTIONS OR COMMENTS?
COU.TRY CALL' ORWS_TuSO.UNEAT
800-SAMSUNG Samsung Electronics America, Inc. 400 Valley
U.S www.samsung.com
(800-726-7864) Road Suite 201 Mt. Arlington, NJ 07956
800-SAMSUNG Samsung Electronics Canada Inc. Customer
CANADA (800-726-7864) www.samsung.com/ca Service, 55 Standish Court Mississauga, Ontario
L5R 4B2 Canada
Code No. DA68-01737A REV(0.0)

Navigation menu
