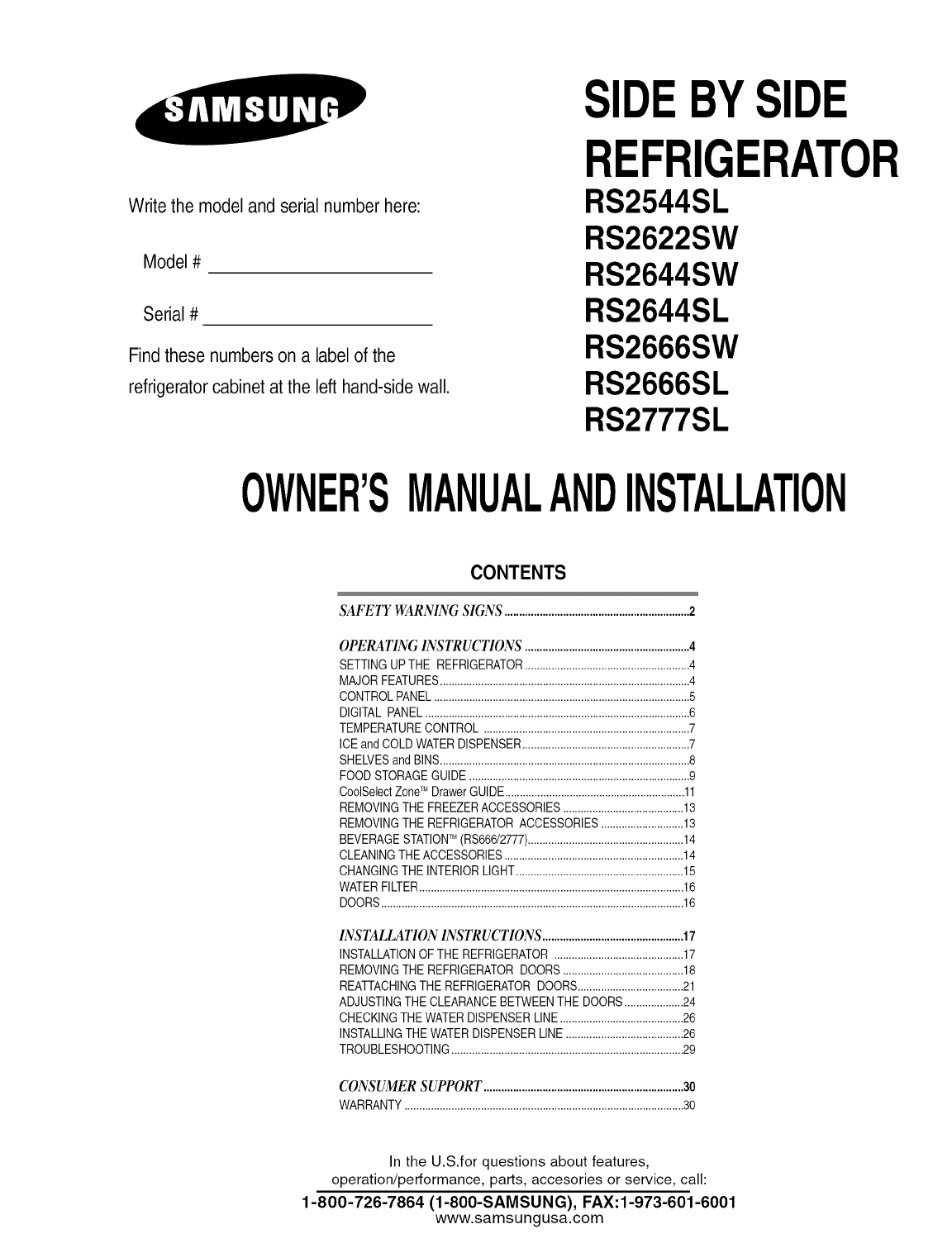

SAMSUNG Side By Refrigerator Manual L0902609

User Manual: SAMSUNG SAMSUNG Side by Side Refrigerator Manual SAMSUNG Side by Side Refrigerator Owner's Manual, SAMSUNG Side by Side Refrigerator installation guides

Open the PDF directly: View PDF .
Page Count: 32

Write the model and serial number here:

Model #

Serial #

Find these numbers on a label of the

refrigeratorcabinet at the left hand-sidewall.

SIDEBYSIDE

REFRIGERATOR

RS2544SL

RS2622SW

RS2644SW

RS2644SL

RS2666SW

RS2666SL

RS2777SL

OWNER'SMANUALANDINSTALLATION

CONTENTS

SAFETY WARNING SIGNS ...............................................................2

OPERAIING INSTRUCTIONS ........................................................4

SETTINGUPTHE REFRIGERATOR........................................................4

MAJORFEATURES.....................................................................................4

CONTROLPANEL.......................................................................................5

DIGITAL PANEL..........................................................................................6

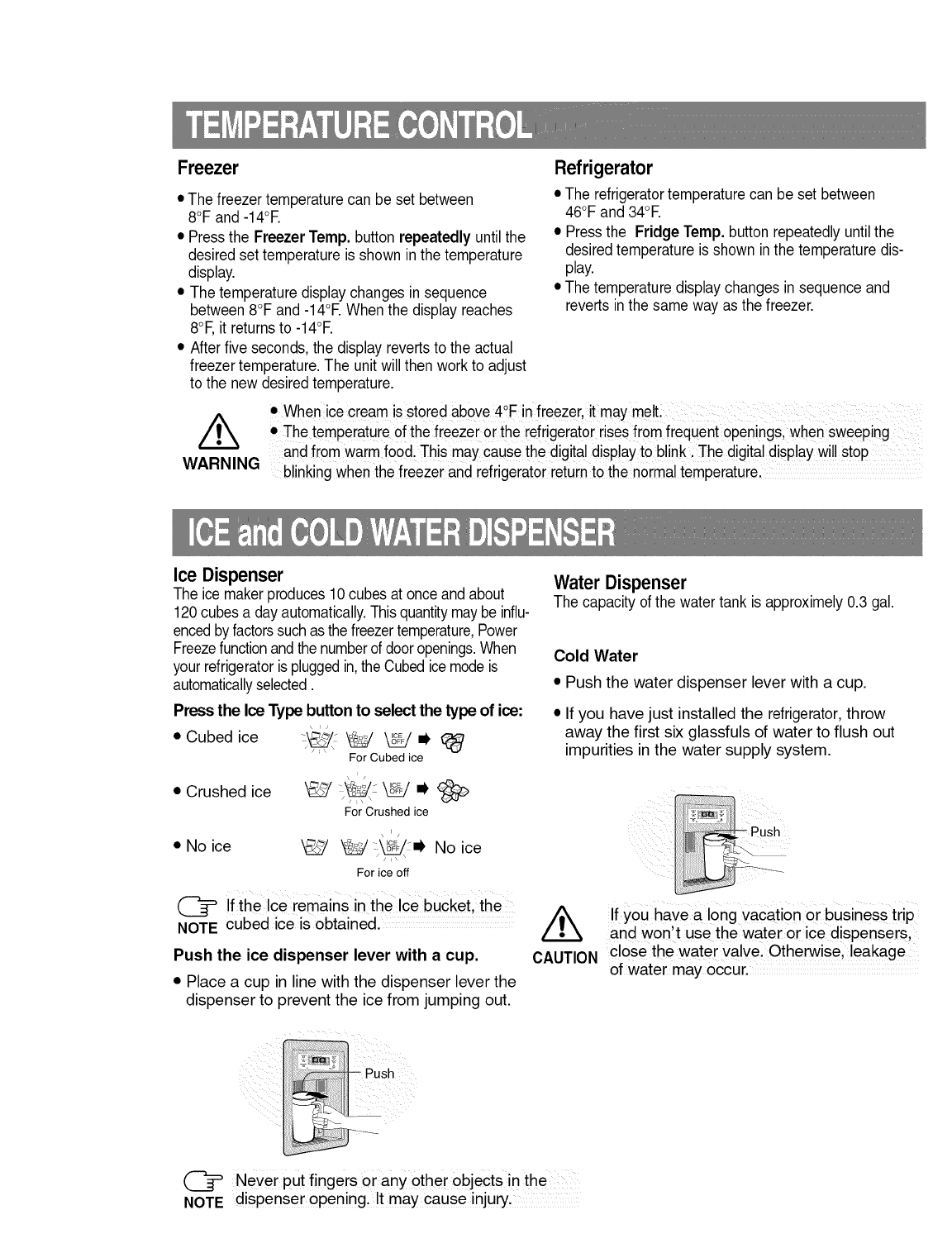

TEMPERATURECONTROL ......................................................................7

ICE and COLDWATERDISPENSER.........................................................7

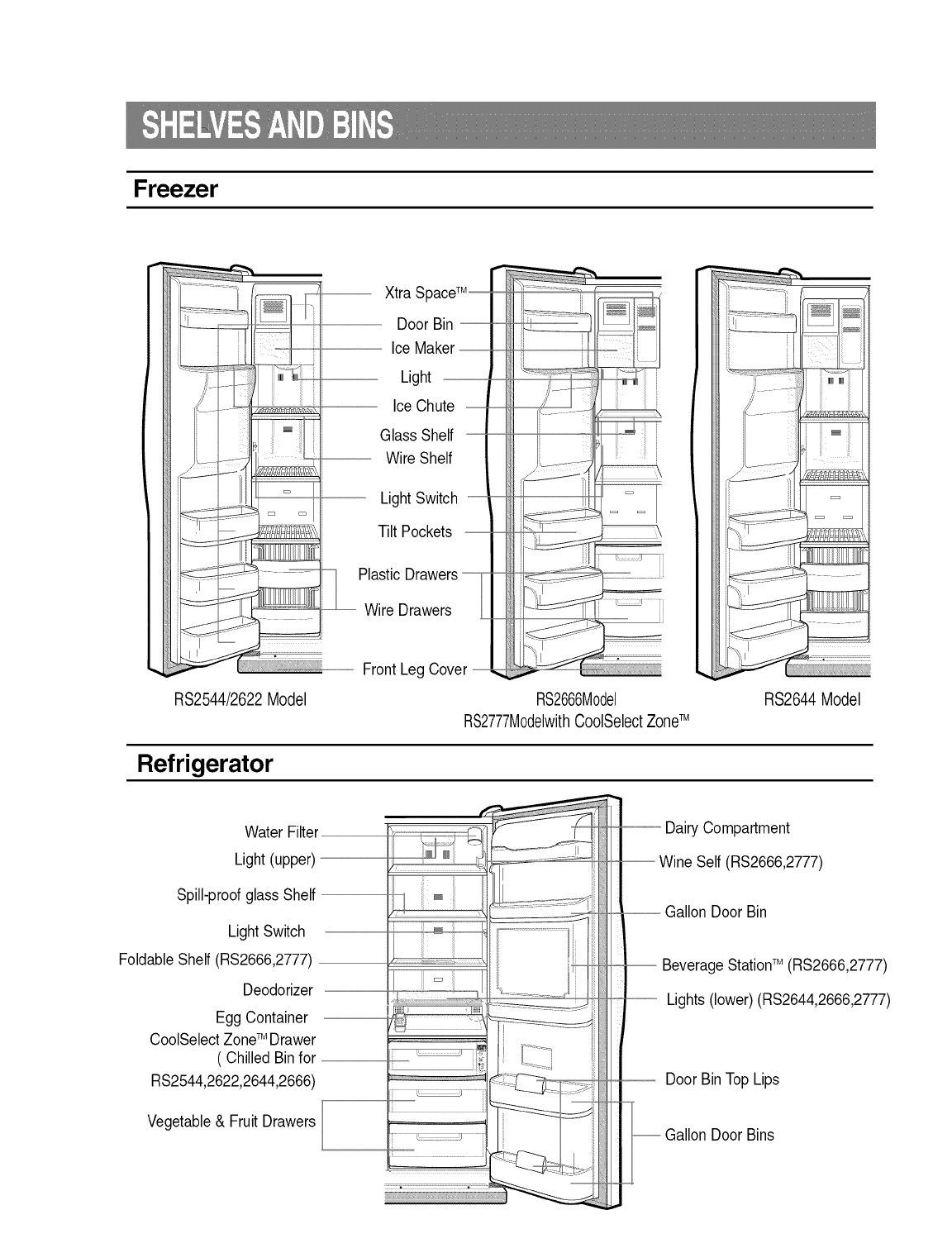

SHELVESand BINS.....................................................................................8

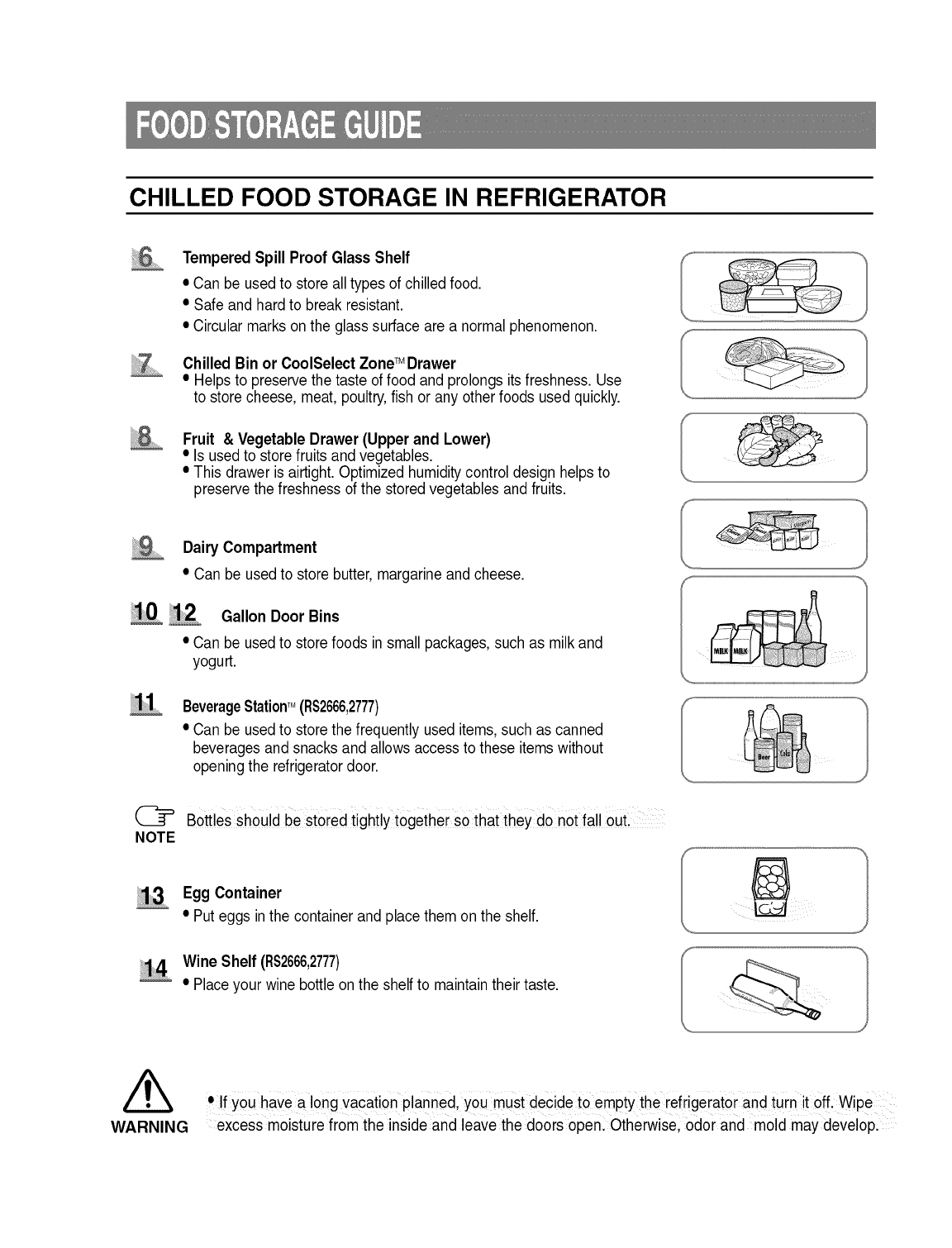

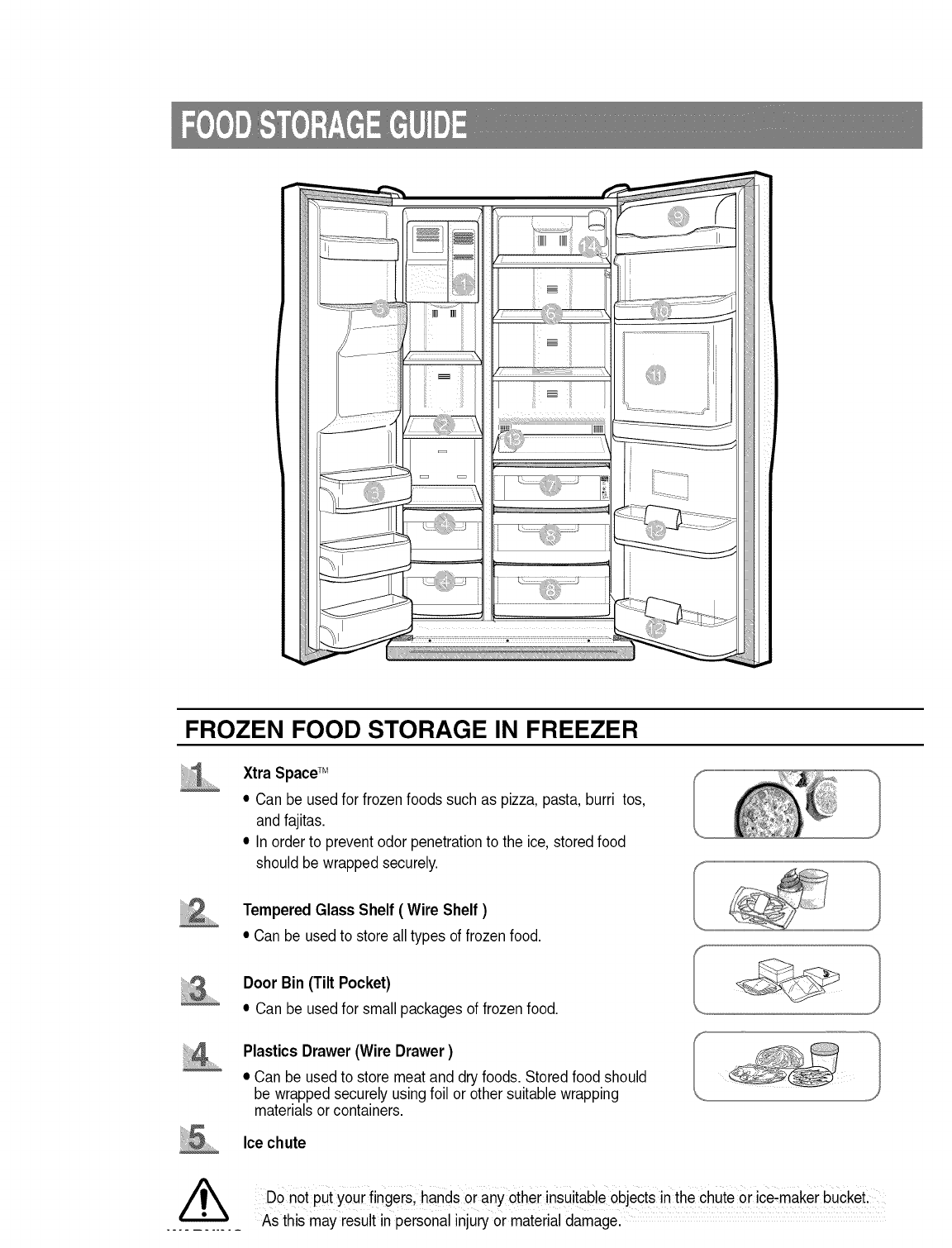

FOODSTORAGEGUIDE...........................................................................9

CoolSelectZoneT'_DrawerGUIDE.............................................................11

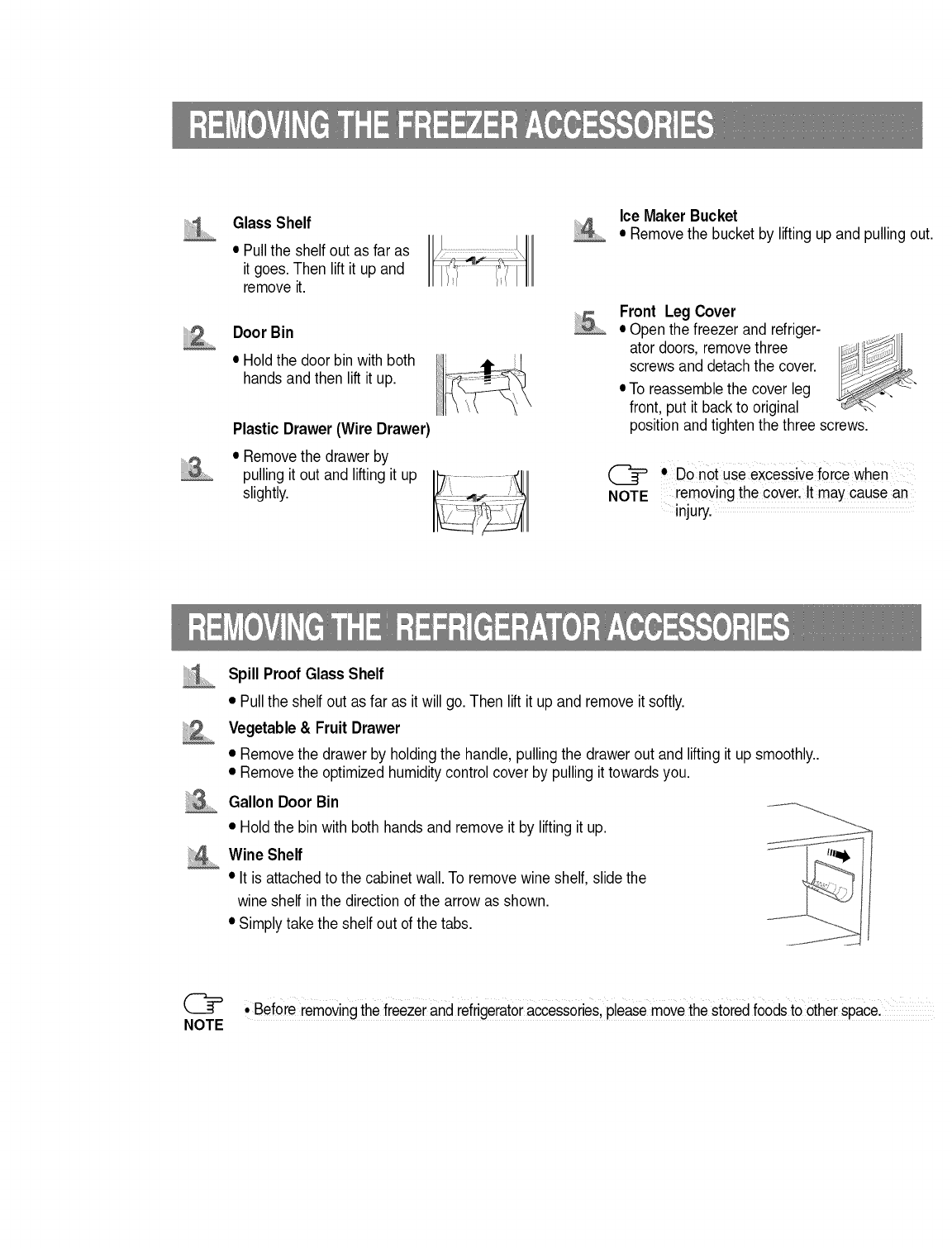

REMOVINGTHEFREEZERACCESSORIES.........................................13

REMOVINGTHEREFRIGERATORACCESSORIES............................13

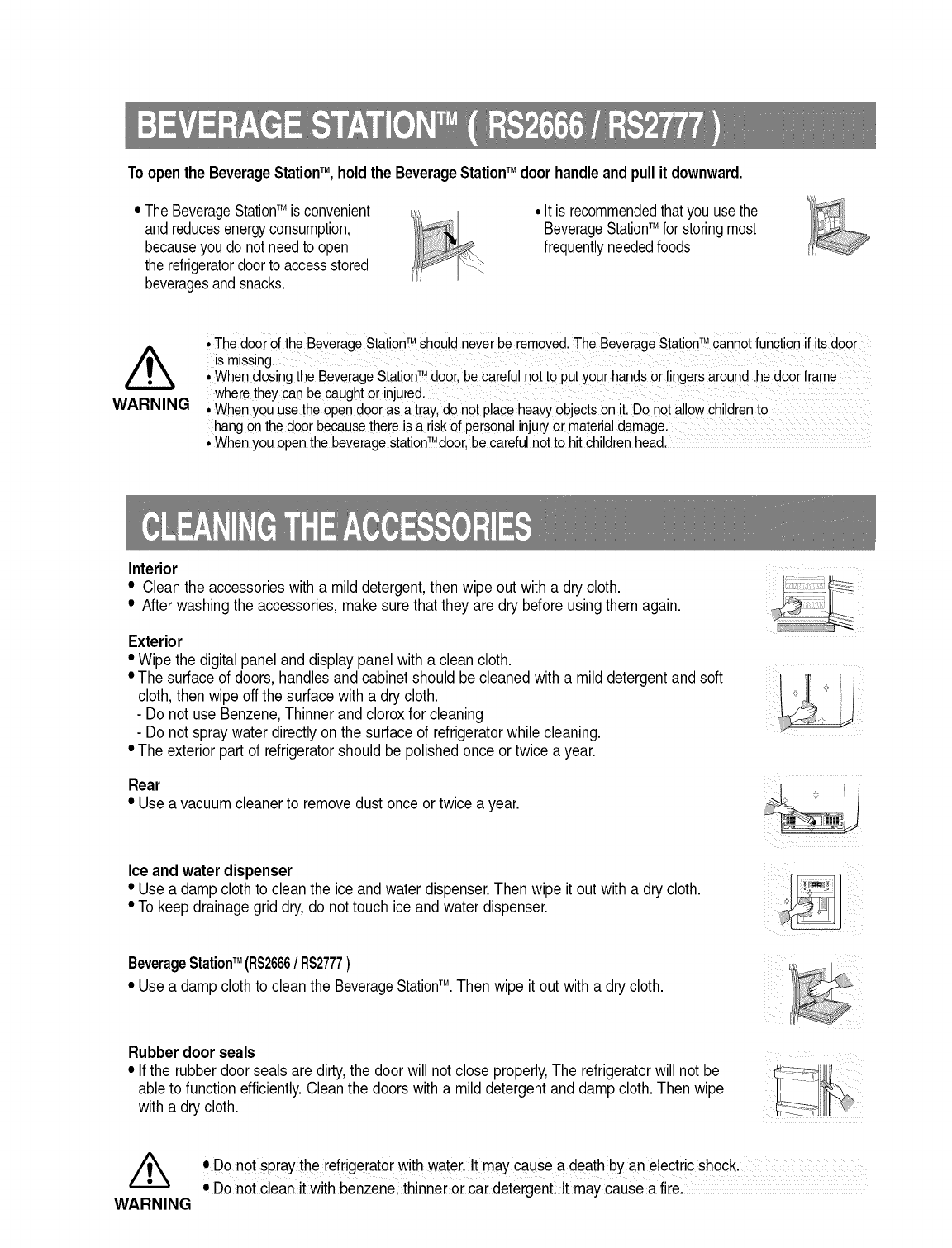

BEVERAGESTATIONTM (RS666/2777).....................................................14

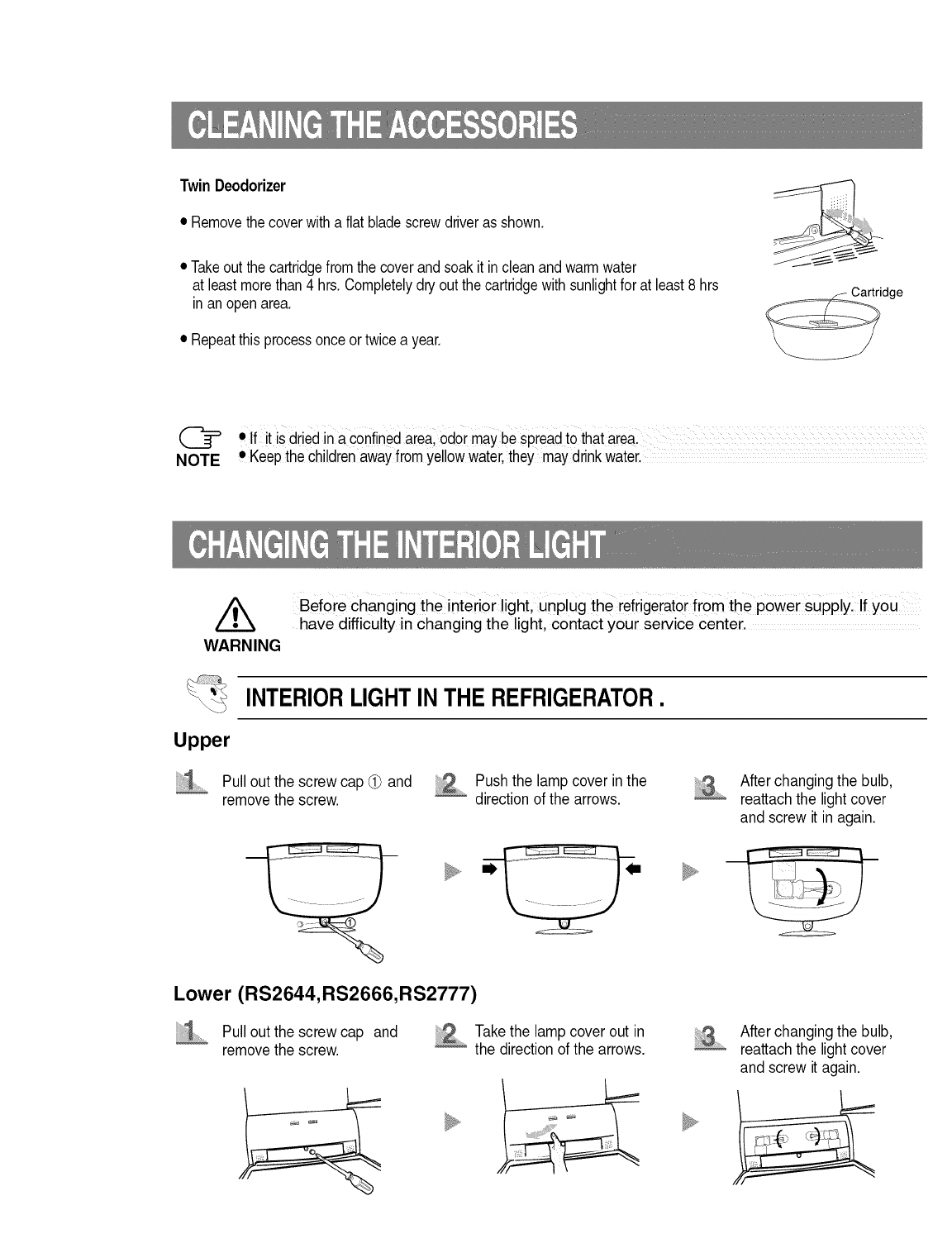

CLEANINGTHEACCESSORIES.............................................................14

CHANGINGTHE INTERIORLIGHT.........................................................15

WATERFILTER..........................................................................................16

DOORS.......................................................................................................16

INSTALLATION INSTRUC770NS ................................................17

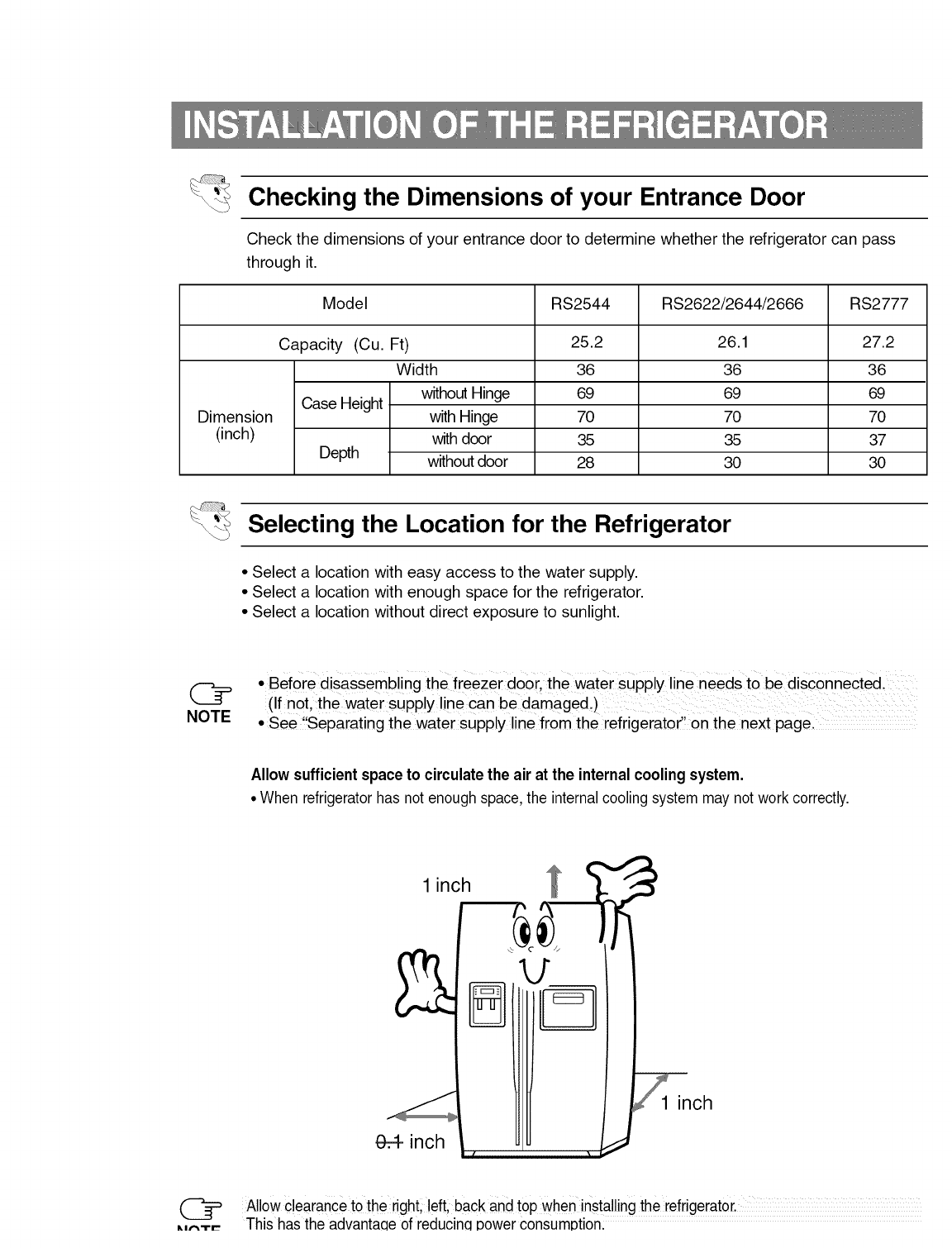

INSTALLATIONOF THE REFRIGERATOR............................................17

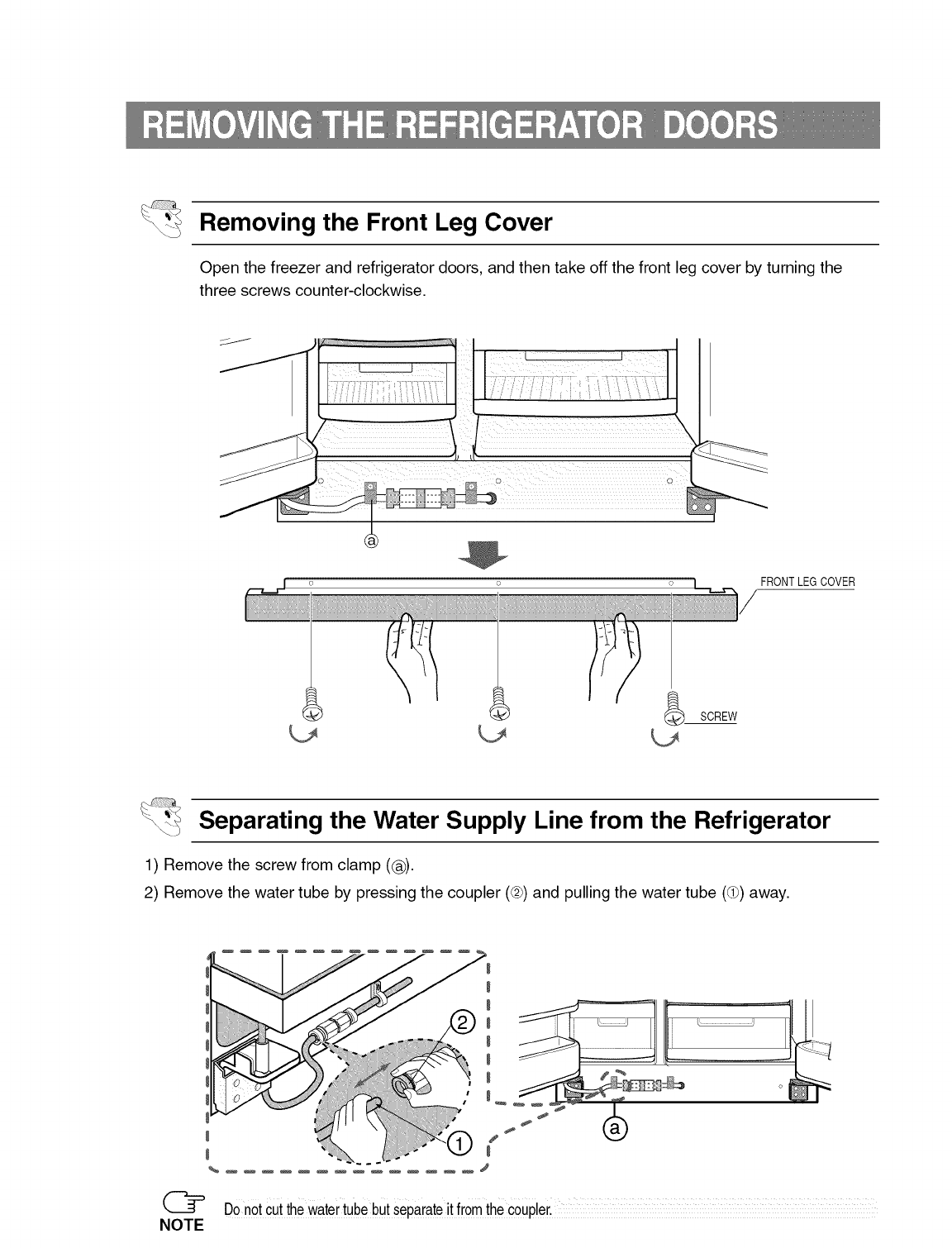

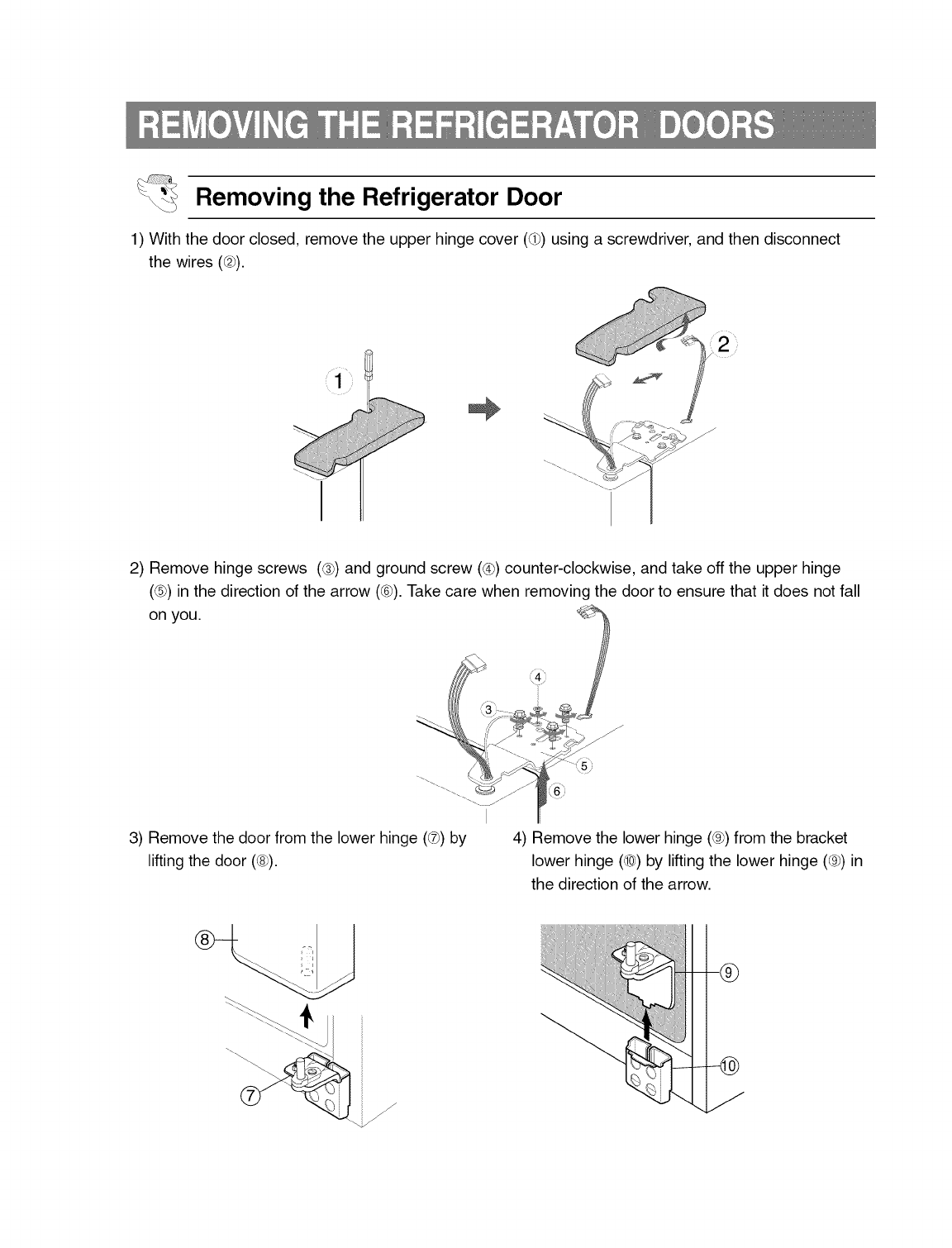

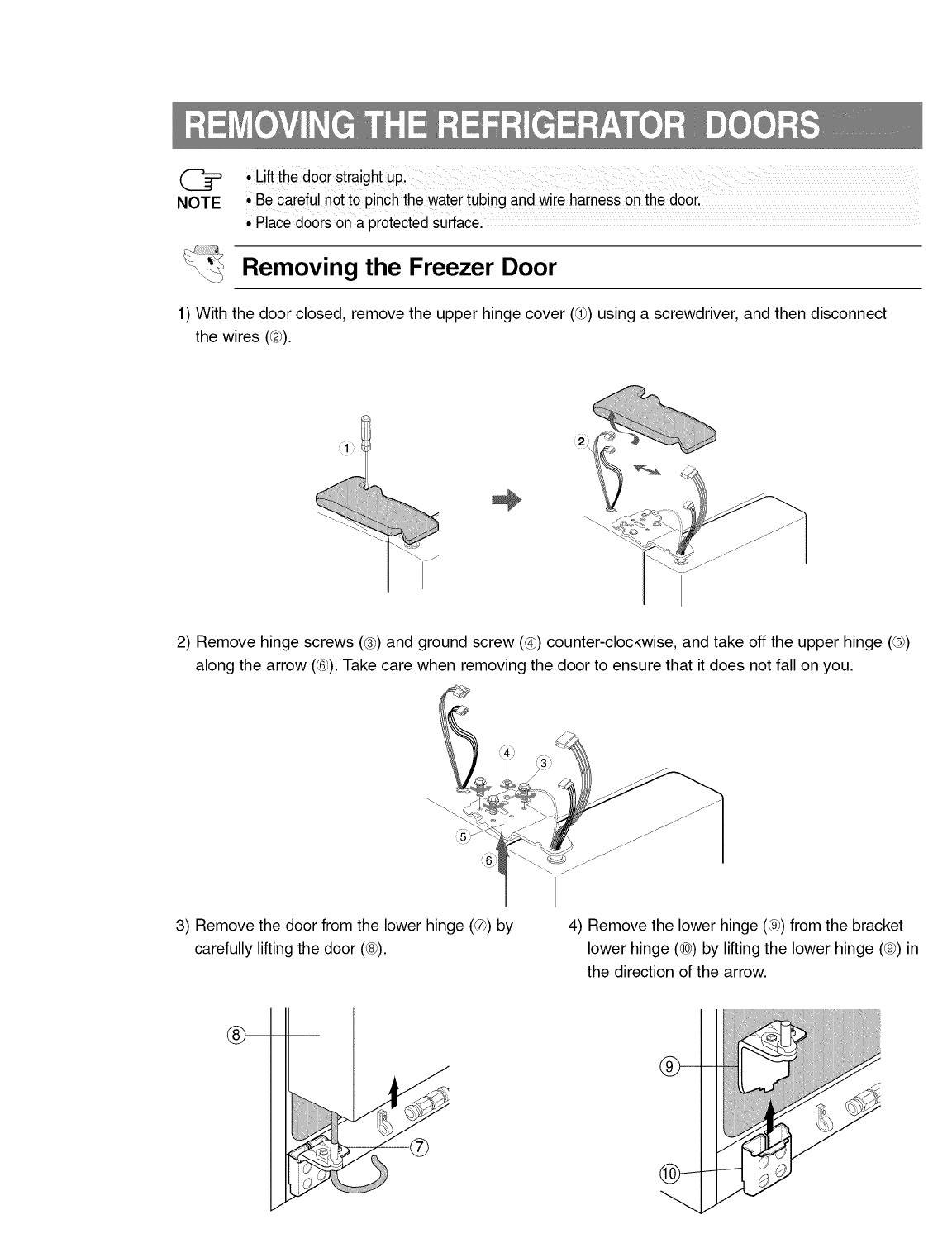

REMOVINGTHEREFRIGERATORDOORS .........................................18

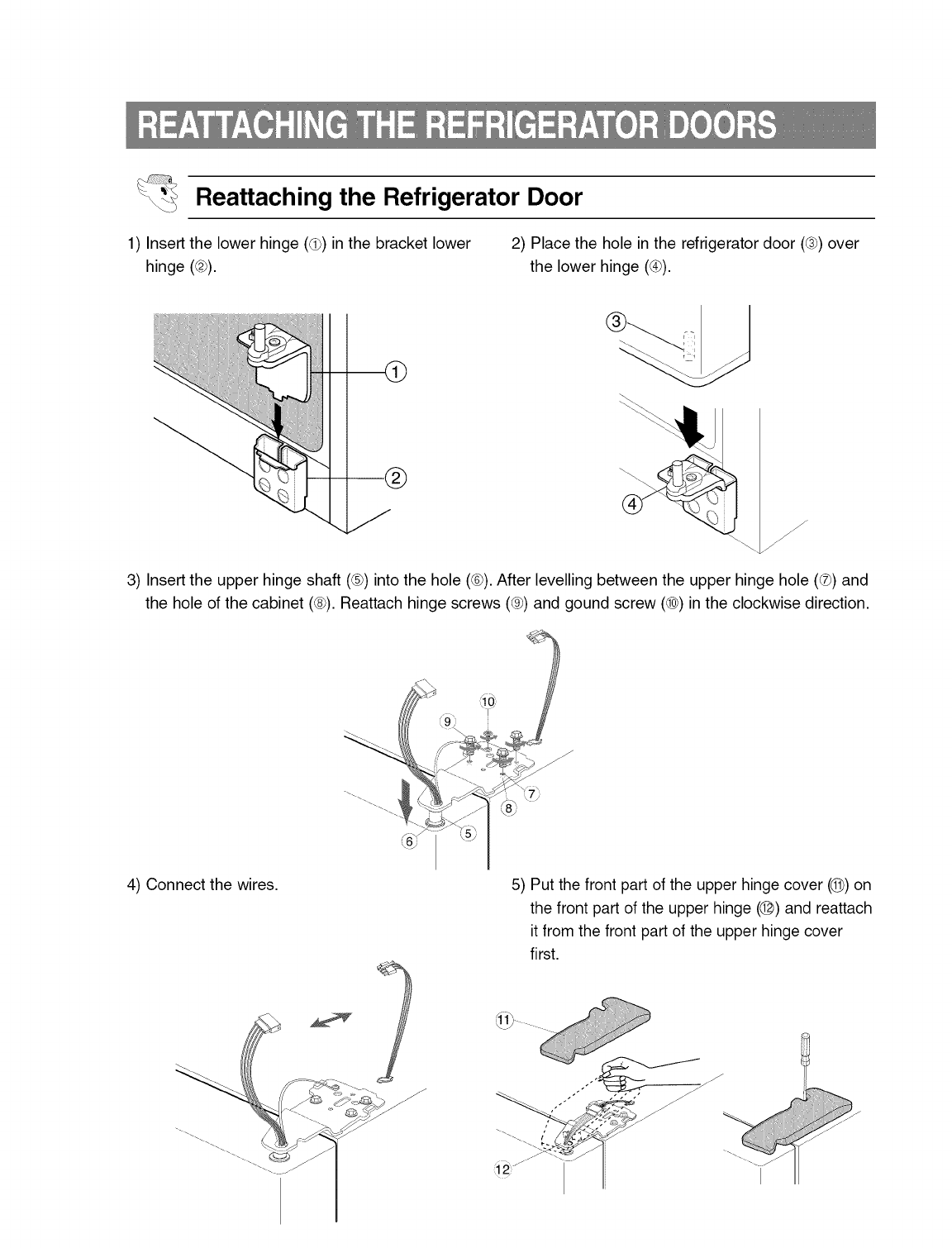

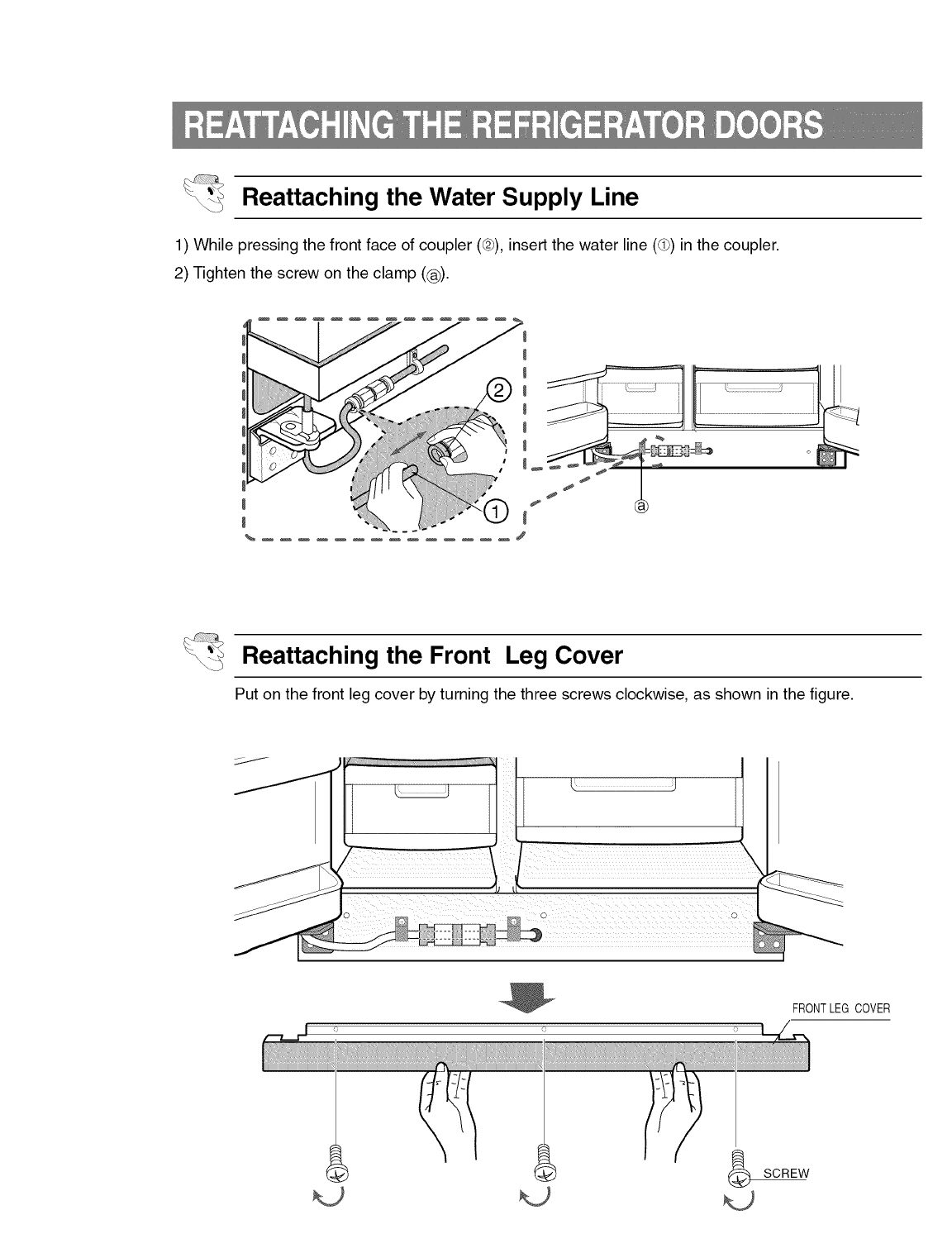

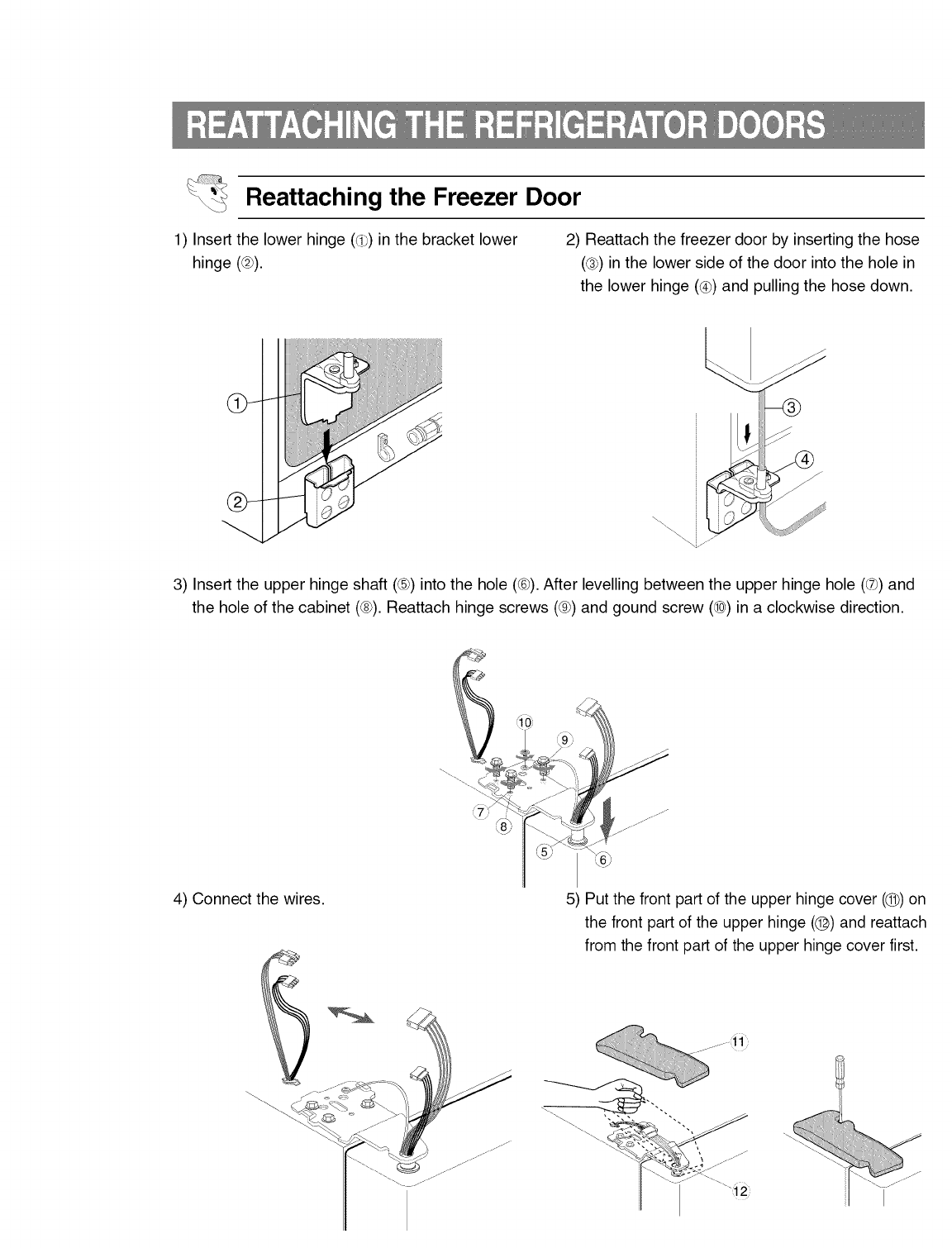

REATTACHINGTHE REFRIGERATORDOORS....................................21

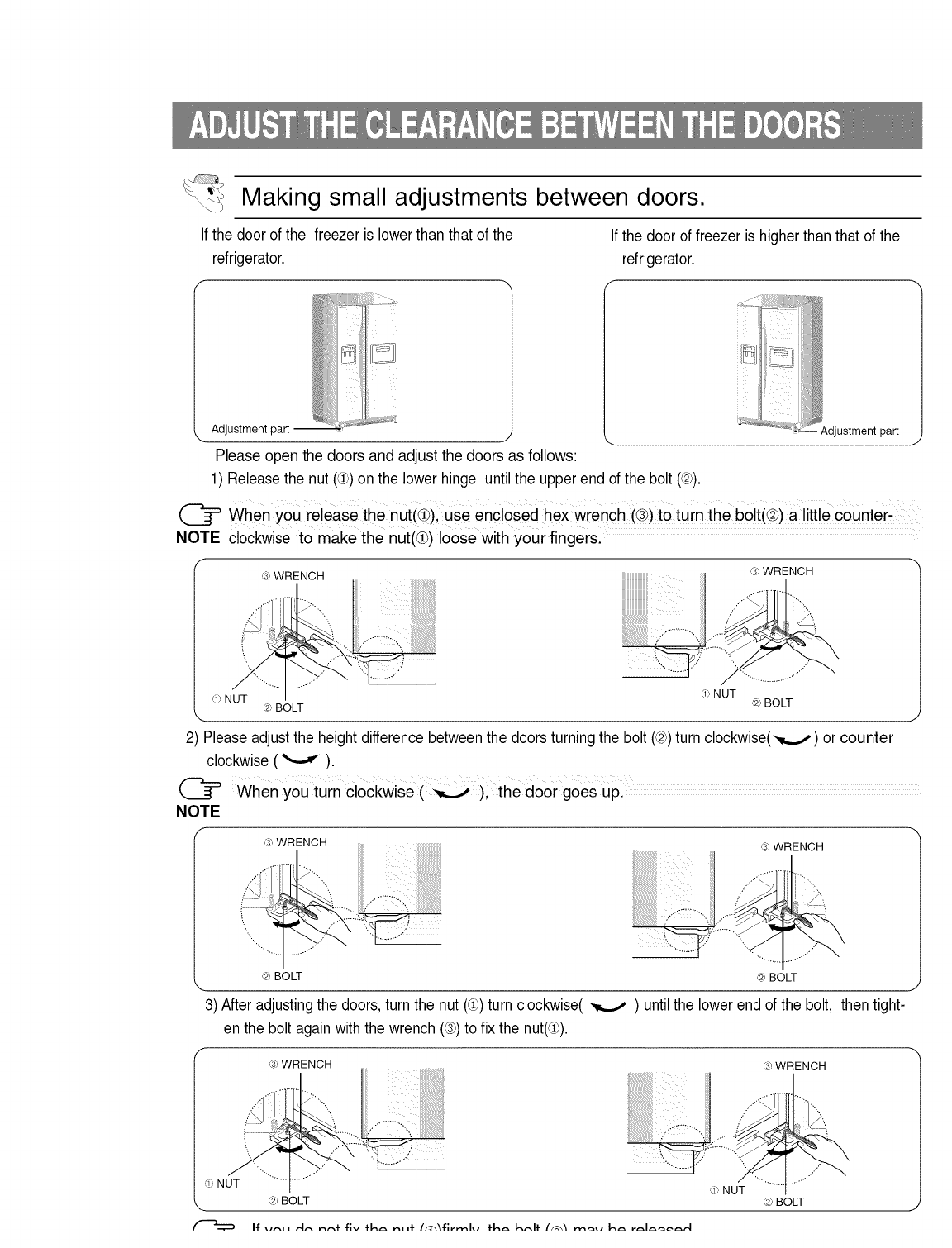

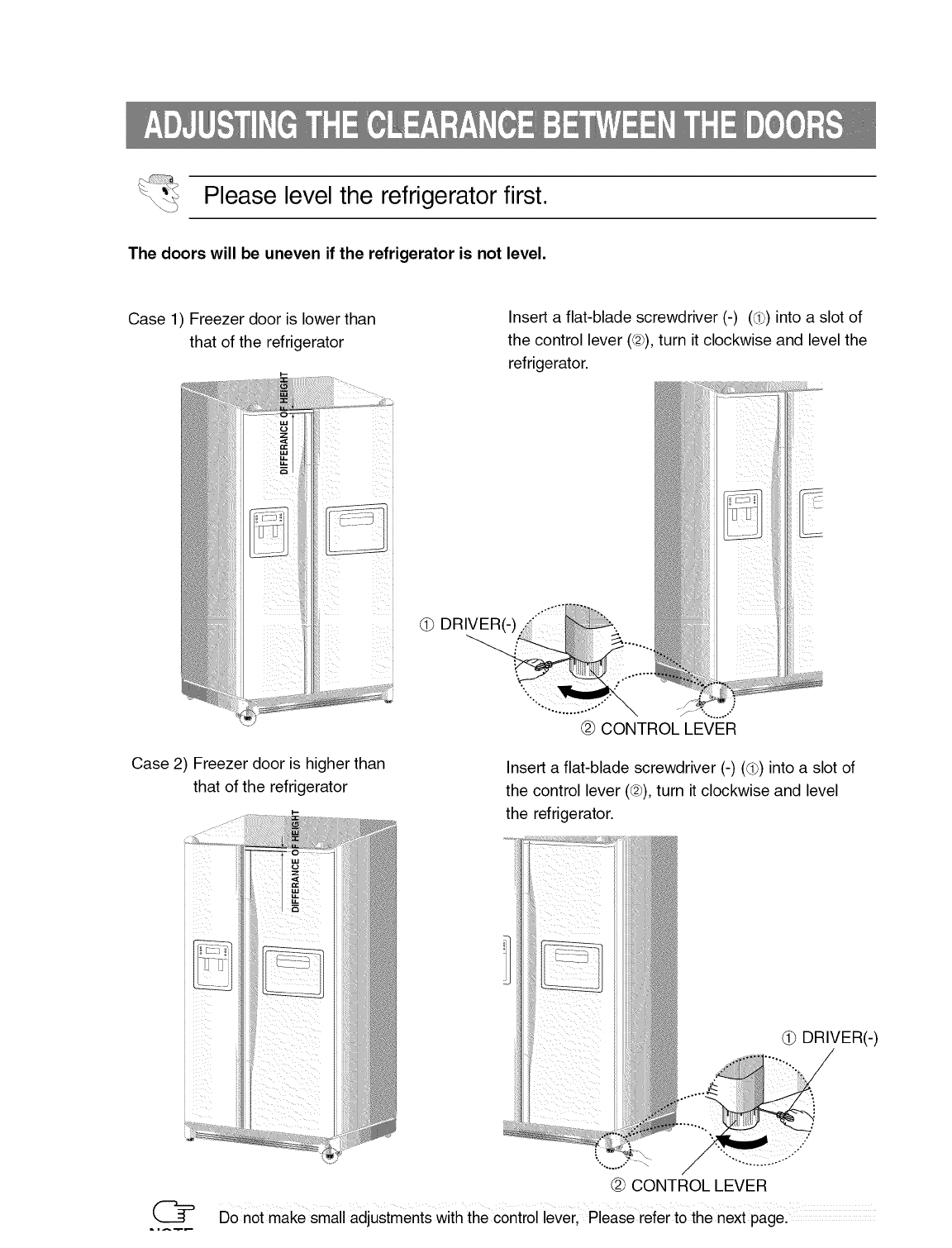

ADJUSTINGTHE CLEARANCEBETWEENTHEDOORS....................24

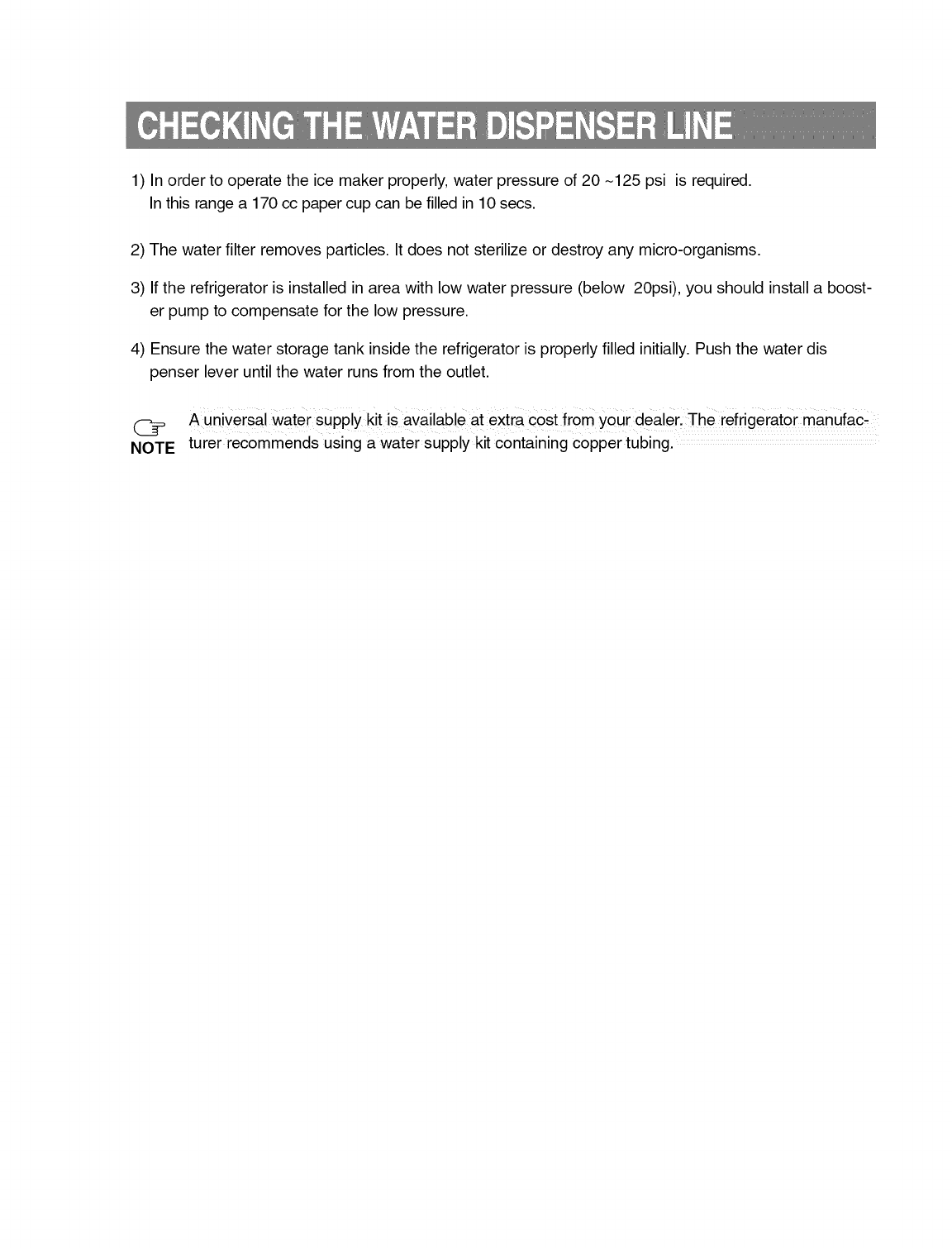

CHECKINGTHEWATERDISPENSERLINE..........................................26

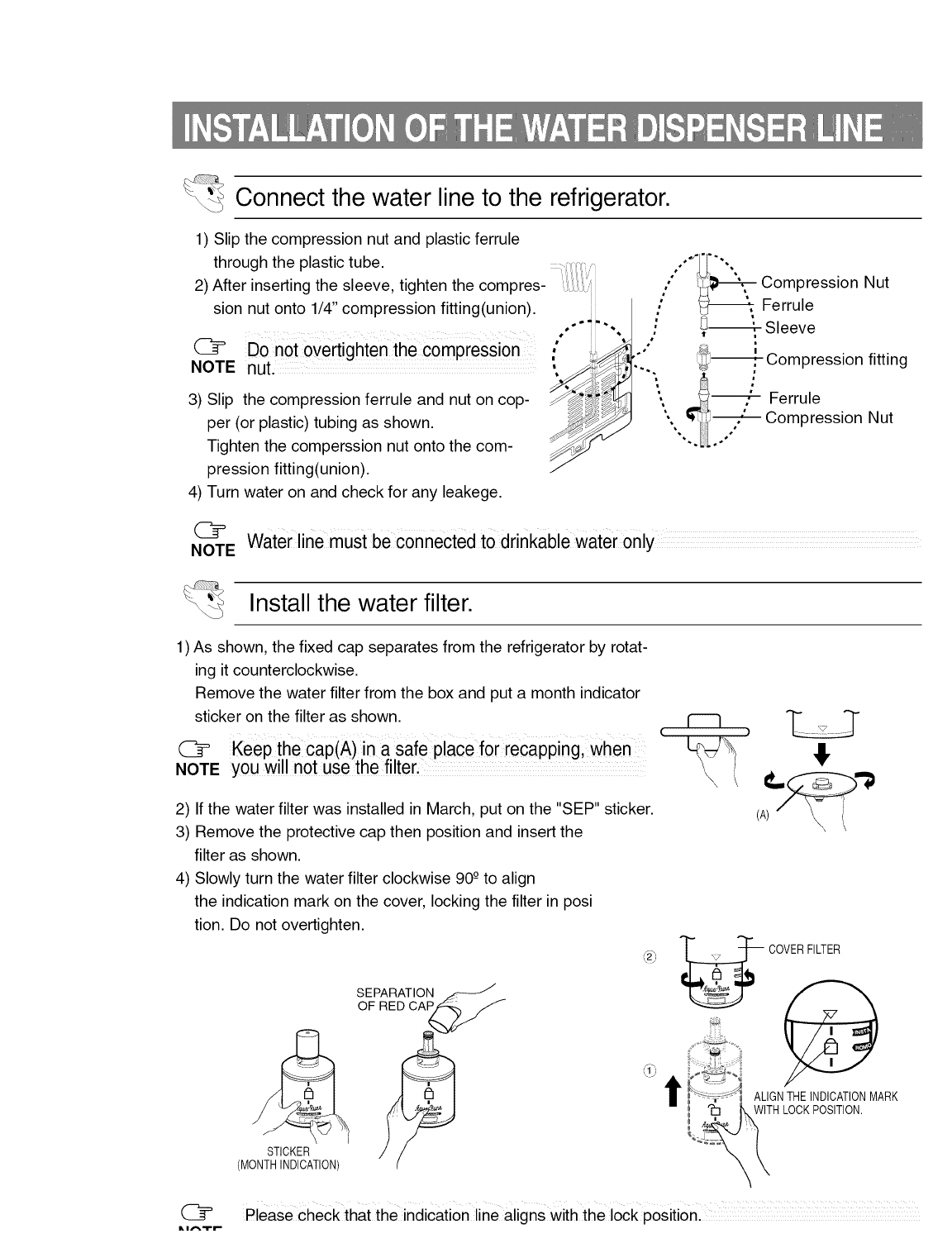

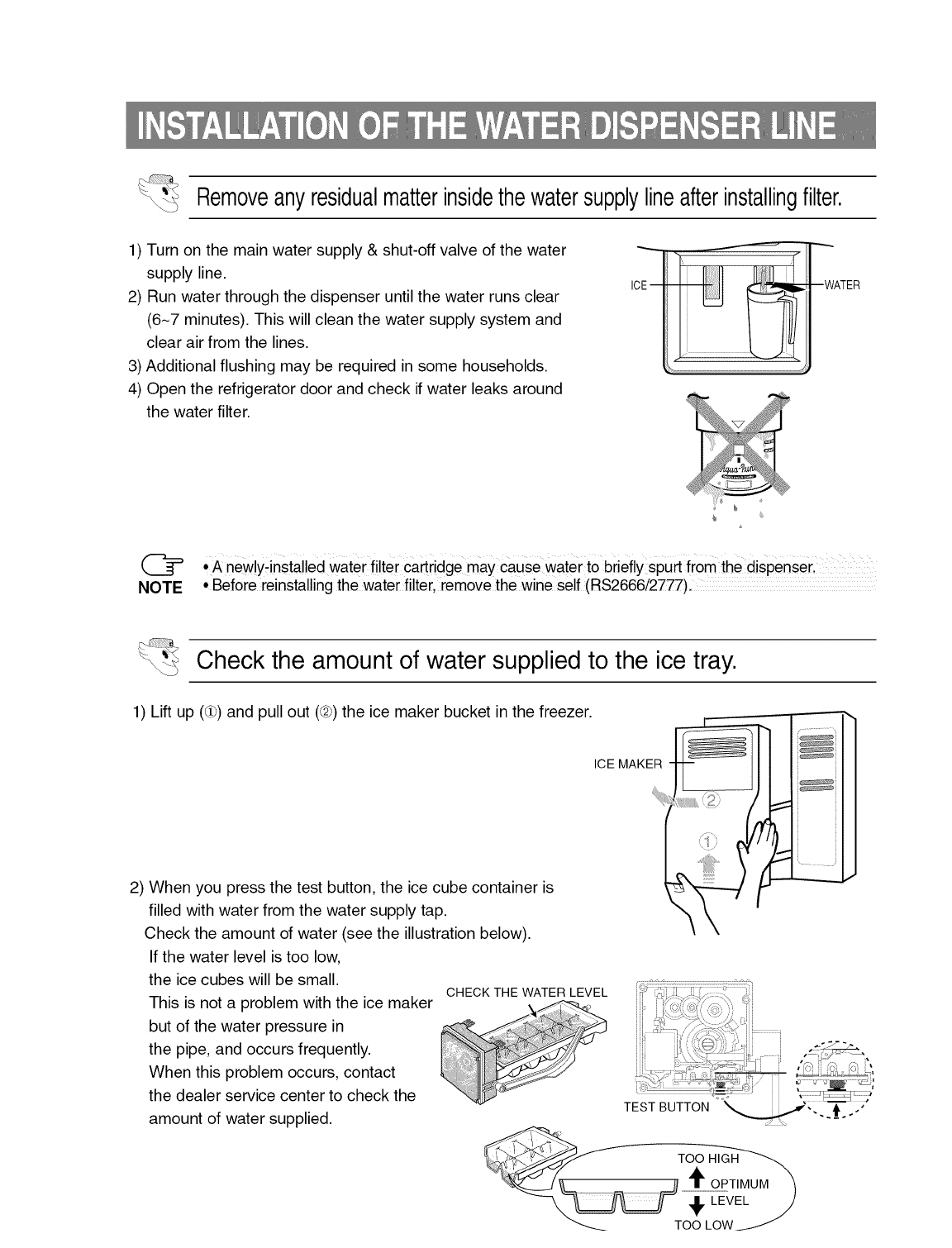

INSTALLINGTHEWATERDISPENSERLINE........................................26

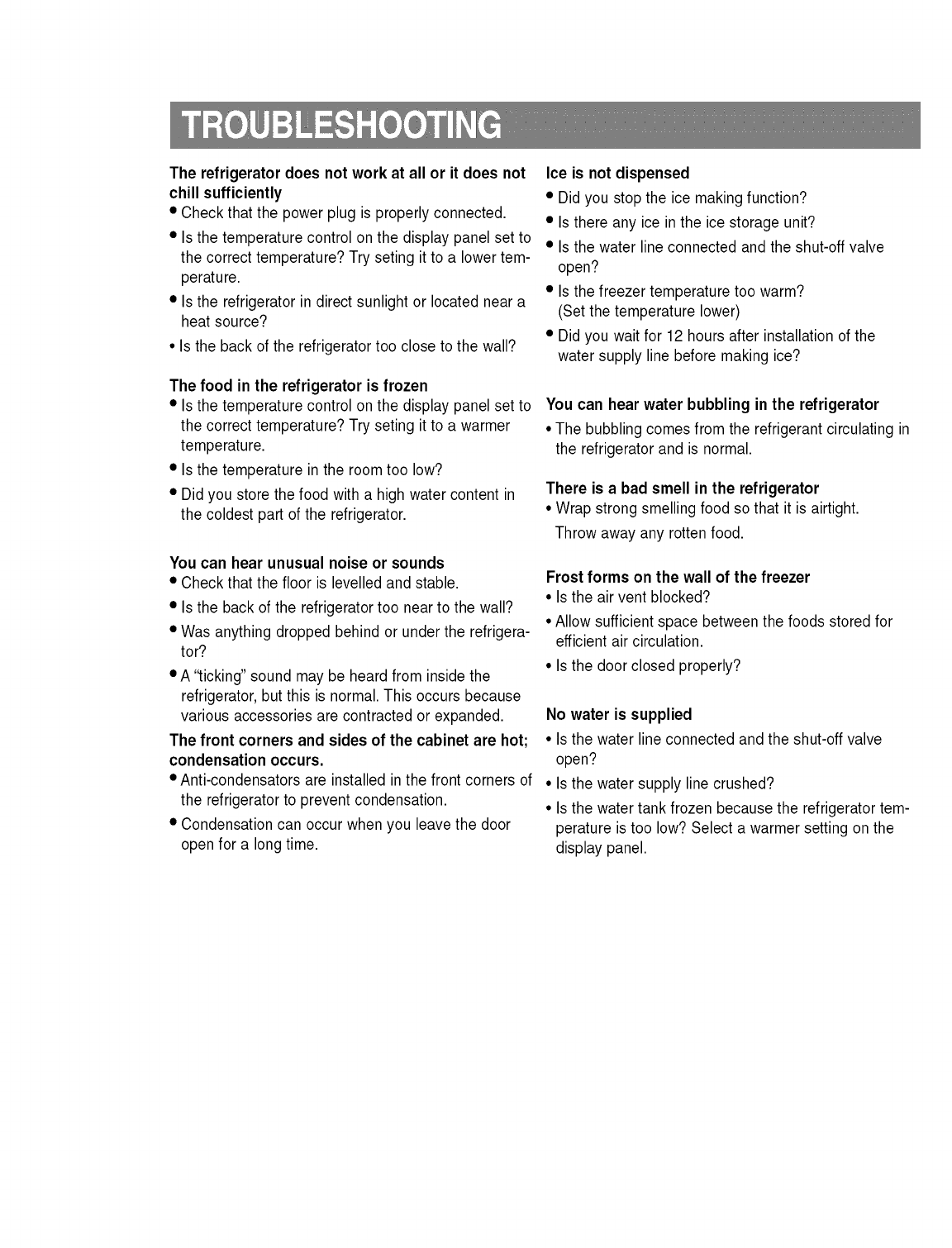

TROUBLESHOOTING...............................................................................29

CONSUMER SUPPORT ....................................................................30

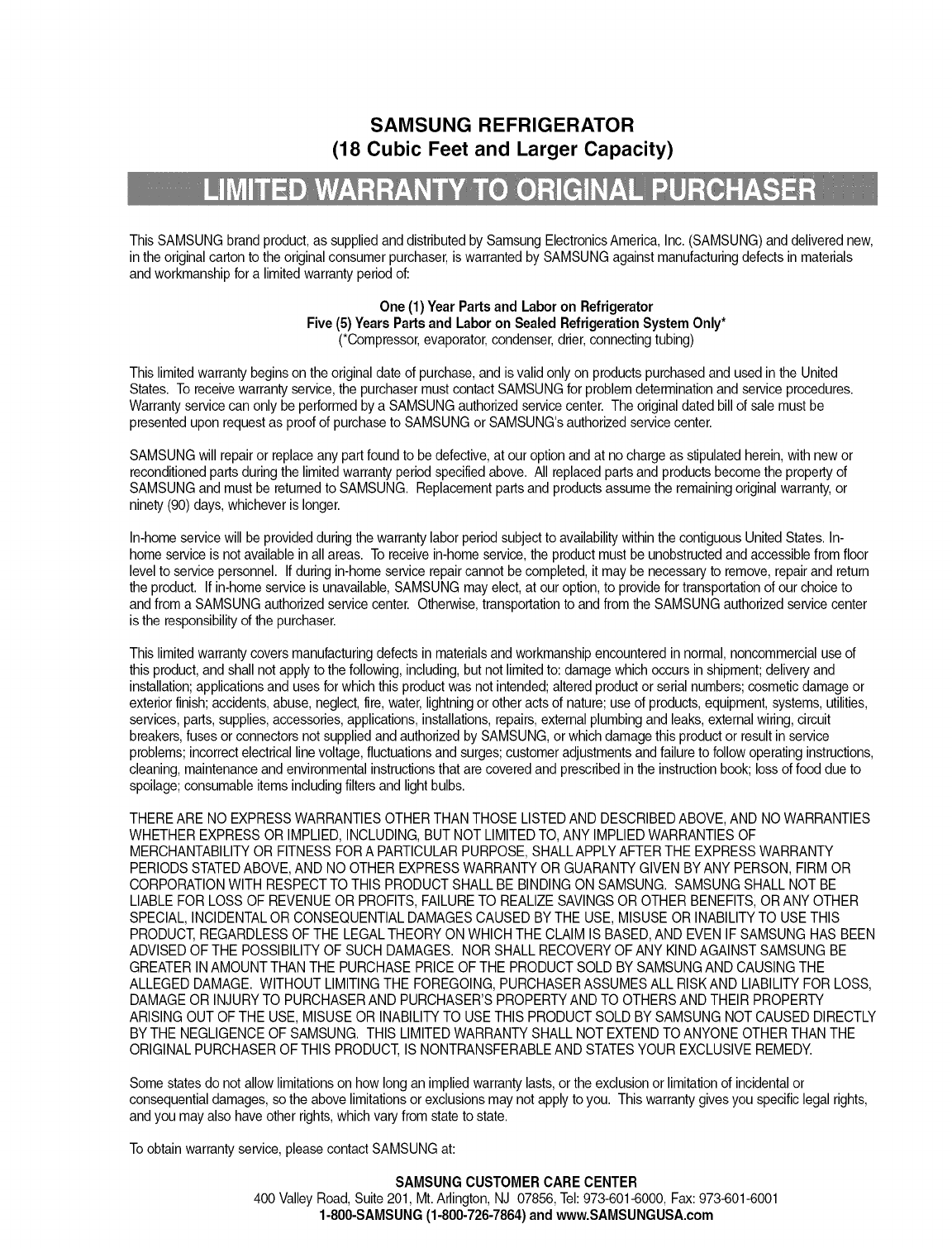

WARRANTY...............................................................................................30

In the U.S.for questions about features,

operation/performance, parts, accesories or service, call:

1-800-726-7864 (1-800-SAMSUNG), FAX:l-973-601-6001

www.samsungusa.com

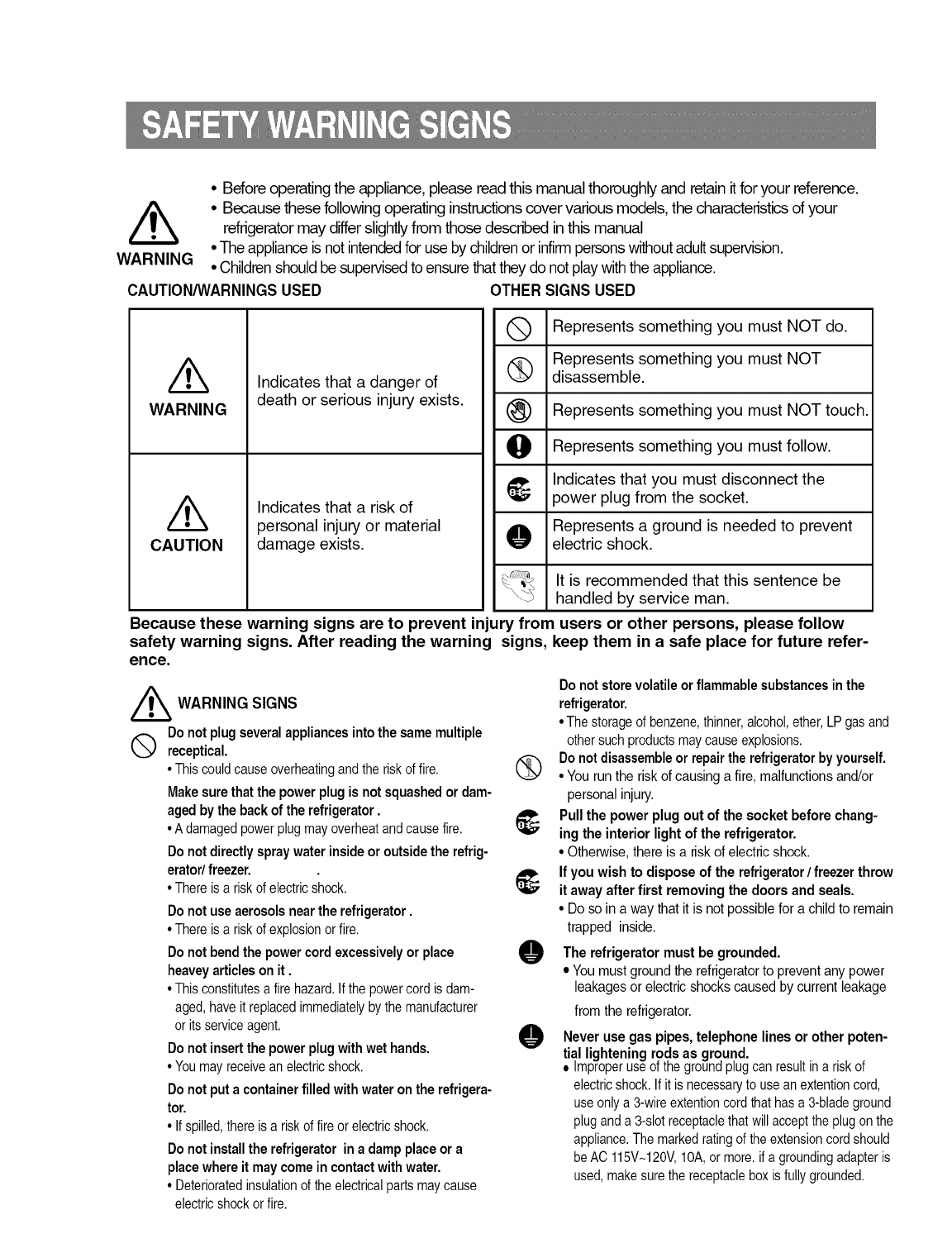

• Beforeoperatingtheappliance,pleasereadthismanualthoroughlyandretainitforyourreference.

//_ • Becausethese followingoperating instructionscover various models, the characteristicsof yourrefrigeratormay differslightlyfrom those described in this manual

• The applianceis not intendedfor use by childrenor infirmpersonswithoutadultsupervision.

WARNING • Childrenshould besupervisedto ensure thattheydo not playwiththe appliance.

CAUTION/WARNINGSUSED OTHER SIGNS USED

WARNING

CAUTION

Indicates that a danger of

death or serious injury exists.

Indicates that a risk of

personal injury or material

damage exists.

Q Represents something you must NOT do.

Represents something you must NOT

disassemble.

Represents something you must NOT touch.

Represents something you must follow.

i_, Indicates that you must disconnect the

power plug from the socket.

Represents a ground is needed to prevent

O electric shock.

It is recommended that this sentence be

handled by service man.

Because these warning signs are to prevent injury from users or other persons, please follow

safety warning signs. After reading the warning signs, keep them in a safe place for future refer-

ence.

_ WARNING SIGNS

Do not plug severalappliancesintothe samemultiple

Qreceptical.

• This couldcauseoverheatingand the riskof fire.

Makesurethat the power plug is not squashedor dam-

aged bythe backof therefrigerator.

•A damagedpower plugmayoverheatandcausefire.

Do not directlyspraywater insideor outsidethe refrig-

erator/freezer.

• Thereis a risk of electricshock.

Do not use aerosols near the refrigerator.

• Thereis a risk of explosionor fire.

Do not bendthe power cordexcessively or place

heaveyarticleson it.

•This constitutesa fire hazard.Ifthe powercord is dam-

aged,have it replacedimmediatelybythe manufacturer

or itsserviceagent.

Do not insertthe power plug withwet hands.

• Youmay receivean electricshock.

Do not put a container filled with water on the refrigera-

tor.

• If spilled,thereisa riskof fireor electricshock.

Do not install the refrigerator in a damp place or a

place where it maycome in contact with water,

• Deterioratedinsulationof theelectricalpartsmay cause

electricshockorfire.

Do not storevolatile orflammable substancesinthe

refrigerator.

•The storageof benzene,thinner,alcohol,ether,LP gas and

othersuchproductsmaycauseexplosions.

Do notdisassembleor repairthe refrigerator by yourself.

• You run the risk of causing a fire, malfunctions and/or

personal injury.

_, Pull the power plug out of the socket before chang-

ing the interior light of the refrigerator.

• Otherwise, there is a risk ofelectric shock.

_, If you wish to dispose of the refrigerator /freezer throw

it away after first removing the doors and seals.

• Do so in a way that it is not possible for a child to remain

trapped inside.

O refrigerator must grounded.

The be

• You must ground the refrigerator to prevent any power

leakagesor electric shocks caused by current leakage

from the refrigerator.

Ousegas pipes, telephone or poten-

Never lines other

tial lightening rods as ground.

•Improperuse of the groundplugcan resultin a riskof

electricshock.If it is necessaryto useanextentioncord,

use only a 3-wireextentioncord thathas a 3-bladeground

plugand a 3-slotreceptaclethat willacceptthe plugon the

appliance.The markedratingof the extensioncord should

beAC 115V~120V,10A,or more.ifa groundingadapteris

used,makesure the receptacleboxisfullygrounded.

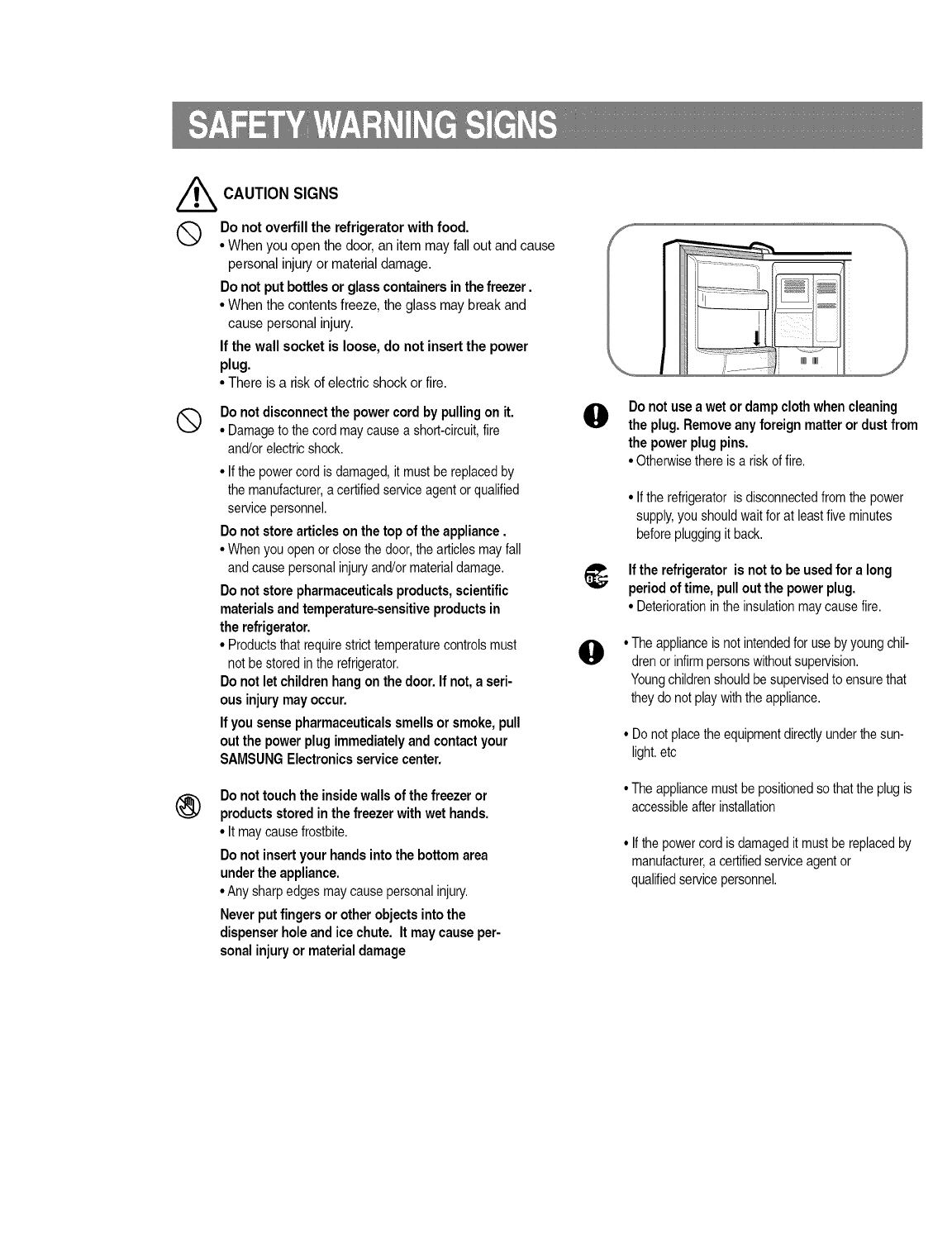

/_ CAUTION SIGNS

QDo not overfill the refrigeratorwith food.

•When you open thedoor,an item may fall out and cause

personal injury or material damage.

Do not put bottlesor glasscontainersin thefreezer.

• When the contents freeze, the glass may break and

cause personal injury.

If the wall socket is loose, do not insert the power

plug.

• There is a risk of electric shock or fire.

®Do not disconnectthepowercord by pullingonit.

• Damageto the cordmay causea short-circuit,fire

and/orelectricshock.

• If thepowercordis damaged,it mustbe replacedby

themanufacturer,a certifiedserviceagentor qualified

servicepersonnel.

Do not store articles on the top of the appliance.

• Whenyou openor closethe door,the articlesmay fall

andcausepersonalinjuryand/or materialdamage.

Do not store pharmaceuticalsproducts, scientific

materials and temperature-sensitive products in

the refrigerator.

• Productsthat requirestrict temperaturecontrolsmust

notbe storedin the refrigerator.

Do not let children hang on the door. If not, a seri-

ous injurymayoccur.

Ifyou sensepharmaceuticalssmellsor smoke,pull

outthe powerplugimmediatelyandcontactyour

SAMSUNGElectronicsservicecenter.

®Do nottouch the insidewallsof the freezer or

productsstoredinthe freezer withwet hands.

• It maycausefrostbite.

Do not insertyourhandsinto thebottomarea

undertheappliance.

•Any sharpedgesmaycause personalinjury.

Never put fingers or other objectsinto the

dispenser hole and ice chute. It may causeper-

sonalinjury or material damage

@

f

Do not usea wet or dampcloth whencleaning

theplug.Removeanyforeign matteror dustfrom

thepower plugpins.

• Otherwisethereis a risk of fire.

• If the refrigeratorisdisconnectedfromthe power

supply,you shouldwaitfor at leastfive minutes

beforepluggingit back.

_; If the refrigeratoris not to be usedfor along

periodof time, pulloutthe powerplug.

• Deteriorationinthe insulationmaycausefire.

@• The applianceis notintendedfor useby youngchil-

drenor infirmpersonswithoutsupervision.

Youngchildrenshouldbe supervisedto ensurethat

theydo not play withthe appliance.

• Do notplacethe equipmentdirectlyunderthesun-

light,etc

• The appliancemustbe positionedso thattheplugis

accessibleafterinstallation

• If thepowercord is damagedit mustbe replacedby

manufacturer,a certifiedserviceagentor

qualifiedservicepersonnel.

Once you have performedthe following steps, your refrigeratorshould be fully operational.If not, check

the power supplyand electricitysource. If you haveany questions,contact your SAMSUNG

servicecenter.

Place the refigeratorin an appropriateloca-

tion with reasonableclearancebetweenthe

wall andthe refigerator.

(refer to installation instructionsinthis man-

nal)

When the refrigerator is plugged in,

the interior light should come on when

you open the doors.

Set the temperature controlto the coldest

temperature and wait for an hour.The

freezer should get slightly chilled and the

motorshould run smoothly.

Once the refrigeratortemperatureis suffi-

ciently low,you can store food in the

refrigerator.After starting the refrigerator,it

takes a few hoursto reachthe appropriate

temperature.

;_ '_i I

r ,,

Twin Cooling System

• The refrigerator and the freezer have two evaporators. Given this inde-

pendent system, the freezer and the refrigerator are cooled individually

as required and are, therefore, more efficient. Food odor from the refrig-

erator does not affect food in the freezer due to separate air flow circu-

lation.

Multi-Flow System

• Cool air circulates through multiple vents on every shelf level. This pro-

vides even distribution of cooling inside cabinets to keep your food

fresh longer.

Xtra Space TM

• Vertical room next to the ice maker in the freezer provides space for

pizza etc.

Door Alarm

• Beeper reminds you that the door is open.

Xtra Fresh TM

• Optimized humidity control keeps vegetables & fruits fresh.

Deodorizer

• Reusable deodorizer keeps the refrigerator air fresh and odor free.

CoolSelect Zone TM Drawer (RS2777)

• User can select Quick Cool, Thaw and Select buttons for quickly

chill, thaw and cools items. Select Soft Freeze, Cool or Chill to control

the temperature of drawer.

Diiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!; , ....

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii,!i_i_"_

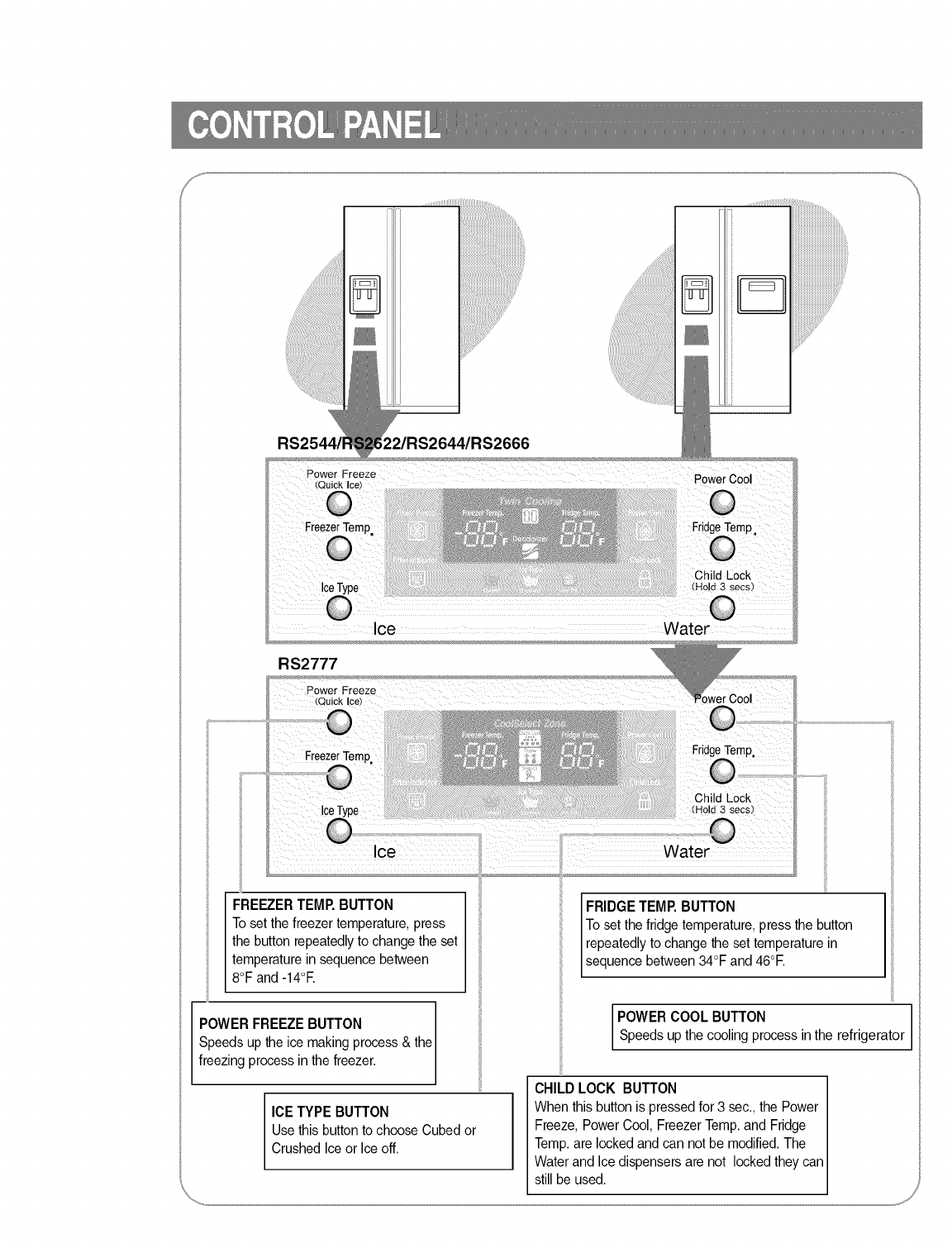

Power Freeze

(Quick Ice)

Ice Water

RS2777

©

FreezerTemp, FridgeTemp.

Ice

FREEZERTEMP. BUTTON

To set the freezertemperature, press

the button repeatedlyto change the set

temperature in sequence between

8°F and -14°E

POWER FREEZE BUTTON

Speeds up the ice making process & the

freezing process in the freezer.

ICE TYPE BUTTON

Use this button to choose Cubed or

Crushed Ice or Ice off.

Child Lock

(Hold 3 secs)

Water

FRIDGE TEMP. BUTTON

To set the fridgetemperature, press the button

repeatedly to change the set temperaturein

sequence between34°F and 46°F.

POWER COOL BUTTON

Speedsup the coo ng process n the refrigerator

CHILD LOCK BUTTON

When this button is pressed for 3 sec., the Power

Freeze,Power Cool, Freezer Temp. and Fridge

Temp. are locked and can not be modified. The

Water and Ice dispensers are not lockedthey can

still be used.

or

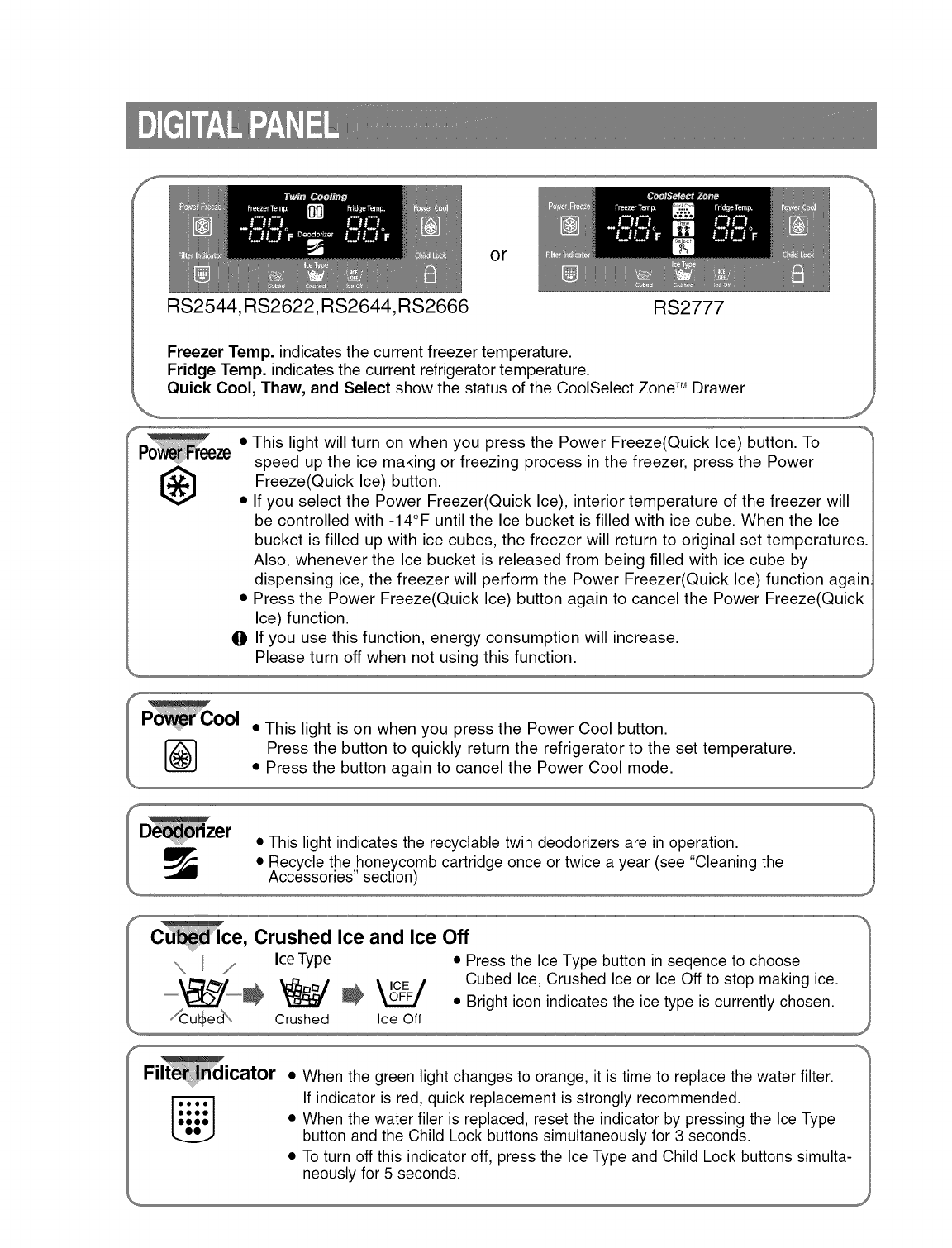

RS2544, RS2622, RS2644, RS2666 RS2777

Freezer Temp. indicates the current freezer temperature.

Fridge Temp. indicates the current refrigerator temperature.

Quick Cool, Thaw, and Select show the status of the CoolSelect Zone TM Drawer

f "%

• This light will turn on when you press the Power Freeze(Quick Ice) button. To

........ 28 speed up the ice making or freezing process in the freezer, press the Power

[_ Freeze(Quick Ice) button.

• If you select the Power Freezer(Quick Ice), interior temperature of the freezer will

be controlled with -14°F until the Ice bucket is filled with ice cube. When the Ice

bucket is filled up with ice cubes, the freezer will return to original set temperatures.

Also, whenever the Ice bucket is released from being filled with ice cube by

dispensing ice, the freezer will perform the Power Freezer(Quick Ice) function again

• Press the Power Freeze(Quick Ice) button again to cancel the Power Freeze(Quick

Ice) function.

O If you use this function, energy consumption will increase.

Please turn off when not using this function.

Fi icator • When the green light changes to orange, it is time to replace the water filter.

If indicator is red, quick replacement is strongly recommended.

• When the water filer is replaced, reset the indicator by pressing the Ice Type

button and the Child Lock buttons simultaneously for 3 seconds.

• To turn off this indicator off, press the Ice Type and Child Lock buttons simulta-

neously for 5 seconds.

Freezer

• The freezertemperature can be set between

8°F and -14°E

• Pressthe FreezerTemp. buttonrepeatedly untilthe

desiredset temperature is shown in the temperature

display.

• The temperature displaychanges in sequence

between8°F and -14°R When the display reaches

8°F, it returnsto -14°R

• Afterfive seconds,the display revertsto the actual

freezer temperature.The unit will then work to adjust

to the new desired temperature.

Refrigerator

• The refrigeratortemperature can be set between

46°F and 34°E

• Pressthe Fridge Temp. button repeatedlyuntilthe

desiredtemperature is shown in the temperature dis-

play.

• The temperature displaychanges in sequence and

reverts in the same way as the freezer.

• When ice cream isstored above 4°F in freezer,it maymelt:

/_ e The temperatuie 0fthe freezer oi the refrigerator rises fromfrequentOpenings,when sweeping

and from warm fo0& This may cause the digital display to blink The d gitaldisplay wil stop

WARNING blinking when the freezer and refrigeratorreturn to the normal temperaturel

Ice Dispenser

The ice maker produces10 cubesat once andabout

120cubesa day automatically.Thisquantitymaybe influ-

encedbyfactorssuchas the freezertemperature,Power

Freezefunctionand the numberof dooropenings.When

your refrigeratoris pluggedin,the Cubedice modeis

automaticallyselected.

Press the Ice Type button to select the type of ice:

\ i/

• Cubed ice :',_.jj., _ _ _

For Cubed ice

• Crushed ice \ '/

For Crushed ice

• No ice

i

\/

\_ _ :::_=I' No ice

For ice off

If the Ice remains in the Ice bucket, the

NOTE cubed ice is obtained.

Push the ice dispenser lever with a cup.

• Place a cup in line with the dispenser lever the

dispenser to prevent the ice from jumping out.

WaterDispenser

The capacity of the water tank is approximely0.3 gal.

Cold Water

• Push the water dispenser lever with a cup.

• If you have just installed the refrigerator,throw

away the first six glassfuls of water to flush out

impurities in the water supply system.

//_k If you have a long vacation or business trip

and won't use the water or ice dispensers,

CAUTION cl°se the water valve, Otherwise, leakage

of water may occur.

Push

@ Never put fingers or any other 0bjects in the

NOTE dispenser opening. It may cause injury,

Freezer

RS2544/2622 Model

Xtra SpaceTM-

Door Bin --

Ice Maker--

Light

Ice Chute --

Glass Shelf --

Wire Shelf

Light Switch --

Tilt Pockets --

Plastic Drawers

Wire Drawers L

Front Leg Cover --

RS2666Model

RS2777ModelwithCoolSelectZoneTM

RS2644 Model

Refrigerator

Water Filter

Light (upper)

Spill-proofglass Shelf

Light Switch

Foldable Shelf (RS2666,2777)

Deodorizer

Egg Container

CoolSelect ZoneTM Drawer

( Chilled Binfor

RS2544,2622,2644,2666)

Vegetable& Fruit Drawers

T

y Compartment

Self (RS2666,2777)

Door Bin

-- BeverageStationTM (RS2666,2777)

Lights (lower) (RS2644,2666,2777)

Door BinTop Lips

Door Bins

FROZEN FOOD STORAGE IN FREEZER

Xtra SpaceTM

• Can be usedfor frozen foods such as pizza, pasta, burri tos,

andfajitas.

• In orderto preventodor penetrationto the ice, storedfood

should be wrapped securely.

Tempered Glass Shelf ( Wire Shelf)

• Can be usedto store all types of frozen food.

Door Bin (Tilt Pocket)

• Can be usedfor small packages of frozenfood.

Plastics Drawer (Wire Drawer )

• Can be used to store meat and dry foods. Stored food should

be wrapped securely using foil or other suitable wrapping

materials orcontainers.

Ice chute

Do notput your fingeis, hands or any othei insuitableobjects in the chute Orice,maker bucket:

As this may result in personal injury or materialdamagel

CHILLED FOOD STORAGE IN REFRIGERATOR

TemperedSpill Proof Glass Shelf

• Can be used to store alltypes of chilled food.

• Safe and hardto break resistant.

• Circularmarks on the glass surface are a normal phenomenon.

Chilled Bin or CoolSelect ZoneTM Drawer

• Helps to preservethe taste of food and prolongs itsfreshness. Use

to store cheese, meat, poultry,fish or any otherfoods used quickly.

Fruit & Vegetable Drawer (Upper and Lower)

• Is used to store fruits and vegetables.

• This drawer is airtight. Optimized humiditycontrol design helpsto

preservethe freshness of the storedvegetables and fruits.

Dairy Compartment

• Can be used to store butter, margarine and cheese.

110 ,12 Gallon Door Bins

• Can be usedto storefoods in small packages,such as milk and

yogurt.

BeverageStationTM (RS2666,2777)

• Can be usedto storethe frequently used items,such as canned

beveragesand snacks and allows accessto these items without

openingthe refrigeratordoor.

Bottles sh0uld be storedtightly together Sothat they do not fall oUt

NOTE

Egg Container

• Put eggs inthe containerand place them on the shelf.

Wine Shelf (RS2666,2777)

!1_...........• Placeyour wine bottle onthe shelf to maintaintheir taste.

WARNING

•IfYOUhave a long Vacationplanned,yOU must decide to empty the refrigerator and turn it off. Wipe

excess moisturefrom the insideand leavethe doors Open:otherwise, odor and mold maydevelopl

"Select" Button (RS2777)

...... Soft Freeze

• When "Soft Freeze"is chosen, the temperature on the

digtal panel displays 23°F(-5°C)regardlessof the set

temperature of the refrigerator.

• "Soft-Freeze"temperature helps keep meats and fishes

fresh longer.

• Can cut meat easilywithout drips.

Chill

• When "Chill" is chosen,the temperature ofthe CoolSe-

lect ZonezuDrawer is keptat 30°F(-1°C)regardlessof

the set refrigeratortemperature.

• "Chill"temperature helps keep meator fish fresh longer.

Cool

• When "Cool" is chosen, the temperature will be the

same as the set temperature of the refrigerator.The digi-

tal panel shows the sametemperature as that of the dis-

play panel.

• For "Cool," the CoolSelectZonezuDrawerallows extra

refrigeratorspace.

_, _i,i_

"Quick Cool" Button

@

NOTE

@

NOTE

• Youcan use the Quick Cool feature with the CoolSelectZoneTM.

• "Quick Cool"allows 1~3 canned beveragesto cool within 60 min.

• To cancelthis option,press the "Quick Cool" buttonagain.

CoolSelect ZoneTM returnsto the previoustemperature.

• When "Quick Cool" ends, it returnsto the "Cool"temperature set-

ting.

Depending onthe beverages, the C0ol-downtimemay Varyl

• I_ • ,I • ' TM

For Qu_ckCool option, food stored Jnthe CoolSelectZone .............

Drawershould be removed.

O Quick Cool

\/

-'@:

_o Soft

Freeze

Chill

ol

Select

"Thaw" Button

Drips loss and quality deteriorationof meats reducesthe fresh-

nessof foods.

After 'q-haw"is selected, warm and cold air is alternatelysup-

plied into the CoolSelect ZoneTM Drawer.

Depending on the weight of meat,thawing time can be selected

for 4 hrs,6 hrs, 10 hrs, and 12 hrs sequentially.

When 'q-haw"ends, CoolSelect ZoneTM displayreturnsto "chill"

condition.

To cancelthis option,press any buttonexcept 'q-haw".

The approximatethawingtime of meatand fish are shown

below. (Based on linch thickness)

ck Cool

Freeze

_ Chill

_ Select

Thaw Time 4 hours 6 hours 10 hours 12hours

Weight 0.8 Ib 1.3 Ib 1.7 Ib 2.2Ib

NOTE

Depending Onthes ze and thickness of meat and fish,the thawingtime mayvary

TM

The above weight representsthe total weight of food in the CoolSelectZone Drawer.

Ex) The total thawing time for 113Ib frozen beef and 0.8 Ibfrozen chicken will be 10 hours. ........

k._=-I • With the!q-haW!option;food stored inthe COolSelectZoneTMDrawerShouldbe removed.

NOTE

iiiiii .........

Glass Shelf

• Pullthe shelf out as far as

it goes.Then lift it up and

remove it.

Door Bin

• Hold the door bin with both

hands and then lift it up.

PlasticDrawer (Wire Drawer)

• Removethe drawer by

pullingit out and lifting it up

slightly.

Ice Maker Bucket

• Removethe bucket by liftingup and pullingout.

Front Leg Cover

• Openthe freezer and refriger-

ator doors, removethree

screwsand detachthe cover.

• To reassemblethe cover leg

front, put it backto original

positionand tightenthe three screws.

(_= •DOnot use excessiveforce when

NOTE rem°ving the cover, It may causean

Injury.

3

Spill Proof Glass Shelf

• Pull the shelf out as far as it will go. Then lift it up and remove it softly.

Vegetable & Fruit Drawer

• Remove the drawer by holdingthe handle, pullingthe drawer out and liftingit up smoothly..

• Remove the optimized humiditycontrol cover by pullingit towards you.

Gallon Door Bin

• Hold the bin with both hands and removeit by liftingit up.

Wine Shelf

• It is attachedto the cabinetwall. To remove wine shelf, slide the

wine shelf in the directionof the arrow as shown.

• Simply take the shelf out of the tabs.

(_ 'Before removingthe freezerandrefrigeratoracceSsories,pleasemovethe storedf0odsto other Spacel

NOTE

Toopenthe BeverageStationTM, holdthe BeverageStationTM door handleand pullit downward.

• The BeverageStationTM is convenient

and reducesenergyconsumption,

becauseyou do notneedto open

the refrigeratordoorto accessstored

beveragesandsnacks.

•It is recommendedthatyou usethe

BeverageStationTM for storingmost

frequentlyneededfoods

WARNING

,Thedoorof the BeverageStationTMShouldneverberemoved.The BeverageStationTM cannotfunctionif itsdoor

is missing.

• WhenclosingtheBeverageStationTM door,becarefulnotto putyourhandsorfingersaroundthedoorframe

wheretheycan becaughtor injured.

• Whenyou usethe opendooras a tray,donotplaceheavyobjectsonit.Do notallowchildrento

hangonthedoorbecausethereisa riskof personalinjuryor materialdamage. ...................................

• TM

•Whenyou openthe beveragestation door,becarefulnotto hitchildrenhead.

Interior

• Clean the accessorieswith a mild detergent,then wipe out with a dry cloth.

• After washing the accessories,makesure that they are dry before using them again.

Exterior

• Wipe the digital panel and displaypanel with a clean cloth.

• The surface of doors, handles and cabinetshould be cleaned with a mild detergentand soft

cloth, then wipe offthe surface with a dry cloth.

- Do not use Benzene,Thinner and clorox for cleaning

- Do not spray water directly on the surface of refrigeratorwhile cleaning.

• The exteriorpart of refrigeratorshould be polished onceor twice a year.

Rear

• Use a vacuum cleaner to remove dust once or twice a year.

i i iTM

Ice and water dispenser

• Use a damp cloth to clean the ice and water dispenser.Then wipe it out with a dry cloth.

• To keep drainagegrid dry,do not touch ice and water dispenser.

BeverageStationTM (RS2666/RS2777)

• Use a damp cloth to clean the BeverageStationTM. Then wipe it out with a dry cloth.

Rubber door seals

• Ifthe rubberdoor seals are dirty,the door will not close properly,The refrigeratorwill not be

ableto function efficiently.Clean the doors with a mild detergentand damp cloth. Then wipe

with a dry cloth.

//_ • Do not spray therefrigeratorwith water.It may causea deathby anelectric shock. ........................

• Do not clean it with benzene,thinner or car deteigent: It maycause a firel

WARNING

TwinDeodorizer

• Removethecoverwithaflatbladescrewdriverasshown.

•Takeoutthecartridgefromthecoverandsoakitincleanandwarmwater

atleastmorethan4hrs.Completelydryoutthecartridgewithsunlightforatleast8hrs

inanopenarea.

• Repeatthisprocessonceortwiceayear. idge

• If it is driedina Confinedarealodormaybe spreadtothat areal

NOTE * Keepthe childrenawayfromyellowwater,they maydrinkwater,

Before changing the interior light, unplug the refiigerator fr0m the p0wer supply:if you

have difficulty in changing the light, contact your service center ...........

WARNING

INTERIORLIGHTIN THE REFRIGERATOR.

Upper

.......Pull out the screw cap (_ and

removethe screw. _Push the lamp cover in the

direction of the arrows. After changing the bulb,

reattachthe lightcover

and screw it in again.

Lower (RS2644,RS2666,RS2777)

Pull out the screw cap and _ Takethe lampcover out in

removethe screw, the directionof the arrows. After changing the bulb,

reattachthe lightcover

and screw it again.

INTERIORLIGHT IN THE FREEZER.

The freezer light is located in the bottom of the auger motor case.

Use a screwdriverto remove _ Change the bulb with a new

the light cover ((_). _ one (@)

Reattach the light cover

Replacement bulbs for both the freezer and iefiigeratoi are at retail outlets such as Wal-mart The

@ Home Depot and Lowe s:

NOTE Use replacement bu!b size E!7, maximum 30 watts_

The water "Filter Indicator" light

• "Filter Indicator" light lets you know when it is time change your water filter cartridge. The light

will change from green to orange. This tells you that it is almost time to change the current cartridge.

It is recommended that you replace the cartridge when the light changes to red.

(see "Install the water filter" section for more informmation)

Using the dispenser without the water filter

• You can not use the water and ice dispenser without a water filter cartridge because the water line

blocks at water supply.

Ordering replacement filters

• To order more water filter cartridges, call 1-800-SAMSUNG and ask for accessory Part # DA29-

00003A or contact your authorized Samsung dealer.

The refrigerator doors have a special door opening and closing feature to make sure that the doors

close all the way and are securely sealed.

When opening the door, it will only open so far. After reaching a certain point, it will remain open.

When the door is partially open, it will close automatically.

Checking the Dimensions of your Entrance Door

Check the dimensions of your entrance door to determine whether the refrigerator can pass

through it.

Model RS2544 RS2622/2644/2666 RS2777

Capacity (Cu. Ft) 25.2 26.1 27.2

Width 36 36 36

Case Height without Hinge 69 69 69

Dimension with Hinge 70 70 70

(inch) with door 35 35 37

Depth without door 28 30 30

Selecting the Location for the Refrigerator

• Select a location with easy access to the water supply.

• Select a location with enough space for the refrigerator.

• Select a location without direct exposure to sunlight.

NOTE

• Before disassembling the freezer door the Water supply line needs to be disconnected,

(if not, the water supply line can be damage&)

• See "Separating the water supply line from the refrigerator'' on the next page.

Allow sufficientspace to circulatethe air at the internal coolingsystem.

• When refrigeratorhas not enoughspace, the internalcooling system may not work correctly.

1 inch

9-.4-inch

1 inch

@ Allow clearanceto the rightl leftl back andt°P when installingthe refrigerat°r'

_,,.,-,-_ This has the advantacleof reducinclpower Consumption:

Removing the Front Leg Cover

Open the freezer and refrigerator doors, and then take off the front leg cover by turning the

three screws counter-clockwise.

FRONT LEG COVER

/.

_. SCREW

Separating the Water Supply Line from the Refrigerator

1) Remove the screw from clamp (®).

2) Remove the water tube by pressing the coupler (@)and pulling the water tube (#_)away.

%

Don0tCuttheWatertubebutseparateit fr0mthecoupler.

NOTE

•Liftthe d0or straight Upl

• Becareful not to Pinchthe water tubing and wire harnesson the door.

• Placedoors on a protectedsurface.

Removing the Freezer Door

1) With the door closed, remove the upper hinge cover (@)using a screwdriver, and then disconnect

the wires (@).

i

2) Remove hinge screws (@)and ground screw (@)counter-clockwise and take off the upper hinge (®)

along the arrow (®). Take care when removing the door to ensure that it does not fall on you.

3) Remove the door from the lower hinge (_7_)by

carefully lifting the door (®).

4) Remove the lower hinge (@)from the bracket

lower hinge (®) by lifting the lower hinge (@)in

the direction of the arrow.

®

Removing the Refrigerator Door

1) With the door closed, remove the upper hinge cover (5_)using a screwdriver, and then disconnect

the wires (@).

i

I

@

2) Remove hinge screws (®) and ground screw (_4h)counter-clockwise, and take off the upper hinge

(®) in the direction of the arrow (®). Take care when removing the door to ensure that it does not fall

on you.

3) Remove the door from the lower hinge (_77)by

lifting the door (®).

f

4) Remove the lower hinge (@)from the bracket

lower hinge (®) by lifting the lower hinge (@) in

the direction of the arrow.

--®

Reattaching the Freezer Door

1) Insert the lower hinge (d_)in the bracket lower

hinge (@).

2) Reattach the freezer door by inserting the hose

(®) in the lower side of the door into the hole in

the lower hinge (_4h)and pulling the hose down.

\\4

Y

3) Insert the upper hinge shaft (®) into the hole (®). After levelling between the upper hinge hole (_73)and

the hole of the cabinet (®). Reattach hinge screws ((gh)and gound screw (®) in a clockwise direction.

4) Connect the wires.

? 6

5 Put the front part of the upper hinge cover (@) on

the front part of the upper hinge (@) and reattach

from the front part of the upper hinge cover first.

Reattaching the Refrigerator Door

1) Insert the lower hinge (5_)in the bracket lower

hinge (@).

2) Place the hole in the refrigerator door (®) over

the lower hinge (_4h).

®

Jf

J

J

f

3) Insert the upper hinge shaft (®) into the hole (®). After levelling between the upper hinge hole (_7_)and

the hole of the cabinet (®). Reattach hinge screws (_gh)and gound screw (®) in the clockwise direction.

4) Connect the wires. 5) Put the front part of the upper hinge cover (@)on

the front part of the upper hinge (@) and reattach

it from the front part of the upper hinge cover

first.

Reattaching the Water Supply Line

1) While pressing the front face of coupler (@), insert the water line (d_)in the coupler.

2) Tighten the screw on the clamp (®).

Reattaching the Front Leg Cover

Put on the front leg cover by turningthe three screws clockwise, as shown inthe figure.

FRONT LEG COVER

t_ SCREW

Please level the refrigerator first.

The doors will be uneven if the refrigerator is not level.

Case 1) Freezer door is lower than

that of the refrigerator

DRIVER(-)

Insert a flat-blade screwdriver (-) (UP)into a slot of

the control lever (@), turn it clockwise and level the

refrigerator.

@ CONTROL LEVER

Case 2) Freezer door is higher than

that of the refrigerator

Insert a flat-blade screwdriver (-) (¢) into a slot of

the control lever (@), turn it clockwise and level

the refrigerator.

DRIVER(-)

@ CONTROL LEVER

Donot make small adjustments with the control lever, Please refer to the next pagel

Making small adjustments between doors.

If the door of the freezer is lowerthan that of the

refrigerator.

Adjustment part -- J

Please open the doors and adjust the doors as follows:

1) Releasethe nut (d_)on the lower hinge until the upper end of the bolt (@).

If the door of freezer is higher than that of the

refrigerator.

f

_djustment part

@ When you release the nut((_), use enclosed hex wrenc h (®)to turn the bolt(@)a little counter:

NOTE clockwise to make the nut((_)loose with your fingers.

,;, WRENCH

Q) NUT l/_2_l BOLT

2) Pleaseadjustthe heightdifference betweenthe doors turning the bolt (@)turn clockwise(_..._ ) or counter

clockwise ( _ ).

whenT0uturncl0ckwise(_); thedo0rg0esupl

NOTE

_WRENCH i :ililililililililililililililililililiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!ii!_i!_ii:*WRENCH

iiiiiii_ili_!I_

i""., ..... !:,.

,'2,BOLT ,'2,BOLT

3) After adjusting the doors, turn the nut (@)turn clockwise( _ ) untilthe lower end of the bolt, then tight-

en the bolt again with the wrench (®) to fixthe nut(_)).

,_._;,WRENCH ,_._;,WRENCH

#:,BOLT

1 In order to operate the ice maker properly, water pressure of 20 ~125 psi is required.

In this range a 170 cc paper cup can be filled in 10 secs.

2) The water filter removes particles. It does not sterilize or destroy any micro-organisms.

3) If the refrigerator is installed in area with low water pressure (below 20psi), you should install a boost-

er pump to compensate for the low pressure.

4) Ensure the water storage tank inside the refrigerator is properly filled initially. Push the water dis

penser lever until the water runs from the outlet.

@ A universal Water supply kit is available at extra cost from your dealerl The refrigerator manUfac_

NOTE turer recommends using a water supply kit containing copper tubing. .................................................

Connect the water line to the refrigerator.

1) Slip the compression nut and plastic ferrule

through the plastic tube.

2) After inserting the sleeve, tighten the compres-

sion nut onto 1/4" compression fitting(union).

@ Do not 0vertghtenthe compression

NOTE nut.

3) Slip the compression ferrule and nut on cop-

per (or plastic) tubing as shown.

Tighten the comperssion nut onto the com-

pression fitting(union).

4) Turn water on and check for any leakege.

,, t_T- Compression Nut

,' _ Ferrule

," _ _-Sleeve

4' I

'_j------V Compression fitting

', _ Ferrule

',, Compression Nut

C_ Water line must be connected tO drinkable water only

NOTE

Install the water filter.

1) As shown, the fixed cap separates from the refrigerator by rotat-

ing it counterclockwise.

Remove the water filter from the box and put a month indicator

sticker on the filter as shown.

(C_ Keep the cap(A) in a safe place for recappingl When '

NOTE you will not use the filter,

2) If the water filter was installed in March, put on the "SEP" sticker.

3) Remove the protective cap then position and insert the

filter as shown.

4) Slowly turn the water filter clockwise 90-oto align

the indication mark on the cover, locking the filter in posi

tion. Do not overtighten.

kJ

SEPARATION

OF RED CAP

STICKER

(MONTH INDICATION)

\J

,I,

_ COVER FILTER

t ALIGN THE INDICATION MARK

WITH LOCK POSITION.

Please check that the indication line aligns with the lock position.

k 1I"_"lr I'-

Removeanyresidualmatterinsidethe watersupplylineafterinstallingfilter.

1) Turn on the main water supply & shut-off valve of the water

supply line.

2) Run water through the dispenser until the water runs clear

(6~7 minutes). This will clean the water supply system and

clear air from the lines.

3) Additional flushing may be required in some households.

4) Open the refrigerator door and check if water leaks around

the water filter.

ICE--

f

?_"i ii_i_i_i_iiiiiiiiii!ii_ii!i_t,liii j

--WATER

• A new!y-insta!led water filter cartridge may cause water to briefly spurt from the dispenser,

NOTE ° Before reinstalling the water filter, remove the wine self (RS2666/2777).

Check the amount of water supplied to the ice tray.

1) Lift up (L#)and pull out (@)the ice maker bucket in the freezer.

2) When you press the test button, the ice cube container is

filled with water from the water supply tap.

Check the amount of water (see the illustration below).

If the water level is too low,

the ice cubes will be small.

This is not a problem with the ice maker

but of the water pressure in

the pipe, and occurs frequently.

When this problem occurs, contact

the dealer service center to check the

amount of water supplied.

CHECK THE WATER LEVEL

ICE MAKER

............. J

--,----.._.. f

The refrigerator does not work at all or it does not

chill sufficiently

• Check that the power plug is properly connected.

• Is the temperature control on the display panel set to

the correct temperature? Try seting it to a lower tem-

perature.

• Is the refrigerator in direct sunlight or located near a

heat source?

• Is the back of the refrigerator too close to the wall?

The food in the refrigerator is frozen

• Is the temperature control on the display panel set to

the correct temperature? Try seting it to a warmer

temperature.

• Is the temperature in the room too low?

• Did you store the food with a high water content in

the coldest part of the refrigerator.

You can hear unusual noise or sounds

• Check that the floor is levelled and stable.

• Is the back of the refrigerator too near to the wall?

• Was anything dropped behind or under the refrigera-

tor?

• A '_ticking"sound may be heard from inside the

refrigerator, but this is normal. This occurs because

various accessories are contracted or expanded.

The front corners and sides of the cabinet are hot;

condensation occurs.

• Anti-condensators are installed in the front corners of

the refrigerator to prevent condensation.

• Condensation can occur when you leave the door

open for a long time.

Ice is not dispensed

• Did you stop the ice making function?

• Is there any ice in the ice storage unit?

• Is the water line connected and the shut-off valve

open?

• Is the freezer temperature too warm?

(Set the temperature lower)

• Did you wait for 12 hours after installation of the

water supply line before making ice?

You can hear water bubbling in the refrigerator

• The bubbling comes from the refrigerant circulating in

the refrigerator and is normal.

There is a bad smell in the refrigerator

• Wrap strong smelling food so that it is airtight.

Throw away any rotten food.

Frost forms on the wall of the freezer

• Is the air vent blocked?

• Allow sufficient space between the foods stored for

efficient air circulation.

• Is the door closed properly?

No water is supplied

• Is the water line connected and the shut-off valve

open?

• Is the water supply line crushed?

• Is the water tank frozen because the refrigerator tem-

perature is too low? Select a warmer setting on the

display panel.

SAMSUNG REFRIGERATOR

(18 Cubic Feet and Larger Capacity)

This SAMSUNG brand product,as supplied and distributedby Samsung ElectronicsAmerica, Inc.(SAMSUNG)and delivered new,

in the originalcarton to the originalconsumer purchaser, is warranted by SAMSUNGagainst manufacturingdefects in materials

and workmanshipfor a limited warranty periodof:

One (1)Year Parts and Labor on Refrigerator

Five(5)Years Partsand Laboron Sealed RefrigerationSystem Only*

(*Compressor,evaporator,condenser,drier,connecting tubing)

This limitedwarranty begins on theoriginal date of purchase,and isvalid only on products purchasedand used in the United

States. To receivewarranty service,the purchaser must contactSAMSUNG for problemdeterminationand serviceprocedures.

Warrantyservice can only beperformed by a SAMSUNG authorizedservice center. The original dated bill of sale must be

presented upon requestas proof of purchaseto SAMSUNGor SAMSUNG'sauthorized service center.

SAMSUNG will repair or replace anypart foundto be defective,at our option and at no charge as stipulatedherein, with new or

reconditionedparts during the limitedwarranty period specifiedabove. All replaced parts and products become the property of

SAMSUNG and must be returnedto SAMSUNG. Replacementpartsand products assume the remainingoriginalwarranty,or

ninety (90) days, whicheveris longer.

In-home servicewill be provided during thewarranty labor period subject to availability within the contiguous UnitedStates. In-

home service is notavailable in all areas. To receive in-homeservice, the product must be unobstructedand accessiblefrom floor

level to service personnel. If duringin-home service repaircannot be completed,it may be necessaryto remove, repairand return

the product. If in-home service is unavailable,SAMSUNG may elect, atour option,to provide for transportationof our choice to

and from a SAMSUNG authorizedservice center. Otherwise,transportation toand from the SAMSUNG authorizedservice center

is the responsibilityof the purchaser.

This limitedwarranty covers manufacturing defects in materialsand workmanshipencounteredin normal, noncommercialuseof

this product, and shall not applyto the following, including,but not limitedto: damage which occurs in shipment; delivery and

installation;applicationsand uses for which this product was not intended; altered product or serial numbers;cosmetic damage or

exterior finish; accidents,abuse, neglect,fire, water, lightningor other acts of nature; use of products, equipment, systems, utilities,

services, parts,supplies, accessories,applications,installations,repairs,external plumbingand leaks,external wiring,circuit

breakers,fuses or connectors notsupplied and authorizedby SAMSUNG, or which damagethis productor result in service

problems;incorrect electrical linevoltage, fluctuationsand surges; customer adjustmentsand failureto follow operating instructions,

cleaning,maintenanceand environmentalinstructionsthat are coveredand prescribedin the instruction book; loss of food due to

spoilage;consumable itemsincluding filters and light bulbs.

THEREARE NO EXPRESSWARRANTIES OTHERTHAN THOSE LISTEDAND DESCRIBEDABOVE, AND NOWARRANTIES

WHETHER EXPRESS OR IMPLIED,INCLUDING, BUTNOT LIMITEDTO, ANY IMPLIEDWARRANTIESOF

MERCHANTABILITYOR FITNESS FORA PARTICULARPURPOSE, SHALLAPPLYAFTER THE EXPRESS WARRANTY

PERIODS STATEDABOVE, AND NO OTHER EXPRESS WARRANTYOR GUARANTY GIVEN BYANY PERSON,FIRM OR

CORPORATIONWITH RESPECTTO THIS PRODUCTSHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE

LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURETO REALIZESAVINGSOR OTHER BENEFITS,ORANY OTHER

SPECIAL, INCIDENTALOR CONSEQUENTIALDAMAGES CAUSED BY THE USE, MISUSE OR INABILITYTO USE THIS

PRODUCT,REGARDLESSOF THE LEGALTHEORY ON WHICH THE CLAIM IS BASED,AND EVEN IF SAMSUNG HAS BEEN

ADVISED OF THE POSSIBILITYOF SUCH DAMAGES. NOR SHALL RECOVERY OFANY KINDAGAINST SAMSUNG BE

GREATER INAMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNGAND CAUSING THE

ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING,PURCHASERASSUMESALL RISK AND LIABILITY FOR LOSS,

DAMAGE OR INJURYTO PURCHASERAND PURCHASER'SPROPERTYAND TO OTHERS ANDTHEIR PROPERTY

ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY

BY THE NEGLIGENCEOF SAMSUNG. THIS LIMITEDWARRANTY SHALL NOT EXTEND TOANYONE OTHER THAN THE

ORIGINAL PURCHASEROF THIS PRODUCT, IS NONTRANSFERABLEAND STATESYOUR EXCLUSIVE REMEDY.

Some states do not allow limitationson how long an implied warrantylasts, or the exclusionor limitationof incidentalor

consequentialdamages,so the above limitations or exclusionsmay not apply to you. This warranty gives you specific legal rights,

and you may also have other rights, which vary fromstate to state.

To obtainwarranty service, please contact SAMSUNG at:

SAMSUNG CUSTOMER CARE CENTER

400 Valley Road,Suite 201, Mt.Arlington, NJ 07856,Tel: 973-601-6000,Fax: 973-601-6001

1-800-SAMSUNG (1-800-726-7864)and www.SAMSUNGUSA.eom

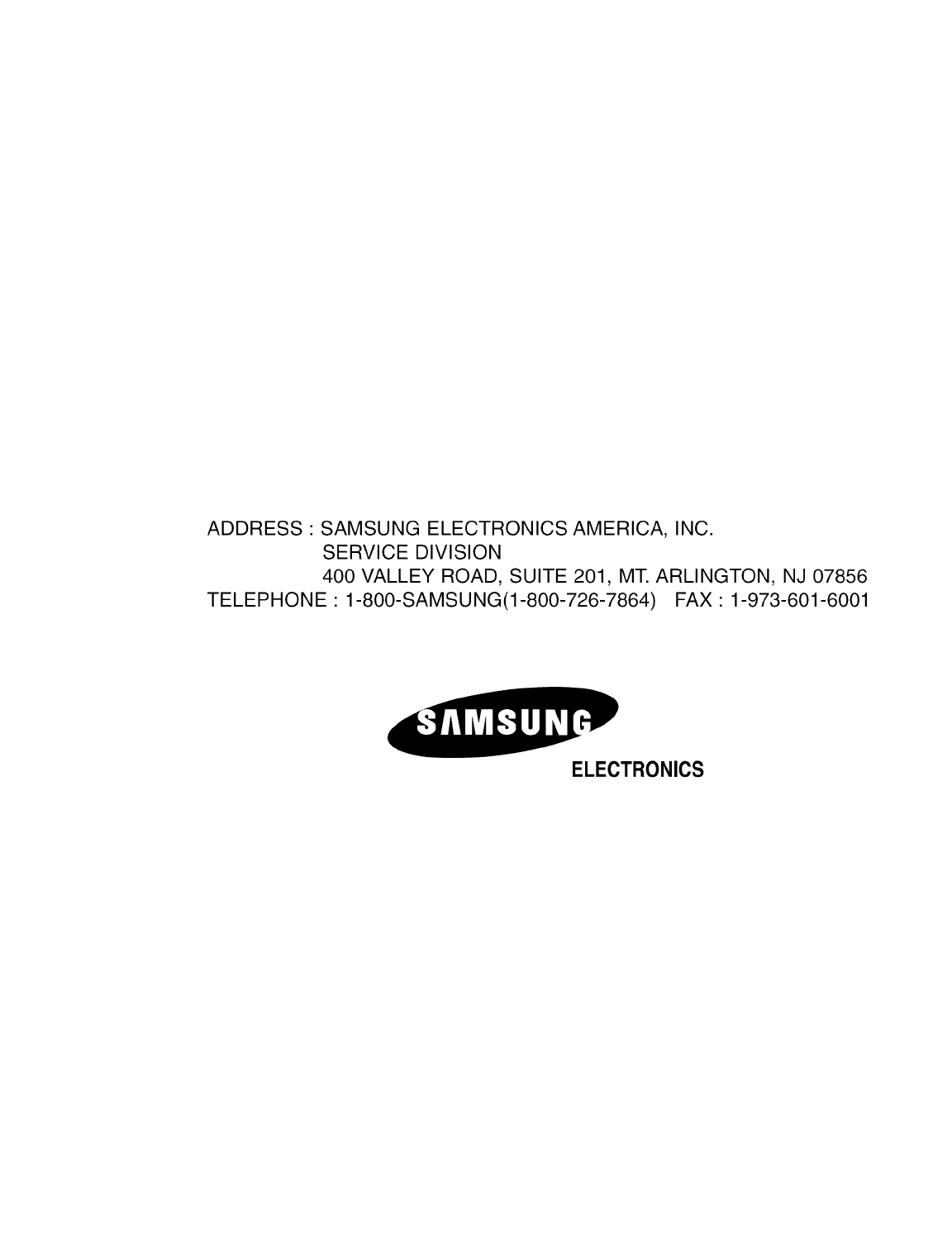

ADDRESS: SAMSUNG ELECTRONICS AMERICA, INC.

SERVICE DIVISION

400 VALLEY ROAD, SUITE 201, MT. ARLINGTON, NJ 07856

TELEPHONE : 1-800-SAMSUNG(1-800-726-7864) FAX: 1-973-601-6001

ELECTRONICS
